IMPORTANT
If you are having difficulties with the installation of this product,
please call out Tech Support line at 1-800-253-TECH. Before
doing so, looks over the instructions a second time, and make
sure the installation was performed exactly as the instructions
are stated. Please have the vehicle apart and ready to perform
troubleshooting steps before calling.
REV. 07/17/2018
TE-GMSH Manual

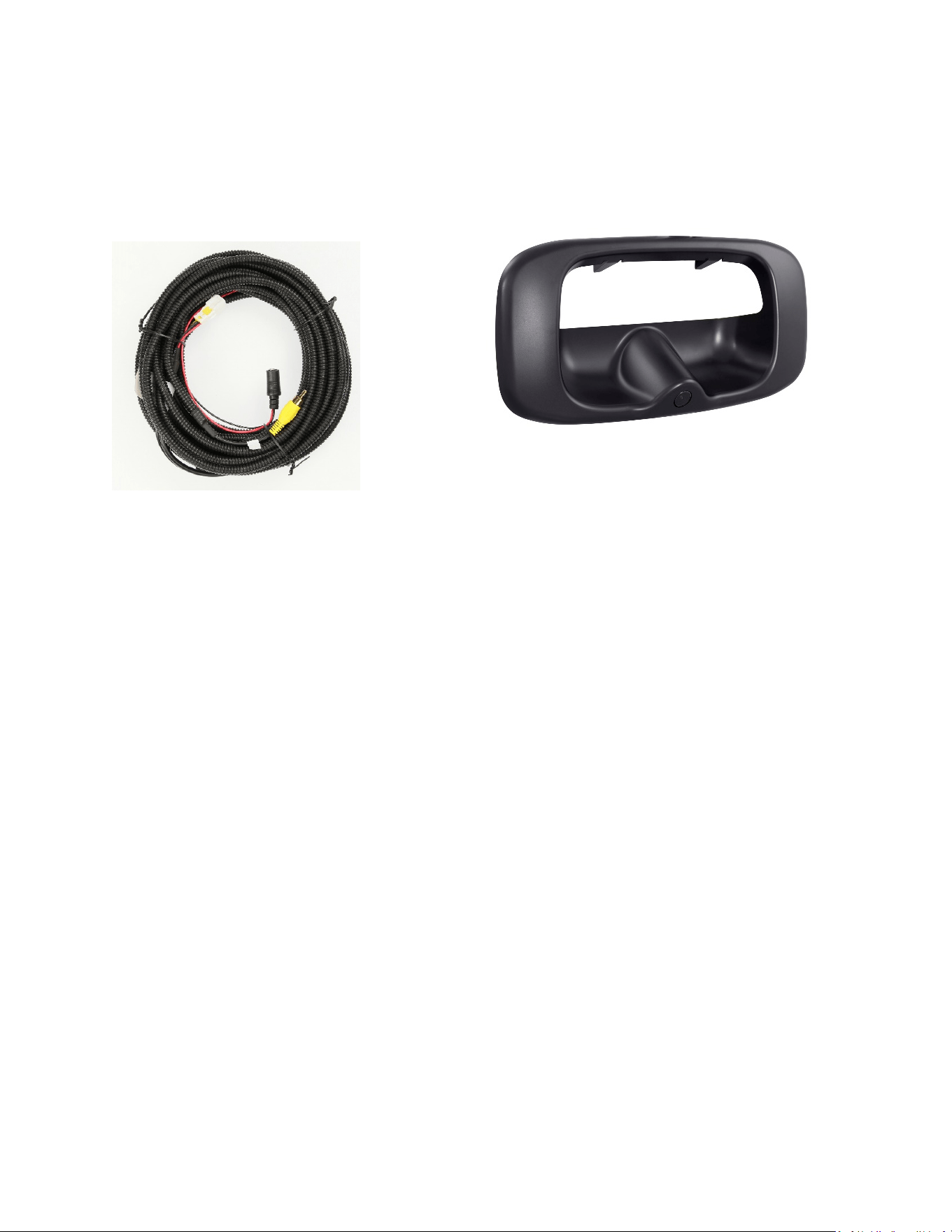

1. Box Contents
Wiring Tailgate handle/Camera
2. Applications
1999-2006 Chevrolet Silverado/Sierra
3. Installation
• Connect the RED wire to a 12V reverse trigger.
• Connect the BLACK wire to a chassis ground.
• Cut the WHITE loop to cancel the parking guide lines.

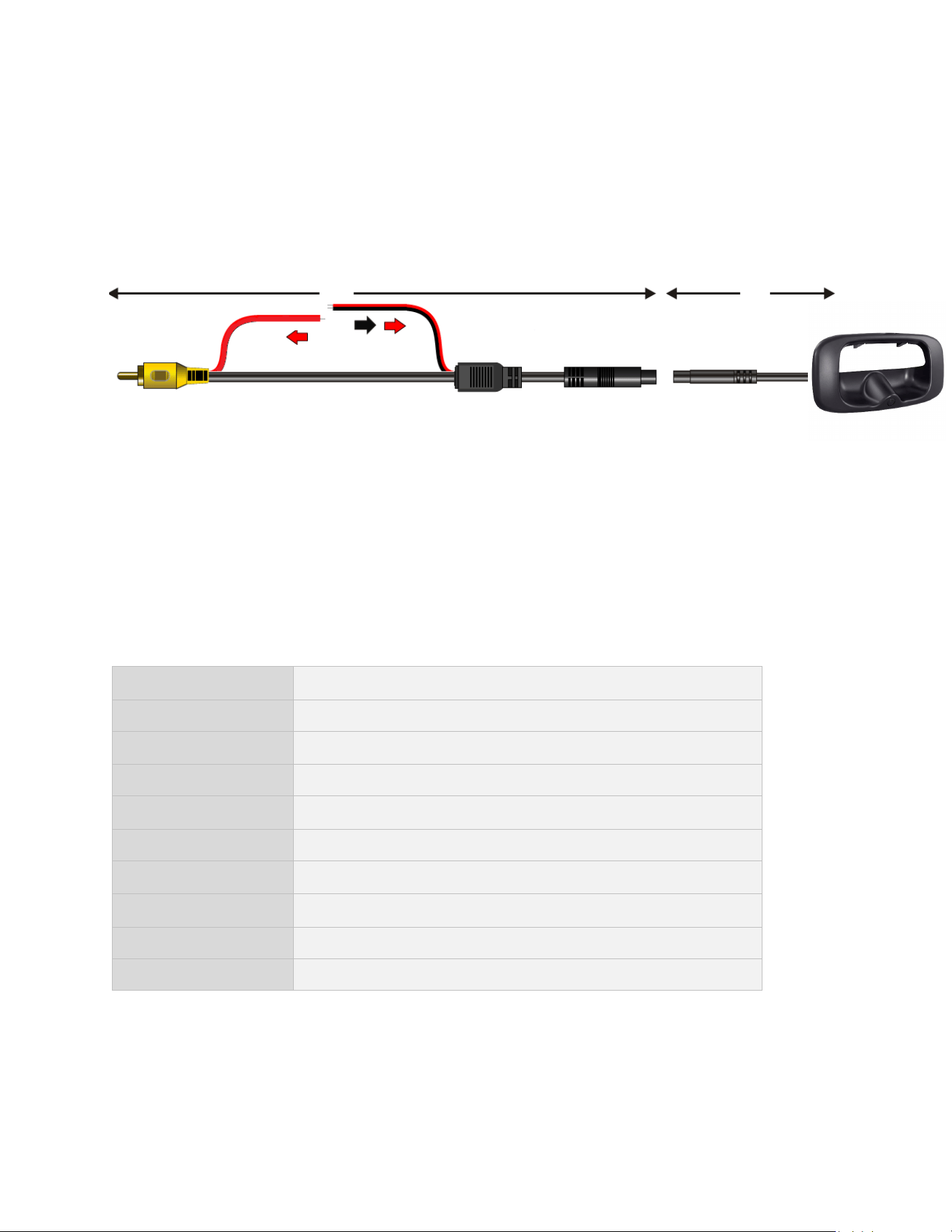

4. Wiring Diagram
5. Specifications
Sensor
CMOS ¼ sensor
Resolution
400 TV Lines
Field of View
Diagonal 168°, Horizontal 136°, Vertical 100°
Illumination
0.1 Lux
IP Rating
IP69
Parking Lines
Defeatable
Extension Cable
26’
TV System
NTSC
Working Temp.
-20°C ~ 70°C
Warranty
3 Years
Extension cable
Camera cable
26 ft
2 ft
Ground & power
12v trigger
