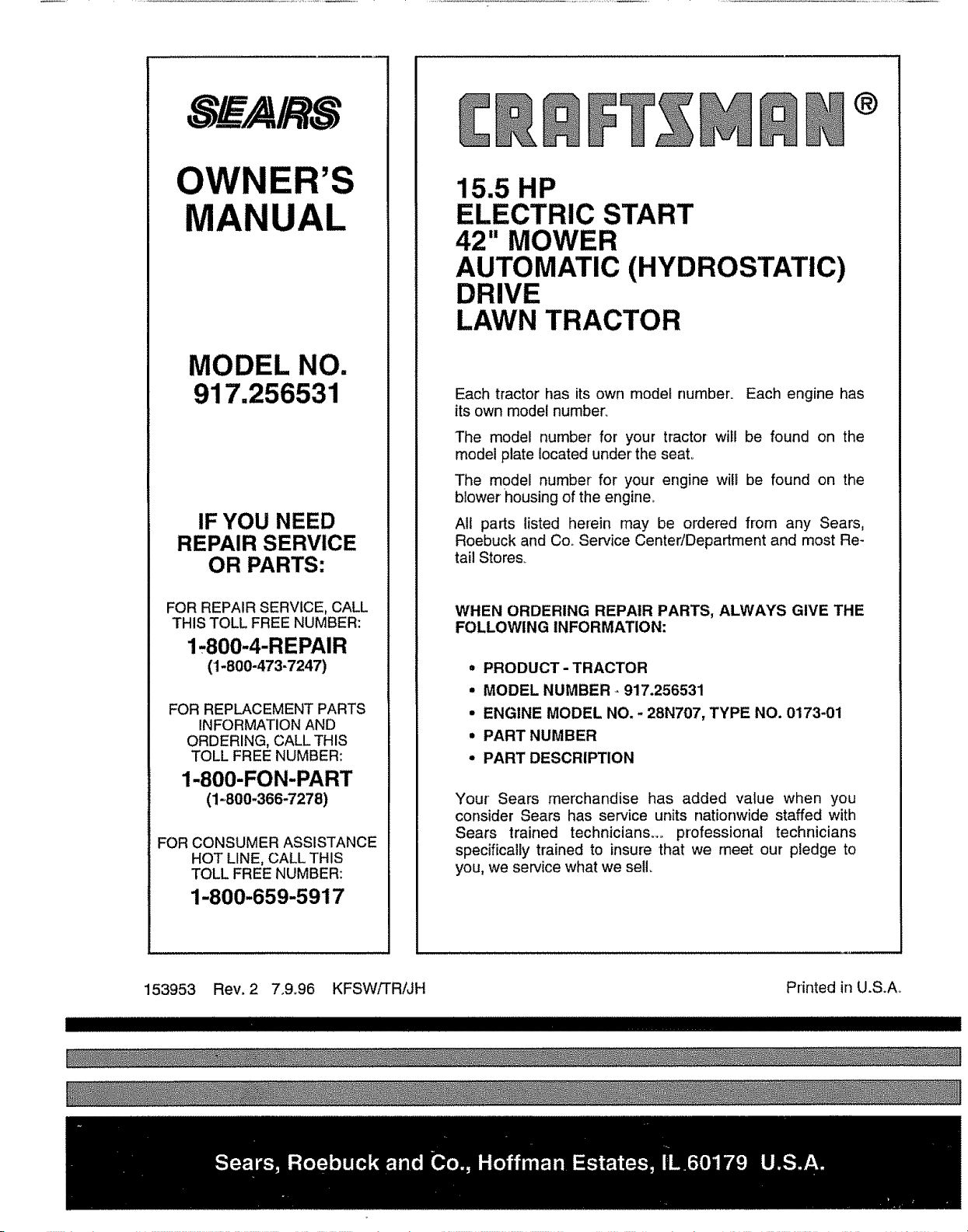

Craftsman 917256531 Tractor User Manual

MODEL NUMBER 917.256531

OWNER'S MANUAL

o Assembly

o Operation

o Customer Responsibilities

o Service and Adjustments

o Repair Parts

CAUTION: Read and follow all safety rules and instructions before operating this equipment.

FOR CONSUMER ASSISTANCE HOT LINE, CALL THIS TOLL FREE NUMBER: 1-800-659-5917

.............................................................................. ,,,,,,,,,,,,,,,, i H.M=

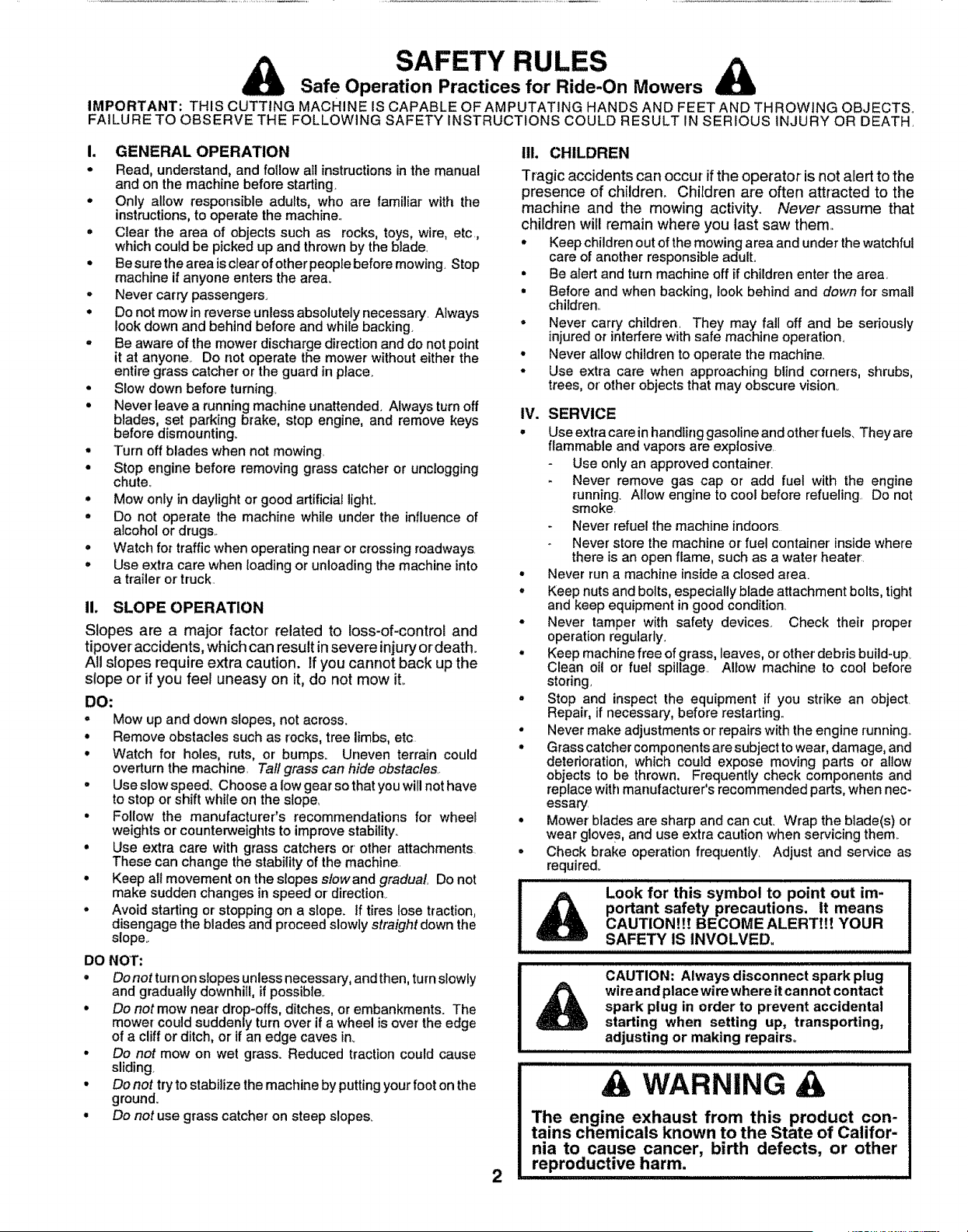

SAFETY RULES

Safe Operation Practices for Ride-On Mowers

IMPORTANT: THIS CUTTING MACHINE IS CAPABLE OF AMPUTATING HANDS AND FEET AND THROWING OBJECTS..

FAILURE TO OBSERVE THE FOLLOWING SAFETY INSTRUCTIONS COULD RESULT IN SERIOUS INJURY OR DEATH,

I. GENERAL OPERATION

* Read, understand, and foilow al! instructions in the manual

and on the machine before starting.

* Only allow responsible adults, who are familiar with the

instructions, to operate the machine..

° Clear the area of objects such as rocks, toys, wire, etc.,

which could be picked up and thrown by the blade.

. Be sure the area is clear of other people before mowing Stop

machine if anyone enters the area.

- Never carry passengers.

* Do not mow in reverse unless absolutely necessary Always

look down and behind before and while backing.

° Be aware of the mower discharge direction and do not point

it at anyone. Do not operate the mower' without either the

entire grass catcher or the guard in place.

° Slow down before turning.

. Never leave a running machine unattended. Always turn off

blades, set parking brake, stop engine, and remove keys

before dismounting.

° Turn off blades when not mowing.

° Stop engine before removing grass catcher or unclogging

chute..

° Mow only in daylight or good artificial light.

. Do not operate the machine while under the influence of

alcohol or drugs..

o Watch for traffic when operating near or crossing roadways.

° Use extra care when loading or unloading the machine into

a trailer or' truck.

II. SLOPE OPERATION

Slopes are a major factor' related to loss-of-control and

tipover accidents, which can result in severe injury or' death.

All slopes require extra caution. If you cannot back up the

slope or if you feel uneasy on it, do not mow it.

DO:

- Mow up and down slopes, not across.

,, Remove obstacles such as rocks, tree limbs, etc

° Watch for holes, ruts, or bumps. Uneven terrain could

overturn the machine. Tall grass can hide obstacles.

° Use slow speed.. Choose a low gear so that you will not have

to stop or shift while on the stope,

• Follow the manufacturer's recommendations for wheel

weights or counterweights to improve stability.

° Use extra care with grass catchers or other attachments.

These can change the stability of the machine

° Keep all movement on the slopes sfowand gradual, Do not

make sudden changes in speed or direction.

° Avoid starting or' stopping on a slope. If tires lose traction,

disengage the blades and proceed slowly straight down the

slope..

DO NOT:

° Do not turn on slopes unless necessary, and then, turnslowly

and gradually downhill, if possib_e_

* Do not mow near drop-offs, ditches, or embankments. The

mower could suddenly turn over if a wheel is over the edge

of a cliff or ditch, or if an edge caves in_

° Do not mow on wet grass. Reduced traction could cause

sliding

° Do not try to stabilize the machine by putting your foot on the

ground.

. Do not use grass catcher on steep slope&

I!1. CHILDREN

Tragic accidents can occur if the operator is not alert to the

presence of children° Children are often attracted to the

machine and the mowing activity. Never assume that

children will remain where you last saw them.,

* Keep children out of the mowing area and under the watchful

care of another responsible aduiL

,, Be alert and turn machine off if children enter the area.

o Before and when backing, look behind and clown for small

children..

, Never carry children. They may fall off and be seriously

injured or interfere with safe machine operation,

° Never allow children to operate the machine.

* Use extra care when approaching blind corners, shrubs,

trees, or other' objects that may obscure vision_

IV. SERVICE

° Use extra care in handling gasotine and etherfuels. They are

flammable and vapors are explosive

Use only an approved container

Never remove gas cap or add fuel with the engine

running. Allow engine to cool before refueling Do not

smoke

Never refuel the machine indoors

Never store the machine or fuel container inside where

there is an open flame, such as a water heater

° Never run a machine inside a closed area.

° Keep nuts and bolts, especially blade attachment bolts, tight

and keep equipment in good condition.

* Never tamper with safety devices, Check their proper

operation regularly.

o Keep machine free of grass, leaves, or other'debris build-up.

Clean oil or fuel spillage Allow machine to cool before

storing

- Stop and inspect the equipment if you strike an object.

Repair, if necessary, before restarting°

° Never make adjustments or repairs with the engine running.

- Grasscatcher components are subject to wear, damage, and

deterioration, which could expose moving parts or allow

objects to be thrown. Frequently check components and

replace with manufacturer's recommended parts, when nec-

essary

° Mower blades are sharp and can cut_ Wrap the blade(s) or

wear gloves, and use extra caution when servicing them_

° Check brake operation frequentty_ Adjust and service as

require&

Hllllllllllllllllllllii llll llllllllll tH H IL I l llllllIHlllm U

Look for this symbol to point out im-

portant safety precautions. It means !

CAUTION!!! BECOME ALERT!!! YOUR

SAFETY IS INVOLVED. !

ii i i iilllll iiinllllll

CAUTION= Always disconnect spark plug

wire and place wire where it cannot contact

spark plug in order to prevent accidental

starting when setting up, transporting,

adjusting or making repairs.

illUllll illl ill n ill iill i

WARNING

The engine exhaust from this product con-

tains chemicals known to the State of Califor-

nia to cause cancer, birth defects, or other

reproductive harm,

CONGRATULATIONS on your purchase of a Sears

Tractor, it has been designed, engineered and manufac-

tured to give you the best possible dependability and

performance.

Should you experience any problem you cannot easily

remedy, please contact your nearest Sears Authorized

Service CentedDepartmento We have competent, well-

trained technicians and the proper tools to service or repair

this tractor°

Please read and retain this manual° The instructions will

enable you to assemble and maintain your tractor properly.

Always observe the "SAFETY RULES",.

MODEL

NUMBER 917..256531

SERIAL

NUMBER

DATE OF PURCHASE

THE MODEL AND SERIAL NUMBERS WILL BE FOUND

ON A PLATE UNDER THE SEAT..

YOU SHOULD RECORD BOTH SERIAL NUMBER AND

DATE OF PURCHASE AND KEEP IN A SAFE PLACE

FOR FUTURE REFERENCE..

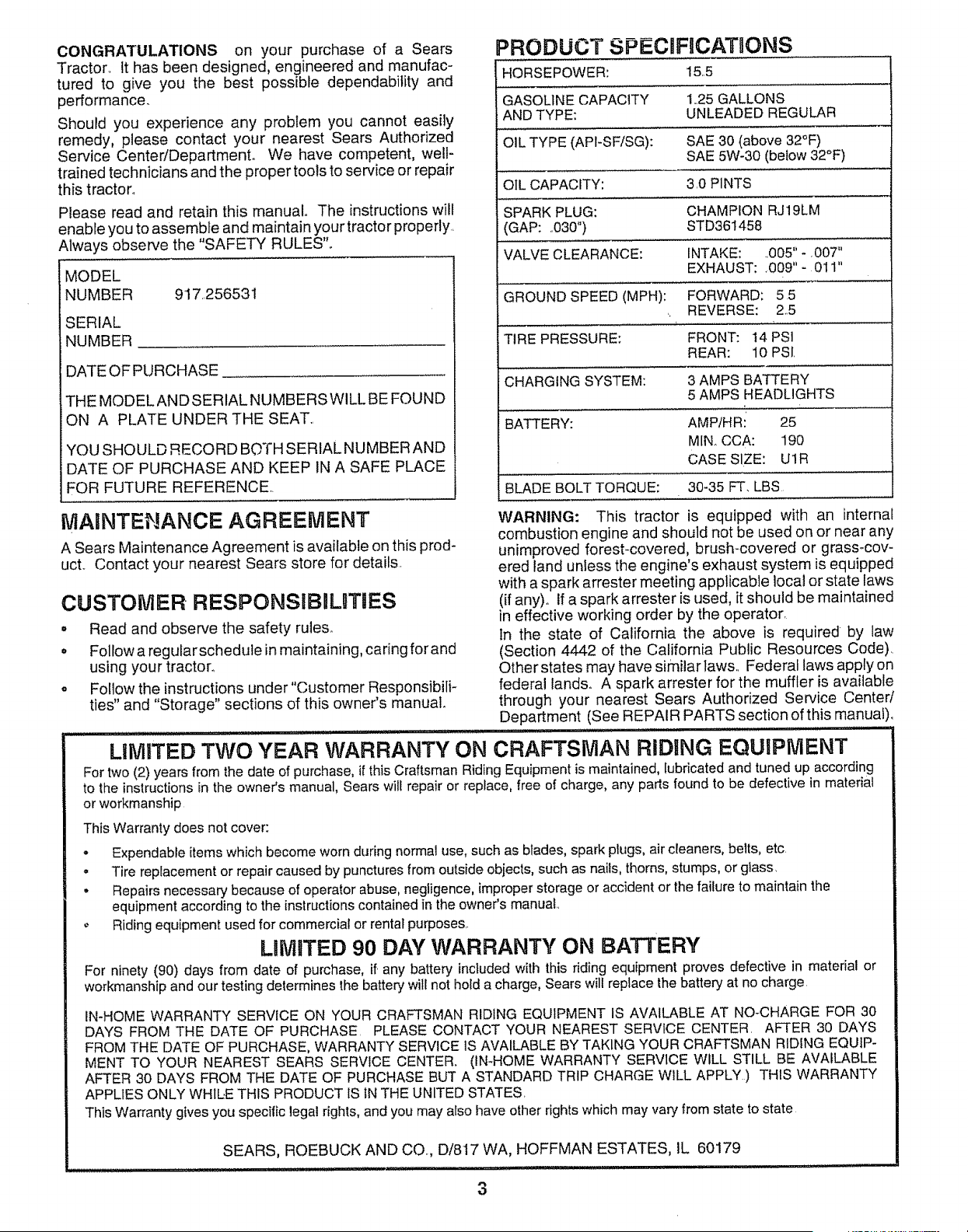

PRODUCT SPECmFgCATIIONS

HORSEPOWER: 155

GASOLINE CAPACITY 1..25 GALLONS

_,ND TYPE: UNLEADED REGULAR

OIL TYPE (API-SF/SG): SAE 30 (above 32°F)

SAE 5W-30 (below 32°F)

OIL CAPACITY: 3.0 PINTS

SPARK PLUG: CHAMPION RJ19LM

(GAP: ..030") STD36t458

VALVE CLEARANCE: INTAKE: ..005" - ,007"

EXHAUST: .009" - 011"

GROUND SPEED (MPH): FORWARD: 5 5

_. REVERSE: 25

TIRE PRESSURE: FRONT: 14 PSI

REAR: 10 PSI.

CHARGING SYSTEM: 3 AMPS BATTERY

5 AMPS HEADLIGHTS

BATTERY: AMP/HR: 25

MINe CCA: 190

CASE SIZE: U1R

BLADE BOLT TORQUE: 30-35 FT'. LBS

MAINTENANCE AGREEMENT

A Sears Maintenance Agreement is available on this prod-

uct.. Contact your nearest Sears store for details.

CUSTOMER RESPONSIBmUTIES

• Read and observe the safety rules°

• Fellow a regular schedute in maintaining, caring forand

using your tractor°

o Follow the instructions under"Customer ResponsibilF

ties" and "Storage" sections of this owner's manual

WARNING: This tractor is equipped with an internal

combustion engine and should not be used on or near any

unimproved forest-covered, brush-covered or grass_cov -

ered land unless the engine's exhaust system is equipped

with a spark arrester meeting applicable local or state laws

(if an% If a spark arrester is used, it should be maintained

in effective working order by the operater_

In the state of California the above is required by law

(Section 4442 of the California Public Resources Code)..

Other states may have similar laws.. Federal laws apply on

federal lands. A spark arrester for the muffler is available

through your nearest Sears Authorized Service Center/

Department (See REPAIR PARTS section of this manual),

LIMITED TWO YEAR WARRANTY ON CRAFTSMAN RIDING EQUIPIVIENT

For two (2) years from the date of purchase, if this Craftsman Riding Equipment is maintained, lubricated and tuned up according

to the instructions in the owner's manual, Sears wilt repair or replace, free of charge, any parts found to be defective in material

or workmanship

This Warranty does not cover:

- Expendable items which become worn during normal use, such as blades, spark plugs, air cleaners, bells, etc

o Tire replacement or repair caused by punctures from outside objects, such as nails, thorns, stumps, or glass,

,, Repairs necessary because of operator abuse, negligence, improper storage or accident or the failure to maintain the

equipment according to the instructions contained in the owner's manual,,

Riding equipment used for commercial or rental purposes,.

LIMgTED 90 DAY WARRANTY ON BATTERY

For ninety (90) days from date of purchase, if. any battery included with this riding equipment proves defective in material or

workmanship and our testing determines the battery will not hold a charge, Sears will replace the battery at no charge,

IN-HOME WARRANTY SERVICE ON YOUR CRAFTSMAN RIDING EQUIPMENT IS AVAILABLE AT NO-CHARGE FOR 30

DAYS FROM THE DATE OF PURCHASE. PLEASE CONTACT YOUR NEAREST SERVICE CENTER. AFTER 30 DAYS

FROM THE DATE OF PURCHASE, WARRANTY SERVICE iS AVAILABLE BY TAKING YOUR CRAFTSMAN RIDING EQUIP-

MENT TO YOUR NEAREST SEARS SERVICE CENTER. (IN*HOME WARRANTY SERVICE WILL STILL BE AVAILABLE

AFTER 30 DAYS FROM THE DATE OF PURCHASE BUT A STANDARD TRIP CHARGE WILL APPLY) THIS WARRANTY

APPLIES ONLY WHILE THIS PRODUCT IS IN THE UNITED STATES.

This Warranty gives you specific legal rights, and you may also have other rights which may vary from state to state

SEARS, ROEBUCK AND CO., D/817 WA, HOFFMAN ESTATES, IL 60179

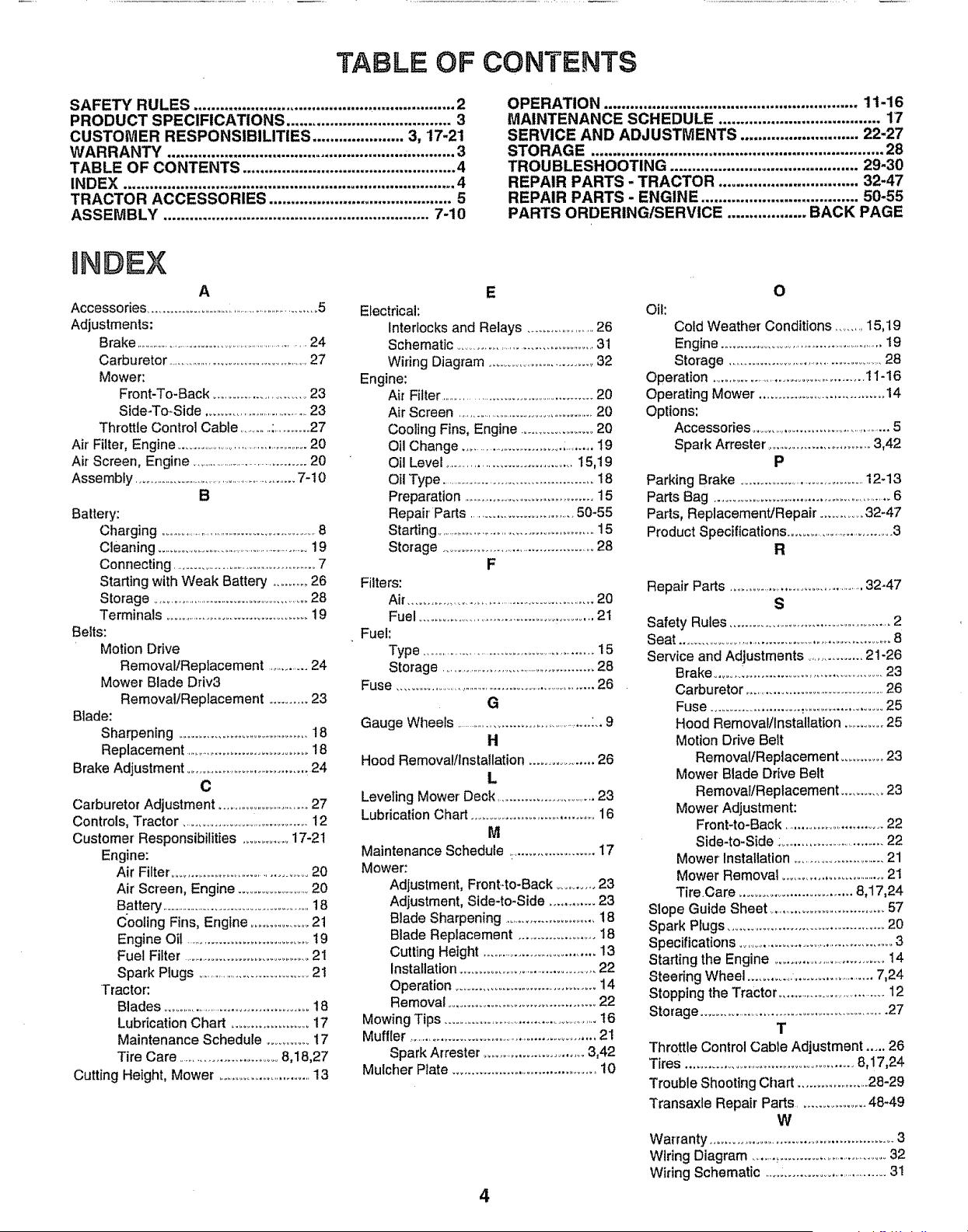

TABLE OF CONTENTS

SAFETY RULES ............................................................ 2

PRODUCT SPECIFICATIONS ...................................... 3

CUSTOMER RESPONSIBILITIES ..................... 3, 17-21

WARRANTY .................................................................. 3

TABLE OF CONTENTS ................................................. 4

INDEX ............................................................................ 4

TRACTOR ACCESSORIES .......................................... 5

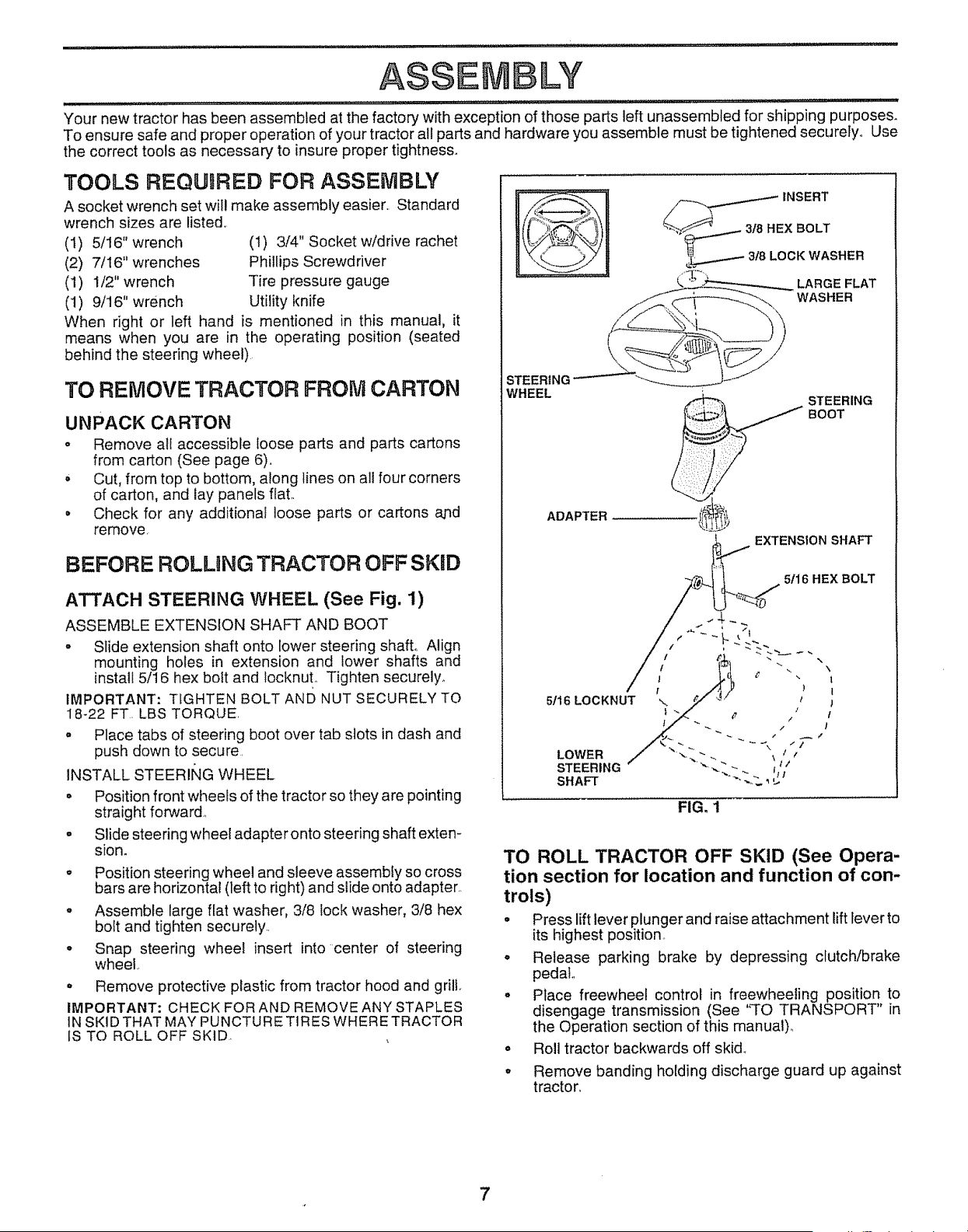

ASSEMBLY ............................................................. 7-10

OPERATION .......................................................... 1t-16

MAINTENANCE SCHEDULE ..................................... 17

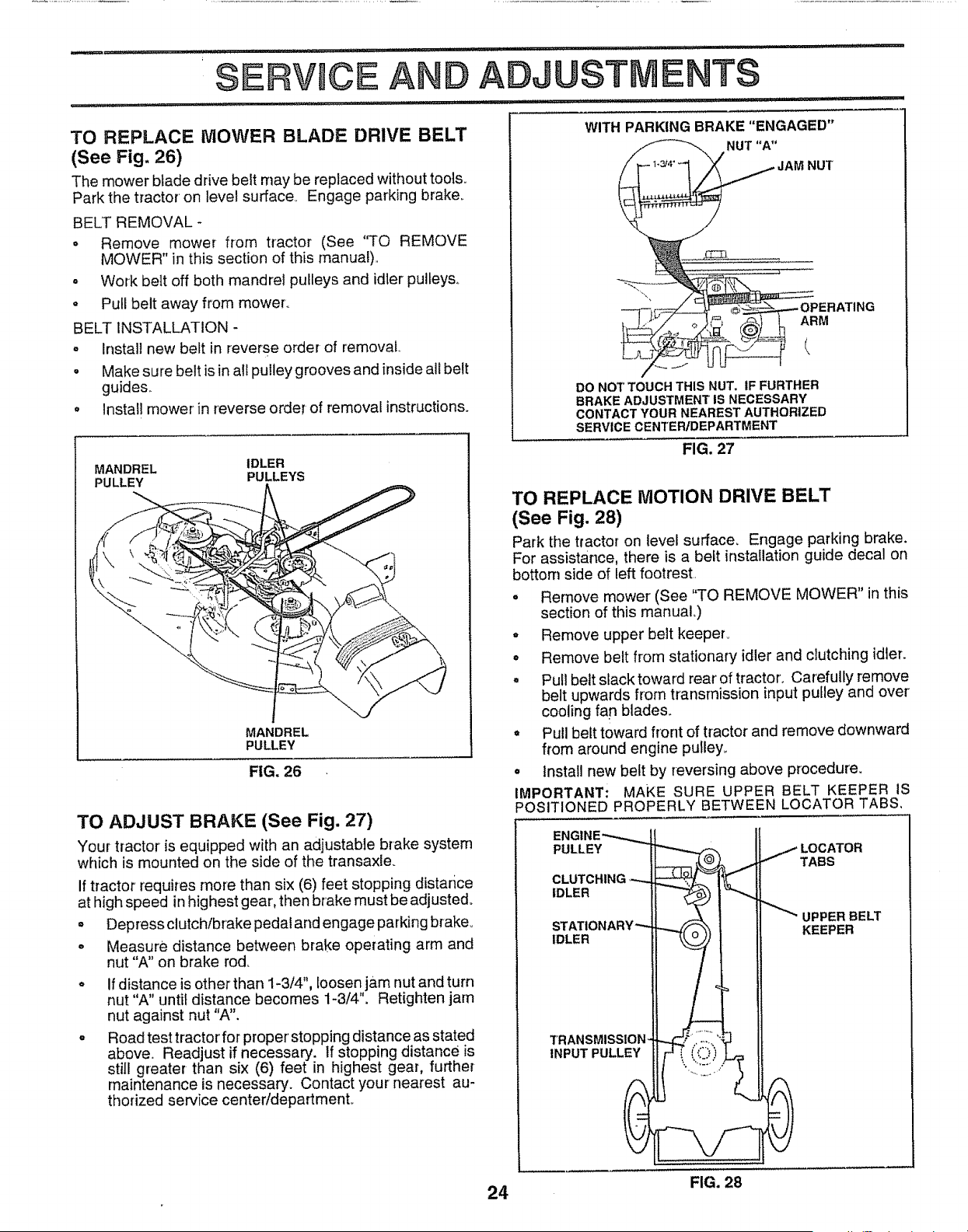

SERVICE AND ADJUSTMENTS ........................... 22-27

STORAGE ................................................................... 28

TROUBLESHOOTING ........................................... 29-30

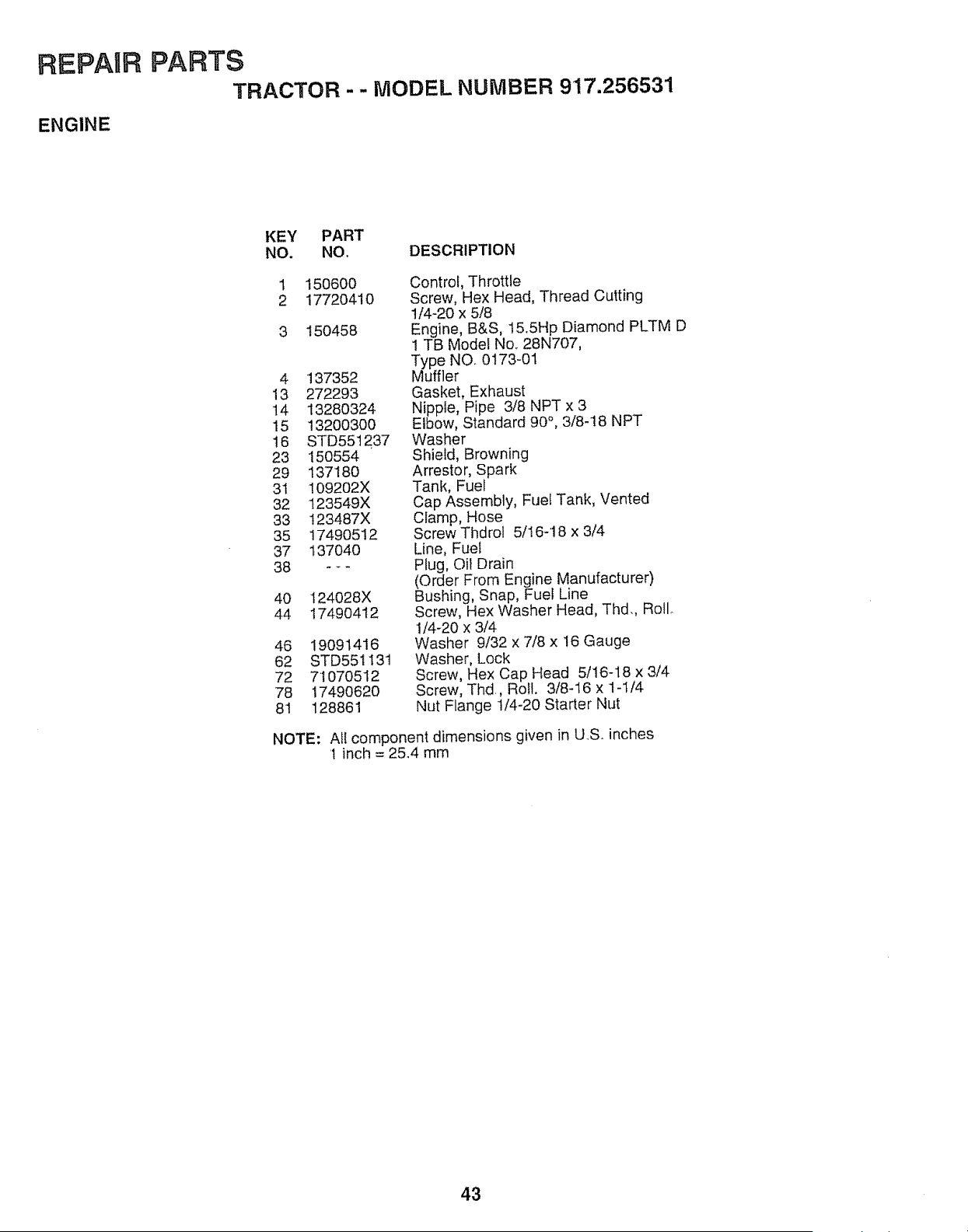

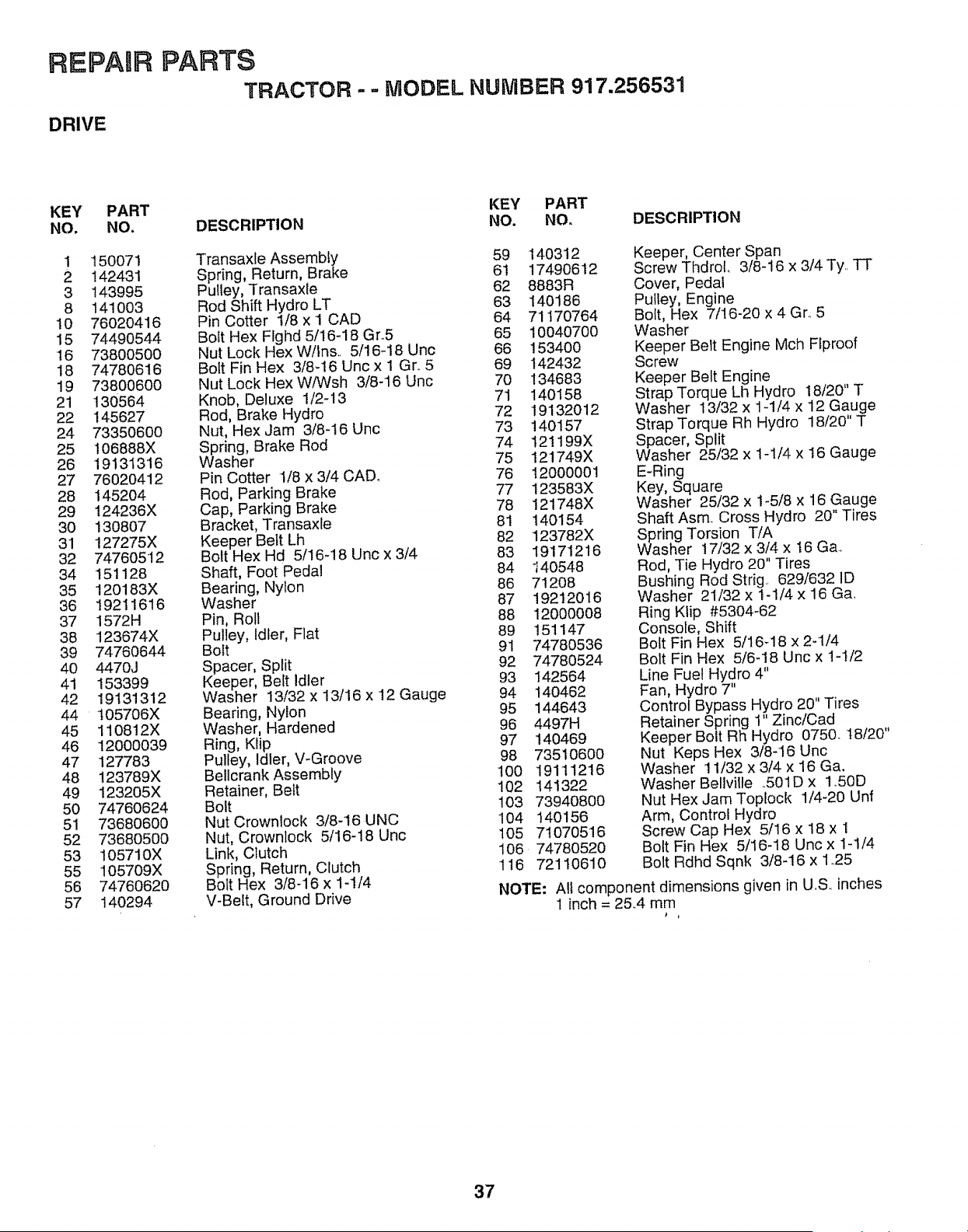

REPAIR PARTS - TRACTOR ................................ 32-47

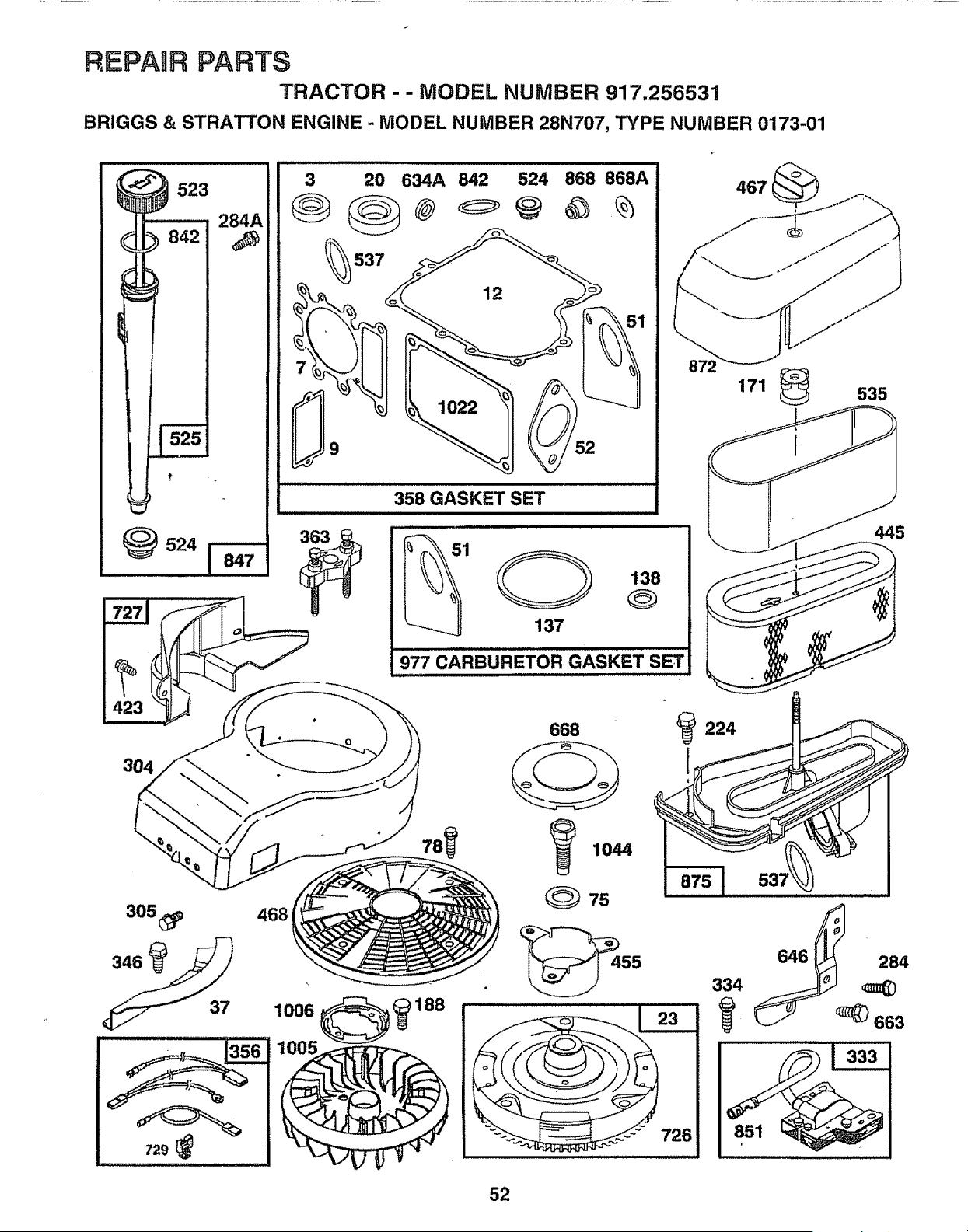

REPAIR PARTS - ENGINE .................................... 50-55

PARTS ORDERING/SERVICE .................. BACK PAGE

NDEX

Accessories ..............................................................5

Adjustments;

Brake ................................................................24

Carburetor .................................................27

Mower:

Front-To-Back ...............................23

Side-To*Side ......................................28

Throttle Control Cable ............:................27

Air Filter, Engine ..................................................20

Air Screen, Engine .........................................20

Assembly ........................................................7-10

Baltery:

Charging .................................................8

Cleaning ....................................................19

Connecting .................................................7

Starting with Weak Battery ............26

Storage ....................................................28

Terminals ............................................19

Belts:

Motion Drive

Removal/Replacement ..............24

Mower Blade Driv3

Removal/Replacement .......... 23

Blade:

Sharpening ..............................................18

Replacement ......................................18

Brake Adjustment .................................. 24

Carburetor Adjustment ...................................27

Controls, Tractor .......................................12

Customer' Responsibilities ............. 17-21

Engine:

Air Filter ...........................................20

Air Screen, Engine ..........................20

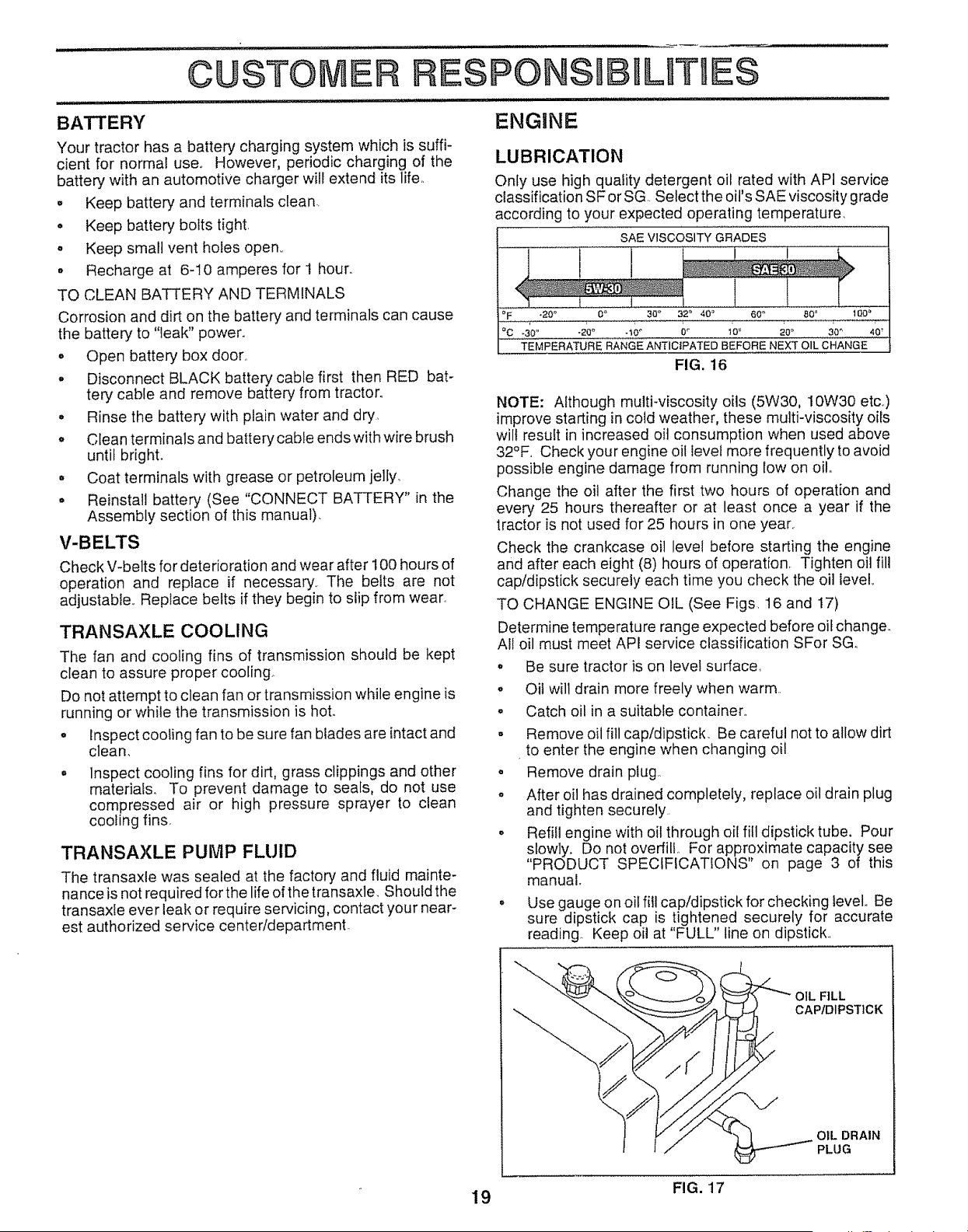

Battery .................................................18

Cooling Fins, Engine ................. 21

Engine Oil .....................................I9

Fuel Filter ................................... 21

Spark Plugs .................................21

Tractor:

Blades .......................................... 18

Lubrication Chart ..................... 17

Maintenance Schedule ..............17

Tire Care ................................8,18,27

Cutting Height, Mower ...........................13

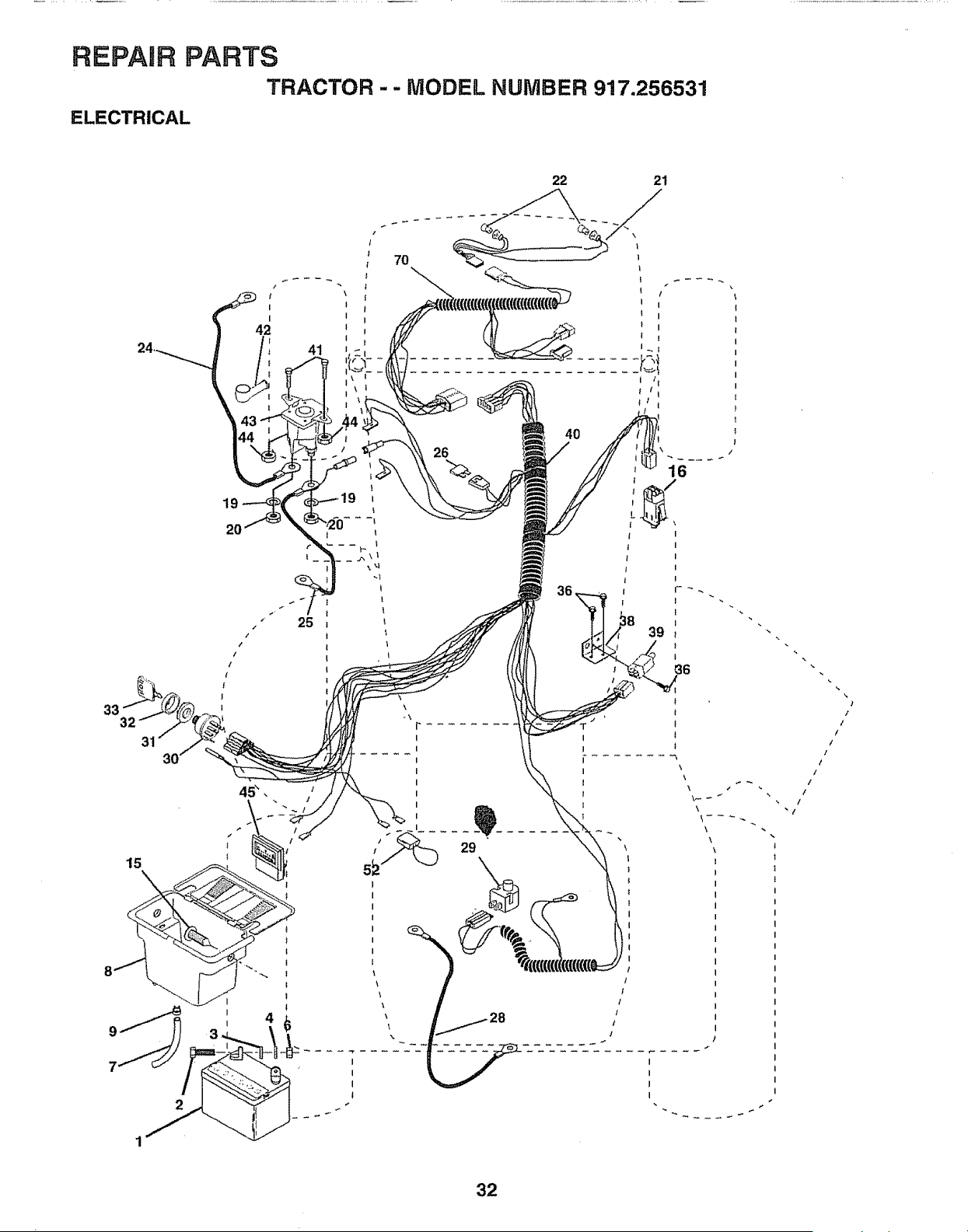

Electrical:

Interlocks and Relays .....................26

Schematic ...........................................31

Wiring Diagram ................................32

Engine:

Air Filter.................................................20

Air Screen .............................................20

Cooling Fins, Engine ......................20

Oil Change .........................................19

Oil Level ........................................15,19

Oil Type ..................................................18

Preparation ..................................... 15

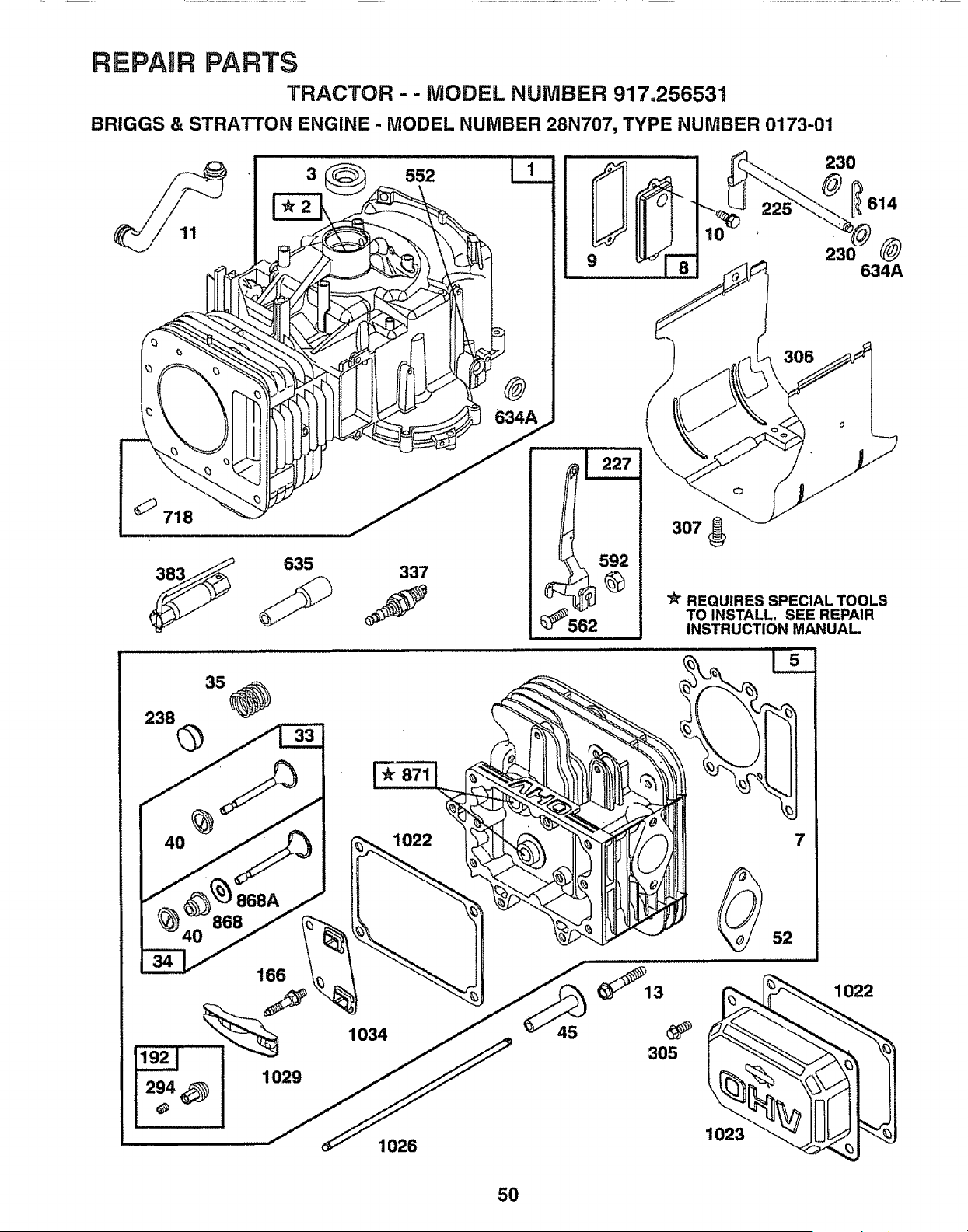

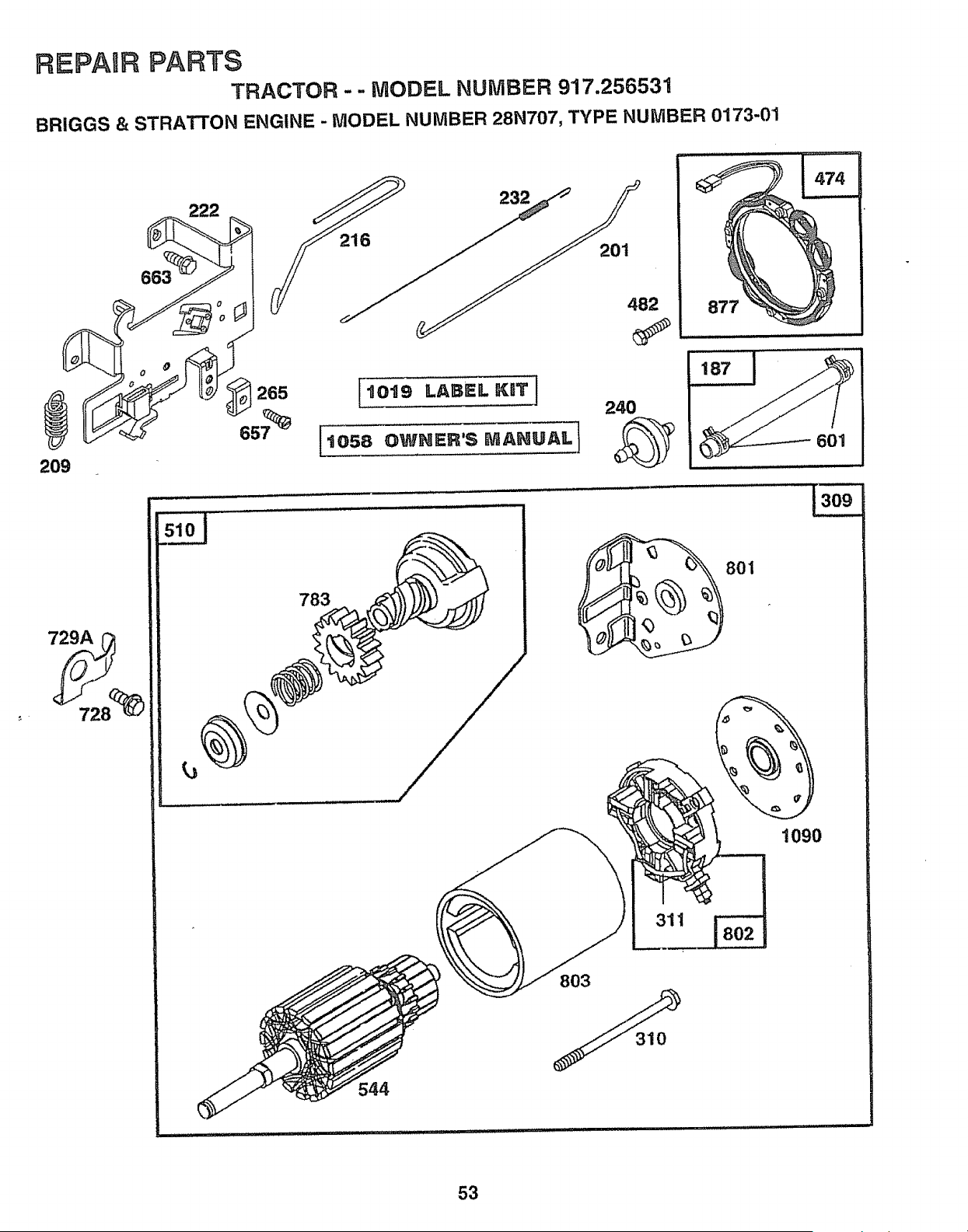

Repair' Parts .............................. 50-55

Starting .....................................................15

Storage ............................................ 28

Filters:

Air ..........................................................20

Fuel ........................................................21

Fuel:

Type .................................................. 15

Storage ...................................................28

Fuse ....................................................................26

Gauge Wheels ..............................................L. 9

Hood Removal/installation .................. 26

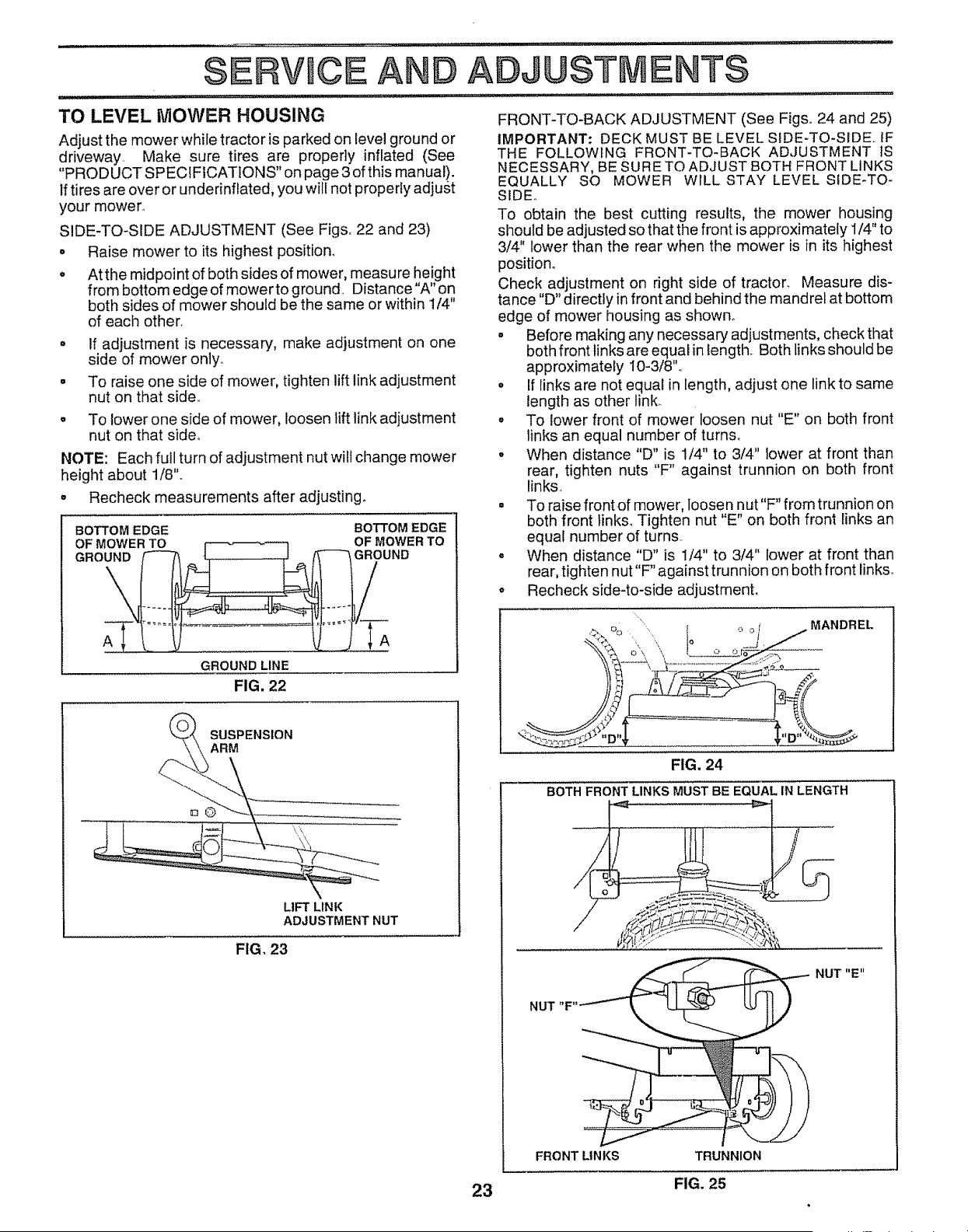

Leveling Mower Deck ..............................23

Lubrication Chart ................................... 16

Maintenance Schedule ........................ 17

Mower:

Adjustment, Front.to-Back .......... 23

Adjustment, Side-to-Side ............. 23

Blade Sharpening .......................... 18

Blade Replacement ..................... 18

Culling Height ....................................13

Installation ...................................... 22

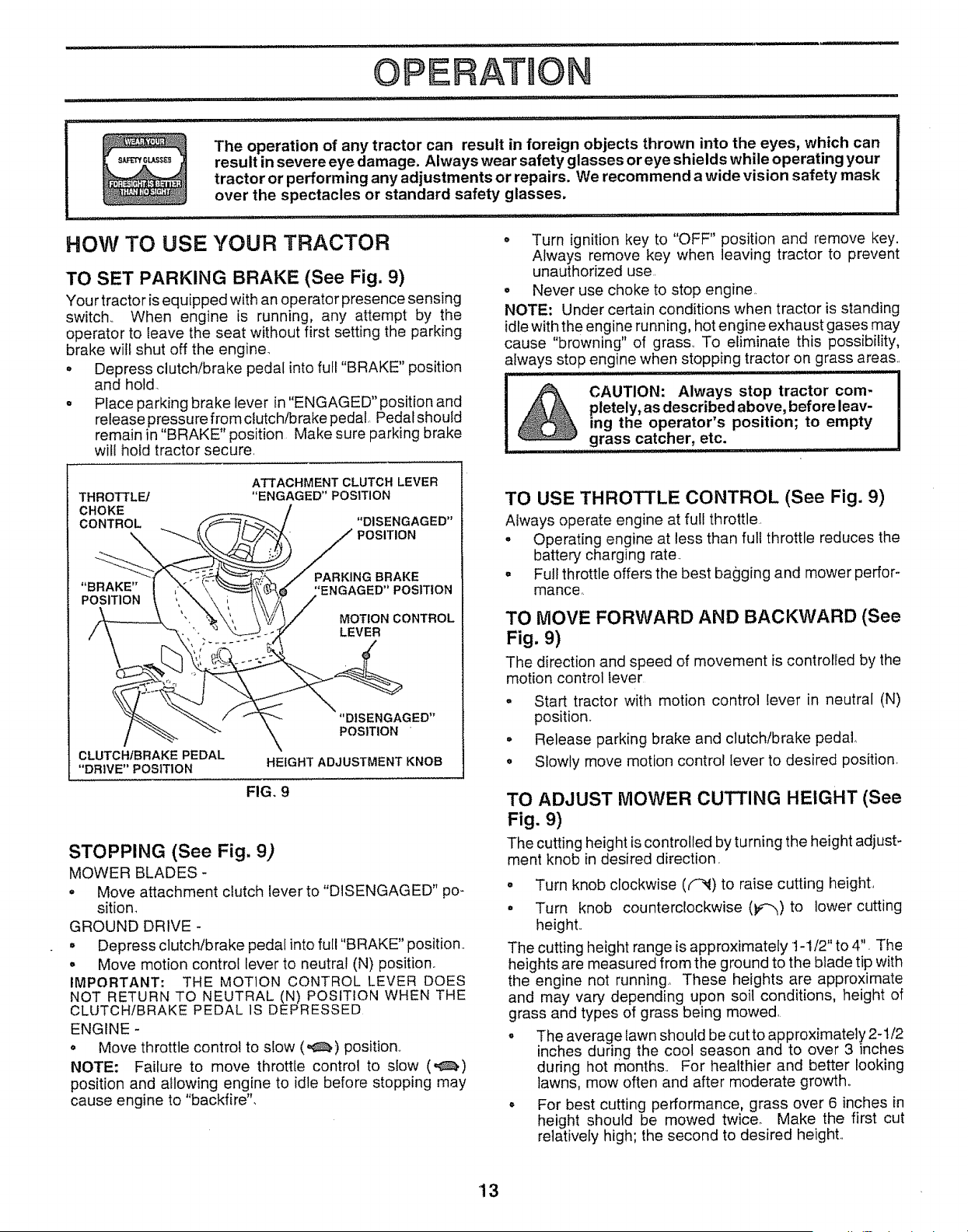

Operation ..........................................14

Removal ...................................... 22

Mowing Tips ..............................................t6

Muffler ...................................................... 21

Spark Arrester ............................ 3,42

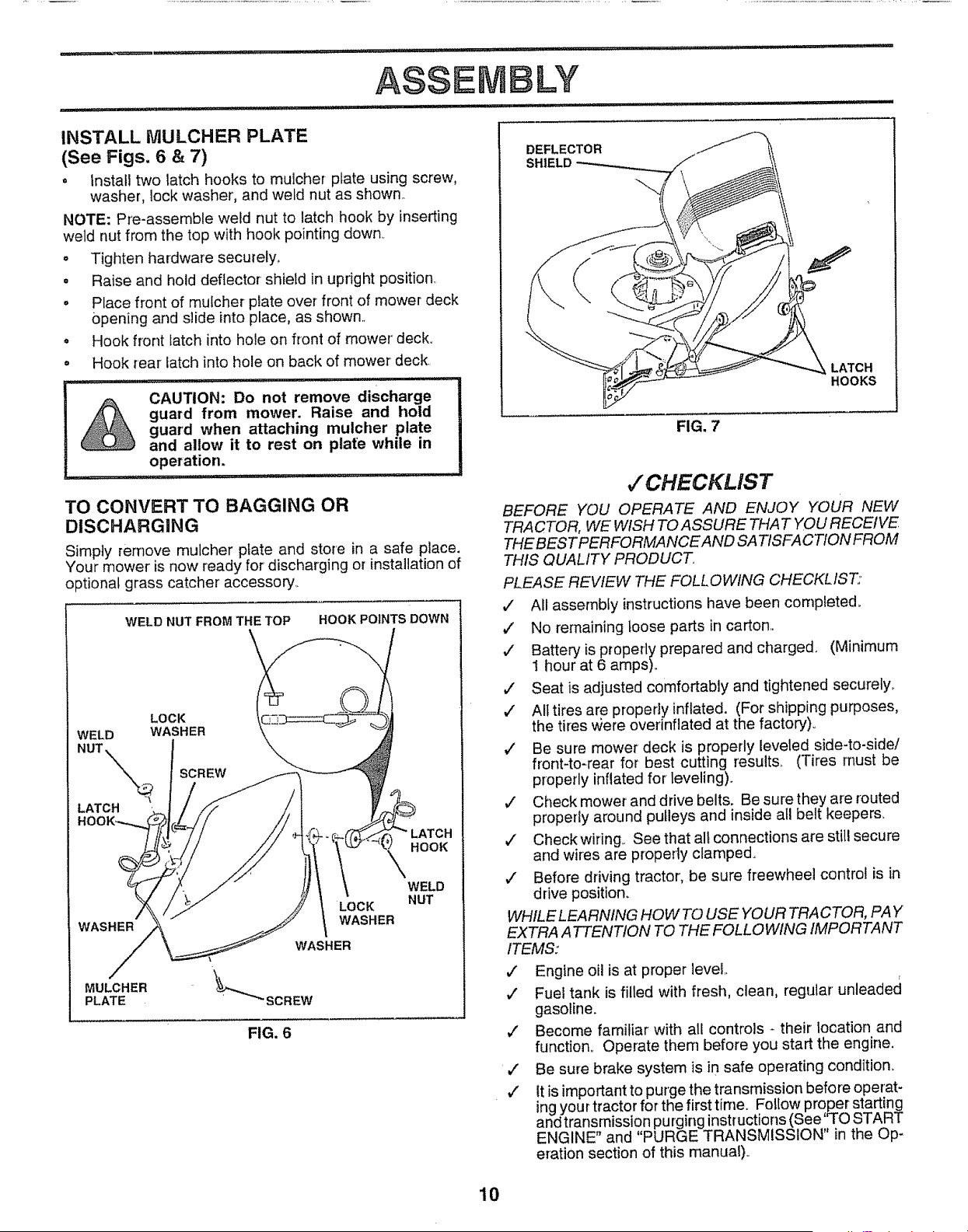

Mulcher Plate ....................................... 10

Oil:

Cold Weather Conditions ........ 15,19

Engine ........................................................19

Storage .............................................28

Operalion ........................................... t I- 16

Operating Mower .................................. 14

Options:

Accessories ................................................5

Spark Arrester ..................................3,42

Parking Brake ......................................12-13

Pads Bag ................................................... 6

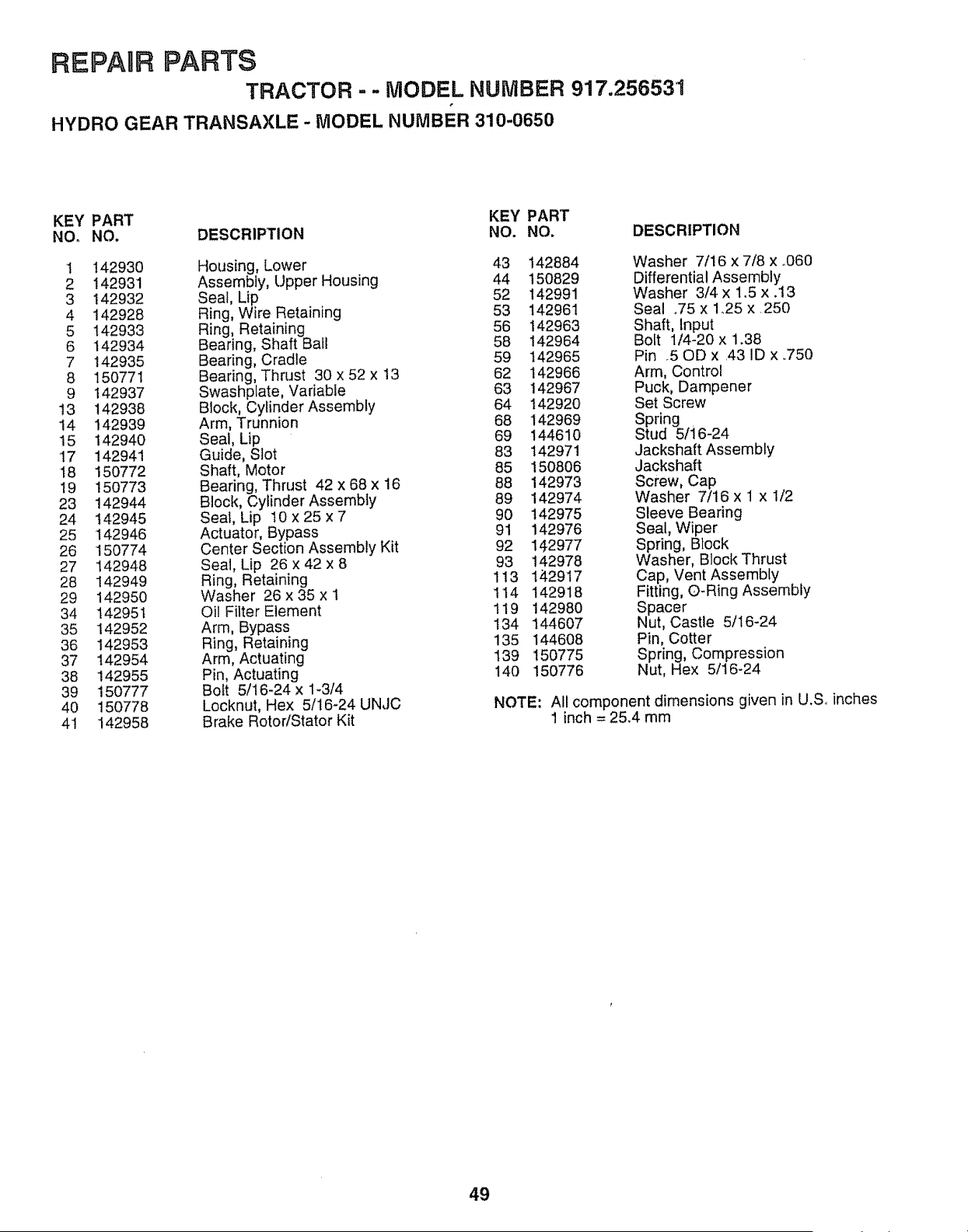

Pads, Replacement/Repair ............ 32-47

Product Specifications .................................8

Repair Parts ..............................................32-47

Safety Rules ............................................. 2

Seat .....................................................................8

Service and Adjustments ................ 21-26

Brake .............................................. 23

Carburetor ..........................................26

Fuse ....................... :....................... 25

Hood Removal/Installation ........... 25

Motion Drive Belt

Removal/Replacement ........... 23

Mower Blade Drive Belt

RemovalfReplacement ........... 23

Mower Adjustment:

Front-to-Back ............................. 22

Side4o-Side .;...............................22

Mower Installation ...........................21

Mower Removal ...............................2t

Tire Care ............................... 8,17,24

Slope Guide Sheet ................................. 57

Spark Plugs ........................................... 20

Specifications .............................................3

Starling the Engine ............................... 14

Steedng Wheel ............. ....................... 7,24

Stopping the Tractor ............................... 12

Storage .......................................................27

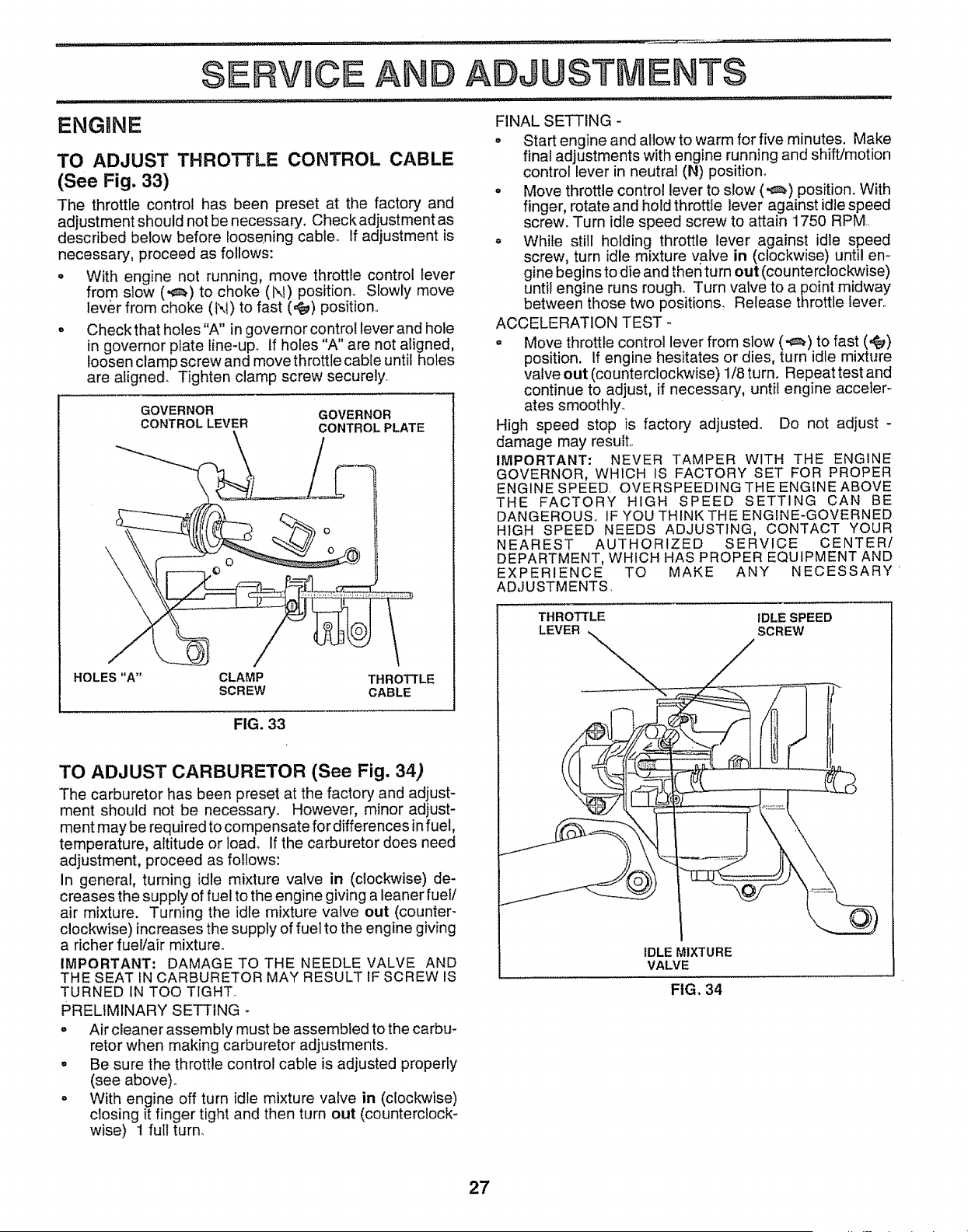

Throttle Control Cable Adjustment ..... 26

Tires ................................................. 8,17,24

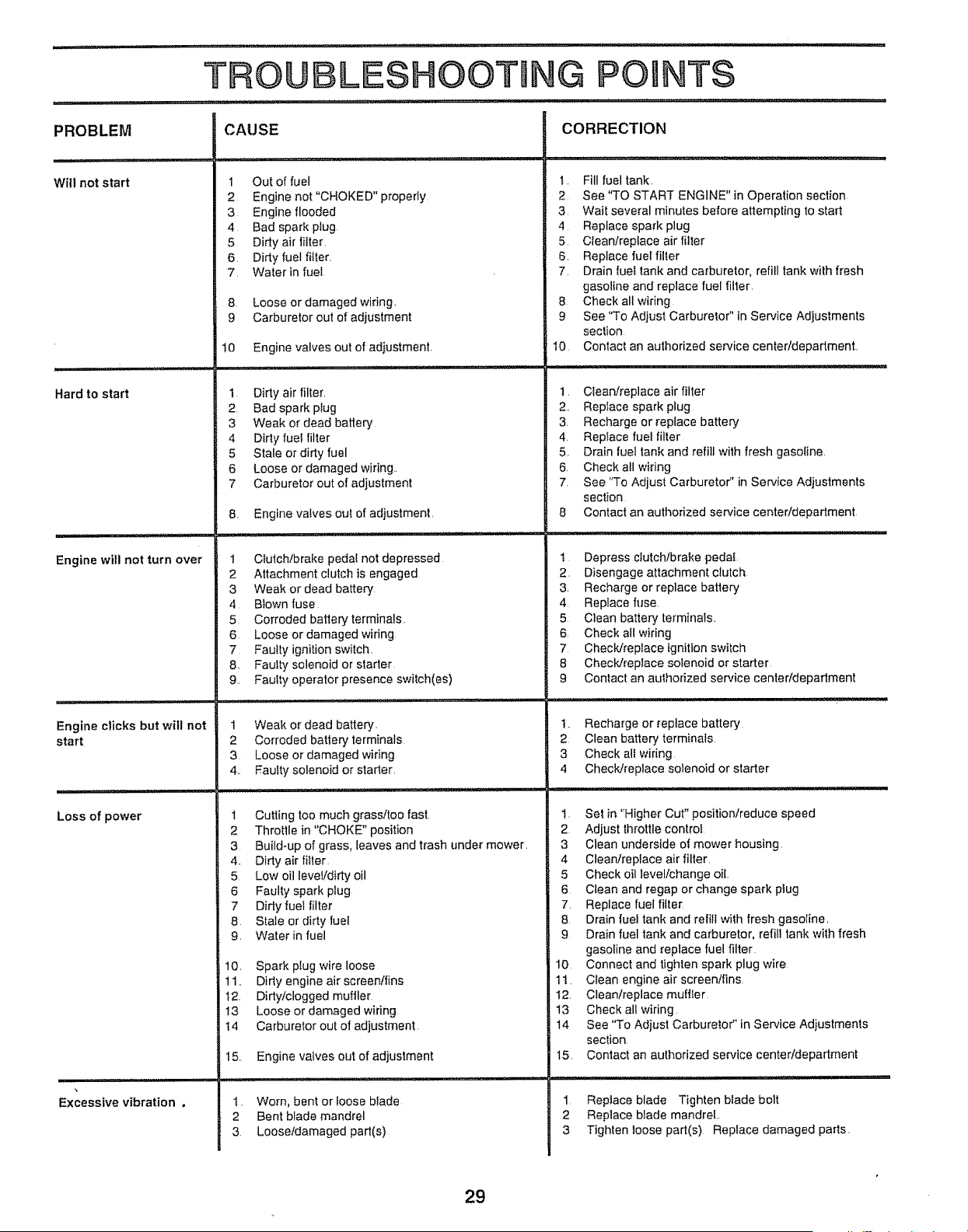

Trouble Shooting Chart ......................28-29

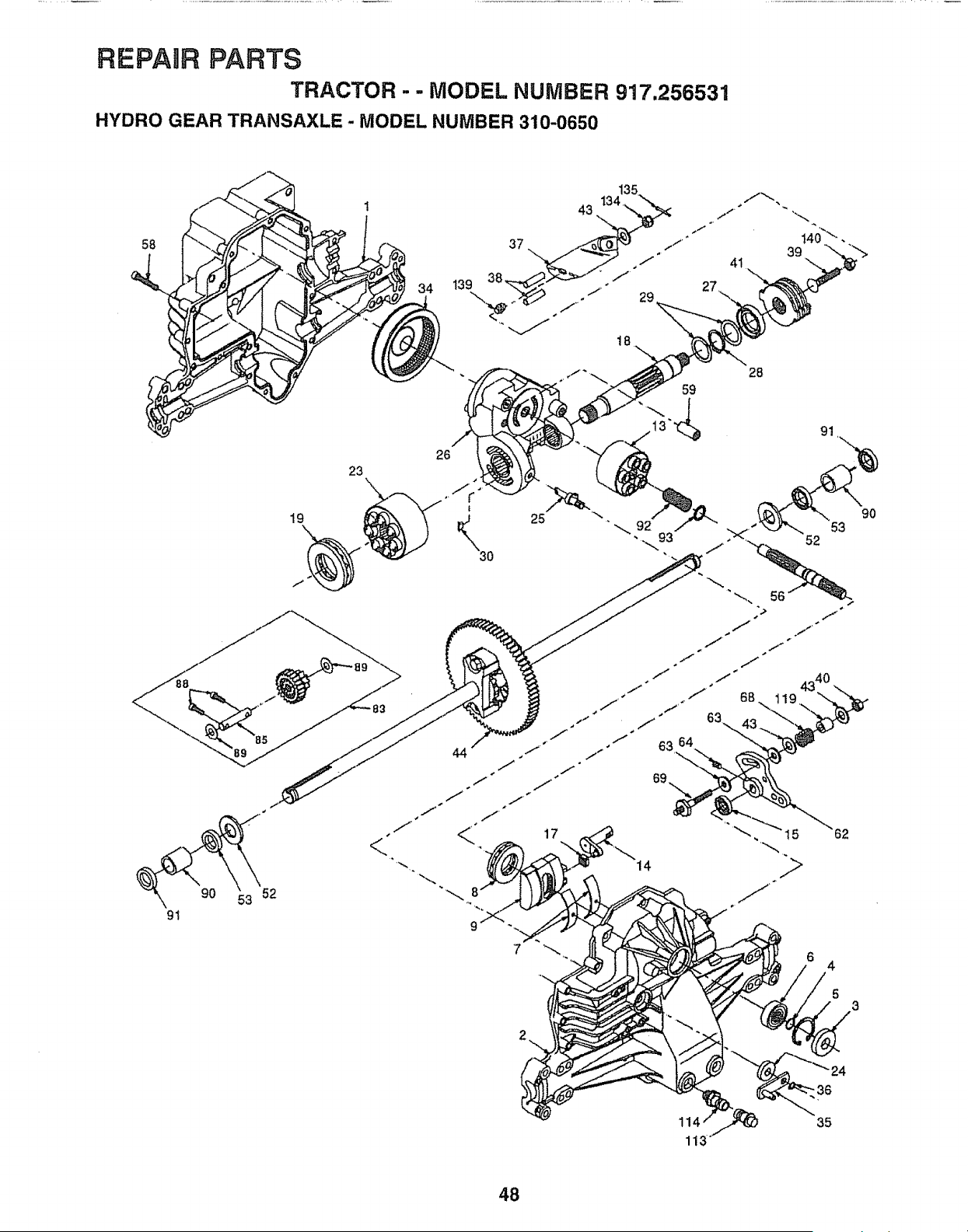

Transaxle Repair Parts .................... 48-49

Warranty ................................................. 3

Wtring Diagram ........,.................................32

Wiring Schematic .....................................31

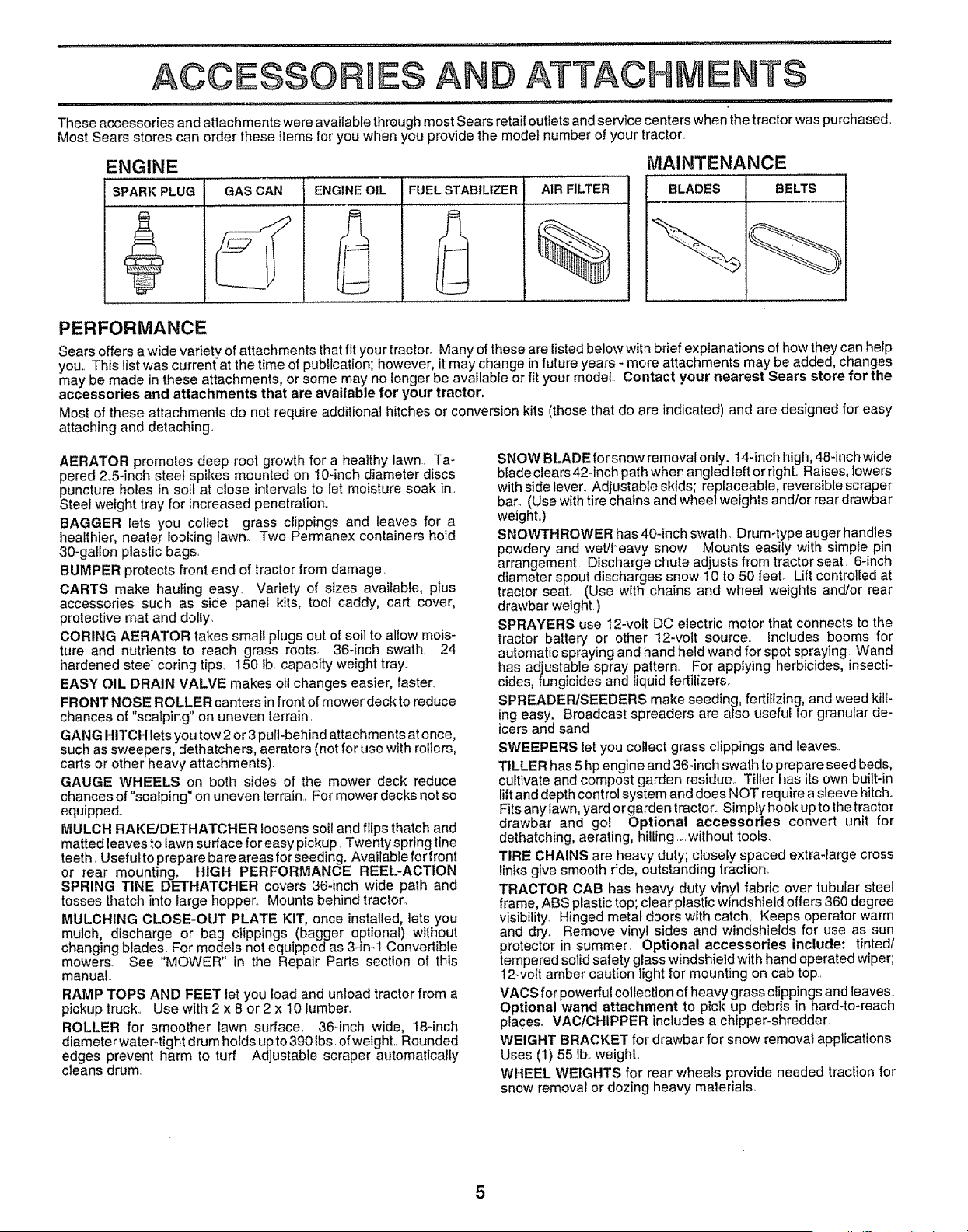

ACCEG$O E$ A D ATTA¢ ENT$

.........::::i,l_l:i, ..........: :itl,i,

These accessories and attachments were available through most Sears retail outlets and service centers when the tractor was purchased..

Most Sears stores can order these items for you when you provide the model number of your tractor..

ENGINE MAINTENANCE

SPARK PLUG GAS CAN ENGINE OIL FUEL STABILIZER

.....................................

AIR FILTER

BLADES BELTS

PERFORMANCE

Sears offers a wide variety of attachments that fit your tractor. Many of these are listed below with brief explanations of how they can help

you.. This list was current at the time of publication; however, it may change in future years - more attachments may be added, changes

may be made in these attachments, or some may no longer be available or fit your model Contact your nearest Sears store for the

accessories and attachments that are available for your tractor,

Most of these attachments do not require additional hitches or conversion kits (those that do are indicated) and are designed for easy

attaching and detaching..

AERATOR promotes deep root growth for a healthy lawn. Ta-

pered 2..5-inch steel spikes mounted on 10-inch diameter discs

puncture holes in soil at close intervals to let moisture soak in..

Steel weight tray for increased penetration.

BAGGER lets you collect grass clippings and leaves for a

healthier, heater looking lawn. Two Permanex containers hold

30-gaf{on plastic bags,

BUMPER protects front end of tractor from damage.

CARTS make hauling easy. Variety of sizes available, plus

accessories such as side panel kits, tool caddy, cart cover,

protective mat and dolly,

CORING AERATOR takes sinai{ plugs out of soil to allow mois-

ture and nutrients to reach grass roots 36-inch swath. 24

hardened steel coring tips.. 150 lb, capacity weight tray..

EASY OIL DRAIN VALVE makes oil changes easier, faster..

FRONT NOSE ROLLER canters in front of mower deck to reduce

chances of "scalping" on uneven terrain.

GANG HITCH lets you tow 2 or 3 pull-behind attachments at once,

such as sweepers, dethatchers, aerators (not for use with rollers,

carts or other heavy attachments).

GAUGE WHEELS on both sides of the mower deck reduce

chances of"scaIping" on uneven terrain.. For mower decks not so

equipped..

MULCH RAKE/DETHATCHER loosens soit and flips thatch and

matted leaves to lawn surface for easy pickup. Twenty spring tine

teeth. Useful to prepare bare areas for seeding. Available for front

or rear mounting. HIGH PERFORMANCE REEL-ACTION

SPRING TINE DETHATCHER covers 36-inch wide path and

tosses thatch into large hopper.. Mounts behind tractor..

MULCHING CLOSE-OUT PLATE KIT, once installed, lets you

mulch, discharge or bag clippings (bagger optional) without

changing blades_ For models not equipped as 3-ira1 Convertible

mowers.. See "MOWER" in the Repair Parts section of this

manual,

RAMP TOPS AND FEET let you load and unload tractor from a

pickup truck.. Use with 2 x 8 or 2 x 10 lumber.

ROLLER for smoother lawn surface. 36-inch wide, 18-inch

diameterwater-tight drum holds up to 390 lbs. of weight.. Rounded

edges prevent harm to tuff. Adjustable scraper automatically

cleans drum.

SNOW BLADE for snow removal only. 14-inch high, 48-inch wide

blade clears 42-inch path when angled left or right.. Raises, lowers

with side lever.. Adjustable skids; replaceable, reversible scraper

bar.. (Use with tire chains and wheel weights and/or rear drawbar

weight..)

SNOWTHROWER has 40-inch swath. Drum-type auger handles

powdery and wet/heavy snow. Mounts easily with simple pin

arrangement Discharge chute adjusts from tractor seat 6-inch

diameter spout discharges snow 10 to 50 feel Lift controlled at

tractor seat. (Use with chains and wheel weights and/or rear

drawbar weight.)

SPRAYERS use 12-volt DC electric motor that connects to the

tractor battery or other 12-volt source.. Includes booms for

automatic spraying and hand held wand for spot spraying. Wand

has adjustable spray pattern. For applying herbicides, insecti-

cides, fungicides and liquid fertilizers

SPREADER/SEEDERS make seeding, fertilizing, and weed kilF

ing easy. Broadcast spreaders are also usefu[ for g_:anular de-

icers and sand

SWEEPERS let you collect grass clippings and leaves.

TILLER has 5 hp engine and 36-inch swath to prepare seed beds,

cultivate and compost garden residue., Tiller has its own built-in

lift and depth control system and does NOT require a sleeve hitch.

Fits any lawn, yard or garden tractor., Simply hook up to the tractor

drawbar and go! Optional accessories convert unit for

dethatching, aerating, hilling ....without toots.

TIRE CHAINS are heavy duty; closety spaced extra-large cross

links give smooth ride, outstanding traction.

TRACTOR CAB has heavy duty vinyl fabric over tubular steel

frame, ABS plastic top; clear plastic windshield offers 360 degree

visibility. Hinged metal doors with catch. Keeps operator warm

and dry.. Remove vinyl sides and windshields for use as sun

protector in summer. Optional accessories include: tinted/

tempered solid safety giass windshield with hand operated wiper;

12-volt amber caution light for mounting on cab top..

VACS for powerful collection of heavy grass clippings and leaves

Optional wand attachment to pick up debris in hard-to-reach

places. VAClCHIPPER includes a chipper-shredder

WEIGHT BRACKET for drawbar for snow removal applications

Uses (1) 55 lb,. weight.

WHEEL WEIGHTS for rear wheels provide needed traction for

snow removal or dozing heavy materials.

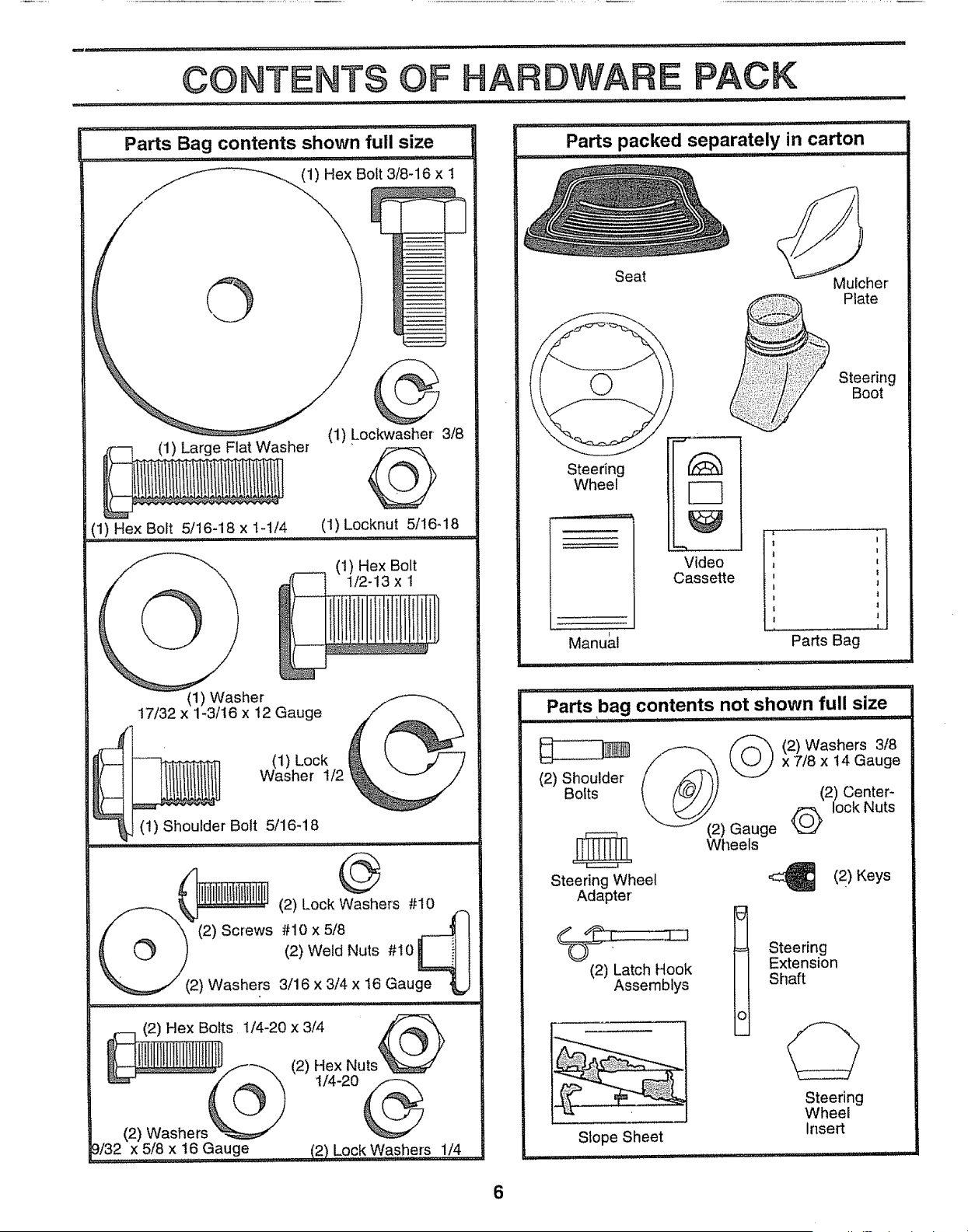

Parts Bag contents shown full size

............. ill ii, i ....

(1) Hex Bolt 318-16 x 1

(1) Large Flat Washer

(1) Hex Bolt 5/16-18 x 1-1/4

(1) Lockwasher 3/8

(1) Locknut 5/16-18

(1) Hex Bolt

1/2-13 x 1

(1) Washer

t7/32 x 1-3/16 x 12 Gauge

(1) Lock

Washer I/2

(1) Shoulder Bolt 5/16-18

.................. i ill ii ......... i,i

(2) Lock Washers #10

(2) Screws #10 x 5/8 _-_t

(2) Weld Nuts #10

(2) Washers 3/16 x 3/4 x 16 Gauge

(2) Hex Bolts 1/4-20 x 3/4 __

(2) Hex Nuts

1/4-20

(2) Washers

9/32 x 5/8 x 16 Gauge

(2) Lock Washers 1/4

Parts packed separately in carton

............ ............... ll,lllll J _l llllll,i i,

Seat

Steering

Wheel

Manua

Mulcher

Plate

Steering

Boot

Video

Cassette

T, i'' "1 .... u,u,l,,, ii ulL ................ i,l,lll iii '

Parts bag contents not shown full size

............ _ i,, ,i ii,i!,,,,,!l , ............. i i'ii

(2) Shoulder

Bolts

Steering Wheel

Adapter

__((2 (2) Washers 3t8

(_x7/8 x t4 Gauge

(2) Center-

lock Nuts

) Gauge O_

Wheels

(2) Latch Hook

Assemblys

Slope Sheet

(2) Keys

Steering

Extension

Shaft

Steering

Wheel

Insert

ASSEMBLY

.............................. : :,,i,:

Your new tractor has been assembled at the factory with exception of those parts left unassembled for shipping purposes.

To ensure safe and proper operation of your tractor all parts and hardware you assemble must be tightened securely° Use

the correct tools as necessary to insure proper tightness.

TOOLS REQUURED FOR ASSEMBLY

A socket wrench set will make assembly easier.. Standard

wrench sizes are listed.

(1) 5/16" wrench (1) 3/4" Socket w/drive rachet

(2) 7/16" wrenches Phillips Screwdriver

(1) 1/2" wrench Tire pressure gauge

('1) 9/16" wrench Utility knife

When right or left hand is mentioned in this manual, it

means when you are in the operating position (seated

behind the steering wheel)

TO REMOVE TRACTOR FROM CARTON

UNPACK CARTON

o Remove all accessible loose parts and parts cartons

from carton (See page 6)_

o Cut, from top to bottom, along lines on all four corners

of carton, and lay panels flat,.

= Check for any additional loose parts or cartons and

remove.

BEFORE ROLMNG TRACTOR OFF SKRD

ATTACH STEERING WHEEL (See Fig. 1)

ASSEMBLE EXTENSION SHAFT AND BOOT

o Slide extension shaft onto lower steering shaft° Align

mounting holes in extension and lower shafts and

install 5/16 hex bolt and IocknuL Tighten securely_

IMPORTANT: TIGHTEN BOLT AND NUT SECURELY TO

I8-22 FT. LBS TORQUE.

o Place tabs of steering boot over tab slots in dash and

push down to secure.

INSTALL STEERII_G WHEEL

= Position front wheels of the tractor so they are pointing

straight forward_

° Slide steering wheel adapter onto steering shaft exten-

sion.

• Position steering wheel and sleeve assembly so cross

bars are horizontal (left to right) and slide onto adapter,,

o Assemble large flat washer, 3/8 lock washer, 3/8 hex

bolt and tighten securely.,

o Snap steering wheel insert into center of steering

wheel,.

• Remove protective plastic from tractor hood and gri&

IMPORTANT: CHECK FOR AND REMOVE ANY STAPLES

1NSKID THAT MAY PUNCTURE TIRES WHERE TRACTOR

IS TO ROLL OFF SKID

LARGE FLAT

WASHER

WHEEL

ADAPTER

STEERING

BOOT

J_ EXTENSION SHAFT

/ z t.L _ ,-_ - ".,

/; .. ',

¢ ' ,/t! ' I

5/16 LOCKNUT \ . .,'_ "_ / j

STEERING " " '_''_._ " . till I

SHAFT "" "-._._'_,

FIG. 1

TO ROLL TRACTOR OFF SKID (See Opera-

tion section for location and function of con-

trols)

° Press lift lever plunger and raise attachment lift lever to

its highest position_

° Release parking brake by depressing clutchlbrake

pedal

= Place freewheel control in freewheeling position to

disengage transmission (See "TO TRANSPORT" in

the Operation section of this manual),

° Roll tractor backwards off ski&

• Remove banding holding discharge guard up against

tractor,

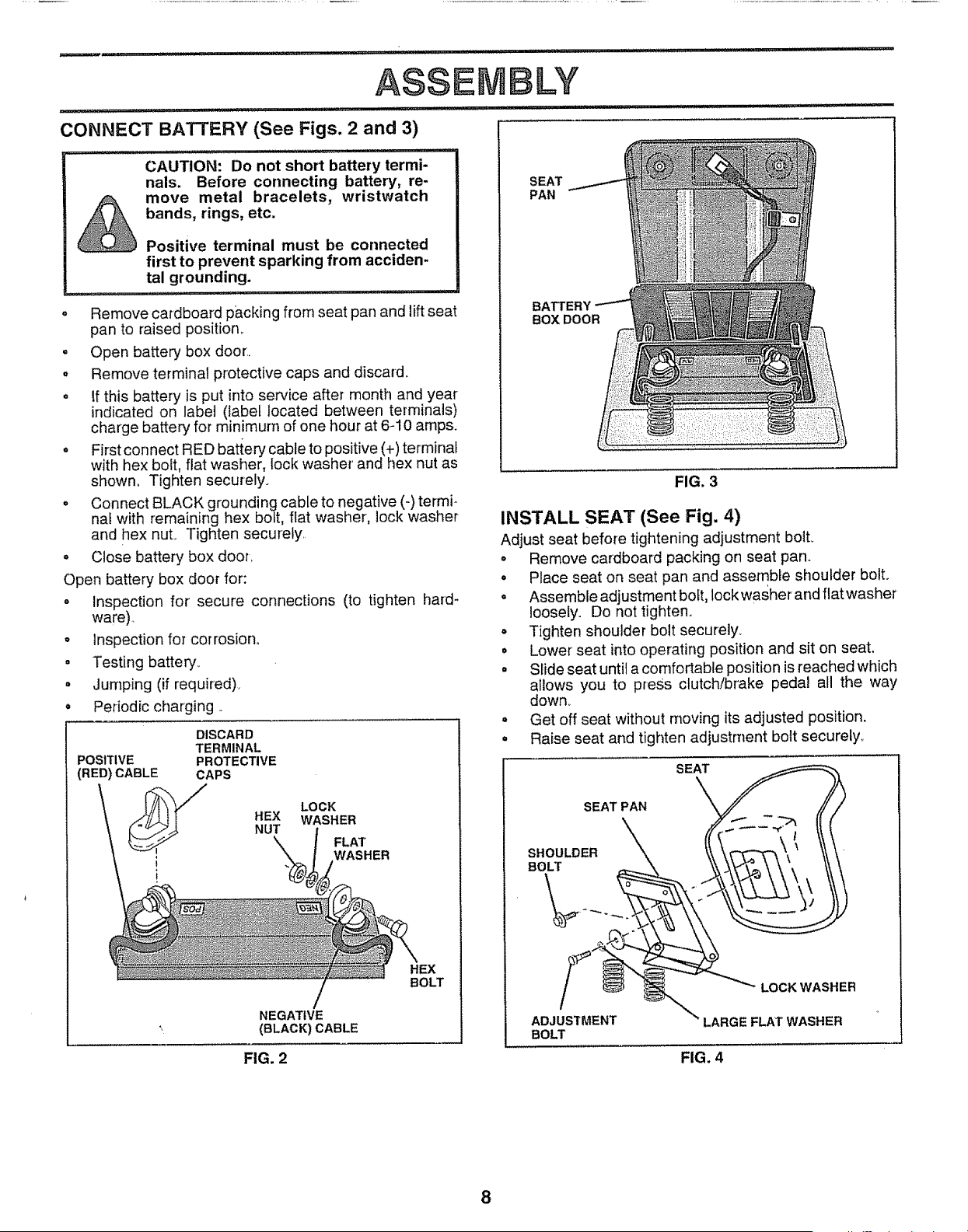

CONNECT BATTERY (See Figs. 2 and 3)

CAUTION: Do not short battery termi-

nals. Before connecting battery, re-

move metal bracelets, wristwatch

bands, rings, etc.

Positive terminal must be connected

first to prevent sparking from acciden-

tal grounding.

o Remove cardboard packing from seat pan and lift seat

pan to raised position.

o Open batter':/box door'.,

o Remove terminal protective caps and discard.

o If this battery is put into service after month and year

indicated on label (label located between terminals)

charge battery for minimum of one hour at 6-10 arnps.

o First connect RED batiery cable to positive (+) terminal

with hex bolt, flat washer, lock washer' and hex nut as

shown° Tighten securely.

° Connect BLACK grounding cable to negative (-) termi-

nal with remaining hex bolt, flat washer, lock washer

and hex nut. Tighten securely.

° Close battery box door.

Open battery box door for:

- inspection for secure connections (to tighten hard-

ware)..

= Inspection for corrosion°

o Testing battery°

° Jumping (if required)_

° Periodic charging o

DISCARD

TERMINAL

POSITIVE PROTECTIVE

(RED) CABLE CAPS

_'_ HEX

NUT

LOCK

WASHER

FLAT

NEGATIVE

(BLACK) CABLE

FIG. 2

HEX

BOLT

SEAT

PAN

BATTERY

BOX DOOR

FIG. 3

INSTALL SEAT (See Fig. 4)

Adjust seat before tightening adjustment bolt.

o Remove cardboard packing on seat pan.,

° Place seat on seat pan and assemble shoulder bolt.

° Assemble adjustment bolt, lock washer and flat washer

loosely. Do not tighten.

° Tighten shoulder bolt securely_

o Lower' seat into operating position and sit on seat.

o Slide seat until a comfortable position is reached which

allows you to press clutch/brake pedal all the way

down_

• Get off seat without moving its adjusted position.

. Raise seat and tighten adjustment bolt securely.

SEAT

SEAT PAN

X\.

ADJUSTMENT

BOLT

LOCK WASHER

LARGE FLAT WASHER

FIG. 4

CHECK TIRE PRESSURE

The tires on your tractor were overinflated at the factory for

shipping purposes,, Correct tire pressure is important for

best cutting performance.

o Reduce tire pressure to PSi shown in "PRODUCT

SPECIFICATIONS" on page 3 of this manual.

CHECK DECK LEVELNESS

For best cutting results, mower housing should be properly

leveled. See "TO LEVEL MOWER HOUSING" in the

Service and Adjustments section of this manual

CHECK FOR PROPER POSITION OF ALL

BELTS

See the figures that are shown for replacing motion and

mower blade drive belts in the Service and Adjustments

section of this manual, Verify that the belts are routed

correctly.,

CHECK BRAKE SYSTEM

After you learn how to operate your tractor, check to see that

the brake is properly adjusted. See "TO ADJUST BRAKE"

in the Service and Adjustments section of this manual,

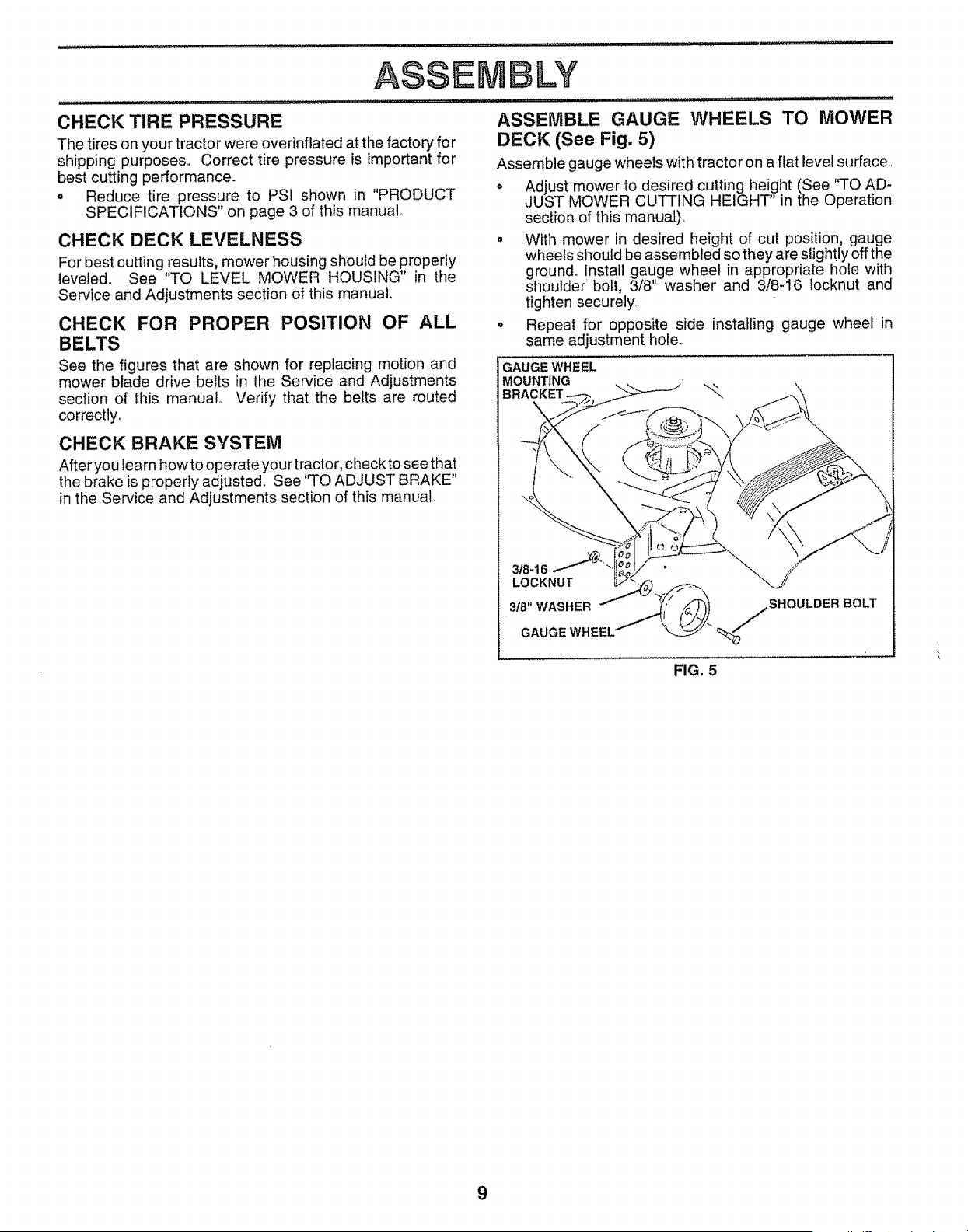

ASSEMBLE GAUGE WHEELS TO MOWER

DECK (See Fig. 5)

Assemble gauge wheels with tractor on a flat level surface=,

o Adjust mower to desired cutting height (See '%0 AD-

JUST MOWER CUFFING HEIGHT" in the Operation

section of this manual)°

o With mower in desired height of cut position, gauge

wheels should be assembled so they are slightly off the

ground. Install gauge wheel in appropriate hole with

shoulder bolt, 3/8" washer and 3/8-16 locknut and

tighten securely.

° Repeat for opposite side installing gauge wheel in

same adjustment holeo

GAUGE WHEEL

MOUNTING

3/8-16 ---"""_ "

LOCKNUT

3/8" WASHER

GAUGE WHEEL'

FIG. 5

INSTALL iViULCHER PLATE

(See Figs. 6 & 7)

o Install two latch hooks to mulcher plate using screw,

washer, lock washer', and weld nut as shown.

NOTE: Pre-assemble weld nut to latch hook by inserting

weld nut from the top with hook pointing down_

= Tighten hardware securely.,

° Raise and hold deflector shield in upright position.

,, Place front of mutcher plate over front of mower deck

Opening and slide into place, as shown..

° Hook front latch into hole on front of mower' deck.

o Hook rear latch into hole on back of mower deck.

DEFLECTOR

SHIELD

LATCH

HOOKS

FIG. 7

TO CONVERT TO BAGGING OR

DISCHARGING

Simply remove mulcher ptate and store in a safe place.

Your mower is now ready for discharging or installation of

optional grass catcher accessory.

WELD NUT FROM THE TOP HOOK POINTS DOWN

LOCI(

WELD WASHER

LATCH

WASHER

SCREW

LOCK

WASHER

LATCH

HOOK

WELD

NUT

MULCHER

PLATE

FIG. 6

,/'CHECKLIST

BEFORE YOU OPERATE AND ENJOY YOUR NEW

TRACTOR, WE WISH TO ASSURE THAT YOU RECEIVE

THE BEST PERFORMANCEAND SATISFACTION FROM

THIS QUALITY PRODUCT.

PLEASE REVIEW THE FOLL OWIIVG CHECKLIST:

,/ All assernbfy instructions have been completed_

v" No remaining loose parts in carton..

,/ Batteryis properly prepared and charged. (Minimum

1 hour at 6 amps)o

¢" Seat is adjusted comfortably and tightened securely..

¢" All tires are properly inflated. (For shipping purposes,

the tires v,_ereoverinflated at the factory)_

,/ Be sure mower deck is properly leveled side-to-side/

front-to-rear for best cutting results_ (Tires must be

properly inflated for leveling).

v" Check mower and drive belts. Be sure they are routed

properly around pulleys arid inside all belt keepers,

v" Check wMng.. See that all connections are still secure

and wires are properly clamped°

,/ Before driving tractor, be sure freewheel control is in

drive position°

WHILE LEARNING HOW TO USE YOUR TRA CTOR, PAY

EXTRA ATTENTION TO THE FOLLOWING IMPORTANT

ITEMS:

v" Engine oil is at proper level..

,/ Fuel tank is filled with fresh, clean, regular unleaded

gasoline.

€" Become familiar with all controls - their location and

function. Operate them before you start the engine.

,/ Be sure brake system is in safe operating condition.

,/ it is important to purge the transmission before operat-

ing your tractor for the first time. Follow proper starting

and transmission pu rging instructions (See"TO START

ENGINE" and "PURGE TRANSMISSION" in the Op-

eration section of this manual).

OPERATION

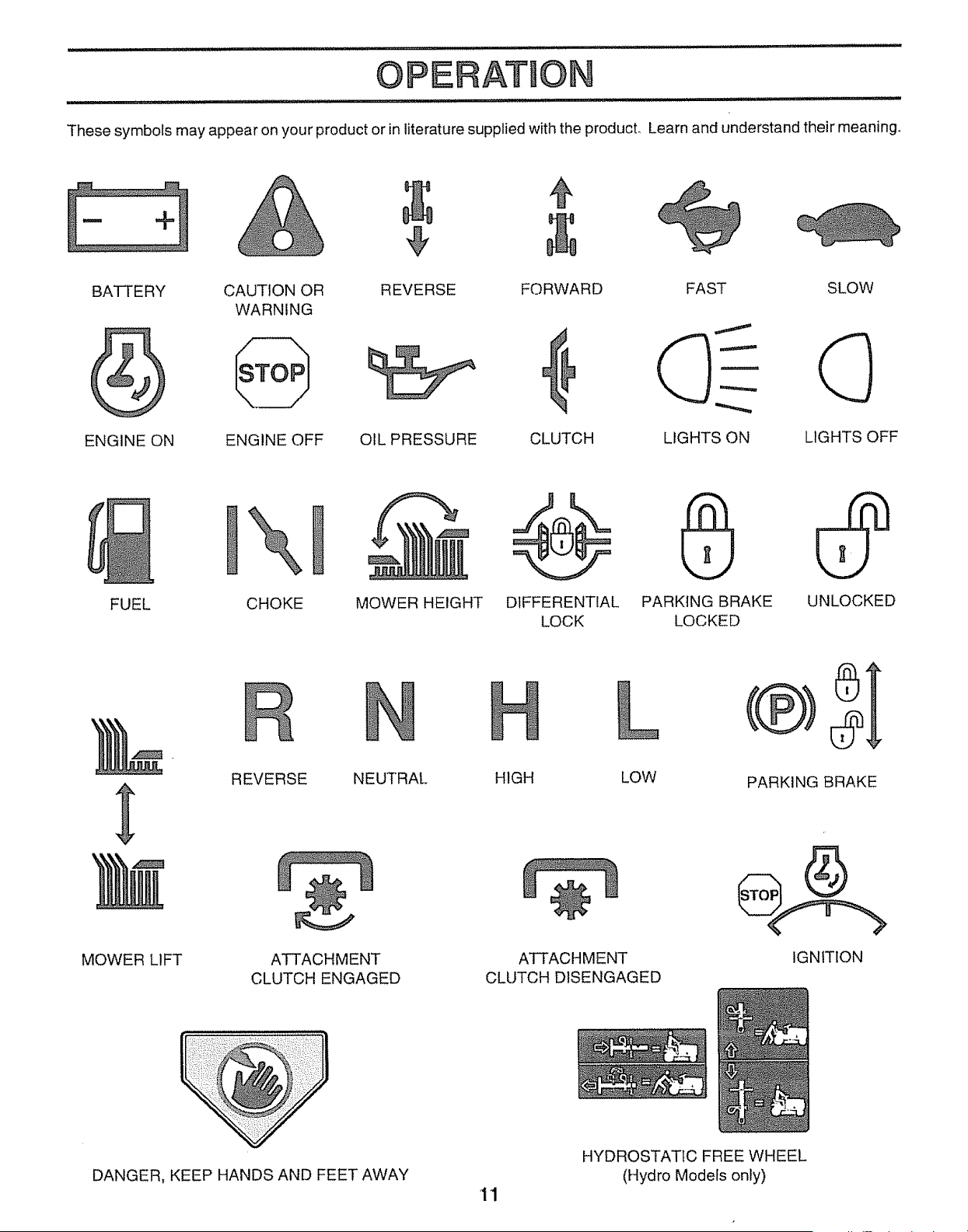

These symbols may appear on your product or in literature supplied with the product, Learn and understand their meaning.

BATTERY CAUTION OR REVERSE FORWARD FAST SLOW

WARNING

ENGINE ON ENGINE OFF OIL PRESSURE CLUTCH LIGHTS ON LIGHTS OFF

FUEL MOWER HEIGHT UNLOCKED

CHOKE

@ 0

DIFFERENTIAL PARKING BRAKE

LOCK LOCKED

REVERSE NEUTRAL HIGH LOW

PARKING BRAKE

MOWER LIFT ATTACHMENT

CLUTCH ENGAGED

ATTACHMENT

CLUTCH DISENGAGED

IGNITION

DANGER, KEEP HANDS AND FEET AWAY

HYDROSTATIC FREE WHEEL

(Hydro Models only)

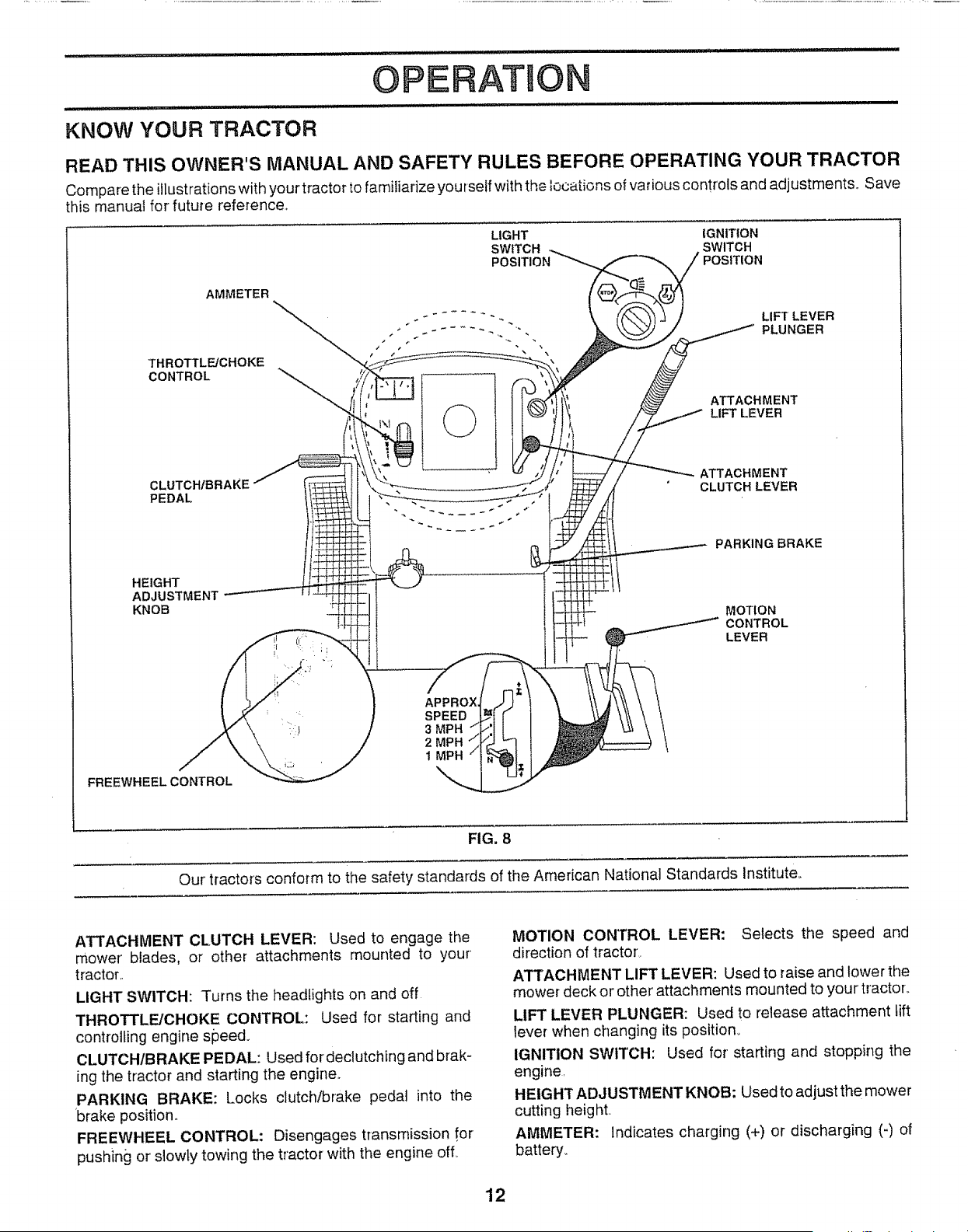

KNOW YOUR TRACTOR

OP ATmON

READ THIS OWNER'S MANUAL AND SAFETY RULES BEFORE OPERATING YOUR TRACTOR

Compare the illustrations withyour'tractor to familiarize yourself with the toca_ions of various cont_'ols and adjustments_ Save

this manual for future reference.,

LIGHT IGNITION

SWITCH SWITCH

POSI'

AMMETER

THROTTLE/CHOKE

CONTROL

LIFT LEVER

PLUNGER

ATTACHMENT

LIFT LEVER

CLU1

PEDAL

HEIGHT

ADJUSTMENT

KNOB

ATTACHMENT

CLUTCH LEVER

PARKING BRAKE

MOTION

CONTROL

LEVER

FREEWHEEL CONTROL

APPROX,

SPEED

3 MPH

2 MPH

1 MPH

FIG. 8

Our tractoFs conform to the safety standards of the American National Standards Institute_

ATTACHMENT CLUTCH LEVER: Used to engage the

mower" blades, or other attachments mounted to your

tractor,.

LIGHT SWITCH: Turns the headlights on and off

THROTTLE/CHOKE CONTROL: Used for starting and

controlling engine speed.

CLUTCH/BRAKE PEDAL: Used for declutching and brak-

ing the tractor and starting the engine,,

PARKING BRAKE: Locks clutch!brake pedal into the

brake position,,

FREEWHEEL CONTROL: Disengages transmission for

pushing or slowty towing the tractor with the engine off.

MOTION CONTROL LEVER: Selects the speed and

direction of tractor.

ATTACHMENT LIFT LEVER: Used to raise and lower the

mower deck or other attachments mounted to your tractor..

LIFT LEVER PLUNGER: Used to release attachment lift

lever when changing its position°

IGNITION SWITCH: Used for starting and stopping the

engine,

HEIGH'T ADJUSTMENT KNOB: Used to adjust the mower

cutting height.

AMMETER: Indicates charging (+) or discharging (-) of

battery_

OPERATIO

The operation of any tractor can result in foreign objects thrown into the eyes, which can

result in severe eye damage. Always wear safety glasses or eye shields while operating your

tractor or performing any adjustments or repairs. We recommend a wide vision safety mask

over the spectacles or standard safety glasses.

HOW TO USE YOUR TRACTOR

TO SET PARKING BRAKE (See Fig. 9)

Your tractor is equipped with an ope rator presence sensing

switch., When engine is running, any attempt by the

operator to leave the seat without first setting the parking

brake wilt shut off the engine.

• Depress clutch/brake pedal into full "BRAKE" position

and hold.

o Place parking brake lever in "ENGAGED" position and

release pressure from clutch/brake pedal. Pedal should

remain in "BRAKE" position Make sure parking brake

will hold tractor secure,

THROTTLE/

CHOKE

CONTROL

ATTACHMENT CLUTCH LEVER

"ENGAGED" POSITION

"DISENGAGED"

POSITION

"BRAKE" PARKING BRAKE

POSITION

MOTION CONTROL

LEVER

CLUTCHIBRAKE PEDAL

"DRIVE" POSITION

"DISENGAGED"

POSITION "

HEIGHT ADJUSTMENT KNOB

FIG. 9

STOPPING (See Fig, 9)

MOWER BLADES -

• Move attachment clutch lever to "DISENGAGED" po-

sition_

GROUND DRIVE -

° Depress clutch/brake pedal into full "BRAKE" position.,

° Move motion control lever to neutral (N) position.

IMPORTANT: THE MOT1ON CONTROL LEVER DOES

NOT RETURN TO NEUTRAL (N) POSITION WHEN THE

CLUTCH/BRAKE PEDAL 1SDEPRESSED

ENGINE -

• Move throttle control to slow (,_,) position.

NOTE: Failure to move throttle control to slow (,,_,)

position and allowing engine to idle before stopping may

cause engine to "backfire".

o Turn ignition key to "OFF" position and remove key.

Always remove key when leaving tractor to prevent

unauthorized use.

o Never use choke to stop engine..

NOTE: Under certain conditions when tractor is standing

idle with the engine running, hot engine exhaust gases may

cause "browning" of grass. To eliminate this possibility,

always stop engine when stopping tractor on grass areas.

CAUTION: Always stop tractor com-

pletely, as described above, before leav-

ing the operator's position; to empty

grass catcher, etc.

TO USE THROTTLE CONTROL (See Fig. 9)

Always operate engine at full throttle,

° Operating engine at less than full throttle reduces the

battery charging rate.

° Full throttle offers the best bagging and mower perfor-

mance,

TO MOVE FORWARD AND BACKWARD (See

Fig. 9)

The direction and speed of movement is controlled by the

motion control lever

° Start tractor with motion control lever in neutral (N)

position_

• Release parking brake and clutchlbrake pedal,

• Slowly move motion control lever to desired position

TO ADJUST MOWER CUTTING HEIGHT (See

Fig. 9)

The cutting height is controlled by turning the height adjust-

ment knob in desired direction.

= Turn knob clockwise (f_) to raise cutting height.,

° Turn knob counterclockwise (_¢--_)to lower cutting

height..

The cutting height range is approximately t -1/2" to 4". The

heights are measured from the ground to the blade tip with

the engine not running., These heights are approximate

and may vary depending upon soil conditions, height of

grass and types of grass being mowed.

o The average lawn should be cut to approximately 2-t/2

inches during the cool season and to over 3 inches

during hot months.. For healthier and better looking

lawns, mow often and after moderate growth,.

° For best cutting performance, grass over 6 inches in

height should be mowed twice. Make the first cut

relatively high; the second to desired height..

OPERAT O

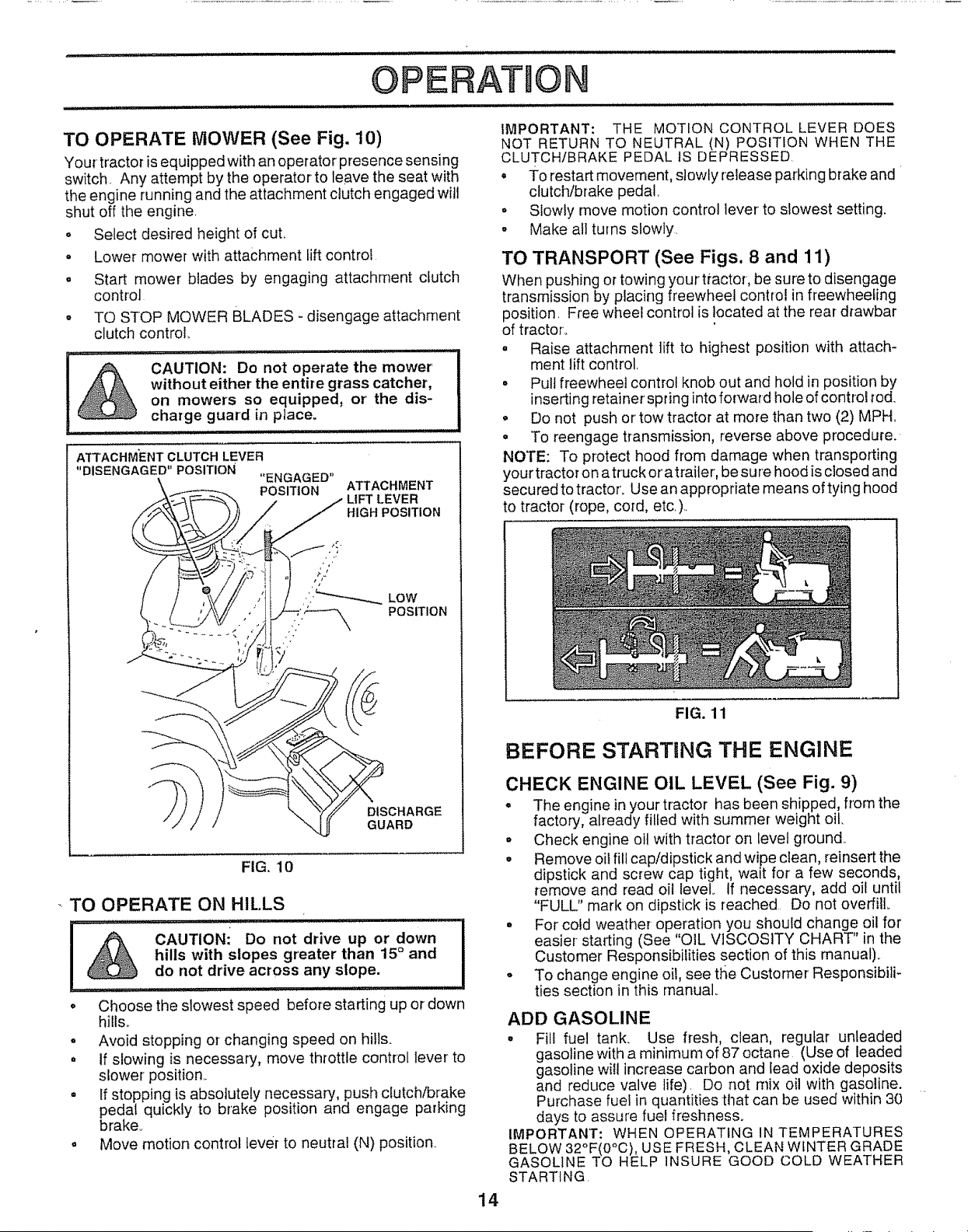

TO OPERATE MOWER (See Fig. 10)

Your tractor is equipped with an operator presence sensing

switch Any attempt by the operator to leave the seat with

the engine running and the attachment clutch engaged witl

shut off the engine.

o Select desired height of cut.

o Lower mower with attachment lift control

° Start mower blades by engaging attachment clutch

control

o TO STOP MOWER BLADES - disengage attachment

clutch control

CAUTION: Do not operate the mower'

without either the entire grass catcher,

on mowers so equipped, or the dis-

charge guard in place.

A'i'TACHM'ENT CLUTCH LEVER

"DISENGAGED" POSITION

"ENGAGED"

POSITION

ATTACHMENT

LIFT LEVER

HIGH POSITION

LOW

POSITION

FIG. 10

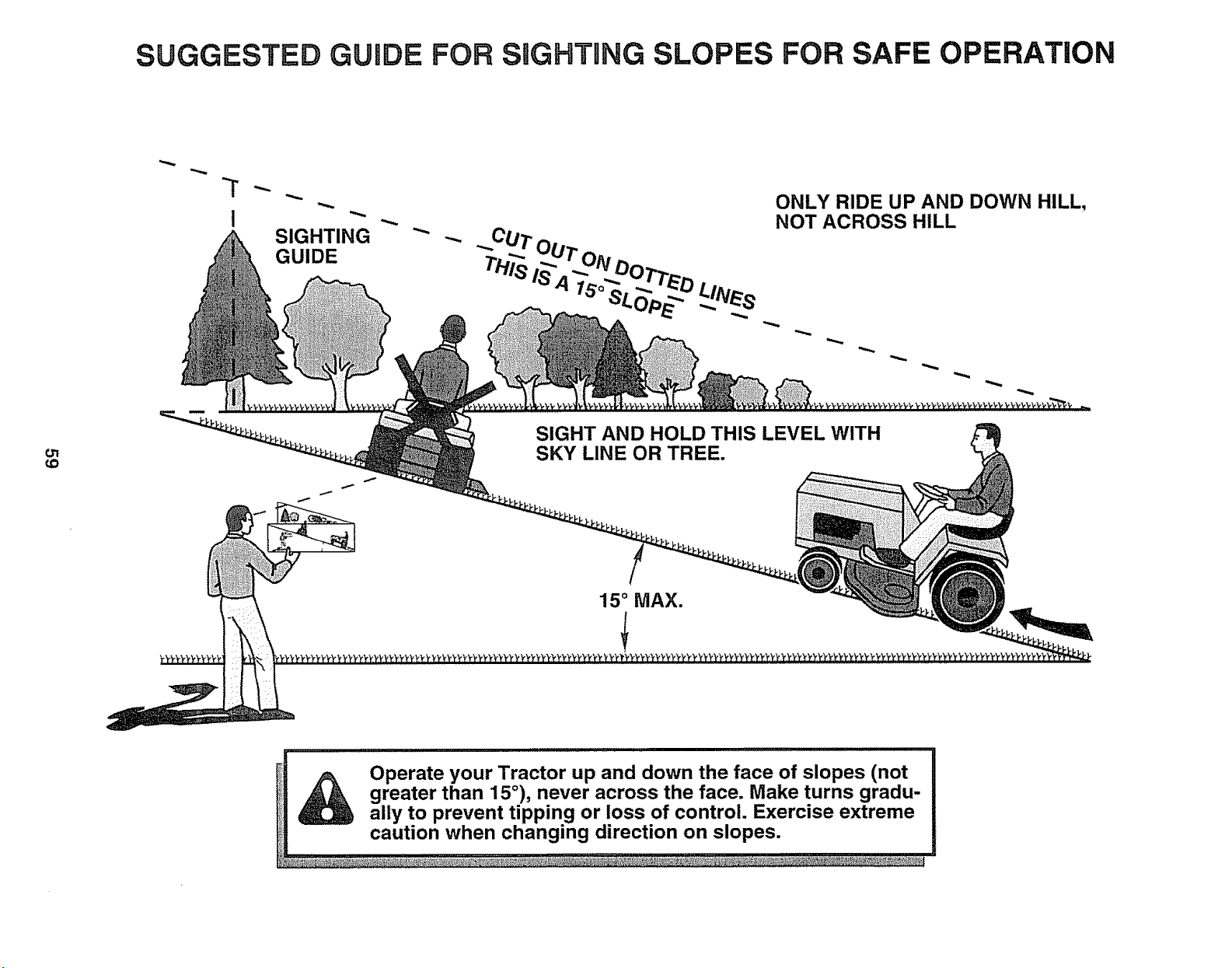

TO OPERATE ON HILLS

CAUTIONi Do not drive up or down

hills with slopes greater than 15 ° and

do not drive across any slope.

o Choose the slowest speed before starting up or down

hills_

o Avoid stopping or changing speed on hills.

o If slowing is necessary, move throttle control lever to

slower' position,

° if stopping is absolutely necessary, push clutch/brake

pedal quickly to brake position and engage parking

brake

° Move motion control lever to neutral (N) position

IMPORTANT: THE MOTION CONTROL LEVER DOES

NOT RETURN TO NEUTRAL (N) POSITION WHEN THE

CLUTCH/BRAKE PEDAL IS DEPRESSED

o To restart movement, stowly release parking brake and

clutch/brake pedal.

° Slowly move motion control lever to slowest setting.

° Make all turns slowly

TO TRANSPORT (See Figs. 8 and 11)

When pushing or towing your tractor, be sure to disengage

transmission by placing freewheel control in freewheeling

position. Free wheel control is located at the rear drawbar

of tractor_

° Raise attachment lift to highest position with attach-

ment lift control.

• Pull freewheel control knob out and hold in position by

inserting retainer spring into forward hole of control rod.

• Do not push or tow tractor at more than two (2) MPH,

o To reengage transmission, reverse above procedure.

NOTE: To protect hood from damage when transporting

your tractor on a truck or atraiter, be su re hood is closed and

secured to tractor'. Use an appropriate means of tying hoed

to tractor (rope, cord, etc.).

FIG. 11

BEFORE STARTING THE ENGINE

CHECK ENGINE OIL LEVEL (See Fig. 9)

° The engine in your tractor has been shipped, from the

factory, already filled with summer weight oil,

o Check engine oil with tractor on level ground.

o Remove oil fill cap/dipstick and wipe clean, reinsert the

dipstick and screw cap tight, wait for a few seconds,

remove and read oil level. If necessary, add oil until

"FULL" mark on dipstick is reached Do not overfill.

o For cold weather operation you should change oil for

easier' starting (See "OIL VISCOSITY CHART" in the

Customer Responsibilities section of this manual)°

o To change engine oil, see the Customer Responsibili-

ties section in this manual.

ADD GASOLINE

o Fil! fuel tank. Use fresh, clean, regular unleaded

gasoline with a minimum of 87 octane (Use of leaded

gasoline will increase carbon and lead oxide deposits

and reduce valve life) Do not mix oil with gasoline.

Purchase fuel in quantities that can be used within 30

days to assure fuel freshness_

IMPORTANT: WHEN OPERATING IN TEMPERATURES

BELOW 32°F(0°C), USE FRESH, CLEAN WINTER GRADE

GASOLINE TO HELP INSURE GOOD COLD WEATHER

STARTING

OPERATION

WARNING: Experience indicates that alcohol blended

fuels (called gasohol or using ethanol or methanol) can

attract moisture which leads to separation and formation of

acids during storage, Acidic gas can damage the fuel

system of an engine while in storage, To avoid engine

problems, the fuel system should be emptied before stor-

age of 30 days or longer. Drain the gas tank, start the

engine and let it run until the fuel lines and carburetor are

empty. Use fresh fuel next season,, See Storage Instruc-

tions for additional information., Never use engine or

carburetor cleaner products in the fuel tank or permanent

damage may occur,

CAUTION: Fill to bottom of gas tank

filler neck. Do not overfill, Wipe off any

spilled oil or fuel. Do not store, spill or

use gasoline near an open flame,

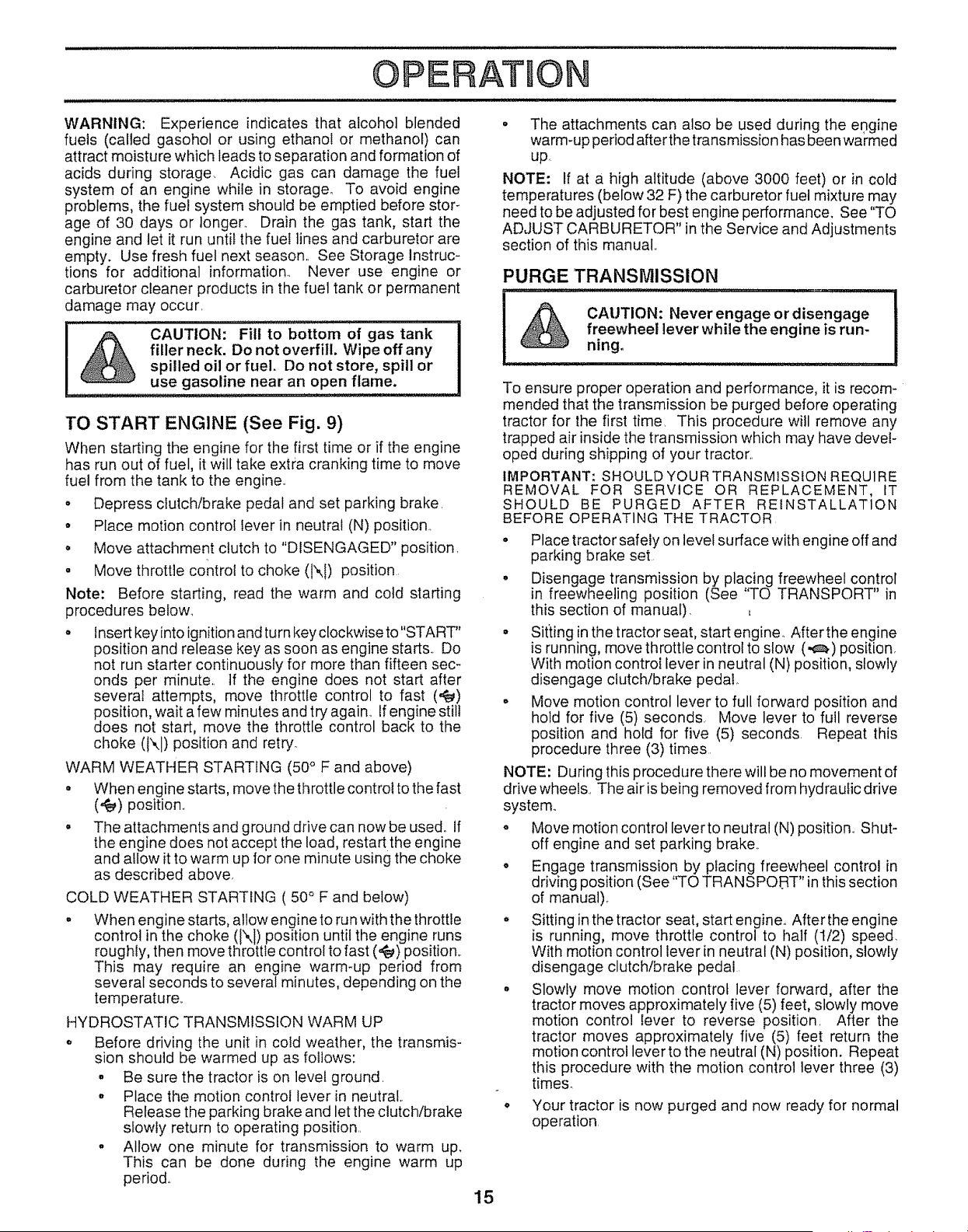

TO START ENGINE (See Fig. 9)

When starting the engine for the first time or if the engine

has run out of fuel, it will take extra cranking time to move

fuel from the tank to the engine.

° Depress clutch/brake pedal and set parking brake

• Place motion control lever in neutral (N) position.

° Move attachment clutch to "DISENGAGED" position.

o Move throttle control to choke (N) position.

Note: Before starting, read the warm and cold starting

procedures below.

o insert key into ignition and turn key clockwise to "START"

position and release key as soon as engine starts.. Do

not run starter continuously for more than fifteen sec-

onds per minute,, tf the engine does not start after

several attempts, move throttle control to fast ('fs,)

position, wait a few minutes and try again. If engine still

does not start, move the throttle control back to the

choke (N) position and retry.

WARM WEATHER STARTING (50° F and above)

• When engine starts, move the throttle control to the fast

(,{_) position.

° The attachments and ground drive can now be used. If

the engine does not accept the load, restart the engine

and allow it to warm up for one minute using the choke

as described above,

COLD WEATHER STARTING ( 50° F and below)

° When engine starts, allow engine to run with the throttle

control in the choke ("_,1)position until the engine runs

roughly, then move thrott e control to fast (._) position,,

This may require an engine warm-up period from

several seconds to several minutes, depending on the

temperature,.

HYDROSTATIC TRANSMISSION WARM UP

o Before driving the unit in cold weather, the transmis-

sion should be warmed up as follows:

o Be sure the tractor is on level ground,

° Place the motion control lever in neutral

Release the parking brake and let the clutch/brake

slowly return to operating position,

° Allow one minute for transmission to warm up,

This can be done during the engine warm up

period,.

° The attachments can also be used during the engine

warm-up period after the transmission has been wa_'med

up,

NOTE: If at a high altitude (above 3000 feet) or in cold

temperatures (below 32 F) the carburetor fuel mixture may

need to be adjusted for best engine performance. See "TO

ADJUST CARBURETOR" in the Service and Adjustments

section of this manual,.

PURGE TRANSMISSION

CAUTION: Never engage or disengage

freewheel lever while the engine is run-

ning°

To ensure proper operation and performance, it is recom-

mended that the transmission be purged before operating

tractor for the first time. This procedure will remove any

trapped air inside the transmission which may have devel-

oped during shipping of your tractor,.

IMPORTANT: SHOULD YOUR TRANSMISSION REQUIRE

REMOVAL FOR SERVICE OR REPLACEMENT, IT

SHOULD BE PURGED AFTER REINSTALLAT1ON

BEFORE OPERATING THE TRACTOR

° Place tractor safely on level surface with engine off and

parking brake set

. Disengage transmission by placing freewheel control

in freewheeling position (See "TO TRANSPORT" in

this section of manual)_ L

• Sit'ting in the tractor seat, start engine. After the engine

is running, move throttle control to slow (.e_) position,

With motion control lever in neutral (N) position, slowly

disengage clutch/brake pedal.

o Move motion control lever to full forward position and

hold for five (5) seconds. Move lever to full reverse

position and hold for five (5) seconds Repeat this

procedure three (3) times

NOTE: During this procedure there will be no movement of

drive wheels., The air is being removed from hydraulic drive

system,

o Move motion control lever to neutral (N) position° Shut-

off engine and set parking brake.

o Engage transmission by placing freewheel control in

driving position (See "TO TRANSPORT" in this section

of manual).

• Sitting inthe tractor seat, start engineo After the engine

is running, move throttle control to half (I/2) speed,

With motion control lever in neutral (N) position, slowly

disengage clutch/brake pedal

° Slowly move motion control lever forward, after the

tractor moves approximately five (5) feet, slowly move

motion control lever to reverse position, After the

tractor moves approximately five (5) feet return the

motion control lever to the neutral (N) position. Repeat

this procedure with the motion control lever three (3)

times.

• Your tractor is now purged and now ready for normal

operation

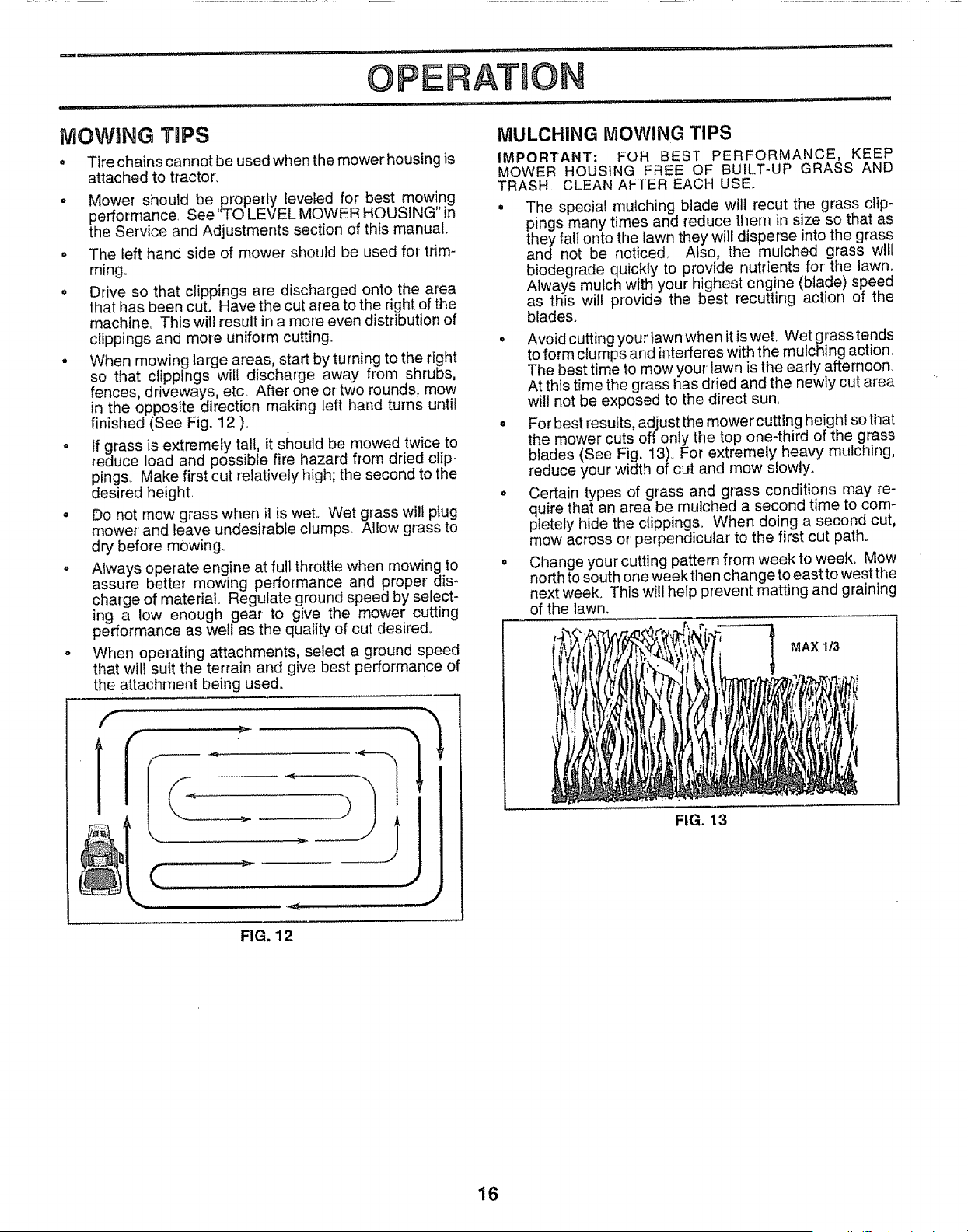

OPERA'['ION

i1,, ::: ::.................. ll.i , lit lll,llj i iHll i

MOWING TiPS MULCHING MOWING TiPS

* Tire chainscannot be used when the mower housing is

attached to tractor.

= Mower should be properly leveled for best mowing

performance,, See "TO LEVEL MOWER HOUSING" in

the Service and Adjustments section of this manual.

• The left hand side of mower should be used for trim-

ming,.

= Drive so that clippings are discharged onto the area

that has been cut. Have the cut area to the right of the

machine_ This will result in a more even distribution of

clippings and more uniform cutting..

• When mowing large areas, start by turning to the right

so that clippings will discharge away from shrubs,

fences, driveways, etc_ After one or two rounds, mow

in the opposite direction making left hand turns until

finished (See Fig.. 12 ).

° If grass is extremely tall, it sf_ould be mowed twice to

reduce load and possible fire hazard from dried cfip-

pings Make first cut relatively high; the second to the

desired height.

= Do not mow grass when it is wet. Wet grass wilt plug

mower and leave undesirable clumps,_ Allow grass to

dry before mowing.

• Always operate engine at full throttle when mowing to

assure better mowing performance and proper dis-

charge of material. Regulate ground speed by select-

ing a low enough gear to give the mower cutting

performance as wel! as the quality of cut desired.

o When operating attachments, select a ground speed

that will suit the terrain and give best performance of

the attachment being used,,

IMPORTANT: FOR BEST PERFORMANCE, KEEP

MOWER HOUSING FREE OF BUILT-UP GRASS AND

TRASH.. CLEAN AFTER EACH USE°

The special mutching blade will recut the grass clip-

pings many times and reduce them in size so that as

they fall onto the lawn they will disperse into the grass

and not be noticed Also, the mulched grass wiIL

biodegrade quickly to provide nutrients for the lawn.

Always mulch with your highest engine (blade) speed

as this will provide the best recutting action of the

blades.

° Avoid cutting your'lawn when it is wet,, Wet grass tends

to form clumps and interferes with the mulching action,,

The best time to mow your lawn is the early afternoon°

At this time the grass has dried and the newly cut area

will not be exposed to the direct sun,

o For'best results, adjust the mowercutting height so that

the mower cuts off only the top one-third of the grass

blades (See Fig. 13), For extremely heavy mulching,

reduce your width of cut and mow slowly.

o Certain types of grass and grass conditions may re-

quire that an area be mulched a second time to com-

pletely hide the clippings. When doing a second cut,

mow across or perpendicular to the first cut path°

• Change your cutting pattern from week to week. Mow

north to south one week then change to east to west the

next week. This will help prevent matting and graining

of the lawn.

FIG. 13

MAX 1t3

FIG, 12

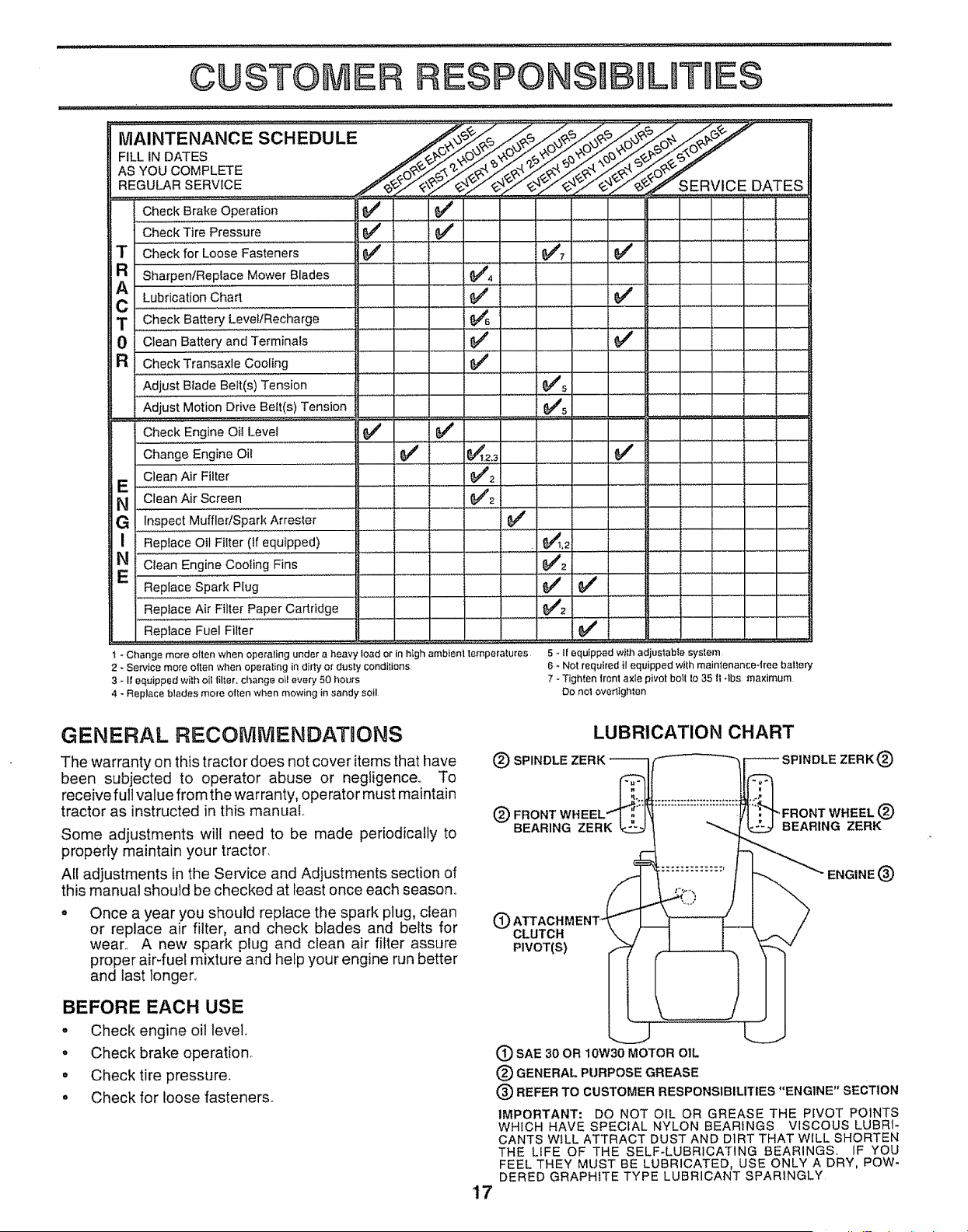

OUSTO ER ESPON BIL ES

Check Brake Operat,!on ....... 6_ _ I ......................

Check Tire Pressure 6/ $f

T check for Loose Fasteners 6#4 _7 .......... 6_ .....................................

R Sharpen/Replace Mower Blades 6_'4

A Lubrication&". ....V ......................

T Check Batt,eP/,L,e,vet/Recharge .................. 6#46...................

0 Cfean Battery and Terminals 6# # ¢#4

R CheckTransaxle Cooling

Adjust Blade Belt(s) Tension $##'s

Adjust Motion Drive Belt(s) Tension _'s

Check Engine Oi! Level 6##'

Change,Engine Oil _ .............. 64_t2,3 6##' ....... , ,,

Clean Air Filter _42

E ........... ............................. ...... . ...... _ ..............

N Clean Air Scree n 6#42 . .

G Inspect Muffler/Spark Arrester 6#4

I Replace Oil Filter (If equipped) . _,2 .

N , := .... : ., ............

Clean Engine c00iing Fins .......................... 6442...... I1 ..........

Replace Spark Plug 6#4 6#4

Replace Air Filter Paper Cartridge _#'2 "

RePiace Fuel Filter ............ 6#4 ...........

! - Change more often when operating under a heavy lead or in high ambient temperatures

2 - Service more olten when operating in dirty or dusty conditions

3 - if equipped with oit Iil_e_,change ell every 50 hours

4 - Replace blades more often when mowing in sandy soil

5 - It equipped with adjustable system

6 - Not required il equipped with maintenance-flee battery

7 - Tighlen trent axle pivot boil to 35 It -Ibs maximum

Do not overltghten

GENERAL RECOMMENDATnONS

The warranty on this tractor does not cover items that have

been subjected to operator abuse or negligence,, To

receive full value from the warranty, operator must maintain

tractor as instructed in this manual,,

Some adjustments will need to be made periodically to

properly maintain your tractor,

All adjustments in the Service and Adjustments section of

this manual should be checked at least once each season..

Once a year you should replace the spark plug, clean

or replace air filter, and check blades and belts for

wear,, A new spark plug and clean air filter assure

proper air-fuel mixture and help your engine run better

and last longer_

BEFORE EACH USE

, Check engine oil level..

o Check brake operation,

• Check tire pressure_

o Check for loose fasteners..

LUBRICATION CHART

(_ SPINDLE ZERK _INDLE ZERK(_)

(_) FRON1 (_)

BEARING ZERK BEARING ZERK

ENGINE (_)

CLUTCH

PIVOT(S)

(_ SAE 30 OR 10W30 MOTOR OIL

(_) GENERAL PURPOSE GREASE

@ REFER TO CUSTOMER RESPONSIBILITIES "ENGINE" SECTION

IMPORTANT: DO NOT OIL OR GREASE THE PIVOT POINTS

WHICH HAVE SPECIAL NYLON BEARINGS VISCOUS LUBRI-

CANTS WiLL ATTRACT DUST AND DIRT THAT WILL SHORTEN

THE LIFE OF THE SELF-LUBRICATING BEARINGS, IF YOU

FEEL THEY MUST BE LUBRICATED, USE ONLY A DRY, POW-

DERED GRAPHITE TYPE LUBRICANT SPARINGLY

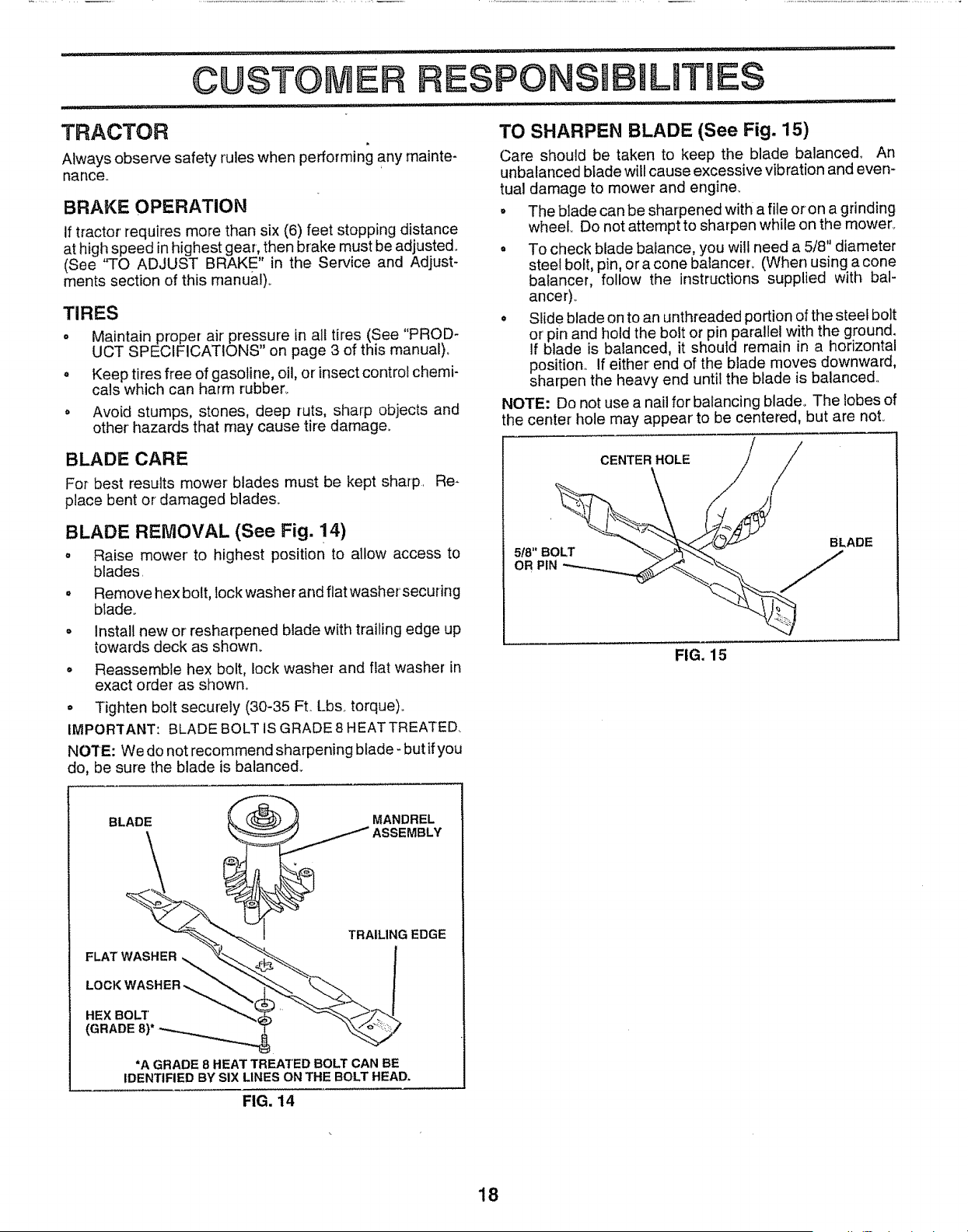

CUSTOM

ESPONSH

TRACTOR

Always observe safety rules when pe#orming any mainte-

nance.

BRAKE OPERATION

if tractor requires more than six (6) feet stopping distance

at high speed inhighest gear, then brake must be adjuste&

(See "TO ADJUST BRAKE" in the Service and Adjust-

ments section of this rnanual)_

TIRES

. Maintain proper air pressure in all tires (See "PROD-

UCT SPECIFICATIONS" on page 3 of this manual)°

o Keep tires free of gasoline, oil, orinsect control chemi-

cals which can harm rubber_

• Avoid stumps, stones, deep ruts, sharp objects and

other' hazards that may cause tire damage_

BLADE CARE

For best results mower blades must be kept sharp. Re_

place bent or damaged blades°

BLADE REMOVAL (See Fig. 14)

o Raise mower to highest position to allow access to

blades.

• Remove hex bolt, lock washer and flat washer' securing

blade.

,, Install new or resharpened blade with trailing edge up

towards deck as shown_

• Reassemble hex bolt, lock washer and flat washer in

exact order as shown.

• Tighten bolt securely (30-35 FL Lb& torque)°

IMPORTANT: BLADE BOLT tS GRADE 8 HEAT TREATED.

NOTE: We do not recommend sharpening blade - but if you

do, be sure the blade is balanced.,

TO SHARPEN BLADE (See Fig. 15)

Care should be taken to keep the blade balanced° An

unbalanced blade will cause excessive vibration and even-

tual damage to mower and engine.

• The blade can be sharpened with a file or on a grinding

wheel. Do not attempt to sharpen while on the mower_

. To check blade balance, you will need a 5/8" diameter

steel bolt, pin, or a cone balanceh (When using a cone

balancer, follow the instructions supplied with bal-

ancer).

. Slide blade on to an unthreaded portion of the steef bolt

or' pin and hold the bolt or pin parallel with the ground.

If blade is balanced, it should remain in a horizontal

position., If either end of the blade moves downward,

sharpen the heavy end until the blade is balanced.,

NOTE: Do not use a nail for balancing blade° The lobes of

the center hole may appear' to be centered, but are not.

FIG. 15

*A GRADE 8 HEAT TREATED BOLT CAN BE

IDENTIFIED BY SIX LINES ON THE BOLT HEAD.

FIG. 14

CUSTO

ESPONSm LnTIES

BATTERY

Your tractor has a battery charging system which is suffi-

cient for normal use° However, periodic charging of the

battery with an automotive charger will extend its life,,

o Keep battery and terminals clean..

° Keep battery bolts tight,

° Keep small vent holes open,,

• Recharge at 6-10 amperes for 1 hour,.

TO CLEAN BATTERY AND TERMINALS

Corrosion and dirt on the battery and terminals can cause

the battery to "leak" power°

° Open battery box door,,

° Disconnect BLACK battery cable first then RED bat-

ten/cable and remove battery from tractor.

. Rinse the battery with plain water and dry

o Clean terminals and battery cable ends with wire brush

until bright.

• Coat terminals with grease or petroleum jelly.

• Reinstall batter/(See "CONNECT BATTERY" in the

Assembly section of this manual).

V-BELTS

Check V-belts for deterioration and wear after 100 hours of

operation and replace if necessary, The belts are not

adjustable,, Replace belts if they begin to slip from wear.

TRANSAXLE COOLING

The fan and cooling fins of transmission should be kept

clean to assure proper cooling.

Do not attempt to clean fan or transmission while engine is

running or while the transmission is hot..

, Inspect cooling fan to be sure fan blades are intact and

clean.

° Inspect cooling fins for dirt, grass clippings and other

materials° To prevent damage to seals, do not use

compressed air or high pressure sprayer to clean

cooling fins_

TRANSAXLE PUMP FLUID

The transaxle was sealed at the factory and fluid mainte-

nance is not required for the life of the transaxle. Should the

transaxle ever leak or require servicing, contact your near-

est authorized service center/department.

ENGINE

LUBRICATION

Only use high quality detergent oil rated with API service

classification SF or SG. Select the oil's SAE viscosity grade

according to your expected operating temperature.

SAE VISCOSITY GRADES

I i

1....... I

° F -20 _ 0 ° 30 ° 32 _' 40" 60" 80" 1(}0 _

°c .3o" ._o° ....._t o' ;oo _oo _oo 4o_

TEMPERATURE RANGE ANTICIPATED BEFORE NEXT OIL CHANGE

FIG. 16

NOTE: Although multi-viscosity oils (5W30, 10W30 etc_)

improve starting in cotd weather, these multi-viscosity oils

will result in increased oil consumption when used above

32°F. Check your engine oil level more frequently to avoid

possible engine damage from running low on oil.

Change the oil after the first two hours of operation and

every 25 hours thereafter or at least once a year if the

tractor is not used for 25 hours in one year.

Check the crankcase oil level before starting the engine

and after each eight (8) hours of operation. Tighten oil fill

capfdipstick securely each time you check the oil level..

TO CHANGE ENGINE OIL (See Figs. 16 and 17)

Determine temperature range expected before oil change.

All oil must meet API service classification SFor SG..

o Be sure tractor is on level surface.

o Oil will drain more freely when warm..

- Catch oil in a suitable container..

• Remove oil fill cap/dipstick. Be careful not to allow dirt

to enter the engine when changing oil

o Remove drain plug..

,, After oil has drained completely, replace oil drain plug

and tighten securely

o Refill engine with oil through oil fill dipstick tube. Pour

slowly, Do not overfill.. For approximate capacity see

"PRODUCT SPECIFICATIONS" on page 3 of this

manual.

° Use gauge on oil fitl cap/dipstick for checking level. Be

sure dipstick cap is tightened securely for accurate

reading. Keep oil at "FULL" line on dipstick..

OIL FILL

CAPIDIPSTICK

OIL DRAIN

PLUG

19 FIG. 17

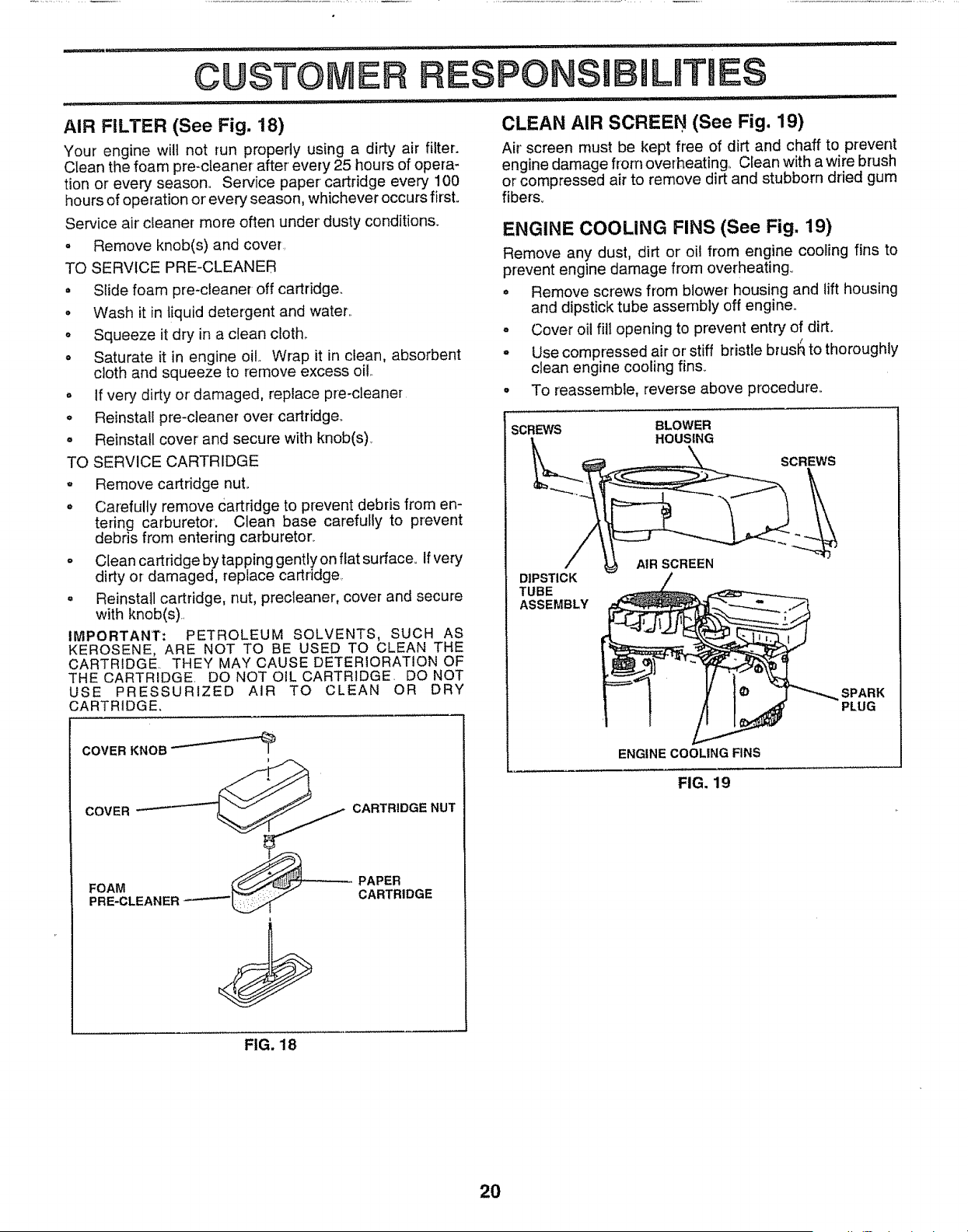

AIR FILTER (See Fig. 18)

Your engine will not run properly using a dirty air filter.

Clean the foam pre-cteaner after every 25 hours of opera-

tion or every season,, Service paper cartridge every 100

hours of operation or every season, whichever occurs first.

Service air cleaner more often under' dusty conditions.

o Remove knob(s) and cover,

TO SERVICE PRE-CLEANEB

° Slide foam pre-cleaner off cartridge.

° Wash it in t!quid detergent and water,.

o Squeeze it dry in a clean cfoth,,

° Saturate it in engine oil. Wrap it in clean, absorbent

cloth and squeeze to remove excess oil.

o If very dirty or damaged, replace pre-cleaner

o Reinstall pre-cleaner over cartridge.

° Reinstall cover and secure with knob(s),

TO SERVICE CARTRIDGE

o Remove cartridge nut°

o Carefully remove Cartridge to prevent debris from en-

tering carburetor'. Clean base carefully to prevent

debris from entering carburetor,,

o Clean cartridge by tapping gently on flat surface° Ifvery

dirty or damaged, replace cartridge,

. Reinstall cartridge, nut, precleaner, cover and secure

with knob(s),

IMPORTANT: PETROLEUM SOLVENTS, SUCH AS

KEROSENE, ARE NOT TO BE USED TO CLEAN THE

CARTRIDGE, THEY MAY CAUSE DETERIORATION OF

THE CARTRIDGE. DO NOT OIL CARTRIDGE. DO NOT

USE PRESSURIZED AIR TO CLEAN OR DRY

CARTRIDGE.

COVER KNOB'""

COVER

CARTRIDGE NUT

PAPER

CARTRIDGE

FOAM

PRE-CLEANER

CLEAN AIR SCREEN (See Fig. 19)

Air screen must be kept free of dirt and chaff to prevent

engine damage from overheating, Clean with a wire brush

or compressed air to remove dirt and stubborn dried gum

fiber&

ENGINE COOLING FINS (See Fig. 19)

Remove any dust, dirt or oil from engine cooling fins to

prevent engine damage from overheating_

° Remove screws from blower housing and lift housing

and dipstick tube assembly off engine,,

° Cover oil fill opening to prevent entry of dirt.

° Use compressed air or' stiff bristle brusl_ to thoroughly

clean engine cooling fin&

° To reassemble, reverse above procedure=

SCREWS

BLOWER

HOUSING

SCREWS

DIPSTICK

TUBE

ASSEMBLY

AIR SCREEN

PLUG

ENGINE COOLING FINS

FIG. 19

FIG. 18

i,ii,

CVSTO RESPONS

UL ES

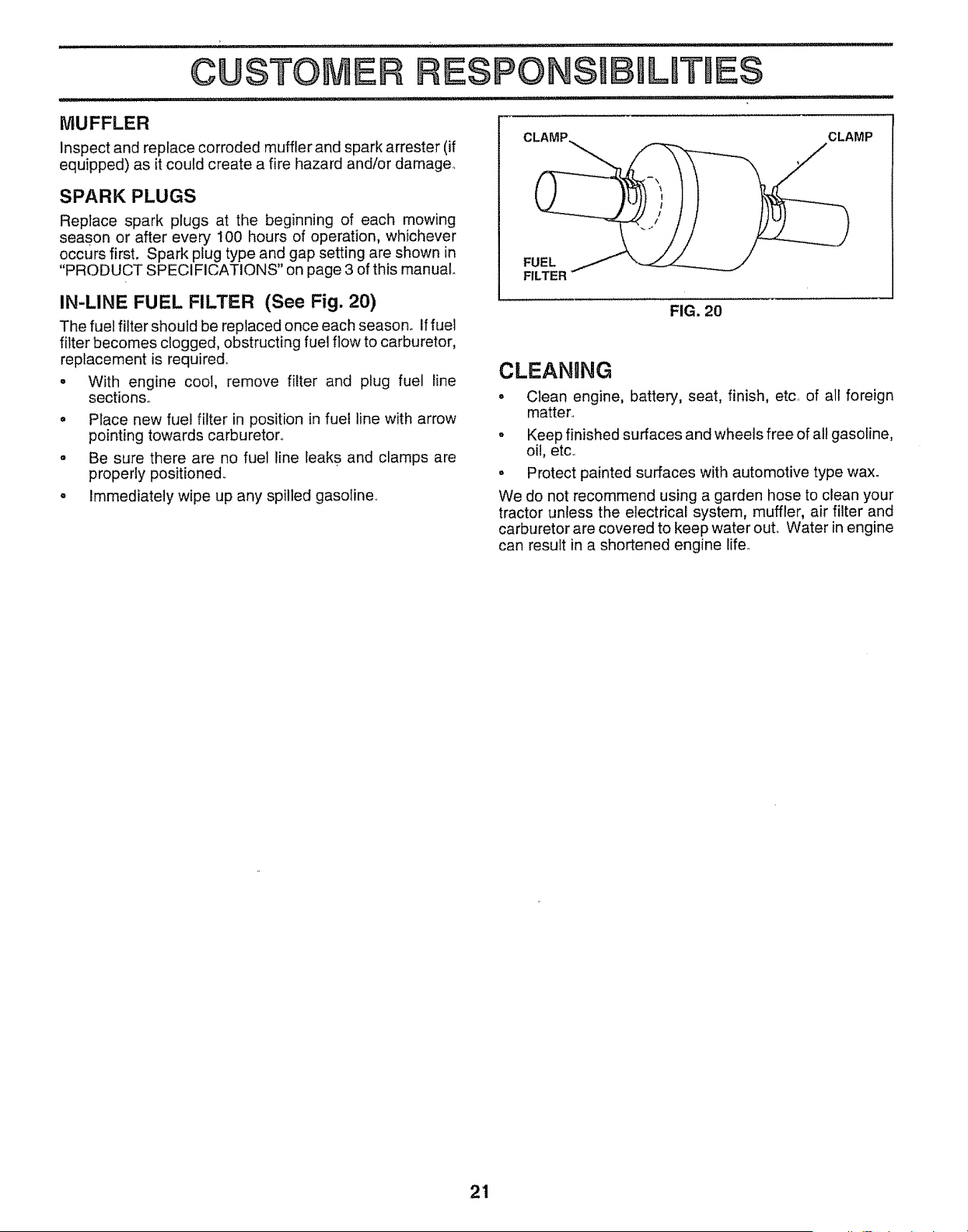

MUFFLER

Inspect and replace corroded muffler and spark arrester (if

equipped) as it could create a fire hazard and/or damage,,

SPARK PLUGS

Replace spark plugs at the beginning of each mowing

season or after every 100 hours of operation, whichever

occurs first. Spark plug type and gap setting are shown in

"PRODUCT SPECIFICATIONS" on page 3 of this manual.

IN-LINE FUEL FILTER (See Fig. 20)

The fuel filter should be replaced once each season° If fuel

filter becomes clogged, obstructing fuel flow to carburetor,

replacement is required,,

• With engine cool, remove filter and plug fuel line

sections..

• Place new fuel filter in position in fuel line with arrow

pointing towards carburetor°

o Be sure there are no fuel line leaks and clamps are

properly positioned,.

° Immediately wipe up any spilled gasoline.

CLAMP CLAMP

FUEL

FILTER

FIG. 20

CLEANUNG

• Clean engine, battery, seat, finish, etc_.of all foreign

matter.,

o Keep finished surfaces and wheels free of all gasoline,

oi!, etc_.

° Protect painted surfaces with automotive type wax.

We do not recommend using a garden hose to clean your

tractor unless the electrical system, muffler, air filter and

carburetor are covered to keep water out. Water in engine

can result in a shortened engine life_

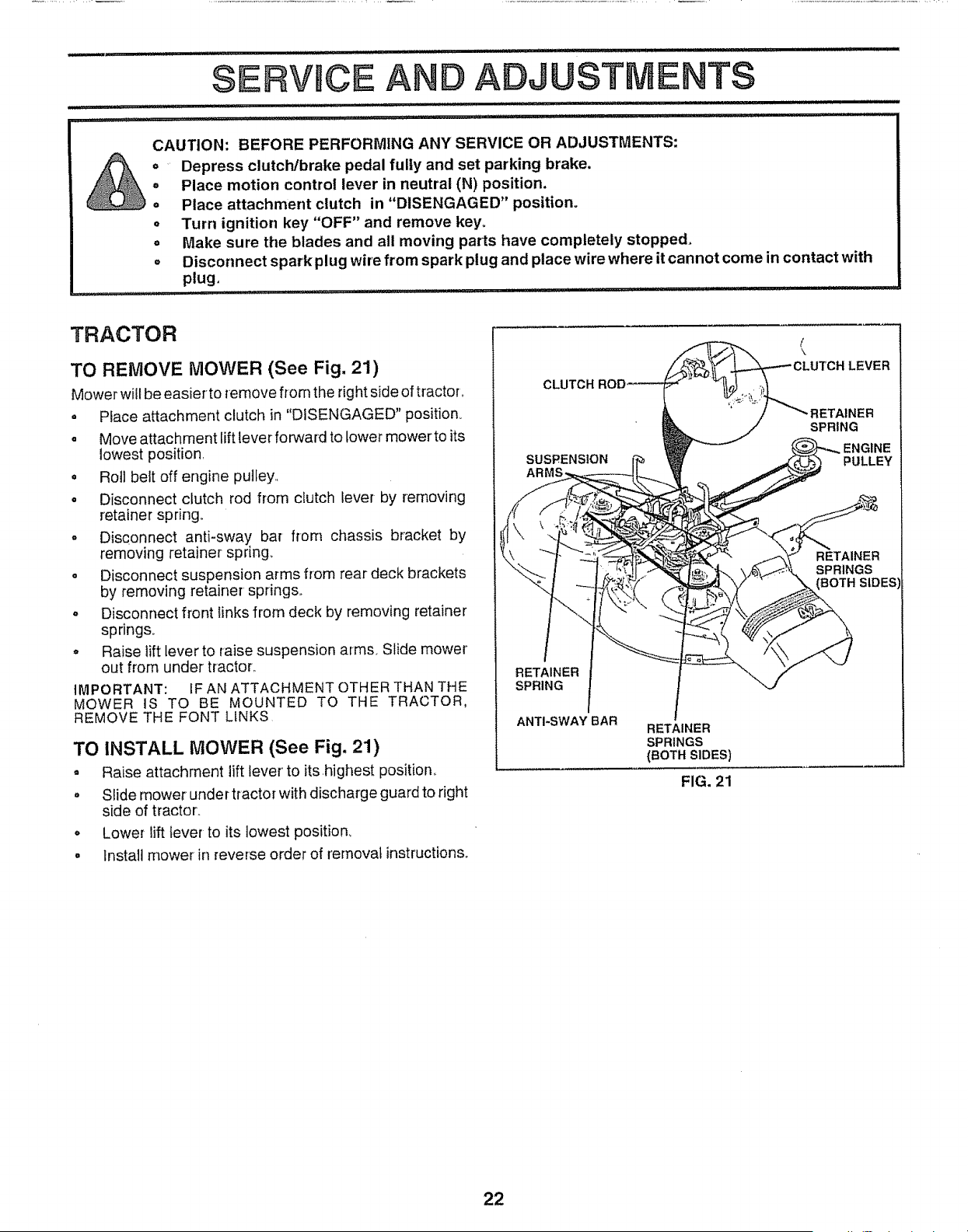

SERVICE AND ADJUSTMENTS

CAUTION:

BEFORE PERFORMING ANY SERVICE OR ADJUSTMENTS:

Depress clutch/brake pedal fully and set parking brake.

Place motion control lever in neutral (N) position.

Place attachment clutch in "DISENGAGED" position°

Turn ignition key "OFF" and remove key,

Make sure the blades and all moving parts have completely stopped,

Disconnect spark plug wire from spark plug and place wire where it cannot come in contact with

plug,

...... i i,H,i,i .......................... ii i ii irlll , _l

TRACTOR

TO REMOVE MOWER (See Fig, 21)

Mower will be easier to remove from the right side of tractor,

= Place attachment clutch in "DISENGAGED" position

o Move attachment lift lever forward to lower mower to its

lowest position,

o Roll belt off engine pulley,,

o Disconnect clutch rod from clutch lever by removing

retainer spring,,

= Disconnect anti-sway bar from chassis bracket by

removing retainer spring,

o Disconnect suspension arms from rear deck brackets

by removing retainer springs,.

o Disconnect front links from deck by removing retainer

springs_

o Raise lift lever to raise suspension arms, Slide mower

out from under tractor,.

IMPORTANT: IF AN ATTACHMENT OTHER THAN THE

MOWER IS TO BE MOUNTED TO THE TRACTOR,

REMOVE THE FONT LtNKS

TO INSTALL MOWER (See Fig. 21)

° Raise attachment lift lever' to its,highest positiorL

° Slide mower under tractor with discharge guard to right

side of tractor°

o Lower lift lever to its lowest position,

o Install mower in reverse order of rernovat instructions°

CLUTCH

SUSPENSION

RETAINER

SPRING

ANTI-SWAY BAR

RETAINER

SPRINGS

(BOTH SIDES)

FIG. 21

LEVER

$ERVUCE AND ADjUSTMIE

TO LEVEL MOWER HOUSING

Adjust the mower while tractor is parked on level ground or

driveway., Make sure tires are proper]y inflated (See

"PRODUCT SPECIFICATION S" on page 3 of this manual).

If tires are over or underinflated, you will not properly adjust

your mower°

SIDE-TO-SIDE ADJUSTMENT (See Figs° 22 and 23)

o Raise mower to its highest position_

° Atthe midpoint of both sidesof mower, measure height

from bottom edge of mower to ground Distance "A" on

both sides of mower should be the same or within 1/4"

of each other.

° If adjustment is necessary, make adjustment on one

side of mower only_

• To raise one side of mower, tighten lift link adjustment

nut on that side,,

° To lower one side of mower, loosen lift link adjustment

nut on that side°

NOTE: Each full turn of adjustment nut will change mower

height about 1/8".,

. Recheck measurements after adjusting_

BOTTOM EDGE BOTTOM EDGE

OF MOWER TO OF MOWER TO

GROUND GROUND

GROUND LINE

FIG. 22

SUSPENSION

ARM

LIFT LINK

ADJUSTMENT NUT

FIG, 23

FRONT-TO-BACK ADJUSTMENT (See Figs° 24 and 25)

IMPORTANT: DECK MUST BE LEVEL SIDE-TO-SIDE,. IF

THE FOLLOWING FRONT-TO-BACK ADJUSTMENT ]S

NECESSARY, BE SURE TO ADJUST BOTH FRONT LINKS

EQUALLY SO MOWER WILL STAY LEVEL SIDE-TO-

SIDEo

To obtain the best cutting results, the mower housing

should be adjusted so that the front is approximately 1/4" to

3/4" lower than the rear when the mower is in its highest

position.

Check adjustment on right side of tractor. Measure dis-

tance "D" directly in front and behind the mandrel at bottom

edge of mower housing as shown°

• Before making any necessary adjustments, check that

both front links are equal in length, Both links should be

approximately I0-3/8"o

o If links are not equal in length, adjust one link to same

length as other tink_

. To lower front of mower loosen nut "E" on both front

links an equal number of turns.

° When distance "D" is 1/4" to 3/4" lower at front than

rear, tighten nuts "F" against trunnion on both front

links,

• To raise front of mower, loosen nut "F" from trunnion on

both front links° Tighten nut "E" on both front links an

equal number of turns,,

o When distance "D" is 1/4" to 3/4" lower at front than

rear, tighten nut "F" against trunnion on both front links°

o Recheck side-to-side adjustment,

% MANDREL

FIG. 24

BOTH FRONT LINKS MUST BE EQUAL IN LENGTH

I" ='1

NUT "E"

NUT "F"

FRONT LINKS TRUNNION

23 FIG. 25

............. IMI'"I

SERVaCE AN

ADJUSTME

ii i, I,,I,,I,HI

TO REPLACE MOWER BLADE DRIVE BELT

(See Fig. 26)

The mower blade drive belt may be replaced without tools,,

Park the tractor on level surface,_ Engage parking brake_

BELT REMOVAL -

o Remove mower from tractor (See '%0 REMOVE

MOWER" in this section of this manual),,

- Work belt off both mandrel pulleys and idler pulteyso

° Pull belt away from mower,,

BELT INSTALLATION -

° instal] new belt in reverse order of removal

• Make sure belt is in all pulley grooves and inside all belt

guides,,

. Install mower in reverse order of removal instructions.

MANDREL IDLER

PULLEY PULLEYS

MANDREL

PULLEY

FIG. 26

TO ADJUST BRAKE (See Fig. 27)

Your tractor is equipped with an adjustable brake system

which is mounted on the side of the transaxle_

If tractor requires more than six (6) feet stopping distarice

at high speed in highest gear, then brake must be adjusted_

= Depress clutch/brake pedal and engage parking brake..

o Measure distance between brake operating arm and

nut "A" on brake rod,

o If distance is other than 1-3/4", loosen jam nut and turn

nut "A" until distance becomes 1-3/4". Retighten jam

nut against nut "A".

° Road test tractor'for proper'stopping distance as stated

above,, Readjust if necessary, if stopping distance is

still greater than six (6) feet in highest gear, further

maintenance is necessary. Contact your nearest au-

thorized service center/department,

WITH PARKING BRAKE "ENGAGED"

NUT "A"

NUT

tATING

ARM

DO NOTTOUCH THIS NUT, IFFURTHER

BRAKE ADJUSTMENTIS NECESSARY

CONTACT YOUR NEAREST AUTHORIZED

SERVICE CENTER/DEPARTMENT

FIG. 27

TO REPLACE MOTION DRIVE BELT

(See Fig. 28)

Park the tractor on level surface_ Engage parking brake.

For assistance, there is a belt installation guide decal on

bottom side of left footrest.

• Remove mower (See "TO REMOVE MOWER" in this

section of this manual.)

° Remove upper belt keeper_

• Remove belt from stationary idler and clutching idler.

° Pull be t slack toward rear' of tractor. Carefully remove

belt upwards from transmission input pulley and over'

cooling fan blades.

• Pull belt toward front of tractor and remove downward

from around engine pulley_

, Install new belt by reversing above procedure.

IMPORTANT: MAKE SURE UPPER BELT KEEPER IS

POSITIONED PROPERLY BETWEEN LOCATOR TABS,

CLUTCHING _ _:_. - It_:

--.. I _ UPPER BELT

TRANSMISSION {._..._.r_ , ../.../'_

INPUT PULLEY I_:'_ :, .._ =

24 FIG. 28

$ERVBCE AND AOjUSTMENT$

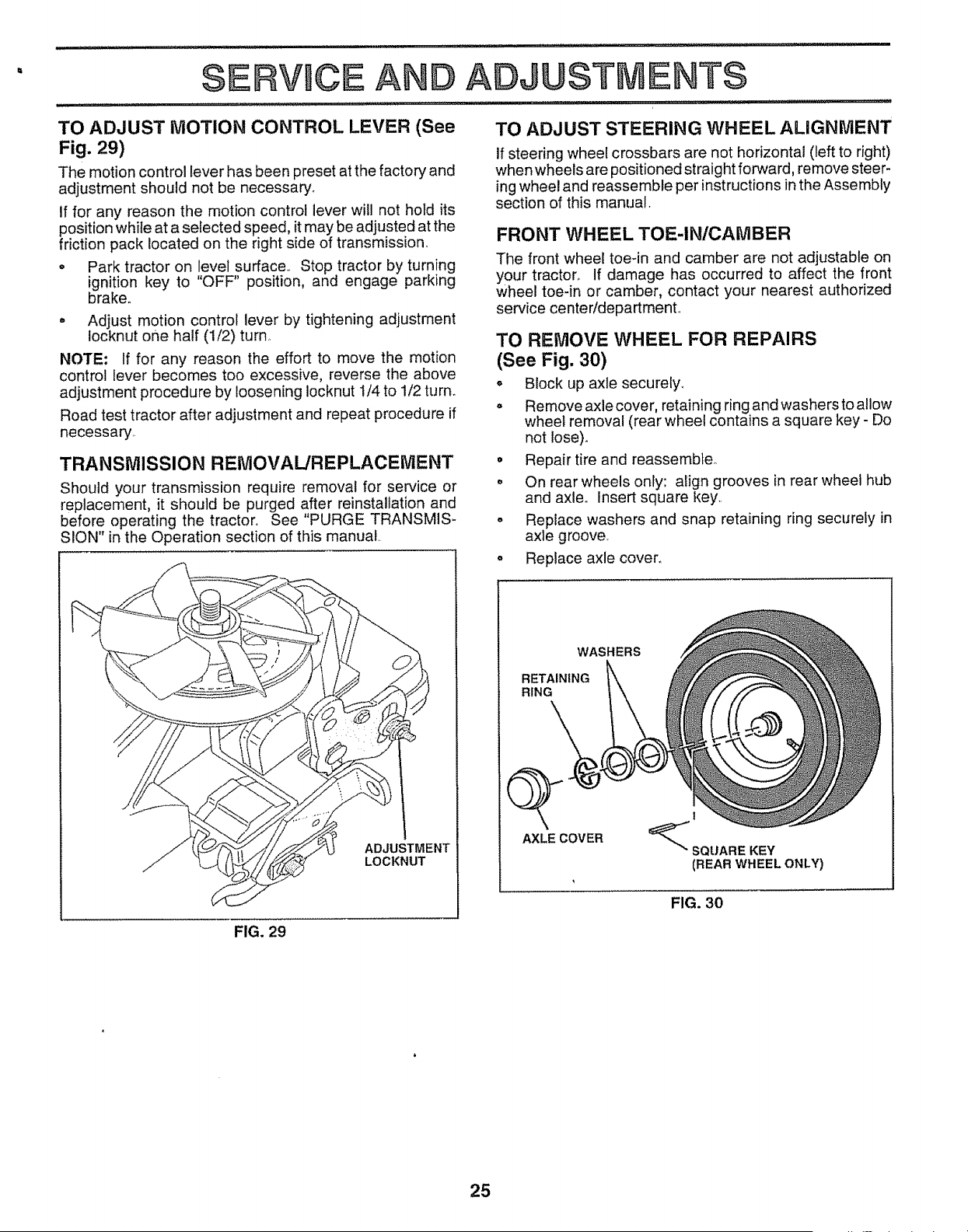

TO ADJUST MOTION CONTROL LEVER (See

Fig. 29)

The motion control lever has been preset at the factory and

adjustment should not be necessary°

if for any reason the motion control lever will not hold its

position while at a selected speed, it may be adjusted at the

friction pack located on the right side of transmission.

• Park tractor on level surface° Stop tractor by turning

ignition key to "OFF" position, and engage parking

brake°

° Adjust motion control lever by tightening adjustment

Iocknut one half (1/2) turn,.

NOTE: if for any reason the effort to move the motion

control lever becomes too excessive, reverse the above

adjustment procedure by loosening iocknut 1/4 to 1/2 turn°

Road test tractor after adjustment and repeat procedure if

necessary,.

TRANSMISSION REMOVAL/REPLACEMENT

Should your transmission require removal for service or

replacement, it should be purged after reinstallation and

before operating the tractor, See "PURGE TRANSMIS-

S!ON" in the Operation section of this manua!..

ADJUSTMENT

LOCI(NUT

FIG. 29

TO ADJUST STEERING WHEEL ALIGNMENT

If steering wheel crossbars are not horizontal (left to right)

when wheels are positioned straight forward, remove steer-

ing wheel and reassemble per instructions in the Assembly

section of this manual.

FRONT WHEEL TOE-IN/CAMBER

The front wheel toe-in and camber are not adjustable on

your tractor_ If damage has occurred to affect the front

wheel toe-in or camber, contact your nearest authorized

service centeddepartment,,

TO REMOVE WHEEL FOR REPAIRS

(See Fig. 30)

° Block up axle securely,

o Remove axlecover, retaining ring and washers to allow

wheel removal (rear wheel contains a square key - Do

not lose).

• Repair tire and reassemble°

o On rear wheels only: align grooves in rear wheel hub

and axleo Insert square key,,

- Replace washers and snap retaining ring securely in

axle groove,

o Replace axle cover°

WASHERS

RETAINING

RING

AXLE COVER

_" SQUARE KEY

(REAR WHEEL ONLY)

FIG. 30

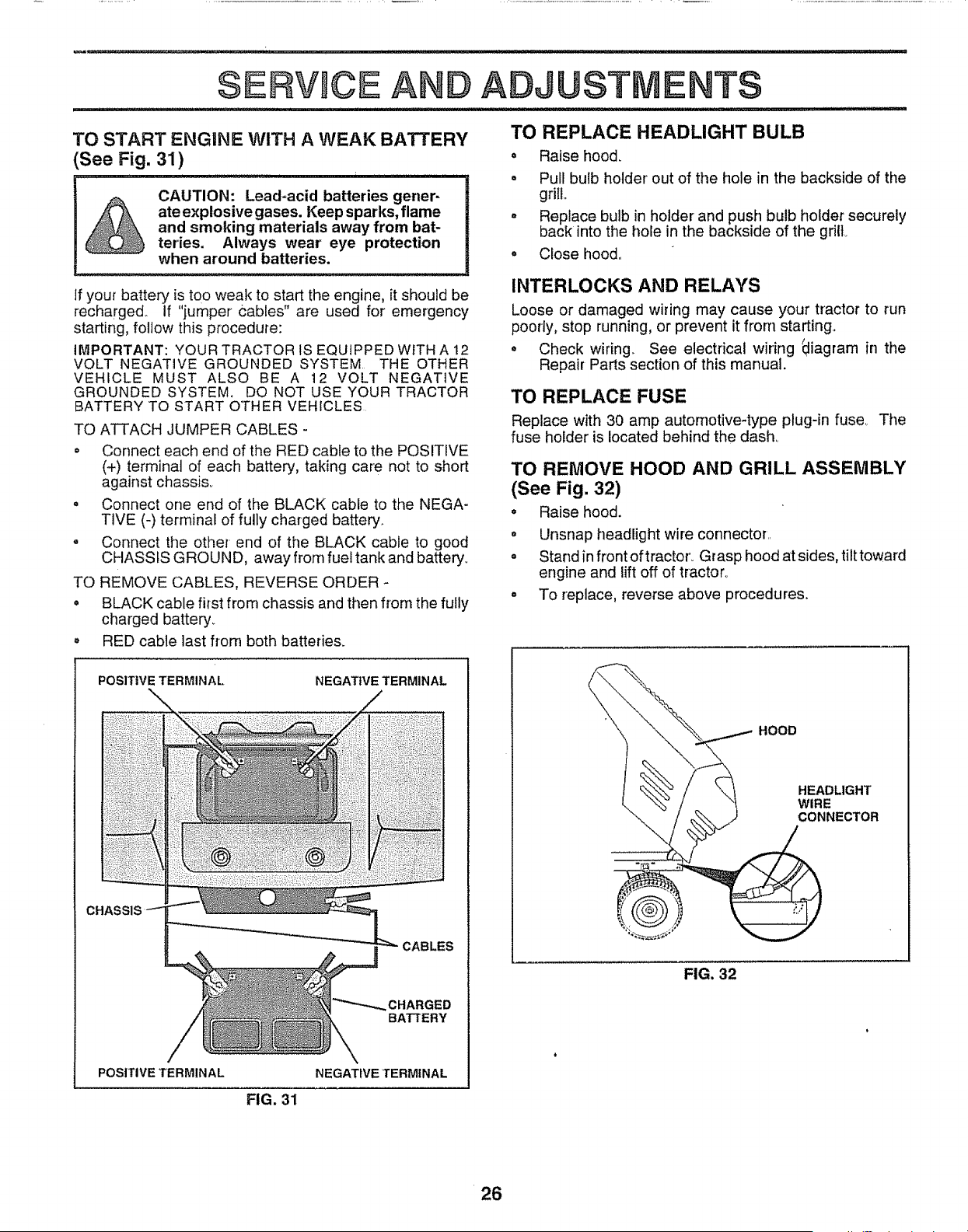

SERVmCE AND ADJUSTMENTS

TO START ENGINE WITH A WEAK BATTERY

(See Fig. 31)

' i ill ll,n i i,lll i

TO REPLACE HEADLIGHT BULB

o Raise hoo&

• PuLlbulb holder' out of the hole in the backside of the

grJE

- Replace bulb in holder and push bulb holder securely

back into the hole in the backside of the grill

o Close hood.,

tf your battery is too weak to start the engine, it should be

recharged.. If "jumper Cables" are used for emergency

starting, follow this procedure:

IMPORTANT: YOUR TRACTOR tS EQUIPPED WiTH A 12

VOLT NEGATIVE GROUNDED SYSTEM THE OTHER

VEHICLE MUST ALSO BE A 12 VOLT NEGATIVE

GROUNDED SYSTEM, DO NOT USE YOUR TRACTOR

BATTERY TO START OTHER VEHICLES

TO ATTACH JUMPER CABLES -

= Connect each end of the RED cable to the POSITIVE

(+) terminat of each battery, taking care not to short

against chassi&

° Connect one end of the BLACK cable to the NEGA-

TIVE (-) terminal of fully charged battery.

= Connect the other end of the BLACK cable to good

CHASSIS GROUND, away from fuel tank and battery°

TO REMOVE CABLES, REVERSE ORDER -

• BLACK cable first from chassis and then from the fully

charged battery_

o RED cable last from both batteries.

INTERLOCKS AND RELAYS

Loose or damaged wiring may cause your tractor to run

poorly, stop running, or prevent it from starting.,

• Check wiring.. See electrical wiring _iagram in the

Repair Parts section of this manual,

TO REPLACE FUSE

Replace with 30 amp automotive-type plug-in fuse, The

fuse holder is located behind the dash°

TO REMOVE HOOD AND GRILL ASSEMBLY

(See Fig. 32)

o Raise hood.

° Unsnap headlight wire connector,,

° Stand in frontoftractor_ Grasp hood atsides, tilttoward

engine and lift off of tractor_

° To replace, reverse above procedures.

POSITIVE TERMINAL

NEGATIVE TERMINAL

CHARGED

BATI'ERY

NEGATIVE TERMINAL

\ \

HOOD

HEADLIGHT

WIRE

CONNECTOR

FIG. 32

FIG. 31

ENGINE

SERVnCE

AND ADJUSTMENTS

TO ADJUST THROTTLE CONTROL CABLE

(See Fig. 33)

The throttle control has been preset at the factory and

adjustment should not be necessary. Check adjustment as

described below before loosening cable. If adjustment is

necessary, proceed as follows:

o With engine not running, move throttle control lever

from slow (._) to choke (1\I) position. Slowly move

lever from choke (N) to fast (,#_) position,.

o Check that holes "A" in governor control lever and hole

in governor plate tine-upo If holes "A" are not aligned,

loosen clamp screw and move throttle cable until holes

are aligned. Tighten clamp screw securely.

GOVERNOR

CONTROL PLATE

GOVERNOR

CONTROL LEVER

HOLES "A" CLAMP THROTTLE

SCREW CABLE

FINAL SETTING -

° Start engine and allowto warm for five minutes. Make

final adjustments with engine running and shift/motion

control lever in neutral (N) position_

° Move throttle control lever to slow (,_) position. With

finger, rotate and hold throttle lever against idle speed

screw. Turn idle speed screw to attain 1750 RPM.

o White still holding throttle lever against idle speed

screw, turn idle mixture valve in (clockwise) until en-

gine begins to die and then turn out (counterclockwise)

until engine runs rough° Turn valve to a point midway

between those two positions. Release throttle lever,.

ACCELERATION TEST -

° Move throttle control lever from slow (,e_) to fast (.f_)

position. If engine hesitates or dies, turn idle mixture

valve out (counterclockwise) 1/8 turn. Repeat test and

continue to adjust, if necessary, until engine acceler-

ates smoothly.

High speed stop is factory adjusted° Do not adjust -

damage may result,.

IMPORTANT: NEVER TAMPER WITH THE ENGINE

GOVERNOR, WHICH IS FACTORY SET FOR PROPER

ENGINE SPEED. OVERSPEEDING THE ENGINE ABOVE

THE FACTORY HIGH SPEED SETTING CAN BE

DANGEROUS,, tF YOU THINK THE ENGINE-GOVERNED

HIGH SPEED NEEDS ADJUSTING, CONTACT YOUR

NEAREST AUTHORIZED SERVICE CENTER/

DEPARTMENT, WHICH HAS PROPER EQUIPMENT AND

EXPERIENCE TO MAKE ANY NECESSARY

ADJUSTMENTS.

THROTTLE IDLE SPEED

LEVER SCREW

FIG. 33

TO ADJUST CARBURETOR (See Fig. 34)

The carburetor has been preset at the factory and adjust-

ment should not be necessary,. However, minor adjust-

ment may be required to compensate for differences in fuel,

temperature, altitude or load. If the carburetor does need

adjustment, proceed as follows:

In general, turning idle mixture valve in (clockwise) de-

creases the supply of fuel to the engine giving a leaner fuel/

air mixture. Turning the idle mixture valve out (counter-

clockwise) increases the supply of fuel to the engine giving

a richer fuel/air mixture.

IMPORTANT; DAMAGE TO THE NEEDLE VALVE AND

THE SEAT fN CARBURETOR MAY RESULT IF SCREW IS

TURNED IN TOO TtGHTr

PRELIMINARY SETTING -

- Air cleaner assembly must be assembled to the carbu-

retor when making carburetor adjustments°

° Be sure the throttle control cable is adjusted properly

(see above)°

o With engine off turn idle mixture valve in (clockwise)

closing it finger tight and then turn out (counterclock-

wise) 1 full turn,

IDLE MIXTURE

VALVE

FIG, 34

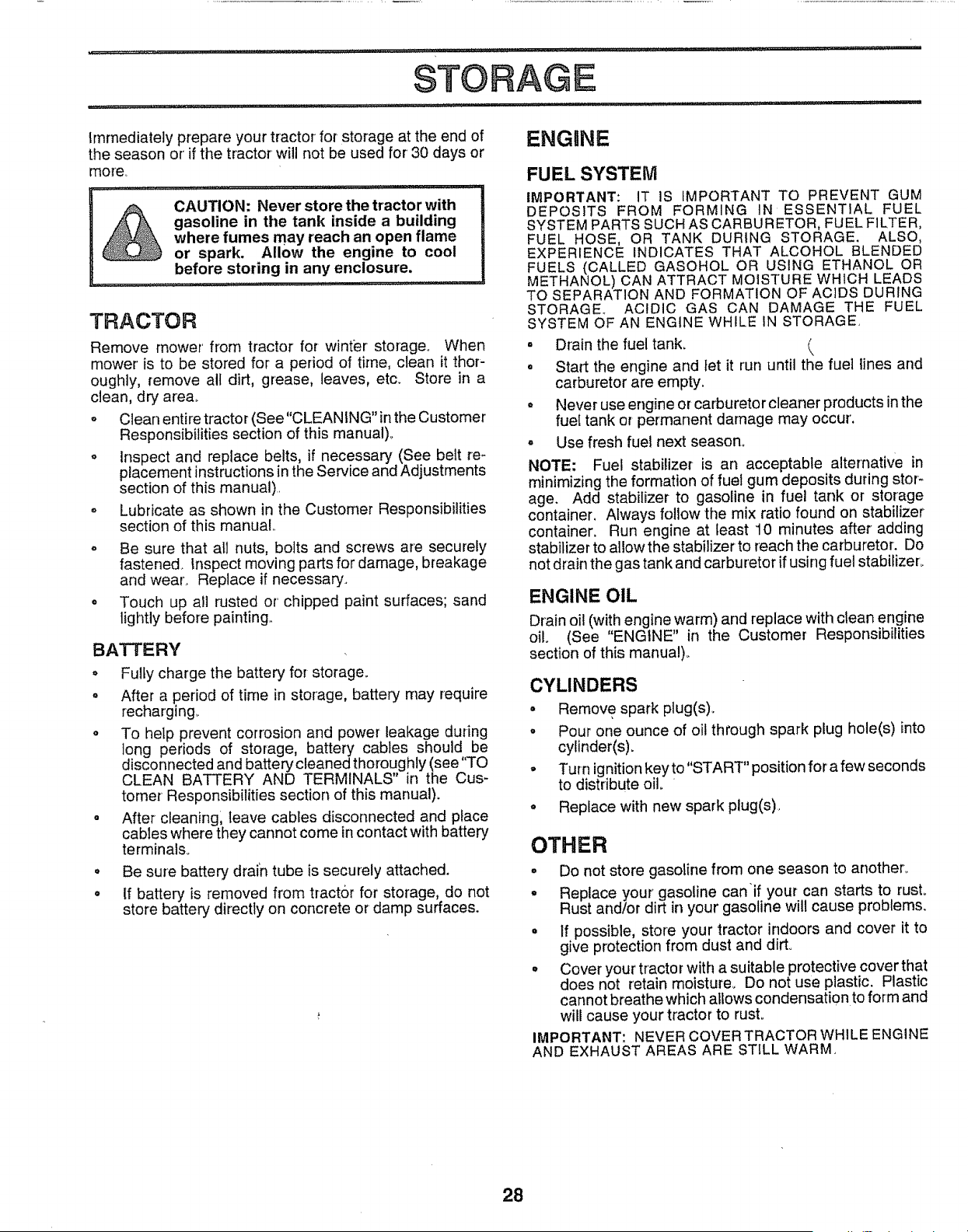

STORAGE

Immediately prepare your tractor for storage at the end of

the season or' if the tractor will not be used for 30 days or

CAUTION: Never store the tractor with

gasoline in the tank inside a building

where fumes may reach an open flame

or spark. Allow the engine to cool

before storing in any enclosure.

TRACTOR

Remove mower' from tractor for wint_,r storage. When

mower is to be stored for a period of time, clean it thor _

oughly, remove all dirt, grease, leaves, etc. Store in a

clean, dry area,.

o Clean entire tractor (See "CLEANING" in the Customer

Responsibilities section of this manual)..

. Inspect and replace belts, if necessary (See belt re-

placement instructions in the Service and Adjustments

section of this manual)..

o Lubricate as shown in the Customer Responsibilities

section of this manual.,

o Be sure that all nuts, bolts and screws are securely

fastened_ Inspect moving parts for damage, breakage

and wear. Replace if necessary.

o Touch up all rusted or' chipped paint surfaces; sand

lightly before painting.

BATTERY

o Fulfy charge the battery for storage.

. After a period of time in storage, battery may require

recharging_

o To help prevent corrosion and power leakage during

long periods of storage, battery cables should be

disconnected and battery cleaned thoroughly (see "TO

CLEAN BATTERY AND TERMINALS" in the Cus-

tomer Responsibilities section of this manual).

o After cleaningl teave cables disconnected and place

cables where they cannot come in contact with battery

terminals°

° Be sure battery drai'n tube is securely attached.

o If battery is removed from tractor for storage, do not

store battery directly on concrete or damp surfaces.

ENGONE

FUEL SYSTEM

IMPORTANT: IT iS IMPORTANT TO PREVENT GUM

DEPOSITS FROM FORMING IN ESSENTIAL FUEL

SYSTEM PARTS SUCH AS CARBURETOR, FUEL FILTER,

FUEL HOSE, OR TANK DURING STORAGE. ALSO,

EXPERIENCE INDICATES THAT ALCOHOL BLENDED

FUELS (CALLED GASOHOL OR USING ETHANOL OR

METHANOL) CAN ATTRACT MOISTURE WHICH LEADS

TO SEPARATION AND FORMATION OF ACIDS DURING

STORAGE. ACIDIC GAS CAN DAMAGE THE FUEL

SYSTEM OF AN ENGINE WHILE IN STORAGE.

• Drain the fuel tank_

o Start the engine and let it run until the fuel lines and

carburetor are empty.

° Never use engine or carburetorcleaner products in the

fuel tank or permanent damage may occur',

= Use fresh fuel next season.

NOTE: Fuel stabilizer is an acceptable alternative in

minimizing the formation of fuel gum deposits during stor_

age. Add stabilizer to gasoline in fuel tank or storage

container, Always follow the mix ratio found on stabilizer

container. Run engine at least 10 minutes after adding

stabilizer to allow the stabilizer to reach the carburetor. Do

not drain the gas tank and carburetor if using fuel stabilizer.

ENGINE OIL

Drain oil (with engine warm) and replace with clean engine

oil. (See "ENGINE" in the Customer Responsibilities

section of this manua!)_

CYLINDERS

• Remove spark plug(s)_

° Pour one ounce of oil through spark plug hole(s) into

cylinder(s).

• Turn ignitionkey to"START" position for a few seconds

to distribute oil '

° Replace with new spark plug(s),

OTHER

= Do not store gasoline from one season to another_

° Replace your gasoline canif your can starts to rust°

Rust and/or dirt in your gasoline will cause problems.

o If possible, store your tractor indoors and cover it to

give protection from dust and dirt°

° Cover your tractor with a suitable protective cover that

does not retain moisture_ Do not use plastic. Plastic

cannot breathe which allows condensation to form and

will cause your tractor to rust°

IMPORTANT: NEVER COVER TRACTOR WHILE ENGINE

AND EXHAUST AREAS ARE STILL WARM.

TROUBLESHOOTmNG POINTS

PROBLEM

Wi!l not start

Hard to start

Engine will not turn over

Engine clicks but will not

start

Loss of power

Excessive vibration ,

CAUSE

1 Out of fuel

2 Engine not "CHOKED" properly

3 Engine flooded

4 Bad spark plug

5 Dirty air filter,

6, Dirty fuel filter.

7, Water in fuel

8 Loose or damaged wiring,

9 Carburetor out of adjustment

!0 Engine valves out of adjustment,

t Dirty air filter.

2. Bad spark plug

3 Weak or dead batten/

4 Dirty fuel tilter

5 Stale or dirty fuel

6 Loose or damaged wiring..

7 Carburetor out of adjustment

8. Engine valves out of adjustment.

1 Clutch/brake pedal not depressed

2 Attachment clutch is engaged

3 Weak or dead battery

4 Blown fuse

5 Corroded battery terminals,

6 Loose or damaged wiring

7 Fautty ignition switch,

8, Faulty solenoid or starter

9,, Faulty operator presence switch(es)

1 Weak or dead battery.

2 Corroded battery terminals

3 Loose or damaged wiring

4, FauItysolenoid or staMer,

1 Cutting too much grass/too fast

2 Throttle in "CHOKE" position

3 Build-up of grass, leaves and trash under mower,

CORRECTION

t, Fill fuel tank,

2 See'TO START ENGINE" in Operation section

3 Wait several minutes before attempting to start

4 Replace spark plug

5 Clean/replace air filter

6, Replace fuel filter

7, Drain fuel tank and carburetor, refill tank with fresh

gasoline and replace fuel filter,

8 Check all wiring

9 See "To Adjust Carburetor" in Service Adjustments

section

t0 Contacl an authorized service center/department

t. Clean!replace air filter

2. Replace spark plug

3. Recharge or replace battery

4. Replace fuel filter

5. Drain fuel tank and refill with fresh gasoline.

6. Check all wiring

7. See "To Adjust Carburetor" in Service Adjustments

section

8 Contact an authorized service center/department

t Depress cfutch/brake pedal

2, Disengage attachment clutch

3. Recharge or replace battery

4 Replace fuse,

5 Clean battery terminals

6 Check all wiring

7 CheckJreplace ignition switch

8 Checldreplace solenoid or starter

9 Contact an authorized service center!department

t,, Recharge or replace battery

2 Clean battery terminals

3 Check all wiring

4 CheckJreptace solenoid or starter

4.. Dirty air filter

5 Low oil leve!/dirty oil

6 Faulty spark plug

7 Dirty fuet filter

8 Stale or dirty fuel

9. Water in fuel

10. Spark plug wire loose

11.. Dirty engine air screen/fins

12. Dirty/clogged muffler

I3 Loose or damaged wiring

14 Carburetor out of adjustment.

15, Engine valves out of adjustment

l, Worn, bent or loose blade

2 Bent biade mandrel

3 Loose/damaged part(s)

15,

1. Set in '*Higher Cut" position/reduce speed

2 Adjust throttle control

3 Clean underside of mower housing

4 Clean/replace air filter.

5 Check oil level/change oil.

6 Clean and regap or change spark ptug

7. Replace fuel filter

8. Drain fuel tank and refill with fresh gasoline.

9 Drain fuel tank and carburetor, refill tank with fresh

gasoline and replace fuel filter

10 Connect and tighten spark plug wire

It. Clean engine air screen/fins

!2. Clean/replace muffler

13 Check all wiring

14 See "To Adjust Carburetor" in Service Adjustments

section

Contact an authorized service center/department

Replace blade Tighten blade bolt

Replace blade mandrel..

Tighten loose part(s) Replace damaged parts.

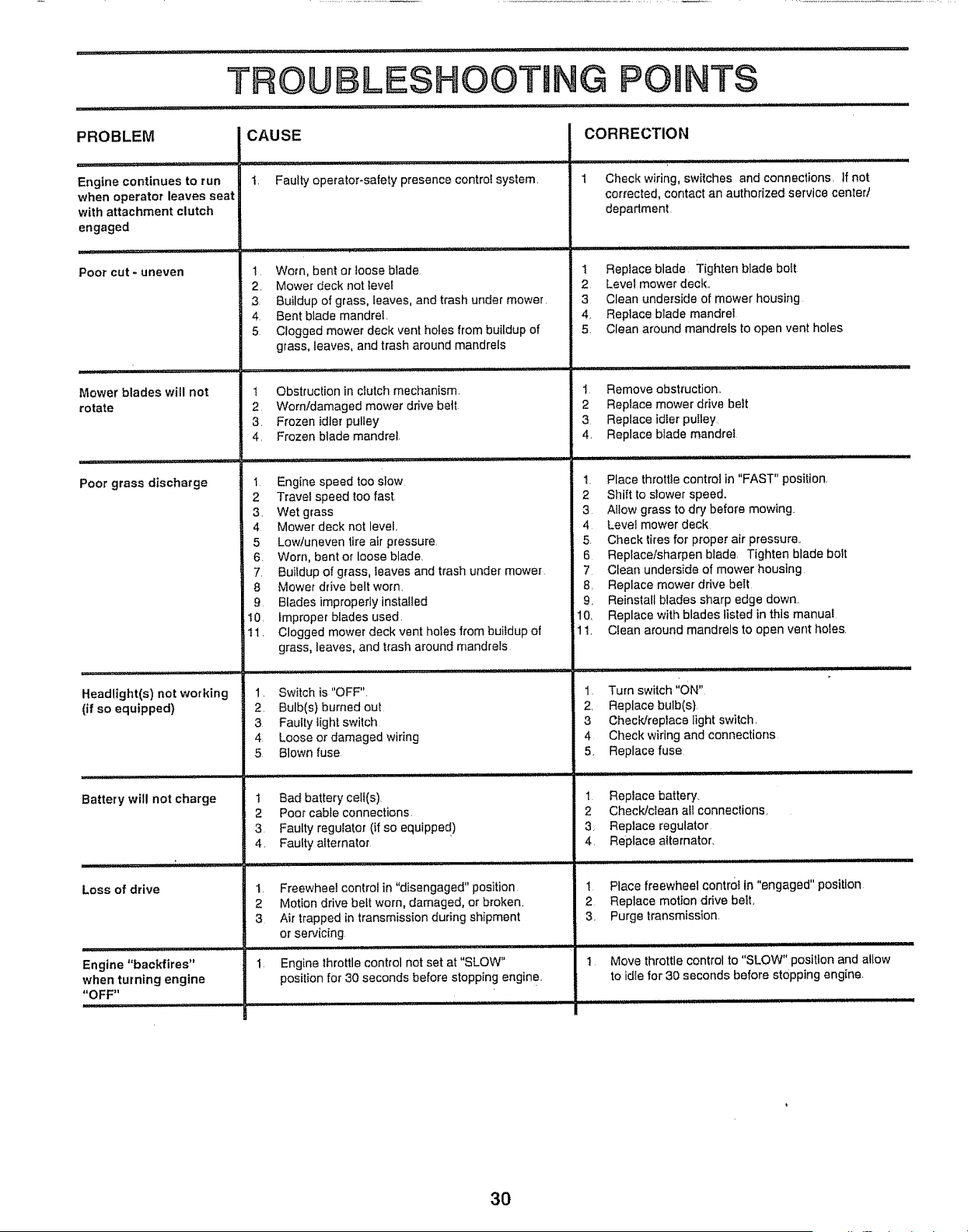

TROU

LESHOOTJ

G POMNTS

PROBLEM

Engine continues to run

when operator leaves seat

with attachment clutch

engaged

Poor cut * uneven

Mower blades will not

rotate

Poor grass discharge

CAUSE

,u................... iii , illll ii ,,,ll,,m

i. Faulty operator-safety presence control system.

,,, in. i i.

1 Worn, bent or loose blade

2. Mower deck nottevei

3 Buildup of grass, leaves, and trash under moweL

4 Bent blade mandrel.

5 Clogged mower deck vent holes from buildup of

grass, leaves, and trash around mandrels

! Obstruction in clutch mechanism,

2 Worn/damaged mower drive beff

3. Frozen idler pulley

4, Frozen blade mandrel,

1 Engine speed too stow

2 Travetspeed too fast.

3. Wet grass

4 Mower deck not level..

5 Low/uneven tire air pressure.

6. Worn, bent or loose blade.

7. Buildup of grass, leaves and trash under mower

8 Mower drive beltworn,

9 Blades improperly instaIled

t0 Improper blades used.

11. Clogged mower deck vent holes from buildup of

grass, leaves, and trash around mandrels

CORRECTION

1 Check wiring, switches and connections, If not

corrected, contact an authorized service center

depadment

t Replace blade Tighten blade bott

2 Level mower deck.

3 Clean underside of mower housing

4. Replace blade mandrel

5 Clean around mandrels to open vent holes

1 Remove obstruction..

2 Replace mower drive belt

3 Replace idler pulley

4. Replace blade mandrel

t. Place throttle control in "FAST" position.

2 Shift to slower speed.

3 Allow grass to dry before mowing.

4 Level mower deck

5. Check tires for proper air pressur&

6 Replace/sharpen blade Tighten blade bolt

7 Clean underside of mower housing

8, Replace mower drive beit

9, Reinstall blades sharp edge down.

10, Replace with blades listed in this manual

i!. Clean around mandrels to open vent holes.

Headlight(s) not working

(if so equipped)

//ul,Jl,i

Battery will not charge

1. Switch is "OFF"

2 Bulb(s) burned out

3 Faulty light switch

4 Loose or damaged wiring

5 Blown fuse

1 Bad battery cell(s).

2 Poor cable connections

3 Faulty regulator (if so equipped)

4. Faulty alternator

1 Turn switch "ON"

2 Replace bulb(s)

3 Ohecidreplace light switch.

4 Check wiring and connections

5, Replace fuse

t Replace battery.

2 Check/clean all connections.

3. Replace regulator

4 Replace al{ernator.

..................... i uu ii lllllllll,llu

Loss of drive

Engine "backfires"

when turning engine

"OFF"

1 Freewheel control in "disengaged" position

2 Motion drive belt worn, damaged, or broken.

3 Air trapped in transmission during shipment

or servicing

Engine throttle control not set at "SLOW"

position for 30 seconds before stopping engine..

1 Place freewheel contr01 in "engaged" position

2 Replace motion drive belt,

3. Purge transmission.

1 Move throttle control to "SLOW" position and allow

to idle for 30 seconds before stopping engine.

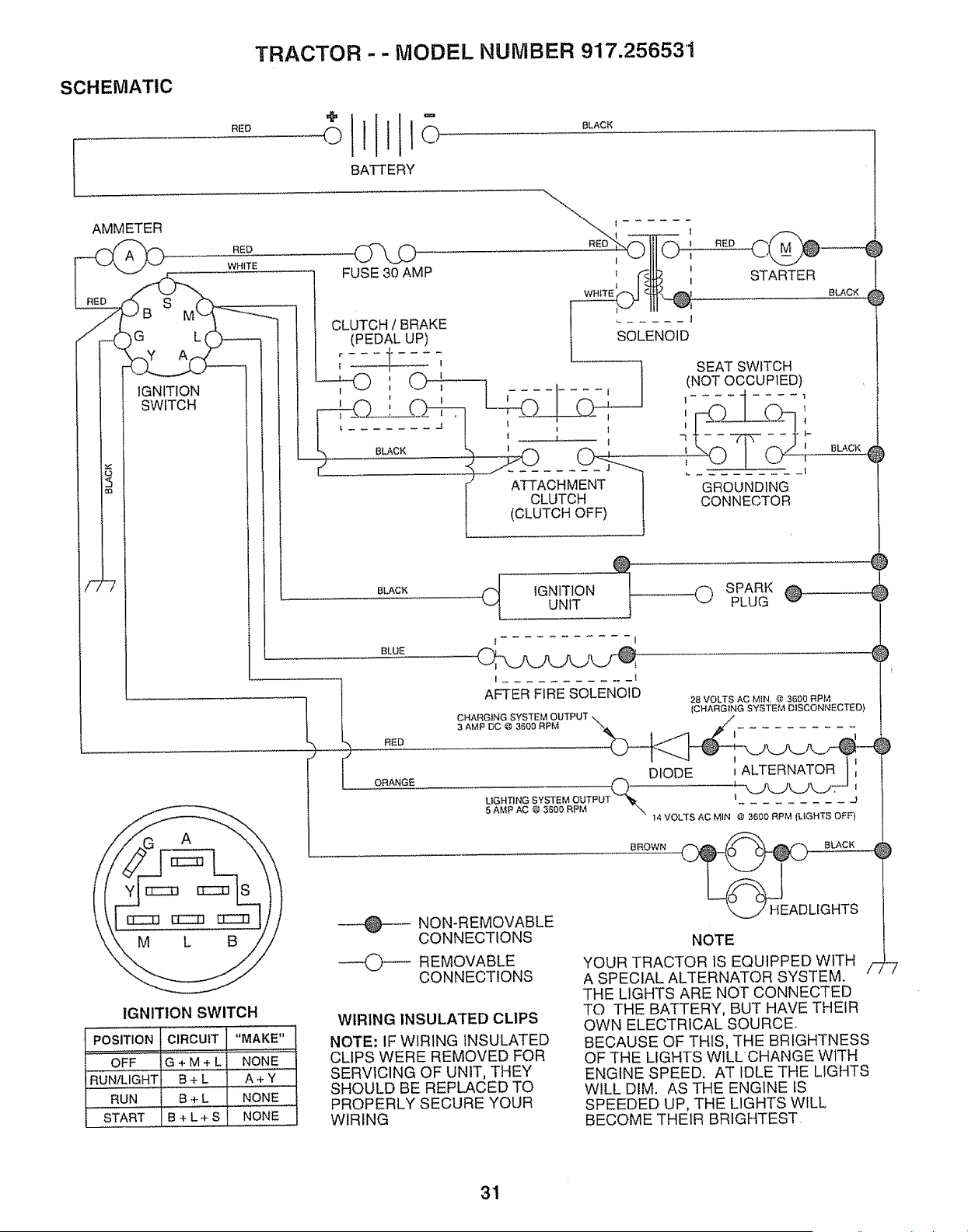

TRACTOR - - MODEL NUMBER 917.256531

SCHEMATIC

RED

BATTERY

BLACK

AMMETER

R_ED _ RED

WHITE

FUSE 3OAMP

CLUTCH / BRAKE

(PEDAL UP)

1 I

t ......

RED t

WHITE t I

_ ..... J

SOLENOID

RED

STARTER

BLACK

SEAT SWITCH

_--'_) , O-_l I ] , , (NOT OCCUPIED) ,

i " i-^7.-- t ',.... ',..... ', , g

[ ATTACHMENT } GROUNDING

CWTCH I CONNECTOR

[ (CLUTCH OFF) j

BLACK

(_ IGNITION i O SPARK @

UNIT PLUG

BLUE

RED

ORANGE

O_,_LLLS¢,

I _!

AFTER FIRE SOLENOID

28 VOLTS AC MIN, @ 3600 RPM

CHARGING SYSTEM OUTPUT _. (CHARGING/SYSTEM'DISCONNECTED)

aAMPoC_ 3600RP_ ".,. ./ ..........

5AMPAC@3BOORP _" 14VOL_SACMIN @ 3600RPM(UGHTSOFF)

NON-REMOVABLE

CONNECTIONS

BROWN

IGNITION SWITCH

POSITION CIRCUIT "MAKE"

OFF i G+M+Li NONE

RUN/LIGHT B + L A + Y

RUN B + L NONE

START B + L + S NONE

---O--- REMOVABLE

CONNECTIONS

WIRING INSULATED CLIPS

NOTE

YOUR TRACTOR 1SEQUIPPED WITH

A SPECIAL ALTERNATOR SYSTEM,

THE LIGHTS ARE NOT CONNECTED

TO THE BATTERY, BUT HAVE THEIR

OWN ELECTRICAL SOURCE°

/77

NOTE: IF WIRING INSULATED

CLIPS WERE REMOVED FOR

SERVICING OF UNIT, THEY

SHOULD BE REPLACED TO

PROPERLY SECURE YOUR

WIRING

BECAUSE OF THIS, THE BRIGHTNESS

OF THE LIGHTS WILLCHANGE WITH

ENGINE SPEED, AT IDLE THE LIGHTS

WILL DIM, AS THE ENGINE IS

SPEEDED UP, THE LIGHTS WILL

BECOME THEIR BRIGHTEST,

REPAIR PARTS

TRACTOR - - MODEL NUMBER 917.256531

ELECTRICAL

22 21

,t \

I I

| t I

I t I

I t !

I /!

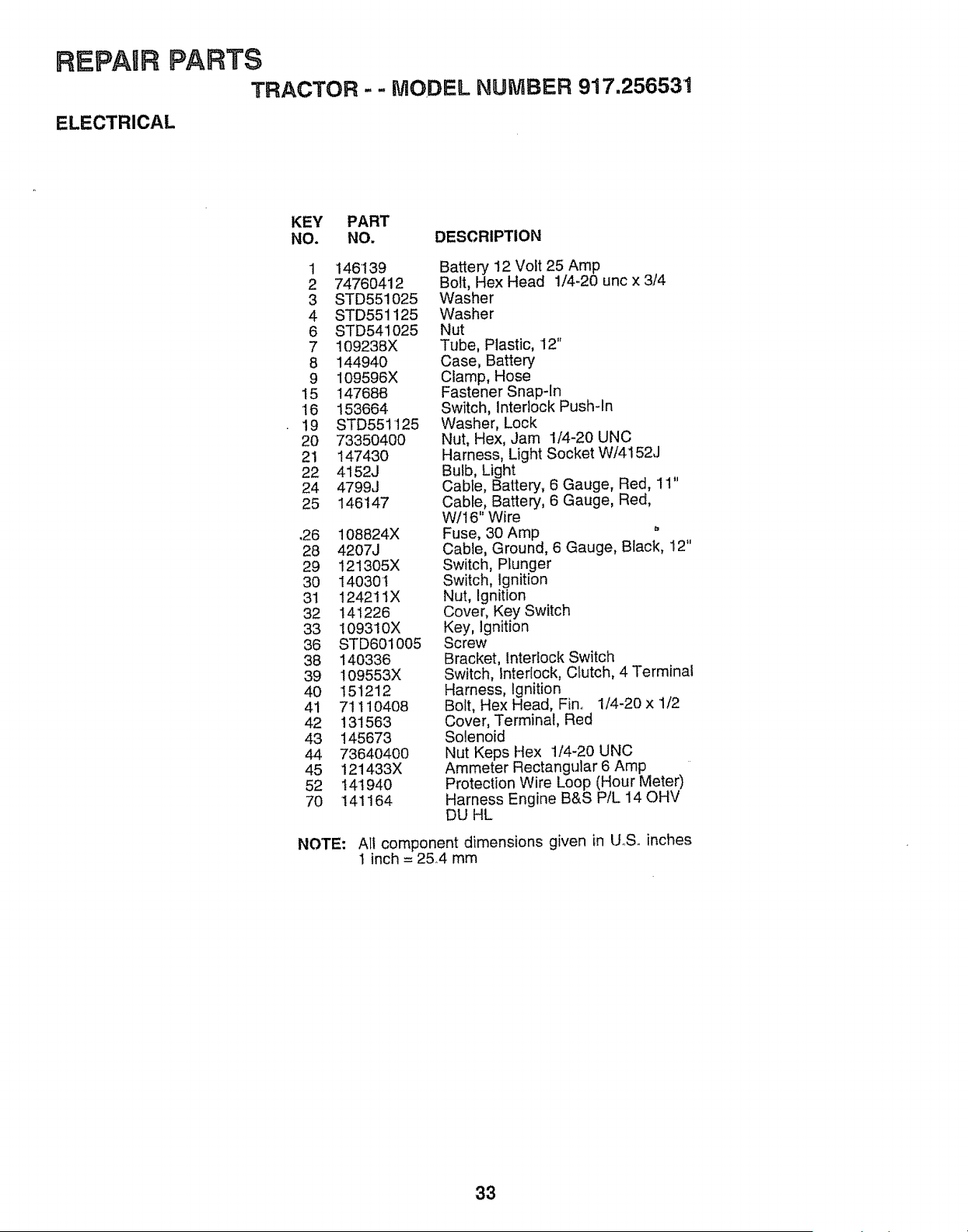

Rn=PAWRPARTS

TRACTOR -- MODEL NUMBER 917.256531

ELECTRICAL

KEY PART

NO. NO. DESCRIPTION

1 146139 Battery 12 Volt 25 Amp

2 74760412 Bolt, Hex Head 1/4-20 unc x 3/4

3 STD551025 Washer

4 STD551125 Washer

6 STD541025 Nut

7 109238X Tube, Plastic, 12"

8 144940 Case, Battery

9 109596X Clamp, Hose

15 147688 Fastener Snap-In

16 153664 Switch, Interlock Push-In

19 STD551125 Washer, Lock

20 73350400 Nut, Hex, Jam 1/4-20 UNC

21 147430 Harness, Light Socket W/4152J

22 4152J Bulb, Light

24 4799J Cable, Battery, 6 Gauge, Red, 11"

25 146147 Cable, Battery, 6 Gauge, Red,

W/16" Wire

,26 108824X Fuse, 30 Amp

28 4207J Cable, Ground, 6 Gauge, Black, !2"

29 121305X Switch, Plunger

30 14030I Switch, Ignition

31 124211X Nut, Ignition

32 141226 Cover, Key Switch

33 109310X Key, Ignition

36 STD601005 Screw

38 140336 Bracket, Interlock Switch

39 109553X Switch, Interlock, Crutch, 4 Terminal

40 151212 Harness, Ignition

41 71110408 Bolt, Hex Head, Fin,, 1/4-20 x 1/2

42 131563 Cover, Terminal, Red

43 145673 Solenoid

44 73640400 Nut Keps Hex 1/4-20 UNC

45 121433X Ammeter Rectangular 6 Amp

52 141940 Protection Wire Loop (Hour Meter)

70 141164 Harness Engine B&S P/L 14 OHV

DU HL

NOTE: All component dimensions given in tJ_S. inches

t inch = 25°4 mm

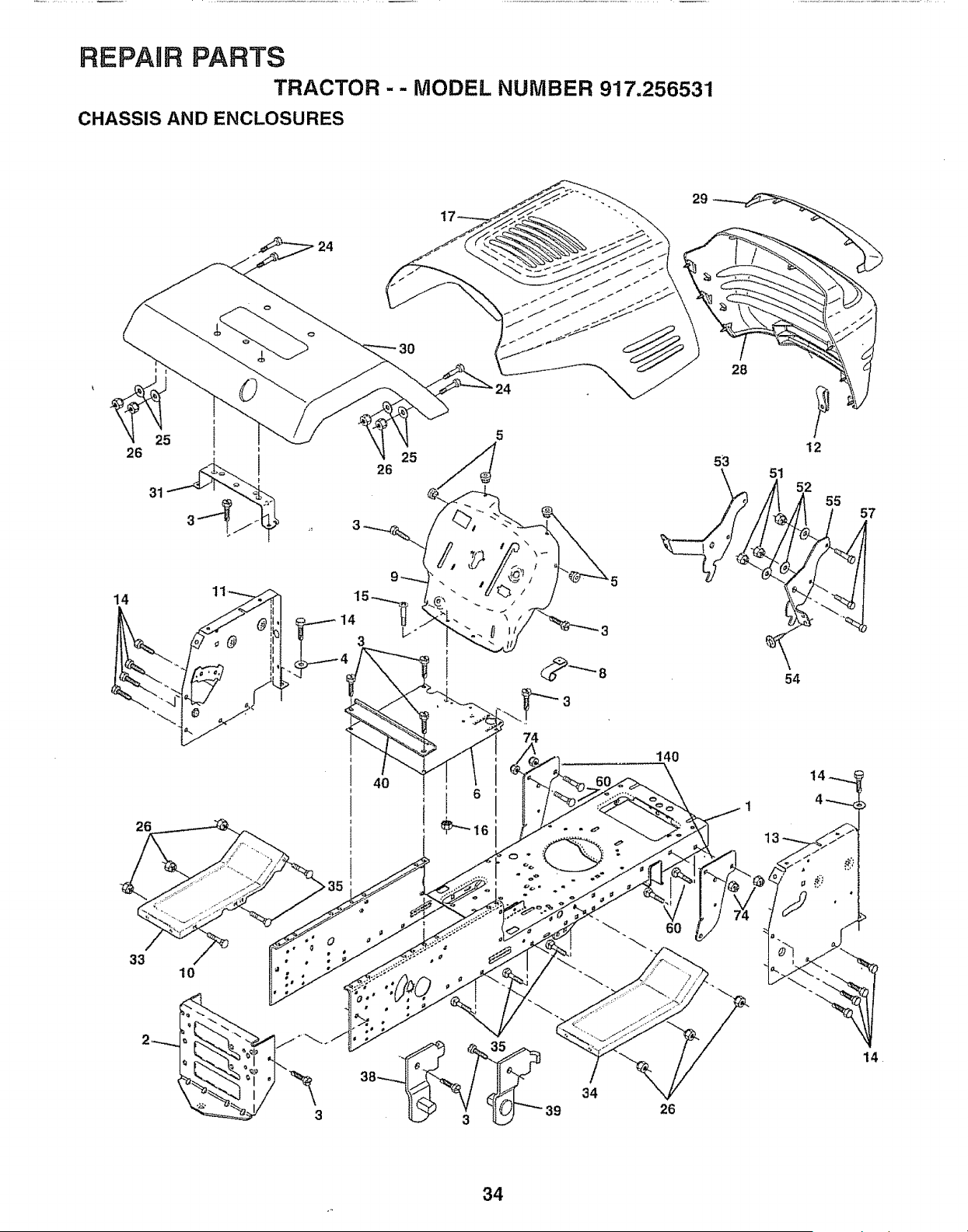

REPAUR PARTS

TRACTOR - - MODEL NUMBER 917,256531

CHASSIS AND ENCLOSURES

140

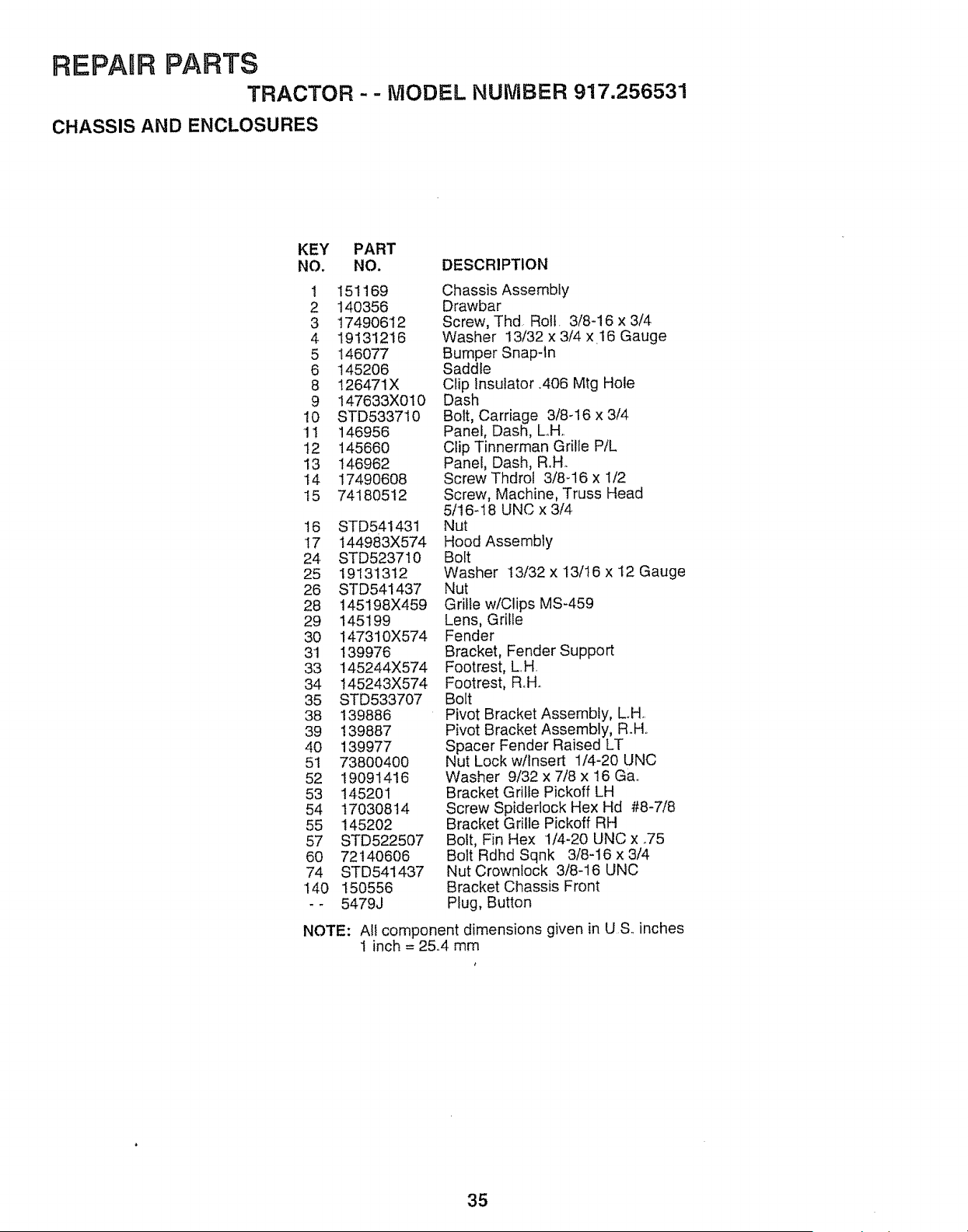

REPAIR PARTS

TRACTOR - - MODEL NUMBER 917.256531

CHASSIS AND ENCLOSURES

KEY PART

NO. NO. DESCRIPTION

1 151169

2 14O356

3 17490612

4 19131216

5 146077

6 145206

8 126471X

9 147633X010

10 STD533710

11 146956

12 145660

13 146962

14 17490608

15 74180512

16 STD541431

17 144983X574

24 STD523710

25 19131312

26 STD541437

28 145198X459

29 145199

30 147310X574

31 139976

33 145244X574

34 145243X574

35 STD533707

38 139886

39 139887

40 139977

51 738OO4OO

52 19091416

53 1452O1

54 17030814

55 145202

57 STD522507

60 72140606

74 STD541437

140 150556

-_ 5479J

Chassis Assembly

Drawbar

Screw, Thd Roll 3/8-16 x 3/4

Washer 13/32 x 3/4 x16 Gauge

Bumper Snap-tn

Saddle

Clip Insulator 406 Mtg Hole

Dash

Bolt, Carriage 3/8-16 x 3/4

Panel, Dash, LH.

Clip Tinnerman Grille P/L

Panel, Dash, R.H.

Screw Thdrol 3/8q6 x 1/2

Screw, Machine, Truss Head

5/16-18 UNC x 3/4

Nut

Hood Assembly

Bolt

Washer 13/32 x 13/16 x 12 Gauge

Nut

Grille w/Clips MS-459

Lens, Grille

Fender

Bracket, Fender Support

Footrest, L H

Footrest, R_H_

Bolt

Pivot Bracket Assembly, LH

Pivot Bracket Assembly, Roll

Spacer Fender Raised LT

Nut Lock w/Insert 1/4-20 UNC

Washer 9/32 x 7/8 x 16 Ga

Bracket Grille Pickoff LH

Screw Spidedock Hex Hd #8-7/8

Bracket Grille Pickoff RH

Bolt, Fin Hex 1/4-20 UNC x .75

Bolt Rdhd Sqnk 3/8-16 x 3/4

Nut Crownlock 3/8-16 UNC

Bracket Chassis Front

PIug, Button

NOTE: Al! component dimensions given in U S.. inches

1 inch = 25.4 mm

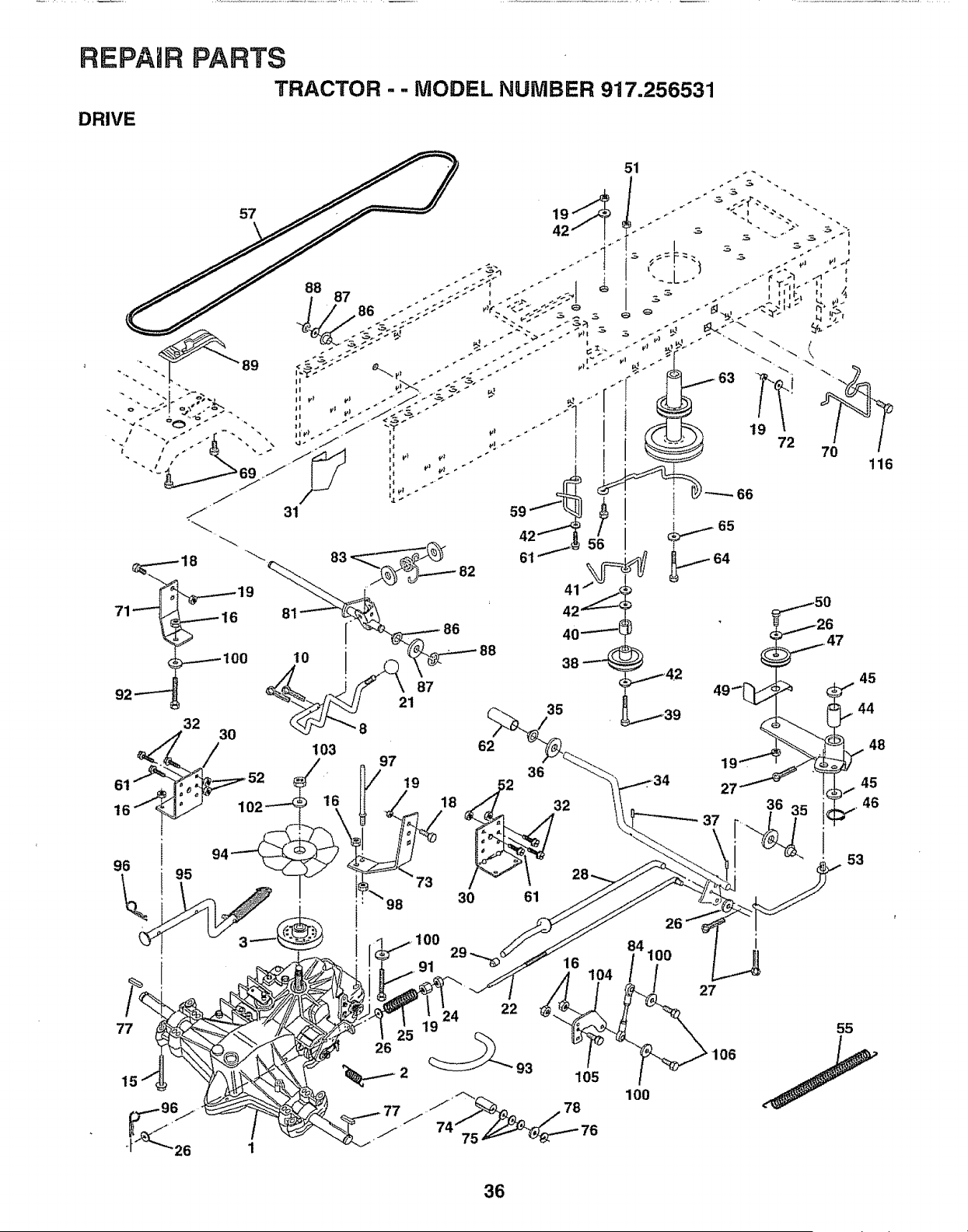

REPAIR PARTS

TRACTOR - - MODEL NUMBER 917.256531

DRIVE

".L 69 /

J_ 31

105

100

REPAIR

DRIVE

PARTS

TRACTOR - - I ODF:L NUMBER 917.256531

KEY

NO.

PART

NO.

150071

142431

143995

141003

76020416

7449O544

73800500

74780616

73800600

130564

145627

73350600

106888X

19131316

76020412

145204

124236X

130807

127275X

747605'12

151128

120183X

19211616

1572H

123674X

74760644

4470J

153399

19131312

t 05706X

110812X

12000039

127783

123789X

123205X

74760624

73680600

73680500

105710X

105709X

74760620

140294

KEY PART

DESCRIPTION NO. NO. DESCRIPTION

Transaxte Assembly

Spring, Return, Brake

Pulley, Transaxle

Rod Shift Hydro LT

Pin Cotter t/8 x I CAD

Bolt Hex Flghd 5/16-18 Gr.5

Nut Lock Hex W/ins.. 5/16-18 Unc

Bolt Fin Hex 3/8q6 Unc x 1 Gr. 5

Nut Lock Hex W/Wsh 3/8-16 Unc

Knob, Deluxe 1/2-13

Rod, Brake Hydro

Nut, Hex Jam 3/8-16 Unc

Spring, Brake Rod

Washer

Pin Cotter 1/8 x 3/4 CAD.

Rod, Parking Brake

Cap, Parking Brake

Bracket, Transaxle

Keeper Belt Lh

Bolt Hex Hd 5/16-18 Unc x 3/4

Shaft, Foot Pedal

Bearing, Nylon

Washer

Pin, Roll

Pulley, idler, Flat

Bolt

Spacer, Split

Keeper, Belt idler

Washer 13/32 x 13/16 x 12 Gauge

Bearing, Nylon

Washer, Hardened

Ring, Klip

Pulley, idler, V-Groove

Bellcrank Assembly

Retainer, Belt

Bolt

Nut Crownlock 3/8-16 UNC

Nut, Crownlock 5/16-18 Unc

Link, Clutch

Spring, Return, Clutch

Bolt Hex 3/8-16 x 1-1/4

V-Belt, Ground Drive

59 140312

61 17490612

62 8883R

63 140186

64 7117O764

65 10040700

66 153400

69 142432

70 134683

71 140158

72 19132012

73 140157

74 121199X

75 121749X

76 12000001

77 123583X

78 121748X

81 140154

82 123782X

83 19171216

84 _40548

86 71208

87 19212016

88 12000008

89 151147

91 74780536

92 74780524

93 142564

94 140462

95 144643

96 4497H

97 140469

98 73510600

100 19111216

102 141322

103 73940800

104 140156

105 71070516

106 74780520

116 72110610

Keeper, Center Span

Screw Thdrol. 3/8-16 x 3/4 Ty.. 77

Cover, Pedal

Pulley, Engine

Bolt, Hex 7/16-20 x 4 Gr_ 5

Washer

Keeper Belt Engine Mch F_proof

Screw

Keeper Belt Engine

Strap Torque Lh Hydro 18/20" T

Washer 13/32 x 1-1/4 x 12 Gauge

Strap Torque Rh Hydro 18/20" T

Spacer, Split

Washer 25/32 x 1-1/4 x 16 Gauge

E-Ring

Key, Square

Washer 25/32 x 1-5/8 x 16 Gauge

Shaft Asm. Cross Hydro 20" Tires

Spring Torsion T/A

Washer !7/32 x 3/4 x 16 Ga..

Rod, Tie Hydro 20" Tires

Bushing Rod Strig.. 629/632 ID

Washer 21/32 x 1-1/4 x 16 Ga_

Ring Kiip #5304-62

Console, Shift

Bolt Fin Hex 5/16_18 x 2-'1/4

Bolt Fin Hex 5/6-18 Unc x 1-'I/2

Line Fuel Hydro 4"

Fan, Hydro 7

Controf Bypass Hydro 20" Tires

Retainer Spring 1" ZinctCad

Keeper Bolt Rh Hydro 0750. t8/20"

Nut Keps Hex 3/8-16 Unc

Washer 11/32 x 3/4 x 16 Ga.

Washer Beilville _501D x 1o50D

Nut Hex Jam Top_ock 1/4-20 Unf

Arm, Control Hydro

Screw Cap Hex 5/16 x 18 x 1

Bolt Fin Hex 5/16-18 Unc x 1-1/4

Bolt Rdhd Sqnk 3/8-16 x 1.25

NOTE: All component dimensions given in UoS,,inches

1 inch = 25.,4 mm

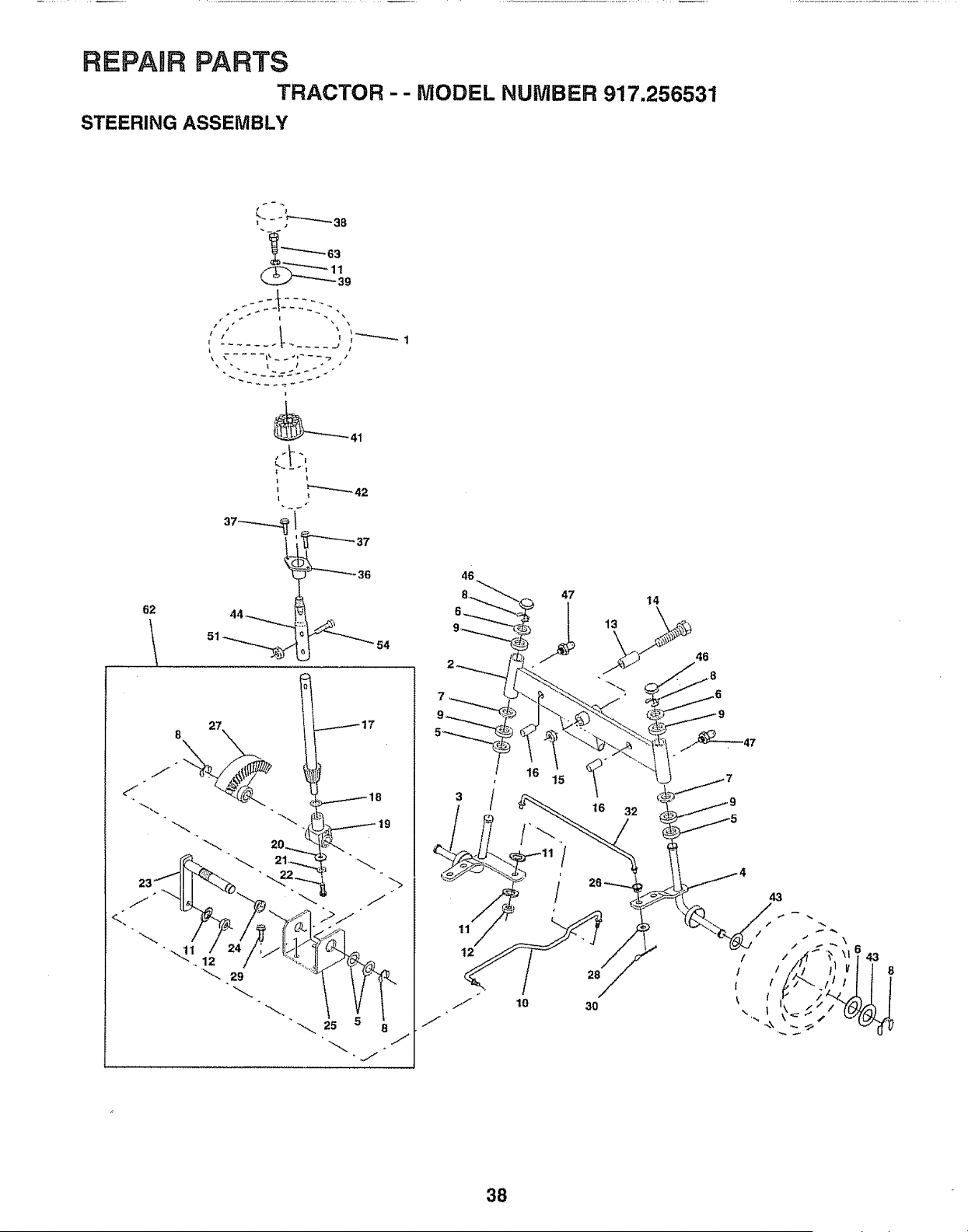

REPAUR PARTS

TRACTOR-- MODEL NUMBER 917.256531

STEERING ASSEMBLY

_ t

16 32

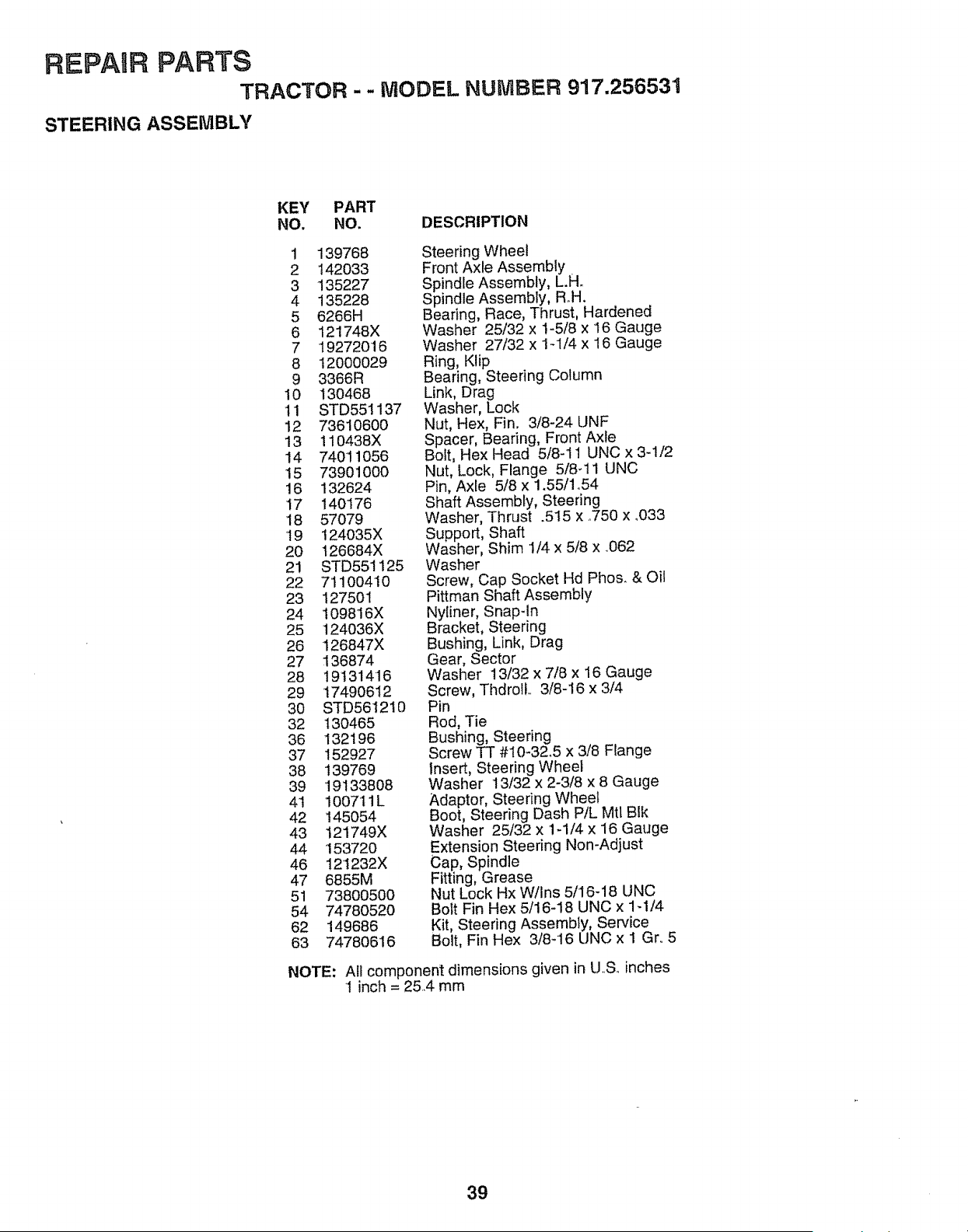

REPAnR PARTS

TRACTOR -- MODEL NUMBER 917.256531

STEERING ASSEMBLY

KEY PART

NO. NO. DESCRIPTION

1 139768

2 142033

3 135227

4 135228

5 6266H

6 121748X

7 19272016

8 12000029

9 3366R

10 130468

11 STD551137

12 73610600

13 110438X

14 74011056

15 73901000

16 132624

17 140176

18 57079

19 124035X

20 126684X

21 STD551125

22 7'1100410

23 127501

24 109816X

25 124036X

26 126847X

27 136874

28 19t31416

29 17490612

30 STD5612t0

32 130465

36 132196

37 152927

38 139769

39 19133808

41 100711L

42 145054

43 121749X

44 153720

46 12t232X

47 6855M

51 73800500

54 74780520

62 149686

63 74780616

Steering Wheel

Front Axle Assembly

Spindle Assembly, L.H.

Spindle Assembly, Roll.

Bearing, Race, Thrust, Hardened

Washer 25/32 x I-5/8 x 16 Gauge

Washer 27/32 x 1-1/4 x 16 Gauge

Ring, Klip

Bearing, Steering Column

Link, Drag

Washer, Lock

Nut, Hex, Fin. 3/8-24 UNF

Spacer, Bearing, Front Axle

Bolt, Hex Head 5/8-11 UNC x 3-1/2

Nut, Lock, Flange 5/8_11 UNC

Pin, Axle 5/8 x 1.55/1 °54

Shaft Assembly, Steering

Washer, Thrust .515 x .750 x .033

Support, Shaft

Washer, Shim 1/4 x 5/8 x _.062

Washer

Screw, Cap Socket Hd Pho& & Oil

Pittman Shaft Assembly

Nyfiner, Snap-in

Bracket, Steering

Bushing, Link, Drag

Gear, Sector

Washer 13/32 x 7/8 x 16 Gauge

Screw, ThdrolL 3/8-16 x 3/4

Rod, Tie

Bushing, Steering

Screw TT #10-32o5 x 3/8 Flange

Insert, Steering Wheel

Washer 13/32 x 2-3/8 x 8 Gauge

Adaptor, Steering Wheel

Boot, Steering Dash P/L Mtl Blk

Washer 25/32 x 1-1/4 x 16 Gauge

Extension Steering Non-Adjust

Cap, Spindle

Fitting, Grease

Nut Lock Hx W/Ins 5/16q8 UNC

Bolt Fin Hex 5/16-18 UNC x 1-1/4

Kit, Steering Assembly, Service

Bolt, Fin Hex 3/8-16 UNC x 1 Gr.. 5

NOTE: Al! component dimensions given in US.. inches

! inch = 25.,4 mm

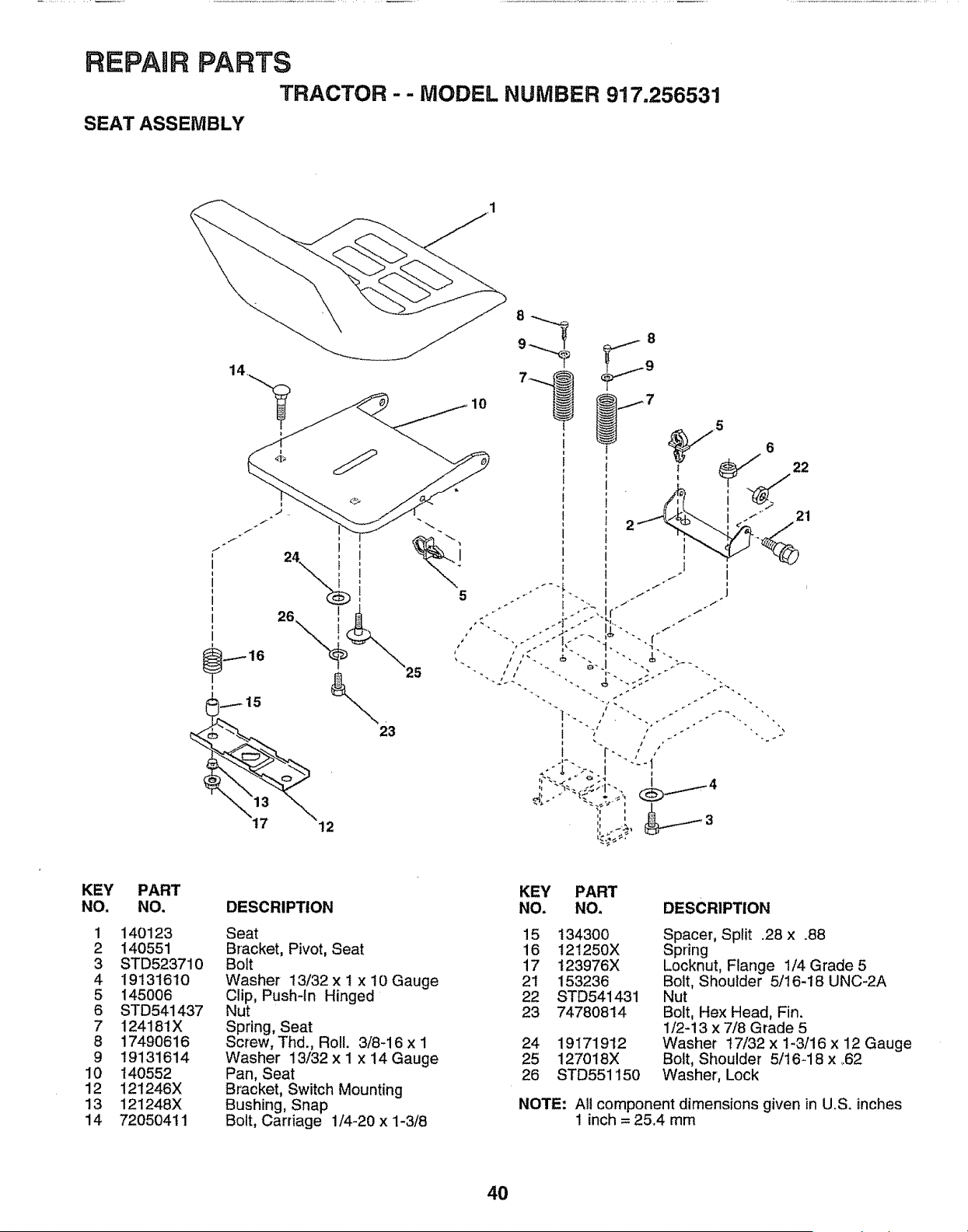

REPAaR PARTS

TRACTOR - - MODEL NUMBER 917.256531

SEAT ASSEMBLY

KEY

NO.

PART

NO.

140123

140551

STD523710

19131610

145006

STD541437

124181X

17490616

19131614

t40552

121246X

121248X

72050411

KEY PART

DESCRIPTION NO. NO, DESCRIPTION

Seat 15 134300

Bracket, Pivot, Seat 16 12t250X

Bolt 17 123976X

Washer t3/32 x 1 x 10 Gauge 21 153236

Clip, Push-ln Hinged 22 STD541431

Nut 23 74780814

Spring, Seat

Screw, Thd., Roll. 3/8-16 x 1 24 19171912

Washer 13/32 x I x 14 Gauge 25 127018X

Pan, Seat 26 STD551150

Bracket, Switch Mounting

Bushing, Snap

Bolt, Carriage 1/4-20 x 1-3/8

Spacer, Split .28 x .88

Spring

Locknut, Flange 1/4 Grade 5

Bolt, Shoulder 5/16-18 UNC-2A

Nut

Bolt, Hex Head, Fin.

1/2-13 x 7/8 Grade 5

Washer 17/32 x 1-3/16 x 12 Gauge

Bolt, Shoulder 5/16-18 x .62

Washer, Lock

NOTE: All component dimensions given in U.S. inches

1 inch = 25.4 mm

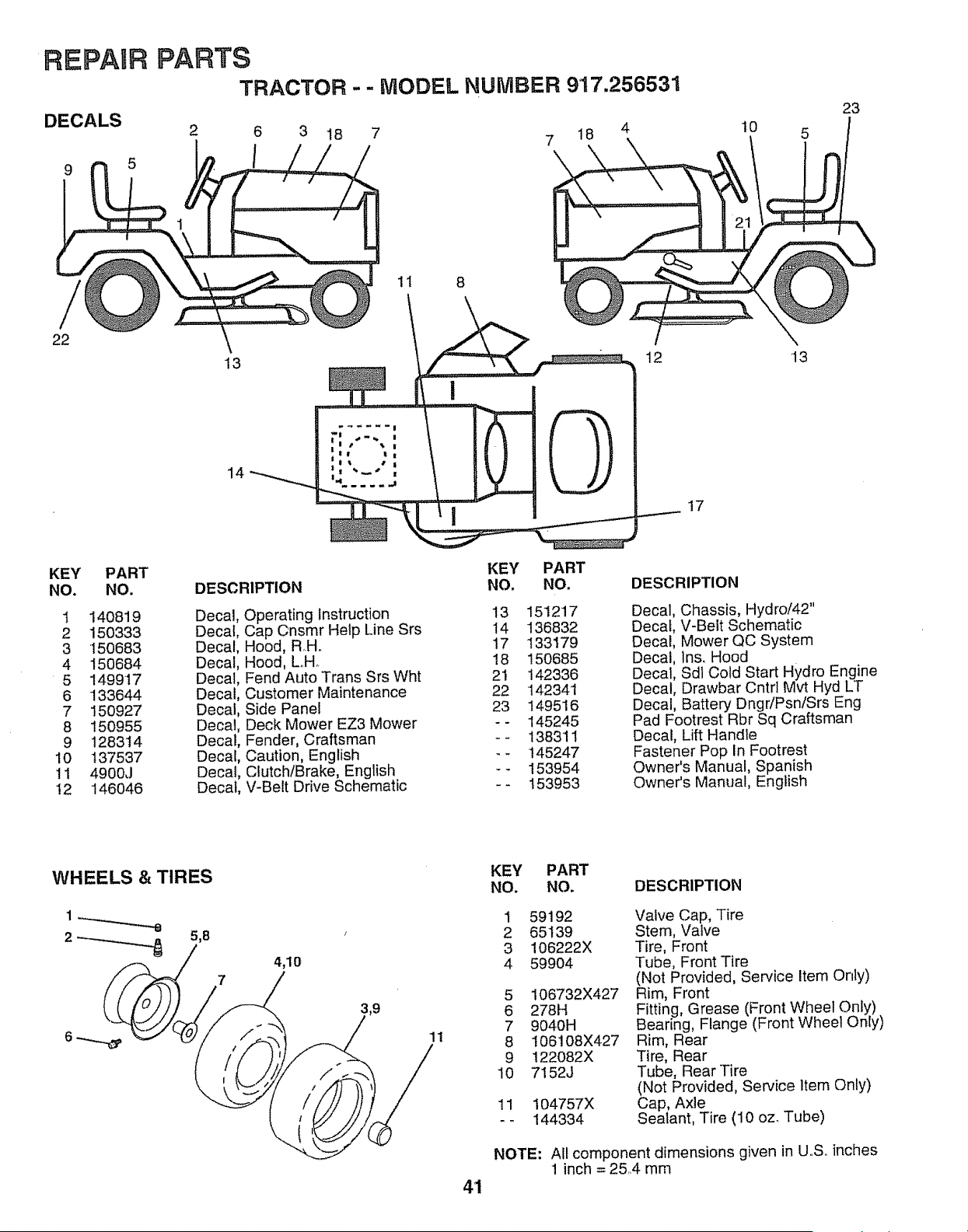

REPAnR

DECALS

9 5

PARTS

TRACTOR - - MODEL NUMBER 917.256531

2 6 3 18 7 7 18 4

11 8

KEY PART

NO. NO.

1 140819

2 150333

3 '150683

4 150684

5 1499!7

6 133644

7 150927

8 150955

9 128314

10 137537

11 4900J

!2 146046

KEY PART

DESCRIPTION NO. NO.

Decal, Operating instruction 13 151217

Decal, Cap Cnsmr Help Line Srs 14 136832

Decal, Hood, RH. 17 133179

Decal, Hood, LoHo 18 150685

Decal, Fend Auto Trans Srs Wht 21 142336

Decal, Customer Maintenance 22 1142341

Decal, Side Panel 23 149516

Decal, Deck Mower EZ3 Mower - - 145245

Decal, Fender, Craftsman -- 138311

Decal, Caution, English - - 145247

Decal, Clutch/Brake, English -- 153954

Decal, V-Belt Drive Schematic - - 153953

DESCRIPTION

Decal, Chassis, Hydro/42"

Deca_, V-Belt Schematic

Decal, Mower QC System

Decal, Ins. Hood

Decal, Sdl Cold Start Hydro Engine

Decal, Drawbar Cntr] Mvt Hyd LT

Decal, Battery Dngr/Psn/Srs Eng

Pad Footrest Rbr Sq Craftsman

Decal, Lift Handle

Fastener Pop In Footrest

Owner's Manual, Spanish

OwneCs Manual, English

WHEELS & TIRES

2 _.._ 5,8

4,10

KEY PART

NO. NO. DESCRIPTION

1 59192

2 65139

3 106222X

4 59904

5 106732X427

6 278H

7 9040H

8 !06108X427

9 122082X

10 7152J

11 104757X

-_ 144334

Valve Cap, Tire

Stem, Valve

Tire, Front

Tube, Front Tire

(Not Provided, Service Item Only)

Rim, Front

Fitting, Grease (Front Wheel Only)

Bearing, Flange (Front Wheel Only)

Rim, Rear

Tire, Rear

Tube, Rear Tire

(Not Provided, Service Item Only)

Cap, Axle

Sealant, Tire (10 oz. Tube)

NOTE: All component dimensions given in U.S. inches

1 inch = 25,,4 mm

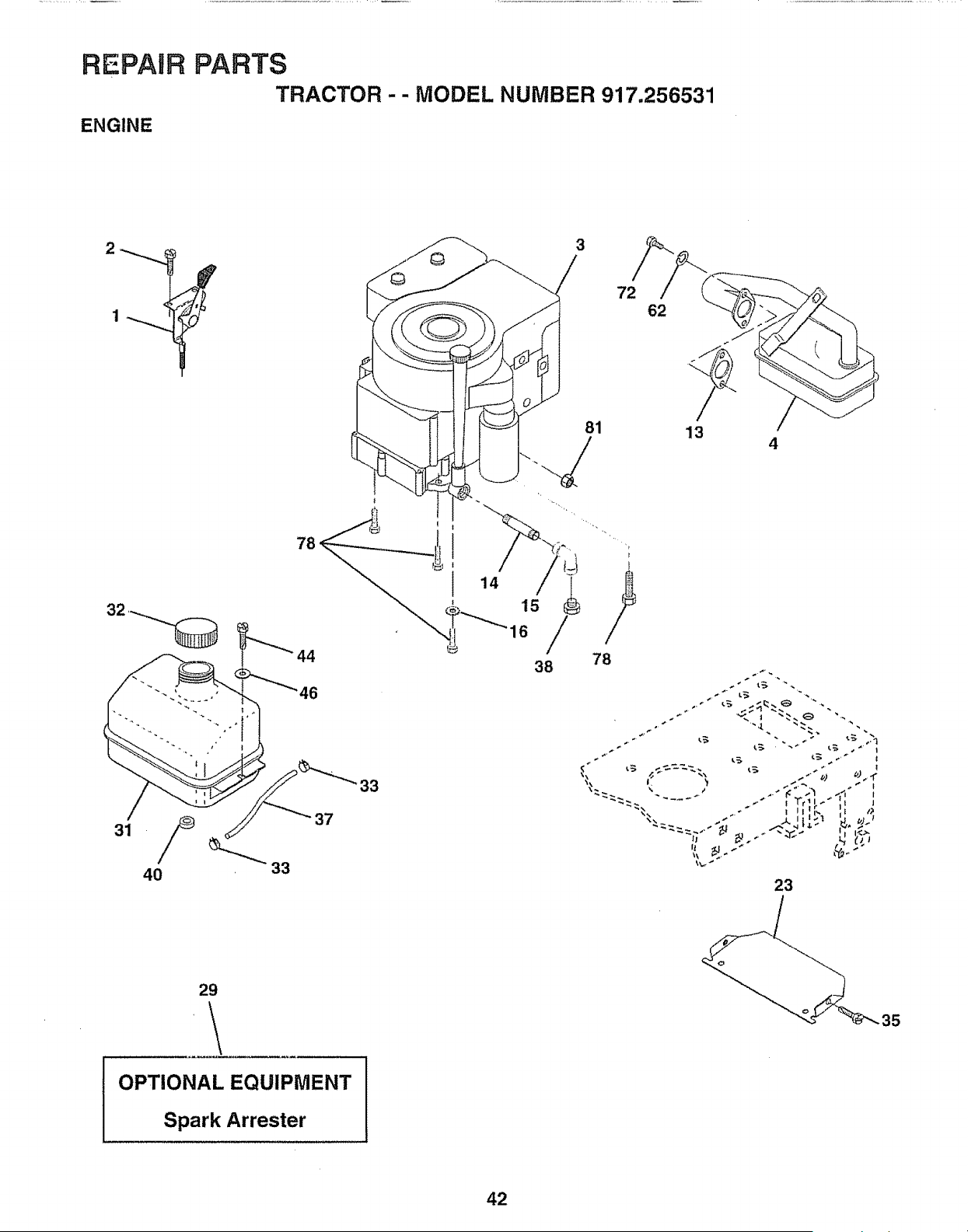

REPAIR PARTS

TRACTOR - - MODEL NUMBER 917.256531

ENGINE

'_ 15

38 78

OPTIONAL EQUIPMENT

Spark Arrester

REPAIR

ENGINE

PARTS

TRACTOR-- MODEL NUMBER 917.256531

KEY PART

NO. NO, DESCRIPTION

1 150600

2 17720410

3 150458

4 137352

13 272293

14 13280324

15 13200300

16 STD551237

23 15O554

29 137180

31 109202X

32 123549X

33 123487X

35 1749O512

37 13704O

38 -_-

40 I24028X

44 17490412

46 19091416

62 STD551131

72 7"1070512

78 17490620

8t 128861

Control, Throttle

Screw, Hex Head, Thread Cutting

1/4-20 x 5!8

Engine, B&S, t5.5Hp Diamond PLTM D

1 TB Model t'4o. 28N707,

Type NO. 0173-01

Muffler

Gasket, Exhaust

Nipple, Pipe 3/8 NPT x 3

Elbow, Standard 90 °, 3/8-18 NPT

Washer

Shield, Browning

Arrestor, Spark

Tank, Fuel

Cap Assembly, Fuel Tank, Vented

Clamp, Hose

Screw Thdrol 5/16-18 x 3/4

Line, Fuel

Plug, Oil Drain

(Order From Engine Manufacturer)

Bushing, Snap, Fuel Line

Screw, Hex Washer Head, Thd., Rollo

1/4-20 x 3/4

Washer 9/32 x 7/8 x !6 Gauge

Washer, Lock

Screw, Hex Cap Head 5/16-18 x 3/4

Screw, Thd., Roll. 318-16 x 1-I14

Nut Flange t/4-20 Starter Nut

NOTE: Al! component dimensions given in U.So inches

1 inch = 25_4 mm

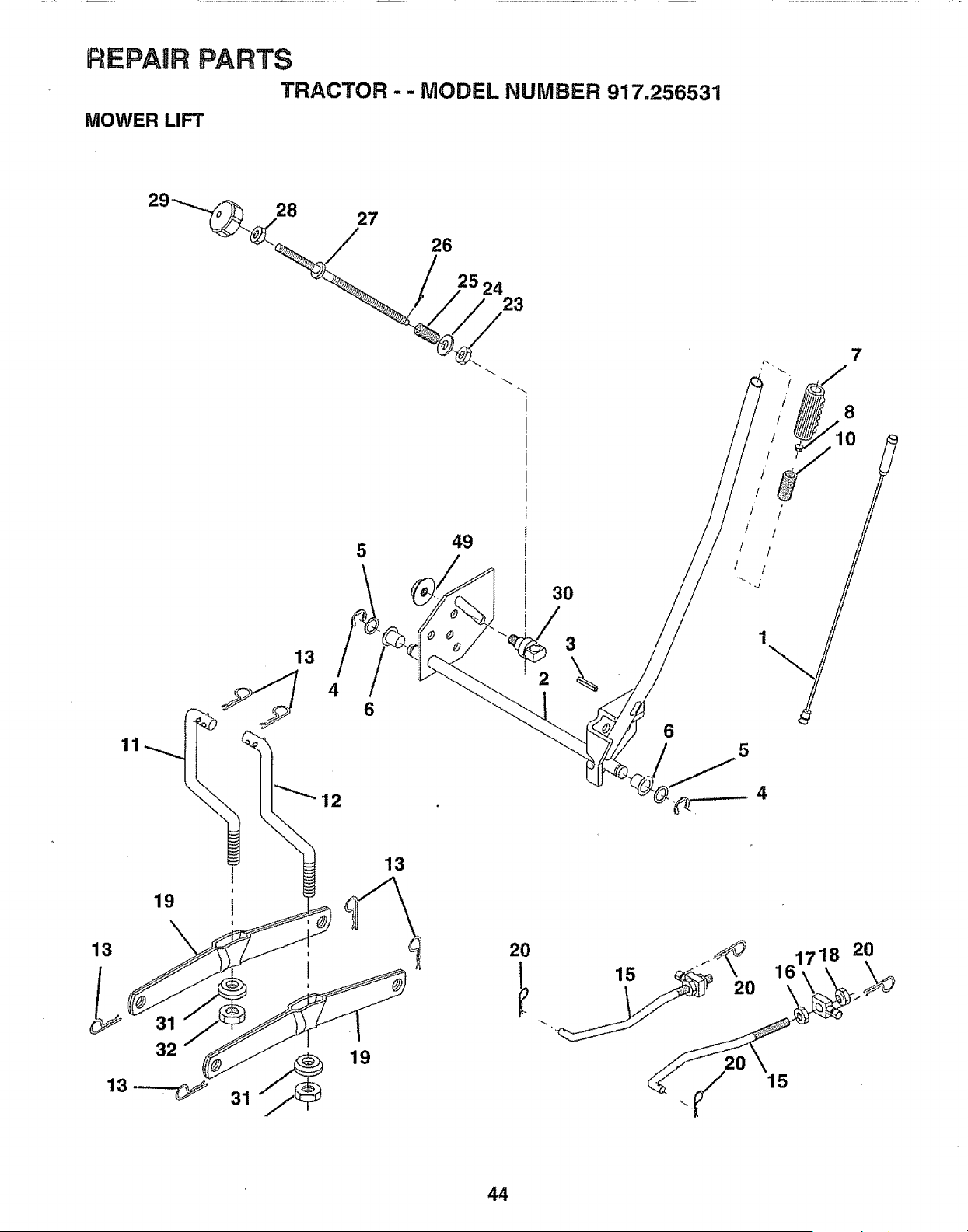

tFIEPAIRPARTS

TRACTOR - - MODEL NUMBER 917o256531

MOWER LIFT

25 24

/ 10

/ /'

/ /

_ 161718 20

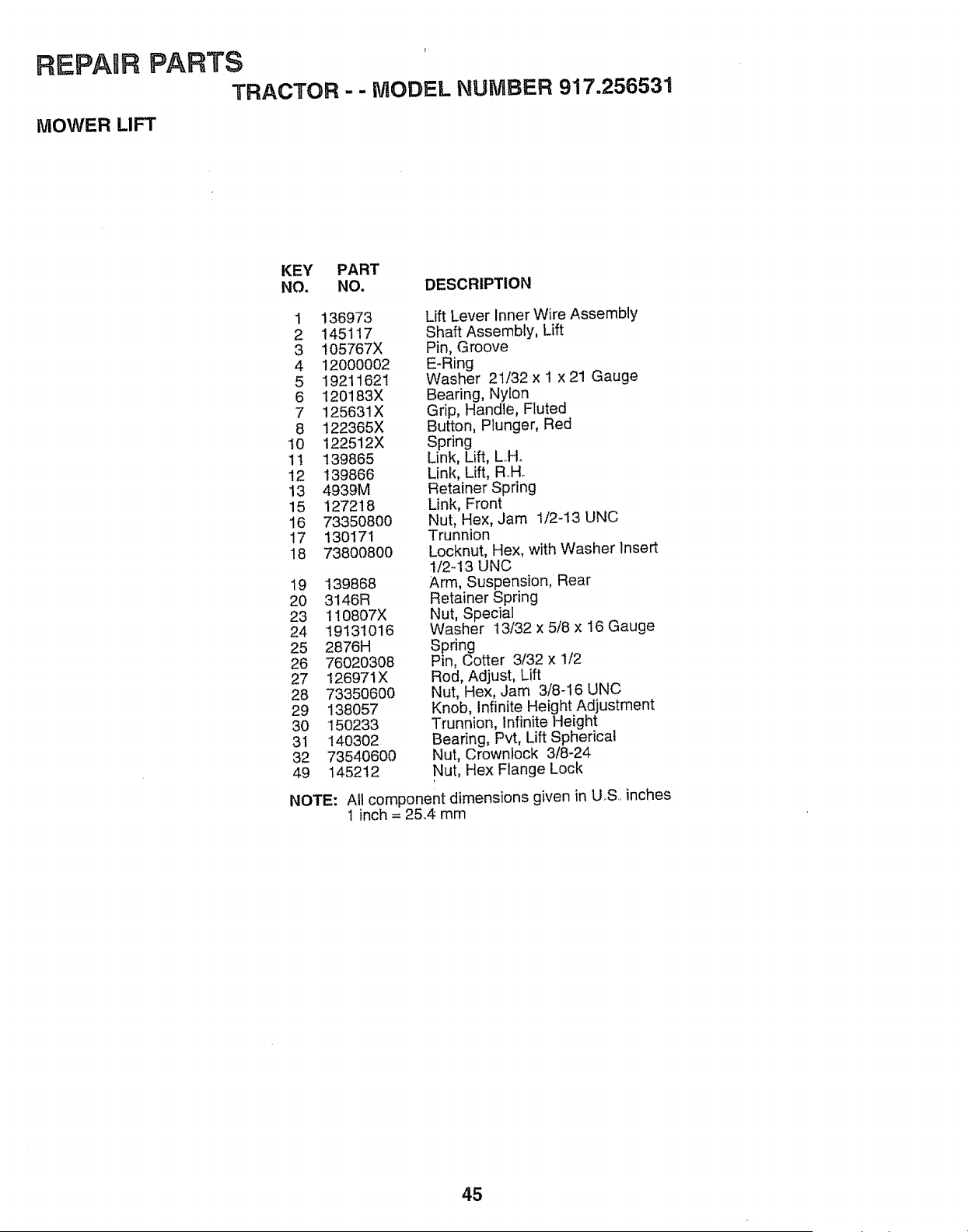

REPAIR PARTS

TRACTOR -- MODEL NUMBER 917.256531

MOWER LIFT

KEY PART

NO, NO. DESCRIPTION

1 136973

2 145117

3 105767X

4 12000002

5 '19211621

6 120183X

7 125631X

8 122365X

10 122512X

1I 139865

12 139866

13 4939M

15 127218

16 73350800

17 130171

18 73800800

19 139868

20 3146R

23 110807X

24 19131016

25 2876H

26 76020308

27 126971X

28 73350600

29 138057

30 150233

31 140302

32 73540600

49 145212

Lift Lever inner Wire Assembly

Shaft Assembly, Lift

Pin, Groove

E-Ring

Washer 21/32 x 1 x 21 Gauge

Bearing, Nylon

Grip, Handle, Fluted

Button, PkJnger, Red

Spring

Link, Lift, L,,Ho

Link, Lift, RHo

Retainer Spring

Link, Front

Nut, Hex, Jam 1/2-13 UNC

Trunnion

Locknut, Hex, with Washer Insert

1/2-13 UNC

Arm, Suspension, Rear

Retainer Spring

Nut, Special

Washer 13/32 x 5/8 x 16 Gauge

Spring

Pin, Cotter 3/32 x 1/2

Rod, Adjust, Lift

Nut, Hex, Jam 3/8-16 UNC

Knob, infinite Height Adjustment

Trunnion, Infinite Height

Bearing, Pvt, Lift Spherical

Nut, Crownlock 3/8-24

Nut, Hex Flange Lock

NOTE: All component dimensions given in US, inches

1 inch = 25°4 mm

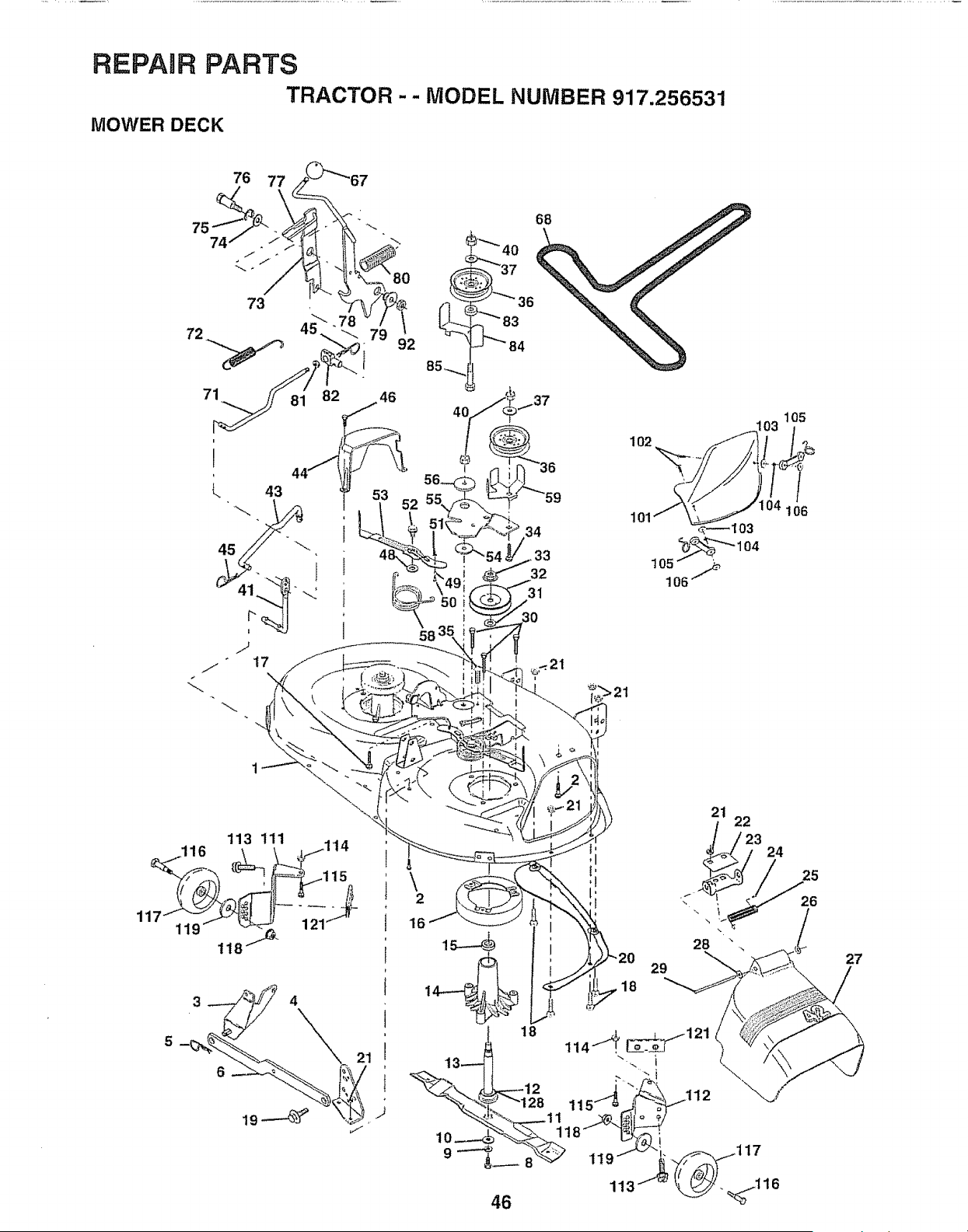

REPAIR PARTS

TRACTOR - - MODEL NUMBER 917.256531

MOWER DECK

85_,,

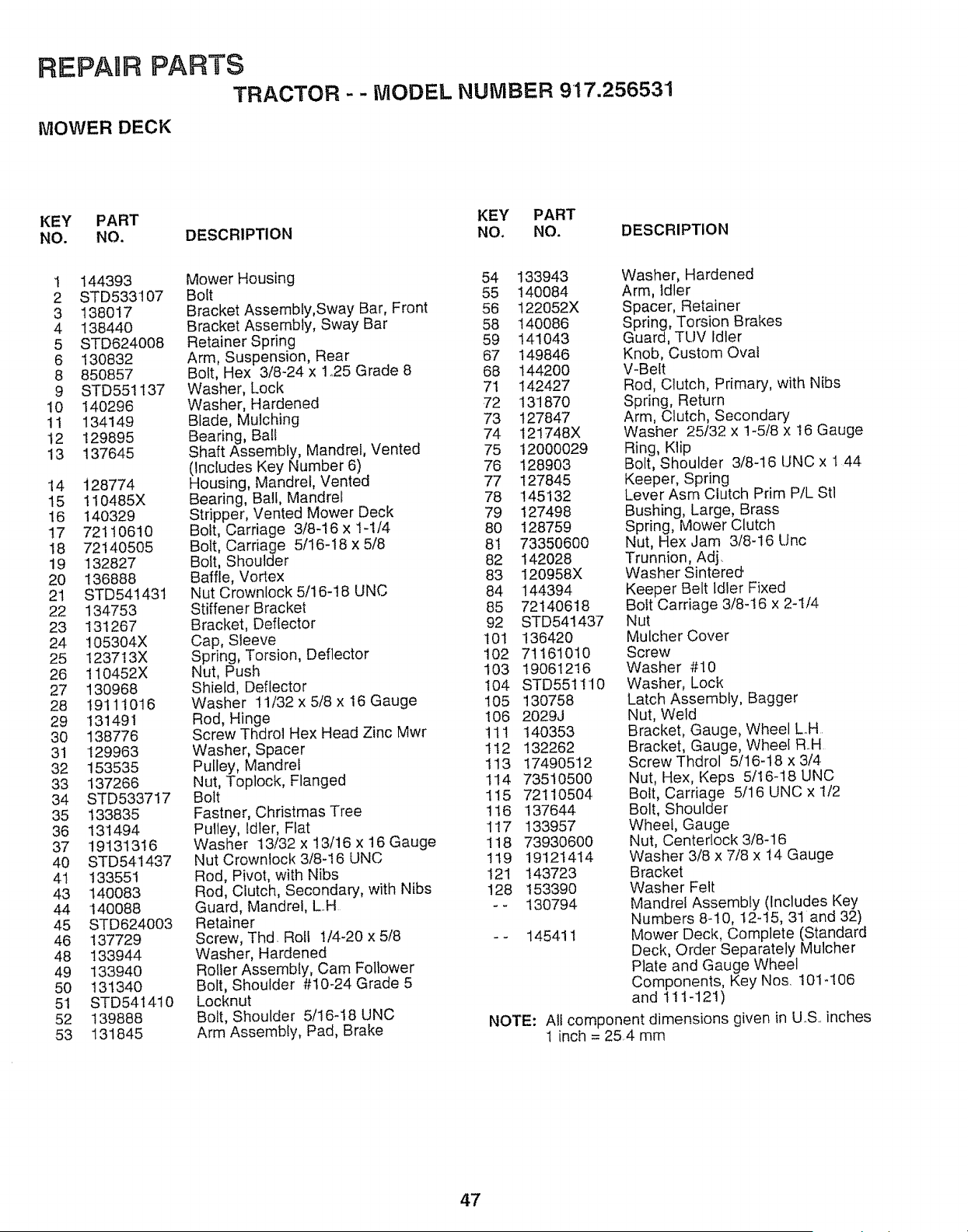

REPAUR PARTS

TRACTOR - - MODEL NUMBER 917.25653'1

MOWER DECK

KEY PART KEY PART

NO. NO. DESCRIPTION NO. NO. DESCRIPTION

1 144393

2 STD533107

3 138017

4 13844O

5 STD624008

6 130832

8 850857

9 STD551137

10 140296

11 134149

12 129895

13 137645

14 128774

t5 110485X

16 140329

17 72110610

18 72140505

19 132827

20 136888

2't STD541431

22 134753

23 131267

24 105304X

25 I23713X

26 110452X

27 130968

28 I9111016

29 131491

30 138776

31 129963

32 153535

33 137266

34 STD533717

35 133835

36 131494

37 19131316

40 STD541437

4t 133551

43 140083

44 140088

45 STD624003

46 137729

48 133944

49 133940

50 131340

51 STD5414!0

52 139888

53 131845

Mower Housing 54

Bolt 55

Bracket Assembly,Sway Bar, Front 56

Bracket Assembly, Sway Bar 58

Retainer Spring 59

Arm, Suspension, Rear 67

Bolt, Hex 3/8-24 x 1o25 Grade 8 68

Washer, Lock 71

Washer, Hardened ,72

Blade, Mulching 73

Bearing, Ball 74

Shaft Assembly, Mandrel, Vented 75

(Includes Key Number 6) 76

Housing, Mandrel, Vented 77

Bearing, Ball, Mandrel 78

Stripper, Vented Mower Deck 79

Bolt, Carriage 3/8-16 x 1-1/4 80

Bolt, Carriage 5/16-18 x 5/8 81

Bolt, Shoulder 82

Baffle, Vortex 83

Nut Crown[ock 5/16-18 UNC 84

Stiffener Bracket 85

Bracket, Deflector 92

Cap, Sleeve 101

Spring, Torsion, Deflector 102

Nut, Push 103

Shield, Deflector 104

Washer 11/32 x 5/8 x 16 Gauge 105

Rod, Hinge 106

Screw Thdrol Hex Head Zinc Mwr 11 !

Washer, Spacer 1!2

Pulley, Mandrel 113

Nut, Toplock, Flanged t14

Bolt 115

Fastner, Christmas Tree 116

Pulley, Idler, Flat 117

Washer 13/32 x 13/16 x 16 Gauge I18

Nut Crownlock 3/8-16 UNC 119

Rod, Pivot, with Nibs 121

Rod, Clutch, Secondary, with Nibs 128

Guard, Mandrel, LH ....

Retainer

Screw, Thd. Roll t/4-20 x 5/8 - -

Washer, Hardened

Roller Assembly, Cam Follower

Bolt, Shoulder #10-24 Grade 5

Locknut

Bolt, Shoulder 5/16-18 UNC

Arm Assembly, Pad, Brake NOTE:

133943

140084

122052X

140086

141043

149846

t44200

142427

131870

127847

121748X

12000029

128903

127845

145132

127498

128759

73350600

142028

120958X

144394

72140618

STD541437

136420

71161010

19061216

STD551110

13O758

2029J

140353

132262

I7490512

7351050O

72110504

137644

133957

73930600

19121414

143723

153390

130794

14541 t

Washer, Hardened

Arm, Idler

Spacer, Retainer

Spring, Torsion Brakes

Guard, TUV Idler

Knob, Custom Oval

V-Belt

Rod, Clutch, Primary, with Nibs

Spring, Return

Arm, Clutch, Secondary

Washer 25/32 x 1_5/8 x 16 Gauge

Ring, Klip

Bolt, Shoulder 3/8-16 UNC x t 44

Keeper, Spring

Lever Asm Clutch Prim P/L Stl

Bushing, Large, Brass

Spring, Mower Clutch

Nut, Hex Jam 3!8-16 Unc

Trunnion, Adj.

Washer Sintered.

Keeper Belt Idler Fixed

Bolt Carriage 3/8-t6 x 2-1/4

Nut

Mulcher Cover

Screw

Washer #10

Washer, Lock

Latch Assembly, Bagger

Nut, Weld

Bracket, Gauge, Wheel L..H

Bracket, Gauge, Wheel R.H

Screw Thdrol 5/16-18 x 3/4

Nut, Hex, Keps 5/16-18 UNC

Bolt, Carriage 5/16 UNC x 1/2

Bolt, Shoulder

Wheel, Gauge

Nut, Centerlock 3/8-16

Washer 3/8 x 7/8 x I4 Gauge

Bracket

Washer Felt

Mandrel Assembly (Includes Key

Numbers 8-10, 12-t5, 31and 32)

Mower Deck, Complete (Standard

Deck, Order Separately Mulcher

Plate and Gauge Wheel

Components, Key Nes, 101-106

and 11lq21)

All component dimensions given in US. inches

1 inch = 25.4 mm

REPAUR PARTS

TRACTOR - - MODEL NUMBER 917.256531

HYDRO GEAR TRANSAXLE- MODEL NUMBER 310-0650

90 52

"36

REPABRPARTS

TRACTOR - - MODEL NUMBER 917.256531

HYDRO GEAR TRANSAXLE - MODEL NUMBER 310-0650

KEY PART KEY PART

NO, NO. DESCRIPTION NO. NO. DESCRIPTION

1 142930 Housing, Lower 43 142884 Washer 7/16 x 7/8 x _060

2 142931 Assembly, Upper Housing 44 150829 Differential Assembly

3 142932 Seal, Lip 52 142991 Washer 3/4 x 1_5x.13

4 142928 Ring, Wire Retaining 53 142961 Seal °75 x 1..25 x .250

5 142933 Ring, Retaining 56 142963 Shaft, Input

6 142934 Bearing, Shaft Ball 58 142954 Bolt 1/4-20x 1.38

7 142935 Bearing, Cradle 59 142965 Pin .50D x .43 ID x,.750

8 150771 Bearing, Thrust 30 x 52 x 13 62 142966 Arm, Control

9 142937 Swashplate, Variable 63 142967 Puck, Dampener

13 142938 Block, Cylinder Assembly 64 142920 Set Screw

14 142939 Arm, Trunnion 68 142969 Spring .

15 142940 Seal, Lip 69 144610 Stud 5/16-24

'17 142941 Guide, Slot 83 142971 Jackshaft Assembly

18 150772 Shaft, Motor 85 150806 Jackshaft

19 !50773 Bearing, Thrust 42 x 68 x 16 88 142973 Screw, Cap

23 142944 Block, Cylinder Assembly 89 142974 Washer 7/16 x 1 x 1/2

24 142945 Seal, Lip t0 x 25 x 7 90 142975 Sleeve Bearing

25 142946 Actuator, Bypass 91 142976 Seal, Wiper

26 150774 Center Section Assembly Kit 92 142977 Spring, Block

27 142945 Seal, Lip 26 x 42 x 8 93 142978 Washer, BIockThrust

28 142949 Ring, Retaining 113 142917 Cap, Vent Assembly

29 142950 Washer 26 x 35 x 1 114 142918 Fitting, O-Ring Assembly

34 142951 Oil Filter Element t19 142980 Spacer

35 142952 Arm, Bypass 134 144607 Nut, Castle 5/16-24

36 142953 Ring, Retaining 135 144608 Pin, Cotter

37 142954 Arm, Actuating 139 150775 Spring, Compression

38 142955 Pin, Actuating 140 150776 Nut, Hex 5/16-24

39 150777 Bolt 5/16-24 x 1-3/4

40 150778 Locknut, Hex 5/16-24 UNJC NOTE: All component dimensions given in U.Soinches

41 142958 Brake RotoriStator Kit 1 inch = 25.4 mm

REPAIR PARTS

TRACTOR - - MODEL NUMBER 917.256531

BRIGGS & STRATTON ENGINE - MODEL NUMBER 28N707, TYPE NUMBER 0173-01

635 337

238_

634A

230

614

_4A

3o7

562

'_ REQUIRES SPECIAL TOOLS

TO INSTALL. SEE REPAIR

INSTRUCTION MANUAL.

166

1029

294 _

1034

1022

1026

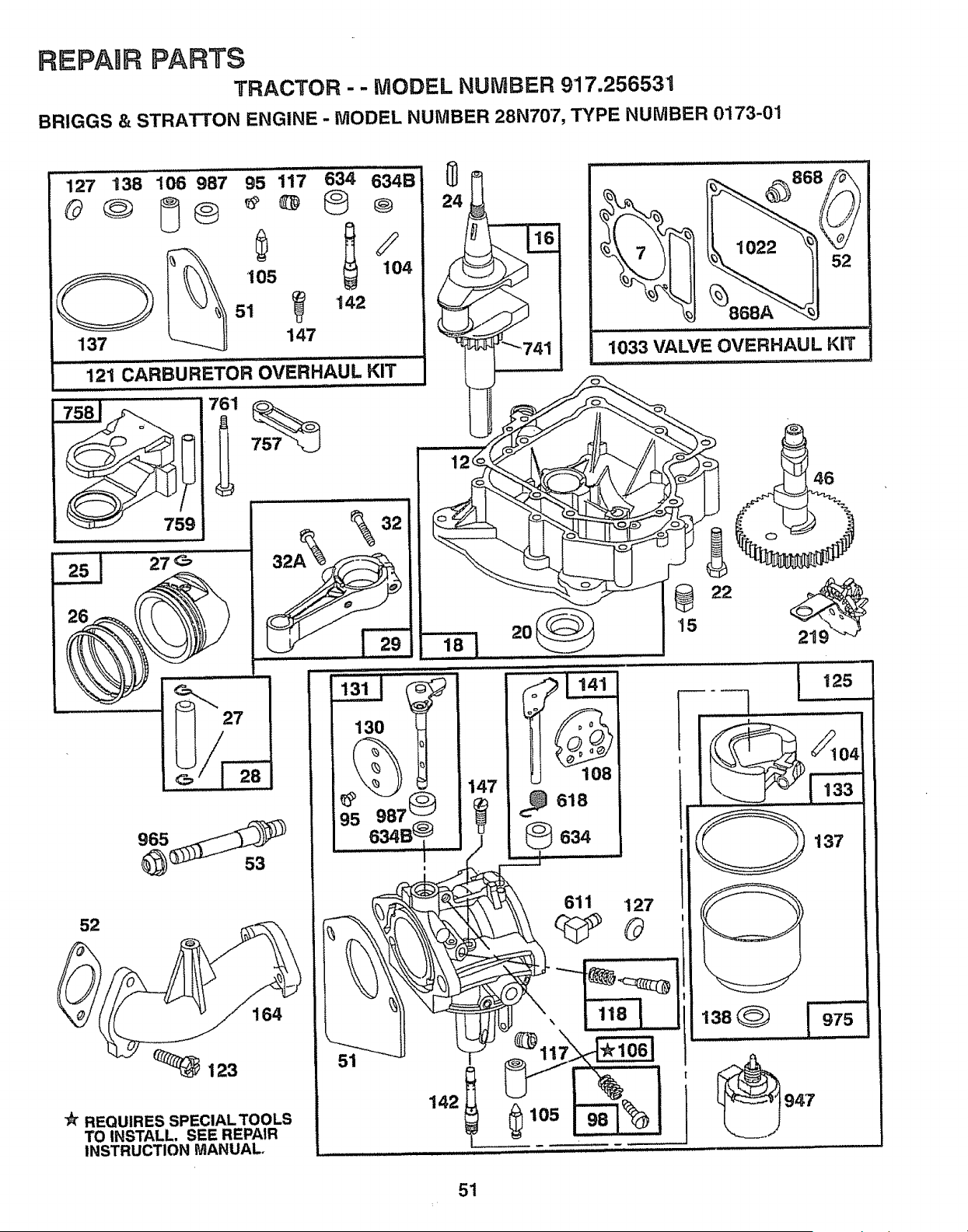

REPAIR PARTS

TRACTOR - - MODEL NUMBER 917.256531

BRIGGS & STRATTON ENGINE - MODEL NUMBER 28N707, TYPE NUMBER 0173-01

127 13S"1_ 9e7 9s 117 634

27 _

164

_123

REQUIRES SPECIAL TOOLS

TO INSTALL. SEE REPAIR

INSTRUCTION MANUAL.

104

1033 VALVE OVERHAUL KIT

iiHi H i ill HHI

0==15

.....................................I" 125

947

REPAIR PARTS

TRACTOR -- MODEL NUMBER 917.256531

BRIGGS & STRATTON ENGINE - MODEL NUMBER 28N707, TYPE NUMBER 0173-01

523

284A

304

305_

346

468

I,Ul,l,l,I,U_,llll, UI J II l lj II Ill I

358 GASKET SET

uiiui, illll ill Ill llllllllll I I

20 634A 842 524 868 868A

537 ,._

9 _ _52

/ II iiii ilJlJ 11111

467

363

171 _ 535

ii i i i i ill

138

137 . i977 CARBURETOR GASKET SET

1006

668

1044

224

[

334

• 284

1333

REPAIR PARTS

TRACTOR - - MODEL NUMBER 917.256531

BRIGGS & STRATTON ENGINE - MODEL NUMBER 28N707, TYPE NUMBER 0173-01

D='= I,°,°L.°=L=°T! 2,o

os_ l,o58ow.°.'==A.U.L]

209

877

783

801

1090

544

803

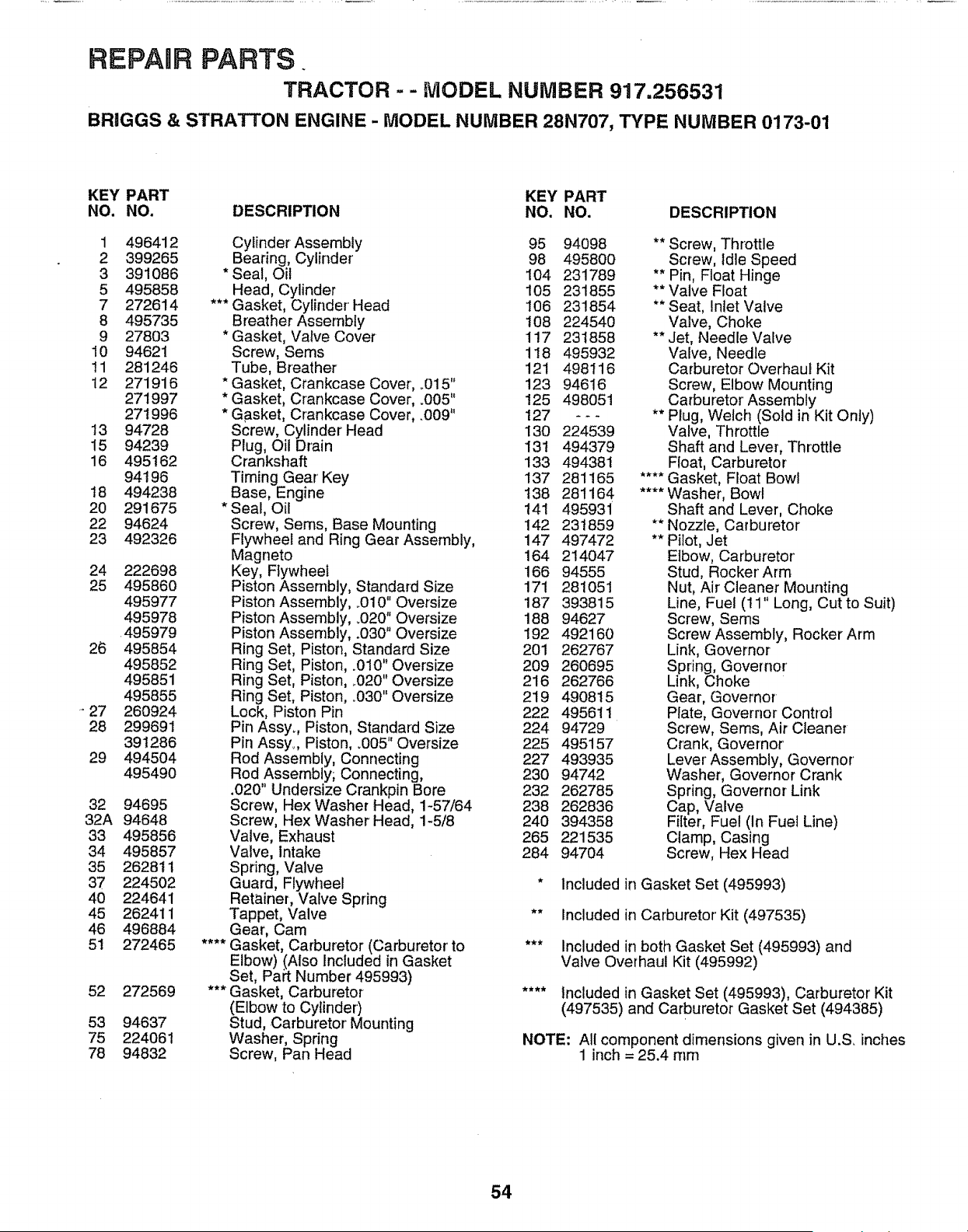

REPAnR PARTS.

TRACTOR - - MODEL NUMBER 917.256531

BRIGGS & STRATTON ENGINE - MODEL NUMBER 28N707, TYPE NUMBER 0173-01

KEY PART KEY PART

NO. NO. DESCRIPTION NO, NO. DESCRIPTION

1 496412

2 399265

3 391086

5 495858

7 272614

8 495735

9 27803

10 94621

tl 281246

12 271916

271997

271996

13 94728

15 94239

16 495162

94196

t8 494238

20 291675

22 94624

23 492326

" 27

32A

222698

49586O

495977

495978

495979

495854

495852

495851

495855

260924

299691

391286

494504

495490

94695

94648

495856

495857

262811

224502

224641

262411

496884

272465

272569

94637

224061

94832

Cylinder Assembly 95

Bearing, Cylinder' 98

* Seal, Oil 104

*** Head, Cylinder 105

Gasket, Cylinder Head 106

Breather Assembly 108

* Gasket, Valve Cover 117

Screw, Sems 118

Tube, Breather 121

* Gasket, Crankcase Cover, o015" 123

* Gasket, Crankcase Cover, .005" 125

* Gasket, Crankcase Cover, .009" 127

Screw, Cylinder Head 130

Plug, Oil Drain 131

Crankshaft 133

Timing Gear' Key 137

Base, Engine 138

* Seal, Oil 141

Screw, Sems, Base Mounting 142

Flywheel and Ring Gear Assembly, 147

Magneto 164

Key, Flywheel 166

Piston Assembly, Standard Size 171

Piston Assembly, _010" Oversize 187

Piston Assembly, ..020" Oversize 188

Piston Assembly, .030" Oversize 192

Ring Set, Piston, Standard Size 201

Ring Set, Piston, .010" Oversize 209

Ring Set, Piston, ..020" Oversize 216

Ring Set, Piston, .030" Oversize 219

Lock, Piston Pin 222

Pin Assyo, Piston, Standard Size 224

Pin Assy.., Piston, °005" Oversize 225

Rod Assembly, Connecting 227

Rod Assembly; Connecting, 230

.020" Undersize Crankpin Bore 232

Screw, Hex Washer Head, 1-57/64 238

Screw, Hex Washer Head, 1-5/8 240

Valve, Exhaust 265

Valve, Intake 284

Spring, Valve

Guard, Flywheel

Retainer, Valve Spring

Tappet, Valve

Gear, Cam

**** Gasket, Carburetor (Carburetor' to

Elbow) (Also Included in Gasket

Set, Pa_t Number 495993)

*** Gasket, Carburetor

(Elbow to Cylinder)

Stud, Carburetor' Mounting

Washer, Spring

Screw, Pan Head

94098

495800

231789

231855

231854

224540

231858

495932

498116

94616

498051

224539

494379

494381

281165

281164

495931

23 t 859

497472

214047

94555

281051

393815

94627

492160

262767

260695

262766

490815

495611

94729

495157

493935

94742

262785

262836

394358

221535

94704

** Screw, Throttle

Screw, Idle Speed

** Pin, Float Hinge

** Valve Float

** Seat, Inlet Valve

Valve, Choke

** Jet, Needle Valve

Valve, Needle

Carburetor OverhauI Kit

Screw, Elbow Mounting

Carburetor Assembly

** Plug, Welch (Sold in Kit Only)

Valve, Throttle

Shaft and Lever, Throttle

Float, Carburetor

**** Gasket, Float Bowl

.... Washer, Bowl

Shaft and Lever, Choke

** Nozzle, Carburetor

** Pilot, Jet

Elbow, Carburetor

Stud, Rocker' Arm

Nut, Air Cleaner Mounting

Line, Fuel (11" Long, Cut to Suit)

Screw, Sems

Screw Assembly, Rocker Arm

Link, Governor

Spring, Governor'

Link, Choke

Gear, Governor

PFate, Governor Control

Screw, Sems, Air Cleaner

Crank, Governor

Lever' Assembly, Governor

Washer, Governor Crank

Spring, Governor Link

Cap, Valve

Filter, Fuel (in Fue! Line)

Clamp, Casing

Screw, Hex Head

* Included in Gasket Set (495993)

** Included in Carburetor Kit (497535)

*** Included in both Gasket Set (495993) and

Valve Overhaul Kit (495992)

**** included in Gasket Set (495993), Carburetor' Kit

(497535) and Carburetor Gasket Set (494385)

NOTE: All component dimensions given in U.S. inches

1 inch = 25.4 turn

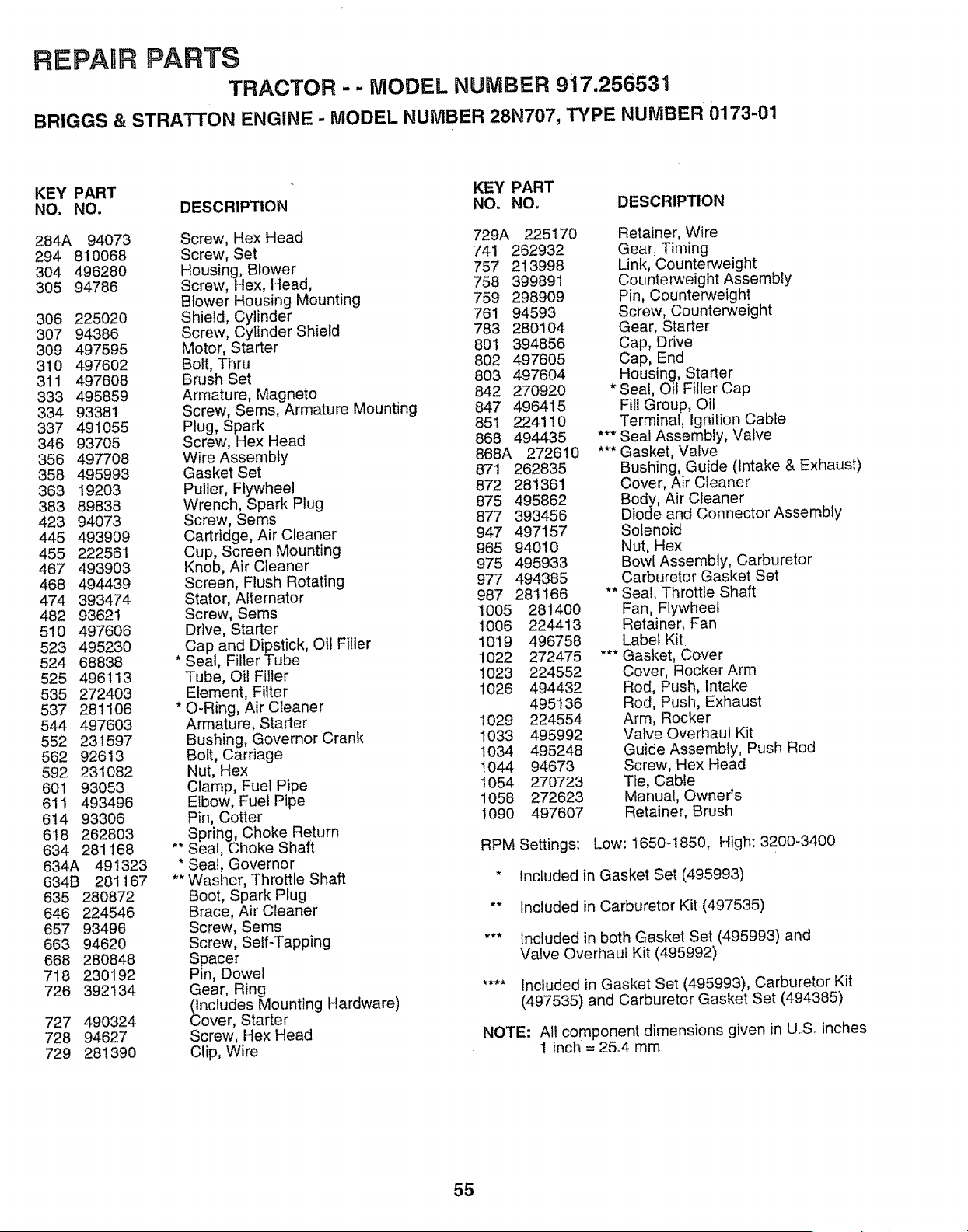

REPAIR PARTS

TRACTOR - - MODEL NUMBER 917.256531

BRIGGS & STRATTON ENGINE - MODEL NUMBER 28N707, TYPE NUMBER 0173-01

KEY PART KEY PART

NO. NO. DESCRIPTION NO. NO. DESCRIPTION

284A 94073 Screw, HexHead 729A 225170

294 810068 Screw, Set 741 262932

304 496280 Housing, Blower 757 213998

305 94786 Screw, Hex, Head, 758 399891

Blower Housing Mounting 759 298909

306 225020 Shield, Cylinder 761 94593

307 94386 Screw, Cylinder Shield 783 280104

309 497595 Motor, Starter 801 394856

310 497602 Bolt, Thru 802 497605

311 497608 Brush Set 803 497604

333 495859 Armature, Magneto 842 270920

334 93381 Screw, Sems, Armature Mounting 847 496415

337 491055 Plug, Spark 851 224110

346 93705 Screw, Hex Head 868 494435

356 497708 Wire Assembly 868A 272610

358 495993 Gasket Set 871 262835

363 19203 Puller, Flywheel 872 28!361

383 89838 Wrench, Spark Plug 875 495862

423 94073 Screw, Sems 877 393456

445 493909 Cartridge, Air Cleaner 947 497157

455 222561 Cup, Screen Mounting 965 94010

467 493903 Knob, Air Cleaner 975 495933

468 494439 Screen, Flush Rotating 977 494385

474 393474 Stator, Alternator 987 281166

482 93621 Screw, Sems 1005 281400

510 497606 Drive, Starter 1006 224413

523 495230 Cap and Dipstick, Oil Filler 1019 496758

524 68838 * Seal, Filler Tube +1022 272475

525 496+113 Tube, Oil Filler t023 224552

535 272403 Element, Filter 1026 494432

537 28t106 * O-Ring, Air Cleaner 495136

544 497603 Armature, Starter 1029 224554

552 231597 Bushing, Governor Crank 1033 495992

562 92613 Bolt, Carriage 1034 495248

592 231082 Nut, Hex t044 94673

601 93053 Clamp, Fuel Pipe 1054 270723

611 493496 Elbow, Fuel Pipe 1058 272623

614 93306 Pin, Cotter 1090 497607

618 262803 Spring, Choke Return

634 281168 ** Seal, Choke Shaft

634A 491323 * Seal, Governor

634B 281167 ** Washer, Throttle Shaft

635 280872 Boot, Spark Plug

646 224546 Brace, Air Cleaner

657 93496 Screw, Sems

663 94620 Screw, Self-Tapping

668 280848 Spacer

718 230192 Pin, Dowel

726 392134 Gear, Ring

(Includes Mounting Hardware)

727 490324 Cover, Starter

728 94627 Screw, Hex Head

729 281390 Clip, Wire

Retainer, Wire

Gear, Timing

Link, Counterweight

Counterweight Assembly

Pin, Counterweight

Screw, Counterweight

Gear, Starter

Cap, Drive

Cap, End

Housing, Starter

* Seal, Oil Filler Cap

Fill Group, Oil

Terminal, ignition Cabte

*** Seal Assembly, Valve

*** Gasket, Valve

Bushing, Guide (intake & Exhaust)

Cover, Air Cleaner

Body, Air Cleaner

Diode and Connector Assembly

Solenoid

Nut, Hex

Bowl Assembly, Carburetor

Carburetor Gasket Set

** Seat, Throttle Shaft

Fan, Flywheel

Retainer, Fan

Label Kit

*** Gasket, Cover

Cover, Rocker Arm

Rod, Push, Intake

Rod, Push, Exhaust

Arm, Rocker

Valve Overhaul Kit

Guide Assembly, Push Rod

Screw, Hex Head

Tie, Cabie

Manual, Owner's

Retainer, Brush

RPM Settings: Low: 1650-1850, High: 3200-3400

* included in Gasket Set (495993)

** Included in Carburetor Kit (497535)

*** Inctuded in both Gasket Set (495993) and

Valve Overhaul Kit (495992)

**** Included in Gasket Set (495993), Carburetor Kit

(497535) and Carburetor Gasket Set (494385)

NOTE: All component dimensions given in U..S. inches

1 inch = 25.4 mm

$ERVmCE NOTES

NOTES

, , iiiii, ii iii1,11,,i _l iii_lll_l

SERVICE 03=E

SUGGESTED GUUDE FOR SIGHTUNG SLOPES FOR SAFE OPERATION

SIGHTING "" --.

ONLY RIDE UP AND DOWN HILL,

NOT ACROSS HILL

SIGHT AND HOLD THIS LEVEL WITH

SKY LINE OR TREE.

15 ° MAX.

_ A Operate your Tractor up and down the face of slopes (not I

_i_ _ greater than 15°), never across the face. Make turns gradu-

I!_ _ ally to prevent tipping or loss of control. Exercise extreme

i_ caution when direction on slopes.

changing

OWNER'S

MODEL NO.

917.256531

IF YOU NEED

REPAIR SERVICE

OR PARTS:

FOR REPAIR SERVICE, CALL

THIS TOLL FREE NUMBER:

1-800-4-REPAIR

(1-800-473-7247)

FOR REPLACEMENT PARTS

INFORMATION AND

ORDERING, CALL THIS

TOLL FREE NUMBER:

1-800-FON-PART

(1-800-366-7278)

FOR CONSUMER ASSISTANCE

HOT LINE, CALL THIS

TOLL FREE NUMBER:

1-800-659-5917

15.5 HP

ELECTRIC START

42" MOWER

AUTOMATIC (HYDROSTATIC)

DRIVE

LAWN TRACTOR

Each tractor has its own model number. Each engine has

its own model numben

The model number for your tractor will be found on the

model plate located under the seat°

The model number for your engine witl be found on the

blowerhousing of the engine_

All parts listed herein may be ordered from any Sears,

Roebuck and Co. Service Center/Department and most Re-

tail Stores_

WHEN ORDERING REPAIR PARTS, ALWAYS GIVE THE

FOLLOWING INFORMATION:

= PRODUCT- TRACTOR

= MODEL NUMBER - 917.256531

• ENGINE MODEL NO. - 28N707, TYPE NO. 0173-01

• PART NUMBER

= PART DESCRIPTION

Your' Sears merchandise has added value when you

consider Sears has service units nationwide staffed with

Sears trained technicians°°° professional technicians

specifically trained to insure that we meet our pledge to

you, we service what we sell.

153953 Rev. 2 7.9.96 KFSW/TR!JH

Printed in U.S.A.

Craftsman 917256531 Tractor

Product's Documents

OWNER'S MANUAL

Specifications

Craftsman 917256531 Questions and Answers
