W AT T S
Front & Rear
Camera
JCR311
AM-FM/Bluetooth/CD/USB Receiver
INSTALLATION &
OWNER’S MANUAL
2
INSTALLATION
2
Preparation
Please read entire manual before installation.
Before You Start
• Disconnect negative battery terminal. Consult a qualified technician for
instructions.
• Avoid installing the unit where it would be subject to high temperatures, such
as from direct sunlight, or where it would be subject to dust, dirt or excessive
vibration.
Getting Started

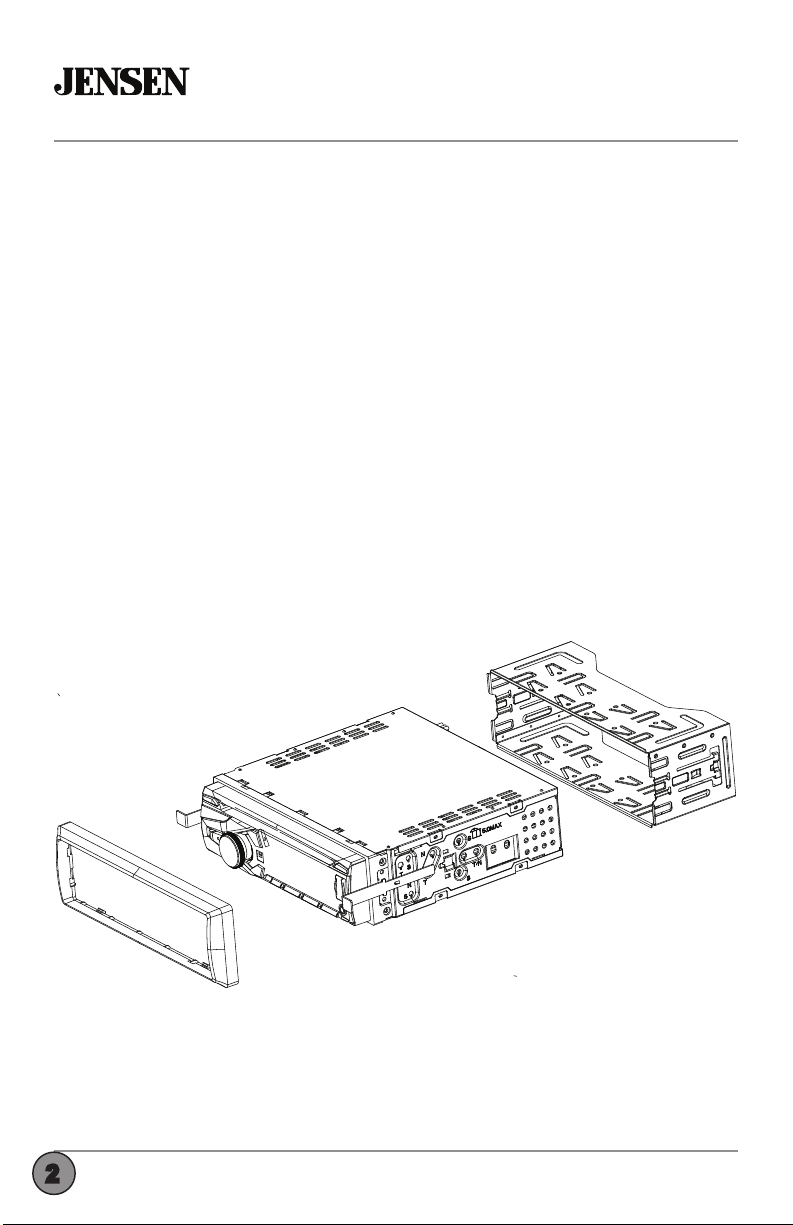

• Remove trim ring from unit.
• Remove 2 transit screws located on top of the unit.
• Insert the supplied keys into the slots as shown, and slide the unit out of the
mounting sleeve.
• Install mounting sleeve into opening, bending tabs to secure.
• Connect wiring harness and antenna. Consult a qualified technician if you are
unsure.
• Certain vehicles may require an installation kit and/or wiring
harness adapter (sold separately).
• Test for correct operation and slide into mounting sleeve to secure.
TYPICAL FRONT-LOAD DIN MOUNTING METHOD
3
INSTALLATION
3

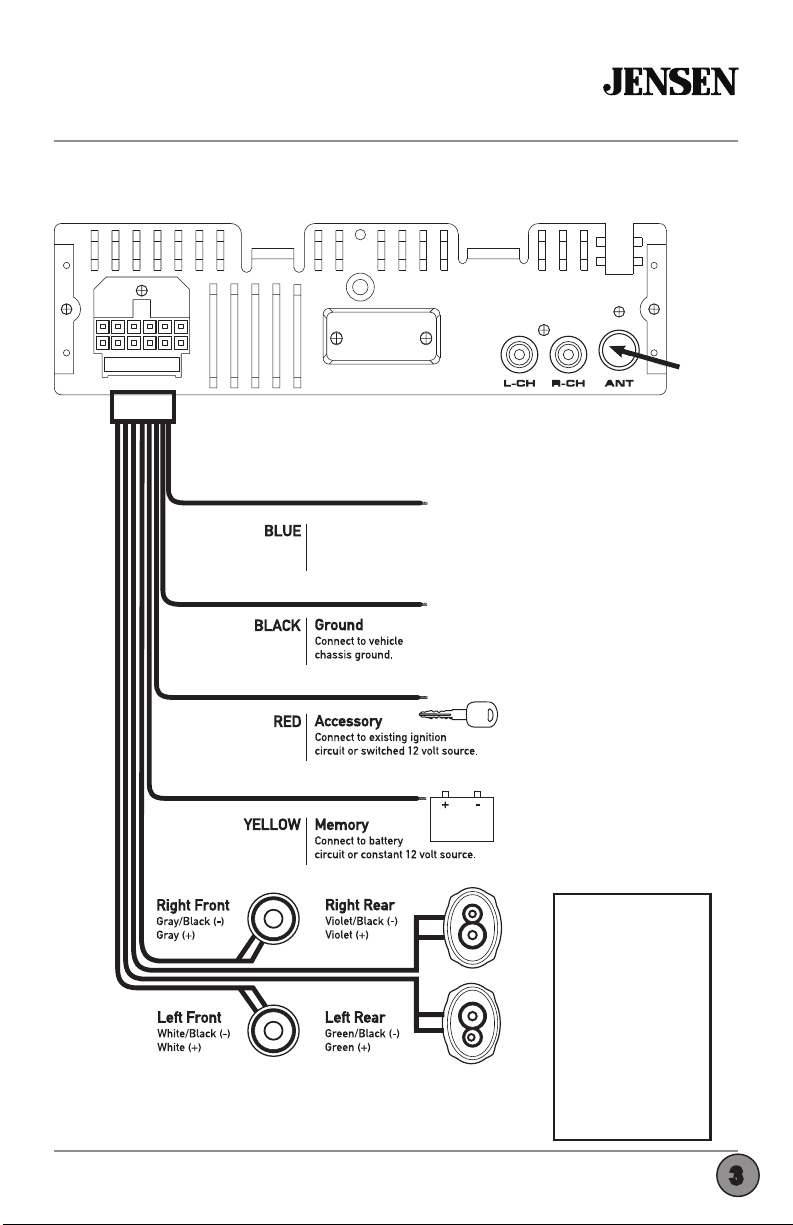

Wiring Diagram
FUSE
When replacing the
fuse, make sure new
fuse is the correct type
and amperage. Using
an incorrect fuse could
damage the radio.
The
10 amp ATC fuse
located beside the wiring
connector.
unit uses one
Antenna
Connector
Remote Turn On
Connect to amplifier or power
antenna. Insulate wire if not used.
4
OPERATION
4

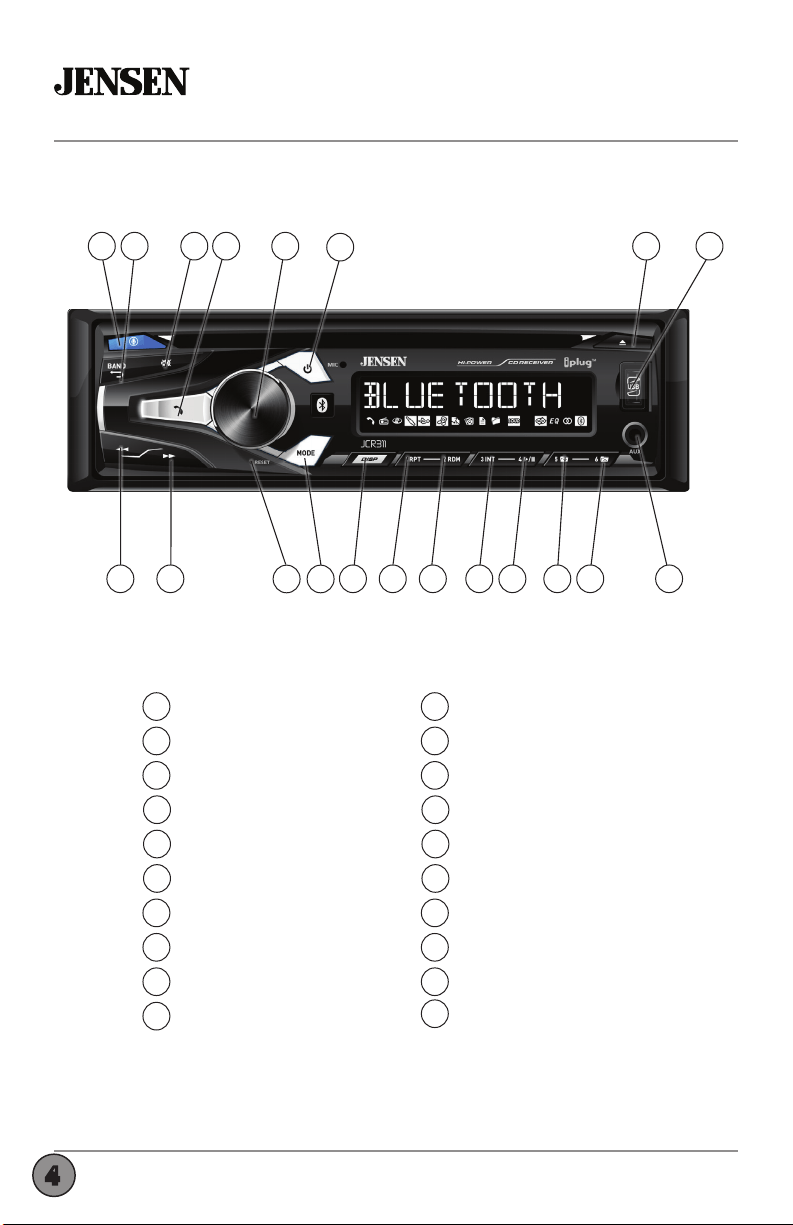

Control Locations
Preset 5 / Folder
Down
Preset 4 / Play / Pause
Preset 3 / Intro
Preset 2 / Random
Preset 1 / Repeat
Display
Mode
Reset
Tune / Track Up
Tune / Track Down
Voice Activation
Band / Go Back
Mute
Bluetooth Talk
Volume Knob
Power
Eject
USB Port
Auxiliary Input
Preset 6 / Folder Up
1 3 4 7
1 11
2 12
3 13
4 14
5 15
6 16
7 17
8 18
9
10
19
9
8
16 15 14 13 12 11 1020
18
2
6
5
17
19
20
5
OPERATION
5
Press or any other button (except EJECT) to turn the unit on.
Press to turn the unit off.
Press MODE to select between AM/FM, CD player, auxiliary, USB
and Bluetooth.. Modes of operation are shown in the display. CD
and USB modes will not appear unless a CD is inserted or USB
device is connected.
The JCR311 offers a 3.5 mm auxiliary input port on the front
panel of the unit for connecting an audio device, MP3 player, etc.
Press MODE to select auxiliary input mode.
Adjust volume using volume knob (00-46).
Press DISP to show the clock. During MP3 playback, ID3 tag
information, elapsed time, track number and file/folder names
will automatically rotate on the display.
Press RESET upon initial installation or if abnormal operation
occurs. The reset hole is located under the volume knob of the
front panel.
With the unit on, press and hold DISP until the clock begins to
flash, then release. Press TUNE
nn
to adjust the hours or
TUNE
ll
to adjust the minutes.
The clock will display 12-hour AM/PM time in USA frequency
spacing mode (PM 10
:
00). In European frequency spacing mode,
the clock will display 24-hour time (22:00).
Press the volume knob momentarily to select between Bass,
Treble, Balance, Fader, EQ, Loud and Source Level.
BASS TREBLE BALANCE FADER EQ LOUD SOURCE LEVEL
Press the volume knob until BASS appears then rotate volume
knob left/right to adjust ( -6 minimum / +6 maximum).
Press the volume knob until TREBLE appears then rotate
volume knob left/right to adjust ( -6 minimum / +6 maximum).
Press the volume knob until BAL appears then rotate volume
knob left/right to adjust (BAL 7L - BAL 7R). BAL EVEN
represents equal balance.
Press the volume knob until FAD appears then rotate volume
knob left/right to adjust (FAD 7R - FAD 7F). FAD EVEN
represents equal fader.
Press the volume knob until EQ appears then rotate volume
knob left/right to adjust USER, ROCK, BEAT, CLASSICS, JAZZ,
POP, and FLAT.
Press the volume knob until LOUD appears then rotate it to
adjust OFF/ON.
Press the volume knob until SRC LEVEL appears then rotate it
left/right to adjust the current source volume (-6 minimum/+6
maximum).
Power On/Off
Mode
Auxiliary Input
Volume
Display
Reset
Set the Clock
12/24-hour Clock
Audio Controls
Bass
Treble
Balance
Fader
EQ
Loudness
SRC Level
General Operation
6
OPERATION
6
General Operation - Setup Menu
Menu Function Options Action
Auto Station
Store
AUTO STORE
When you see Auto Store, press DISP to seek and save 6
strong stations in the current band. (Tuner mode only)
Local/Distance
Tuning
LOCAL OFF Activates distance tuning (Tuner mode only).
LOCAL ON
Activates local tuning for strong station reception only
(Tuner mode only).
Tuner
Frequency
Spacing
FREQ USA
Programs the unit to USA tuner spacing.
(200kHz for FM and 10kHz for AM). (Tuner mode only)
FREQ EURO
Programs the unit to European tuner spacing.
(50kHz for FM and 9kHz for AM). (Tuner mode only)
Auxiliary Input
AUX ON
Enables the front panel 3.5mm auxiliary input.
AUX OFF Disables the front panel 3.5mm auxiliary input.
Beep
Confirmation
BEEP OFF Disables the confirmation beep.
BEEP ON Enables the confirmation beep.
Programmable
Turn On
Volume
PRO OFF/
VOL#
Programs unit to always turn on at a specific volume
(default is OFF). Any volume level 1-30 can be selected.
Power On
Message
MSG OFF Disables power on message. (Example: GOOD MORNING)
MSG ON Enables power on message to be displayed.
Scrolling
Option
SCROLL 15
SP
Programs unit to scroll information every 15 seconds
(default).
SCROLL
ONCE
Programs unit to scroll once then show the first 10
characters on display
SCROLL ON Programs unit to scroll continuously.
SCROLL OFF
Programs the unit to show the first 10 characters on
display.
DEMO OFF Disables the demonstration mode.
DEMO ON Enables the demonstration mode.
Bluetooth
BT ON Enables Bluetooth functionality.
BT OFF Disables Bluetooth functionality.
Auto Answer
ANSWER
Auto
Programs unit to automatically answer every incoming
phone call after 2-3 rings.
ANSWER
Manual
Programs unit to require the
button must be pressed
to answer incoming phone calls (default).
Press and hold the volume knob for more than 3 seconds to access the setup menu.
Press the volume knob momentarily to select between the menu functions and rotate
the volume knob left/right to adjust or activate the desired function.
7
OPERATION
7
AM/FM Tuner Operation
Seek Tuning
Manual Tuning
Band
Storing and Recalling
Station Presets
Automatically Store
Stations
Press and hold TUNE
nn
or TUNE
ll
momentarily to
seek to the next strong station.
Press TUNE
nn
or TUNE
ll
momentarily to change
radio frequency up or down one step at a time. Press and
hold to advance quickly.
Press BAND to select between FM1, FM2, FM3, AM1 and
AM2 bands.
Up to 18 FM stations and 12 AM stations can be stored.
To store a station, select the desired band and station.
Press and hold the desired preset button (1-6) for
more than 2 seconds. When stored, the preset number
will appear in the display. The station can be recalled
anytime by pressing the corresponding preset button.
Press and hold the volume knob for more than 3
seconds to find auto store in the display. Then press
volume knob to automatically store strong 6 stations in
the current band.
8
OPERATION
8
Insert CD
Eject CD
Track Select
Fast Forward/Reverse
Pause
Intro
Repeat
Random
CD-R/CD-RW
Compatibility
With the label facing up, insert a standard size CD into
the CD slot. The CD will automatically begin playback.
Press EJECT to eject the CD. The unit will change to
previous mode of operation. If the disc is not removed
within 10 seconds, the unit will reload the disc. The unit
does not have to be turned on to eject CD.
Press TRACK
ll
to skip to the beginning of the next
track. Press TRACK
nn
to return to the beginning of
the current track. Pressing TRACK
nn
again skips to
the beginning of the previous track.
Press and hold TRACK
ll
or TRACK
nn
to fast
forward or reverse a track.
Press
l
/
II
to temporarily stop CD playback.
Press
l
/
II
again to resume playback.
Press INT to enter the Intro menu, then turn the volume
knob to select one of the following options:
• OFF - Cancels the INT function.
• ALL - Plays the first 10 seconds of each track.
• FOLDER - Plays first 10 seconds of each track in folder.
Press RPT to enter the Repeat menu, then turn the
volume knob to select one of the following options:
• ALL - Plays all tracks on CD.
• TRACK - Continuously repeats selected track.
• FOLDER - Continuously repeats all files in selected
folder
Press RDM to enter the Random menu, then turn the
volume knob to select one of the following options:
• OFF - Cancels the RDM function.
• ALL- Plays all tracks in random order.
FOLDER - Plays all tracks in folder in random order.
Some CD-Rs and CD-RWs may be incompatible with this
unit, depending on media type and recording method.
In addition, the following CDs may be incompatible with
this unit: CDs exposed to extreme temperatures or direct
sunlight for extended periods of time, CDs recorded in
which a recording session failed or a re-recording was
attempted and, or encrypted or copy-protected CDs
which do not conform to the audio CD-DA red book
recording standard.
CD Player Operation
9
OPERATION
9
CD Player Operation - MP3 Files
Playing an MP3 CD
Displaying Information
Title Icon
Artist Icon
Folder Icon
File Icon
Character Support
When an MP3 encoded disc is first inserted,
“DISC READ" will appear in the display. Depending on
the number of files and folders, this may take several
seconds.
Press DISP to select between song title, artist, file name,
folder name, track number, and clock/elapsed time.
“NO ARTIST” or "NO TITLE" will be displayed if the MP3
file contains no ID3 tag information.
“ROOT” will be displayed if the directory name of a root
folder is not labeled.
This icon will illuminate when the song title is displayed.
This icon will illuminate when the artist name is
displayed.
This icon will illuminate when the folder name is
displayed.
This icon will illuminate when the file name is displayed.
Maximum character display information
• Track name – 32 character maximum
• Directory name – 32 character maximum
• *Song title – 32 character maximum
• *Artist name – 32 character maximum
*Song title and Artist Name will only be displayed if
included
with the MP3 file.
When referring to MP3 playback, the following terms
are synonymous:
• File name and track name
• Folder name and directory name
10
OPERATION
10
CD Player Operation - MP3 Files
The following types of discs/files are compatible:
• CD-ROM (ISO), CD-R, CD-RW
• CD-DA
• MP3 data
The following types of discs/files are not compatible:
• Discs recorded with Track At Once or packet writing
• MP3 PRO format
• MP3 playlists
• WAV format
MP3 playback sequence is based on recorded order
of files and begins in the root folder of the disc. Any
empty
folders or folders that do not include MP3 files are
skipped. This unit may not play files in the order they
were
recorded in. Refer to your recording software’s user’s
manual for more information.
• ISO9660 level 1
• ISO9660 level 2
• Yellow Book MODE 1
• Yellow Book MODE 2 FORM 1
• Multi session
• Maximum files - 999
• Maximum folders - 255
• Maximum folder levels - 8
• MPEG-1/2/2.5 Audio Layer-3
ISO9660 standards:
• Maximum nested folder depth is 8 (including the root
folder).
• Valid characters for folder/file names are letters A-Z
(all caps), numbers 0-9, and “_” (underscore). Some
characters may not be displayed correctly, depending
on
the character type.
• This device can play back discs in Joliet, Romeo, and
other
standards that conform to ISO9660. MP3 written in
the formats other than the above may not play and/or
their file names or folder names may not be displayed
properly.
Media Compatibility
Playback Order
Compatible Recording
Formats
11
OPERATION
11
CD Player Operation - MP3 Files
An internal buffer provides ESP (Electronic Skip
Protection) to virtually eliminate skipping.
When playing a disc recorded with regular audio files
(CD-DA or .WAV) and MP3 files, the unit will play the
MP3 files only.
Only MP3 files with filename extension (.mp3) can be
played.
Do not attempt to play discs which contain non-MP3
files with the MP3 extension.
8kHz ~ 48kHz
32kbps ~ 320kbps constant
Variable bit rates
Note: Some files may not play or be displayed correctly,
depending on sampling rates and bit rates.
ID3 tags Version 1.0 to 2.4.
This model will not display ID3 Version 2.4 or greater
tags.
For best results, use the following settings when burning
an
MP3 disc:
128kbps or higher constant bit rate
44.1kHz or higher sampling frequency
Additional
MP3Information
Sampling Frequency
Rates MP3
Transfer Bit Rates MP3
MP3 Tag Display
Recommended Settings
12
OPERATION
12
USB Operation
To play MP3 files from most USB mass storage devices,
line up the USB connector and insert the USB device into
the unit's USB port.
When a USB device is first connected, “USB READ”
will appear in the display and playback will begin
momentarily. Depending on the number of files and
folders, it may take several seconds for the device
to begin playing. If no valid MP3 files are detected,
“NO FILE” will be displayed and the last mode will be
resumed.
Press TRACK
ll
to skip to the beginning of the next
track. Press TRACK
nn
to return to the beginning of
the current track. Pressing TRACK
nn
again skips to
the beginning of the previous track.
Press and hold TRACK
ll
or TRACK
nn
to fast
forward or reverse a track.
Press
l
/
II
to temporarily stop USB playback.
Press
l
/
II
again to resume playback.
Press SELECT to enter the file/folder search mode. A list
of all the folders from the USB device will be displayed.
Note: Any files located in the root directory will be
located in the folder named "ROOT". Press SELECT to
view the files on the root folder.
Turn the volume knob to cycle through all the folders
on the device and press SELECT to choose the desired
folder. The list of files in the selected folder will be
displayed. Turn the volume knob to cycle through the list
of files.
Note: Pressing GO BACK when viewing the contents of a
folder will return to the list of folders on the USB device.
Press GO BACK again to exit the search menu.
Once the desired song is displayed, press SELECT to
begin playback of the desired song.
Note: Due to differences in USB device transfer speeds,
it is recommended to limit each folder to less than 30
songs.
Connecting a
USB Device
(sold separately)
Playing Music
Track Select
Fast Forward and
Reverse
Pause
File Search
Step 1
Step 2
Step 3
13
OPERATION
13
USB Operation
When a file is accessed, the clock and elapsed time will
be displayed. Press DISP momentarily to select beween
song title, artist, file name, folder name, track number
and clock/elapsed time.
"NO TITLE" will be displayed if no song title information
is available.
"NO ARTIST" will be displayed if no artist information is
available.
This icon will illuminate when the song title is displayed.
This icon will illuminate when the artist name is
displayed.
This icon will illuminate when the folder name is
displayed.
This icon will illuminate when the file name is displayed.
Press
to select the previous folder.
Press
to select the next folder.
Note: Folder access is only available on devices with
more than one folder.
Press RPT to enter the Repeat menu, then turn the
volume knob to select one of the following options:
• ALL - Plays all tracks on the device.
• SONG - Continuously repeats selected song.
• FOLDER - Continuously repeats all files in selected
folder.
Press RDM to enter the Random menu, then turn the
volume knob to select one of the following options:
• OFF - Cancels the RDM function.
• ALL - Plays all tracks in random order.
• FOLDER - Plays all tracks in folder in random order.
Note: Random mode is retained in memory when
selecting between other modes and when the unit is
turned on/off.
Press INT to enter the Intro menu, then turn the volume
knob to select one of the following options:
• OFF - Cancels the INT function.
• ALL - Plays first 10 seconds of each track.
• FOLDER - Plays first 10 seconds of each track in folder.
Displaying Information
Song Title Icon
Artist Icon
Folder Icon
File Icon
Folder Access
Repeat
Random
Intro
14
OPERATION
14
USB Operation
Character Support
Media Compatibility
Playback Order
Playback Capacity
USB Device
Compatibility
Maximum character display information
• Track name – 32 character maximum
• Directory name – 32 character maximum
• *Song title – 32 character maximum
• *Artist name – 32 character maximum
*Song title and artist name will only be displayed if
included
with the MP3 file.
The following types of files are compatible:
• MP3 data
The following types of files are not compatible:
• MP3 PRO format
• MP3 playlists
• WAV format
MP3 playback sequence is based on order the files
are copied to the USB device and begins in the root
folder. Any empty folders or folders that do not include
MP3 files are skipped. Depending on your software, the
playback order may vary.
• Maximum number of files: 999
• Maximum number of folders: 255 plus the root
directory
• Maximum number of files in each folder and root: 999
Note: If the number of files/folders exceeds the
maximum outlined above, the additional files/folders will
be ignored.
Note: Devices that exceed the maximum number of files
or folders may not function properly.
Due to the differences of USB devices, some devices may
not be compatible. USB devices must be ‘mass storage
class’ and formatted to the FAT or FAT32 file system in
order to ensure compatibility.
15
OPERATION
15
USB Operation
Only MP3 files with filename extension (.mp3) can be
played. Do not attempt to play non-MP3 files with the
MP3 extension.
8kHz ~ 48kHz
32kbps ~ 320kbps constant
Variable bit rates
Note: Some files may not play or be displayed correctly,
depending on sampling rates and bit rates.
ID3 tags Version 1.0 to 2.4
Note: If an invalid ID3 tag version is detected, "NO
SUPPORT" will scroll on the display.
Additional
MP3Information
Sampling Frequency
Rates MP3
Transfer Bit Rates MP3
MP3 Tag Display
16
OPERATION
16
Bluetooth
®
Operation
Before you can use a Bluetooth device, it must be paired
and connected. Make sure that Bluetooth is activated on
your device before you begin the pairing process. The unit
broadcasts the pairing signal constantly when no devices
are currently connected. Complete the pairing sequence
from your Bluetooth device. Refer to the owner's manual
for your device for more details.
The device name is "JENSEN JCR311"
The Bluetooth passcode "1234"
Note: The unit can be in any mode of operation when
pairing is performed.
If a device is currently connected, press and hold
to
disconnect the current device before a new device can be
paired. Then begin the pairing sequence from the new
Bluetooth device.
Most Bluetooth devices support the auto-connect
feature, and will connect automatically if the device is
in range when the unit is powered-on. If your device
was previously paired but does not connect, use these
instructions below.
• If your most recently connected Bluetooth device
becomes disconnected or does not reconnect, press and
hold
from Bluetooth mode to reconnect your mobile
device.
• To connect a previously paired device that was not
recently connected:
1) Press and hold
to disconnect any connected mobile
devices when Bluetooth is paired. Press and hold
to
connect Bluetooth device again when Bluetooth is not
paired.
2) The paired device name will appear on the LCD once it
is connected.
3) Turn the volume knob to cycle through the list of
devices.
4) Press the volume knob to cycle through the list of
recent calls up to ten and select the phone number to
dial when Bluetooth is paired. NONE appears on the LCD
if there are no recent calls.
Press and hold
for 3 seconds to disconnect a
connected device. The device will remain paired and
appear in the SEARCH menu, but not be connected.
Note: Placing a phone call from your cell phone will also
initiate Bluetooth function.
Pairing a New Device
Pairing Additional
Devices
Connecting a
Paired Device
Disconnecting a Device
17
OPERATION
17
Bluetooth
®
Operation
Press SELECT from Bluetooth mode to view recent calls
dialed, received or missed while connected to the head
unit. Turn the volume knob to cycle through the recent
phone numbers. Press SELECT or
to dial
To redial the last phone number, press
from Bluetooth
mode. Press
or SELECT again to redial the phone
number.
Incoming phone calls will automatically appear on the
display and a ring tone will be heard.
Note: The volume of the ring tone depends on the
volume level of the unit. The incoming ring tone may not
be heard if the volume is set to a low level or mute is
activated.
• Press
to receive the incoming phone call.
• Press and hold
to refuse the incoming phone call.
Note: If Auto Answer is set to ON in the setup menu, all
phone calls will be received automatically.
During an active phone call, press
to end a phone call.
If the phone call was received when listening to music in
another mode, the unit will resume the previous mode.
The unit supports A2DP (advanced audio distribution
profile) wireless streaming audio from your Bluetooth
mobile device directly to your head unit. The following
functions can be used to control the music:
• Press
ll
to skip to the next available audio track.
• Press
nn
to skip to the previous audio track.
• Press
l
/
II
to toggle between play and pause during
playback.
Recent Calls List
Redialing the last
number
Receiving a phone call
Ending a Phone Call
Streaming Audio
18
OPERATION
18
Bluetooth
®
Operation
The unit supports A2DP (advanced audio distribution profile) wireless streaming
audio from your Bluetooth mobile device directly to your head unit. You can also
control your music from the front panel of the head unit using AVRCP (audio video
remote control profile).
Notes:
• To stream music to your head unit, your mobile device must support the A2DP
and AVRCP Bluetooth profiles. Check the owner's manual of your mobile device for
details.
• Streaming audio must be enabled from your mobile device. This option will vary
depending on the device. Some devices allow streaming audio to be disabled.
After pairing, connecting and enabling streaming audio from a compatible mobile
device, begin playing music using the music player on your mobile device. Once the
music is playing, the following functions can be used to control the music:
• The
ll
button will skip to the next available audio track.
• The
nn
button will skip to the previous audio track.
• The
l
/
II
button will toggle between play and pause during playback.
Note: Some Bluetooth devices may not fully support these commands.
Streaming Audio Operation
19
OPERATION
19
Voice Activation
Your receiver is designed with an easy access voice activation button to use Siri®
or the Google Assistant™ via your car's Bluetooth. Interact with your smartphone
assistant while you drive with only the push of a button!
Bluetooth should be paired between your smartphone and the receiver. Press the
voice activation button, and the receiver will switch into Bluetooth mode, This will
activate Siri® or Google Assistant
TM
on your smartphone. You will need to manually
switch back to the previous or desired mode once this operation is terminated.
20
OPERATION
20
Limited One Year (Or Two Year*) Warranty
This warranty gives you specific legal rights.
You may also have other rights which vary
from state to state. Namsung America
Inc warrants this product to the original
purchaser to be free from defects in material
and workmanship for a period of one year
from the date of the original purchase.
Namsung America Inc agrees, at our
option, during the warranty period, to repair
any defect in material or workmanship
or to furnish an equal new, renewed or
comparable product (whichever is deemed
necessary) in exchange without charges,
subject to verification of the defect or
malfunction and proof of the date of
purchase. Subsequent replacement products
are warranted for the balance of the original
warranty period.
Who is covered? This warranty is extended
to the original retail purchaser for products
purchased from an authorized JENSEN
dealer and used in the U.S.A.
What is covered? This warranty covers all
defects in material and workmanship in
this product. The following are not covered:
software, installation/removal costs,
damage resulting from accident, misuse,
abuse, neglect, product modification,
improper installation, incorrect line voltage,
unauthorized repair or failure to follow
instructions supplied with the product, or
damage occurring during return shipment
of the product. Specific license conditions
and copyright notices for the software can be
found via www.jensenmobile.com.
Warranty Coverage
Limited 1-year warranty when purchased
from an authorized Jensen dealer.
or
*Limited 2-year warranty when purchased
from and professionally installed by an
authorized Jensen dealer.(Proof of purchase
and Installation required)
What to do?
1. Before you call for service, check the
troubleshooting guide in your owner’s
manual. A slight adjustment of any custom
controls may save you a service call.
2. If you require service during the warranty
period, you must carefully pack the
product (preferably in the original package)
and ship it by prepaid transportation with
a copy of the original receipt from the
retailer to an
authorized service center.
3. Please describe your problem in writing
and include your name, a return UPS
shipping address (P.O. Box not acceptable),
and a daytime phone number with your
shipment.
4. For more information and for the location
of the nearest authorized service center
please contact us by one of the following
methods:
• Call us toll-free at (888) 921-4088
• E-mail us at [email protected]om
Exclusion of Certain Damages: This
warranty is exclusive and in lieu of any and
all other warranties, expressed or implied,
including without limitation the implied
warranties of merchantability and fitness
for a particular purpose and any obligation,
liability, right, claim or remedy in contract
or tort, whether or not arising from the
company’s negligence, actual or imputed.
No person or representative is authorized to
assume for the company any other liability in
connection with the sale of this product. In no
event shall the company be liable for indirect,
incidental or consequential damages.
21
OPERATION
21
FCC Compliance
This device complies with Part 15 of the FCC Rules. Operation is subject to the
following two conditions:
(1) this device may not cause harmful interference, and
(2) this device must accept any interference received, including interference that may
cause undesired operation.
Warning: Changes or modifications to this unit not expressly approved by the party
responsible for compliance could void the user’s authority to operate the equipment.
Note: This equipment has been tested and found to comply with the limits for a Class
B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed
to provide reasonable protection against harmful interference in a residential
installation. This equipment generates, uses and can radiate radio frequency
energy and, if not installed and used in accordance with the instructions, may cause
harmful interference to radio communications. However, there is no guarantee that
interference will not occur in a particular installation. If this equipment does cause
harmful interference to radio or television reception, which can be determined
by turning the equipment off and on, the user is encouraged to try to correct the
interference by one or more of the following measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different from that to which
the receiver is connected.
• Consult the dealer or an experienced radio/TV technician for help.
22
OPERATION
22
Specifications
Frequency response: 20Hz-20kHz
Channel separation @ 1kHz: >60dB
D/A converter: 1 Bit
Tuning range: 87.5MHz-107.9MHz
Usable sensitivity: 8.5dBf
50dB quieting sensitivity: 10dBf
Stereo separation @ 1kHz: >30dB
Frequency response: 30Hz-13kHz
Tuning range: 530kHz-1710kHz
Usable sensitivity: <42dBu
Frequency response: 30Hz-2.2kHz
USB Charge: 1A
Speaker output impedance: 4~8 ohms
Dimensions: 7" x 5.9" x 2" (178 x 150 x 50 mm)
Design and specifications subject to change without notice.
CD Player
FM Tuner
AM Tuner
General
CEA-2006 Power Standard Specifications
(reference: 14.4VDC +/- 0.2V, 20Hz~20kHz)
Power Output: 16 Watts RMS x 4 channels at 4 ohms and < 1%
THD+N
Signal to Noise Ratio: 80dBA (reference: 1 watt into 4 ohms)
23
OPERATION
23
Troubleshooting
Problem Cause Action
Unit will not turn on
(no power)
Yellow wire not connected or incorrect
voltage Red wire not connected or
incorrect voltage
Check connections for proper
voltage (11~16VDC)
Black wire not connected Check connection to ground
Fuse blown Replace fuse
Unit has power
(but no sound)
Speaker wires not connected
Check connections at
speakers
One or more speaker wires touching
each other or touching chassis
ground
Insulate all bare speaker
wires from each other and
chassis ground
Unit blows fuses
Yellow or red wire touching chassis
ground
Check for pinched wire
Speaker wires touching chassis
ground
Check for pinched wire
Incorrect fuse rating Use fuse with correct rating
Excessive skipping
Unit is not mounted correctly or
backstrap is not secure
Check mounting sleeve and
backstrap support
Physical defect in media (CD, CD-R or
CD-RW)
Check media for scratches
ERR FILE appears
on display
Disc read error Press eject or RESET
Focus error or disc is in upside down Press eject or RESET
NO FILE appears
on display
No playable MP3files found on the
device
Check the device for valid
MP3 files
Unit will not accept
a disc
CD mechanism position out of
alignment
Press EJECT to reset CD
mechanism position
CD transit screws still in place
Remove 2 transit screws
located on top of the unit
NO SUPPORT appears
on display
An invalid ID3 tag version is present
Version 1.0 to 2.0 ID3 tags
are supported.
Customer Support
1-888-921-4088
(Monday-Friday, 9AM-5PM EST)
Visit https://www.jensenmobile.com
Designed and Engineered in USA
W AT T S
Front & Rear
Camera
NSA0821-v01
Namsung America Inc.
©2021 Namsung America Inc.
All rights reserved.
All rights reserved. No part of this publication may be
reproduced, distributed, or transmitted in any form or
by any means, including photocopying, recording, or
other electronic or mechanical methods, without the
prior written permission of NAMSUNG AMERICA INC.
