ITEM #5127846
TALAMORE CEILING FAN
Español p. 20
MODEL #TAL60MBK8LR
ATTACH YOUR RECEIPT HERE
Purchase Date
1
HARBOR BREEZE and logo design are
trademarks or registered trademarks of
LF, LLC. All rights reserved.
AS22531
Questions, problems, missing parts? Before returning to your retailer, call our customer
service department at 888-251-1003, 8 a.m. - 8 p.m., EST, Monday - Sunday. You could also
contact us at [email protected].
4007498
2
Safety Information ...............................................................................................................
.
. 2
Package Contents ..............................................................................................................
.
. 4
Hardware Contents
...........................................................................................................................
5
Preparation ........................................................................................................................... 5
Initial Installation ................................................................................................................... 5
Downrod-Style Fan Mounting ............................................................................................... 7
Closemount-Style Fan Mounting ........................................................................................
.
.. 9
Wiring ...................................................................................................................................11
Final Installation .................................................................................................................. 12
Operating Instructions ......................................................................................................... 16
Care and Maintenance ...................................................................................................
.
.... 17
Troubleshooting ..................................................................................................................
Limited Lifetime Warranty ...................................................................................................
Replacement Parts List .......................................................................................................
TABLE OF CONTENTS
SAFETY INFORMATION
READ AND SAVE THESE INSTRUCTIONS
• Do not discard fan carton or foam inserts. Should this fan need to be returned to the factory for repairs, it
must be shipped in its original packaging to ensure proper protection against damage that might exceed the
initial cause for return.
• Make sure all electrical connections comply with local codes, ordinances, the National Electrical Code and
ANSI/NFPA 70-1999. Hire a qualified electrician or consult a do-it-yourself wiring handbook if you are
unfamiliar with installing electrical wiring.
• Make sure the installation site you choose allows a minimum clearance of 7 ft. from the blades to the floor
and at least 30 in. from the end of the blades to any obstruction.
• After you install the fan, make sure all connections are secure to prevent the fan from falling.
• The net weight of this fan is: 18.08 lbs.
CAUTION: Changes or modifications not approved by the party responsible for compliance could void the
user's authority to operate the equipment. [The equipment refers to the remote control transmittor and/or
LED light kit.]
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions:
(1) this device may not cause harmful interference, (2) this device must accept any interference received,
including interference that may cause undesired operation.
NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device,
pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against
harmful interference in a residential installation. This equipment generates, uses and can radiate radio
frequency energy and, if not installed and used in accordance with the instructions, may cause harmful
interference to radio communications. However, there is no guarantee that interference will not occur in a
particular installation. If this equipment does cause harmful interference to radio or television reception,
which can be determined by turning the equipment off and on, the user is encouraged to try to correct the
interference by one or more of the following measures:
* Reorient or relocate the receiving antenna.
* Increase the separation between the equipment and receiver.
* Connect the equipment into an outlet on a circuit different from that to which the
receiver is connected.
* Consult the dealer or an experienced radio/TV technician for help.
Distributed by: Litex Industries Inc., P.O. Box 535639, Grand Prairie, TX, 75053; 1-800-527-1292
18
19
19
FCC Compliance Notice
SAFETY INFORMATION
3
Read all instructions and safety information before installing your new fan. Review the
accompanying assembly diagrams.
Be sure outlet box is properly grounded and that a ground wire (green or bare) is present.
Before beginning installation, carefully check all screws, bolts and nuts on fan motor housing to
ensure that they are secured.
DO NOT tamper with or attempt to repair LED component. The light source is designed for this
specific application and should not be serviced by untrained personnel. If any servicing is required,
call our customer service department.
CAUTION
WARNING
To reduce the risk of fire, electrical shock or personal injury, mount fan to outlet box
marked "ACCEPTABLE FOR FAN SUPPORT OF 35 LBS. OR LESS" and use
mounting screws provided with the outlet box. Most outlet boxes commonly used for the
support of lighting fixtures are not acceptable for fan support and may need to be replaced.
Consult a qualified electrician if in doubt.
To avoid personal injury, the use of gloves may be necessary while handling fan parts with
sharp edges.
When mounting fan to a ceiling outlet box, use a METAL octagonal outlet box; do NOT use a
plastic outlet box. Secure the outlet box directly to the building structure. The outlet box and its
support must be able to support the moving weight of the fan (at least 35 lbs.).
To reduce the risk of fire, electrical shock or personal injury, wire connectors provided with this fan
are designed to accept only one 12-gauge house wire and two lead wires from the fan. If your
house wire is larger than 12-gauge or there is more than one house wire to connect to the
corresponding fan lead wires, consult an electrician for the proper size wire connectors to use.
To reduce the risk of fire or electrical shock, do not use the fan with any solid state speed control
device or control fan speed with a full range dimmer switch.
To reduce the risk of fire, electrical shock or personal injury, do not bend the blades when
installing them, balancing the blades or cleaning the fan. Do not insert objects between the
rotating fan blades.
To reduce the risk of personal injury, use ONLY parts provided with this fan. The use of parts
OTHER than those provided with this fan will void the warranty.
Before installation, be sure to shut off electricity at main switch or circuit breaker in order to avoid
electrical shock.
WARNING
The DC Motor will not operate until blades are installed.
DANGER
When using an existing outlet box, make sure the outlet box is securely attached to the building
structure and can support the full weight of the fan. Failure to do this can result in serious injury or
death. The stability of the outlet box is essential in minimizing wobble and noise in the fan after
installation is complete.
To reduce the risk of serious bodily injury, DO NOT use power tools to assemble any part of the fan,
including the blades.
4
4
IMPORTANT REMINDER: You must use the
parts provided with this fan for proper installation
and safety.

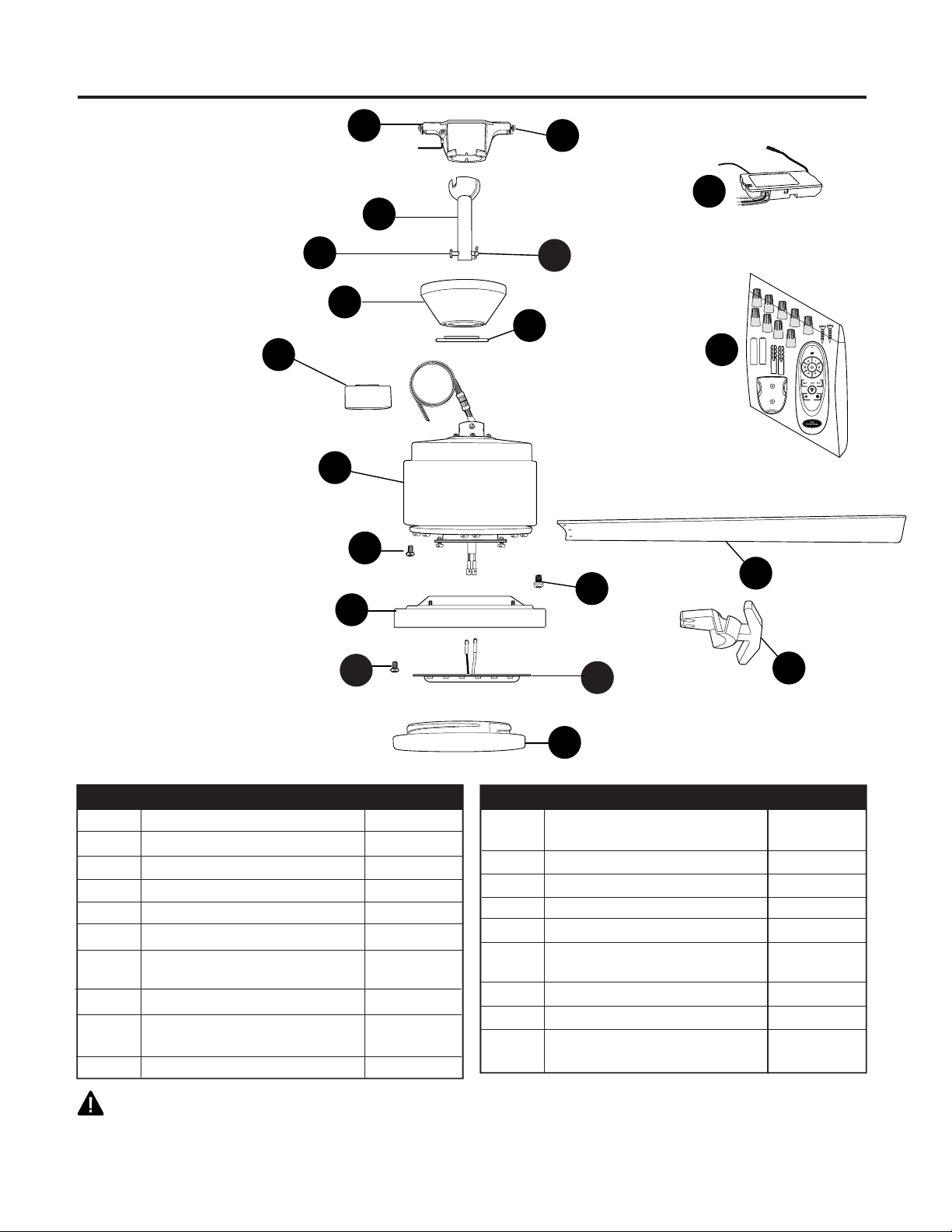

PACKAGE CONTENTS
A Downrod 1
B Canopy 1
C Mounting Bracket 1
D Motor Housing 1
E Yoke Cover 1
F LED Light Kit 1
G Canopy Mounting Screw 4
(preassembled)
H
Fitter Plate 1
I Fitter Plate Screw 3
(preassembled)
J Blade 8
DESCRIPTIONPART
QUANTITY
DESCRIPTIONPART
QUANTITY
K Motor Plate Screw 3
(preassembled)
L Blade Arm 8
M Shade 1
N Pin (preassembled) 1
O Clip (preassembled) 1
P Canopy Cover 1
(preassembled)
Q Remote Control Receiver 1
R Remote Pack
1
S
Motor Screw/Washer 16
(preassembled) + 1 extra
A
D
B
C
N
M
J
E
S
G
Q
K
F
O
H
I
L
R
P
5
HARDWARE CONTENTS (shown actual size)
Before beginning assembly of product, make sure all parts are present. Place motor on carpet or on
foam to avoid damage to finish. Compare parts with package contents list and hardware contents list.
If any part is missing or damaged, do not attempt to assemble the product.
Estimated Assembly Time: 120 minutes
Tools Required for Assembly (not included): Electrical Tape, Phillips Screwdriver, Pliers, Safety
Glasses, Stepladder and Wire Strippers
Helpful Tools (not included): AC Tester Light, Tape Measure, Do-It-Yourself Wiring Handbook and
Wire Cutters, Hammer
PREPARATION
Fiber
Blade
Washer
Qty. 24
+ 1 extra
CC
Blade
Screw
Qty. 24
+ 1 extra
Wire
Connector
Qty. 4
AA
BB
CC
INITIAL INSTALLATION
ON
OFF
ON
OFF
1

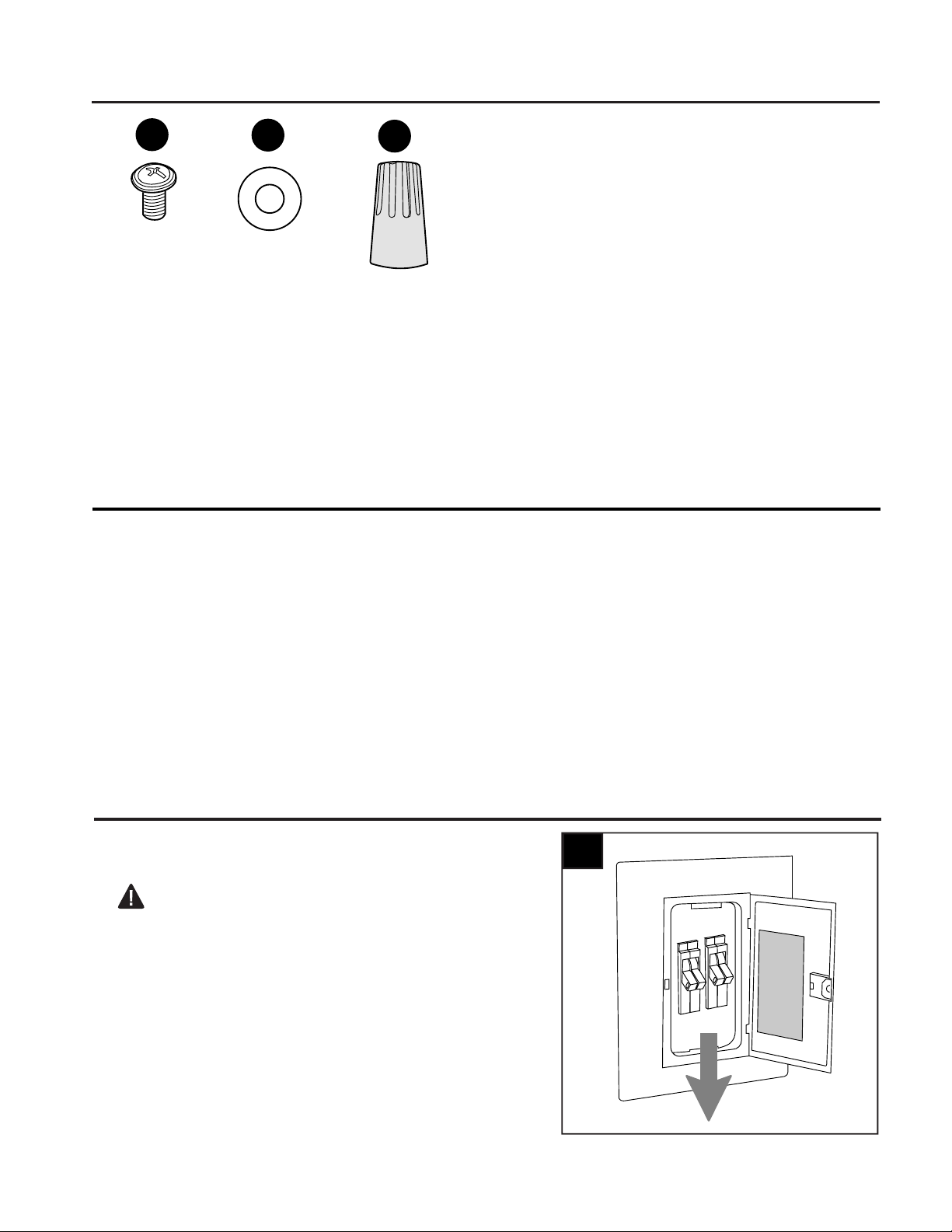

Turn off circuit breakers and wall switch to the fan
supply line leads.
DANGER: Failure to disconnect power supply
prior to installation may result in serious injury or
death.
1.
INITIAL INSTALLATION
6
A
B
2
17° max.
Open End
C
C
2.

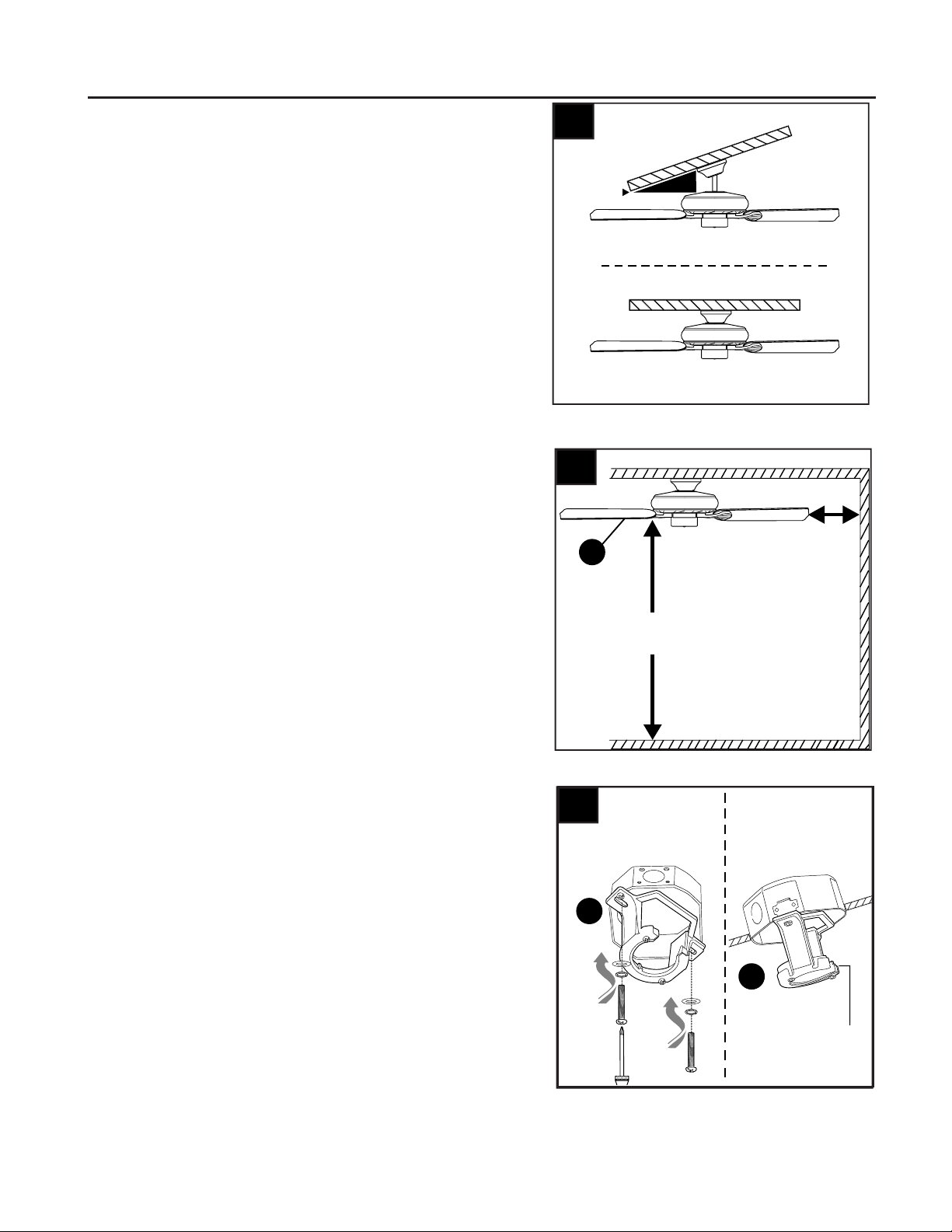

Determine mounting method to use.
A. Downrod mount (standard or angled ceiling).
B. Closemount (standard ceiling only).
IMPORTANT: If using the angle mount, check to
make sure the ceiling angle is not steeper than 17°.
*Helpful Hint: Downrod-style mounting is best
suited for ceilings 8 ft. or higher. For taller ceilings
you may want to use a longer downrod (not
included). Angle-style mounting is best suited for
angled or vaulted ceilings. A longer downrod is
sometimes necessary to ensure proper blade
clearance. Closemount mounting is more suitable
for ceilings lower than 8 ft. high.
Check to make sure blades (J) will be at least
30 in. from any obstruction and at least 7 ft.
above the floor.
3.
Secure mounting bracket (C) to outlet box (not
included) using screws, spring washers and flat
washers provided with the outlet box.
*NOTE: It is very important you use the proper
hardware when installing the mounting bracket (C)
as this will support the fan.
IMPORTANT: If using the angle mount, make
sure open end of mounting bracket (C) is installed
facing the higher point of the ceiling, and ensure
the ceiling angle is not steeper than 19°.
4.
ANGLE
MOUNT
STANDARD
MOUNT
7 ft.
min.
30 in.
min.
J
3
4
7
INITIAL INSTALLATION
DOWNROD-STYLE FAN MOUNTING

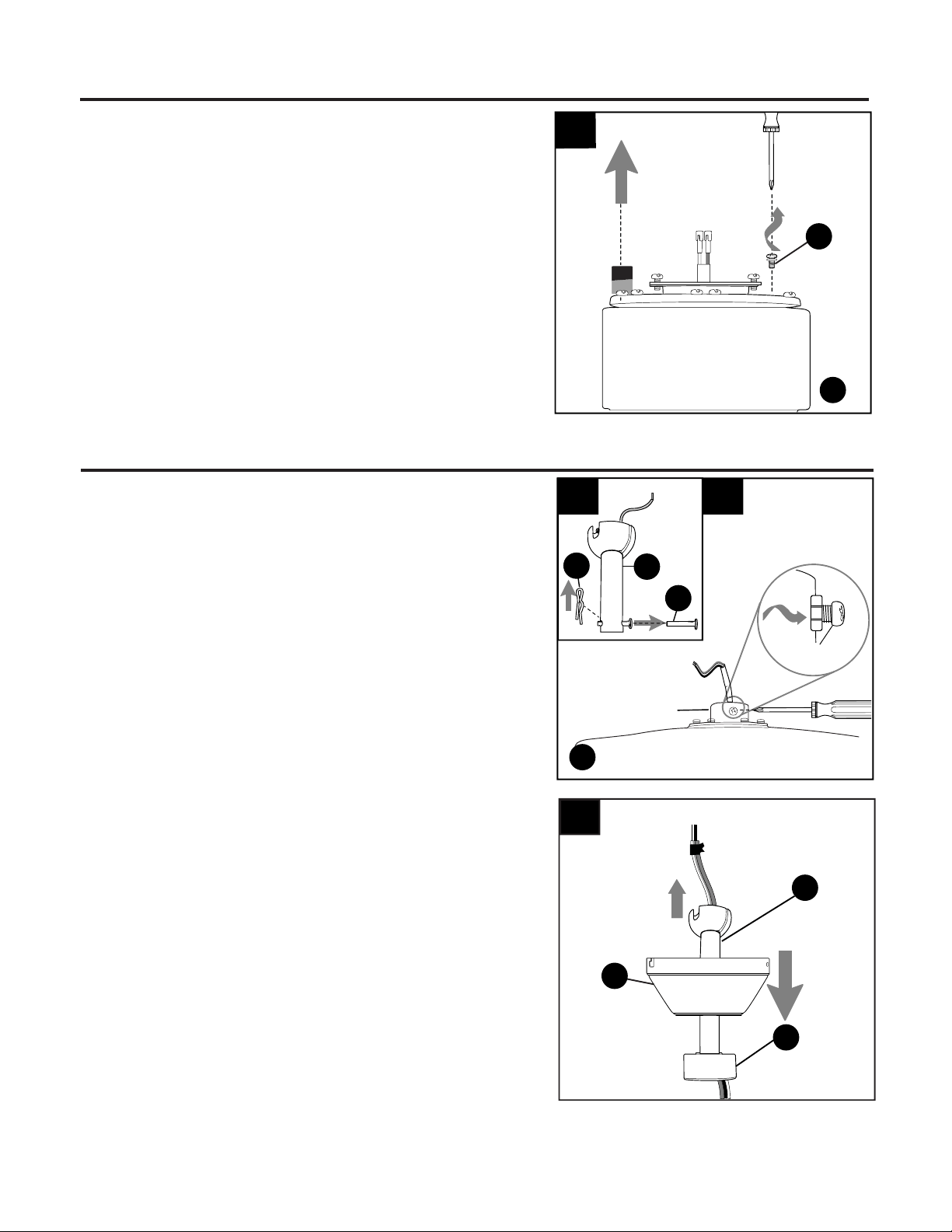

Remove pin (N) and clip (O) from downrod (A).
Partially loosen preassembled set screw and nut
in yoke at top of motor housing (D).
1a.
1b.
5.
D
1b
Yoke
Set Screw
& Nut
Sideview
1a
O
N
A
A
2.
2
B
E
5
D
Motor
Block
S
Remove motor screw/washers (S) from
underside of motor housing (D) and save for
blade arm attachment later on. [If there are
plastic motor blocks installed with the motor
screws/washers (S), discard the plastic motor
blocks.]
For DOWNROD-STYLE FAN MOUNTING,
proceed to step 1a below.
For CLOSEMOUNT-STYLE FAN MOUNTING,
skip to page 9.
Insert downrod (A) through canopy (B) and yoke
cover (E).Thread wires from motor housing (D) up
through downrod (A).
8
INITIAL INSTALLATION
4.
3.
3
A
O
N
Set Screw
and Nut
5.
Depending on the length of downrod you use, you
may need to cut the lead wires back to simplify the
wiring. If you decide to cut back the lead wires, it is
suggested you do so in the following manner:
Take the lead wires and make sure you have pulled
them all the way through the top of the downrod.
Start at the TOP of the hanging ball on the downrod
and measure 8 in. of lead wire, and then cut the
excess wire off with wire cutters (not included).
NOTE: If you do not cut back the lead wires, Steps
4 and 5 are not necessary and you may proceed
to Step 6 instead.
E

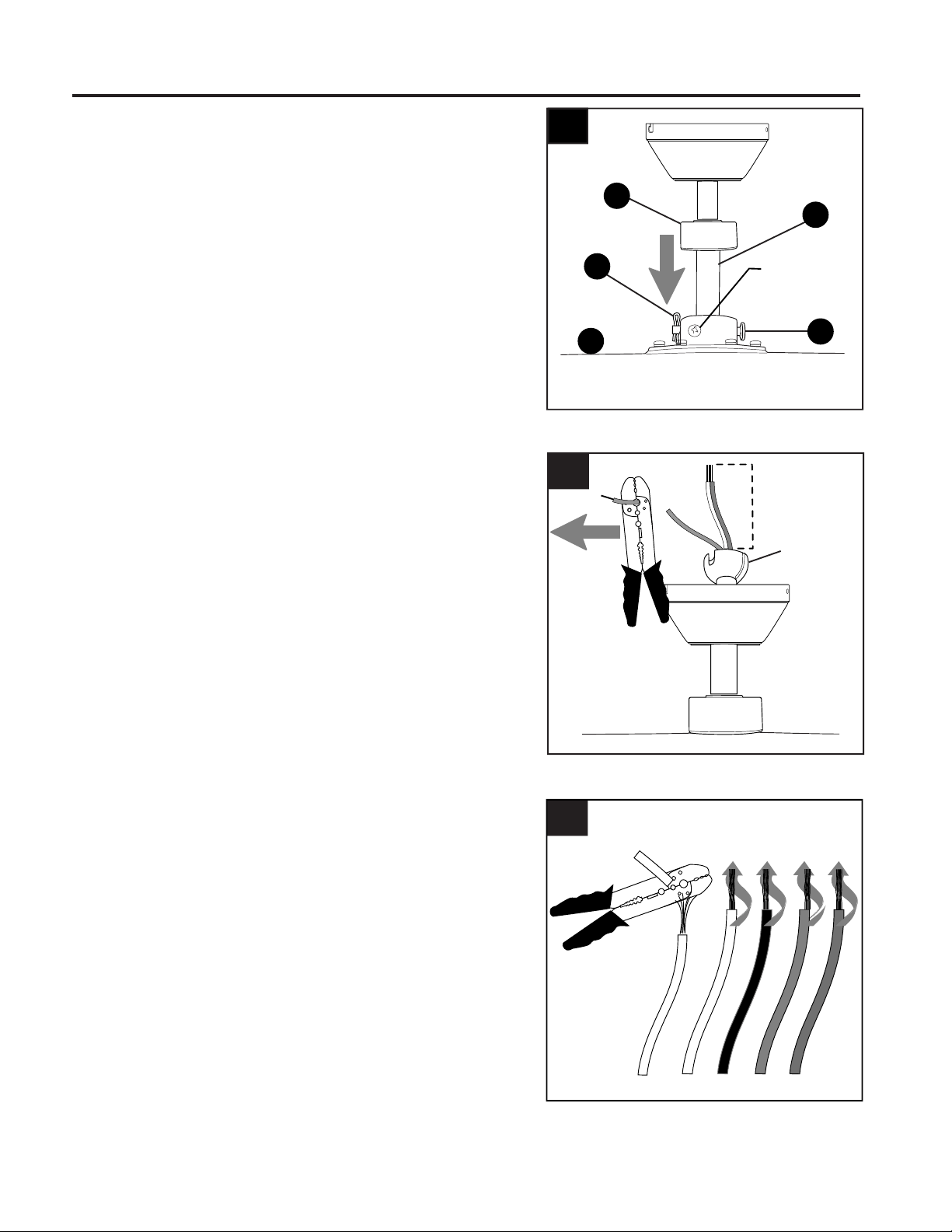

Slip downrod (A) into yoke, align holes and
re-install pin (N) and clip (O). Tighten set screw
and nut. Slide yoke cover (E) down until it rests on
top of motor housing (D).
D
4
Hanging
Ball
8 in.
If you decided to cut back the lead wires in Step 4,
strip 1/2 in. of insulation from end of each
wire -- WHITE, BLUE, PINK, GREY AND RED (if
applicable). Twist stripped ends of each strand of
wire within the insulation with pliers (not included).
5
9
DOWNROD-STYLE FAN MOUNTING
6.
CLOSEMOUNT-STYLE FAN MOUNTING
2.

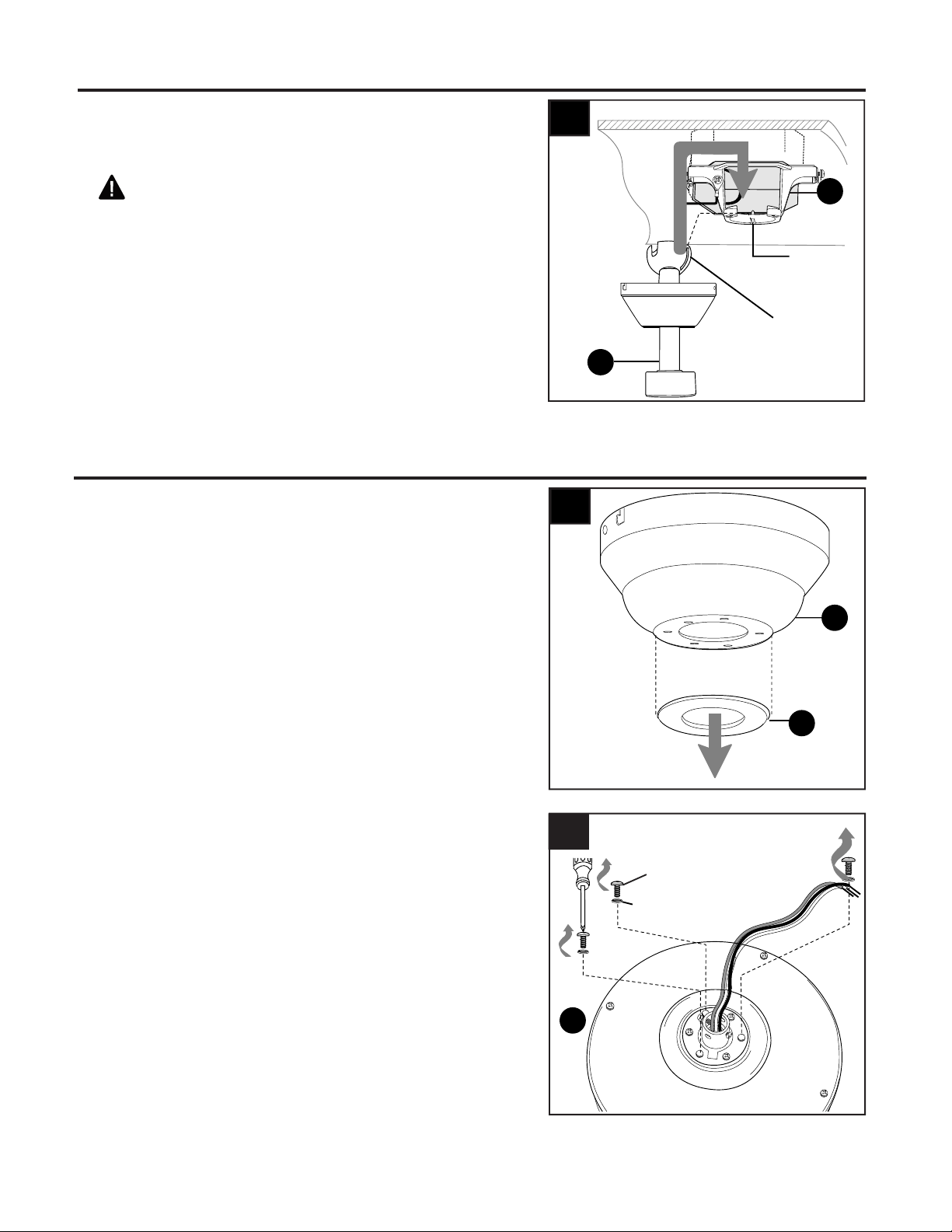

Install hanging ball of downrod (A) into opening of
mounting bracket (C). Align slot in hanging ball
with the tab in mounting bracket (C).
DANGER: Failure to align slot in hanging ball
with the tab in mounting bracket (C) may result in
serious injury or death.
Continue to WIRING on page 11.
C
Tab
6
A
Slot
2
D
Screw
Lock Washer

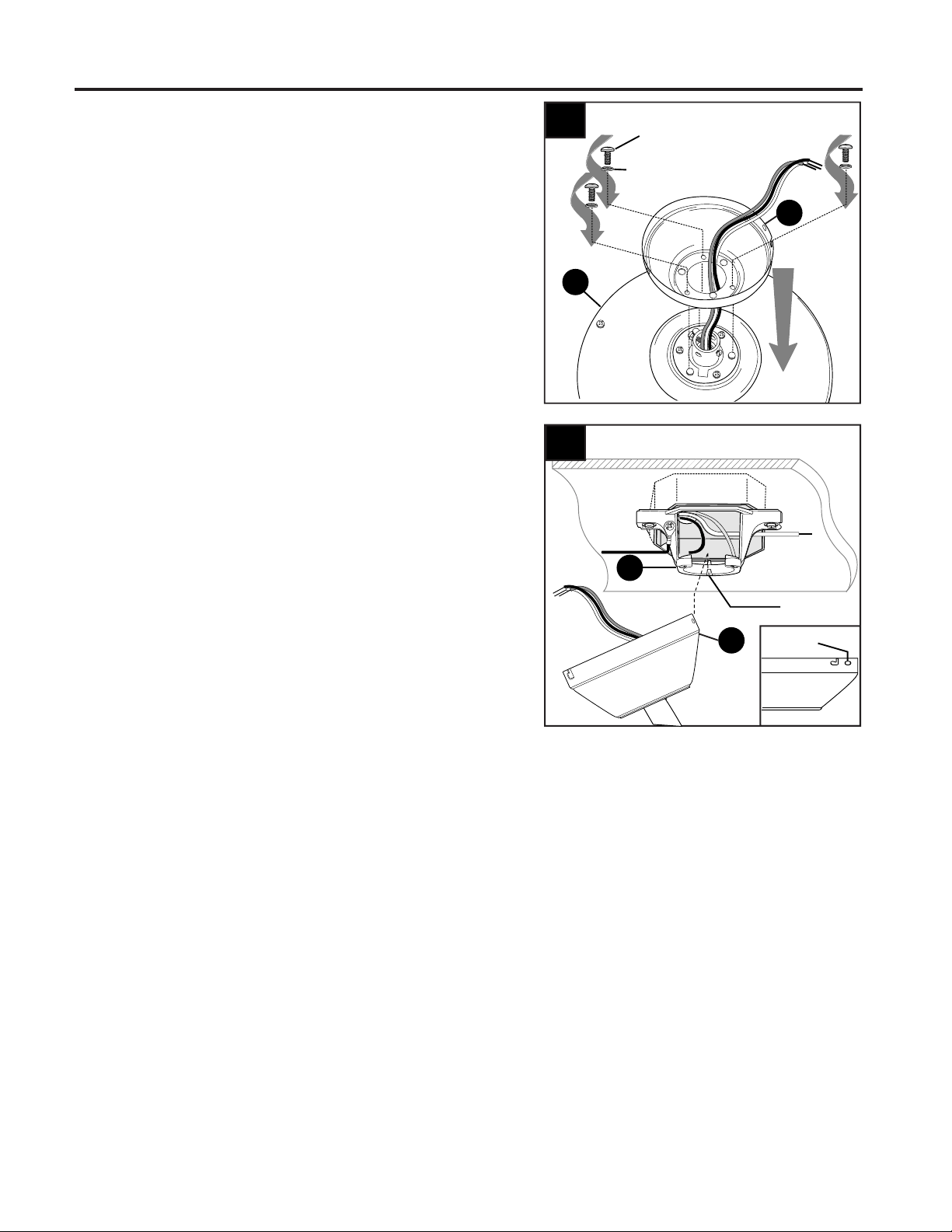

Remove every other preassembled screw and lock
washer from top of motor housing (D).
Remove preassembled canopy cover (P) from
bottom of canopy (C). NOTE: To remove canopy
cover from canopy (C), twist canopy cover (P)
until the two small protrusions on the inner lip of
the canopy cover align with the two notches on
the bottom of the canopy (C). Pull on canopy
cover to remove.
NOTE: The downrod (A), yoke cover (E) and
canopy cover (P) are not used in this type of
installation.
1.
P
B
1
C
CLOSEMOUNT-STYLE FAN MOUNTING
10
Temporarily hang fan on the tab on the mounting
bracket (C) using one of the non-slotted holes in
the canopy (B).
3.
3.
Non-Slotted
Tab
C
3
B
Pull wires up through hole in the middle of the
canopy (B) and attach canopy (B) to motor
housing (D) using the three previously removed
screws and lock washers.
3
B
D
Screw
Lock
Washer
11
Connect all GROUND (GREEN) wires from fan
(on downrod (A), if applicable, mounting
bracket (C)) and remote control receiver (Q) to
BARE/GREEN supply wire from ceiling.
Connect BLACK wire (labeled AC IN L) from remote
control receiver (Q) to BLACK supply wire from
ceiling.
Connect WHITE wire (labeled AC IN N) from remote
control receiver (Q) to WHITE supply wire from
ceiling.
Connect RED wire (labeled TO MOTOR) from
remote control receiver (Q) to RED wire from motor
housing (D).
Connect GRAY wire (labeled TO MOTOR) from
remote control receiver (Q) to GRAY wire from motor
housing (D).
Connect PINK wire (labeled FOR MOTOR) from
remote control receiver (Q) to PINK wire from motor
housing (D).
Connect BLUE wire (labeled FOR LIGHT L) from
remote control receiver (Q) to BLUE wire from motor
housing (D).
Connect WHITE wire (labeled FOR LIGHT N) from
remote control receiver (Q) to WHITE wire from motor
housing (D).

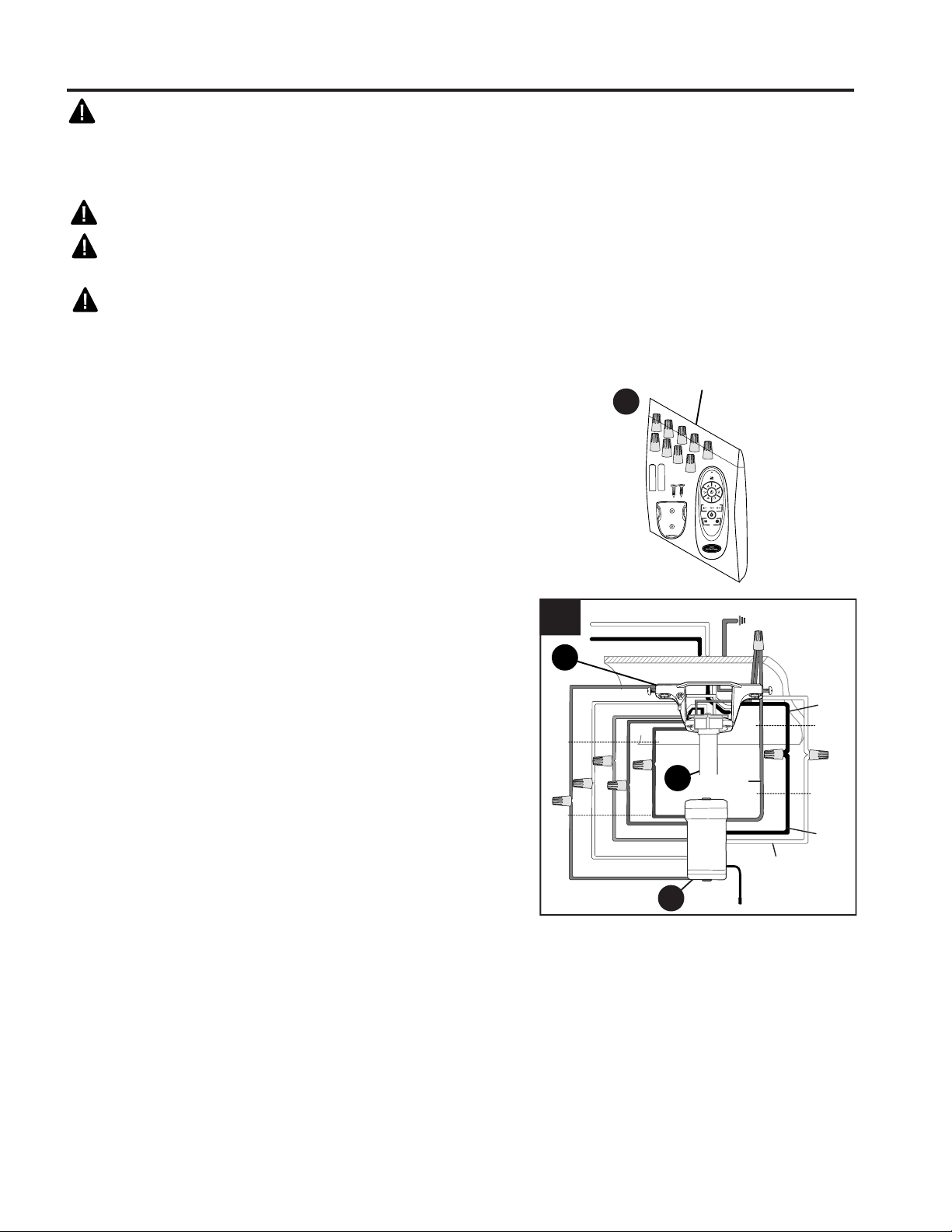

1.
WIRING
Q
1
WHITE SUPPLY WIRE
BLACK SUPPLY WIRE
PINK
RED
RED
GRAY
GRAY
PINK
WHITE
BLUE
BLUE
WHITE
BLACK
AC IN L
WHITE
AC IN N
WHITE
GROUND (GREEN OR BARE)
GROUND
(GREEN OR BARE)
BLACK
FROM
RECEIVER
FROM
FAN
FROM
RECEIVER
FROM
CEILING
A
C
GREEN/
GROUND
WARNING: To reduce the risk of fire, electrical shock or personal injury, wire connectors provided
with this fan are designed to accept only one 12-gauge house wire and two lead wires from the fan. If
your house wire is larger than 12-gauge or there is more than one house wire to connect to the
corresponding fan lead wires, consult an electrician for the proper size wire connectors to use.
CAUTION: Be sure outlet box is properly grounded and that a ground (green or bare) wire is present.
WARNING: If house wires are different colors than referred to in the following steps, stop immediately.
A professional electrician is recommended to determine wiring.
WARNING: Using a full range dimmer switch (not included) to control fan speed will cause a loud
humming noise from fan. To reduce the risk of fire or electrical shock, do NOT use a full range dimmer switch
to control fan speed.
IMPORTANT: Make the necessary wiring connections for
remote control operation as detailed on next page. For each
wire connection, use one of the wire connectors from the
remote pack (R), making sure to screw wire connector on in
a clockwise direction.
Wire
Connectors
R
12
3
Gently slide remote control receiver (Q) flat-side
up into mounting bracket (C). Turn spliced/taped
wires upward and gently push wires and wire
connectors (CC) into outlet box. Let antenna from
remote control receiver (Q) hang to the side.
NOTE: The remote control included with this fan
meets the following requirements:
a. Not for use with solid state fans.
b. Electrical rating: 120V / 60 Hz;
motor amps:1.25 MAX.
3.
Antenna
A
Q
C
WIRING
FINAL INSTALLATION
1.
1
Downrod
Option
Closemount
Option
B
G
D
G
D
B

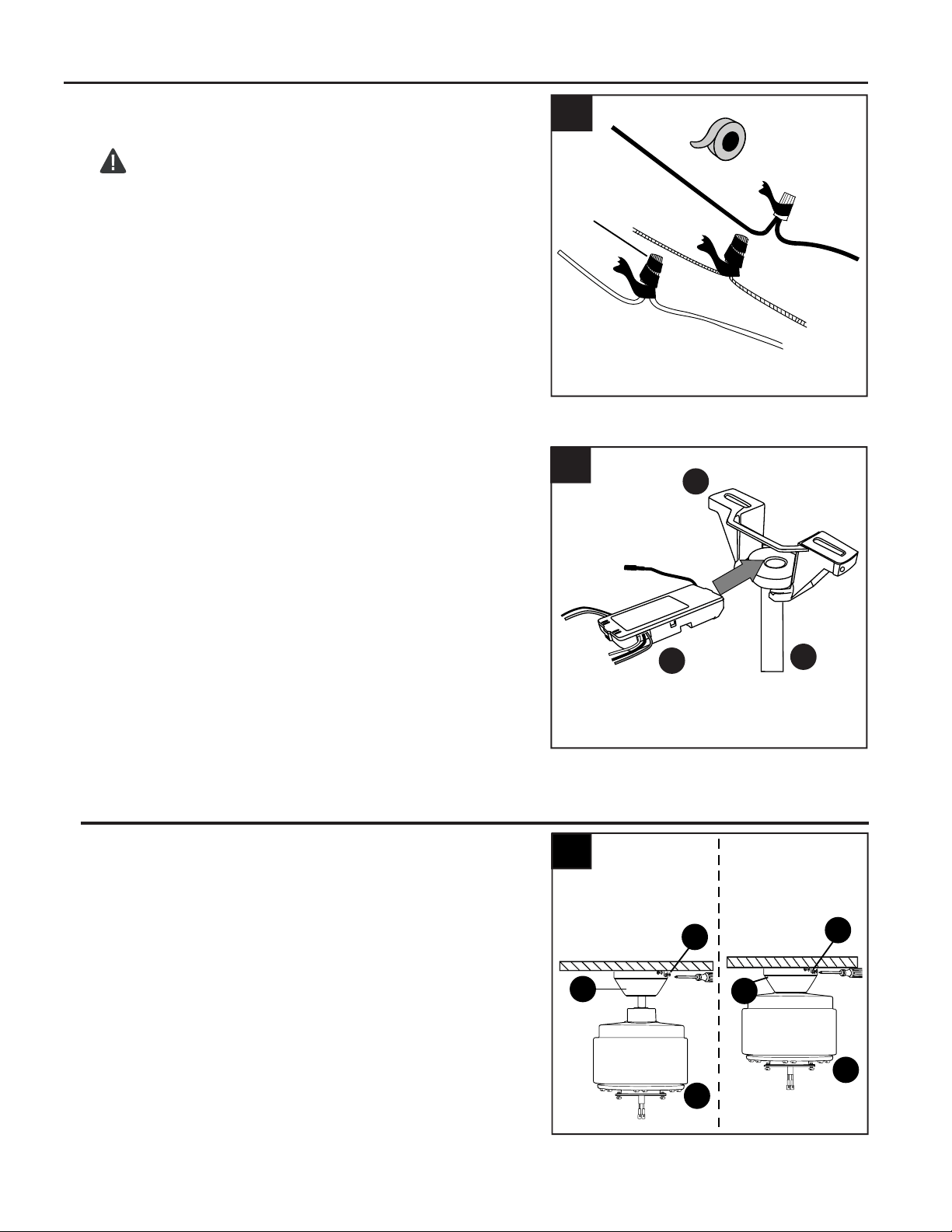

Wrap electrical tape (not included) around each
individual wire connector down to the wire.
WARNING: Make sure no bare wire or wire
strands are visible after making connections. Place
GREEN and WHITE connections on opposite side of
the outlet box from the BLACK and BLUE (if
applicable) connections.
2.
2
Wire
Connector
Temporarily lift canopy (B) to mounting bracket
(C) to determine which two canopy mounting
screws (G) in mounting bracket (C) align with
slotted holes in canopy (B) and partially loosen
these two canopy mounting screws (G). Remove
the other two canopy mounting screws (G). Now,
lift canopy (B) to mounting bracket (C) again,
aligning slotted holes in canopy (B) with loosened
canopy mounting screws (G) in mounting bracket
(C). Twist canopy (B) clockwise to lock. Re-insert
the two canopy mounting screws (G) that were
just removed and tighten all canopy mounting
screws (G) securely.
13
FINAL INSTALLATION
3.
3
L
D
4.
Partially loosen two motor plate screws (K) in motor
plate on underside of motor housing (D) and
remove the other motor plate screw (K). Align
slotted holes in fitter plate (H) with loosened motor
plate screws (K), allowing molex connections from
motor housing (D) to come through hole in fitter
plate (H). Twist fitter plate (H) to lock. Re-insert the
motor plate screw (K) that was removed and
securely tighten all three motor plate screws (K).
4
Motor
Plate
Molex
Connections
I
H
D
I
K
I
K
I
K

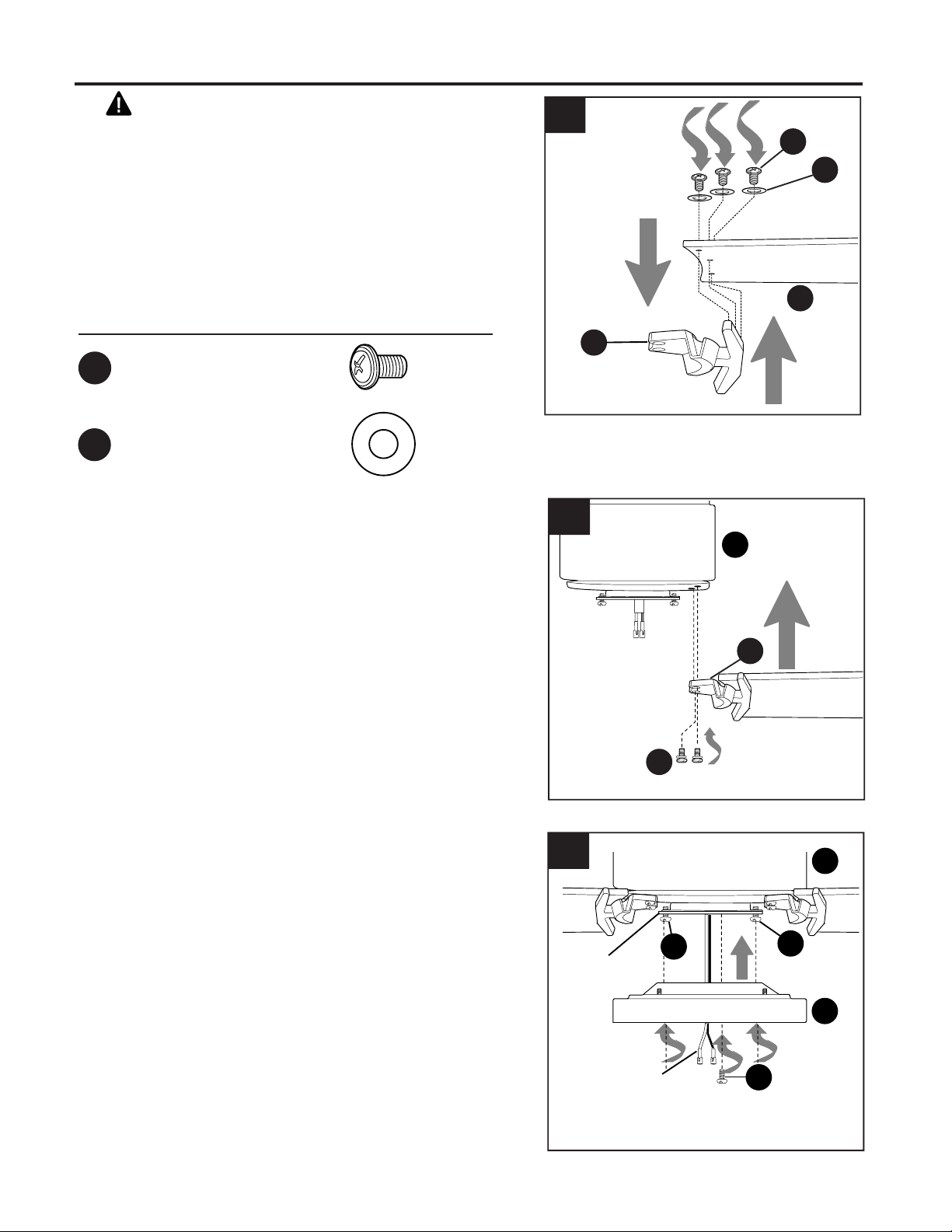

Locate motor screws/washers (S) that were
previously removed (Step 5, page 7).
Insert two motor screws/washers (S) through one
blade arm (L) to attach blade arm (L) to motor
housing (D). Tighten motor screws/washers (S)
securely. Repeat with remaining blade arms (L),
making sure to completely secure each blade
arm (L) before proceeding with the next.
2.
DANGER: To reduce the risk of serious bodily
injury, DO NOT use power tools to assemble the
blades (J). If screws are overtightened, blades (J)
may crack and break.
Partially insert three blade screws (AA) along with
three fiber blade washers (BB) into holes in blade (J)
to attach blade arm (L) to blade (J). Then, tighten
each blade screw (CC) starting with the one in the
middle. Repeat with remaining blades (J).
Hardware Used
Fiber Blade Washer x 24
BB
2
AA
BB
L
J
Blade Screw x 24
AA
S
14
FINAL INSTALLATION
5.
Partially loosen two fitter plate screws (I) on the
underside of the fitter plate (H) and remove the
other fitter plate screw (I).
H
5
Molex
Connections
I
D
I
6.

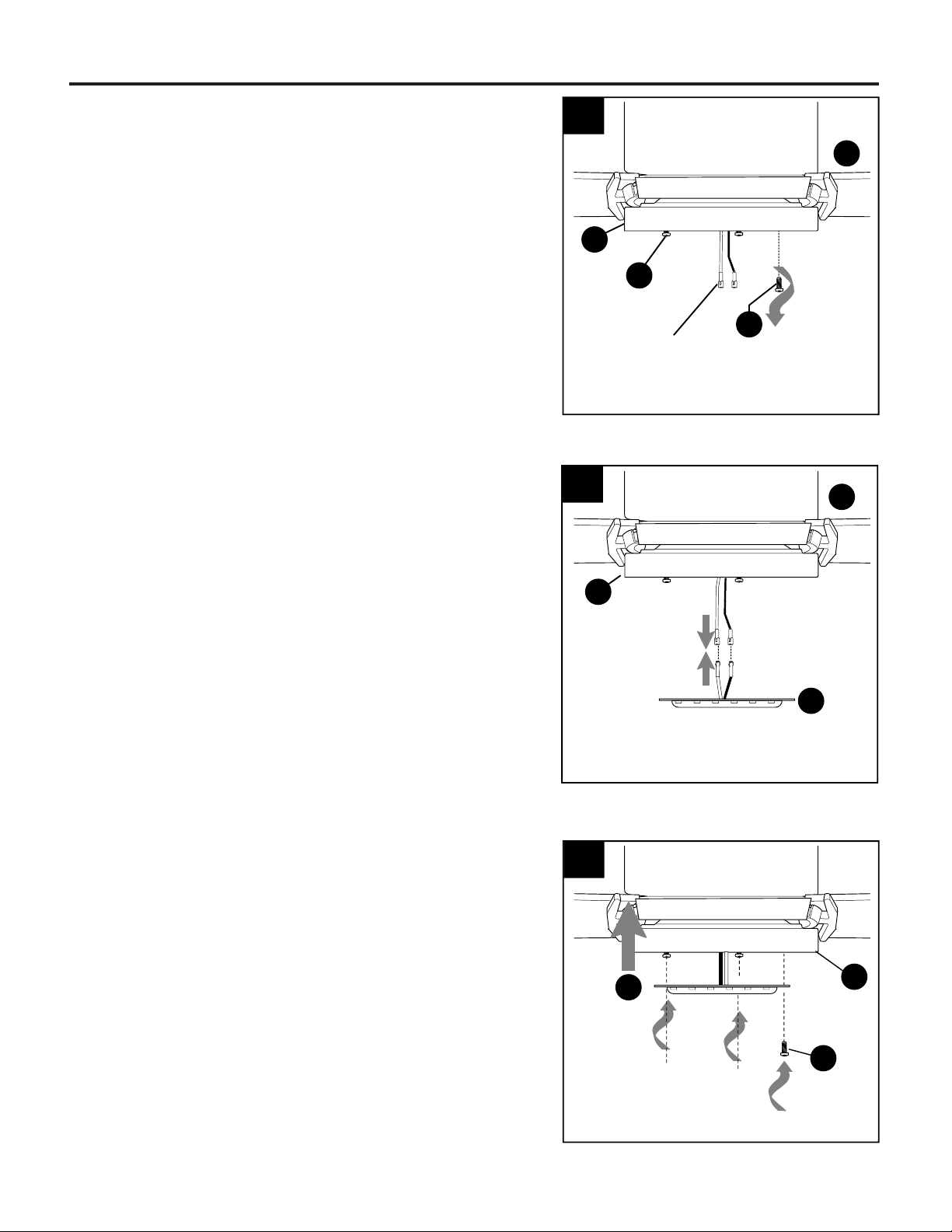

Connect WHITE wire from LED light kit (F) to
WHITE wire from motor housing (D). Connect BLUE
wire from LED light kit (F) to BLUE (or BLACK) wire
from motor housing (D). Make sure molex
connections are secure.
F
6
WHITE
BLUE (or BLACK)
WHITE
BLUE
D
H
7.
Carefully arrange wiring within the fitter plate (H) to
ensure wires do not get pinched when attaching the
LED light kit (F).
Align slotted holes in LED light kit (F) with loosened
fitter plate screws (I) on fitter plate (H). Twist LED
light kit (F) to lock in place. Re-insert the previously
removed fitter plate screw (I) and securely tighten
all fitter plate screws (I).
H
I
7
F
15
FINAL INSTALLATION
8.

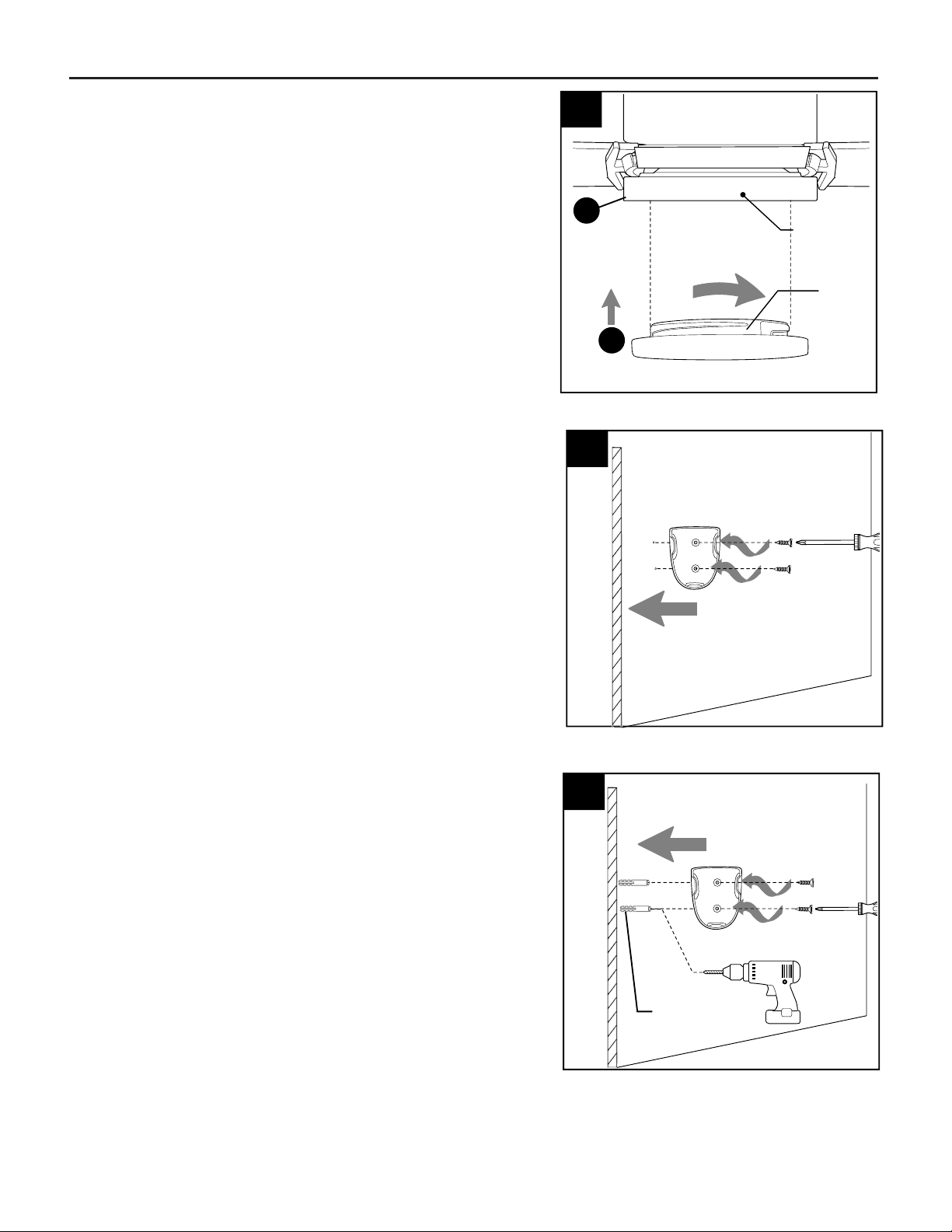

Align slots on shade (M) with protrusions on
underside of fitter plate (H). Turn shade (M)
clockwise until it no longer turns.
NOTE: Pull down gently on the shade (M) to make
sure it is secured completely.
8
Slot
Protrusion
M
H
If mounting surface is drywall, mark the
location of the holes using a pencil or a marker
(not included). Use a 7/32 in. drill bit (not
included) to drill two pilot holes in drywall at
marked locations.
Position plastic anchor in each pilot hole. Gently
tap plastic anchors with a hammer (not
included) until flush with wall surface. Screw
bracket screws into plastic anchor.
The remote control transmitter from remote
pack (R) rests inside the bracket.
9.
9
Remote Control
Bracket
Wall
Bracket
Screws
Wall
Anchors
8
Remote Control
Bracket
Wall
Bracket
Screws
If you wish to use the remote control bracket
from remote pack (R) on a wood surface, install
bracket screws from remote pack (R) through
bracket and into the desired installation site.
8.
16
OPERATING INSTRUCTIONS
CAUTION: The remote control transmitter can be programmed to multiple receivers or fans.
If this is not desired, turn wall switch off to any other programmable receiver or fan.
Locate remote control transmitter in remote pack (R).
Remove screw on the back of remote control
transmitter to remove battery cover. Install two AAA
batteries (included).
Replace battery cover on remote control transmitter
with screw just removed.
WARNING: Batteries are to be inserted with the
correct polarity.
WARNING: Choking Hazard - Small parts.
Keep battery away from children.
NOTE: DO NOT mix old and new batteries; DO NOT
mix alkaline, standard (carbon - zinc), or rechargeable
(nickel - cadmium) batteries or equivalent.
NOTE: Batteries are NOT rechargeable. Remove
battery with low or no charge and dispose of properly.
1.
(back
side)
1
Battery
Cover
CAUTION: “DO NOT DISPOSE OF BATTERIES IN FIRE, BATTERIES MAY EXPLODE OR
LEAK.” - When disposing of household alkaline batteries, it is best to check with your local and state
recycling or household hazardous waste coordinators concerning the specifics of the program in your
area. You may also locate a recycling center by calling 1-800-8-BATTERY or 1-877-2-RECYCLE or visit
www.epa.gov/recycle or www.earth911.org for more information.
Remote
Control
Transmitter
Battery
AAA
AAA
CAUTION: Changes or modifications not approved by the party responsible for compliance could void the
user's authority to operate the equipment.
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions:
(1) this device may not cause harmful interference, (2) this device must accept any interference received,
including interference that may cause undesired operation.
NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device,
pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against
harmful interference in a residential installation. This equipment generates, uses and can radiate radio
frequency energy and, if not installed and used in accordance with the instructions, may cause harmful
interference to radio communications. However, there is no guarantee that interference will not occur in a
particular installation. If this equipment does cause harmful interference to radio or television reception,
which can be determined by turning the equipment off and on, the user is encouraged to try to correct the
interference by one or more of the following measures:
* Reorient or relocate the receiving antenna.
* Increase the separation between the equipment and receiver.
* Connect the equipment into an outlet on a circuit different from that to which the receiver is
connected.
* Consult the dealer or an experienced radio/TV technician for help.
Distributed by: Litex Industries Inc., P.O. Box 535639, Grand Prairie, TX, 75053; 1-800-527-1292
FCC Compliance Notice for Remote Control and LED Light Kit
CARE AND MAINTENANCE
17
At least twice each year, lower canopy (B) to check downrod (A) assembly, and then tighten all screws on
fan. Clean motor housing (D) with only a soft brush or lint-free cloth to avoid scratching the finish. Clean
blades (J) with a lint-free cloth. You may occasionally apply a light coat of furniture polish to wood blades
for added protection.
IMPORTANT: Shut off main power supply before beginning any maintenance. Do not use water or a
damp cloth to clean the ceiling fan.
Total wattage for this fan is 20 watts; do not attempt to replace the LEDs.
3.
3

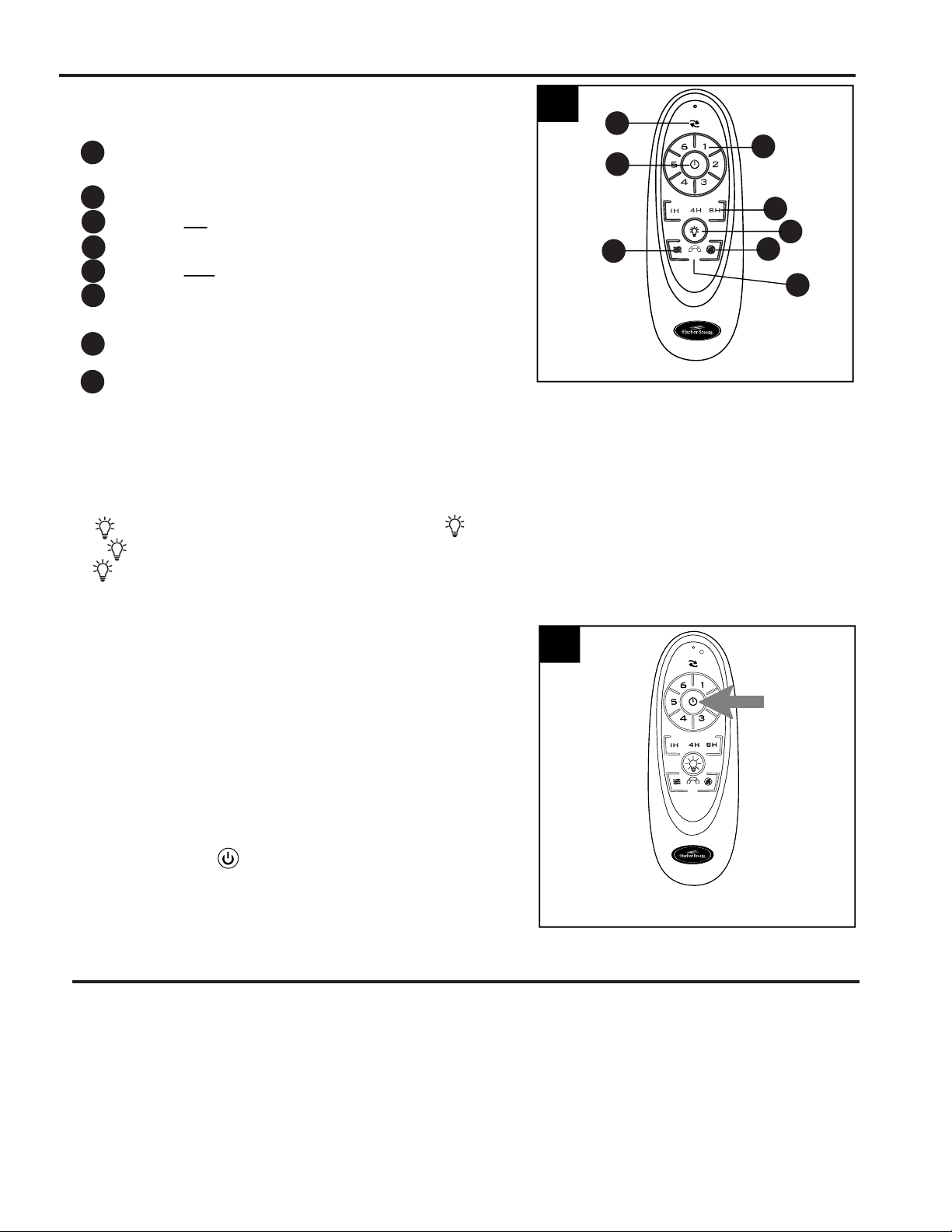

Remote Control Transmitter
COLORCOLOR
2
Remote Control Transmitter
1
2
3
4
5
6
7
2.
COLOR
8
Operation buttons on the panel of the remote control
transmitter:
- Reverse function (fan must be set on low before
reversing blade direction).
- Fan speeds: 1 (lowest) to 6 (highest)
- To turn fan ON or OFF
- Timer: fan stops after 1 hour/4 hours/8 hours
- To turn light ON or OFF
- Breeze mode: fan speeds automatic cycle
between 1 to 6 speeds.
- Vacation mode: switches on the light kit for
5 minutes every 2 hours.
- Color mode: change/select light color
– warm white
– bright warm white
– natural white
– bright white
– daylight
3
1
2
4
5
6
7
8
OPERATING INSTRUCTIONS
Tap button quickly to turn lights off or on. Hold button down to increase or decrease light. If you
press button in excess of 7 seconds, it becomes a dimmer. The light varies cyclically in 8 seconds.
The button also has an auto resume function which: (1) keeps the light at the same brightness as the
last time it was turned off, and (2) resumes at the same speed as the last time it was turned off.
Restore electrical power.
IMPORTANT: To prevent damage to remote control
transmitter, remove the batteries if not used for long
periods. Store the remote control transmitter away
from excess heat or humidity.
NOTE: If fan and/or remote control fail(s) to operate
or you have purchased a new remote control
transmitter, make sure to turn the power off first.
Restore electrical power. Within 30 seconds of
restoring electrical power, press and hold the
ON/OFF button ( ) on the remote control
transmitter for 5 seconds or until fan beeps. Use the
remote control transmitter to test the light and fan
functions to confirm the learning process is complete.
18
WARNING: Before beginning work, shut off the power supply to avoid electrical shock.
TROUBLESHOOTING
PROBLEM POSSIBLE CAUSE CORRECTIVE ACTION
Fan does not move. 1. Power is off or fuse is blown.
2. Faulty wire connection.
3. Learning code process between fan
and remote control transmitter may
not have been successful and
learning code was not activated.
1. Turn power on or check fuse.
2. Turn power off. Loosen canopy
and check all connections.
3. Turn off power and repeat
instructions in Step 3 on page 17.
Noisy operation.
1. Blades are loose.
2. Cracked blade.
3. Fan is new.
1. Tighten all blade screws.
2. Replace blade.
3. Allow fan a “break in” period of a
few days, especially when
running the fan at Medium and
High speeds.
Excessive wobbling. 1. Blades are loose.
2. Unbalanced blades.
3. Fan not securely mounted.
4. Fan too close to vaulted ceiling.
5. Set screw on motor housing yoke is
not tightened properly.
6. Set screw on hanging ball is not
tightened properly.
1. Tighten all blade screws.
2. Switch one blade with a blade
from the opposite side.
3. Turn power off. Carefully loosen
canopy and verify that mounting
bracket is secure.
4. Use a longer downrod or move
fan to another location.
5. Tighten yoke set screw securely.
6. Carefully loosen and lower
canopy and verify that set screw
on hanging ball is tightened
securely.
NOTE: A small amount of "wobble" is normal and should not be considered a defect.
Fan operates but
light fails.
1. Wires in canopy not wired
properly.
2. Wall switch to fan is off.
3. Wires in LED light kit not wired
correctly.
1. Check wires in canopy and, if
necessary, re-wire according to
instructions on page 11.
2. Make sure that wall switch to
fan is on.
3. Check that molex connections
in LED light kit are connected
properly according to
instructions on page 14.
19
A
B
C
Printed in China
REPLACEMENT PARTS LIST
For replacement parts, call our customer service department at 888-251-1003, 8 a.m. - 8 p.m., EST,
Monday - Sunday. You could also contact us at [email protected].
JMLI2208
The distributor warrants this fan to be free from defects in workmanship and materials present at time of
shipment from the factory for Lifetime limited from the date of purchase. This warranty applies only to
the original purchaser. The distributor agrees to correct any defect at no charge or, at our option,
replace the ceiling fan with a comparable or superior model.
To obtain warranty service, present a copy of your sales receipt as proof of purchase. All cost of
removal and reinstallation are the express responsibility of the purchaser. Any damage to the ceiling fan
by accident, misuse or improper installation, or by using parts not produced by the manufacturer of this
fan or affixing accessories not produced by the manufacturer of this fan, are the purchaser's own
responsibility. The distributor assumes no responsibility whatsoever for fan installation during the limited
lifetime warranty. Any service performed by an unauthorized person will render the warranty invalid.
Due to varying climatic conditions, this warranty does not cover changes in brass finish, rusting, pitting,
tarnishing, corroding or peeling. Brass finish fans maintain their beauty when protected from varying
weather conditions. Any glass provided with this fan is not covered by the warranty.
Any replacement of defective parts for the ceiling fan must be reported within the first year from the date
of purchase. For the balance of the warranty, call our customer service department (at 888-251-1003)
for return authorization and shipping instructions so that we may repair or replace the ceiling fan. Any
fan or parts returned improperly packaged is/are the sole responsibility of the purchaser. There is no
further express warranty. The distributor disclaims any and all implied warranties. The duration of any
implied warranty which cannot be disclaimed is limited to the limited lifetime period as specified in our
warranty. The distributor shall not be liable for incidental, consequential or special damages arising at or
in connection with product use or performance except as may otherwise be accorded by law. This
warranty gives you specific legal rights and you may also have other rights which vary from state to
state. This warranty supersedes all prior warranties.
LIMITED LIFETIME WARRANTY
J
PART DESCRIPTION
A Downrod
B
Canopy
C Mounting Bracket
J Blade
L Blade Arm
5127846-A
5127846-B
5127846-C
5127846-J
5127846-L
PART #
L
