5-AMP CORDED COMPACT RECIPROCATING SAW
241-0946
Owner’s Manual
PRODUCT SPECIFICATIONS
Rating:
120V, 60Hz, AC
Amperes:
5 AMP
Speed:
0–3,500 SPM (no load)
Stroke Length:
1/2"
Blade change system:
Tool-less
Weight:
5.1 lb
For questions / comments, technical assistance or repair parts –
Please Call Toll Free at: 1-866-349-8665 (M-F 9am – 5pm EST)
Or email us at: customerservice@powertoolsplus.ca
2
Product specifications ………….………………………………………………………………...
1
Table of contents ……………………………………………………………………..................
2
General safety warnings …………………………………………………………………………
3–4
Eye, ear & lung protection ……………………………………………………………………….
3–4
Electrical safety …………………………………………………………………………………...
4
Power tool safety ……………………………………………………………………..................
5–6
General safety rules ……………………………………………………………………………...
5
Work area ………………………………………………………………….……………………...
5
Electrical safety …………………………………………………………………………………...
5
Personal safety …………………………………………………………………………………...
5–6
Power tool use and care.…………………………………………………………………………
6
Service …………………………………………………………………………………………….
6
Specific safety rules ……………………………………………………………………………...
7
Extension cord safety ………………………………………………………….…………………
8

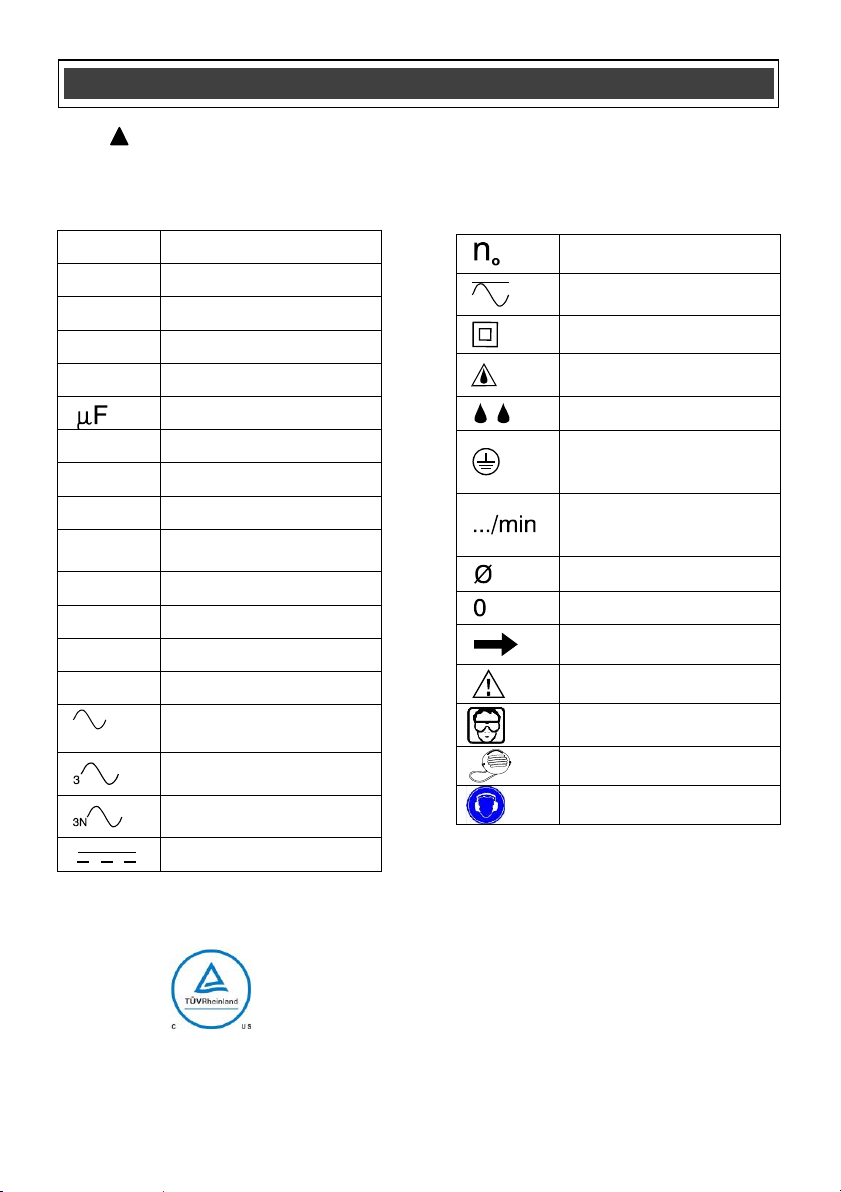

Symbols ……………………………………………………………………………………………
9

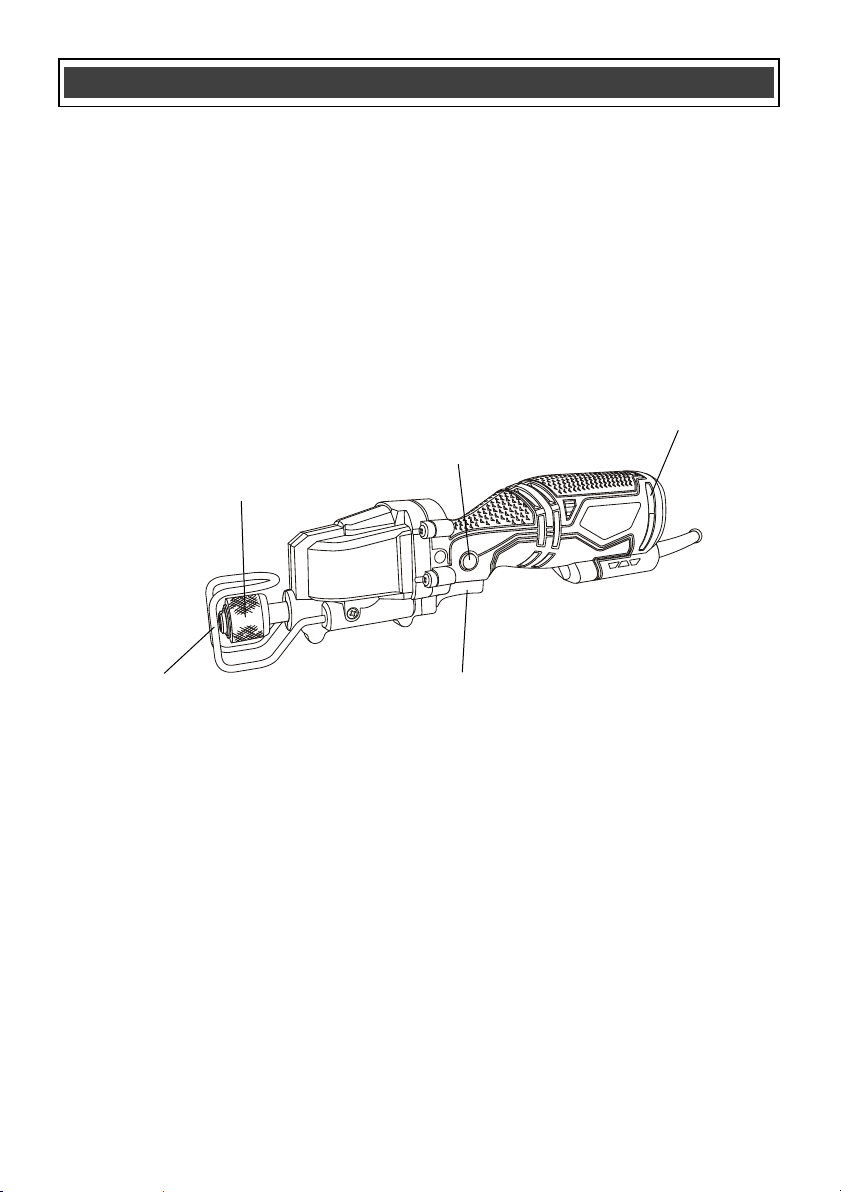

Know your reciprocating saw ………………………….........................................................
10
Assembly and operating …………………………………………………………………………
11–14

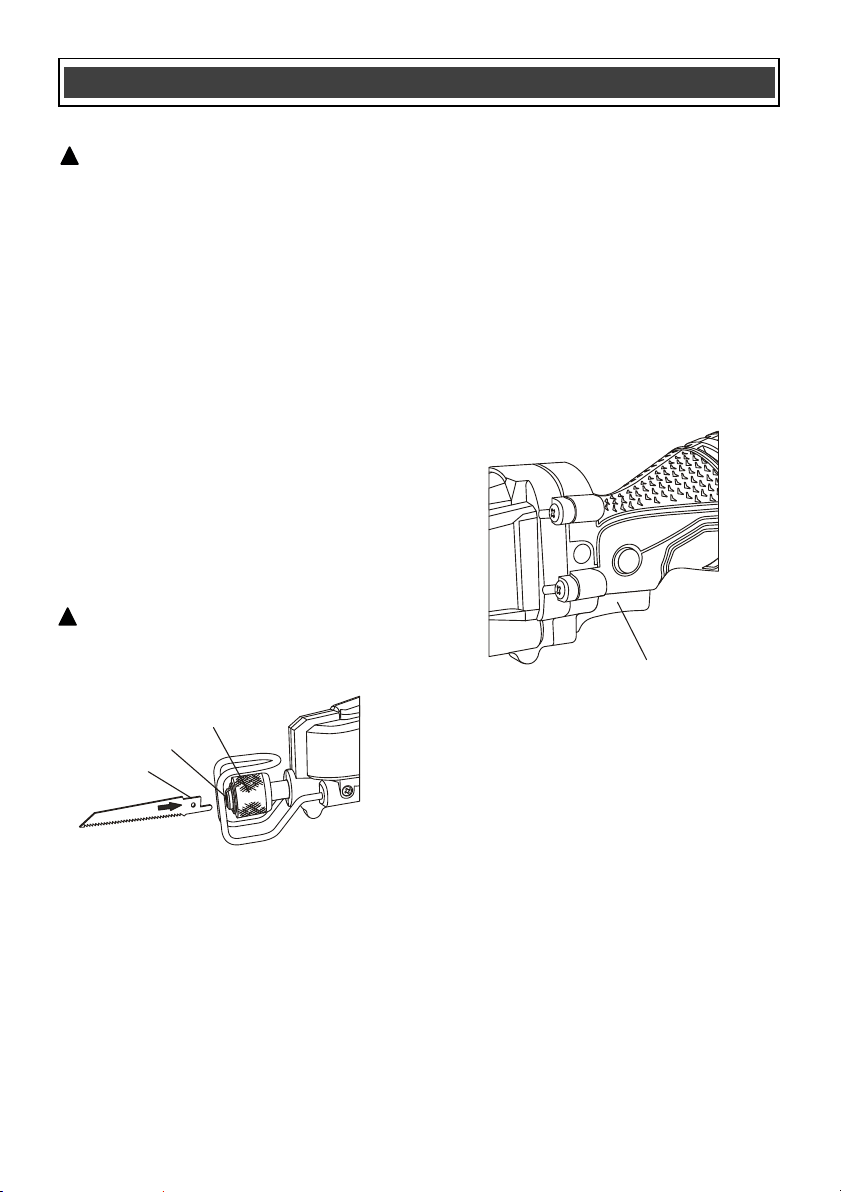

Installing a blade ………………………………………………………………………………….
11
Removing a blade ………………………………………………………………………………..
11
Variable speed trigger switch …………………………………..............................................
11

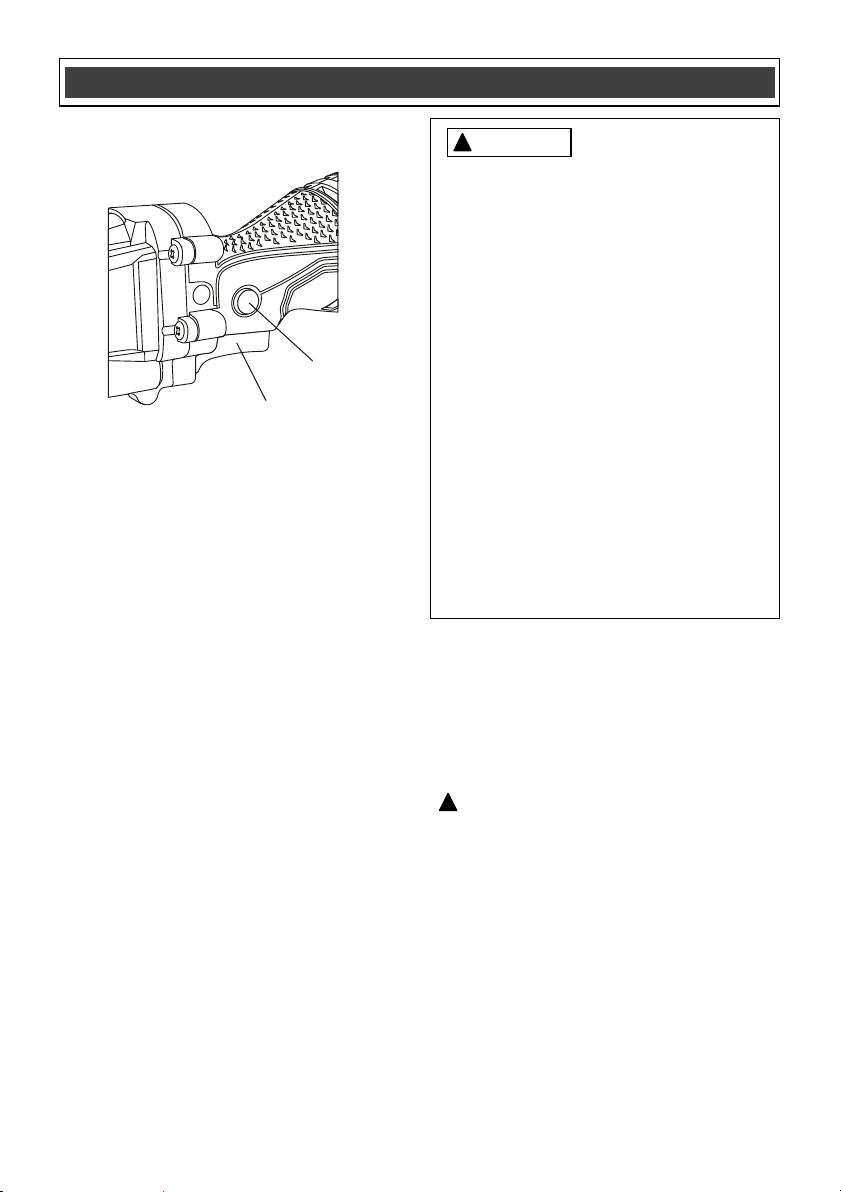

Lock-on button ……………………………………………………………………………………
11–12
Materials you can cut …………………………………………………………………………….
12
General cutting ……………………………………………………………………………………
12–13
Plunge cutting …………………………………………………………………………………….
13

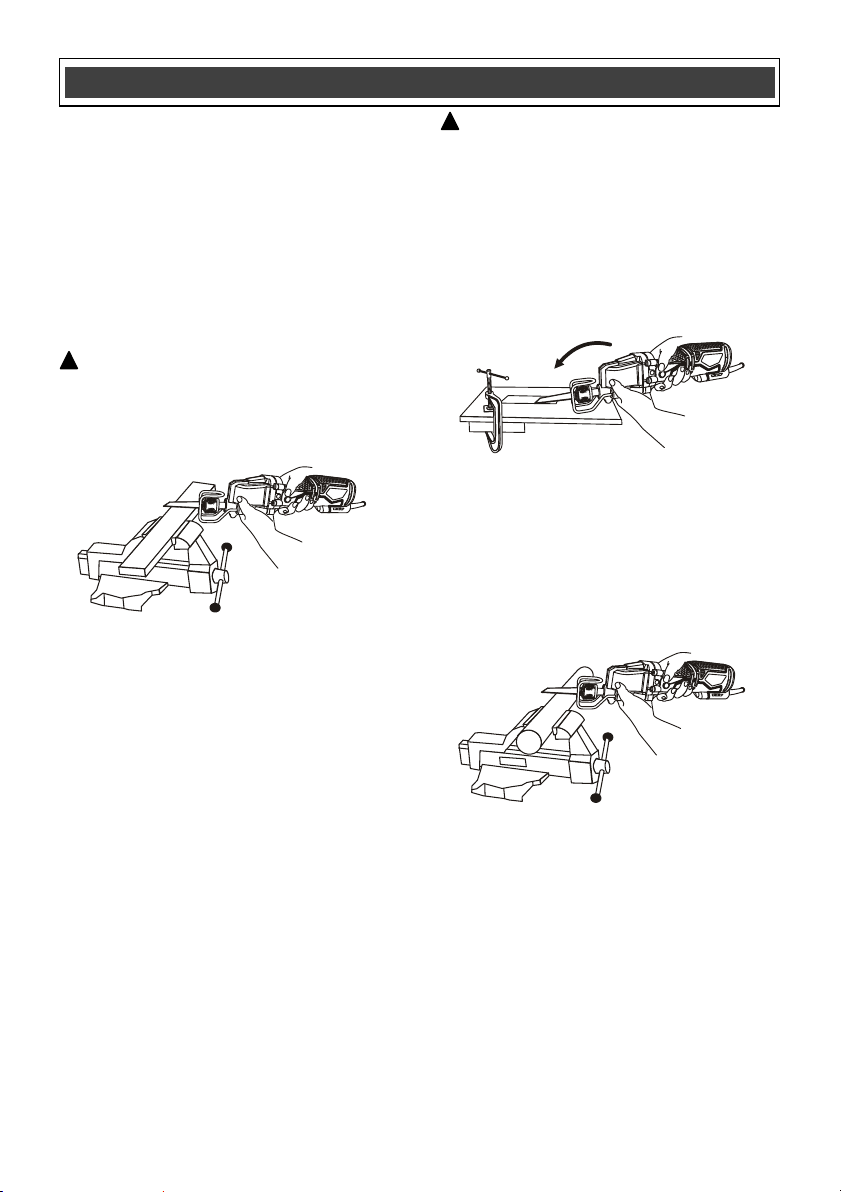

Metal cutting …………………………………………………………………………..................
13–14
Maintenance ………………………………………………………………………………………
15

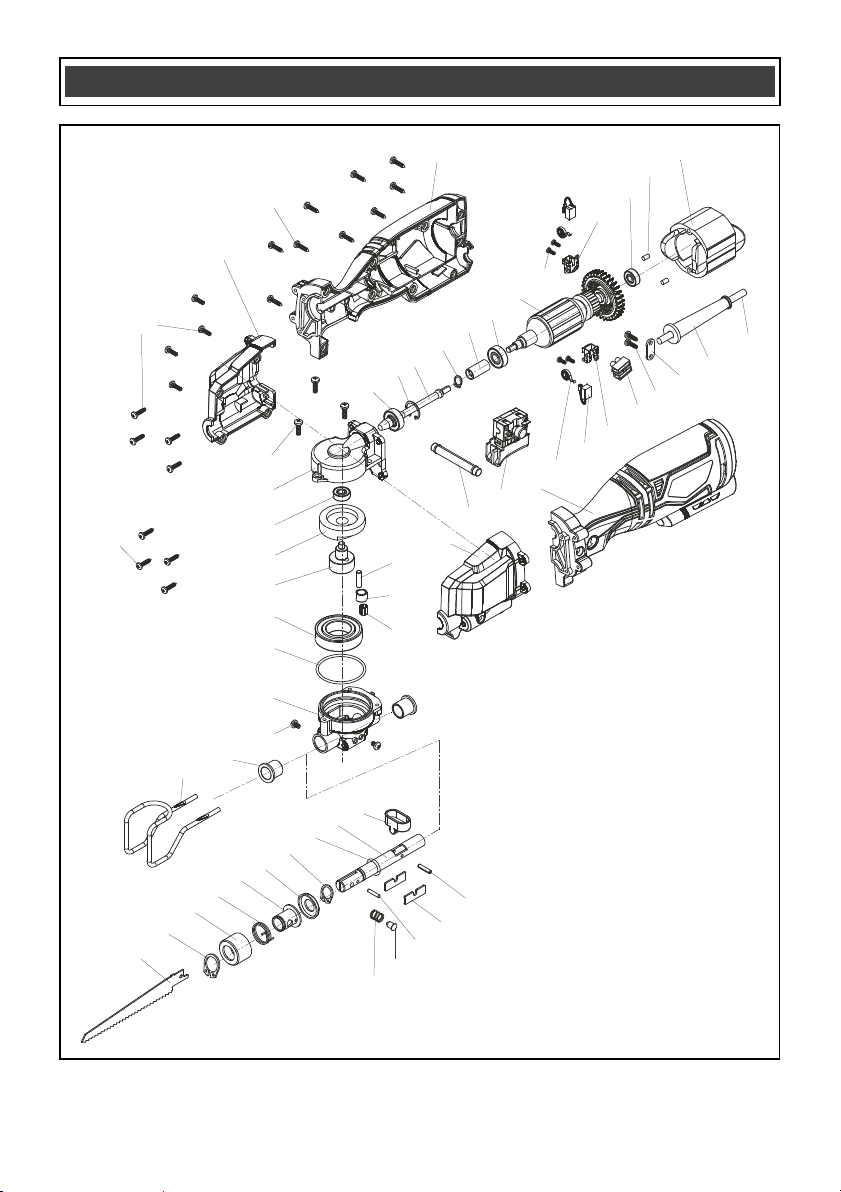

Exploded view ………………………………………………………………………...................
16
Parts list ……………………………………………………………………………………………
17–18
Warranty ……………………………………………………………………….………………….
19
TABLE OF CONTENTS
3
EYE, EAR & LUNG PROTECTION
SAVE THESE INSTRUCTIONS FOR REFERENCE
GENERAL SAFETY WARNINGS
This instruction manual includes the following:
General Safety Rules
Specific Safety Rules and Symbols
Functional Description
Assembly
Operation
Maintenance
Accessories
WARNING: Before using this tool or any of its accessories, read this
manual and follow all Safety Rules and Operating Instructions. The important
precautions, safeguards and instructions appearing in this manual are not
meant to cover all possible situations. It must be understood that common
sense and caution are factors which cannot be built into the product.
!
!
ALWAYS WEAR EYE PROTECTION THAT CONFORMS WITH CSA
REQUIREMENTS or ANSI SAFETY STANDARD Z87.1
FLYING DEBRIS can cause permanent eye damage. Prescription
eyeglasses ARE NOT a replacement for proper eye protection.
WARNING: Non-compliant eyewear can cause serious injury if
broken during the operation of a power tool.
WARNING: Use hearing protection, particularly during extended
periods of operation of the tool, or if the operation is noisy.
!
SAVE THESE INSTRUCTIONS FOR REFERENCE
4
ELECTRICAL SAFETY
GENERAL SAFETY WARNINGS
WEAR A DUST MASK THAT IS DESIGNED TO BE USED WHEN
OPERATING A POWER TOOL IN A DUSTY ENVIRONMENT.
WARNING: Dust that is created by power sanding, sawing, grinding,
drilling, and other construction activities may contain chemicals that are
known to cause cancer, birth defects, or other genetic abnormalities. These
chemicals include:
Lead from lead-based paints
Crystalline silica from bricks, cement, and other masonry products
Arsenic and chromium from chemically treated lumber
The level of risk from exposure to these chemicals varies, according to how
often this type of work is performed. In order to reduce exposure to these
chemicals, work in a well-ventilated area, and use approved safety
equipment, such as a dust mask that is specifically designed to filter out
microscopic particles.
!
WARNING: To avoid electrical hazards, fire hazards or damage to the
tool, use proper circuit protection.
This tool is wired at the factory for 120 V AC operation. It must be
connected to a 120 V AC, 15 A circuit that is protected by a time-delayed
fuse or circuit breaker. To avoid shock or fire, replace power cord
immediately if it is worn, cut or damaged in any way.
SAVE THESE INSTRUCTIONS FOR REFERENCE
5
WARNING: Read all safety warnings,
instructions, illustrations and specifications
provided with this power tool. Failure to follow
all instructions listed below may result in electric
shock, fire and/or serious injury.
Save all warnings and instructions for future
reference.
Work area safety
Keep work area clean and well lit. Cluttered or
dark areas invite accidents.
Do not operate power tools in explosive
atmospheres, such as in the presence of
flammable liquids, gases or dust. Power tools
create sparks which may ignite the dust or
fumes.
Keep children and bystanders away while
operating a power tool. Distractions can cause
you to lose control.
Electrical safety
Power tool plugs must match the outlet.
Never modify the plug in any way. Do not
use any adapter plugs with earthed
(grounded) power tools. Unmodified plugs and
matching outlets will reduce risk of electric
shock.
Avoid body contact with earthed or
grounded surfaces such as pipes, radiators,
ranges and refrigerators. There is an
increased risk of electric shock if your body is
earthed or grounded.
Do not expose power tools to rain or wet
conditions. Water entering a power tool will
increase the risk of electric shock.
Do not abuse the cord. Never use the cord
for carrying, pulling or unplugging the power
tool. Keep cord away from heat, oil, sharp
edges or moving parts. Damaged or
entangled cords increase the risk of electric
shock.
When operating a power tool outdoors, use
an extension cord suitable for outdoor use.
Use of a cord suitable for outdoor use reduces
the risk of electric shock.
If operating a power tool in a damp location
is unavoidable, use a residual current device
(RCD) protected supply. Use of an RCD
reduces the risk of electric shock.
Personal safety
Stay alert, watch what you are doing and use
common sense when operating a power tool.
Do not use a power tool while you are tired
or under the influence of drugs, alcohol or
medication. A moment of inattention while
operating power tools may result in serious
personal injury.
Use personal protective equipment. Always
wear eye protection. Protective equipment
such as dust mask, non-skid safety shoes, hard
hat, or hearing protection used for appropriate
conditions will reduce personal injuries.
Prevent unintentional starting. Ensure the
switch is in the off-position before
connecting to power source and/or battery
pack, picking up or carrying the tool.
Carrying power tools with your finger on the
switch or energizing power tools that have the
switch on invites accidents.
Remove any adjusting key or wrench before
turning the power tool on. A wrench or a key
left attached to a rotating part of the power tool
may result in personal injury.
Do not overreach. Keep proper footing and
balance at all times. This enables better
control of the power tool in unexpected
situations.
Dress properly. Do not wear loose clothing
or jewelry. Keep your hair, clothing and
gloves away from moving parts. Loose
clothes, jewelry or long hair can be caught in
moving parts.
POWER TOOL SAFETY
!
SAVE THESE INSTRUCTIONS FOR REFERENCE
6
Personal safety – cont’d
If devices are provided for the connection of
dust extraction and collection facilities,
ensure these are connected and properly
used. Use of dust collection can reduce dust-
related hazards.
Do not let familiarity gained from frequent
use of tools allow you to become
complacent and ignore tool safety principles.
A careless action can cause severe injury within
a fraction of a second.
Power tool use and care
Do not force the power tool. Use the correct
power tool for your application. The correct
power tool will do the job better and safer at the
rate for which it was designed.
Do not use the power tool if the switch does
not turn it on and off. Any power tool that
cannot be controlled with the switch is
dangerous and must be repaired.
Disconnect the plug from the power source
and/or the battery pack, if detachable, from
the power tool before making any
adjustments, changing accessories, or
storing power tools. Such preventive safety
measures reduce the risk of starting the power
tool accidentally.
Store idle power tools out of the reach of
children and do not allow persons unfamiliar
with the power tool or these instructions to
operate the power tool. Power tools are
dangerous in the hands of untrained users.
Maintain power tools. Check for
misalignment or binding of moving parts,
breakage of parts and any other condition
that may affect the power tool’s operation. If
damaged, have the power tool repaired
before use. Many accidents are caused by
poorly maintained power tools.
Keep cutting tools sharp and clean. Properly
maintained cutting tools with sharp cutting
edges are less likely to bind and are easier to
control.
Use the power tool, accessories and tool bits
etc. in accordance with these instructions,
taking into account the working conditions
and the work to be performed. Use of the
power tool for operations different from those
intended could result in a hazardous situation.
Keep handles and grasping surfaces dry,
clean and free from oil and grease. Slippery
handles and grasping surfaces do not allow for
safe handling and control of the tool in
unexpected situations.
Hold the power tool by insulated gripping
surfaces, when performing an operation
where the cutting accessory may contact
hidden wiring or its own cord. Cutting
accessory contacting a ″ live ″ wire may make
exposed metal parts of the power tool ″ live ″
and could give the operator an electric shock.
Use clamps or another practical way to
secure and support the workpiece to a stable
platform. Holding the workpiece by hand or
against your body leaves it unstable and may
lead to loss of control.
Service
Have your power tool serviced by a qualified
repair person using only identical
replacement parts. This will ensure that the
safety of the power tool is maintained.
POWER TOOL SAFETY POWER TOOL SAFETY
SAVE THESE INSTRUCTIONS FOR REFERENCE
7
WARNING: Know your reciprocating
saw. Do not plug in the tool until you have
read and understand this Instruction Manual.
Learn the tool’s applications and limitations,
as well as the specific potential hazards
related to this tool. Following this rule will
reduce the risk of electric shock, fire, or serious
injury.
Always wear eye protection. Any
power tool can throw foreign
objects into your eyes and cause
permanent eye damage.
ALWAYS wear safety goggles (not glasses) that
comply with ANSI safety standard Z87.1.
Everyday glasses have only impact resistant
lenses. They ARE NOT safety glasses.
WARNING: Glasses or goggles not in
compliance with ANSI Z87.1 could cause
serious injury when they break.
WARNING: Always use hearing
protection when sawing, particularly during
extended periods of operation.
WARNING: Always unplug the tool from
the power source before changing the blade
and when making any adjustments.
Do not wear gloves, neckties or loose clothing.
Hold the tool by its insulated gripping surfaces
when performing an operation where the saw
blade may contact hidden wiring or its own cord.
Contact with a "live" wire will make exposed
metal parts of the tool "live" and shock the
operator.
Always hold the tool with two hands. Attempting
to control the tool with only one hand is
dangerous. It could result in loss of control and
serious injury.
Never hold the workpiece in one hand and the
tool in the other hand when sawing. Never place
the hands near or below the cutting surface.
Clamp the workpiece and guide the tool with
both hands.
Always make sure the work surface is free from
nails and other foreign objects. Cutting into a
nail can cause the blade and the tool to jump
and damage the blade.
Never lay the workpiece on hard surfaces like
concrete, stone, etc. The protruding blade may
cause tool to jump.
After changing a blade or making adjustments,
make sure the blade clamp is holding the blade
securely. Loose blades could be violently thrown
from the tool.
Never use dull or damaged blades. Sharp
blades must be handled with care. Damaged
blades can snap during use. Dull blades require
more force to cut the workpiece, possibly
causing the blade to break.
Never touch the blade during or immediately
after use. After use the blade is too hot to be
touched.
SPECIFIC SAFETY RULES
SAVE THESE INSTRUCTIONS FOR REFERENCE
!
!
!
!
SAVE THESE INSTRUCTIONS FOR REFERENCE
8
WARNING: Keep the extension cord
clear of the working area. Position the cord so
it will not get caught on the workpiece, tools or
any other obstructions while you are working
with the power tool.
Make sure any extension cord used with this
tool is in good condition. When using an
extension cord, be sure to use one of heavy
enough gauge to carry the current the tool will
draw. An undersized cord will cause a drop in
line voltage resulting in loss of power and
overheating.
The table at right shows the correct size to use
according to cord length and nameplate ampere
rating. If in doubt, use the next heavier gauge.
The smaller the gauge number the heavier the
cord.
Be sure your extension cord is properly wired
and in good condition. Always replace a
damaged extension cord or have it repaired by a
qualified electrician before using it. Protect your
extension cord from sharp objects, excessive
heat and damp or wet areas.
Use a separate electrical circuit for your power
tools. This circuit must not be less than 14
gauge wire and should be protected with either
a 15 AMP time delayed fuse or circuit breaker.
Before connecting the power tool to the power
source, make sure the switch is in the OFF
position and the power source is the same as
indicated on the nameplate. Running at lower
voltage will damage the motor.
WARNING: Repair or replace damaged
or worn extension cords immediately.
Select the appropriate extension cord gauge
and length using the chart below.
When operating a power tool outdoors, use
an outdoor extension cord marked "W-A" or
"W". These cords are rated for outdoor use and
reduce the risk of electric shock.
WARNING: Keep the extension cord
clear of the working area. Position the cord
so it will not get caught on the workpiece,
tools or any other obstructions while you are
working with the power tool.
MINIMUM GAUGE (AWG)
EXTENSION CORDS (120V use only)
Amperage
rating
Total length
More
than
Not
more
than
25'
(7.5 m)
50'
(15 m)
100'
(30 m)
150'
(45 m)
0
6
18
16
16
14
6
10
18
16
14
12
10
12
16
16
14
12
12
16
14
12
Not Applicable
EXTENSION CORD SAFETY
!
!
!
SAVE THESE INSTRUCTIONS FOR REFERENCE
9
LISTED
This symbol designates that this tool is listed with
U.S. requirements by TÜVRheinland.
Conforms to UL Std. 62841-1 and 62841-2-11.
477011
JD3518U
V
Volts
A
Amperes
Hz
Hertz
W
Watts
kW
Kilowatts
Microfarads
L
Liters
kg
Kilograms
H
Hours
N/cm
2
Newtons per square
centimeter
Pa
Pascals
OPM
Oscillations per minute
Min
Minutes
S
Seconds
or a.c.
Alternating current
Three-phase alternating
current
Three-phase alternating
current with neutral
Direct current
No load speed
Alternating or direct
current
Class II construction
Splash-proof
construction
Watertight construction
Protective grounding at
grounding terminal,
Class I tools
Revolutions or
reciprocations per
minute
Diameter
Off position
Directional arrow
Warning symbol
Wear your safety
glasses
Wear a dust mask
Wear hearing protection
SYMBOLS
WARNING: Some of the following symbols may appear on the reciprocating saw.
Study these symbols and learn their meaning. Proper interpretation of these symbols
will allow for more efficient and safer operation of this tool.
!
10
KNOW YOUR RECIPROCATING SAW
Motor
vent
Variable speed
trigger switch
Blade holder
guard
Tool free
blade holder
Lock-on
button
11
INSTALLING A BLADE
WARNING: Always remove the plug from
the power source before installing or
removing a blade or adjusting the saw in any
way.
1. To install a blade in the saw, rotate the
blade locking sleeve (1) counter clockwise
(Fig. 1).
2. Insert the appropriate blade (2) into the
blade slot (3) as far as it will go.
3. Release the blade locking sleeve.
NOTE: The blade will automatically be locked
into the blade holder. Pull outward on the blade
to ensure it is properly locked into the blade
holder.
REMOVING A BLADE
To remove a blade, simply rotate the blade
locking sleeve counter clockwise and remove
the blade from the blade holder.
CAUTION: Wear gloves when removing
the blade. It is sharp when new and it will be
very hot immediately after use.
VARIABLE SPEED TRIGGER SWITCH
The variable speed trigger switch controls both
the ON/OFF function and the speed of the tool.
1. To turn the saw ON, squeeze the trigger
(1) slightly (Fig. 2).
NOTE: The saw will start at its slowest
speed.
2. To increase the speed of the saw, squeeze
the trigger harder.
NOTE: When the trigger is squeezed fully,
the saw will run at its maximum speed.
3. To turn the saw OFF, release the trigger.
LOCK-ON BUTTON
Your reciprocating saw is equipped with a lock-
on feature, which is convenient when
continuous cutting for extended periods of time
is required (Fig. 3). To lock the switch ON, fully
depress the trigger switch (1), push in and hold
the lock-on button (2) located at the left side of
the handle, then release the trigger. Release the
lock-on button and your reciprocating saw will
continue running. To turn the saw OFF, depress
and release the trigger switch to release lock.
NOTE: The lock-on button will only function
when the saw is running at full speed.
ASSEMBLY AND OPERATING
!
Fig. 1
1
3
2
Fig. 2
1
!
12
LOCK-ON BUTTON – cont’d
MATERIALS YOU CAN CUT
This reciprocating saw is a versatile tool that
allows you to cut many different types of
materials. Some of these materials include:
Wood products such as lumber, hardwood,
plywood, composite board, and paneling
Drywall
Fiber board and plastic
Metals, such as pipe, steel rods, sheet
steel, aluminum, brass, and copper.
NOTE: There are many different types of blades
available. Generally, there are metal cutting
blades (fine teeth) and wood cutting blades
(coarse teeth). Use the correct blade for your
application. The packaging on the blade will
indicate the type of materials each blade is
designed to cut.
GENERAL CUTTING
1. Clearly mark the workpiece to locate the
position of the cut.
2. Hold smaller workpieces with a vice. Clamp
larger workpieces to a workbench or table.
DANGER: Any workpiece that is not
adequately clamped in place may come loose
and cause serious injury. Never hold the
workpiece with your hand.
3. Make sure there are no nails, screws,
clamps or foreign materials in the path of
the saw blade.
4. Hold the saw away from your body and in
front of you (Fig. 4).
ASSEMBLY AND OPERATING
For safety reasons, the operator must
read the sections of this Owner’s Manual
entitled "GENERAL SAFETY
WARNINGS", "POWER TOOL SAFETY",
"SPECIFIC SAFETY RULES",
"EXTENSION CORD SAFETY" and
"SYMBOLS" before using this
reciprocating saw.
Verify the following every time the
reciprocating saw is used:
1. The correct blade for the material
being cut is installed in the saw.
2. The blade is firmly clamped in the
blade holder.
3. The blade is sharp and in good
condition.
4. The workpiece is properly secured.
5. Safety glasses and hearing
protection are being worn.
Failure to observe these safety rules will
significantly increase the risk of injury.
WARNING
!
!
Fig. 3
1
2
13
GENERAL CUTTING – cont’d
5. With both hands firmly gripping the saw,
and with the blade NOT in contact with the
surface to be cut, start the saw by
squeezing the switch trigger.
6. Once the saw has reached the desired
speed, place the blade holder guard
against the workpiece and gradually bring
the moving blade into contact with the
workpiece at the appropriate location.
CAUTION: Do not force the saw. Use
only enough force to keep the blade cutting.
Excessive pressure on the blade will cause it
to bend and twist, which may result in
breaking the blade.
PLUNGE CUTTING
1. Clearly mark the workpiece to locate the
position of the cut.
2. Clamp the workpiece to a workbench or
table (Fig. 5).
NOTE: Make sure the area to be cut is clear
under the workpiece so that the blade will not
come into contact with anything other than the
workpiece.
3. Select a convenient starting point in the
area to be cut out. Place the tip of the
blade over that point.
4. Rest the lower edge of the blade holder
guard on the workpiece and hold it firmly in
that position, maintaining a shallow cutting
angle.
5. Squeeze the switch trigger to start the saw.
WARNING: Make sure the blade does
not touch the workpiece until the saw
reaches full speed. Loss of control and
possible injury could result.
6. With the saw running at full speed, slowly
tilt the saw until the tip of the blade
contacts the workpiece and begins to cut.
After the blade cuts through the workpiece,
tilt the saw upward until the blade is
perpendicular to the workpiece.
METAL CUTTING
Metals such as pipe, steel rods, sheet steel,
aluminum, brass and copper can be cut with
your reciprocating saw (Fig. 6).
NOTE: Always use an appropriate blade when
cutting metal.
To cut thin sheet material, "sandwich" the
material between hardboard or plywood
and clamp the layers to limit vibration and
material tearing.
Always use a fine toothed metal cutting
blade and run the saw at medium speeds
when cutting metal.
Use cutting oil to keep the blade cool,
increase cutting action, and prolong the life
of the blade.
!
!
ASSEMBLY AND OPERATING
Fig. 4
Fig. 5
Fig. 6
14
METAL CUTTING – cont’d
Do not twist or bend the saw blade.
Do not force the saw blade. Let it cut at its
own speed.
DANGER:
a) Always clamp the workpiece in a vice,
or to a workbench or table. Do not hold
workpiece in your hand.
b) Never use gasoline as a lubricant or as
a cleaning agent. A spark from the
motor may cause an explosion.
Gasoline will also damage the plastic
components of the saw.
!
ASSEMBLY AND OPERATING
15
GENERAL
WARNING: When servicing, use only
identical replacement parts. The use of any
other part may create a hazard or cause
product damage.
DO NOT use solvents when cleaning plastic
parts. Plastics are susceptible to damage from
various types of commercial solvents and may
be damaged by their use. Use a clean cloth to
remove dirt, dust, oil, grease etc.
WARNING: Do not allow brake fluids,
gasoline, petroleum-based products,
penetrating oils, etc. to come into contact
with plastic parts. They contain chemicals
that can damage, weaken or destroy plastic.
DO NOT abuse power tools. Abusive practices
can damage the tool and the workpiece.
WARNING: DO NOT attempt to modify
tools or create accessories. Any such
alteration or modification is misuse and
could result in a hazardous condition leading
to possible serious injury. It will also void
the warranty.
It has been found that electric tools are
subjected to accelerated wear and possible
premature failure when they are used on
fiberglass boats and sports cars, wallboard,
spackling compounds or plaster. The chips and
grindings from these materials are highly
abrasive to electric tool parts such as bearings,
brushes, commutators, etc. Consequently, it is
not recommended that this tool be used for
extended work on any fiberglass material,
wallboard, spackling compounds or plaster.
During any use on these materials it is
extremely important that the tool is cleaned
frequently by blowing it out with an air jet.
WARNING: Always wear safety goggles
or safety glasses with side shields during all
cutting operations. It is critical that you also
wear safety goggles or safety glasses with
side shields and a dust mask while blowing
dust out of the reciprocating saw with an air
jet. Failure to take these safety precautions
could result in permanent eye or lung
damage.
LUBRICATION
All of the bearings in this tool are lubricated with
a sufficient amount of high-grade lubricant for
the life of the unit under normal conditions.
Therefore, no further lubrication is required.
MAINTENANCE
!
!
!
!
16
EXPLODED VIEW
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
22
27
4
28
27
29
30
18
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
7
17
WARNING: When servicing, use only original equipment replacement parts. The use of any
other parts may create a safety hazard or cause damage to the reciprocating saw.
Any attempt to repair or replace electrical parts on this reciprocating saw may create a safety hazard
unless repairs are performed by a qualified technician. For more information, call the Toll-free
Helpline, at 1-866-349-8665.
Always order by PART NUMBER, not by key number.
Key #
Part #
Part Name
Quantity
1
4110130001
Kingpin φ1.5*8.5
13
2
2040310061
Needle bearing φ11*φ8*8.5
1
3
2040160222
Kingpin φ5*18
1
4
3160100018
Gear housing assembly
1
5
3110010255
Blocking shaft
1
6
1062020079
Switch block
1
7
3011110019
Housing
1
8
2050020031
Wind up spring
2
9
1230010161
Carbon brush
2
10
1230030037
Brush holder
1
11
1250010009
Termination block HYT230
1
12
4030010096
Tapping screw ST3.9*12
2
13
2030050002
Cable clamp
1
14
3140010088
Cable strain relief
1
15
1190030069
UL power cord with plug
1
16
211000026
Stator
1
17
3140060002
Cushioning Pads φ4*7
2
18
4010010032
Bearing #606Z
2
19
1230030036
Brush holder
1
20
4030010023
Tapping screw ST2.9*8
4
PARTS LIST
!
18
Key #
Part #
Part Name
Quantity
21
1010110019
Rotor
1
22
4010010036
Bearing #608Z
4
23
2010080149
Sleeve
1
24
4100020006
Circlip #8
1
25
2040110057
Pinion gear with shaft
1
26
4100010007
Circlip #22
1
27
4030010102
Tapping screws ST3.9*16
13
28
4030010074
Tapping screws ST3.9*14
8
29
4020010201
Gear housing screws M4*14
3
30
2020020059
Top half of gearbox cover
1
31
2040110058
Eccentric gear
1
32
2040040136
Eccentric shaft
1
33
4010010163
Bearing #6005Z
1
34
3140020162
O-ring φ47*φ2.4
1
35
2020020060
Gearbox cover
1
36
4020010206
Tapping screws M4*6
2
37
2010080155
Reciprocating rod bushings
2
38
2030100087
Wire guard
1
39
2060010002
Reciprocating driver
1
40
1150010054
Reciprocating rod
1
41
3140020163
O-ring φ12.8*φ16*21
1
42
4100020008
Circlip
1
43
3150160186
Rear cap
1
44
2040310033
Blade sleeve holder φ22.2*φ16*21
1
45
2050050045
Torsion spring φ22.2*φ1.2
1
46
2040310034
Blade quick release sleeve
1
47
4100020013
Circlip #16
1
48
6060030012
Blade
1
49
2050060204
Coil spring φ0.5*φ6*8
1
50
2040160170
Spring holding pin φ7.5*11.3
1
51
2040160171
Sleeve locating pin φ3*15.7
1
52
2030100086
Anti friction pieces
2
53
4130010017
Spring retaining pin φ3*16
1
PARTS LIST
19
!
Rev 1.5 20/11/2018
Distributed by: Menard, Inc., Eau Claire, WI 54703
PERFORMAX
®
RECIPROCATING SAW WARRANTY
30-DAY MONEY BACK GUARANTEE:
This PERFORMAX
®
brand power tool carries our 30-Day Money Back
Guarantee. If you are not completely satisfied with your PERFORMAX
®
brand
power tool for any reason within thirty (30) days from the date of purchase, return
the tool with your original receipt to any MENARDS
®
retail store, and we will
provide you a refund – no questions asked.
2-YEAR LIMITED WARRANTY:
This PERFORMAX
®
brand power tool carries a 2-Year Limited Warranty to the
original purchaser. If, during normal use, this PERFORMAX
®
power tool breaks
or fails due to a defect in material or workmanship within two (2) years from the
date of original purchase, simply bring this tool with the original sales receipt
back to your nearest MENARDS® retail store. At its discretion, PERFORMAX
®
agrees to have the tool or any defective part(s) repaired or replaced with the
same or similar PERFORMAX
®
product or part free of charge, within the stated
warranty period, when returned by the original purchaser with original sales
receipt. Not withstanding the foregoing, this limited warranty does not cover any
damage that has resulted from abuse or misuse of the Merchandise. This
warranty: (1) excludes expendable parts including but not limited to blades,
brushes, belts, bits, light bulbs, and/or batteries; (2) shall be void if this tool is
used for commercial and/or rental purposes; and (3) does not cover any losses,
injuries to persons/property or costs. This warranty does give you specific legal
rights and you may have other rights, which vary from state to state. Be careful,
tools are dangerous if improperly used or maintained. Seller’s employees are
not qualified to advise you on the use of this Merchandise. Any oral
representation(s) made will not be binding on seller or its employees. The rights
under this limited warranty are to the original purchaser of the Merchandise and
may not be transferred to any subsequent owner. This limited warranty is in lieu
of all warranties, expressed or implied including warranties or merchantability
and fitness for a particular purpose. Seller shall not be liable for any special,
incidental, or consequential damages. The sole exclusive remedy against the
seller will be for the replacement of any defects as provided herein, as long as
the seller is willing or able to replace this product or is willing to refund the
purchase price as provided above. For insurance purposes, seller is not allowed
to demonstrate any of these power tools for you.
For questions / comments, technical assistance or repair parts –
Please Call Toll Free at: 1-866-349-8665 (M-F 9am – 5pm EST)
SAVE YOUR RECEIPTS. THIS WARRANTY IS VOID WITHOUT THEM.
