OWNER’S MANUAL AND SAFETY INSTRUCTIONS
MINI CIRCULAR SAW
ITEM # 47517
SAVE THIS MANUAL. KEEP THIS MANUAL FOR SAFETY WARNINGS, PRECAUTIONS, ASSEMBLY,
OPERATION, INSPECTION, MAINTENANCE AND CLEANING PROCEDURES. WRITE THE PRODUCT’S
SERIAL NUMBER ON THE BACK OF THE MANUAL, OR THE MONTH AND YEAR OF PURCHASE IF
PRODUCT HAS NO SERIAL NUMBER
FOR QUESTIONS, PLEASE CALL CUSTOMER SERVICE: 909.628.0880
SAFETY INFORMATION
1
Read all safety warnings and instructions. Failure to follow the warnings and instructions may result in
injury and/or property damage. Save all warnings and instructions for future reference. The warnings,
precautions, and instructions discussed in this instruction manual cannot cover all possible conditions
and situations that may occur. It must be understood by the operator that common sense and caution
are factors which cannot be built into this product, but must be supplied by the operator.
WORK AREA SAFETY
• Keep work area clean and well lit. Cluttered or dark areas invite accidents.
• Do not operate power tools in explosive atmospheres, such as in the presence of ammable liquids, gases or
dust. Power tools create sparks which may ignite the dust or fumes.
• Keep children and bystanders away while operating power tool .Distractions can cause you to lose control.
ELECTRICAL SAFETY
• Do not expose power tools to rain or wet conditions. Water entering a power tool will increase the risk of electric
shock.
PERSONAL SAFETY
• Stay alert, watch what you are doing and use common sense when operating a power tool. Do not use a power
tool while you are tired or under the inuence of drugs, alcohol or medication. A moment of inattention while
operating power tools may result in serious personal injury.
• Use personal protective equipment.Always wear eye protection. Safety equipment such as dust mask, non-skid
safety shoes,hard hat, or hearing protection used for appropriate conditions will reduce personal injuries.
• Prevent unintentional starting. Ensure the switch is in the o-position before connecting to power source and/
or battery pack, picking up or carrying the tool. Carrying power tools with your nger on the switch or energizing
power tools that have the switch on invites accidents.
• Remove any adjusting key or wrench before turning the power tool on. A wrench or a key left attached to a
rotating part of the power tool may result in personal injury.
• Do not overreach. Keep proper footing and balance at all times. This enables better control of the power tool in
unexpected situations.
• Dress properly. Do not wear loose clothing or jewelry. Keep your hair, clothing and gloves away from moving
parts. Loose clothes, jewelry or long hair can be caught in moving parts.
• If devices are provided for the connection of dust extraction and collection facilities, ensure these are connected
and properly used. Use of these devices can reduce dust-related hazards.
• Only use safety equipment that has been approved by an appropriate standards agency. Unapproved safety
equipment may not provide adequate protection Eye protection must be ANSI-approved and breathing protection
must be NIOSH-approved for the specic hazards in the work area.
POWER TOOL USE AND CARE
a. Do not force the power tool. Use the correct power tool for your application. The correct power tool will do the
job better and safer at the rate for which it was designed.
b. Do not use the power tool if the switch does not turn it on and o. Any power tool that cannot be controlled
with the switch is dangerous and must be repaired.
c. Disconnect the plug from the power source and/or the battery pack from the power tool before making any
adjustments, changing accessories, or storing power tools. Such preventive safety measures reduce the risk of
starting the power tool accidentally.
SAFETY INFORMATION SAFETY INFORMATION
1 2
• Store idle power tools out of the reach of children and do not allow persons unfamiliar with the power tool or
these instructions to operate the power tool. Power tools are dangerous in the hands of untrained users.
• Maintain power tools. Check for misalignment or binding of moving parts, breakage of part s and any other
condition that may aect the power tool’s operation. If damaged, have the power tool repaired before use. Many
accidents are caused by poorly maintained power tools.
• Keep cutting tools sharp and clean. Properly maintained cutting tools with sharp cutting edges are less likely to
bind and are easier to control.
• Use the power tools, accessories and tools bits etc. In accordance with these instructions, taking into account
the working conditions and the work to be performed. Use of the power tool for operations dierent from those
intended could result in a hazardous situation.
BATTERY TOOL USE AND CARE
• Recharge only with the charger specied by the manufacturer A charger that is suitable for one type of battery
pack may create a risk of re when used with another battery pack.
• Use power tools only with specically designated battery packs. Use of any other battery packs may create a
risk of injury and re.
• When battery pack is not in use, keep it away from other metal objects, like paper clips, coins, keys, nails,screws
or other small metal objects, that can make a connection from one terminal to another. Shorting the battery
terminals together may cause burns or a re.
• Under abusive conditions, liquid may be ejected from the battery; avoid contact. If contact accidentally occurs,
ush with water. If liquid contacts eyes, additionally seek medical help. Liquid ejected from the battery may cause
irritation or burns.
SERVICE
Have your power tools serviced by a qualied repair person using only identical replacement parts. This will
ensure that the safety of the power tools is maintained.
SPECIFIC SAFETY RULES FOR CIRCULAR SAWS
CUTTING PROCEDURES
DANGER: Keep hands away from cutting area and the blade. Keep your second hand on auxiliary handle, or
motor housing. If both hands are holding the saw, they cannot be cut by the blade. Do not reach underneath the
workpiece. The guard cannot protect you from the blade below the workpiece.
• Adjust the cutting depth to the thickness of the workpiece. Less than a full tooth of the blade teeth should be
visible below the workpiece.
• Never hold piece being cut in your hands or across your leg. Secure the workpiece to a stable platform. It it
important to support the work properly to minimize body exposure, blade binding, or loss of control.
• Hold the power tool by insulated gripping surfaces only, when performing an operation where the cutting tool
may contact hidden wiring. Contact with a “live” wire will also make exposed metal parts of the power tool “live”
and could give the operator an electric shock.
• When ripping, always use a rip fence or straight edge guide. This improves the accuracy of cut and reduces
the chance of blade binding. ·
Always use blades with correct size and shape of arbour holes. Blades that do not match the mounting hardware
of the saw will run eccentrically, causing loss of control.
• Never use damaged or incorrect blade washers or bolt. The blade washers and bolt were specially designed
for your saw, for optimum performance and safety operation.
SAFETY INFORMATION
3 4
SAVE THESE WARNINGS.
• Always use blades with correct size and shape of arbour holes. Blades that do not match the mounting hardware
of the saw will run eccentrically, causing loss of control.
• Never use damaged or incorrect blade washers or bolt. The blade washers and bolt were specially designed
for your saw, for optimum performance and safety operation.
Further safety instructions for all saws Kickback causes and related warning
• Kickback is a sudden reaction to a pinched, bound or misaligned saw blade, causing an uncontrolled saw to lift
up and out of the workpiece toward the operator.
• When the blade is pinched or bound tightly by the kerf closing down, the blade stalls and the motor reaction
drives the unit rapidly back toward the operator.
• If the blade becomes twisted or misaligned in the cut, the teeth at the back edge of the blade can dig into the
top surface of the wood causing the blade to climb out of the kerf and jump back toward the operator.
Kickback is the result of saw misuse and/or incorrect operating procedures or conditions and can be avoided by
taking proper precautions as given below:
• Maintain a rm grip with both hands on the saw and position your arms to resist kickback forces.Position your
body to either side of the blade, but not in line with the blade. Kickback could cause the saw to jump backwards,
but kickback forces can be controlled by the operator, if proper precautions are taken.
• When blade is binding, or when interrupting a cut for any reason, release the trigger and hold the saw motionless
in the material until the blade comes to a complete stop. Never attempt to remove the saw from the work or pull
the saw backward while the blade is in motion or kickback any occur. Investigate and take corrective actions to
eliminate the cause of blade binding.
• When restarting a saw in the workpiece, centre the saw blade in the kerf and check that saw teeth are not
engaged into the material. If saw blade is binding, it may walk up or kickback from the workpiece as the saw is
restarted.
• Support large panels to minimise the risk of blade pinching and kickback. Large panels tend to sag under their
own weight. Supports must be placed under the panel on both sides, near the line of cut and near the edge of
the panel.
• Do not use dull or damaged blades. Unsharpened or improperly set blades produce narrow kerf causing
excessive friction, blade binding and kickback.
• Blade depth and bevel adjusting locking knob must tight and secure before making cut. If blade adjustment
shifts while cutting, it may cause binding and kickback.
Use extra caution when sawing into existing walls or other blind areas. The protruding blade may cut objects that
can cause kickback.
Lower guard function
• Check lower guard for proper closing before each use. Do not operate the saw if lower guard does not move
freely and close instantly. Never clamp or tie the lower guard into the open position. If saw is accidentally
dropped, lower guard may be bent. Raise the lower guard with the retracting handle and make sure it moves
freely and does not touch the blade or any other part, in all angles and depths of cut.
• Check the operation of the lower guard spring. If the guard and the spring are not operating properly, they
must be serviced before use. Lower guard may operate sluggishly due to damaged parts, gummy deposits, or
a build-up of debris.
• Lower guard should be retracted manually only for special cuts such as “plunge cuts and angle cuts” . Raise
the lower guard by retracting the handle and as soon as the blade enters the material, release the lower guard.
For all other sawing operations, the lower guard should operate automatically.
• Always observe that the lower guard is covering the blade before placing saw down on bench or oor. An
unprotected, coasting blade will cause the saw to walk backwards, cutting whatever is in its path.Be aware of the
time it takes for the blade to stop after switch is released.
SAFETY INFORMATION
4
SAVE THESE WARNINGS.
• Do not reach into the chip ejector with your hands. They could be injured by rotating parts.
• Do not work overhead with the saw. In this manner you do not have sucient control over the power tool.
• Use appropriate detector to determine if utility lines are hidden in the work area or call the local utility company
for assistance. Contact with electric lines can lead to re and electric shock. Damaging as gas line can lead to
explosion. Penetrating a water line causes properly damage.
• Do not operate the power tool stationary. It is not designed for operation with a saw table.
• Do not use high speed steel saw blades. Such saw blades can easily break.
• Do not saw ferrous metals. Red hot chips can ignite the dust extraction.
•Secure the workpiece. A workpiece clamped with clamping devices or in a vice is held more secure than by
hand.
• Always wait until the machine has come to a complete stop before placing it down. The tool insert can jam and
lead to loss of control over the power tool.
• Do not open the battery. Danger of short-circuiting. Protect the battery against heat, e.g., against continuous
intense sunlight, re, water, and moisture. Danger of explosion.
• In case of damage and improper use of the battery, vapours may be emitted. Ventilate the area and seek
medical help in case of complaints. The vapours can irritate the respiratory system.
• Use the battery only in conjunction with your product. This measure alone protects the battery against dangerous
overload.
• The battery pack can be damaged by pointed objects such as nails or screwdrivers or by force applied externally.
An internal short circuit can occur and the battery pack can burn, smoke, explode or overheat.

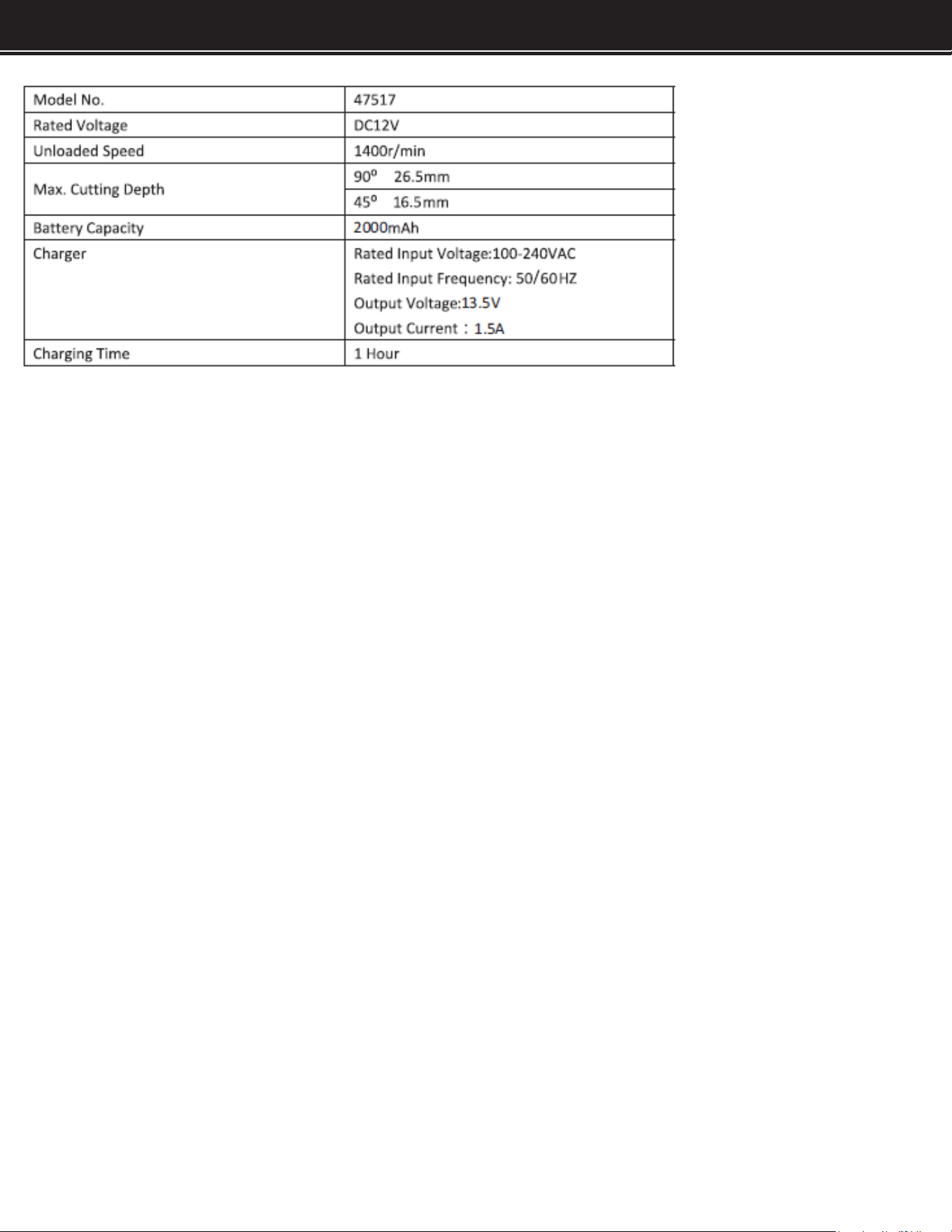

PRODUCT INFORMATION
5

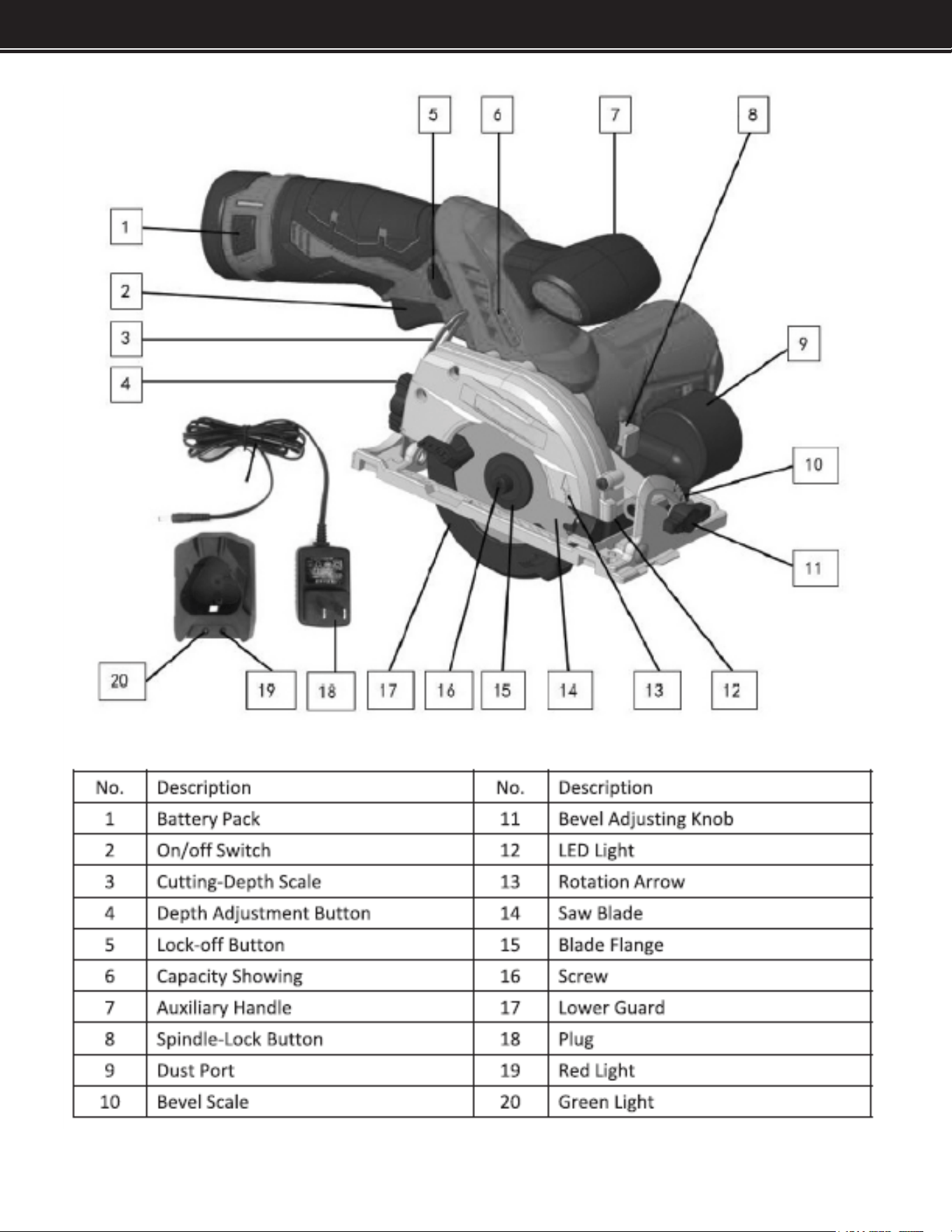

ASSEMBLY PARTS INFORMATION
BATTERY CHARGING
Use only the battery chargers listed on the manual. Only these battery chargers are matched to the lithium-ion
battery of your power tool.
Note: The battery supplied is partially charged. To insure full capacity of the battery, completely charge the battery
in the battery charger before using your power tool for the rst time. The lithium-ion battery can be charged at any
time without reducing its service life. Interrupting the charging procedure does not damage the battery.
When the battery is empty, the machine is switched o by means of a protective circuit: The inserted tool no
longer rotates.
Do not continue to press the On/O switch after the machine has been automatically switched o. The battery
can be damaged. Observe the notes for disposal.
REMOVING THE BATTERY
The battery is equipped with two locking levels that should prevent the battery from falling out when pushing the
battery unlocking button unintentionally. As long as the battery is inserted in the power tool, it is held in position by
means of a spring. To remove the battery, press the battery unlocking button and pull the battery out of the power
tool toward the rear. Do not exert any force.

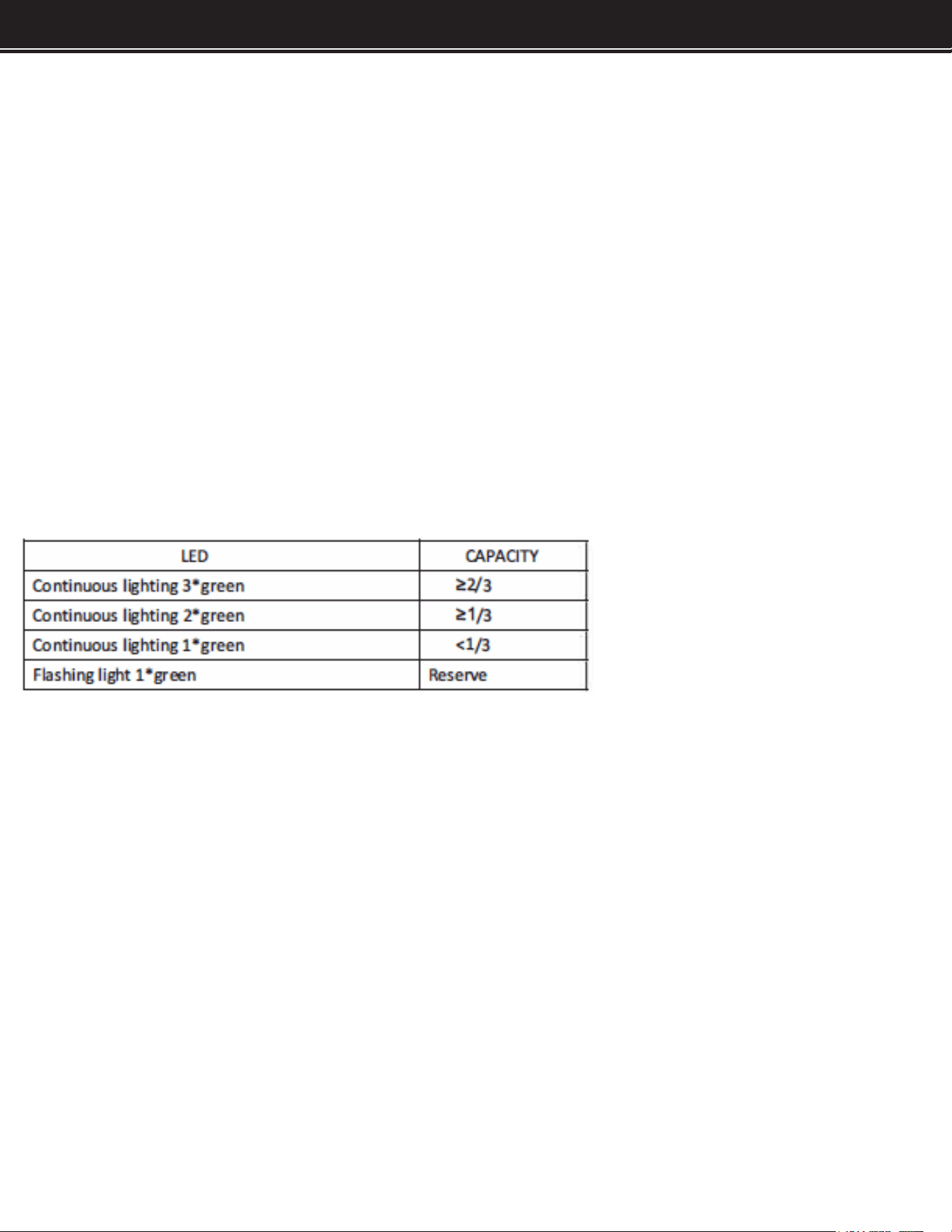

BATTERY CHARGE
-
CONTROL INDICATION
The three LEDs of the battery charge-control indicator indicate the charge condition of the battery. For safety
reasons, it is only possible to check the status of the charge condition when the machine is at a standstill. Press
the On/O switch halfway or completely through to indicate the charge condition.
When no LED light up after pressing the On/O switch, the battery is defective and must be replaced.
MOUNTING/REPLACING THE SAW BLADE
• Before any work on the power tool, remove the battery.
• When mounting the saw blade, wear protective gloves. Danger of injury when touching the saw blade.
• Only use saw blades that correspond with t he characteristic data given in the operating instructions.
• Do not under any circumstances use grinding discs as the cutting tool.
REMOVAL OF THE SAW BLADE
For changing the cutting tool, it is best to place the machine on the face side of the motor housing.
--Press the spindle lock button and keep it pressed.
•The spindle lock button may be actuated only when the saw spindle is at a standstill. Otherwise, the power tool
can be damaged. With the hex key, unscrew the clamping bolt turning in rotation direction. Tilt back the retracting
blade guard and hold rmly. Remove the clamping ange and the saw blade from the saw spindle.
MOUNTING THE SAW BLADE
For changing the cutting tool, it is best to place the machine on the face side of the motor housing. Clean the
saw blade and all clamping parts to be assembled. Tilt back the retracting blade guard and hold rmly. Place the
saw blade onto the mounting ange. The cutting direction of the teeth(direction of arrow on the saw blade) and
the direction-of-rotation arrow on the retracting blade guard must correspond. Mount the clamping ange and
screw in the clamping bolt turning in rotation direction. Observe correct mounting position of mounting ange and
clamping ange. Press the spindle lock button and keep it pressed. With the hex key, tighten the clamping bolt
turning in rotation direction.
6
PRODUCT INFORMATION
ASSEMBLY PARTS INFORMATION
6
PRODUCT INFORMATION
OPERATION OPERATION
Inserting the battery: Use only original lithium-ion batteries with the voltage listed on the nameplate of your
power tool. Using other batteries can lead to injuries and pose a re hazard. Insert the charged battery from the
front into the base of the power tool. Push the battery completely into the base until the red stripe can no longer
be seen and the batter is securely locked.
Switching On and O: To start the machine, rst push the lock-o button for the On/O switch and then press
the On/O switch and keep it pressed. To switch o the machine, release the On/O switch.
Note: For safety reasons, the On/O switch cannot be locked; it must remain pressed during the entire operation.
Temperature Control/ Overload Protection Indicator: The red LED indicator will help you in protecting the battery
against overheating and the motor against overloading. When the LED indicator continuously lights up red, the
temperature of the battery is too high and the machine switches o automatically.
• Switch the power tool o.
• Allow the battery to cool down before continuing to work.
The LED indicator ashed red, the power tool is blocked and switches o automatically. Remove the power tool
from the workpiece. The power tool will continue to work as soon as the blockage is rectied.
Protection Against Deep Discharging: The lithium-ion battery is protected against deep discharging by the
“Electronic Cell Protection (ECP)”. When the battery is empty, the machine is switched o by means of a protective
circuit: the inserted tool no longer rotates.
Switching on the LED Work area illumination: The power light lights up when the On/O switch is slightly or
completely pressed, and allows the work area to be illuminated when lighting conditions are insucient.
Working Advice: Protect saw blades against impact and shock. Guide the machine evenly and with light feed
in the cutting direction. Excessive feed signicantly reduces the service life of the saw blade and can cause
damage to the power tool. Sawing performance and cutting quality depend essentially on the condition and the
tooth form of the saw blade. Therefore, use only sharp saw blades that are suited for the material to be worked.
Sawing Wood: The correct selection of the saw blade depends on the type and quality of the wood and whether
lengthway or crossway cuts are required. Beech and oak dusts are especially detrimental to health. Therefore,
work only with dust extraction. Before any work on the power tool, remove the battery.
Adjusting the Cutting Angle
It is best to place the machine on the face side of the blade guard. Loosen wing bolt. Tilt the saw sidewards.
Adjust the desired setting at the scale. Tighten wing bolt again. When setting the mitre angle, use the reference
mark upper edge of the holder.
Note: For bevel cuts, the cutting depth is smaller than the setting indicated on the cutting-depth scale.
7 8
PRODUCT INFORMATION
OPERATION OPERATION
8
Cutting Marks
The 0° cutting mark indicates the position of the saw blade for right-angled cuts. The 45° cutting mark indicated
the position of the saw blade for 45° cuts.
Recommendations for Optimal Handling of the Battery: Protect the battery against moisture and water. Charge
the battery only within a temperature range between 0-45°C. As an example, do not leave the battery in the car
in summer. Occasionally clean the venting slots of the battery using a soft, clean and dry brush. A signicantly
reduced working period after charging indicates that the battery is used and must be replaced. Observed the
notes for disposal.
Maintenance and cleaning
Before any work on the machine itself (e.g maintenance, tool change, etc.) as well as during transport and
storage, remove the battery from the power tool. There is danger of injury when unintentionally actuating the
On/O switch. For safe and proper working, always keep the machine and ventilation slots clean. The retracting
blade guard must always be able to move freely and retract automatically. Therefore, always keep the area
around the retracting blade guard clean. Remove dust and chips by blowing out with compressed air or with a
brush. Saw blades that are not coated can be protected against corrosion with a thin coat of acid-free oil. Before
use, the oil must be removed again, otherwise the wood will become soiled. Resign and glue residue on the saw
blade produces poor cuts. Therefore, clean the saw blade immediately after use.
PRODUCT INFORMATION

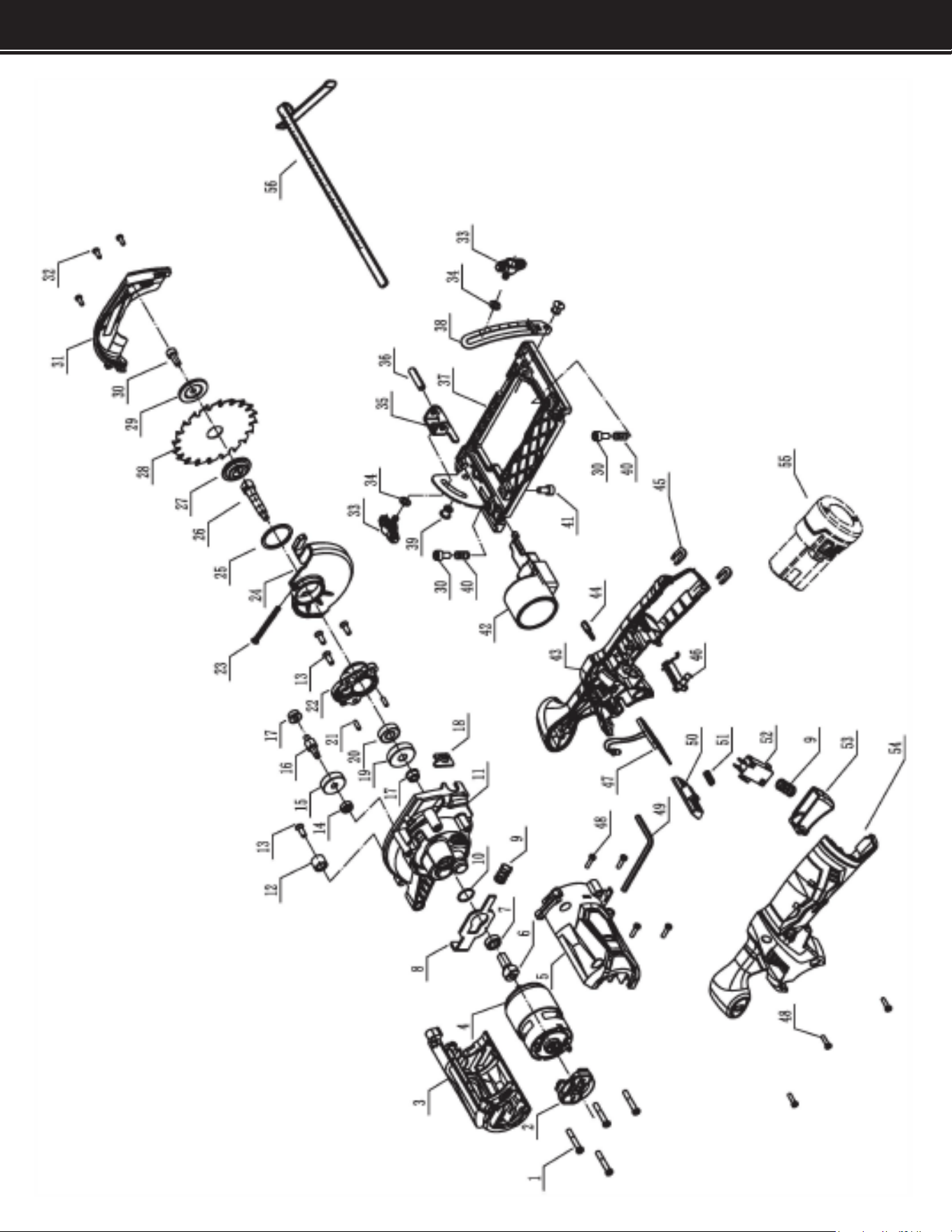

PARTS INFORMATION
9

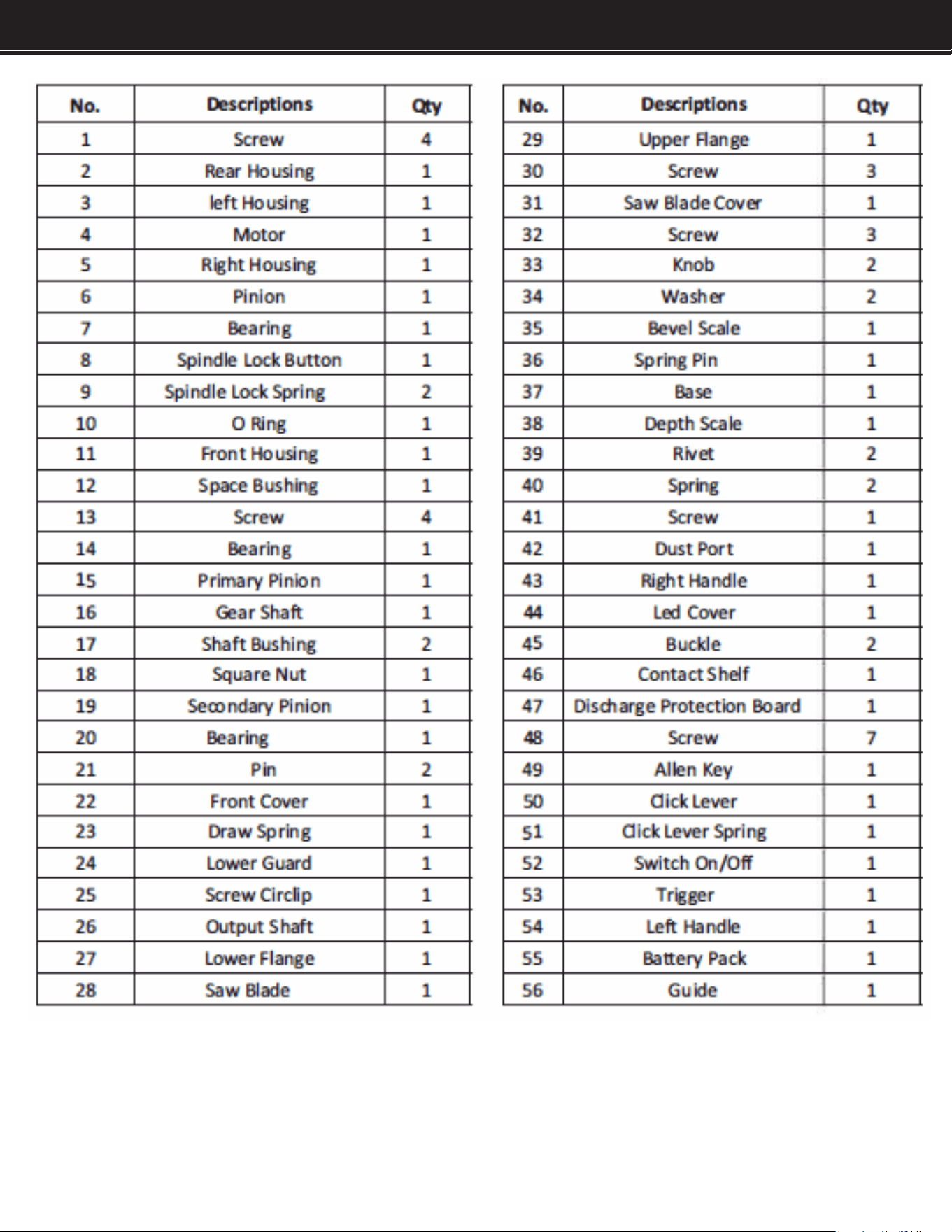

PARTS INFORMATION
10
PRODUCT INFORMATION
PARTS INFORMATION
PARTS INFORMATION
10
OF NOTE
PLEASE READ THE FOLLOWING CAREFULLY
THE MANUFACTURER AND/OR DISTRIBUTOR HAS PROVIDED THE PARTS LIST AND ASSEMBLY
DIAGRAM IN THIS MANUAL AS A REFERENCE TOOL ONLY. NEITHER THE MANUFACTURER OR
DISTRIBUTOR MAKES ANY REPRESENTATION OR WARRANTY OF ANY KIND TO THE BUYER THAT HE
OR SHE IS QUALIFIED TO MAKE ANY REPAIRS TO THE PRODUCT, OR THAT HE OR SHE IS QUALIFIED
TO REPLACE ANY PARTS OF THE PRODUCT. IN FACT, THE MANUFACTURER AND/OR DISTRIBUTOR
EXPRESSLY STATES THAT ALL REPAIRS AND PARTS REPLACEMENTS SHOULD BE UNDERTAKEN
BY CERTIFIED AND LICENSED TECHNICIANS, AND NOT BY THE BUYER. THE BUYER ASSUMES
ALL RISK AND LIABILITY ARISING OUT OF HIS OR HER REPAIRS TO THE ORIGINAL PRODUCT OR
REPLACEMENT PARTS THERETO, OR ARISING OUT OF HIS OR HER INSTALLATION OF REPLACEMENT
PARTS THERETO.
Record Product’s Serial Number Here:
Note: If product has no serial number, record month and year of purchase instead.
Note: Some parts are listed and shown for illustration purposes only and are not available
individually as replacement parts.
MADE IN CHINA
OF NOTE
OF NOTE
DISCLAIMER
11
DISCALIMER
