OWNER’S MANUAL
3 in. (7.6 cm)
Chipper-Shredder
12039 Smith Ave.
Santa Fe Springs, CA 90670
USA / 1-877-338-0999
www.championpowerequipment.com
SAVE THESE INSTRUCTIONS
Important Safety Instructions
are included in this manual.
MADE IN CHINA
REV 100137-20170526
100137
MODEL NUMBER
Have questions or need assistance?
Do not return this product to the store!
WE ARE HERE TO HELP!
Visit our website:
www.championpowerequipment.com
for more info:
• Product Info & Updates
• Frequently Asked Questions
• Tech Bulletins
• Product Registration
– or –
Call our Customer Care Team Toll-Free at:
1-877-338-0999
*We are always working to improve our products. Therefore, the enclosed product may differ slightly from the image on the cover.*We are always working to improve our products. Therefore, the enclosed product may differ slightly from the image on the cover.
Parts Ordering:
Mon – Fri 8:30 AM – 5:00 PM (PST/PDT)
Toll Free : 1-877-338-0999
For residents of California:
WARNING: This product contains chemicals known to the State of California to cause cancer or birth defects
and other reproductive harm.
WARNING: The engine exhaust from this product contains chemicals known to the State of California
to cause cancer and birth defects and other reproductive harm.
AN IMPORTANT MESSAGE ABOUT TEMPERATURE:
Your Champion Power Equipment product is designed and rated for continuous operation at ambient temperatures up to
40°C (104°F). When your product is needed your product may be operated at temperatures ranging from -15°C (5°F) to
50°C (122°F) for short periods. If the product is exposed to temperatures outside this range during storage, it should be
brought back within this range before operation. In any event, the product must always be operated outdoors, in a
well-ventilated area and away from doors, windows and other vents.
100137
TABLE OF CONTENTS
3 in. (7.6 cm)
Chipper-Shredder
Introduction ............................ 1
Introduction .......................... 1
Manual Conventions . ...................... 2
Safety Rules . ........................... 3
Training ............................. 5
Preparation .......................... 5
Operation . ........................... 6
Maintenance and Storage ................. 6

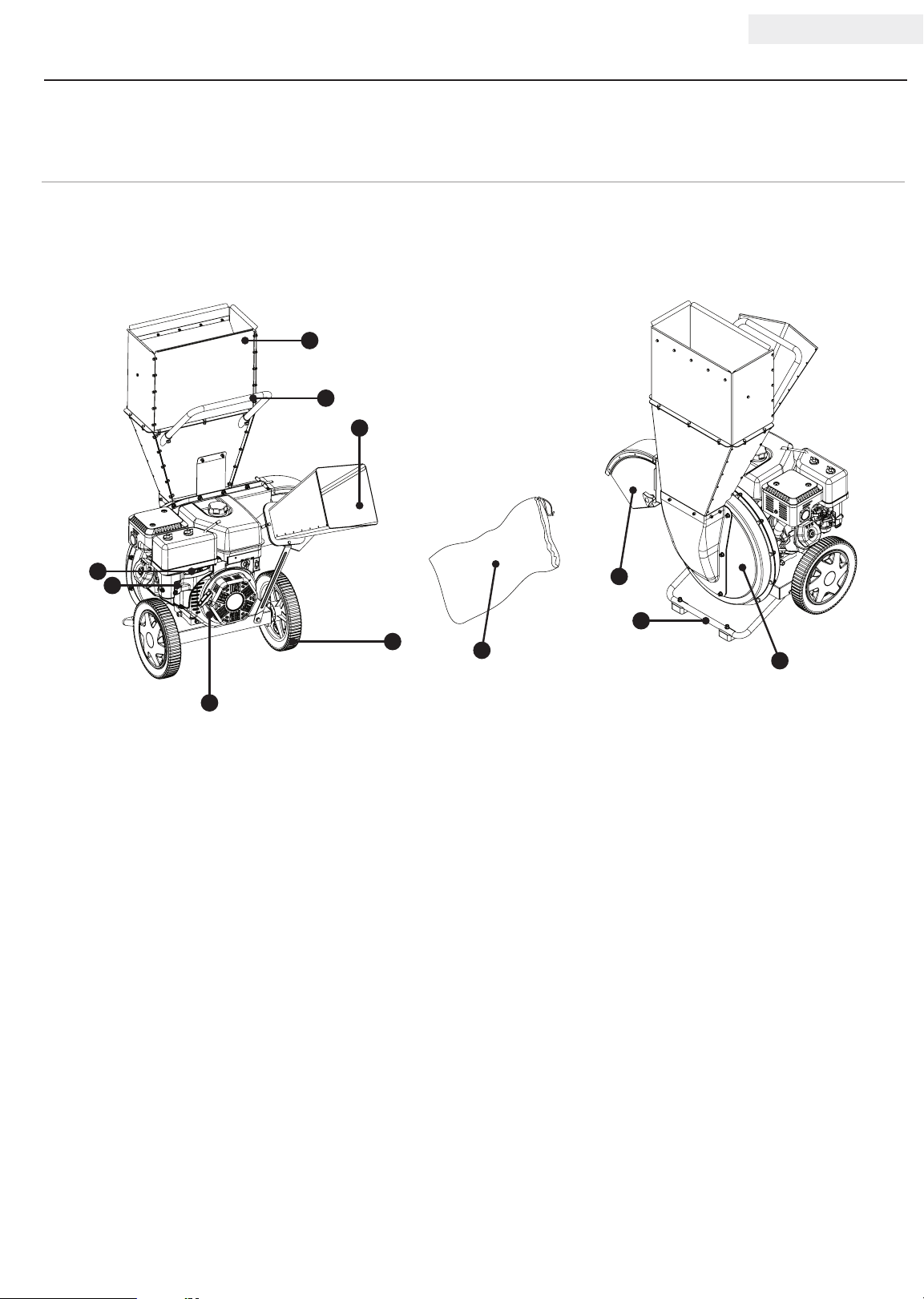

Controls and Features ..................... 7
Chipper-shredder . ...................... 7
Parts Included ........................ 8

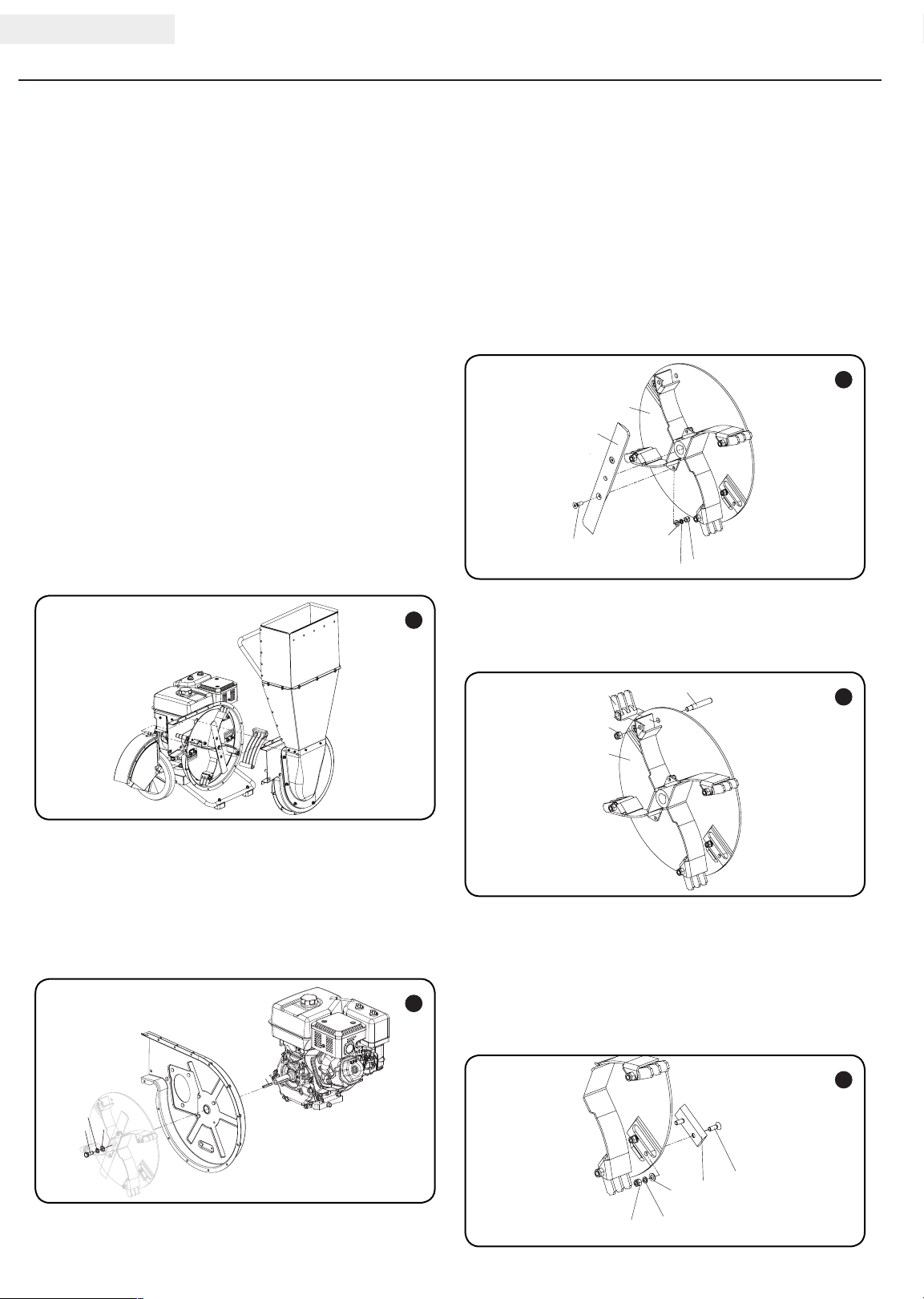

Assembly .............................. 9
Unpacking ........................... 9
1) Install the Shredder Chute .............. 9
2) Install the Handle .................... 9
3) Install the Chipper Chute ............... 9
4) Install the Chute Deflector ............. 10
Collection Bag ....................... 10
Add Engine Oil ....................... 11
Add Engine Fuel ...................... 12
Operation . ............................ 13
Chipper-shredder Location ............... 13
Work Area .......................... 13
Before Each Use Inspect the Chipper-shredder . 14
Starting the Engine .................... 14
Chipper-shredder Operation .............. 15
Chipping and Shredding Tips ............. 16
Chipping ......................... 16
Shredding ........................ 16
Clearing the Shredding Chute ............. 16
Emptying the Collection Bag . ............. 17
Stopping the Engine ................... 17
Operation at High Altitude ............... 17
Maintenance and Storage .................. 18
Engine Maintenance ................... 18
Oil ............................. 18
Spark Plugs ....................... 18
Air Filter ......................... 19
Chipper-shredder Maintenance ............ 19
Cleaning ......................... 19
Flail Housing and Impeller Cleaning . ...... 19
Blade Sharpening ................... 20
Maintenance Schedule . ............... 21
Storage ............................ 21
Chipper-shredder Storage . ............. 21
Engine Stored for Less than 30 Days . ..... 21
Engines Stored for Over 30 Days . ........ 21
Specifications .......................... 22
Chipper-shredder Specifications ........... 22
Engine Specifications .................. 22
Fuel .............................. 22
Oil ............................... 22
Spark Plugs ......................... 22
Maintenance Valve Clearance ............. 22
Parts Diagram . ....................... 23
Parts List . .......................... 24

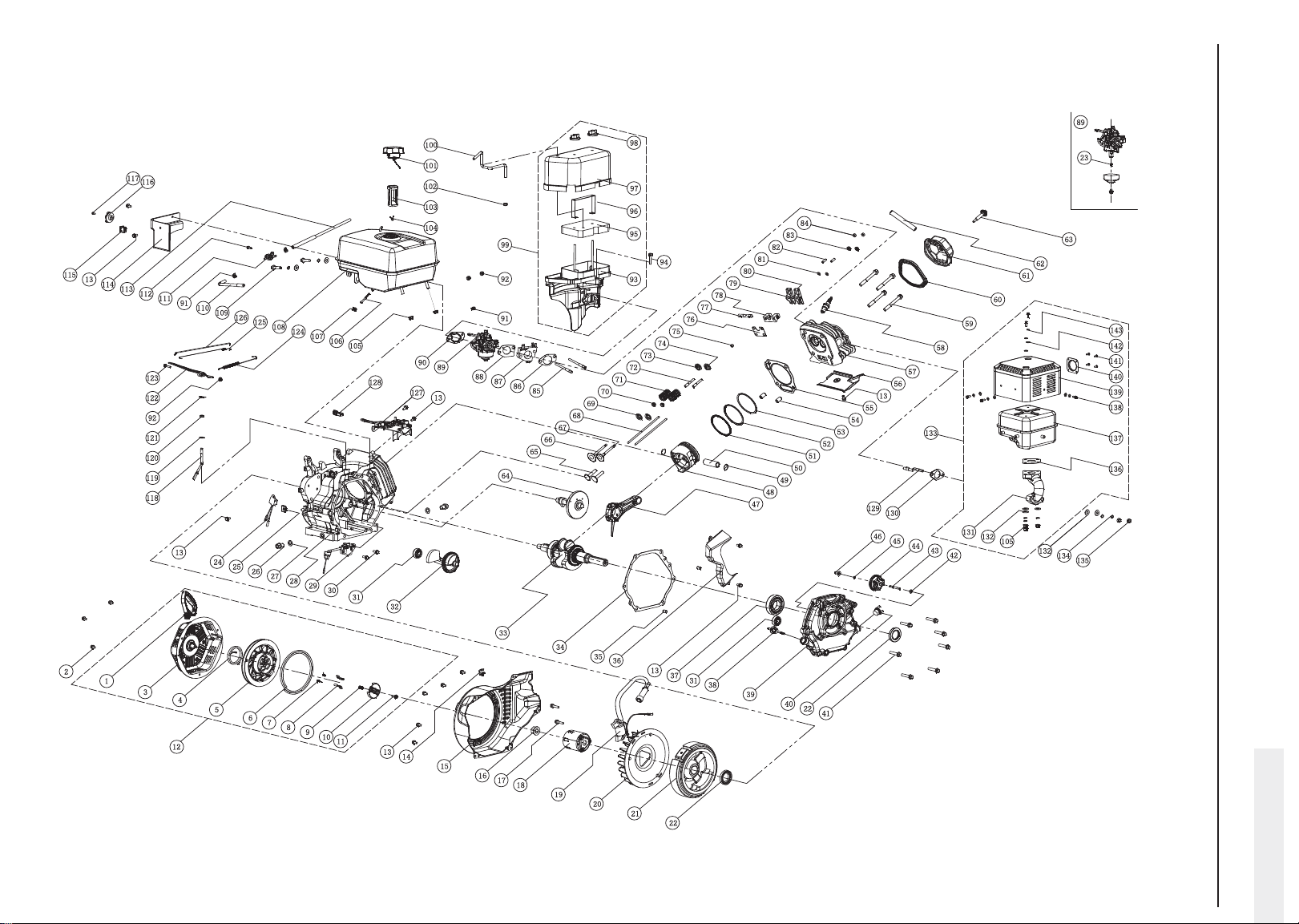

Engine Parts Diagram .................. 25
Engine Parts List ..................... 26
Troubleshooting . ........................ 27
1
ENGLISH 100137
INTRODUCTION
Record the model and serial numbers as well as date and place of purchase for future reference. Have this
information available when ordering parts and when making technical or warranty inquiries.
Introduction
Congratulations on your purchase of a Champion Power Equipment product. Champion Power Equipment and
Champion Engine Technology designs, builds, and supports all of our products to strict specifications and guidelines.
With proper product knowledge, safe use, and regular maintenance, this product should bring years of satisfying
service.
Every effort has been made to ensure the accuracy and completeness of the information in this manual, and we
reserve the right to change, alter and/or improve the product and this document at any time without prior notice.
Since CPE/CET highly value how our products are designed, manufactured, operated and are serviced, and also
highly value your safety and the safety of others, we would like you to take the time to review this product manual
and other product materials thoroughly and be fully aware and knowledgeable of the assembly, operation, dangers
and maintenance of the product before use. Fully familiarize yourself, and make sure others who plan on operating
the product fully familiarize themselves too, with the proper safety and operation procedures before each use. Please
always exercise common sense and always error on the side of caution when operating the product to ensure no
accidents, property damage, or injury occurs. We want you to continue to use and be satisfied with your CPE/CET
product for years to come.
Model Number
Serial Number
Date of Purchase
Purchase Location
1-877-338-0999
100137
For Oil Type see ‘Add Engine Oil‘ section. For Fuel Type see ‘Add Fuel‘ section.
Champion Power Equipment Support
2
100137 ENGLISH
MANUAL CONVENTIONS
CAUTION indicates a potentially hazardous
situation which, if not avoided, may result in minor
or moderate injury.
CAUTION
CAUTION used without the safety alert symbol
indicates a potentially hazardous situation which, if
not avoided, may result in property damage.
CAUTION
This manual uses the following symbols to help differentiate between different kinds of information. The safety symbol
is used with a key word to alert you to potential hazards in operating and owning power equipment.
Follow all safety messages to avoid or reduce the risk of serious injury or death.
DANGER indicates an imminently hazardous
situation which, if not avoided, will result in death
or serious injury.
DANGER
WARNING indicates a potentially hazardous
situation which, if not avoided, could result in
death or serious injury.
WARNING
If you have questions regarding your chipper-
shredder, we can help. Please call our help line at
1-877-338-099 9.
NOTE
3
ENGLISH 100137
SAFETY RULES
Engine exhaust contains carbon monoxide, a
colorless, odorless, poison gas. Breathing carbon
monoxide will cause nausea, dizziness, fainting or
death. If you start to feel dizzy or weak, get to fresh
air immediately.
DANGER
Run the motor outdoors only in a well ventilated
area. DO NOT operate the engine inside any
buildings or enclosures.
DO NOT allow exhaust fumes to enter a confined
area through windows, doors, vents or other
openings. DANGER CARBON MONOXIDE, using an
engine indoors CAN KILL YOU IN MINUTES.
Hands, feet, hair, clothing and / or accessories can
be caught in moving rotating parts and cause a
traumatic amputation or severe laceration.
DANGER
Keep hands and feet away from rotating parts. Tie up
long hair and remove jewelry. Operate equipment with
guards in place. DO NOT wear loose-fitting clothing,
dangling drawstrings or items that could become
caught.
The engine exhaust from this product contains
chemicals known to the state of California to cause
cancer, birth defects, or other reproductive harm.
WARNING
Sparks can result in fire or electrical shock.
DANGER
When servicing the engine:
Disconnect the spark plug wire and place it where
it cannot contact the plug. DO NOT check for spark
with the plug removed. Use only approved spark
plug testers.
Running engines produce heat. Severe burns can
occur on contact. Combustible material can catch
fire on contact.
DO NOT touch hot surfaces. Avoid contact with
hot exhaust gases. Allow equipment to cool before
touching. Maintain at least 3 ft. (91.4 cm) of
clearance on all sides to ensure adequate cooling.
Maintain at least 5 ft. (1.5 m) of clearance from
combustible materials.
WARNING
Child, Pet and Bystander Hazard
Do not allow children, pets or bystanders near
the work area or location of the chipper-shredder.
This can create potential distractions and safety
hazards. Accidents, damage and injury could occur.
A minimum distance of 75 ft. (22.9 m) from the
chipper-shredder is recommended. Projectiles
can also fly haphazardly in the work area. Only a
qualified adult with complete working knowledge
of the product and safety rules should operate the
chipper-shredder and be in the work area.
WARNING
Read this manual thoroughly, and understand all safety rules before operating the chipper-shredder. Become
familiar with the product and know how to stop the product immediately if needed. Failure to follow safety
instructions and familiarize one’s self with product operation could result in serious property damage, injury or
death.
DANGER
Always disconnect the spark plug wire during times
of inactivity, cleaning and maintenance. This will
prevent any accidental start up that may cause
damage or injury.
DANGER
4
100137 ENGLISH
SAFETY RULES
Projectile Hazard
Pieces of debris may be ejected from the chipper-
shredder while operating. Be alert.
WARNING
Always wear proper clothing and safety gear.
DANGER
Close fitting clothing and safety approved eye
protection must be wore at all times around the
chipper-shredder. Wear boots or sturdy shoes that
will improve footing around slippery surfaces.
Keep Operator Work Zone Clear
Keep work zone clear of debris while working to
ensure safe footing.
WARNING
Rapid retraction of the starter cord will pull hand and
arm towards the engine faster than you can let go.
Unintentional startup can result in entanglement,
traumatic amputation or laceration.
Broken bones, fractures, bruises or sprains could
result.
When starting engine, pull the starter cord slowly
until resistance is felt and then pull rapidly to avoid
kickback.
WARNING
Improper treatment or use of the chipper-shredder
can damage it, shorten its life and void your
warranty.
Use the chipper-shredder only for intended uses.
Operate only on level surfaces. DO NOT expose
chipper-shredder to excessive moisture, dust, or
dirt. DO NOT allow any material to block the cooling
slots.
DO NOT use the engine if:
– Equipment sparks, smokes or emits flames
– Equipment vibrates excessively
– Equipment makes unusual sounds
– Equipment is damaged
CAUTION
Fuel and fuel vapors are highly flammable and
extremely explosive.
Fire or explosion can cause severe burns or death.
Unintentional startup can result in entanglement,
traumatic amputation or laceration.
When adding or removing fuel:
Turn the engine off and let it cool for at least two
minutes before removing the fuel cap. Loosen the
cap slowly to relieve pressure in the tank.
Only fill or drain fuel outdoors in a well-ventilated area.
DO NOT pump gas directly into the chipper-
shredder at the gas station. Use an approved
container to transfer the fuel to the chipper-
shredder.
DO NOT overfill the fuel tank.
Always keep fuel away from sparks, open flames,
pilot lights, heat and other sources of ignition.
DO NOT light or smoke cigarettes.
When starting the engine:
DO NOT attempt to start a damaged engine.
Make certain that the gas cap, air filter, spark plug,
fuel lines and exhaust system are properly in place.
Allow spilled fuel to evaporate fully before
attempting to start the engine.
Make certain that the chipper-shredder is resting
firmly on level ground.
When operating the chipper-shredder:
DO NOT move or tip the chipper-shredder during
operation.
DO NOT tip the chipper-shredder or allow fuel or oil
to spill.
When transporting or servicing the chipper-shredder:
Make certain that the fuel shutoff valve is in the off
position and the fuel tank is empty.
Disconnect the spark plug wire.
When storing the chipper-shredder:
Store away from sparks, open flames, pilot lights,
heat and other sources of ignition.
DANGER
5
ENGLISH 100137
SAFETY RULES
Training
1. Read the Operator’s Manual completely before
attempting to use this chipper-shredder.
2. Do not allow anyone to operate your chipper-
shredder who has not read the Operator’s Manual
or has not been instructed on the safe use of the
chipper-shredder.
3. Never allow children or untrained adults to operate
this machine.
4. Many accidents occur when more than one (1)
person operates the chipper-shredder. If a helper is
assisting, never actuate controls until helper is clear
of the area.
5. Never allow anyone to ride on the machine.
6. Never transport cargo on the chipper-shredder.
7. Projectiles can exit the chipper-shredder at high
velocities. Therefore, the following instructions
should be heeded at all times.
a. Never operate the unit on hardened ground, such
as asphalt or concrete.
b. Never operate the unit close to any buildings or
walls.
c. Do not allow children, pets, bystanders, and
assistants to be within 75 ft. (22.9 m) of the
unit during operation.
d. Do not lean directly over any chute, entry or exit,
during operation.
8. Keep the operator zone and adjacent area clear for
safe, secure footing.
9. If your chipper-shredder is equipped with an
internal-combustion engine and intended for use
near any unimproved forest, brush, or grass covered
land, the engine exhaust should be equipped with
a spark arrestor. Make sure you comply with local,
state, and federal codes. Take appropriate fire-
fighting equipment with you.
10. Chipper-shredders should be used only for chipping
branches 3 in. (7.6 cm) or less in diameters or
shredding vegetation with small diameter branches.
Do not use for other purposes.
11. Always make sure the spark plug wire is
disconnected from the engine when not in use, and
before cleaning or maintenance.
Preparation
1. Be thoroughly familiar with all controls and with
proper use of the equipment.
2. Make sure the spark plug wire is disconnected until
operation.
3. Safety Gear:
a. Always wear safety shoes or heavy boots when
operating the machine.
b. Always wear safety glasses or goggles when
operating the machine.
c. Never wear jewelry or loose-fitting clothing that
might become entangled in moving or rotating
parts of the machine.
d. Always wear hearing protection.
e. Tie back long hair or anything that will dangle
and may get entangled.
4. Inspection:
a. Make sure the spark plug wire has been fully
removed and the unit is grounded.
b. Make sure the chutes, chambers, and intakes/
exits are all clean and free of any debris.
c. Make sure the work area is clean and has no
obstacles or distractions.
d. Make sure all connections and parts are secure
and undamaged.
e. Make sure collection bag is fully connected and
secure.
f. Make sure material to be chipped is less than
3 in. (7.6 cm) in diameter. Branches to be
chipped can be pruned down.
g. Make sure material to be chipped or shredded is
not damp or wet.
5. Check to make sure the chipper-shredder is on a
level surface that is not asphalt, concrete or harden
ground. Block the wheels and ensure support leg
is secure to prevent unintended movement of the
chipper-shredder during operation.
a. Always operate the chipper shredder from the
manufacturer’s indicated operator zone.
6. Fuel:
a. Use an approved fuel container.
b. Never add fuel to a running or hot engine.
c. Fill fuel tank outdoors with extreme care. Never
fill fuel tank indoors.
d. Replace gasoline cap securely and clean up any
spilled fuel.
6
100137 ENGLISH
SAFETY RULES
Maintenance and Storage
1. Always shut off the power source and disconnect
the spark plug wire and ground the engine, while
repairing or adjusting the unit.
2. Clean debris, shrubbery and chaff from the
engine cylinder, cylinder head fins, blower house
rotation screen, and muffler areas. If the engine is
equipped with a spark arrestor muffler, clean and
inspect it regularly (follow manufacturer’s service
instructions). Replace, if damaged.
3. Never store the unit with fuel in the tank. Fumes
might reach an open flame spark. Allow the engine
to cool before storing in any enclosure.
4. Clear debris from moveable parts, but only when the
engine is off, the fuel valve is in the “OFF” position,
and the spark plug wire is disconnected.
5. Check to be sure all nuts and bolts are tight to
assure the equipment is in safe working condition.
Operation
1. Before starting this chipper-shredder, review all
safety rules. Failure to follow these rules may result
in serious injury to the operator or bystanders.
2. Be sure to confirm all connections are tight before
each use. It is possible for connections to vibrate
loose over time.
3. Never leave the machine unattended with the power
source operating.
4. Never operate the machine when under the
influence of alcohol, drugs or medication.
5. The machine owner should instruct all operators in
safe chipper-shredder operation.
6. Always operate the chipper-shredder with all
safety equipment in place and all controls properly
adjusted for safe operation.
7. Always operate the chipper-shredder at
manufacturer’s recommended speed.
8. Always keep hands and feet clear of moving parts.
9. When loading the chipper-shredder, never place
your hands inside or on the sides of the chutes,
chambers, or intake. Never place your hands or any
part of your body between the material and any part
of the chipper-shredder.
a. Never attempt to chip more than one (1) branch
at a time, this may cause the chute, chamber or
intake to become clogged.
b. Never attempt to use your hand, foot or any body
part to unclog the chipper-shredder.
c. Only attempt to unclog with a small diameter
stick that can get chipped.
d. If a major clog occurs; turn the fuel valve off and
let the unit run until dry, turn off the engine, let
the unit cool down, unplug the spark plug wire
and take apart the unit to see where the clog has
occurred. Remove clog before further operation.
10. Only chip branches 3 in. (7.6 cm) or less in
diameter.
11. Only shred bushes, shrubbery, leaves, etc. with
branches 1/2 in. (1.3 cm) or less in diameter.
12. Only shred dry or slightly damp material. Never
attempt to shred material that is wet, as this may
cause clogging to occur.
13. Use only your hand to operate the chipper-shredder
controls.
14. Do not refuel the engine until it has cooled for several
minutes.
7
ENGLISH 100137
(1) Throttle
(2) Choke
(3) Engine – 338cc, OHV, 4-stroke, air cooled.
(4) Shredder Chute – place shreddable material in this
chute.
(5) Handle
(6) Chipper Chute – place chippable material in this
chute.
(7) Wheels – 12 in. (30.5 cm) never flat.
(8) Collection Bag – attach to chute deflector to collect
material.
(9) Chute Deflector – chipped or shredded material
will exit from this.
(10) Support Leg with Vibration Mounts – used to help
stabilize the unit.
(11) Flail Housing – housing for chipper-shredder blades.
Chipper-shredder
CONTROLS AND FEATURES
Read this owner’s manual before operating your chipper-shredder. Familiarize yourself with the location and function
of the controls and features. Save this manual for future reference.
3
6
7
5
4
10
2
1
9
11
8
8
100137 ENGLISH
CONTROLS AND FEATURES
Parts Included
Your 100137 gasoline powered chipper-shredder ships
with the following parts:
– Collection Bag - 2 Bushel (70 L) Capacity
...... 1
– Oil Funnel ............................ 1
9
ENGLISH 100137
ASSEMBLY
Your chipper-shredder requires some assembly. This unit
ships from our factory without oil. It must be properly
serviced with fuel and oil before operation.
If you have any questions regarding the assembly of your
chipper-shredder, call our help line at 1-877-338-0999.
Please have your serial number and model number available.
Unpacking
1. Set the shipping crate on a solid, flat surface
2. Carefully cut the shipping bands and remove lid of
shipping crate.
3. Locate all hardware before beginning assembly.

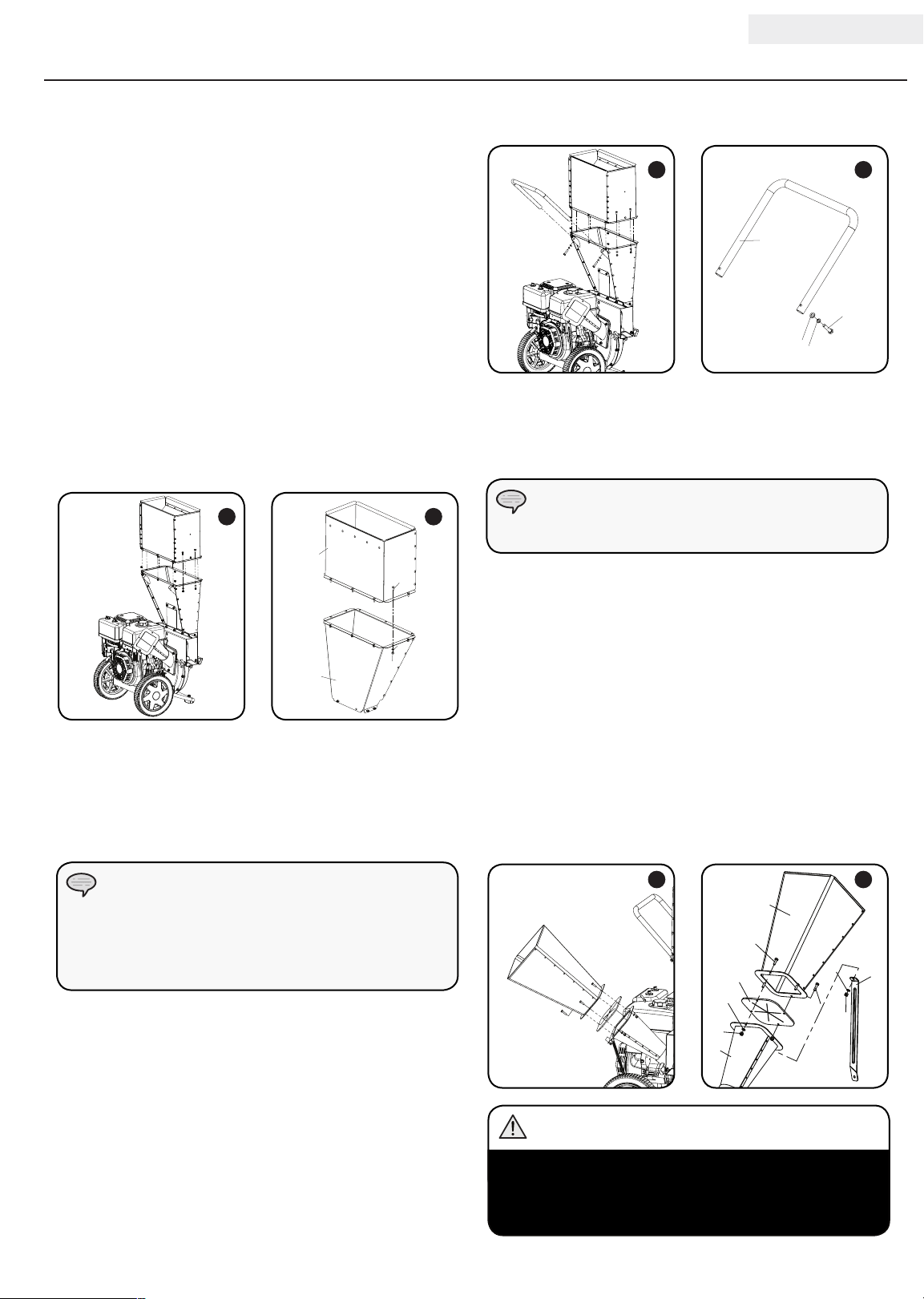

1) Install the Shredder Chute
1. Align the holes in the upper shredder chute (#53)
with the holes in the lower shredder chute (#52). (A)
2. Insert M6x15 bolt (#43) into the hole of the chutes,
from top to bottom direction. (B)
3. Secure bolt with washer (#21) and lock nut (#22).
4. Tighten till secure. Do not over tighten.
5. Repeat step 2-4 for all holes in the chutes.
2) Install the Handle
1. Insert handle ends (#56) into the receptacles on the
lower shredder chute (#52). (A)
2. Secure handle end by threading bolt M8x35 (#11),
through lock washer (#30) and washer (#14), and
then through the handle. (B)
3. Tighten till secure. Do not over tighten.
4. Repeat step 2-3 until both handle ends are secure.
Make sure chutes are fully secured with all the holes
aligned and filled with bolts. If parts are damaged or
missing do not use the unit until replacement parts
have been obtained.
NOTE
Make sure the rubber blocker (#20) is secure
between the top and bottom chutes. Do not operate
unit if blocker is damaged or missing.
WARNING
53
21
22
43
52
B
56
11
30
14
B
A
Install the Handle Cont’d.
A
3) Install the Chipper Chute
1. Remove bolt used to secure the support bracket to
chute.
Only remove bolt, leave bracket in position
NOTE
18
19
20
23
21
22
62
21
22
63
BA
2. Line up the upper chipper chute (#18) with the
rubber blocker (#20), and with the lower chipper
chute (#23). (A)
3. Once aligned, insert bolt (qty. 4) M6x20 (#19)
through the hole in the upper and lower chipper
chute (Being sure to re-attach support bracket to
chute assembly). Insert bolt from top to bottom
direction. (B)
4. Secure bolt with washer (#21) and lock
nut (#22). (B)
5. Tighten till secure. Do not over tighten.
6. Repeat step 2-4 for all holes in the chutes.
10
100137 ENGLISH
ASSEMBLY
4) Install the Chute Deflector
1. Align the chute deflector (#57) and the hinge
spacers (#58) up with the hinge mounting holes on
the flailing housing. (A)
2. Slide bolt M6x100 (#45) through the hinge
mounting holes, hinge spacers, and chute deflector.
3. Secure with lock nut (#22). Tighten. Do not
overtighten.
4. Slide knob bolt (#59) through lock washer (#30)
and washer (#13) and then through chute deflector
and lower flailing housing assembly.
5. Tighten knob bolt. Do not overtighten.
6. Repeat for second knob bolt.
Collection Bag
The collection bag can be attached and removed from
the chute deflector using the adjustable drawstring.
It is recommended to be attached before operation and
removed before completely full, after operation,
or before storage. The collection bag will collect up to
2 bushels (70 L) of material.
Always inspect the collection bag prior to use. Do
not use a frayed, worn, or damaged collection bag.
NOTE
Before operation, ensure the adjustable drawstring
is tight around the chute deflector and secure.
WARNING
Once the collection bag appears to be almost full, it
is recommended to empty it. This will help to keep
the bag from becoming dislodged from the deflector
chute and also to keep the bag from bursting. Do
not allow the collection bag to become dislodged
from the deflector chute during operation. If this
occurs stop operation at once and let unit cool
before reconnecting the collection bag. Only empty
the collection bag when the engine is off and the
spark plug has been disconnected.
WARNING
22
45
57
58
59
30
13
BA
11
ENGLISH 100137
ASSEMBLY

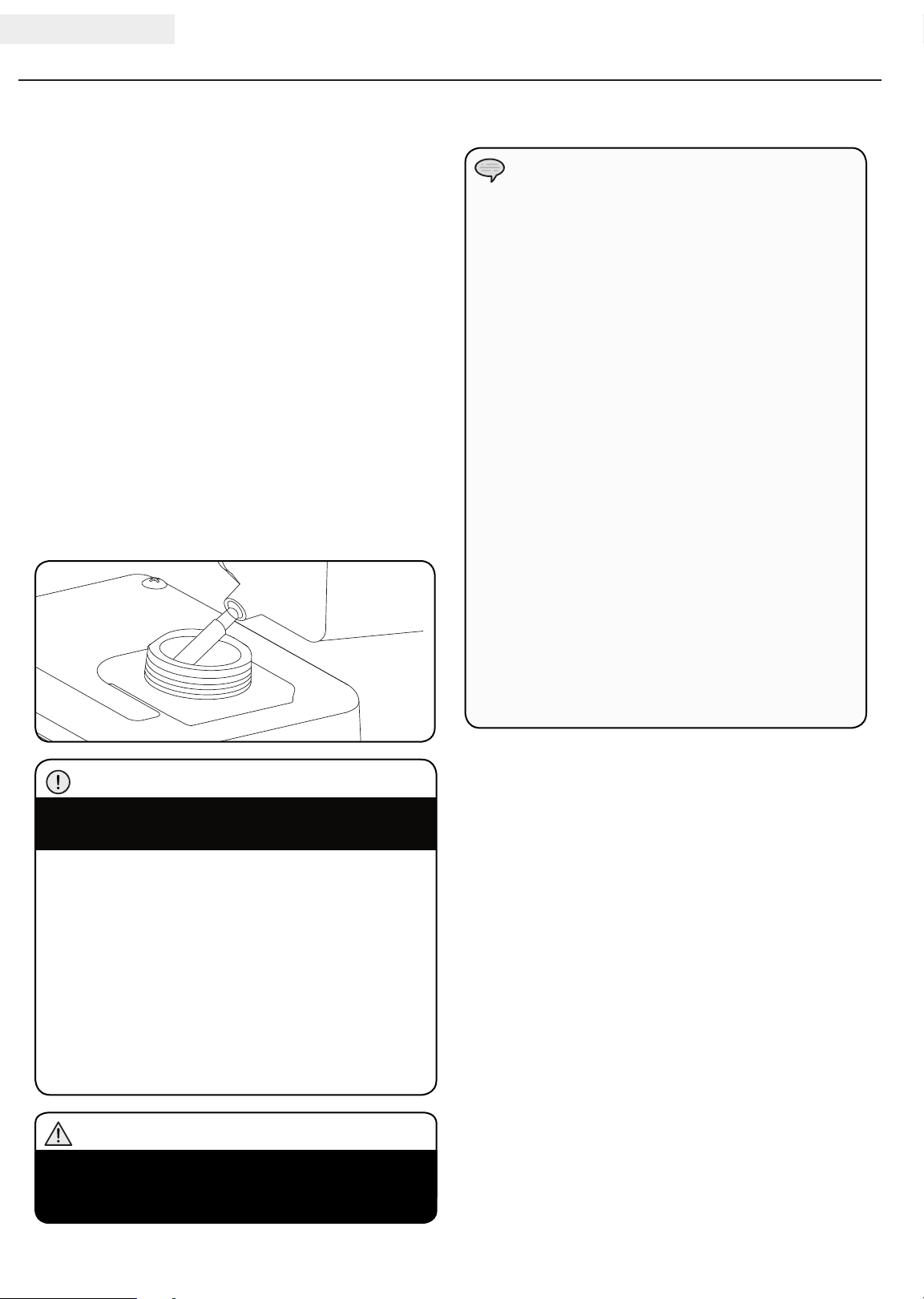

Add Engine Oil
Add Engine Oil Cont’d.
1. Place the chipper-shredder on a flat, level surface.
2. Remove oil fill cap/dipstick to add oil.
3. Add up to 1.2 qt. (1.1 L) of oil (not included) and
replace oil fill cap/dipstick. DO NOT OVERFILL.
4. Check engine oil level daily and add as needed.
The engine is equipped with a low oil shut-off and
will stop when the oil level in the crankcase falls
below the threshold level.
CAUTION
DO NOT attempt to crank or start the engine before
it has been properly filled with the recommended
type and amount of oil. Damage to the chipper-
shredder as a result of failure to follow these
instructions will void your warranty.
CAUTION
Check oil often during the break-in period. Refer to the
Maintenance section for recommended service intervals.
NOTE
The recommended oil type is 10W-30 automotive oil.
NOTE
Once oil has been added, a visual check should show
oil about 1-2 threads from running out of the fill hole.
If using the dipstick to check oil level, DO NOT screw
in the dipstick while checking.
NOTE
Full Synthetic 5W-30
Degrees Celsiusº
(Outside)
(Outside)
Degrees Fahrenheitº
Weather will affect engine oil and engine
performance. Change the type of engine oil used
based on weather conditions to suit the engine
needs.
NOTE
We consider the first 5 hours of run time to be the
break-in period for the engine. During the break-in
period we recommend using standard automotive
non-synthetic blended oils. After the break-in
period synthetic lubricant can be used but is not
required. Adjusting throttle setting will increase/
decrease engine speed helping to seat piston
rings. Avoid bogging or lugging the engine down
and avoid prolonged running at constant RPM.
After the 5 hour break-in period, change the oil.
Using synthetic lubricants does not increase the
recommended oil change interval.
NOTE
12
100137 ENGLISH
ASSEMBLY
Add Engine Fuel Cont’d.
Add Engine Fuel
1. Use clean, fresh, regular unleaded fuel with a
minimum octane rating of 85 and an ethanol
content of less than 10% by volume.
2. DO NOT mix oil with fuel.
3. Clean the area around the fuel cap.
4. Remove the fuel cap.
5. Slowly add fuel to the tank. DO NOT OVERFILL.
Fuel can expand after filling. A minimum of ¼ in.
(6.4 mm) of space left in the tank is required
for fuel expansion, more than ¼ in. (6.4 mm) is
recommended. Fuel can be forced out of the tank
as a result of expansion if it is overfilled, and can
affect the stable running condition of the product.
When filling the tank, it is recommended to leave
enough space for the fuel to expand.
6. Screw on the fuel cap and wipe away any spilled
fuel.
Use regular unleaded gasoline with a minimum
octane rating of 85.
Do not mix oil and gasoline.
Fill tank to approximately ¼ in. (6.4 mm) below the
top of the tank to allow for fuel expansion.
DO NOT pump gas directly into the engine at the
gas station. Use an approved container to transfer
the fuel to the engine.
DO NOT fill fuel tank indoors.
DO NOT fill fuel tank when the engine is running or hot.
DO NOT overfill the fuel tank.
DO NOT light cigarettes or smoke when filling the fuel
tank.
CAUTION
Pouring fuel too fast through the fuel screen may
result in blow back of fuel at the operator while
filling.
WARNING
Our engines work well with 10% or less ethanol
blend fuels. When using blended fuels there are
some issues worth noting:
– Ethanol-gasoline blends can absorb more water
than gasoline alone.
– These blends can eventually separate, leaving
water or a watery goo in the tank, fuel valve and
carburetor.
– With gravity-fed fuel supplies, this compromised
fuel can be drawn into the carburetor and cause
damage to the engine and/or potential hazards.
– There are only a few suppliers of fuel stabilizer
that are formulated to work with ethanol blend
fuels.
– Any damages or hazards caused by using
improper fuel, improperly stored fuel, and/
or improperly formulated stabilizers, are not
covered by manufacture’s warranty.
It is advisable to always shut off the fuel supply,
run the engine to fuel starvation and drain the tank
when the equipment is not in use for more than 30
days.
NOTE
13
ENGLISH 100137
OPERATION
Chipper-Shredder Location
Never operate the chipper-shredder indoors or inside
any confined spaces, enclosures or buildings; including
garages, basements, and sheds. The chipper-shredder
must have at least 5 ft. (1.5 m) of clearance on all
sides from combustible materials at all times. The
chipper-shredder must also have 3 ft. (91.4 cm) or
more of clearance on all sides of the at all times to
allow for adequate cooling, maintenance and servicing.
Chipper-shredders should never be started or operated
in the bed of a truck (regular, flat or otherwise), under
staircases/stairwells, next to walls or buildings, or
in any other location that will not allow for adequate
cooling of the unit and/or the muffler, or adequate
safety to the operator, assistants, or bystanders. Place
the chipper-shredder in a well-ventilated area. DO NOT
place the chipper-shredder near vents or intakes where
exhaust fumes could be drawn into occupied or confined
spaces. Carefully consider wind and air currents when
positioning the unit. Allow the unit to properly cool
before transport or storage. The chipper-shredder needs
to be on a dry level surface with good footing. (Even
while not in operation) DO NOT work on mud, ice, tall
grass, brush or snow. DO NOT work on asphalt, brick,
rock, concrete or other harden surfaces. DO NOT
position the unit next to or facing any buildings, walls or
fences, that could cause any projectiles to ricochet back
at the operator or bystanders.

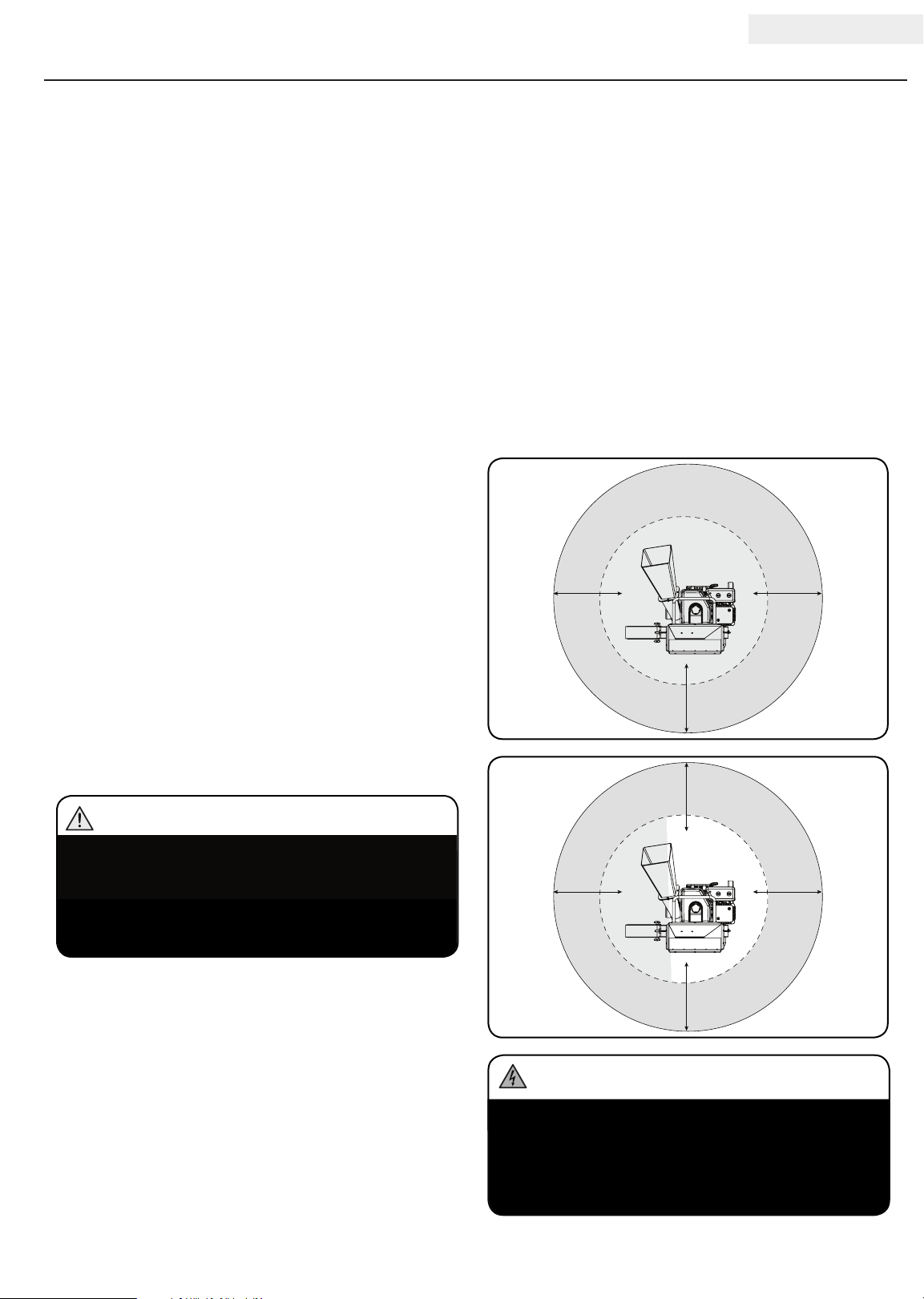

Work Area
Always operate the chipper-shredder outdoors in a large,
open area on solid ground that will allow for good footing
and ventilation. Keep a clean and clear immediate area
around the chipper-shredder at all times. Ensure no
pets, children or bystanders are in the immediate or
surrounding areas at any time. Debris and projectiles
can be launched up to 75 ft. (22.9 m) in diameter in all
directions surrounding the chipper-shredder. Assistants
must also be out of the immediate and surrounding
areas while chipping or shredding is being performed.
The operator must be in the “Safe Zone” at all times
when the spark plug wire is connected and/or the engine
is on.
WARNING
During operation the muffler and exhaust fumes
produced will become hot. If adequate cooling and
breathing space are not supplied, or if the chipper-
shredder is blocked or contained, temperatures can
become extremely heated and may lead to fire.
S
U
R
R
O
U
N
D
I
N
G
A
R
E
A
IMMEDIATE
AREA
Up to
75 ft.
(22.9 m)
Up to
75 ft.
(22.9 m)
Up to 75 ft.
(22.9 m)
SAFE ZONE
Up to
75 ft.
(22.9 m)
Up to
75 ft.
(22.9 m)
Up to 75 ft.
(22.9 m)
Up to 75 ft.
(22.9 m)
Never stand directly in front of the chipper chute
or deflector chute. Do not lean over or reach across
the shredder chute. Debris and projectiles may be
discharged through these areas and may cause
damage or injury.
DANGER
14
100137 ENGLISH
OPERATION
Before Each Use Inspect the Chipper-Shredder
1. Make sure the spark plug wire has been disconnected
and engine has been grounded.
2. Visually inspect all attachments and chutes for loose
fittings, cracks, fraying or other damage.
3. DO NOT operate the chipper-shredder if there is any
indication of damage to parts or the unit.
4. DO NOT operate the chipper-shredder if there are any
clogged chutes. Remove all debris before operation.
5. Inspect the engine and make sure the oil level and
fuel level are correct before operating.
6. Clean and inspect the spark arrestor regularly (follow
spark arrestor maintenance schedule).
7. Inspect the collection bag for any fraying, holes or
damage. Never use a damaged collection bag.
8. Inspect the work area for any distractions or elements
that may prevent operator safety or proper operation.
DO NOT operate a damaged chipper-shredder,
or one with damaged or loose parts. Operating a
damaged unit or one with loose parts may cause
damage to the product or injury to the user. Make
sure all parts are in good condition and secure
before operation.
DANGER

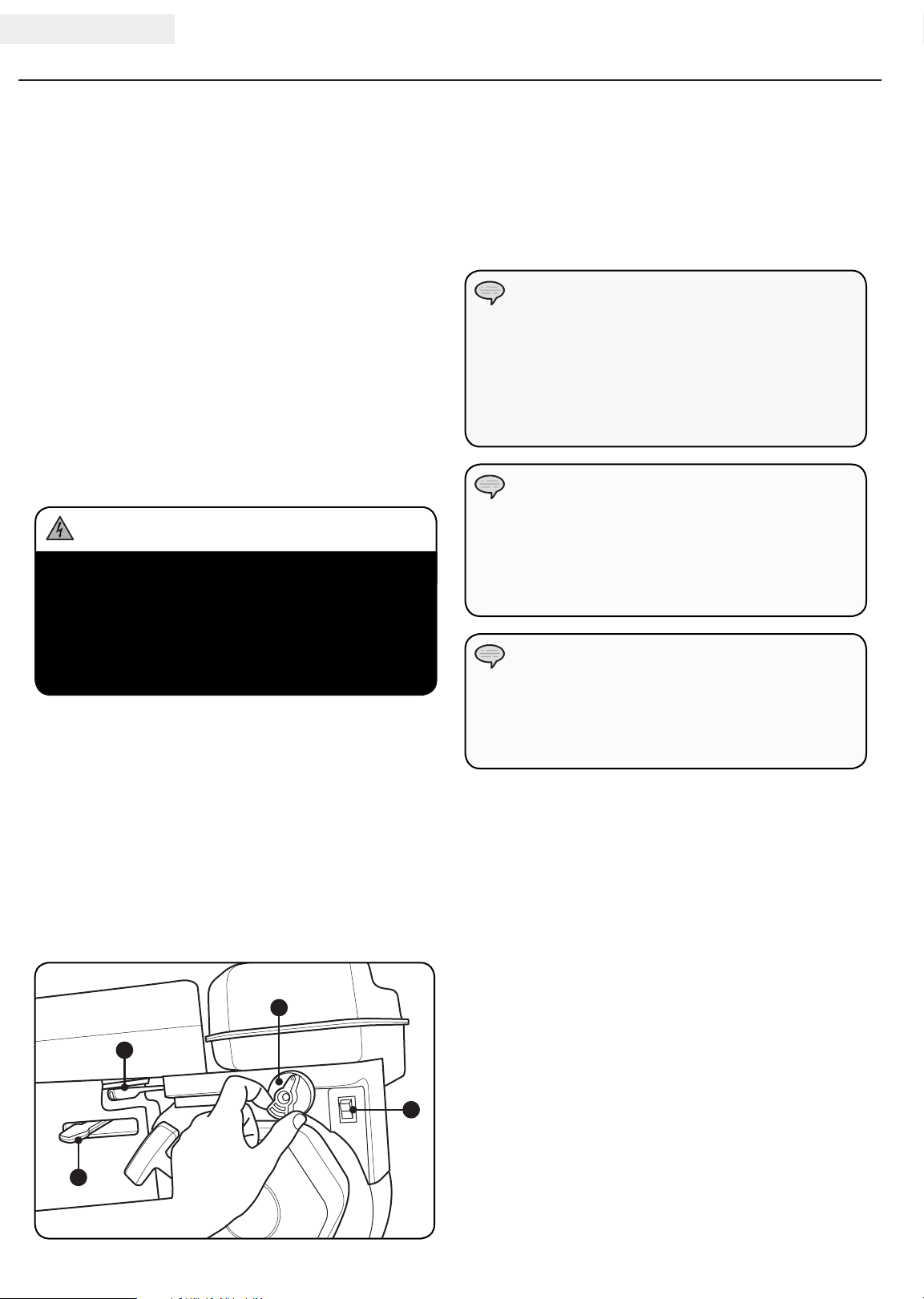

Starting the Engine
1. Make certain the chipper-shredder is on a flat, level
surface.
2. Re-attach the spark plug wire to the spark plug. Make
sure the connection is secure.
3. Turn engine switch to “ON” position. (A)
4. Turn the fuel valve to the “ON” position. (B)
5. Move the throttle level to the middle position. (C)
6. Move the choke lever to the “Choke” position. (D)
7. Pull the starter cord slowly until resistance is felt and
then pull rapidly. SEE NOTE BELOW.
8. As engine warms up, move the choke lever to “Run.”
(D)
9. Move the throttle lever to the “Fast” position. (C)
Keep choke lever in “Choke” position for only 1
pull of the recoil starter. After first pull, move choke
lever to the “Run” position for up to the next 3
pulls of the recoil starter. Too much choke leads to
spark plug fouling/engine flooding due to the lack of
incoming air. This will cause the engine not to start.
NOTE
A
B
C
D
If the engine starts but does not run make certain
that the chipper-shredder is on a flat, level surface.
The engine is equipped with a low oil sensor that will
prevent the engine from running when the oil level
falls below a critical threshold.
NOTE
Pulling the recoil cord will spin the impeller and
this will make noises. These noises are normal
and should be made as the cord is pulled and the
impeller spins.
NOTE
Starting the Engine Cont’d.
15
ENGLISH 100137
If the impeller or blades strike a foreign object,
stop engine immediately. Do not continue use until
chutes and unit have been thoroughly inspected.
Do not attempt to unclog any jam or chute while
engine is on or spark plug wire is connected.
DANGER
This machine has rotating blades and parts capable
of amputating body parts. This machine can also
throw objects at high velocity, long distances.
Exercise extreme caution when operating the
chipper-shredder. NEVER insert body parts or
foreign object into any chute at any time. Never
look directly into any chute, as projectiles can
backfire.
DANGER
OPERATION
ALWAYS use the chipper-shredder for its intended
uses only. The chipper-shredder should only be
used to chip branches 3 in. (7.6 cm) or less in
diameter, or to shred leaves and brush. DO NOT
chip anything that is larger than 3 in. (7.6 cm) in
diameter.
NEVER modify, alter or change the chipper-
shredder in anyway. Modifications will void the
warranty and may result in damage or injury.
DO NOT modify or change the engine and operating
speeds. These changes can cause safety issues.
ONLY operate the chipper-shredder in daylight.
NEVER operate, or let anyone else operate, the
chipper-shredder while under the influence of
alcohol, drugs, or medication.
NEVER leave the chipper-shredder unattended
while the engine is running.
Avoid contact with the muffler, as it can cause
serious burns.
WARNING
Always be aware of who and what is in the
immediate and surrounding areas of the chipper-
shredder. Operators should always work in the SAFE
ZONE only.
NOTE

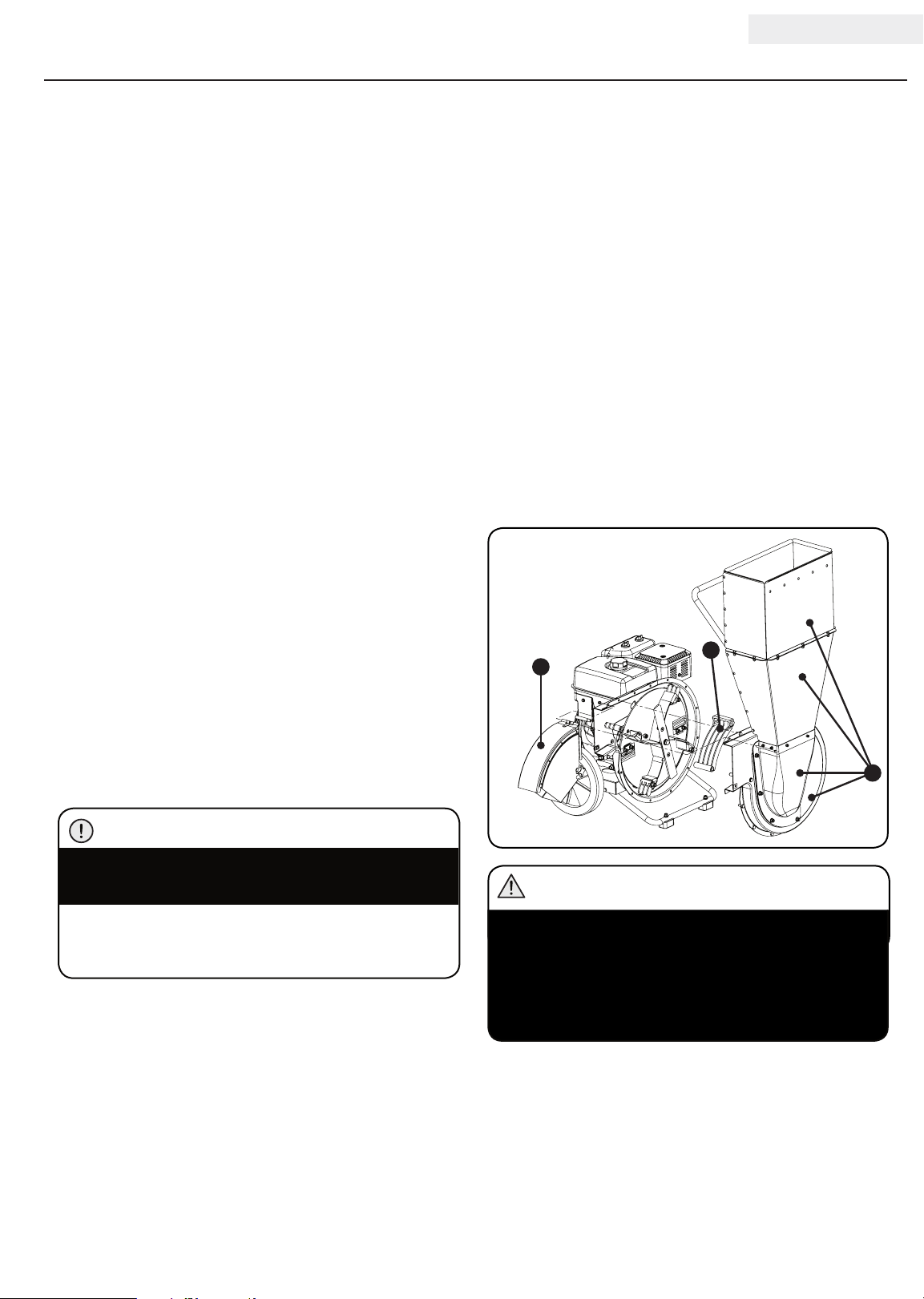

Chipper-Shredder Operation
1. ALWAYS wear ear and eye protection, protective shoes
and clothing, and proper safety gear.
2. Block tires and put both support mounts in the
DOWN position to prevent unintended movement of
the chipper-shredder during operation.
3. Tie back long hair. Do not wear loose fitting clothing
or jewelry.
4. Make sure surrounding, immediate and safe zones
are clear of distractions and debris.
5. Do not attempt to chip or shred material that is larger
than specified. This may damage the unit or cause
injury.
6. Make sure the materials that are going to be chipped
or shredded are free of any rocks, trash, metals and
other foreign objects.
7. Make sure wood to be chipped has been “trimmed”
down and do not have any excessive branches.
8. Make sure wood to be chipped or leaves/brush to be
shredded are not “wet” as this may clog the chutes.
9. Keep all chutes, deflectors and guards assembled
and in place at all times.
Chipper-Shredder Operation Cont’d.
16
100137 ENGLISH
Clearing the Shredding Chute
If the shredding chute gets slightly clogged, then firmly
grasp the handle and gently rock the unit back and
forth to try and dislodge or shift the material that may
be causing the clog. This may help to loosen and draw
the material better into the flail housing and impeller. If
slightly rocking the unit fails then:
1. Stop the engine.
2. Turn the fuel valve to the “OFF” position.
3. Disconnect the spark plug wire.
4. Using your hands, remove the material that is still
atop the shredding chute. DO NOT stick your hands
in the chute, only remove the material on top.
5. Using a branch, or other piece of wood less than
1/2 in. (1.3 cm) in diameter try and dislodge the
material.
6. Once cleared, remove the branch, reconnect the
spark plug wire, turn the fuel valve “ON,” and
restart the engine.
If the clog appears to be serious, then shut the
engine off, disconnect the spark plug wire, and
allow the unit to cool before draining the fuel and
opening the flail housing to remove the clogged
material.
NOTE
After all material has been processed it is
recommended that the unit run for short period to
clear out any left over material that may still be in
the chutes or flail housing.
NOTE
Chipping and Shredding Tips
Chipping
1. Make sure wood is less than 3 in. (7.6 cm) in
diameter.
2. Make sure wood is dry.
3. Make sure all smaller branches have been pruned for
the wood.
4. Make sure pieces are long enough to be fed through
the chute.
5. Large pieces can be rotated and alternately inserted
and retracted as they are fed.
6. Always maintain control with two hands of what is
being fed, to prevent “whipping” around.
7. Standing in the safe zone will prevent any damage or
injury if a piece is kicked back out of the chute.
Shredding
1. Inserting smaller loads at a time will prevent
overloading of the chute.
2. Make sure material is dry.
3. Make sure material is free of trash, metal, rocks, and
foreign objects.
4. Air flow will draw loads into the chute, pushing or
shoving the loads is not necessary.
5. Branches larger than 1/2 in. (1.3 cm) in diameter are
not recommended, as they can damage the blades.
6. Vines are not recommended as they can clog or
damage the blades.
OPERATION
Never insert pieces larger than 3 in. (7.6 cm) in
diameter as this may cause damage or injury.
Small pieces may be fed carefully using a larger
piece. Never insert smaller pieces using your hands.
If larger pieces will not chip, get pushed backed
by the chipper, or can not be controlled, remove at
once.
Never feed more than one branch or piece of wood
into the chute at a time.
WARNING
Never insert any item into the chute to “assist” in
the feeding of any load.
Never insert completely wet material into the chute.
If material is “damp” then alternate with dry loads to
prevent clogging.
WARNING
Chipping and Shredding Tips Cont’d.
17
ENGLISH 100137
OPERATION
Stopping the Engine
1. Turn the throt tle down to the “SLOW” position.
2. Turn the fuel valve to the “OFF” position.
3. Let the engine run until fuel starvation has stopped
the engine. This usually takes a few minutes.
4. Turn the engine switch to the “OFF” position.
5. Disconnect spark plug wire.
Important: Always ensure that the Fuel Valve and the
Engine Switch are in the “OFF” position when the engine
is not in use.
If the engine will not be used for a period of two (2)
weeks or longer, please see the Storage section for
proper engine and fuel storage.
NOTE
Do not let the collection bag fill to capacity before
emptying. It is recommended to empty the bag
before it fills completely to minimize damage to the
bag.
NOTE
As the engine shuts off and the blades wind down,
some noises in the flail housing can be made, these
are normal, but any weird noises may be damage
and if these occur the unit should be inspected.
NOTE
OPERATION
Emptying the Collection Bag
1. Turn the throt tle down to the “SLOW” position.
2. Stop the engine.
3. Turn the fuel valve to the “OFF” position.
4. Disconnect the spark plug wire.
5. Using your hands, release the draw string on the
collection bag.
6. Remove the collection bag from the deflector chute
and empty bag.
7. Once emptied, reconnect the collection bag by
pulling the draw string tight, then reconnect the
spark plug wire, turn the fuel valve “ON”, and
restart the engine.
Operation at High Altitude
The density of air at high altitude is lower than at sea
level. Engine power is reduced as the air mass and
air-fuel ratio decrease. Engine power and output will
be reduced approximately 3½% for every 1000 feet of
elevation above sea level. This is a natural trend and
cannot be changed by adjusting the engine. At high
altitudes increased exhaust emissions can also result
due to the increased enrichment of the air fuel ratio.
Other high altitude issues can include hard starting,
increased fuel consumption and spark plug fouling.
To alleviate high altitude issues other than the natural
power loss, Champion Power Equipment can provide a
high altitude carburetor main jet. The alternative main
jet and installation instructions can be obtained by
contacting Customer Support. Installation instructions
are also available in the Technical Bulletin area of the
Champion Power Equipment internet site.
The part number and recommended minimum altitude
for the application of the high altitude carburetor main
jet is listed in the table below.
In order to select the correct high altitude main jet
it is necessary to identify the carburetor model. For
this purpose, a code is stamped on the side of the
carburetor. Select the correct main jet part number
corresponding to the carburetor code found on your
particular carburetor.
Operation using the alternative main jet at
elevations lower than the recommended minimum
altitude can damage the engine. For operation at
lower elevations, the standard main jet must be
used. Operating the engine with the wrong engine
configuration at a given altitude may increase
its emissions and decrease fuel efficiency and
performance.
WARNING
Carburetor
Code
Main Jet Part Number Altitude
P23-1-Z
Standard 46.131017.01.Z
4500 Feet
(1372 Meters)
Altitude 46.131017.01.01.Z
P23-1-H
Standard 46.131017.01.H
Altitude 46.131017.01.01.H
P23-1-Y
Standard 46.131017.01.Y
Altitude 46.131017.01.01.Y
18
100137 ENGLISH

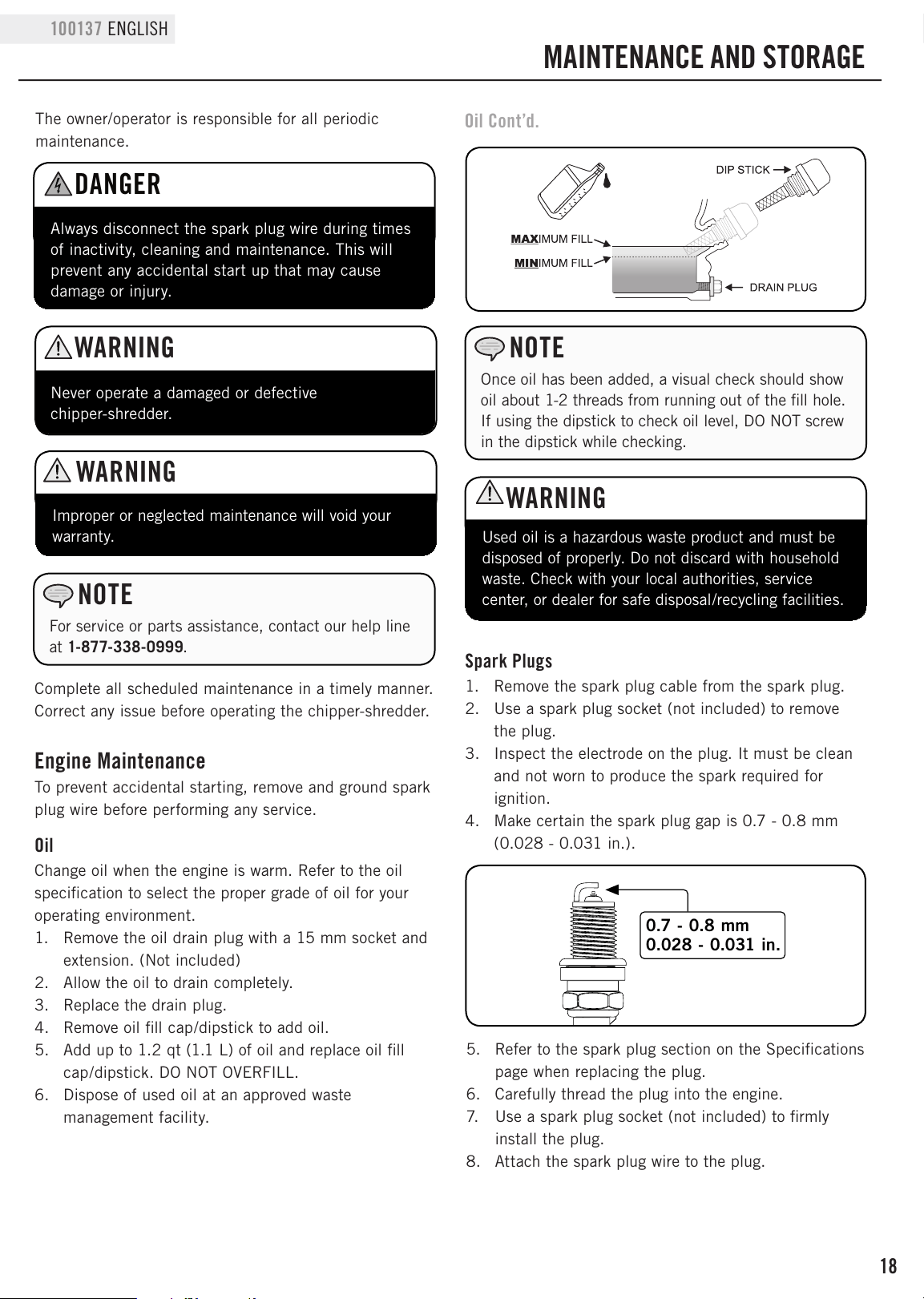

MAINTENANCE AND STORAGE
The owner/operator is responsible for all periodic
maintenance.
Complete all scheduled maintenance in a timely manner.
Correct any issue before operating the chipper-shredder.
For service or parts assistance, contact our help line
at 1-877-338-0999.
NOTE
Never operate a damaged or defective
chipper-shredder.
WARNING
Improper or neglected maintenance will void your
warranty.
WARNING
Engine Maintenance
To prevent accidental starting, remove and ground spark
plug wire before performing any service.
Oil
Change oil when the engine is warm. Refer to the oil
specification to select the proper grade of oil for your
operating environment.
1. Remove the oil drain plug with a 15 mm socket and
extension. (Not included)
2. Allow the oil to drain completely.
3. Replace the drain plug.
4. Remove oil fill cap/dipstick to add oil.
5. Add up to 1.2 qt (1.1 L) of oil and replace oil fill
cap/dipstick. DO NOT OVERFILL.
6. Dispose of used oil at an approved waste
management facility.
Spark Plugs
1. Remove the spark plug cable from the spark plug.
2. Use a spark plug socket (not included) to remove
the plug.
3. Inspect the electrode on the plug. It must be clean
and not worn to produce the spark required for
ignition.
4. Make certain the spark plug gap is 0.7 - 0.8 mm
(0.028 - 0.031 in.).
5. Refer to the spark plug section on the Specifications
page when replacing the plug.
6. Carefully thread the plug into the engine.
7. Use a spark plug socket (not included) to firmly
install the plug.
8. Attach the spark plug wire to the plug.
0.7 - 0.8 mm
0.028 - 0.031 in.
Once oil has been added, a visual check should show
oil about 1-2 threads from running out of the fill hole.
If using the dipstick to check oil level, DO NOT screw
in the dipstick while checking.
NOTE
Oil Cont’d.
Always disconnect the spark plug wire during times
of inactivity, cleaning and maintenance. This will
prevent any accidental start up that may cause
damage or injury.
DANGER
Used oil is a hazardous waste product and must be
disposed of properly. Do not discard with household
waste. Check with your local authorities, service
center, or dealer for safe disposal/recycling facilities.
WARNING
19
ENGLISH 100137
MAINTENANCE AND STORAGE
Do not use the chipper-shredder if any part is lost
or damaged while cleaning. Get lost or damaged
parts replaced before use. Do not use the chipper-
shredder if any part is loose, not fitting correctly or
not fully re-assembled.
WARNING
Chipper-Shredder Maintenance
Make certain that the chipper-shredder is kept clean
and stored properly. Only operate the unit on a flat, level
surface in a clean, dry operating environment. DO NOT
expose the unit to extreme conditions, excessive dust,
dirt, moisture or corrosive vapors.
Inspect all air vents and cooling slots to ensure that they
are clean and unobstructed.
Inspect all chutes and housing and make sure they are
free of dirt, dust, and debris.
Check and tighten all bolts and nuts. It is possible for
connections to vibrate loose over time.
Air Filter
1. Unscrew wing nut to remove the air filter cover.
2. Remove the supporter and foam element.
3. Tap the foam element to remove dirt and debris. Use
compressed air (25 PSI) to clear debris.
4. For the foam element: Wash in liquid detergent and
water. Squeeze thoroughly dry in a clean cloth.
5. Saturate in clean engine oil.
6. Squeeze in a clean, absorbent cloth to remove all
excess oil.
7. Reassemble the elements and the supporter.
8. Reattach the air filter cover and snap in place.
9. Tighten wing nuts.
DO NOT use a garden hose or water to clean the
engine or chipper-shredder.
CAUTION
Water can contaminate the fuel system and can
enter the engine through the cooling slots and
damage the engine.
Cleaning
Clear the debris from the chutes and engine. Use a damp
cloth to clean exterior surfaces of the engine and chipper-
shredder.
Use a soft bristle brush to remove excess dirt and oil. Use
an air compressor (25 PSI) to clear dirt and small debris.
Wipe all metal parts with an oily rag to help prevent rust
and corrosion.
Flail Housing and Impeller Cleaning
1. Make sure spark plug wire is disconnected.
2. Disconnect the recoil housing on the front of the
engine.
3. Disconnect the deflector chute #57. (A)
4. Disconnect the upper #53 and lower #52 hopper
assemblies, the inlet guide #42 and the outer flail
housing assembly #40, all together. (B)
5. Disconnect the shredder screen #60. (C)
6. Use compressed air (25 PSI) or brush to clean the
inner flail housing assembly #24, impeller assembly
#29, flail blades #27, and shredder blades #36.
7. Once all debris and dust has been blown out or
removed, reconnect the shredder screen, outer flail
housing, inlet guide, hopper assemblies, and the
deflector chute, making sure all bolts and nuts are
tightened. Do not over tighten.
A
C
B
20
100137 ENGLISH
6. Once the 7/16 screw, lock washer, and washer are
removed, the impeller (#29) can be removed from
the cam shaft of the engine.
7. Removing the impeller will make it easier to remove
and sharpen the shredder blade, flail blades, and
chipper blades.
8. To remove the shredder blade (#36), unscrew both
the M8x25 bolts (#33), washers ø8 (#14), lock
washers ø8 (#30) and M8 lock nuts (#35). (C)
MAINTENANCE AND STORAGE
Blade Sharpening Cont’d.
Blade Sharpening
Sharpening of the shredder blade, flail blades
and chipper blades are required maintenance to
be performed by a professional service center or
knowledgeable and experienced owners only. Sharpening
of the blades will keep the chipper-shredder performing
at a higher quality than with dull blades. Sharp blades
will chip or shred material faster and easier, and cause
the engine and other parts to work less. Blades are not
covered under warranty as they are a wear item, and
therefore should be sharpened regularly to keep their
edge and to ensure a longer life of the blades, other
parts and engine.
1. Make sure spark plug wire is disconnected.
2. Disconnect the recoil housing on the front of the
engine.
3. To get to the blades and impeller, the outer flail
housing assembly (#40) must be removed. The
steps in the flail housing and impeller cleaning
section should be followed to remove it and the
shredder screen (#60). (A)
A
9
37
38
39
B
29
36
14
30
35
33
C
26
27
28
29
D
34
35
30
14
33
E
4. Once the outer flail housing and shredder screen are
removed, remove the 7/16 screw (#39), 7/16 lock
washer (#38) and washer ø12 (#37) from the engine
cam shaft. (B)
5. DO NOT remove the flat key (#9) when removing the
screw, washers.
9. To remove the flail blades (#27), unscrew the M10
lock nut (#28) from the shoulder pin (#26). (D)
10. Repeat for all 4 flail blades.
11. To remove the chipper blade (#34), unscrew M8
lock nut (#35), lock washer ø8 (#30), washer ø8
(#14) from the M8x25 bolt (#33). Each chipper
blade is secured with two M8x25 bolts, lock washer,
washer and lock nut. (E)
12. Repeat for second chipper blade.
21
ENGLISH 100137
MAINTENANCE AND STORAGE
Maintenance Schedule
Follow the service intervals indicated in the schedule
below. Service your chipper-shredder more frequently
when operating in adverse conditions. Contact our help
line at 1-877-33 8-099 9 to locate the nearest Champion
Power Equipment authorized service dealer for your
chipper-shredder or engine maintenance needs.
Storage
Refer to the maintenance sections for proper cleaning
instructions. Always disconnect the spark plug wire in
times of inactivity, maintenance, and storage. This will
help to prevent any unintended engine start ups.
*To be performed by knowledgeable, experienced owners or
Champion Power Equipment certified dealers.
Never store the chipper-shredder inside next to appliances
where there is a source of heat or open flame, spark or
pilot light because they can ignite gasoline vapors.
DO NOT store a chipper-shredder near fertilizer or any
corrosive material.
Even with an empty gas tank, gasoline vapors could ignite.
WARNING
Every time of use or daily
Check engine oil level
Clean around air intake and muffler
Check air filter
Check for loose or damaged parts
Inspect all chutes and guards
First 5 Hours
Change engine oil (break in period)
Every 25 Hours or per 1 month
Change engine oil
Clean air filter
Inspect all blades, sharpen if needed
Every 50 hours or per 6 months
Clean and adjust spark plug
Check cooling fan
Every 100 hours or per 1 year
Check/adjust valve clearance*
Clean fuel tank and filter*
Every 200 hours or per 2 years
Check/replace fuel line
Change spark plug
Every 250 hours
Clean combustion chamber
Chipper-shredder Storage
1. The chipper-shredder needs to be cool for at least 5
minutes before storing.
2. Clean the chipper-shredder before storage according
to the Maintenance section.
3. Store the unit in a clean, dry place out of direct
sunlight.
Engine Stored for Less than 30 Days
1. Add a properly formulated fuel stabilizer to the tank.
2. Run the engine for a few minutes so the treated fuel
cycles through the fuel system and carburetor.
3. Turn the fuel valve to the “Off” position.
4. Let the engine run until fuel starvation has stopped
the engine. This usually takes a few minutes.
5. The engine needs to cool completely before cleaning
and storage.
6. Clean the engine according to the maintenance section.
Engines Stored for Over 30 Days
1. Add a properly formulated fuel stabilizer to the tank.
2. Run the engine for a few minutes so the treated fuel
cycles through the fuel system and carburetor.
3. Turn the fuel valve to the “Off” position.
4. Let the engine run until fuel starvation has stopped
the engine. This usually takes a few minutes.
5. The engine needs to cool completely before cleaning
and storage.
6. Clean the engine according to the maintenance section.
7. Change the oil.
8. Remove the spark plug and pour about 1⁄2 ounce
(14.8 mL) of oil into the cylinder. Crank the engine
slowly to distribute the oil and lubricate the cylinder.
22
100137 ENGLISH
Chipper-Shredder Specifications
– Max Diameter Chipper Material
...... 3 in. (7.6 cm)
– Max Diameter Shredder Material ... 1/2 in. (1.3 cm)
– Overall Dimensions
– Gross Weight .............. 227.1 lb. (103 kg)
– Net Weight . ................ 191.8 lb. (87 kg)
– Height . ................. 49.4 in. (125.5 cm)
– Width ................... 35.9 in. (91.1 cm)
– Length. . . . . . . . . . . . . . . . . . . 35.1 in. (89.2 cm)
SPECIFICATIONS
Engine Specifications
– Model
....................... YF182F-000
– Displacement ...................... 338 cc
– Type ........................ 4-Stroke OHV
– Start Type ......................... Recoil
Spark Plugs
OEM spark plug: NHSP F6RTC
Replacement spark plug: NGK BPR6ES or equivalent
Make certain the spark plug gap is 0.7 - 0.8 mm or
(0.028 - 0.031 in.).
Oil
Use 10W-30 automotive oil.
Oil capacity is 1.2 qt. (1.1 L).
DO NOT OVERFILL.
Please reference the following chart for recommended
oil types for use in the chipper-shredder.
Fuel
Fuel capacity is 1.6 gallons (6.2 L). Use regular
unleaded gasoline with a minimum octane rating of 85
and an ethanol content of less than 10% by volume.
Maintenance Valve Clearance
– Intake: 0.13 – 0.17 mm (0.005 – 0.007 in.)
– Exhaust: 0.18 – 0.22 mm (0.007 – 0.009 in.)
Note: Tech bulletin regarding the valve adjustment
procedure is on www.championpowerequipment.com.
An Important Message About Temperature
Your Champion Power Equipment product is designed
and rated for continuous operation at ambient
temperatures up to 40°C (104°F). When your product is
needed your product may be operated at temperatures
ranging from -15°C (5°F) to 50°C (122°F) for short
periods. If the product is exposed to temperatures
outside this range during storage, it should be brought
back within this range before operation. In any event,
the product must always be operated outdoors, in a
well-ventilated area and away from doors, windows and
other vents.
Full Synthetic 5W-30
Degrees Celsiusº
(Outside)
(Outside)
Degrees Fahrenheitº
Weather will affect engine oil and engine
performance. Change the type of engine oil used
based on weather conditions to suit the engine
needs.
NOTE
23
ENGLISH 100137
Parts Diagram
SPECIFICATIONS
2
3
4
6
7
8
91 01112
13
14
1 5
1 6
1 7
1 8
19
20
2 1
2 22 3
2 4
2 5
26
2 7
28
29
3 0
3 1
32
33
34
3 536
3 7
3 8394 0
4 1
4 2
4 3
4 4
4 5 46
4 7
4 8
49
50
5 1
5 2
53
54
5 5
5 6
5 7
58
5 9
6 0
61
6 2
3 7
8
1 3
8
1 3
8
1 4
54
13
24
55
24
1 3
14
8
1 2
4 3
4 5 4 5
23
1 1
12
40
12
11
4 5
1 1 1 2
4 0
40
4 3
4 3
13
2 4
1 3
24
12 23
8
1 1
12
8
1
5
4 2
42
24
100137 ENGLISH
Parts List
# Part number Description Qty
1
601.201702.00.48 Wheel Cap, Yellow 2
2
1.91.3220 Cotter Pin, Ø3.2 x 20 3
3
1.97.1.13 Washer, Ø13 3
4 601.201701.00 12 in. Wheel 2
5
601.20170.00.48 12 in. Wheel Assembly, Yellow 1
6
1.97.1.10 Washer, Ø10 4
7
1.6177.1.10 Nut, M10 4
8
1.6187.08 Flange Nut, M8 31
9
44.102 Engine 1
10
601.300027.01.1 Chute Support Bracket, Black 1
11
1.97.1.06 Washer, Ø6 26
12
1.6182.06 Lock Nut, M6 27
13
1.97.1.08 Washer, Ø8 17
14
1.16674.0820 Bolt, M8 x 20 16
15
2.14.002 Flat Key, 6.3 x 6.3 x 50 1
16
1.5789.0625 Flange Bolt, M6 x 25 1
17
601.300120.01.48
Upper Chipper Chute Assembly,
Yellow
1
18
1.5789.0620 Flange Bolt, M6 x 20 3
19
601.300103.01 Block Rubber 1
20
601.300110.01.48
Lower Chipper Chute Assembly,
Yellow
1
21
601.300600.00.1 Engine Plate Assembly, Black 1
22
601.300200.00.1
Inner Flail Housing Assembly,
Black
1
23
2.02.032 U Nut, M8 2
24
1.93.08 Lock Washer, Ø8 14
25
601.303005.00 Shoulder Pin 4
26
601.303003.00.2 Flail Blade, Black 4
27
1.6182.10 Lock Nut, M10 4
28
601.303100.00.2 Impeller Assembly, Black 1
29
601.303004.00 Shredder Blade 1
30
601.300024.00 Washer 1
31
1.93.12 Lock Washer, Ø12 1
32
2.08.136 Screw, 7/16 - 20UNF 1
33
601.300008.00.2 Shredder Screen, Black 1
# Part number Description Qty
34
601.300020.00 Knob, M8 2
35
601.300018.00 Hinge Spacer 2
36
601.300400.00.1
Chute Deflector Assembly,
Black
1
37
1.5789.0835 Flange Bolt, M8 x 35 6
38
601.301703.00.1 Hopper Handle, Black 1
39
601.301708.00.48
Rear Upper Hopper Assembly,
Yellow
1
40
1.6182.05 Lock Nut, M5 23
41
601.301704.00.48 Upper Hopper Shield 1
42
1.97.1.05 Washer, Ø5 17
43
1.16674.0512.2 Bolt, M5 x 12 23
44
601.301709.00.48
Front Upper Hopper Assembly,
Yellow
1
45
1.5789.0615 Flange Bolt, M6 x 15 22
46
601.301710.00.48
Rear Lower Hopper Assembly,
Yellow
1
47
601.300014.00.1 Hopper Support Bracket, Black 1
48
1.5782.06100 Bolt, M6 x 100 1
49
601.300022.00 Clevis Pin 1
50
601.301702.00.48
Front Lower Hopper Assembly,
Yellow
1
51
601.300013.00.1 Inlet Guide, Black 1
52
601.300007.00.1 Shredder Plate, Black 1
53
601.300500.00.1
Outer Flail Housing Assembly,
Black
1
54
1.70.3.0825 Machine Screw, M8 x 25 6
55
1.6182.08 Lock Nut, M8 6
56
601.303002.00 Chipper Blade 2
57
2.08.137 Bolt, 5/16 - 24UNF 4
58
601.300021.00 Rubber Cushion 2
59
601.300011.00.1 Tube Suppor t, Black 1
60
1.5783.1040 Bolt, M10 x 40 4
61
601.300900.00.1 Frame Assembly, Black 1
62
9.1400.001 Collection Bag 1
25
ENGLISH 100137
Engine Parts Diagram
SPECIFICATIONS
47
64
13
127
128
42
118
119
120
121
92
122
123
105
106
107
124
108
125
126
109
110
91
111
112
113
85
13
24
25
26
27
28
29
30
92
143
33
34
35
142
37
38
39
40
22
41
43
44
45
46
48
49
50
51
52
53
54
55
13
56
57
58
59
60
61
62
63
65
66
68
69
70
71
72
73
74
75
76
77
78
79
141
81
82
114
13
115
91
93
101
86
87
88
89
90
102
132
105
132
131
130
129
134
135
116
117
136
137
138
139
140
67
83
84
103
94
95
96
97
98
2
1
10
3
4
5
6
7
8
9
11
12
13
14
15
16
17
18
19
20
21
99
133
31
32
31
22
80
13
36
100
104
89
23
26
100137 ENGLISH
Engine Parts List
# Part Number Description Qty
1 23.061006.01 Handle, Recoil, Big 1
2
1.5789.0608 Flange Bolt M6 × 8 3
3
46.061100.00.2 Cover, Recoil Starter, Black 1
4
45.060005.00 Spring, Recoil Starter 1
5
45.061102.00 Reel, Recoil Starter 1
6
2.10.003 Rope Ø5 × 1550 1
7
45.060003.00 Spring, Ratchet 2
8
45.060002.00 Starter Ratchet, Steel 2
9
45.060009.00 Spring, Ratchet Guide 1
10
45.060007.00 Ratchet Guide 1
11
45.060008.00 Screw, Ratchet Guide 1
12
46.061000.01 Recoil Assembly 1
13
1.5789.0612 Flange Bolt M6 × 12 13
14
2.05.003 Clamp Ø11.5 × 10 1
15
46.080100.00.48 Fan Cover, Yellow 1
16
2.02.007 Nut M16 × 1.5 1
17
1.5789.0629 Flange Bolt M6 × 29 2
18
45.060001.00 Pulley, Starter 1
19
46.123000.01 Ignition Coil 1
20
45.080001.00 Cooling Fan 1
21
46.120100.03 Flywheel, Manual Start EPA 1
22
2.11.007 Oil Seal Ø35 × Ø52 × 8 2
23
46.131017.01 Main Jet, Standard 1
46.131017.01.01 Main Jet, Altitude /
24
21.120400.00 Diode Assembly 1
25
45.030032.00 Sheath, Wire 1
26
2.08.039 Drain Bolt M12 × 1.5 × 15 2
27
2.03.023 Washer Ø12.5 × Ø20 × 2 2
28
46.030100.00 Crankcase 1
29
45.127000.02 Oil Level Sensor 1
30
1.5789.0615 Flange Bolt M6 × 15 2
31
1.276.6202 Bearing 6202 2
32
47.050006.00 Weight Balancer 1
33
45.050100.09 Crankshaft 1
34
46.030008.00 Gasket, Crankcase Cover 1
35
2.04.001 Dowel Pin Ø9 × 14 2
36
46.080600.00 Air Guide, Right Side 1
37
1.276.6207 Bearing 6207 1
38
46.031000.01.48 Oil Dipstick Assembly, Yellow 1
39
45.030007.01 Cover, Crankcase 1
40
22.031000.01.48 Oil Filler Cap, Yellow 1
41
1.5789.0840.0.8 Flange Bolt M8 × 40 7
42
2.03.021.1 Washer Ø6.4 × Ø13 × 1, Black 1
43
45.110013.00 Shaft, Governor Gear 1
44
45.110100.00 Gear, Governor 1
45
21.110011.00 Clip, Governor Gear 1
46
45.110012.00 Bushing, Governor Gear 1
47
47.050200.00 Connecting Rod 1
48
46.050005.01 Piston 1
49
2.09.004 Circlip Ø21 × Ø1 2
50
45.050003.00 Pin, Piston 1
51
46.050303.01 Ring, Oil 1
52
46.050302.01 Ring, Second Piston 1
53
46.050301.01 Ring, First Piston 1
54
2.04.004 Dowel Pin Ø12 × 20 2
55
46.030009.00 Gasket, Cylinder Head 1
56
46.080400.00 Air Guide, Lower 1
57
46.010100.00 Cylinder Head 1
58
2.15.002(F6RTC) Spark Plug, F6RTC 1
59
2.08.014 Flange Bolt M10 × 80 4
60
46.020002.00 Gasket, Cylinder Head Cover 1
61
46.021000.00 Cover, Cylinder Head 1
62
45.020001.02 Breather Tube 1
63
45.020100.00 Bolt, Cylinder Head Cover 1
64
46.041000.00 Camshaft 1
65
45.040013.00 Lifter, Valve 2
66
45.040002.00 Valve, Intake 1
67
45.040006.00 Valve, Exhaust 1
68
46.040005.00 Push Rod 2
69
45.040015.00 Retainer, Valve Spring, Down 2
70
45.040017.00 Oil Seal, Valve 2
71
45.040003.00 Spring, Valve 2
# Part Number Description Qty
72
23.040010.00 Bolt, Rocker Arm 2
73
45.040001.00 Retainer, Intake Valve Spring, Up 1
74
45.040007.00 Retainer, Exhaust Valve Spring, Up 1
75
45.040008.00 Rotator, Exhaust Valve 1
76
46.040004.00 Guide Plate, Push Rod 1
77
46.040016.00 Shaft, Rocker Arm 1
78
46.040201.00 Retainer, Rocker Arm 1
79
46.040009.00 Rocker Arm, Intake Valve 1
80
46.040018.00 Rocker Arm, Exhaust Valve 1
81
1.97.1.06 Washer Ø6 2
82
22.040012.00 Screw, Valve Adjustment 2
83
1.6177.1.06 Lock Nut M6, Flange 2
84
21.040021.00 Nut M6 × 0.5, Lock 2
85
2.01.007 Stud Bolt M6 × M8 × 130 2
86
46.130002.20 Gasket, Insulator 1
87
45.130001.01 Insulator, Carburetor 1
88
46.130003.00 Gasket, Carburetor 1
89
46.131000.01 Carburetor 1
90
45.130004.00 Gasket, Air Cleaner 1
91
2.06.007 Clamp Ø8 × b6 3
92
1.6177.06 Flange Nut M6 3
93
46.091100.01 Base, Air Cleaner 1
94
1.5789.0633 Flange Bolt M6 × 33 1
95
46.091003.08 Element, Air Cleaner 1
96
46.091102.01 Supporter, Air Cleaner 1
97
46.091200.02 Cover, Air Cleaner 1
98
46.091600.01 Screw Cap, Air Cleaner Cover 2
99
46.091000.08 Air Cleaner Assembly 1
100
46.070014.01 Pipe, Fuel Tank To Air Cleaner 1
101
24.070100.02 Cap, Fuel Tank 1
102
2.12.001 Buffer Ø7.5 × 7.5 1
103
46.070300.00 Fuel Filter, Fuel Tank 1
104
2.06.006 Clamp Ø7 × Ø1 1
105
1.6187.1.08 Nut M8 5
106
111.070300.01 Fuel Filter, Fuel Pipe 1
107
2.06.018 Clamp Ø10.5 × b8 1
108
46.071000.01 Fuel Tank, Black 1
109
1.5789.0832 Flange Bolt M8 × 32 2
110
46.070011.00 Pipe, Fuel Tank To Fuel Valve 1
111
24.070400.00 Fuel Valve 1
112
1.16674.0512.2 Flange Bolt M5 × 12 1
113
46.070011.01 Pipe, Fuel Valve To Carburetor 1
114
46.070010.00 Veil, Fuel Tank 1
115
5.1010.003.3 Ignition Switch, Red 1
116
24.070001.00 Knob, Fuel Vavle 1
117
1.818.0412 Bolt M4 x 12 1
118
45.110001.00 Shaft, Governor Arm 1
119
2.03.019 Washer Ø8.2 × Ø17 × 0.8 1
120
2.11.006 Oil Seal Ø7 × Ø14 × 5 1
121
45.110008.00 Pin, Shaft 1
122
45.110003.00 Arm, Governor 1
123
2.08.040 Bolt M6 × 21, Governor Arm 1
124
45.110007.00 Spring, Governor 1
125
45.110005.00 Spring, Throttle Return 1
126
45.110006.00 Rod, Governor 1
127
46.080300.00 Air Guide, Upper 1
128
24.111008.01 Sheath, Grip 1
129
2.01.005 Stud Bolt M8 × 49 2
130
46.100001.07 Gasket, Exhaust Pipe 1
131
46.101001.05 Exhaust Pipe 1
132
1.848.08 Washer Ø8 7
133
46.101000.05 Muffler Assembly 1
134
1.93.08 Lock Washer Ø8 7
135
1.6175.08 Nut M8 2
136
46.101002.05 Washer, Muffler 1
137
46.101100.05 Muffler Assembly 1
138
1.16674.0510 Flange Bolt M5 × 10 5
139
46.101202.05 Muffler Protector 1
140
46.101300.05 Muffler Screen 1
141
1.818.046 Screw M4 × 6 4
142
1.848.05 Washer Ø5 5
143
1.859.05 Lock Washer Ø5 5
27
ENGLISH 100137
TROUBLESHOOTING
For further technical support:
Technical Service
Mon – Fri 8:30 AM – 5:00 PM (PST/PDT)
Toll Free : 1-877-338-0999
tech@championpowerequipment.com
Problem Cause Solution
Engine will not start No fuel Add fuel
Faulty spark plug Replace spark plug
Unit loaded during startup Remove load from unit
Engine starts but runs roughly Low oil level Fill crankcase to the proper level
Place chipper-shredder on a flat, level
surface
Choke in the wrong position Adjust choke
Throttle in wrong position Adjust throttle
Spark plug wire loose Attach wire to spark plug
Engine shuts down during operation Out of fuel Fill fuel tank
Low oil level Fill crankcase to the proper level
Place chipper-shredder on a flat, level
surface
Engine cannot supply enough power or
overheating
Insufficient ventilation Check for air restriction. Move to a
well ventilated area
No materials are discharged Flail housing clogged Stop engine immediately, disconnect
spark plug, take apart flail housing to
clear clog
Deflector chute clogged Stop engine immediately, disconnect
spark plug, take apart deflector chute
to clear clog
Collection bag is full Stop engine, disconnect spark plug,
empty collection bag
Discharge rate slows or discharge
material changes
Low engine power Increase throttle
Chipper blades, shredder blade and
flail blades are dull
Stop engine, disconnect spark plug,
take apart flail housing and check all
blades. Sharpen if needed
Excessive vibration or unusual noise
while engine is running or material is
being processed
Engine power to high Decrease throttle
Foreign object(s) in chutes or flail
housing
Stop engine immediately, disconnect
spark plug, inspect all chutes and
take apart flail housing to inspect for
foreign object (s)
Impeller overloaded with material Allow impeller to run current material
load through before adding more
Material is too dry or thick for blades Remove material immediately
WARRANTY*
CHAMPION POWER EQUIPMENT
2 YEAR LIMITED WARRANTY
Warranty Qualifications
Champion Power Equipment (CPE) will register this warranty upon
receipt of your Warranty Registration Card and a copy of your sales
receipt from one of CPE’s retail locations as proof of purchase.
Please submit your warranty registration and your proof of purchase
within ten (10) days of the date of purchase.
Repair/Replacement Warranty
CPE warrants to the original purchaser that the mechanical and
electrical components will be free of defects in material and
workmanship for a period of two years (parts and labor) from
the original date of purchase and 180 days (parts and labor) for
commercial and industrial use. Transportation charges on product
submitted for repair or replacement under this warranty are the sole
responsibility of the purchaser. This warranty only applies to the
original purchaser and is not transferable.
Do Not Return The Unit To The Place Of Purchase
Contact CPE’s Technical Service and CPE will troubleshoot any issue
via phone or e-mail. If the problem is not corrected by this method,
CPE will, at its option, authorize evaluation, repair or replacement
of the defective part or component at a CPE Service Center. CPE
will provide you with a case number for warranty service. Please
keep it for future reference. Repairs or replacements without prior
authorization, or at an unauthorized repair facility, will not be covered
by this warranty.
Warranty Exclusions
This warranty does not cover the following repairs and equipment:
Normal Wear
Products with mechanical and electrical components need periodic
parts and service to perform well. This warranty does not cover repair
when normal use has exhausted the life of a part or the equipment as a
whole.
Installation, Use and Maintenance
This warranty will not apply to parts and/or labor if the product is
deemed to have been misused, neglected, involved in an accident,
abused, loaded beyond the product’s limits, modified, installed
improperly or connected incorrectly to any electrical component.
Normal maintenance is not covered by this warranty and is not
required to be performed at a facility or by a person authorized by
CPE.
Other Exclusions
This warranty excludes:
– Cosmetic defects such as paint, decals, etc.
– Wear items such as filter elements, o-rings, etc.
– Accessory parts such as starting batteries, and storage covers.
– Failures due to acts of God and other force majeure events
beyond the manufacturer’s control.
– Problems caused by parts that are not original Champion Power
Equipment parts.
When applicable, this warranty does not apply to products used for
prime power in place of a utility.
Limits of Implied Warranty and Consequential Damage
Champion Power Equipment disclaims any obligation to cover
any loss of time, use of this product, freight, or any incidental
or consequential claim by anyone from using this product. THIS
WARRANTY AND THE ATTACHED U.S. EPA, CARB and/or ECCC
EMISSION CONTROL SYSTEM WARRANTIES (WHEN APPLICABLE)
ARE IN LIEU OF ALL OTHER WARRANTIES, EXPRESS OR IMPLIED,
INCLUDING WARRANTIES OF MERCHANTABILITY OR FITNESS FOR
A PARTICULAR PURPOSE.
A unit provided as an exchange will be subject to the warranty of the
original unit. The length of the warranty governing the exchanged
unit will remain calculated by reference to the purchase date of the
original unit.
This warranty gives you certain legal rights which may change from
state to state or province to province. Your state or province may also
have other rights you may be entitled to that are not listed within this
warranty.
Contact Information
Address
Champion Power Equipment, Inc.
Customer Service
12039 Smith Ave.
Santa Fe Springs, CA 90670 USA
www.championpowerequipment.com
Customer Service
Mon – Fri 8:30 AM – 5:00 PM (PST/PDT)
Toll Free: 1-877-338- 0999
info@championpowerequipment.com
Fax no.: 1-562-236-9429
Technical Service
Mon – Fri 8:30 AM – 5:00 PM (PST/PDT)
Toll Free: 1-877-338- 0999
tech@championpowerequipment.com
24/7 Tech Support: 1-562-204-1188
WARRANTY
* Except as otherwise stipulated in any of the following enclosed Emission Control System Warranties (when applicable) for the Emission Control System: U.S.
Environment Protection Agency (EPA), California Air Resources Board (CARB) and/or Environment and Climate Change Canada (ECCC).
Champion Power Equipment, Inc. (CPE),
United States Environment Protection Agency (U.S. EPA)
Emission Control System Warranty
Your Champion Power Equipment (CPE) engine complies with U.S. EPA emission regulations.
YOUR WARRANTY RIGHTS AND OBLIGATIONS:
The US EPA AND CPE are pleased to explain the Federal Emission Control Systems Warranty on your 2017 small
off-road engine and engine powered equipment. New engines and equipment must be designed, built and
equipped, at the time of sale, to meet U.S. EPA regulations for small non-road engines. CPE warrants the emission
control system on your small off-road engine and equipment for the period of time listed below, provided there has
been no abuse, neglect, unapproved modification, or improper maintenance of your equipment.
Your emission control system may include parts such as the carburetor, fuel-injection system, the ignition system,
catalytic converter and fuel lines. Also included may be hoses, belts, connectors and other emission related
assemblies. Where a warrantable condition exits, CPE will repair your small off-road engine at no cost to you
including diagnosis, parts and labor.
MANUFACTURER’S EMISSION CONTROL SYSTEM WARRANTY COVERAGE:
This emission control system is warranted for two years, subject to provisions set forth below. If, during the
warranty period, emission related part on your engine is defective in materials or workmanship, the part will be
repaired or replaced by CPE.
OWNER WARRANTY RESPONSIBILITIES:
As the small off-road engine owner, you are responsible for the performance of the required maintenance listed in
your Owner’s Manual. CPE recommends that you retain all your receipts covering maintenance on your small off-
road engine, but CPE cannot deny warranty solely for the lack of receipts or for your failure to ensure the
performance of all scheduled maintenance.
As the small off-road engine owner, you should however be aware that CPE may deny you warranty coverage if
your small, off-road engine or a part has failed due to abuse, neglect, improper maintenance or unapproved
modifications.
You are responsible for presenting your small off-road engine to an Authorized CPE service outlet or alternate
service outlet as described in (3)(f.) below, CPE dealer or CPE, Santa Fe Springs, Ca. as soon as a problem exists.
The warranty repairs should be completed in a reasonable amount of time, not to exceed 30 days.
If you have any questions regarding your warranty rights and responsibilities, you should contact:
Champion Power Equipment, Inc.
Customer Service
12039 Smith Ave.
Santa Fe Springs, CA 90670
1-877-338-0999
tech@championpowerequipment.com
EMISSION CONTROL SYSTEM WARRANTY
The following are specific provisions relative to your Emission Control System (ECS) Warranty Coverage.
1. APPLICABILITY: This warranty shall apply to 1997 and later model year small off-road engines. The ECS
Warranty Period shall begin on the date the new engine or equipment is delivered to its original, end-use
purchaser, and shall continue for 24 consecutive months thereafter.
2. GENERAL EMISSIONS WARRANTY COVERAGE
CPE warrants to the original, end-use purchaser of the new engine or equipment and to each subsequent
purchaser that each of its small off-road engines is:
a. Designed, built and equipped so as to conform to U.S. EPA emissions standards for spark-ignited
engines at or below 19 kilowatts.
b. Free from defects in materials and workmanship that cause the failure of a warranted part to be identical
in all material respects to the part as described in the engine manufacturer’s application for certification for a period
of two years.
3. THE WARRANTY ON EMISSION-RELATED PARTS WILL BE INTERPRETED AS FOLLOWS:
a. Any warranted part that is not scheduled for replacement as required maintenance in the Owners
Manual shall be warranted for the ECS Warranty Period. If any such part fails during the ECS Warranty Period, it
shall be repaired or replaced by CPE according to Subsection “d” below. Any such part repaired or replaced under
the ECS Warranty shall be warranted for any remainder of the ECS Warranty Period.
b. Any warranted, emissions-related part which is scheduled only for regular inspection as specified in the
Owners Manual shall be warranted for the ECS Warranty Period. A statement in such written instructions to the
effect of “repair or replace as necessary”, shall not reduce the ECS Warranty Period. Any such part repaired or
replaced under the ECS Warranty shall be warranted for the remainder of the ECS Warranty Period.
c. Any warranted, emissions-related part which is scheduled for replacement as required maintenance in
the Owner’s Manual shall be warranted for the period of time prior to the first scheduled replacement point for that
part. If the part fails prior to the first scheduled replacement, the part shall be repaired or replaced by CPE
according to Subsection “d” below. Any such emissions-related part repaired or replaced under the ECS Warranty,
shall be warranted for the remainder of the ECS Warranty Period prior to the first scheduled replacement point for
such emissions-related part.
d. Repair or replacement of any warranted, emissions-related part under this ECS Warranty shall be
performed at no charge to the owner at a CPE Authorized Service Outlet.
e. The owner shall not be charged for diagnostic labor which leads to the determination that a part covered
by the ECS Warranty is in fact defective, provided that such diagnostic work is performed at a CPE Authorized
Service Outlet.
f. CPE shall pay for covered emissions warranty repairs at non-authorized service outlets under the
following circumstances:
i. The service is required in a population center with a population over 100,000 according to U.S.
Census 2000 without a CPE Authorized Service Outlet AND
ii. The service is required more than 100 miles from a CPE Authorized Service Outlet. The 100 mile
limitation does not apply in the following states: Alaska, Arizona, Colorado, Hawaii, Idaho, Montana, Nebraska,
Nevada, New Mexico, Oregon, Texas, Utah and Wyoming.
g. CPE shall be liable for damages to other original engine components or approved modifications
proximately caused by a failure under warranty of an emission-related part covered by the ECS Warranty.
h. Throughout the ECS Warranty Period, CPE shall maintain a supply of warranted emission-related parts
sufficient to meet the expected demand for such emission-related parts.
i. Any CPE Authorized and approved emission-related replacement part may be used in the performance of
any ECS Warranty maintenance or repair and will be provided without charge to the owner. Such use shall not
reduce CPE’s warranty obligation.
j. Unapproved add-on or modified parts may not be used to modify or repair a CPE engine. Such use voids
this ECS Warranty and shall be sufficient grounds for disallowing an ECS Warranty claim. CPE shall not be liable
hereunder for failures of any warranted parts of a CPE engine caused by the use of such an unapproved add-on or
modified part.
EMISSION-RELATED PARTS INCLUDE THE FOLLOWING: (using those portions of the list applicable to the
engine)
Systems covered by this
warranty
Parts Description
Fuel Metering System
Fuel regulator, Carburetor and internal parts
Air Induction System
Air cleaner, Intake manifold
Ignition System
Spark plug and parts, Magneto ignition system
Exhaust System
Exhaust manifold, catalytic converter
Miscellaneous Parts
Tubing, Fittings, Seals, Gaskets, and Clamps associated with these listed
systems.
Evaporative Emissions
Fuel Tank, Fuel Cap, Fuel Line, Fuel Line Fittings, Clamps, Pressure
Relief Valves, Control Valves, Control Solenoids, Electronic Controls,
Vacuum Control Diaphragms, Control Cables, Control Linkages, Purge
Valves, Vapor Hoses, Liquid/Vapor Separator, Carbon Canister, Canister
Mounting Brackets, Carburetor Purge Port Connector
TO OBTAIN WARRANTY SERVICE:
You must take your CPE engine or the product on which it is installed, along with your warranty registration card or
other proof of original purchase date, at your expense, to any Champion Power Equipment dealer who is
authorized by Champion Power Equipment, Inc. to sell and service that CPE product during his normal business
hours. Alternate service locations defined in Section (3)(f.) above must be approved by CPE prior to service. Claims
for repair or adjustment found to be caused solely by defects in material or workmanship will not be denied because
the engine was not properly maintained and used.
If you have any questions regarding your warranty rights and responsibilities, or to obtain warranty
service, please write or call Customer Service at Champion Power Equipment, Inc.
Champion Power Equipment, Inc.
12039 Smith Ave.
Santa Fe Springs, CA 90670
1-877-338-0999
Attn.: Customer Service
tech@championpowerequipment.com
