NEC PN-CE701H 70" Class AQUOS BOARD User Manual

PN-CE701H

LCD MONITOR

OPERATION MANUAL

IMPORTANT:

To aid reporting in case of loss or theft, please record the

product’s model and serial numbers in the space provided.

The numbers are located in the rear of the product.

Model No.:

Serial No.:

U.S.A. ONLY

IMPORTANT INFORMATION

WARNING: TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK, DO NOT EXPOSE THIS PRODUCT

TO RAIN OR MOISTURE.

CAUTION: TO REDUCE THE RISK OF ELECTRIC

SHOCK, DO NOT REMOVE COVER.

NO USER-SERVICEABLE PARTS

INSIDE.

REFER SERVICING TO QUALIFIED

SERVICE PERSONNEL.

The lightning flash with arrowhead symbol, within

a triangle, is intended to alert the user to the

presence of uninsulated “dangerous voltage”

within the product’s enclosure that may be of

sufficient magnitude to constitute a risk of electric

shock to persons.

The exclamation point within a triangle is

intended to alert the user to the presence of

important operating and maintenance (servicing)

instructions in the literature accompanying the

product.

WARNING:

FCC Regulations state that any unauthorized changes or modifications to this equipment not expressly approved by the

manufacturer could void the user’s authority to operate this equipment.

NOTE:

This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to Part 15 of the

FCC Rules. These limits are designed to provide reasonable protection against harmful interference when the equipment

is operated in a commercial environment. This equipment generates, uses, and can radiate radio frequency energy and, if

not installed and used in accordance with the instruction manual, may cause harmful interference to radio communications.

Operation of this equipment in a residential area is likely to cause harmful interference in which case the user will be required

to correct the interference at his own expense.

This product utilizes a CR coin Lithium battery which contains a Perchlorate material.

Special handling for this material may apply,

California residents, See www.dtsc.ca.gov/hazardouswaste/perchlorate/

Others, consult local environmental officers.

U.S.A. ONLY

To maintain compliance with EMC regulations, use shielded cables to connect to the following terminals: HDMI input terminal,

D-sub input/output terminals, Audio input/output terminals, Video input terminal, TOUCH PANEL terminal, and USB port.

CAUTION

RISK OF ELECTRIC

SHOCK

DO NOT OPEN

Thank you for your purchase of a SHARP LCD product. To ensure safety and many years of trouble-free operation of your

product, please read the Safety Precautions carefully before using this product.

SAFETY PRECAUTIONS

Electricity is used to perform many useful functions, but it can also cause personal injuries and property damage if improperly

handled. This product has been engineered and manufactured with the highest priority on safety. However, improper use can

result in electric shock and/or fire. In order to prevent potential danger, please observe the following instructions when installing,

operating and cleaning the product. To ensure your safety and prolong the service life of your LCD product, please read the

following precautions carefully before using the product.

1. Read instructions — All operating instructions must be read and understood before the product is operated.

2. Keep this manual in a safe place — These safety and operating instructions must be kept in a safe place for future

reference.

3. Observe warnings — All warnings on the product and in the instructions must be observed closely.

4. Follow instructions — All operating instructions must be followed.

5. Cleaning — Unplug the power cord from the power outlet before cleaning the product. Use a dry cloth to clean the product.

Do not use liquid cleaners or aerosol cleaners. Do not use dirty cloths. Doing so may damage the product.

6. Attachments — Do not use attachments not recommended by the manufacturer. Use of inadequate attachments can result

in accidents.

7. Water and moisture — Do not use the product near water. Do not install the product in a place where water may splash onto

it. Be careful of equipment which drains water such as an air-conditioner.

8. Ventilation — The vents and other openings in the cabinet are designed for ventilation.

Do not cover or block these vents and openings since insufficient ventilation can cause overheating and/or shorten the life

of the product. Do not place the product on a sofa, rug or other similar surface, since they can block ventilation openings.

Do not place the product in an enclosed place such as a bookcase or rack, unless proper ventilation is provided or the

manufacturer’s instructions are followed.

9. Power cord protection — The power cords must be routed properly to prevent people from stepping on them or objects from

resting on them.

10. The screen used in this product is made of glass. Therefore, it can break when the product is dropped or applied with

impact. Be careful not to be injured by broken glass pieces in case the screen breaks.

11. Overloading — Do not overload power outlets or extension cords. Overloading can cause fire or electric shock.

12. Entering of objects and liquids — Never insert an object into the product through vents or openings. High voltage flows in

the product, and inserting an object can cause electric shock and/or short internal parts.

For the same reason, do not spill water or liquid on the product.

13. Servicing — Do not attempt to service the product yourself. Removing covers can expose you to high voltage and other

dangerous conditions. Request a qualified service person to perform servicing.

14. Repair — If any of the following conditions occurs, unplug the power cord from the power outlet, and request a qualified

service person to perform repairs.

a. When the power cord or plug is damaged.

b. When a liquid was spilled on the product or when objects have fallen into the product.

c. When the product has been exposed to rain or water.

d. When the product does not operate properly as described in the operating instructions.

Do not touch the controls other than those described in the operating instructions. Improper adjustment of controls

not described in the instructions can cause damage, which often requires extensive adjustment work by a qualified

technician.

e. When the product has been dropped or damaged.

f. When the product displays an abnormal condition. Any noticeable abnormality in the product indicates that the product

needs servicing.

15. Replacement parts — In case the product needs replacement parts, make sure that the service person uses replacement

parts specified by the manufacturer, or those with the same characteristics and performance as the original parts. Use of

unauthorized parts can result in fire, electric shock and/or other danger.

16. Safety checks — Upon completion of service or repair work, request the service technician to perform safety checks to

ensure that the product is in proper operating condition.

17. Wall mounting — When mounting the product on a wall, be sure to install the product according to the method

recommended by the manufacturer.

18. Heat sources — Keep the product away from heat sources such as radiators, heaters, stoves and other heat-generating

products (including amplifiers).

DEAR SHARP CUSTOMER

SAFETY PRECAUTIONS (Continued)

19. Batteries — Incorrect use of batteries may cause the batteries to burst or ignite. A leaky battery may corrode the equipment,

dirty your hands or spoil your clothing. In order to avoid these problems, make sure to observe the precautions below:

  •Usethespecifiedbatteriesonly.

  •Installthebatterieswithdueattentiontotheplus(+)andminus(-)sidesofthebatteriesaccordingtotheinstructionsinthe

compartment.

  •Donotmixoldandnewbatteries.

  •Donotmixbatteriesofdifferenttypes.Voltagespecificationsofbatteriesofthesameshapemayvary.

  •Replaceanexhaustedbatterywithanewonepromptly.

  •Ifyouwillnotusetheremotecontrolforalongtime,removethebatteries.

  •Ifleakedbatteryfluidgetsonyourskinorclothing,rinseimmediatelyandthoroughly.Ifitgetsintoyoureye,batheyour

eye well rather than rubbing and seek medical treatment immediately. Leaked battery fluid that gets into your eye or your

clothing may cause a skin irritation or damage your eye.

20. Usage of the monitor must not be accompanied by fatal risks or dangers that, could lead directly to death, personal injury,

severe physical damage or other loss, including nuclear reaction control in nuclear facility, medical life support system, and

missile launch control in a weapon system.

21. Do not stay in contact with the parts of the product that become hot for long periods of time. Doing so may result in

low-temperature burns.

22. Do not modify this product.

WARNING:

This is a Class A product. In a domestic environment this product may cause radio interference in which case the user may

be required to take adequate measures.

An apparatus with CLASS I construction shall be connected to a MAIN socket outlet with a protective earthing connection.

STABILITY HAZARD

If a monitor is not positioned in a sufficiently stable location, it can be potentially hazardous due to falling. Many injuries,

particularly to children, can be avoided by taking simple precautions such as:

•Usingfixingdeviceslikewallmountbracketsrecommendedbythemanufacturer.

•Onlyusingfurniturethatcansafelysupportthemonitor.

•Ensuringthemonitorisnotoverhangingtheedgeofthesupportingfurniture.

•Notplacingthemonitorontallfurniture(forexample,cupboardsorbookcases)withoutanchoringboththefurnitureandthe

monitor to a suitable support.

•Notstandingthemonitorsonclothorothermaterialsplacedbetweenthemonitorandsupportingfurniture.

•Educatingchildrenaboutthedangersofclimbingonfurnituretoreachthemonitororitscontrols.

•Thisequipmentisnotsuitableforuseinlocationswherechildrenarelikelytobepresentunsupervised.

Especially for child safety

- Don’t allow children to climb on or play with the monitor.

- Don’t place the monitor on furniture that can easily be used as steps, such as a chest of drawers.

- Remember that children can become excited while watching a program, especially on a “larger than life” monitor. Care

should be taken to place or install the monitor where it cannot be pushed, pulled over, or knocked down.

- Care should be taken to route all cords and cables connected to the monitor so that they cannot be pulled or grabbed by

curious children.

The TFT color LCD panel used in this monitor is made with

the application of high precision technology. However, there

may be minute points on the screen where pixels never light

or are permanently lit. Also, if the screen is viewed from an

acute angle there may be uneven colors or brightness. Please

note that these are not malfunctions but common phenomena

of LCDs and will not affect the performance of the monitor.

- Do not display a still picture for a long period, as this could

cause a residual image.

- Never rub or tap the monitor with hard objects.

- Please understand that SHARP CORPORATION bears no

responsibility for errors made during use by the customer or

a third party, nor for any other malfunctions or damage to this

product arising during use, except where indemnity liability is

recognized under law.

- This monitor and its accessories may be upgraded without

advance notice.

- Do not use the monitor where there is a lot of dust, where

humidity is high, or where the monitor may come into contact

with oil or steam. Do not use in an environment where

there are corrosive gases (sulfur dioxide, hydrogen sulfide,

nitrogen dioxide, chlorine, ammonia, ozone, etc.). As this

could lead to fire.

- Ensure that the monitor does not come into contact with

water or other fluids. Ensure that no objects such as paper

clips or pins enter the monitor as this could lead to fire or

electric shock.

- Do not place the monitor on top of unstable objects or in

unsafe places. Do not allow the monitor to receive strong

shocks or to strongly vibrate. Causing the monitor to fall or

topple over may damage it.

- Do not use the monitor near heating equipment or in places

where there is likelihood of high temperature, as this may

lead to generation of excessive heat and outbreak of fire.

- Do not use the monitor in places where it may be exposed to

direct sunlight. Risk of cabinet deformation and failure if the

monitor is used in direct sunlight.

- Please be sure to constantly remove dust and garbage that

has attached to the ventilation opening. If dust collects in the

ventilation opening or the inside of the monitor, it may lead to

excessive heat, outbreak of fire, or malfunction.

Please request a cleaning of the inside of the monitor from

an authorized SHARP servicing dealer or service center.

- The power outlet shall be installed near the equipment and

shall be easily accessible.

- Continuous operating time and warranty.

This product is designed for a maximum daily use of 16

hours. Continual use in excess of 16 hours per day is not

covered by the warranty.

- Do not touch the screen when the monitor power is turned

on, it will lead to a malfunction. When this occurs, turn the

monitor power off and then on.

- Do not operate the screen with a hard or pointed object such

as a fingernail or pencil.

- If another USB device is connected to the computer to which

the touch panel is connected, do not operate the USB device

during touch panel input. Input may not take place correctly.

- To maintain stable operation, this monitor must be restarted

once a day.

- If you or a third party uses the product incorrectly, or if the

product is subjected to the effects of static electricity or

electrical noise, or if the product malfunctions or is repaired,

there is a risk that saved data will be corrupted or lost.

- Always back up important data to a USB flash drive or SD

memory card.

- We bear no responsibility for protection of internal memory

recorded content or related damages.

The Power Cord

- Use only the power cord supplied with the monitor.

- Do not damage the power cord nor place heavy objects on

it, stretch it or over bend it. Also, do not add extension cords.

Damage to the cord may result in fire or electric shock.

- Do not use the power cord with a power tap.

Adding an extension cord may lead to fire as a result of

overheating.

- Do not remove or insert the power plug with wet hands.

Doing so could result in electric shock.

- Unplug the power cord if it is not used for a long time.

- Do not attempt to repair the power cord if it is broken

or malfunctioning. Refer the servicing to the service

representative.

Manual Scope

- Microsoft and Windows are either registered trademarks or

trademarks of Microsoft Corporation in the United States

and/or other countries.

- Apple, Mac and macOS are trademarks of Apple Inc.,

registered in the U.S. and other countries.

- The terms HDMI, HDMI High-Definition Multimedia Interface,

and the HDMI Logo are trademarks or registered trademarks

of HDMI Licensing Administrator, Inc.

- Intel and Intel Core are trademarks or registered trademarks

of Intel Corporation or its subsidiaries in the U.S.A. and other

countries.

- Google, Chrome OS and Android are trademarks or

registered trademarks of Google LLC.

- Ethernet is a registered trademark of Xerox Corporation.

- VESA is either registered trademark or trademark of Video

Electronics Standards Association in the United States and/

or other countries.

- All other brand and product names are trademarks or

registered trademarks of their respective holders.

- Language of OSD menu used in this manual is English by

way of example.

- Illustrations in this manual may not exactly represent the

actual product or display.

LED Backlight

● TheLEDbacklightinthisproducthasalimitedlifetime.

* If the screen gets dark or does not turn on, it may be

necessary to replace the LED backlight.

* This LED backlight is exclusive to this product and must

be replaced by an authorized SHARP servicing dealer

or service center. Please contact an authorized SHARP

servicing dealer or service center for assistance.

TIPS AND SAFETY INSTRUCTIONS

MOUNTING PRECAUTIONS

• Thisproductisforindooruse.

• AmountingbracketcompliantwithVESAspecificationsis

required.

• Sincethemonitorisheavy,consultyourdealerbefore

installing,removingormovingthemonitor.

• Mountingthemonitoronthewallrequiresspecialexpertise

andtheworkmustbeperformedbyanauthorizedSHARP

dealer.Youshouldneverattempttoperformanyofthis

workyourself.Ourcompanywillbearnoresponsibility

foraccidentsorinjuriescausedbyimpropermountingor

mishandling.

• Usethemonitorwiththesurfaceperpendiculartoalevel

surface.

• Whenmovingthemonitor,besuretoholdthepartsmarked

by

below.Donotgraspthescreenortray.Thismay

causeproductdamage,failure,orinjury.

• Thismonitorshouldbeusedatanambienttemperature

between41°F(5°C)and95°F(35°C).Provideenough

spacearoundthemonitortopreventheatfrom

accumulatinginside.



Unit: inch [mm]

7-7/8 [200]

2 [50]

[50]

1-7/16 [35]

• Ifitisdifficulttoprovidesufficientspaceforanyreason

suchastheinstallationofthemonitorinsideahousingor

ofseveralunitsside-by-side,oriftheambienttemperature

maybeoutsideoftherangeof41°F(5°C)to95°F(35°C),

installafanortakeothermeasurestokeeptheambient

temperaturewithintherequiredrange.

• Temperatureconditionmaychangewhenusingthemonitor

togetherwiththeoptionalequipmentsrecommendedby

SHARP.Insuchcases,pleasecheckthetemperature

conditionspecifiedbytheoptionalequipments.

• Donotblockanyventilationopenings.Ifthetemperature

insidethemonitorrises,thiscouldleadtoamalfunction.

• Donotplacethemonitoronadevicewhichgeneratesheat.

• Donotusetheproductinlocationswheretheunitis

exposedtodirectsunlightorotherstronglight.Sincethis

productoperateswithinfraredrays,suchlightmaycausea

malfunction.

• Whenusingmultiplemonitorsclosely,besuretheinfrared

transmitter/receiverdoesnotaffecttheotherones.

Contents

IMPORTANT INFORMATION ............................................ 3

DEAR SHARP CUSTOMER ..............................................4

SAFETY PRECAUTIONS ..................................................4

TIPS AND SAFETY INSTRUCTIONS ...............................6

MOUNTING PRECAUTIONS ............................................7

Supplied Components ..................................................... 9

System Requirements .....................................................9

Part Names .....................................................................10

Connecting Peripheral Equipment ...............................12

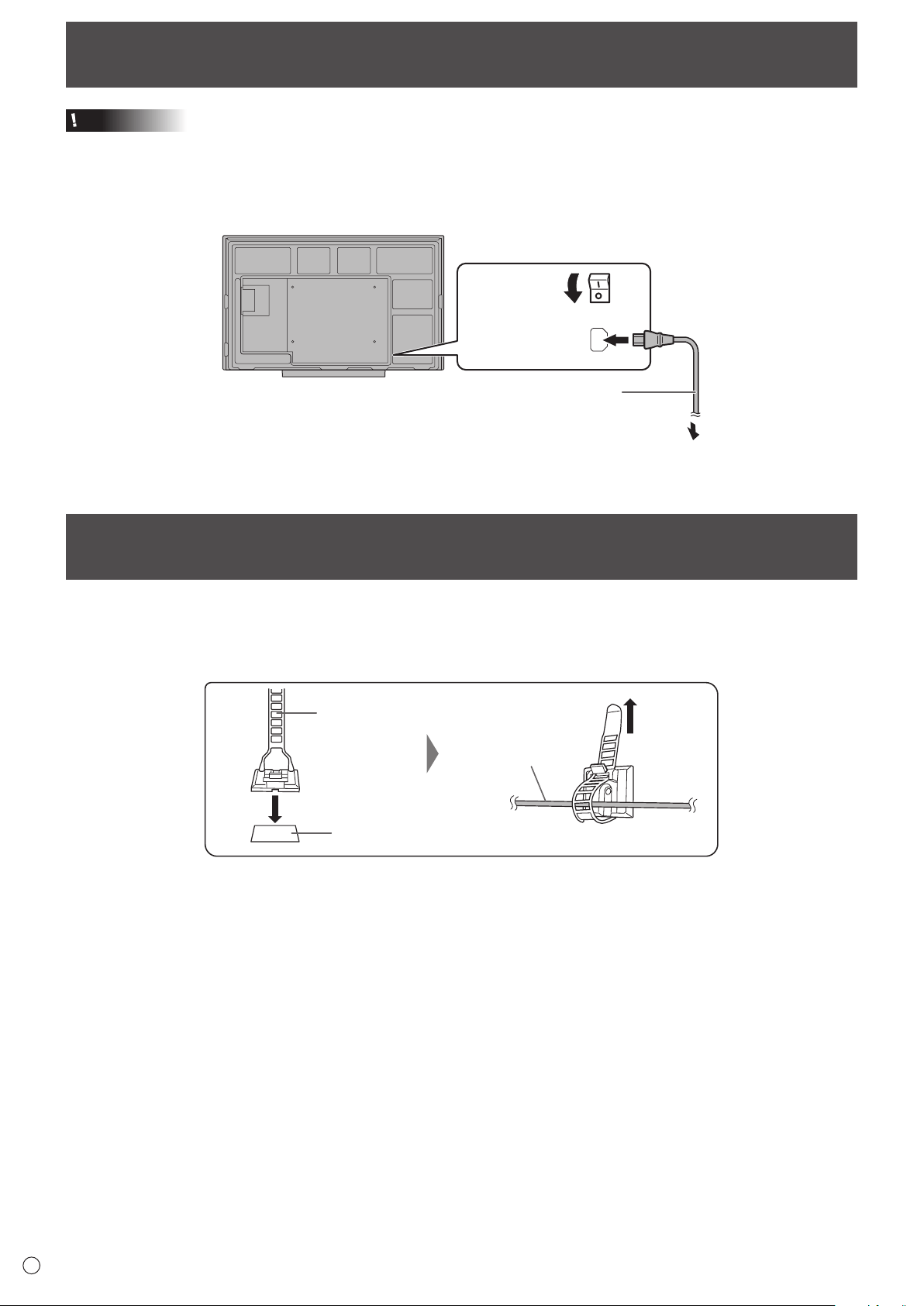

Connecting the Power Cord .........................................14

Binding Cables ............................................................... 14

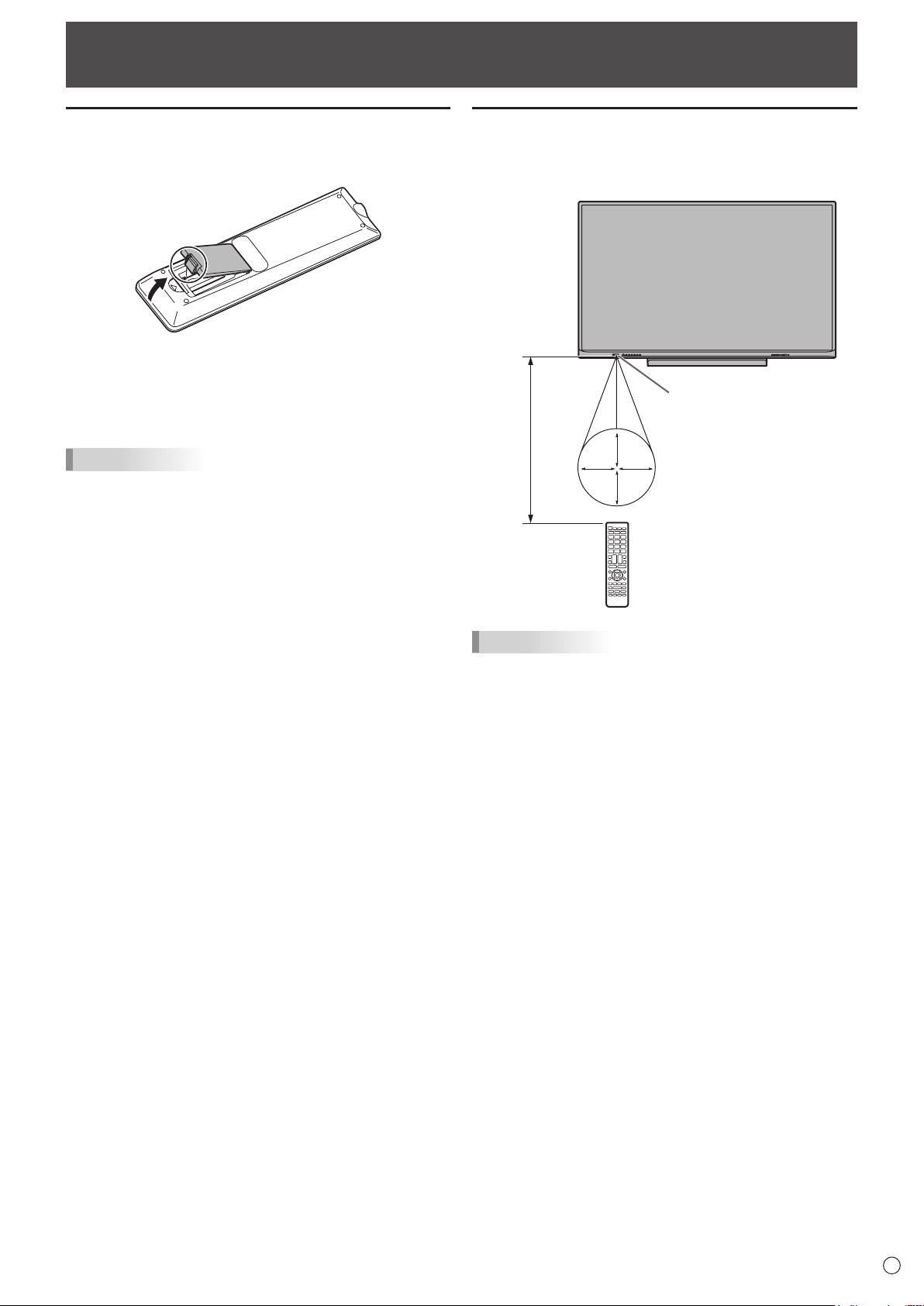

Preparing the Remote Control Unit .............................. 15

Installing the batteries ................................................15

Remote control operation range .................................15

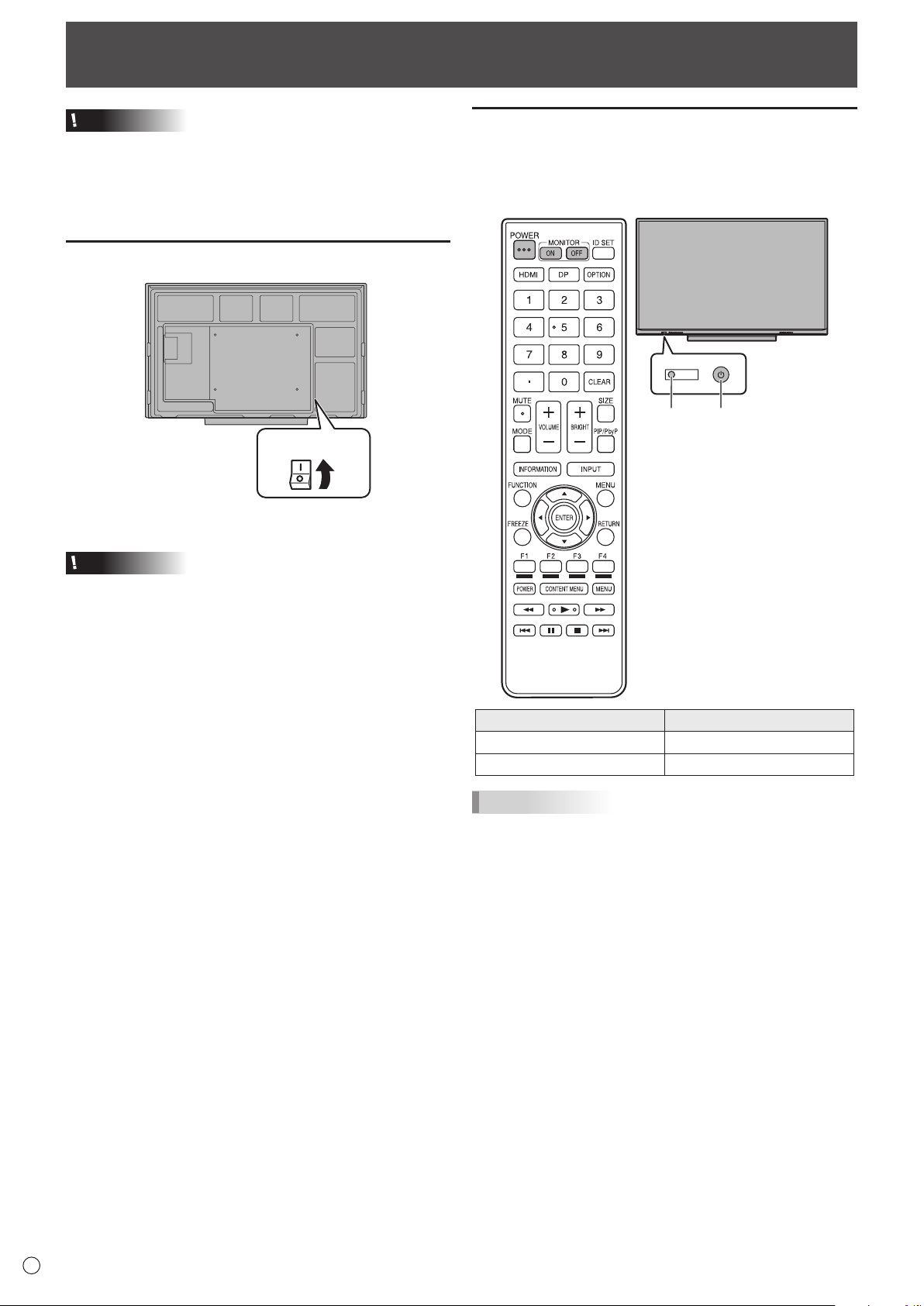

Turning Power On/Off .................................................... 16

Turning on the main power.........................................16

Turning power on/off ..................................................16

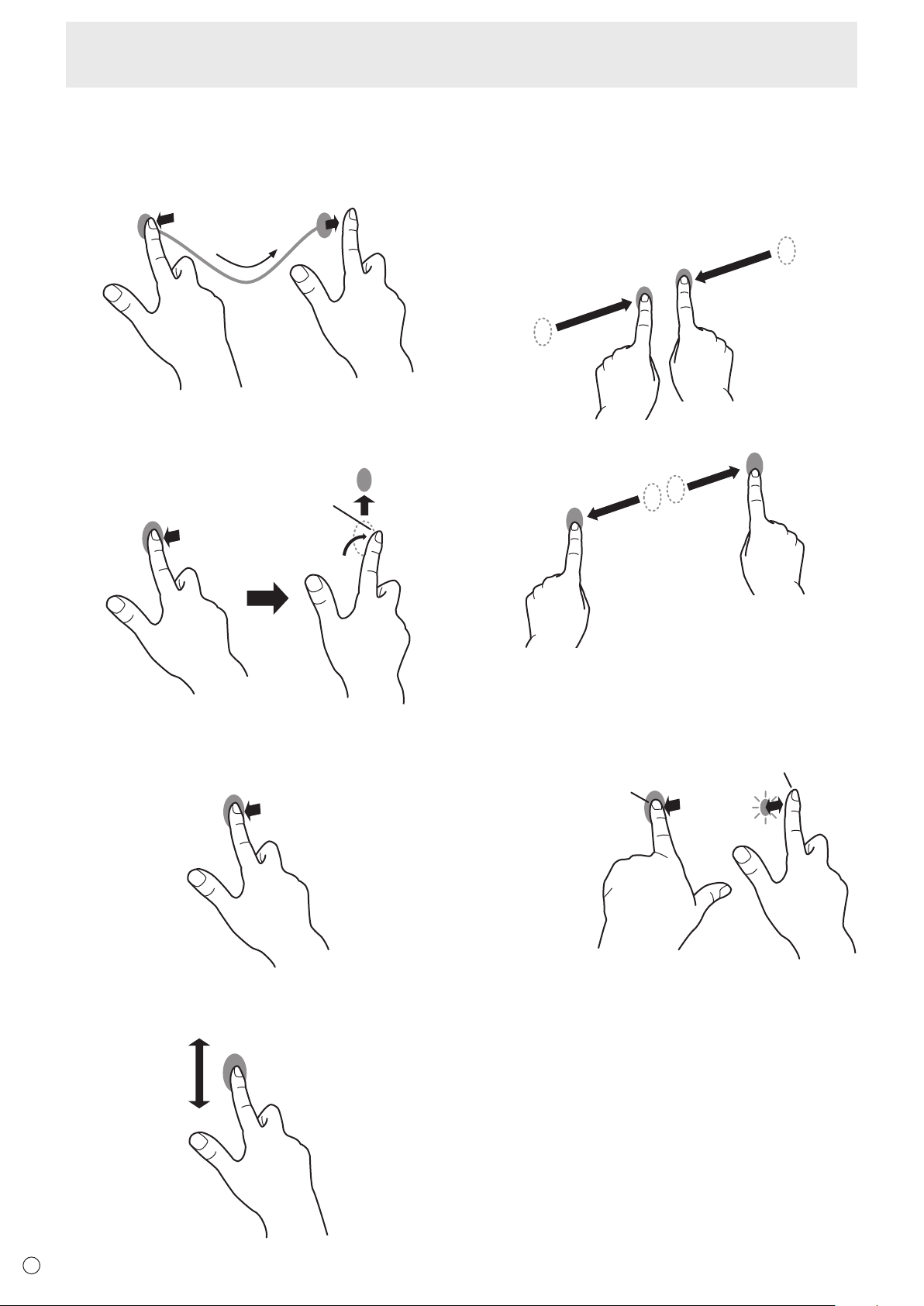

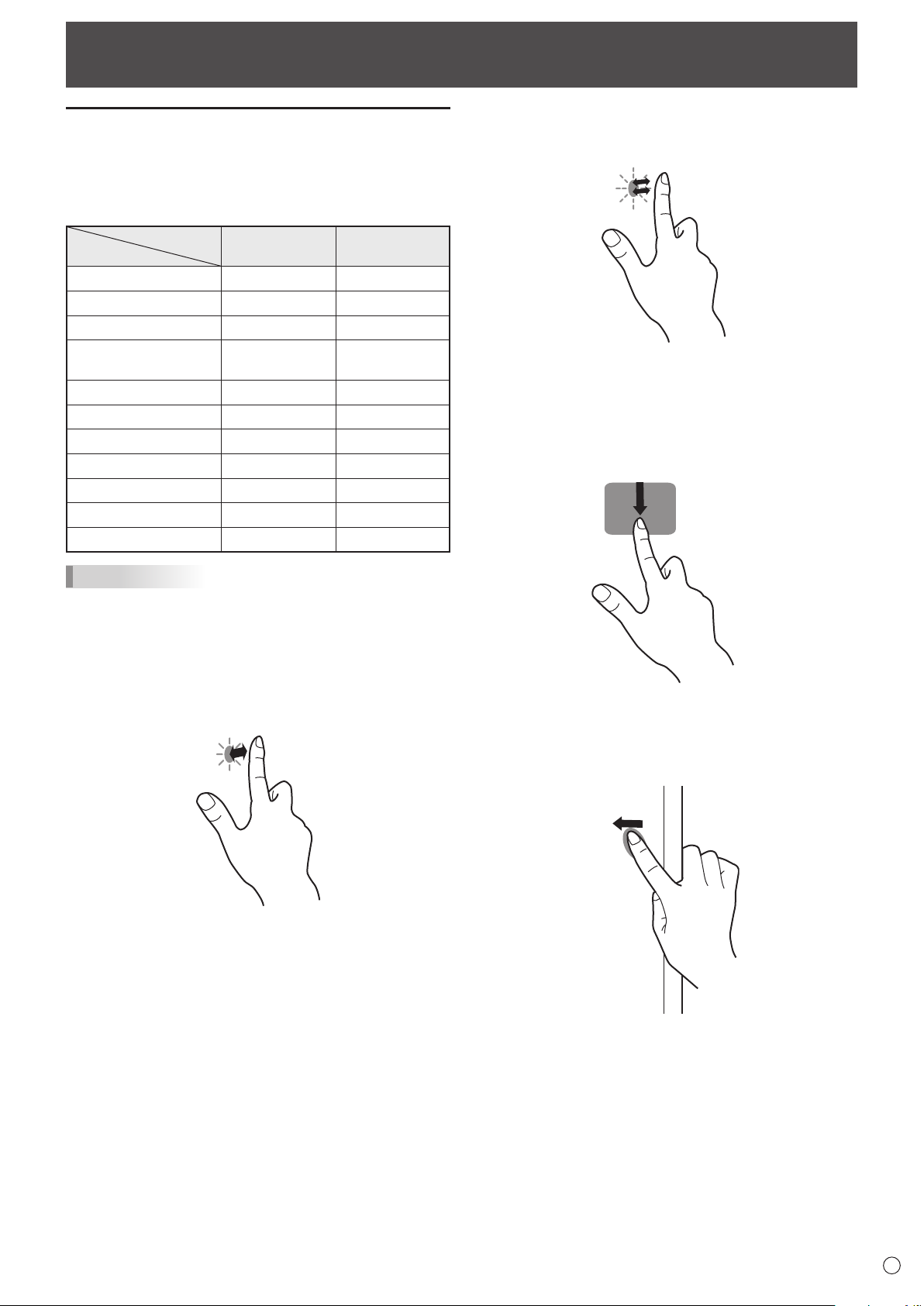

Touch action ................................................................... 17

Touch action ...............................................................17

Other functions ...........................................................19

Cautionary points .......................................................19

Basic Operation .............................................................20

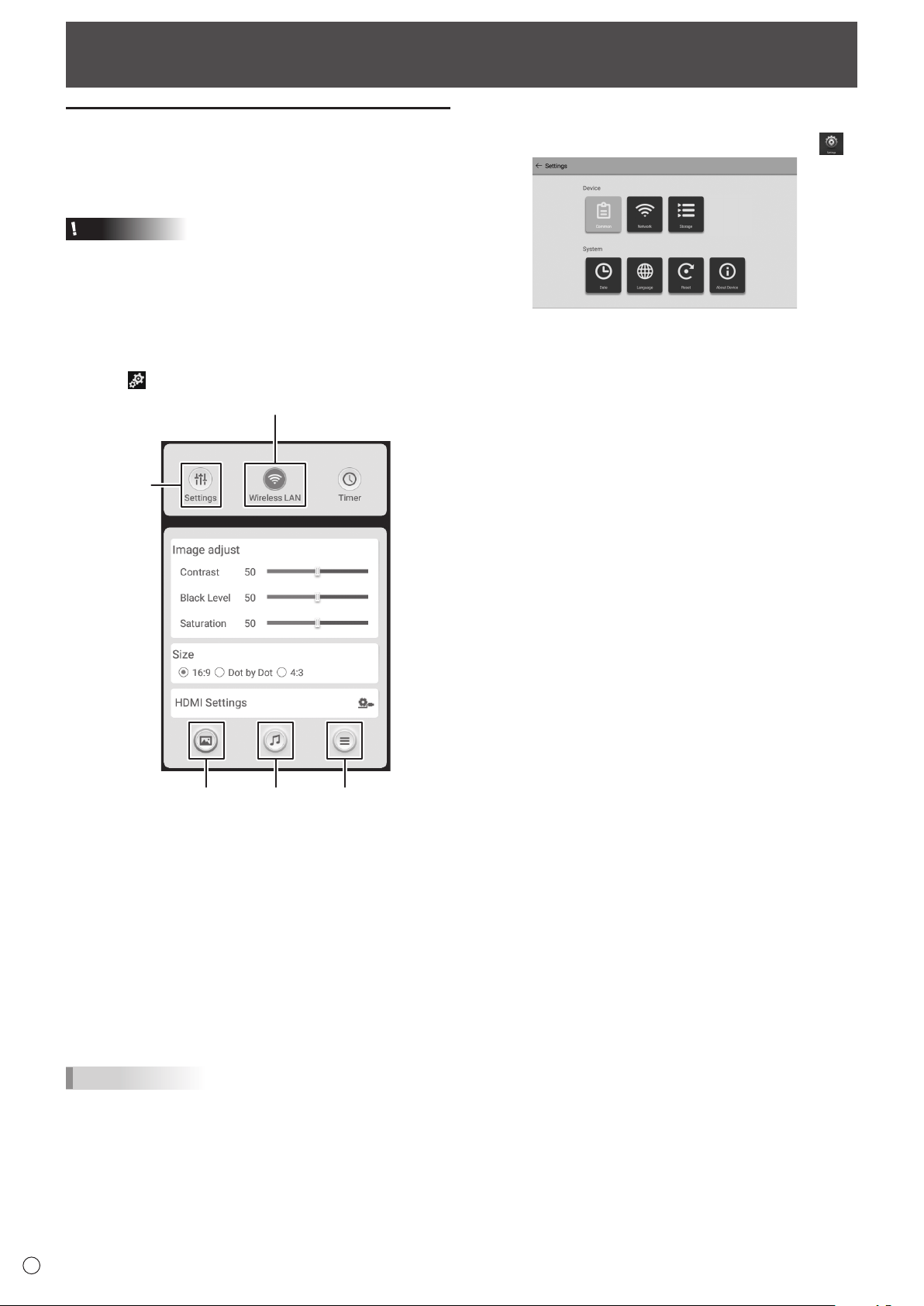

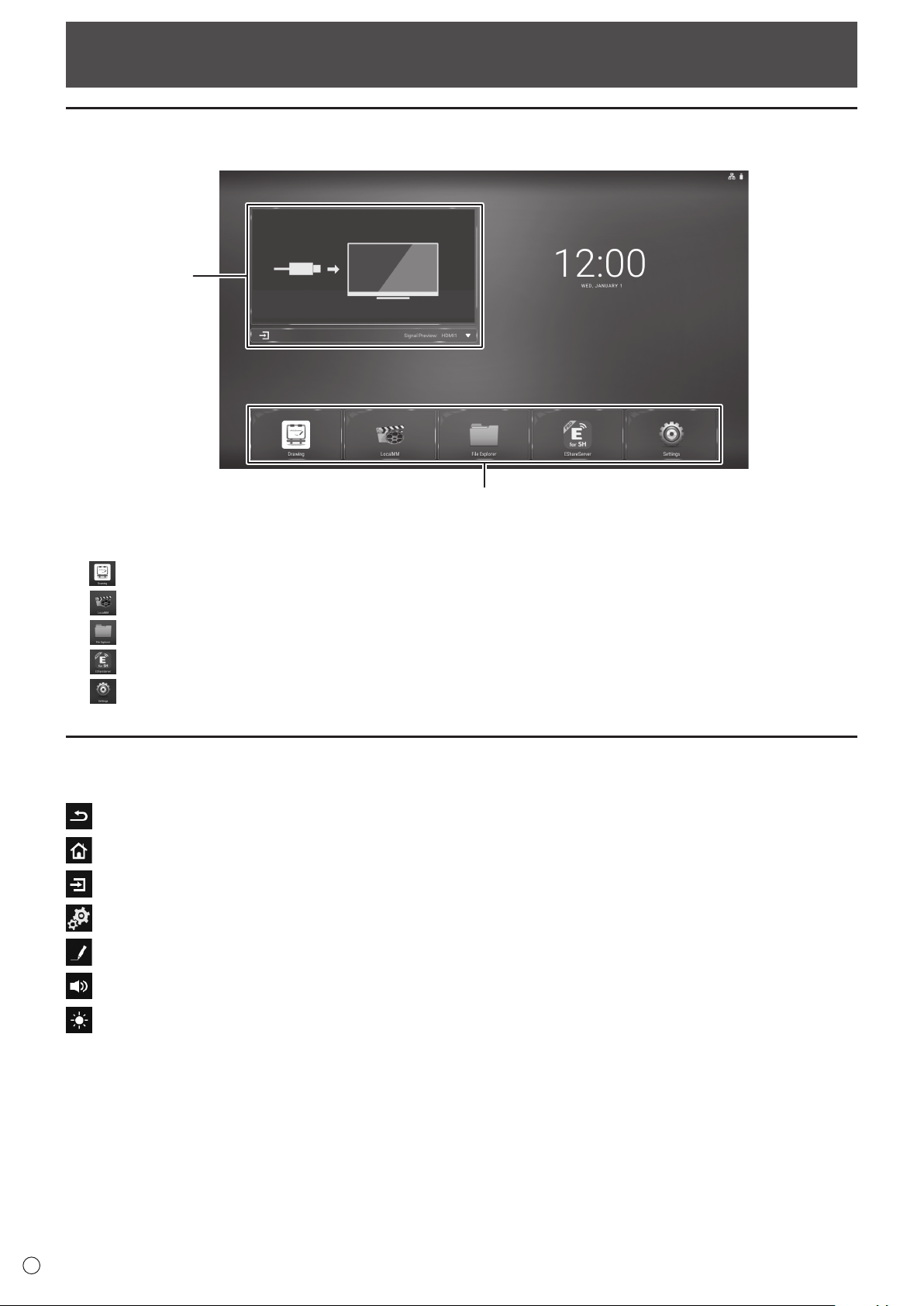

About the home screen of APPLICATION mode ........ 20

Using the side menu ..................................................20

Using the remote control unit .....................................21

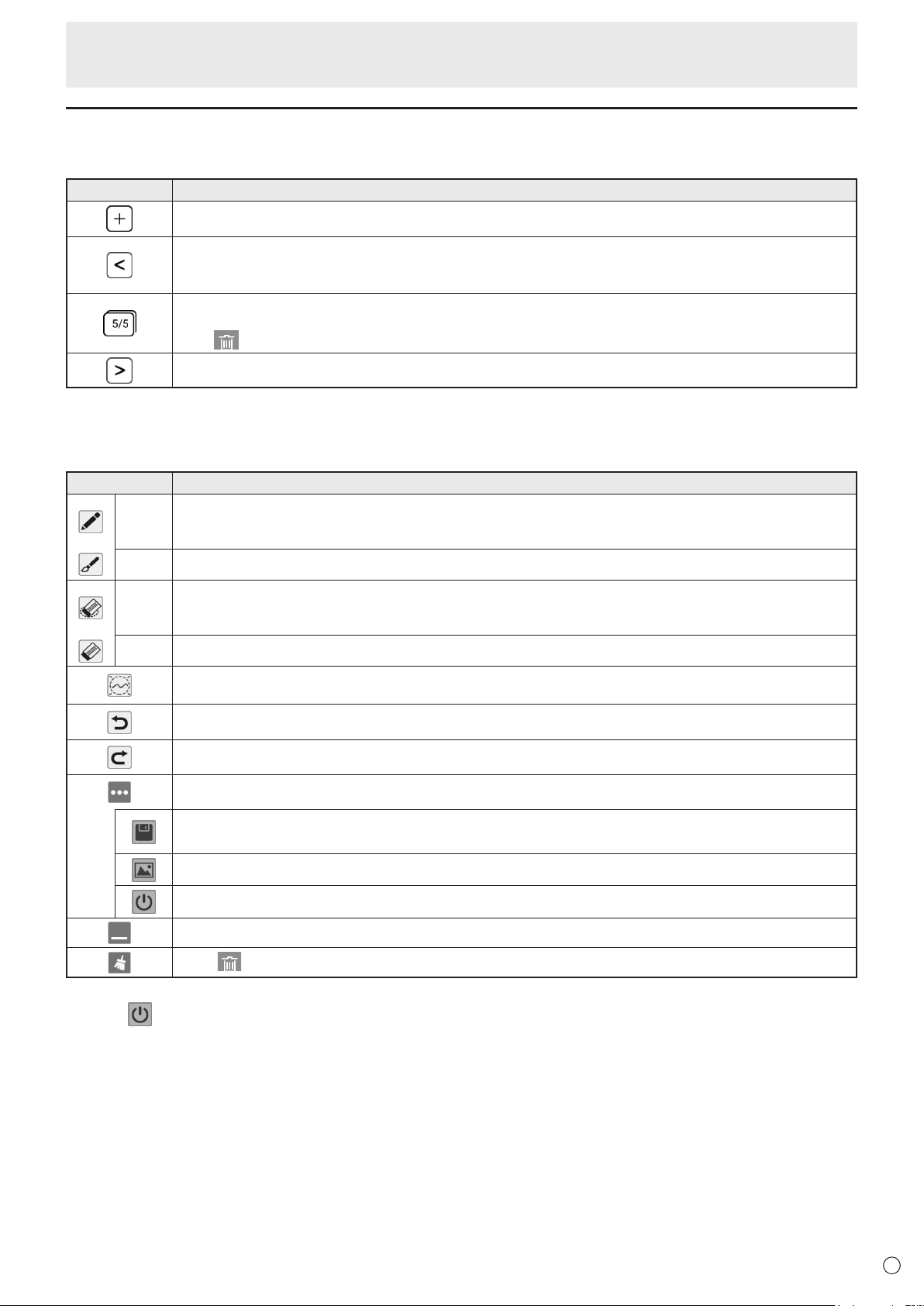

Drawing ........................................................................... 24

Drawing ......................................................................25

LocalMM .........................................................................26

Playing files ................................................................27

Operations during play ...............................................27

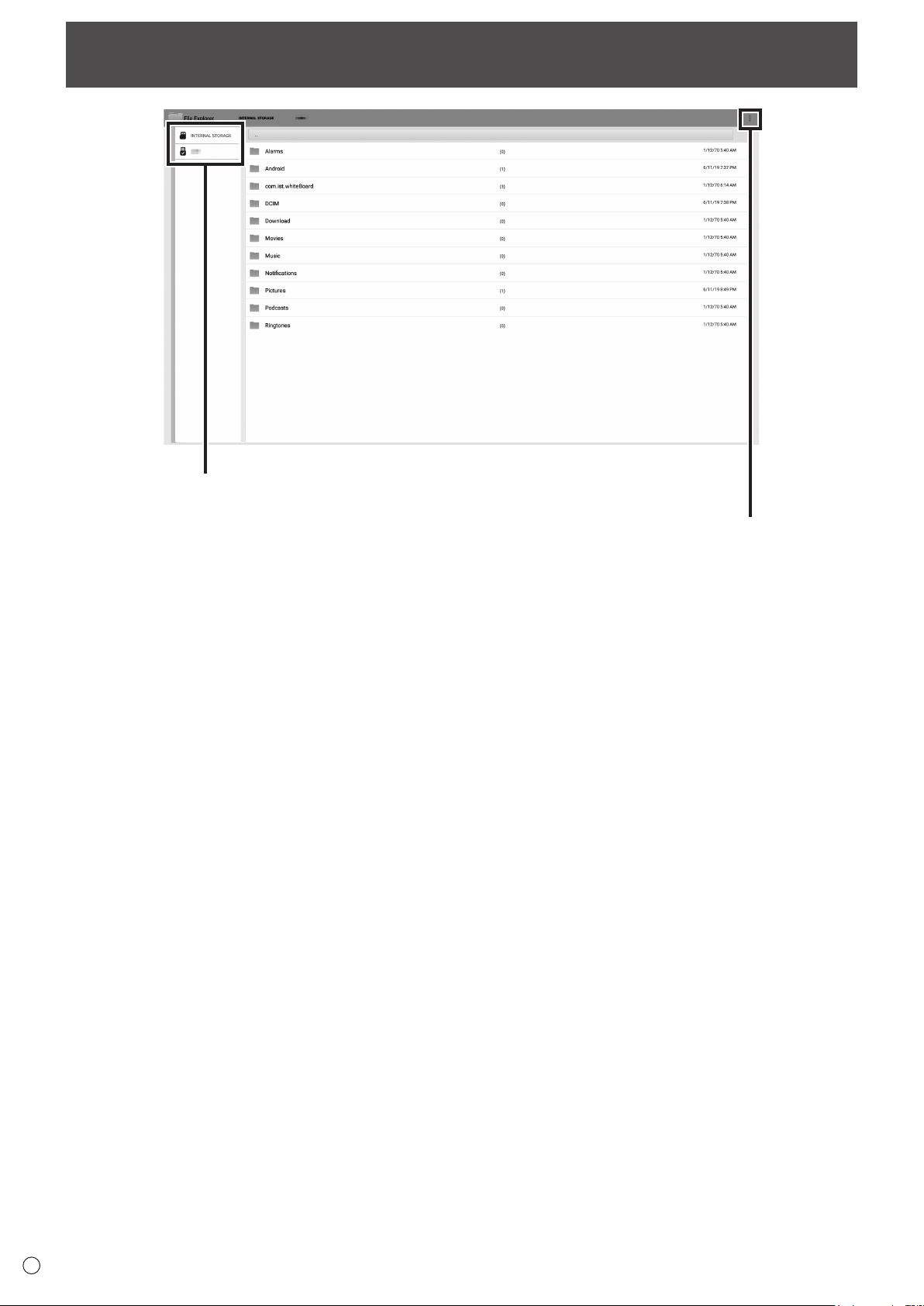

File Explorer ...................................................................28

Wireless Display ............................................................29

Menu Items .....................................................................30

Displaying the menu screen ....................................... 30

Menu item details .......................................................31

Adjustments for computer screen display ..................35

Functional Restriction Setting (Function) ...................36

Controlling the Monitor with a computer (RS-232C)

...37

Computer connection .................................................37

Communication conditions .........................................37

Communication procedure .........................................37

RS-232C command table ........................................... 39

Troubleshooting .............................................................41

Specifications ...............................................................43

Mounting Precautions

(For SHARP dealers and service engineers) ............... 48

Hardware

Must have a USB 2.0 compliant port.

CD-ROM drive required for software installation.

Operating system

Windows 8.1 (32-bit or 64-bit version), Windows 10 (32-bit or 64-bit version)

macOS v10.13, v10.14

Google Chrome OS Version 74 or later

Requirements when the software (Windows) supplied with this monitor is used.

CPU

Intel Core i5-6360U or faster

Intel Core i7-6650U or faster recommended

Video Output Must be capable of output at a Vsync of 60 Hz or higher

Memory At least 4 GB

Free space on hard drive At least 5 GB (free space separately required for data storage)

To use the touch panel, connect the USB cable (supplied) to your computer.

The touch panel operates with the standard driver of each operating system. On the Mac, operation is only possible in mouse

mode.

Install Pen Software from the supplied CD-ROM.

When the Information Display Downloader is installed, you can check and download the most recent versions of the software

programs.

To install the software, see the manual for each.

Supplied Components

If any component should be missing, please contact your dealer.



Liquid Crystal Display Monitor: 1



Remote control unit: 1



Cable clamp (affixing type): 3



Power cord: 1



R03 battery (“AAA” size): 2



CD-ROM (Utility Disk for Windows): 1



Setup Manual: 1



Touch pen: 2



Tray: 1



Tray mounting screws (M3x15): 5



USB cable: 1



Cover SHARP logo: 1

Place this sticker onto the SHARP logo to cover the logo.



Wireless Adapter: 1

* SHARP Corporation holds authorship rights to the Utility Disk program. Do not reproduce it without permission.

* For environmental protection!

Do not dispose of batteries in household waste. Follow the disposal instructions for your area.

System Requirements

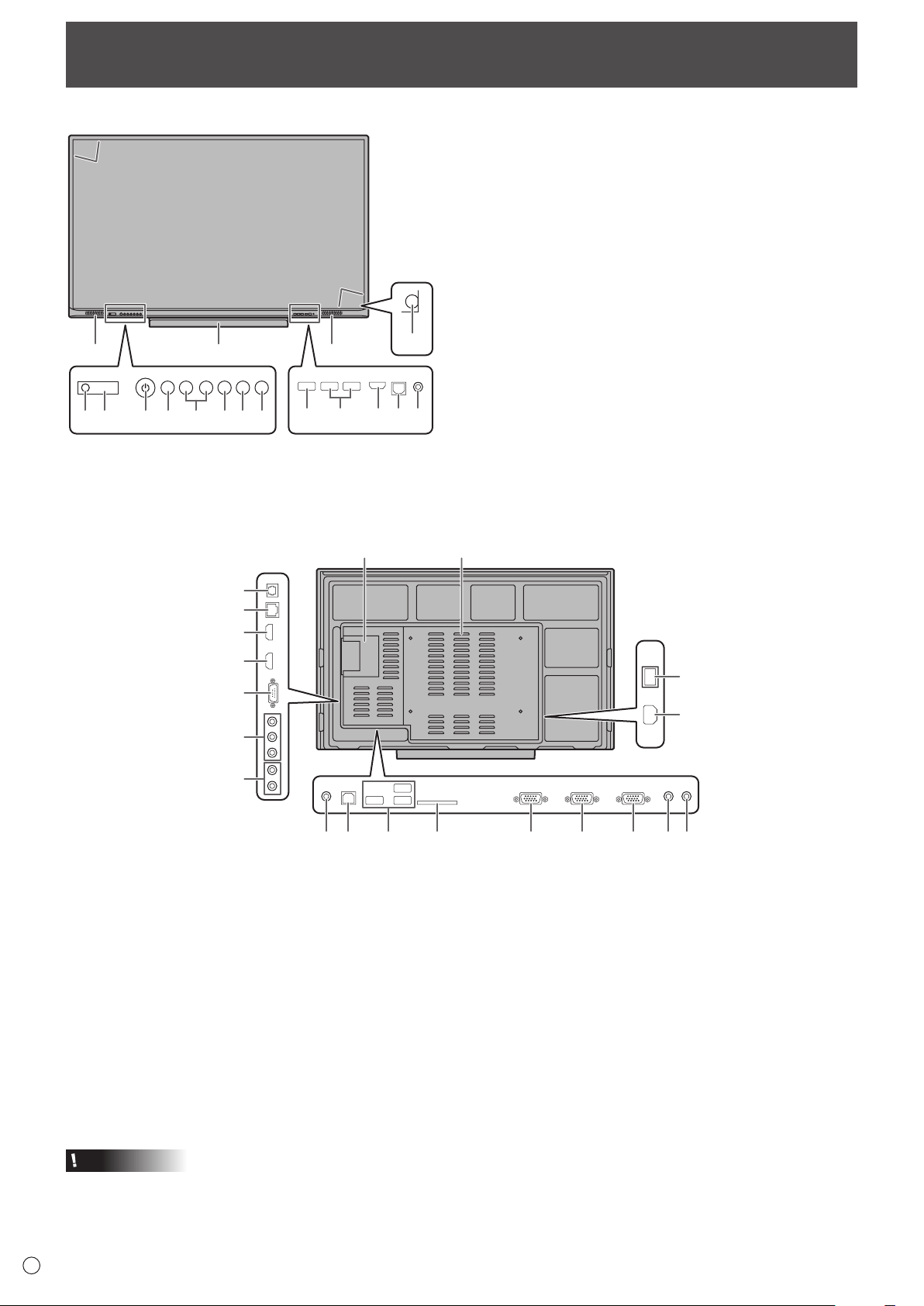

Front view

1414 15

91011 12 13

12 34 567 8

Part Names

1. Power LED (See page 16.)

2. Remote control sensor (See page 15.)

3. POWER button (See page 16.)

4. FREEZE button (See page 21.)

5. VOLUME +/- (Volume adjustment) buttons

(See page 21.)

6. Touch On/Off button

Toggle the touch panel on and off. When turned off, only

this button and the POWER button can be used.

7. MENU button (See page 22.)

8. INPUT button (See page 22.)

9. USB port (USB 2.0 compliant) (See page 12.)

10. USB ports (for Expansion slot) (USB 2.0 compliant)

(See page 12.)

11. HDMI 1 input terminal (See page 12.)

12. TOUCH PANEL terminal 1 (for touch panel)

(See page 13.)

13. Audio input terminal (See page 13.)

14. Speakers

15. Tray

16. Infrared transmitter/receiver

17. Brightness sensor

Caution

• ConsultyourSHARPdealerforattachment/detachmentofoptionalparts.

18. Main power switch (See page 16.)

19. AC input terminal (See page 14.)

20. Digital audio output (optical) terminal (See page 13.)

21. LAN terminal (See page 13.)

22. HDMI 2 input terminal (See page 13.)

23. HDMI 3 input terminal (See page 13.)

24. RS-232C input terminal (See page 13.)

25. Component input terminals (AV/YPBPR)

(See page 13.)

26. Audio input terminals (for component input terminals)

(See page 13.)

27. Audio output terminal (See page 13.)

28. TOUCH PANEL terminal 2 (for touch panel)

(See page 13.)

29. USB ports (USB 2.0 compliant) (See page 12.)

30. SD card slot (See page 13.)

31. D-sub 1 input terminal (VGA1) (See page 13.)

32. D-sub 2 input terminal (VGA2) (See page 13.)

33. D-sub output terminal (See page 13.)

34. Audio input terminal 1 (See page 13.)

35. Audio input terminal 2 (See page 13.)

36. Expansion slot (OPS)

This section is used to connect optional hardware for

function expansion. Offering this attachment location

is not a guarantee that future compatible hardware

attachments will be released.

37. Vents

Rear view

36 37

27 28 29 30 31 32 33 34 35

Part Names

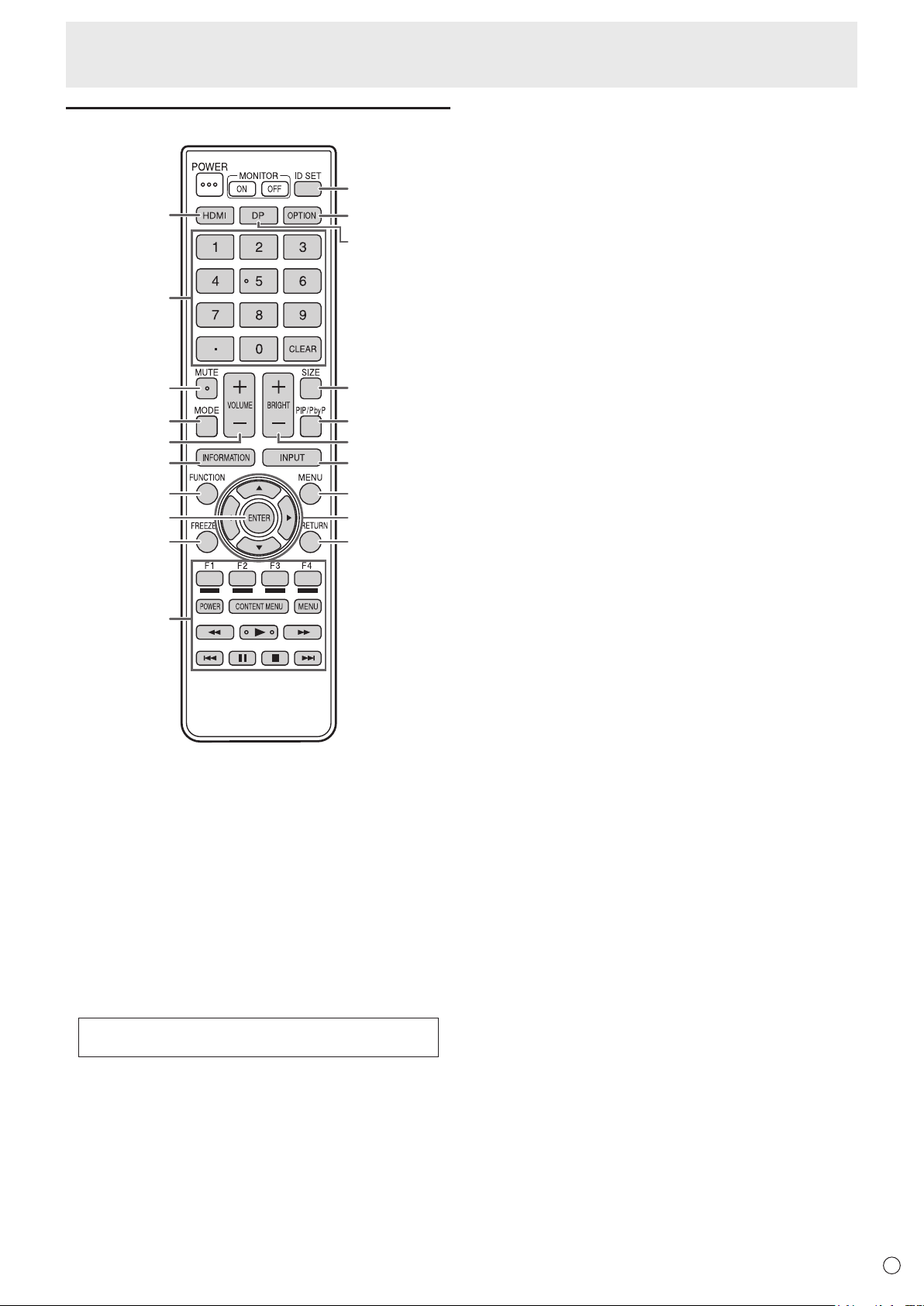

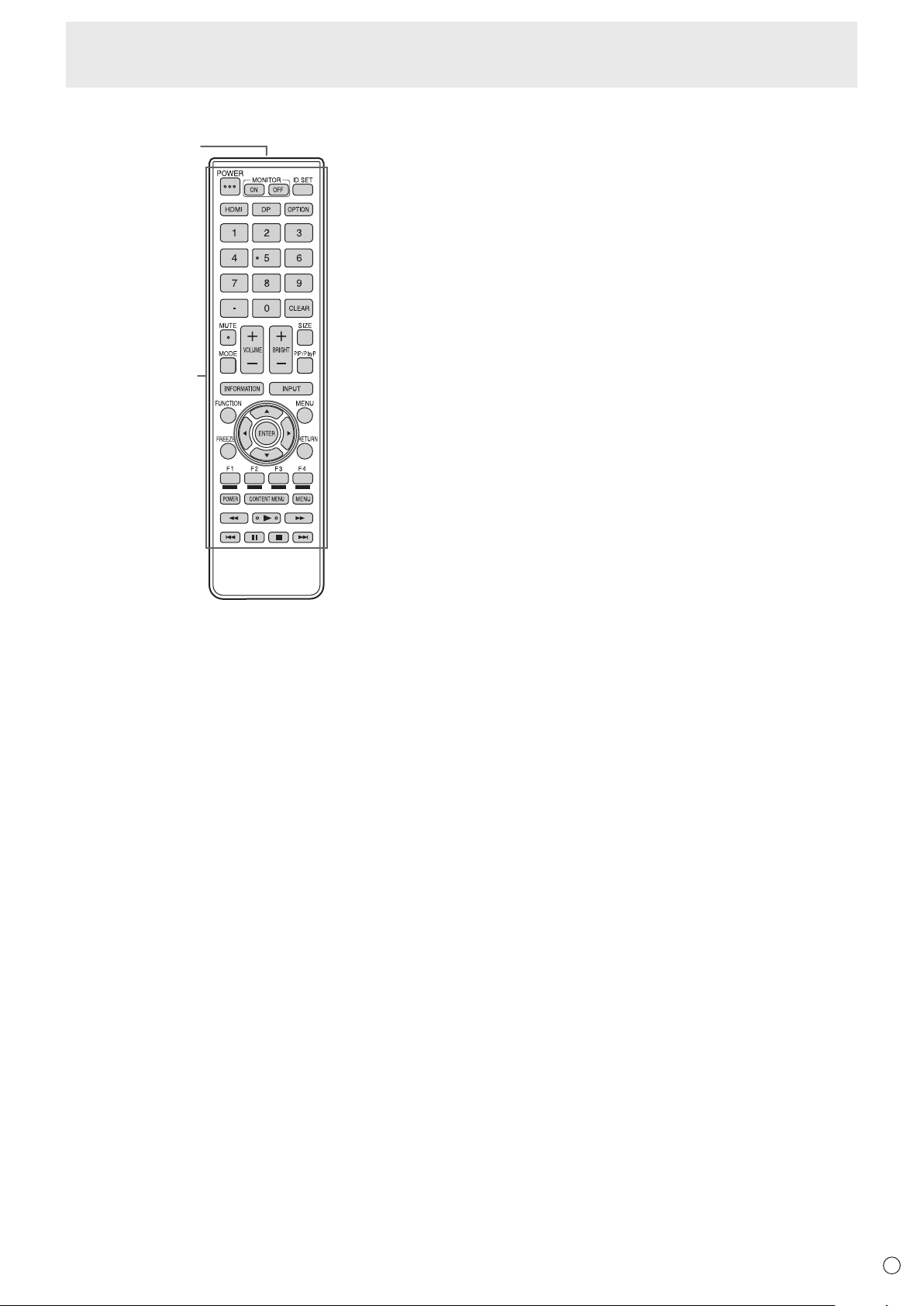

Remote control unit

1. Signal transmitter

2. Operation buttons (See page 21.)

12 3 4 5

14 15 16 17 18 19 201

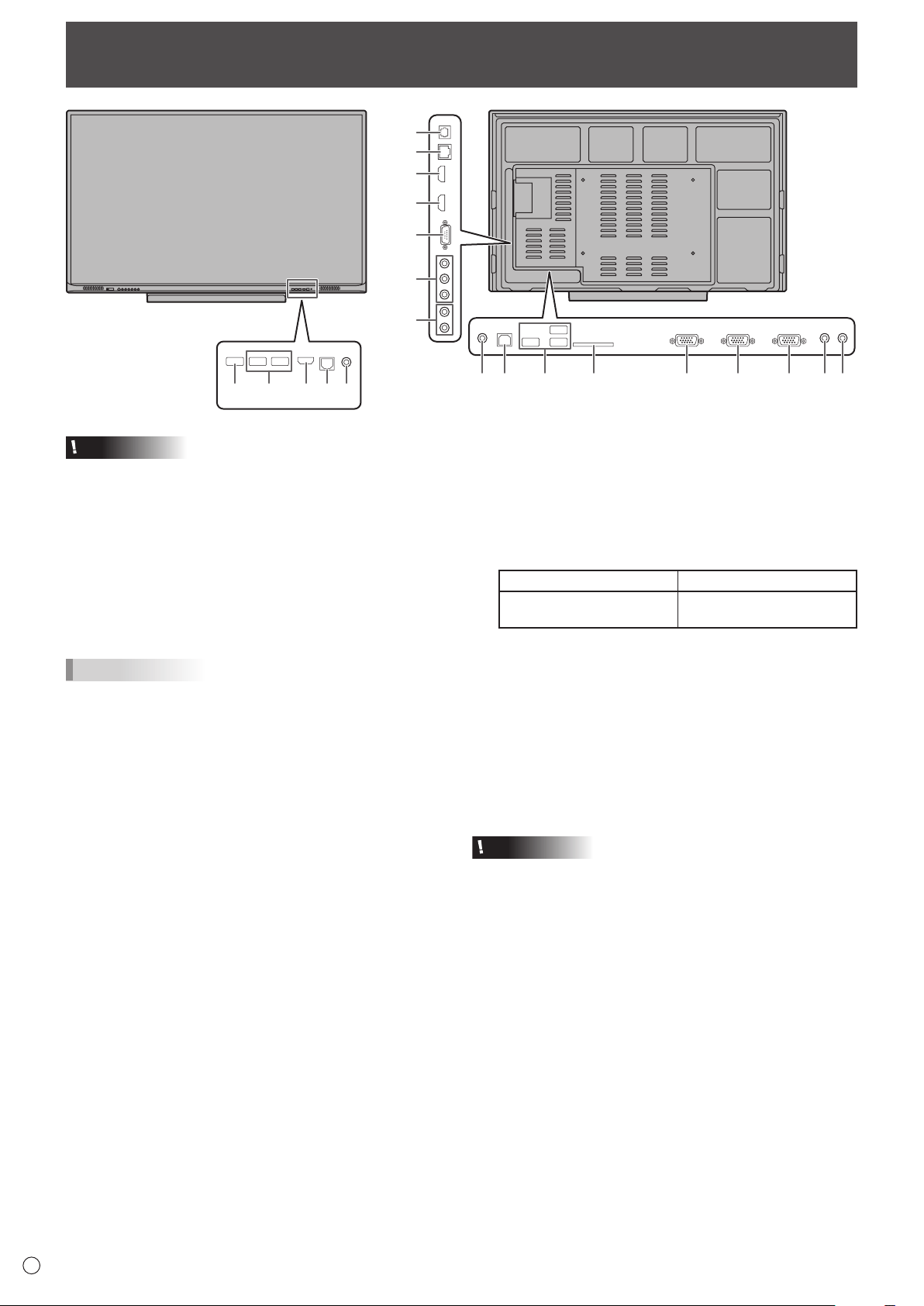

Connecting Peripheral Equipment

Caution

• Besuretoturnoffthemainpowerswitchanddisconnect

the plug from the power outlet before connecting/

disconnecting cables. Also, read the manual of the

equipment to be connected.

• Becarefulnottoconfusetheinputterminalwiththeoutput

terminal when connecting cables. Accidentally reversing

cables connected to the input and output terminals may

cause malfunctions and other problems.

• Donotuseanycablethathasadamagedordeformed

terminal. Using such cables may cause malfunctions.

TIPS

• Whenusingthetouchpanel,connecttheUSBcabletothe

computer.

• Imagesmaynotbedisplayedproperlydependingonthe

computer (video card) to be connected.

• Usetheautomaticscreenadjustmentwhenacomputer

screen is displayed for the first time using VGA(D-SUB) or

when the setting of the computer is changed. The screen

is adjusted automatically using Auto adjust in PC image

adjustment of the Image menu.

• Iftheaudiooutputfromtheplaybackdeviceisconnected

directly to speakers or other devices, the video on the

monitor may appear delayed from the audio portion.

Audio should be played through this monitor by connecting

the playback device to the monitor’s audio input, and

connecting the monitor’s audio output to the speakers or

other devices.

1. USB ports (USB 2.0 compliant) (5 V, 500 mA)

• ConnectaUSBflashdrivetotheUSBport.

• DonotconnectaUSBdeviceotherthanaUSBflash

drive.

• BeforeremovingaUSBflashdrive,followthestepsfor

removal. (See page 13.)

Supported USB flash drives

File System FAT32

Capacity

Up to 32 GB

(maximum file size 4 GB)

 • DonotuseaUSBflashdrivewithasecurityfunctionor

a write protection function.

 • UseaUSBflashdrivewithashapethatcanbeinserted

in the USB port. Some USB flash drives with special

shapes cannot be inserted. Do not forcibly insert a USB

flash drive. This may damage the connector and cause

failure.

2. USB ports (for Expansion slot) (USB 2.0 compliant)

(5 V, 500 mA)

• YoucanconnectacommerciallyavailableUSBmouseor

USB keyboard as a USB hub.

Caution

• Donotconnectastoragedevicesuchasaharddriveor

memory device.

3. HDMI 1 input terminal

• UseacommerciallyavailableHDMIcable(conformingto

the HDMI standard) that supports 4K.

• ThisterminaldoesnotsupportHDMICEC.

Connecting Peripheral Equipment

4. TOUCH PANEL terminal 1 (for touch panel)

• Tousethetouchpanelwithacomputer,connectthe

touch panel to the computer with a USB cable.

• Tousethisterminal,connectyourcomputertotheHDMI

1 input terminal on the front of the monitor.

5. Audio input terminal

• Useanaudiocablewithoutresistance.

• Whenusingthisterminalforinput,donotinputaudiofrom

any other terminals.

• Youcannotadjustthevolumewithvolumeadjustment.

Please control volume on source device.

6. Digital audio output (optical) terminal

• Audiothatisinputintothemonitorisoutput.

• Connectusingacommerciallyavailableaudiodigital

cable.

• Theoutputsoundvariesdependingontheinputmode.

• Youcanadjustthevolumewithvolumeadjustment.

7. LAN terminal

• WhenPowerSaveModeisOff,youcanconnecttoa

network and use the Wake on LAN function.

8. HDMI 2 input terminal

9. HDMI 3 input terminal

• UseacommerciallyavailableHDMIcable(conformingto

the HDMI standard) that supports 4K.

10. RS-232C input terminal

• Youcancontrolthemonitorfromacomputerby

connecting a commercially available RS-232 straight

cable between these terminals and the computer. The

terminal on the monitor is a female-type connector.

11. Component input terminals (AV/YPBPR)

• ChangetheinputmodetoYPBPR.

• Thiscanbeusedasavideoinputterminal.Connectto

the [VIDEO] input terminal, and change the input mode to

AV.

12. Audio input terminals (for Component input terminals)

13. Audio output terminal

• Theoutputsoundvariesdependingontheinputmode.

14. TOUCH PANEL terminal 2 (for touch panel)

• Tousethetouchpanelwithacomputer,connectthe

touch panel to the computer with a USB cable.

• Tousethisterminal,connectyourcomputertothevideo

input terminal on the rear of the monitor.

15. SD card slot

• InsertanSDmemorycardorSDHCmemorycard.SD

memory cards (up to 2GB) and SDHC memory cards (up

to 32GB) are supported. The explanations in this manual

refer to both SD memory cards and SDHC memory cards

as “SD memory cards”.

• BeforeremovinganSDmemorycard,followthestepsfor

removal. (See page below.)

Supported SD memory cards

File System FAT32

Capacity

Up to 32 GB

(maximum file size 4 GB)

 • DonotuseanSDmemorycardwithasecurityfunction

or a write protection function.

16. D-sub 1 input terminal (VGA1)

17. D-sub 2 input terminal (VGA2)

18. D-sub output terminal

19. Audio input terminal 1

20. Audio input terminal 2

• Useanaudiocablewithoutresistance.

How to remove a USB flash drive or an

SD memory card

1. In the home screen of APPLICATION mode, touch

and touch “Storage”.

2. Touch

of the device you want to remove.

Connecting the Power Cord

Caution

• Useonlythepowercordsuppliedwiththemonitor.

1. Turn off the main power switch.

2. Plug the power cord (supplied) into the AC input terminal.

3. Plug the power cord (supplied) into the power outlet.

Main power

switch

AC input

terminal

For power outlet

Power cord (Supplied)

Binding Cables

The supplied cable clamps can be used to clamp the power cord and cables connected to the back of the monitor.

Attach the supplied cable clamps (affixing type) to a flat surface, removing any dust or dirt before attaching.

Do not attach over a vent.

Cable clamp

(affixing type)

Affixing point

Cable

Preparing the Remote Control Unit

Remote control operation range

The operation range of the remote control unit is approx. 16.4

feet (5 m) at an angle of approx 10° from the center to the top/

bottom/right/left of the remote control sensor.

10°10°

10°

Remote

control sensor

16.4

feet

(5 m)

TIPS

• Donotexposetheremotecontrolunittoshockbydropping

or stepping on it. This could lead to a malfunction.

• Donotexposetheremotecontrolunittoliquids,anddonot

place it in an area with high humidity.

• Theremotecontrolunitmaynotworkproperlyiftheremote

control sensor is under direct sunlight or strong lighting.

• Objectsbetweentheremotecontrolunitandtheremote

control sensor may prevent proper operation.

• Replacethebatterieswhentheyrunlowasthismay

shorten the remote control’s operation range.

• Ifafluorescentlightisilluminatedneartheremotecontrol

unit, it may interfere with proper operation.

• Donotuseitwiththeremotecontrolofotherequipment

such as air conditioner, stereo components, etc.

Installing the batteries

1. Placeyourfingeronthepartmarkedwiththe▲,and

then pull the cover off.

2. See the instructions in the compartment and put in the

supplied batteries (R03 (“AAA” size) x 2) with their plus

(+) and minus (-) sides oriented correctly.

3. Close the cover.

TIPS

• Whenthebatteriesbecomeexhausted,replacethemwith

new (commercially available) batteries.

• Thesuppliedbatteriesmaybecomeexhaustedquickly

depending on how they are stored.

• Ifyouwillnotbeusingtheremotecontrolforalongtime,

remove the batteries.

• Usemanganeseoralkalinebatteriesonly.

Caution

• Turnonthemonitorfirstbeforeturningonthecomputeror

playbackdevice.

• WhenswitchingthemainpowerswitchorthePOWER

buttonoffandbackon,alwayswaitforatleast5seconds.

Ashortintervalmayresultinamalfunction.

Turning on the main power

Main power switch

Whenyouturnonthemainpower,themonitorentersstandby

mode.

Caution

• Themainpowermustbeturnedon/offwiththemainpower

switch.Donotconnect/disconnectthepowercordorturn

thebreakeron/offwhilethemainpowerswitchison.

• Foracompleteelectricaldisconnection,pulloutthemain

plug.

Turning Power On/Off

Turning power on/off

PressthePOWERbuttontoturnthepowerON/OFF.

YoucanalsoturnthepowerON/OFFbypressingthe

MONITORONbutton/MONITOROFFbuttonontheremote

controlunit.

Power LED

POWER button

Status Status of the monitor

Bluelit Poweron

Redlit Poweroff(Standbymode)

TIPS

• Whenthemainpowerswitchisoff,themonitorcannotbe

turnedon.

Touch action

Touch actions that can be used with this monitor differ

according to operating system and application. The functions

of touch actions are also different. For details, check operating

system Help and the application’s support documentation.

Operating system

Touch action

Windows 8.1 / 10 Chrome OS

Single-tap Yes Yes

Double-tap Yes Yes

Swipe Yes Yes

Swipe from edge of

screen

Yes Yes

Drag-and-drop Yes Yes

Flicks Yes Yes

Press-and-hold Yes Yes

Slide to pan Ye s Ye s

Zoom Yes Yes

Press-and-tap No Yes

Rotate Yes Yes

TIPS

• OntheMac,theactionsaretheequivalentmouseactions.

Common finger and touch pen actions

Single-tap

Same action as left-clicking a mouse.

Touch with your finger/touch pen.

Double-tap

Same action as double-clicking a mouse.

Quickly touch twice with your finger/touch pen.

When double-tapping with your finger, be sure to lift your

finger sufficiently off the screen after the first tap. If there

is insufficient distance between the screen and your finger,

double-tap will not take place.

Swipe

Touch the screen with your finger/touch pen, move without

lifting, and then stop.

Swipe from edge of screen

After touching the edge of the monitor with your finger/touch

pen, move horizontally without releasing your finger/touch pen

and then stop.

Touch action

Drag-and-drop

Same action as drag-and-drop with a mouse.

Touch the screen with your finger/touch pen and move without

lifting. When you have finished the movement, lift your finger/

touch pen.

Flicks

Flick your finger/touch pen in the direction of the function you

want to use.

Flick your finger

Press-and-hold

Same action as right-clicking a mouse.

Press briefly with your finger/touch pen, and then lift your

finger/touch pen from the screen.

Slide to pan

With your finger/touch pen touching the screen, move it up

and down to scroll the screen.

Finger actions

Zoom

Use in a screen that is capable of enlargement/reduction.

Touch the screen with two fingers and move your fingers

closer together to reduce the view, or apart to enlarge the

view.

Reduction

Enlargement

Press-and-tap

Same action as right-clicking a mouse.

With one finger touching the screen, tap once (single tap) with

another finger.

With one finger touching

Tap once (single tap) with another finger

Touch action

Rotate

Use this action in a screen that is capable of image rotation.

Touch the center point of the rotation with one finger. While

holding that finger still, move another finger in the desired

direction of rotation.

With one finger touching

Move another finger in the

desired direction of rotation

TIPS

•

The screen may not respond correctly in the following cases:

- Touch gesture is too quick.

- The distance between the two points is too short.

- The two points intersect.

Other functions

In Windows 8.1/10, input panel functions can be used.

For details, see Windows Help.

Input panel :

A software keyboard and an input panel with handwriting

recognition appear on the screen.

In Windows 8.1/10, the ink function of Microsoft Office can be

used.

Handwritten comments can be written, and handwriting can

be recognized.

For details, see Microsoft Office Help.

Cautionary points

• Donotusethetouchpenforanypurposeotherthantouch

panel operation.

• Donotpresshardonthepentip.

• Operationwillnottakeplacecorrectlyifthereisanobstacle

between the infrared transmitter/receiver and the touch pen

or your finger. Operation will not take place correctly if your

fingers or your sleeve is near the screen.

• Ifthetouchpenisheldtooflatagainstthescreen,the

touch position may not be correctly detected.

• Ifthetouchpendoesnotworkattheedgeofthescreen,

move it slowly.

• Ifthepentipbecomeswornordamaged,replacethetouch

pen. To purchase a new touch pen, consult your dealer.

• Thismaynotoperatecorrectlyifthereisaninverter

fluorescent light nearby.

• Ifthereisdirtorforeignmatteronthetipofthetouchpen,

remove it. Foreign matter may damage the screen.

• Thetouchpenpositionmayoccasionallydeviateinthe

• IftheUSBcablebecomesdisconnected,thetouch

panel may not operate correctly after the USB cable is

reconnected. In this case, restart the computer.

• When removing the pen tip or your finger from the screen,

remove a sufficient distance. If the distance is not sufficient,

a touch may be detected even if the screen is not touched.

Basic Operation

About the home screen of APPLICATION mode

This appears when the input mode is changed to APPLICATION.

(2)

(1)

(1) You can check the currently input video.

Change the input terminal with the menu at the bottom. Touch to change to the currently displayed input.

(2)

: Start the Drawing. (See page 24.)

: Start LocalMM. (See page 26.)

: Start File Explorer (See page 28.)

: Start EShareServer. (See page 29.)

: Display the Settings screen. (See page 30.)

Using the side menu

To show the menu, swipe from the edge (left or right) of the screen.

: Go back to the previous screen.

: Return to the home screen of APPLICATION mode.

: Display the change input menu. (See page 22.)

: Display the video settings menu. (See page 30.)

: Drawing starts in Overlay mode.

: Display the volume menu.

: Display the brightness menu.

Using the remote control unit

1. HDMI

Switch the input mode to HDMI 1, HDMI 2 or HDMI 3.

2. Numeric input buttons

These buttons are used for setting such as LAN setting.

3. MUTE

Turns off the volume temporarily.

Press the MUTE button again to turn the sound back to the

previous level.

4. MODE (Display mode selection)

In video input mode (other than APPLICATION), each time you

press this button, the picture mode changes in the following

order:

STD (Standard) → Soft → High Illuminance → STD...

• High Illuminance is a display with colors suited to bright

locations.

5. VOLUME +/- (Volume adjustment)

Press + or - to adjust the volume.

6. INFORMATION

In video input mode (other than APPLICATION), use this to

display the input terminal and the signal.

7. FUNCTION

Use this to display the FUNCTION menu. (See page 36.)

8. ENTER

Confirms the setting.

9. FREEZE

Freezes the video shown on the monitor.

To cancel, press any button other than the POWER button,

MUTE button or VOLUME button.

In some cases a residual image may occur. Do not freeze the

video for a long time.

10. Buttons for LocalMM or operating the HDMI-connected

device

When used in LocalMM, the buttons that can be used vary

depending on the file that is played.

When HDMI CEC is set to On, only the POWER button is

enabled for the device connected through the HDMI interface.

11. ID SET

This is not used with this monitor.

12. OPTION

Switch the input mode to APPLICATION or OPS.

13. DP (DisplayPort)

This is not used with this monitor.

14. SIZE (Screen size selection)

In video input mode (other than APPLICATION), each time

you press this button, screen size is changed. (See page 23.)

15. PIP/PbyP

This is not used with this monitor.

16. BRIGHT +/- (Brightness adjustment)

Press + or - to adjust the brightness.

Basic Operation

17. INPUT (Input mode selection)

The menu is displayed.

Press the

or button to select the input mode, and press

the ENTER button to enter.

Input mode Video Audio

APPLICATION APPLICATION

APPLICATION

OPS Expansion slot Expansion slot

HDMI 1

HDMI 1 input

terminal

HDMI 1 input

terminal

HDMI 2

HDMI 2 input

terminal

HDMI 2 input

terminal

HDMI 3

HDMI 3 input

terminal

HDMI 3 input

terminal

VGA1

D-sub 1 input

terminal

Audio input terminal

VGA2

D-sub 2 input

terminal

Audio input terminal

VIDEO input

terminal

Audio input

terminals

YPBPR

Component input

terminals

Audio input

terminals

18. MENU

Displays the menu screen. (See page 30.)

19. Cursor

These buttons are used to perform operations such as

selecting items, changing adjustment values, and moving the

cursor.

20. RETURN

Returns to the previous screen.

Basic Operation

Switching the screen size

Even when the screen size is changed, the display may remain the same depending on the input signal.

16:9 Displays the image with an aspect ratio of 16:9 so it fills the entire screen.

Use with 16:9 signals such as 3840 × 2160, 1920 × 1080 or 1280 × 720.

4:3

Displays the image with an aspect ratio of 4:3 so it fills the entire screen.

Use with 4:3 signals such as 640 × 480, 800 × 600, or 1024 × 768.

When showing such as 16:9 video, the width of the image will be shrunk.

Dot by Dot

Displays the dots of the input signals as the corresponding dots on the screen.

TIPS

• Usingthismonitor’sscreen-sizeswitchingfunctiontocompressorexpandthescreenforcommercialorpublicviewingin

establishments like cafes or hotels may infringe on the rights of the creators, as protected by Copyright Law, so please be

careful.

• Theappearanceoftheoriginalvideomaychangeifyouselectascreensizewithadifferentaspectratiothantheoriginal

image (e.g. TV broadcast or video input from external equipment).

• Whenplayingcommercialsoftware,partsoftheimage(likesubtitles)maybecropped.Inthiscaseselecttheoptimalscreen

size using the screen-size switching function of this monitor. With some software, there may be noise or distortion at the

edges of the screen. This is due to the characteristics of the software, and is not a malfunction.

• Dependingontheoriginalvideosize,blackbandsmayremainattheedgesofthescreen.

For Drawing, there are Whiteboard mode and Overlay mode.

In this application, the data of one screen is referred to as a “sheet”.

Whiteboard mode

You can use the screen as a whiteboard.

There are two drawing modes: pen mode and brush mode. You can draw on up to 10 sheets in pen mode, and up to 5 sheets in

brush mode.

Overlay mode

The board is shown as transparent.

Your drawing will appear on the transparent board placed over the screen, so that you can write comments directly on the items

displayed on the screen. Note, however, that you cannot operate the screen shown behind the transparent board.

Video input from the HDMI terminals cannot be saved.

Only 1 sheet.

• Thedrawnlinesandtheimagespastedontheboardarehandledinthesoftwareasan“object”.

• Youcandisplayanimagefile,andwrite/drawlettersandlinesontheimage.

You can switch between whiteboard

mode and overlay mode.

Used for drawing.

(See page 25.)

Caution

• Whenthepoweristurnedoff,anydatainDrawingislost.

Drawing

1. In whiteboard mode, select the pen to be used for drawing (see step 2), and select the sheet to be drawn.

Tool Function

Add a new sheet behind the currently displayed sheet.

Display the previous sheet.

Shows the current sheet number and the total number of sheets. Touch to show a list (thumbnails) of the

sheets on the right side of the screen. You can touch a thumbnail to go to that sheet. To delete that sheet,

touch

Display the next sheet.

2. Draw.

Select such as drawing tool to draw. You can perform the following operations.

• Thetypethatcanbeusedvariesdependingonwhiteboardoroverlayboardandthepentype.

Tool Function

Pen

Draw a line of even width. You can change the settings (line width/color). The drawn lines are handled in the

software as an “object”.

You can touch with the flat part of your finger or palm of your hand to automatically change to an eraser.

Brush

Brush a line as wide as the part of the screen you are touching. (Whiteboard only)

Object

eraser

Select and delete objects in the selected location. (Only when drawing by “Pen” mode in whiteboard)

When selecting, you cannot simply touch the object itself that you want to delete.

To select the object, trace over the object.

Eraser

Erase a drawn line. The size of the eraser varies by the area of the screen touched.

Select objects in the selected location. You can move or enlarge/reduce the object. (Only when drawing by

“Pen” mode in whiteboard)

Undo the previous drawing or edit.

(Only when drawing by “Pen” mode in whiteboard)

Redo an undone action. (Only when drawing by “Pen” mode in whiteboard)

The sub-menu will appear.

Save sheets.

Read in an image. (Only when drawing by pen mode in whiteboard)

Exit the application.

Hide the application.

Touch to delete all content from the sheet you are drawing.

3. Touch

to exit.

You can play photo, music, and video files.

Supported formats

The types of files that can be played are as follows.

The operation of formats not indicated in the table is not

guaranteed.

Photo files

Extension Max. resolution




Music files

Extension Sample rate

Maximum

bit rate

Audio coding

*.mp3 32/44.1/48kHz 320kbs MPEG-1,2,2.5 L3

Video files

Extension Video coding

Max.

resolution

Maximum

bit rate

*.mpg

(*.mpeg)

MPEG1/2

(MP@HL)

1920x1080@

30fps

40Mbps

*.mp4

H.264 (MP/HP)

1920x1080@

60fps

62.5Mbps

HEVC/H.265

(MP)

4096x2160@

60fps

100Mbps

MPEG1/2

(MP@HL)

1920x1080@

30fps

40Mbps

MPEG4

(SP/ASP)

1920x1080@

30fps

*.mkv

H.264 (MP/HP)

1920x1080@

60fps

62.5Mbps

HEVC/H.265

(MP)

4096x2160@

60fps

100Mbps

MPEG1/2

(MP@HL)

1920x1080@

30fps

40Mbps

MPEG4

(SP/ASP)

VP8 20Mbps

VP9

4096x2160@

60fps

100Mbps

*.webm

VP8

1920x1080@

30fps

20Mbps

VP9 (Prifile0, 2)

4096x2160@

60fps

100Mbps

*.3gp

H.264 (MP/HP)

1920x1080@

60fps

62.5Mbps

MPEG4

(SP/ASP)

1920x1080@

30fps

40Mbps

Extension Audio coding Sample rate

Maximum

bit rate

*.mpg

(*.mpeg)

MPEG-1,2,2.5 L3 32/44.1/48kHz 320kbs

MPEG-1,2 L2

Hz - 48

385kbps

LPCM 8kHz - 48kHz 1.5Mbps

*.mp4

AAC, HEAAC 8kHz - 48kHz

AAC-LC:

576kbps

V1: 288kbps

V2: 144kbps

MPEG-1,2,2.5 L3 32/44.1/48kHz

320kbs

*.mkv

MPEG-1,2,2.5 L3 32/44.1/48kHz

320kbs

MPEG-1,2 L2

Hz - 48

385kbps

AAC, HEAAC 8kHz - 48kHz

AAC-LC:

576kbps

V1: 288kbps

V2: 144kbps

*.webm

Vorbis

(only stereo)

up to 48kHz 192kbps

*.3gp AAC, HEAAC 8KHz - 48kHz

AAC-LC:

576kbps

V1: 288kbps

V2: 144kbps

•Bothvideocodecandaudiocodecneedtobesupported.

• Insomecasesitmaynotbepossibletoplaytheabove

files.

• Amaximumof32alphanumericcharacterscanbeusedfor

folder name and file name.

• Donotuseafilethatisover4GB.

LocalMM

Playing files

1. Touch in the home screen of APPLICATION mode.

2. Select the media with the file to be played.

3. Display the file you want to play and tap it.

The selected file starts playing.

You can narrow the type of file (photo[picture]/music/video)

with the icon on the left side of the screen.

TIPS

•

If there are files with same play format, the next file starts

playing. The file is played in order of file name.

When playing photos, each photo is displayed at the size of

the file’s resolution. You can enlarge a photo with the Zoom

Out function (see right).

•

For operations during play, see right.

To stop play

1. Press the RETURN button on the remote control unit.

Operations during play

When playback starts, you can display the operation bar in the

bottom of the screen by swiping from the bottom edge of the

screen.

You can perform the actions below while the operation bar is

displayed.

Play ( ) /

Pause (

)

Play the current file. If Photo is

selected, play slideshow. /

Pause the playing file.

FB (

)

Fast backward playing the file.

(Video only)

FF (

)

Fast forward playing the file.

(Video only)

Prev. (

)

Go to the previous file.

Next (

)

Go to the next file.

RepeatRandom

(

) /

Repeat1file (

) /

RepeatALL (

)

RepeatRandom:

Play and repeat files in the playlist at

random.

Repeat1file:

Play and repeat the current file.

RepeatALL:

Play and

epeat files in order of the

playlist.

(Music only)

Playlist (

)

Show Playlist. (Music and Video only)

Info (

)

Show Playing file information.

Rotate (Clockwise)

(

)

Rotate the current file 90 degrees

clockwise temporarily.

(Photo only)

Rotate

(Anti-Clockwise)

(

)

Rotate the current file 90 degrees Anti-

clockwise temporarily.

(Photo only)

Zoom In (

)

The file zooms in.

(Photo only)

Zoom Out (

)

The file zooms out.

(Photo only)

Playing settings

(

)

video subtitle:

You can change the subtitle display.

video track:

You can change multiplex audio.

(Video only)

File Explorer

You can long press a folder or file to copy, move, rename, or delete.

Select the memory you

want to display.

Select a menu item.

You can perform actions such

as sorting and creating a folder.

Wireless Display

• YoucandisplayimagesfromotherdevicesonthismonitorusingwirelessLAN.

You can capture the displayed image and set it to the background of a Drawing sheet.

• Softwaremustbedownloadedtotheotherdevice.

For details, see below.

• Connectionstoalldevicesisnotguaranteed.

Wireless adapter connection

1. Connect the supplied wireless adapter to the USB port indicated below on the rear of the monitor.

Caution

• Whenawirelessadapterisconnected,pleasedonotconnectotherUSBdevicetothesideUSBport.Thatmaycause

malfunctions as the terminals may interfere with each other. Please use the front USB port for connecting other device.

Wireless LAN connection settings

1. Swipe from the edge (left or right) of the screen, touch in the menu that appears, and touch .

2. Set Wireless LAN to On.

3. Configure the network connection settings in Wireless Setting.

Start EShareServer

1. Touch in the home screen of APPLICATION mode.

Display the image that appears on the other device

The following explanation uses Windows (device) as an example.

1. Access the address shown in EShare on the monitor with your browser, and download the software to the other

device whose screen is to be displayed.

2. Install and start the software you downloaded.

3. Check the name of the display shown in EShare on the monitor, select that name on the other device, and select

“Share screen”.

4. The other device connects to the monitor, and the image from the other device appears on the monitor.

5. Drawings are displayed in overlay mode.

You can draw on the displayed image and save the displayed image.

TIPS

• InAndroid,audiocannotbesentandtouchoperationcannotbeused.

Menu Items

Displaying the menu screen

Video and audio adjustment and settings of various functions

are enabled. This section describes how to use the menu

items. See page 31 for details of each menu items.

Caution

• Donotturnthemainpowerswitchoffwhilethemenuitems

arebeingdisplayed.Doingsomayinitializethesettings.

Display the video settings menu

1. Change to video input mode (other than APPLICATION).

2. Swipe from the edge (left or right) of the screen to

display the menu.

3. Touch

to display the settings menu.

(3)(2)(1)

(4)

(5)

(1) Image menu (See page 31.)

You can select this in video input mode (other than

APPLICATION).

(2) Sound menu (See page 32.)

(3) Others menu (See page 32.)

(4) Settings menu (See page 33.)

(5) Wireless LAN menu (See page 29.)

In this screen, you can switch 5 menus by touching each

icon.

4. Touch the icon of the desired menu.

5. Configure the setting for each item.

TIPS

• Themenuwilldifferdependingontheinputmode.

Display other menus

1. In the home screen of APPLICATION mode, touch .

• Common: DisplaytheCommonSettingsmenu.

(See pages 33 and 34.)

• Network: ConfigureLANsettings.

• Storage: Usetoremoveexternalmedia.

• Date: Setthedateandtime.

• Language: Setthedisplaylanguage.

• Reset: Executereset.

• AboutDevice: Showdeviceinformation.

Menu item details

The menu will differ depending on the input mode.

Image (

)

Image adjust

Contrast

Adjusts the difference between the bright and dark portions of the image.

Black Level

Adjusts the entire brightness of the video signals.

Saturation

Adjusts the color intensity.

Size

This is the same setting as when SIZE button is pressed. See page 23 for an explanation of the setting.

PC image adjustment (VGA[D-SUB])

Clock

Adjusts frequency for sampling clock for applicable video.

Adjust when there is flickering in the form of vertical stripes.

When using the adjustment pattern (see page 35), make adjustments so that no vertical stripe noise appears in it.

Phase

Adjusts sampling clock phase for applicable video. Useful when small characters appear with low contrast and/or there are

flickers at corners. When using the adjustment pattern (see page 35), make adjustments so that no horizontal stripe noise

appears in it.

* Adjustments to Phase should be made only after Clock has been correctly set.

H-POS

Adjust the horizontal position of the image.

V-POS

Adjust the vertical position of the image.

Auto adjust

The Clock, Phase, H-POS, and V-POS are automatically adjusted.

Pressing the ENTER button performs adjustment. Use this automatic adjustment when you use the VGA(D-SUB) to display

a computer screen for the first time or when you change the setting of the computer. (See page 35.)

HDMI Settings (HDMI)

HDMI Mode

Use Mode1 normally.

If video is not displayed correctly when one of the HDMI1 to HDMI3 input terminals is used, such as when a device that do

not support 4K is connected, set to Mode2.

HDMI RGB Input Range

Sets the RGB input signal range.

When using HDMI set to Auto, the RGB input signal range is detected automatically. Use Auto normally.

If the RGB input signal range cannot be set appropriately even when using Auto, set according to the image. When the

setting is different, images will be displayed with washed out blacks and compressed gradients.

HDMI CEC

HDMI 1 input terminal does not support HDMI CEC.

On ............. HDMI CEC function is used.

If the device connected to the HDMI input terminal supports CEC, power of the monitor is turned on when

playback starts on the device.

Off ............. HDMI CEC function is not used.

System Standby

Set whether the connected device enters standby mode when the monitor enters standby mode.

Device List

The name of the connected device appears.

Menu Items

Sound (

)

Audio

Bass

Adjusts the volume of bass-level sound.

Treble

Adjusts the volume of treble-level sound.

SPDIF

Set to ON to output PCM format on the digital audio output (optical) terminal.

Others (

)

Source Identify (HDMI)

Set automatic input switching when a signal is input. Set to Auto to switch automatically, or set to Request to show the selection

screen.

Eye protection

Set to On to have the screen brightness automatically decrease slightly when you touch the screen. If no action is performed

for about 3 seconds, the screen returns to its original brightness.

Menu Items

Settings (

)

Volume

Adjusts the volume.

Brightness

Set to Standard to fix the brightness. Set to Auto to have the brightness change automatically. Set to Energy Saving to fix the

brightness at the middle value. Set to Auto/Energy Saving to change Eye protection to Off.

Startup and Shutdown

Startup Source

You can set the input mode that will be in effect when the power is turned on.

Specified Source

Set the input mode at startup when the Startup Source is set to Specified Source.

OPS boot

Only OPS Source ....... When the input mode changes to OPS, turn on the power of the device in the expansion slot.

Any Source................. When the monitor power is turned on, turn on the power of the device in the expansion slot.

Close .......................... Do not automatically turn on the power of the device in the expansion slot.

Power Save Mode

When OFF is selected, Wake on LAN is enabled. Note, however, that more power will be consumed in standby mode.

When ON is selected, Wake on LAN is disabled. Note, however, that the startup time from standby mode becomes longer.

Time Settings

Automatic date & time

When connected to a LAN, set to On to automatically set the time to the network provided time.

Set date

When Automatic date & time is set to Off, set the date manually.

Set time

When Automatic date & time is set to Off, set the time manually.

Select time zone

Specify your time zone. Daylight saving time will be set automatically.

Use 24-hour format

Switch between 24-hour time and 12-hour time.

Language Settings

Language

Set the display language for the menu screen.

Mute With Freeze

Set whether or not audio turns off during freeze.

Backlight Off

When set to On, the backlight turns off. Audio does not turn off.

Off If No Operation

Determines whether or not to set the monitor to go into standby mode when there is no operation by the remote control unit,

touch or RS-232C control.

Time

Set the time until standby mode is entered.

System setting

The main menu items not found in the setting menu (see page 33) are explained in this section.

Ethernet

Set whether or not to use LAN terminal. Set the IP address, subnet mask, and other settings.

Automatic acquisition of IP

If your LAN has a DHCP server and you wish to obtain an address automatically, select Automatic acquisition of IP.

Static IP

You can configure the following settings.

IP Address, Gateway, Subnet Mask, DNS 1, DNS 2

Proxy

Configure settings to use a proxy server.

Screen Lock Setting

You can lock the monitor with a password when the power is turned on.

Off If No Signal

This setting determines whether or not to set the monitor to go into standby mode if there is no signal or no operation is

performed for 15 minutes.

Wallpaper

You can select wallpaper.

Menu Items

Adjustments for computer screen display

Automatic adjustment

When you use the VGA(D-SUB) to display a computer screen

for the first time, or when you change the setting of the

computer, use the automatic screen adjustment.

1. Switch the input to VGA1 or VGA2 and display the

adjustment pattern. (See the description below.)

2. Swipe from the edge (left or right) of the screen to

display the menu, and touch

- - “PC image

adjustment”.

3. Touch “Auto adjust”.

The automatic adjustment is complete in several seconds.

4. Press the RETURN button to close the menu screen.

TIPS

• Ifthescreencannotbeadjustedproperlywithone

automatic adjustment, repeat the automatic adjustment two

or three times. Try manual adjustment if necessary.

Screen display for adjustment

Before making adjustments in the Image menu, display

an image to brighten the entire screen. If you are using

a Windows computer, use the adjustment pattern on the

supplied CD-ROM.

Opening the adjustment pattern

The following example is performed in Windows 10.

1. Load the supplied CD-ROM into the computer’s CD-

ROM drive.

2. Open [CD Drive] in [This PC].

3. Double-click [Adj_uty.exe] in the [Monitor] folder.

The adjustment pattern will appear.

Adjust the screen automatically or manually.

4. When adjustment is finished, press the [Esc] on the

computer’s keyboard to quit the adjustment program.

5. Eject the CD-ROM from the CD-ROM drive.

TIPS

• Ifthedisplaymodeonthecomputeryouareusingis65000

colors, the color levels in the color pattern may appear

differently or grayscale may appear to be colored. (This

is due to the specifications of the input signal and is not a

malfunction.)

Functional Restriction Setting (Function)

You can restrict operations.

1. Press the FUNCTION button, and then press the MENU

button within 10 seconds.

Function

RC Lock

Monitor Lock

OFF

2. Select and set the items.

RC Lock

You can disable the remote control buttons.

OFF ............... Enables operation.

ON 1 .............. Disables all remote control operations.

ON 2 .............. Disables all remote control operations

other than POWER button (turning power

on/off)andVOLUME+/-button(volume

adjustment).

Monitor Lock

You can disable the monitor buttons.

3. Press the RETURN button to return to the normal

screen.

TIPS

• EvenifsetRCLocktoON1orMonitorLocktoON,

POWER button is enabled during standby mode.

Controlling the Monitor with a computer (RS-232C)

You can control this monitor from a computer via RS-232C

(COM port) on the computer.

Computer connection

Connect with RS-232 straight cable between the computer’s

COM port (RS-232C connector) and the RS-232C input

terminal on the monitor. The terminal on the monitor is a

female-type connector.

RS-232 straight cable

(commercially available)

To COM port

Computer

RS-232C

input terminal

Communication conditions

Set the RS-232C communication settings on the computer to

match the monitor’s communication settings as follows:

Baud rate 9600bps

Stop bit

1 bit

Data length 8 bits Flow control None

Parity bit None

Communication procedure

Command format

When a command is sent from the computer to the monitor,

the monitor operates according to the received command and

sends a response message to the computer.

C1 C2 C3 C4 P1 P2 P3 P4

Return code

Command field

(4 prescribed

alphanumerical characters)

Parameter field

(4 character string comprised of:

0-9, space, ?)

Example: VOLM0030

VOLM

* Be sure to input 4 characters for the parameter. Pad with

spaces (“

”) if necessary.

(“

” is a return code (0D

, 0A

or 0D

))

Wrong : VOLM30

Right : VOLM 30

If a command has “R” listed for “Direction” in the

“RS-232C command table” on page 39, the current value can

be returned by using “?” as the parameter.

Example:

VOLM ? ? ? ? ←

From computer to monitor (How

much is current volume setting?).

30 ←

From monitor to computer

(Current volume setting: 30).

TIPS

• SendCommandfield,ParameterfieldandReturncode

at the same time. When sending a command manually in

1 character units and it takes more than 2 seconds, the

command function does not work.

Controlling the Monitor with a computer (RS-232C)

Response code format

When a command has been executed correctly

O K

Return code

(0DH, 0AH)

A response is returned after a command is executed.

When a command has not been executed

R R E

Return code

(0DH, 0AH)

TIPS

• “ERR” is returned when there is no relevant command or

when the command cannot be used in the current state of

the monitor.

• Ifcommunicationhasnotbeenestablishedforreasons

such as a bad connection between the computer and

monitor, nothing is returned (not even ERR).

•

“ERR” may be returned when a command cannot be received

correctly due to interference from the surrounding environment.

Please ensure that the system or software resends the

command if this occurs.

If execution of the command is taking some time

I W T A

Return code

(0DH, 0AH)

When the following commands are used, “WAIT” is returned.

In this case, a value will be returned if you wait a while. Do not

send any command during this period.

• CommandswhichreturnWAIT:

RSET, POWR, INPS, WIDE, BOMD

Communication interval

• AfterOKorERRisreturned,youmustsendthefollowing

commands.

To set a timeout for the command response, specify 10

seconds or longer.

• Provideanintervalof100msormorebetweenthe

command response and the transmission of the next

command.

VOLM0020

INPS0002

WAIT

Interval of 100 ms or more

TIPS

• WhenALLRESETisexecuted,themonitorentersstandby

mode. Wait at least 1 minute before sending the next

command. If you execute power “On” after ALL RESET, it

will take time for the monitor to start up, so wait at least 5

minutes before sending the next command.

• Beforesendingapower“On”or“Off”command,itis

recommended that you perform buffer clear at the sending

application side.

• Afterexecutingapower“On”or“Off”command,waitat

least 1 minute before sending the next command.

RS-232C command table

How to read the command table

Command: Command field (See page 37.)

Direction: W When the “Parameter” is set in the parameter field (see page 37), the command functions as described

under “Control/Response Contents”.

R The returned value indicated under “Reply” can be obtained by setting “????” or “

?” in the

parameter field. (See page 37.)

Parameter: Parameter field (See page 37.)

Reply: Response (Returned value)

TIPS

• Inthestandbymode,theonlycommandthatisusedisPowercontrol.

Power control/Input mode selection

Function

Command Direction

Parameter Reply Control/Response contents

Powercontrol POWR W 0

Switchestostandbymode.

1 Returns from standby mode.

R 0 Standby mode

1 Normal mode

Input mode selection INPS W 0 Toggle change for input mode.

2 VGA1

3 YPBPR

4 AV

10 HDMI 1

13 HDMI 2

16 VGA2

18 HDMI 3

21 OPS

“ERR”whennothingisattachedintheexpansionslot.

24 APPLICATION

R 2 VGA1

3 YPBPR

4 AV

10 HDMI 1

13 HDMI 2

16 VGA2

18 HDMI 3

21 OPS

24 APPLICATION

Image menu

Function

Command Direction

Parameter Reply Control/Response contents

BRIGHT VLMP WR 0-100 0-100 “ERR”whenAutoandEnergySavingareineffect.

SIZE (Screen size selection) WIDE W 0 0 Toggle change for input mode.

WR 1-3 1-3 1: 16:9, 2: Dot by Dot, 3: 4:3

Settings menu

Function

Command Direction

Parameter Reply Control/Response contents

VOLUME VOLM WR 0-100 0-100

MUTE AUDIO MUTE WR 0-1 0-1 0: OFF, 1: ON

Controlling the Monitor with a computer (RS-232C)

Others

Function

Command Direction

Parameter Reply Control/Response contents

INFORMATION Model INF1 R Value

Serial no. SRNO R Value

ALL RESET RSET W 0 ALL RESET

BACKLIGHT OFF BOMD W 0 Turn backlight off

1 Turn backlight on

R 0 Backlight off

1 Backlight on

Check the resolution PXCK R - Returns current resolution in the form of hhh, vvv.

Controlling the Monitor with a computer (RS-232C)

Troubleshooting

If you are experiencing any problem with your display, before

calling for service, please review the following troubleshooting

tips.

There is no picture or sound.

• ThepowerLEDisoff.

- Is power supplied to this monitor?

- Is the power cord disconnected? (See page 14.)

- Is the main power switch off? (See page 16.)

• ThepowerLEDlightsred.

-Thismonitorisinstandbymode.Turnonthepower.(See

page 16.)

Remote control does not work.

• Arethebatteriesinsertedwithpolarity(+,-)aligned?(See

page 15.)

• Arethebatteriesexhausted?

• Pointtheremotecontrolunittowardthemonitor’sremote

control sensor. (See page 15.)

• Isoperationwiththeremotecontrolunitdisabled?(See

page 36.)

The remote control unit’s buttons for operating the HDMI-

connected device do not work.

• IsHDMICECsettoOnunderHDMISettingsontheImage

menu?

• Onthismonitor,onlythePOWERbuttonisenabled.

• Switchtoadifferentinputmode,andthentryswitchingthe

inputmodebacktoHDMI.

Sound from left and right speakers is reversed.

Sound is heard from only one side.

• Areaudiocablesconnectedproperly?

There is a picture but no sound.

• Isthesoundmuted?

• Makesurethevolumeisnotsettominimum.

• Areaudiocablesconnectedproperly?

Unstable video.

• Thesignalmaybeincompatible.

• TrytheautomaticscreenadjustmentwhenVGA(D-SUB)is

in use.

The video from the HDMI input terminal does not appear

properly.

• DoestheHDMIcablesupport4K,andisitHDMIstandard

compliant?Themonitorwillnotworkwithcablesthatare

not standard compliant.

• Istheinputsignalcompatiblewiththismonitor?(Seepages

45 and 46.)

• Whenconnectingadevicethatdoesnotsupport4KVsync

50/60Hzsignals,settheHDMIModetoMode2.

The video from D-Sub input terminal does not appear

correctly.

• Istheinputsignalcompatiblewiththismonitor?(Seepage

45.)

Control buttons do not work.

There is no picture.

• Loadnoisesfromoutsidemaybeinterferingwithnormal

operation.Turnoffthemainpowerandturnitonafter

waiting at least 5 seconds, and then check the operation.

The touch panel does not respond.

• IstheUSBcableconnectedproperly?

• Didyouconnectyourcomputertothevideoinputterminal

onthefrontwhenconnectedtoTOUCHPANELterminal1

on the front, or to the video input terminal on the rear when

connectedtoTOUCHPANELterminal2onthetherear?

• IstheTouchOn/OffbuttonsettoOff?

Troubleshooting

The response of the touch panel is slow.

Some parts of the screen do not respond.

A different place is touched.

• Is the screen exposed to direct sunlight or other strong

light? The touch panel uses infrared rays and thus may not

operate correctly.

• Is there an obstacle between the infrared transmitter/

receiver and the touch pen or your finger? An obstacle will

prevent correct operation. If your fingers or a sleeve are too

close to the screen, correct operation will not be possible.

• Is the infrared transmitter/receiver dirty? Gently wipe off

any dirt with a soft cloth.

• If the touch panel is touched with a small tip less than about

5/16 inch (8 mm) x 5/16 inch (8 mm), the touch may not

be detected by infrared and correct operation will not take

place.

• When starting your computer or connecting the USB cable,

do not touch the touch panel. If you touch the touch panel,

this may be detected as an element failure in the infrared

transmitter/receiver and incorrect operation will result.

The monitor makes a cracking sound.

• You may occasionally hear a cracking sound from the

monitor. This happens when the cabinet slightly expands

and contracts according to change in temperature. This

does not affect the monitor’s performance.

Specifications

Product Specifications

Model PN-CE701H

LCD component

70" Class [69-1/2 inch (176.56 cm) diagonal] TFT LCD

Max. resolution (pixels)

3840 x 2160

Max. colors

Approx. 1.07 billion colors

Pixel pitch

0.40075 mm (H) × 0.40075 mm (V)

Brightness (typical) 350 cd/m

Contrast ratio (typical) 4000: 1

Viewing angle

176°right/left/up/down(contrastratio≥10)

Screen active area inch (mm)

60-9/16 (W) x 34-1/16 (H) (1538.9 x 865.6)

Computer input signal

AnalogRGB(0.7Vp-p)[75Ω]

Sync signal

Horizontal/vertical separate (TTL: positive/negative)

Plug and play

VESA DDC2B

Input

terminals

Video Mini D-sub 15 pin, 3 rows x 2

HDMI x 3

AV RCA *

x 1

Component RCA *

x 1

Serial (RS-232C)

D-sub 9 pin x 1

Audio

3.5 mm mini stereo jack x 3

RCA pin (L/R) x 1

USB 2.0 compliant (Type A) x 4

2.0 compliant (Type A) x 2 (for Expansion slot)

Output

terminals

Video Mini D-sub 15 pin, 3 rows x 1

Audio

3.5 mm mini stereo jack x 1

Digital audio output (optical) x 1

System CPU Arm Cortex - A53 processor (quad core)

Memory 1.5GB

Storage 8GB

SD card slot SD/SDHC x 1

LAN terminal 10 BASE-T/100 BASE-TX (Wake on LAN only)

Wireless LAN IEEE802.11ac/n/a/g/b compliant (When a wireless adapter is connected)

Expansion slot 19 V, 4.74 A (power supplied when expanding the functions with an optional part)

Speaker output 10W+10W

Touch

Panel

Detection method Infrared blocking detection method

Computer connector USB (2.0 compliant) (Type B) x 2

Power requirement AC 100 - 240 V, 4.5 A, 50/60 Hz

Operating temperature

41°F to 95°F (5°C to 35°C)

Operating humidity

20% to 80% (no condensation)

Power consumption

(standby mode

)

400 W *

(0.5 W *

)

Dimensions inch (mm)

(excluding protrusions)

Approx. 64-1/8 (W) x 3-15/16 (D) x 39 (H) (1629 x 100 x 990)

Weight lbs. (kg)

Approx. 119.0 (54)

*1 Brightness will depend on input mode and other picture settings. Brightness level will decrease over time. Due to the nature of the

equipment, it is not possible to precisely maintain a constant level of brightness. This is the brightness of the LCD panel, not the

brightness of the product.

*2 AV RCA and Component RCA cannot be used simultaneously.

*3 Temperature condition may change when using the monitor together with the optional equipments recommended by SHARP. In such

cases, please check the temperature condition specified by the optional equipments.

*4 In addition, check the requirements of the computer and other devices to be connected, and make sure that all requirements are satisfied.

*5 When an option is installed in the expansion slot. When not installed, 295 W.

*6 When Power Save Mode is set to On.

When Power Save Mode is set to Off, and no optional part is attached: 2.0 W

As a part of our policy of continuous improvement, SHARP reserves the right to make design and specification changes for product improvement

without prior notice. The performance specification figures indicated are nominal values of production units. There may be some deviations from

these values in individual units.

Specifications

Dimensional Drawings

Note that the values shown are approximate values.

Unit: inch [mm]

Screw holes for mounting brackets

1/16

[1.3]

3-11/16

[93]

3-15/16

[100]

64-1/8 [1629]

31-3/4 [806]

11-13/16

[300]

11-13/16

[300]

[101.5]

11-3/4

[298.5]

2-1/16 [53]

1 [25.5]

39 [990]

41-1/8 [1044]

1 [25.5]

18-7/8 [480]

1 [25.5]

(Screw holes

for mounting

brackets)

When mounting the monitor, be sure to use a wall-mount bracket that complies with the VESA-compatible mounting method.

SHARP recommends using M6 screws and tighten the screws.

Note that screw hole depth of the monitor is 3/8 inch (10 mm). Loose mounting may cause the product to fall, resulting in serious

personal injuries as well as damage to the product. The screw and hole should come together with over 5/16 inch (8 mm) length

of thread. Use a bracket which has been approved for UL1678 standard, and which can endure at least 4 times or more the

weight of the monitor.

Compatible signal timing (PC)

Screen resolution Hsync Vsync

Frequency

Digital

Analog (D-sub)

HDMI

VESA 640 × 480 31.5kHz 60Hz 25.175MHz Yes Yes

37.9kHz 72Hz 31.5MHz Yes Yes

37.5kHz 75Hz 31.5MHz Yes Yes

800 × 600 35.1kHz 56Hz 36.0MHz - Yes

37.9kHz 60Hz 40.0MHz Yes Yes

48.1kHz 72Hz 50.0MHz Yes Yes

46.9kHz 75Hz 49.5MHz Yes Yes

848 × 480 31.0kHz 60Hz 33.75MHz - Yes

1024 × 768 48.4kHz 60Hz 65.0MHz Yes Yes

56.5kHz 70Hz 75.0MHz Yes Yes

60.0kHz 75Hz 78.75MHz Yes Yes

1280 × 768 47.8kHz 60Hz 79.5MHz - Yes

60.3kHz 75Hz 102.25MHz - Yes

1280 × 800 49.7kHz 60Hz 83.5MHz Yes Yes

1280 × 960 60.0kHz 60Hz 108.0MHz Yes Yes

1280 × 1024 64.0kHz 60Hz 108.0MHz Yes Yes

80.0kHz 75Hz 135.0MHz Yes Yes

1360 × 768 47.7kHz 60Hz 85.5MHz Yes Yes

1400 × 1050 65.3kHz 60Hz 121.75MHz Yes -

1440 × 900 55.9kHz 60Hz 106.5MHz Yes Yes

1600 × 1200 75.0kHz 60Hz 162.0MHz Yes Yes

1680 × 1050 65.3kHz 60Hz 146.25MHz Yes -

1920 × 1200 74.0kHz 60Hz 154.0MHz Yes Yes

Wide 1280 × 720 44.7kHz 60Hz 74.4MHz Yes Yes

1920 × 1080 67.5kHz 60Hz 148.5MHz Yes Yes

3840 × 2160 54.0kHz 24Hz 297.0MHz Yes -

56.3kHz 25Hz 297.0MHz Yes -

67.5kHz 30Hz 297.0MHz Yes -

67.5kHz 50Hz

297.0MHz Yes -

67.5kHz 60Hz

297.0MHz Yes -

4096 × 2160

54.0kHz 24Hz 297.0MHz Yes -

54.0kHz 25Hz 297.0MHz Yes -

54.0kHz 30Hz 297.0MHz Yes -

54.0kHz 50Hz

297.0MHz Yes -

54.0kHz 60Hz

297.0MHz Yes -

US TEXT 720 × 400 31.5kHz 70Hz 28.3MHz Yes Yes

*1 Displays a reduced image even if set to Dot by Dot.

*2 Compatible when HDMI Mode is Mode1.

Specifications

Compatible signal timing (AV)

Screen resolution Frequency HDMI Component

4096 × 2160p 24Hz Yes

25Hz Yes*

30Hz Yes*

50Hz Yes

59.94Hz Yes

60Hz Yes

3840 × 2160p 24Hz Yes

25Hz Yes

30Hz Yes

50Hz Yes

59.94Hz Yes

60Hz Yes

1920 × 1080p 24Hz Yes

50Hz Yes Yes

59.94Hz Yes Yes

60Hz Yes Yes

1920 × 1080i 50Hz Yes Yes

59.94Hz Yes Yes

60Hz Yes Yes

1280 × 720p 50Hz Yes Yes

59.94Hz Yes Yes

60Hz Yes Yes

720 × 576p 50Hz Yes Yes

720 × 480p 59.94Hz Yes Yes

60Hz Yes Yes

640 × 480p(VGA) 59.94Hz Yes

60Hz Yes

720(1440) × 576i 50Hz Yes Yes

720(1440) × 480i 59.94Hz Yes Yes

60Hz Yes Yes

* Compatible when HDMI Mode is Mode2.

TIPS

• WhenthesignalisdisplayedwiththeINFORMATIONbuttonduringHDMIinput,thesignalwillappearintheformat“xxxxp”,

suchas“2160p”,ratherthantheformat“3840×2160”.

DDC (plug and play)

ThemonitorsupportstheVESADDC(DisplayDataChannel)standard.

DDCisasignalstandardforplugandplaybetweenmonitorsandcomputers.Informationaboutresolutionandotherparameters

isexchangedbetweenthetwo.ThisfunctioncanbeusedifthecomputersupportsDDCandithasbeenconfiguredtodetect

plug-and-playmonitors.

ThereareseveraltypesofDDC,dependingonthecommunicationmethodused.ThismonitorsupportsDDC2B.

Specifications

Channels that can be used in wireless LAN

Standard Channel

Frequency band

(center frequency)

IEEE802.11 b/g/n 1-11ch 2412-2462MHz

IEEE802.11 ac/a/n 36/40/44/48ch 5180-5240MHz

52/56/60/64ch 5260-5320MHz

100/104/108/112/116/132/136/140ch 5500-5700MHz

149/153/157/161/165ch 5745-5825MHz

This device is restricted to indoor use due to its operation in the 5.15 GHz to 5.25 GHz frequency range. FCC requires this product to be used

indoors for frequency range 5.15 GHz to 5.25 GHz to reduce the potential for harmful interference to co-channel Mobile Satellite systems.

High power radars are allocated as primary users of the 5.25 GHz to 5.35 GHz and 5.65 GHz to 5.85 GHz bands. These radar stations can

cause interference with and/or damage this device.

Specifications

• Wheninstalling,removingormovingthemonitor,ensurethatthisiscarriedoutbyatleast3people.

• Besuretouseawall-mountbracketdesignedordesignatedformountingthemonitor.

• Thismonitorisdesignedtobeinstalledonaconcretewallorpillar.Reinforcedworkmightbenecessaryforsomematerials

suchasplaster/thinplasticboard/woodbeforestartinginstallation.

• Thismonitorandbracketmustbeinstalledonawallwhichcanendureatleast4timesormoretheweightofthemonitor.

Installbythemostsuitablemethodforthematerialandthestructure.

• ToattachaVESA-compliantmountingbracket,useM6screwsthatare5/16inch(8mm)to3/8inch(10mm)longerthanthe

thicknessofthemountingbracket.

Screws (M6)

Mounting bracket

Monitor mounting

5/16 - 3/8 inch (8-10 mm)

• Donotuseanimpactdriver.

• Whenmovingthemonitor,besuretoholdthepartsmarkedby

below.Donotgraspthescreenortray.Thismaycause

productdamage,failure,orinjury.

• Ifyouneedtotemporarilyplacethemonitoronatableorothersurfaceduringinstallation,spreadathicksoftclothonthe

tabletopreventdamagetothescreenandtable.

• Priortorepackingorremoval,removethetray.

• Aftermounting,pleasecarefullyensurethemonitorissecure,andnotabletocomeloosefromthewallormount.

• Donotuseanyscrewholesotherthanthoseformountingbrackets,locatedontherearofthemonitor,forinstallation.

Mounting Precautions

(For SHARP dealers and service engineers)

Attaching the Tray

Secure the tray using 5 tray mounting screws (M3x15) (supplied).

Mounting Precautions (For SHARP dealers and service engineers)

PN-CE701H M EN19F(1)
