Dji MAVIC 3 CLASSIC User Manual

User Manual

2022.12

v1.2

Searching for Keywords

Search for keywords such as “battery” and “install” to find a topic. If you are using Adobe

Acrobat Reader to read this document, press Ctrl+F on Windows or Command+F on Mac

to begin a search.

Navigating to a Topic

View a complete list of topics in the table of contents. Click on a topic to navigate to that

section.

Printing this Document

This document supports high resolution printing.

Version Date Revisions

v1.2 2022.12 Added Waypoint Flight

Revision Log

Using this Manual

Legend

Important Hints and Tips Reference

Read Before the First Flight

Read the following documents before using the DJI

MAVIC

3 Classic:

1. Safety Guidelines

2. Quick Start Guide

3. User Manual

It is recommended to watch all tutorial videos on the official DJI website and read safety

guidelines before using for the first time. Prepare for your first flight by reviewing the quick

start guide and refer to this user manual for more information.

Video Tutorials

Go to the address below or scan the QR code to watch the DJI Mavic 3 Classic tutorial videos,

which demonstrate how to use the Mavic 3 Classic safely:

Download the DJI Fly App

Make sure to use DJI Fly during flight. Scan the QR code above to download the latest version.

• The DJI RC remote controller has the DJI Fly app already installed. Users are required

to download DJI Fly to their mobile device when using DJI RC-N1 remote controller.

• The Android version of DJI Fly is compatible with Android v6.0 and later. The iOS

version of DJI Fly is compatible with iOS v11.0 and later.

* For increased safety, flight is restricted to a height of 98.4 ft (30 m) and range of 164 ft (50 m) when not

connected or logged into the app during flight. This applies to DJI Fly and all apps compatible with DJI

aircraft.

https://s.dji.com/guide44

Mavic 3 Classic

(DRONE ONLY)

Mavic 3 Classic

(DJI RC/DJI RC-N1)

https://s.dji.com/guide45

DJI Mavic 3 Classic User Manual

Download DJI Assistant 2 (Consumer Drones Series)

Download DJI ASSISTANT

2 (Consumer Drones Series) at

http://www.dji.com/mavic-3-classic/downloads.

• The operating temperature of this product is -10° to 40° C. It does not meet the

standard operating temperature for military grade application (-55° to 125° C),

which is required to endure greater environmental variability. Operate the product

appropriately and only for applications that it meets the operating temperature range

requirements of that grade.

Contents

Using this Manual 3

Legend 3

Read Before the First Flight 3

Video Tutorials 3

Download the DJI Fly App 3

Download DJI Assistant 2 (Consumer Drones Series) 4

Product Profile 9

Introduction 9

Feature Highlights 9

Using for the First Time 10

Preparing the Aircraft 10

Preparing the Remote Controller 11

Activating DJI Mavic 3 Classic Aircraft 12

Binding the Aircraft and Remote Controller 12

Updating Firmware 12

Diagram 12

Aircraft 12

DJI RC Remote Controller 13

RC-N1 Remote Controller 14

Aircraft 17

Flight Modes 17

Aircraft Status Indicators 18

Return to Home 19

Smart RTH 19

Low Battery RTH 22

Failsafe RTH 22

Landing Protection 23

Precision Landing 23

Vision Systems and Infrared Sensing System 25

Detection Range 25

Using the Vision Systems 26

Intelligent Flight Mode 28

FocusTrack 28

MasterShots 30

QuickShots 31

Hyperlapse 33

Waypoint Flight 36

Cruise Control 40

Advanced Pilot Assistance Systems 5.0 (APAS 5.0) 41

Flight Recorder 42

QuickTransfer 42

Propellers 43

Attaching the Propellers 43

Detaching the Propellers 43

Intelligent Flight Battery 44

Battery Features 44

Using the Battery 45

Charging the Battery 46

Inserting the Intelligent Flight Battery 47

Removing the Intelligent Flight Battery 47

Gimbal and Camera 48

Gimbal Profile 48

Gimbal Operation Modes 48

Camera Profile 49

Storing and Exporting Photos and Videos 49

Remote Controller 51

DJI RC 51

Using the Remote Controller 51

Status LED and Battery Level LEDs Description 54

Remote Controller Alert 54

Optimal Transmission Zone 55

Linking the Remote Controller 56

Operating the Touchscreen 56

Advanced Features 59

DJI RC-N1 60

Using the Remote Controller 60

Remote Controller Alert 63

Optimal Transmission Zone 63

Linking the Remote Controller 64

DJI Fly App 66

Home 66

Camera View 67

Flight 74

Flight Environment Requirements 74

Operating the Aircraft Responsibly 74

Flight Limits and GEO Zones 75

GEO (Geospatial Environment Online) System 75

Flight Limits 75

Flight Altitude and Distance Limits 75

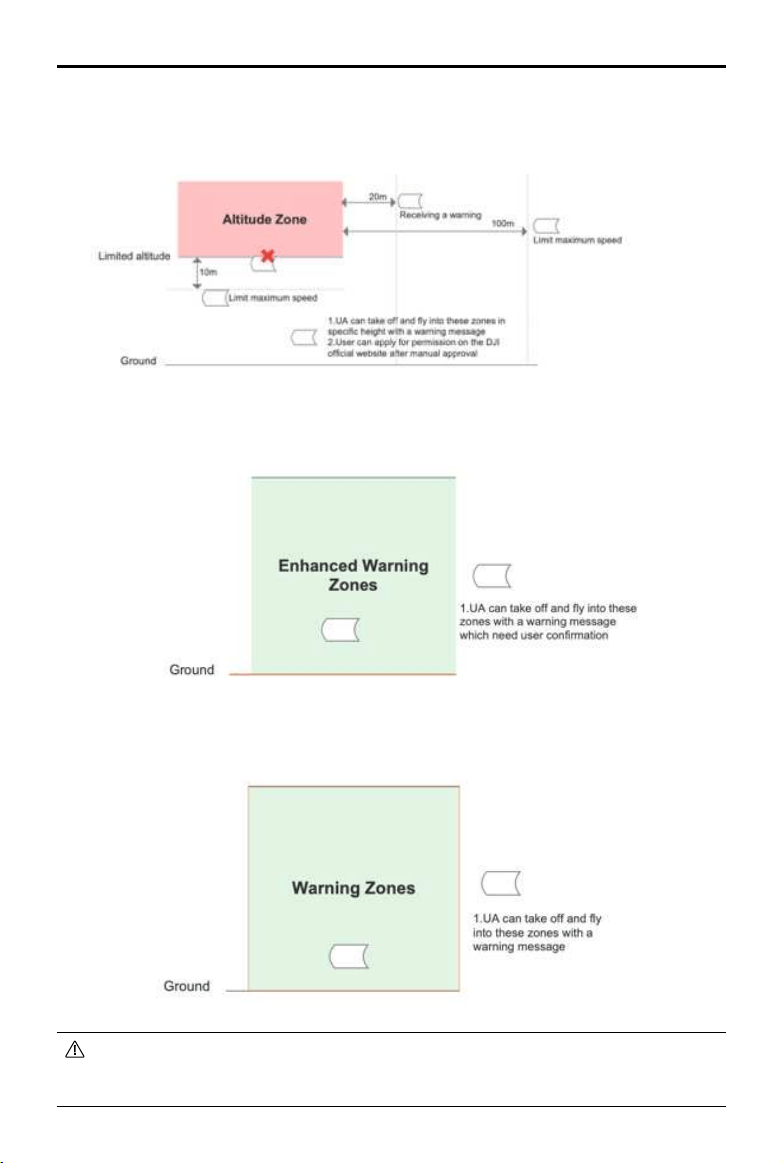

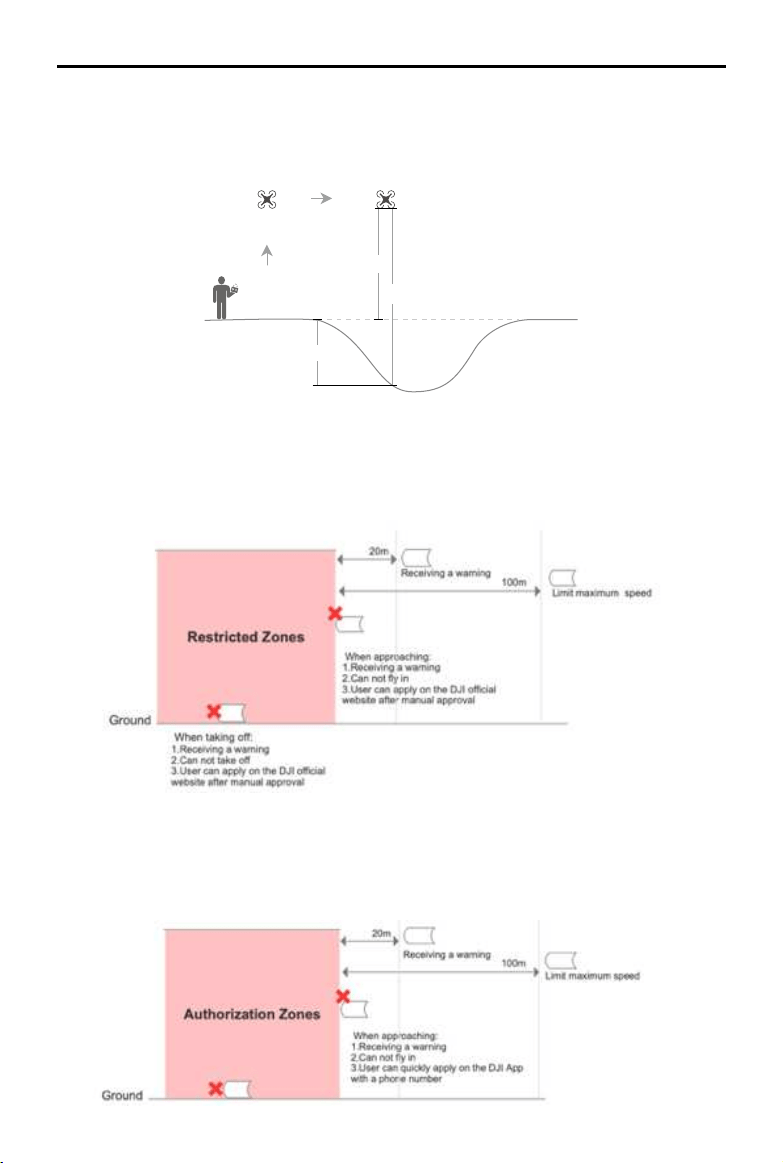

GEO Zones 76

Pre-Flight Checklist 76

Auto Takeoff/Landing 77

Auto Takeoff 77

Auto Landing 77

Starting/Stopping the Motors 78

Starting the Motors 78

Stopping the Motors 78

Stopping the Motors Mid-Flight 78

Flight Test 79

Takeoff/Landing Procedures 79

Video Suggestions and Tips 79

Appendix 81

Specifications 81

Firmware Update 86

Using DJI Fly 86

Using DJI Assistant 2 (Consumer Drones Series) 86

Maintenance Instructions 87

Troubleshooting Procedures 88

Risk and Warnings 88

Disposal 89

C1 Certification 89

MTOM Statement 89

Direct Remote ID 90

List of Items, including qualified accessories 90

List of Spare and Replacement Parts 90

Remote Controller Warnings 90

GEO Awareness 90

FAR Remote ID Compliance Information 93

After-Sales Information 93

Product Profile

This section introduces DJI Mavic 3 Classic

and lists the components of the aircraft

and remote controller.

Product Profile

Introduction

DJI Mavic 3 Classic features both an Infrared Sensing System and Forward, Backward, Upward,

Lateral, and Downward Vision Systems, allowing for hovering and flying indoors as well as

outdoors and for automatic Return to Home while avoiding obstacles in all directions. The

aircraft has a maximum flight speed of 47 mph (75.6 kph) and a maximum flight time of 46

minutes.

The DJI RC remote controller has a built-in 5.5-in screen with a resolution of 1920×1080 pixels.

Users can connect to the internet via Wi-Fi while the Android operating system includes both

Bluetooth and GNSS. The DJI RC remote controller comes with a wide range of aircraft and gimbal

controls as well as customizable buttons. It has a maximum operating time of approximately 4

hours. The RC-N1 remote controller displays the video transmission from the aircraft to DJI Fly on

a mobile device. The aircraft and camera are easy to control using the onboard buttons and the

remote controller has a runtime of 6 hours.

Feature Highlights

Gimbal and Camera: DJI Mavic 3 Classic uses a 4/3 CMOS sensor Hasselblad L2D-20c camera,

capable of shooting 20MP photos and 5.1K 50fps/DCI 4K 120fps H.264/H.265 videos. The

camera has an adjustable aperture of f/2.8 to f/11, a dynamic range of 12.8 stops, and supports

10-bit D-Log video.

Video Transmission: With four built-in antennas and DJI’s long-range transmission O3+ technology,

DJI Mavic 3 Classic offers a maximum transmission range of 15 km and video quality at up to 1080p

60fps from the aircraft to the DJI Fly app. The remote controller works at both 2.4 and 5.8 GHz, and is

capable of selecting the best transmission channel automatically.

Intelligent Flight Modes: The user can focus on operating the aircraft while the Advanced Pilot

Assistance System 5.0 (APAS 5.0) helps the aircraft to avoid obstacles in all directions and effortlessly

capture complex shots using FocusTrack, MasterShots, QuickShots and Hyperlapse.

• The maximum flight time was tested in an environment without wind while flying at a

consistent flight speed of 20.1 mph (32.4 kph). The maximum flight speed was tested

at sea level altitude without wind. Note that the maximum flight speed is limited to 42

mph (68.4 kph) in the European Union (EU). These value are for reference only.

• The remote controller reaches its maximum transmission distance (FCC) in a wide-

open area with no electromagnetic interference at an altitude of about 400 ft (120 m).

The maximum transmission distance refers to the maximum distance that the aircraft

can still send and receive transmissions. It does not refer to the maximum distance

the aircraft can fly in a single flight. The maximum runtime was tested in a laboratory

environment and without charging the mobile device. This value is for reference only.

• 5.8 GHz is not supported in some regions. Observe the local laws and regulations.

• DJI RC-N1, DJI RC remote controller, and all types of ND filters are fully compatible with

Mavic 3 Classic.

DJI Mavic 3 Classic User Manual

3. Unfold the front arms, followed by the rear arms, and then the propeller blades.

• Make sure to unfold the front arms before unfolding the rear arms.

• Make sure the storage cover is removed and all arms are unfolded before powering

on the aircraft. Otherwise, it may affect the aircraft self-diagnostics.

• Attach the storage cover when the aircraft is not in use.

• DJI 65W charger is not included in Mavic 3 Classic (Drone Only). It is recommended to

use a PD 65W charger to charge the Intelligent Flight Battery.

Using for the First Time

DJI Mavic 3 Classic is folded before being packaged. Follow the steps below to unfold the aircraft

and remote controller.

Preparing the Aircraft

1. Remove the storage cover.

2. All Intelligent Flight Batteries are in hibernation mode before delivery to ensure safety.

Charge and activate the Intelligent Flight Batteries for the first time. It takes approximately

1 hour and 36 minutes to fully charge an Intelligent Flight Battery using the provided

DJI 65W charger. Charging time is tested when using the fixed cable of the charger. It is

recommended to use this cable to charge the Intelligent Flight Battery.

DJI Mavic 3 Classic User Manual

Preparing the Remote Controller

Follow the steps below to prepare to use the DJI RC remote controller.

1. Remove the control sticks from the storage slots and mount them on the remote controller.

2. The remote controller needs to be activated before first use and an internet connection is

required for activation. Press, and then press again and hold the power button to power on

the remote controller. Follow the on-screen prompts to activate the remote controller.

Follow the steps below to prepare the DJI RC-N1 remote controller.

1. Remove the control sticks from their storage slots on the remote controller and screw them

into place.

2. Pull out the mobile device holder. Choose an appropriate remote controller cable based on

the type of mobile device. A Lightning connector cable, Micro USB cable, and USB-C cable are

included in the packaging. Connect the end of the cable with the phone icon to your mobile

device. Make sure the mobile device is secured.

• If a USB connection prompt appears when using an Android mobile device, select the

option to charge only. Otherwise, it may fail to connect.

DJI Mavic 3 Classic User Manual

Diagram

Aircraft

1. Gimbal and Camera

2. Horizontal Omnidirectional

Vision System

3. Auxiliary Bottom Light

4. Downward Vision System

5. Infrared Sensing System

6. Front LEDs

7. Motors

8. Propellers

9. Aircraft Status Indicators

10. Landing Gears (Built-in antennas)

11. Upward Vision System

12. Intelligent Flight Battery

13. Battery Level LEDs

14. Power Button

15. Battery Buckles

16. USB-C Port

17. microSD Card Slot

Activating DJI Mavic 3 Classic Aircraft

DJI Mavic 3 Classic requires activation before using for the first time. After powering on the

aircraft and remote controller, follow the on-screen prompts to activate DJI Mavic 3 Classic using

DJI Fly. An internet connection is required for activation.

Binding the Aircraft and Remote Controller

It is recommended to bind the aircraft and remote controller to help ensure the best possible

after-sales service. Follow the on-screen prompts after activation to bind the aircraft and

remote controller.

Updating Firmware

A prompt will appear in DJI Fly when new firmware is available. It is recommended to update the

firmware whenever prompted to do so in order to ensure the best possible user experience.

DJI Mavic 3 Classic User Manual

DJI RC Remote Controller

1. Control Sticks

Use the control sticks to control the

movement of the aircraft. The control

sticks are removable and easy to store.

Set the flight control mode in DJI Fly.

2. Status LED

Indicates the status of the remote

controller.

3. Battery Level LEDs

Displays the current battery level of the

remote controller.

4. Flight Pause/Return to Home (RTH) Button

Press once to make the aircraft brake and

hover in place (only when GNSS or Vision

Systems are available). Press and hold to

initiate RTH. Press again to cancel RTH.

5. Flight Mode Switch

Switch between Cine, Normal, and Sport

mode.

6. Power Button

Press once to check the current battery

level. Press, and then press and hold to

power the remote controller on or off.

When the remote controller is powered

on, press once to turn the touchscreen on

or off.

7. Touchscreen

Touch the screen to operate the remote

controller. Note that the touchscreen is

not waterproof. Operate with caution.

8. USB-C Port

For charging and connecting the remote

controller to your computer.

9. microSD Card Slot

For inserting a microSD card.

10. Host Port (USB-C)

Reserved port.

11. Gimbal Dial

Controls the tilt of the camera.

12. Record Button

Press once to start or stop recording.

13. Camera Control Dial

Control zoom in/out by default. The dial

function can be set in DJI Fly.

14. Focus/Shutter Button

Press halfway down on the button to auto

focus and press all the way down to take

a photo. Press once to switch to photo

mode when in record mode.

15. Speaker

Outputs sound.

DJI Mavic 3 Classic User Manual

17 18

16. Control Sticks Storage Slot

For storing the control sticks.

17. Customizable C2 Button

Control Auxiliary Bottom Light by default

(switch between recentering the gimbal

and pointing the gimbal downward by

default when using in EU). The function

can be set in DJI Fly.

18. Customizable C1 Button

Switch between recentering the gimbal

and pointing the gimbal downward. The

function can be set in DJI Fly.

1. Power Button

Press once to check the current battery

level. Press once, then again, and hold to

power the remote controller on or off.

2. Flight Mode Switch

Switch between Sport, Normal, and Cine

mode.

3. Flight Pause/Return to Home (RTH) Button

Press once to make the aircraft brake and

hover in place (only when GNSS or Vision

Systems are available). Press and hold

the button to initiate RTH. Press again to

cancel RTH.

RC-N1 Remote Controller

4. Battery Level LEDs

Displays the current battery level of the

remote controller.

5. Control Sticks

Use the control sticks to control the

aircraft movements. Set the flight control

mode in DJI Fly. The control sticks are

removable and easy to store.

6. Customizable Button

Press once to recenter the gimbal or tilt

the gimbal downward (default settings).

Press twice to turn the Auxiliary Bottom

Light on or off. The button can be set in

DJI Fly.

DJI Mavic 3 Classic User Manual

7. Photo/Video Toggle

Press once to switch between photo and

video mode.

8. Remote Controller Cable

Connect to a mobile device for video

linking via the remote controller cable.

Select the cable according to the mobile

device.

9. Mobile Device Holder

Used to securely mount the mobile device

to the remote controller.

10. Antennas

Relay aircraft control and video wireless

signals.

11. USB-C Port

For charging and connecting the remote

controller to the computer.

12. Control Sticks Storage Slot

For storing the control sticks.

13. Gimbal Dial

Controls the tilt of the camera.

14. Shutter/Record Button

Press once to take photos or start or stop

recording.

15. Mobile Device Slot

Used to secure the mobile device.

Aircraft

DJI Mavic 3 Classic contains a flight

controller, video downlink system,

vision systems, infrared sensing system,

propulsion system, and an Intelligent

Flight Battery.

Aircraft

DJI Mavic 3 Classic contains a flight controller, video downlink system, vision systems, infrared

sensing system, propulsion system, and an Intelligent Flight Battery.

Flight Modes

DJI Mavic 3 Classic has three flight modes, plus a fourth flight mode that the aircraft switches

to in certain scenarios. Flight modes can be switched via the Flight Mode switch on the remote

controller.

Normal Mode: The aircraft utilizes GNSS and the Forward, Backward, Lateral, Upward, and

Downward Vision Systems and Infrared Sensing System to locate and stabilize itself. When

the GNSS signal is strong, the aircraft uses GNSS to locate and stabilize itself. When the GNSS

is weak but the lighting and other environment conditions are sufficient, the aircraft uses the

vision systems to locate and stabilize itself. When the Forward, Backward, Lateral, Upward,

and Downward Vision Systems are enabled and lighting and other environment conditions are

sufficient, the maximum tilt angle is 30° and the maximum flight speed is 15 m/s.

Sport Mode: In Sport mode, the aircraft uses GNSS for positioning and the aircraft responses

are optimized for agility and speed making it more responsive to control stick movements. Note

that obstacle sensing is disabled and the maximum flight speed is 21 m/s (19 m/s when flying in

the EU).

Cine Mode: Cine mode is based on Normal mode and the flight speed is limited, making the

aircraft more stable during shooting.

The aircraft automatically changes to Attitude (ATTI) mode when the Vision Systems are

unavailable or disabled and when the GNSS signal is weak or the compass experiences

interference. In ATTI mode, the aircraft may be more easily affected by its surroundings.

Environmental factors such as wind can result in horizontal shifting, which may present hazards,

especially when flying in confined spaces.

• The Forward, Backward, Lateral, and Upward Vision Systems are disabled in Sport mode,

which means the aircraft cannot sense obstacles on its route automatically.

• The maximum speed and braking distance of the aircraft significantly increase in Sport

mode. A minimum braking distance of 30 m is required in windless conditions.

• A minimum braking distance of 10 m is required in windless conditions while the aircraft

is ascending and descending.

• The responsiveness of the aircraft significantly increases in Sport mode, which means

a small control stick movement on the remote controller translates into the aircraft

moving a large distance. Make sure to maintain adequate maneuvering space during

flight.

DJI Mavic 3 Classic User Manual

When the aircraft is powered on but the motors are not running, the front LEDs glow solid red

to display the orientation of the aircraft.

When the aircraft is powered on but the motors are not running, the aircraft status indicators

display the status of the flight control system. Refer to the table below for more information

about the aircraft status indicators.

Aircraft Status Indicator States

Normal States

Alternating red, green,

and yellow

Blinks

Turning on and performing

self-diagnostic tests

×4

Yellow Blinks four times Warming up

Green Blinks slowly GNSS enabled

×2

Green Periodically blinks twice Vision Systems enabled

Yellow Blinks slowly NO GNSS or Vision Systems

Warning States

Yellow Blinks quickly Remote controller signal lost

Red Blinks slowly Low battery

Red Blinks quickly Critically low battery

——

Red Solid Critical error

Alternating red and yellow Blinks quickly Compass calibration required

After the motor starts, the front LEDs blink red and green alternately and the aircraft status

indicators blink green. The green lights indicate the aircraft is a UAV and the red lights indicate

the heading and position of the aircraft.

• If the front LEDs are set to auto in DJI Fly, the front LEDs turn off automatically when

shooting to obtain better footage. Lighting requirements vary depending on the

region. Observe local laws and regulations.

Aircraft Status Indicators

DJI Mavic 3 Classic has front LEDs and aircraft status indicators.

Front LED

Aircraft Status Indicator

Front LED

Aircraft Status Indicator

DJI Mavic 3 Classic User Manual

Return to Home

Return to Home (RTH) returns the aircraft to the last recorded Home Point when the positioning

system is functioning normally. There are three types of RTH: Smart RTH, Low Battery RTH, and

Failsafe RTH. The aircraft automatically flies back to the Home Point and lands when Smart RTH

is initiated, the aircraft enters Low Battery RTH, or the video link signal is lost during flight.

GNSS

Description

Home

Point

The default Home Point is the first location where the aircraft received

a strong to moderately strong GNSS signal where the icon is white. The

Home Point can be updated before takeoff as long as the aircraft receives

a strong to moderately strong GNSS. If the GNSS signal is weak then the

Home Point cannot be updated.

Smart RTH

If the GNSS signal is sufficient, Smart RTH can be used to bring the aircraft back to the Home

Point. Smart RTH is initiated either by tapping

in DJI Fly or by pressing and holding the RTH

button on the remote controller until it beeps. Exit Smart RTH by tapping

in DJI Fly or by

pressing the RTH button on the remote controller.

Advanced RTH

Advanced RTH is enabled if the lighting is sufficient and the environment is suitable for the

vision systems when Smart RTH is triggered. The aircraft will automatically plan the best RTH

path, which will be displayed in DJI Fly and will adjust according to the environment.

RTH Settings

RTH settings are available for Advanced RTH. Go to the camera view in DJI Fly and tap

Safety > RTH.

1. Optimal: Regardless of the RTH Altitude settings, the aircraft automatically plans the optimal

RTH path and adjusts the altitude according to environmental factors such as obstacles

and transmission signals. The optimal RTH path means the aircraft will travel the shortest

distance possible reducing the amount of battery power used and increasing flight time.

2. Preset: When the aircraft is farther than 50 m from the home point when RTH begins, the

aircraft will plan the RTH path, fly to an open area while avoiding obstacles, ascend to the

RTH Altitude, and return to home using the best path. When the aircraft is at a distance of

5 to 50 m from the home point when RTH begins, the aircraft will not ascend to the RTH

Altitude and instead return to home using the best path at the current altitude. When the

aircraft is near the home point, the aircraft will descend while flying forward if the current

altitude is higher than the RTH Altitude.

DJI Mavic 3 Classic User Manual

Advanced RTH Procedure

1. The Home Point is recorded.

2. Advanced RTH is triggered.

3. The aircraft brakes and hover in place.

a. The aircraft lands immediately if it is less than 5 m from the Home Point when RTH

begins.

b. If the aircraft is farther than 5 m from the home point when RTH begins, the aircraft will

plan the best path according to the RTH settings and fly to the home point while avoiding

obstacles and GEO zones. The aircraft front will always point in the same direction as the

flight direction.

4. The aircraft will fly automatically according to the RTH settings, environment, and the

transmission signal during RTH.

5. The aircraft lands and the motors stop after reaching the Home Point.

Straight Line RTH

The aircraft will enter Straight Line RTH when the lighting is not sufficient and the environment

is not suitable for the Advanced RTH.

Straight Line RTH Procedure:

1. The Home Point is recorded.

2. Straight Line RTH is triggered.

3. The aircraft brakes and hover in place.

a. The aircraft lands immediately if it is less than 5 m from the Home Point when RTH

begins.

b. If the aircraft is at a distance of 5 to 50 m from the Home Point when RTH begins, the

aircraft adjusts its orientation and flies to the Home Point at the current altitude. If the

current altitude is lower than 2 m when RTH begins, the aircraft will ascend to 2 m and

files to the Home Point.

c. If the aircraft is farther than 50 m from the Home Point when RTH begins, the aircraft

adjusts its orientation and ascends to the preset RTH altitude and flies to the Home Point.

If the current altitude is higher than the RTH altitude, the aircraft flies to the Home Point

at the current altitude.

4. The aircraft lands and the motors stop after reaching the Home Point.

DJI Mavic 3 Classic User Manual

• During Advanced RTH, the aircraft will adjust the flight speed automatically to

environmental factors such as wind speed and obstacles.

• The aircraft cannot avoid small or fine objects such as tree branches or power lines.

Fly the aircraft to an open area before using Smart RTH.

• Set Advanced RTH as Preset if there are power lines or towers that the aircraft cannot

avoid on the RTH path and make sure the RTH Altitude is set higher than all obstacles.

• The aircraft will brake and return to home according to the latest settings if the RTH

settings are changed during RTH.

• If the max altitude is set below the current altitude during RTH, the aircraft will

descend to the max altitude and return to home.

• The RTH Altitude cannot be changed during RTH.

• If there is a large difference in the current altitude and the RTH altitude, the amount

of battery power used cannot be calculated accurately due to wind speeds at different

altitudes. Pay extra attention to the battery power and warning prompts in DJI Fly.

• Advanced RTH will not be available if the lighting condition and environment were not

suitable for vision systems during takeoff or RTH.

• During Advanced RTH, the aircraft will enter Straight Line RTH if the lighting condition and

environment was not suitable for vision systems and the aircraft cannot avoid obstacles.

An appropriate RTH altitude must be set before entering RTH.

• When the remote controller signal is normal during Advanced RTH, the pitch stick

can be used to control the flight speed but the orientation and altitude cannot be

controlled and the aircraft cannot be flown left or right. Acceleration uses more power.

The aircraft cannot avoid obstacles if the flight speed exceeds the effective sensing

speed. The aircraft will brake and hover in place and exit from RTH if the pitch stick is

pulled all the way down. The aircraft can be controlled after the pitch stick is released.

• When ascending in Straight Line RTH, the aircraft will stop ascending and exit from

RTH if the throttle stick is pulled all the way down. The aircraft can be controlled after

the throttle stick is released. When flying forward in Straight Line RTH, the aircraft will

brake and hover in place and exit from RTH if the pitch stick is pulled all the way down.

The aircraft can be controlled after the pitch stick is released.

• If the aircraft reaches the max altitude while it is ascending during RTH, the aircraft

stops and returns to the Home Point at the current altitude.

• The aircraft will hover in place if it reaches the max altitude while it is ascending after

detecting obstacles in front.

• During Straight Line RTH, the speed and altitude of the aircraft can be controlled using

the remote controller if the remote controller signal is normal. The orientation of the

aircraft and the direction of flight, however, cannot be controlled. The aircraft cannot

avoid obstacles if the pitch stick is used to accelerate and the flight speed exceeds the

effective sensing speed.

DJI Mavic 3 Classic User Manual

Low Battery RTH

Low Battery RTH is triggered when the Intelligent Flight Battery is depleted to the point that the

safe return of the aircraft may be affected. Return home or land the aircraft immediately when

prompted.

In order to avoid unnecessary danger due to insufficient power, the aircraft automatically

calculates if the battery power is sufficient to return to the Home Point according to the current

position, environment, and flight speed. A warning prompt will appear in DJI Fly when the

battery level is low and the aircraft can only support Low Battery RTH.

The user can cancel RTH by pressing the RTH button on the remote controller. If RTH is

cancelled following a low battery level warning, the Intelligent Flight Battery may not have

enough power for the aircraft to land safely, which may lead to the aircraft crashing or being

lost.

The aircraft will land automatically if the current battery level can only support the aircraft long

enough to descend from its current altitude. Auto landing cannot be canceled but the remote

controller can be used to alter the direction and the speed of descent of the aircraft during

landing. The throttle stick can be used to increase the ascent speed by 1 m/s if there is sufficient

power. The throttle stick cannot be used to increase the ascent speed and the aircraft will land

if there is no power left.

During auto landing, find an appropriate place to land the aircraft as soon as possible. The

aircraft will fall if there is no power remaining.

Failsafe RTH

If the Home Point was successfully recorded and the compass is functioning normally, Failsafe

RTH automatically activates after the remote controller signal is lost for more than six seconds.

Note that the action the aircraft performs when the remote controller is lost must be set to

Return to Home in DJI Fly.

When the lighting is sufficient and the vision systems are working normally, DJI Fly will display

the RTH path that was generated by the aircraft before the remote controller signal was lost

and return to home using Advanced RTH according to the RTH settings. The aircraft will remain

in RTH even if the remote controller signal is restored.

When the lighting is not sufficient and the vision systems are not available, the aircraft will enter

Original Route RTH.

Original Route RTH Procedure:

1. The aircraft brakes and hover in place.

2. a. The aircraft lands immediately if it is less than 5 m from the Home Point when RTH begins.

b. If the aircraft is farther than 5 m but less than 50 m from the Home Point, it enters

Straight Line RTH.

c. If the aircraft is farther than 50 m from the Home Point, the aircraft adjust its orientation

and flies backwards for 50 m on its original flight route before entering Straight Line RTH.

3. The aircraft lands and the motors stop after reaching the Home Point.

The aircraft will enter or remain in Straight Line RTH even if the remote controller signal is

restored during Original Route RTH.

DJI Mavic 3 Classic User Manual

• If the RTH is triggered through DJI Fly and the aircraft is farther than 5 m from the

Home Point, a prompt will appear in the app to select a landing option.

• The aircraft may not be able to return to the Home Point normally if the GNSS signal

is weak or unavailable. The aircraft may enter ATTI mode if the GNSS signal becomes

weak or unavailable after entering Failsafe RTH. The aircraft will hover in place for a

while before landing.

• It is important to set a suitable RTH altitude before each flight. Launch DJI Fly and set

the RTH altitude. The default RTH altitude is 100 m.

• The aircraft cannot avoid obstacles during Failsafe RTH if the vision systems are

unavailable.

• GEO zones may affect the RTH. Avoid flying near GEO zones.

• The aircraft may not be able to return to a Home Point when the wind speed is too

high. Fly with caution.

• Be aware of small or fine objects (such as tree branches or power lines) or transparent

objects (such as water or glass) during RTH. Exit RTH and control the aircraft manually

in an emergency.

• RTH may not be available in some environments even if the vision systems are

working. The aircraft will exit RTH in such cases.

Landing Protection

Landing Protection will activate during Smart RTH. When aircraft begins landing, Landing

Protection is enabled.

1. During Landing Protection, the aircraft will automatically detect and carefully land on suitable

ground.

2. If the ground is determined unsuitable for landing, the aircraft will hover and wait for pilot

confirmation.

3. If Landing Protection is not operational, DJI Fly will display a landing prompt when the aircraft

descends below 0.5 m. Pull down on the throttle stick for more than one second or use the

auto landing slider to land.

Precision Landing

The aircraft automatically scans and attempts to match the terrain features below during RTH.

The aircraft will land when the current terrain matches the Home Point. A prompt will appear in

DJI Fly if the terrain match fails.

• Landing Protection is activated during Precision Landing.

• The Precision Landing performance is subject to the following conditions:

a. The Home Point must be recorded upon takeoff and must not be changed during

flight. Otherwise, the aircraft will have no record of the Home Point terrain features.

b. During takeoff, the aircraft must ascend at least 7 m before flying horizontally.

c. The Home Point terrain features must remain largely unchanged.

d. The terrain features of the Home Point must be sufficiently distinctive. Terrain such

as snow- covered areas are not suitable.

e. The lighting conditions must not be too light or too dark.

DJI Mavic 3 Classic User Manual

• The following actions are available during Precision Landing:

a. Press the throttle stick down to accelerate landing.

b. Move the control sticks in any direction apart from the throttle direction to stop

Precision Landing. The aircraft will descend vertically after the control sticks are

released.

DJI Mavic 3 Classic User Manual

Vision Systems and Infrared Sensing System

DJI Mavic 3 Classic is equipped with both an Infrared Sensing System and Forward, Backward,

Lateral, Upward, and Downward Vision Systems.

The Upward and Downward Vision Systems consist of two cameras each, and the Forward,

Backward, and Lateral Vision Systems consist of four cameras in total.

The Infrared Sensing System consists of two 3D infrared modules. The Downward Vision System

and Infrared Sensing System helps the aircraft maintain its current position, hover in place

more precisely, and to fly indoors or in other environments where GNSS is unavailable.

In addition, the Auxiliary Bottom Light located on the underside of the aircraft improves visibility

for the Downward Vision System in weak light conditions.

Horizontal Omnidirectional Vision System

Infrared Sensing System

Auxiliary Bottom Light

Downward Vision System

Upward Vision System

Horizontal Omnidirectional

Vision System

Detection Range

Forward Vision System

Precision Measurement Range: 0.5-20 m; FOV: 90° (horizontal), 103° (vertical)

Backward Vision System

Precision Measurement Range: 0.5-16 m; FOV: 90° (horizontal), 103° (vertical)

Lateral Vision System

Precision Measurement Range: 0.5-25 m; FOV: 90° (horizontal), 85° (vertical)

Upward Vision System

Precision Measurement Range: 0.2-10 m; FOV: 100° (front and back), 90° (left and right)

Downward Vision System

Precision Measurement Range: 0.3-18 m; FOV: 130° (front and back), 160° (left and right). The

Downward Vision System works best when the aircraft is at an altitude of 0.5 to 30 m.

90°

90° 90°

90°

90° 90°

0.5-20 m

0.5-16 m

0.5-25 m

0.5-30 m

103°

130°130°

100°

103°

0.2-10 m

90°

85°

160°

85°

90°

DJI Mavic 3 Classic User Manual

Using the Vision Systems

When GNSS is unavailable, the Downward Vision System is enabled if the surface has a clear

texture and sufficient light.

The Forward, Backward, Lateral, and Upward Vision Systems will activate automatically when

the aircraft is powered on if the aircraft is in Normal or Cine mode and Obstacle Avoidance is

set to Bypass or Brake in DJI Fly. The aircraft can actively brake when detecting obstacles when

using the Forward, Backward, Lateral, and Upward Vision Systems. The Forward, Backward,

Lateral, and Upward Vision Systems work best with adequate lighting and clearly marked

or textured obstacles. Due to inertia, users must make sure to brake the aircraft within a

reasonable distance.

• Vision Systems have limited ability to sense and avoid obstacles, and the performance

may be affected by the surrounding environment. Make sure to maintain visual line of

sight with the aircraft and pay attention to prompts in DJI Fly.

• The Downward Vision Systems work best when the aircraft is at an altitude from 0.5

to 30 m if there is no GNSS available. Extra caution is required if the altitude of the

aircraft is above 30 m as the Vision Systems may be affected.

• The Auxiliary Bottom Light can be set in DJI Fly. If set to Auto, it is automatically

enabled when the environment light is too weak. Note that the Vision System cameras

performance may be affected when the Auxiliary Bottom Light is enabled. Fly with

caution if the GNSS signal is weak.

• The Vision Systems may not function properly when the aircraft is flying over water or

snow-covered areas. Aircraft may not be able to land properly over water. Make sure

to maintain visual line of sight with the aircraft and pay attention to prompts in DJI Fly.

• The Vision Systems cannot work properly over surfaces that do not have clear pattern

variations. The Vision Systems cannot work properly in any of the following situations.

Operate the aircraft cautiously.

a. Flying over monochrome surfaces (e.g., pure black, pure white, pure green).

b. Flying over highly reflective surfaces.

c. Flying over water or transparent surfaces.

d. Flying over moving surfaces or objects.

e. Flying in an area where the lighting changes frequently or drastically.

f. Flying over extremely dark (< 10 lux) or bright (> 40,000 lux) surfaces.

g. Flying over surfaces that strongly reflect or absorb infrared waves (e.g., mirrors).

h. Flying over surfaces without clear patterns or texture.

i. Flying over surfaces with repeating identical patterns or textures (e.g., tiles with the

same design).

j. Flying over obstacles with small surface areas (e.g., tree branches).

• Keep the sensors clean at all times. DO NOT tamper with the sensors. DO NOT use the

aircraft in dusty or humid environments.

• Vision System cameras may need to be calibrated after being stored for an extended

period. A prompt will appear in DJI Fly and calibration will be performed automatically.

• DO NOT fly when it is raining, foggy, or if there is no clear sight.

DJI Mavic 3 Classic User Manual

• Check the following before each takeoff:

a. Make sure there are no stickers or any other obstructions over the Infrared

Sensing and Vision Systems.

b. If there is any dirt, dust, or water on the Infrared Sensing and Vision Systems, clean

it with a soft cloth. Do not use any cleanser that contains alcohol.

c. Contact DJI Support if there is any damage to the glass of the Infrared Sensing and

Vision Systems.

• DO NOT obstruct the Infrared Sensing System.

DJI Mavic 3 Classic User Manual

Intelligent Flight Mode

FocusTrack

FocusTrack includes Spotlight 2.0, Point of Interest 3.0, and ActiveTrack 5.0.

Spotlight 2.0

Control the aircraft manually while the camera remains locked on the subject. The mode

supports both stationary and moving subjects such as vehicles, boats, and people. Move the roll

stick to circle the subject, move the pitch stick to alter the distance from the subject, move the

throttle stick to change the altitude, and move the pan stick to adjust the frame.

• Refer to the Remote Controller and Controlling the Aircraft sections for more

information about the roll, pitch, throttle, and pan sticks.

In Spotlight mode, the aircraft will hover in place when there is an obstacle detected when the

vision systems are working normally, no matter the behavior is set to Bypass or Brake in DJI Fly.

Note that the vision systems are disabled in Sport mode.

Point of Interest 3.0 (POI 3.0)

The aircraft tracks the subject in a circle based on the radius and flight speed that is set. The

mode supports both static and moving subjects such as vehicles, boats, and people. The max

flight speed is 12 m/s and the flight speed may be adjusted dynamically according the actual

radius. Move the roll stick to change the speed, the pitch stick to alter the distance from the

subject, the throttle stick to change the altitude, and the pan stick to adjust the frame.

The aircraft will bypass obstacles in this mode regardless of the settings in DJI Fly when the

vision systems are working normally.

ActiveTrack 5.0

ActiveTrack 5.0 is divided into Trace and Parallel, which support tracking both stationary and

moving subjects such as vehicles, boats, and people. In Sport, Normal, and Cine mode, the max

flight speed is 12 m/s. Move the roll stick to circle the subject, the pitch stick to alter the distance

from the subject, the throttle stick to change the altitude, and the pan stick to adjust the frame.

The aircraft will bypass obstacles in ActiveTrack 5.0 regardless of the settings in DJI Fly.

Trace: The aircraft tracks the subject at a constant distance and altitude with a constant angle

in the direction of the subject. The aircraft can track subjects in eight directions including front,

back, left, right, forward diagonal left, front diagonal right, backward diagonal left, and backward

diagonal right. The direction is set to back by default and this setting is only available when the

subject is moving in a stable direction. The direction of tracking can be adjusted during tracking.

Parallel: The aircraft tracks the subject at a constant angle and distance from the side.

In ActiveTrack, the aircraft maintains a distance of 4-20 m when tracking people with an altitude

of 2-20 m (the optimal distance is 5-10 m and altitude is 2-10 m), and a distance of 6-100 m

when tracking vehicles or boats with an altitude of 6-100 m (the optimal distance is 20-50 m

and altitude is 10-50 m). The aircraft will fly to the supported distance and altitude range if the

distance and altitude is out of range when ActiveTrack begins. Fly the aircraft at the optimal

distance and altitude for the best performance.

DJI Mavic 3 Classic User Manual

Using FocusTrack

1. Take off.

4. Tap the shutter/record button to take photos or start recording. View the footage in

Playback.

2. Drag a box around the subject in the camera view or enable Subject Scanning under Control

settings in DJI Fly and tap the recognized subject to enable FocusTrack. The default mode

is Spotlight. Tap the icon to switch between Spotlight, ActiveTrack, and POI. FocusTrack

supports 3x zoom. The zoom ratio will be limited if it is too large to recognize a subject. Tap

GO to start FocusTrack.

3. In Trace of ActiveTrack, the tracking direction can be changed using the direction wheel.

The direction wheel will be minimized if there is no operation for an extended period or any

other area of the screen is tapped. Trace or Parallel can be selected once the direction wheel

is minimized. The tracking will be reset to back once Trace is selected again.

4K 30

108 m

1.6m/s

164.0 m164.0 m

7.9m/s

POI

只能放置在控件右侧。在控件末尾或选中时消失。

Spotline

Mode N

In Flight

12 26

06:21

4K 30

Storage

RES&FPS

4K 60

+0.7

108 m

1.6m/s

164.0 m164.0 m

7.9m/s

POI

只能放置在控件右侧。在控件末尾或选中时消失。

Spotline

Mode N

In Flight

06:21

4K 30

Storage

RES&FPS

4K 60

+0.7

12 26

DJI Mavic 3 Classic User Manual

Exiting FocusTrack

Tap Stop in DJI Fly or press the Flight Pause button once on the remote controller to exit

FocusTrack.

• DO NOT use FocusTrack in areas with people and animals running or vehicles moving.

• DO NOT use FocusTrack in areas with small or fine objects (e.g., tree branches or

power lines), or transparent objects (e.g., water or glass).

• Operate the aircraft manually. Press the Flight Pause button or tap Stop in DJI Fly in an

emergency.

• Be extra vigilant when using FocusTrack in any of the following situations:

a. The tracked subject is not moving on a level plane.

b. The tracked subject changes shape drastically while moving.

c. The tracked subject is out of sight for an extended period.

d. The tracked subject is moving on a snowy surface.

e. The tracked subject has a similar color or pattern to its surrounding environment.

f. The lighting is extremely low (<300 lux) or high (>10,000 lux).

• Make sure to follow local privacy laws and regulations when using FocusTrack.

• It is recommended to only track vehicles, boats, and people (but not children). Fly with

caution when tracking other subjects.

• In supported moving subjects, vehicles refer to cars and small to medium-sized yachts.

• DO NOT track a remote control model car or boat.

• The tracking subject may inadvertently swap to another subject if they pass nearby to

each other.

• FocusTrack is disabled when using a ND filter, or when recording in 5.1K and above or

120fps and above.

• ActiveTrack is unavailable when the lighting is insufficient and the vision systems are

unavailable. POI for static subjects and Spotlight can still be used, but obstacle sensing

is not available.

• FocusTrack is unavailable when the aircraft is on the ground.

• FocusTrack may not function properly when the aircraft is flying near flight limits or in

a GEO zone.

2 m

MasterShots

MasterShots keeps the subject in the center of the frame while executing different maneuvers

in sequence to generate a short cinematic video.

Using MasterShots

1. Take off and hover at least 2 m above the ground.

DJI Mavic 3 Classic User Manual

2. In DJI Fly, tap the shooting mode icon to select MasterShots and follow the prompts. Make

sure that you understand how to use the shooting mode and that there are no obstacles in

the surrounding area.

3. Select your target subject in the camera view by tapping the circle on the subject or dragging

a box around the subject. Tap Start to begin recording. The aircraft flies back to its original

position once shooting is finished.

4. Tap

to access the video.

Exiting MasterShots

Press the Flight Pause button once or tap in DJI Fly to exit MasterShots. The aircraft will hover

in place.

• Use MasterShots at locations that are clear of buildings and other obstacles. Make

sure that there are no humans, animals, or other obstacles on the flight path. When

the lighting is sufficient and the environment is suitable for vision systems, the aircraft

will brake and hover in place if there is an obstacle detected.

• Pay attention to objects around the aircraft and use the remote controller to avoid

collisions with the aircraft.

• DO NOT use MasterShots in any of the following situations:

a. When the subject is blocked for an extended period or outside the line of sight.

b. When the subject is similar in color or pattern with the surroundings.

c. When the subject is in the air.

d. When the subject moves fast.

e. The lighting is extremely low (<300 lux) or high (>10,000 lux).

• DO NOT use MasterShots in places that are close to buildings or where the GNSS

signal is weak. Otherwise, the flight path will be unstable.

• Make sure to follow local privacy laws and regulations when using MasterShots.

QuickShots

QuickShots shooting modes include Dronie, Rocket, Circle, Helix, Boomerang, and Asteroid.

Mavic 3 Classic records according to the selected shooting mode and automatically generates a

short video. The video can be viewed, edited, or shared to social media from playback.

1:30:301:30:30

StorageStorage

+0.7+0.7

EVEV

5.1K 505.1K 50

RES&FPSRES&FPS

80 m

4.6m/s4.6m/s

150

3m/s3m/s

Mode N

In-Flight

12 26

Start

Video


MasterShots

QuickShots

DJI Mavic 3 Classic User Manual

Dronie: The aircraft flies backward and ascends, with the camera locked on the subject.

Rocket: The aircraft ascends with the camera pointing downward.

Circle: The aircraft circles around the subject.

Helix: The aircraft ascends and spirals around the subject.

Boomerang: The aircraft flies around the subject in an oval path, ascending as it flies away

from its starting point and descending as it flies back. The starting point of the aircraft

forms one end of the long axis of the oval while the other end of the long axis is at the

opposite side of the subject from the starting point. Make sure there is sufficient space

when using Boomerang. Allow a radius of at least 30 m around the aircraft and allow at

least 10 m above the aircraft.

Asteroid: The aircraft flies backward and upward, takes several photos, and then flies back

to the starting point. The video generated starts with a panorama of the highest position

and then shows the descent. Make sure there is sufficient space when using Asteroid.

Allow at least 40 m behind and 50 m above the aircraft.

Using QuickShots

1. Take off and hover at least 2 m above the ground.

2 m

4. Tap to access the video.

2. In DJI Fly, tap the shooting mode icon to select QuickShots and follow the prompts. Make

sure that you understand how to use the shooting mode and that there are no obstacles in

the surrounding area.

3. Select your target subject in the camera view by tapping the circle on the subject or dragging

a box around the subject. Choose a shooting mode and tap Start to begin recording.

1014.4m

1.6m/s1.6m/s

126m126m

7.9m/s7.9m/s

Start

Video


Hyperlapse

QuickShots

Dronie

Rocket

Circle

In-Flight

Mode N

06:21

4K 30

Storage

RES&FPS

4K 60

+0.7

DJI Mavic 3 Classic User Manual

Exiting QuickShots

Press the Flight Pause button once or tap in DJI Fly to exit QuickShots. The aircraft will hover

in place.

• Use QuickShots at locations that are clear of buildings and other obstacles. Make sure

that there are no humans, animals, or other obstacles on the flight path. The aircraft

will brake and hover in place if there is an obstacle detected.

• Pay attention to objects around the aircraft and use the remote controller to avoid

collisions with the aircraft.

• DO NOT use QuickShots in any of the following situations:

a. When the subject is blocked for an extended period or outside the line of sight.

b. When the subject is more than 50 m away from the aircraft.

c. When the subject is similar in color or pattern with the surroundings.

d. When the subject is in the air.

e. When the subject moves fast.

f. The lighting is extremely low (<300 lux) or high (>10,000 lux).

• DO NOT use QuickShots in places that are close to buildings or where the GNSS signal

is weak. Otherwise, the flight path will be unstable.

• Make sure to follow local privacy laws and regulations when using QuickShots.

Hyperlapse

Hyperlapse shooting modes include Free, Circle, Course Lock, and Waypoint.

1:30:301:30:30

StorageStorage

+0.7+0.7

EVEV

5.1K 505.1K 50

RES&FPSRES&FPS

80 m

4.6m/s4.6m/s

150

3m/s3m/s

12400:10:20

+1.0+1.0

EVEV

1014.4m

1.6m/s1.6m/s

126m126m

7.9m/s7.9m/s

Mode N

In-Flight

Video


MasterShots

Hyperlapse

Free

Circle

Course

Free

The aircraft automatically takes photos and generates a timelapse video. Free mode can be

used while the aircraft is on the ground. After takeoff, control the movement and gimbal angle

of the aircraft using the remote controller. Follow the steps below to use Free:

1. Set the interval time, video duration, and max speed. The screen displays the number of

photos that will be taken and how long the shooting time will be.

2. Tap the shutter/record button to begin.

DJI Mavic 3 Classic User Manual

Circle

The aircraft automatically takes photos while flying around the selected subject to generate a

timelapse video. Follow the steps below to use Circle:

1. Set the interval time, video duration, and max speed. Circle can be selected to travel in either

a clockwise or counter-clockwise direction. The screen displays the number of photos that

will be taken and how long the shooting time will be.

2. Select a subject on the screen. Use the pan stick and gimbal dial to adjust the frame.

3. Tap the shutter/record button to begin.

Course Lock

Course Lock can be used in two ways. In the first way, the orientation of the aircraft is fixed, but

a subject cannot be selected. In the second way, the orientation of the aircraft is fixed and the

aircraft flies around a selected object. Follow the steps below to use Course Lock:

1. Set the interval time, video duration, and max speed. The screen displays the number of

photos that will be taken and how long the shooting time will be.

2. Set a flight direction.

3. If applicable, select a subject. Use the gimbal dial and pan stick to adjust the frame.

4. Tap the shutter/record button to begin.

Waypoints

The aircraft automatically takes photos on a flight path of two to five waypoints and generates

a timelapse video. The aircraft can fly in order from waypoint 1 to 5 or 5 to 1. Follow the steps

below to use Waypoints.

1. Set the desired waypoints.

2. Set the interval time, video duration, and max speed. The screen displays the number of

photos that will be taken and how long the shooting time will be.

3. Tap the shutter button to begin.

The aircraft will generate a timelapse video automatically, which is viewable in playback. Users

can select Output Quality and Photo Type in System Settings-Camera page in DJI Fly. Mavic 3

Classic supports the fast compositing function of Hyperlapse. Select "Preview" in the output

quality. Mavic 3 Classic will not perform stabilization and brightness smoothing but will only

synthesize the effect preview film, which can save the compositing time. Users can synthesize

the original film into a high-quality film later.

DJI Mavic 3 Classic User Manual

• For optimal performance, it is recommended to use Hyperlapse at an altitude higher

than 50 m and to set a difference of at least two seconds between the interval time

and shutter.

• It is recommended to select a static subject (e.g., high-rise buildings, mountainous

terrain) at a safe distance from the aircraft (farther than 15 m). Do not select a subject

that is too near the aircraft.

• When the lighting is sufficient and the environment is suitable for vision systems, the

aircraft brakes and hovers in place if an obstacle is detected during Hyperlapse. If the

lighting becomes insufficient or the environment is not suitable for vision systems

during Hyperlapse, the aircraft will continue to shoot without obstacle avoidance. Fly

with caution.

• The aircraft only generates a video if it has taken at least 25 photos, which is the

amount required to generate a one second video. The video is generated when a user

command is received from the remote controller or if the mode is exited unexpectedly

such as when Low Battery RTH is triggered.

DJI Mavic 3 Classic User Manual

Waypoint Flight

Waypoint Flight enables the aircraft to capture images during a ight according to the waypoint ight

route generated by the preset waypoints. Points of Interest (POI) can be linked to the waypoints. The

heading will point toward the POI during ight. A waypoint ight route can be saved and repeated.

Using Waypoint Flight

1. Enable Waypoint Flight

Tap the Waypoint Flight icon on the left of the camera view in DJI Fly to enable Waypoint Flight.

2. Waypoint Settings

Pin Waypoint

Waypoints can be pinned via the map before take off.

Waypoints can be pinned via the remote controller, operation panel, and map after aircraft

take off, GNSS is required.

a. Using the Remote Controller: Press once on the Fn button (RC-N1) or C1 button (DJI RC/DJI

RC Pro) to pin a waypoint.

b. Using the Operation Panel: Tap + on the operation panel to pin a waypoint.

c. Using the Map: Enter and tap on the map to pin a waypoint. The default altitude of a

waypoint via the map is set to 50 m.

Press and hold on a waypoint to move its position on the map.

• When setting a waypoint, it is recommended to fly to the location for a more

accurate and smoother imaging result during the Waypoint Flight.

• The aircraft horizontal GNSS, altitude from the take-off point, heading, focal length,

and gimbal tilt will be recorded if the waypoint is pinned via the remote controller

and operation panel.

• Connect the remote controller to the internet and download the map before using

the map to pin a waypoint. When the waypoint is pinned via the map, only the

aircraft horizontal GNSS can be recorded.

• The flight route will curve between waypoints, and the aircraft altitude may decrease

during the flight route. Make sure to avoid any obstacles below when setting a waypoint.

DJI Mavic 3 Classic User Manual

Camera Action Choose between Non, Take Photo, Start or Stop Recording.

Altitude Set the altitude from the take-off point. Ensure to take off at the

same altitude to obtain better performance when a Waypoint Flight is

repeated.

Speed The flight speed can be set to Global Speed or Custom.

When Global Speed is selected, the aircraft will fly at the same speed

during the waypoint flight route. When Custom is selected, the aircraft

will accelerate or decelerate at a steady speed when flying between

waypoints. The preset speed will be reached when the aircraft is at the

waypoint.

Heading Choose between Follow Course, POI, Custom, and Manual.

Custom: Drag the bar to adjust the heading. The heading can be previewed

in the map view.

Manual: The heading can be adjusted by the user during a Waypoint Flight.

Gimbal Tilt Choose between POI, Custom, and Manual.

POI: Tap the number of the POI to point the camera toward the POI.

Custom: Drag the bar to adjust the tilt of the gimbal.

Manual: Gimbal tilt can be adjusted by the user during a Waypoint Flight.

Zoom Choose between Auto, Digital Zoom, and Manual.

Auto: The zoom ratio will be adjusted by the aircraft when flying between

two waypoints.

Digital: Drag the bar to adjust the zoom ratio.

Manual: The zoom ratio can be adjusted by the user during the waypoint

flight route.

Hovering Time Set the duration of the aircraft hovering time of the current waypoints.

Settings

Tap the waypoint number for settings such as camera action, altitude, speed, heading,

gimbal tilt, zoom, and hovering time.

DJI Mavic 3 Classic User Manual

All the settings except camera action can be applied to all waypoints after selecting Apply to

All. Tap the delete icon to delete a waypoint.

3. POI Settings

Tap POI on the operation panel to switch to POI settings. Use the same method to pin a POI

as used with a waypoint.

Tap the number of the POI to set the altitude of the POI. The POI can be linked to a waypoint.

Multiple waypoints can be linked to the same POI, the camera will point toward the POI

during the Waypoint Flight.

4. Plan a Waypoint Flight

Tap

to plan a Waypoint Flight. Tap Next to adjust the Global Speed, the behavior of End

of Flight, On Signal Lost, and Start Point. The settings apply to all waypoints.

5. Perform a Waypoint Flight

• Check the Obstacle Avoidance settings in the Safety section of DJI Fly before

performing the Waypoint Flight. When set to Bypass or Brake, the aircraft will brake

and hover in place if an obstacle is detected during the Waypoint Flight. The aircraft

cannot avoid obstacles if Obstacle Avoidance is disabled. Fly with caution.

• Observe the environment and ensure there are no obstacles on the route before

performing Waypoint Flight.

• Make sure to maintain visual line of sight (VLOS) with the aircraft. Press the flight

pause button in an emergency situation.

• Tap

to upload the waypoint flight task. Tap the

button to cancel the uploading

process and return to the waypoint flight edit status.

• The waypoint flight task will be performed after uploading, the flight duration, waypoints,

and distance and will be displayed on the camera view. The control stick input will change

the flight speed during a Waypoint Flight.

• Tap

to pause the Waypoint Flight after the task begins. Tap to stop Waypoint Flight

and return to the waypoint flight edit status. Tap

to continue the Waypoint Flight.

• When the signal is lost during flight, the aircraft will perform the action set in On

Signal Lost.

• When the Waypoint Flight is finished, the aircraft will perform the action set in End

of Flight.

6. Library

When planning a Waypoint Flight, the task will be generated automatically and saved every

minute. Tap the list icon on the left to enter Library and save the task manually.

DJI Mavic 3 Classic User Manual

• Tap the list icon to check the saved tasks, and tap to open a task.

• Tap the icon to edit the name of the task.

• Slide left to delete a task.

• Tap the icon on the top right corner to change the order of the tasks.

:Tasks will be saved according to the time.

:Tasks will be saved according to the distance between the start waypoint and the current

position of the aircraft from shortest to farthest.

7. Exit Waypoint Flight

Tap the icon to exit Waypoint Flight. Tap Save and Exit to save the task to Library and exit.

DJI Mavic 3 Classic User Manual

Cruise Control

The Cruise Control function enables the aircraft to lock the current control stick input of the

remote control when conditions permit. Fly at the speed corresponding to the current control

stick input without continually using control stick movements, and also supports more camera

movements such as spiraling up by increasing the control stick input.

Using Cruise Control

1. Set the Cruise Control Button

Go to DJI Fly, select System Settings, Control, and then set the C1 or C2 button of the DJI RC

remote controller or the Fn button of the RC-N1 remote controller to Cruise Control.

2. Enter Cruise Control

Push the control stick in any direction and press the Cruise Control button simultaneously.

According to the control stick input, the aircraft will fly at the current speed. The control stick

can be released and will automatically return to the center. Before the control stick returns

to the center, press the Cruise Control button again, and the aircraft will reset the flight

speed based on the current control stick input. Push the control stick after it returns to the

center, and the aircraft will fly at the increased speed based on the previous speed. In this

case, press the Cruise Control button again, and the aircraft will fly at the increased speed.

3. Exit Cruise Control

Press the Cruise Control button without a control stick input, flight pause button of the

remote controller, or disable Cruise Control to exit cruise control.

• Cruise Control is available in Normal, Cine, and Sport mode or APAS, Free Hyperlapse,

and Spotlight.

• Cruise Control cannot be started without a control stick input.

• Cruise Control cannot be started or will exit automatically when near the Max Altitude

or Max Distance.

• Cruise Control cannot be started or will exit automatically when the aircraft

disconnects from the remote controller or DJI Fly.

• Cruise Control cannot be started or will exit automatically after the aircraft senses an

obstacle and will hover in place.

• During RTH or auto landing, the aircraft cannot enter or will automatically exit the

Cruise Control.

• Cruise Control will exit automatically when switching flight modes.

• The obstacle avoidance in Cruise Control follows the current flight mode. Fly with

caution.

DJI Mavic 3 Classic User Manual

Advanced Pilot Assistance Systems 5.0 (APAS 5.0)

The Advanced Pilot Assistance Systems 5.0 (APAS 5.0) feature is available in Normal and Cine

mode. When APAS is enabled, the aircraft continues to respond to user commands and plans its

path according to control stick inputs and the flight environment. APAS makes it easier to avoid

obstacles and obtain smoother footage for a better flying experience.

Keep moving the control sticks in any directions. The aircraft will avoid the obstacles by flying

above, below, or to the left or right of the obstacle. The aircraft can also response to the control

stick inputs while avoiding obstacles.

When APAS is enabled, the aircraft can be stopped by pressing the Flight Pause button on the

remote controller or tapping the screen in DJI Fly. The aircraft hovers for three seconds and

awaits further pilot commands.

To enable APAS, go to DJI Fly and select

> Safety > Bypass.

Select Normal or Nifty mode when using Bypass. Nifty mode, the aircraft can fly faster,

smoother, and closer to obstacles obtaining better footage while avoiding obstacles. Meanwhile,

the risk of crashing with the obstacles increases. Fly with caution.

Nifty cannot work normally in the following situations:

1. When aircraft orientation changes rapidly flying near obstacles when using Bypass.

2. When flying through narrow obstacles such as canopies or bushes at high speed.

3. When flying near obstacles that are too small to detect.

4. When flying with the propeller guard.

Landing Protection

Landing Protection will activate if Obstacle Avoidance is set to Bypass or Brake and the user

pulls the throttle stick down to land the aircraft. Landing Protection is enabled once the aircraft

begins to land.

1. During Landing Protection, the aircraft will automatically detect and carefully land on suitable

ground.

2. If the ground is determined unsuitable for landing, the aircraft will hover when the aircraft

descends below 0.8 m. Pull down on the throttle stick for more than five seconds and the

aircraft will land without obstacle avoidance.

• Make sure you use APAS when the Vision Systems are available. Make sure there are

no people, animals, objects with small surface areas (such as tree branches), or objects

with transparent surfaces (such as glass or water) along the flight path.

• Make sure you use APAS when the Downward Vision System is available or the GNSS

signal is strong. APAS may not function properly when the aircraft is flying over water

or snow-covered areas.

• Be extra cautious when flying in extremely dark (<300 lux) or bright (>10,000 lux)

environments.

• Pay attention to DJI Fly and make sure APAS is working normally.

• APAS may not function properly when the aircraft is flying near flight limits or in a GEO zone.

DJI Mavic 3 Classic User Manual

Flight Recorder

Flight data including flight telemetry, aircraft status information, and other parameters are

automatically saved to the internal data recorder of the aircraft. The data can be accessed using

DJI Assistant 2 (Consumer Drones Series).

QuickTransfer

Mavic 3 Classic can connect directly to mobile devices via Wi-Fi, enabling users to download

photos and videos from the aircraft to the mobile device through DJI Fly without the need of

the RC-N1 remote controller. Users can enjoy faster and more convenient downloads with a

transmission rate of up to 80 MB/s.

Usage

Method 1: mobile device is not connected to the remote controller

1. Power on the aircraft and wait until the self-diagnostic tests of the aircraft are complete.

2. Make sure Bluetooth and Wi-Fi is enabled on the mobile device. Launch DJI Fly and a prompt

will automatically appear to connect to the aircraft.

3. Tap Connect. Once successfully connected, the files on the aircraft can be accessed and

downloaded at a high speed.

Method 2: mobile device is connected to the remote controller

1. Make sure that the aircraft is connected to the mobile device via the remote controller and

the motors have not started.

2. Enable Bluetooth and Wi-Fi on the mobile device.

3. Launch DJI Fly, enter playback, and tap in the upper right corner to access the files on the

aircraft to download at high speed.

• The maximum download speed can only be achieved in countries and regions where

the 5.8 GHz frequency is permitted by laws and regulations, when using devices that

support 5.8 GHz frequency band and Wi-Fi 6 connection, with the footage using the

internal storage of aircraft, and in an environment without interference or obstruction.

If 5.8 GHz is not allowed by local regulations (such as in Japan), the mobile device of

the user will not support the 5.8 GHz frequency band or the environment will have

severe interference. Under these circumstances, QuickTransfer will use the 2.4 GHz

frequency band and its maximum download rate will reduce to 10 MB/s.

• Make sure that Bluetooth, Wi-Fi, and location services are enabled on the mobile

device before using QuickTransfer.

• When using QuickTransfer, it is not necessary to enter the Wi-Fi password on the

settings page of the mobile device in order to connect. Launch DJI Fly and a prompt

will appear to connect the aircraft.

• Use QuickTransfer in an unobstructed environment with no interference and stay

away from sources of interference such as wireless routers, Bluetooth speakers, or

headphones.

DJI Mavic 3 Classic User Manual

Propellers

There are two types of DJI Mavic 3 Classic Low-Noise Quick Release Propellers, which are

designed to spin in different directions. Marks are used to indicate which propellers should

be attached to which motors. Make sure to match the propeller and motor following the

instructions.

Attaching the Propellers

Attach the propellers with marks to the motors with marks and the unmarked propellers to the

motors without marks. Press each propeller down onto the motor and turn until it is secure.

B A

A B

Detaching the Propellers

Press the propellers down onto the motors and rotate them in the unlock direction.

• Propeller blades are sharp. Handle with care.

• Only use official DJI propellers. DO NOT mix propeller types.

• Purchase the propellers separately if necessary.

• Make sure that the propellers are installed securely before each flight.

• Make sure all propellers are in good condition before each flight. DO NOT use aged,

chipped, or broken propellers.

• Stay away from the rotating propellers and motors to avoid injuries.

• DO NOT squeeze or bend the propellers during transportation or storage.

• Make sure the motors are mounted securely and rotating smoothly. Land the aircraft

immediately if a motor is stuck and unable to rotate freely.

• DO NOT attempt to modify the structure of the motors.

• DO NOT touch or let your hands or body come in contact with the motors after flight

as they may be hot.

• DO NOT block any of the ventilation holes on the motors or the body of the aircraft.

• Make sure the ESCs sound normal when powered on.

DJI Mavic 3 Classic User Manual

Intelligent Flight Battery

The DJI Mavic 3 Classic Intelligent Flight Battery is a 15.4 V, 5000 mAh battery with smart

charging and discharging functionality.

Battery Features

1. Battery Level Display: The LED indicators display the current battery level.

2. Auto-Discharging Function: To prevent swelling, the battery automatically discharges to 96%

of the battery level when it is idle for three days, and automatically discharges to 60% of the

battery level when it is idle for nine days. It is normal to feel moderate heat being emitted

from the battery during the discharging process.

3. Balanced Charging: During charging, the voltages of the battery cells are automatically

balanced.

4. Overcharge Protection: The battery stops charging automatically once fully charged.

5. Temperature Detection: In order to protect itself, the battery only charges when the

temperature is between 5° and 40° C (41° and 104° F).

6. Overcurrent Protection: The battery stops charging if an excess current is detected.

7. Over-Discharge Protection: Discharging stops automatically to prevent excess discharge

when the battery is not in use. Over-discharge protection is not enabled when the battery is

in use.

8. Short Circuit Protection: The power supply is automatically cut if a short circuit is detected.

9. Battery Cell Damage Protection: DJI Fly displays a warning prompt when a damaged battery

cell is detected.

10. Hibernation Mode: The battery switches off after 20 minutes of inactivity to save power.

If the battery level is less than 5%, the battery enters Hibernation mode to prevent over-

discharge after being idle for six hours. In Hibernation mode, the battery level indicators do

not illuminate. Charge the battery to wake it from hibernation.

11. Communication: Information about the voltage, capacity, and current of the battery is

transmitted to the aircraft.

• Refer to the Safety Guidelines and the battery sticker before use. Users take full

responsibility for all operations and usage.

DJI Mavic 3 Classic User Manual

Using the Battery

Checking Battery Level

Press the power button once to check the battery level.

Battery Level LEDs

: LED is on

: LED is flashing

: LED is off

LED1 LED2 LED3 LED4

Battery Level

Battery Level ≥ 88%

75% ≤ Battery Level < 88%

63% ≤ Battery Level < 75%

50% ≤ Battery Level < 63%

38% ≤ Battery Level < 50%

25% ≤ Battery Level < 38%

13% ≤ Battery Level < 25%

0% ≤ Battery Level < 13%

Powering On/Off

Press the power button once, then press again, and hold for two seconds to power the battery

on or off. The battery level LEDs display the battery level when the aircraft is powered on.

Low Temperature Notice

1. Battery capacity is significantly reduced when flying in low-temperature environments of -10°

to 5° C (14° to 41° F). It is recommended to hover the aircraft in place for a while to heat the

battery. Make sure to fully charge the battery before takeoff.

2. Batteries cannot be used in extremely low-temperature environments of lower than -10° C

(14° F).

3. When in low-temperature environments, end the flight as soon as DJI Fly displays the low

battery level warning.

4. To ensure the optimal performance of the battery, keep the battery temperature above

20° C (68° F).

LED

Power Button

DJI Mavic 3 Classic User Manual

5. The reduced battery capacity in low-temperature environments reduces the wind speed

resistance performance of the aircraft. Fly with caution.

6. Fly with extra caution at high sea levels.

Charging the Battery

Fully charge the Intelligent Flight Battery before every flight

Using DJI 65W Portable Charger

1. Connect the DJI 65W Portable Charger to an AC power supply (100-240 V, 50/60 Hz).

2. Attach the aircraft to the charger using the battery charging cable with the battery powered

off.

3. The battery level LEDs display the current battery level during charging.

4. The Intelligent Flight Battery is fully charged when all the battery level LEDs are off. Detach

the charger when the battery is fully charged.

• DO NOT charge an Intelligent Flight Battery immediately after flight as the temperature

may be too high. Wait until it cools down to room temperature before charging again.

• The charger stops charging the battery if the battery cell temperature is not within the

operating range of 5° to 40° C (41° to 104° F). The ideal charging temperature is 22° to

28° C (71.6° to 82.4° F).

• Fully charge the battery at least once every three months to maintain battery health.

• DJI does not take any responsibility for damage caused by third-party chargers.

• It is recommended to discharge the Intelligent Flight Batteries to 30% or lower before

transportation. This can be done by flying the aircraft outdoors until there is less than

30% charge left.

The table below shows the battery level during charging.

LED1 LED2 LED3 LED4 Battery Level

0% < Battery Level ≤ 50%

50% < Battery Level ≤ 75%

75% < Battery Level < 100%

Fully Charged

Battery Protection Mechanisms

The battery LED indicator can display battery protection prompts triggered by abnormal

charging conditions.

DJI Mavic 3 Classic User Manual

Battery Protection Mechanisms

LED1 LED2 LED3 LED4 Blinking Pattern Status

LED2 blinks twice per second Overcurrent detected

LED2 blinks three times per second Short circuit detected

LED3 blinks twice per second Overcharge detected

LED3 blinks three times per second Over-voltage charger detected

LED4 blinks twice per second Charging temperature is too low

LED4 blinks three times per second Charging temperature is too high

If the battery protection mechanisms activate, in order to resume charging it is necessary

to unplug the battery from the charger and plug it in again. If the charging temperature

is abnormal, wait for the charging temperature to return to normal, and the battery will

automatically resume charging without requiring to unplug and plug in the charger again.

Inserting the Intelligent Flight Battery

Insert the Intelligent Flight Battery into the battery compartment of the aircraft. Make sure it is

mounted securely and that the battery buckles click into place.

Removing the Intelligent Flight Battery

Press the textured part of the battery buckles on the sides of the Intelligent Flight Battery to

remove it from the compartment.

• DO NOT detach the battery when the aircraft is powering on.

• Make sure that the battery is mounted firmly.

Click

DJI Mavic 3 Classic User Manual

Use the gimbal dial on the remote controller to control the tilt of the camera. Alternatively, enter

the camera view in DJI Fly. Press the screen until the camera adjustment bar appears. Drag the

bar up or down to control the tilt and left or right to control the pan.

Gimbal Operation Modes

Two gimbal operation modes are available. Switch between the different operation modes in DJI

Fly.

Follow Mode: The angle between the gimbal’s orientation and aircraft front remains constant at

all times.

FPV Mode: The gimbal synchronizes with the movement of the aircraft to provide a first-person

flying experience.

• DO NOT tap or knock the gimbal when the aircraft is powered on. To protect the

gimbal during takeoff, take off from open and flat ground.

• Precision elements in the gimbal may be damaged in a collision or impact, which may

cause the gimbal to function abnormally.

• Avoid getting dust or sand on the gimbal, especially in the gimbal motors.

• A gimbal motor may enter protection mode in the following situations:

a. The aircraft is on uneven ground or the gimbal is obstructed.

b. The gimbal experiences excessive external force, such as during a collision.

• DO NOT apply external force to the gimbal after the gimbal is powered on. DO

NOT add any extra payload to the gimbal as this may cause the gimbal to function

abnormally or even lead to permanent motor damage.

• Make sure to remove the storage cover before powering on the aircraft. Also, make

sure to mount the storage cover when the aircraft is not in use.

• Flying in heavy fog or clouds may make the gimbal wet, leading to temporary failure.

The gimbal recovers full functionality once it is dry.

-90°

0°

35°

Gimbal and Camera

Gimbal Profile

The 3-axis gimbal of DJI Mavic 3 Classic provides stabilization for the camera, allowing you to

capture clear and stable images and video. The control tilt range is -90° to +35° and the control

pan range is -5° to +5°.

-5°

5°

DJI Mavic 3 Classic User Manual

Camera Profile

DJI Mavic 3 Classic uses a 4/3 CMOS sensor Hasselblad L2D-20c camera, which can take

20MP photos and record at 5.1K 50fps/DCI 4K 120fps H.264/H.265 format videos. The

camera also supports 10-bit D-Log video, has an adjustable aperture of f/2.8 to f/11, and

can shoot from 1 m to infinity.

• Make sure the temperature and humidity is suitable for the camera during usage and

storage.

• Use a lens cleanser to clean the lens to avoid damage.

• DO NOT block any ventilation holes on the camera as the heat generated may damage

the device and hurt the user.

Storing and Exporting Photos and Videos

Storing Photos and Videos

DJI Mavic 3 Classic has 8 GB of built-in storage and supports the use of a microSD card to store

photos and videos. A SDXC or UHS-I microSD card is required due to the fast read and write

speeds necessary for high-resolution video data. Refer to the Specifications section for more

information about recommended microSD cards.

Exporting Photos and Videos

Use QuickTransfer to export the footage to a mobile phone. Connect the aircraft to a computer

or use a card reader to export the footage to a computer.

• DO NOT remove the microSD card from the aircraft while it is powered on. Otherwise,

the microSD card may be damaged.

• To ensure the stability of the camera system, single video recordings are limited to 30

minutes.

• Check camera settings before use to ensure they are configured as desired.

• Before shooting important photos or videos, shoot a few images to test the camera is

operating correctly.

• Photos or videos cannot be transmitted or copied from the camera if the aircraft is

powered off.

• Make sure to power off the aircraft correctly. Otherwise, your camera parameters will

not be saved and any recorded videos may be damaged. DJI is not responsible for any

failure of an image or video to be recorded or having been recorded in a way that is

not machine-readable.

Remote Controller

This section describes the features of

the remote controller and includes

instructions for controlling the aircraft

and the camera.

Remote Controller

DJI RC

When used with DJI Mavic 3 Classic, DJI RC remote controller features O3+ video transmission,

works at both 2.4 GHz and 5.8 GHz frequency bands. It is capable of selecting the best

transmission channel automatically and can transmit up to 1080p 60fps HD live view from the

aircraft to the remote controller at a distance of up to 15 km (compliant with FCC standards,

and measured in a wide open area without interference). The DJI RC is also equipped with a

5.5-in touchscreen (1920×1080 pixel resolution) and a wide range of controls and customizable

buttons, enabling users to easily control the aircraft and remotely change the aircraft settings.

The built-in 5200 mAh battery with a power of 18.72 Wh provides the remote controller with a

maximum operating time of four hours. The DJI RC comes with many other functions such as

Wi-Fi connection, built-in GNSS (GPS+BeiDou+Galileo), Bluetooth, built-in speakers, detachable

control sticks, and microSD storage.

Charging the Battery

Use a USB-C cable to connect a USB

charger to the USB-C port of the remote

controller. The battery can be fully charged

in about 1 hour and 30 minutes with a

maximum charging power of 15 W (5V/3A).

Using the Remote Controller

Powering On/Off

Press the power button once to check the

current battery level.

Press and then press again and hold to power

the remote controller on or off.

Controlling the Gimbal and Camera

Focus/Shutter Button: Press halfway down to

auto focus and press all the way down to take

a photo.

Record Button: Press once to start or stop

recording.

Camera Control Dial: Use to adjust the zoom

by default. The dial function can be set to

adjust the focal length, EV, aperture, shutter

speed, and ISO.

Gimbal Dial: Use to adjust the tilt of the gimbal.

Gimbal Dial

Record Button

Camera

Control

Dial

Focus/Shutter Button

DJI Mavic 3 Classic User Manual

Controlling the Aircraft

Three preprogrammed modes (Mode 1, Mode 2, and Mode 3) are available and custom modes

can be configured in DJI Fly. The default mode is Mode 2.

Down

Turn RightTurn Left

RightLeft

Forward

Backward

Left Stick Right Stick

Right Stick

Left Stick

Turn RightTurn Left

Down

RightLeft

Forward

Backward

Right Stick

Down

Forward

Backward

Left Stick

Turn RightTurn Left

RightLeft

Mode 1

Mode 2

Mode 3

DJI Mavic 3 Classic User Manual

Flight Mode Switch

Toggle the switch to select the flight mode.

Remote

Controller

(Mode 2)

Aircraft

(

Indicates Nose Direction)

Remarks

Moving the left stick up or down (throttle

stick) changes the aircraft’s altitude.

Push the stick up to ascend and down to

descend. The more the stick is pushed

away from the center position, the faster

the aircraft will change altitude. Push

the stick gently to prevent sudden and

unexpected changes in altitude.

Moving the left stick to the left or right

(pan stick) controls the orientation of the

aircraft. Push the stick left to rotate the

aircraft counter-clockwise and right to

rotate the aircraft clockwise. The more

the stick is pushed away from the center

position, the faster the aircraft will rotate.

Moving the right stick up and down (pitch

stick) changes the aircraft’s pitch. Push

the stick up to fly forward and down to fly

backward. The more the stick is pushed

away from the center position, the faster

the aircraft will move.

Moving the right stick to the left or right

(roll stick) changes the aircraft’s roll. Push

the stick left to fly left and right to fly right.

The more the stick is pushed away from

the center position, the faster the aircraft

will move.

Position Flight Mode

S Sport Mode

N Normal Mode

C Cine Mode

CNS

DJI Mavic 3 Classic User Manual

Flight Pause/RTH Button

Press once to make the aircraft brake and hover in place. Press and hold the button until the

remote controller beeps to start RTH, the aircraft will return to the last recorded Home Point.

Press this button again to cancel RTH and to regain control of the aircraft.

Customizable Buttons

Go to System Settings in DJI Fly and select Control to set the functions of the customizable C1

and C2 buttons.

Status LED and Battery Level LEDs Description

Status LED

Blinking Pattern Description

—

Solid red Disconnected from the aircraft

Blinking red The battery level of the aircraft is low

—

Solid green Connected with the aircraft

Blinking blue The remote controller is linking to an aircraft

—

Solid yellow Firmware update failed

—

Solid blue Firmware update successful

Blinking yellow The battery level of the remote controller is low

Blinking cyan Control sticks not centered

Battery Level LEDs

Blinking Pattern Battery Level

75%~100%

50%~75%

25%~50%

0%~25%

Remote Controller Alert

The remote controller beeps when there is an error or warning. Pay attention when prompts

appear on the touch screen or in DJI Fly. Slide down from the top and select Mute to disable all

alerts, or slide the volume bar to 0 to disable some alerts.

DJI Mavic 3 Classic User Manual

The remote controller sounds an alert during RTH. The RTH alert cannot be cancelled. The

remote controller sounds an alert when the battery level of the remote controller is low (6% to

10%). A low battery level alert can be cancelled by pressing the power button. The critical low

battery level alert, which is triggered when the battery level is less than 5%, cannot be cancelled.

Optimal Transmission Zone

The signal between the aircraft and the remote controller is most reliable when the remote

controller is positioned towards the aircraft as shown below.

• DO NOT use other wireless devices operating at the same frequency as the remote

controller. Otherwise, the remote controller will experience interference.

• A prompt will be received in DJI Fly if the transmission signal is weak during flight.

Adjust the antennas to make sure that the aircraft is in the optimal transmission

range.

Optimal Transmission Zone

Weak Signal

DJI Mavic 3 Classic User Manual

Linking the Remote Controller

The remote controller is already linked to the aircraft when purchased together as a combo.

Otherwise, follow the steps below to link the remote controller and the aircraft after activation.

1. Power on the aircraft and the remote controller.

2. Launch DJI Fly.

3. Go to the camera view and tap

> Control, and then Pair to Aircraft (Link).

4. Press and hold the power button on the aircraft for more than four seconds. The aircraft will

beep once when it is ready to link. After linking is successful, the aircraft will beep twice and

the battery level LEDs of the remote controller will glow solid.

• Make sure the remote controller is within 0.5 m of the aircraft during the linking.

• The remote controller will automatically unlink from an aircraft if a new remote

controller is linked to the same aircraft.

• Turn off Bluetooth and Wi-Fi of the remote controller for optimal video transmission.

• Fully charge the remote controller before each flight. The remote controller sounds an

alert when the battery level is low.

• If the remote controller is powered on and not in use for five minutes, an alert will

sound. After six minutes, the remote controller automatically powers off. Move the

control sticks or press any button to cancel the alert.

• Fully charge the battery at least once every three months to maintain the battery

health.

Operating the Touchscreen

Home

DJI Mavic 3 Classic User Manual

Operations

Slide from the left or right to the

center of the screen to return to

the previous screen.

Slide up from the bottom of

the screen to return to DJI Fly.

Slide down from the top of the screen to

open the status bar when in DJI Fly.

The status bar displays the time, Wi-Fi

signal, and battery level of the remote

controller, etc.

Slide down twice from the top

of the screen to open Quick

Settings when in DJI Fly.

×2

DJI Mavic 3 Classic User Manual

Quick Settings

1. Notifications

Tap to check system notifications.

2. System Settings

Tap to access system settings and configure settings such as Bluetooth, volume, and

network. You can also view the Guide to learn more about the controls and status LEDs.

3. Shortcuts

: Tap to enable or disable Wi-Fi. Hold to enter settings and then connect to or add a Wi-Fi

network.

: Tap to enable or disable Bluetooth. Hold to enter settings and connect with nearby

Bluetooth devices.

: Tap to enable Airplane mode. Wi-Fi and Bluetooth will be disabled.

: Tap to turn off system notifications and disable all alerts.

: Tap to start recording the screen. The function will be available only after a microSD card

is inserted into the microSD slot on the remote controller.

: Tap to take a screenshot. The function will be available only after a microSD card is

inserted into the microSD slot on the remote controller.

: Mobile data.

4. Adjusting Brightness

Slide the bar to adjust the screen brightness.

5. Adjusting Volume

Slide the bar to adjust the volume.

DJI Mavic 3 Classic User Manual

Advanced Features

Calibrating the Compass

The compass may need to be calibrated after the remote controller is used in an area with

electromagnetic interference. A warning prompt will appear if the compass of the remote

controller requires calibration.

Tap the warning prompt to start calibrating. In other cases, follow the steps below to calibrate

the remote controller.

1. Power on the remote controller, and enter Quick Settings.

2. Tap

to enter system settings, scroll down and tap Compass.

3. Follow the on-screen instructions to calibrate the compass.

4. A prompt will be displayed when the calibration is successful.

DJI Mavic 3 Classic User Manual

DJI RC-N1

Built into the remote controller is DJI's long-range tranmission technology, offering a maximum

transmission range of 15 km and displaying video from the aircraft to DJI Fly on a mobile device

at up to 1080p 60fps (depending on mobile device). The aircraft and camera are easy to control

using the onboard buttons and the detachable control sticks make the remote controller easier

to store.

In a wide-open area with no electromagnetic interference, the aircraft uses O3+ to smoothly

transmit video links at up to 1080p 60fps (depending on mobile device). The remote controller

works at both 2.4 GHz and 5.8 GHz, automatically selecting the best transmission channel.

The built-in battery has a capacity of 5200 mAh and energy of 18.72 Wh and a maximum run

time of six hours. The remote controller charges the mobile device with a charging ability of 500

mA@5 V. The remote controller automatically charges Android devices. For iOS devices, first

make sure that charging is enabled in DJI Fly. Charging for iOS devices is disabled by default and

needs to be enabled each time the remote controller is powered on.

• Compliance Version: The remote controller is compliant with local regulations.

• Control Stick Mode: The control stick mode determines the function of each control

stick movement. Three pre-programmed modes (Mode 1, Mode 2, and Mode 3) are

available and custom modes can be configured in DJI Fly. The default mode is Mode 2.

Using the Remote Controller

Charging the Battery

Use a USB-C cable to connect the provided

charger to the USB-C port of the remote

controller. It takes approximately four hours

to fully charge the remote controller.

Powering On/Off

Press the power button once to check

the current battery level. Press and then

press and hold to power on/off the remote

controller. If the battery level is too low,

recharge before use.

Controlling the Gimbal and Camera

Shutter/Record Button: Press once take a

photo or to start or stop recording.

Photo/Video Toggle: Press once to switch

between photo and video mode.

Gimbal Dial: Use to control the tilt of the gimbal.

Gimbal Dial

Shutter/

Record Button

Photo/Video

Toggle

Customizable

Button

DJI Mavic 3 Classic User Manual

Controlling the Aircraft

The control sticks control the aircraft’s orientation (pan), forward/backward movement (pitch),

altitude (throttle), and left/right movement (roll). The control stick mode determines the function

of each control stick movement. Three preprogrammed modes (Mode 1, Mode 2, and Mode 3) are

available and custom modes can be configured in DJI Fly. The default mode is Mode 2.

Down

Turn RightTurn Left

RightLeft

Forward

Backward

Left Stick Right Stick

Right Stick

Left Stick

Turn RightTurn Left

Down

RightLeft

Forward

Backward

Right Stick

Down

Forward

Backward

Left Stick

Turn RightTurn Left

RightLeft

Mode 1

Mode 2

Mode 3

DJI Mavic 3 Classic User Manual

Remote

Controller

(Mode 2)

Aircraft

(

Indicates Nose Direction)

Remarks

Moving the left stick up or down (throttle

stick) changes the aircraft’s altitude. Push the

stick up to ascend and down to descend. The

more the stick is pushed away from the center

position, the faster the aircraft will change

altitude. Push the stick gently to prevent

sudden and unexpected changes in altitude.

Moving the left stick to the left or right (pan

stick) controls the orientation of the aircraft.

Push the stick left to rotate the aircraft

counter-clockwise and right to rotate the

aircraft clockwise. The more the stick is

pushed away from the center position, the

faster the aircraft will rotate.

Moving the right stick up and down (pitch

stick) changes the aircraft’s pitch. Push

the stick up to fly forward and down to fly

backward. The more the stick is pushed

away from the center position, the faster the

aircraft will move.

Moving the right stick to the left or right (roll

stick) changes the aircraft’s roll. Push the stick

left to fly left and right to fly right. The more

the stick is pushed away from the center

position, the faster the aircraft will move.

Position Flight Mode

SPORT Sport Mode

NORMAL Normal Mode

CINE Cine Mode

Flight Mode Switch

Toggle the switch to select the flight mode.

DJI Mavic 3 Classic User Manual

Flight Pause/RTH Button

Press once to make the aircraft brake and hover in place. If the aircraft is performing Smart RTH

or auto landing, press once to exit the procedure and then brake.

Press and hold the RTH button until the remote controller beeps to start RTH. Press this button

again to cancel RTH and regain control of the aircraft. Refer to the Return to Home section for

more information about RTH.

Customizable Button

Go to System Settings in DJI Fly and select Control to customize the function of the button.

Functions include recentering the gimbal, switching the auxiliary LED, and enabling Cruise

Control.

Remote Controller Alert

The remote controller sounds an alert during RTH or when the battery level is low (6% to 15%).

The low battery alert level can be cancelled by pressing the power button. The critical battery

level alert (less than 5%), however, cannot be cancelled.

Optimal Transmission Zone

The signal between the aircraft and the remote controller is most reliable when the anten-

nas are positioned in relation to the aircraft as shown below.

Optimal Transmission Zone

Weak Signal

DJI Mavic 3 Classic User Manual

Linking the Remote Controller

The aircraft and remote controller must be linked before use. Follow these steps to link a new

remote controller:

1. Power on the remote controller and the aircraft.

2. Launch DJI Fly.

3. Go to the camera view and tap

> Control > Pair to Aircraft (Link).

4. Press and hold the power button of the aircraft for more than four seconds. The aircraft

beeps once indicating it is ready to link. The aircraft beeps twice indicating linking is

successful. The battery level LEDs of the remote controller will glow solid.

• Make sure the remote controller is within 0.5 m of the aircraft during linking.

• The remote controller will automatically unlink from an aircraft if a new remote

controller is linked to the same aircraft.

• Turn off Bluetooth and Wi-Fi on the mobile device for optimal video transmission.

• Fully charge the remote controller before each flight. The remote controller sounds an

alert when the battery level is low.

• If the remote controller is powered on and not in use for five minutes, an alert will

sound. After six minutes, the remote controller automatically powers off. Move the

control sticks or press any button to cancel the alert.

• Adjust the mobile device holder to ensure the mobile device is secure.

• Fully charge the battery at least once every three months to maintain battery health.

DJI Fly App

This section introduces the main

functions of the DJI Fly app.

DJI Fly App

Home

Launch DJI Fly and enter the home screen.

Fly Spots

View or share nearby suitable flight and shooting locations, learn more about GEO zones, and

preview aerial photos of different locations taken by other users.

Academy

Tap the icon in the top right corner to enter Academy. Product tutorials, flight tips, flight safety,

and manual documents can be viewed here.

Album

Allows you to view photos and videos from DJI Fly and mobile device. Create contains Templates

and Pro. Templates provides auto edit feature for imported footage. Pro allows you to edit the

footage manually.

SkyPixel

Enter SkyPixel to view videos and photos shared by users.

Profile

View the account information, flight records, DJI forum, online store, Find My Drone feature, and

other settings.

Academy

Fly Spots

GO FLY

Skypixel

Album

Altitude Zone (120m)

Proﬁle

DJI Mavic 3 Classic User Manual

Camera View

1. Flight Mode

N: Displays the current flight mode.

2. System Status Bar

In-Flight : Indicates aircraft flight status and displays various warning messages.

3. Battery Information

24'17"

: Displays the current battery level and remaining flight time. Tap to view more

information about the battery.

4. Video Downlink Signal Strength

: Displays the video downlink strength between the aircraft and remote controller.

5. Vision Systems Status

: The left side of the icon indicates the status of the Forward, Backward, and Lateral

Vision Systems and the right side of the icon indicates the status of the Upward and

Downward Vision Systems. The icon is white when the Vision System is working normally

and red when the Vision System is unavailable.

6. GNSS Status

: Displays the current GNSS signal strength. Tap to check the GNSS signal status. The

Home Point can be updated when the icon is white, which indicates the GNSS signal is

strong.

7. System Settings

: Tap to view information about safety, control, and transmission.

N ModeN Mode

80 m

4.6m/s4.6m/s

3m/s

150 m

In-Flight

1.0x

12 26

06:21

Storage

RES&FPS

4K 60

+0.7

1 2

3 4 5 6 7

1213141516

DJI Mavic 3 Classic User Manual

Safety

Flight Assistance

Obstacle Avoidance

Action

Upward, Forward, Backward, and the Lateral Vision Systems are

enabled after setting Obstacle Avoidance to Bypass or Brake. The

aircraft cannot sense obstacles if Obstacle Avoidance is disabled.

Bybassing Options Select Normal or Nifty mode when using Bypass.

Display Radar Map When enabled, the real-time obstacle detection radar map will be

displayed.

Return to Home: Tap to set Advanced RTH, Auto RTH Altitude (default altitude is 100 m), and

to update the Home Point.

Flight Protection: Tap to set the max altitude and max distance.

Sensors: Tap to view the IMU and compass status and start to calibrate if necessary.

Battery: Tap to view the battery information such as battery cell status, serial number, and

times charged.

Auxiliary LED: Tap to set the auxiliary LED to auto, on, or off. DO NOT turn on the Auxiliary

LED before takeoff.

Aircraft Front Arm LEDs: In auto mode, the aircraft front LEDs will be disabled during

recording to ensure the quality is not affected.

Unlock GEO Zone: Tap to view the information about unlocking GEO zones.

The Find My Drone feature helps to find the location of the aircraft on the ground.

Advanced Safety Settings include the behavior settings of the aircraft when the remote

controller signal is lost, when the propellers can be stopped during flight, downward vision

positioning switch, and the AirSense switch.

Signal Lost The behavior of the aircraft when the remote controller signal is

lost can be set to Return to Home, Descend, and Hover.

Emergency Propeller

Stop

“Emergency Only” indicates that the motors can only be stopped

mid-flight in an emergency situation such as if there is a collision,

a motor has stalled, the aircraft is rolling in the air, or the aircraft

is out of control and is ascending or descending quickly. “Anytime”

indicates that the motors can be stopped mid-flight anytime once

user performs a combination stick command (CSC). Stopping the

motors in mid-flight will cause the aircraft to crash.

AirSense An alert will appear in DJI Fly when a manned aircraft is detected

if AirSense is enabled. Read the disclaimer in the DJI Fly prompt

before using AirSense.

DJI Mavic 3 Classic User Manual

Control

Aircraft Settings

Unit Can be set to metric or imperial.

Subject Scanning When enabled, aircraft automatically scans and displays subjects

in the Camera View (only available for single-shot photos and

normal video recording).

Gain and Expo Tuning Supports the gain and expo settings to be fine-tuned on the

aircraft and the gimbal in different flight modes, including the

max horizontal speed, max ascent speed, max descent speed,

max angular velocity, yaw smoothness, brake sensitivity, and expo

and the gimbal max tilt control speed and tilt smoothness.

• When releasing the control sticks, an increased brake sensitivity reduces the

braking distance of the aircraft, while a decreased brake sensitivity increases the

braking distance. Fly with caution.

Gimbal Settings: Tap to set the gimbal mode, gimbal angle, and perform gimbal calibration.

Remote Controller Settings: Tap to set the function of the customizable button, to calibrate

the remote controller, and to switch stick modes. Make sure to understand the operations

of a stick mode before changing stick mode.

Beginner Flight Tutorial: View the flight tutorial.

Connect to Aircraft: Tap to start linking when the aircraft is not linked to the remote controller.

Camera

Camera Parameter Settings: Displays different settings according to the shooting mode.

Shooting Modes Settings

Photo Mode Format, Size

Record Mode Format, Color, Coding Format, Video Bitrate, Video Subtitles

MasterShots Format, Color, Coding Format, Video Bitrate, Video Subtitles

QuickShots Format, Color, Coding Format, Video Bitrate, Video Subtitles

Hyperlapse Output Quality, Photo Type, Shot Frame, Format

Pano Photo Type

General Settings: Tap to view and set anti-flicker, histogram, peaking level, overexposure

warning, gridlines, and white balance.

Storage: Footage can be stored in the aircraft or on a microSD card. Internal storage and

microSD cards can be formatted. The cache when recording settings and camera reset

settings can also be adjusted.

Transmission

Live Stream Platform (not supported when using DJI RC), Frequency, and Channel Mode

settings.

DJI Mavic 3 Classic User Manual

About

Displays the Device Name, Wi-Fi Name, Model, App Version, Aircraft Firmware, RC Firmware,

FlySafe Data, SN, etc.

Tap Reset All Settings to reset settings including camera, gimbal and safety settings to

default.

Tap Clear All Data to reset all settings to default, and delete all the data stored in internal

storage and microSD card, including flight log. It is recommended to provide proof (flight

log) when claiming compensation. Contact DJI support before clearing the flight log if an

accident occurs during flight.

8. Shooting Modes

Photo: Single, Burst Shooting, AEB, and Timed Shot.

Video: Normal, Night, and Slow Motion. Supported digital zoom for normal video mode.

Night mode provides better noise reduction and cleaner footage, supports up to 12800

ISO.

• Night mode currently supports 4K 30fps.

• Obstacle avoidance will be disabled in Night mode. Fly with caution.

• Night mode will be exited automatically when RTH or landing is started.

• During RTH or auto landing, Night mode is not available.

• FocusTrack is not supported in Night mode.

MasterShots: Select a subject. The aircraft will record while executing different maneuvers

in sequence and keeping the subject in the center of the frame. A short cinematic video will

be generated afterward.

QuickShots: Dronie, Rocket, Circle, Helix, Boomerang, and Asteroid.

Hyperlapse: Choose from Free, Circle, Course Lock, and Waypoints.

Pano: Choose from Sphere, 180°, Wide Angle, and Vertical.

9. Digital Zoom/AF/MF

1.0x

: Displays the zoom ratio.

AF / MF: Tap the icon to switch between AF and MF. Press and hold the icon to display the

focus bar.

10. Shutter/Record Button

: Tap to take a photo or to start or stop recording a video.

11. Playback

: Tap to enter playback and preview photos and videos as soon as they are captured.

12. Camera Modes Switch

: Choose between Auto and Pro mode when in photo mode. Different parameters can

be set in different modes. In Pro mode, anti-flicker will only take effect when the shutter

speed and ISO are set to auto.

13. Shooting Parameters

K 6

RES&FPS

: Displays the current shooting parameters. Tap to access parameter settings.

DJI Mavic 3 Classic User Manual

14. Storage Information

Storage

6:2

Sto

Stora

: Displays the remaining number of photos or video recording time of the current

storage. Tap to view the available capacity of the microSD card.

15. Flight Telemetry

D 80m H 150m

4.6m/s 3m/s

: Displays the distance between the aircraft and the Home Point,

height from the Home Point, aircraft horizontal speed, and aircraft vertical speed.

16. Map

: Tap to switch to the Attitude Indicator, which displays information such as the

orientation and tilt angle of the aircraft, position of the remote controller, and position of

the Home Point. The Attitude Indicator can be switched between the aircraft or the remote

controller being centered.

Collapse

Switch to minimap

Aircraft tilt angle

Home Point

Remote controller

position

Aircraft orientation

Switch to Attitude

Indicator

17. Auto Takeoff/Landing/RTH

/ : Tap the icon. When the prompt appears, press and hold the button to initiate auto

takeoff or landing.

: Tap to initiate Smart RTH and have the aircraft return to the last recorded Home Point.

18. Waypoint Flight

: Tap to enable/disable Waypoint Flight.

19. Back

: Tap to return to the home screen.

Press and hold on the screen to bring up the gimbal adjustment bar to adjust the gimbal angle.

Tap on the screen to enable focus or spot metering. Focus or spot metering will display

differently depending on the focus mode, exposure mode, and spot metering mode. After

using spot metering, press and hold on the screen to lock the exposure. To unlock the

exposure, press and hold on the screen again or tap on other area of the screen.

• Make sure to fully charge your device before launching DJI Fly.

• Mobile cellular data is required when using DJI Fly. Contact your wireless carrier for

data charges.

• If you are using a mobile phone as your display device, DO NOT accept phone calls or

use texting features during flight.

DJI Mavic 3 Classic User Manual

• Read all safety tips, warning messages, and disclaimers carefully. Familiarize yourself

with the related regulations in your area. You are solely responsible for being aware of

all relevant regulations and flying in a way that is compliant.

a. Read and understand the warning messages before using the auto-take off and

auto-landing.

b. Read and understand the warning messages and disclaimer before setting the

altitude beyond the default limit.

c. Read and understand the warning messages and disclaimer before switching

between flight modes.

d. Read and understand the warning messages and disclaimer prompts near or in

GEO zones.

e. Read and understand the warning messages before using the Intelligent Flight modes.

• Land the aircraft immediately in a safe location if prompted to do so in the app.

• Review all warning messages on the checklist displayed in the app before each flight.

• Use the in-app tutorial to practice your flight skills if you have never operated the aircraft

or if you do not have sufficient experience to operate the aircraft with confidence.

• Cache the map data of the area where you intend to fly the aircraft by connecting to

the internet before each flight.

• The app is designed to assist your operation. Use your sound discretion and DO NOT

rely on the app to control your aircraft. Your use of the app is subject to DJI Fly Terms

of Use and DJI Privacy Policy. Read them carefully in the app.

Flight

This section describes safe flight practices

and flight restrictions.

Flight

Once pre-flight preparation is complete, it is recommended to hone your flight skills and

practice flying safely. Make sure that all flights are carried out in an open area. Refer to the

Remote Controller and DJI Fly sections for information about using the remote controller and

the app to control the aircraft.

Flight Environment Requirements

1. DO NOT use the aircraft in severe weather conditions including wind speeds exceeding 12 m/s,

snow, rain, and fog.

2. Only fly in open areas. Tall structures and large metal structures may affect the accuracy of

the onboard compass and GNSS system. It is recommended to keep the aircraft at least 5 m

away from structures.

3. Avoid obstacles, crowds, high voltage power lines, trees, and bodies of water. It is

recommended to keep the aircraft at least 3 m above water.

4. Minimize interference by avoiding areas with high levels of electromagnetism such as

locations near power lines, base stations, electrical substations, and broadcasting towers.

5. Aircraft and battery performance is subject to environmental factors such as air density

and temperature. Be careful when flying 6,000 m or more above sea level, since battery and

aircraft performance may be reduced.

6. Aircraft cannot use GNSS within the polar regions. Use the Downward Vision System when

flying in such locations.

7. DO NOT take off from moving objects such as cars, ships, and airplanes.

8. DO NOT use the aircraft, remote controller, battery, and battery charger near accidents,

fires, explosions, floods, tsunamis, avalanches, landslides, earthquakes, dust, or sandstorms.

9. Use the battery charger in a temperature range of 5° to 40° C (41° to 104° F).

10. Operate the aircraft, battery, remote controller, and battery charger in a dry environment.

11. DO NOT use the battery charger in humid environments.

Operating the Aircraft Responsibly

To avoid serious injury and property damage, observe the following rules:

1. Make sure you are NOT under the influence of anesthesia, alcohol, or drugs or suffering

from dizziness, fatigue, nausea, or other conditions that could impair the ability to operate

the aircraft safely.

2. When landing, power off the aircraft first, then switch off the remote controller.

3. DO NOT drop, launch, fire, or otherwise project any dangerous payloads on or at any

buildings, persons, or animals, which could cause personal injury or property damage.

4. DO NOT use an aircraft that has been crashed or accidentally damaged or an aircraft that is

not in good condition.

5. Make sure to train sufficiently and have contingency plans for emergencies or when an

incident occurs.

DJI Mavic 3 Classic User Manual

6. Make sure to have a flight plan. DO NOT fly the aircraft recklessly.

7. Respect the privacy of others when using the camera. Make sure to comply with local

privacy laws, regulations, and moral standards.

8. DO NOT use this product for any reason other than general personal use.

9. DO NOT use it for illegal or inappropriate purposes such as spying, military operations, or

unauthorized investigations.

10. DO NOT use this product to defame, abuse, harass, stalk, threaten, or otherwise violate

legal rights such as the right to privacy and publicity of others.

11. DO NOT trespass onto the private property of others.

Flight Limits and GEO Zones

GEO (Geospatial Environment Online) System

DJI’s Geospatial Environment Online (GEO) System is a global information system that provides

real-time information on flight safety and restriction updates and prevents UAVs from flying

in restricted airspace. Under exceptional circumstances, restricted areas can be unlocked to

allow flights in. Prior to that, the user must submit an unlocking request based on the current

restriction level in the intended flight area.

The GEO system may not fully comply with local laws and regulations. Users shall be responsible

for their own flight safety and must consult with the local authorities on the relevant legal and

regulatory requirements before requesting to unlock a flight in a restricted area. For more

information about the GEO system, visit https://www.dji.com/flysafe.

Flight Limits

For safety reasons, flight limits are enabled by default to help users operate this aircraft safely.

Users can set flight limits on height and distance. Altitude limits, distance limits, and GEO zones

function concurrently to manage flight safety when GNSS is available. Only altitude can be

limited when GNSS is unavailable.

Flight Altitude and Distance Limits

The flight altitude and distance limits can be changed in DJI Fly. Based on these settings, the

aircraft will fly in a restricted cylinder, as shown below:

Max Flight Altitude

Height of aircraft

when takeoff

Max Radius

Home Point

DJI Mavic 3 Classic User Manual

Flight Limits DJI Fly App

Max Altitude

Aircraft's altitude cannot exceed the specified

value

Warning: Height limit

reached

Max Radius Flight distance must be within the max radius

Warning: Distance limit

reached

Only Downward Vision System is available

Flight Limits DJI Fly App

Max

Altitude

Height is restricted to 30 m when the GNSS signal is

weak. Height is restricted to 3 m when the GNSS signal

is weak and light conditions is not sufficient.

Warning: Height limit

reached.

Max

Radius

The restrictions on the radius are disabled and warning prompts cannot be

received in the app.

• The altitude limit when the GNSS is weak will not be restricted if there was a strong

GNSS signal when the aircraft was powered on.

• If the aircraft reaches a limit, you can still control the aircraft, but you cannot fly it any

further. If the aircraft flies out of the max radius, it will automatically fly back within

range when the GNSS signal is strong.

• For safety reasons, do not fly close to airports, highways, railway stations, railway lines,

city centers, or other sensitive areas. Fly the aircraft only within your line of sight.

GEO Zones

All GEO zones are listed on the DJI official website at http://www.dji.com/flysafe/geo-map. GEO

zones are divided into different categories and include locations such as airports, flying fields

where manned aircraft operate at low altitudes, borders between countries, and sensitive

locations such as power plants. There will be prompts in the DJI Fly app to fly in GEO zones.

Pre-Flight Checklist

1. Make sure the remote controller, mobile device, and Intelligent Flight Battery are fully

charged.

2. Make sure the Intelligent Flight Battery and the propellers are mounted securely.

3. Make sure the aircraft arms are unfolded.

4. Make sure the gimbal and camera are functioning normally.

5. Make sure that there is nothing obstructing the motors and that they are functioning

normally.

6. Make sure that DJI Fly is successfully connected to the aircraft.

7. Make sure that the camera lens and Vision System sensors are clean.

When GNSS is available

DJI Mavic 3 Classic User Manual

8. Use only genuine DJI parts or parts certified by DJI. Unauthorized parts or parts from non-

DJI certified manufacturers may cause system malfunctions and compromise safety.

9. Check if the Remote ID is up to date and working.

10. Make sure the max flight altitude is set properly according to local regulations.

11. DO NOT fly over a density population.

12. Make sure the aircraft and remote controller are functioning normally.

Auto Takeoff/Landing

Auto Takeoff

Use auto takeoff:

1. Launch DJI Fly and enter the camera view.

2. Complete all steps in the pre-flight checklist.

3. Tap

. If conditions are safe for takeoff, press and hold the button to confirm.

4. The aircraft will take off and hover 1.2 m above the ground.

Auto Landing

Use auto landing:

1. Tap

. If conditions are safe to land, press and hold the button to confirm.

2. Auto landing can be cancelled by tapping

3. If the Vision System is working normally, Landing Protection will be enabled.

4. Motors stops after landing.

DJI Mavic 3 Classic User Manual

Starting/Stopping the Motors

Starting the Motors

A Combination Stick Command (CSC) is used to start the motors. Push both sticks to the bottom

inner or outer corners to start the motors. Once the motors have started spinning, release both

sticks simultaneously.

Stopping the Motors

There are two methods to stop the motors.

Method 1: When the aircraft has landed, push and hold the left stick down. The motors will stop

after one second.

Method 2: When the aircraft has landed, perform the same CSC that was used to start the

motors. The motors will stop after two seconds. Release both sticks once the motors have

stopped.

• If the motor is started unexpected, use CSC to stop motors immediately.

Stopping the Motors Mid-Flight

Stopping motors mid-flight will cause the aircraft to crash. The motors should only be stopped

mid-flight in an emergency situation such as if a collision has occurred or if the aircraft is out

of control and is ascending or descending quickly, rolling in the air, or if a motor has stalled.

To stop the motors mid-flight use the same CSC that was used to start the motors. The default

setting can be changed in DJI Fly.

Method 1 Method 2

DJI Mavic 3 Classic User Manual

Flight Test

Takeoff/Landing Procedures

1. Place the aircraft in an open, flat area with the aircraft status indicator facing towards you.

2. Turn on the aircraft and the remote controller.

3. Launch DJI Fly and enter the camera view.

4. Wait until the self-check is finished, it is safe to fly if there is no abnormal warning in DJI Fly.

5. Gently push the throttle stick to take off or use auto-takeoff.

6. Pull the throttle stick or use auto-landing to land the aircraft.

7. After landing, push the throttle stick down and hold. The motors stop after one second.

8. Turn off the aircraft and remote controller.

Video Suggestions and Tips

1. The pre-flight checklist is designed to help you fly safely and to ensure that you can shoot

video during flight. Go through the full pre-flight checklist before each flight.

2. Select the desired gimbal operation mode in DJI Fly.

3. Use Normal or Cine mode to record video.

4. DO NOT fly in bad weather conditions such as when it is raining or windy.

5. Choose the camera settings that best suit your needs.

6. Perform flight tests to establish flight routes and to preview scenes.

• Make sure to place the aircraft on a flat and steady surface before takeoff. DO NOT

takeoff from your palm or while holding the aircraft with your hand.

Appendix

Specifications

Appendix

Aircraft

Takeoff Weight 895 g

Dimensions (L×W×H) Folded (without propellers): 221×96.3×90.3 mm

Unfolded (without propellers): 347.5×283×107.7 mm

Diagonal Distance 380.1 mm

Ascent Speed S Mode: 1 m/s-8 m/s

N Mode: 1 m/s-6 m/s

C Mode: 1 m/s-6 m/s

Descent Speed 1 m/s-6 m/s

Horizontal Speed (near sea level,

no wind)

S Mode: 1 m/s-21 m/s; S Mode (EU): 1 m/s-19 m/s

N Mode: 1 m/s-15 m/s

C Mode: 1 m/s-15 m/s

Max Takeoff Altitude 6,000 m

Max Flight Time 46 min (measured while flying at 32.4 kph in windless conditions)

Max Hover Time (without wind) 40 min

Max Flight Distance 30 km

Max Wind Speed Resistance 12 m/s

Max Tilt Angle 35°

Max Angular Velocity 200°/s

Operating Temperature -10° to 40° C (14° to 104° F)

GNSS GPS + Galileo + BeiDou

Hovering Accuracy Range Vertical: ±0.1 m (with Vision Positioning)

±0.5 m (with GNSS Positioning)

Horizontal: ±0.3 m (with Vision Positioning)

±0.5 m (with High Accuracy System Positioning)

Internal Storage 8 GB (7.9 GB of available storage)

Camera

Sensor 4/3 CMOS Effective Pixels: 20 MP

Lens FOV: 84°

Format Equivalent: 24 mm

Aperture: f/2.8-f/11

Shooting Range: 1 m to ∞ (with auto focus)

ISO Range Video

Normal and Slow Motion;

100-6400 (Normal)

400-1600 (D-Log)

100-1600 (HLG)

Night: 800-12800 (Normal)

Photo: 100-6400

Electronic Shutter Speed 1/8000-8 s

Max Image Size 5280 × 3956

DJI Mavic 3 Classic User Manual

Still Photography Single: 20 MP

Automatic Exposure Bracketing (AEB): 20 MP, 3/5 Frames at 0.7EV

Step Timed: 20 MP 2/3/5/7/10/15/20/30/60 seconds

Video Resolution H.264/H.265

5.1K: 5120×2700@24/25/30/48/50fps

DCI 4K: 4096×2160@24/25/30/48/50/60/120*fps

4K: 3840×2160@24/25/30/48/50/60/120*fps

FHD:1920×1080@24/25/30/48/50/60/120*/200*fps

* Recorded frame rate, corresponding video plays as slow motion

video

Max Video Bitrate H.264/H.265: 200Mbps

Supported File System exFAT

Photo Format JPEG/DNG (RAW)

Video Format MP4/MOV (MPEG-4 AVC/H.264, HEVC/H.265)

Color Normal/HLG/D-Log

Gimbal

Stabilization 3-axis (tilt, roll, pan)

Mechanical Range Tilt: -135° to +100°

Roll: -45° to +45°

Pan: -27° to +27°

Controllable Range Tilt: -90° to 35°

Pan: -5° to 5°

Max Control Speed (tilt) 100°/s

Angular Vibration Range ±0.007°

Sensing System

Type Omnidirectional Vision Systems and Infrared Sensing System

Forward Vision System Precision Measurement Range: 0.5-20 m

Detection Range: 0.5-200 m

Effective Sensing Speed: ≤15 m/s

FOV: 90° (horizontal), 103° (vertical)

Backward Vision System Precision Measurement Range: 0.5-16 m

Effective Sensing Speed: ≤12 m/s

FOV: 90° (horizontal), 103° (vertical)

Lateral Vision System Precision Measurement Range: 0.5-25 m

Effective Sensing Speed: ≤15 m/s

FOV: 90° (horizontal), 85° (vertical)

Upward Vision System Precision Measurement Range: 0.2-10 m

Effective Sensing Speed: ≤6 m/s

FOV: 100° (front and back), 90° (left and right)

Downward Vision System Precision Measurement Range: 0.3-18 m

Effective Sensing Speed: ≤6 m/s

FOV: 130° (front and back), 160° (left and right)

Operating Environment Forward, Lateral, Upward, Backward:

Discernible surfaces, adequate lighting of lux >15

Downward: Non-reflective, discernible surfaces with diffuse

reflectivity of >20%, such as walls, trees, people; Adequate lighting

of lux >15 Surface with a clear pattern

DJI Mavic 3 Classic User Manual

Transmission

Video Transmission System O3+

Live View Quality Remote Controller: 1080p@30fps/1080p@60fps

Operating Frequency 2.4000-2.4835 GHz, 5.725-5.850 GHz

Max Transmission Distance

(unobstructed, free of

interference)

15 km (FCC), 8 km (CE/SRRC/MIC)

Measured in an unobstructed environment free of interference. The

above data shows the farthest communication range for one-way,

non-return flights under each standard. During flight, pay attention to

RTH reminders in the DJI Fly app.

Signal Transmission Ranges (FCC) Strong Interference (urban landscape, limited line of sight, many

competing signals): Approx. 1.5-3 km

Medium Interference (suburban landscape, open line of sight,

some competing signals): Approx. 3-9 km

Low Interference (open landscape abundant line of sight, few

competing signals): Approx. 9-15 km

Data is tested under different standards in open areas free of

interference. It only refers to the maximum, one-way flight distance

without considering Return to Home. Please pay attention to RTH

prompts in the DJI Fly app during actual flight.

Max Download Speed O3+: 5.5 MB/s (with DJI RC/RC-N1 remote controller)

Wi-Fi 6: 80MB/s*

Measured in a laboratory environment with little interference in

countries/regions that support both 2.4 GHz and 5.8 GHz. The footage

is saved on the internal storage of the aircraft. Download speeds may

vary depending on the actual conditions.

Latency (depending on

environmental conditions and

mobile device)

130 ms (with DJI RC/RC-N1 remote controller)

Antennas 4 antennas, 2T4R

Transmitter Power (EIRP) 2.4 GHz: <33 dBm (FCC); <20 dBm (CE/SRRC/MIC)

5.8 GHz: <33 dBm (FCC), <30 dBm(SRRC), <14 dBm(CE)

Intelligent Flight Battery

Capacity 5000 mAh

Standard Voltage 15.4 V

Max Charging Voltage 17.6 V

Battery Type LiPo 4S

Energy 77 Wh

Weight 335.5 g

Charging Temperature 5° to 40° C (41° to 104° F)

Battery Charger

Input 100-240 V AC (47-63 Hz) 2.0 A

Output USB-C: 5.0 V

5.0 A/9.0 V 5.0 A/12.0 V 5.0 A/15.0 V 4.3

A/20.0 V

3.25 A/5.0 V-20.0 V 3.25 A

USB-A: 5 V

2 A

Rated Power 65 W

Charging Temperature 5° to 40° C (41° to 104° F)

Storage

Supported SD Cards SDXC, UHS-I Speed Grade 3 rating microSD card

DJI Mavic 3 Classic User Manual

Recommended microSD Cards

Lexar 1066x 64GB V30 A2 microSDXC

Lexar 1066x 128GB V30 A2 microSDXC

Lexar 1066x 256GB V30 A2 microSDXC

Lexar 1066x 512GB V30 A2 microSDXC

SanDisk High Endurance 64GB V30 microSDXC

SanDisk High Endurance 128GB V30 microSDXC

SanDisk High Endurance 256GB V30 microSDXC

Kingston Canvas Go! Plus 64GB V30 A2 microSDXC

Kingston Canvas Go! Plus 128GB V30 A2 microSDXC

Kingston Canvas Go! Plus 256GB V30 A2 microSDXC

Kingston Canvas Go! Plus 512GB V30 A2 microSDXC

Samsung EVO Plus 512GB V30 A2 microSDXC

Samsung PRO Plus 256GB V30 A2 microSDXC

Samsung PRO Plus 512GB V30 A2 microSDXC

DJI RC-N1 Remote Controller

Transmission System When used with different aircraft hardware configurations, DJI

RC- N1 Remote Controllers supports the following transmission

technologies enabled by the hardware performance of the linked

aircraft models:

a. DJI Mini 2/ DJI Mavic Air 2: O2

b. DJI Air 2S: O3

c. DJI Mavic 3 Classic/DJI Mavic 3/DJI Mavic 3 Cine: O3+

Operating Time 6 hours (without charging the mobile device)

4 hours (with charging the mobile device)

Supported USB Port Types Lightning, Micro USB, USB-C

Max Supported Mobile Device Size

(H×W×T)

180 mm × 86 mm × 10 mm

Operating Temperature -10° to 40° C (14° to 104° F)

Transmitter Power (EIRP) 2.4 GHz: ≤26 dBm (FCC), ≤20 dBm (CE/SRRC/MIC)

5.8 GHz: ≤26 dBm (FCC/SRRC), ≤14 dBm (CE)

Charging Temperature 5° to 40° C (41° to 104° F)

Operating Voltage 3.6 V

DJI RC Remote Controller

Transmission

Video Transmission System When used with different aircraft hardware configurations, the DJI

RC Remote Controller will automatically select the corresponding

firmware version for updating. It supports the O3+ transmission

technology when linked with DJI Mavic 3 Classic.

Operating Frequency 2.4000 - 2.4835 GHz, 5.725 - 5.850 GHz

Transmitter Power (EIRP) 2.4 GHz: <26 dBm (FCC), <20 dBm (CE/SRRC/MIC)

5.8 GHz: <26 dBm (FCC), <23 dBm (SRRC), <14 dBm (CE)

Max Transmission Distance

(unobstructed, free of

interference)

15 km (FCC); 8 km (CE/SRRC/MIC)

Transmission Distance (in

common scenarios)

Strong interference (e.g., city center): 1.5-3 km

Moderate interference (e.g., suburbs, small towns): 3-7 km

No interference (e.g., rural areas, beaches): 7-12 km

DJI Mavic 3 Classic User Manual

Wi-Fi

Protocol 802.11a/b/g/n

Operating Frequency 2.4000-2.4835 GHz; 5.150-5.250 GHz; 5.725-5.850 GHz

Transmitter Power (EIRP) 2.4 GHz: <23 dBm (FCC); <20 dBm (CE/SRRC/MIC)

5.1 GHz: <23 dBm (FCC/CE/SRRC/MIC)

5.8 GHz: <23 dBm (FCC/SRRC), <14 dBm (CE)

Bluetooth

Protocol Bluetooth 4.2

Operating Frequency 2.4000-2.4835 GHz

Transmitter Power (EIRP) <10 dBm

General

Operating Temperature -10° to 40° C (14° to 104° F)

GNSS GPS + BeiDou + Galileo

Battery Capacity 5,200 mAh

Battery Type Li-ion

Chemical System LiNiMnCoO2

Operating Current/Voltage 1250 [email protected] V

Storage Capacity microSD card supported

Supported microSD Cards for DJI

RC Remote Controller

UHS-I Speed Grade 3 rating microSD card

Recommended microSD Cards for

DJI RC Remote Controller

SanDisk Extreme 64GB V30 A1 microSDXC

SanDisk Extreme 128GB V30 A2 microSDXC

SanDisk Extreme 256GB V30 A2 microSDXC

SanDisk Extreme 512GB V30 A2 microSDXC

SanDisk Extreme Pro 64GB V30 A2 microSDXC

SanDisk Extreme Pro 256GB V30 A2 microSDXC

SanDisk Extreme Pro 400GB V30 A2 microSDXC

SanDisk High Endurance 64GB V30 microSDXC

SanDisk High Endurance 256GB V30 microSDXC

Kingston Canvas Go Plus 64GB V30 A2 microSDXC

Kingston Canvas Go Plus 256GB V30 A2 microSDXC

Lexar High Endurance 64GB V30 microSDXC

Lexar High Endurance 128GB V30 microSDXC

Lexar 633x 256GB V30 A1 microSDXC

Lexar 1066x 64GB V30 A2 microSDXC

Samsung EVO Plus 512GB microSDXC

DJI Mavic 3 Classic User Manual

Firmware Update

Use DJI Fly or DJI Assistant 2 (Consumer Drones Series) to update the aircraft firmware.

Using DJI Fly

When you connect the aircraft or remote controller to DJI Fly, you will be notified if a new

firmware update is available. To start updating, connect your remote controller or mobile device

to the internet and follow the onscreen instructions. Note that you cannot update the firmware

if the remote controller is not linked to the aircraft. Internet is required.

Using DJI Assistant 2 (Consumer Drones Series)

Update the aircraft and remote controller firmware separately using DJI Assistant 2 (Consumer

Drones Series).

Follow the instructions below to update the aircraft firmware through DJI Assistant 2 (Consumer

Drones Series):

1. Launch DJI Assistant 2 (Consumer Drones Series) and log in with your DJI account.

2. Power on the aircraft and connect the aircraft to a computer via the USB-C port.

3. Select DJI Mavic 3 Classic and click on Firmware Updates on the left panel.

4. Select the firmware version that you wish to update to.

5. Wait for the firmware to download. The firmware update will start automatically.

6. The aircraft will reboot automatically after the firmware update is complete.

Follow the instructions below to update the remote controller firmware through DJI Assistant 2

(Consumer Drones Series):

1. Launch DJI Assistant 2 (Consumer Drones Series) and log in with your DJI account.

2. Power on the remote controller and connect to a computer via the USB-C port using a Micro

USB cable.

3. Select DJI Mavic 3 Classic Remote Controller and click on Firmware Updates on the left panel.

4. Select the firmware version that you wish to update to.

5. Wait for the firmware to download. The firmware update will start automatically.

6. Wait for the firmware update to be completed.

• Make sure follow all the steps to update firmware. Otherwise, the update may fail.

• The firmware update will take approximately ten minutes. It is normal that the gimbal

goes limp, aircraft status indicators blink, and the aircraft reboots. Wait patiently until

the update is complete.

• Make sure the computer has access to the internet.

• Before performing an update, make sure the Intelligent Flight Battery is at least 40%

charged and the remote controller is at least 30% charged.

• DO NOT disconnect the aircraft from the computer during an update.

• DO NOT use Hardware and Software that is not specified by DJI.

Refer to the Mavic 3 Classic Release Notes for more firmware update information for Traceability.

DJI Mavic 3 Classic User Manual

Maintenance Instructions

To avoid serious injury to children and animals, observe the following rule:

1. Small parts, such as cables and straps, are dangerous if swallowed. Keep all parts out of

reach of children and animals.

2. Store the Intelligent Flight Battery and remote controller in a cool, dry place away from

direct sunlight to ensure the built-in LiPo battery does NOT overheat. Recommended

storage temperature: between 22° and 28° C (71° and 82° F) for storage periods of more

than three months. Never store in environments outside the temperature range of 14° to

113° F (-10° to 45° C).

3. DO NOT allow the camera to come into contact with or become immersed in water or

other liquids. If it gets wet, wipe dry with a soft, absorbent cloth. Turning on an aircraft that

has fallen in water may cause permanent component damage. DO NOT use substances

containing alcohol, benzene, thinners, or other flammable substances to clean or maintain

the camera. DO NOT store the camera in humid or dusty areas.

4. DO NOT connect this product to any USB interface older than version 3.0. DO NOT connect

this product to any “power USB” or similar devices.

5. Check every aircraft part after any crash or serious impact. If there are any problems or

questions, contact a DJI authorized dealer.

6. Regularly check the Battery Level Indicators to see the current battery level and overall

battery life. The battery is rated for 200 cycles. It is not recommended to continue use

afterward.

7. After-Flight Checklist

a. Make sure the Intelligent Flight Battery and the propellers are in good condition.

b. Make sure that the camera lens and Vision System sensors are clean.

c. Make sure to attach the gimbal protector before storing or transporting the aircraft.

8. Make sure to transport the aircraft with the arms folded when powered off.

9. Make sure to transport the remote controller with antennas folded when powered off.

10. The battery will enter sleep mode after long-term storage. Charge the battery to exit from

sleep mode.

11. Use the ND filter if the exposure time needs to prolonged. Refer to the product information

on how to install the ND filters.

12. Store the aircraft, remote controller, battery, and charger in a dry environment.

13. Remove the battery before servicing the aircraft (e.g., cleaning or attaching and detaching

the propellers). Make sure that the aircraft and the propellers are clean by removing any

dirt or dust with a soft cloth. Do not clean the aircraft with a wet cloth or use a cleanser that

contains alcohol. Liquids can penetrate the aircraft housing, which can cause a short circuit

and destroy the electronics.

14. Make sure to turn off the battery to replace or to check the propellers.

DJI Mavic 3 Classic User Manual

Troubleshooting Procedures

1. Why can the battery not be used before the first flight?

The battery must be activated by charging before using it for the first time.

2. How to solve the gimbal drift issue during flight?

Calibrate IMU and compass in DJI Fly. If the problem persists, contact DJI Support.

3. No function

Check if the Intelligent Flight battery and the remote controller are activated by charging. If

the problems persist, contact DJI support.

4. Power-on and start-up problems

Check if the battery has power. If yes, contact DJI support if it cannot be started normally.

5. SW update issues

Follow the instructions in the user manual to update the firmware. If the firmware update

fails, restart all the devices and try again. If the problem persists, contact DJI support.

6. Procedures to reset to factory default or last known working configuration

Use the DJI Fly app to reset to factory default.

7. Shutdown and power-off problems

Contact DJI support.

8. How to detect careless handling or storage in unsafe conditions

Contact DJI support.

Risk and Warnings

When the aircraft detects a risk after powering on, there will be a warning prompt on DJI Fly.

Pay attention to the list of situations below.

1. If the location is not suitable for takeoff.

2. If an obstacle is detected during flight.

3. If the location is not suitable for landing.

4. If the compass and IMU experience interference and need to be calibrated.

5. Follow the on-screen instructions when prompted.

DJI Mavic 3 Classic User Manual

Disposal

Observe the local regulations related to electronic devices when disposing of the aircraft and

remote controller.

Battery Disposal

Dispose of the batteries in specific recycling containers only after a complete discharge. DO

NOT dispose of the batteries in regular trash containers. Strictly follow the local regulations

regarding the disposal and recycling of batteries.

Dispose of a battery immediately if it cannot be powered on after over-discharging.

If the power on/off button on the Intelligent Flight Battery is disabled and the battery cannot be

fully discharged, contact a professional battery disposal/recycling agency for further assistance.

C1 Certification

Mavic 3 Classic is comply with C1 certification, there are some requirements and restrictions

when using Mavic 3 Classic in European Economic Area (EEA, i.e. EU plus Norway, Iceland and

Liechtenstein).

UAS Class C1

Sound Power Level 83 dB

Maximum Propeller Speed 7500 RPM

MTOM Statement

The MTOM of Mavic 3 Classic (Model L2C), including the SD card, is 895 g to comply with C1

requirements.

Users must follow the instructions below to comply with the MTOM C1 requirements.

Otherwise, the aircraft cannot be used as a C1 UAV:

1. DO NOT add any payload to the aircraft, such as the propeller guards, etc.

2. DO NOT use any non-qualified replacement parts, such as intelligent flight batteries or

propellers, etc.

3. DO NOT retrofit the aircraft.

• The prompt "Low Battery RTH" will not appear in case of a horizontal distance

between the pilot and aircraft is lower than 5 m.

• FocusTrack will exit automatically if the horizontal distance between the subject

and the aircraft is further than 50 m (only available when using FocusTrack in the

EU).

• The auxiliary LED is set to auto when used in the EU and cannot be changed. The

aircraft Front Arm LEDs are always on when used in the EU and cannot be changed.

DJI Mavic 3 Classic User Manual

Direct Remote ID

1. Transport Method: Wi-Fi Beacon

2. Method of uploading the UAS Operator Registration Number to the aircraft: Enter DJI Fly >

Safety > UAS Remote Identification, and then upload UAS Operator Registration Number.

List of Items, including qualified accessories

1. DJI Mavic 3 Classic Low-Noise Propellers (Model: 9453F, 8.5g)

2. DJI Mavic 3 Classic ND Filters Set (ND 4/8/16/32/64/128/256/512) (2.3 g)

3. DJI Mavic 3 Classic Intelligent Flight Battery (Model: BWX260-5000-15.4, 335.5 g)

List of Spare and Replacement Parts

1. DJI Mavic 3 Classic Low-Noise Propellers (Model: 9453F)

2. DJI Mavic 3 Classic Intelligent Flight Battery (Model: BWX260-5000-15.4)

Remote Controller Warnings

The remote controller indicator will glow red after disconnecting from the aircraft for more than

two seconds.

DJI Fly will prompt a warning after disconnecting from the aircraft for more than 4.5 seconds.

The remote controller will beep and power off automatically after disconnecting from the

aircraft or without operation for a long time.

• Avoid interference between the remote controller and other wireless equipment.

Make sure to turn off the Wi-Fi on nearby mobile devices. Land the aircraft as soon as

possible if there is interference.

• DO NOT operate the aircraft if lighting conditions are too bright or dark when using a

mobile phone to monitor the flight. Users are responsible for correctly adjusting the

display brightness when using the monitor in direct sunlight during flight operation.

• Release the control sticks or press the flight pause button if an unexpected operation occurs.

GEO Awareness

GEO Awareness contains the features listed below.

UGZ (Unmanned Geographical Zone) Data update: user can update the fly safe data through

GPS by using the data update feature and store the data in the aircraft.

GEO Awareness Map Drawing: after the latest UGZ data is updated, a flight map with a

restricted zone will be displayed in the DJI Fly app. Name, effective time, height limit, etc., can be

viewed by tapping the area.

GEO Awareness Pre-Warning: the app will prompt the user with warning information when the

aircraft is near or in a restricted area, the horizontal distance is less than 160 m, or the vertical

distance is less than 40 m from the zone to remind the user to fly with caution.

AGL (Above Ground Level) Statement

The vertical part of ‘‘Geo-awareness’’ may use the AMSL altitude or the AGL height. The choice

between these two references is specified individually for each UGZ. Neither AMSL altitude

nor the AGL height is supported by DJI Mavic 3 Classic. The height H appears in the DJI Fly app

DJI Mavic 3 Classic User Manual

camera view, which is the height from the aircraft takeoff point to the aircraft. The height above

the takeoff point may be used as an approximation but may differ more or less from the given

altitude/height for a specific UGZ. The remote pilot remains responsible for not breaching the

vertical limits of the UGZ.

Restricted Zones

Appear red in the DJI app. Users will be prompted with a warning, and flight is prevented.

UA cannot fly or takeoff in these zones. Restricted Zones may be unlocked, to unlock contact

[email protected] or go to Unlock A Zone at dji.com/flysafe.

Takeoff

AGL (not supported)

Height error

Authorization Zones

Appear blue in the DJI app. Users will be prompted with a warning, and flight is limited by

default. UA cannot fly or takeoff in these zones unless authorized. Authorization Zones may be

unlocked by authorized users using a DJI verified account.

DJI Mavic 3 Classic User Manual

Altitude Zones

Altitude zones are zones with a limited altitude and appear in gray on the map. When

approaching, users receive warnings in the DJI app.

Enhanced Warning Zones

A warning message will prompt users when the drone reaches the edge of the zone.

Warning Zones

A warning message will prompt users when the drone reaches the edge of the zone.

• When the aircraft and DJI Fly app cannot obtain a GPS signal, the GEO awareness

function will be inoperative. Interference of the aircraft antenna or disabling the GPS

authorization in DJI Fly will cause the GPS signal fails to be obtained.

DJI Mavic 3 Classic User Manual

This manual is provided by SZ DJI Technology, Inc., and the content is subject to change.

Address: 14th Floor, West Wing,

Skyworth Semiconductor Design Building, No 18 Gaoxin South 4th Ave, Nanshan District,

Shenzhen, China, 518057.

FAR Remote ID Compliance Information

The aircraft complies with the requirements of 14 CFR Part 89:

The aircraft automatically broadcasts Remote ID messages from takeoff to shut down. An

external device such as a cell phone or tablet is required to be connected as a location

source to DJI mobile devices without an integrated GNSS system

[1]

, and must run the DJI

flight control app such as DJI Fly in the foreground and always allow the DJI flight control app

to obtain its accurate location information. The connected external device must minimally be

one of the following:

1) FCC Certified personal wireless device that uses GPS with SBAS (WAAS) for location

services; or

2) FCC Certified personal wireless device with integrated GNSS.

Also, the external device must be operated in a way that does not interfere with the location

reported and its correlation to the operator location.

The aircraft automatically initiates a pre-flight self-test (PFST) of the Remote ID system

before takeoff and cannot take off if it does not pass the PFST

[2]

. The results of the PFST of

the Remote ID system can be viewed in either a DJI flight control app such as DJI Fly or DJI

goggles.

The aircraft monitors the Remote ID system functionality from pre-flight to shut down. If the

Remote ID system malfunctions or has a failure, an alarm will be displayed in either a DJI

flight control app such as DJI Fly or DJI goggles.

Footnotes

1. DJI mobile devices without an integrated GNSS system such as DJI RC-N1, DJI FPV Goggles V2,

and DJI Goggles 2.

2. The pass criterion for PFST is that the hardware and software of the Remote ID required-

data source and transmitter radio in the Remote ID system are functioning properly.

After-Sales Information

Visit https://www.dji.com/support to learn more about after-sales service policies, repair

services, and support.

This content is subject to change.

If you have any questions about this document, please

contact DJI by sending a message to [email protected].

and MAVIC are trademarks of DJI.

https://www.dji.com/mavic-3-classic/downloads

WE ARE HERE FOR YOU

Contact

DJI SUPPORT

Dji MAVIC 3 CLASSIC

Product's Documents

User Manual

Specifications

Dji MAVIC 3 CLASSIC Questions and Answers
