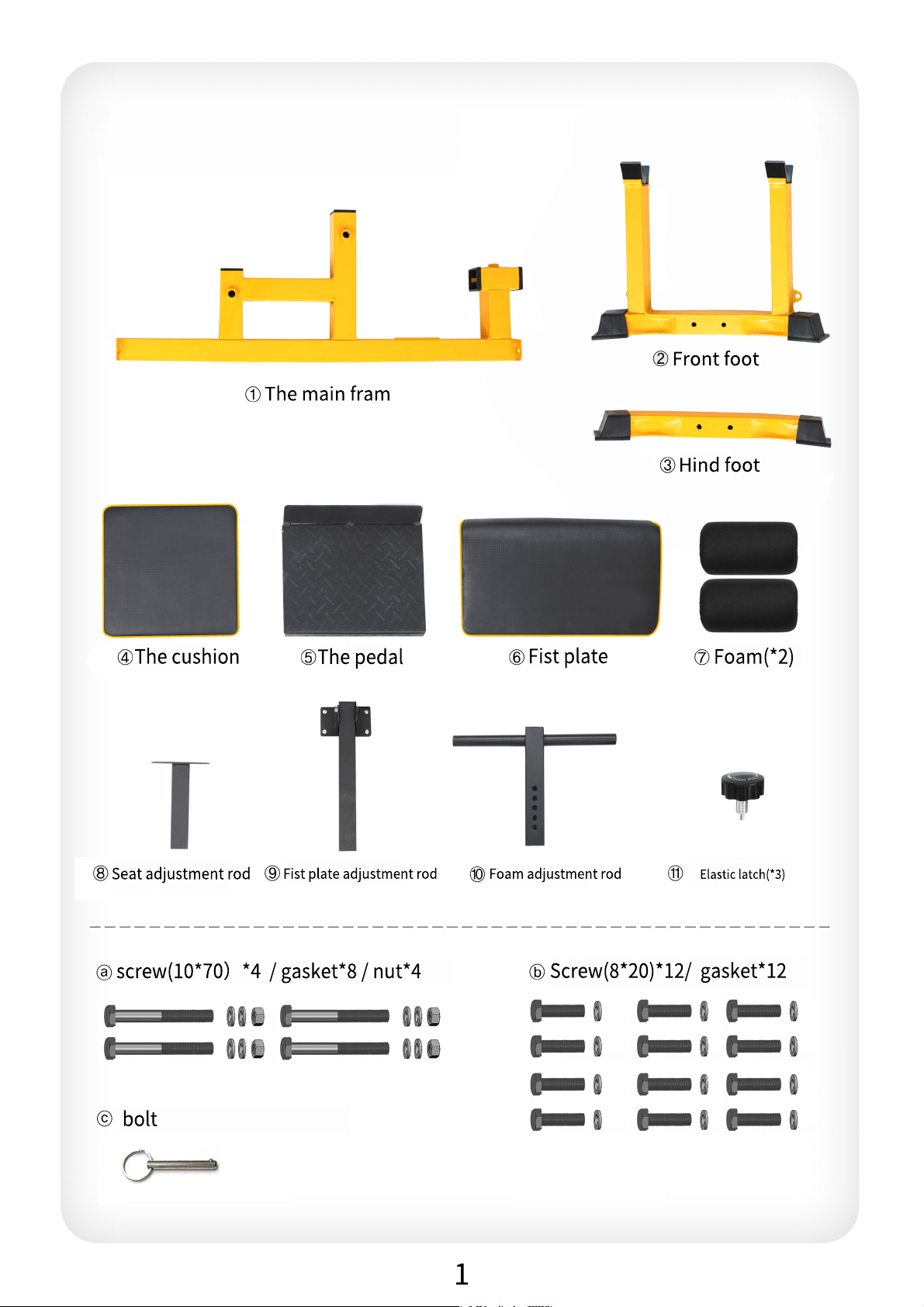

The main fram
Front foot
Hind foot
Foam(*2)
Fist plate
The pedal
The cushion
Elastic latch(*3)
Screw(8*20)*12/ gasket*12
screw(10*70）*4 / gasket*8 / nut*4
bolt
Foam adjustment rod
Fist plate adjustment rod
Seat adjustment rod
1
2
1:Install the pedal ⑤ on main frame ①，assemble and
fix with screw and gasket.
2:Install front foot ②and hind foot ③on main frame①respectively,as-
semble and fix withscrew . gasket and nut.
Attention:The curved front and hind foot
face the outside of the main fram!

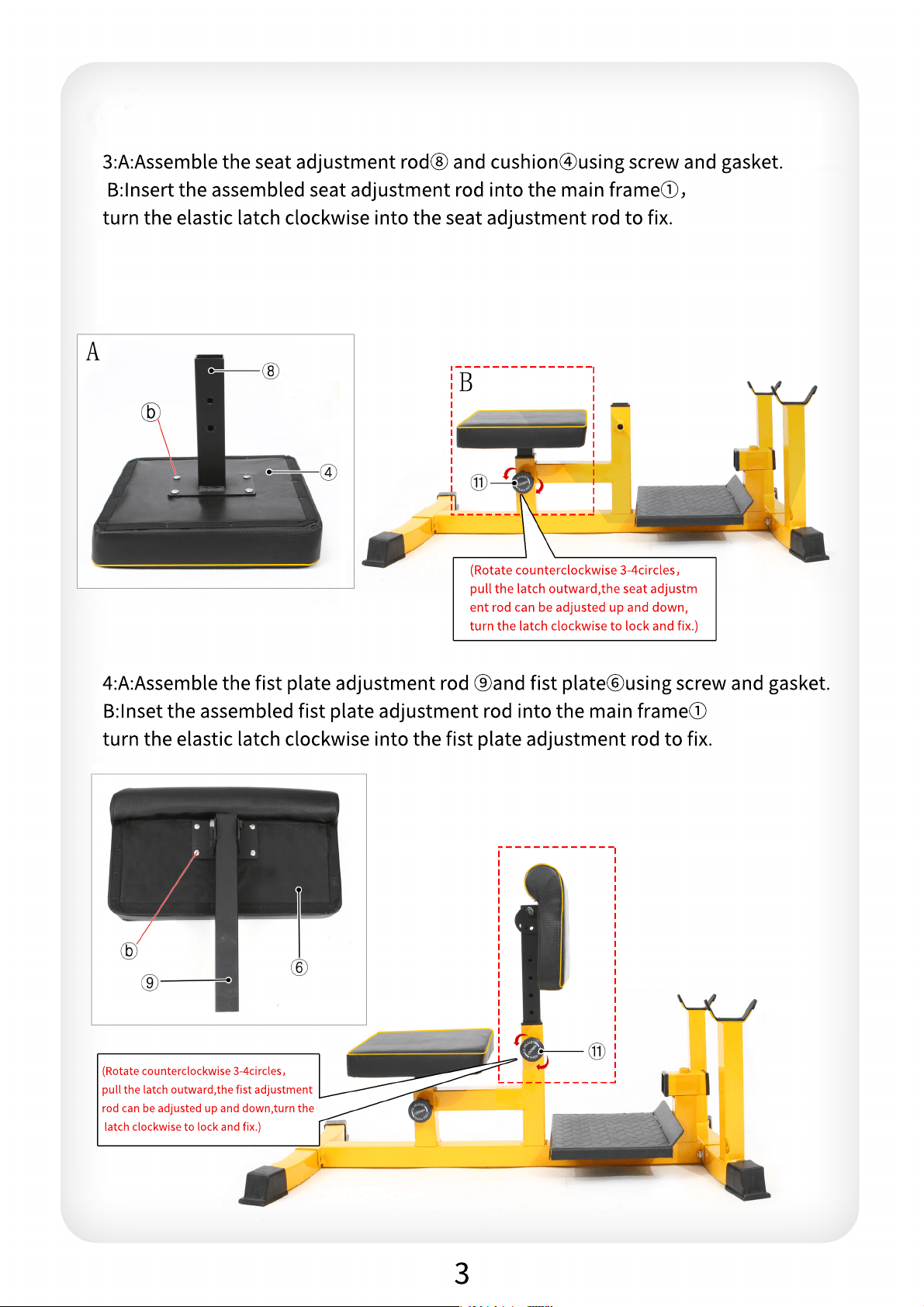

3:A:Assemble the seat adjustment rod⑧ and cushion④using screw and gasket.
B:Insert the assembled seat adjustment rod into the main frame①，
turn the elastic latch clockwise into the seat adjustment rod to fix.
4:A:Assemble the fist plate adjustment rod ⑨and fist plate⑥using screw and gasket.
B:Inset the assembled fist plate adjustment rod into the main frame①
turn the elastic latch clockwise into the fist plate adjustment rod to fix.
(Rotate counterclockwise 3-4circles，
pull the latch outward,the seat adjustm
ent rod can be adjusted up and down,
turn the latch clockwise to lock and fix.)
(Rotate counterclockwise 3-4circles，
pull the latch outward,the fist adjustment
rod can be adjusted up and down,turn the
latch clockwise to lock and fix.)
3
5:A:Put the foam⑦into the foam rod⑩
B:Insert the assembled foam adjustment rod into the main frame①，
turn the elastic latchclockwise into the foam adjustment rod.
6:Insert the boltinto the fist plate
adjustment rod,different positions can
adjust the gradient of the fist plate.
(Rotate counterclockwise 3-4
circles，pull the latch outward,
the foam adjustment rod can be
adjusted up and down,turn the
latch clockwise to lock and fix.)
