CAUTION: HOT SURFACE !
CAUTION: RISK OF FIRE !
EN
WASHER DRYER
MODEL:
MF10ED80B
1
Congratulations to your new machine !
This user manual will help you discover all the benefits of your machine and use
it the way you want.
We strongly recommend that you read this manual carefully before using
the washer dryer for the first time.It contains important safety instructions and
information relating to the installation, operation and maintenance.Proper
handling contributes to efficient, environmentally friendly and safe use and
minimises energy consumption during operation. Please always keep the proof
of purchase to preserve any warranty claims.
These instructions for use are in general terms. This means: Certain functions
apply to your machine, while others do not. We are continuously working on
the further development and improvement of our unit types and models.
Therefore, we reserve the right to make changes to the design, features and
accessories of all types and models without prior notice.
On our website www.midea.com you can also download the user manual in
digital form and discover other products. We hope you enjoy using your
machine.
Danger
This symbol indicates that there are dangers to the life and health
of persons due to extremely fammable gas.
Warning of electrical voltage
This symbol indicates that there is a danger to life and health of
persons due to voltage.
Explanation of symbols
Warning
The signal word indicates a hazard with a medium level of risk which,
if not avoided, may result in death or serious injury.
Caution
The signal word indicates a hazard with a low degree of risk which,
if not avoided, may result in minor or moderate injury.
Notice:
The signal word indicates important information (e.g. damage to
property), but not danger.
Observe instructions
Notes with this symbol indicate that you should read the operating
instructions carefully.
Observe instructions
This symbol indicates that a service technician should only operate
and maintain this appliance in accordance with the operating
instructions.
CONTENTS
2
4 MAINTENANCE .......................................
4.1 Cleaning and Care ...............................
Cleaning the Cabinet...........................
Cleaning the Drum ..............................
Cleaning the Door Seal and Glass..
Cleaning the Inlet Filter .....................
Cleaning the Detergent Dispenser
Cleaning the Drain Pump Filter.......
4.2 Trouble Shooting..................................
4.3 Customer Service.................................
5 TECHNICAL SPECIFICATION ................
6 PRODUCT FICHE ....................................
INSTRUCTIONS
Safety Instructions ................
INSTALLATION
Product Description ............
2.2 Installation ...........................
3 OPERATION
Quick Start ..............................
Calibration
3.2 Before Each Washing ..........
3.3 Detergent Dispenser ..........
Control Panel .........................
3.5 Display .....................................
3.6 Programmes............................
1 SAFETY ..................
1.1 .........
2 .................................
2.1 ..........
Accessories ......................................
............
Installation area ..............................
Unpacking the machine................
Remove transport bolts ...............
Levelling the machine....................
Connect the water supply hose
Drain Hose ........................................
Acoustic Sponge ............................
......................................
3.1 ..........
..........................................
.........
...........
Detergent Recommendation .....
3.4 ..........
.........
..........
3.7 Option..................................................
3
3
11
11
11
12
12
13
13
14
14
14
15
16
16
16
19
20
21
22
23
24
27
30
30
30
30
30
31
32
33
34
35
36
37
Please read the following safety information
thoroughly and follow it strictly to minimize the
risk of fire or explosion, electric shock and to
prevent property damage, personal injury or
loss of life. Failing to follow these instructions
shall void any warranty.
1 SAFETY INSTRUCTIONS
1.1 Safety Instructions
3
INTENDED USE
The product is intended only for home use and for textiles in
household amounts suitable for washing and drying. This appliance is
for indoor use only and not intended for built in use. Only use
according to these instructions. The appliance is not intended for
commercial use.
Any other use is considered as improper use. The producer is not
responsible for any damage or injuries that may result of it.
This appliance is intended to be used in household and similar
applications such as:
- Staff kitchen areas in shops, offices and other working
environments;
- Farm houses;
- By clients in hotels, motels and other residential type environments;
- Bed and breakfast type environments;
- Areas for communal use in blocks of flats or in launderettes.
•
Warning!
This combination of symbol and signal word
indicates a potentially dangerous situation
which may result in death or serious injuries
unless it’s avoided.
indicates a potentially dangerous situation
which may result in slight or minor injuries.
This combination of symbol and signal word
Caution!
This combination of symbol and signal word
indicates a potentially dangerous situation
which may result in slight or minor injuries or
damage to property and the environment.
Note!
1 SAFETY INSTRUCTIONS
4
ELECTRIC SHOCK HAZARD
Warning!
If the supply cord is damaged, it must be
replaced by the manufacturer, its service agent
or similarly qualified persons in order to avoid
a hazard.
If the machine is damaged, it must not be
operated unless repaired by the manufacturer,
its service agent or similarly qualified persons.
Risk of electric shock!
The appliance can be used by children aged
from 8 years and above and persons with
reduced physical,sensory or mental capabilities
or lack of experience and knowledge if they
have been given supervision or instruction
concerning use of the appliance in a safe way
and understand the hazards involved. Children
shall not play with the appliance. Cleaning and
user maintenance shall not be made by
children without supervision.
Children should be supervised that they do not
play with the appliance.
Children 3 years and under shall be kept away
from the appliance or continuously supervised.
Animals and children may climb into the
machine. Check the machine before every
operation.
Do not climb or sit on the appliance.
•
•
•
•
•
•
•
•
1 SAFETY INSTRUCTIONS
5
INSTALLATION LOCATION AND
SURROUNDING
All washing and additional substances are to
be kept in a safe place out of the reach of
children.
Do not install the machine on a carpet floor.
The obstruction of the openings by a carpet
can damage the machine.
Keep the appliance clear from heating sources
and direct sunlight to avoid plastic and rubber
parts to corrode.
Do not use the appliance in humid
environments or rooms containing explosive or
caustic gas. In case of water leakage or water
splashes let the appliance dry in the open air.
The appliance must not be installed behind a
lockable door, a sliding door or a door with a
hinge on the opposite side to that of the
washer dryer.
Do not operate the machine in rooms with a
temperature of below 5°C. This can cause
damages to parts of it. If it is unavoidable,
make sure to drain the water completely from
the appliance after every use (see
“Maintenance - Cleaning of drain pump filter”)
to avoid damages caused by frost.
Never use flammable sprays or substances in
the immediate proximity of the appliance.
•
•
•
•
•
•
•
1 SAFETY INSTRUCTIONS
6
INSTALLATION
Remove all packaging material and transport
bolts before using the appliance. Otherwise,
serious damage may result.
This appliance is equipped with a single inlet
valve and can be connected to the cold water
supply only.
Mains plug must be accessible after installation.
Before washing clothes for the first time, the
product shall be operated once throughout all
the procedures without any clothes inside.
Before using the washer dryer, the product
shall be calibrated.
Do not put any excessively heavy objects on
the appliance, like water containers or heating
devices.
The new hose-sets supplied with the appliance
are to be used and that old hose-sets should
not be reused.
Max. Inlet water pressure 1 MPa. Min. inlet water
pressure 0.05 MPa.
•
•
•
•
•
•
•
ELECTRICAL CONNECTION
Make sure the supply cable is not trapped by
the machine, it can get damaged.
Connect the product to a grounded outlet
protected by a fuse complying with the values
in the “ Technical specifications” table. The
grounding installation has to be made by a
qualified electrician. Ensure that the machine is
installed in accordance with the local
•
•
•
7
1 SAFETY INSTRUCTIONS
Don´t use multiple plugs or extension cords.
The appliance must not have an external
switching device such as a timer or
connected to a circuit that is regularly
switched on and off.
Do not pull the plug out of the mains outlet
if there is flammable gas around.
Never pull out power plug with wet hands.
Always pull at the plug, not at the cable.
Always unplug the appliance if it is not being
used.
Warning!
•
•
•
•
•
•
regulations.
Water and electrical connections must be
carried out by a qualified technician in
accordance with the manufacturer’s
instructions and local safety regulations.
•
WATER CONNECTIONS
Check the connections of the water inlet tubes,
the water tap and the outlet hose for possible
problems due to changes of water pressure. If
the connections loosen or leak, close the water
tap and get it repaired.
Do not use the appliance before the pipes and
hoses are installed properly by qualified
persons.
Glass door may become very hot during the
operation. Keep children and pets far away
from the machine while it is operating.
The water inlet and outlet hoses have to be
safely installed and remain undamaged.
Otherwise, water leakage can occur.
•
•
•
•
8
1 SAFETY INSTRUCTIONS
OPERATION AND MAINTENANCE
Never stop the washer dryer before the end
of the drying cycle unless all items are
quickly removed and spread out so that the
heat can dissipate.
The washer dryer is not to be used if
industrial chemicals have been used for
cleaning. Risk of explosion.
•
•
Warning!
Do not remove the drain pump filter while there
is still water in the appliance. Big quantities of
water can leak out, and there is a risk of
scalding due to hot water.
•
Never use any flammable, explosive or toxic
solvents. Do not use gasoline and alcohol etc.
as detergents. Only select detergents that are
suitable for machine washing.
Make sure that all pockets are emptied. Sharp
and rigid items such as coins, brooches, nails,
screws, stones etc. may cause serious
damages to this machine.
Remove all objects from pockets such as
lighters and matches before use the appliance.
Thoroughly rinse items that have been washed
by hand.
Do not dry unwashed items in the appliance.
Items that have been soiled with substances
such as cooking oil, acetone, alcohol, petrol,
kerosene, spot removers, turpentine, wax and
wax removers should be washed in hot with an
extra amount of detergent before being dried
in the appliance.
Items containing foam rubber (latex foam),
shower caps, water proof textiles, rubber
•
•
•
•
•
9
1 SAFETY INSTRUCTIONS
backed articles and clothes or pillows fitted
with foam rubber pads should not be dried in
the machine.
Fabric softeners or similar products should be
used are recommended in their instructions.
Never try to open the door forcefully.
The door will unlock shortly after the end of a
cycle.
Please do not close the door with excessive
force. If it is found difficult to close the door,
please check if the clothes are properly
inserted and distributed.
Always unplug the appliance and close the
water tap before cleaning and maintenance
and after each use.
Never pour water over the appliance for
cleaning purpose. Risk of electric shock!
Repairs shall only be carried out by the
manufacturer, its service agent or similarly
qualified persons in order to avoid a hazard.
The producer will not be responsible for
damages caused by the intervention of not
authorized persons.
•
•
•
•
•
•
TRANSPORT
• Before Transport:
-Bolts shall be reinstalled to the machine by a
specialized person;
- Accumulated water shall be drained out of
the machine.
• This appliance is heavy. Transport with care.
Never hold any protruding part of the machine
•
•
10
1 SAFETY INSTRUCTIONS
when lifting. The machine door can not be used
as a handle.
ENVIRONMENT
(Only for EU countries)
This appliance is labelled in accordance with the European Directive
2012/19/EU on waste electrical and electronic equipment (WEEE). The
directive provides the framework for the EU-wide take-back and recycling
of waste equipment.
Disposal of old appliances
The devices marked with this symbol
must not be disposed of in household waste!
As a manufacturer, we ensure
environmentally friendly
treatment and recycling of old
appliances within the scope of
product responsibility. Our
products are registered with the
authorities for electrical
appliances and packaging. For
further information on
collection and disposal, please
contact your local authority,
city council or your
(specialised) retailer. Already
during the development of new
appliances, we pay attention to a
high recyclability of the materials
used. High recycling rates are
achieved via the take-back system
to reduce the burden on waste
dumps and the environment.
Together, we are making an
important contribution to
environmental protection.
11
2 INSTALLATION

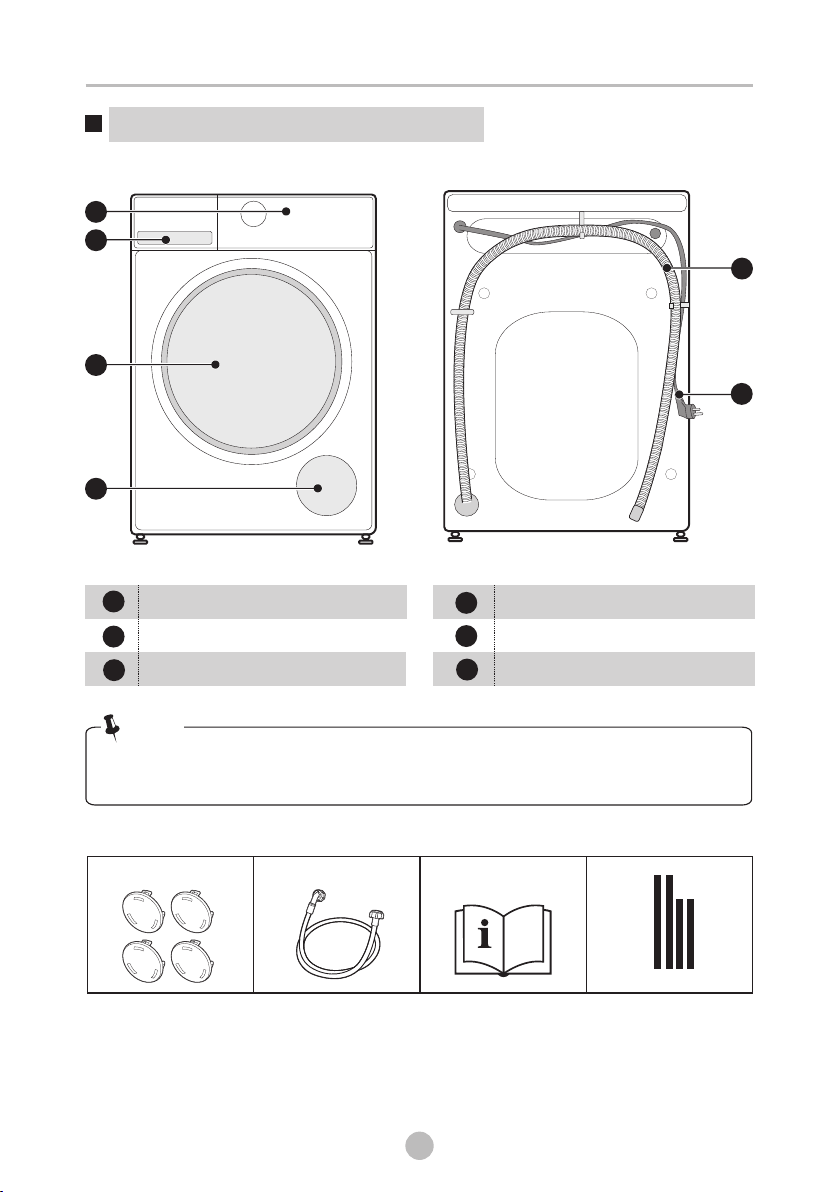

2.1 Product Description
1
2
3
4
5
6
1
2
3
4
5
6
Service flap
Door
Detergent dispenser
Control panel
Drain hose
Power supply cord
• The product picture is for illustration only, please refer to real
product as reference.
Accessories
4 x Cover
caps
1 x Supply hose
cold water
1 x Owner’s
manual
Acoustic sponge
(optional)
Note!
Before installing the machine, the location characterized as follows shall be
selected:
1. Rigid, dry, and level surface
2.Avoid direct sunlight
3.Sufficient ventilation
4.Room temperature is above 5°C
5.Keep far away from the heat sources such as coal or gas burning appliances.
Stability is important to prevent the product from wandering!
Make sure the machine is standing leveled and stable.
Make sure that the product does not stand onto the power cord.
Make sure to maintain the minimum distances from the walls as
shown in the picture
Installation area
12
2 INSTALLATION
2.2 Installation
w
w
W> 20mm
•
•
•
•
Warning!

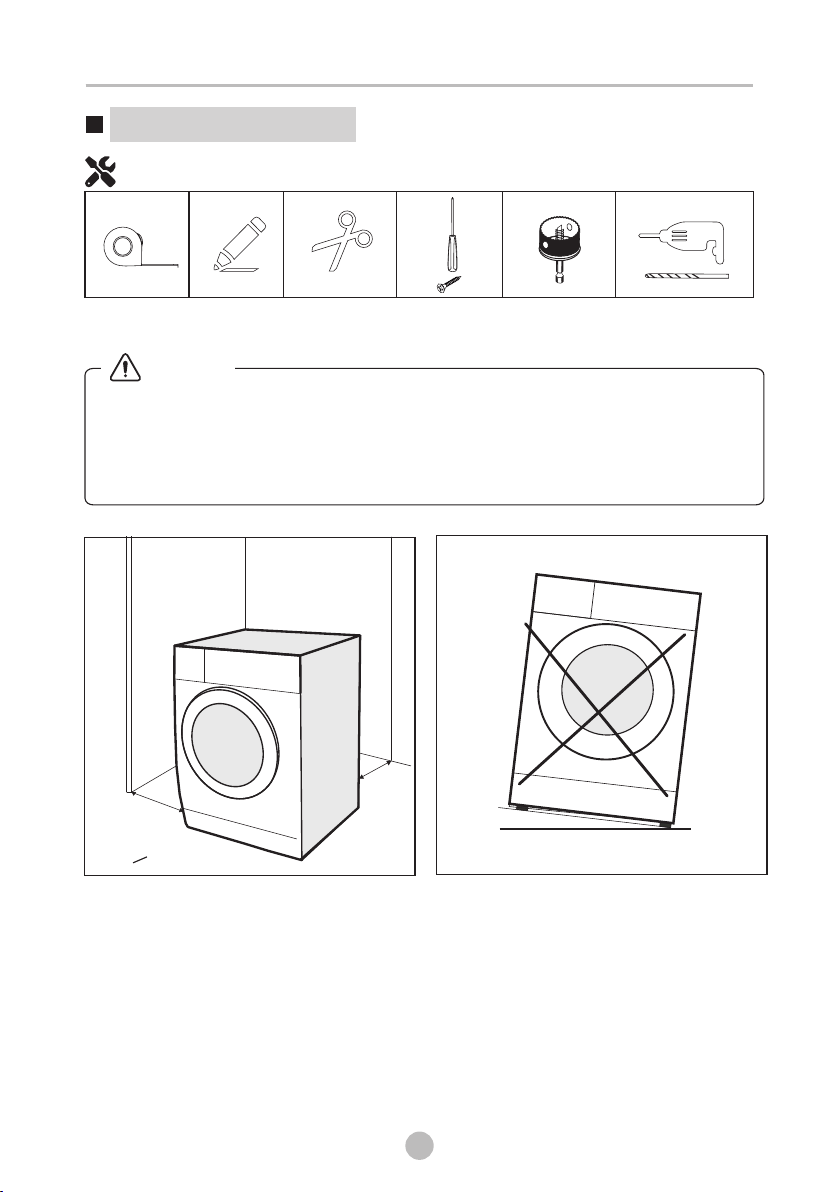

Tools Needed If Installation By Yourself (not include)
2 INSTALLATION
Unpacking the machine
• Packaging material (e.g. Films,
Styrofoam) can be dangerous for
children.
• There is a risk of suffocation ! Keep
all packaging well away from
children.

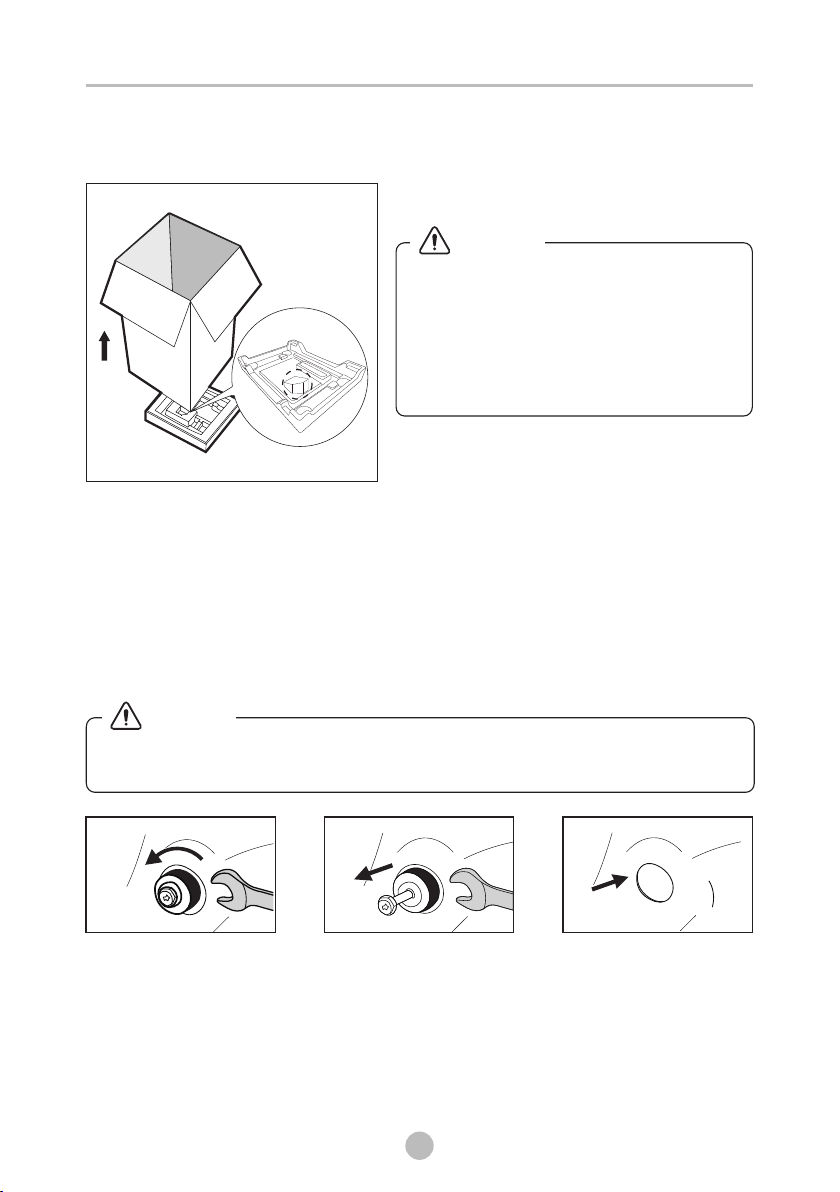

1. Remove the cardboard box and styrofoam packing.
2. Lift the washer dryer and remove the base packaging. Make sure the
small triangle foam (a) is removed with the bottom packaging together.
If not, lay the unit down on the side surface and remove it manually.
3. Remove the tape securing the power supply cord and drain hose.
4. Remove the inlet hose from the drum.

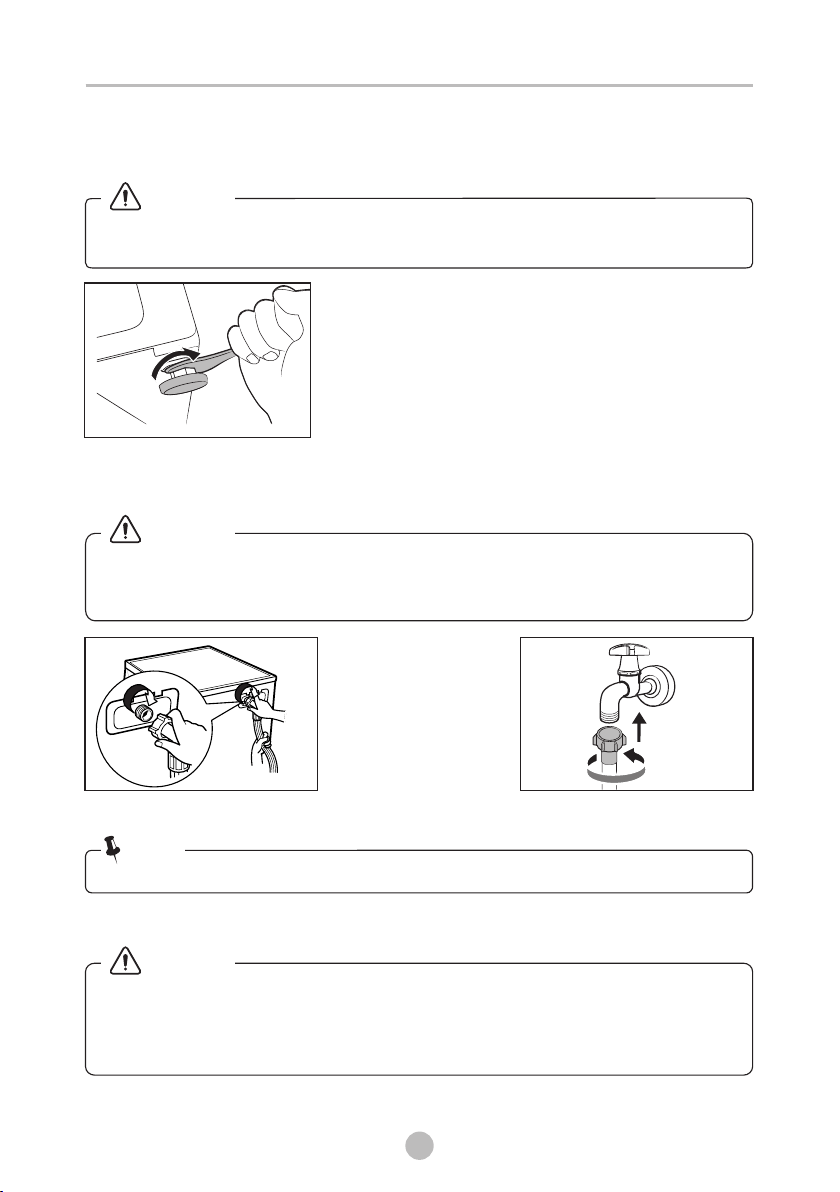

Remove transport bolts
• You must remove the transport bolts from the backside before using
the product.
Loosen the 4
transport bolts with
a spanner.
Close the holes
using the cover
caps.
Remove the bolts
including the rubber
parts and keep them
for future use.
13
a
Warning!
Warning!
2 INSTALLATION
14
Levelling the machine
• The lock nuts on all four feet must be screwed tightly against the
housing.
1. Loosen the lock nut.
2. Turn the foot until it reaches the floor.
3. Adjust the legs and lock the nuts with a
spanner. Make sure the machine is level
using a spirit level.
Connect the water supply hose
To prevent leakage or water damage, follow the instructions in this
chapter.
• Do not kink, crush or modify water inlet hose.
Connect the water
supply hose to the
water inlet valve
and a water tap
with cold water as
indicated.
• Connect manually, do not use tools. Check if the connections are tight.
Drain Hose
•
• Position drain hose properly ,otherwise damage might result of water
leakage.
It is not allowed to remove the buckle of drain pipe.
Do not kink or protract the drain hose.
•
Warning!
Warning!
Warning!
Note!
2 INSTALLATION

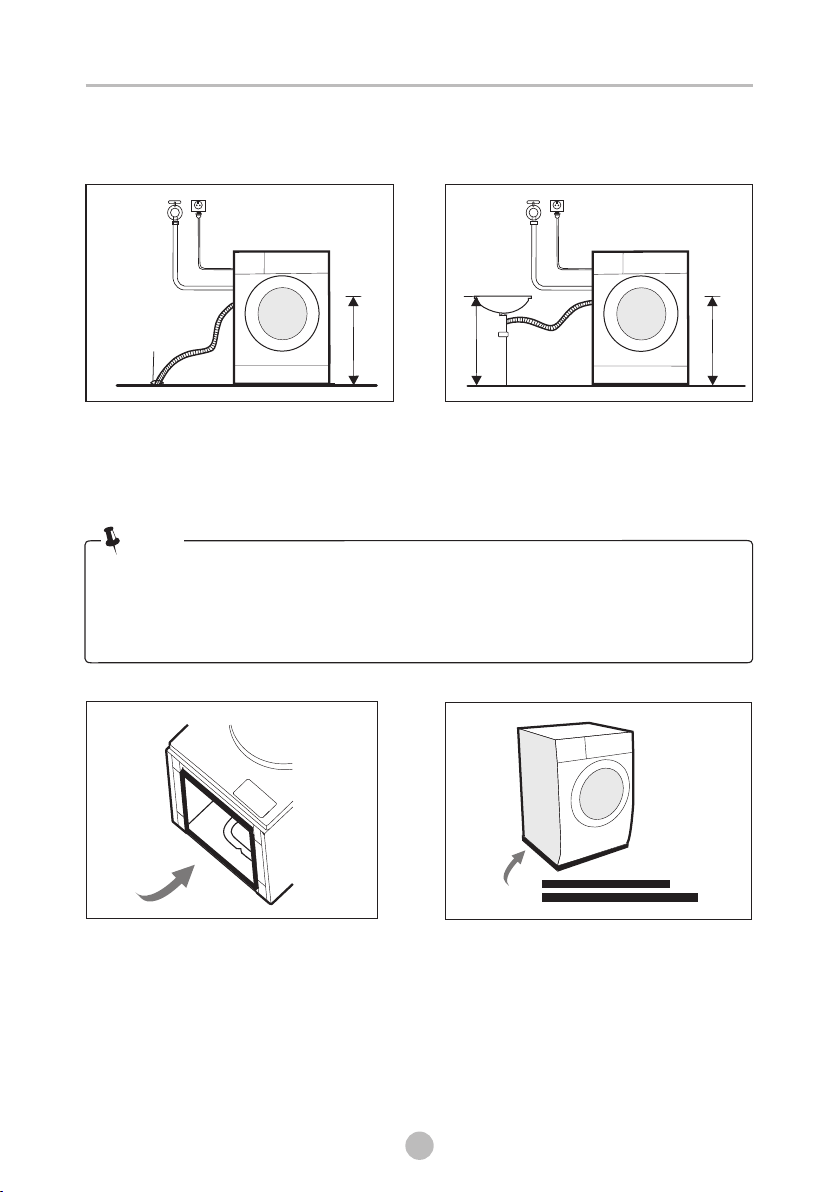

There are two ways to place the end of drain hose:
2.Connect it to the branch drain
pipe of the trough.
10
0
cm
M
a
x.
Mi
n
.
60c
m
1
0
0
cm
Ma
x.
Water
trough
1
0
0
c
m
Max
.
Min
.
60
c
m
15
1.Put it into the water trough.
•
effectively reduce the noise caused by the machine while working,
in order to provide you with a more peaceful and quiet living
environment.
Please make sure to assemble the acoustic sponges, which can
Acoustic Sponge
2x
2x
1. Get the machine laid on the floor, using some soft material like foam or
clothes between the machine and floor for a protection;
2. Stick the 2x longer sponges to the longer bottom edges of machine,
and the 2x shorter sponges to the shorter bottom edges.
Note!
4. Press to start the appliance, initially“---” is displayed, and then
“***” (such as “126”)is displayed to indicate the real time drum speed.
When the number reaches a certain value (stop changing),it means the
machine is successfully calibrated.
• Before washing, please make sure the washer dryer is installed
properly.
• Your appliance was thoroughly checked before it left the factory. To
remove any residual water and to neutralize potential odors, it’s
recommended to clean your appliance before first use. For this
reason, start the Cotton program at 90°C without laundry and
detergent.
3.1 Quick Start
3 OPERATION
16
It’s recommended to calibrate the washer dryer, so that provide the best
performance.
The appliance is able to detect the amount of laundry loaded. This
function is optimizing the product performance by minimizing energy and
water consumption, saving you money and time. For this reason it’s
recommended to calibrate the appliance for best use.
1. Remove all accessories from the drum and close the door;
2. Insert the main plug to the socket;
3. Switch on the washer dryer, and within 6 seconds, press
“Extra Rinse” and “Spin” simultaneously and continuously
(normally 3 seconds) until “t19” is displayed on the knob.
Calibration
Caution!
3 OPERATION

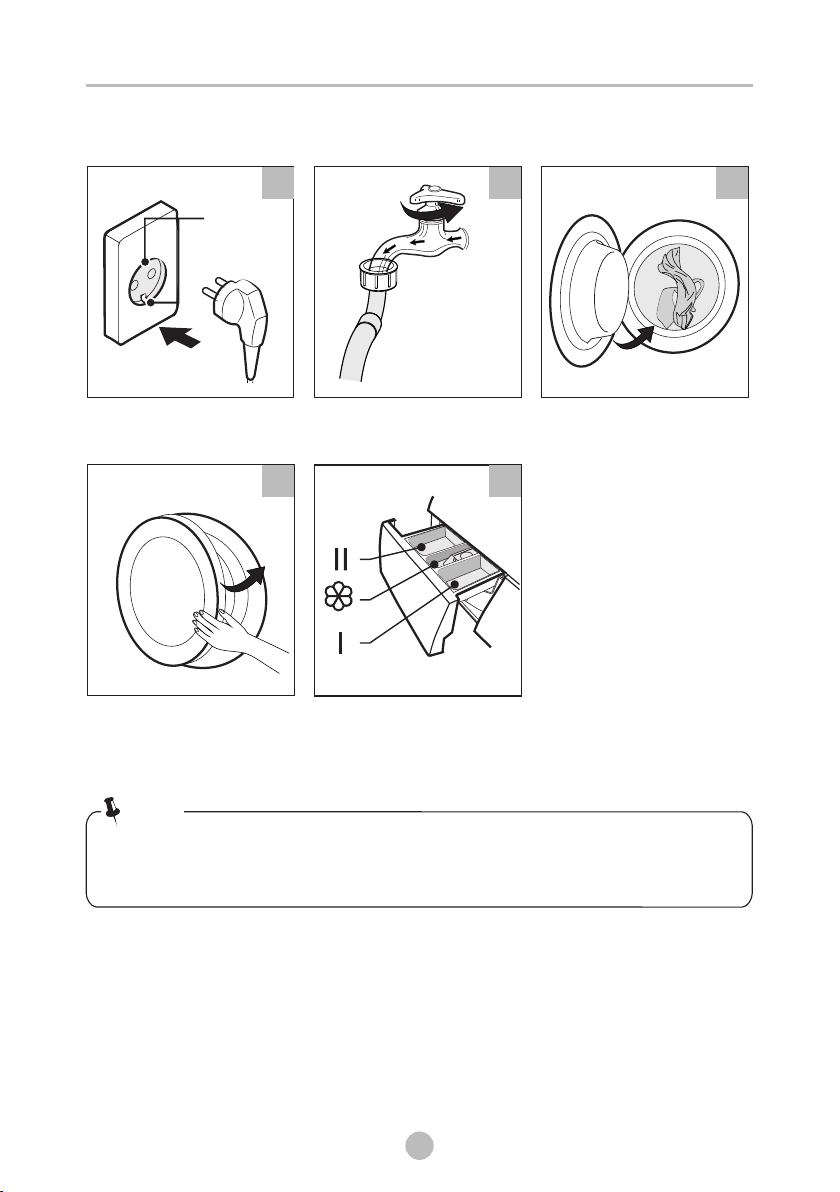

1. Before Washing
• Detergent need to be added in compartment I if the pre-wash
function is selected.
• Do not put laundry beads into the detergent dispenser.
Open tap
Load
Close door
Plug in
Add detergent
Main
wash
Prewash
Softener
earth
terminal
17
1
2
3
5
4
Note!
3 OPERATION
18
Press Start/Pause to
start the program
3. After Washing
Buzzer beep and “End” on display.
3
4

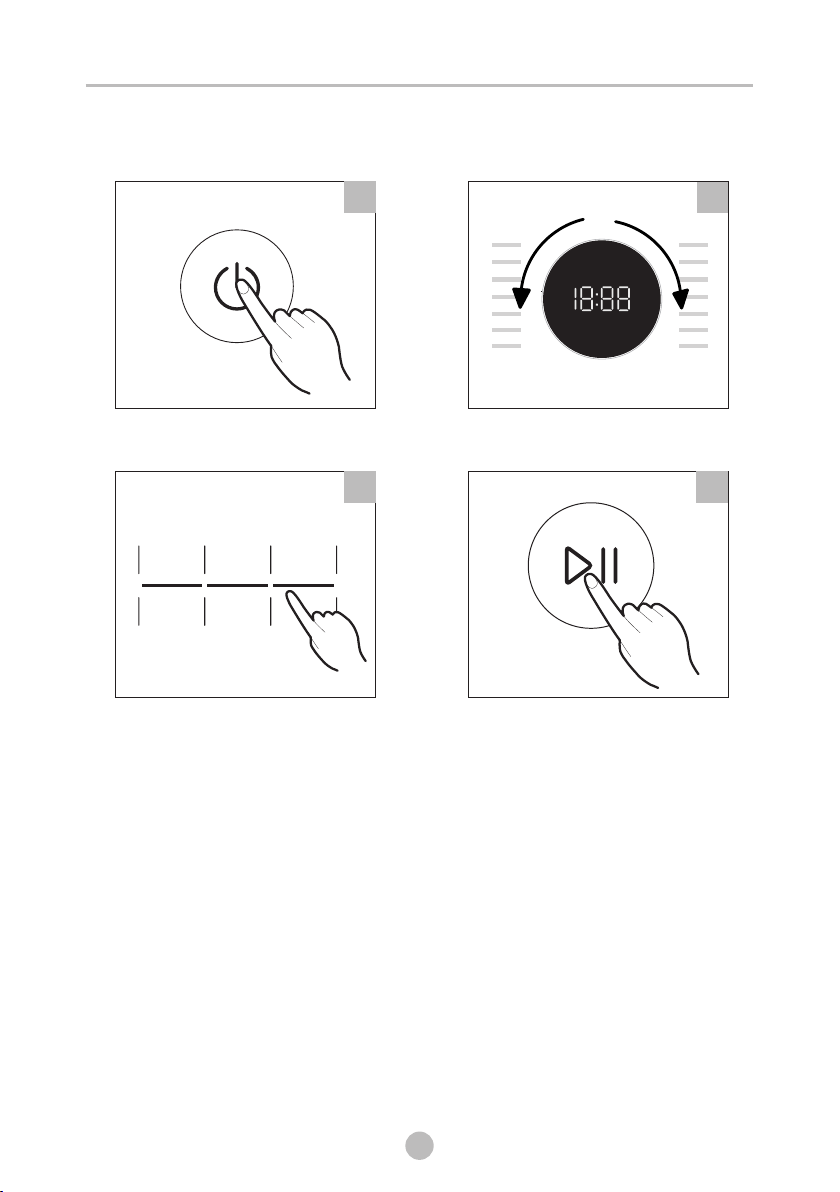

2. Washing
Power on
Select programme
1
2
Select function or remain
default settings
• Do not wash or dry articles that have been cleaned in, washed in,
soaked in, or dabbed with combustible or explosive substances like
wax, oil, paint, gasoline, alcohol, kerosene, and other flammable
materials.
• Washing single clothes items may easily create big eccentricity .
Therefore it is suggested to add one or two more laundry items to
the wash so that spin can be done smoothly.
• The ambient temperature of the washer dryer should be 5 -40°C. If
used under 0°C, the inlet valve and draining system may be damaged. If
the machine is installed under freezing conditions, it should be transferred
to normal ambient temperature to ensure the water supply hose and drain
hose can unfreeze before use.
• Please check your laundry care labels and the detergent use instructions
before wash. Use non-foaming or less-foaming detergent suitable for
machine washing properly.
°C

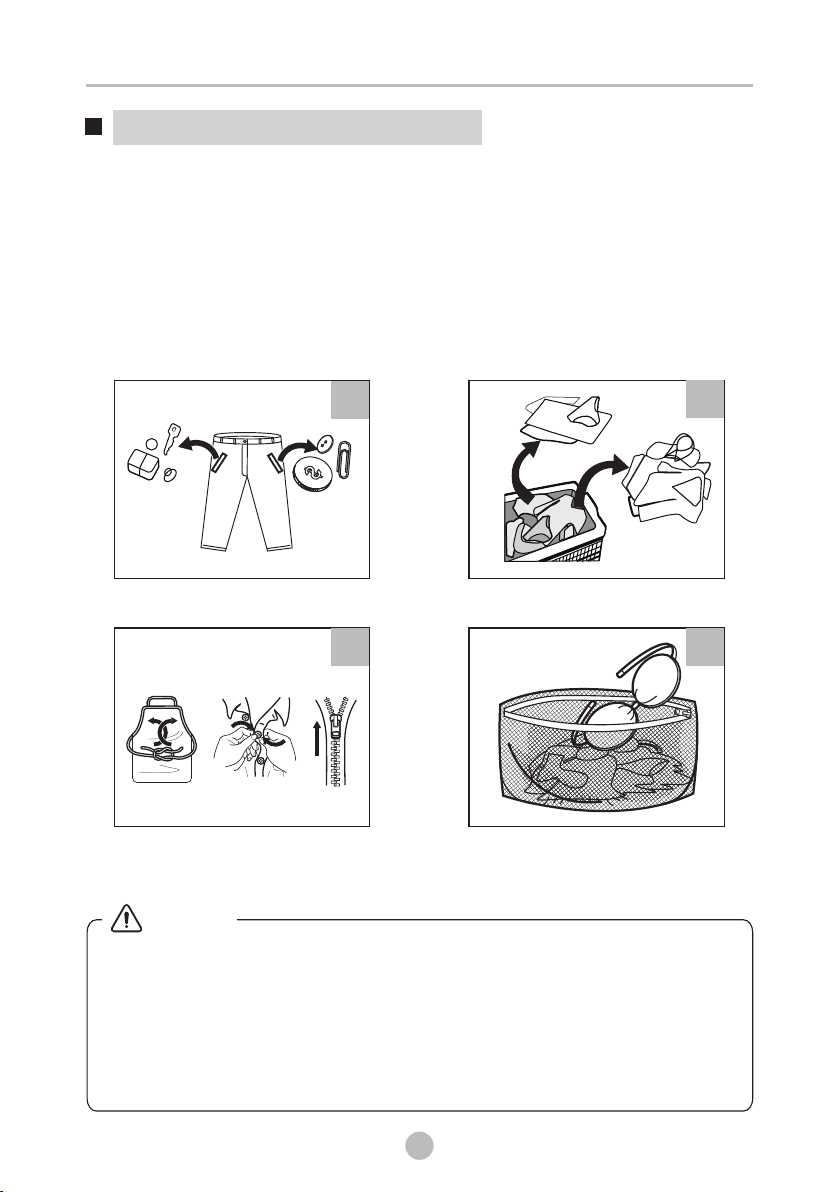

Tie together long textile
strips and belts, close
zips and button
Take all items out of the
pockets
Put small items into a
laundry bag
3.2 Before Each Washing
Sort laundry according to
color and textile type
3 OPERATION
2
3
19
4
1
Warning!

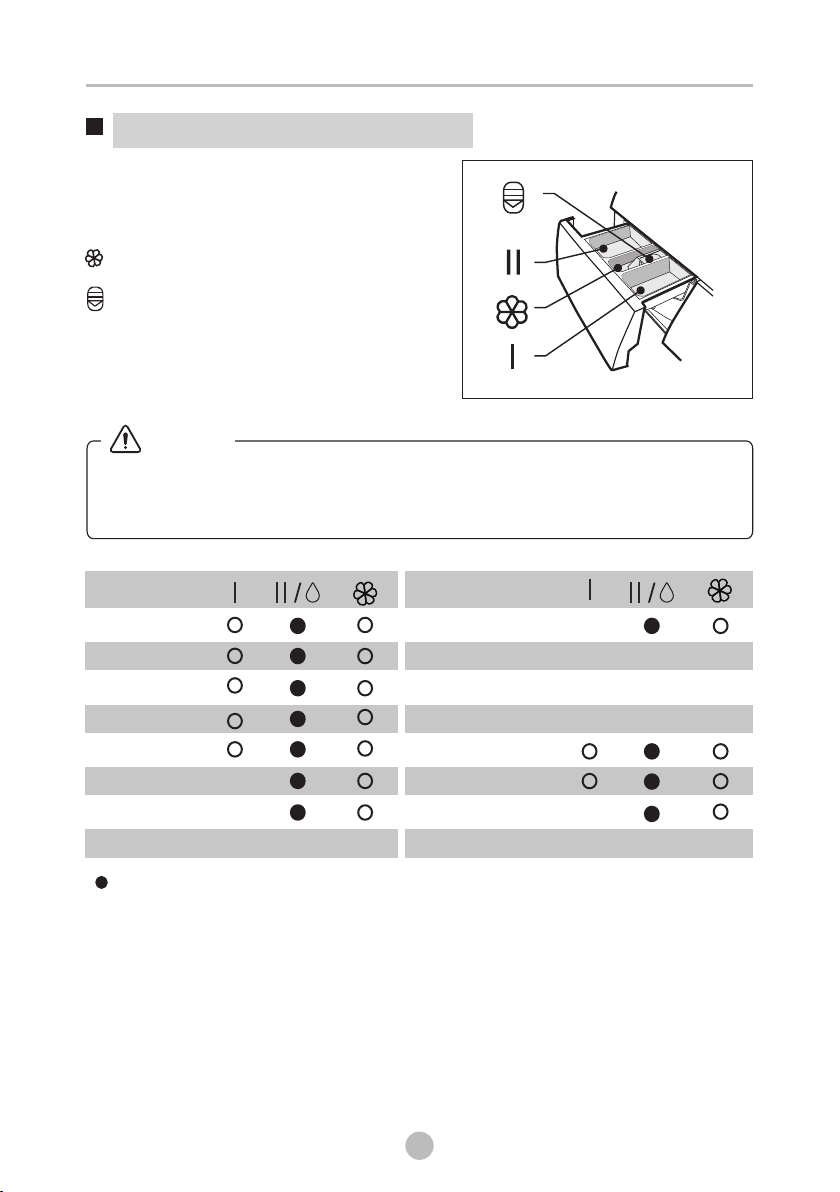

3.3 Detergent Dispenser
• Detergent only need to be added in compartment I ”after
selecting pre-wash function.
“
• Do not put laundry beads into the detergent dispenser.
3 OPERATION
Pre wash
Main wash
Softener
II
I
Release button to
pull out the dispenser
20
Caution!
Programme
Cotton 20
Cotton 40
Cotton 60
Steam Care
Jeans
Delicate
ECO 40-60
Spin only
°C
°C
°C
Programme
Wash and Dry
Dry Auto
Dry 90’
Dry 60’
Mix 30
Mix Cold
15’Wash
°C
Means must ○ Means optional
Detergent Recommendation
3 OPERATION
Agglomerating or ropy detergent or additive can be diluted in some
water before pouring it into the detergent dispenser, to avoid its inlet
to get blocked and thus cause a water overflow.
• Please choose the suitable type of detergent to get a maximum of
washing performance and a minimum of water and energy
consumption.
• To achieve the best cleaning result a proper detergent dosing is
important.
• Use a reduced detergent amount if the drum is not filled completely.
• Always adjust the amount of detergent to the water hardness, if your
tap water is soft, use less detergent.
• Dose according to how dirty your laundry is, less dirty clothes require
less detergent.
• Highly concentrated (compact detergent) requires particularly
accurate dosing.
Following symptoms are a sign of detergent overdosing:
- heavy foam formation
- poor washing and rinsing result
Following symptoms are a sign of detergent underdosing:
- laundry turns grey
- built-up of limescale deposits on the drum, the heating element
and/or the laundry
•
Heavy-duty detergent
with bleaching agents
and optical brighteners
Colour detergent without
bleaching agent and
optical brighteners
Color or mild
detergent without
optical brighteners
Mild washing detergent
Special wool detergent
21
Washing
temp. °C
Wash cycles
Recommended washing
detergent
Type of laundry
and textile
Note!
White laundry made
from boil-proof
cotton or linen
Coloured laundry
made from cotton or
linen
Coloured laundry
made
from easy care
fibres or synthetic
materials
Delicate textiles,
silk, viscose
Delicate
Cotton,ECO 40-60,
Mix
Cotton,ECO40-60,
Mix
Cotton 20°C
Delicate
Delicate
Cold/20
/30 40
/60
/
30
30
Cold/20
/30/40/
60
20
3 OPERATION
3.4 Control Panel
22
Off
Product is switched Power.
Start/Pause
Press the button to start or pause the
washing cycle.
1
1
1
2
Display
The display shows the settings, estimated time remaining,
options, and status messages for your washer dryer. The display
will remain on through the cycle.
5
1
5
2
3
1
1
1
4
Option
This allows you to select an additional
function and will light when selected.
3
Programmes
Available according to the laundry type.
4
3 OPERATION
3.5 Display
23
E
A
D
C
A
B
Door Lock
Dry
C
D
Pre-Wash
Display
Wash Time Delay Time
Speed Error
End Temp.
B
D
Extra Rinse
Programmes are available according to the laundry type.
3 OPERATION
24
3.6 Programmes
Programmes
15' Wash
Mix
Cotton
Hard-wearing textiles, heat-resistant textiles made
of cotton or linen.
Steam Care is applicable for daily laundries like
cotton and synthetics. The steam can deeply
penetrate the fiber, which effectively eliminate
bacterias and germs, preventing odors and
protecting your health.
Mixed load consisting of textiles made of cotton
and synthetics.
Specially for jeans.
Extra short programme approx, suitable for lightly
soiled washing as a small amounts of laundry.
Extra spin with selectable spin speed.
Select it to dry clothes, the temperature is different.
The drying time according to the load .
The standard energy program.
Spin Only
Wash and Dry
Steam Care
Dry
Jeans
Default 40℃,not selectable,suitabale for laundry
washing at about 40℃-60℃.
ECO 40-60
Delicate
For delicate, washable textiles, e.g. made of silk,
satin, synthetic fibres or blended fabrics.
3 OPERATION
•
different actual use conditions.
• The values given for programmes other than the ECO 40-60
programme and the Wash and Dry cycle are indicative only.
• Concerning to EN IEC 62512:2020+A11:2020,EN 60456:2016+A11:2020
With (EU) 2019/2014, (EU) 2019/2023, (EU) 2021/340, (EU)2021/341,
The EU energy efficiency class is: E
Energy test program: ECO 40-60. Other as the default.
Energy test program: Wash and Dry;
The above data is for reference only, and the data may change due to
Half load for 8.0kg machine: 4.0kg.
Quarter load for 8.0kg machine: 2.0kg.
Other as the default.
Dry load for 8.0kg machine: 5.0kg, Half load machine: 2.5kg.
25
Cycle
Nominal capacity in kg
Temperature setting
Cycle duration in h:min
Energy consumption in
kWh/cycle
Water consumption in
L/cycle
Highest washing
temperature
1)
°C
Residual moisture in %
/ Spin speed
2)
15' Wash 2.0 cold 0:15 0.030 31 cold 70%/800
Cotton 20℃ 4.0 20 3:49 0.183 44 20 65%/1000
Cotton 60℃ 8.0 60 3:54 1.515 71 60 65%/1000
Mix 30℃ 8.0 30 1:20 0.509 71 30 65%/1000
8.0 39 3:38 0.870 57.8 39 53.9%/1350
4.0 32 2:48 0.505 46.6 32 53.9%/1350
2.0 22 2:48 0.222 38.4 22 53.9%/1350
ECO40-60
5.0 35 8:00 4.000 96 35 3%/1350
2.5 27 7:00 2.136 56 27 3%/1350
Wash And Dry
3 OPERATION
1.
at least 5 minutes.
2. Residual moisture after the wash cycle in water content percent and
the spin speed at which this was achieved.
3. The ECO 40-60 programme is able to clean normally soiled cotton
laundry declared to be washable at 40°C or 60°C, together in the
same cycle. This programme is used to assess the compliance with
the regulation (EU) 2019/2014, (EU) 2019/2023, (EU) 2021/340, (EU)
2021/341.
4. The Wash and Dry programme, is able to clean normally soiled cotton
laundry declared to be washable at 40°C or 60°C, together in the same
cycle, and to dry it in such a way that it can be immediately stored in a
cupboard. This programme is used to assess the compliance with the
regulation (EU) 2019/2014, (EU) 2019/2023, (EU) 2021/340, (EU)
2021/341.
The most efficient programmes in terms of energy consumption are
generally those that perform at lower temperatures and longer duration.
Loading the household machine up to the capacity indicated for the
respective programmes will contribute to energy and water savings.
Noise and remaining moisture content are influenced by the spinning
speed: the higher the spinning speed in the spinning phase, the higher the
noise and the lower the remaining moisture content.
The highest temperature reached by the laundry in the wash cycle for
• If there is any break in the power supply while the machine is
operating, a special memory stores the selected programme. The
machine will continue the programme when the power supply is
re-established.
26
Caution!
3 OPERATION
3.7 Option
For the maximum spin speed, program time, and other details of

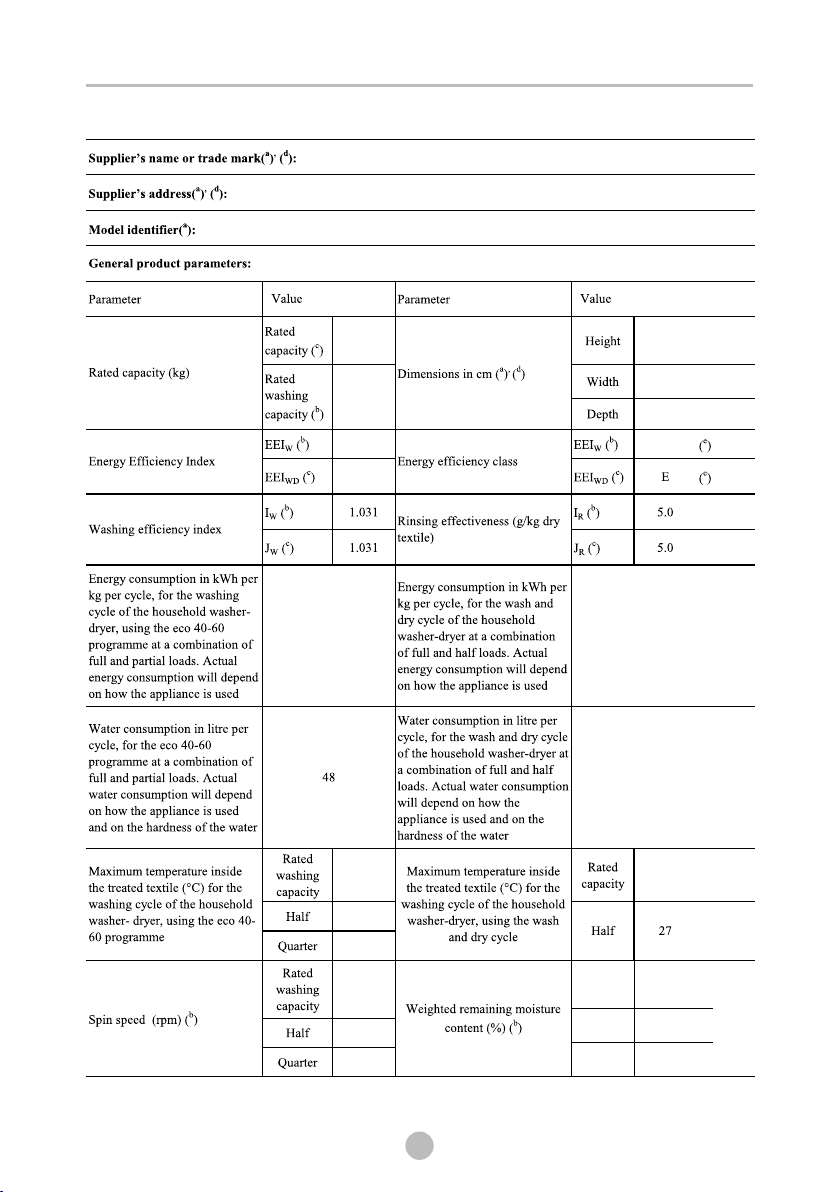

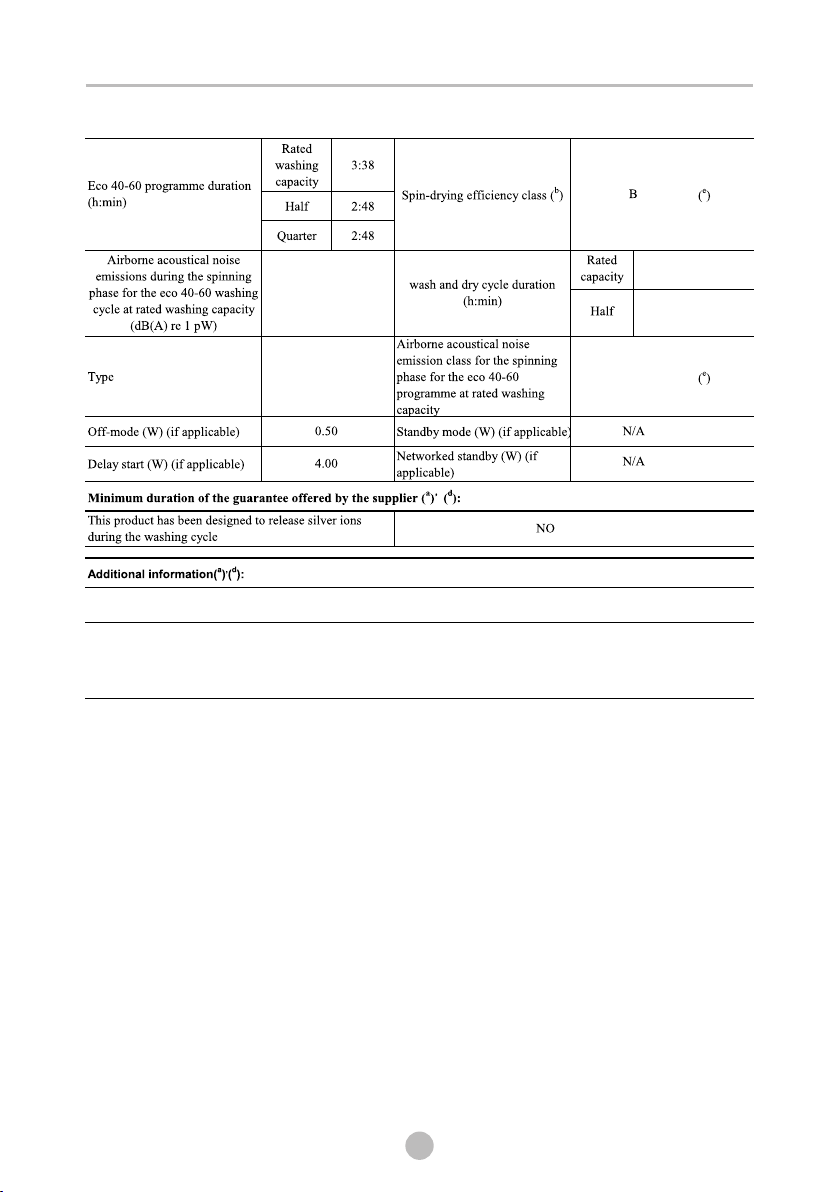

the ECO 40-60 and Wash and Dry programs, please refer to the
content on the Product Fiche page.
• The table shows which cycle offers which options for adjustment.
•
27
Note!
Default
spin
speed
Cycle
Default
Temp.(℃)
Additional
functions
Washing
Load/
Dry
Load(kg)
20
40
60
40
40
30
–
–
–
--
--
--
30
Cold
Cold
1000
1000
800
1400
1000
1400
1200
1000
1000
800
1000
1000
1000
1200
1200
1400
Cotton 20
Cotton 40
Cotton 60
Steam Care
Jeans
Delicate
ECO 40-60
Spin only
Wash and Dry
Dry Auto
Dry 90’
Dry 60’
Mix 30
Mix Cold
15’Wash
°C
°C
°C
°C
4.0
8.0
8.0
8.0
8.0
8.0
8.0
8.0/5.0
2.0
2.0
--/0.5
--/5.0
--/1.0
8.0
8kg
4.0
3 OPERATION
28
Delay
Set the Delay function:
1. Select a programme
2.Press the Delay button to choose the time(the delaying time
is 0-24 H.)
3.Press [Start/Pause] to commence the delay operation
Choose the Programme
StartSetting time
Delay
Cancel the Delay function:
Press the [Delay] button until the display be 0H.It should be
pressed before starting the programme. If the programme
already started, should select [Off] to reset the programme.
Pre Wash
The Prewash function can get an extra wash before main wash,
it is suitable for washing the dust rises to surface of the clothes;
You need to put detergent into the Case (I) when select it.
Extra Rinse
The laundry will undergo extra rinse once after you select it.
• If there is any break in the power supply while the machine
is operating, a special memory stores the selected
programme and when the power is restarted, press the
[Start/Pause]button the program will continue.
Spin
Press the button to change the spin speed.
1400: 0-400-600-800-1000-1200-1400
• When the lights of spin speed are off means the spin
speed is 0.
Caution!
Caution!
3 OPERATION
29
Press the [Delay]&[Spin] button for 3sec.
the buzzer is mute.
Start
To act the buzzer function, press the two buttons again for 3 seconds.
The setting will be kept until the next reset.
When the Child Lock is activated, the display will alternately show
“CL” and the remaining time.
Pressing any other button will cause the Child Lock indicator to flash
for 3 sec. When the program ends, “CL” and “END” will alternate on
the display for 6 sec .
The Child Lock deactivates the function of all buttons except the
On/Off button and the Child lock button!
Only the simultaneous pressing of the two buttons [Extra Rinse] and
[Pre Wash] can deactivate the Child Lock!
Please deactivate the Child Lock before selecting a new program!
Child Lock
This function is meant to keep children from misusing the controls.
Extra
Rinse
Pre
Wash
Mute the buzzer
Delay
Spin
• MuAfter ting the buzzer function, the sounds will not be activated
any more.
Caution!
Caution!
Press [Extra Rinse] and [Pre Wash] simultaneously
for 3 sec until the buzzer beep. The child lock
indicator switches on.
Usage counter
1 Unplug the equipment for 10s and reconnect again.
2 Power on and within 10s, please press " delay" and "prewash"
on control panel for around 5s
until the device display shows digits--the value can indicate the
times of equipment usage.
3 Repeat step 1 again and customer can resume to normal
operation.
.
.
simultaneously and continuously
.
Note!
• Always unplug the appliance and close the water tap before cleaning
and maintenance.

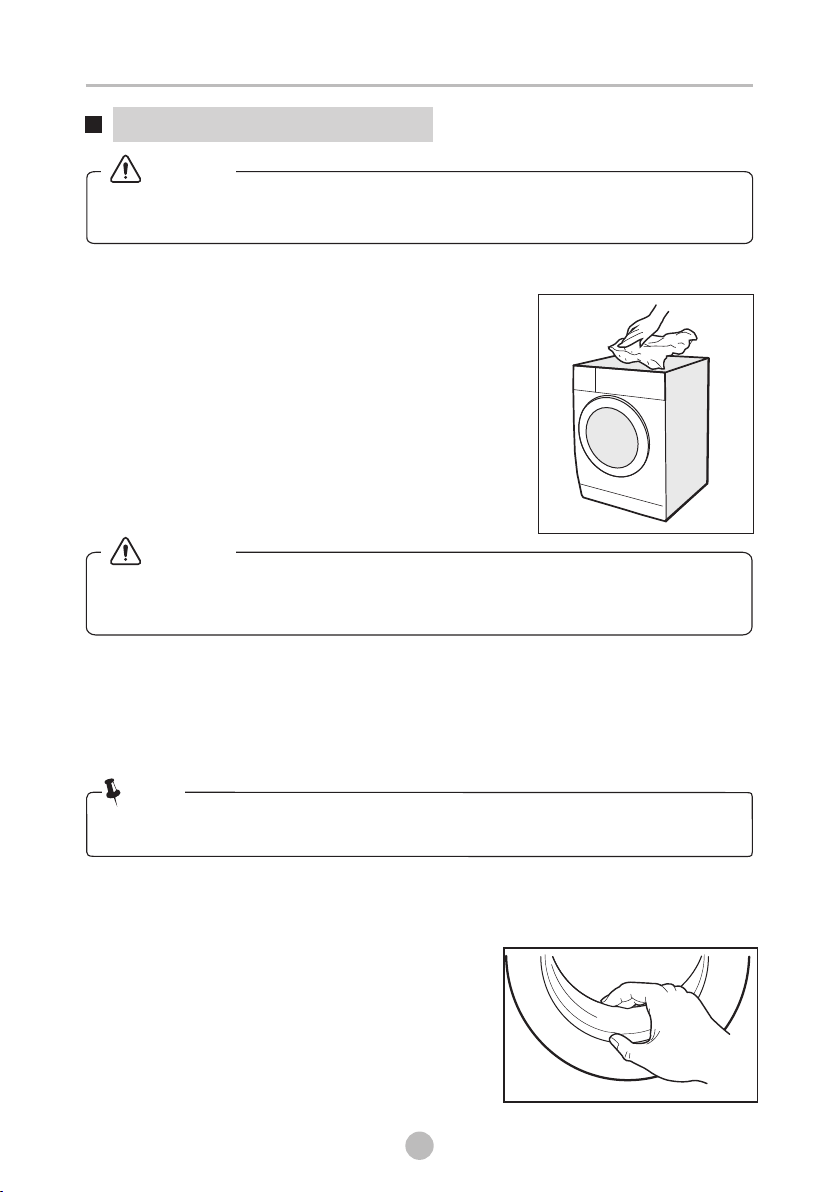

Cleaning the Cabinet
Cleaning the Drum
• Keep any laundry away from the machine while cleaning the drum.
Cleaning the Door Seal and Glass
4.1 Cleaning and Care
Any rust stains left inside the drum by metal articles must be removed
immediately using chlorine-free detergents. Never use steel wool for
cleaning the drum!
Proper maintenance on the washer dryer can
extend its working life. The surface can be
cleaned with diluted non-abrasive neutral
detergents when necessary. If there is any
water overflow, use a towel to wipe it off
immediately.
Never use sharp items to clean the appliance.
4 MAINTENANCE
• Never use abrasive or caustic agents. formic acids or its diluted
solvents or similar substances, like alcohol or chemical products.
Wipe the glass and seal after each wash to
remove lint and stains. If lint builds up it can
cause leakages.
Remove any coins, buttons and other
objects from the seal after each wash.
Clean the Door Seal and Glass every month
to ensure the normal operation of the
appliance.
30
Warning!
Caution!
Note!

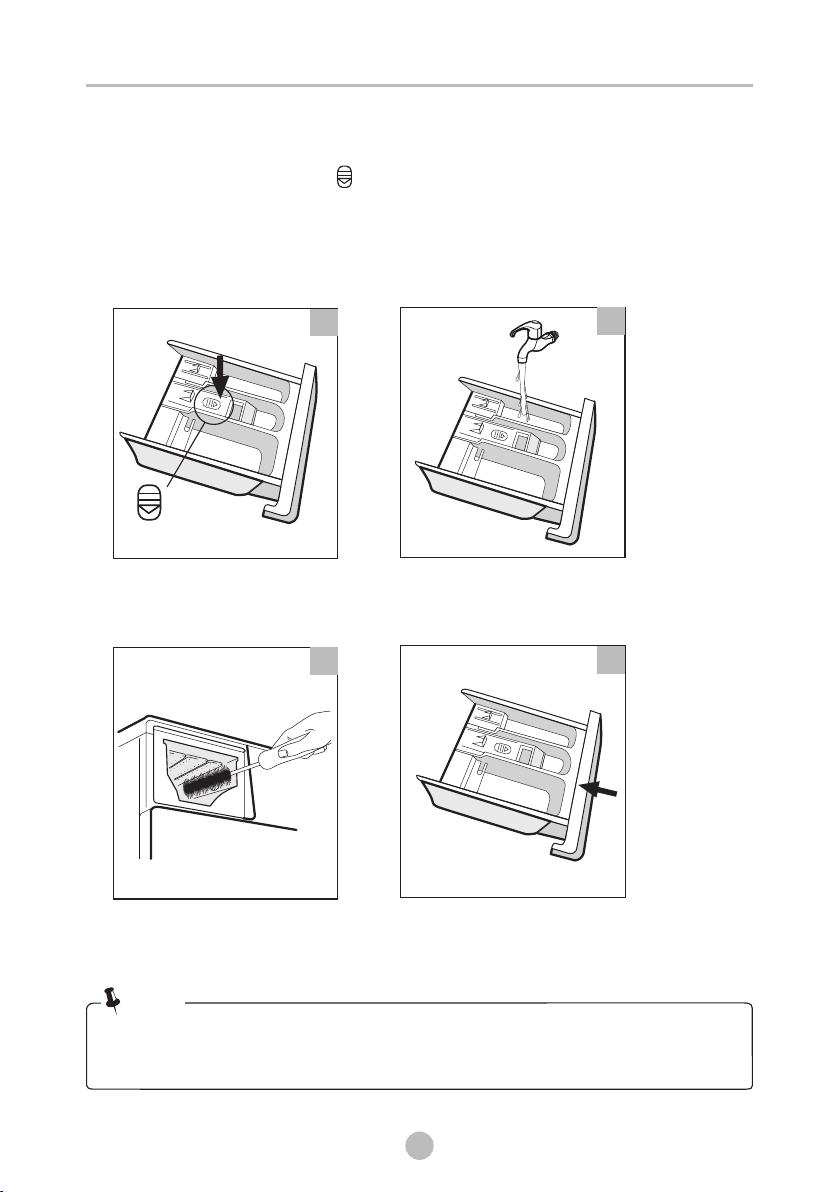

Cleaning the Inlet Filter
• Diminishing water flow is a sign that the filter need to be cleaned.
31

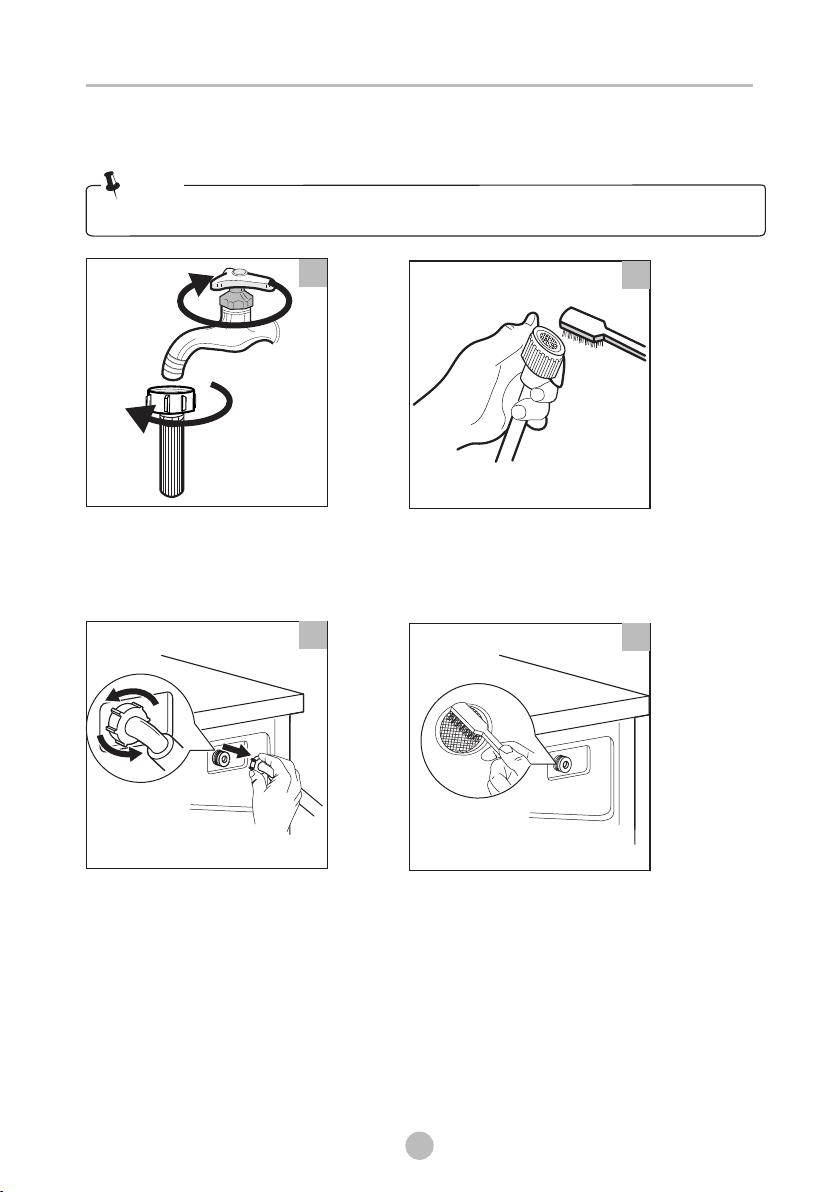

1. Close the tap and
remove the water
supply hose from it.
2. Clean the filter with
a brush.
5. Reinstall the filter to the water inlet and reconnect the water supply hose.
6. Clean the Inlet filter every 3 months to ensure the normal operation of
the appliance.
3. Unscrew the water
supply hose from the
backside of the machine.
Pull out the filter with
long nose pliers.
4. Use a brush to clean
the filter.
4 MAINTENANCE
1
2
3
4
Note!
32
Cleaning the Detergent Dispenser
1. Press down the release [ ] on the softener cover and pull the dispenser
drawer out of the recess. Clean the inside of the recess with a brush.
2. Lift the softener cover off the dispenser drawer and wash both items with
water.
3. Restore the softener cover and push the drawer back into the recess.
Press the release and
remove the dispenser
drawer
Clean the dispenser
drawer and the softener
cover under water
Clean the recess with
an soft brush
Insert the dispenser
drawer
• Do not use abrasive or caustic agents to clean plastic parts.
Clean the detergent dispenser every 3 months to ensure the normal
operation of the appliance
•
4 MAINTENANCE
1
2
3
4
Note!

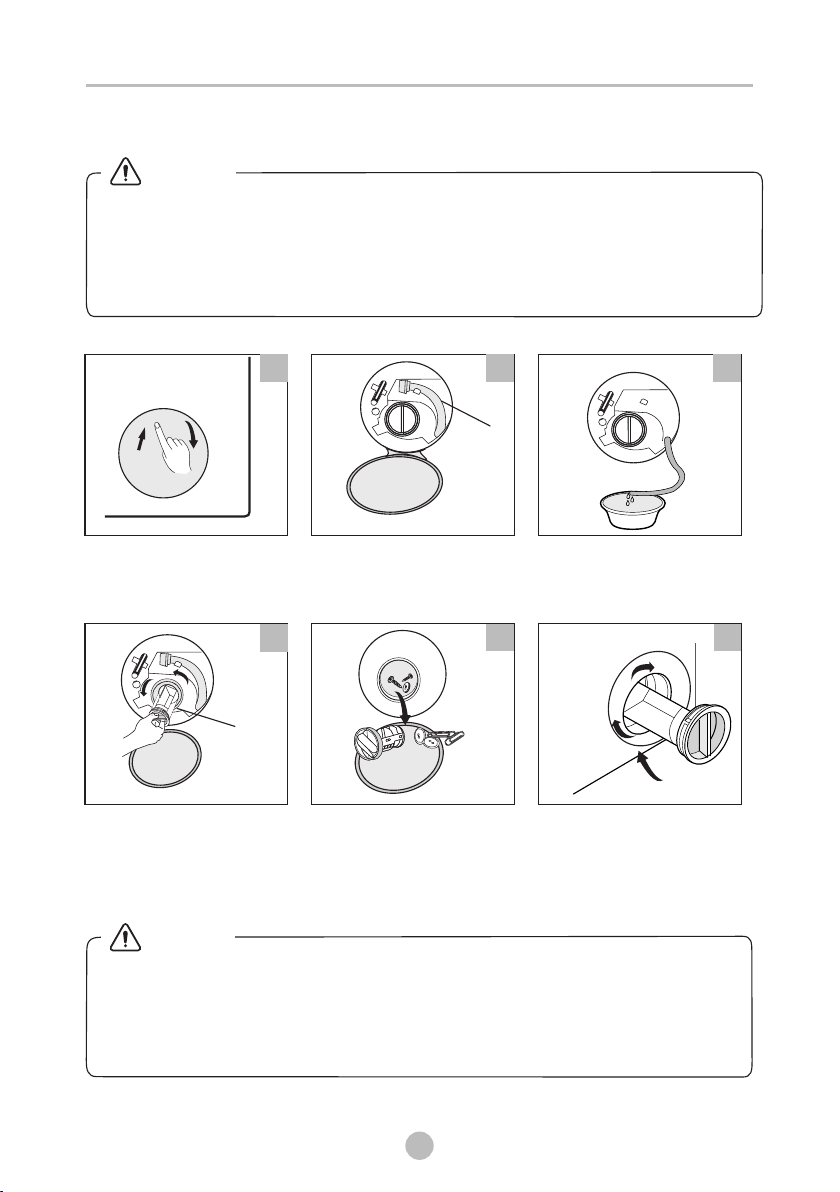

Cleaning the Drain Pump Filter
•
empty. Switch it off and unplug it before cleaning the drain pump filter.
• Be careful of hot water. Wait for water cooling down. Risk of scalding!
• Clean the filter periodically every 3 months to ensure the normal
operation of the appliance.
Make sure that the machine has finished the washing cycle and is
1
2
3
Emergency
drain hose
Open the lower cover
cap
Pull out the emergency
drain hose, and take
off the hose cap
After water runs out,
reset the drain hose
33
5
4
Filter cap
6
Open the filter by
turning to the counter
clockwise
Remove extraneous
matter
Carefully reinsert the
filter and screw the lower
cover cap in clockwise
4 MAINTENANCE
• Make sure emergency drain hose cap and the emergency drain hose
are reinstalled properly, otherwise water may leak.
• Some machine don’t have emergency drain hose, so step 2 and step
3 can be skipped. Rotate lower cover cap directly to make water run
into basin.
Warning!
Caution!
34
Whenever there is a problem with the appliance, check if you can solve
it following the tables below. If the problem persists, please contact the
customer service.
Description
Possible cause
Solution
Check if the water pressure
is high enough.
Straighten the water pipe.
Clean the inlet valve filter.
Check the drain hose for
blockage.
Water injecting
problem during
wash cycle.
Overtime water
draining
Restart the appliance. If
problem persists, please
contact the customer service.
Others
Water overflow
Restart the appliance.
Close the door properly
and restart.
Door is not closed
properly.
Description
Possible cause
Solution
Close the door properly
andrestart.
Check the laundry.
Door is not closed
properly.Clothes are
stuck.
Safety protection
is activated.
Disconnect the power and
restart.
Water leakage
Connections are
not tight enough.
Check and fasten the water
inlet pipe.Check and clean
the outlet hose.
Clean and wipe the
detergent dispenser dry.
Abnormal noise
Check if the fixing bolts
have been removed.
Make sure the appliance is
installed on a solid and
level floor.
Indicator or display
does not work
PC board or harness
have connection
problems.
Switch off the power and
check if the mains plug
is connected properly.
Appliance does
not start
Detergent residues
in the detergent
dispenser
Detergent is damp
and/or clotted.
Door can´t be
opened
Fixing bolts still in
place.
Floor is not solid or
level.
Error Codes
4 MAINTENANCE
4.2 Trouble Shooting
4 MAINTENANCE
4.3 Customer Service
In case of questions, please contact our local customer service center.
Risk of electric shock
• Never try repair an appliance which is defective of presumed to
defective. You may put your own and future users' lives in danger.
Only authorised specialists are allowed to carry out this repair work.
• Improper repair will void the warranty and subsequent damages
can't be recognized!
Spare part for your appliance are available for a minimum of 10 years
.
following EU COMMISSION REGULATION 2019/2023 ANNEX II Ecodesign
requirements
Transport
IMPORTANT STEPS WHEN MOVING THE APPLIANCE
•
• Check, if the door and the detergent dispenser are closed properly.
• Remove the water inlet pipe and the outlet hose from the house
installations.
• Let the water drain completely from the appliance (see “Maintenance
Cleaning the drain pump filter”)
• Important: Re-install the 4 transport bolts in the back of the appliance.
• This appliance is heavy. Transport with care. Never hold any protruding
part of the machine when lifting. The machine door can not be used as a
handle.
Unplug the appliance and close the water inlet tap.
35
Warning!

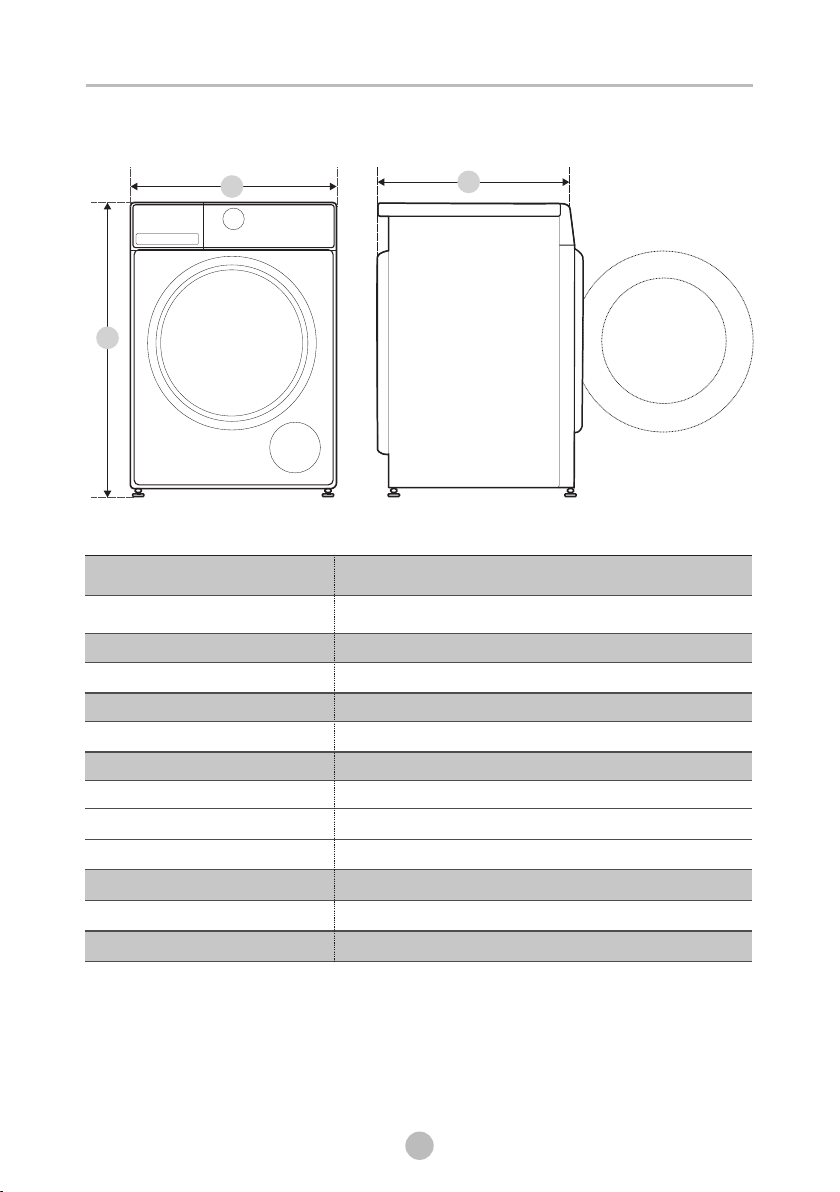

5 TECHNICAL SPECIFICATION
36
MAX.Current
Standard Water Pressure
Power Supply
Model
A
B
C
8.0kg
5.0kg
595mm
74kg
2000W
1350W
850mm
565mm
Washing Capacity
Drying Capacity
Dimension
A
B
C
Weight
Rated Power
Drying Power
MF10ED80B
220-240V~,50Hz
10A
0.05MPa~1MPa
6 PRODUCT FICHE
37
1350
1350
1350
59.8
0.544
39
32
22
MF10ED 80B
5.0
8.0
85
60
57
B
81.9
3.254
80
Rated
capacity
53.9
Half
53.9
Quarter
53.9
35
38
1) The actual energy consumption will depend on how the appliance is used.
2) The actual water consumption will depend on how the appliance is used
and on the hardness of the water.
3) Delivery of the spare parts within 15 working days after having received
the order.
Product Data Sheet concerning (EU) 2019/2014, (EU) 2019/2023, (EU)
2021/340, (EU) 2021/341.
The product data sheet for your appliance can be found online.
Go to https://eprel.ec.europa.eu and enter the model identifier for your
appliance to download the data sheet.
The model identifier for your appliance can be found in the technical
specifications section.
6 PRODUCT FICHE
8:00
7:00
(a) for the eco 40-60 programme.
(b) for the wash and dry cycle
(c) changes to these items shall not be considered relevant for the purposes of paragraph 4 of Article 4 of Regulation (EU) 2017/1369.
(d) if the product database automatically generates the definitive content of this cell the supplier shall not enter these data.
Weblink to the supplier’s website, where the information in point 9 of Annex II to Regulation (EU) 2019/2023 is found (b):
free-standing
76
B
Your device / serial number
Purchase date:
Place of purchase:
We provide a guarantee for this machine in accordance with the
following conditions: You have a manufacturer’s warranty of 2
years from the date of purchase (proof of purchase must be
provided). Our General Terms and Conditions apply.
Warranty
NOTES
Do you have any questions ?
We are happy to support you !
http://www.midea.com
16138100A33915
V1.0
