Projector
M380HL / M430WL
User’s Manual
Model No.
NP-M380HL / NP-M430WL
English
2
TABLE OF CONTENTS
SAFETY ............................................................................................... 4
Important Safety Instruction....................................................................................................... 4
Cleaning the Lens...................................................................................................................... 5
Laser Radiation Safety Information ........................................................................................... 6
Copyright ................................................................................................................................... 8
Disclaimer .................................................................................................................................. 8
Trademark Recognition ............................................................................................................. 8
Supplier’s declaration of conformity (for USA only) ................................................................... 8
Declaration of Conformity for EU countries ............................................................................... 9
Disposing of your used product ................................................................................................. 9
INTRODUCTION ................................................................................. 10
Package Overview.................................................................................................................... 10

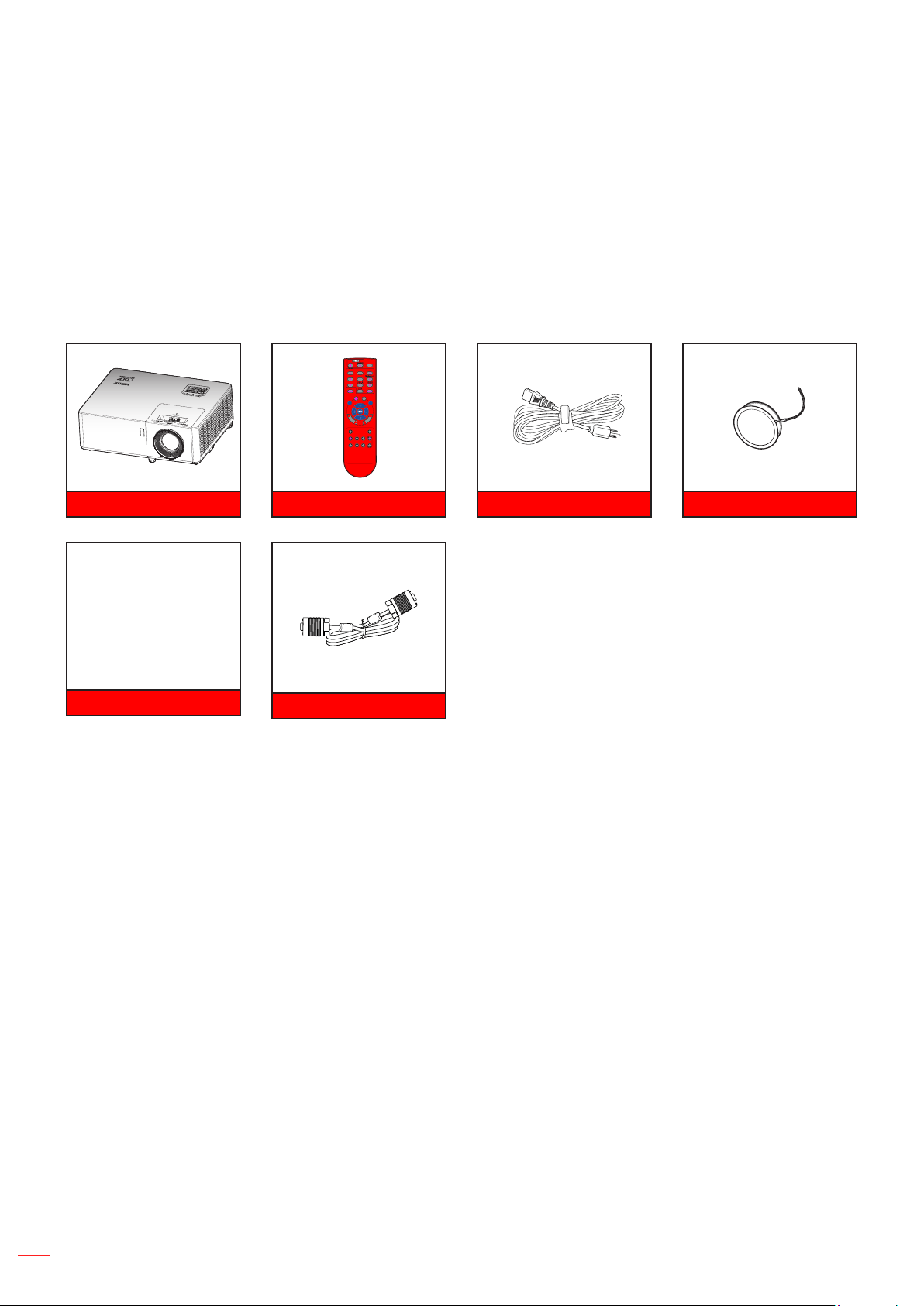

Standard accessories ............................................................................................................... 10

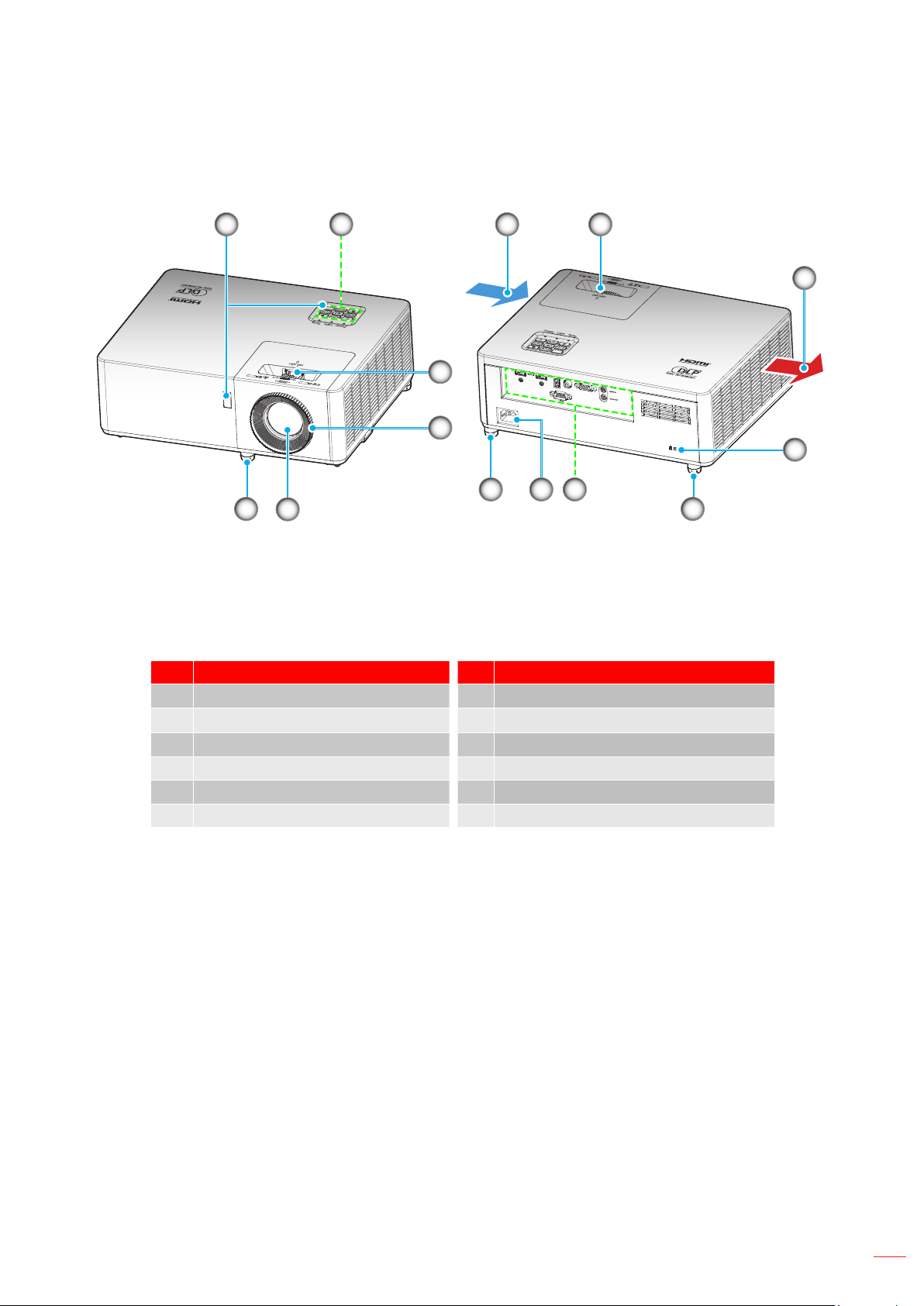

Product Overview ..................................................................................................................... 11

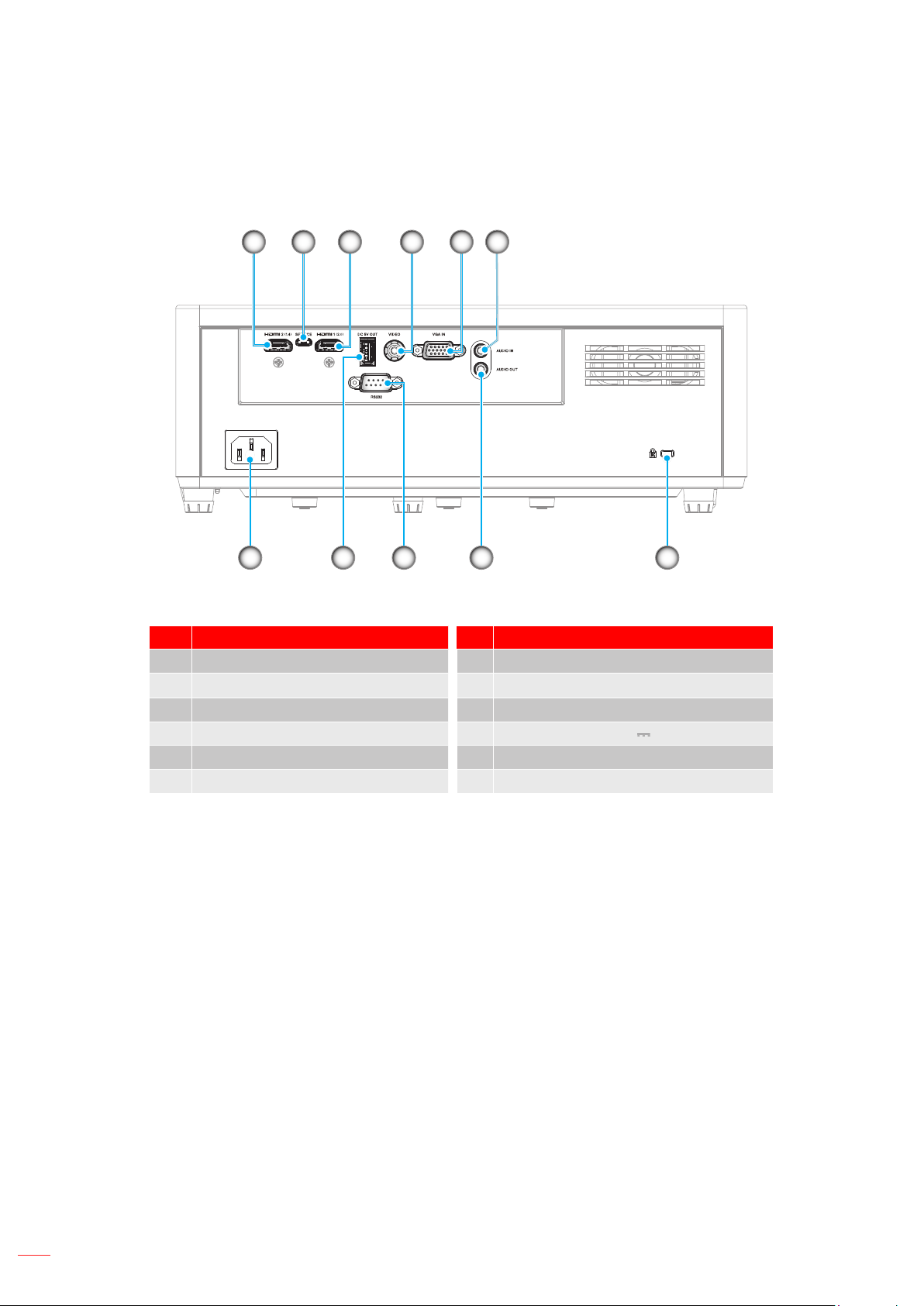

Connections.............................................................................................................................. 12

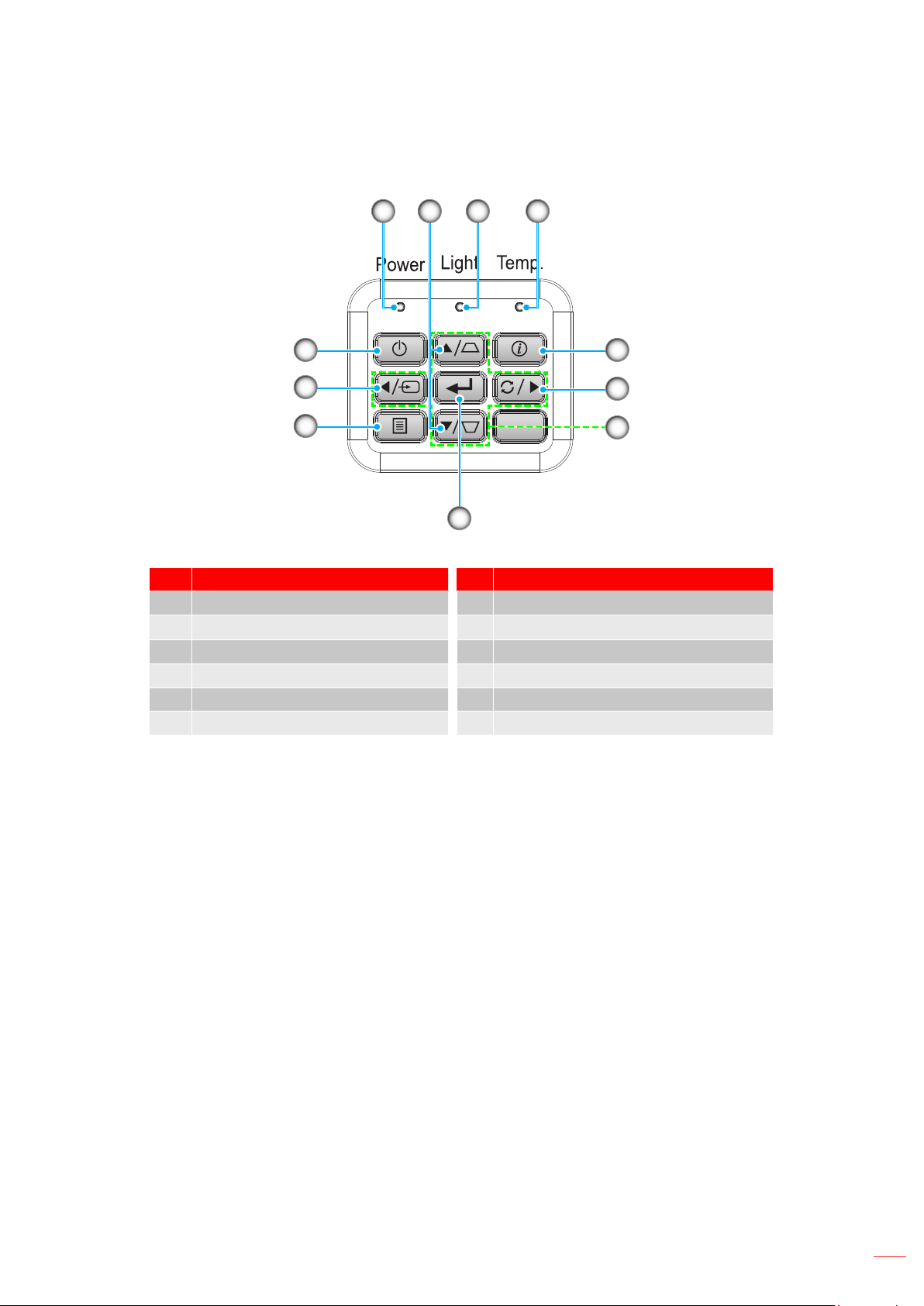

Keypad ..................................................................................................................................... 13

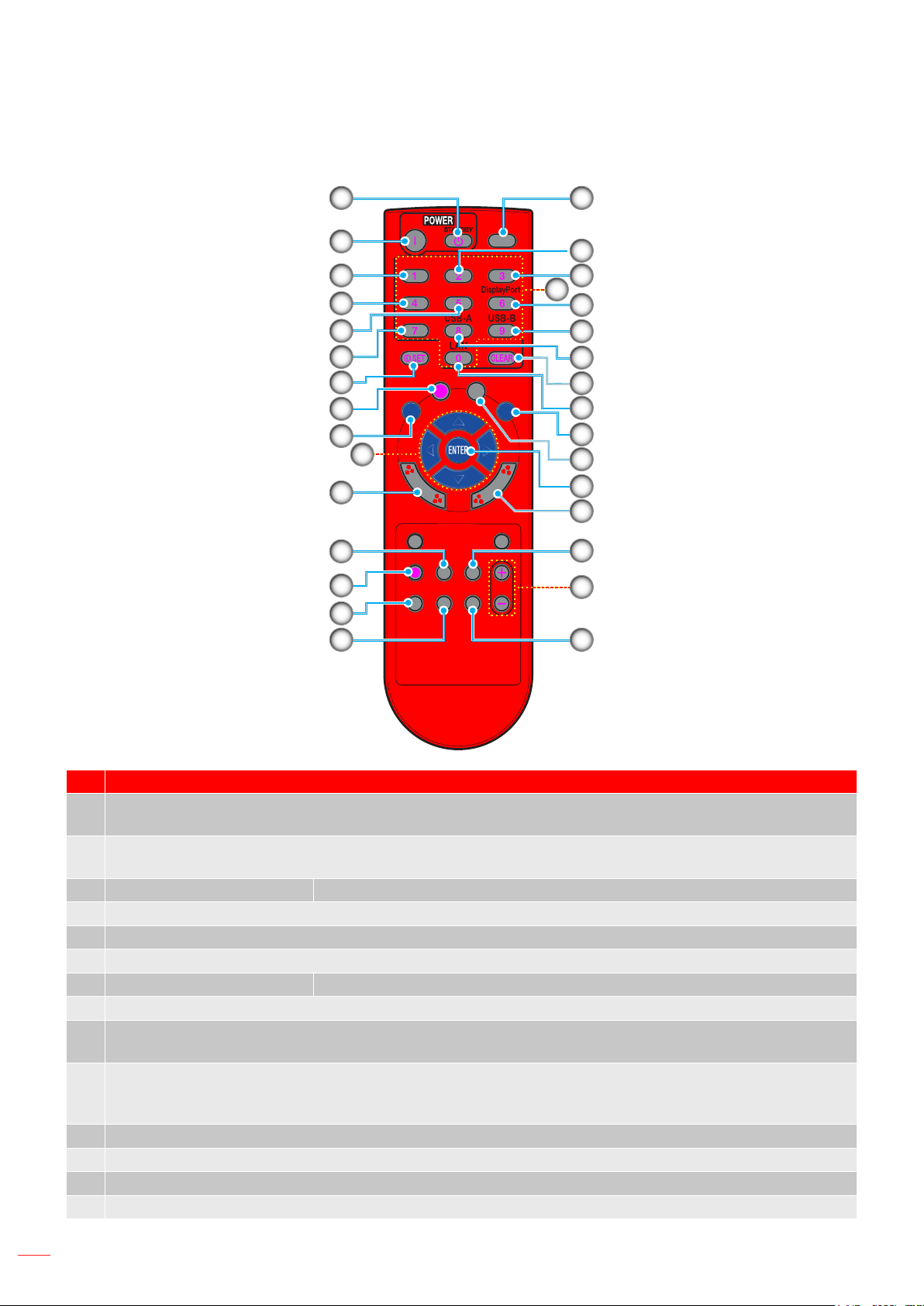

Remote control ......................................................................................................................... 14
SETUP AND INSTALLATION ............................................................. 16

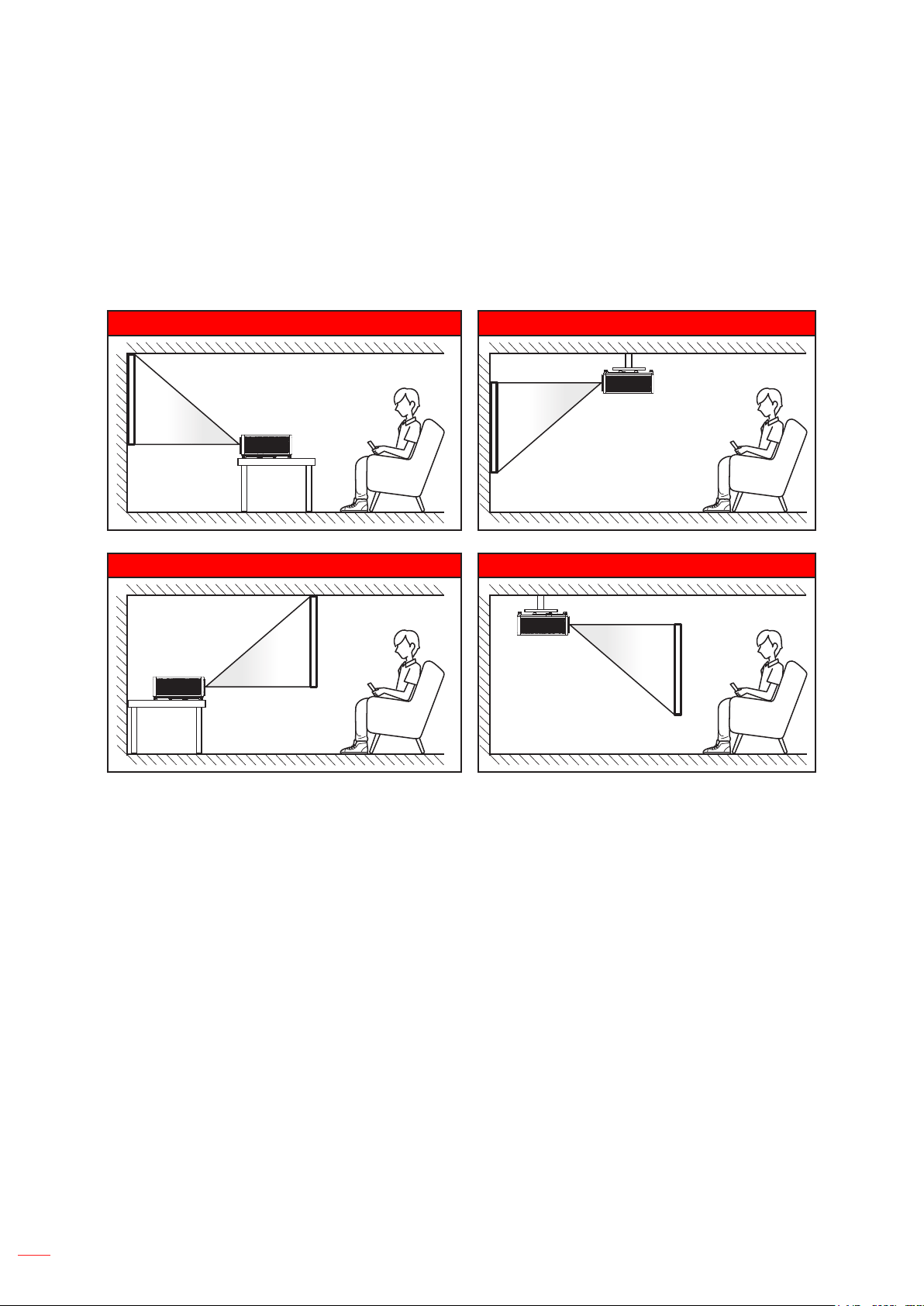

Installing the projector .............................................................................................................. 16

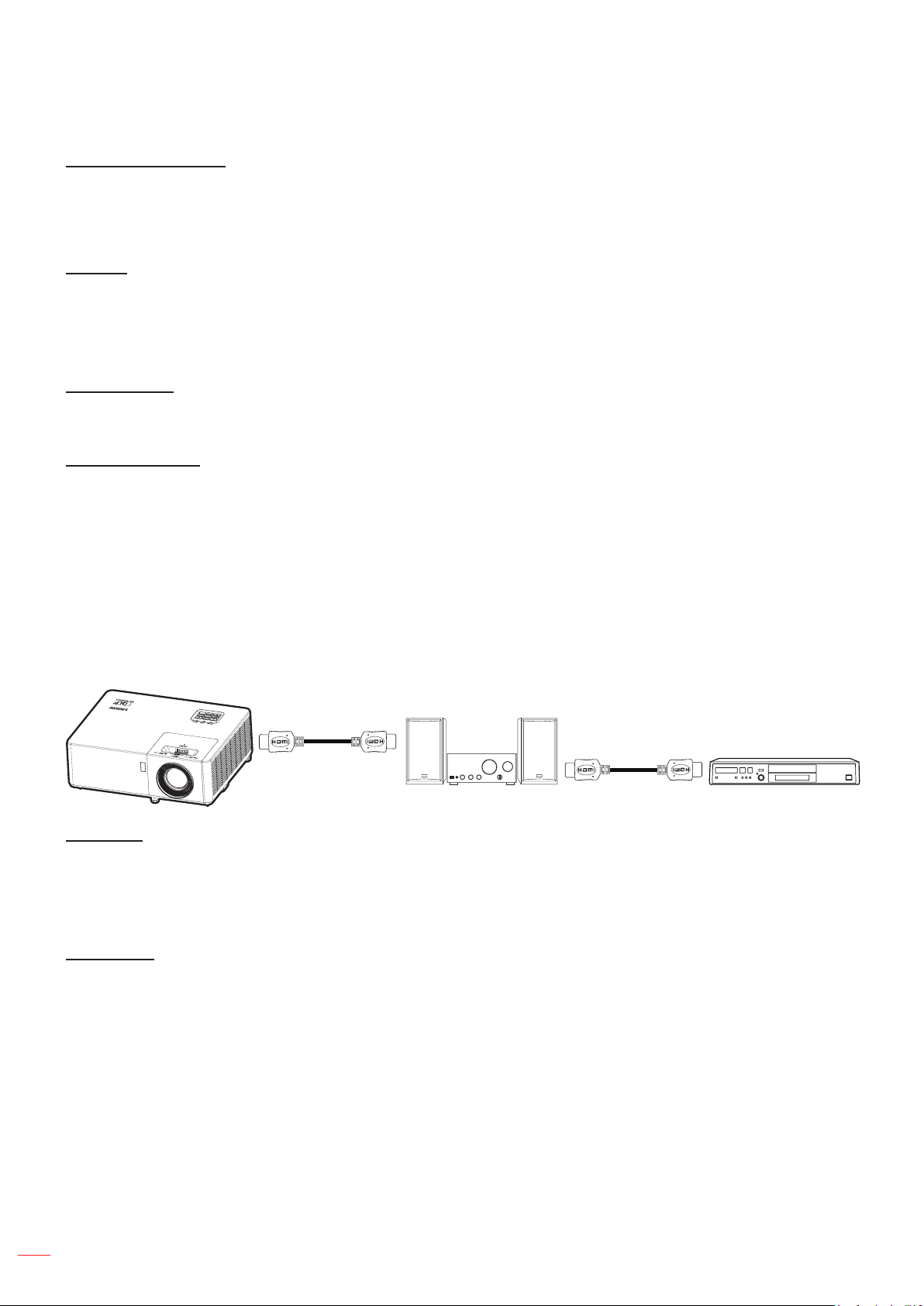

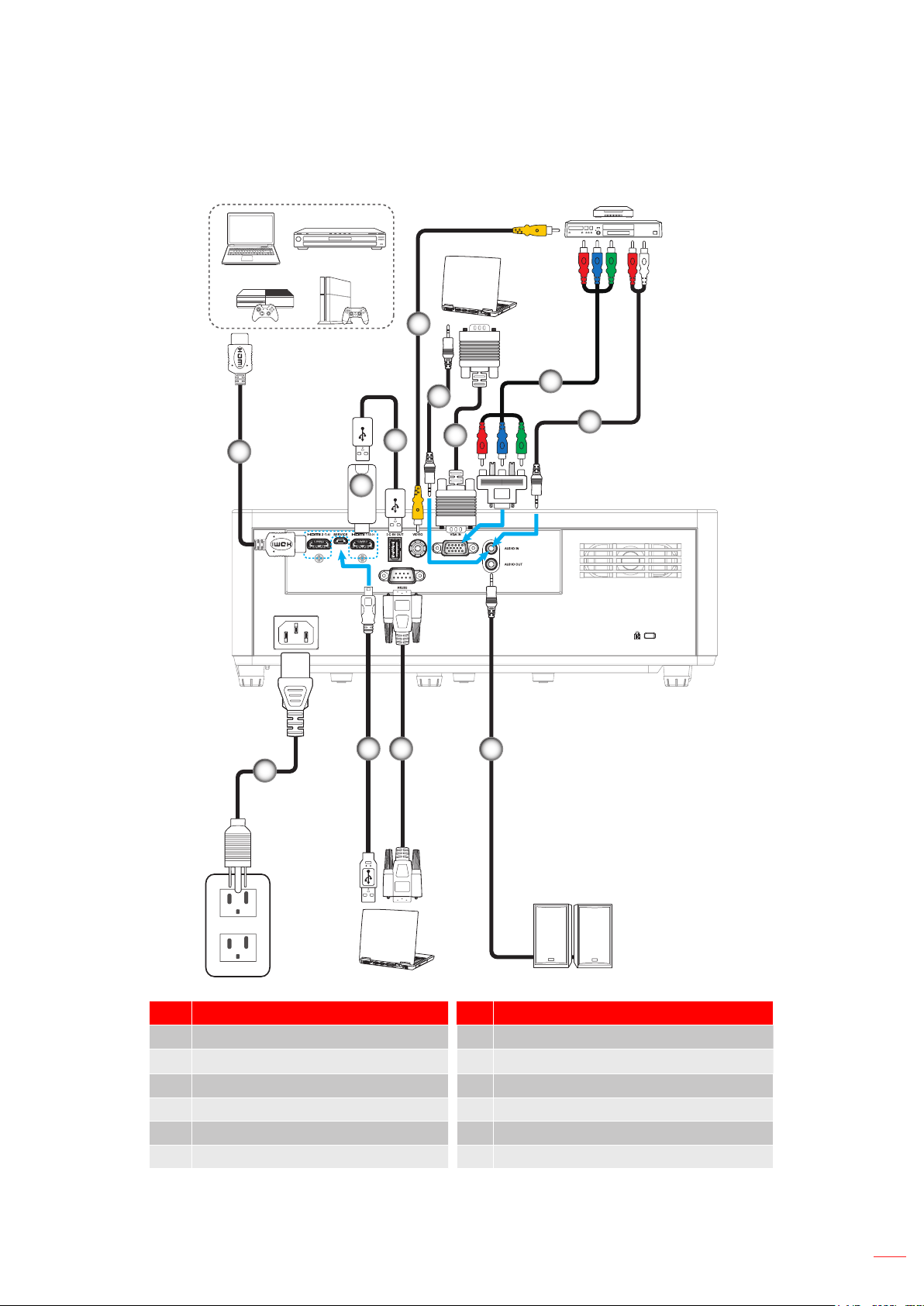

Connecting sources to the projector ......................................................................................... 19

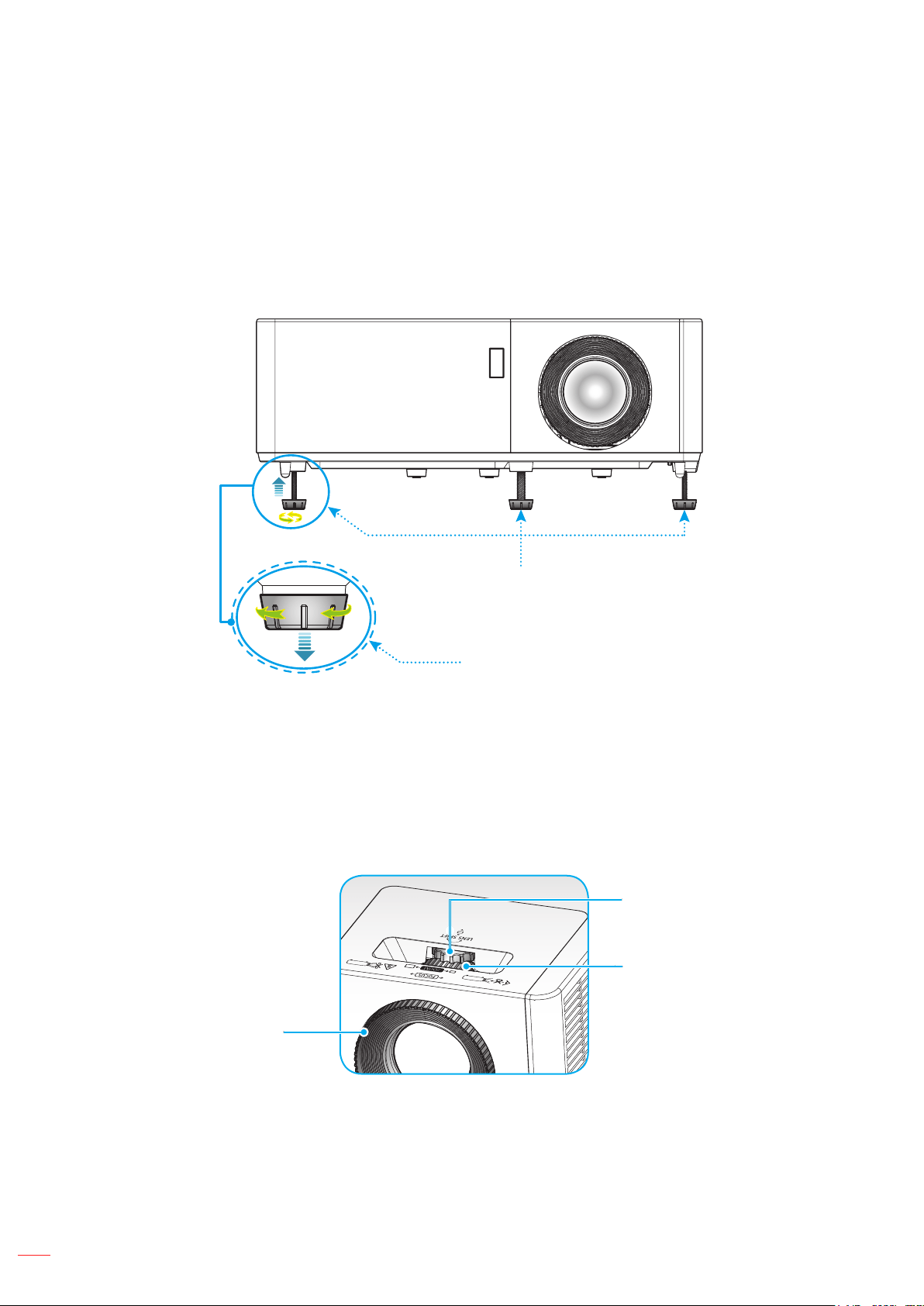

Adjusting the projector image ................................................................................................... 20

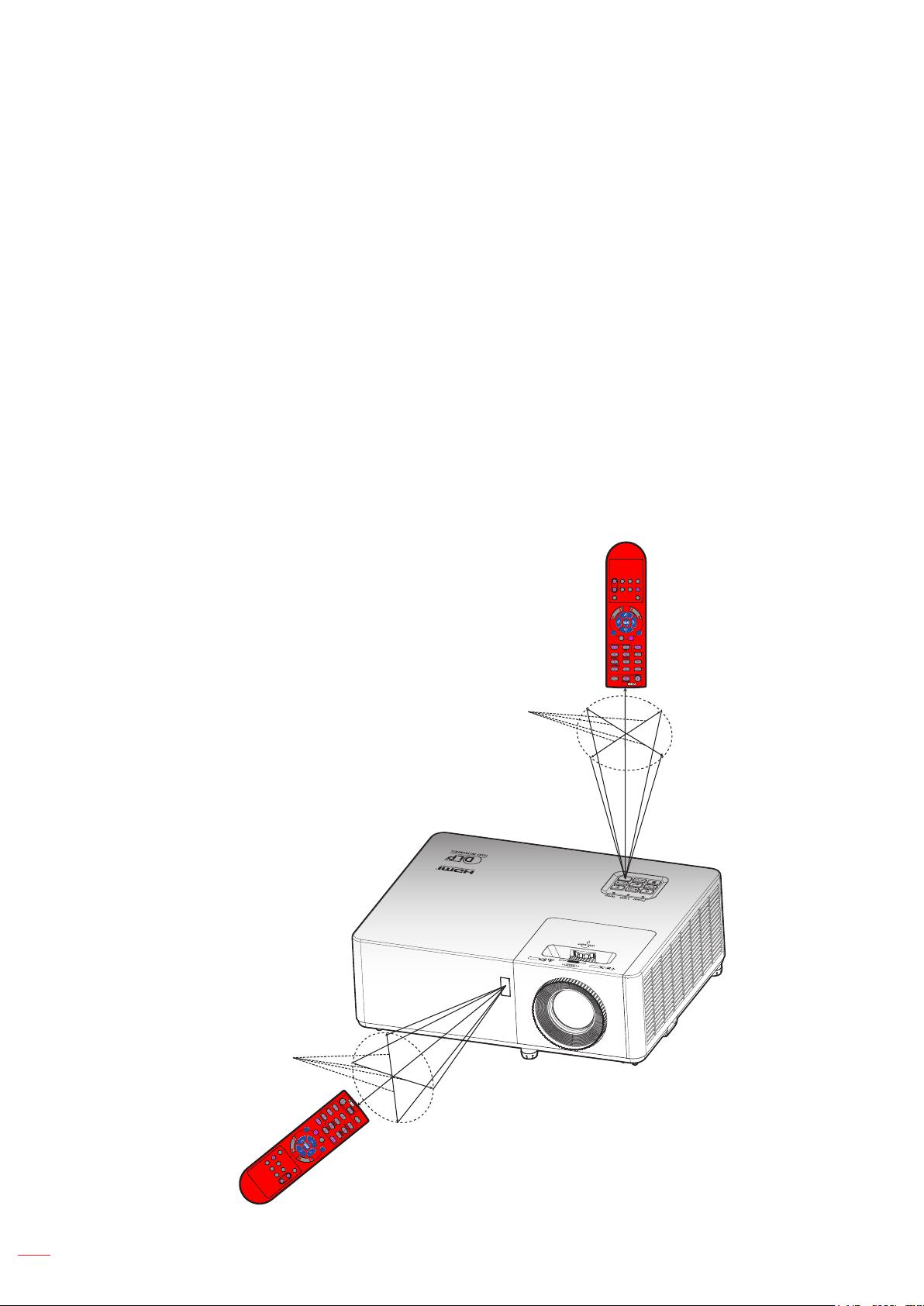

Remote setup ........................................................................................................................... 21
USING THE PROJECTOR .................................................................. 23

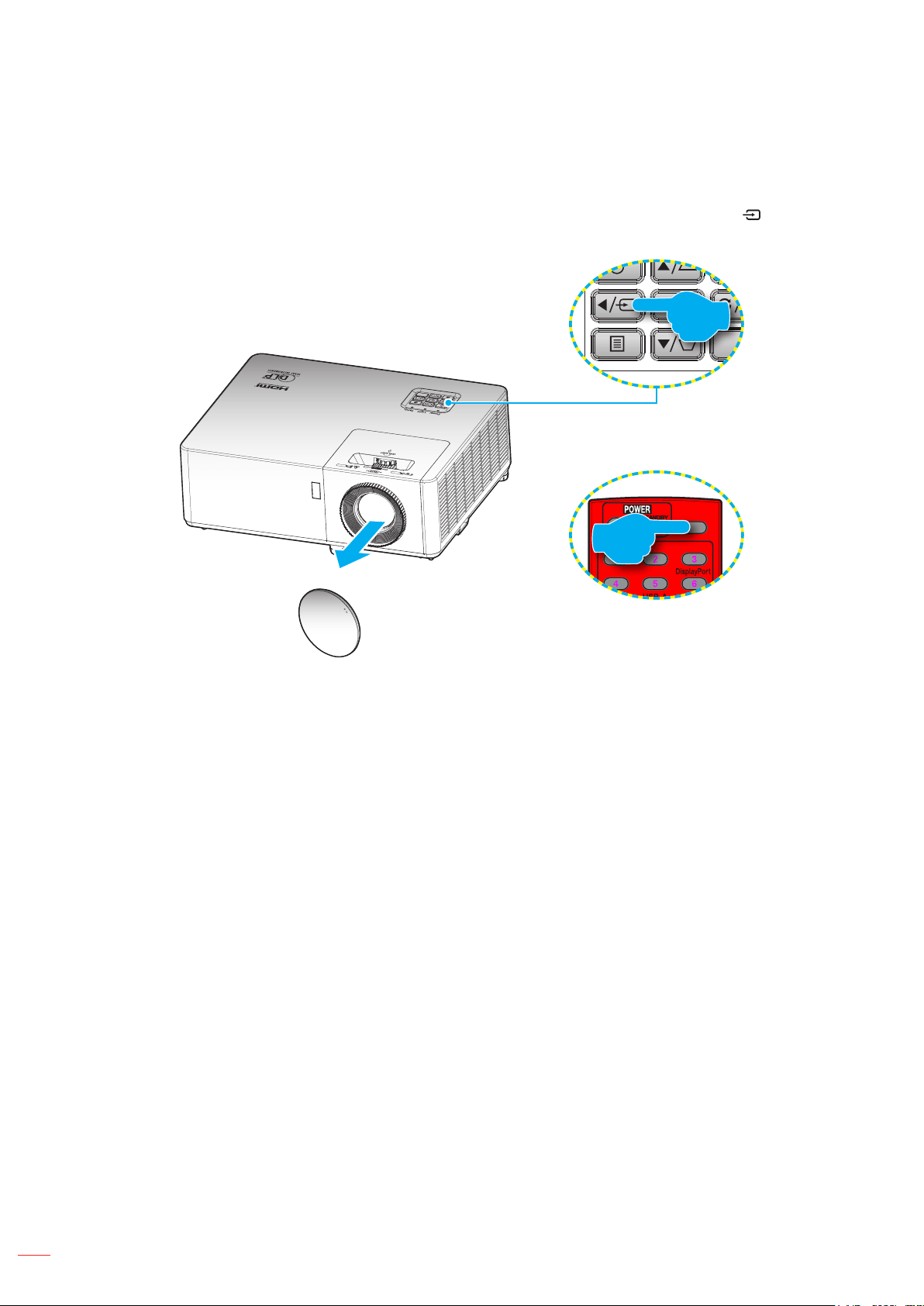

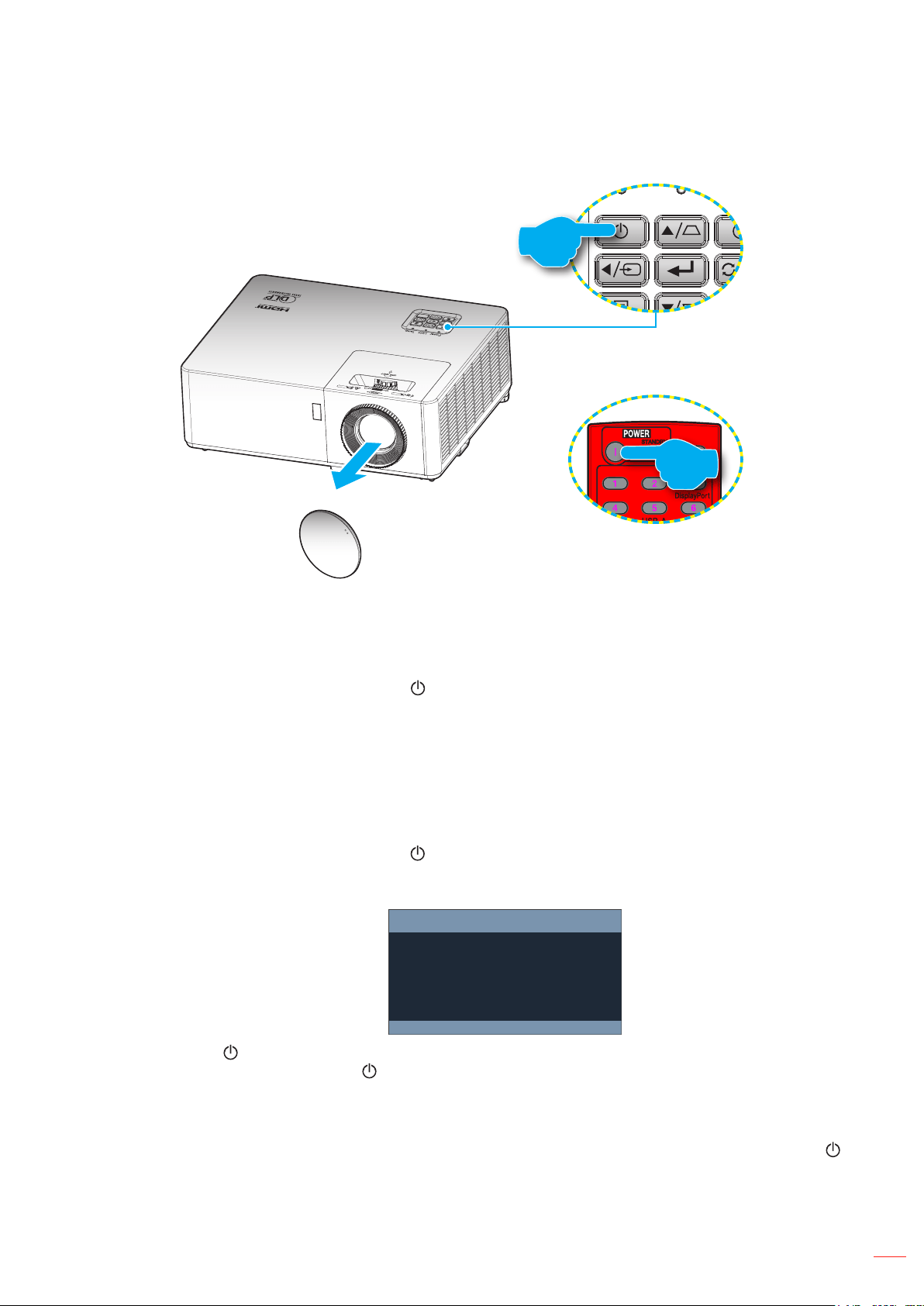

Powering on / off the projector.................................................................................................. 23
Selecting an input source ......................................................................................................... 24

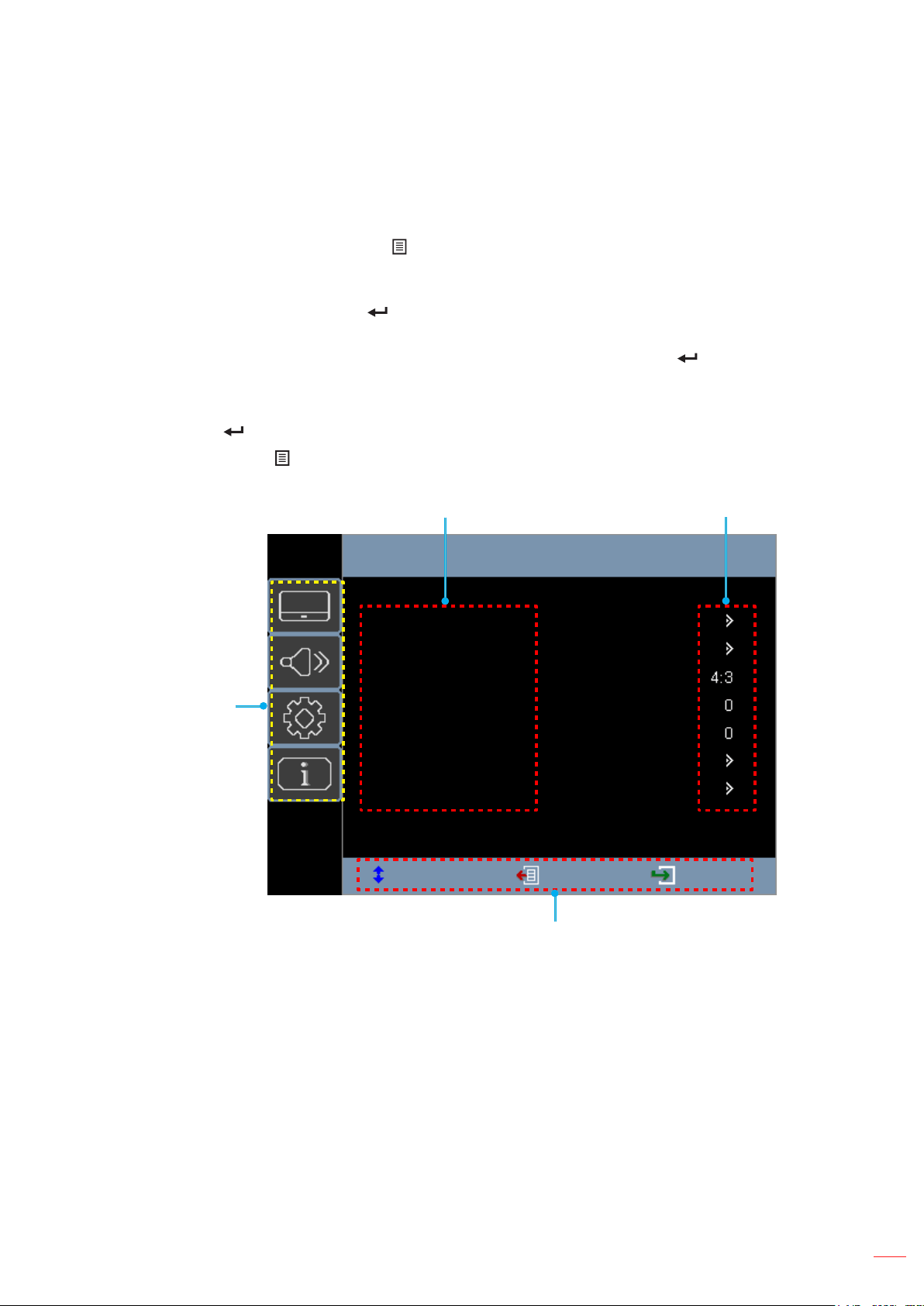

Menu navigation and features .................................................................................................. 25
OSD Menu tree......................................................................................................................... 26
Display image settings menu.................................................................................................... 32
Display 3D menu ...................................................................................................................... 34
Display aspect ratio menu ........................................................................................................ 35
Display edge mask menu ......................................................................................................... 36
Display zoom menu .................................................................................................................. 36
Display image shift menu ......................................................................................................... 36
Display keystone menu ............................................................................................................ 36
Audio mute menu ..................................................................................................................... 37
Audio volume menu .................................................................................................................. 37
Setup projection menu.............................................................................................................. 37
Setup screen type menu........................................................................................................... 37
Setup power settings menu ...................................................................................................... 37
Setup security menu ................................................................................................................. 38
English
3
Setup HDMI link settings menu ................................................................................................ 38
Setup test pattern menu ........................................................................................................... 38
Setup options menu.................................................................................................................. 39
Setup reset OSD menu ............................................................................................................ 39
Info menu.................................................................................................................................. 40
ADDITIONAL INFORMATION ............................................................ 41
Compatible resolutions ............................................................................................................. 41
Image size and projection distance .......................................................................................... 45

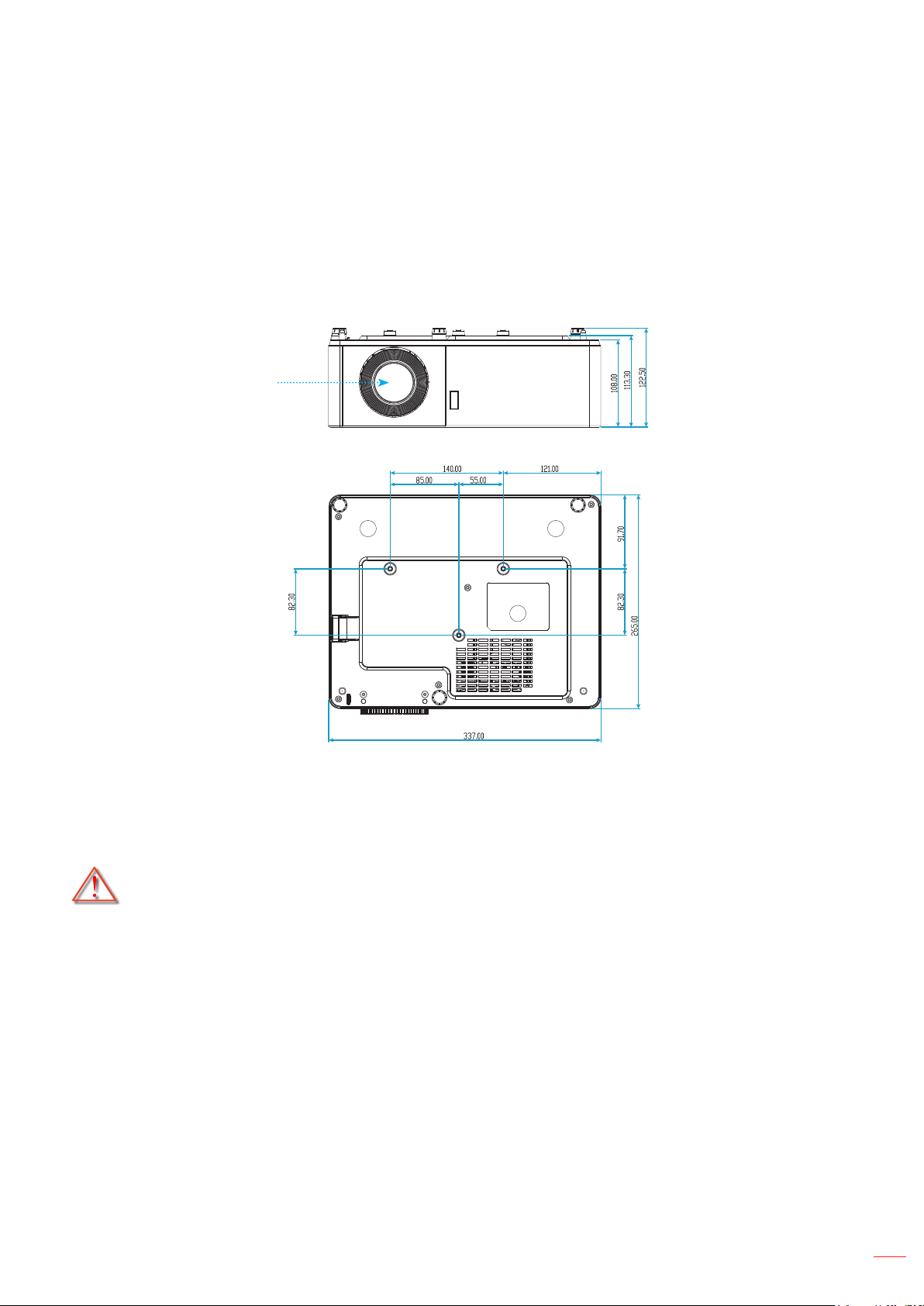

Projector dimensions and ceiling mount installation ................................................................. 47
Troubleshooting ........................................................................................................................ 48
Warning indicators .................................................................................................................... 50
Specications ........................................................................................................................... 51
PC control codes and cable connection ................................................................................... 52
English
4
SAFETY

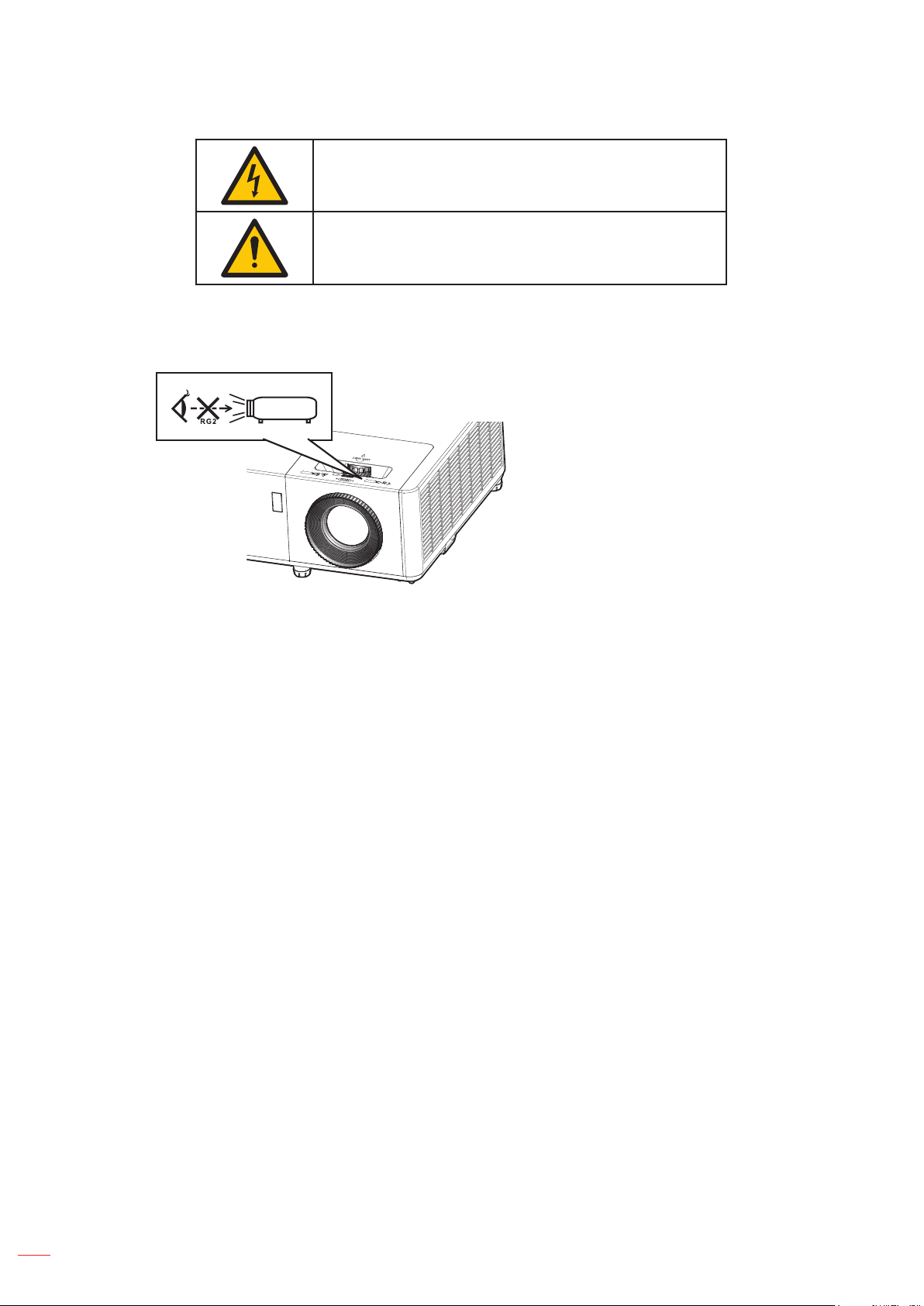

The lightning ash with arrow head within an equilateral triangle is
intended to alert the user to the presence of uninsulated "dangerous
voltage" within the product's enclosure that may be of sufcient
magnitude to constitute a risk of electric shock to persons.
The exclamation point within an equilateral triangle is intended to alert
the user to the presence of important operating and maintenance
(servicing) instructions in the literature accompanying the appliance.
Please follow all warnings, precautions and maintenance as recommended in this user’s guide.
Important Safety Instruction
Do not stare into the beam, RG2.
As with any bright source, do not stare into the direct beam, RG2 IEC 62471-5:2015.
Do not block any ventilation openings. To ensure reliable operation of the projector and to protect from
over heating, it is recommended to install the projector in a location that does not block ventilation.
As an example, do not place the projector on a crowded coffee table, sofa, bed, etc. Do not put the
projector in an enclosure such as a book case or a cabinet that restricts air ow.
To reduce the risk of re and/or electric shock, do not expose the projector to rain or moisture. Do not
install near heat sources such as radiators, heaters, stoves or any other apparatus such as ampliers
that emits heat.
Do not let objects or liquids enter the projector. They may touch dangerous voltage points and short
out parts that could result in re or electric shock.
Do not use under the following conditions:
± In extremely hot, cold or humid environments.
(i) Ensure that the ambient room temperature is within 5°C ~ 40°C
(ii) Relative humidity is 10% ~ 85%
± In areas susceptible to excessive dust and dirt.
± Near any appliance generating a strong magnetic eld.
± In direct sunlight.
Do not use the unit if it has been physically damaged or abused. Physical damage/abuse would be
(but not limited to):
± Unit has been dropped.
± Power supply cord or plug has been damaged.
± Liquid has been spilled on to the projector.
± Projector has been exposed to rain or moisture.
± Something has fallen in the projector or something is loose inside.
English
5
Do not place the projector on an unstable surface. The projector may fall over resulting in injury or the
projector may become damaged.
Do not block the light coming out of the projector lens when in operation. The light will heat the object
and may melt, cause burns or start a re.
Please do not open or disassemble the projector as this may cause electric shock.
Do not attempt to service the unit yourself. Opening or removing covers may expose you to dangerous
voltages or other hazards. Please call our customer service before you send the unit for repair.
See projector enclosure for safety related markings.
The unit should only be repaired by authorized service personnel.
Only use attachments/accessories specied by the manufacturer.
Do not look into straight into the projector lens during operation. The bright light may harm your eyes.
This projector will detect the life of the light source itself.
When switching the projector off, please ensure the cooling cycle has been completed before
disconnecting power. Allow 90 seconds for the projector to cool down.
Turn off and unplug the power plug from the AC outlet before cleaning the product.
Use a soft dry cloth with mild detergent to clean the display housing. Do not use abrasive cleaners,
waxes or solvents to clean the unit.
Disconnect the power plug from AC outlet if the product is not being used for a long period of time.
Do not setup the projector in places where it might be subjected to vibration or shock.
Do not touch the lens with bare hands.

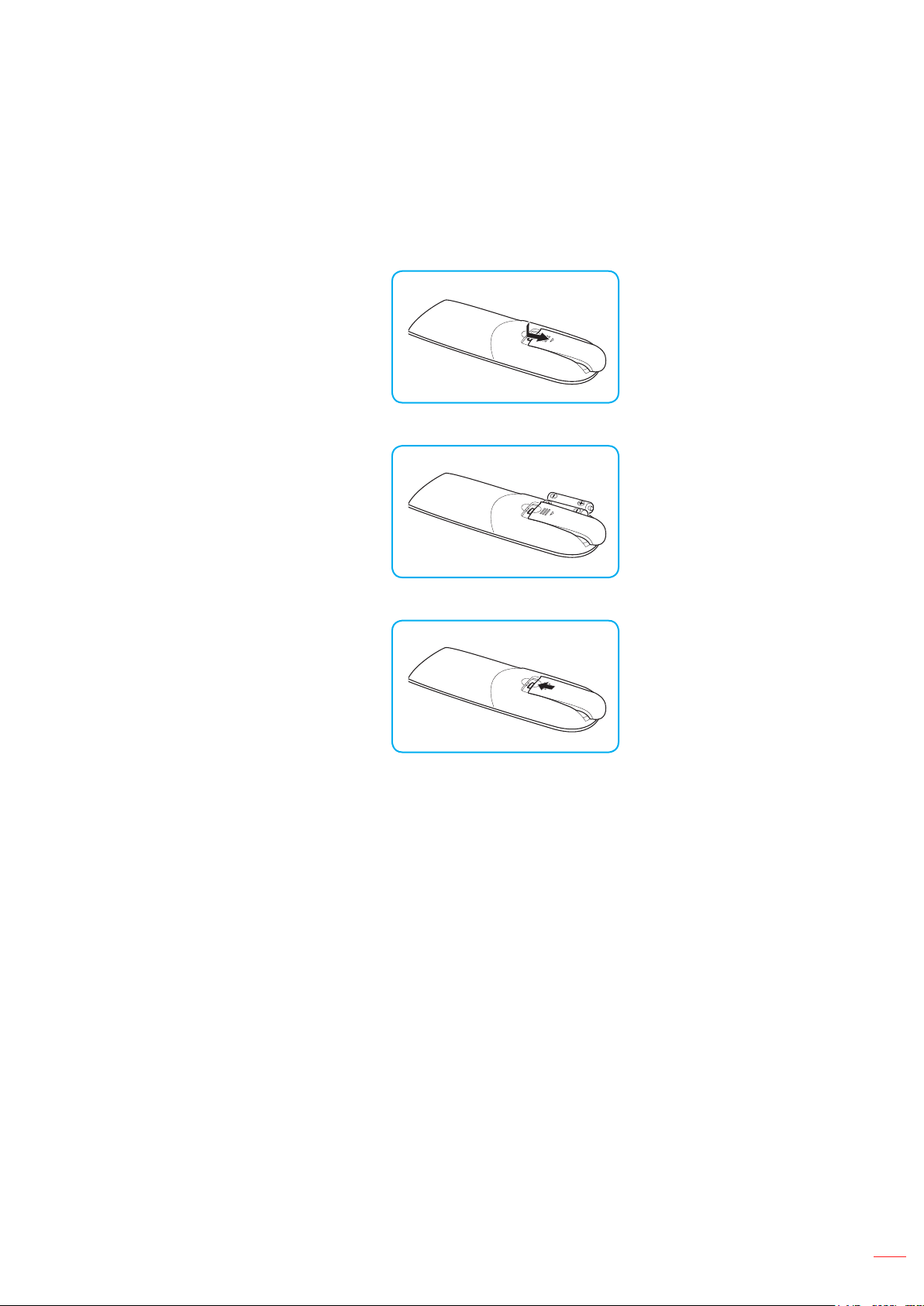

Remove battery/batteries from remote control before storage. If the battery/batteries are left in the
remote for long periods, they may leak.
Do not use or store the projector in places where smoke from oil or cigarettes may be present, as it
can adversely affect the quality of the projector performance.

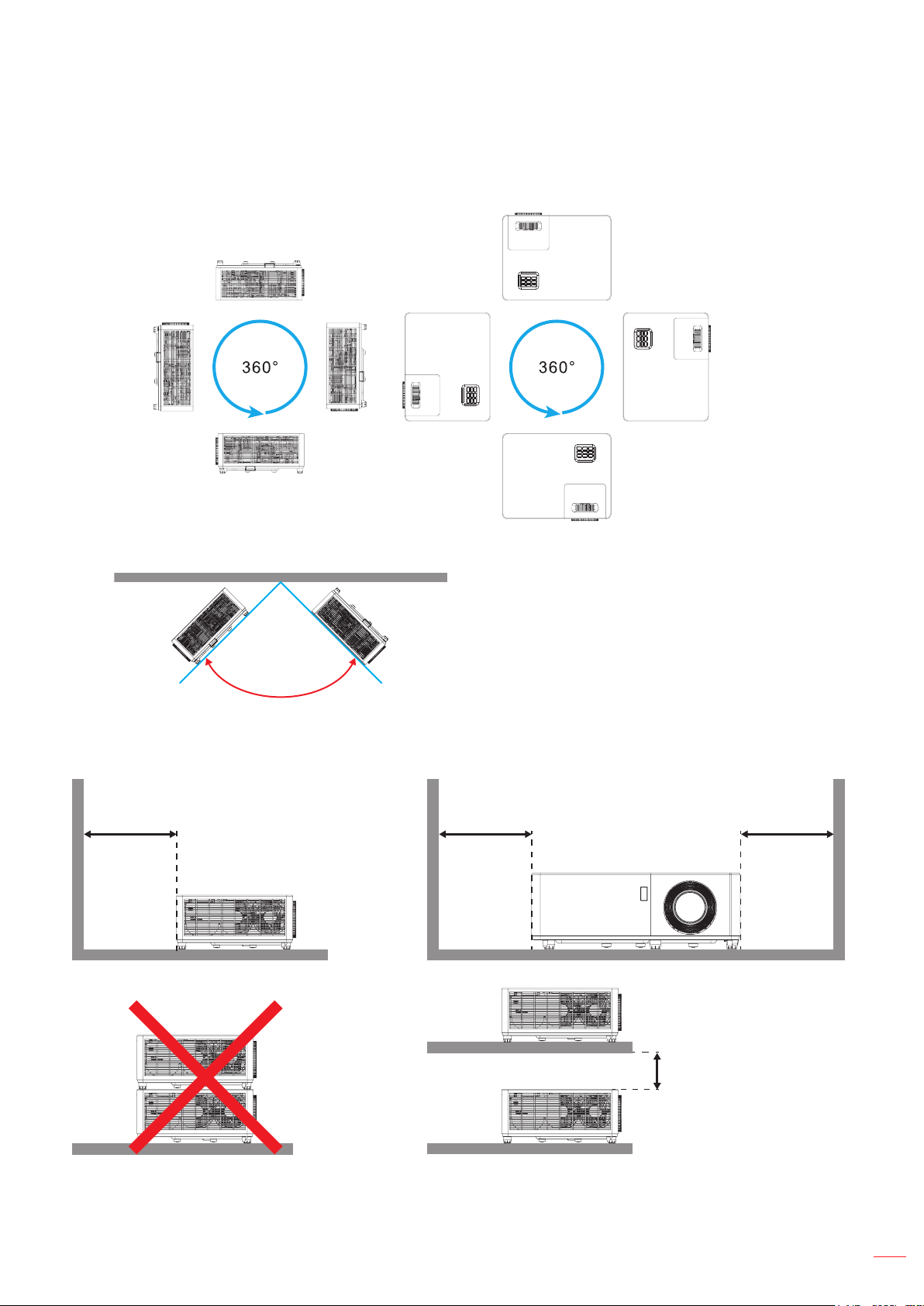

Please follow the correct projector orientation installation as non standard installation may affect the
projector performance.
Use a power strip and or surge protector. As power outages and brown-outs can KILL devices.
Cleaning the Lens
Before cleaning the lens, be sure to turn off the projector and unplug the power cord to allow it to
completely cool down.
Use a compressed air tank to remove the dust.
Use a special cloth for cleaning lens and gently wipe the lens. Do not touch the lens with your ngers.
Do not use alkaline/acid detergents or volatile solvents such as alcohol for cleaning lens. If the lens is
damaged due to the cleaning process, it is not covered by the warranty.
Warning: Do not use a spray containing ammable gases to remove dust or dirt from the lens. This
may cause a re due to excessive heat inside the projector.
Warning: Do not clean the lens if the projector is warming up as this may cause the lens’ surface lm
to peel off.
Warning: Do not wipe or tap the lens with a hard object.
English
6
To avoid electric shock, the unit and its peripherals must be properly grounded (earthed).
Laser Radiation Safety Information
This product is classied as CLASS 1 LASER PRODUCT - RISK GROUP 2 of IEC60825-1 : 2014 and
also complies with 21 CFR 1040.10 and 1040.11 as a Risk Group 2, LIP (Laser Illuminated Projector)
as dened in IEC 62471:5:Ed. 1.0. For more information see Laser Notice No. 57, dated May 8, 2019.
As with any bright source, do not stare into the direct beam, RG2 IEC 62471-5:2015

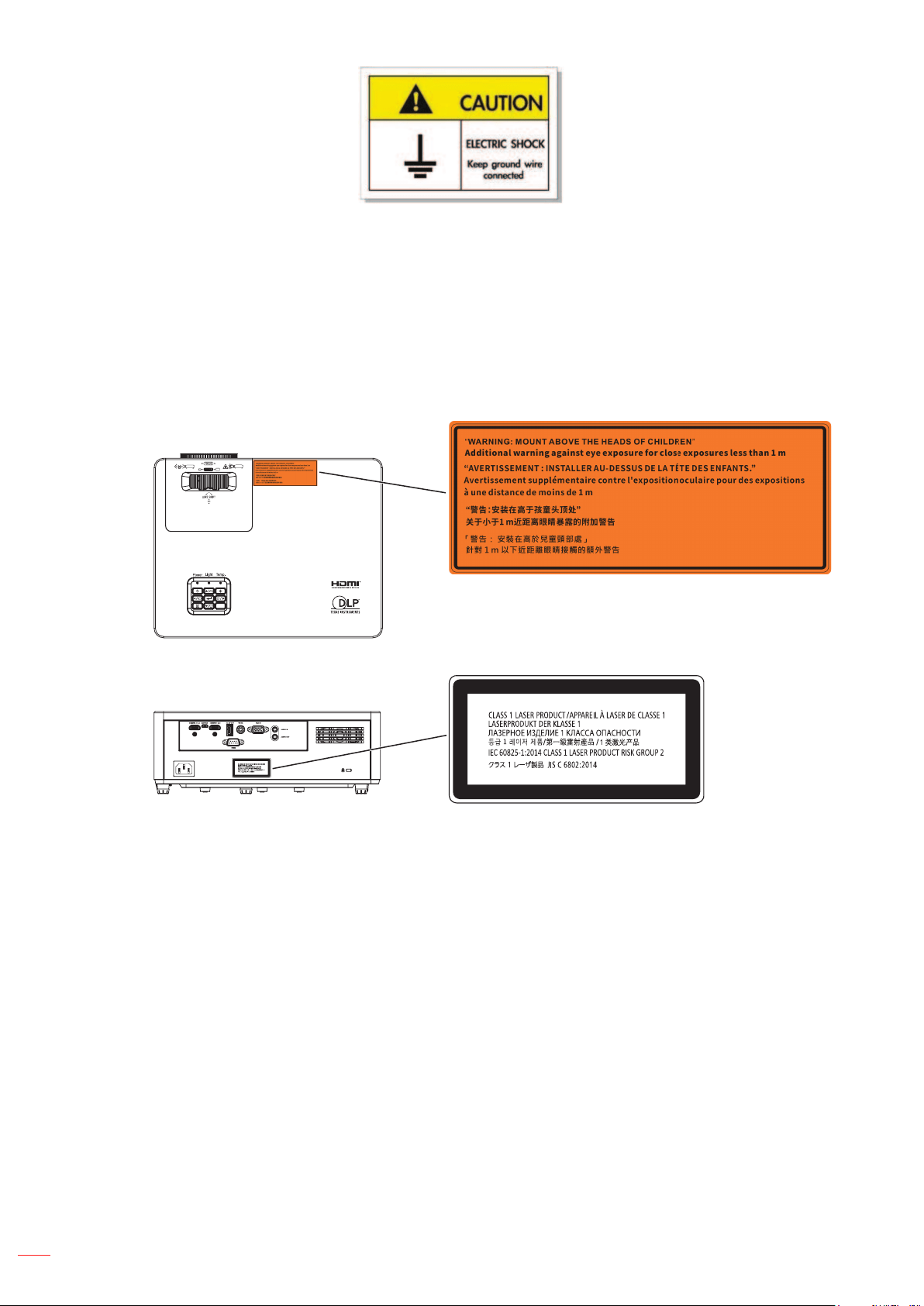

FDA additional warning label
Class 1 laser product label
Outline of laser emitted from the built-in light module:
Wave length: 449 - 461 nm
Maximum power: 186 W
The laser module is equipped in this product. Use of controls or adjustments of procedures other than
those specied herein may result in hazardous radiation exposure.
Additional instructions to supervise children, no staring, and not use optical aids.
Notice is given to supervise children and to never allow them to stare into the projector beam at any
distance from the projector.
Notice is given to use caution when using the remote control for starting the projector while in front of
the projection lens.
Notice is given to the user to avoid the use of optical aids such as binoculars or telescopes inside the
beam.
When turning on the projector, make sure no one within projection range is looking at the lens.
Keep any items (magnifying glass etc.) out of the light path of the projector. The light path being
projected from the lens is extensive, therefore any kind of abnormal objects that can redirect light
coming out of the lens, can cause an unpredictable outcome such as a re or injury to the eyes.
The use of a ceiling mount is recommended with this product to place it above the eyes of children.
Any operation or adjustment not specically instructed by the user’s guide creates the risk of
English
7
hazardous laser radiation exposure.
Do not open or disassemble the projector as this may cause damage by the exposure of laser
radiation.
Do not stare into beam when the projector is on. The bright light may result in permanent eye damage.
Without following the control, adjustment or operation procedure may cause damage by the exposure of
laser radiation.

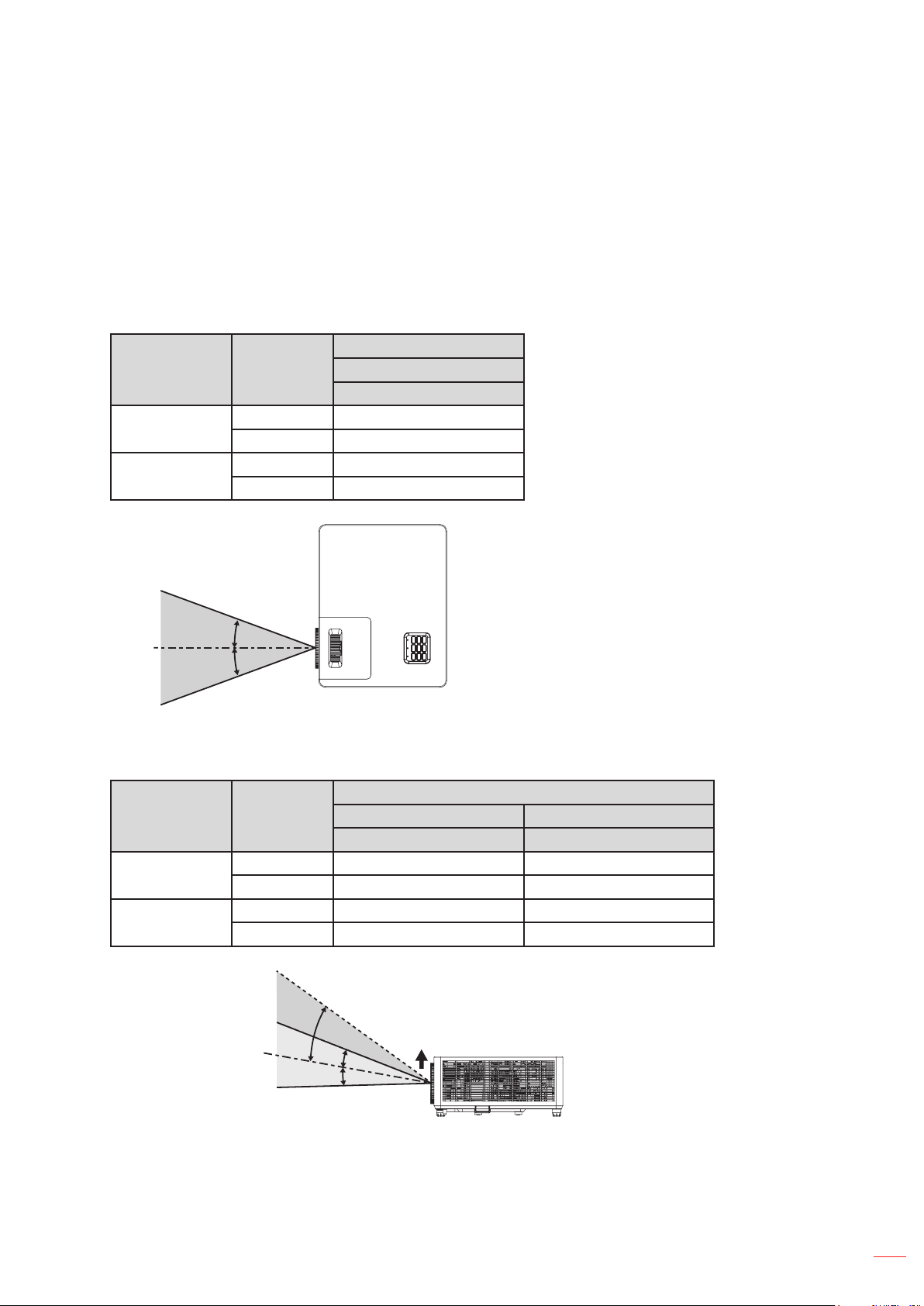

Laser light radiation range
The gure below shows the maximum radiation range of the laser light.
Horizontal angle (unit: degree)
Model Zoom
Lens position
Center (Reference value)
HC
M380HL
Wide 19.7
Tele 12.6
M430WL
Wide 18.8
Tele 12.0
HC
HC
Vertical angle (unit: degree)
Model Zoom
Lens position
Center (Reference value) Upper most
VC VU
M380HL
Wide 11.4 25.6
Tele 7.2 16.6
M430WL
Wide 10.8 23.7
Tele 6.8 15.4
VC
VU
Upper
VC
English
8
Copyright
This publication, including all photographs, illustrations and software, is protected under international copyright
laws, with all rights reserved. Neither this manual, nor any of the material contained herein, may be reproduced
without written consent of the author.
© Sharp NEC Display Solutions, Ltd. 2021
Disclaimer
The information in this document is subject to change without notice. The manufacturer makes no representations
or warranties with respect to the contents hereof and specically disclaims any implied warranties of
merchantability or tness for any particular purpose. The manufacturer reserves the right to revise this publication
and to make changes from time to time in the content hereof without obligation of the manufacturer to notify any
person of such revision or changes.
Trademark Recognition
Kensington is a U.S. registered trademark of ACCO Brand Corporation with issued registrations and pending
applications in other countries throughout the world.
HDMI, the HDMI Logo, and High-Denition Multimedia Interface are trademarks or registered trademarks of HDMI
Licensing LLC in the United States and other countries.
DLP
®
, DLP Link and the DLP logo are registered trademarks of Texas Instruments and BrilliantColor
TM
is a
trademark of Texas Instruments.
All other product names used in this manual are the properties of their respective owners and are Acknowledged.
WARNING
The Federal Communications Commission does not allow any modications or changes to the unit EXCEPT
those specied by Sharp NEC Display Solutions of America, Inc. in this manual. Failure to comply with this
government regulation could void your right to operate this equipment.
This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant
to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful
interference in a residential installation. This equipment generates, uses, and can radiate radio frequency
energy and, if not installed and used in accordance with the instructions, may cause harmful interference
to radio communications. However, there is no guarantee that interference will not occur in a particular
installation.
If this equipment does cause harmful interference to radio or television reception, which can be determined
by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more
of the following measures:
Reorient or relocate the receiving antenna.
Increase the separation between the equipment and receiver.
Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
Consult the dealer or an experienced radio / TV technician for help.
Supplier’s declaration of conformity (for USA only)
This device complies with Part 15 of FCC Rules. Operation is subject to the following two conditions.
(1) This device may not cause harmful interference, and (2) this device must accept any interference received,
including interference that may cause undesired operation.
U.S.Responsible Party: Sharp NEC Display Solutions of America, Inc.
Address: 3250 Lacey Rd, Ste 500
Downers Grove, IL 60515
Telephone Number: 630-467-3000
Type of Product: Projector
Equipment Classication: Class B Peripheral
Model Number: NP-M430WL / NP-M380HL
English
9
Notice: Shielded cables
All connections to other computing devices must be made using shielded cables to maintain compliance with FCC
regulations.
Caution
Changes or modications not expressly approved by the manufacturer could void the user's authority, which is
granted by the Federal Communications Commission, to operate this projector.
Operation Conditions
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions:
1. This device may not cause harmful interference and
2. This device must accept any interference received, including interference that may cause undesired operation.
Notice: Canadian users
This Class B digital apparatus complies with Canadian ICES-003.
Remarque à l'intention des utilisateurs canadiens
Cet appareil numerique de la classe B est conforme a la norme NMB-003 du Canada.
Declaration of Conformity for EU countries
EMC Directive 2014/30/EU (including amendments)
Low Voltage Directive 2014/35/EU
RED 2014/53/EU (if product has RF function)
Disposing of your used product
In the European Union
EU-wide legislation as implemented in each Member State requires that used electrical and electronic
products carrying the mark (left) must be disposed of separately from normal household waste. This
includes projectors and their electrical accessories. When you dispose of such products, please follow
the guidance of your local authority and/or ask the shop where you purchased the product.
After collecting the used products, they are reused and recycled in a proper way. This effort will help
us reduce the wastes as well as the negative impact to the human health and the environment at the
minimum level.
The mark on the electrical and electronic products only applies to the current European Union Member
States.
Outside the European Union
If you wish to dispose of used electrical and electronic products outside the European union, please
contact your local authority and ask for the correct method of disposal.
For EU: The crossed-out wheeled bin implies that used batteries should not be put to the general
household waste! There is a separate collection system for used batteries, to allow proper treatment
and recycling in accordance with legislation.
According the EU directive 2006/66/EC, the battery can’t be disposed improperly. The battery shall be
separated to collect by local service.
(for Germany only)
Machine Noise Information Regulation - 3. GPSGV,
The highest sound pressure level is less than 70 dB (A) in accordance with EN ISO 7779.
Information of the AUDIO OUT mini jack
The AUDIO OUT mini jack does not support earphone/headphone terminal.
English
10
INTRODUCTION
Package Overview
Carefully unpack and verify that you have the items listed below under standard accessories. Some of the items
under optional accessories may not be available depending on the model, specication and your region of
purchase. Please check with your place of purchase. Some accessories may vary from region to region.
The warranty card is only supplied in some specic regions. Please consult your dealer for detailed information.
Standard accessories
Projector Remote control Power lead
Note: The remote control is shipped with the batteries.
VGA cable
Lens cap
Documentation
Warranty Card
User’s Manual
Quick Start Guide
English
11
INTRODUCTION
Product Overview
2
3
5 6
9
9
9
12
1011
7
8
4
1
Note:
Do not block projector intake and exhaust vents.
When operating the projector in an enclosed space, allow at least 30 cm clearance around the intake
and exhaust vents.
No Item No Item
1. IR Receivers 7. Ventilation (outlet)
2.
Keypad
8.
Kensington™ Lock Port
3. Lens Shift Dial 9. Tilt-Adjustment Feet
4. Focus Ring/Focus Lever 10. Input / Output
5. Ventilation (inlet) 11. Power Socket
6. Zoom Lever 12. Lens
English
12
INTRODUCTION
Connections
7
1
11
2 3 4
8
10
5 6
9
No Item No Item
1. HDMI 2 Connector 7. Kensington
TM
Lock Port
2.
Micro USB Connector
8. Audio Out Connector
3. HDMI 1 Connector 9. RS-232 Connector
4. Video Connector 10. USB Power Out (5V
1.5A) Connector
5. VGA In Connector 11. Power Socket
6. Audio In Connector
English
13
INTRODUCTION
Keypad
5
1 3 42
7
6
11
10
9
8
No Item No Item
1. Power LED 7. Four Directional Select Keys
2.
Keystone Correction
8.
Enter
3. Light LED 9. Menu
4. Temp LED 10. Source
5. Information 11. Power
6. Re-Sync
English
14
INTRODUCTION
Remote control
10
2
11
1
12
15
30
7
8
9
13
14
21
18
17
16
3
4
5
6
20
19
22
23
24
25
26
27
28
29
31
No Item Description
1. STANDBY
Power off the projector. Please see the “Powering on / off the projector”
section on page 23.
2. ON
Power on the projector. Please see the “Powering on / off the projector”
section on page 23.
3. COMPUTER 1 Press “1” to choose source from VGA In connector.
4. HDMI 1 Press “4” to choose source from HDMI 1 connector.
5. HDMI 2 Press “5” to choose source from HDMI 2 connector.
6. VIDEO Press “7” to choose source from VIDEO connector.
7. ID SET No function.
8. AV-MUTE Momentarily turn off/on the audio and video.
9. MENU
Launch the on-screen display (OSD), back to the top level of OSD for the
OSD main menu operation.
10. Four Directional Select Keys
Use the p, q, t, or u button to select items or make adjustments to your
selection. When the image is magnied by using the D-ZOOM + button, the
p, q, t, or u button moves the image.
11. D-ZOOM Zoom in/out the projected image.
12. KEYSTONE Correction Adjust the image to compensate for distortion caused by tilting the projector.
13. ECO Display the Brightness Mode menu.
14. HELP Display the Information menu.
English
15
INTRODUCTION
No Item Description
15. FOCUS/ZOOM No function.
16. SOURCE Select the desired input source.
17. COMPUTER 2 No function.
18. AUTO ADJ. Automatically synchronize the projector to the input source.
19. Number Buttons No function.
20. DisplayPort No function.
21. USB B No function.
22. USB A No function.
23. CLEAR No function.
24. LAN No function.
25. EXIT Exit the settings.
26. FREEZE Pause the screen image. Press again to resume the screen image.
27. ENTER Conrm your section of items in sub menu operation.
28. PAGE Page up/down in USB mode.
29. PICTURE Mode Choose your desired display mode. Please see page 32.
30. VOL. +/- Increase/decrease speaker volume.
31. ASPECT Choose your desired aspect ratio. Please see page 35.
Note: Some keys may have no function for models that do not support these features.
English
16
SETUP AND INSTALLATION
Installing the projector
Your projector is designed to be installed in one of four possible positions.
Your room layout or personal preference will dictate which installation location you select. Take into consideration
the size and position of your screen, the location of a suitable power outlet, as well as the location and distance
between the projector and the rest of your equipment.
Table mount front Ceiling mount front
Table mount rear Ceiling mount rear
Projector should be placed at on a surface and 90 degrees / perpendicular to the screen.
How to determine projector location for a given screen size,
please refer to distance table on pages
45-46.
How to determine screen size for a given distance, please refer to distance table on pages 45-46.
Note: The further away the projector is placed from the screen the projected image size increases and vertical
offset also increases proportionally.
English
17
SETUP AND INSTALLATION
Projector installation notice
360-degree free orientation operation
Note: The fan will default to “High altitude mode” when the projector is installed within the range highlighted.
225°~315°
Allow at least 30 cm clearance around the exhaust vent.
Minimum 100mm
(3.94 inches)
Minimum 300mm
(11.81 inches)
Minimum 300mm
(11.81 inches)
Minimum 100mm
(3.94 inches)
English
18
SETUP AND INSTALLATION
Minimum 100mm
(3.94 inches)
Minimum 100mm
(3.94 inches)
Ensure that the intake vents do not recycle hot air from the exhaust vent.
When operating the projector in an enclosed space, ensure that the surrounding air temperature within
the enclosure does not exceed operation temperature while the projector is running, and the air intake
and exhaust vents are unobstructed.
All enclosures should pass a certied thermal evaluation to ensure that the projector does not recycle
exhaust air, as this may cause the device to shutdown even if the enclosure temperature is with the
acceptable operation temperature range.
English
19
SETUP AND INSTALLATION
Connecting sources to the projector
1
2
3
4
5
6
7
8
1011
12
9
No Item No Item
1. HDMI Cable 7. RCA Component Cable
2.
HDMI Dongle
8.
Audio In Cable
3. USB Power Cable 9. Audio Out Cable
4. Video Cable 10. RS232 Cable
5. Audio In Cable 11. USB Cable
6. VGA In Cable 12. Power Cord
English
20
SETUP AND INSTALLATION
Adjusting the projector image
Image height
The projector is equipped with elevator feet for adjusting the image height.
1. Locate the adjustable foot you wish to adjust on the underside of the projector.
2. Rotate the adjustable foot clockwise or counterclockwise to raise or lower the projector.
Tilt-Adjustment Feet
Tilt-Adjustment Ring
Zoom, lens shift, and focus
To adjust the image size, turn the zoom lever clockwise or counterclockwise to increase or decrease
the projected image size.
To adjust the image position, turn the lens shift dial clockwise or counterclockwise to adjust the
position of the projected image vertically.
To adjust the focus, turn the focus ring/focus lever clockwise or counterclockwise until the image is
sharp and legible.
Zoom Lever
Lens Shift Dial
Focus Ring
English
21
SETUP AND INSTALLATION
Remote setup
Installing / replacing the batteries
Two AAA size batteries are supplied for the remote control.
1. Press rmly and slide the battery cover off.
2. Install new batteries (AAA). Ensure that you have the batteries’ polarity (+/–) aligned correctly.
3. Slip the cover back over the batteries until it snaps into place.
Note: Replace only with the same or equivalent type batteries.
CAUTION
Improper use of batteries can result in chemical leakage or explosion. Be sure to follow the instructions below.
Do not mix batteries of different types. Different types of batteries have different characteristics.
Do not mix old and new batteries. Mixing old and new batteries can shorten the life of new batteries or
cause chemical leakage in old batteries.
Remove batteries as soon as they are depleted. Chemicals that leak from batteries that come in
contact with skin can cause a rash. If you nd any chemical leakage, wipe thoroughly with a cloth.
The batteries supplied with this product may have a shorter life expectancy due to storage conditions.
If you will not be using the remote control for an extended period of time, remove the batteries.
When you dispose of the batteries, you must obey the law in the relative area or country.
English
22
SETUP AND INSTALLATION
Effective range
Infra-Red (IR) remote control sensor is located on the top and front sides of the projector. Ensure to hold the
remote control at an angle within 60 degrees perpendicular to the projector’s IR remote control sensor to function
correctly. The distance between the remote control and the sensor should not be longer than
7 meters (22 feet).
Make sure that there are no obstacles between the remote control and the IR sensor on the projector
that might obstruct the infra-red beam.
Make sure the IR transmitter of the remote control is not being shined by sunlight or uorescent lamps
directly.
Please keep the remote controller away from uorescent lamps for over 2 m or the remote controller
might become malfunction.
If the remote control is close to Inverter-Type uorescent lamps, it might become ineffective from time
to time.
If the remote control and the projector are within a very short distance, the remote control might
become ineffective.
When you aim at the screen, the effective distance is less than 5 m from the remote control to the
screen and reecting the IR beams back to the projector. However, the effective range might change
according to screens.
Approx. ±30°
Approx. ±30°
English
23
USING THE PROJECTOR
Powering on / off the projector
or
Lens cap
Powering on
1. Remove the lens cap.
2. Securely connect the power lead and signal/source cable. When connected, the Power LED will turn
red.
3. Turn on the projector by pressing the button on the projector keypad or the ON button on the
remote control.
4. A start up screen will display in approximately 10 seconds and the Power LED will be ashing blue.
Note: The rst time the projector is turned on, you will be prompted to select the preferred language, projection
orientation, and other settings.
Powering off
1. Turn off the projector by pressing the
button on the projector keypad or the STANDBY button on the
remote control.
2. The following message will be displayed:
Power Off
Power Off?
Press power key again.
3. Press the or STANDBY button again to conrm, otherwise the message will disappear after 10
seconds. When you press the or STANDBY button for the second time, the projector will shut down.
4. The cooling fans will continue to operate for about 10 seconds for the cooling cycle and the Power
LED will ash blue. When the Power turns solid red, this indicates the projector has entered standby
mode. If you wish to turn the projector back on, you must wait until the cooling cycle has nished and
the projector has entered standby mode. When the projector is in standby mode, simply press the
button on the projector keypad or the ON button on the remote control again to turn on the projector.
5. Disconnect the power lead from the electrical outlet and the projector.
Note: It is not recommended that the projector is turned on immediately, right after a power off procedure.
English
24
USING THE PROJECTOR
Selecting an input source
Turn on the connected source that you want to display on the screen, such as computer, notebook, video player,
etc. The projector will automatically detect the source. If multiple sources are connected, press the
button on the
projector keypad or the SOURCE button on the remote control to select the desired input.
or
Lens cap
English
25
USING THE PROJECTOR
Menu navigation and features
The projector has multilingual on-screen display menus that allow you to make image adjustments and change a
variety of settings. The projector will automatically detect the source.
1. To open the OSD menu, press the
button on the projector keypad or the MENU button on the
remote control.
2. When OSD is displayed, use pq keys to select any item in the main menu. While making a selection
on a particular page, press the
button on the projector keypad or the Enter button on the remote
control to enter sub menu.
3. Use tu keys to select the desired item in the sub menu and then press the
or ENTER button to
view further settings. Adjust the settings by using tu keys.
4. Select the next item to be adjusted in the sub menu and adjust as described above.
5. Press the
or ENTER button to conrm, and the screen will return to the main menu.
6. To exit, press the
or MENU button again. The OSD menu will close and the projector will
automatically save the new settings.
Sub Menu
Main Menu
Settings
Navigation guide
Image Settings
3D
Aspect Ratio
Edge Mask
Zoom
Image Shift
Keystone
Display
Select
Exit Enter
English
26
USING THE PROJECTOR
OSD Menu tree
Main
Menu
Sub Menu Sub Menu 2 Sub Menu 3 Sub Menu 4 Values
Display Image Settings
Display Mode
Presentation
Bright
HDR SIM.
HLG SIM.
Cinema
Game
sRGB
DICOM SIM.
User
3D
Wall Color
Off [Default]
Blackboard
Light Yellow
Light Green
Light Blue
Pink
Gray
Brightness -50 ~ 50
Contrast -50 ~ 50
Sharpness 1 ~ 15
Color -50 ~ 50
Tint -50 ~ 50
Gamma
Film
Video
Graphics
Standard(2.2)
1.8
2.0
2.4
2.6
Color Settings
BrilliantColor
TM
1 ~ 10
Color
Temperature
Warm
Standard
Cool
Cold
English
27
USING THE PROJECTOR
Main
Menu
Sub Menu Sub Menu 2 Sub Menu 3 Sub Menu 4 Values
Display Image Settings
Color Settings
Color Matching
Color
Red [Default]
Green
Blue
Cyan
Yellow
Magenta
White(*)
Hue / R(*) -50 ~ 50 [Default: 0]
Saturation / G(*) -50 ~ 50 [Default: 0]
Gain / B(*) -50 ~ 50 [Default: 0]
Reset
Cancel [Default]
Yes
Exit
RGB Gain/Bias
Red Gain -50 ~ 50
Green Gain -50 ~ 50
Blue Gain -50 ~ 50
Red Bias -50 ~ 50
Green Bias -50 ~ 50
Blue Bias -50 ~ 50
Reset
Cancel [Default]
Yes
Exit
Color Space [Not
HDMI Input]
Auto [Default]
RGB
YUV
Color Space
[HDMI Input]
Auto [Default]
RGB(0~255)
RGB(16~235)
YUV
Signal
Automatic
Off
On [Default]
Frequency
-10 ~ 10 (depends on signal)
[Default: 0]
Phase
0~31 (depends on signal)
[Default: 0]
H. Position
-5 ~ 5 (depends on signal)
[Default: 0]
V. Position
-5 ~ 5 (depends on signal)
[Default: 0]
Brightness Mode
DynamicBlack
Eco.
Power
(Power = 100%/ 95%/ 90%/ 85%/
80%/ 75%/ 70%/ 65%/ 60%/ 55%/
50%)
Reset
English
28
USING THE PROJECTOR
Main
Menu
Sub Menu Sub Menu 2 Sub Menu 3 Sub Menu 4 Values
Display
3D
3D Mode
Off [Default]
On
3D
2D
3D [Default]
L
R
3D Format
Auto [Default]
SBS
Top and Bottom
Frame Sequential
3D Sync Invert
On
Off [Default]
Aspect Ratio
4:3
16:9
16:10
LBX
Native
Auto [Default]
Edge Mask 0 ~ 10 [Default: 0]
Zoom -5 ~ 25
Image Shift
H -100 ~ 100 [Default: 0]
V -100 ~ 100 [Default: 0]
Keystone
Four Corners
H Keystone
-30 ~30 / -15 ~ 15 [Default: 0]
V Keystone -30 ~30 / -15 ~ 15 [Default: 0]
Auto Keystone
Off
On [Default]
Reset
Audio
Mute
Off [Default]
On
Volume 0 ~ 10 [Default: 5]
English
29
USING THE PROJECTOR
Main
Menu
Sub Menu Sub Menu 2 Sub Menu 3 Sub Menu 4 Values
Setup
Projection
Front [Default]
Rear
Ceiling-top
Rear-top
Screen Type
16:9
16:10
[Default]
Power Settings
Direct Power On
Off [Default]
On
Signal Power On
Off [Default]
On
Auto Power Off
(min.)
0 ~ 180 (5 min increments)
[Default: 20]
Power Mode
(Standby)
Active
Eco. [Default]
USB Power
(Standby)
Off [Default]
On
Security
Security
Off [Default]
On
Security Timer
Month
Day
Hour
Exit
Change
Password
[Default: 1234]
HDMI CEC
Off [Default]
On
Test Pattern
Green Grid
Magenta Grid
White Grid
White
Off [Default]
English
30
USING THE PROJECTOR
Main
Menu
Sub Menu Sub Menu 2 Sub Menu 3 Sub Menu 4 Values
Setup Options
Language
English [Default]
Deutsch
Français
Italiano
Español
Português
Polski
Nederlands
Svenska
Norsk
Suomi
ελληνικά
繁體中文
简体中文
日本語
한국어
Русский
Magyar
Čeština
ไทย
Türkçe
Tiếng Việt
Bahasa Indonesia
Română
Slovenčina
Closed
Captioning
CC1
CC2
Off [Default]
Menu Settings
Menu Location
Top left
Top right
Center [Default]
Bottom left
Bottom right
Menu Timer
Off
5sec
10sec [Default]
Auto Source
Off [Default]
On
English
31
USING THE PROJECTOR
Main
Menu
Sub Menu Sub Menu 2 Sub Menu 3 Sub Menu 4 Values
Setup
Options
Input Source
HDMI 1 [Default]
HDMI 2
VGA IN
VIDEO
High Altitude
Off [Default]
On
Logo
Default [Default]
User
Neutral
Background
Color
Black [Default]
Blue
Red
Green
Gray
Logo
Reset Reset to Default
Cancel [Default]
OK
Info
Serial Number
Source
Resolution
Refresh Rate
Display Mode
Power Mode
(Standby)
Light Source
Hours
Brightness
Mode
FW Version
System
MCU
Note: Functions vary depending on model denition.
English
32
USING THE PROJECTOR
Display menu
Display image settings menu
Display Mode
There are many factory presets optimized for various types of images.
Presentation: This mode is suitable for showing in front of public in connection to the PC.
Bright: Maximum brightness from PC input.
HDR SIM.: Decodes and displays High Dynamic Range (HDR) content for the deepest blacks,
brightest whites, and vivid cinematic color using REC.2020 color gamut. This mode can be selected to
enhances non-HDR content with simulated High Dynamic Range (HDR).
HLG SIM.: Decodes and displays Hybrid Log Gamma(HLG) content for the deepest blacks, brightest
whites, and vivid cinematic color using REC.2100 color gamut. This mode can be selected to
enhances non-HLG content with simulated Hybrid Log Gamma(HLG).
Cinema: Provides the best colors for watching movies.
Game: Select this mode to increase the brightness and response time level for enjoying video games.
sRGB: Standardized accurate color.
DICOM SIM.: This mode can project a monochrome medical image such as an X ray radiography,
MRI, etc.
User: Memorize user’s settings.
3D: To experience the 3D effect, you need to have 3D glasses, make sure your PC/portable device
has a 120 Hz signal output quad buffered graphics card and have a 3D Player installed.
Wall Color
Use this function to obtain an optimized screen image according to the wall color. Select between off, blackboard,
light yellow, light green, light blue, pink, and gray.
Brightness
Adjust the brightness of the image.
Contrast
The contrast controls the degree of difference between the lightest and darkest parts of the picture.
Sharpness
Adjust the sharpness of the image.
Color
Adjust a video image from black and white to fully saturated color.
Tint
Adjust the color balance of red and green.
English
33
USING THE PROJECTOR
Gamma
Set up gamma curve type. After the initial setup and ne tuning is completed, utilize the Gamma Adjustment steps
to optimize your image output.
Film: For home theater.
Video: For video or TV source.
Graphics: For PC / Photo source.
Standard(2.2): For standardized setting.
1.8 / 2.0 / 2.4 / 2.6: For specic PC / Photo source.
Note: If the Display Mode setting is set to DICOM SIM., HDR SIM., or HLG SIM., user cannot select Gamma
setting.
Color Settings
Congure the color settings.
BrilliantColor
TM
: This adjustable item utilizes a new color-processing algorithm and enhancements to
enable higher brightness while providing true, more vibrant colors in picture.
Color Temperature: Select a color temperature from Warm, Standard, Cool, or Cold.
Color Matching: Select the following options:
± Color: Adjust the red, green, black, cyan, yellow, magenta, and white level of the image.
± Hue / R(red)*: Adjust the color balance of red and green.
Note: *If the Color setting is set to White, you can adjust the red color setting.
± Saturation / G(green)*: Adjust a video image from black and white to fully saturated color.
Note: *If the Color setting is set to White, you can adjust the green color setting.
± Gain / B(blue)*: Adjust the image brightness.
Note: *If the Color setting is set to White, you can adjust the blue color setting.
± Reset: Return the factory default settings for color matching.
± Exit: Exit the “Color Matching” menu.
RGB Gain/Bias: This settings allows to congure the brightness (gain) and contrast (bias) of an
image.
± Reset: Return the factory default settings for RGB gain/bias.
± Exit: Exit the “RGB Gain/Bias” menu.
Color Space (non-HDMI input only): Select an appropriate color matrix type from the following:
AUTO, RGB, or YUV.
Color Space (HDMI input only): Select an appropriate color matrix type from the following: Auto,
RGB(0-255), RGB(16-235), and YUV.
English
34
USING THE PROJECTOR
Signal
Adjust the signal options.
Automatic: Congure automatically the signal (the frequency and phase items are grayed out). If
automatic is disabled, the frequency and phase items will appear for tuning and saving the settings.
Frequency: Change the display data frequency to match the frequency of your computer’s graphic
card. Use this function only if the image appears to icker vertically.
Phase: Synchronize the signal timing of the display with the graphic card. If the image appears to be
unstable or ickers, use this function to correct it.
H. Position: Adjust the horizontal positioning of the image.
V. Position: Adjust the vertical positioning of the image.
Note: This menu is only available if the input source is RGB/Component.
Brightness Mode
Adjust the brightness mode settings.
DynamicBlack: Use to automatically adjust the picture brightness in order to give optimum contrast
performance.
Eco.: Choose “Eco.” to dim the projector light which will lower power consumption and extend the light
life.
Power: Choose the power percentage for brightness mode.
Reset
Return the factory default settings for color settings.
Display 3D menu
Note:
This projector is a 3D ready projector with DLP-Link 3D solution.
Please make sure your 3D glasses are use for DLP-Link 3D before enjoy your video.
This projector supports frame sequential (page-ip) 3D via HDMI/VGA ports.
To enable 3D mode, the input frame rate should be set to 60Hz only, lower or higher frame rate is not
supported.
To reach the best performance, resolution 1920x1080 is recommended, please be noted that 4K
(3840x2160) resolution is not supported in 3D mode.
3D Mode
Use this option to disable the 3D function or select the appropriate the 3D function.
Off:
Select “Off” to turn off 3D mode.
On: Select “On” to turn on 3D mode.
Note: If the 2D and 3D sources enter projector at the same time, if the ghosting image appears in the 2D source,
make sure to manually turn off the 3D function.
3D → 2D
Use this option to specify how the 3D content should appear on the screen.
3D: Display 3D signal.
L (Left): Display the left frame of 3D content.
R (Right): Display the right frame of 3D content.
English
35
USING THE PROJECTOR
3D Format
Use this option to select the appropriate 3D format content.
Auto: When a 3D identication signal is detected, the 3D format is selected automatically.
SBS: Display 3D signal in “Side-by-Side” format.
Top and Bottom: Display 3D signal in “Top and Bottom” format.
Frame Sequential: Display 3D signal in “Frame Sequential” format.
3D Sync Invert
Use this option to enable/disable the 3D sync invert function.
Display aspect ratio menu
Aspect Ratio
Select the aspect ratio of the displayed image between the following options:
4:3:
This format is for 4:3 input sources.
16:9:
This format is for 16:9 input sources, like HDTV and DVD enhanced for Wide screen TV.
16:10 (for WXGA model only):
This format is for 16:10 input sources, like widescreen laptops.
LBX: This format is for non-16x9, letterbox source and if you use external 16x9 lens to display 2.35:1
aspect ratio in full resolution.
Native:
This format displays the original image without any scaling.
Auto: Automatically selects the appropriate display format.
Note: Detailed informations about LBX mode:
± Some Letter-Box Format DVDs are not enhanced for 16x9 TVs. In this situation, the image will not look
right when displaying image in 16:9 mode. In this situation, please try to use the 4:3 mode to view the
DVD. If the content is not 4:3, there will be black bars around the image in 16:9 display. For this type of
content, you can use LBX mode to ll the image on the 16:9 display.
± If you use an external anamorphic lens, this LBX mode also allows you to watch a 2.35:1 content (include
Anamorphic DVD and HDTV lm source) that supports anamorphic wide is enhanced for 16x9 Display in
a wide 2.35:1 image. In this case, there are no black bars. Light source power and vertical resolution are
fully utilized.
English
36
USING THE PROJECTOR
Display edge mask menu
Edge Mask
Use this function to remove the video encoding noise on the edge of video source.
Display zoom menu
Zoom
Use to reduce or magnify an image on the projection screen.
Display image shift menu
Image Shift
Adjust the projected image position horizontally (H) or vertically (V).
Display keystone menu
Four Corners
Allow the image to be squeezed to t an area dened by moving each of the four corners’ x and y position.
H Keystone
Adjust image distortion horizontally and make a squarer image. Horizontal keystone is used to correct a keystoned
image shape in which the left and right borders of the image are unequal in length. This is intended for use with
horizontally on-axis applications.
V Keystone
Adjust image distortion vertically and make a squarer image. Vertical keystone is used to correct a keystoned
image shape in which the top and bottom are slanted to one of the sides. This is intended when for use with
vertically on-axis applications.
Auto Keystone
Correct keystone digitally to t the projected image on the area on which you are projecting.
Note:
The image size will reduce slightly when adjusting the horizontal and vertical keystone.
When the Auto Keystone is used, the Four Corner Adjustment function will be disabled.
Reset
Return the factory default settings for keystone settings.
English
37
USING THE PROJECTOR
Audio menu
Audio mute menu
Mute
Use this option to temporarily turn off the sound.
On: Choose “On” to turn mute on.
Off: Choose “Off” to turn mute off.
Note: “Mute” function affects both internal and external speaker volume.
Audio volume menu
Volume
Adjust the volume level.
Setup menu
Setup projection menu
Projection
Select the preferred projection between front, rear, ceiling-top, and rear-top.
Setup screen type menu
Screen Type (for WXGA model only)
Choose the screen type from 16:9 and 16:10.
Setup power settings menu
Direct Power On
Choose “On” to activate Direct Power mode. The projector will automatically power on when AC power is supplied,
without pressing the “Power” key on the projector keypad or on the remote control.
Signal Power On
Choose “On” to activate Signal Power mode. The projector will automatically power on when a signal is detected,
without pressing the “Power” key on the projector keypad or on the remote control.
Note: Only supported on HDMI 1, HDMI 2, and VGA In connectors.
Auto Power Off (min.)
Sets the countdown timer interval. The countdown timer will start, when there is no signal being sent to the
projector. The projector will automatically power off when the countdown has nished (in minutes).
Power Mode (Standby)
Set the power mode setting.
Active: Choose “Active” to return to normal standby.
Eco.: Choose “Eco.” to save power dissipation further < 0.5W.
English
38
USING THE PROJECTOR
USB Power (Standby)
Enable or disable the USB power function when the projector is in standby mode.
Setup security menu
Security
Enable this function to prompt for a password before using the projector.
On: Choose “On” to use security verication when the turning on the projector.
Off: Choose “Off” to be able to switch on the projector without password verication.
Security Timer
Can be select the time (Month/Day/Hour) function to set the number of hours the projector can be used. Once this
time has elapsed you will be requested to enter your password again.
Change Password
Use to set or modify the password that is prompted when turning the projector on.
Note: Password default value is “1234” (rst time).
Setup HDMI link settings menu
Note: When you connect HDMI CEC-compatible devices to the projector with HDMI cables, you can control them
on the same power on or power off status using the HDMI Link control feature in the projector’s OSD. This
lets one device or multiple devices in a group power on or power off via HDMI Link Feature in a typical
conguration, your DVD player may be connected to the projector through an amplier or home theater
system.
HDMI
Amplier
HDMI
DVD Player
HDMI CEC
Default is Off. Select “On” to enable HDMI CEC function.
Setup test pattern menu
Test Pattern
Select the test pattern from green grid, magenta grid, white grid, white or disable this function (off).
English
39
USING THE PROJECTOR
Setup options menu
Language
Select the multilingual OSD menu.
Closed Captioning
Closed Captioning is a text version of the program sound or other information displayed on the screen. If the input
signal contains closed captions, you can turn on the feature and watch the channels. The available options include
“Off”, “CC1”, and “CC2”.
Note: Closed Captioning is only available for VIDEO input source.
Menu Settings
Set the menu location on the screen and congure menu timer settings.
Menu Location: Select the menu location on the display screen.
Menu Timer: Set the duration where the OSD menu stays visible on the screen.
Auto Source
Choose this option to let the projector automatically nd an available input source.
Input Source
Select the input source between HDMI 1, HDMI 2, VGA IN, and VIDEO.
High Altitude
When “On” is selected, the fans will spin faster. This feature is useful in high altitude areas where the air is thin.
Logo
Use this function to set the desired startup screen. If changes are made, they will take effect the next time the
projector is powered on.
Default: The default startup screen.
User: Use the stored picture as the startup screen.
Neutral: Logo is not displayed on startup screen.
Background Color
Use this function to display a blue, red, green, gray color, black, or logo screen when no signal is available.
Setup reset OSD menu
Reset to Default
Return the factory default settings for all settings.
English
40
USING THE PROJECTOR
Info menu
Info menu
View the projector information as listed below:
Serial Number
Source
Resolution
Refresh Rate
Display Mode
Power Mode (Standby)
Light Source Hours
Brightness Mode
FW Version
English
41
ADDITIONAL INFORMATION
Compatible resolutions
Analog
Analog Native resolution: 1280x800@60Hz(WXGA); 1920x1080@60Hz(1080p); 1024x768@60Hz(XGA)
B0/Established
Timing
B0/Standard Timing B0/Detail Timing B1/Video Mode B1/Detail Timing
720 x 400 @ 70Hz 1280 x 720 @ 60Hz 1920x1080@60Hz(For
1080p model)
1366x768 @ 60Hz
640 x 480 @ 60Hz 1280 x 800 @ 60Hz 1024x768@60Hz(For
XGA model)
1280x800@120Hz(RB)
640 x 480 @ 67Hz 1280x1024 @ 60Hz 1280x800@60Hz(For
WXGA model)
1920x1200 @
60Hz(RB)
640 x 480 @ 72Hz 1600X1200@60Hz
640 x 480 @ 75Hz 1280X960@60Hz
800 x 600 @ 56Hz 640x480@120Hz
800 x 600 @ 60Hz 800x600@120Hz
800 x 600 @ 72Hz 1024x768@120Hz
800 x 600 @ 75Hz
832 x 624 @ 75Hz
1024 x 768 @ 60Hz
1024 x 768 @ 70Hz
1024 x 768 @ 75Hz
1280 x 1024 @ 75Hz
Manufacturer's
Timings:
1152 x 870@ 75Hz
English
42
ADDITIONAL INFORMATION
Digital (HDMI1 2.0)
Digital Native resolution: 1280x800@60Hz(WXGA); 1920x1080@60Hz(1080p); 1024x768@60Hz(XGA)
Established Timing Standard Timing
Descriptor timing -B0
(Detail timing)
Support Video Mode
Descriptor timing -B1
(Detail timing)
720 x 400 @ 70Hz 1280 x 720 @ 60Hz 1920x1080@60Hz(For
1080p model)
1920x1080@120Hz(*)
640 x 480 @ 60Hz 1280 x 800 @ 60Hz 1024x768@60Hz(For
XGA model)
1366x768@60Hz
640 x 480 @ 67Hz 1280x1024 @ 60Hz 1280x800@60Hz(For
WXGA model)
1920x1200 @
60Hz(RB)
640 x 480 @ 72Hz 1600X1200@60Hz
640 x 480 @ 75Hz 720 x 480p @ 60Hz 16:9
800 x 600 @ 56Hz 640x480@120Hz 720 x 576p @ 50Hz 4:3
800 x 600 @ 60Hz 800x600@120Hz 720 x 576p @ 50Hz 16:9
800 x 600 @ 72Hz 1024x768@120Hz 1280 x 720p @ 60Hz 16:9
800 x 600 @ 75Hz 1280x800@120Hz 1280 x 720p @ 50Hz 16:9
832 x 624 @ 75Hz 1920 x 1080i @ 60Hz 16:9
1024 x 768 @ 60Hz 1920 x 1080i @ 50Hz 16:9
1024 x 768 @ 70Hz 1920 x 1080p @ 60Hz 16:9
1024 x 768 @ 75Hz 1920 x 1080p @ 50Hz 16:9
1280 x 1024 @ 75Hz 1920 x 1080p @ 24Hz 16:9
3840 x 2160 @ 24Hz
3840 x 2160 @ 25Hz
3840 x 2160 @ 30Hz
4096 x 2160 @ 24Hz
Manufacturer's
Timings:
3840 x 2160 @ 50Hz
1152 x 870@ 75Hz 3840 x 2160 @ 60Hz
4096 x 2160 @ 50Hz
4096 x 2160 @ 60Hz
4096 x 2160 @ 25Hz
4096 x 2160 @ 30Hz
(*) 1920x1080p@120Hz is over DDP442X-HV bandwidth, so TI won’t guarantee the image quality for this timing.
TI Recommendations:
Without a viable work around, TI cannot support customer “Dual” Pixel inputs above 141 MHz (effective 282 MHz)
with the DDP442xHV ASIC. The only recommendation TI has is for any high bandwidth video input, that would
normally >141 MHz (dual pixel input), is to have it reduced in input clock speed by reducing the associated input
source’s blanking (Vertical and/or Horizontal). However, the blanking must still be above the minimum requirements
of the ASIC. Removing blanking from the input source, other than reducing frame rate, would be the only way to
reduce the high end input clocking to 141 MHz or lower.
English
43
ADDITIONAL INFORMATION
Digital (HDMI2 1.4)
Digital Native resolution: 1280x800@60Hz(WXGA); 1920x1080@60Hz(1080p); 1024x768@60Hz(XGA)
Established Timing Standard Timing
Descriptor timing -B0
(Detail timing)
Support Video Mode
Descriptor timing -B1
(Detail timing)
720 x 400 @ 70Hz 1280 x 720 @ 60Hz 1920x1080@60Hz(For
1080p model)
640 x 480p @ 60Hz 4:03 1920 x 1080p @ 60Hz
640 x 480 @ 60Hz 1280 x 800 @ 60Hz 1024x768@60Hz(For
XGA model)
720 x 480i @ 60Hz 16:9 1366x768@60Hz
640 x 480 @ 67Hz 1280x1024 @ 60Hz 1280x800@60Hz(For
WXGA model)
720 x 480p @ 60Hz 4:3 1920x1080@120Hz(*)
640 x 480 @ 72Hz 1600X1200@60Hz 720 x 480p @ 60Hz 16:9 1920x1200@60Hz(RB)
640 x 480 @ 75Hz 720 x 576i @ 50Hz 16:9
800 x 600 @ 56Hz 640x480@120Hz 720 x 576p @ 50Hz 4:3
800 x 600 @ 60Hz 800x600@120Hz 720 x 576p @ 50Hz 16:9
800 x 600 @ 72Hz 1024x768@120Hz 1280 x 720p @ 60Hz 16:9
800 x 600 @ 75Hz 1280x800@120Hz 1280 x 720p @ 50Hz 16:9
832 x 624 @ 75Hz 1920 x 1080i @ 60Hz 16:9
1024 x 768 @ 60Hz 1920 x 1080i @ 50Hz 16:9
1024 x 768 @ 70Hz 1920 x 1080p @ 60Hz 16:9
1024 x 768 @ 75Hz 1920 x 1080p @ 50Hz 16:9
1280 x 1024 @ 75Hz 1920 x 1080p @ 24Hz 16:9
3840 x 2160 @ 24Hz
3840 x 2160 @ 25Hz
3840 x 2160 @ 30Hz
4096 x 2160 @ 24Hz
Manufacturer's
Timings:
1152 x 870@ 75Hz
English
44
ADDITIONAL INFORMATION
True 3D video compatibility
Input
resolutions
HDMI 1.4a
3D Input
Input timing
1280 x 720P @ 50Hz Top-and-Bottom
1280 x 720P @ 60Hz Top-and-Bottom
1280 x 720P @ 50Hz Frame packing
1280 x 720P @ 60Hz Frame packing
1920 x 1080i @ 50Hz Side-by-Side(Half)
1920 x 1080i @ 60Hz Side-by-Side(Half)
1920 x 1080P @ 24Hz Top-and-Bottom
1920 x 1080P @ 24Hz Frame packing
HDMI 1.3
1920 x 1080i @ 50Hz
Side-by-Side(Half) SBS mode is on
1920 x 1080i @ 60Hz
1280 x 720P @ 50Hz
1280 x 720P @ 60Hz
800 x 600 @ 60Hz
1024 x 768 @ 60Hz
1280 x 800 @ 60Hz
1920 x 1080i @ 50Hz
Top-and-Bottom TAB mode is on
1920 x 1080i @ 60Hz
1280 x 720P @ 50Hz
1280 x 720P @60Hz
800 x 600 @ 60Hz
1024 x 768 @ 60Hz
1280 x 800 @ 60Hz
480i HQFS 3D format is Frame sequential
Note:
If 3D input is 1080p@24Hz, the DMD should replay with integral multiple with 3D mode.
1080i@25Hz and 720p@50Hz will run in 100Hz; 1080p@24Hz will run in 144Hz; other 3D timing will
run in 120Hz.
English
45
ADDITIONAL INFORMATION
Image size and projection distance
WXGA
Diagonal
Length Size
of (16:9)
Screen
Screen Size (W x H) Projection Distance ( D )
Offset (Hd)
(m) (inch) (m) (feet)
Width Height Width Height Wide Tele Wide Tele (m) (inch)
19.7 0.42 0.27 16.71 10.44 NA 1.0 NA 3.28 0.03 1.18
40 0.86 0.54 33.92 21.2 1.3 2.0 4.27 6.56 0.07 2.76
50 1.08 0.67 42.40 26.5 1.6 2.5 5.25 8.20 0.09 3.54
60 1.29 0.81 50.88 31.8 1.9 3.0 6.23 9.84 0.10 3.94
70 1.51 0.94 59.36 37.1 2.2 3.5 7.22 11.48 0.12 4.72
80 1.72 1.08 67.84 42.4 2.5 4.1 8.20 13.45 0.13 5.12
90 1.94 1.21 76.32 47.7 2.8 4.6 9.19 15.09 0.15 5.91
100 2.15 1.35 84.80 53 3.2 5.1 10.50 16.73 0.16 6.30
120 2.58 1.62 101.76 63.6 3.8 6.1 12.47 20.01 0.20 7.87
150 3.23 2.02 127.20 79.5 4.7 7.6 15.42 24.93 0.25 9.84
180 3.88 2.42 152.64 95.4 5.7 9.1 18.70 29.86 0.30 11.81
200 4.31 2.69 169.60 106 6.3 10.1 20.67 33.14 0.34 13.39
250 5.38 3.37 212.00 132.5 7.9 NA 25.92 NA 0.41 16.14
315.8 6.80 4.25 267.80 167.4 10.0 NA 32.81 NA 0.53 20.87
Note: Zoom Ratio: 1.6x
1080p
Diagonal
Length Size
of (16:9)
Screen
Screen Size (W x H) Projection Distance ( D )
Offset (Hd)
(m) (inch) (m) (feet)
Width Height Width Height Wide Tele Wide Tele (m) (inch)
20.2 0.45 0.25 17.61 9.9 NA 1.0 NA 3.28 0.04 1.57
40 0.89 0.5 34.86 19.6 1.2 2.0 3.94 6.56 0.08 3.15
50 1.11 0.62 43.58 24.5 1.6 2.5 5.25 8.20 0.10 3.94
60 1.33 0.75 52.29 29.4 1.9 3.0 6.23 9.84 0.12 4.72
70 1.55 0.87 61.01 34.3 2.2 3.5 7.22 11.48 0.14 5.51
80 1.77 1 69.73 39.2 2.5 4.0 8.20 13.12 0.16 6.30
90 1.99 1.12 78.44 44.1 2.8 4.5 9.19 14.76 0.18 7.09
100 2.21 1.25 87.16 49 3.1 5.0 10.17 16.40 0.19 7.48
120 2.66 1.49 104.59 58.8 3.7 6.0 12.14 19.69 0.24 9.45
150 3.32 1.87 130.74 73.5 4.7 7.4 15.42 24.28 0.30 11.81
180 3.98 2.24 156.88 88.2 5.6 8.9 18.37 29.20 0.36 14.17
200 4.43 2.49 174.32 98.1 6.2 9.9 20.34 32.48 0.40 15.75
250 5.53 3.11 217.89 122.6 7.8 NA 25.59 NA 0.50 19.69
320.4 7.09 3.99 279.25 157.1 10.0 NA 32.81 NA 0.64 25.20
Note: Zoom Ratio: 1.6x
English
46
ADDITIONAL INFORMATION
Width
Height
Diagonal
Top View
Side View
Projection Distance (D)
Projection Distance (D)
Screen
Screen
Screen (W)
Screen (H)
Offset (Hd)
English
47
ADDITIONAL INFORMATION
Projector dimensions and ceiling mount installation
If you wish to use a third party ceiling mount kit, please ensure the screws used to attach a mount to the projector
meet the following specications:
Screw type: M4*10
Minimum screw length: 10mm
Unit: mm
Lens
Note: Please note that damage resulting from incorrect installation will void the warranty.
Warning:
If you buy a ceiling mount from another company, please be sure to use the correct screw size.
Screw size will vary depending on the thickness of the mounting plate.
Be sure to keep at least 10 cm gap between the ceiling and the bottom of the projector.
Avoid installing the projector near a heat source.
English
48
ADDITIONAL INFORMATION
Troubleshooting
If you experience a problem with your projector, please refer to the following information. If a problem persists,
please contact your local reseller or service center.
Image problems
No image appears on-screen
Ensure all the cables and power connections are correctly and securely connected as described in the
"Installation" section.
Ensure the pins of connectors are not crooked or broken.
Ensure that the "Mute" feature is not turned on.
Image is out of focus
Turn the focus ring/focus lever clockwise or counterclockwise until the image is sharp and legible.
(Please see page 20).
Make sure the projection screen is between the required distance from the projector. (Please refer to
pages
45-46).
The image is stretched when displaying 16:9 DVD title
When you play anamorphic DVD or 16:9 DVD, the projector will show the best image in 16: 9 format
on projector side.
If you play the LBX format DVD title, please change the format as LBX in projector OSD.
If you play 4:3 format DVD title, please change the format as 4:3 in projector OSD.
Please setup the display format as 16:9 (wide) aspect ratio type on your DVD player.
Image is too small or too large
Turn the zoom lever clockwise or counterclockwise to increase or decrease the projected image size.
(Please see page 20).
Move the projector closer to or further from the screen.
Press "Menu" on the projector panel, go to "Display → Aspect Ratio". Try the different settings.
Image has slanted sides:
If possible, reposition the projector so that it is centered on the screen and below the bottom of the
screen.
Image is reversed
Select "Setup → Projection" from the OSD and adjust the projection direction.
English
49
ADDITIONAL INFORMATION
Other problems
The projector stops responding to all controls
If possible, turn off the projector, then unplug the power cord and wait at least 20 seconds before
reconnecting power.
Remote control problems
If the remote control does not work
Check the operating angle of the remote control is pointed within ±30° to the IR receiver on the
projector.
Make sure there are not any obstructions between the remote control and the projector. Move to within
7 m (22 ft) of the projector.
Make sure batteries are inserted correctly.
Replace batteries if they are exhausted.
English
50
ADDITIONAL INFORMATION
Warning indicators
When the warning indicators (see below) light up or ash, the projector will automatically shutdown:
“Light” LED indicator is lit red and if “Power” indicator ashes red.
“Temp” LED indicator is lit red and if “Power” indicator ashes red. This indicates the projector has
overheated. Under normal conditions, the projector can be switched back on.
“Temp” LED indicator ashes red and if “Power” indicator ashes red.
Unplug the power cord from the projector, wait for 30 seconds and try again. If the warning indicator light up or
ash, please contact your nearest service center for assistance.
LED lightning messages
Message
Power LED Temp LED Light LED
(Red)
(Blue) (Red) (Red)
Standby state
(Input power cord)
Steady light
Power on (Warming)
Flashing
(0.5 sec off / 0.5 sec
on)
Power on and Light lighting Steady light
Power off (Cooling)
Flashing
(0.5 sec off / 0.5
sec on). Back to red
steady light when
cooling fan turns off.
Error (Light failure) Flashing Steady light
Error (Fan failure) Flashing Flashing
Error (Over temp.) Flashing Steady light
Power off:
Power Off
Power Off?
Press power key again.
Temperature warning:
Warning
TEMPERATURE TOO HIGH
Please:
1. Make sure air in and outlets are not blocked.
2. Make sure the environment temperature is under 40 degree C.
If the problem persists in spite of the above.
Please contact a service center for repair.
English
51
ADDITIONAL INFORMATION
Specications
Optical Description
Maximum resolution 1080p
Native resolution
1080p
WXGA
Lens Manual zoom and manual focus
Image size (diagonal)
WXGA: 19.7” ~ 315.8” (optimized@60”)
1080p: 20.2” ~ 320.4” (optimized@60”)
Projection distance
WXGA: 1.0m to 10m ([email protected])
1080p: 1.0m to 10m ([email protected])
Electrical Description
Inputs
HDMI 1.4a
HDMI 2.0b
VGA In
Video (RCA connector (Y))
Audio In 3.5mm
USB Type-A for power USB 5V/1.5A
Outputs Audio Out 3.5mm
Control
Micro USB
RS232
Color reproduction 1073.4 Million color
Scan rate
Horizontal scan rate: 15.375~91.146 KHz
Vertical scan rate: 50~85 Hz (120Hz for 3D feature projector)
Built-in speaker Yes, 10W
Power requirement 100 - 240V ±10%, AC 50/60Hz
Input current
3.0A
Mechanical Description
Installation orientation Front, Rear, Ceiling, Rear-top
Dimensions
337mm (W) x 265mm (D) x 108mm (H) (without feet)
337m
m (W) x 265mm (D) x 122.5mm( H) (with feet)
Weight 4.4±0.5kg
Environmental conditions
Operating in 5~40°C , 10% to 85% humidity (non-condensing)
Non-operating in -10~60°C, 90%RH (Max.), non-condensing
Note: All specications are subject to change without notice.
English
52
ADDITIONAL INFORMATION
PC control codes and cable connection
PC control codes
Function Code Data
POWER ON 02H 00H 00H 00H 00H 02H
POWER OFF 02H 01H 00H 00H 00H 03H
INPUT SELECT COMPUTER 02H 03H 00H 00H 02H 01H 01H 09H
INPUT SELECT HDMI 1 02H 03H 00H 00H 02H 01H A1H A9H
INPUT SELECT HDMI 2 02H 03H 00H 00H 02H 01H A2H AAH
INPUT SELECT VIDEO 02H 03H 00H 00H 02H 01H 06H 0EH
PICTURE MUTE ON 02H 10H 00H 00H 00H 12H
PICTURE MUTE OFF 02H 11H 00H 00H 00H 13H
SOUND MUTE ON 02H 12H 00H 00H 00H 14H
SOUND MUTE OFF 02H 13H 00H 00H 00H 15H
Note: Contact your local dealer for a full list of the PC Control Codes if needed.
Cable connection
Communication Protocol
Baud rate...............................................38400 bps
Data length............................................ 8 bits
Parity .................................................... No parity
Stop bit.................................................. One bit
X on/off.................................................. None
Communications procedure...................Full duplex
PC control connector (D-SUB 9P)
3 4 521
9876
To TxD of PC
To RxD of PC
To GND of PC
To RTS of PCTo CTS of PC
Note:
Pins 1, 4, 6, and 9 are no used.
Jumper “Request to Send” and “Clear to Send” together on both ends of the cable to simplify cable
connection.
