User’s Manual
DLP Cinema
®
Projector
NP-NC603L
Model No.
NP-NC603L
2
Important Information
Precautions: Please read this manual carefully before
using your NP-NC603L and keep the manual handy for
future reference.
The NP-NC603L is called the “projector”, and the IMB
(integrated media server) is called the “media block” or
“IMB” in this manual.
• DLP (Digital Light Processing), DLP Cinema and DLP
Cinema logo are trademarks of Texas Instruments.
• Microsoft and Windows are either registered trademarks
or trademarks of Microsoft Corporation in the United
States and/or other countries.
• Oracle and Java are registered trademarks of Oracle
and/or its affiliates.
• Linux is a registered trademark of Linus Torvalds in the
United States and/or other countries.
• Other product names and logos mentioned in the user’s
manual may be the trademarks or registered trademarks
of their respective holders.
• The display screens and illustrations shown in this man-
ual may differ slightly from the actual ones.
• GPL/LGPL Software Licenses
• The product includes software licensed under GNU
• General Public License (GPL), GNU Lesser General
Public License (LGPL), and others.
• For more information on each software, see “readme.
pdf” inside the “about GPL&LGPL” folder on our
website.
WARNING
TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK,
DO NOT EXPOSE THIS APPLIANCE TO RAIN OR
MOISTURE.
CAUTION
TO PREVENT ELECTRIC SHOCK, DO NOT OPEN TOP
COVER. NO USER SERVICEABLE PARTS INSIDE.
This symbol warns the user that uninsu-
lated voltage within the unit may have suf-
ficient magnitude to cause electric shock.
Therefore, it is dangerous to make any kind
of contact with any part inside of this unit.
This symbol alerts the user that important
literature concerning the operation and
maintenance of this unit has been included.
Therefore, it should be read carefully in order
to avoid any problems.
Laser Safety Caution
This product is classified as Class 1 of IEC 60825-1 Third
edition 2014. This product is classified as RG3 of IEC/EN
62471-5 First edition 2015.
• This product complies with performance standards for
laser products under 21 CFR Part 1040 except with
respect to those characteristics authorized by Variance
Number 2015-V-3435 effective on April 7 2016.
Obey the laws and regulations of your country in relation to
the installation and management of the device.
• Outline of laser emitted from the built-in light module
Wave length: Blue 449–471 nm
Maximum power: Blue 385 W
CAUTION
CLASS 1 LASER PRODUCT
Use of controls or adjustments of procedures other
than those specified herein may lead to hazardous laser
radiation exposure.

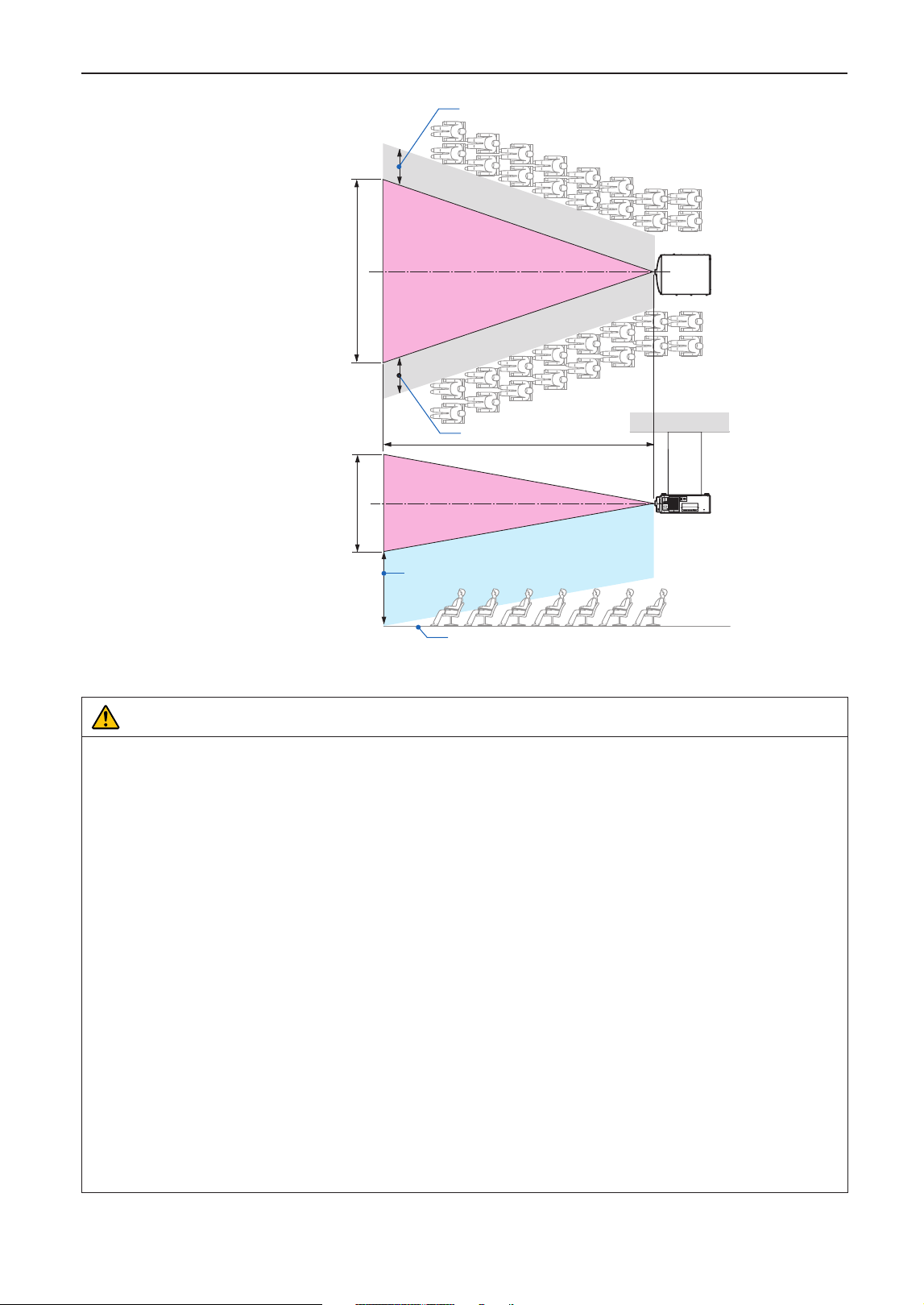

• No direct exposure to the beam shall be permitted, RG3
IEC/EN 62471-5:2015.
Operators shall control access to the beam within the
hazard distance and install the product at the height that
will prevent exposures of spectators’ eyes within the
hazard distance.
• Do not look into the lens while the projector is on.
Serious damage to your eyes could result.
• Do not look at operating light source. Eye injury may
result.
• Not for household use.
• Direct exposure of human eyes to beam is prohibited.

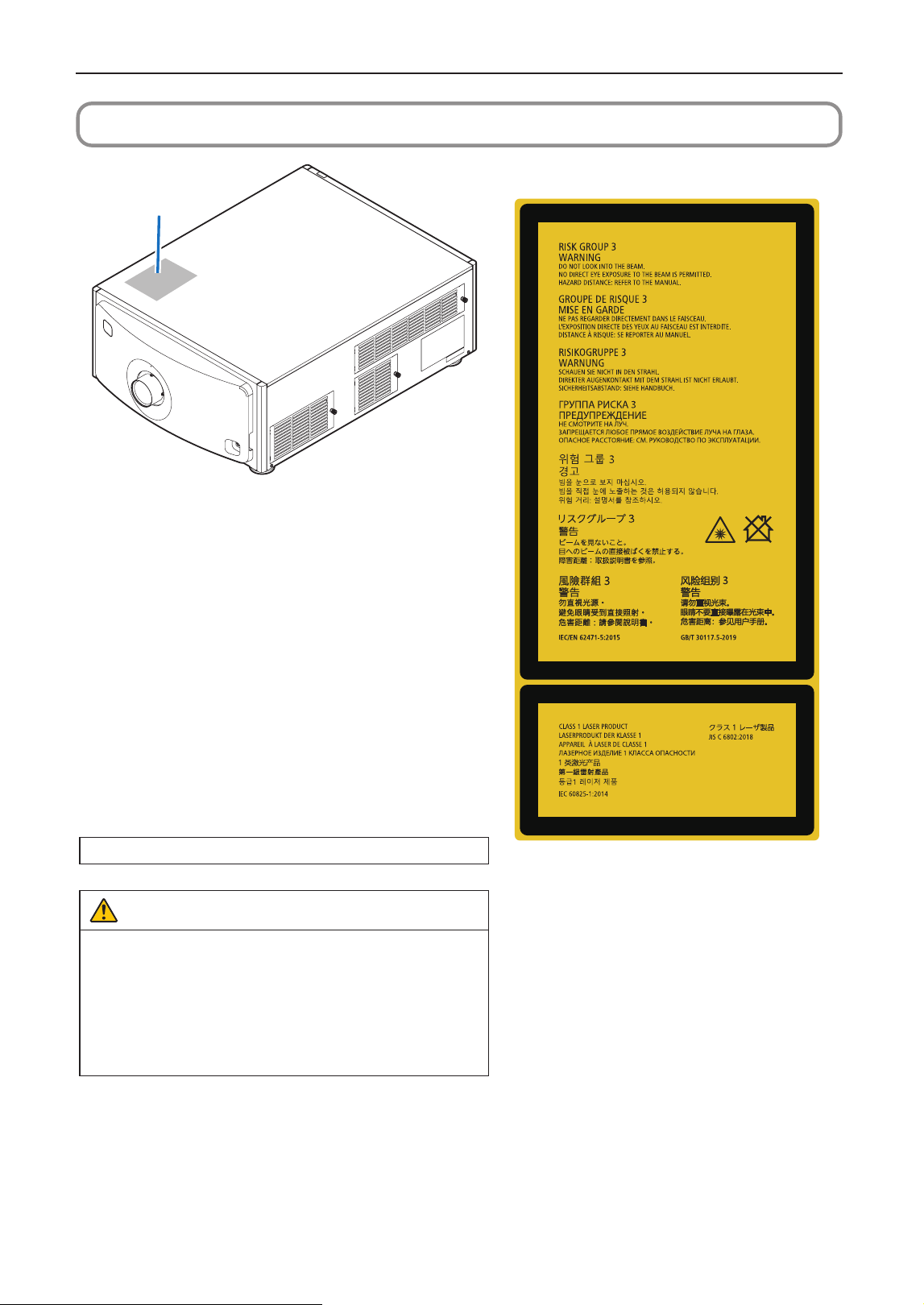

• The following graphic symbol indicating that looking into
the projector is prohibited is displayed on the projector
cabinet.
• Do not allow to look into the projector beam at any dis-
tance from the projector. An adult should supervise the
children to prevent exposure risks.
• Check that there is no one looking at the lens, when
using the remote control for starting the projector.
• Do not look at the projected light using optical devices
(binoculars, telescopes, magnifying glasses, reflectors,
etc). Doing so could result in vision impairment.

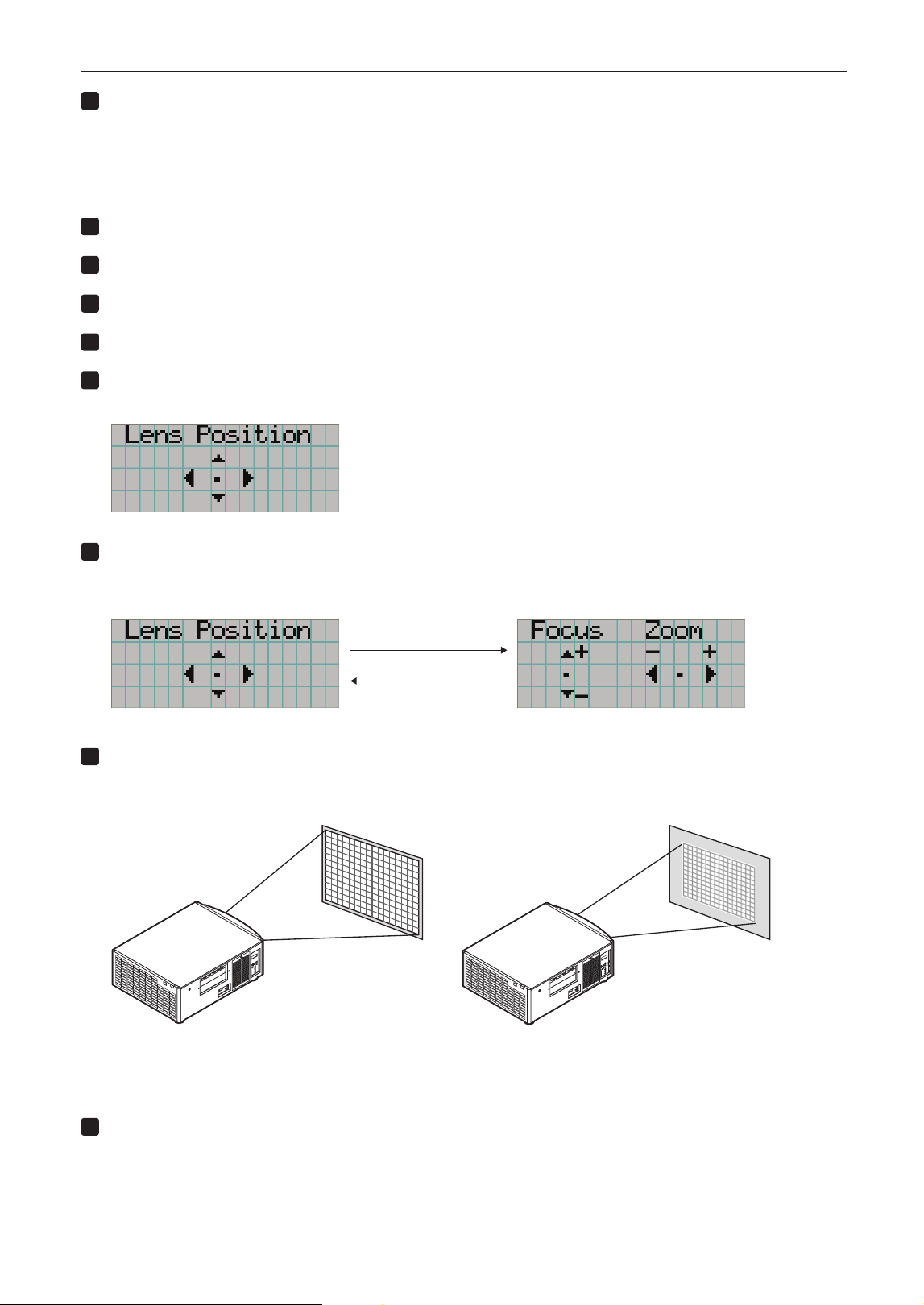

• When performing the lens shift adjustment, make sure
that you are behind or beside the projector. Doing so
from the front of the projector may cause intense light to
enter into your eyes, resulting in damage to them.
• [WARNING: MOUNT ABOVE THE HEADS OF CHILDREN.]
The use of a ceiling mount is recommended with this
product to place it above the eyes of children.
• This projector, which is an RG3 product, is for business
use and must be installed in location where safety is
assured. For this reason, installation of the projector and
mounting and removal of the lens unit must be per-
formed by professional service personnel. To do the
works, be sure to consult your dealer. NEVER install the
projector by end users. Doing so may cause visual
impairment and other injuries.
• Keep any items such as magnifying glass out of the light
path of the projector. The light being projected from the
lens is extensive, therefore any kind of abnormal objects
that can redirect light coming out of the lens, can cause
unpredictable outcome such as fire or injury to the eyes.
• When turning on the projector, ensure that nobody is
facing towards the lens in the path of the light emitted
from the laser.
3
Important Information
• This product can only be operated in theaters by speci-
fied personnel. Customers should not operate this
product.
Machine Noise Information Regulation - 3. GPSGV,
The highest sound pressure level is less than 70 dB (A) in
accordance with EN ISO 7779.
WARNING
Operation of this equipment in a residential environ-
ment could cause radio interference.
FCC Information (for USA only)
WARNING
• The Federal Communications Commission does not allow
any modifications or changes to the unit EXCEPT those
specified by Sharp NEC Display Solutions of America, Inc.
in this manual. Failure to comply with this government
regulation could void your right to operate this
equipment.
• This equipment has been tested and found to comply with
the limits for a class A digital device, pursuant to Part 15
of the FCC Rules. These limits are designed to provide
reasonable protection against harmful interference when
the equipment is operated in a commercial environment.
This equipment generates, uses, and can radiate radio
frequency energy and, if not installed and used in accor-
dance with the instruction manual, may cause harmful
interference to radio communications. Operation of this
equipment in a residential area is likely to cause harmful
interference in which case the user will be required to cor-
rect the interference at his own expense.
Supplier’s declaration of conformity
This device complies with Part 15 of the FCC Rules.
Operation is subject to the following two conditions.
(1) This device may not cause harmful interfer-
ence, and (2) this device must accept any inter-
ference received, including interference that may
cause undesired operation.
U.S.Responsible Party: Sharp NEC Display Solutions
of America, Inc.
Address: 3250 Lacey Rd, Ste 500
Downers Grove, IL 60515
Telephone Number: 630-467-3000
Type of Product: Projector
Equipment Classification: Class A Peripheral
Model Number: NP-NC603L
WARNING
THE END USER IS NOT ALLOWED TO OPEN OR MODIFY
THE PRODUCT.
NO USER SERVICEABLE PARTS.
MAINTAIN AND SERVICE OF THE PRODUCT IS ONLY TO
BE HANDLED BY Sharp NEC Display Solutions AUTHORIZED
TECHNICIANS.
Important Safeguards
These safety instructions are to ensure the long life of your
projector and to prevent fire and shock. Please read them
carefully and heed all warnings.
Installation
1. Do not point the projection beam toward other people
or reflective objects.
2. Consult your dealer for information about transporting
and installing the projector. Do not attempt to transport
and install the projector yourself.
The projector must be installed by qualified technicians
in order to ensure proper operation and reduce the risk
of bodily injury.
3. Place the projector on a flat, level surface in a dry area
away from dust and moisture. Tilting the front of the
projector up or down from level could reduce laser life.
Do not put the projector on its side when the laser is on.
Doing so may cause damage to the projector.
4. Do not place the projector in direct sunlight, near heat-
ers or heat radiating appliances.
5. Exposure to direct sunlight, smoke or steam could
harm internal components.
6. Handle your projector carefully. Dropping or jarring your
projector could damage internal components.
7. When moving the projector, be sure to remove the lens
from the projector before moving it.
8. To carry the projector, a minimum of four persons are
required.
9. Do not hold the lens part with your hand. Otherwise the
projector may tumble or drop, causing personal injury.
10. Do not place heavy objects on top of the projector.
11. Turn off the projector, and disconnect the power cable
before moving the projector.
12. The cooling fan settings need to be configured when
using the projector in a location at an altitude of approx-
imately 5500 feet/1600 meters or higher. Consult your
dealer in advance.
13. Turn off the projector when removing and installing
lenses. Failure to do so can cause loss of vision.
For mounting or replacing the lens, please contact your
dealer.
14. Do not install and store the projector in the below
circumstances.
Failure to do so may cause of malfunction.
• In powerful magnetic fields
• In corrosive gas environment
• Outdoors
15. If you wish to have the projector installed on the
ceiling;
• Do not attempt to install the projector yourself.
• The projector must be installed by qualified techni-
cians in order to ensure proper operation and
reduce the risk of bodily injury.
• In addition, the ceiling must be strong enough to
support the projector and the installation must be in
accordance with any local building codes.
• Please consult your dealer for more information.
16. When moving the projector, check the following:
• That the projector is turned off, the power plug is
disconnected from the outlet
• That the connector cable that connects the device
to the projector is unplugged
4
Important Information
WARNING
1. Do not cover the lens with the supplied lens cap or
equivalent while the projector is on. Doing so can
lead to distorting or melting of the cap and burning
your hands due to the heat emitted from the light
output.
2. Do not place any objects, which are easily affected
by heat, in front of the projector lens. Doing so could
lead to the object melting from the heat that is emit-
ted from the light output.

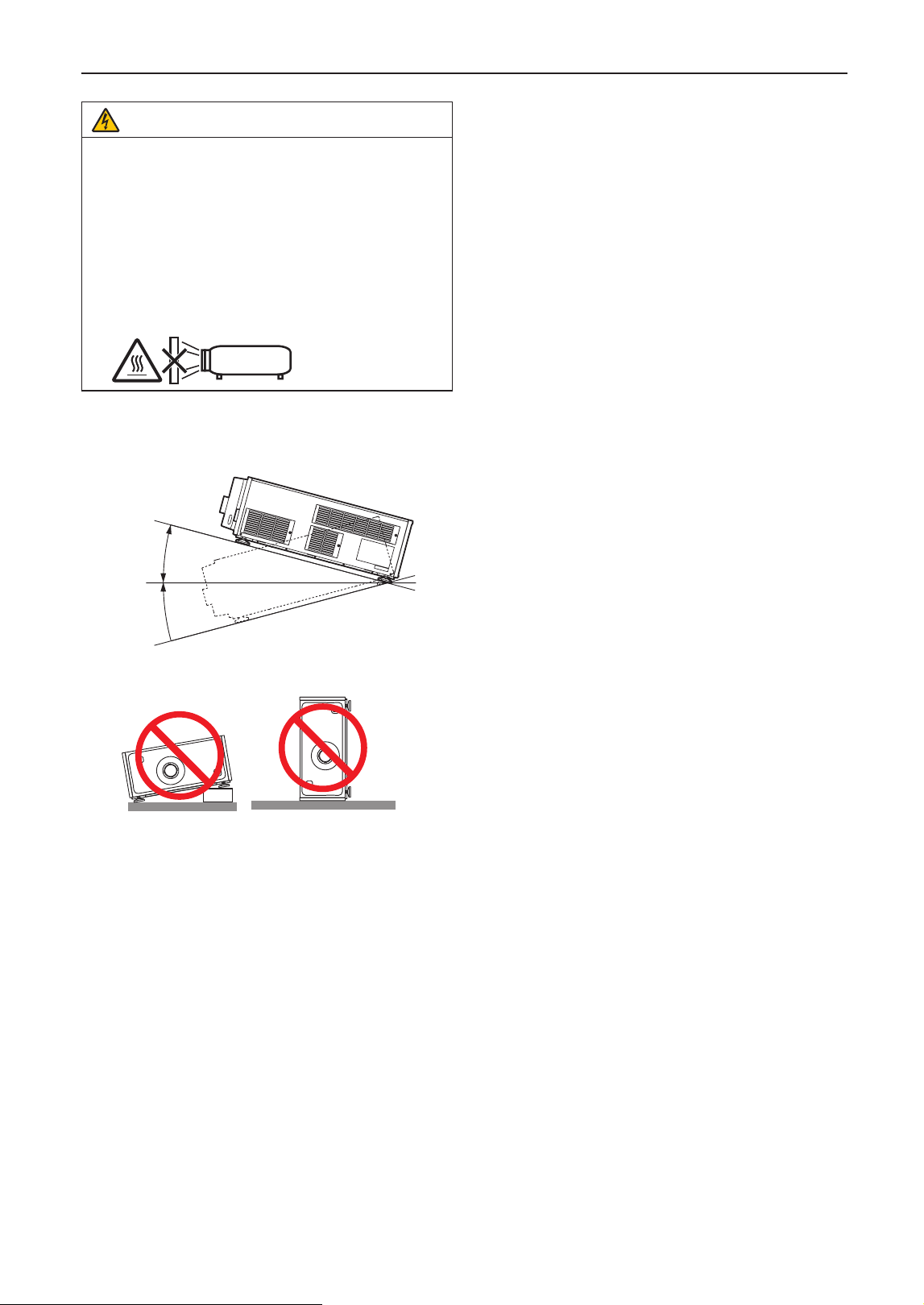

The following graphic symbol is shown on the pro-
jector cabinet.
When using the projector tilted in the forward or backward
direction, use it in the range of (+15° to -15°) from horizon-
tal. If you tilt it outside of this range or tilt it to the left or
right, it may become damaged.
+15
°
–15
°
When installed on a floor or a desktop
Power Supply
1. The projector is so designed that it operates with the
power supply voltage described below.
• Projector
AC200–240V single phase 50/60Hz
Ensure that your power supply fits this requirement
before attempting to use your projector.

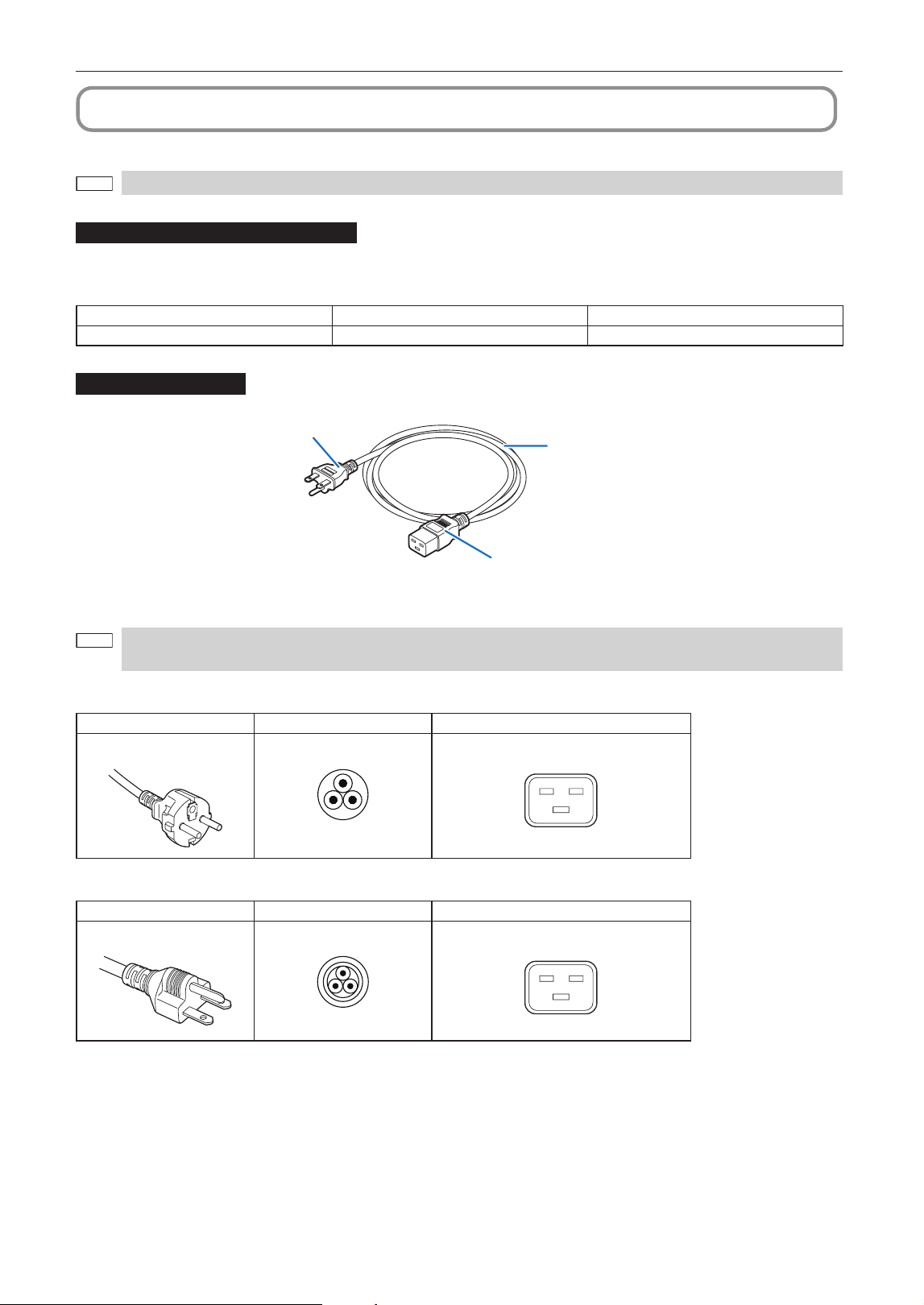

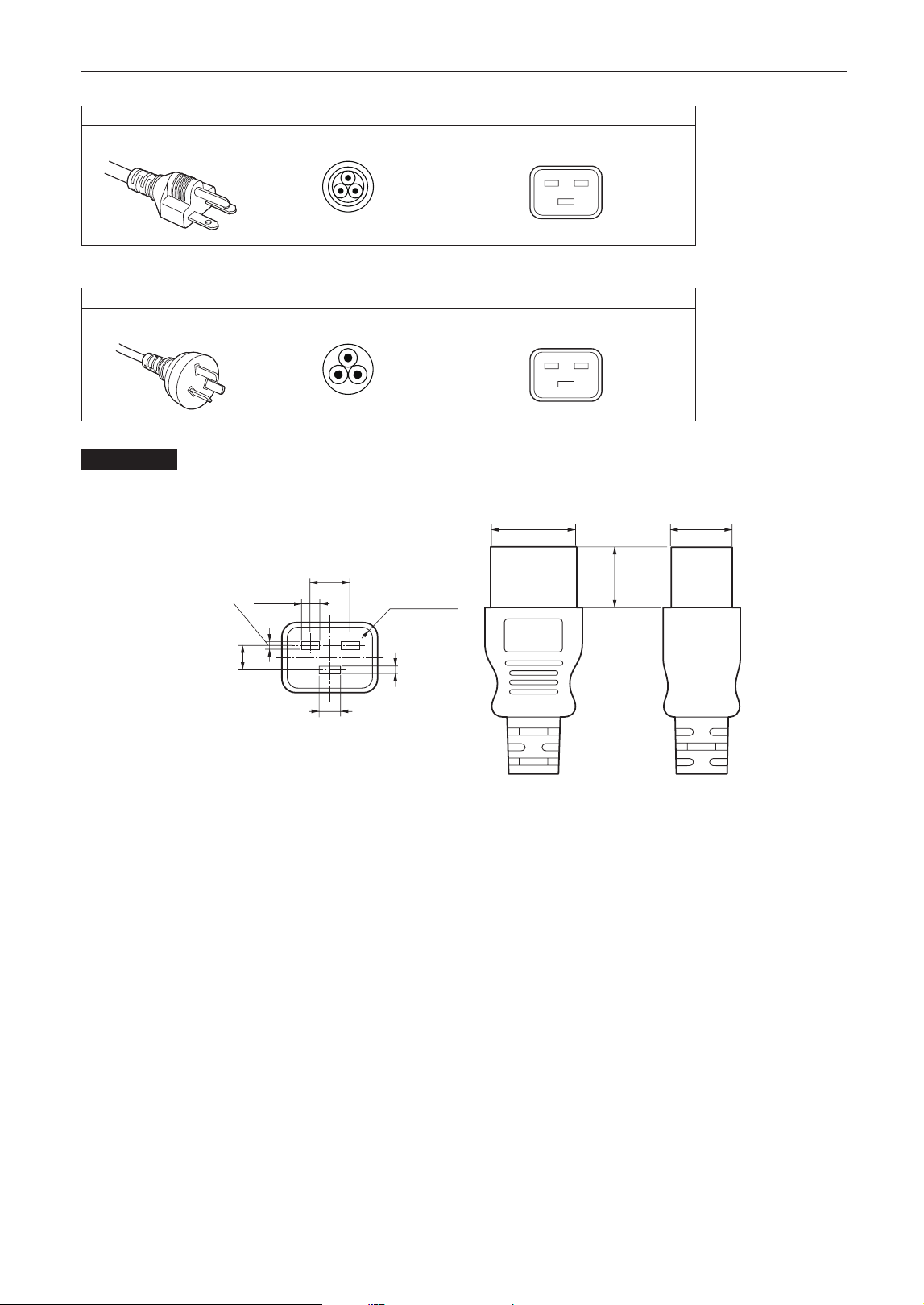

2. The power cable is not included with the projector. Ask
your dealer for the power cable to select and purchase.
Use a power cable that meets the standards and power
supply voltage of the country where you are using the
projector.

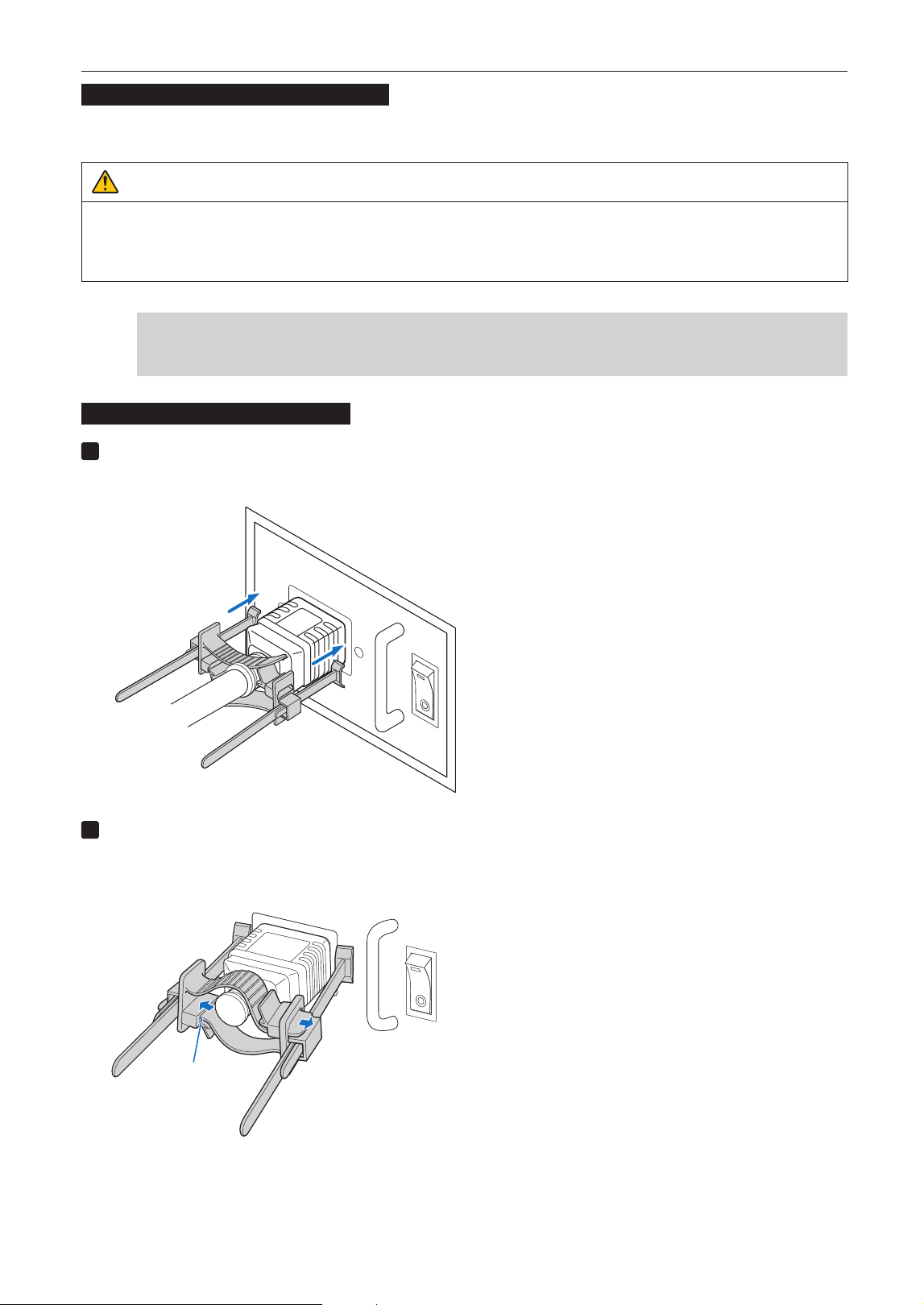

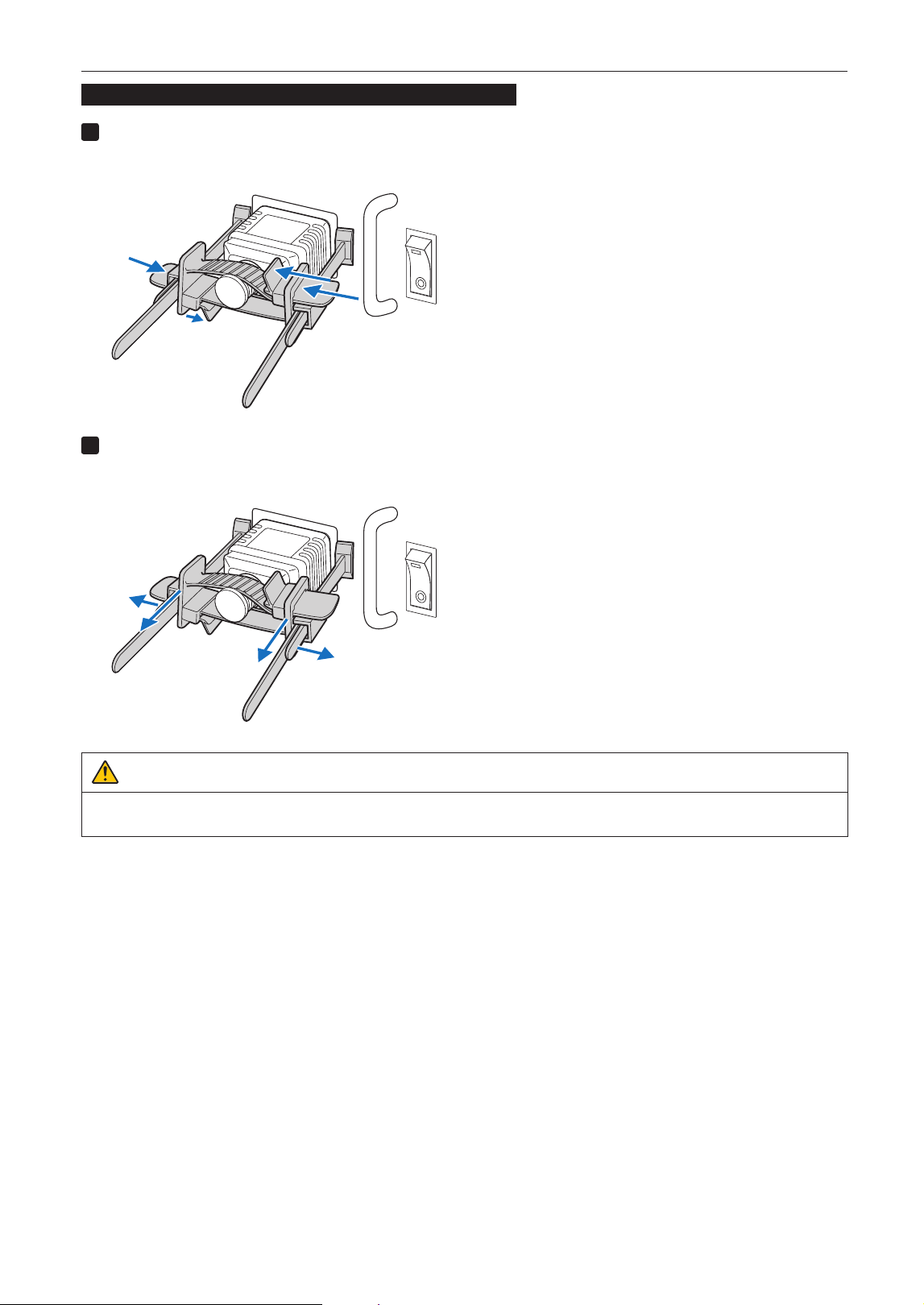

Refer to “2-2. Connecting the Power Cable” (page 22)
for details on connecting the power cable.
3. Handle the power cable carefully. A damaged or frayed
power cable can cause electric shock or fire.
• Do not bend or tug the power cable excessively.
• Do not place the power cable under the projector, or
any heavy object.
• Do not cover the power cable with other soft materi-
als such as rugs.
• Do not heat the power cable.
• Do not change the arrangement of the installed
power cable.
4. If the projector will not be used for an extended period
of time, turn off the projector, and disconnect the power
plug from the outlet.
5. Placing the power cable and the signal cable closely to
each other can cause beat noise. If this happens, keep
the two separated so that beat noise is not generated.
Beat noise is corruption of the picture often seen as a
rolling band moving through the image.
6. Do not touch the projector during a thunder storm.
Doing so can cause electrical shock or fire.
7. When installed on the ceiling, install the breaker in a
location that is easy to reach by hand.
Fire and Shock Precautions

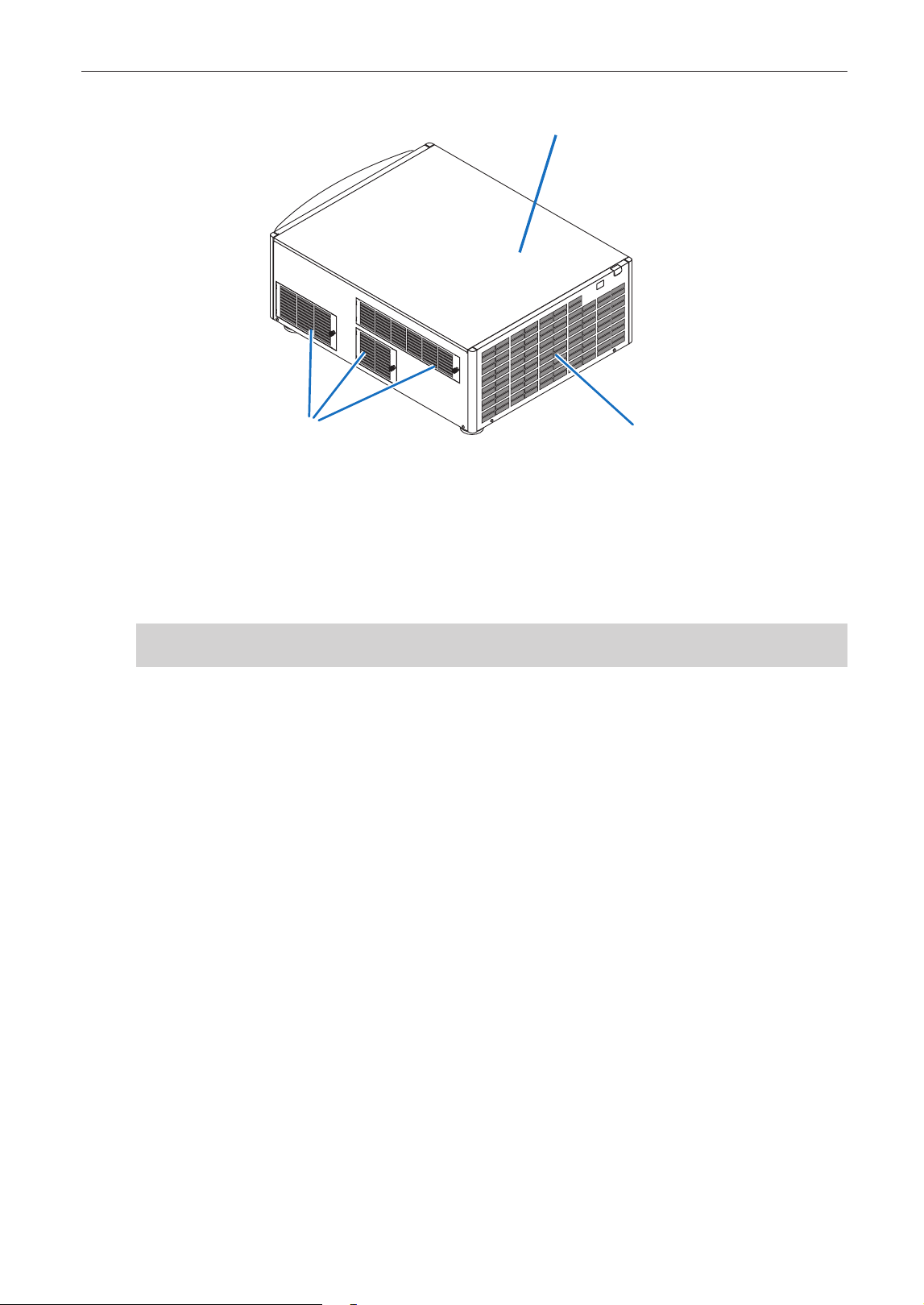

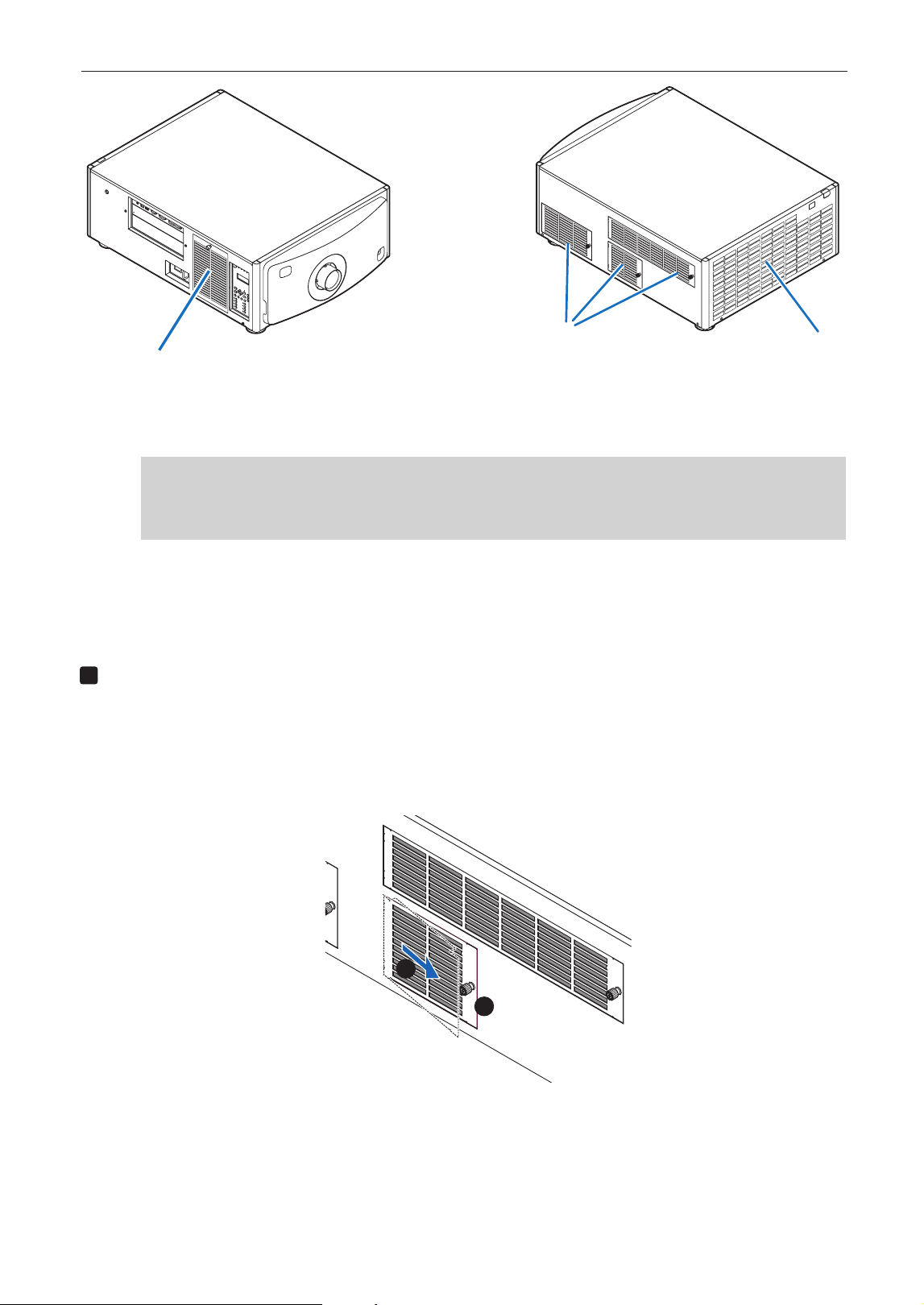

1. Ensure that there is sufficient ventilation and that vents
are unobstructed to prevent potentially dangerous con-
centrations of ozone and the build-up of heat inside
your projector. Allow at least 12 inches (30cm) of space
between your projector and a wall. In particular, clear a
space of 20 inches (50cm) or more in front of the air
outlet on the rear surface.
2. Prevent foreign objects such as paper clips and bits of
paper from falling into your projector. Do not attempt to
retrieve any objects that might fall into your projector.
Do not insert any metal objects such as a wire or screw-
driver into your projector. If something should fall into
your projector, turn off the projector, disconnect the
power plug from the outlet and have the object removed
by a qualified service person.
3. Turn off the projector, unplug the power cable and have
the projector serviced by a qualified service personnel
under the following conditions:
• When the power cable or plug is damaged or frayed.
• If liquid has been spilled into the projector, or if it
has been exposed to rain or water.
• If the projector does not operate normally when you
follow the instructions described in this user’s
manual.
• If the projector has been dropped or the cabinet has
been damaged.
• If the projector exhibits a distinct change in perfor-
mance, indicating a need for service.
4.
Keep any items such as magnifying glass out of the light
path of the projector. The light being projected from the
lens is extensive, therefore any kind of abnormal objects
that can redirect light coming out of the lens, can cause
unpredictable outcome such as fire or injury to the eyes.
5. Never remove or open the projector cabinet and never
modify the projector. Otherwise, fire, electric shock, or
leakage of laser light may cause visual impairment or
burn injuries.
6. When using a LAN cable:
For safety, do not connect to the connector for periph-
eral device wiring that might have excessive Voltage.
7. Do not try to touch the air outlets on the projector dur-
ing normal projector operation as it is hot.
5
Cleaning
1. Turn off the projector and unplug the power cable
before cleaning the cabinet or replacing the laser.
2. During cleaning, turn off the projector, and disconnect
the power plug from the outlet.
3. Clean the cabinet periodically with a cloth. If heavily
soiled, use a mild detergent. Never use strong deter-
gents or solvents such as alcohol or thinner.
4. Use a blower or lens paper to clean the lens, and be
careful not to scratch or mar the lens.
5. Do not touch the projector or the power plug with wet
hand. Doing so can cause electrical shock or fire.
CAUTION
1. Do not unplug the power cable from the wall outlet
or projector when the projector is powered on.
Doing so can damage the projector.
• While projecting images
• While cooling after the projector has been turned
off.

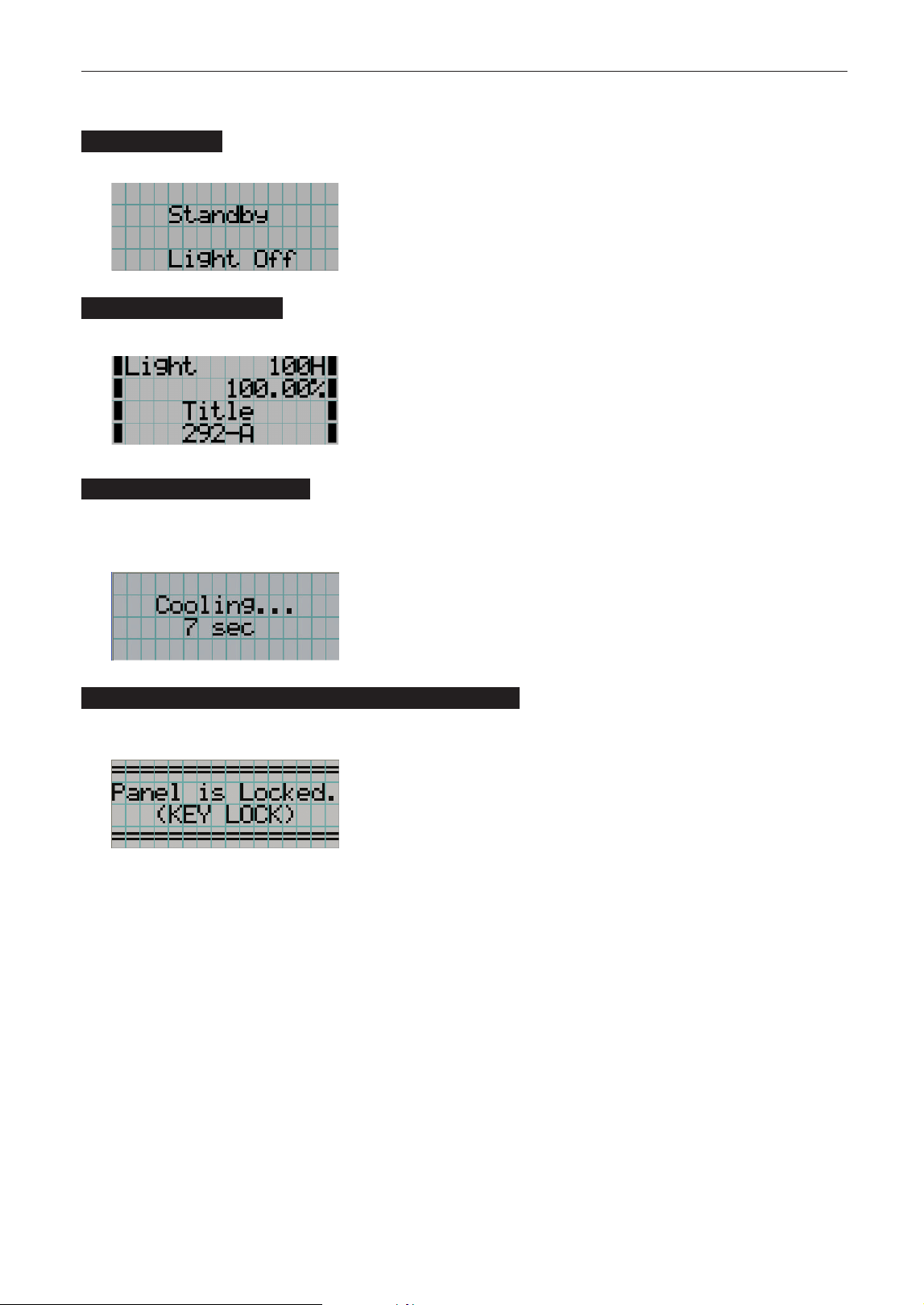

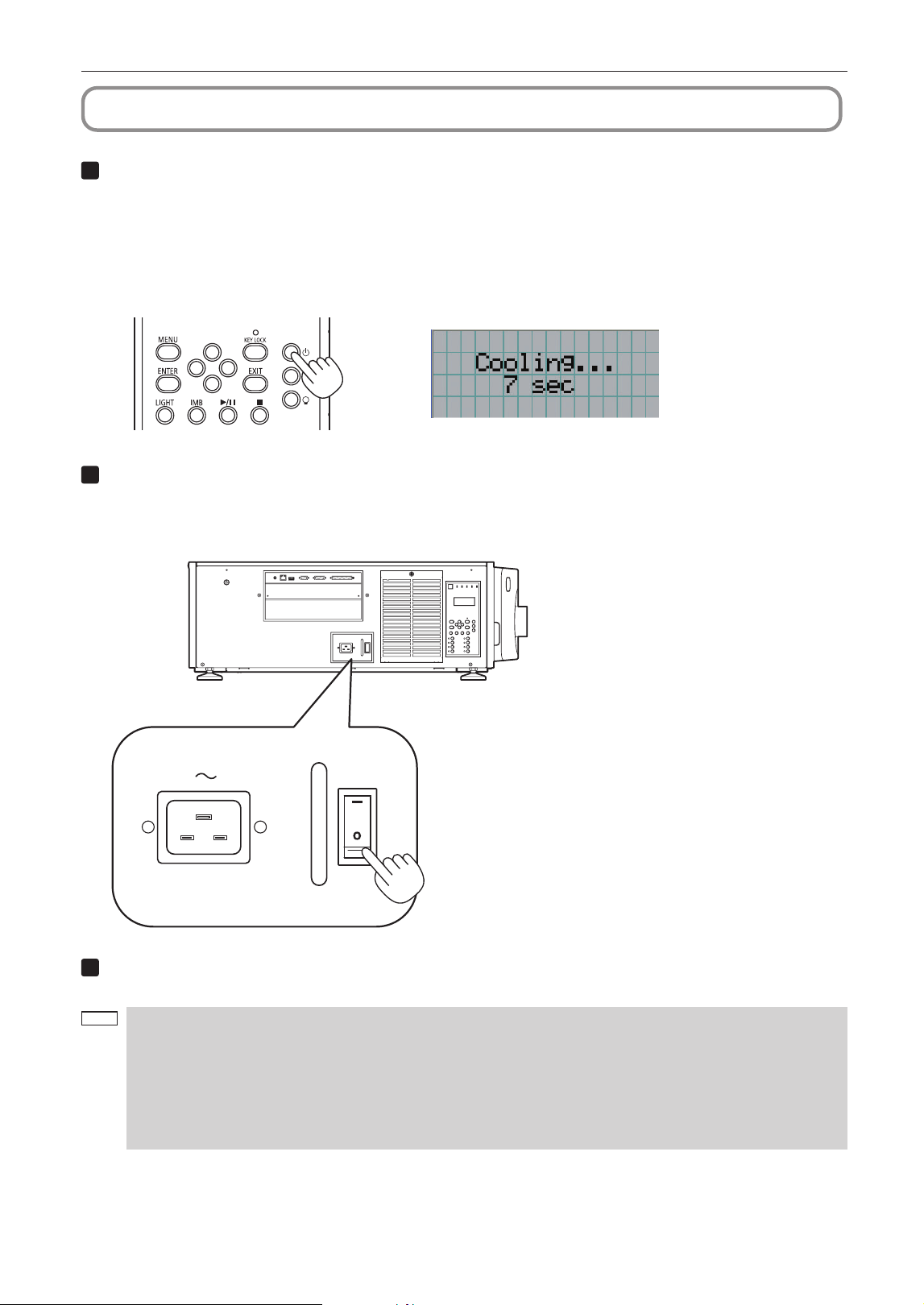

(The POWER button LED blinks in green while the
fan is rotating, and “cooling...” is displayed on the
LCD screen.)
2. Do not turn of the AC power for 90 seconds after the
laser is turned on and while the POWER indicator is
blinking green. Doing so could cause premature
laser failure.
3. Use of a wall outlet with a 20 A or more circuit
breaker is recommended.
4. Keep hands away from the lens mounting portion
while the lens shift is in operation. Failure to do so
could result in fingers being pinched between the
cabinet and lens cover.

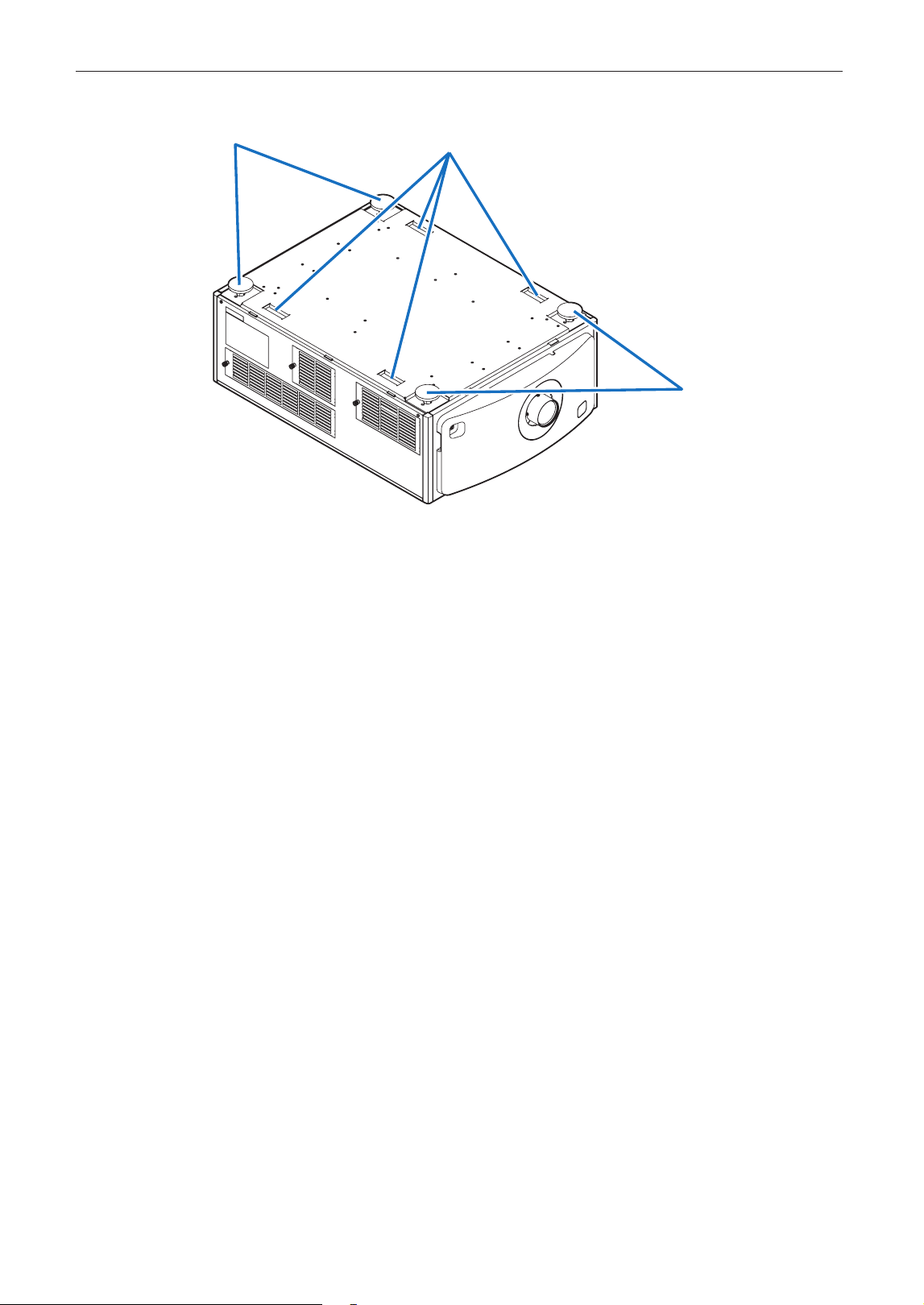

Caution on Carrying the Projector/Handling the
Optional Lens
The projector should always be carried by at least 4 peo-
ple, holding the handles on the bottom. Remove the lens
unit from the projector body when moving the projector.
When installing / removing a lens, shut down the AC power
to the projector.
When shipping the projector with the lens, remove the lens
before shipping the projector. Always attach the dust cap
to the lens whenever it is not mounted on the projector. The
lens and the lens shift mechanism may encounter damage
caused by improper handling during transportation.
Light Module
1. A light module containing multiple laser diodes is
included in the product as the light source.
2. These laser diodes are sealed in the light module. No
maintenance or service is required for the performance
of the light module.
3. End user is not allowed to replace the light module.
4. Contact qualified distributor for light module replace-
ment and further information.
Cable information
Use shielded cables or cables attached ferrite cores so as
not to interfere with radio and television reception.
For details, please refer to “2. Installation and Connection”
in this user’s manual.
Important Information
Installing the Projector
This projector is an RG3 product. The projector is for
profes sional use and must be installed in location where
safety is assured. For this reason, be sure to consult your
dealer as installation and attachment/detachment of the
lens unit must be performed by a professional service per-
sonnel. Never try to install the projector by yourself. This
may result in visual impairment etc.
Connecting the power cord to earth
This equipment is designed to be used in the condition of
the power cord connected to earth. If the power cord is not
connected to the earth, it may cause electric shock. Please
make sure the power cord is connected to the wall outlet
directly and earthed properly.
Do not use a 2-core plug converter adapter.

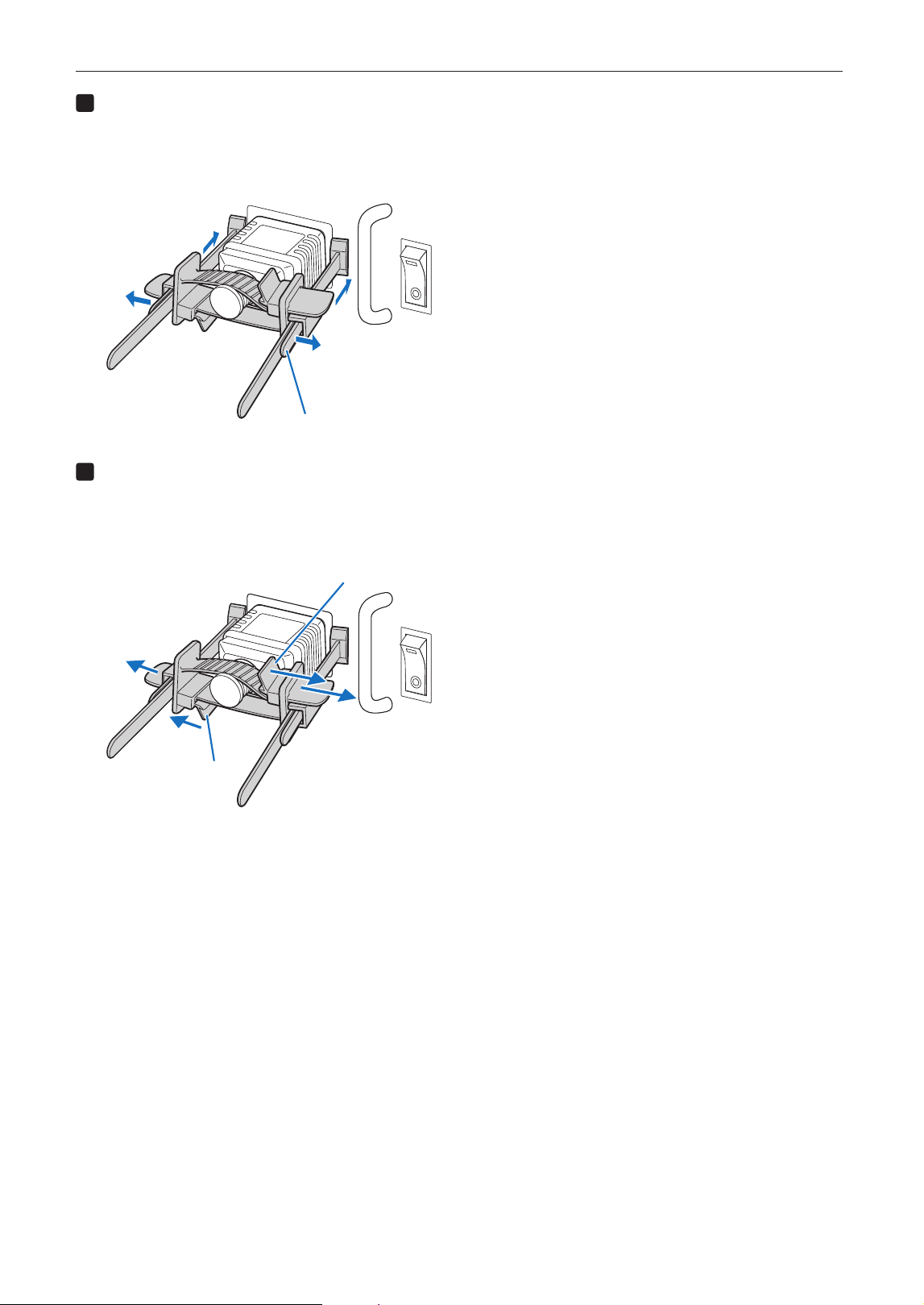

Handling the power cord
• When connecting the power cord to the projector’s AC
IN terminal, make sure the connector is fully and firmly
inserted. Be sure to fix the power cord using the power
cord stopper. Loose connection of the power cord could
lead to fire or electric shock.
• Do not connect or disconnect the power cord with wet
hands. Doing so could result in electric shock.
Lens shift, focus and zoom operations
• When shifting the lens or adjusting the focus or zoom,
do so from either behind or to the side of the projector.
If adjustments are performed from the front, your eyes
could be exposed to strong light and get injured.
• Keep your hands away from the lens area when perform-
ing the lens shift operation. If not, your fingers could get
caught in the gap between the cabinet and the lens.
(For Customers in U.K.)
IMPORTANT
• The wires in this mains lead are coloured in accor-
dance with the following code:
GREEN-AND-YELLOW: “Earth”
BLUE: “Neutral”
BROWN: “Live”
• As the colours of the wires in the mains lead of this
apparatus may not correspond with the coloured
markings identifying the terminals in your plug pro-
ceed as follows:
• The wire which is coloured GREEN-AND-YELLOW
must be connected to the terminal in the plug which
is marked by the letter E or by the safety earth symbol
or coloured green or green-and-yellow.
• The wire which is coloured BLUE must be connected
to the terminal which is marked with the letter N or
coloured black.
• The wire which is coloured BROWN must be con-
nected to the terminal which is marked with the letter
L or coloured red.
• Ensure that your equipment is connected correctly. If
you are in any doubt consult a qualified electrician.
“WARNING: THIS APPARATUS MUST BE EARTHED.”
6
Important Information
Disposing of your used product
EU-wide legislation as implemented in each
Member State requires that used electrical
and electronic products carrying the mark
(left) must be disposed of separately from nor-
mal household waste.
This includes projectors and their electrical
accessories. When you dispose of such prod-
ucts, please follow the guidance of your local
authority and/or ask the shop where you pur-
chased the product.
After collecting the used products, they are
reused and recycled in a proper way. This
effort will help us reduce the wastes as well as
the negative impact to the human health and
the environment at the minimum level.
The mark on the electrical and electronic
products only applies to the current European
Union Member States.
Outside the European Union
If you wish to dispose of used electrical and
electronic products outside the European
union, please contact your local authority and
ask for the correct method of disposal.
For EU: The crossed-out wheeled bin implies
that used batteries should not be put to the
general household waste! There is a separate
collection system for used batteries, to allow
proper treatment and recycling in accordance
with legislation.
According the EU directive 2006/66/EC, the
battery can’t be disposed improperly. The
battery shall be separated to collect by
local service.
For questions relating to unclear points or repairs
Contact your dealer or the following support branch for
questions relating to unclear points, malfunctions and
repairs of the product.
In Europe
Company Name: Sharp NEC Display Solutions Europe
GmbH
Address: Landshuter Allee 12-14, D-80637 Munich, Germany
Telephone: +49 89 99699 0
Fax Line: +49 89 99699 500
Email Address: [email protected]
WEB Address: https://www.sharpnecdisplays.eu
In North America
Company Name: Sharp NEC Display Solutions of
America, Inc.
Address: 3250 Lacey Rd, Ste 500
Downers Grove, IL 60515 U.S.A.
Telephone: +1 866-632-6431
Email: [email protected]
WEB Address: https://www.sharpnecdisplays.us
In China
Company Name:
Sharp NEC Display Solutions (China), Ltd.
Address:
1F-North, A2 Building, Foxconn Technology Group,
No. 2, 2nd Donghuan Road, Longhua District,
Shenzhen City, P.R.C.
Telephone: 4008-900-678
Email Address: [email protected]
In Hong Kong and Taiwan
Company Name: Strong Westrex, Inc.
Address: Room 4108 China Resources Building, No. 26
Harbour Road, Wanchai, Hong Kong
Telephone: +852 2827 8289
Fax Line: +852 2827 5993
Email Address: [email protected]
In South Korea
Company Name: Hyosung ITX Co., Ltd.
Address: 1F, Ire Building, 2, Yangpyeong-dong 4-ga,
Yeongdeungpo-gu, Seoul, Korea 150-967
Telephone: +82-2-2102-8591
Fax Line: +82-2-2102-8600
Email Address: [email protected]
WEB Address: http://www.hyosungitx.com
In Australia and New Zealand
Company Name: NEC Australia Pty Ltd
Address: 26 Rodborough Road Frenchs Forest NSW 2086
Telephone: 131 632 (from anywhere in Australia)
Email Address: [email protected]
WEB Address: http://www.nec.com.au
In Thailand, Singapore, Malaysia, Indonesia and
Philippines
Company Name: Goldenduck International Co., Ltd.
Address: 65 Soi Phutthamothon Sai 1, 21 Bangramad,
Talingchan, Bangkok, Thailand 10170
Telephone: +66-2887-8807
Fax Line: +66-2887-8808
Email Address: contact@goldenduckgroup.com
7
Important Information

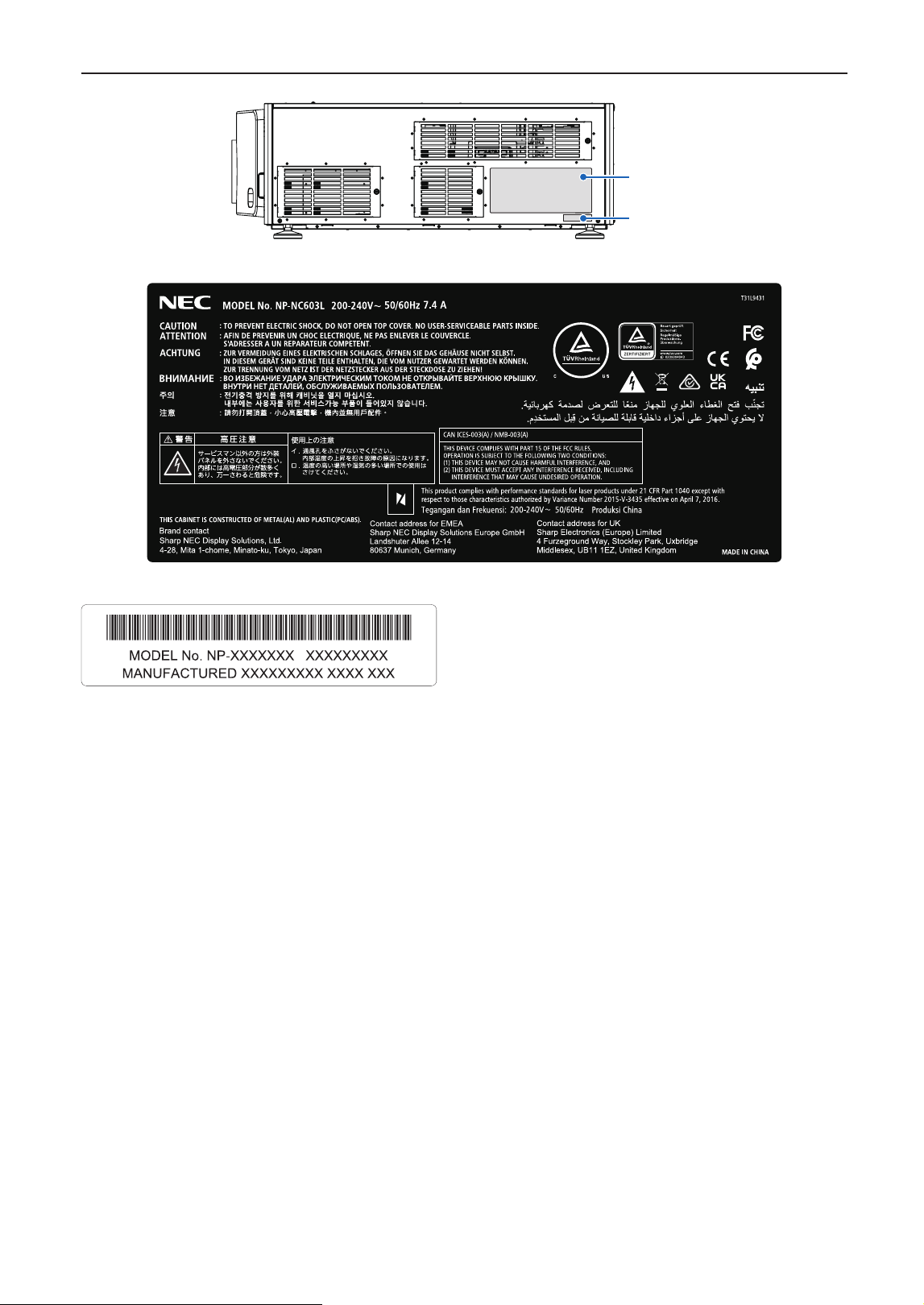

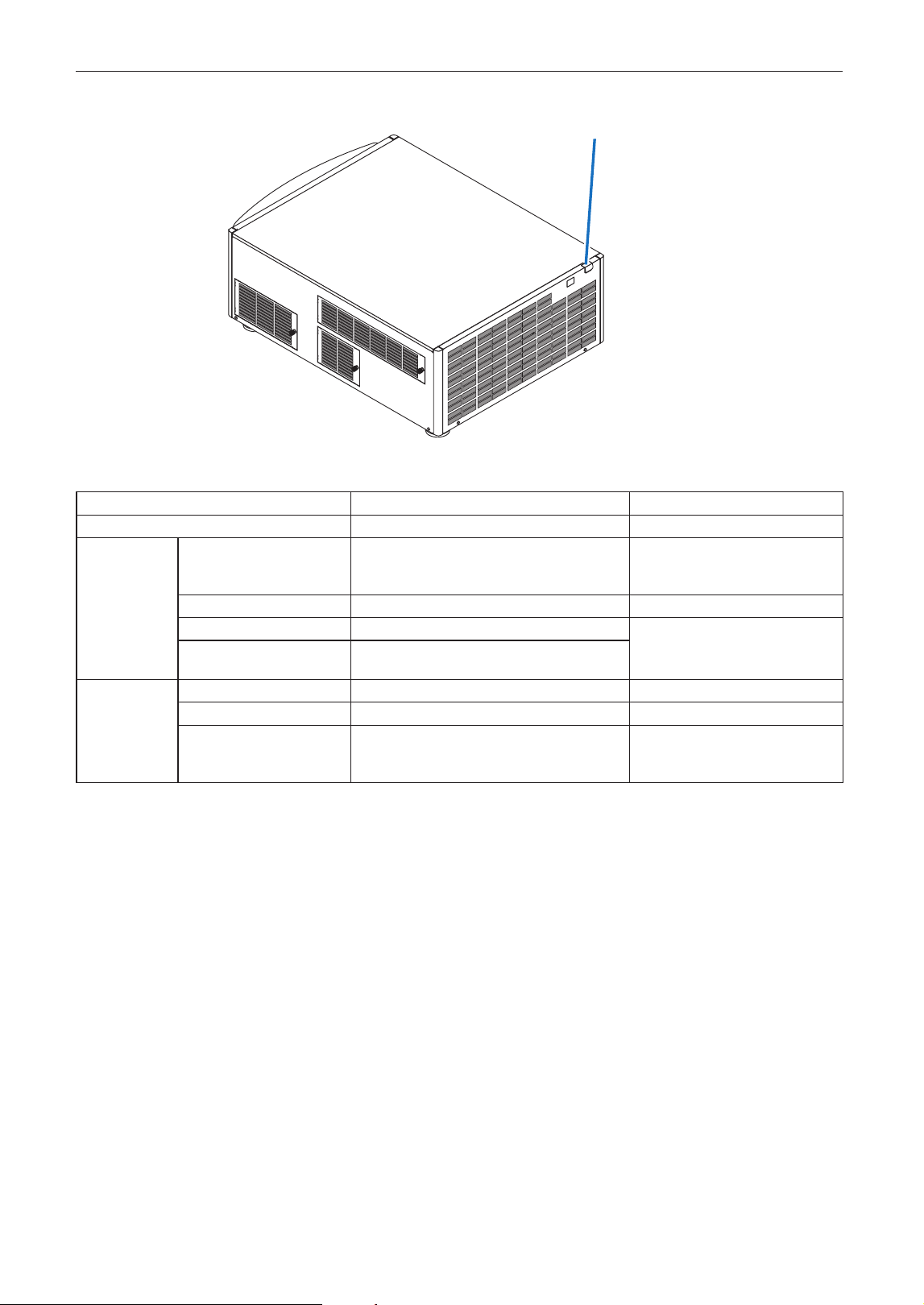

Label Information
Label A
About the laser module used in the light source
• This product has a built-in laser module. Control and adjust-
ment procedures other than those described in this document
may result in exposure to hazardous laser radiation.
• This product is classified as a Class 1 of Laser Product Safety
Standard JIS C 6802: 2018, IEC 60825-1 3rd Edition: 2014.
This product is classified as Risk Group 3 of IEC/EN 62471-5
1st Edition: 2015.
• This product complies with performance standards for laser
products under 21 CFR Part 1040 except with respect to those
characteristics authorized by Variance Number 2015-V-3435
effective on April 7 2016.
[Overview of the built-in laser]
Wave length: Blue 449–471 nm
Maximum power: Blue 385 W
The explanatory label of the laser product is put on the top of the
projector.
CLASS 1 LASER PRODUCT
WARNING RG3 PRODUCT
• No direct exposure to the beam shall be permitted.
• Do not look into the projector’s lens. Serious damage to
your eyes could result.
• Not for household use.
• Operators shall control access to the beam within the haz-
ard distance and install the product at the height that will
prevent exposures of spectators’ eyes within the hazard
distance.
Label A: Laser Explanatory and Risk Group / Lamp
Safety Label
8
Important Information
Label B
Label C
Label B
Label C
9
Important Information
Laser radiation range/No entry range (HD: Hazard distance)
• The below table describes the radiation range of emitted light by the projector that is classified as Risk Group 3 (RG3)
of IEC/EN 62471-5 First edition 2015.
• Please keep within bounds for installing the projector.
• Install a barrier for preventing human eyes from entering the RG3 area. For the barrier installation position, keep hori-
zontal safety zone over 1 m from the RG3 area. In case to install the projector over head, keep at least 2 m (2.5 m for
USA) distance between the floor surface and the RG3 area.
• This projector must be installed at a height that will prevent your eyes from being exposed within the RG3 zone.
The equipment administrator (operator) must control the entry of viewers into the RG3 zone.
NP-NC603L (IEC/EN 62471-5 First edition 2015)
Lens RG3 HD(m)
Screen size(m)
H V
NP-9LS12ZM1
Wide 0.6 0.49 0.26
Tele 0.8 0.49 0.26
NP-9LS13ZM1
Wide 0.6 0.50 0.26
Tele 1.0 0.50 0.26
NP-9LS16ZM1
Wide 0.8 0.50 0.26
Tele 1.3 0.50 0.26
NP-9LS20ZM1
Wide 1.0 0.43 0.23
Tele 1.9 0.46 0.24
NP-9LS08ZM1
Wide 0.4 0.48 0.25
Tele 0.5 0.47 0.25
10
Important Information
When installed on a floor or a desktop
HD
H
V
Horizontal safety zone: over 1m
RG3 range
RG3 range
Vertical safety zone: over 2m (2.5m for USA)
floor
Horizontal safety zone: over 1m
[Plan view]
[Side view]
When installed on a ceiling
* If lens shift is utilized, please consider the shift of projected image according to the volume of lens shift.
CAUTION
Please heed all precaution for safety.
To install the projector
• For planning the layout of the projector, make sure to take safety measures instructed on the installation manual.
• In order to refuse danger, install either a wall outlet within easy reach for pulling out the power plug in emergency or a device
as a breaker to shut down the power supply to the projector.
• Take safety measures preventing human eyes from entering the RG3 area.
• Considering the installation place, select an appropriate lens and secure safety zone that is determined for each lens. For
operation on the powered projector as light adjustment, make sure appropriate safety measures have been taken.
• Check the validity of taken security measures if appropriate safety zone based on the installed lens is secured. Periodically
check the validity and keep these results.
• Educate the administrator of the projector (operators) about safety before starting to operate the projector.
• This projector is an RG3 product. The projector is for professional use and must be installed in location where safety is
assured. For this reason, be sure to consult your dealer as installation and attachment/detachment of the lens unit must be
performed by a professional service personnel. Never try to install the projector by yourself. This may result in visual impair-
ment etc.
To use the projector
• Instruct the administrator of the projector (operators) to perform inspections before powering on the projector. (Including the
safety check against emitted light by the projector)
• Instruct the administrator of the projector (operators) to be in circumstances able to control the projector whenever the projec-
tor is powered on for an emergency.
• Instruct the administrator of the projector (operators) to keep the installation manual, user’s manual and inspection records to
a place where they can take these documents out easily.
• Instruct them to clarify if the projector is conformed to standards of each country and region.
11
Table of Contents
Important Information ..................................................................... 2
1. What’s in the Box? and the Names of the Projector Parts
.......... 12
1-1. Features ....................................................................................................................................................................12
1-2. What’s in the Box? ................................................................................................................................................... 14
1-3. Names of the Projector Parts ...................................................................................................................................15
2. Installation and Connection ....................................................... 21
2-1. Steps for setting up and connecting ........................................................................................................................ 21
2-2. Connecting the Power Cable ................................................................................................................................... 22
2-3. Connecting the image input terminals ..................................................................................................................... 27
2-4. Connecting the various control terminal .................................................................................................................27
3. Projection of Images (Basic Operation) ...................................... 28
3-1. Steps of projecting images .......................................................................................................................................28
3-2. Turning your projector on ......................................................................................................................................... 29
3-3. Selecting the title of input signal .............................................................................................................................. 31
3-4.
Adjusting the position and the size of projected screen .............................................................................................................. 32
3-5. Preventing misoperations .........................................................................................................................................36
3-6.
Turning on/off the light with the projector turned on ....................................................................................................... 37
3-7. Turning your projector off .........................................................................................................................................38
4. Using Menus ............................................................................. 39
4-1. Basic operation with adjustment menus .................................................................................................................. 39
4-2. Table of adjustment menus ...................................................................................................................................... 44
4-3. Title Select ................................................................................................................................................................ 45
4-4. Configuration ............................................................................................................................................................ 46
4-5. Title Setup ................................................................................................................................................................ 48
4-6. Information ............................................................................................................................................................... 48
5. Maintenance of Your Projector .................................................. 52
5-1. Cleaning the Cabinet ................................................................................................................................................ 52
5-2. Cleaning the Lens ..................................................................................................................................................... 53
5-3. Cleaning the Air Filters ............................................................................................................................................. 53
6. Appendix ................................................................................... 58
6-1. Troubleshooting ........................................................................................................................................................ 58
6-2. Indicator display list .................................................................................................................................................. 59
6-3. Operation using an HTTP browser ........................................................................................................................... 62

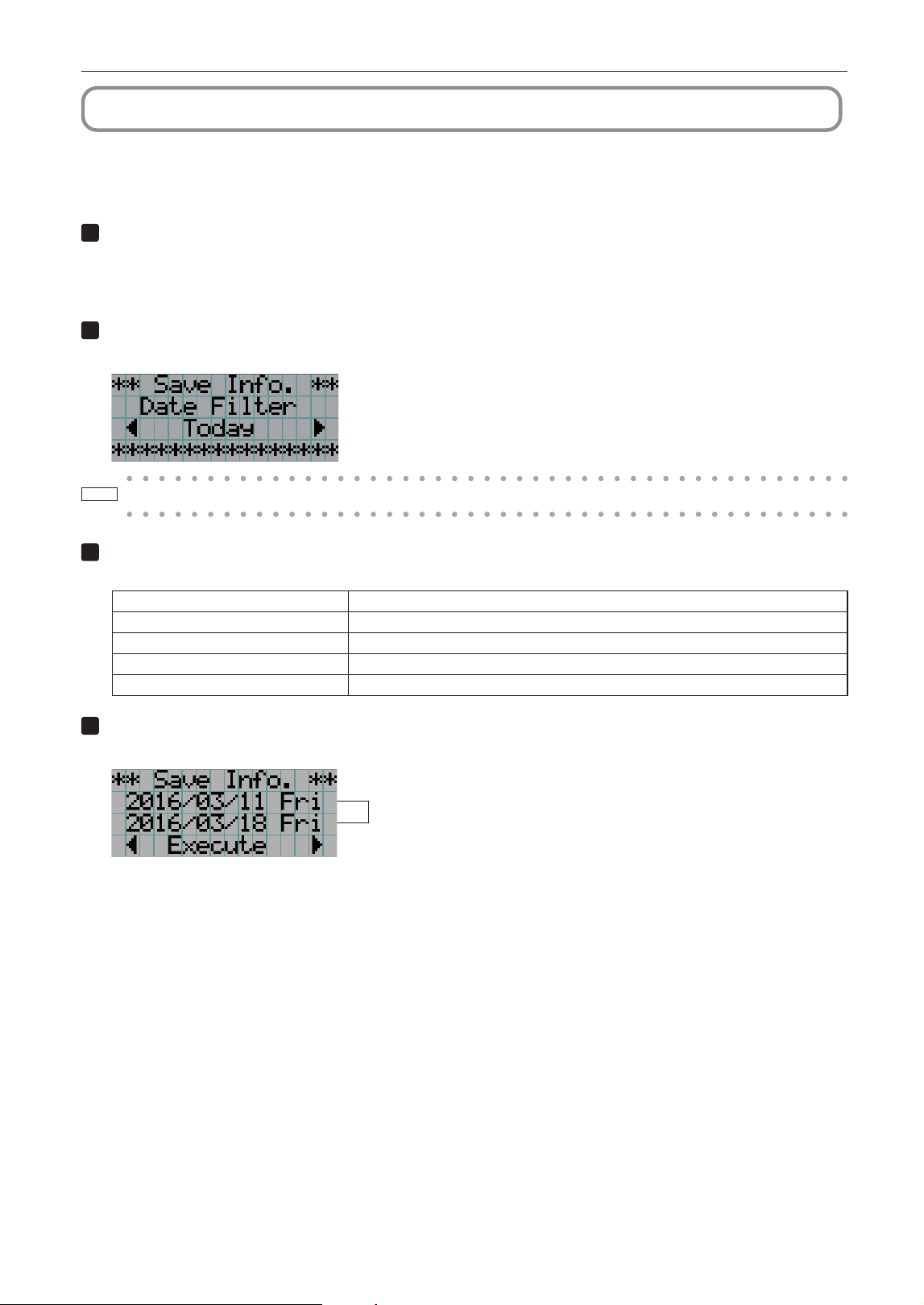

6-4. Writing of the log file (Save Information)...................................................................................................................64
6-5. Outline Drawing ........................................................................................................................................................ 67
6-6. Specifications ........................................................................................................................................................... 68
6-7. Power Cable ............................................................................................................................................................. 69

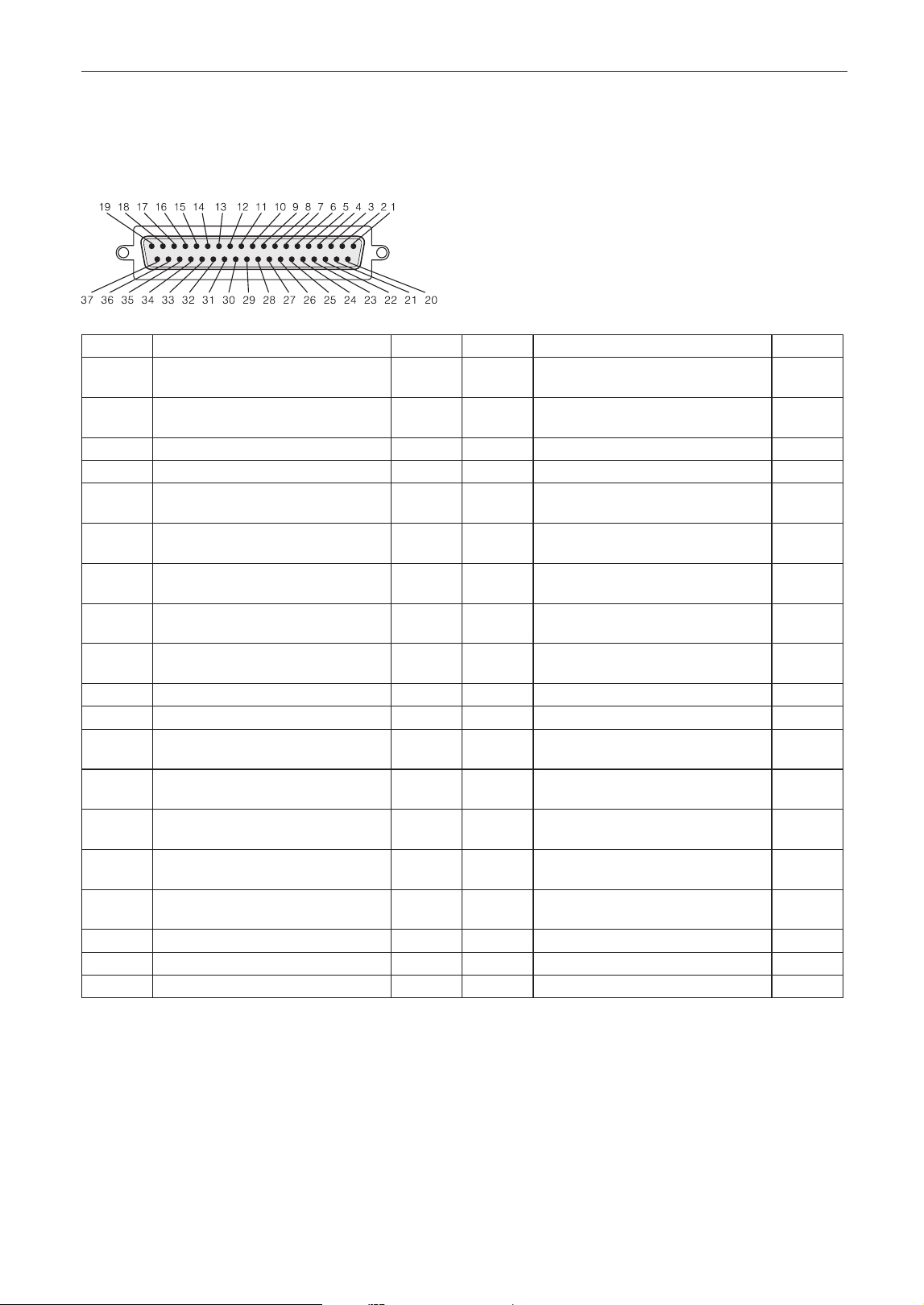

6-8. Pin Assignment and Functions of Terminal
.............................................................................................................. 71
6-9. Related products list ................................................................................................................................................78
12
1.
What’s in the Box? and the
Names of the
Projector Parts
1-1. Features
• DLP Cinema
®
projector
Complies with the strict projection standards defined by the Digital Cinema Initiatives (DCI) industry group in the United States using
leading imaging technology. It also supports 3D projection and high frame rates (HFR).
• Employs a long life laser light source
The projector employs a newly developed laser light source offering excellent reliability and redundancy. Since the laser light source
has a long life, this delivers low cost operation by removing the need for maintenance such as replacing and adjusting the light
module over extended periods of time. Furthermore, it reduces the risk of the light source suddenly shutting off and leaving a black
screen.
• Delivers reduced installation space and increased freedom through a more compact and lightweight body
The use of a 0.69" DLP cinema chip together with integration of the light module into the projector main unit both delivers a reduced
installation area as well as improving the degree of freedom of installation, such as removing the need to connect to external ventila-
tion ducting and supporting both pedestal-mounted and ceiling-suspended installation. A wide variety of optional lenses (sold sepa-
rately) are also available for the projector in order to support a wide variety of installation methods (a lens is not mounted when the
projector is shipped from the factory).
• Equipped with easy to use functions
(1) Lens memory function and light memory function that can be operated with one touch.
The projector is equipped with a lens memory function that can save the zoom position and shift position of the lens and a light
memory function that can save the brightness setting separately for each input signal. This makes it possible to project using
preconfigured settings simply by selecting the signal when projecting multiple different input signals each with different screen
size and brightness settings (Refer to “6-9. Related products list” (page 78) for details on the lenses that support the lens
memory function).
(2) Built-in automatic adjustment function that makes the brightness and color of the light source uniform
Degradation of brightness and variations in color that occur as the light source is used for longer periods of time are kept to a
minimum (the period over which variations in brightness can be limited varies depending on the brightness setting).
13
1. What’s in the Box? and the Names of the Projector Parts
(3) Frequently used titles can be registered in preset buttons
The projector has been equipped with 8 preset buttons that make it easy to select registered title (input signal). To this projector,
100 titles at most can be registered (input signal registration). Among the registered titles, any 16 titles can be assigned to the
preset buttons.
(4) You can operate and configure the projector via a network from a PC
You can operate and configure the projector via a network from a PC by using the separately supplied software Digital Cinema
Communicator (DCC) V2.
• Advanced Dust Protection
A dust control shield is arranged between each DMD chip of R, G and B, and the spectroscopic/condenser prism. It prevents
dust and dirt in the air, and oily particles in smoke associated with event halls from coming into contact with the face of the
DMD and causing operating problems.
• Reduced running cost thanks to the use of metal filters
The filters are made of metal, so they can be used repeatedly and do not have to be replaced when performing periodic
cleaning.
This not only reduces running costs, but also contributes to preserving the environment since no spent filters are discarded.
14
1. What’s in the Box? and the Names of the Projector Parts

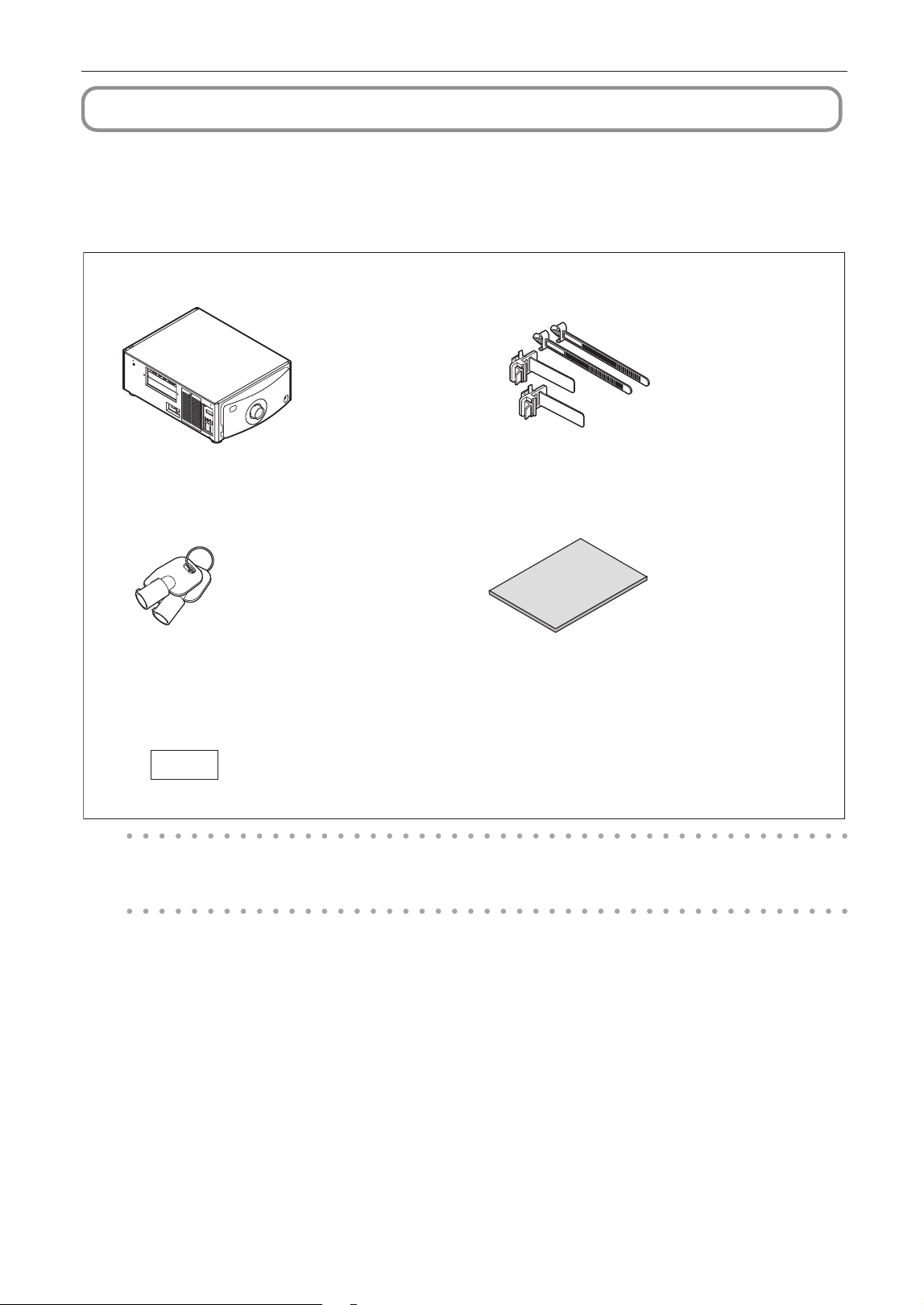

1-2. What’s in the Box?
Check the content of the accessories.
1-2-1. Projector
Projector
Service Keys x 2
Warranty (for Japan)
Important Information
Power cable stopper
In the event that you did not receive all of the accessories outlined above, or some are damaged, contact your dealer/
distributor.
Differs slightly from the drawings in this manual, but there is no problem in actual use.
[TIP]
15
1. What’s in the Box? and the Names of the Projector Parts
1-3. Names of the Projector Parts

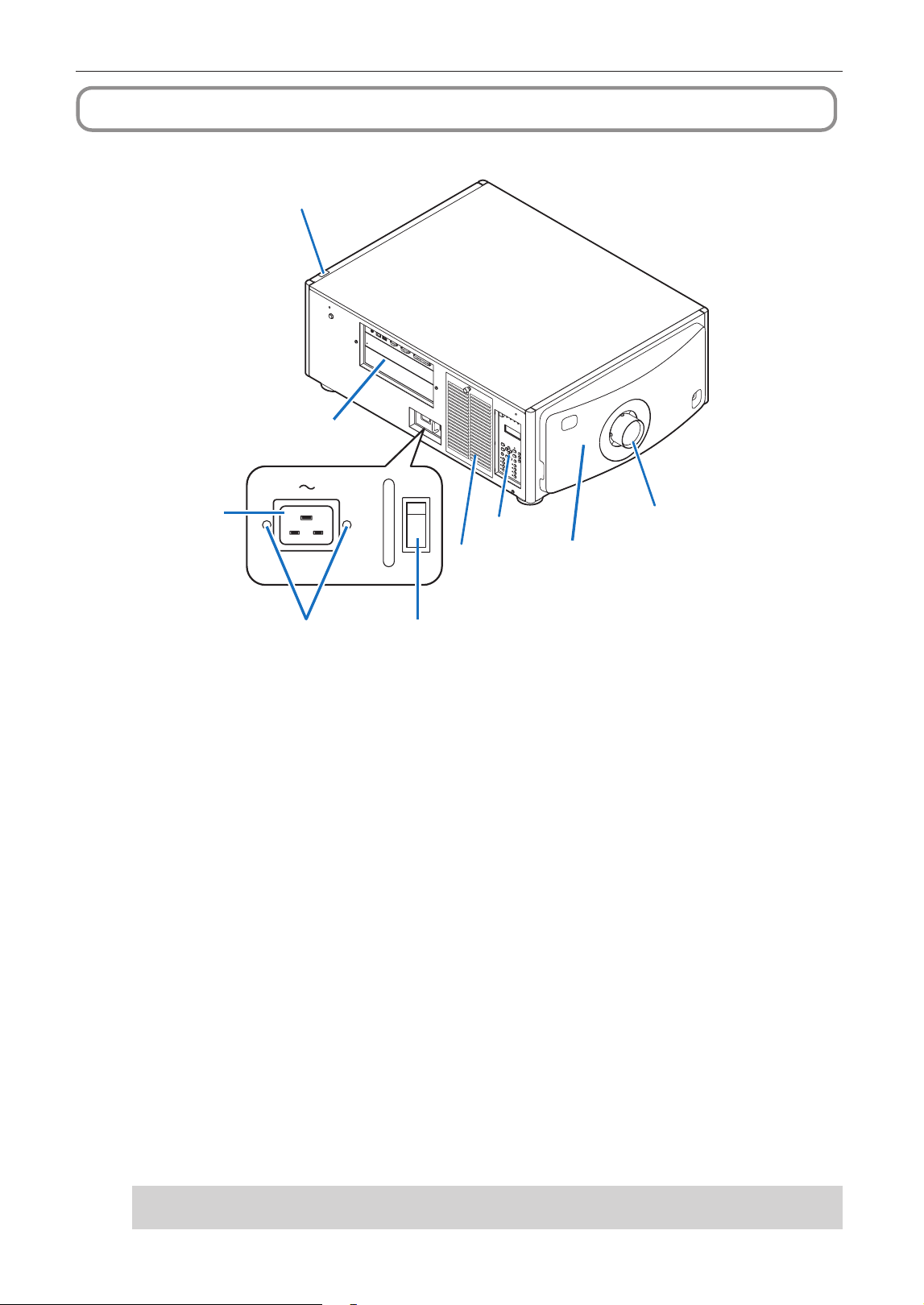

1-3-1. Front of the projector
1
6
8
9
3
4
2
7
5
1. SYSTEM status indicator
These indicate the status of the projector. When the projector is operating normally, these light/blink in green or orange. When
an error occurs, they light/blink in red. When an error occurs, check the contents of the display on the LCD screen. (See page
61)
2. Main power switch
While AC power is being supplied, set the main power switch to ON position (1), then your projector will enter a standby state.
3. Power cable stopper
Prevents the power plug from falling out from the projector.
4. AC input
Connects to the AC power cable. The AC power cable is not an accessory. Consult with your dealer/distributor about the AC
power cable.

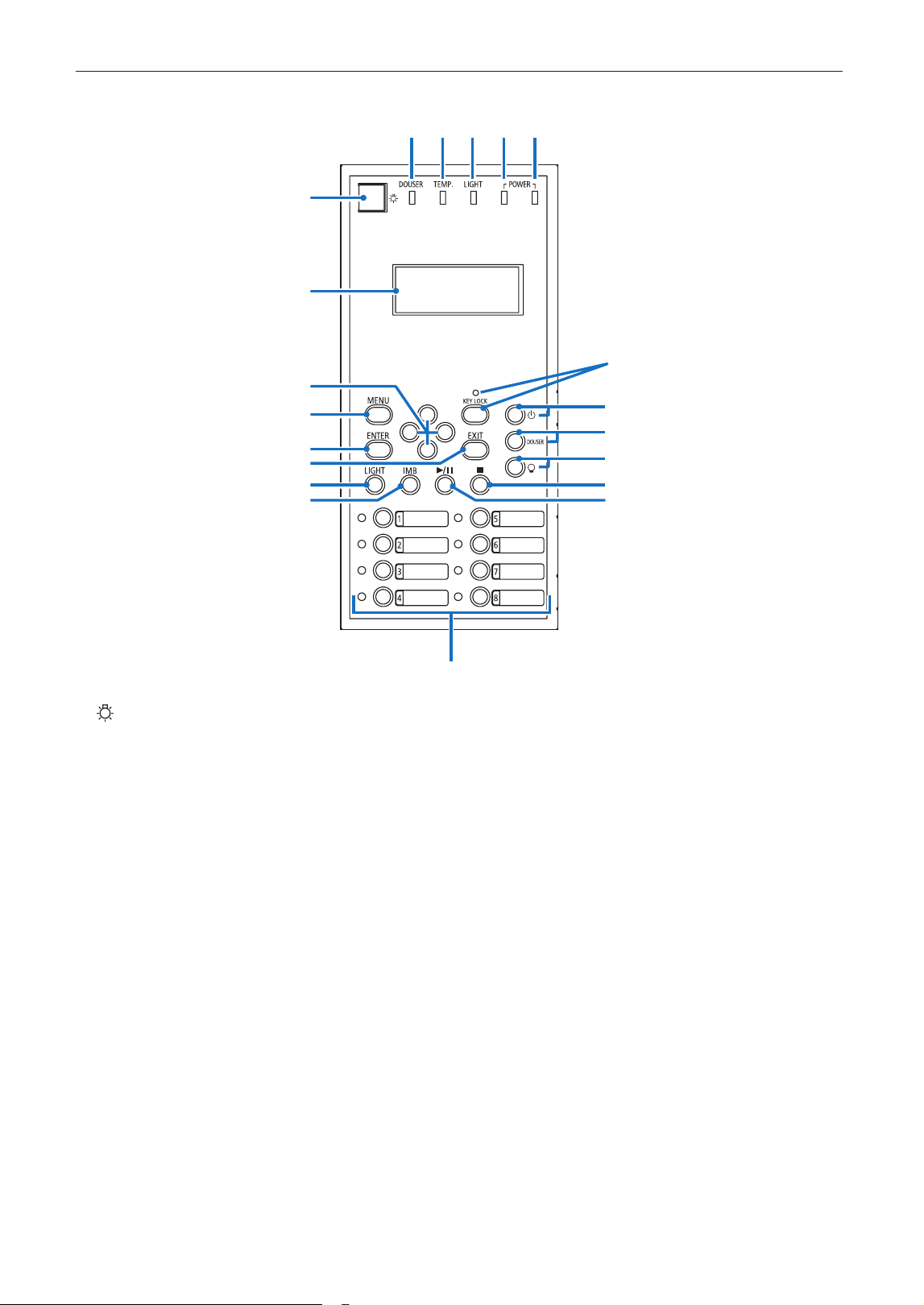

5. Control panel
On the control panel, power to your projector is turned on or off, titles are selected, and various adjustments are made of pro-
jected screen. (See page 19)
6. Connection terminals
Various image signal cable are to be connected here. (See page 18)
You can expand signal input terminals by installing the optional board.
Contact your dealer/distributor for more information on separately sold optional products.
7. Air inlet
The air inlet for cooling inside the projector. Do not cover. An air filter is attached over the air inlet to prevent dust.
8. Remote interlock connector (inside front of projector)
This port is for safely using the laser in this device. It is used to externally control the laser illumination in the projector. Consult
with your dealer/distributor about using this.
9. Lens (optional)
Images are projected from the lens. Request your dealer/distributor to install or replace the lens.
[NOTE]
Do not cover the air inlets and outlet while the projector is in operation. Insufficient ventilation leads to a rise of the
internal temperature and may cause a fire or malfunction.
16
1. What’s in the Box? and the Names of the Projector Parts
1-3-2. Rear of the projector
1
3
2
1. Air inlet
The air inlet for cooling inside the projector. Do not cover. Air filters are attached over the air inlet to prevent dust.
2. Buzzer (inside rear of projector)
The buzzer rings when the power is turned on or an error has occurred.
3. Air outlet
The air outlet to exhaust heat inside the projector. Do not cover.
[NOTE]
Do not cover the air inlets and outlet while the projector is in operation. Insufficient ventilation leads to a rise of the
internal temperature and may cause a fire or malfunction.
17
1. What’s in the Box? and the Names of the Projector Parts
1-3-3. Bottom of the projector
1
2
2
1. Handle (4 locations)
Handles for moving the projector.
2. Level adjusters (in 4 positions)
In the ordinary installation, you can adjust the projector inclination at 4 positions.
18
1. What’s in the Box? and the Names of the Projector Parts
1-3-4. Connection terminals
1 2 3 4 5
6
7
1. Service terminal (REMOTE) (Stereo mini)
This terminal is used for service purpose only.
2. Ethernet port (LAN) (RJ-45)
The port for interfacing with an image signal server or controlling the projector from a PC via a network. Connect the projector
and the PC with a commercially available Ethernet cable (10/100Base-T).
3. USB port (USB) (type A)
The port for the projector maintenance.
4. PC control terminal (RS-232) (D-sub 9P)
The terminal for operating the projector from a PC via an RS-232C or for service personnel to set data for the projector. Connect
the projector and the PC with a commercially available RS-232C straight cable.
5. 3D terminal (3D) (D-sub 15P)
The terminal for connecting a 3D image system to the projector. (See page 77)
6. External control terminal (GP I/O) (D-sub 37P)
The terminal for externally controlling the projector or connecting a 3D image system to the projector. (See page 72)
7. Slot
The slot is used for an image media block (IMB). Contact your dealer/distributor for an installation of IMB.
Refer to the IMB instruction manual for details on IMB.
19
1. What’s in the Box? and the Names of the Projector Parts

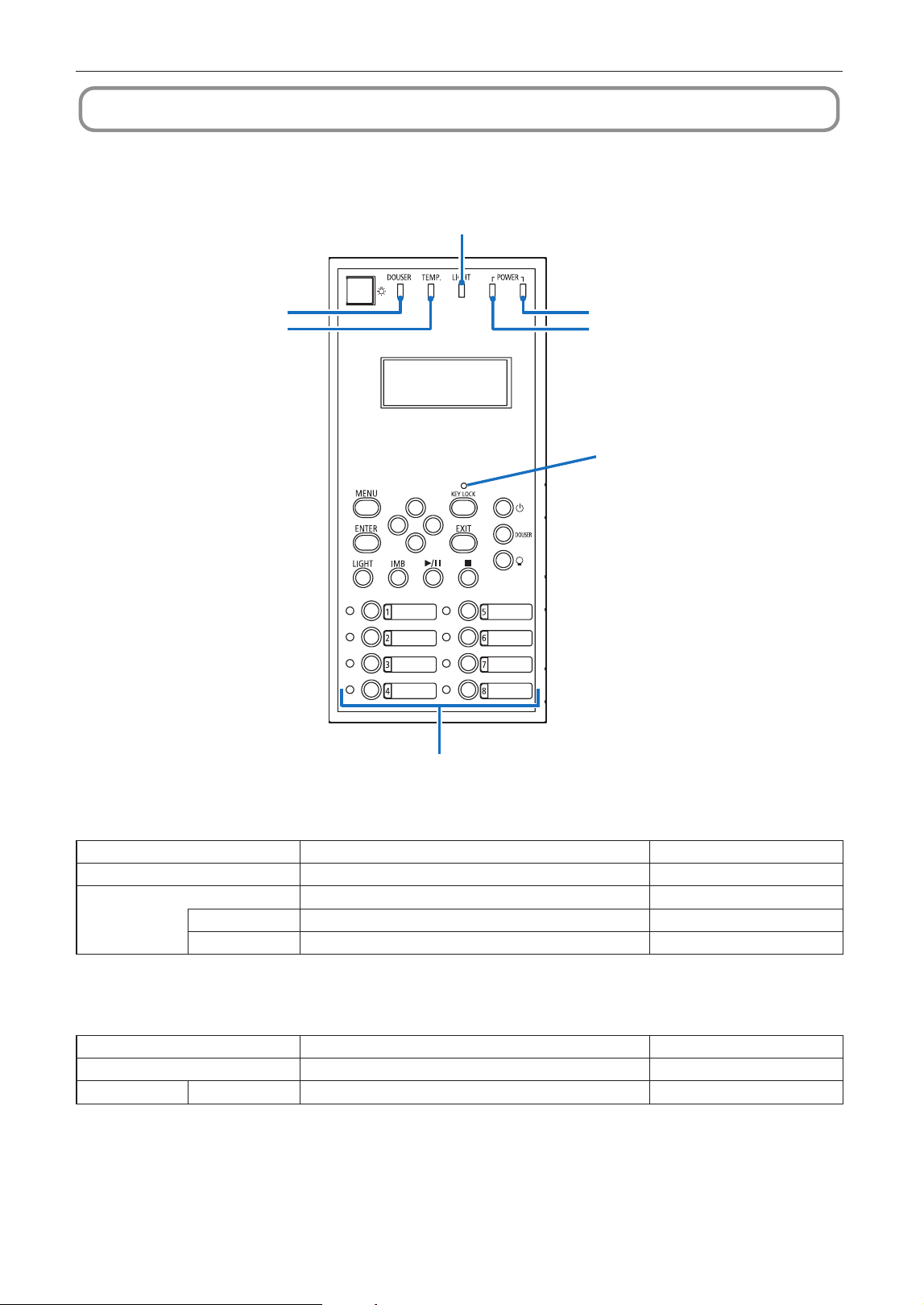

1-3-5. Control panel
2 3 4 5
6
10
11
14
13
1
7
8
9
16
17
12
14
15
19
18
20
1. button (Light button)
Toggles ON and OFF the light on the control panel of the projector and the backlight on the LCD screen.
2. DOUSER indicator
Displays the douser open/close state. (See page 60)
3. TEMP. indicator
Displays the status of the temperature inside the projector. It blinks or lights up when the temperature inside the projector
rises close to the operating temperature limit or exceeds the operating temperature. (See page 60)
4. LIGHT indicator
Displays the status of the light source. The indicators turn on when the light source is on and turn off when the light source
is off. (See page 60)
5. POWER indicator
Displays the status of the power after the projector software has been started. (See page 60)
6. POWER (BOOT) indicator
Displays the status that the projector software is starting after the main power switch has been turned ON (see page 60).
It goes off once the projector software startup and internal check are completed.
7. LCD screen
The LCD screen displays menus and setting values for the projector operations.
8. UP/DOWN/LEFT/RIGHT buttons
Press these buttons to select a menu item while a menu is displayed.
9. MENU button
Press this button to display the menu for various settings and adjustments. (See page 44)
10
. ENTER button
Press this button to select the menu item.
20
1. What’s in the Box? and the Names of the Projector Parts
11
. EXIT button
Press this button to return to the previous menu item.
12
. KEY LOCK button
Press this button to lock (KEY LOCK) the buttons on the control panel. Buttons on the control panel do not function while KEY
LOCK is on.
Pressing the KEY LOCK button for one second or longer while KEY LOCK is off locks the buttons.
Pressing the KEY LOCK button for one second or longer while KEY LOCK is on unlocks the buttons. (See page 36)
[NOTE]
KEY LOCK becomes automatically on if no control panel operation takes place in the standby state for 30 seconds
by default. (See page 36)
13
. button (POWER button)
Press this button for more than three seconds to turn on or off (standby) the projector. (See page 60)
In order to start up the projector, turn on the main power switch for the projector to set the projector in the standby state. (See
page 29)
14
. DOUSER button
Press this button to open and close the douser. (See page 60)
15
. button (LIGHT ON/OFF button)
Press this button for five seconds or longer to turn on or off the light source while the projector is on. (See page 37)
16
. LIGHT button
Press this button to display the light source adjustment menu. (See page 35)
17
. IMB button (planned to be supported in a future update)
This button is operable when the media block is installed in the projector.
Press this button to display the operation menu of the media block.
18
. Play/pause button (planned to be supported in a future update)
This button is operable when the media block is installed in the projector.
Press this button to play or pause the image contents.
19
. Stop button (planned to be supported in a future update)
This button is operable when the media block is installed in the projector.
Press this button to stop playing the image contents.
20

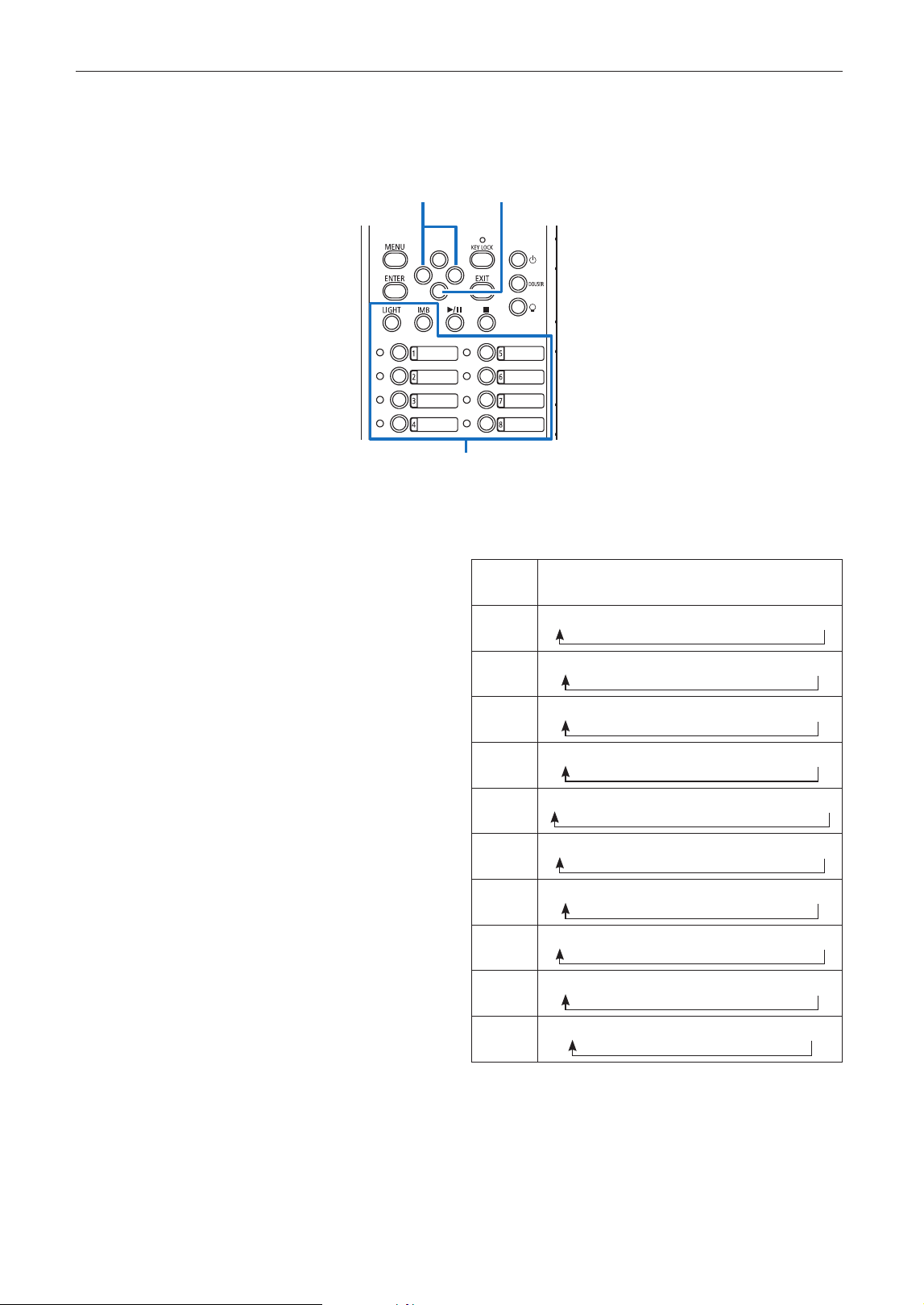

. Preset buttons
Press the preset button to select a title (input signal) assigned to each button. Up to 100 titles (input signals) can be registered
to this projector, and any 16 titles from them can be assigned to the preset button. Please request your dealer to register and
change the titles of the buttons as required.
The preset button indicators show their assigned title or selection status. (See page 59)
TIP
To select a title allocated to one of the preset buttons, use the following procedure.
• To select a title allocated to one of “Preset Button1” to “Preset Button8”
Press the button which corresponds to the number of the preset button (button <1> to <8>).
- Press the <1> button to select the “Preset Button1”.
- Press the <8> button to select the “Preset Button8”.
• To select a title allocated to one of “Preset Button9” to “Preset Button16”
Press the preset button (button <1> to <8>) while holding down the UP button.
- Press the <1> button while holding down the UP button to select the “Preset Button9”.
- Press the <8> button while holding down the UP button to select the “Preset Button16”.
21
2-1. Steps for setting up and connecting
Use the following steps for setting up your projector:
• Step 1
Setup the screen and projector. (Contact your dealer to carry out the setup.)
• Step 2
Connect the power cable to the projector. (See page 22)
• Step 3
Connect cables to the image input terminals. (See page 27)
Connect cables to the various control terminals. (See page 27)
2.
Installation and
Connection
22
2. Installation and Connection
2-2. Connecting the Power Cable
The power cable is not included with the projector. Use a power cable that meets the standards and power supply voltage of the
country where you are using the projector. Ask your dealer for the power cable to select and purchase.
WARNING
Carefully read the contents described in this section before connection and connect the cables according to the proper proce-
dure. Inappropriate handling may cause fatal, serious or other bodily injuries due to fire or electric shock.
CAUTION
• Before connecting the power cables, check that the main power switch of the projector is turned off. Implement the connec-
tion with AC power shut off.
• Be sure to ground the equipment to ensure safety. Use a power cable that meets the standards and power supply voltage of
the country where you are using the projector (page 69), and always connect the equipment to the ground. If the ground
is not connected, it may cause electrical shocks.
• When connecting the power cable plugs to the AC IN and the electrical outlet, securely insert the plugs all the way in. If the
connection between the power cable plug and the electrical outlet is loose, the plug area may generate heat, causing burns
and accidents.
CAUTION
• This equipment is designed to be used in the condition of the power cord connected to earth. If the power cord is not con-
nected to the earth, it may cause electric shock. Please make sure the power cord is connected to the wall outlet directly and
earthed properly.
Do not use a 2-core plug converter adapter.
[NOTE] • Install the electric outlet nearby the projector main unit so that the power supply can be cut by unplugging the
AC power cable.
• When plugging in or unplugging the AC power cable, make sure that the main power switch is pushed to the [O]
position. Failure to do so may cause damage to the projector.
• Do not use a three-phase power supply. Doing so may cause malfunction.
23
2. Installation and Connection
1
Connect the AC power supply cable.
Connect the AC power supply cable to the projector.
AC input
2
Connect the power plug to the electrical outlet.
This completes the connection of the AC power supply cable.
24
2. Installation and Connection
Using the supplied power cable stopper
To prevent the power cable from accidently removing from the AC IN of the projector, attach the supplied power cable stopper to
clamp the power cable.
CAUTION
• To prevent the power cable from coming loose, make sure that all the prongs of the power cable are fully inserted into the AC
IN terminal of the projector before using the power cable stopper to fix the power cable. A loose contact of the power cable
may cause a fire or electric shock.
• Do not bundle the power cable. Doing this could cause heat or a fire.
[NOTE] • Do not clamp the power cable with other cables. Doing so can generate noise, which can affect adversely the
signal cable.
• Be careful not to insert the band inversely. Once the band is attached, it cannot be removed from the slot.
Attaching the power cable stopper
1
Insert the end of band of the power cable stopper into the slot next to the AC IN on the ter-
minal panel.
2
Pass each band through the slits in the power cable stopper.
Pass the bands through them so that the power cable will be sandwiched from above and below.
band
25
2. Installation and Connection
3
Slide the clamper to the hilt of the power cable.
Pulling the knob in the arrow direction allows you to adjust the clamper position.
Once the clamper position is adjusted, release the knob to lock the clamper.
knob
4
Pull the band to hold the power cable.
Pulling the knob in the arrow direction allows you to adjust the band position.
Pull the top and bottom bands by keeping their balance.
Once the band position is adjusted, release the knob to lock.
knob
knob
This completes the attachment of the power cable stopper.
26
2. Installation and Connection
Removing the power cable from the power cable stopper
1
Pull the knob of the clamper and loosen the band.
2
Pull the knob and slide the clamper away from the power plug.
CAUTION
The projector may become hot temporarily when the power is turned off or if the AC power is disconnected while the projector
is projecting. Take care when handling the projector.
27
2. Installation and Connection
2-3. Connecting the image input terminals
Refer to the instruction manual of the IMB for details on connecting the video input ports with external equipment.
2-4. Connecting the various control terminal
For control, your projector comes with such ports as the PC control terminal and the Ethernet port (RJ-45).
• PC control terminal (RS-232) --------- Use this terminal when controlling the projector in serial connection from a PC.
• LAN port (LAN) ------------------------- Use this port when controlling the projector in LAN connection from a PC.
GP I/O3DRS-232
USB
LAN
REMOTE
LAN cable
PC
RS-232C
28
3.
Projection of Images
(Basic Operation)
3-1. Steps of projecting images
• Step 1
Turn on the power to the projector. (See page 29)
• Step 2
Select the title of input signal. (See page 31)
• Step 3
Adjust the position and size of the projected screen. (See page 32)
• Step 4
Turn off the power to the projector. (See page 38)
29
3. Projection of Images (Basic Operation)

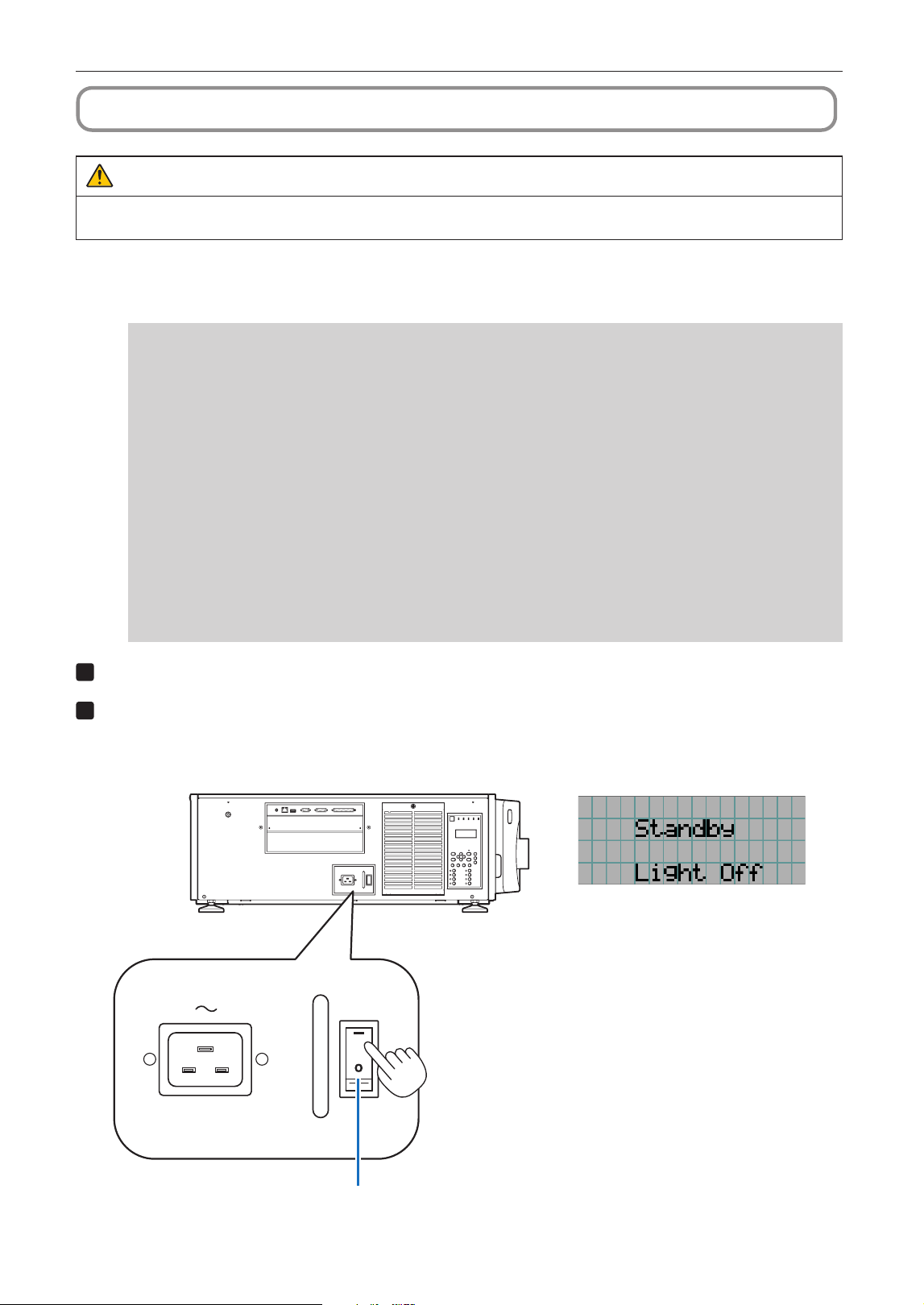

3-2. Turning your projector on
WARNING
The projector produces a strong light. When turning on the power, operate from the side or rear of the projector (outside the
Restriction Zone (HD)). Also, when turning on the power, make sure no one within the projection range is looking at the lens.
Preparation:
• Connect the power cable to the projector (see page 22).
• Supply AC power to the projector.
[NOTE]
• Turn off the main power switch to the projector when supplying or cutting AC power to the projector.
Supplying or shutting down the AC power while the main power switch is on will damage the projector.
• Turning on and off the projector involves a two-step operation; the “main power switch” and the “POWER
button”.
• Turning power on. (See this page)
[1] Turn on the “main power switch” of the projector.
Your projector is set in a standby state.
[2] If KEY LOCK is on, press the KEY LOCK button for one second or longer.
KEY LOCK is off and buttons on the control panel become operable.
[3] Press the POWER button three seconds or longer.
Your projector is turn on.
• Turning power off. (See page 38)
[1] Press the POWER button three seconds or longer.
Your projector is set in a standby state.
[2] Turn off the “main power switch” of the projector.
Your projector is turned off.
1
Remove the lens cap.
2
Turn on the main power switch on the side of the projector.
A buzzer will ring on the projector. The POWER button indicator will blink green and the SYSTEM status indicator will light
orange (standby state). KEY LOCK becomes automatically on if no control panel operation takes place in the standby
state for 30 seconds by default. Buttons on the control panel do not function while KEY LOCK is on. (See page 36)
Main power switch
30

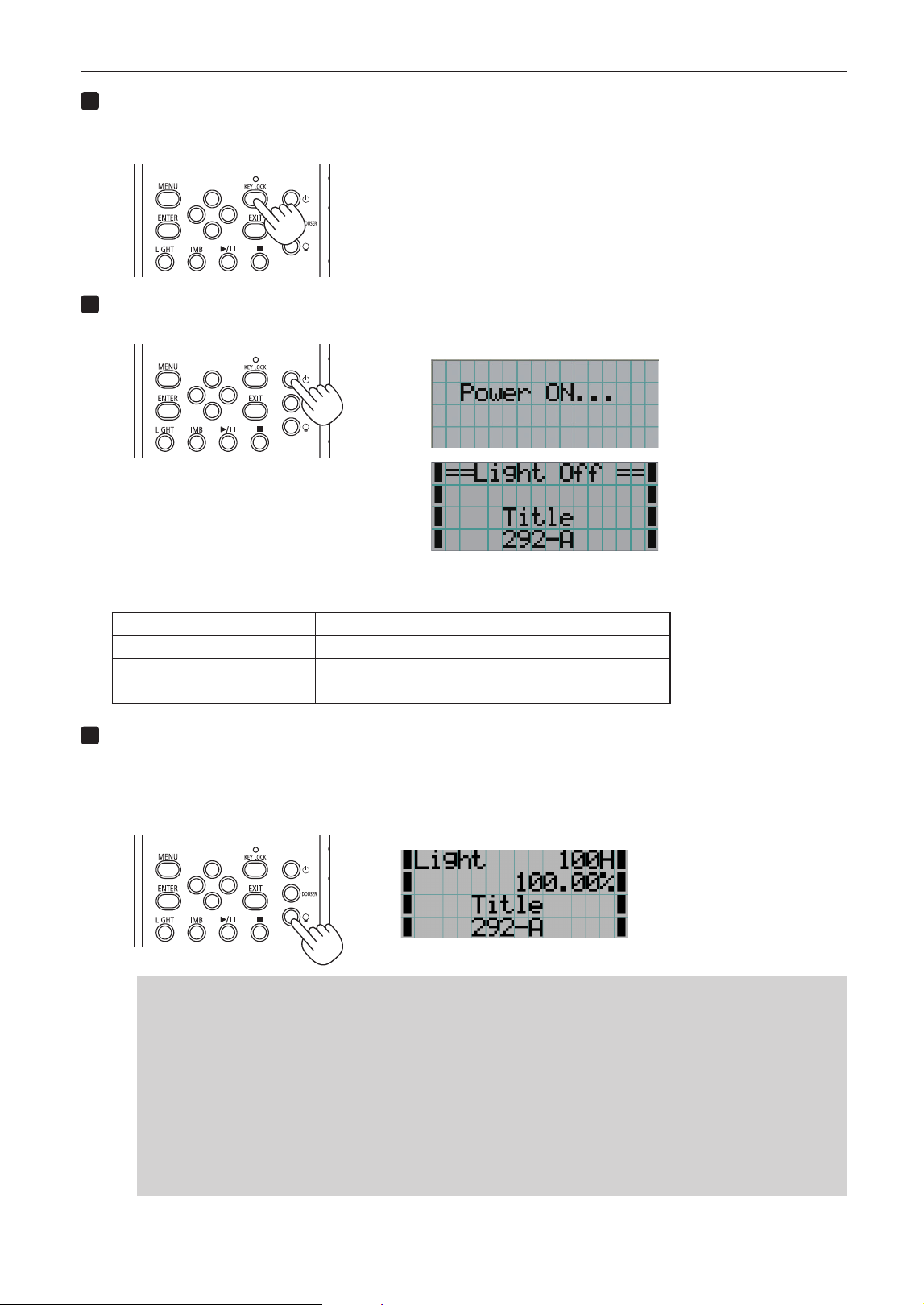

3. Projection of Images (Basic Operation)
5
If KEY LOCK is on, press the KEY LOCK button for one second or longer.
KEY LOCK becomes off. The KEY LOCK button indicator turns off and buttons on the control panel become operable.
(See page 36)
6
Press the POWER button on the control panel of your projector three seconds or longer.
Your projector is turn on.
When the startup of the projector completes, the status of the POWER button, DOUSER button, LIGHT ON/OFF button,
and preset button (button <1> to <8>) changes as follows.
POWER button Lit green
DOUSER button Initial settings: Off (douser is off)
LIGHT ON/OFF button Initial settings: Blinking green (light source is off)
Button <1> to <8> The preset button which was last selected is lit green
7
Press the LIGHT ON/OFF button on the control panel for three seconds or longer.
The light source is turned on and the screen glows light about 15 seconds later.
The LIGHT ON/OFF button indicator blinks in cycles of 2 (and changes to steady green light 90 seconds later).
The douser is closed until the screen glows light (the DOUSER button indicator lights green). When the douser is open,
the DOUSER button indicator turns off.
[NOTE] • While your projector is on, be sure to have the lens cap and glass protector cap removed from the lens.
Otherwise, the lens cap or glass protector cap may get deformed due to a heat buildup.
• In the following instances, the power to your projector cannot be turned on even if you press the POWER
button.
- When the inside temperature is abnormally high. The protective function prevents power from turning on. Wait
some time (until the projector inside cools down) and then turn on the power.
- When the SYSTEM status indicator is blinking in red without the light source lighting up after power-on. Your
projector may be in trouble. Check the error display on the LCD screen and contact your dealer/distributor for
instructions.
• When turning on the projector, ensure that nobody is fac ing towards the lens in the path of the light emitted from
the laser.
31
3. Projection of Images (Basic Operation)

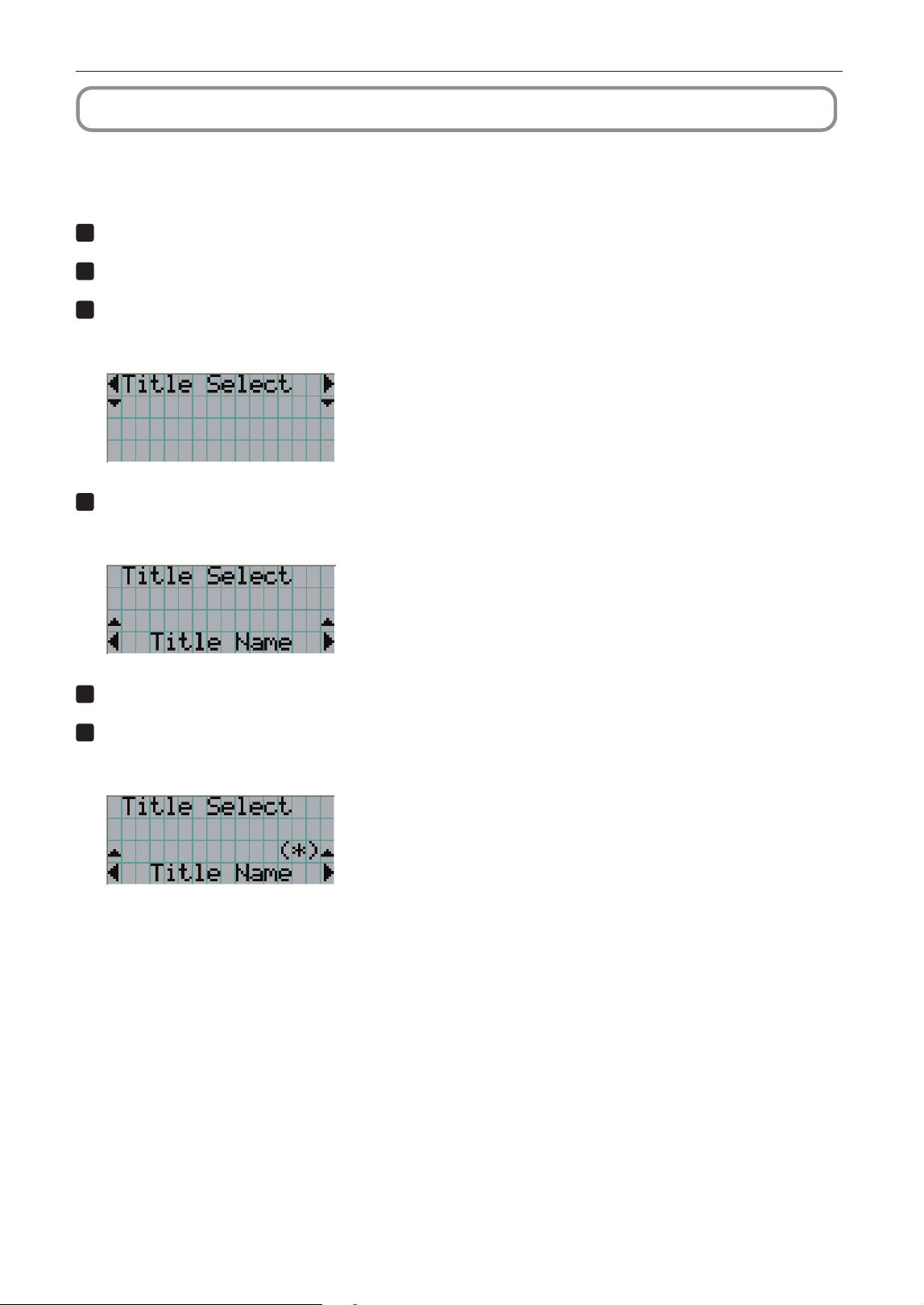

3-3. Selecting the title of input signal
This projector allows you to select pre-registered title (input signal) using the preset buttons on the control panel (up to 16 titles).
Request your dealer/distributor for details on registering and changing titles. This section explains the steps for selecting registered
titles.
1
Turn on the power to the image devices connected to the projector.
2
Press the MENU button.
3
Press the LEFT/RIGHT button to display “Title Select” on the LCD screen.
At each press of the LEFT/RIGHT buttons, the display will cycle as “Title Select” ←→ “Configuration” ←→ “(Title Setup)”
←→ “Information.”
4
Press the DOWN button.
The title of the input signal is displayed.
• When you have made a wrong selection, press the UP button. A return will be made to the previous menu.
5
Press the LEFT/RIGHT buttons to display “Title of Signal to be Projected” on the LCD screen.
6
Press the ENTER button.
The title of the signal to be projected is selected.
• The (*) mark on the LCD indicates that this is the currently selected item.
32

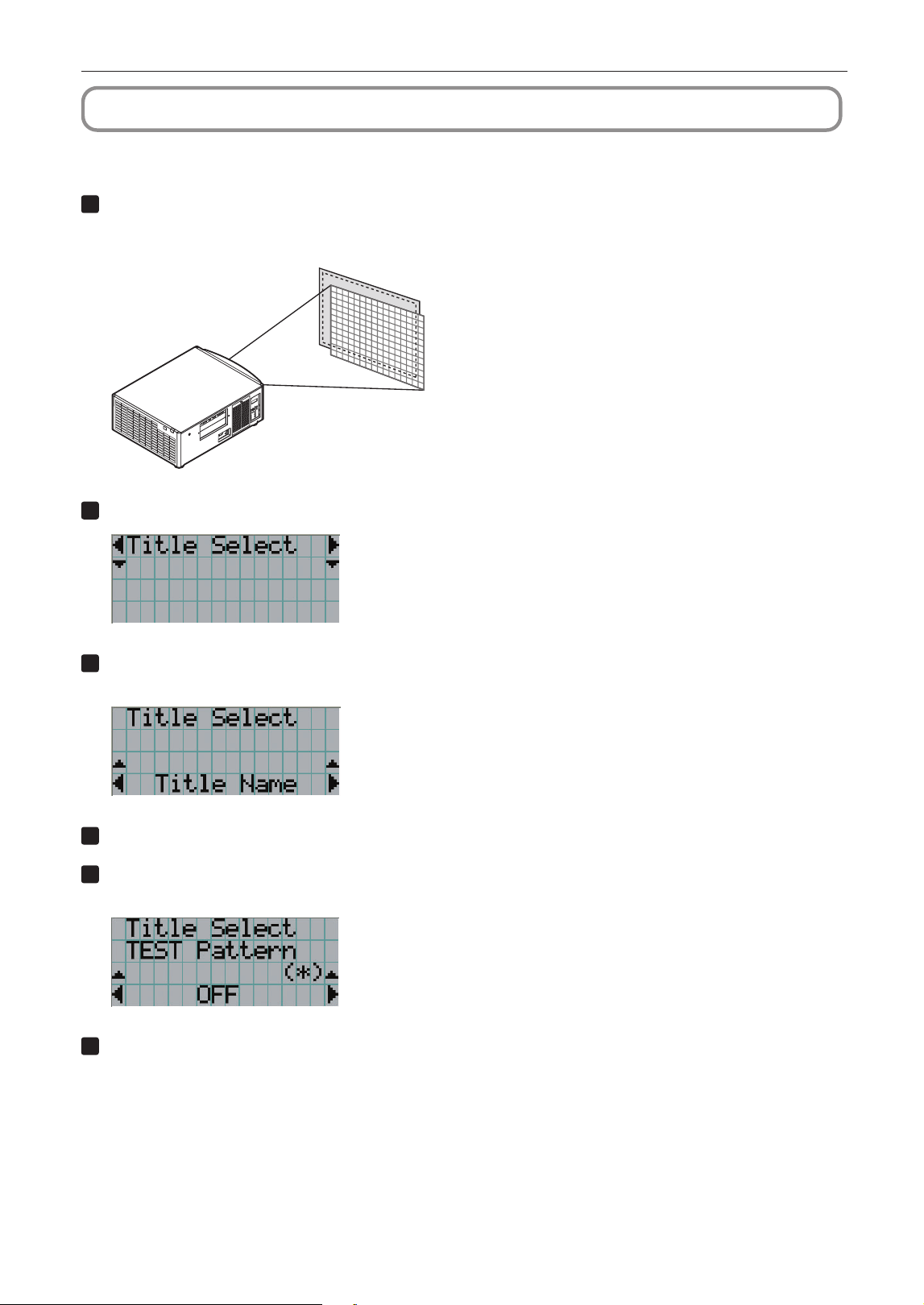

3. Projection of Images (Basic Operation)
3-4.
Adjusting the position and the size of projected screen

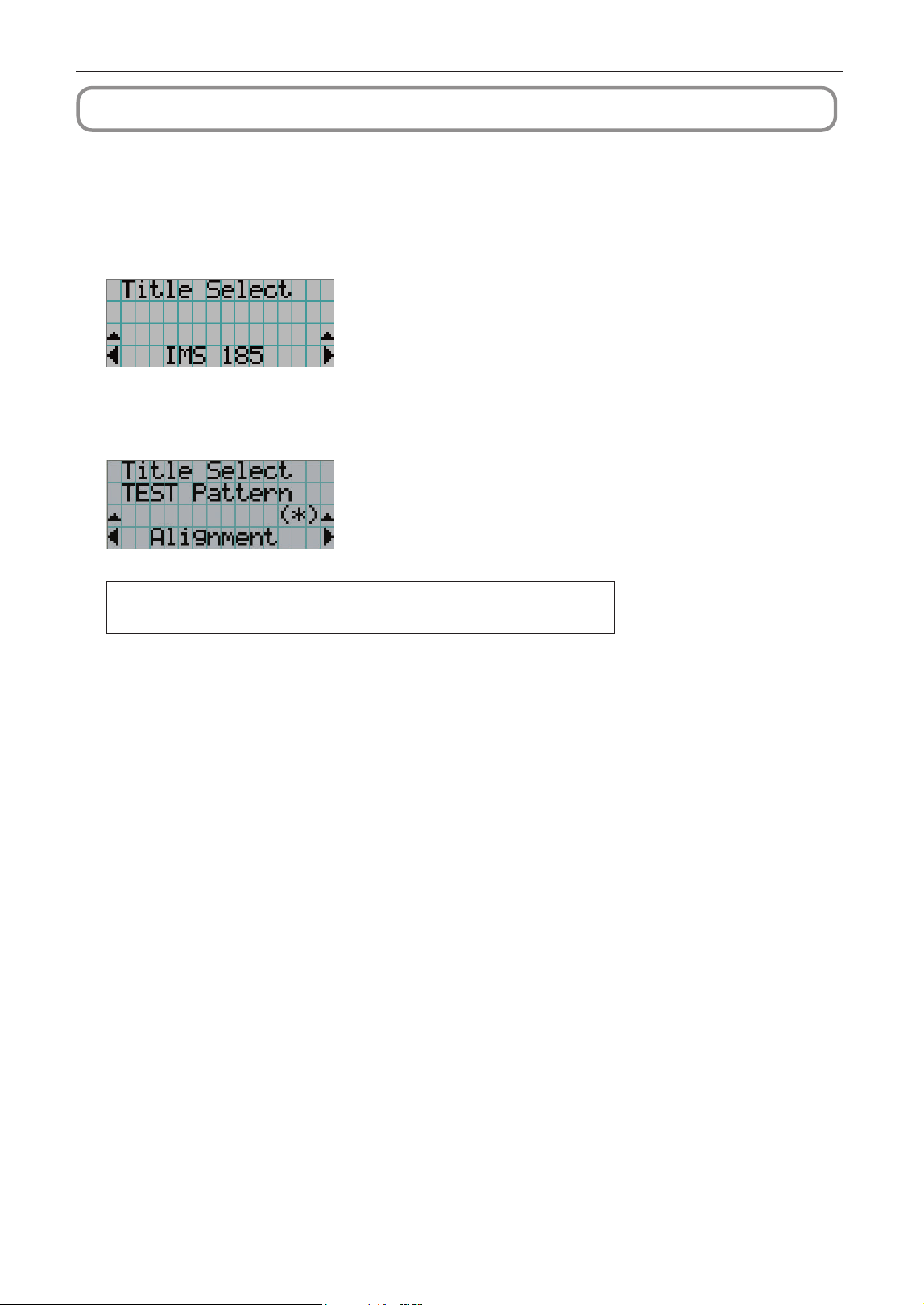

3-4-1. Displaying the test pattern
1
Press the MENU button, or select a test pattern from preset buttons (button <1> to <8>).
If you register the test patterns to the preset buttons (<1> to <8> buttons), select the test pattern according to “3-3.
Selecting the title of input signal (See page 31)”.
2
Press the LEFT/RIGHT button to display “Title Select” on the LCD screen.
3
Press the DOWN button.
The title of the input signal is displayed.
4
Press the LEFT/RIGHT button to display “TEST Pattern” on the LCD screen.
5
Press the DOWN button.
The LCD screen enters the mode where you can select a test pattern.
6
Press the LEFT/RIGHT button.
This switches the test pattern name displayed on the LCD screen.
33

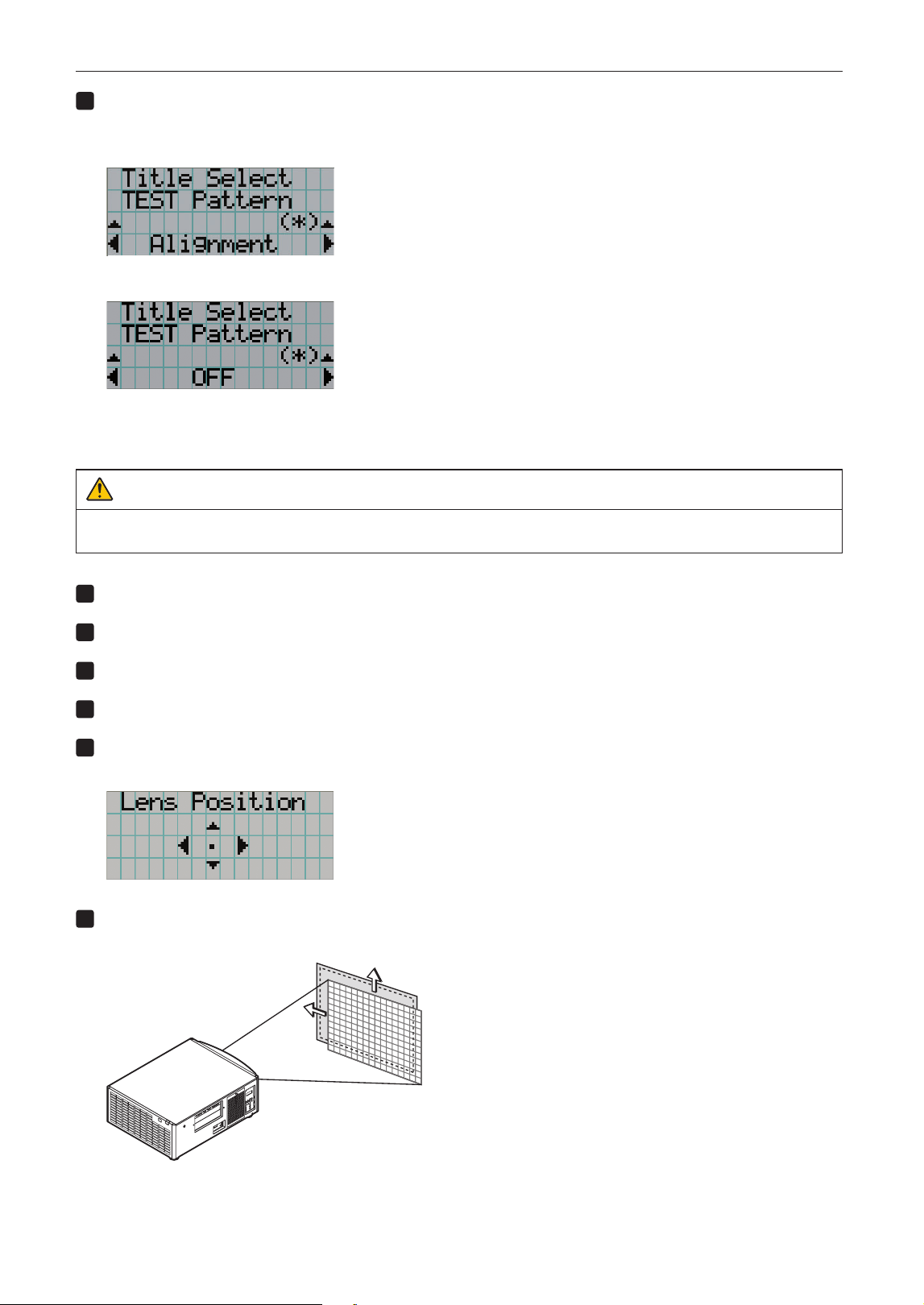

3. Projection of Images (Basic Operation)
7
Display on the LCD the name of the test pattern to be projected, then press the ENTER
button.
The test pattern is displayed.
To cancel the test pattern display, select the title of the signal to project or select the “OFF” test pattern.
3-4-2. Adjusting the position of the projected screen (Lens shift)
CAUTION
• Perform the adjustment from behind or from the side of the projector. If adjustments are performed from the front, your eyes
could be exposed to strong light and get injured.
1
Press the MENU button.
2
Press the LEFT/RIGHT button to display “Configuration” on the LCD screen.
3
Press the DOWN button.
4
Press the LEFT/RIGHT button to display “Lens Control” on the LCD screen.
5
Press the DOWN button.
The screen (“Lens Position”) to adjust the position of the projected screen is displayed.
6
Press the UP/DOWN/LEFT/RIGHT button.
The position of the projected screen moves in the selected direction.
34
3. Projection of Images (Basic Operation)
7
Press the EXIT button when adjustment is complete.
The display will return to a menu one level above (where “Lens Control” is displayed).
3-4-3. Adjustment of the size (zoom) and focus of the projected screen
1
Press the MENU button.
2
Press the LEFT/RIGHT button to display “Configuration” on the LCD screen.
3
Press the DOWN button.
4
Press the LEFT/RIGHT button to display “Lens Control” on the LCD screen.
5
Press the DOWN button.
The screen (“Lens Position”) to adjust the position of the projected screen is displayed.
6
Press the ENTER button.
The screen to adjust the size and focus of the projected screen is displayed.
Press the ENTER button to switch the display between “Lens Position” and “Focus Zoom” adjustments.
ENTER button
7
Adjust the size and focus of the projected screen.
Press the UP/DOWN button to adjust the focus.
Press the LEFT/RIGHT button to adjust the size.
Focus
(UP/DOWN button)
Zoom
(LEFT/RIGHT button)
8
Press the EXIT button when adjustment is complete.
The display will return to a menu one level above (where “Lens Control” is displayed).
35
3. Projection of Images (Basic Operation)

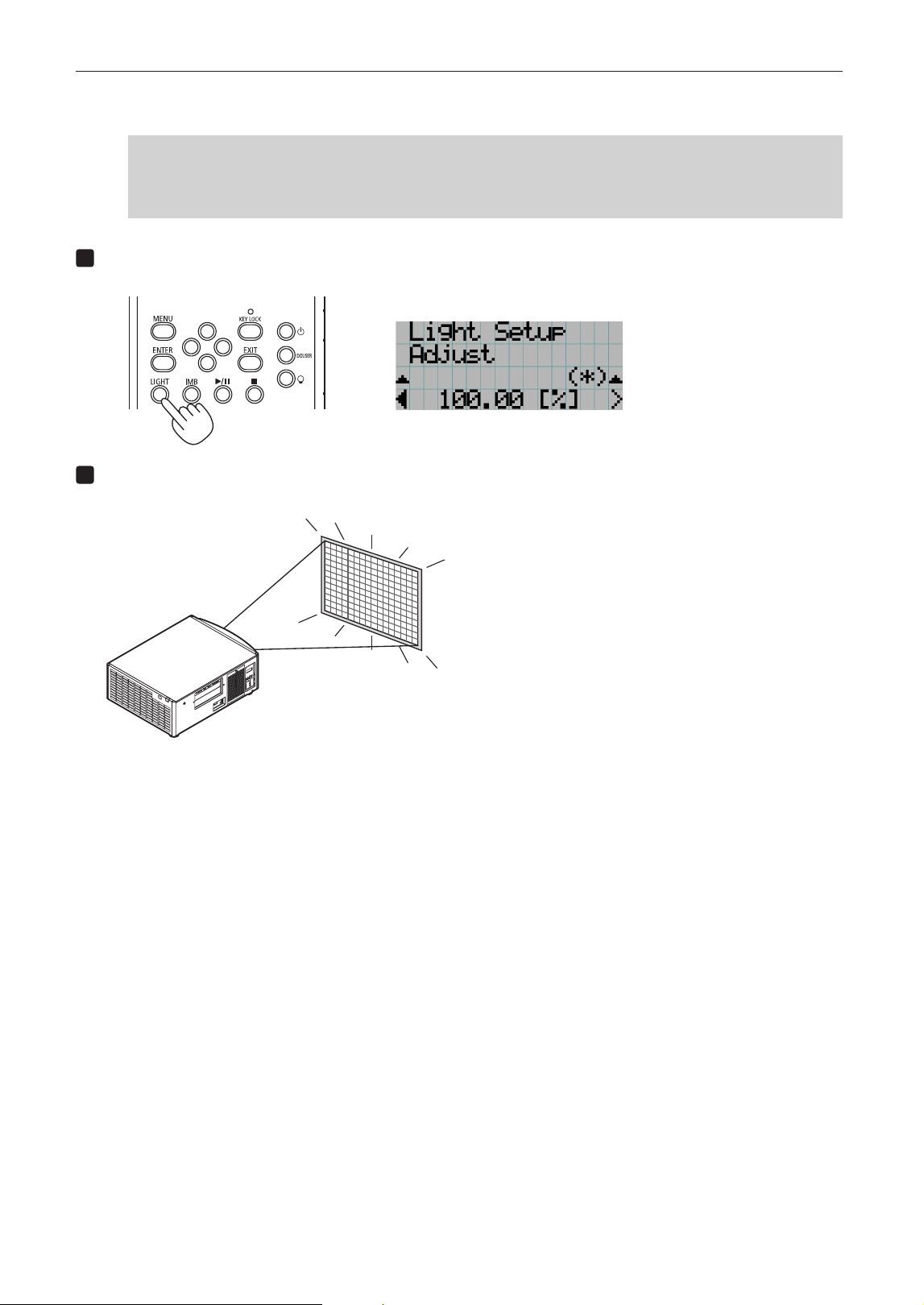

3-4-4. Adjusting the brightness of the projected screen (Light output)
[NOTE]
If the internal temperature within the projector rises due to the temperature in the room being high, the light output
may be automatically reduced. This is called “Thermal Protection Mode (Down Light Power)”. When the projector is
in the Thermal Protection Mode, the picture brightness decreases slightly. To clear Thermal Protection Mode, adjust
the light output. Consult with your dealer/distributor for details.
1
Press the LIGHT button.
The screen to adjust the light output is displayed.
2
Press the LEFT/RIGHT button to adjust the light output.
The specified adjustment value is applied.
36
3. Projection of Images (Basic Operation)
3-5. Preventing misoperations
Buttons on the control panel can be locked (KEY LOCK) to prevent misoperations. Buttons on the control panel do not function
while KEY LOCK is on. KEY LOCK must be off to operate these buttons.
[NOTE]
• KEY LOCK is automatically turned on in the following cases.
- When the projector has entered the standby state by turning on the main power switch of the projector while
the AC power is supplied.
- When the projector has entered the standby state after turning off the power using the POWER button.
• The timing where KEY LOCK is turned on while the projector is in standby state depends on the “Auto Key Lock”
setting in the adjustment menu.
- When Auto Key Lock is enabled, KEY LOCK becomes automatically on if no control panel operation takes
place in the standby state for 30 seconds. KEY LOCK becomes automatically on again even after KEY LOCK
is turned off if no control panel operation takes place for 30 seconds.
- When Auto Key Lock is disabled, KEY LOCK becomes automatically on when the projector enters the standby
state; however, it stays off after KEY LOCK is turned off.
3-5-1. KEY LOCK setting
• Press the KEY LOCK button on the control panel for one second or longer.
KEY LOCK becomes on. The KEY LOCK button indicator lights orange. When you press a button on the control panel of
the projector while KEY LOCK is on, “Panel is Locked. (KEY LOCK)” is displayed, and the button will not function. (See
page 40)
3-5-2. Turning KEY LOCK off
• Press the KEY LOCK button for one second or longer while KEY LOCK is on.
KEY LOCK becomes off. The KEY LOCK button indicator turns off.
37
3. Projection of Images (Basic Operation)
3-6.
Turning on/off the light with the projector turned on
3-6-1. Turning off the light
• Press the LIGHT ON/OFF button on the control panel for three seconds or longer.
3-6-2. Turning on the light
• Press the LIGHT ON/OFF button on the control panel for three seconds or longer.
38
3. Projection of Images (Basic Operation)
3-7. Turning your projector off
1
Press the POWER button on the projector control panel for three seconds or longer.
The light is turned off, the POWER button indicator blinks green, and the STATUS indicator blinks orange (cooling state).
The fan will continue to rotate while cooling, and the amount of time remaining for cooling is displayed on the LCD screen.
The cooling-off time is 90 seconds.
When the cooling is finished, the POWER button indicator turns off and the status indicator lights orange (standby state).
KEY LOCK becomes automatically on if no control panel operation takes place in the standby state for 30 seconds by
default. Buttons on the control panel do not function while KEY LOCK is on. (See page 36)
2
Wait till the projector enters standby state before turning off the main power switch of the
projector.
The POWER button indicator is turned off and the main power is turned off.
3
Turn off the AC power to the projector.
NOTE
In the following instances, do not turn off the main power switch or disconnect the AC power. Doing so can damage
the projector.
• While projecting images
• While the fan is running after the power is turned off
- While the projector is cooling down after the power was turned off.
- When using the IMB: 90 seconds
- During IMB operation (when the projector is not in the standby mode)
39

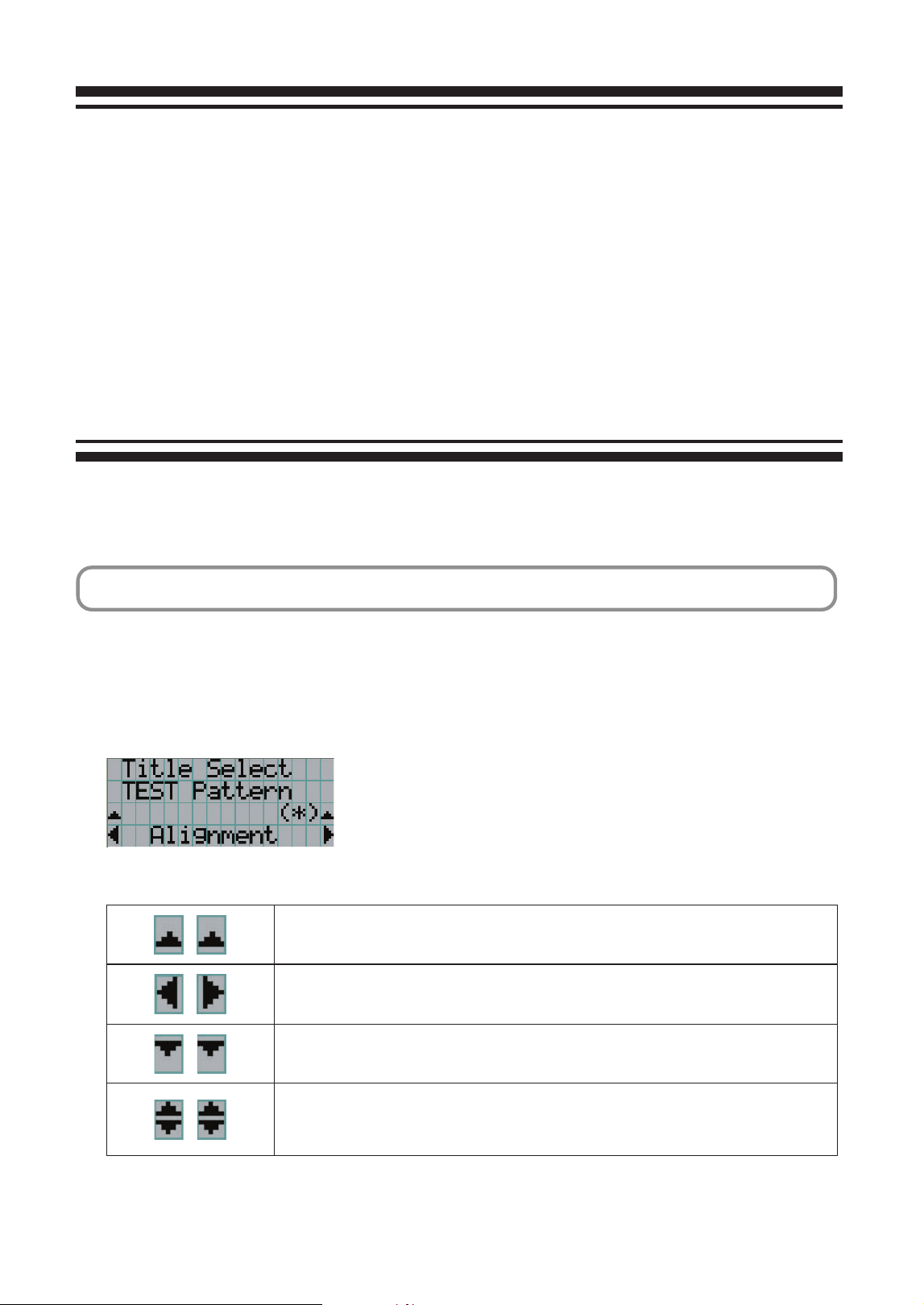

4.
Using Menus
4-1. Basic operation with adjustment menus
To adjust the projector, display the menu on the LCD screen of the projector control panel.
4-1-1. Screen display
The menu display screen is composed of a menu display field (the upper two lines) and a setting item display field (the bottom two
lines).
← Displays the main menu or submenus.
← Displays submenus or selection items.
← Displays settings and selection status.
← Displays settings, selected items and information on selected menus.
The meanings of symbols in the menu display screen are outlined below.
Indicates that there is a menu of a higher level.
Press the UP button to return to a menu one level above.
Indicates that there is a selected item or menu at the same level.
Press the LEFT/RIGHT button to display other selected items or menus.
Indicates that there is a menu of a lower level.
Press the DOWN button to display the menu one level below.
Indicates that there are setting items of a higher or lower level.
Press the UP button to return to a menu one level above.
Press the DOWN button to display the setting item one level below.
40
4. Using Menus
When not displaying menus, the following screen is normally displayed.
When in standby
When the projector is in a standby state (the main power switch in on), the following is displayed.
When power is turned on
When the power is turned on, the following is displayed.
← Displays the light mode and light output (%).
← Displays the light usage time.
← Displays the selected title.
← Displays the selected video input port.
When the power is turned off
When you press the POWER button on the control panel of the projector for 3 or more seconds, the projector starts cooling. When
cooling finishes, the projector enters the standby mode. The amount of time remaining for cooling is displayed as shown below
during cooling.
When a button is pressed while the key lock function is on
If a button on the control panel is pressed while the key lock function is on, the following is displayed and the button will not
function.
41
4. Using Menus

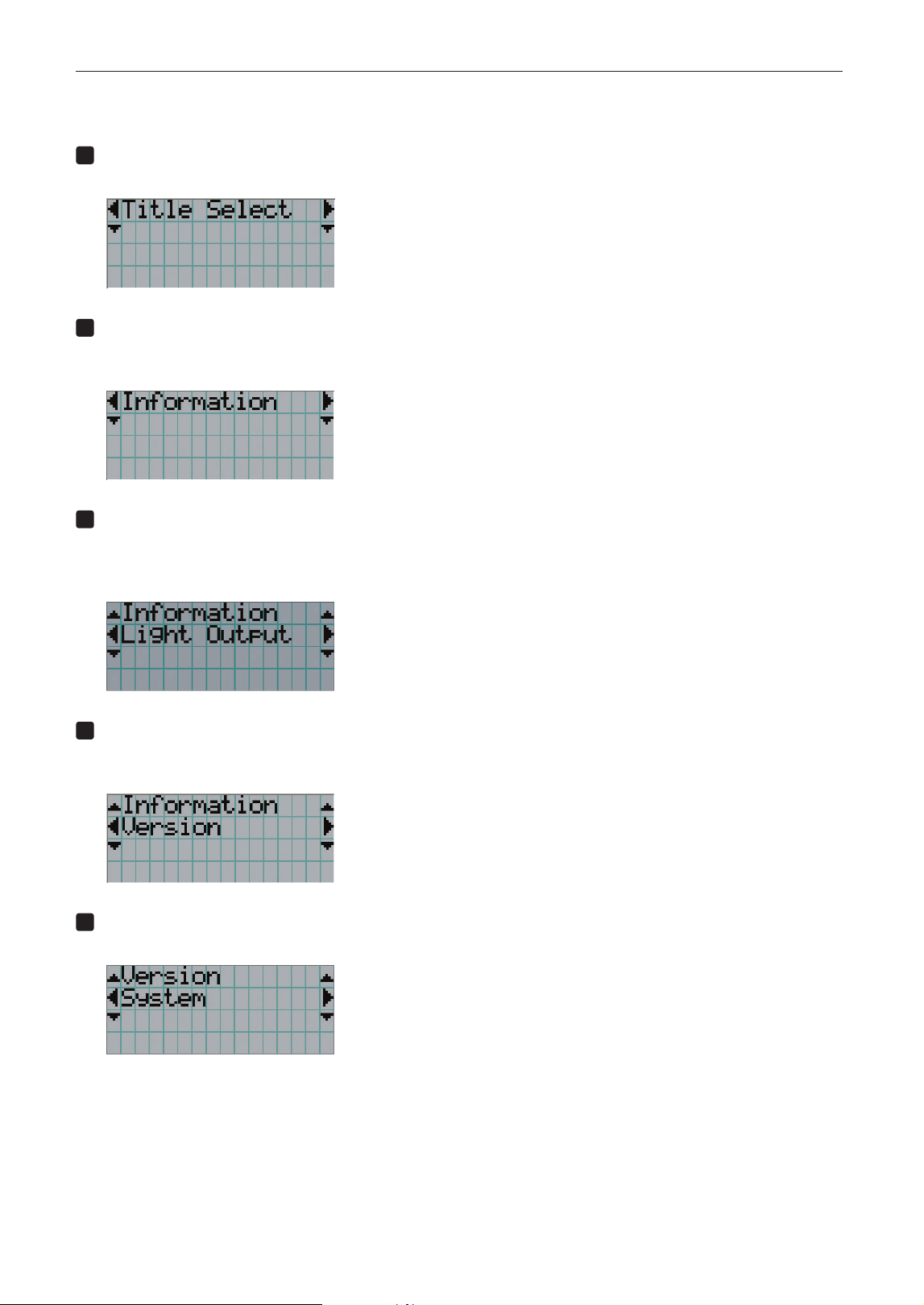

4-1-2. Operating menus
Preparation: Turn your projector on. (See page 29)
1
Press the MENU button on the control panel of your projector.
The menu is displayed in the LCD screen.
2
Press the LEFT/RIGHT buttons to display “Information.”
At each press of the LEFT/RIGHT buttons, the display will cycle as “Title Select” ←→ “Configuration” ←→ “(Title Setup)”
←→ “Information.”
3
Press the DOWN button.
The submenu “Light Output” of “Information” is displayed.
The menu item can be selected by pressing the ENTER button instead of the DOWN button.
To return to the previous state, press the UP button, or the EXIT button.
4
Press the LEFT/RIGHT button to select the submenu “Version.”
At each press of the LEFT/RIGHT button, the display will cycle as “Light Output” ←→ “Lens Type” ←→ “Preset Button”
←→ “Usage” ←→ “Error Code” ←→ “Version” ←→ “IP Address” ←→ “Setup Date” ←→ “Option Status.”
5
Press the DOWN button.
The submenu “System” another rank lower than “Version” is displayed.
42
4. Using Menus
6
Press the DOWN button.
The submenu “BIOS” another rank lower than “Model” is displayed.
7
Press the LEFT/RIGHT button to select the submenu “Release Package.”
At each press of the LEFT/RIGHT button, the display will cycle as “Model” ←→ “Serial No.” ←→ “Release Package” ←→
“Kernel” ←→ “U-Boot” ←→ “System Files” ←→ “Cinema Firmware” ←→ “Cinema Data” ←→ “ICP Firmware” ←→ “ICP
ConfigFile” ←→ “FMT FPGA” ←→ “Secure Processor” ←→ “Slave BIOS” ←→ “Slave Firmware” ←→ “Slave Data” ←→
“SSL FPGA” ←→ “LD Driver1” ←→ “LD Driver2” ←→ “LD Driver3” and each version information is displayed.
8
Press the UP button several times.
At each press of the UP button, the display will return to a menu one level above.
43
4. Using Menus
4-1-3. How to enter alphanumeric characters
Alphanumeric characters are entered for items, such as the log file of the specified period is written to USB memory. (See page
64)
Characters can be entered by pressing numeric buttons on the control panel on this projector.
Move right and left
Enter characters
Delete entered characters
Characters can be entered by pressing each button as shown in the following table.
• To delete a character during entry, press the DOWN button.
[Example of Entry]
To enter “XGA” for example, use the following procedure:
(1) Press the “8” button three times.
V → W → X
(2) Press the RIGHT button.
(3) Press the “3” button.
XG
(4) Press the RIGHT button.
(5) Press the “1” button.
XGA
Button Entered character
1
A → B → C → 1 → a → b → c → ! →
2
D → E → F → 2 → d → e → f → “ →
3
G → H → I → 3 → g → h → i → # →
4
J → K → L → 4 → j → k → l → $ →
5
M → N → O → 5 → m → n → o → % →
6
P → Q → R → 6 → p → q → r → & →
7
S → T → U → 7 → s → t → u → ’ →
8
V → W → X → 8 → v → w → x → ( →
LIGHT
Y → Z → / → 9 → y → z → ? → ) →
IMB
* → , → . → 0 → ; → : → + → - →
44
4. Using Menus
4-2. Table of adjustment menus
Menus in parentheses are menus for our service personnel. Normally, these menus cannot be used.
Main menu Submenu Description
Reference
page
Title Select “Title Memory Name” Selects the title of the signal to be projected. 45
TEST Pattern Selects the test pattern to be projected. 45
Configuration Light Setup Adjust Adjusts light brightness. 46
Lens Control Lens Position Adjusts the position of the projected screen. 46
Focus Zoom Adjusts the size and focus of the projected screen. 46
Reset (FactoryDefault) Returns the settings to their default values. Selects between preset buttons
and titles only, LAN settings only and all settings.
-
Filter Cleaning Initializes the air filter usage time (for confirming the filter cleaning time). 47
(Fan Usage) Initializes the usage time of the fan. -
(Light Usage) Initializes the usage time of the light source.
(Phosphor) Initializes the usage time of the phosphor.
(Diffuser) Initializes the usage time of the diffuser.
(Setup) Douser Setup Sets the douser open/close state. -
Panel Key Lock Locks the buttons on the projector’s control panel so that they cannot be
operated.
-
Auto Key Lock Enables or disables Auto Key Lock. -
3D Reference Sets the signal input terminal for a 3D image system (3D terminal or GPI/O
terminal).
Sets the video input port for 3D video systems.
-
Off Timer Sets the time until the projector power is turned off automatically. -
Message Sets the time to display the message indicating the light replacement cycle,
air filter replacement cycle, and air filter cleaning cycle.
-
Silent Mode Selects whether to use the status indicator, buzzer, indicators on the control
panel and backlight.
-
Installation (Note) (Option Slot) Configures the device installed in slot (only when the projector is in
standby mode).
-
(Orientation) Sets the projection method and cooling fan operating mode. -
Lens Type (Note) Sets the type of lens (supports or does not support the lens memory function)
attached to the projector.
-
Lens Calibrate (Note) Performs calibration on lens that support the lens memory function (only
when the projector power is turned on).
-
Lens Center (Note) Moves the lens shift position to the center (only when the projector power is
turned on).
-
(Baudrate) Sets the PC control connector (RS-232) data transmission speed (bps). -
(Date/Time) Sets the date and time on the projector. -
(Fan Speed Mode) Sets the cooling fan operating mode. -
(Service) (Only when the projector is in standby mode)
This is used during shadow adjustment and lens mount adjustment (focus
balance adjustment).
(Memory) Light The content of the selected light memory (light output power value) can be
overwritten with the current settings.
-
Lens The content of the selected lens memory can be overwritten with the current
settings.
-
(Title Setup) Preset Button Preset Button 1–16 Sets the title to be assigned to the preset buttons (<1> to <8> buttons). 48
Information
Light Light Output Displays the light module's brightness (output) setting value.
48
S/N Displays the serial number of the light module.
48
Lens Type Displays the lens type setting. 48
Preset Button
Preset Button 1–16 Displays the titles which are assigned to the preset buttons (<1> to <8>
buttons).
49
Usage Displays information related to projector usage. 49
Error Code Displays the currently occurring error. 49
Version System Displays the model name and various version information about the
projector.
50
IMB Displays the vendor name and version information about the media block
(IMB).
50
IP Address System Displays the IP address of the projector. 50
Setup Date Displays the date when the projector was set up (starting date of the
warranty period).
51
Option Status Displays the link status of the device mounted in slot and projector. 51
(Note) Requires logging into the projector with Advanced User or higher privileges.
45
4. Using Menus
4-3. Title Select
4-3-1. Title select (Title Memory)
Selects the title of the signal to be projected.
You can register up to 100 titles. You can also assign registered titles to the preset buttons (<1> to <8> buttons) on the projector’s
control panel and call them up directly using those buttons.
Request your dealer/distributor for details on registering and changing titles.
← Displays the currently selected item with asterisk (*).
← Selects the title to be projected.
4-3-2. Test Pattern
Selects the test pattern to be projected.
← Displays the currently selected item with asterisk (*).
← Selects the test pattern to be projected.
OFF, Alignment, Cross Hatch, Convergence, Red, Green, Blue, White, Black,
White 50% [IRE], H-Ramp, Logo, MCG CG-TEST
46
4. Using Menus

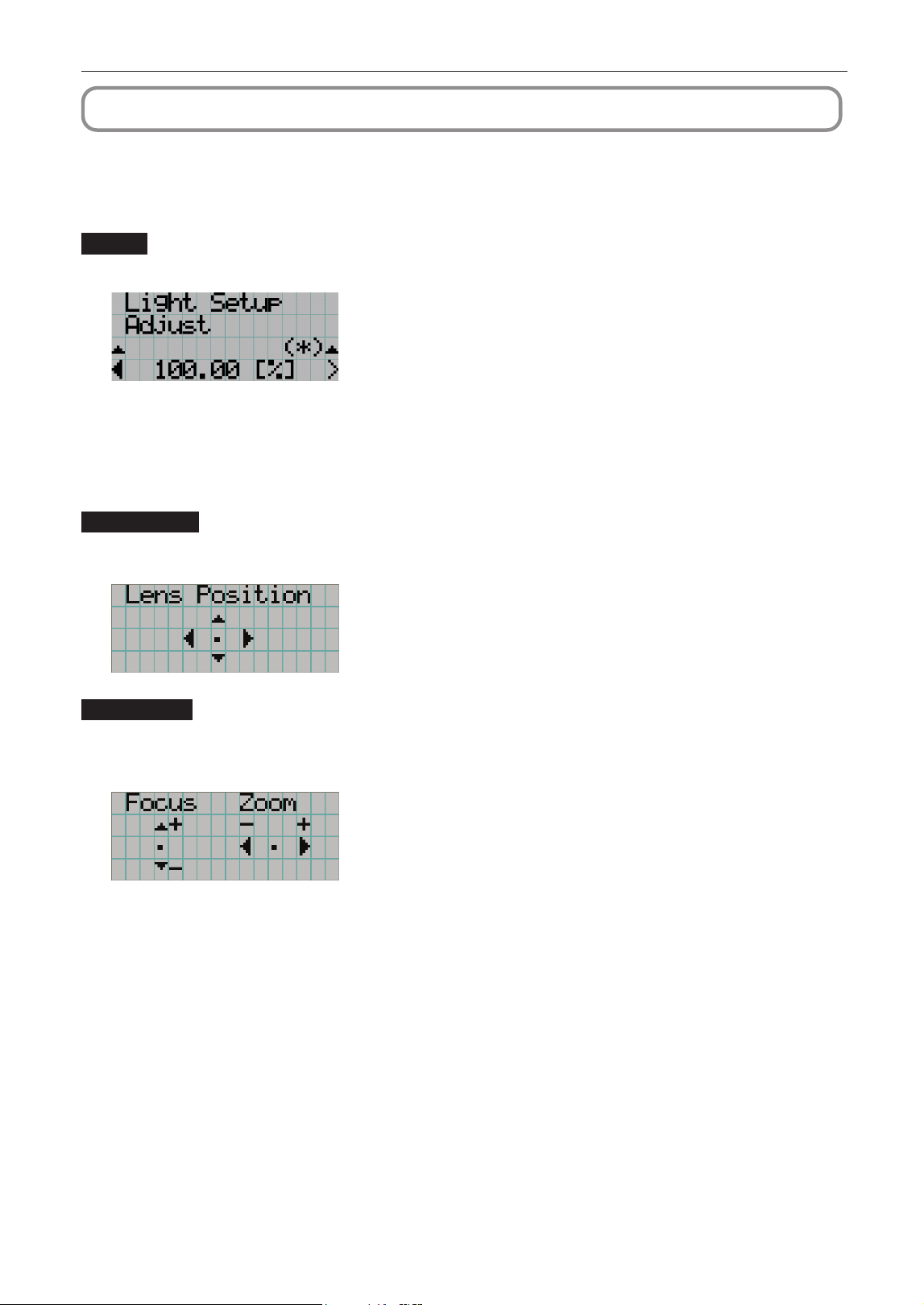

4-4. Configuration
Please request your dealer/distributor to perform the settings.
4-4-1. Light Setup
Adjust
Adjusts the light output (brightness).
← Displays the current output power value (%) when the light rated output is 100%.
4-4-2. Lens Control
Adjust the position, size, and focus of the projected screen.
Press the ENTER button to switch the display between “Lens Position” and “Focus Zoom” adjustments. Press the EXIT button to
return to a menu one level above.
Lens Position
Adjusts the position of the projected screen.
The projected screen moves in the selected direction as you press the UP/DOWN/LEFT/RIGHT button.
Focus Zoom
Adjusts the size (Zoom) and focus (Focus) of the projected screen.
Press the UP/DOWN button to adjust the focus.
Press the LEFT/RIGHT button to adjust the size of the projected screen.
47

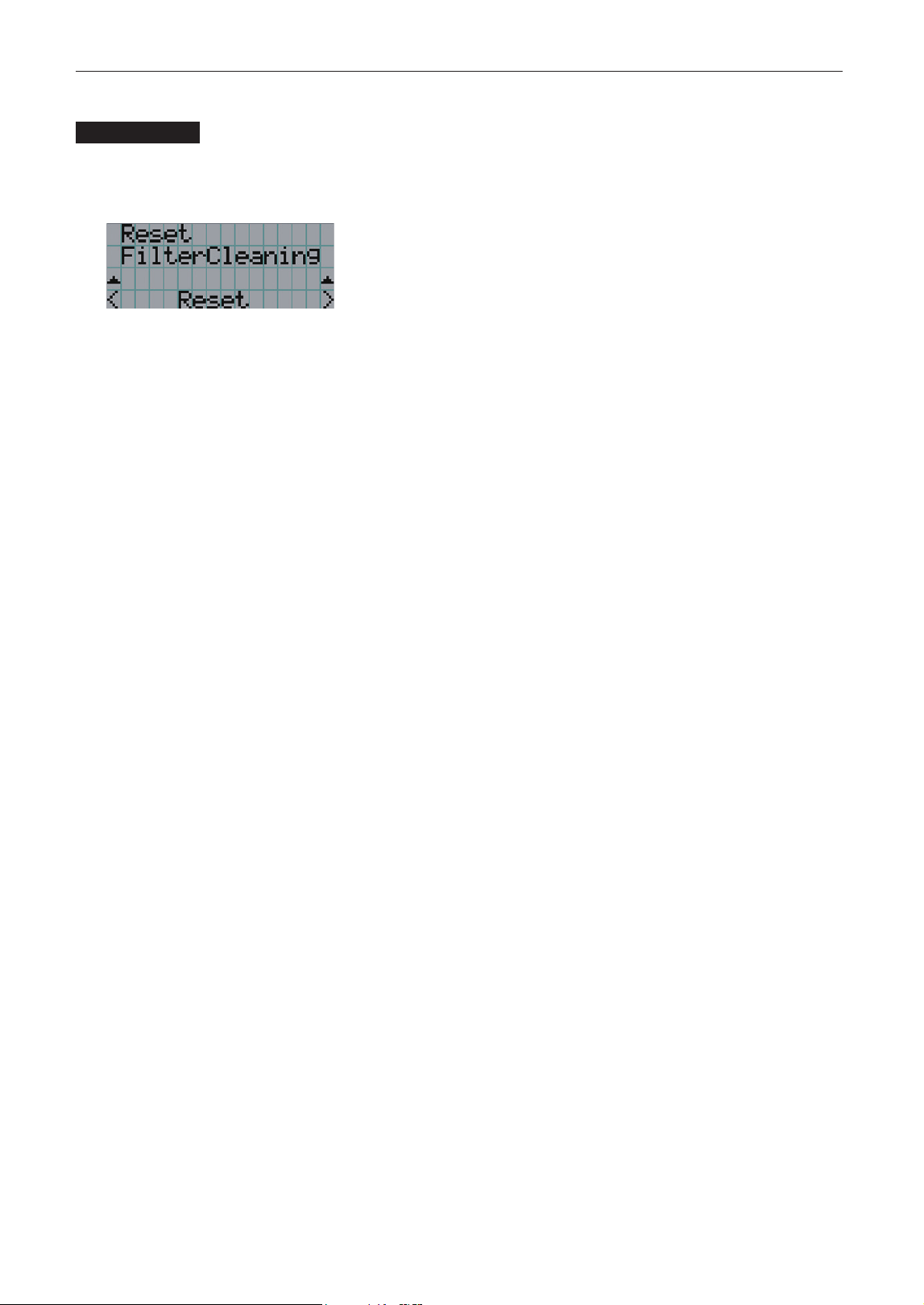

4. Using Menus
4-4-3. Reset
Filter Cleaning
Resets the air filter usage time (for confirming the filter cleaning time).
[1] Press the ENTER button, the confirmation screen will appear.
[2] Select “Yes” in the confirmation screen, and then press the ENTER button to reset the filter usage time.
← Press the ENTER button to display the confirmation screen.
48
4. Using Menus
4-5. Title Setup
Sets the title to be assigned to the preset buttons (<1> to <8> buttons) (up to 16 titles).
Request your dealer/distributor to perform the settings.
4-6. Information
Displays the hours of light use, the version information and error codes.
4-6-1. Light
Displays the light source information.
← Displays the current setting (%).
Output Displays the output setting value (%).
S/N Displays the serial number of the light module.
4-6-2. Lens Type
Displays the current lens type setting.
← Displays the current lens type setting.
Without Sensor Using a lens unit that does not support the lens memory function.
With Sensor Using a lens unit that supports the lens memory function.
49
4. Using Menus

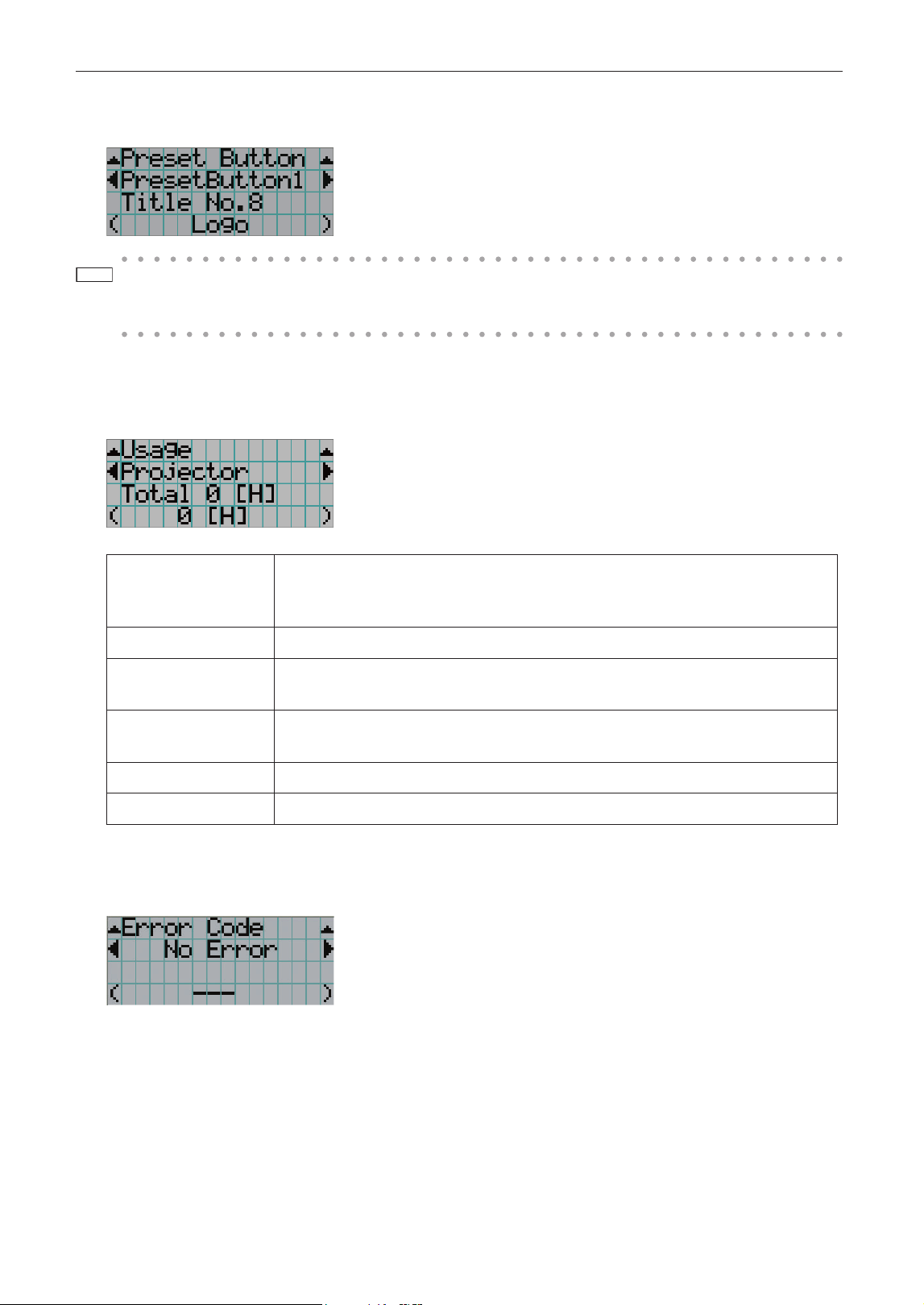

4-6-3. Preset Button
Sets the title to be assigned to the preset buttons (<1> to <8> buttons) on the projector’s control panel.
← Selects the preset button number whose contents you want to display.
← Displays the assigned title numbers.
← Displays the registered names of the assigned titles.
TIP
To select a title allocated to one of “Preset Button9” to “Preset Button16”, press the preset button while holding down
the UP button. For example, to select the title allocated to “Preset Button9”, press the <1> button while holding down
the UP button.
4-6-4. Usage
Displays information related to the projector usage, such as the usage time of the projector, light, air filters, and fan, and information
about the light replacement cycle.
← Selects the item to display.
← Displays information about the selected item.
Projector
Displays the usage time of the projector.
The upper row shows the usage time including standby mode while the lower row shows
the usage time not including standby mode.
Light Displays the usage time of the light.
Phosphor
Display of the usage time of the phosphor and the value that is displayed is the amount of
usage time remaining (approximate).
Diffuser
Display of the usage time of the diffuser and the value that is displayed is the amount of usage
time remaining (approximate).
Filter Cleaning Displays the usage time of the air filter.
Fan Usage Displays the usage time of the fan.
4-6-5. Error Code
Displays the error code when an error occurs.
← Displays the code of the error currently occurring.
← Displays the name of the error currently occurring.
When multiple errors occur, you can display them by pressing the LEFT/RIGHT buttons.
50
4. Using Menus

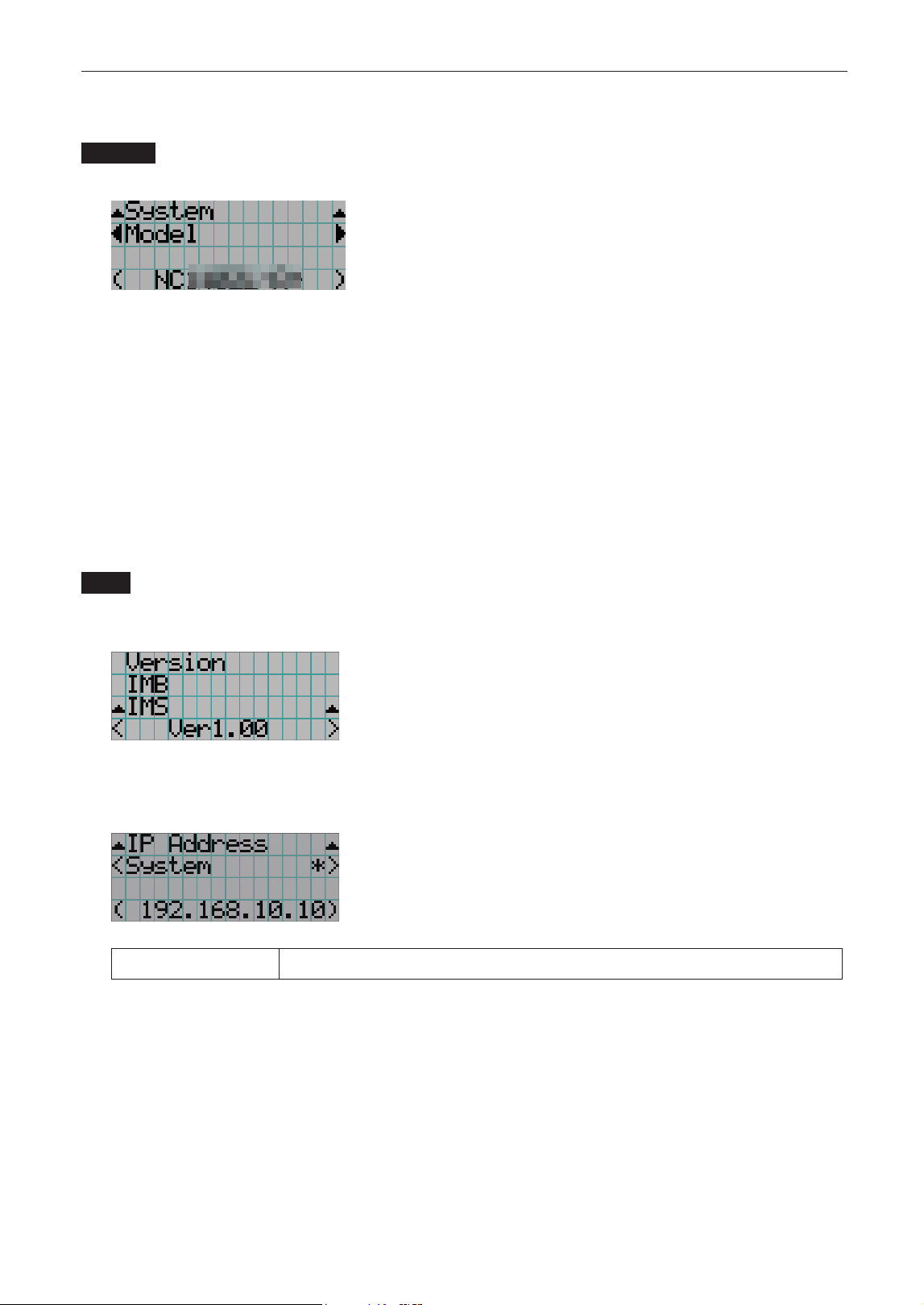

4-6-6. Version
Displays version information about the projector, optional boards, and IMB.
System
Displays the version information of the projector.
← Selects the item to display.
← Displays the version information.
• Model • Secure Processor
• Serial No. • Slave BIOS
• Release Package • Slave Firmware
• Kernel • Slave Data
• U-Boot • SSL FPGA
• System Files • LD Driver1
• Cinema Firmware • LD Driver2
• Cinema Data • LD Driver3
• ICP Firmware
• ICP ConfigFile
• FMT FPGA
IMB
Displays the vendor name and version information about the media block (IMB). When the projector is in standby mode, the vendor
name is blank and the version information displays “---”.
← Displays the vendor name.
← Displays the version information.
4-6-7. IP Address
Displays the IP address set in the projector.
← Displays the IP address.
System Displays the IP address set for the projector (System).
51
4. Using Menus

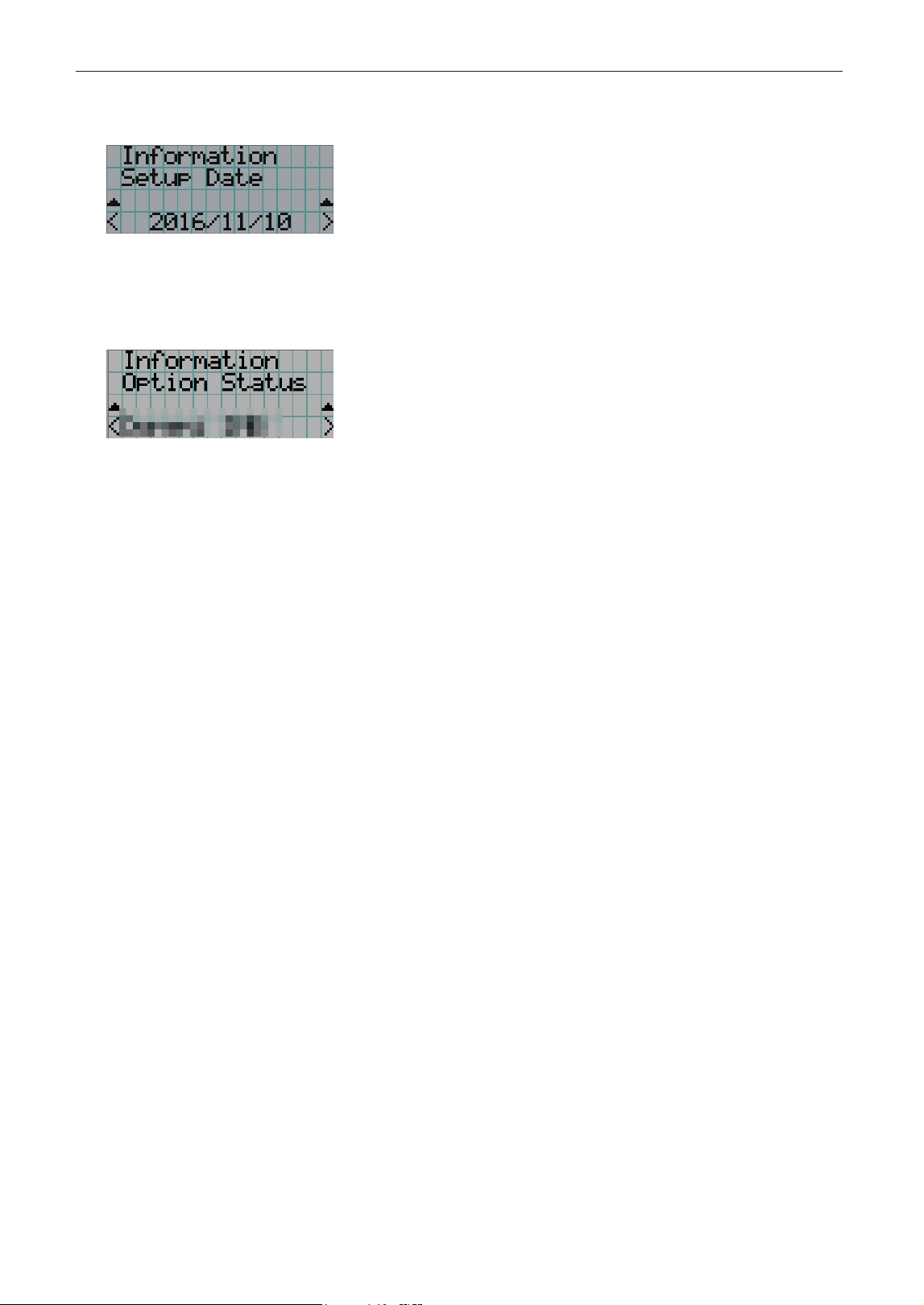

4-6-8. Setup Date
Displays the date when the projector was set up (starting date of the warranty period).
← Displays the date when the projector was set up (starting date of the warranty period).
4-6-9. Option Status
Displays the link status of the device mounted in slot on the projector. The device name is displayed in ( ) when the projector is in
standby or when connection to the device cannot be confirmed.
← Displays the link status of the device in slot.
• <Vendor Name> IMB: Media block
• No Board: No device mounted
52
5.
Maintenance of Your
Projector
[NOTE] Please request your dealer to perform cleaning of the projector inside.
5-1. Cleaning the Cabinet
WARNING
Pull out the power plug from the power outlet before cleaning the cabinet.
WARNING
Please do not use a spray containing flammable gas to remove dust attached to the cabinet, etc. Doing so may result in fires.
• Wipe with a dry, soft cloth without nap.
When the cabinet is excessively dirty, wipe with cloth well wrung after being dampened with a neutral detergent diluted with water
and then finish up with a dry cloth.
When you use a chemical dust cloth, follow the instructions in the manual attached to it.
• Do not use a solvent, such as thinner or benzene. The coating may deteriorate or peel off.
• When removing dust on the ventilation opening, suck it off using an adapter with a brush on a vacuum cleaner. Never allow the
cleaner without an adapter to come into direct contact or use a nozzles adapter in cleaning.
• Clean the ventilation opening at regular intervals. Dust, if allowed to accumulate there, may cause heating inside, which leads to
functional trouble. The interval, which can vary with the location of your projector, is about 100 hours.
• Do not damage the cabinet by scratching it or allowing hard objects to hit it. This can scratch the projector.
• Consult your dealer/distributor about cleaning the inside of the projector.
[NOTE]
Do not allow insecticide or other volatile liquid to splash on the cabinet, lens or screen. Also, do not allow any rubber
or plastic object to remain in contact with the cabinet for a long time. The coating may deteriorate or peel off.
53
5. Maintenance of Your Projector
5-2. Cleaning the Lens
Clean the lens the same way as with camera lens (using a commercially available camera blower or cleaning paper for glasses).
Take care not to damage the lens when cleaning.
WARNING
Pull out the power plug from the power outlet before cleaning the lens.
WARNING
• Do not look into the light module while the projector is ON. Strong light is emitted from the projector and visual impairment
could result.
• Please do not use a spray containing flammable gas to remove dust attached to the lens, etc. Doing so may result in fires.
5-3. Cleaning the Air Filters
Air filters are provided on the projector's air intakes to prevent dust from entering the projector. Clean the air filters regularly to
maintain the performance of the projector.
The air filters of the unit are metal air filters. They can be used over and over again if properly cleaned.
• The usage time of the air filters can be checked at “Information” - “Usage” (page 52) on the adjustments menu.
WARNING
Pull out the power plug from the power outlet before cleaning the air filters.
WARNING
• If dust accumulates on the air filters, air intake to the projector will be insufficient and the internal temperature will rise,
leading to fire or malfunction.
• Do not use a flammable gas spray to remove dust from the filters. Doing so may lead to fire.
CAUTION
• Before cleaning the air filters, turn off the power, wait for the cooling fan to come to a complete stop, turn off the projector
power switch and the light power switch, interrupt the AC power supply, and make sure that the projector has cooled
sufficiently. Removing the filter units during operation may cause burns or electric shock if the inside is touched.
54
5. Maintenance of Your Projector
Air inlet
(Filter cover / Filter)
Air outlet
Air inlet
(Filter cover / Filter)
There are 4 air filters.
[NOTE] • Do not wash the air filter in water. Doing so will cause the dust to clog the holes, reducing intake performance.
• Do not bend the air filter. Doing so could damage it, rendering it unusable.
• Clean the air filter at 4 locations at the same time. If you clean only one or two places, the correct filter usage
time will not be displayed on the adjustments menu.
5-3-1. Cleaning the Air Filters
Preparation: Have a Phillips head screwdriver ready.
1
Remove the filter cover.
1. Twist the knob to the left until it turns without resistance.
2. Open the filter cover and remove it.
• The knob does not come off.
• If the knob will not turn, use a Phillips head screwdriver.
1
2
55
5. Maintenance of Your Projector

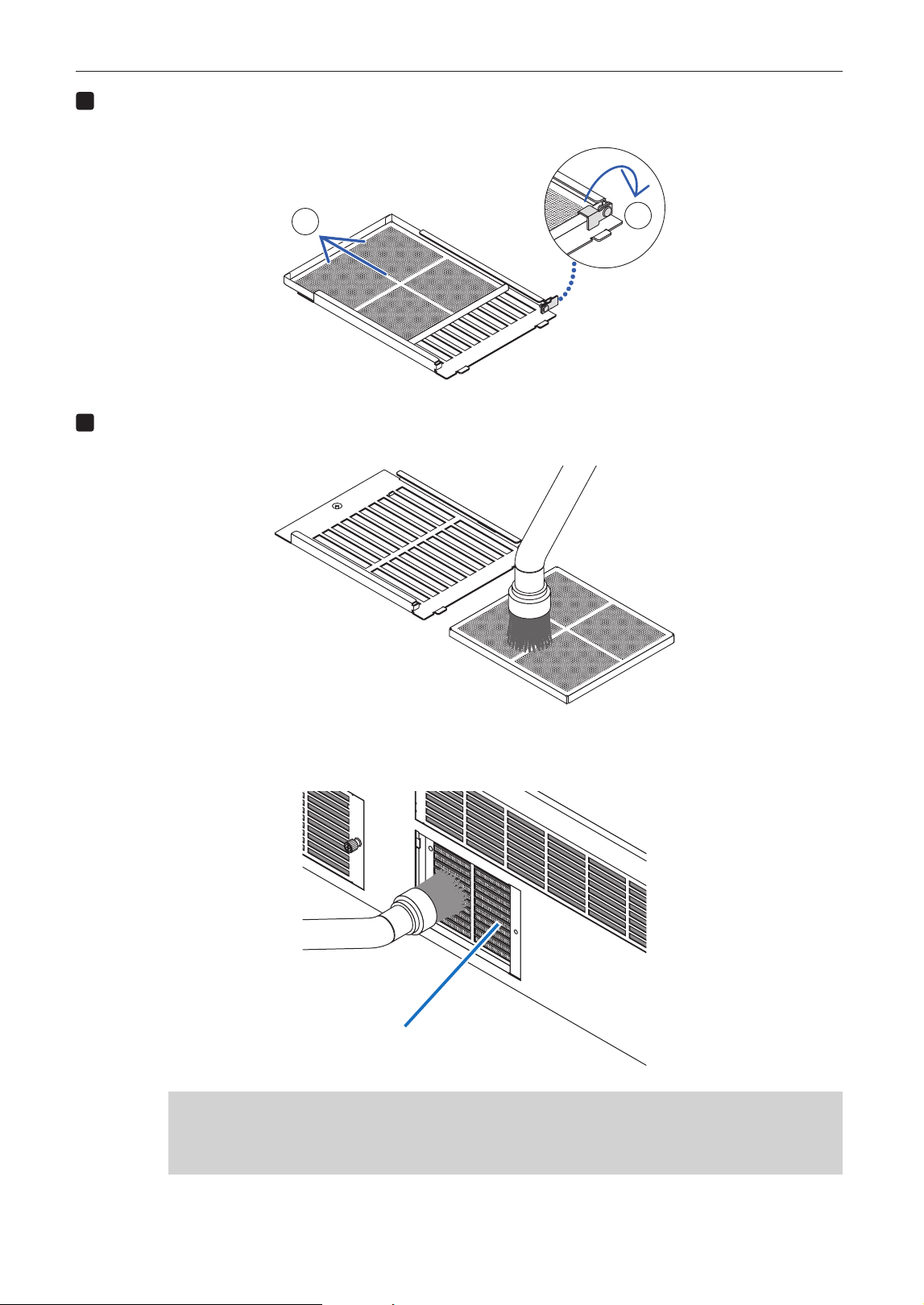

2
Undo the lock lever on the filter cover and remove it.
If the filter gets caught on the filter cover, press the filter cover down slightly and it will come out.
A
B
3
Clean all the dust from the filters using a vacuum cleaner.
Carefully remove the dust from the filter covers as well as from both sides of the filter.
Remove the dust from the grates on the outside of the projector as well.
Some intake vents do not have grates. Be sure to also remove any dust stuck to the louver (blind with angled hori-
zontal slats) with a vacuum cleaner.
The grates on the outside of the
projector
[NOTE] • Whenever you vacuum the filter, use the soft brush attachment to vacuum. This is to avoid damage to
the filter.
• Do not wash the filter with water. Doing so can result in damage to the filter membrane and also cause
clogging.
56
5. Maintenance of Your Projector

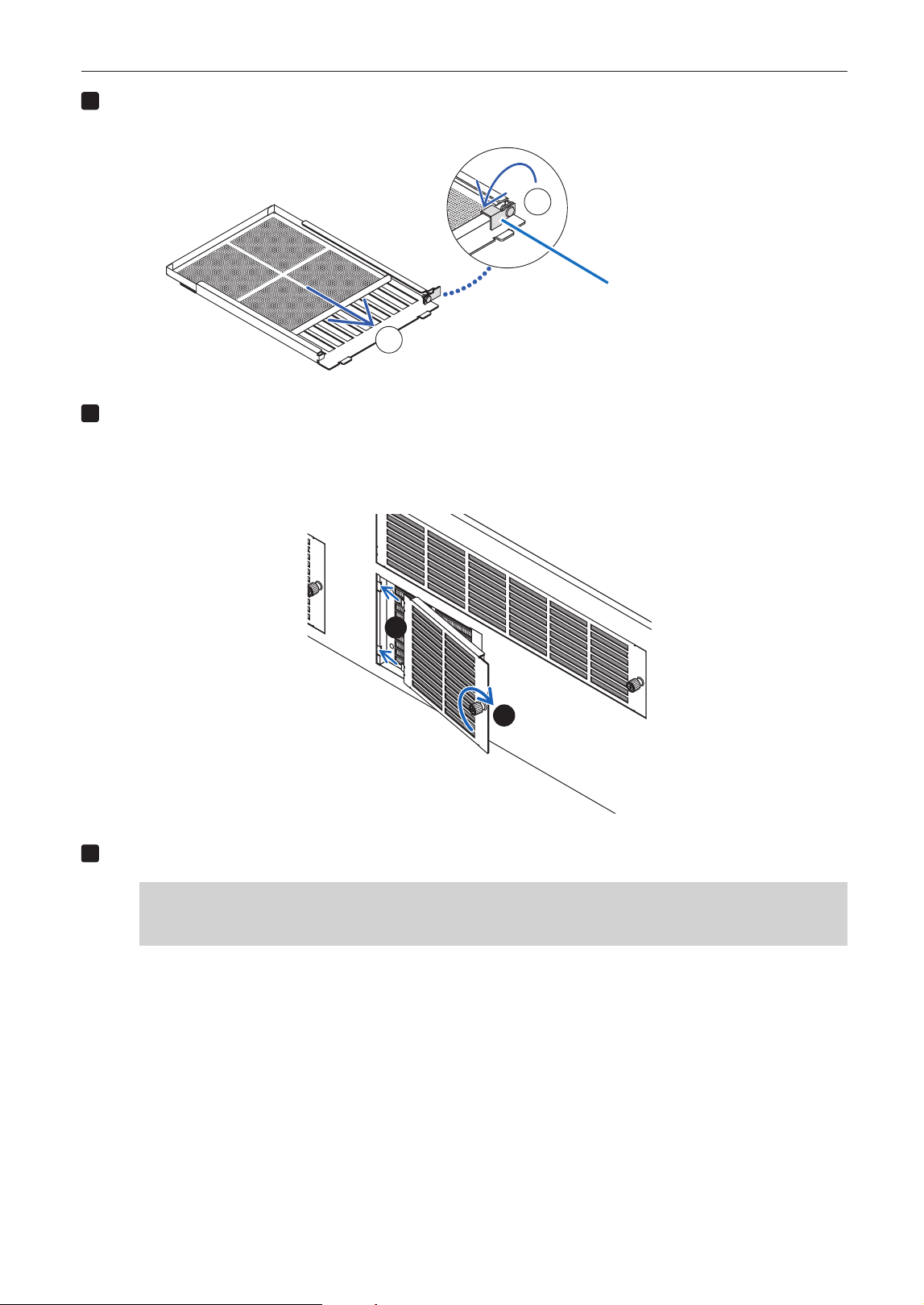

4
Fit the filter inside the filter cover.
Slide slowly the filter in, and close the lock lever.
Lock lever
A
B
5
Fix the filter inside the projector unit.
1. Snap the filter cover tabs into the cutout portion of the projector unit to secure it.
2. Turn the knob to the right to fix it in place.
1
2
6
Clean the other intake vent air filters in the same way.
[NOTE] • Before turning on the power, make sure that all filter covers are in place. If they are not fitted properly dust
could get inside the projector causing it to malfunction.
• Reset “FilterCleaning Time” after cleaning the filters. (See this page)
57
5. Maintenance of Your Projector
5-3-2. Resetting the Air Filter Usage Time
1
Turn on the power to the projector.
2
Reset the displayed message by selecting “Configuration” → “Reset”.
Select “Configuration” → “Reset” → “Filter Cleaning” in the adjustment menu. “FilterCleaning Time” message on the
LCD screen is turned off.
This completes resetting the air filter usage time.
58
6.
Appendix
6-1. Troubleshooting
Before asking for repair, please check your connection, settings and operation once again. If the trouble cannot be corrected, please
contact your dealer/distributor for instructions or repair.
6-1-1. Problems and where to check
Problem Check these items
The projector cannot be turned on. Check to see if AC power is supplied to the projector.
Make certain that the main power switch is ON.
Check to see whether the panel key lock function is activated. If so, the main unit’s control buttons
are locked and do not work.
Is the temperature inside the projector too high? When the inside temperature is too high, the
protective function does not allow your projector to be turned on. Wait some time and then turn it
on.
The image cannot be projected. Check to see if the connected input has been selected.
Check to see if a cable is properly connected to the input terminal.
Check to see whether the douser is closed.
Check to see if the settings are all adjusted properly.
The image is distorted. Check to see if the protractor is properly set up.
The image is blurred. Make certain that the lens is properly focused.
Check to see if the screen and a projector are installed at correct angles.
The projection distance may be larger than the focusing range.
See if the lens and other parts have condensation on them. If the projector is turned on in a
warm place after storage in a cold place, the lens and other optical components inside may develop
condensation. In such a case, please wait several minutes until the condensation disappears.
Video image is disturbed. Check whether the signal cable connected to the projector is disconnected.
The STATUS indicator blinks in red. Your projector may have trouble. Please contact your dealer/distributor for instructions.
An error code is displayed. Please contact your dealer/distributor for instructions.
59
6. Appendix
6-2. Indicator display list
See the descriptions below when the buttons on the control panel or the STATUS indicator on the rear of the projector is lit or blink-
ing. The projector also has a warning function that uses a buzzer.
POWER (BOOT) indicator
POWER indicator
DOUSER indicator
TEMP. indicator
Preset buttons
LIGHT indicator
KEY LOCK indicator
6-2-1. Preset buttons
Indicator condition Projector condition Note
Off No title is assigned to the button. -
Steady light A title is assigned to the button. -
Green The title is being selected. -
White The title is not selected. -
6-2-2. KEY LOCK button
Indicator condition Projector condition Note
Off The key lock is off. -
Steady light Orange The key lock is on. -
60
6. Appendix
6-2-3. DOUSER indicator
Indicator condition Projector condition Note
Steady light Green The douser is closed. -
Off The douser is opened. -
6-2-4. TEMP. indicator
Indicator condition Projector condition Note
Steady light Red The projector temperature rises close to the operating
temperature limit.
An error message is displayed
in the LCD screen.
Check the content of the error.
Blinking light Red The projector temperature exceeded the operating
temperature.
An error message is displayed
in the LCD screen.
Check the content of the error.
6-2-5. LIGHT indicator
Indicator condition Projector condition Note
Off The light source is off. -
Blinking light Green The ON/OFF of the light source cannot be operated. -
Steady light Green The light source is on. -
6-2-6. POWER indicator
Indicator condition Projector condition Note
Off The projector power supply is off. -
Blinking light Orange While the projector software is starting Wait for a moment.
Green
(cycles of 1)
(Note 1)
Preparing to turn power on/cooling fan rotating
(State from turning the power off to entering standby
mode).
Wait for a moment.
Green
(cycle of 3 seconds)
(Note 2)
When the sleep timer is activated -
Steady light Green The projector is turned on. -
Orange The projector is in standby. -
(Note 1) Repeats 0.5 seconds on → 0.5 seconds off.
(Note 2) Repeats 2.5 seconds on → 0.5 seconds off.
6-2-7. POWER (BOOT) indicator
Indicator condition Projector condition Note
Steady light Blue While the projector software is starting Wait for a moment.
Blinking light Blue Wait for a moment.
Off The projector power supply is on, or the projector is in
standby.
-
61
6. Appendix
6-2-8. STATUS indicator
Rear status indicator
SYSTEM status indicator
Indicator condition Projector condition Note
Off Main power is off. -
Blinking light Green The projector is getting ready to turn on.
The douser is closed.
The light is off.
Wait for a moment.
Orange The projector is cooling down. Wait for a moment.
Red (With buzzer) Safety problem, error. An error message is displayed in the
LCD screen.
Check the content of the error.
Red (Without buzzer) Error with possible image project under certain
conditions.
Steady light Green The projector is turned on. -
Orange The projector is in standby. -
Red Error at a level with not affect on projection. An error message is displayed in the
LCD screen.
Check the content of the error.
62
6. Appendix
6-3. Operation using an HTTP browser
6-3-1. Overview
The use of HTTP server functions will allow control of the projector from a web browser.
This device uses “JavaScript” and “Cookies” and the browser should be set to accept these functions. The setting method will vary
depending on the version of the browser. Please refer to the help files and the other information provided in your software.
[NOTE] The display’s or button’s response can be slowed down or operation may not be accepted depending on the set-
tings of your network.
Should this happen, consult your network administrator.
The projector may not respond if its buttons are repeatedly pressed in rapid intervals. Should this happen, wait a
moment and repeat.
Access is gained to the HTTP server functions by and specifying
http://<the projector’s IP address>/index.html
in the entry column of the URL.
6-3-2. Preparation before use
Make network connections and set up the projector and confirm that it is complete before engaging in browser operations.
Operations with a browser that uses a proxy server may not be possible depending on the type of proxy server and the setting
method. Although the type of proxy server will be a factor, it is possible that items that have actually been set will not be displayed
depending on the effectiveness of the cache, and the contents set from a browser not be reflected in operation. It is recommended
that a proxy server not be used unless it is unavoidable.
6-3-3. Handling of the address for operation via a browser
Regarding the actual address that is entered for the address or entered to the URL column when operation of the projector is via a
browser, the host name can be used as it is with the host name corresponding to the IP address of the projector has been registered
in the domain name server by a network administrator, or the host name corresponding to the IP address of the projector has been
set in the “HOSTS” file of the computer being used.
(Example 1) When the host name of the projector has been set to “pj.nec.co.jp”
http://pj.nec.co.jp/index.html is specified for the address or the entry column of the URL to access HTTP server
functions.
(Example 2) When the IP address of the projector is “192.168.10.10”
http://192.168.10.10/index.html is specified for the address or the entry column of the URL to access HTTP server
functions.
63
6. Appendix

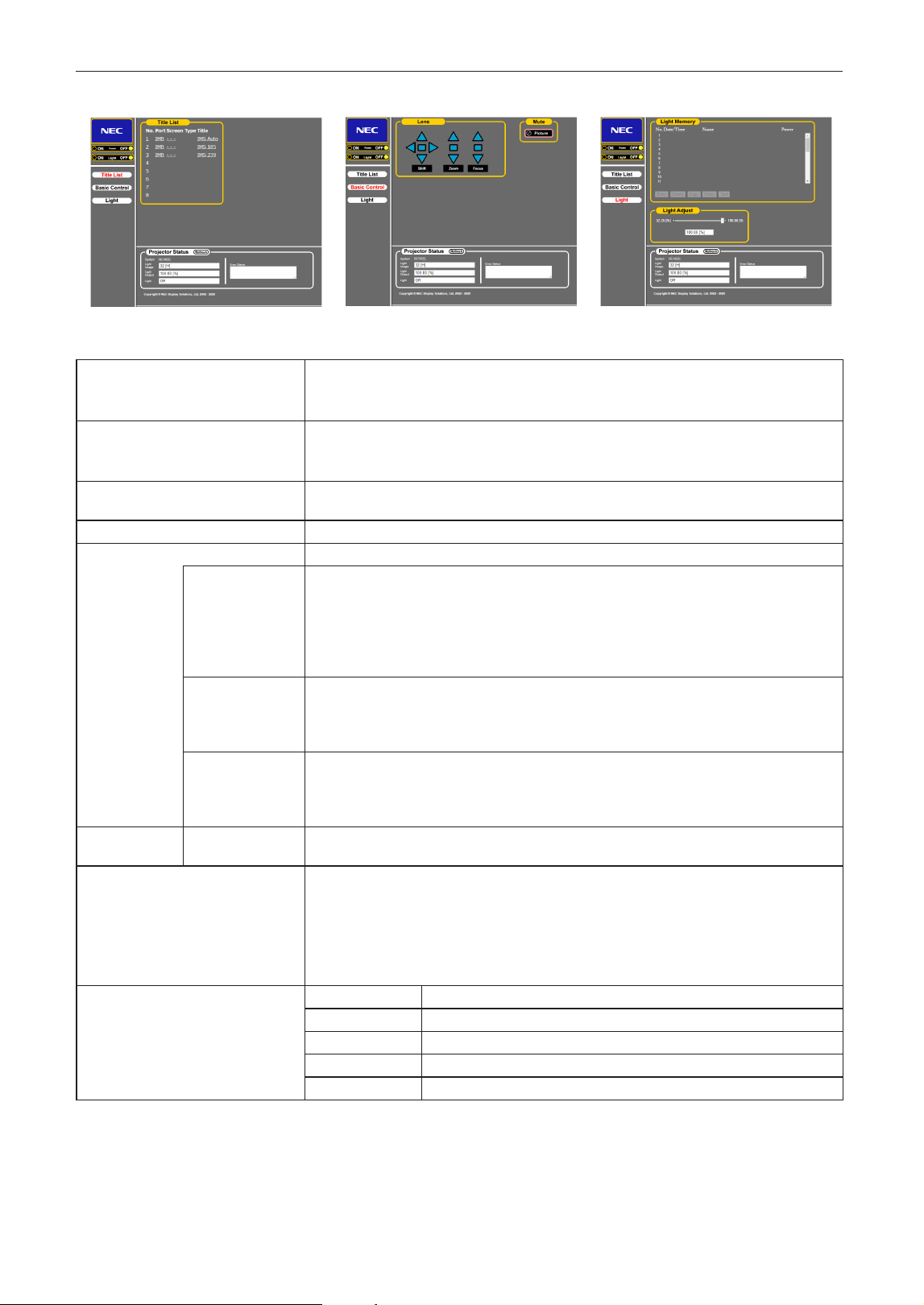

6-3-4. Structure of the HTTP server
Power Controls the power to your projector.
• On: Turns the power on.
• Off: Turns the power off.
Light Turn the light on/off.
• On: Turns the light on.
• Off: Turns the light off.
Title List Displays titles set in the projector (such as input port, screen type, and title).
Check, and the title will be changed.
Basic Control Displays the basic control items.
Lens Controls the lens operation.
Shift G : Shifts the projected screen upward.
H : Shifts the projected screen downward.
F : Shifts the projected screen leftward.
E : Shifts the projected screen rightward.
: Stops the shifting.
Shifting can also be stopped by clicking the same button one more time.
Zoom G : Zooms up the lens.
H : Zooms down the lens.
: Stops the zooming.
Zooming the can also be stopped by clicking the same button one more time.
Focus G : Focuses up the lens.
H : Focuses down the lens.
: Stops the focusing.
Focusing can also be stopped by clicking the same button one more time.
Mute Picture Click and the douser closes and the projected picture disappears. Click once again and the
picture will be projected again.
Projector Status Displays the condition of the projector.
• Light Usage: Displays the hours of light use.
• Light Power: Displays light output (%).
• Light Status: Displays the status of the light (On: Lights / Off: Off).
• Error Status: Displays the status of errors occurring within the projector.
• Refresh: Updates the display of the following conditions.
Light Memory Entry Saves the current light output value in the memory.
Delete Deletes the memory selected in the list from the Light Memory.
Copy Copies the memory selected in the list.
Paste Saves/overwrites the copied memory to the selected memory in the list.
Test Tests the adjustment value of the memory selected in the list.
64
6. Appendix
6-4. Writing of the log file (Save Information)
Log files saved on the main unit can be written to USB memory connected to the USB port of the main unit. To perform the writing
of the log file, use the following procedure.
1
Connect the USB memory to the USB port of the main unit.
Wait until the USB memory is recognized, and it enters the condition in which it can be used (5 or more seconds). For
details, refer to the instruction guide of the USB memory.
2
Simultaneously press the UP button and ENTER button.
The “Save Info.” screen is displayed.
TIP
If you press the EXIT button during operation, operation is stopped and the display returns to the normal screen.
3
Press the LEFT/RIGHT button, and select the log file writing period.
The items that can be selected are as follows.
Today
Writes today’s log files.
7days Writes 7 days’ log files from today.
30days
Writes 30 days’ log files from today.
2years
Writes 2 years’ log files from today.
Manual Writes the specified period’s log files.
4
Press the ENTER button.
When “Today”, “7days”, “30days” or “2years” is selected, the log file writing period is displayed.
← The log file writing period is displayed.
65
6. Appendix

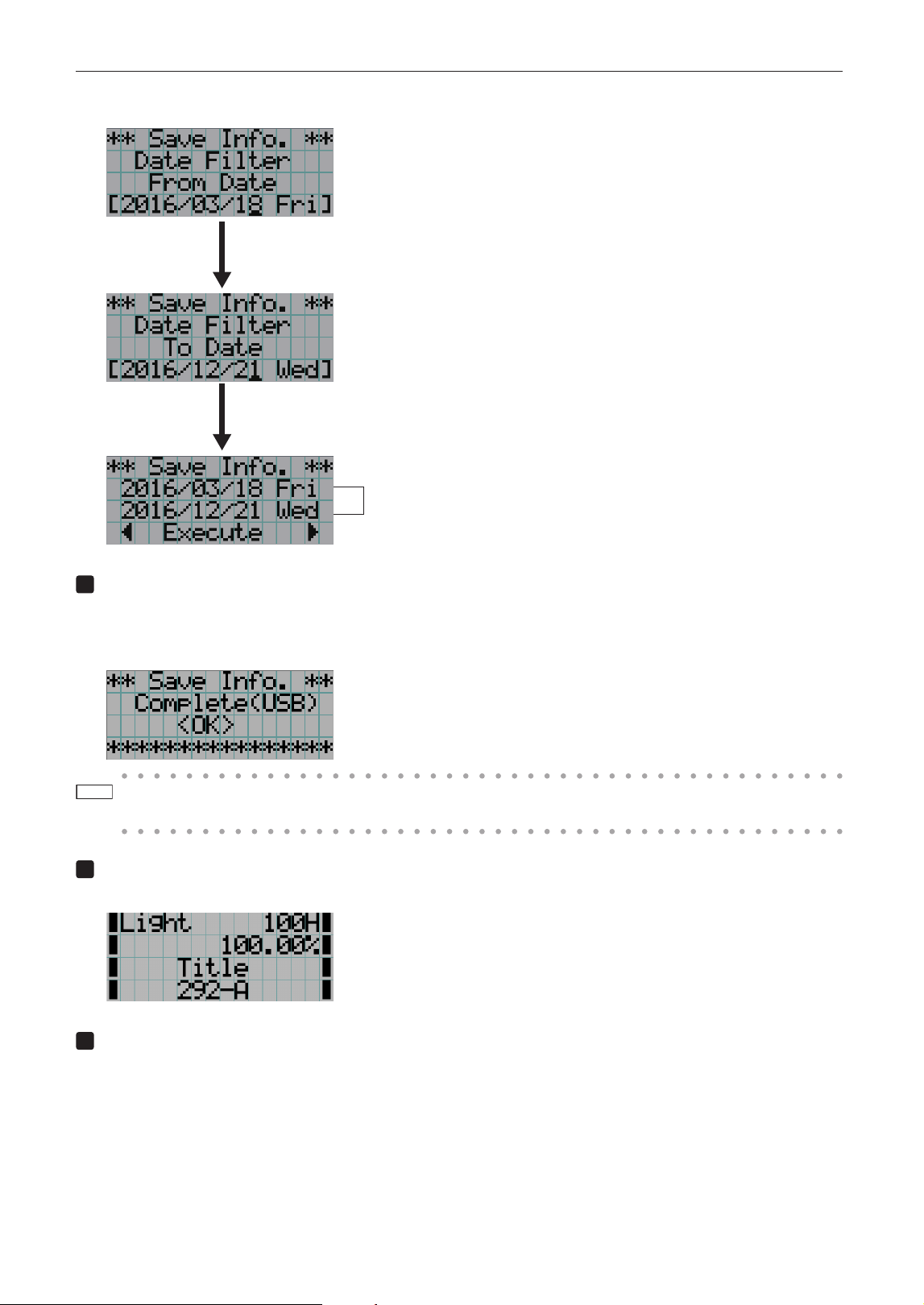

When “Manual” is selected, specify the log file writing period. For how to enter numerals, refer to “4-1-3. How to enter
alphanumeric characters” (See page 43). If you press the ENTER button, the display advances to the following screen.
← Enter the date/time to start writing.
← Enter the date/time to stop writing.
← The log file writing period is displayed.
Press the ENTER button.
Press the ENTER button.
5
Confirm the log file writing period, press the LEFT/RIGHT button to select “Execute”, and
press the ENTER button.
The log files of the specified period are written to the USB device. When writing completes, the following screen is
displayed.
TIP
If you select “Cancel” and press the ENTER button, the writing of log files is stopped, and the display returns to the
normal screen.
6
Press the ENTER button.
The display returns to the normal screen.
7
Remove the USB from the USB port of the main unit.
66
6. Appendix
6-4-1. Names of log files
Written log files are saved with the following file names.
(Model name)_(Serial Number)_YYMMDDHHmm.txt
(Model name)
This shows the model of projector.
(Serial Number)
This shows the serial number of projector.
YYMMDDHHmm Shows the date/time when written.
YY: Year (lower 2 digits)
MM: Month (2 digits)
DD: Date (2 digits)
HH: Hour (2 digits)
mm: Minute (2 digits)
For example, if NC603L log file is written at 14:05 on November 10, 2016, it is saved with the “NC603L_abcd1234_1611101405.
txt” file name.
67
6. Appendix

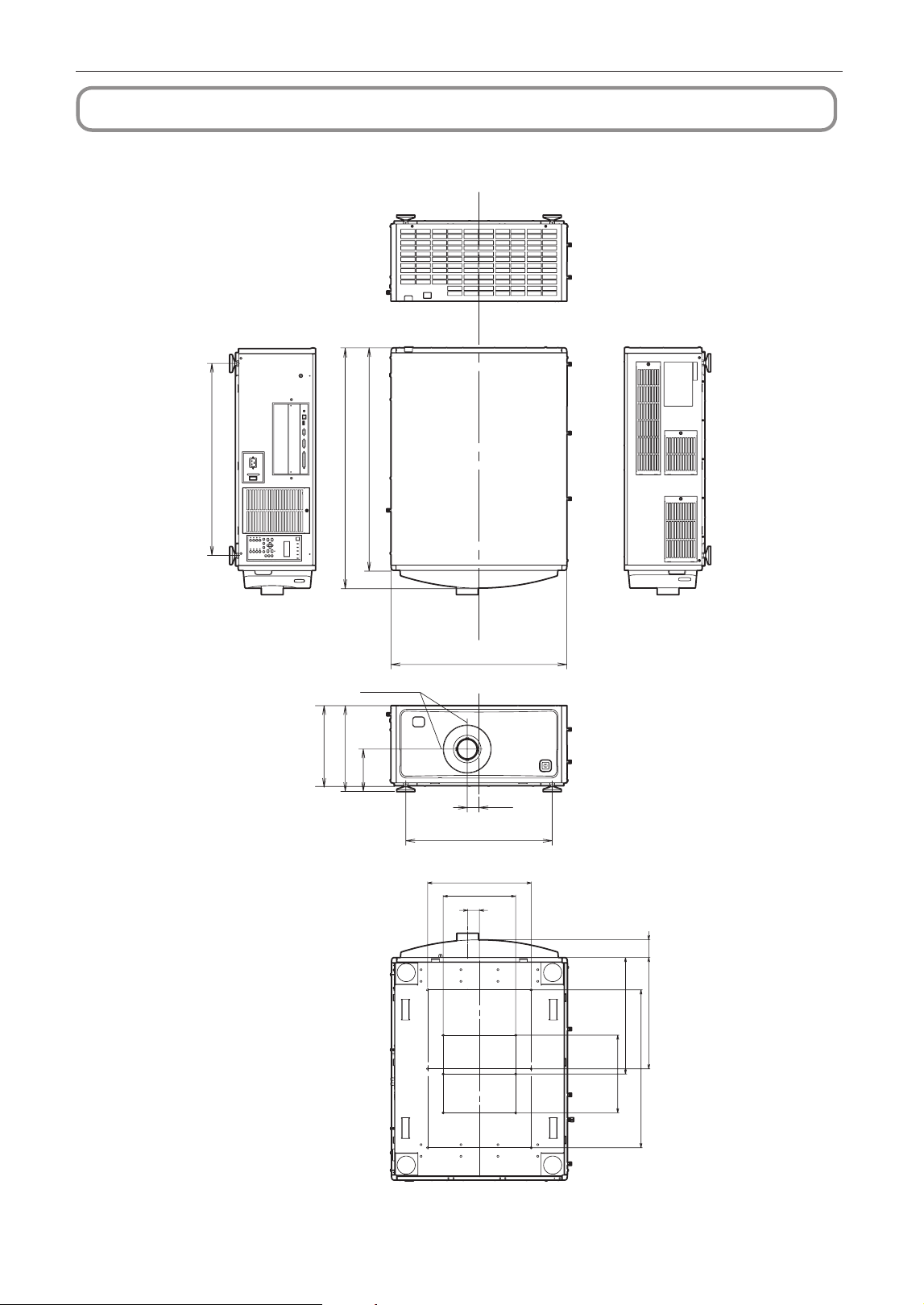

6-5. Outline Drawing
6-5-1. Projector
The screws specifications for Ceiling
Mount:
Screw type : M6
Screw hole dimension on the projector :
M6 with the maximum depth 10 mm
400
280
45.2
68.5430
450
610
300
744
928.5
680
333
310
164.5
Lens center
566
45.2
860
Units: mm
68
6. Appendix
6-6. Specifications
Model name NP-NC603L
Projection method 3 chip DLP Cinema® method
0.69-inch DC2K chip
Panel resolution 2048 x 1080
Light type Laser diode
Screen sizes
Max. 11 m @14ft-L / Screen Gain 1.8 (Depends on setup conditions)
Contrast ratio 1650:1 with DCI specified color representation
Lens adjustment function Motorized lens shift (vertical/horizontal), motorized zoom, motorized focus, douser
Signal input ports When shipped from factory: Empty
(for mounting optional components) (Note 1)
External Control RS-232C (D-sub 9pin) x 1
GPIO port (D-sub 37 pin) x 1
Service terminal (stereo mini jack) x 1
3D CTL (D-sub 15 pin) x 1
USB (Type A) x 1
Interlock port x 1
Ethernet port (RJ-45 10/100Base-T) x 1
Power supply voltage
AC 200 to 240 V, 50/60 Hz single phase
Input current 7.4A (Note 3)
Power consumption 890 W (200V) (Note 2)
Cooling method Air cooling system
Noise level
39 dB (Note 2)
Installation Orientation: Desktop/front, Desktop/rear, Ceiling/front, Ceiling/rear
Net weight
59 kg (Excluding lens)
Dimensions 680 mm (W) x 860 mm (D) x 310 mm (H) (Does not include protruding portions and feet.)
Environment Operating temperature: 10 to 35°C
Operating humidity: 10 to 85% (non-condensing)
Storage temperature: -10 to 50°C
Storage humidity: 10 to 85% (non-condensing)
Operating altitude: 0 to 3,000 m/10,000 feet
(Note 1) The video input slots are empty when the device is shipped. Input ports can be added by mounting option boards, which
are sold separately.
(Note 2) The value is typical.
(Note 3) This product conforms to the harmonic current standard “EN 61000-3-2”.
* Note that these specifications and design can change without prior notice.
69
6. Appendix
6-7. Power Cable
NOTE
Ask your dealer for the power cable to select and purchase.
Power Cable Electrical Specification
The projector is equipped with an IEC 60320 C20 Inlet to connect an AC power supply cable. Ensure that the AC power cables that
connect the connectors built into the projector to the AC power maintains the current capacities as shown below.
Power supply voltage Projector input current Power cable current capacity
AC 200–240V 7.4A 250V 16A or higher
Type of Power Cable
Cable
Plug
Connector
Use plugs, cables, and connectors that are suitable for the regulations of the country of installation, as shown in the following table.
NOTE
For users in North America
Use a power cable no longer than 4.5m/14.76 ft according to National Electrical Code.
Germany
Plug Cable Connector
CEE 7
H05VV-F 3G1.5 IEC 320 C19
USA
Plug Cable Connector
NEMA 6-15P
SJT 3 x AWG 14 IEC 320 C19
70
6. Appendix
Japan
Plug Cable Connector
JIS C 8303
VCTF 3 x 2.0mm IEC 320 C19
China
Plug Cable Connector
GB2099
RVV 300/500 GB17465.1
Connector
Dimensions of the connector of the power cable are shown below.
7
+ 0.5
-
0
28
+0
-
0.9
20
+0
-
0.7
6.0
+ 0.5
-
0
2.5
+ 0.5
-
0
2.5
+ 0.5
-
0
8 ±
0.2
13 ±0.2
Unit: mm
R3.5 min
20 min
71
6. Appendix
6-8. Pin Assignment and Functions of Terminal
6-8-1. PC CONTROL connector (RS-232) (D-sub 9 pin)
This is an RS-232C interface for controlling the projector from a PC. The projector operates as a DCE (Data Communication
Equipment), so use a straight cable when connecting to a PC.
Pin No. RS-232C Signal Name Functions as RS-232C Projector Connector Operation
1 CD Carrier detection Not used (N.C.)
2 RXD Reception data Data transmission to an external device
3 TXD Transmission data Data reception from an external device
4 DTR
Data Terminal ready (Note)
Connection to 6 pins
5 GND Signal GND Signal GND
6 DSR Data set ready (Note) Connection to 4 pins
7 RTS Transmission request SYSTEM: Hi-Z (Not used)
CINEMA: Hi-Z (Used)
8 CTS Transmission available SYSTEM: Fixed at -6.5 V (Not used)
CINEMA: ±10.5 V (Used: Depends on communication status)
9 RI Ring indicator Not used (N.C.)
(Note) Do not use DTR and DSR signals when communicating.
72
6. Appendix
6-8-2. External control connector (GP I/O) (D-sub 37 pin)
It is possible to control the projector with an external device and to control the external device from the projector using an external
control connector (GPIO: General Purpose I/O Ports). Each pin is electrically separated from the projector internal circuits by a
photo-coupler. 8 port input and 8 port output are available.
Please contact your dealer/distributor regarding how to use and to operate them.
Pin view of female connector
Pin No. Signal Name I/O Pin No. Signal Name I/O
1 GPIN1+
(3D L/R Input Reference +)
IN 20 GPIN1-
(3D L/R Input Reference -)
IN
2 GPIN2+
(3D L/R Display Reference +)
IN 21 GPIN2-
(3D L/R Display Reference -)
IN
3 GPIN3+ (system reserved) IN 22 GPIN3- (system reserved) IN
4 GPIN4+ (system reserved) IN 23 GPIN4- (system reserved) IN
5 EXT_GPIN1+
(Control and Title Selection +)
IN 24 EXT_GPIN1-
(Control and Title Selection -)
IN
6 EXT_GPIN2+
(Control and Title Selection +)
IN 25 EXT_GPIN2-
(Control and Title Selection -)
IN
7 EXT_GPIN3+
(Control and Title Selection +)
IN 26 EXT_GPIN3-
(Control and Title Selection -)
IN
8 EXT_GPIN4+
(Control and Title Selection +)
IN 27 EXT_GPIN4-
(Control and Title Selection -)
IN
9 GPOUT1+
(External 3D L/R Output Reference +)
OUT 28 GPOUT1-
(External 3D L/R Output Reference -)
OUT
10 GPOUT2+ (system reserved) OUT 29 GPOUT2- (system reserved) OUT
11 GPOUT3+ (system reserved) OUT 30 GPOUT3- (system reserved) OUT
12 GPOUT4+
(Internal 3D L/R Output Reference +)
OUT 31 GPOUT4-
(Internal 3D L/R Output Reference -)
OUT
13 EXT_GPOUT1+
(Projector Ready/Busy +)
OUT 32 EXT_GPOUT1-
(Projector Ready/Busy -)
OUT
14 EXT_GPOUT2+
(Projector Error Status +)
OUT 33 EXT_GPOUT2-
(Projector Error Status -)
OUT
15 EXT_GPOUT3+
(IMB Play/End Status +)
OUT 34 EXT_GPOUT3-
(IMB Play/End Status -)
OUT
16 EXT_GPOUT4+
(Projector Heartbeat +)
OUT 35 EXT_GPOUT4-
(Projector Heartbeat -)
OUT
17 NC (not connected) - 36 NC (not connected) -
18 GND PWR 37 GND PWR
19 GND PWR - - -
EXT_GPIN1 - EXT_GPIN4: You can control the projector externally by combinations of input signals (high/low). (Projector
power supply/turning the light source on or off/image mute/title selection)
EXT_GPOUT1 - EXT_GPOUT4: Functions in the above table are default settings. You can change the assigned functions.
73
6. Appendix
Input Connector
GP I/O Connector Inside Projector
Resist = 390 Ω
Photo-coupler
Forward direction voltage: 1.1V (@5mA)
Ext_GPIN_P
Pin No.: 1 2 3 4 5 6 7 8
Ext_GPIN_N
Pin No.: 20 21 23 23 24 25 26 27
Voltage applied across the pins of Ext_GPIN_P and
Ext_GPIN_N should be in the range from 3.3 Vdc to 10 Vdc.
Recommended Operating Current: 5mA
Absolute Maximum Rating: 23mA
• Using GPIO Control
Momentary “ON” pulse enables you to control projector. To enable “ON” pulse, hold it for at least 500 ms. Hold “OFF” for at least
500 ms before “ON”. (See page 74)
Here is function list to control projector by using GPIO port.
Pin No. Photo-coupler ON/OFF Function
1-20 ON/OFF 3D L/R timing signal input ON/OFF
2-21 ON/OFF 3D L/R display timing signal input ON/OFF
3-22 - System reserved (used internally)
4-23 - System reserved (used internally)
5-24
6-25
7-26
8-27
8-27 7-26 6-25 5-24 The following functions apply depending on the combination of input terminals.
OFF OFF OFF ON Power ON
OFF OFF ON OFF Power OFF
OFF OFF ON ON Light source ON
OFF ON OFF OFF Light source OFF
OFF ON OFF ON Image douser ON
OFF ON ON OFF Image douser OFF
OFF ON ON ON System reserved (used internally)
ON OFF OFF OFF Selects the title registered to the preset button 1
ON OFF OFF ON Selects the title registered to the preset button 2
ON OFF ON OFF Selects the title registered to the preset button 3
ON OFF ON ON Selects the title registered to the preset button 4
ON ON OFF OFF Selects the title registered to the preset button 5
ON ON OFF ON Selects the title registered to the preset button 6
ON ON ON OFF Selects the title registered to the preset button 7
ON ON ON ON Selects the title registered to the preset button 8
Example for dousing image: Input ON to 5-24 and 7-26 while 6-25 and 8-27 are OFF.
Example for selecting the preset button 2: Input ON to 5-24 and 8-27 while 6-25 and 7-26 are OFF.
[NOTE]
• The operation command coming from GPI/O port will be canceled when the projector is processing other tasks,
such as light source cooling and switching title.
• Set all other pins than those in use to “OFF”.
• The operation command is executed upon continuous input of the “ON” pulse for approximately 200 ms.
74
6. Appendix
• Timing chart of GPIO control
Example of Select Preset Button
Off at least 500 ms at least 500 ms
approx. 200 ms
on
off
on
off
8-27
5-24/6-25/7-26
Execute
Select Preset Button
time
Example for turning the image douser (Douser) on
Off at least 500 ms at least 500 ms
approx. 200 ms
on
off
on
off
5-24/7-26
6-25/8-27
Execute
Image douser (Douser) ON
time
75
6. Appendix
Example of Light source On
Off at least 500 ms at least 500 ms
approx. 200 ms
on
off
on
off
5-24/6-25
7-26/8-27
Execute
Light source On
time
Example for turning the power off
Off at least 500 ms at least 500 ms
approx. 200 ms
on
off
on
off
6-25
5-24/7-26/8-27
Execute
Power OFF
time
76
6. Appendix
Output Connector
GP I/O Connector Inside Projector
Photo-coupler
Ext_GPOUT_P
Ext_PROJ_GOOD_P
Pin No.: 9 10 11 12 13 14 15 16
Pin No.: 28 29 30 31 32 33 34 35
Absolute Maximum Rating: 50 mA
Ext_GPOUT_N
Ext_PROJ_GOOD_N
• Using GPIO Control
You can use GPIO control for the projector’s health check and error check. Also, you can use the output as the trigger to control
external devices.
The following functions are assigned to the pin number 13-32, 14-33, 15-34, and 16-35 (EXT_GPOUT1 - EXT_GPOUT4) as the
default. You can change the assigned functions.
Pin No. Photo-coupler ON/OFF Function
9-28 ON/OFF External 3D L/R timing signal output ON/OFF
10-29 – System reserved (used internally)
11-30 – System reserved (used internally)
12-31 ON/OFF Internal 3D L/R timing signal output ON/OFF
13-32 ON/OFF GPIO control status check
ON: GPIO control (input) is unavailable.
OFF: GPIO control (input) is available.
14-33 ON/OFF Error check
ON: Error
OFF: No error
15-34 ON/OFF IMB status check
ON: The content is being played.
OFF: The content is stopped/paused.
16-35 ON/OFF Health check (heart beat)
ON and OFF are alternately output when operations are
normal.
77
6. Appendix
6-8-3. 3D connector (D-sub 15 pin)
This is used to connect a 3D image system to the projector.
Pin view of a female connector
Pin No. Signal Name I/O Function
1 +12V PWR Supplies power (+12V) to the 3D image system
2 GNDC GND Ground
3 GNDC GND Ground
4 RS232_RX IN Data transmission from the 3D image system
(1200 Baud, 8 bits, No Parity)
5 RS232_TX OUT Data transmission to the 3D image system
(1200 Baud, 8 bits, No Parity)
6 CONN_3D_MODE+ OUT 3D mode status (+)
(Connects to the collector of the output transistor of the photo
coupler inside the projector)
7 CONN_SYNC+ OUT 3D L/R switching timing signal (+)
(Connects to the collector of the output transistor of the photo
coupler inside the projector)
8 3D_INPUT_REFERENCE+ IN 3D L/R timing signal (+)
(Connects to the anode of the input diode of the photo
coupler inside the projector)
9 +12V PWR Supplies power (+12V) to the 3D image system
10 3D_INPUT_REFERENCE− IN 3D L/R timing signal (–)
(Connects to the cathode of the input diode of the photo
coupler inside the projector)
11 3D_DISPLAY_REFERENCE+ IN 3D L/R display timing signal (+)
(Connects to the anode of the input diode of the photo
coupler inside the projector)
12 3D_DISPLAY_REFERENCE− IN 3D L/R display timing signal (–)
(Connects to the cathode of the input diode of the photo
coupler inside the projector)
13 CONN_3D_MODE− OUT 3D mode status (–)
(Connects to the emitter of the output transistor of the photo
coupler inside the projector)
14 CONN_SYNC− OUT 3D L/R switching timing signal (–)
(Connects to the emitter of the output transistor of the photo
coupler inside the projector)
15 N/C − Unused
78
6. Appendix
6-9. Related products list
Product name Lens memory support Model name
Lens Zoom lens 1.2 to 1.72 Yes NP-9LS12ZM1
Zoom lens 1.33 to 2.1 Yes NP-9LS13ZM1
Zoom lens 1.62 to 2.7 Yes NP-9LS16ZM1
Zoom lens 2.09 to 3.9 Yes NP-9LS20ZM1
Zoom lens 0.84 to 1.26 Yes NP-9LS08ZM1
© Sharp NEC Display Solutions, Ltd. 2023
Ver. 1 6/23
