225H60/H75
Operator's Manual (CARB, EPA)
Please read these instructions carefully and make sure
you understand them before using the hedge trimmer.
101 89 47-95
SYMBOL EXPLANATION
Symbols
WARNING! The hedge trimmer
can be dangerous!
Careless or incorrect use can result in
serious, even fatal injury.
Read through the Operator's
Manual carefully and understand the
content be_breusing the hedge
trimmer.
Always use
• Ear protection
• Approved eye protection
• This product is in accordance with
applicable CE directives.
• Always wear approved protective
gloves.
• Cutting tool. Do not touch the
tool without _]rstswitching off the
engine.
Checks and/or maintenance should be
carried out with the engine switched of_,
with the stop switch in the STOP
position.
Always use approved protective gloves.
Regular cleaning required.
Ocular control.
Approved eye protection must always be
used.
2 - English
CONTENTS
Before using a new machine
* Readthe Operator's Manual carefully.
* Start the machine and check the carburetor settings. See
pages 8, 13 and 14.
IMPOR'IANT! A too lean carburetor adjustment significantly
increases the risk of an engine breakdown.
Insuf}]cient care of the air filter will cause deposits on the spark
plug resulting in starting dif}]culties.
Maintenance, replacement, or repair of the emission control
devices and systems may be performed by any nonroad
engine repair establishment or individual.
Ak WARNING
The engine exhaust from this product
contains chemicals known to the State
of California to cause cancer, birth
defects or other reproductive harm.
B Hu_rna ___
"I'WC
'li BEfE CO_ TO1g_ U.LIR=AAm11i96-
1008CJ,UlIA ImalOHliEHiAllOfl$FOil
LiI,GEBIGIEB,I1_ TO6PttJOOff8MANUALFOR
MAi_ 8P'I_ AI ADJ--,
List of contents
SYMBOL EXPLANATION
Symbols ............................................................................... 2
CONTENTS
Before using a new machine ................................................. 3
List of contents .................................................................... 3
SAFETY INSTRUCTIONS
lYrsonal protective equipment ............................................. 4
The machine's protective equipment .................................... 4
Control, maintenance and service of the hedge trimmer's
protective equipment ..................................................... 6
General safety instructions ................................................... 8
General working instructions for hedge trimmer .................. 9

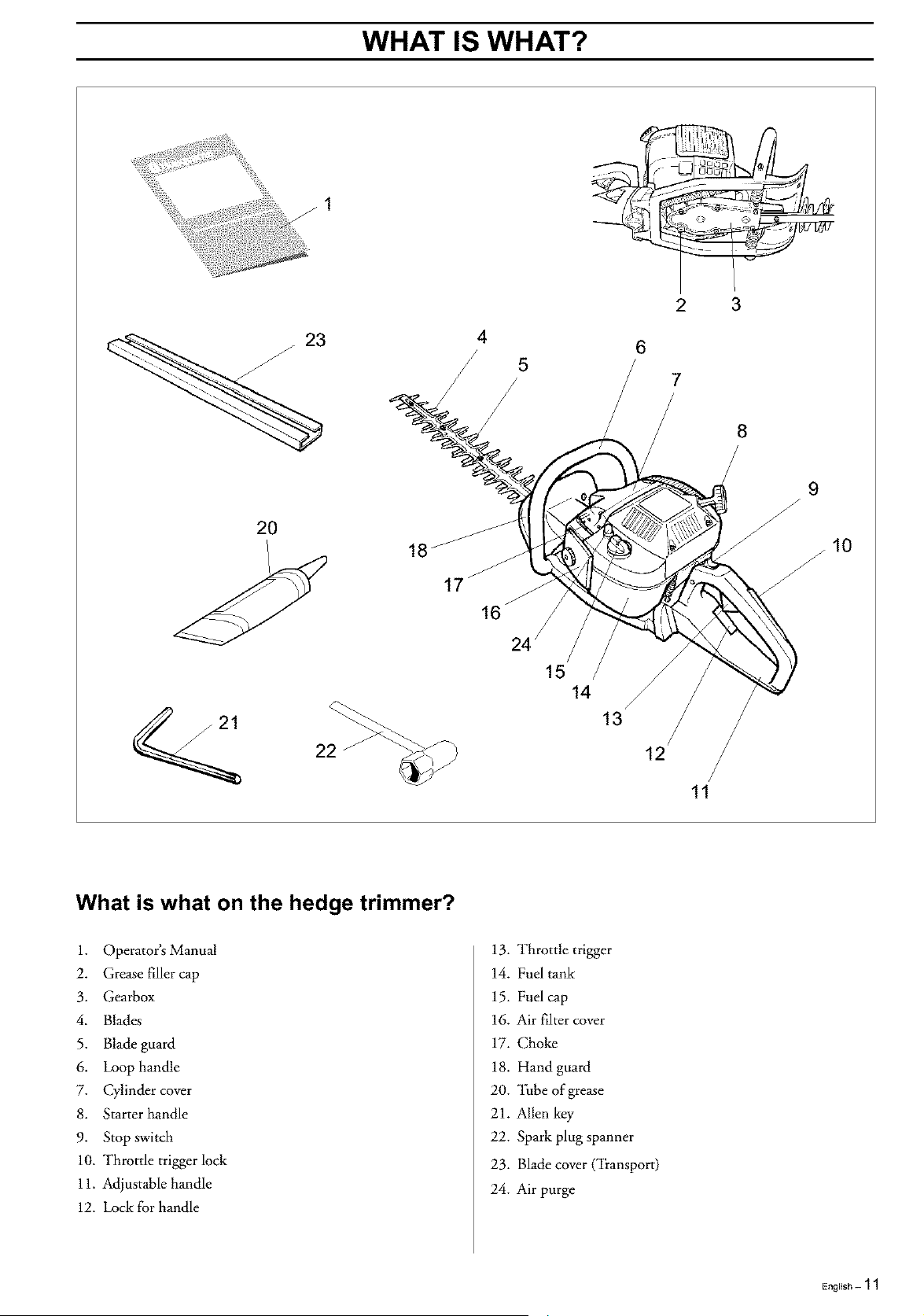

WHAT IS WHAT?
What is what on the hedge trimmer? ................................. 11
FUEL HANDLING
Fuel mixture ...................................................................... 12
Fuelling .............................................................................. 12
START AND STOP
Control before starting ....................................................... 13
Start and stop ..................................................................... 13
MAINTENANCE

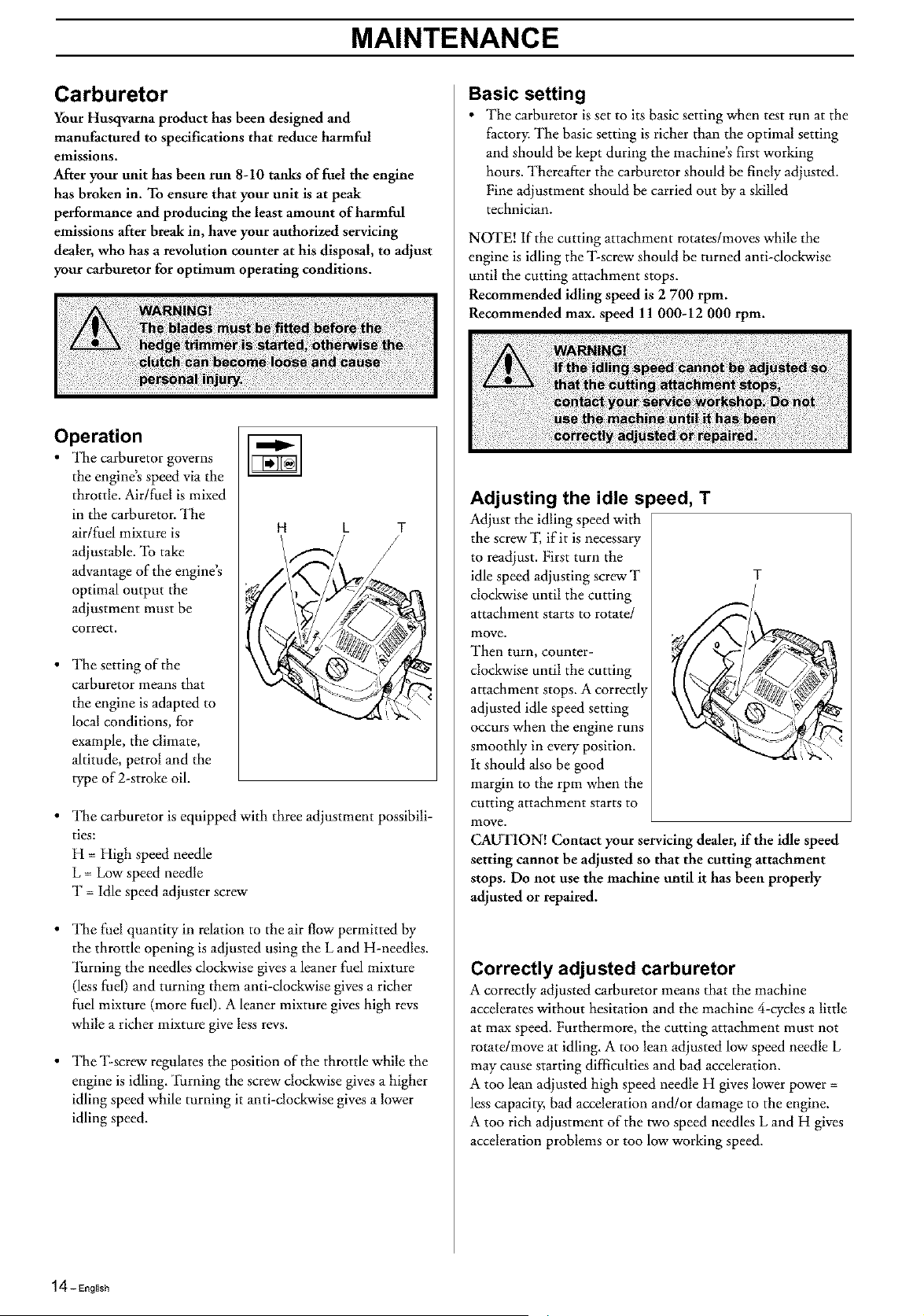

Carburetor ......................................................................... 14

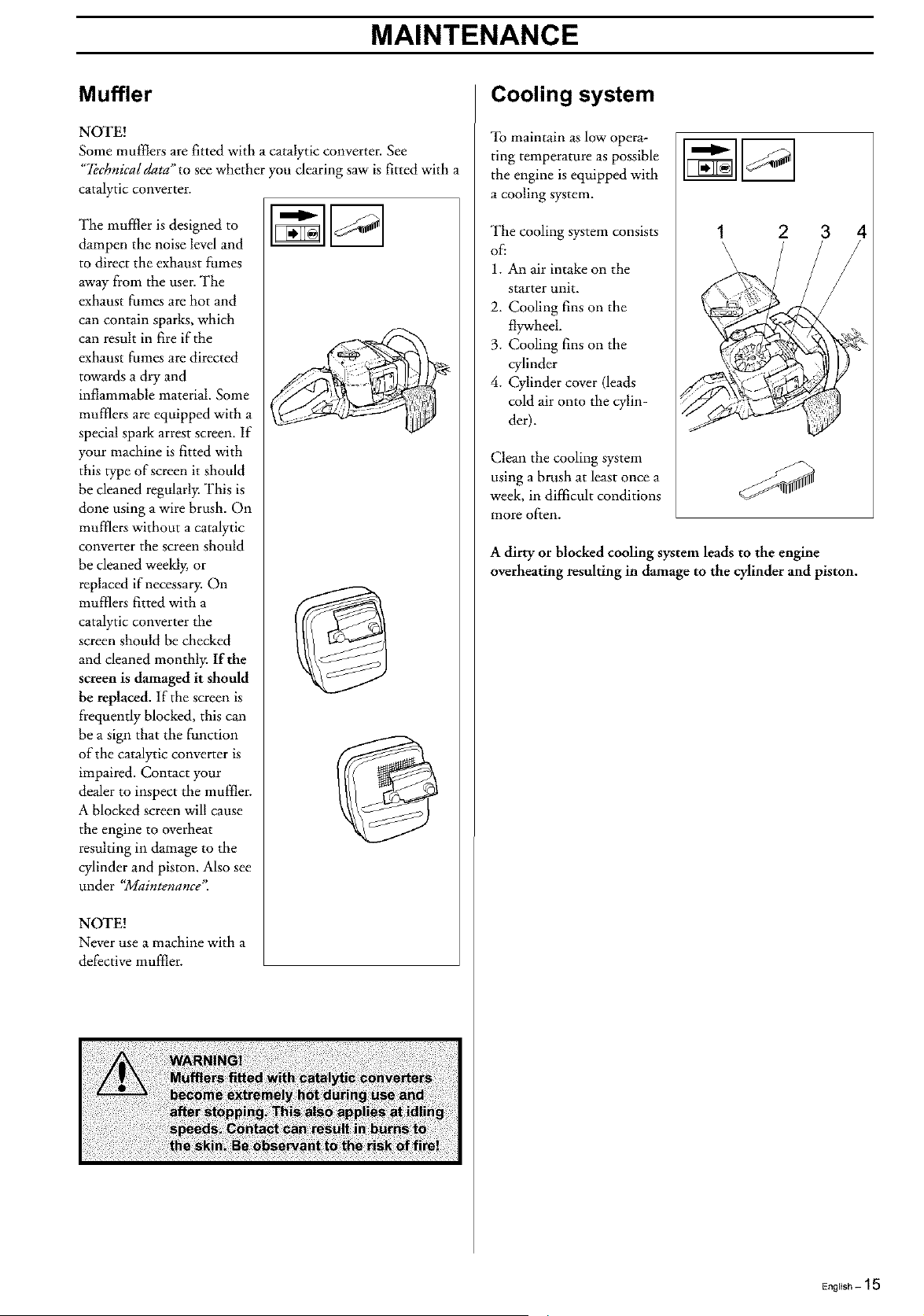

Muffler .............................................................................. 15
Cooling system .................................................................. 15
Air filter ............................................................................. 16
Spark plug .......................................................................... 16
Gearbox ............................................................................. 16
Lubrication ........................................................................ 16

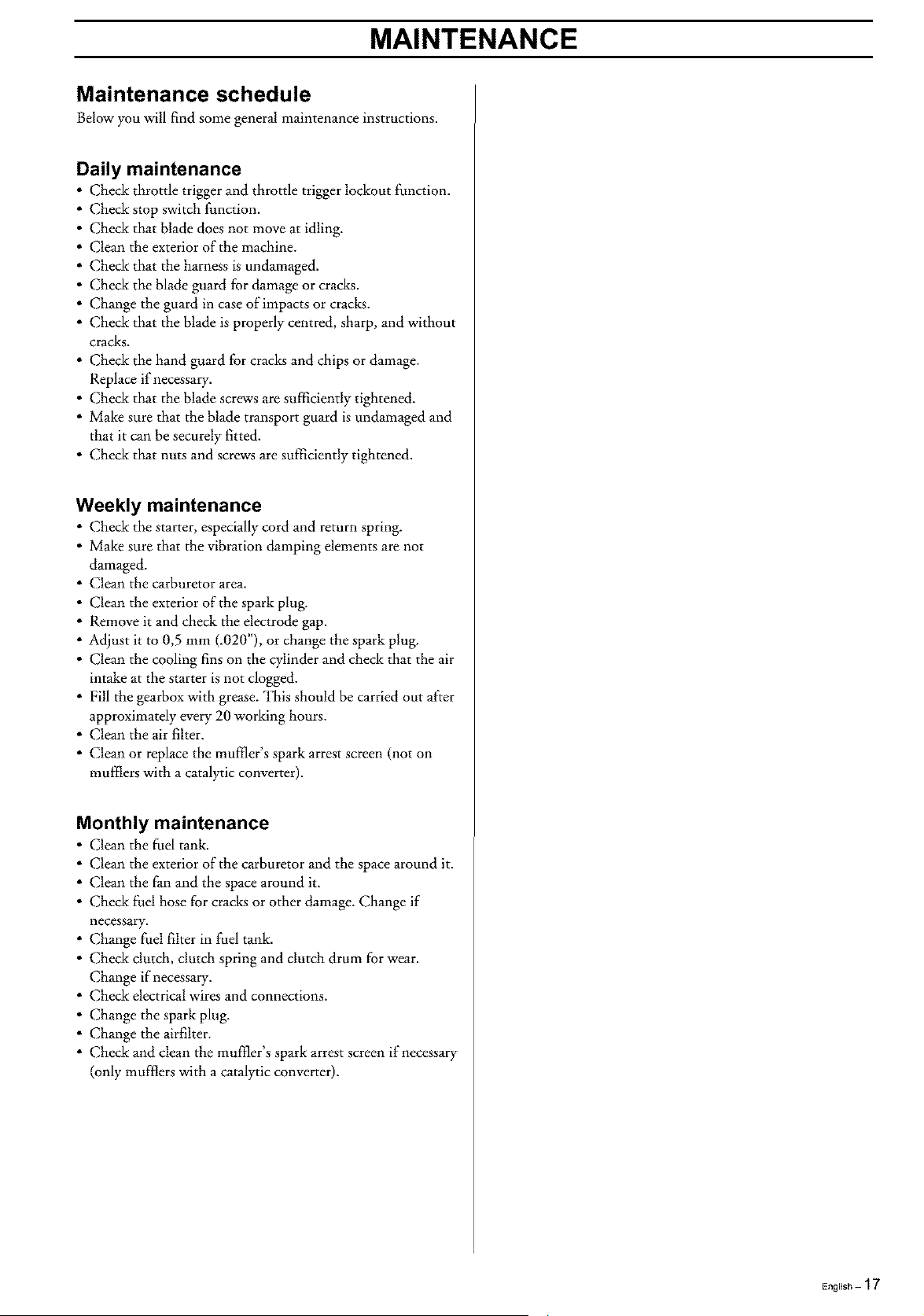

Maintenance schedule ........................................................ 17

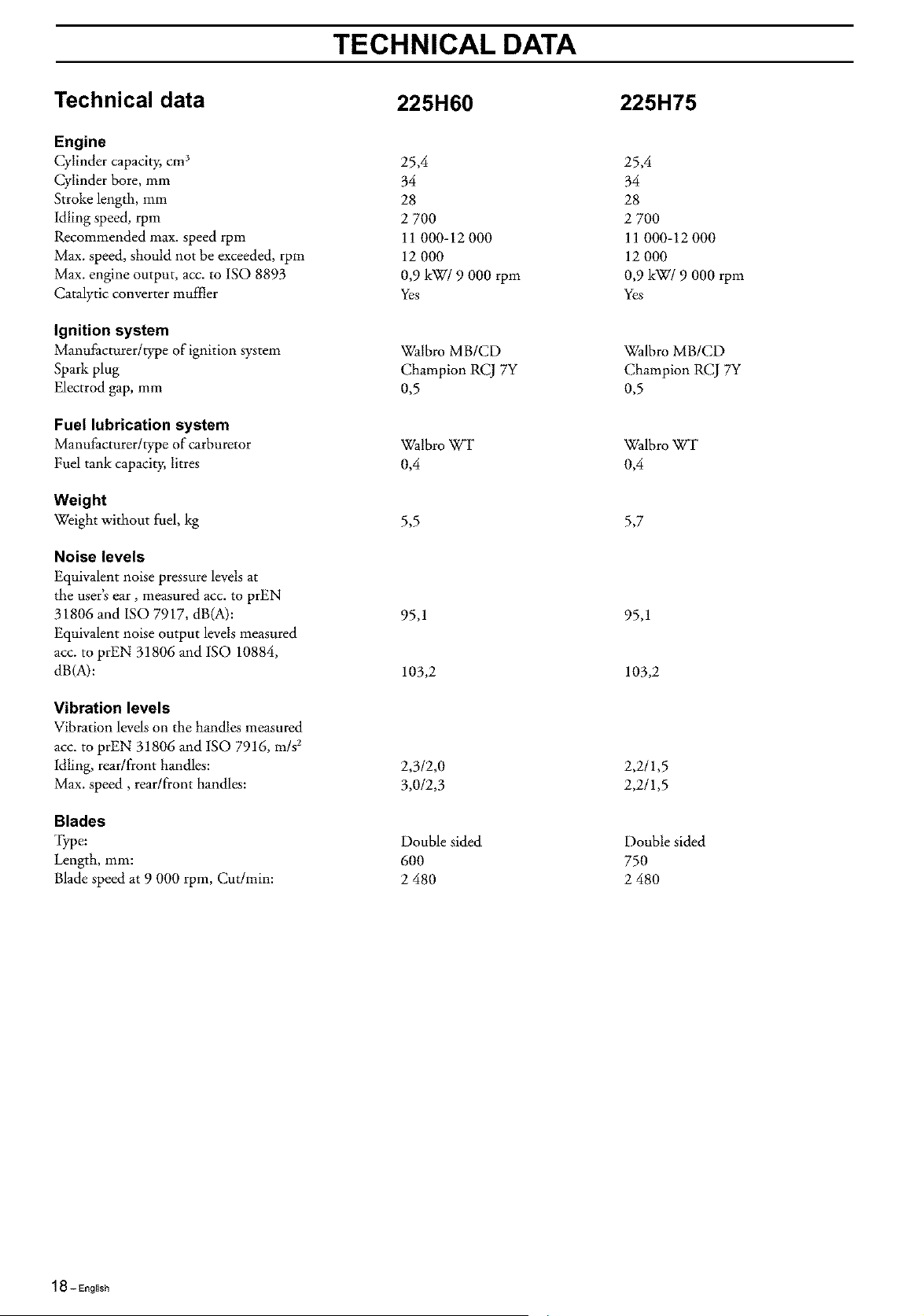

TECHNICAL DATA
225H60 ............................................................................. 18
225H75 ............................................................................. 18
FEDERAL AND CALIFORNIA EMISSION CONTROL
WARRANTY STATEMENT
.................................................................................... 19
English - 3
SAFETY INSTRUCTIONS
Personal protective eqipment
IMPORTANT INFORMATION
Incorrect or careless use of a hedge trimmer can
turn it into a dangerous tool that can cause
serious or even fatal injury. It is extremely
important that you read and understand this
manual.
When using a hedge trimmer, protective
equipment approved by the appropriate
authorities must be used. Personal protective
equipment does not eliminate the risk of
accidents, however, it can reduce the effects of an
injury in the event of an accident. Ask your dealer
for help when choosing protective equipment.
GLOVES
Gloves should be worn when
necessary, e.g., when
inspecting, cleaning or
assembling cutting equip-
ment.
EAR PROTECTION
Ear protection ot}'ering
sufficient dampening effect
should be used.
EYE PROTECTION
Blows from branches or
objects thrown by the
moving blades can damage
the eyes.
BOOTS
Use anti-slip and stable
boots.
CLOTHING
Wear clothes made of a
strong fabric and avoid loose
clothing that can catch on
shrubs and branches.
FIRST AID KIT
A first aid kit should be dose
at hand.
The machine's protective equipment
This section describes the hedge trimmer's protective equip-
ment, its function and how checks and maintenance are
carried out to ensure that it operates correctly. (See the chapter
"What is what" to locate where this equipment is positioned on
your machine.)
1. Throttle trigger lock
The throttle trigger lock is
designed to prevent the
throttle from accidentally
being engaged. The trigger
(A) can only be pressed in, if
the lock (B) is held in (= the
operator holding the
handle). When the grip on
the handle is released the
throttle and the throttle
trigger lock return to their
original positions. This
takes place via two indepen-
dent return spring systems.
This means that the throttle
is automatically locked in
the idling position.
2. Stop switch
The stop switch (C) should
be used to stop the engine.
3. Hand guard
The hand guard (D)
prevents the operator's
hands from coming into
contact with the blades. For
example, if the operator
should loose his grip on the
front handle.
D
4- English
SAFETY INSTRUCTIONS

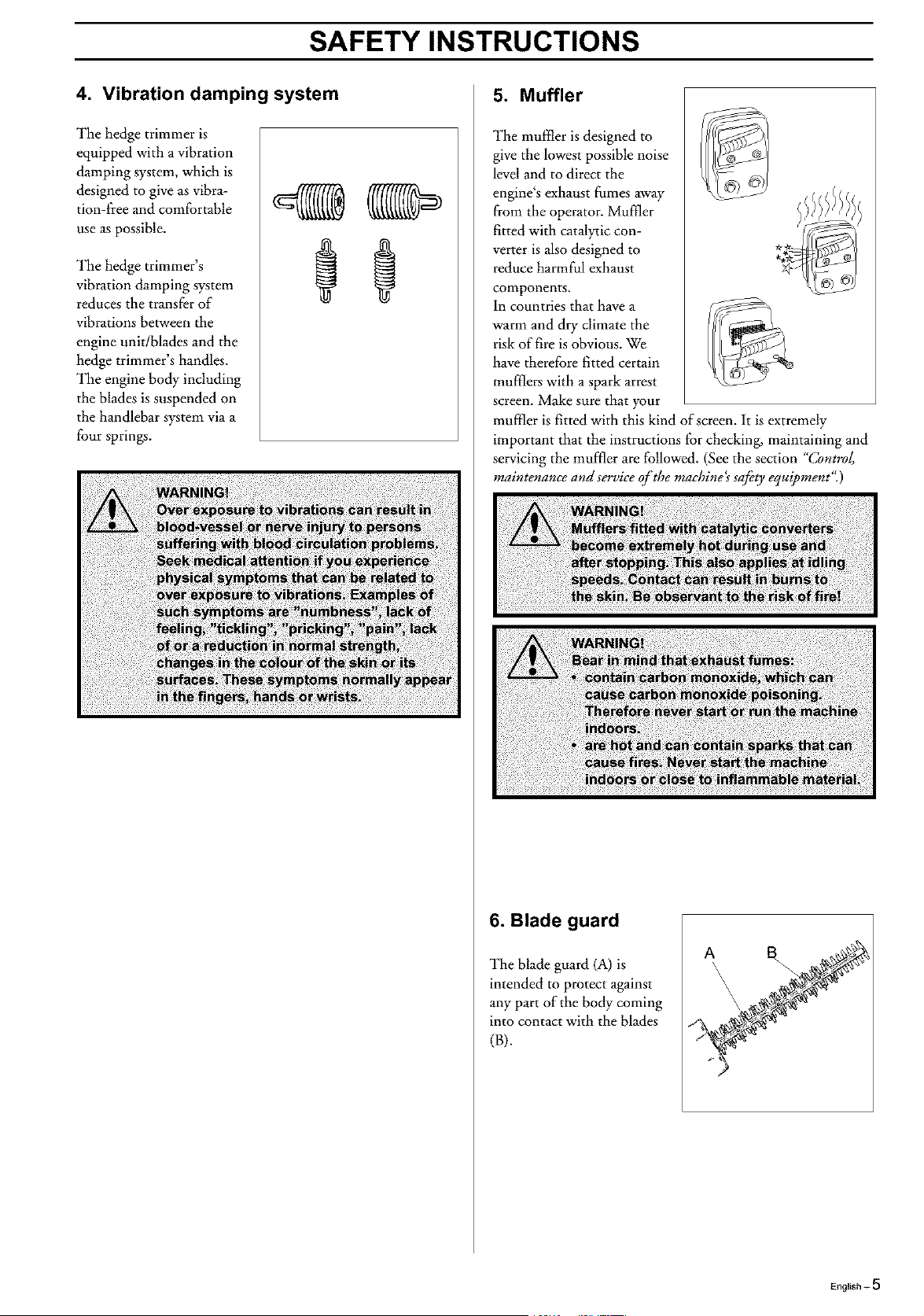

4. Vibration damping system
The hedge trimmer is
equipped with a vibration
damping system, which is
designed to give asvibra-
tion-free and comfortable
use as possible.
The hedge trimmer's
vibration damping system
reduces the transfer of
vibrations between the
engine unit/blades and the
hedge trimmer's handles.
The engine body including
the blades is suspended on
the handlebar system via a
four springs.
_!_ _.............................;_ .........
Muffler
The muffler is designed to
give the lowest possible noise
level and to direct the
engine's exhaust fumes away
from the operator. Muffler
fitted with catalytic con-
verter is also designed to
reduce harmful exhaust
components.
In countries that have a
warm and dry climate the
risk of fire is obvious. We
have therefore fitted certain
mufflers with a spark arrest
screen. Make sure that your
muffler is fittedwith this kind of screen. It is extremely
important that the instructions for checking, maintaining and
servicing the muffler are followed. (See the section '_bntrol,
maintenance and se_ice of the machine'ssafetyequipment")
6. Blade guard
The blade guard (A) is
intended to protect against
any part of the body coming
into contact with the blades
(B).
A
English - 5
SAFETY INSTRUCTIONS
Control, maintenance and service of
the hedge trimmer's protective
equipment
IMPORTANT INFORMATION
All service and repairs to the machine require
special training.
This applies especially to the machine's safety
equipment. If the machine does not meet any of
he controls listed below you should contact
your service workshop.
The purchase of one of our products
guarantees that professional repair and
servicing will be carried out on it. If the point of
purchase is not one of our servicing dealers,
please ask for details of the closest service
workshop.

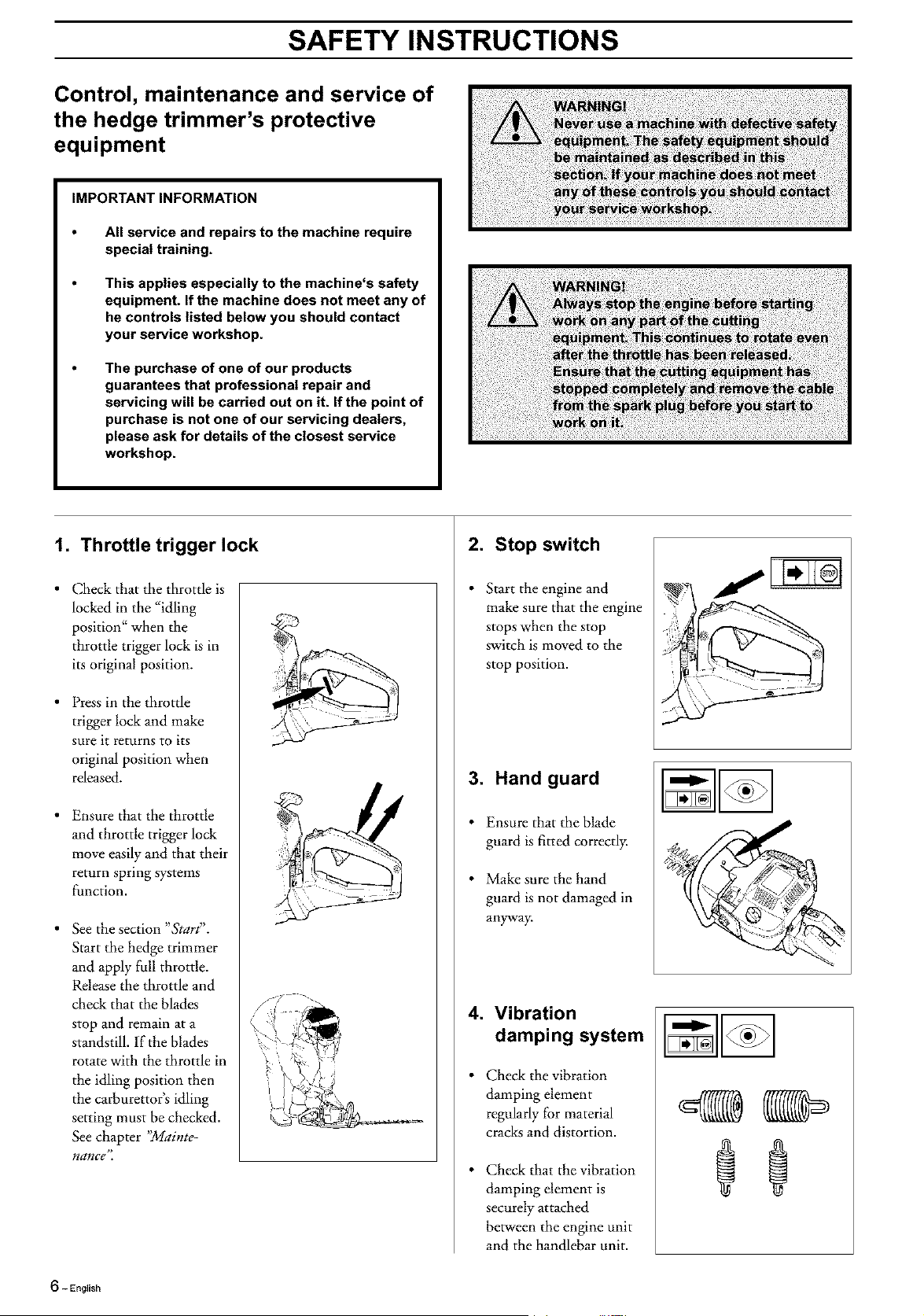

1. Throttle trigger lock
• Check that the throttle is
locked in the "idling
position" when the
throttle trigger lock is in
its original position.
Press in the throttle
trigger lock and make
sure it returns to its
original position when
released.
• Ensure that the throttle
and throttle trigger lock
move easily and that their
return spring systems
function.
• See the section "Start".
Start the hedge trimmer
and apply full throttle.
Release the throttle and
check that the blades
stop and remain at a
standstill. If the blades
rotate with the throttle in
the idling position then
the carburettor's idling
setting must be checked.
See chapter "Mainte-
nance'_
2. Stop switch
• Start the engine and
make sure that the engine
stops when the stop
switch is moved to the
stop position.
3. Hand guard
• Ensure that the blade
guard is fitted correctly.
• Make sure the hand
guard is not damaged in
anyway.
4. Vibration
damping system
• Check the vibration
damping element
regularly for material
cracks and distortion.
• Check that the vibration
damping element is
securely attached
between the engine unit
and the handlebar unit.
6 - English
SAFETY INSTRUCTIONS

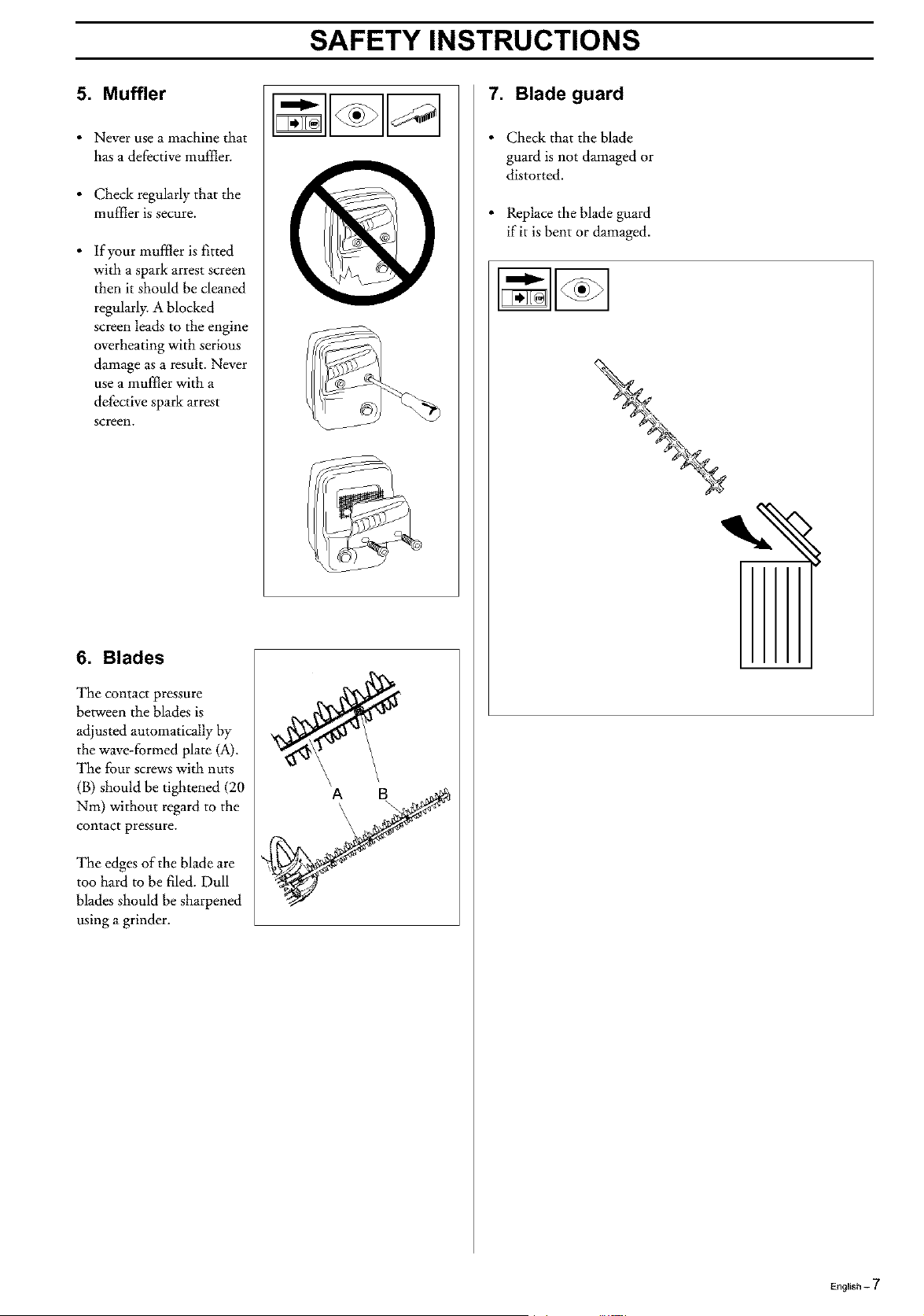

5. Muffler
• Never use a machine that
has a defective muffler.
• Check regularly that the
muffler is secure.
= If your muf_Ier is fitted
with a spark arrest screen
then it should be cleaned
regularly. A blocked
screen leads to the engine
overheating with serious
damage as a result. Never
use a muffler with a
defective spark arrest
screen.
6. Blades
The contact pressure
between the blades is
adjusted automatically by
the wave-formed plate (A).
The four screwswith nuts
(B) should be tightened (20
Nm) without regard to the
contact pressure.
The edges of the blade are
too hard to be filed. Dull
blades should be sharpened
using a grinder.
Blade guard
° Check that the blade
guard is not damaged or
distorted.
Replace the blade guard
if it is bent or damaged.
English - 7
SAFETY INSTRUCTIONS
General safety instructions
IMPORTANT INFORMATION
The machine is only designed for cutting
branches and twigs.
Never use the machine if you are tired, if you
have consumed alcohol, or if you are taking
medicines that can affect your sight, your
judgement or the control of your body.
Use personal protective equipment. See the
section "Personal protective equipment".
Never use a machine that has been modified so
that it no longer corresponds with the original
design.
Never use a machine that is faulty. Follow the
maintenance, control and service instructions in
this Operator's Manual.
Some maintenance and service actions should
be carried out by trained and qualified
specialists. See the chapter "Maintenance"
Start
• The gearbox and clutch drum must be fitted before the
machine is started, otherwise the dutch can become loose
and cause personal injury.
• Never start the machine indoors. Bear in mind the dangers
of inhaling the engine's exhaust fumes.
• Observe your surroundings and make sure that there is no
risk of people or animals coming into contact with the
cutting equipment.
Place the machine on the
ground, make sure the
blades are free from
branches and stones.
Press the machine body
against the ground using
your lel_ hand (NOTE!
Do not use your foot).
Grip the starter handle
with your right hand and
pull the starter cord.
@
Fuel safety
• Never fill the machine
while the engine is
running. Always stop the
engine and let it cool for
a few minutes before
refuelling.
• Provide good ventilation
when filling or mixing
fuel (petrol and 2-stroke
oil).
• Move the machine at
least 3 m from the filling
position before starting.
• Never start the machine:
a) If you have spilt fuel on
it. Wipe up all spillage.
b) If you have spilt fuel on
yourself or your clothes.
Change your clothes.
c) If there is a fuel leak.
Make regular checks for
leakage from the fuel cap
and the fuel supply pipes.
Transport and storage
Store and transport the machine and fuel so that any
leakage or fumes do not risk coming into contact with
sparks or naked flames. For example, electric machines,
electric motors, electrical switches/power switches, heaters
or the like.
When storing and transporting fuel, approved containers
intended for this purpose must be used.
When storing the machine for long periods the fuel tank
must be emptied. Contact your local petrol station to find
out how to dispose of excess fuel.
The blades transport guard should always he fitted when
transporting or storing the hedge trimmer.
8 - English
SAFETY INSTRUCTIONS
Safety instructions when
using the hedge trimmer
NOTE! Read the Operator's Manual carefully before using
the hedge trimmer.
Personal protection
= Always wear boots, and the
other safety equipment
described in the section
"Personalprotective
equipment':
° Always wear working
clothes and thick, long
trousers.
• Never wear loose fitting
clothes or jewellery
° Hair should be put up if
longer than shoulder
length.
Protective instructions regarding the
surroundings
• Never allow children to
use the machine.
° Ensure no one comes
within 15 metres while
working.
• Never allow anyone to use
the machine without first
being absolutely sure that
they understand the
contents of the Operator's
Manual.
• Never work on a ladder,
stool or any other raised
position that is not fully
secured.
Protective instructions while working
• Always ensure you have a
safe and firmworking
position.
• Always use both hands to
hold the machine. Hold
the machine on the right-
hand side of the body.
• Make sure that your
hands and feet cannot
come into contact with
the blades when the
engine is running.
, When the engine is
switched off; keep your
hands and feet away from
the blades until they have
stopped.
@
, Do not cut too close to the ground. Stones and other
objects can be thrown.
• If any object is hit or if vibrations occur stop the machine
immediately. Remove the spark plug cable from the spark
plug. Check that the machine is not damaged. Repair any
damage.
English-9
SAFETY INSTRUCTIONS
Protective instructions when
work is completed
• The transport guard should always be fitted to the blades
when the machine is not in use.
• Ensure the blades have stopped and remove the spark plug
cable from the spark plug before carrying out cleaning,
repairs or an inspection.
• Alwayswear heaW duty
gloveswhen repairing the
blades. The blades are
extremely sharp and can
easily causes cuts.
• Store the machine out of
reach from children.
• Only use original spare
parts when carrying out
repairs.
Basic working techniques
• The hedge trimmer's rear
handle can be set in three
positions by pulling out
the catch. See figure.
When the handle is
adjusted the hedge
trimmer should be idling
or not running.
• While working the
handle should always be
facing upwards irrespec-
tive of how the hedge
trimmer is directed.
• When trimming a hedge
the engine should always
beturned away fromthe
hedge.
• The hedge trimmer
should be held as dose to
the body as possible to
get the best balance.
• Make sure that the tip
does not touch the
ground.
Do not try to force the
work, but move at a
steady speed so that all
the stems are cut evenly.
10- English
WHAT IS WHAT?
4
5
2
6
7
3
8
20
I
17"
16
10
22
/
15 /
14
13
12
/
11
What is what on the hedge trimmer?
1. Operator's Manual
2. Grease filler cap
3. Gearbox
4. Blades
5. Blade guard
6. Loop handle
7. Cylinder cover
8. Starter handle
9. Stop switch
10. Throttle trigger lock
11. Adjustable handle
12. Lock for handle
13. Throttle trigger
14. Fuel tank
15. Fuel cap
16. Air filter cover
17. Choke
18. Hand guard
20. Tube of grease
21. Allen key
22. Spark plug spanner
23. Blade cover ('Dansport)
24. Air purge
English - 11
FUEL HANDLING
Fuel mixture
NOTE_
The machine is fitted with a two-stroke engine and must
always be run on a mixture of petrol and two-stroke oil. It is
important to measure the quantity of oil accurately, to ensure
the correct mixture ratio. Small discrepancies in the amount of
oil have a great bearing on the proportions of the fuel mixture
when mixing small amounts of fuel.
Gasoline
NOTE]
Mways use an oil-mixed
quality petrol (at least 87
octane). If your machine is
equipped with a catalytic
converter, (see "technical
data') an unleaded, oil
mixed quality petrol should
always be used. A leaded
petrol will destroy the
catalytic converter.
• This engine is certified to
operate on unleaded
gasoline.
• The lowest recommended
octane rating is 87. lfyou
run the engine on lower
octane rating than 87 so-
called "knocking" can
occur. This leads to an
increased engine
temperature, which can
result in a serious engine
breakdown.
• When working at
continuous high revs a
higher octane rating is
recommended.
6
6
Two-stroke oil
• For the best results use HUSQVARNA two-stroke oil,
which has been specially developed for HUSQVARNA's
small, two-stroke engines. Mixing ratio 1:50 (2%).
• Never use two-stroke oil intended forwater cooled outboard
motors, so-called outboard motor oil.
• Never use oil intended for four-strokeengines.
Mixture
• Always mix gasoline and oil in a clean container intended
for fuel.
• Always start by filling half the quantity of gasoline required.
Then add the entire oil quantity. Mix (shake) the fuel
mixture. Fill the remaining quantity of gasoline.
• Mix (shake) the fuel mixture carefully before filling in the
machine's fuel tank.
• Do not mix more than max. one month's supply of fuel.
• If the clearing saw is not used for a long period of time, the
fuel tank should be emptied and cleaned.
• This engine is certified to operate on unleaded gasoline.
Fuelling
• Clean around the fuel
cap. Contamination in
the tank can disrupt
operations.
• Ensure that the fuel is
well mixed by shaking the
container before filling
the tank.
Gasoline Oil
2%(1:50)
Lit. Lit.
5 0,10
10 0,20
15 0,30
20 0,40
US US
gallon ft.oz
1 2 1/2
2 1/2 6 1/2
5 12 7/8
Min. 3 m
(10 ft) •
12 - English
START AND STOP
Control before starting
• Inspect the working area. Remove objects that can be
thrown.
• Check the blades. Never [=_
use blades that are dull,
cracked or damaged.
• Check that the hedge
trimmer is in full
working order. Check
that all nuts and bolts are
tightened correctly.
• Make sure the gearbox is lubricated correctly. See the
section "Lubricating the blades".
• Ensure the blades always stop when the engine is idling.
• Only use the machine for what it is intended for.
• Ensure that the handle and safety functions are in order.
Never use a machine that lacks a part or has been modified
outside of the specifications.
Start and stop
Start
Cold engine
IGNITION:
Set the stop switch to the
start position.
CHOKE:
Set the choke control in the
choke position (A).
The choke position is also
the automatic start throttle
position.
AIR PURGE:
Press the air purge
diaphragm repeatedly until
fuel begins to fill the
diaphragm. The diaphragm
need not be completely
filled.
Warm engine
IGNITION:
Set the stop switch to the
start position.
CHOKE:
Set the choke control in the
choke position and then
back again to its original
position (B)
In this way only the start
throttle is applied with no
choke.
AIR PURGE:
Press the air purge
diaphragm repeatedly until
fuel begins to fill the
diaphragm. The diaphragm
need not be completely
filled.
@
I+1
Press the machine body
against the ground using
your leI_hand (NOTE! Do
not use your foot). Grip the
starter handle with your
right hand and slowly pull
the starter cord out until
you feelsome resistance,
(the starter hooks grip) now
quickly and powerfully pull
the cord.
Immediately press the choke
control in when the engine
fires and repeat until the
engine starts. When the
engine starts, quickly apply
full throttle and the start
throttle will automatically
disengage.
@
NOTE! Do not pull the starter cord out completely and do
not release the starter cord from the fully extended position.
This can damage the hedge trimmer.
Stop
The engine isstopped by
switching the ignition off
using the stop switch.
English - 1 3
MAINTENANCE
Carburetor
Your Husqvarna product has been designed and
manufactured to specifications that reduce harmful
emissions.
After your unit has been run 8-10 tanks of fuel the engine
has broken in. To ensure that your unit is at peak
performance and producing the least amount of harmful
emissions after break in, have your authorized servicing
dealer, who has a revolution counter at his disposal, to adjust
your carburetor for optimum operating conditions.
Operation
• The carburetor governs
the engine's speed via the
throttle. Air/fuel is mixed
in the carburetor. The
air/fuel mixture is
adjustable. _Ibtake
advantage of the engine's
optimal output the
adjustment must be
correct.
• The setting of the
carburetor means that
the engine is adapted to
local conditions, for
example, the climate,
altitude, petrol and the
type of 2-stroke oil.
H L T
• The carburetor is equipped with three adjustment possibili-
ties:
H = High speed needle
L = Low speed needle
T = Idle speed adjuster screw
• The fuel quantity in relation to the air flow permitted by
the throttle opening is adjusted using the L and H-needles.
_lhrning the needles do&wise gives a leaner fuel mixture
(less fuel) and turning them anti-clockwise gives a richer
fuel mixture (more fuel). A leaner mixture gives high revs
while a richer mixture give less revs.
• The T-screw regulates the position of the throttle while the
engine is idling. "filrning the screw clockwise gives a higher
idling speed while turning it anti-clockwise gives a lower
idling speed.
Basic setting
• The carburetor is set to its basic setting when test run at the
factory. The basic setting is richer than the optimal setting
and should be kept during the machine's first working
hours. Thereafter the carburetor should be finely adjusted.
Fine adjustment should be carried out by a skilled
technician.
NOTE! If the cutting attachment rotates/moves while the
engine is idling the T-screw should be turned anti-clockwise
until the cutting attachment stops.
Recommended idling speed is 2 700 rpm.
Recommended max. speed 11 000-12 000 rpm.
Adjusting the idle speed, T
Adjust the idling speed with
the screw'E if it is necessary
to readjust. First turn the
idle speed adjusting screw T
clockwise until the cutting
attachment starts to rotate/
T
move.
Then turn, counter-
clockwise until the cutting
attachment stops, a correctl,
adjusted idle speed setting
occurs when the engine runs
smoothly in every position.
It should also be good
margin to the rpm when the
cutting attachment starts to
move.
CAUTION! Contact your servicing dealer, if the idle speed
setting cannot be adjusted so that the cutting attachment
stops. Do not use the machine until it has been properly
adjusted or repaired.
Correctly adjusted carburetor
A correctly adjusted carburetor means that the machine
accelerates without hesitation and the machine 4-cycles a little
at max speed. Furthermore, the cutting attachment must not
rotate/move at idling. A too lean adjusted low speed needle L
may cause starting dif}]culties and bad acceleration.
A too lean adjusted high speed needle H gives lower power =
lesscapacity, bad acceleration and/or damage to the engine.
A too rich adjustment of the two speed needles L and H gives
acceleration problems or too low working speed.
14- English
MAINTENANCE
Muffler
NOTE_
Some mufflers are fitted with a catalytic converter. See
"Ibchnical data" to see whether you dearing saw is fitted with a
catalytic converter.
The muffler is designed to
dampen the noise level and
to direct the exhaust fumes
away from the user. The
exhaust fumes are hot and
can contain sparks, which
can result in fire if the
exhaust fumes are directed
towards a dry and
inflammable material. Some
mufflers are equipped with a
special spark arrest screen. If
your machine is fitted with
this type of screen it should
be cleaned regularly. This is
done using a wire brush. On
mufflers without a catalytic
converter the screen should
be cleaned weekly, or
replaced if necessary. On
mufflers fitted with a
catalytic converter the
screen should be checked
and cleaned monthly. If the
screen is damaged it should
be replaced. If the screen is
frequently blocked, this can
be a sign that the function
of the catalytic converter is
impaired. Contact your
dealer to inspect the muffler.
A blocked screen will cause
the engine to overheat
resulting in damage to the
cylinder and piston. Also see
under "Maintenance"
NOTE_
Never use a machine with a
defective muffler.
Cooling system
_lbmaintain as low opera-
ting temperature as possible
the engine is equipped with
a cooling system.
The cooling system consists
of:
1. An air intake on the
starter unit.
2. Cooling fins on the
flywheel.
3. Cooling fins on the
cylinder
4. Cylinder cover (leads
cold air onto the cylin-
der).
Clean the cooling system
using a brush at least once a
week, in difficult conditions
Pll O r e often.
A dirty or blocked cooling system leads m the engine
overheating resulting in damage to the cylinder and piston.
English - 15
MAINTENANCE
Air filter
The air filter (A) should be
cleaned regularly removing
dust and dirt to avoid:
• carburetor malfunction
• starting problems
reduced engine power
unnecessary wear to
engine parts
• abnormal fuel consump-
tion
Clean the filter after every
25 hours or more regularly
if operating conditions are
exceptionally dusty.
B A
Cleaning the air filter
Dismantle the air filter cover (B) and remove the air filter.
Wash in clean, warm soapy water. Ensure that the filter is dry
before refitting.
An air filter used for a long period of time can never be cleaned
completely. Therefore it is necessary to replace the filter from
time to time with a new filter.A damaged air filter must always
be replaced.
Spark plug
The condition of the spark plug is aff_cred by:
• An incorrect carburetor setting.
• An incorrect fuel mixture (too much or faulty oil).
• A dirty air filter.
These factors cause deposits on the spark plug electrode that
may result in malfunction or starting difficulties.
If the machine is low on
power, difficuh to start or
runs poorly while idling
always check the spark plug
first before taking other
action.
The spark plug is accessed
from under the cylinder
cover, which is removed by
loosening the four bolts (A).
If the spark plug is dirty,
clean it and at the same time
check that the electrode gap
is 0.5 mm. The spark plug
should be changed after
about one month of
operation or earlier if
necessary.
NOTE! Always use the
recommended type of spark
plug. An incorrect spark
plug can damage the
cylinder/piston.
A
A
0,5 mm
Gearbox
There is a grease plug on the
gearbox (A). Remove the
plug and insert a 4-5 cm
string from the tube of
grease supplied with the
hedge trimmer. This should
be carried out after approxi-
mately every 20 working
hours. Use Husqvarna
special grease,
No 503 98 96-01.
The lubricant in the gearbox
does not normally need to
be replaced other than with
repair.
Lubrication
Always lubricate the blade
runners with special grease
531 00 60-74 (UL 2001)
before use.
A
16- English
MAINTENANCE
Maintenance schedule
Below you will find some general maintenance instructions.
Daily maintenance
Check throttle trigger and throttle trigger lockout function.
Check stop switch function.
Check that blade does not move at idling.
Clean the exterior of the machine.
Check that the harness is undamaged.
Check the blade guard for damage or cracks.
Change the guard in case of impacts or cracks.
Check that the blade is properly centred, sharp, and without
cracks.
• Check the hand guard for cracks and chips or damage.
Replace if necessary.
• Check that the blade screwsare sufficiently tightened.
• Make sure that the blade transport guard is undamaged and
that it can be securely fitted.
• Check that nuts and screws are sufficiently tightened.
Weekly maintenance
, Check the starter, especially cord and return spring.
• Make sure that the vibration damping elements are not
damaged.
° Clean the carburetor area.
• Clean the exterior of the spark plug.
• Remove it and check the electrode gap.
° Adjust it to 0,5 mm (.020"), or change the spark plug.
• Clean the cooling fins on the cylinder and check that the air
intake at the starter is not clogged.
° Fill the gearbox with grease. This should be carried out after
approximately every 20 working hours.
• Clean the air filter.
• Clean or replace the muffler's spark arrest screen (not on
mufflers with a catalytic converter).
Monthly maintenance
. Clean the fuel tank.
° Clean the exterior of the carburetor and the space around it.
° Clean the fan and the space around it.
• Check fuel hose for cracks or other damage. Change if
necessary.
° Change fuel filter in fuel tank.
• Check clutch, clutch spring and clutch drum for wear.
Change if necessary.
° Check electrical wires and connections.
° Change the spark plug.
° Change the airfilter.
° Check and clean the muffler's spark arrest screen if necessary
(only mufflers with a catalytic converter).
English - 1 7
TECHNICAL DATA
Technical data
Engine
Cylinder capacity, cm3
Cylinder bore, mm
Stroke length, mm
Idling speed, rpm
Recommended max. speed rpm
Max. speed, should not be exceeded, rpm
Max. engine output, acc. to 1SO 8893
Catalytic converter muffler
Ignition system
Manufacturer/type of ignition system
Spark plug
Electrod gap, mm
Fuel lubrication system
Manufacturer/type of carburetor
Fuel tank capacity, litres
Weight
Weight without fuel, kg
Noise levels
Equivalent noise pressure levels at
the user's ear, measured acc. to prEN
31806 and ISO 7917, dB(A):
Equivalent noise output levels measured
acc. to prEN 31806 and 1SO 10884,
dB(A):
Vibration levels
Vibration levels on the handles measured
acc. to prEN 31806 and 1SO 7916, m/s 2
Idling, rear/front handles:
Max. speed, rear/front handles:
Blades
Length, mm:
Blade speed at 9 000 rpm, Cut/rain:
225H60
25,4
34
28
2 700
11 000-12 000
12 000
0,9 kW/9 000 rpm
Yes
Walbro MB/CD
Champion RCJ 7Y
0,5
Walbro WT
0,4
5,5
95,1
103,2
2,3/2,0
3,0/2,3
Double sided
600
2 480
225H75
25,4
34
28
2 700
11 000-12 000
12 000
0,9 kW/9 000 rpm
Yes
Walbro MB/CD
Champion RCJ 7Y
0,5
WalbroWF
0,4
5,7
95,1
103,2
2,2/1,5
2,2/1,5
Doublesided
750
2 480
18- English
FEDERAL AND CALIFORNIA EMISSION CONTROL WARRANTY STATEMENT
YOUR WARRANTY RIGHTS AND
OBLIGATIONS
The EPA (U.S. Etwiromnental Protection Agency), Carb
(California Air Resources Board) and Husqvarna Forest &
Garden are pleased to explain the emissions control system
warranty on your 1997 and later Lawn and Garden
Equipment Engine. In U.S., new utility and lawn and garden
equipment engines must be designed, built and equipped to
meet the federal and California stringent anti-smog standards.
Husqvarna Forest & Garden must warrant the emission
control system on your Lawn and Garden Equipment Engine
for the periods of time listed below provided there has been no
abuse, neglect or improper maintenance of your unit.
Your emission control system includes Parts such as the
carburetor and the ignition system.
Where a warrantable condition exists, Husqvarna Forest &
Garden will repair your Lawn and Garden Equipment Engine
at no cost to you. Expenses covered under warranty include
diagnosis, parts and labor.
MANUFACTURER'S WARRANTY
COVERAGE
The 1997 and later utility and lawn and garden equipment
engines are warranted for two years. If any emission related
part on your engine (as listed above) is defective, the part will
be repaired or replaced by Husqvarna Forest & Garden.
OWNER'S WARRANTY
RESPONSIBILITIES
As the Lawn and Garden Equipment Engine owner, you are
responsible for the performance of the required maintenance
listed in your Owner's Manual. Husqvarna Forest & Garden
recommends that you retain all receipts covering maintenance
on your Lawn and Garden Equipment Engine, but Husqvarna
Forest & Garden cannot deny warranty solely for the lack of
receipts or for your failure to ensure the performance of all
scheduled maintenance.
As the Lawn and Garden Equipment Engine owner, you
should, however, be aware that Husqvarna Forest & Garden
may deny you warranty coverage if your Lawn and Garden
Equipment Engine or a part of it has failed due to abuse,
neglect, improper maintenance, unapproved modifications or
the use of parts not made or approved by the original
equipment manufacturer.
You are responsible for presenting your Lawn and Garden
Equipment Engine to a Husqvarna Forest & Garden
authorized servicing dealer as soon as a problem exists. The
warranty repairs should be completed in a reasonable amount
of time, not to exceed 30 days.
lfyou have any questions regarding your warranty rights and
responsibilities, you should contact your nearest authorized
servicing dealer or call Husqvarna Forest & Garden at
1-800-487-5963.
WARRANTY COMMENCEMENT DATE
The warranty period begins on the date Lawn and Garden
Equipment Engine is delivered.
LENGTH OF COVERAGE
Husqvarna Forest & Garden warrants to the initial owner and
each subsequent purchaser that the engine is free from defects
in materials and workmanship which cause the failure of a
warranted part for a period of two years.
WHAT IS COVERED
REPAIR OR REPLACEMENT OF PARTS
Repair or replacement of"any warranted part will be
performed at no charge to the owner at an approved
Husqvarna Forest & Garden servicing dealer.
lfyou have any questions regarding your warranty
rights and responsibilities, you should contact your
nearest authorized servicing dealer or call Husqvarna
Forest & Garden at 1-800-487-5963.
WARRANTY PERIOD
Any warranted part which is not scheduled for
replacement as required maintenance, or which is
scheduled only for regular inspection to the effect of
"repair or replace as necessary" shall be warranted for 2
years. Any war-ranted part which is scheduled for
replacement as required maintenance shall be
warranted for the period of time up to the first
scheduled replace-ment point for that part.
DIAGNOSIS
The owner shall not be charged for diagnostic labor
which leads to the determination that a warranted part
is defective, if the diagnostic work is performed at an
approved Husqvarna Forest & Garden servicing dealer.
CONSEQUENTIAL DAMAGES
Husqvarna Forest & Garden may be liable for damages
to other engine components caused by the failureof a
warranted part still under warranty.
WHAT IS NOT COVERED
All failures caused by abuse, neglect or improper maintenance
are not covered.
ADD -ON OR MODIFIED PARTS
The use of add-on or modified parts can be grounds for
disallowing a warranty claim. Husqvarna Forest &
Garden is not liable to cover failuresofwarranred parts
caused by the use of add-on or modified parts.
HOW TO FILE A CLAIM
If you have any questions regarding your warranty rights and
responsibilities, you should contact your nearest authorized
servicing dealer or call Husqvarna Forest & Garden at 1-800-
487-5963.
WHERE TO GET WARRANTY SERVICE
Warranty services or repairs shall be provided at all Husqvarna
Forest & Garden authorized servicing dealers.
MAINTENANCE, REPLACEMENT AND
REPAIR OF EMISSION-RELATED PARTS
Any Husqvarna Forest & Garden approved replacement part
used in the performance of any warranty maintenance or
repairs on emission-related parts, will be provided without
charge to the owner ifthe part is under warranty.
EMISSION CONTROL WARRANTY PARTS
LIST
1.Carburetor and internal parts
2. Intake pipe, airfilter holder and carburetor bolts.
3.Airfflter and fueffllrer covered up to maintainance schedule.
4. Ignition System
a) Spark Plug, covered up to maintenance schedule
b) Ignition Module
5.Muffler with catalytic converter
MAINTENANCE STATEMENT
The owner is responsible for the performance of"all required
maintenance, as defined in the operator's manual.
English - 19
