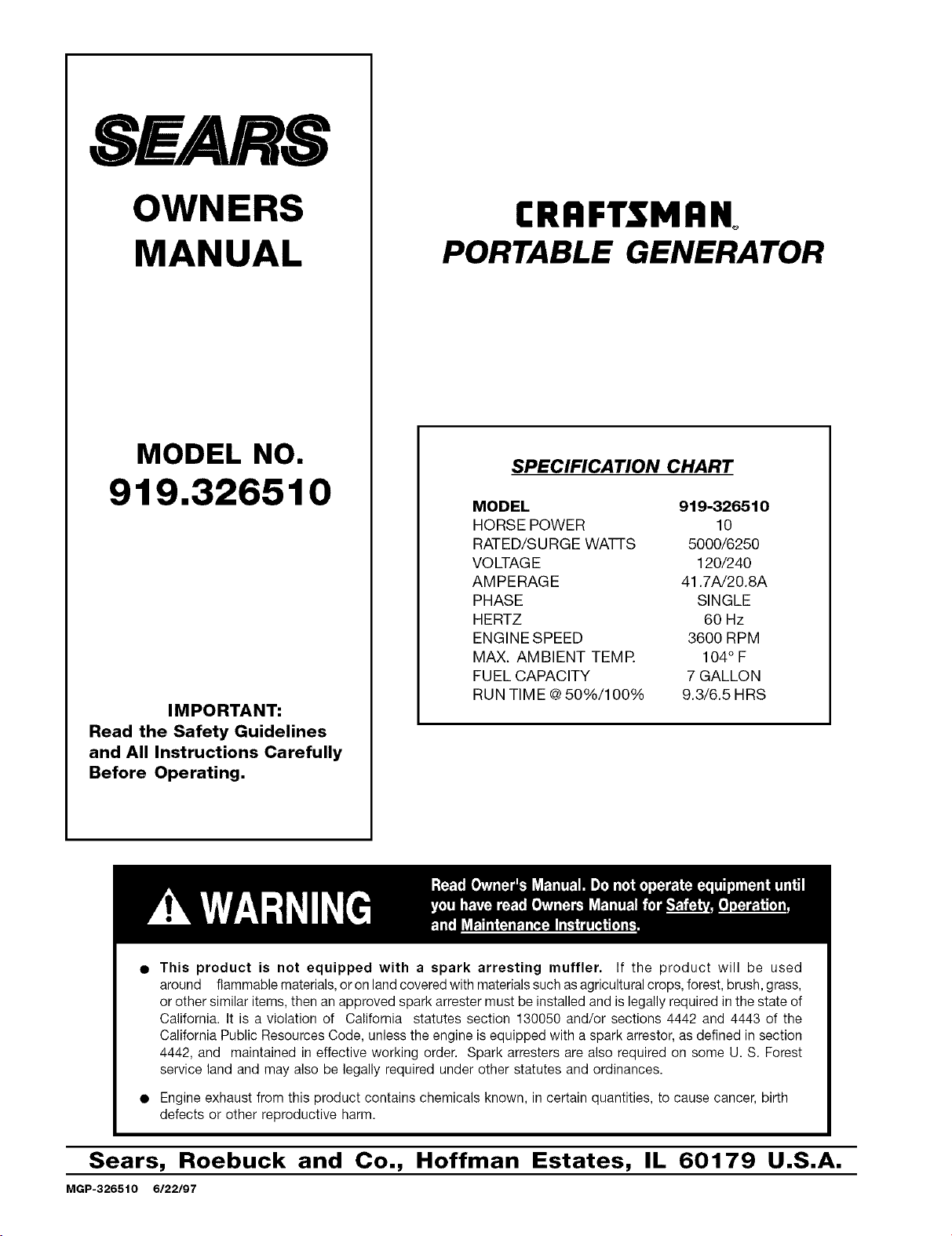

S£ARS
OWNERS
MANUAL
MODEL NO.
919.326510
IMPORTANT:

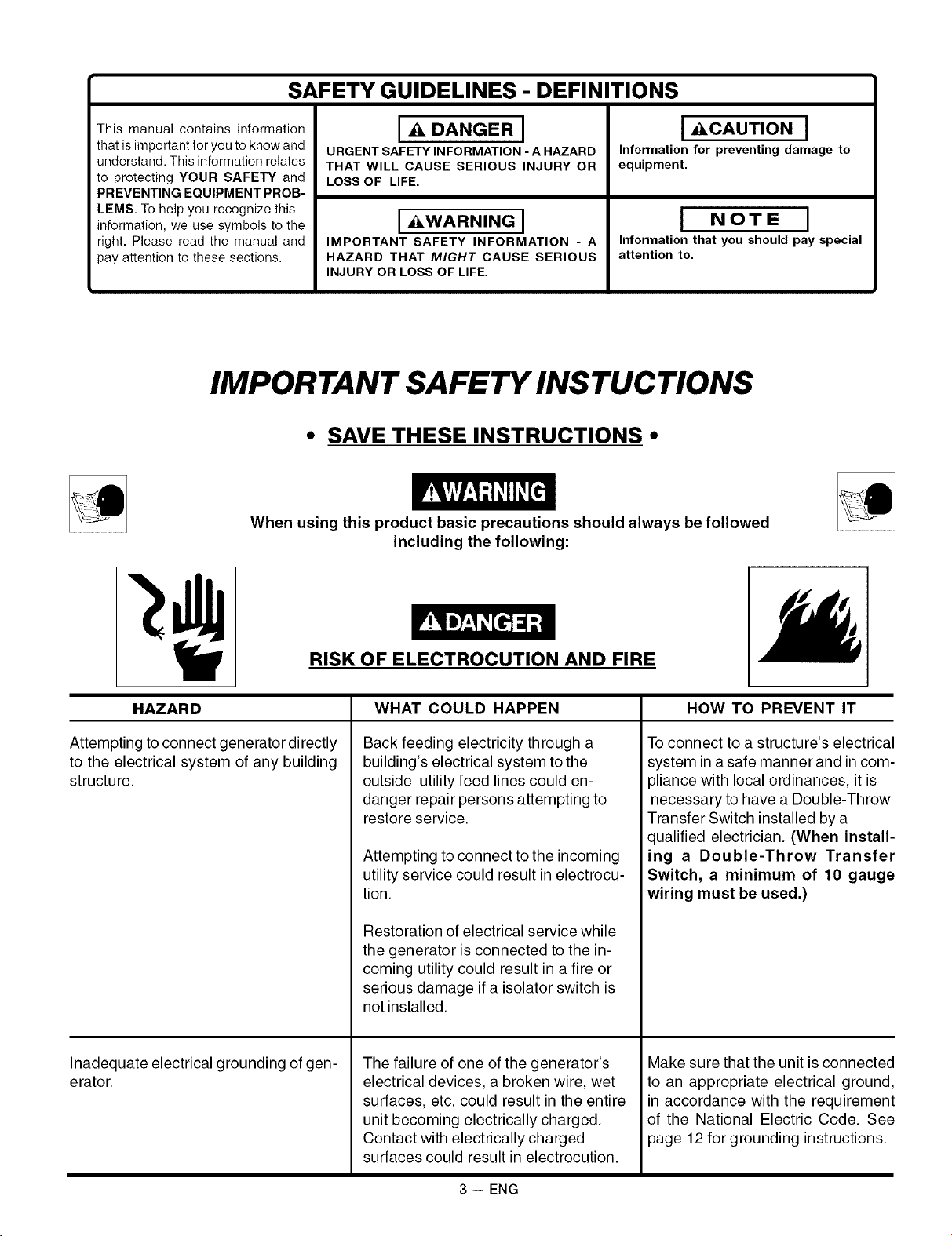

Read the Safety Guidelines
and All Instructions Carefully
Before Operating.
CRRFTSMRNo
PORTABLE GENERATOR
SPECIFICATION CHART
MODEL 919-326510
HORSE POWER 10
RATED/SURGE WATTS 5000/6250
VO LTAGE 120/240
AMPERAGE 41.7A/20.8A
PHASE SINGLE
HERTZ 60 Hz
ENGINE SPEED 3600 RPM
MAX. AMBIENT TEMP. 104° F
FUEL CAPACITY 7 GALLON
RUN TIME @50%/100% 9.3/6.5 HRS
• This product is not equipped with a spark arresting muffler. If the product will be used
around flammable materials, or on land covered with materials such asagricultural crops, forest, brush, grass,
or other similar items, then an approved spark arrester must be installed and is legally required in the state of
California. It is a violation of California statutes section 130050 and/or sections 4442 and 4443 of the
California Public Resources Code, unless the engine is equipped with a spark arrestor, as defined in section
4442, and maintained in effective working order. Spark arresters are also required on some U. S. Forest
service land and may also be legally required under other statutes and ordinances.
• Engine exhaust from this product contains chemicals known, in certain quantities, to cause cancer, birth
defects or other reproductive harm.
Sears, Roebuck and Co., Hoffman Estates, IL 60179 U.S.A.
MGP-326510 6/22/97
