E-MANUAL
Thank you for purchasing this Samsung product.
To receive more complete service, please register your
product at
www.samsung.com
Model Serial No.
To directly go to the page that provides instructions on
how to use the manual for visually impaired users, select
the Menu Learning Screen link below.
"Menu Learning Screen
" Link
Contents
Guide
Projector Screen Adjustment
5
Adjusting the screen by moving the Projector
7 Adjusting the screen by using menu items of the product
8
Adjusting the Keystone from SmartThings on the mobile
device
Connections
9
Connection Guide
10
Connecting to the network
13
Displaying your mobile device screen on the Projector
15 Connection Cables for External Devices
16 Switching between external devices connected to the
Projector
18
Connection Notes
Remote Control and Peripherals
20
About the Samsung Smart Remote
23 Connecting the Samsung Smart Remote to the Projector
23 Learn how to use Samsung Smart Remote
24 Using Anynet+ (HDMI-CEC)
25 Controlling the Projector with a Keyboard, Mouse or
Gamepad
29
Entering Text using the On-Screen Virtual Keyboard
Smart Features
31 Using Smart Hub
35 Using Ambient Mode
38 Using Samsung Gaming Hub
41 Using a larger screen by putting two screens together
42 About the Media Home Screen
45 About the Menu Home Screen
49 Using a Samsung account
51 Using Workspace
57 Using TV Access
59 Using the Apps Service
63 Using the e-Manual
65
Using the Internet
66
Using SmartThings
71
Using Bixby
Projector Viewing
76 Projector-Viewing Support Functions
Picture and Sound
79 Adjusting the Picture Quality
82
Picture Support Functions
83
Setting the Viewing Environment for External Devices
84
a Sound Mode and Expert Settings
85 Using the Sound Support Functions
System and Support
87
Using the Time Functions and the Timers
89
Using the Power and Energy Saving Functions
90
Updating the Projector's Software
91 Using the Parental Settings function
92 Audio and Video Functions for the Visually or Hearing
Impaired
97
Using Voice Assistants on the Projector
98
Using Other Functions
Precautions and Notes
100 Supported broadcasting audio options
101 Read Before Using Apps
102 Read Before Using the Internet Function
104 Read After Installing the Projector
105 Read Before Connecting a Computer (Supported
Resolutions)
107 Supported Resolutions for Video Signals
108 Read Before Using Bluetooth Devices
109 Licences & Other Information
Troubleshooting
Picture Issues
111
The screen is or has become dark
111 The picture is not bright, or the picture colours do not look
clear
112 The picture colours are black and white or do not look the
way they should look
112 The Projector automatically turns off by itself
112 Unable to power on
113 Displayed video looks blurry
113 The picture is distorted.
113
There is a dotted line on the edge of the screen.
113 The picture won’t display in full screen.
114 The Subtitle function in the Projector menu is deactivated.
114 Subtitles appear on the Projector screen.
114 Auto keystone does not work properly.
Sound and Noise Issues
115
How can I connect an audio device to the Projector?
115
There is no sound or the sound is too low at maximum
volume.
115 The picture is good but there is no sound.
116 HDMI (eARC/ARC) is connected, and there is no sound.
116
The speakers are making an odd sound.
116
The sound is interrupted.
117
Whenever a function is used on the Projector or the channel
is changed, the Projector voices the activity. The Projector
explains in voice-over the video scenes displayed on the
screen.
117 The Projector audio is not being played through the
Soundbar or A/V receiver.
117 The sound is not heard clearly.
117 The volume of the external device cannot be adjusted.
117 I want to turn the Projector and audio device off and on at
the same time.
External Device Connectivity Issues
118
The "Mode Not Supported" message appears.
118
The video is OK but there is no audio.
118 I want to connect to a PC and mobile device via screen
mirroring.
119
No screen appears when connecting the Projector to an
external device.
119
I want to connect to a Bluetooth speaker.
119 The PC screen does not appear or it
Network Issues
120 Wireless network connection failed. Unable to connect to a
wireless access point. Unable to connect to the network.
120
Connected to a local network, but not to the Internet.
Anynet+ (HDMI-CEC) Issues
121
What is Anynet+?
121
Anynet+ does not work. The connected device is not
displayed.
121 I want to start Anynet+. I also want the connected devices to
turn on when the Projector is turned on.
122 I want to exit Anynet+. It is inconvenient to turn on other
devices because the Projector also turns on. It is
inconvenient because the connected devices (e.g. set-top
box) turn off together.
122 The message "Connecting to Anynet+ device..." or
"Disconnecting from Anynet+ device" appears on the screen.
122
The Anynet+ device won't play.
Remote Control Issues
123
The remote control does not work.
Apps
124 I cannot the app I want.
124 I launched an app, but it's in a different language. How can I
change the language?
124
The app does not work properly. Its image quality is poor.
124
The Smart Hub Home Screen keeps appearing whenever you
turn on the Projector.
Voice Assistant Issues
125 The microphone is off.
125 The voice commands do not work well.
125 Bixby/Alexa answers although I did not call it.
126 I spoke "Hi, Bixby/Alexa" but Bixby/Alexa does not answer.
126 Voice recognition does not work with the Samsung Smart
Remote unlike other features. There is no response even if
the Voice Assistant button is pressed.
126 During voice recognition, the heavy load message appears
and the function does not work.
126 I want to see weather information of the desired area.
Other issues
127
The Projector is hot.
127
The Projector smells like plastic.
127 The settings are lost after 5 minutes or every time the
Projector is turned off.
127 The Projector is making a popping noise.
128
The Projector is making a humming noise.
128
The Projector narrates the screen events in voice-over.
Diagnosing Projector operational issues
129 Self Diagnosis
129 Reset Smart Hub
130 Reset picture
130 Reset sound
Getting Support
131
Getting support through Remote Management
131
Finding the contact information for service
131 Requesting service
Accessibility Guidance
Menu Learning Screen
132
Using the Samsung Smart Remote
134 Using the accessibility menu
138
Using the Projector with Voice Guide on
140 Using Smart Hub
142 Launching the e-Manual
143 Using Bixby
Guide
Learn how to use various features.
Projector Screen Adjustment
Adjust the size, keystone or focus for the projected screen by moving the Projector or using the screen adjustment
menu.
Adjusting the screen by moving the Projector
When the screen looks skewed or blurry, adjust the screen.
1.
Move the Projector to the left or right to adjust its angle. Alternatively, adjust the top and bottom angles until
the screen shape becomes rectangular.
- 5 -
2.
Move the Projector back and forth to adjust the screen size.
When the screen looks skewed or distorted, use the, Keystone ( Menu Settings Keystone) function.
Try Now
When the screen looks blurry, use the Focus ( Menu Settings Focus) function. Try Now
For more information about screen adjustment, refer to "Adjusting the screen by using menu items of the product".
- 6 -
Adjusting the screen by using menu items of the product
Adjust the Projector's mode options and installation settings for your viewing environment.
Guide to screen adjustment
Menu Settings All Settings General & Privacy Projector Settings
Adjust the Projector's mode options and installation settings for your viewing environment.
• Keystone Try Now
Fix a distorted image on the screen based on the projection angle. You can also turn on/off the vertical
automatic Keystone function or manually adjust vertical or horizontal Keystone.
This feature may be affected by the external illuminance, the distance between the Projector and wall, and the
projection surface.
In auto Keystone mode, use the directional buttons on the remote control to finely adjust the angle or shape of the
displayed screen.
• Focus Try Now
This feature adjusts the projected screen focus.
• Keystone Mode Try Now
Select Auto or Manual mode for Keystone correction. If you select Manual, you can manually adjust a distorted
image by using the Keystone feature.
• Focus Mode Try Now
Select Auto or Manual mode for focus adjustment. If you select Manual, you can manually adjust the focus of an
image by using the Focus feature.
• Auto Keystone After Movement
Try Now
Turn Auto Keystone on or off when the device is moved.
This option is enabled when Keystone Mode is set to Auto.
• Auto Focus After Movement Try Now
Turn Auto focus on or off when the device is moved.
This option is enabled when Focus Mode is set to Auto.
- 7 -
•
Scale and Move Screen Try Now
Enlarge or reduce the screen scale. You can also move the screen.
• Auto Flip Screen Vertically
Try Now
When the direction of the Projector is changed, the screen automatically flips upside down.
• Projection Mode Try Now
This feature changes the direction of the image projection according to the projector's installation direction.
– Front / Front Ceiling / Rear / Rear Ceiling
• High-Altitude Mode
Try Now
This feature prevents the projector from overheating when operating at high altitudes.
To use the Projector at a height greater than 1219 m, turn on High-Altitude Mode. If this mode is turned on, the fan
speed increases and loud noise may be experienced.
The Projector can only be used at a height of 3048 m or less.
• Setup Guide Try Now
This guide shows you how to adjust the size and shape of the projection screen when installing Projector.
Adjusting the Keystone from SmartThings on the mobile device
Use SmartThings on your mobile device to adjust the Keystone based on your viewing position.
Register the Projector to SmartThings on your mobile device. Next, from the SmartThings app on the mobile device,
select the registered Projector and then select Personal Keystone.
Follow the instructions provided in the SmartThings app to proceed.
The keystone is adjusted based on your viewing position, by analysing the current viewing environment through the
mobile device.
This feature can be useful when projecting onto a slanted wall, such as a wall of a tent, or when projecting onto the
ceiling in a bedroom.
Ensure that the mobile device and Projector are connected to the same Wi-Fi network.
The availability and menu name of this feature are subject to change, depending on updates.
The screen may not look rectangular, depending on the surrounding environment. You can adjust the screen to the
appropriate shape by changing screen settings from the mobile device.
- 8 -
Connections
You can get access to the network by using a wireless access point. Using connectors, you can also connect external
devices to your Projector.
Connection Guide
You can view detailed information about external devices that can be connected to the Projector.
Menu Connected Devices Connection Guide Try Now
It shows you how to connect various external devices such as video devices, game consoles and PCs using pictures.
If you select the connection method and an external device, the connection details appear.
• Audio Device: HDMI (eARC/ARC), Bluetooth, Wi-Fi, Wi-Fi Speaker Surround Setup
• Video Device: HDMI
• Smartphone: Screen Sharing (Smart View), Screen Sharing (Tap View), Samsung DeX, SmartThings, Apple
AirPlay
• PC: HDMI, Screen Sharing (Wireless), Easy Connection to Screen, Apple AirPlay
• Input Device: Remote Control, Bluetooth Device
• Game Console: HDMI
Using HDMI Troubleshooting, you can check the connection to HDMI cable and external devices (takes approximately 2
minutes).
Some functions may not be supported depending on the model or geographical area.
The connection method and available external devices may differ depending on the model.
Connection Guide
Audio Device
Video Device
Smartphone
PC
Input Device
Game Console
HDMI (eARC)
Bluetooth
Wi-Fi
Wi-Fi Speaker Surround Setup
HDMI Troubleshooting
Connect audio devices, such as speakers, soundbars,
headphones, or home theatres, to your Projector.
The image on your Projector may differ from the image above depending on the model and geographical area.
- 9 -
Connecting to the network
You can get access to the network through your Projector.
Menu Settings All Settings Connection Network Open Network Settings
Try Now
network settings to connect to an available network.
Establishing a wireless network connection
Menu Settings All Settings Connection Network Open Network Settings
Wireless
Make sure that you have the wireless access point's name (SSID) and password settings before attempting to
connect. The network name (SSID) and security key are available on the wireless access point's
screen. See the wireless access point's user manual for more information.
- 10 -
The image on your Projector may differ from the image above depending on the model and geographical area.
If no wireless access point is found, select Add Network at the bottom of the list and enter the network name (SSID).
If your wireless access point has a WPS or PBC button, select Use WPS at the bottom of the list, and then push the WPS or
PBC button on your access point within 2 minutes. The Projector will connect automatically.
To view or delete previously connected network names (SSIDs), move the focus to Manage Saved Networks, and then press
the Select button.
To disconnect Wi-Fi, select Disconnect in Menu Settings All Settings Connection Network
Network Status. Try Now
Checking the network connection status
Menu Settings All Settings Connection Network Network Status Try Now
View the current network status.
Resetting Your Network
Menu Settings All Settings Connection Network Reset Network Try Now
Restore the network settings to the factory default.
- 11 -
Turning on the Projector with a mobile device
Menu Settings All Settings Connection Network Expert Settings Power On
with Mobile Try Now
You can turn on the Projector using a mobile device connected to the same network as the Projector.
This function is available with a mobile device connected to the Projector through the SmartThings app or the Apple AirPlay
function.
Apple AirPlay may not be supported depending on the model or geographical area.
Connecting an IP control device to the Projector
Menu Settings All Settings Connection Network Expert Settings IP Remote
Try Now
You can connect an IP control device to the Projector remotely to manage your IP device.
To use this function, Power On with Mobile must be turned on.
Turning this feature on may allow other IP control devices to control your Projector. We recommend turning this feature on
only if an authorised third-party custom controller is installed and for a Samsung Projector and if
your Wi-Fi network is password protected.
This function may not be supported depending on the model or geographical area.
Allowing to connect a wireless network
Menu Settings All Settings Connection Network Expert Settings Wi-Fi
Try Now
You can enable the connection to Wi-Fi.
To connect a wireless network, the function must be active.
Changing the name of the Projector
Menu Settings All Settings Connection Device Name Try Now
You can change the name of the Projector on the network. Select User Input at the bottom of the list and change
the name.
- 12 -
Displaying your mobile device screen on the Projector
You can watch the screen of your mobile device on the Projector screen through Smart View, Apple AirPlay or Tap
View.
Using Screen Sharing (Smart View)
For information on how to share the screen with your mobile device, refer to
Menu Connected Devices
Connection Guide Smartphone Screen Sharing (Smart View). Try Now
• To turn off Screen Sharing (Smart View), disconnect the mobile device or press the button on the remote
control.
• Using the Smart View menu on your mobile device, you can change the settings such as aspect ratio.
Using Apple AirPlay
Use AirPlay if you are an iPhone or iPad user. For more information, refer to Menu Connected Devices
Connection Guide Smartphone Apple AirPlay. Try Now
This function may not be supported depending on the model or geographical area.
To use Apple AirPlay, make sure Menu Settings All Settings Connection Apple AirPlay Settings is
enabled.
- 13 -
Using Screen Sharing (Tap View)
Tap your mobile device on the Projector, you can watch mobile device's screen through the Projector screen. When
you tap a mobile device on your Projector while running a music app on your mobile device, the Projector screen
switches to the Music Wall screen.
This function may not be supported depending on the model.
1.
Enable Tap View on your mobile device.
For more information about refer to 'Enabling the Tap View' below for how to set.
2.
Turn on the screen of your mobile device.
3.
Tap your mobile device on the Projector. The Projector screen switches to Music Wall or mobile device's screen.
4.
Watch Music Wall or mobile device's screen on the Projector screen.
Music Wall function may not be supported depending on the model or geographical area.
This function is available in Samsung mobile devices with Android 8.1 or higher.
Music Wall screen is a function that allows you to enjoy music along with visual video effects that change according to the
genre and beat of the music.
This function enables mirroring (Smart View) by detecting vibrations generated when you tap the mobile device on the
Projector.
The displayed Projector screen may differ depending on the model.
We recommend using your mobile device with the cover in place and lightly tap it on any external edge of the Projector.
Enabling Tap View
Enable Tap View in the SmartThings app.
Depending on the SmartThings app version, you may need to register the Projector with your mobile device.
This function may not be supported depending on the model.
1.
Launch the SmartThings app on your mobile device.
2.
Select Settings ( ) in SmartThings app on your mobile device.
3.
Set Tap View to on.
Upon connection for the time, select Allow on a pop-up window of the Projector.
- 14 -
Connection Cables for External Devices
You can view detailed information about the connection cables for external devices that can be connected to the
Projector.
Cable name Image Description
Micro HDMI
to
HDMI
Each cable simultaneously transmits digital video and audio signals
from an external device to the Micro HDMI port on the Projector.
Cables are divided into various types according to the types of input/
output ports on external devices.
Micro HDMI
to
USB type-C
Micro HDMI
to
Micro HDMI
Micro HDMI
to
Mini HDMI
- 15 -
Switching between external devices connected to the Projector
You can switch between Projector programmes and the content of external devices.
Menu Connected Devices
When you select a connected external device on the Source screen, the output of the selected device is displayed on
the Projector's screen.
This function may not be supported depending on the device and geographical area.
Editing the name and icon of an external device
Menu Connected Devices
You can change the port name for a connected external device or add it to the Home Screen.
The image on your Projector may differ from the image above depending on the model and geographical area.
1.
Move the focus to a connected external device.
2.
Press the down directional button. The following functions become available.
Available functions may differ depending on the port type.
- 16 -
1.Edit
You can rename the input ports and change the device icons.
2.Information
You can view detailed information about an external device.
3.Add to Home
You can add the port of an external device to the Home Screen for quick switching.
Using additional functions
You can use the SmartThings feature.
• SmartThings
It allows the Projector to connect and control the detected various devices in the same space.
For more information, refer to "Using SmartThings".
You can use the following features on the Sources screen.
• Workspace
Use the Projector to access your PC via remote PC or Screen Sharing (Wireless).
For more information, refer to "Using Workspace".
You can use the following features on the Featured screen.
• TV Access
By mirroring, you can watch TV from the Projector screen.
For more information, refer to "Using TV Access".
• Connection Guide
Displays device connection instructions.
For more information, refer to "Connection Guide".
- 17 -
Connection Notes
When connecting an external device, note the following.
The number of connectors and their names and locations may differ with the model.
Refer to the external device's operating manual when connecting it to the Projector. The number of external device
connectors and their names and locations may differ with the manufacturer.
Connection notes for HDMI
• The following types of HDMI cables are recommended:
– High Speed HDMI Cable
– High Speed HDMI Cable with Ethernet
– Premium High Speed HDMI Cable
– Premium High Speed HDMI Cable with Ethernet
– Ultra High Speed HDMI Cable
• Use an HDMI cable with a thickness of 17 mm or less.
• Using a non-certified HDMI cable may result in a blank screen or a connection error.
• Some HDMI cables and devices may not be compatible with the Projector due to different HDMI specifications.
• Many computer graphics adapters do not have HDMI ports, but have DVI or DisplayPort ports instead.
• When the Projector is connected to an external device such as a DVD/BD player or a set-top box via HDMI, power
sync mode will be automatically activated. In the power sync mode, the Projector continues to detect and
connect external devices via HDMI cable. This function can be deactivated by removing the HDMI cable of the
connected device.
This function may not be supported depending on the model.
- 18 -
Connection notes for computers
• For the resolutions supported by the Projector, refer to "
Read Before Connecting a Computer (Supported
Resolutions)".
• If you want to connect your PC and Projector wirelessly, both of them must be connected to each other on the
same network.
• When sharing content with other network-based devices such as those in an IP (Internet Protocol) storage
system, sharing may not be supported due to the network’s configuration, quality or functionality, for example, if
the network has a NAS (Network-Attached Storage) device.
Connection notes for mobile devices
• To use the Smart View function, the mobile device must support a mirroring function such as Screen Mirroring or
Smart View. To check whether your mobile device supports the mirroring function, refer to the mobile device's
user manual.
• To use Wi-Fi Direct, the mobile device must support the Wi-Fi Direct function. To check whether your mobile
device supports Wi-Fi Direct, refer to the mobile device's user manual.
• The mobile device and your Projector must be connected to each other on the same network.
• Use AirPlay if you are an iPhone or iPad user. For more information, refer to
Menu Connected
Devices Connection Guide Smartphone Apple AirPlay. Try Now
This function may not be supported depending on the model or geographical area.
• The video or audio may stop intermittently, depending on network conditions.
• When sharing content with other network-based devices such as those in an IP (Internet Protocol) storage
system, sharing may not be supported due to the network’s configuration, quality or functionality, for example, if
the network has a NAS (Network-Attached Storage) device.
- 19 -
Remote Control and Peripherals
You can control Projector operations with your Samsung Smart Remote. Pair external devices such as a keyboard
for ease of use.
About the Samsung Smart Remote
Learn about the buttons on the Samsung Smart Remote.
- 20 -
Button Description
(Power)
Press to turn the Projector on or off.
MIC / LED
Used as MIC when using voice recognition with the remote control. When charging the remote
control via the USB port, the LED is lit if charging is in progress. When charging is complete, the
LED is turned off.
• Do not impact the MIC hole or use a sharp object to poke into the hole.
(Voice Assistant)
Runs Voice Assistant. Press and hold the button, say a command, and then release the button to
run Voice Assistant.
The supported Voice Assistant's languages and features may differ by geographical
region.
(Settings / Number /
Colour button)
Each time you press this button, Settings menu / virtual numeric pad / Option pad with Colour
buttons are displayed alternately.
• Use this button to access additional options that are specific to the feature in use.
• Press to bring up the virtual numeric pad on the screen. Select numbers and then select
Done or Enter Number to enter a numeric value.
• Press and hold for more than 1 second to activate the Focus feature.
If the Colour Button appears with a number strip on the screen, select the Colour Button
and then select a colour by using the directional button (up/down/left/right).
Directional button
(up/down/left/right)
Moves the focus.
Select
Selects or runs a focused item. When pressed while you are watching a broadcast programme,
detailed programme information appears.
(Return)
Press to return to the previous menu. When pressed for 1 second or more, the running function
is terminated. When pressed while you are watching a programme, the previous channel
appears.
(Smart Hub)
Press to switch to the Home Screen.
- 21 -
Button Description
(Play/pause)
When pressed, the playback controls appear. Using these controls, you can control the media
content that is playing.
(Volume)
Move the button up or down to adjust the volume. To mute the sound, press the button. When
pressed for 2 seconds or more, the Accessibility Shortcuts appears.
(Channel)
Move the button up or down to change the channel. To see the Guide screen, press the button.
When pressed for 1 second or more, the Channel List screen appears.
Press and hold the button up or down to quickly change the channel.
Launch app button
Launch the app indicated by the button.
Available apps may differ depending on the geographical area or contents provider.
This function may not be supported depending on the model or geographical area.
Use the Samsung Smart Remote less than 6 m from the Projector. The usable distance may vary with the wireless
environmental conditions.
The images, buttons and functions of the Samsung Smart Remote may differ with the model or geographical area.
To use the Samsung Smart Remote to control a compatible external device that does support HDMI-CEC (Anynet+), connect
the device to an HDMI port on the Projector using an HDMI cable. For more information, refer to "Using Anynet+ (HDMI-
CEC)".
- 22 -

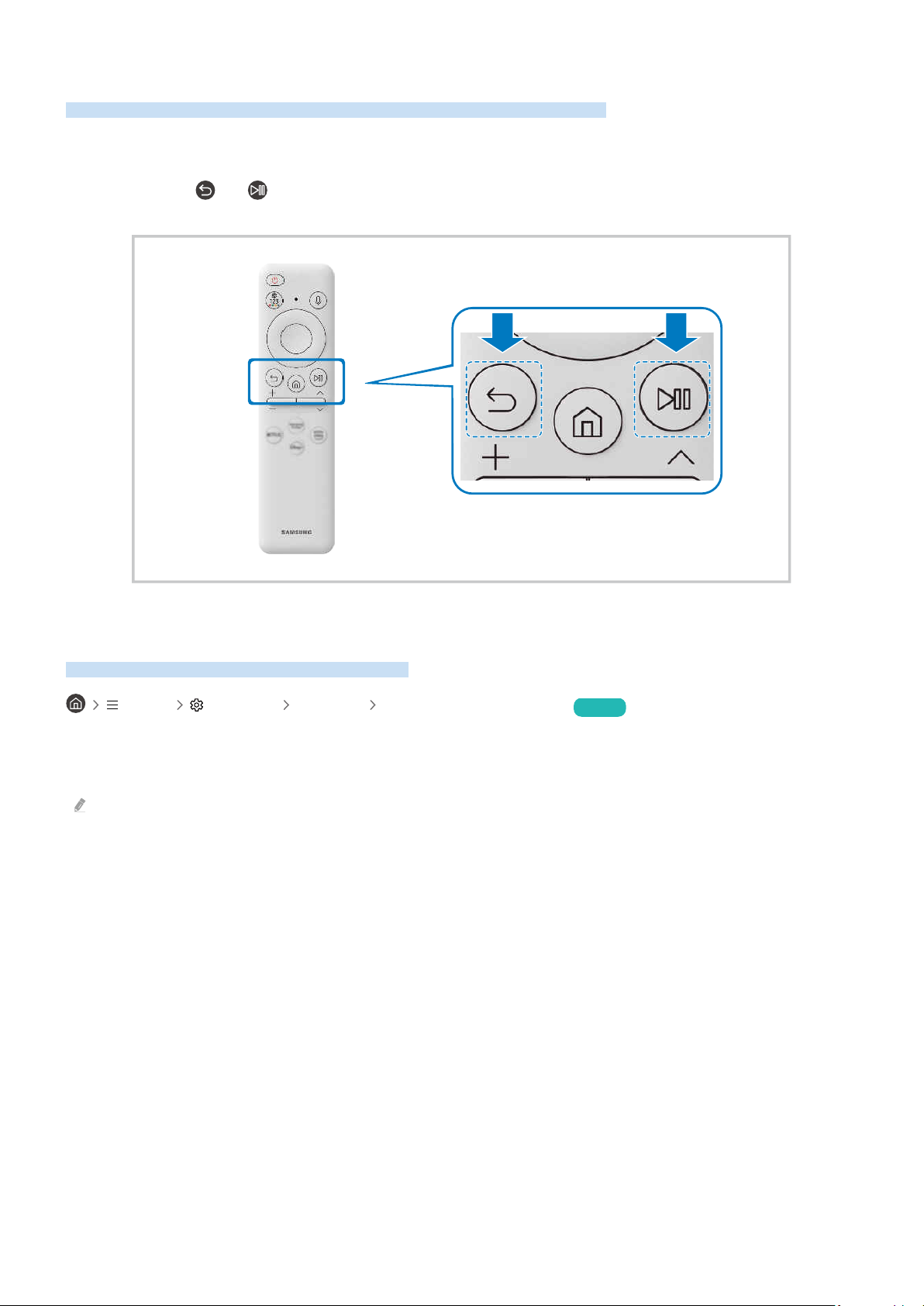

Connecting the Samsung Smart Remote to the Projector
Connect the Samsung Smart Remote to your Projector to operate the Projector.
When you turn on the Projector for the time, the Samsung Smart Remote pairs to the Projector automatically. If
the Samsung Smart Remote does not pair to the Projector automatically, point it at the front of the Projector, then
press and hold the
and buttons simultaneously for 3 seconds or more.
Learn how to use Samsung Smart Remote
You can learn how to use Samsung Smart Remote.
Menu Settings Support Remote Control Guide Try Now
Find details on how to use the Samsung Smart Remote.
Press the menu to use a variety of functions of the Samsung Smart Remote.
This function may not be supported depending on the model.
- 23 -
Using Anynet+ (HDMI-CEC)
Control an external device connected via Anynet+ (HDMI-CEC) with the remote control.
You can use the Projector's remote control to control external devices that are connected to the Projector by an
HDMI cable and that support Anynet+ (HDMI-CEC). Note that you can only set up and operate Anynet+ (HDMI-CEC)
with the remote control.
Connecting an external device through Anynet+ and using their menus
Menu Settings All Settings Connection External Device Manager Anynet+
(HDMI-CEC) Try Now
1.
Set Anynet+ (HDMI-CEC) to On.
2.
Connect an HDMI-CEC-compliant device to the Projector.
3.
Turn on the connected external device.
The device is automatically connected to the Projector. After the connection process is you can access the
menu of the connected device using your Projector remote and control the device.
The connecting process can take up to 2 minutes to complete.
Read before connecting an Anynet+ (HDMI-CEC) device
Anynet+ (HDMI-CEC)-enabled devices must be connected to the Projector with an HDMI cable. Note that some HDMI cables
may not support Anynet+ (HDMI-CEC).
Anynet+ cannot be used to control external devices that do not support HDMI-CEC.
The Projector remote control may not work under certain circumstances. If this occurs, set up the device as an Anynet+
(HDMI-CEC)-enabled device again.
Anynet+ (HDMI-CEC) works only with external devices that support HDMI-CEC and when those devices are either in standby
mode or turned on.
Anynet+ (HDMI-CEC) can control up to 12 compliant external devices (up to 3 of the same type) except for home theatres.
Anynet+ (HDMI-CEC) can control only one home theatre system.
To listen to 5.1 channel audio from an external device, connect the device to the Projector via an HDMI cable and connect a
5.1 home theatre system directly to the external device's digital audio output connector.
- 24 -
Controlling the Projector with a Keyboard, Mouse or Gamepad
Connecting a keyboard, mouse or gamepad to make it easier to control the Projector.
Menu Settings All Settings Connection External Device Manager Input Device
Manager Try Now Try Now
You can connect a keyboard, mouse or gamepad to control the Projector easily.
Connecting a Bluetooth keyboard, mouse or gamepad
Menu Settings All Settings Connection Bluetooth Device List Try Now
If your device was not detected, position the keyboard close to the Projector, and then select Refresh. The Projector scans
for available devices again.
If you connect a mouse, it is available only in the Internet app.
A maximum of four gamepads can be connected, regardless of connection method (for example,Bluetooth).
– When using one BT audio device, up to two BT gamepads can be connected.
For more information, refer to the Bluetooth device's user manual.
This function may not be supported depending on the model or geographical area.
- 25 -
Using the keyboard and mouse
Button Description
Directional keys Moves the focus
Enter key Selects or runs a focused item
ESC key Returns to the previous screen
Number keys Enter numbers
F1 key Turns on or off the Projector
F2 key
Displays the Settings menu / numeric keypad / Option pad
Each time you press this button, Settings menu / virtual numeric pad / Option pad are
displayed alternately.
F3 key Plays / pauses
F4 key Displays the Settings screen
F5 key Displays the Home Screen
F6 key Displays the Sources screen
F7 key Displays the Channel List
F8 key Mutes the sound
F9 / F10 key Adjusts the volume
F11 / F12 key Changes the channel
Page Up / Page Down Scrolls a webpage displayed by the Internet app.
Left-click
Selects and runs an item.
Available only in the Internet app.
You can click a menu or link to start a function as you do on a PC.
The key operation may differ depending on some apps or the keyboard.
- 26 -
Using the Gamepad
Check the supported gamepads. Try Now
This function may not be supported depending on the model or geographical area.
Manufacturer Controllers Connection Force feedback
Microsoft
Xbox Series X/S controller BT O
Xbox One S controller BT O
Xbox Elite Wireless Controller Series 2 BT O
Xbox Adaptive controller BT -
Sony
Dualsense BT O
DualShock 4 BT O
Google Stadia controller Wi-Fi Not support
Amazon Luna controller
BT O
Wi-Fi Not support
PowerA MOGA XP5-X Plus Bluetooth controller BT -
Nvidia Shield controller BT O
Some keys are not available on this product depending on controller.
Force feedback :
"Not support" (This product can’t support force feedback.)
"-" (Controllers don’t have force feedback function.)
Tizen Projectors will support only XInput mode for the supported gamepads.
Xbox controllers may require updates.
Controller audio output (3.5 mm port) is not available on this product.
Other controllers may or may not work for cloud gaming.
- 27 -
Using the controller
Button Description
Left joystick and dpad 4 way navigation
Right joystick
• Up / Down : Volume control (Up / Down)
• Left / Right : Channel control (Up / Down) on Projector screen
• Select (press) : Mute the sound
A button or X button (Sony Only) Enter (OK)
B button or O button (Sony Only) Return (Cancel)
Pressing and holding the B button or O
button (Sony Only)
Exit
Home button
Gaming Hub homepage (Gaming Hub supported countries)
Smart Hub homepage
Pressing and holding the Home button (During cloud game play) Quick panel
X button or button (Sony Only) Numeric buttons (123)
Pressing and holding the left and right
joysticks simultaneously
Power off (Turning power on is not possible)
The button operation may differ depending on some apps or the controller.
If you connect controller to this product by Wi-Fi solution, you cannot use UI navigation function.
Gaming Hub and Cloud game may not be supported depending on the country.
- 28 -
Setting up the input devices
Menu Settings All Settings Connection External Device Manager Input Device
Manager Try Now
• Keyboard Settings Try Now
You can set up the keyboard with the Keyboard Language and Keyboard type functions.
• Mouse Settings
Try Now
You can set up the mouse with the Primary Button and Pointer Speed functions.
Entering Text using the On-Screen Virtual Keyboard
Use the virtual keyboard to enter text on your Projector.
The image on your Projector may differ from the image above depending on the model and geographical area.
1.Recommend text
When you type a word you want to use as a search term, this function displays related suggestions from which you
can choose one.
2.Editing Buttons
By selecting any of pop-up Editing Buttons after entering characters on the virtual keyboard, you can quickly
perform the editing function.
This function is only available when the Show Editing Buttons feature is turned on.
- 29 -
3.Settings
Select on the virtual keyboard screen. The following options are available:
The options available may differ depending on the function running currently.
• Recommend text
– Recommended text
– Reset Recommended Text Memory
– Show Editing Buttons
• Keypad Language
Entering Text using the remote control's microphone and the on-screen virtual keyboard
When the virtual keyboard is on the screen, press and hold the button on the Samsung Smart Remote, speak into
the microphone on the Samsung Smart Remote, and then release the button. What you say appears on the screen as
text.
Entering text with your voice may not be supported for some functions.
This function may not be supported depending on the model or geographical area.
The Samsung Smart Remote may not be supported depending on the model or geographical area.
- 30 -
Smart Features
You can enjoy various apps with Smart Hub.
Using Smart Hub
View descriptions of Smart Hub's basic functions.
From Smart Hub, you can use the Internet search function, install and use various apps, view photos and videos or
listen to music stored on external storage devices, and perform more functions.
Some Smart Hub services are paid services.
To use smart functions, you should connect to a network, agree to the terms and conditions, and log in with your Samsung
account.
Some Smart Hub features may not be supported depending on the service provider, language or geographical area.
Smart Hub service outages can be caused by disruptions in your network service.
- 31 -
Displaying the Home Screen
Press the button.
The image on your Projector may differ from the image above depending on the model and geographical area.
1. Privacy Choices
From your Projector, easily manage the privacy policy regarding services related to Smart Hub and verify how
personal information is protected.
To use Smart Hub, you must agree to the Smart Hub service agreement and the collection and use of personal information.
Without giving consent, you cannot use the additional features and services. You can view the entire text of the Terms &
Privacy by navigating to Menu Settings All Settings General & Privacy Terms & Privacy. Try Now
If you want to stop using Smart Hub, you can cancel the agreement. To cancel the Smart Hub service agreement, select
Reset Smart Hub (
Menu Settings Support Device Care Self Diagnosis Reset Smart Hub). Try Now
2. Search
Search for channels, programmes, movies, and apps offered by Smart Hub.
To use the Search service, make sure the Projector is connected to a network.
This function may not be supported depending on the model or geographical area.
- 32 -
3. Ambient
Set your Projector to display content you desire, when the Projector is not used.
To return to viewing mode from Ambient mode, press the left directional button Media. Press the
button to turn off the Projector.
This function may not be supported depending on the model or geographical area.
For more information, refer to "Using Ambient Mode".
4. Game
Play games from the Projector screen by connecting a Controller to the Projector. settings to optimise
the Controller and audio device for playing games.
This function may not be supported depending on the model or geographical area.
For more information, refer to "Using Samsung Gaming Hub".
5. Media
View a variety of contents. Install various apps offered by Smart Hub, such as video, music, sports and game apps,
and use the apps from the Projector.
For more information, refer to "About the Media Home Screen".
6. Menu
Manage external devices connected to the Projector, and settings for various functions available on the
Projector.
For more information, refer to "About the Menu Home Screen".
- 33 -
Launching Smart Hub automatically
Menu Settings All Settings General & Privacy Start Screen Options Start with
Smart Hub Home Try Now
Enabling Start with Smart Hub Home automatically launches Smart Hub when the Projector is turned on. Navigate
to this option to enable or disable the feature.
Launching the last used app automatically
Menu Settings All Settings General & Privacy Start Screen Options Autorun
Last App Try Now
If Autorun Last App is set to On, the last used app is automatically run when you turn on the Projector. You can turn
this function on or off. Press the Select button at the current menu.
This function may not be supported depending on the app.
This function may not be supported depending on the model.
Testing Smart Hub connections
Menu Settings Support Device Care Self Diagnosis Smart Hub Connection
Test Try Now
Resetting Smart Hub
Menu Settings Support Device Care Self Diagnosis Reset Smart Hub Try Now
You can reset the Smart Hub settings. To reset Smart Hub, enter the PIN. The default PIN is "0000" (for France and Italy:
"1111"). You can set the PIN in Menu Settings All Settings General & Privacy System Manager
Change PIN. Try Now
Change PIN may not be supported depending on the model or geographical area.
- 34 -
Using Ambient Mode
Learn about the functions available in Ambient mode.
left directional button Ambient Try Now
Set your Projector to display a photo or content you desire when the Projector is not used.
This function may not be supported depending on the model.
Press the button in Ambient mode screen to enter to Ambient Home.
In Ambient mode, some functions may not be supported.
The image on your Projector may differ from the image above depending on the model and geographical area.
1.Getting to Know Ambient Mode
Press View Help to view information about Ambient mode, including functions.
- 35 -
2.Selecting Content Category
Select a preferred content and a preferred background and set them as your Ambient mode. While in Ambient
mode, press the Select button on the remote control to view the content details.
You can use the SmartThings app on a Mobile Device to select a desired content and change the settings. Indicates content
perfectly suited for the time of the day.
Available content categories may differ depending on the model or geographical area.
• Lighting
Provides lighting content options in stylish and beautiful designs.
• Scene
Provides atmospheric content options to suit the mood of your choice.
• Cinemagraph
Adds a looping animation to a part of the photo to make it more attention-grabbing.
• Prism
To experience amazing mood lighting, put Lens Cap on Projector.
• My Album
Allows you to set a photo stored in your mobile device or Samsung Cloud as the wallpaper of the Ambient
mode screen.
To import photos from your mobile device or Samsung Cloud, use the SmartThings app on your mobile device.
For more information about how to the photo settings, select How to Select Photos.
- 36 -
.
3.Ambient Screen Options
Following Ambient mode options are
This menu can be found at the bottom of the Ambient home. To the option settings, scroll down to the far
bottom.
Available options may vary depending on the model.
• Sleep After
Sets the time when the Ambient mode screen turns off automatically.
If there is no remote control input for the set time, the screen goes off.
• Reset All Photos
Reset photos saved in My Album.
• What is Ambient?
view information about Ambient mode, including functions.
Entering the Projector viewing screen from Ambient Mode
To access the Projector screen from Ambient mode, press either the or button to redirect to the Ambient
Home Screen, press the left directional button on the remote control, and then select the Media.
If the Projector is off and the button is pressed, the Media Home Screen appears.
- 37 -
Using Samsung Gaming Hub
Gamestream a wide variety of games right on your Projector through Samsung Gaming Hub. Connect your
controller through Bluetooth.
left directional button Game
This function may not be supported depending on the model or geographical area.
The image on your Projector may differ from the image above depending on the model and geographical area.
1.Learn More
Provides information about Samsung Gaming Hub and details on how to use devices.
2.Accessories and Music / Accessories
• Controllers
Select a Controller to connect to the Projector.
For supported controller list information, refer to "Using the Gamepad".
• Audio
Select an Audio Device (e.g. Gaming Headset) to connect to the Projector.
• Music Player
Manage the music to play while playing a game.
This function may not be supported depending on the model or geographical area.
- 38 -
3.Apps and Devices
Install or remove apps or devices that are required to play games.
4.Game list
Purchase games or subscribe to service offered by the Samsung Gaming Hub. Select a game to view the game
details.
Installation of related apps is required to run some games.
The image on your Projector may differ from the image above depending on the model and geographical area.
- 39 -
5.Game Activity and Options
This menu is provided at the very bottom of the Samsung Gaming Hub screen. To Game Activity and Options,
scroll down to the very bottom.
• Game Rating Lock
Set the age limit for playing games.
The age limit is only supported to cloud game browsing domain in Gaming Hub.
• Personalisation
Tailored content is recommended, according to the games recently played by the user and the content the user
is interested in.
• Tutorial
Provides information about the Samsung Gaming Hub and details on how to use devices.
- 40 -
Using a larger screen by putting two screens together
Display content on a larger screen by putting two screens together.
Register the Projector to SmartThings on your mobile device. Next, from the SmartThings app on the mobile device,
select the registered Projector and then select Smart Edge Blending.
Follow the instructions provided in the SmartThings app to proceed.
You can display content on a larger screen by putting the screens of two projectors together in landscape or portrait
orientation.
To exit from the Smart Edge Blending screen, press the
button on the remote control that came with the
projector or use the SmartThings app.
The actual menu screen may differ depending on the Projector model.
Ensure that the mobile device and the two projectors are connected to the same Wi-Fi network.
Project onto a surface with no curves or obstacles, in order for the function to work properly.
If there is a difference in brightness between the projectors, adjust the brightness of each projector through the mobile
SmartThings.
Menu names are subject to change due to updates.
Use two Projectors to project images toward the front at the same distance from the screen. The more similar the sizes of
the two projected images, the better the result obtained.
- 41 -
About the Media Home Screen
View a variety of contents. Install various apps offered by Smart Hub, such as video, music, sports and game apps,
and use the apps from the Projector.
left directional button Media
The image on your Projector may differ from the image above depending on the model and geographical area.
1. APPS
Install a variety of apps offered by Smart Hub, such as video, music, sports and game apps, and use the apps from
the Projector.
To use APPS, make sure the Projector is connected to a network.
For more information, refer to "Using the Apps Service".
2.Moving an item on the Home Screen
From the end of the APPS list, select Edit List. Move the focus to the app to relocate, and press the down directional
button on the remote control. Select Move from the option menu. Use the left or right button to reposition the app
and then press Select. This repositions the app on the Home Screen.
An alternative way to move an app is to move the focus to the app to move and then press and hold the Select
button.
- 42 -
3.Removing an item on the Home Screen
From the end of the APPS list, select Edit List. Move the focus to the app to uninstall, and press the down directional
button on the remote control. Select Remove from the option menu. This removes the app from the Home Screen
list.
4.Recent
Access your last watched contents or last used input source.
5.On Now
Display a list of contents currently being aired.
This function may not be supported, depending on the input signal and settings.
- 43 -
6.Universal Guide
Universal Guide is a function that allows you to search for and enjoy various content, such as news, dramas, and
movies, in one place. Universal Guide can recommend content tailored to your preferences.
You can use this feature on your mobile device with the Samsung SmartThings app.
To access Universal Guide, press the down directional button on the remote control in Home Screen.
To enjoy the content from these apps on your Projector, they must be installed on the Projector.
When you watch some paid content, you may need to make a payment using their associated app.
Some content may be restricted depending on your network conditions and your subscriptions to paid channels.
Parental control is necessary when children use this service.
Images may look blurry depending on the service provider's circumstances.
This function may not be supported depending on the model or geographical area.
Media Options
This menu can be found at the bottom of the Media home. To the option settings, scroll down to the far bottom.
This function may not be supported depending on the model or geographical area.
• Preferences: Select a preferred service to receive content recommendations to suit your preference.
• Continue Watching: Choose content providers for Continue Watching. You can continue watching different
shows in one place from all the Continue Watching-supported content providers listed below.
• Parental Lock: Redirect to the Parental Lock menu. Turn all parental control settings on or off.
- 44 -
About the Menu Home Screen
Manage external devices connected to the Projector, and settings for various functions available on the
Projector.
left directional button Menu
The image on your Projector may differ from the image above depending on the model and geographical area.
1.Samsung Account
Go to the Samsung Account screen to create a new account or sign out of your account.
For more information, refer to "Using a Samsung account".
2. Notication
You can view a list of for all events that occur on your Projector.
If you move the focus to Notication, and then press the Select button, a window appears on the right
and the following functions are available:
• Delete All
You can delete all your
•
Settings
You can select services you want to be about.
When you select Allow sound, are displayed with a sound.
- 45 -
3. Connected Devices
Select an external device that is connected to the Projector.
For more information, refer to "Switching between external devices connected to the Projector".
4. Settings
Move the focus to the Settings menu to display quick setting options below the menu. Quick Settings can be used to
quickly frequently used features.
The Settings items may not be supported depending on the model or geographical area.
• Focus
This feature adjusts the projected screen focus.
• Keystone
Correct screen distortion, according to the projection angle. Turn on or off the vertical or horizontal auto
Keystone function. You can also manually adjust keystone.
The automatic Keystone calibration function may not work, depending on the environment in which the product is
used.
In auto Keystone mode, use the directional buttons on the remote control to adjust the angle or shape of the
displayed screen.
• Sound Output
You can select which speakers the Projector uses for audio output. To change the audio output, press the Select
button.
• Picture Mode
Change the picture mode for the optimal viewing experience. Press the Select button to change the Picture
Mode.
• Energy Saving Solution
Reduce power consumption by adjusting brightness settings.
• Audio Language
You can change to the audio language you want to hear. To make adjustments, press the down directional
button, and then select Go to Audio Options.
• Sleep Timer
You can turn off the Projector automatically at a time. To change the sleep time, press the Select
button. To set the time at which the Projector turns off automatically, press the down directional
button, and then select Set Up Off Timer.
• Scale and Move Screen
Enlarge or reduce the screen scale. You can also move the screen.
- 46 -
• Bluetooth Device List
Connect your Projector to Bluetooth devices. This can be done by selecting Bluetooth Device List to
automatically search for Bluetooth devices.
Connecting Bluetooth devices may not be supported depending on the model or geographical area.
• Picture Setup
Easily the screen settings: Brightness, Contrast, Sharpness, Colour and Tint (G/R).
• Wi-Fi
Check your network connection. To check your network connection or change the connection settings, press
the down directional button, and select either Network Status or Network Settings.
• Sound Mode
You can select a sound mode to optimise your listening experience. To change the sound mode, press the Select
button. To make adjustments, press the down directional button, and then select Equaliser Setup.
• Game Mode
You can set the Game Mode to optimise the Projector screen for better gaming performance. To turn Game
Mode on or off, press the Select button. To set the detailed options, press the down directional button, and then
select Go to Game Mode Settings.
This function is only available when an external input source is being used.
For more information, refer to "Setting the Viewing Environment for External Devices".
This function may not be supported depending on the model or geographical area.
• Digital Output Audio Format
You can select an output format for digital audio. Note that the Dolby Digital+ option is only available via HDMI
(eARC) for external devices that support the Dolby Digital+ format.
• Picture Clarity
You can optimise pictures that contain a lot of motions. To turn this function on or off, press the Select button.
To set the detailed options, press the down directional button, and then select Picture Clarity Settings.
- 47 -
• Colour Tone
You can select a colour tone suitable for your viewing preferences. To change to a colour tone that you want,
press the Select button.
• Power and Energy Saving
Display the Power and Energy Saving menu. Reduce energy consumption by changing your power preferences
and other energy-saving options.
• Support
Displays the Support settings menu.
• All Settings
Displays the Settings menu for settings.
These functions may not be supported depending on the model or geographical area.
5.Edit List
From the end of the Settings list, select Edit List. You can change the location of functions in the Settings screen.
An alternative way to move a function is to move the focus to the function to move and then press and hold the Select
button.
- 48 -
Using a Samsung account
Create and manage your own Samsung account.
Menu Settings All Settings General & Privacy System Manager Samsung
Account Try Now Try Now
You can view the entire text of the Terms & Policy in Menu Settings All Settings General & Privacy
System Manager Samsung Account My Account Terms & Conditions, Privacy Policy after logging in to your
Samsung account.
Follow the instructions on your Projector screen to create or log in to a Samsung account.
Samsung account can be used on Projector, mobile device, and website with one ID.
Signing in to a Samsung account
Menu Settings All Settings General & Privacy System Manager Samsung
Account Sign In
Creating a new account
Menu Settings All Settings General & Privacy System Manager Samsung
Account Create Account
Managing your Samsung account
Menu Settings All Settings General & Privacy System Manager Samsung
Account My Account
When you sign in to your Samsung account, you can use the following functions:
• Sign out
When multiple people share the Projector, you can sign out of your account to prevent others from using it.
To sign out of your Samsung Account ( Menu Settings All Settings General & Privacy System
Manager
Samsung Account), move the focus to your account's icon, and then press the Select button. When a pop-up
window appears, select Sign out.
- 49 -
• Edit profile
You can edit your account information.
To protect personal information, enter Edit profile and then Sign-in Method is set to Select your ID and input password
(high security).
If you want the Projector to log you into your account automatically whenever you turn on the Projector, click Stay
Signed In.
When the Projector is used by multiple people, turn off Stay Signed In to protect personal information.
• PIN Setting
Set or change your PIN.
• Payment Info
You can view or manage your payment information.
• Back up
You can back up the Projector settings to your Cloud storage. When resetting or replacing the Projector, you can
also restore its settings with the backed-up settings.
• Product Registration
You can register the current Projector or see the registered information. You can easily receive services after
product registration.
You can see the registered information or delete it at the Samsung account website (https://account.samsung.com).
• Personalisation Settings
Select to change settings for the Customisation Service.
This function may not be supported depending on the model or geographical area.
• Sync Internet
Once you sign in to your Samsung account and configure the Sync Internet settings, you can share the favourites
and website bookmarks that you registered on other devices.
• Remove Account
You can delete an account from the Projector. Although you have deleted your Samsung account from the
Projector, you are not unsubscribed.
To unsubscribe from your Samsung account, visit the Samsung accounts website (https://account.samsung.com).
• Terms & Conditions, Privacy Policy
You can view the user agreement and privacy policy.
For more information about the terms and conditions, privacy policy, select View Details.
- 50 -
Using Workspace
Use the remote function to connect to and use a Windows PC, Mac, or mobile device from the Projector.
Menu Connected Devices Workspace Try Now
Connect a Windows PC, Mac, or mobile device to the Projector to easily use the device.
For smooth use as in a computer, connect a keyboard and a mouse to your Projector in advance.
Using Screen Sharing (Windows PC) / AirPlay (Mac)
Menu Connected Devices Workspace Windows PC Screen Sharing
Menu Connected Devices Workspace Mac Screen Mirroring
Follow the instructions on the screen to adjust the PC settings and wirelessly connect the Projector to the PC.
This function is only available for PCs that support wireless screen sharing.
This function may not be supported depending on the model or geographical area.
Connection via Windows OS is available in Windows 10 and later versions only.
Connection via Mac OS is available in AirPlay.
Using Easy Connection to Screen
Menu Connected Devices Workspace Windows PC Easy Connection
You can easily use remote access function after installing Easy Connection to Screen on your PC.
Follow the instructions on the screen to download and install the Easy Connection to Screen PC app. Then you can
easily connect a remote PC.
1.
Download the Easy Connection to Screen PC app from http://smsng.co/easy and then install it on your PC.
2.
Log in with the same Samsung account for both Projector and PC.
3.
When the PC is turned on and connected via the network, Workspace's Home screen displays the PC.
The Easy Connection to Screen PC app is available in Windows 10 and later versions only.
Depending on the network environment including the router type, and wireless signal strength,
connection problems may occur, such as low speed, disconnection, or limited connection.
- 51 -
Connecting a Remote PC
Menu Connected Devices Workspace Windows PC Manual Connection Try Now
Menu Connected Devices Workspace Mac Remote Login Try Now
Provides Remote Desktop Connection (RDP) for remotely connecting to a PC running on Windows and Virtual
Network Computing (VNC) for a PC running on Mac. To remotely connect to a PC, you must enter the IP address of
the remote PC or select a saved Enter a correct username and password. If there is any computer that can
be accessed via the same network, the found IP is displayed.
To register a frequently used PC, move the focus to Manage User Proles, and then press the Select button. When a pop-
up window appears, select Add, and then enter the PC information.
When your PC enters in power saving mode, connection is not available. It is recommended to cancel the power saving
mode.
1.
your computer’s settings to use the Workspace function.
Connection to Windows via the RDP protocol is available in Windows 10 Professional or higher.
Remote connection to a PC running on Mac via the VNC protocol is only supported for Mac OS X 10.5 or later.
• Windows OS:
1)
Right-click the My PC icon on Desktop or Windows Explorer and then click Properties.
2)
Click Remote Desktop and select Activate Remote Desktop.
• Mac OS:
1)
Select Menu System Preferences and then click Sharing.
2)
Select the Screen Sharing and Remote Login check box.
3)
Run the resolution changing app downloaded from App Store and then change the resolution to 1440 x
900 or lower.
If you do not change the resolution in Mac OS, the previous image may appear while connecting a remote
computer.
- 52 -
2.
Enter the required settings for connecting the computer remotely.
The image on your Projector may differ from the image above depending on the model and geographical area.
1.PC/Prole
Enter the IP address or of the PC you want to connect to.
• In case of Windows, when the computer to connect is within the same network (router/AP), run “cmd" command
in Settings
Network and Internet View Network Properties or in Start Run, and then run “ipconfig” to
check the IPv4 address of the computer.
• In case of Mac, you can check the IP address in Settings Remote Access.
• When the Projector and computer are not within the same network, it is required to know the public IP and
configure the router and AP. Check whether the router connected to the computer supports port forwarding.
When the company provides additional security features such as firewall, seek help from a security officer.
Home
- 53 -
2.Username
Enter the Username of the computer. How to check the Username:
• Windows OS: Control Panel User Account Control
• Mac OS: System Preferences Users & Groups
3.Password
Enter the password for the login account.
For use of PIN, do not enter PIN but the password of the computer.
Playing Multimedia Content on a Remote PC
When you move the mouse cursor to the top of the screen after accessing a remote computer, the top bar appears.
When the sharing folder icon is clicked in the top bar, the folders shared on Windows or Mac OS appear. You can
play back any media content in a folder.
To use this function, the folder sharing option on the computer to access must have been enabled as shown below:
• Windows OS:
1.
Run Windows Explorer and then move to the folder to share.
2.
Right-click the folder and then click Properties.
3.
After the Properties window appears, click the Sharing tab and then click Advanced Sharing.
4.
After the Advanced Sharing window appears, select the Share this folder check box.
• Mac OS:
1.
Select Menu System Preferences and then click Sharing.
2.
Select the File Sharing check box.
3.
To add a folder to share, click the Add+ button at the bottom.
4.
Select a folder and then click Add+.
When playing a video via a remote computer, the screen or sound breaking may be encountered.
- 54 -
Using Samsung DeX
Run Samsung DeX on your mobile device to connect the software to the Projector.
Follow the on-screen instructions to connect Samsung DeX. Some models may not be searched when connecting
the Projector from a mobile device through Samsung DeX. If that is the case, follow the instructions shown on the
mobile device screen to connect the software.
This function is available only on mobile devices that support the wireless Samsung DeX.
Using Microsoft 365
You can read or create a document after accessing the Microsoft 365 website.
Run the site in full screen mode.
URL is impossible in the Microsoft 365 page.
Adding the Web Service
Select the Add Web Service icon. Use the bookmarking function of the Workspace browser, you can add or delete
the Web service link to or from Workspace.
To add the Web service, you must be signed in to your Samsung account.
The number of Web services that can be added to Workspace is limited.
Workspace browser not share data with Internet. (Web browser outside from Workspace)
- 55 -
Using Web Service
You can access the Web service by selecting the Web service icon added to Workspace.
The screen on the webpage may differ from that of a computer.
You can copy or paste any text. Some image formats are supported.
For easy and secured login in Web Service, Workspace Pass is additionally supported as well as Samsung Pass.
Setting Samsung Pass or Workspace Pass.
Set Samsung Pass or Workspace Pass to Use in Menu Connected Devices Workspace Run the
Workspace browser (Additionally select Microsoft 365 or Add Web Service) Internet Menu Settings General.
Workspace Pass allows you to easily manage the Web service ID and password without biometric authentication on mobile
devices. For this purpose, you must be signed in to your Samsung account. The password is encrypted to be safely stored on
your Projector.
However, the log in to Workspace Pass may not work depending on the site policy.
Workspace Pass only working on Workspace.
To securely access the Web service, you can use the Workspace browser's automatic shutdown or clear the history logs.
Before accessing the Web service, refer to "Read Before Using the Internet Function".
Workspace browser not share data with Internet. (Web browser outside from Workspace)
The Web service supports the following keyboard shortcuts:
• F1: Returns to Workspace's Home screen.
• F5: Refresh.
• F8: Mutes the sound.
• F9/F10: Adjusts the volume.
• F11: Switches between full screen or default screen.
- 56 -
Using TV Access
By mirroring, you can watch TV from the Projector screen.
Select and mirror the desired TV to view the TV content from the Projector screen.
Menu Connected Devices TV Access
This function may not be supported depending on the model.
Connect the TV and Projector to the same 5 GHz network.
Connecting to a TV
Select TV Access to display a list of available TVs to connect to. Select and connect the desired TV to the Projector.
After a connection is established, the TV appears in the Connected Devices list of the Projector. To subsequently
connect to the same TV, select the TV from the Connected Devices list.
To disconnect from the TV, press the or button on the remote control.
- 57 -
Controlling the connected TV from the Projector
When content is playing, press the up directional buttons on the remote control to display the control menu of the
Projector.
1.Power
Turn on or off the connected TV.
2.Enter Number
Press a channel number to change the connected TV channel.
Alternatively, use the (Channel) button on the remote control to change channels.
3.Source
Change the input source connected to the TV.
- 58 -
Using the Apps Service
Download and run various apps from Smart Hub.
left directional button Media APPS
You can enjoy a wide range of content including video, music, sports and game apps by installing the corresponding
apps on your Projector.
To use this feature, the Projector must be connected to the network.
When Smart Hub is launched for the time, the default apps are automatically installed. The default apps may differ
depending on the model or geographical area.
The image on your Projector may differ from the image above depending on the model and geographical area.
1. Samsung Account
Go to the Samsung Account screen to create a new account or sign out of your account.
If you are signed out of your Samsung account, select Sign In to sign in.
If you want to download new apps using Apps, sign in to your Samsung account.
2. App Search
You can search for available apps.
3.
Settings
You can manage the installed apps.
- 59 -
Installing an app
1.
Move to the app you want to install, and then press the Select button. The detailed information screen appears.
2.
Select Install. When the installation is complete, the Open menu appears.
3.
Select Open to run the app immediately.
You can view installed apps on the Settings screen.
Launching an app
You can run the app desired from Downloaded App.
The icons below appear within the selected app's icon and indicate the following:
•
: The app has a password.
• : The app needs to be updated.
• : The app supports the mirroring function.
- 60 -
Managing installed apps
Select Settings on Apps. You can manage installed apps.
The image on your Projector may differ from the image above depending on the model and geographical area.
1.Removing an app
1.
Select an app to delete.
2.
Select Delete.
The selected app is deleted.
Ensure that the related app data is also removed when you remove an app.
Standard apps cannot be uninstalled.
2.Adding apps to the Home Screen
1.
Select an app to add.
2.
Select Add to Home.
3.
After the Home Screen appears, move the selected app to the desired location.
4.
Press the Select button.
The selected app is added to the Home Screen.
If the selected app is already added to the Home Screen, this function is disabled.
- 61 -
3.Locking and unlocking apps
1.
Select an app to lock or unlock.
2.
Select Lock/Unlock.
The selected app is locked or unlocked.
To lock or unlock an app, enter the PIN. The default PIN is "0000" (for France and Italy: "1111"). You can set the PIN in
Menu Settings All Settings General & Privacy System Manager Change PIN. Try Now
Change PIN may not be supported depending on the model or geographical area.
4.Moving apps
1.
Select an app to move.
2.
Select Move.
3.
Move the app to the desired location.
4.
Press the Select button.
The selected app is moved.
This function may not be supported depending on the model or geographical area.
5.Reinstalling an app
1.
Select the app to install again.
2.
Select Reinstall.
Reinstallation starts.
6.Checking the app information details
1.
Select the app to check.
2.
Select View Details.
The app information screen appears.
You can rate an app on the View Details screen.
7.Automatically updating apps
To automatically update the installed apps, set Auto update to ON.
Automatic update is enabled only when the Projector is connected to the network.
- 62 -
Using the e-Manual
Control and read the manual embedded in your Projector.
Launching the e-Manual
Menu Settings Support Open e-Manual
You can view the embedded e-Manual that contains information about your Projector's key features.
You can download a copy of the e-Manual from Samsung's website to view or print on your PC or mobile device (https://
www.samsung.com).
Some menu screens cannot be accessed from the e-Manual.
Using the buttons in the e-Manual
The image on your Projector may differ from the image above depending on the model and geographical area.
1. (Search)
Select an item from the search results to load the corresponding page.
2.
(Recently Viewed Topics)
Select a topic from the list of recently viewed topics.
3. (Site Map)
It displays the lists for each item in e-Manual.
- 63 -
4. (Index)
Select a keyword to navigate to the relevant page.
This function may not be supported depending on the model or geographical area.
5.Device Care
Optimise and diagnose the condition of your Projector. You can check and clean your storage space, diagnose
problems or request technical support.
Words in blue (e.g., Internet) indicate a menu item.
The image on your Projector may differ from the image above depending on the model and geographical area.
6. (Try Now)
Allows you to access the corresponding menu item and try out the feature right away.
7. (Link)
Access an underlined topic referred to on an e-Manual page immediately.
- 64 -
Using the Internet
Surf the Internet on your Projector.
left directional button Media Internet
When you run Internet, you can see recently viewed websites or featured recommendations. When you select a
desired website, you can get immediate access to it.
You can use the Internet function more easily after connecting a keyboard and mouse.
You can scroll webpages with the directional button on the Samsung Smart Remote.
The webpages may differ from those on a PC.
Before using the Internet, refer to "Read Before Using the Internet Function".
The Internet app has an embedded Samsung Pass Settings ( Media Internet Internet Menu Settings
Samsung Pass).
With Samsung Pass, you can log into the website easily and securely. When you visit the website again, you can log in with
Samsung Pass Biometrics Authentication on your mobile device without entering your ID and password.
However, this Samsung Pass login may not work depending on the website policy. For this purpose, you must have been
logged in the mobile device with a Samsung account registered in Samsung Pass.
- 65 -
Using SmartThings
It allows the Projector to connect and control the detected various devices in the same space.
Menu Connected Devices SmartThings Try Now Try Now
You can control the devices registered to the SmartThings cloud and devices directly connected to this product with
a remote control.
This function may not be supported depending on the product or model.
Functions that can be controlled by remote control may not work depending on the location of the device. In this case,
move the location of the device.
SmartThings
Home
Favourite
Device
Life
Automation
The image on your Projector may differ from the image above depending on the model and geographical area.
1.Favourite
View devices or features that have been set as favourites from the Device/Life/Automation tab.
- 66 -
2.Device
View devices connected to SmartThings, and use the remote control to select and control any of the connected
devices. In Map View, you can move the position of a device to create a custom map and check the device status.
If you log in with the same account used for the mobile SmartThings app, you can view devices, registered through
SmartThings, more intuitively from Map View.
.List of devices compatible with the Projector
Type Description Detail
Devices for IR remote control
(IR
Air conditioner, air robot vacuum cleaner, electric fan,
Bluetooth devices Bluetooth speaker, headset, Soundbar, keyboard, mouse, game pad
SmartThings devices
For details on SmartThings devices, access https://www.smartthings.com/products.
SmartThings devices can also be controlled from the mobile app.
For a detailed list of supported devices, visit www.samsung.com.
This function may not be available depending on the external device.
3.Life
Displays recommended Life services that can be viewed or controlled from SmartThings.
Only Life services supported by the Projector are displayed.
4.Automation
View or run scenes created from the Automation tab in the mobile SmartThings app.
- 67 -
5.Location or Device near Projector
• Place
Displays all places connected via the SmartThings app.
• Devices near Projector
Displays all the detected devices that can be connected and controlled.
You can run the control options after selecting a desired device.
Available options may differ depending on the device.
6.Add Device
Displays the list of devices that can be registered on your Projector. You can register any by selecting a device.
7.Samsung Account
Go to the Samsung account screen to create a new account or sign out of your account.
If you are signed out of your Samsung account, select Sign In to sign in.
8.Settings
Edit devices connected to SmartThings, or settings for the devices. You can also turn on the
TV sensor or the SmartThings hub feature.
SmartThings Quick access
Control most used devices by accessing the
Connected Devices menu, without having to access SmartThings.
Menu Connected Devices
- 68 -
Register and manage devices via SmartThings Try Now
Registering peripheral devices of the Projector
1.
When there is a device detected near the Projector, a registration pop-up appears on the Projector screen.
When there is no device detected, the pop-up may not appear.
To connect a Bluetooth device, make sure that the device has been paired.
2.
Select Register to register the device.
To register an appliance, make sure that it uses IR and is detectable in the area around the Projector. Supported
devices and options may differ depending on the model.
Select Close. Then the device registration pop-up does not appear.
You can register a device in Menu Connected Devices SmartThings Add Device.
Menu Connected Devices SmartThings, you can see available options for each device. Try Now
Supportable options may differ depending on the device.
Registering a Projector / Smart Appliance / IoT device from the mobile app
Use the mobile SmartThings app to register your Projector, smart appliances or various IoT devices. Some IoT
devices can only be registered using this mobile app. In the mobile app, tap the (Add Device) to register a device.
Connect a doorbell to your Projector, to receive a of the doorbell video and speak with the visitor while
watching Projector.
Only WWST (Works with SmartThings) doorbells are supported. Supported options may vary, depending on the
device.
- 69 -
Use the screen's sensors via SmartThings Try Now
When you activate the sensor, you can see the sensor device on the SmartThings Device tab. You can create various
IoT scenarios with Projector without purchasing a separate IoT sensor.
Menu Connected Devices SmartThings Settings TV sensor
Each sensor can be activated with user consent.
Each sensor may not be supported depending on the model.
The sound sensor is supported when the microphone switch of the Projector is turned on.
Control SmartThings with Bixby Try Now
With Bixby on the product, you can control devices connected to SmartThings, as well as the Projector, using voice
commands.
This function may not be supported depending on the connected device type.
Control the display device from the mobile SmartThings app Try Now
From the mobile SmartThings App, use the Projector remote control functionality, such as On/Off, Channel, Volume,
and four directional buttons. You can also use Search, APPS, Ambient mode, Mobile Cam, and other functions from
the mobile app.
Automation (mode/routine) in the mobile SmartThings app allows you to automatically run apps installed on the
Projector.
With automation, you can turn on the Projector at your desired time and automatically run frequently used apps.
- 70 -
Using Bixby
Set Voice Assistant to Bixby. Speak into the microphone on your Samsung Smart Remote or Projector to control
your Projector.
This function is available only if Voice Assistant is set to Bixby. ( Menu Settings All Settings General &
Privacy Voice Voice Assistant) Try Now
Bixby is available only when the Projector is connected to the network.
To use Bixby, you must register and sign in to your Samsung account. Some functions may not be supported if you are not
signed in to your Samsung account.
Bixby only supports some languages and the supported functions may differ depending on the geographical area.
Bixby may not be supported depending on the model or geographical area.
Starting Bixby with voice
You can immediately start a conversation with Bixby by saying "Hi, Bixby". Say "Hi, Bixby", and the Bixby icon at the
bottom of the Projector screen is activated in Listen mode. Continue speaking.
When the distance to the Projector is within 1 to 2 m, optimal performance is provided. If Bixby does not answer, refer to "I
spoke "Hi, Bixby/Alexa" but Bixby/Alexa does not answer." in "Troubleshooting".
This function may not be supported depending on the model or geographical area.
- 71 -
Starting Bixby using buttons on the Samsung Smart Remote
You can have conversation with Bixby using the Samsung Smart Remote buttons. Press and hold the button on
your Samsung Smart Remote, say a command, and then release the button.
For details on how to use Bixby, press the button once:
• When you press the button, the Explore Now button appears at the bottom of the screen. Press the Select
button to go to the Explore Bixby screen.
- 72 -
Learning about the Explore Bixby Screen
The image on your Projector may differ from the image above depending on the model and geographical area.
1. My Prole
Log out after going to the My Prole screen.
If you are signed out of your Samsung account, select My Prole to sign in.
2. Tutorials
The popup window on using Bixby appears.
3. Settings
You can change the settings for using Bixby.
These functions may not be supported depending on the model or geographical area.
These functions can be set in Bixby Settings ( Menu Settings All Settings General & Privacy Voice
Bixby Settings). Try Now
• Language and voice style
You can change Bixby's language and voice style.
The languages of the Projector and other apps will not change.
Bixby only supports some languages.
This function may not be supported in Bixby depending on the language selected.
- 73 -
• Voice Wake-up
settings on how to wake up Bixby with your voice. You can the following settings: Use your
Samsung Soundbar to interact with Bixby., Bixby Wake-up Options, and Wake-up Sensitivity. ( Explore
Now Settings Voice Wake-up)
The Voice Wake-up function may not be supported depending on the model or geographical area.
This function can be used only when the microphone switch of the Projector is active.
When the distance to the Projector is within 1 to 2 m, optimal performance is provided. If Bixby does not answer, refer
to "I spoke "Hi, Bixby/Alexa" but Bixby/Alexa does not answer." in "Troubleshooting".
• Sound feedback
Play a sound when Bixby starts and stops listening.
This function may not be supported depending on the model or geographical area.
• Privacy
You can permit or prohibit Bixby from utilising your personal information when you are using Bixby services.
• About Bixby
Displays the detailed terms and conditions.
4.Recommended commands
Displays recommended commands you can use to control the Projector with Bixby given the current context.
If you do not want to see the recommended commands, set Voice Hint to Off. (
Menu Settings All
Settings General & Privacy Voice Voice Hint) Try Now
5.All Services
You can learn the voice commands that let you use Bixby in various situations. Use the directional buttons to move
to the desired command, and then press the Select button. You can operate the Projector with various voice
commands.
- 74 -
Read Before Using Bixby
• The supported voice interaction languages and features may differ depending on the geographical area.
• If the language set differs from the language of your country, some features are not available.
• Bixby is available only when the Projector is connected to the network.
• Even if the Projector is connected to the network, there may be no response due to a Bixby server error.
• The existing functional specifications may be changed if Bixby is updated.
• Bixby is available only on Projectors that support it and come with remote controls that have a microphone.
• Symbols including "-" and special characters are not supported. Consequently, if a word or sentence contains
numeric values or symbols, the function may not operate properly.
• Searched results may not provide complete results.
• You may be required to pay for some apps. Consequently, you may encounter a service application or contract.
• To use the voice text input function and the search function, you must consent to provisions allowing third
parties to collect and use your voice data.
• To use the Bixby function, you must:
– Agree to Smart Hub's Terms of Use.
– Agree to a guidance regarding the collection and use of personal information for the Smart Hub service.
– Consent to the collection and use of personal information for the voice interaction-based service.
Provisions for using Bixby
• The voice interaction rate differs with the volume/tone, pronunciation and ambient sound environment
(Projector sound and ambient noise).
- 75 -
Projector Viewing
You can use convenient features while watching Projector.
Projector-Viewing Support Functions
Use the functions that are available while watching Projector.
Checking digital channel signal info and strength
Menu Settings Support Device Care Self Diagnosis Signal Information Try Now
If your Projector is attached to a separate, over-the-air antenna, you can use the signal strength information to adjust the
antenna for increased signal strength and improved HD channel reception.
Signal Information is only available for digital channels.
This function may not be supported depending on the model or geographical area.
Restricting Viewing to Specic Channels
Menu Settings All Settings General & Privacy Parental Settings Apply
Channel Lock Try Now
By selecting the menu, you can turn on or off the Apply Channel Lock function.
Lock channels to prevent children from watching adult content.
To use this function, the PIN number is required.
Selecting the broadcasting audio option
Menu Settings All Settings Broadcasting Dual Sound Try Now
Set audio options for stereo or bilingual broadcasts. For more information, refer to "Supported broadcasting audio
options".
This function may not be supported depending on the model or geographical area.
- 76 -
Using Programme Rating Lock
Menu Settings All Settings General & Privacy Parental Settings Programme
Rating Lock Try Now
This function may not be supported depending on the model or geographical area.
This function is useful for controlling what programmes children can watch on the Projector based on their ratings.
Programme Rating Lock does not, however, block programmes originating from external sources.
Every time you access Programme Rating Lock, you must enter the security PIN. You must also enter this PIN to
watch a blocked programme. The default PIN is "0000" (for France and Italy: "1111"). To change the PIN, go to
Menu Settings All Settings General & Privacy System Manager Change PIN. Try Now
For more information about how to set your password, refer to "Setting up a password".
The Broadcasting is not available in HDMI or Component mode.
Programme Rating Lock may not be supported depending on your input signal.
Change PIN may not be supported depending on the model or geographical area.
Conguring advanced broadcasting settings
Menu Settings All Settings Broadcasting Expert Settings Try Now
Setting satellite system
Menu Settings All Settings Broadcasting Expert Settings Satellite System
Try Now
You can a set of satellite dish settings before performing a channel scan.
This function may not be supported depending on the model or geographical area.
Changing teletext language
Menu Settings All Settings Broadcasting Expert Settings Teletext Language
Settings Teletext Language Try Now
You can set or change the teletext language. To watch the teletext broadcast in your preferred language, select a
language to use in Primary Teletext Language. If this language is not supported, you can watch the teletext
broadcast in your secondary preferred language set in Secondary Teletext Language.
This function may not be supported depending on the model, channel or geographical area.
- 77 -
Selecting the broadcast audio language
Menu Settings All Settings Broadcasting Expert Settings Audio Options
Try Now
This is the language you will hear while watching Projector if the language is included in the broadcast signal. Audio
Options functions differently for channels.
This function may not be supported depending on the model or geographical area.
• Audio Language Settings
You can change the audio language you want to hear.
The available language may differ with the broadcast.
- 78 -
Picture and Sound
You can change the settings for the picture and the sound according to your preference.
Adjusting the Picture Quality
Change the Picture Mode and adjust Expert Settings.
Choosing a picture mode
Menu Settings All Settings Picture Picture Mode Try Now
You can select the Picture Mode that provides the best viewing experience.
Entertain and Graphic are supported only when you change the external device name to PC in PC mode.
• Dynamic
Makes the picture brighter and clearer in bright viewing environments.
• Standard
Is the default mode suitable for general viewing environments.
• Movie
Is suitable for watching Projector or movies in a dark room.
- 79 -
Conguring advanced picture settings
Menu Settings All Settings Picture Expert Settings Try Now
the screen settings to your taste by using the following functions:
• Brightness Try Now
Adjust the overall picture brightness. The closer to 50, the brighter the picture.
• Contrast
Try Now
Adjust the difference between the darkest and brightest areas between objects and their background. The closer
to 50, the larger the difference.
• Sharpness Try Now
Adjust the outline sharpness of objects. The closer to 20, the sharper the object outlines.
• Colour Try Now
Adjust the chroma of a video. The closer to 50, the deeper the colours.
• Tint (G/R) Try Now
Adjust the colour tone. The higher either value, the redder or greener the video.
• Apply Picture Settings
Try Now
Apply the selected picture settings to the current input source or all input sources.
• Picture Clarity Settings Try Now
Optimise a video that has many dynamic scenes.
When LED Clear Motion is set to On, the screen appears darker than when it is Off.
• Contrast Enhancer Try Now
Automatically adjust the contrast to prevent excessive brightness differences between brighter and darker
areas.
- 80 -
•
Film Mode Try Now
Touch up an old video to improve the picture quality for a better viewing experience.
This function is only available when the input signal is Projector, or HDMI (1080i).
• Colour Tone Try Now
Select an appropriate colour tone, according to the viewing situation.
• White Balance
Try Now
Adjust the brightness of the colours red, green and blue so that the brightest area of the picture becomes white.
• Gamma Try Now
Adjust the medium brightness of a video.
• Shadow Detail Try Now
Adjust the brightness of a dim picture. The closer to 5, the brighter the dim picture.
• Colour Space Settings
Try Now
Select a range of colours that can be expressed on the picture.
• Smart Calibration Try Now
Automatically adjust the picture quality of a movie to obtain the quality intended by the movie producer.
This function may not be supported depending on the model or geographical area.
To use this function, use a Smartphone that is compatible with the function. The list of compatible models is
shown below.
– Galaxy models: Galaxy S, Galaxy Note, Galaxy Fold, and Galaxy Flip Series models that were released after
January 2019
– iPhone models: Models with a Face ID function that were released after January 2019.
Supported models may differ depending on the situation.
• Reset Picture Try Now
Reset the picture settings to the default values.
- 81 -
Picture Support Functions
the picture settings for your Projector.
Changing the picture size settings
Menu Settings All Settings Picture Picture Size Settings Try Now
• Picture Size Try Now
You can change the size of the picture displayed on the Projector screen to 16:9 Standard, Custom or 4:3.
Supported picture sizes differ with the input signal. For more information about supported picture sizes, refer to
"Picture sizes and input signals".
• Auto Wide Try Now
Changing the picture size automatically.
This function may not be supported depending on the model or geographical area.
• 4:3 Screen Size Try Now
You can select a picture size suitable for your geographical area while you are watching Projector in the 4:3 or Fit
to screen mode. The supported screen sizes differ with the country and this function allows you to adjust the
picture size in this case.
The 4:3 mode is not available when an external device is connected to the Projector via a Component connector or an
HDMI connector.
This function may not be supported depending on the model or geographical area.
• Fit to screen Try Now
Fitting the picture to the screen.
This function may not be supported depending on the Picture Size setting.
This function may not be supported depending on the broadcast signals.
• Zoom and Position Try Now
Adjusting the picture size or position.
This function is available only if Picture Size is set to Custom.
These functions may not be available on Samsung TV Plus and some applications.
- 82 -
Setting the Viewing Environment for External Devices
You can optimise the Projector for viewing video formats.
Playing games on an optimised screen
Menu Settings All Settings Connection Game Mode Try Now
You can enable game mode to optimise the Projector's settings for playing video games with a gaming console,
such as a PlayStation™, Xbox™ or Nintendo Switch™. You can also set the Game Mode quickly from Home Screen
( Menu Settings Game Mode ).
This function may not be supported depending on the model or geographical area.
The screen may shake somewhat.
When Game Mode is set to On, some functions are not available.
To use a different external device on the same port, remove the game console connection, set Game Mode to Off, and then
connect the external device to the port.
The Game Mode functions used for Nintendo Switch™ are subject to change without prior notice.
Using HDMI black level
Menu Settings All Settings Connection External Device Manager HDMI Black
Level Try Now
Use HDMI Black Level to adjust the black level to compensate for low black levels, low contrast or dull colours
generated by external devices connected to the Projector via an HDMI cable.
This function is only available when the input signal connected to the Projector via an HDMI connector is set to RGB444.
- 83 -
Conguring a Sound Mode and Expert Settings
Change the Sound Mode and adjust Expert Settings.
Choosing a sound mode
Menu Settings All Settings Sound Sound Mode Try Now
You can select the available sound mode that you prefer for a content type or your listening environment.
When an external device is connected, Sound Mode may change accordingly.
This function may not be supported depending on the model.
Conguring advanced sound settings
Menu Settings All Settings Sound Expert Settings Try Now
You can personalise the sound quality by adjusting the following settings.
Supported menu options may vary depending on the Sound Output setting.
• Equaliser Try Now
Customise the Projector sound by adjusting the volume of high-pitched and low-pitched sounds.
The name and properties of this function may appear differently depending on the connected external device.
• HDMI-eARC Mode Try Now
You can connect an audio device that supports eARC via HDMI-eARC. Muting occurs temporarily during device
connection.
• Digital Output Audio Format
Try Now
Select a digital audio output format. If you select Auto option, the audio output mode automatically changes to
the mode supported by the connected soundbar or A/V receiver.
• Auto Volume Try Now
Automatically adjusts the sound to a certain level when changing channels or switching to another external
input.
• Sound Feedback Try Now
Plays the notification sound when manipulating a menu or selecting an option.
• Reset Sound
Try Now
Reset changed sound settings.
Standard audio signals are sampled at 48 kHz while HD audio signals are sampled at 96 kHz.
Some SPDIF receivers may not be compatible with HD audio format.
- 84 -
Using the Sound Support Functions
the sound settings for your Projector.
Selecting speakers
Menu Settings All Settings Sound Sound Output Try Now
You can select which speakers the Projector uses for audio output.
External speakers may not be controlled with the Samsung Smart Remote. When an external speaker is enabled, some
sound menus are not supported.
Listening to the Projector through Bluetooth devices
Menu Settings All Settings Sound Sound Output Bluetooth Speaker List
You can connect Bluetooth audio devices to the Projector. They must be paired using the Projector's Bluetooth
function. Refer to the user manual for your audio device such as Bluetooth speaker, soundbar and headphones for
detailed connection and usage.
If the Projector fails to a Bluetooth audio device, place the device closer to the Projector, and then select Refresh.
When you turn on a paired Bluetooth audio device, the Projector detects it automatically, and then displays a pop-up
window. Use this pop-up window to activate/deactivate the Bluetooth audio device.
The sound quality may be affected by the condition of the Bluetooth connection.
Before using a Bluetooth audio device, refer to "Read Before Using Bluetooth Devices".
On some models, you can connect and use two Bluetooth devices simultaneously.
If multiple BT audio devices and BT input devices are simultaneously connected, sound from the audio devices may be
choppy or key data from the input devices may be dropped.
The number of BT audio devices for connection can be limited to one device, for a stable game service.
If a call comes in while you listen to Projector sound with Galaxy Buds, the Buds connects to the mobile phone and the
Projector sound is muted for connecting to the call.
When the call is ended, the Buds automatically connects to the Projector. This feature is supported only when the Projector
and mobile phone are connected to the same Samsung account.
If the Galaxy Buds is disconnected while listening to Projector sound with the Buds, the Projector sound is muted.
- 85 -
Listening to the Projector through a Samsung audio device that supports the Wi-Fi function
Menu Settings All Settings Sound Wi-Fi Speaker Surround Setup Try Now
If you've connected one or more Samsung wireless audio devices that support the Wi-Fi function to the Projector,
you can create an optimal sound set up by the surround effect settings. You can select any of the
surround sound with or without a soundbar.
A surround sound can be used if all of the following conditions are met:
• Two or more Samsung wireless speakers of the same type must be connected to the same wireless network.
• The Samsung audio devices that support the Wi-Fi function must be connected to the same wireless network as
the Projector.
For more information about how to connect and use a Samsung audio device that supports the Wi-Fi function, refer to its
user manual.
Surround sound with a soundbar may not be supported depending on the product.
If you activate the Screen Mirroring function while using Samsung audio devices that support the Wi-Fi function, the Wi-Fi
connection is disconnected.
Mismatched video and audio lip-syncing may occur depending on the device type.
- 86 -
System and Support
You can system and support settings such as clock, timers, energy usage and software updates.
Using the Time Functions and the Timers
Set the current time and use the timer function.
Menu Settings All Settings General & Privacy System Manager Time Try Now
You can set the Clock manually or automatically. Once the Clock is set, you can view the current time on the
Projector anytime.
You must set the clock in the following cases:
• The power cord is disconnected and then connected.
• The Clock Mode is changed from Auto to Manual.
• The Projector is not connected to the network.
Setting the clock automatically
Menu Settings All Settings General & Privacy System Manager Time Clock
Clock Mode Auto
This function works only when the Projector is connected to the network.
Adjusting the clock
Menu Settings All Settings General & Privacy System Manager Time Clock
Time Zone Try Now
You can set the current date and time using your remote control.
Changing the current time
Menu Settings All Settings General & Privacy System Manager Time Clock
Time Offset Try Now
Time Offset adjusts the time through a network connection.
This function is available only when Clock Mode is set to Auto, the Projector is connected to a network.
- 87 -
Setting the clock manually
Menu Settings All Settings General & Privacy System Manager Time Clock
Clock Mode Manual
When Clock Mode is set to Manual, you can directly enter the current date and time. Select the Date and Time by
using the directional buttons on the remote control.
Using the sleep timer
Menu Settings All Settings General & Privacy System Manager Time Sleep
Timer Try Now
You can use this function to automatically shut off the Projector after a pre-set period of time. You can set the sleep
timer for up to 180 minutes after which it will turn off the Projector.
This function may not be supported in some viewing modes.
This function may not be supported depending on the model or geographical area.
Turning off the Projector using the off timer
Menu Settings All Settings General & Privacy System Manager Time Off
Timer Try Now
You can set Off Timer to shut off the Projector automatically at a time. Off Timer is only available if the
Clock has been set.
To use this function, set the Clock ( Menu Settings All Settings General & Privacy System
Manager Time Clock). Try Now
This function may not be supported depending on the model or geographical area.
- 88 -
Using the Power and Energy Saving Functions
Reduce the Projector's energy consumption.
Reducing the energy consumption of the Projector
Menu Settings All Settings General & Privacy Power and Energy Saving Try Now
Reduce energy consumption by changing your power preferences and other energy-saving options.
• Energy Saving Solution Try Now
Reduce power consumption by adjusting brightness settings.
• Screen Saver
Try Now
Activate a screensaver when your Projector displays a still image for two hours or more.
• Auto Power Saving Try Now
When the Projector is connected to Wi-Fi, this feature checks Wi-Fi signals and remote control usage data to
determine whether the Projector is used. If the Projector is left idle, the feature automatically switches off the
screen.
This feature may not be supported, depending on the Wi-Fi router.
• Auto Power Off Try Now
Automatically turns off the Projector to reduce unnecessary power consumption if the Projector Controller and
the remote control are not used for the set period of time.
• Available Remote Battery Try Now
You can check the Samsung Smart Remote's remaining amount of the battery.
This function may not be supported depending on the model.
- 89 -
Updating the Projector's Software
View your Projector's software version and update it if necessary.
DO NOT turn off the Projector's power until the update is complete. The Projector will turn off and on
automatically after completing the software update. Video and audio settings will be reset to their defaults
after a software update.
Updating through the network
Menu Settings Support Software Update Update Now Try Now
Updating from the network requires an active network connection.
Updating the Projector automatically
Menu Settings Support Software Update Auto update Try Now
If the Projector is connected to the network, you can have the Projector's software update itself automatically while
you are watching the Projector. When the background update is completed, it is applied the next time the Projector
is turned on.
If you agree to the Smart Hub terms and conditions, Auto update is set to On automatically. If you want this function
disabled, use the Select button to turn it off.
This function may take a longer time if another network function is running concurrently.
This function requires a network connection.
- 90 -
Using the Parental Settings function
content or app security settings.
Menu Settings All Settings General & Privacy Parental Settings Try Now
Restrict access to content or apps that require parental guidance. Locked content or apps can be accessed by
entering the password.
• Programme Rating Lock Try Now
This function is useful for controlling what programmes children can watch on the Projector based on their
ratings.
For more information, refer to "Using Programme Rating Lock".
• Apply Channel Lock Try Now
By selecting the menu, you can turn on or off the Apply Channel Lock function.
Lock specific channels to prevent children from watching adult content.
To use this function, the PIN number is required.
• Channel Lock Settings Try Now
Set the channel to lock or unlock.
• App Lock Settings
Try Now
Set the installed app to lock or unlock.
- 91 -
Audio and Video Functions for the Visually or Hearing Impaired
You can the functions for the visually or hearing impaired.
Running the accessibility functions
Menu Settings All Settings General & Privacy Accessibility Try Now
Running Accessibility Shortcuts
The Accessibility Shortcuts provide easy access to the accessibility functions. To display the Accessibility Shortcuts,
press and hold the (Volume) button for 2 seconds or more. You can easily turn on or turn off the functions such
as Voice Guide, Subtitle, Sign Language Zoom, Learn Remote, Menu Learning Screen, Picture Off, Multi-output
Audio, High Contrast, Zoom Menu and Text, Greyscale, Colour Inversion, Slow Button Repeat, Accessibility Settings,
etc.
Even if the Voice Guide is set to Off or muted, the voice guide for Accessibility Shortcuts is enabled.
The shortcut menus may not appear depending on the model or geographical area.
Enabling voice guides for the visually impaired
Menu Settings All Settings General & Privacy Accessibility Voice Guide
Settings Try Now
You can activate voice guides that describe the menu options aloud to aid the visually impaired. To activate this
function, set Voice Guide to On. With Voice Guide on, the Projector provides voice guides for channel change,
volume adjust, information on current and upcoming programmes, schedule viewing, other Projector functions and
various content in the Internet and in Search.
You can go to Voice Guide, and then press the Select button to turn the function on or off.
The Voice Guide is provided in the language that is on the Projector Language. However, some languages are not
supported by Voice Guide even though they are listed in the Projector Language. English is always supported.
For more information about the Projector Language settings, refer to "Changing the menu language".
- 92 -
Changing the volume, speed, pitch and the Projector Background Volume of the Voice Guide
You can the Volume, Speed, Pitch and the Projector Background Volume of the voice guide.
The Projector screen is turned off but audio continues
Menu Settings All Settings General & Privacy Accessibility Picture Off Try Now
Turn off the Projector screen and provide only sound to reduce overall power consumption. When you press a
button on the remote control other than Volume and Power while the screen is off, the Projector screen turns back
on.
This function may not be supported depending on the geographical area.
White text on black background (high contrast)
Menu Settings All Settings General & Privacy Accessibility High Contrast
Try Now
You can change Smart Hub and setting menu screens to white text on a black background and change the
transparent Projector menus to opaque automatically so that text can be more easily read.
If High Contrast is on, some Accessibility menus are not available.
Setting the screen to black and white
Menu Settings All Settings General & Privacy Accessibility Greyscale Try Now
You can change the colour of the Projector screen to black and white to sharpen blurred edges caused by colours.
If Greyscale is on, some Accessibility menus are not available.
This function may not be supported depending on the model or geographical area.
- 93 -
Inverting the screen colour
Menu Settings All Settings General & Privacy Accessibility Colour Inversion
Try Now
You can invert the colours of the text and background for the setting menus displayed on the Projector screen to
make it easier to read them.
If Colour Inversion is on, some Accessibility menus are not available.
This function may not be supported depending on the model or geographical area.
Enlarging the font (for the visually impaired)
Menu Settings All Settings General & Privacy Accessibility Zoom Menu and
Text Try Now
You can enlarge the size of the font on the screen. To activate, set Zoom Menu and Text to On.
Learning about the remote control (for the visually impaired)
Menu Settings All Settings General & Privacy Accessibility Learn Remote
Try Now
This function helps individuals with a visual impairment to learn the positions of the buttons on the remote control.
When this function is activated, you can press a button on the remote control and the Projector will tell you its
name. Press the button twice to exit Learn Remote.
Learning about the Projector menu
Menu Settings All Settings General & Privacy Accessibility Menu Learning
Screen Try Now
Learn the menus on the Projector screen. Once enabled, your Projector will tell you the structure and features of
the menus you select.
- 94 -
Watching Projector broadcasts with subtitles
Menu Settings All Settings General & Privacy Accessibility Subtitle Settings
Try Now
Set Subtitle to On. Then you can watch the programme with the subtitle displayed.
This function may not be supported depending on the model or geographical area.
This function has no relationship with the features for controlling sub-titles of DVD or Blu-ray players. To control DVD or
Blu-ray subtitles, use the sub-title feature of the DVD or Blu-ray player and the player's remote control.
• Subtitle Try Now
Turns on or off the subtitle.
• Subtitle Mode Try Now
Sets the subtitle mode.
• Subtitle Language Try Now
Sets the subtitle language.
• Spoken Subtitles
Listen to an audio version of the subtitles. Only available with broadcasts that provide this service.
This function may not be supported depending on the model or geographical area.
Selecting the broadcasting subtitle language
You can select the default subtitle language. The list may vary depending on the broadcast.
• Primary Subtitle Language Try Now
Sets the primary subtitle language.
• Secondary Subtitle Language Try Now
Sets the secondary subtitle language.
- 95 -
Listening to the Projector through Bluetooth devices (for the hearing impaired)
Menu Settings All Settings General & Privacy Accessibility Multi-output
Audio Try Now
You can turn on both the Projector speaker and Bluetooth headphone at the same time. When this function is active,
you can set the volume of the Bluetooth headphone higher than the volume of the Projector speaker.
This function may not be supported depending on the model or geographical area.
For more information about connecting Bluetooth devices to the Projector, refer to "Listening to the Projector through
Bluetooth devices".
Enlarging the sign language screen for the hearing impaired
Menu Settings All Settings General & Privacy Accessibility Sign Language
Zoom Settings Try Now
You can zoom in the sign language screen when the programme you are watching provides it. First, set Sign
Language Zoom to On, and then select Edit Sign Language Zoom to change the position and of the
sign language screen.
Conguring the repeat settings for remote control buttons
Menu Settings All Settings General & Privacy Accessibility Remote Button
Repeat Settings Try Now
You can the operation speed of the remote control buttons so that they slow down when you continually
press and hold them. First, set Slow Button Repeat to On, and then adjust the operation speed in Repeat Interval.
Setting the colour correction feature for users with colour blindness
Menu Settings All Settings General & Privacy Accessibility SeeColors Mode
This feature helps users with colour blindness experience richer colours.
Use this feature to customise the colours for your unique viewing conditions, to experience richer colours on the
screen.
When SeeColors Mode is in use, some menus are disabled.
This function may not be supported depending on the model.
- 96 -
Using Voice Assistants on the Projector
You can change the settings of a Voice Assistant after selecting it.
Select the Voice Assistant
Menu Settings All Settings General & Privacy Voice Voice Assistant Try Now
Select which Voice Assistant you would like to help control your Projector.
To use this function, the Projector must be connected to the network.
This function and Voice Recognition Solution Partner may not be supported depending on the model or geographical area.
Voice Assistant only supports some languages, and the supported functions may differ depending on the geographical
area.
The Voice Wake-up function may not be supported depending on the model, Voice Assistant or geographical area.
• Bixby / Amazon Alexa
To use the Voice Assistant, follow the instructions on the Projector screen to enable the selected Voice Assistant.
To change the settings for Voice Assistant, run the Settings menu under each Voice Assistant ( Menu
Settings All Settings General & Privacy Voice Voice Assistant). Try Now
To enable the Settings menus for each Voice Assistant, log in each Voice Assistant.
For an example of Voice command, see the Settings menus for each Voice Assistant.
- 97 -
Using Other Functions
You can view other functions.
Changing the menu language
Menu Settings All Settings General & Privacy System Manager Language
Try Now
Setting up a password
Menu Settings All Settings General & Privacy System Manager Change PIN
Try Now
The PIN input window appears. Enter a PIN. Enter it again to it. The default PIN is "0000" (for France and
Italy: "1111").
This function may not be supported depending on the model or geographical area.
If you forget your PIN, you can reset it with your remote control. With the Projector turned on, press the following buttons
on the remote control in the order shown to reset the PIN to "0000" (for France and Italy: "1111").
Press (Volume) button. Volume Up Volume Down Volume Up .
Selecting Usage or Retail Mode
Menu Settings All Settings General & Privacy System Manager Usage Mode
Try Now
You can set the Projector for retail environments by setting Usage Mode to Retail Mode.
For all other uses, select Home Mode.
Use Retail Mode only in a store. With Retail Mode, some functions are disabled and the Projector settings automatically
reset after a preset amount of time.
This function may not be supported depending on the model.
- 98 -
Managing External Devices
Menu Settings All Settings Connection External Device Manager Device
Connection Manager Try Now
When you connect external devices such as mobile devices or tablets connected to the same network as the
Projector so you can share content, you can view the list of allowed devices and connected devices.
• Access Notification
Set whether to display a notification when an external device such as a mobile device or tablet attempts to
connect to the Projector.
• Device List
Manage a list of external devices registered to the Projector.
Using AirPlay
Menu Settings All Settings Connection Apple AirPlay Settings Try Now
You can use AirPlay to view content from your iPhone, iPad or Mac on the Projector screen.
This function may not be supported depending on the model or geographical area.
Restoring the Projector to the factory settings
Menu Settings All Settings General & Privacy Reset Try Now
You can restore all Projector settings to the factory defaults.
1.
Select Reset. The security PIN entry window appears.
2.
Enter the security PIN, and then select Reset. All settings are then reset. The Projector turns off and on again
automatically and displays the Initial Setup screen.
For more information on Reset, refer to the user manual that came with the Projector.
- 99 -
Precautions and Notes
You can get instructions and information that you must read after installation.
Supported broadcasting audio options
Check the supported broadcasting audio options.
Audio Type Dual Sound Default
A2 Stereo
Mono Mono Automatic change
Stereo Stereo, Mono Automatic change
Dual Dual I, Dual II Dual I
NICAM Stereo
Mono Mono Automatic change
Stereo Mono, Stereo Automatic change
NICAM Dual
Mono, NICAM Dual-1,
NICAM Dual-2
NICAM Dual-1
If the Stereo signal is too weak and an automatic switching occurs, select Mono.
Available only for the stereo signals.
Available only when the input source is set to TV.
- 100 -
Read Before Using Apps
Read this information before using Apps.
• If you want to download new apps using Apps, first sign in to your Samsung account.
• Due to the product characteristics featured on Samsung Smart Hub, as well as limitations in available content,
certain features, applications and services may not be available on all devices or in all territories. Visit
https://www.samsung.com for more information on specific device information and content availability.
Services and content availability are subject to change without prior notice.
• Samsung takes no legal responsibility whatsoever for any interruption of app services caused by the service
provider for any reason.
• Application services may be provided in English only and available content may differ with the geographical
area.
• For more information about applications, visit the applicable service provider's website.
• An unstable network connection may cause delays or interruptions. In addition, applications may terminate
automatically depending on the network environment. If this occurs, check your network connection and try
again.
• Application services and updates may become unavailable.
• Application content is subject to change by the service provider without prior notice.
• Specific services may differ with the version of the application installed on the Projector.
• An application's functionality may change in future versions of the application. If this occurs, run the
application's tutorial or visit the service provider's website.
• Depending on the service provider's policies, certain applications may not support multitasking.
• For details on how to subscribe or unsubscribe from an app, please contact the service provider.
- 101 -
Read Before Using the Internet Function
Read this information before using the Internet function.
• File download is not supported.
• The Internet function may not be able to access certain websites, including websites operated by certain
companies.
• The Projector does not support playback of flash videos.
• E-commerce for online purchases is not supported.
• ActiveX is not supported.
• Only a limited number of fonts are supported. Certain symbols and characters may not be displayed properly.
• The response to remote commands and the resulting on-screen display may be delayed while a webpage is
loading.
• Loading a webpage may be delayed or suspended completely depending on the status of the participating
systems.
• Copy and paste operations are not supported.
• When composing an email or a simple message, certain functions such as the font size and colour selection may
not be available.
• There is a limit to the number of bookmarks and the size of the log file that can be saved.
• The number of windows that can be opened concurrently is limited.
• Web browsing speed will differ with the network environment.
• Browsing history is saved from latest to oldest, with the oldest entries being overwritten first.
• Depending on the types of video/audio codecs supported, you may not be able to play certain HTML5 video and
audio files.
• Video sources from PC-optimised streaming service providers may not play properly on our proprietary Internet
browser.
- 102 -
Read before setting up a wireless network connection
Precautions for wireless network
• This Projector supports the IEEE 802.11 a /b /g /n /ac communication protocols. Video files stored on a device
connected to the Projector via a Home Network may not play back smoothly.
Some of the IEEE 802.11 communication protocols may not be supported depending on the model or geographical area.
• To use wireless network, the Projector must be connected to a wireless access point or modem. If the wireless
access point supports DHCP, the Projector can use a DHCP or static IP address to connect to the wireless
network.
• Select a channel that is not currently being used by the wireless access point. If the channel set is currently
being used by the wireless access point to communicate with another device, the result is usually interference or
a communications failure.
• Most wireless networks have an optional security system. To enable a wireless network's security system, you
need to create a password using characters and numbers. This password is then needed to connect to a security-
enabled access point.
Wireless security protocols
The Projector only supports the following wireless network security protocols. The Projector cannot connect to
wireless access point.
• Authentication Modes: WEP, WPAPSK, WPA2PSK
• Encryption Types: WEP, TKIP, AES
In compliance with the Wi-Fi Samsung Projector do not support WEP or TKIP security
encryption in networks running in the 802.11n mode. If the wireless access point supports WPS (Wi-Fi Protected
Setup), you can connect the Projector to your network using PBC (Push Button or a PIN (Personal
Number). WPS automatically the SSID and WPA key settings.
- 103 -
Read After Installing the Projector
Read this information after installing the Projector.
Picture sizes and input signals
The Picture Size is applied to the current source. The applied Picture Size will remain in effect whenever you select
that source unless you change them.
Input signal Picture size
HDMI (720p) 16:9 Standard, Custom, 4:3
HDMI (1080i, 1080p) 16:9 Standard, Custom, 4:3
The input ports for external devices may differ depending on the model and geographical area.
- 104 -
Read Before Connecting a Computer (Supported Resolutions)
Check the resolutions supported for PC input signals.
When you connect your Projector to a computer, set the computer's video card to one of the standard resolutions
listed in the tables below or on the next pages. The Projector will automatically adjust to the resolution you choose.
Note that the optimal and recommended resolution is 1920 x 1080 @ 60 Hz. Choosing a resolution not included in
the tables can result in a blank screen or just the remote control sensor turning on. Refer to the user manual of your
graphics card for compatible resolutions.
IBM
Resolution
(Dots x lines)
Display format
Horizontal
frequency
(KHz)
Vertical
frequency
(Hz)
Clock frequency
(MHz)
Polarity
(horizontal /
vertical)
720 x 400 70 Hz 31.469 70.087 28.322 - / +
MAC
Resolution
(Dots x lines)
Display format
Horizontal
frequency
(KHz)
Vertical
frequency
(Hz)
Clock frequency
(MHz)
Polarity
(horizontal /
vertical)
640 x 480 67 Hz 35.000 66.667 30.240 - / -
832 x 624 75 Hz 49.726 74.551 57.284 - / -
1152 x 870 75 Hz 68.681 75.062 100.000 - / -
- 105 -
VESA DMT
Resolution
(Dots x lines)
Display format
Horizontal
frequency
(KHz)
Vertical
frequency
(Hz)
Clock frequency
(MHz)
Polarity
(horizontal /
vertical)
640 x 480 60 Hz 31.469 59.940 25.175 - / -
640 x 480 72 Hz 37.861 72.809 31.500 - / -
640 x 480 75 Hz 37.500 75.000 31.500 - / -
800 x 600 60 Hz 37.879 60.317 40.000 + / +
800 x 600 72 Hz 48.077 72.188 50.000 + / +
800 x 600 75 Hz 46.875 75.000 49.500 + / +
1024 x 768 60 Hz 48.363 60.004 65.000 - / -
1024 x 768 70 Hz 56.476 70.069 75.000 - / -
1024 x 768 75 Hz 60.023 75.029 78.750 + / +
1152 x 864 75 Hz 67.500 75.000 108.000 + / +
1280 x 720 60 Hz 45.000 60.000 74.250 + / +
1280 x 800 60 Hz 49.702 59.810 83.500 - / +
1280 x 1024 60 Hz 63.981 60.020 108.000 + / +
1280 x 1024 75 Hz 79.976 75.025 135.000 + / +
1440 x 900 60 Hz 55.935 59.887 106.500 - / +
1600 x 900 60 Hz 60.000 60.000 108.000 + / +
1680 x 1050 60 Hz 65.290 59.954 146.250 - / +
1920 x 1080 60 Hz 67.500 60.000 148.500 + / +
- 106 -
Supported Resolutions for Video Signals
Check the resolutions supported for video signals.
CTA-861
Resolution
(Dots x lines)
Display format
Horizontal
frequency
(KHz)
Vertical
frequency
(Hz)
Clock frequency
(MHz)
Polarity
(horizontal /
vertical)
720 (1440) x 576i 50 Hz 15.625 50.000 27.000 - / -
720 (1440) x 480i 60 Hz 15.734 59.940 27.000 - / -
720 x 576 50 Hz 31.250 50.000 27.000 - / -
720 x 480 60 Hz 31.469 59.940 27.000 - / -
1280 x 720 50 Hz 37.500 50.000 74.250 + / +
1280 x 720 60 Hz 45.000 60.000 74.250 + / +
1920 x 1080i 50 Hz 28.125 50.000 74.250 + / +
1920 x 1080i 60 Hz 33.750 60.000 74.250 + / +
1920 x 1080 24 Hz 27.000 24.000 74.250 + / +
1920 x 1080 25 Hz 28.125 25.000 74.250 + / +
1920 x 1080 30 Hz 33.750 30.000 74.250 + / +
1920 x 1080 50 Hz 56.250 50.000 148.500 + / +
1920 x 1080 60 Hz 67.500 60.000 148.500 + / +
- 107 -
Read Before Using Bluetooth Devices
Read this information before using a Bluetooth device.
This function may not be supported depending on the model or geographical area.
Restrictions on using Bluetooth
• You can't use Bluetooth devices and the Wi-Fi Speaker Surround Setup feature simultaneously.
• Compatibility issues may occur, depending on the Bluetooth device. (A Mobile exclusive headphone may not be
available, depending on the environment.)
• Lip-sync errors may occur.
• The Projector and Bluetooth device may disconnect, depending on the distance between them.
• A Bluetooth device may hum or malfunction:
– When a part of your body is in contact with the receiving/transmitting system of the Bluetooth device or the
Projector.
– When the device is subject to electrical variation from obstructions caused by a wall, corner or office
partitioning.
– When the device is exposed to electrical interference from same frequency-band devices including medical
equipment, microwave ovens and wireless LANs.
- 108 -
Licences & Other Information
Check the licences and other information and trademarks applied in your Projector.
Dolby, Dolby Atmos, Dolby Audio and the double-D symbol are registered trademarks of Dolby Laboratories
Licensing Corporation. Manufactured under license from Dolby Laboratories. unpublished works.
Copyright © 2012-2021 Dolby Laboratories. All rights reserved.
Projector with TÜRKSAT Channel Update System work with the principle of updating channel databases and
automatically update channels and parameters.
This licence may not be supported depending on the model or geographical area.
The terms HDMI, HDMI Multimedia Interface, HDMI trade dress and the HDMI Logos are trademarks
or registered trademarks of HDMI Licensing Administrator, Inc.
Open Source License Notice
Open Source used in this product can be found on the following webpage. (https://opensource.samsung.com)
- 109 -
Trademark: Rovi and Rovi Guide are trademarks of Rovi Corporation and/or its subsidiaries.
Licence: The Rovi Guide system is manufactured under licence from Rovi Corporation and/or its subsidiaries.
Patent: The Rovi Guide system is protected by patents and patent applications in the US, Europe and other
countries including one or more of the United States patents 6,396,546; 5,940,073; 6,239,794 issued to Rovi
Corporation and/or its subsidiaries.
Disclaimer: Rovi Corporation and/or its subsidiaries and related are not in any way liable for the accuracy
or availability of the programme schedule information or other data in the Rovi Guide system and cannot guarantee
service availability in your area. In no event shall Rovi Corporation and/or its related be liable for any
damages in connection with the accuracy or availability of the programme schedule information or other data in the
Rovi Guide system.
This licence may not be supported depending on the model or geographical area.
- 110 -
Troubleshooting
The following are troubleshooting solutions for each problem.
Picture Issues
When the Projector has trouble with the picture, these steps may help resolve the problem.
The screen is ashing or has become dark
If your Projector is or dimming sporadically, you may need to disable some of the energy
feature.
Disable Contrast Enhancer or Energy Saving Solution.
• Menu Settings All Settings Picture Expert Settings Contrast Enhancer Try Now
•
Menu Settings All Settings General & Privacy Power and Energy Saving Energy Saving
Solution
Try Now
Run Picture Test. When the tested image quality is normal, check the signal of the connected device.
•
Menu Settings Support Device Care Self Diagnosis Picture Test Try Now
The picture is not bright, or the picture colours do not look clear
If the screen appears too dim, try changing the settings under Reset Picture or disabling Energy Saving Solution.
•
Menu Settings All Settings Picture Expert Settings Reset Picture Try Now
• Menu Settings All Settings General & Privacy Power and Energy Saving Energy Saving
Solution Try Now
Go to Picture and adjust the Picture Mode, Contrast, Brightness, and Sharpness settings.
•
Menu Settings All Settings Picture Picture Mode Try Now
• Menu Settings All Settings Picture Expert Settings Contrast Try Now
• Menu Settings All Settings Picture Expert Settings Brightness Try Now
•
Menu Settings All Settings Picture Expert Settings Sharpness Try Now
• Menu Settings All Settings Picture Expert Settings Colour Try Now
• Menu Settings All Settings Picture Expert Settings Tint (G/R) Try Now
- 111 -
The picture colours are black and white or do not look the way they should
look
If the product’s colours or absolute whites/blacks seem to be off, launch Picture Test.
• Menu Settings Support Device Care Self Diagnosis Picture Test Try Now
Check whether Greyscale is set to On.
• Menu Settings All Settings General & Privacy Accessibility Greyscale Try Now
The Projector automatically turns off by itself
If your Projector appears to turn off by itself, try disabling some of the Projector's energy functions.
See if Sleep Timer has been enabled. The Sleep Timer automatically turns the Projector off after a period
of time.
• Menu Settings All Settings General & Privacy System Manager Time Sleep Timer
Try Now
If the Sleep Timer has not been enabled, see if Auto Power Off or Off Timer has been enabled and disable it.
• Menu Settings All Settings General & Privacy System Manager Time Off Timer
Try Now
•
Menu Settings All Settings General & Privacy Power and Energy Saving Auto Power Off
Try Now
Unable to power on
If you are having problems powering on your Projector, there are a number of things to check before calling the
service department.
that the Projector's power cord is connected correctly at both ends and that the remote control is operating
normally.
Make sure that the Projector cable is connected.
- 112 -
Displayed video looks blurry
If you notice blurring or juddering on the screen, use the Picture Clarity Settings function to resolve the issue.
• Menu Settings All Settings Picture Expert Settings Picture Clarity Settings Try Now
The picture is distorted.
The compression of video content may cause picture distortions, especially in fast moving pictures from sports
programmes and action movies.
Remove and reconnect the power cord, and check the remote control battery.
If the signal reception is weak or poor, screen distortion may be visible but it is not a malfunction.
Mobile phones used close to the Projector (within 1 m) may cause noise on channels.
There is a dotted line on the edge of the screen.
Change Picture Size to 16:9 Standard.
•
Menu Settings All Settings Picture Picture Size Settings Picture Size Try Now
Change the output resolution of your external device.
The picture won’t display in full screen.
HD channels will have black bars on either side of the screen when displaying upscaled SD content.
Black bars will appear at the top and bottom of the screen when you watch movies that have aspect ratios different
from your Projector.
Adjust the picture size options on your external device or set the Projector to full screen.
•
Menu Settings All Settings Picture Picture Size Settings Picture Size Try Now
- 113 -
The Subtitle function in the Projector menu is deactivated.
When an external device is connected with an HDMI cable, the Subtitle function is unavailable. Adjust the subtitle
setting on the external device.
Subtitles appear on the Projector screen.
Turn off the Subtitle function in Subtitle Settings.
• Menu Settings All Settings General & Privacy Accessibility Subtitle Settings Subtitle
Try Now
Auto keystone does not work properly.
When the product is tilted, project images ensuring that the Samsung logo faces the
Do not project onto lights or obstacles.
Make sure the top (sensor part) of the product is not dirty with dust or foreign matter.
- 114 -
Sound and Noise Issues
When the Projector has with sound, these steps may help resolve the problem.
How can I connect an audio device to the Projector?
The connection method may differ depending on the audio device such as HDMI (eARC/ARC), Bluetooth and Wi-Fi.
For more information about how to connect an audio device, run Connection Guide.
•
Menu Connected Devices Connection Guide Audio Device
There is no sound or the sound is too low at maximum volume.
Check the volume control of your Projector, and then check the volume control of the external device (cable box or
satellite box, DVD, Blu-ray, etc.) connected to your Projector.
Check the cable connection between an external device and the Projector, and then try cable connection again.
The picture is good but there is no sound.
Check the Sound Output setting.
If it is set to Projector Speaker, check the volume setting.
• Menu Settings All Settings Sound Sound Output Try Now
If you are using an external device, check the device’s audio output option.
For example, you may need to change your cable box’s audio option to HDMI if the box connected to your Projector
is using an HDMI cable.
Reboot the connected device by disconnecting and then reconnecting the device’s power cord.
With a set-top box or cable box, check the cable connection and reboot the external device. When the symptom
persists, contact your service provider.
- 115 -
HDMI (eARC/ARC) is connected, and there is no sound.
It is recommended to set Digital Output Audio Format to Auto if only limited audio format is supported depending
on the performance of the connected soundbar or A/V receiver.
• Menu Settings All Settings Sound Expert Settings Digital Output Audio Format Auto
The speakers are making an odd sound.
Run Sound Test.
•
Menu Settings Support Device Care Self Diagnosis Sound Test Try Now
Make sure that the audio cable is connected to the correct audio output connector on the external device.
Check the Signal Information. A low signal level may cause sound distortions.
• Menu Settings Support Device Care Self Diagnosis Signal Information Try Now
The sound is interrupted.
Sound quality may become affected if the wireless router is close to the Bluetooth speaker. Place the Bluetooth
speaker as close as possible to the Projector without obstacle between them. Do not place the wireless router close
to the Bluetooth speaker body.
To minimise interruptions, we recommend a wireless access point that uses a 5 GHz frequency. 5 GHz may not be
available depending on the model.
- 116 -
Whenever a function is used on the Projector or the channel is changed, the
Projector voices the activity. The Projector explains in voice-over the video
scenes displayed on the screen.
Turn off the Voice Guide function in Voice Guide Settings.
• Menu Settings All Settings General & Privacy Accessibility Voice Guide Settings Voice
Guide Try Now
The Projector audio is not being played through the Soundbar or A/V
receiver.
Check the Soundbar or A/V receiver's power supply and its settings.
• In case of HDMI-eARC connection, make sure that it is connected to the eARC dedicated HDMI port on your
Projector. However, the eARC can be used only when the Soundbar or A/V receiver supports the eARC feature.
The sound is not heard clearly.
Change to an appropriate sound mode.
•
Menu Settings All Settings Sound Sound Mode Try Now
The volume of the external device cannot be adjusted.
Check the cable connection between the Projector and the external device.
When connecting an external speaker such as home theatre via HDMI, make sure it is connected to the HDMI (eARC/
ARC) port on the Projector. Make sure that the Menu Settings All Settings Connection External
Device Manager Anynet+ (HDMI-CEC) is active on your Projector. Try Now
I want to turn the Projector and audio device off and on at the same time.
When you connect the Samsung Soundbar to the Projector via Bluetooth, the power turns off and on together. It
may not be supported depending on the Samsung Soundbar model.
When you connect an audio device that supports HDMI eARC to the HDMI (eARC) port on the Projector, the power
turns off and on together.
- 117 -
External Device Connectivity Issues
When the Projector has connecting to external devices such as a PC, game console or mobile device,
these steps may help resolve the problem.
The "Mode Not Supported" message appears.
Adjust the output resolution of the external device to a resolution supported by the Projector.
The video is OK but there is no audio.
If you are using an HDMI connection, check the audio output setting on your PC.
To listen to the computer sound, connect external speakers to the audio output connection of the computer.
I want to connect to a PC and mobile device via screen mirroring.
To wirelessly connect the Projector to your PC, read the instructions at PC Screen Sharing (Wireless) in
Connection Guide, and then try to connect.
• Menu Connected Devices Connection Guide PC Screen Sharing (Wireless)
that the Projector and your PC are connected to the same network.
To wirelessly connect the Projector to your mobile device, read the instructions at Smartphone Screen Sharing
(Smart View) in Connection Guide, and then try to connect.
•
Menu Connected Devices Connection Guide Smartphone Screen Sharing (Smart View)
Try Now
If the Projector has connecting to your PC or mobile device due to surrounding radio interferences,
change the frequency of the wireless access band, and then try to connect.
- 118 -
No screen appears when connecting the Projector to an external device.
For more information about how to connect an external device, run Connection Guide.
• Menu Connected Devices Connection Guide Try Now
Make sure that the external device is connected securely and turned on. Move to Sources to switch to other input
sources.
• Menu Connected Devices Sources
Using HDMI Troubleshooting, you can check the connection to HDMI cable and external devices (takes
approximately 2 minutes).
•
Menu Connected Devices Connection Guide Video Device HDMI Troubleshooting
When using a set-top box or cable box, check the broadcast signals or the network that is connected to the external
device.
I want to connect to a Bluetooth speaker.
For more information on how to connect a Bluetooth speaker, see Audio Device Bluetooth in Connection Guide.
•
Menu Connected Devices Connection Guide Audio Device Bluetooth
The PC screen does not appear or it ickers.
When the set resolution is not matched, it may cause a blank or screen. For the PC supported resolution,
refer to "Read Before Connecting a Computer (Supported Resolutions)".
- 119 -
Network Issues
When the Projector has connecting to the Network, these steps may help resolve the problem.
Wireless network connection failed. Unable to connect to a wireless access
point. Unable to connect to the network.
Menu Settings Support Device Care Self Diagnosis Smart Hub Connection
Test Try Now Try Now
Ensure that the network cable is connected and the router is powered on.
Connect your mobile device to the router via Wi-Fi.
Turn the router off and back on again. (Requires 2 to 3 minutes)
If a security key is required, make sure it has been entered correctly.
Unplug the Projector’s power cord and plug it back in or press and hold the power button for at least 3 seconds.
Make sure that there is no electromagnetic wave generating device placed between the Projector and router.
Connected to a local network, but not to the Internet.
1.
Check if the Internet LAN cable is connected to the access point's external LAN port.
2.
Check the DNS setting in IP Settings.
– Menu Settings All Settings Connection Network Network Status IP Settings
- 120 -
Anynet+ (HDMI-CEC) Issues
When Anynet+ (HDMI-CEC) isn't working, these steps may help resolve the problem.
What is Anynet+?
You can use the Projector's remote control to control external devices that support Anynet+ (HDMI-CEC) and that
are connected to the Projector via an HDMI cable. For example, if a connected external device supports Anynet+,
you can have the connected device turn on or off when you turn the Projector on or off.
Anynet+ does not work. The connected device is not displayed.
Make sure the device is an Anynet+ (HDMI-CEC) device. From the settings menu on the device, check and
that the HDMI-CEC option is enabled.
From the Projector, check and that the Anynet+ (HDMI-CEC) feature is set to On.
• Menu Settings All Settings Connection External Device Manager Anynet+ (HDMI-CEC)
Try Now
Check and that the device’s power cord is securely plugged in.
Check the device's HDMI cable connection.
Anynet+ (HDMI-CEC) cannot function under circumstances. (when the Projector is scanning channels or
performing Reset)
When connecting or disconnecting an HDMI cable, turn the Projector off and then back on again.
I want to start Anynet+. I also want the connected devices to turn on when
the Projector is turned on.
Check if the Anynet+ device is properly connected to the Projector, and then select Anynet+ (HDMI-CEC) menu to
see if Anynet+ (HDMI-CEC) is set to On.
•
Menu Settings All Settings Connection External Device Manager Anynet+ (HDMI-CEC)
Try Now
- 121 -
I want to exit Anynet+. It is inconvenient to turn on other devices because
the Projector also turns on. It is inconvenient because the connected devices
(e.g. set-top box) turn off together.
To turn off the Anynet+ function of a device connected to the Projector, turn off the Anynet+ (HDMI-CEC) function
of the device.
• Menu Settings All Settings Connection External Device Manager Anynet+ (HDMI-CEC)
Try Now
When Anynet+ (HDMI-CEC) is turned off, the soundbar connected via the HDMI (eARC) port does not turn off and on
together with the Projector. To prevent a device connected to the Projector from turning off automatically,
turn off the HDMI-CEC function on a device connected to the Projector.
The message "Connecting to Anynet+ device..." or "Disconnecting from
Anynet+ device" appears on the screen.
You cannot use the remote control when the Projector is Anynet+ or switching to the Projector viewing
screen.
Use the remote control after the Projector has completed the Anynet+ or has switched to the
Projector viewing screen.
The Anynet+ device won't play.
You cannot use the play function when Reset is in progress.
- 122 -
Remote Control Issues
When the remote control isn't working, these steps may help resolve the problem.
The remote control does not work.
The connection between the remote control and the Projector may be lost.
Point the Samsung Smart Remote at the front of the Projector, and then press and hold the and buttons
simultaneously for 3 seconds or more.
Also, if the remote control does not work properly or its response is very slow, the battery might be low or dead.
• Charge the remote control by using the USB port (C-type) on the bottom, or turn over the remote to expose the
solar cell.
– You can check remaining battery of Samsung Smart Remote with solar cell in
Menu Settings
All Settings General & Privacy Power and Energy Saving Available Remote Battery. Try Now
This function may not be supported depending on the model.
- 123 -
Apps
When apps aren't working, these steps may help resolve the problem.
I cannot nd the app I want.
To use smart functions, you should connect to a network, agree to the terms and conditions, and log in with your
Samsung account. If these settings were not during the initial setting process, you can Smart
Hub settings by running APPS from the Home Screen.
•
left directional button Media APPS
If Smart Hub settings are complete but the app you want cannot be found on the Home Screen, you can the app
from
Search or APPS. To add frequently used apps to the Home Screen, run the Add to Home feature from APPS.
• left directional button Media APPS Settings List of installed apps Add to Home
I launched an app, but it's in a different language. How can I change the
language?
Languages supported by an app may be different from the Projector Language set in the menu.
The ability to change the language depends on the app's provider. Change the language from the settings menu in
the app.
The app does not work properly. Its image quality is poor.
Check the network connection. When the network speed is slow, the app may not work or its image quality may be
poor.
Uninstall and reinstall the app. For more information about app uninstallation, refer to "
Managing installed apps".
The services of your application are not provided by the Projector but by the application service provider.
Refer to the Help section on the application service provider's website.
The Smart Hub Home Screen keeps appearing whenever you turn on the
Projector.
Turn off the Start with Smart Hub Home function in Start Screen Options.
• Menu Settings All Settings General & Privacy Start Screen Options Start with Smart Hub
Home Try Now
- 124 -
Voice Assistant Issues
When the Voice Assistant isn't working, these steps may help resolve the problem.
The microphone is off.
Turn on the microphone switch of the Projector. Each time the switch is turned on or off, the screen displays a pop-
up window showing whether the microphone is turned on or off.
If the microphone is turned off, all voice recognition features and some sound features involving the microphone do not
work.
The position and appearance of the microphone switch may differ depending on the model.
This function may not be supported depending on the model or geographical area.
The voice commands do not work well.
Voice commands may differ depending on the Voice Assistant.
Refer to the command examples for each Voice Assistant.
• Bixby: Explore Now
• Amazon Alexa: Menu Settings All Settings General & Privacy Voice Amazon Alexa
Settings Try Now
This function and Voice Recognition Solution Partner may not be supported depending on the model or geographical area.
Bixby/Alexa answers although I did not call it.
The Projector may recognise an ambient noise or everyday conversation as a call to Voice Assistant.
Turn off the Voice Wake-up function or set the Wake-up Sensitivity to Low.
•
Explore Now Settings Voice Wake-up
This function and Voice Recognition Solution Partner may not be supported depending on the model or geographical area.
- 125 -
I spoke "Hi, Bixby/Alexa" but Bixby/Alexa does not answer.
When the Projector is far from you or the ambient noise is so loud, the Projector may be unable to recognise your
voice.
• When the distance to the Projector is within 1 to 2 m, optimal performance is provided. Please look at your
Projector and speak.
Turn on the Voice Wake-up function.
• Explore Now Settings Voice Wake-up
This function and Voice Recognition Solution Partner may not be supported depending on the model or geographical area.
Voice recognition does not work with the Samsung Smart Remote unlike
other features. There is no response even if the Voice Assistant button is
pressed.
The connection between the remote control and the Projector may be lost. Try pairing the remote control with the
Projector.
Point the Samsung Smart Remote at the front of the Projector, and then press and hold the
and buttons
simultaneously for 3 seconds or more.
Also, if the remote control does not work properly or its response is very slow, the battery might be low or dead.
• Charge the remote control by using the USB port (C-type) on the bottom, or turn over the remote to expose the
solar cell.
– You can check remaining battery of Samsung Smart Remote with solar cell in
Menu Settings
All Settings General & Privacy Power and Energy Saving Available Remote Battery. Try Now
This function may not be supported depending on the model.
During voice recognition, the heavy load message appears and the function
does not work.
Unplug and then plug the Projector power cord and then try again after 1 minute and 30 seconds. It may take a
while if the voice recognition server is being inspected.
I want to see weather information of the desired area.
Say with the area name included.
- 126 -
Other issues
Use these procedures to resolve other issues that may occur in relation to the product.
The Projector is hot.
Watching Projector for an extended period of time causes the panel to generate heat, which is released through the
vents on the Projector.
The vents may feel hot to the touch when the Projector has been used for an extended period of time.
Adults should exercise extra care and ensure that children do not touch the vents on the Projector.
This heat, however, is not a defect and does not affect the Projector's functionality.
The Projector smells like plastic.
This smell is normal and will dissipate over time.
The settings are lost after 5 minutes or every time the Projector is turned off.
If Usage Mode is set to Retail Mode, the Projector's audio and video settings are automatically reset every 5
minutes.
Change Usage Mode to Home Mode.
• Menu Settings All Settings General & Privacy System Manager Usage Mode Home
Mode
The Projector is making a popping noise.
The expansion and contraction of the Projector's outer casing may cause a popping noise.
This does not indicate a product malfunction.
The Projector is safe to use.
- 127 -
The Projector is making a humming noise.
Your Projector utilises high-speed switching circuits and high levels of electrical current. Depending on the
Projector's brightness level, the Projector may seem slightly noisier than a conventional Projector.
Your Projector has undergone strict quality control procedures that meet our demanding performance and
reliability requirements.
Some noise coming from the Projector is considered normal and is not an acceptable cause for an exchange or
refund.
The Projector narrates the screen events in voice-over.
To turn off Voice Guide, move the focus from Accessibility Shortcuts to Voice Guide and then press the Select
button. You can turn on or off Voice Guide. To run Accessibility Shortcuts, see the following:
• Press and hold the (Volume) button on your Samsung Smart Remote.
- 128 -
Diagnosing Projector operational issues
You can diagnose issues with your Projector and Smart Hub and run reset functions.
Self Diagnosis
Menu Settings Support Device Care Self Diagnosis Try Now
You can use the Picture Test to help diagnose video issues and the Sound Test to diagnose sound issues. You can
test the Smart Hub network connection and run the Smart Hub and Projector factory reset functions.
• Picture Test Try Now
• Sound Test
Try Now
• HDMI Troubleshooting
• Signal Information Try Now
• Smart Hub Connection Test
Try Now
• Reset Smart Hub Try Now
Reset Smart Hub
Resets all Smart Hub settings to their factory defaults and deletes all information related to Samsung accounts,
linked service accounts, Smart Hub service agreements and Smart Hub applications.
•
Menu Settings Support Device Care Self Diagnosis Reset Smart Hub Try Now
- 129 -
Reset picture
Resets current picture settings to the default settings.
• Menu Settings All Settings Picture Expert Settings Reset Picture Try Now
Reset sound
Resets current sound settings to the default settings.
•
Menu Settings All Settings Sound Expert Settings Reset Sound Try Now
- 130 -
Getting Support
Get help directly from Samsung if you have a problem with your Projector.
Getting support through Remote Management
Menu Settings Support Remote Management Try Now
After consenting to our service agreement, you can use Remote Management to access Remote Support and have a
Samsung service technician diagnose your Projector, correct problems and update your Projector's software
remotely via the web. You can also turn Remote Management on and off.
This function requires a network connection.
Finding the contact information for service
Menu Settings Support About Projector Try Now
You can view the address of the Samsung website, the call centre phone number, your Projector's model number,
your Projector's software version, Open Source License and other information you may need to get service support
from a Samsung Service Centre or the Samsung website.
You can also view information by scanning the QR code of your Projector.
You can also start this function by pressing and holding the button for 5 or more seconds. Continue holding the button
until the customer information pop-up window appears.
Requesting service
Menu Settings Support Device Care Request Support Try Now
You can request service when you encounter a problem with the Projector. Select the item matching the problem
that you encountered, enter the required item, move the focus to Next, and then press the Select button. Select
Request Now Send or Schedule Appointment Request Send. Your service request will be registered. The
Samsung Contact Centre will contact you to set up or your service appointment.
You must agree to the terms and conditions for the service request.
This function may not be supported depending on the geographical area.
This function requires a network connection.
- 131 -
Accessibility Guidance
Provides a menu and a remote control guide that aid the visually impaired.
Menu Learning Screen
Learn the menus on the Projector screen. Once enabled, your Projector will tell you the structure and features of
the menus you select.
Using the Samsung Smart Remote
You can see the description of the buttons on the Samsung Smart Remote.
The Samsung Smart Remote may not be supported depending on the model or geographical area.
Orientation of the Samsung Smart Remote
Hold the remote control with the buttons facing towards you. The side with the button in the upper left is the top of
the remote control.
Description of the Samsung Smart Remote
The images, buttons and functions of the remote control may differ with the model or geographical area.
From top to bottom and left to right:
• The button is at the top left.
• Of the 2 buttons below the button on the Samsung Smart Remote, the left one is the button and the right
one is the button.
• There is a small LED (microphone) between the
button and the button on the Samsung Smart Remote, but
it cannot be felt by hand.
• Underneath these two buttons are a round button and a large outer circle button. The round button is the Select
button and the large outer circle button consists of 4 directional buttons (up / down / left / right).
- 132 -
• Underneath the directional button are three buttons, one on the left, one on the right and one in the centre. The
one on the left is the button and the one on the right is the button. The round button in the middle is the
button.
• Underneath the
button are two thin horizontal buttons. These buttons protrude higher above the surface
than the other buttons on the remote control. The one on the left is the volume button and the one on the right
is the channel button. Push up from beneath or down from above to use these as rocker buttons to change the
channel or volume.
– Briefly press the (Volume) button to mute the sound.
– Press and hold the (Volume) button to open the Accessibility Shortcuts menu.
– Briefly press the
(Channel) button to open the Guide.
– Press and hold the (Channel) button to open the Channel List.
This function may not be supported depending on the model or geographical area.
- 133 -
Using the accessibility menu
View how to use the Accessibility menu functions and description of its functions.
This function may not be supported depending on the model or geographical area.
Running the Accessibility Shortcuts menu
You can turn on or turn off the accessibility functions such as Voice Guide, Subtitle, Sign Language Zoom, Picture
Off, Multi-output Audio, High Contrast, Zoom Menu and Text, Greyscale, Colour Inversion, Slow Button Repeat and
you can move to the Learn Remote, Menu Learning Screen, Multi-output Audio and Accessibility Settings pages.
• Samsung Smart Remote
On the Samsung Smart Remote, there are two thin horizontal rocker buttons next to each other located slightly
below the middle of the remote. The one on the left is the volume button. Press and hold the volume button to
open the Accessibility Shortcuts menu.
Even if the Voice Guide is set to Off or muted, when you press and hold the volume button, the voice guide for
Accessibility Shortcuts is enabled.
Running the Accessibility menu functions using the General menu
Menu Settings All Settings General & Privacy Accessibility Try Now
You can also go to the Accessibility menu from the Projector settings menu. This provides more options, for
example, to change the speed of Voice Guide.
The Projector will not verbalise this menu unless Voice Guide is already turned on.
1.
Press the button.
2.
Press the left directional button to navigate to Menu, and then press the down directional button to navigate
to Settings.
3.
Press the Select button, and press All Settings to open the menu. Press Select to load the Projector’s Set menu.
4.
Press the down directional button to reach General & Privacy, and then press the Select button to open this
menu.
- 134 -
5.
Place the focus on Accessibility, and press the Select button to open the menu.
6.
The menu will appear with Voice Guide Settings as the selection. Highlight Voice Guide Settings, and then
press the Select button.
7.
A menu appears with the options to change Voice Guide and Volume, Speed, Pitch, Projector Background
Volume.
8.
Select the menu using the directional buttons, and then press the Select button.
The menus are activated when Voice Guide is on.
Running the Accessibility menu functions using Bixby
This function is available only if Voice Assistant is set to Bixby. ( Menu Settings All Settings General &
Privacy Voice Voice Assistant) Try Now
Bixby may not be supported depending on the model or geographical area.
To use Bixby, the Projector must be set up and tuned and must be connected to the network. You can connect the
Projector to the network during the initial setup or do it later through the settings menu.
There are many commands you can say to control the Projector. These can be used together with Voice Guide to
give you voice input and voice output. You can use the Samsung Smart Remote but the Projector must be connected
to the network.
To speak a command, press and hold the button (located near the top right of the Samsung Smart Remote,
directly right the button and say the command, and then release the button. The Projector will the
command.
For example you can:
• Turn Voice Guide on
Press the button on the Samsung Smart Remote, and then say "Voice Guide on".
• Turn High Contrast on
Press the button on the Samsung Smart Remote, and then say "High Contrast on".
- 135 -
Learning about the Accessibility menu functions
• Voice Guide Settings
This function works on every screen on the Projector and when turned on verbally tells you what the Projector's
current settings are and verbally provides details about the programme you are watching. For example, it tells
you the selected volume and the current channel and gives you programme information. It also reads out the
programme information from the Guide screen.
• Subtitle Settings
You can view the subtitle in programmes that provide broadcast subtitles.
When watching a channel on an external device such as a set-top box and cable box, turn on the subtitle function on the
device. For more information, contact your service provider.
• Sign Language Zoom Settings
You can zoom in the sign language screen when the programme you are watching provides it.
• Learn Remote
Learn the names and functions of the buttons on remote control. On this screen, pressing the power button (top
left button) will turn off the Projector, but when any other button is pressed the Projector will say the button
name and briefly tell what that button does. This teaching mode helps you to learn the location and operation of
the buttons on the remote without affecting normal Projector operation. Press the button twice to exit Learn
Remote.
• Menu Learning Screen
Learn the menus on the Projector screen. Once enabled, your Projector will tell you the structure and features of
the menus you select.
• Picture Off
Turn off the Projector screen and provide only sound to reduce overall power consumption. When you press a
button on the remote control other than Volume and Power while the screen is off, the Projector screen turns
back on.
- 136 -
• Multi-output Audio
You can turn on both the Projector speaker and Bluetooth headphone designed for the hearing impaired at the
same time. The hearing impaired can then set the volume of their Bluetooth headphone higher than the volume
of the Projector speaker without affecting the volume of the Projector speaker, allowing both the hearing
impaired and their families to listen to the Projector at comfortable sound levels.
This function may not be supported depending on the model or geographical area.
• High Contrast
To display all menus with an opaque black background and a white font, providing maximum contrast.
If High Contrast is on, some Accessibility menus are not available.
• Zoom Menu and Text
You can enlarge important elements on the menu such as the names of programmes.
• Greyscale
You can change the colour of the Projector screen to black and white to sharpen blurred edges caused by
colours.
If Greyscale is on, some Accessibility menus are not available.
This function may not be supported depending on the model or geographical area.
• Colour Inversion
You can invert the colours of the text and background displayed on the Projector screen to make it easier to read
the text.
If Colour Inversion is on, some Accessibility menus are not available.
This function may not be supported depending on the model or geographical area.
• Remote Button Repeat Settings
You can configure the operation speed of the remote control buttons so that they slow down when you
continually press and hold them.
- 137 -
Using the Projector with Voice Guide on
Turn on Voice Guide that describes the menu options aloud to aid the visually impaired.
Changing channel
You can change the channel in three of ways. Every time you change channels, the new channel details will be
announced. The ways to change the channel are below.
• Channel List
Press and hold the
(Channel) button to open the Channel List. Use the up or down directional button to
move to a channel and press the Select button.
• (Channel) button
Of the two buttons that protrude from the centre of the Samsung Smart Remote, the right one is the
(Channel) button. Push up or pull down the (Channel) button to change the channel.
• Number button
Use the button on the Samsung Smart Remote to open the virtual numeric pad, enter a number, and then
select Done.
Using on-screen number entry via the Samsung Smart Remote
Use the virtual numeric pad to enter numbers (for example, to enter a channel number or to enter a PIN).
Press the button on the Samsung Smart Remote and the virtual numeric pad with 2 rows appears on screen.
Voice Guide speaks “virtual numeric pad, 6” which indicates that the number strip is on screen and the focus is on
the number 6. This strip has the following buttons:
• In the top row, a list of Most Watched Channel is shown.
• On the bottom row: From the far left: Colour pad, TTX/MIX, 1, 2, 3, 4, 5, 6, 7, 8, 9, 0, Delete
The menus may not appear depending on the model or geographical area.
The options that you can select in the virtual numeric pad may vary depending on the viewing mode.
- 138 -
Use the left and right directional buttons to move along the row, and then press the Select button to choose the
numeric pad. When you have selecting all the numbers you need (for example, 123), press the directional
button to move to the Done option, and then press the Select button to
When entering a channel number, you can enter the number, and then select the Done option on the top row or you
can enter the channel number and wait. After a short while, the channel will change and the virtual numeric pad
will disappear from the screen.
Changing volume
Use the (Volume) button on the left to change the volume. Every time you change the volume, the new volume
level will be announced.
• Samsung Smart Remote
Of the two buttons that protrude from the centre of the Samsung Smart Remote, the left one is the
(Volume) button. Push up or pull down the (Volume) button to change the volume.
Using programme information
When watching Projector, press the Select button to view programme information which then appears at the top of
the screen. Voice Guide will say programme subtitles or audio descriptions if they are available. To view more
detailed programme information, press and hold the Select button. Voice Guide will say more details such as a
synopsis of the programme.
Press the left or right directional button to see what you can watch next on the same channel. Press the up or down
directional button to move to other channels and see which programmes are currently being broadcast on them.
Press to go back or close the programme details.
This function may not be supported depending on the model or geographical area.
- 139 -
Using Smart Hub
Learn how to use Smart Hub to access apps, games, movies and more.
Smart Hub
Use a variety of Smart Hub content offered by your Samsung Projector.
Some Smart Hub services are for pay services.
To use smart functions, you should connect to a network, agree to the terms and conditions, and log in with your Samsung
account.
Some Smart Hub features may not be supported depending on the service provider, language or geographical area.
Smart Hub service outages can be caused by disruptions in your Internet service.
Press the button. You are redirected to the Home Screen of the content you are currently using. Press the left
directional button, and try moving the focus to other items.
Use a variety of Smart Hub content, as follows: Privacy Choices, Search, Ambient, Media, Menu.
Supported Smart Hub content may vary depending on the model and geographical area.
Using the Smart Hub Home Screen
On the leftmost part of the Smart Hub Home Screen is the static menu listed. You can quickly and easily use the
listed menu items to access the main Projector settings or external devices, search and apps.
• Privacy Choices
From your Projector, easily manage the privacy policy regarding services related to Smart Hub and verify how
personal information is protected.
To use Smart Hub, you must agree to the Smart Hub service agreement and the collection and use of personal
information. Without giving consent, you will not be able to use the additional features and services. You can view the
entire text of the Terms & Privacy by navigating to Menu Settings All Settings General & Privacy
Terms & Privacy. Try Now
In order to rescind your consent to mandatory terms and conditions related to Smart Hub, launch Reset Smart Hub (
Menu Settings Support Device Care Self Diagnosis Reset Smart Hub). Try Now
• Search
Search for channels, programmes, movies, and apps offered by Smart Hub.
To use the Search service, make sure the Projector is connected to a network.
This function may not be supported depending on the model or geographical area.
- 140 -
• Ambient
Set your Projector to display content you desire, when the Projector is not used.
To return to viewing mode from Ambient mode, press the left directional button Media. Press the
button to turn off the Projector.
This function may not be supported depending on the model or geographical area.
For more information, refer to "Using Ambient Mode".
• Game
Play games from the Projector screen by connecting a Controller to the Projector. Configure settings to optimise
the Controller and audio device for playing games.
This function may not be supported depending on the model or geographical area.
For more information, refer to "Using Samsung Gaming Hub".
• Media
View a variety of contents. Install various apps offered by Smart Hub, such as video, music, sports and game
apps, and use the apps from the Projector.
For more information, refer to "About the Media Home Screen".
• Menu
Manage external devices connected to the Projector, and configure settings for various functions available on
the Projector.
For more information, refer to "About the Menu Home Screen".
- 141 -
Launching the e-Manual
Open the user manual embedded in your Projector.
Menu Settings Support Open e-Manual
You can view the embedded e-Manual containing information about your Projector's key features.
Alternatively, you can download a copy of the e-Manual from Samsung's website (https://www.samsung.com).
Words in blue (e.g., Internet) indicate a menu item.
The e-Manual's Home Screen contains 1 row of menu icons. Use the left and right directional buttons to move within
a row. Press the Select button to open the section you want to read.
You can use the directional buttons on the remote control to use the functions on the top such as Search, Site Map, and
Index.
The e-Manual contains a section called "Learn Remote" in "Accessibility Guidance". This is particularly useful for
people who cannot easily see the buttons on the control or who are not clear what each button does. When you are
viewing this section of the e-Manual, pressing the buttons on the remote control will not affect the Projector.
- 142 -
Using Bixby
Set Voice Assistant to Bixby. Speak into the microphone on your Samsung Smart Remote or Projector to control
your Projector.
To use Bixby, your Projector must be connected to the network and you must use the microphone on your Samsung
Smart Remote.
To use Bixby, press and hold the
button on the Samsung Smart Remote, say a command into the microphone on
the remote, and then release the button to run Bixby.
This function may not be supported depending on the model or geographical area.
The existing functional may be changed if Bixby is updated.
This function is available only if Voice Assistant is set to Bixby. ( Menu Settings All Settings General &
Privacy Voice Voice Assistant) Try Now
The supported language may differ depending on the geographical area.
Running Bixby
Press and hold the button on the Samsung Smart Remote. Bixby is activated in the listening mode, the Bixby
icon appears at the bottom of the Projector screen. Say a command, and then release the button. The Projector
provides feedback on how it understands the command, and then performs the commanded task.
If the Projector does not understand the command, try again with more precise pronunciation.
This function may not be supported depending on the model or geographical area.
You can a detailed description of the voice commands at Explore Bixby. Press the button. The Explore Now button
appears at the bottom of the screen. Press the Select button to go to the Explore Bixby screen.
- 143 -
