For Future Assistance .............................. 1
Safety Instructions ............................... 1-2
Using Your Cooktop ............................. 3-4
Cooktop At A Glance
Hot Surface Lights
Cooking Areas
Setting the Controls
Suggested Control Settings
Cookware
Tips to Protect Your Cooktop
Ventilation System .................................. 4
Care and Cleaning ................................... 5
Before You Call for Service ...................... 6
Warranty .................................................. 7
; :

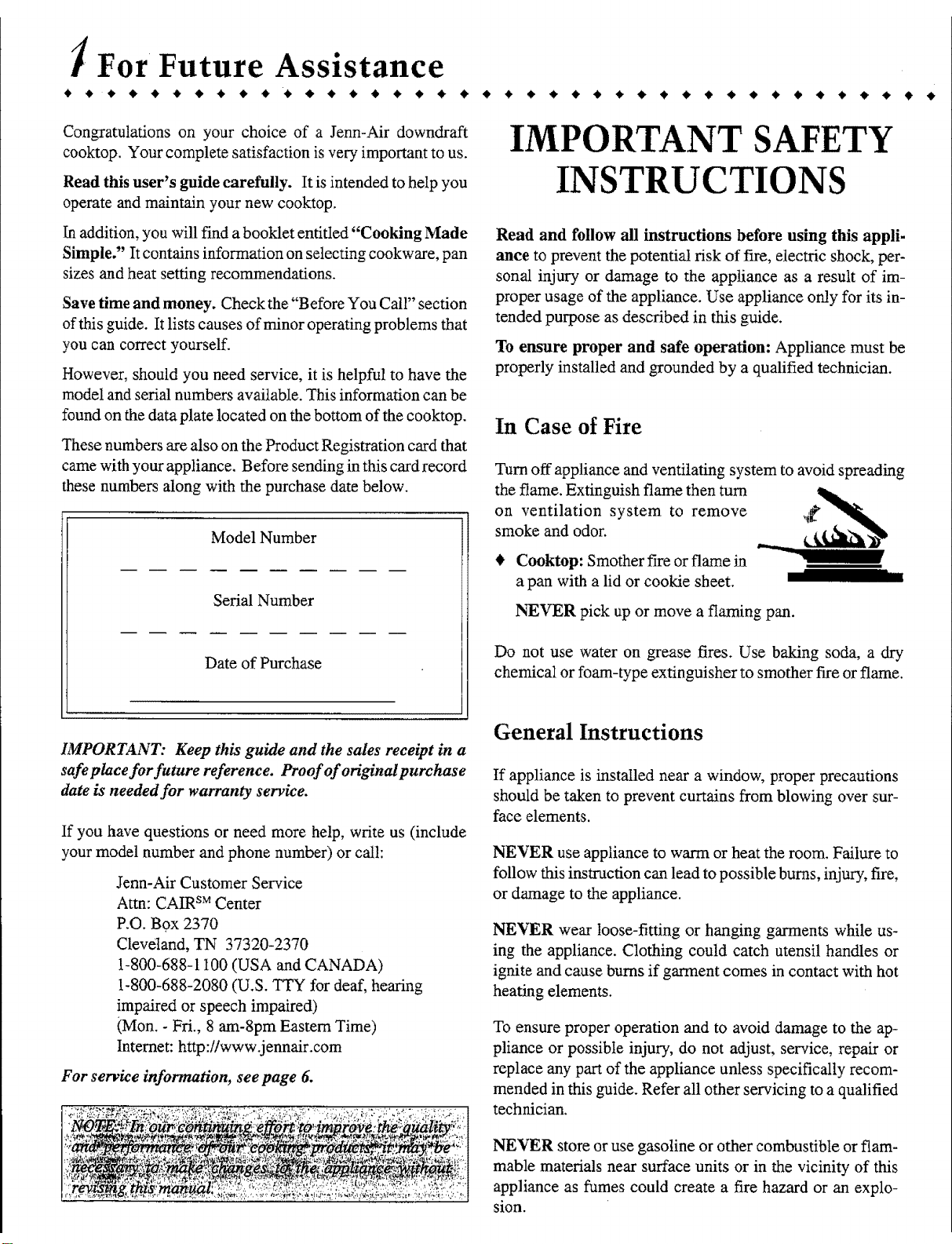

] For Future Assistance
Congratulations on your choice of a Jenn-Air downdraft
cooktop. Your complete satisfaction is very important to us.
Read this user's guide carefully. It is intended to help you
operate and maintain your new cooktop,
In addition, you will find a booklet entitled "Cooking Made
Simple." It contains information on selecting cookware, pan
sizes and heat setting recommendations.
Save time and money. Check the "Before You Call" section
of this guide. It lists causes of minor operating problems that
you can correct yourself.
However, should you need service, it is helpful to have the
model and serial numbers availabIe. This information can be
found on the data plate located on the bottom of the cooktop.
These numbers are also on the Product Registration card that
came with your appliance. Before sending in this card record
these numbers along with the purchase date below.
Model Number
Serial Number
Date of Purchase
IMPORTANT SAFETY
INSTRUCTIONS
Read and follow all instructions before using this appli-
ance to prevent the potential risk of fire, electric shock, per-
sonal injury or damage to the appliance as a result of im-
proper usage of the appliance. Use appliance only for its in-
tended purpose as described in this guide.
To ensure proper and safe operation: Appliance must be
properly installed and grounded by a qualified technician.
In Case of Fire
Turn off appliance and ventilating system to avoid spreading
the flame. Extinguish flame then turn _._
on ventilation system to remove _i
smoke and odor. _ tki,_'_
€ Cooktop: Smother fire or flame in
a pan with a lid or cookie sheet.
NEVER pick up or move a timing pan.
Do not use water on grease fires. Use baking soda, a dry
cher_Acal or foam-type extinguisher to smother fire or flame.
IMPORTANT: Keep this guide and the sales receipt in a
safe place for future reference. Proof of original purchase
date is needed for warranty service.
If you have questions or need more help, write us (include
your model number and phone number) or call:
Jenn-Air Customer Service
Attn: CAIR sMCenter
P.O. Box 2370
Cleveland, TN 37320-2370
1-800-688-1100 (USA and CANADA)
1-800-688-2080 (U.S. TTY for deaf,hearing
impaired or speech impaired)
(Mon.- Fri., 8 am-8pm Eastern Time)
Internet: http:!/www.jennair.com
For service information, see page 6.
General Instructions
If appliance is installed near a windov¢, proper precautions
should be taken to prevent curtains from blowing over sur-
face elements.
NEVER use appliance to warm or heat the room. Failure to
follow this instruction can lead to possible bums, injury, fire,
or damage to the appliance.
NEVER wear loose-fitting or hanging garments while us-
ing the appliance. Clothing could catch utensil handles or
ignite and cause burns if garment comes in contact with hot
heating elements.
To ensure proper operation and to avoid damage to the ap-
pliance or possible injury, do not adjust, service, repair or
replace any part of the appliance unless specifically recom-
mended in this guide. Refer all other servicing to a qualified
technician.
NEVER store or use gasoline or other combustible or flam-
mable materials near surface units or in the vicinity of this
appliance as fumes could create a fire hazard or an explo-
sion.

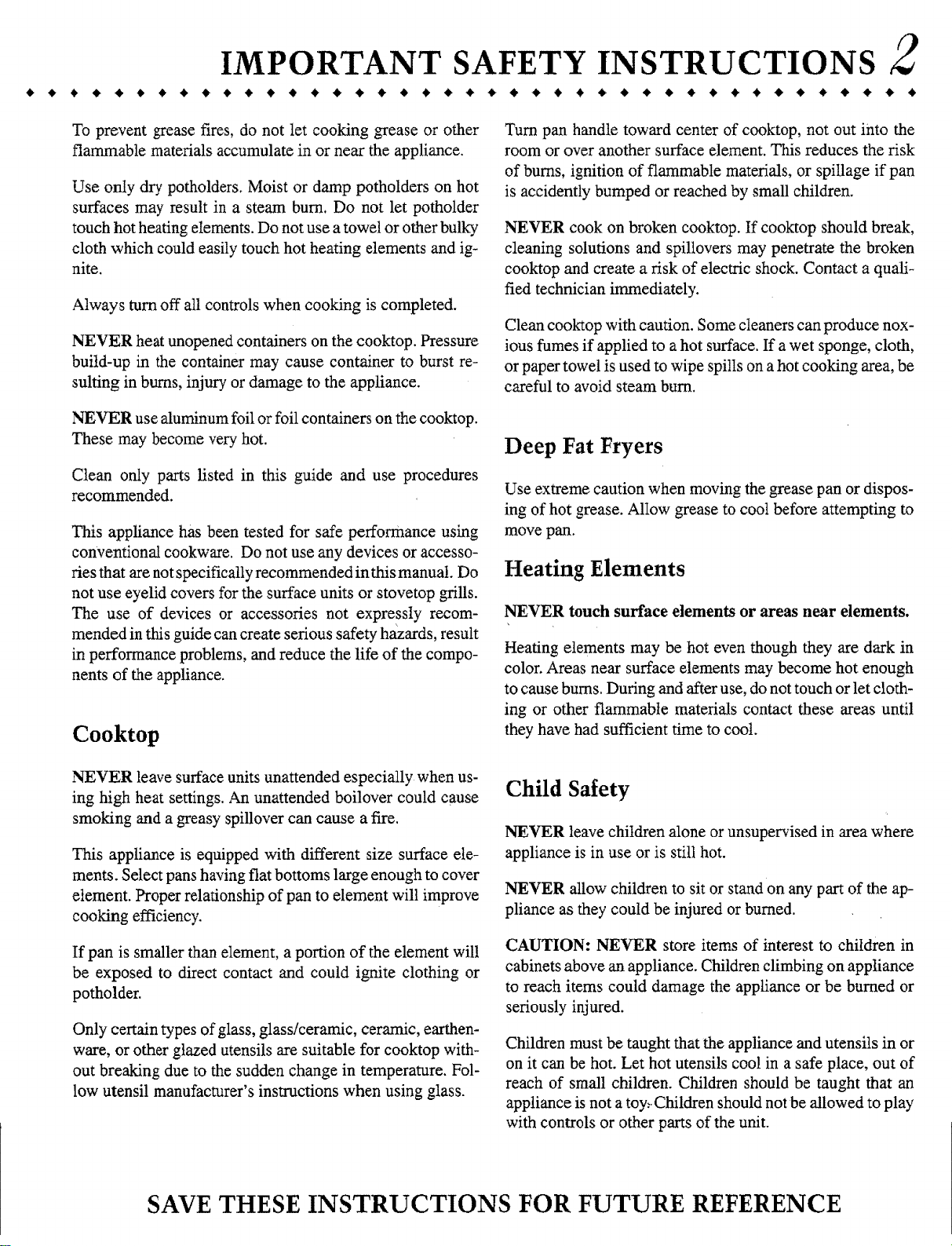

IMPORTANT SAFETY INSTRUCTIONS
To prevent grease fires, do not let cooking gease or other
flammable materials accumulate in or near the appliance.
Use only dry potholders. Moist or damp potholders on hot
surfaces may result in a steam burn. Do not let potholder
touch hot heating elements. Do not use a towel or other bulky
cloth which could easily touch hot heating elements and ig-
nite.
Always turn off all controls when cooking is completed.
NEVER heat unopened containers on the cooktop. Pressure
build-up in the container may cause container to burst re-
sulting in bums, injury or damage to the appliance.
NEVER use aluminum foil or foil containers on the cooktop.
These may become very hot.
Ctean only parts listed in this guide and use procedures
recommended.
This appliance has been tested for safe performance using
conventional cookware. Do not use any devices or accesso-
ries that are not specifically recommended in this manua!. Do
not use eyelid covers for the surface units or stovetop grills.
The use of devices or accessories not expressly recom-
mended in this guide can create serious safety hazards, result
in performance problems, and reduce the life of the compo-
nents of the appliance.
Cooktop
Turn pan handle toward center of cooktop, not out into the
room or over another surface element. This reduces the risk
of bums, ignition of flammable materials, or spiIlage if pan
is accidently bumped or reached by small children.
NEVER cook on broken cooktop. If cooktop should break,
c!eaning solutions and spillovers may penetrate the broken
cooktop and create a risk of electric shock. Contact a quali-
fied technician immediately.
Clean cooktop with caution. Some cleaners can produce nox-
ious fumes if applied to a hot surface. If a wet sponge, cloth,
or paper towel is used to wipe spills on a hot cooking area, be
careful to avoid steam burn.
Deep Fat Fryers
Use extreme caution when moving the grease pan or dispos-
ing of hot grease. Allow grease to cool before attempting to
move pan.
Heating Elements
NEVER touch surface elements or areas near elements.
Heating elements may be hot even though they are dark in
color. Areas near surface elements may become hot enough
to cause bums. During and after use, do not touch or let cloth-
ing or other flammable materials contact these areas until
they have had sufficient time to cool.
NEVER leave surface units unattended especia!ly when us-
ing high heat settings. An unattended boilover could cause
smoking and a greasy spillover can cause a fire.
This appliance is equipped with different size surface ele-
ments. Select pans having flat bottoms large enough to cover
element. Proper relationship of pan to element will improve
cooking efficiency.
If pan is smaller than element, a portion of the element wil!
be exposed to direct contact and could ignite clothing or
potholder.
Only certain types of glass, glass/ceramic, ceramic, earthen-
ware, or other glazed utensils are suitable for cooktop with-
out break_ing due to the sudden change in temperature. Fol-
low utensil manufacturer's instructions when using glass.
Child Safety
NEVER leave children alone or unsupervised in area where
appliance is in use or is still hot.
NEVER allow children to sit or stand on any part of the ap-
pliance as they could be injured or burned.
CAUTION: NEVER store items of interest to children in
cabinets above an appliance. Children climbing on appliance
to reach items could damage the appliance or be burned or
seriously injured.
Children must be taught that the appliance and utensils in or
on it can be hot. Let hot utensils cool in a safe place, out of
reach of small children. Children should be taught that an
appliance is not a toy:. Children should not be allowed to play
with controls or other parts of the unit.
SAVE THESE INSTRUCTIONS FOR FUTURE REFERENCE

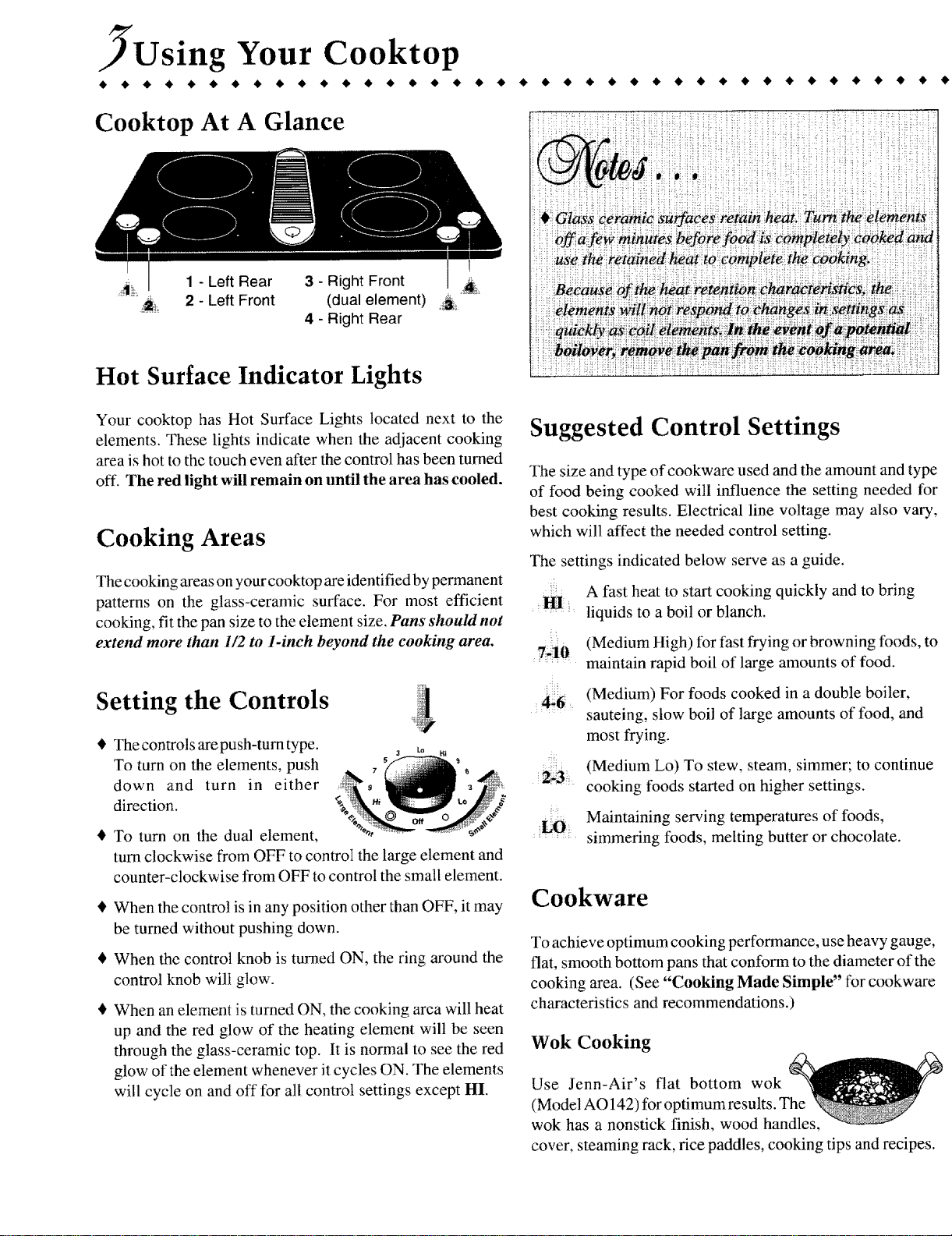

Using Your Cooktop
Cooktop At A Glance
1 - Left Rear 3 - Right Front ,_
2 - Left Front (dual element)
4 - Right Rear
Hot Surface Indicator Lights
Your cooktop has Hot Surface Lights located next to the
elements. These lights indicate when the adjacent cooking
area is hot to thc touch even after the control has been turned
off. The red light will remain on until the area has cooled.
Cooking Areas
The cooking areas on your cooktop are identified by permanent
patterns on the glass-ceramic surface. For most efficient
cooking, fit the pan size to the element size. Pans shouldnot
extend more than 1/2 to 1-inch beyond the cooking area.
Setting the Controls
The controls are push-turn type.
To turn on the elements, push
down and turn in either
direction.
€ To turn on the dual element,
turn clockwise from OFF to control the large element and
counter-clockwise from OFF to control the small element.
l, When the control is in any position other than OFF, it may
be turned without pushing down.
€ When the control knob is turned ON, the ring around the
control knob will glow.
€ When an element is turned ON, the cooking arca will heat
up and the red g!ow of the heating element will be seen
through the glass-ceramic top. It is normal to see the red
glow of the element whenever it cycles ON. The elements
will cycle on and off for all control settings except HI.
Suggested Control Settings
The size and type of cookware used and the amount and type
of food being cooked will influence the setting needed for
best cooking results. Electrical line voltage may also vary,
which will affect the needed control setting.
The settings indicated below serve as a guide.
7 i0
A fast heat to start cooking quickly and to bring
liquids to a boil or blanch.
(Medium High) for fast frying or browning foods, to
maintain rapid boil of large amounts of food.
(Medium) For foods cooked in a double boiler,
sauteing, stow boil of large amounts of food, and
most frying.
(Medium Lo) To stew, steam, simmer; to continue
cooking foods started on higher settings.
• Maintaining serving temperatures of foods,
LO
simmering foods, melting butter or chocolate.
Cookware
To achieve optimum cooking performance, use heavy gauge,
flat, smooth bottom pans that conform to the diameter of the
cooking area. (See "Cooking Made Simple" for cookware
characteristics and recommendations.)
Wok Cooking
Use Jenn-Air's flat bottom wok
(Model AO 142) for optimum results. The
wok has a nonstick finish, wood handles,
cover, steaming rack, rice paddles, cooking tips and recipes.

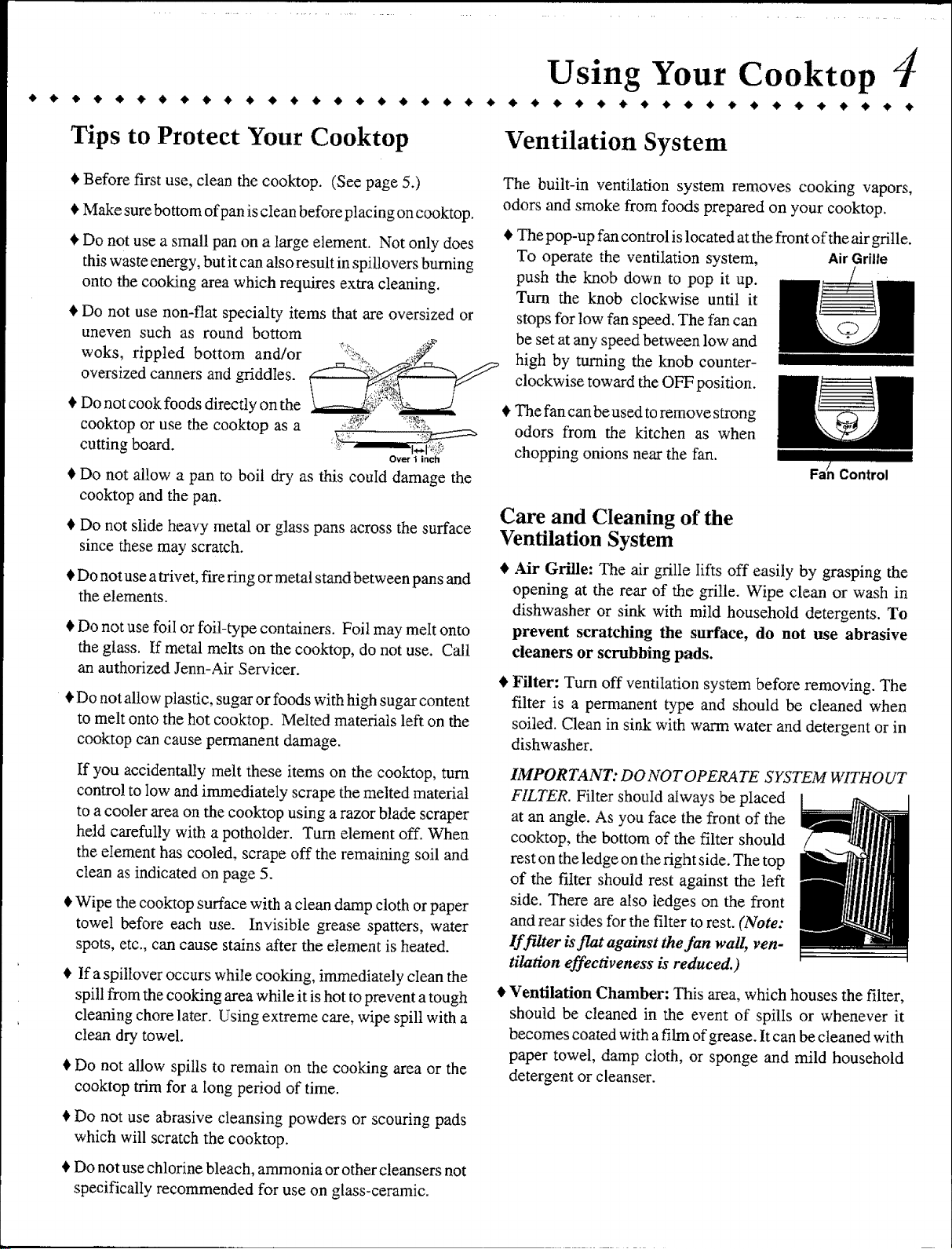

Tips to Protect Your Cooktop
Using Your Cooktop
Ventilation System
#
#
€
Before first use, clean the cooktop. (See page 5.)
Make sure bottom of pan is clean before placing on cooktop.
Do not use a small pan on a large element. Not only does
this waste energy, but it can also result in spiltovers burning
onto the cooking area which requires extra cleaning.
€ Do not use non-flat specialty items that are oversized or
uneven such as round bottom
woks, rippled bottom and/or
oversized canners and griddles.
Do not cook foods directly on the
cooktop or use the cooktop as a
cutting board.
The built-in ventilation system removes cooking vapors,
odors and smoke from foods prepared on your cooktop.
€
Ove_ 1 inch
Do not allow a pan to boil dry as this couId damage the
cooktop and the pan.
II,Do not slide heavy metal or glass pans across the surface
since these may scratch.
Do not use a trivet, fire ring or metal stand between pans and
the elements.
# Do not use foil or foil-type containers. Foil may melt onto
the glass. If metal melts on the cooktop, do not use. Call
an authorized Jenn-Air Servicer.
# Do not allow plastic, sugar or foods with high sugar content
to melt onto the hot cooktop. Melted materials left on the
cooktop can cause permanent damage.
The pop-up fan control is located at the front of the air grille.
To operate the ventilation system, Air Grille
push the knob down to pop it up.
Turn the knob clockwise unfit it
stops for low fan speed. The fan can
be set at any speed between low and
high by turning the knob counter-
clockwise toward the OFF position.
The fan can be used to remove strong
odors from the kitchen as when
chopping onions near the fan.
I/
Fan Control
Care and Cleaning of the
Ventilation System
# Air Grille: The air grille lifts off easily by grasping the
opening at the rear of the grille. Wipe clean or wash in
dishwasher or sink with mild household detergents. To
prevent scratching the surface, do not use abrasive
cleaners or scrubbing pads.
Filter: Turn off ventilation system before removing. The
filter is a permanent type and should be cleaned when
soiled. Clean in sink with warm water and detergent or in
dishwasher.
If you accidentally melt these items on the cooktop, turn
control to low and immediately scrape the melted material
to a cooler area on the cooktop using a razor blade scraper
held carefully with a potholder. Turn element off, When
the element has cooled, scrape off the remaining soil and
clean as indicated on page 5.
€ Wipe the cooktop surface with a clean damp cloth or paper
towel before each use. Invisible grease spatters, water
spots, etc., can cause stains after the element is heated.
t If a spillover occurs while cooking, immediately clean the
spill from the cooking area while it is hot to prevent a tough
cleaning chore later. Using extreme care, wipe spill with a
clean dry towel.
# Do not allow spills to remain on the cooking area or the
cooktop trim for a long period of time.
IMPORTANT: DO NOT OPERATE SYSTEM WITHOUT
FILTER. Filter shouId always be placed
at an angle. As you face the front of the
cooktop, the bottom of the filter should
rest on the ledge on the fight side. The top
of the filter should rest against the left
side. There are also ledges on the front
and rear sides for the filter to rest. (Note:
If filter is flat against the fan wall, ven-
tilation effectiveness is reduced.)
€ Ventilation Chamber: This area, which houses the filter,
should be cleaned in the event of spills or whenever it
becomes coated with afilm of grease. It can be cleaned with
paper towel, damp cloth, or sponge and mild household
detergent or cleanser.
# Do not use abrasive cleansing powders or scouring pads
which will scratch the cooktop.
l, Do not use chlorine bleach, ammonia or other cleansers not
specifically recommended for use on glass-ceramic.

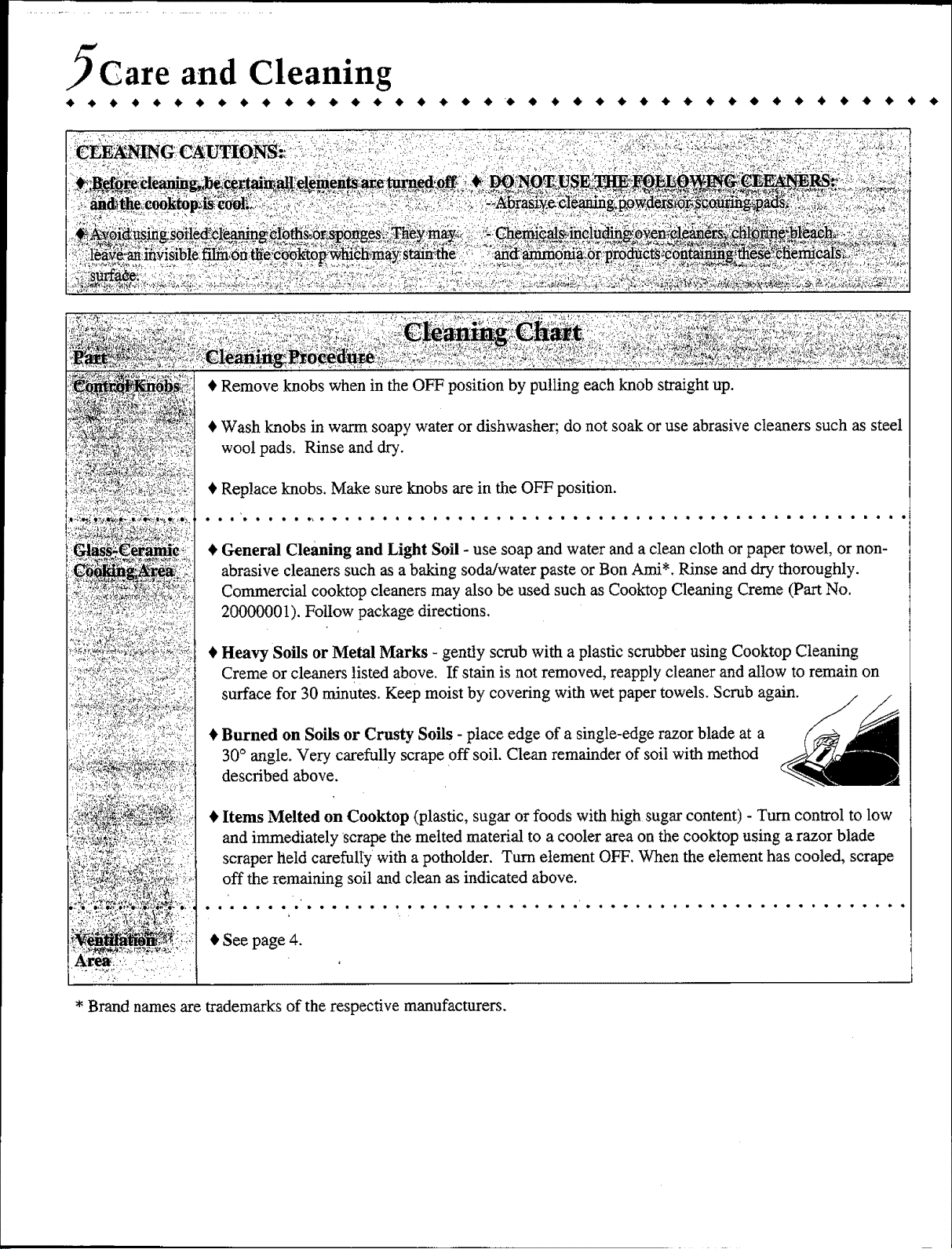

Care and Cleaning
_ i_i,i:!:_ $ Remove knobs when m the OFF posmon by pulhng each knob strmght up.
_++__++;(+"+_:+2"_:'_'m+:+:+12+;_k++l+l'_ i Wash knobs m warm soapy water or dtshwasher; do not soak or use abrastve cleaners such as steel
_.,:....... _,,,_,........... wool ads Rinse and dry.
"i+_+_+)4:+:+'?+:!:++++_+++i_i_ii:+:lace knobs. Mak s " p " ' .
'_, "+_;] "_ 11+ .... ' .... # Rep e ure knobs are m the OFF osmon
'i; i' '-r:+;;?i .':1+£_++_ , + • • • + • + + + • +, • • • • • + • *
1' ,' :++ + rS++_+ r+m+ : ....... +' "1'+'" +: + _+ " ........................
+_;++;y+r:::+_',+_++,+':_,:+++.++_;_+p+:+,,i:
_++_++t_i_+;! + General Cleaninm and Light Soil - use soap and water and a clean cloth or paper towel, or non-
_ _{;!:} abrasive cleaners such as a baking soda/water paste or Bon Arm*. Rinse and dry thoroughly.
!_,,:','L,","+>'++?'i++!i_}!:_i!'[i',,++.+.+_+_':+i_+i;_+J:;)!i+,, 'L'_'' Commercial cooktop cleaners may also be used such as Cooktop Cleaning" Creme (Part No.
;,;i@,:i!;_F:::;:+;ii,+_?_,+;!,:,++: 20000001). Follow package dtrecttons.
.x_+_', +'+?_+++_':+i+__:,`!_+ tteavy Soils or Metal Marks - gently scrub wtth a plasttc scrubber using Cooktop Cleamng
_i!+_';!?:'++L??+i:i_++i+i!!++};_')i:i::+'7Creme or cleaners listed above. If stam ts not removed, reapply cleaner and allow to remain on
i!i;!;!i)i+i_ii;;i:i2,1;;;!_;:):+(;_iiiii+surface for 30 minutes. Keep moist by covering with wet paper towels. Scrub gain. / /
i!!i)i@:i!;++iiii!_+!II;!;!L}!!!I;I+I!+:i + Burned on Soils or Crusty Soils-place edge of a single-edge razor blade at a
30 angle Very carefully scrape off soil. Clean remainder of soil with method _
+++_ +v++_,4++,_+++:+_,' ,
"'++'_)+L']_I]?_ _ .......... ' described abo e _
?,;':;,++_'# +++,+:+_+::'+!1!+,++:,,,+?+, •
_.N{. lw
_i,::_i_:!!,._i)i_{_:;_}'iiiii+__ Items Melted on Cooktop (plastic, sugar or foods with high sugar content) - Tuna control to o
+_+:i+++'++++:;+,:,.:++_i+'::: and tmmedmtely Scrape the melted material to a cooler area on the cooktop using a razor blade
@_,+ ;/:@_+ scraper held carefully with a potholder Turn element OFF When the element has cooled, scrape
_:I+_+U,_'7,K?'F.'_2'+:" ,"_I _. i , i !
_+i}+i++}:#)+i++}i+,i+i++i;:):+!I:;.+ off the remaining soil and clean as indicated above•
71_f_;_.: "+rrV_i': ,q:i_,,' _ '+'p_++', ......'+ * '
mm+ao+++_: ,;,,+ • +ee page +.
• Brand names are trademarks of the respective manufacturers.

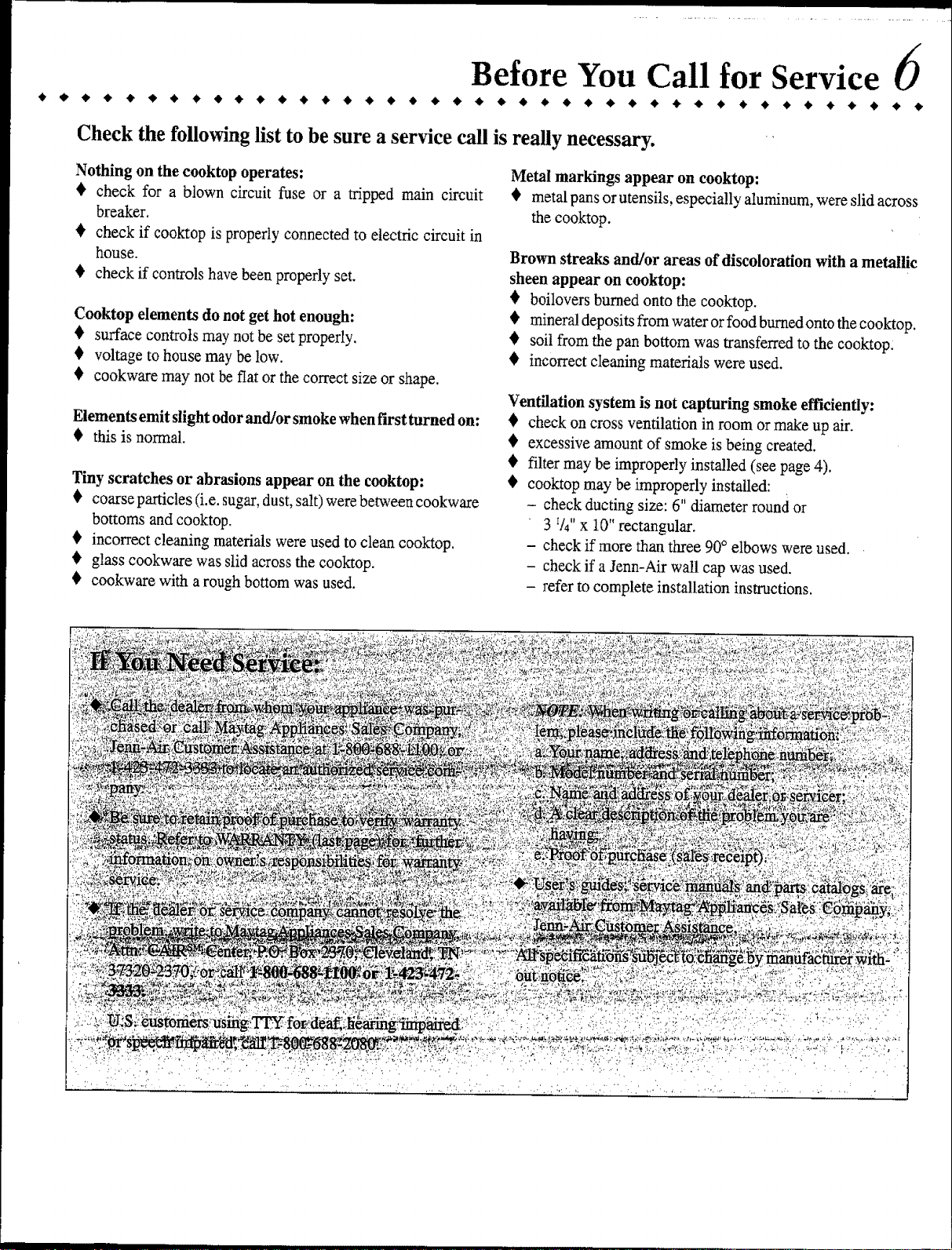

Before You Call for Service 6
Check the following list to be sure a service call is really necessary.
Nothing on the cooktop operates:
t check for a blown circuit fuse or a tripped main circuit
breaker.
check if cooktop is properly connected to electric circuit in
house.
check if controls have been properly set.
Cooktop dements do not get hot enough:
surface controls may not be set properly.
voltage to house may be low.
cookware may not be fiat or the correct size or shape.
Elements emit slight odor and/or smoke when first turned on:
0 this is normal.
Tiny scratches or abrasions appear on the cooktop:
coarse particles (i.e. sugar, dust, salt) were between cookware
bottoms and cooktop.
0 incorrect cleaning materials were used to clean cooktop.
glass cookware was slid across the cooktop.
cookware with a rough bottom was used.
Metal markings appear on cooktop:
# metal pans or utensils, especially aluminum, were slid across
the cooktop.
Brown streaks and/or areas of discoloration with a metallic
sheen appear on cooktop:
# boilovers burned onto the cooktop.
minera! deposits from water or food burned onto the cooktop.
soil from the pan bottom was transferred to the cooktop:
incorrect cIeaning materials were used.
Ventilation system is not capturing smoke efficiently:
check on cross ventilation in room or make up air.
excessive amount of smoke is being created.
filter may be improperly installed (see page 4).
cooktop may be improperly installed:
- check ducting size: 6" diameter round or
3 iij x t0" rectangular.
- check if more than three 90° elbows were used,
- check if a Jenn-Air wall cap was used.
- refer to complete installation instructions.
Warranty

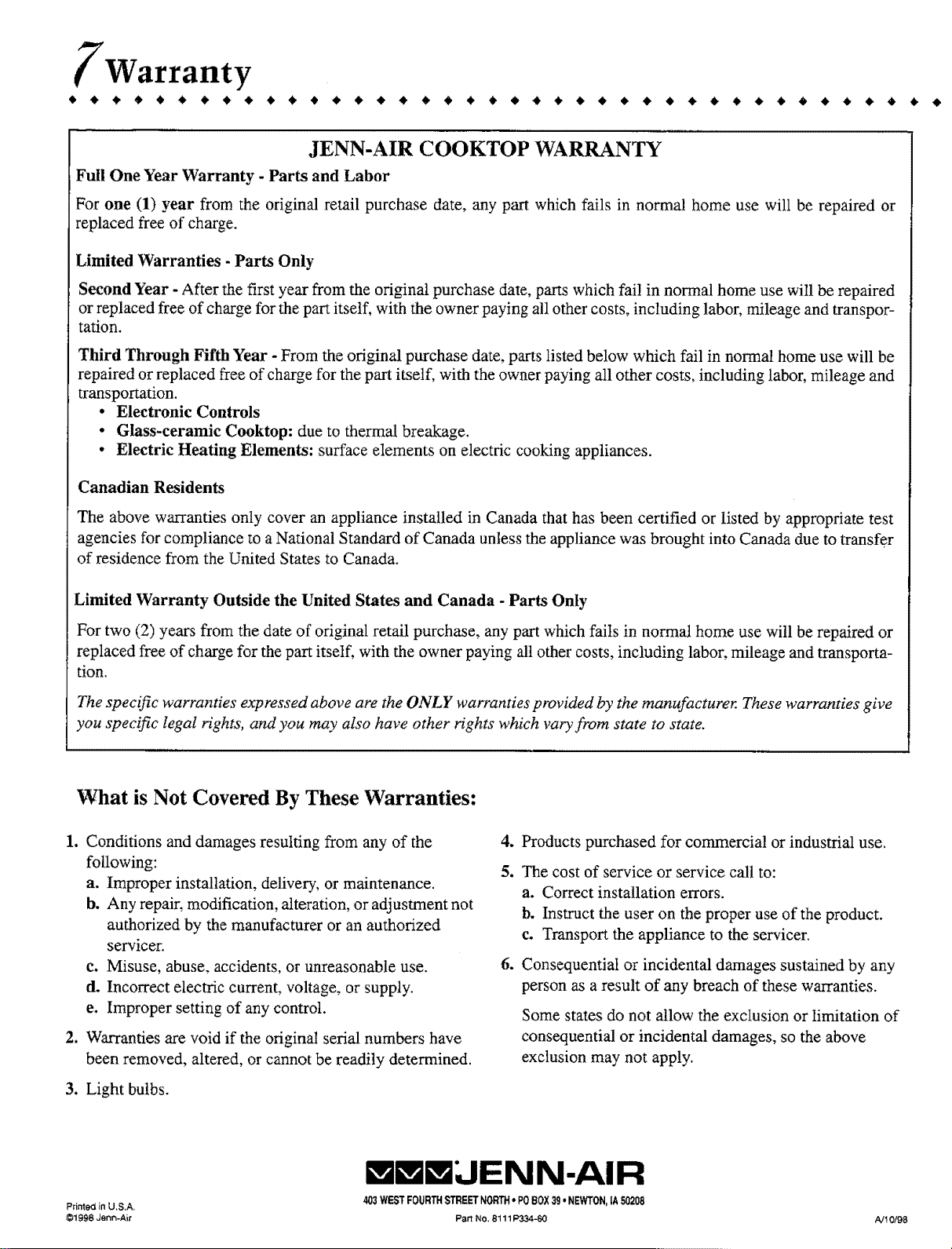

JENN-AIR COOKTOP WARRANTY
Full One Year Warranty - Parts and Labor
For one (1) year from the original retail purchase date, any part which fails in normal home use will be repaired or
replaced free of charge.
Limited Warranties - Parts Only
Second Year - After the first year from the original purchase date, parts which fail in normal home use will be repaired
or replaced free of charge for the part itself, with the owner paying all other costs, including labor, mileage and transpor-
tation.
Third Through Fifth "gear - From the original purchase date, parts listed below which fail in normal home use will be
repaired or replaced free of charge for the part itself, with the owner paying all other costs, including labor, mileage and
transportation.
• Electronic Controls
° Glass-ceramic Cooktop: due to thermal breakage.
• Electric Heating Elements: surface elements on electric cooking appliances.
Canadian Residents
The above warranties only cover an appliance installed in Canada that has been certified or listed by appropriate test
agencies for compliance to a National Standard of Canada unless the appliance was brought into Canada due to transfer
of residence from the United States to Canada.
Limited Warranty Outside the United States and Canada - Parts Only
For two (2) years from the date of original retail purchase, any part which fails in normal home use will be repaired or
replaced free of charge for the part itself, with the owner paying all other costs, including labor, mileage and transporta-
tion.
The specific warranties expressed above are the ONLY warranties provided by the manufacturer. These warranties give
you specific legal rights, and you may also have other rights which vary'from state to state.
What is Not Covered By These Warranties:
1. Conditions and damages resulting from any of the
following:
a. Improper installation, delivery, or maintenance.
b. Any repair, modification, alteration, or adjustment not
authorized by the manufacturer or an authorized
servicer.
c. Misuse, abuse, accidents, or unreasonable use,
d. Incorrect electric current, voltage, or supply.
e, Improper setting of any control.
2. Warranties are void if the original serial numbers have
been removed, altered, or cannot be readily determined.
3. Light bulbs.
4. Products purchased for commercial or industrial use.
5. The cost of service or service call to:
a. Correct installation errors.
b. Instruct the user on the proper use of the product.
c. Transport the appliance to the servicer.
6. Consequential or incidental damages sustained by any
person as a result of any breach of these warranties.
Some states do not allow the exclusion or limitation of
consequential or incidental damages, so the above
exclusion may not apply.
mmmLIENN-AIR
Printeain U,S.A_ 403WESTFOURTHSTREETNORTH,PO BOX39,,NEWTON,[A50208
©1998Jenn-Air PartNo. 8111P3.34-60 N10/98
