© 2023 AAMP Global. All rights reserved. PAC is a Power Brand of AAMP Global.
PAC-Audio.com
Pacific Accessory Corporation
Page 1
Rev: V1
Date: 021323
CANPRO Harness
for Select Ford Vehicles
CP1- FRD1
Output 8 Pos. 250mA
Output 7 Pos. 250mA
Output 6 Pos. 250mA
Output 5 Pos. 250mA
Output 4 Pos. 250mA
Output 3 Speed Pulse
Output2 Pos. 250mA
Output1 Pos. 250mA
Output 9 Neg. 250mA
The CP1-FRD1 is a factory matched plug & play harness for use with the CANPRO CP1-S CAN-Bus Interface Module
for select Ford Model applications using the 8pin data harness for connection at the Steering Column Control Module
(SCCM). The harness and module allow a simple and safe way to access vehicle information, status and triggers from
the CAN-Bus for a wide range of aftermarket uses such as radar detectors, camera activation, sound system upgrades,
lighting and more!
Introduction and Features
Important Notes
1. Any unused outputs should be insulated to prevent shorting.
2. The outputs of the CANPRO are low current (250mA) and require the use of a separate relay if additional current is required.

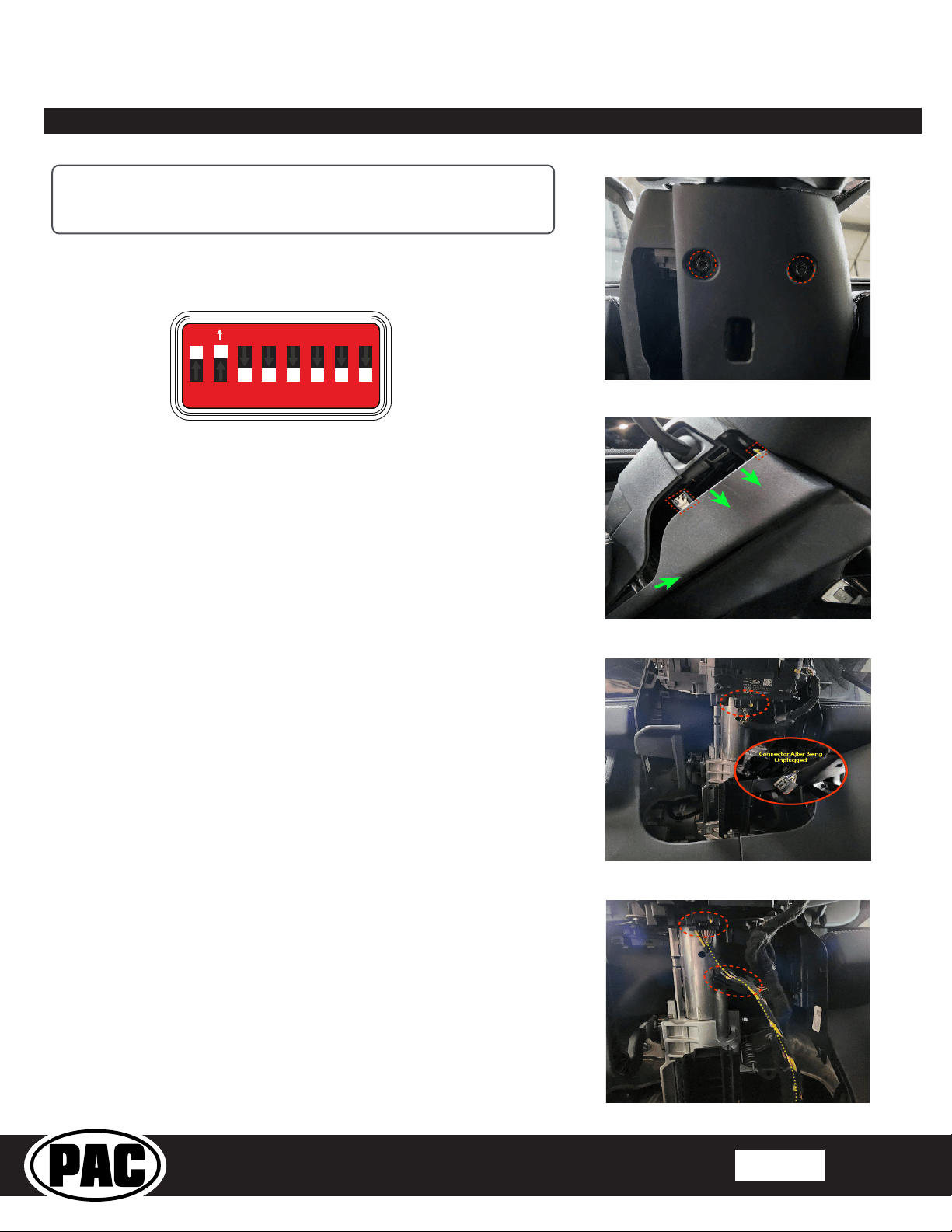

3. The vehicle should be in a resting state prior to opening connection to the 8pin data harness. See Installation note for further
information.

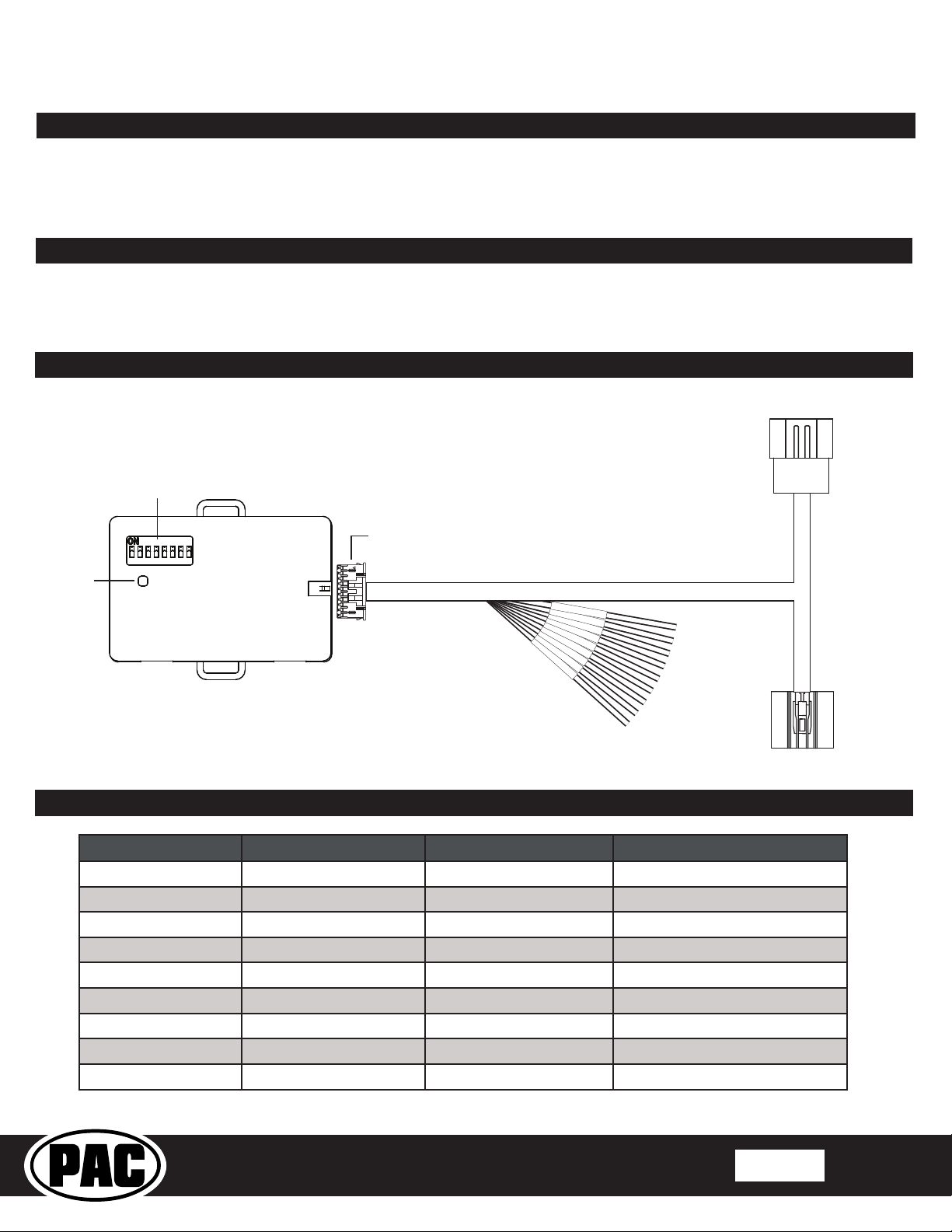

Wiring Connection Chart
Outputs
To Factory
Harness
DescriptionDescription PolarityPolarity Wire ColorWire Color
Output 1 Accessory + Positive (250mA) White-Red
Output 2 Illumination + Positive (250mA) Blue
Output 3 Speed Pulse Pulse Green-Black
Output 4
Reverse + Positive (250mA) Violet-Black
Output 5 Ignition* + Positive (250mA) Yellow-Black
Output 6 Left Turn Signal + Positive (250mA) Red-Black
Output 7
Right Turn Signal + Positive (250mA) Gray-Red
Output 8
High Beam + Positive (250mA) Blue-Black
Output 9
Parking Brake - Negative (250mA) Brown-Black
Output Wires
1-9
DIP Switches
16pin
Interface
Connector
Status
LED
CANPRO CP1-S
* In Electric Vehicles, Output 5 provides a positive output when the vehicle is in a “Ready to Drive” state.
To Vehicle's
SCCM
