Model No.: F0081
aireRyder ORIGINAL CEILING FAN LIMITED LIFETIME WARRANTY
The limited lifetime warranty covers this ceiling fan, for residential use by the original purchaser, against defects in
material or workmanship as follows:
If your aireRyder Ceiling Fan motor fails at any time during the lifetime of the original purchaser due to defects in
material or workmanship, we will provide a replacement part free of charge.
If your Fan motor fails at any time within one year after the original date of sale to the original purchaser due to defects
in material or workmanship, we will provide labor to repair the defect, with the exception of take down/reinstallation,
free of charge. The original purchaser will be responsible for all labor costs after this one year period.
If no replacement parts are provided for any part of your Fan motor that fails at any time during your lifetime due to
defects in material or workmanship, we will refund the original purchase price of your Fan.
If your Fan blades, or any accessory, except glass globes and light bulbs, fails at any time within one year after the
original date of purchase due to a defect in material and workmanship, we will repair or, if we choose, replace the
defective blades, switch, or accessory free of charge, with the exception of take down/reinstallation services.
If the original purchaser ceases to own the Fan, this warranty and any implied warranty, including but not limited to any
implied warranty of merchantability or fitness for a particular purpose, become void. This warranty and any implied
warranty, including but not limited to any implied warranty of merchantability or fitness for a particular purpose, do not
cover glass globes, light bulbs, or finish on any metal portions of the Fan.
This warranty is in lieu of express warranties. The duration of any implied warranty of merchantability or fitness for a
particular purpose, with respect to any aireRyder Ceiling Fan motor, blades, switch, or accessories, is expressly
limited to the period of the express warranty set forth above for such motor, blades, switch, or accessories.
This warranty excludes defects, malfunctions, or failures of any aireRyder Ceiling Fan that are caused by repairs by
persons not authorized by us, use of parts or accessories not authorized by us, mishandling, improper installation,
modifications or damage to the Fan while in your possession, or unreasonable use, including failure to provide
necessary maintenance.
In no event shall aireRyder Fan be liable for consequential or incidental damages.
Some states do not allow the exclusion or limitation of consequential or incidental damages, in which case the above
limitation or exclusion may not apply.
This warranty gives you specific legal rights and you may also have other rights which vary from state to state.
LIMITED LIFETIME WARRANTY
Page: 1 / 9
F A N C O
191225
PAGE: 2 / 9
11 12
2
X19
13
14
15
16
10
5
7
8
6
9
3
4

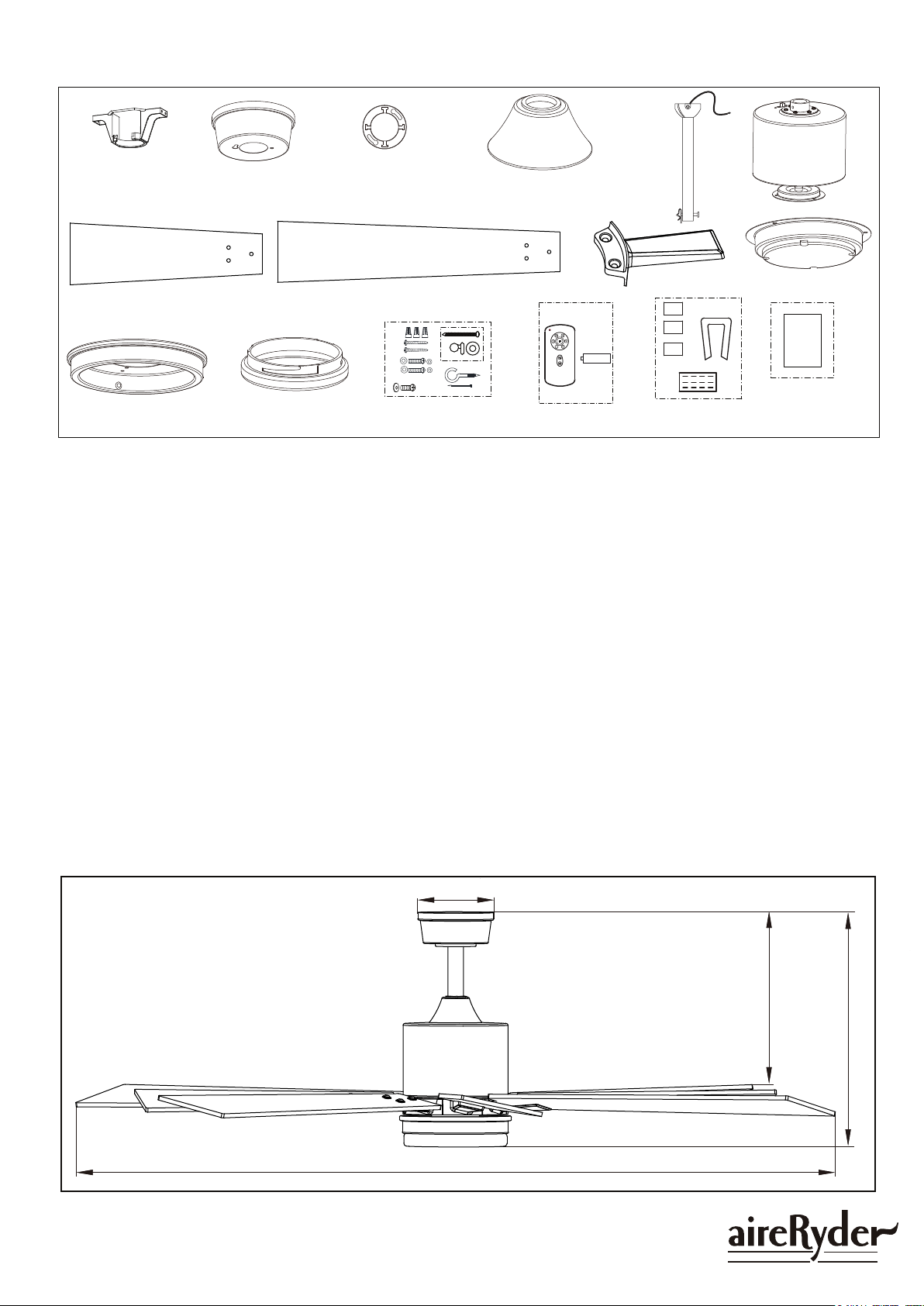

Unpack your fan and check the contents. You should have the following items.
1.) Hanger Bracket
2.) Canopy
3.) Decorative Cap
4.) Downrod Stand Cover
5.) Downrod Set (Included Hanger Ball, 6” Downrod, Hanger Pin & Lock Pin)
6.) Fan Motor Assembly
7.) Short Fan Blades (4 PCS)
8.) Long Fan Blades (4 PCS)
9.) Blade Holder (8 PCS)
10.) LED Module
11.) Glass Holder
12.) Glass Shade
13.) Assembly Kit
14.) Remote Hand Held (Includes battery)
15.) Blade Balancing Kit
16.) Installation Instructions
Package Contents:
1
Installation
Instruction
Dimension Reference (Installed with 6” Downrod):
A. 15-3/5” B. 13” C. 60” D. 5”
12V
D
A
B
C
F A N C O
191225
Hanger Bracket
Canopy
Downrod
Downrod Stand Cover
Hanger Ball
Hanger Pin
Decorative Cap
Collar
Lock Pin
Glass Holder
Blade Holder
LED Module
Glass Shade
Exploded View Detail
PAGE: 3 / 9
Downrod Mount
Slope Ceiling Mount (Up to 23 degrees)
Dual Mount Drawing
Fan Blade
Fan Motor Assembly
F A N C O
191225
PAGE: 4 / 9
Safety Instructions
READ ALL SAFETY INFORMATION AND INSTALLATION INSTRUCTIONS BEFORE YOU BEGIN TO
INSTALL THE FAN AND SAVE INSTRUCTIONS.
All set screws of the fan must be checked and retightened where necessary before installation.
To reduce the risk of personal injury, do not bend the blade brackets when installing the brackets,
balancing the blades or cleaning the fan. Do not insert foreign objects between rotating fan blades.
Before changing the fan direction, turn off the fan and wait for the fan blades to stop completely.
The safeguards provided by these safety instructions and by the separate installation instructions are
not meant to cover all possible conditions and situations that may occur. It must be understood that
common sense, caution and care are factors which can not be built into this product. These factors
must be supplied by the person(s) installing, caring for and operating the fan.
F A N C O
191225
TO AVOID RISK OF ELECTRIC SHOCK, BE SURE TO SHUT OFF POWER AT THE MAIN
FUSE OR CIRCUIT BREAKER BOX BEFORE INSTALLING OR SERVICING THIS
FIXTURE. TURNING OFF THE ELECTRICAL POWER BY USING THE LIGHT SWITCH
IS NOT SUFFICIENT TO PREVENT ELECTRICAL SHOCK.
TO REDUCE THE RISK OF INJURY, INSTALL THE FAN SO THAT THE BLADES ARE
AT LEAST 7 FEET (2.1 METERS) ABOVE THE FLOOR AND AT LEAST 18 INCHES
(0.5 METERS) FROM THE TIP OF THE BLADES TO THE WALL.
TO REDUCE THE RISK OF FIRE, ELECTRIC SHOCK, OR PERSONAL INJURY, MOUNT
TO OUTLET BOX MARKED "ACCEPTABLE FOR FAN SUPPORT" AND USE MOUNTING
SCREWS PROVIDED WITH THE OUTLET BOX.
THE INSTALLATION HAS TO BE IN ACCORDANCE WITH THE NATIONAL ELECTRICAL
CODE, ANSI/NFPA 70-1999 AND LOCAL CODES. IF YOU ARE UNFAMILIAR WITH THE
METHODS OF INSTALLING ELECTRICAL WIRING, SEEK THE SERVICES OF A
QUALIFIED LICENSED ELECTRICIAN.
WARNING
PAGE: 5 / 9
Installation Steps :
Fig.1
Turn OFF the electric circuit at the
main fuse or circuit breaker box.
NOTE: The fan weight is 18.7 lbs (8.5 kg). Be sure the outlet box you are using is securely attached to the building
structure and can support the full weight of the fan. Failing to do so can result in serious injury.
INSTALLATION INSTRUCTIONS
IMPORTANT:
BEFORE YOU BEGIN INSTALLING THE FAN, CAREFULLY READ ALL INFORMATION ON THE SEPARATE
SHEET "SAFETY INSTRUCTIONS" AS WELL AS THE FOLLOWING "INSTALLATION INSTRUCTIONS". IF IN
DOUBT, CONSULT A QUALIFIED ELECTRICIAN.
SAVE ALL INSTRUCTIONS.
Tighten the hanger bracket to the outlet box with two mounting screws.(Make sure
the outlet box is securely installed so that it will be able to support at least the
fan weight.) Attach the safety cable hook to the ceiling with the dry wall screw and
washer, and make sure the safety cable hook is covered by the fan canopy.
WARNING: MOUNT ONLY TO AN OUTLET BOX MARKED "ACCEPTABLE FOR
FAN SUPPORT"!
Fig.5.Fig.2.
Ceiling
Hanger Bracket
Ceiling Joist
Wood Member
(2" x 4" Approx.)
Junction Box
Washer
Safety Cable Hook
Dry Wall Screw
Ceiling
Hanger Bracket
Ceiling Joist
Wood Member
(2" x 4" Approx.)
Junction Box
Thread the motor wires through the
downrod stand cover, decorative
cap, canopy and downrod.
Collar
Collar
Hanger Pin
Hanger Pin
Lock Pin
Remove the Lock Pin and take off
the Hanger Pin.
Fig.3
Loosen the collar screws in part way.
Insert the Downrod into the Collar.
Slide Hanger Pin through holes of
Collar and Downrod.
Fig.4
Motor Wires
Downrod
Downrod Stand
Cover
Canopy
Downrod
Canopy
Downrod Stand
Cover
Fig.5
Decorative Cap
Decorative Cap
Lock Pin
Hang the fan on Hanger Bracket, and
make sure the slot of hanger ball is
snapped into the chip of Hanger
Bracket exactly.
Note: For slope ceiling installation,
make sure the slot of hanger ball and
the chip of hanger bracket face down.
Insert and tighten the two Collar
Screws. Slide Lock Pin into Hanger
Pin until it is locked into position.
Fig.6
Collar Screws
Fig.7
Slot
Chip
Hanger Bracket
F A N C O
191225
PAGE: 6 / 9
Green (Ground)
Fig.8
Make wire connections:
1). The white motor wire to the white wire from the outlet box with a wire nut.
2). The black motor wire to the black (hot) wire from the outlet box
with a wire nut.
3). The green (ground) wire from the downrod and hanger bracket to the ground
wire from the outlet box with a wire nut.
*** After making the wire connections, the wires should be spread apart with the
grounded wires on one side of the outlet box and the ungrounded wires on the
other side of the outlet box.
*** After the connections have been made, the wires should be turned upward and
pushed carefully up into the outlet box.
Hang the safety cable into the safety cable hook.
Fig.10
Canopy Screw
Canopy Screw
Key Hole
Slot
Hanger Bracket
Canopy
Decorative Cap
Remove one canopy
screw (for later use),
then push the canopy
upwards by inserting
canopy screw head
left in hanger bracket
into key hole slot,
rotate the canopy till
the hole in canopy
aligns the hole in
hanger bracket, finally,
secure the canopy to
hanger bracket with
Fig.11
Motor Screw
Washer
Blade Holder
Remove the motor screws and
washers from the motor assembly.
Secure blade holders to the motor
with washers and motor screws.
previous canopy screw and tighten the other canopy
screw. Attach the decorative cap to canopy, rotate it
clockwise until tight.
Thread the blade screws
through the washer, blade
into blade holder. Tighten
all blade screws securely.
Repeat to other blades.
Note: Alternate long blade
with short blade to keep
balance.
Remove one fan motor assembly screw
(for later use), Push the glass holder
upwards until the fan motor assembly
screws insert into the key hole slot of glass
holder then rotate the glass holder till it fixed
on the motor bottom. Finally, secure the glass
holder to motor bottom with previous screw
which we removed and tighten the other two
fan motor assembly screws.
Connect the female terminals from motor to male terminals
from LED module.
secure the LED module to the motor by LED module screws.
Note: 1). The black fixture wire to blue motor wire.
2). The white fixture wire to white motor wire.
Fig.9
Safety Cable Hook
Safety
Cable
Blade
Blade Holder
Washer
Blade Screw
Fig.12
Fig.13
Glass Holder
Fan Motor
Assembly Screw
LED Module
Screw
Fig.14
Male Terminal
Female Terminal
F A N C O
191225
PAGE: 7 / 9
Fig.16
Turn ON the electric circuit at the
main fuse or circuit breaker box.
Attach the glass shade to the glass
holder by aligning studs and slots,
and then turn it clockwise until it is
locked in place.
Fig.17
Remote control
Install one 12 volt battery (type 23A, included) to the remote control.
1. The remote buttons instruct as below:
● Fan speed:
I = minimum speed II = low speed
III = medium low speed IV = medium speed
V = medium high speed VI = high speed
● ■ Button:
This button turns the fan off.
● Reverse button:
This button is to control fan direction.
● Light button:
The button is to control light, Infinite light levels are available by holding the light
on/off button.
2. Frequency Interference (code setting):
Step 1: Turn the power off to your ceiling fan.
Setp 2: Slide code switches on back of remote control.
Step 3: Turn the power on and within 60 seconds, press and hold “SET” button nearby switches. The setup is completed
after the light of the ceiling fan flashes twice.
3. “D” and “ON” dip switch:
The “ON” selection is the light dimmable selection. The “D” selection is the light on only (no dimming function).
Note:The receiver provides protection in the following two situations:
1- Lock protection:The receiver has a built-in protection against obstruction during operation. The motor will be locked and the
power will be disconnected after 30 seconds of obstruction. Please remove obstacles before restarting. To reset, turn off the
power supply to the fan motor, then restart.
2- Power surge protection: If the receiver detects a power consumption of the motor greater than 80W, the power supply will
be interrupted and operation will immediately stop. To reset, turn off the power supply to the fan motor, then restart (after 5
seconds).
3- This remote control has memory function setting. The fan will operate at the same speed and the fan light will stay at the
same brightness as the last time the power supply was turned off.
SET
1
2
3 4
ON
D
Dip Switch
Frequency Code
12V
4- Compatible with on / off fuction wall switch only,wall control and remote control can’t be use on the same time.
Glass Shade
Slot
Glass
Holder
Stud
Fig.15
F A N C O
191225
PAGE: 8 / 9
Trouble Shooting Guide
If you have difficulty operating your new ceiling fan, it may be the result of incorrect assembly, installation
or wiring. If you experience any faults, please check this Trouble Shooting Guide. If a problem cannot be
remedied or you are experiencing difficulty in installation, please call our Customer Service Department.
PROBLEM
1. If fan does not start:
2. If fan sounds noisy:
3. If fan wobbles:
4. If light does not work:
1. Check main and branch circuit fuses or circuit breakers.
2. Make sure that the wall control is turned "ON".
1. Make sure all screws in motor housing are snug. (not over tightened)
2. Make sure the screws which attach the fan blade holders to the motor are tight.
3. Make sure wire nut connectors at the back of light kit. are not rattling against each
other or against the interior wall of the back of light kit.
CAUTION: Make sure main power is turned off before accessing light kit.
4. Check to be sure the light kit is secured on motor tightly.
5. Some fan motors are sensitive to signals from Solid State variable speed
controls.
6. Allow "break-in" period of 24 hours. Most noises associated with a new fan will
disappear after this period.
All blades are weighed and grouped by weight. Natural woods vary in density
which could cause the fan to wobble even though all blades are weight-matched.
The following procedures should eliminate most of the wobble. Check for wobble
after each step.
1. Check that all blades are screwed firmly into blade holders.
2. Check that all blade holders are tightened securely to motor.
3. Make sure that canopy and hanger bracket are tightened securely to ceiling
outlet box and outlet box is mounted firmly to ceiling joist.
4. Most wobble problems of fan are caused when blades are not in equal level. To
check the blade levels, select a point on the ceiling above the tip of any blade.
Measure the distance from the ceiling to the blade tip, to an accuracy of 1/8
inch. Rotate the blades until the next blade is in the measuring position. Repeat
measurement for each blade. If all blade levels are not equal, you can adjust
blade levels by the following procedure. To adjust a blade tip down, insert a
washer (not supplied) between the blade and blade bracket at the screw
closest to the motor. To adjust a blade tip up, insert washer (not supplied)
between the blade and blade bracket at the two screws farthest from the motor.
5. Interchanging two adjacent blades could redistribute the weight and possibly result
in smoother operation.
1. Check blue wire from fan to make sure it is connected to hot wire from supply wire
coming out of the ceiling.
2. Check for loose or disconnected wires in fan light kit.
SUGGESTED REMEDY
F A N C O
191225
DYNAMIC BLADE BALANCING KIT
PREFACE
Your ceiling fan may sometimes have wobbling problems when operating due to irregularity in the
blades or the blade brackets. Improper assembly in the mounting system may cause some additional
problems. This balancing kit can be used to fix wobbling problems.
DYNAMIC BLADE BALANCING KIT FOR CEILING FANS
1. Make sure that all blades are firmly screwed into the blade brackets.
2. Make sure that all blade brackets are firmly secured to the motor housing.
3. By looking up at the fan from below, check and be certain that none of the blade brackets are bent
and that none of the blades are out of position.
4. Use a yardstick to check the blade tracking. Put the yardstick up against the ceiling vertically and
against the outside leading edge of a blade. Note the distance of the edge of blade to the ceiling.
Carefully turn the blades slowly by hand to check the remaining blades. All distances should be
the same.
Operate the fan ten minutes. After following all the steps and if the wobbling problem is not solved, a
dynamic balancing needs to be done by balancing kit. Follow the procedure listed below:
● Turn the fan off. Select one blade and place the plastic clip on it, where the plastic clip locates is
halfway between the blade bracket and the blade tip on the edge of the blade.
Caution: The plastic clip should be placed on the windward edge of the blade for fear of
clip’s flying off.
● Turn the fan on (set the speed that causes the wobble most). Observe if the wobble is better or
worse. Turn the fan off and move the clip to the next blade. Do the same for all blades and note
on which blade the clip reduces the wobble most. Place the clip on the blade which showed the
most improvement. Move the clip inward and outward on this blade and operate the fan to find
the position where the clip gives the most improvement.
Caution: Stay clear of the blades. If the clip, for any reason, is not secure, injury could result .
● Once the exact position is determined, place a weight on the top of the blade, on its centerline and
most close to the clip. Peel the paper off of the back of the weight and press firmly to ensure that
it is securely attached to the blade. Remove the clip.
Caution: Clean the surface of fan blade before placing the balancing weight so that the
balancing weight can be firmly attached on it.
BALANCING WEIGHT
MEASURING
POINT
YARDSTICK
PLASTIC CLIP
CENTERLINE
COUNTER-
CLOCKWISE
1
2
3
4
5
6
7
8
9
PAGE: 9 / 9
F A N C O
191225
