Declaration
1. This manual is designed for the usage of A80 Pro, applying to A80 Pro automotive
diagnosis platform.
No part of this manual can be reproduced, stored in a retrieval system or transmitted,
in any form or by any means (electronic, mechanical, photocopying, recording, or
otherwise), without the prior written permission of Xtool.
2. This electronic control system diagnostic unit is designed for professional vehicle
maintenance technicians. It has a certain reliability, however, it can not exclude vehicle
damage and loss caused by customer technical problems, vehicle problems or other
factors, so users need to take risks.
3. Use the device only as described in this manual. The user will be responsible solely for
the after-effects of violating the laws and regulations caused by using the product or its
data information, Xtool will not bear any legal responsibility for that.
4. Xtool shall not be liable for any incidental or consequential damages or for any
economic consequential damages arising from the accidents of individual users and the
third parties, misuse or abuse of the device, unauthorized change or repair of the device,
or the failure made by the user not to use the product according to the manual.
5. All information, specifications and illustrations in this manual are based on the latest
configurations and functions available at the time of printing. Xtool reserves the right to
make changes at any time without notice.
6. is the registered trademark of Shenzhen Xtooltech Co., Ltd.
7. In countries that the trademarks, service marks, domain names, logos and the name of
the company are not registered, Xtool claims that it still reserves the ownership of the
unregistered trademarks, service marks, domain names, logos and the company name. All
other marks for the other products and the company’s name mentioned in the manual still
belong to the original registered company. You may not use the trademarks, service
marks, domain names, logos and company name of Xtool or other companies mentioned
without written permission from the trademark holder.
8. Please visit http://www.xtooltech.com
for more information about A80 Pro.
9. Xtool reserves the right for the final interpretation of this manual content.
A80 Pro Intelligent Diagnosis System
2
Contents
CHAPTER I ABOUT A80 PRO................................................................................................ ................ 4
1. APPEARANCE ................................................................................................................................ .... 4
2. LAYOUT OF A80 PRO TABLET................................................................................................ ................. 5
2.1 Top View of A80 Pro Tablet................................................................................................ ............... 5
2.2 Side View of A80 Pro Tablet................................................................................................ .............. 5
2.3 Outline diagram of VCI Box diagnostic kit................................................................ ........................ 5
2.4 A80 Pro technical parameters ................................................................................................ .......... 6
CHAPTER II HOW TO USE A80 PRO................................................................................................ ...... 7
1. A80 PRO MAIN INTERFACE AND FUNCTION BUTTONS DESCRIPTION................................................................ .. 7
1.1 Main interface................................................................................................................................ .. 7
1.2 Sub-menu and function buttons................................................................................................ ....... 7
1.3 Toolbar functional buttons ................................................................................................ ............... 9
2. CONNECTION DIAGNOSIS ................................................................................................ ...................... 9
2.1 Vehicle Connection test ................................................................................................ .................... 9
2.2 Precautions Before Use ................................................................................................ .................. 10
3. DIAGNOSIS ................................................................................................................................ ..... 11
3.1 Menu selection ................................................................................................ ............................... 11
3.2 Test function................................................................................................................................ ... 12
3.3 Read ECU................................................................................................................................ ........ 14
3.4 Read DTCs................................................................................................................................ ....... 15
3.5 Clear DTCs ................................................................................................................................ ...... 16
3.6 Read live Data ................................................................................................................................ 17

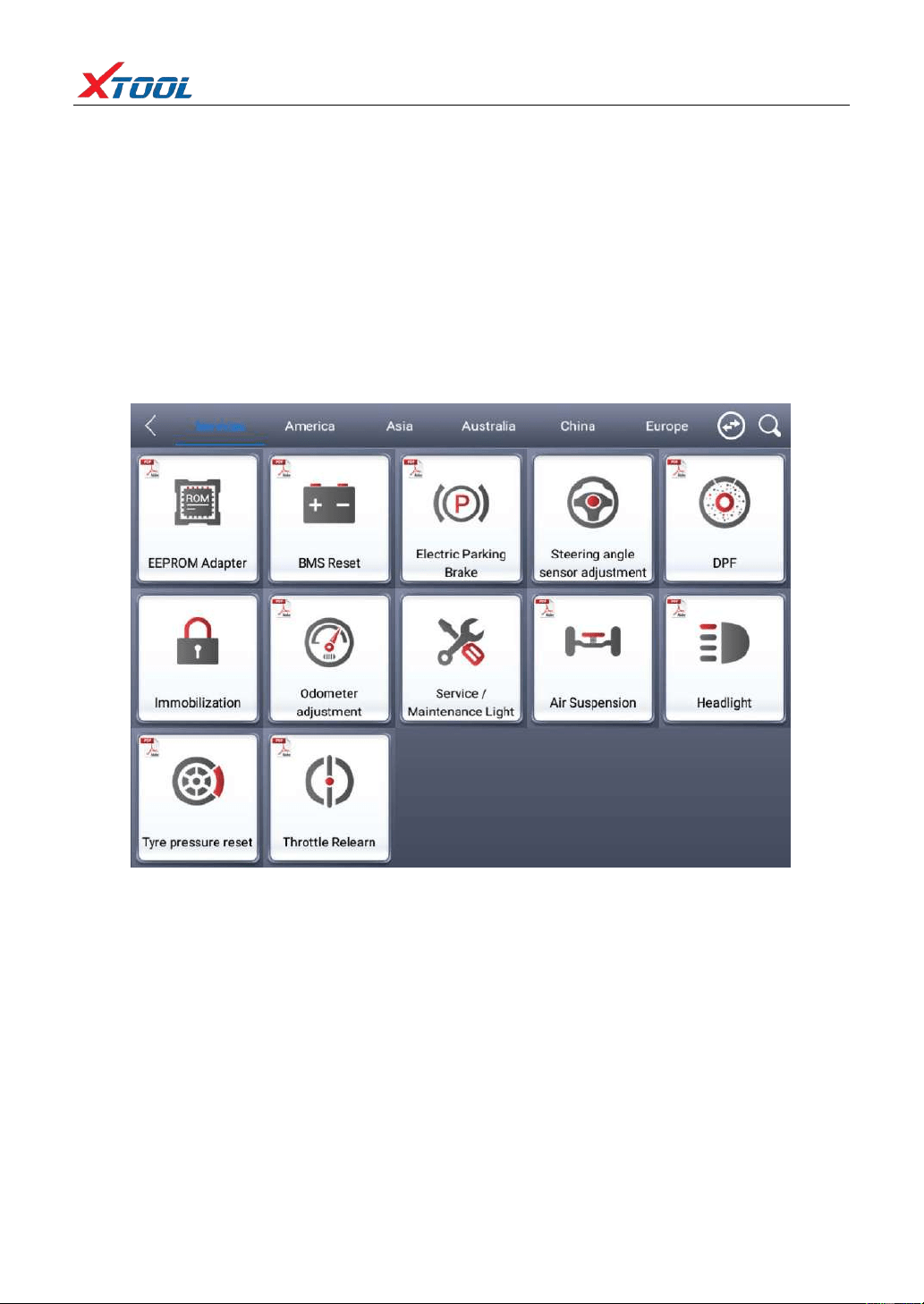

3.7 Special function................................................................................................ .............................. 17
3.8 Actuating components test ................................................................................................ ............ 17
4. SETTING................................................................................................................................ ......... 18
5. DIAGNOSE REPORT ................................................................................................ ........................... 20
5.1 Diagnose report.............................................................................................................................. 20
5.2 Data playback ................................................................................................................................ 21
6. ONE-CLICK UPGRADE................................................................................................ ......................... 21
7. XTOOL CLOUD SYSTEM ................................................................................................ ...................... 22
8. REMOTE CONTROL................................................................................................ ............................ 22
CHAPTER III LOCATION OF DIAGNOSTIC LINK CONNECTORS ON DIFFERENT VEHICLE MODELS ............ 24
1.
DIAGNOSTIC LINK CONNECTORS LOCATIONS OF VARIOUS VEHICLE MODELS ................................ ....................... 24
2. LOCATION DIAGRAM OF VEHICLE DIAGNOSTIC LINK CONNECTORS................................................................ ... 27
3. DIAGNOSTIC LINK CONNECTORS TERMINAL DEFINITION AND COMMUNICATION PROTOCOLS ............................... 27

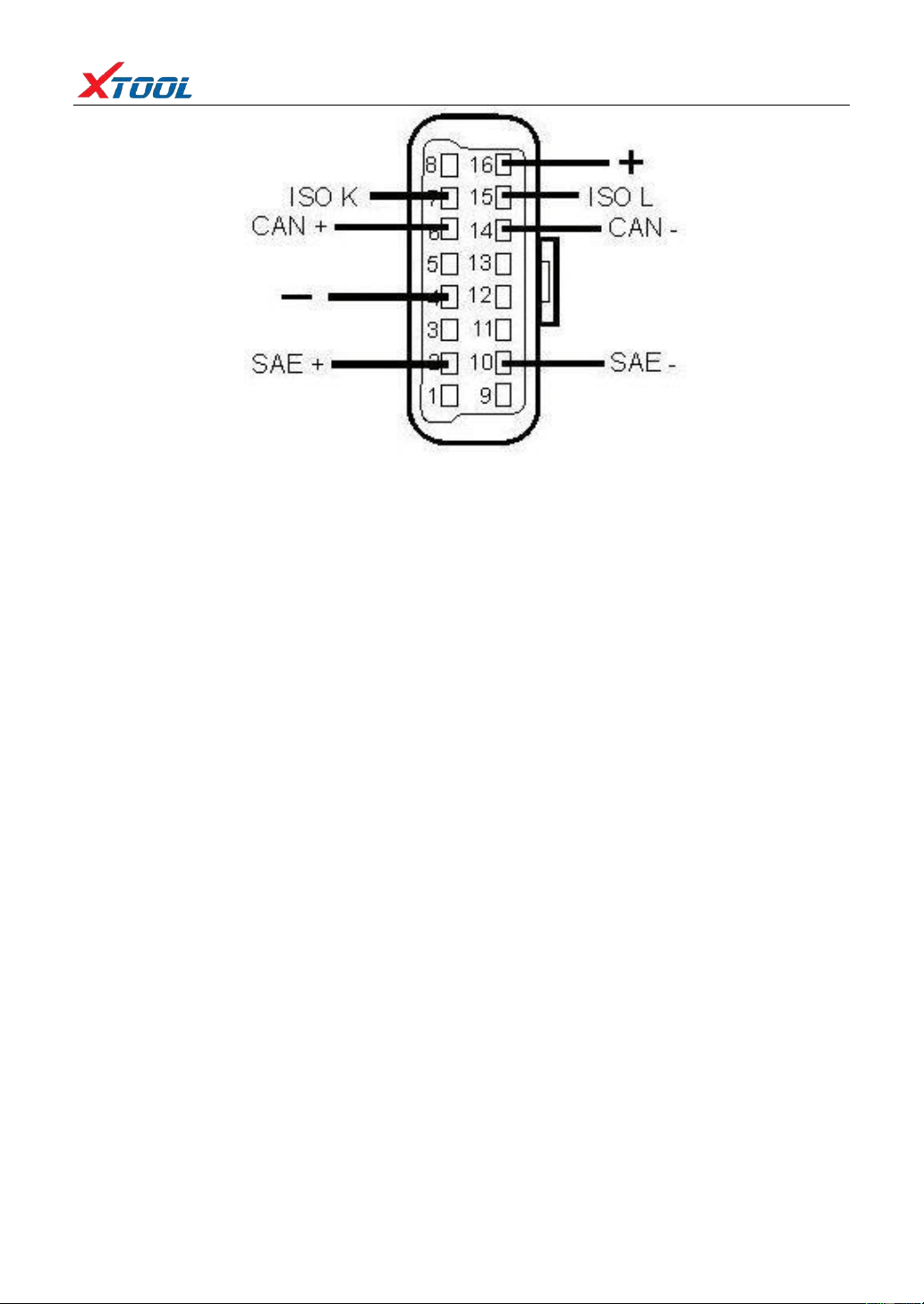

3.1 Standard OBDII Diagnostic Link Connector ................................................................ .................... 27
A80 Pro Intelligent Diagnosis System
3
CHAPTER IV ADDITIONAL INFORMATION................................................................ .......................... 29

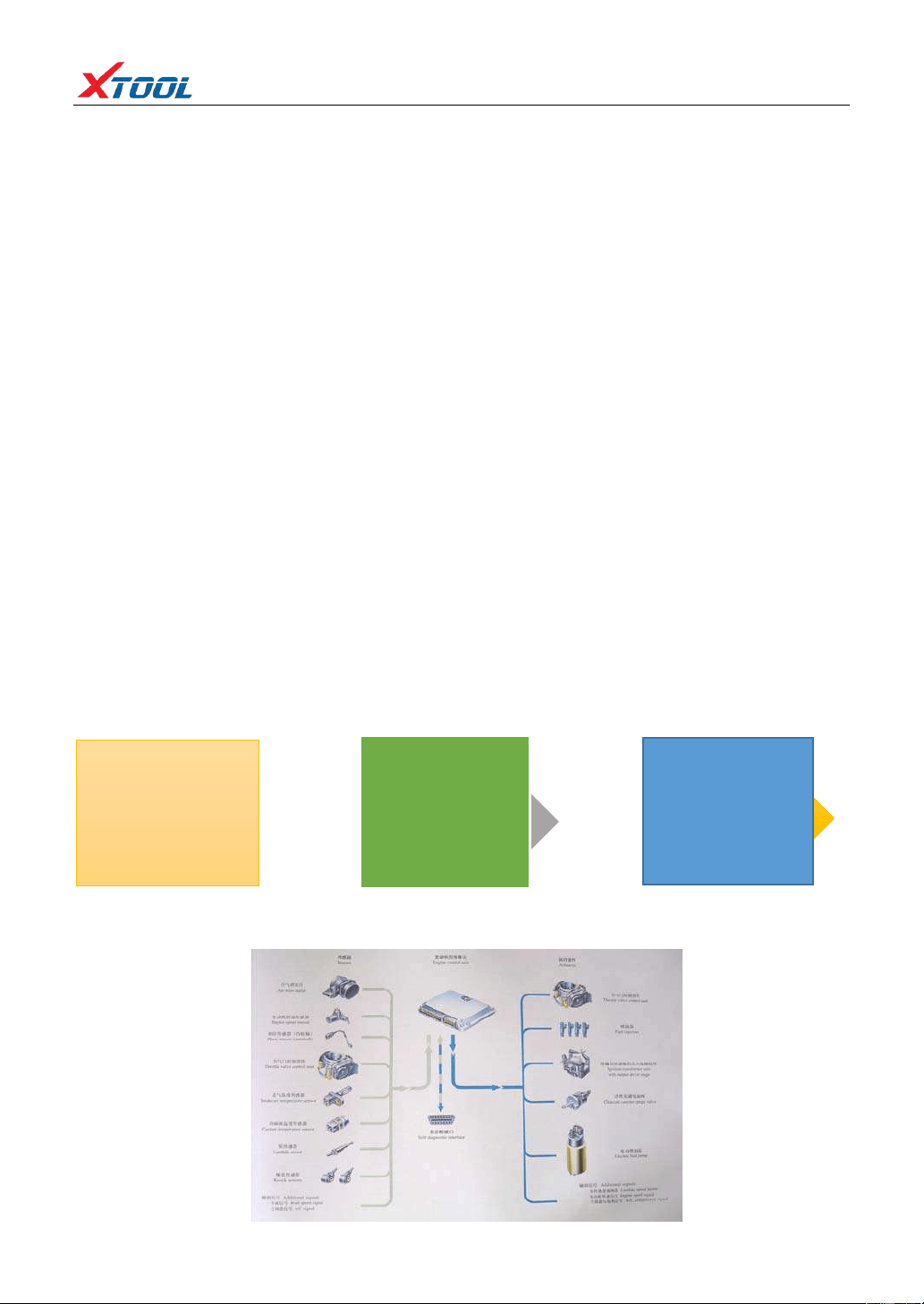

1. DESCRIPTION OF OBDII AND THE FUNCTION OF SENSOR COMPONENTS ................................ .......................... 29
1.1 OBDII function description ................................................................................................ ............. 29
1.2 Sensor element function................................................................................................ ................. 30
2. COMMON FAULTS AND ELIMINATION OF ELECTRONIC CONTROL SYSTEM................................ ........................... 33
A80 Pro Intelligent Diagnosis System
4
Chapter I About A80 Pro

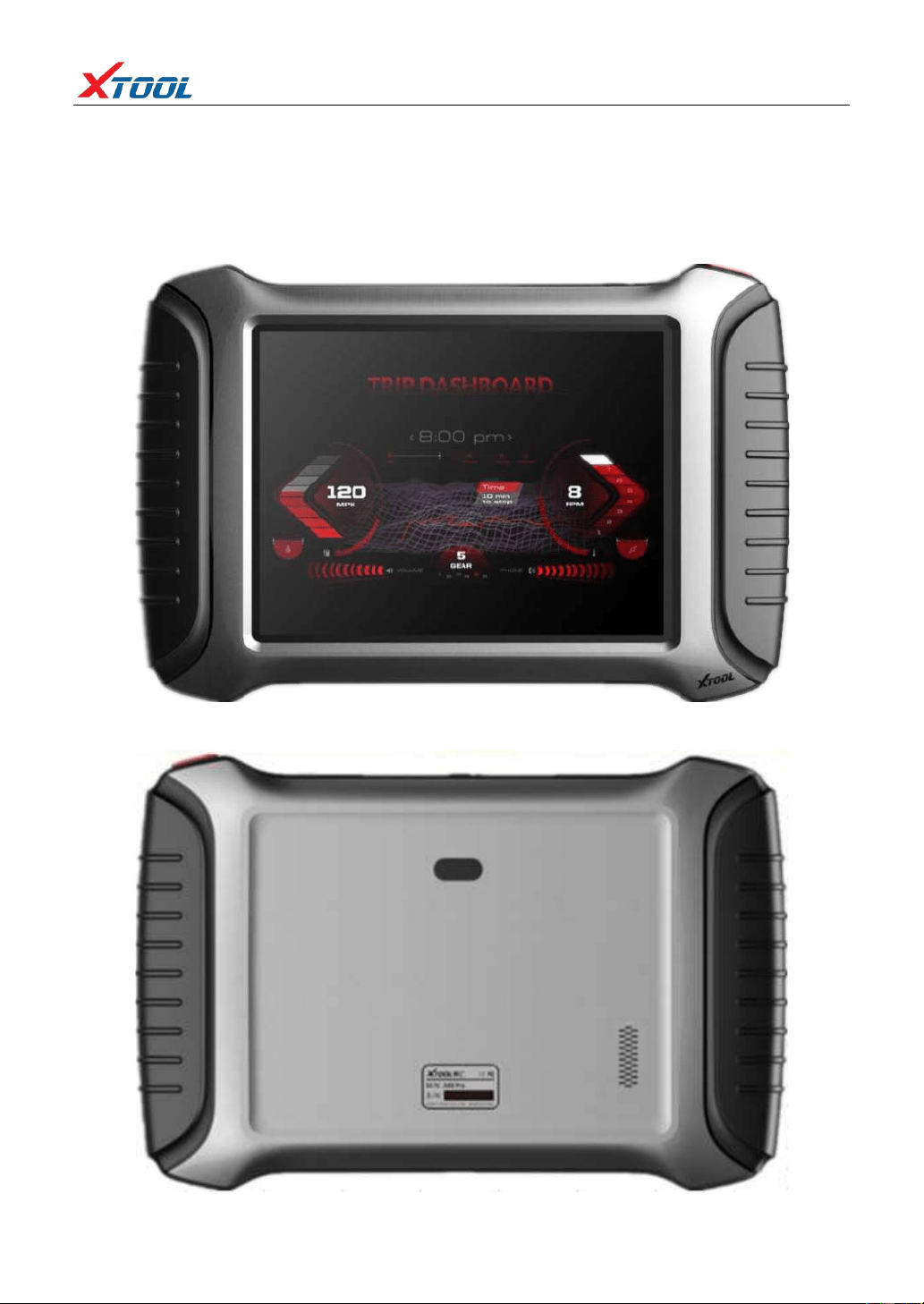

1. Appearance
1.1 Front view
1.2 Back view
A80 Pro Intelligent Diagnosis System
5
2. Layout of A80 Pro Tablet
2.1 Top View of A80 Pro Tablet
① ② ③
①USB3.0 interface: Wired data transmission
②Mini HDMI interface: Transmission of audio and video
③DB15 interface: Subsequent extended reservation port
④DC charging port: Charge for equipment, use 12V power supply
⑤Power Button: Power on or power off
2.2 Side View of A80 Pro Tablet
①
①Seat adapter: This is reserved for the socket, and can be charged with charging.
2.3 Outline diagram of VCI Box diagnostic kit
④ ⑤
②
①
③
A80 Pro Intelligent Diagnosis System
6
① Display： Display voltage, Bluetooth connection status, etc.
② D B15 i nterface： Used to communicate with the extension cable and various types of connectors
by connecting the vehicle diagnostic seat
③ D B9 i nterface： Used to communicate with the host computer with USB3.0 cable by DB9 male
Function
VCI diagnostic box function: After inserting the vehicle diagnostic seat, it connects with A80 Pro host
computer by Bluetooth to realize wireless data transmission.
2.4 A80 Pro technical parameters
Operating system: Android
Processor: quad core processor 1.8GHz
Memory: 2G RAM, 32G ROM
Display / touch screen: 1024·768 resolution, 8 inch LED Compatible touch screen
Camera: rear camera, 8 million pixels, with flash autofocus
Sensor: gravity sensor
Audio input / output: microphone, 4 band 3.5 millimeters stereo
Interface: USB3.0, DC charging port, MINI HDMI, DB15 interface.
Battery: 10000mAh 3.7V lithium polymer battery
Input voltage: +9~+36VDC, compatible with 12V and 24V voltage system.
Working temperature: -20 to 50℃ (-4 to 126℉)
Relative humidity: <90%
Appearance size: 275·183·33.9 (mm)
A80 Pro Intelligent Diagnosis System
7
Chapter II How to use A80 Pro
1. A80 Pro main interface and function buttons description
1.1 Main interface
After A80 Pro boot, the main interface and sub menu are shown. ▼
1.2 Sub-menu and function buttons
Functional Buttons Functional descriptions
Diagnostic functions and special functions enter the button, and
then select the desired functions for operation, such as reading
diagnostic information, viewing data flow parameters, performing
motion tests, special functions, etc.
A80 Pro Intelligent Diagnosis System
8
During the diagnosis of the vehicle, all diagnostic operations will
be recorded, the exit system will prompt whether to save, the choice
will be saved in the diagnostic report, such as vehicle information,
system information, diagnostic information, test date, etc; enter the
read data stream function, click data stream playback, the recorded
dynamic data stream will be saved in the data stream playback, enter
the diagnostic report, select the corresponding date and model to view.

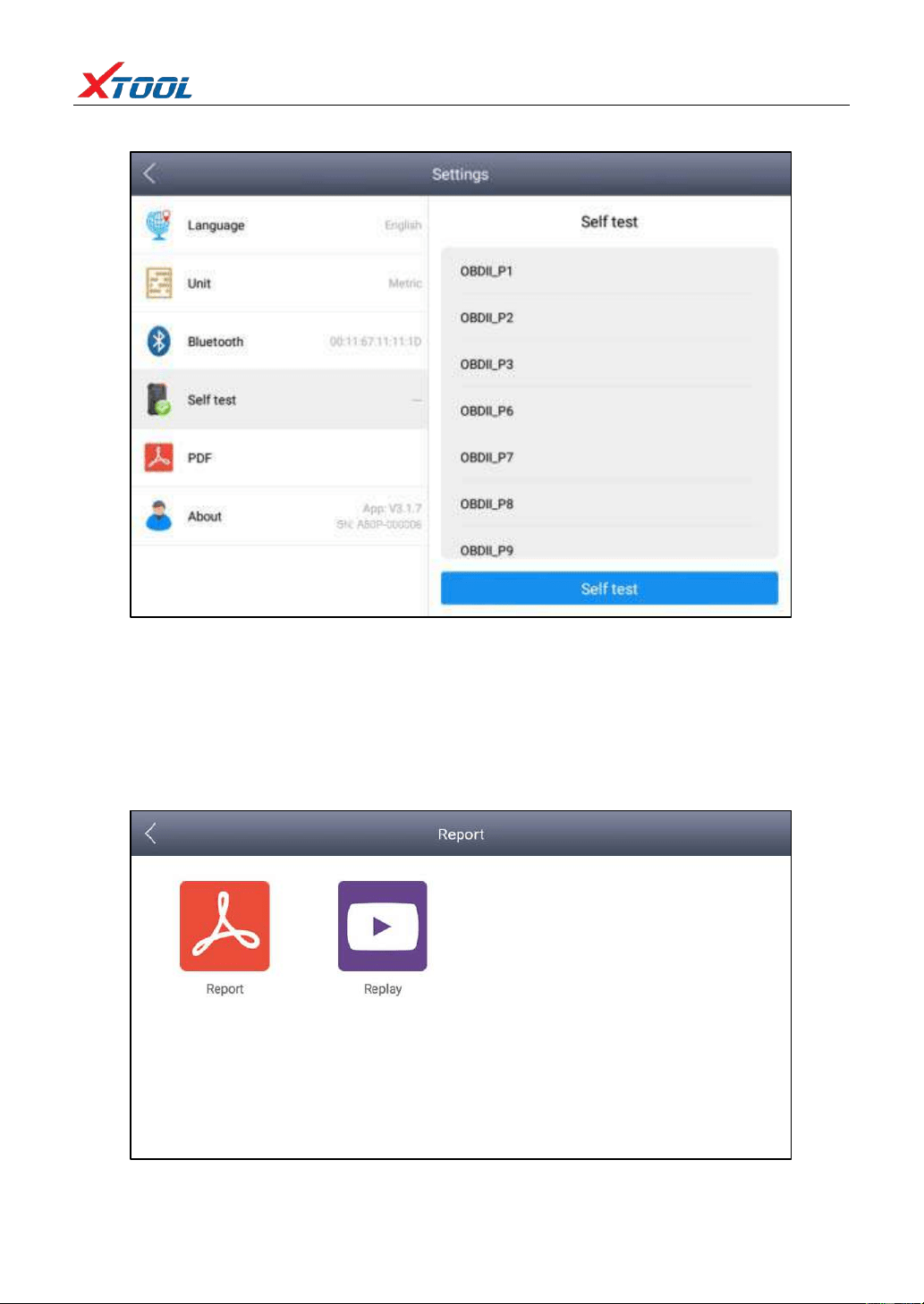

By selecting “Setting”, users can access the language setting and
other system related settings.
Online communication cloud Platform.
After the user activates, you can upgrade the newly developed
diagnostic software by directly clicking the one-click upgrade. The
software is continuously updated. Please pay attention to the official
website upgrade announcement or public announcement, and upgrade
in time.
This feature can accept Remote Assistance from the Xtool
company Technical Support Center.
A80 Pro Intelligent Diagnosis System
9
1.3 Toolbar functional buttons
Functional Buttons Descriptions
Return to previous interface
decrease volume
increase volume
Return to the main interface of Android system
Display recent usage procedures
Press this button for screen captures.
Click this button to return to the diagnostic vehicle interface, and the
Bluetooth connection light will be shown in blue.
Click this button to return to the diagnostic vehicle models interface.
2. Connection diagnosis
2.1 Vehicle Connection test
（1）The A80 Pro host is connected to the vehicle through the VCI diagnostic box with the main
test line.
（2）Turn on the car ignition switch and press the A80 Pro key to diagnose the vehicle (see
diagram below).
A80 Pro Intelligent Diagnosis System
10
① A80 Pro Mainframe
② VCI box (can be directly connected to the vehicle diagnostic seat or select ③⑤ Accessory
after connecting the vehicle diagnostic seat)
③ Adapter cable (optional for non-standard OBD II 16pin connectors)
④ Measured vehicle
⑤ Adapter (optional for non-standard OBD II 16pin connectors)
2.2 Precautions Before Use
（1）Battery voltage range on the car: +9~+36V DC.
（2）When the test harness is unplugged, the application hand pinch the head of the front end of the
wire harness to unplug, do not pull the middle segment of the wiring bundle, and the plug
connection beam sees the direction of the corresponding interface flat plug, and does not tend to
be inserted to avoid damaging the terminal.
（3）When carrying out some special functions tests, users are required to operate the device
according to operating instructions. For some tests the vehicle has to meet certain requirements,
for example: engine temperature 80℃/105℃, turn off loads (such as headlights, air-conditioner,
etc.), put accelerator pedal in released position, etc.
（4）As the domestic models equipped with the electronic control system is messy, such as the failure
to test or test data is not correct, consider the selected menu and the measured electronic control
①
③
②
④
⑤
⑤
A80 Pro Intelligent Diagnosis System
11
system is appropriate, you can find the vehicle ECU, through the ECU sticker model for menu
selection.
（5）You may not have a software upgrade or consult with the company's technical services when you
do not find the vehicle or electronic control system in the A80 Pro test menu.
（6）It is forbidden to use the wiring harness of the non-Xtool technology company to test the
connection to avoid unnecessary loss.
（7）In A80 Pro and vehicle communication, the direct shutdown is prohibited. You should cancel the
task before returning to the main interface for shutdown.
（8）The use of A80 Pro should be lightly handled, as far as possible to avoid vibration or impact. To
ensure the service life of the touchscreen, touch the screen gently.
（9）During long period of non-use, please disconnect the power and then turn off the A80 Pro unit.
3. Diagnosis
3.1 Menu selection
（1）After the VCI box is connected to the car and the A80 Pro host is successfully paired with the
wireless Bluetooth, the diagnostic interface can be performed as shown in the following figure.
A80 Pro Intelligent Diagnosis System
12

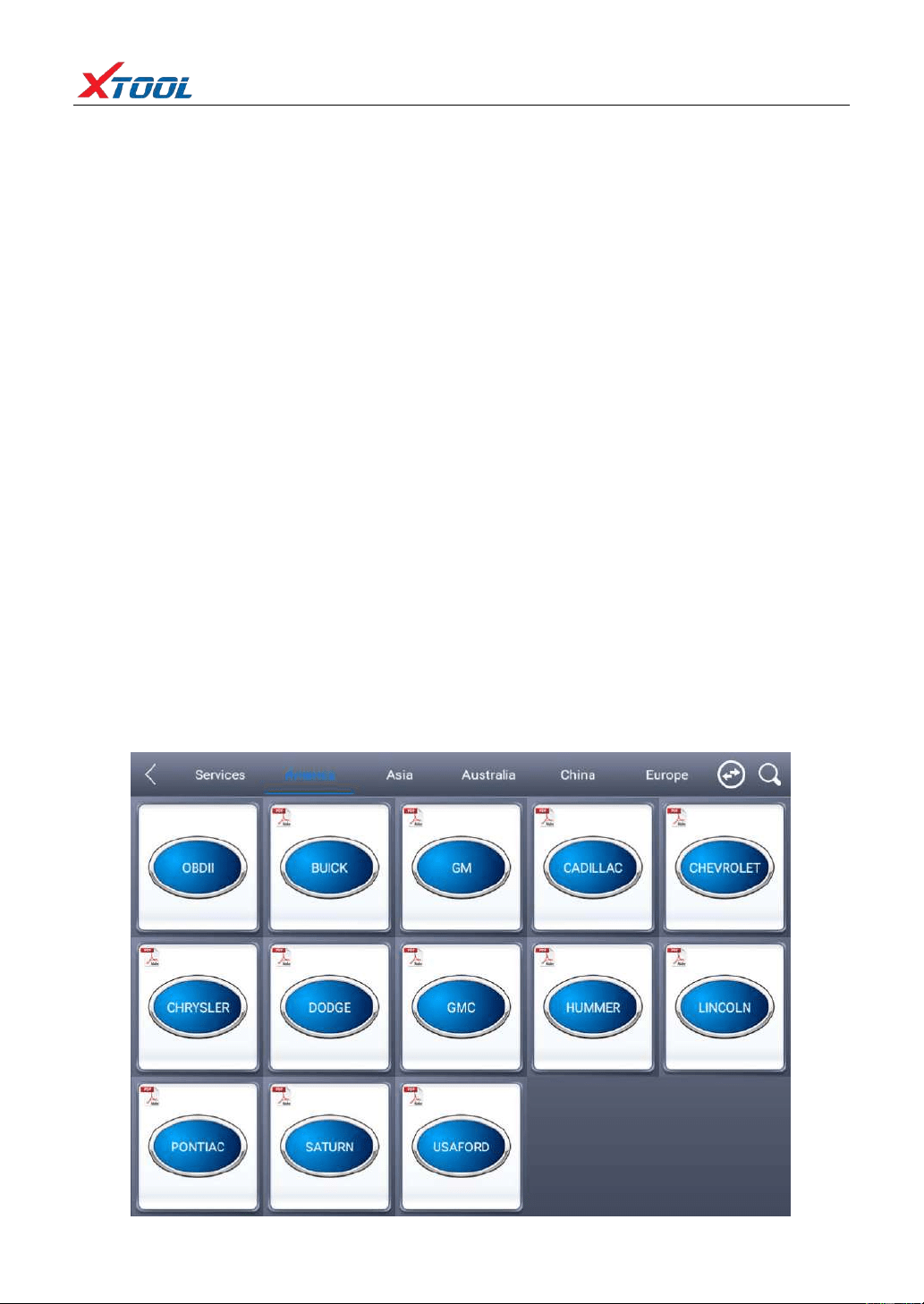

（2）The menu can be selected according to your needs: Choose European car to enter the European
car system, choose Asian Car Show Asian menu, choose the American Car into the American
menu, choose the domestic car into the domestic menu, according to the model of the diagnosis
of the choice of car system to enter the search. You can quickly search by clicking on the
magnifying glass icon in the top right corner and entering models.
（3）In addition to common system troubleshooting, the development team also develops a range of
special diagnostic functions for some vehicles, as follows.
3.2 Test function
（1）Using "BMW car" as an example, select "Royal Car V8.70", and then select the "GX9" menu to
enter, you can see the "Engine system" icon, find the UMC engine system (UDS), click into the
following image:
A80 Pro Intelligent Diagnosis System
13
The main function menu for different cars is slightly different, and the following options are
included in the common main features’ menu:
Read version information: This function reads the ECU version information and displays it as
“system identification” or “system information” menu in some electronic control. It has the same
meaning, and reads the software and hardware versions related to the ECU, the model of the diesel
engine, information such as the date of manufacture and part number. It is convenient for us to make
records during the maintenance process, and also facilitate future data feedback and data management.
Read ECU: Read the current fault code in the ECU.
Read DTCs: Read the fault codes of the history store in the ECU.
Clear DTCs: Clear the current and historical fault code memory stored in the ECU. It can be
cleared only after all faults have been eliminated. If there is a fault that is not eliminated, the fault
code cannot be successfully cleared. The fault code is always stored in the ECU and read this fault
code ever. Recommendation: Do not remove the fault code casually. After reading the fault code, we
must first record the fault content for the maintenance reference. When the fault is processed, there
will be no fault code after re-reading the fault code.
A80 Pro Intelligent Diagnosis System
14
Read live data: It is to read the parameters of the current engine running, such as oil pressure,
temperature, engine speed, fuel temperature, coolant temperature, intake air temperature and so on.
Through these parameters, we can basically directly determine which problems have occurred, so that
we have narrowed the scope when performing maintenance, which is more convenient. For many
vehicles in the actual operation process, because of the deviation of the operating characteristics of the
electronic components, the sensitivity reduction, which all can be judged in the data stream; For this
function, we need to be very familiar with the parameters of the engine, such as: idle speed For
800RPM or 750RPM, when the operating temperature of the coolant is 80-105 degrees Celsius, the
operating voltage and time of each sensor and actuator should be.
Actuation components test: The main purpose is to determine whether these actuator
components are working properly.
Special Features: Special models only.
（2）Toolbar function buttons description
Functional Buttons Descriptions
Returns to the previous interface.
Click to record the data, click again to send your feedback to XTOOL service
center.
3.3 Read ECU
This function is to read the ECU version information, in some of the electronic control displayed
as "System identification" or "System Information" menu, the meaning is the same., It reads the ECU
related software, hardware version and part number and other information. As shown in the following
figure.
A80 Pro Intelligent Diagnosis System
15
3.4 Read DTCs
Select the "Read fault code" function to read the electronic control ECU stored in the fault code,
read the fault code when the screen will display the read fault code and fault code definition, as shown
in the figure below. ▼
A80 Pro Intelligent Diagnosis System
16
Tip: When the fault vehicle is detected, if the "system normal" or "No Trouble code" is displayed,
the ECU does not store the relevant fault code or some fault phenomenon is not in the ECU
monitoring range, many belong to the mechanical system or circuit failure, it is possible that the
sensor in the range of signal deviation. This can be judged in the data flow function.
3.5 Clear DTCs
（1）After returning to the previous step, select the "Clear Code" function to clear the ECU stored in
the current and historical fault code memory, the implementation of this function will be the
current fault code and the history of the fault code to clear all, clear the fault code before you
need to confirm the failure code to record. As shown in the following figure.
（2）Click "Yes" confirmation after clearing the fault code, such as normal communication will show
"failure code cleanup success" or "fault code has been cleared", usually after clearing the fault
code and read the code to confirm the failure code is cleared.
A80 Pro Intelligent Diagnosis System
17
3.6 Read live Data
Click "Save As Reference" function key, will save this model the current data stream of this
system as a reference; Click the "Data Playback" function key to record the current data stream
Dynamic Data, please go to the diagnostic report inside the data playback for review.
3.7 Special function
The special functions of different vehicle systems will also be different.
3.8 Actuating components test
Test conditions: Follow the instructions, for example: The engine is not running and the ignition
switch is turned on. If the engine is started or the speed signal is recognized, the motion test diagnosis
is interrupted.
A80 Pro Intelligent Diagnosis System
18
（1）Return the menu to "dynamic diagnostic data" to see the "Action test" function menu, choose to
display the system can be used to perform action test of the Actuator component menu.
Tip: The "Action test" function is a part of the system to perform functional testing of
components, when performing this function, the diagnostic instrument will simulate the ECU signal to
carry out the action of the component to determine whether the actuator or line is good.
（2）Return the menu to "dynamic diagnostic data" to see the "Action test" function menu and select
the Actuator component menu that will display the system for action testing.
4. Setting
Choose the "Settings" application to open the Settings screen, you can set the language units and
system-related selection, and so on, the following 6 options are set:
Language: Select the language and select the desired language in the language options on the right.
A80 Pro Intelligent Diagnosis System
19
Units: Select units of measure, metric or imperial tick
Bluetooth：
1. Host click on the gear icon to enter settings, tap Bluetooth, and then click Search Bluetooth,
Bluetooth name for the corresponding serial number or diagnostic.
2. Then go to A80 Pro app click Settings, turn on Bluetooth, tick, as shown in the following image:
A80 Pro Intelligent Diagnosis System
20
Self-test: Check the VCI box yourself to see if there is a malfunction.
5. Diagnose report
Diagnostic Report is used for viewing and printing the saved files, such as Live Data, Trouble
Codes or pictures generated in the process of diagnosis, users also can view a record of which cars have
been previously tested. It includes three parts: PDF Files, Pictures and Data Playback.
5.1 Diagnose report
A80 Pro Intelligent Diagnosis System
21
The diagnostic report of the data stream or fault code in the course of the vehicle is checked into
the various diagnostic reports.
5.2 Data playback
The Data playback feature lets you see which cars, which systems, and playback of recorded data
streams freeze frames.
6. One-click upgrade
The A80 Pro device no longer requires a card to be upgraded, just open the app and click
Upgrade, as shown in the following figure.
A80 Pro Intelligent Diagnosis System
22
7. Xtool Cloud System
All vehicle maintenance Technicians using our equipment can easily inquire about the
maintenance information we put on the cloud service platform, and can be combined with the results
of the car diagnosis to query and use, and use the forum to communicate with other Xtool users, but
also access to an online database that provides extensive repair and diagnostic techniques as well as
vehicle maintenance programs.
8. Remote control
Maintenance Master in the repair process encountered problems, do not know how to solve, you
can open the application to seek Remote Assistance.
How to accept support from the Xtool Technology Center:
8.1 Turn on A80 Pro and go to the A80 Pro App.
8.2 Click the "remote Control" application to open the TeamViewer interface. Generate and display
the device ID.
8.3 Provide your ID to the after-sales technical support staff.
A80 Pro Intelligent Diagnosis System
23
8.4 System pop-up window, allow the other control can be remote control, after-sales technical
support personnel control your A80 Pro, please do not operate the equipment, as far as possible to
cooperate with the staff to complete the operation.
A80 Pro Intelligent Diagnosis System
24
Chapter III Location of Diagnostic link connectors on
Different vehicle Models
1. Diagnostic link connectors locations of various vehicle models
*AUDI A6: the OBD plug is on the lower left side of the dashboard, use SMART OBDII-16 connector.
*VW Bollywood 1.8: the OBD plug is below the console, use SMART OBDII-16 connector.
*Benz S320,220 Chassis: the OBD plug is below the dashboard, use SMART OBDII-16 connector.
A80 Pro Intelligent Diagnosis System
25
*Benz C180: the OBD plug is on the left side of the engine bay, use Benz-38 connector.
*Benz 300SEL 140 chassis: the OBD plug is on the left side of the engine bay, use Benz-38 connector.
*GM Buick: the OBD plug is below the dashboard, use SMART OBDII-16 connector.
*GM Buick GL8: the OBD plug is below the dashboard, use SMART OBDII-16 connector.
A80 Pro Intelligent Diagnosis System
26
*VW POLO: the OBD plug is below the dashboard, use SMART OBDII-16 connector.
*BMW 735I: the OBD plug is in the right hands side of the engine bay, use BMW-20 connector.
*VW Passat B5: the OBD plug is behind the gearlever and beside the parking brake lever. Lift the
cover to access it. Use SMART OBDII-16 connector.
A80 Pro Intelligent Diagnosis System
27
2. Location diagram of vehicle diagnostic link connectors
Location diagram of pick-up truck diagnostic link connectors：
Location diagram of utility vehicles diagnostic link connectors：
Link diagram of small car diagnostic link connectors：
NOTE: Each vehicle manufacturer may use additional pins to diagnose a variety of systems. Not
every manufacturer uses the same standard. The function on a certain pin will vary from
manufacturer to manufacturer. Verify with the manufacturer.
3. Diagnostic Link Connectors Terminal Definition and Communication
Protocols
3.1 Standard OBDII Diagnostic Link Connector
A80 Pro Intelligent Diagnosis System
28
Pin definition (reference material)
Various pin definitions as follows:
1. Manufacturer definition
2. SAE J1850 bus positive
3. Manufacturer definition
4. Bodywork site
5. Signal site
6. ISO 15765-4 defined CAN high
7. ISO9141 and ISO14230 defined K line
8. Manufacturer definition
9. Manufacturer definition
10. SAE J1850 bus negative
11. Manufacturer definition
12. Manufacturer definition
13. Manufacturer definition
14. ISO 15765-4 defined CAN low
15. ISO9141 and ISO14230 defined L line
16. Permanent positive voltage
[1]1, 3, 8, 9, 11, 12 and 13 are defined by manufacturer.
[2] 2, 6, 7, 10, 14 and 15 are used for diagnostic communication. Unused definitions can be
defined by manufacturers
A80 Pro Intelligent Diagnosis System
29
Chapter IV Additional Information
1. Description of OBDII and the function of sensor components
1.1 OBDII function description
In 1994, the American Society of Automotive Engineers proposed the second generation of
self-diagnosis system for on-board faults, namely OBD-II. OBD-II unifies the form of the fault
detection socket, the number and meaning of the fault code, and the reading method of the fault code,
and adds a strong data stream detection function. However, the fault code and data flow can only be
obtained with the microcomputer fault detector, and the fault code cannot be read manually. So far,
after the 1996 production of vehicles in the United States, the introduction of vehicles produced by
American technology (such as Shanghai Buick, etc.) and vehicles sold to the United States, only
OBD-II has been adopted, and OBD-I has been completely abandoned, other vehicles are generally
OBD-I and OBD-II coexist.
Electronic technology is applied to the engine management system. In addition to basic functions
such as fuel injection and ignition functions, as well as on-board (OBD) function. When the system
fails, the fault light (MIL) or the check engine warning light (Check Engine) lights up. At the same
time, the powertrain control module (PCM) stores the fault information in the memory, and the fault
code can be read out from the PCM through a certain program. According to the prompt of the fault
code, you can quickly and accurately determine the nature and location of the fault, and then
specifically check the relevant parts, components and lines to eliminate the faults.
OBD II set standards. The main points of the standard are as follows：
（1）Standardized 16-pin diagnostic seats (DLC)
（2）Standardized electronic protocols
（3）Standardized diagnostic codes (DTC)
（4）Standardized technology
The OBD II system is technologically advanced and very effective in detecting emissions problems,
but OBD II is powerless to warn drivers of whether to accept MIL warnings. To this end, OBD III
A80 Pro Intelligent Diagnosis System
30
system development, which is further than OBD II, is on the agenda.
The OBD III system mainly uses a small car wireless transceiver system to automatically notify
the management department of the VIN, fault code and location of the vehicle through wireless
cellular communication, satellite communication or GPS system. The management department
according to the level of the vehicle emission problem. Issue instructions, including advice on where
to go for repairs, and time limits for solving emissions problems. A ban on passwords is issued for
vehicles that exceed the time limit, as permitted by law. In short, the main feature of OBD III is the
support of social regulations. In China, there are some feasible solutions in combination with national
conditions, such as the setting time limit of MIL warning lights, and the over-limit vehicles will be
automatically banned. In addition, the OBD III system not only warns the driver of vehicle emissions,
but also penalizes those who do not accept the warning.
1.2 Sensor element function
The control basic sensor of the car microcomputer control system detects the working condition
of the car, and the electronic control unit processes and judges to issue the command execution
component, and executes the command to complete the optimal work requirement.
Sensor connection example diagram (as shown below)▼
Sensor
Electronic
control unit
Operati
ng units
A80 Pro Intelligent Diagnosis System
31
（1）ECU (Electronic Control Unit)
The ECU is the control center of the electronically controlled engine, which can control the
action of each actuator by receiving the engine operation information transmitted by each sensor.
The ECU calculates the signals of the external sensors and limits them to the allowed voltage
levels. The microprocessor calculates the injection time and injection timing from the input data and
the stored MAP chart and converts these times into a time varying voltage process that matches the
engine operation. Due to the high precision required, the engine's operation is highly variable, so the
calculation efficiency should be high.
The final stage is controlled by the output voltage, which provides sufficient power to regulate
the common rail pressure operating units (Actuator) and shut off the plunger supply. In addition, the
actuator controls engine functions (e.g. exhaust gas recirculation actuators, boost pressure actuators,
electric oil pump actuators) and other auxiliary functions (e.g. fan relays, auxiliary heating relays,
preheating relays, air conditioning units). The final stage is protected by short circuit protection and
electrical overload. This type of fault and wire disconnection is fed back to the microprocessor. The
diagnostic function at the end of the injector also identifies defective signal changes. In addition, some
of the output signals are transmitted to other systems of the vehicle via the interface. Within the scope
of the safety program, the ECU also monitors the entire fuel injection system.
The ECU also contains a monitoring module. The ECU and the monitoring module monitor each
other and if a fault is found, any one of them can be separated from the other and cut off the fuel.
（2）Camshaft speed sensor
The camshaft controls the intake and exhaust valves, which rotate at half the crankshaft speed. Its
position determines that the piston moving up the dead point is in the compression stroke and then in
the firing or exhaust stroke. This information is not available from the crankshaft position during
starting. In contrast, the information generated by the crankshaft sensor is sufficient to determine the
engine state while the vehicle is running. That is to say, the ECU still knows the engine state when the
camshaft speed sensor fails during vehicle operation.
The camshaft speed sensor uses the Hall Effect to determine the position of the camshaft. The
A80 Pro Intelligent Diagnosis System
32
Hall Effect is as follows: A tooth made of ferromagnetic material is placed on the camshaft, and the
teeth rotate with the camshaft. When the semiconductor wafer through which the current flows in the
camshaft rotational speed sensor passes the tooth, the magnetic field of the sensor deflects the flow of
electrons on the semiconductor wafer perpendicular to the direction of the current. Thus, a voltage
signal (Hall voltage) is formed in a short time, and this signal informs the ECU that the first cylinder
is in the compression stroke.
（3）Temperature sensor
The temperature sensor is used in several places: ○
1
in the cooling water circuit to infer the
engine temperature from the cooling water temperature; ○
2
used in the intake port to determine the
temperature of the intake air; ○
3
used in the oil to determine Oil temperature (optional);
（4）Air flow sensor
○
4
used in the
fuel return oil line to determine the fuel temperature (optional). The sensor has a
temperature-dependent resistance, the temperature coefficient of the resistor is negative, and the
high-sensitivity NTC (negative temperature coefficient thermistor) resistance increases with
temperature. It is a part of voltage divider circuit powered by 5V support. The voltage connected to
the resistor is read by an analog-to-digital converter, which is a measure of temperature. There is a
characteristic curve in the microprocessor of the ECU that gives the corresponding temperature for
any voltage.
In order to achieve the statutory emission limits, especially in the case of dynamic engine
operation, the air-fuel ratio must be maintained. For this purpose, sensors that accurately determine
the actual intake air mass flow are used. Changes in intake pulsation, back-flow, exhaust gas return
and camshaft control, and changes in intake air temperature must not affect the accuracy of the load
cell measurement. To achieve the above objectives, in a hot film air mass flow meter, heat is
extracted from a heated sensing element by heat transfer to the air mass flow. The micromechanical
measurement system works in conjunction with a hybrid circuit to measure air mass flow, including
flow direction. When the air mass flow is strongly pulsating, back-flow can be identified. The
micromechanical sensing element is disposed in the plug sensor flow path. The plug-in sensor can
A80 Pro Intelligent Diagnosis System
33
be mounted in the air filter or in the measuring tube of the air guiding section. The measuring tubes
are available in a variety of sizes depending on the maximum air flow required by the engine. The
relationship between signal voltage and air mass flow can be divided into two signal ranges of
reverse and forward flow. In order to improve the measurement accuracy, the measurement signal is
correlated with a reference voltage derived from engine control. The characteristics of the
characteristic curve are designed such that the wire breakage can be detected during the diagnosis of
the repair shop, for example by means of engine control. To determine the intake air temperature, a
temperature sensor can be built in.
（5）Intake pressure sensor
The intake pressure sensor detects the absolute pressure of the intake manifold behind the throttle
and the valve. It detects the change of the absolute pressure in the manifold according to the engine
speed and the load, and then converts it into a signal voltage and sends it to the controller (ECU). The
ECU controls and corrects the fuel injection amount based on this signal voltage.
Note: The sensor pressure port should be perpendicular to the mounting surface. The maximum
angle between the sensor and the vertical direction should not exceed 60 degrees. The sensor should
not be installed after the air intake heating device (if equipped). It is forbidden to enter the sensor
during painting or cleaning.
（6）Accelerator pedal sensor
Unlike ordinary distribution pumps or in-line pumps, in diesel electrical control devices, the
driver's acceleration requirements are no longer transmitted to the fuel injection pump through the
cable or transmission rod system, but are learned by the accelerator pedal sensor and transmitted to
the power supply. Control the accelerator pedal. A voltage is developed in the accelerator pedal sensor
via a potentiometer based on the position of the accelerator pedal. The accelerator pedal position is
calculated from the voltage based on the MAP chart.
2. Common faults and elimination of electronic control system
Trouble shooting of common vehicle self-diagnosis systems
A80 Pro Intelligent Diagnosis System
34
Audi's V6 engine uses the MPFI multi-point fuel injection system, and its self-diagnostic system
has 30 different faults stored in the microcomputer. Its characteristics are:
If the fault exists for more than a certain amount of time, the fault is stored in the memory in a
stable form.
If a failure occurred during a certain period of time, the fault is considered to be a sporadic fault,
and if the engine is started 50 times and the fault still does not occur again, the occasional fault will be
automatically cleared.
After turning off the ignition switch 150 minutes, the microcomputer enters the self-holding
stage, if the fuel injection and ignition system is repaired during this period, then the fault code that
has been stored should be recalled and removed.
Chrysler Automotive Fault Self-Diagnostic System
Chrysler Automobile's electronic control system is referred to as SBEC. When a car fails, the
corresponding fault information is stored in SBEC in the form of code.
Each time the ignition switch is turned on, the “CHECKENGINE” indicator will flash for a few
seconds to indicate that the indicator is working properly. If the SBEC receives an abnormal signal
from various sensors or does not receive the signal at all, the instrument panel The “CHECK
ENGINE” indicator will illuminate, indicating that the engine is faulty and needs to be serviced.
The method of entering the self-diagnosis state is to switch the ignition switch three times within
five seconds, that is, ON→OFF→ON→OFF→ON, at this time, the “CHECKENGINE” indicator on
the instrument panel will flash, thereby displaying the stored the fault code. The fault code is cleared
by using the dedicated instrument DRBII to clear the fault code. If there is no DRBII, the ignition
switch can be turned ON/OFF 50 times and the fault code is cleared.
A80 Pro Intelligent Diagnosis System
35
Volvo Car Fault Self-Diagnostic System
The interface of the Volvo series of self-diagnostic system is in the right front corner of the car
body, the engine cover is opened, and the front left headlights have two diagnostic seats A and B. The
A seat has a diagnostic jumper, an LED light and a button. There are six diagnostic jacks in each of
the two diagnostic seats A and B, each connected to a different diagnostic system.
Block A:
Hole 1 → Transmission
Hole 2 → Fuel System
Hole 3 → ABS System
Hole 5 → Turbocharging System
Hole 6 → Ignition System
Hole 7 → Instrument Diagnostic System
Block B:
Hole 1 → Central Air Conditioning
Hole 2 → Constant Speed Control System
Hole 5 → Airbag
Hole 6 →Power Seat
A80 Pro Intelligent Diagnosis System
36
The Volvo series models are capable of diagnosing 10 systems in terms of self-diagnostic
functions, and in each system diagnosis, they can be divided into six modes:
1 fault code reading
2 control component action test;
3 Each control element operates simultaneously to control the test;
4 Develop component motion command control test;
5 numerical reading analysis instructions;
6 Reset the microcomputer memory command.
When diagnosing the car, you can use the jumper on the diagnostic stand directly into the
different diagnostic holes, and press the buttons on the diagnostic stand to select various specific
diagnostic modes by pressing 1 to 6 respectively.
To clear the fault code, first insert the diagnostic jumper into the corresponding diagnostic hole
of the system to be diagnosed, set the ignition switch to ON, and read the fault code first, until all fault
codes are displayed, the LED light is continuously on. From then on, press and hold the diagnostic
button for more than 5 seconds to clear the fault code.
Crown auto ABS fault self-diagnosis system
The new Crown sedan uses an anti-lock braking system (ABS). If the system fails, the fault
self-diagnosis system in the anti-lock braking system will identify the fault that occurred, and the
microcomputer (ABSECU) will represent the fault. The code is stored and the fault message is
communicated to the owner via the ABS warning light (installed in the upper left corner of the
instrument cluster).
A80 Pro Intelligent Diagnosis System
37
To clear the fault code, turn on the ignition switch and connect the Tc and El terminals of the
diagnostic interface with a jumper. Keep the car still, and press the brake pedal continuously for more
than 8 times in 3 seconds. In this way, the fault code in the ABS ECU will be cleared.
Shenzhen Xtooltech Co., Ltd
Company address: 2nd Floor, Building No.2, Block 1, Excellence City, No.128, Zhongkang
Road, Shangmeilin, Futian District, Shenzhen, China
Factory address: 2/F, Building 12, Tangtou Third Industrial Zone, Shiyan Street, Baoan
District, Shenzhen, China
Service Hotline: 400-880-3086/ 0755-21670995
Email: marketing@xtooltech.com
Fax: 0755-83461644
Website: www.xtooltech.com
Dealer:www.xtool.co.uk
