CONTENTS
INTRODUCTION
SAFETY
GETTING TO KNOW YOUR PRODUCT
USING YOUR APPLIANCE
USING THE GRILL
USING THE TOP OVEN
USING THE MAIN OVEN FANNED
COOKING GUIDE
BAKING GUIDE
ROASTING GUIDE
CLOCKPROGRAMMER
REMOVING SHELF RUNNERS
CLEANING YOUR APPLIANCE
TECHNICAL DATA
4
INTRODUCTION
Thank you for buying this British-built appliance from
us.
This user guide book is designed to help you through
each step of owning your new product.
Please read it carefully before you start using your
appliance, as we have endeavored to answer as many
questions as possible, and provide you with as much
support as we can.
General information, spares and service information is
available from our website.
If you should find something missing from your
product or have any questions that are not covered
in this user guide, please contact us (see contact
information inside the front cover).
EUROPEAN DIRECTIVES
As a producer and a supplier of cooking appliances we
are committed to the protection of the environment
and are in the compliance with the WEEE directive.
All our electric products are labelled accordingly with
the crossed out wheeled bin symbol. This indicates, for
disposal purposes at end of life, that these products
must be taken to a recognized collection points, such
as local authority sites/local recycling centres.
This appliance Complies with European Community
Directives (CE) for household and similar electrical
appliances and Gas appliances where applicable.
This appliance conforms to European Directive
regarding Eco design requirements for energy-related
products. Our policy is one of constant development
and improvement, therefore we cannot guarantee
the strict accuracy of all of our illustrations and
specifications – changes may have been made
subsequent to publishing.
DISPOSAL OF PACKAGING
MATERIAL
The packaging materials used with this
appliance can be recycled. Please dispose of
the packaging materials in the appropriate
container at your local waste disposal
facilities.
6 GAS WARNING! - If you smell gas: Do
not try to light any appliance, Do not
touch any electrical switch. Contact your
local gas supplier immediately.
5
SAFETY
WARNING
6 Never put items directly on the base
of the oven or cover the oven with foil,
as this can cause the base element to
overheat.
6 Accessible parts may become hot when
the grill is in use. Children should be kept
away
6 Do not place articles on or against the
appliance.
6 Always switch off your appliance and
allow it to cool down before you clean
any part of it.
6 Although every care has been taken to
ensure this appliance has no sharp edges,
we recommend that you wear protective
gloves when installing and moving this
appliance. This will prevent injury.
6 This appliance must be fitted to a switch
providing all pole disconnection with a
minimum contact separation of 3mm.
6 Connection should be made with a
suitable flexible cable with a minimum
temperature of 70°C.
6 Do not use a steam cleaner on any
cooking range, hob or oven appliance.
6 If your appliance is fitted with a lid, any
spillage should be removed from the lid
before opening. The hob surface should
be allowed to cool before closing the lid
(if fitted).
6 To avoid electric shock, ensure that the
appliance is switched off before replacing
the lamp.
6 The appliance is not intended to be
operated by means of an external timer
or separate control system.
6 Unattended cooking on a hob with fat or
oil can be dangerous and may result in
fire.
6 NEVER try to extinguish a fire with water,
but switch off the appliance and then
cover the flame with a lid or damp cloth.
6 Danger of fire: Do not store items on the
cooking surfaces.
6 Only use hob guards designed by the
manufacturer of the cooking appliance
or indicated by the manufacturer of the
appliance in the instructions for use as
suitable or hob guards incorporated in
the appliance. The use of inappropriate
hob guards can cause accidents.
6 If the cooker is placed on a base,
measures have to be taken to prevent the
appliance slipping from the base.
6 The cooking process has to be supervised.
A short term cooking process has to be
supervised continuously.
6 This appliance must not be installed
behind a decorative door in order to avoid
overheating.
6 Ensure shelving is correctly installed. See
the sections on the shelf runners and
shelf location within this book.
6 This appliance is for cooking purposes
only. It must not be used for other
purposes, for example room heating.
6
CAUTION
6 The use of a gas cooking appliance
results in the production of heat,
moisture and products of combustion
in the room in which it is installed.
Ensure that the kitchen is well ventilated
especially when the appliance is in use:
keep natural ventilation holes open or
install a mechanical ventilation device
(mechanical extractor hood). Prolonged
intensive use of the appliance may call
for additional ventilation, for example
opening of a window, or more effective
ventilation, for example increasing the
level of mechanical ventilation where
present.
FIRE SAFETY ADVICE
6 If you do have a fire in the kitchen, don’t
take any risks – get everyone out of your
home and call the Fire Service.
If you have an electrical fire in the
kitchen:
1. Pull the plug out, or switch off the
power at the fuse box – this may be
enough to stop the fire immediately
2. Smother the fire with a fire blanket,
or use a dry powder or carbon dioxide
extinguisher
6 Remember: never use water on an
electrical or cooking oil fire.
OTHER SAFETY ADVICE
6 Servicing should be carried out only by
authorised personnel.
6 Do not operate the appliance without the
glass panel correctly fitted.
6 There is a risk of electric shock, so always
make sure you have turned off and
unplugged your appliance. Always allow
the product to cool down before you
change a bulb.
6 Do not modify the outer panels of this
appliance in any way.
6 This appliance must be earthed.
6 The appliance must never be
disconnected from the mains supply
during use, as this will seriously affect
the safety and performance, particularly
in relation to surface temperatures
becoming hot and gas operated parts
not working efficiently. The cooling fan
(if fitted) is designed to run on after the
control knob has been switched off.
7
GETTING TO KNOW YOUR PRODUCT
4
Note: Your appliance layout may differ
depending on the model.
HOB
1
2
3
2
4
1
Small Left hand rear
2
Medium
Left hand front
Right hand rear
3
Wok Middle
4
Large Right hand front

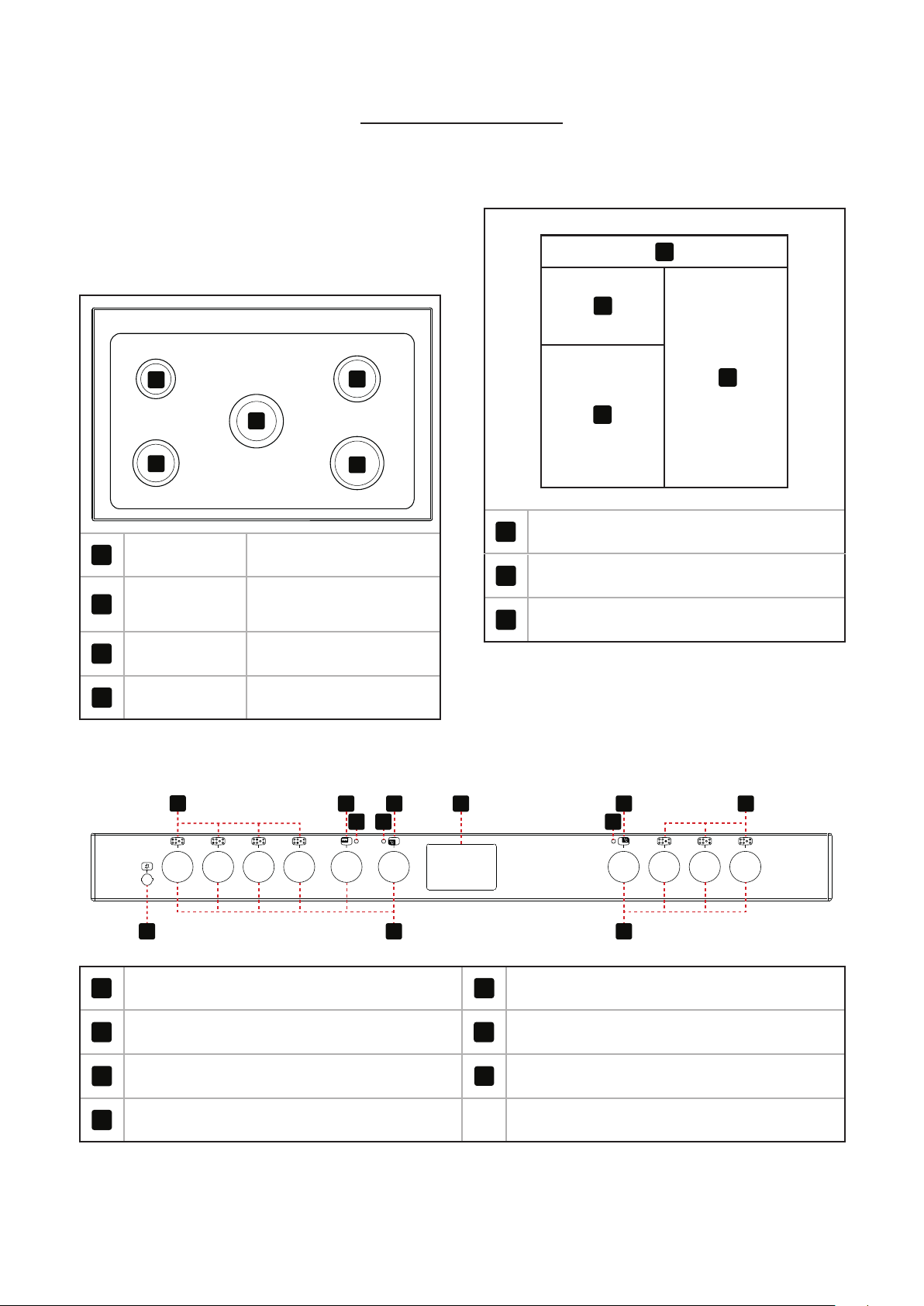

OVERVIEW
90cm
1
2
3
3
1
Fascia
2
Top Oven/Grill
3
Main Oven (Fanned)
CONTROL PANEL
1
6 3 64
5 5
3
5
810 8
1
Cook Zones
6
Top Oven/Grill
3
Oven
8
Hob and Oven controls
4
Clock/Programmer
10
Ignition switch
5
Thermostat indicator
8
OVEN CONTROLS
Oven
OFF
60
8
0
120
140
1
60
180
200
220
240
S
Top Oven/Grill
OFF
60
80
10
0
120
140
160
180
200
22
0
240
260
Single Grill
OFF
1
7
8
2
3
4
5
6
Dual Grill
OFF
1
2
3
4
5
1
2
3
4
5
D
u
a
l
G
r
i
l
l
S
i
n
g
l
e
G
r
i
l
l

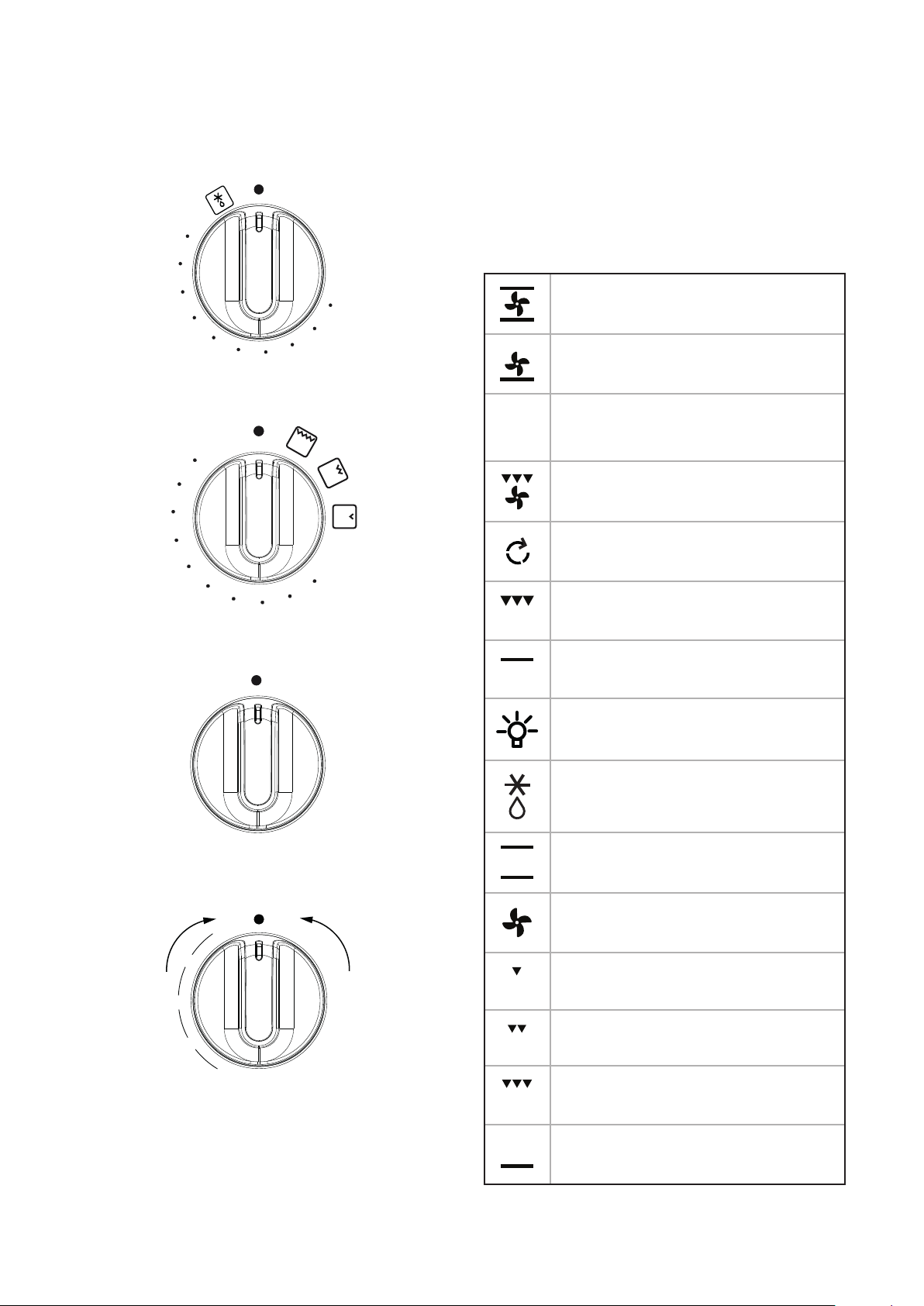

APPLIANCE FUNCTIONS
4
Note: Your oven may not have all of the
functions shown here. We recommend
for best cooking results, please preheat
your oven for 15 minutes and 3−5
minutes for grilling.
Intense Baking
Base Heat with Fan
S
Slow Cook
Fanned Grill
Oven Selector Control
Conventional Grill
Top Heat
Lights Only
Defrost
Conventional oven
Fanned Oven
Low Grill
Single Grill
Dual Grill
Base Heat
9
USING YOUR APPLIANCE
OVENS AND GRILL
Main Oven &
Top Oven/Grill
Grill
When using the top oven or main oven, the red
thermostat indicator light will come on until the
selected temperature is reached.
When the Top oven/grill or grill is switched on, the
cooling fans come on to keep the fascia and control
knobs cool during cooking/grilling. The cooling
fans may operate when the main ovens are in use,
depending on the temperature setting. The fans may
continue to operate for a period after the oven/grill
has been switched off. During use the fan may cycle
on and off, this is normal.
6 Important: Never put items directly on
top the base of the oven, or cover the
oven base with foil, as this may cause
the element to overheat. Always position
items on the shelf.
Top Oven – Grill
6 The door must be OPEN when the grill is
used.
Main Oven – Grill
6 The door must be CLOSED when the
grill is used for fanned and conventional
grilling.
Tall Oven – Grill
6 The door must be OPEN when the grill is
used.

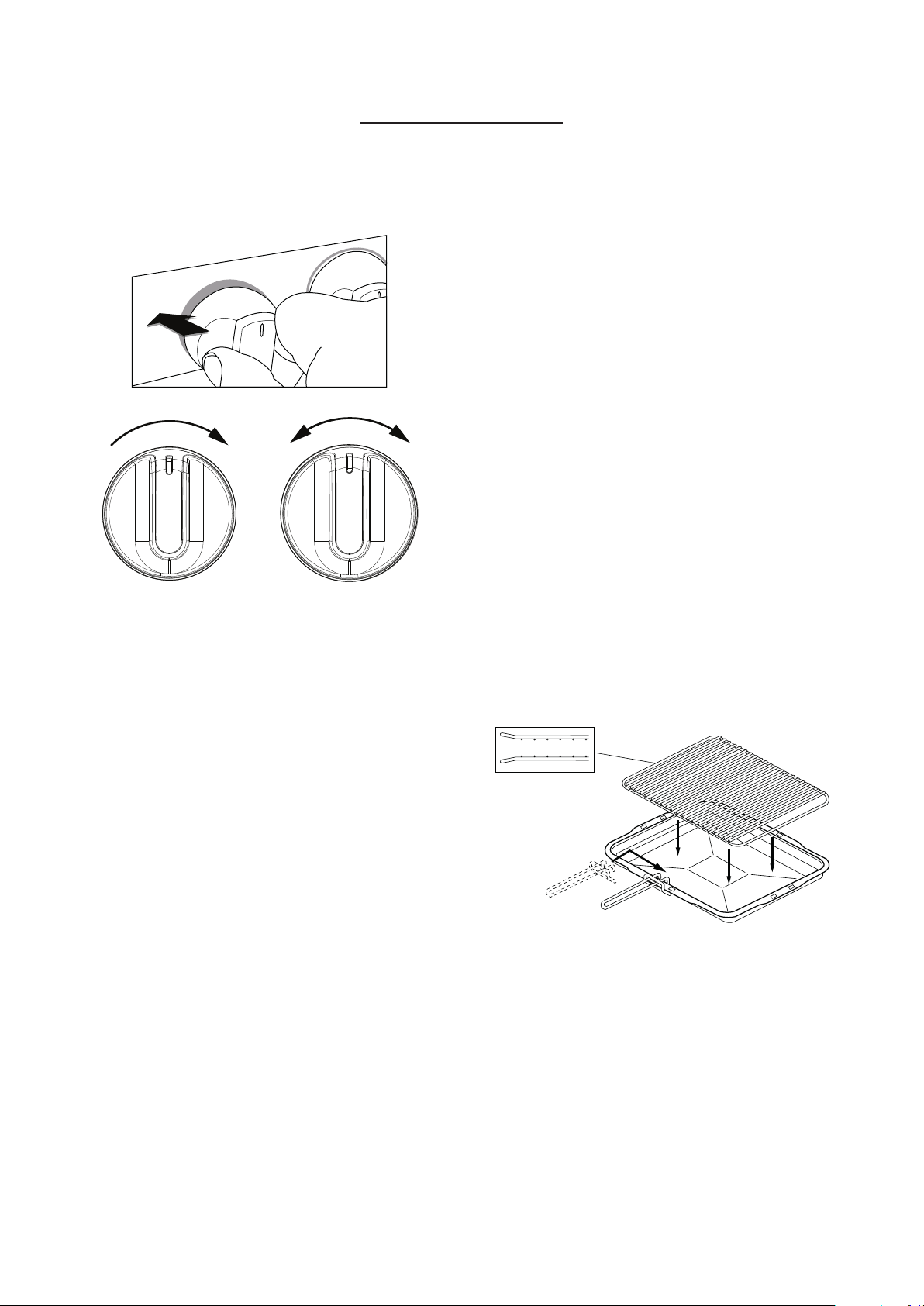

GRILL PAN, TRIVET AND
DETACHABLE GRILL PAN HANDLE
The grill trivet (inside the grill pan) can be inverted
to give a high or low position, or it may be removed.
The speed of grilling can be controlled by selecting a
higher or lower shelf position, or adjusting the grill
setting.
4
Note: Grill pan handle not included. This
can be purchased as an optional extra
from our spares store.
Inverted
6 The door must be open when the grill is
used for conventional grilling.
10
HOB

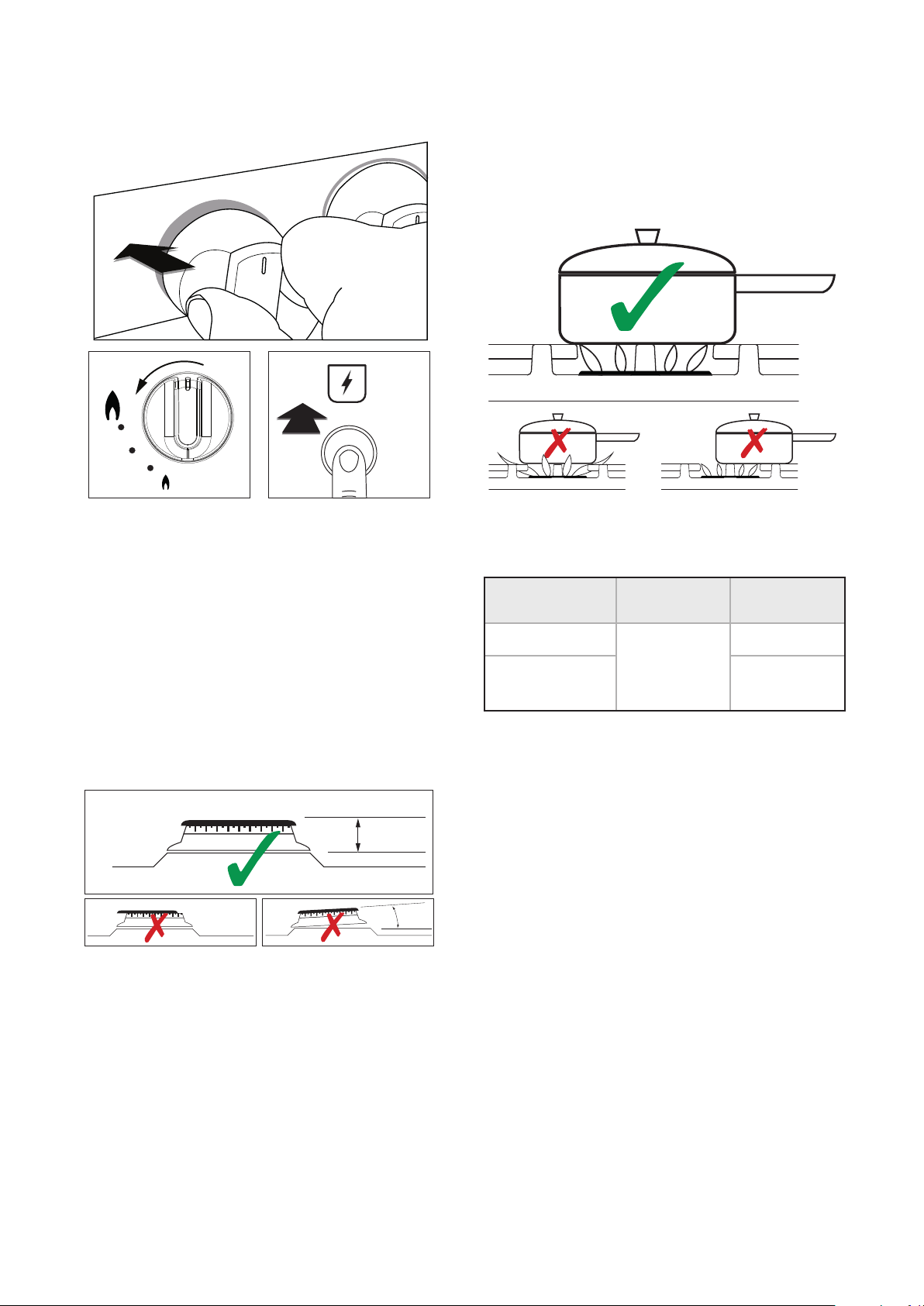

1. Hold the control knob and press the ignition in for
up to 15 seconds then release. For the wok, please
allow the burner to warm up for a few minutes.
2. Once lit, turn the control knob to the required
setting.
4
If the burner fails to ignite within this
time, release the control knob and wait 1
minute before attempting to re-ignite.
FITTING BURNER CAPS AND HEADS
PAN PLACEMENT
Always make sure that your pans are placed centrally
and do not allow the flame to extend over the base of
the pan. Do not place pans directly onto the burners.
PAN SIZES REQUIRED
Hob Cook Zones Minimum Pan
Sizes (mm)
Maximum Pan
Sizes (mm)
Rapid & Wok
100
260
All other cook
zones
250
6 Warning: Do not allow cooking vessels to
overlap cooking zones
11
USING THE GRILL
BEFORE YOU START GRILLING. . . .
Before you use the grill, make sure you have placed the
grill shelf in the position you need as once the grill is
on you may injure yourself if you try to move the shelf.
Do not close the door while the grill is in use.
Turn the top oven control knob to the required grill
setting.
Turn the grill control knob (if fitted) to the heat
setting you require.
To switch off, return the control knob(s) to the ‘off’
position.
The cooling fan will come on during use, and may
continue to run for some time afterwards.
To adjust your results, you can turn the grid over,
or remove it altogether.
The dual grill uses all of the top element and is
ideal for grilling large quantities of food.
The single grill uses part of the element only, and
is better suited to grill smaller amounts of food.
THE GRILL PAN
This appliance comes with a grill pan and trivet.
SHELF & TRIVET ADJUSTMENTS
Speed of grilling can be adjusted by changing the shelf
position or the turning the trivet.
High: For thin foods and toasting
Low: For thicker meat pieces.
ALUMINIUM FOIL
6 Never cover the grill pan or grill trivet
with foil, or allow fat to build up in the
grill pan, as this creates a fire hazard.
6 Accessible parts may become hot when
the grill is in use. Children should be kept
away
TYPES OF GRILL
Dual grill: has two grill elements which can be used
together, or as a single grill.
For best results: Pre-heat the single grill for 5
minutes and the dual grill for 3 minutes.
THE COOLING FAN
During use the fan may cycle on and off, this is
normal.
When the grill is switched on, the cooling fan comes
on to keep the fascia and control knobs cool during
grilling. The fan may continue to operate for a period
after the grill has been switched off.
12
USING THE TOP OVEN
6 When you are cooking keep children
away from the vicinity of the oven.
6 Caution: The top element gets extremely
hot when in use, so take extra care to
avoid touching it.
4
The top oven is a conventional oven.
4
Note: The top oven is not controlled by
the programmer.
OVEN FURNITURE
Oven shelves
The oven shelf must be positioned with the upstand at
the rear of the oven and facing upwards.
4
Extra shelves may be ordered from your
local supplier.
Baking tray and roasting tins
For best cooked results and even browning, the
recommended size baking trays and roasting tins that
should be used are as follows;
Baking tray 350mm x 250mm
Roasting tin 370mm x 320mm
4
Position baking trays and roasting tins on
the middle of the shelves, and leave one
clear shelf-position between shelves, to
allow for circulation of heat.
4
We recommend that you use good quality
cookware. Poor quality trays and tins may
warp when heated, leading to uneven
baking results.
Shelf positions
As a general guide, when cooking frozen or chilled
food, use the highest possible shelf position, while
allowing some clearance between the food and the top
element. Follow the instructions given on packaging.
The cooling fan
When the top oven is switched on, you will hear
the cooling fan come on – this keeps the fascia and
control knobs of the appliance cool during cooking.
The fan may continue to operate for a period after the
oven control has been switched off.
TO TURN ON THE TOP OVEN
1. Turn the temperature control knob until the
required temperature is selected.
The white thermostat indicator will come on until
the selected temperature is reached, and then go off.
It will turn on and off periodically as the thermostat
operates to maintain the selected tem-perature.
2. To switch off, return the top oven control knob to
the off position.
6 Important: Never put items directly on
the base of the oven, or cover the oven
base with foil, as this may cause the
element to overheat. Always position
items on the shelf.
13
PREHEATING
Preheat the oven until the indicator light switches
off for the first time, this will take up to 15 minutes
depending on the temperature selected.
4
The oven must be preheated when
cooking frozen or chilled foods, and
we recommend preheating for yeast
mixtures, batters, soufflés, and whisked
sponges.
4
If you are not preheating the oven, the
cooking times in the following guide may
need to be extended, as they are based on
a preheated oven.
4
Put the oven shelves in the position
required before preheating the oven.
The oven shelf must be positioned with the up-stand
at the rear of the oven and facing up. Position baking
trays and roast-ing tins on the middle of the shelves,
and leave one clear shelf position between shelves, to
allow for circulation of heat.
WHEN USING THE TOP OVEN
As part of the cooking process, hot air is expelled
through a vent at the top of the oven(s). When opening
the oven door, care should be taken to avoid any
possible contact with potentially hot air, since this
may cause discomfort to people with sensitive skin.
We recommend that you hold the underneath of the
oven door handle.
14
USING THE MAIN OVEN - FANNED
6 Accessible parts may be hot when the
oven is used. Young children should be
kept away.
OVEN FURNITURE
Oven shelves
The oven shelf must be positioned with the upstand at
the rear of the oven and facing upwards.
4
Extra shelves may be ordered from your
local supplier.
Baking tray and roasting tins
For best cooked results and even browning, the
recommended size baking trays and roasting tins that
should be used are as follows;
Baking tray 350mm x 250mm
This size of baking tray will hold up to 12 small cakes.
Roasting tin 370mm x 320mm
4
Position baking trays and roasting tins on
the middle of the shelves, and leave one
clear shelf-position between shelves, to
allow for circulation of heat.
4
We recommend that you use good quality
cookware. Poor quality trays and tins may
warp when heated, leading to uneven
baking results.
Shelf positions
As a general guide, when cooking frozen or chilled
food, use the highest possible shelf position, while
allowing some clearance between the food and the top
element. Follow the instructions given on packaging.
To help the air circulate freely
Position the shelves evenly within the oven and
maintain a clearance from the oven roof and base.
If more than one cooking dish or baking tray is to be
used on a shelf, leave a gap of at least 25mm between
the items themselves and the oven interior.
The cooling fan
The cooling fan may operate when the main oven is
on and may continue to operate for a period after the
oven has been switched off.
Aluminium Foil
6 Use foil only to cover food or cooking
dishes, using foil to cover the shelves or
oven base creates a fire hazard.
WHEN USING THE OVEN
As part of the cooking process, hot air is expelled
through a vent at the top of the oven(s). When opening
the oven door, care should be taken to avoid any
possible contact with potentially hot air, since this
may cause discomfort to people with sensitive skin.
We recommend that you hold the underneath of the
oven door handle.
15
To switch on the oven
Turn the oven control knob(s) to the required
setting.
The white thermostat neon (if fitted) will come
on until the selected temperature is reached and
then go off; it will turn on and off periodically as
the thermostat operates to maintain the selected
temperature.
To switch off, return the control knob to the off
position.
Preheating
Fanned oven
When cooking sensitive items such as souffle and
Yorkshire puddings or, when cooking bread, we
recommend that the oven is preheated until the neon
switches off for the first time. For any other types of
cooking, a preheat may not be required.
Conventional oven
Preheating is always required
Manual Operation (Left hand oven only)

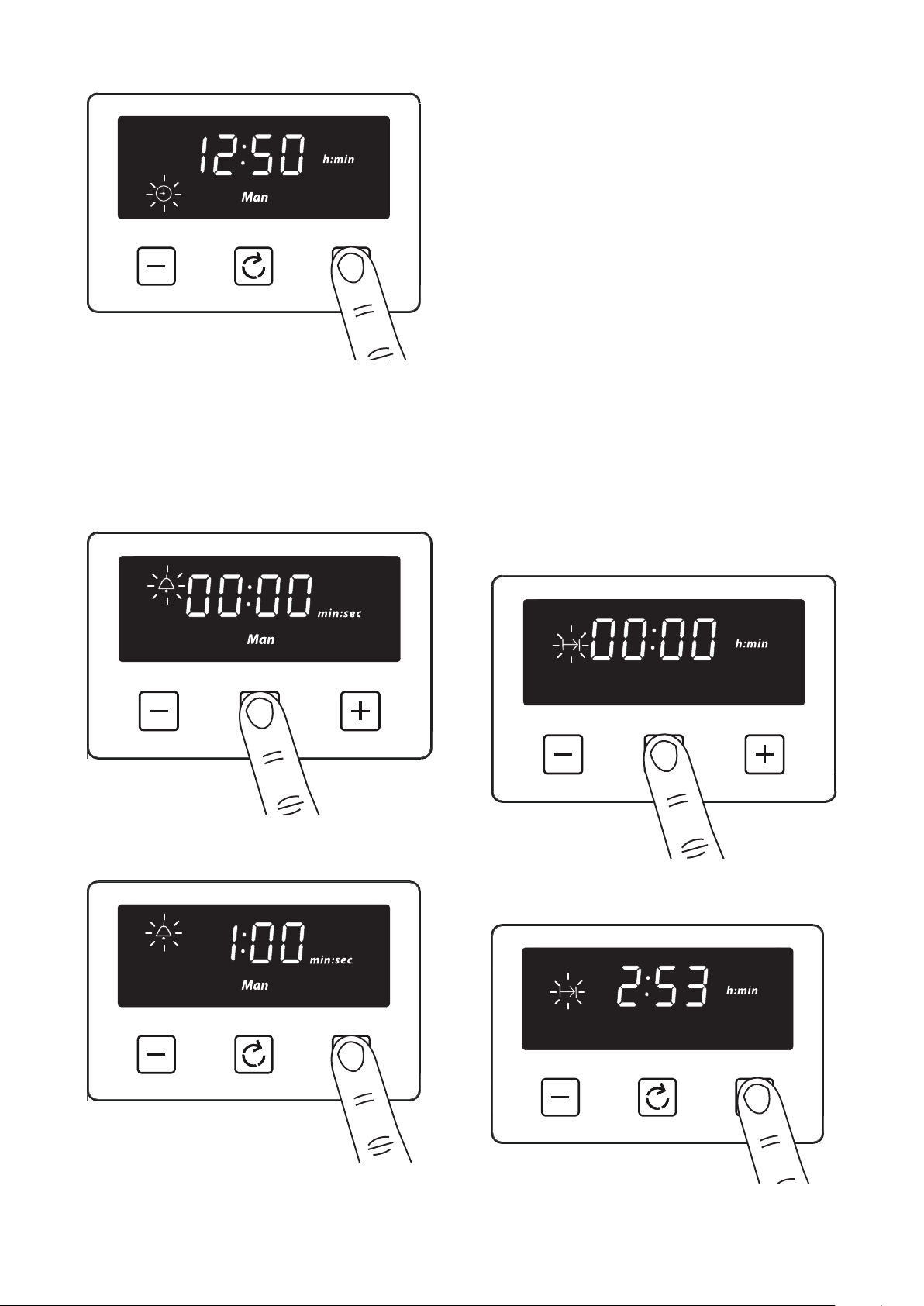

The programmer must be set to manual operation
before the main oven can be used. If A (Auto) is on the
programmer display, return the oven to manual by
pressing the plus and minus buttons simultaneously
or the Menu button where applicable. Any programme
which has been set is cancelled.
Cooking with a fanned oven
6 As this is a high efficiency oven, you may
notice the emission of steam from the
oven when the door is opened. Please
take care when opening the door.
If you are used to cooking with a conventional oven
you will find a number of differences to cooking with
a fan oven which will require a different approach:
There are no zones of heat in a fan oven as the
convection fan at the back of the oven ensures an even
temperature throughout the oven.
This makes it ideal for batch baking – eg; when
planning a party as all the items will be cooked within
the same length of time.
4
Foods are cooked at a lower temperature
than a conventional oven, so
conventional recipe temperature may
have to be reduced. Please refer to the
conversion chart.
4
Preheating is generally not necessary as a
fan oven warms up quickly.
4
There is no flavour transference in a fan
oven, which means you can cook strong
smelling foods such as fish at the same
time as mild foods – eg; milk puddings.
4
When batch baking foods that will rise
during cooking – eg; bread – always
ensure that enough space has been left
between the shelves to allow for the rise.
Notes:
4
When 2 or more shelves are being used, it
may be necessary to increase the cooking
time slightly.
4
Because the 2 oven shelves are wider
than in many ovens, it is possible to
cook 2 items per shelf – eg; 2 victoria
sandwiches or 2 casseroles.
4
When roasting meats, you will notice that
fat splashing is reduced, which is due in
part to the lower oven temperatures, and
will help keep cleaning of the oven to a
minimum.
4
Because a fan oven has an even
temperature throughout the oven, there
is no need to follow the shelf positions
given in the baking guide.
4
There is no need to interchange dishes
onto different shelves part way through
cooking, as with a conventional oven.
16
Keep Warm (Setting or 70°C)
This setting temperature is set to allow the user to
keep food warm without over cooking. This setting can
also thaw frozen foods, or warm plates.
4
Do not use this as a cooking function.
Defrosting and cooling in the main oven
To defrost frozen foods, turn the main oven control
to the Bread Proving position, place the food in the
centre of the oven and close the door.
To cool foods after cooking prior to refrigerating or
freezing, turn the main oven control to the defrost
position and open the door.
Defrosting times
4
Small or thin pieces of frozen fish or
meat – eg; fish filets, prawns & mince
will take approximately 1 – 2 hours.
4
Placing the food in a single layer will
reduce the thawing time.
4
A medium sized casserole or stew will
take approximately 3 – 4 hours.
4
A 1½kg/3lb oven ready chicken will
take approximately 5 hours, remove the
giblets as soon as possible.
Be safe
4
Do not defrost stuffed poultry using this
method.
4
Do not defrost larger joints of meat and
poultry over 2kg / 4lb using this method.
4
Never place uncooked food for defrosting
next to cooked food which is to be cooled,
as this can lead to cross contamination.
4
Defrosting meat, poultry, and fish can be
accelerated using this method but make
sure they are completely thawed before
cooking thoroughly. Place meat and
poultry on a trivet in a meat tin.
17
COOKING GUIDE
GRILL
Food Type Time Approx (mins)
Bacon
8 - 15
Sausages
12 - 15
Chops
- Lamb 10 - 15
- Pork 15 - 25
Toast
- 2 rounds 1 - 2 (per side)
- 4 rounds 1 - 2 (per side)
Bread products
- Buns 1 - 2 (per side)
- Tea cakes 1 - 2 (per side)
Cheese on toast
- 2 rounds 4 - 5
- 4 rounds 4 - 5
Fish
- Fillets 10 - 15
Chicken
- Fillets 20 - 30
Beef Steaks
- Rare 7 - 10
- Medium 10 - 15
- Well done 15 - 20
Gammon Steaks
12 - 15
4
As with any cooking guide, all times are
approximate and can be adjusted to suit
personal taste.
18
BAKING GUIDE
TOP OVEN
Cooking temperatures
The temperature settings and time given in the
Baking Guides are based on dishes made with block
margarine. If soft tub margarine is used, it may be
necessary to reduce the temperature setting. If a
recipe gives a different temperature set-ting to that
shown in the guide, the recipe instruction should be
followed.
4
Because the top oven is more compact,
it may be necessary to reduce cooking
temperatures specified in recipes by up
to 20°C.
4
Use the baking guide as a reference for
determining which temperatures to use.
Cooking times
4
These times are based on cooking in a
preheated oven.
4
These cooking times are approximate,
due to the size and type of cooking dish
and personal preferences.
Item Temperature (°C) Shelf Position Approximate cooking time
Small cakes 160°C - 180°C (fanned) 1 15 - 20 mins
Victoria sandwich (2 x 180mm
/ 7”)
160 1 20 - 25 mins
Swiss roll 200 1 8 - 12 mins
Semi rich fruit cake (180mm x
7”)
140 1 2¼ - 2¾ hours
Scones 215 1 10 - 15 mins
Meringues 90 - 100 1 2 - 3 hours
Shortcrust pastry 200 - 210 1
Depends on size & type
of cooking dish & also the
filling
Pu / flaky pastry 200 - 210 1
Choux pastry 200 - 210 1
Biscuits 160 - 200 2 10 - 20 mins
Sponge pudding 150 1 30 - 45 mins
Milk pudding 140 1 2 - 2½ hours
19
MAIN OVEN
Cooking times & temperatures
4
The temperature settings and times
given in the baking guide are based on
dishes made with block margarine. If
soft tub margarine is used it may be
necessary to reduce the temperature
setting.
4
Allow enough space between shelves for
food that will rise during cooking.
4
Do not place items on the oven base as
this will prevent air circulating freely.
4
Note: This is a fanned oven, therefore
some adjustment will have to be made to
conventional cooking temperatures. The
table below shows conventional cooking
temperatures, fanned oven temperatures
and gas marks. For optimum results,
conventional temperatures need to be
converted to fanned oven temperatures.
For example, an item which would
normally cook at a conventional
temperature of 180 °C, will now cook at
the fanned oven temperature of 160 °C.
Conventional temperature (°C) Fanned Oven (°C) Gas Mark
100
110
130
140
150
160
180 - 190
200
220
230
250
100
110
120
130
140
150
160
170
180
190
200
1/4
1/4
1/2
1
2
3
4 - 5
6
7
8
9
Food Type Temp. Setting °C Time Approx. Shelf Position
Cakes
Small cakes 190 160 15 - 25 2 - 4
Victoria sandwich 180 160 20 - 30 3
Semi rich fruit cake 150 125 2½ - 3 hours 2
Christmas cake 150 125 2½ - 3 hours 2
Puddings
Bread & butter pudding 170 150 45 - 1 hour 3
Fruit crumble 200 175 40 - 1 hour 3
20
Food Type Temp. Setting °C Time Approx. Shelf Position
Miscellaneous
Yorkshire pudding:
- large 220 200 40 - 48 4 - 5
- small 220 200 15 - 20 4 - 5
Shortcrust pastry 200 180 depends on filling 4 - 5
GENERAL BAKING GUIDE
Traditional fruit cakes
It should be remembered that ovens can vary over
time, therefore cooking times can vary, making it
difficult to be precise when baking fruit cakes.
It is necessary therefore, to test the cake before
removal from the oven. Use a fine warmed skewer
inserted into the centre of the cake. If the skewer
comes out clean, then the cake is cooked.
4
Follow the temperatures suggested in the
recipe and then adjust accordingly to the
conversion table.
4
Do not attempt to make Christmas cakes
larger than the oven can cope with, you
should allow at least 25mm (1”) space
between the oven walls and the tin.
4
Always follow the temperatures
recommended in the recipe.
4
To protect a very rich fruit cake during
cooking, tie 2 layers of brown paper
around the tin.
4
We recommend that the cake tin is not
stood on layers of brown paper, as this
can hinder effective circulation of air.
4
Do not use soft tub margarine for rich
fruit cakes, unless specified in the recipe.
4
Always use the correct size and shape of
tin for the recipe quantities.
Trouble-shooting – fruit cakes
21
Problem Possible Cause
Fruit sinking to
the bottom
Low oven temperature which
may cause the cake to take
longer to set, allowing the
fruit to sink. Or, too much
liquid, or raising agent. The
fruit may not have been
properly washed and dried.
Cake sinking /
dipping in the
centre
Too much raising agent in
the mixture. Too hot, or
too cool an oven. Or, not
enough liquid or insucient
creaming.
Surface cracks
Too small a tin, or too much
mixture in the tin. Too much
raising agent in the mix,
plus not enough liquid or
insucient creaming. The
oven may be too hot.
Hard outer
crust with a
damp patch
inside
Oven too hot, therefore the
cake baked too quickly. Too
much sugar, or insucient
liquid.
Burnt outside
Oven temperature too high.
Oven too small for the size of
cake. Insucient protection
around the tin. Cake baked
on too high a shelf.
Texture with
pronounced
holes.
Too much raising agent. Flour
unevenly mixed.
Texture too
close and cake
insuciently
risen.
Not enough raising agent.
Not enough liquid. Too
cool an oven. Insucient
creaming.
Cake crumbles
when cut
Not enough liquid. Baked for
too long. Not enough sugar.
Too much baking agent.
Too dry
Over baking. Insucient egg
or liquid. Too much raising
agent.
Trouble-shooting – sponge cakes
Problem Possible Cause
Domed top
Insucient creaming of
mixture. Cake baked on
too high a shelf position, or
at too high a temperature.
Paper liners can cause the
outer edge not to rise and
the centre to peak.
Hollowed /
sunken top
Too much raising agent.
Oven temperature too low, or
incorrect shelf position. Cake
removed from oven before
it’s cooked. Use of soft tub
margarine.
Very pale, but
cooked
Oven temperature too low.
Baked too low in the oven
Overflowing tin
Tin too small for the amount
of mixture
22
ROASTING GUIDE
The times given in the roasting guide are only
approximate, because the size and age of the bird will
influence cooking times as will the shape of a joint
and the proportion of the bone.
Frozen meat should be thoroughly thawed before
cooking. For large joints it is advisable to thaw over
night.
Frozen poultry should be thoroughly thawed before
cooking. The time required depends on the size of the
bird – eg; a large turkey may take up to 48 hours to
thaw.
Use of a trivet with a roasting tin will reduce fat
splashing and will help to keep the oven interior clean.
Alternatively, to help reduce fat splashing, potatoes
or other vegetables can be roasted around the meat/
poultry.
Cook in main oven at:
160°C - 180°C (fanned)
180°C - 200°C
(conventional)
Approximate Cooking
Time (preheated oven)
Beef
Rare
20 minutes per 450g
(1lb), plus 20 minutes
Medium
25 minutes per 450g
(1lb), plus 25 minutes
Well
done
30 minutes per 450g
(1lb), plus 30 minutes
Lamb
Medium
25 minutes per 450g
(1lb), plus 25 minutes
Well
done
30 minutes per 450g
(1lb), plus 30 minutes
Pork
35 minutes per 450g
(1lb), plus 35 minutes
Poultry
20 minutes per 450g
(1lb), plus 20 minutes
Notes:
4
When cooking stuffed meat or poultry
calculate the cooking time from the total
weight of the meat plus the stuffing.
4
For joints cooked in foil or covered
roasters, and for lidded casseroles, add 5
minutes per 450g (1lb) to the calculated
cooking time.
4
Smaller joints weighing less than 1.25kg
(2½lb) may require 5 minutes per 450g
(1lb) extra cooking time.
4
Position the oven shelf so that the meat
or poultry is in the centre of the oven.
4
It is recommended that the appliance is
cleaned after open roasting.
23
ROAST TURKEY
Roasting turkey involves cooking two different types
of meat – the delicate light breast meat, which must
not be allowed to dry out, and the darker leg meat,
which takes longer to cook.
The turkey must be roasted long enough for the legs
to cook, so frequent basting is necessary. The breast
meat can be covered once browned.
To test if the turkey is cooked, push a fine skewer into
the thickest part of the thigh. If the juices run clear,
the turkey is cooked. If the juices are still pink, the
turkey will need longer cooking.
4
Always make sure that the turkey is
completely thawed and that the giblets
are removed before cooking.
4
Turkey should be roasted at gas mark 5
for 20 minutes per lb, plus 20 minutes,
unless packaging advises otherwise.
4
The turkey can be open roasted, breast
side down, for half of the cook time, and
then turned over for the remainder of the
cooking time.
4
If the turkey is stuffed, add 5 minutes per
1lb to the cooking time.
4
If roasting turkey covered with foil, add 5
minutes per 1lb to the cooking time.
4
Please note: for all other Roasting guides
refer to main oven section and see table.
24
CLOCK/PROGRAMMER
4
Please be aware that only the main oven
is controlled by the programmer.
4
Note: Your clock / programmer may not
have all these functions
MenuMinus Plus
Minute minder
Cooking time / Duration
Time of day
Key Lock
Auto cooking
Automatic mode
Manual mode
, ,
Volume level
, ,
7-segment display
Max. adjustable minute minder
Max. adjustable cooking time
Display hours:minutes
Display minutes:seconds

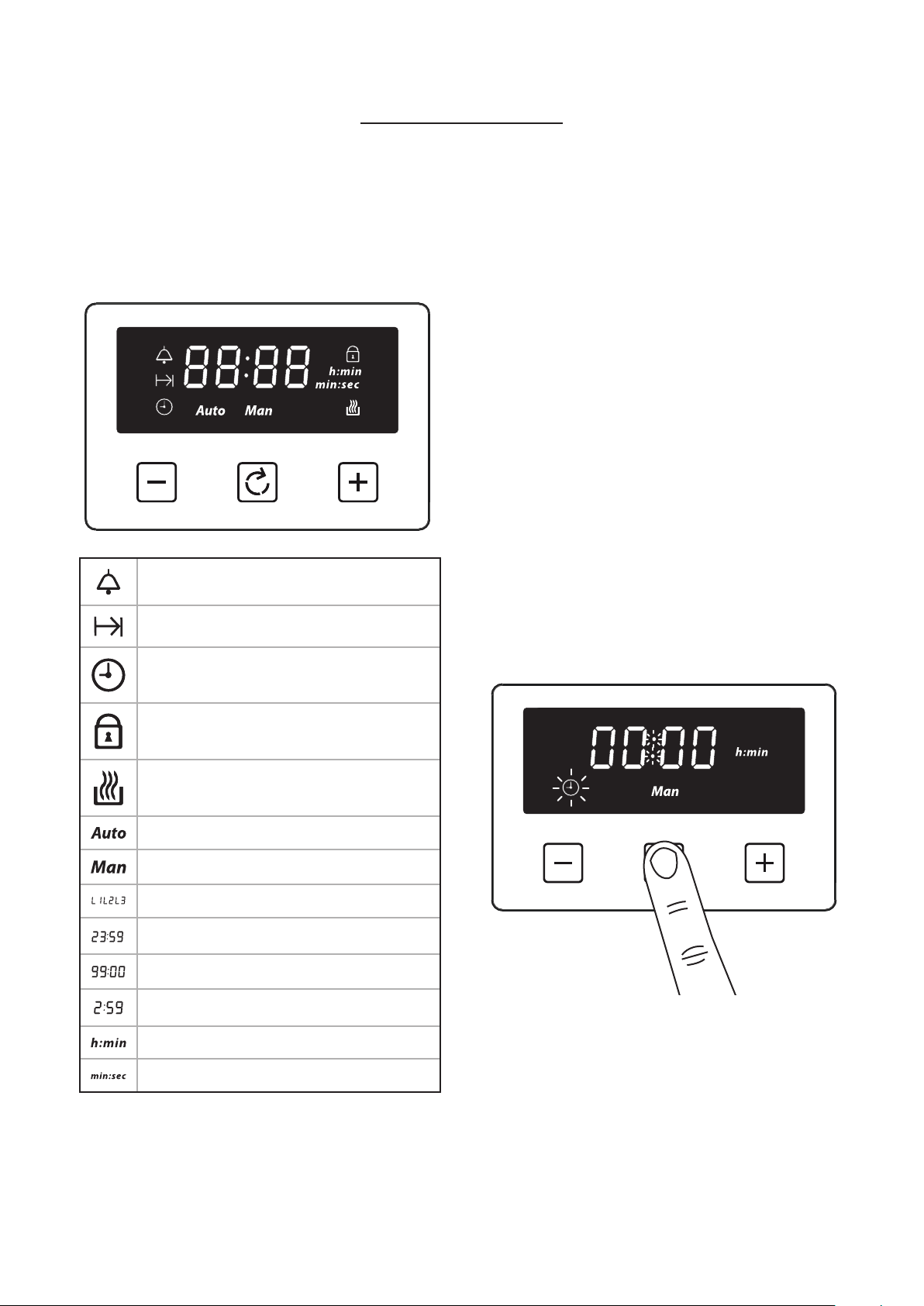

USING THE TOUCH CONTROLS
Menu – Scroll through to select a function
Plus – Increase time or volume
Minus – Decrease time or volume
4
When a function is selected and the time
or volume is set, the chosen function will
automatically start seven seconds after
setting.
MANUAL MODE
If the programmer is not in semi-automatic or full-
automatic mode you can use oven functions manually.
The manual icon is also on the display.
SETTING THE TIME OF DAY
By pressing menu, scroll through the functions until
you reach ‘time of day’.
1. Press the function button until the 'time of day'
symbol appears
25
2. Press the plus or minus buttons to set a time
SETTING THE MINUTE MINDER
The maximum cooking time that can be set is 99
minutes.
1. Press the function button until the 'minute minder'
symbol appears
2. Press the plus or minus buttons to set a time
Once set, the minute minder will start to countdown
in steps of seconds. The display will show the
minute minder symbol and the remaining time. The
countdown will continue in the background, if other
functions are being set.
When the set time for the minute minder has
completed, an alarm is heard and the minute minder
symbol will flash on the display. Press any button to
stop the alarm and the time of day is displayed.
To modify or cancel the minute minder
Return to the minute minder function and use
either the plus or minus buttons to adjust the time.
By setting the time to ‘0.00’, this will cancel the
countdown.
SETTING THE COOKING TIME (SEMI
AUTOMATIC COOKING)
1. Press the function button until the 'cooking time'
symbol appears
2. Press the plus or minus buttons to set a time
26
Once set, the automatic mode, auto cooking symbol
and the time of day is displayed.
When cooking is completed, an alarm is heard and the
manual mode symbol flashes on the display. Press the
Menu button to stop the alarm and then the ‘time of
day’ will then be displayed. Pressing the Menu button
again will return to manual mode.
4
Note: Only the bottom left hand oven
can use the Semi Automatic cooking
function.
4
The maximum cooking time that can be
set is 23 hours and 59 minutes.
To modify or cancel the cooking time
Return to the ‘cooking time’ function and use either
the plus or minus buttons to set the time. By setting
the time to ‘0.00’, this will cancel the countdown.
SETTING THE END OF COOKING
TIME (FULLY AUTOMATIC)

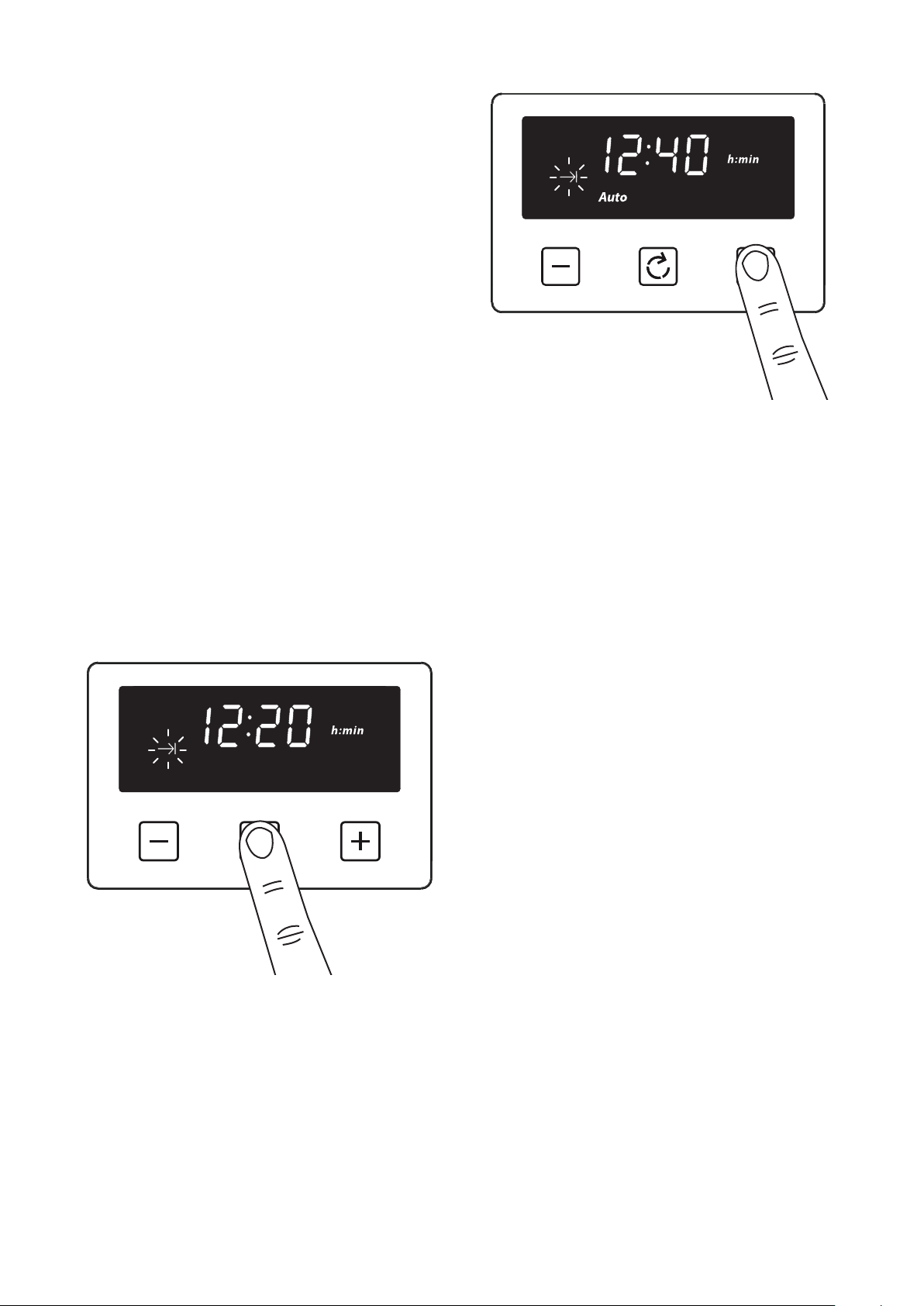

1. Press the function button until the 'end of cooking
time' symbol appears
2. Press the plus or minus buttons to set a time
Enter cooking duration as described in ‘Setting the
cooking time’ section.
The display shows the current ‘time of day’ plus
the ‘end of cooking time’ symbol. The latest ‘end of
cooking time’ is limited to the current ‘time of day’
plus the maximum time that can be set (23 hours and
59 minutes).
The auto cooking symbol disappears from the display
once the time, the required cooking settings and
temperature have been set. The appliance will not be
switched on until the set cooking start time, that is
the difference between the cooking end time and the
cooking duration.
When cooking is completed, an alarm is heard and the
manual mode symbol flashes on the display. Press the
Menu button to stop the alarm and then the ‘time of
day’ will then be displayed. Pressing the Menu button
again will return to manual mode.
To modify or cancel the end cooking time
Return to the ‘end of cooking time’ function and use
either the plus or minus buttons to set the time. The
‘end of cooking time’ can be deleted by counting back
using the minus button until it equals the current
time of day.
27
SETTING THE VOLUME

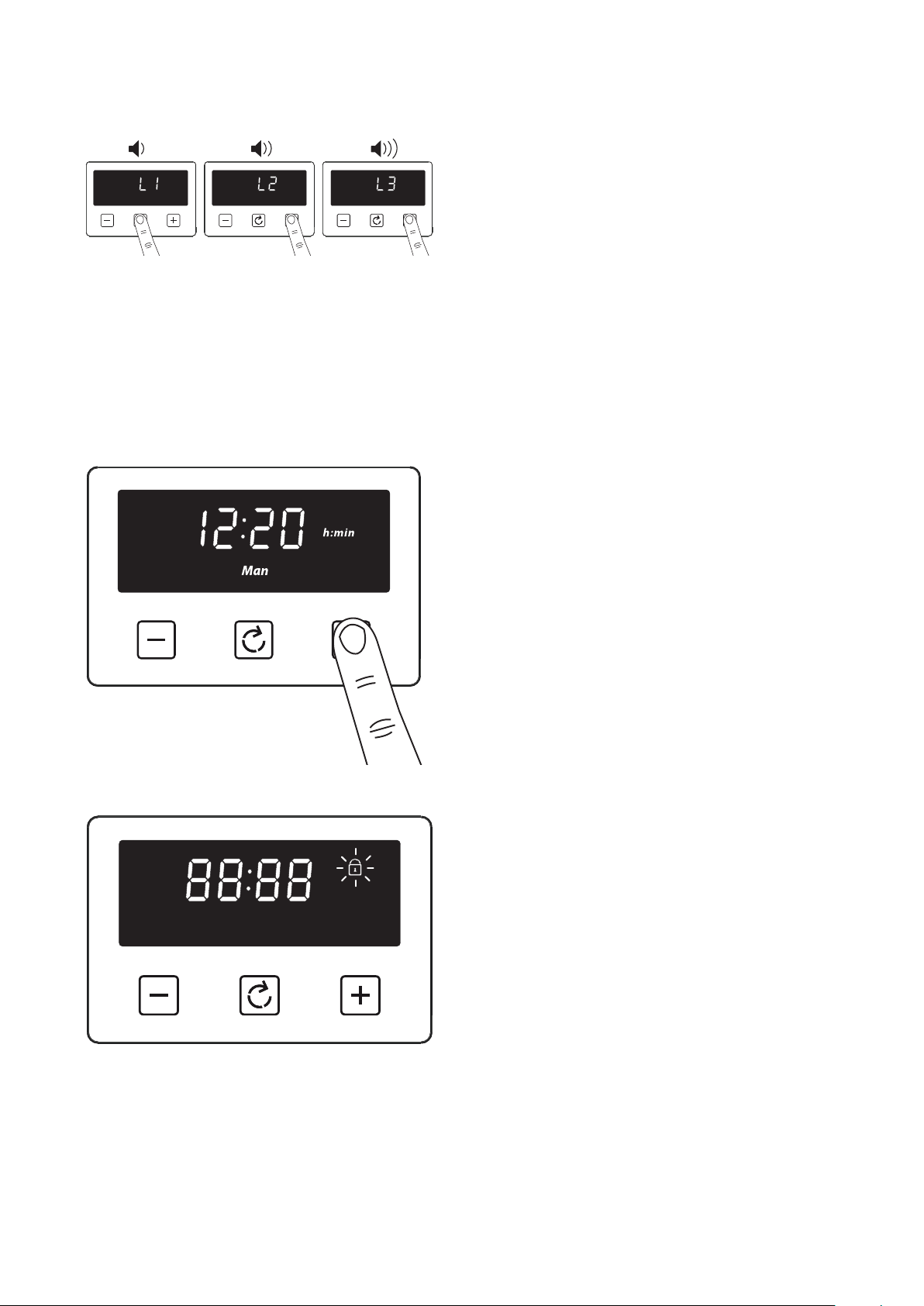

Press the menu button until “LX” (X = 1, 2 or 3)
flashes on the display. Use the plus or minus
buttons to select a tone.
4
Note: Default tone is L3
ACTIVATING / DEACTIVATING KEY
LOCK
1. Press and hold the plus button for 3−5 seconds
Once the Key lock is active, the buttons will be
inactive. A two beep signal will be heard if the buttons
are pressed.
To deactivate the Key lock
Press and hold the plus button for 3−5 seconds. The
Key lock symbol will disappear and the appliance
can continue to be used.
4
Note: In case of main power loss for a
short time (about 1.5 minutes), timer
maintains its status.
4
Key lock status and buzzer tone are
memorized independent of the power
loss duration.
28

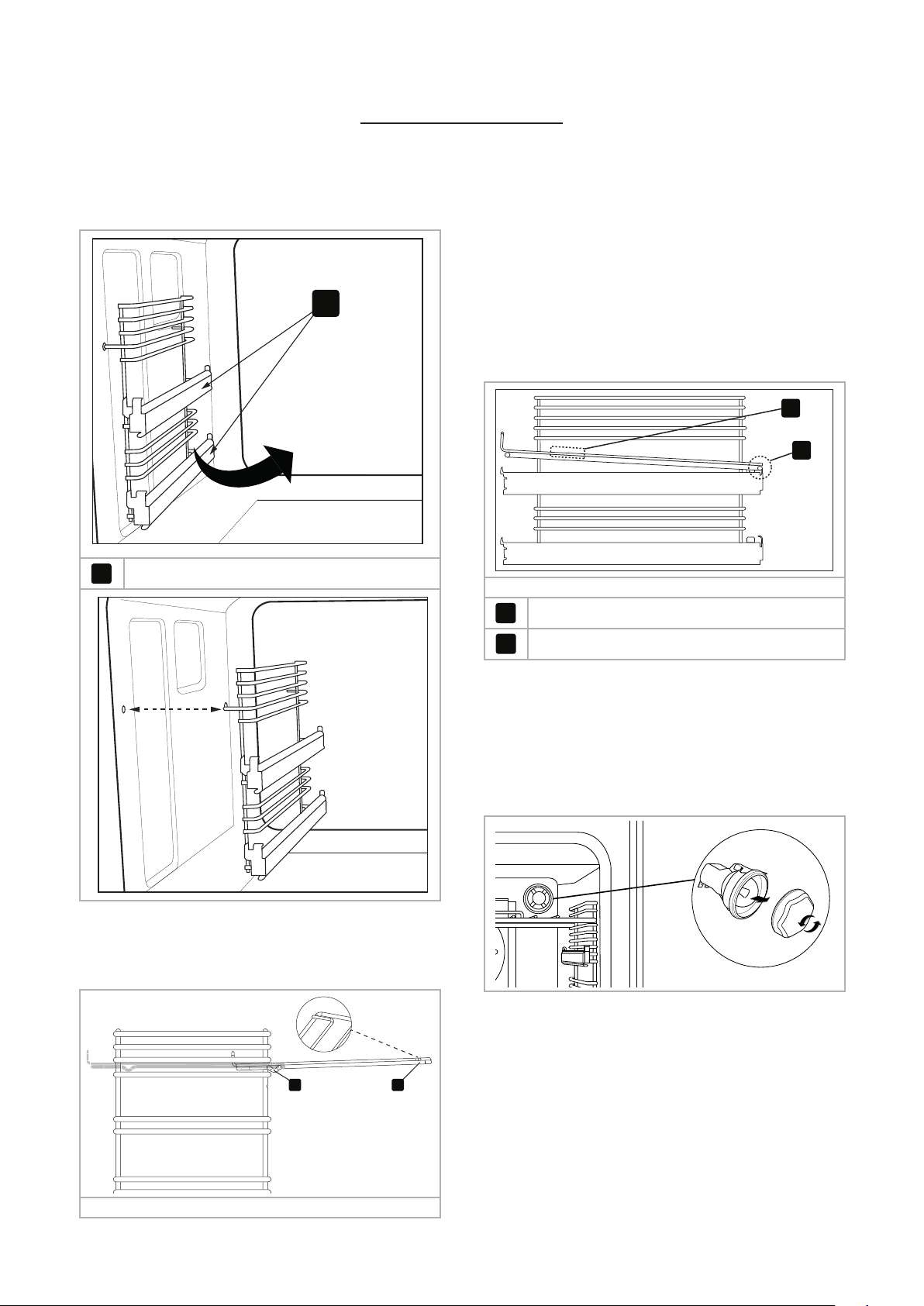

REMOVING SHELF RUNNERS
REMOVING SHELF RUNNERS
Telescopic positions
(if fitted)
1
1
Telescopic positions (if fitted)
STANDARD SHELVES
1 2
Front of appliance
1. Slightly raise the shelf and insert in the chosen
shelf position
2. Ensure the shelf is fully pushed back towards the
back of the oven, until the shelf stopper is reached.
REMOVING TELESCOPIC SHELVES
(IF FITTED)
2
1
2
Front of appliance
1
Grasp and lift shelf
2
Lift shelf from the retaining tabs
4
Before removing the shelves completely,
please make sure that the shelf is
unclipped from the retaining tabs.
CHANGING THE LIGHT BULB
6 Warning! Switch off the power before
you change the light bulb.
4
Not all appliances have the same number
and type of bulbs. Before you replace
your bulb, check to see what type you
have. Please remember that bulbs are not
covered by your warranty.
29
CLEANING YOUR APPLIANCE

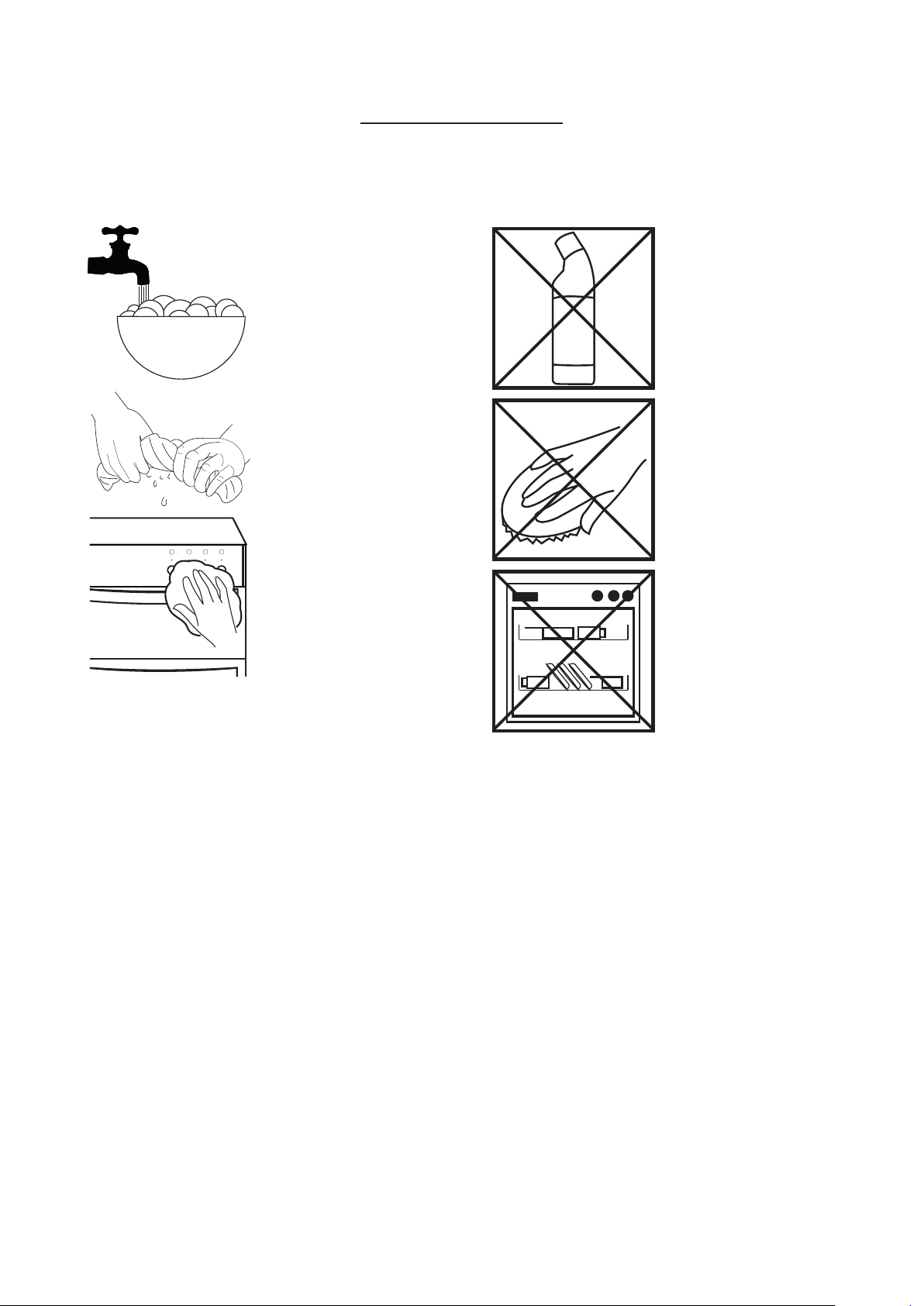

DO'S
H
Warm, soapy water
Clean, wrung out cloth
Wipe with damp cloth
Dry with a soft cloth
4
Note: Always switch off your appliance
and allow it to cool down before you
clean any part of it.
4
Note: Please take extra care when
cleaning over the symbols on the control
panel, as this can lead to them fading.
4
Tips: Some foods can mark or damage
the metal or paint work e.g.; Vinegar,
fruit juices and salt. Always clean food
spillages as soon as possible.
DON’TS
Undiluted bleaches
Chloride products
Wire Wool
Abrasive cleaners
Nylon pads
Steam cleaners
Do not place in the
dishwasher:
Cast iron griddle
Pan supports
6 It is important to clean your appliance
regularly as a build up of fat can affect
its performance or damage it and may
invalidate your guarantee.
6 In addition to the above, do not use metal
scrapers to clean the oven door glass.
4
We offer a great range of cleaning
products and accessories for your
appliance. To shop, please visit our
website located at the front of this User
Guide.
30
TECHNICAL DATA
6 WARNING – This cooker must be earthed
GAS - RANGE
Data badge
Lower part of the front frame
Appliance class
Class 1 - freestanding cooker
Electrical supply
220 - 240V ~ 50 Hz
Type of gas
Please see data badge for your specified gas type. Can be converted from
natural gas to LPG. Never attempt to convert an appliance unless the data
badge states you can.
Gas pressure settings
G20 Natural gas @ 20 mbar
G30 Butane @ 28-30mbar
G31 Propane @ 37mbar
Burner Aeration
Fixed
Burner / Element Nat Gas / LPG
(kW) Injector (Nat
gas)
Injector
(LPG)
Butane g/h Propane g/h
Hob - small 1.00 77 50 73 72
Hob - medium (x2) 2.00 104 70 145 143
Hob - large 3.00 129 87 218 215
Hob - wok 4.00 152 100 291 286
Total heat input (5 burners) 12 N/A N/A N/A N/A
31
ELECTRICAL SUPPLY / LOAD
Electrical supply Oven Load (kW)
Fanned 2.0
Single variable grill 1.85
Dual variable grill 1.7 / 2.7
Conventional top 1.39
Electrical supply Max. load (kW)
220 - 240V 6.48 - 7.33
Electrical components Load
Lamps 25 W each
Cooling fans 10 W each
Oven stir fans 30 W each
084014600
Stoney Lane, Prescot, Merseyside L35 2XW
belling.co.uk
Customer Care
0344 815 3740
Product Information Helpline
0344 248 4149
WWW.BELLING.CO.UK
