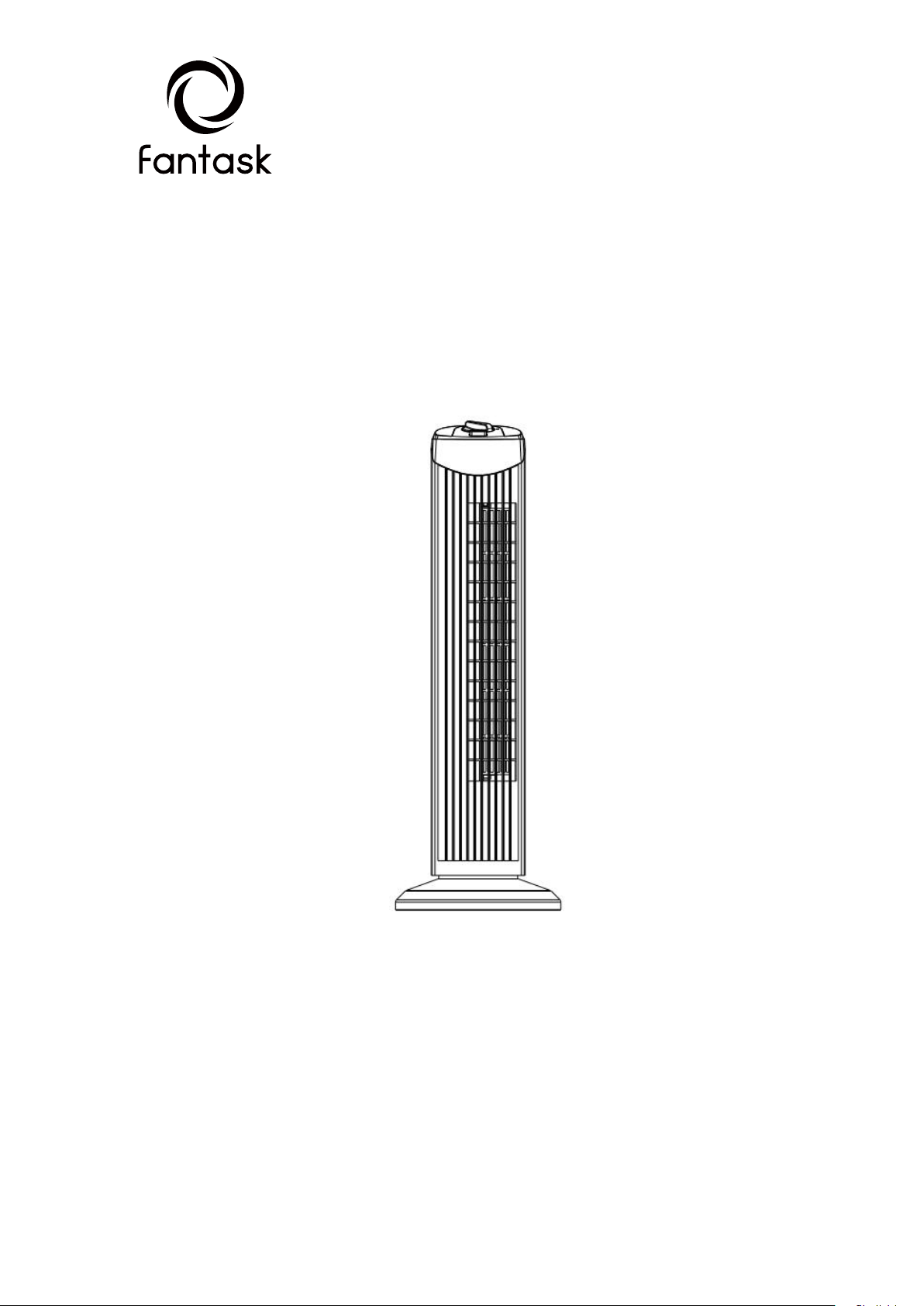

28” TOWER FAN
READ AND SAVE THESE INSTRUCTIONS
EP23485WH
11
CAUTION
Read Rules of Safe Operation and Instructions Carefully.
WARNING
1.To reduce the risk of fire or electrical shock, do not use this fan with any solid state
speed control devi ce.
2.If the power cord is damaged, stop usin g the product immedi ately.
3.This appliance has a polarized plug (one blade is wider than the other). To reduce the
risk of electric shock, this plug is intended to fit in a polarized outlet only one way. If the
plug does not fit fully in the outlet, rever
se the plug. If it still does not fit, contact a qualified
electrician. Do not attempt to defeat this safety feature.
4.Do not leave the fan running unattended.
RULES FOR SAFE OPERATION
1.Never insert fingers, pencils, or any other obj ects through the f an housing when the
tower fan is running. Unplug the fan when moving it from one location to another.
2.Disconnect the fan before cleaning.
3.To avoid product tipping over, be sure the fan is on a stable surface w hen in operation
.
4.To reduce the risk of electric shock, DO NOT use the fan by a window.
5.The rules about cord and plug are as below:
(1 ) This product employs overload protection (fuse). A blown fuse indicates an overload
or short-circuit situation. If the fuse blows, unplug the product from the outlet. Replace
the fuse as per the user servicing in structions (follow product marking for proper fuse
rating) and check the products. If the replacement fuse blows, a short-circuit may be
present
and the product should be discarded or returned to service facility for
examination and/ or repair.
( 2 ) Do not operate any fan with a dam aged cord or plug. Discard fan or return to an
authorized service facility for examination and/ or repair.
( 3 ) Do not run cord under carpeting. Do not cover cord with throw rugs, run ners, or
similar coverings. Do not route cord under furniture or appliances. Arrange cord away
from traffic are a and where it will not be tripped over.
6.Do not use f
an in a window, rain may create electrical hazard.
7.Ensure that the fan is unplugged and switched off before removing the grill.
12
PARTS NAME
1.Body
2.Front base
3.Rear base
4.Base clip
5.Power cord

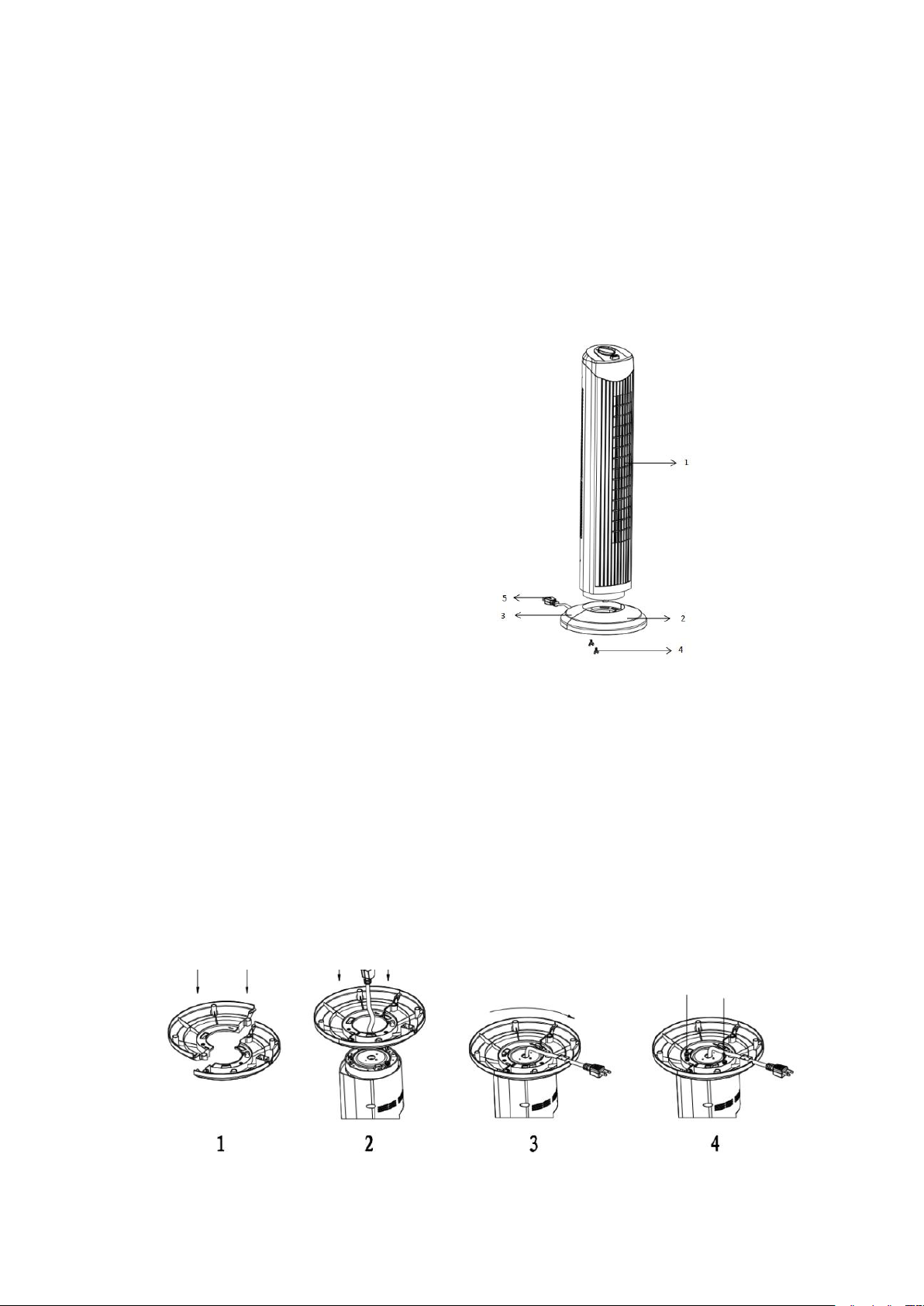

PARTS ASSEMBLY
1.Assemble the front and rear bas e by aligning the tabs and sliding them together until
they form one base.
2.Place the assembled base on the bottom of the fan body, pull power cord through the
hole in the center of th e base until the bas e touches the bottom of the fan body.
3.Rotate the base in a clockwise direction on the bottom of the fan until installed in place.
Pull the power cord through the hole on the sid
e of the base.
4.Install the base clip to secure the body and base. (see the assembly diagram as below)
SPECIFICATIONS
1.Model No.: EP23485WH
2.Rated voltage: 120V~60Hz
3.Rated power: 35W
13
OPERATING INS TRUCTIONS

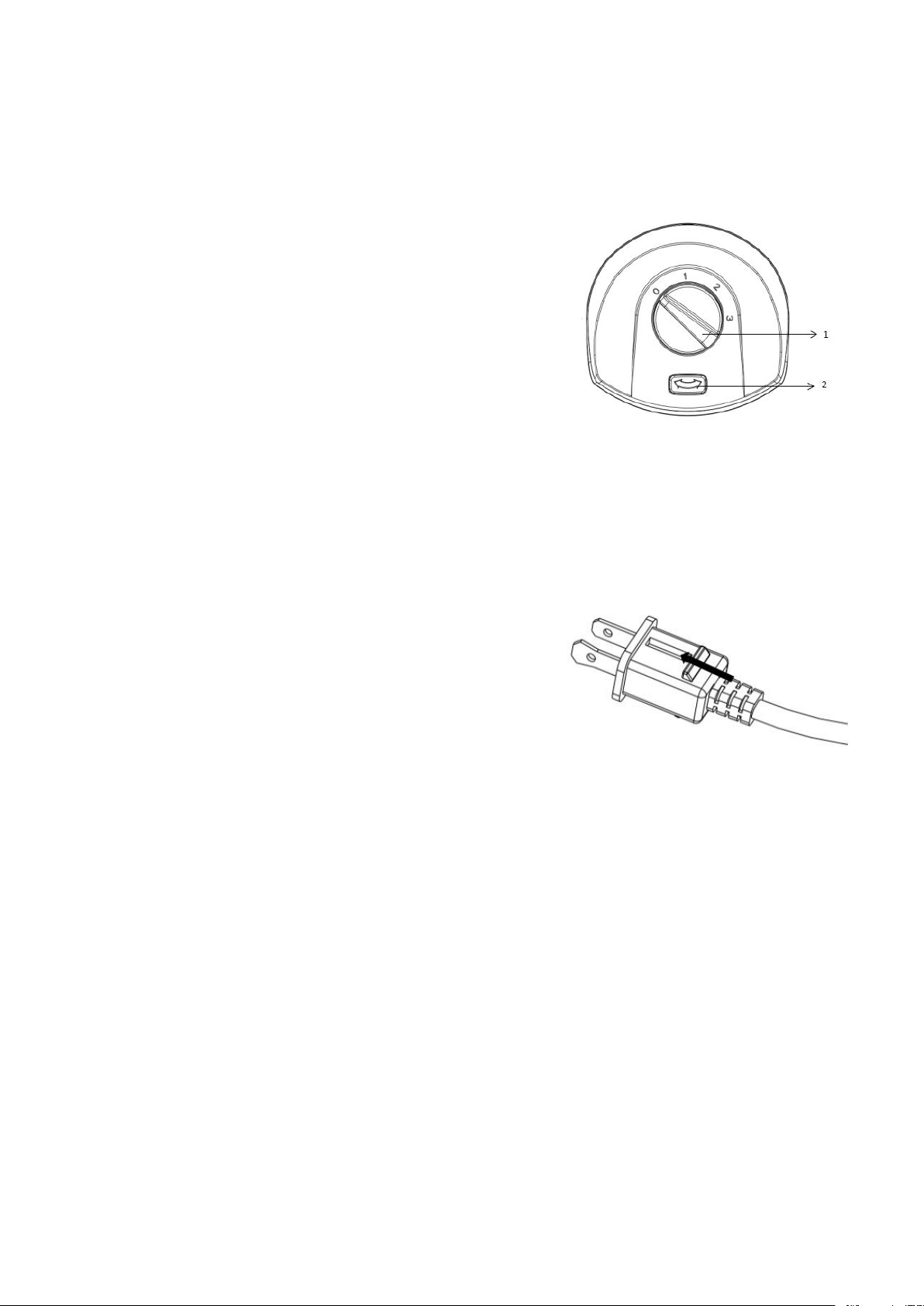

A. Control parts description:
1.
Speed
switch
2.Body oscillating switch
B. Instructions:
1. Plug the power cord into a wall outlet.
2. To improve air circulation, the fan can oscillate. To
start the oscillation feature, press the oscillating switch
(2). To stop the fan from oscillatin g, press the oscillation
switch (2) again.
3. The fan has 3 speed settings, use the rotating speed
switch (1) to s elect desired speed.
USER S ERVICING INSTRUCTIONS
1) Grasp plug and remove from the receptacle or other
outlet device. Do not unplug by pulling on cord.
2) Open fuse cover. Slide open fuse access cover on
top of attachment plug towards blades.
3) Remove fuse carefully. Push the fuse from the other
side or turn fuseholder over to remove fuse.
4) Risk of fire. Replace fuse only with 5 Amp, 125 Volt
fuse.
5) Close fuse cover. Slide c lose the fuse access cover on top of attachment plug.
6) Risk of fire. Do not replace attachment plug. Contai
ns a safety device (fuse) that
should not be removed. Discard product if the attac hment plug is damaged.
CLEANING
1. Be sure to unplug the power cord from the outlet before c leaning.
2. Plastic parts should be cleaned with a damp cloth or sponge.
3. Be sure not to submerge in water or other liquids.
4. Avoid getting water or other liquids inside the motor housing.
