APD30 and APD40 SERIES PIZZA DOUGH PRESSER
1、Installation
1.1 Remove the protection film , avoid contact with utensils that can damage the surfaces , check
that machine is not damaged. Please contact with the manufacturer if it is damaged.
1.2 The machine must be installed in dry ,adequate ventilation and lighting environment condition.
Position the machine on a flat and firm place ; you can put it on a workbench whose height fits
you(about 700-900 mm) , and leave a space around it of 150 mm for easier usage and cleaning.
1.3 Connect the machine to the electric net by an electric technical personnel. It is suggest that
using copper wires (at least 2.5 mm
2
) for the electric wires. It is important to have a good ground
system and a protection switch (5-10A).
1.4 It is necessary for safety to check the cable carefully and verify it is not damaged before put
the plug to the receptacle. The receptacle must be easily accessible ,must not require any kind of
movement. The cable from the machine to the receptacle must not be pulled tightly , also do not
rest the machine on the cable.
Note : The machine has been installed and tested by technical personal before leaving the factory ,
and it is a qualified production. It is not allowed to disassemble or modify the machine without the
permission of the manufacturer , or we do not pay if any loss.
2、Operation

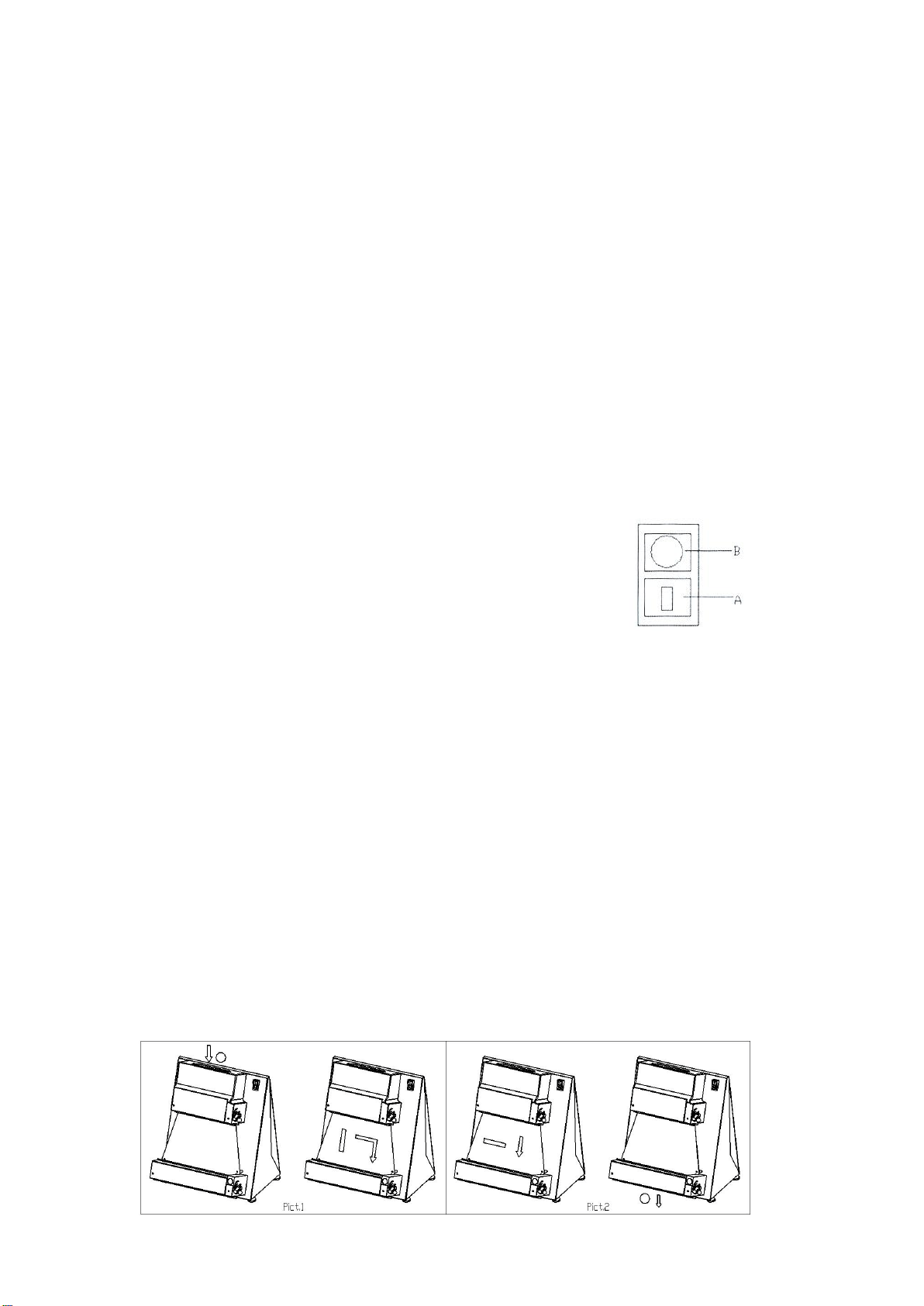

2.1 The machine has the following control devices on the front panel:
A--Red button to stop the machine
B--Green button to start the machine
2.2 Functional test
After having plugged the feeding cable in the electric net , the machine is ready for the functional
test. To start:press the green button , the machine starts working. To stop:press the red button , the
machine will stop working.Start the machine without loading , let it run for one minute and make
sure it is functioning perfectly.
2.3 Before every work-cycle , always make sure the machine is perfectly clean , in particular those
surfaces that get in touch with the dough. If necessary clean the machine.
Warning:Take sundries and hands away from the rollers before turn on the machine!
2.4 Operation for the shaping of round disks
2.4.1 After turning on the machine , you can put the small dough(20-500g) which have ferment
previously (at least 4 to 6 hours) , squash the sides slightly and put some dry flouron it so it can
easily go through the upper rollers. (Pict.1)
2.4.2 When the dough comes out from the upper roller , you will see thin dough,with an oval
shape.You can turn the dough to 90ºplace by hand rapidly , and ready for the next trial to through
the lowest rollers.Out of these rollers it will have a disk shape , this shape is not perfect so it needs
the finishing touches by hand. Pict.2
2.5 Usage for the shaping of rectangles , squares , and others.
The methods are the same as the point 2.4 . If you want to obtain different shaping dough , you
can cut the dough to the approximate shape , for example squares , rectangle etc. with a knife or a
special tool , before introducing the small dough in opening of the highest cover. Then introduce
the dough in opening of the highest cover and let it through the roller. You can choose it as
following: A)let the dough only through the highest rollers. B)let the dough through both the
highest rollers and the lowest rollers. C)let the dough through the highest roller , then turn the
dough 90ºplace by hand rapidly , and let it through the lowest rollers.
2.6 How to regulate the thickness
Regulating the machine can only be recommended as there are different characteristics of : the
dough , the weight , the thickness , the size and the shape of the disk. Therefore the correct
regulating of the machine must be made by experience. The machine is provided with a medium
size regulation for the shapes of pizza. To obtain different thickness of dough , you may regulate
as following : A) Turn off the machine.
B) Regulate the width between the highest rollers. Pull the black knot in order to release the lever ,
and then turn the lever to a proper position. Clockwise is to reduce the thickness , anti-clockwise is
to increase the thickness. (Pict.3)
EX : the width between the upper rollers is twice to the one between the lower rollers.
3
、
Warning
Warning : To avoid dangerous conditions and/or possible injuries caused by electric current ,
mechanical parts , fire or hygiene problems , you must follow the safety indications step by step :
3.1 Keep in order your working area. Disorder can cause dangerous accidents.
3.2 Consider environmental conditions. Do not use the machine in humid , wet or badly lit
environments , close to inflammable liquids or gas.
3.3 Keep away from children and non authorized personnel. Do not permit them to go near the
machine or the working area.
3.4 Do not touch the switch and the cable with a wet hand.
3.5 Only utilize the machine with the correct voltage. Normal usage gives better results.
3.6 Dress in adequate way. Do not wear hanging clothes or any items which can be caught in the
machine. Use non-slip shoes. For hygiene and safety, keep your hair tied back and wear protective
gloves.
3.7 Protect the cable , do not put the cable to extract the plug. Do not leave the cable near high
temperatures , sharp objects , water or solvents.
3.8 Take the plug out. When the machine is not in use , before cleaning , maintenance and moving
it.
3.9 Check that the machine is not damaged. Before using the machine , carefully check that all
safety devices are working. Check that : the removable parts are not blocked , there are not any
parts damaged , all the parts have been set up correctly and all the conditions that could influence
the regular functioning of the machine are in working order.
3.10 When the machine is damaged or some anomalies with it , you must turn off the machine at
once and apply for authorized assistance from the manufacturer. The repairs can only be done by
qualified people , using original spare parts. The non-compliance with these rules can represent
danger for the user.
4、Maintenance
4.1 Before effecting any kind of maintenance or cleaning you must take out the plug. It is
important not to use chemical , abrasive or corrosive products. Absolutely do not use running
water , abrasive and not smooth tools , such as metal wool etc; these can damage the surfaces and
compromise the hygienically safety.
4.2 The cleaning must be done every time the machine has been used following all the rules to
prevent malfunctioning of the machine and for hygienic purposes.

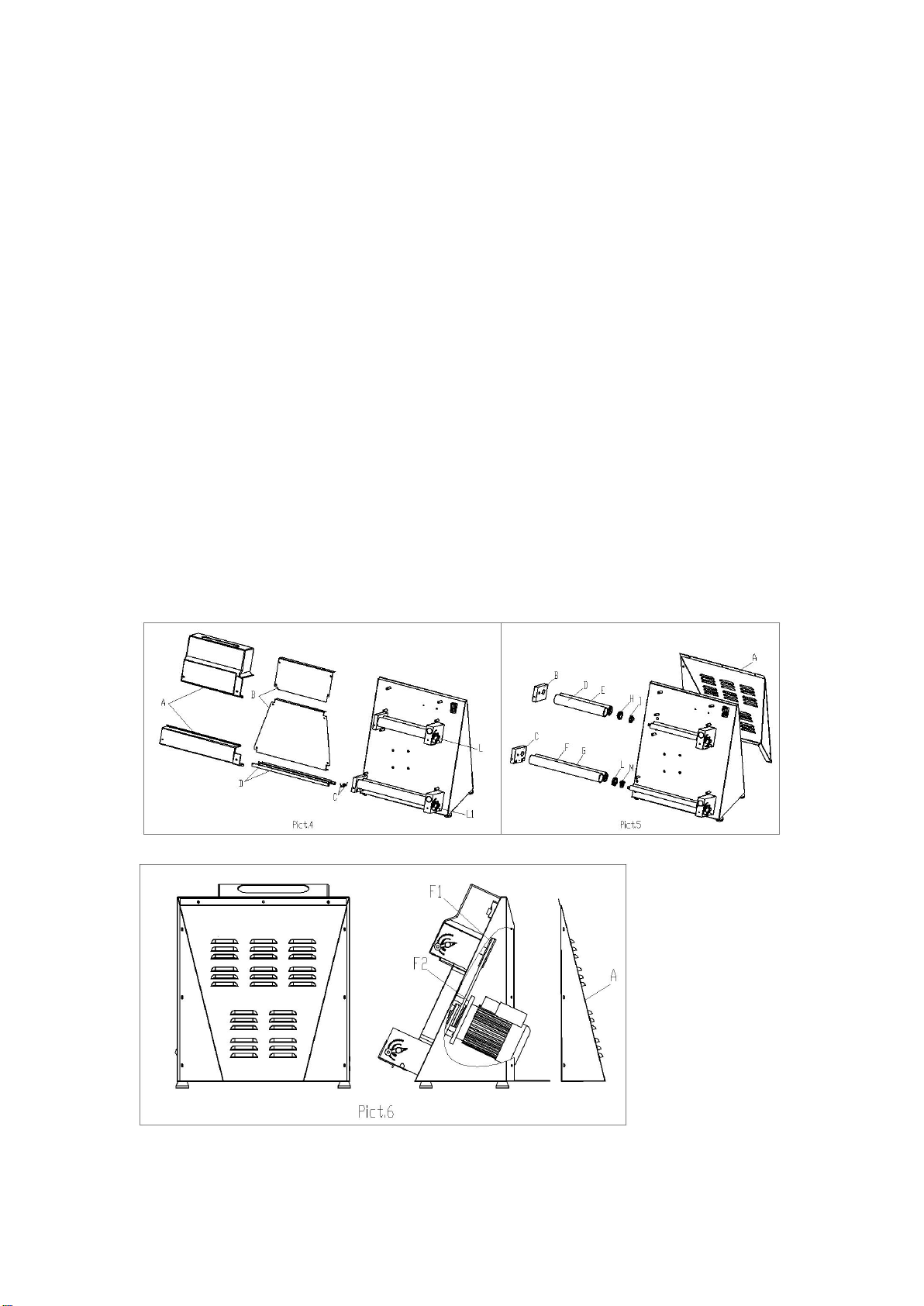

4.3 Using a proper brush and a wooden palate , first clean the residue of flour and dough , take
them away from the covers , the two slides A , release springs B , C , remove the scraping dough
pieces D then turn the regulating levers L-L1 in position of maximum opening of rollers.
Accurately clean the machine and in particular the disassembled parts using a sponge or cloth
damped with water and detergent.
Rinse thoroughly and dry with an absorbing food-paper , wipe again all the surfaces that get in
touch with the dough and then clean the whole machine with a smooth cloth and specific
disinfectant for food-machines.
4.4 Mount everything in this order : the scraping dough pieces , the springs , the slides and the
protections.
4.5 Lubrication of shafts and rollers
It is necessary to grease shafts and rollers every year. Take off the protections , the slanted wall ,
the springs and the dough-scrapers ; unscrew the fixing screws and take off first the back-panel A
and then the stands B and C ; take off the rollers DEFG and the joints H I L M.clean all these parts
accurately by means of a sponge ; warm(page9) water and fool detergent , rinse thoroughly and
dry it with absorbing paper. grease both the shafts and the rollers holes with a sufficient quantity
of paraffin oil. Put back on and fix all the parts , starting from the last taken off piece.
5
、

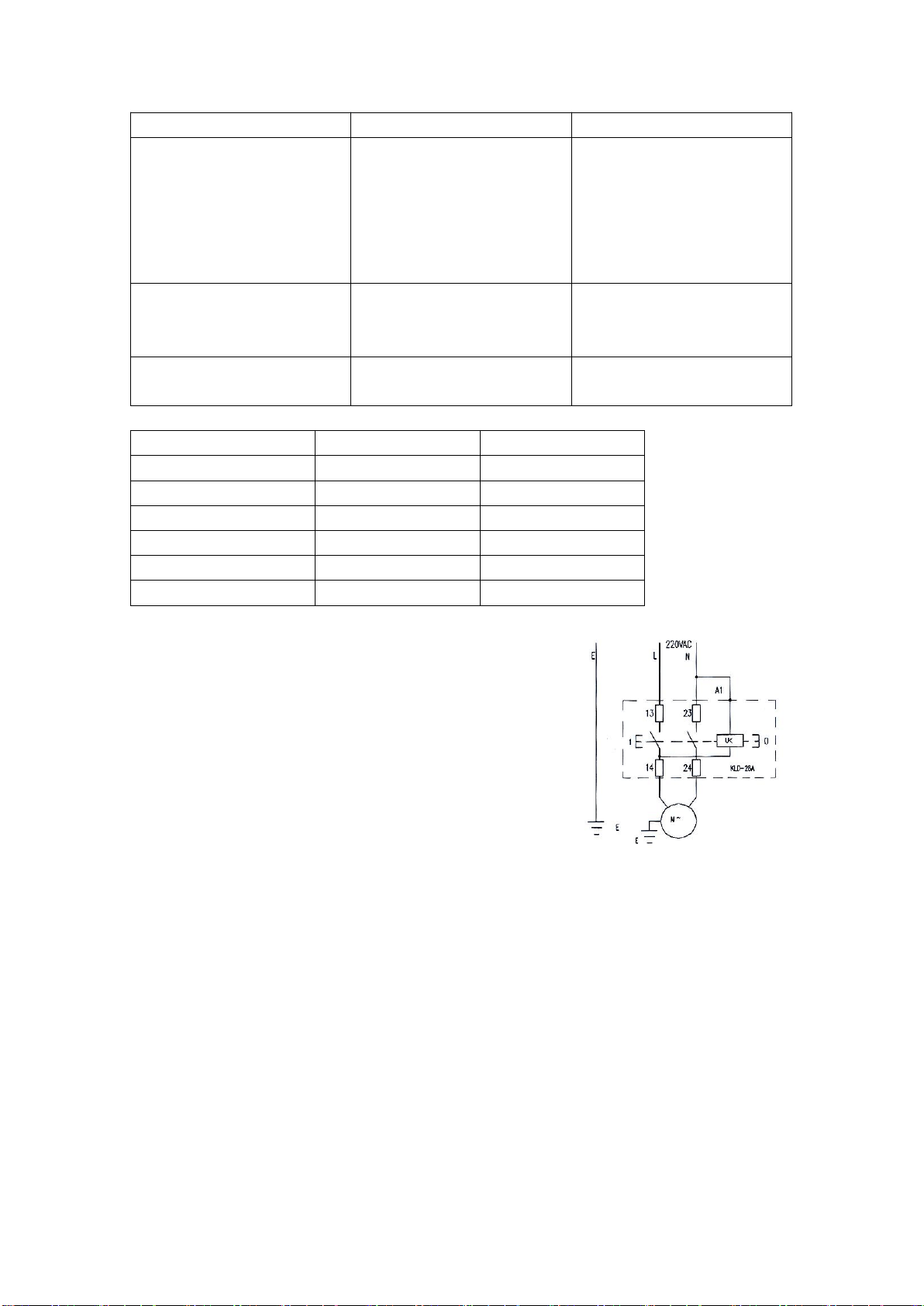

Possible anomalies
anomaly
cause
solution
The machine does not start
1、Electrical power is missing
2、the input voltage is wrong.
3、other reasons
1、Check the general switch ,
the plug and the feeding cable
2、use a proper voltage.
3、stop using and apply for
authorized assistance from the
manufacturer.
The machine conduct
electricity
The wires touch the structure
of the machine.
Check the wires , verify the
wires do not touch the
structure of the machine.
Only a group roller working
1、the belt is broken. 2、the
worm wheel is worn out.
1、change the belt. 2、change a
new worm wheel.
6、Specification
Model
APD30
APD40
Voltage(V)
~220
~220
Frequency(Hz)
50
50
Motor power(kW)
0.37
0.37
Dough weight(g)
50-500
50-500
Pizza diameter(cm)
10-30
10-40
Dimension(mm)
495*490*640
540*550*650
7
、
Electrical diagram
KLD: Switch M: Motor
FA: Thermo-protection of the engine
