THANK YOU FOR CHOOSING OUR ICE MAKER
PLEASE READ THE MANUAL CAREFULLY BEFORE OPERATING
ICE MAKER
INSTRUCTION MANUAL
Model: ICM1260
IMPORTANT NOTICES
When using an electrical appliance, basic safety precautions should
always be followed to reduce the risk of fire, electric shock, and/or
injury, including the following:
1. Read all instructions before using.
2. Remove all packing material and carefully check your ice maker
to ensure it is in good condition and that there is no damage to
the ice maker or power cord and plug.
3. If the supply cord is damaged, it must be replaced by the
manufacturer or its service agent or a similarly qualified person in
order to avoid a hazard.
4. This appliance is not intended for use by persons (including
children) with reduced physical, sensory or mental capabilities, or
lack of experience and knowledge, unless they have been given
supervision or instruction concerning use of the appliance by a
person responsible for their safety. Children should be
supervised to ensure that they do not play with the appliance.
This appliance can be used by children aged from 8 years and
above and persons with reduced physical, sensory or mental
capabilities or lack of experience and knowledge if they have
been given supervision or instruction concerning use of the
appliance in a safe way and understand the hazards involved.
Children shall not play with the appliance. Cleaning and user
maintenance shall not be made by children without supervision.
5. This appliance is intended to be used in household and similar
applications such as
–staff kitchen areas in shops, offices and other working
1
environments;
–farm houses and by clients in hotels, motels and other
residential type environments;
–bed and breakfast type environments.
6. –Warning: Do not use electrical appliances inside the food
storage compartments of the appliance, unless they are of the
type recommended by the manufacturer.
–WARNING: When positioning the appliance, ensure the supply
cord is not trapped or damaged.
–WARNING: Do not locate multiple portable socket-outlets or
portable power supplies at the rear of the appliance.
–WARNING: fill with potable water only.
–WARNING: Connect to potable water supply only.
7. Before using the Ice maker for the first time, please wait 2 hours
after positioning it, and keep the transparent lid open for at least 2
hours
8. Pure water is not allowed to be used on this unit, spring water is
recommended.
9. Ensure the voltage is compliant with the voltage range stated on
the rating label, and ensure the earthing of the socket is in good
condition.
10. Do not upend this product or incline it over a 45℃ angle.
11. To protect against risk of electric shock, do not pour water on
cord, plug and ventilation, immerse the appliance in water or any
other liquid.
12. Unplug the appliance after using or before cleaning.
13. Keep the appliance 8cm from other objects to ensure the good
2
heat releasing.
14. Do not use the accessories which are not recommended by
Manufacturer.
15. Do not use the appliance close by flames, hot plates or stoves.
16. Do not switch on the power button frequently (ensure 5min.
interval at least) to avoid the damage of compressor.
17. Do not use outdoors.
18. Never clean with scouring powders or hard implements.
19. Please keep the instruction manual.
20. To avoid contamination of food, please respect the following
instructions:
– Opening the door for long periods can cause a significant
increase of the temperature in the compartments of the
appliance.
– Clean regularly surfaces that can come in contact with food
and accessible drainage systems.
– Clean water tanks if they have not been used for 48 h; flush the
water system connected to a water supply if water has not been
drawn for 5 days.
– If the refrigerating appliance is left empty for long periods,
switch off, defrost, clean, dry, and leave the door open to prevent
mould developing within the appliance.
21. Regarding the information pertaining to the use of the appliance,
please refer to the paragraphs below.
3
SPECIFICATIONS
Model Number: ICM1260
Voltage: 110-120V/60Hz
Power Consumption: 120 W
Daily Ice Output: 12kg/24 hours
Ice Storage Capacity: 1.0L/600g
Water Reservoir Capacity: 1.0L
N.W: 14.37lbs/6.52kg
G.W: 15.54lbs/7.05kg
Compression-Type Refrigeration: 110-120V/60Hz
Cooling Agent: R600a environmental friendly refrigerant
Max Overall Dimensions (WXDXH): 206X268X282mm
Packing Dimensions (LXWXH): 235X318X290mm
4

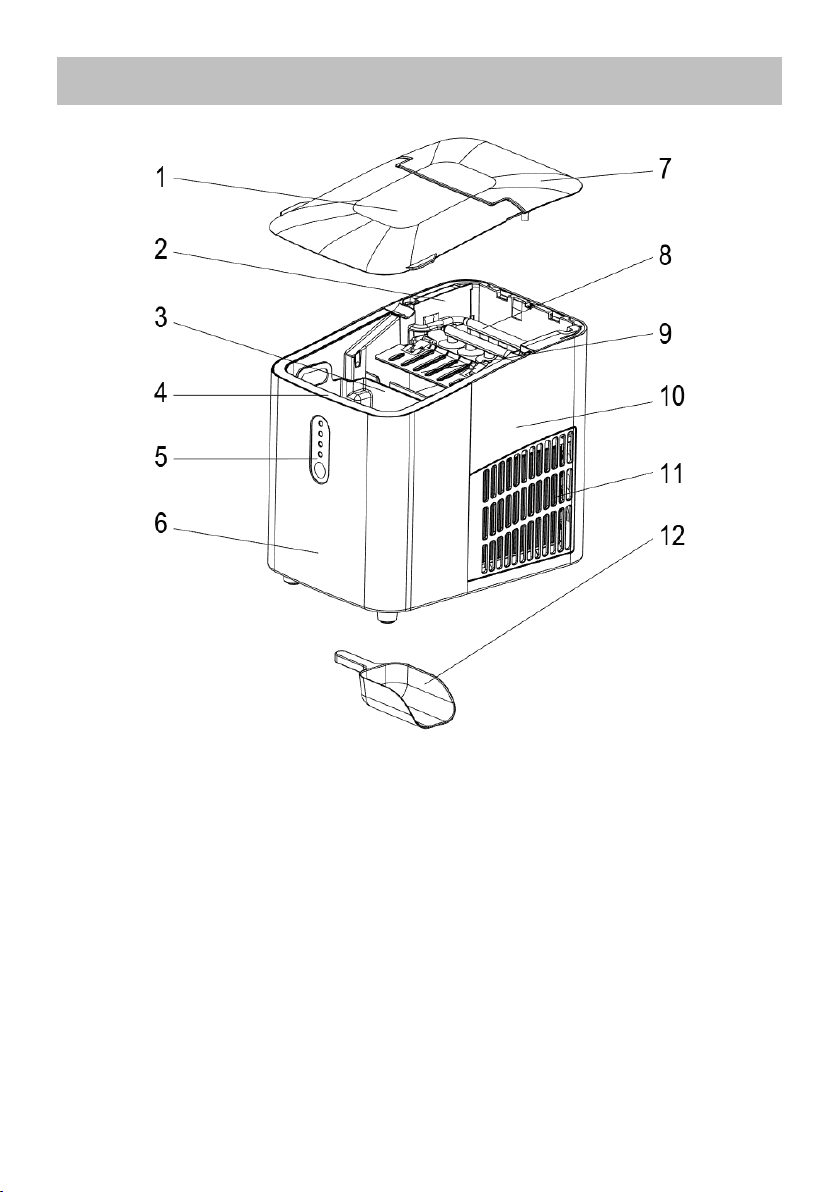

DESCRIPTION
1. Transparent lid
2. Micro switch support
3. Ice collecting tray
4. Water tank
5. Control panel
6. Front Housing
7. Top Lid
8. Evaporator
9. Ice shovel board
10. Rear housing
11. Air vent
12. Ice scoop
5
FEATURE
Quick ice making
Prompt when the ice is full and water is insufficient
Bullet transparent ice
8 pcs ice can be made in nine minutes
1. During transportation, do not tilt the machine more than 45
degrees, do not reverse the machine. This may damage the
compressor and the sealing system.
2. Remove all packing materials, check the machine carefully and
make sure that the machine, power cord and plug are normal.
3. The machine should be on a level surface. To ensure sufficient
ventilation, the distance of the back of ice maker to the wall should
be at least 150mm, it should be away from the oven, radiator or other
heat source.
4. Before using the machine for the first time, place the machine and
leave the transparent cover open for at least two hours.
5. Make sure that the home voltage is consistent with the voltage
indicated by the machine.
6. When the ambient temperature is lower than 15 degrees, please
choose small ice. When the ambient temperature is higher than 30
degrees, it is recommended to choose large ice.
7. Do not use chemicals, acidic or alkaline liquids to make ice.
6

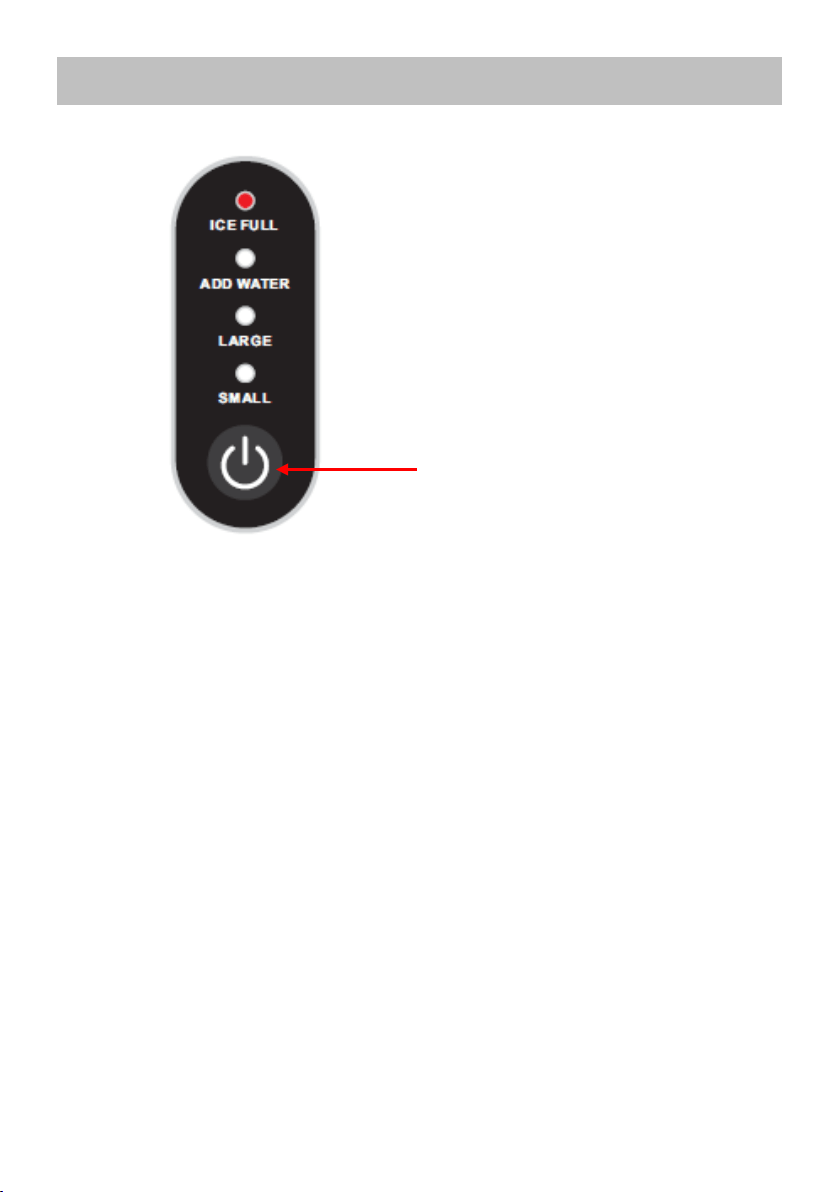

CONTROL PANEL OPERATION
ICE FULL: Ice full alarm indicator light
ADD WATER: Water shortage alarm indicator light
CLEAN: Large ice indicator light
ICE MAKING: Small ice indicator light
1. Plug in power, the machine is in standby mode, and the small ice
indicator light flashes green. Press the START/PAUSE button,
the indicator lights of small ice and large ice flash alternately, and
enter the ice cube size selection mode. When the corresponding
indicator lights up, press the START/PAUSE button again, and
the machine starts to work. The corresponding indicator lights up
for a long time, and the ice cube production starts. After the ice
making is completed, the ice is shedded, and the machine enters
the deicing function, and so on.
2. CLEANING FUNCTION: Plug in power, press the
START/PAUSE button
7
START/PAUSE button to start the machine, and then press the
START/PAUSE button for 2 seconds. The machine enters the
cleaning function, and the four lights flash alternately. Do not
disconnect the power supply during cleaning. After cleaning, the
machine will automatically enter the standby mode.
3. ADD WATER: water shortage alarm: when the light is on, it
means water shortage in the water tank. You need to add water
and press the START/PAUSE button to restart the machine.
4. ICE FULL: ice full alarm. When the ice reaches the maximum
amount of ice storage container, the "ICE FULL" indicator light is
on and the machine stops. At this time, the ice needs to be
poured out. When the ice position is lower than the full sensor
position, the machine will restart automatically.
OPERATING INSTRUCTIONS
Step 1
Open the lid and take out the ice collecting tray and add water to the
reservoir.
Note: There is a maximum scale MAX in the reservoir. The water
should not exceed the MAX position. If the water exceeds the
maximum scale MAX, you need to open the bottom drain plug,
release the excess water, and cover with a transparent cover.
Step 2
Plug in power, press the START/PAUSE button to start the machine.
1. The three cycles used for the first time, the ice produced is small
and irregular.
2. When the ice collecting tray is full, please take out the ice
immediately, do not let the ice overflow the ice collecting tray.
8
CLEANING & USE GUIDANCE
1. Clean the inner liner, ice collecting tray, water tank and ice
shovel frequently. When cleaning, unplug the unit and remove
the ice cubes. Use a diluted solution of water and vinegar to
clean the inside and the outside surface of the Ice maker. Rinse
thoroughly before use.
2. Keep ventilation openings in the appliance enclosure, or in the
built-in structure, clear of obstruction. Do not use mechanical
devices or other means to accelerate the defrosting process,
other than those recommended by the manufacturer.
3. Reuse the machine after being idled for a period of time, it may
not be able to pump enough water up for air blockage. In this
case, the water shortage indictor sign is displayed, just repress
START/PAUSE button to restart the ice maker.
4. To ensure the cleanness of ice, please change water for water
reservoir at least once one day. If do not use for a long time,
please drain the water out and clean it up.
5. If the compressor does not work due to lack of water, ice full,
power failure, etc, it will delay for 3 minutes to start up after
restarted.
6. Always use fresh water before starting ice production either at
initial installation or after a long shut-off period.
7. According to the actual use of the machine, the filter screen in
the water tank shall be regularly cleaned after disassembly to
prevent the water inlet from being blocked by incrustation scale.
9
TROUBLESHOOTING
1. Please note, if a power failure occurs due to disconnection of the
power cord, or the power button has been pushed off during an ice
making cycle, small ice chips may formed and lodge in the
automatic shovel causing it to jam. If this occurs, the ice chips may
be removed by disconnecting the power cord and gently pushing
the shovel to the rear of the cabinet and removing the ice chips,
then restarting.
2. Please check if the water reservoir is flat when the ice shovel can
not remove the ice to ice collecting tray. If not, please push the ice
shovel gently by finger, then press START/PAUSE button to
restart.
PROBLEM POSSIBLE CAUSE SUGGESTED SOLUTIONS
The compressor
works abnormally
with a buzzing noise
The voltage is lower than
recommended
Stop the ice maker a
nd do not
restart until the voltage is normal.
Water shortage
indicator light is on
1.There is no water
2.The pump is full of air
1. Add some water until it reaches
MAX position
2. Press START/PAUSE button to
restart the machine
I
ndicator lights on
control panel are not
on
Blown fuse/ No power Replace fuse / Turn power on
The ice made is too
large
and with
pieces sticking
together.
1. Ice of previous cycles left
in the water tray
Take out the ice under the standby
state
10
The ice making
process was
correct,
but no ice
came out?
1.
The compressor has no
refrigerant
2. Compressor damaged
3. Fan motor damaged
Call the service hotline
All indicator lights
flash at the same
time.
1. The water box is blocked
by ice.
2.
The motor is stuck, or
the motor falls off, or the
motor is damaged
3. Micro switch damaged
1. Take out the ice under the ice
shovel, plug in power again, and
press the POWER button. After 3
minutes, the machine will restart
automatically.
2. Call the service hotline
The machine has
been working, but
the water has been
warming
Solenoid broke down Replace the solenoid valve
When the ice is full,
the machine does
not display the ice
full icon
1. Ice full sensor damaged
2. Solar light interference
1. Replace the ice full sensor
2. Making ice indoor
3. Call the service hotline
1. If the power cord is damaged, it must be replaced by the
manufacturer, its service agent or a similarly qualified person in
order to avoid a hazard.
2. Fill with potable water only.
3. It is normal for the compressor and condenser surface to reach
temperatures between 70°C and 90°C during operation and
surrounding areas may be very hot.
4. Due to fast freezing, ice cubes may opaque. This is air trapped in
the water and will not affect quality or taste of ice.
5. This appliance is not intended for use by persons (including
11
children) with reduced physical, sensory or mental capabilities or
lack of experience and knowledge unless they have been given
supervision or instruction concerning use of the appliance by a
person responsible for their safety.
6. Children should be supervised to ensure that they do not play
with the appliance.
7. Do not immerse in water.
Correct Disposal of this product
This marking indicates that this product should not be
disposed with other household wastes throughout the
EU. To prevent possible harm to the environment or
human health from uncontrolled waste disposal,
recycle it responsibly to promote the sustainable
reuse of material resources. To return your used
device, please use the return and collection systems
or contact
the retailer where the product was
purchased. They can take this product for
environmental safe recycling.
12
:$55$17<:$55$17<
LimitedLimited two-year two-year warranty warranty
ThisThis warranty warranty is is available available toto consumers consumers only. only. YouYou are are a a
ccoonnssuummeerr i iff y yoou ou owwn a kn a kuummiio io icce me maakkeer r tthhaatt w waas s ppuurrcchhaasseed d aatt
retailretail for for personal,personal, family family oror household household use.use. Except Except as as
otherwisotherwisee requiredrequired under under applicable applicable law,law, this this warranty warranty is is not not
availableavailable toto retretailersailers oror other other commercial commercial purchaserspurchasers or or owners.owners.
WeWe warrant warrant that that your your kumiokumio ice ice m maakerker willwill be be freefree of of defec defecttss in in
materialsmaterials and and workmanship workmanship under under normalnormal home home useuse for for 2 2 y yeearsars
fromfrom the the date date of of originaloriginal purchase.purchase. If If your your kumiokumio ice ice makermaker is is
proveprove to to be be defective defective ( (NonNon Man-damaged)within Man-damaged)within the the warrantywarranty
period,period, we we will will offeroffer free free replacement replacement oror reimburse. reimburse.
ThThaannk you for k you for usiusinng our g our proprodducts. Plucts. Pleeaase se contaccontactt
VXSSRUW#NXPLRQHWVXSSRUW#NXPLRQHW o orr C Cuussttoommeerr SSeerrvviiccee O Onnlineline iiff y yoouu h haavvee a annyy
quequessttionionss..
13
