The illustration shows SC-HT730.
Operating Instructions
DVD Home Theater Sound System
Model No. SC-HT730/SC-HT733/
SC-HT930
Region number
The player plays DVD-Video marked with labels containing the region
number "1" or "ALl".
Example: _ _ _
AUD|O/VIDEO
As an ENERGY STAR's'Partner; _
Panasonic has determined that
this product meets the ENERGY STAR '_
guidelines for energy efficiency,
_ For Canada only: The word "Participant" is used in place of the word
"Partner".
If you have any questions contact
In the U.S.A.: 1-800-211-PANA (7262)
In Canada: 1-800-561-5505
Before connecting, operating or adjusting this product,
please read the instructions completely.
Please keep this manual for future reference.
[_ _ [_ RQT7972-2P

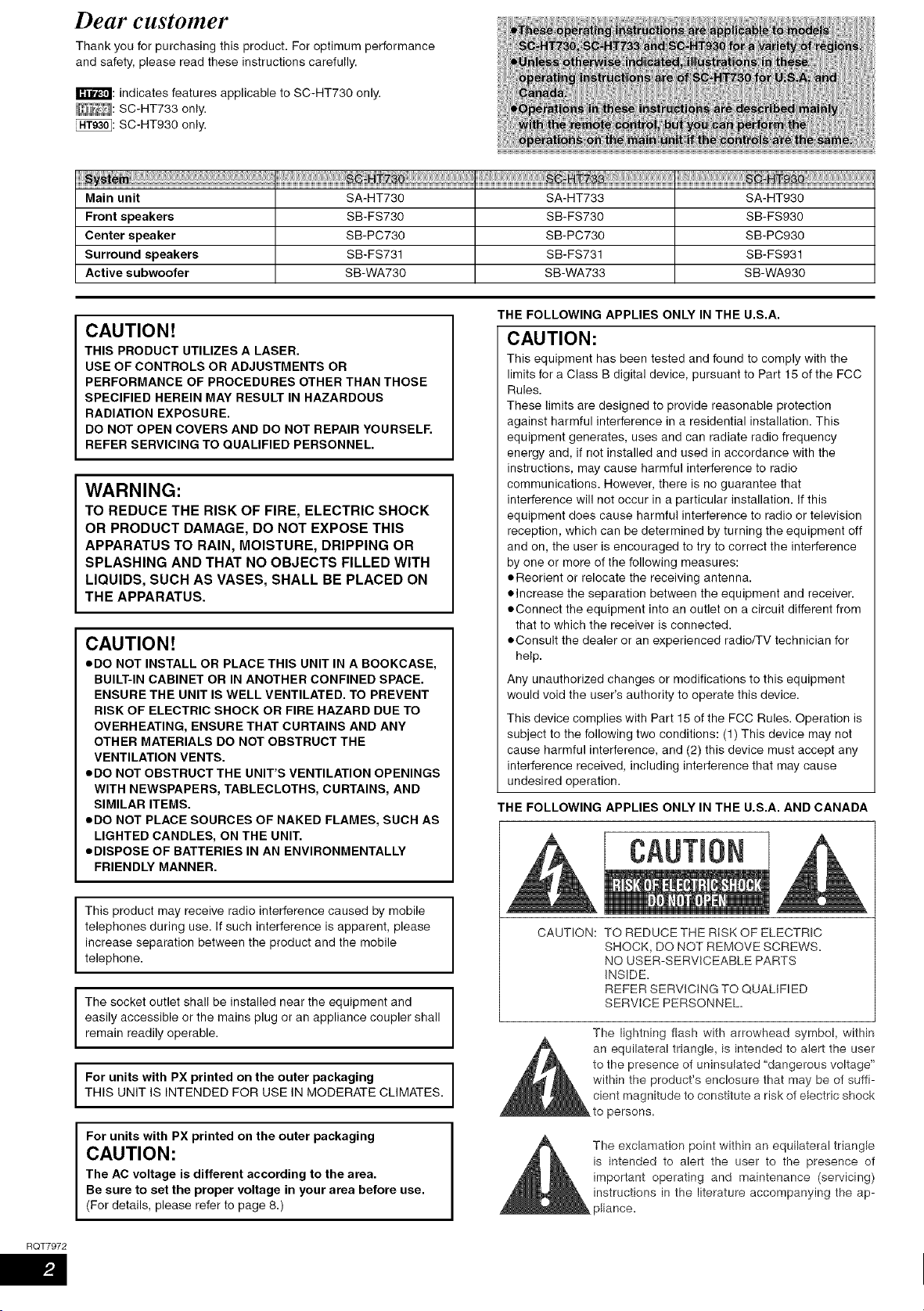

Dear customer
Thank you for purchasing this product. For optimum performance
and safety, please read these instructions carefully.
I_'_'_: indicates features applicable to SC-HT730 only.
_: SC-HT733 only.
HT930_: SC-HT930 only.
}S are a]
] Illust]
of SC-_
]t vouc
Jtlithe
Main unit SA-HT730 SA-HT733 SA-HT930
Front speakers SB-FS730 SB-FS730 SB-FS930
Center speaker SB-PC730 SB-PC730 SB-PC930
Surround speakers SB-FS731 SB-FS731 SB-FS931
Active subwoofer SB-WA730 SB-WA733 SB-WA930
RQT7972
CAUTION!
THIS PRODUCT UTILIZES A LASER.
USE OF CONTROLS OR ADJUSTMENTS OR
PERFORMANCE OF PROCEDURES OTHER THAN THOSE
SPECIFIED HEREIN MAY RESULT IN HAZARDOUS
RADIATION EXPOSURE.
DO NOT OPEN COVERS AND DO NOT REPAIR YOURSELF.
REFER SERVICING TO QUALIFIED PERSONNEL.
WARNING:
TO REDUCE THE RISK OF FIRE, ELECTRIC SHOCK
OR PRODUCT DAMAGE, DO NOT EXPOSE THIS
APPARATUS TO RAIN, MOISTURE, DRIPPING OR
SPLASHING AND THAT NO OBJECTS FILLED WITH
LIQUIDS, SUCH AS VASES, SHALL BE PLACED ON
THE APPARATUS.
I
I
I
CAUTION!
oDO NOT INSTALL OR PLACE THIS UNIT IN A BOOKCASE,
BUILT-IN CABINET OR IN ANOTHER CONFINED SPACE.
ENSURE THE UNIT IS WELL VENTILATED. TO PREVENT
RISK OF ELECTRIC SHOCK OR FIRE HAZARD DUE TO
OVERHEATING, ENSURE THAT CURTAINS AND ANY
OTHER MATERIALS DO NOT OBSTRUCT THE
VENTILATION VENTS.
eDO NOT OBSTRUCT THE UNIT'S VENTILATION OPENINGS
WITH NEWSPAPERS, TABLECLOTHS, CURTAINS, AND
SIMILAR ITEMS.
eDO NOT PLACE SOURCES OF NAKED FLAMES, SUCH AS
LIGHTED CANDLES, ON THE UNIT.
eDISPOSE OF BATTERIES IN AN ENVIRONMENTALLY
FRIENDLY MANNER.
This product may receive radio interference caused by mobile
telephones during use. If such interference is apparent, please
increase separation between the product and the mobile
telephone.
The socket outlet shall be installed near the equipment and
easily accessible or the mains plug or an appliance coupler shall
remain readily operable.
For units with PX printed on the outer packaging
THIS UNIT IS INTENDED FOR USE IN MODERATE CLIMATES.
For units with PX printed on the outer packaging
CAUTION:
The AC voltage is different according to the area.
Be sure to set the proper voltage in your area before use.
(For details, please refer to page 8.)
THE FOLLOWING APPLIES ONLY IN THE U.S.A.
CAUTION:
This equipment has been tested and found to comply with the
limits for a Class B digital device, pursuant to Part 15 of the FCC
Rules.
These limits are designed to provide reasonable protection
against harmful interference in a residential installation. This
equipment generates, uses and can radiate radio frequency
energy and, if not installed and used in accordance with the
instructions, may cause harmful interference to radio
communications. However, there is no guarantee that
interference will not occur in a particular installation. If this
equipment does cause harmful interference to radio or television
reception, which can be determined by turning the equipment off
and on, the user is encouraged to try to correct the interference
by one or more of the following measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different from
that to which the receiver is connected.
• Consult the dealer or an experienced radio/TV technician for
help.
Any unauthorized changes or modifications to this equipment
would void the user's authority to operate this device.
This device complies with Part 15 of the FCC Rules. Operation is
subject to the following two conditions: (1) This device may not
cause harmful interference, and (2) this device must accept any
interference received, including interference that may cause
undesired operation.
THE FOLLOWING APPLIES ONLY IN THE U.S.A. AND CANADA
A
CAUTION
f;k
CAUTION: TO REDUCE THE RISK OF ELECTRIC
SHOCK, DO NOT REMOVE SCREWS.
NO USER-SERVICEABLE PARTS
INSIDE.
REFER SERVICING TO QUALIFIED
SERVICE PERSONNEL
The lightning flash with arrowhead symbol, within
an equilateral triangle, is intended to alert the user
to the presence of uninsulated "dangerous voltage"
within the product's enclosure that may be of suffi-
cient magnitude to constitute a risk of electric shock
persons.
The exclamation point within an equilateral triangle
is intended to alert the user to the presence of
important operating and maintenance (servicing)
instructions in the literature accompanying the ap-
pliance.

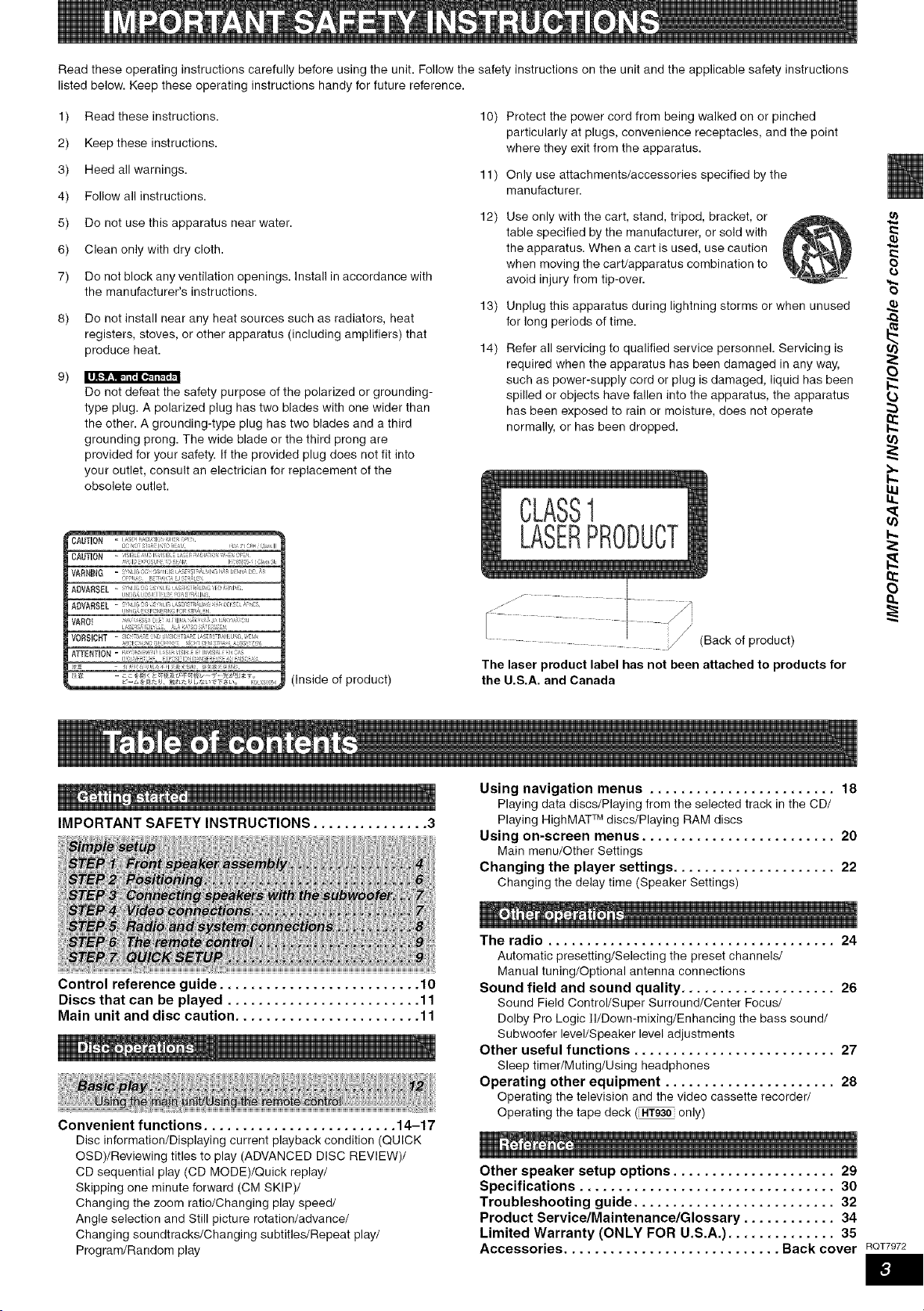

Readtheseoperatinginstructionscarefullybeforeusingtheunit.Followthesafetyinstructionsontheunitandtheapplicablesafetyinstructions
listedbelow.Keeptheseoperatinginstructionshandyforfuturereference.
1) Readtheseinstructions. 10)
2) Keeptheseinstructions.
3) Heedallwarnings. 11
4) Followallinstructions.
5) Donotusethisapparatusnearwater. 12)
6) Cleanonlywithdrycloth.
7) Donotblockanyventilationopenings.Installinaccordancewith
themanufacturer'sinstructions.
13)
8) Donotinstallnearanyheatsourcessuchasradiators,heat
registers,stoves,orotherapparatus(includingamplifiers)that
produceheat. 14)
Donotdefeatthesafetypurposeofthepolarizedorgrounding-
typeplug.Apolarizedplughastwobladeswithonewiderthan
theother.Agrounding-typeplughastwobladesandathird
groundingprong.Thewidebladeorthethirdprongare
providedforyoursafety.Iftheprovidedplugdoesnotfitinto
youroutlet,consultanelectricianforreplacementofthe
obsoleteoutlet.
Protectthepowercordfrombeingwalkedonorpinched
particularlyatplugs,conveniencereceptacles,andthepoint
wheretheyexitfromtheapparatus.
Onlyuseattachments/accessoriesspecifiedbythe
manufacturer.
Useonlywiththecart,stand,tripod,bracket,or
tablespecifiedbythemanufacturer,orsoldwith
theapparatus.Whenacartisused,usecaution
whenmovingthecart/apparatuscombinationto
avoidinjuryfromtip-over.
Unplugthisapparatusduringlightningstormsorwhenunused
forlongperiodsoftime.
Referallservicingtoqualifiedservicepersonnel.Servicingis
requiredwhentheapparatushasbeendamagedinanyway,
suchaspower-supplycordorplugisdamaged,liquidhasbeen
spilledorobjectshavefallenintotheapparatus,theapparatus
hasbeenexposedtorainormoisture,doesnotoperate
normally,orhasbeendropped.
B _KTa J,T _LE
U 6 Sll I ) I
1114_G,_E PNEI, F:R TF L]IJ
US S IIL_ a C X_: r
_T_E_]" 0_ = i qSII I IrLISI l ,i ! :,S
(Inside of product)
IMPORTANT SAFETY INSTRUCTIONS ............... 3
(Back of product)
The laser product label has not been attached to products for
the U.S.A. and Canada
O
O
.Q
iiii
iii/
Control reference guide .......................... 10

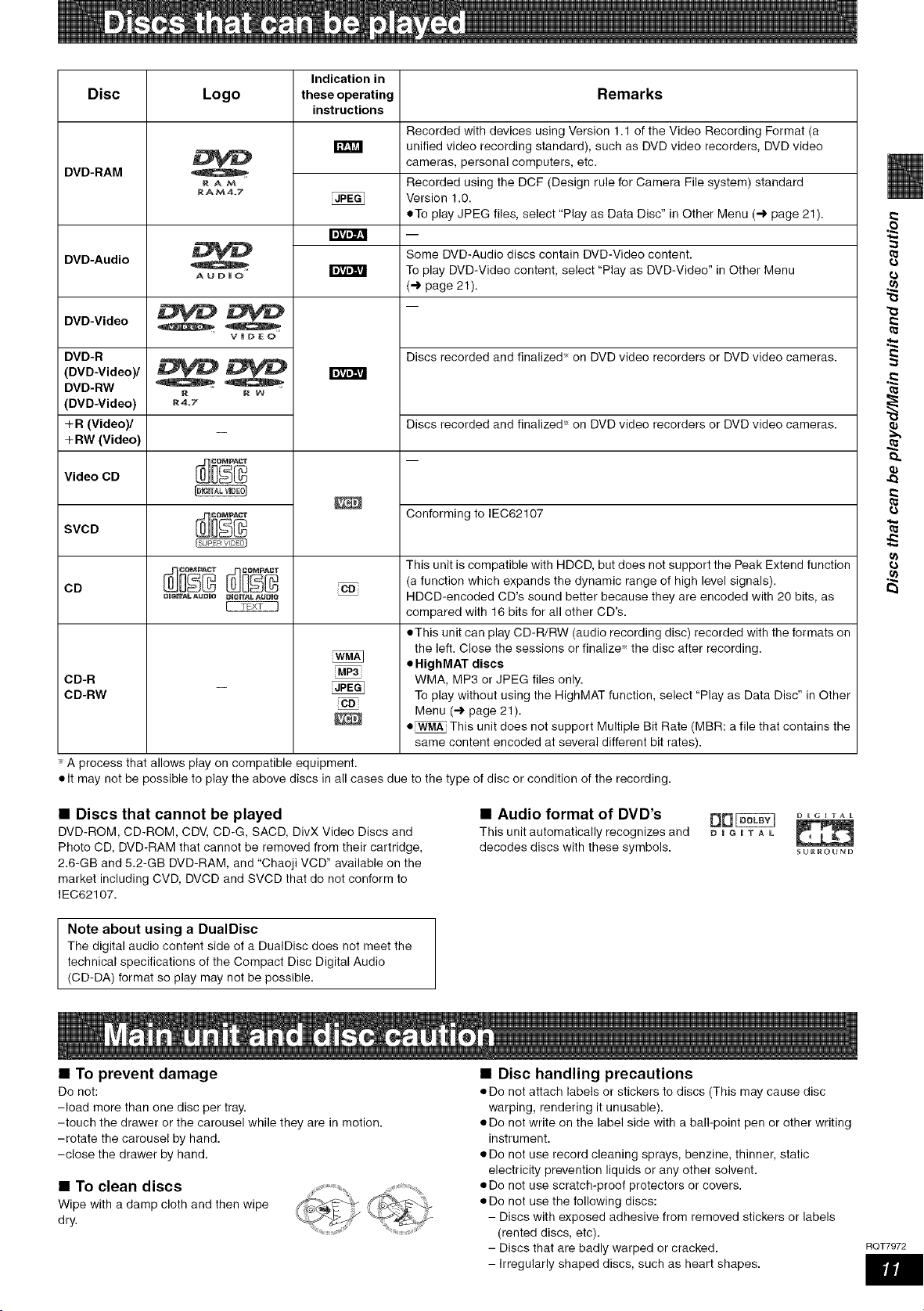

Discs that can be played ......................... 11
Main unit and disc caution ........................ 11

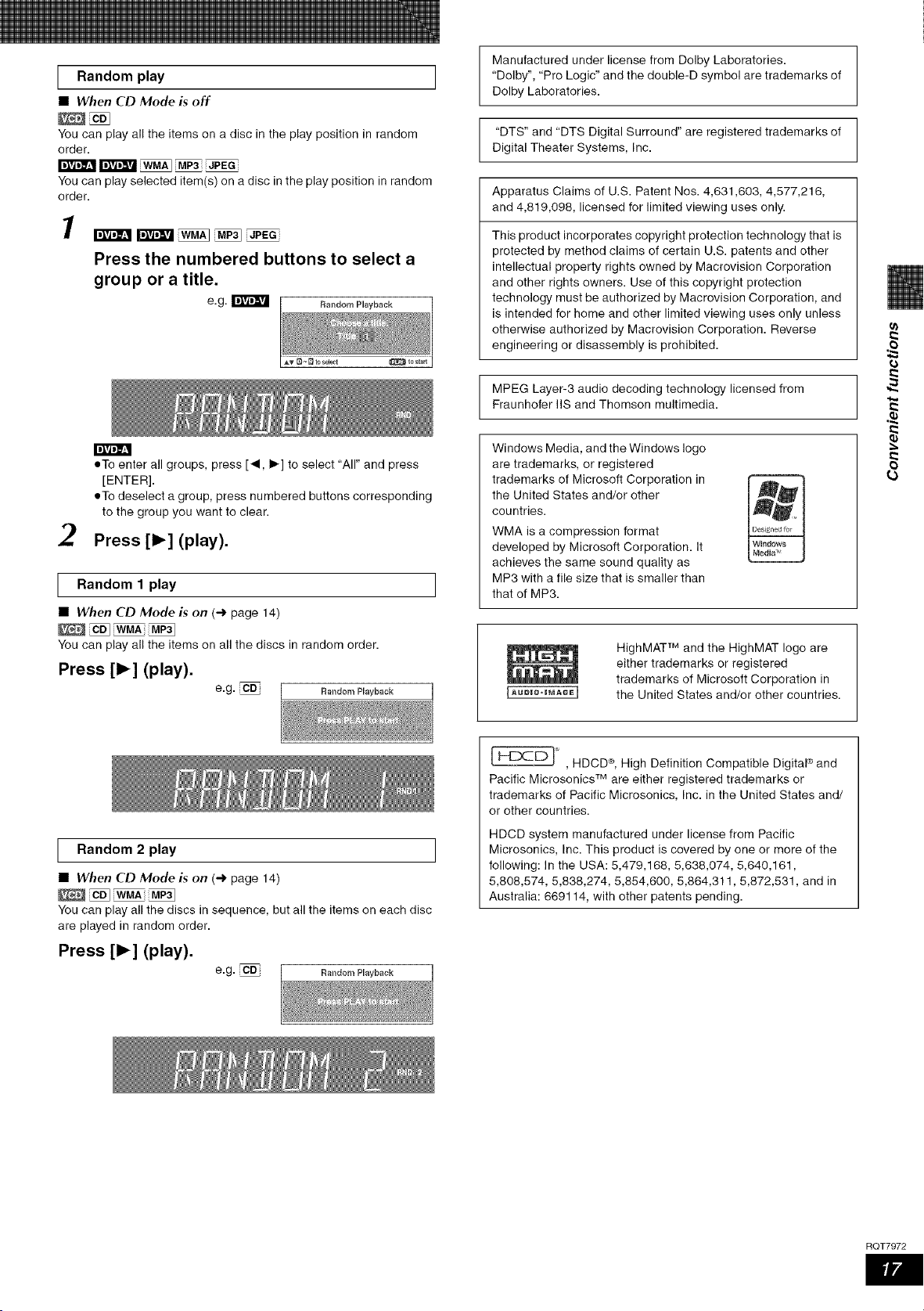

Convenient functions ......................... 14-17
Disc information/Displaying current playback condition (QUICK
OSD)/Reviewing titles to play (ADVANCED DISC REVIEW)/
CD sequential play (CD MODE)/Quick replay/
Skipping one minute forward (CM SKIP)/
Changing the zoom ratio/Changing play speed/
Angle selection and Still picture rotation/advance/
Changing soundtracks/Changing subtitles/Repeat play/

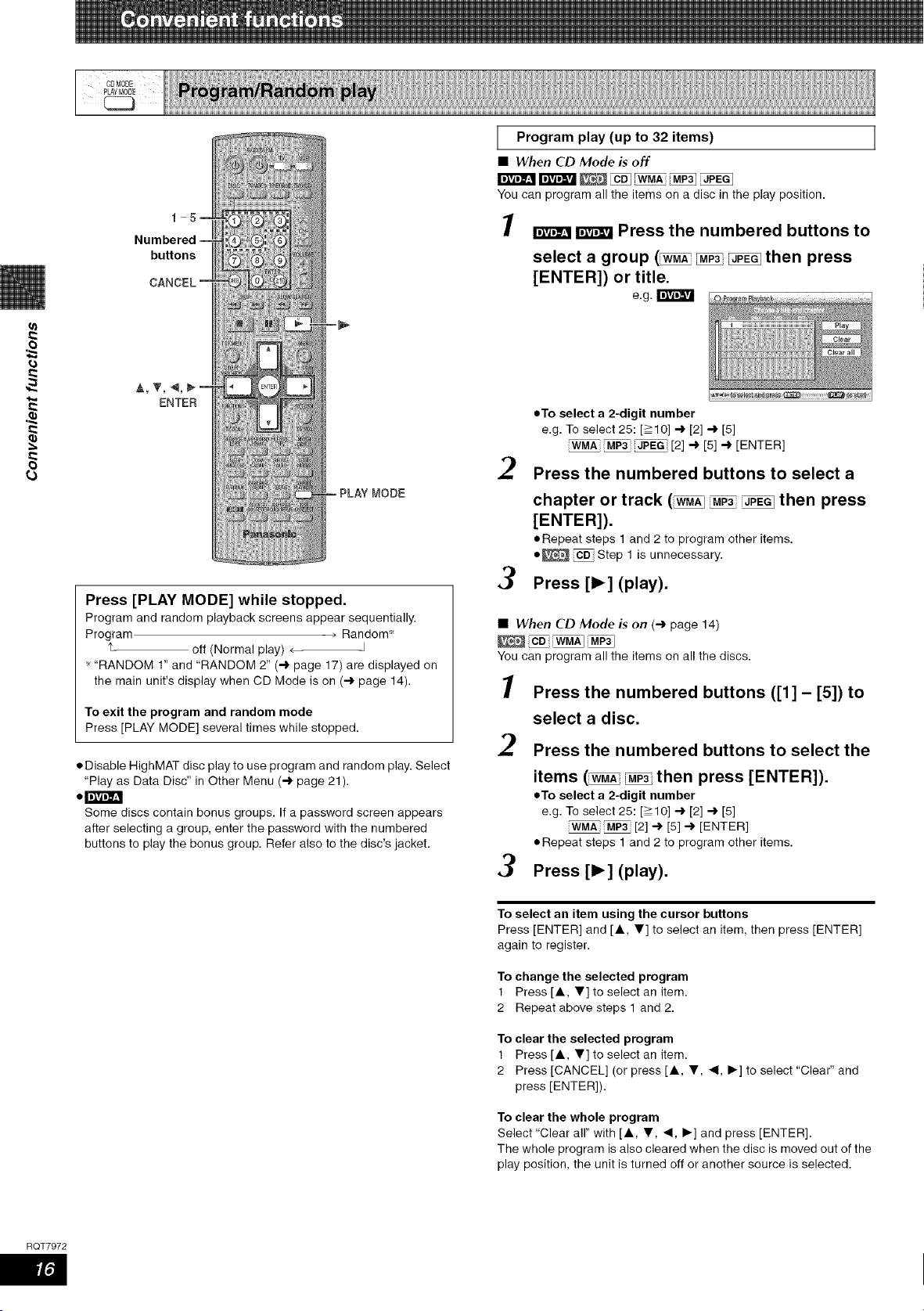

Program/Random play

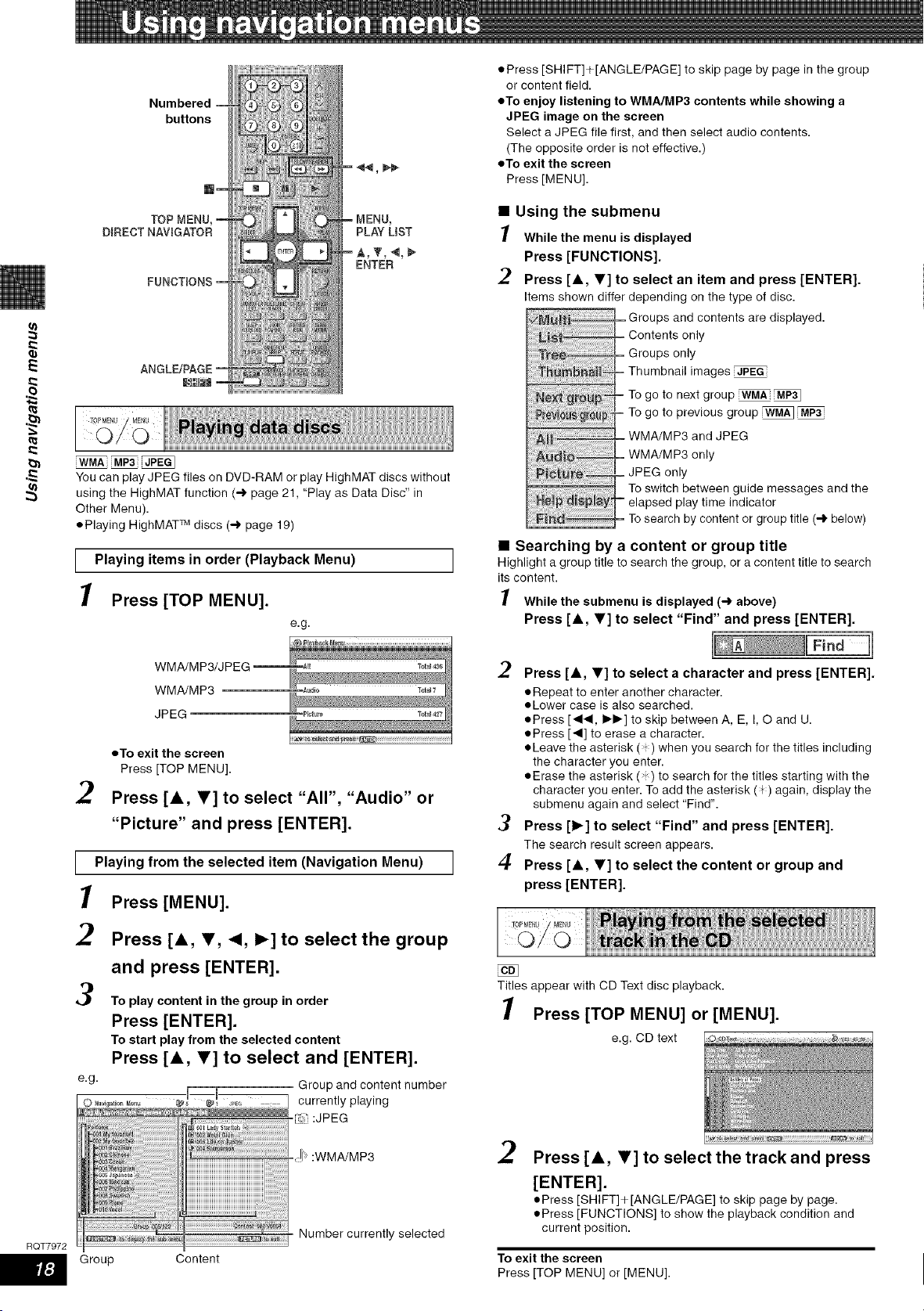

Using navigation menus ........................ 18
Playing data discs/Playing from the selected track in the CD/

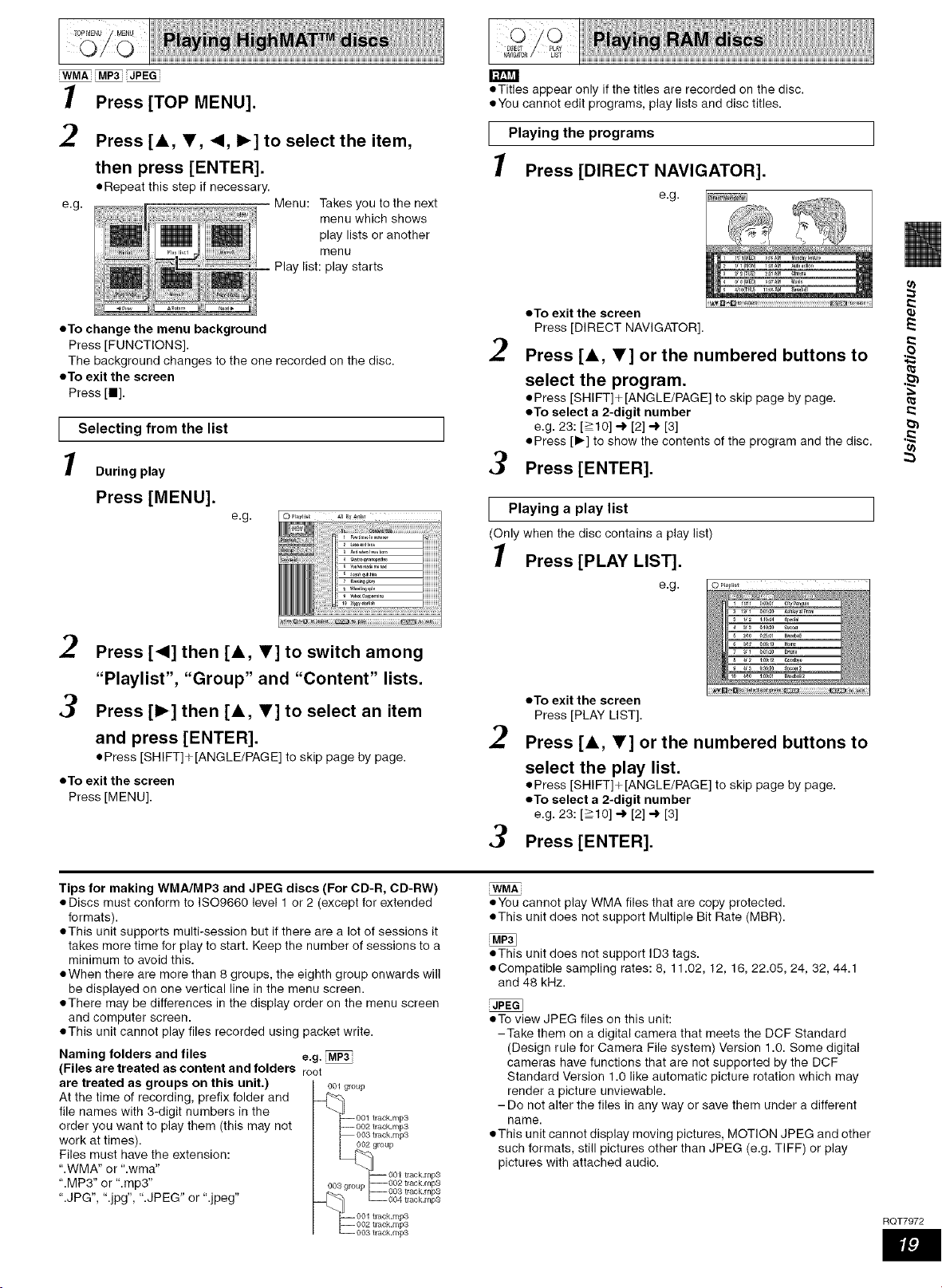

Playing HighMAT TM discs/Playing RAM discs

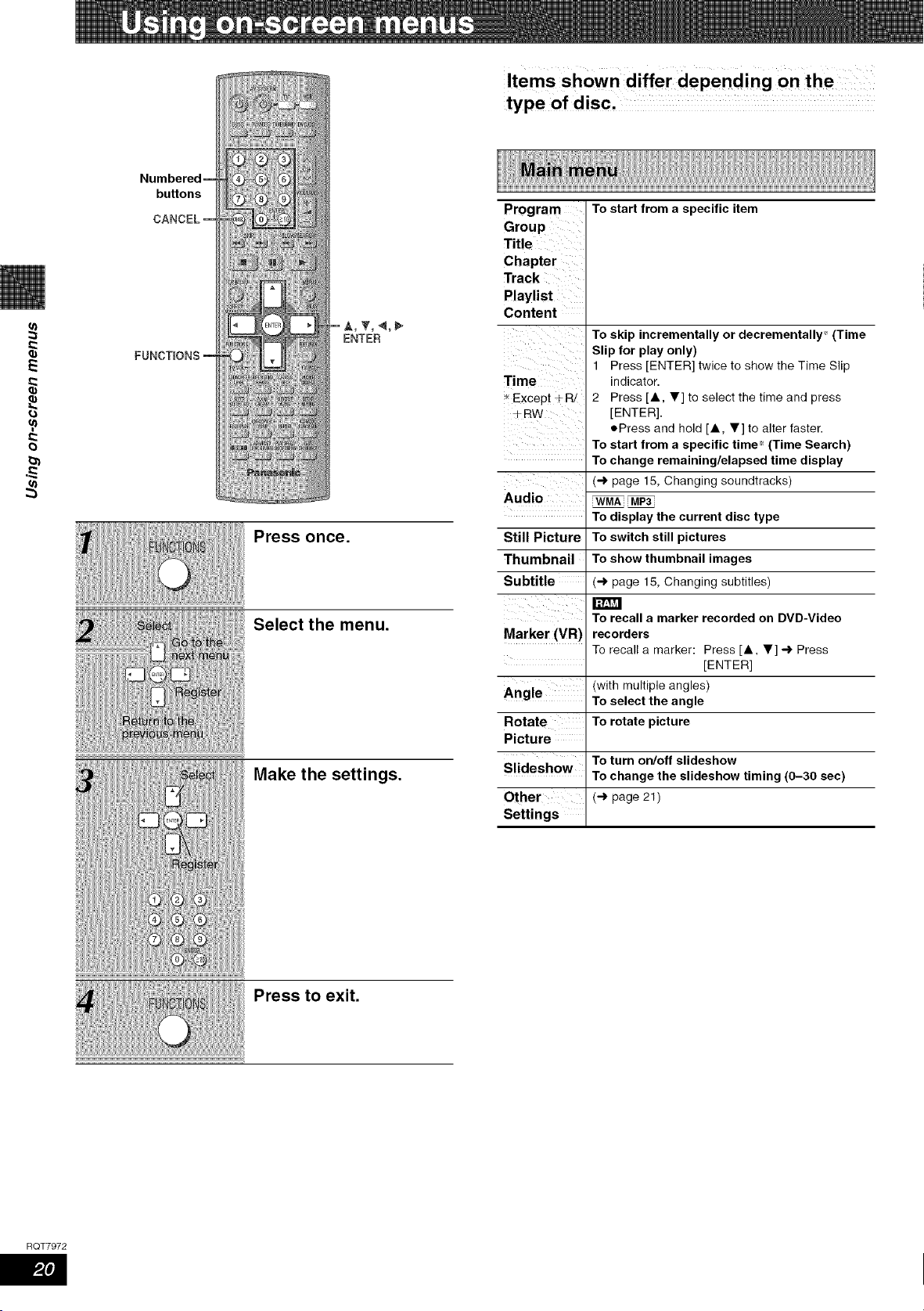

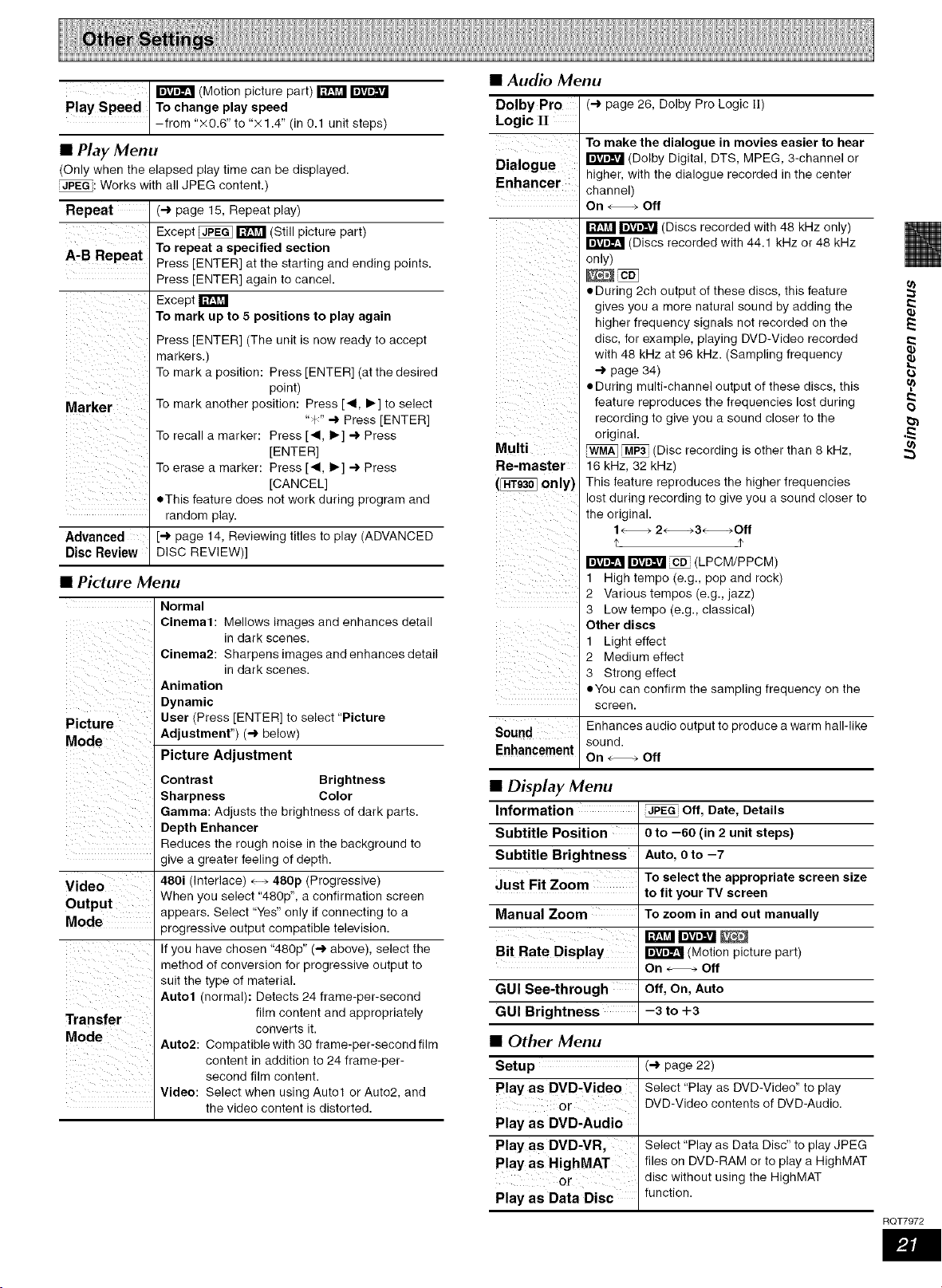

Using on-screen menus ......................... 20
Main menu/Other Settings

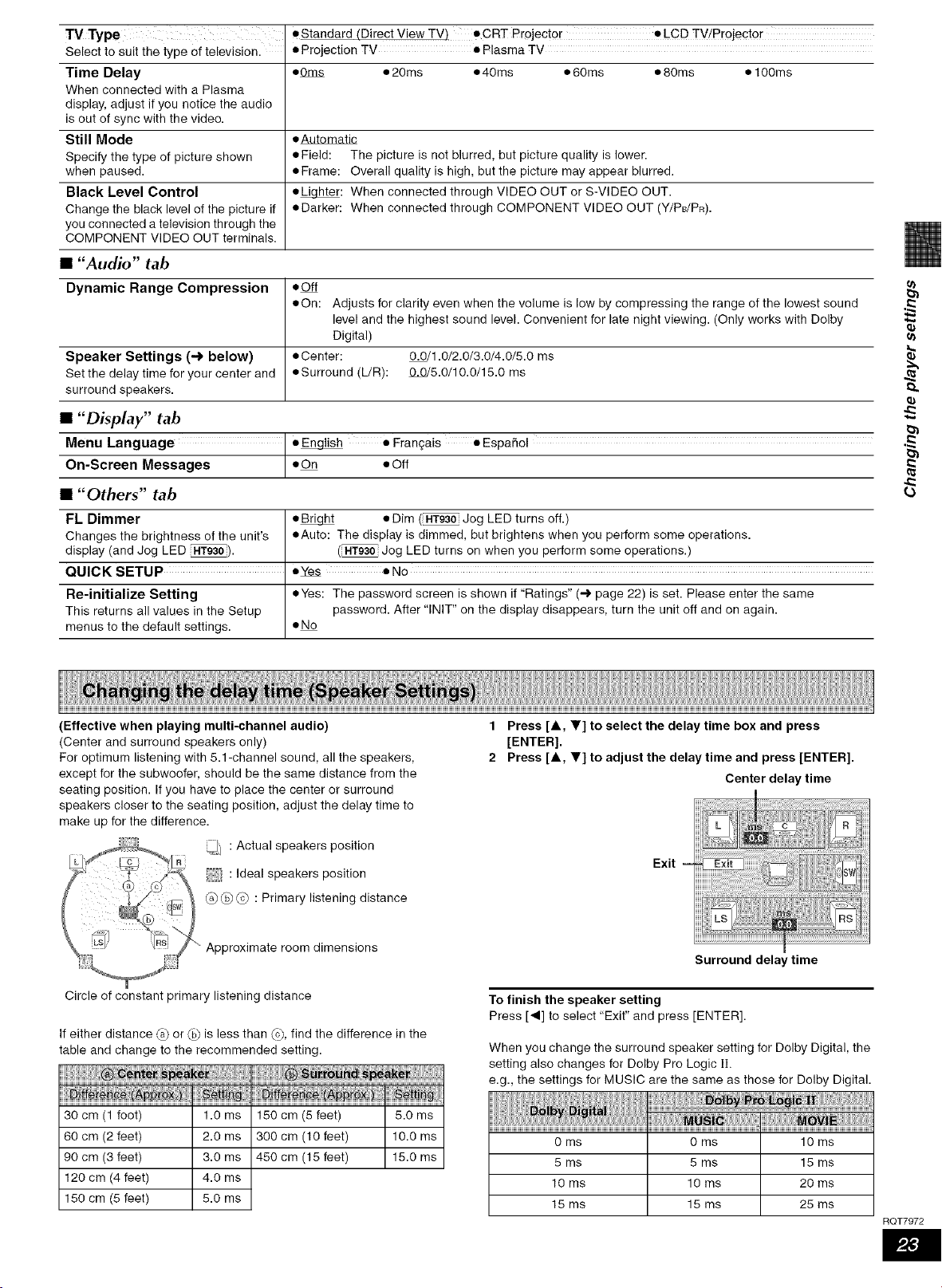

Changing the player settings ..................... 22
Changing the delay time (Speaker Settings)

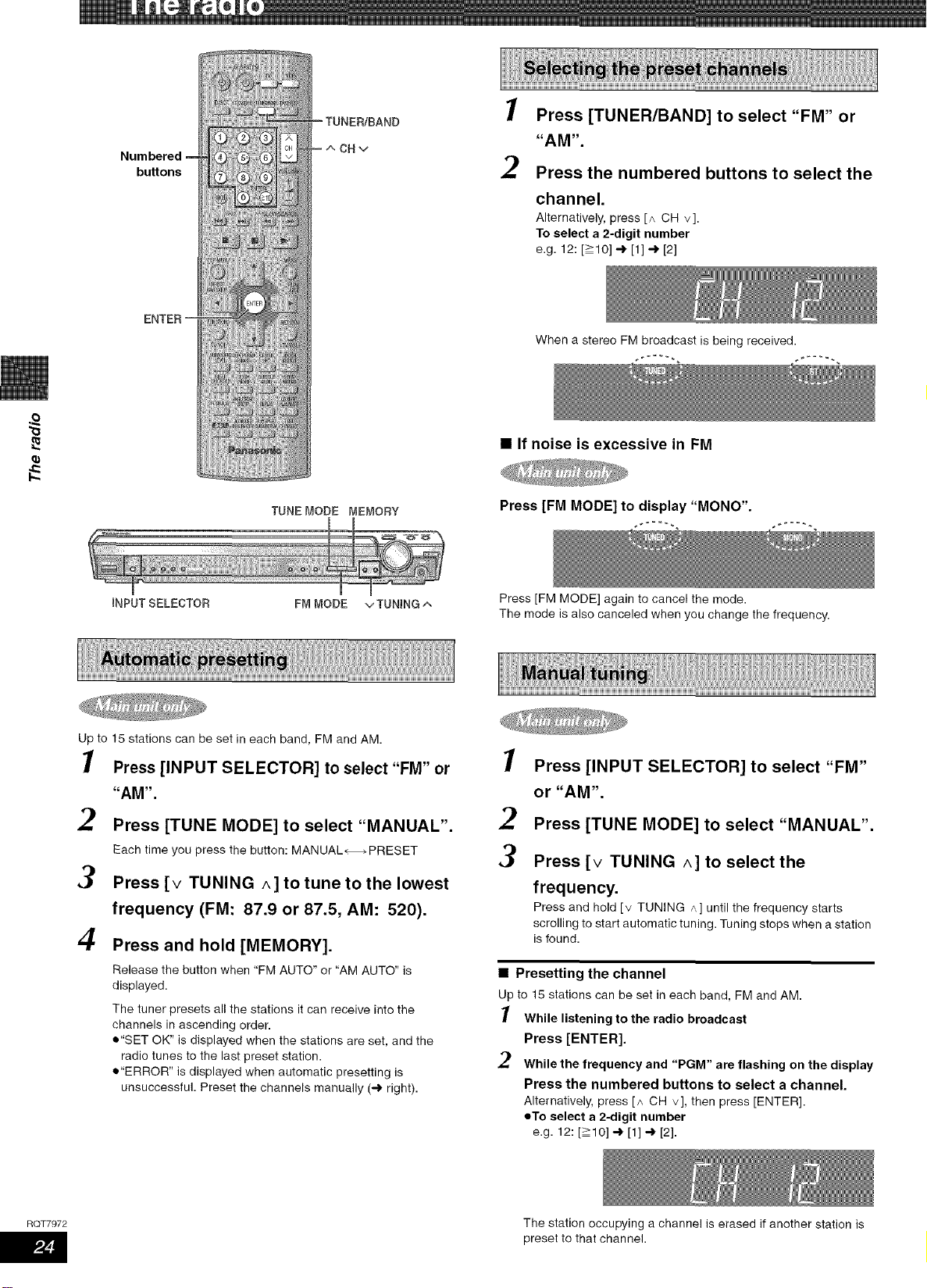

The radio ..................................... 24
Automatic presetting/Selecting the preset channels/

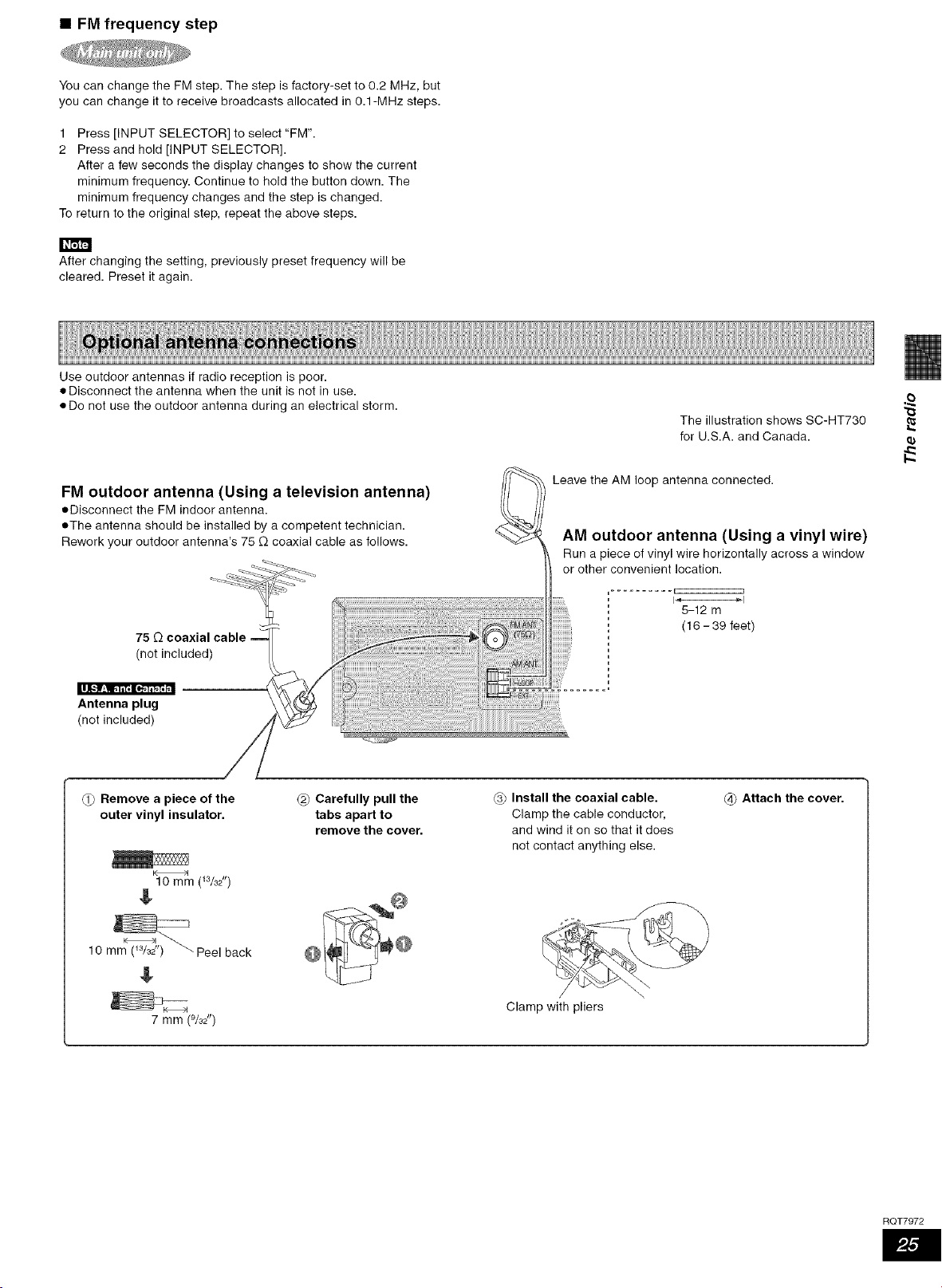

Manual tuning/Optional antenna connections

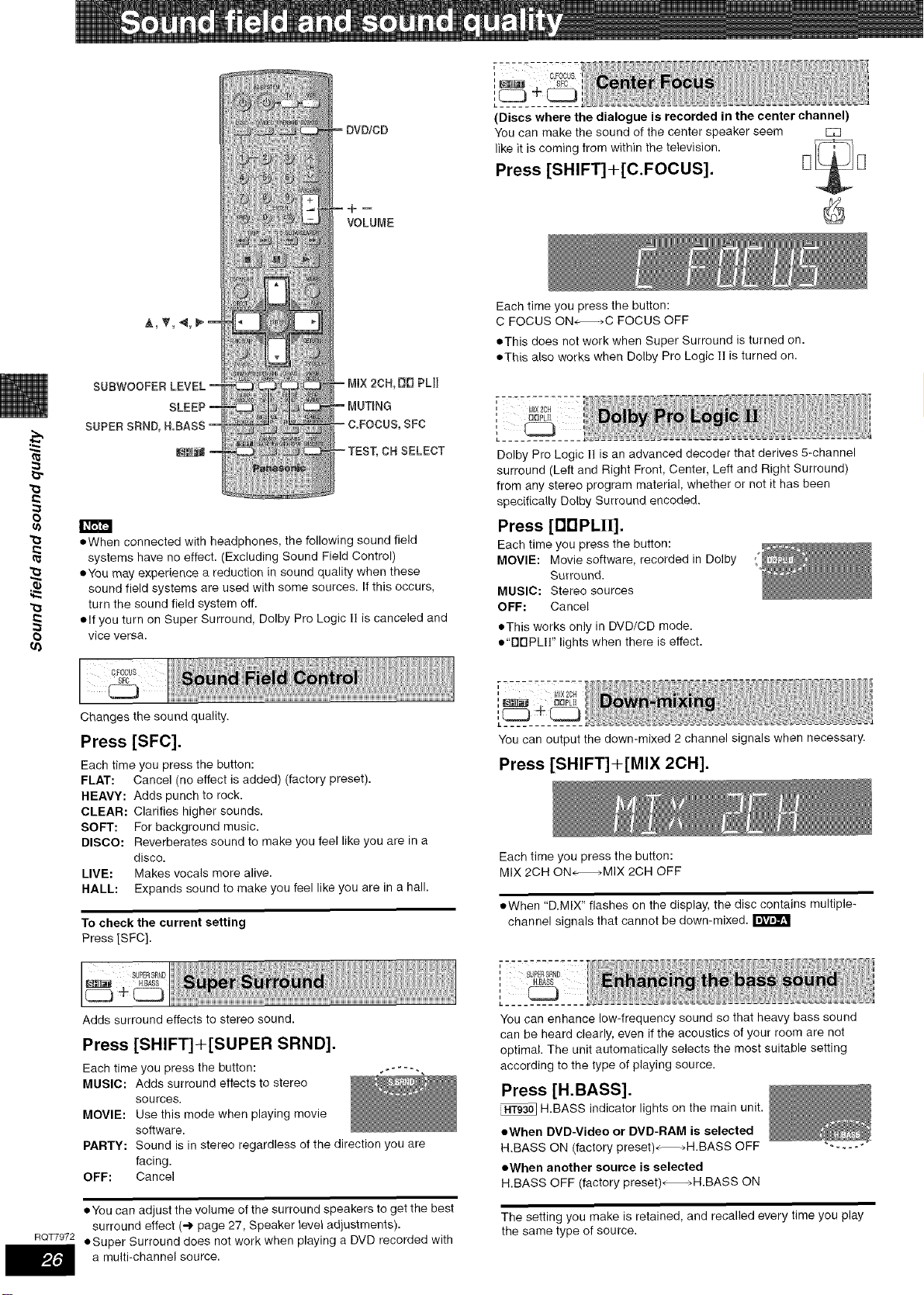

Sound field and sound quality .................... 26
Sound Field Control/Super Surround!Center Focus/
Dolby Pro Logic H/Down-mixing/Enhancing the bass sound/
Subwoofer level/Speaker level adjustments

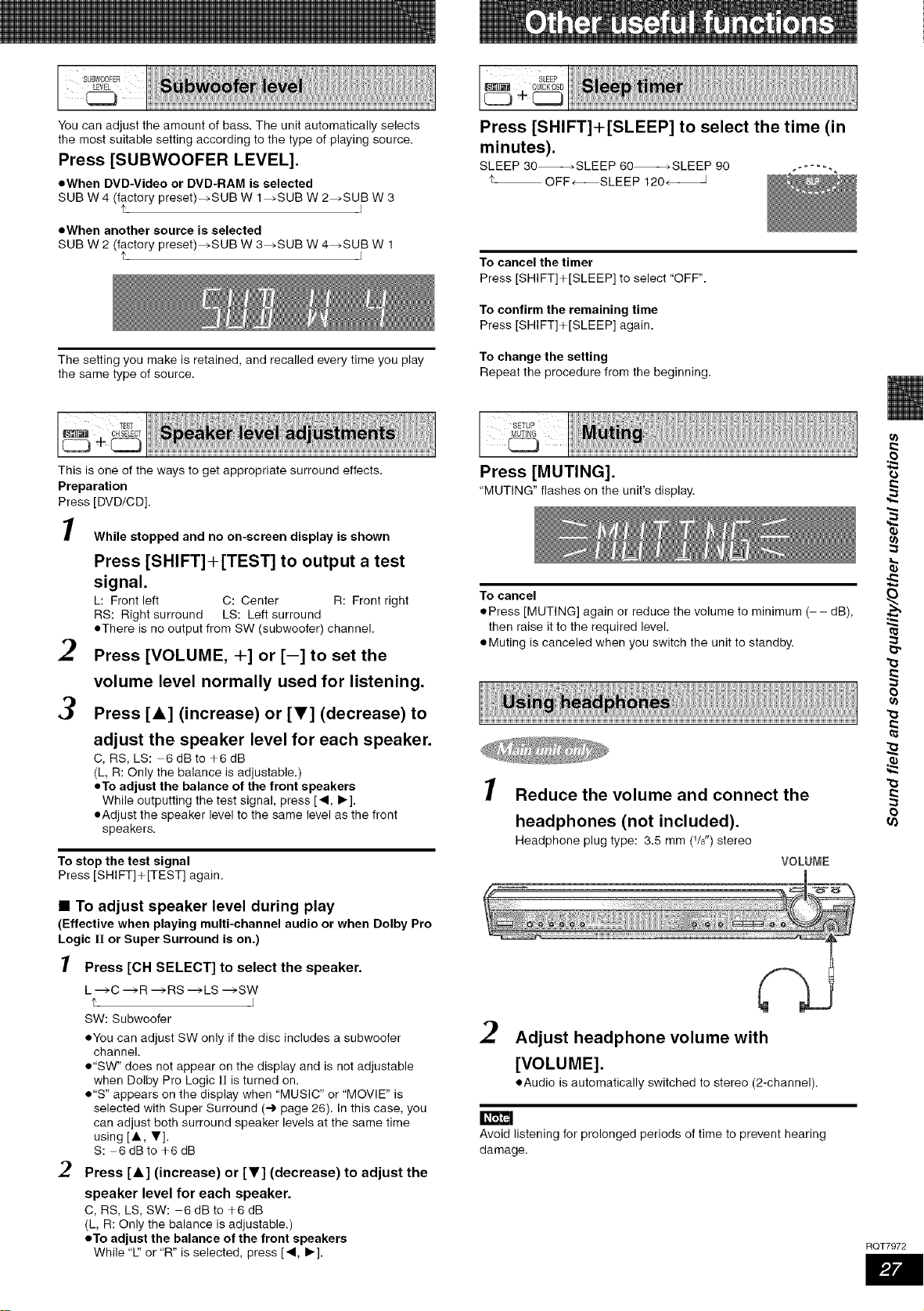

Other useful functions .......................... 27
Sleep timer/Muting/Using headphones

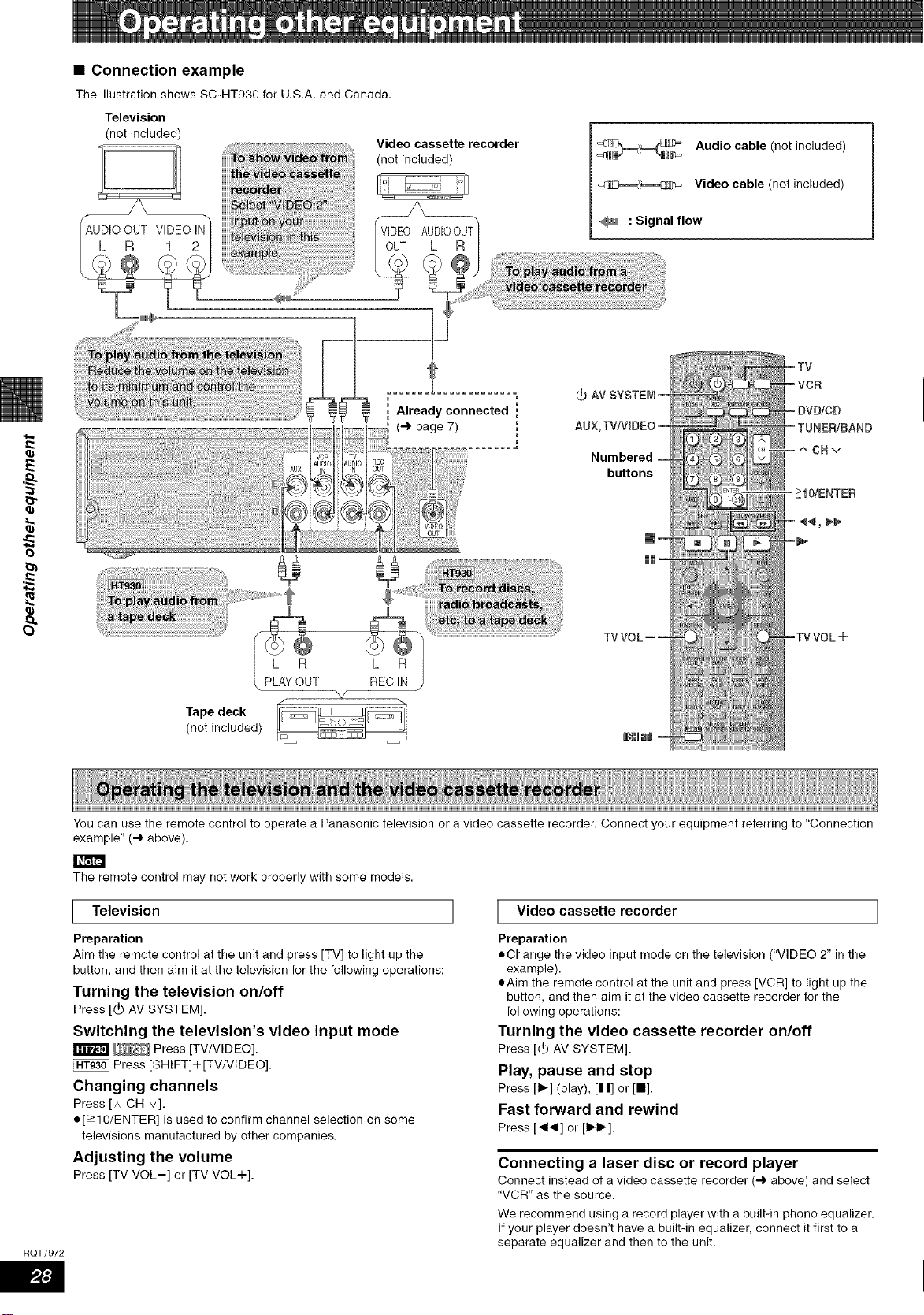

Operating other equipment ...................... 28
Operating the television and the video cassette recorder/
Operating the tape deck (_ only)

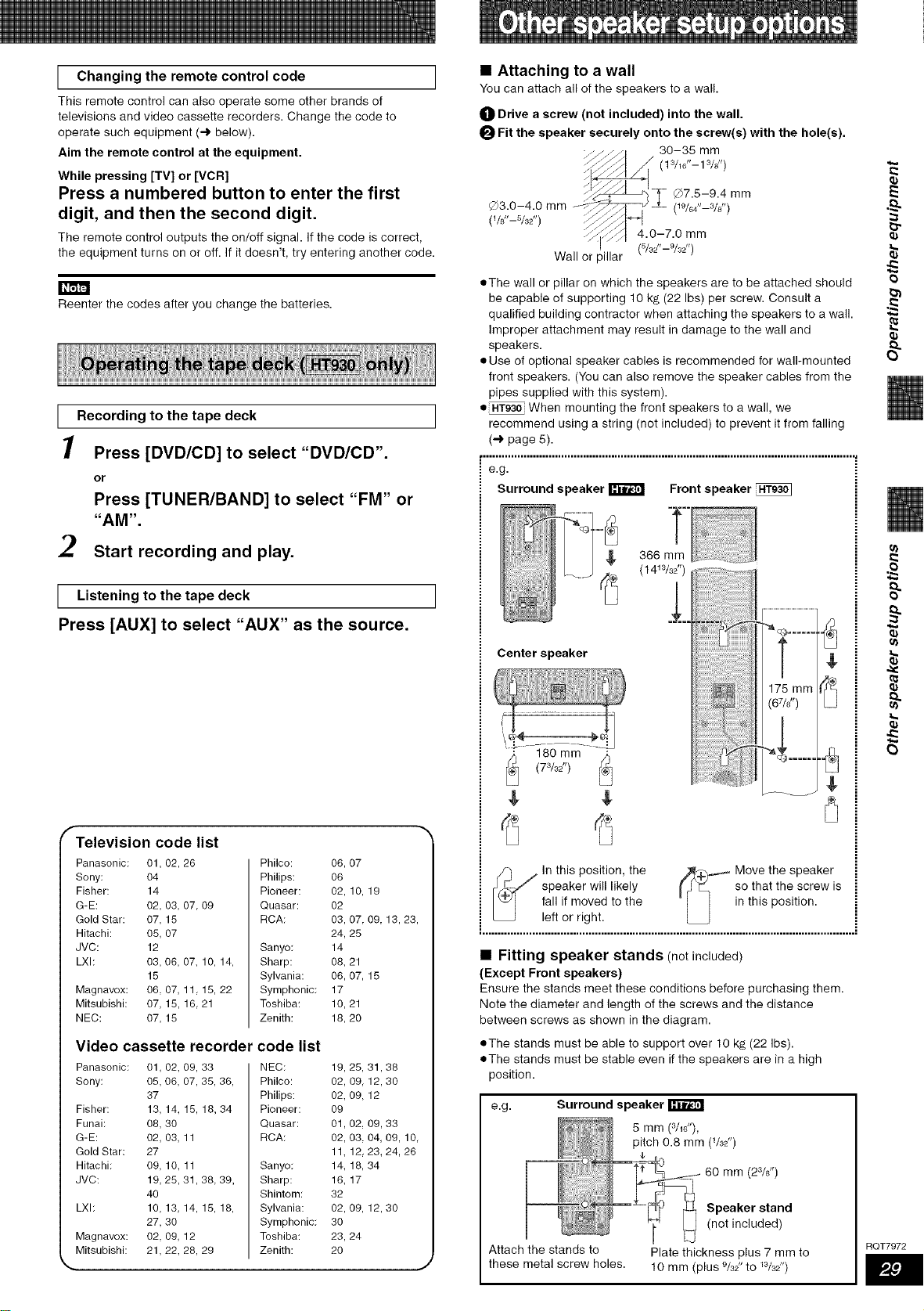

Other speaker setup options ..................... 29
Specifications ................................. 30

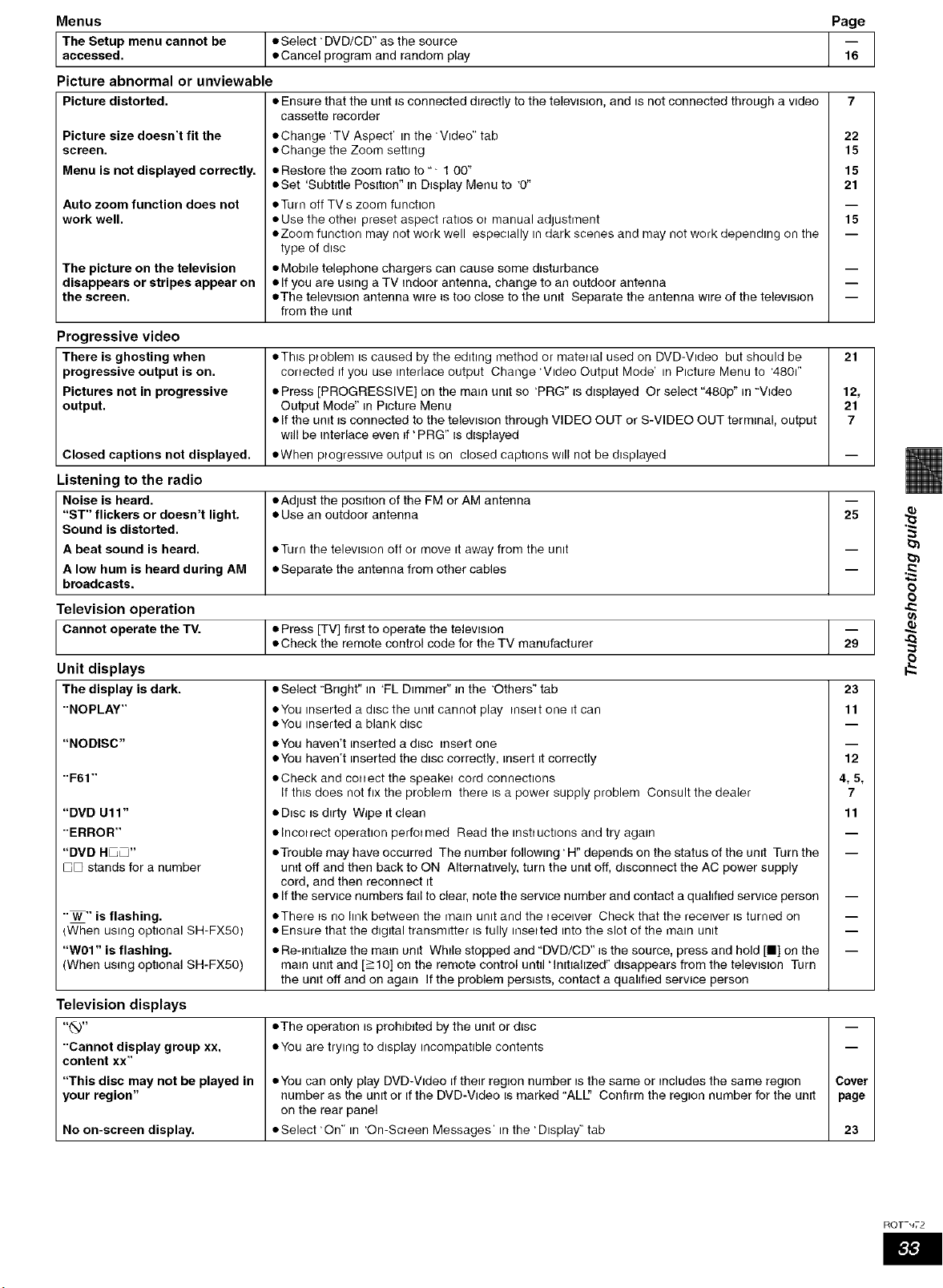

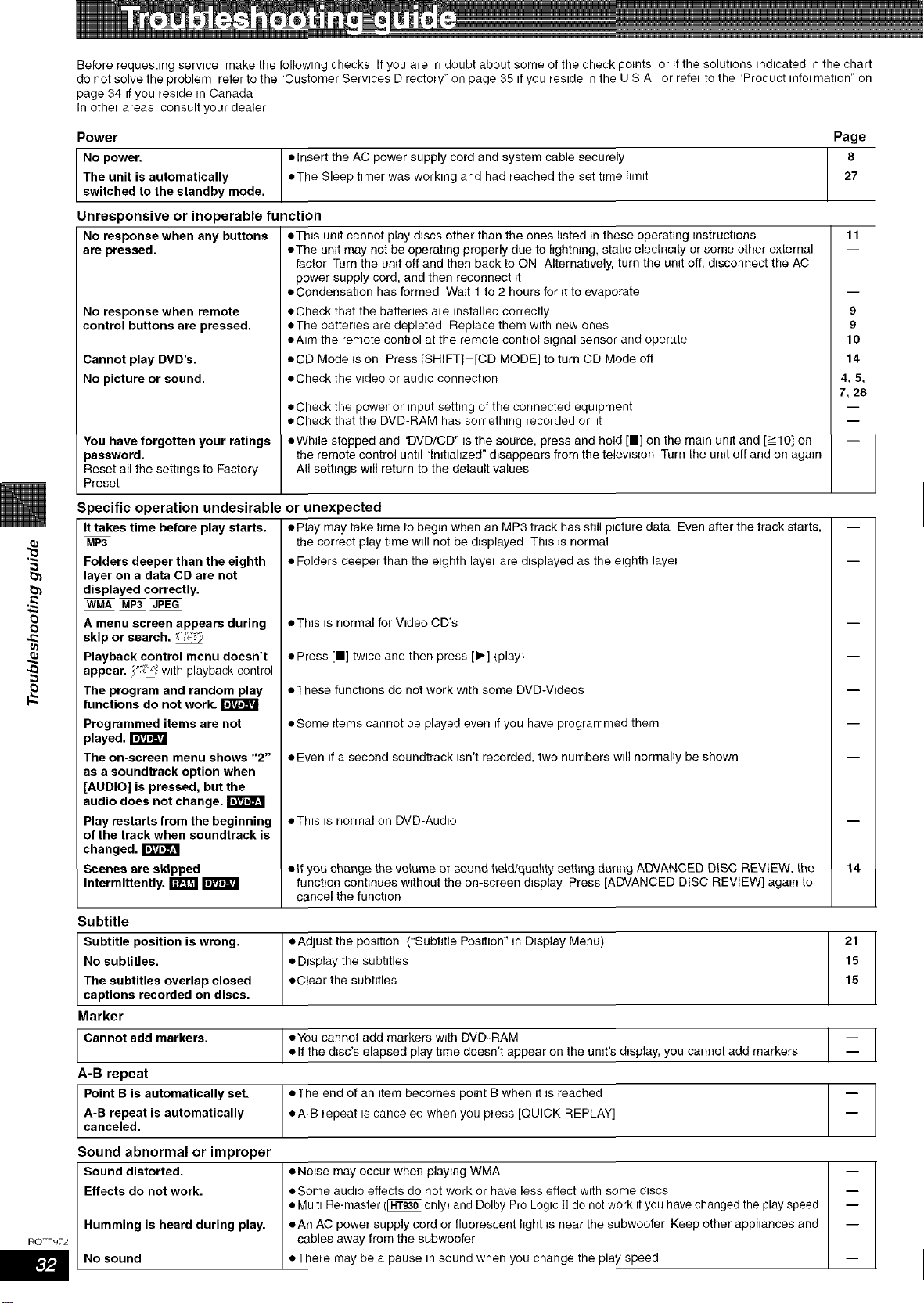

Troubleshooting guide .......................... 32

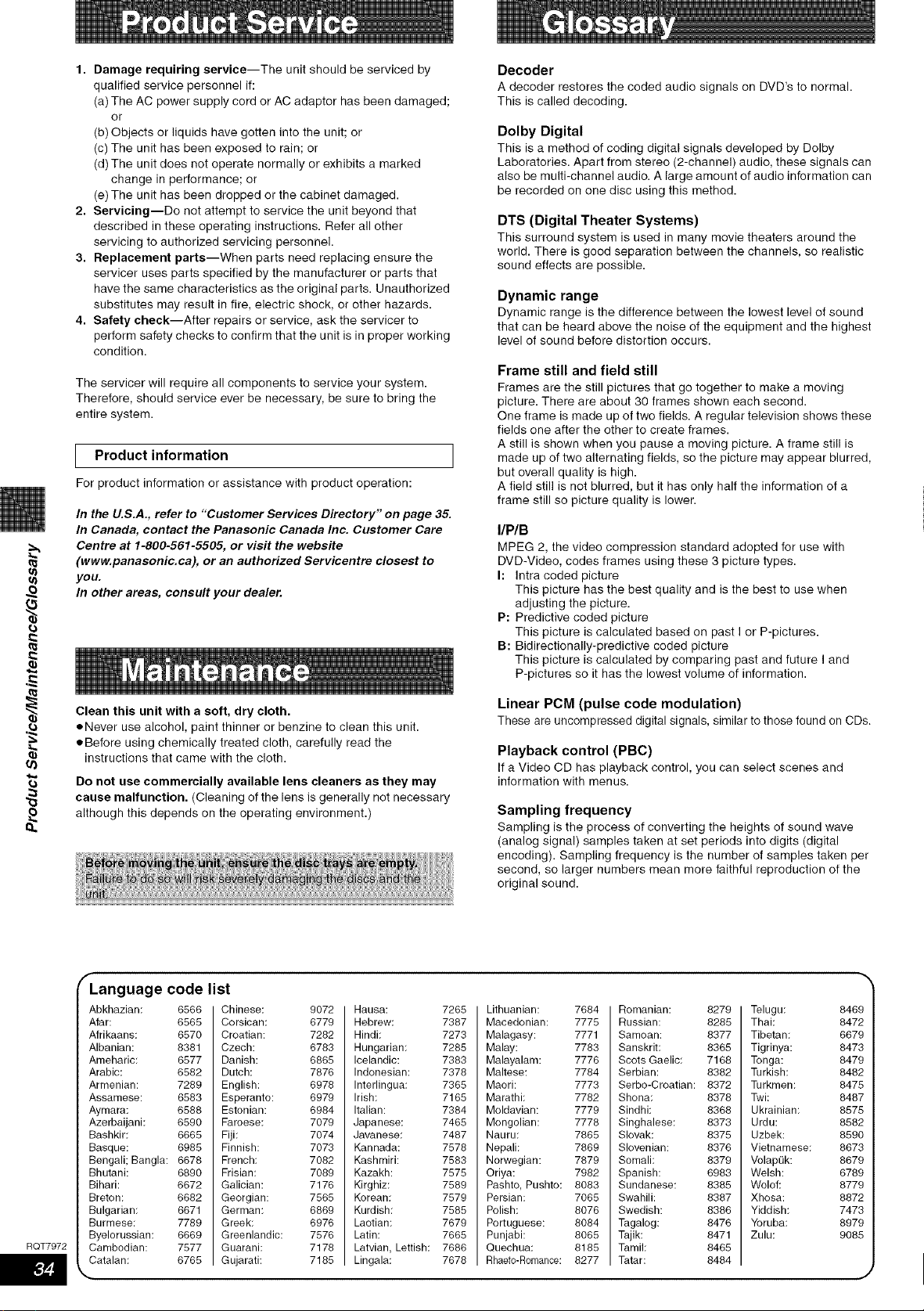

Product Service/Maintenance/Glossary ............ 34

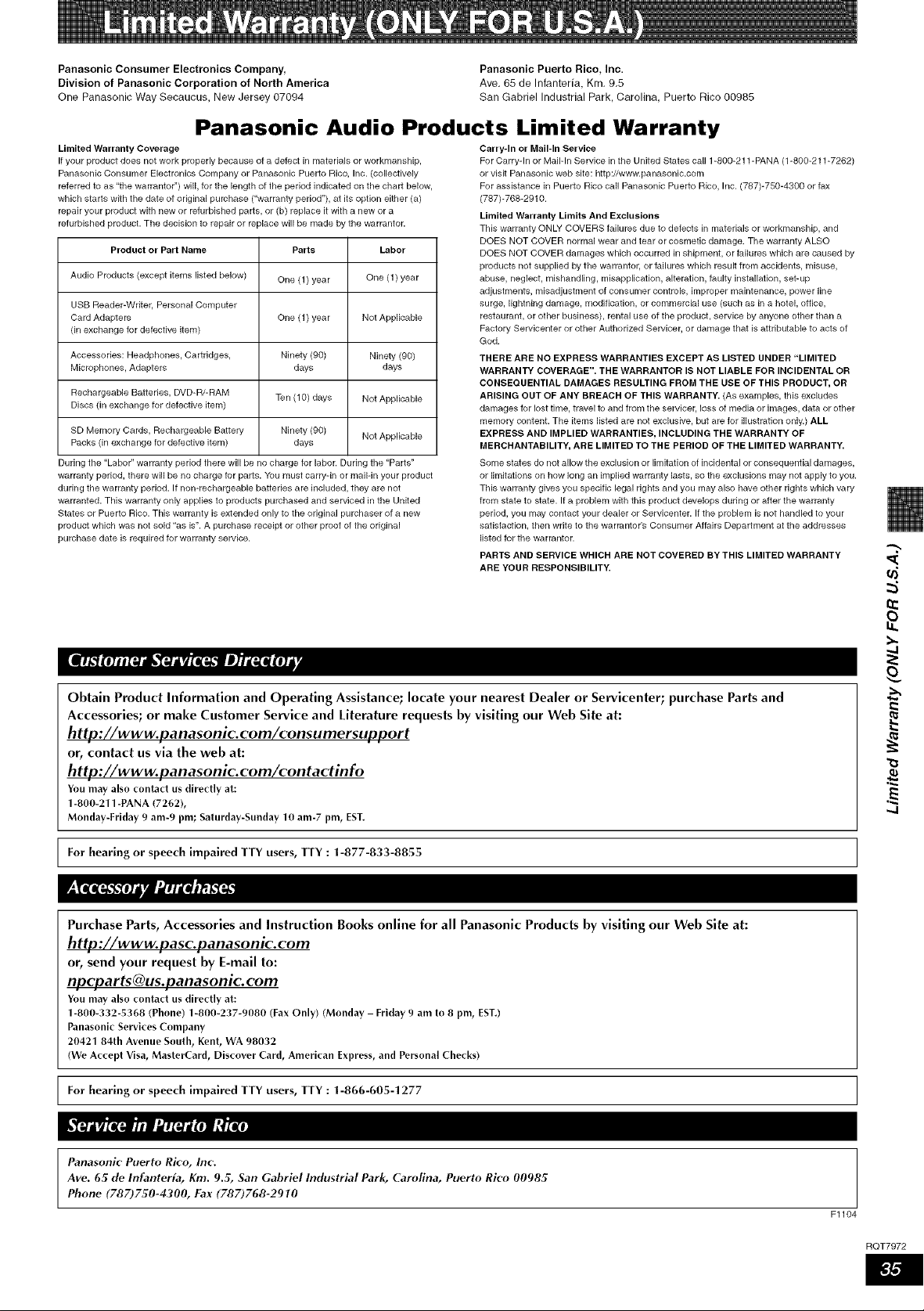

Limited Warranty (ONLY FOR U.S.A.) .............. 35

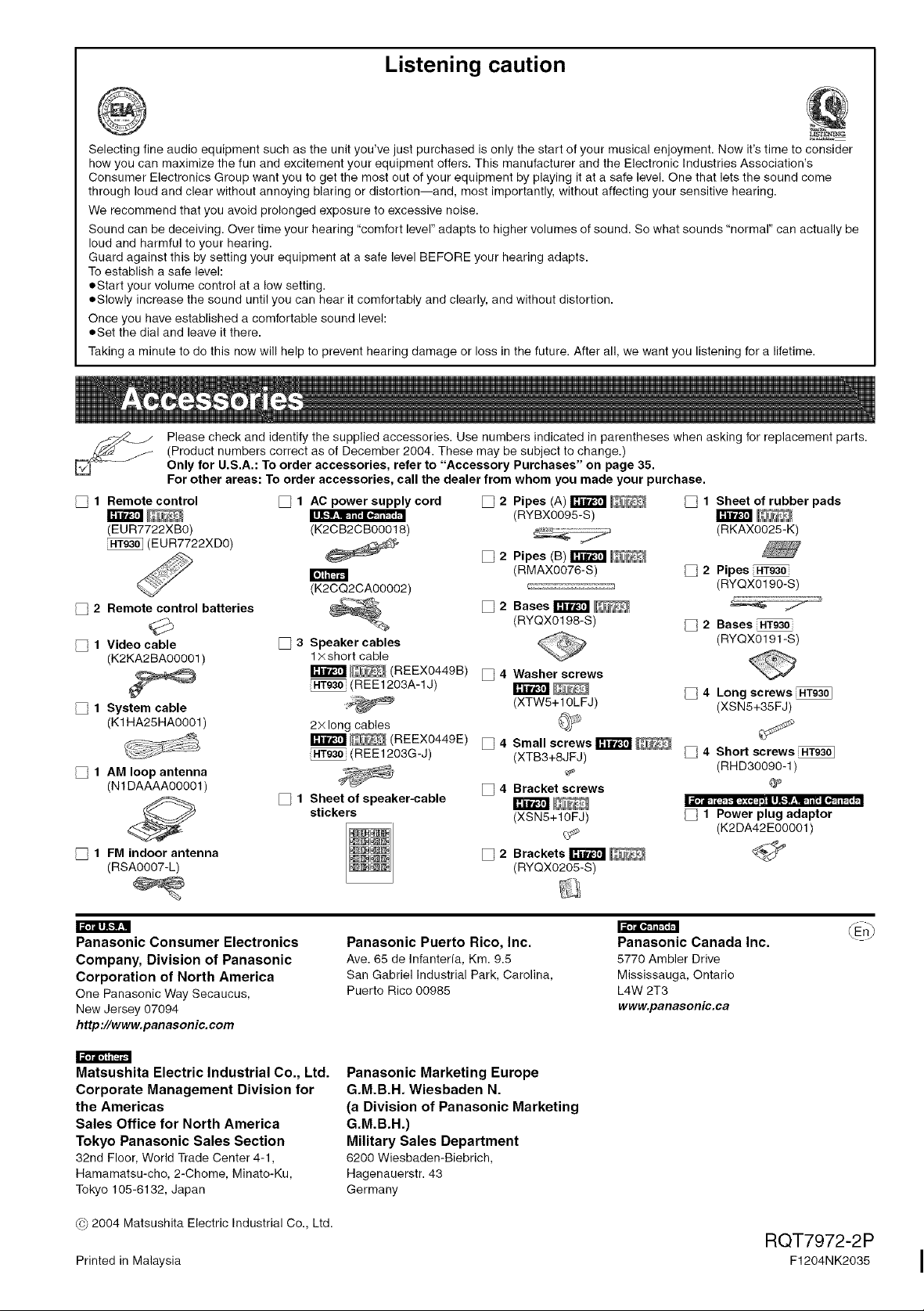

Accessories ............................ Back cover RQT7972

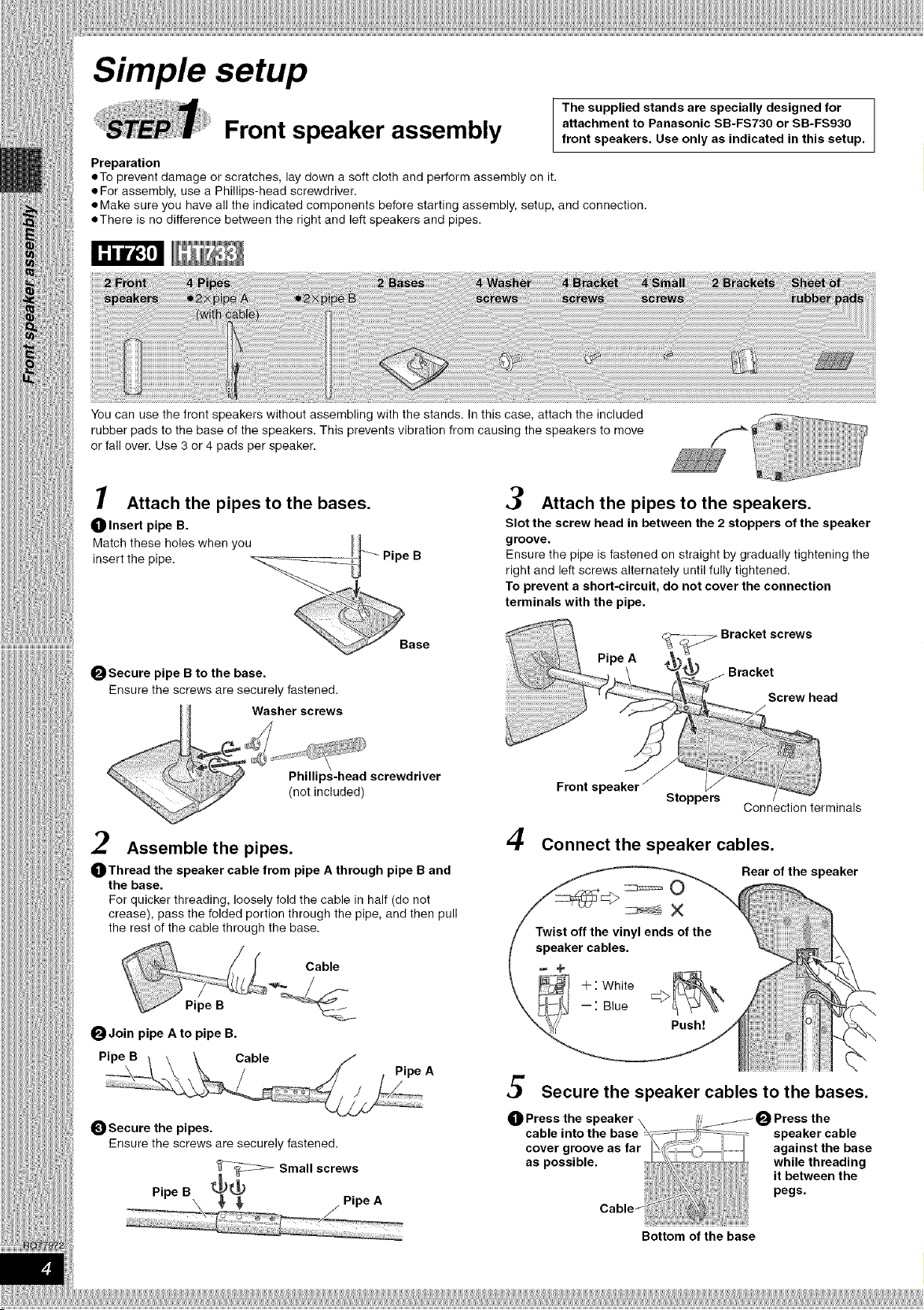

Simple setup
Front speaker assembly
The supplied stands are specially designed for
attachment to Panasonic SB-FS730 or SB-FS930
front speakers. Use only as indicated in this setup.
Preparation
eTo prevent damage or scratches, lay down a soft cloth and perform assembly on it.
• For assembly, use a Phillips-head screwdriver.
• Make sure you have all the indicated components before starting assembly, setup, and connection.
eThere is no difference between the right and left speakers and pipes.
You can use the front speakers without assembling with the stands. In this case, attach the included
rubber pads to the base of the speakers. This prevents vibration from causing the speakers to move
or fall over. Use 3 or 4 pads per speaker.
"If
! Attach the pipes to the bases.
_]_lnsert pipe B.
3 Attach the pipes to the speakers.
Slot the screw head in between the 2 stoppers of the speaker
groove.
Ensure the pipe is fastened on straight by gradually tightening the
right and left screws alternately until fully tightened.
To prevent a short-circuit, do not cover the connection
terminals with the pipe.
OSecure pipe B to the base.
Ensure the screws are securely fastened.
t Washer screws
_ Phillip_s-head screwdriver
(not included)
,_ Assemble the pipes.
_]_Thread the speaker cable from pipe A through pipe B and
the base.
For quicker threading, loosely fold the cable in half (do not
crease), pass the folded portion through the pipe, and then pull
the rest of the cable through the base.
Cable
Pipe B
_Join pipe Ato pipe B.
Pipe B Cable
Secure the pipes.
Ensure the screws are securely fastened.
4
5
Stoppers
Connection terminals
Connect the speaker cables.
Rear of the speaker
Secure the speaker cables to the bases.
Bottom of the base
I HT930 I
!i!i!i!i!i/iiiiill IIIIIIII iiii!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i
To prevent the speaker cables from being pulled out of the pipes, leave the plastic wrap on the pipes while
assembling the speaker stands.
t

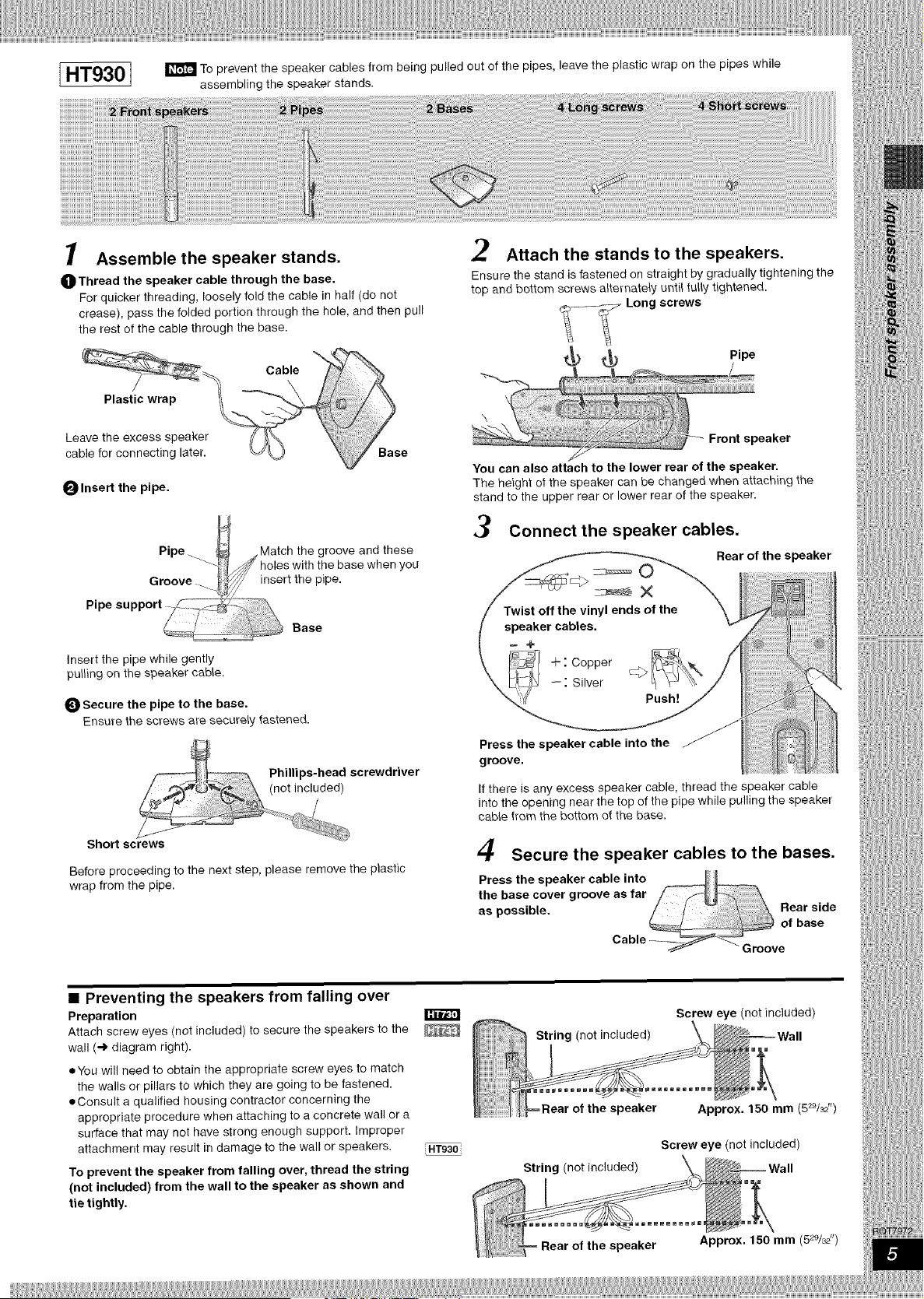

! Assemble the speaker stands.
O Thread the speaker cable through the base.
For quicker threading, loosely fold the cable in half (do not
crease), pass the folded portion through the hole, and then pull
the rest of the cable through the base.
2
Attach the stands to the speakers.
Ensure the stand is fastened on straight by gradually tightening the
top and bottom screws alternately until fully tightened.
_ Long screws
Olnsert the pipe.
Base
You can also attach to the lower rear of the speaker.
The height of the speaker can be changed 'when attaching the
stand to the upper rear or lower rear of the speaker.
3
Pipe Match the groove and these
_'_ _ holes with the base when you
Groove [/_/_/_// insertthe pipe.
Pipe support
Base
Insert the pipe while gently
pulling on the speaker cable.
O Secure the pipe to the base.
Ensure the screws ere securely fastened.
Connect the speaker cables.
Rear of the speaker
Press the speaker cable into the
groove.
If there is any excess speaker cable, thread the speaker cable
into the opening near the top of the pipe while pulling the speaker
cable from the bottom of the base.
Short screws
Before proceeding to the next step, please remove the plastic
wrap from the pipe.
A
Secure the speaker cables to the bases.
Press the speaker cable into
the base cover groove as far
as possible. Rear side
of base
Cal:
Groove
• Preventing the speakers from falling over
Preparation
Attach screw eyes (not included) to secure the speakers to the
wall (-_ diagram right).
• You will need to obtain the appropriate screw eyes to match
the walls or pillars to which they are going to be fastened.
• Consult a qualified housing contractor concerning the
appropriate procedure when attaching to a concrete wall or a
surface that may not have strong enough support. Improper
attachment may result in damage to the wall or speakers. HT93O
To prevent the speaker from failing over, thread the string
(not included) from the wall to the speaker as shown and
tie tightly.
Screw eye (not included)
String (not included)
speaker Approx. 150 mm (529/3£_)
Screw eye (net included)
String (not included)
;peaker Approx. 150 mm (529/3_")
FRONT(L,R)

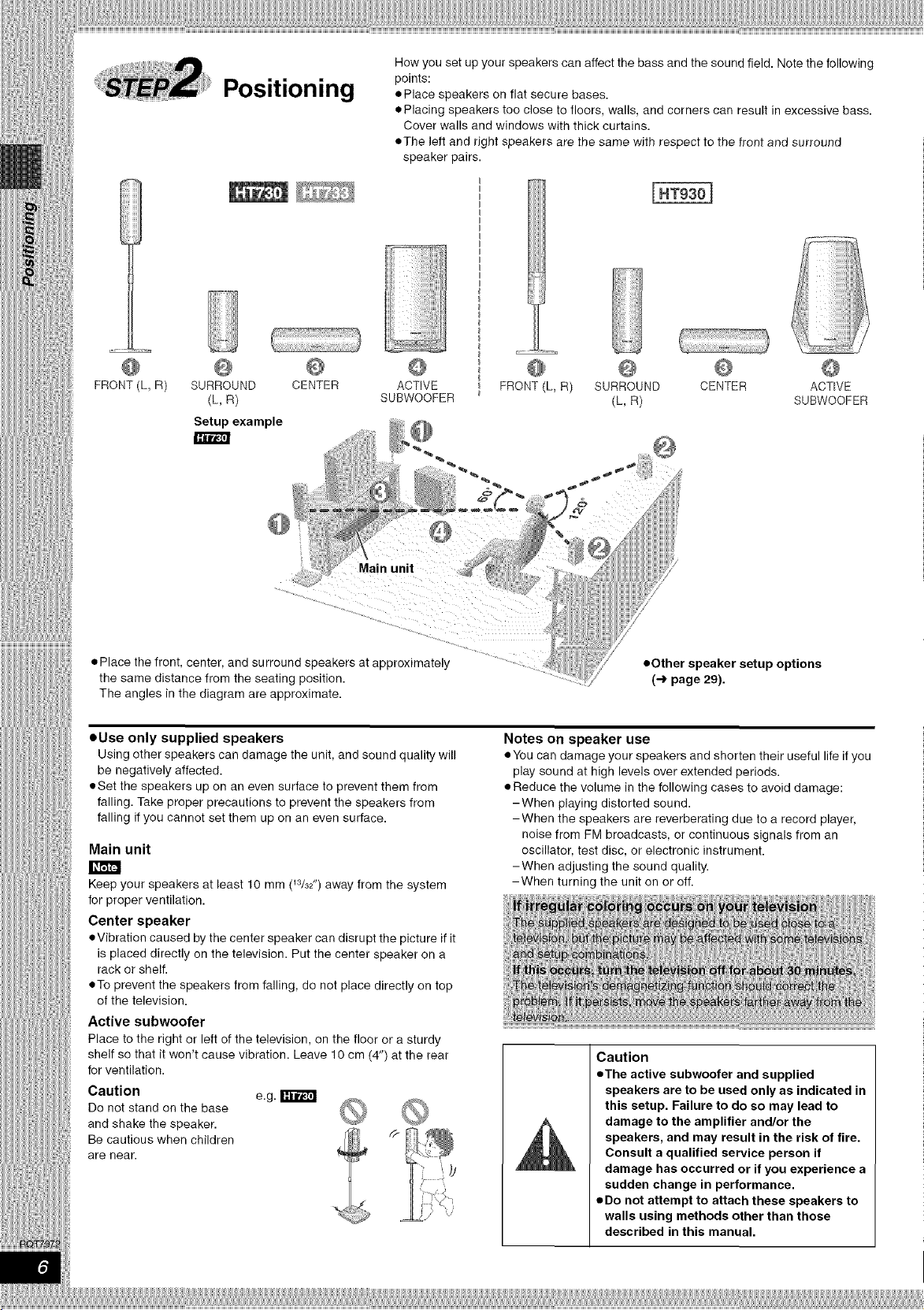

Positioning
SURROUND CENTER
(L, R)
Setup example
How you set up your speakers can affect the bass and the sound field. Note the following
points:
• Place speakers on flat secure bases.
• Placing speakers too close to floors, walls, and corners can result in excessive bass.
Cover walls and windows with thick curtains.
eThe left and right speakers are the same with respect to the front and surround
speaker pairs.
ACTIVE FRONT (L, R) SURROUND CENTER ACTIVE
SUBWOOFER (L, R) SUBWOOFER
\
Main unit
• Place the front, center, and surround speakers at approximately
the same distance from the seating position.
The angles in the diagram are approximate.
eUse only supplied speakers
Using other speakers can damage the unit, and sound quality will
be negatively affected.
eSet the speakers up on an even surface to prevent them from
falling. Take proper precautions to prevent the speakers from
falling if you cannot set them up on an even surface.
• Other speaker setup options
(-_ page 29).
Main unit
_l_t_J
Keep your speakers at least 10 mm (W32") away from the system
for proper ventilation.
Center speaker
eVibration caused by the center speaker can disrupt the picture if it
is placed directly on the television. Put the center speaker on a
rack or shelf.
eTo prevent the speakers from falling, do not place directly on top
of the television.
Active subwoofer
Place to the right or left of the television, on the floor or a sturdy
shelf so that it won't cause vibration. Leave 10 cm (4") at the rear
for ventilation.
Caution
e.g.I_!
Do not stand on the base
and shake the speaker.
Be cautious when children
are near.
Notes on speaker use
• You can damage your speakers and shorten their useful life if you
play sound at high levels over extended periods.
• Reduce the volume in the following cases to avoid damage:
-When playing distorted sound.
-When the speakers are reverberating due to a record player,
noise from FM broadcasts, or continuous signals from an
oscillator, test disc, or electronic instrument.
-When adjusting the sound quality.
-When turning the unit on or off.
this setup. Failure to do so may lead to
damage to the amplifier and/or the
speakers, and may result in the risk of fire.
Consult a qualified service person if
damage has occurred or if you experience a
sudden change in performance.
eDo not attempt to attach these speakers to
walls using methods other than those
described in this manual.
Caution
• The active subwoofer and supplied
speakers are to be used only as indicated in
Connecting speakers with the subwoofer
• Attach the speaker-cable stickers to make connection easier,
• The terminals of the subwoofer have high output power. Carefully connect the speaker wires.
Speaker-cable sticker
ACTIVE
SUBWOOFER
(2_ FRONT (R)
<_}FRONT (L)
@ SURROUND (R)
_3}SURROUND (L)
The illustration shows SC-HT730
for U.S,A. and Canada.
<5)CENTER
oiH_o Even though the subwoofer shown is different, you can connect the speakers to the subwoofer in the same way.
• Never short-circuit positive (+) and negative (-) speaker wires.
• Be sure to connect only positive (n'i'_ _: white, HT-930: copper) wires to positive (÷ / terminals and negative (11_i_! _: blue,
_H_O: silver) wires to negative (-) terminals. Incorrect connection can damage the speakers.
Video connections
• Do not connect through the video cassette recorder.
Due to copy guard protection, the picture may not be displayed properly.
• Turn the television off before connecting, and refer to the television's operating instructions.
• Television with a VIDEO IN terminal • Television with COMPONENT VIDEO IN terminals
Television
Television Sack of the Video cables (not included)
Back of the ...... Video cable (not included) main unit
main unit
(inc}uded)
• Television with an S-VIDEO IN terminal
Sack of the Television
main unit ..... (not included)
S-video cable
S-VIDEO OUT terminal
The S-VIDEO OUT terminal achieves a more vivid picture than the
VIDEO OUT terminal by separating the chrominance (C) and
}uminance (Y) signals. (Actual results depend on the television.)
COMPONENT VIDEO OUT terminals
These terminals can be used for eitt_er interlace or progressive
output and provide a purer picture than the S-VIDEO OUT
terminal. Connection using these terminals outputs the color
difference signals (PdPR) and luminance signal (Y} separately in
order to achieve high fidelity in reproducing colors.
• The description of the component video input terminals depends
on the television or monitor (e.g. WPdPR, Y/B-Y/R-Y, Y/CdCR).
Connect to terminals of the same color.
• After making this connection, select "Darker" from the "Black
Level Control" in the "Video" tab (-_ page 23).
a fat _ti_ _
II III IW I!. I I }1 lit /1 /J z, l, J_ _

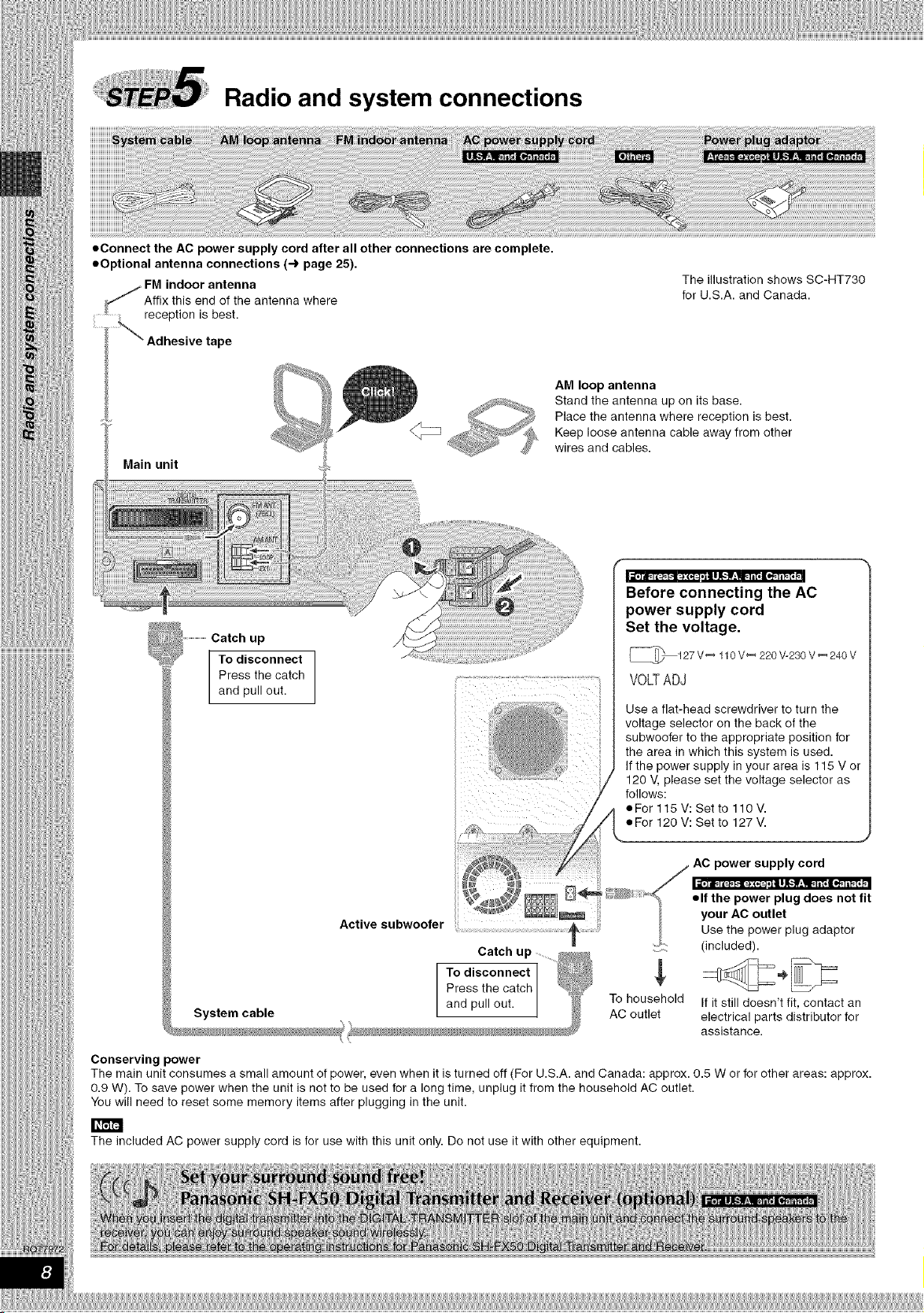

Radio and system connections
oConnect the AC power supply cord after all other connections are complete.
oOptional antenna connections (-_ page 25).
/FM indoor antenna
Affix this end of the antenna where
.... reception is best.
Adhesive tape
The illustration shows SC-HT730
for U.S.A. and Canada.
Main unit
AM loop antenna
Stand the antenna up on its base.
Place the antenna where reception is best.
Keep loose antenna cable away from other
wires and cables.
Catch up
To disconnect
Press the catch
and pull out.
I _ t l i-;.i t_,;. k-]l :_:( _ :_ li | II_'t_IlI;.i i [ • Ill_o _ i
Before connecting the AC
power supply cord
Set the voltage.
_127 V _ 110 V _ 220 V-230 V _ 240 V
VOLTADJ
Use a flat-head screwdriver to turn the
voltage selector on the back of the
subwoofer to the appropriate position for
the area in which this system is used.
If the power supply in your area is 115 V or
120 V, please set the voltage selector as
follows:
oFor 115 V: Set to 110 V.
oFor 120 V: Set to 127 V.
Active subwoofer
/ A? power su,pp?or I......
' _,;_2_ *'_ olf the power plug does not fit
your AC outlet
Use the power plug adaptor
......... (included).
To household If it still doesn't fit, contact an
AC outlet electrical parts distributor for
assistance.
Conserving power
The main unit consumes a small amount of power, even when it is turned off (For U.S.A. and Canada: approx. 0.5 W or for other areas: approx.
0.9 W). To save power when the unit is not to be used for a long time, unplug it from the household AC outlet.
You will need to reset some memory items after plugging in the unit.
The included AC power supply cord is for use with this unit only. Do not use it with other equipment.

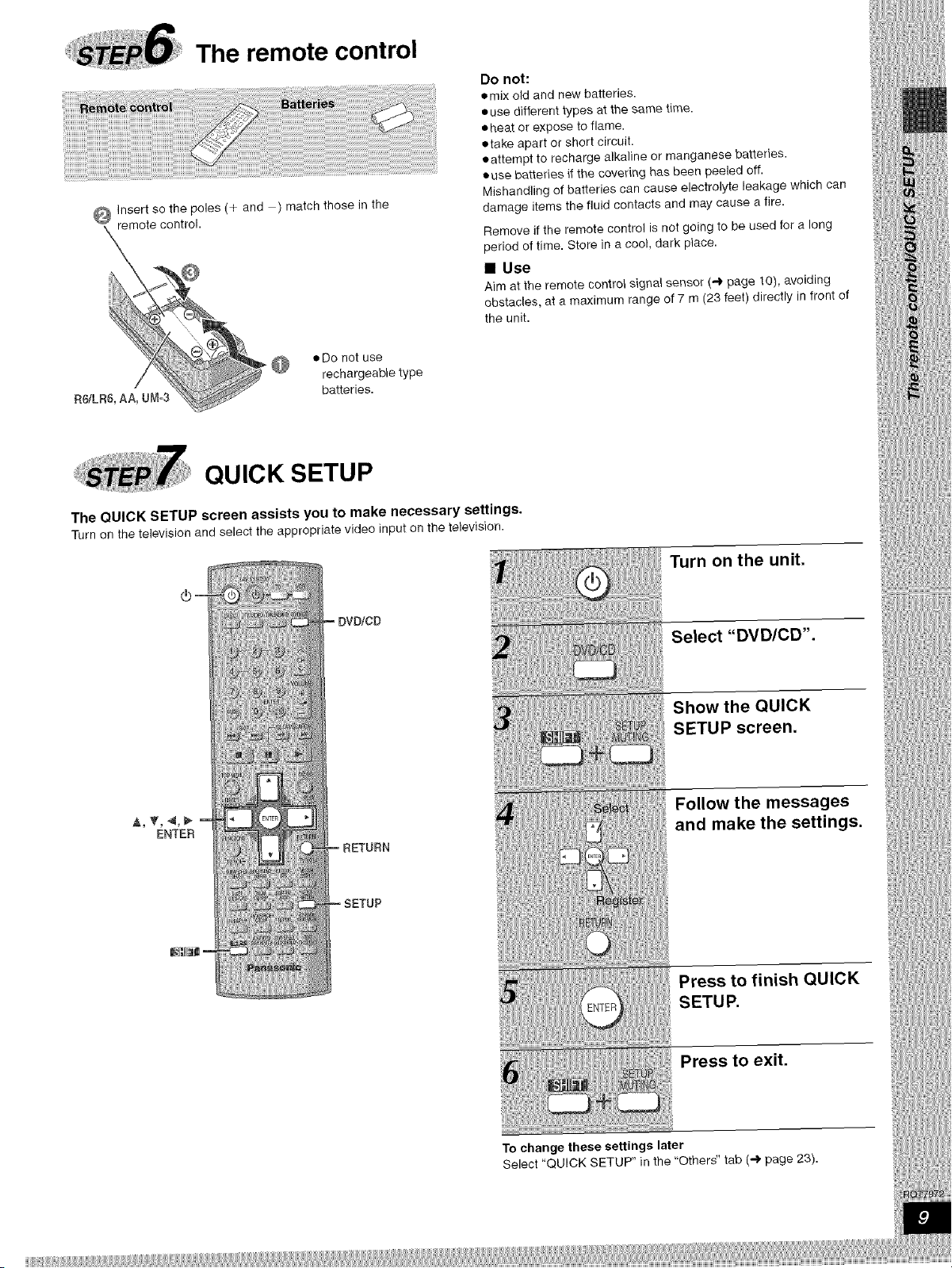

The remote control
RC/LR6, AA, UM=3
insert so the poles (+ and ) match those in the
remote control.
• Do not use
rechargeable type
batteries.
Do not:
emix old and new batteries.
• use different types at the same time.
• heat or expose to flame.
• take apart or short circuit.
• attempt to recharge alkaline or manganese batteries.
=use batteries if the covering has been peeled off.
Mishandling of batteries can cause electrolyte leakage which can
damage items the fluid contacts and may cause a fire.
Remove if the remote control is not going to be used for a long
period of time. Store in a cool, dark place.
• Use
Aim at the remote control signal sensor (-_ page 10), avoiding
obstacles, at a maximum range of 7 m (23 feet) directly in front of
the unit.
QUICK SETUP
The QUICK SETUP screen assists you to make necessary settings.
Turn on the television and select the appropriate video input on the television.
Turn on the unit.
DVD/CD
Select "DVD/CD".
Show the QUICK
SETUP screen.
RETURN
Follow the messages
and make the settings.
Press to finish QUICK
SETUP.
Press to exit.
To change these settings later
Select "QUICK SETUP _ in the "Others" tab (_ page 23)1

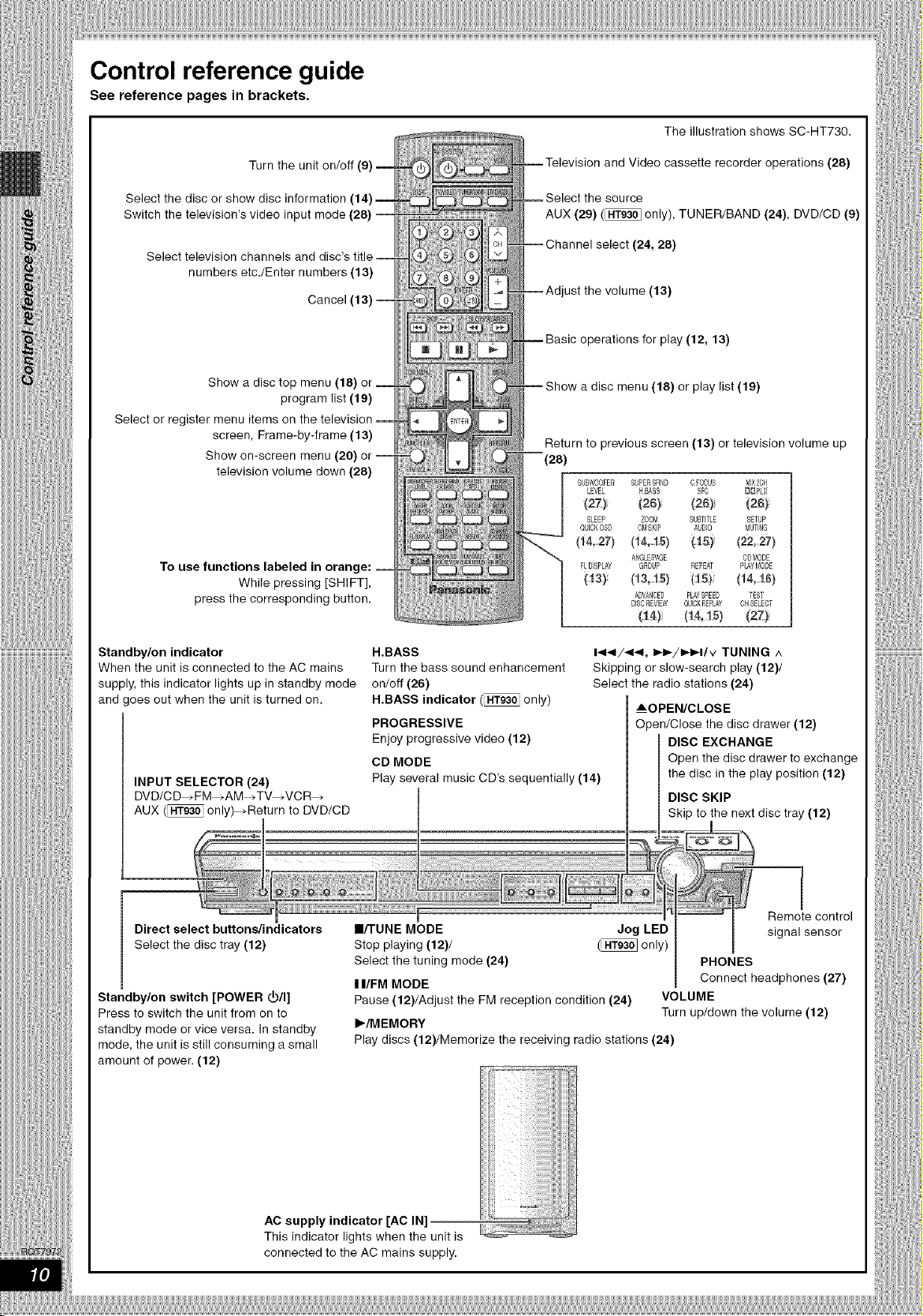

Control reference guide
See reference pages in brackets.
Turn the unit on/off
Select the disc or show disc information
Switch the television's video input mode (28)
Select television channels
numbers etc./Enter numbers (13)
Cancel
The illustration shows SC-HT730.
and Video cassette recorder operations (28)
AUX (29) (_ only), TUNER/BAND (24), DVD/CD (9)
select (24, 28)
ust the volume (13)
play (12, 13)
Select or reg
Show a disc top menu
program list (19)
screen, Frame-by-frame (13)
Show on-screen menu
television volume down (28)
To use functions labeled in orange:
While pressing [SHIFT],
press the corresponding button.
(18) or play list (19)
Return to previous screen (13) or television volume up
(28)
SUBWOOPER SUPERSRND C FOCUS MIX2CH
LEVEL HBASS SFC _]PL l
(2z) (28) (2_) (26)
SLEEP ZOOM SUBTITLE SETUP
QUICNOSD CMSKIP AUDIO MUTING
(14,27) (14:15) (15) (22,22)
ANGLE_PAGE C# MODE
FLDISPLAY GROUP REPEAl PLAYMODE
(13} (13, 15] (15}: (14,16)
ADVANCED PLAYSPEED TEST
DISCREVIEW QUICKREPLAY CNSELECT
(!4) (14,15) (2Z_
Standby/on indicator H.BASS I<P</_<, _,-D,-/It,,4H/v TUNING A
When the unit is connected to the AC mains Turn the bass sound enhancement Skipping or slow-search play (12)/ ....
supply, this indicator lights up in standby mode on/off (26) Select the radio stations (24)
and goes out when the unit is turned on. H.BASS indicator (i_HT930only) _OPEN/CLOSEA i
PROGRESSIVE Open/C ose the d sc drawer (12)
Enjoyprogressivevideo(12) D,SCEXCH,NGE
I CD MODE m I open the disc drawer to .exchange
the disc in the play poslhon (12)
INPUT SELECTOR (24) Play several music CD's sequentially (14) !:' !'
DVD/CD_ FM_AM_TV_VCR_ DISC SKIP
I AUX (_ only)_Return to DVD/CD I m I Skip to the next disc tray (12) ::
- m_R i i [
I I_ I Remote control
I Direct select buttons/indicators I/TUNE MODE Jog LED 1_ signal sensor i_ i i
I Se=ectthed_sctray(12) Stopp_ay_ng(12)/ 1_ on_y)I_
Select the tuning mode (24) PHONES
I Connect headphones (27)
I I/FM M OD E
Standby/on switch [POWER (_)/I] Pause (12)/Ad ust the FM reception condition (24) VOLUME
Press to switch the unit from on to Turn up/down the volume (12) ,
standby mode or vice versa. In standby I_/MEMORY
mode, the unit is still consuming a small Play discs (12)/Memorize the receiving radio stations (24) !
amount of power. (12) :iii
AC supp y nd cator [AC N]
Thisindicator,ghtswhenthe
connectedtotheACmainssupp=y.
Indication in
Disc Logo these operating Remarks
instructions
DVD-RAM
il_vJ,2T±_
DVD-Audio
|,IvJm_'rJ
DVD-Video
DVD-R
(DVD=Video)/
DVD-RW
(DVD=Video)
+R (Video)/
+RW (Video)
|llvJ,2MJ
Video CD
SVCD
CD
CD-R
CD-RW
RAM
RA_4_7
AUD|O
VmDEO
R R W
R4o7
DI_AL AUDIO D_[rAL AUDRO
(JPEG_
iOD
MP3
JPEG_
A process that allows play on compatible equipment.
Recorded with devices using Version 1.1 of the Video Recording Format (a
unified video recording standard), such as DVD video recorders, DVD video
cameras, personal computers, etc.
Recorded using the DCF (Design rule for Camera File system) standard
Version 1.0.
eTo play JPEG files, select "Play as Data Disc" in Other Menu (-_ page 21).
Some DVD-Audio discs contain DVD-Video content.
To play DVD-Video content, select "Play as DVD-Video" in Other Menu
(-_ page 21 ).
Discs recorded and finalized _ on DVD video recorders or DVD video cameras.
Discs recorded and finalized _ on DVD video recorders or DVD video cameras.
Conforming to IEC62107
This unit is compatible with HDCD, but does not support the Peak Extend function
(a function which expands the dynamic range of high level signals).
HDCD-encoded CD's sound better because they are encoded with 20 bits, as
compared with 16 bits for all other CD's.
eThis unit can play CD-R/RW (audio recording disc) recorded with the formats on
the left. Close the sessions or finalize _ the disc after recording.
• HighMAT discs
WMA, MP3 or JPEG files only.
To play without using the HighMAT function, select "Play as Data Disc" in Other
Menu (-_ page 21).
• WMA This unit does not support Multiple Bit Rate (MBR: a file that contains the
same content encoded at several different bit rates).
elt may not be possible to play the above discs in all cases due to the type of disc or condition of the recording.
• Discs that cannot be played
DVD-ROM, CD-ROM, CDV, CD-G, SACD, DivX Video Discs and
Photo CD, DVD-RAM that cannot be removed from their cartridge,
2.6-GB and 5.2-GB DVD-RAM, and "Chaoji VCD" available on the
market including CVD, DVCD and SVCD that do not conform to
IEC62107.
• Audio format of DVD's
This unit automatically recognizes and
decodes discs with these symbols.
D(GITA[
SUu_OUND
Note about using a DualDisc
The digital audio content side of a DuaIDisc does not meet the
technical specifications of the Compact Disc Digital Audio
(CD-DA) format so play may not be possible.
.£
4_
• To prevent damage
Do not:
-load more than one disc per tray.
-touch the drawer or the carousel while they are in motion.
-rotate the carousel by hand.
-close the drawer by hand.
• To clean discs
Wipe with a damp cloth and then wipe
dry.
i 1 1
• Disc handling precautions
eDo not attach labels or stickers to discs (This may cause disc
warping, rendering it unusable).
• Do not write on the label side with a ball-point pen or other writing
instrument.
eDo not use record cleaning sprays, benzine, thinner, static
electricity prevention liquids or any other solvent.
• Do not use scratch-proof protectors or covers.
eDo not use the following discs:
- Discs with exposed adhesive from removed stickers or labels
(rented discs, etc).
- Discs that are badly warped or cracked.
- Irregularly shaped discs, such as heart shapes.
RQT7972

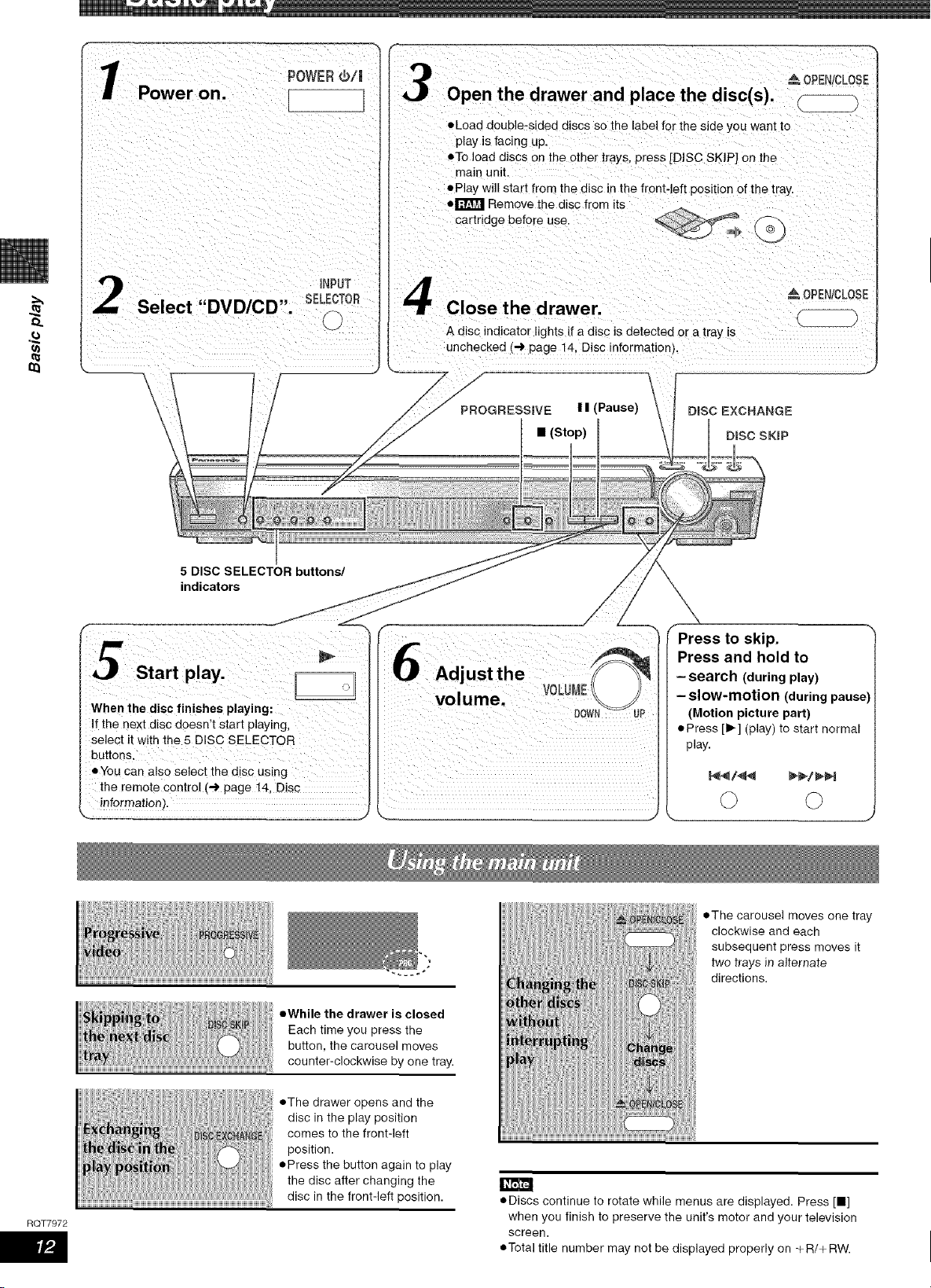

POWER_/l
I Power on. I l
INPUT
Select " ,, SELECTOR
DVD/CD . 0
Open the drawer and place the disc(s).
eLoad double-sided discs so the label tor the side y'ou want to
play is facing up,
eTo lead discs on the other trays, press [DISC SKIP] on the
mare unit.
oPlay will start from the disc in the front-left position of the tray.
oi_tR_ll Remove the disc from its
cartridge before use
d rawe r.
A disc indicator lights if a disc is detected or a tray is
unchecked (-.) page 14 Disc information
!"
/-
_OPEN/¢LOSE
=J
I I (Pause) DmSCEXCHANGE
• (Stop)
DmSCSKIP
5 DISC SELECTOR buttons/
indicators
5 Start play. _ Adjust. the V0LU_,IE__/
When the disc finishes playing: v°lume, D0_,_-_ p
If the next disc doesn't Start playing,
Select it with the 5 DISC SELECTOR
buttons.
• You Can als0 Select the disc Using
the remote Control (-) page i4, Disc
information].
to skip.
Press and hold to
- search (duringplay)
- slow-motion (duringpause
(Motion picture part)
• Press [1_] (play) to start normal
play.
N_/_i _/_
© ©
RQT7972
_la_
eWhile the drawer is closed
Each time you press the
button, the carousel moves
counter-clockwise by one tray.
oThe drawer opens and the
disc in the play position
comes to the frontqeft
position.
**Press the button again to play
the disc after changing the
disc in the front-left position.
oThe carousel moves one tray
clockwise and each
subsequent press moves it
two trays in alternate
directions.
• Discs continue to rotate while menus are displayed. Press [•]
when you finish to preserve the unit's motor and your television
screen.
oTotal title number may not be displayed properly on + R/+ RW.
buttons
TOp MENU
0
ENTER
((m),VAm_vA
SUBTITLE
AUDIO
ANGLB'P_GE
_FOUp
The position is memorized while
"RESUME" is on the display.
• Press [1_-] (play) to resume.
• Press [W] again to clear the
position.
• Press [1_] (play) to restart play.
•__
[A, _']: Group skip during
play
[<1, I_]: Content skip during
play
• Up to 5 steps.
• Press [1_] (play) to start
normal play.
• _ Slow-motion: forward
direction only.
(Motion picture part)
• _ Forward direction only.
e.g. To select 12:
[>10] -_ [1] -_ [2]
with playback control
Press [11] to cancel the PBC
function, and then press the
numbered buttons.
Mp3_
e.g. To select 123:
[1] -_ [2] -_ [3] -_ [ENTER]
• Press [CANCEL] to cancel the
number(s).
rera_ m
Shows a disc top menu
Shows the programs
(-_ page 19)
Shows a disc menu
Shows a play list (-_ page 19)
with playback control
Shows a disc menu
I_1 rera_ m _ _
WMA
Time display
<-->Information display
When Slideshow (-_ page 20) is
on:
SLIDEe-->lnformation display
When Slideshow is off:
PLAYe-elnformation display
Turns subtitle on/off (-_ page 15)
_ (SVCD only)
Selects the subtitle languages
(-_ page 15)
Date _ Details of the picture
No information
A folder on WMA/MP3 and
JPEG discs is treated as a
"Group".
RQT7972

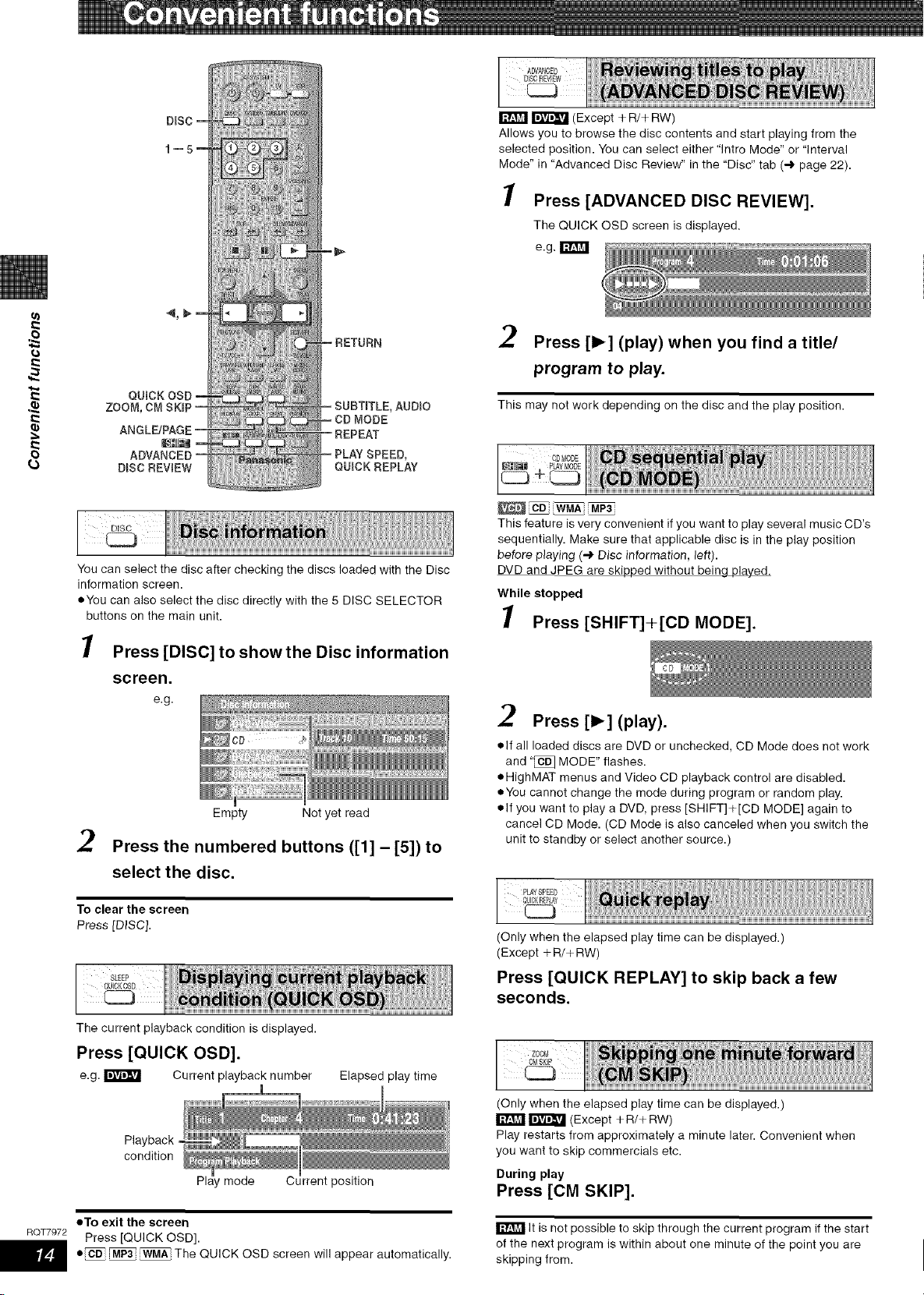

DtSCR_I_W
_ (Except + R/+ RW)
Allows you to browse the disc contents and start playing from the
selected position. You can select either "lntro Mode" or "Interval
Mode" in "Advanced Disc Review" in the "Disc" tab (-) page 22).
_r Press [ADVANCED DISC REVIEW].
The QUICK OSD screen is displayed,
e.g,
O
QUICK OS
._ ZOOM, CM SKiP SUBTITLE, AUDIO
ANGLE/PAGE
O ADVANCED SPEED1
{3 D_SC REWEW QU_CK REPLAY
2 Press [1_] (play) when you find a title/
program to play.
This may not work depending on the disc and the play position.
RQT7972
You can select the disc after checking the discs loaded with the Disc
information screen.
oYou can also select the disc directly with the 5 DISC SELECTOR
buttons on the main unit.
Press [DISC] to show the Disc information
screen.
e.g.
Empty Not yet read
,2 Press the numbered buttons ([1] - [5]) to
select the disc.
To clear the screen
Press [DISC].
SLEEP
QUIGKOSD
The current playback condition is displayed.
Press [QUICK OSD].
e.g. _ Current playback number
Elapsed play time
Playback -
condition
Lymode Ct trent position
eTo exit the screen
Press [QUICK OSD].
o_ _ _ The QU CK OSD screen will appear automatically.
This feature is very convenient if you want to play several music CD's
sequentially. Make sure that applicable disc is in the play position
before playing (-_ Disc information, left).
DVD and JPEG are skipped without being played.
While stopped
7 Press [SHIFT]+[CD MODE].
qb
L Press [1_] (play).
elf all loaded discs are DVD or unchecked, CD Mode does not work
and "_ MODE" flashes.
• HighMAT menus and Video CD playback control are disabled.
• You cannot change the mode during program or random play.
• If you want to play a DVD, press [SHIFT]+[CD MODE] again to
cancel CD Mode. (CD Mode is also canceled when you switch the
unit to standby or select another source.)
PLAYSPEED
QUICKR£Pb_y
(Only when the elapsed play time can be displayed.)
(Except + R/+ RW)
Press [QUICK REPLAY] to skip back a few
seconds.
Z001d
CMSK]P
(Only when the elapsed play time can be displayed.)
_ (Except + R/+ RW)
Play restarts from approximately a minute later. Convenient when
you want to skip commercials etc.
During play
Press [CM SKIP].
It is not possible to skip through the current program if the start
of the next program is within about one minute of the point you are
skipping from.

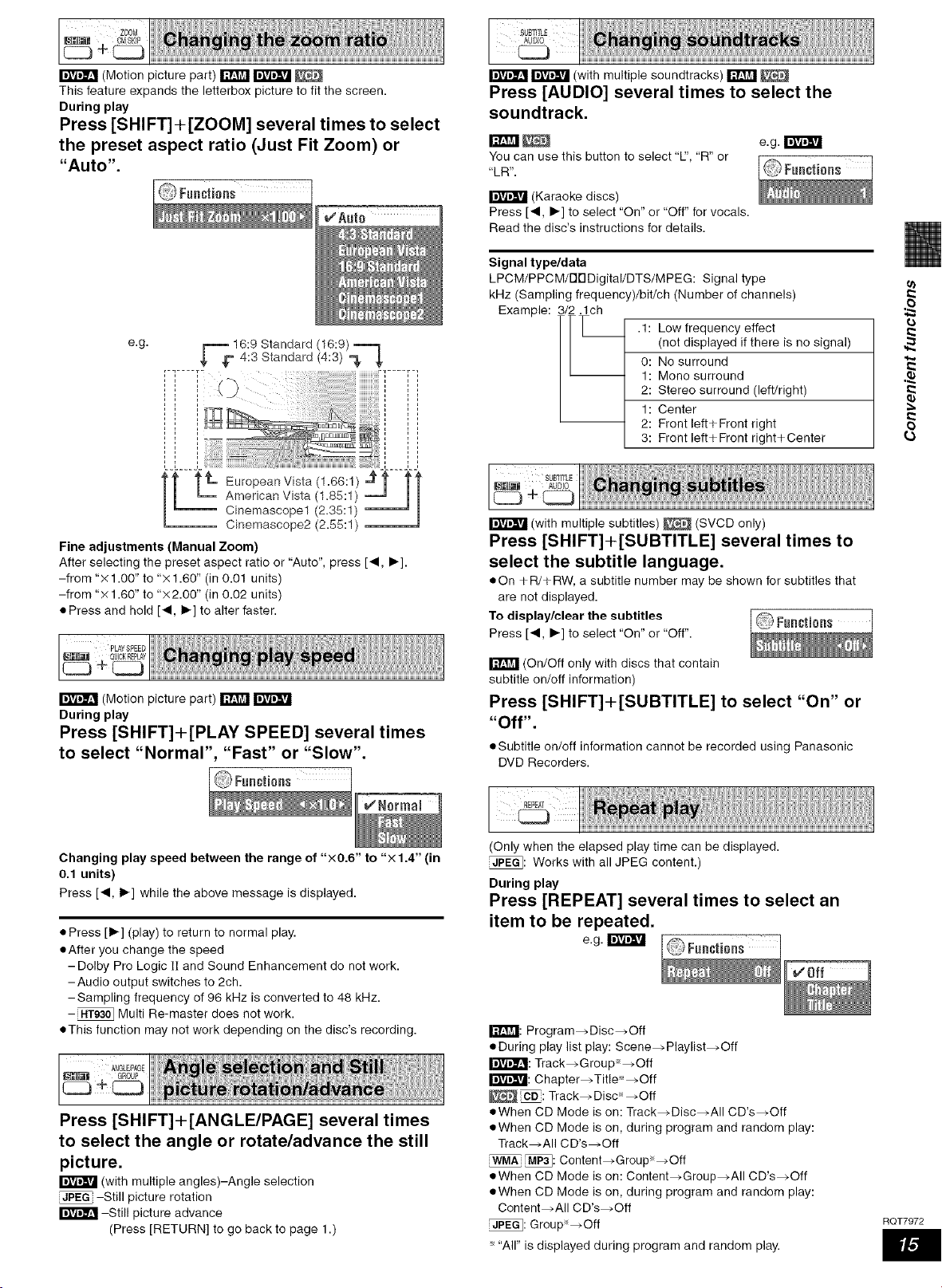

(Motionpicturepart)_ _
Thisfeatureexpandstheletterboxpicturetofitthescreen.
During play
Press [SHIFT]+[ZOOM] several times to select
the preset aspect ratio (Just Fit Zoom) or
"Auto".
e,g,
16:9 Standard (16:9)
4:3 Standard (4:3) =j, ,_
b
I
European Vista (1 =66:1) ._
American Vista (1.85:1)
Cinemascopel (2.35:1)
-- Cinemascope2 (2=55:1)
Fine adjustments (Manual Zoom)
After selecting the preset aspect ratio or "Auto", press [<, I_].
-from "× 1.00" to "× 1.60" (in 0.01 units)
-from "×1.60" to "×2.00" (in 0.02 units)
• Press and hold [<, I_] to alter faster.
11
(Motion picture part) _
During play
Press [SHIFT]+[PLAY SPEED] several times
to select "Normal", "Fast" or "Slow".
Functions
_/Norraal
Changing play speed between the range of "xO.6" to "x 1.4" (in
0,1 units)
Press [<, I_] while the above message is displayed.
• Press [1_] (play) to return to normal play.
• After you change the speed
- Dolby Pro Logic I! and Sound Enhancement do not work.
-Audio output switches to 2ch.
-Sampling frequency of 96 kHz is converted to 48 kHz.
-HT930_ Multi Re-master does not work.
• This function may not work depending on the disc's recording.
Press [SHIFT]+[ANGLE/PAGE] several times
to select the angle or rotate/advance the still
picture.
(with multiple angles)-Angle selection
JPEG -Still picture rotation
-Still picture advance
(Press [RETURN] to go back to page 1.)
_ (with multiple soundtracks) _
Press [AUDIO] several times to select the
soundtrack.
rm_l_
You can use this button to select "E', "R" or
"LR'.
e.g.rera_
(Karaoke discs)
Press [<, I_] to select "On" or "Off" for vocals.
Read the disc's instructions for details.
Signal type/data
LPCM/PPCM/DrlDigital/DTS/MPEG: Signal type
kHz (Sampling frequency)/bit/ch (Number of channels
Example: i/2_
.1: Low frequency effect
(not displayed if there is no signal)
0: No surround
1: Mono surround
2: Stereo surround (left/right)
1: Center
2: Front left+ Front right
3: Front left+Front right+Center
(with multiple subtitles) _ (SVCD only)
Press [SHIFT]+[SUBTITLE] several times to
select the subtitle language.
• On +R/+RW, a subtitle number may be shown for subtitles that
are not displayed.
To display/clear the subtitles
Press [<, I_] to select "On" or "Off".
(On/Off only with discs that contain
subtitle on/off information)
Press [SHIFT]+[SUBTITLE] to select "On" or
"Off".
• Subtitle on/off information cannot be recorded using Panasonic
DVD Recorders.
(Only when the elapsed play time can be displayed.
JPEGI: Works with all JPEG content.)
During play
Press [REPEAT] several times to select an
item to be repeated.
e.g. _ ' Funclions
r_B_ll: Program_Disc_Off
• During play list play: Scene_Playlist_Off
r¢_'€_1: Track_Group_Off
I'€_'€_1: Chapter_Title_Off
i CD: Track_ Disc __Off
• When CD Mode is on: Track_Disc_AII CD's_Off
• When CD Mode is on, during program and random play:
Track--All CD's_Off
_: Content_Group_Off
• When CD Mode is on: Content_Group_AII CD's_Off
• When CD Mode is on, during program and random play:
Content_AII CD's_Off
JPEG I: Group _Off
_ "All" is displayed during program and random play.
=
o
o
RQT7972
e}
o
o
1
buttons
ENTER
MODE
Press [PLAY MODE] while stopped.
Program and random playback screens appear sequentially.
Program , Random '*
off (Normal play) ÷ J
"RANDOM 1" and "RANDOM 2" (-_ page 17) are displayed on
the main unit's display when CD Mode is on (-_ page 14).
To exit the program and random mode
Press [PLAY MODE] several times while stopped.
• Disable HighMAT disc play to use program and random play. Select
"Play as Data Disc" in Other Menu (-) page 21).
• [=_vjm][,J
Some discs contain bonus groups. If a password screen appears
after selecting a group, enter the password with the numbered
buttons to play the bonus group. Refer also to the disc's jacket.
I Program play (up items)
to 32
• When CD Mode is off
You can program all the items on a disc in the play position.
_ _ Press the numbered buttons to
select a group (_ _ _ then press
[ENTER]) or title.
e.g.
2
• To select a 2-digit number
e.g. To select 25: [>10] -) [2] '-) [5]
_iMP3 iJPEG [2] -) [5] -) [ENTER]
Press the numbered buttons to select a
chapter or track (_ _ _ then press
[ENTER]).
• Repeat steps 1 and 2 to program other items.
• _ _ Step 1 is unnecessary.
3 Press [1_] (play).
• When CD Mode is on (-) page 14)
You can program all the items on all the discs.
Press the numbered buttons ([1] - [5]) to
select a disc.
Press the numbered buttons to select the
items (WMA _ then press [ENTER]).
• To select a 2-digit number
e.g. To select 25: [>10] -_ [2] -_ [5]
WMA_ [2] _ [5] _ [ENTER]
• Repeat steps 1 and 2 to program other items.
3 Press [1_] (play).
To select an item using the cursor buttons
Press [ENTER] and [A, V] to select an item, then press [ENTER]
again to register.
To change the selected program
1 Press [&, V] to select an item.
2 Repeat above steps 1 and 2.
To clear the selected program
1 Press [&, V] to select an item.
2 Press [CANCEL] (or press [A, V, _1, I_] to select "Clear" and
press [ENTER]).
To clear the whole program
Select "Clear all" with [A, ,, "4, I_] and press [ENTER].
The whole program is also cleared when the disc is moved out of the
play position, the unit is turned off or another source is selected.
RQT7972
I andom play I
• When CD Mode is off
You can play all the items on a disc in the play position in random
order.
You can play selected item(s) on a disc in the play position in random
order.
Press the numbered buttons to select a
group or a title.
e.g. _ Random Playback
A_" _ ~ _ to s_leet _ to _t_rt
I Iltll]T_.l
oTo enter all groups, press [41, I_] to select "All" and press
[ENTER].
oTo deseiect a group, press numbered buttons corresponding
to the group you want to clear.
2 Press [1_] (play).
I andom 1 play
• When CD Mode is on (-) page 14)
You can play all the items on all the discs in random order.
Press [1_] (play).
e.g. [CD Random Playback
Manufactured under license from Dolby Laboratories.
"Dolby", "Pro Logic" and the double-D symbol are trademarks of
Dolby Laboratories.
"DTS" and "DTS Digital Surround" are registered trademarks of
Digital Theater Systems, Inc.
Apparatus Claims of U.S. Patent Nos. 4,631,603, 4,577,216,
and 4,819,098, licensed for limited viewing uses only.
This product incorporates copyright protection technology that is
protected by method claims of certain U.S. patents and other
intellectual property rights owned by Macrovision Corporation
and other rights owners. Use of this copyright protection
technology must be authorized by Macrovision Corporation, and
is intended for home and other limited viewing uses only unless
otherwise authorized by Macrovision Corporation. Reverse
engineering or disassembly is prohibited.
MPEG Layer-3 audio decoding technology licensed from
Fraunhofer IIS and Thomson multimedia.
Windows Media, and the Windows logo
are trademarks, or registered
trademarks of Microsoft Corporation in
the United States and/or other
countries.
WMA is a compression format
developed by Microsoft Corporation. It
achieves the same sound quality as
MP3 with a file size that is smaller than
that of MP3.
! AUDBO*BMAGE*]
HighMAT TM and the HighMAT logo are
either trademarks or registered
trademarks of Microsoft Corporation in
the United States and/or other countries.
u)
=
o
o
L)
I andom 2 play I
• When CD Mode is on (-) page 14)
You can play all the discs in sequence, but all the items on each disc
are played in random order.
Press [ll_] (play).
e.g. CD Rai_dom Playback
[_* , HDCD ®, High Definition Compatible DigitaP and
Pacific Microsonics TM are either registered trademarks or
trademarks of Pacific Microsonics, Inc. in the United States and/
or other countries.
HDCD system manufactured under license from Pacific
Microsonics, Inc. This product is covered by one or more of the
following: In the USA: 5,479,168, 5,638,074, 5,640,161,
5,808,574, 5,838,274, 5,854,600, 5,864,311,5,872,531, and in
Australia: 669114, with other patents pending.
RQT7972
buttons
TOP MENU
DIRECT NAVIGATOR PLAY LiST
ENTER
E
=
o
ANGLE/PAGE
You can play JPEG files on DVD-RAM or play HighMAT discs without
using the HighMAT function (-) page 21, "Play as Data Disc" in
Other Menu).
oPlaying HighMAT TM discs (-_ page 19)
I Playing items in order (Playback Menu)
Press [TOP MENU].
e,g,
2
• To exit the screen
Press [TOP MENU].
Press [&, !'] to select "All", "Audio" or
"Picture" and press [ENTER].
I Playing from the selected item (Navigation Menu) ]
1
2
3
e,g,
RQT7972
_ Group
Press [MENU].
Press [A, V, <1, I_] to select the group
and press [ENTER].
To play content in the group in order
Press [ENTER].
To start play from the selected content
Press [&, !'] to select and [ENTER].
-- Group and content number
currently playing
?-¢ :JPEG
.!:_ :WMA/MP3
Number currently selected
Content
• Press [SHIFT]+[ANGLE/PAGE] to skip page by page in the group
or content field.
eTo enjoy listening to WMA/MP3 contents while showing a
JPEG image on the screen
Select a JPEG file first, and then select audio contents.
(The opposite order is not effective.)
eTo exit the screen
Press [MENU].
• Using the submenu
While the menu is displayed
Press [FUNCTIONS].
2 Press [&, V] to select an item and press [ENTER].
Items shown differ depending on the type of disc.
3roups and contents are displayed.
Contents only
Groups only
Thumbnail images [JPEG
To go to next group _
To go to previous group _ MP3
WMA/MP3 and JPEG
WMA/MP3 only
JPEG only
To switch between guide messages and the
elapsed play time indicator
To search by content or group title (-_ below)
• Searching by a content or group title
Highlight a group title to search the group, or a content title to search
its content.
While the submenu is displayed (-) above)
Press [A, !'] to select "Find" and press [ENTER].
2
3
4
Press [A, V] to select a character and press [ENTER].
eRepeat to enter another character.
• Lower case is also searched.
• Press [<<, I_1_] to skip between A, E, I, O and U.
• Press [_1] to erase a character.
• Leave the asterisk (:) when you search for the titles including
the character you enter.
• Erase the asterisk (:) to search for the titles starting with the
character you enter. To add the asterisk (_) again, display the
submenu again and select "Find".
Press [1_] to select "Find" and press [ENTER].
The search result screen appears.
Press [&, V] to select the content or group and
press [ENTER].
Titles appear with CD Text disc playback.
Press [TOP MENU] or [MENU].
e.g. CD text
2
Press [&, !'] to select the track and press
[ENTER].
• Press [SHIFT]+[ANGLE/PAGE] to skip page by page.
• Press [FUNCTIONS] to show the playback condition and
current position.
To exit the screen
Press [TOP MENU] or [MENU].
[
_ JPEG
Press [TOP MENU].
2
Press [A, V, <1, II_] to select the item,
then press [ENTER].
• Repeat this step if necessary.
e.g. ,!__!,:
i
• To change the menu background
Press [FUNCTIONS].
The background changes to the one recorded on the disc.
• To exit the screen
Press [I].
I Selecting from the list
During play
Press [MENU].
2
e,g,
Menu: Takes you to the next
menu which shows
play lists or another
menu
Play list: play starts
C) p_,yJJ_l _L By_t
Press [<1] then [A, T] to switch among
"Playlist", "Group" and "Content" lists.
3 Press [1_] then [A, T] to select an item
and press [ENTER].
• Press [SHIFT]+[ANGLE/PAGE] to skip page by page.
• To exit the screen
Press [MENU].
• Titles appear only if the titles are recorded on the disc.
• You cannot edit programs, play lists and disc titles.
I Playing programs
the
_ Press [DIRECT NAVIGATOR].
e.g.
2
• To exit the screen
Press [DIRECT NAVIGATOR].
Press [&, T] or the numbered buttons to
select the program.
• Press [SHIFT]+[ANGLE/PAGE] to skip page by page.
• To select a 2-digit number
e.g. 23: [_10] _ [2] _ [3]
• Press [1_] to show the contents of the program and the disc.
3 Press [ENTER].
I Playing a play
list
(Only when the disc contains a play list)
_ Press [PLAY LIST].
e.g. 0 PE.yEL_
2
• To exit the screen
Press [PLAY LIST].
Press [&, T] or the numbered buttons to
select the play list.
• Press [SHIFT]+[ANGLE/PAGE] to skip page by page.
• To select a 2-digit number
e.g. 23: [>10] _ [2] _ [3]
3 Press [ENTER].
E
=
o
m
Tips for making WMA/MP3 and JPEG discs (For CD-R, CD-RW)
• Discs must conform to ISO9660 level 1 or 2 (except for extended
formats).
• This unit supports multi-session but if there are a lot of sessions it
takes more time for play to start. Keep the number of sessions to a
minimum to avoid this.
• When there are more than 8 groups, the eighth group onwards will
be displayed on one vertical line in the menu screen.
• There may be differences in the display order on the menu screen
and computer screen.
• This unit cannot play files recorded using packet write.
Naming folders and files e.g.
(Files are treated as content and folders root
are treated as groups on this unit.)
At the time of recording, prefix folder and
file names with 3-digit numbers in the
order you want to play them (this may not
work at times).
Files must have the extension:
".WMA" or ".wma"
".MP3" or ".mp3"
".JPG', ".jpg", ".JPEG" or ".jpeg"
WMA
• You cannot play WMA files that are copy protected.
• This unit does not support Multiple Bit Rate (MBR).
• This unit does not support ID3 tags.
• Compatible sampling rates: 8, 11.02, 12, 16, 22.05, 24, 32, 44.1
and 48 kHz.
JPEG I
• To view JPEG files on this unit:
-Take them on a digital camera that meets the DCF Standard
(Design rule for Camera File system) Version 1.0. Some digital
cameras have functions that are not supported by the DCF
Standard Version 1.0 like automatic picture rotation which may
render a picture unviewable.
- Do not alter the files in any way or save them under a different
name.
• This unit cannot display moving pictures, MOTION JPEG and other
such formats, still pictures other than JPEG (e.g. TIFF) or play
pictures with attached audio.
RQT7972
0j
E
o
buttons
T,4,_
ENTER
Press once.
Select the menu.
Make the settings.
Items shown differ depending on the
Program
Group
Title
Chapter
Track
Playlist
Content
Time
Except ÷ R/
RW
Audio
To start from a specific item
Still Picture
Thumbnail
Subtitle
_r±_V_l
To recall a marker recorded on DVD-Video
Marker (VR) recorders
To recall a marker: Press [A, _'] -_ Press
[ENTER]
Angle (with multiple angles)
To select the angle
Rotate To rotate picture
Slideshow To turn on/off slideshow
To change the slideshow timing (0-30 sec)
Other (-_ page 21)
Settings
To skip incrementally or decrementally _ (Time
Slip for play only)
Press [ENTER] twtce to show the Time Slip
ndicator.
2 Press [A, V] to select the time and press
[ENTER].
oPress and hold [&, V] to alter faster.
To start from a specific time '_(Time Search)
To change remammg/elapsed time display
-_ page 15. Changing soundtracks)
MP3
TO display the current disc type
To switch still pictures
To show thumbnail images
(-_ page 15, Changing subtitles)
Press to exit.
RQT7972
PlaY Speed I'Rtr_R (Motion picture part)_
To change play speed
-from "×0.6" to "× 1.4" (in 0.1 unit steps)
• Play Menu
(Only when the elapsed play time can be displayed.
JPEG: Works with all JPEG content.)
Repeat (-) page 15, Repeat play)
Except _ _ (Still picture part)
A:B Repeat To repeat a specified section
Press [ENTER] at the starting and ending points.
Press [ENTER] again to cancel.
Except
To mark up to 5 positions to play again
Press [ENTER] (The unit is now ready to accept
markers.)
To mark a position: Press [ENTER] (at the desired
point)
Marker To mark another position: Press [_1, I_] to select
"+" -) Press [ENTER]
To recall a marker: Press [<, I_] -) Press
[ENTER]
To erase a marker: Press [<, I_] -) Press
[CANCEL]
eThis feature does not work during program and
random play.
Advanced [-) page 14, Reviewing titles to play (ADVANCED
Disc Review DISC REVIEW)]
• Picture Menu
Normal
Cinema1: Mellows images and enhances detail
in dark scenes.
Cinema2: Sharpens images and enhances detail
in dark scenes.
Animation
Dynamic
Picture User (Press [ENTER] to select "Picture
Mode Adjustment") (-) below)
Picture Adjustment
Contrast Brightness
Sharpness Color
Gamma: Adjusts the brightness of dark parts.
Depth Enhancer
Reduces the rough noise in the background to
give a greater feeling of depth.
Video 480i (Interlace) _-_ 480p (Progressive)
Output When you select "480p", a confirmation screen
appears. Select "Yes" only if connecting to a
Mode progressive output compatible television.
If you have chosen "480p" (-) above), select the
method of conversion for progressive output to
suit the type of material.
Auto1 (normal): Detects 24 frame-per-second
Transfer film content and appropriately
converts it.
Mode
Auto2: Compatible with 30 frame-per-second film
content in addition to 24 frame-per-
second film content.
Video: Select when using Auto1 or Auto2, and
the video content is distorted.
• Audio Menu
Dolby Pro (-) page 26, Dolby Pro Logic II)
Logic II
To make the dialogue in movies easier to hear
Dialogue _ (Dolby Digital, DTS, MPEG, 3-channel or
higher, with the dialogue recorded in the center
Enhancer channel)
On ÷_ Off
_ (Discs recorded with 48 kHz only)
(Discs recorded with 44.1 kHz or 48 kHz
only)
• During 2ch output of these discs, this feature
gives you a more natural sound by adding the
higher frequency signals not recorded on the
disc, for example, playing DVD-Video recorded
with 48 kHz at 96 kHz. (Sampling frequency
-) page 34)
• During multi-channel output of these discs, this
feature reproduces the frequencies lost during
recording to give you a sound closer to the
original.
Multi _ _ (Disc recording is other than 8 kHz,
Re-master 16 kHz, 32 kHz)
(_ only} This feature reproduces the higher frequencies
lost during recording to give you a sound closer to
the original.
1 _ 2_3_Off
I'RtJ'_I I'RtJ'_'_IiCD (LPCM/PPCM)
1 High tempo (e.g., pop and rock)
2 Various tempos (e.g., jazz)
3 Low tempo (e.g., classical)
Other discs
1 Light effect
2 Medium effect
3 Strong effect
eYou can confirm the sampling frequency on the
screen.
Sound Enhances audio output to produce a warm hallqike
sound.
Enhancement On ÷_ Off
• Display Menu
Information ' _ off, Date, Details
Subtitle Position 0 to -60 (in 2 unit steps)
Subtitle Brightness Auto, 0 to -7
To select the appropriate screen size
Just Fit Zoom
to fit your TV screen
Manual Zoom To zoom in and out manually
Bit Rate Display _ (Motion picture part)
On _ _ Off
GUI See-through off, On, Auto
GUI Brightness -3 to +3
• Other Menu
Setup (-> page 22)
Play as DVD-Video Select "Play as DVD-Video" to play
DVD-Video contents of DVD-Audio.
Play as DVD-Audio
Play as DVD_VR, Select "Play as Data Disc" to play JPEG
Play as HighMAT files on DVD-RAM or to play a HighMAT
disc without using the HiglhMAT
Play as Data Disc function.
E
o
RQT7972
Numbered
buttons
SETUP
I Item
• The settings remain intact even if you switch the unit to standby.
• Underlined items are the factory preset in the following diagram.
Show the Setup menu.
If you have not set QUICK SETUP
(-> page 9), the QUICK SETUP
screen appears.
Select the tab.
Select the item.
Make the settings.
Press to exit.
RQT7972
• "Disc" tab
Audio o_ • French • Spanish •OriginaP 1 •Other _ :_:_ _2
Choose the audio language.
Subtitle •Automatic _3 • English • French • Spanish •Other _ } _2
Choose the subtitle language.
Menus
Choose the language for disc menus.
Changing the menu language in
QUICK SETUP also changes this '
setting.
Advanced Disc Review •lntro Mode: Reviews each title/program.
(-) page 14) •Interval Mode: Reviews not only each title/program but also each 10 minute interval within a title/program.
Ratings Setting ratings (When level 8 is selected)
Set a ratings level to limit DVD-Video •8 No Limit • 1 to 7 • 0 Lock All: To prevent play of discs without ratings levels.
play. When you select your ratings level, a password screen is shown.
Follow the on-screen instructions.
Do not forget your password.
A message screen will be shown if a DVD-Video exceeding the ratings level is inserted in the unit.
Enter your password and then follow the on-screen instructions.
_ The original language designated on the disc is selected. _3If the language selected for "Audio" is not available, subtitles
_2 Input a code number referring to the table on page 34. appear in that language (if available on the disc).
• "Video" tab
TV Aspect
Choose the setting to suit your
television and preference.
• 4:3 Pan&Scan: Regular aspect television (4:3)
The sides of the widescreen picture are cut off so it fills the screen (unless
prohibited by the disc).
• 4:3 Letterbox: Regular aspect television (4:3)
Widescreen picture is shown in the letterbox style.
o16:9: Widescreen television (16:9)
TV Type
Select to suit the type of television.
Time Delay
When connected with a Plasma
display, adjust if you notice the audio
is out of eync with the video.
Still Mode
Specify the type of picture shown
when paused.
Black Level Control
Change the black level of the picture if
you connected a television through the
COMPONENT VIDEO OUT terminals.
• "Audio" tab
Dynamic Range Compression
• Standard (Direct View TV) e CRT Pr0jector e LCD T'v'!Projector
• Projection TV • Plasma TV
e0ms • 20ms • 40ms • 60ms • 80ms • 100ms
• Automatic
• Field: The picture is not blurred, but picture quality is lower.
eFrame: Overall quality is high, but the picture may appear blurred.
e_: When connected through VIDEO OUT or S-VIDEO OUT.
eDarker: When connected through COMPONENT VIDEO OUT (Y/PB/PR).
• Off
eOn: Adjusts for clarity even when the volume is low by compressing the range of the lowest sound
level and the highest sound level. Convenient for late night viewing. (Only works with Dolby
Digital)
Speaker Settings (-) below) eCenter: 0.0/1.0/2.0/3.0/4.0/5.0 ms
Set the delay time for your center and • Surround (L/R): 0.0/5.0/10.0/15.0 ms
surround speakers.
• "Display" tab
Menu Language •_ • Fran_ais • Espa_ol
On-Screen Messages • On • Off
• "Others" tab
FL Dimmer e_ • Dim (_ Jog LED turns off.)
Changes the brightness of the unit's • Auto: The display is dimmed, but brightens when you perform some operations.
display (and Jog LED _). (_ Jog LED turns on when you perform some operations.)
QUICK SETUP •Yes •No
Re-initialize Setting eYes: The password screen is shown if "Ratings" (-) page 22) is set. Please enter the same
This returns all values in the Setup password. After "INIT" on the display disappears, turn the unit off and on again.
menus to the default settings. • No
(Effective when playing multi-channel audio)
(Center and surround speakers only)
For optimum listening with 5.1-channel sound, all the speakers,
except for the subwoofer, should be the same distance from the
seating position. If you have to place the center or surround
speakers closer to the seating position, adjust the delay time to
make up for the difference.
_ij : Actual speakers position
i_'_'_-_]: Ideal speakers position
_ _)_c_ : Primary listening distance
1 Press [A, y] to select the delay time box and press
[ENTER],
2 Press [A, _'] to adjust the delay time and press [ENTER],
Center delay time
Exit
Approximate room dimensions
Circle of constant primary listening distance
If either distance _ or @ is less than (_, find the difference in the
table and change to the recommended setting.
30 cm (1 foot)
60 cm (2 feet)
90 cm (3 feet)
120 cm (4 feet)
150 cm (5 feet)
1.0 ms 150 cm (5 feet) 5.0 ms
2.0 ms 300 cm (10 feet) 10.0 ms
3.0 ms 450 cm (15 feet) 15.0 ms
4.0 ms
5.0 ms
Surround delay time
To finish the speaker setting
Press [<] to select "Exit" and press [ENTER].
When you change the surround speaker setting for Dolby Digital, the
setting also changes for Dolby Pro Logic II.
e.g., the settings for MUSIC are the same as those for Dolby Digital.
0 ms 0 ms 10 ms
5 ms 5 ms 15 ms
10 ms 10 ms 20 ms
15 ms 15 ms 25 ms
RQT7972
.£
buttons
tUNER/BAND
CRy
TUNE MODE MEMORY
1
2
Press [TUNER/BAND] to select "FM" or
"AM".
Press the numbered buttons to select the
channel.
Alternatively, press [A CH v].
To select a 2-digit number
e.g. 12: [>10] -_ [1] -_ [2]
When a stereo FM broadcast is being received.
• If noise is excessive in FM
Press [FM MODE] to display "MONO".
iNPUT SELECTOR FM MODE v TUNING ^
Press [FM MODE] again to cancel the mode.
The mode is also canceled when you change the frequency.
Up to
1
2
3
4
15 stations can be set in each band, FM and AM.
Press [INPUT SELECTOR] to select "FM" or
"AM".
Press [TUNE MODE] to select "MANUAL".
Each time you press the button: MANUAL_PRESET
Press [v TUNING ^] to tune to the lowest
frequency (FM: 87.9 or 87.5, AM: 520).
Press and hold [MEMORY].
Release the button when "FM AUTO" or "AM AUTO" is
displayed.
The tuner presets all the stations it can receive into the
channels in ascending order.
o"SET OK" is displayed when the stations are set, and the
radio tunes to the last preset station.
o"ERROR" is displayed when automatic presetting is
unsuccessful. Preset the channels manually (-) right).
1
2
3
Press [INPUT SELECTOR] to select "FM"
or "AM".
Press [TUNE MODE] to select "MANUAL".
Press [v TUNING ^] to select the
frequency.
Press and hold [v TUNING A] until the frequency starts
scrolling to start automatic tuning. Tuning stops when a station
is found.
• Presetting the channel
Up to 15 stations can be set in each band, FM and AM.
Z While listening to the radio broadcast
Press [ENTER].
,2 While the frequency and "PGM" are flashing on the display
Press the numbered buttons to select a channel.
Alternatively, press [A CH v], then press [ENTER].
eTo select a 2-digit number
e.g. 12: [>10] -) [1] -) [2].
RQT7972 The station occupying a channel is erased if another station is
preset to that channel.
• FM frequency step
You can change the FM step. The step is factory-set to 0.2 MHz, but
you can change it to receive broadcasts allocated in 0.1-MHz steps.
1 Press [INPUT SELECTOR] to select "FM'.
2 Press and hold [INPUT SELECTOR].
After a few seconds the display changes to show the current
minimum frequency. Continue to hold the button down. The
minimum frequency changes and the step is changed.
To return to the original step, repeat the above steps.
After changing the setting, previously preset frequency will be
cleared. Preset it again.
Use outdoor antennas if radio reception is poor.
• Disconnect the antenna when the unit is not in use.
• Do not use the outdoor antenna during an electrical storm.
FM outdoor antenna (Using a television antenna)
• Disconnect the FM indoor antenna.
• The antenna should be installed by a competent technician.
Rework your outdoor antenna's 75 O coaxial cable as follows.
75 O coaxial cable ,_"
(not included) //
The illustration shows SC-HT730
for U.S.A. and Canada.
Leave the AM loop antenna connected.
AM outdoor antenna (Using a vinyl wire)
Run a piece of vinyl wire horizontally across a window
or other convenient location.
5-12 m
(16 -39 feet)
.£
d_ Remove a piece of the
outer vinyl insulator.
10 mm (W32")
$
10 Peel back
$
7 mm (%2")
@ Carefully pull the
tabs apart to
remove the cover.
(_ Install the coaxial cable.
Clamp the cable conductor,
and wind it on so that it does
not contact anything else.
Clamp with pliers
(4_ Attach the cover.
RQT7972
o
e}
==
o
VOLUME
SUPER SRND,
SFC
SELECT
| _EZ_IF_I
$When connected with headphones, the following sound field
systems have no effect. (Excluding Sound Field Control)
oYou may experience a reduction in sound quality when these
sound field systems are used with some sources. If this occurs,
turn the sound field system off.
$1f you turn on Super Surround, Dolby Pro Logic I1 is canceled and
vice versa.
Changes the sound quality.
Press [SFC].
Each time you press the button:
FLAT: Cancel (no effect is added) (factory preset).
HEAVY: Adds punch to rock.
CLEAR: Clarifies higher sounds.
SOFT: For background music.
DISCO: Reverberates sound to make you feel like you are in a
disco.
LIVE: Makes vocals more alive.
HALL: Expands sound to make you feel like you are in a hall.
To check the current setting
Press [SFC].
(Discs where the dialogue is recorded in the center channel)
You can make the sound of the center speaker seem
like it is coming from within the television.
Press [SHIFT]+[C.FOCUS].
EZ
Each time you press the button:
C FOCUS ON_-_C FOCUS OFF
$This does not work when Super Surround is turned on.
sThis also works when Dolby Pro Logic I1 is turned on.
_ MIX2CH
: U0PLIJ
Dolby Pro Logic I! is an advanced decoder that derives 5-channel
surround (Left and Right Front, Center, Left and Right Surround)
from any stereo program material, whether or not it has been
specificaUy Dolby Surround encoded.
Press [DrlpLII].
Each time you press the button:
MOVIE: Movie software, recorded in Dolby
Surround.
MUSIC: Stereo sources
OFF: Cancel
$This works only in DVD/CD mode.
$"r'JrlPLtl" lights when there is effect.
I_tlX2CH
You can output the down-mixed 2 channel signals when necessary.
Press [SHIFT]+[MIX 2CH].
Each time you press the button:
MIX 2CH ONe-MIX 2CH OFF
$When "D.MIX" flashes on the display, the disc contains multiple-
channel signals that cannot be down-mixed.
RQT7972
Adds surround effects to stereo sound.
Press [SHIFT]+[SUPER SRND].
Each time you press the button: ._ .... .
MUSIC: Adds surround effects to stereo
sources.
MOVIE: Use this mode when playing movie
software.
PARTY: Sound is in stereo regardless of the direction you are
facing.
OFF: Cancel
$You can adjust the volume of the surround speakers to get the best
surround effect (-) page 27, Speaker level adjustments).
$Super Surround does not work when playing a DVD recorded with
a multi-channel source.
You can enhance low-frequency sound so that heavy bass sound
can be heard clearly, even if the acoustics of your room are not
optimal. The unit automatically selects the most suitable setting
according to the type of playing source.
Press [H.BASS].
HT930] H.BASS indicator lights on the main unit.
oWhen DVD-Video or DVD-RAM is selected
H.BASS ON (factory preset)÷ _H.BASS OFF "- ....
eWhen another source is selected
H.BASS OFF (factory preset)÷_H.BASS ON
The setting you make is retained, and recalled every time you play
the same type of source.
r 8UBW00FER
You can adjust the amount of bass. The unit automatically selects
the most suitable setting according to the type of playing source.
Press [SUBWOOFER LEVEL].
eWhen DVD-Video or DVD-RAM is selected
SUB W4 (factory preset)_SUB W I_SUB W 2_SUB W 3
_' I
• When another source is selected
SUB W2 (factory preset)_SUB W 3_SUB W 4_SUB W 1
= I
The setting you make is retained, and recalled every time you play
the same type of source.
2
3
This is one of the ways to get appropriate surround effects.
Preparation
Press [DVD/CD].
While stopped and no on-screen display is shown
Press [SHIFT]+[TEST] to output a test
signal.
L: Front left C: Center R: Front right
RS: Right surround LS: Left surround
eThere is no output from SW (subwoofer) channel.
Press [VOLUME, +] or [--] to set the
volume level normally used for listening.
Press [&] (increase) or [V] (decrease) to
adjust the speaker level for each speaker.
C, RS, LS: 6dBto +6dB
(L, R: Only the balance is adjustable.)
eTo adjust the balance of the front speakers
While outputting the test signal, press [<, I_].
eAdjust the speaker level to the same level as the front
speakers.
To stop the test signal
Press [SHIFT]+[TEST] again.
• To adjust speaker level during play
(Effective when playing multi-channel audio or when Dolby Pro
Logic I1 or Super Surround is on.)
Press [CH SELECT] to select the speaker.
2
L --->C --->R --->RS --->LS --->SW
¢ I
SW: Subwoofer
eYou can adjust SW only if the disc includes a subwoofer
channel.
• "SW" does not appear on the display and is not adjustable
when Dolby Pro Logic 11is turned on.
e"S" appears on the display when "MUSIC" or "MOVIE" is
selected with Super Surround (-_ page 26). In this case, you
can adjust both surround speaker levels at the same time
using [A, T].
S: 6dBto+6dB
Press [A] (increase) or [V] (decrease) to adjust the
speaker level for each speaker.
C, RS, LS, SW: 6dBto+6dB
(L, R: Only the balance is adjustable.)
• To adjust the balance of the front speakers
While "1" or "R" is selected, press [<, I_].
Press [SHIFT]+[SLEEP] to select the time (in
minutes).
SLEEP 3O_SLEEP 6O_SLEEP 90 ,_ .... ,
¢ OFF_-_SLEEP 120_
To cancel the timer
Press [SHIFT]+[SLEEP] to select "OFF".
To confirm the remaining time
Press [SHIFT]+[SLEEP] again.
To change the setting
Repeat the procedure from the beginning.
Press [MUTING].
"MUTING" flashes on the unit's display.
To cancel
ePress [MUTING] again or reduce the volume to minimum (- -dB),
then raise it to the required level.
• Muting is canceled when you switch the unit to standby.
1
Reduce the volume and connect the
headphones (not included).
Headphone plug type: 3.5 mm (1/8,,)stereo
VOLUME
ql
Adjust headphone volume with
[VOLUME].
eAudio is automatically switched to stereo (2-channel).
Avoid listening for prolonged periods of time to prevent hearing
damage.
=
o
o
=
o
RQT7972
• Connection example
The illustration shows SC-HT930 for U.S.A. and Canada.
Television
(not included)
Video cassette recorder
(not included)
_l_--_H_ Audio cable (not included)
_D_,_._ Video cable (not included)
: Signal flow
"e
o
Tape deck
(not included)
t
, [
', Already connected
(-_ page 7)
L R
REC iN
AV SYSTEM
Numbered
buttons
||
TUNER/BAND
>IO/ENTER
RQT7972
You can use the remote control to operate a Panasonic television or a video cassette recorder. Connect your equipment referring to "Connection
example" (-_ above).
The remote control may not work properly with some models.
I Television
Preparation
Aim the remote control at the unit and press [TV] to light up the
button, and then aim it at the television for the following operations:
Turning the television on/off
Press [40 AV SYSTEM].
Switching the television's video input mode
_ Press [TV/VlDEO].
HTe301Press [SHIFT]+[TV/VlDEO].
Changing channels
Press [A CH v].
o[>IO/ENTER] is used to confirm channel selection on some
televisions manufactured by other companies.
Adjusting the volume
Press [TV VOL-] or [TV VOL+].
I I Video cassette recorder
Preparation
oChange the video input mode on the television ("VIDEO 2" in the
example).
cAirn the remote control at the unit and press [VCR] to light up the
button, and then aim it at the video cassette recorder for the
following operations:
Turning the video cassette recorder on/off
Press [(_ AV SYSTEM].
Play, pause and stop
Press [1_] (play), [I I] or [I].
Fast forward and rewind
Press [_14] or [1_1_].
Connecting a laser disc or record player
Connect instead of a video cassette recorder (-_ above) and select
"VCR" as the source.
We recommend using a record player with a built-in phone equalizer.
If your player doesn't have a built-in equalizer, connect it first to a
separate equalizer and then to the unit.
I hanging the remote control code I
This remote control can also operate some other brands of
televisions and video cassette recorders. Change the code to
operate such equipment (-_ below).
Aim the remote control at the equipment.
While pressing [TV] or [VCR]
Press a numbered button to enter the first
digit, and then the second digit.
The remote control outputs the on/off signal. If the code is correct,
the equipment turns on or off. If it doesn't, try entering another code.
Reenter the codes after you change the batteries.
I Recording to the tape deck
7 Press [DVD/CD] to select "DVD/CD".
or
Press [TUNER/BAND] to select "FM" or
"AM".
2 Start recording and play.
I Listening tothe tape deck I
Press [AUX] to select "AUX" as the source.
f
Television code list
Panasonic: 01,02, 26
Sony: 04
Fisher: 14
G-E: 02, 03, 07, 09
Gold Star: 07, 15
Hitachi: 05, 07
JVC: 12
LXI: 03, 06, 07, 10, 14,
15
Magnavox: 06, 07, 11, 15, 22
Mitsubishi: 07, 15, 16, 21
NEC: 07, 15
Video cassette recorder
Panasonic: 01,02, 09, 33
Sony: 05, 06, 07, 35, 36,
37
Fisher: 13, 14, 15, 18, 34
Funai: 08, 30
G-E: 02, 03, 11
Gold Star: 27
Hitachi: 09, 10, 11
JVC: 19, 25, 31,38, 39,
4O
LXI: 10, 13, 14, 15, 18,
27, 30
Magnavox: 02, 09, 12
Mitsubishi: 21,22, 28, 29
Philco:
Philips:
Pioneer:
Quasar:
RCA:
Sanyo:
Sharp:
Sylvania:
Symphonic:
Toshiba:
Zenith:
code list
NEC:
Philco:
Philips:
Pioneer:
Quasar:
RCA:
Sanyo:
Sharp:
Shintom:
Sylvania:
Symphonic:
Toshiba:
Zenith:
06, 07
06
02, 10, 19
02
03, 07, 09, 13, 23,
24, 25
14
08, 21
06, 07, 15
17
10, 21
18, 20
19, 25, 31,38
02, 09, 12, 30
02, 09, 12
09
01,02, 09, 33
02, 03, 04, 09, 10,
11, 12, 23, 24, 26
14, 18, 34
16, 17
32
02, 09, 12, 30
30
23, 24
2O
J
• Attaching to a wall
You can attach all of the speakers to a wall.
_]_ Drive a screw (not included) into the wall.
O Fit the speaker securely onto the screw(s) with the hole(s).
z/,"/, 30-35 nlm
;:_,::/:_[ 4.0_7.0 mm
p!illar (5/32-9/32 )
Wall
or
• The wall or pillar on which the speakers are to be attached should
be capable of supporting 10 kg (22 Ibs) per screw. Consult a
qualified building contractor when attaching the speakers to a wall.
Improper attachment may result in damage to the wall and
speakers.
• Use of optional speaker cables is recommended for wall-mounted
front speakers. (You can also remove the speaker cables from the
pipes supplied with this system).
• [HT930 When mounting the front speakers to a wall, we
recommend using a string (not included) to prevent it from falling
(-_ page 5).
e.g.
Surround speaker _ Front speaker
Center speaker
180 mm
(73/32")
$
(67/8 LJ
In this position, the
speaker will likely
fall if moved to the
left or right.
Move the speaker
so that the screw is
in this position.
• Fitting speaker stands (notincluded)
(Except Front speakers)
Ensure the stands meet these conditions before purchasing them.
Note the diameter and length of the screws and the distance
between screws as shown in the diagram.
• The stands must be able to support over 10 kg (22 Ibs).
• The stands must be stable even if the speakers are in a high
position.
e,g,
Surround speaker
5 mm (3/ld'),
pitch 0.8 mm (1/32")
60 mm (23/{ ')
Attach the stands to
these metal screw holes.
Speaker stand
(not included)
Plate thickness plus 7 mm to
10 mm (plus %£' to W32")
.£-
o
8-
u)
o
RQT7972
[IIU_'-YV,.I
e}
o
RQT7972

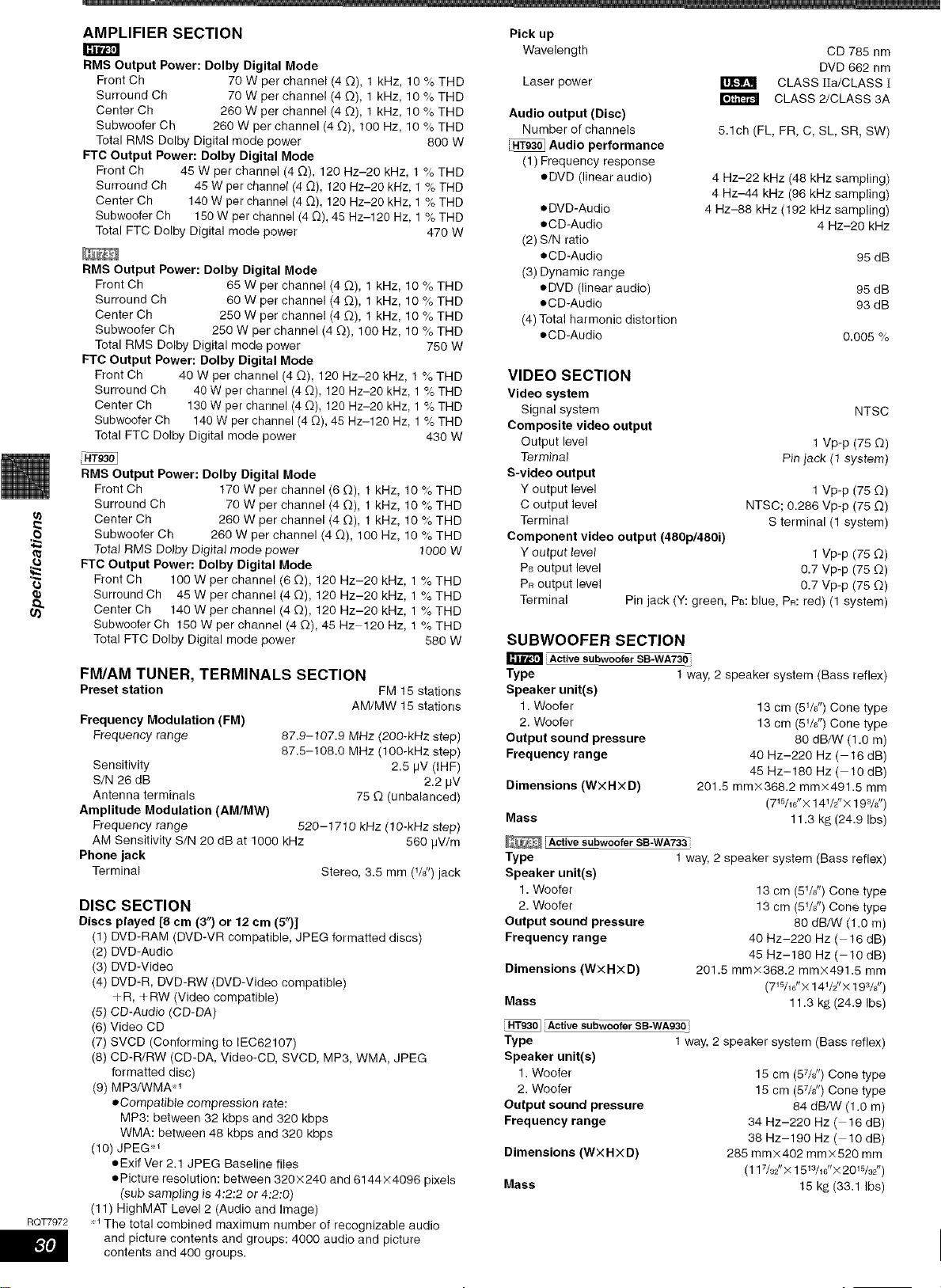

AMPLIFIER SECTION
RMS Output Power: Dolby Digital Mode
Front Ch 70 W per channel (4 _), 1 kHz, 10 % THD
Surround Ch 70 W per channel (4 _), 1 kHz, 10 % THD
Center Ch 260 W per channel (4 _), 1 kHz, 10 % THD
Subwoofer Ch 260 W per channel (4 _), 100 Hz, 10 % THD
Total RMS Delby Digital mode power 600 W
FTC Output Power: Dolby Digital Mode
Front Ch 45 W per channel (4_), 120 Hz-20 kHz, 1%THD
Surround Ch 45 W per channel (4 Q), 120 Hz-20 kHz, 1% THD
Center Ch 140 W per channel (4 Q), 120 Hz-20 kHz, 1% THD
Subwoofer Ch 150 W per channel (4 [Q),45 Hz-120 Hz, 1% THD
Total FTC Dolby Digital mode power 470 W
RMS Output Power: Dolby Digital Mode
Front Ch 65 W per channel (4 _), 1 kHz, 10 % THD
Surround Ch 60 W per channel (4 Q), 1 kHz, 10 % THD
Center Ch 250 W per channel (4 D), 1 kHz, 10 % THD
Subwoofer Ch 250 W per channel (4 £_.),100 Hz, 10 % THD
Total RMS Delby Digital mode power 750 W
FTC Output Power: Dolby Digital Mode
Front Ch 40 W per channel (4_), 120 Hz-20 kHz, 1%THD
Surround Ch 40 W per channel (4 [Q), 120 Hz-20 kHz, 1% THD
Center Ch 130 W per channel (4 _), 120 Hz-20 kHz, 1% THD
Subwoofer Ch 140 W per channel (4 [Q), 45 Hz-120 Hz, 1% THD
Total FTC Dolby Digital mode power 430 W
HTg_Ol
RMS Output Power: Dolby Digital Mode
Front Ch 170 W per channel (6 Q), 1 kHz, 10 % THD
Surround Ch 70 W per channel (4 Q), 1 kHz, 10 % THD
Center Ch 260 W per channel (4 _), 1 kHz, 10 % THD
Subwoofer Ch 260 W per channel (4 Q), 100 Hz, 10 % THD
Total RMS Dolby Digital mode power 1000 W
FTC Output Power: Dolby Digital Mode
Front Ch 100 W per channel (6 _), 120 Hz-20 kHz, 1%THD
SurroundCh 45 W per channel (4 Q),120 Hz-20 kHz, 1%THD
Center Ch 140 W per channel (4 Q), 120 Hz-20 kHz, 1% THD
Subweefer Ch 150 W per channel (4 _), 45 FIz 120 Hz, 1% THD
Total FTC Dolby Digital mode power 580 W
FM/AM TUNER, TERMINALS SECTION
Preset station
Frequency Modulation (FM)
Frequency range
Sensitivity
S/N 26 dB
Antenna terminals
Amplitude Modulation (AM/MW)
Frequency range
AM Sensitivity S/N 20 dB at 1000 kHz
Phone jack
Terminal
FM 15 stations
AM/MW 15 stations
87.9-107.9 MHz (200-kHz step)
87.5-108.0 MHz (100-kHz step)
2.5 IJV (IHF)
2.2 pV
75 _ (unbalanced)
520-1710 kHz (10-kHz step)
560 pV/m
Stereo, 3.5 mm (W') jack
DISC SECTION
Discs played [8 cm (3") or 12 cm (5")]
(1) DVD-RAM (DVD-VR compatible, JPEG formatted discs)
(2) DVD-Audio
(3) DVD-Video
(4) DVD-R, DVD-RW (DVD-Video compatible)
+ R, + RW (Video compatible)
(5) CD-Audio (CD-DA)
(6) Video CD
(7) SVCD (Conforming to IEC62107)
(8) CD-R/RW (CD-DA, Video-CD, SVCD, MP3, WMA, JPEG
formatted disc)
(9) M P3/WMA _1
oCompatible compression rate:
MP3: between 32 kbps and 320 kbps
WMA: between 48 kbps and 320 kbps
(10) JPEG _1
oExif Vet 2.1 JPEG Baseline files
oPicture resolution: between 320×240 and 6144×4096 pixels
(sub sampling is 4:2:2 or 4:2:0)
(11) HighMAT Level 2 (Audio and Image)
,,1The total combined maximum number of recognizable audio
and picture contents and groups: 4000 audio and picture
contents and 400 groups.
Pick up
Wavelength
Laser power
Audio output (Disc)
Number of channels
HT930] Audio performance
(1) Frequency response
oDVD (linear audio)
oDVD-Audio
oCD-Audio
(2) S/N ratio
oCD-Audio
(3) Dynamic range
oDVD (linear audio)
oCD-Audio
(4) Total harmonic distortion
oCD-Audio
CD 785 nm
DVD 662 nm
CLASS 11a/CLASS ]
CLASS 2/CLASS 3A
5.1ch (FL, FR, C, SL, SR, SW)
4 Hz-22 kHz (48 kHz sampling)
4 Hz-44 kHz (96 kHz sampling)
4 Hz-88 kHz (192 kHz sampling)
4 Hz-20 kHz
95 dB
95 dB
93 dB
0.005 %
VIDEO SECTION
Video system
Signal system
Composite video output
Output level
Termina_
S-video output
Y output level
C output level
Terminal
Component video output (480p/480i)
Y output level
PB output level
PR output level
Terminal
NTSC
1 Vp-p (75 £2)
Pin iack (1 system)
1 Vp-p (75 O)
NTSC; 0.286 Vp-p (75 _)
S terminal (1 system)
1 Vp-p (75 Q)
0.7 Vp-p (75 O)
0.7 Vp-p (75 O)
Pin jack (Y: green, PB:blue, PR: red) (1 system)
SUBWOOFER SECTION
_'_ ActivesubwooferSB-WA730
Type
Speaker unit(s)
1. Woofer
2. Woofer
Output sound pressure
Frequency range
Dimensions (WXHXD)
Mass
ActivesubwooferSB-WA733
Type
Speaker unit(s)
1. Woofer
2. Woofer
Output sound pressure
Frequency range
Dimensions (WXHXD)
Mass
HT930] ActivesubwooferSB-WA930
Type
Speaker unit(s)
1. Woofer
2. Woofer
Output sound pressure
Frequency range
Dimensions (WXHXD)
Mass
1 way, 2 speaker system (Bass reflex)
13 cm (5V8") Cone type
13 cm (5W') Cone type
80 dB/W (1.0 m)
40 Hz-220 Hz ( 16 dB)
45 Hz-180 Hz (1ODD)
201.5 mm×368.2 mm×491.5 mm
(7W10"× 141/2_'× t 93/8_')
11.3 kg (24.9 Ibs)
1 way, 2 speaker system (Bass reflex)
13 cm (5V8") Cone type
13 cm (5W') Cone type
80 dB/W (1.0 m)
40 Hz-220 Hz ( 16 dB)
45 Hz-180 Hz ( 10 dB)
201.5 mm×368.2 mm×491.5 mm
(7W10"× 141/2_'× 193/8_')
11.3 kg (24.9 Ibs)
1 way, 2 speaker system (Bass reflex)
15 cm (57/8") Cone type
15 cm (57/8") Cone type
84 dB/W (1.0 m)
34 Hz-220 Hz ( 16 dB)
38 Hz-190 Hz (1ODD)
285 minx402 minx520 mm
(117/32_'×15WW'X2OWJ')
15 kg (33.1 Ibs)

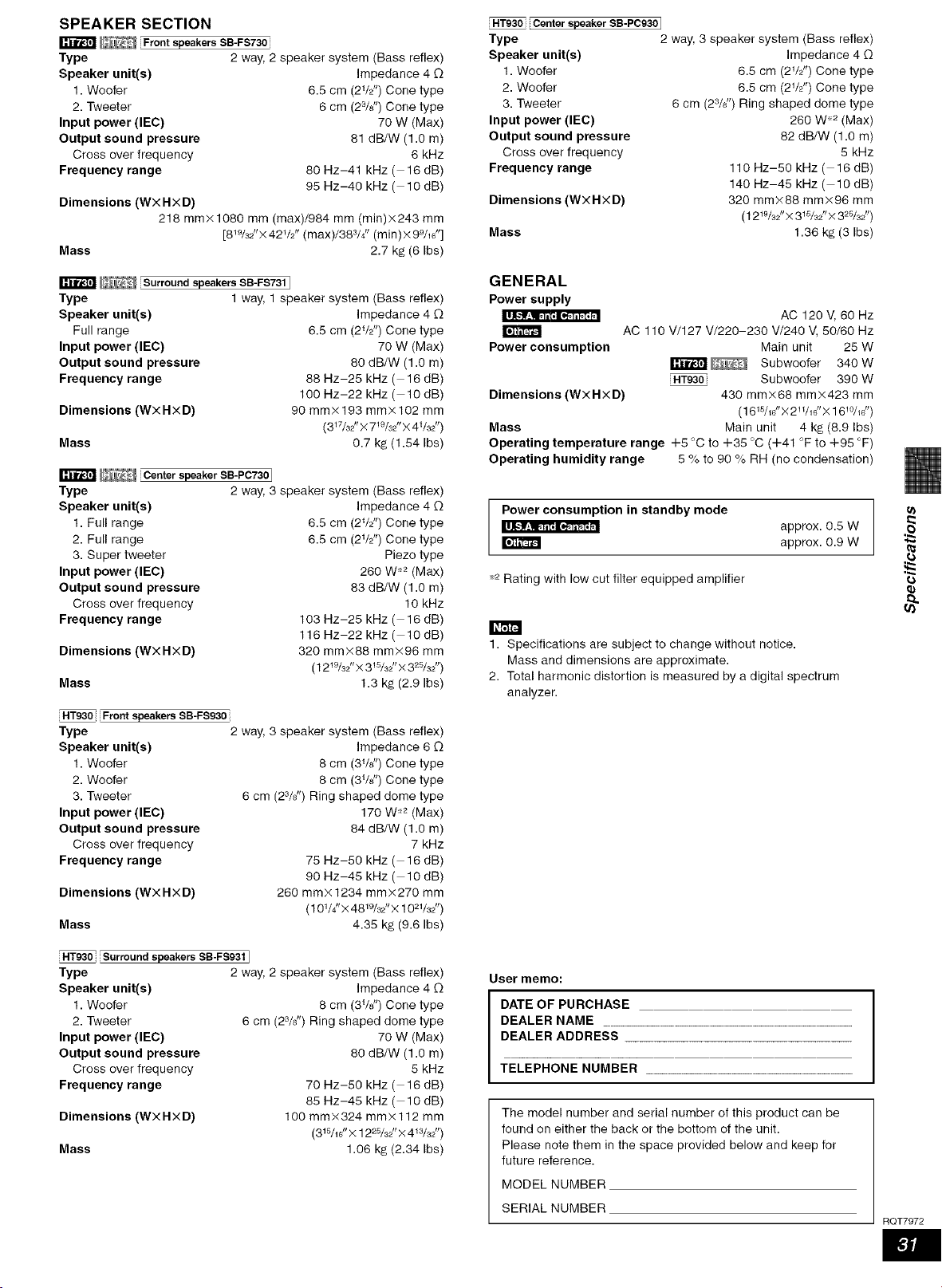

SPEAKER SECTION
_'_ _ Front speakersSB-FS730
Type 2 way,
Speaker unit(s)
1. Woofer
2. Tweeter
Input power (IEC)
Output sound pressure
Cross over frequency
Frequency range
Dimensions (WXHXD)
Mass
speaker system (Bass reflex)
Impedance 4 £2
6.5 cm (21h") Cone type
6 cm (23/8'') Cone type
70 W (Max)
61 dB/W (1 .Om)
6 kHz
80 Hz-41 kHz ( 16 dB)
95Hz-4OkHz(1OdB)
218 mm×1080 mm (max)/984 mm (min)X243 mm
[8W3_"× 421/2" (max)/383/4" (min) X 99h6"]
2.7 k8 (6 Ibs)
_'_ _ Surround speakers SB-FS7311
Type
Speaker unit(s)
Full range
Input power (IEC)
Output sound pressure
Frequency range
Dimensions (WXHXD)
Mass
1 way, 1 speaker system (Bass reflex)
Impedance 4 £2
6.5 cm (21/2") Cone type
70 W (Max)
80 dB/W (1 .Om)
88Hz-25kHz(16dB)
100 Hz-22 kHz ( 10 dB)
90 mmx193 mm× 102 mm
(317/32_'x 719/32"× 41/32 p')
0.7 kg (1.54 Ibs)
_'_ _ Center speaker SB-PC7301
Type
Speaker unit(s)
1. Full range
2. Full range
3. Super tweeter
Input power (IEC)
Output sound pressure
Cross over frequency
Frequency range
Dimensions (WXHXD)
Mass
2 way, 3 speaker system (Bass reflex)
Impedance 4 £2
6.5 cm (21/2") Cone type
6.5 cm (21/2") Cone type
Piezo type
260 W _2 (Max)
83 dB/W (1 .Om)
10 kHz
103 Hz-25 kHz ( 16 dB)
116 Hz-22 kHz (lOdB)
320 mm×88 minx96 mm
(1219/32"×315/32_'× 325/32 p')
1.3 kg (2.9 Ibs)
_=]]i"ts"_
HT930 Front speakers SB-FS930
Type
Speaker unit(s)
1. Woofer
2. Woofer
3. Tweeter
Input power (IEC)
Output sound pressure
Cross over frequency
Frequency range
Dimensions (WXHXD)
Mass
2 way, 3 speaker system (Bass reflex)
Impedance 6 £2
8 cm (3%") Cone type
8 cm (31/8") Cone type
6 cm (23/8") Ring shaped dome type
170 W _2 (Max)
84 dB/W (1 .Om)
7 kHz
75 Hz-5O kHz ( 16 dB)
90 Hz-45 kHz ( 10 dB)
260 ram× 1234 ram×270 mm
(101/4_'X48W32'_X1021/32It)
4.35 kg (9.6 Ibs)
Surround speakers SB-FS931 I
Type
Speaker unit(s)
1. Woofer
2. Tweeter
Input power (IEC)
Output sound pressure
Cross over frequency
Frequency range
Dimensions (WXHXD)
Mass
2 way, 2 speaker system (Bass reflex)
Impedance 4 £2
8 cm (3%") Cone type
6 cm (23/8") Ring shaped dome type
70 W (Max)
80 dB/W (1 .Om)
5 kHz
70Hz-50kHz(16dB)
86Hz-45kHz(1OdB)
100 mm×324 mm×112 mm
(315/16P'X1225/32P'×413/32 p')
1.06 kg (2.34 Ibs)
HT930 Center speaker SB-PC9301
Type
Speaker unit(s)
1. Woofer
2. Woofer
3. Tweeter
Input power (IEC)
Output sound pressure
Cross over frequency
Frequency range
Dimensions (WX H X D)
Mass
2 way, 3 speaker system (Bass reflex)
Impedance 4 £2
6.5 cm (2V2") Cone type
6.5 cm (2V2") Cone type
6 cm (23/8") Ring shaped dome type
260 W 2 (Max)
82 dB/W (1.O m)
5 kHz
110 Hz-50 kHz (16dB)
140 Hz-45 kHz ( 10 dB)
320 minx88 mm×96 mm
(1219/32pt× 315/32tt× 325/32 ")
1.36 k8 (3 Ibs)
GENERAL
Power supply
AC 120 V, 60 Hz
AC 110 V/127 V/220-230 V/240 V, 50/60 Hz
Power consumption Main unit 25 W
I_"_'_ Subwoofer 340W
HT930 Subwoofer 390 W
Dimensions (WXHXD) 430 minx68 mm×423 mm
(16WId'X 21V16_X161°/ld')
Mass Main unit 4 kg (8.9 Ibs)
Operating temperature range +5 r'C to +35 r'C (+41 _'Fto +95 °F)
Operating humidity range 5 % to 90 % RH (no condensation)
Power consumption in standby mode
approx. 0.5 W
__ ,10 .i.I.
approx. 0.9 W
_ Rating with low cut filter equipped amplifier
1. Specifications are subject to change without notice.
Mass and dimensions are approximate.
2. Total harmonic distortion is measured by a digital spectrum
analyzer.
User memo:
DATE OF PURCHASE
DEALER NAME
DEALER ADDRESS
TELEPHONE NUMBER
The model number and serial number of this product can be
found on either the back or the bottom of the unit.
Please note them in the space provided below and keep for
future reference.
MODEL NUMBER
o
SERIAL NUMBER
RQT7972
o
4_
#.
RQT-_T2
Before requesting service make the following checks If you are in doubt about some of the check points or If the soluhons indicated in the chart
do not solve the problem refer to the 'Customer Services Directoly" on page 35 if you leside in the U S A or refel to the 'Product infol matRon" on
page 34 if you leside in Canada
In othel areas consult your dealer
Power
No power. • Insert the AC power supply cord and system cable securely
The unit is automatically •The Sleep turner was working and had leached the set time hrnit
switched to the standby mode.
Unresponsive or inoperable function
No response when any buttons
are pressed.
No response when remote
control buttons are pressed.
Cannot play DVD's.
No picture or sound.
You have forgotten your ratings
_assword.
Reset all the settings to Factory
Preset
• This unit cannot play discs other than the ones hsted m these operating instructions
• The umt may not be operahng properly due to hghtnmg, static electricity or some other external
factor Turn the unit off and then back to ON Alternatively, turn the unit off, disconnect the AC
power supply cord, and then reconnect tt
• Condensatton has formed Wait 1 to 2 hours for it to evaporate
• Check that the batteries ate installed correctly
• The batteries are depleted Replace them with new ones
• Aim the remote control at the remote control s_gnal sensor and operate
• CD Mode is on Press [SHIFT]+[CD MODE] to turn CD Mode off
• Check the wdeo or audio connection
• Check the power or input sethng of the connected equipment
• Check that the DVD-RAM has something recorded on it
• While stopped and 'DVD/CD" Is the source, press and hold re] on the mare unit and [>10] on
the remote control unttl "lnltlahzed" disappears from the telewslon Turn the untt off and on again
All settings wtll return to the default values
11
m
9
9
10
14
4,5,
7, 28
Specific operation undesirable or unexpected
It takes time before play starts. • Play may take t_meto begin when an MP3 track has still picture data Even after the track starts,
'MP3 the correct play hme w_ll not be d_splayed Th=s _snormal
Folders deeper than the eighth
layer on a data CD are not
displayed correctly.
WMA MP3 JPEGJ
A menu screen appears during
skip or search. :_,'_"_:;_
Playback control menu doesn't
appear. [_'_:;,:_,:_wtth playback control
The program and random play
functions do not work.
Programmed items are not
played.
The on-screen menu shows "2"
as a soundtrack option when
[AUDIO] is pressed, but the
audio does not change.
Play restarts from the beginning
of the track when soundtrack is
changed.
Scenes are skipped
intermittently. _
• Folders deeper than the eighth layer are displayed as the eighth layer
• This Is normal for Video CD's
• Press re] twice and then press [1_] tplay)
• These functtens do not work wtth some DVD-Vtdeos
• Some items cannot be played even ifyou have programmed them
• Even tf a second seundtrack isn't recorded, two numbers will normally be shown
• Thts ts normal on DVD-Audto
• If you change the volume or sound fleldtqual_ty setting during ADVANCED DiSC REVIEW, the
functton continues without the on-screen display Press [ADVANCED DISC REVIEW] again to
cancel the function
m
D
m
D
m
D
m
14
Subtitle
Subtitle position is wrong,
No subtitles,
The subtitles overlap closed
captions recorded on discs,
Marker
Cannot add markers,
A-B repeat
Point B is automatically set.
A-B repeat is automatically
canceled,
Sound abnormal or improper
Sound distorted.
Effects do not work,
Humming is heard during play.
No sound
• Adjust the pos_t_on ("Subtitle Pos_hon" m D_splay Menu)
• Display the subtitles
• Clear the subtitles
• You cannot add markers with DVD-RAM
• If the disc's elapsed play time doesn't appear on the unit's display, you cannot add markers
• The end of an _tem becomes point B when it is reached
• A-B _epeat is canceled when you p_ess [QUICK REPLAY]
• No_se may occur when playing WMA
• Some audio effects do not work or have less effect with some discs
• Multi Re-master (HTLHT_0only) and Dolby Pro Logic li do not work if you have changed the play speed
• An AC power supply cord or fluorescent light is near the subwoofer Keep other appliances and
cables away from the subwoofer
• The_e may be a pause in sound when you change the play speed
15
Menus
The Setup menu cannot be • Select'DVD!CD" as the source
accessed. • Cancel program and random play
Picture abnormal or unviewable
Picture distorted. • Ensure that the unit is connected directly to the television, and is not connected through a video
cassette recorder
Picture size doesn't fit the eChange 'TV Aspect' in the 'Video" tab
screen. • Change the Zoom setttng
Menu is not displayed correctly. • Restore the zoom ratio to "- 1 00"
• Set 'Subtitle Position" in Display Menu to "0"
Auto zoom function does not eTum off TV s zoom function
work well. • Use the ethel preset aspect ratios el manual adjustment
=Zoom functton may not work well espectally tn dark scenes and may not work depending on the
type of dtsc
The picture on the television • Mobile telephone chargers can cause some disturbance
disappears or stripes appear on • If you are using a TV indoor antenna, change to an outdoor antenna
the screen, eThe television antenna wire is too close to the unit Separate the antenna wire of the television
from the unit
Progressive video
There is ghosting when
progressive output is on.
Pictures not in progressive
output.
Closed captions not displayed.
Listening to the radio
Noise is heard. •Adjust the position of the FM or AM antenna
"ST" flickers or doesn't light. • Use an outdoor antenna
Sound is distorted.
A beat sound is heard. •Turn the television off or move It away from the unit
A low hum is heard during AM • Separate the antenna from other cables
broadcasts.
Television operation
Cannot operate the TV. • Press [TV] first to operate the telewslon
• Check the remote control code for the TV manufacturer
Unit displays
The display is dark.
"'NOPLAY"
• This prablem is caused by the editing method or matenal used on DVD-Video but should be
conected _fyou use interlace output Change 'Video Output Mode' in Picture Menu to '4801"
• Press [PROGRESSIVE] on the matn unit so 'PRG" is displayed Or select "480p" m "Video
Output Mode" m Ptcture Menu
• If the unit Js connected to the telewston through VIDEO OUT or S-VIDEO OUT terminal, output
will be interlace even ff'PRG" is displayed
• When progressive output is on closed captions will not be d_splayed
"NODISC"
"'F61"
"DMD U11"
"'ERROR"
"DVD H½LJ"
lID stands for a number
"" w" is flashing.
When using optional SH-FX50)
"W01" is flashing.
When using opttonal SH-FX50)
Television displays
"'Cannot display group xx,
content xx"
"This disc may not be played in
your region"
No on-screen display.
• Select "Brtght" m 'FL Dimmer" in the "Others" tab
• You inserted a disc the unit cannot play insert one it can
• You inserted a blank disc
• You haven't inserted a disc insert one
• You haven't inserted the dtsc correctly, insert tt correctly
• Check and conect the speaker cord connections
If this does not fix the problem there is a power supply problem Consult the dealer
• Disc Is dirty Wipe It clean
• Incorrect operation pert•ruled Read the inshuctions and try again
• Trouble may have occurred The number following" H" depends on the status of the unit Turn the
unit off and then back to ON Alternatively, turn the unit off, disconnect the AC power supply
cord, and then reconnect tt
• If the serwce numbers fall to clear, note the service number and contact a qual#led service person
• There _sno hnk between the main unit and the receiver Check that the receiver is turned on
• Ensure that the digital transmitter is fully insetted _nto the slot of the main unit
• Re-initialize the main unit Whtle stopped and "DVD!CD" is the source, press and hold [Hi on the
mare unit and [>10] on the remote control until 'Initialized" disappears from the telewslon Turn
the unit off and on again If the problem persists, contact a qual#led service person
• The operation is prohibited by the unit or disc
• You are trying to display incompatible contents
• You can only play DVD-Vldeo if their region number ts the same or includes the same region
number as the unit or if the DVD-Wdeo is marked "ALl" Confirm the regton number for the unit
on the rear panel
• Select'On" in 'On-Screen Messages'in the 'Display" tab
Page
7
22
15
15
21
D
15
m
m
m
21
12,
21
7
23 I
11 I
-- I
-- I
t2 I
4,5,1
7 I
tt I
-- I
-- I
m I
D I
m I
m I
m
D
Cover
page
23
0
0
u}
ROT-'_72
b
e}
.£
#,
1. Damage requiring service--The unit should be serviced by
qualified service personnel if:
(a) The AC power supply cord or AC adaptor has been damaged;
or
(b) Objects or liquids have gotten into the unit; or
(c) The unit has been exposed to rain; or
(d) The unit does not operate normally or exhibits a marked
change in performance; or
(e) The unit has been dropped or the cabinet damaged.
2. Servicing--Do not attempt to service the unit beyond that
described in these operating instructions. Refer all other
servicing to authorized servicing personnel.
3. Replacement parts--When parts need replacing ensure the
servicer uses parts specified by the manufacturer or parts that
have the same characteristics as the original parts. Unauthorized
substitutes may result in fire, electric shock, or other hazards.
4. Safety check--After repairs or service, ask the servicer to
perform safety checks to confirm that the unit is in proper working
condition.
The servicer will require all components to service your system.
Therefore, should service ever be necessary, be sure to bring the
entire system.
I Product information
For product information or assistance with product operation:
In the U.S.A., refer to "Customer Services Directory" on page 35.
In Canada, contact the Panasonic Canada Inc. Customer Care
Centre at 1-800-561-5505, or visit the website
(www.panasonic.ca), or an authorized Servicentre closest to
you.
In other areas, consult your dealer.
Clean this unit with a soft, dry cloth.
oNever use alcohol, paint thinner or benzine to clean this unit.
• Before using chemically treated cloth, carefully read the
instructions that came with the cloth.
Do not use commercially available lens cleaners as they may
cause malfunction. (Cleaning of the lens is generally not necessary
although this depends on the operating environment.)
Decoder
A decoder restores the coded audio signals on DVD's to normal.
This is called decoding.
Dolby Digital
This is a method of coding digital signals developed by Dolby
Laboratories. Apart from stereo (2-channel) audio, these signals can
also be multi-channel audio. A large amount of audio information can
be recorded on one disc using this method.
DTS (Digital Theater Systems)
This surround system is used in many movie theaters around the
world. There is good separation between the channels, so realistic
sound effects are possible.
Dynamic range
Dynamic range is the difference between the lowest level of sound
that can be heard above the noise of the equipment and the highest
level of sound before distortion occurs.
Frame still and field still
Frames are the still pictures that go together to make a moving
picture. There are about 30 frames shown each second.
One frame is made up of two fields. A regular television shows these
fields one after the other to create frames.
A still is shown when you pause a moving picture. A frame still is
made up of two alternating fields, so the picture may appear blurred,
but overall quality is high.
A field still is not blurred, but it has only half the information of a
frame still so picture quality is lower.
I/P/B
MPEG 2, the video compression standard adopted for use with
DVD-Video, codes frames using these 3 picture types.
h Intra coded picture
This picture has the best quality and is the best to use when
adjusting the picture.
P: Predictive coded picture
This picture is calculated based on past I or P-pictures.
B: Bidirectionally-predictive coded picture
This picture is calculated by comparing past and future I and
P-pictures so it has the lowest volume of information.
Linear PCM (pulse code modulation)
These are uncompresseddigitalsignals,similarto those found on CDs.
Playback control (PBC)
If a Video CD has playback control, you can select scenes and
information with menus.
Sampling frequency
Sampling is the process of converting the heights of sound wave
(analog signal) samples taken at set periods into digits (digital
encoding). Sampling frequency is the number of samples taken per
second, so larger numbers mean more faithful reproduction of the
original sound.
RQT7972
f
Language code list
Abkhazian:
Afar:
Afrikaans:
Albanian:
Ameharic:
Arabic:
Armenian:
Assamese:
Aymara:
Azerbaijani:
Bashkir:
Basque:
Bengali; Bangla:
Bhutani:
Bihari:
Breton:
Bulgarian:
Burmese:
Byelorussiam
Cambodian:
Catalan:
6566 Chinese:
6868 Corsican:
6570 Croatian:
8381 Czech:
6577 Danish:
6582 Dutch:
7289 English:
6583 Esperanto:
6588 Estonian:
6590 Faroese;
6668 Fiji;
6988 Finnish:
6678 French:
6890 Frisiam
6672 Galician:
6682 Georgian:
6671 German:
7789 Greek:
6669 Greenlandic:
7577 Guarani:
6768 Gujarati:
9072 Hausa:
6779 Hebrew:
7282 Hindi:
6783 Hungarian:
6868 Icelandic:
7876 Indonesian:
6978 Interlingua:
6979 Irish:
6984 Italian: 7384
7079 Japanese: 7468
7074 Javanese: 7487
7073 Kannada: 7578
7082 Kashmiri: 7583
7089 Kazakh: 7575
7176 Kirghiz: 7589
7568 Korean: 7579
6869 Kurdish: 7585
6976 Laotian: 7679
7576 Latin: 7665
7178 Latvian, Lettish: 7686
7188 Lingala: 7678
7265 Lithuanian:
7387 Macedonian:
7273 Malagasy:
7288 Malay:
7383 Malayalam:
7378 Maltese:
7365 Maori:
7165 Marathi:
Moldavian:
Mongolian:
Nauru:
Nepali:
Norwegian:
Oriya:
Pashto, Pushto:
Persian:
Polish:
Portuguese:
Punjabi:
Quechua:
Rhaeto-Rornance:
7684
7775
7771
7783
7776
7784
7773
7782
7779
7778
7868
7869
7879
7982
8083
7065
8076
8084
8065
8185
8277
Romanian:
Russian:
Samoan: 8377
Sanskrit: 8365
Scots Gaelic: 7168
Serbian: 8382
Serbo-Croatian: 8372
Shona: 8378
Sindhi: 8368
Singhalese: 8373
Slovak: 8375
Slovenian: 8376
Somali: 8379
Spanish: 6983
Sundanese: 8385
Swahili: 8387
Swedish: 8386
Tagalog: 8476
Tajik: 8471
Tamil: 8465
Tatar: 8484
8279 Telugu:
8285 Thai:
Tibetan:
Tigrinya:
Tonga:
Turkish:
Turkmen:
Twi:
Ukrainian:
Urdu:
Uzbek:
Vietnamese:
Volap0k:
Welsh:
Wolof:
Xhosa:
Yiddish:
Yoruba:
Zulu:
8469
8472
6679
8473
8479
8482
8475
8487
8575
8582
8590
8673
8679
6789
8779
8872
7473
8979
9085
Panasonic Consumer Electronics Company,
Division of Panasonic Corporation of North America
One Panasonic Way Secaucus, New Jersey 07094
Panasonic Puerto Rico, Inc.
Ave, 65 de Infanteria, Kin, 9,5
San Gabriel Industrial Park, Carolina, Puerto Rico 00985
Panasonic Audio Products Limited Warranty
Limited Warranty Coverage
If your product does not work properly because of a defect in materials or workmanship,
Panasonic Consumer Electronics Company or Panasonic Puerto Rico, Inc. (collectively
referred to as "the warrantor") will, for the length of the period indicated on the chart below,
which starts with the date of original purchase ("warranty period"}, at its option either (a)
repair your product with new or refurbished parts, or (b) replace it with a new or a
refurbished product. The decision to repair or replace will be made by the warrantor.
Product or Part Name Parts Labor
Audio Products (except items listed below} One (1) year One (1) year
USB Reader-Writer, Personal Computer
Card Adapters One (1) year Not Applicable
(in exchange for defective item)
Accessories: Headphones, Cartridges, Ninety (90) Ninety (9%
Microphones, Adapters days days
Rechargeable Batteries, DVD-R/-RAM Ten (10) days Not Applicable
Discs (in exchange for defective item}
SD Memory Cards, Rechargeable Battery Ninety (90) Not Applicable
Packs (in exchange for defective item) days
During the "Labor" warranty period there will be no charge for labor. During the "Parts"
warranty period, there will be no charge for parts. You must carry-in or mail-in your product
during the warranty period. If non-rechargeable batteries are included, they are not
warranted. This warranty only applies to products purchased and serviced in the United
States or Puerto Rico. This warranty is extended only to the original purchaser of a new
product which was not sold "as is". A purchase receipt or other proof of the original
purchase date is required for warranty service.
Carry-In or Mail-In Service
For Carry=In or MaNn Service in the United States call 1-800-211-PANA (1-800-211-7262)
or visit Panasonic web site: http://www.panasonic.com
For assistance in Puerto Rico call Panasonic Puerto Rico, Inc. (787)-750-4300 or fax
(787)-768=2910.
Limited Warranty Limits And Exclusions
This warranty ONLY COVERS failures due to defects in matedals or workmanship, and
DOES NOT COVER normal wear and tear or cosmetic damage. The warranty ALSO
DOES NOT COVER damages which occurred in shipment, or failures which are caused by
products not supplied by the warrantor, or failures which result from accidents, misuse,
abuse, neglect, mishandling, misapplication, alteration, faulty installation, set-up
adjustments, misadjustment of consumer controls, improper maintenance, power line
surge, lightning damage, modification, or commercial use (such as in a hotel, office,
restaurant, or other business), rental use of the product, service by anyone other than a
Factory Servicenter or other Authorized Servicer, or damage that is attributable to acts of
God.
THERE ARE NO EXPRESS WARRANTIES EXCEPT AS LISTED UNDER "LIMITED
WARRANTY COVERAGE". THE WARRANTOR IS NOT LIABLE FOR INCIDENTAL OR
CONSEQUENTIAL DAMAGES RESULTING FROM THE USE OF THIS PRODUCT, OR
ARISING OUT OF ANY BREACH OF THIS WARRANTY. (As examples, this excludes
damages for lost time, travel to and from the servicer, loss of media or images, data or other
memory content. The items listed are not exclusive, but are for illustration only.) ALL
EXPRESS AND IMPLIED WARRANTIES, INCLUDING THE WARRANTY OF
MERCHANTABILITY, ARE LIMITED TO THE PERIOD OF THE LIMITED WARRANTY.
Some states do not allow the exclusion or limitation of incidental or consequential damages,
or limitations on how long an implied warranty lasts, so the exclusions may not apply to you.
This warranty gives you specific legal rights and you may also have other rights which vary
from state to state. If a problem with this product develops during or after the warranty
period, you may contact your dealer or Servicenter. If the problem is not handled to your
satisfaction, then write to the warrantor's Consumer Affairs Department at the addresses
listed for the warrantor.
PARTS AND SERVICE WHICH ARE NOT COVERED BY THIS LIMITED WARRANTY
ARE YOUR RESPONSIBILITY.
Obtain Product Information and Operating Assistance; locate your nearest Dealer or Servicenter; purchase Parts and
Accessories; or make Customer Service and Literature requests by visiting our Web Site at:
http://www.panasonic.com/consumersupport
or, contact us via the web at:
http://www.panasonic.com/contactinfo
You may also contact us directly at:
1-800-211-PANA (7262),
Monday-Friday 9 am-9 pm; Saturday-Sunday 10 am-7 pro, EST,
For hearing or speech impaired TTY users, TTY : 1-877-833-8855
(6
Q:
.E
..d
Purchase Parts, Accessories and Instruction Books online for all Panasonlc Products by visiting our Web Site at:
htto://www.pasc.panasonic.com
or, send your request by E-mail to:
You may also contact us directly at:
1-800-332-5368 (Phone) 1-800-237-9080 (Fax Only) (Monday - Friday 9 am to 8 pro, EST,)
Panasonic Services Company
20421 84th Avenue South, Kent, WA 98032
(We Accept Visa, MasterCard, Discover Card, American Express, and Personal Checks)
For hearing or speech impaired TTY users, TTY : 1-866-605-1277
Panasonic Puerto Rico, Inc.
Ave. 65 de Infanterfa, Kin. 9.5, San Gabriel Industrial Park, Carolina, Puerto Rico 00985
Phone (787)750-4300, Fax (787)768-2910
Fl104
RQT7972
Listening caution
Selecting fine audio equipment such as the unit you've just purchased is only the start of your musical enjoyment. Now it's time to consider
how you can maximize the fun and excitement your equipment offers. This manufacturer and the Electronic Industries Association's
Consumer Electronics Group want you to get the most out of your equipment by playing it at a safe level. One that lets the sound come
through loud and clear without annoying blaring or distortion--and, most importantly, without affecting your sensitive hearing.
We recommend that you avoid prolonged exposure to excessive noise.
Sound can be deceiving. Over time your hearing "comfort level" adapts to higher volumes of sound. So what sounds "normal" can actually be
loud and harmful to your hearing.
Guard against this by setting your equipment at a safe level BEFORE your hearing adapts.
To establish a safe level:
eStart your volume control at a low setting.
eSlowly increase the sound until you can hear it comfortably and clearly, and without distortion.
Once you have established a comfortable sound level:
eSet the dial and leave it there.
Taking a minute to do this now will help to prevent hearing damage or loss in the future. After all, we want you listening for a lifetime.
Please check and identify the supplied accessories. Use numbers indicated in parentheses when asking for replacement parts.
(Product numbers correct as of December 2004. These may be subject to change.)
Only for U.S.A.: To order accessories, refer to "Accessory Purchases" on page 35.
For other areas: To order accessories, call the dealer from whom you made your purchase.
[] 1 AC power supply cord [] 2 Pipes (A) _ _ [] 1
(RYBX0095-S)
(K2CB2CB00018)
[] 1 Remote control
(EUR7722XB0)
HTe30] (EUR7722XDO)
_e]%"F4"_
[] 2 Remote control batteries
[] 1 Video cable
(K2KA2BAO0001)
[] 1 System cable
(K1HA25HA0001 )
[]2
(K2CQ2CA00002)
[]2
[] 3 Speaker cables
1 ×short cable
_(REEXO449B) [] 4
(REE1203A-1J)
2× long cables
_(REEXO449E) [] 4
(REE1203G-J)
[] 1 Sheet of speaker-cable
stickers
Sheet of rubber pads
(RKAX0025-K)
Pipes (B) _
(RMAXO076-S) [] 2 Pipes HT930
(RYQXOl 9O-S)
Bases _ _
(RYQX0198-S) [] 2
Bases HT930
(RYQX0191-S)
[] 1 AM loop antenna
(N 1DAAAA00001 )
[] 1 FM indoor antenna
(RSA0007-L)
Washer screws
_ [] 4 Long screws HTg30]
(XTW5+ 1OLFJ) (XSN5+35FJ)
Small screws _
(XTB3+BJFJ) [] 4 Short screws HT930]
(RHD3009O-1)
[] 4 Bracket screws _
(XSN5+10FJ) [] 1 Power plug adaptor
(K2DA42E00001)
[] 2 Brackets _ _ _
(RYQX0205-S)
I _IIU_-_F ±:1
Panasonic Consumer Electronics
Company, Division of Panasonic
Corporation of North America
One Panasonic Way Secaucus,
New Jersey 07094
http://www.panasonic.com
Panasonic Puerto Rico, Inc.
Ave. 65 de Infanterfa, Kin. 9.5
San Gabriel Industrial Park, Carolina,
Puerto Rico 00985
Panasonic Canada Inc.
5770 Ambler Drive
Mississauga, Ontario
L4W 2T3
www.panasonic.ca
Matsushita Electric Industrial Co., Ltd.
Corporate Management Division for
the Americas
Sales Office for North America
Tokyo Panasonic Sales Section
32nd Floor, World Trade Center 4-1,
Hamamatsu-cho, 2-Chome, Minato-Ku,
Tokyo 105-6132,Japan
@ 2004 Matsushita Electric Industrial Co., Ltd.
Printed in Malaysia
Panasonic Marketing Europe
G.M.B.H. Wiesbaden N.
(a Division of Panasonic Marketing
G.M.B.H.)
Military Sales Department
6200 Wiesbaden-Biebrich,
Hagenauerstr. 43
Germany
RQT7972-2P
F1204NK2035 I
