UNPACKING
After unpacking unit, inspect carefully for any damage that
may have occurred during transit. Check for loose, missing,
or damaged parts. If any damage is observed, a shipping
damage claim must be filed with the carrier. DO NOT use
OEMTOOLS™ Pneumatic/Manual Fluid Evacuator - 1.5
Gallon (6 L) if broken, bent, cracked or damaged parts
(including labels) are noted. Any Pneumatic/Manual Fluid
Evacuator that appears damaged in any way, operates
abnormally or is missing parts should be removed from
service immediately. If you suspect that the Pneumatic/
Manual Fluid Evacuator was subjected to a shock load
(a load that was dropped suddenly, unexpectedly, etc.),
immediately discontinue use until it has been checked by a
factory authorized service center.
Please read and save these instructions. Read through this owner’s manual carefully before using product. Protect yourself and
others by observing all safety information, warnings, and cautions. Failure to comply with instructions could result in personal
injury and/or damage to product or property. Please retain instructions for future reference.
Operating Instructions and Parts Manual 24937
FOR CUSTOMER SERVICE
Technical Question?
CALL 1-866-458-2472
PNEUMATIC/MANUAL FLUID
EVACUATOR - 1.5 GALLON (6 L)
1
11/18
2018 OEMTOOLS
™
The following safety information is provided as a guideline to help you operate your Manual Fluid Evacuator under the safest
possible conditions. Any tool or piece of equipment can be potentially dangerous to use when safety or safe handling instructions
are not known or not followed. The following safety instructions are to provide the user with the information necessary for safe
use and operation. Please read and retain these instructions for the continued safe use of your Manual Fluid Evacuator. Failure
to follow instructions listed below may result in serious injury. In addition, make sure that anyone who uses the equipment
understands and follows these safety instructions as well.
Thank you very much for choosing an OEMTOOLS
™
Product!
For future reference, please register your new tool at www.oem-tools.com and complete the owner’s record below:
Model: _______________ Purchase Date: ___________
Save the receipt, warranty and these instructions. It is important that you read the entire manual to become familiar with this product
before you begin using it. This product is designed for certain applications only. OEMTOOLS
™
cannot be responsible for issues
arising from modification. We strongly recommend that this product is not modified and/or used for any application other than that
for which it was designed. If you have any questions relative to a particular application, DO NOT use the product until you have first
contacted customer service to determine if it can or should be performed on the product.
WARNING: This product can expose you to chemicals, including DEHP and lead, which are known to the State of
California to cause cancer and birth defects or other reproductive harm. For more information, go to www.P65Warnings.ca.gov.
Explanation of Safety Signal Words
WARNING: Indicates a potentially hazardous situation which, if not avoided, could result in death or serious injury.
CAUTION: Indicates a potentially hazardous situation which, if not avoided, may result in minor or moderate injury.
CAUTION: Used without the safety alert symbol indicates a potentially hazardous situation which, if not avoided, may
result in property damage.
NOTES: Provide clarity and helpful information.
WARNING
2
Operating Instructions and Parts Manual 24937
11/18
2018 OEMTOOLS
™
PNEUMATIC/MANUAL FLUID
EVACUATOR - 1.5 GALLON (6 L)
IMPORTANT INSTRUCTIONS
AND SAFETY RULES
1. Know your tool. Read this manual carefully. Learn the
tool’s applications and limitations, as well as potential
hazards specific to it.
2. Keep work area clean and well lit. Cluttered or dark
work areas invite accidents.
3. Keep children away. All children should be kept away
from the work area. Never let a child handle a tool
without strict adult supervision.
4. DO NOT operate this tool if under the influence of
alcohol or drugs. Read warning labels on prescriptions
to determine if your judgment or reflexes are impaired
while taking drugs. If there is any doubt, DO NOT
attempt to operate.
5. Use safety equipment. Eye protection should be
worn at all times when operating this tool. Use ANSI
approved safety glasses. Everyday eyeglasses are NOT
safety glasses. Dust mask, non-skid safety shoes, hard
hat or hearing protection should be used in appropriate
conditions.
6. Wear proper apparel. Loose clothing, gloves, neck-ties,
rings, bracelets or other jewelry may present a potential
hazard when operating this tool. Keep all apparel clear
of the tool.
7. DO NOT overreach. Keep proper footing and balance
at all times when operating this tool.
8. Check for damage. Check your tool regularly. If part of
the tool is damaged, it should be carefully inspected
to make sure that it can perform its intended function
correctly. If in doubt, the part should be repaired. Refer
all servicing to a qualified technician. Consult your
dealer for advice.
9. Keep away from flammables. DO NOT attempt
to operate this tool near flammable materials or
combustibles. Failure to comply may cause serious
injury or death.
10. Store idle tools out of the reach of children and
untrained persons. Tools may be dangerous in the
hands of untrained users.
11. Maintain tools with care.
12. Keep tools dry and clean.
13. Properly maintained tools are less likely to bind and
are easier to control. DO NOT use a damaged tool. Tag
damaged tools “DO NOT USE” until repaired.
14. Check for misalignment or binding of moving parts,
breakage of parts, and any other condition that may
affect the tool’s operation.
15. If damaged, have the tool serviced before using. Many
accidents are caused by poorly maintained tools.
16. Use only accessories that are recommended by the
manufacturer for your model. Accessories that may
be suitable for one tool may become hazardous when
used on another tool.
17. Tool service must be performed only by qualified repair
personnel. Service or maintenance performed by
unqualified personnel could result in a risk of injury.
18. When servicing a tool, use only identical replacement
parts. Use of unauthorized parts or failure to follow
maintenance instructions may create a risk of injury.
19. Maintain a safe working environment. Keep the work
area well lit. Make sure there is adequate surrounding
workspace. Keep the work area free of obstructions,
grease, oil, trash, and other debris. DO NOT use this
product in a damp or wet location.
SAFETY RULES & INSTRUCTIONS FOR
THIS PRODUCT
1. Maintain labels and nameplates on this product. These
carry important information. If unreadable or missing,
contact OEMTOOLS™ for a replacement.
2. Keep the handle dry, clean, and free from brake fluid,
oil, and grease.
3. Before use, read and understand all warnings, safety
precautions, and instructions as outlined in the vehicle
manufacturer’s service manual. It is beyond the
scope of this manual to properly describe the correct
procedure and test data for each vehicle.
4. Always perform vehicle service in a properly ventilated
area. Never run an engine without proper ventilation
for its exhaust. Stop work and take necessary steps
to improve ventilation in the work area if you develop
momentary eye, nose, or throat irritation as this
indicates inadequate ventilation.
5. Engine parts that are in motion and unexpected
movement of a vehicle can injure or kill. When working
near moving engine parts, wear snug fit clothing and
keep hands and fingers away from moving parts. Keep
hoses and tools clear of moving parts. Always stay
clear of moving engine parts. Hoses and tools can
be thrown through the air if not kept clear of moving
engine parts. The unexpected movement of a vehicle
can injure or kill. When working on vehicles, always set
the parking brake or block the wheels.
6. Be alert for hot engine parts to avoid accidental burns.
7. If you drove your car recently, fluids could be very hot.
Allow at least 2 hours before you handle any fluids. Oil
and coolant burns are very dangerous.
8. Avoid accidental fire and/or explosion. DO NOT smoke
near engine fuel and battery components.
9. Never remove the cap from the radiator or expansion
tank while the engine is at operating temperature.
10. Always allow the engine to cool before removing the
radiator cap or expansion tank cap. The cooling system
is under pressure. Failure to allow the engine to cool
before attempting to remove the cap could result in
serious injuries.
3
Operating Instructions and Parts Manual 24937
11/18
2018 OEMTOOLS
™
PNEUMATIC/MANUAL FLUID
EVACUATOR - 1.5 GALLON (6 L)
11. The warnings, precautions, and instructions discussed
in this manual cannot cover all possible conditions
and situations that may occur. The operator must
understand that common sense and caution are factors
which cannot be built into this product, but must be
supplied by the operator.
12. For safety purposes and the prevention of damage
to expensive components, it is advised that the user
understand basic automotive repair and have a working
knowledge of automotive systems.
13. We believe the information contained herein to be
reliable. However, general technical information is
given by us without charge and the user shall employ
such information at his or her own discretion and risk.
We assume no responsibility for results or damages
incurred from the use of such information in whole or in
part. Always refer to specific instructions and technical
information supplied by vehicle manufacturer.
14. The manufacturer declines any and all responsibility
for damage to vehicles or components if said damage
is the result of unskillful handling by the operator or of
failure to observe the basic safety rules set forth in the
instruction manual.
15. Used oil, antifreeze, brake fluid and transmission fluid
contain chemical compounds that can be harmful to
humans and other animals. When managed properly,
used oil may again be of beneficial use. Used oil may
be blended and recycled as a heating or industrial
fuel and also may be re-refined and made into new
lubricants. Persons who perform maintenance on their
own vehicles are responsible for managing the used
fluids in a manner that is protective of human health
and the environment and to follow all local laws and
regulations concerning their disposal.
DISPOSAL
At the end of the useful life of the Pneumatic/Manual Fluid
Evacuator, dispose of the components according to all
local, state, and federal regulations.
PURPOSE
The OEMTOOLS™ 24937 Pneumatic/Manual Fluid
Evacuator is designed for the extraction of all types
of engine, transmission and lubricating oils from cars,
motorcycles, marine engines and industrial machinery. Also
suitable for low viscosity fluid such as water or coolant.
This fluid evacuator is equipped with a Venturi for use with
shop air.
PRODUCT SPECIFICATIONS
Reservoir Capacity 1.5 Gallon (6 L)
Operation Manual/Pneumatic
Working Pressure 85 - 110 PSI
Application Lubricating Oils, ATF,
Coolant, Brake Fluid, Water,
Other Low Viscosity Fluids
SPECIFIC SAFETY INSTRUCTIONS
AND WARNINGS
CAUTION:
This equipment is intended for professional use
only and only for the applications specified in in this manual.
CAUTION: DO NOT attempt to extract fluids at
temperatures greater than 175°F (80°C).
CAUTION:
This equipment is designed for servicing
a variety of vehicles; however, differences in makes and
models may not allow this equipment to be used as
intended by the manufacturer. DO NOT attempt to force this
equipment to fit an application for which it was not designed.
CAUTION: In addition to the guidelines set by this
manual, always follow the manufacturer provided vehicle
maintenance manual prior to attempting service of any kind.
WARNING: DO NOT use this equipment with gasoline
or other flammable liquids or with fluids at temperatures
above 175°F (80°C).
WARNING:
Keep away from open flames or excessive heat.
WARNING: To extract certain fluids, the vehicle
may need to be lifted. Practice extreme caution when
using lifting equipment, and ensure that the proper lifting
equipment is utilized.
WARNING: Prior to inserting the extraction hoses into
any dipstick tube/fluid reservoir, ensure that the extraction
hoses are clean of any residual fluids. This could cause
contamination, potentially leading to system failure.
WARNING: This system creates a vacuum, thus
creating pressurized fluid. While operating, ensure secure
fittings and always check the system pressure prior to
disconnecting any hose.
ASSEMBLY
The Main Extraction Reservoir is fully assembled.
1. Remove the unit and all pieces from the packaging.
2. Refer to the parts list to ensure all pieces are present.
3. Press the Main Suction Hose into the receiving hole on
the Reservoir Cap. Press in until snug against the cap.
The O-Ring will hold the Main Suction Hose in place
during operation.
4. Remove the protective cover from the Venturi and
install the Air Fitting.
5. Ensure that the Reservoir Lid is properly secured to
the Reservoir.
6. If using shop air, connect the compressed air source to
the Air Fitting installed on the Venturi.
4
Operating Instructions and Parts Manual 24937
11/18
2018 OEMTOOLS
™
PNEUMATIC/MANUAL FLUID
EVACUATOR - 1.5 GALLON (6 L)
PREPARING FOR OPERATION
1. Park the vehicle on a level surface, free from
obstruction. Put the vehicle in park or neutral; apply the
parking brake.
2. If extracting oil, start the engine and allow the engine to
idle until it has reached normal operating temperature.
Turn the engine off.
NOTE: If extracting coolant, DO NOT follow Step 2. Allow
the engine to cool completely before proceeding.
EXTRACTING OIL THROUGH THE DIPSTICK
TUBE
1. Insert the Dipstick Tube Adapter into the vehicle’s
dipstick tube until it reaches the bottom of the oil pan.
NOTE: DO NOT bend the Dipstick Tube Adapter while
inserting the adapter into the dipstick tube.
2. Connect the Main Suction Hose to the inserted Dipstick
Tube Adapter.
NOTE: Ensure that the hose connections are tight to
prevent leakage during the extraction process.
3. Press the Main Suction Hose into the Reservoir Cap as
described in the assembly instructions.
NOTE: Ensure that the Vacuum Release Plug is fully
inserted in the lower receiving hole prior to operation. If the
Vacuum Release Plug is not inserted, a vacuum will not be
created.
4. USING THE PNEUMATIC FUNCTION
a) Open the Air Valve on the Venturi to create a
vacuum. The oil will flow through the Suction Hose
Assembly into the Reservoir until it has all been
extracted OR until maximum reservoir capacity has
been reached.
b) Close the Air Valve on the Venturi and disconnect
from the air source.
5. USING THE MANUAL FUNCTION
a) Pump the Evacuator Handle several times to
create a vacuum. The oil will flow through the
Suction Hose Assembly into the Reservoir until it
has all been extracted OR until maximum reservoir
capacity has been reached.
6. Disconnect the Main Suction Hose from Dipstick Tube
Adapter.
7. Disconnect the Main Suction Hose from the Reservoir
Cap. Pour the used oil from the Reservoir into a
suitable container. Dispose of used oil in accordance
with federal, state and local regulations.
EXTRACTING COOLANT FROM A RADIATOR
OR EXPANSION TANK
WARNING: DO NOT remove the cap from the radiator
or expansion tank while the engine is at operating
temperature. This system is under pressure and could
cause serious injury. ALWAYS allow the engine to cool
completely prior to removing the radiator cap or expansion
tank cap.
1. See “Preparing for Operation” instructions above. Allow
the engine to cool completely.
2. Remove the radiator or expansion tank cap.
3. Insert the appropriate diameter Suction Hose Adapter
into the radiator or expansion tank until it reaches the
bottom.
NOTE: DO NOT bend the Suction Hose Adapter while
inserting the Hose Adapter into the radiator.
4. Connect the Main Suction Hose to the inserted Suction
Hose Adapter.
NOTE: Ensure that the hose connections are tight to
prevent leakage during the extraction process.
5. Press the Main Suction Hose into the Reservoir Cap as
described in the assembly instructions.
NOTE: Ensure that the Vacuum Release Plug is fully
inserted in the lower receiving hole prior to operation. If
the Vacuum Release Plug is not inserted, a vacuum will
not be created.
6. USING THE PNEUMATIC FUNCTION
a) Open the Air Valve on the Venturi to create a
vacuum. The coolant will flow through the Suction
Hose Assembly into the Reservoir until it has
all been extracted OR until maximum reservoir
capacity has been reached.
b) Close the Air Valve on the Venturi and disconnect
from the air source.
7. USING THE MANUAL FUNCTION
a) Pump the Evacuator Handle several times to
create a vacuum. The coolant will flow through the
Suction Hose Assembly into the Reservoir until it
has all been extracted OR until maximum reservoir
capacity has been reached.
8. Disconnect the Main Suction Hose from the Suction
Hose Adapter.
9. Disconnect the Main Suction Hose from the Reservoir
Cap. Pour the used coolant from the Reservoir into
a suitable container. Dispose of used coolant in
accordance with federal, state and local regulations.
5
Operating Instructions and Parts Manual 24937
11/18
2018 OEMTOOLS
™
PNEUMATIC/MANUAL FLUID
EVACUATOR - 1.5 GALLON (6 L)
EXTRACTING BRAKE FLUID FROM THE
MASTER CYLINDER
1. See “Preparing for Operation” instructions above.
2. Clean the exterior of the master cylinder and master
cylinder cap to prevent dirt and debris from entering
the master cylinder when the cap is removed.
3. Insert the appropriate diameter Suction Hose Adapter
into the master cylinder reservoir.
NOTE: DO NOT bend the Suction Hose Adapter while
inserting the hose adapter into the reservoir.
4. Connect the Main Suction Hose to the inserted Suction
Hose Adapter.
NOTE: Ensure that the hose connections are tight to
prevent leakage during the extraction process.
5. Press the Main Suction Hose into the Reservoir Cap as
described in the assembly instructions.
NOTE: Ensure that the Vacuum Release Plug is fully
inserted in the lower receiving hole prior to operation. If
the Vacuum Release Plug is not inserted, a vacuum will
not be created.
6. USING THE PNEUMATIC FUNCTION
a) Open the Air Valve on the Venturi to create a
vacuum. The brake fluid will flow through the
Suction Hose Assembly into the Reservoir until it
has all been extracted OR until maximum reservoir
capacity has been reached.
b) Close the Air Valve on the Venturi and disconnect
from the air source.
7. USING THE MANUAL FUNCTION
a) Pump the Evacuator Handle several times to create
a vacuum. The brake fluid will flow through the
Suction Hose Assembly into the Reservoir until it
has all been extracted OR until maximum reservoir
capacity has been reached.
8. Disconnect the Main Suction Hose from the Suction
Hose Adapter.
9. Disconnect the Main Suction Hose from the Reservoir
Cap. Pour the used brake fluid from the Reservoir
into a suitable container. Dispose of used coolant in
accordance with federal, state and local regulations.
EXTRACTING POWER STEERING FLUID FROM
THE POWER STEERING FLUID RESERVOIR
1. See “Preparing for Operation” instructions above.
2. Clean the exterior of the power steering fluid reservoir
and reservoir cap to prevent dirt and debris from
entering the master cylinder when the cap is removed.
3. Insert the appropriate diameter Suction Hose Adapter
into the master cylinder reservoir.
NOTE: DO NOT bend the Suction Hose Adapter while
inserting the Hose Adapter into the reservoir.
4. Connect the Main Suction Hose to the inserted Suction
Hose Adapter.
NOTE: Ensure that the hose connections are tight to
prevent leakage during the extraction process.
5. Press the Main Suction Hose into the Reservoir Cap as
described in the assembly instructions.
NOTE: Ensure that the Vacuum Release Plug is fully
inserted in the lower receiving hole prior to operation. If
the Vacuum Release Plug is not inserted, a vacuum will
not be created.
6. USING THE PNEUMATIC FUNCTION
a) Open the Air Valve on the Venturi to create a
vacuum. The power steering fluid will flow through
the Suction Hose Assembly into the Reservoir
until it has all been extracted OR until maximum
reservoir capacity has been reached.
b) Close the Air Valve on the Venturi and disconnect
from the air source.
7. USING THE MANUAL FUNCTION
a) Pump the Evacuator Handle several times to
create a vacuum. The power steering fluid will
flow through the Suction Hose Assembly into the
Reservoir until it has all been extracted OR until
maximum reservoir capacity has been reached.
8. Disconnect the Main Suction Hose from the Suction
Hose Adapter.
9. Disconnect the Main Suction Hose from the Reservoir
Cap. Pour the used power steering fluid from the
Reservoir into a suitable container. Dispose of used
coolant in accordance with federal, state and local
regulations.
6
Operating Instructions and Parts Manual 24937
11/18
2018 OEMTOOLS
™
PNEUMATIC/MANUAL FLUID
EVACUATOR - 1.5 GALLON (6 L)
PARTS LIST MAINTENANCE
1. Always store the Pneumatic/Manual Fluid Evacuator in
a well-protected area where it will not be exposed to
inclement weather, corrosive vapors, abrasive dust, or
any other harmful elements.
2. Keep the Pneumatic/Manual Fluid Evacuator clean for
better and safer performance.
3. Inspect Reservoir, Hoses, Caps, Gaskets, Seals, Gauge
and Adapters periodically and, if damaged, replace
them.
4. Rinse the evacuator reservoir, pump, adapter, and
tubes with clean solvent or engine degreaser, and allow
them to dry thoroughly.

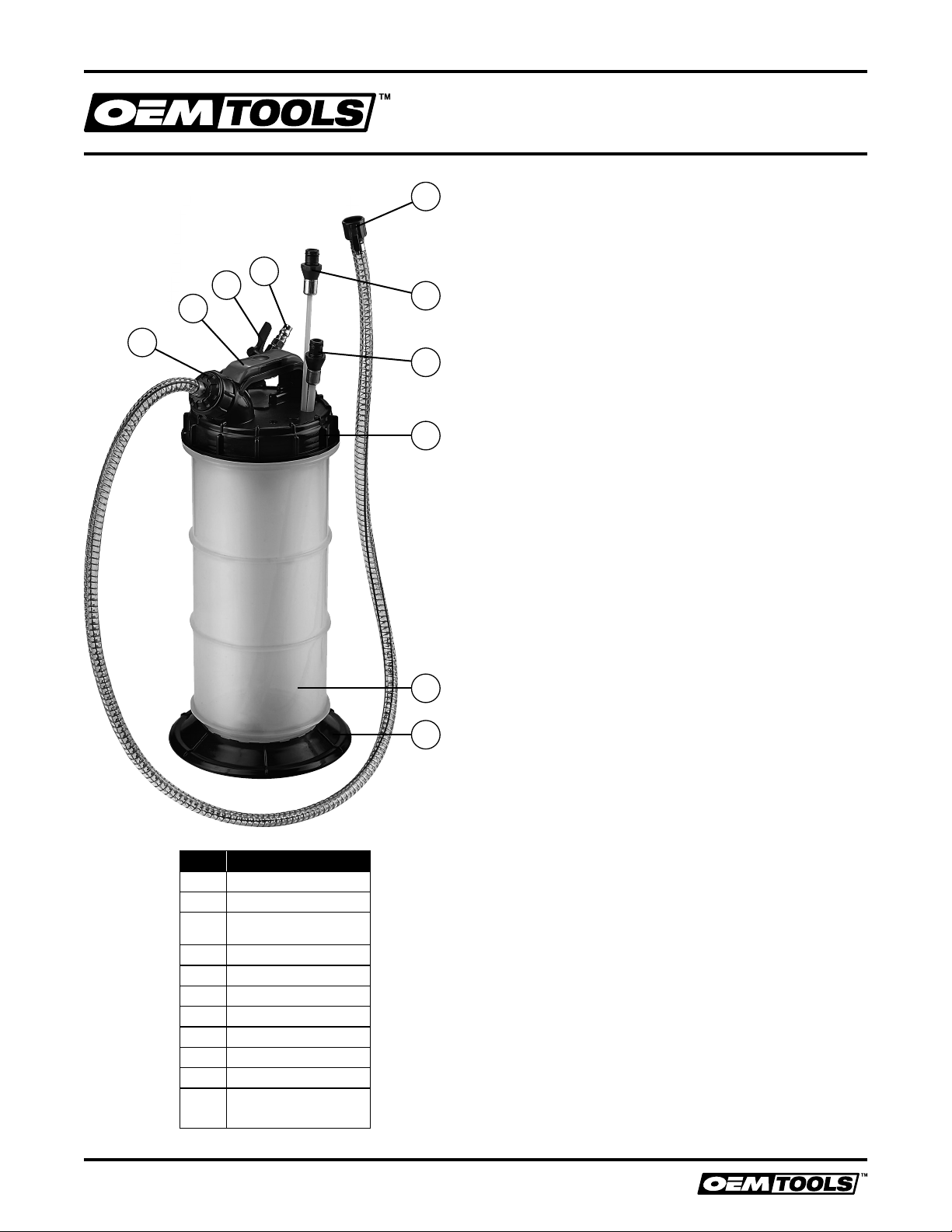

Figure Description
A
Extraction Reservoir
B
Extraction Reservoir Cap
C
Main Suction Hose
Receiving Hole
D
Main Suction Hose
E
Dipstick Tube Adapter
F
Suction Hose Adapter
G
Manual Pump Handle
H
Venturi
I
Air Fitting
J
Base
K
Vacuum Release Plug
(not shown)
A
B
F
E
I
H
J
D
G
C
7
Operating Instructions and Parts Manual 24937
11/18
2018 OEMTOOLS
™
PNEUMATIC/MANUAL FLUID
EVACUATOR - 1.5 GALLON (6 L)
OEMTOOLS
TM
ONE YEAR WARRANTY
For up to one year from the date of purchase of this OEMTOOLS™ product, if you find any defect in material or
workmanship (through normal usage), return it to the place of purchase or to OEMTOOLS™ for repair or replacement at our
discretion. In order to obtain this service, send the product and proof of purchase (transportation pre-paid) to:
OEMTOOLS™ Q.A. Dept, 3580 E. Raines Road #3, Memphis, TN 38118.
We will not be responsible for lost or damaged goods during transportation; please insure your package. If our inspection
verifies the defect, we will either repair or replace the product, or we may elect to refund the purchase price if we cannot
readily and quickly provide you with a replacement. We will return repaired products at our expense, but if we determine
there is no defect, or that the defect resulted from causes not within the scope of our warranty, then you must bear the cost
of returning the product.
OEMTOOLS™ does not provide warranty for products labeled other than OEM
®
or OEMTOOLS™. OEMTOOLS™ will
not provide any warranty for products subjected to abnormal use. Abnormal use includes (but is not limited to) abuse,
accident, alteration, neglect, and unauthorized or unreasonable use or repairs. This warranty does not cover bits, blades,
files, batteries, or calibration. We recommend that you maintain your tools and sharpen or replace blades, bits, files, and
batteries as necessary. OEMTOOLS™ reserves the right to make any changes in construction or design at any time without
any obligation in incorporating such changes to tools or equipment previously sold. OEMTOOLS™ makes every effort to
ensure that its products meet high quality and durability standards, and warrants to the original purchaser that this product
is free from defects in materials and workmanship for the period of one year from the date of purchase. This warranty does
not apply to damage due directly or indirectly to misuse, abuse, negligence or accidents, repairs or alterations outside our
facilities, criminal activity, improper installation, normal wear and tear, or to lack of maintenance.
We shall in no event be liable for death, injuries to persons or property, or for incidental, contingent, special or consequential
damages arising from the use of our product. Some states do not allow the exclusion or limitation of incidental or
consequential damages, so the above limitation of exclusion may not apply to you. THIS WARRANTY IS EXPRESSLY IN
LIEU OF ALL OTHER WARRANTIES, EXPRESS OR IMPLIED, INCLUDING THE WARRANTIES OF MERCHANTABILITY AND
FITNESS. This warranty gives you specific legal rights, and you may also have other rights, which vary from state to state.
Don’t forget to register your new OEMTOOLS™ product at www.oem-tools.com.
8
Operating Instructions and Parts Manual 24937
11/18
2018 OEMTOOLS
™
PNEUMATIC/MANUAL FLUID
EVACUATOR - 1.5 GALLON (6 L)
NOTES:
