4.2. Standard test
The battery model, type, standard and
rating are generally marked in the
battery label.

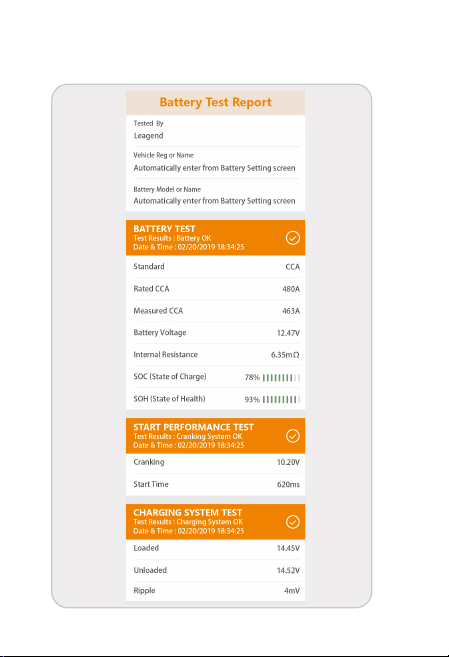

4.4. Test report can be exported and
printed out.
Type:AGM
Rating:950A
Model:H9-105-L-T2-A
AGM
950A(EN)
H9-105-L-T2-A
Standard:EN
Regular Flooded AGM Flat Plate
AGM Spiral GEL EFB
CCA DIN JIS EN IEC
GB SAE MCA BCI CA
Vehicle & Battery Settings
Reg or Name
Input Reg or Name
Rating
950A
Standard
CCA
Type
Regular Flooded
Model or Name
Input Model or Name
Add
4.3. Quick test
No need to create new battery, you can test
directly by entering the battery parameters.
Regular Flooded
AGM Flat Plate
AGM Spiral
GEL
EFB
Type
Standard
DINCCA JIS
AGM Spiral
EN IEC GB
SAE
MCA BCI
CA
Rating
950A
Test
Create new battery and multi-batteries
switching for test.
Working Temperature: -40~80℃
Housing: IP65
Protective Function: Built-in short
circuit and reverse connection protection.
Bluetooth: 4.0
Type: Regular Flooded, AGM, GEL, EFB
Before testing the battery, please make sure the
engine is turned off, otherwise it will affect the test
results.
Range
Standard
CCA
100-2000A
EN
100-2000A
GB
30-220Ah
SAE
100-2000A
BCI
100-2000A
CA
100-2000A
MCA
100-2000A
JIS
26A17-245H52
DIN
100-1400A
IEC
100-1400A
1
1
Product Introduction
* Support Android 4.3 and above / IOS 8.0 and above
1
2
Product Parameters
Name: Bluetooth Battery Tester
Model: BT500
Size: 75mm*52mm*21mm
Input Voltage: DC 6V-30V
Applicable Battery: 12V
Applicable Battery Type: Regular Flooded,
AGM, GEL, EFB
3
Installation Instructions
4.1. Turn on Bluetooth on your phone and
connect to the BT500 device, allow the BT500
application to access the location information.
Note: connect the red clamp to the positive(+)
terminal and the black clamp to the negative(-) terminal.
4
Application Operation
6-30V
IOSAndroid
Location Permission
Required
Starting from Android M(6.0)
and above Android apps
require access to the device
location in order to scan for
nearby BLE devices, your
location will not be used in
any way aside from enabling
the app to perform BLE scans.
OK
Allow"BT500" to access
your location while
you are using the app?
Allow Access: When close
to vehicle, the battery and
related system data will be
automatically sent to the app
wi
th a fault notice if it exists.
Don't allow Allow
Bluetooth Battery Tester
User Manual
正面
成品尺寸 宽 70mm 高 100mm 出血3mm
反面
®
BT500
