NEC NP-PH1202HL1 12,000-lumen Laser/Phosphor Professional User Manual

Projector

PH1202HL1

User’s Manual

Model No.

NP-PH1202HL1

Ver. 1 12/15

• Apple,Mac,MacOSX,andMacBookaretrademarksofAppleInc.registeredintheU.S.andothercountries.

• Microsoft,Windows,WindowsVista, Internet Explorer,.NETFrameworkandPowerPointareeitheraregistered

trademarkortrademarkofMicrosoftCorporationintheUnitedStatesand/orothercountries.

• MicroSaverisaregisteredtrademarkofKensingtonComputerProductsGroup,adivisionofACCOBrands.

• Adobe,AdobePDF,AdobeReader,andAcrobatareeitherregisteredtrademarksortrademarksofAdobeSystems

IncorporatedintheUnitedStatesand/orothercountries.

• VirtualRemoteToolusesWinI2C/DDClibrary,©NicomsoftLtd.

• HDMI,theHDMILogoandHigh-DenitionMultimediaInterfacearetrademarksorregisteredtrademarksofHDMI

LicensingLLC.

• DisplayPortandDisplayPortComplianceLogoaretrademarksownedbytheVideoElectronicsStandardsAssocia-

tion.

• HDBaseT™isatrademarkofHDBaseTAlliance.

• DLPisatrademarkofTexasInstruments.

• TrademarkPJLinkisatrademarkappliedfortrademarkrightsinJapan,theUnitedStatesofAmericaandother

countriesandareas.

• Blu-rayisatrademarkofBlu-rayDiscAssociation

• CRESTRONandROOMVIEWareregisteredtrademarksofCrestronElectronics,Inc.intheUnitedStatesandother

countries.

• EthernetiseitheraregisteredtrademarkortrademarkofFujiXeroxCo.,Ltd.

• Otherproductsandcompanynamesmentionedinthisuser’smanualmaybethetrademarksorregisteredtrade-

marksoftheirrespectiveholders.

• TOPPERSSoftwareLicenses

 TheproductincludessoftwarelicensedunderTOPPERSLicense.

 Formoreinformationoneachsoftware,see“readme_English.pdf”insidethe“aboutTOPPERS”folderonthesup-

pliedCD-ROM.

NOTES

(1)Thecontentsofthisuser’smanualmaynotbereprintedinpartorwholewithoutpermission.

(2)Thecontentsofthisuser’smanualaresubjecttochangewithoutnotice.

(3)Greatcarehasbeentakeninthepreparationofthisuser’smanual;however,shouldyounoticeanyquestionable

points,errorsoromissions,pleasecontactus.

(4)Notwithstandingarticle(3),NECwillnotberesponsibleforanyclaimsonlossofprotorothermattersdeemed

toresultfromusingtheProjector.

Important Information

Safety Cautions

Precautions

PleasereadthismanualcarefullybeforeusingyourNECprojectorandkeepthemanualhandyforfuturereference.

CAUTION

Toturnoffmainpower,besuretoremovetheplugfrompoweroutlet.

Thepoweroutletsocketshouldbeinstalledasneartotheequipmentaspossible,andshouldbeeasily

accessible.

CAUTION

TOPREVENTSHOCK,DONOTOPENTHECABINET.

THEREAREHIGH-VOLTAGECOMPONENTSINSIDE.

REFERSERVICINGTOQUALIFIEDSERVICEPERSONNEL.

Thissymbolwarnstheuserthatuninsulatedvoltagewithintheunitmaybesufcienttocauseelectrical

shock.Therefore,itisdangeroustomakeanykindofcontactwithanypartinsideoftheunit.

Thissymbolalertstheuserthatimportantinformationconcerningtheoperationandmaintenanceofthis

unithasbeenprovided.

Theinformationshouldbereadcarefullytoavoidproblems.

WARNING:TOPREVENTFIREORSHOCK,DONOTEXPOSETHISUNITTORAINORMOISTURE.

DONOTUSETHISUNIT’SPLUGWITHANEXTENSIONCORDORINANOUTLETUNLESSALLTHEPRONGS

CANBEFULLYINSERTED.

DOC Compliance Notice (for Canada only)

ThisClassAdigitalapparatusmeetsallrequirementsoftheCanadianICES-003Standards.

WARNING

ThisisaClassAproduct.Inadomesticenvironmentthisproductmaycauseradiointerferenceinwhichcasethe

usermayberequiredtotakeadequatemeasures.

CAUTION

• Inordertoreduceanyinterferencewithradioandtelevisionreceptionuseasignalcablewithferritecoreattached.

Useofsignalcableswithoutaferritecoreattachedmaycauseinterferencewithradioandtelevisionreception.

• ThisequipmenthasbeentestedandfoundtocomplywiththelimitsforaClassAdigitaldevice,pursuanttoPart

15oftheFCCRules.Theselimitsaredesignedtoprovidereasonableprotectionagainstharmfulinterference

whentheequipmentisoperatedinacommercialenvironment.Thisequipmentgenerates,uses,andcanradi-

ateradiofrequencyenergyand,ifnotinstalledandusedinaccordancewiththeinstallationmanual,maycause

harmfulinterferencetoradiocommunications.Operationofthisequipmentinaresidentialareaislikelytocause

harmfulinterferenceinwhichcasetheuserwillberequiredtocorrecttheinterferenceathisownexpense

Important Information

WARNING TO CALIFORNIA RESIDENTS:

Handlingthecablessuppliedwiththisproductwillexposeyoutolead,achemicalknowntotheStateofCalifornia

tocausebirthdefectsorotherreproductiveharm.WASHHANDSAFTERHANDLING.

Important Safeguards

Thesesafetyinstructionsaretoensurethelonglifeofyourprojectorandtopreventreandshock.Pleasereadthem

carefullyandheedallwarnings.

Installation

• Consultyourdealerforinformationabouttransportingandinstallingtheprojector.Donotattempttotransportand

installtheprojectoryourself.Theprojectormustbeinstalledbyqualiedtechniciansinordertoensureproperop-

erationandreducetheriskofbodilyinjury.

• Donotplacetheprojectorinthefollowingconditions:

- onanunstablecart,stand,ortable.

- nearwater,baths,ordamprooms.

- indirectsunlight,nearheaters,orheatradiatingappliances.

- inadusty,smokyorsteamyenvironment.

- onasheetofpaperorcloth,rugsorcarpets.

• Donotinstallandstoretheprojectorinthebelowcircumstances.Failuretodosomaycauseofmalfunction.

- Inpowerfulmagneticelds

- Incorrosivegasenvironment

- Outdoors

• Ifyouwishtohavetheprojectorinstalledontheceiling:

- Donotattempttoinstalltheprojectoryourself.

- Theprojectormustbeinstalledbyqualiedtechniciansinordertoensureproperoperationandreducetherisk

ofbodilyinjury.

- Inaddition,theceilingmustbestrongenoughtosupporttheprojectorandtheinstallationmustbeinaccordance

withanylocalbuildingcodes.

- Pleaseconsultyourdealerformoreinformation.

iii

Important Information

WARNING

• Donotcoverthelenswiththelenscaporequivalentwhiletheprojectorison.Doingsocanleadtomeltingof

thecapduetotheheatemittedfromthelightoutput.

• Donotplaceanyobjects,whichareeasilyaffectedbyheat,infrontoftheprojectorlens.Doingsocouldlead

totheobjectmeltingfromtheheatthatisemittedfromthelightoutput.

Donotusetheprojectorwithitleaningtotheleftandright.Thismayresultinamalfunction,however,portraitinstal-

lation*ispossible.Pleasereadthewarningsconcerningportraitorientationbeforesettingtheprojectorinportrait

orientation.(→page140)

Fire and Shock Precautions

• Ensurethatthereissufcientventilationandthatventsareunobstructedtopreventthebuild-upofheatinsideyour

projector.Allowenoughspacebetweenyourprojectorandawall.(→pageix)

• Preventforeignobjectssuchaspaperclipsandbitsofpaperfromfallingintoyourprojector.Donotattempttoretrieve

anyobjectsthatmightfallintoyourprojector.Donotinsertanymetalobjectssuchasawireorscrewdriverintoyour

projector.Ifsomethingshouldfallintoyourprojector,disconnectitimmediatelyandhavetheobjectremovedbya

qualiedservicepersonnel.

• Donotplaceanyobjectsontopoftheprojector.

• Donottouchthepowerplugduringathunderstorm.Doingsocancauseelectricalshockorre.

• Theprojectorisdesignedtooperateonapowersupplyof200-240VAC50/60Hz.Ensurethatyourpowersupply

tsthisrequirementbeforeattemptingtouseyourprojector.

• Donotlookintothelightsourceusingopticalinstruments(suchasmagnifyingglassesandmirrors).Visualimpair-

mentcouldresult.

• Donotusethemalfunctionedprojector.Itmaycauseofnotonlyelectricshockorrebutalsoseriousdamageto

youreyesight.

• Ifdamageormalfunctionoftheprojectorisfound,immediatelystoptouseitandconsultyourdealerforrepair.

• Neverdisassemble,repair,andremodelbyendusers.Iftheseareperformedbyendusers,itmaycauseofserious

problemonusers'safety.

• Consultyourdealerfordisposingtheprojector.Neverdisassembletheprojectorbeforedisposingit.

Important Information

• Handlethepowercordcarefully.Adamagedorfrayedpowercordcancauseelectricshockorre.

- Donotuseanypowercordotherthantheonesuppliedwiththeprojector.

- Donotbendortugthepowercordexcessively.

- Donotplacethepowercordundertheprojector,oranyheavyobject.

- Donotcoverthepowercordwithothersoftmaterialssuchasrugs.

- Donotheatthepowercord.

- Donothandlethepowerplugwithwethands.

• Turnofftheprojector,unplugthepowercordandhavetheprojectorservicedbyaqualiedservicepersonnelunder

thefollowingconditions:

- Whenthepowercordorplugisdamagedorfrayed.

- Ifliquidhasbeenspilledintotheprojector,orifithasbeenexposedtorainorwater.

- Iftheprojectordoesnotoperatenormallywhenyoufollowtheinstructionsdescribedinthisuser’smanual.

- Iftheprojectorhasbeendroppedorthecabinethasbeendamaged.

- Iftheprojectorexhibitsadistinctchangeinperformance,indicatinganeedforservice.

• Disconnectthepowercordandanyothercablesbeforecarryingtheprojector.

• Movingtheprojectorrequiresfourpeopleormore.Besuretormlygripthefrontandbackhandles,thenmovethe

projector.

• Turnofftheprojectorandunplugthepowercordbeforecleaningthecabinet.

• Turnofftheprojectorandunplugthepowercordiftheprojectorisnottobeusedforanextendedperiodoftime.

• WhenusingaLANcable:

 Forsafety,donotconnecttotheterminalforperipheraldevicewiringthatmighthaveexcessivevoltage.

CAUTION

• Keephandsawayfromthelensmountingportionwhilethelensshiftisinoperation.Failuretodosocouldresult

inngersbeingpinchedbetweenthecabinetandlenscover.

• Donotusetheleveladjusterforpurposesotherthanoriginallyintended.

• Ifasafetycover(soldseparately)isused,donotcarrytheprojectorbythecover.Thesafetycovercancomeoff

andtheprojectormaybedropped,causingpersonalinjury.

• Donotunplugthepowercordfromthewalloutletorprojectorwhentheprojectorispoweredon.Doingsocan

causedamagetotheACINterminaloftheprojectorand(or)theprongplugofthepowercord.

 ToturnofftheACpowersupplywhentheprojectorispoweredon,usetheprojector’smainpowerswitch,apower

stripequippedwithaswitch,orabreaker.

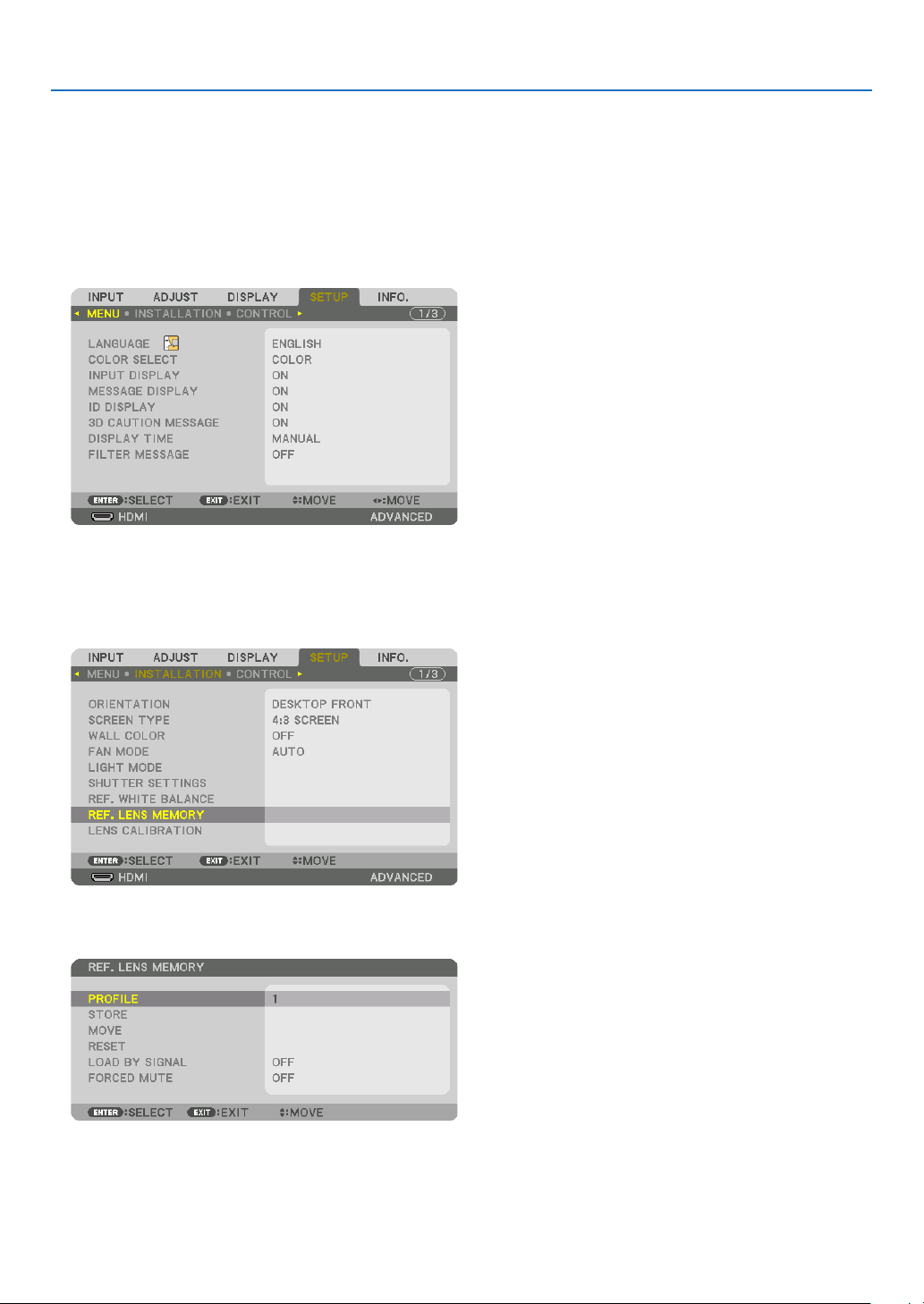

Precautions when installing or replacing the lens unit sold separately (LENS

CALIBRATION)

Afterinstallingorreplacingthelensunit,presseithertheLENSCALIBRATIONbuttononthemainunitortheINFO/L-

CALIB.buttonwhilepressingtheCTLbuttonontheremotecontroltocarryout[LENSCALIBRATION].(→page16,106)

Bycarryingout[LENSCALIBRATION],theadjustmentrangeofthezoomandfocusofthe[LENSMEMORY]iscalibrated.

Contactyourdealertoinstallandreplacethelensunit.

Caution on Handling the Optional Lens

Whenshippingtheprojectorwiththelens,removethelensbeforeshippingtheprojector.Alwaysattachthedustcap

tothelenswheneveritisnotmountedontheprojector.Thelensandthelensshiftmechanismmayencounterdamage

causedbyimproperhandlingduringtransportation.Ifyouneedtoremovethelensunit,contactyourdealer.

Important Information

Remote Control Precautions

• Handletheremotecontrolcarefully.

• Iftheremotecontrolgetswet,wipeitdryimmediately.

• Avoidexcessiveheatandhumidity.

• Donotshort,heat,ortakeapartbatteries.

• Donotthrowbatteriesintore.

• Ifyouwillnotbeusingtheremotecontrolforalongtime,removethebatteries.

• Ensurethatyouhavethebatteries’polarity(+/−)alignedcorrectly.

• Donotusenewandoldbatteriestogether,orusedifferenttypesofbatteriestogether.

• Disposeofusedbatteriesaccordingtoyourlocalregulations.

Light Module

1. Alightmodulecontainingmultiplelaserdiodesisequippedintheproductasthelightsource.

2. Theselaserdiodesaresealedinthelightmodule.Nomaintenanceorserviceisrequiredfortheperformanceof

thelightmodule.

3. Enduserisnotallowedtoreplacethelightmodule.

4. Contactqualieddistributorforlightmodulereplacementandfurtherinformation.

Laser Safety Caution

ThisproductsisclassiedasClass3RofIEC60825-1

Secondedition2007-03.Also complieswithFDAperformancestandards21 CFR 1040.10and1040.11 forlaser

productsexceptfordeviationspursuanttoLaserNoticeNo.50,datedJune24,2007.Obeythelawsandregulations

ofyourcountryinrelationtotheinstallationandmanagementofthedevice.

CAUTION

• Useofcontrolsoradjustmentsorperformanceofproceduresotherthanthosespeciedhereinmayresultin

hazardousradiationexposure.

CAUTION – CLASS 3R LASER PRODUCT

LASERLIGHT–AVOIDDIRECTEYEEXPOSURE

• Donotlookintothelenswhiletheprojectorison.Seriousdamagetoyoureyescouldresult.

• Keepanyitemssuchasmagnifyingglassoutofthelightpathoftheprojector.Thelightbeingprojectedfromthe

lensisextensive,thereforeanykindofabnormalobjectsthatcanredirectlightcomingoutofthelens,cancause

unpredictableoutcomesuchasreorinjurytotheeyes.

• Whenturningontheprojector,ensurethatnobodyisfacingtowardsthelensinthepathofthelightemittedfrom

thelaser.

Important Information

Laser aperture and warning labels on the projector

Laser aperture

NonaccessibleInternalLaserParameters

Wavelength 462nm

Laserpowerforclassication <220mW

Totalinternallaserpower <56W

Divergence ±12 - 35°

Modeofoperation CW

Negativemodulation,duetoframerate 23-192Hz

vii

Important Information

About High Altitude mode

• Usingtheprojectorathighlandscanshortenthelifeofopticalcomponentssuchasthelightmodule.

About Copyright of original projected pictures:

Pleasenotethatusingthisprojectorforthepurposeofcommercialgainortheattractionofpublicattentioninavenue

suchasacoffeeshoporhotelandemployingcompressionorexpansionofthescreenimagewiththefollowingfunc-

tionsmayraiseconcernabouttheinfringementofcopyrightswhichareprotectedbycopyrightlaw.

[ASPECTRATIO],[KEYSTONE],Magnifyingfeatureandothersimilarfeatures.

Thisdeviceisnotintendedforuseinthedirecteldofviewatvisualdisplayworkplaces.Toavoidincommodingreec-

tionsatvisualdisplayworkplacesthisdevicemustnotbeplacedinthedirecteldofview.

viii

Important Information

Health precautions to users viewing 3D images

Beforeviewing,besuretoreadhealthcareprecautionsthatmaybefoundintheuser’smanualincludedwithyour3D

eyeglassesoryour3DcompatiblecontentsuchasBlu-rayDiscs,videogames,computer’svideolesandthelike.

Toavoidanyadversesymptoms,heedthefollowing:

• Donotuse3Deyeglassesforviewinganymaterialotherthan3Dimages.

• Allowadistanceof2m/7feetorgreaterbetweenthescreenandauser.Viewing3Dimagesfromtooclosea

distancecanstrainyoureyes.

• Avoidviewing3Dimagesforaprolongedperiodoftime.Takeabreakof15minutesorlongeraftereveryhour

ofviewing.

• Ifyouoranymemberofyourfamilyhasahistoryoflight-sensitiveseizures,consultadoctorbeforeviewing3D

images.

• Whileviewing3Dimages,ifyougetsicksuchasnausea,dizziness,queasiness,headache,eyestrain,blurry

vision,convulsions,andnumbness,stopviewingthem.Ifsymptomsstillpersist,consultadoctor.

• View3Dimagesfromthefrontofthescreen.Viewingfromananglemaycausefatigueoreyestrain.

Power management function

Inordertokeeppowerconsumptionlow,thefollowingpowermanagementfunctions(1)and(2)havebeensetwhen

shippedfromthefactory.Pleasedisplaytheon-screenmenuandchangethesettings(1)and(2)accordingtothe

aimofusingtheprojector.

1. STANDBY MODE (Factory preset: NORMAL)

• When[NORMAL]isselectedfor[STANDBYMODE],thefollowingterminalsandfunctionswillnotwork:

 HDMIOUTterminal,Ethernet/HDBaseTPort,USBPort,LANfunctions,MailAlertfunction

(→page122)

2. AUTO POWER OFF (Factory preset: 1 hour)

• When[1:00]isselectedfor[AUTOPOWEROFF],youcanenabletheprojectortoautomaticallyturnoffin1

hourifthereisnosignalreceivedbyanyinputorifnooperationisperformed.

(→page123)

Important Information

Clearance for Installing the Projector

Allowampleclearancebetweentheprojectoranditssurroundingsasshownbelow.

Thehightemperatureexhaustcomingoutofthedevicemaybesuckedintothedeviceagain.

AvoidinstallingtheprojectorinaplacewhereairmovementfromtheHVACisdirectedattheprojector.

HeatedairfromtheHVACcanbetakeninbytheprojector'sintakevent.Ifthishappens,thetemperatureinsidethe

projectorwillrisetoohighcausingtheover-temperatureprotectortoautomaticallyturnofftheprojectorspower.

• Beforesettingtheprojectorinportraitorientation,pleasereadpage140,Portraitprojection(verticalorientation).

Example 1 – If there are walls on both sides of the projector.

30cm/11.8"orgreater 30cm/11.8"orgreater

IntakeventIntakevent

NOTE:

The drawing shows the proper clearance required for the front, back, and top of the projector.

Example 2 – If there is a wall behind the projector.

(1) For ﬂoor installation:

70cm/27.6"orgreater

Lens

Exhaustvent

NOTE:

The drawing shows the proper clearance required for the back, right, left, and top of the projector.

(2) For ceiling mounting:

30cm/12"orgreater

70cm/27.6"orgreater

Lens

NOTE:

1. The drawing shows the proper clearance required for the front, right, left, back, and bottom of the projector.

2. If suspending the projector within the range of 30 cm/12 inches away from the ceiling, allow ample clearance for all four sides

and the under the projector.

Table of Contents

Important Information ............................................................................................i

1. Introduction ...........................................................................................................1

❶What’sintheBox? ..........................................................................................................1

❷IntroductiontotheProjector ...........................................................................................2

CongratulationsonYourPurchaseoftheProjector ..................................................2

General .....................................................................................................................2

Lightsource·Brightness ..........................................................................................2

Installation ................................................................................................................. 2

Videos .......................................................................................................................3

Network ..................................................................................................................... 3

Energy-saving ...........................................................................................................3

Aboutthisuser’smanual ........................................................................................... 4

❸PartNamesoftheProjector ...........................................................................................5

Front/Top ...................................................................................................................5

Rear ..........................................................................................................................6

Controls/IndicatorPanel ............................................................................................ 7

TerminalsFeatures ...................................................................................................8

❹PartNamesoftheRemoteControl ................................................................................9

BatteryInstallation ..................................................................................................10

RemoteControlPrecautions ................................................................................... 10

OperatingRangeforWirelessRemoteControl ....................................................... 11

UsingtheRemoteControlinWiredOperation ........................................................ 11

2. Projecting an Image (Basic Operation) ...............................................12

❶FlowofProjectinganImage .........................................................................................12

❷ConnectingYourComputer/ConnectingthePowerCord ..............................................13

UsingthePowerCordFixingMetal ......................................................................... 14

❸TurningontheProjector ...............................................................................................15

PerformingLensCalibration ...................................................................................16

NoteonStartupscreen(MenuLanguageSelectscreen) ....................................... 17

❹SelectingaSource .......................................................................................................18

Selectingthecomputerorvideosource..................................................................18

❺AdjustingthePictureSizeandPosition ........................................................................20

Adjustmentoftheprojector’ssettings(Leveladjusters) .......................................... 21

Adjustingtheverticalpositionofaprojectedimage(Lensshift) .............................22

Focus ......................................................................................................................24

Zoom

....................................................................................................................... 24

❻OptimizingComputerSignalAutomatically ..................................................................25

AdjustingtheImageUsingAutoAdjust ...................................................................25

❼TurningofftheProjector ...............................................................................................26

3. Convenient Features ......................................................................................28

❶Stoppingprojection ....................................................................................................... 28

❷Turningoffthelightsource ...........................................................................................28

❸Lockingtheprojectorsoitcannotbeoperated .............................................................28

❹MutingtheImage(AVMute) ......................................................................................... 29

❺TurningOfftheOn-ScreenMenu(On-ScreenMute) ....................................................29

Table of Contents

❻FreezingaPicture ........................................................................................................29

❼MagnifyingaPicture .....................................................................................................30

❽ChangingLIGHTMODE/CheckingEnergy-SavingEffectUsingLIGHTMODE

[LIGHTMODE]........................................................................................................31

CheckingEnergy-SavingEffect[CARBONMETER] ..............................................33

❾CorrectingHorizontalandVerticalKeystoneDistortion[CORNERSTONE] .................34

❿

PreventingtheUnauthorizedUseoftheProjector[SECURITY] .......................................37

⓫Projecting3Dvideos.....................................................................................................40

Proceduretowatch3Dvideosusingthisprojector .................................................40

Whenvideoscannotbeviewedin3D .....................................................................42

⓬ControllingtheProjectorbyUsinganHTTPBrowser ..................................................43

⓭StoringChangesforLensShift,Zoom,andFocus[LENSMEMORY] .........................49

UsageExample.......................................................................................................49

Tostoreyouradjustedvaluesin[REF.LENSMEMORY]: .......................................49

Tocallupyouradjustedvaluesfrom[REF.LENSMEMORY]: ................................51

4. Multi-Screen Projection ...............................................................................54

❶Thingsthatcanbedoneusingmulti-screenprojection ................................................54

Case1.Usingasingleprojectortoprojecttwotypesofvideos[PIP/PICTURE

BYPICTURE] .........................................................................................................54

Case2.Usingfourprojectors(resolution:FULLHD)toprojectvideoswitha

resolutionof3840×2160pixels[TILING]...............................................................55

Thingstonotewheninstallingprojectors ................................................................ 57

❷DisplayingTwoPicturesattheSameTime ...................................................................58

Projectingtwoscreens ............................................................................................ 59

Switchingthemaindisplaywiththesub-displayandviceversa .............................60

Restrictions .............................................................................................................61

❸DisplayingaPictureUsing[EDGEBLENDING] ...........................................................62

Settingtheoverlapofprojectionscreens ................................................................ 63

BlackLevelAdjustment ...........................................................................................66

5. Using On-Screen Menu .................................................................................68

❶UsingtheMenus ...........................................................................................................68

MenuElements .......................................................................................................69

❷ListofMenuItems ........................................................................................................70

❸MenuDescriptions&Functions[INPUT] ......................................................................76

HDMI ....................................................................................................................... 76

DisplayPort ..............................................................................................................76

BNC ........................................................................................................................76

BNC(CV) .................................................................................................................76

BNC(Y/C) ................................................................................................................76

COMPUTER ...........................................................................................................76

HDBaseT ................................................................................................................76

SLOT ....................................................................................................................... 76

ENTRYLIST ...........................................................................................................76

TESTPATTERN ...................................................................................................... 76

❹MenuDescriptions&Functions[ADJUST] ................................................................... 80

[PICTURE] ..............................................................................................................80

[IMAGEOPTIONS] .................................................................................................84

xii

Table of Contents

[VIDEO] ................................................................................................................... 88

[3DSETTINGS] ......................................................................................................90

UsingtheLensMemoryFunction[LENSMEMORY] ..............................................91

❺MenuDescriptions&Functions[DISPLAY] ..................................................................92

[PIP/PICTUREBYPICTURE] ................................................................................. 92

[GEOMETRICCORRECTION] ...............................................................................94

[EDGEBLENDING] ................................................................................................98

[MULTISCREEN]....................................................................................................99

❻MenuDescriptions&Functions[SETUP] ................................................................... 101

[MENU] .................................................................................................................101

[INSTALLATION] ...................................................................................................103

[CONTROL] ..........................................................................................................107

[NETWORKSETTINGS] ....................................................................................... 115

[SOURCEOPTIONS] ...........................................................................................120

[POWEROPTIONS] .............................................................................................122

ReturningtoFactoryDefault[RESET] ..................................................................124

❼MenuDescriptions&Functions[INFO.] .....................................................................125

[USAGETIME] ......................................................................................................125

[SOURCE(1)] ........................................................................................................125

[SOURCE(2)] ........................................................................................................126

[SOURCE(3)] ........................................................................................................126

[SOURCE(4)] ........................................................................................................126

[WIREDLAN] ........................................................................................................127

[VERSION(1)] .......................................................................................................127

[VERSION(2)] .......................................................................................................127

[OTHERS] .............................................................................................................128

[CONDITIONS] .....................................................................................................128

[HDBaseT] ............................................................................................................128

6. Connecting to Other Equipment ...........................................................129

❶Connectingacomputer ..............................................................................................129

AnalogRGBsignalconnection .............................................................................129

DigitalRGBsignalconnection ..............................................................................130

❷ConnectinganExternalMonitor .................................................................................133

❸ConnectingYourBlu-rayPlayerorOtherAVEquipment ............................................134

ConnectingComponentInput ...............................................................................135

ConnectingHDMIInput.........................................................................................136

❹Connectingadocumentcamera .................................................................................137

❺ConnectingtoaWiredLAN ........................................................................................138

❻ConnectingtoaHDBaseTtransmissiondevice(soldcommercially) .........................139

❼Portraitprojection(verticalorientation) ....................................................................... 140

7. Maintenance .....................................................................................................142

❶CleaningtheFilters.....................................................................................................142

❷CleaningtheProtectionglass ..................................................................................... 146

❸CleaningtheCabinet ..................................................................................................146

8. User Supportware ..........................................................................................147

❶OperatingEnvironmentforUserSupportware ...........................................................147

xiii

Table of Contents

Downloadservice .................................................................................................147

OperatingEnvironment .........................................................................................147

❷InstallingSoftwareProgram .......................................................................................148

InstallationforWindowssoftware .......................................................................... 148

❸OperatingtheProjectorViatheLAN(VirtualRemoteTool) ........................................150

ConnecttheprojectortoaLAN. ............................................................................ 151

❹

ControllingtheProjectoroveraLAN(PCControlUtilityPro4/Pro5) ........................... 153

9. Appendix ..............................................................................................................156

❶Throwdistanceandscreensize .................................................................................156

Lenstypesandthrowdistance .............................................................................156

Tablesofscreensizesanddimensions ................................................................157

Lensshiftingrange ................................................................................................158

❷MountingtheOptionalBoard(soldseparately) ..........................................................159

❸CompatibleInputSignalList .......................................................................................161

❹Specications .............................................................................................................164

❺CabinetDimensions ...................................................................................................167

❻Pinassignmentsandsignalnamesofmainterminals ...............................................169

❼Troubleshooting ..........................................................................................................175

IndicatorMessages ............................................................................................... 175

CommonProblems&Solutions ............................................................................177

Ifthereisnopicture,orthepictureisnotdisplayedcorrectly. ............................... 179

❽PCControlCodesandCableConnection ..................................................................180

❾TroubleshootingCheckList ......................................................................................... 181

1. Introduction

❶ What’s in the Box?

Makesureyourboxcontainseverythinglisted.Ifanypiecesaremissing,contactyourdealer.

Pleasesavetheoriginalboxandpackingmaterialsifyoueverneedtoshipyourprojector.

Projector

* Theprojectorisshippedwithouta

lens.Forthetypesoflensandthrow

distances,seepage156.

Remotecontrol

(7N901041)

AAalkalinebatteries(x2)

Powercord

(US:7N080244)

Servicekeys(2)(24C09081)

WARNING:

Usedbytheservicetechnician.

Donotattempttousebyyourselfasthis

isdangerous.

Glassprotectorcap

• ImportantInfomation

(7N8N6771)

• QuickSetupGuide(ForNorth

America:7N8N6781)

• SecuritySticker

 (Usethisstickerwhensecurity

passwordisseton.)

• Limitedwarranty

NECProjectorCD-ROM

User’smanual(PDF)

(7N952401)

1. Introduction

❷ Introduction to the Projector

Thissectionintroducesyoutoyournewprojectoranddescribesthefeaturesandcontrols.

Congratulations on Your Purchase of the Projector

Thisprojectorisoneoftheverybestprojectorsavailabletoday.Theprojectorenablesyoutoprojectpreciseimages

upto500inchesacross(measureddiagonally)fromyourPCorMaccomputer(desktopornotebook),VCR,Blu-ray

player,ordocumentcamera.

Youcanusetheprojectoronatabletoporcart,youcanusetheprojectortoprojectimagesfrombehindthescreen,

andtheprojectorcanbepermanentlymountedonaceiling*

.Theremotecontrolcanbeusedwirelessly.

 Donotattempttomounttheprojectoronaceilingyourself.

 Theprojectormustbeinstalledbyqualiedtechniciansinordertoensureproperoperationandreducetherisk

ofbodilyinjury.

 Inaddition,theceilingmustbestrongenoughtosupporttheprojectorandtheinstallationmustbeinaccordance

withanylocalbuildingcodes.Pleaseconsultyourdealerformoreinformation.

General

• Three-chipsDLPprojectorwithhighresolutionandhighbrightness

 Realizedtoprojecttheimageintheresolution1920×1080pixels(FullHD),theaspectratioin16:9,andthe

brightnessin12000lm.AbletoprojectFullHDimageinNativeresolution.

• Superiordust-proofstructure

 Adaptedthecyclecoolingsystemforcoolingdowntheopticalparts.Bythissystem,airinthelightsourceiscooled

downandcirculated.Astheresult,theopticalpartsarenotexposedtotheopenairandenabletokeepbrightness

withoutcontaminationbydust.

* Cannotpreventcontaminationbydustcompletely.

Light source · Brightness

• Along-lifelaserdiodeisequippedinthelightmodule

 Theproductcanbeoperatedatlowcostbecausethelaserlightsourcecanbeusedforalongtimewithoutrequir-

ingreplacementormaintenance.

 Moreover,ifthelightmodulelifeoptimizing[LONGLIFE]modeisselected,lightmodulelifecanbeextended.

• Brightnesscanbeadjustedwithinawiderange

 Unlikewithordinarylightsources,thebrightnesscanbeadjustedfrom30to100%in1%increments.

• [CONSTANTBRIGHTNESS]mode

 Brightnessnormallydecreaseswithuse,butbyselecting[CONSTANTBRIGHTNESS]mode,sensorsinsidethe

projectordetectandautomaticallyadjusttheoutput,therebymaintainingconstantbrightnessthroughoutthelife

ofthelightmodule.

 However,ifbrightnessoutputissetatthemaximum,brightnesswilldecreasewithuse.

Installation

• Widerangeofoptionallensesselectableaccordingtotheplaceofinstallation

 Thisprojectorsupports4typesofoptionallenses,providingaselectionoflensesadaptedtoavarietyofplaces

ofinstallationandprojectionmethods.Nolensismountedatshippingfromthefactory.Contactyourdealerfor

purchasingandreplacingtheseoptionallensessoldseparately.

• Tilt-free,portraitprojection

 Thisprojectorcanbesettoanyanglewithinavertical360°range.

 Itcanalsorotatethepicture90°intoportraitorientation,however,itcannotbeinstalledwithrightorleftslant

besidestheportraitprojection.

• Powerlenscontrolforquickandeasyadjustment

 Byusingbuttonsontheprojectorortheremotecontrol,zoom,focus,andposition(lensshift)canbeadjusted.

1. Introduction

Videos

• Widerangeofinput/outputterminals(HDMI,DisplayPort,HDBaseT,BNC,etc.)

 Theprojectorisequippedwithavarietyofinput/outputterminals:HDMI,DisplayPort,HDBaseT,BNC(5-core),

computer(analog),etc.

 Theprojector’sHDMIinput/outputterminalsandDisplayPortinputterminalsupportHDCP.

 HDBaseT,promotedandadvancedbytheHDBaseTAlliance,isaconnectionstandardforhomeappliances.

• Slotforoptionalboard

 Thisprojectorhasaslotforoptionalboards(soldseparately).

• Simultaneousdisplayof2images(PIP/PICTUREBYPICTURE)

 Twoimagescanbeprojectedsimultaneouslywithasingleprojector.

 Therearetwotypesoflayoutsforthetwoimages:“picture-in-picture”(PIP)inwhichasub-pictureisdisplayed

onthemainpicture,and“picture-by-picture”(PICTUREBYPICTURE)inwhichthemainandsubpicturesare

displayednexttoeachother.

• Multi-screenprojectionusingmultipleprojectors

 ThisprojectorisequippedwithmultipleHDMIinput&outputterminalsthatcanconnectmultipleprojectorsina

daisychain.Ahighqualitypictureisachievedbydividingandprojectinghighresolutionvideosamongthevarious

projectors.

 Furthermore,theboundariesofthescreensaresmoothedusinganedgeblendingfunction.

• Seamlessswitchfunctionforsmootherscreenchangeswhenswitchingthesignal

 Whentheinputconnectorisswitched,theimagedisplayedbeforeswitchingisheldsothatthatthenewimage

canbeswitchedtowithoutabreakduetoabsenceofasignal.

• SupportsHDMI3Dformat

 Thisprojectorcanbeusedtowatchvideosin3Dusingcommercially-availableactiveshutter-type3Deyewear

and3DemittersthatsupportXpand3D.

Network

• SupportedbywiredLAN

 HDBaseT/EthernetPortVideocanbetransmittedfromacomputerequippedwithaRF-45portthatisconnected

toawiredLANtotheprojector,andtheprojectorcanalsobecontrolledfromthecomputer.

• CRESTRONROOMVIEWcompatible

 ThisprojectorsupportsCRESTRONROOMVIEW,allowingmultipledevicesconnectedtothenetworktobeman-

agedfromacomputerorcontroller.

Energy-saving

• “LIGHTMODE”forlowpowerconsumptionand“CarbonMeter”display

 Theprojectorisequippedwithan“LIGHTMODE”forreducingpowerconsumptionduringuse.Furthermore,the

power-savingeffectwhentheLIGHTMODEissetisconvertedintotheamountofreductionsofCO

emissions

andthisisindicatedontheconrmationmessagedisplayedwhenthepoweristurnedoffandat“Information”on

theon-screenmenu(CARBONMETER).

1. Introduction

About this user’s manual

Thefastestwaytogetstartedistotakeyourtimeanddoeverythingrightthersttime.Takeafewminutesnowto

reviewtheuser’smanual.Thismaysaveyoutimelateron.Atthebeginningofeachsectionofthemanualyou’llnd

anoverview.Ifthesectiondoesn’tapply,youcanskipit.

1. Introduction

❸ Part Names of the Projector

Front/Top

Thelensissoldseparately.ThedescriptionbelowisforwhentheNP-9LS16ZM1lensismounted.

Lens

Handle

LevelAdjuster

(→page21)

Terminals

(→

page8)

ACINterminal

Connectthesuppliedpowercord’s

three-pinplughere,andplugthe

otherendintoanactivewalloutlet.

(→page13)

Mainpowerswitch

WhileACpowerisbeingsupplied,

setthemainpowerswitchtoON

position(|),thenyourprojectorwill

enterastandbystate.

Intakevent

Takesinoutsideairtocooltheunit.

Thereareairintakeandventilation

holesonthebottom.

(→pageix,57,142)

RemoteSensor(locatedonthe

frontandtherear)

(→page11)

Controls/Indicatorpanel

(→page7)

1. Introduction

Rear

Intakevent

Takesinoutsideairtocooltheunit.

(→pageix,57,142)

LevelAdjuster

(→page21)

RearLED

(→page112)

Exhaustvent

Heatedairisexhaustedfromhere.

RemoteSensor(locatedonthe

frontandtherear)

(→page11)

Handle

Modelname

Modelnameofyourprojectoris

indicatedhereonthelabel.

1. Introduction

Controls/Indicator Panel

1. Light button

 Illuminatesthecontrolpanelandtheindicatorpanel.

AvailablewhenthePowerisONandtheHDBaseT

standbyisselectedasstandbymode.

(→page16)

2. (POWER)Button

(→page16,26)

3. POWER Indicator

(→page15,16,26,175)

4. STATUS Indicator

(→page175)

5. LIGHT Indicator

(→page28,176)

6. TEMP.Indicator

(→page176)

7. SHUTTER Indicator

(→page28,176)

8. Liquidcrystalindicatorpanel

 Theprojectordisplaysitsstatus,inputsignalinfo,and

errorinfowheneverconnectedtoapowersource.

 Informationdisplayed

 Projectorstatus:stand-by(sleep),poweron/off

 Input signal info: input terminal, entry list number,

sourcename,horizontalfrequency,verticalfrequency

 Errorinfo:errorcode,errordescription

9. SHUTTERButton

(→page28,105)

10. (light source) button

(→page28)

11.MENUButton

(→page68)

12. ▲▼◀▶Buttons

(→page68)

13.ENTERButton

(→page68)

14.EXITButton

(→page68)

15.KEYLOCKButton/KEYLOCKIndicator

(→page28)

16.LIGHTButton

(→page31)

17.SOURCEButton

(→page18)

18.AUTOADJ.Button

(→page25)

19.3DREFORMButton

(→page34,94)

20.LENSSHIFT/HOMEPOSITIONButton

(→page22,158)

21.LENSCALIBRATIONButton

(→page16,106)

22.FOCUS+/−Button

(→page24)

23.ZOOM+/−Button

(→page24)

671

1. Introduction

Terminals Features

1. COMPUTERIN/ComponentInputTerminal(Mini

D-Sub15Pin)

(→page13,129,135,169)

2. DisplayPortINTerminal(DisplayPort20Pin)

(→page130,169)

3. HDMIINTerminal(TypeA)

(→page130,132,136,169)

4. BNCInput[R/Cr/CV,G/Y/Y,B/Cb/C,H,V]Termi-

nals(BNC×5)

(→page129,135)

5. BNC(Y/C)InputTerminal(BNC×2)

(→page134)

6. BNC(CV)InputTerminal(BNC×1)

(→page134)

7. USBPort(TypeA)

(→page170)

 (Forfutureexpansion.Thisportallowsforpowersup-

ply.)

8. HDMIOUTTerminal(TypeA)

(→page133)

9. Ethernet/HDBaseTPort(RJ-45)

(→page138,139,170)

10.3DSYNCTerminal(MiniDIN4Pin)

(→page41)

11.3Dterminal(3D)(D-sub15P)

 Theterminalforconnectinga3Dimagesystemtothe

projector.

12.REMOTETerminal(StereoMini)

 Usethisjackforwiredremotecontroloftheprojector

usingacommerciallyavailableremotecablewith⌀3.5

stereomini-plug(withoutresistance).

 Connecttheprojectorandthesuppliedremotecontrol

usingacommerciallyavailablewiredremotecontrol

cable.

(→page11)

NOTE:

• WhenaremotecontrolcableisconnectedtotheREMOTE

terminal, infrared remote control operations cannot be per-

formed.

• PowercannotbesuppliedfromtheREMOTEterminaltothe

remote control.

• When [HDBaseT] is selected in the [REMOTE SENSOR]

and the projector is connected to a commercially-available

transmissiondevicethatsupportsHDBaseT,remotecontrol

operations in infra-red cannot be carried out if transmission

of remote control signals has been set up in the transmission

device.However,remotecontrolusinginfraredrayscanbe

carried out when the power supply of the transmission device

is switched off.

13.Ethernetport(LAN)(RJ-45)

 Thisterminalisusedforservicepurposeonly.

14.USBport(USB)(typeA)

 Thisterminalisusedforservicepurposeonly.

15.PCcontrolterminal(RS-232)(D-sub9P)

 TheterminalforoperatingtheprojectorfromaPCvia

anRS-232Corforservicepersonneltosetdatafor

theprojector.

 ConnecttheprojectorandthePCwithacommercially

availableRS-232Cstraightcable.

16.Externalcontrolterminal(GPI/O)(D-sub37P)

 Theterminalforexternallycontrollingtheprojectoror

forcontrollingexternaldevicesbytheprojector.

17. SLOT

(→page159)

5621038

14 15 16

1. Introduction

❹ Part Names of the Remote Control

1. Infrared Transmitter

(→page11)

2. RemoteJack

 Connectacommerciallyavailable

remotecablehereforwiredopera-

tion.(→page11)

3. POWERONButton

(→page16)

4. POWEROFFButton

(→page26)

5. INFO/L-CALIB.Button

 Displaythe[SOURCE(1)]screen

oftheon-screenmenu.

(→page125)

 [LENSCALIBRATION]ofthelens

unitiscarriedoutwhenyoupress

theCTLbuttonatthesametime.

(→page16,106)

6. VOL./FOCUS+/−Buttons

(→page24)

7. D-ZOOM/ZOOM+/−Buttons

(→page24,30)

8. TESTButton

(→page20,76)

9. ECO/L-SHIFTButton

(→page23,31)

10.MENUButton

(→page68)

11.EXITButton

(→page68)

12.ENTERButton

(→page68)

13. ▲▼◀▶Button

(→page68)

14.ON-SCREENButton

(→page29)

15.SHUTTERButton

(→page28,105)

16.AV-MUTEButton

(→page29)

17.PICTUREButton

(→page80)

18.SOURCEButton

(→page18)

19.3DREFORMButton

(→page34,94)

20.PIP/FREEZEButton

(→page29,58)

21.AUTOADJ.Button

(→page25)

22,23,24.COMPUTER1/2/3But-

ton

 (23&24arenotavailableonthis

seriesoftheprojector)

(→page18)

25.VIDEOButton

(→page18)

26.S-VIDEOButton

(→page18)

27.HDMIButton

(→page18)

28.DisplayPortButton

(→page18)

29.VIEWERButton

 (TheVIEWERbuttonwillnotwork

onthisseriesofprojectors.)

30.NETWORKButton

(→page18)

31.SLOTButton

(→page18,160)

32.IDSETButton

(→page101,113)

33.Numeric(0to9/CLEAR)But-

tons

(→page113)

 (TheAUXbuttonwillnotworkon

thisseriesofprojectors.)

34.CTLButton

 Thisbuttonisusedinconjunction

with other buttons, similar to a

CTRLkeyonacomputer.

35.LIGHTButton

 Thisbuttonisusedtoturnonthe

backlight forthe remote control

buttons.

 Thebacklight will turn off if no

buttonoperation is made for10

seconds.

36.HELPButton

(→page125)

1. Introduction

Battery Installation

1. Press the catch and remove

the battery cover.

2. Install new ones (AA). En-

sure that you have the bat-

teries’ polarity (+/−) aligned

correctly.

3. Slip the cover back over the batteries until

it snaps into place.

NOTE:Donotmixdifferenttypesofbatteriesornew

and old batteries.

Remote Control Precautions

• Handletheremotecontrolcarefully.

• Iftheremotecontrolgetswet,wipeitdryimmediately.

• Avoidexcessiveheatandhumidity.

• Donotshort,heat,ortakeapartbatteries.

• Donotthrowbatteriesintore.

• Ifyouwillnotbeusingtheremotecontrolforalongtime,removethebatteries.

• Ensurethatyouhavethebatteries’polarity(+/−)alignedcorrectly.

• Donotusenewandoldbatteriestogether,orusedifferenttypesofbatteriestogether.

• Disposeofusedbatteriesaccordingtoyourlocalregulations.

1. Introduction

Operating Range for Wireless Remote Control

15m/42.21ft

Remotecontrol

Remotesensoronprojectorcabinet

15m/42.21ft

5°

30°

• Theinfraredsignaloperatesbyline-of-sightuptoadistanceofabovemetersandwithina60-degreeangleofthe

remotesensorontheprojectorcabinet.

• Theprojectorwillnotrespondifthereareobjectsbetweentheremotecontrolandthesensor,orifstronglightfalls

onthesensor.Weakbatterieswillalsopreventtheremotecontrolfromproperlyoperatingtheprojector.

Using the Remote Control in Wired Operation

ConnectoneendoftheremotecabletotheREMOTEterminalandtheotherendtotheremotejackontheremote

control.

REMOTE

RemoteJack

NOTE:

• WhenaremotecableisinsertedintotheREMOTEterminal,theremotecontroldoesnotworkforinfraredwirelesscommunication.

• PowerwillnotbesuppliedtotheremotecontrolbytheprojectorviatheREMOTEjack.Batteryisneededwhentheremotecontrol

is used in wired operation.

Thissectiondescribeshowtoturnontheprojectorandtoprojectapictureontothescreen.

❶ Flow of Projecting an Image

Step 1

• Connectingyourcomputer/Connectingthepowercord(→ page 13)

Step 2

• Turningontheprojector(→ page 15)

Step 3

• Selectingasource(→ page 18)

Step 4

• Adjustingthepicturesizeandposition(→ page 20)

• Correctingkeystonedistortion[CORNERSTONE](→ page 34)

Step 5

• Adjustingapicture

- Optimizingacomputersignalautomatically(→page25)

Step 6

• Makingapresentation

Step 7

• Turningofftheprojector(→ page 26)

2. Projecting an Image (Basic Operation)

❷ Connecting Your Computer/Connecting the Power Cord

1. Connectyourcomputertotheprojector.

 Thissectionwillshowyouabasicconnectiontoacomputer.Forinformationaboutotherconnections,see“1.Con-

nectingacomputer”onpage129.

 Connectthedisplayoutputterminal(miniD-sub15pin)onthecomputertotheCOMPUTERINterminalonthe

projectorwithacommercially-availablecomputercable(withferritecore)andthenturntheknobsoftheterminals

tosecurethem.

2. Connectthesuppliedpowercordtotheprojector.

 Firstconnectthesuppliedpowercord’sthree-pinplugtotheACINterminaloftheprojector,andthenconnectthe

otherplugofthesuppliedpowercordinthewalloutlet.

WARNING:TOPREVENTFIREORSHOCK,DONOTEXPOSETHISUNITTORAINORMOISTURE.

DONOTUSETHISUNIT’SPLUGWITHANEXTENSIONCORDORINANOUTLETUNLESSALLTHEPRONGS

CANBEFULLYINSERTED.

 ImportantInformation:

• Whenplugginginorunpluggingthesuppliedpowercord,makesurethatthemainpowerswitchispushedto

theoff[O]position.Failuretodosomaycausedamagetotheprojector.

• Donotuseathree-phasepowersupply.Doingsomaycausemalfunction.

COMPUTER IN

Makesurethattheprongsarefullyinsertedinto

boththeACINterminalandthewalloutlet.

Towalloutlet

Computercable(withferritecore)(sold

commercially)

CAUTION:

PartsoftheprojectormaybecometemporarilyheatediftheprojectoristurnedoffwiththePOWERbuttonorifthe

ACpowersupplyisdisconnectedduringnormalprojectoroperation.

Usecautionwhenpickinguptheprojector.

2. Projecting an Image (Basic Operation)

Using the Power Cord Fixing Metal

TopreventthepowercordfromaccidentlyremovingfromtheACINoftheprojector,attachthepowercordxingmetal.

CAUTION

• Topreventthepowercordfromcomingloose,makesurethatalltheprongsofthepowercordarefullyinserted

intotheACINterminaloftheprojectorbeforeusingthepowercordxingmetal.Aloosecontactofthepower

cordmaycauseareorelectricshock.

Attaching the power cord ﬁxing metal

1. PinchandpulloutthepowercordxingmetalapthatishousedovertheACINterminal.

PowerCordFixingMetal

2. Pull down the ﬁxing metal ﬂap over the power code until the ﬁxing metal ﬁts into the bottom stopper.

Upperstopper

Bottomstopper

 Forreleasingthexingmetalap,pullitupuntilthexingmetaltsintotheupperstopper.

2. Projecting an Image (Basic Operation)

❸ Turning on the Projector

NOTE:

• Theprojectorhastwopowerswitches:AmainpowerswitchandaPOWERbutton(POWERONandOFFontheremotecontrol)

•Turningontheprojector:

1. Press the main power switch to the ON position (I).

 Theprojectorwillgointostandbymode.

2. Press the POWER button .

 Theprojectorwillbecomereadytouse.

•Turningofftheprojector:

1. Press the POWER button.

 Theconrmationmessagewillbedisplayed.

2. Press the POWER button again.

 Theprojectorwillgointostandbymode.

3. Press the main power switch to the OFF position (O).

 Theprojectorwillbeturnedoff.

1. Press the main power switch to the ON position ( I ).

 ThePOWERindicatorlightsupred.*

* ThisindicatesthattheSTANDBYmodeisin[NORMAL]

setting.

(→page122,175)

• Thebuzzersound is released when [NOTIFICATION

SETTING]for[BUZZER]isON.

WARNING

The projector produces a strong light.When turning on

thepower, makesureno one within projection range is

lookingatthelens.

NOTE:

• The[STANDBYMODE]settingwillbedisabledandtheprojector

will go into the sleep mode when the network service is utilized

ortheprojectorreceivesHDBaseTsignal.Inthesleepmode,the

fans in the projector sometimes rotate for the purpose of interior

partsprotection.Pleaserefertopage122 about the sleep mode.

2. Projecting an Image (Basic Operation)

2. Press the (POWER) button on the projector cabinet

or the POWER ON button on the remote control.

 ThePOWER indicator goes from a steady red light to

aashing bluelight,andthepictureis projectedonthe

screen.

• Ifusingtheremotecontrol,pressthePOWERONbutton.

• Whenthereisnosignaltheunitwillprojectabluescreen

(factorydefaultmenusettings).

• Ifthepictureisblurry,adjustthescreenfocus.(→page

24)

• Whenitisdarkpressthe (lights)button.Theindicator

panelbacklightandtheLEDlampontherightsideof

theprojectorwillturnon.(→page7)

TIP:

• TheunithasaPowerOnShutterfunctionthatallowsthelight

sourcetoturnoffevenwhenconnectedtoapowersource.(→

page 105)

• PressingthebuttonwillnotactivatetheunitwhentheKEYLOCK

indicatorisashingorange.(→ page 28)

• Whenthemessage“PROJECTORISLOCKED!ENTERYOUR

PASSWORD.” is displayed, it means that the [SECURITY]

featureisturnedon.(→ page 38)

 Afteryouturnonyourprojector,ensurethatthecomputer

orvideosourceisturnedon.

NOTE:Thebluescreen([BLUE]background)isdisplayedwhenno

signalisbeinginput(byfactorydefaultmenusettings).

Standby Blinking Power On

Steady red light Blinking blue

light

Steady blue

light

(→page175)

Performing Lens Calibration

• Afterinstalling or replacing the lens unit (below*) sold

separately,presstheLENSCALIBRATIONbuttononthe

projector,orholddowntheCTLbuttonontheremotecontrol

thenpresstheINFO/L-CALIB.buttontocarryout[LENS

CALIBRATION].

 By carrying out [LENS CALIBRATION], the adjustment

rangeofthezoomandfocusof the[LENSMEMORY] is

calibrated.

 Ifyouneedtoinstallorreplacethelensunit,contactyour

dealerandhavethemdoitforyou.

2. Projecting an Image (Basic Operation)

Note on Startup screen (Menu Language Select screen)

Whenyourstturnontheprojector,youwillgettheStartupmenu.Thismenugivesyoutheopportunitytoselectone

ofthe29menulanguages.

Toselectamenulanguage,followthesesteps:

1. Use the ▲, ▼, ◀ or ▶buttontoselectoneofthe29

languagesfromthemenu.

2. Press the ENTER button to execute the selection.

After this has been done, you can proceed to the menu

operation.

Ifyouwant,youcanselectthemenulanguagelater.

(→[LANGUAGE]onpage72and101)

NOTE:

• WhentheKEYLOCKindicatorisashing,thatmeans[CONTROLPANELLOCK]hasbeensetandpressingthe button will not

causetheunittopower-on.Release[CONTROLPANELLOCK].(→ page 28)

• WhilethePOWERindicatorisblinkingblueinshortcycles,thepowercannotbeturnedoffbyusingthepowerbutton.(Whilethe

POWERindicatorisblinkingblueinlongcycles,theOFFTIMERisfunctionedandthepowercanbeturnedoff.)

2. Projecting an Image (Basic Operation)

❹ Selecting a Source

Selecting the computer or video source

NOTE: Turn on the computer or video source equipment connected to the projector.

DetectingtheSignalAutomatically

Press the SOURCE button for 1 second or longer.The projector will

searchfortheavailableinputsourceanddisplayit.Theinputsourcewill

changeasfollows:

HDMI→DisplayPort→BNC→BNC(CV)→BNC(Y/C)→COMUPTER

→HDBaseT→SLOT→ …

• Pressitbrieytodisplaythe[INPUT]screen.

 Pressthe▼/▲buttonstomatchthetargetinputterminalandthen

presstheENTERbuttontoswitchtheinput.Todeletethemenudisplay

inthe[INPUT]screen,presstheMENUorEXITbutton.

TIP:Ifnoinputsignalispresent,theinputwillbeskipped.

Using the Remote Control

Press any one of the HDMI, DisplayPort, COMPUTER 2,VIDEO, S-

VIDEO,COMPUTER1,NETWORK,orSLOTbuttons.

• COMPUTER2buttonselectstheBNCinputterminal.

• VIDEObuttonselectstheBNC(CV)inputterminal(CompositeVideo).

• S-VIDEObuttonselectstheBNC(Y/C)inputterminal(S-Video).

2. Projecting an Image (Basic Operation)

Selecting Default Source

Youcansetasourceasthedefaultsourcesothatitwillbedisplayedeachtimetheprojectoristurnedon.

1. Press the MENU button.

 Themenuwillbedisplayed.

2. Press the ▶buttontoselect[SETUP]andpressthe▼buttonortheENTERbuttontoselect[BASIC].

3. Press the ▶buttontoselect[SOURCEOPTIONS].

4. Press the ▼buttonfourtimestoselect[DEFAULTINPUTSELECT]andpresstheENTERbutton.

 The[DEFAULTINPUTSELECT]screenwillbedisplayed.

(→page120)

5. Selectasourceasthedefaultsource,andpresstheENTERbutton.

6. Press the EXIT button three times to close the menu.

7. Restart the projector.

 Thesourceyouselectedinstep5willbeprojected.

NOTE:Evenwhen[AUTO]isturnedon,the[HDBaseT]willnotbeautomaticallyselected.Tosetyournetworkasthedefaultsource,

select[HDBaseT].

TIP:

• WhentheprojectorisinStandbymode,applyingacomputersignalfromacomputerconnectedtotheCOMPUTERINinputwill

power on the projector and simultaneously project the computer’s image.

 ([AUTOPOWERONSELECT]→ page 123)

• OntheWindows7keyboard,acombinationoftheWindowsandPkeysallowsyoutosetupexternaldisplayeasilyandquickly.

2. Projecting an Image (Basic Operation)

❺ Adjusting the Picture Size and Position

Usethelensshiftdial,theleveladjusterlever,thezoomlever/zoomringandthefocusringtoadjustthepicturesize

andposition.

Inthischapterdrawingsandcablesareomittedforclarity.

Adjustingtheprojector’ssettings

[Leveladjuster]

(→page21)

Adjustingtheprojectedimage’sverticalandhorizontal

position

[Lensshift]

(→page22)

Adjustingthefocus

[Focus]

(→page24)

Finelyadjustingthesizeofanimage

[Zoom]

(→page24)

TIP:

• Built-intestpatternscanbeconvenientlyusedforadjustingthepicturesizeandposition.(→ page 76)

 ApressoftheTESTbuttonwilldisplaythetestpattern.The◀ or ▶ button can select one test pattern. To close the test pattern,

change the source to another.

2. Projecting an Image (Basic Operation)

CAUTION

• Performtheadjustmentfrombehindorfromthesideoftheprojector.Adjustingfrom

thefrontcouldexposeyoureyestostronglightwhichcouldinjurethem.

• Keephandsawayfromthelensmountingportionwhilethelensshiftisinoperation.

Failuretodosocouldresultinhandsbeingpinchedbythemovinglens.

Adjustment of the projector’s settings (Level adjusters)

Theprojectormustbeplacedsquaretothescreenotherwisekeystonedistortionmayappearonthescreen.Forset-

tingtheprojectorperpendiculartothescreenwhenviewedfromtheside,utilizingtheleveladjustersequippedateach

corneroftheprojectorbottom.MaximumAdjustablelengthoftheleveladjusteris10mm/0.39".

Example for adjustment

NOTE:

• Donotlengtheneachoftheleveladjustersanymorethan10mm/0.39".Theforceofdoingsomaycausetheleveladjusterto

come off, resulting in damage to the projector.

• Payattentiontolengthenorshortentwoleveladjustersatfrontatthesametime.Samefortherearadjusters,otherwise,the

weight of the projector is loaded on one level adjuster and it may cause of damage to it.

Raise

Lower

Leveladjuster

2. Projecting an Image (Basic Operation)

Adjusting the vertical position of a projected image (Lens shift)

NOTE:

• Shiftingthelenstothemaximumintwodirectionscombinedwillcausetheedgesoftheimagetobecomedarkorwillcause

some shadows.

Adjusting with buttons on the cabinet

1. Press the LENS SHIFT/HOME POSITION button.

 The[LENSSHIFT]screenwillbedisplayed.

2. Press the ▼▲◀ or ▶ button.

 Usethe▼▲◀▶buttonstomovetheprojectedimage.

• Returningthelensshiftpositiontothehomeposition

 PressandholdtheLENSSHIFT/HOMEPOSITIONbuttonfor2secondstoreturnthelensshiftpositiontothe

homeposition(nearlycenterposition)

2. Projecting an Image (Basic Operation)

Adjusting with the remote control

1. HoldtheCTLbuttonandpresstheECO/L-SHIFTbutton.

 The[LENSSHIFT]screenwillbedisplayed.

2. Press the ▼▲◀ or ▶ button.

 Usethe▼▲◀▶buttonstomovetheprojectedimage.

TIP:

• Thegurebelowshowsthelensshiftranges(projectionmode:desktop/front)oflensunitsNP-9LS08ZM1,NP-9LS12ZM1,NP-

9LS13ZM1,andNP-9LS16ZM1.

100%V

50%V

20%V

50%V

100%H

11%H 11%H

11%H11%H

Heightofprojectedimage

Widthofprojectedimage

 Descriptionofsymbols:Vindicatesvertical(heightoftheprojectedimage),Hindicateshorizontal(widthoftheprojectedimage).

2. Projecting an Image (Basic Operation)

Focus

NOTE:

• ForlensunitNP-9LS08ZM1,bothcentralandperipheralfocusmustbeadjusted.UsetheFOCUS+/−buttonstoadjustthecentral

focus. If the peripheral focus is off, contact your dealer to have them adjust it.

1. PresstheFOCUS+/−button.

• Ontheremotecontrol,whilepressingontheCTLbutton,pressonVOL/FOCUS(+)or(−)button.

 Thefocusisadjusted.

TIP:Toobtainthebestfocus,performthefollowing(forxedinstallation)

Preparation:Warmuptheprojectorforonehour.

1.UsetheFOCUS+/−buttonstomakesureyouobtainthebestfocus.Ifyoudonot,movetheprojectorbackandforth.

2.Selectthe[TESTPATTERN]fromthemenuanddisplaythetestpattern.(→ page 76)

• YoucanalsousetheTESTbuttonontheremotecontroltodisplaythetestpattern.

3.KeeppressingtheFOCUS−buttonuntilthegridofthetextpatternismadeinvisible.

4.KeeppressingtheFOCUS+buttonuntilyouobtainthebestfocus.

If you adjust beyond the best focal point, go back to step 3 and repeat the procedures.

Zoom

1. Press the ZOOM +/− button.

• Ontheremotecontrol,whilepressingontheCTLbutton,presstheD-ZOOM/ZOOM(+)or(−)button.

 Thezoomisadjusted.

2. Projecting an Image (Basic Operation)

❻ Optimizing Computer Signal Automatically

Adjusting the Image Using Auto Adjust

WhenanimagefromHDMIIN,DisplayPortIN,BNCinputterminal(analogRGB),COMPUTERIN,orHDBaseTis

beingprojected,andtheedgeiscutoffortheimagequalityispoor,thisbuttoncanbeusedtoautomaticallyoptimize

theprojectionimageonthescreen.

PresstheAUTOADJ.buttontooptimizeacomputerimageautomatically.

This adjustmentmay be necessarywhenyou connect yourcomputer

forthersttime.

[Poorpicture] [Normalpicture]

NOTE:

Somesignalsmaytaketimetodisplayormaynotbedisplayedcorrectly.

• IftheAutoAdjustoperationcannotoptimizethecomputersignal,trytoadjust[HORIZONTAL],[VERTICAL],[CLOCK],and[PHASE]

manually.(→ page 84, 85)

2. Projecting an Image (Basic Operation)

❼ Turning off the Projector

To turn off the projector:

1. First, press the (POWER) button on the projector

cabinet or the POWER OFF button on the remote con-

trol.

 The[POWEROFF/AREYOUSURE?/CARBONSAV-

INGS-SESSION0.000[g-CO2]]messagewillappear.

2. Secondly, press the ENTER button or press the

(POWER) or the POWER OFF button again.

 Whentheprojectorisin STANDBYMODE,thePOWER

indicator lights up red. (When [STANDBY MODE] is in

[NORMAL]setting)

• BeforethePOWERindicatorlightsupred,thebuzzer

soundisreleasedwhen[NOTIFICATIONSETTING]for

[BUZZER]isON.

3. Make sure the projector is in STANDBY MODE, then

turnoffthemainpowerswitch(○ OFF)

 ThePOWERindicatorwillgooffandthemainpowerwill

turnoff.

• While the POWER indicator is blinking blue in short

cycles,thepowercannotbeturnedoff.

Power On

Steady blue light

Standby

Steady red light

Press twice

CAUTION:

PartsoftheprojectormaytemporarilyoverheatiftheprojectoristurnedoffwiththemainpowerswitchortheAC

powersupplyisdisconnectedwhiletheprojectorisinoperationorthecoolingfanisrunning.Handlewithcare.

2. Projecting an Image (Basic Operation)

NOTE:

• Donotunplugthepowercordfromtheprojectororfromthepoweroutletwhileanimageisbeingprojected.Doingsocould

deterioratetheprojector’sACINterminalorthepowerplug’scontact.ToturnofftheACpowersupplywhentheprojectoris

powered on, use the projector’s main power switch, a power strip equipped with a switch, or a breaker.

• DonotturnoffthemainpowerswitchordisconnecttheACpowersupplywithin10secondsofmakingadjustmentsorsetting

changesandclosingthemenu.Doingsocancauselossofadjustmentsandsettings.

3. Convenient Features

❶ Stopping projection

1. Press the SHUTTER button on the projector or on the remote

control.

 Thelightsourcewillturnoffandthelightoftheprojectorwilltemporarily

godark.TheSHUTTERindicatorwillturnoningreen.

 Pressthe button again and projection will resume.The SHUTTER

indicatorwillturnoff.

 Youcansettheprojectionlighttograduallyfadeinorfadeout.

Ontheprojector Ontheremote

SHUTTER indicator

❷ Turning off the light source

1 Press the (light source) button on the projector.

 Holdthebuttonforthreesecondswhenthepowerisontoturnoffthe

lightsourcedirectly(thecoolingfanwillalsostop).TheLIGHTindicator

willturnoff.

• Ifthe (lightsource)buttonwillbehelddownforthreeseconds

again,theLIGHTindicatorwillashingreen.

LIGHT indicator

❸ Locking the projector so it cannot be operated

1 PresstheKEYLOCKbuttonforover1secondontheprojector.

 TheKEYLOCKindicatorwillturnoninorangeandalltheprojector’s

operatingbuttonswillbelocked.

• PresstheKEYLOCKbuttonforover1secondagaintoturnoffthe

KEYLOCKindicatorandunlockthebuttons.

TIP:

• When[CONTROLPANELLOCK]isengageda“ ”iconappearsinthelowerright-handcornerofthemenuscreen.

• Theprojectorcanstillbeoperatedusingtheremotecontrolevenwhenthebuttonsontheunitarelocked.

3. Convenient Features

❹ Muting the Image (AV Mute)

PresstheAV-MUTEbuttontoturnofftheimageforashortperiodoftime.

Pressagaintorestoretheimage.

TIP:

• Theimagewilldisappearbutnotthemenudisplay.

❺ Turning Off the On-Screen Menu (On-Screen Mute)

ApressoftheON-SCREENbuttonontheremotecontrolwillhidethe

on-screenmenu,thesourcedisplayandothermessages.Pressagain

torestorethem.

TIP:

• Toconrmthattheon-screenmuteisturnedon,presstheMENUbutton.Iftheon-screenmenuisnotdisplayedeventhough

youpresstheMENUbutton,itmeanstheon-screenmuteisturnedon.

• Theon-screenmuteismaintainedevenwhentheprojectoristurnedoff,

• HoldingdowntheMENUbuttonforatleast10secondswillturnofftheon-screenmute.

❻ Freezing a Picture

HoldtheCTLbuttonandpressthePIP/FREEZEbuttontofreezeapicture.

Pressagaintoresumemotion.

NOTE: The image is frozen but the original video is still playing ahead.

3. Convenient Features

❼ Magnifying a Picture

Youcanmagnifythepictureuptofourtimes.

NOTE:

• Dependingonaninputsignal,themaximummagnicationmaybelessthanfourtimes,orthefunctionmayberestricted.

Todoso:

1. PresstheD-ZOOM(+)buttontomagnifythepicture.

2. Press the ▲▼◀▶ button.

 Theareaofthemagniedimagewillbemoved

3. Press the D-ZOOM (−) button.

 EachtimetheD-ZOOM(−)buttonispressed,theimageisdemagni-

ed.

NOTE:

• Theimagewillbemagniedordemagniedatthecenterofthescreen.

• Displayingthemenuwillcancelthecurrentmagnication.

3. Convenient Features

❽ Changing LIGHT MODE/Checking Energy-Saving Effect

Using LIGHT MODE [LIGHT MODE]

Wheneither[ECO1]or[ECO2]in[LIGHTMODE]isselected,motionnoiseoftheprojectoriscutdownbylowering

brightnessofitslightsource.Bysavingenergyconsumption,theCO

emissionfromthisprojectorcanbereduced.

LIGHTMODE

Iconatthebottom

ofthemenu

Description

NORMAL

100%brightness

Thescreenwillbebrightlylit.

ECO1 Brightnesswillbeatabout80%.

Thecoolingfanwillalsoslowdownaccordingly.

Lowerpowerconsumption

ECO2 Brightnesswillbeatabout50%.

Thecoolingfanwillalsoslowdownaccordingly.

Lowerpowerconsumptionconsiderably

LONGLIFE Brightnessisabout90%.

Thissettingspeedsupthecoolingfanandoptimizestheservicelifeof

thelightsource.

* Whenthebrightnessislowered,thecoolingfanspeedwillbereducedaccordingly.

Toturnonthe[LIGHTMODE],dothefollowing:

1. Press LIGHT button on the cabinet.

• Inanotherway,pressECO/L-SHIFTbuttonontheremotecontrol.

 The[LIGHTMODE]screenwillbedisplayed.

2. Press the ENTER button.

 The[LIGHTMODE]selectionscreenwillbedisplayed.

3. Use the ▼▲ buttons to make a selection, and press the ENTER

button.

 Thedisplaywillreturntothe[LIGHTMODE]screenandtheselected

optionwillbeapplied.

 PresstheMENUbuttontoreturntotheoriginalscreen.

3. Convenient Features

NOTE:

• The[LIGHTMODE]canbechangedbyusingthemenu.

 Select[SETUP]→[INSTALLATION]→[LIGHTMODE]→[LIGHTMODE].

• Thelightmoduleusedhourscanbecheckedin[USAGETIME].Select[INFO.]→[USAGETIME].

• Afteralapseof1minutefromwhentheprojectordisplaysablue,blackorlogoscreen,[LIGHTMODE]willautomaticallyswitch

to[ECO].Bytheautomaticsettingto[ECO],theprojectorwillbeautomaticallyresettotheprevioussettingwhenitdetectsinput

signal.

• Iftheprojectorisoverheatedin[NORMAL]mode,theremaybeacasetheprojectorautomaticallylowersthebrightnessasa

protectivefunction.Thisiscalled“ForcedECOMODE”.WhentheprojectorisintheForcedECOMODE,thepicturebrightness

decreasesslightlyandtheTEMP.indicatorlightsorange.AtthesametimetheThermometersymbol[ ]isdisplayedatthebot-

tom right of the screen.

 Whentheprojectorcomesbacktonormaltemperature,theForcedECOMODEiscancelledandthe[LIGHTMODE]returnsto

[NORMAL]mode.

3. Convenient Features

Checking Energy-Saving Effect [CARBON METER]

Thisfeaturewillshowenergy-savingeffectintermsofCO

emissionreduction(kg)whentheprojector’s[LIGHTMODE]

issettoeither[ECO1],[ECO2],or[LONGLIFE].Thisfeatureiscalledas[CARBONMETER].

Therearetwomessages:[TOTALCARBONSAVINGS]and[CARBONSAVINGS-SESSION].The[TOTALCARBON

SAVINGS]messageshowsthetotalamountofCO

emissionreductionfromthetimeofshipmentuptonow.Youcan

checktheinformationon[USAGETIME]from[INFO.]ofthemenu.(→page125)

The[CARBONSAVINGS-SESSION]messageshowstheamountofCO

emissionreductionbetweenthetimeof

changingtoLIGHTMODEimmediatelyafterthetimeofpower-onandthetimeofpower-off.The[CARBONSAVINGS-

SESSION]messagewillbedisplayedinthe[POWEROFF/AREYOUSURE?]messageatthetimeofpower-off.

TIP:

• TheformulashownbelowisusedtocalculatetheamountofCO

emissionreduction.AmountofCO

emissionreduction=(Power

consumptionin[NORMAL]LIGHTMODE–Powerconsumptionincurrentsetting)×CO

conversionfactor.*Settingthe[LIGHT

MODE]to[ECO1],[ECO2],or[LONGLIFE]increasesCO

emissions savings.

* CalculationforamountofCO

emissionreductionisbasedonanOECDpublication“CO

EmissionsfromFuelCombustion,

2008Edition”.

• The[TOTALCARBONSAVINGS]iscalculatedbasedonsavingsrecordedin15minutesintervals.

• Thisformulawillnotapplytothepowerconsumptionwhichisnotaffectedbywhether[LIGHTMODE]isturnedonoroff.

3. Convenient Features

❾ Correcting Horizontal and Vertical Keystone Distortion

[CORNERSTONE]

Usethe[CORNERSTONE]featuretocorrectkeystone(trapezoidal)distortiontomakethetoporbottomandtheleft

orrightsideofthescreenlongerorshortersothattheprojectedimageisrectangular.

1. Pressandholdthe3DREFORMbuttonfor2secondsatleasttoresetcurrentadjustments.

 Currentadjustmentsfor[GEOMETRICCORRECTION]willbecleared.

2. Projectanimagesothatthescreenissmallerthantheareaoftheraster.

Projectedimage

Thedrawingshowstheupperrightcorner.

3. Pickupanyoneofthecornersandalignthecorneroftheimagewithacornerofthescreen.

4. Press the 3D REFORM button.

 Displaythe[GEOMETRICCORRECTION]screenoftheon-screenmenu.

3. Convenient Features

5. Press the ▼buttontoalignwiththe[CORNERSTONE]andthenpresstheENTERbutton.

Thedrawingshowstheupperlefticon( )isselected.

 Thescreenwillswitchtothe[CORNERSTONE]screen.

NOTE:

• Whena[GEOMETRICCORRECTION]functionotherthan[CORNERSTONE]hasbeensetup,the[CORNERSTONE]screen

willnotbedisplayed.Whenthescreenisnotdisplayed,eitherpressthe3DREFORMbuttonfor2ormoreseconds,orrun

[RESET]in[GEOMETRICCORRECTION]tocleartheadjustmentvalueof[GEOMETRICCORRECTION].

6. Use the ▲▼◀▶ button to select one icon (▲) which points in the direction you wish to move the projected

imageframe.

7. Press the ENTER button.

8. Use the ▲▼◀▶buttontomovetheprojectedimageframeasshownontheexample.

9. PresstheENTERbutton.

. Use the ▲▼◀▶ button to select another icon which points in the direction.

.Repeatstepsfrom7to10tocompletethecornerstoneadjustment.

.Onthe[CORNERSTONE]screen,select[EXIT]orpresstheEXITbuttonontheremotecontrol.

 Theconrmationscreenisdisplayed.

3. Convenient Features

. Press the ◀ or ▶buttontohighlightthe[OK]andpresstheENTERbutton.

 Thiscompletesthe[CORNERSTONE]correction.

• Returningtothe[CORNERSTONE]screen,select[CANCEL]andpresstheENTERbutton.

NOTE:

• Evenwhentheprojectoristurnedon,thelastusedcorrectionvaluesareapplied.

• Carryouteitheroneofthefollowingactionstocleartheadjustmentvalueof[CORNERSTONE].

• InStep12,select[RESET]andthenpresstheENTERbutton.

• Pressthe3DREFORMbuttonfor2ormoreseconds.

• Run[DISPLAY]→[GEOMETRICCORRECTION]→[RESET]intheon-screenmenu.

• UsingCORNERSTONEcorrectioncancausetheimagetobeslightlyblurredbecausethecorrectionismadeelectronically.

3. Convenient Features

❿

Preventing the Unauthorized Use of the Projector [SECURITY]

AkeywordcanbesetforyourprojectorusingtheMenutoavoidoperationbyanunauthorizeduser.Whenakeyword

isset,turningontheprojectorwilldisplaytheKeywordinputscreen.Unlessthecorrectkeywordisentered,thepro-

jectorcannotprojectanimage.

•The[SECURITY]settingcannotbecancelledbyusingthe[RESET]ofthemenu.

ToenabletheSecurityfunction:

1. Press the MENU button.

 Themenuwillbedisplayed.

2. Press the ▶buttontwicetoselect[SETUP]andpressthe▼buttonortheENTERbuttontoselect[MENU].

3. Press the ▶buttontoselect[CONTROL].

4. Press the ▼buttonthreetimestoselect[SECURITY]andpresstheENTERbutton.

 TheOFF/ONmenuwillbedisplayed.

5. Press the ▼buttontoselect[ON]andpresstheENTERbutton.

 The[SECURITYKEYWORD]screenwillbedisplayed.

6. Typeinacombinationofthefour▲▼◀▶ buttons and press the ENTER button.

NOTE:Akeywordmustbe4to10digitsinlength.

 The[CONFIRMKEYWORD]screenwillbedisplayed.

NOTE:Makeanoteofyourpasswordandstoreitinasafeplace.

3. Convenient Features

7. Typeinthesamecombinationof▲▼◀▶ buttons and press the ENTER button.

 Theconrmationscreenwillbedisplayed.

8. Select[YES]andpresstheENTERbutton.

 TheSECURITYfunctionhasbeenenabled.

Toturnontheprojectorwhen[SECURITY]isenabled:

1. Press the button.

• Ifusingtheremotecontrol,pressthePOWERONbutton.

 Theprojectorwillbeturnedonanddisplayamessagetotheeffect

thattheprojectorislocked.

2. Press the MENU button.

3. Type in the correct keyword and press the ENTER button. The projector will display an image.

NOTE: The security disable mode is maintained until the main power is turned off or unplugging the power cord.

3. Convenient Features

TodisabletheSECURITYfunction:

1. Press the MENU button.

 Themenuwillbedisplayed.

2. Select[SETUP]→[CONTROL]→[SECURITY]andpresstheENTERbutton.

 TheOFF/ONmenuwillbedisplayed.

3. Select[OFF]andpresstheENTERbutton.

 TheSECURITYKEYWORDscreenwillbedisplayed.

4. Type in your keyword and press the ENTER button.

 Whenthecorrectkeywordisentered,theSECURITYfunctionwillbedisabled.

NOTE:Ifyouforgetyourkeyword,contactyourdealer.Yourdealerwillprovideyouwithyourkeywordinexchangeforyourrequest

code.YourrequestcodeisdisplayedintheKeywordConrmationscreen.Inthisexample[NB52-YGK8-2VD6-K585-JNE6-EYA8]

is a request code.

3. Convenient Features

⓫ Projecting 3D videos

ThisprojectorsupportsDLP-Linkglassesand3Demitter.

CAUTION

Health precautions

Beforeuse,pleasemakesuretoreadanyhealthprecautionsthatmaybestatedintheoperatingmanualsenclosed

withthe3Deyewearand3Dvideosoftware(Blu-rayplayer,games,computeranimationles,etc.).

Pleasetakenoteofthefollowinginordertoavoidadversehealtheffects.

• Pleasedonotusethe3Deyewearforpurposesotherthantowatch3Dvideos.

• Pleasekeepadistanceofatleast2mawayfromthescreenwhenwatchingvideos.Watchingavideotooclose

tothescreenwillincreaseeyefatigue.

• Pleasedonotwatchvideoscontinuouslyforalongperiodoftime.Pleasetakea15minutes’breakafterevery

hourofwatching.

• Pleaseconsultadoctorbeforewatchingifyouoranyofyourfamilymembershaveahistoryofsufferingfrom

seizurescausedbylightsensitivity.

• Pleasestopwatchingimmediatelyandtakearestwhenyoufeelphysicallyunwellwhilewatching(vomiting,gid-

diness,nausea,headaches,soreeyes,blurredvision,crampsanddumbnessinthelimbs,etc.).Pleaseconsult

adoctorifthesymptomspersist.

• Pleasewatcha3Dvideodirectlyinfrontofthescreen.Ifyouwatcha3Dvideoobliquelyfromthesides,thismay

resultinphysicalandeyefatigue.

Procedure to watch 3D videos using this projector

3Deyewearand3Demitterpreparations

Useanactiveshuttersystem3DglassesconformedwithVESA.

RecommendtouseRFtypeglassesproducedbyXpand

• 3DGlasses:XpandX105-RF

• 3DEmitter:XpandAD025-RF-X1

1. Connectthevideodevicetotheprojector.

2. Switch on the projector.

3. Runthe3Dvideosoftwareandprojectthevideousingtheprojector.

 [AUTOMATIC]issetasthefactorydefaultsetting.Whena3Dvideocannotbeprojected,itmaycauseonno3D

signalortheprojectorcannotdetectthe3Dsignal.Inthiscase,selecttheformatmanually.

4. Selectthe3Dvideoformat.

(1)PresstheMENUbutton.

 TheMENUwillbedisplayed.

(2)Pressthe▶button,select[ADJUST],thenpressENTER.

 [PICTURE]willbehighlighted.

3. Convenient Features

(3)Usethe▶buttontoselect[3DSETTINGS].

 The[3DSETTINGS]screenwillbedisplayed.

(4)Usethe▼buttontoalignthecursorwith[FORMAT],thenpressENTER.

 The[FORMAT]screenwillbedisplayed.

(5)Usethe▼/▲buttonstoalignthecursoratoneamongformatoptions,thenpressENTERforsettingitup.

 Thedisplaywillreturntothe[3DSETTINGS]screen.

 PresstheMENUbuttontoreturntotheoriginalscreen.

• The3Dcautionmessagescreenwillbedisplayedwhenswitchingtoa3Dvideo(defaultfactorysettingwhen

shipped).Pleasereadthe“HealthPrecautions”onthepreviouspagetowatchvideosinthecorrectmanner.The

screenwilldisappearafter60secondsorwhentheENTERbuttonispressed.(→page102)

5. Turnonthepowersupplyofthe3Deyewearandweartheeyeweartowatchthevideo.

 Anormalvideowillbeshownwhena2Dvideoisinput.

 Towatcha3Dvideoin2D,select[OFF(2D)]inthe[FORMAT]screenmentionedabovein(5).

NOTE:

• Uponswitchingto3Dimage,thefollowingfunctionswillbecancelledanddisabled.[BLANKING],[PIP/PICTUREBYPICTURE],

[GEOMETRICCORRECTION],[EDGEBLENDING]([GEOMETRICCORRECTION]and[EDGEBLENDING]adjustmentvalueswill

bemaintained.)

• Theoutputmaynotautomaticallyswitchtoa3Dvideodependingonthe3Dinputsignal.

• ChecktheoperatingconditionsdescribedintheusermanualoftheBlu-rayplayer.

• PleaseconnecttheDINterminalofthe3Demittertothe3DSYNCofthemainprojector.

• The3Deyewearallowsvideostobeviewedin3Dbyreceivingsynchronizedopticalsignalsoutputfromthe3Demitter.

 Asaresult,the3Dimagequalitymaybeaffectedbyconditionssuchasthebrightnessofthesurroundings,screensize,viewing

distance, etc.

• Whenplayinga3Dvideosoftwareonacomputer,the3DimagequalitymaybeaffectedifthecomputerCPUandgraphicschip

performancearelow.Pleasechecktherequiredoperatingenvironmentofthecomputerthatisstatedintheoperatingmanual

attachedtothe3Dvideosoftware.

• Dependingonthesignal,[FORMAT]and[L/RINVERT]maynotbeabletobeselected.Pleasechangethesignalinthatcase.

3. Convenient Features

When videos cannot be viewed in 3D

Pleasecheckthefollowingpointswhenvideoscannotbeviewedin3D.

Pleasealsoreadtheoperatingmanualattachedtothe3Deyewear.

Possible reasons Solutions

The selected signal does not support 3D output. Please change the video signal input to one that supports 3D.

The format for the selected signal is turned to [OFF(2D)]. Please change the format in the on-screen menu to [AUTO] or a

format that supports 3D.

A eyewear that is not supported by the projector is being used. Please purchase a commercially-available 3D eyewear or 3D emit-

ter (recommended). (→ page 40)

Please check the following points when a video cannot be viewed

in 3D using a 3D eyewear that is supported by the projector.

The power supply of the 3D eyewear is turned off. Please turn on the power supply of the 3D eyewear.

The internal battery of the 3D eyewear is ﬂat. Please charge or replace the battery.

The viewer is located too far away from the screen. Please get closer to the screen until the video can be seen in 3D.

Please turn the L/R INVERT in the on-screen menu to [OFF].

Due to multiple 3D projectors working at the same time in the

vicinity, the projectors may interfere with one another. Alter-

natively, there may be a bright light source near the screen.

Please maintain sufﬁcient distance between the projectors.

Please keep the light source away from the screen.

Please turn the L/R INVERT in the on-screen menu to [OFF].

There is an obstacle between the optical receiver of the 3D eye-

wear and the 3D emitter.

Please remove the obstacle.

The 3D format of the 3D video contents is not supported. Please check with the company selling the 3D video contents.

3. Convenient Features

⓬ Controlling the Projector by Using an HTTP Browser

Overview

TheHTTPServerfunctionprovidessettingsandoperationsfor:

1. Settingforwirednetwork(NETWORKSETTINGS)

 TousewiredLANconnection,connecttheprojectortothecomputerwithacommerciallyavailableLANcable.(→

page138)

2. Setting Alert Mail (ALERT MAIL)

 Whentheprojectorisconnectedtoawirednetwork,errormessageswillbesentviae-mail.

3. Operating the projector

 Poweron/off,selectinginput,andpictureadjustmentsarepossible.

4. SettingPJLinkPASSWORDandAMXBEACON

AccesstotheHTTPserverfunctionisavailable:

• StarttheWebbrowseronthecomputerviathenetworkconnectedtotheprojectorandenterthefollowing

URL :

http://<the projector’s IP address> /index.html

TIP:ThefactorysettingIPaddressis[DHCPON].

NOTE:

• Tousetheprojectorinanetwork,consultwithyournetworkadministratoraboutnetworksettings.

• Thedisplay’sorbutton’sresponsecanbesloweddownoroperationmaynotbeaccepteddependingthesettingsofyournetwork.

 Shouldthishappen,consultyournetworkadministrator.Theprojectormaynotrespondifitsbuttonsarerepeatedlypressedin

rapidintervals.Shouldthishappen,waitamomentandrepeat.Ifyoustillcan’tgetanyresponse,turnoffandbackontheprojec-

tor.

• IfthePROJECTORNETWORKSETTINGSscreendoesnotappearinthewebbrowser,presstheCtrl+F5keystorefreshyourweb

browser(orclearthecache).

• Thisprojectoruses“JavaScript”and“Cookies”andthebrowsershouldbesettoacceptthesefunctions.Thesettingmethodwill

varydependingontheversionofbrowser.Pleaserefertothehelplesandtheotherinformationprovidedinyoursoftware.

Preparation before Use

ConnecttheprojectortoacommerciallyavailableLANcablebeforeengaginginbrowseroperations.(→page138)

Operationwithabrowserthatusesaproxyservermaynotbepossibledependingonthetypeofproxyserverandthe

settingmethod.Althoughthetypeofproxyserverwillbeafactor,itispossiblethatitemsthathaveactuallybeenset

willnotbedisplayeddependingontheeffectivenessofthecache,andthecontentssetfromthebrowsermaynotbe

reectedinoperation.Itisrecommendedthataproxyservernotbeusedunlessitisunavoidable.

3. Convenient Features

Handling of the Address for Operation via a Browser

RegardingtheactualaddressthatisenteredfortheaddressorenteredtotheURLcolumnwhenoperationofthepro-

jectorisviaabrowser,thehostnamecanbeusedasitiswhenthehostnamecorrespondingtotheIPaddressofthe

projectorhasbeenregisteredtothedomainnameserverbyanetworkadministrator,orthehostnamecorresponding

totheIPaddressoftheprojectorhasbeensetinthe“HOSTS”leofthecomputerbeingused.

Example1:Whenthehostnameoftheprojectorhasbeensetto“pj.nec.co.jp”,accessisgainedtothenetwork

settingbyspecifying

 http://pj.nec.co.jp/index.html

fortheaddressortheentrycolumnoftheURL.

Example2:WhentheIPaddressoftheprojectoris“192.168.73.1”,accessisgainedtothenetworksettingby

specifying

 http://192.168.73.1/index.html

fortheaddressortheentrycolumnoftheURL.

PROJECTOR ADJUSTMENT

POWER:Thiscontrolsthepoweroftheprojector.

ON ......................... Power is switched on.

OFF

........................ Power is switched off.

VOLUME:Cannotbeusedforthisdevice.

AV-MUTE:Thiscontrolsthemutefunctionoftheprojector.

PICTURE ON .......... Mutes the video.

PICTURE OFF

......... Cancels the video muting.

SOUND ON

............ Cannot be used for this device.

SOUND OFF

........... Cannot be used for this device.

ALL ON

.................. Mutes the video functions.

ALL OFF

................. Cancels the muting of the video functions.

3. Convenient Features

PICTURE:Controlsthevideoadjustmentoftheprojector.

BRIGHTNESS ▲ .... Increases the brightness adjustment value.

BRIGHTNESS ▼

.... Decreases the brightness adjustment value.

CONTRAST ▲

........ Increases the contrast adjustment value.

CONTRAST ▼

........ Decreases the contrast adjustment value.

COLOR ▲

.............. Increases the color adjustment value.

COLOR ▼

.............. Decreases the color adjustment value.

HUE ▲

................... Increases the hue adjustment value.

HUE ▼

................... Decreases the hue adjustment value.

SHARPNESS ▲

..... Increases the sharpness adjustment value.

SHARPNESS ▼

..... Decreases the sharpness adjustment value.

• Thefunctionsthatcanbecontrolledwillvarydependingonthesignalbeinginputtotheprojector.(→page82,

83)

SOURCESELECT:Thisswitchestheinputterminaloftheprojector.

HDMI ..................... Switches to the HDMI IN terminal.

DisplayPort

............ Switches to the DisplayPort IN.

BNC

....................... Switch to BNC video input.

BNC(CV)

................ Switch to BNC (CV) video input.

BNC(Y/C)

............... Switch to BNC (Y/C) video input.

COMPUTER

........... Switches to the COMPUTER IN terminal.

HDBaseT

................ Switch to image input sent from a transmission device that supports HDBaseT.

SLOT

...................... The projector switches to video input from the optional board when an optional board (sold separately) is

equipped on.

PROJECTORSTATUS:Thisdisplaystheconditionoftheprojector.

LIGHT HOURS USED ..........Displays how many hours the light module has been used.

FILTER HOURS USED

.........The number of ﬁlter hours used is displayed.

ERROR STATUS

..................Displays the status of errors occurring within the projector.

LOGOFF:Loggingoffyourprojectorandreturningtotheauthenticationscreen(LOGONscreen).

3. Convenient Features

NETWORK SETTINGS

•SETTINGS

WIRED

SETTING SetforwiredLAN.

APPLY ApplyyoursettingstowiredLAN.

PROFILE1/PROFILE2 TwosettingscanbesetforwiredLANconnection.SelectPROFILE1orPROFILE2.

DISABLE TurnoffwiredLANconnection

DHCPON AutomaticallyassignIPaddress,subnetmask,andgatewaytotheprojectorfromyour

DHCPserver.

DHCPOFF SetIPaddress,subnetmask,andgatewaytotheprojectorassignedbyyournetwork

administrator.

IPADDRESS SetyourIPaddressofthenetworkconnectedtotheprojector.

SUBNETMASK Setyoursubnetmasknumberofthenetworkconnectedtotheprojector.

GATEWAY Setthedefaultgatewayofthenetworkconnectedtotheprojector.

AUTODNSON DHCPserverwillautomatically assign IPaddressof DNS serverconnectedtothe

projector.

AUTODNSOFF SetyourIPaddressofDNSserverconnectedtotheprojector.

3. Convenient Features

•NAME

PROJECTORNAME Entera nameforyourprojectorso thatyourcomputercan identifythe projector. A

projectornamemustbe16charactersorless.

TIP:Projectornamewillnotbeaffectedevenwhen[RESET]isdonefromthemenu.

HOSTNAME Enterthehostnameofthenetworkconnectedtotheprojector.Ahostnamemustbe

15orless.

DOMAINNAME Enterthe domainnameofthenetwork connectedtotheprojector.Adomainname

mustbe60charactersorless.

•ALERTMAIL

ALERTMAIL Thisoptionwillnotifyyourcomputeroferrormessagesviae-mailwhenusingwiredLAN.

PlacingacheckmarkwillturnontheAlertMailfeature.

ClearingacheckmarkwillturnofftheAlertMailfeature.

Sampleofamessagetobesentfromtheprojector:

Subject:[Projector]ProjectorInformation

THECOOLINGFANHASSTOPPED.

[INFORMATION]

PROJECTORNAME:PH1202HLSeries

LIGHTHOURSUSED:0000[H]

FILTERHOURSUSED:0000[H]

SENDER’SADDRESS Entersender’saddress.

SMTPSERVERNAME EntertheSMTPservernametobeconnectedtotheprojector.

RECIPIENT’SADDRESS

1,2,3

Enteryourrecipient’saddress.Uptothreeaddressescanbeentered.

TESTMAIL Sendatestmailtocheckwhetheryoursettingsarecorrectornot

NOTE:

• Ifyouexecuteatest,youmaynotreceiveanAlertmail.Shouldthishappen,checkifnetwork

settings are correct.

• Ifyouenteredanincorrectaddressinatest,youmaynotreceiveanAlertmail.Shouldthis

happen,checkiftheRecipient’sAddressiscorrect.

SAVE Clickthisbuttontosaveyoursettingstotheprojector’smemory.

3. Convenient Features

•NETWORKSERVICE

PJLinkPASSWORD SetapasswordforPJLink*.Apasswordmustbe32charactersorless.Donotforget

yourpassword.However,ifyouforgetyourpassword,consultwithyourdealer.

HTTPPASSWORD SetapasswordforHTTPserver.Apasswordmustbe10charactersorless.

Whenapasswordissetup,youwillbepromptedforyourusername(arbitrary)and

passwordduringLOGON.

AMXBEACON TurnonorofffordetectionfromAMXDeviceDiscoverywhenconnectingtothenetwork

supportedbyAMX’sNetLinxcontrolsystem.

TIP:

WhenusingadevicethatsupportsAMXDeviceDiscovery,allAMXNetLinxcontrolsystemwill

recognizethedeviceanddownloadtheappropriateDeviceDiscoveryModulefromanAMXserver.

PlacingacheckmarkwillenabledetectingtheprojectorfromAMXDeviceDiscovery.

ClearingacheckmarkwilldisabledetectingtheprojectorfromAMXDeviceDiscovery.

NOTE: If you forget your password, contact your dealer.

*WhatisPJLink?

PJLinkisastandardizationofprotocolusedforcontrollingprojectorsofdifferentmanufacturers.Thisstandard

protocolisestablishedbyJapanBusinessMachineandInformationSystemIndustriesAssociation(JBMIA)in2005.

TheprojectorsupportsallthecommandsofPJLinkClass1.

SettingofPJLinkwillnotbeaffectedevenwhen[RESET]isdonefromthemenu.

CRESTRON

•ROOMVIEWformanagingfromthecomputer.

DISABLE DisablesROOMVIEW.

ENABLE EnablesROOMVIEW.

•CRESTRONCONTROLformanagingfromthecontroller.

DISABLE DisablesCRESTRONCONTROL.

ENABLE EnablesCRESTRONCONTROL.

IPADDRESS SetyourIPaddressofCRESTRONSERVER.

IPID SetyourIPIDofCRESTRONSERVER.

•INFORMATION

WIREDLAN DisplayalistofsettingsofwiredLANconnection.

UPDATE Reectsettingswhentheyarechanged.

TIP:TheCRESTRONsettingsarerequiredonlyforusewithCRESTRONROOMVIEW.

Formoreinformation,visithttp://www.crestron.com

3. Convenient Features

⓭ Storing Changes for Lens Shift, Zoom, and Focus [LENS

MEMORY]

TheadjustedvaluescanbestoredinprojectormemorywhenusingtheLENSSHIFT,ZOOMandFOCUSbuttons

oftheprojector.Adjustedvaluescanbeappliedtothesignalyouselected.Thiswilleliminatetheneedtoadjustlens

shift,focus,andzoomatthetimeofsourceselection.Therearetwowaystosaveadjustedvaluesforlensshift,zoom,

andfocus.

Functionname Description page

REF.LENSMEMORY Adjustedvaluescommontoallinputsignals.Atthetimeofinstallation,

twokindsofadjustedvaluescanberecorded.

Ifnoadjustedvaluesarestoredin[LENSMEMORY],adjustedvalues

fromtheselectedprole([REF.LENSMEMORY])willbeappliedfor

lensadjustment.

→page106

LENSMEMORY Adjustedvaluesforeachinputsignal.

Usetheadjustedvaluesforthesignalwithadifferentaspectratioor

resolution.Theadjustedvaluescanbeappliedatthetimeofsource

selection.

→page91

NOTE:

• Besuretocarryout[LENSCALIBRATION]afterreplacingthelensunit.(→ page 16, 106)

If you need to replace the lens unit, contact your dealer and have them do it for you.

Usage Example

Whenyouwishtodisplayonascreenhavinga4:3aspectratioanNTSCorother4:3aspectratiosignalandan

SXGAorother5:4aspectratiosignal:

Performshift,focus,andzoomadjustmentstosettheverticalscreensizeoftheverticallytall5:4aspectratiosignal

tostandard.

Both4:3aspectratiosignalsand5:4aspectratiosignalscannowbedisplayed.

Notethatwiththeseshift,focus,andzoomadjustments,the4:3aspectratiosignalwillbecomesmalleronthescreen.

Toeliminatethissizereduction,adjusttheshift,focusandzoomtotheoptimumconditionforeachofthe4:3aspect

ratiosignalandthe5:4aspectratiosignal.

Memory(storage)ofeachofthesevalueswillpermitprojectionatanoptimumconditionuponsignalswitching.

To store your adjusted values in [REF. LENS MEMORY]:

1. Press the MENU button.

 Themenuwillbedisplayed.

2. Press the ▶buttontoselect[SETUP]andpresstheENTERbutton.

3. Press the ▶buttontoselect[INSTALLATION].

4. Press the ▼buttontoselect[REF.LENSMEMORY]andpresstheENTERbutton.

3. Convenient Features

 The[REF.LENSMEMORY]screenwillbedisplayed.

5. Makesure[PROFILE]ishighlighted,thenpresstheENTERbutton.

 The[PROFILE]selectionscreenappears.

6. Press the ▼/▲buttonstoselectthe[PROFILE]number,thenpresstheENTERbutton.

 Returntothe[REF.LENSMEMORY]settingsscreen.

7. Select[STORE]andpresstheENTERbutton.

 Theconrmationscreenwillbedisplayed.

8. Press the ◀buttontoselectand[YES]andpresstheENTERbutton.

 Selecta[PROFILE]numberandsavetheadjusted[LENSSHIFT],[ZOOM],and[FOCUS]valuestoit.

• The[FORCEDMUTE]settingstopsprojectionduringlensshift.(→page105)

3. Convenient Features

9. PresstheMENUbutton.

 Themenuwillbeclosed.

TIP:

• Tostoreadjustedvaluesforeachinputsource,usetheLensMemoryfunction.(→ page 91)

To call up your adjusted values from [REF. LENS MEMORY]:

1. Press the MENU button.

 Themenuwillbedisplayed.

2. Press the ▶buttontoselect[SETUP]andpresstheENTERbutton.

3. Press the ▶buttontoselect[INSTALLATION].

4. Press the ▼buttontoselect[REF.LENSMEMORY]andpresstheENTERbutton.

 The[REF.LENSMEMORY]screenwillbedisplayed.

5. Makesure[PROFILE]ishighlighted,thenpresstheENTERbutton.

 The[PROFILE]selectionscreenappears.

6. Press the ▼/▲buttonstoselectthe[PROFILE]number,thenpresstheENTERbutton.

3. Convenient Features

 Returntothe[REF.LENSMEMORY]settingsscreen.

7. Select[MOVE]andpresstheENTERbutton.

 Thelenswillshiftbasedontheadjustedvaluesstoredintheselected[PROFILE].

8. Press the ◀buttontoselectand[YES]andpresstheENTERbutton.

 Theadjustedvalueswillbeappliedtothecurrentsignal..

9. PresstheMENUbutton.

 Themenuwillbeclosed.

3. Convenient Features

TIP:

Tocalluptheadjustedvaluesfrom[LENSMEMORY]:

1. Fromthemenu,select[ADJUST]→[LENSMEMORY]→[MOVE]andpresstheENTERbutton.

 Theconrmationscreenwillbedisplayed.

2. Press the ◀buttontoselectand[YES]andpresstheENTERbutton.

 Duringprojection,iftheadjustedvaluesforaninputsignalhavebeensaved,thelenswillshift.Ifnot,thelenswill

shiftaccordingtotheadjustedvaluesstoredintheselected[REF.LENSMEMORY][PROFILE]number.

Toautomaticallyapplytheadjustedvaluesatthetimeofsourceselection:

1. Fromthemenu,select[SETUP]→[REF.LENSMEMORY]→[LOADBYSIGNAL]andpresstheENTERbut-

ton.

2. Press the ▼buttontoselectand[ON]andpresstheENTERbutton.

 Thiswillmovethelensautomaticallytothepositionatthetimeofsourceselectionaccordingtotheadjustedvalues.

NOTE:TheLensMemoryfunctionmaynotproduceacompletelyalignedimage(duetotolerancesinthelenses)usingtheadjusted

valuesstoredintheprojector.AftercallingupandapplyingtheadjustedvaluesfromtheLensMemoryfunction,nelyadjustthe

lens shift, zoom and focus to produce the best possible image.

4. Multi-Screen Projection

❶ Things that can be done using multi-screen projection

Thisprojectorcanbeusedsinglyorarrangedinmultipleunitsformulti-screenprojection.

Wewillintroduceanexampleusingtwoprojectionscreenshere.

Case 1

Usingasingleprojectortoprojecttwotypesofvideosatthesametime

[PIP/PICTUREBYPICTURE]

Case 2

Usingfourprojectors(resolution:FULLHD)toprojectvideowitharesolutionof3840×2160pixels

[TILING]

Case 1. Using a single projector to project two types of videos [PIP/PICTURE BY

PICTURE]

Connection example and projection image

Inthecaseof[PICTUREBYPICTURE] Inthecaseof[PIP]

On-screenmenuoperations

Display[DISPLAY]→[PIP/PICTUREBYPICTURE]→[MODE]screenintheon-screenmenuandselect[PIP]or

[PICTUREBYPICTURE].

Fordetails,pleasereferto“4-2DisplayingTwoPicturesattheSameTime”.(→page58)

4. Multi-Screen Projection

Case 2. Using four projectors (resolution: FULL HD) to project videos with a resolution

of 3840 × 2160 pixels [TILING]

Connection example and projection image

On-screenmenuoperations

1 Foursimilarvideosaredisplayedwhenfourprojectorsareprojected.

 Pleaserequestthedealertoadjusttheprojectionpositionofeachprojector.

4. Multi-Screen Projection

2 Operatetheon-screenmenuusingthefourrespectiveprojectorstodividetheimageintofourportions.

 Display[DISPLAY]→[MULTISCREEN]→[PICTURESETTING]Screenintheon-screenmenuandselect[TIL-

ING].

(1)Inthescreenforsettingthenumberofhorizontalunits,select[2UNITS].(numberofunitsinthehorizontaldirec-

tion)

(2)Inthescreenforsettingthenumberofverticalunits,select[2UNITS].(numberofunitsintheverticaldirection)

(3)Inthescreenforsettingthehorizontalorder,select[1stUNIT]or[2ndUNIT].

 (lookatthescreens,theoneontheleftisthe[1stUNIT]whiletheoneontherightisthe[2ndUNIT])

(4)Inthescreenforsettingtheverticalorder,selectthe[1stUNIT]orthe[2ndUNIT].

 (lookatthescreens,theoneatthetopisthe[1stUNIT]whiletheoneatthebottomisthe[2ndUNIT])

3 Adjustthelensshiftofeachprojectortone-tunetheboundariesofthescreen.

 Forfurtherne-tuning,adjustusing[DISPLAY]→[EDGEBLENDING]intheon-screenmenuforeachprojector.

 Fordetails,pleasereferto“4-3DisplayingaPictureUsing[EDGEBLENDING]”.

(→page62)

4. Multi-Screen Projection

Things to note when installing projectors

• Leave60cm/23.6"oroverspacebetweentheprojectorswhenprojectorsareinstalledsidebyside,sothatthe

intakeventsoftheprojectorsarenotobstructed.Inaddition,leaveaspaceofatleast30cm/11.8"betweenthe

intakeventandthewallandatleast70cm/27.6"betweentheexhaustventandthewall.Whentheairintakeand

dischargeoutletareobstructed,thetemperatureinsidetheprojectorwillriseandthismayresultinamalfunction.

60cm/23.6"orgreater

• Donotdirectlystackprojectorunits.

WARNING

Projectorsstackeddirectlycouldfallandcauseinjury.Theprojector(s)couldalsobecome

damagedorbroken.

• Exampleofmultipleprojectorsinstalledtogether

 Whenusingmultipleprojectorstogetherformultiscreenprojection,besuretosetthemupinaspecializedprojector

cabinetliketheonethatfollows.

[Installationexample]

IntakeventIntakevent Cabinet

Airdischarge

Airintake

Rear Rear

WARNING

Pleaserequestthedealerforspecialinstallationservicessuchaswhenmountingtheprojectortotheceiling.Never

carryouttheinstallationbyyourself.Theprojectormayfalldownandresultininjury.Pleaseuseasturdycabinet

thatcanwithstandtheweightoftheprojectorfortheinstallation.Pleasedonotpileuptheprojectorsdirectlyon

topofoneanother.

NOTE:

• Fortherangeoftheprojectiondistance,pleaserefertotheAppendix“Throwdistanceandscreensize”.(→ page 156)

4. Multi-Screen Projection

❷ Displaying Two Pictures at the Same Time

Theprojectorhasafeaturethatallowsyoutoviewtwodifferentsignalssimultaneously.Youhavetwomodes:picture

inpicture(PIP)modeandpicturebypicture(PICTUREBYPICTURE)mode.

Theprojectionvideointherstscreendisplayisknownasthemaindisplaywhiletheprojectionvideothatiscalled

outsubsequentlyisknownasthesub-display.

Selecttheprojectionfunctionunder[DISPLAY]→[PIP/PICTUREBYPICTURE]→[MODE]intheon-screenmenu

(thedefaultfactorysettingwhenshippedisPIP).(→page92)

• Asinglescreenisprojectedwhenpoweristurnedon.

Picture in Picture function (PIP)

Asmallsub-displayisdisplayedinsidethemaindisplay.

Thesub-displaycanbesetupandadjustedasfollows.(→page93)

• Selectwhethertodisplaythesub-displayatthetopright,topleft,bottomright

orbottomleftofthescreen(thesizeofthesub-displaycanbeselectedand

thepositioncanbene-tuned)

• Switchthemaindisplaywiththesub-display

Main Display

Sub-Display

Picturebypicturefunction(PICTUREBYPICTURE)

Displaythemaindisplayandsub-displaysidebyside.

Themaindisplayandsub-displaycanbesetupandadjustedasfollows.(→

page93)

• Selectingthedisplayboundary(ratio)ofthemaindisplayandsub-display

• Switchthemaindisplayandsub-display

Main Display Sub-Display

Inputterminalsthatcanbeusedforthemainscreenandsub-screen.

Themainscreenandsub-screencanprovidethefollowinginputterminals.

• Themaindisplayandsub-displaysupportcomputersignalsuptoWUXGA@60HzRB.

Sub-Display or additional display

HDMI DisplayPort BNC BNC(CV) BNC(Y/C) COMPUTER HDBaseT SLOT

Main Display

HDMI

Yes Yes Yes Yes

No No

DisplayPort Yes Yes Yes Yes

BNC Yes Yes

No Yes Yes

BNC(CV) Yes Yes Yes Yes Yes

BNC(Y/C) Yes Yes Yes Yes Yes

COMPUTER Yes Yes No Yes Yes No Yes Yes

HDBaseT No Yes Yes Yes Yes No No

SLOT No Yes Yes Yes Yes No No

NOTE:

• Somesignalsmaynotappeardependingontheresolution.

4. Multi-Screen Projection

Projecting two screens

1. PresstheMENUbuttontodisplaytheon-screenmenuandselect[DISPLAY]→[PIP/PICTUREBYPICTURE].

 Thisdisplaysthe[PIP/PICTUREBYPICTURE]screenintheon-screenmenu.

2. Select[SUBINPUT]usingthe▼/▲ buttons, and press the ENTER button.

 Thisdisplaysthe[SUBINPUT]screen.

3. Select the input signal using the ▼/▲ buttons, and press the ENTER button.

 The[PIP](PICTUREINPICTURE)or[PICTUREBYPICTURE]screensetupunder[MODE]isprojected.(→page

92)

• Whenthesignalnameisdisplayedingrey,thismeansthatitcannotbeselected.

• ThesignalcanalsobeselectedbypressingthePIP/FREEZEbuttonontheremotecontrol.

4. Press the MENU button.

 Theon-screenmenuwilldisappear.

5. Whenreturningtosinglescreen,displaythe[PIP/PICTUREBYPICTUE]screenonemoretimeandselect

[OFF]inthe[SUBINPUT]screenoftheStep3.

TIP:

• Duringdual-screenprojection,iftheselectedinputisnotsupportedbythesub-screen,thesub-screenwillappearasablack

screen.

4. Multi-Screen Projection

Switching the main display with the sub-display and vice versa

1. PresstheMENUbuttontodisplaytheon-screenmenuandselect[DISPLAY]→[PIP/PICTUREBYPICTURE].

 Thisdisplaysthe[PIP/PICTUREBYPICTURE]screenintheon-screenmenu.

2. Select[PICTURESWAP]usingthe▼/▲ buttons and then press the ENTER button.

 Displaythescreenforswitchingthedisplaypositions.

3. Select[ON]usingthe▼ button and then press the ENTER button.

 Thevideoofthemaindisplaywillswitchwiththatofthesub-display.

Whenturned“OFF” Whenturned“ON”

Sub-displayvideo

Maindisplayvideo Sub-displayvideo

Maindisplayvideo

 ThesignaloutputfromtheHDMIOUTterminaldoesnotchangeevenifthedisplaypositionsareswitched.

4. Press the menu button.

 Theon-screenmenuwilldisappear.

4. Multi-Screen Projection

Restrictions

• Thefollowingoperationsareenabledonlyforthemaindisplay.

• Visualadjustments

• Videomagnication/demaginicationusingthepartialD-ZOOM/ZOOM+/−buttons.

 However,magnication/demaginicationisuptotheboundarysetin[PICTUREBYPICTURE].

• TESTPATTERN

• Thefollowingoperationsareenabledforboththemaindisplayandsub-display.Theseoperationscannotbeap-

pliedindividually.

• Momentarydeletionofvideo

• Videopause

• [PIP/PICTUREBYPICTURE]cannotbeusedwhena3Dvideoisbeingdisplayed.

• Whenusingthe[PIP/PICTUREBYPICTURE]function,[CLOSEDCAPTION]and[DYNAMICCONTRAST]can

beused.

• [PIP/PICTUREBYPICTURE]cannotbeusedwhenthesignalinputhasaresolutionof1920×1080ormore.

• TheHDMIOUTterminalhasarepeaterfunction.Theoutputresolutionislimitedbythemaximumresolutionof

theconnectedmonitorandprojector.

4. Multi-Screen Projection

❸ Displaying a Picture Using [EDGE BLENDING]

Ahighresolutionvideocanbeprojectedonanevenbiggerscreenbycombiningmultipleprojectorsontheleft,right,

topandbottom.

Thisprojectorisequippedwithan“EDGEBLENDINGFunction”thatmakestheedges(boundaries)oftheprojection

screenindistinguishable.

NOTE:

• Forprojectorthrowdistances,referto“Throwdistanceandscreensize”onpage156.

• BeforeperformingtheEdgeBlendingfunction,placetheprojectorinthecorrectpositionsothattheimagebecomessquarein

theappropriatesize,andthenmakeopticaladjustments(lensshift,focus,andzoom).

• Adjustthebrightnessofeachprojectorusing[ADJUST]under[LIGHTMODE].Afteradjustingthebrightness,youcankeepthe

setbrightnesslevelbyturningONthe[CONSTANTBRIGHTNESS]mode.Inaddition,use[REF.WHITEBALANCE]toadjustthe

[CONTRAST]and[BRIGHTNESS].

BeforeexplaininguseoftheEdgeBlendingfunction

Thissectionexplainsthecasefor“Example:Placingtwoprojectorssidebyside”.Asshown,theprojectedimageon

theleftisreferredtoas“ProjectorA”andtheprojectedimageontherightisreferredto“ProjectorB”.Unlessotherwise

speciedhereinafter,the“projector”isusedtomeanbothAandB.

Example:Placingtwoprojectorssidebyside

EdgeBlendingarea

Projectedarea

ProjectorA ProjectorB

4. Multi-Screen Projection

Preparation:

• Turnontheprojectoranddisplayasignal.

• Whenperformingsettingsoradjustmentsusingtheremotecontrol,enablethe[CONTROLID]soasnottoactivate

theotherprojectors.(→page113)

Setting the overlap of projection screens

①

Enable[EDGEBLENDING].

1. Press the MENU button.

 Themenuwillbedisplayed.

2. Select[EDGEBLENDING].

 The[EDGEBLENDING]screenwillbedisplayed.Alignthecursorwith[MODE]andthenpresstheENTERbutton.

Themodescreenwillbedisplayed.

3. Select[MODE]→[ON]andpresstheENTERbutton.

 ThisenablestheEdgeBlendingfunction.Thefollowingmenuitemsareavailable:

 [TOP],[BOTTOM],[LEFT],[RIGHT],and[BLACKLEVEL]

4. Select[RIGHT]forProjectorAand[LEFT]forProjectorB.

 PresstheENTERbutton.

 Thefollowingitemsareavailable:

 [CONTROL],[MARKER],[RANGE],and[POSITION]

4. Multi-Screen Projection

5. Select[CONTROL]→[ON]andpresstheENTERbutton.

 Each[TOP],[BOTTOM],[LEFT],[RIGHT],and[BLACKLEVEL]hasitsown[CONTROL],[MARKER],[RANGE],

and[POSITION].

• ForProjectorA,setthe[CONTROL]forthe[TOP],[LEFT]and[BOTTOM]to[OFF].SimilarlyforProjectorB,set

the[CONTROL]forthe[TOP],[RIGHT]and[BOTTOM]to[OFF].

②Adjust[RANGE]and[POSITION]todetermineanareaofoverlappededgesofimages

projected from each projector.

Turningon[MARKER]willdisplaymarkersinmagentaandgreen.

Themagentamarkerisusedfor[RANGE]andgreenonefor[POSITION].

[RANGE]

(Determineanareaofoverlappededgesof

images.)

[POSITION]

(Determinethepositionofoverlappededgesofimages.)

Greenmarker

Turnon[RIGHT]

Magentamarker

Turnon[LEFT]

Magentamarker

* The2screensareseparatedinthediagramforexplanatorypurposes.

4. Multi-Screen Projection

1 Adjust[RANGE].

 Usethe◀or▶buttontoadjusttheoverlappedarea.

TIP:

• Adjusttooverlaponeprojector’markerwiththeotherprojector’smarker.

2 Adjust[POSITION].

 Usethe◀or▶buttontoalignoneedgewiththeotheredgeofoverlappedimages.

TIP:

• Whendisplayingasignalwithadifferentresolution,performtheEdgeBlendingfunctionfromthestart.

• Settingof[MARKER]willnotbesavedandreturnto[OFF]whentheprojectoristurnedoff.

• Todisplayorhidethemarkerwhiletheprojectorisrunning,turnonoroff[MARKER]fromthemenu.

4. Multi-Screen Projection

Black Level Adjustment

Thisadjuststheblackleveloftheoverlappingareaandthenon-overlappingareaofthemulti-screen(EDGEBLENDING).

Adjustthebrightnesslevelifyoufeelthedifferenceistoolarge.

NOTE:

Thisfunctionisenabledonlywhen[MODE]isturnedon.

Adjustableareavariesdependingonwhatcombinationof[TOP],[BOTTOM],[LEFT]and[RIGHT]areturnedon.

Example:AdjustingtheBlackLevelwhenplacingtwoprojectorssidebyside

Widthofoverlap

Adjust[CENTER] Adjust[CENTER]

ProjectorA’s


ProjectorB’s


Adjust[CENTER-RIGHT] Adjust[CENTER-LEFT]

1. Turnon[MODE]

2. Select[BLACKLEVEL]andpresstheENTERbutton.

 Thescreenwillswitchtotheblackleveladjustmentscreen.

3. Use the ▼ or ▲ button to select an item and use the ◀ or ▶ to adjust the black level.

 Dothisfortheotherprojectorifnecessary.

4. Multi-Screen Projection

9-segmentedportionsforBlackLeveladjustment

Thecenterprojector

Thisfunctionadjuststhebrightnesslevelof9-segmentedportionsforthecenterprojectorand4-segmentedportions

fortheleftbottomprojectorasshownbelow.

TOP-LEFT

BOTTOM-LEFT

CENTER-

LEFT

TOP-RIGHT

CENTER-RIGHT

BOTTOM-RIGHT

TOP-CENTER

CENTER

BOTTOM-CENTER

TOP-RIGHT

CENTER-RIGHT

TOP-CENTER

TIP:

• Thenumberofblackleveldivisionscreens(maximumofninedivisions)changesdependingonthenumberofedgeblending

positionsselected(top,bottom,right,left).Inaddition,whenthetop/bottomandleft/rightendsareselected,thecornerdivision

screen appears.

• Theedgeblendingwidthisthewidthsetintherangeandthecornerisformedbytheintersectingareaofthetop/bottomends

or left / right ends.

• The[BLACKLEVEL]canbeadjustedtomakeitbrighteronly.

5. Using On-Screen Menu

❶ Using the Menus

NOTE: The on-screen menu may not be displayed correctly depending on input signal and the projector setting.

1. Press the MENU button on the remote control or the projector cabinet to display the menu.

NOTE: The commands such as ENTER,EXIT,▲▼, ◀▶ in the bottom show available buttons for your operation.

2. Press the ◀▶ buttons on the remote control or the projector cabinet to display the submenu.

3. Press the ENTER button on the remote control or the projector cabinet to highlight the top item or the ﬁrst

tab.

4. Use the ▲▼ buttons on the remote control or the projector cabinet to select the item you want to adjust or

set.

You can use the ◀▶ buttons on the remote control or the projector cabinet to select the tab you want.

5. Press the ENTER button on the remote control or the projector cabinet to display the submenu window.

6. Adjustthelevelorturntheselecteditemonoroffbyusingthe▲▼◀▶ buttons on the remote control or

the projector cabinet.

 Changesarestoreduntiladjustedagain.

7. Repeat steps 2-6 to adjust an additional item, or press the EXIT button on the remote control or the projec-

tor cabinet to quit the menu display.

NOTE:Whenamenuormessageisdisplayed,severallinesofinformationmaybelost,dependingonthesignalorsettings.

8. Press the MENU button to close the menu.

To return to the previous menu, press the EXIT button.

5. Using On-Screen Menu

Menu Elements

Slidebar

Solidtriangle

Menumode

Tab

Radiobutton

LIGHTMODEsymbol

Menuwindowsordialogboxestypicallyhavethefollowingelements:

Highlight ............................. Indicates the selected menu or item.

Solid triangle

......................Indicates further choices are available. A highlighted triangle indicates the item is active.

Tab

......................................Indicates a group of features in a dialog box. Selecting on any tab brings its page to the front.

Radio button

....................... Use this round button to select an option in a dialog box.

Source

................................Indicates the currently selected source.

Menu mode

........................Indicates the current menu mode: BASIC or ADVANCED.

Off Timer remaining time

.... Indicates the remaining countdown time when the [OFF TIMER] is preset.

Slide bar

.............................Indicates settings or the direction of adjustment.

LIGHT MODE symbol

..........Indicates [LIGHT MODE] is set.

Key Lock symbol

................Indicates the [CONTROL PANEL LOCK] is enabled.

Thermometer symbol

.........Indicates the [LIGHT MODE] is forcibly set to [ECO] mode because the internal temperature is too

high.

HIGH symbol

......................Indicates the [FAN MODE] is set to [HIGH] mode.

Source

Availablebuttons

Thermometersymbol

KeyLocksymbol

OffTimerremaining

time

Highlight

5. Using On-Screen Menu

* Theasterisk(*)indicatesthatthedefaultsettingvariesdependingonthesignal.

*1 The[GAMMACORRECTION]itemisavailablewhenanitemotherthan[DICOMSIM.]isselectedfor[REFERENCE].

*2 The[SCREENSIZE]itemisavailablewhen[DICOMSIM.]isselectedfor[REFERENCE].

*3 When[PRESENTATION]or[HIGH-BRIGHT]isselectedin[REFERENCE],the[COLORTEMPERATURE]isnotavailable.

•Basicmenuitemsareindicatedbyshadedarea.

❷ List of Menu Items

Somemenuitemsarenotavailabledependingontheinputsource.

Menu Item Default Options

INPUT

HDMI *

DisplayPort *

BNC *

BNC(CV) *

BNC(Y/C) *

COMPUTER *

HDBaseT

SLOT

ENTRY LIST

TEST PATTERN

ADJUST


MODE STANDARD STANDARD, PROFESSIONAL

PRESET *

HIGH-BRIGHT, PRESENTATION, VIDEO, MOVIE, GRAPHIC, sRGB,

DICOM SIM.

DETAIL SETTINGS

GENERAL

REFERENCE *

HIGH-BRIGHT, PRESENTATION, VIDEO, MOVIE, GRAPHIC, sRGB,

DICOM SIM.

GAMMA CORRECTION*

SELECT DYNAMIC, NATURAL, BLACK DETAIL

NATURAL SETTING

SCREEN SIZE*

* LARGE, MEDIUM, SMALL

COLOR TEMPERATURE*

DYNAMIC CONTRAST * OFF, MOTION IMAGE, STILL IMAGE

WHITE BALANCE

CONTRAST R 0

CONTRAST G 0

CONTRAST B 0

BRIGHTNESS R 0

BRIGHTNESS G 0

BRIGHTNESS B 0

COLOR CORRECTION

RED 0

GREEN 0

BLUE 0

YELLOW 0

MAGENTA 0

CYAN 0

CONTRAST 50

BRIGHTNESS 50

SHARPNESS 10

COLOR 50

HUE 0

RESET


OPTIONS

CLOCK *

PHASE *

HORIZONTAL *

VERTICAL *

BLANKING * TOP, BOTTOM, LEFT, RIGHT

OVERSCAN AUTO AUTO, 0[%], 5[%], 10[%]

ASPECT RATIO

AUTO (COMPUTER) AUTO, 4:3, 5:4, 16:9, 15:9, 16:10, NATIVE

AUTO

(COMPONENT/VIDEO/S-VIDEO) AUTO, 4:3, LETTERBOX, WIDE

SCREEN, ZOOM

AUTO

(COMPONENT/VIDEO/S-VIDEO) AUTO, 4:3 WINDOW, LETTERBOX,

WIDE SCREEN, FULL

INPUT RESOLUTION * –

VIDEO

NOISE REDUCTION

RANDOM NR OFF OFF, LOW, MEDIUM, HIGH

MOSQUITO NR OFF OFF, LOW, MEDIUM, HIGH

BLOCK NR OFF OFF, LOW

DEINTERLACE NORMAL NORMAL, MOVIE, STILL

CONTRAST

ENHANCEMENT

MODE AUTO OFF, AUTO, NORMAL

GAIN

SIGNAL TYPE AUTO AUTO, RGB, COMPONENT

VIDEO LEVEL AUTO AUTO, NORMAL, ENHANCED, SUPER WHITE

3D SETTINGS

STEREO VIEWER SINGLE, DUAL LEFT, DUAL RIGHT

FORMAT AUTO

AUTO, OFF(2D), FRAME PACKING, SIDE BY SIDE(HALF), SIDE

BY SIDE(FULL), TOP AND BOTTOM, FRAME ALTERNATIVE, LINE

ALTERNATIVE

L/R INVERT OFF OFF, ON

LENS

MEMORY

STORE

MOVE

RESET

5. Using On-Screen Menu

Menu Item Default Options

DISPLAY

PIP/PICTURE

BY PICTURE

SUB INPUT OFF

OFF, HDMI, DisplayPort, BNC, BNC(CV), BNC(Y/C), COMPUTER,

HDBaseT, SLOT

MODE PIP PIP, PICTURE BY PICTURE

PICTURE SWAP OFF OFF, ON

PIP SETTING

START POSITION TOP-LEFT TOP-LEFT, TOP-RIGHT, BOTTOM-LEFT, BOTTOM-RIGHT

HORIZONTAL POSITION

VERTICAL POSITION

SIZE MEDIUM LARGE, MEDIUM, SMALL

BORDER

GEOMETRIC

CORRECTION

KEYSTONE

HORIZONTAL

VERTICAL

TILT

THROW RATIO

CORNERSTONE

TOP-LEFT, TOP-CENTER, TOP-RIGHT, CENTER-LEFT, CENTER-

RIGHT, BOTTOM-LEFT, BOTTOM-CENTER, BOTTOM-RIGHT

HORIZONTAL CORNER

TOP-LEFT, TOP-CENTER, TOP-RIGHT, CENTER-LEFT, CENTER-

RIGHT, BOTTOM-LEFT, BOTTOM-CENTER, BOTTOM-RIGHT

VERTICAL CORNER

TOP-LEFT, TOP-CENTER, TOP-RIGHT, CENTER-LEFT, CENTER-

RIGHT, BOTTOM-LEFT, BOTTOM-CENTER, BOTTOM-RIGHT

PINCUSHION TOP, BOTTOM, LEFT, RIGHT

PC TOOL OFF OFF, 1, 2, 3

RESET

EDGE

BLENDING

MODE OFF OFF, ON

TOP

CONTROL ON OFF, ON

MARKER OFF OFF, ON

RANGE

POSITION

BOTTOM

CONTROL ON OFF, ON

MARKER OFF OFF, ON

RANGE

POSITION

LEFT

CONTROL ON OFF, ON

MARKER OFF OFF, ON

RANGE

POSITION

RIGHT

CONTROL ON OFF, ON

MARKER OFF OFF, ON

RANGE

POSITION

BLACK LEVEL

TOP-LEFT

TOP-CENTER

TOP-RIGHT

CENTER-LEFT

CENTER

CENTER-RIGHT

BOTTOM-LEFT

BOTTOM-CENTER

BOTTOM-RIGHT

MULTI

SCREEN

WHITE BALANCE

MODE OFF OFF, ON

CONTRAST W

CONTRAST R

CONTRAST G

CONTRAST B

BRIGHTNESS W

BRIGHTNESS R

BRIGHTNESS G

BRIGHTNESS B

PICTURE SETTING

MODE OFF OFF, ZOOM, TILING

ZOOM

HORIZONTAL ZOOM

VERTICAL ZOOM

HORIZONTAL POSITION

VERTICAL POSITION

TILING

WIDTH 1 UNIT, 2 UNITS, 3 UNITS, 4 UNITS

HEIGHT 1 UNIT, 2 UNITS, 3 UNITS, 4 UNITS

HORIZONTAL POSITION 1st UNIT, 2nd UNIT, 3rd UNIT, 4th UNIT

VERTICAL POSITION 1st UNIT, 2nd UNIT, 3rd UNIT, 4th UNIT

5. Using On-Screen Menu

Menu Item Default Options

SETUP

LANGUAGE ENGLISH

ENGLISH, DEUTSCH, FRANÇAIS, ITALIANO, ESPAÑOL, SVENSKA,

日本語

DANSK, PORTUGUÊS, ČEŠTINA, MAGYAR, POLSKI,

NEDERLANDS, SUOMI

NORSK, TÜRKÇE, РУССКИЙ,

, Ελληνικά, 中文, 한국어

ROMÂNĂ, HRVATSKA, БЪЛГАРСКИ, INDONESIA, , ไทย,

, 繁體中文

COLOR SELECT COLOR COLOR, MONOCHROME

INPUT DISPLAY ON OFF, ON

MESSAGE DISPLAY ON OFF, ON

ID DISPLAY ON OFF, ON

3D CAUTION MESSAGE ON OFF, ON

DISPLAY TIME

AUTO 45

SEC

MANUAL, AUTO 5 SEC, AUTO 15 SEC, AUTO 45 SEC

FILTER MESSAGE OFF

OFF, 100[H], 500[H], 1000[H], 2000[H], 5000[H], 10000[H],

20000[H]

INSTALLATION

ORIENTATION

DESKTOP

FRONT

DESKTOP FRONT, CEILING REAR, DESKTOP REAR, CEILING

FRONT

SCREEN TYPE FREE FREE, 4:3 SCREEN, 16:9 SCREEN, 16:10 SCREEN

WALL COLOR OFF

OFF, WHITEBOARD, BLACKBOARD, BLACKBOARD (GRAY), LIGHT

YELLOW, LIGHT GREEN, LIGHT BLUE, SKY BLUE, LIGHT ROSE,

PINK

FAN MODE AUTO AUTO, HIGH

LIGHT MODE

LIGHT MODE NORMAL NORMAL, ECO1, ECO2, LONG LIFE

CONSTANT BRIGHTNESS OFF OFF, ON

ADJUST 30–100%

SHUTTER SETTINGS

POWER ON SHUTTER OPEN OPEN, CLOSE

PICTURE MUTE SHUTTER OPEN OPEN, CLOSE

FADE IN TIME 0–10 SEC

FADE OUT TIME 0–10 SEC

REF. WHITE BALANCE

CONTRAST R

CONTRAST G

CONTRAST B

BRIGHTNESS R

BRIGHTNESS G

BRIGHTNESS B

UNIFORMITY R

UNIFORMITY B

REF. LENS MEMORY

PROFILE 1 1, 2

STORE

MOVE

RESET

LOAD BY SIGNAL OFF OFF, ON

FORCED MUTE OFF OFF, ON

LENS CALIBRATION

5. Using On-Screen Menu

Menu Item Default Options

SETUP CONTROL

TOOLS

ADMINISTRA-

TOR MODE

MENU MODE ADVANCED ADVANCED, BASIC

NOT SAVE SETTING VALUES OFF OFF, ON

NEW PASSWORD

CONFIRM PASSWORD

PROGRAM

TIMER

ENABLE OFF OFF, ON

SETTINGS

EDIT

ACTIVE OFF, ON

DAY

SUN, MON, TUE, WED, THU, FRI, SAT, MON-FRI, MON-SAT, EVERY

DAY

TIME

FUNCTION POWER, INPUT, LIGHT MODE

ADVANCED

SETTINGS

POWER OFF, ON

INPUT

HDMI, DisplayPort, BNC, BNC(CV), BNC(Y/C), COMPUTER,

HDBaseT, SLOT

LIGHT MODE NORMAL, ECO1, ECO2

REPEAT OFF, ON

DELETE

DOWN

BACK

DATE AND TIME

SETTINGS

TIME

ZONE

SETTIMGS

GMT

-12:00, -11:30, -11:00, -10:30, -10:00, -09:30, -09:00, -08:30,

-08:00, -07:30, -07:00, -06:30, -06:00, -05:30, -05:00, -04:30,

-04:00, -03:30, -03:00, -02:30, -02:00, -01:30, -01:00, -00:30,

00:00, +00:30, +01:00, +01:30, +02:00, +02:30, +03:00, +03:30,

+04:00, +04;30, +05:00, +05:30, +06:00, +06:30, +07:00, +07:30,

+08:00, +08:30, +09:00, +09:30, +10:00, +10:30, +11:00, +11:30,

+12:00, +12:30, +13:00

DATE

AND TIME

SETTINGS

DATE MM/DD/YYYY

TIME HH:MM

INTERNET TIME

SERVER

OFF, ON

IP ADDRESS

UPDATE

SUMMER

TIME

SETTINGS

ENABLE OFF, ON

MON(START) 1, 2, 3, 4, 5, 6, 7, 8, 9, 10, 11, 12

DAY(START)

FIRST WEEK, SECOND WEEK, THIRD WEEK, FOURTH WEEK, LAST

WEEK

SUN, MON, TUE, WED, THU, FRI, SAT

TIME(START)

MON(EXIT) 1, 2, 3, 4, 5, 6, 7, 8, 9, 10, 11, 12

DAY(EXIT)

FIRST WEEK, SECOND WEEK, THIRD WEEK, FOURTH WEEK, LAST

WEEK

SUN, MON, TUE, WED, THU, FRI, SAT

TIME(EXIT)

TIME DIFFERENCE +01:00, +00:30, -00:30, -01:00

MOUSE (Note) Cannot be used for this device.

CONTROL PANEL LOCK OFF OFF, ON

NOTIFICATION SETTINGS

REAR LED ON OFF, ON

BUZZER ON OFF, ON

SECURITY OFF OFF, ON

COMMUNICATION SPEED 38400bps 4800bps, 9600bps, 19200bps, 38400bps, 115200bps

CONTROL ID

CONTROL ID NUMBER 1 1–254

CONTROL ID OFF OFF, ON

REMOTE SENSOR

FRONT/

BACK

FRONT/BACK, FRONT, BACK, HDBaseT

LENS TYPE

WITH

SENSOR

WITH SENSOR, WITHOUT SENSOR

5. Using On-Screen Menu

Menu Item Default Options

SETUP

NETWORK

SETTINGS

WIRED LAN

PROFILES DISABLE, PROFILE 1, PROFILE 2

DHCP OFF, ON

IP ADDRESS 192.168.0.10

SUBNET MASK 255.255.255.0

GATEWAY 192.168.0.1

AUTO DNS OFF, ON

DNS CONFIGURATION

RECONNECT

PROJECTOR NAME PROJECTOR NAME

PH1202HL Series

DOMAIN

HOST NAME necpj

DOMAIN NAME

ALERT MAIL

ALERT MAIL OFF, ON

HOST NAME

DOMAIN NAME

SENDER'S ADDRESS

SMTP SERVER NAME

RECIPIENT'S ADDRESS 1

RECIPIENT'S ADDRESS 2

RECIPIENT'S ADDRESS 3

TEST MAIL

NETWORK SERVICE

HTTP

SERVER

NEW PASSWORD

CONFIRM PASSWORD

PJLink

NEW PASSWORD

CONFIRM PASSWORD

AMX

BEACON

OFF, ON

CRESTRON

ROOMVIEW OFF, ON

CRESTRON

CONTROL (ENABLE,

CONTROLLER IP

ADDRESS, IP ID)

SOURCE

OPTIONS

AUTO ADJUST NORMAL OFF, NORMAL, FINE

COLOR SYSTEM

BNC(VIDEO) AUTO AUTO, NTSC3.58, NTSC4.43, PAL, PAL-M, PAL-N, PAL60, SECAM

BNC(Y/C) AUTO AUTO, NTSC3.58, NTSC4.43, PAL, PAL-M, PAL-N, PAL60, SECAM

DEFAULT INPUT SELECT LAST

LAST, AUTO, HDMI, DisplayPort, BNC, BNC(CV), BNC(Y/C),

COMPUTER, HDBaseT, SLOT

SEAMLESS SWITCHING OFF OFF, ON

CLOSED CAPTION OFF

OFF, CAPTION1, CAPTION2, CAPTION3, CAPTION4, TEXT1, TEXT2,

TEXT3, TEXT4

BACKGROUND BLUE BLUE, BLACK, LOGO

POWER

OPTIONS

STANDBY MODE NORMAL NORMAL, HDBaseT STANDBY

DIRECT POWER ON OFF OFF, ON

AUTO POWER ON SELECT OFF OFF, HDMI, DisplayPort, COMPUTER, HDBaseT, SLOT

AUTO POWER OFF 1:00 OFF, 0:05, 0:10, 0:15, 0:20, 0:30, 1:00

OFF TIMER OFF OFF, 0:30, 1:00, 2:00, 4:00, 8:00, 12:00, 16:00

SLOT POWER

PROJECTOR ON ON OFF, ON

PROJECTOR STANDBY ENABLE DISABLE, ENABLE

RESET

CURRENT SIGNAL

ALL DATA

ALL DATA (INCLUDING ENTRY LIST)

CLEAR FILTER HOURS

5. Using On-Screen Menu

Menu Item Default Options

INFO.

USAGE TIME

LIGHT HOURS USED

FILTER HOURS USED

TOTAL CARBON SAVINGS

SOURCE(1)

INPUT TERMINAL

RESOLUTION

HORIZONTAL FREQUENCY

VERTICAL FREQUENCY

SYNC TYPE

SYNC POLARITY

SCAN TYPE

SOURCE NAME

ENTRY NO.

SOURCE(2)

SIGNAL TYPE

VIDEO TYPE

BIT DEPTH

VIDEO LEVEL

LINK RATE

LINK LANE

3D FORMAT

SOURCE(3)

INPUT TERMINAL

RESOLUTION

HORIZONTAL FREQUENCY

VERTICAL FREQUENCY

SYNC TYPE

SYNC POLARITY

SCAN TYPE

SOURCE NAME

ENTRY NO.

SOURCE(4)

SIGNAL TYPE

VIDEO TYPE

BIT DEPTH

VIDEO LEVEL

LINK RATE

LINK LANE

3D FORMAT

WIRED LAN

IP ADDRESS

SUBNET MASK

GATEWAY

MAC ADDRESS

VERSION(1)

FIRMWARE

DATA

SUB-CPU

VERSION(2) FIRMWARE3

OTHERS

DATE TIME

PROJECTOR NAME

MODEL NO.

SERIAL NUMBER

CONTROL ID (when [CONTROL ID] is set)

CONDITIONS

INTAKE TEMPERATURE

EXHAUST TEMPERATURE

ATMOSPHERIC PRESSURE

HDBaseT

SIGNAL QUALITY

OPERATION MODE

LINK STATUS

HDMI STATUS

5. Using On-Screen Menu

❸ Menu Descriptions & Functions [INPUT]

HDMI

ThisprojectsthevideoofthedeviceconnectedtotheHDMIINterminal.

DisplayPort

ThisprojectsthevideoofthedeviceconnectedtotheDisplayPortINterminal.

BNC

Thisprojectsthevideoofthedeviceconnectedtothevideoinputterminal.

(ThisprojectstheanalogRGBsignalorcomponentsignal.)

BNC(CV)

ThisprojectsthevideoofthedeviceconnectedtotheBNC(CV)videoinputterminal.

(Thisprojectsthecompositevideosignal.)

BNC(Y/C)

ThisprojectsthevideoofthedeviceconnectedtotheBNC(Y/C)videoinputterminal.

(ThisprojectstheS-videosignal.)

COMPUTER

ThisprojectsthevideoofthedeviceconnectedtotheCOMPUTERINterminal.

(ThisprojectstheanalogRGBsignalorcomponentsignal.)

HDBaseT

ProjectingtheHDBaseTorWIREDLANsignal.

SLOT

Projectsthepictureviatheoptionalboard(soldseparately)insertedintotheSLOT.

ENTRY LIST

Displaysalistofsignals.Seethefollowingpages.

TEST PATTERN

Closesthemenuandswitchestothetestpatternscreen.

Selectthepatternusingthe◀▶buttons.

5. Using On-Screen Menu

UsingtheEntryList

Whenyousave[IMAGEOPTIONS]and[LENSMEMORY],theadjustedvaluesofthesignalareautomaticallysavedto

theprojector’s[ENTRYLIST].Whenneeded,thestoredsignaladjustedvaluescanbeaccessedfromthe[ENTRYLIST].

However,onlyupto100patternscanberegisteredintheEntryList.When100patternshavebeenregisteredinthe

EntryList,anerrormessageisthendisplayedandnoadditionalpatternscanberegistered.Youshouldthusdelete

(adjustmentvaluesof)signalsthatarenolongerneeded.

DisplayingtheEntrylist

1. Press the MENU button.

 Themenuwillbedisplayed.

2. Press the ◀ or ▶buttontoselect[INPUT].

 TheINPUTlistwillbedisplayed.

3. Use the ◀, ▶, ▲, or ▼toselect[ENTRYLIST]andpresstheENTERbutton.

 TheENTRYLISTwindowswillbedisplayed.

 IftheENTRYLISTwindowisnotdisplayed,switchthemenuto[ADVANCED].

 Toswitchthemenubetween[ADVANCED]and[BASIC],select[SETUP]→[CONTROL]→[TOOLS]→[ADMIN-

ISTRATORMODE]→[MENUMODE].(→page107)

5. Using On-Screen Menu

EnteringthecurrentlyprojectedsignalintotheEntryList[STORE]

1. Press the ▲ or ▼ button to select any number.

2. Press the ◀ or ▶buttontoselect[STORE]andpresstheENTERbutton.

CallingupasignalfromtheEntryList[LOAD]

Pressthe▲ or ▼buttontoselectasignalandpresstheENTERbutton.

EditingasignalfromtheEntryList[EDIT]

1. Press the ▲ or ▼ button to select a signal you wish to edit.

2. Press the ◀, ▶, ▲, or ▼buttontoselect[EDIT]andpresstheENTERbutton.

 TheEditwindowwillbedisplayed.

SOURCENAME Enterasignalname.Upto18alphanumericcharacterscanbeused.

INPUT Theinputterminalcanbechanged.SwitchingbetweenHDMI/DisplayPort/BNC/BNC(CV)/

BNC(Y/C)/Computer/HDBaseT/SLOTispossible.

LOCK Setso that the selected signal cannot be deleted when [ALL DELETE] is executed.The

changesmadeafterLOCKexecutioncannotbesaved.

SKIP Setsothattheselectedsignalwillbeskippedduringautosearch.

3. Settheaboveitemsandselect[OK]andpresstheENTERbutton.

NOTE: The input terminal cannot be changed to the currently projected signal.

5. Using On-Screen Menu

CuttingasignalfromtheEntryList[CUT]

1. Press the ▲ or ▼ button to select a signal you wish to delete.

2. Press the ◀, ▶, ▲, or ▼buttontoselect[CUT]andpresstheENTERbutton.

 ThesignalwillbedeletedfromtheEntryListandthedeletedsignalwillbedisplayedontheclipboardatthebottom

oftheEntryList.

NOTE:

• Thecurrentlyprojectedsignalcannotbedeleted.

• Whenthelockedsignalisselected,itwillbedisplayedingraywhichindicatesitisnotavailable.

TIP:

• DataontheclipboardcanbepassedontotheEntryList.

• DataontheclipboardwillnotbelostaftertheEntryListisclosed.

CopyingandpastingasignalfromtheEntryList[COPY]/[PASTE]

1. Press the ▲ or ▼ button to select a signal you wish to copy.

2. Press the ◀, ▶, ▲, or ▼buttontoselect[COPY]andpresstheENTERbutton.

 ThecopiedsignalwillbedisplayedontheclipboardatthebottomoftheEntryList.

3. Press the ◀ or ▶ button to move to the list.

4. Press the ▲ or ▼ button to select a signal.

5. Press the ◀, ▶, ▲, or ▼buttontoselect[PASTE]andpresstheENTERbutton.

 Dataontheclipboardwillbepastedtothesignal.

DeletingallthesignalsfromtheEntryList[ALLDELTE]

1. Press the ◀, ▶, ▲, or ▼buttontoselect[ALLDELETE]andpresstheENTERbutton.

 Theconrmationmessagewillbedisplayed.

2. Press the ◀ or ▶buttontoselect[YES]andpresstheENTERbutton.

NOTE: The locked signal cannot be deleted.

5. Using On-Screen Menu

❹ Menu Descriptions & Functions [ADJUST]

[PICTURE]

[MODE]

Thisfunctionallowsyoutodeterminehowtosavesettingsfor[DETAILSETTINGS]of[PRESET]foreachinput.

STANDARD ............ Saves settings for each item of [PRESET] (Preset 1 through 7)

PROFESSIONAL

..... Saves all the settings of [PICTURE] for each input.

NOTE:

• When[TESTPATTERN]isdisplayed,[MODE]cannotbeselected.

[PRESET]

Thisfunctionallowsyoutoselectoptimizedsettingsforyourprojectedimage.

Youcanadjustneutraltintforyellow,cyanormagenta.

Therearesevenfactorypresetsoptimizedforvarioustypesofimages.Youcanalsouse[DETAILSETTINGS]toset

useradjustablesettingstocustomizeeachgammaorcolor.

Yoursettingscanbestoredin[PRESET1]to[PRESET7].

HIGH-BRIGHT ........ Recommended for use in a brightly lit room.

PRESENTATION

..... Recommended for making a presentation using a PowerPoint ﬁle.

VIDEO

.................... Recommended for typical TV program viewing.

MOVIE

................... Recommended for movies.

GRAPHIC

............... Recommended for graphics.

sRGB

..................... Standard color values

DICOM SIM.

.......... Recommended for DICOM simulation format.

NOTE:

• The[DICOMSIM.]optionisfortraining/referenceonlyandshouldnotbeusedforactualdiagnosis.

• DICOMstandsforDigitalImagingandCommunicationsinMedicine.ItisastandarddevelopedbytheAmericanCollegeofRadiol-

ogy(ACR)andtheNationalElectricalManufacturersAssociation(NEMA).

 Thestandardspecieshowdigitalimagedatacanbemovedfromsystemtosystem.

• Adjustmentmaynotworkdependingoninputsignal.

5. Using On-Screen Menu

[DETAILSETTINGS]

[GENERAL]

StoringYourCustomizedSettings[REFERENCE]

Thisfunctionallowsyoutostoreyourcustomizedsettingsin[PRESET1]to[PRESET7].

First,selectabasepresetmodefrom[REFERENCE],thenset[GAMMACORRECTION]and[COLORTEMPERATURE].

HIGH-BRIGHT ........ Recommended for use in a brightly lit room.

PRESENTATION

..... Recommended for making a presentation using a PowerPoint ﬁle.

VIDEO

.................... Recommended for typical TV program viewing.

MOVIE

................... Recommended for movies.

GRAPHIC

............... Recommended for graphics.

sRGB

..................... Standard color values.

DICOM SIM.

.......... Recommended for DICOM simulation format.

SelectingGammaCorrectionMode[GAMMACORRECTION]

Eachmodeisrecommendedfor:

SELECT DYNAMIC Createsahigh-contrastpicture.

NATURAL Standardsettings. Settings can be adjusted to suit the picture being

projected.

BLACKDETAIL Emphasizesdetailindarkareasofthepicture.

NATURALSETTING Afterselecting[NATURAL]youcanadjustthesettings.Adjustthemusingthe◀/▶buttons.

NOTE:Thisfunctionisnotavailablewhen[DICOMSIM.]isselectedfor[DETAILSETTINGS].

SelectingScreenSizeforDICOMSIM[SCREENSIZE]

Thisfunctionwillperformgammacorrectionappropriateforthescreensize.

LARGE ................... For screen size of 150"

MEDIUM

................ For screen size of 100"

SMALL

................... For screen size of 50"

NOTE:Thisfunctionisavailableonlywhen[DICOMSIM.]isselectedfor[DETAILSETTINGS].

5. Using On-Screen Menu

AdjustingColorTemperature[COLORTEMPERATURE]

Thisoptionallowsyoutoselectthecolortemperatureofyourchoice.

Avaluebetween5000Kand10500Kcanbesetin100Kunits.

NOTE:When[PRESENTATION]or[HIGH-BRIGHT]isselectedin[REFERENCE],thisfunctionisnotavailable.

AdjustingBrightnessandContrast[DYNAMICCONTRAST]

Select[MOTIONIMAGE]or[STILLIMAGE]dependingonthepictureyouwishtoproject,andthecontrastrationwill

beadjustedtotheoptimumvalue.

NOTE:

• Dependingontheconditions,projectorsettingssuchas[DYNAMICCONTRAST]maynotbeabletobeselected.

AdjustingWhiteBalance[WHITEBALANCE]

Thisallowsyoutoadjustthewhitebalance.Contrastforeachcolor(RGB)toadjustthewhitelevelofthescreen;

Brightnessforeachcolor(RGB)isusedtoadjusttheblacklevelofthescreen.

[COLORCORRECTION]

Correctsthecolorforallsignals.

Adjuststhetoneforthecolorsred,green,blue,yellow,magentaandcyan.

RED HUE +Direction Magentadirection

−Direction Yellowdirection

SATURATION +Direction Vivid

−Direction Weak

GREEN HUE

+Direction Yellowdirection

−Direction Cyandirection

SATURATION +Direction Vivid

−Direction Weak

BLUE HUE

+Direction Cyandirection

−Direction Magentadirection

SATURATION +Direction Vivid

−Direction Weak

YELLOW HUE

+Direction Reddirection

−Direction Greendirection

SATURATION +Direction Vivid

−Direction Weak

MAGENTA HUE

+Direction Bluedirection

−Direction Reddirection

SATURATION +Direction Vivid

−Direction Weak

CYAN HUE

+Direction Greendirection

−Direction Bluedirection

SATURATION +Direction Vivid

−Direction Weak

[CONTRAST]

Adjuststheintensityoftheimageaccordingtotheincomingsignal.

[BRIGHTNESS]

Adjuststhebrightnesslevelorthebackrasterintensity.

[SHARPNESS]

Controlsthedetailoftheimage.

[COLOR]

Increasesordecreasesthecolorsaturationlevel.

5. Using On-Screen Menu

[HUE]

Variesthecolorlevelfrom+/−greento+/−blue.Theredlevelisusedasreference.

Inputsignal CONTRAST BRIGHTNESS SHARPNESS COLOR HUE

RGBsystemof“COMPUTER/

DisplayPort/HDMI/HDBaseT”

Ye s Ye s Ye s No No

COMPONENTsystemof“COMPUTER/

DisplayPort/HDMI/HDBaseT”

Ye s Ye s Ye s Ye s Ye s

CompositeVideo/S-Video Yes Ye s Ye s Ye s Ye s

Yes=Adjustable,No=Notadjustable

NOTE:

• When[TESTPATTERN]isdisplayed,[CONTRAST],[BRIGHTNESS],[SHARPNESS],[COLOR]and[HUE]cannotbeadjusted.

[RESET]

Thesettingsandadjustmentsfor[PICTURE]willbereturnedtothefactorysettingswiththeexceptionofthefollowing;

Presetnumbersand[REFERENCE]withinthe[PRESET]screen.

Thesettingsandadjustmentsunder[DETAILSETTINGS]withinthe[PRESET]screenthatarenotcurrentlyselected

willnotbereset.

5. Using On-Screen Menu

[IMAGE OPTIONS]

AdjustingClockandPhase[CLOCK/PHASE]

ThisallowsyoutomanuallyadjustCLOCKandPHASE.

CLOCK ................... Use this item to ﬁne tune the computer image or to remove any vertical banding that might appear. This

function adjusts the clock frequencies that eliminate the horizontal banding in the image.

This adjustment may be necessary when you connect your computer for the ﬁrst time.

PHASE ................... Use this item to adjust the clock phase or to reduce video noise, dot interference or cross talk. (This is

evident when part of your image appears to be shimmering.)

Use [PHASE] only after the [CLOCK] is complete.

NOTE:The[CLOCK]and[PHASE]itemsareavailableforRGBsignalsonly.

5. Using On-Screen Menu

AdjustingHorizontal/VerticalPosition[HORIZONTAL/VERTICAL]

Adjuststheimagelocationhorizontallyandvertically.

• Animagecanbedistortedduringtheadjustmentof[CLOCK]and[PHASE].Thisisnotmalfunction.

• Theadjustmentsfor[CLOCK], [PHASE],[HORIZONTAL], and[VERTICAL]willbestoredin memoryforthe

currentsignal.Thenexttimeyouprojectthesignalwiththesameresolution,horizontalandverticalfrequency,

itsadjustmentswillbecalledupandapplied.

 Todeleteadjustmentsstoredinmemory,fromthemenu,youselect[RESET]→[CURRENTSIGNAL]andreset

theadjustments.

[BLANKING]

Adjuststhedisplayrange(blanking)atthetop,bottom,leftandrightedgesoftheinputsignal.

SelectingOverscanPercentage[OVERSCAN]

Selectoverscanpercentage(Auto,0%,5%and10%)forsignal.

Projectedimage

Overscanedby10%

NOTE:

• The[OVERSCAN]itemisnotavailable:

 -when[NATIVE]isselectedfor[ASPECTRATIO].

5. Using On-Screen Menu

SelectingtheAspectRatio[ASPECTRATIO]

Usethisfunctiontoselectthescreen’svertical:horizontalaspectratio.

Selectthescreentype(4:3screen,16:9screenor16:10screen)atthescreensettingbeforesettingtheaspectratio.

(→page104)

Theprojectorautomaticallyidentiesthesignalbeinginputandsetstheoptimumaspectratio.

For Computer signal

ForComponent/Video/S-Videosignals

Whenthescreentypeissetto4:3 Whenthescreentypeissetto16:9or16:10

Resolution AspectRatio

VGA 640×480 4:3

SVGA

800×600 4:3

XGA

1024×768 4:3

WXGA

1280×768 15:9

WXGA

1280×800 16:10

HD(FWXGA)

1366×768 approx.16:9

WXGA+ 1440×900 16:10

SXGA

1280×1024 5:4

SXGA+

1400×1050 4:3

WXGA++

1600×900 16:9

UXGA

1600×1200 4:3

WSXGA+

1680×1050 16:10

FHD(1080P)

1920×1080 16:9

WUXGA

1920×1200 16:10

WQXGA

2560×1600 16:10

Options Function

AUTO

Theprojectorwillautomaticallydeterminetheincomingsignalanddisplayitinitsaspectratio.

Theprojectormayerroneouslydeterminetheaspectratiodependingonitssignal.Ifthisoccurs,select

theappropriateaspectratiofromthefollowing.

4:3 Theimageisdisplayedin4:3aspectratio.

5:4 Theimageisdisplayedin5:4aspectratio

16:9 Theimageisdisplayedin16:9aspectratio

15:9 Theimageisdisplayedin15:9aspectratio

16:10 Theimageisdisplayedin16:10aspectratio

5. Using On-Screen Menu

Options Function

NATIVE

Theprojectordisplaysthecurrentimageinitstrueresolutionwhentheincomingcomputersignalhasa

lowerorhigherresolutionthantheprojector’snativeresolution.(→page164)

Whentheincomingcomputersignalhasahigherresolutionthantheprojector'snativeresolution,the

centerofanimagewillbedisplayed.

LETTERBOX Theimageofaletterboxsignal(16:9)isstretchedequallyinthehorizontalandverticaldirectionstotthe

screen.

WIDESCREEN Theimageofasqueezesignal(16:9)isstretchedleftandrightin16:9.

ZOOM Theimageofasqueezesignal(16:9)isstretchedleftandrightin4:3.

Partsofthedisplayedimagearecroppedattheleftandrightedgesandthereforenotvisible.

FULL Projecttofullscreensize.

TIP:

• Imagepositioncanbeadjustedverticallyusing[POSITION]whenthe[16:9],[15:9],or[16:10]aspectratiosareselected.

• Theterm“letterbox”referstoamorelandscape-orientedimagewhencomparedtoa4:3image,whichisthestandardaspect

ratio for a vide source.

 Theletterboxsignalhasaspectratioswiththevistasize“1.85:1”orcinemascopesize“2.35:1”formovielm.

• Theterm“squeeze”referstothecompressedimageofwhichaspectratioisconvertedfrom16:9to4:3.

[INPUTRESOLUTION]

Theresolutionisassignedautomaticallywhentheresolutionoftheinputsignalfromthecomputervideoinputterminal

orBNCvideoinputterminal(analogRGB)cannotbedistinguished.

5. Using On-Screen Menu

[VIDEO]

UsingNoiseReduction[NOISEREDUCTION]

Whenprojectingavideoimage,youcanusethe[NOISEREDUCTION]functiontoreducethescreennoise(roughness

anddistortion).Thisdeviceisequippedwiththreetypesofnoisereductionfunctions.Selectthefunctionaccordingto

thetypeofnoise.Dependingonthenoiselevel,thenoisereductioneffectcanbesetto[OFF],[LOW],[MEDIUM]or

[HIGH].[NOISEREDUCTION]canbeselectedforSDTV,HDTVsignalandcomponentsignalinput.

RANDOM NR ......... Reduces ﬂickering random noise in an image.

MOSQUITO NR

...... Reduces mosquito noise that appears around the edges of an image during Blu-ray playback.

BLOCK NR

............. Reduces block noise or mosaic-like patterns by selecting ON.

SelectingInterlacedProgressiveConversionProcessMode[DEINTERLACE]

Thisfunctionallowsyoutoselectaninterlaced-to-progressiveconversionprocessforvideosignals.

NORMAL ................ Automatically distinguishes a moving image from a static image to create a distinct image. Please select

[MOVIE] if there are any obvious jitter and noises.

MOVIE

................... Select when projecting moving images. This is suitable for signals with a lot of jitter and noise.

STILL

..................... Select when projecting static images. The video will ﬂicker when a moving image is projected.

NOTE:ThisfunctionisnotavailablewithRGBsignals.

[CONTRASTENHANCEMENT]

Usingthecharacteristicsofthehumaneye,apicturequalitywithasenseofcontrastandresolutionisachieved.

OFF ........................ Suite vision is switched off.

AUTO

..................... Contrast and picture quality are automatically improved using the suite vision function.

NORMAL

................ Adjust the gain manually.

5. Using On-Screen Menu

[SIGNALTYPE]

SelectionofRGBandcomponentsignals.Normally,thisissetto[AUTO].Pleasechangethesettingifthecolorofthe

imageremainsunnatural.

AUTO ..................... Automatically distinguishes RGB and component signals.

RGB

....................... Switches to the RGB input.

COMPONENT

......... Switches to the component signal input.

[VIDEOLEVEL]

SelectionofthevideosignallevelwhenconnectinganexternaldevicetotheHDMIINterminal,DisplayPortinput

terminal,andHDBaseTinputterminaloftheprojector.

AUTO ..................... The video level is switched automatically based on the information from the device outputting the signal.

Depending on the connected device, this setting may not be made properly. In this case, switch to [NORMAL”

or “ENHANCED” from the menu and view with the optimum setting.

NORMAL

................ This disables the enhanced mode.

ENHANCED

............ This improves the image’s contrast, expressing the dark and light sections more dynamically.

SUPER WHITE

....... The video contrast is improved and the dark areas appear more dynamic.

5. Using On-Screen Menu

[3D SETTINGS]

Pleasereferto“3-11Projecting3Dvideos”(→page40)fortheoperation.

STEREOVIEWER

Adjustingthesettingsforprojectinga3Dpicturewithoneormultipleprojectors.For3Dglassesright-eyeandleft-eye

settings,select[STEREOVIEWER].

SINGLE .................. Use a single projector to project 3D videos.

DUAL LEFT

............ Use a dedicated projector for displaying videos on the left.

DUAL RIGHT

.......... Use a dedicated projector for displaying videos on the right.

FORMAT

Selectthe3Dvideoformat(recording/transmissionformat).Selecttomatchthe3Dbroadcastand3Dmedia.Nor-

mally,[AUTO]isselected.Pleaseselectthe3Dinputsignalformatwhenthe3Ddetectionsignaloftheformatcannot

bedistinguished.

L/RINVERT

Invertthedisplayorderoftheleftandrightvideos.

Select[ON]ifyoufeeluncomfortablewiththe3Ddisplaywhen[OFF]isselected.

5. Using On-Screen Menu

Using the Lens Memory Function [LENS MEMORY]

ThisfunctionservestostoretheadjustedvaluesforeachinputsignalwhenusingtheLENSSHIFT,ZOOMandFO-

CUSbuttonsoftheprojector.Adjustedvaluescanbeappliedtothesignalyouselected.Thiswilleliminatetheneed

toadjustlensshift,focus,andzoomatthetimeofsourceselection.

STORE ................... Stores the current adjusted values in memory for each input signal.

MOVE

.................... Applies the adjusted values to the current signal.

RESET

.................... Returns the adjusted values to the last condition.

NOTE:

• Thelensshift,zoom,andfocusadjustmentscanbeperformedwiththeremotecontrol.(→ page 23, 24)

• Tostoreadjustedvaluescommontoalltheinputsources,usetheREF.LENSMEMORYfunction.Seepage49, 106.

• LensmemoryadjustmentswillbeautomaticallyregisteredtheENTRYLIST.Theselensmemoryadjustmentscanbeloadedfrom

theENTRYLIST.(→ page 78)

 Notethatperforming[CUT]or[ALLDELETE]intheENTRYLISTwilldeletelensmemoryadjustmentsaswellassourceadjust-

ments. This deletion will not take effect until other adjustments is loaded.

5. Using On-Screen Menu

❺ Menu Descriptions & Functions [DISPLAY]

[PIP/PICTURE BY PICTURE]

SUBINPUT

Selecttheinputsignaltobedisplayedinthesub-display.

Pleasereferto“4-2DisplayingTwoPicturesattheSameTime”(→page58)fordetailsontheoperation.

MODE

SelecteitherPIPorPICTUREBYPICTUREwhenswitchingto2-screendisplay.

PICTURE SWAP

Thevideosinthemaindisplayandsub-displaywillbeswitched.

Pleasereferto“4-2DisplayingTwoPicturesattheSameTime”(→page58)fordetails.

PIP SETTING

Selectthedisplayposition,positionadjustmentandsizeofthesub-displayinthePIPscreen.

START POSITION ... Selection of the display position of the sub-display when switching to the PIP screen.

HORIZONTAL POSITION

.............................. Adjust the display position of the sub-display in the horizontal direction. The respective corners will serve

as reference points.

VERTICAL POSITION

.............................. Adjust the display position of the sub-display in the vertical direction. The respective corners will serve as

reference points.

SIZE

....................... Select the display size of the sub-display.

5. Using On-Screen Menu

TIP:

Thehorizontalpositionandverticalpositionaretheamountofmovementfromthereferencepoints.Forexample,whenTOP-LEFT

is adjusted, the position is displayed with the same amount of movement even if displayed with other starting positions.

Themaximumamountofmovementishalftheresolutionoftheprojector.

Referencepoint

Adjustusingthehorizon-

talposition

Sub-display Maindisplay

Referencepoint

Adjustusingtheverticalposition

TOP-LEFT TOP-RIGHT

BOTTOM-LEFT BOTTOM-RIGHT

ReferencepointReferencepoint

BORDER

Selectthedisplayboundaryofthemaindisplayandsub-displayofthe[PICTUREBYPICTURE]screen.

Displayboundary

Maindisplay

Sub-displayMaindisplay

Sub-display

MaindisplaySub-display

TIP:

• 6stepscanbeselectedonthisprojector.

5. Using On-Screen Menu

[GEOMETRIC CORRECTION]

KEYSTONE

Displaythetrapezoidcorrectionscreenandadjustthetrapezoidaldistortionoftheprojectionscreen.

Todisplaythe[KEYSTONE]screen,select[DISPLAY]→[GEOMETRICCORRECTION]→[KEYSTONE]intheon-

screenmenu.The[GEOMETRICCORRECTION]screencanalsobedisplayedbypressingthe3DREFORMbutton

ontheprojectororontheremotecontrol.

HORIZONTAL ......... Adjustments when projecting from a diagonal direction to the

screen.

VERTICAL .............. Adjustments when projecting from the top or bottom direction to

the screen.

TILT ....................... Adjusts the distortion when performing trapezoidal correction with the screen moved in the vertical direction

using the lens shift.

THROW RATIO

....... Adjusts according to the projection ratio of the optional lens used.

Modelnameoflens

unit

Adjustmentrange

NP-9LS12ZM1 12–19

NP-9LS13ZM1 14–23

NP-9LS16ZM1 17–29

NP-9LS08ZM1 8–14

NOTE:

• Whenpowerissuppliedtothedevice,theadjustmentvalueofthe[KEYSTONE]usedpreviouslyisretainedevenifthegradient

of the device is changed.

• Whenclearingtheadjustmentvalueof[KEYSTONE],pressthe3DREFORMbuttonfor2ormoreseconds.

• Whensettingother[GEOMETRICCORRECTION]functions,the[KEYSTONE]menucannotbeselected.Whenperformingtrapezoidal

correction,pressthe3DREFORMbuttonfor2ormoresecondstocleartheadjustmentvalueof[GEOMETRICCORRECTION].

• Aselectricalcorrectioniscarried outby [KEYSTONE],thebrightnessmaybereducedor thescreenqualitymaydeteriorate

sometimes.

5. Using On-Screen Menu

CORNERSTONE

Displaythe4-pointcorrectionscreenandadjustthetrapezoidaldistortionoftheprojectionscreen.

Pleasereferto“CorrectingHorizontalandVerticalKeystoneDistortion[CORNERSTONE]”(→page34)fordetails

ontheoperation.

HORIZONTALCORNER/VERTICALCORNER

Distortioncorrectionforcornerprojectionsuchaswallsurfaces.

HORIZONTAL CORNER

.............................. Performs correction for projection onto a wall lying at an angle to the horizontal direction.

* Reverse angle correction is also possible.

VERTICAL CORNER

.............................. Performs correction for projection onto a wall lying at an angle to the vertical direction.

* Reverse angle correction is also possible.

NOTE:

• Whenthemaximumadjustmentrangeisexceeded,distortionadjustmentisdisabled.Setuptheprojectoratanoptimalangleas

the deterioration in the image quality increases as the distortion adjustment volume gets larger.

• Pleasenotethattheimagewillgooutoffocusduetothedifferenceinthedistancebetweentheupperandlowerorleftandright

sidesandthecenterofthescreenforprojectionscuttingacrosscorners.Lenseswithshortfocalpointsarealsonotrecommended

for projections cutting across corners as the image will go out of focus.

5. Using On-Screen Menu

Adjustment method

1. Alignthecursorwiththe[HORIZONTALCORNER]or[VERTICALCORNER]ofthe[GEOMETRICCORREC-

TION]menuandthenpresstheENTERbutton.

• Theadjustmentscreenwillbedisplayed.

2. Press the ▼▲◀▶ buttons to align the cursor (yellow box) with the target adjustment point and then press

the ENTER button.

• Thecursorwillchangeintoanadjustmentpoint(yellowincolor).

3. Press the ▼▲◀▶buttonstoadjustthecornersorsidesofthescreenandthenpresstheENTERbutton.

• Theadjustmentpointwillgobacktobeingacursor(yellowbox).

Explanationofscreentransition

• Theadjustmentpointsofthefourcorners(a,c,fandhinthedrawing)willmoveindependently.

• Thefollowingadjustmentpointsdifferatthe[HORIZONTALCORNER]and[VERTICALCORNER].

 HORIZONTALCORNER:WhenPointbinthedrawingismoved,andtheuppersideandPointgaremoved,the

lowersidewillmoveinaparallelmanner.

 VERTICALCORNER:WhenPointdinthedrawingismoved,andtheleftsideandPointearemoved,theright

sidewillmoveinaparallelmanner.

 [Adjustmentpointsofthe[HORIZONTALCORNER]screenandmovementpointsoftheprojectionscreen]

PointbwillbedisplacedinaparallelmanneratthesametimeasPointsa,b,c

PointgwillbedisplacedinaparallelmanneratthesametimeasPointsf,g,h

 [Adjustmentpointsofthe[VERTICALCORNER]screenandmovementpointsoftheprojectionscreen]

PointdwillbedisplacedinaparallelmanneratthesametimeasPointsa,d,f

PointewillbedisplacedinaparallelmanneratthesametimeasPointsf,g,h

4. StartfromStep2onwardstoadjusttheotherpoints.

5. When the adjustment is completed, press the ▼▲◀▶buttonstoalignthecursorwiththe [EXIT]inthe

adjustment screen and then press theENTER button.

• Switchtothe[GEOMETRICCORRECTION]menuscreen.

5. Using On-Screen Menu

PINCUSHION

Adjustthecurvedistortionoftheprojectionscreen.

TOP ........................ Adjust the curve distortion of the upper edge of the projection

screen.

BOTTOM

................ Adjust the curve distortion of the lower edge of the projection

screen.

LEFT

...................... Adjust the curve distortion of the left edge of the projection screen.

RIGHT

.................... Adjust the curve distortion of the right edge of the projection

screen.

TOP

LEFT RIGHT

BOTTOM

PC TOOL (For future support)

Recallthegeometriccorrectiondatathatisregisteredintheprojectorbeforehand.

Therearethreetypesofregistereddata.

NOTE:

• KEYSTONE,CORNERSTONE,andPINCUSHIONcannotbeselectedwhensettingthegeometriccorrectionusingaPCtool.

• Toclearthe[GEOMETRICCORRECTION]datathathasbeensetup,pressthe3DREFORMbuttonfor2ormoreseconds.

• Aselectricalcorrectioniscarriedoutingeometriccorrection,thebrightnessmaybeaffectedandthepicturequalitymaybe

degraded.

RESET

ResettheadjustmentvaluethathasbeensetupinGEOMETRICCORRECTION(returntotheinitialvalue).

5. Using On-Screen Menu

[EDGE BLENDING]

Thisadjuststheedges(boundaries)oftheprojectionscreenwhenprojectinghighresolutionvideosusingacombina-

tionofseveralprojectorsintheup,down,leftandrightpositions.

MODE

ThisenablesordisablestheEDGEBLENDINGfunction.

WhenMODEissettoON,theTOP,BOTTOM,LEFT,RIGHTandBLACKLEVELsettingscanbeadjusted.

TOP/BOTTOM/LEFT/RIGHT

ThisselectstheEDGEBLENDINGlocationsontheleft,right,topandbottomonthescreen.

Thefollowingsettingscanbeadjustedwhenanitemisselected.(→page63)

CONTROL .............. Enable TOP, BOTTOM, LEFT and RIGHT functions.

MARKER

................ Set whether to display marker or not when adjusting the range and display position. When turned on, a

magenta marker for adjusting the range adjustment and a green marker for adjusting the display position

will be displayed.

RANGE

................... Adjust the range (width) of the edge blending.

POSITION

.............. Adjust the display position of the edge blending.

BLACKLEVEL

Dividethescreenintoninepartsandkeeptheblackleveluniformforeachprojector.

TheninedivisionsscreensareTOP-LEFT,TOP-CENTER,TOP-RIGHT,CENTER-LEFT,CENTER,CENTER-RIGHT,

BOTTOM-LEFT,BOTTOM-CENTERandBOTTOM-RIGHT.(→page66)

5. Using On-Screen Menu

[MULTI SCREEN]

WHITEBALANCE

Thisadjuststhewhitebalanceforeachprojectorwhenprojectingusingacombinationofseveralprojectors.

Thiscanbeadjustedwhen[MODE]issetto[ON].

BRIGHTNESS W, BRIGHTNESS R, BRIGHTNESS G, BRIGHTNESS B

.............................. Adjusting the black color of the video.

CONTRAST W, CONTRAST R, CONTRAST G, CONTRAST B

.............................. Adjusting the white color of the video.

PICTURE SETTING

Thissetsthedivisionconditionwhenprojectingusingacombinationofseveralprojectors.

Pleasereferto“4.Multi-ScreenProjection”(→page54)fordetails.

MODE OFF Usetheprojectorinastandalonestate.

ZOOM Thisadjuststhepositionandwidthofthevideoareathatyouwishtodivide.Theedge

blendingwidthwillalsobeautomaticallysettothatwidth.

TILING Thisassignsthedividedscreenstotheprojectors.Theedgeblendingfunctionwillalso

besetautomatically.

ZOOM HORIZONTAL

ZOOM

Thismaginiesthevideoareainthehorizontaldirection.

VERTICAL

ZOOM

Thismaginiesthevideoareaintheverticaldirection.

HORIZONTAL

POSITION

Thisshiftsthevideoareainthehorizontaldirection.

VERTICALPO-

SITION

Thisshiftsthevideoareaintheverticaldirection.

TILING WIDTH Thisselectsthenumberofprojectorstobearrangedhorizontally.

HEIGHT Thisselectsthenumberofprojectorstobearrangedvertically.

HORIZONTAL

POSITION

Thisselectsthepositionoftheprojectorstartingfromtheleftamongthosearranged

horizontally.

VERTICALPO-

SITION

Thisselectsthepositionoftheprojectorstartingfromthetopamongthosearranged

vertically.

100

5. Using On-Screen Menu

Conditions for using tiling

• Alltheprojectorsneedtofullthefollowingconditions.

• Thepanelsizemustbethesame

• Theprojectionscreensizemustbethesame

• Theleftandrightendsortopandbottomendsoftheprojectionscreenmustbeconsistent.

• Thesettingsfortheleftandrightedgesoftheedgeblendingarethesame

• Thesettingsforthetopandbottomedgesoftheedgeblendingarethesame

 Ifthetilingconditionsaresatised,thevideoscreenoftheprojectorateachinstallationpositionwillbeautomatically

extractedandprojected.

 Ifthetilingconditionsarenotsatised,adjustthevideoscreenoftheprojectorateachinstallationpositionusing

thezoomfunction.

• AssignauniquecontrolIDtoeachprojector.

• Setthe“ColorSetting”and“DeepColorSetting”onyourBlu-rayplayerorcomputerto“Auto”.Refertotheowner’s

manualaccompanyingyourBlu-rayplayerorcomputerformoreinformation.

 ConnecttheHDMIoutputofyourBlu-rayplayerorcomputertotherstprojector.ThenconnecttotheHDMIINinput

terminalofthesecondandsubsequenttiledprojectors.

Tilingsettingexample)Numberofhorizontalunits=2,Numberofverticalunits=2

Horizontalorder=Secondunit

Verticalorder=Firstunit

101

5. Using On-Screen Menu

❻ Menu Descriptions & Functions [SETUP]

[MENU]

SelectingMenuLanguage[LANGUAGE]

Youcanchooseoneof29languagesforon-screeninstructions.

NOTE:Yoursettingwillnotbeaffectedevenwhen[RESET]isdonefromthemenu.

SelectingMenuColor[COLORSELECT]

Youcanchoosebetweentwooptionsformenucolor:COLORandMONOCHROME.

TurningOn/OffSourceDisplay[INPUTDISPLAY]

ThisoptionturnsonoroffinputnamedisplaysuchasHDMI,DisplayPort,BNC,BNC(CV),BNC(Y/C),COMPUTER,

HDBaseTtobedisplayedonthetoprightofthescreen.

Turningmessagesonandoff[MESSAGEDISPLAY]

Thisoptionselectswhetherornottodisplayprojectormessagesatthebottomoftheprojectedimage.

Evenwhen“OFF”isselected,thesecuritylockwarningisdisplayed.Thesecuritylockwarningturnsoffwhenthe

securitylockiscanceled.

TurningON/OFFControlID[IDDISPLAY]

ID DISPLAY ........... This option turns on or off the ID number which is displayed when the ID SET button on the remote control

is pressed. (→ page 113)

102

5. Using On-Screen Menu

[3DCAUTIONMESSAGE]

Thisselectswhethertodisplayacautionmessageornotwhenswitchingtoa3Dvideo.

ThedefaultconditionwhenshippedfromthefactoryisON.

OFF ........................ The 3D caution message screen will not be displayed.

......................... The 3D caution message screen will be displayed when switching to a 3D video. Press the ENTER button

to cancel the message.

• Themessagewilldisappearautomaticallyafter60secondsorwhenotherbuttonsarepressed.Ifitdisap-

pears automatically, the 3D caution message will be displayed again when switching to a 3D video.

SelectingMenuDisplayTime[DISPLAYTIME]

Thisoptionallowsyoutoselecthowlongtheprojectorwaitsafterthelasttouchofabuttontoturnoffthemenu.The

presetchoicesare[MANUAL],[AUTO5SEC],[AUTO15SEC],and[AUTO45SEC].The[AUTO45SEC]isthefac-

torypreset.

SelectingIntervalTimeforFilterMessage[FILTERMESSAGE]

Thisoptionallowsyoutoselectthetimepreferencebetweendisplayingthemessageforcleaningthelters.Clean

thelterwhenyougetthemessage“PLEASECLEANFILTER.”(→page142)

Eightoptionsareavailable:OFF,100[H],500[H],1000[H],2000[H],5000[H],10000[H],20000[H]

Thedefaultsettingis[OFF].

NOTE:Yoursettingwillnotbeaffectedevenwhen[RESET]isdonefromthemenu.

103

5. Using On-Screen Menu

[INSTALLATION]

SelectingProjectorOrientation[ORIENTATION]

Thisreorientsyourimageforyourtypeofprojection.Theoptionsare:desktopfrontprojection,ceilingrearprojection,

desktoprearprojection,andceilingfrontprojection.

NOTE:

• Pleaseconsultthedealerifyourequirespecialinstallationservicese.g.whenmountingtheprojectortoaceiling.Neverinstall

the projector on your own. This may result in the projector falling down and causing injury to people.

DESKTOPFRONT CEILINGREAR

DESKTOPREAR CEILINGFRONT

104

5. Using On-Screen Menu

SelectingAspectRatioandPositionforScreen[SCREENTYPE]

Screentype Setstheaspectratiooftheprojectionscreen.

FREE Theratioofpanelisselected.Selectthiswhenprojectingmulti-screenand

17:9screen(2K).

4:3screen Forascreenwitha4:3aspectratio

16:9screen Forascreenwitha16:9aspectratio

16:10screen Forascreenwitha16:10aspectratio

NOTE:

•

Afterchangingthescreentype,checkthesettingof[ASPECTRATIO]inthemenu.(→ page 86)

UsingtheWallColorCorrection[WALLCOLOR]

Thisfunctionallowsforquickadaptivecolorcorrectioninapplicationswherethescreenmaterialisnotwhite.

SelectingFanMode[FANMODE]

FanModeisusedtosetthespeedoftheinternalcoolingfan.

MODE .................... Select either AUTO or HIGH.

AUTO: The built-in fans automatically run at a variable speed according to the internal temperature.

HIGH: The built-in fans run at a high speed.

NOTE:

• Makesurethespeedissetto[HIGH]whenyouareusingthisdevicecontinuouslyforseveraldays.

• Yoursettingwillnotbeaffectedevenwhen[RESET]isdonefromthemenu.

105

5. Using On-Screen Menu

[LIGHTMODE]

Adjustingthe energy savingssettingsandthe brightness ofeachprojector inmulti-screenprojection.Forenergy

savingssettings,seepage31“3-8.ChangingLIGHTMODE/CheckingEnergy-SavingEffectUsingLIGHTMODE

[LIGHTMODE]”.

LIGHTMODE NORMAL Thelightmoduleluminance(brightness)willbecome100%andthescreenwillturnbright.

ECO1 Bycontrollingthebrightnessandfanspeedaccordingtotheselectedsetting,energycan

besavedandmotionnoiseandthepowerconsumptioncanbelowered.

ECO2

LONGLIFE Lightmodulelifeisthepriorityinthismode.Thelightmoduleluminance(brightness)is

loweredaround90%.

CONSTANT

BRIGHTNESS

OFF [CONSTANTBRIGHTNESS]modewillbecanceled.

ON Maintainsthebrightnessthatisineffectatthetime[ON]isselected.Unless[OFF]isse-

lected,thesamesettingswillremainineffectevenwhentheprojectoristurnedoff.

• Tore-adjustthebrightness,rstturnthissettingOFFbeforemakingfurtheradjustments.

NOTE:

• [CONSTANTBRIGHTNESS]modeisafunctionusedtomaintainthebrightnessataconstant

level.Colorwillnotbexed.

ADJUST Brightnesscanbeadjustedin1%incrementsfrom30to100%.

Whenseveralprojectorsareusedformulti-screenprojection,thebrightnesscanbead-

justedindividuallyoneachprojector.

NOTE:

• When[CONSTANTBRIGHTNESS]modeisset[ON],[LIGHTMODE]and[ADJUST]arenoteffective.

TIP:

• Brightnessnormallydecreaseswithuse,butbyselecting[CONSTANTBRIGHTNESS]mode,sensorsinsidetheprojectordetect

brightness and automatically adjust the output, thereby maintaining a constant brightness throughout the life of the light module.

 However,ifoutputisalreadyatitsmaximum,brightnesswilldecreasewithuse.

 Forthisreason,whenusingmulti-screenprojection,itisrecommendedtoadjustthebrightnesstoaslightlylowerlevel,then

settingthe[CONSTANTBRIGHTNESS]modeto[ON].

[SHUTTERSETTINGS]

Enablinganddisablingthelensshutterfunction.Youcanalsosethowlongthelightwilltaketofadeinandfadeout

whentheSHUTTERbuttonispressed.

POWERON

SHUTTER

OPEN When the poweris turned on, the light source comes on and the picture is

projected.

Thelightsourcedoesnotcomeonwhenthepoweristurnedon.

WhentheSHUTTERbuttonispressed,theshutterisreleasedandthelight

sourceisturnedon.

PICTUREMUTE

SHUTTER

OPEN Thelightsourceisstillonwhenthepictureisturnedoffforswitchingtheinput

terminals.

Thelightsourceturnsoffwhenthepictureisturnedoffforswitchingtheinput

terminals.

FADEINTIME SethowlongthelightwilltaketofadeinaftertheSHUTTERbuttonispressed.

Thetimecanbesetfrom0to10secondsinincrementsof1second.

FADEOUTTIME SethowlongthelightwilltaketofadeoutaftertheSHUTTERbuttonispressed.

Thetimecanbesetfrom0to10secondsinincrementsof1second.

106

5. Using On-Screen Menu

[REF.WHITEBALANCE]

Thisfeatureallowsyoutoadjustthewhitebalanceforallsignals.

Thewhiteandblacklevelsofthesignalareadjustedforoptimumcolorreproduction.

Uniformityisalsoadjustedwhentheredness(R)andblueness(B)ofthewhitecolorinthescreen’shorizontal(left/

right)directionareuneven.

CONTRAST R/CONTRAST G/CONTRAST B

.............................. These adjust the picture’s white color.

BRIGHTNESS R/BRIGHTNESS G/BRIGHTNESS B

.............................. These adjust the picture’s black color.

UNIFORMITY R

...... The further this is set to the + side, the stronger the redness on the left side of the picture (increasing

towards the left edge) and the weaker the redness on the right side of the picture (decreasing towards the

right edge).

This is reversed when set to the − side.

UNIFORMITY B

...... The further this is set to the + side, the stronger the blueness on the left side of the picture (increasing

towards the left edge) and the weaker the blueness on the right side of the picture (decreasing towards the

right edge).

This is reversed when set to the − side.

UsingtheReferenceLensMemoryFunction[REF.LENSMEMORY]

ThisfunctionservestostoretheadjustedvaluescommontoallinputsourceswhenusingtheLENSSHIFT,ZOOM

andFOCUSbuttonsoftheprojectorortheremotecontrol.Theadjustedvaluesstoredinmemorycanbeusedasa

referencetothecurrent.

PROFILE ................ Select a stored [PROFILE] number.

STORE

................... Stores the current adjusted values in memory as a reference.

MOVE

.................... Applies the adjusted reference values stored in [STORE] to the current signal.

RESET

.................... Reset selected [PROFILE] number [REF. LENS MEMORY] to the factory default settings.

LOAD BY SIGNAL

.. When you switch signals the lens will shift to the lens shift, zoom, and focus values for the selected [PRO-

FILE] number.

If no adjusted values have been saved to [LENS MEMORY], the lens will apply [REF. LENS MEMORY]

adjusted values. Alternatively, if no adjusted values have been saved to [REF. LENS MEMORY], the unit will

return to factory default settings.

FORCED MUTE

...... To turn off the image during lens shift, select [YES].

NOTE:

• Adjustedvaluesin[REF.LENSMEMORY]willnotbereturnedtodefaultwhenperforming[CURRENTSIGNAL]or[ALLDATA]for

[RESET]fromthemenu.

• Tostoreadjustedvaluesforeachinputsource,usetheLensMemoryfunction.(→ page 49, 91)

• When[PICTUREMUTESHUTTER]under[SHUTTERSETTINGS]is[ON],[FORCEDMUTE]willturnoffthelightsourceandstop

projection.(→ previous page)

[LENSCALIBRATION]

Theadjustmentrangeofthezoomandfocusofthe[LENSMEMORY]iscalibrated.TheSHUTTERindicatorashes

ingreenwhen[LENSCALIBRATION]isbeingexecuted.

Besuretocarryout[LENSCALIBRATION]afterreplacingthelens.

107

5. Using On-Screen Menu

[CONTROL]

TOOLS

ADMINISTRATORMODE

ThisallowsyoutoselectMENUMODE,savesettings,andsetapasswordfortheadministratormode.

MENUMODE Selecteither[BASIC]or[ADVANCED]menu.

(→page70)

—

NOTSAVESETTING

VALUES

Placing a check mark will not save your projector settings.

Clear this check box to save your projector settings.

—

NEWPASSWORD/

CONFIRMPASS-

WORD

Assignapasswordfortheadministratormode. Upto10alphanumeric

characters

108

5. Using On-Screen Menu

PROGRAMTIMER

Thisoption turnson/standbythe projectorandchanges videosignals,andselects ECOmodeautomaticallyata

speciedtime.

NOTE:

• Beforeusing[PROGRAMTIMER],makesurethatthe[DATEANDTIME]featureisset.(→ page 111)

 MakesurethattheprojectorisinthestandbyconditionwiththePOWERcordconnected.

The projector has a built-in clock. The clock will keep working for about two weeks after the main power is turned off. If the main

powerisnotsuppliedtotheprojectorfortwoweeksormore,itrequirestoset[DATEANDTIMESETTINGS]featureagain.

Setting a new program timer

1. On the PROGRAM TIMER screen, use the ▲ or ▼buttontoselect[SETTINGS]andpresstheENTERbutton.

 The[PROGRAMLIST]screenwillbedisplayed.

2. Select a blank program number and press the ENTER button.

 The[EDIT]screenwillbedisplayed.

3. Makesettingsforeachitemasrequired.

ACTIVE .................. Place a check mark to enable the program.

DAY

........................ Select days of the week for the program timer. To execute the program from Monday to Friday, select [MON-

FRI]. To execute the program in everyday basis, select [EVERYDAY].

109

5. Using On-Screen Menu

TIME ...................... Set the time to execute the program. Enter time in 24-hour format.

FUNCTION

............. Select a function to be executed. Selecting [POWER] will allow you to turn on or off the projector by setting

[ADVANCED SETTINGS]. Selecting [INPUT] will allow you to select a video source by setting [ADVANCED

SETTINGS]. Selecting [LIGHT MODE] will allow you to select [LIGHT MODE] by setting [ADVANCED SET-

TINGS].

ADVANCED SETTINGS

.............................. Select power on/off, a type of video source, or LIGHT MODE for the selected item in [FUNCTION].

REPEAT

.................. Place a check mark to repeat the program continuing basis. To use the program this week only, clear the

check mark.

4. Select[OK]andpresstheENTERbutton.

 Thiswillcompletethesettings.

 Youwillbereturnedtothe[PROGRAMLIST]screen.

5. Select[BACK]andpresstheENTERbutton.

 Youwillbereturnedtothe[PROGRAMTIMER]screen.

6. Select[OK]andpresstheENTERbutton.

 Youwillbereturnedtothe[TOOLS]screen.

NOTE:

• Upto30differenttimersettingscanbeprogrammed.

• When[PROGRAMTIMER]isturnedon,the[STANDBYMODE]settingisignored.

• TheProgramTimerisexecutedonasettimebasis,notinaprogrambasis.

• Oncetheprogramnotmarkedwithacheckin[REPEAT]hasbeenexecuted,thecheckmarkinthe[ACTIVE]checkboxwillbe

cleared automatically and the program will be disabled.

• Whentheon-timeandtheoff-timesetforthesametime,theoff-timesettingwilltakepreference.

• Twodifferentsourcesaresetforthesametime,thelargerprogramnumberwilltakepreference.

• Theon-timesettingwillnotbeexecutedwhilethecoolingfansarerunningoranerrorisoccurring.

• Iftheoff-timesettingisexpiredundertheconditioninwhichthepoweroffisnotpossible,theoff-timersettingwillnotbeexecuted

until the power off becomes possible.

• Programsnotmarkedwithacheckmarkin[ACTIVE]ofthe[EDIT]screenwillnotbeexecutedeveniftheProgramTimeris

enabled.

• Whentheprojectoristurnedonbyusingtheprogramtimerandifyouwanttoturnofftheprojector,settheoff-timeordoit

manually so as not to leave the projector on for a long period of time.

110

5. Using On-Screen Menu

Activating the program timer

1. Select[ENABLE]onthe[PROGRAMTIMER]screenandpresstheENTERbutton.

 Theselectionscreenwillbedisplayed.

2. Press the ▼buttontoalignthecursorwith[ON]andthenpresstheENTERbutton.

 Returntothe[PROGRAMTIMER]screen.

NOTE:

• Whentheeffectivesettingsofthe[PROGRAMTIMER]havenotbeensetto[ON],theprogramwillnotbeexecutedevenifthe

[ACTIVE]itemsintheprogramlisthavebeenticked.

• Evenwhentheeffectivesettingsofthe[PROGRAMTIMER]aresetto[ON],the[PROGRAMTIMER]willnotworkuntilthe[PRO-

GRAMTIMER]screenisclosed.

Changing the programmed settings

1. Onthe[PROGRAMLIST]screen,selectaprogramyouwanttoeditandpresstheENTERbutton.

2. Changethesettingsonthe[EDIT]screen.

3. Select[OK]andpresstheENTERbutton.

 Theprogrammedsettingswillbechanged.

 Youwillbereturnedtothe[PROGRAMLIST]screen.

Changing the order of programs

1. Onthe[PROGRAMLIST]screen,selectaprogramwhoseorderyouwanttochangeandpressthe▶ button.

2. Press the ▼ button to select ▲ or ▼.

3. PresstheENTERbuttonafewtimestoselectarowtowhichyouwishtomovetheprogram.

 Theorderoftheprogramswillbechanged.

Deleting the programs

1. Onthe[PROGRAMLIST]screen,selectaprogramnumberyouwanttodeleteandpressthe▶ button.

2. Press the ▼buttontoselect[DELETE].

3. Press the ENTER button.

 Theconrmationscreenwillbedisplayed.

4. Select[YES]andpresstheENTERbutton.

 Theprogramwillbedeleted.

Thiswillcompletedeletingtheprogram.

111

5. Using On-Screen Menu

DATEANDTIMESETTINGS

Youcansetthecurrenttime,month,date,andyear.

NOTE: The projector has a built-in clock. The clock will keep working for about 2 weeks after the main power is turned off. If the

main power is off for 2 weeks or more, the built-in clock will cease. If the built-in clock ceases, set the date and time again. The

built-in clock will not cease while in the standby mode.

TIME ZONE SETTINGS

.............. Select your time zone.

DATE AND TIME SETTINGS

...... Set your current date (MM/DD/YYYY) and time (HH:MM).

INTERNET TIME SERVER

......... If you place a check mark, the projector’s built-in clock will be synchronized with an Internet

time server in every 24 hours and at the time of projector’s startup.

UPDATE

.................................... Synchronizes the projector’s built-in clock immediately. The UPDATE button is not available

unless the INTERNET TIME SERVER check box is turned on.

SUMMER TIME SETTINGS

....... If you place a check mark, the clock for daylight saving will be enabled.

[MOUSE]

Thisfunctioncannotbeusedinthisdevice.Itisusedforfutureexpansionpurposesonly.

112

5. Using On-Screen Menu

DisablingtheCabinetButtons[CONTROLPANELLOCK]

ThisoptionturnsonorofftheCONTROLPANELLOCKfunction.

NOTE:

• Howtocancelthe[CONTROLPANELLOCK]

 Whenthe[CONTROLPANELLOCK]issetto[ON],presseithertheKEYLOCKbuttonontheprojectorover1secondortheSOURCE

buttonover10secondstocancelthe[CONTROLPANELLOCK].

TIP:

• Whenthe[CONTROLPANELLOCK]isturnedon,akeylockicon[ ]willbedisplayedatthebottomrightofthemenu.

• ThisCONTROLPANELLOCKdoesnotaffecttheremotecontrolfunctions.

[NOTIFICATIONSETTINGS]

Thissettingistoenable/disablethenoticationbythebuzzerandrearLED.

REARLED OFF [REARLED]isdeactivated.

ON The[REARLED]informsyouoftheunit’sstatusjustlikethestatusindicator.

BUZZER OFF Thebuzzergoesoff

ON Thebuzzerstops.

EnablingSecurity[SECURITY]

ThisfeatureturnsonorofftheSECURITYfunction.

Unlessthecorrectkeywordisentered,theprojectorcannotprojectanimage.(→page37)

NOTE:Yoursettingwillnotbeaffectedevenwhen[RESET]isdonefromthemenu.

SelectingCommunicationSpeed[COMMUNICATIONSPEED]

ThisfeaturesetsthebaudrateofthePCControlport(D-Sub9P).Itsupportsdataratesfrom4800to115200bps.

Thedefaultis38400bps.Selecttheappropriatebaudrateforyourequipmenttobeconnected(dependingonthe

equipment,alowerbaudratemayberecommendedforlongcableruns).

NOTE:

• Select[38400bps]orlesswhenusingtheUserSupportware.

• Yourselectedcommunicationspeedwillnotbeaffectedevenwhen[RESET]isdonefromthemenu.

113

5. Using On-Screen Menu

SettingIDtotheProjector[CONTROLID]

YoucanoperatemultipleprojectorsseparatelyandindependentlywiththesingleremotecontrolthathastheCONTROL

IDfunction.IfyouassignthesameIDtoalltheprojectors,youcanconvenientlyoperatealltheprojectorstogether

usingthesingleremotecontrol.Todoso,youhavetoassignanIDnumbertoeachprojector.

CONTROL ID NUMBER ....... Select a number from 1 to 254 you wish to assign to your projector.

CONTROL ID

.......................Select [OFF] to turn off the CONTROL ID setting and select [ON] to turn on the CONTROL ID setting.

NOTE:

• When[ON]isselectedfor[CONTROLID],theprojectorcannotbeoperatedbyusingtheremotecontrolthatdoesnotsupport

theCONTROLIDfunction.(Inthiscasethebuttonsontheprojectorcabinetcanbeused.)

• Yoursettingwillnotbeaffectedevenwhen[RESET]isdonefromthemenu.

• PressingandholdingtheENTERbuttonontheprojectorcabinetfor10secondswilldisplaythemenuforcancelingtheControl

ID.

Assigning or Changing the Control ID

1. Turn on the projector.

2. Press the ID SET button on the remote control.

 TheCONTROLIDscreenwillbedisplayed.

 IftheprojectorcanbeoperatedwiththecurrentremotecontrolID,the[AC-

TIVE]willbedisplayed.Iftheprojectorcannotbeoperatedwiththecurrent

remotecontrolID,the[INACTIVE]willbedisplayed.Tooperatetheinactive

projector,assignthecontrolIDusedfortheprojectorbyusingthefollowing

procedure(Step3).

3. PressoneofnumerickeypadbuttonswhilepressingandholdingtheID

SET button on the remote control.

Example:

 Toassign“3”,pressthe“3”buttonontheremotecontrol.

 NoIDmeansthatalltheprojectorscanbeoperatedtogetherwithasingle

remotecontrol.Toset“NoID”,enter“000”orpresstheCLEARbutton.

TIP:TherangeofIDsisfrom1to254.

4. Release the ID SET button.

 TheupdatedCONTROLIDscreenwillbedisplayed.

NOTE:

• TheIDscanbeclearedinafewdaysafterthebatteriesarerundownorremoved.

• Ifoneofbuttonsoftheremotecontrolwithoutbatteriesispressed accidentally,

currentspeciedIDwillbecleared.

114

5. Using On-Screen Menu

TurningOnorOffRemoteSensor[REMOTESENSOR]

Thisoptiondetermineswhichremotesensorontheprojectorisenabledinwirelessmode.

Theoptionsare:FRONT/BACK,FRONT,BACK,andHDBaseT.

NOTE:

• TheremotecontroloftheprojectorwillnotbeabletoreceivesignalsifthepowersupplyoftheHDBaseTtransmissiondevice

connectedtotheprojectorisswitchedonwhenthishasbeensetto“HDBaseT”.

TIP:

• Iftheremotecontrolsystemdoesnotfunctionwhendirectsunlightorstrongilluminationstrikestheremotecontrolsensorof

the projector, change another option.

[LENSTYPE]

Dependingonthelensinstalledontheprojector,selecteither[WITHSENSOR]or[WITHOUTSENSOR].

[WITH SENSOR] ................. For the lens units support the lens memory function

[WITHOUT SENSOR]

.......... For the lens units do not support the lens memory function.

115

5. Using On-Screen Menu

[NETWORK SETTINGS]

Important:

• Consultwithyournetworkadministratoraboutthesesettings.

• WhenusingawiredLANconnection,connectaLANcable(Ethernetcable)totheLANport(RJ-45)oftheprojector.(→ page

138

)

TIP:Thenetworksettingsyoumakewillnotbeaffectedevenwhen[RESET]isdonefromthemenu.

Hints on How to Set Up LAN Connection

To set up the projector for a LAN connection:

Select[WIREDLAN]→[PROFILES]→[PROFILE1]or[PROFILE2].

TwosettingscanbesetforwiredLAN.

Nextturnonorofffor[DHCP],[IPADDRESS],[SUBNETMASK],and[GATEWAY]andselect[OK]andpressthe

ENTERbutton.(→page116)

To recall LAN settings stored in the proﬁle number:

Select[PROFILE1]or[PROFILE2]forwiredLAN,andthenselect[OK]andpresstheENTERbutton.(→page116)

To connect a DHCP server:

Turnon[DHCP]forwiredLAN.Select[ON]andpresstheENTERbutton.TospecifyIPaddresswithoutusingthe

DHCPserver,turnoff[DHCP].(→page116)

Toreceiveerrormessagesviae-mail:

Select[ALERTMAIL],andset[SENDER'SADDRESS],[SMTPSERVERNAME],and[RECIPIENT'SADDRESS].

Last,select[OK]andpresstheENTERbutton.(→page118)

116

5. Using On-Screen Menu

WIRED LAN

PROFILES • Thesettingsforusingthebuilt-inEthernet/HDBaseTportinthe

projectorcanberecordedintheprojectormemoryintwoways.

• Select[PROFILE1]or[PROFILE2]andthendosettingsfor

[DHCP]andtheotheroptions.

 Afterdoingthis,select[OK]andpresstheENTERbutton.This

willstoreyoursettingsinmemory.

• Torecallthesettingsfrommemory:

 Afterselecting[PROFILE1]or[PROFILE2]fromthe[PRO-

FILES]list.

 Select[OK]andpresstheENTERbutton.

• Select[DISABLE]whennotconnectingtoawiredLAN

—

DHCP

PlaceacheckmarktoautomaticallyassignanIPaddresstothe

projectorfromyourDHCPserver.

ClearthischeckboxtoregistertheIPaddressorsubnetmask

numberobtainedfromyournetworkadministrator.

—

IPADDRESS SetyourIPaddressofthenetworkconnectedtotheprojector

when[DHCP]isturnedoff.

Upto12numeric

characters

SUBNETMASK Setyoursubnetmasknumberofthenetworkconnectedtothe

projectorwhen[DHCP]isturnedoff.

Upto12numeric

characters

GATEWAY

Setthedefaultgatewayofthenetworkconnectedtotheprojector

when[DHCP]isturnedoff.

Upto12numeric

characters

AUTODNS PlaceacheckmarktoautomaticallyassigntheIPaddressofyour

DNSserverconnectedtotheprojectorfromyourDHCPserver.

ClearthischeckboxtosettheIPaddressofyourDNSserver

connectedtotheprojector.

Upto12numeric

characters

DNSCONFIGURA-

TION

SettheIPaddressofyourDNSserveronthenetworkconnected

totheprojectorwhen[AUTODNS]iscleared.

Upto12numeric

characters

RECONNECT

Retrytoconnecttheprojectortoanetwork.Trythisifyouhave

changed[PROFILES].

—

117

5. Using On-Screen Menu

PROJECTORNAME

PROJECTORNAME Setauniqueprojectorname. Upto16alphanu-

mericcharactersand

symbols

DOMAIN

Setahostnameanddomainnameoftheprojector.

HOSTNAME Setahostnameoftheprojector. Upto15alphanumeric

characters

DOMAINNAME Setadomainnameoftheprojector. Upto60alphanumeric

characters

118

5. Using On-Screen Menu

ALERTMAIL

ALERTMAIL Thisoptionwillnotifyyourcomputeroferrormessagesviae-mail

whenusingwirelessorwiredLAN.

Placing a checkmark will turn on the Alert Mail feature.

Clearing a checkmark will turn off the Alert Mail feature.

Sample of a message to be sent from the projector:

Subject:[Projector]ProjectorInformation

THECOOLINGFANHASSTOPPED.

[INFORMATION]

PROJECTORNAME:PH1202HLSeries

LIGHTHOURSUSED:0000[H]

FILTERHOURSUSED:0000[H]

—

HOSTNAME Typeinahostname. Upto15alphanumeric

characters

DOMAINNAME Typeinadomainnameofthenetworkconnectedtotheprojector. Upto60alphanumeric

characters

SENDER'SAD-

DRESS

Specifythesender’saddress. Upto60alphanu-

mericcharactersand

symbols

SMTPSERVER

NAME

TypeintheSMTPservernametobeconnectedtotheprojector. Upto60alphanumeric

characters

RECIPIENT'SAD-

DRESS1,2,3

Typeinyourrecipient’saddress. Upto60alphanu-

mericcharactersand

symbols

TESTMAIL Sendatestmailtocheckifyoursettingsarecorrect.

NOTE:

• Ifyouenteredanincorrectaddressinatest,youmaynotreceivean

Alert mail. Should this happen, check if the Recipient’sAddressis

correctly set.

• Unless any one of the [SENDER'S ADDRESS], [SMTP SERVER'S

NAME]or[RECIPIENT'SADDRESS1-3]isselected,[TESTMAIL]is

not available.

• Besuretohighlight[OK]andpresstheENTERbuttonbeforeexecuting

[TESTMAIL].

—

119

5. Using On-Screen Menu

NETWORKSERVICE

HTTPSERVER SetapasswordforyourHTTPserver. Upto10alphanumeric

characters

PJLink

This option allows you to set a passwordwhen you use the

PJLinkfeature.

NOTE:

• Donotforgetyourpassword.However,ifyouforgetyourpassword,

consult with your dealer.

• WhatisPJLink?

 PJLinkisastandardizationofprotocolusedforcontrollingprojectors

of different manufacturers. This standard protocol is established by

JapanBusinessMachineandInformationSystemIndustriesAssocia-

tion(JBMIA)in2005.

 TheprojectorsupportsallthecommandsofPJLinkClass1.

• SettingofPJLinkwillnotbeaffectedevenwhen[RESET]isdonefrom

the menu.

Upto32alphanumeric

characters

AMXBEACON TurnonorofffordetectionfromAMXDeviceDiscoverywhen

connectingtothenetworksupportedbyAMX’sNetLinxcontrol

system.

TIP:

WhenusingadevicethatsupportsAMXDeviceDiscovery,allAMXNetLinx

control system will recognize the device and download the appropriate

DeviceDiscoveryModulefromanAMXserver.

Placing a checkmark will enable detecting the projector from AMX Device

Discovery.

Clearing a checkmark will disable detecting the projector from AMX

Device Discovery.

—

CRESTRON

ROOMVIEW:Turnonoroffwhencontrollingtheprojectorfrom

yourPC.

CRESTRON CONTROL:Turn on or off when controlling the

projectorfromyourcontroller.

• CONTROLLERIPADDRESS:EnteryourIPaddressofCREST-

RONSERVER.

• IPID:EnteryourIPIDofCRESTRONSERVER.

Upto12numeric

characters

TIP:TheCRESTRONsettingsarerequiredonlyforusewithCRESTRONROOMVIEW.

Formoreinformation,visithttp://www.crestron.com

120

5. Using On-Screen Menu

[SOURCE OPTIONS]

SettingAutoAdjust[AUTOADJUST]

ThisfeaturesetstheAutoAdjustmodesothatthecomputersignalcanbeautomaticallyormanuallyadjustedfor

noiseandstability.Youcanautomaticallymakeadjustmentintwoways:[NORMAL]and[FINE].

OFF ........................ The computer signal will not be automatically adjusted. You can manually optimize the computer signal.

NORMAL

................ Default setting. The computer signal will be automatically adjusted. Normally select this option.

FINE

....................... Select this option if ﬁne adjustment is needed. It takes more time to switch to the source than when [NOR-

MAL]is selected.

TIP:

• Thedefaultsettingwhenshippedfromthefactoryis[NORMAL].

• WhentheAUTOADJ.buttonispressed,thesame[FINE]adjustmentiscarriedout.

[COLORSYSTEM]

ThisfeatureallowsyoutoselecttheTVvideosignal,whichdiffersfromcountrytocountry(NTSC,PAL,etc.).

Thisissetto[AUTO]byfactorydefault.Setthisiftheprojectorcannotidentifythesignalautomatically.

SelectingDefaultSource[DEFAULTINPUTSELECT]

Youcansettheprojectortodefaulttoanyoneofitsinputseachtimetheprojectoristurnedon.

LAST ...................... Set the projector to default to the previous or last active input each time the projector is turned on.

AUTO

..................... Search for an active source in order of HDMI → DisplayPort → BNC → BNC(CV) → BNC(Y/C) → COMPUTER

→ HDBaseT → SLOT and displays the ﬁrst found source.

HDMI

..................... Display the digital source from the HDMI IN terminal every time the projector is turned on.

DisplayPort

............ Display the digital source from the DisplayPort IN terminal every time the projector is turned on.

BNC

....................... Project the input signal from the BNC input terminal

BNC(CV)

................ Project the input signal from the BNC(CV) input terminal.

BNC(Y/C)

............... Project the input signal from the BNC(Y/C) input terminal.

COMPUTER

........... Display the computer signal from the COMPUTER IN terminal every time the projector is turned on.

HDBaseT

................ Project the HDBaseT or WIRED LAN signal.

SLOT

...................... Project the picture via the optional board (sold separately) inserted into the SLOT.

121

5. Using On-Screen Menu

[SEAMLESSSWITCHING]

Whentheinputconnectorisswitched,theimagedisplayedbeforeswitchingisheldtoswitchtothenewimagewithout

abreakduetoabsenceofasignal.

SettingClosedCaption[CLOSEDCAPTION]

ThisoptionsetsseveralclosedcaptionmodesthatallowtexttobesuperimposedontheprojectedimageofVideo

orS-Video.

Thesubtitlesandtextwillbedisplayedashortwhileaftertheon-screenmenudisappears.

OFF ........................ This exits the closed caption mode.

CAPTION 1-4

......... Text is superimposed.

TEXT 1-4

................ Text is displayed.

SelectingaColororLogoforBackground[BACKGROUND]

Usethisfeaturetodisplayablue/blackscreenorlogowhennosignalisavailable.Thedefaultbackgroundis[BLUE].

NOTE:

• Evenwhenthebackgroundlogoisselected,iftwopicturesaredisplayedin[PIP/PICTUREBYPICTURE]mode,thebluebackground

is displayed without the logo when there is no signal.

122

5. Using On-Screen Menu

[POWER OPTIONS]

SelectingPower-savingin[STANDBYMODE]

Settingthepowerconsumptioninthestandbymode.

NORMAL ................ In the standby mode, the power consumption of the projector is minimized.

In the standby mode, the POWER indicator lights up in red while the STATUS indicator will go off.

• Whensetto[NORMAL],thefollowingterminalsandfunctionswillbedisabled.HDMIOUTterminals,

Ethernet/HDBaseT port, LAN function, mail notiﬁcation function

HDBaseT STANDBY

.............................. Compared to [NORMAL], the power consumption in the standby mode is higher but power can be supplied

to the projector using a wired LAN.

In the standby mode, the power indicator will light up in orange while the status indicator will be turned off.

Important:

• When[HDBaseTSTANDBY]isselected,[AUTOPOWEROFF]willturngreyincolorandbedisabledand[0:15]willbeselected

automatically.

• Inthefollowingconditions,the[STANDBYMODE]settingwillbedisabledandtheprojectorwillgointothesleepmode.Inthe

sleep mode, the fans in the projector rotate for the purpose of interior parts protection.

* Sleepmodereferstothemodewherebythefunctionalrestrictionsduetothe[STANDBYMODE]settingareremoved.

• When[ENABLE]isselectedunder[NETWORKSERVICE]→[AMXBEACON]

• When[ENABLE]isselectedunder[NETWORKSERVICE]→[CRESTRON]→[CRESTRONCONTROL]

• When[HDBaseT]isselectedunder[CONTROL]→[REMOTESENSOR]

• WhenasignalisbeingreceivedfromaHDBaseTtransmissiondevice

• WhentheprojectorisinHDBaseTstandbymodeconnectingtheoptionalboard(soldcommercially)totheSLOTterminaland

[PROJECTORSTANDBY]for[SLOTPOWER]is[ENABLE].

• When[NORMAL]isselected,the[AUTOPOWERONSELECT]displayturnsgreyincolorandisdisabled,and[OFF]isautomati-

cally selected.

NOTE:

• WhenconnectingtoaHDBaseTtransmissiondevicesoldcommercially,ifthetransmissiondeviceissettotransmitremotecontrol

signals, the power consumption of the projector in the standby mode will increase.

TIP:

• Yoursettingwillnotbeaffectedevenwhen[RESET]isdonefromthemenu.

• ThepowerconsumptioninthestandbymodewillnotbeincludedincalculatingCO

emission reduction.

EnablingDirectPowerOn[DIRECTPOWERON]

Turnstheprojectoronautomaticallywhenthepowercordisinsertedintoanactivepoweroutlet.Thiseliminatesthe

needtoalwaysusethePOWERbuttonontheremotecontrolorprojectorcabinet.

123

5. Using On-Screen Menu

TurningOntheProjectorByApplyingComputerSignal[AUTOPOWERONSELECT]

Ifsetto[HDBaseTSTANDBY],theprojectorautomaticallydetectsthesynchronizingsignalinputfromthefollowing

selectedterminalsandprojectsthepictureaccordingly:Computer,HDMI,DisplayPort,HDBaseT,andSLOT.

OFF ........................ AUTO POWER ON SELECT function will be switch off.

HDMI, DisplayPort, COMPUTER, HDBaseT, SLOT

.............................. When a computer signal of a selected input terminal is detected, the power supply of the projector will be

turned on automatically and the computer screen will be projected.

NOTE:

• IfyouwanttoactivatetheAUTOPOWERONSELECTfunctionafterpoweringOFFtheprojector,interruptthesignalfromthe

input terminals or disconnect the computer cable from the projector and wait for at least 3 seconds before inputting the signal

fromtheselectedterminal.WhentheprojectoristurnedoffandentersHDBaseTSTANDBYmode,butsignalsfromthecomputer

continuetobesenttheprojector,theprojectormaintainsHDBaseTSTANDBYmodeandwillnotturnONautomatically.Inaddi-

tion,ifsignalsfromHDMI,DisplayPortorHDBaseTcontinuetobesenttotheprojector,dependingonthesettingsofconnected

externaldevices,theprojectormayturnONautomaticallyevenifitispoweredoffandHDBaseTSTANDBYmodeisineffect.

• ThisfunctiondoesnotworkwhencomponentsignalscomeintoCOMPUTERINterminalorwhencomputersignalsareSyncon

GreenorCompositeSync.

EnablingPowerManagement[AUTOPOWEROFF]

Whenthisoptionisselectedyoucanenabletheprojectortoautomaticallyturnoff(attheselectedtime:0:05,0:10,

0:15,0:20,0:30,1:00)ifthereisnosignalreceivedbyanyinputorifnooperationisperformed.

NOTE:

• ThepowerwillnotgooffautomaticallywhenasignalfromtheEthernet/HDBaseTportisbeingprojected.

• [AUTOPOWEROFF]appearsingreywhenthe[STANDBYMODE]issetto[HDBaseTSTANDBY]and[0:15]willbesetautomati-

cally.

UsingOffTimer[OFFTIMER]

1. Select your desired time between 30 minutes and 16 hours: OFF, 0:30, 1:00, 2:00, 4:00, 8:00, 12:00, 16:00.

2. Press the ENTER button on the remote control.

3. The remaining time starts counting down.

4. Theprojectorwillturnoffafterthecountdowniscomplete.

NOTE:

• Tocancelthepresettime,set[OFF]forthepresettimeorturnoffthepower.

• Whentheremainingtimereaches3minutesbeforetheprojectoristurnedoff,the[THEPROJECTORWILLTURNOFFWITHIN3

MINUTES]messagewillbedisplayedonthebottomofthescreen.

SettingfortheOptionalBoard[SLOTPOWER]

Whenusingtheoptionalboardinstalledintheslot,setthefollowingoptions.

PROJECTOR ON .................Thisfeaturewillturnonoroffthepowertotheoptionalboard.

OFF: Forcibly turn off the power to the optional board installed in the slot.

ON (Default): Turn on the power to the optional board installed in the slot.

PROJECTOR STANDBY

.......Thisfeaturewillautomaticallyenableordisabletheoptionalboardinstalledintheslot

whentheprojectorisinstandby.

DISABLE: Select this option to disable the optional board in the projector standby.

ENABLE (Default): Select this option to enable the optional board in the projector standby.

NOTE:

• Inthebelowthreeconditionsaresatised,thestandbymodewillgointothesleepmode.

The optional board is connected

 InHDBaseTstandby

 [PROJECTORSTANDY]for[SLOTPOWER]isenable

124

5. Using On-Screen Menu

Returning to Factory Default [RESET]

TheRESETfeatureallowsyoutochangeadjustmentsandsettingstothefactorypresetfora(all)source(s)except

thefollowing:

[CURRENTSIGNAL]

Resetstheadjustmentsforthecurrentsignaltothefactorypresetlevels.

Theitemsthatcanberesetare:[PRESET],[CONTRAST],[BRIGHTNESS],[COLOR],[HUE],[SHARPNESS],[AS-

PECTRATIO],[HORIZONTAL],[VERTICAL],[CLOCK],[PHASE],and[OVERSCAN].

[ALLDATA]

Resetalltheadjustmentsandsettingsforallthesignalstothefactorypreset.

AllitemscanberesetEXCEPT[LANGUAGE],[BACKGROUND],[FILTERMESSAGE],[EDGEBLENDING],[MULTI

SCREEN],[SCREENTYPE],[GEOMETRICCORRECTION],[REF.WHITEBALANCE],[ADMINISTRATORMODE],

[CONTROLPANEL LOCK], [SECURITY], [REF.LENS MEMORY], [COMMUNICATION SPEED], [CONTROLID],

[STANDBYMODE],[FANMODE],[LIGHTHOURSUSED],[FILTERHOURSUSED],[TOTALCARBONSAVINGS],

and[WIREDLAN].

[ALLDATA(INCLUDINGENTRYLIST)]

Resetalltheadjustmentsandsettingsforallthesignalstothefactorypresetexcept[LANGUAGE],[BACKGROUND],

[FILTERMESSAGE],[EDGEBLENDING],[MULTISCREEN],[SCREENTYPE],[GEOMETRICCORRECTION],[REF.

WHITEBALANCE],[ADMINISTRATORMODE],[CONTROLPANELLOCK],[SECURITY],[REF.LENSMEMORY],

[COMMUNICATIONSPEED],[CONTROLID],[STANDBYMODE],[FANMODE],[LIGHTHOURSUSED],[FILTER

HOURSUSED],[TOTALCARBONSAVINGS],and[WIREDLAN].

Alsodeletesallthesignalsinthe[ENTRYLIST]andreturnstothefactorypreset.

NOTE:LockedsignalsinEntryListcannotbereset.

ClearingtheFilterUsageHours[CLEARFILTERHOURS]

Resetsthelterusagebacktozero.Selectingthisoptiondisplayssubmenuforaconrmation.Select[YES]andpress

theENTERbutton.

The[OFF]itemisselectedfor[FILTERMESSAGE]atthetimeofshipment.When[OFF]isselected,youdonotneed

toclearthelterusagehour.

NOTE:Elapsedtimeofthelterusewillnotbeaffectedevenwhen[RESET]isdonefromthemenu.

125

5. Using On-Screen Menu

❼ Menu Descriptions & Functions [INFO.]

Displaysthestatusofthecurrentsignalandlightmoduleusage.Thisitemhasninepages.Theinformationincluded

isasfollows:

TIP:PressingtheHELPbuttonontheremotecontrolwillshowthe[INFO.]menuitems.

[USAGE TIME]

[LIGHTHOURSUSED](H)

[FILTERHOURSUSED](H)

[TOTALCARBONSAVINGS](kg-CO2)

• [TOTALCARBONSAVINGS]

 Thisdisplaystheestimatedcarbonsavinginformationinkg.Thecarbonfootprintfactorinthecarbonsavingcal-

culationisbasedontheOECD(2008Edition).(→page33)

[SOURCE(1)]

INPUTTERMINAL RESOLUTION

HORIZONTALFREQUENCY VERTICAL FREQUENCY

SYNCTYPE SYNC POLARITY

SCANTYPE SOURCE NAME

ENTRYNO.

126

5. Using On-Screen Menu

[SOURCE(2)]

SIGNALTYPE VIDEOTYPE

BITDEPTH VIDEO LEVEL

LINKRATE LINKLANE

3DFORMAT

[SOURCE(3)]

INPUTTERMINAL RESOLUTION

HORIZONTALFREQUENCY VERTICAL FREQUENCY

SYNCTYPE SYNC POLARITY

SCANTYPE SOURCE NAME

ENTRYNO.

[SOURCE(4)]

SIGNALTYPE VIDEOTYPE

BITDEPTH VIDEO LEVEL

LINKRATE LINKLANE

3DFORMAT

127

5. Using On-Screen Menu

[WIRED LAN]

IPADDRESS SUBNETMASK

GATEWAY MACADDRESS

[VERSION(1)]

FIRMWARE DATA

SUB-CPU

[VERSION(2)]

FIRMWARE3

128

5. Using On-Screen Menu

[OTHERS]

DATETIME PROJECTORNAME

MODELNO. SERIAL NUMBER

CONTROLID(when[CONTROLID]isset)

[CONDITIONS]

INTAKETEMPERATURE EXHAUSTTEMPERATURE

ATMOSPHERICPRESSURE

[HDBaseT]

SIGNALQUALITY OPERATIONMODE

LINKSTATUS HDMISTATUS

129

❶ Connecting a computer

Acomputercable,BNCcable(5-coretype),HDMIcable,oraDisplayPortcablecanbeusedtoconnecttoacomputer.

Theconnectioncableisnotenclosedwiththeprojector.Pleasegetreadyasuitablecablefortheconnection.

Analog RGB signal connection

• Connectthecomputercabletothedisplayoutputterminal(miniD-sub15pin)onthecomputerandtheCOMPUTER

INterminalontheprojector.Pleaseuseacomputercableattachedwithaferritecore.

• Whenconnectingthedisplayoutputterminal(miniD-sub15pin)onthecomputertotheBNCinputterminal,use

aconversioncabletoconverttheBNCcable(5core)toaminiD-sub15pincable.

• Selectthesourcenameforitsappropriateinputterminalafterturningontheprojector.

Inputterminal

SOURCEbuttonontheprojector

cabinet

Buttonontheremotecontrol

COMPUTERIN COMPUTER COMPUTER1

BNC BNC COMPUTER2

COMPUTER IN

BNC IN

Computercable(soldcommercially)

RGB-to-BNCcable

(notsupplied)

NOTE:Pleasechecktheoperatingmanualof

the computer as the name, position and direc-

tion of the terminal may differ depending on

the computer.

6. Connecting to Other Equipment

130

6. Installation and Connections

Digital RGB signal connection

• ConnectacommerciallyavailableHDMIcablebetweenthecomputer’sHDMIoutputterminalandtheprojector’s

HDMIINterminal.

• ConnectacommerciallyavailableDisplayPortcablebetweenthecomputer’sDisplayPortoutputterminalandthe

projector’sDisplayPortINterminal.

• Selectthesourcenameforitsappropriateinputterminalafterturningontheprojector.

Inputterminal

SOURCEbuttonontheprojector

cabinet

Buttonontheremotecontrol

HDMIIN HDMI HDMI

DisplayPortIN DisplayPort DisplayPort

DisplayPort IN

HDMI IN

HDMIcable(notsupplied) DisplayPortcable(notsupplied)

131

6. Installation and Connections

CautionswhenconnectinganHDMIcable

• UseacertiedHighSpeedHDMI

CableorHighSpeedHDMI

CablewithEthernet.

CautionswhenconnectingaDisplayPortcable

• UseacertiedDisplayPortcable.

• Dependingonthecomputer,sometimemayberequireduntiltheimageisdisplayed.

• SomeDisplayPortcables(commerciallyavailable)havelocks.

• Todisconnectthecable,pressthebuttononthetopofthecable’sterminal,thenpullthecableout.

• PowercanbesuppliedtotheconnectingdevicefromtheDisplayPortINterminal(maximumof1.65W).However,

powerwillnotbesuppliedtothecomputer.

• WhensignalsfromadevicethatusesasignalconverteradapterareconnectedtotheDisplayPortINterminal,in

somecasestheimagemaynotbedisplayed.

• WhentheHDMIoutputofacomputerisconnectedtotheDisplayPortINterminal,useaconverter(commercially

available).

132

6. Installation and Connections

CautionswhenusingaDVIsignal

• WhenthecomputerhasaDVIoutputterminal,useacommerciallyavailableconvertercabletoconnectthecom-

putertotheprojector’sHDMIINterminal(onlydigitalvideosignalscanbeinput).

HDMI IN

NOTE:WhenViewingaDVIDigitalSignal

• Turnoffthepowerofthecomputerandprojectorbeforeconnectingdevices.

• Whenavideodeckisconnectedviaascanconverter,etc.,thedisplaymaynotbecorrectduringfast-forwardingandrewinding.

• UseaDVI-to-HDMIcablecompliantwithDDWG(DigitalDisplayWorkingGroup)DVI(DigitalVisualInterface)revision1.0stan-

dard.Thecableshouldbewithin197"/5mlong.

• TurnofftheprojectorandthePCbeforeconnectingtheDVI-to-HDMIcable.

• ToprojectaDVIdigitalsignal:Connectthecables,turntheprojectoron,thenselecttheHDMI.Finally,turnonyourPC.

 Failuretodosomaynotactivatethedigitaloutputofthegraphicscardresultinginnopicturebeingdisplayed.Shouldthishappen,

restartyourPC.

• SomegraphicscardshavebothanalogRGB(15-pinD-Sub)andDVI(orDFP)outputs.Useofthe15-pinD-Subterminalmay

result in no picture being displayed from the digital output of the graphics card.

• DonotdisconnecttheDVI-to-HDMIcablewhiletheprojectorisrunning.Ifthesignalcablehasbeendisconnectedandthen

reconnected,animagemaynotbecorrectlydisplayed.Shouldthishappen,restartyourPC.

• TheCOMPUTERINterminalssupportWindowsPlugandPlay.TheBNCinputterminaldoesnotsupportWindowsPlugandPlay.

• AMacsignaladapter(commerciallyavailable)mayberequiredtoconnectaMaccomputer.

 ToconnectaMaccomputerequippedwithaMiniDisplayPorttotheprojector,useacommerciallyavailableMiniDisplayPort→

DisplayPortconvertercable.

133

6. Installation and Connections

HDMI IN

HDMI OUT

HDMI IN

❷ Connecting an External Monitor

Asshowninthegure,whentheprojectorisconnectedtoacomputer,thesamecontentfromtheHDMIinputsignal

isdisplayedonthemonitorforconrmation.

• TheHDMIOUTterminalcannotsendanalogsignals(COMPUTERINterminal,BNCterminal).

• PleaserefertoPage58whendisplayingthePIP/PBPscreen.

NOTE:

• WhenoutputtingHDMIsignals,turnonthepowerofthevideodeviceontheoutputsideandkeepitconnectedbeforeinputting

videosignalsintothisdevice.TheHDMIOUTterminalsoftheprojectorareequippedwithrepeaterfunctions.Whenadeviceis

connectedtotheHDMIOUTterminal,theresolutionoftheoutputsignalislimitedbytheresolutionsupportedbytheconnected

device.

• InthecaseoftheHDMIOUTterminaloftheprojector,thetheoreticalnumberofunitsthatcanbeconnectedinaseriesisseven.

Themaximumnumberofunitsthatcanbeconnectedmaybereducedbytheexternalenvironmentandqualityofthesignaland

cable,etc.ThenumberofunitsthatcanbeconnectedmaydifferdependingontheHDCPversion,restrictiononthenumberof

HDCPrepeatersinthesourcedeviceandthequalityofthecable.Theoverallsystemneedstobecheckedinadvancewhenbuild-

ing a system.

• Whenthe[STANDBYMODE]issetto[NORMAL],videowillnotbeoutputiftheprojectorgoesintothestandbymode.Setthe

modeto[HDBaseTSTANDBY],turnonthepowerofthetransmissiondeviceandkeepitinaconnectedstate.

• Whenthe[STANDBYMODE]ofthisdeviceissetto[NORMAL],HDMIsignalswillnotbeoutput.TooutputHDMIsignals,setthe

[STANDBYMODE]to[HDBaseTSTANDBY],turnonthepowersupplyofthetransmissiondeviceandkeepitconnected.

• HDMIrepeaterfunctionwillnotbefunctionedifswitchingterminalsandputtingin/pullingouttheHDMIcableisperformedon

the 2nd projector and after.

HDMIcable(notsupplied) HDMIcable(notsupplied)

134

6. Installation and Connections

❸ Connecting Your Blu-ray Player or Other AV Equipment

Componentvideosignal/S-videosignalconnection

• Selectthesourcenameforitsappropriateinputterminalafterturningontheprojector.

Inputterminal

SOURCEbuttonontheprojector

cabinet

Buttonontheremotecontrol

BNC(CV) BNC(CV) VIDEO

BNC(Y/C)

BNC(Y/C) S-VIDEO

CV YC

BNC（CV）

BNC（Y）

BNC（C）

Ifthesignalisacompositevideosignal

BNCcable(notsupplied)

IfthesignalisanS-videosignal

BNCcable(notsupplied)

Audioequipment

135

6. Installation and Connections

Connecting Component Input

ConnecttheBlu-rayplayer’saudiototheaudiodevice.

• Selectthesourcenameforitsappropriateinputterminalafterturningontheprojector.

Inputterminal

SOURCEbuttonontheprojector

cabinet

Buttonontheremotecontrol

COMPUTERIN COMPUTER COMPUTER1

BNC BNC COMPUTER2

NOTE:

• Whenthesignalformatissetto[AUTO](defaultfactorysettingwhenshipped),thecomputersignalandcomponentsignalare

automaticallydistinguished and switched. If the signals cannot be distinguished, select [COMPONENT] under [ADJUST]→

[VIDEO]→[SIGNALTYPE]intheon-screenmenuoftheprojector.

• ToconnecttoavideodevicewithaDterminal,usethesoldseparatelyDterminalconverteradapter(modelADP-DT1E).

COMPUTER IN

15-pin-to-RCA(female)×3cableadapter

(ADP-CV1E)

BNC(male)-to-RCA(male)conversion

cable×3(soldcommercially)

ComponentvideoRCA×3cable(notsup-

plied)

Blu-rayplayer

Audioequipment

136

6. Installation and Connections

Connecting HDMI Input

YoucanconnecttheHDMIoutputofyourBlu-rayplayer,harddiskplayer,ornotebooktypePCtotheHDMIINterminal

ofyourprojector.

Inputterminal

SOURCEbuttonontheprojector

cabinet

Buttonontheremotecontrol

HDMIIN HDMI HDMI

TIP:ForusersofaudiovideoequipmentwithanHDMIterminal:

Select“Enhanced”ratherthan“Normal”ifHDMIoutputisswitchablebetween“Enhanced”and“Normal”.

This will provide improved image contrast and more detailed dark areas.

Formoreinformationonsettings,refertotheinstructionmanualoftheaudiovideoequipmenttobeconnected.

• WhenconnectingtheHDMIINterminaloftheprojectortotheBlu-rayplayer,theprojector’svideolevelcanbe

madesettingsinaccordancewiththeBlu-rayplayer’svideolevel.Inthemenuselect[ADJUST]→[VIDEO]→

[VIDEOLEVEL]andmakenecessarysettings.

HDMI IN

Audiocable(notsupplied)

HDMIcable(notsupplied)

UseHighSpeedHDMI

Cable.

137

6. Installation and Connections

❹ Connecting a document camera

Youcanconnectadocumentcameraandprojectprinteddocuments,etc.

• Selectthesourcenameforitsappropriateinputterminalafterturningontheprojector.

Inputterminal

SOURCEbuttonontheprojector

cabinet

Buttonontheremotecontrol

COMPUTERIN COMPUTER COMPUTER1

BNC(CV) BNC(CV) VIDEO

BNC

(

)

COMPUTER IN

VIDEO

NOTE:

• Name,position,anddirectionofterminalsare

varydependingoncameramodel.Pleasecheck

user’s manual of your camera for details.

BNC(male)andRCA(male)conver-

sioncable(notsupplied)

Computercable(notsupplied)

138

6. Installation and Connections

❺ Connecting to a Wired LAN

TheprojectorcomesstandardwithaEthernet/HDBaseTport(RJ-45)whichprovidesaLANconnectionusingaLAN

cable.

TouseaLANconnection,youarerequiredtosettheLANontheprojectormenu.Select[SETUP]→[NETWORK

SETTINGS]→[WIREDLAN].(→page115).

Example of LAN connection

ExampleofwiredLANconnection

Ethernet/HDBaseT

Server

Hub

LANcable(notsupplied)

NOTE:UseaCategory5orhigherLANcable.

139

6. Installation and Connections

❻ Connecting to a HDBaseT transmission device (sold

commercially)

HDBaseTisaconnectionstandardforhomeappliancesthatisestablishedbytheHDBaseTAlliance.

UseaLANcablesoldcommerciallytoconnecttheEthernet/HDBaseTportoftheprojector(RJ-45)toaHDBaseT

transmissiondevicesoldcommercially.

TheEthernet/HDBaseTportoftheprojectorsupportsHDMIsignals(HDCP)fromtransmissiondevices,controlsignals

fromexternaldevices(serial,LAN)andremotecontrolsignals(IRcommands).

Connection example

Ethernet/HDBaseT

Computer(forcontroluse)

Computer(foroutputuse)

Exampleofatransmissiondevice

Remotecontrol

HDMIoutputvideodevice

NOTE:

• NeverusetheLANport(RJ-45)ontheprojectorterminalpanelforconnectingaHDBaseTtransmissiondevice.Itmaycauseof

malfunction.

• Pleaseuseashieldedtwistedpair(STP)cableofCategory5eorhigherfortheLANcable(soldcommercially).

• ThemaximumtransmissiondistanceovertheLANcableis100m.(themaximumdistanceis70mfora4Ksignal)

• Pleasedonotuseothertransmissionequipmentbetweentheprojectorandtransmissionequipment.Thepicturequalitymaybe

deteriorated as a result.

• ThisprojectorisnotguaranteedtoworkwithallHDBaseTtransmissiondevicessoldcommercially.

140

6. Installation and Connections

❼ Portrait projection (vertical orientation)

Ifyouinstalltheprojectorverticallyyoucanprojectscreensfromyour

computerandothersourcesinportraitorientation.

Precautions during installation

• Donotsimplysettheprojectorverticallyontheoororonatable.Theprojectormayfallover,resultingininjury,

damageormalfunction.Alsotheintakeventmaybecomeblockedcausingtheunit’sinternaltemperatureto

riseresultinginmalfunctionandriskofre.

• Forportraitinstallationtheintakeventsmustbeinstalledatthetopandbottom.Toensureairowtothebottom

intakevent,aracktosupporttheunitisnecessary.Pleasehireaninstallationserviceprovider(forafee)to

makeacustomportraitprojectionstand.

• Wheninstalledinportraitorientationtheprojectorcanbetiltedforwardorbackward

 withinarangeof±10°.Tiltingtheprojectorforwardorbackwardoutsideofthisrange,ortiltingittotheleftor

totherightcouldcauseittomalfunction.

• Toensureairow,maintain30cm/11.8"ofspacebetweentheintake

ventandtheinstallationsurface.

 (NOTE)Intheguretotherightthereisplentyofspacebehind,above,

andoneithersideoftheprojectorunit.

Intakevent

30cm/11.8"orgreater

141

6. Installation and Connections

Design and manufacturing conditions for the projector stand

Pleasehireaninstallationserviceprovider(forafee)todesignandmanufactureacustomizedstand.Pleaseensure

thatthedesigncomplieswiththefollowingconditions:

• Thereisoneintakeventoneithersideandoneexhaustventattherear.Theseshouldremainunobstructed.Also,

secureenoughspaceforeasyltercoverremovalforltercleaning.

• Removetheleveladjustersortheprojectorhandlesincasethesehitagainstthestand.Forremovingthelevel

adjuster,rotatetheleveladjusteritself,andforremovingthehandle,removethehandlefasteningscrews.

• Fixthestandontotheceilingmountscrewholes(6positions)ontheprojectorbottomface.

 Dimensionsofscrewhole:forM6screwMaximumdepth10mm(Calculatetheboltlengthdependingonthestand

design)

• Horizontaladjustmentmechanism(forexample,boltsandnutsin4places)

• Makesuretodesignthestandnotfallingovereasily.

Reference drawings

* Figureillustratingthedimensionsandconditions(notactualdesignblueprint).

150 150 300

140140

[Side View] [Front View]

6 - M6 bolt

(Unit: mm)

Horizontal adjuster

Exhaust vent

Intake vent

CAUTION

• Whenmovingtheprojector,makesureyouhaveatleastfourpeople.Attemptingtomovetheprojectoralone

couldresultinbackpainorotherinjuries.

142

7. Maintenance

Thissectiondescribesthesimplemaintenanceproceduresyoushouldfollowtocleanthelters,thelens,andthecabinet.

❶ Cleaning the Filters

Theair-lterspongekeepsdustanddirtfromgettinginsidetheprojectorandshouldbefrequentlycleaned.Ifthelter

isdirtyorclogged,yourprojectormayoverheat.

WARNING

• Pleasedonotuseaspraycontainingammablegastoremovedustattachedtothelters,etc.Doingsomay

resultinres.

NOTE:Themessageforltercleaningwillbedisplayedforoneminuteaftertheprojectoristurnedonoroff.Whenthemessageis

displayed,cleanthelters.Thetimetocleantheltersissetto[OFF]attimeofshipment.(→ page 102)

To cancel the message, press any button on the projector cabinet or the remote control.

CAUTION

• Beforecleaningthelter,rstturnoffthepower,makesurethecoolingfanhascompletelystopped,thenturn

offthemainpowerswitch.Makesuretheunithascooleddowncompletelybeforecleaningthelter.Removing

theltercoverwhiletheunitisrunningcouldresultinburnsorelectricshockfromcontactwithinternalparts.

Theunitusesathreelayermetal-meshlterinstalledbehindtheltercover.Itcanbeusedrepeatedlybyperiodical

cleaning.

Therearefourltersintotal,locatedontherightandleftsides.Cleanallfouratthesametime.

Filtercover/Filter

1. Remove the ﬁlter cover.

(1)Twisttheknobtotheleftuntilitturnswithoutresistance.

(2)Opentheltercoverandremoveit.

• Theknobdoesnotcomeoff.

• Iftheknobwillnotturn,useaPhillipsheadscrewdriver.

143

7. Maintenance

2. Undo the lock lever on the ﬁlter cover and remove it.

 Iftheltergetscaughtontheltercover,presstheltercover

downslightlyanditwillcomeout.

3. Remove the ﬁlters.

(1)Turnthetabstotheleftpositionandslidethetoplterto

theright.

Tab

Tabsinthe

rear

• If it is stuck, slowly inserting the tip of a Phillips head

screwdriverintothegapinafewplaceswillloosenit.

NOTE:

• Donotapplyahighdegreeofforceorattempttopryitopen.This

coulddeformtheangemakingitimpossibletoreattachthelter

cover.

(2)Withthetabsstillontheleft-facingposition,removethe

lterinsidebypullingittowardyou.

 Allthreelayersofthelterwillcomeout.

4. Cleanallthedustfromtheltersusingavacuumcleaner.

 Carefullyremovethedustfromtheltercoversaswellas

frombothsidesofallthelters.

144

7. Maintenance

 Removethedustfromthegratesontheoutsideoftheprojec-

toraswell.

• Someintakeventsdo nothavegrates.Besuretoalso

removeanydust stucktothe louver(blindwith angled

horizontalslats)withavacuumcleaner.

NOTE:

• Wheneveryouvacuumthelter,usethesoftbrushattachmentto

vacuum.Thisistoavoiddamagetothelter.

• Donotwashthelterwithwater.Doingsocanresultindamageto

theltermembraneandalsocauseclogging.

Thegratesontheoutsideofthe

projector

5. Putthevariouspartsoftheltertogetherandttheminsidetheltercover.

 Thethreelayersoftheltermustbeassembledandinstalledinaparticularorderanddirection.

Finegradelter Mediumgradelter Coarsegradelter

(1)Turnthetabsonthenegradeltertotheleft,turnthe

tabsonthe mediumgradelter (withdiagonalcrossed

mesh)totheright,thenslidethenegradelterintothe

mediumgradelter.

Thetabsonthene

gradelter

Thetabsonthe

mediumgradelter

(2)Turnthetabslotsonthecoarsegradeltertotheleft.Next

setthenegradelterandthemediumgradelterinto

theange,thenslidethemtotheleft.

Thetabslotsonthecoarsegradelter

Finegradelter

Mediumgradelter

(3)Makesurethatallsixtabsareslightlyintothetabslots,

thenslowlypushtheltertogether(someltershaveten

tabs).

• Ifthepartsofthelterarenotcompletelyttedtogether

theywillnottinsidetheltercover.

145

7. Maintenance

(4)Turnthe ne gradelter so itisfacingupward,set the

cutoutportionofthemediumgradelterinsidethelter

coveralongthedirectionindicatedbythetabs,andslowly

slidethelterin.

Directiontabs

Cutoutportion

(5)Lockthelever,andinsertitintothelockslotonthene

gradelter.

Lockslot

6. Fix the ﬁlter inside the projector unit.

(1)Snaptheltercovertabs into thecutoutportionof the

projectorunittosecureit.

(2)Turntheknobtotherighttoxitinplace.

 Cleantheotherintakeventairltersinthesameway.

NOTE:

• Beforeturningonthepowermakesurethatallltercoversareinplace.Iftheyarenotttedproperlydustcouldgetinsidethe

projector causing it to malfunction.

• Reset[FILTERHOURSUSED]aftercleaningthelters.Toresetgototheonscreenmenuandselect[SETUP]→[RESET]→

[CLEARFILTERHOURS].(→ page 124)

146

7. Maintenance

❷ Cleaning the Protection glass

• Turnofftheprojectorbeforecleaning.

• Useablowerorlenspapertocleantheprotectionglass,andbecarefulnottoscratchormartheprotectionglass.

WARNING

• DonotlookintothelightsourcewhiletheprojectorisON.Stronglightisemittedfromtheprojectorandvisual

impairmentcouldresult.

• Pleasedonotuseaspraycontainingammablegastoremovedustattachedontheprotectionglass,etc.Doing

somayresultinres.

❸ Cleaning the Cabinet

Turnofftheprojector,andunplugtheprojectorbeforecleaning.

• Useadrysoftclothtowipedustoffthecabinet.

 Ifheavilysoiled,useamilddetergent.

• Neverusestrongdetergentsorsolventssuchasalcoholorthinner.

• Whencleaningtheventilationslitsorthespeakerusingavacuumcleaner,donotforcethebrushofthevacuum

cleanerintotheslitsofthecabinet.

Vacuumthedustofftheventilationslits.

• Poorventilationcausedbydustaccumulationinventilationopenings(intake,exhaust)canresultinoverheating

andmalfunction.Theseareasshouldbecleanedregularly.

• Donotscratchorhitthecabinetwithyourngersoranyhardobjects

• Contactyourdealerforcleaningtheinsideoftheprojector.

NOTE:Donotapplyvolatileagentsuchasinsecticideonthecabinet,thelens,orthescreen.Donotleavearubberorvinylproduct

inprolongedcontactwithit.Otherwisethesurfacenishwillbedeterioratedorthecoatingmaybestrippedoff.

147

8. User Supportware

❶ Operating Environment for User Supportware

Thefollowingsoftwareprogramscanbedownloadedfromourwebsite.

Nameofsoftwareprogram Features

VirtualRemoteTool

(Windowsonly)

Whenthecomputerandprojectorareconnectedusinganetwork(wiredLAN),

suchoperationsasturningtheprojector’spoweronandoffandswitchingthe

signalcanbeperformed.Itisalsopossibletosendanimagetotheprojector

andregisteritasthebackgroundlogo.Oncetheimageisregistered,itcanbe

lockedtopreventthelogofrombeingoverwritten.(→page150)

PCControlUtilityPro4

PCControlUtilityPro5(forMac

OS)

Thisisasoftwareprogramusedtooperatetheprojectorfrom thecomputer

whenthecomputerandtheprojectorareconnectedwithLAN.(→page153)

• PCControlUtilityPro4canbeusedwithaserialconnection.

NOTE:

• ToconnecttheprojectortothenetworkbyusingtheVirtualRemoteTool,PCControlUtilityPro4,PCControlUtilityPro5,please

congurethesettingsof[SETUP]→[NETWORKSETTINGS]intheon-screenmenu(→ page 115).

Download service

Fortheupdateinformationaboutthesesoftwareprograms,visitourwebsite:

URL:http://www.nec-display.com/dl/en/index.html

Operating Environment

[Windows]

SupportedOS Windows8.1,Windows8.1Pro,Windows8.1Enterprise,Windows8,Windows

8Pro,Windows8Enterprise

Windows7HomeBasic,Windows7HomePremium,Windows7Professional,

Windows7Ultimate,Windows7Enterprise

WindowsVistaHome Basic,WindowsVistaHomePremium,WindowsVista

Business,WindowsVistaUltimate,WindowsVistaEnterprise

WindowsXPHomeEdition(32-bitversion)ServicePack3orlater

WindowsXPProfessional(32-bitversion)ServicePack3orlater

[Mac]

SupportedOS MacOSXv10.6,v10.7,v10.8,v10.9,v10.10

148

8. User Supportware

❷ Installing Software Program

Installation for Windows software

ThesoftwareprogramsexceptPCControlUtilityPro5supportWindows8.1,Windows8,Windows7,WindowsVista,

andWindowsXP.

NOTE:

• Toinstalloruninstalleachsoftwareprogram,theWindowsuseraccountmusthave“Administrator”privilege(Windows8.1,

Windows8,Windows7,WindowsVista)or“ComputerAdministrator”privilege(WindowsXP).

• Exitallrunningprogramsbeforeinstallation.Ifanotherprogramisrunning,theinstallationmaynotbecompleted.

• TorunVirtualRemoteToolorPCControlUtilityPro4onWindows8.1,Windows8,WindowsXPHomeEdition,andWindows

XPProfessional,“Microsoft.NETFrameworkVersion2.0”isrequired.TheMicrosoft.NETFrameworkVersion2.0,3.0or3.5is

availablefromMicrosoft’swebpage.Downloadandinstallitonyourcomputer.

1. Connectyourcomputertotheinternetandvisitourwebsite(http://www.nec-display.com/dl/en/index.html).

2. Downloadthesupportedsoftwareprogramsfrom“Download”andsavean“.exe”letoyourcomputer.

 Filenameisdifferentdependingontheversionofthesoftwareprogram.

3. Clickthe“.exe”le.

 Theinstallationwillstart.

 Followtheinstructionsontheinstallerscreenstocompletetheinstallation.

TIP:

Uninstalling a Software Program

Preparation:

Exitthe softwareprogrambeforeuninstalling.Touninstall thesoftwareprogram,theWindowsuseraccountmust

have“Administrator”privilege(Windows8.1,Windows8,Windows7,andWindowsVista)or“ComputerAdministra-

tor”privilege(WindowsXP).

•ForWindows8.1/Windows8/Windows7/WindowsVista

1 Click“Start”andthen“ControlPanel”.

 TheControlPanelwindowwillbedisplayed.

2 Click“Uninstallaprogram”under“Programs”

 The“ProgramsandFeatures”windowwillbedisplayed.

3 Selectthesoftwareprogramandclickit.

4 Click“Uninstall/Change”or“Uninstall”.

 •Whenthe“UserAccountControl”windowsisdisplayed,click“Continue”.

 Followtheinstructionsonthescreenstocompletetheuninstallation.

•ForWindowsXP

1 Click“Start”andthen“ControlPanel”.

 TheControlPanelwindowwillbedisplayed.

2 Double-click“Add/RemovePrograms”.

 TheAdd/RemoveProgramswindowwillbedisplayed.

3 Clickthesoftwareprogramfromthelistandthenclick“Remove”.

 Followtheinstructionsonthescreenstocompletetheuninstallation.

149

8. User Supportware

Using on Mac OS

Step 1: Install PC Control Utility Pro 5 on the computer.

1. ConnectyourcomputertotheInternetandvisitourwebsite(http://www.nec-display.com/dl/en/index.html).

2. DownloadtheupdatedPCControlUtilityPro5forMacOSfromourwebsite.

3. InFinder,control-click(“control”+click)orrightclickthePCControlUtilityPro5.pkg.

4. Select“Open”fromthetopofcontextualmenuthatappears.

5. Click“Open”inthedialogbox.Ifprompted,enteranadministratornameandpassword.

6. Click“Next”.

 “ENDUSERLICENSEAGREEMENT”screenwillbedisplayed.

7. Read“ENDUSERLICENSEAGREEMENT”andclick“Next”.

 Theconrmationwindowwillbedisplayed

8. Click“Iacceptthetermsinthelicenseagreement”.

 Followtheinstructionsontheinstallerscreenstocompletetheinstallation.

TIP:

•Uninstallingasoftwareprogram

1. Putthe“PCControlUtilityPro5”foldertotheTrashicon.

2. PutthecongurationleofPCControlUtilityPro5totheTrashicon.

• ThecongurationleofPCControlUtilityPro5islocatedin“/Users/<yourusername>/ApplicationData/NEC

ProjectorUserSupportware/PCControlUtilityPro5”.

150

8. User Supportware

❸ Operating the Projector Via the LAN (Virtual Remote Tool)

Thiswillhelpyouperformoperationssuchasprojector’spoweronoroffandsignalselectionviaaLANconnection.It

isalsousedtosendanimagetotheprojectorandregisteritasthelogodataoftheprojector.Afterregisteringit,you

canlockthelogotopreventitfromchanging.

Control Functions

PowerOn/Off,signalselection,picturefreeze,picturemute,audiomute,Logotransfertotheprojector,andremote

controloperationonyourPC.

VirtualRemotescreen

RemoteControlWindow Toolbar

ThissectionprovidesanoutlineofpreparationforuseofVirtualRemoteTool.

ForinformationonhowtouseVirtualRemoteTool,seeHelpofVirtualRemoteTool.(→page152)

NOTE:

• Logodata(graphics)thatcanbesenttotheprojectorwithVirtualRemoteToolhasthefollowingrestrictions:

 (OnlyviaserialorLANconnection)

* Filesize:Within256kilobytes

* Imagesize:Withintheresolutionoftheprojector

* Fileformat:PNG(Fullcolor)

• Logodata(image)sentusingtheVirtualRemoteToolwillbedisplayedinthecenterwiththesurroundingareainblack.

• Toputthedefault“NEClogo”backinthebackgroundlogo,youneedtoregisteritasthebackgroundlogobyusingtheimagele

(¥Logo¥NEC_logo2012_1920x1080.png)includedonthesuppliedNECProjectorCD-ROM.

151

8. User Supportware

Connect the projector to a LAN.

ConnecttheprojectortotheLANbyfollowingtheinstructionsin“ConnectingtoaWiredLAN”(→page138)and

“[NETWORKSETTINGS]”(→page115)

Start Virtual Remote Tool

Start using the shortcut icon

• Double-clicktheshortcuticon on the Windows Desktop.

Start from the Start menu

• Click[Start]→[AllPrograms]or[Programs]→[NECProjectorUserSupportware]→[VirtualRemoteTool]

→[VirtualRemoteTool].

 WhenVirtualRemoteToolstartsforthersttime,“EasySetup”windowwillbedisplayed.

 The“EasySetup”featureisnotavailableonthismodel.Click“CloseEasySetup”.

 Closingthe“EasySetup”windowwilldisplaythe“ProjectorList”window.

 Selectyourprojectoryouwishtoconnect.ThiswilldisplaytheVirtualRemotescreen.

NOTE:

• When[NORMAL]isselectedfor[STANDBYMODE]fromthemenu,theprojectorcannotbeturnedonvianetworkconnection.

TIP:

• TheVirtualRemoteToolscreen(orToolbar)canbedisplayedwithoutdisplaying“EasySetup”window.

 Todoso,clicktoplaceacheckmarkfor“ DonotuseEasySetupnexttime”onthescreen.

152

8. User Supportware

ExitingVirtualRemoteTool

1 ClicktheVirtualRemoteToolicon on the Taskbar.

 Thepop-upmenuwillbedisplayed.

2 Click“Exit”.

 TheVirtualRemoteToolwillbeclosed.

ViewingthehelpleofVirtualRemoteTool

•Displayingthehelpleusingthetaskbar

1 ClicktheVirtualRemoteToolicon onthetaskbarwhenVirtualRemoteToolisrunning.

 Thepop-upmenuwillbedisplayed.

2. Click“Help”.

 TheHelpscreenwillbedisplayed.

•DisplayingthehelpleusingtheStartMenu.

1. Click“Start”.“Allprograms”or“Programs”.“NECProjectorUserSupportware”.“VirtualRemoteTool”.and

then“VirtualRemoteToolHelp”inthisorder.

 TheHelpscreenwillbedisplayed.

153

8. User Supportware

❹

Controlling the Projector over a LAN (PC Control Utility Pro 4/

Pro 5)

Usingtheutilitysoftware“PCControlUtilityPro4”or“PCControlUtilityPro5”includedonthecompanionNECPro-

jectorCD-ROM,theprojectorcanbecontrolledfromacomputeroveraLAN.

PCControlUtilityPro4isaprogramcompatiblewithWindows.(→ nextpage)

PCControlUtilityPro5isaprogramcompatiblewithMacOS.(→page155)

Control Functions

PowerOn/Off,signalselection,picturefreeze,picturemute,audiomute,adjusting,errormessagenotication,event

schedule.

ScreenofPCControlUtilityPro4

ThissectionprovidesanoutlineofpreparationforuseofPCControlUtilityPro4/Pro5.Forinformationonhowtouse

PCControlUtilityPro4/Pro5,seeHelpofPCControlUtilityPro4/Pro5.(→page154,155)

Step1:InstallPCControlUtilityPro4/Pro5onthecomputer.

Step2:ConnecttheprojectortoaLAN.

Step3:StartPCControlUtilityPro4/Pro5.

TIP:

• PCControlUtilityPro4canbeusedwithaserialconnection.

154

8. User Supportware

Step 1: Install PC Control Utility Pro 4/Pro 5 on the computer

ReferInstallingSoftwareProgramonpage148,149.

Step 2: Connect the projector to a LAN.

ConnecttheprojectortotheLANbyfollowingtheinstructionsin“ConnectingtoaWiredLAN”(→page138)and

“[NETWORKSETTINGS]”(→page115)

(Using on Windows)

Step 3: Start PC Control Utility Pro 4

Click“Start”→“Allprograms”or“Programs”→“NECProjectorUserSupportware”→“PCControlUtilityPro4”→

“PCControlUtilityPro4”.

NOTE:

• FortheSchedulefunctionofthePCControlutilityPro4towork,youmusthaveyourcomputerrunningandnotinstandby/

sleepmode.Select“PowerOptions”fromthe“ControlPanel”inWindowsanddisableitsstandby/sleepmodebeforerunningthe

scheduler.

[Example]ForWindows7:

Select“ControlPanel”→“SystemandSecurity”→“PowerOptions”→“Changewhenthecomputersleeps”→“Putthecomputer

tosleep”→“Never”.

NOTE:

• When[NORMAL]isselectedfor[STANDBYMODE]fromthemenu,theprojectorcannotbeturnedonviathenetwork(wiredLAN)

connection.

TIP:

ViewingtheHelpofPCControlUtilityPro4

• DisplayingtheHelpleofPCControlUtilityPro4whileitisrunning.

 Click“Help(H)”→“Help(H)…”ofwindowofPCControlUtilityPro4inthisorder.

 Thepop-upmenuwillbedisplayed.

• DisplayingthehelpleusingtheStartMenu.

 Click“Start”→“Allprograms”or“Programs”→“NECProjectorUserSupportware”→“PCControlUtilityPro4”→

“PCControlUtilityPro4Help”.

 TheHelpscreenwillbedisplayed.

155

8. User Supportware

(Using on Mac OS)

Step 3: Start PC Control Utility Pro 5

1. OpenyourApplicationsfolderinMacOS.

2. Clickthe“PCControlUtilityPro5”folder.

3. Clickthe“PCControlUtilityPro5”icon.

 PCControlUtilityPro5willstart.

NOTE:

• FortheSchedulefunctionofthePCControlutilityPro5towork,youmusthaveyourcomputerrunningandnotinsleepmode.

Select“EnergySaver”fromthe“SystemPreferences”inMacanddisableitssleepmodebeforerunningthescheduler.

• When[NORMAL]isselectedfor[STANDBYMODE]fromthemenu,theprojectorcannotbeturnedonviathenetwork(wiredLAN)

connection.

TIP:

ViewingtheHelpofPCControlUtilityPro5

•DisplayingtheHelpleofPCControlUtilityPro5whileitisrunning.

• Fromthemenubar,click“Help”→“Help”inthisorder.

 TheHelpscreenwillbedisplayed.

•DisplayingtheHelpusingtheDock

1. Open“ApplicationFolder”inMacOS.

2. Clickthe“PCControlUtilityPro5”folder.

3. Clickthe“PCControlUtilityPro5Help”icon.

 TheHelpscreenwillbedisplayed.

156

9. Appendix

❶ Throw distance and screen size

Fourseparatebayonetstylelensescanbeusedonthisprojector.Refertotheinformationonthispageandusea

lenssuitedfortheinstallationenvironment(screensizeandthrowdistance).Forinstallationandreplacementoflens

unitscontactyourdealer.

Eachnumberprovidedinthetablebelowmeansthethrowdistancebetweenthelenssurfaceandthescreen.

Lens types and throw distance

unit=m

Screensize Lensmodelname

NP-9LS08ZM1 NP-9LS12ZM1 NP-9LS13ZM1 NP-9LS16ZM1

60" — — — —

70" 1.4–2.1 — — —

100" 2.0–3.0 2.8–4.0 3.1–4.9 3.8–6.3

120" 2.4–3.6 3.4–4.8 3.7–5.9 4.5–7.6

150" 3.0–4.5 4.2–6.0 4.7–7.4 5.7–9.5

200" 4.0–6.0 5.6–8.1 6.2–9.9 7.6–12.7

250" 5.0–7.5 7.0–10.1 7.8–12.4 9.5–15.9

300" 6.0–9.0 8.5–12.1 9.4–14.9 11.4–19.1

350" 7.0–10.6 9.9–14.2 11.0–17.4 13.3–22.3

400" 8.0–12.1 11.3–16.2 12.5–19.8 15.2–25.5

450" 9.0–13.6 12.7–18.2 14.1–22.4 17.1–28.9

500" 10.0–15.1 14.1–20.2 15.7–24.8 19.0–31.9

550" 11.1–16.6 — — —

600" 12.1–18.1 — — —

TIP

• Calculationofthethrowdistancefromthescreensize

 NP-9LS08ZM1lensthrowdistance(m)=H×0.90toH×1.35:1.4m(min.)to18.1m(max.)

 NP-9LS12ZM1lensthrowdistance(m)=H×1.28toH×1.83:2.8m(min.)to20.2m(max.)

 NP-9LS13ZM1lensthrowdistance(m)=H×1.42toH×2.24:3.1m(min.)to24.8m(max.)

 NP-9LS16ZM1lensthrowdistance(m)=H×1.73toH×2.88:3.8m(min.)to31.9m(max.)

 “H”(Horizontal)referstothescreenwidth.

 *Figuresdifferbyseveral%withthetableabovebecausethecalculationisapproximate.

 Ex.:Throwdistancewhenprojectingona300"screenusingtheNP-9LS13ZM1lens:

 Accordingtothe“Tablesofscreensizesanddimensions”(→ page 157),H(screenwidth)=664.1cm.

 Thethrowdistanceis6.641cm×1.42to6.641cm×2.24=9.430cmto14.876cm(becauseofthezoomlens).

157

9. Appendix

Projection range for the different lenses

100-500

NP-9LS13ZM1

3.1–24.8 m

NP-9LS08ZM1

1.4–18.1 m

70-600"

NP-9LS12ZM1

2.8–20.2 m

NP-9LS16ZM1

3.8–31.9 m

100-500" 100-500"

Tables of screen sizes and dimensions

Screenheight

Screenwidth

16:10screensize

(diagonal)

Size(inches) Screenwidth Screenheight

(inches) (cm) (inches) (cm)

60 52 132.8 29 74.7

70 61 155.0 34 87.2

100 87 221.4 49 124.5

150 131 332.1 74 186.8

200 174 442.8 98 249.1

250 218 553.5 123 311.3

300 261 664.1 147 373.6

350 305 774.8 172 435.8

400 349 885.5 196 498.1

450 392 996.2 221 560.4

500 436 1106.9 245 622.6

550 479 1217.6 270 684.9

600 523 1328.3 294 747.2

158

9. Appendix

Lens shifting range

ThisprojectorisequippedwithalensshiftfunctionforadjustingthepositionoftheprojectedimagebyusingtheLENS

SHIFTbuttons(→page22).Thelenscanbeshiftedwithintherangeshownbelow.

NOTE:

• Pleasedonotusethelensshiftfunctionwhenprojectingportraitimages.Pleaseuseitwiththelensinthecenter.

Legend:V“Vertical”referstothescreenheightandH“Horizontal”referstothescreenwidth.Thelensshiftrangeis

expressedasaratioofheightandwidth,respectively.

Compatiblelensunits

NP-9LS08ZM1,NP-9LS12ZM1,NP-9LS13ZM1,NP-9LS16ZM1

100%V

50%V

20%V

50%V

100%H

11%H 11%H

11%H11%H

Heightofprojectedimage

Widthofprojectedimage

* Thelensshiftrangeisthesameforceilinginstallation.

(Examplecalculation)Ifprojectingona300inchscreenusinganNP-9LS13ZM1lensunit

Accordingtothe“Tableofscreensizesanddimensions”(→page157),H=261.5"/664.1cm,V=147.1"/373.6cm.

Adjustment range in the vertical direction:the projected image can be movedupwards 0.5 × 147.1"/373.6 cm ≈

73.6"/187cm,downwardsapproximately73.6"/187cm(whenthelensisatthecenterposition).Adjustmentrangein

thehorizontaldirection:theprojectedimagecanbemovedtotheleft0.11×261.5"/664.1cm≈28.7"/73cm,tothe

rightapproximately28.7"/73cm.

* Figuresdifferbyseveral%becausethecalculationisapproximate.

159

9. Appendix

❷ Mounting the Optional Board (sold separately)

CAUTION

Beforemountingorremovingtheoptionalboard,besuretoturnofftheprojector,waitforthefanstostopandturn

offthemainpowerswitch.

Toolneeded:Phillipsscrewdriver(plus-head)

1. Turnoffthemainpowerswitchoftheprojector.

2. LoosenthetwoscrewsontheSLOTcoveroftheterminals.

 RemovethetwoscrewsandtheSLOTcover.

NOTE:Keepthetwoscrewsandtheslotcover.

3. Insert the optional board into the slot.

 Makesurethattheboardisinsertedintotheslotinthecorrectorientation.

 Incorrectorientationmaycausemiscommunicationbetweentheoptionalboardandprojector.

160

9. Appendix

4. Tightenthetwoscrewsonbothsidesoftheslot.

• Besuretotightenthescrews.

 Thiswillcompleteinstallationoftheoptionalboard.

 Toselecttheoptionalboardsource,selectSLOTastheinput.

NOTE:

• Mountingtheoptionalboardmaycausethefanstoruninthestandbymodeforthepurposeofcoolingdependingontheoptional

board.Thefanspeedmayalsoincreaseinordertocooltheprojectorproperly.Bothoftheseinstancesareconsiderednormal

and not a malfunction of the projector.

161

9. Appendix

❸ Compatible Input Signal List

Analog Computer Signal

Signal Resolution(dots) AspectRatio RefreshRate(Hz)

VGA 640 × 480 4 : 3 60/72/75/85/iMac

SVGA 800 × 600 4 : 3 56/60/72/75/85/iMac

XGA 1024 × 768 4 : 3 60/70/75/85/iMac

XGA+ 1152 × 864 4 : 3 60/70/75/85

WXGA

1280 × 768 15 : 9 60

1280 × 800 16 : 10 60

1360 × 768 *

16 : 9 60

1366 × 768 *

16 : 9 60

Quad-VGA 1280 × 960 4 : 3 60/75/85

SXGA 1280 × 1024 5 : 4 60/75/85

SXGA+ 1400 × 1050 4 : 3 60/75

WXGA+ 1440 × 900 16 : 10 60

WXGA++ 1600 × 900 16 : 9 60

UXGA 1600 × 1200 4 : 3 60/65/70/75

WSXGA+ 1680 × 1050 16 : 10 60

WUXGA 1920 × 1200 16 : 10

60(ReducedBlanking)

2K 2048 × 1080 17 : 9 60

FullHD 1920 × 1080 *

16 : 9 60

MAC13" 640 × 480 4 : 3 67

MAC16" 832 × 624 4 : 3 75

MAC19" 1024 × 768 4 : 3 75

MAC21" 1152 × 870 *

4 : 3 75

MAC23" 1280 × 1024 5 : 4 65

Component

Signal Resolution(dots) AspectRatio RefreshRate(Hz)

HDTV(1080p) 1920 × 1080 16 : 9 50/60

HDTV(1080i) 1920 × 1080 16 : 9 50/60

HDTV(720p) 1280 × 720 16 : 9 50/60

SDTV(480p) 720 × 480 4:3/16:9 60

SDTV(576p) 720 × 576 4:3/16:9 50

SDTV(480i) 720 × 480 4:3/16:9 60

SDTV(576i) 720 × 576 4:3/16:9 50

CompositeVideo/S-Video

Signal AspectRatio RefreshRate(Hz)

NTSC 4 : 3 60

PA L 4 : 3 50

PAL60 4 : 3 60

SECAM 4 : 3 50

162

9. Appendix

HDMI

Signal Resolution(dots) AspectRatio RefreshRate(Hz)

VGA 640 × 480 4 : 3 60

SVGA 800 × 600 4 : 3 60

XGA 1024 × 768 4 : 3 60

HD 1280 × 720 16 : 9 60

WXGA

1280 × 768 15 : 9 60

1280 × 800 16 : 10 60

1366 × 768 *

16 : 9 60

Quad-VGA 1280 × 960 4 : 3 60

SXGA 1280 × 1024 5 : 4 60

SXGA+ 1400 × 1050 4 : 3 60

WXGA+ 1440 × 900 16 : 10 60

WXGA++ 1600 × 900 16 : 9 60

WSXGA+ 1680 × 1050 16 : 10 60

UXGA 1600 × 1200 4 : 3 60

FullHD 1920 × 1080 *

16 : 9 60

WUXGA 1920 × 1200 16 : 10

60(ReducedBlanking)

2K 2048 × 1080 17 : 9 60

WQHD

iMac27"

2560 × 1440 16 : 9 60

WQXGA 2560 × 1600 16 : 10

60(ReducedBlanking)

3840 × 2160 16 : 9 23.98/24/25/29.97/30

4096 × 2160 17 : 9 24

HDTV(1080p) 1920 × 1080 16 : 9 50/60

HDTV(1080i) 1920 × 1080 16 : 9 50/60

HDTV(720p) 1280 × 720 16 : 9 50/60

SDTV(480i/p) 720/1440 × 480 4:3/16:9 60

SDTV(576i/p) 720/1440 × 576 4:3/16:9 50

HDMI3D

SignalResolution(dots) RefreshRate(Hz) AspectRatio 3DFormat

1920 × 1080p

23.98/24

16 : 9

FramePacking

TopandBottom

50 SideBySide

59.94/60 SideBySide

1920 × 1080i

SideBySide

59.94/60 SideBySide

1280 × 720p

FramePacking

SideBySide

TopandBottom

59.94/60

FramePacking

SideBySide

TopandBottom

163

9. Appendix

DisplayPort

Signal Resolution(dots) AspectRatio RefreshRate(Hz)

VGA 640 × 480 4 : 3 60

SVGA 800 × 600 4 : 3 60

XGA 1024 × 768 4 : 3 60

HD 1280 × 720 16 : 9 60

WXGA

1280 × 768 15 : 9 60

1280 × 800 16 : 10 60

1366 × 768 *

16 : 9 60

Quad-VGA 1280 × 960 4 : 3 60

SXGA 1280 × 1024 5 : 4 60

SXGA+ 1400 × 1050 4 : 3 60

WXGA+ 1440 × 900 16 : 10 60

WXGA++ 1600 × 900 16 : 9 60

WSXGA+ 1680 × 1050 16 : 10 60

UXGA 1600 × 1200 4 : 3 60

FullHD 1920 × 1080 *

16 : 9 60

WUXGA 1920 × 1200 16 : 10

60(ReducedBlanking)

2K 2048 × 1080 17 : 9 60

WQHD

iMac27"

2560 × 1440 16 : 9 60

WQXGA 2560 × 1600 16 : 10

60(ReducedBlanking)

3840 × 2160 16 : 9 23.98/24/25/29.97/30

4096 × 2160 17 : 9 24

HDTV(1080p) 1920 × 1080 16 : 9 50/60

HDTV(720p) 1280 × 720 16 : 9 50/60

SDTV(480i/p) 720/1440 × 480 4:3/16:9 60

SDTV(576i/p) 720/1440 × 576 4:3/16:9 50

DisplayPort3D

SignalResolution(dots) RefreshRate(Hz) AspectRatio 3DFormat

1920 × 1080p

23.98/24

16 : 9

SideBySide

TopandBottom

SideBySide

TopandBottom

SideBySide

TopandBottom

59.94/60

SideBySide

TopandBottom

1920 × 1080i

TopandBottom

SideBySide

59.94/60

TopandBottom

SideBySide

1280 × 720p

SideBySide

TopandBottom

59.94/60

SideBySide

TopandBottom

*1 Nativeresolution

*2 Theprojectormayfailtodisplaythesesignalscorrectlywhen[AUTO]isselectedfor[ASPECTRATIO]intheon-screenmenu.

 Thefactorydefaultis[AUTO]for[ASPECTRATIO].Todisplaythesesignals,select[16:9]for[ASPECTRATIO].

*3 Theprojectormayfailtodisplaythesesignalscorrectlywhen[AUTO]isselectedfor[ASPECTRATIO]intheon-screenmenu.

 Thefactorydefaultis[AUTO]for[ASPECTRATIO].Todisplaythesesignals,select[4:3]for[ASPECTRATIO].

• Signalsexceedingtheprojector’sresolutionarehandledwithAdvancedAccuBlend.

• WithAdvancedAccuBlend,thesizeofcharactersandruledlinesmaybeunevenandcolorsmaybeblurred.

• Uponshipment,theprojectorissetforsignalswithstandarddisplayresolutionsandfrequencies,butadjustmentsmayberequired

dependingonthetypeofcomputer.

164

9. Appendix

❹ Specifications

Modelname PH1202HL1

Method

3chipDMDreectiontype

Specicationsofmainparts

DMDpanel Size 0.65"(aspectratio:16:9)

Pixels

(*1)

2,073,600(1920dots×1080lines)

Projectionlenses Zoom Powerzoom(zoomrangedependsonlens)

Focus Powerfocus

Lensshifting Powerlensshift

Lightsource LaserDiode

Opticaldevice Opticalisolationbydichroicmirror,combiningbydichroicprism

Lightoutput

(*2)

(*3)

12,000lm

Contrastratio

(*2)

(allwhite/allblack) 10,000:1withdynamiccontrast

Screensize(throwdistance) Pleaserefertoprojectionlensspecications(projectionlensessoldseparately).(→

page166)

Colorreproducibility 10-bitcolorprocessing(approx.1.07billioncolors)

Scanningfrequency Horizontal Analog:15kHz,24to100kHz(24kHzorgreaterforRGBinputs),conformingto

VESAstandards

Digital:15kHz,24to153kHz,conformingtoVESAstandards

Vertical Analog:48Hz,50to85Hz,100,120HzconformingtoVESAstandards

Digital:24,25,30,48Hz,50to85Hz,100,120HzconformingtoVESAstandards

Mainadjustmentfunctions Powerzoom,powerfocus,powerlensshift,inputsignalswitching(HDMI/DisplayPort/

BNC/BNC(CV)/BNC(Y/C)/COMPUTER/HDBaseT/SLOT),autoimageadjustment,

picturemaginication,shutter,muting(video),poweron/standby,on-screendisplay/

selection,etc.

Max.displayresolution(horizontal×

vertical)

Analog:1920×1200(handledwithAdvancedAccuBlend)

Digital:4096×2160(handledwithAdvancedAccuBlend)

Inputsignals

R,G,B,H,V RGB:0.7Vp-p/75Ω

Y:1.0Vp-p/75Ω(withNegativePolaritySync)

Cb,Cr(Pb,Pr):0.7Vp-p/75Ω

H/VSync:4.0Vp-p/TTL

CompositeSync:4.0Vp-p/TTL

SynconG:1.0Vp-p/75Ω(withSync)

Compositevideo 1.0Vp-p/75Ω

S-Video

Y:1.0Vp-p/75Ω

C:0.286Vp-p/75Ω

Component

Y:1.0Vp-p/75Ω(withSync)

Cb,Cr(Pb,Pr):0.7Vp-p/75Ω

DTV:480i,480p,720p,1080i,1080p(60Hz)

576i,576p,720p,1080i,1080p(50Hz)

DVD:Progressivesignal(50/60Hz)

Input/outputterminals

Computer/Com-

ponent

Videoinput MiniD-Sub15-pin×1,BNCterminal×5

HDMI Videoinput HDMI

TerminaltypeA×1

DeepColor(colordepth):8-/10-/12-bitcompatible

Colorimetry:RGB,YcbCr444andYcbCr422compatible

LipSynccompatible,HDCPcompatible

(*4)

,Supports4Kand3D

Videooutput Repeater

Audioinput HDMI:Samplingfrequency–32/44.1/48kHz,Samplingbits–16/20/24bits

HDBaseT Videoinput DeepColor(colordepth):Support8/10/12bits

Colorimetry:SupportRGB,YCbCr444andYCbCr422

SupportLipSync,HDCP

(*4)

,4K,3D

Audioinput Samplingfrequency:32/44.1/48kHz

Samplingbit:16/20/24bit

DisplayPort Videoinput DisplayPort×1

Datarate:2.7Gbps/1.62Gbps

No.lanes:1lane/2lanes/4lanes

Colordepth:6-bit,8-bit,10-bit

Colorimetry:RGB,YcbCr444andYcbCr422compatible

HDCPcompatible

(*4)

Audioinput DisplayPort:Samplingfrequency–32/44.1/48kHz,Samplingbits–16/20/24bits

BNC(CV) Videoinput BNC×1

BNC(Y/C) Videoinput BNC×2

USBport USBtypeA×1

165

9. Appendix

Modelname PH1202HL1

Ethernet/HDBaseTport RJ-45×1,SupportsBASE-TX

3DSYNCoutputterminal 5V/10mA,synchronizedsignaloutputfor3Duse

ControlTerminals

Remoteterminal Stereominijack×1

RS-232Cterminal(PCcontrol) D-Sub9-pin×1

3Dterminal D-Sub15-pin×1

GPI/Oterminal D-Sub37-pin×1

Usageenvironment Operatingtemperature:5to40°C

(*5)

Operatinghumidity:20to80%(withnocondensation)

Storagetemperature:-10to50°C

(*5)

Storagehumidity:20to80%(withnocondensation)

Operatingaltitude:0to2600m/8500feet

*Lightoutputvaluesometimesdropsbytheenvironmentathighlands.

Powersupply 200-240VAC,50/60Hz

Powercon-

sumption

LIGHT

MODE

NORMAL 1392W

ECO1 1110W

ECO2 752W

LONGLIFE 1291W

STAND-

BY

MODE

NORMAL 1.83W

HDBaseT

STANDBY

5.7W

Ratedinputcurrent 9.2A

Externaldimensions 26.8"(width)×13.1"(height)×33.9"(depth)/680(width)×333(height)×860(depth)

mm(notincludingthelens/lenshood,handles,orotherprotrudingparts)

Weight 160.9lbs/73.0kg(notincludinglens)

*1 Effectivepixelsaremorethan99.99%.

*2 CompliancewithISO21118-2005

*3 Thisisthelightoutputvaluethatresultsfromsettingthe[LIGHTMODE]to[NORMAL]andsettingthe[PRESET]to[HIGH-BRIGHT]

whileusingtheNP-9LS16ZM1lens(soldseparately).

 Thelightoutputvalueislowerwhensettingthe[LIGHTMODE]to[ECO1],[ECO2]or[LONGLIFE].([ECO1]:about80%,[ECO2]:

about50%,[LONGLIFE]:about90%).Ifanyothermodeisselectedasthe[PRESET]mode,thelightoutputvaluemaydrop

slightly.

*4 HDMI

(DeepColor,LipSync)withHDCP

 WhatisHDCP/HDCPtechnology?

 HDCPisanacronymforHigh-bandwidthDigitalContentProtection.HighbandwidthDigitalContentProtection(HDCP)isasystem

forpreventingillegalcopyingofvideodatasentoveraHigh-DenitionMultimediaInterface(HDMI).

 IfyouareunabletoviewmaterialviatheHDMIinput,thisdoesnotnecessarilymeantheprojectorisnotfunctioningproperly.With

theimplementationofHDCP,theremaybecasesinwhichcertaincontentisprotectedwithHDCPandmightnotbedisplayed

duetothedecision/intentionoftheHDCPcommunity(DigitalContentProtection,LLC).

 Video:DeepColor;8/10/12-bit,LipSync

 Audio:LPCM;upto2ch,samplerate32/44.1/48KHz,samplebit;16/20/24-bit

*5 35to40°C–“Forcedecomode”

• Thesespecicationsandtheproduct’sdesignaresubjecttochangewithoutnotice.

Foradditionalinformationvisit:

US:http://www.necdisplay.com/

Global:http://www.nec-display.com/global/index.html

Forinformationonouroptionalaccessories,visitourwebsiteorseeourbrochure.

166

9. Appendix

Optionlens(soldseparately)

NP-9LS08ZM1 Powerlensshift,Powerzoom,Powerfocus,[LENSMEMORY]support

(Throwratio0.90–1.35:1,F2.5/3.0,f=0.5–0.8"/13.3–19.9mm)

Screensize(throwingdistance):70-600inch,1.4-18.1m

NP-9LS12ZM1 Powerlensshift,Powerzoom,Powerfocus,[LENSMEMORY]support

(Throwratio1.27–1.82:1,F2.5/2.5,f=0.7–1.1"/18.6–26.7mm)

Screensize(throwingdistance):100-500inch,2.8-20.2m

NP-9LS13ZM1 Powerlensshift,Powerzoom,Powerfocus,[LENSMEMORY]support

(Throwratio1.41–2.23:1,F2.5/2.5,f=0.8–1.3"/20.7–32.7mm)

Screensize(throwingdistance):100-500inch,3.1-24.8m

NP-9LS16ZM1 Powerlensshift,Powerzoom,Powerfocus,[LENSMEMORY]support

(Throwratio1.71–2.87:1,F2.5/2.5,f=1–1.7"/25.2–42mm)

Screensize(throwingdistance):100-500inch,3.8-31.9m

167

9. Appendix

❺ Cabinet Dimensions

Unit:mm(inch)

680 (26.8)

744 (29.3)

164.5 (6.5)

45.2 (1.8)

566 (22.3)

1081 (42.6)

860 (33.9)

683 (26.9)

334 (13.1)

1132.3 (44.6)

Lenscenter

168

9. Appendix

Unit:mm(inch)

150 (5.9) 150 (5.9)300 (11.8)

140 (5.5)140 (5.5)

Figure for securing the unit with dimensions

6-M6screwMaximumdepth10mm

169

9. Appendix

❻ Pin assignments and signal names of main terminals

COMPUTER IN/ Component Input Terminal (Mini D-Sub 15 Pin)

Connection and signal level of each pin

51423

11 12 13 14 15

6978

Signal Level

Videosignal:0.7Vp-p(Analog)

Syncsignal:TTLlevel

Pin No. RGBSignal(Analog) YCbCrSignal

1 Red Cr

GreenorSynconGreen Y

3 Blue Cb

4 Ground

5 Ground

RedGround CrGround

7 GreenGround YGround

8 BlueGround CbGround

9 NoConnection

10 SyncSignalGround

11 NoConnection

12 Bi-directionalDATA(SDA)

13 HorizontalSyncorCompositeSync

14 VerticalSync

15 DataClock

HDMI IN Terminal (Type A)

135791113151719

246810 12 14 16 18

Pin No. Signal Pin No. Signal

TMDSData2+ 11 TMDSClockShield

2 TMDSData2Shield 12 TMDSClock−

3 TMDSData2− 13 CEC

TMDSData1+ 14 Disconnection

TMDSData1Shield 15 SCL

TMDSData1− 16 SDA

TMDSData0+ 17 DDC/CECgrounding

8 TMDSData0Shield 18 +5Vpowersupply

9 TMDSData0− 19 Hotplugdetection

10 TMDSClock+

DisplayPort IN Terminal

135791113151719

246810 12 14 16 18 20

Pin No. Signal Pin No. Signal

Mainlinklane3− 11 Grounding0

2 Grounding3 12 Mainlinklane0+

3 Mainlinklane3+ 13 Conguration1

4 Mainlinklane2− 14 Conguration2

5 Grounding2 15 Supplementarychannel+

6 Mainlinklane2+ 16 Grounding4

7 Mainlinklane1− 17 Supplementarychannel−

8 Grounding1 18 Hotplugdetection

9 Mainlinklane1+ 19 Return

Mainlinklane0− 20 +3.3Vpowersupply

170

9. Appendix

Ethernet/HDBaseT Port (RJ-45)

12345678

Pin No. Signal

1 TxD+/HDBT0+

2 TxD−/HDBT0−

3 RxD+/HDBT1+

4 Disconnection/HDBT2+

5 Disconnection/HDBT2−

6 RxD−/HDBT1−

7 Disconnection/HDBT3+

8 Disconnection/HDBT3−

USB Port (Type A)

Pin No. Signal

1 V

BUS

2 D−

3 D+

4 Grounding

RS-232C terminal (PC control) (D-Sub 9 Pin)

1234

6789

Communications protocol

Pin No. Signal

1 Unused

Transmissiondata

3 Receptiondata

4 Connection/Pin6

5 Grounding

Connection/Pin4

7 Unused

8 Unused

9 Unused

171

9. Appendix

3D connector (D-sub 15 pin)

87654321

15 14 13 12 11 10 9

Pin No. Signal Name I/O Function

1 +12V PWR

Suppliespower(+12V)tothe3Dimagesystem

2 GNDC GND Ground

3 GNDC GND Ground

4 reserved IN

5 reserved OUT

6 reserved OUT

7 CONN_SYNC+ OUT

3DL/Rswitchingtimingsignal(+)

(Connectstothecollectoroftheoutputtransistorofthe

photocouplerinsidetheprojector)

8 reserved IN

9 +12V PWR

Suppliespower(+12V)tothe3Dimagesystem

10 reserved IN

11 reserved IN

12 reserved IN

13 reserved OUT

14 CONN_SYNC− OUT

3DL/Rswitchingtimingsignal(–)

(Connectstotheemitteroftheoutputtransistorofthe

photocouplerinsidetheprojector)

15 N/C — Unused

172

9. Appendix

GP I/O terminal (External control) (D-sub 37 pin)

19 18 17 16 15 14 13 12 11 10 987654321

37 26 35 34 33 32 31 30 29 28 27 26 25 24 23 22 21 20

Pin No. Signal Name I/O

1 reserved IN

2 reserved IN

3 reserved

4 reserved

EXT_GPIN1+(Control) IN

EXT_GPIN2+(Control) IN

EXT_GPIN3+(Control) IN

EXT_GPIN4+(Control) IN

GPOUT1+(External3DL/ROutput

Reference+)

OUT

10 reserved OUT

11 reserved OUT

12 reserved OUT

13 reserved OUT

14 reserved OUT

15 reserved OUT

16 reserved OUT

NC(notconnected) —

18 GND PWR

19 GND PWR

Pin No. Signal Name I/O

20 reserved IN

21 reserved IN

22 reserved IN

23 reserved IN

EXT_GPIN1-(Control) IN

EXT_GPIN2-(Control) IN

EXT_GPIN3-(Control) IN

EXT_GPIN4-(Control) IN

GPOUT1-(External3DL/ROutput

Reference-)

OUT

29 reserved OUT

30 reserved OUT

31 reserved OUT

32 reserved OUT

33 reserved OUT

34 reserved OUT

35 reserved OUT

NC(notconnected) -

37 GND PWR

173

9. Appendix

Inside Projector

Voltage applied across the pins of Ext_GPIN_P and Ext_GPIN_N

should be in the range from 3.3 Vdc to 10 Vdc.

Recommended Operating Current: 5 mA

Absolute Maximum Rating: 23 mA

Resist = 360 Ω

Photo-coupler

Forward direction voltage: 1.1 V (@5 mA)

GP I/O Connector

Pin No.: 5 6 7 8

Pin No.: 24 25 26 27

Ext_GPIN_P

Ext_GPIN_N

Using GPIO Control

Momentary“ON”pulseenablesyoutocontrolprojector.Toenable“ON”pulse,holditforatleast300ms.Hold“OFF”

foratleast300msbefore“ON”.(→page174)

HereisfunctionlisttocontrolprojectorbyusingGPIOport.

Photo-couplerON/OFF Function

8-27 7-26 6-25 5-24

The followingfunctions apply depending on the combination of input

terminals.

OFF OFF OFF ON

PowerON

OFF OFF ON OFF PowerOFF

OFF OFF ON ON ShutterOFF

OFF ON OFF OFF ShutterON

OFF ON OFF ON SelectHDMI

OFF ON ON OFF SelectDisplayPort

OFF ON ON ON SelectBNC

ON OFF OFF OFF SelectBNC(CV)

ON OFF OFF ON SelectBNC(Y/C)

ON OFF ON OFF SelectComputer

ON OFF ON ON SelectHDBaseT

ON ON OFF OFF SelectSLOT

ON ON OFF ON reserved

ON ON ON OFF reserved

ON ON ON ON reserved

Exampleforturningoffthepowersource(ShutterON):InputONto6-25and5-24while8-27and7-26areOFF.

NOTE:

• TheoperationcommandcomingfromGPI/Oportwillbecanceledwhentheprojectorisprocessingothertasks.

• Setallotherpinsthanthoseinuseto“OFF”.

• Theoperationcommandisexecuteduponcontinuousinputofthe“ON”pulseforapproximately300ms.

174

9. Appendix

Timing chart of GPIO control

ExampleofSelectHDMI

Off at least 300 ms at least 300 ms

approx. 300 ms

Execute

Select HDMI

time

5-24/7-26

6-25/8-27

off

175

9. Appendix

❼ Troubleshooting

Thissectionhelpsyouresolveproblemsyoumayencounterwhilesettinguporusingtheprojector.

Indicator Messages

POWER Indicator

Indicatordisplay Projectorstatus Procedure

Off Powerisoff. –

Flashing

Blue(shortashes) Preparingtoturnpoweron Waitawhile.

Blue(longashes) Offtimer(enabled)

Programtimer(offtimeenabled)

–

Orange(shortashes) Projectorcooling Waitawhile.

Orange(longashes) Programtimer(ontimeenabled) –

Lit Blue

Poweron –

Red Standbymode(NORMAL) –

Orange

Standbymode(HDBaseTSTANDBY) –

STATUS Indicator

Indicatordisplay Projectorstatus Procedure

Off

Noproblem,orSTAND-

BYMODE-“HDBaseT

STANDBY”

–

Flashing

Red(onceper

cycle)

Problemwiththecover Checktomakesurethefrontcover,topcover,sidecover,

andlensunitareallcorrectlyxedinplace.

Red(3times

percycle)

Powerfailure Problemwiththepowersystem.ContacttheNECprojector

customersupportcentertoarrangeforrepair.

Red(4times

percycle)

Problemwiththefan Rotationofthecoolingfanhasstopped.ContacttheNEC

projectorcustomersupportcentertoarrangeforrepair.

Red(6times

percycle)

Problemwiththelight

source

Problemwith the light source system.Contact the NEC

projectorcustomersupportcentertoarrangeforrepair.

Red(9times

percycle)

Hardwareproblem Problem with the hardware. Contact the NEC projector

customersupportcentertoarrangeforrepair.

Lit Green STANDBYMODEin

sleepmode*

–

Orange

Buttonhasbeen

pressedwhileprojector

isinkeylockmode

Theprojector’skeysarelocked.Thesettingmustbecan-

celedtooperatetheprojector.(→Page28,112)

Projector’sIDnumber

andremotecontrol’sID

numberdonotmatch

CheckthecontrolIDs.(→Pages113)

* Sleepmodereferstothestatewherebythefunctionalrestrictionsduetothestandbymodesettingareremoved.

176

9. Appendix

LIGHT Indicator

Indicatordisplay Projectorstatus Procedure

Off

Thelightmoduleis

turnedoff.

–

Flashing Green

TransitiontoswitchON/

OFFthelightmodule

–

Lit Green

Lightmodulelit –

TEMP.Indicator

Indicatordisplay Projectorstatus Procedure

Off

Noproblem

Flashing Red(cycles

of2)

Temperatureproblem Thetemperatureprotectorhasbeenactivated.Iftheroom

temperatureishigh,movetheprojectortoacoolplace.If

theproblemstillpersists,contactanNECprojectorcus-

tomersupportcenter.

Lit Orange Highsurroundingtem-

perature(ForcedECO

Mode)

The surrounding temperature is high.Lower the room

temperature.

SHUTTER Indicator

Indicatordisplay Projectorstatus

Off Openshutter

Flashing Green [LENSCALIBRATION]inprogress

Lit Green Shutterclosed

KEYLOCKIndicator

Indicatordisplay Projectorstatus

Off [CONTROLPANELLOCK][OFF]

Lit Orange [CONTROLPANELLOCK][ON]

If the temperature protector is activated

Iftheprojector’sinternaltemperaturerisesabnormally,thelightmoduleturnsoffandthetemperatureindicatorashes

(repeatedlyincyclesof2).

Itmayhappenthattheprojector’stemperatureprotectorissimultaneouslyactivatedandtheprojector’spowerturnsoff.

Ifthishappens,dothefollowing:

- Unplugthepowercordfromthepoweroutlet.

- Ifusinginaplacewherethesurroundingtemperatureishigh,movetheprojectortoadifferent,coolplace.

- Ifthereisdustintheventilationholes,clean.(→page146)

- Waitassuchabout1hourfortheprojector’sinternaltemperaturetolower.

177

9. Appendix

Common Problems & Solutions

(→“POWER/STATUS/LIGHT/TEMP./SHUTTER/KEYLOCKIndicator”onpage175,176.)

Problem CheckTheseItems

Does not turn on

or shut down

• Checkthatthepowercordispluggedinandthatthepowerbuttonontheprojectorcabinetortheremote

control is on. (→ pages 13, 14)

• Checktoseeiftheprojectorhasoverheated.Ifthereisinsufcientventilationaroundtheprojectororifthe

room where you are presenting is particularly warm, move the projector to a cooler location.

• Thelightmodulemayfailtolight.Waitafullminuteandthenturnonthepoweragain.

• Set[FANMODE]to[HIGH]whenusingtheprojectorathighlands.Usingtheprojectorathighlandscan

cause the projector to overheat and the projector could shut down. If this happens, wait a couple minutes

and turn on the projector. (→ page 104)

If you turn on the projector immediately after the light module is turned off, the fans run without displaying

an image for some time and then the projector will display the image. Wait for a moment.

• Incaseit’shardtothinkthetroubleisnotcausedontheabovementionedconditions,unplugthepower

cord from the outlet. Then wait 5 minutes before plugging it in again. (→ page 26)

Will turn off

• Ensurethatthe[OFFTIMER],[AUTOPOWEROFF]or[PROGRAMTIMER]isoff.(→ page 108, 123)

No picture

• Checkiftheappropriateinputisselected.(→ page 18) If there is still no picture, press the SOURCE button

or one of the source buttons again.

• Ensureyourcablesareconnectedproperly.

• Usemenustoadjustthebrightnessandcontrast.(→ page 82)

• Isthe[POWERONSHUTTER]intheon-screenmenusetto[CLOSE]?

• CheckthattheSHUTTER(lens shutter),the LIGHTSOURCE, orAVMUTE(imageoff) buttonsare not

pressed.

• Resetthesettingsoradjustmentstofactorypresetlevelsusingthe[RESET]intheMenu.(→ page 124)

• EnteryourregisteredkeywordiftheSecurityfunctionisenabled.(→ page 37)

• IftheHDMIINortheDisplayPortINsignalcannotbedisplayed,trythefollowing.

- Reinstall your driver for the graphics card built in your computer, or use the updated driver.

For reinstalling or updating your driver, refer to the user guide accompanied with your computer or

graphics card, or contact the support center for your computer manufacturer.

Install the updated driver or OS on your own responsibility.

We are not liable for any trouble and failure caused by this installation.

• SignalsmaynotbesupporteddependingontheHDBaseTtransmissiondevice.IRandRS232Ccannotbe

used in certain cases as well.

• BesuretoconnecttheprojectorandnotebookPCwhiletheprojectorisinstandbymodeandbeforeturning

on the power to the notebook PC.

In most cases the output signal from the notebook PC is not turned on unless connected to the projector

before being powered up.

* If the screen goes blank while using your remote control, it may be the result of the computer’s screen-

saver or power management software.

• Seealsothepage179.

Picture suddenly

becomes dark

• CheckiftheprojectorisintheForcedECOmodebecauseoftoohighambienttemperature.Ifthisisthe

case, lower the internal temperature of the projector by selecting [HIGH] for [FAN MODE]. (→ page 104)

Color tone or hue is

unusual

• Checkifanappropriatecolorisselectedin[WALLCOLOR].Ifso,selectanappropriateoption.(→ page

104)

• Adjust[HUE]in[PICTURE].(→ page 83)

Image isn’t square to

the screen

• Repositiontheprojectortoimproveitsangletothescreen.(→ page 20)

• UsetheKeystonecorrectionfunctiontocorrectthetrapezoiddistortion.(→ page 34)

Picture is blurred

• Adjustthefocus.(→ page 24)

• Repositiontheprojectortoimproveitsangletothescreen.(→ page 20)

• Ensurethatthe distancebetween theprojectorand screeniswithin theadjustment rangeofthe lens.

(→ page 156)

• Hasthelensbeenshiftedbyanamountexceedingtheguaranteedrange?(→ page 158)

• Condensationmayformonthelensiftheprojectoriscold,broughtintoawarmplaceandisthenturned

on. Should this happen, let the projector stand until there is no condensation on the lens.

Image is scrolling

vertically, horizontally

or both

• Checkthecomputer’sresolutionandfrequency.Makesurethattheresolutionyouaretryingtodisplayis

supported by the projector. (→ page 161)

• AdjustthecomputerimagemanuallywiththeHorizontal/Verticalinthe[IMAGEOPTIONS].(→ page 85)

178

9. Appendix

Problem CheckTheseItems

Remote control does

not work

• Installnewbatteries.(→ page 10)

• Makesuretherearenoobstaclesbetweenyouandtheprojector.

• Standwithin42.21ft(15m)oftheprojector.(→ page 11)

Indicator is lit or

blinking

• SeethePOWER/STATUS/LIGHT/TEMP./SHUTTER/KEYLOCKIndicator.(→ page 175, 176)

Cross color in RGB

mode

• PresstheAUTOADJ.buttonontheprojectorcabinetortheremotecontrol.(→ page 25)

• Adjustthecomputerimagemanuallywith[CLOCK]/[PHASE]in[IMAGEOPTIONS]inthemenu.(→ page

84)

Formoreinformationcontactyourdealer.

179

9. Appendix

If there is no picture, or the picture is not displayed correctly.

• PoweronprocessfortheprojectorandthePC.

 BesuretoconnecttheprojectorandnotebookPCwhiletheprojectorisinstandbymodeandbeforeturningon

thepowertothenotebookPC.

 InmostcasestheoutputsignalfromthenotebookPCisnotturnedonunlessconnectedtotheprojectorbefore

beingpoweredup.

NOTE:Youcancheckthehorizontalfrequencyofthecurrentsignalintheprojector’smenuunderInformation.Ifitreads“0kHz”,

thismeansthereisnosignalbeingoutputfromthecomputer.(→ page 125orgotonextstep)

• Enablingthecomputer’sexternaldisplay.

 DisplayinganimageonthenotebookPC’sscreendoesnotnecessarilymeanitoutputsasignaltotheprojector.

WhenusingaPCcompatiblelaptop,acombinationoffunctionkeyswillenable/disabletheexternaldisplay.Usu-

ally,thecombinationofthe“Fn”keyalongwithoneofthe12functionkeysgetstheexternaldisplaytocomeon

oroff.Forexample,NEClaptopsuseFn+F3,whileDelllaptopsuseFn+F8keycombinationstotogglethrough

externaldisplayselections.

• Non-standardsignaloutputfromthecomputer

 IftheoutputsignalfromanotebookPCisnotanindustrystandard,theprojectedimagemaynotbedisplayed

correctly.Shouldthishappen,deactivatethenotebookPC’sLCDscreenwhentheprojectordisplayisinuse.Each

notebookPChasadifferentwayofdeactivate/reactivatethelocalLCDscreensasdescribedinthepreviousstep.

Refertoyourcomputer’sdocumentationfordetailedinformation.

• ImagedisplayedisincorrectwhenusingaMac

 WhenusingaMacwiththeprojector,settheDIPswitchoftheMacadapter(notsuppliedwiththeprojector)ac-

cordingtoyourresolution.Aftersetting,restartyourMacforthechangestotakeaffect.

 ForsettingdisplaymodesotherthanthosesupportedbyyourMacandtheprojector,changingtheDIPswitchon

aMacadaptermaybounceanimageslightlyormaydisplaynothing.Shouldthishappen,settheDIPswitchto

the13"xedmodeandthenrestartyourMac.Afterthat,restoretheDIPswitchestoadisplayablemodeandthen

restarttheMacagain.

NOTE:AVideoAdaptercablemanufacturedbyAppleComputerisneededforaMacBookwhichdoesnothaveaminiD-Sub

15-pin terminal.

• MirroringonaMacBook

* WhenusingtheprojectorwithaMacBook,outputmaynotbesetto1024×768unless“mirroring”isoffonyour

MacBook.Refertoowner’smanualsuppliedwithyourMaccomputerformirroring.

• FoldersoriconsarehiddenontheMacscreen

 Foldersoriconsmaynotbeseenonthescreen.Shouldthishappen,select[View]→[Arrange]fromtheApple

menuandarrangeicons.

180

9. Appendix

❽ PC Control Codes and Cable Connection

PC Control Codes

Function Code Data

POWER ON 02H 00H 00H 00H 00H 02H

POWER OFF 02H 01H 00H 00H 00H 03H

INPUT SELECT HDMI 02H 03H 00H 00H 02H 01H A1H A9H

INPUT SELECT DisplayPort 02H 03H 00H 00H 02H 01H A6H AEH

INPUT SELECT BNC 02H 03H 00H 00H 02H 01H 02H 0AH

INPUT SELECT BNC(CV) 02H 03H 00H 00H 02H 01H 06H 0EH

INPUT SELECT BNC(Y/C) 02H 03H 00H 00H 02H 01H 0BH 13H

INPUT SELECT COMPUTER 02H 03H 00H 00H 02H 01H 01H 09H

INPUT SELECT HDBaseT 02H 03H 00H 00H 02H 01H 20H 28H

INPUT SELECT SLOT 02H 03H 00H 00H 02H 01H ABH B3H

PICTURE MUTE ON 02H 10H 00H 00H 00H 12H

PICTURE MUTE OFF 02H 11H 00H 00H 00H 13H

NOTE:ContactyourlocaldealerforafulllistofthePCControlCodesifneeded.

Cable Connection

CommunicationProtocol

Baud rate .........................................38400 bps

Data length

......................................8 bits

Parity

...............................................No parity

Stop bit

............................................One bit

X on/off

............................................None

Communications procedure

.............Full duplex

NOTE:Dependingontheequipment,alowerbaudratemayberecommendedforlongcableruns.

PC Control Terminal (D-SUB 9P)

NOTE1:Pins1,4,6and9arenoused.

NOTE2:Jumper“RequesttoSend”and“CleartoSend”togetheronbothendsofthecabletosimplifycableconnection.

NOTE3:Forlongcablerunsitisrecommendedtosetcommunicationspeedwithinprojectormenusto9600bps.

15243

67 98

ToGNDofPC

ToRxDofPC

ToTxDofPC

ToRTSofPC

ToCTSofPC

181

9. Appendix

❾ Troubleshooting Check List

Beforecontactingyourdealerorservicepersonnel,checkthefollowinglisttobesurerepairsareneededalsoby

referringtothe“Troubleshooting”sectioninyouruser’smanual.Thischecklistbelowwillhelpussolveyourproblem

moreefciently.

* Printthispageandthenextpageforyourcheck.

Frequency of occurrence □ always □sometimes(Howoften?_____________________) □ other (__________________)

Power

□

No power (POWER indicator does not light blue). See also “Status

Indicator (STATUS)”.

□

Power cord’s plug is fully inserted into the wall outlet.

□

No power even though you press and hold the POWER button.

□

The main power switch is in the “ON (I)” position.

□

Shut down during operation.

□

Power cord’s plug is fully inserted into the wall outlet.

□

[AUTO POWER OFF] is turned off (only models with the [AUTO

POWER OFF] function).

□

[OFF TIMER] is turned off (only models with the [OFF TIMER]

function).

Video and Audio

□

No image is displayed from your PC or video equipment to the

projector.

□

Still no image even though you connect the projector to the PC

ﬁrst, then start the PC.

□

Enabling your notebook PC’s signal output to the projector.

• Acombinationoffunctionkeyswillenable/disabletheexter-

naldisplay.Usually,thecombinationofthe“Fn”keyalong

withoneofthe12functionkeysturnstheexternaldisplay

on or off.

□

No image (blue or black background, no display).

□

Still no image even though you press the AUTO ADJUST button.

□

Still no image even though you carry out [RESET] in the

projector’s menu.

□

Signal cable’s plug is fully inserted into the input terminal

□

A message appears on the screen.

( _____________________________________________ )

□

The source connected to the projector is active and available.

□

Still no image even though you adjust the brightness and/or

the contrast.

□

Input source’s resolution and frequency are supported by the

projector.

□

Image is too dark.

□

Remains unchanged even though you adjust the brightness

and/or the contrast.

□

Image is distorted.

□

Image appears to be trapezoidal (unchanged even though you

carry out the [KEYSTONE] adjustment).

□

Parts of the image are lost.

□

Still unchanged even though you press the AUTO ADJUST

button.

□

Still unchanged even though you carry out [RESET] in the

projector’s menu.

□

Image is shifted in the vertical or horizontal direction.

□

Horizontal and vertical positions are correctly adjusted on a

computer signal.

□

Input source’s resolution and frequency are supported by the

projector.

□

Some pixels are lost.

□

Image is ﬂickering.

□

Still unchanged even though you press the AUTO ADJUST

button.

□

Still unchanged even though you carry out [RESET] in the

projector’s menu.

□

Image shows ﬂickering or color drift on a computer signal.

□

Still unchanged even though you change [FAN MODE] from

[HIGH] to [AUTO].

□

Image appears blurry or out of focus.

□

Still unchanged even though you checked the signal’s resolution

on PC and changed it to projector’s native resolution.

□

Still unchanged even though you adjusted the focus.

Other

□

Remote control does not work.

□

No obstacles between the sensor of the projector and the

remote control.

□

Projector is placed near a ﬂuorescent light that can disturb the

infrared remote controls.

□

Batteries are new and are not reversed in installation.

□

Buttons on the projector cabinet do not work (only models with the

[CONTROL PANEL LOCK] function)

□

[CONTROL PANEL LOCK] is not turned on or is disabled in

the menu.

□

Still unchanged even though you press and hold the SOURCE

button for a minimum of 10 seconds.

182

9. Appendix

In the space below please describe your problem in detail.

Information on application and environment where your projector is used

Projector

Blu-rayplayer

Projector

Model number:

Serial No.:

Date of purchase:

Light module operating time (hours):

Eco Mode: □ OFF □ ON

Information on input signal:

Horizontal synch frequency [ ] kHz

Vertical synch frequency [ ] Hz

Synch polarity H □ (+) □ (−)

V □ (+) □ (−)

Synch type □ Separate □ Composite

□ Sync on Green

STATUS Indicator:

Steady light □ Orange □ Green

Flashing light [ ] cycles

Remote control model number:

Installation environment

Screen size: inch

Screen type: □ White matte □ Beads □ Polarization

□

Wide angle □ High contrast

Throw distance: feet/inch/m

Orientation: □ Ceiling mount □ Desktop

Power outlet connection:

□

Connected directly to wall outlet

□ Connected to power cord extender or other (the

number of connected equipment______________)

□

Connected to a power cord reel or other (the number

of connected equipment______________)

Computer

Manufacturer:

Model number:

Notebook PC □ / Desktop □

Native resolution:

Refresh rate:

Video adapter:

Other:

Videoequipment

VCR, Blu-ray player, Video camera, Video game or other

Manufacturer:

Model number:

Signal cable

NECstandardorothermanufacturer’scable?

Model number: Length: inch/m

Distribution ampliﬁer

Model number:

Switcher

Model number:

Adapter

Model number:

NEC NP-PH1202HL1 12,000-lumen Laser/Phosphor Professional Installation Laser Projector

Product's Documents

User's Manual

Specifications

NEC NP-PH1202HL1 Questions and Answers
