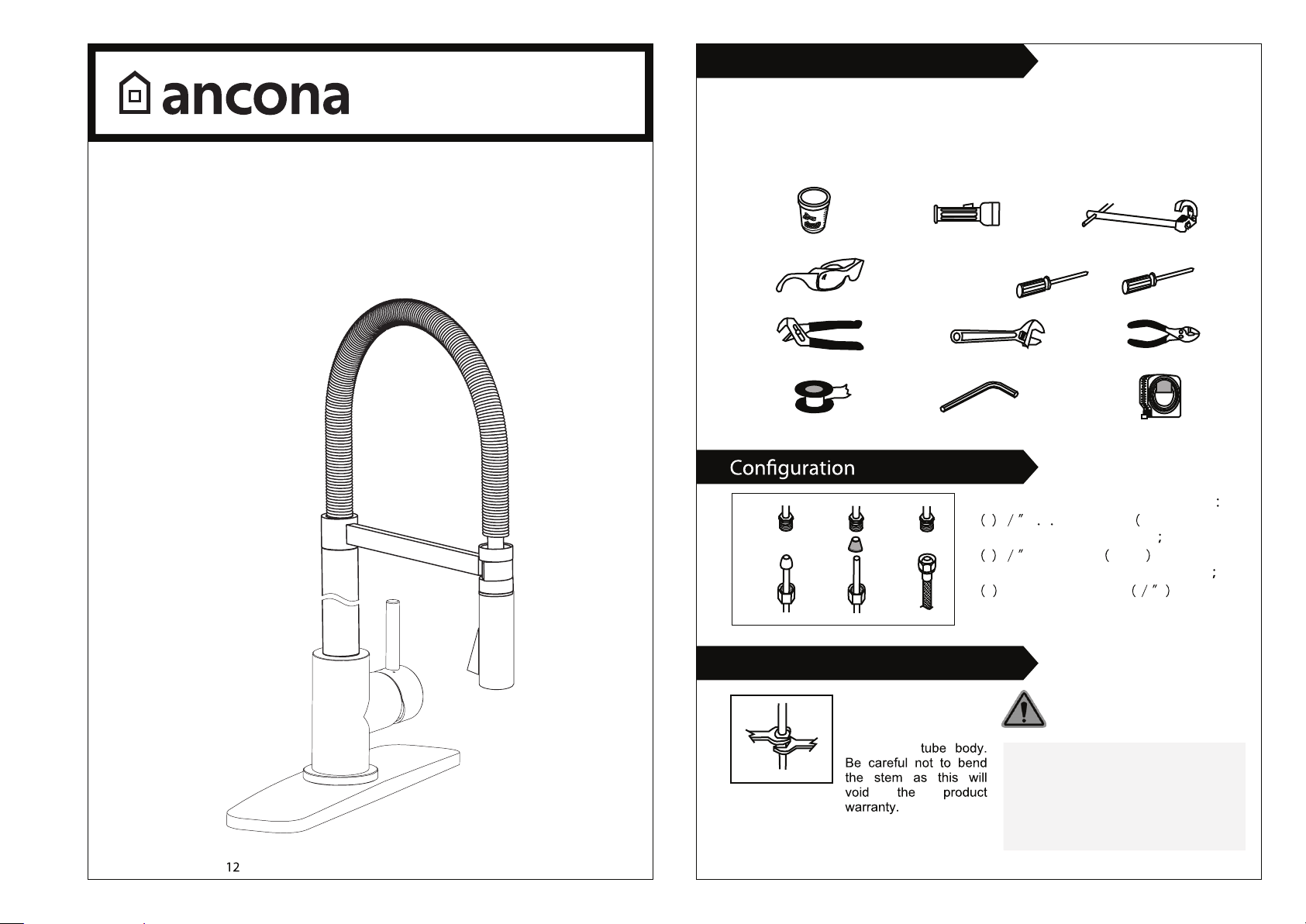

Gather the necessary tools as shown below to complete the installation of this
faucet. Some may not be needed depending on the model of faucet you are
installing. Check with your local hardware store on the requirements of your
installation situation.
Tools:
PLUMBERS PUTTY FLASHLIGHT BASIN WRENCH
SAFETY GLASSES
SCREWDRIVER
PLIERSCHANNELLOCKS ADJUSTABLE WRENCH
SEALED-TUBE
HEX-KEY TAPE
Connect to water supply lines with either
A 3 8 O D copper tubing ball nose
risers with the coupling nuts or
B 3 8 copper tubing no ball with
supplied tube head interior connector or
C IPS faucet connectors 1 2
Tighten connection with
two wrench to prevent
damage to
A . B .
C .
Helpful Information
Important
Barista
2020-01-15 MAAN41 -02
WARNING
Ensure hoses are tightly
screwed into positon as they
may move during
transportation and installation.
• STANDARDS
ASME A112.18.1-2012
CSA B125.1-12
NSF 61-9
LISTED IAPMO/cUPC
• 1.8 gpm/6.8 L/min
A. Move handle into "OFF" position.
B. Turn on water supplies. Check connections for leaks.
C. Remove hand shower and let both hot and cold water
run for one minute. This will help clean any debris that
might otherwise clog the system. Replace hand shower.
D. Operate handle up and down, in cold and hot positions,
to flush water lines thoroughly.

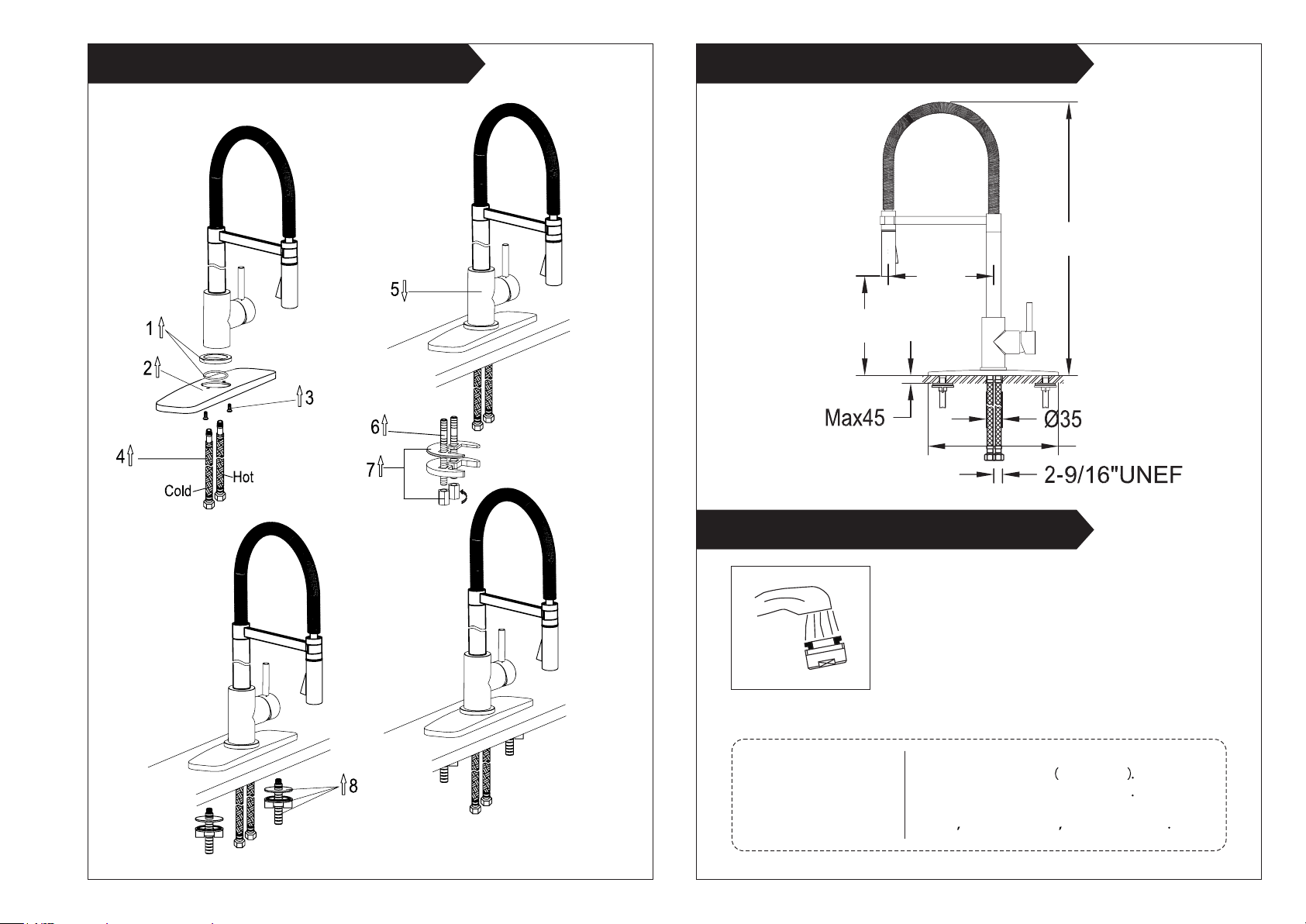

Installation Size MapSingle Hole Installation
Test Faucet Installation
Simply rinse the surface with clear water or
mild liquid detergents
if necessary Dry the
faucet with a clean soft cotton cloth
Do not
use any cleaning agents containing
acids
polish abrasives or harsh cleaners
Maintenance:
8.2’’
(210 mm)
21.4’’ (545 mm)
10.2’’ (260 mm)
7.8’’ (199 mm)
