ELMSWORTH
TM
SINGLE HANDLE
PULL DOWN KITCHEN FAUCET
Register Online:
www.karran.com/productregistration
Save this instruction sheet for future reference
Tools you may need:
Karran USA - 1291 East Ramsey Rd, Vincennes, IN 47591 - T: 866.452.7726 F: 812.885.2440 - www.karran.com
We reserve the right to update product installation
instructions without notice. Please visit karran.com
for the most current installation instructions.
Image is for reference only
Installation Guide
REV. 06/05/2025
KKF760SFSS
MODEL
Spot Free Stainless Steel
Matte Black
Spot Free Champagne Bronze
Spot Free Gunmetal Grey
Spot Free Brushed Gold
FINISH
KKF760MB
KKF760SFCB
KKF760SFGG
KKF760SFBG
R
! TIPS FOR REMOVING YOUR OLD FAUCET
Turn your water supply off before removing your old faucet. Open the faucet handle to relieve
any water pressure and to make sure that complete water shut off has been achieved.
Care & Maintenance
To clean, rinse with clean water and dry with a soft cloth. Do not clean with soaps, polish,
abrasives or harsh cleaners, they can cause damage to the finish. Do not use any cloth with a
coarse finish. Clean the aerator when needed.
2

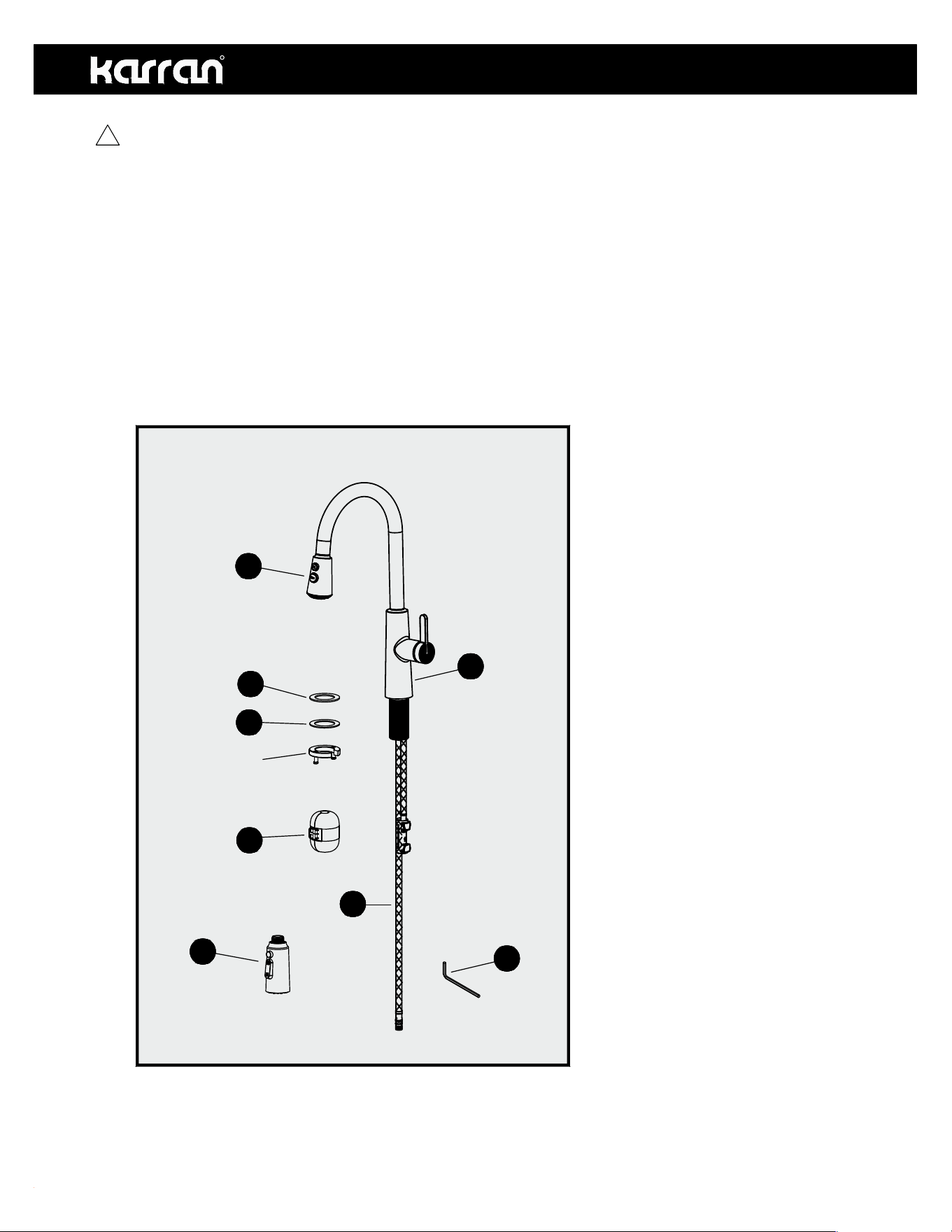

Parts List
1. Main Body
2. Spray Head
3. Rubber Washer
4. Metal Washer
5. Mounting Hardware
6. Weight
7. Spray Hose
8. Extra Spray Head
9. Hex Wrench
1
6
2
4
3
7
5
R
8
9
3

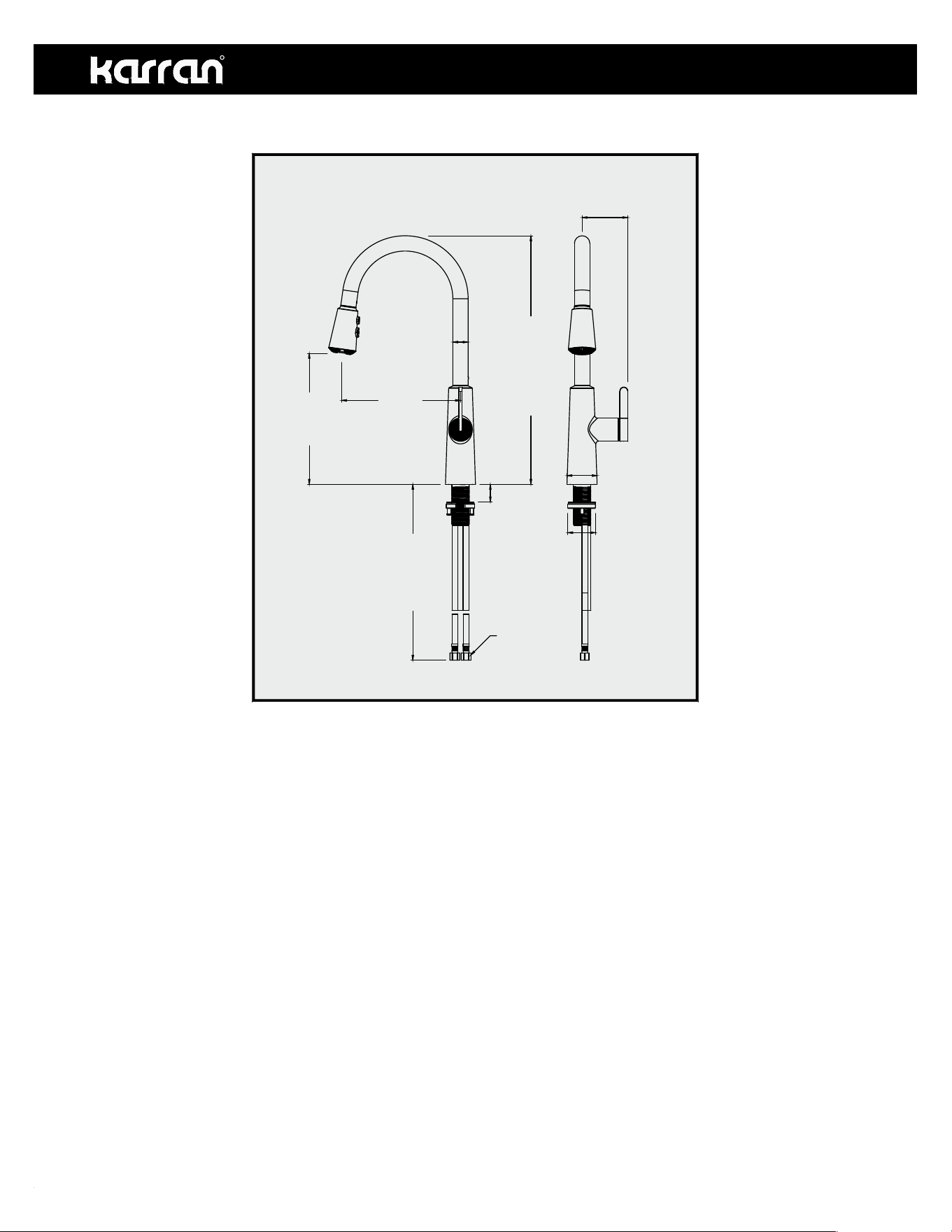

Technical Drawing
2 x 9/16
"
17 7/8"
(454.4mm)
3 1/4"
(83.8mm)
9 3/8"
(239.3mm)
2 3/8"
(61.5mm)
23"
(583.4mm)
R
Ø1 1/8"
(28mm)
Ø2"
(50.5mm)
8 1/2"
(217mm)
Ø2 1/8"
(55mm)
4

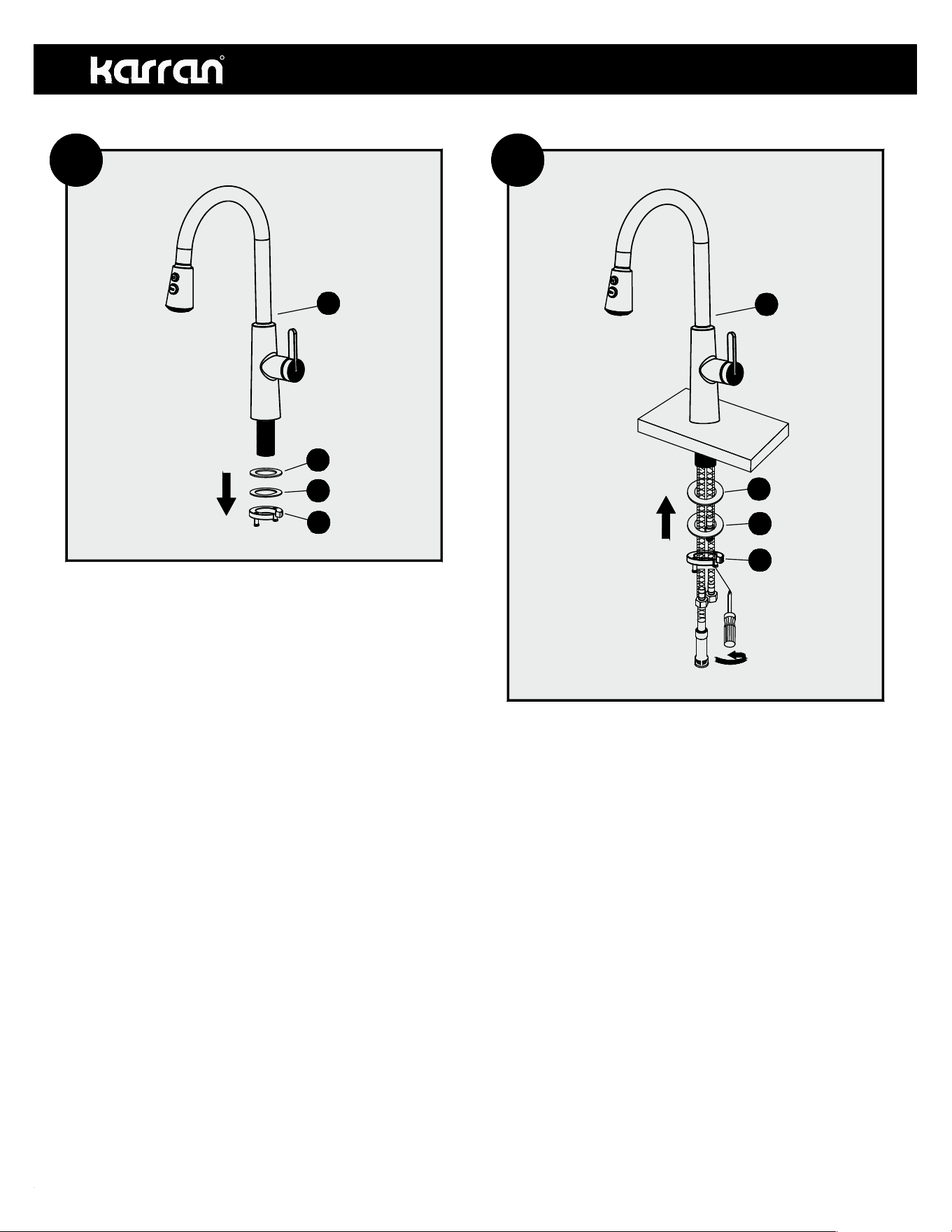

1. Remove the mounting harware (5), metal washer
(4) and rubber washer (3) from the main body (1).
2. Insert the main body (1) into the hole in the sink
or countertop. Install the rubber washer (3), metal
washer (4) and mounting hardware (5) from below
the countertop or sink. Adjust the direction of the
main body (1) so that the handle is on the right
side of faucet. Tighten the mounting nut (5) until
snug. Tighten the mounting screws to the nut with
a Phillips screwdriver until snug.
1
2
Installation Steps
5
4
3
5
4
3
1
R
1

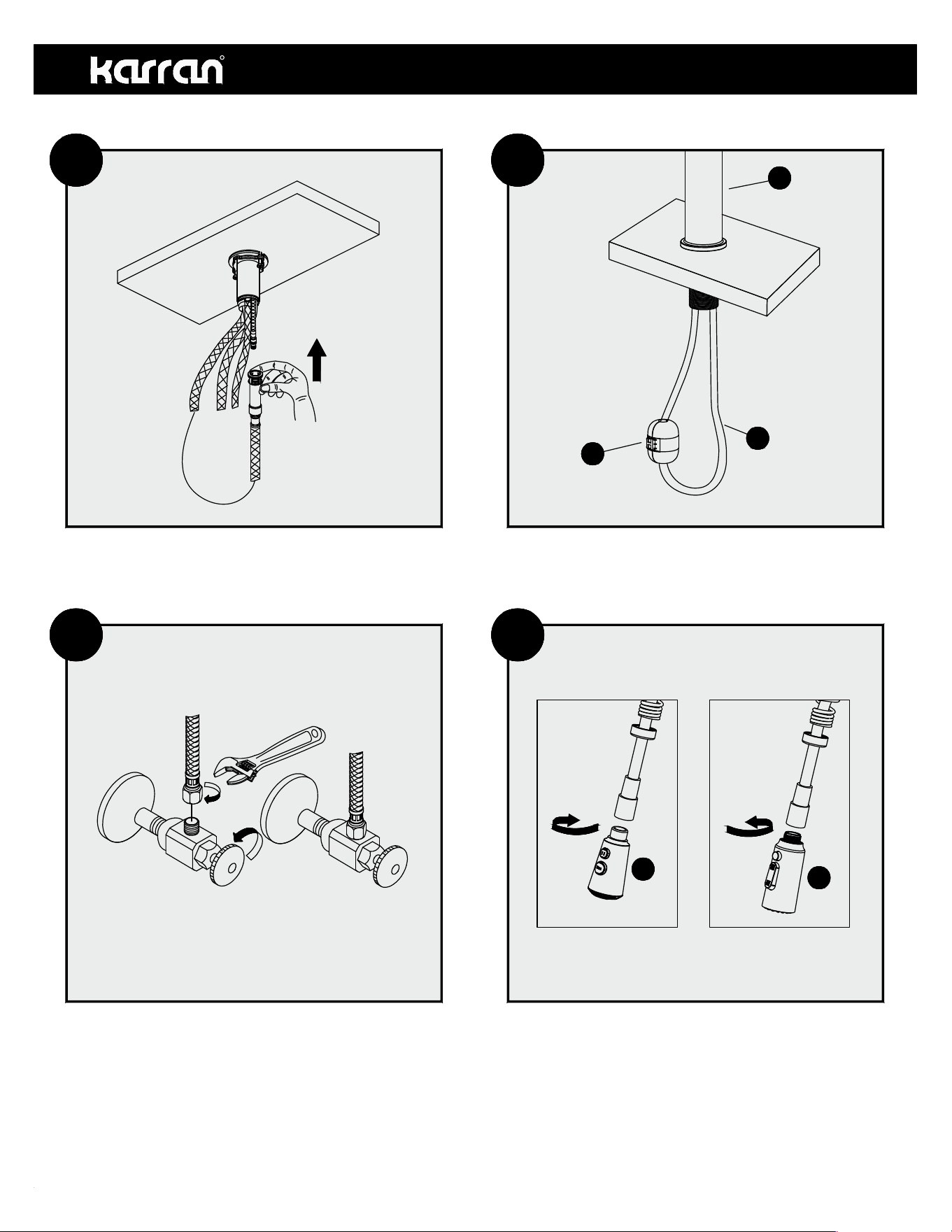

4. Attach the weight (6) onto the spray hose (7)
where it is marked.
5
3. Connect the spray hose (7) to the quick
connector attached to the supply hose.
4
3
5. Connect the waterlines to the water valves until
snug. Turn on the water valves and check for leaks.
5
6
7
1
R
6. To replace the spray head (2) with the extra
provided spray head (8), please unscrew the
pre-installed spray head counterclockwise by hand
and install the extra one by screwing it clockwise.
When installing a new spray head, please do not
miss the sealing o-ring.
6
2
8
6

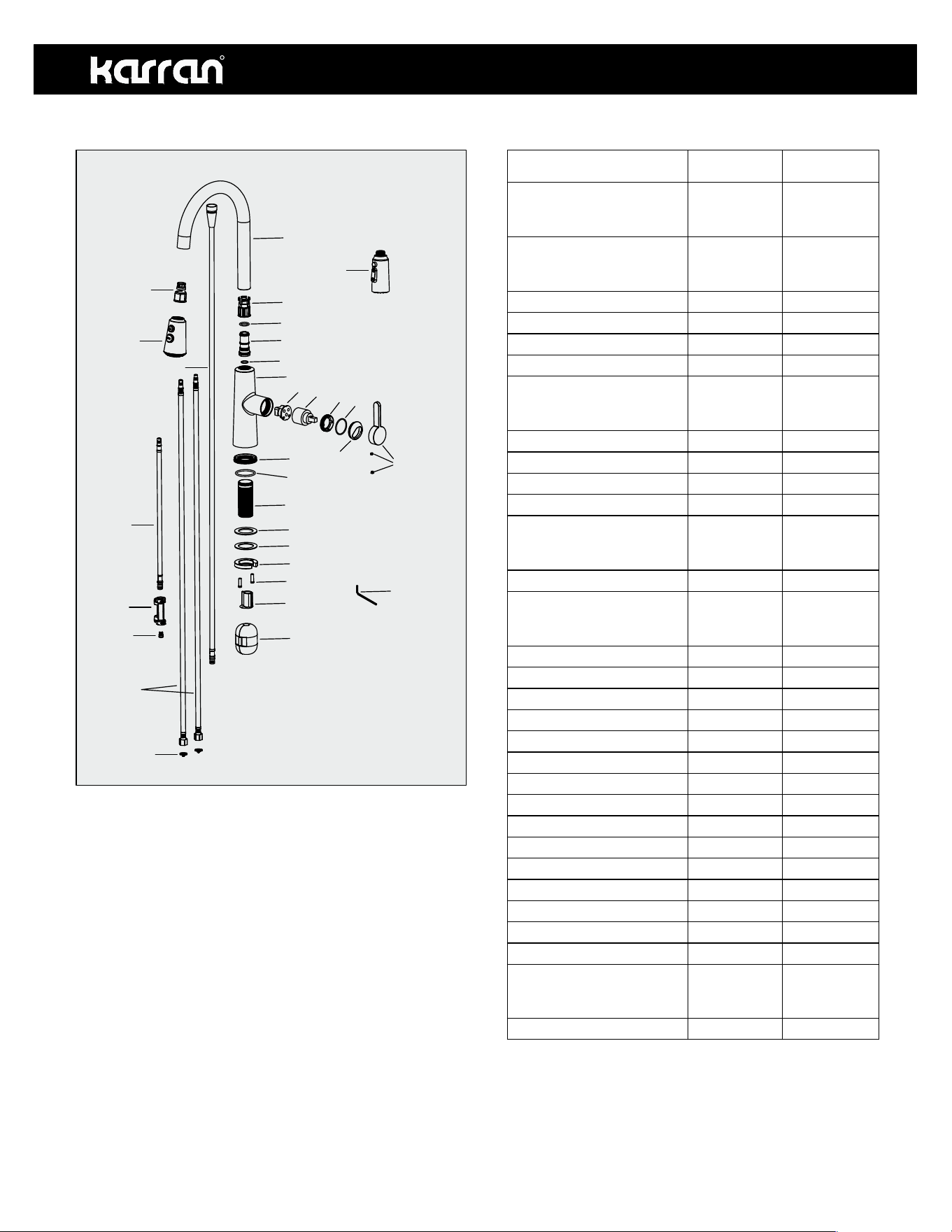

Replacement parts
R
*Denotes faucet component color options:
MB - Matte Black
SFSS - Spot Free Stainless Steel
SFCB - Spot Free Champagne Bronze
SFGG - Spot Free Gunmetal Grey
SFBG - Spot Free Brushed Gold
BL - Black
GR - Grey
1. Handle
19. Metal Washer
20. Mounting Nut
18. Rubber Washer
21. Mounting Screws
Description Finishes Item No.
KPFSH018
080003R
080004S
054007A-32
053002S
BL, GR*
2. Cartridge Cap
103007B
4. Cartridge Nut
6. Cartridge Base
7. Body
8. O-ring
24. Spray Hose
104001S
044011B
033130Z
004031R
KPFSL002
14. Spray Head
KPFSH018
16. O-ring
004066R
17. Shank
035020S
5. Cartridge
9. Connector
039049A
10. O-ring
004003R
11. Sleeve
012016P
12. Spout
020029S-2
13. Sleeve
041015P
23. EZ-Weight
22. Sleeve
26. Mixer Hose
041001P
KPFW001
134084S
KPFCT002
MB, SFSS,
SFGG, SFCB,
SFBG*
MB, SFSS,
SFGG, SFCB,
SFBG*
MB, SFSS,
SFGG, SFCB,
SFBG*
MB, SFSS,
SFGG, SFCB,
SFBG*
BL*
MB, SFSS,
SFGG, SFCB,
SFBG*
25. Cold & Hot Waterlines
131013P
27. Check Valve
988033P
28. Quick Connector
039002P
29. Filter Washer
088025R
30. Spray Head
KPFSH020
31. Hex Wrench
G002
MB, SFSS,
SFGG, SFCB,
SFBG*
24
2
3
4
5
BL*
15. Connector
034035B
1
7
8
9
10
11
13
15
16
17
18
19
20
21
22
25
26
27
28
3. O-ring
004051R
6
12
14
23
29
30
31
7
