362
Clamp Meter
Users Manual
LIMITED WARRANTY AND LIMITATION OF LIABILITY
This Fluke product will be free from defects in material and workmanship for two years
from the date of purchase. This warranty does not cover fuses, disposable batteries, or
damage from accident, neglect, misuse, alteration, contamination, or abnormal
conditions of operation or handling. Resellers are not authorized to extend any other
warranty on Fluke’s behalf. To obtain service during the warranty period, contact your
nearest Fluke authorized service center to obtain return authorization information, then
send the product to that Service Center with a description of the problem.
THIS WARRANTY IS YOUR ONLY REMEDY. NO OTHER WARRANTIES, SUCH AS
FITNESS FOR A PARTICULAR PURPOSE, ARE EXPRESSED OR IMPLIED. FLUKE
IS NOT LIABLE FOR ANY SPECIAL, INDIRECT, INCIDENTAL OR
CONSEQUENTIAL DAMAGES OR LOSSES, ARISING FROM ANY CAUSE OR
THEORY. Since some states or countries do not allow the exclusion or limitation of an
implied warranty or of incidental or consequential damages, this limitation of liability
may not apply to you.
i
Table of Contents
Title Page
Introduction ................................................................................................................. 1
Contact Fluke ............................................................................................................. 2
Safety Information ...................................................................................................... 3
The Meter ................................................................................................................... 11
Specifications ............................................................................................................. 17
Electrical Specifications .......................................................................................... 17
Mechanical Specifications ...................................................................................... 18
Environmental Specifications ................................................................................. 19
Safety Specifications .............................................................................................. 20
362
Users Manual
ii
1
Introduction
Warning
Read "Safety Information" before you use the Meter.
The Fluke 362 is a hand-held, battery-operated clamp meter (the Meter) that measures:
• ac and dc current and voltage
• resistance
• continuity
The Meter ships with:
• TL75 test leads
• two AAA batteries (installed)
• 362 User Manual
362
Users Manual
2
Contact Fluke
To contact Fluke, call one of the following telephone numbers:
• Technical Support USA: 1-800-44-FLUKE (1-800-443-5853)
• Calibration/Repair USA: 1-888-99-FLUKE (1-888-993-5853)
• Canada: 1-800-36-FLUKE (1-800-363-5853)
• Europe: +31 402-675-200
• Japan: +81-3-3434-0181
• Singapore: +65-738-5655
• China: +86-400-810-3435
• Anywhere in the world: +1-425-446-5500
Or, visit Fluke's website at www.fluke.com.
To register your product, visit http://register.fluke.com.
To see, print, or download the latest manual supplement, visit
http://us.fluke.com/usen/support/manuals.
Clamp Meter
Safety Information
3
Safety Information
A Warning identifies conditions and actions that pose hazard(s) to the user. A Caution identifies
conditions and procedures that could cause Meter damage, equipment under test damage, or
permanent loss of data.
Symbols used on the Meter and in this manual are explained in Table 1.
Warning
To prevent possible electrical shock or personal injury, follow these guidelines:
• Use the Meter only as specified in this manual or the protection provided by the
Meter can be compromised.
• Examine the case before you use the Meter. Look for cracks or missing plastic.
Carefully look at the insulation around the connectors.
• Never measure current while the test leads are inserted into the input jacks.
• Make sure the battery door is closed and latched before operating the Meter.
362
Users Manual
4
• Remove the test leads from the Meter before the battery door is opened.
• Examine the test leads for damaged insulation or exposed metal. Check test lead
continuity. Replace damaged test leads before using the Meter.
• Do not use the Meter if it operates incorrectly. Protection can be compromised.
When in doubt, have the Meter serviced.
• Do not use the Meter around explosive gas, vapor or in damp or wet
environments.
• Use only type AAA batteries, properly installed in the Meter case, to power the
Meter.
• When batteries are changed, make sure the calibration seal in the battery
compartment is not damaged. If damaged, the Meter may not be safe to use.
Return the Meter to Fluke for replacement of the seal.
• When measuring, keep fingers behind the Tactile Barrier. See "The Meter" .
Clamp Meter
Safety Information
5
• To avoid false readings that can lead to electrical shock and injury, replace the
batteries as soon as the low battery indicator () appears.
• When servicing the Meter, use only specified replacement parts.
• Have the Meter serviced only by qualified service personnel.
• Be careful around voltages > 30 V ac rms, 42 V ac peak, or 60 V dc. Such
voltages pose a shock hazard.
• Do not apply more than the rated voltage, as marked on the Meter, between the
terminals or between any terminal and earth ground.
• When using the probes, keep fingers behind the finger guards on the probes.
• Connect the common test lead before connecting the live test lead. When
disconnecting test leads, disconnect the live test lead first.
• Do not work alone so assistance can be rendered in an emergency.
362
Users Manual
6
• Use extreme caution when working around bare conductors or bus bars. Contact
with the conductor could result in electric shock.
• Adhere to local and national safety codes. Individual protective equipment must
be used to prevent shock and arc blast injury where hazardous live conductors
are exposed.
• Disconnect circuit power and discharge all high-voltage capacitors before you
do diode tests or measure resistance or continuity.
• Do not measure ac/dc current in circuits carrying more than 600 V or 200 A with
the Meter Jaw.
• Never operate the Meter with the back cover removed or the case open.
• Remove the batteries if the Product is not used for an extended period of time, or
if stored in temperatures above 50 °C. If the batteries are not removed, battery
leakage can damage the Product.
Clamp Meter
Safety Information
7
• Measure a known voltage first to make sure that the Product operates correctly.
• Only use probes, test leads, and accessories that have the same measurement
category, voltage, and amperage ratings as the Product.
• Use Product-approved measurement category (CAT), voltage, and amperage
rated accessories (probes, test leads, and adapters) for all measurements.
• Do not exceed the Measurement Category (CAT) rating of the lowest rated
individual component of a Product, probe, or accessory.
Caution
To avoid possible damage to the Meter or to equipment under test:
• Use the proper jacks, function, and range for the measurement application.
• Clean the case and accessories with a damp cloth and mild detergent only. Do
not use abrasives or solvents.
362
Users Manual
8
Table 1. Symbols
Symbol Meaning Symbol Meaning
AC (Alternating Current)
Earth ground
DC (Direct Current)
Double insulated
Hazardous voltage
Conforms to European Union
directives.
Risk of Danger. Important
information. See Manual.
Conforms to relevant North American
Safety Standards.
Battery. Low battery when shown
on display.
Application around and removal from
HAZARDOUS LIVE conductors is
permitted.
Clamp Meter
Safety Information
9
Table 1. Symbols (cont.)
Symbol Meaning Symbol Meaning
CAT II
Measurement Category II is
applicable to test and measuring
circuits connected directly to
utilization points (socket outlets
and similar points) of the low-
voltage MAINS installation.
CAT III
IEC Measurement Category III
CAT III equipment has protection
against transients in equipment in
fixed-equipment installations, such as
distribution panels, feeders and short
branch circuits, and lighting systems in
large buildings.
362
Users Manual
10
Table 1. Symbols (cont.)
Symbol Meaning Symbol Meaning
CAT IV
Measurement Category IV is
applicable to test and measuring
circuits connected at the source o
f
the building’s low-voltage MAINS
installation.
This product complies with the WEEE
Directive (2002/96/EC) marking
requirements. The affixed label
indicates that you must not discard this
electrical/electronic product in domestic
household waste. Product Category:
With reference to the equipment types
in the WEEE Directive Annex I, this
product is classed as category 9
"Monitoring and Control
Instrumentation" product. Do not
dispose of this product as unsorted
municipal waste. Go to Fluke’s website
for recycling information.
Clamp Meter
The Meter
11

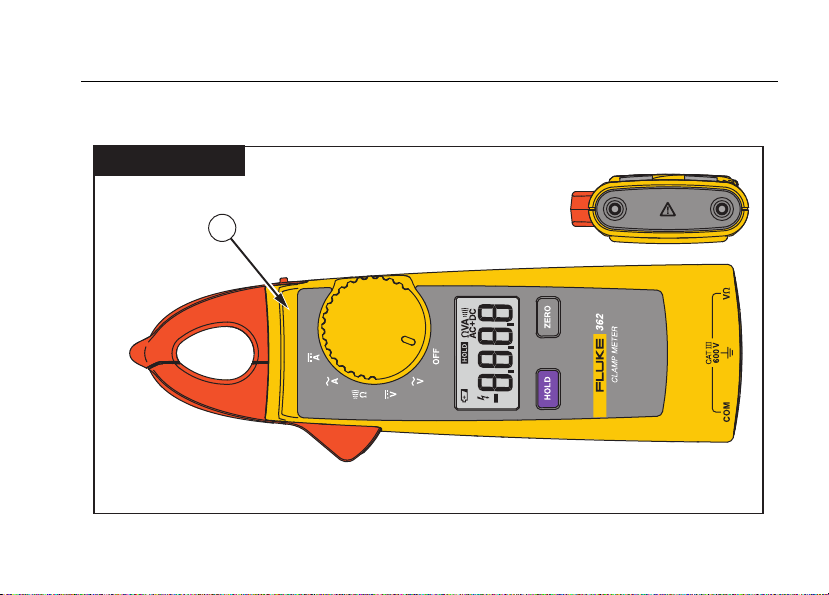

The Meter
Clamp Meter
1
fig01.eps
362
Users Manual
12
15
VA
AC
DC
VA
AC
DC
ON
V
AC
V
AC

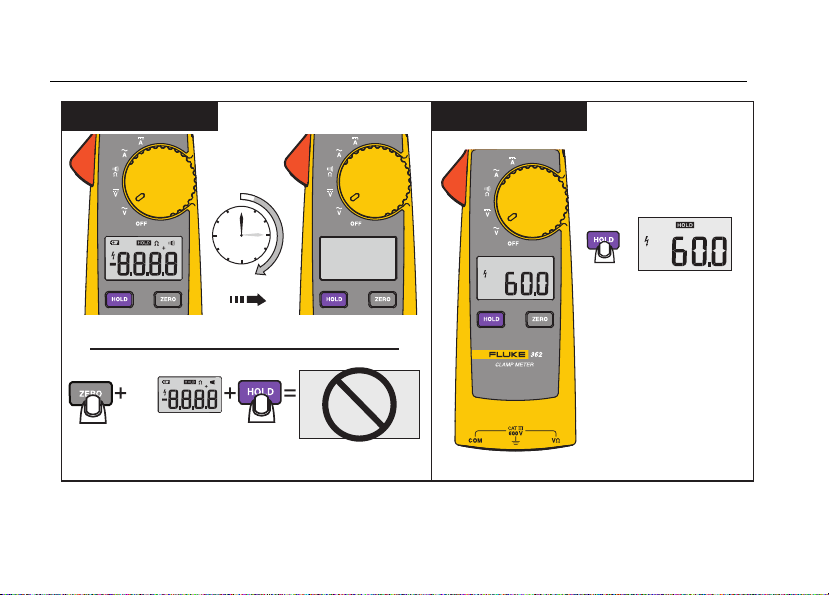

Auto Power Off
Display Hold
fig02_3.eps
Clamp Meter
The Meter
13

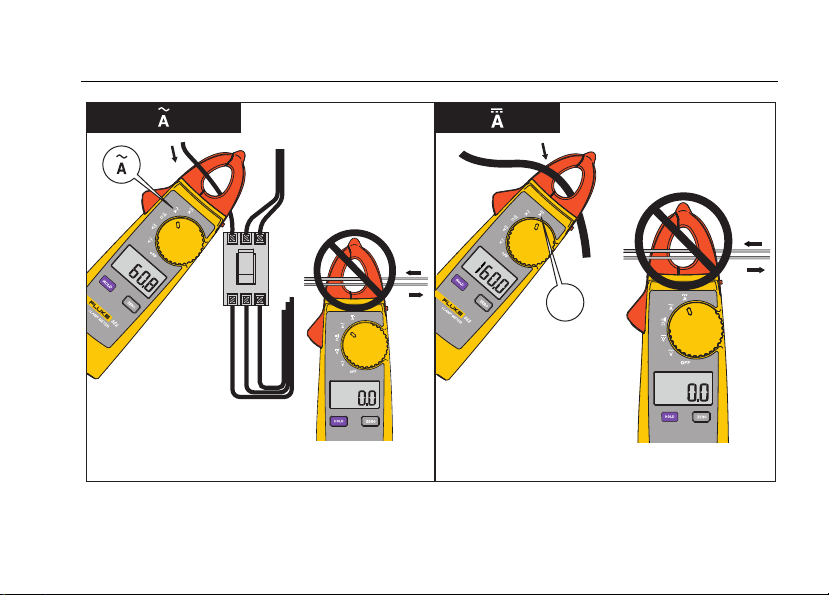

A
AC
A
AC
A
DC
A
DC
A
Fig04_05.eps
362
Users Manual
14
fig06_07.eps
Clamp Meter
The Meter
15

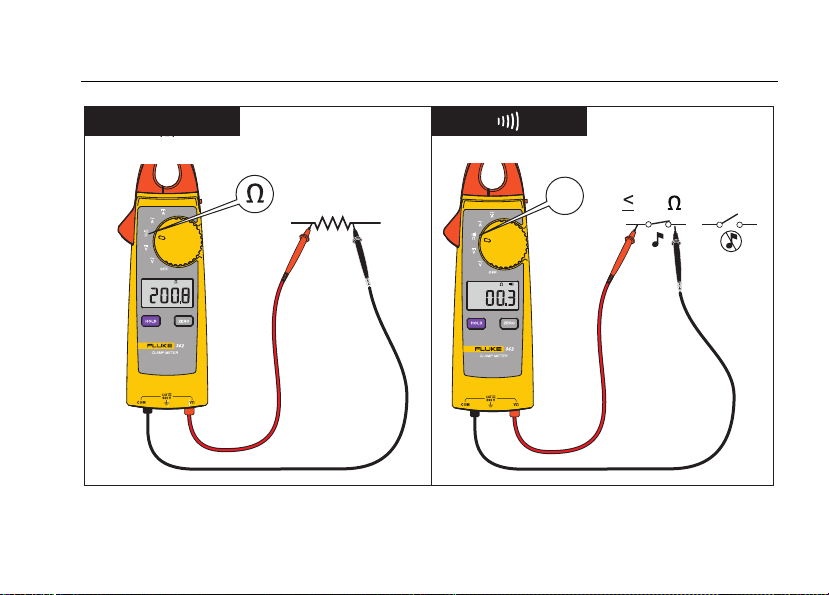

e
R
70
Fig08_09.eps
362
Users Manual
16

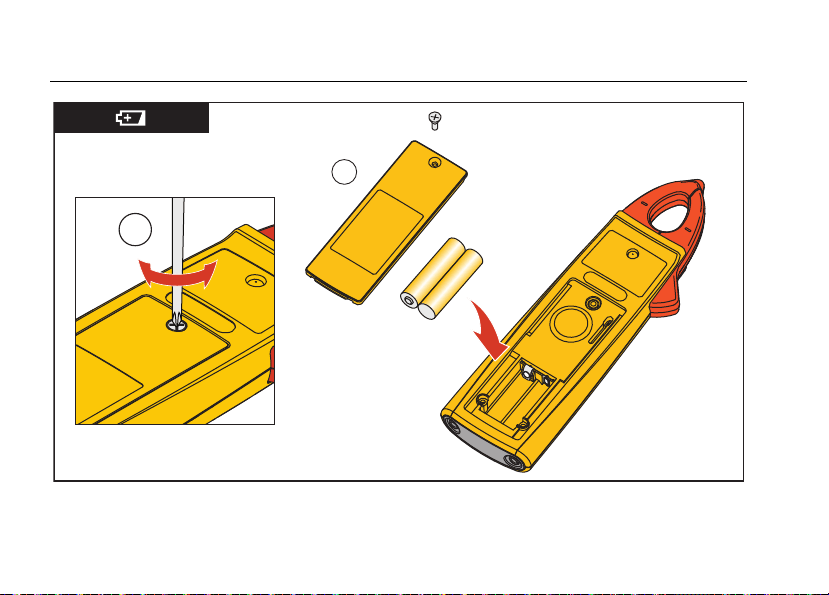

1
2
Fig10.eps
Clamp Meter
Specifications
17
Specifications
Electrical Specifications
AC Current
Range ..................................................... 200.0 A
Resolution ............................................... 0.1 A
Accuracy ................................................. 2 % ±5 digit (45 Hz-65 Hz)
2.5 % ±5 digits (65 Hz-400 Hz)
DC Current
Range ..................................................... 200.0 A
Resolution ............................................... 0.1 A
Accuracy ................................................. 2 % ±5 digit
AC Voltage
Range ..................................................... 600.0 V
Resolution ............................................... 0.1 V
Accuracy ................................................. 1.5 % ±5 digits (45 Hz-400 Hz)
362
Users Manual
18
DC Voltage
Range ..................................................... 600.0 V
Resolution ............................................... 0.1 V
Accuracy ................................................. 1 % ±5 digits
Resistance
Range ..................................................... 300 Ω/ 3000 Ω
Resolution ............................................... 0.1 Ω/1 Ω
Accuracy ................................................. 1 % ±5 digits
Continuity
Beeper on Threshold .............................. ≤ 70 Ω
Mechanical Specifications
Size (L x W x H) ..................................... 205 mm x 60 mm x 22 mm
Weight ..................................................... 196 g
Jaw Opening ........................................... 18 mm
Clamp Meter
Specifications
19
Environmental Specifications
Operating Temperature ........................... 0 °C to +40 °C
Storage Temperature .............................. -30 °C to +60 °C, 100 hours under -40 °C
Operating Humidity ................................. Non condensing (< 10 °C)
≤ 90 % RH (at 10 °C to 30 °C)
≤ 75 % RH (at 30 °C to 40 °C)
≤ 45 % RH (at 40 °C to 50 °C)
(Without Condensation)
Operating Altitude ................................... 2000 meters
Storage Altitude ...................................... 12,000 meters
IP Rating ................................................. IP 30 per IEC/EN 60529; Case
Vibration Requirements .......................... MIL-PRF-28800F, Class 2
362
Users Manual
20
Electromagnetic Environment ................. IEC/EN 61326-1 (portable)
Temperature Coefficients........................ Add 0.1 x specified accuracy for each degree C above
28 °C or below 18 °C
Safety Specifications
Safety Compliance .................................. IEC/EN 61010-1
IEC/EN 61010-2-032
Batteries .................................................. 2 AAA
