USE AND CARE MANUAL
Built-in Ovens
Model:
ME271
ME301
ME272
ME302
MED272
MED302
MEW301
MEM271
MEM301
MEMC301
MEMW271
MEMW301
MEMCW301
This Thermador Appliance is made by
BSH Home Appliances Corporation
5551 McFadden Ave.
Huntington Beach, CA 92649
Questions?
1-800-735-4328
www.thermador.com
We look forward to hearing from you!

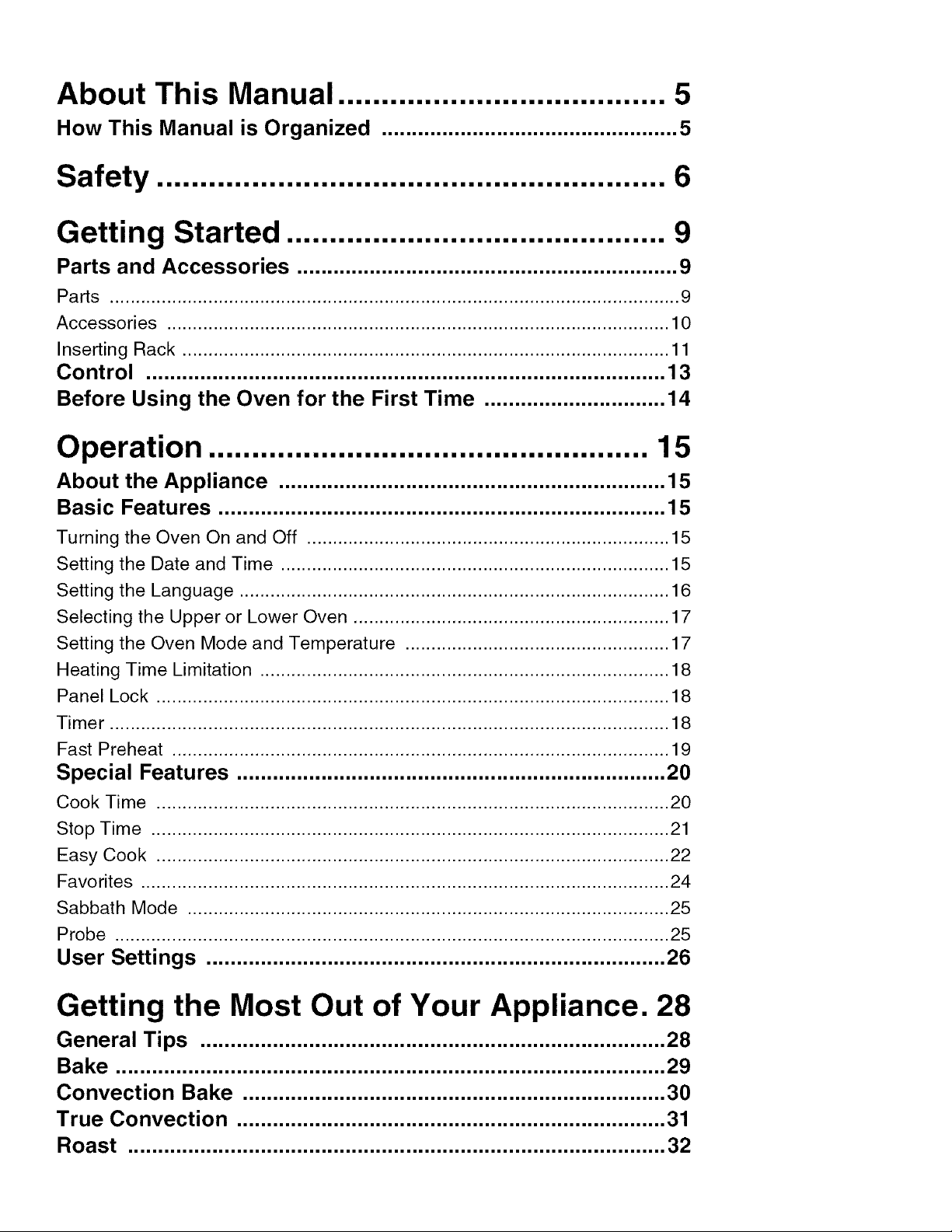

About This Manual ...................................... 5
How This Manual is Organized ................................................. 5
Safety ........................................................... 6
Getting Started ............................................ 9

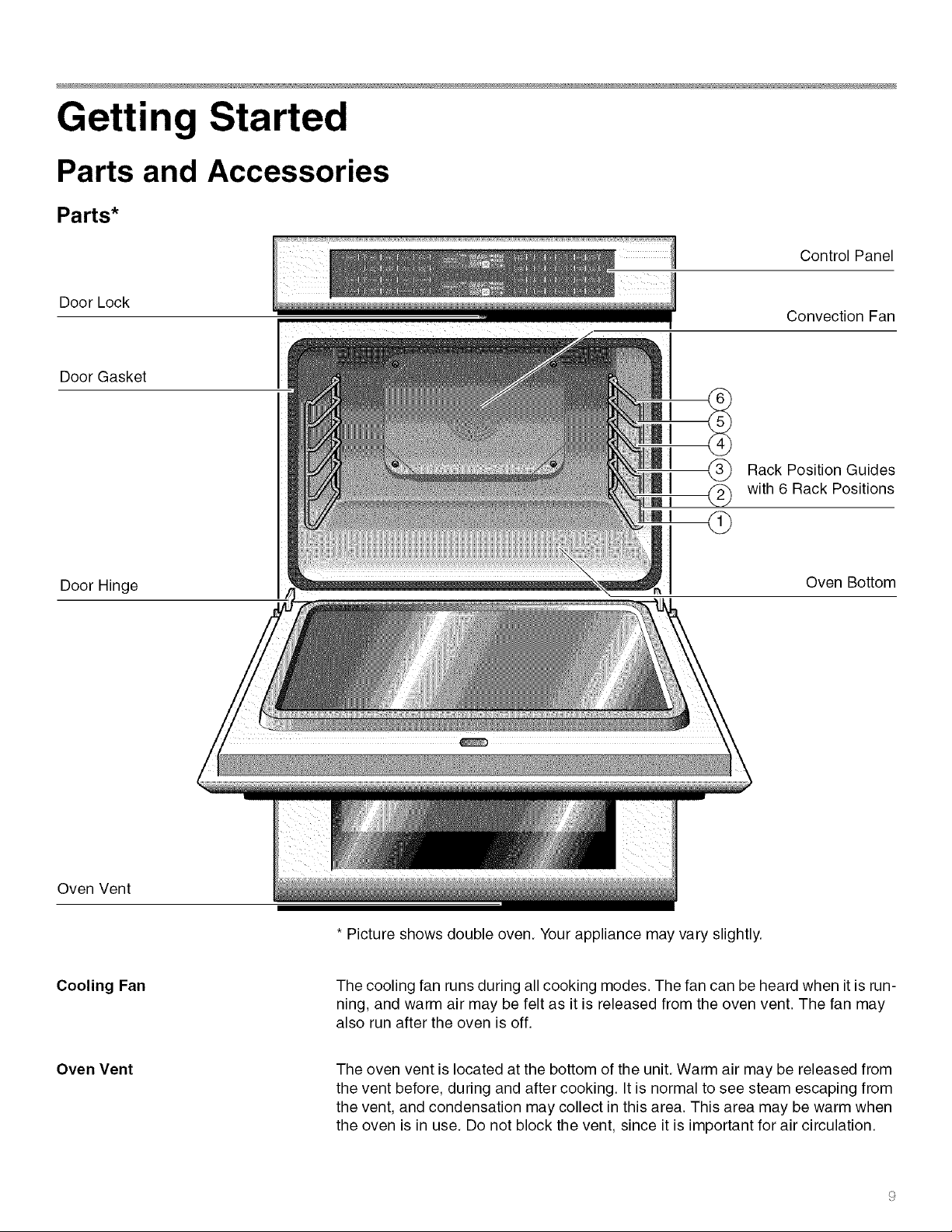

Parts and Accessories ............................................................... 9
Parts .............................................................................................................. 9

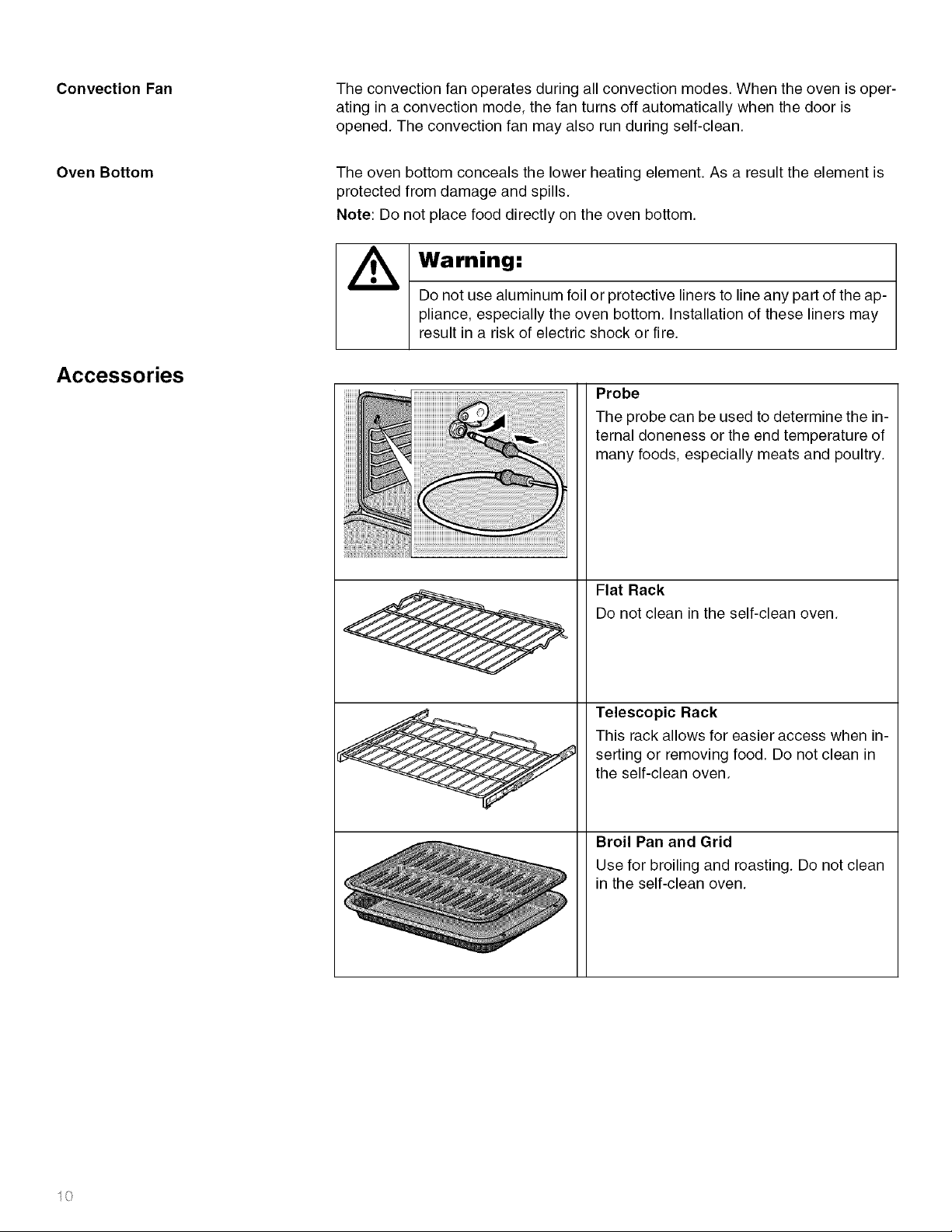

Accessories ................................................................................................. 10

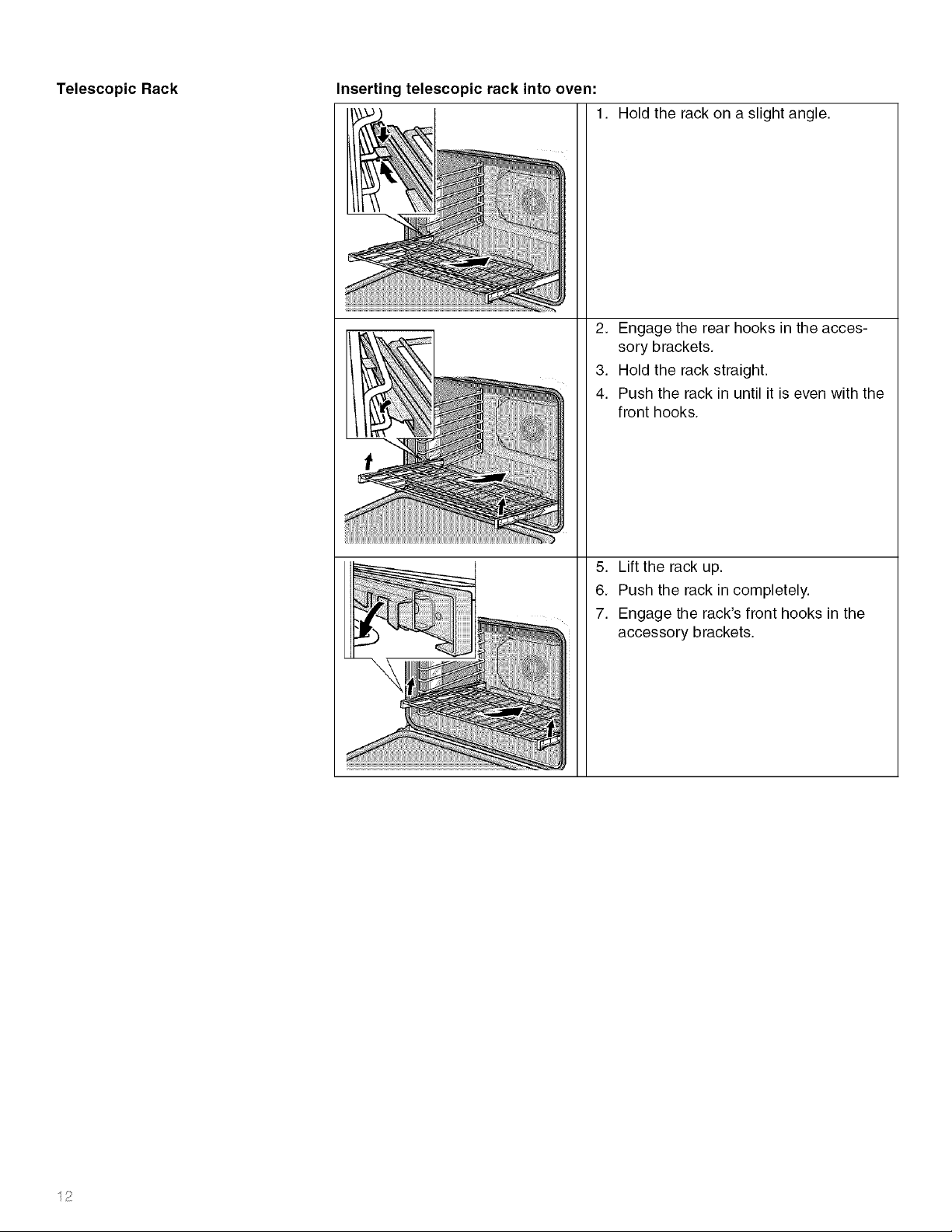

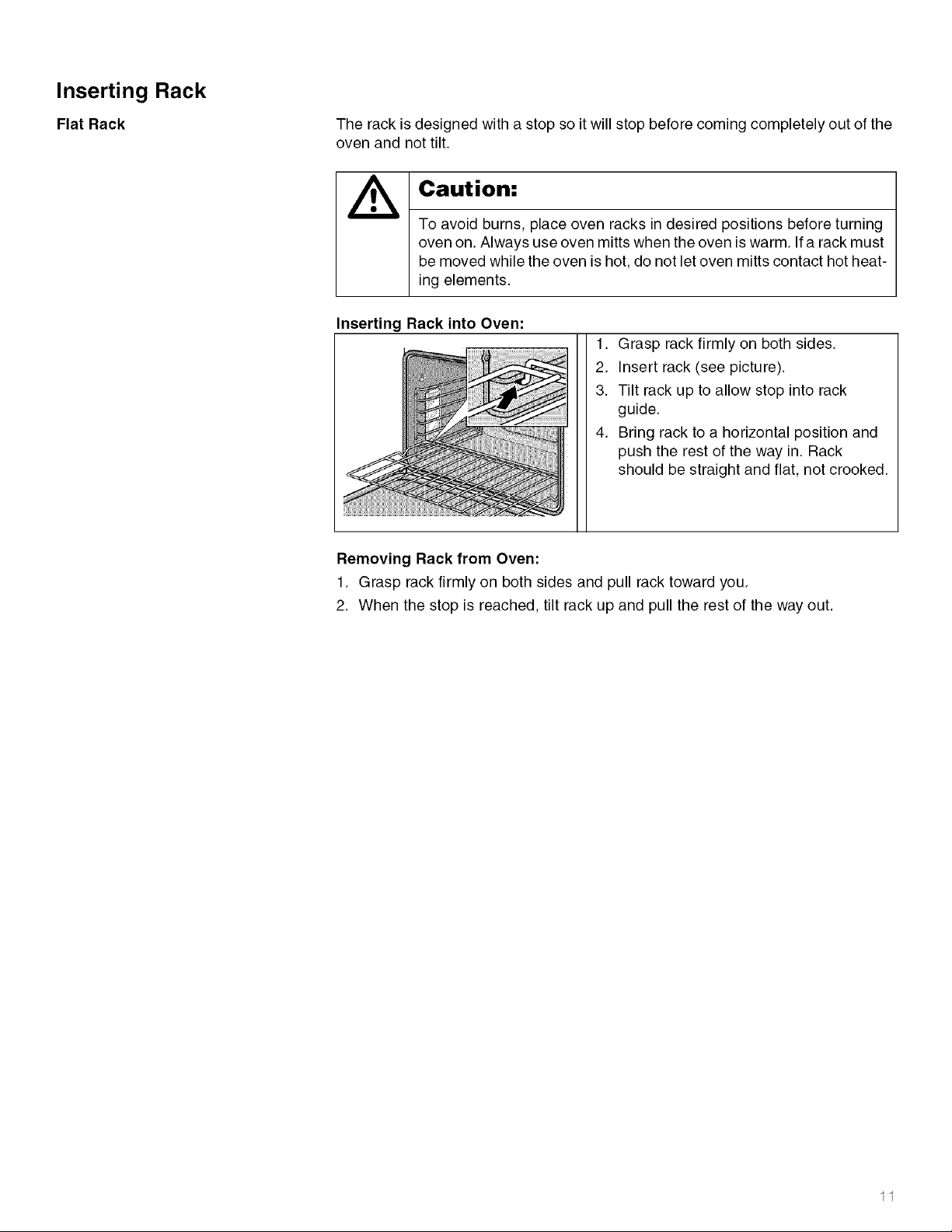

Inserting Rack .............................................................................................. 11

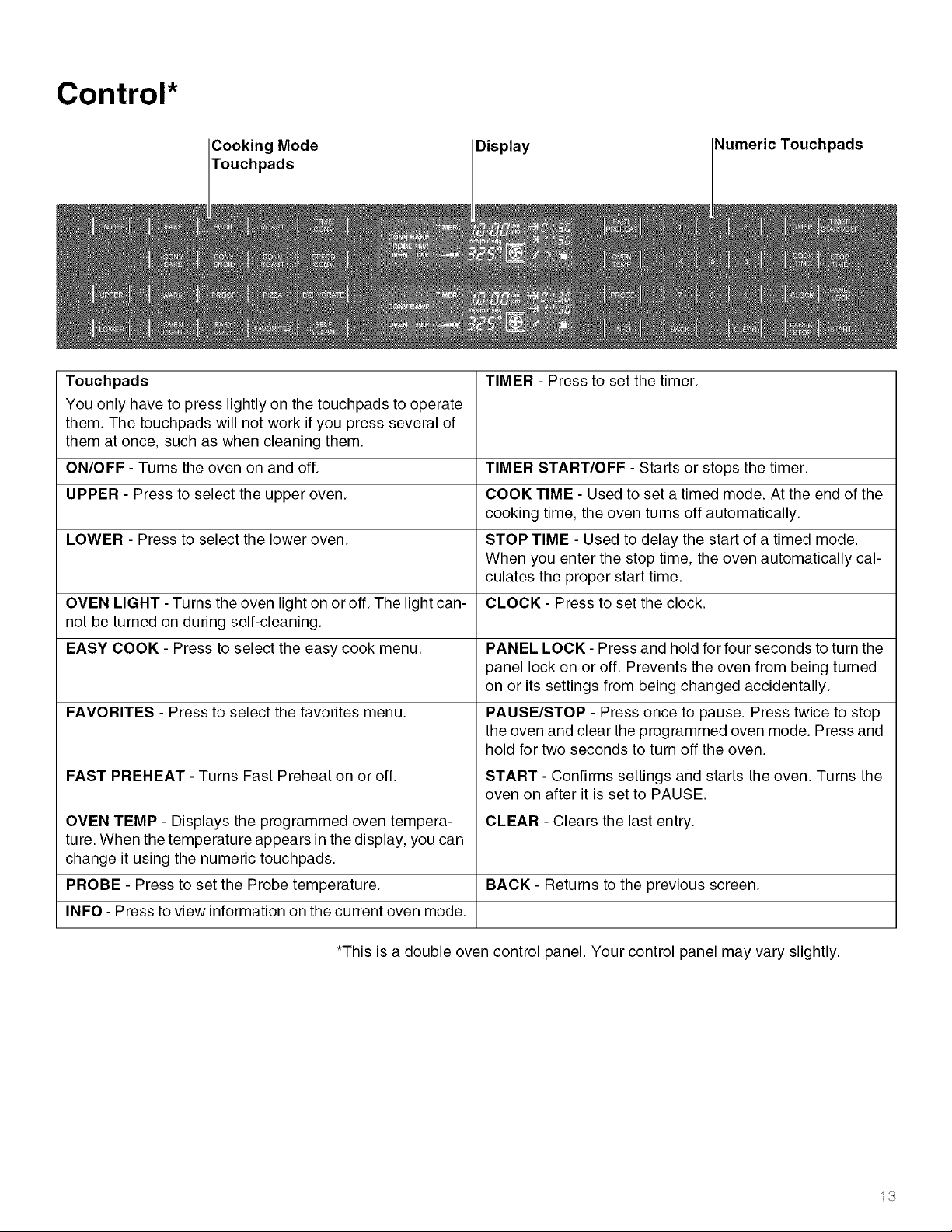

Control ...................................................................................... 13

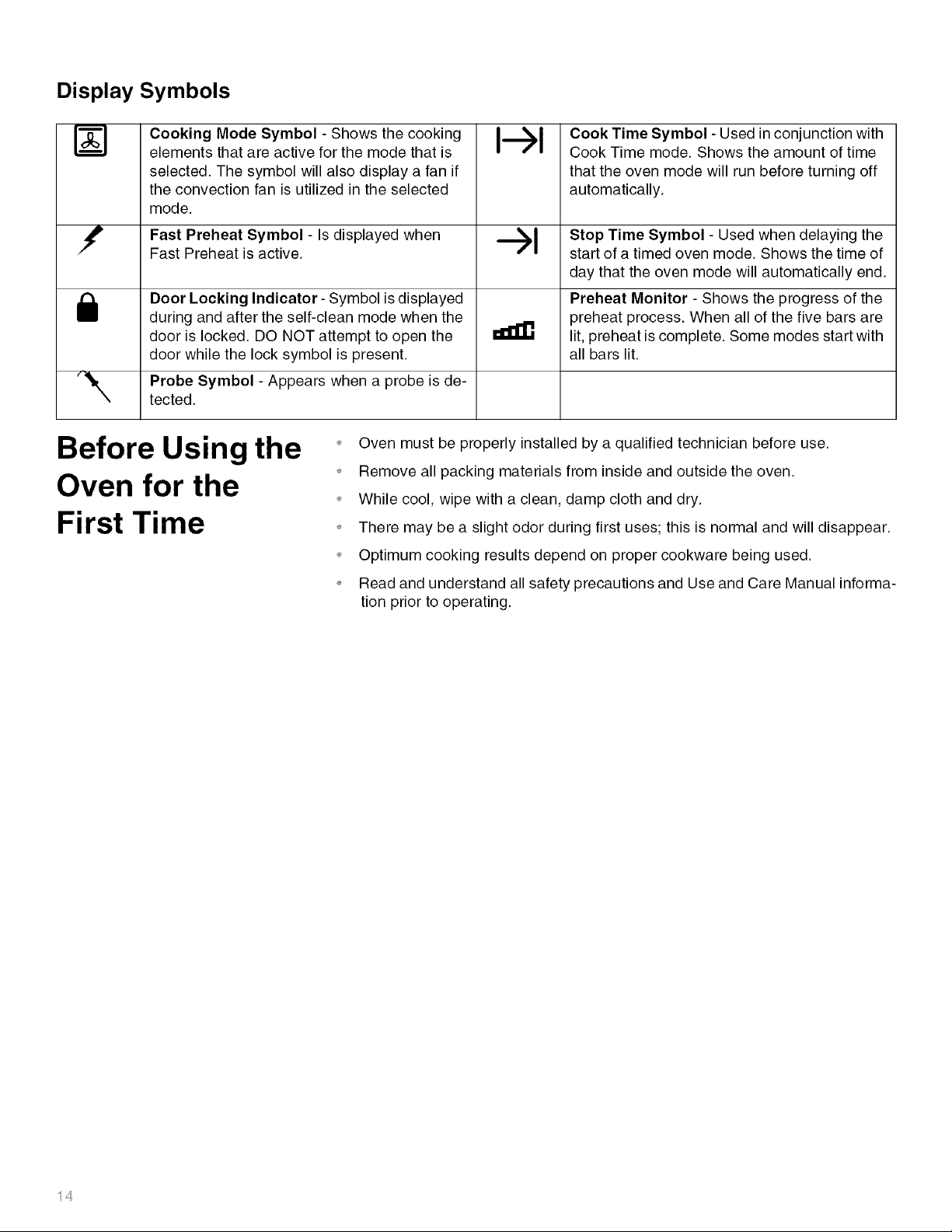

Before Using the Oven for the First Time .............................. 14
Operation ................................................... 15

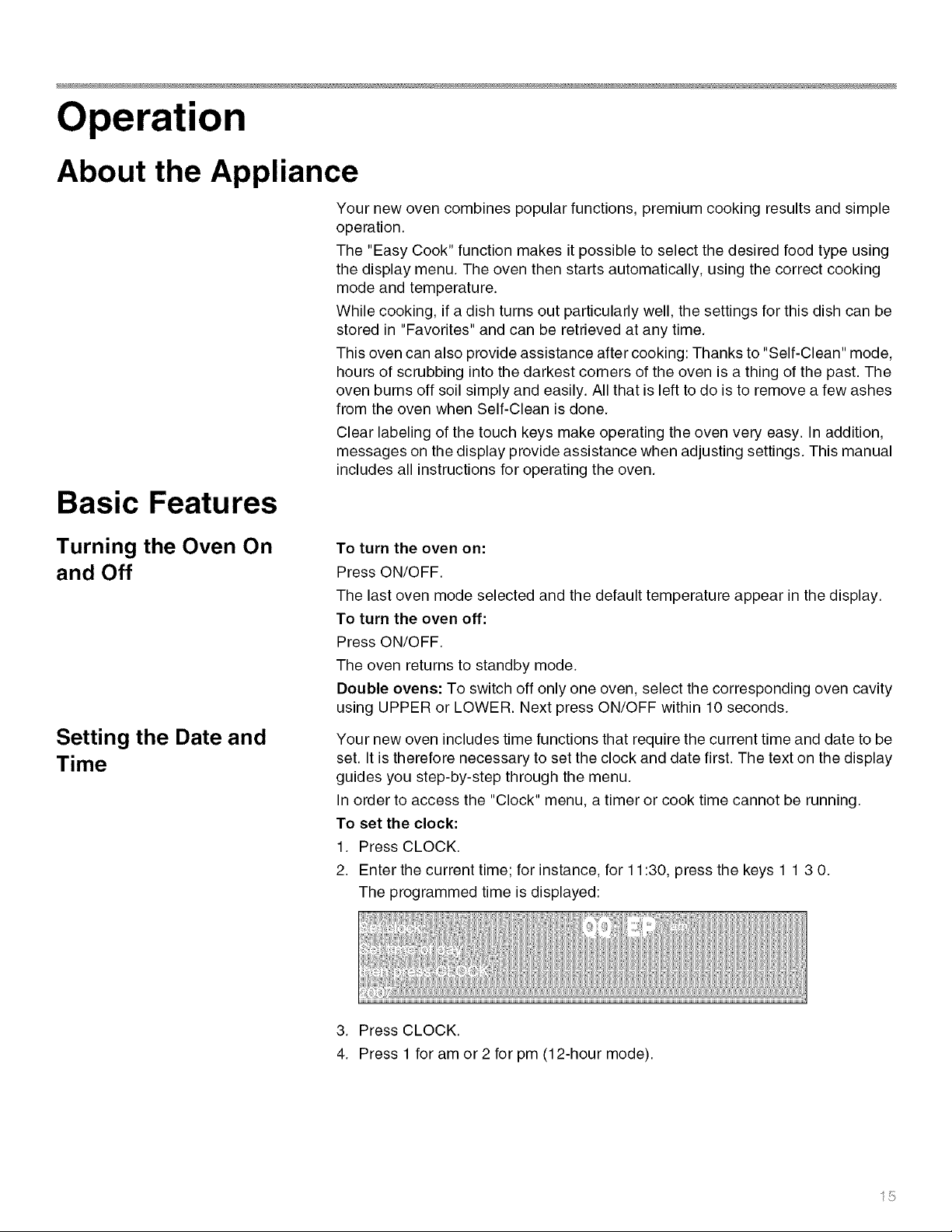

About the Appliance ................................................................ 15
Basic Features .......................................................................... 15
Turning the Oven On and Off ...................................................................... 15

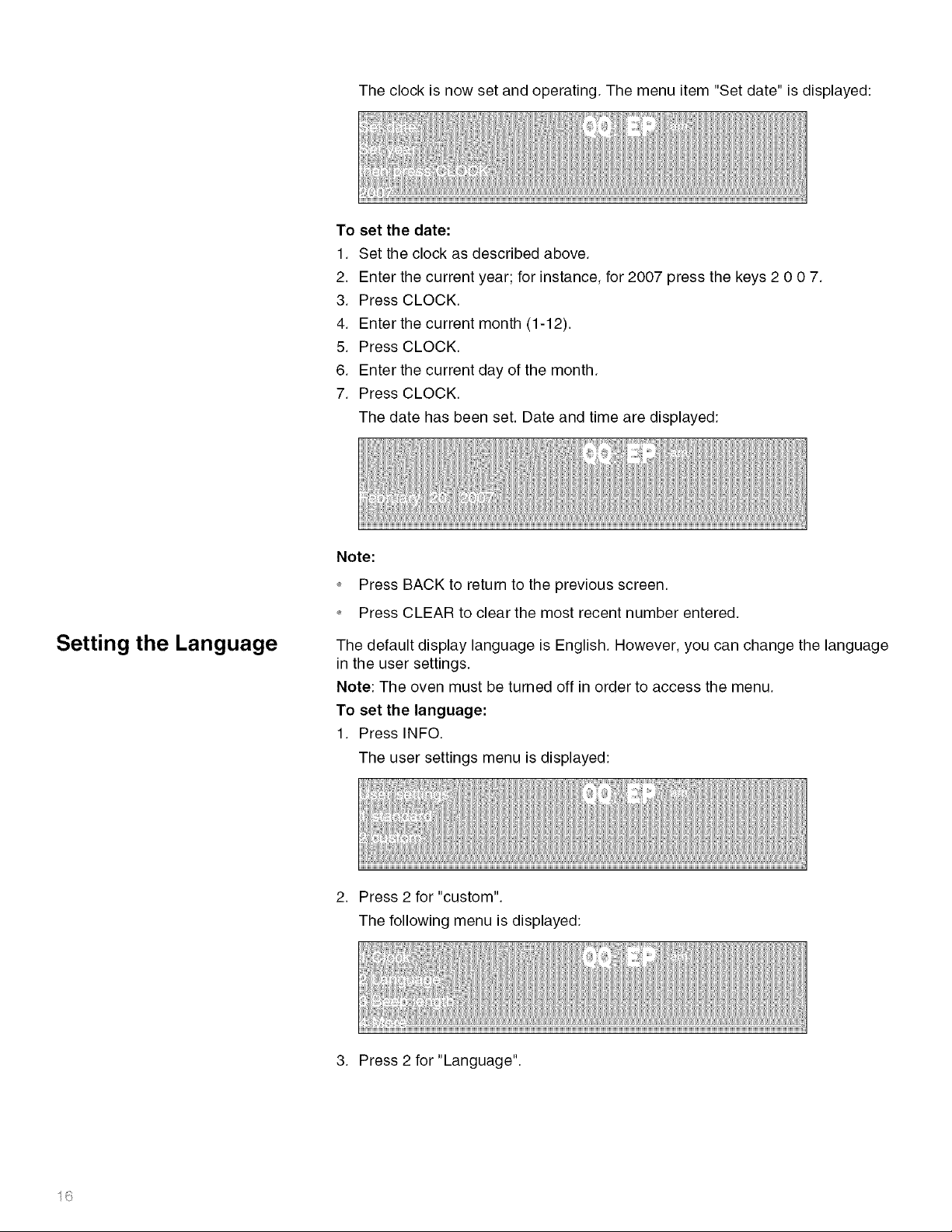

Setting the Date and Time ........................................................................... 15
Setting the Language ................................................................................... 16

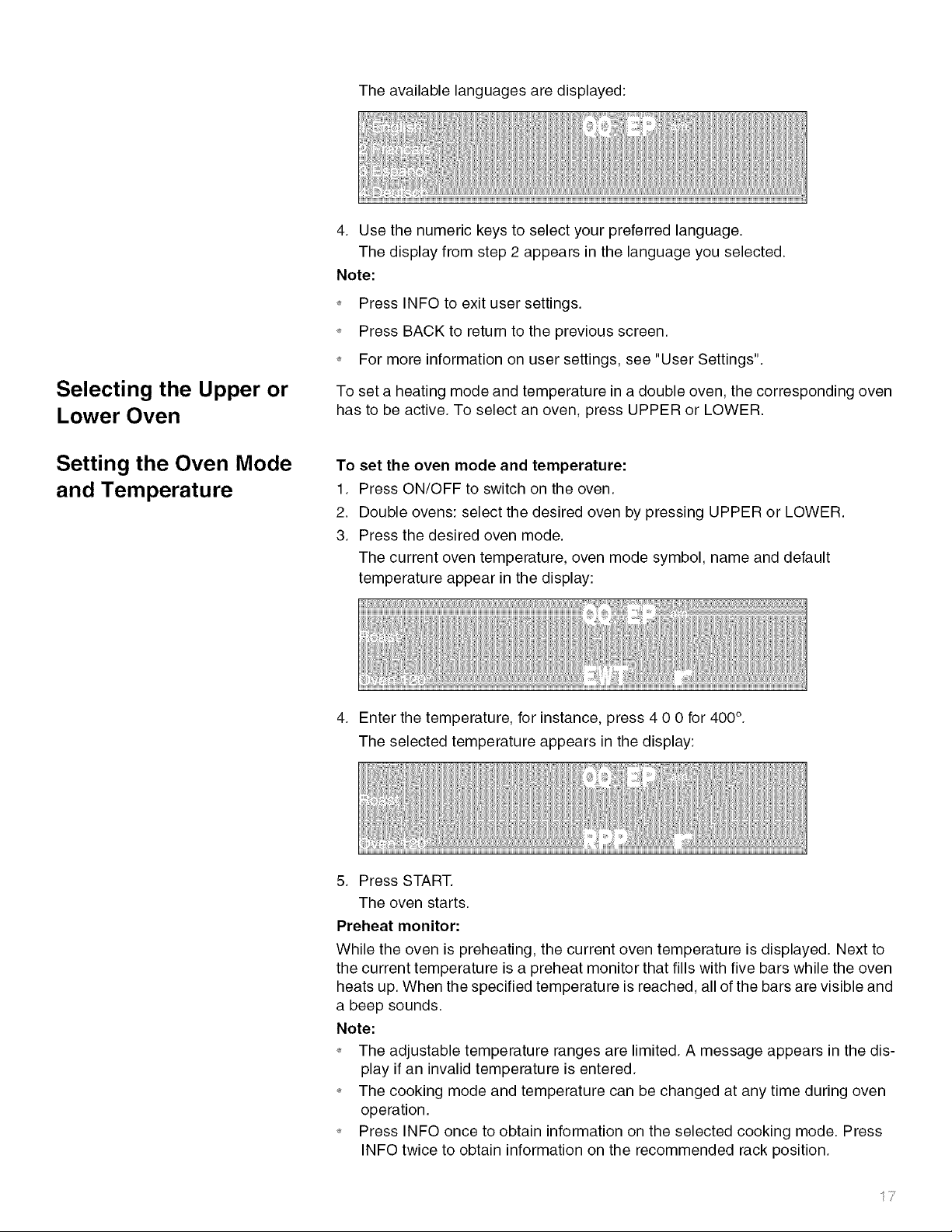

Selecting the Upper or Lower Oven ............................................................. 17
Setting the Oven Mode and Temperature ................................................... 17

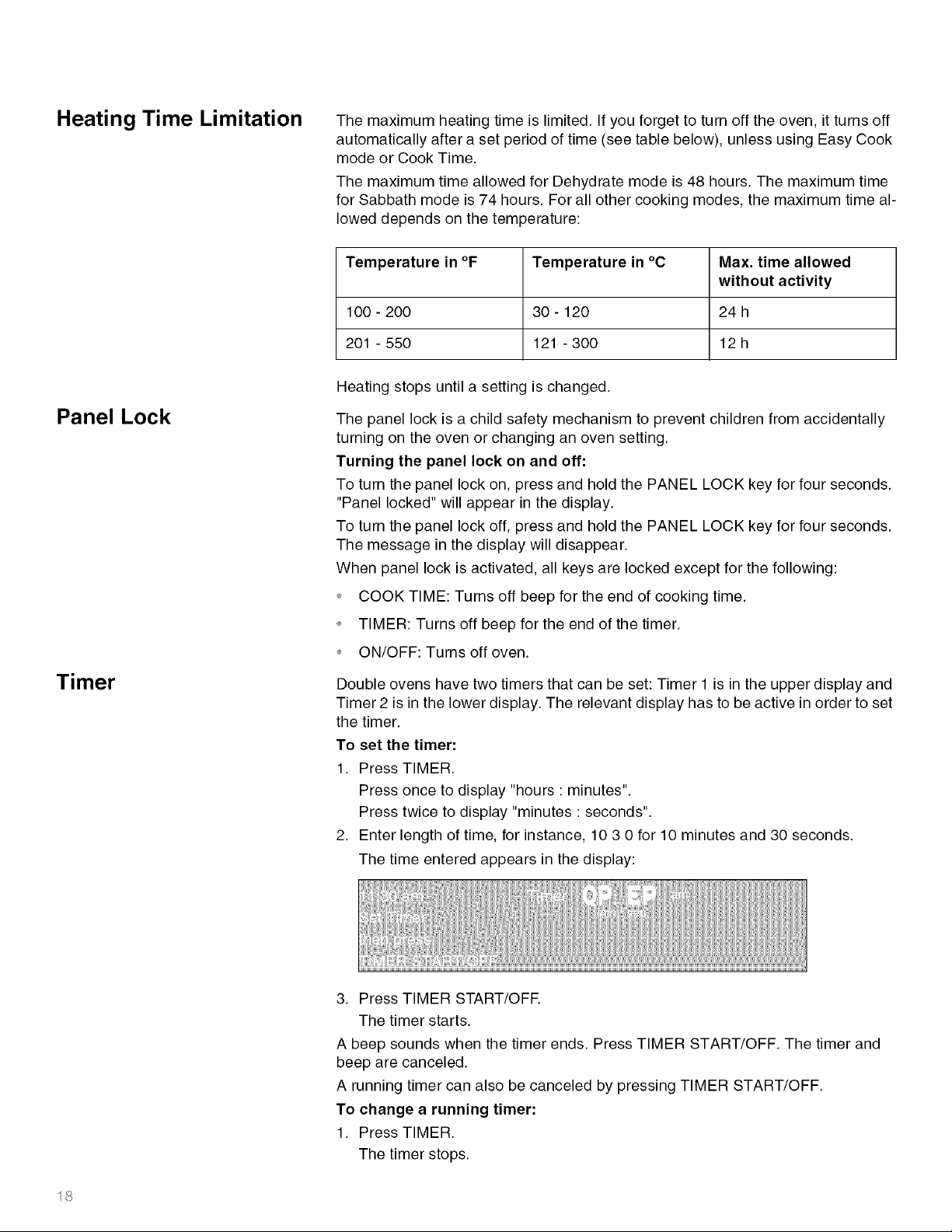

Heating Time Limitation ............................................................................... 18
Panel Lock ................................................................................................... 18
Timer ............................................................................................................ 18

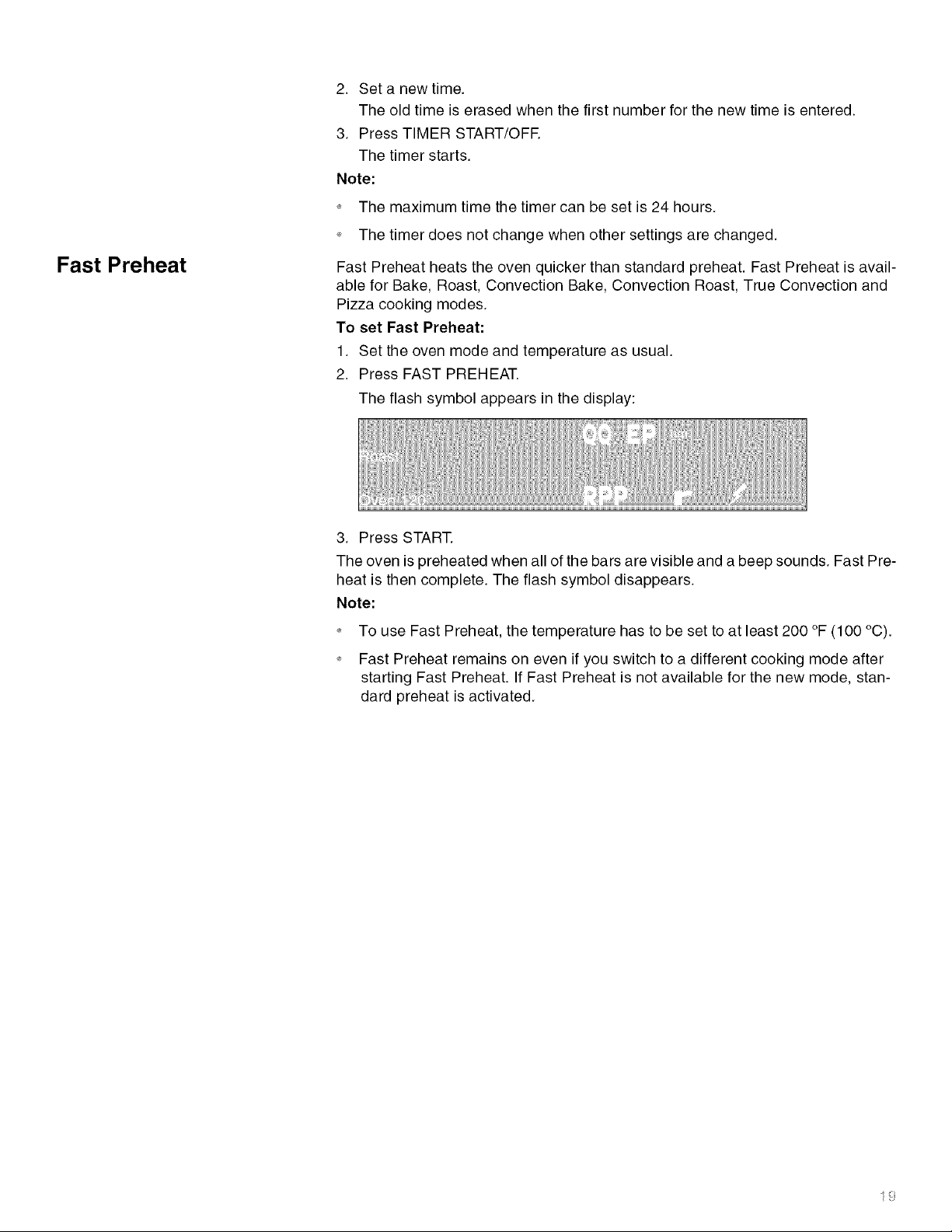

Fast Preheat ................................................................................................ 19

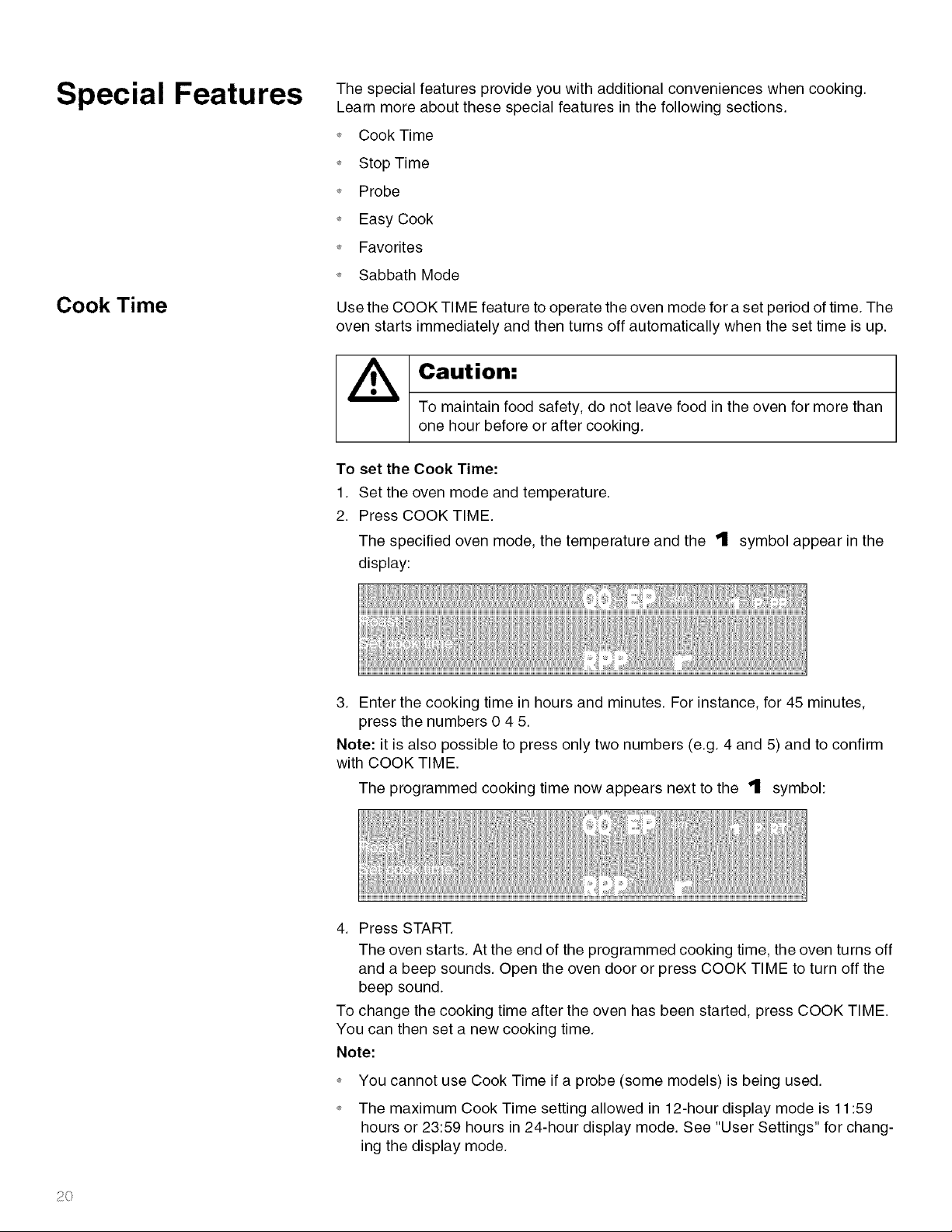

Special Features ....................................................................... 20
Cook Time ................................................................................................... 20

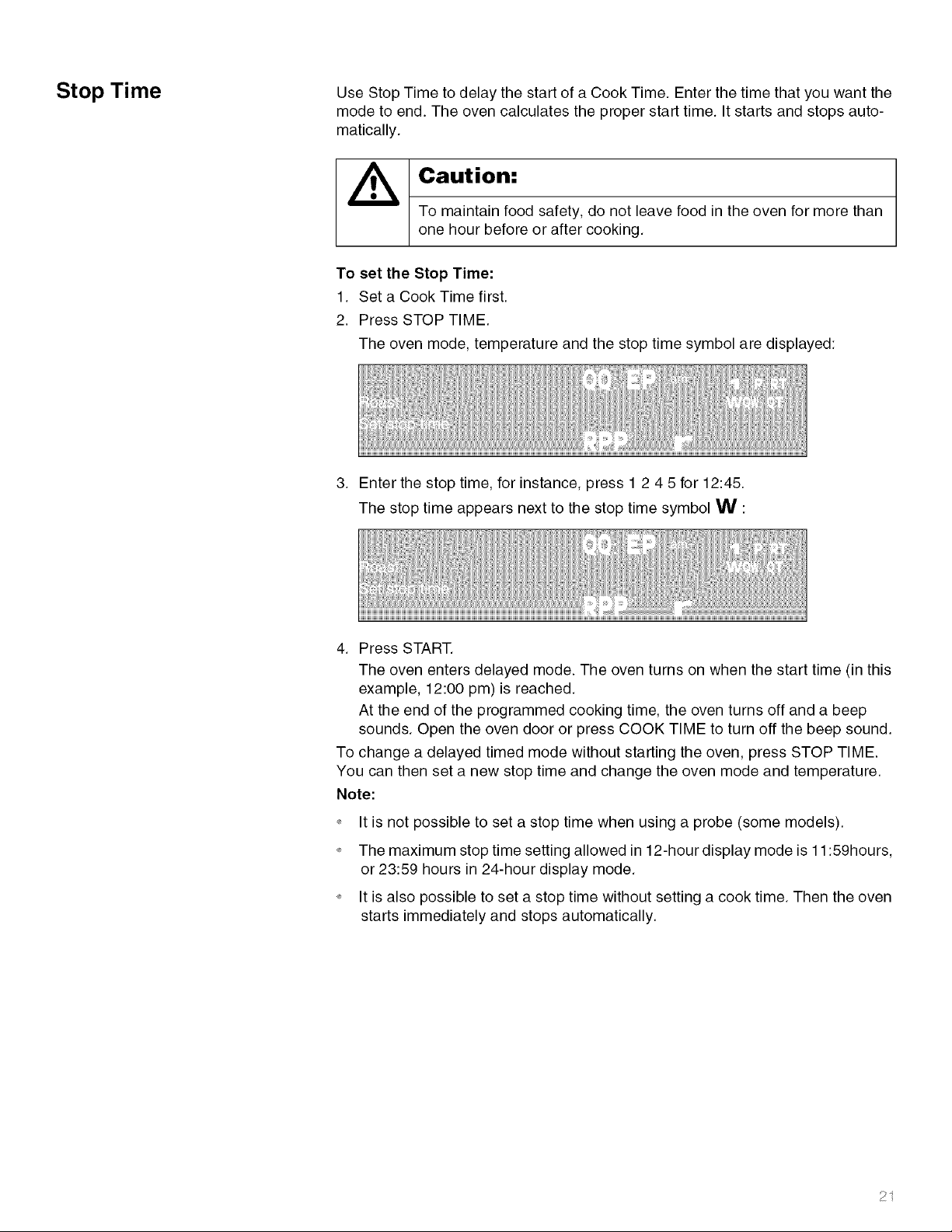

Stop Time .................................................................................................... 21

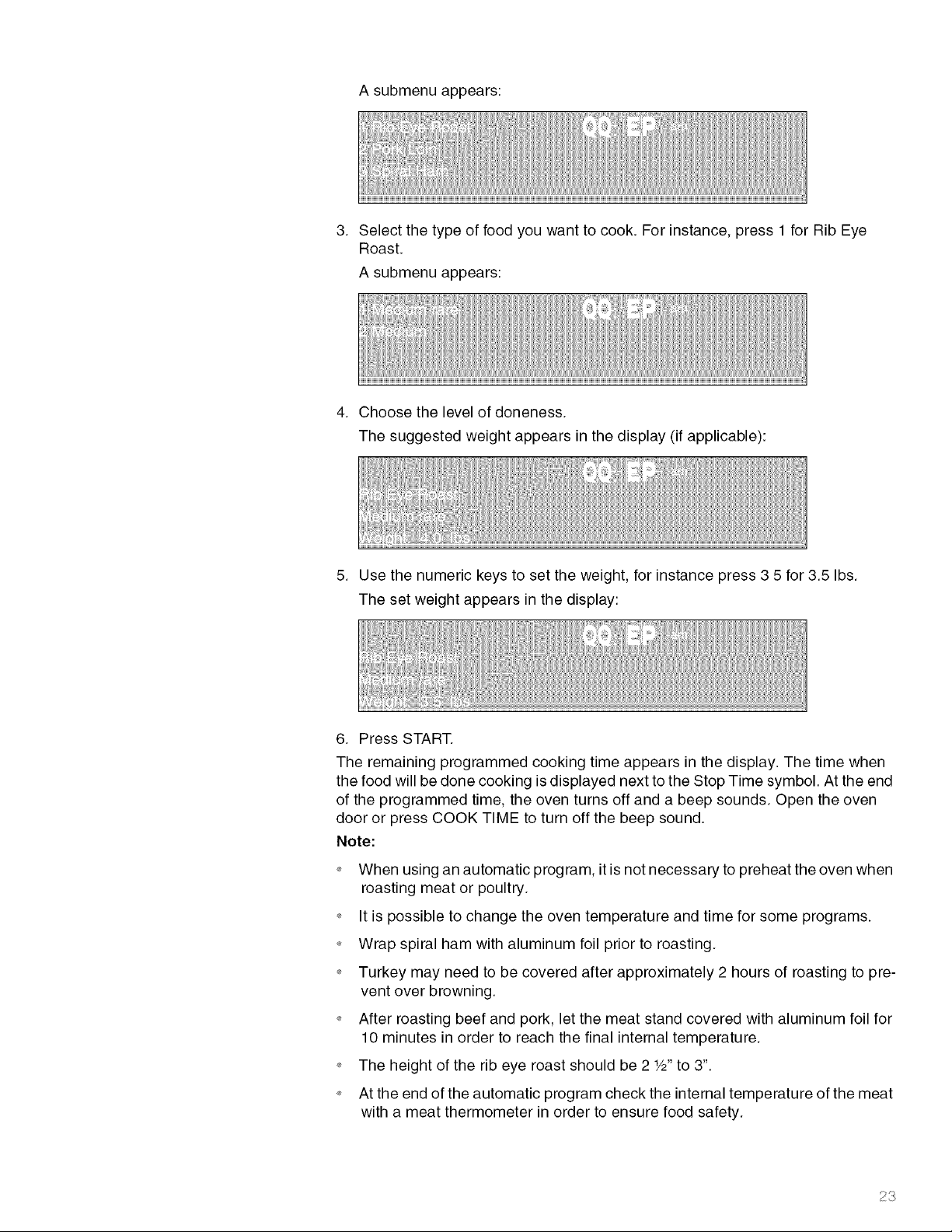

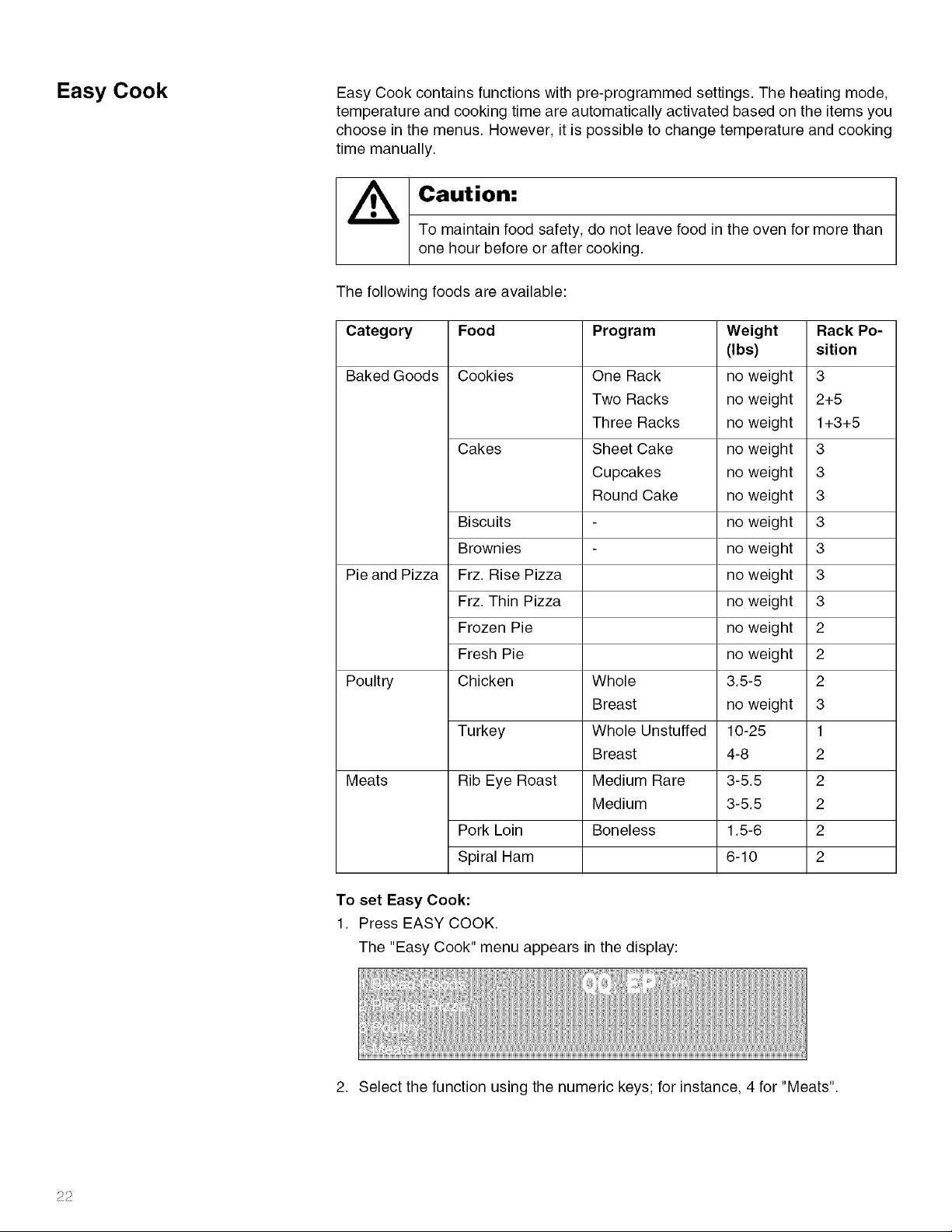

Easy Cook ................................................................................................... 22

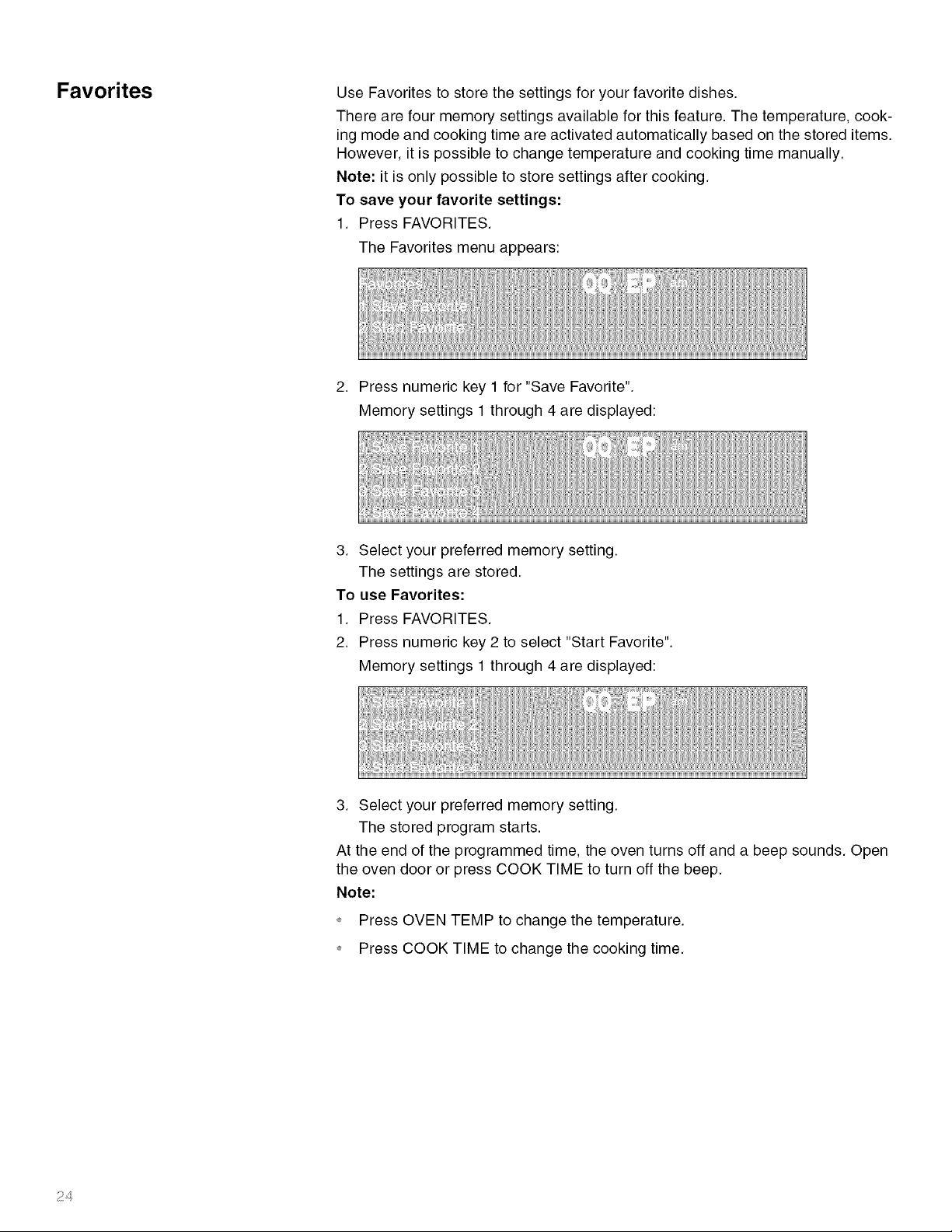

Favo rites ...................................................................................................... 24

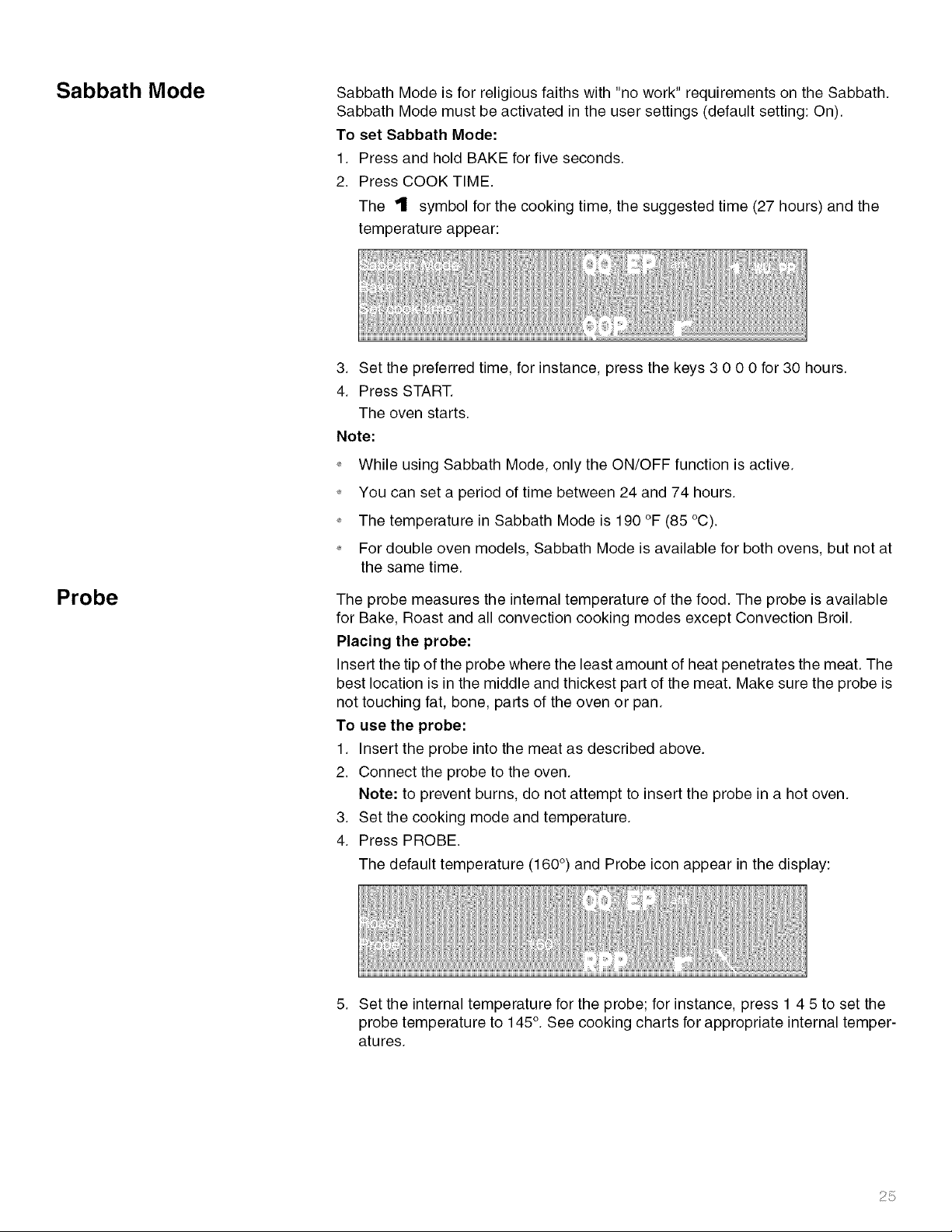

Sabbath Mode ............................................................................................. 25
Probe ........................................................................................................... 25

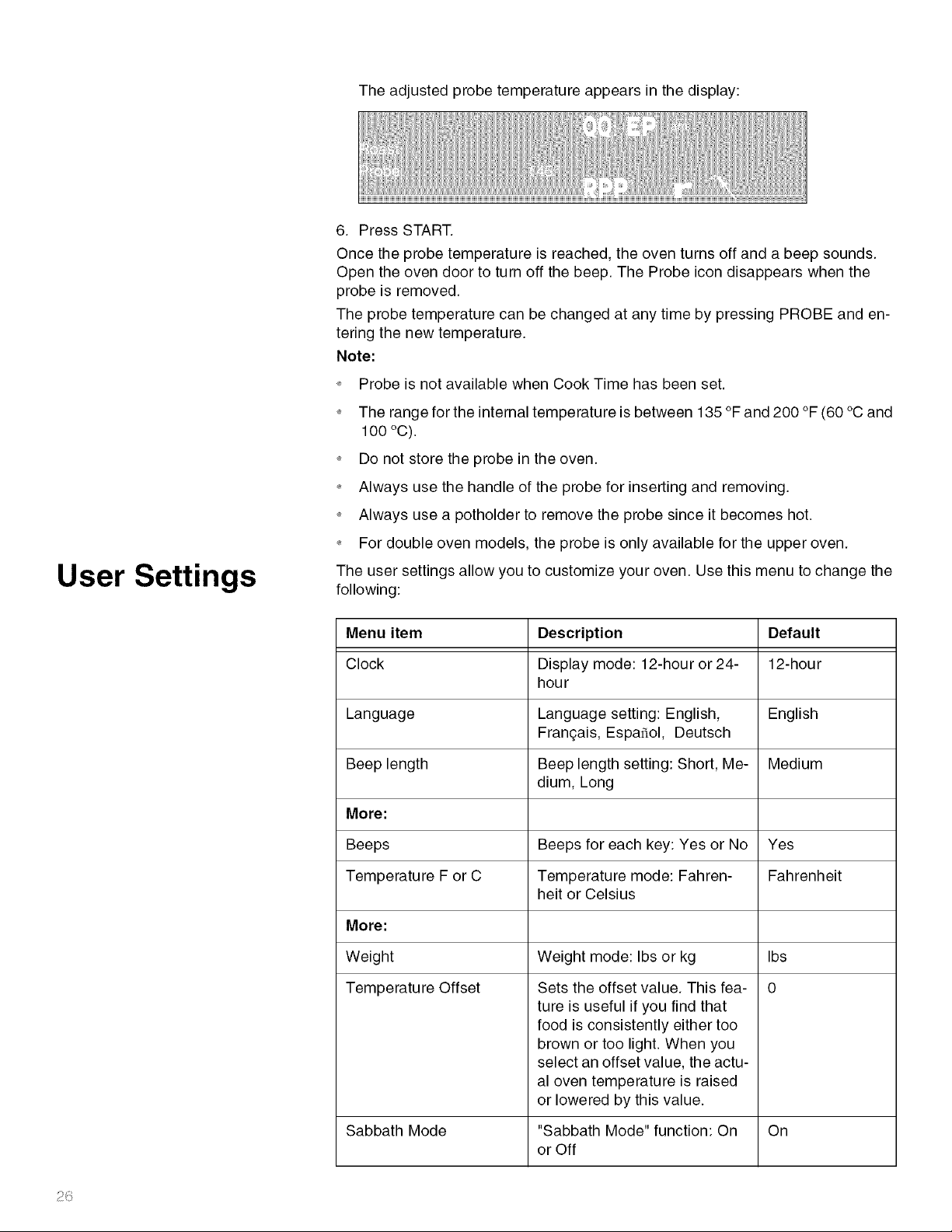

User Settings ............................................................................ 26

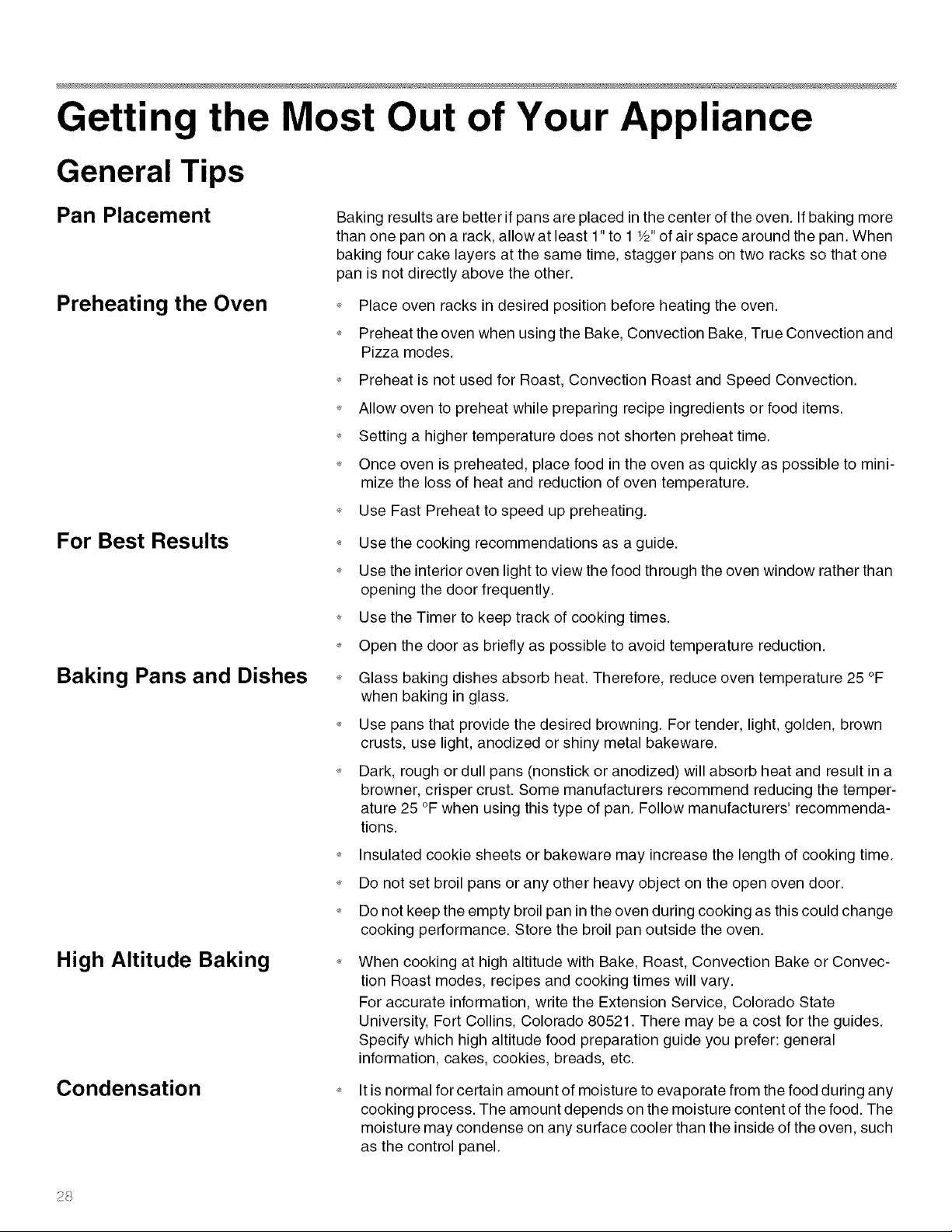

Getting the Most Out of Your Appliance. 28
General Tips ............................................................................. 28

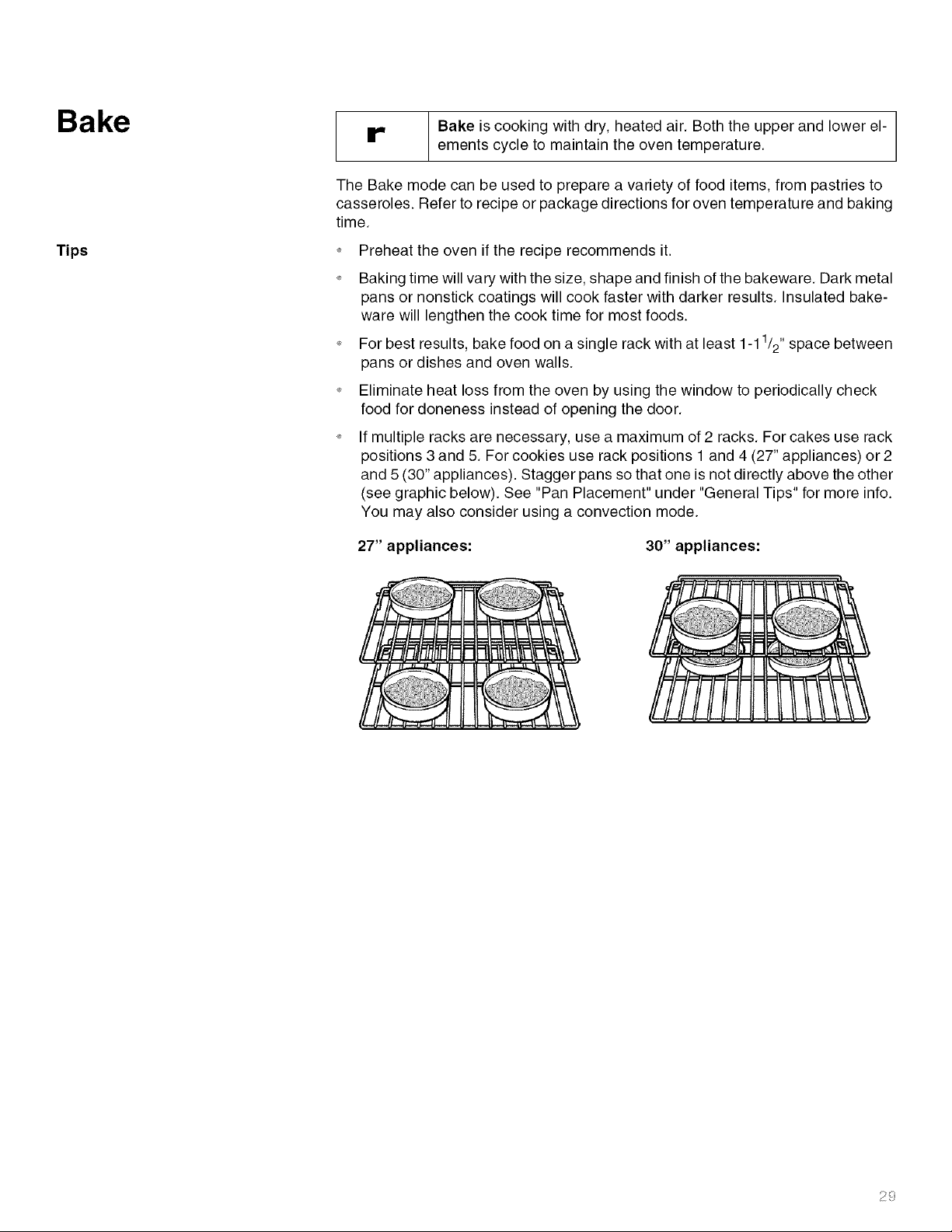

Bake ........................................................................................... 29

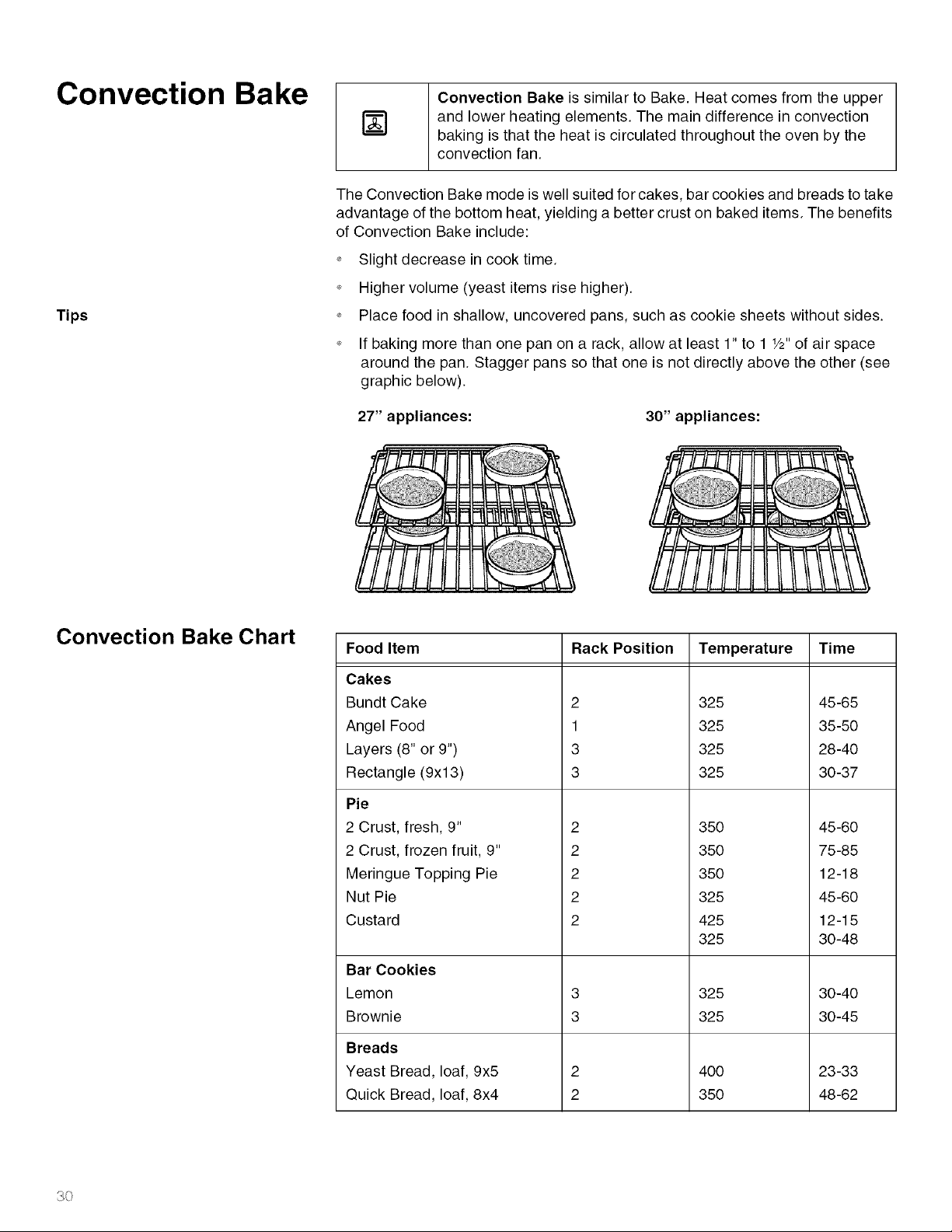

Convection Bake ...................................................................... 30

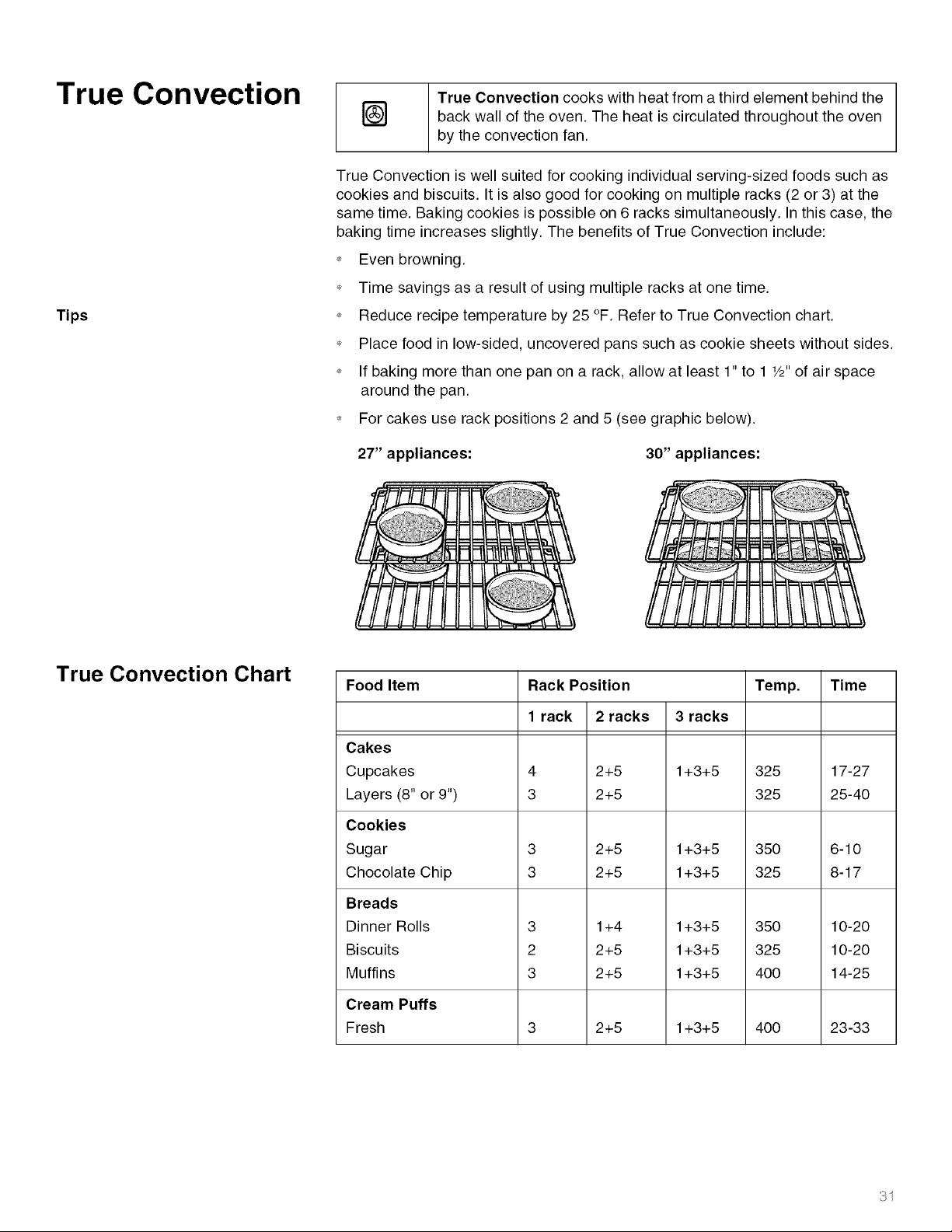

True Convection ....................................................................... 31

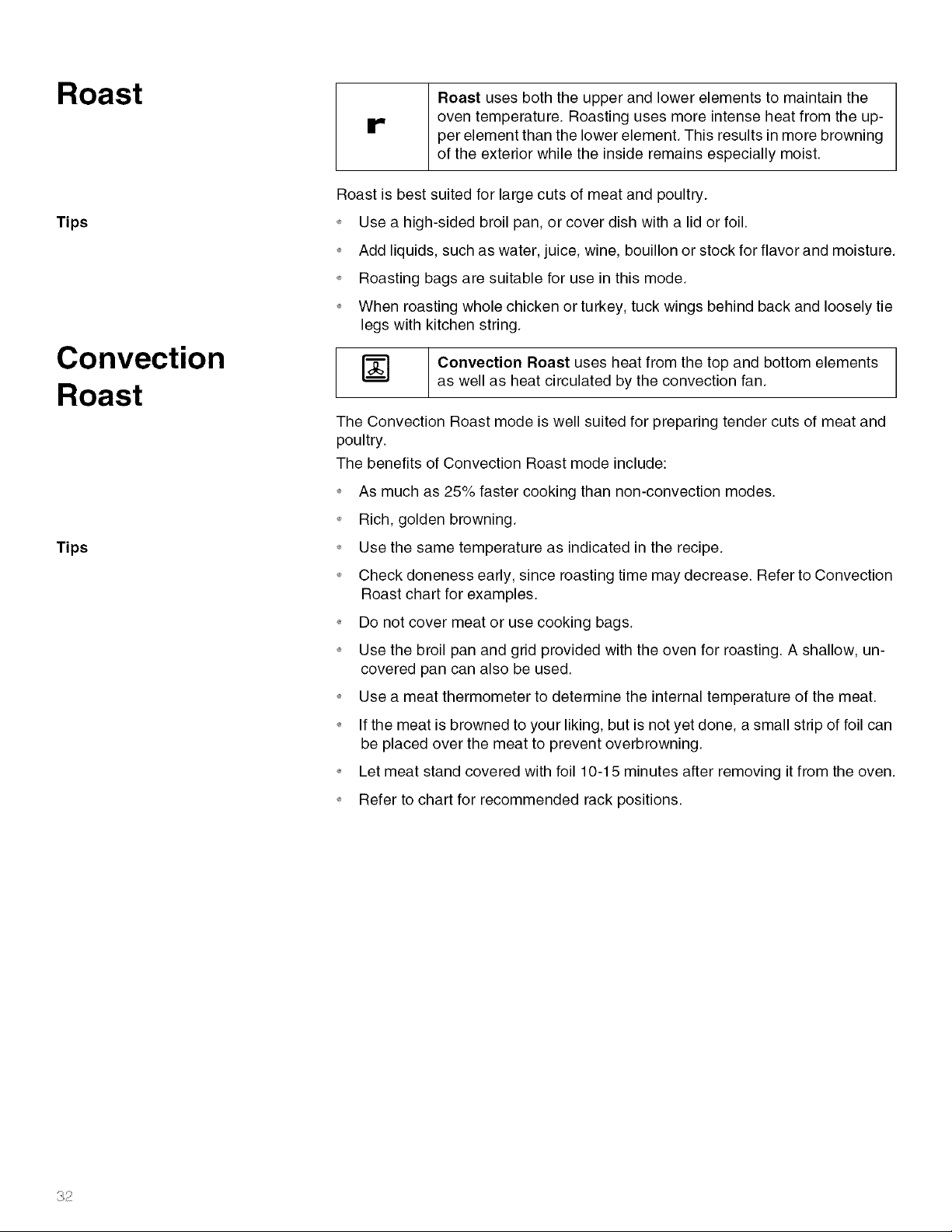

Roast ......................................................................................... 32

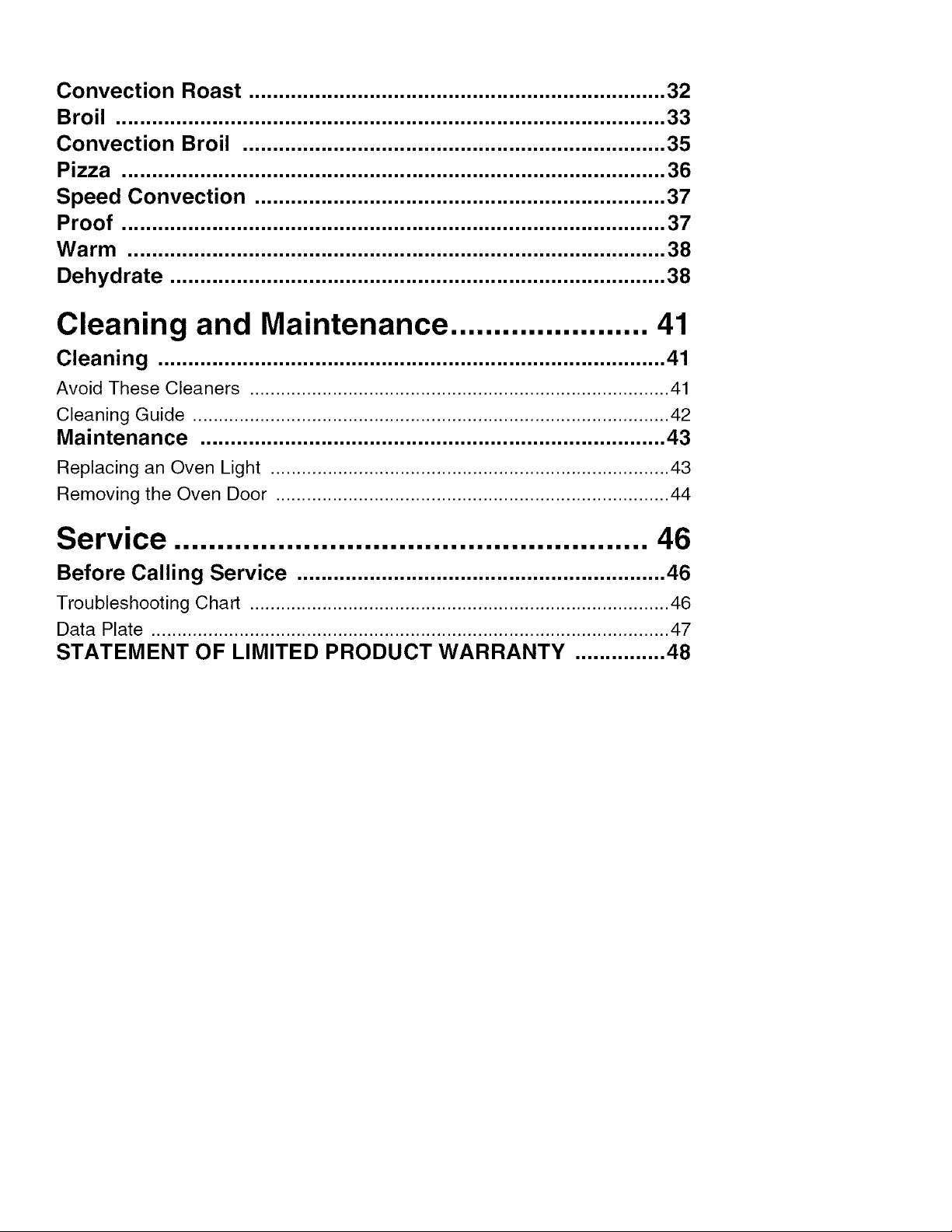

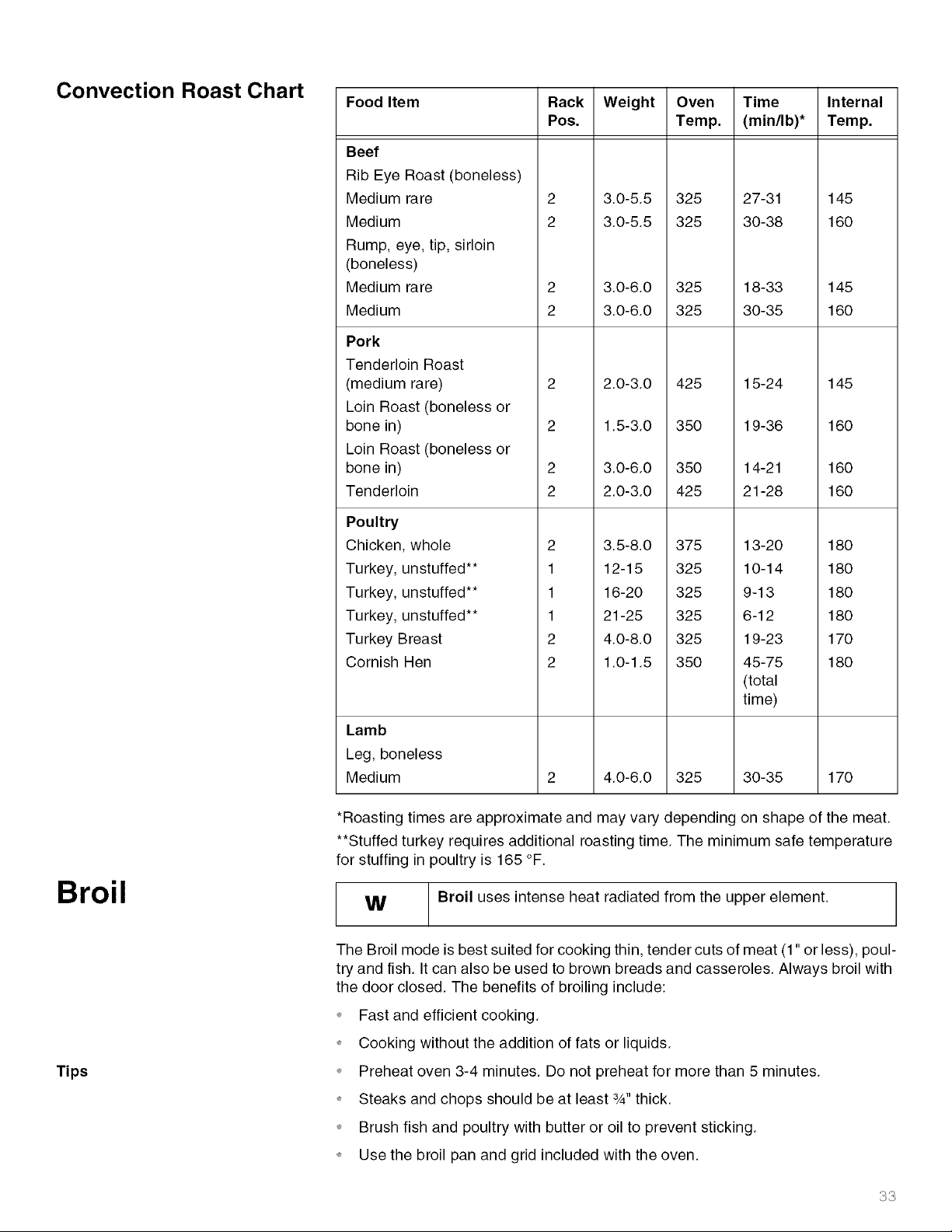

Convection Roast ..................................................................... 32

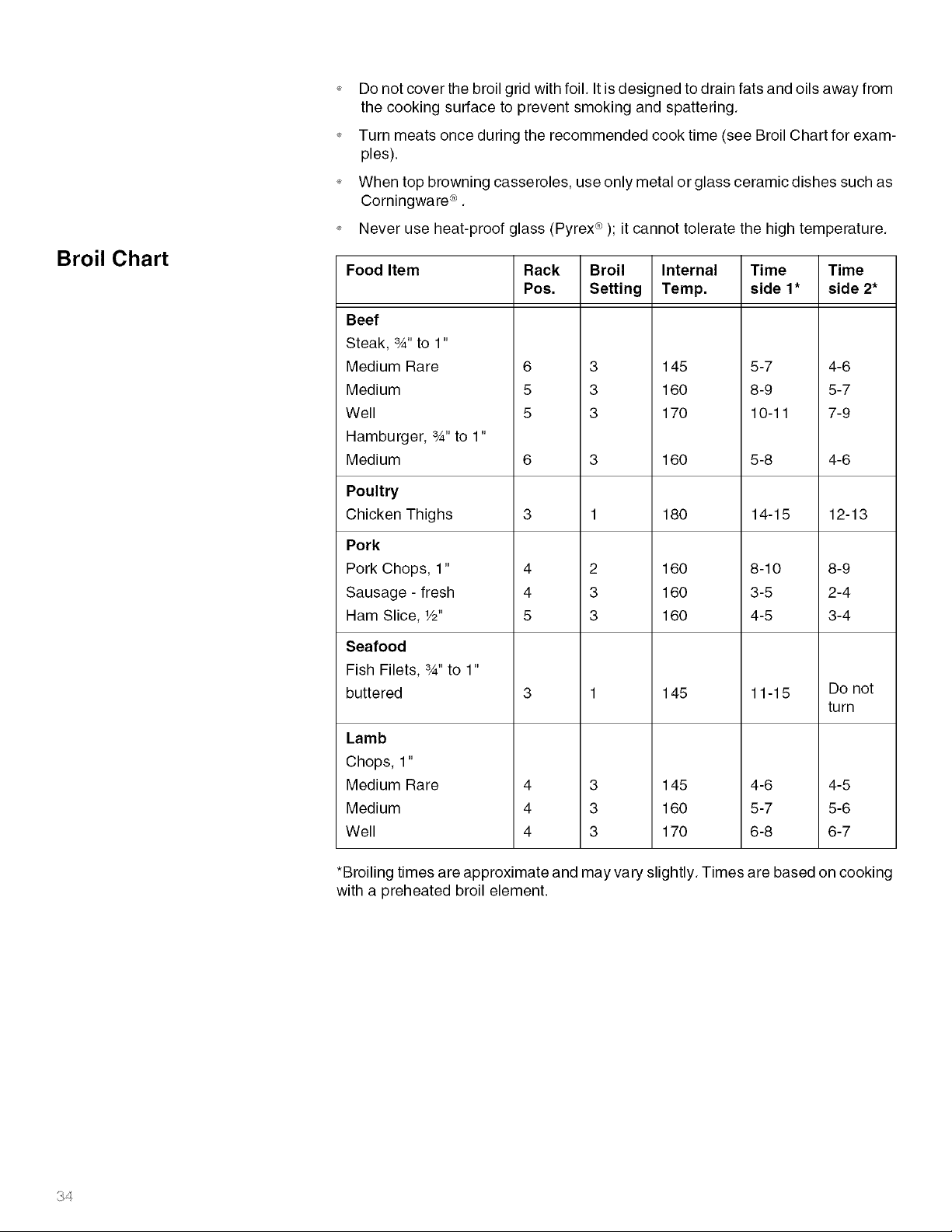

Broil ........................................................................................... 33

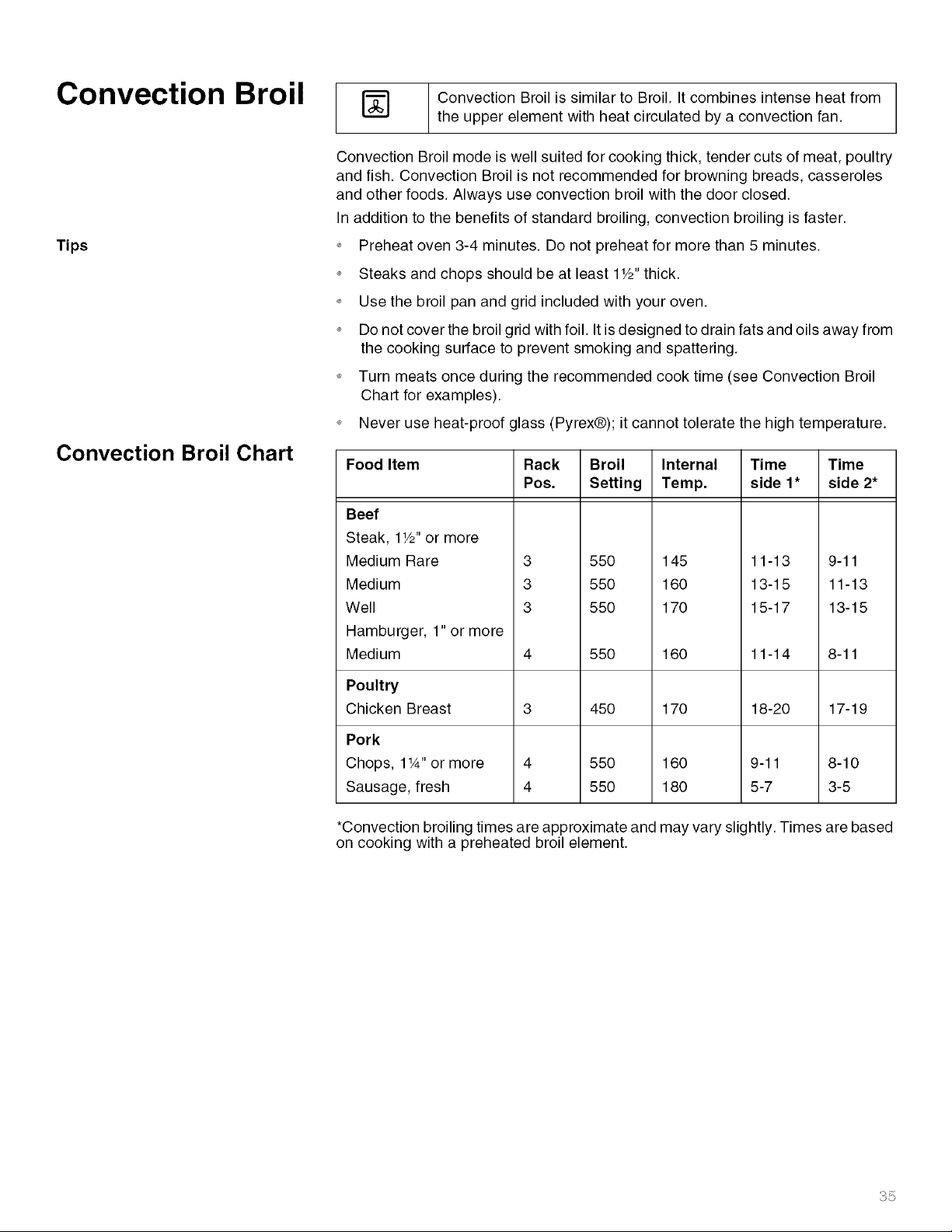

Convection Broil ...................................................................... 35

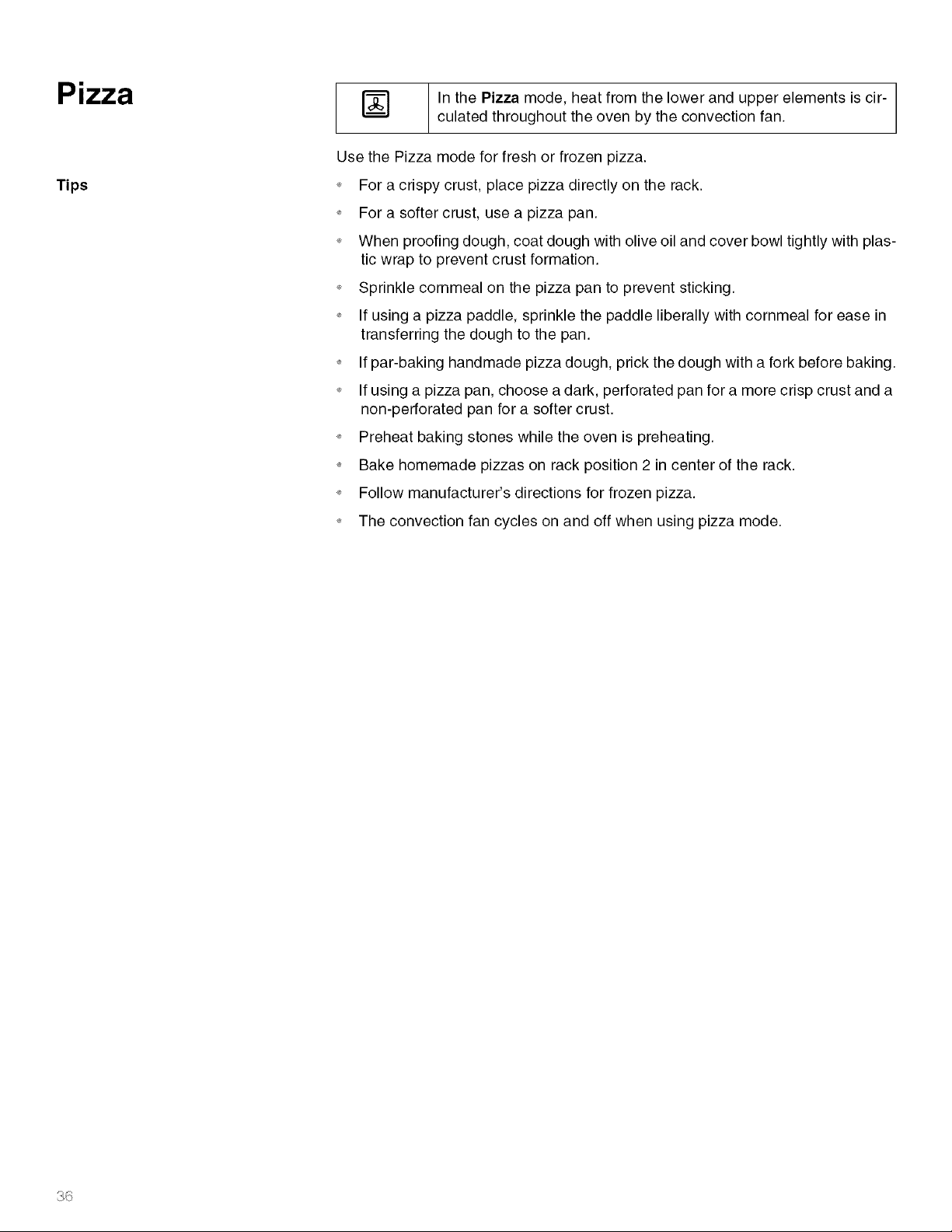

Pizza .......................................................................................... 36

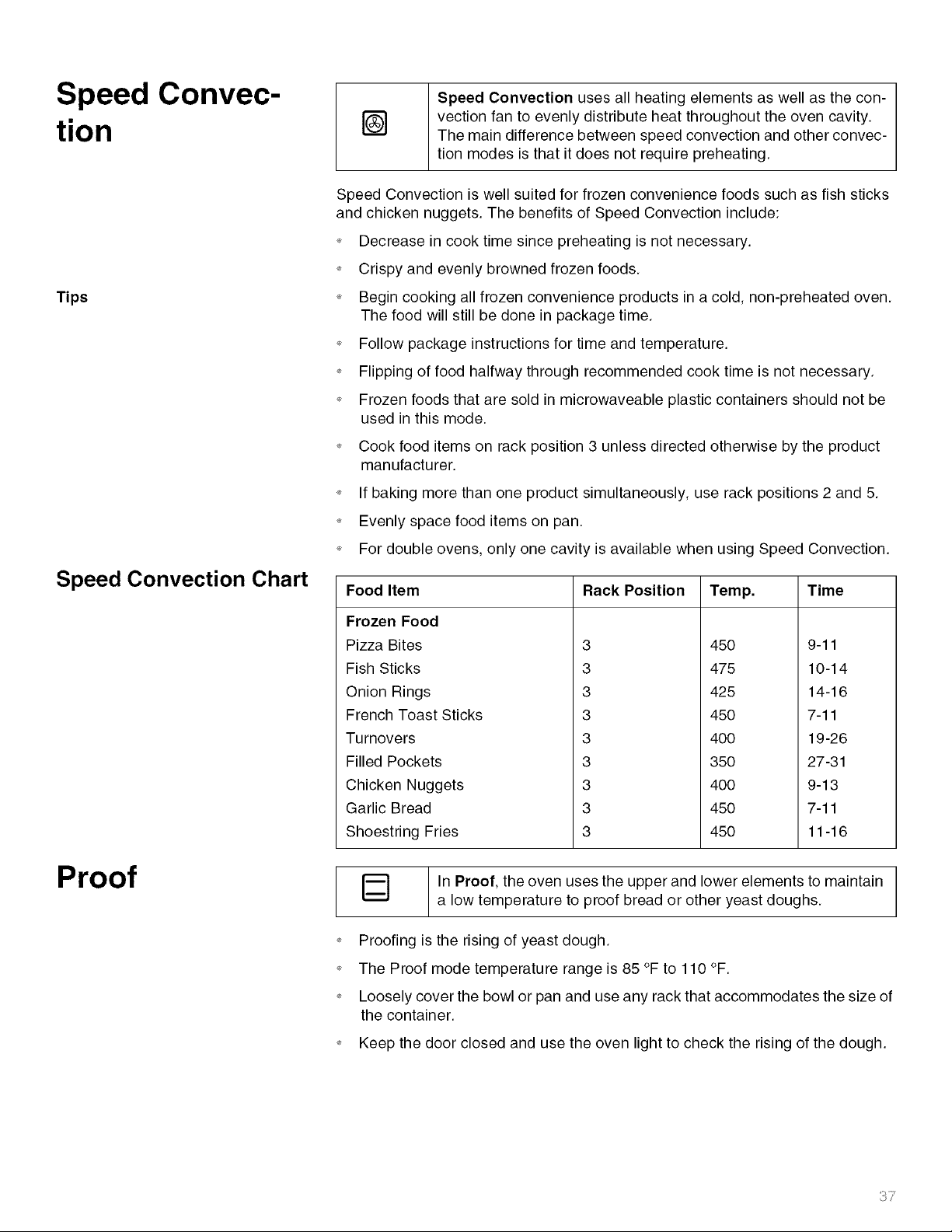

Speed Convection .................................................................... 37
Proof .......................................................................................... 37

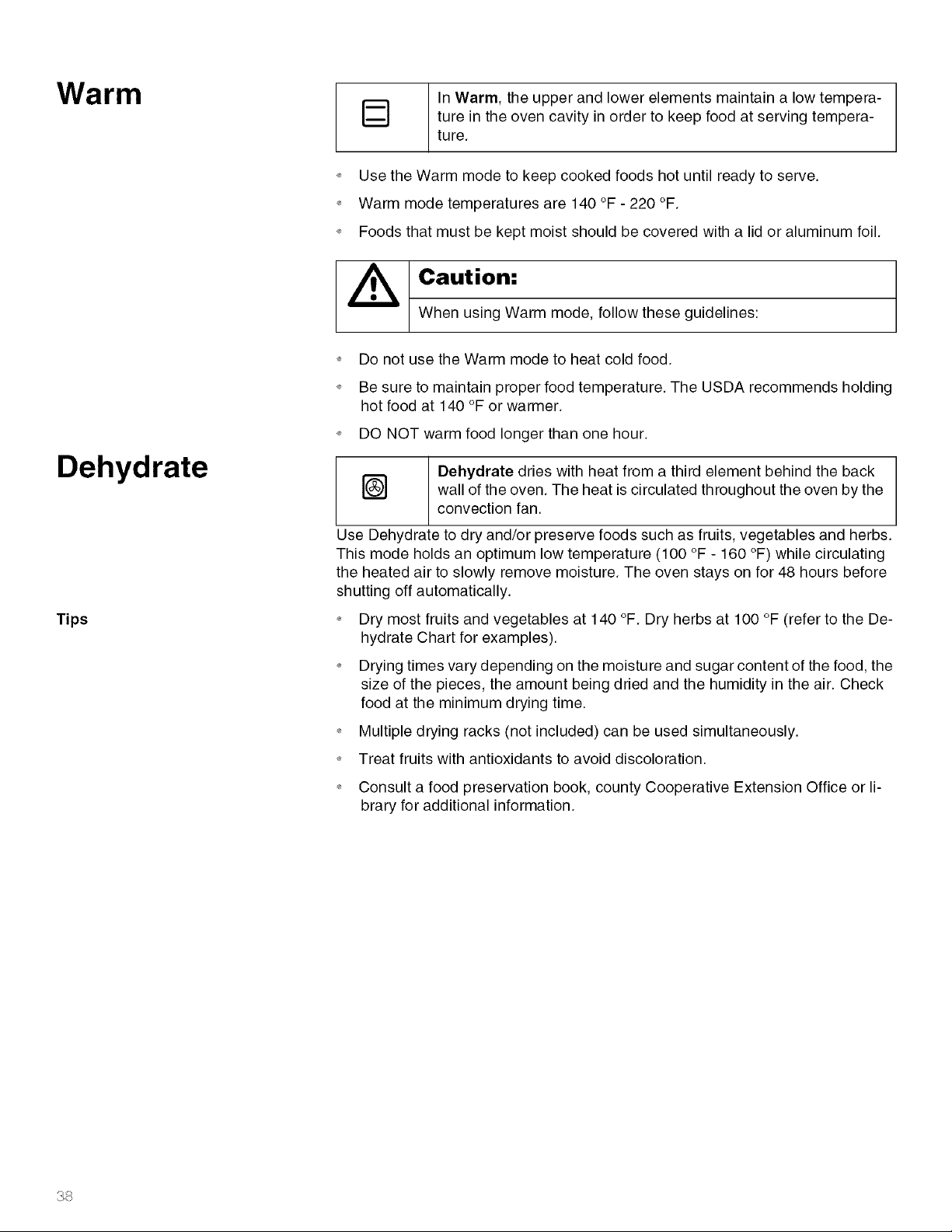

Warm ......................................................................................... 38

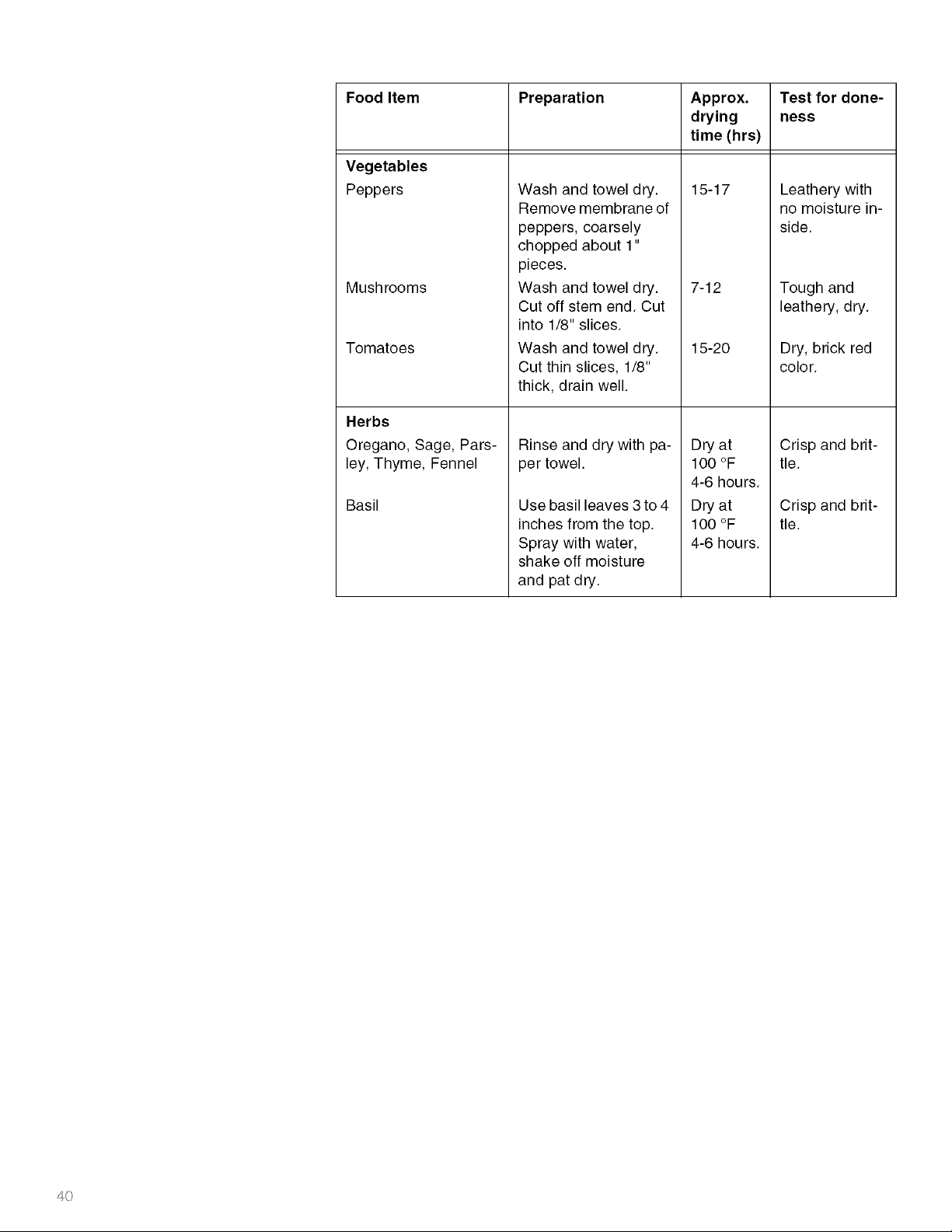

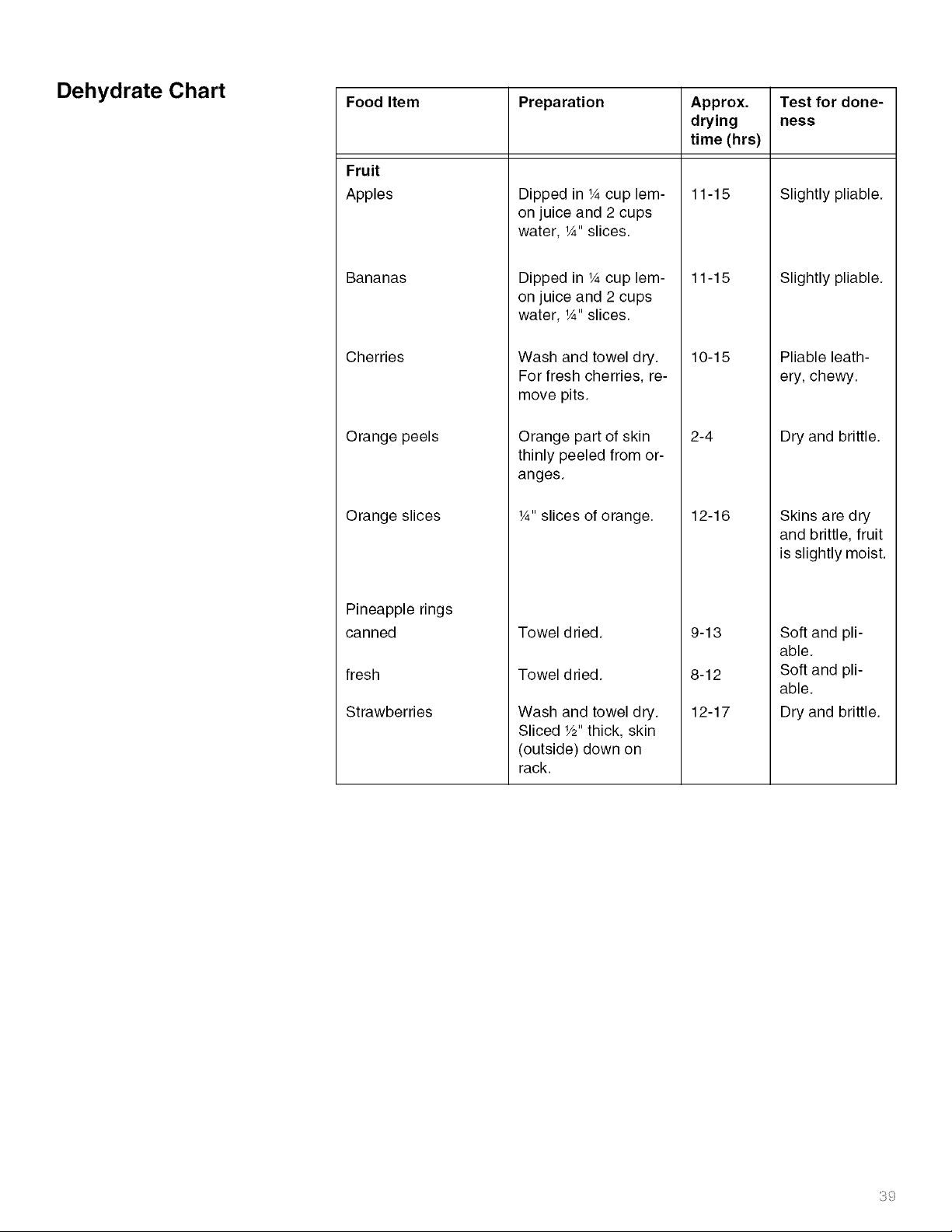

Dehydrate .................................................................................. 38

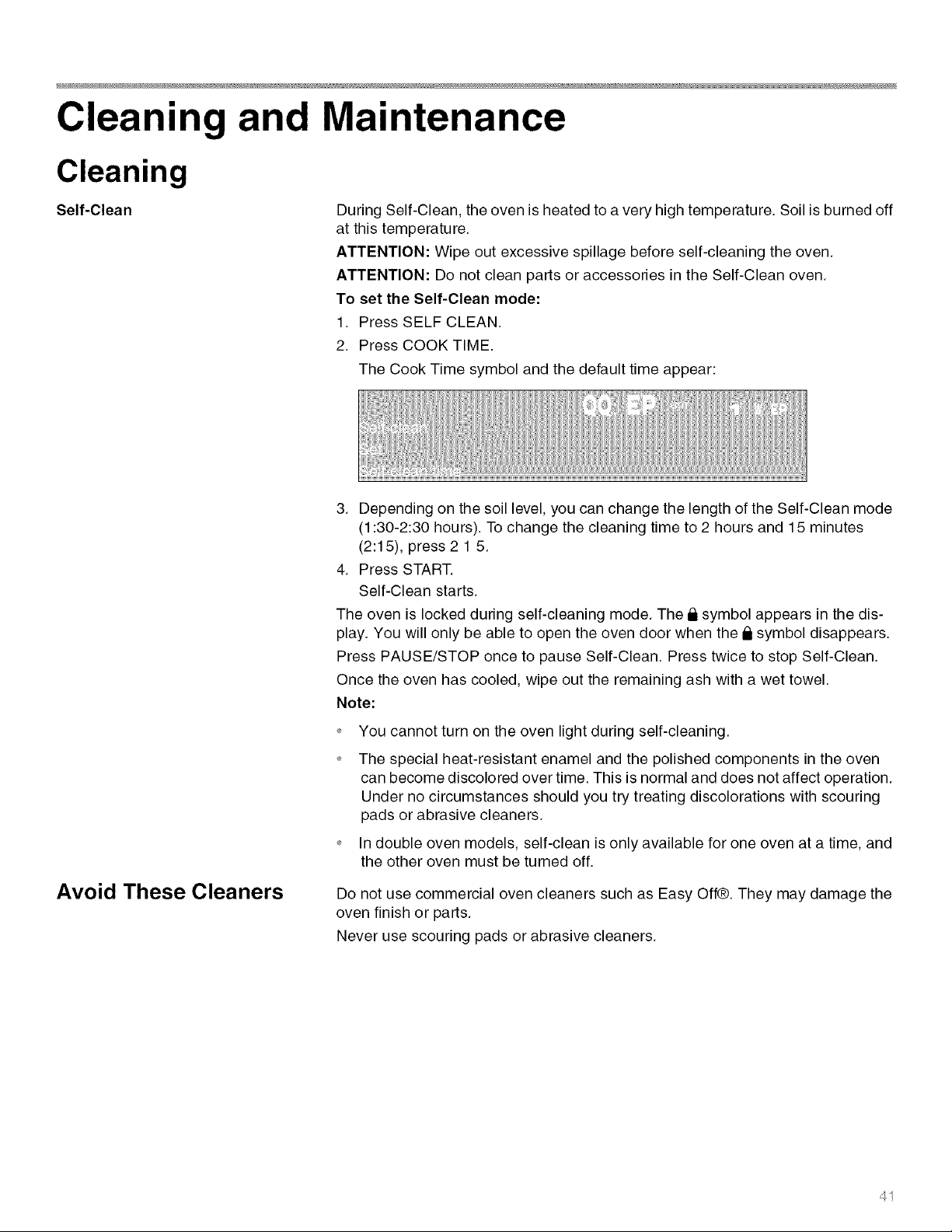

Cleaning and Maintenance ....................... 41
Cleaning .................................................................................... 41
Avoid These Cleaners ................................................................................. 41

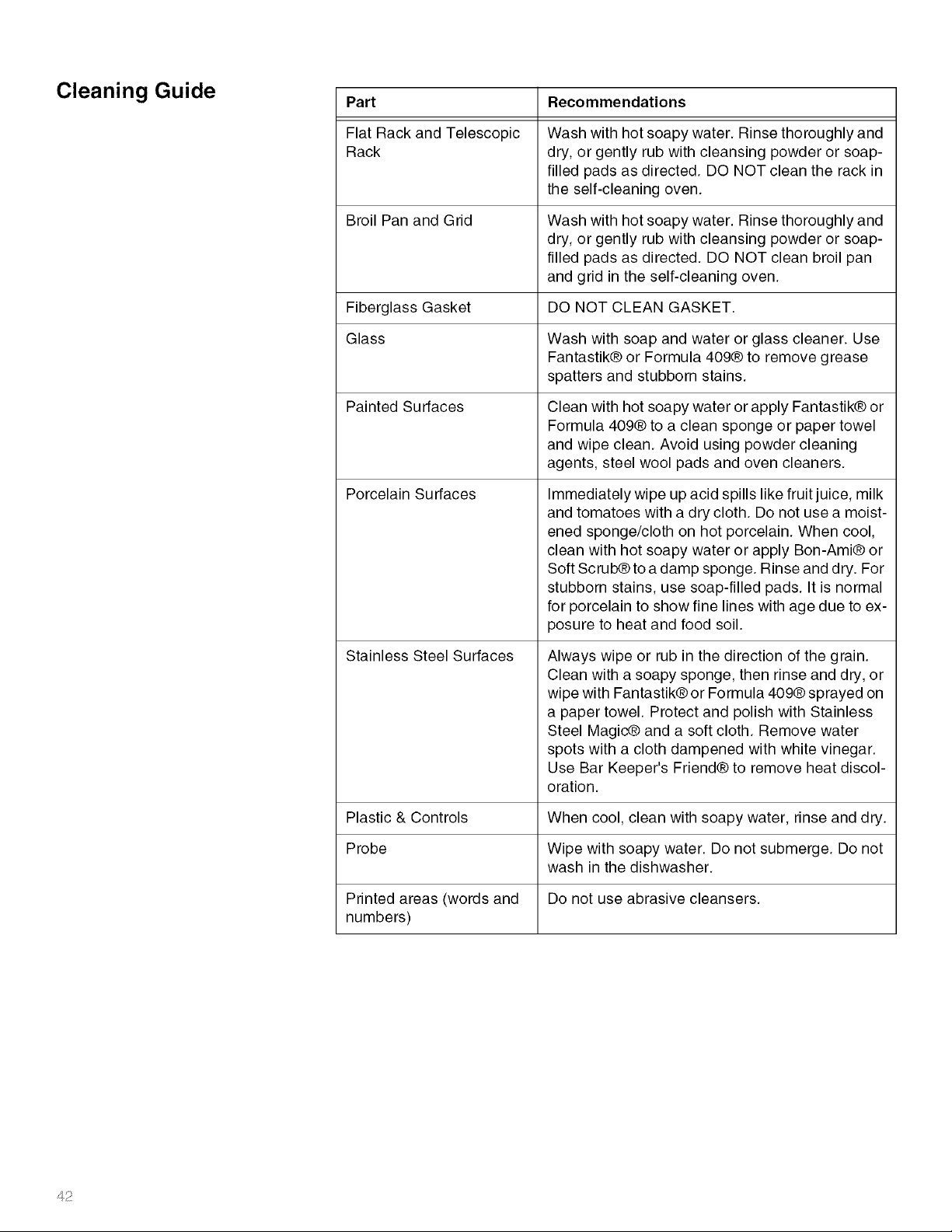

Cleaning Guide ............................................................................................ 42
Maintenance ............................................................................. 43

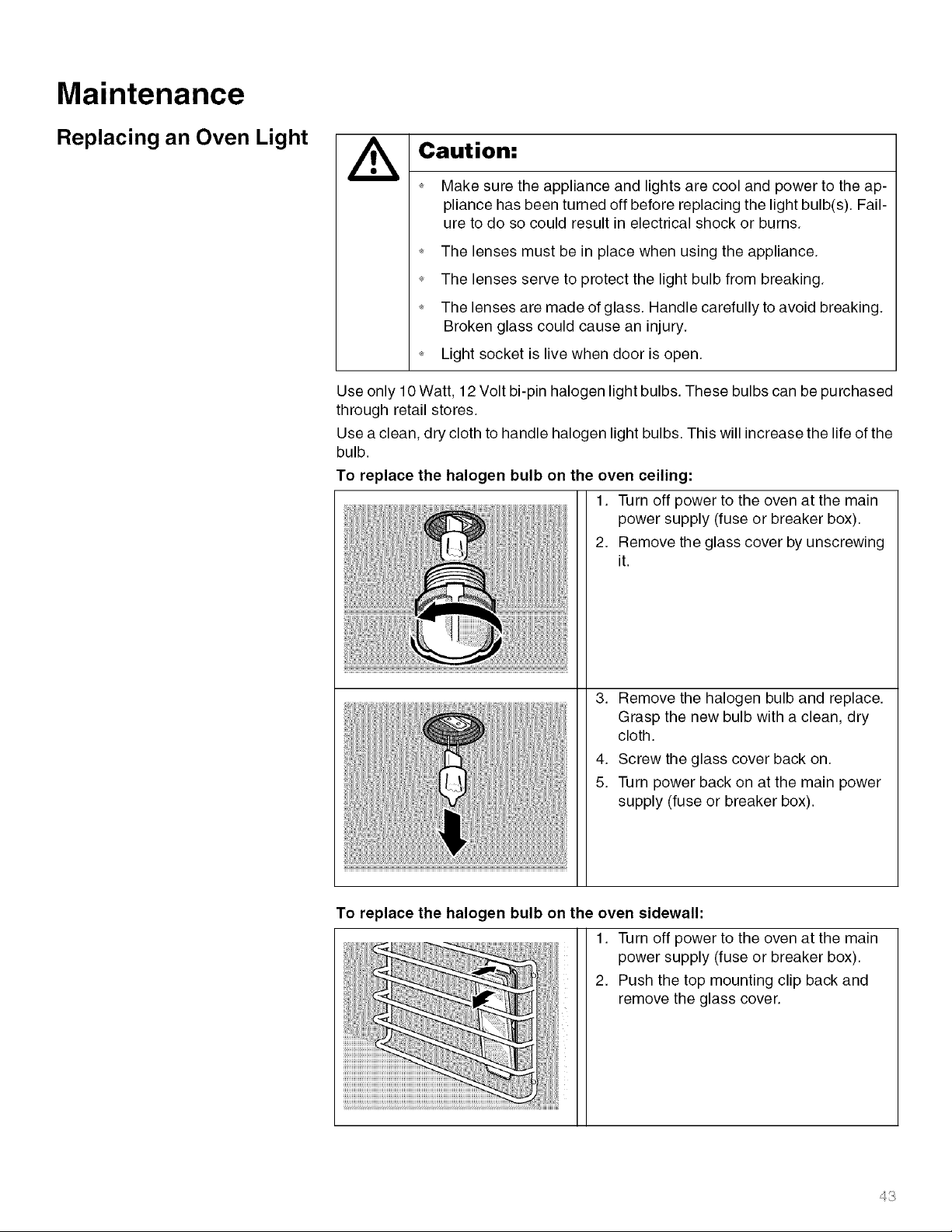

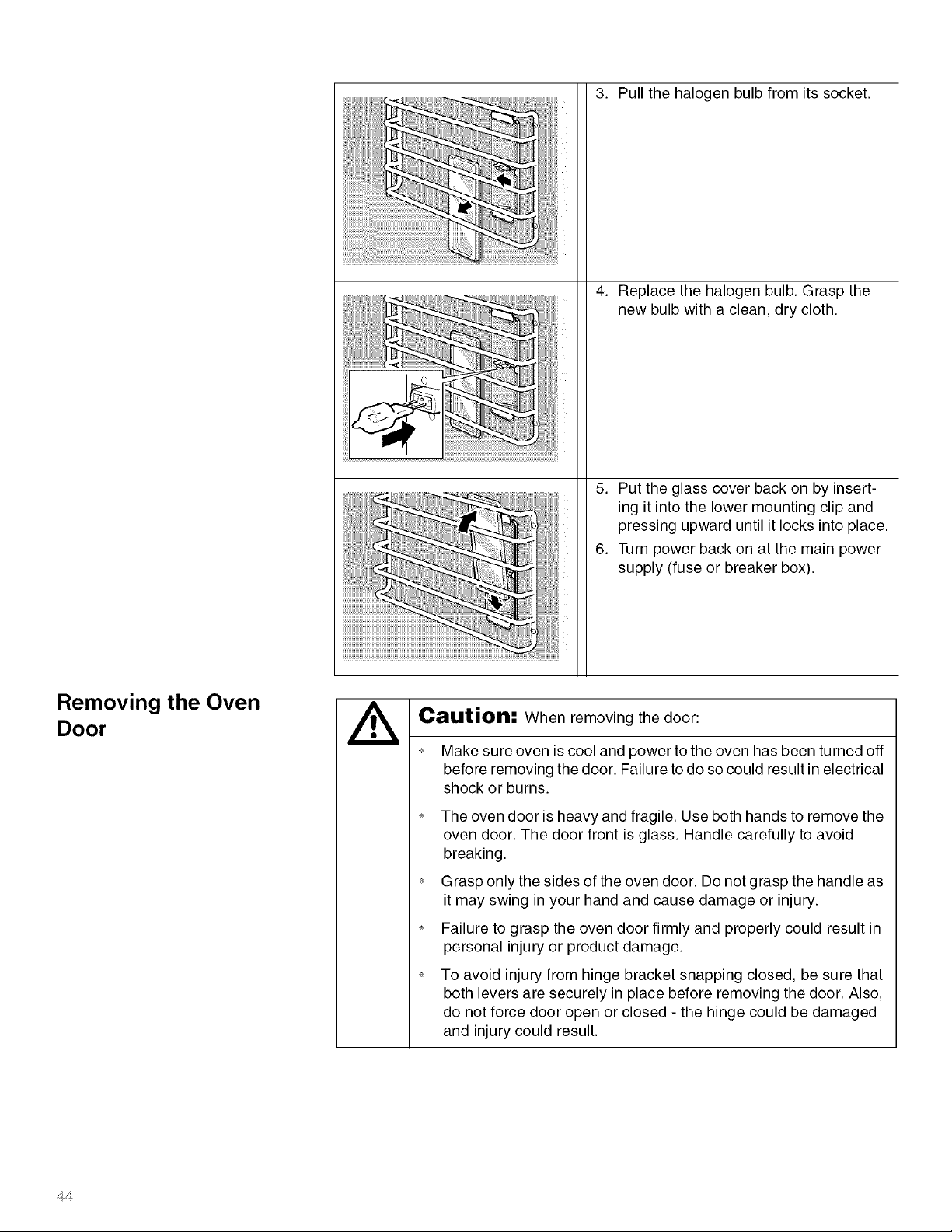

Replacing an Oven Light ............................................................................. 43

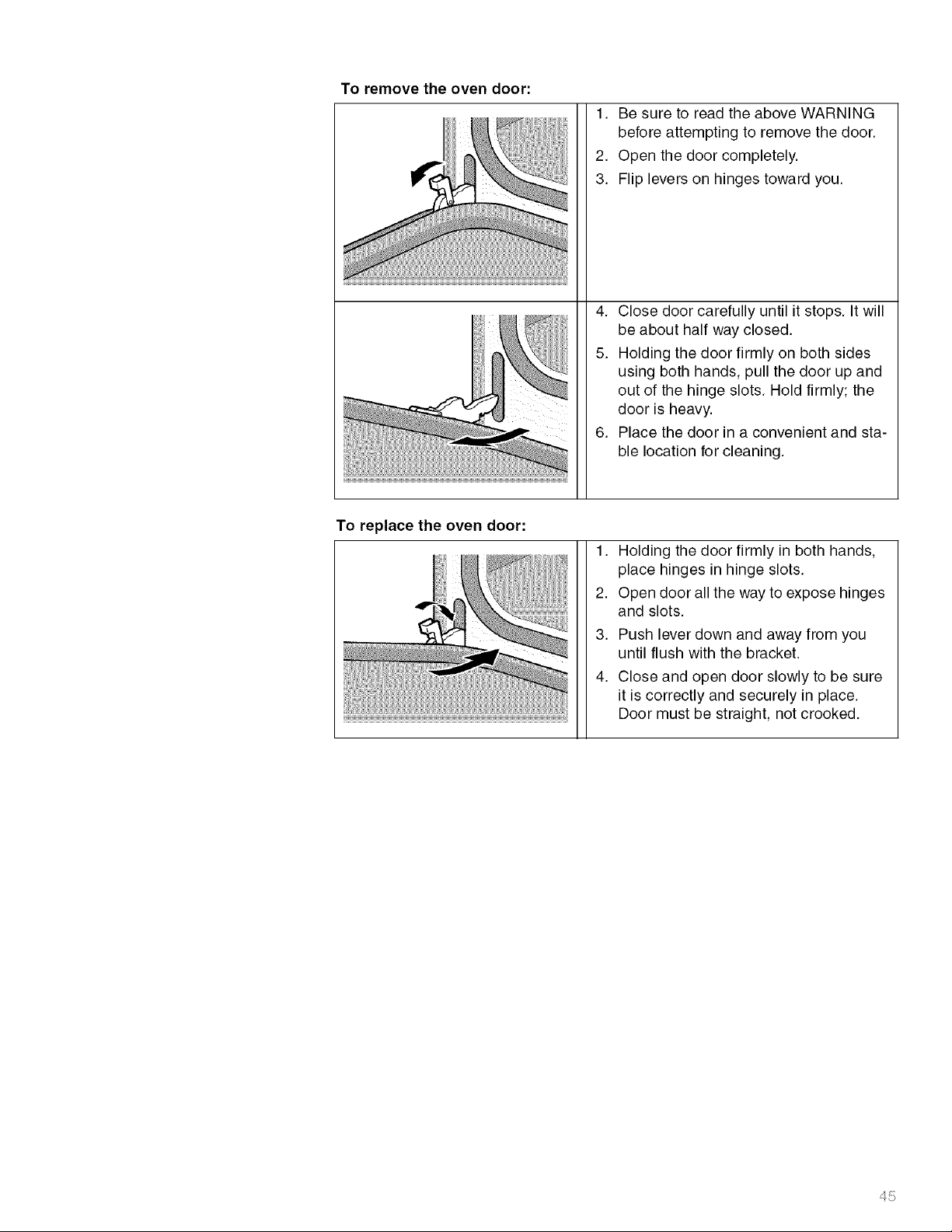

Removing the Oven Door ............................................................................ 44
Service ....................................................... 46
Before Calling Service ............................................................. 46

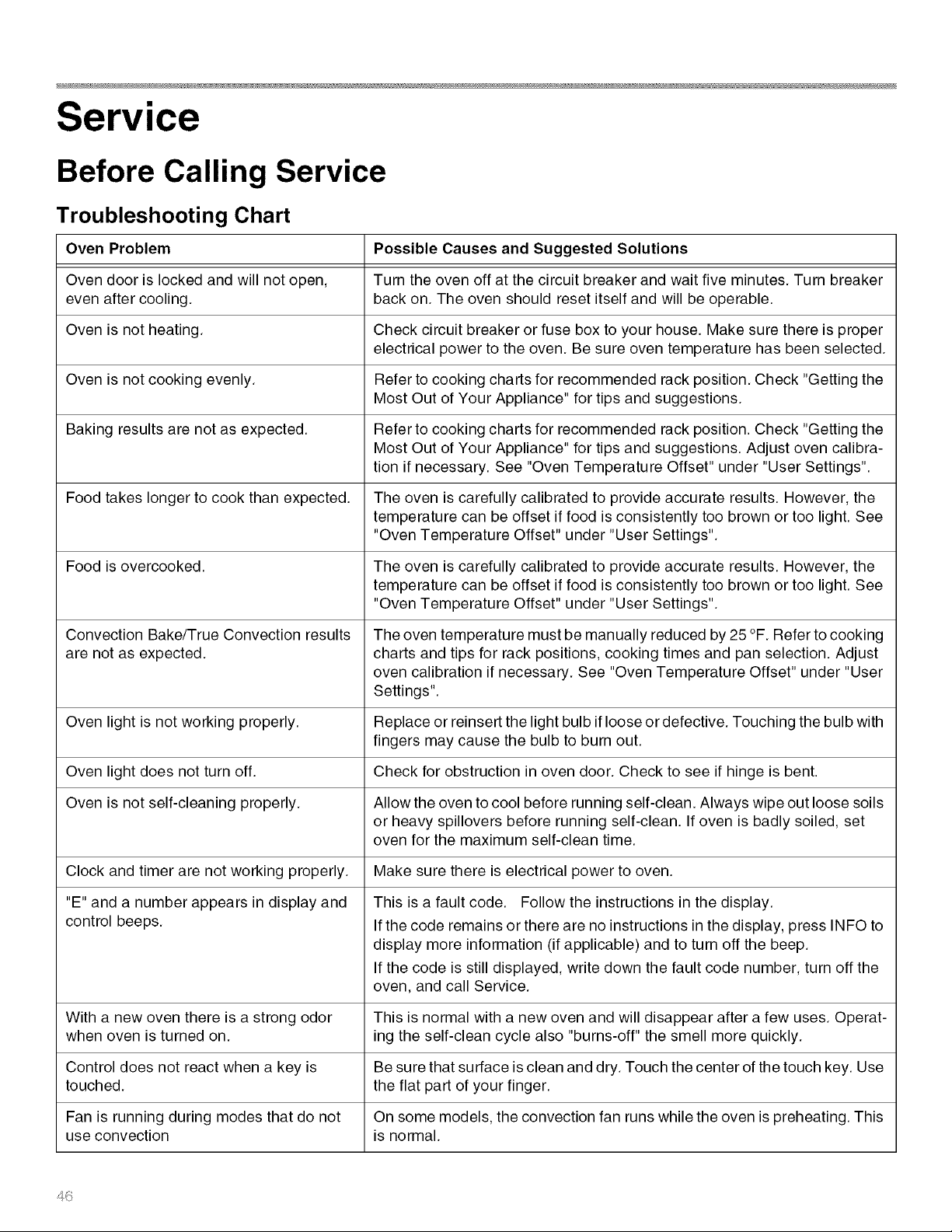

Troubleshooting Chart ................................................................................. 46

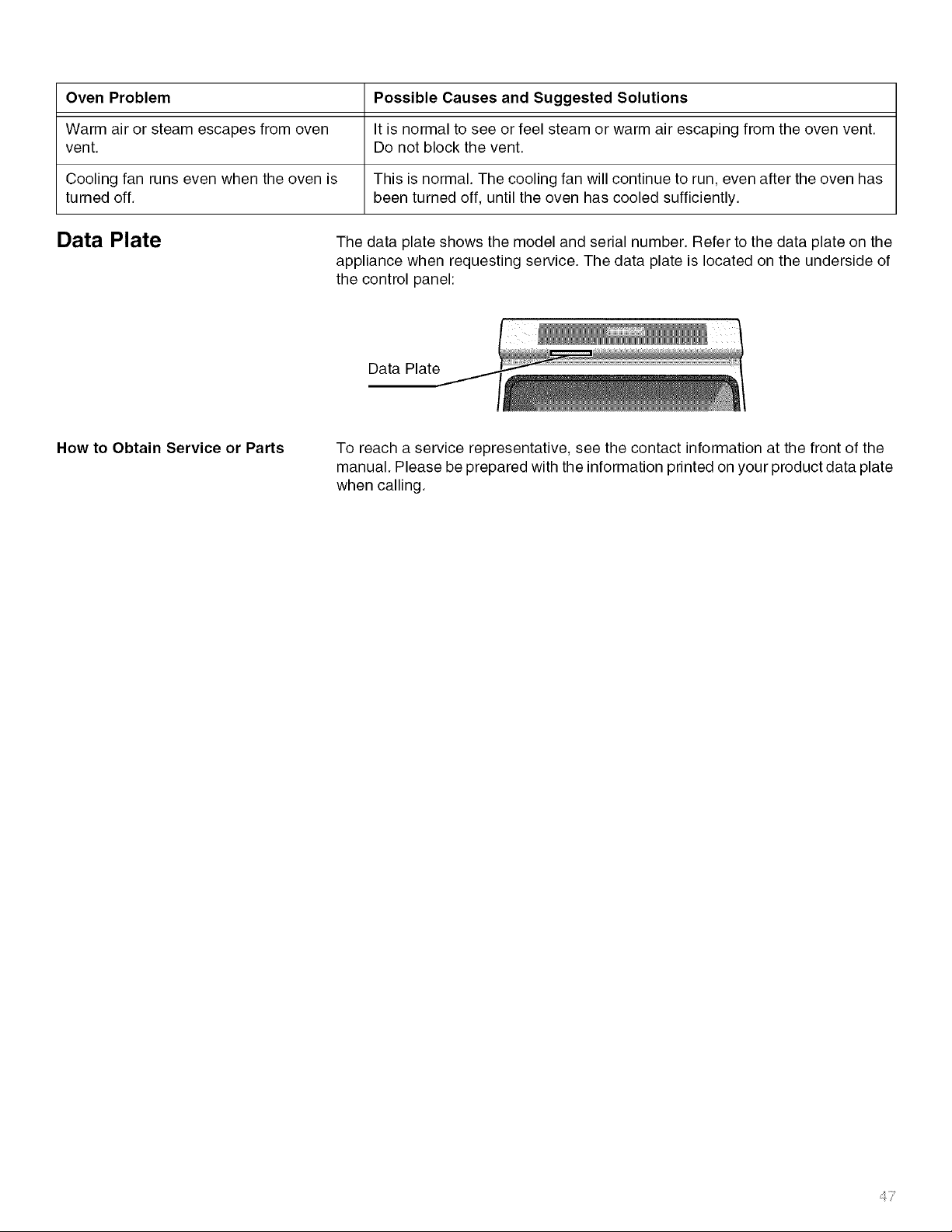

Data Plate .................................................................................................... 47

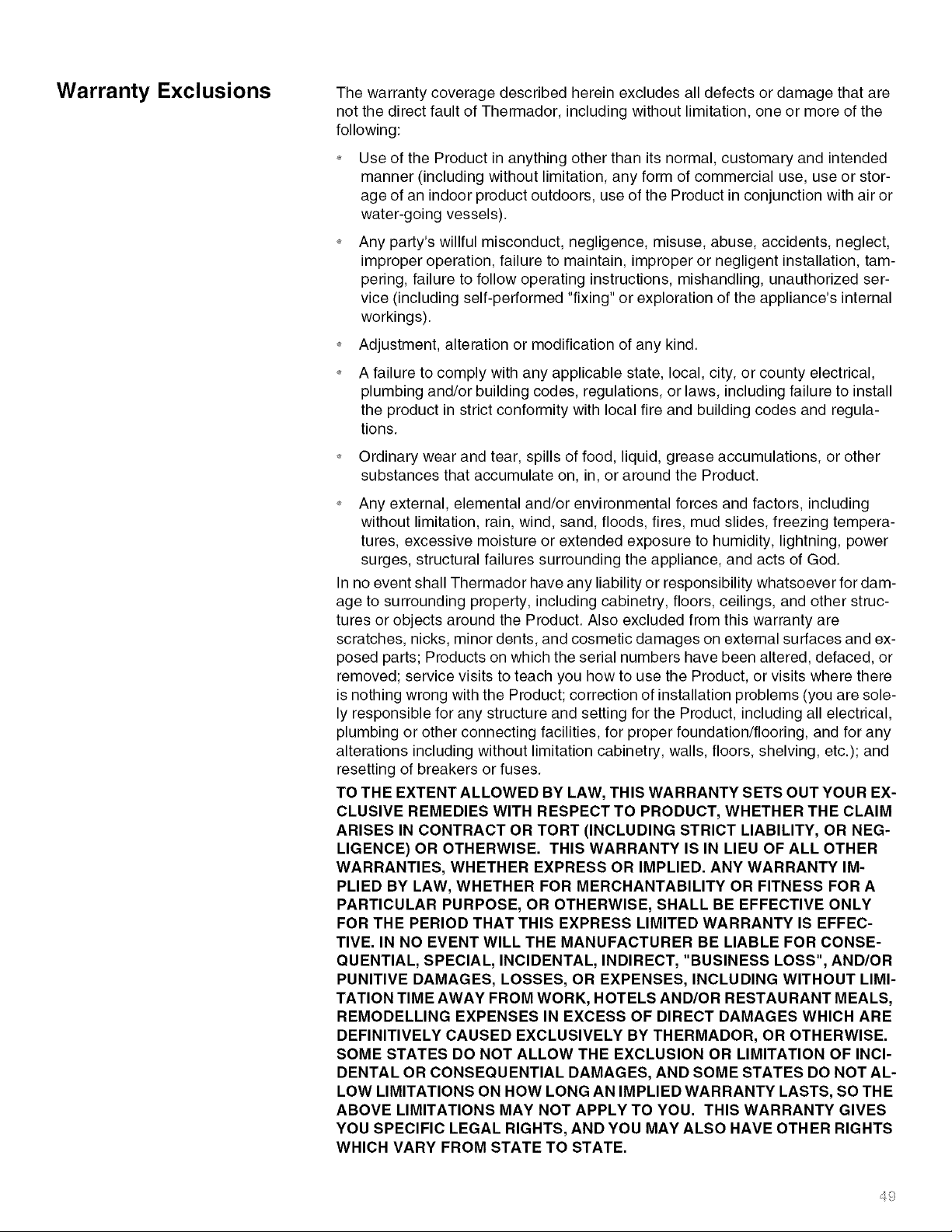

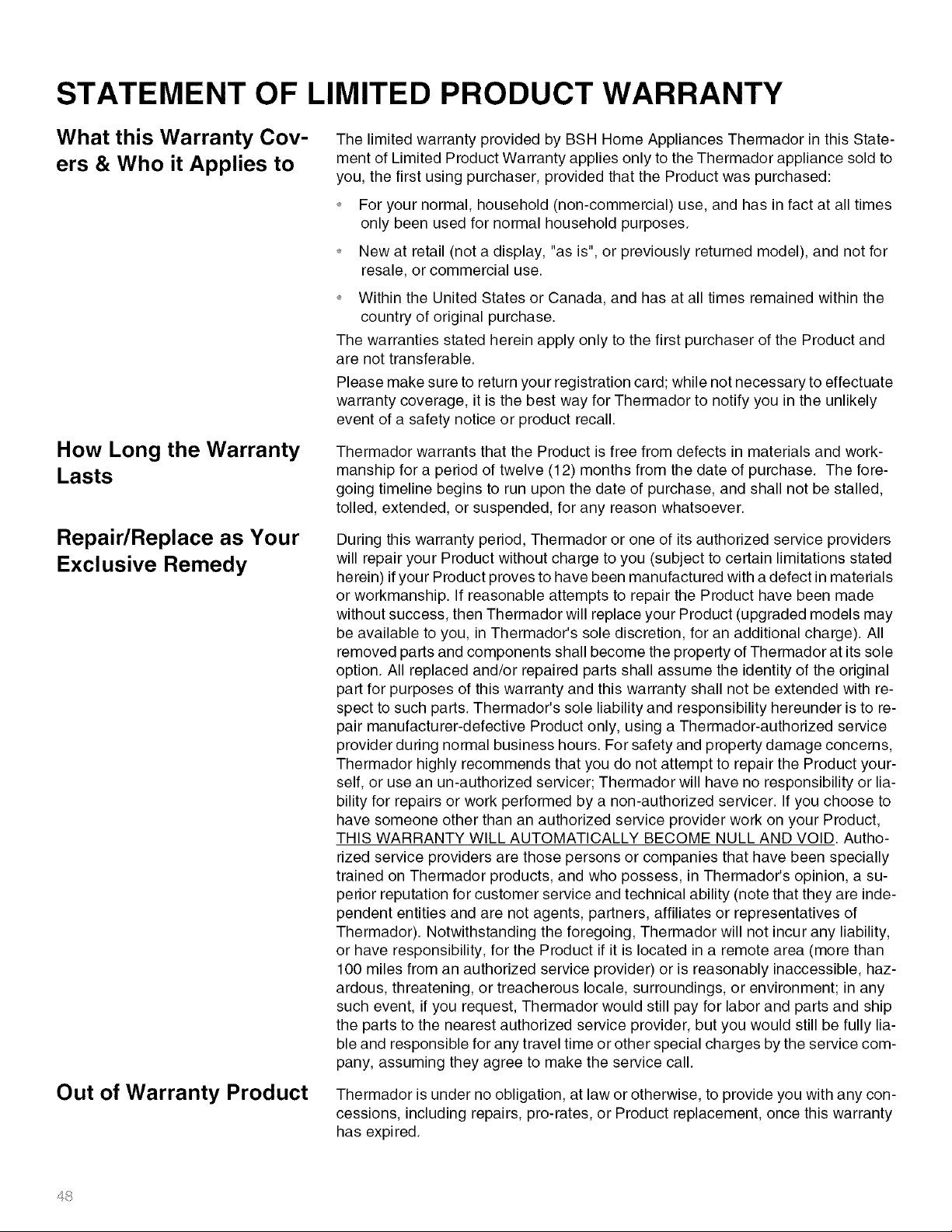

STATEMENT OF LIMITED PRODUCT WARRANTY ............... 48

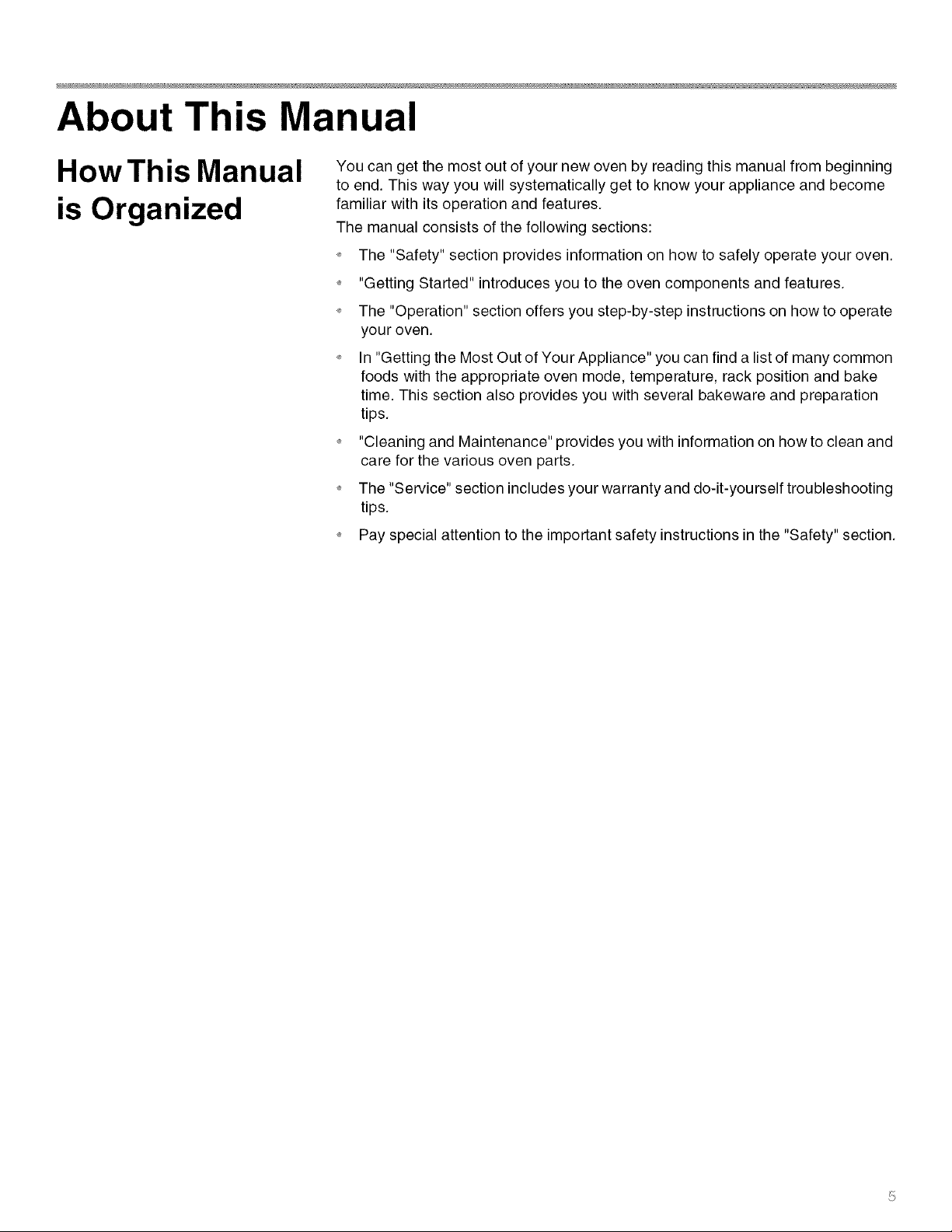

About This Manual
How This Manual
is Organized
You can get the most out of your new oven by reading this manual from beginning
to end. This way you will systematically get to know your appliance and become
familiar with its operation and features.
The manual consists of the following sections:
_ The "Safety" section provides information on how to safely operate your oven.
_ "Getting Started" introduces you to the oven components and features.
_ The "Operation" section offers you step-by-step instructions on how to operate
your oven.
_ In "Getting the Most Out of Your Appliance" you can find a list of many common
foods with the appropriate oven mode, temperature, rack position and bake
time. This section also provides you with several bakeware and preparation
tips.
_ "Cleaning and Maintenance" provides you with information on how to clean and
care for the various oven parts.
_ The "Service" section includes your warranty and do-it-yourself troubleshooting
tips.
_ Pay special attention to the important safety instructions in the "Safety" section.

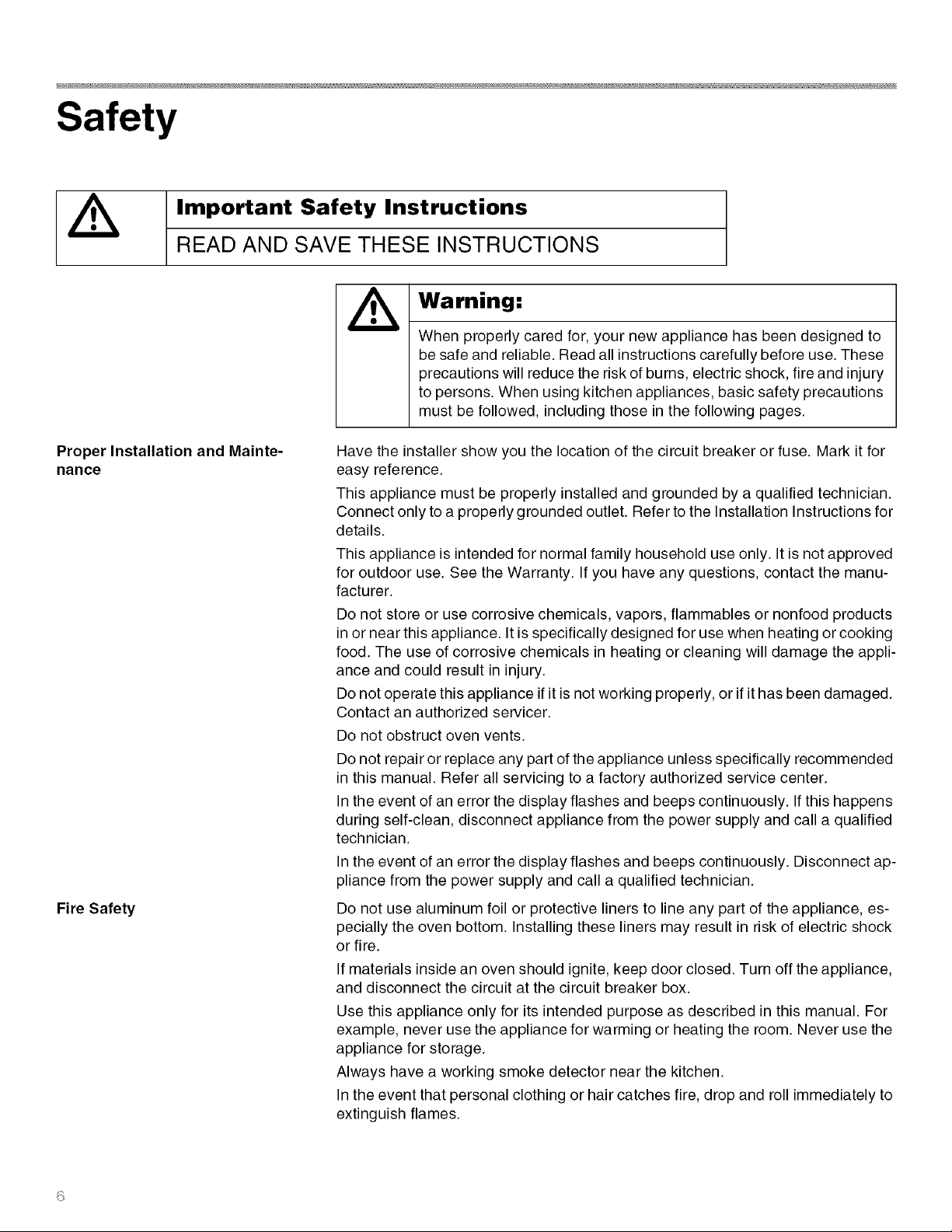

Safety
Important Safety Instructions
READ AND SAVE THESE INSTRUCTIONS
Proper Installation and Mainte-
nance
Fire Safety
Warning:
When properly cared for, your new appliance has been designed to
be safe and reliable. Read all instructions carefully before use. These
precautions will reduce the risk of burns, electric shock, fire and injury
to persons. When using kitchen appliances, basic safety precautions
must be followed, including those in the following pages.
Have the installer show you the location of the circuit breaker or fuse. Mark it for
easy reference.
This appliance must be properly installed and grounded by a qualified technician.
Connect only to a properly grounded outlet. Refer to the Installation Instructions for
details.
This appliance is intended for normal family household use only. It is not approved
for outdoor use. See the Warranty. If you have any questions, contact the manu-
facturer.
Do not store or use corrosive chemicals, vapors, flammables or nonfood products
in or near this appliance. It is specifically designed for use when heating or cooking
food. The use of corrosive chemicals in heating or cleaning will damage the appli-
ance and could result in injury.
Do not operate this appliance if it is not working properly, or if it has been damaged.
Contact an authorized servicer.
Do not obstruct oven vents.
Do not repair or replace any part of the appliance unless specifically recommended
in this manual. Refer all servicing to a factory authorized service center.
In the event of an error the display flashes and beeps continuously. If this happens
during self-clean, disconnect appliance from the power supply and call a qualified
technician.
In the event of an error the display flashes and beeps continuously. Disconnect ap-
pliance from the power supply and call a qualified technician.
Do not use aluminum foil or protective liners to line any part of the appliance, es-
pecially the oven bottom. Installing these liners may result in risk of electric shock
or fire.
If materials inside an oven should ignite, keep door closed. Turn off the appliance,
and disconnect the circuit at the circuit breaker box.
Use this appliance only for its intended purpose as described in this manual. For
example, never use the appliance for warming or heating the room. Never use the
appliance for storage.
Always have a working smoke detector near the kitchen.
In the event that personal clothing or hair catches fire, drop and roll immediately to
extinguish flames.

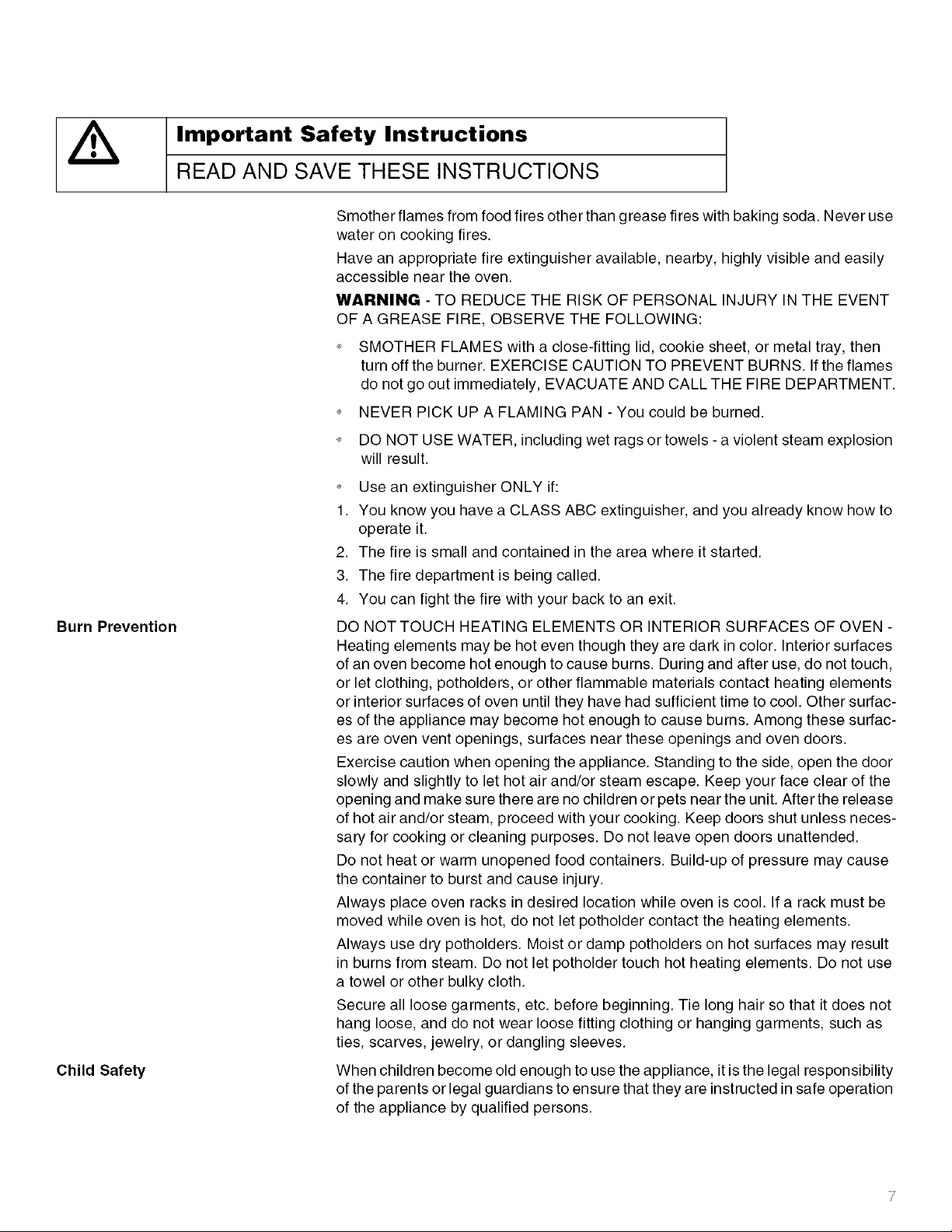

Important Safety Instructions
READ AND SAVE THESE INSTRUCTIONS
Burn Prevention
Child Safety
Smother flames from food fires other than grease fires with baking soda. Never use
water on cooking fires.
Have an appropriate fire extinguisher available, nearby, highly visible and easily
accessible near the oven.
WARNING - TO REDUCE THE RISK OF PERSONAL INJURY IN THE EVENT
OF A GREASE FIRE, OBSERVE THE FOLLOWING:
_ SMOTHER FLAMES with a close-fitting lid, cookie sheet, or metal tray, then
turn off the burner. EXERCISE CAUTION TO PREVENT BURNS. If the flames
do not go out immediately, EVACUATE AND CALL THE FIRE DEPARTMENT.
_ NEVER PICK UP A FLAMING PAN - You could be burned.
_ DO NOT USE WATER, including wet rags or towels - a violent steam explosion
will result.
_ Use an extinguisher ONLY if:
1. You know you have a CLASS ABC extinguisher, and you already know how to
operate it.
2. The fire is small and contained in the area where it started.
3. The fire department is being called.
4. You can fight the fire with your back to an exit.
DO NOT TOUCH HEATING ELEMENTS OR INTERIOR SURFACES OF OVEN -
Heating elements may be hot even though they are dark in color. Interior surfaces
of an oven become hot enough to cause burns. During and after use, do not touch,
or let clothing, potholders, or other flammable materials contact heating elements
or interior surfaces of oven until they have had sufficient time to cool. Other surfac-
es of the appliance may become hot enough to cause burns. Among these surfac-
es are oven vent openings, surfaces near these openings and oven doors.
Exercise caution when opening the appliance. Standing to the side, open the door
slowly and slightly to let hot air and/or steam escape. Keep your face clear of the
opening and make sure there are no children or pets near the unit. After the release
of hot air and/or steam, proceed with your cooking. Keep doors shut unless neces-
sary for cooking or cleaning purposes. Do not leave open doors unattended.
Do not heat or warm unopened food containers. Build-up of pressure may cause
the container to burst and cause injury.
Always place oven racks in desired location while oven is cool. If a rack must be
moved while oven is hot, do not let potholder contact the heating elements.
Always use dry potholders. Moist or damp potholders on hot surfaces may result
in burns from steam. Do not let potholder touch hot heating elements. Do not use
a towel or other bulky cloth.
Secure all loose garments, etc. before beginning. Tie long hair so that it does not
hang loose, and do not wear loose fitting clothing or hanging garments, such as
ties, scarves, jewelry, or dangling sleeves.
When children become old enough to use the appliance, it is the legal responsibility
of the parents or legal guardians to ensure that they are instructed in safe operation
of the appliance by qualified persons.

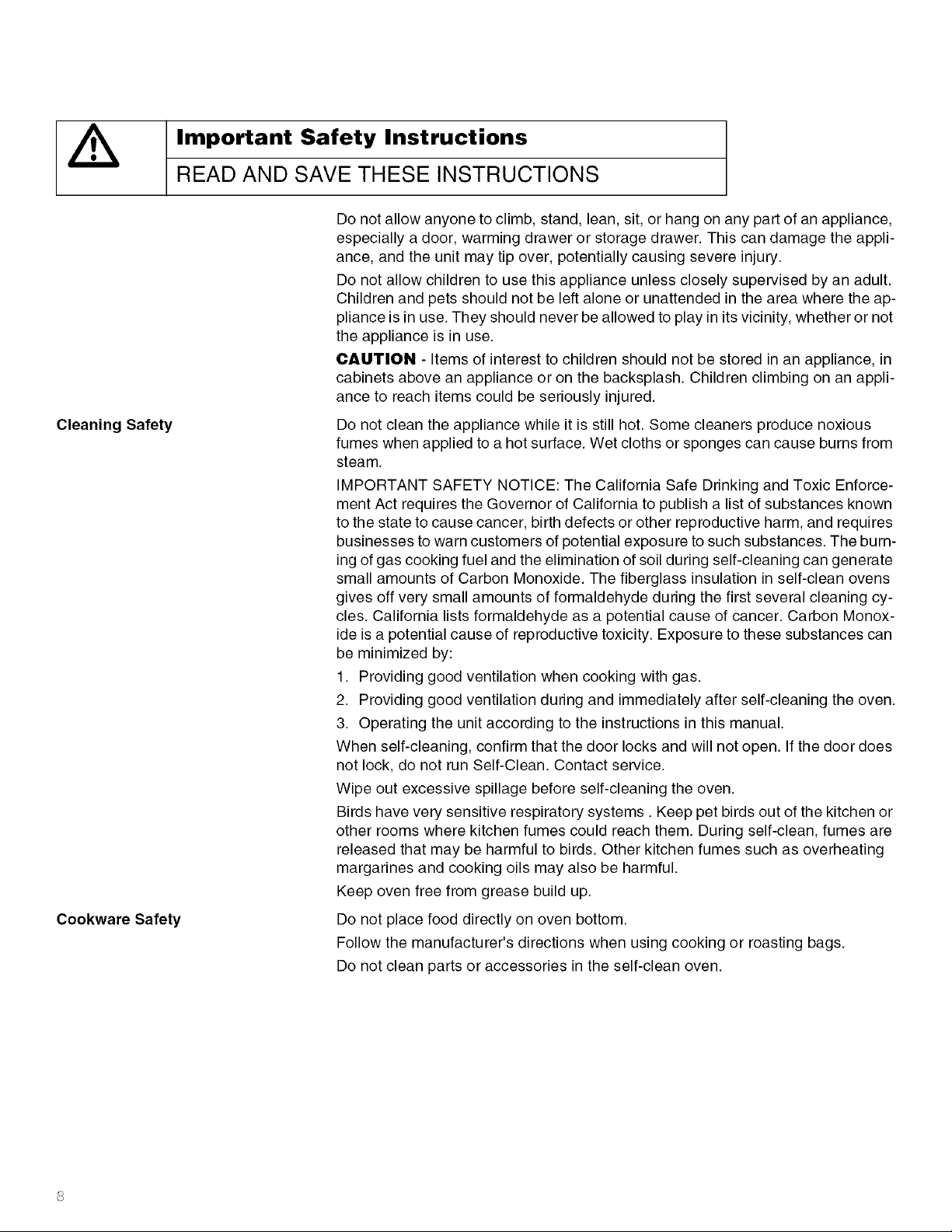

Important Safety Instructions
READ AND SAVE THESE INSTRUCTIONS
Cleaning Safety
Cookware Safety
Do not allow anyone to climb, stand, lean, sit, or hang on any part of an appliance,
especially a door, warming drawer or storage drawer. This can damage the appli-
ance, and the unit may tip over, potentially causing severe injury.
Do not allow children to use this appliance unless closely supervised by an adult.
Children and pets should not be left alone or unattended in the area where the ap-
pliance is in use. They should never be allowed to play in its vicinity, whether or not
the appliance is in use.
CAUTION - Items of interest to children should not be stored in an appliance, in
cabinets above an appliance or on the backsplash. Children climbing on an appli-
ance to reach items could be seriously injured.
Do not clean the appliance while it is still hot. Some cleaners produce noxious
fumes when applied to a hot surface. Wet cloths or sponges can cause burns from
steam.
IMPORTANT SAFETY NOTICE: The California Safe Drinking and Toxic Enforce-
ment Act requires the Governor of California to publish a list of substances known
to the state to cause cancer, birth defects or other reproductive harm, and requires
businesses to warn customers of potential exposure to such substances. The burn-
ing of gas cooking fuel and the elimination of soil during self-cleaning can generate
small amounts of Carbon Monoxide. The fiberglass insulation in self-clean ovens
gives off very small amounts of formaldehyde during the first several cleaning cy-
cles. California lists formaldehyde as a potential cause of cancer. Carbon Monox-
ide is a potential cause of reproductive toxicity. Exposure to these substances can
be minimiFed by:
1. Providing good ventilation when cooking with gas.
2. Providing good ventilation during and immediately after self-cleaning the oven.
3. Operating the unit according to the instructions in this manual.
When self-cleaning, confirm that the door locks and will not open. If the door does
not lock, do not run Self-Clean. Contact service.
Wipe out excessive spillage before self-cleaning the oven.
Birds have very sensitive respiratory systems. Keep pet birds out of the kitchen or
other rooms where kitchen fumes could reach them. During self-clean, fumes are
released that may be harmful to birds. Other kitchen fumes such as overheating
margarines and cooking oils may also be harmful.
Keep oven free from grease build up.
Do not place food directly on oven bottom.
Follow the manufacturer's directions when using cooking or roasting bags.
Do not clean parts or accessories in the self-clean oven.
Getting Started
Parts and Accessories
Parts*
Control Panel
Convection Fan
DoorLock
Door Gasket
Door Hinge
I
I
I
I
I
@
Rack Position Guides
with 6 Rack Positions
Oven Bottom
Oven Vent
* Picture shows double oven. Your appliance may vary slightly.
Cooling Fan The cooling fan runs during all cooking modes. The fan can be heard when it is run-
ning, and warm air may be felt as it is released from the oven vent. The fan may
also run after the oven is off.
Oven Vent
The oven vent is located at the bottom of the unit. Warm air may be released from
the vent before, during and after cooking. It is normal to see steam escaping from
the vent, and condensation may collect in this area. This area may be warm when
the oven is in use. Do not block the vent, since it is important for air circulation.
Convection Fan
The convection fan operates during all convection modes. When the oven is oper-
ating in a convection mode, the fan turns off automatically when the door is
opened. The convection fan may also run during self-clean.
Oven Bottom
The oven bottom conceals the lower heating element. As a result the element is
protected from damage and spills.
Note: Do not place food directly on the oven bottom.
Warning:
Do not use aluminum foil or protective liners to line any part of the ap-
pliance, especially the oven bottom. Installation of these liners may
result in a risk of electric shock or fire.
Accessories
Probe
The probe can be used to determine the in-
ternal doneness or the end temperature of
many foods, especially meats and poultry.
Flat Rack
Do not clean in the self-clean oven.
Telescopic Rack
This rack allows for easier access when in-
serting or removing food. Do not clean in
the self-clean oven.
Broil Pan and Grid
Use for broiling and roasting. Do not clean
in the self-clean oven.
40
Inserting Rack
Flat Rack
The rack is designed with a stop so it will stop before coming completely out of the
oven and not tilt.
Caution:
To avoid burns, place oven racks in desired positions before turning
oven on. Always use oven mitts when the oven is warm. If a rack must
be moved while the oven is hot, do not let oven mitts contact hot heat-
ing elements.
Inserting Rack into Oven:
1. Grasp rack firmly on both sides.
2. Insert rack (see picture).
3. Tilt rack up to allow stop into rack
guide.
4. Bring rack to a horizontal position and
push the rest of the way in. Rack
should be straight and flat, not crooked.
Removing Rack from Oven:
1. Grasp rack firmly on both sides and pull rack toward you.
2. When the stop is reached, tilt rack up and pull the rest of the way out.
Telescopic Rack Inserting telescopic rack into oven:
1. Hold the rack on a slight angle.
2. Engage the rear hooks in the acces-
sory brackets.
3. Hold the rack straight.
4. Push the rack in until it is even with the
front hooks.
5. Lift the rack up.
6. Push the rack in completely.
7. Engage the rack's front hooks in the
accessory brackets.
12
Control*
Cooking Mode
Touchpads
Display
Numeric Touchpads
Touchpads TIMER - Press to set the timer.
You only have to press lightly on the touchpads to operate
them. The touchpads will not work if you press several of
them at once, such as when cleaning them.
ON/OFF - Turns the oven on and off. TIMER START/OFF - Starts or stops the timer.
UPPER - Press to select the upper oven. COOK TIME - Used to set a timed mode. At the end of the
cooking time, the oven turns off automatically.
LOWER - Press to select the lower oven. STOP TIME - Used to delay the start of a timed mode.
When you enter the stop time, the oven automatically cal-
culates the proper start time.
OVEN LIGHT - Turns the oven light on or off. The light can- CLOCK - Press to set the clock.
not be turned on during self-cleaning.
EASY COOK - Press to select the easy cook menu. PANEL LOCK - Press and hold for four seconds to turn the
panel lock on or off. Prevents the oven from being turned
on or its settings from being changed accidentally.
FAVORITES - Press to select the favorites menu. PAUSE/STOP - Press once to pause. Press twice to stop
the oven and clear the programmed oven mode. Press and
hold for two seconds to turn off the oven.
FAST PREHEAT - Turns Fast Preheat on or off. START - Confirms settings and starts the oven. Turns the
oven on after it is set to PAUSE.
OVEN TEMP - Displays the programmed oven tempera- CLEAR - Clears the last entry.
ture. When the temperature appears in the display, you can
change it using the numeric touchpads.
PROBE - Press to set the Probe temperature. BACK - Returns to the previous screen.
INFO - Press to view information on the current oven mode.
*This is a double oven control panel. Your control panel may vary slightly.
43
Display Symbols
Cooking Mode Symbol - Shows the cooking
elements that are active for the mode that is
selected. The symbol will also display a fan if
the convection fan is utiliFed in the selected
mode.
I-->1
Cook Time Symbol - Used in conjunction with
Cook Time mode. Shows the amount of time
that the oven mode will run before turning off
automatically.
Fast Preheat Symbol - Is displayed when __,_,_ Stop Time Symbol - Used when delaying the
Fast Preheat is active. _1 start of a timed oven mode. Shows the time of
day that the oven mode will automatically end.
I_1 Door Locking Indicator - Symbol is displayed Preheat Monitor - Shows the progress of the
during and after the self-clean mode when the preheat process. When all of the five bars are
door is locked. DO NOT attempt to open the _ lit, preheat is complete. Some modes start with
door while the lock symbol is present, all bars lit.
"_k_ Probe Symbol - Appears when a probe is de-
X
tected.
Before Using the
Oven for the
First Time
* Oven must be properly installed by a qualified technician before use.
* Remove all packing materials from inside and outside the oven.
* While cool, wipe with a clean, damp cloth and dry.
* There may be a slight odor during first uses; this is normal and will disappear.
* Optimum cooking results depend on proper cookware being used.
* Read and understand all safety precautions and Use and Care Manual informa-
tion prior to operating.
Operation
About the Appliance
Your new oven combines popular functions, premium cooking results and simple
operation.
The "Easy Cook" function makes it possible to select the desired food type using
the display menu. The oven then starts automatically, using the correct cooking
mode and temperature.
While cooking, if a dish turns out particularly well, the settings for this dish can be
stored in "Favorites" and can be retrieved at any time.
This oven can also provide assistance after cooking: Thanks to "Self-Clean" mode,
hours of scrubbing into the darkest corners of the oven is a thing of the past. The
oven burns off soil simply and easily. All that is left to do is to remove a few ashes
from the oven when Self-Clean is done.
Clear labeling of the touch keys make operating the oven very easy. In addition,
messages on the display provide assistance when adjusting settings. This manual
includes all instructions for operating the oven.
Basic Features
Turning the Oven On
and Off
Setting the Date and
Time
To turn the oven on:
Press ON/OFF.
The last oven mode selected and the default temperature appear in the display.
To turn the oven off:
Press ON/OFF.
The oven returns to standby mode.
Double ovens: To switch off only one oven, select the corresponding oven cavity
using UPPER or LOWER. Next press ON/OFF within 10 seconds.
Your new oven includes time functions that require the current time and date to be
set. It is therefore necessary to set the clock and date first. The text on the display
guides you step-by-step through the menu.
In order to access the "Clock" menu, a timer or cook time cannot be running.
To set the clock:
1. Press CLOCK.
2. Enter the current time; for instance, for 11:30, press the keys 1 1 3 0.
The programmed time is displayed:
3. Press CLOCK.
4. Press 1 for am or 2 for pm (12-hour mode).
Theclockisnowsetandoperating.Themenuitem"Setdate"isdisplayed:
Tosetthedate:
1. Settheclockasdescribedabove.
2. Enterthecurrentyear;forinstance,for2007pressthekeys20 0 7.
3. PressCLOCK.
4. Enterthecurrentmonth(1-12).
5. PressCLOCK.
6. Enterthecurrentdayofthemonth.
7. PressCLOCK.
Thedatehasbeenset.Dateandtimearedisplayed:
Setting the Language
Note:
_ Press BACK to return to the previous screen.
_ Press CLEAR to clear the most recent number entered.
The default display language is English. However, you can change the language
in the user settings.
Note: The oven must be turned off in order to access the menu.
To set the language:
1. Press INFO.
The user settings menu is displayed:
2. Press 2 for "custom".
The following menu is displayed:
3. Press 2 for "Language".
_G
Theavailablelanguagesaredisplayed:
Selecting the Upper or
Lower Oven
Setting the Oven Mode
and Temperature
4. Use the numeric keys to select your preferred language.
The display from step 2 appears in the language you selected.
Note:
_ Press INFO to exit user settings.
_ Press BACK to return to the previous screen.
_ For more information on user settings, see "User Settings".
To set a heating mode and temperature in a double oven, the corresponding oven
has to be active. To select an oven, press UPPER or LOWER.
To set the oven mode and temperature:
1. Press ON/OFF to switch on the oven.
2. Double ovens: select the desired oven by pressing UPPER or LOWER.
3. Press the desired oven mode.
The current oven temperature, oven mode symbol, name and default
temperature appear in the display:
4. Enter the temperature, for instance, press 4 0 0 for 400 °.
The selected temperature appears in the display:
5. Press START.
The oven starts.
Preheat monitor:
While the oven is preheating, the current oven temperature is displayed. Next to
the current temperature is a preheat monitor that fills with five bars while the oven
heats up. When the specified temperature is reached, all of the bars are visible and
a beep sounds.
Note:
_ The adjustable temperature ranges are limited. A message appears in the dis-
play if an invalid temperature is entered.
_ The cooking mode and temperature can be changed at any time during oven
operation.
_ Press INFO once to obtain information on the selected cooking mode. Press
INFO twice to obtain information on the recommended rack position.
47
Heating Time Limitation
The maximum heating time is limited. If you forget to turn off the oven, it turns off
automatically after a set period of time (see table below), unless using Easy Cook
mode or Cook Time.
The maximum time allowed for Dehydrate mode is 48 hours. The maximum time
for Sabbath mode is 74 hours. For all other cooking modes, the maximum time al-
lowed depends on the temperature:
Temperature in °F Temperature in °C Max. time allowed
without activity
100 - 200 30 - 120 24 h
201 - 550 121 - 300 12 h
PanelLock
Timer
Heating stops until a setting is changed.
The panel lock is a child safety mechanism to prevent children from accidentally
turning on the oven or changing an oven setting.
Turning the panel lock on and off:
To turn the panel lock on, press and hold the PANEL LOCK key for four seconds.
"Panel locked" will appear in the display.
To turn the panel lock off, press and hold the PANEL LOCK key for four seconds.
The message in the display will disappear.
When panel lock is activated, all keys are locked except for the following:
_ COOK TIME: Turns off beep for the end of cooking time.
_ TIMER: Turns off beep for the end of the timer.
_ ON/OFF: Turns off oven.
Double ovens have two timers that can be set: Timer 1 is in the upper display and
Timer 2 is in the lower display. The relevant display has to be active in order to set
the timer.
To set the timer:
1. Press TIMER.
Press once to display "hours : minutes".
Press twice to display "minutes : seconds".
2. Enter length of time, for instance, 10 3 0 for 10 minutes and 30 seconds.
The time entered appears in the display:
3. Press TIMER START/OFE
The timer starts.
A beep sounds when the timer ends. Press TIMER START/OFF. The timer and
beep are canceled.
A running timer can also be canceled by pressing TIMER START/OFF.
To change a running timer:
1. Press TIMER.
The timer stops.
Fast Preheat
2. Set a new time.
The old time is erased when the first number for the new time is entered.
3. Press TIMER START/OFE
The timer starts.
Note:
_ The maximum time the timer can be set is 24 hours.
_ The timer does not change when other settings are changed.
Fast Preheat heats the oven quicker than standard preheat. Fast Preheat is avail-
able for Bake, Roast, Convection Bake, Convection Roast, True Convection and
Pizza cooking modes.
To set Fast Preheat:
1. Set the oven mode and temperature as usual.
2. Press FAST PREHEAT.
The flash symbol appears in the display:
3. Press START.
The oven is preheated when all of the bars are visible and a beep sounds. Fast Pre-
heat is then complete. The flash symbol disappears.
Note:
_ To use Fast Preheat, the temperature has to be set to at least 200 °F (100 °C).
_ Fast Preheat remains on even if you switch to a different cooking mode after
starting Fast Preheat. If Fast Preheat is not available for the new mode, stan-
dard preheat is activated.
19
Special Features
Cook Time
The special features provide you with additional conveniences when cooking.
Learn more about these special features in the following sections.
_ Cook Time
_ Stop Time
_ Probe
_ Easy Cook
_ Favorites
_ Sabbath Mode
Use the COOK TIME feature to operate the oven mode for a set period of time. The
oven starts immediately and then turns off automatically when the set time is up.
Caution:
To maintain food safety, do not leave food in the oven for more than
one hour before or after cooking.
To set the Cook Time:
1. Set the oven mode and temperature.
2. Press COOK TIME.
The specified oven mode, the temperature and the 1 symbol appear in the
display:
3. Enter the cooking time in hours and minutes. For instance, for 45 minutes,
press the numbers 0 4 5.
Note: it is also possible to press only two numbers (e.g. 4 and 5) and to confirm
with COOK TIME.
The programmed cooking time now appears next to the 1 symbol:
4. Press START.
The oven starts. At the end of the programmed cooking time, the oven turns off
and a beep sounds. Open the oven door or press COOK TIME to turn off the
beep sound.
To change the cooking time after the oven has been started, press COOK TIME.
You can then set a new cooking time.
Note:
®
®
You cannot use Cook Time if a probe (some models) is being used.
The maximum Cook Time setting allowed in 12-hour display mode is 11:59
hours or 23:59 hours in 24-hour display mode. See "User Settings" for chang-
ing the display mode.
_0
Stop Time Use Stop Time to delay the start of a Cook Time. Enter the time that you want the
mode to end. The oven calculates the proper start time. It starts and stops auto-
matically.
Caution:
To maintain food safety, do not leave food in the oven for more than
one hour before or after cooking.
To set the Stop Time:
1. Set a Cook Time first.
2. Press STOP TIME.
The oven mode, temperature and the stop time symbol are displayed:
3. Enter the stop time, for instance, press 1 2 4 5 for 12:45.
The stop time appears next to the stop time symbol W :
4. Press START.
The oven enters delayed mode. The oven turns on when the start time (in this
example, 12:00 pm)is reached.
At the end of the programmed cooking time, the oven turns off and a beep
sounds. Open the oven door or press COOK TIME to turn off the beep sound.
To change a delayed timed mode without starting the oven, press STOP TIME.
You can then set a new stop time and change the oven mode and temperature.
Note:
_ It is not possible to set a stop time when using a probe (some models).
_ The maximum stop time setting allowed in 12-hour display mode is 11:59hours,
or 23:59 hours in 24-hour display mode.
_ It is also possible to set a stop time without setting a cook time. Then the oven
starts immediately and stops automatically.
2!
Easy Cook Easy Cook contains functions with pre-programmed settings. The heating mode,
temperature and cooking time are automatically activated based on the items you
choose in the menus. However, it is possible to change temperature and cooking
time manually.
Caution:
To maintain food safety, do not leave food in the oven for more than
one hour before or after cooking.
The following foods are available:
Category Food Program Weight Rack Po-
(Ibs) sition
Baked Goods Cookies One Rack no weight 3
Two Racks no weight 2+5
Three Racks no weight 1+3+5
Cakes Sheet Cake no weight 3
Cupcakes no weight 3
Round Cake no weight 3
Biscuits no weight 3
Brownies no weight 3
Pie and Pizza Frz. Rise Pizza no weight 3
Frz. Thin Pizza no weight 3
Frozen Pie no weight 2
Fresh Pie no weight 2
Poultry Chicken Whole 3.5-5 2
Breast no weight 3
Turkey Whole Unstuffed 10-25 1
Breast 4-8 2
Meats Rib Eye Roast Medium Rare 3-5.5 2
Medium 3-5.5 2
Pork Loin Boneless 1.5-6 2
Spiral Ham 6-10 2
To set Easy Cook:
1. Press EASY COOK.
The "Easy Cook" menu appears in the display:
2. Select the function using the numeric keys; for instance, 4 for "Meats".
22
A submenuappears:
3. Selectthetypeoffoodyouwantto cook.Forinstance,press1forRibEye
Roast.
A submenuappears:
4. Choosethelevelofdoneness.
Thesuggestedweightappearsinthedisplay(ifapplicable):
5. Usethenumerickeystosettheweight,forinstancepress35for3.5Ibs.
Thesetweightappearsinthedisplay:
6. PressSTART.
Theremainingprogrammedcookingtimeappearsinthedisplay.Thetimewhen
thefoodwillbedonecookingisdisplayednexttotheStopTimesymbol.Attheend
oftheprogrammedtime,theoventurnsoffanda beepsounds.Opentheoven
doororpressCOOKTIMEtoturnoffthebeepsound.
Note:
_ Whenusinganautomaticprogram,itisnotnecessarytopreheattheovenwhen
roastingmeatorpoultry.
_ Itispossibletochangetheoventemperatureandtimeforsomeprograms.
_ Wrapspiralhamwithaluminumfoilpriortoroasting.
_ Turkeymayneedtobecoveredafterapproximately2 hoursof roastingtopre-
ventoverbrowning.
_ Afterroastingbeefandpork,letthemeatstandcoveredwithaluminumfoilfor
10minutesin orderto reachthefinalinternaltemperature.
_ Theheightofthe ribeyeroastshouldbe2 1_2"to3".
_ Attheendoftheautomaticprogramchecktheinternaltemperatureofthemeat
witha meatthermometerinordertoensurefoodsafety.
23
Favorites
Use Favorites to store the settings for your favorite dishes.
There are four memory settings available for this feature. The temperature, cook-
ing mode and cooking time are activated automatically based on the stored items.
However, it is possible to change temperature and cooking time manually.
Note: it is only possible to store settings after cooking.
To save your favorite settings:
1. Press FAVORITES.
The Favorites menu appears:
2. Press numeric key 1 for "Save Favorite".
Memory settings 1 through 4 are displayed:
3. Select your preferred memory setting.
The settings are stored.
To use Favorites:
1. Press FAVORITES.
2. Press numeric key 2 to select "Start Favorite".
Memory settings 1 through 4 are displayed:
3. Select your preferred memory setting.
The stored program starts.
At the end of the programmed time, the oven turns off and a beep sounds. Open
the oven door or press COOK TIME to turn off the beep.
Note:
_ Press OVEN TEMP to change the temperature.
_ Press COOK TIME to change the cooking time.
24
Sabbath Mode
Sabbath Mode is for religious faiths with "no work" requirements on the Sabbath.
Sabbath Mode must be activated in the user settings (default setting: On).
To set Sabbath Mode:
1. Press and hold BAKE for five seconds.
2. Press COOK TIME.
The 1 symbol for the cooking time, the suggested time (27 hours) and the
temperature appear:
Probe
3. Set the preferred time, for instance, press the keys 3 0 0 0 for 30 hours.
4. Press START.
The oven starts.
Note:
_ While using Sabbath Mode, only the ON/OFF function is active.
_ You can set a period of time between 24 and 74 hours.
_ The temperature in Sabbath Mode is 190 °F (85 °C).
_ For double oven models, Sabbath Mode is available for both ovens, but not at
the same time.
The probe measures the internal temperature of the food. The probe is available
for Bake, Roast and all convection cooking modes except Convection Broil.
Placing the probe:
Insert the tip of the probe where the least amount of heat penetrates the meat. The
best location is in the middle and thickest part of the meat. Make sure the probe is
not touching fat, bone, parts of the oven or pan.
To use the probe:
1. Insert the probe into the meat as described above.
2. Connect the probe to the oven.
Note: to prevent burns, do not attempt to insert the probe in a hot oven.
3. Set the cooking mode and temperature.
4. Press PROBE.
The default temperature (160°) and Probe icon appear in the display:
5. Set the internal temperature for the probe; for instance, press 1 4 5 to set the
probe temperature to 145 °. See cooking charts for appropriate internal temper-
atures.
25
Theadjustedprobetemperatureappearsinthedisplay:
User Settings
6. Press START.
Once the probe temperature is reached, the oven turns off and a beep sounds.
Open the oven door to turn off the beep. The Probe icon disappears when the
probe is removed.
The probe temperature can be changed at any time by pressing PROBE and en-
tering the new temperature.
Note:
_ Probe is not available when Cook Time has been set.
_ The range for the internal temperature is between 135 °F and 200 °F (60 °C and
100 °C).
_ Do not store the probe in the oven.
_ Always use the handle of the probe for inserting and removing.
_ Always use a potholder to remove the probe since it becomes hot.
_ For double oven models, the probe is only available for the upper oven.
The user settings allow you to customize your oven. Use this menu to change the
following:
Menu item Description Default
Clock Display mode: 12-hour or 24- 12-hour
hour
Language Language setting: English, English
Fran£_ais,Espa5ol, Deutsch
Beep length Beep length setting: Short, Me- Medium
dium, Long
More:
Beeps Beeps for each key: Yes or No Yes
Temperature F or C Temperature mode: Fahren- Fahrenheit
heit or Celsius
More:
Weight Weight mode: Ibs or kg Ibs
Temperature Offset 0
Sets the offset value. This fea-
ture is useful if you find that
food is consistently either too
brown or too light. When you
select an offset value, the actu-
al oven temperature is raised
or lowered by this value.
Sabbath Mode "Sabbath Mode" function: On On
or Off
2G
Tochangethesettings:
Theovenmustbeturnedoffwithnotimerrunninginordertoaccessthe"UserSet-
tings"menu.
1. PressINFO.
A menuappears:
2. Press2 for"custom".
Thefirstmenuappears:
3. Selectthedesiredmenuitem.
Note:
_ PressINFOto exitusersettings.
_ PressBACKto returnto thepreviousmenu.
_ Torevertbacktothedefaultsettings,select"standard"inthemenu.
27
Getting the Most Out of Your Appliance
General Tips
Pan Placement
Preheating the Oven
For Best Results
Baking Pans and Dishes
High Altitude Baking
Condensation
Baking results are better if pans are placed in the center of the oven. If baking more
than one pan on a rack, allow at least 1" to 1 W' of air space around the pan. When
baking four cake layers at the same time, stagger pans on two racks so that one
pan is not directly above the other.
_ Place oven racks in desired position before heating the oven.
_ Preheat the oven when using the Bake, Convection Bake, True Convection and
Pizza modes.
_ Preheat is not used for Roast, Convection Roast and Speed Convection.
_ Allow oven to preheat while preparing recipe ingredients or food items.
_ Setting a higher temperature does not shorten preheat time.
_ Once oven is preheated, place food in the oven as quickly as possible to mini-
mize the loss of heat and reduction of oven temperature.
_ Use Fast Preheat to speed up preheating.
_ Use the cooking recommendations as a guide.
_ Use the interior oven light to view the food through the oven window rather than
opening the door frequently.
_ Use the Timer to keep track of cooking times.
_ Open the door as briefly as possible to avoid temperature reduction.
®
®
®
Glass baking dishes absorb heat. Therefore, reduce oven temperature 25 °F
when baking in glass.
Use pans that provide the desired browning. For tender, light, golden, brown
crusts, use light, anodized or shiny metal bakeware.
Dark, rough or dull pans (nonstick or anodized) will absorb heat and result in a
browner, crisper crust. Some manufacturers recommend reducing the temper-
ature 25 °F when using this type of pan. Follow manufacturers' recommenda-
tions.
Insulated cookie sheets or bakeware may increase the length of cooking time.
Do not set broil pans or any other heavy object on the open oven door.
Do not keep the empty broil pan in the oven during cooking as this could change
cooking performance. Store the broil pan outside the oven.
When cooking at high altitude with Bake, Roast, Convection Bake or Convec-
tion Roast modes, recipes and cooking times will vary.
For accurate information, write the Extension Service, Colorado State
University, Fort Collins, Colorado 80521. There may be a cost for the guides.
Specify which high altitude food preparation guide you prefer: general
information, cakes, cookies, breads, etc.
It is normal for certain amount of moisture to evaporate from the food during any
cooking process. The amount depends on the moisture content of the food. The
moisture may condense on any surface cooler than the inside of the oven, such
as the control panel.
Bake
Tips
r
Bake is cooking with dry, heated air. Both the upper and lower el-
ements cycle to maintain the oven temperature.
The Bake mode can be used to prepare a variety of food items, from pastries to
casseroles. Refer to recipe or package directions for oven temperature and baking
time.
_ Preheat the oven if the recipe recommends it.
_ Baking time will vary with the size, shape and finish of the bakeware. Dark metal
pans or nonstick coatings will cook faster with darker results. Insulated bake-
ware will lengthen the cook time for most foods.
_ For best results, bake food on a single rack with at least 1-11/2" space between
pans or dishes and oven walls.
_ Eliminate heat loss from the oven by using the window to periodically check
food for doneness instead of opening the door.
_ If multiple racks are necessary, use a maximum of 2 racks. For cakes use rack
positions 3 and 5. For cookies use rack positions 1 and 4 (27" appliances) or 2
and 5 (30" appliances). Stagger pans so that one is not directly above the other
(see graphic below). See "Pan Placement" under "General Tips" for more info.
You may also consider using a convection mode.
27" appliances: 30" appliances:
29
Convection Bake
Tips
[]
Convection Bake is similar to Bake. Heat comes from the upper
and lower heating elements. The main difference in convection
baking is that the heat is circulated throughout the oven by the
convection fan.
The Convection Bake mode is well suited for cakes, bar cookies and breads to take
advantage of the bottom heat, yielding a better crust on baked items. The benefits
of Convection Bake include:
_ Slight decrease in cook time.
_ Higher volume (yeast items rise higher).
_ Place food in shallow, uncovered pans, such as cookie sheets without sides.
_ If baking more than one pan on a rack, allow at least 1" to 1 W' of air space
around the pan. Stagger pans so that one is not directly above the other (see
graphic below).
27" appliances: 30" appliances:
Convection Bake Chart
Food Item Rack Position Temperature Time
Cakes
Bundt Cake
Angel Food
Layers (8" or 9")
Rectangle (9x13)
Pie
2 Crust, fresh, 9"
2 Crust, froFen fruit, 9"
Meringue Topping Pie
Nut Pie
Custard
Bar Cookies
Lemon
Brownie
Breads
Yeast Bread, loaf, 9x5
Quick Bread, loaf, 8x4
2
1
3
3
2
2
2
2
2
3
3
2
2
325
325
325
325
350
350
350
325
425
325
325
325
400
350
45-65
35-50
28-40
30-37
45-60
75-85
12-18
45-60
12-15
30-48
30-40
30-45
23-33
48-62
30
True Convection
Tips
[]
True Convection cooks with heat from a third element behind the
back wall of the oven. The heat is circulated throughout the oven
by the convection fan.
True Convection is well suited for cooking individual serving-sized foods such as
cookies and biscuits. It is also good for cooking on multiple racks (2 or 3) at the
same time. Baking cookies is possible on 6 racks simultaneously. In this case, the
baking time increases slightly. The benefits of True Convection include:
Even browning.
®
®
®
®
®
Time savings as a result of using multiple racks at one time.
Reduce recipe temperature by 25 °F. Refer to True Convection chart.
Place food in low-sided, uncovered pans such as cookie sheets without sides.
If baking more than one pan on a rack, allow at least 1" to 1 Y2"of air space
around the pan.
For cakes use rack positions 2 and 5 (see graphic below).
27" appliances: 30" appliances:
True Convection Chart
Food Item Rack Position Temp. Time
1 rack 2 racks 3 racks
Cakes
Cupcakes 4 2+5 1+3+5 325 17-27
Layers (8" or 9") 3 2+5 325 25-40
Cookies
Sugar 3 2+5 1 +3+5 350 6-10
Chocolate Chip 3 2+5 1 +3+5 325 8-17
Breads
Dinner Rolls 3 1+4 1 +3+5 350 10-20
Biscuits 2 2+5 1 +3+5 325 10-20
Muffins 3 2+5 1 +3+5 400 14-25
Cream Puffs
Fresh 3 2+5 1 +3+5 400 23-33
Roast
Tips
Convection
Roast
Tips
r
Roast uses both the upper and lower elements to maintain the
oven temperature. Roasting uses more intense heat from the up-
per element than the lower element. This results in more browning
of the exterior while the inside remains especially moist.
Roast is best suited for large cuts of meat and poultry.
_ Use a high-sided broil pan, or cover dish with a lid or foil.
_ Add liquids, such as water, juice, wine, bouillon or stock for flavor and moisture.
_ Roasting bags are suitable for use in this mode.
_ When roasting whole chicken or turkey, tuck wings behind back and loosely tie
legs with kitchen string.
Convection Roast uses heat from the top and bottom elements
as well as heat circulated by the convection fan.
The Convection Roast mode is well suited for preparing tender cuts of meat and
poultry.
The benefits of Convection Roast mode include:
_ As much as 25% faster cooking than non-convection modes.
_ Rich, golden browning.
_ Use the same temperature as indicated in the recipe.
_ Check doneness early, since roasting time may decrease. Refer to Convection
Roast chart for examples.
_ Do not cover meat or use cooking bags.
_ Use the broil pan and grid provided with the oven for roasting. A shallow, un-
covered pan can also be used.
_ Use a meat thermometer to determine the internal temperature of the meat.
_ If the meat is browned to your liking, but is not yet done, a small strip of foil can
be placed over the meat to prevent overbrowning.
_ Let meat stand covered with foil 10-15 minutes after removing it from the oven.
_ Refer to chart for recommended rack positions.
32
Convection Roast Chart
Food Item Rack
Pos.
Weight
Beef
Rib Eye Roast (boneless)
Medium rare 2 3.0-5.5
Medium 2 3.0-5.5
Rump, eye, tip, sirloin
(boneless)
Medium rare 2 3.0-6.0
Medium 2 3.0-6.0
Pork
Tenderloin Roast
(medium rare) 2 2.0-3.0
Loin Roast (boneless or
bone in) 2 1.5-3.0
Loin Roast (boneless or
bone in) 2 3.0-6.0
Tenderloin 2 2.0-3.0
Poultry
Chicken, whole 2 3.5-8.0
Turkey, unstuffed** 1 12-15
Turkey, unstuffed** 1 16-20
Turkey, unstuffed** 1 21-25
Turkey Breast 2 4.0-8.0
Cornish Hen 2 1.0-1.5
Lamb
Leg, boneless
Medium 4.0-6.0
Oven
Temp.
325
325
325
325
425
350
35O
425
375
325
325
325
325
350
325
Time
(min/Ib)*
27-31
30-38
18-33
30-35
15-24
19-36
14-21
21-28
13-20
10-14
9-13
6-12
19-23
45-75
(total
time)
30-35
Internal
Temp.
145
160
145
160
145
160
160
160
180
180
180
180
170
180
170
Broil
Tips
*Roasting times are approximate and may vary depending on shape of the meat.
**Stuffed turkey requires additional roasting time. The minimum safe temperature
for stuffing in poultry is 165 °F.
W Broil uses intense heat radiated from the upper element.
The Broil mode is best suited for cooking thin, tender cuts of meat (1" or less), poul-
try and fish. It can also be used to brown breads and casseroles. Always broil with
the door closed. The benefits of broiling include:
_ Fast and efficient cooking.
_ Cooking without the addition of fats or liquids.
_ Preheat oven 3-4 minutes. Do not preheat for more than 5 minutes.
,_ Steaks and chops should be at least 3A"thick.
_ Brush fish and poultry with butter or oil to prevent sticking.
_ Use the broil pan and grid included with the oven.
33
_ Donotcoverthebroilgridwithfoil.Itisdesignedtodrainfatsandoilsawayfrom
thecookingsurfacetopreventsmokingandspattering.
Broil Chart
Turn meats once during the recommended cook time (see Broil Chart for exam-
ples).
_ When top browning casseroles, use only metal or glass ceramic dishes such as
Corningware ® .
_ Never use heat-proof glass (Pyrex ® ); it cannot tolerate the high temperature.
Food Item Rack Broil Internal Time Time
Pos. Setting Temp. side 1" side 2*
Beef
Steak, 3A"to 1"
Medium Rare
Medium
Well
Hamburger, 3A"to 1"
Medium
Poultry
Chicken Thighs
Pork
Pork Chops, 1"
Sausage - fresh
Ham Slice, 1/2"
Seafood
Fish Filets, 3A"to 1"
buttered
Lamb
Chops, 1"
Medium Rare
Medium
Well
6
5
5
3
3
3
145
16O
17O
5-7
8-9
10-11
4-6
5-7
7-9
6 3 160 5-8 4-6
3 1 180 14-15 12-13
2
3
3
4
4
5
16O
16O
16O
145
145
16O
17O
4
4
4
8-10
3-5
4-5
11-15
4-6
5-7
6-8
3
3
3
8-9
2-4
3-4
Do not
turn
4-5
5-6
6-7
*Broiling times are approximate and may vary slightly. Times are based on cooking
with a preheated broil element.
34
Convection Broil
Tips
Convection Broil Chart
Convection Broil is similar to Broil. It combines intense heat from
the upper element with heat circulated by a convection fan.
Convection Broil mode is well suited for cooking thick, tender cuts of meat, poultry
and fish. Convection Broil is not recommended for browning breads, casseroles
and other foods. Always use convection broil with the door closed.
In addition to the benefits of standard broiling, convection broiling is faster.
_ Preheat oven 3-4 minutes. Do not preheat for more than 5 minutes.
_ Steaks and chops should be at least 1W' thick.
_ Use the broil pan and grid included with your oven.
_ Do not cover the broil grid with foil. It is designed to drain fats and oils away from
the cooking surface to prevent smoking and spattering.
_ Turn meats once during the recommended cook time (see Convection Broil
Chart for examples).
_ Never use heat-proof glass (Pyrex(b); it cannot tolerate the high temperature.
Food Item Rack Broil Internal Time Time
Pos. Setting Temp. side 1" side 2*
Beef
Steak, 11/2"or more
Medium Rare
Medium
Well
Hamburger, 1" or more
Medium
Poultry
Chicken Breast
Pork
Chops, 1W' or more
Sausage, fresh
3
3
3
55O
55O
55O
145
16O
17O
11-13
13-15
15-17
9-11
11-13
13-15
4 550 160 11-14 8-11
3 450 170 18-20 17-19
4 550 160 9-11 8-10
4 550 180 5-7 3-5
*Convection broiling times are approximate and may vary slightly. Times are based
on cooking with a preheated broil element.
35
Pizza
Tips
[-_ culated throughout the oven by the convection fan.
In the Pizza mode, heat from the lower and upper elements is cir-
Use the Pizza mode for fresh or frozen pizza.
_ For a crispy crust, place pizza directly on the rack.
_ For a softer crust, use a pizza pan.
_ When proofing dough, coat dough with olive oil and cover bowl tightly with plas-
tic wrap to prevent crust formation.
_ Sprinkle cornmeal on the pizza pan to prevent sticking.
_ If using a pizza paddle, sprinkle the paddle liberally with cornmeal for ease in
transferring the dough to the pan.
_ If par-baking handmade pizza dough, prick the dough with a fork before baking.
_ If using a pizza pan, choose a dark, perforated pan for a more crisp crust and a
non-perforated pan for a softer crust.
_ Preheat baking stones while the oven is preheating.
_ Bake homemade pizzas on rack position 2 in center of the rack.
_ Follow manufacturer's directions for frozen pizza.
_ The convection fan cycles on and off when using pizza mode.
3G
Speed Convec-
tion
Tips
Speed Convection Chart
Proof
[]
Speed Convection uses all heating elements as well as the con-
vection fan to evenly distribute heat throughout the oven cavity.
The main difference between speed convection and other convec-
tion modes is that it does not require preheating.
Speed Convection is well suited for frozen convenience foods such as fish sticks
and chicken nuggets. The benefits of Speed Convection include:
_ Decrease in cook time since preheating is not necessary.
_ Crispy and evenly browned frozen foods.
_ Begin cooking all frozen convenience products in a cold, non-preheated oven.
The food will still be done in package time.
_ Follow package instructions for time and temperature.
_ Flipping of food halfway through recommended cook time is not necessary.
_ Frozen foods that are sold in microwaveable plastic containers should not be
used in this mode.
_ Cook food items on rack position 3 unless directed otherwise by the product
manufacturer.
_ If baking more than one product simultaneously, use rack positions 2 and 5.
_ Evenly space food items on pan.
_ For double ovens, only one cavity is available when using Speed Convection.
Food Item
Frozen Food
Pizza Bites
Fish Sticks
Onion Rings
French Toast Sticks
Turnovers
Filled Pockets
Chicken Nuggets
Garlic Bread
Shoestring Fries
Rack Position Temp.
3 450
3 475
3 425
3 450
3 400
3 350
3 400
3 450
3 450
Time
9-11
10-14
14-16
7-11
19-26
27-31
9-13
7-11
11-16
In Proof, the oven uses the upper and lower elements to maintain
a low temperature to proof bread or other yeast doughs.
_ Proofing is the rising of yeast dough.
_ The Proof mode temperature range is 85 °F to 110 °F.
_ Loosely cover the bowl or pan and use any rack that accommodates the size of
the container.
_ Keep the door closed and use the oven light to check the rising of the dough.
37
Warm
@
In Warm, the upper and lower elements maintain a low tempera-
ture in the oven cavity in order to keep food at serving tempera-
ture.
_ Use the Warm mode to keep cooked foods hot until ready to serve.
_ Warm mode temperatures are 140 °F - 220 °F.
_ Foods that must be kept moist should be covered with a lid or aluminum foil.
Caution:
When using Warm mode, follow these guidelines:
Dehydrate
Tips
_ Do not use the Warm mode to heat cold food.
_ Be sure to maintain proper food temperature. The USDA recommends holding
hot food at 140 °F or warmer.
_ DO NOT warm food longer than one hour.
Dehydrate dries with heat from a third element behind the back
[] wall of the oven. The heat is circulated throughout the oven by the
convection fan.
Use Dehydrate to dry and/or preserve foods such as fruits, vegetables and herbs.
This mode holds an optimum low temperature (100 °F - 160 °F) while circulating
the heated air to slowly remove moisture. The oven stays on for 48 hours before
shutting off automatically.
_ Dry most fruits and vegetables at 140 °F. Dry herbs at 100 °F (refer to the De-
hydrate Chart for examples).
_ Drying times vary depending on the moisture and sugar content of the food, the
size of the pieces, the amount being dried and the humidity in the air. Check
food at the minimum drying time.
_ Multiple drying racks (not included) can be used simultaneously.
_ Treat fruits with antioxidants to avoid discoloration.
_ Consult a food preservation book, county Cooperative Extension Office or li-
brary for additional information.
Dehydrate Chart
Food Item Preparation Approx. Test for done-
drying ness
time (hrs)
Fruit
Apples
Bananas
Cherries
Orange peels
Orange slices
Pineapple rings
canned
fresh
Strawberries
Dipped in 1Acup lem-
on juice and 2 cups
water, W' slices.
Dipped in _ cup lem-
on juice and 2 cups
water, W' slices.
Wash and towel dry.
For fresh cherries, re-
move pits.
Orange part of skin
thinly peeled from or-
anges.
W' slices of orange.
Towel dried.
Towel dried.
Wash and towel dry.
Sliced Y2"thick, skin
(outside) down on
rack.
11-15
11-15
10-15
2-4
12-16
9-13
8-12
12-17
Slightly pliable.
Slightly pliable.
Pliable leath-
ery, chewy.
Dry and brittle.
Skins are dry
and brittle, fruit
is slightly moist.
Soft and pli-
able.
Soft and pli-
able.
Dry and brittle.
39
Food Item Preparation Approx. Test for done-
drying ness
time (hrs)
Vegetables
Peppers
Mush_oms
Tomatoes
Herbs
Oregano, Sage, Pars-
ley, Thyme, Fennel
Basil
Wash and towel dry.
Remove membrane of
peppers, coarsely
chopped about 1"
pieces.
Wash and towel dry.
Cut off stem end. Cut
into 1/8" slices.
Wash and towel dry.
Cut thin slices, 1/8"
thick, drain well.
Rinse and dry with pa-
per towel.
Use basil leaves 3 to 4
inches from the top.
Spray with water,
shake off moisture
and pat dry.
15-17
7-12
15-20
Leathery with
no moisture in-
side.
Tough and
leathery, dry.
Dry, brick red
color.
Dry at
100 °F
4-6 hours.
Dry at
100 °F
4-6 hours.
Crisp and brit-
tle.
Crisp and brit-
tle.
4O
Cleaning and Maintenance
Cleaning
Self-Clean
During Self-Clean, the oven is heated to a very high temperature. Soil is burned off
at this temperature.
ATTENTION: Wipe out excessive spillage before self-cleaning the oven.
ATTENTION: Do not clean parts or accessories in the Self-Clean oven.
To set the Self-Clean mode:
1. Press SELF CLEAN.
2. Press COOK TIME.
The Cook Time symbol and the default time appear:
Avoid These Cleaners
3. Depending on the soil level, you can change the length of the Self-Clean mode
(1:30-2:30 hours). To change the cleaning time to 2 hours and 15 minutes
(2:15), press 2 1 5.
4. Press START.
Self-Clean starts.
The oven is locked during self-cleaning mode. The _ symbol appears in the dis-
play. You will only be able to open the oven door when the _, symbol disappears.
Press PAUSE/STOP once to pause Self-Clean. Press twice to stop Self-Clean.
Once the oven has cooled, wipe out the remaining ash with a wet towel.
Note:
®
®
You cannot turn on the oven light during self-cleaning.
The special heat-resistant enamel and the polished components in the oven
can become discolored over time. This is normal and does not affect operation.
Under no circumstances should you try treating discolorations with scouring
pads or abrasive cleaners.
_ In double oven models, self-clean is only available for one oven at a time, and
the other oven must be turned off.
Do not use commercial oven cleaners such as Easy Off@. They may damage the
oven finish or parts.
Never use scouring pads or abrasive cleaners.
Cleaning Guide
Part Recommendations
Flat Rack and Telescopic Wash with hot soapy water. Rinse thoroughly and
Rack dry, or gently rub with cleansing powder or soap-
filled pads as directed. DO NOT clean the rack in
the self-cleaning oven.
Broil Pan and Grid Wash with hot soapy water. Rinse thoroughly and
dry, or gently rub with cleansing powder or soap-
filled pads as directed. DO NOT clean broil pan
and grid in the self-cleaning oven.
Fiberglass Gasket DO NOT CLEAN GASKET.
Glass Wash with soap and water or glass cleaner. Use
Fantastik® or Formula 409® to remove grease
spatters and stubborn stains.
Painted Surfaces Clean with hot soapy water or apply Fantastik® or
Formula 409® to a clean sponge or paper towel
and wipe clean. Avoid using powder cleaning
agents, steel wool pads and oven cleaners.
Porcelain Surfaces
Stainless Steel Surfaces
Immediately wipe up acid spills like fruit juice, milk
and tomatoes with a dry cloth. Do not use a moist-
ened sponge/cloth on hot porcelain. When cool,
clean with hot soapy water or apply Bon-Ami® or
Soft Scrub@ to a damp sponge. Rinse and dry. For
stubborn stains, use soap-filled pads. It is normal
for porcelain to show fine lines with age due to ex-
posure to heat and food soil.
Always wipe or rub in the direction of the grain.
Clean with a soapy sponge, then rinse and dry, or
wipe with Fantastik® or Formula 409@ sprayed on
a paper towel. Protect and polish with Stainless
Steel Magic@ and a soft cloth. Remove water
spots with a cloth dampened with white vinegar.
Use Bar Keeper's Friend® to remove heat discol-
oration.
Plastic & Controls When cool, clean with soapy water, rinse and dry.
Probe Wipe with soapy water. Do not submerge. Do not
wash in the dishwasher.
Printed areas (words and Do not use abrasive cleansers.
numbers)
42
Maintenance
Replacing an Oven Light
Caution:
®
®
®
®
Make sure the appliance and lights are cool and power to the ap-
pliance has been turned off before replacing the light bulb(s). Fail-
ure to do so could result in electrical shock or burns.
The lenses must be in place when using the appliance.
The lenses serve to protect the light bulb from breaking.
The lenses are made of glass. Handle carefully to avoid breaking.
Broken glass could cause an injury.
Light socket is live when door is open.
Use only 10 Watt, 12 Volt bi-pin halogen light bulbs. These bulbs can be purchased
through retail stores.
Use a clean, dry cloth to handle halogen light bulbs. This will increase the life of the
bulb.
To replace the halogen bulb on the oven ceiling:
1. Turn off power to the oven at the main
power supply (fuse or breaker box).
2. Remove the glass cover by unscrewing
it.
3. Remove the halogen bulb and replace.
Grasp the new bulb with a clean, dry
cloth.
4. Screw the glass cover back on.
5. Turn power back on at the main power
supply (fuse or breaker box).
To replace the halogen bulb on the oven sidewall:
1. Turn off power to the oven at the main
power supply (fuse or breaker box).
2. Push the top mounting clip back and
remove the glass cover.
3. Pullthehalogenbulbfromitssocket.
4. Replacethehalogenbulb.Graspthe
newbulbwithaclean,drycloth.
5. Puttheglasscoverbackonbyinsert-
ingit intothelowermountingclipand
pressingupwarduntilit locksintoplace.
6. Turnpowerbackonatthemainpower
supply(fuseorbreakerbox).
Removing the Oven
Door
Caution: When removing the door:
®
Make sure oven is cool and power to the oven has been turned off
before removing the door. Failure to do so could result in electrical
shock or burns.
_ The oven door is heavy and fragile. Use both hands to remove the
oven door. The door front is glass. Handle carefully to avoid
breaking.
_ Grasp only the sides of the oven door. Do not grasp the handle as
it may swing in your hand and cause damage or injury.
Failure to grasp the oven door firmly and properly could result in
personal injury or product damage.
To avoid injury from hinge bracket snapping closed, be sure that
both levers are securely in place before removing the door. Also,
do not force door open or closed - the hinge could be damaged
and injury could result.
44
To remove the oven door:
1. Be sure to read the above WARNING
before attempting to remove the door.
2. Open the door completely.
3. Flip levers on hinges toward you.
4. Close door carefully until it stops. It will
be about half way closed.
5. Holding the door firmly on both sides
using both hands, pull the door up and
out of the hinge slots. Hold firmly; the
door is heavy.
6. Place the door in a convenient and sta-
ble location for cleaning.
To replace the oven door:
1. Holding the door firmly in both hands,
place hinges in hinge slots.
2. Open door all the way to expose hinges
and slots.
3. Push lever down and away from you
until flush with the bracket.
4. Close and open door slowly to be sure
it is correctly and securely in place.
Door must be straight, not crooked.
45
Service
Before Calling Service
Troubleshooting Chart
Oven Problem Possible Causes and Suggested Solutions
Oven door is locked and will not open, Turn the oven off at the circuit breaker and wait five minutes. Turn breaker
even after cooling, back on. The oven should reset itself and will be operable.
Oven is not heating. Check circuit breaker or fuse box to your house. Make sure there is proper
electrical power to the oven. Be sure oven temperature has been selected.
Oven is not cooking evenly. Refer to cooking charts for recommended rack position. Check "Getting the
Most Out of Your Appliance" for tips and suggestions.
Baking results are not as expected. Refer to cooking charts for recommended rack position. Check "Getting the
Most Out of Your Appliance" for tips and suggestions. Adjust oven calibra-
tion if necessary. See "Oven Temperature Offset" under "User Settings".
Food takes longer to cook than expected. The oven is carefully calibrated to provide accurate results. However, the
temperature can be offset if food is consistently too brown or too light. See
"Oven Temperature Offset" under "User Settings".
Food is overcooked. The oven is carefully calibrated to provide accurate results. However, the
temperature can be offset if food is consistently too brown or too light. See
"Oven Temperature Offset" under "User Settings".
Convection Bake/True Convection results The oven temperature must be manually reduced by 25 °F. Refer to cooking
are not as expected, charts and tips for rack positions, cooking times and pan selection. Adjust
oven calibration if necessary. See "Oven Temperature Offset" under "User
Settings".
Oven light is not working properly. Replace or reinsert the light bulb if loose or defective. Touching the bulb with
fingers may cause the bulb to burn out.
Oven light does not turn off. Check for obstruction in oven door. Check to see if hinge is bent.
Oven is not self-cleaning properly. Allow the oven to cool before running self-clean. Always wipe out loose soils
or heavy spillovers before running self-clean. If oven is badly soiled, set
oven for the maximum self-clean time.
Clock and timer are not working properly.
"E" and a number appears in display and
control beeps.
Make sure there is electrical power to oven.
This is a fault code. Follow the instructions in the display.
If the code remains or there are no instructions in the display, press INFO to
display more information (if applicable) and to turn off the beep.
If the code is still displayed, write down the fault code number, turn off the
oven, and call Service.
With a new oven there is a strong odor This is normal with a new oven and will disappear after a few uses. Operat-
when oven is turned on. ing the self-clean cycle also "burns-off" the smell more quickly.
Control does not react when a key is Be sure that surface is clean and dry. Touch the center of the touch key. Use
touched, the flat part of your finger.
Fan is running during modes that do not On some models, the convection fan runs while the oven is preheating. This
use convection is normal.
4G
Oven Problem Possible Causes and Suggested Solutions
Warm air or steam escapes from oven It is normal to see or feel steam or warm air escaping from the oven vent.
vent. Do not block the vent.
Cooling fan runs even when the oven is This is normal. The cooling fan will continue to run, even after the oven has
turned off. been turned off, until the oven has cooled sufficiently.
Data Plate
The data plate shows the model and serial number. Refer to the data plate on the
appliance when requesting service. The data plate is located on the underside of
the control panel:
Data Plate
How to Obtain Service or Parts
To reach a service representative, see the contact information at the front of the
manual. Please be prepared with the information printed on your product data plate
when calling.
47
STATEMENT OF LIMITED PRODUCT WARRANTY
What this Warranty Cov-
ers & Who it Applies to
How Long the Warranty
Lasts
Repair/Replace as Your
Exclusive Remedy
Out of Warranty Product
The limited warranty provided by BSH Home Appliances Thermador in this State-
ment of Limited Product Warranty applies only to the Thermador appliance sold to
you, the first using purchaser, provided that the Product was purchased:
For your normal, household (non-commercial) use, and has in fact at all times
only been used for normal household purposes.
New at retail (not a display, "as is", or previously returned model), and not for
resale, or commercial use.
* Within the United States or Canada, and has at all times remained within the
country of original purchase.
The warranties stated herein apply only to the first purchaser of the Product and
are not transferable.
Please make sure to return your registration card; while not necessary to effectuate
warranty coverage, it is the best way for Thermador to notify you in the unlikely
event of a safety notice or product recall.
Thermador warrants that the Product is free from defects in materials and work-
manship for a period of twelve (12) months from the date of purchase. The fore-
going timeline begins to run upon the date of purchase, and shall not be stalled,
tolled, extended, or suspended, for any reason whatsoever.
During this warranty period, Thermador or one of its authorized service providers
will repair your Product without charge to you (subject to certain limitations stated
herein) if your Product proves to have been manufactured with a defect in materials
or workmanship. If reasonable attempts to repair the Product have been made
without success, then Thermador will replace your Product (upgraded models may
be available to you, in Thermador's sole discretion, for an additional charge). All
removed parts and components shall become the property of Thermador at its sole
option. All replaced and/or repaired parts shall assume the identity of the original
part for purposes of this warranty and this warranty shall not be extended with re-
spect to such parts. Thermador's sole liability and responsibility hereunder is to re-
pair manufacturer-defective Product only, using a Thermador-authorized service
provider during normal business hours. For safety and property damage concerns,
Thermador highly recommends that you do not attempt to repair the Product your-
self, or use an un-authorized servicer; Thermador will have no responsibility or lia-
bility for repairs or work performed by a non-authorized servicer. If you choose to
have someone other than an authorized service provider work on your Product,
THIS WARRANTY WILL AUTOMATICALLY BECOME NULL AND VOID. Autho-
rized service providers are those persons or companies that have been specially
trained on Thermador products, and who possess, in Thermador's opinion, a su-
perior reputation for customer service and technical ability (note that they are inde-
pendent entities and are not agents, partners, affiliates or representatives of
Thermador). Notwithstanding the foregoing, Thermador will not incur any liability,
or have responsibility, for the Product if it is located in a remote area (more than
100 miles from an authorized service provider) or is reasonably inaccessible, haz-
ardous, threatening, or treacherous locale, surroundings, or environment; in any
such event, if you request, Thermador would still pay for labor and parts and ship
the parts to the nearest authorized service provider, but you would still be fully lia-
ble and responsible for any travel time or other special charges by the service com-
pany, assuming they agree to make the service call.
Thermador is under no obligation, at law or otherwise, to provide you with any con-
cessions, including repairs, pro-rates, or Product replacement, once this warranty
has expired.
Warranty Exclusions The warranty coverage described herein excludes all defects or damage that are
not the direct fault of Thermador, including without limitation, one or more of the
following:
_ Use of the Product in anything other than its normal, customary and intended
manner (including without limitation, any form of commercial use, use or stor-
age of an indoor product outdoors, use of the Product in conjunction with air or
water-going vessels).
_ Any party's willful misconduct, negligence, misuse, abuse, accidents, neglect,
improper operation, failure to maintain, improper or negligent installation, tam-
pering, failure to follow operating instructions, mishandling, unauthorized ser-
vice (including self-performed "fixing" or exploration of the appliance's internal
workings).
_ Adjustment, alteration or modification of any kind.
A failure to comply with any applicable state, local, city, or county electrical,
plumbing and/or building codes, regulations, or laws, including failure to install
the product in strict conformity with local fire and building codes and regula-
tions.
_ Ordinary wear and tear, spills of food, liquid, grease accumulations, or other
substances that accumulate on, in, or around the Product.
_ Any external, elemental and/or environmental forces and factors, including
without limitation, rain, wind, sand, floods, fires, mud slides, freezing tempera-
tures, excessive moisture or extended exposure to humidity, lightning, power
surges, structural failures surrounding the appliance, and acts of God.
In no event shall Thermador have any liability or responsibility whatsoever for dam-
age to surrounding property, including cabinetry, floors, ceilings, and other struc-
tures or objects around the Product. Also excluded from this warranty are
scratches, nicks, minor dents, and cosmetic damages on external surfaces and ex-
posed parts; Products on which the serial numbers have been altered, defaced, or
removed; service visits to teach you how to use the Product, or visits where there
is nothing wrong with the Product; correction of installation problems (you are sole-
ly responsible for any structure and setting for the Product, including all electrical,
plumbing or other connecting facilities, for proper foundation/flooring, and for any
alterations including without limitation cabinetry, walls, floors, shelving, etc.); and
resetting of breakers or fuses.
TO THE EXTENT ALLOWED BY LAW, THIS WARRANTY SETS OUT YOUR EX-
CLUSIVE REMEDIES WITH RESPECT TO PRODUCT, WHETHER THE CLAIM
ARISES IN CONTRACT OR TORT (INCLUDING STRICT LIABILITY, OR NEG-
LIGENCE) OR OTHERWISE. THIS WARRANTY IS IN LIEU OF ALL OTHER
WARRANTIES, WHETHER EXPRESS OR IMPLIED. ANY WARRANTY IM-
PLIED BY LAW, WHETHER FOR MERCHANTABILITY OR FITNESS FOR A
PARTICULAR PURPOSE, OR OTI-IERWlSE, SHALL BE EFFECTIVE ONLY
FOR THE PERIOD THAT THIS EXPRESS LIMITED WARRANTY IS EFFEC-
TIVE. IN NO EVENT WILL THE MANUFACTURER BE LIABLE FOR CONSE-
QUENTIAL, SPECIAL, INCIDENTAL, INDIRECT, "BUSINESS LOSS", AND/OR
PUNITIVE DAMAGES, LOSSES, OR EXPENSES, INCLUDING WITHOUT LIMI-
TATION TIME AWAY FROM WORK, HOTELS AND/OR RESTAURANT MEALS,
REMODELLING EXPENSES IN EXCESS OF DIRECT DAMAGES WHICH ARE
DEFINITIVELY CAUSED EXCLUSIVELY BY TI-IERMADOR, OR OTHERWISE.
SOME STATES DO NOT ALLOW THE EXCLUSION OR LIMITATION OF INCI-
DENTAL OR CONSEQUENTIAL DAMAGES, AND SOME STATES DO NOT AL-
LOW LIMITATIONS ON HOW LONG AN IMPLIED WARRANTY LASTS, SO THE
ABOVE LIMITATIONS MAY NOT APPLY TO YOU. THIS WARRANTY GIVES
YOU SPECIFIC LEGAL RIGHTS, AND YOU MAY ALSO HAVE OTHER RIGHTS
WHICH VARY FROM STATE TO STATE.
49
Noattempttoalter,modifyor amendthiswarrantyshallbeeffectiveunlessautho-
rizedinwritingbyanofficerofBSH.
j/]n__meplcan 3con _
5551 McFadden Avenue, Huntington Beach, CA 92649 • 800-735-4328 • www.thermador.com
Material 9000119715 ° T061186 ° Rev B ° 11/06 © BSH Home Appliances Corporation, 2007 ° All rights reserved
Litho in USA
