Us Stove 2500 WOODSTOVE User Manual

Ussc 1

Owner’s Operation and Instruction Manual

SAFETY NOTICE:

If this heater is not properly installed, a house re

may result. For your safety, follow the installation

instructions. Contact local building or re ofcials

about restrictions and installation requirements in

your area.

CAUTION!

Read All Instructions Carefully

Before Starting The Installation

or Operating This Heater.

Improper Installation Could Void

Your Warranty!

SAFETY TESTED TO UL 1482

US ENVIRONMENTAL PROTECTION AGENCY PHASE II CERTIFIED WOODSTOVE

WASHINGTON STATE APPROVED

MOBILE HOME APPROVED (US ONLY)

United States Stove Company

227IndustrialParkRoad

P.O.Box151

SouthPittsburg,TN37380

SAVE THESE INSTRUCTIONS

THIS MANUAL WILL HELP YOU TO OBTAIN EFFICIENT, DEPENDABLE SERVICE FROM THE HEATER, AND ENABLE YOU

TO ORDER REPAIR PARTS CORRECTLY. KEEP IN A SAFE PLACE FOR FUTURE REFERENCE.

851710revB

MODELS: 2000, 2500

2 Ussc

OPTIONAL ACCESSORIES

DESCRIPTION PART #

OutsideAirIntakeKit 50FAK

CONGRATULATIONS!

You’vepurchasedaheaterfromNorthAmerica’soldestmanufacturerofwoodburningproducts.

Byheatingwithwoodyou’rehelpingtoCONSERVEENERGY!

WoodisouronlyRenewableEnergyResource.Pleasedoyourparttopreserveourwoodsupply.Plantatleastone

treeeachyear.Futuregenerationswillthankyou.

TheinstructionspertainingtotheinstallationofyourwoodstovecomplywithUL-1482standards.

CAUTIONS:

• HOTWHILEINOPERATION.KEEPCHILDREN,CLOTHINGANDFURNITUREAWAY.

CONTACTMAYCAUSESKINBURNS.

• DONOTUSECHEMICALSORFLUIDSTOIGNITETHEFIRE.

• DONOTLEAVETHESTOVEUNATTENDEDWHENTHEDOORISSLIGHTLYOPENED.

• DONOTBURNWASTES,FLAMMABLEFLUIDSUCHASGASOLINE,NAPHTHAOR

MOTOROIL.

• DONOTCONNECTTOANYAIRDISTRIBUTIONDUCTORSYSTEM.

• ALWAYSCLOSETHEDOORAFTERTHEIGNITION.

Combustible : Model Wood

Colors : MetallicBlack

Flue Pipe Diameter : 6”

Flue Pipe Type: (Standard Single Wall or Double Wall): BlackorBluedSteel2100°F(650°C)

Minimum Chimney Hieght : 12’

Maximum Log Length : 21”

Dimensions

Overall :

DepthxWidthxHeight:

2000 20

2”x27”x28

”

2500 25”x27”x28

”

Combustion Chamber :

WidthxDepth:

2000 22

”

x12

”

2500 22

”

x16

”

Volume :

CubicFeet:

2000 1.86ft³

2500 2.69ft³

Door Opening : WidthxHeight: 16”x8”

Pyroceramic Glass Door : (Viewing) WidthxHeight: 13

”

x8

”

Weight (lbs): 2000 275lbs

2500 325lbs

Ussc 3

Tools and Materials Needed For Installation

Youwillneedadrillwitha1/8”bittoinstallsheetmetalscrewsintoconnectorpipe.A5/16”socket/wrenchorscrewdriver

toinstallpedestaltrim,roomairdeector,andblowerassemblydescribedbelow.A1/2”socket/wrenchtoinstallue

collar.Anon-combustibleoorprotectorasspeciedinthismanual.Allchimneyandchimneyconnectorcomponents

requiredforyourparticularchimneyinstallation.Formobilehomes,seepage13.

Assembly

Flue Collar Assembly:

1. Mounttheuecollartothetopoftheunitasshownusingthe(3)

5/16-18x1-1/2bolts,(3)washers,and(3)weld

 tabs

providedinthepartsbox.

Room Air Deector Assembly:

1. LocatetheRoomAirDeector.Usingthethree(3)1/2TekScrewsprovided,mountthedeectortotheunitas

 showninthediagram.

Firebrick Conguration:

1.ReplacetheFirebrickasshownintheillustrationbelow.

Side view of ue collar

mount to heater top

Brick Conguration

HEATER

TOP

WELD

TAB

5/16-18 x 1-1/2

BOLT

2000 2500

4 Ussc

BLOWER ASSEMBLY INSTRUCTIONS

THE BLOWER ASSEMBLY MUST BE DISCONNECTED FROM THE SOURCE OF ELECTRICAL

SUPPLY BEFORE ATTEMPTING THE INSTALLATION.

Step 1.

Fix the assembly to the back of the stove with the four screws provided.

THE BLOWER ASSEMBLY IS INTENDED FOR USE ONLY WITH A STOVE THAT IS MARKED

TO INDICATE SUCH USE.

DO NOT ROUTE THE SUPPLY CORD NEAR OR ACROSS HOT SURFACES!

PEDESTAL TRIM ASSEMBLY

Assemble trim pieces as shown with the screws

provided in the parts bag. Washers may not be

necessary.

After trim assembly, attach to the pedestal base at the

location shown using the screws provided.

Ussc 5

INSTALLATION

SAFETY NOTICE

• IF THIS STOVE IS NOT PROPERLY INSTALLED, A HOUSE FIRE MAY RESULT. TO

REDUCETHERISKOFFIRE,FOLLOWTHEINSTALLATIONINSTRUCTIONS.FAILURE

TOFOLLOWINSTRUCTIONSMAYRESULTINPROPERTYDAMAGE,BODILYINJURY,

OREVENDEATH.

• CONSULT YOUR MUNICIPAL BUILDING DEPARTMENT OR FIRE OFFICIALS ABOUT

RESTRICTIONSANDINSTALLATIONSREQUIREMENTSINYOURAREA.

• USESMOKEDETECTORSINTHEROOMWHEREYOURSTOVEISINSTALLED.

• KEEPFURNITUREANDDRAPESWELLAWAYFROMTHESTOVE.

• NEVER USE GASOLINE, GASOLINE-TYPE LANTERN FUEL, KEROSENE, CHARCOAL

LIGHTERFLUID,ORSIMILARLIQUIDSTOSTARTOR“FRESHENUP”AFIRE.KEEPALL

SUCHLIQUIDSWELLAWAYFROMTHESTOVE.

• IN THE EVENT OF A CHIMNEY FIRE, PUSH THE AIR CONTROL FULL CLOSED TO

DEPRIVETHEFIREOFOXYGEN.CALLTHEFIREDEPARTMENT.

• DONOTCONNECTTOANYAIRDISTRIBUTIONDUCTORSYSTEM.

• ASOURCEOFFRESHAIRINTOTHEROOMORSPACEHEATEDSHALLBEPROVIDED

WHENREQUIRED.

POSITIONING THE STOVE

Itisveryimportanttopositionthewoodstoveascloseaspossibletothechimney,andinanarea

thatwillfavorthemostefcientheatdistributionpossiblethroughoutthehouse.Thestovemust

thereforebeinstalledintheroomwherethe mosttimeisspent,andinthemostspaciousroom

possible.Recallthatwoodstovesproduceradiatingheat,theheatwefeelwhenweareclosetoa

woodstove.Awoodstovealsofunctionsbyconvection,thatisthroughthedisplacementofhotair

acceleratedupwardsanditsreplacementwithcoolerair.Ifnecessary,thehotairdistributionfrom

thestovemaybefacilitatedbytheinstallationofablower.

The wood stove must not be hooked up to a hot air distribution system since an excessive

accumulation of heat may occur.

A wood stove must never be installed in a hallway or near a staircase, since it may block the

way in case of re or fail to respect required clearances.

6 Ussc

FLOOR PROTECTOR

Yourwoodstoveshouldbeplacedona1inch,non-combustiblesurfacewithakfactorof0.84.For

multiplelayers,addR-valuesofeachlayertodeterminetheoverallR-value.TheRvalueforthe

requiredboardis1.2.Theoorprotectorshouldbeunderthestove,twenty-sixinchesbeyondthefront

andsixinchesbeyondeachsideofthefuelloadingandashremovalopening.Ifthereisahorizontal

sectionofchimneyconnector,theoorprotectorshouldgounderitandtwoinchesbeyondeachside

ConvertspecicationtoR-value:

 k-factorisgivenwitharequiredthickness(T)ininches:R=1/kxT

 C-factorisgiven:R=1/C

Example:

 If the oor protector is 4” brick with a C-factor of 1.25 over 1/8” mineral board with a “k”

factor of0.29thetotalR-valueofthesystemis:

 4”brickC=1.25,R=1/1.25=0.8

 1/8”mineralboardK=0.29,R=1/0.29x0.125=0.431

 TotalR=Rbrick+Rmineral=0.8+0.431=1.231

 TotalRisgreaterthan1.2,thesystemisacceptable.

Theoorprotectorshouldexceedthestoveasfollows:

Model Front Sides Rear

2000 25” 8” 6”

2500 26” 8” 6”

Ussc 7

CLEARANCES TO COMBUSTIBLES

Itisofutmostimportancethattheclearancestocombustiblematerialsbestrictlyadheredtoduring

installationofthestove.Refertothetablesbelow:

• Floortoceilingheightmustbeatleast7’(84”)inallcases.

• Donotplaceanycombustiblematerialwithin48”ofthefrontoftheunit.

• Theclearancebetweentheuepipeandawallarevalidonlyforverticlewallsandforverticleue

pipe.

• Theuepipemustnotgothroughrooftrussing,anattic,acloset,aoor,acombustiblepartition,

orsimilarspaces.

• Auepipecrossingacombustiblewallmusthaveaminimumclearanceof18”.

• Toreduceueclearancesfromcombustiblematerials,contactyourlocalsafetydepartment.

Single Wall Pipe (Double Wall Pipe)

Model A B C D E F

2000 20(14) 22(20) 22.5(16.5) 32(30) 12(11) 22(21)

2500 12 20 16 30 10.5 20

8 Ussc

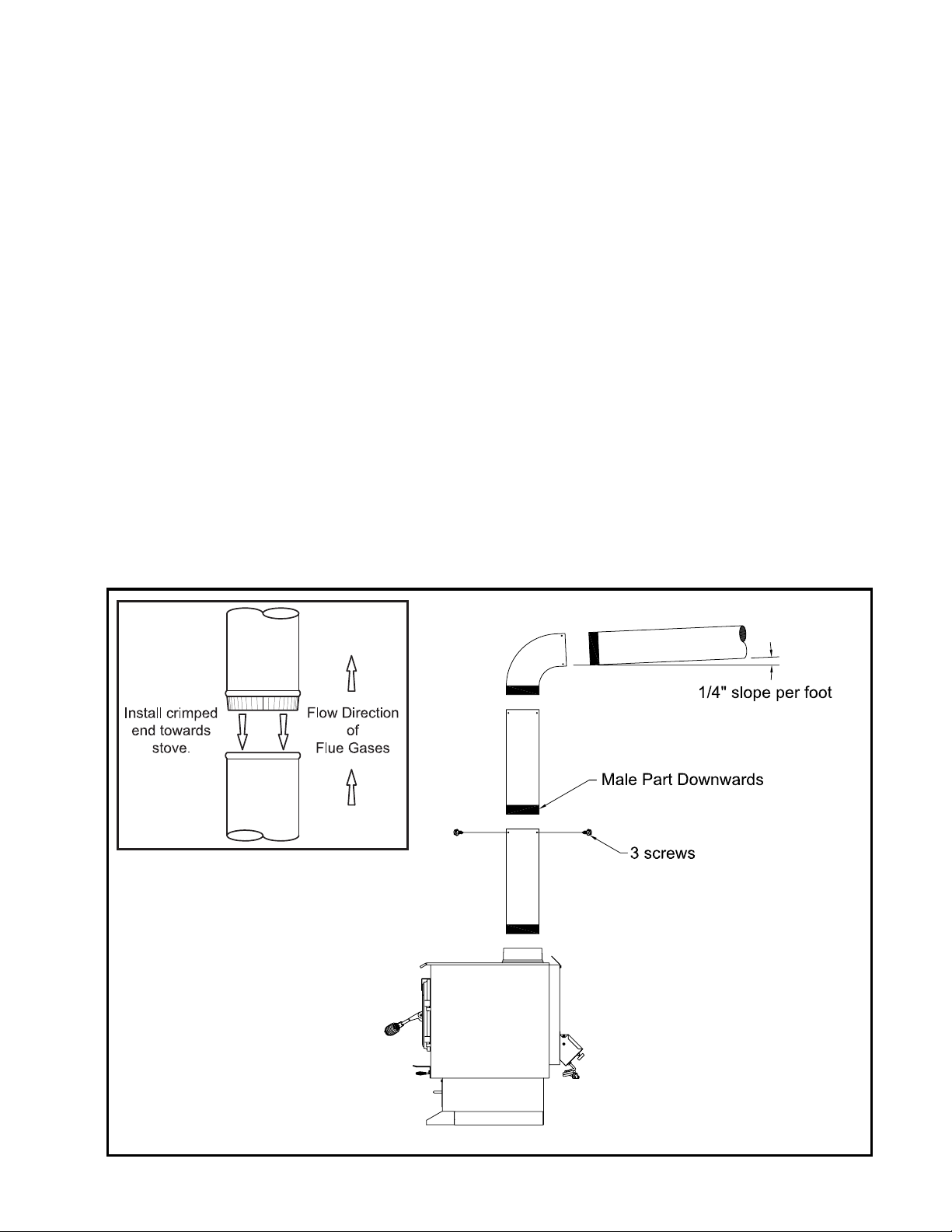

CHIMNEY CONNECTOR (STOVE PIPE)

Yourchimneyconnectorandchimneymusthavethesamediameterasthestoveoutlet(6”).Ifthis

isnotthecase,werecommendyoucontactyourdealerinordertoinsuretherewillbenoproblem

withthedraft.

Thestovepipemustbemadeofaluminizedorcoldrollsteelwithaminimumthicknessof0.021”or

0.53mm.Itisstrictlyforbiddentousegalvanizedsteel.

Yoursmokepipeshouldbeassembledinsuchawaythatthemalesection(crimpedend)ofthepipe

facesdown.Attacheachofthesectionstooneanotherwiththreeequidistantmetalscrews.

Thepipemustbeshortandstraight.Allsectionsinstalledhorizontallymustslopeatleast1/4inch

perfoot,withtheupperendofthesectiontowardthechimney.Anyinstallationwithahorizontal

runofchimneypipemustconformtoNFPA211.YoumaycontactNFPA(NationalFireProtection

Association)andrequestthelatesteditionoftheNFPAStandard211.

Toinsureagooddraft,thetotallengthofthecouplingpipeshouldneverexceed8’to10’(24to3.04

m).(Exceptforcasesofverticalinstallation,cathedral-roofstylewherethesmokeexhaustsystem

canbemuchlongerandconnectedwithoutproblemtothechimneyattheceilingoftheroom).

Thereshouldneverbemorethantwo90degreeselbowsinthesmokeexhaustsystem.

Installation of a “barometric draft stabilizer” (replace register) on a smoke exhaust system is

prohibited.

Furthermore,installationofadraftdamperisnotrecommended.Indeed,withacontrolledcombustion

woodstove,thedraftisregulateduponintakeofthecombustionairinthestoveandnotattheexhaust.

Ussc 9

CHIMNEY

Yourwoodstovemaybehookedupwitha6”factorybuiltormasonrychimney.Ifyouareusinga

factorybuiltchimney,itmustcomplywithUL103standard;thereforeitmustbeaTypeHT(2100°F).

Itisextremelyimportantthatitbeinstalledaccordingtothemanufacturer’sspecications.

Ifyouareusingamasonrychimney,itisimportantthatitbebuiltincompliancewiththespecica-

tionsoftheNationalBuildingCode.Itmustbelinedwithreclaybricks,metalorclaytilessealed

togetherwithrecement.(Rounduesarethemostefcient).

Theinteriordiameterofthechimneyuemustbeidenticaltothestovesmokeexhaust.Auewhich

istoosmallmaycausedraftproblems,whilealargeuefavoursrapidcoolingofthegas,andhence

thebuild-upofcreosoteandtheriskofchimneyres.Notethatitisthechimneyandnotthestove

whichcreatesthedrafteffect;yourstove’sperformanceisdirectlydependentonanadequatedraft

fromyourchimney.

The following recommendations may be useful for the installation of your chimney:

1. DO NOT CONNECT THIS UNIT TO A CHIMNEY FLUE SERVING ANOTHER APPLIANCE.

2. It must rise above the roof at least 3’ (0.9 mm) from the uppermost point of contact.

3. The chimney must exceed any part of the building or other obstruction within a 10’ (3.04m)

distance by a height of 2’ (0.6 m).

4. Installation of an interior chimney is always preferable to an exterior chimney. Indeed, the

interior chimney will, by denition, be hotter than an exterior chimney, being heated up

by the ambient air in the house. Therefore the gas which circulates will cool more slowly,

thus reducing the build-up of creosote and the risk of chimney res.

5. The draft caused by the tendency for hot air to rise will be increased with an interior chim-

ney.

6. Using a re screen at the extremity of the chimney requires regular inspection in order

to insure that it is not obstructed thus blocking the draft, and it should be cleaned when

regularly.

10 Ussc

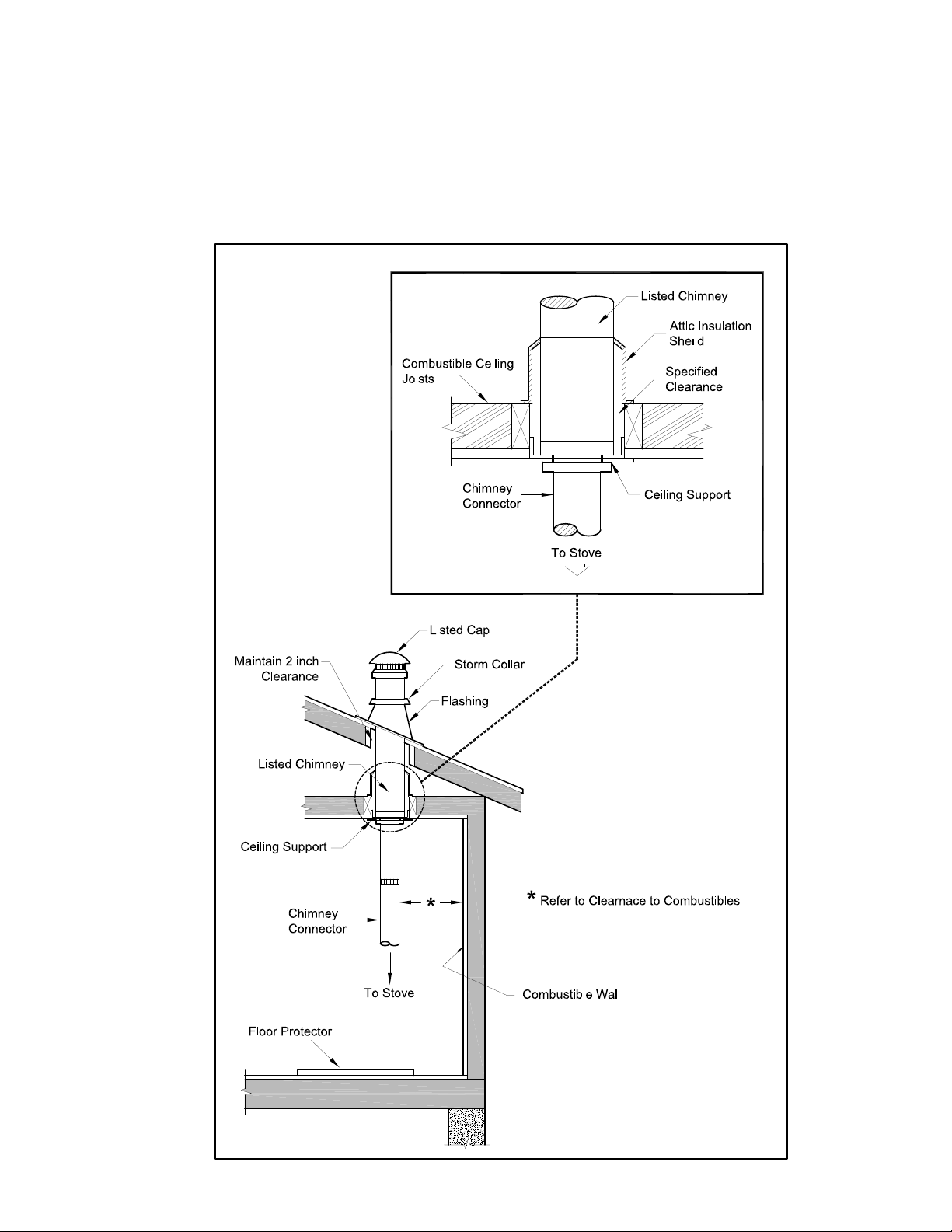

FACTORY BUILT CHIMNEY :

Whenametalprefabricatedchimneyisused,themanufacturer’sinstallationinstructionsmustbe

followed.You mustalsopurchase (fromthesame manufacturer)andinstall theceilingsupport

packageorwallpass-throughand“T”sectionpackage,restops(whereneeded),insulationshield,

roofashing,chimneycap,etc.Maintainproperclearancetothestructureasrecommendedbythe

manufacturer.Thechimneymustbetherequiredheightabovetherooforotherobstructionsfor

safetyandproperdraftoperation.

Ussc 11

MASONRY CHIMNEY :

EnsurethatamasonrychimneymeetstheminimumstandardsoftheNationalFireProtectionAs-

sociation(NFPA)byhavingitinspectedbyaprofessional.Makesuretherearenocracks,loose

mortarorothersignsofdeteriorationandblockage.Havethechimneycleanedbeforethestoveis

installedandoperated.Whenconnectingthestovethroughacombustiblewalltoamasonrychim-

ney,specialmethodsareneeded.

12 Ussc

Combustible Wall Chimney Connector Pass-Throughs

Method A. 12” (304.8 mm) Clearance to Combustible Wall Mem-

ber:

Using a minimum thickness 3.5” (89 mm) brick and a 5/8”

(15.9mm)minimumwallthicknessclayliner,constructawallpass-

through.  The clay liner must conform to ASTM C315 (Standard

SpecicationforClayFireLinings)oritsequivalent.Keepamini-

mumof12”(304.8mm)ofbrickmasonrybetweentheclaylinerand

wallcombustibles.Theclaylinershallrunfromthebrickmasonry

outersurfacetotheinnersurfaceofthechimneyuelinerbutnot

pasttheinnersurface.Firmlygroutorcementtheclaylinerinplace

tothechimneyueliner.

Method B. 9” (228.6 mm) Clearance to Combustible Wall Member:

Usinga6”(152.4 mm)insidediameter, listed,factory-builtSolid-

Pakchimneysectionwithinsulationof1”(25.4mm)ormore,build

awallpass-throughwithaminimum9”(228.6mm)airspacebe-

tweentheouterwallofthechimneylengthandwallcombustibles.

Usesheetmetalsupportsfastenedsecurelytowallsurfacesonall

sides,tomaintainthe9”(228.6mm)air space.  When fastening

supportstochimneylength,donotpenetratethechimneyliner(the

insidewalloftheSolid-Pakchimney).TheinnerendoftheSolid-

Pakchimneysectionshallbeushwiththeinsideofthemasonry

chimneyue, and sealed witha non-water soluble refractoryce-

ment.Usethiscementtoalsosealtothebrickmasonrypenetra-

tion.

Method C. 6” (152.4 mm) Clearance to Combustible Wall Member:

Startingwithaminimum24gage(.024”[.61mm])6”(152.4mm)

metalchimneyconnector,andaminimum24gageventilatedwall

thimblewhichhastwoairchannelsof1”(25.4mm)each,construct

awallpass-through.Thereshallbeaminimum6”(152.4)mmsep-

arationareacontainingberglassinsulation,fromtheoutersurface

ofthewallthimbletowallcombustibles.Supportthewallthimble,

andcover itsopeningwitha24-gage minimumsheetmetal sup-

port.Maintainthe6”(152.4mm)space.Thereshouldalsobea

supportsizedtotandholdthemetalchimneyconnector.Seethat

the supports are fastened securely to wall surfaces on all sides.

Makesurefastenersusedtosecurethemetalchimneyconnector

donotpenetratechimneyueliner.

Method D. 2” (50.8 mm) Clearance to Combustible Wall Mem-

ber: Start with a solid-pak listed factory built chimney section at

least12”(304mm)long,withinsulationof1”(25.4mm)ormore,

andaninsidediameterof8”(2inches[51mm]largerthanthe6”

[152.4 mm] chimney connector). Use this as a pass-through for

a minimum 24-gauge single wall steel chimney connector. Keep

solid-paksectionconcentricwithandspaced1”(25.4mm)offthe

chimneyconnectorbywayofsheetmetalsupport plates at both

endsofchimneysection.Coveropeningwithandsupportchimney

sectiononbothsideswith24gageminimumsheetmetalsupports.

Seethatthesupportsarefastenedsecurelytowallsurfacesonall

sides.Makesurefastenersusedtosecurechimneyueline.

NOTES:

1.Connectorstoamasonrychimney,exceptingmethodB,shallextendinonecontinuoussection

throughthewallpass-throughsystemandthechimneywall,tobutnotpasttheinneruelinerface.

2.Achimneyconnectorshallnotpassthroughanatticorroofspace,closetorsimilarconcealed

space,oraoor,orceiling.

Ussc 13

OUTSIDE COMBUSTION AIR

Yourwoodstoveisapprovedtobeinstalledwithanoutsideairintakewhichisnecessaryforamobile

home.Thistypeofinstallationisalsorequiredinairtighthousesandhouseswithnegativepressure

problems.Youcanpurchasethisoptionthroughyourheaterdealer.Makesuretospecifythepart

numbermentionedinthisbooklet.Installationinstructionsaresuppliedwiththeairintakekit.

Outsidecombustionairmayberequiredif:

1.Yourstovedoesnotdrawsteadily,smokerolloutoccurs,woodburnspoorly,orback-draftsoccur

whetherornotthereiscombustionpresent.

2.Existingfuel-redequipmentinthehouse,suchasreplacesorotherheatingappliances,smell,

donotoperateproperly,suffersmokeroll-outwhenopened,orback-draftsoccurwhetherornot

thereiscombustionpresent.

3.Openingawindowslightlyonacalm(windless)dayalleviatesanyoftheabovesymptoms.

4.Thehouseisequippedwithawell-sealedvaporbarrierandtightttingwindowsand/orhasany

powereddevicesthatexhausthouseair.

5.Thereisexcessivecondensationonwindowsinthewinter.

6.Aventilationsystemisinstalledinthehouse.

For use in MOBILE HOMES:

• WARNING! DO NOT INSTALL IN SLEEPING ROOM.

• CAUTION! THE STRUCTURAL INTEGRITY OF THE MOBILE HOME FLOOR, WALL, AND

CEILING/ROOF MUST BE MAINTAINED.

• THESTOVEMUSTBEATTACHEDTOTHESTRUCTUREOFTHEMOBILEHOMEUSING

THEFIXATIONHOLESONTHEBASEOFTHEUNIT.

• INSTALLINACCORDANCEWITH24CFR,PART3280(HUD).

• USE A FACTORY BUILT CHIMNEY THAT COMPLIES WITH UL 103 STAN

DARDS;

THEREFOREITMUSTBEATYPEHT(2100°F).

• USEASPARKARRESTER

14 Ussc

TYPE WEIGHT

(LBS. CU. FT.,

DRY)

PER CORD EFFICIENCY

RANKING

SPLITS MILLIONS

BTU’s/CORD

Hickory 63 4500 1.0 Well 31.5

WhiteOak 48 4100 .9 Fair 28.6

RedOak 46 3900 .8 Fair 27.4

Beech 45 3800 .7 Hard 26.8

SugarMaple 44 3700 .6 Fair 26.2

BlackOak 43 3700 .6 Fair 25.6

Ash 42 3600 .5 Well 25.0

YellowBirch 40 3400 .4 Hard 23.8

RedMaple 38 3200 .3 Fair 22.6

PaperBirch 37 3100 .3 Easy 22.1

Elm/Sycamore 34 2900 .2 VeryDifcult 20.1

RedSpruce 29 1800 .1 Easy 16.1

WOODSTOVE UTILIZATION

Yourheatingunitwasdesignedtoburnwoodonly;noothermaterialsshouldbeburned.Wasteandotherammable

materialsshouldnotbeburnedinyourstove.Anytypeofwoodmaybeusedinyourstove,butspecicvarietieshave

betterenergyyieldsthanothers.Pleaseconsultthefollowingtableinordertomakethebestpossiblechoice.

It is EXTREMELY IMPORTANT that you use DRY WOOD only in your wood stove.Thewoodshouldhavedried

for9to15months,suchthatthehumiditycontent(inweight)isreducedbelow20%oftheweightofthelog.Itisvery

importanttokeepinmindthatevenifthewoodhasbeencutforone,twoorevenmoreyears,itisnotnecessarilydry,if

ithasbeenstoredinpoorconditions.Underextremeconditionsitmayrotinsteadofdrying.Thispointcannotbeover

stressed;thevastmajorityoftheproblemsrelatedtotheoperationofawoodstoveiscausedbythefactthatthewood

usedwastoodamporhaddriedinpoorconditions.Theseproblemscanbe:

-ignitionproblems

-creosotebuild-upcausingchimneyres

-lowenergyyield

-blackenedwindows

-incompletelogcombustion

Smallerpiecesofwoodwilldryfaster.Alllogsexceeding6”indiametershouldbesplit.Thewoodshouldnotbestored

directlyontheground.Airshouldcirculatethroughthecord.A24”to48”airspaceshouldbeleftbetweeneachrowof

logs,whichshouldbeplacedinthesunniestlocationpossible.Theupperlayerofwoodshouldbeprotectedfromthe

elementbutnotthesides.

TESTING YOUR WOOD

Whenthestoveisthoroughlywarmed,placeonepieceofsplitwood(aboutveinchesindiameter)paralleltothedoor

onthebedofredembers.

Keeptheaircontrolfullopenbypullingonitandclosethedoor.Ifignitionofthepieceisaccomplishedwithin90seconds

fromthetimeifwasplacedinthestove,yourwoodiscorrectlydried.Ifignitiontakeslonger,yourwoodisdamp.

Ifyourwoodhissesandwaterorvaporescapesattheendsofthepiece,yourwoodissoakedorfreshlycut.Donotuse

thiswoodinyourstove.Largeamountsofcreosotecouldbedepositedinyourchimney,creatingpotentialconditions

forachimneyre.

Ussc 15

THE FIRST FIRES

Thefreshpaintonyourstoveneedstobecuredtopreserveitsquality.Oncethefuelchargeisproperlyignited,only

burnsmallresinyourstovefortherstfourhoursofoperation.Neveropentheaircontrolmorethannecessaryto

achieveamediumburnrate.

Makesurethatthere’senoughaircirculationwhilecuringthestove.Theodorscouldbesmelledduringthe3or4rst

res.Neverstartyourstoveoutside.Youwillnotbeabletoseeifyouareoverheating.

IGNITION

Aftermakingsurethatthestoveairintakecontrolsarefullyopen(completelypull-outtowardsyou),placeseveralrumpled

sheetsofpaperinthecentreofthecombustionchamber.Place8to10piecesofsmalldrykindlingwoodoverthepaper

intheformofatent.Youmayalsoplaceafewpiecesofheatingwood,butchoosethesmallerones.Nochemicalproduct

shouldbeusedtolightthere.

Beforeignitingthepaperandkindlingwood,itisrecommendedthatyouwarmupthechimney.Thisisdoneinorderto

avoidbackdraftproblemsoftenduetonegativepressureinthehouse.Ifsuchisthecase,openawindowslightlynear

thestoveandtwisttogetherafewsheetsofnewspaperintoatorch.Lightupthispapertorchandholditascloseas

possibletothemouthofthepipeinsidethecombustionchambertowarmupthechimney.Oncetheupdraftmovement

isinitiated,youarereadytoignitethestovebylightingthepaperandkindlingwoodinsidethecombustionchamber.

Whenyouhaveachievedagoodbedofhotembers,werecommendthefollowingburnprocedures:

HEATING

Controlledcombustionisthemostefcienttechniqueforwoodheatingbecauseitenablesyoutoselectthetypeof

combustionyouwantforeachgivensituation.Thewoodwillburnslowlyifthewoodstoveairintakecontrolisadjusted

toreducetheoxygensupplyinthecombustionchambertoaminimum.Ontheotherhand,woodwillburnquicklyif

theaircontrolisadjustedtoadmitalargerquantityofoxygeninthecombustionchamber.Theairintakecontrolon

yourstoveisverysimple.Ifyoupullonitoutcompletelytowardsyou,itisfullyopen.Ifyoupushonituntilitstopsthe

combustionairisreducedtoaminimum.Realoperatingconditionsmaygiveverydifferentresultsthanthoseobtained

duringtestingaccordingtothespeciesofwoodused,itsmoisturecontent,thesizeanddensityofthepieces,thelength

ofthechimney,altitudeandoutsidetemperature.

2000

Primary Air Settings

(SlideDamperislocatedincenterofstoveunderhearthplate)

(DamperAdjustment:Pullingoutondamperincreasesair)

Electric Blower Speed Setting (Variable)

(BlowerisonHighwhenturned“ON”,Rotateclock-

wiseuntilstopfor“LOW”.)

Burn Rate Adjust Damper from fully closed Burn Time Blower Speed

Low 1/4” @30minutes Low

Medium-Low 3/8” @30minutes Low

Medium-High 1/2” @30minutes Low

High approx.3” allminutes High

2500

Burn Rate Adjust Damper from fully closed Burn Time Blower Speed

Low 1/32” @30minutes Low

Medium-Low 1/16” @30minutes Low

Medium-High 5/16” @30minutes Low

High approx.3” allminutes High

16 Ussc

WARNINGS

• NEVEROVERFIREYOURSTOVE.IFANYPARTOFTHESTOVESTARTSTOGLOWRED,

OVERFIRING ISHAPPENING.READJUSTTHEAIRINTAKECONTROL ATA LOWER

SETTING.

• THEINSTALLATIONOFALOGCRADLEorGRATESISNOTRECOMMENDEDINYOUR

WOODSTOVE.BUILDFIREDIRECTLYONFIREBRICK.

• NEVERPUTWOODABOVETHEFIREBRICKLININGOFTHEFIREBOX.

RELOADING

Onceyouhaveobtainedagoodbedofembers,youshouldreloadtheunit.Inordertodoso,openthe

aircontrolstomaximumafewsecondspriortoopeningthestove’sdoor.Thenproceedbyopening

thedoorveryslowly;openitoneortwoinchesfor5to10seconds,beforeopeningitcompletelyto

increasethedraftandthuseliminatethesmokewhichisstagnantinastateofslowcombustionin

thestove.Thenbringtheredemberstothefrontofthestoveandreloadtheunit.

For optimal operation of your wood stove, we recommend you to operate it with a wood load

approximatelyequivalenttotheheightofrebricks.

Itisimportanttonotethatwoodcombustionconsumesambientoxygenintheroom.Inthecaseof

negativepressure,itisagoodideatoallowfreshairintheroom,eitherbyopeningawindowslightly

orbyinstallingafreshairintakesystemonanoutsidewall.

Creosote-FormationandNeedforRemoval-Whenwoodisburnedslowly,itproducestarandother

organicvapors,whichcombinewithexpelledmoisturetoformcreosote.Thecreosotevaporscondense

intherelativelycoolchimneyueofaslow-burningre.Asaresult,creosoteresidueaccumulates

ontheuelining.Whenignitedthiscreosotemakesanextremelyhotre.Whenburningwood,the

chimneyconnectorandchimneyshouldbeinspectedatleastonceeverytwomonthsduringthe

heatingseasontodetermineifacreosotebuild-uphasoccurred.Ifcreosotehasaccumulated,it

shouldberemovedtoreducetheriskofachimneyre.

We strongly recommend that you install a magnetic thermometer on your smoke exhaust pipe,

approximately 18” above the stove. This thermometer will indicate the temperature of your gas

exhaustfumeswithinthesmokeexhaustsystem.Theidealtemperatureforthesegasesissomewhere

between275°Fand500°F.Belowthesetemperatures,thebuild-upofcreosoteispromoted.Above

500degrees,heatiswastedsinceatoolargequantityislostintotheatmosphere.

TO PREVENT CREOSOTE BUILD UP

• Alwaysburndrywood.Thisallowscleanburnsandhigherchimneytemperatures,thereforeless

creosotedeposit.

• Leavetheaircontrolfullopenforabout5min.everytimeyoureloadthestovetobringitbackto

properoperatingtemperatures.Thesecondarycombustioncanonlytakeplaceifthereboxishot

enough.

• Alwayscheckforcreosotedepositonceeverytwomonthsandhaveyourchimneycleanedatleast

onceayear.

Ussc 17

ASH DISPOSAL

Ashesshouldberemovedfromthestoveeveryfewdaysorwhenashesgetto2to3inchesdeep.

Alwaysemptythestovewhenitiscold,suchasinthemorning.Alwaysdisposeofashesinametal

containerwithatightttinglid.Placethiscontaineronanoncombustibleoororontheground,well

awayfromallcombustiblematerials,pendingnaldisposal.Iftheashesaredisposedofbyburial

insoilorotherwiselocallydispersed,theyshouldberetainedintheclosecontaineruntilallcinders

havethoroughlycooled.

CAUTIONS:

• ASHESCOULDCONTAINHOTEMBERSEVENAFTERTWODAYSWITHOUTOPERATINGTHE

STOVE.

• THEASHPANCANBECOMEVERYHOT.WEARGLOVESTOPREVENTINJURY.

• NEVERBURNTHESTOVEWITHTHEASHTRAPOPEN.THISWOULDRESULTINOVERFIRING

THESTOVE.DAMAGETOTHESTOVEANDEVENHOUSEFIREMAYRESULT.

MAINTENANCE

Yourwoodstoveisahighefciencystoveandthereforerequireslittlemaintenance.Itisimportant

toperformavisualinspectionofthestoveeverytimeitisemptied,inordertoinsurethatnoparts

havebeendamaged,inwhichcaserepairsmustbeperformedimmediately.Inspectandcleanthe

chimneyandconnectorpipeperiodicallyforcreosotebuilduporobstructions.

GLASS

• Inspecttheglassregularlyinordertodetectanycracks.Ifyouspotone,turnthestoveoffimmedi-

ately.Donotabusetheglassdoorbystrikingorslammingshut.Donotusethestoveiftheglass

isbroken.

•

If the glass on your stove breaks, replace only with the glass supplied from your 2500 dealer.

• Toreplacetheglass,removethescrewsretainingtheglassmouldingsinsidethedoor.Remove

themouldingsandreplacethedamagedpiecewithanewone.Performtheprocedurebackwards

afterreplacing.Whenreplacingtheglass,youshouldchangetheglassgaskettomakesureyou

keepitsealed.

• Neverwashtheglasswithaproductthatmayscratch.Useaspecializedproduct,availableinthe

storeswherewoodstovesaresold.

• Theglassshouldbewashedonlywhencold.

GASKETING

Itisrecommendedthatyouchangethedoorgasket(whichmakesyourstovedoorairtight)once

ayear,inordertoinsuregoodcontroloverthecombustion,maximumefciencyandsecurity.To

changethedoorgasket,simplyremovethedamagedone.Carefullycleantheavailable gasket

groove,applyahightemperaturesiliconesoldforthispurpose,andinstallthenewgasket.Youmay

lightupyourstoveagainapproximately24hoursafterhavingcompletedthisoperation.

WARNING:

• NEVEROPERATETHESTOVEWITHOUTAGASKETORWITHABROKENONE.DAMAGE

TOTHESTOVEOREVENHOUSEFIREMAYRESULT.

PAINT

Onlycleanyourstovewithadrysoftcloththatwillnotharmthepaintnish.Ifthepaintbecomes

scratchedordamaged,itispossibletogiveyourwoodstoveabrandnewlook,byrepaintingitwith

a1200°Fheatresistantpaint.Forthispurpose,simplyscrubthesurfacetoberepaintedwithne

sandpaper,cleanitproperly,andapplythincoats(2)ofpaintsuccessively.

18 Ussc

REPAIR PARTS

432

24 25

Feed Door Assembly

Ussc 19

REPAIR PARTS

Key Part No. Description Qty.

1 25491 Feed Door, Painted (40484) 1

2 25692 Handle, Painted (40515) 1

3 83506 3/8 x 1-1/4 Roll Pin 1

4 891135 Spring Handle - LG 1

5 88066 Rope Gasket - 5/8” 4.6 Ft

6 88087 Glass Gasket - 1/8 thk x 1” wide 3.7 Ft

7 891131 Ceramic Glass 1

8 25464 Top Glass Retainer 1

9 25465 Bottom Glass Retainer 1

10 83202 10-24 x 3/8 Pan Head Phillips Screw 4

11 83278 Washer - 7/32 ID x 1/2 OD 4

69515MB

Feed Door Assy. 1

2 25080B Feed Door Latch 1

3 83508 5/16-18 x 3/4 Hex Head Bolt 1

4 83338 5/16-18 Lock Nut 1

5 891373 Door Hinge Pad 2

6 83045A Washer, 3/8” ID x 7/8” OD 2

7 83274 3/8-16 Lock Nut 2

8 86643

Tube, Secondary Air (Ø0.16

holes)

2000

2500

9 86645

Tube, Secondary Air (Ø0.22

holes)

2000

2500

10 891515 Retainer, Tube (1 per Secondary Tube) 3 - 5

88146

Refractory Insulation

2000

88138

2500

12 891516 Damper Slide 1

13 891517 Hearth Plate 1

14 891331 Spring Handle - Small 1

15 891514 Shield, Rear 1

16 891528 Air Deector 1

17 40292A Flue Collar 1

18 88032 Flue Collar Gasket 1.7 Ft

19 83432 5/16-18 x 1-1/2 Hex Head Bolt 3

20 83045 Washer, 5/16” ID x 3/4” OD 3

21 83431 Weld Tab 3

22 89066 Firebrick (4.5 x 9 x 1.25)

2000

2500

23 891414 Firebrick (2-1/4 x 9) 2

24 24103 Firebrick (4-1/2 x 4-1/2) 1

25 891530 Firebrick (4-1/2 x 7-1/2 ) 1

26 40561 Ash Plug 1

891777

Pedestal Wrapper

2000

891788

2500

891778

Pedestal Bottom

2000

891521

2500,

29 891523 Pedestal Back 1

30 891527 Ash Pan 1

31 891137 Handle 1

32 40496 Corner Trim 2

33 83466 8-32 x 1/4 Self Tapping Screw 8

34 891524 Front Pedestal Trim 1

891779

Right Side Pedestal Trim

2000

891526

2500

891780

Left Side Pedestal Trim

2000

891525

2500

37 69354 B36 Blower Assembly 1

N/S = Not Shown

All components common except where noted.

Key Part No. Description Model Qty.Key Part No. Description Model Qty.

20 Ussc

THISMANUALWILLHELPYOUOBTAINEFFICIENT,DEPENDABLESERVICE

FROMYOURHEATER,ANDENABLEYOUTOORDERREPAIRPARTSCOR-

RECTLY.

KEEPTHISMANUALINASAFEPLACEFORFUTUREREFERENCE.

WHENWRITING,ALWAYSGIVETHEFULLMODELNUMBERWHICHISON

THENAMEPLATEATTACHEDTOTHEHEATER.

WHENORDERINGREPAIRPARTS,ALWAYSGIVETHEFOLLOWINGINFOR-

MATIONASSHOWNINTHISLIST:

1.THEPARTNUMBER

2.THEPARTDESCRIPTION

3.THEMODELNUMBER:20002500

4.THESERIALNUMBER:____________________

HOW TO ORDER REPAIR PARTS

UNITED STATES STOVE COMPANY

227INDUSTRIALPARKROAD

P.O.BOX151

SOUTHPITTSBURG,TN37380

(423)837-2100

Us Stove 2500 WOODSTOVE

Product's Documents

Owner’s Operation and Instruction Manual

Specifications

US Stove 2500 Questions and Answers
