HRF680YPC
HRF680YPS
HRF680YS
Thank you for purchasing a Haier Product.
Please read these instructions carefully before using this appliance. The instructions contain
important information which will help you get the best out of the appliance and ensure safe
and proper installation, use and maintenance.
Keep this manual in a convenient place so you can always refer to it for the safe and proper
use of the appliance.
If you sell the appliance, give it away, or leave it behind when you move house, make sure you
also pass this manual so that the new owner can become familiar with the appliance and
safty warnings.
Legend
Warning – Important Safety information
General information and tips
Environmental information
Disposal
Help protect the environment and human health. Put
the packaging in applicable containers to recycle it.
Help to recycle waste of electrical and electronic
appliances.marked with this symbol with the household
waste. Return the product to your local recycling facility
or contact your municipal office.
Risk of injury or suffocation!
Refrigerants and gases must be disposed of professionally. Ensure that the tubing of
the refrigerant circuit is not damaged before being properly disposed of. Disconnect
the appliance from the mains supply. Cut off the mains cable and dispose of it.
Remove the trays and drawers as well as the door catch and seals, to prevent children
and pets to get closed in the appliance.
25
30
28
37
33
Accessories
Check the accessories and literature in accordance with this list:
2
7
8
9
12
*
Note:*Only for model HRF680YPS/HRF680YPC
1
Water pipe
Before switching on the appliance for the first time read the following
safety hints!
Before first use
Make sure there is no transport damage.
Remove all packaging and keep out of children´s reach.
Wait at least two hours before installing the appliance in order to ensure the
refrigerant circuit is fully efficient.
Handle the appliance always with at least two persons because it is heavy.
Installation
The appliance should be placed in a well-ventilated place. Ensure a space of
at least 10 cm above and around the appliance.
Never place the appliance in a damp area or location where it might be
splashed with water. Clean and dry water splashes and stains with a soft
clean cloth.
Do not install the appliance in direct sunlight or in the near of heat
sources(e.g. stoves, heaters).
Install and level the appliance in an area suitable for its size and use.
WARNING:Keep ventilation openings in the appliance or in the in-built
structure clear of obstruction.
Make sure that the electrical information on the rating plate agrees with the
power supply. If it does not, contact an electrician.
Connect the appliance to the electrical supply （220V-240V 50Hz) with the
fitted plug and lead .
Abnormal voltage fluctuation may cause the appliance to fail to start, or
damage to the temperature control or compressor, or there may be an
abnormal noise when operating. In such case, an automatic regulator shall
be mounted.
Do not use multi-plug adapters and extension cables.
WARNING:Do not locate multiple portable socket-outlets or portable power
supplies at the rear of the appliance.
WARNING:When positioning the appliance, ensure the supply cord is not
trapped or damaged.
2
Use a separate earthed socket for the power supply which is easy accessible.
The appliance must be earthed.
WARNING:Do not damage the refrigerant circuit.
Daily use
This appliance is not intended for use by persons (including children) with
reduced physical,sensory or mental capabilities, or lack of experience and
knowledge, unless they have been given supervision or instruction concerning
use of the appliance by a person responsible for their safety.
Children aged from 3 to 8 years are allowed to load and unload, but not
allowed to clean or install the refrigerating appliances.
Keep away children under 3 years of age from the appliance unless they are
constantly supervised.
Children should be supervised to ensure that they do not play with the
appliance.
If cool gas or other inflammable gas is leaking in the vicinity of the appliance,
turn off the valve of the leaking gas, open the doors and windows and do not
unplug a plug in the power cable of the refrigerator or any other appliance.
Notice that the appliance is set for operation at a specific ambient range
between 16 and 38℃. The appliance may not work properly if it is left for a long
period at a temperature above or below the indicated range.
Do not place unstable articles (heavy objects, containers filled with water) on
top of the refrigerator, to avoid personal injury caused by falling or electric
shock caused by contact with water.
Do not pull on the door shelves. The door may be pulled slant, the bottle rack,
may be pulled away, or the appliance may topple.
Open and close the doors only with the handles. The gap between the doors
and between the doors and the cabinet is very narrow.
Do not extend your hands in these areas to avoid pinching your fingers. Open
or close the refrigerator doors only when there are no children standing within
the range of door movement.
Do not store or use inflammable, explosive or corrosive materials in the
appliance or in the vicinity.
3
Do not store explosive substances such as aerosol cans with a
flammable propellant in this appliance.
Do not store medicines, bacteria or chemical agents in the appliance.
This appliance is a household appliance. It is not recommended to store
materials that require strict temperatures.
Never store liquids in bottles or cans (besides high percentage spirits)
especially carbonated beverages in the freezer, as these will burst
during freezing.
Check the condition of food if a warming in the freezer has taken place.
Do not set unnecessarily low temperature in the refrigerator
compartment. Minus temperatures may occur at high settings.
Attention: Bottles can burst
Do not touch frozen goods with wet hands (wear gloves).
Especially do not eat ice lollies immediately after removal from the
freezer compartment. There is the risk to freeze or the formation of frost
blisters. FIRST aid: keep immediately under running cold water.
Do not pull away!
Do not touch the inside surface of the freezer storage compartment
when in operation, especially with wet hands, as your hands may freeze
onto the surface.
Unplug the appliance in the event of a power interruption or before
cleaning. Allow at least 5 minutes before restarting the appliance, as
frequent starting may damage the compressor.
WARNING: Do not use electrical devices inside the food storage
compartments of the appliance, unless they are of the type
recommended by the manufacturer.
Maintenance / cleaning
Make sure children are supervised if they carry out cleaning and
maintenance. Disconnect the appliance from the electrical supply
before undertaking any routine maintenance. Allow at least 5 minutes
before restarting the appliance, as frequent starting may damage the
compressor.
4
Hold the plug, not the cable, when unplugging the appliance.
Do not clean the appliance with hard brushes, wire brushes, detergent
powder, petrol, amyl acetate, acetone and similar organic solutions, acid or
alkaline solutions. Please clean with special refrigerator detergent to avoid
damage.
Do not scrape off frost and ice with sharp objects. Do not use sprays,
electric heaters like heater, hair dryer, steam cleaners or other sources of heat
in order to avoid damage to the plastic parts.
WARNING:Do not use mechanical devices or other means to accelerate the
defrosting process, other than those recommended by the manufacturer.
If the supply cord is damaged, it must be replaced by the manufacturer,
its service agent or similarly qualified persons in order to avoid a hazard.
Do not try to repair, disassemble or modify the appliance by yourself.
In case of repair please contact our customer service.
Eliminate the dust on the back of the unit at least once in the year to avoid
hazard by fire, as well as increased energy consumption.
Do not spray or flush the appliance during cleaning.
Do not use water spray or steam to clean the appliance.
Do not clean the cold glass shelves with hot water. Sudden temperature
change may cause the glass to break.
Refrigerant gas information
The appliance contains the flammable refrigerant ISOBUTANE(R600a).
Make sure the refrigerant circuit is not damaged during transportation or
installation. Leaking refrigerant may cause eye injuries or ignite. If a damage
has occurred, keep away open fire sources, throughly ventilate the room,
do not plug or unplug the power cords of the appliance or any other
appliance.Inform the customer service. In case of eyes get into contact
with the refrigeran, rinse immediately it under running water and call
immediately the eye specialist.
5
This product contains flammable refrigerant isobutane (R600a)
It is hazardous for anyone other than an Authorised Service Person to
service this appliance. In Queensland – the authorized Service Person
MUST hold a Gas Work Authorisation for hydrocarbon refrigerants, to
carry out Servicing or repairs which involve the removal of covers .
The symbol indicates there is a risk of fire since flamma-
ble materials are used. Take care to avoid causing a fire
by ingiting flammable material.
6
-
Please abandon the refrigerator according to local regulators for it uses flammable blowing
gas and refrigerant.

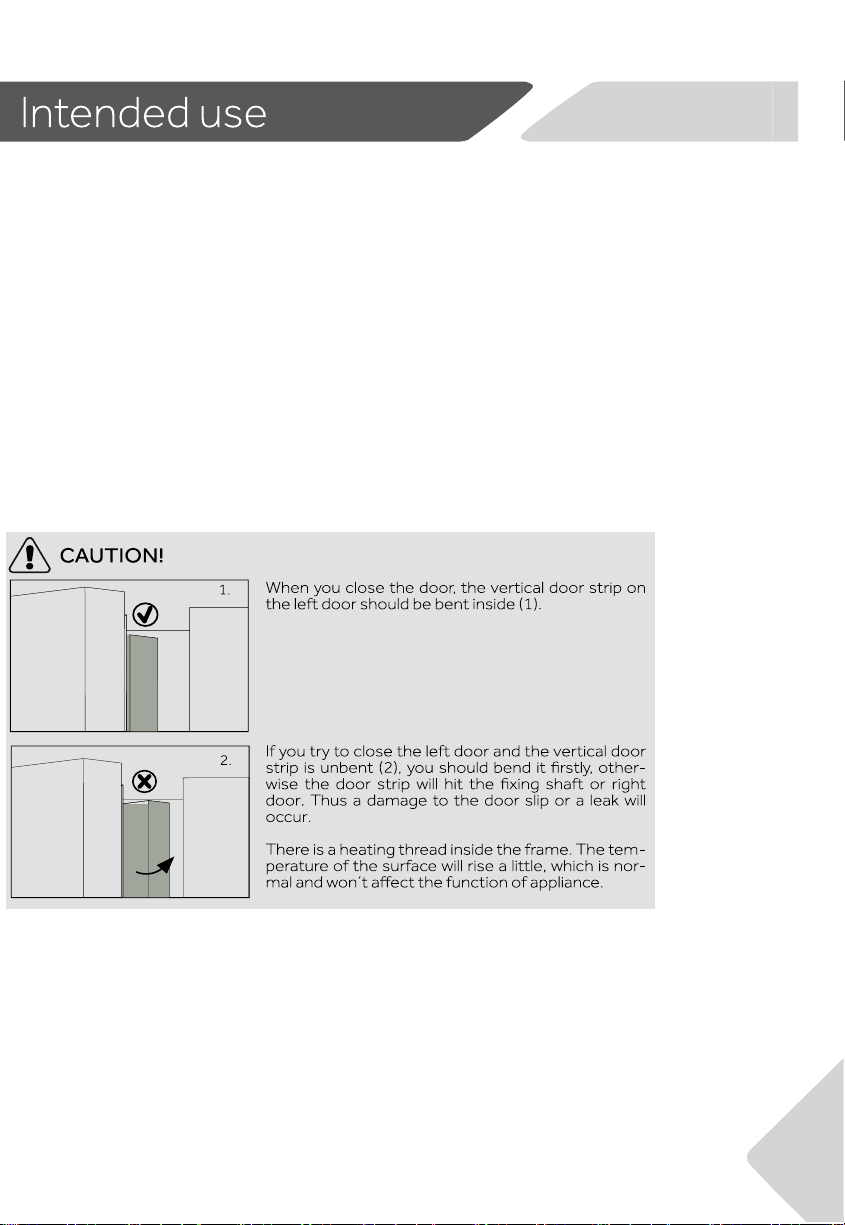

Intended use
This appliance is intended to be used in household and similar applications such as
– staff kitchen areas in shops, offices and other working environments;
– farm houses and by clients in hotels, motels and other residential type environments;
– bed and breakfast type environments;
– catering and similar non-retail applications.
Changes or modifications to the device are not allowed. Unintended use may cause hazards
and loss of warranty claims.
7
8
23
Water filter
Water dispenser
23

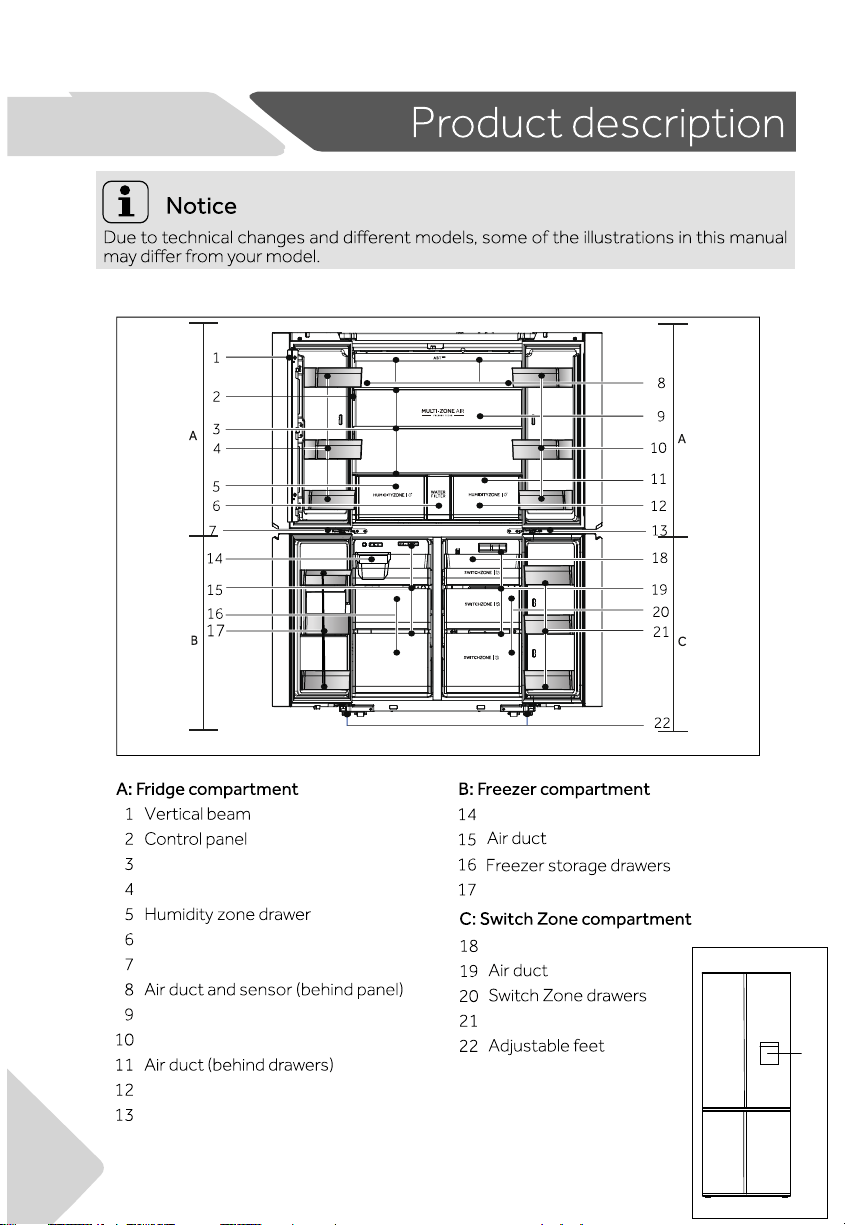

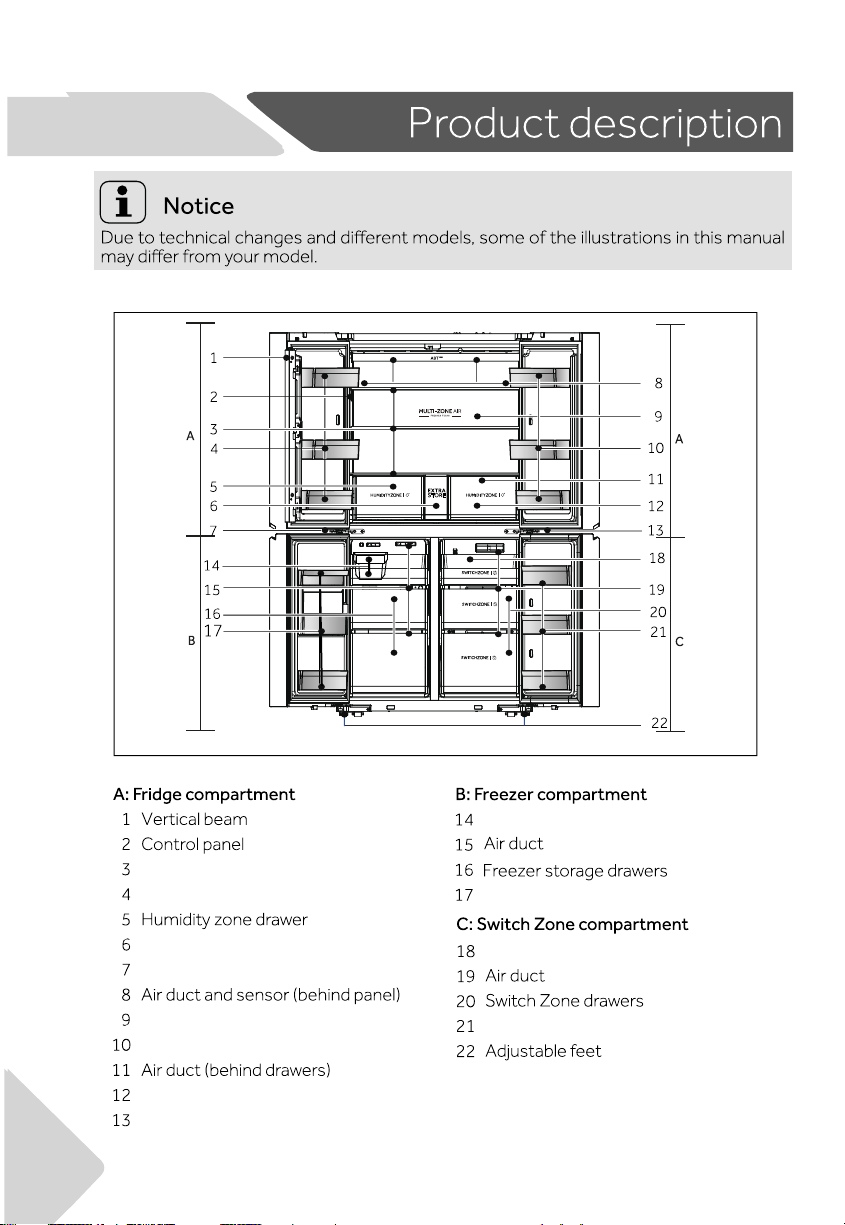

HRF680YPS/HRF680YPC
Cabinet shelves
Door shelves
Door shelves
Humidity zone drawer
Ice maker
Door shelves
Door shelves
Storage tray
Fridge compartment light
Switch Zone light
Freezer light
Before first use
Remove all packaging materials, keep them out of children`s reach and dispose them in an
environmentally friendly manner.
Clean the inside and outside of the appliance with water and a mild detergent before putting
any food in it.
After the appliance has been levelled and cleaned, wait for at least 2-5 hours before
connecting it to the power supply. See Section INSTALLATION.
Precool the compartments at high settings before loading with food. The function Super-
Freeze helps to cool down the compartments quickly.
The refrigerator temperature ,Switch Zone temperature and freezer temperature are
automatically set to5℃ ，- 18℃and -18℃respectively. These are the recommended settings.
If desired, you can change these temperatures manually. Please see ADJUST THE
TEMPERATURE.
B
A
C
D
E
F
G
H
I J
K
a
b
c
d
e
f
g
h
i
k
j1
j3
j2
HRF680YPS/HRF680YPC
A Panel lock selector
B Wi-Fi selector
C Water Lock selector
D Filter Reset selector
E Ice Maker mode selector
F Holiday mode selector
G Super Freeze selector
H Super Cool selector
I Temperature adjustment button “-”
J Temperature adjustment button “+”
K Zone selector
a Panel lock function
b Wi-Fi function
c Water lock function
d Filter reset function
e Ice maker mode

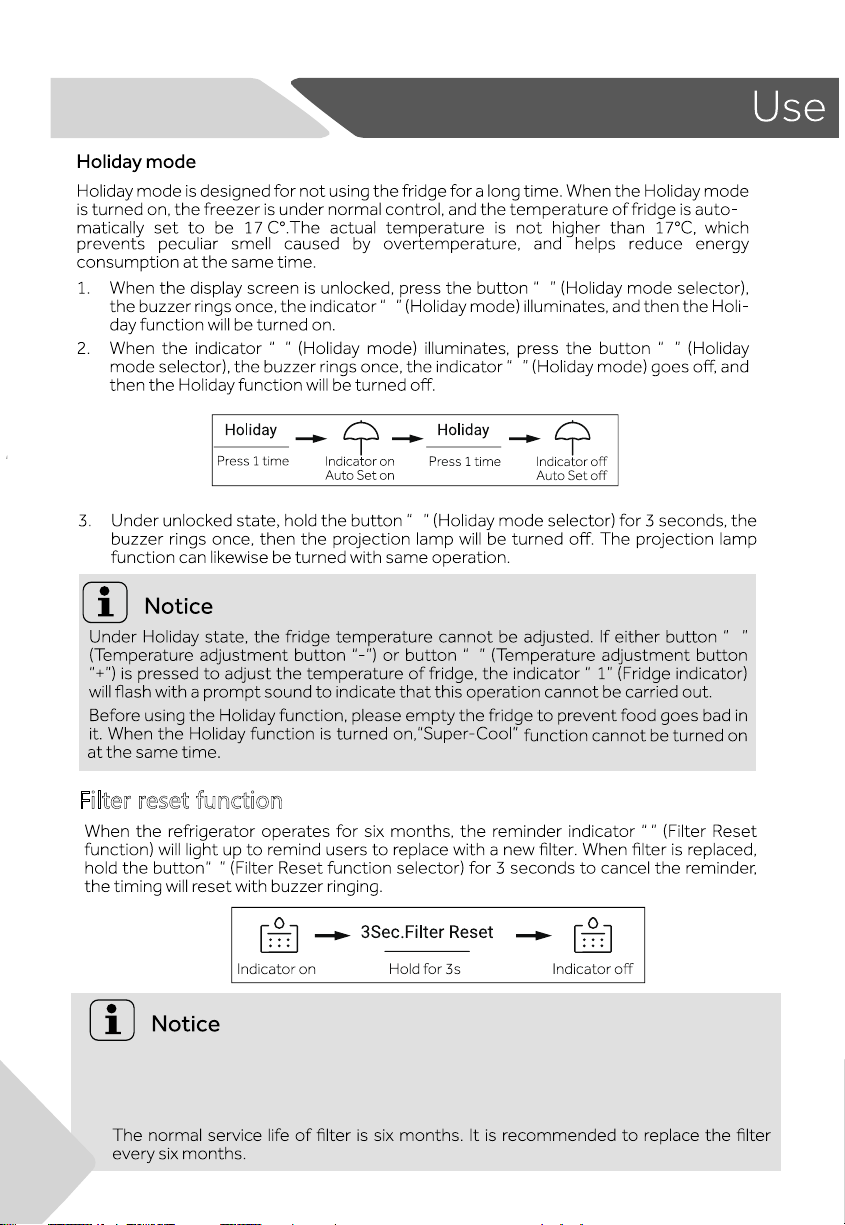

f Holiday mode
g Super freeze function
h Super cool function
i Temperature display
j1 Fridge indicator
j2 Freezer indicator
j3 S-Zone indicator
k Degree Celsius
9
Use a separate earthed socket for the power supply which is easy accessible.
The appliance must be earthed.
WARNING:Do not damage the refrigerant circuit.
Daily use
This appliance is not intended for use by persons (including children) with
reduced physical,sensory or mental capabilities, or lack of experience and
knowledge, unless they have been given supervision or instruction concerning
use of the appliance by a person responsible for their safety.
Children aged from 3 to 8 years are allowed to load and unload, but not
allowed to clean or install the refrigerating appliances.
Keep away children under 3 years of age from the appliance unless they are
constantly supervised.
Children should be supervised to ensure that they do not play with the
appliance.
If cool gas or other inflammable gas is leaking in the vicinity of the appliance,
turn off the valve of the leaking gas, open the doors and windows and do not
unplug a plug in the power cable of the refrigerator or any other appliance.
Notice that the appliance is set for operation at a specific ambient range
between 16 and 38℃. The appliance may not work properly if it is left for a long
period at a temperature above or below the indicated range.
Do not place unstable articles (heavy objects, containers filled with water) on
top of the refrigerator, to avoid personal injury caused by falling or electric
shock caused by contact with water.
Do not pull on the door shelves. The door may be pulled slant, the bottle rack,
may be pulled away, or the appliance may topple.
Open and close the doors only with the handles. The gap between the doors
and between the doors and the cabinet is very narrow.
Do not extend your hands in these areas to avoid pinching your fingers. Open
or close the refrigerator doors only when there are no children standing within
the range of door movement.
Do not store or use inflammable, explosive or corrosive materials in the
appliance or in the vicinity.
Freezer light
8
HRF680YS
Extra store drawer
Cabinet shelves
Door shelves
Door shelves
Humidity zone drawer
Storage tray&Ice maker
Door shelves
Door shelves
Storage tray
Fridge compartment light
SwitchZone light
10
A
L
F
G
H
I J
K
a
l
f
g
h
i
k
j1
j3
j2
HRF680YS
A Panel lock selector
B Wi-Fi selector
F Holiday mode selector
G Super Freeze selector
H Super Cool selector
I Temperature adjustment button “-”
J Temperature adjustment button “+”
K Zone selector
L Bottle Chill selector
a Panel lock function
b Wi-Fi function
f Holiday mode
g Super freeze function
h Super cool function
i Temperature display
j1 Fridge indicator
j2 Freezer indicator
j3 S-Zone indicator
k Degree Celsius
l Bottle chill function
11
B
b
E
edal
For plumbed models
(HRF680YPS/HRF680YPC)
Ice Maker
Water
bin
bin
12
The appliance is preset to the remomended temperature of 5 ℃（Refrigerator）-18℃（
Switch Zone）and -18℃（Freezer）.Under normal ambient condition you need not to
set a temperature.
When the appliance is switched on after disconnection from the main power supply, it
may take up to 12 hours for the correct temperatures to be reached.
Sensor keys
The buttons on the control panel are sensor keys, which already respond when lightly
touched with the finger.
Switch on /off the appliance
The appliance is in operation as soon as it is connected to the power supply.
When the refrigerator is first powered on, the indicator “i” (Temperature display)
illuminates.
The fridge temperature, Switch Zone temperature and freezer temperature are
automatically set to 5℃, -18℃and -18℃ respectively.
Maybe the panel lock is active.
Empty the appliance before switching off. After switch of the appliance,pull the power
cord out of the power socket.
13
Standby-mode
Manual adjusting mode
If you want to manually adjust the temperature of the appliance ,you can set the
temperature via a temperature adjust button （refer to ADJUST THE TEMPERATURE）
.
Adjust the temperature
The indoor temperatures are influenced by the following factors:
Ambient temperature
Frequency of door opening
Amount of stored foods
Installation of the appliance
Lock/unlock panel
The display screen turns off automatically 30seconds after pressing a key .The display
will be automatically locked.It lights up automatically when pressing any key or
opening any door （Alarm does not light up the display screen）
Door alarm
Door alarm will trigger when door opens for long time or not closed properly, as a
reminder.
Under Lock state, long press key"A" for 3 secon-
ds, the panel lock will be unlocked.
14
K
j
I
J
K
j
I
J
15
16
K
j
I
J
H
h
h H
h
H
G
g
g G
G
g
I
J
j
I J
j
17
F
f
f F
f
F
I
J
j
d
D
(Only for HRF680YPS/HRF680YPC)Filter reset function
To replace the water filter, lift open the water filter cover lid, turn the filter co-
unter clockwise for quarter of a turn to remove the used filter, replace with
new filter. Make sure the filter is properly fitted with correct orientation.
18
In unlock state, press key “C”(Water Lock selector), after hearing one beeping sound,
the indicator “c” (Water lock function) lights up, Water lock function is enabled, water
will not come out from the dispenser when you push the pedal. Press the key
“C”(Water Lock selector) again, the indicator “c” (Water lock function)goes off, Water
lock function is disabled, water will come out from the dispenser when you push the
pedal.
Water Lock function (Only for HRF680YPS/HRF680YPC)
Water Lock
E
e
e
e
E
The ice maker is off by default when the refrigerator is powered on for the first time.
The ice maker is designed to automatically dispense ice into the ice storage bin and it will
stop when it detects the bin is full. The more ice you use, the more ice it makes.
Ice Maker Ice Maker
Water Lock Water Lock
Water Lock
Note: If the fridge compartment door is open, water will not dispense when pedal is
pressed, even when the Water lock function is enabled.
(Only for HRF680YPS/HRF680YPC)
Ice maker mode
19
Bottle chill function（Only for HRF680YS)
Bottle Chill rapidly chills your beverages in the freezer for a set time of 15 minutes.
Depending on bottle size, you may need to return it to the freezer and reset.
In unlock state, press key “L”(Bottle Chill selector), after hearing one beeping sound,
the indicator “l” (Bottle Chill function) lights up, Bottle chill function is enabled.
An alarm will sound after 15 minutes to remind you to remove your beverage. Press
the key “L”(Bottle Chill selector) again, the indicator “l” (Bottle Chill function)goes off,
Bottle chill function is disabled.
Bottle Chill Bottle Chill
Bottle chill
Bottle chill
Open the fresh food compartment door and press any button on the control panel to silence the alarm.
Wi-Fi function
20
Your appliance can be connected to your home wireless network and operated
remotely using the app.
Under the display screen is unlocked, press the button ”B” (WI-FI selector), the
buzzer rings once, the indicator “b” (WI-FI function) illuminates and flashes, and
then here comes to the WI-FI function. When the indicator ”b” (WI-FI function)
illuminates, press the button “B” (WI-FI selector) for 3 seconds, the buzzer rings
once, the indicator ”b” (WI-FI function) goes off, and then the WI-FI function
turns off.
Getting started
●Ensure your home WiFi network is turned on.
●You will be given step by step guidance on your mobile device.
● It may take up to 10 minutes to connect your appliance.
On your mobile device:
① Download the app from www.fisherpaykel.com/connect
② Register and create an account.
③ Add your appliance and set up the WiFi connection.
21
Replacing the water filter
22
23
Switch Zone compartment allows you to adjust the temperature between -18℃ to 5℃
according to the demand of food storage and provide you with further flexibility in storage
options for your convenience.
-18°C
For general frozen food items
that require storage between
1 – 12 months .
Meat, poultry, seafood,
pre-cooked foods and
leftovers, some fruits and
vegetable, ice cream, and
other frozen desserts.
-7°C
Allows easy portioning of food
and the ability to heat, cook or
serve foods straight from the
compartment without waiting
for it to thaw.
Meats, seafood, soups,
sauces, pureed foods,
bread, desserts and
pastries.
Note: Recommended for
storage of creamy desserts
such as ice cream.
0°C
Providing the perfect storage zone
for highly perishable food to ensure
they retain their vital freshness and
quality.
Highly perishable meats,
poultry and seafood.
Alcoholic beverages such
as beer.
5°C
The ideal mode for fresh foods
such as fruit and vegetables, dairy
products, meats and drinks.
Fruit and vegetables,
dairy products, jams and
chutneys/preserves, meats
and drinks.
Storage into the Switch Zone compartment
24
Sup
Storage into the freezer compartment
25
24
26
The Light
The LED interior light comes on when the door is opened and it will automatically
goes off if the door is left open for more than 7 minutes. The performance of the
lights is not affected by any of the appliances other settings.
Removable door shelves
shelves
shelves
shelves
(Only for HRF680YS)
27
Make sure the appliance is properly ventilated (see INSTALLATION).
Do not install the appliance in direct sunlight or in the near of heat sources (e.g.
stoves,heaters).
Avoid unnecessarily low temperature in the appliance. The energy consumption increases
the lower the temperature in the appliance is set.
Functions like Super- Freeze consume more energy.
Allow warm food to cool down before placing it in the appliance.
Open the appliance door as little and as briefly as possible.
Do not overfill the appliance to avoid obstructing the air flow.
Avoid air within the food packaging.
Keep door seals clean so that the door always closes correctly.
Defreeze frozen food in the fridge storage compartment.
The most energy-saving configuration requires the appliance keep drawers, food box and
shelves on factory-fresh condition, and food should be places as far as possible without
blocking the air outlet of the duct.
Energy saving tips
28
5
Replacing the LED light
ight by
ight
-
29
(Only for HRF680YS)

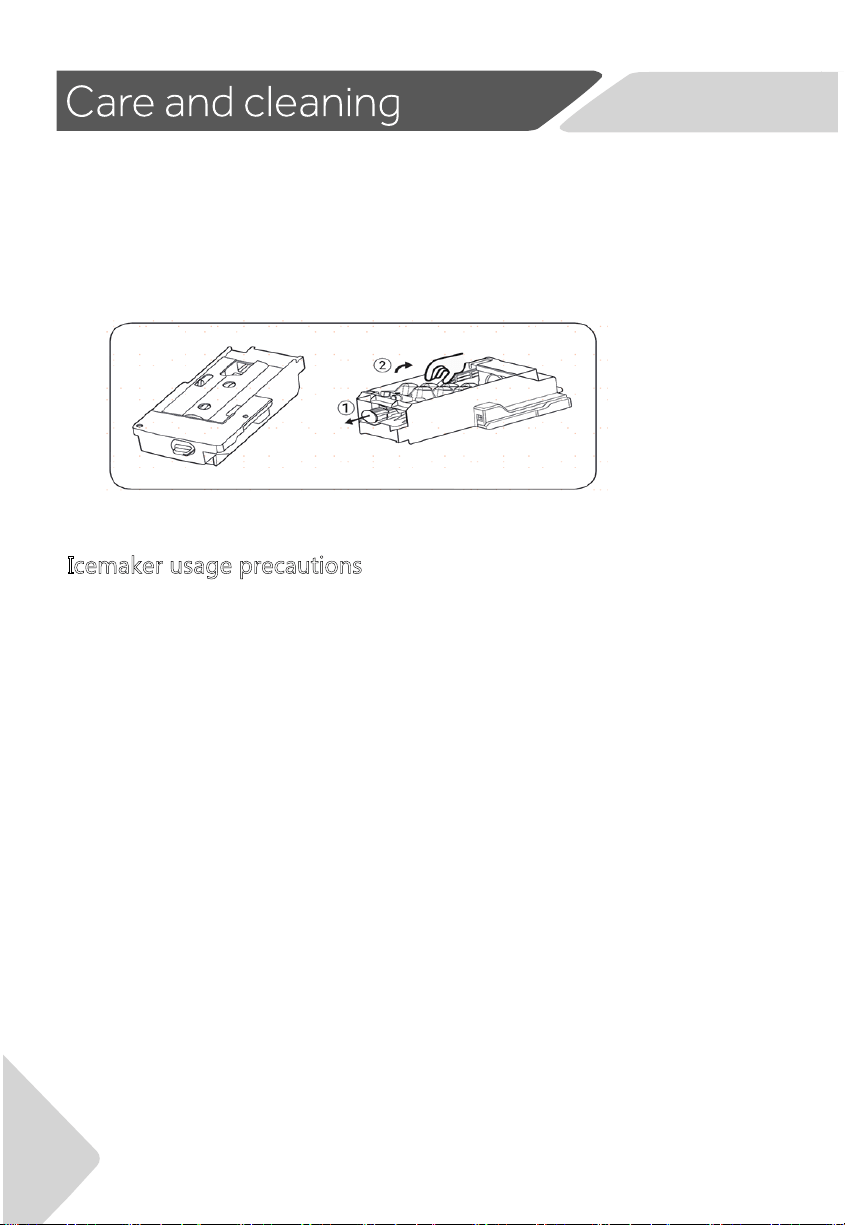

Cleaning the ice cube tray
(Only for HRF680YPS/HRF680YPC)
1 Turn off the icemaker function via the display panel, hold down the handle of the
icemaker, and use strength to pull out the icemaker.
2. Remove the icemaker assembly from the refrigerator and turn over the icemaker,
so that the ice cube tray is visible.
3. Pull the oval shaped fastener on the ice tray in the direction of arrow 1. Tilt the ice
tray upward and pull it out in the direction of arrow 2.
4. After cleaning the tray, put it back in, then firmly push in the icemaker, close the freezer
drawer, and switch on the icemaker function via the display panel.
Icemaker usage precautions
For newly installed appliance, you should wait for 24 hours. This will enable the freezer
compartment to cool down, so that it can make ice.
•The ice machine will make 8 ice cubes each time; but the specific ice-making quantity
will depend on the indoor temperature, frequency that the doors are opened, water
pressure, freezer compartment temperature, etc.
•In order to ensure that the ice tray gets filled up with ice cubes, the ice tray should be
frequently pulled out so that the ice cubes get evenly distributed.
• It is a normal phenomenon that some of the ice cubes will clump together during removing.
•When the freezer compartment reaches or is pelow-8 °C, the icemaker will start making
ice (if you are just beginning to use the icemaker, or it has not been used to make ice in a
long time, you should discard the first several ice cubes, so that impurities in the water l
ine get run out.)
• The icemaker must be installed in the refrigerator through an authorized service agency.
•NEVER expose the water pipe to temperatures below 0°C to avoid freezing.
•Test the tubing for leaks by flushing the tube through with water, until the water runs clear.
•After the appliance has been sited into the location of your choice, make sure that the water
tube is arranged so it does not incur damage through bends and kinks and is clear of any
heat sources.
•Once the temperature inside the freezer is at -8°C ice production will begin.
•DO NOT touch the ice cube outlet with your hands, or any implements to avoid injury
or damage.
30
•The icemaker can only be supplied with water via the container on top of the left door unit.
It can not be connected directly to an external drinking water supply.
•DO NOT manually add water - this is an automatic water system. If the ice maker is turned
on but the appliance is not connected to water, the ice maker will not work。
If you occasionally hear unusual sounds in the refrigerator
You may occasionally hear some "crunching" sounds, but these are just normal sounds that
are emitted during ice making, so do not worry.
If you do not often use ice cubes
"Old" ice cubes will become cloudy, and will not taste fresh; therefore, please periodically clean
the ice cube tray and wash it out with warm water. Before replacing the ice cube tray, be sure to
cool it down, otherwise, ice will stick to other parts of the ice machine and affect the ice making
function.
If the icemaker in the freezer compartment is not used for a long time
If not used for a long time, please remove the automatic icemaker and any residual ice cubes in t
he ice storage compartment, wash the ice cube tray and the ice storage compartment with warm
water, wipe them dry with a clean towel and put them somewhere else in order to increase storage
space.
The water reservoir should be removed, any residual water should be drained out.
How the Icemaker Works
The ice making capacity is 0.8kg/24 hours(this figure is the test result in lab under the 32°C ambient
temperature condition). During the daily use of the appliance, due to the different ambient tempe-
rature and water pressure, the ice making capacity may differ a little.
Do not store ice cubes, which are produced during the first batch of cubes following appliance
start up, or after a prolonged break. Discard these cubes.
To allow the ice cube tray to fill to maximum capacity, you will need to manually arrange the ice
cubes periodically.
Some ice cubes may stick together when dropped into the storage box - you will need to separate
these to allow maximum use of the icebox.
Throw out the first few batches of ice cubes if you are making ice for the first time or have not made
it for a long time.
If the cubed ice becomes smaller, this may suggest that the filter is blocked from the impurities
31
32
33
34

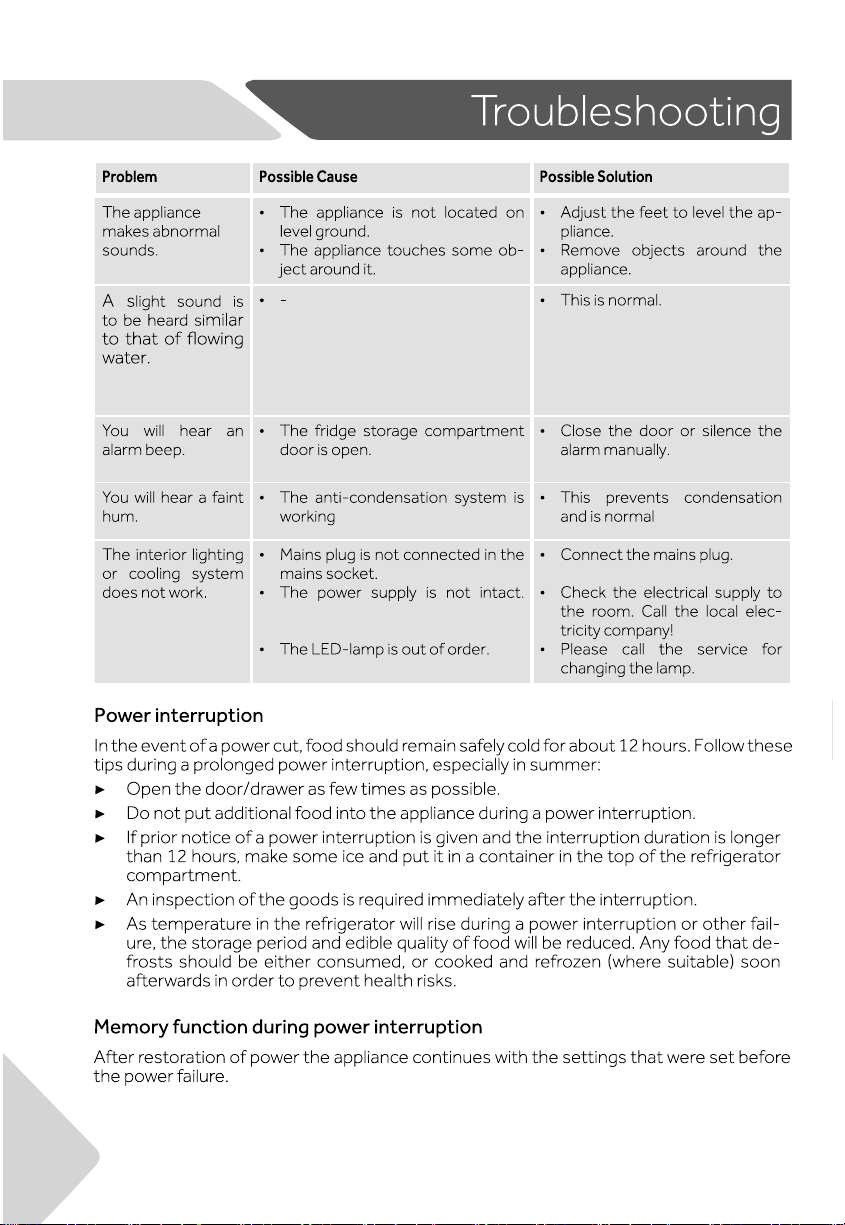

35
Notice: Dimensions above are for reference only.
Please make the object as the standard.
86
W1=1217mm
W2=1528mm
D1=629mm
D2=1110mm

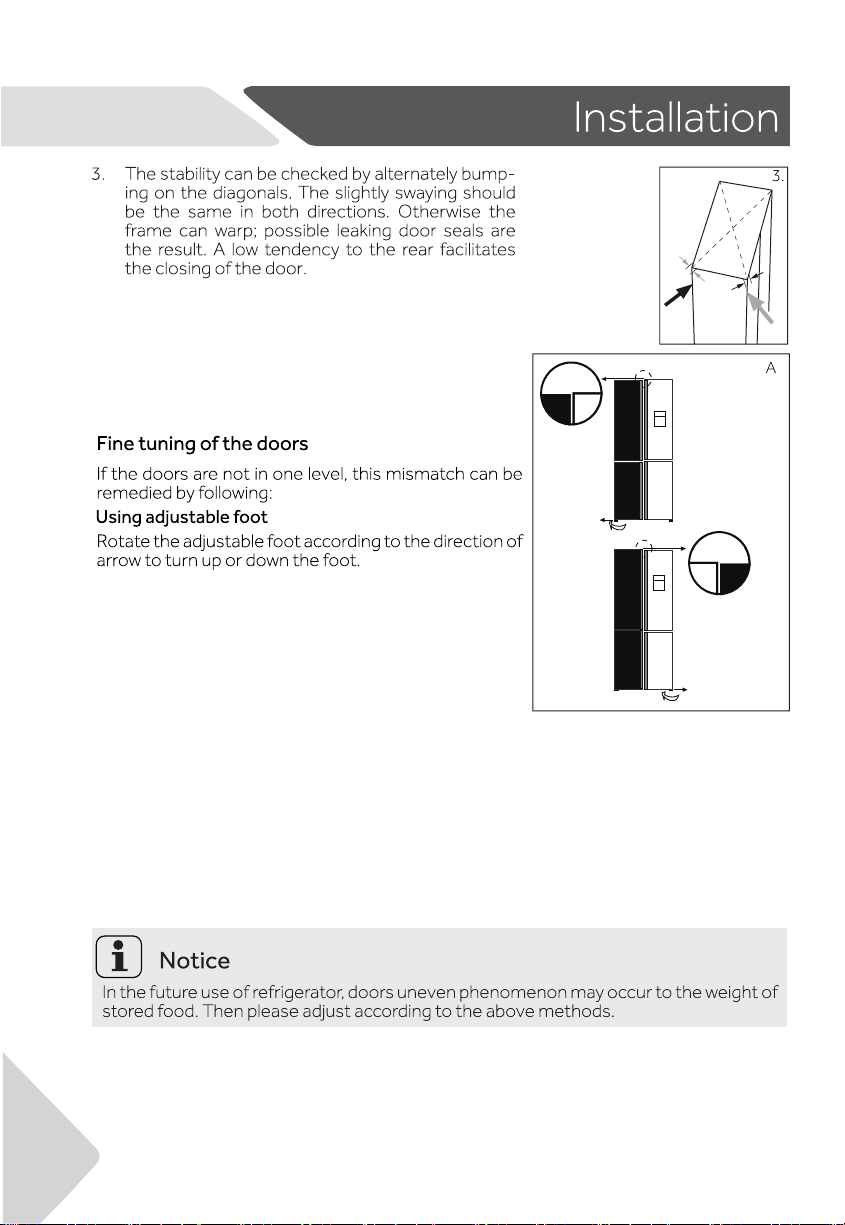

36
37

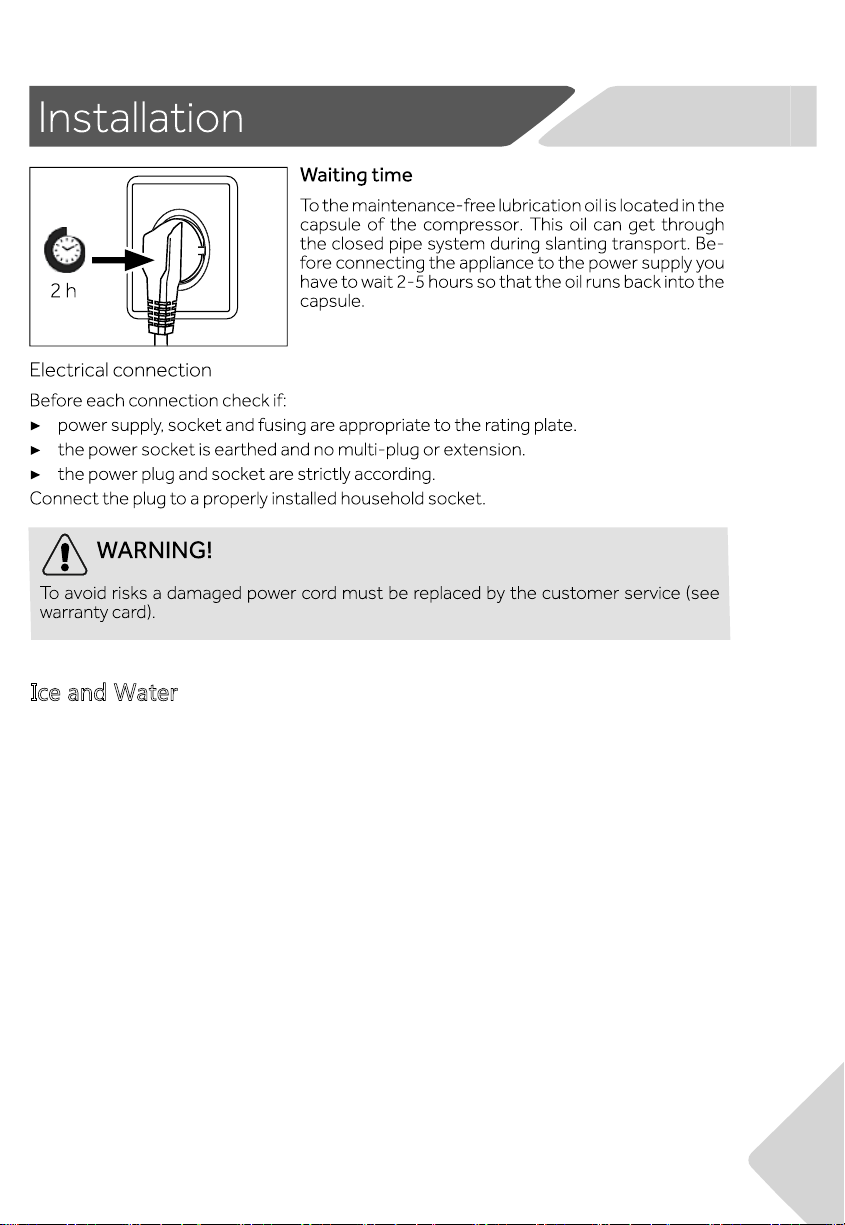

Ice and Water
Your Ice and Water and Automatic ice refrigerator must be installed by
a qualified plumber or Haier trained and supported service technician
as incorrect plumbing can lead to water leaks.
Haier appliances does not accept responsibility for damage (including
water damage) caused by faulty installation or plumbing.
B1
(Only for HRF680YPS/HRF680YPC)
38
B1
Trade mark
Haier
Category of the model
Cooled Appliance
Frostfree system
Yes
Climate class
Model No.
HRF680YPC/ HRF680YPS/HRF680YS
Energy Star
Voltage / Frequency
220V-240V~/50Hz
Product group
5T
Total product volume
623L
Fresh food compartment volume
358L
130L
135L
Insulation blowing gas
CYCLOPENTANE
Dimension (DxWxH)
750x908x1775mm
Rrefrigerant
R600a 75g
T
Protection class
I
4.5 Stars
Freezer compartment volume
Convertible compartment volume
39
