Using this Manual

Legend

Warning Important Hints and Tips Reference

Read Before the First Flight

Read the following documents before using DJI AVATA

1. User Manual

2. Quick Start Guide

3. Safety Guidelines

It is recommended to watch all tutorial videos and read the safety guidelines before using for the rst time. Prepare

for your rst ight by reviewing the quick start guide and refer to this user manual for more information.

Video Tutorials

Visit the link below to watch the tutorial videos, which demonstrate how to use DJI Avata safely:

* For increased safety, ight is restricted to a height of 98.4 ft (30 m) and a range of 164 ft (50 m) when not connected

or logged into the app during ight. This applies to DJI Fly and all apps compatible with DJI aircraft.

The operating temperature of this product is -10° to 40° C. It does not meet the standard operating

temperature for military grade application (-55° to 125° C), which is required to endure greater

environmental variability. Operate the product appropriately and only for applications that meet the

operating temperature range requirements of that grade.

Download the DJI Virtual Flight App

Scan the QR code on the right to download DJI Virtual Flight.

The iOS version of DJI Virtual Flight is compatible with iOS v11.0 and later.

Download DJI Assistant 2 (Consumer Drones Series)

Download DJI ASSISTANT

2 (Consumer Drones Series) at https://www.dji.com/avata/downloads.

Download the DJI Fly App

Scan the QR code above to download DJI Fly.

The Android version of DJI Fly is compatible with Android v6.0 and later. The iOS version of DJI Fly is compatible

with iOS v11.0 and later.

https://s.dji.com/guide24

Contents

Using this Manual

Legend 1

Read Before the First Flight 1

Video Tutorials 1

Download the DJI Fly App 1

Download the DJI Virtual Flight App 1

Download DJI Assistant 2 (Consumer Drones Series) 1

Product Prole

Introduction 4

Preparing the Aircraft 5

Preparing the Goggles 6

Preparing the Remote Control Devices 9

Diagram 11

Linking 17

Activation 18

Aircraft

Flight Modes 19

Aircraft Status Indicator 20

Return to Home 21

Vision System and Infrared Sensing System 23

Flight Recorder 25

Propellers 26

Intelligent Flight Battery 28

Gimbal and Camera 32

Goggles

DJI Goggles 2 34

DJI FPV Goggles V2 43

Remote Control Devices

DJI Motion Controller 48

DJI FPV Remote Controller 2 52

DJI Fly App

DJI Avata

User Manual

Flight

Flight Environment Requirements 59

Flight Restrictions 59

Pre-Flight Checklist 61

Starting/Stopping the Motors 61

Flight Test 63

Maintenance

Aircraft 64

Goggles 74

Appendix

Specications 77

Firmware Update 83

Aftersales Information 83

FAR Remote ID Compliance Information 84

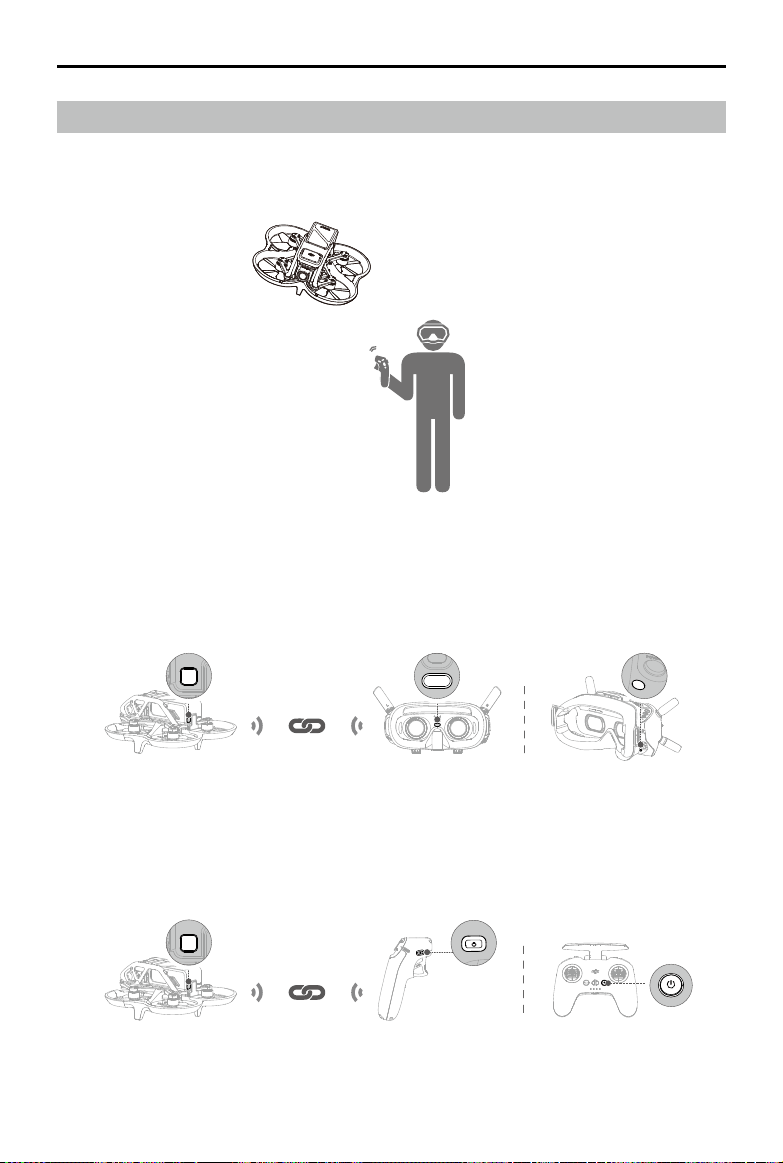

Goggles Remote Control Device

Product Prole

Introduction

DJI Avata features a compact and portable aircraft body, which is equipped with a propeller guard. With both a

Vision System and an Infrared Sensing System, it can hover stably and y exibly indoors as well as outdoors, and

automatically initiate Return to Home (RTH). With a gimbal and 1/1.7″ sensor camera, the aircraft stably shoots

4K 60fps ultra-HD video and 4K photos. The aircraft has a maximum hover time of approximately 18 minutes.

DJI Avata uses DJI O3+ technology, when used with compatible goggles and remote control devices, it provides

video transmission with a maximum range of 6 mi (10 km), and a bit rate of up to 50 Mbps, bringing an immersive

ight experience.

The goggles are equipped with a high-performance display. By receiving the video signal from the aircraft, users

can enjoy a rst-person view of their aerial experience in real time. The remote control devices are equipped with

a range of function buttons, which can be used to control the aircraft and operate the camera. DJI Goggles 2

and DJI Motion Controller can easily control the ight of the aircraft by tracking your head or hand movements,

bringing a new and convenient ight control experience.

Refer to the appendix for the goggles and remote control devices supported by DJI Avata. This

manual only takes DJI Goggles 2, DJI FPV Goggles V2, DJI Motion Controller, and DJI FPV Remote

Controller 2 as examples. Refer to the user manuals of other supported devices respectively for use.

The remote control devices reach their maximum transmission distance (FCC) in a wide open area

with no electromagnetic interference at an altitude of about 120 m (400 ft). The maximum transmission

distance refers to the maximum distance that the aircraft can still send and receive transmissions. It

does not refer to the maximum distance the aircraft can y in a single ight.

Maximum hover time was tested in an environment with no wind or interference.

Using the goggles does not satisfy the requirement of visual line of sight (VLOS). Some countries or

regions require a visual observer to assist during ight. Make sure to comply with local regulations

when using the goggles.

Aircraft

DJI Avata

User Manual

Preparing the Aircraft

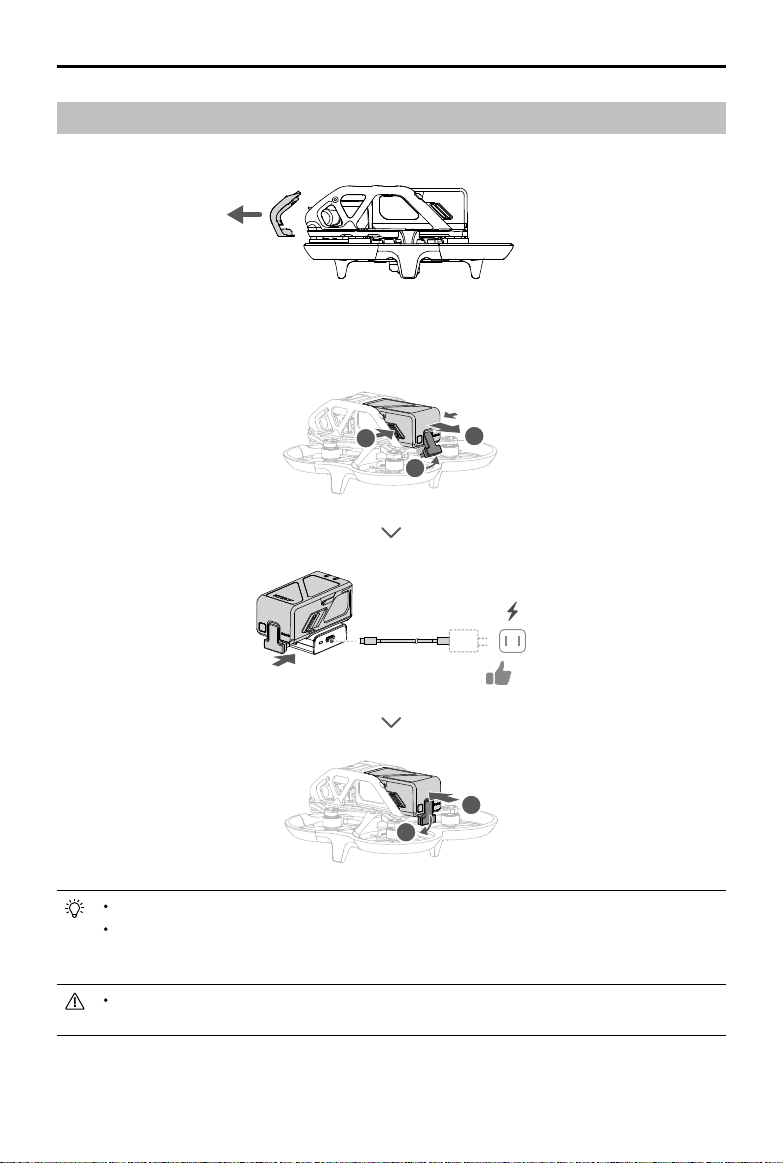

1. Remove the gimbal protector from the camera.

2. Remove the Intelligent Flight Battery and use a USB charger to charge the battery. It takes approximately 90

minutes to fully charge an Intelligent Flight Battery.

≥30 W

USB PD

It is recommended to use the DJI 30W USB-C Charger or other USB Power Delivery chargers.

It is recommended to attach a gimbal protector to protect the gimbal when the aircraft is not in use.

Adjust the camera to the horizontal position, then install the gimbal protector and make sure it is

secure.

Make sure to remove the gimbal protector before powering on the aircraft. Otherwise, it may aect the

aircraft self-diagnostics.

DJI Avata

User Manual

Preparing the Goggles

DJI Goggles 2

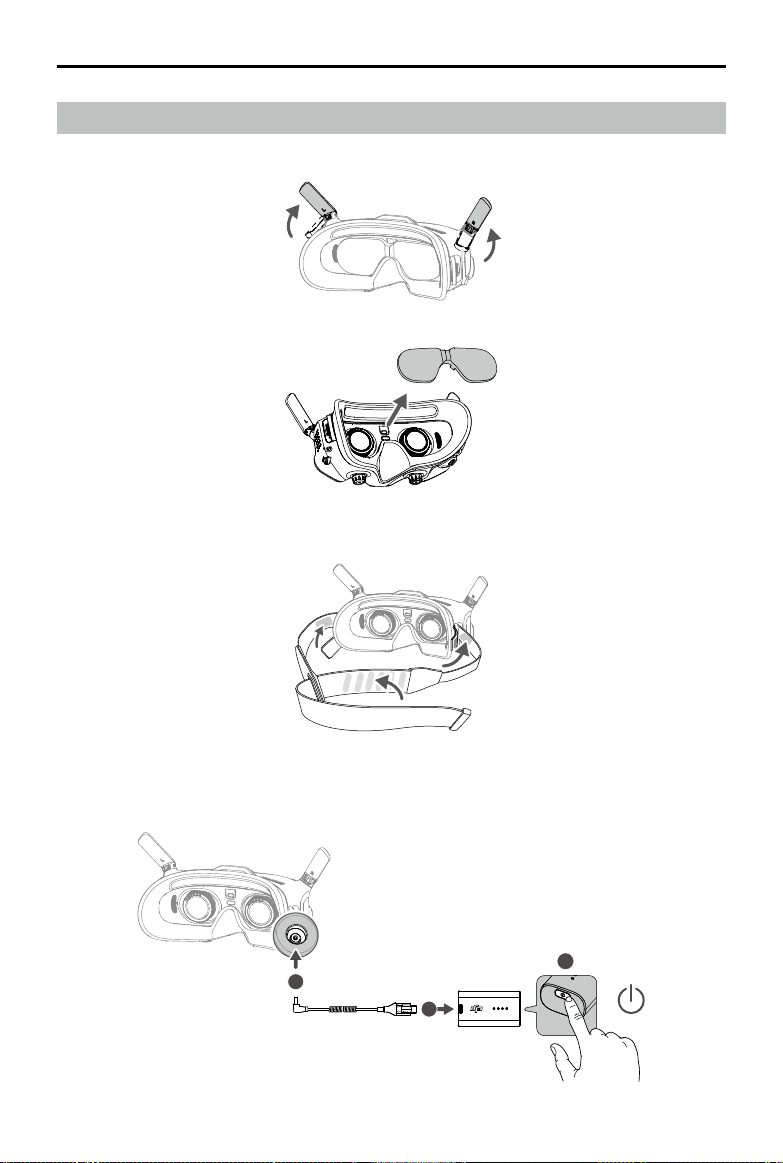

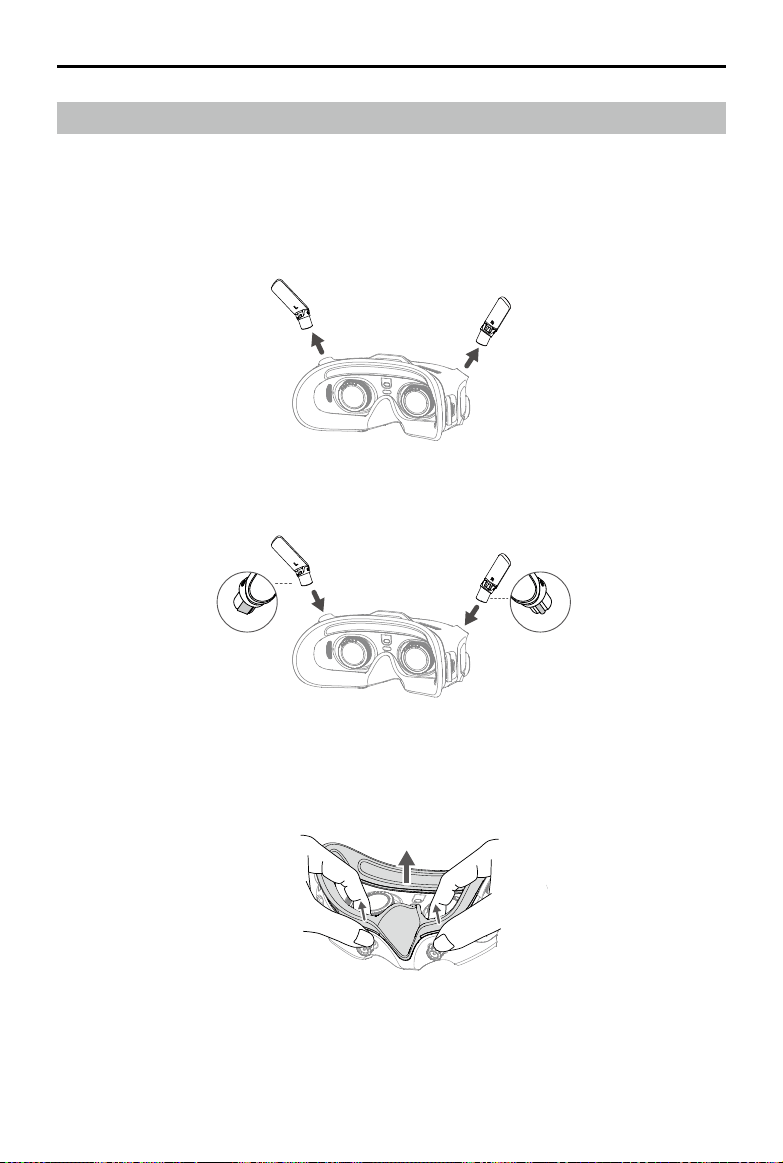

1. Unfold the antennas.

2. Remove the screen protector.

3. Attach the headband to the goggles.

4. Use the power cable (USB-C) provided to connect the power port of the goggles to the goggles battery. Press

the power button once, then press again and hold for two seconds to power the goggles on.

DJI Avata

User Manual

72 mm

-8.0 D

+2.0D

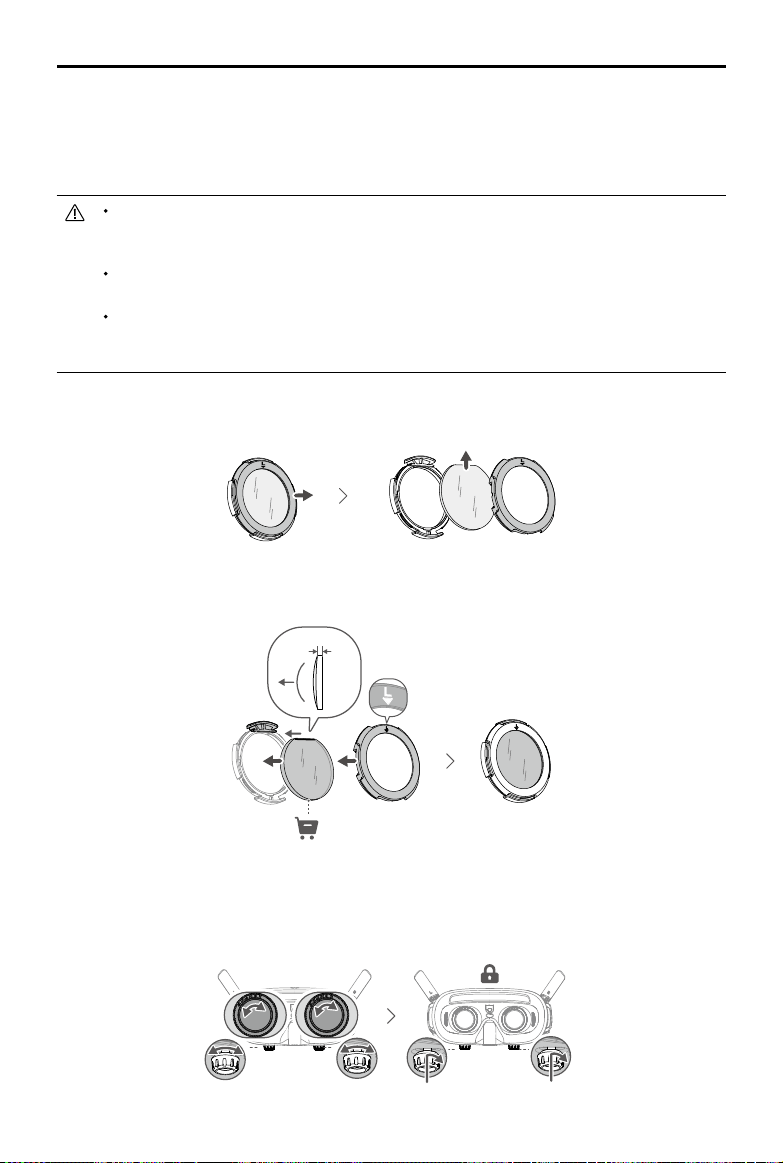

5. Wear the goggles and adjust the headband until the goggles t comfortably.

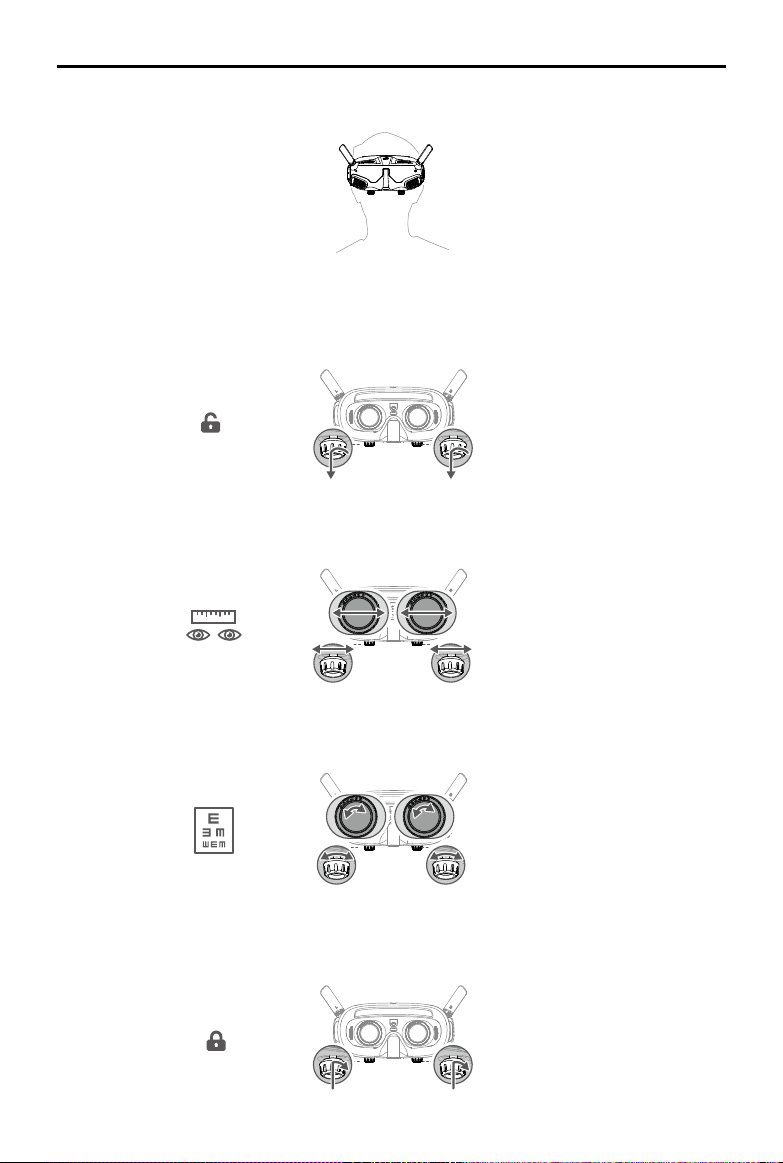

6. Use the IPD (Interpupillary Distance) Slider / Diopter Adjustment Knob (hereinafter referred to as "knob") to

adjust the distances between the lenses and the diopter to get a clear view.

a. Rotate both the knobs in the direction as shown to unlock them. Once unlocked, the knobs will pop out.

b. Toggle the knobs left and right to adjust the distance between the lenses until the images are

properly aligned.

c. Slowly rotate the knobs to adjust the diopter. The supported adjustment range is from -8.0 D to

+2.0 D.

d. After you get a clear view, press the knobs in and rotate them in the direction as shown to lock in

the lenses’ position and the diopter.

DJI Avata

User Manual

The diopter lenses do not support astigmatism correction. If you require astigmatism correction or if

the goggles’ diopter is unsuitable, you can purchase additional lenses and use the eyeglass frames

provided to install them on the goggles. Refer to the “Using the Eyeglass Frames” for more information.

When adjusting the diopter for the rst time, you are advised to adjust to a degree that is slightly lower

than the strength of your actual eyeglasses. Give your eyes enough time to adapt, then adjust the

diopter again until you get a clear view. Do not use a diopter higher than your actual eyeglass power to

avoid eyestrain.

Fold the antennas to avoid damage when the goggles are not in use.

Re-attach the screen protector after use to protect the lens and prevent damage caused by direct

sunlight.

Only use the DJI goggles battery provided. DO NOT use non-DJI batteries.

DO NOT use the goggles battery to power other devices.

DJI FPV Goggles V2

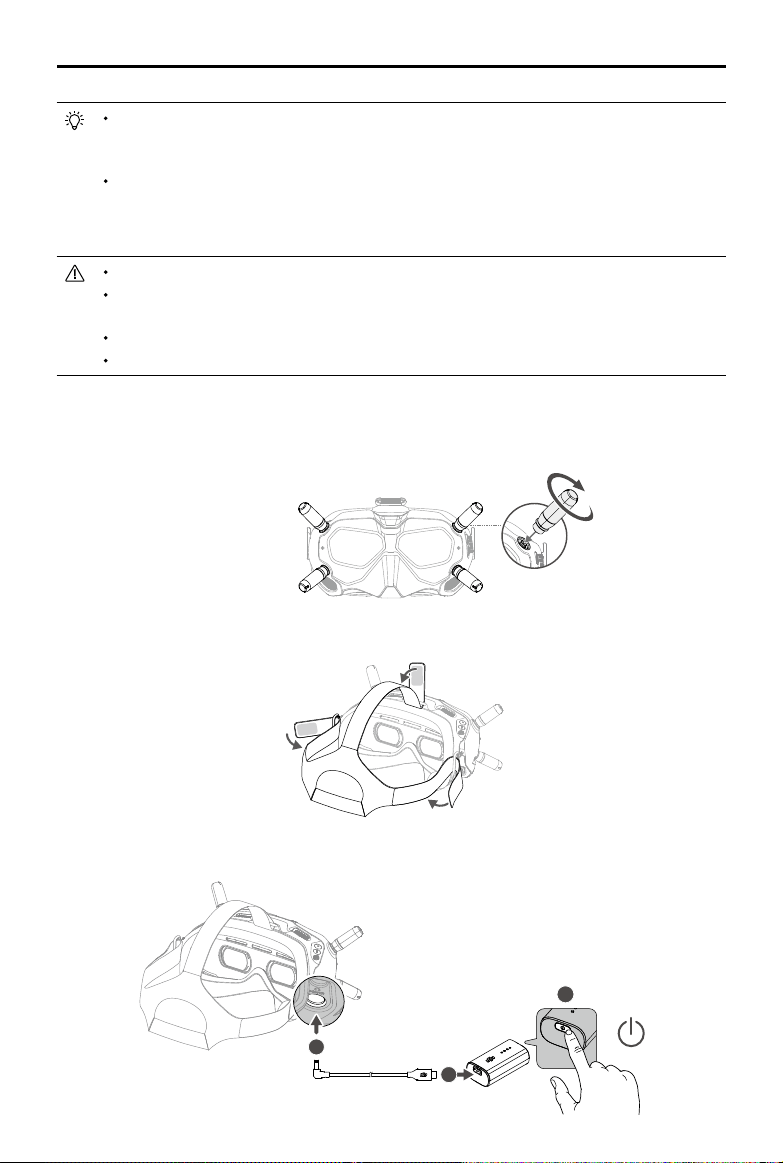

1. Install the four antennas to the mounting holes on the front of the goggles. Make sure that the antennas are

installed securely.

2. Attach the strap to the headband attachment on the top and sides of the goggles.

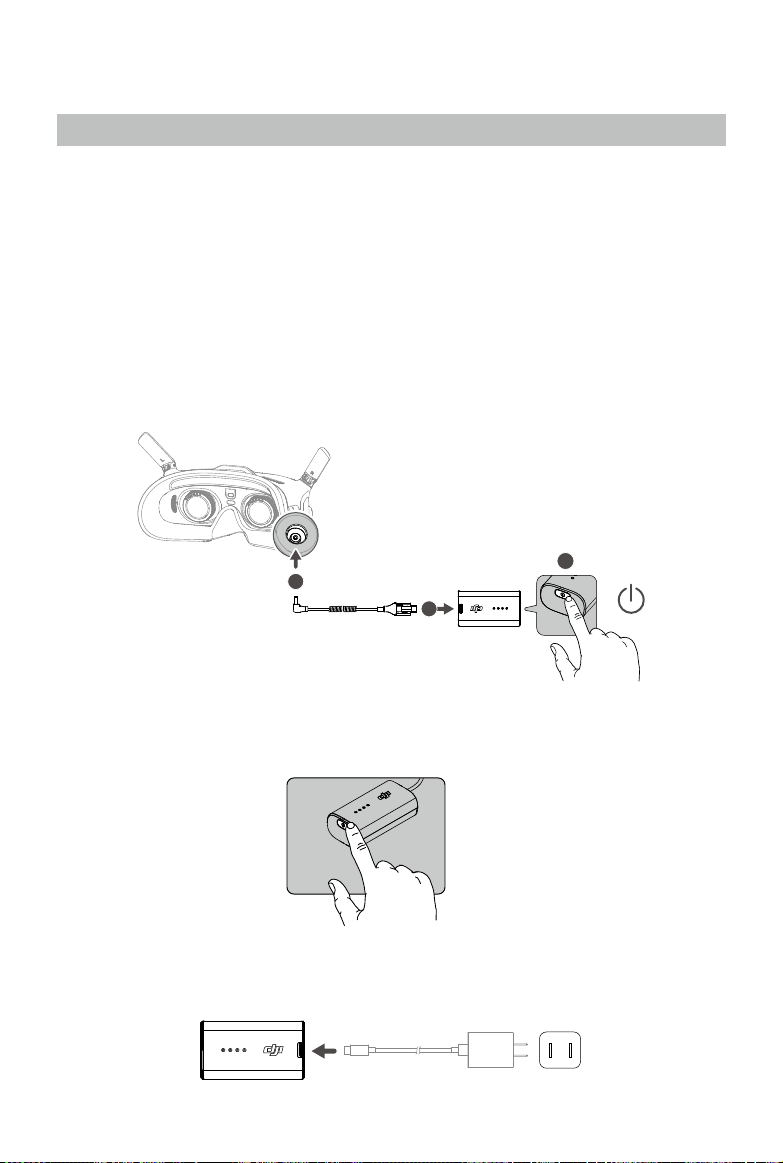

3. Use the included power cable to connect the power port of the goggles to the goggles battery. Press the

power button once, then press again and hold for two seconds to power the goggles on.

DJI Avata

User Manual

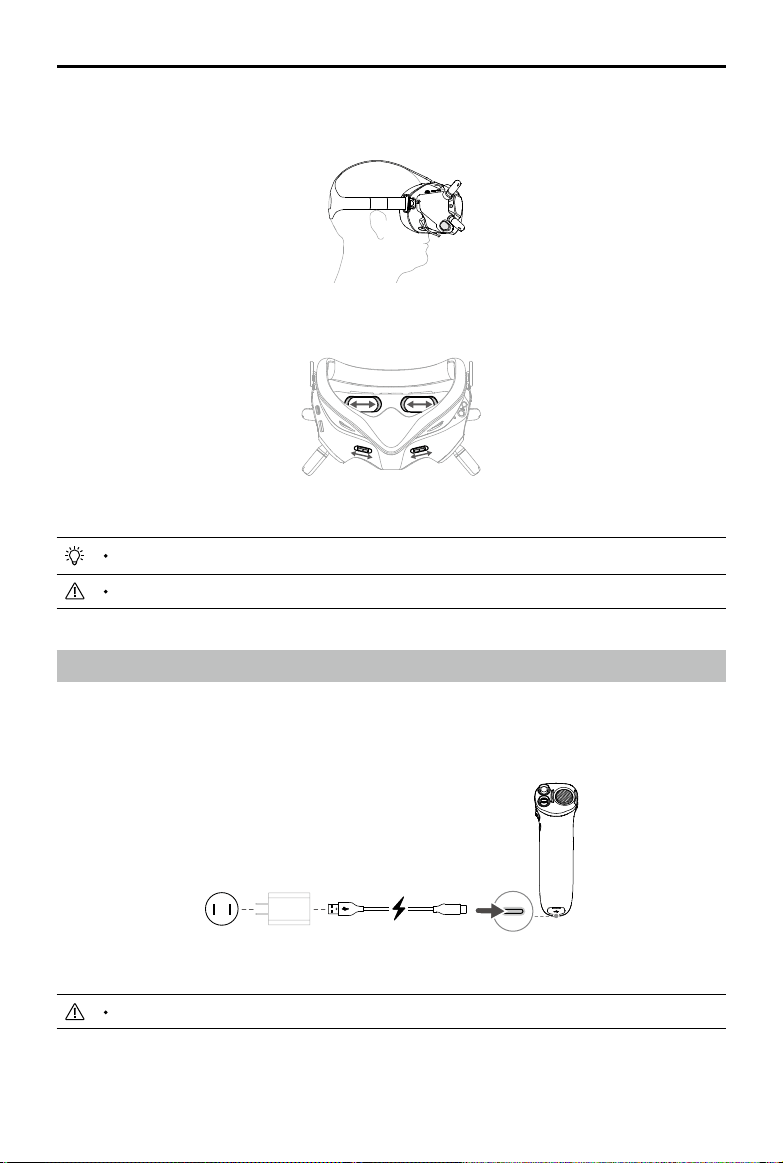

4. Align the lenses over your eyes and pull the headband down. Adjust the headband size until the goggles t

securely and comfortably on your face and head.

5. Turn the IPD slider to adjust the distance between the lenses until the images are properly aligned.

58-70 mm

The goggles can be worn over glasses.

DO NOT use the goggles battery to power other mobile devices.

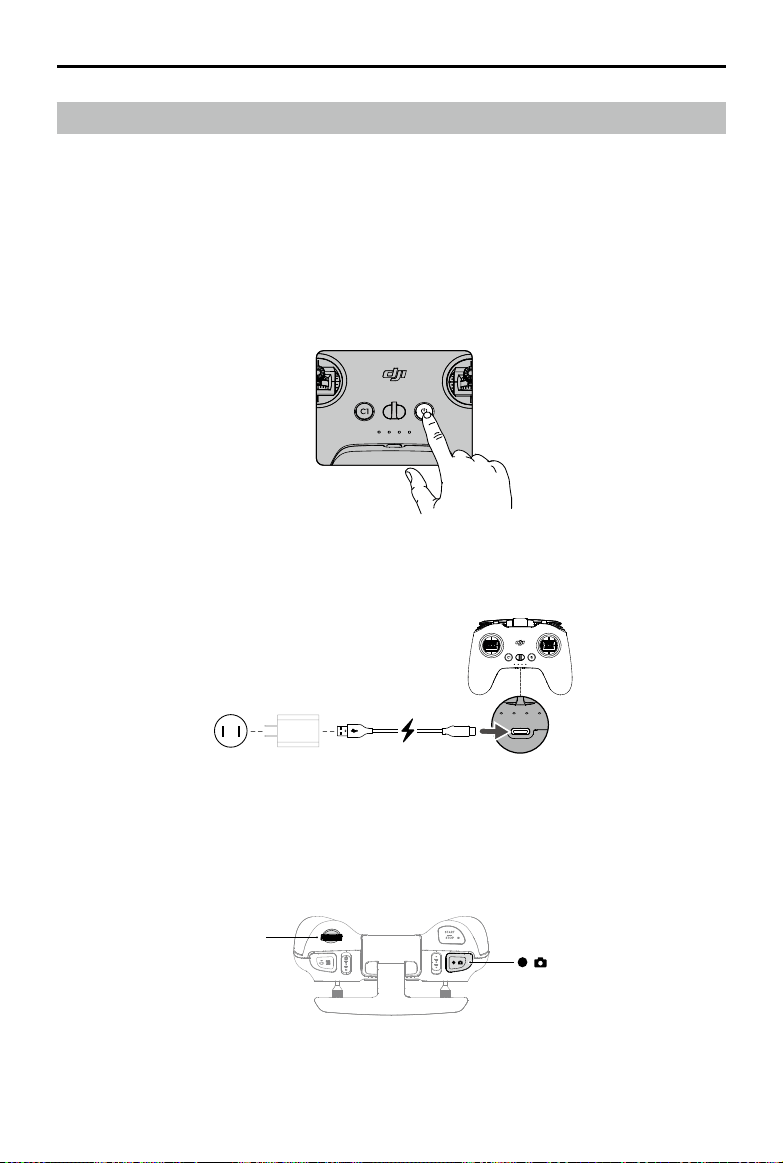

Preparing the Remote Control Devices

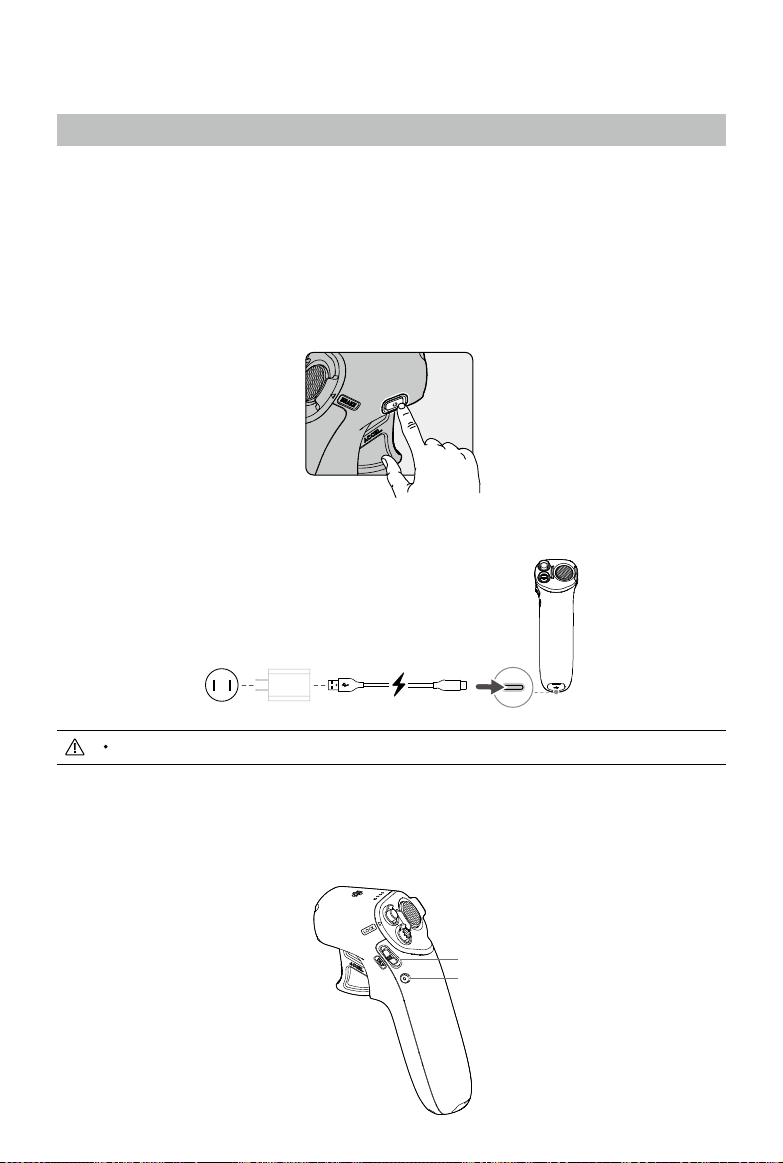

Press the power button once to check the current battery level. Charge before using if the battery level is too low.

DJI Motion Controller

5V, 1A/2A

USB Power Delivery chargers are not supported.

DJI Avata

User Manual

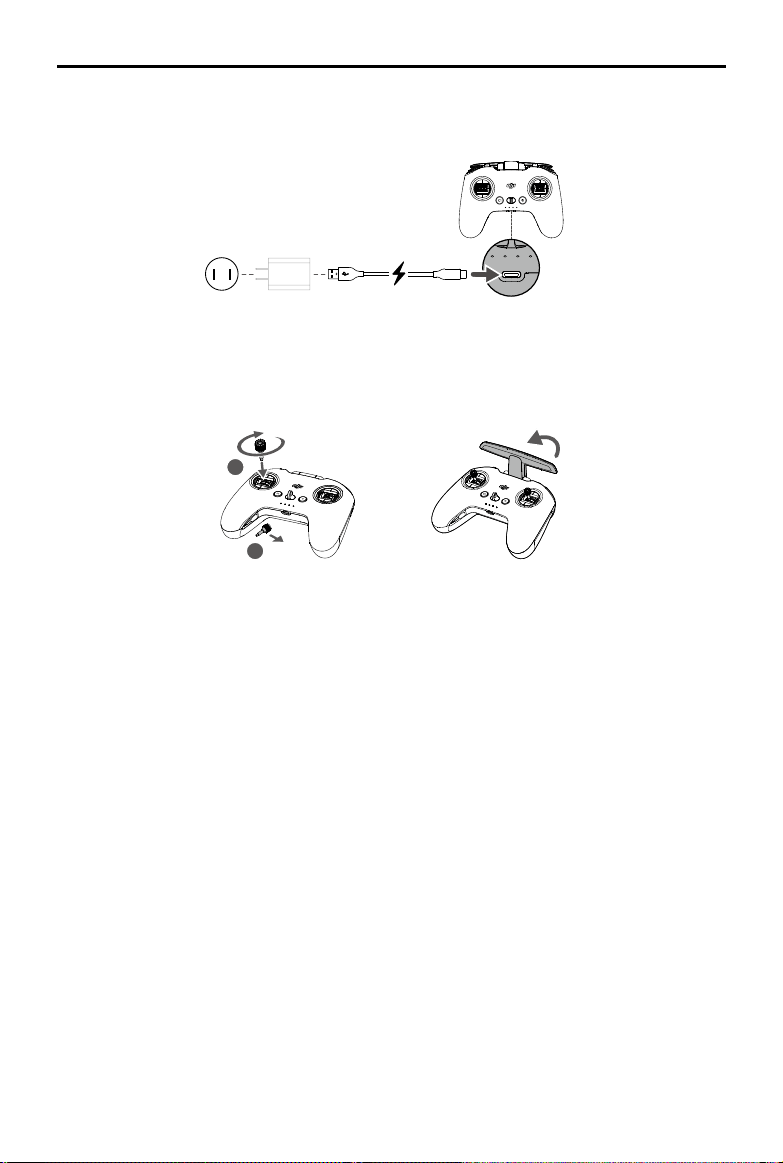

DJI FPV Remote Controller 2

1. Charge the battery.

2. Remove the control sticks from the storage slots and mount them on the remote controller.

3. Unfold the antennas.

DJI Avata

User Manual

Diagram

Aircraft

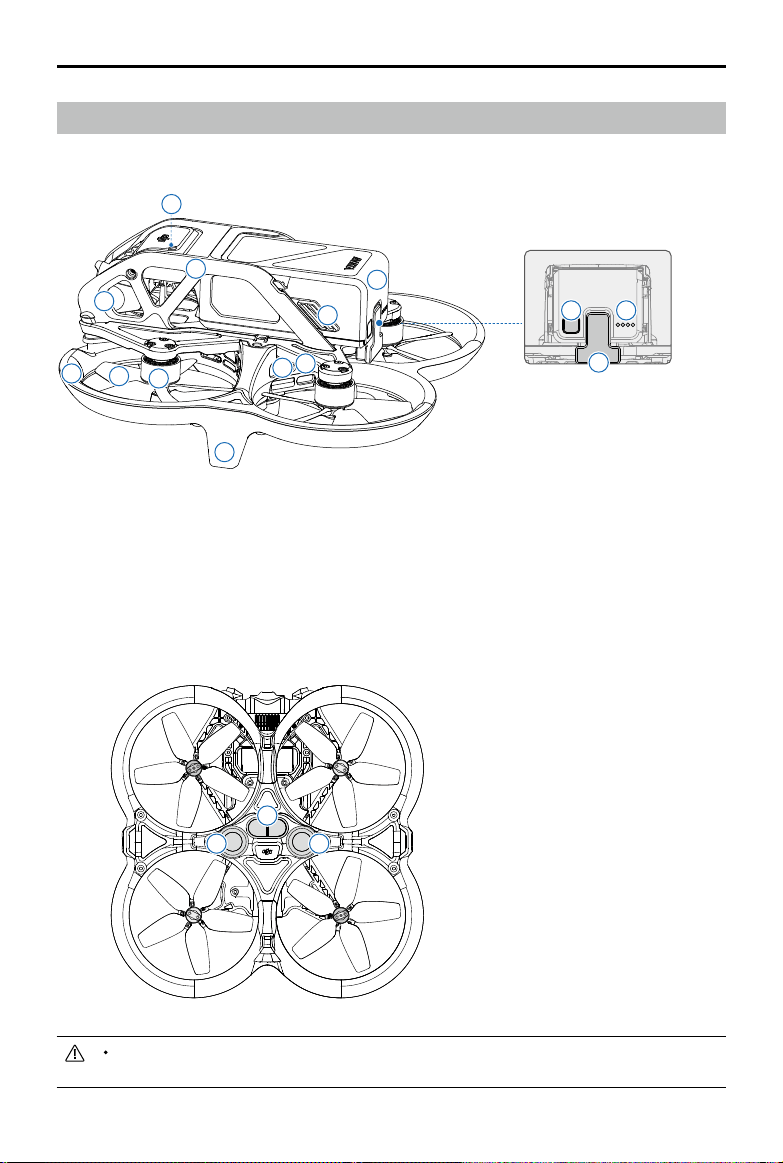

1. Propellers

2. Motors

3. Propeller Guard

4. Gimbal and Camera

5. Aircraft Status Indicator

6. Upper Frame

7. Intelligent Flight Battery

8. Battery Buckles

9. Power Button

10. Battery Level LEDs

11. Power Port

12. USB-C Port

13. microSD Card Slot

14. Landing Gears

(Built-in antennas)

15. Infrared Sensing System

16. Downward Vision System

9 10

16 16

Before ying, make sure the USB-C port and microSD card slot cover is correctly and securely sealed

to avoid interference with the propellers.

DJI Avata

User Manual

Goggles

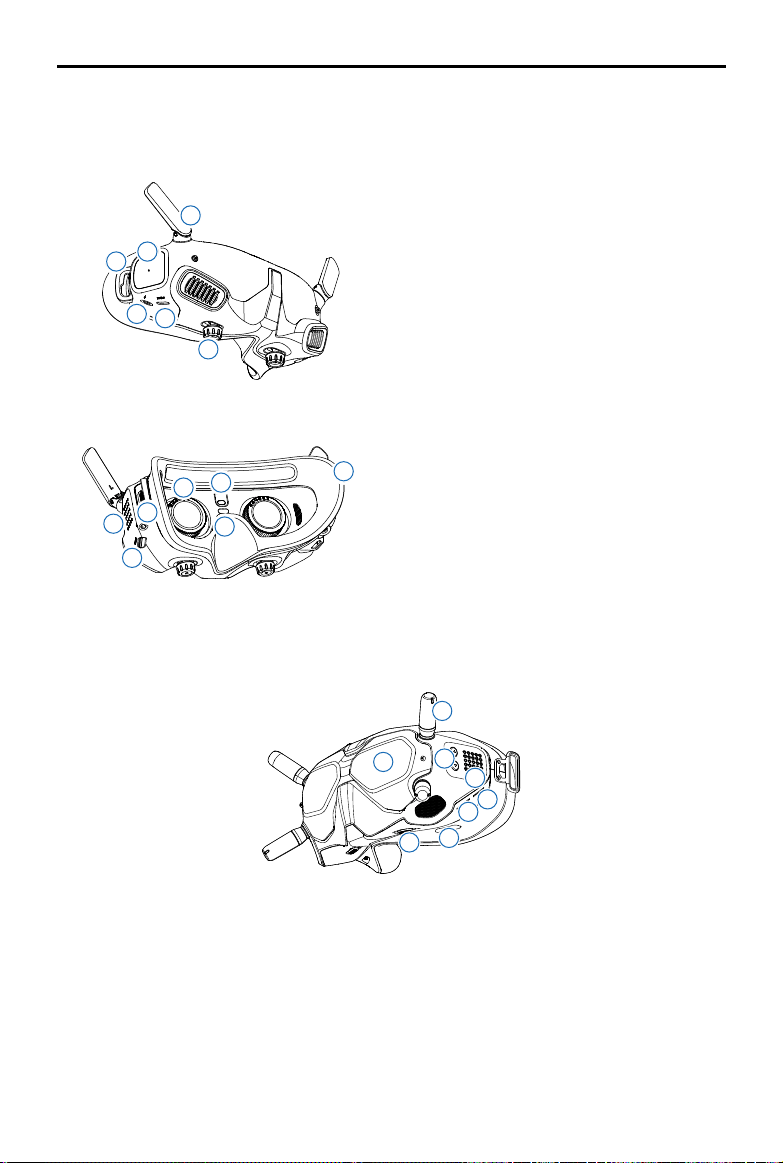

DJI Goggles 2

1. Antennas

2. Touch Panel

3. Headband Attachment

4. Power Port

5. USB-C Port

6. IPD Slider / Diopter Adjustment Knob

7. microSD Card Slot

8. 3.5 mm Audio Port

9. LED Dot Matrix Display

10. Lenses

11. Proximity Sensor

Detects whether the user is wearing

the goggles and automatically turns

the screen on or o.

12. Link Button

13. Foam Padding

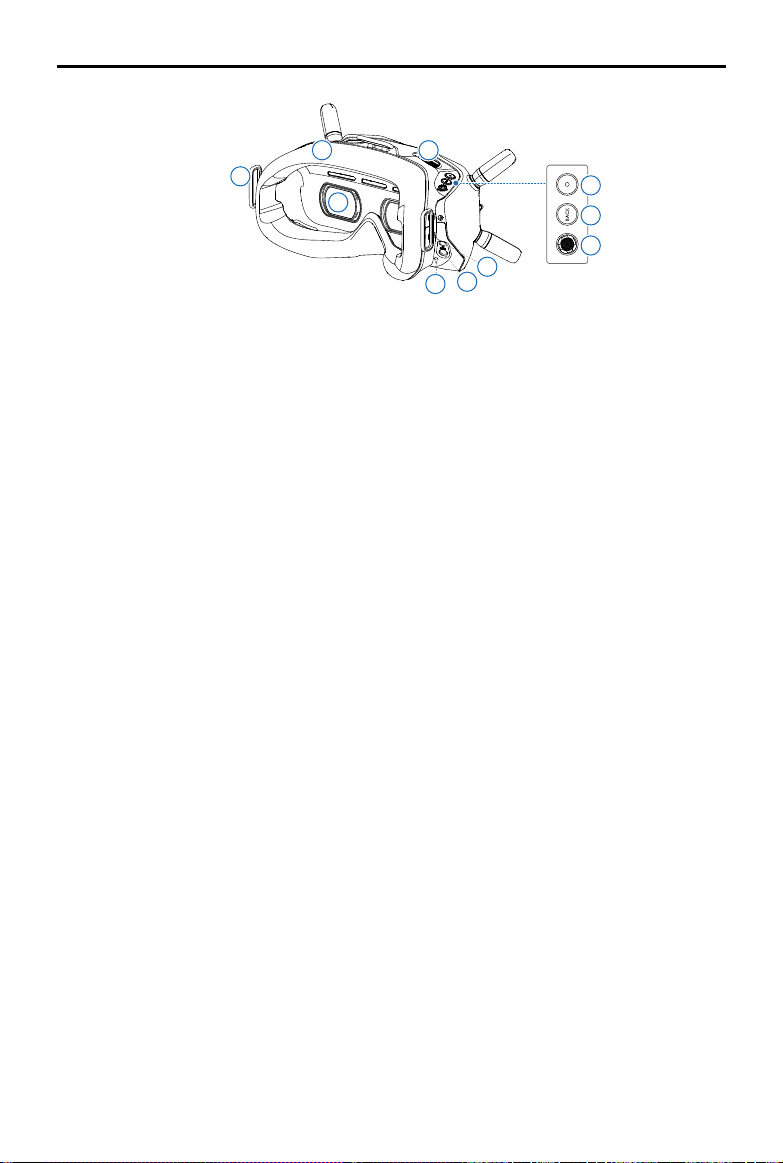

DJI FPV Goggles V2

1. Antennas

2. Front Cover

3. Channel Adjustment Buttons

4. Channel Display

5. USB-C Port

6. microSD Card Slot

7. Air Intake

8. IPD Slider

DJI Avata

User Manual

1718

9. Headband Attachment

10. Foam Padding

11. Lenses

12. Air Vent

13. Shutter/Record Button

Press once to take photos or start or stop

recording. Press and hold to switch between

photo and video mode.

14. Back Button

Press to return to the previous menu or exit

the current mode.

15. 5D Button

Toggle the button to scroll through the menu.

Press the button to conrm.

On the home screen, toggle left or right to adjust

the screen brightness. Toggle up or down to

adjust the volume. Press the button to enter the

menu.

16. Audio/AV-IN Port

17. Power Port (DC5.5×2.1)

18. Link Button

DJI Avata

User Manual

Remote Control Devices

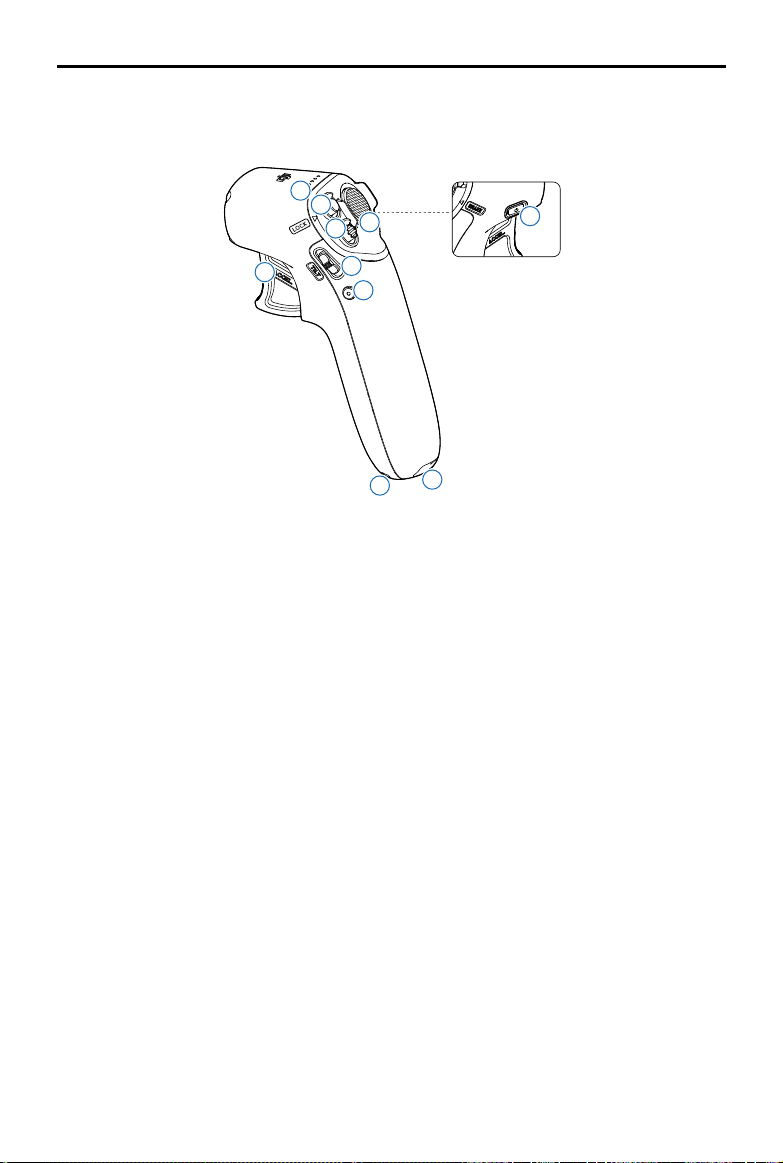

DJI Motion Controller

1. Battery Level LEDs

Indicates the battery level of the motion

controller.

2. Lock Button

Press twice to start the motors of the aircraft.

Press and hold to make the aircraft automatically

take o, ascend to approx. 1.2 m, and hover.

Press once to cancel the Low Battery RTH

countdown when the prompt appears in the

goggles, and the aircraft will not enter the Lower

Battery RTH.

3. Mode Button

Press once to switch between Normal and

Sport mode.

4. Brake Button

Press once to make the aircraft brake and hover

in place (only when GNSS or Vision System is

available). Press again to unlock the attitude.

Press and hold to initiate RTH.

When the aircraft is performing RTH or auto

landing, press the button once to cancel RTH or

landing.

5. Gimbal Tilt Slider

Push up and down to adjust the tilt of the

gimbal. Only available before takeo, during

RTH, or landing.

6. Shutter/Record Button

Press once to take photos or start or stop

recording. Press and hold to switch between

photo and video mode.

7. Accelerator

Press to y the aircraft in the direction of the

circle in the goggles. Apply more pressure to

accelerate. Release to stop and hover.

8. Lanyard Hole

9. USB-C Port

For charging and connecting the motion

controller to a computer for rmware updates.

10. Power Button

Press once to check the current battery level.

Press once then again and hold to power the

motion controller on or o.

DJI Avata

User Manual

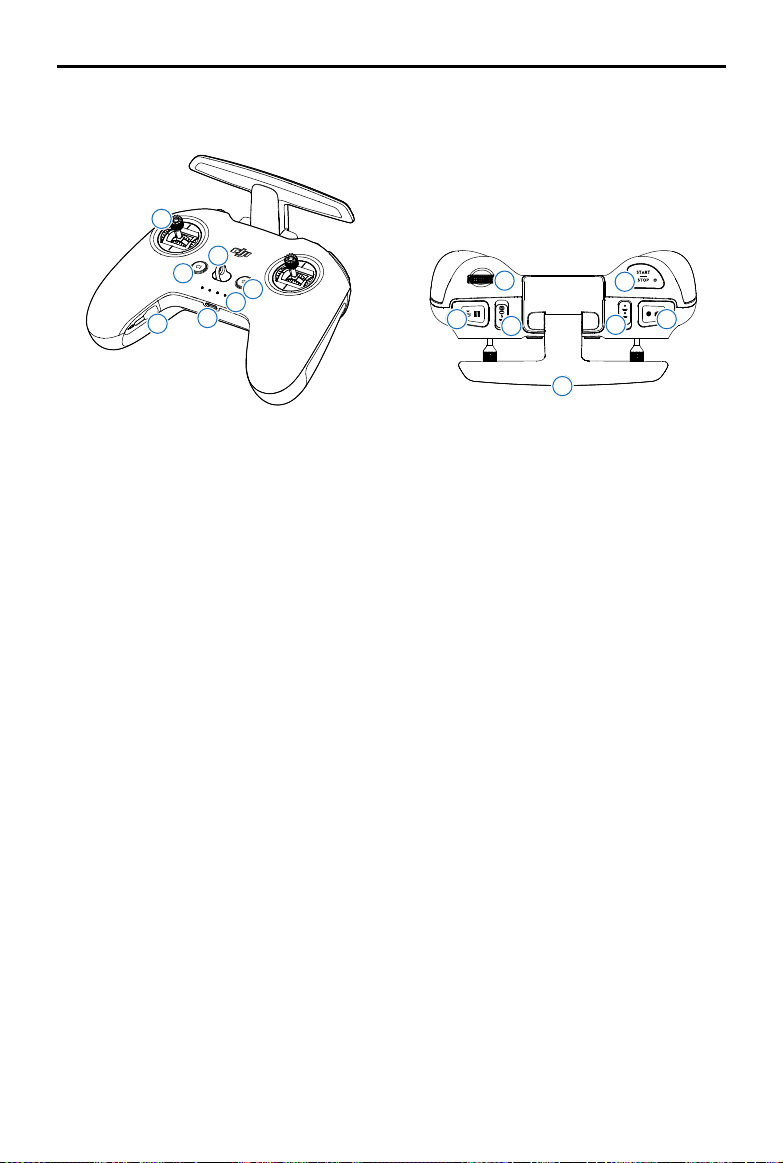

DJI FPV Remote Controller 2

1. Power Button

Press once to check the current battery level.

Press, and then press and hold to power the

remote controller on or o.

2. Battery Level LEDs

Displays the current battery level of the

remote controller.

3. Lanyard Attachment

4. C1 Button (Customizable)

The function of this button can be adjusted in

the goggles. By default, press once to enable

or disable ESC Beeping.

5. Control Sticks

Used to control the movements of the

aircraft. The control sticks mode can be set in

the goggles. The control sticks are removable

and easy to store.

6. USB-C Port

For charging and connecting the remote

controller to your computer.

7. Control Sticks Storage Slots

For storing the control sticks.

8. Flight Pause/RTH Button

Press once to make the aircraft brake and

hover in place (only when GNSS or Vision

System is available). Press and hold to initiate

RTH.

When the aircraft is performing RTH or auto

landing, press the button once to cancel RTH

or landing.

9. Gimbal Dial

Controls the tilt of the camera.

10. Flight Mode Switch

Switch between Normal, Sport, and Manual

mode. Manual mode is disabled by default and

must be enabled in the goggles.

11. C2 Switch (Customizable)

The function of this switch can be adjusted in the

goggles. By default, toggle the switch to recenter

the gimbal and adjust up and down.

12. Start/Stop Button

When using Manual mode, press twice to start or

stop the motor.

When using Normal or Sport mode, press once

to cancel Low Battery RTH countdown when the

prompt appears in the goggles, and the aircraft

will not enter the lower battery RTH.

13. Shutter/Record Button

Press once to take photos or start or stop

recording. Press and hold to switch between

photo and video mode.

14. Antennas

Relay aircraft control wireless signals.

8 13

DJI Avata

User Manual

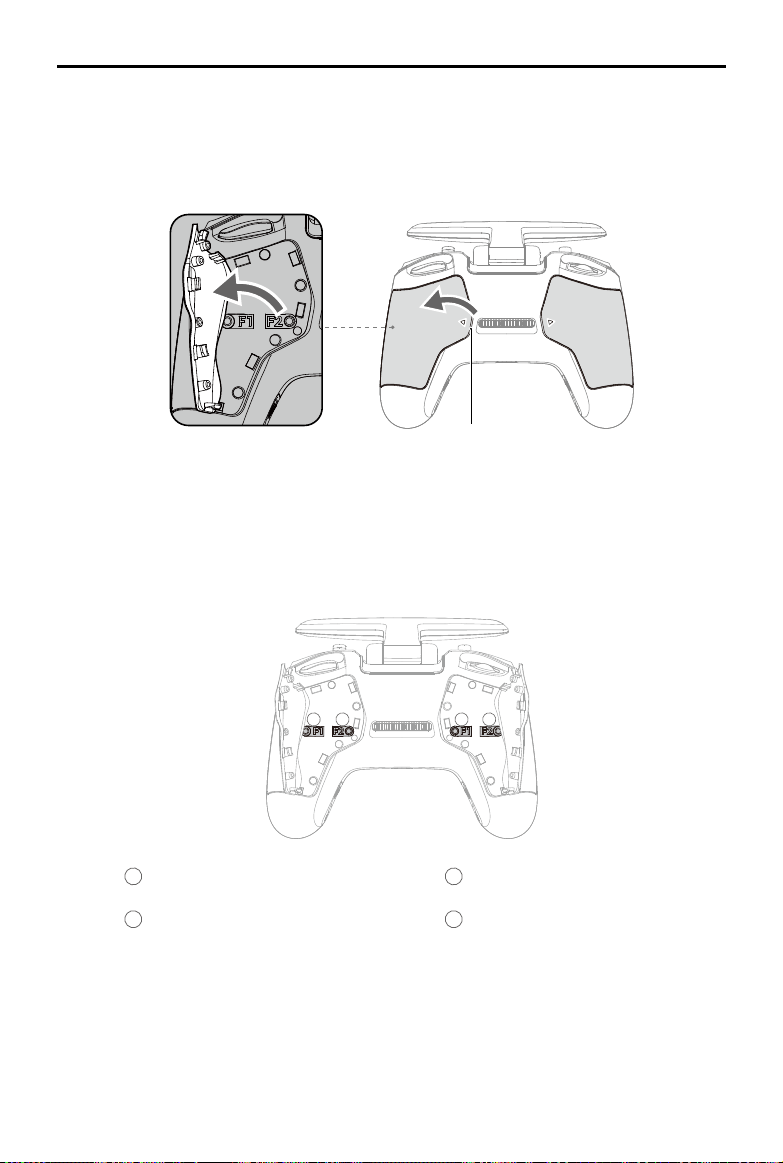

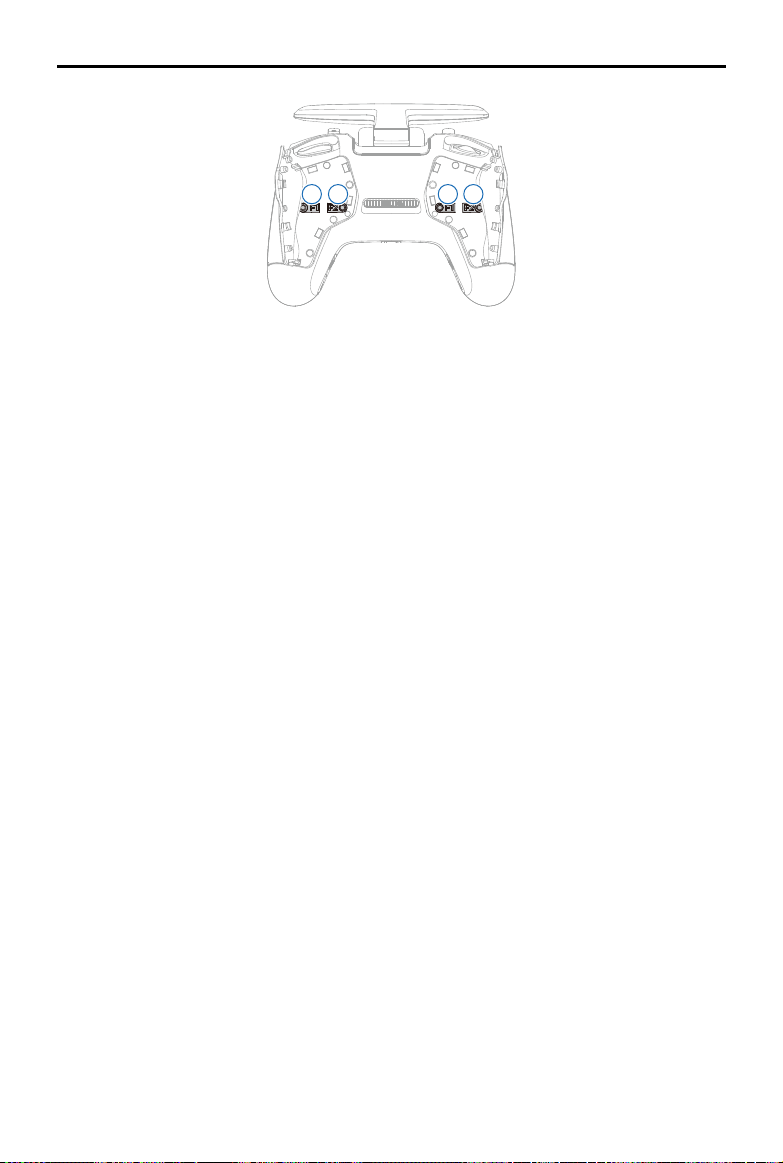

15. F1 Right Stick Resistance Adjustment Screw (Vertical)

Tighten the screw clockwise to increase the vertical resistance of the corresponding stick. Loosen the screw

to decrease vertical resistance.

16. F2 Right Stick Recentering Adjustment Screw (Vertical)

Tighten the screw clockwise to disable the vertical recentering of the corresponding stick. Loosen the screw

to enable vertical recentering.

17. F1 Left Stick Resistance Adjustment Screw (Vertical)

Tighten the screw clockwise to increase the vertical resistance of the corresponding stick. Loosen the screw

to decrease vertical resistance.

18. F2 Left Stick Recentering Adjustment Screw (Vertical)

Tighten the screw clockwise to disable the vertical recentering of the corresponding stick. Loosen the screw

to enable vertical recentering.

16 17 1815

DJI Avata

User Manual

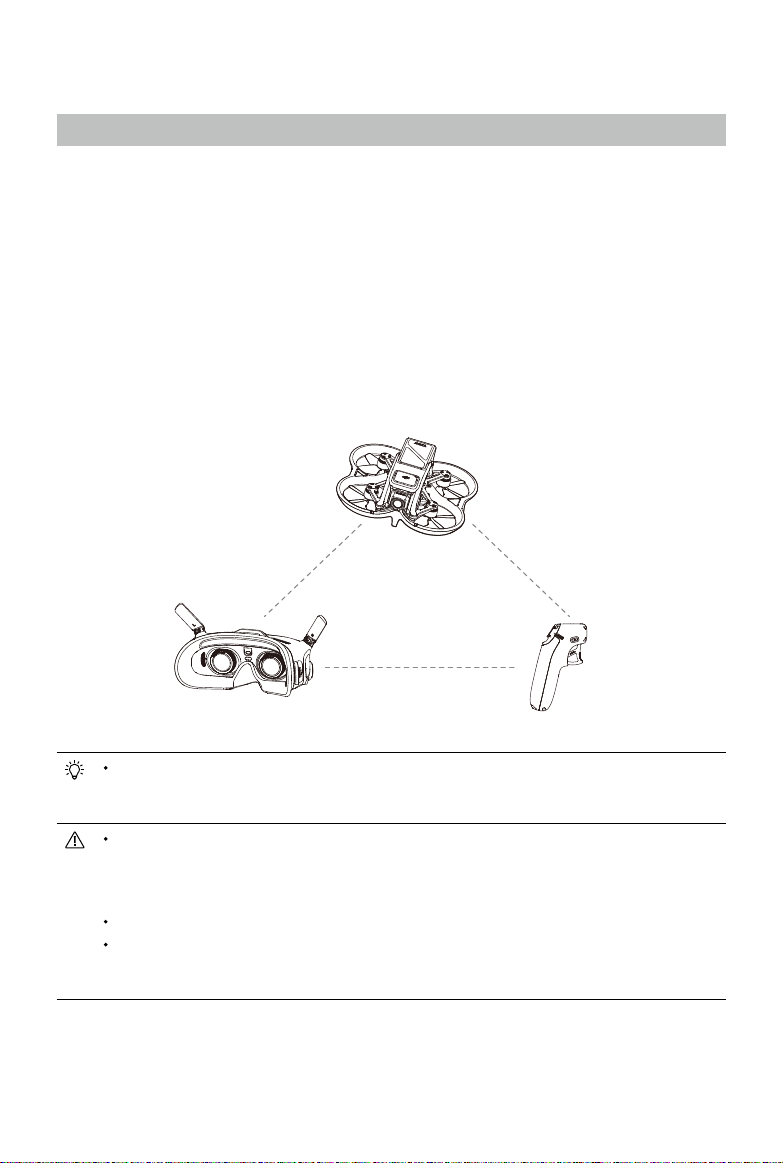

Linking

Follow the steps below to link the aircraft, goggles, and remote control devices. Make sure that the DJI devices

used with the aircraft are activated through the DJI Assistant 2 (Consumer Drones Series) and updated to the

latest rmware before linking.

1. Power on the aircraft, goggles, and remote control devices. Press and then press and hold the power button

to power devices on or o.

2. Press the link button on the goggles. The goggles will start to beep continually.

3. Press and hold the power button on the aircraft until the battery level LEDs start to blink in sequence.

4. Once linking is completed, the battery level LEDs of the aircraft turn solid and display the battery level, the

goggles stop beeping, and image transmission can be displayed normally.

5. Press and hold the power button on the aircraft until the battery level LEDs start to blink in sequence.

6. Press and hold the power button of the remote control device until it starts to beep continually and the battery

level LEDs blinks in sequence.

7. Once linking is successful, the remote control device stops beeping and both the battery level LEDs turn solid

and display the battery level.

DJI Avata

User Manual

Make sure the goggles and the remote control device are within 0.5 m of the aircraft during linking.

To switch between the aircraft or air unit, enter the goggles menu and select before linking. For DJI

Goggles 2, enter the Status page to select the aircraft or air unit. For DJI FPV Goggles V2, switch in

Settings and then go to About page.

The aircraft can be controlled with only one remote control device during ight. If your aircraft has been

linked with multiple remote control devices, turn o other remote control devices before ight.

Activation

DJI Avata must be activated before using for the rst time. Make sure all devices are linked after powering on the

aircraft, goggles, and remote control device. Connect the USB-C port of the goggles to the mobile device, run DJI

Fly, and follow the prompts to activate. An internet connection is required for activation.

DJI Fly

App

USB-C

OTG

Aircraft

DJI Avata contains a flight controller, gimbal and camera, video downlink system, vision system, propulsion

system, and an Intelligent Flight Battery.

Flight Modes

DJI Avata has three ight modes, which can be switched via the ight mode switch or button on the remote

control devices.

Normal Mode: The aircraft utilizes GNSS, the Downward Vision System, and the Infrared Sensing System to

locate itself and stabilize. When the GNSS signal is strong, the aircraft uses GNSS to locate itself and stabilize.

When the lighting and other environmental conditions are sucient, the aircraft uses the vision system. When the

Downward Vision System is enabled and lighting conditions are sucient, the maximum ight attitude angle is 25°

and the maximum ight speed is 8 m/s.

Sport Mode: The aircraft utilizes the GNSS and Downward Vision System to automatically stabilize itself. In

Sport mode, aircraft responses are optimized for agility and speed making it more responsive to control stick

movements. The maximum ight speed is 14 m/s.

Manual Mode: Classic FPV aircraft control mode with the highest maneuverability, which can be used for racing

and freestyle ying. In Manual mode, all ight assistance functions such as automatic stabilization are disabled and

procient control skills are required.

In Normal or Sport mode, when the Downward Vision System is unavailable or disabled and when the GNSS

signal is weak or the compass experiences interference, the aircraft cannot position itself or brake automatically,

which increases the risk of potential ight hazards. At this time, the aircraft may be more easily aected by its

surroundings. Environmental factors such as wind can result in horizontal shifting, which may present hazards,

especially when ying in conned spaces.

Manual mode is only supported when using the DJI FPV remote controller 2 to operate the aircraft, and

the throttle stick can be adjusted in this mode. DJI motion controller does not support Manual mode.

When using Manual mode, move the remote control sticks to directly control the throttle

and attitude of the aircraft. The aircraft has no flight assistance functions such as automatic

stabilization and can reach any attitude. Only experienced pilots should use Manual mode. Failure

to operate in this mode properly is a safety risk and may even lead to the aircraft crashing.

Manual mode is disabled by default. Make sure that the switch is set to Manual mode in the goggles

before switching to Manual mode. The aircraft will remain in Normal or Sport mode if the switch

is not set to Manual mode in the goggles. Go to Settings > Control > Remote Controller > Button

Customization, and then set the Custom Mode to Manual Mode.

Before using Manual mode, it is recommended to adjust the screw on the rear of the throttle stick so

that the stick does not recenter and to practice ying in the mode using DJI Virtual Flight.

When using Manual mode for the rst time, the maximum attitude of the aircraft will be limited. After

you are familiar with ying in Manual mode, the attitude restriction can be disabled in the goggles. Go

to Settings > Control > Remote Controller > Gain & Expo > M Mode Attitude Limit.

When turning the aircraft at high speed in Manual mode, the attitude may become unstable. Avoid

moving the aircraft laterally to ensure a stable ight.

If using the manual mode when the battery is low, the aircraft power output is limited, please y with caution.

The maximum speed and braking distance of the aircraft significantly increase in Sport mode. A

minimum braking distance of 30 m is required in windless conditions.

The responsiveness of the aircraft signicantly increases in Sport mode, which means a small control

stick movement on the remote controller translates into the aircraft moving a large distance. Make sure

to maintain adequate maneuvering space during ight.

DJI Avata

User Manual

Aircraft Status Indicator

DJI Avata has an aircraft status indicator on the top.

The aircraft status indicator shows the status of the ight control system of the aircraft. Refer to the table below for

more information about the aircraft status indicator.

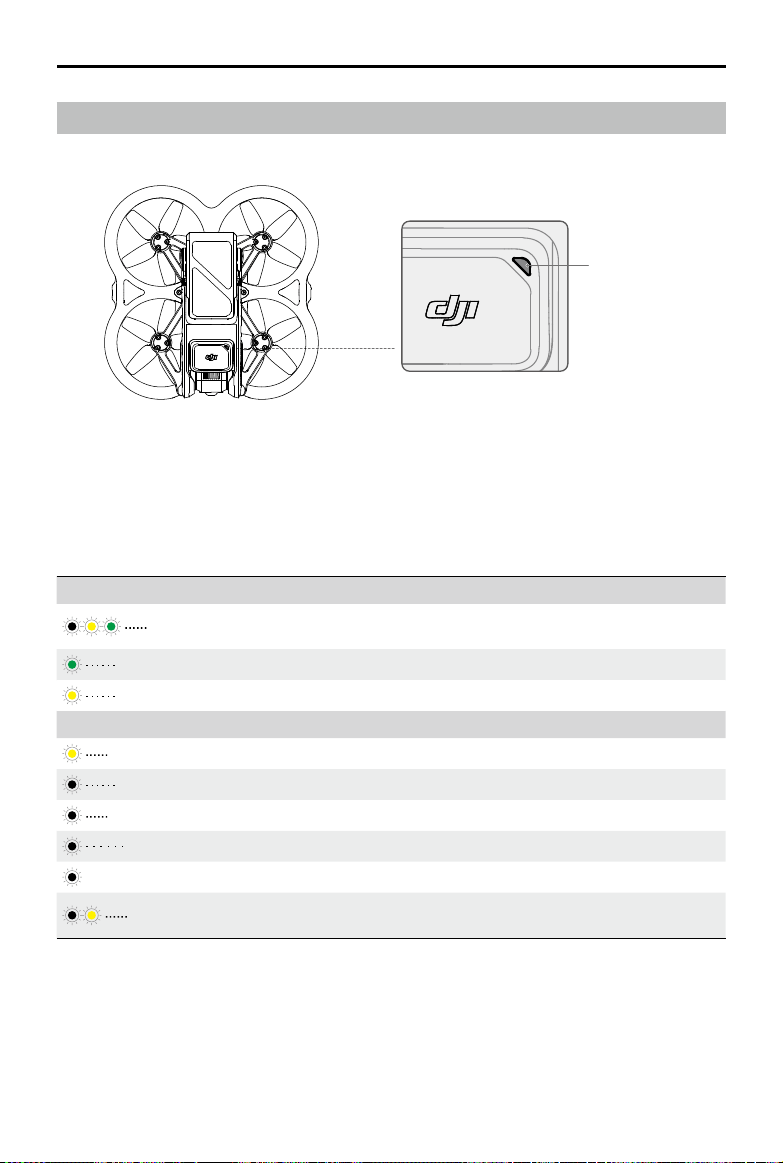

Aircraft Status Indicator Descriptions

Normal States

Blinks red, yellow, and

green alternately

Powering on and performing self-diagnostic tests

Blinks green slowly GNSS or vision system enabled for positioning

Blinks yellow slowly GNSS and vision system disabled

Warning States

Blinks yellow quickly Remote control device signal lost

Blinks red slowly Low battery

Blinks red quickly Critically low battery

Blinks red IMU error

——

Solid red Critical error

Blinks red and yellow

alternately

Compass calibration required

Aircraft Status Indicator

DJI Avata

User Manual

Return to Home

The Return to Home (RTH) function brings the aircraft back to the last recorded Home Point and lands when

the GNSS signal is strong. There are three types of RTH: Smart RTH, Low Battery RTH, and Failsafe RTH. If the

aircraft successfully recorded the Home Point and the GNSS signal is strong, the RTH will be triggered when

either Smart RTH is initiated, the aircraft battery level is low, or the signal between the remote control device and

the aircraft is lost. RTH will also be triggered in other abnormal scenarios such as where video transmission is lost.

GNSS

Description

Home Point

The default Home Point is the rst location where the aircraft received a strong or

moderately strong GNSS signal (where the icon shows white). The aircraft status

indicator blinks green quickly and a prompt appears in the goggles to conrm the

Home Point has been recorded.

Smart RTH

If the GNSS signal is sucient, Smart RTH can be used to bring the aircraft back to the Home Point. Smart RTH

can be initiated or canceled by the remote control devices. After exiting RTH, users will regain control of the

aircraft.

Low Battery RTH

When the Intelligent Flight Battery level is too low and there is not enough power to return home, land the aircraft

as soon as possible.

In order to avoid unnecessary danger due to insucient power, DJI Avata will intelligently determine whether the

current battery level is sucient to return to the Home Point based on the current location. Low Battery RTH

is triggered when the Intelligent Flight Battery is depleted to the point that the safe return of the aircraft may be

aected.

RTH can be canceled by the remote control devices. If RTH is canceled following a low battery warning, the

Intelligent Flight Battery may not have enough power for the aircraft to land safely, which may lead to the aircraft

being crashed or lost.

The aircraft will land automatically if the current battery level can only support the aircraft long enough to descend

from its current altitude. The remote control devices can be used to alter the direction of the aircraft during the

landing process. Pressing the accelerator when using the motion controller during landing can make the aircraft

stop descending and fly at the current altitude to adjust the horizontal position. The aircraft will continue to

descend after releasing the accelerator.

Failsafe RTH

If the Home Point was successfully recorded and the compass is functioning normally, Failsafe RTH automatically

activates after the remote control signal is lost for more than 3.5 seconds.

The aircraft will y backwards for 50 m on its original ight route and enter Straight Line RTH. The aircraft enters

Straight Line RTH if the remote control signal is restored during Failsafe RTH.

The response of the aircraft when the wireless signal is lost can be changed in the goggles. The aircraft will not

execute Failsafe RTH if land or hover has been selected in the settings.

Other RTH Scenarios

A prompt will appear in the goggles and RTH will be initiated if the video download signal is lost during ight, while

the remote control devices can still be used to control the movements of the aircraft.

DJI Avata

User Manual

RTH (Straight Line)

1. The Home Point is recorded automatically.

2. RTH is triggered.

3. If the aircraft is less than 5 m from the Home Point when RTH begins, it lands immediately.

If the aircraft is more than 5 m and less than 50 m from the Home Point when RTH begins, it will return home

at the current altitude with a maximum horizontal speed of 3 m/s.

If the aircraft is further than 50 m from the Home Point when RTH begins, it will ascend to the RTH altitude

and return home at a horizontal speed of 12 m/s. The aircraft ies to the Home Point at the current altitude if

the RTH altitude is lower than the current altitude.

4. After reaching the Home Point, the aircraft lands and the motors stop.

During RTH, obstacles around and above the aircraft cannot be detected or avoided.

The aircraft cannot return to the Home Point if the GNSS signal is weak or unavailable. If the GNSS

signal becomes weak or unavailable after Failsafe RTH is triggered, the aircraft will hover for a while

before landing.

Before each ight, it is important to enter Settings and then Safety on the goggles and set a suitable

RTH altitude.

During RTH, if the aircraft is ying forward and the remote controller signal is normal, the DJI FPV

remote controller 2 can be used to control the speed of the aircraft, but cannot control the orientation

or y left or right. The orientation and horizontal position of the aircraft can be controlled when it is

descending. When the aircraft is ascending or ying forward, push the control stick completely in the

opposite direction to exit RTH.

The aircraft will hover if it ies into a GEO Zone during RTH.

The aircraft may not be able to return to the Home Point when the wind speed is too high. Fly with

caution.

Landing Protection

Landing Protection will activate during Smart RTH. Landing Protection is enabled once the aircraft begins to land.

1. Once Landing Protection determines that the ground is suitable, the aircraft will land gently.

2. If the ground is determined unsuitable for landing, the aircraft will exit landing, then hover and wait for pilot

conrmation.

3. If Landing Protection is not operational, the goggles will display a landing prompt when the aircraft descends

to 0.25 m. Press and hold the lock button on the motion controller, or pull down on the throttle stick of the

remote controller to land.

When flying in strong winds, the aircraft will save power for landing by automatically adjusting the

orientation to be consistent with the wind direction before landing.

The landing protection only works in certain scenarios and cannot replace the control and judgment of

the user. During landing, pay attention to the surrounding environment of the landing point and avoid

obstacles that are not suitable for landing such as trees, branches, and bushes.

DJI Avata

User Manual

Vision System and Infrared Sensing System

DJI Avata aircraft is equipped with both an Infrared Sensing System and a Downward Vision System.

The Downward Vision System consists of two cameras. The Infrared Sensing System consists of two 3D infrared

modules. The Downward Vision System and Infrared Sensing System help the aircraft maintain its current position,

hover more precisely, and to y indoors or in other environments where GNSS is unavailable.

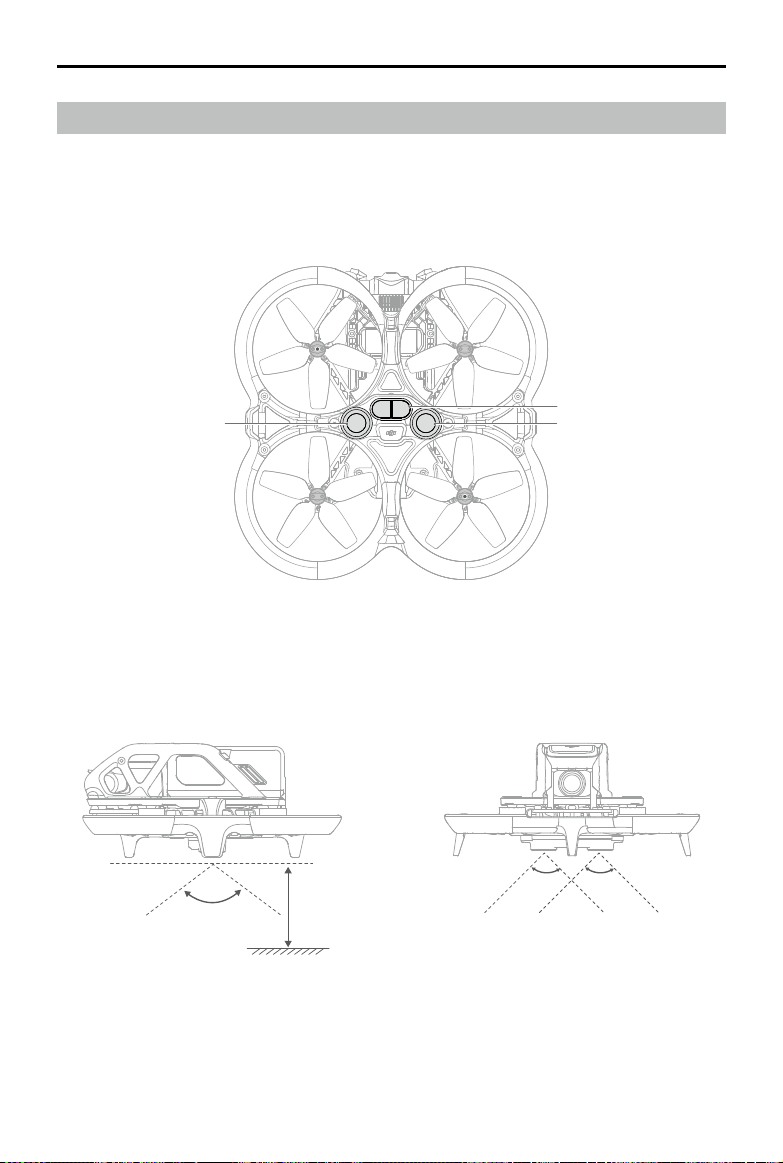

Detection Range

The Downward Vision System works best when the aircraft is at an altitude of 0.5 to 10 m and its operating range

is 0.5 to 20 m. The FOV to the front and rear is 106° and 90° to the right and left.

90°

0.5-20 m

106°

Vision System

Infrared Sensing System

DJI Avata

User Manual

Calibrating Vision System Cameras

Auto Calibration

The Downward Vision System cameras installed on the aircraft are calibrated before shipping. If any abnormality

is detected with a vision system camera, the aircraft will automatically calibrate and a prompt will appear in the

goggles. No further action is required to address the issue.

Advanced Calibration

If the abnormality persists after auto calibration, a prompt appears in the goggles that advanced calibration is

required. Advanced calibration can only be performed using DJI Assistant 2 (Consumer Drones Series). Follow the

steps below to calibrate the vision system cameras.

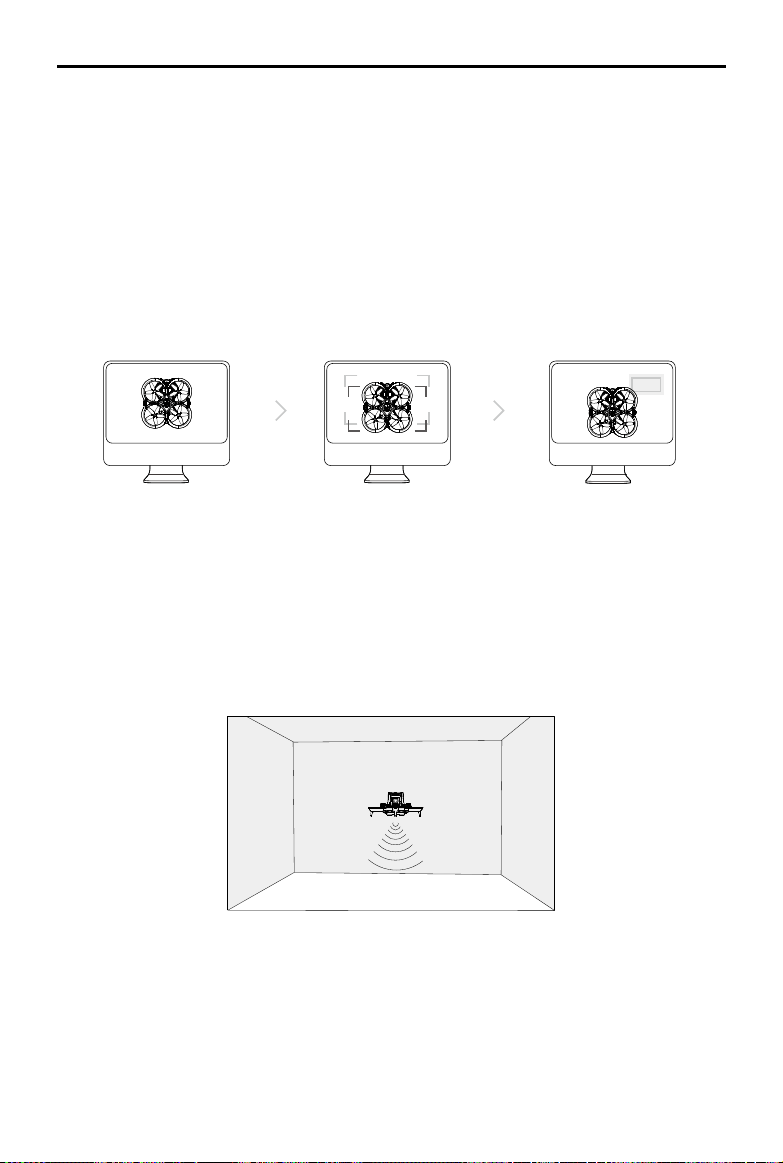

将飞行器面向屏幕

移动位置以对准方框

按照提示旋转飞行器

Using the Vision System

The positioning function of the Downward Vision System is applicable when the GNSS signals are unavailable or

weak. It is automatically enabled in Normal or Sport mode.

Point the aircraft toward the screen.

Align the boxes. Pan and tilt the aircraft.

DJI Avata

User Manual

Pay attention to the ight environment. The Downward Vision System and Infrared Sensing System

only work in certain scenarios and cannot replace human control and judgment. During ight, pay

attention to the surrounding environment and to the warnings on the goggles. Be responsible for and

maintain control of the aircraft at all times.

The aircraft has a max hovering altitude of 20 m when using the vision system in an open and at

environment with clear texture. The best positioning altitude range of the vision system is 0.5 to 10 m.

The vision positioning performance may decrease when ying beyond this range. Fly with caution.

The Downward Vision System may not function properly when the aircraft is flying over water.

Therefore, the aircraft may not be able to actively avoid the water below when landing. It is

recommended to maintain flight control at all times, make reasonable judgments based on the

surrounding environment, and avoid over-relying on the Downward Vision System.

Note that the Downward Vision System and Infrared Sensing System may not function properly when

the aircraft is ying too fast.

The vision system cannot work properly over surfaces without clear pattern variations or where the

light is too weak or too strong. The vision system cannot work properly in the following situations:

a) Flying over monochrome surfaces (e.g., pure black, white, red, or green).

b) Flying over highly reective surfaces.

c) Flying over water or transparent surfaces.

d) Flying over moving surfaces or objects.

e) Flying in an area with frequent and drastic lighting changes.

f) Flying over extremely dark (< 10 lux) or bright (> 40,000 lux) surfaces.

g) Flying over surfaces that strongly reect or absorb infrared waves (e.g., mirrors).

h) Flying over surfaces without clear patterns or texture (e.g., power poles).

i) Flying over surfaces with repeating identical patterns or texture (e.g., tiles with the same design).

j) Flying over obstacles with small surface areas (e.g., tree branches).

Keep the sensors clean at all times. DO NOT tamper with the sensors. DO NOT use the aircraft in

environments with signicant dust or humidity. DO NOT obstruct the Infrared Sensing System.

If the aircraft is involved in a collision, it may be necessary to calibrate the vision system. Calibrate the

vision system if the app prompts you to do so.

DO NOT y when it is rainy, smoggy, or the visibility is lower than 100 m.

Check the following every time before takeo:

a) Make sure there are no stickers or any other obstructions over the glass of the Downward Vision

System and Infrared Sensing system.

b) Use soft cloth if there is any dirt, dust, or water on the glass of the Downward Vision System and

Infrared Sensing system. DO NOT use any cleaning product that contains alcohol.

c) Contact DJI Support if there is any damage to the glass of the Downward Vision System or Infrared

Sensing System.

Flight Recorder

Flight data including ight telemetry, aircraft status information, and other parameters are automatically saved

to the internal data recorder of the aircraft. The data can be accessed using DJI Assistant 2 (Consumer Drones

Series).

DJI Avata

User Manual

Propellers

There are two types of DJI Avata propellers, which are designed to spin in dierent directions. Make sure to match

the propellers and motors by following the instructions.

Propellers With Marks Without Marks

Illustration

Mounting Position Attach on motors with marks Attach on motors without marks

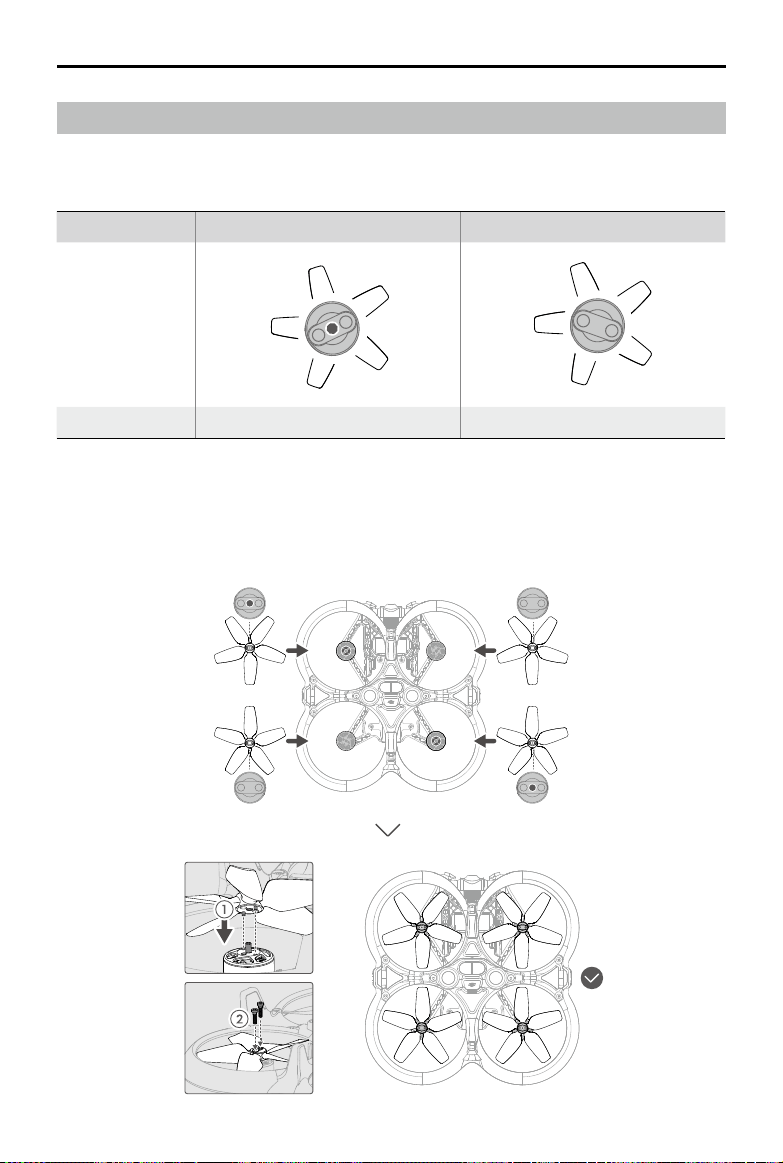

Attaching the Propellers

Flip the aircraft over so that the bottom is facing up, and mount the marked propellers onto the motors with

marks. Insert the propeller into the motor base, slightly rotate the propeller to align the positioning holes and insert

them, and then use a screwdriver to fasten the two screws. Mount the unmarked propellers to the motors without

marks.

DJI Avata

User Manual

Propeller blades are sharp. Handle with care.

Only use ocial DJI propellers. DO NOT mix propeller types.

Propellers are consumable components. Purchase additional propellers if necessary.

Make sure that the propellers and motors are installed securely before each ight.

Make sure that all propellers are in good condition before each ight. DO NOT use aged, chipped, or

broken propellers.

To avoid injury, stay away from rotating propellers or motors.

Make sure the motors are mounted securely and rotating smoothly. Land the aircraft immediately if a

motor is stuck and unable to rotate freely.

DO NOT attempt to modify the structure of the motors.

DO NOT touch or let hands or body parts come in contact with the motors after ight as they may be

hot.

DO NOT block any of the ventilation holes on the motors or the body of the aircraft.

Make sure the ESCs sound normal when powered on.

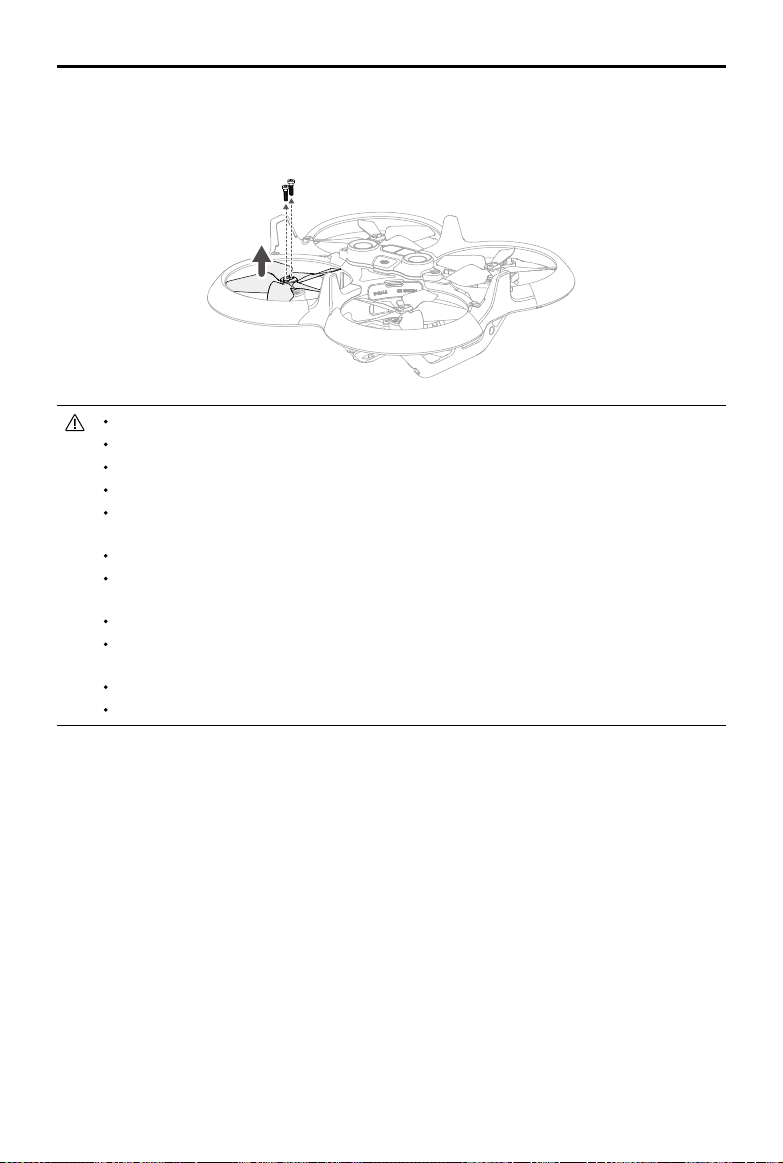

Detaching the Propellers

Flip the aircraft so that the bottom is facing up, use a screwdriver to loosen the two screws and detach the

propellers from the motors.

DJI Avata

User Manual

Intelligent Flight Battery

The Avata Intelligent Flight Battery is a 14.76 V, 2420 mAh battery with smart charging and discharging

functionality.

Battery Features

1. Battery Level Display: The battery level LEDs display the current battery level.

2. Auto-Discharging Function: To prevent swelling, the battery automatically discharges to approximately 96%

of the battery level when it is idle for one day, and approximately 60% when idle for ve days. It is normal to

feel moderate heat from the battery, while it is discharging.

3. Balanced Charging: During charging, the voltages of the battery cells are automatically balanced.

4. Overcharge Protection: The battery stops charging automatically once fully charged.

5. Temperature Detection: To prevent damage, the battery only charges when the temperature is between 5°

and 40° C (41° and 104° F). Charging stops automatically if the temperature of the battery exceeds 50° C

(122° F) during charging.

6. Overcurrent Protection: The battery stops charging if an excess current is detected.

7. Over-Discharge Protection: Discharging stops automatically to prevent excess discharge when the battery is

not in use. Over-discharge protection is not enabled when the battery is in use.

8. Short Circuit Protection: The power supply is automatically cut if a short circuit is detected.

9. Battery Cell Damage Protection: DJI goggles display a warning prompt when a damaged battery cell is

detected.

10. Hibernation Mode: The battery switches o after 20 minutes of inactivity to save power. If the battery level

is less than 10%, the battery enters Hibernation mode to prevent over-discharge after being idle for six

hours. In Hibernation mode, the battery level indicators do not illuminate. Charge the battery to wake it from

hibernation.

11. Communication: Information about the voltage, capacity, and current of the battery is transmitted to the

aircraft.

Refer to the DJI Avata Safety Guidelines and the stickers on the battery before use. Users shall take full

responsibility for all operations and usage.

Using the Battery

Checking the Battery Level

Press the power button once to check the battery level.

LED2

LED3

LED4

LED1

Battery Level LEDs

Power Button

DJI Avata

User Manual

LED1 LED2 LED3 LED4 Battery Level

89%-100%

76%-88%

64%-75%

51%-63%

39%-50%

26%-38%

14%-25%

1%-13%

Powering On/Off

Press the power button once and then press again and hold for two seconds to power the aircraft on or o. The

battery level LEDs display the battery level when the aircraft is powered on. The battery level LEDs turn o when

the aircraft is powered o.

Low Temperature Notice

1. Battery capacity is signicantly reduced when ying at low temperatures from -10° to 5° C (14° to 41° F). Make

sure to fully charge the battery before takeo.

2. Batteries cannot be used in extremely low-temperature environments lower than -10° C (14° F).

3. When in low-temperature environments, end the ight as soon as the goggles display the low battery voltage

warning.

4. To ensure optimal performance, keep the battery temperature above 20° C (68° F).

5. The reduced battery capacity in low-temperature environments reduces the wind speed resistance

performance of the aircraft. Fly with caution.

6. Fly with extra caution at high altitudes.

In cold environments, insert the battery into the battery compartment and power on the aircraft to

warm up before taking o.

Charging the Battery

Fully charge the battery before each use.

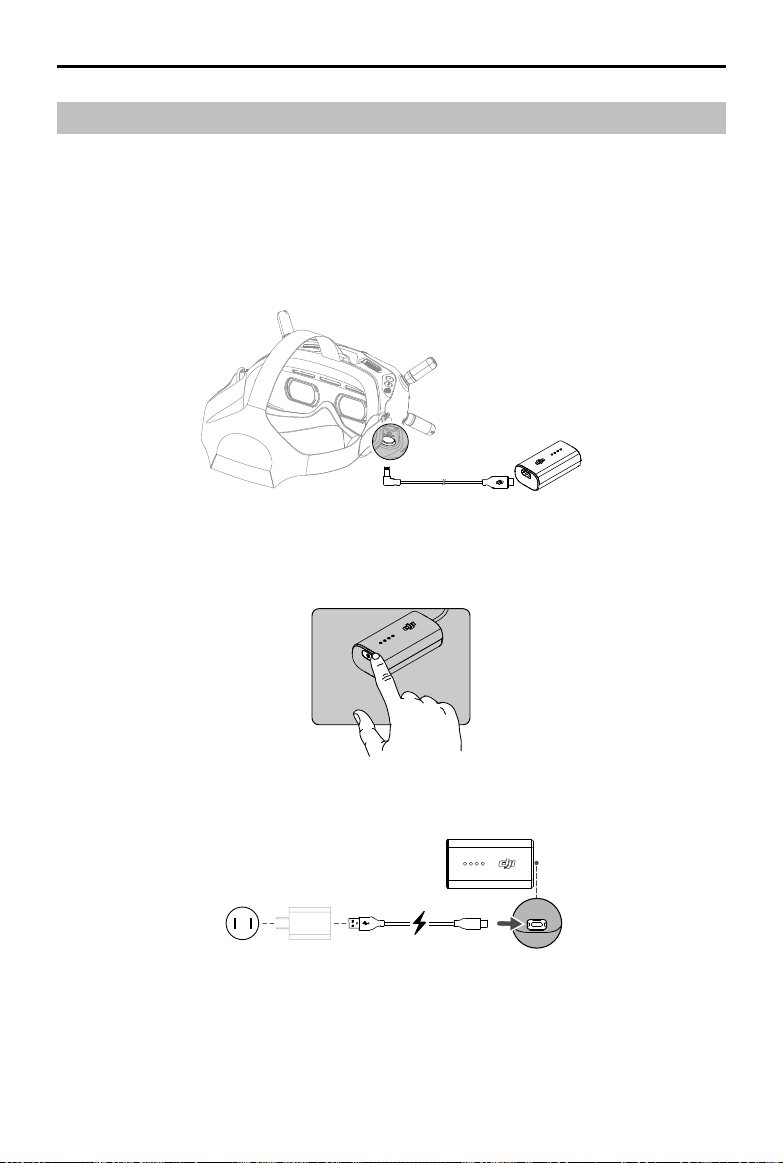

1. Charge with a USB charger and connect it to an AC outlet (100-240V, 50/60 Hz). Use a power adapter if

necessary.

2. Connect the Intelligent Flight Battery to the USB charger using DJI Avata Adapter with the battery powered o.

3. The battery level LEDs display the current battery level during charging.

4. The Intelligent Flight Battery is fully charged when all the battery level LEDs are o. Detach the adapter when

the battery is fully charged.

The battery level LEDs display the power level of the battery during charging and discharging. The

statuses of the LEDs are dened below:

LED is on. LED is o. LED is blinking.

DJI Avata

User Manual

It is recommended to use the DJI 30W USB-C Charger or other USB Power Delivery chargers.

The charging time is approximately 90 minutes.

For safety purposes, keep the batteries at a low power level in transit. Before transportation, it is

recommended to discharge the batteries to 30% or lower.

DO NOT charge an Intelligent Flight Battery immediately after ight as it may be too hot. Wait for the

battery to cool down to room temperature before charging again.

The charger stops charging the battery if the cell temperature is not within 5° to 40° C (41° to 104° F).

The ideal charging temperature is from 22° to 28° C (71.6° to 82.4° F).

The Battery Charging Hub (not included) can charge up to four batteries. Visit the ocial DJI online

store for more information.

Fully charge the battery at least once every three months to maintain battery health.

DJI does not take any responsibility for damage caused by not using DJI Avata Adapter or DJI Avata

Battery Charging Hub.

The table below shows the battery level during charging.

LED1 LED2 LED3 LED4 Battery Level

1%-50%

51%-75%

76%-99%

100%

DJI Avata Adapter Status LED Descriptions

LED Indicator Description

Solid yellow No battery attached

Pulses green Charging

Solid green Fully charged

Blinks yellow Temperature of battery too low or too high (no further operation needed)

Solid red Power supply or battery error (unplug and plug the batteries or charger to resume charging)

≥30 W

USB PD

DJI Avata

User Manual

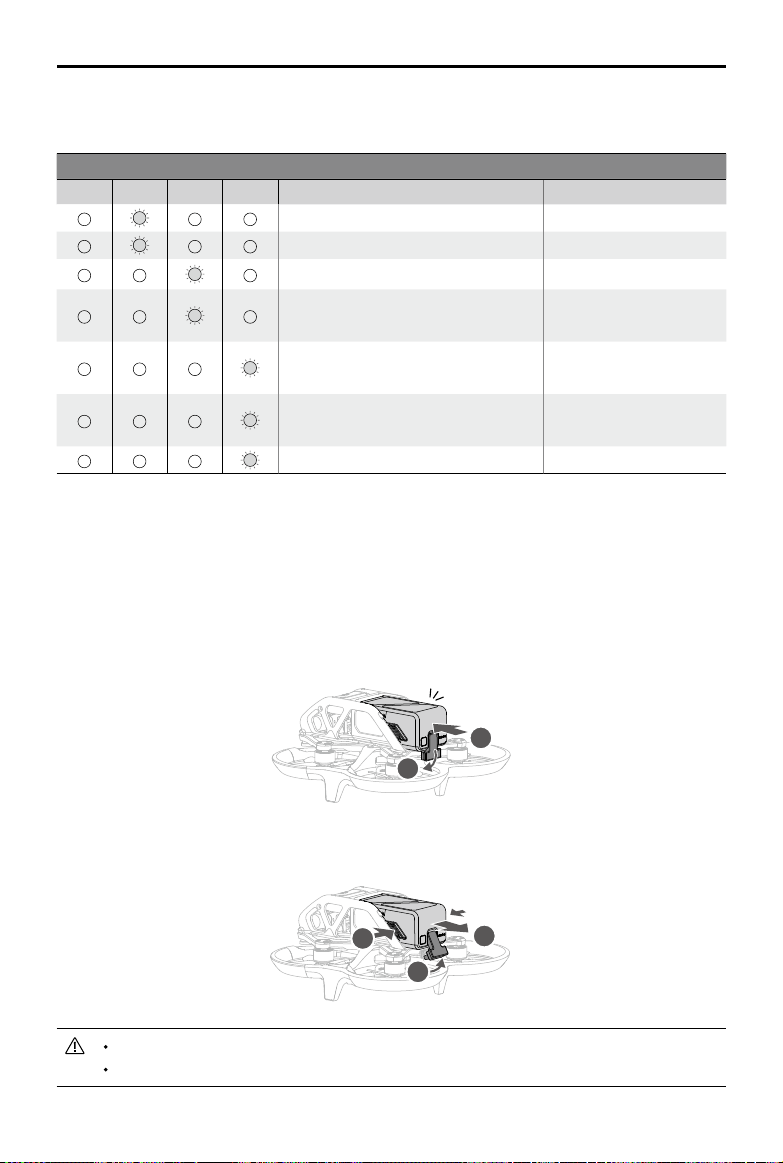

Battery Protection Mechanisms

The battery level LEDs can display battery protection notications triggered by abnormal charging conditions.

Battery Protection Mechanisms

LED1 LED2 LED3 LED4

Blinking Pattern Status

LED2 blinks twice per second Overcurrent detected

LED2 blinks three times per second System abnormal

LED3 blinks twice per second Overcharge detected

LED3 blinks three times per second

Over-voltage charger

detected

LED4 blinks twice per second

Charging temperature

is too low

LED4 blinks three times per second

Charging temperature

is too high

LED4 blinks four times per second Non-DJI adapter

If any of the battery protection mechanisms are activated, unplug the charger, and plug it in again to resume

charging. If the charging temperature is abnormal, wait for it to return to normal and the battery will automatically

resume charging without the need to unplug and plug the charger again.

Installing/Removing the Battery

Install the Intelligent Flight Battery in the aircraft before use. Insert the Intelligent Flight Battery into the battery

compartment of the aircraft. Make sure it is mounted securely and that the battery buckles are clicked into place

before connecting it to the power port.

Disconnect the power port, press the battery buckles on the sides of the Intelligent Flight Battery, and remove it

from the compartment.

Click

DO NOT insert or remove the battery while the aircraft is powered on.

Make sure the battery is mounted securely.

DJI Avata

User Manual

65°

-80°

0°

Maintenance

Return to home or land promptly if a prompt appears in the goggles that the Intelligent Flight Battery requires

maintenance.

1. Fully charge the battery.

2. Leave the battery for 24 hours.

3. Insert the battery in the aircraft and hover at an altitude of up to 2 m after takeo. When the battery reaches

20%, land the aircraft and power o, and remove the battery.

4. Leave the battery for 6 hours.

5. Maintenance should now be complete and the battery is ready to use. Repeat the steps above if the

maintenance prompt continues to appear in the goggles.

Gimbal and Camera

Gimbal Prole

The gimbal of DJI Avata stabilizes the camera and supports tilt angle adjustment, allowing you to capture clear

and steady images and videos at high ight speed. The control tilt range is -80° to +65°. Use the remote control

devices to control the tilt of the camera.

Gimbal Mode

The gimbal mode will automatically switch according to the ight mode.

Normal/Sport mode: the gimbal is in attitude stabilization mode. The tilt angle of the gimbal remains stable relative

to the horizontal plane.

Manual mode: the gimbal is in lock mode. The tilt angle of the gimbal remains stable relative to the aircraft body.

DO NOT tap or knock the gimbal after the aircraft is powered on. Launch the aircraft from open and

at ground to protect the gimbal during takeo.

Precision elements in the gimbal may be damaged in a collision or impact, which may cause the

gimbal to function abnormally.

Avoid getting dust or sand on the gimbal, especially in the gimbal motors.

A gimbal motor error may occur if the aircraft is on uneven ground, the gimbal is obstructed, or the

gimbal experiences a collision or crash.

DO NOT apply external force to the gimbal after the gimbal is powered on. DO NOT add any extra

payload to the gimbal as this may cause the gimbal to function abnormally or even lead to permanent

motor damage.

Make sure to remove the gimbal protector before powering on the aircraft. Make sure to mount the

gimbal protector when the aircraft is not in use.

Flying in heavy fog or clouds may make the gimbal wet, leading to temporary failure. The gimbal will

recover full functionality once it is dry.

DJI Avata

User Manual

Camera

DJI Avata uses a 1/1.7" CMOS sensor camera with up to 48 million eective pixels. The aperture of the lens is

F2.8, the focus range is 0.6 m to innity, and the FOV of the lens can reach 155°.

DJI Avata camera can shoot up to 4K 60fps HD video and 4K photos.

Make sure the temperature and humidity are suitable for the camera during use and storage.

Use a lens cleanser to clean the lens to avoid damage or poor image quality.

DO NOT block any ventilation holes on the gimbal and camera as the heat generated may damage the

device and cause harm.

Storing Photos and Videos

DJI Avata has 20 GB of built-in storage and supports the use of a microSD card to store photos and videos. A

UHS-I Speed Grade 3 rating or above microSD card is required due to the fast read and write speeds necessary

for high-resolution video data. Refer to the Specications for more information about recommended microSD

cards.

Photos and videos recorded by the aircraft can be previewed. Insert the microSD card of the aircraft

into the microSD card slot of the goggles.

DO NOT remove the microSD card from the aircraft while it is powered on. Otherwise, the microSD

card may be damaged.

Check camera settings before use to ensure they are congured correctly.

Before shooting important photos or videos, shoot a few images to test whether the camera is

operating correctly.

Make sure to power o the aircraft correctly. Otherwise, the camera parameters will not be saved and

any recorded videos may be aected. DJI is not responsible for any loss caused by an image or video

recorded in a way that is not machine-readable.

Goggles

DJI Goggles 2

DJI Goggles 2 are equipped with high-performance dual displays and ultra-low-latency image transmission for

use with DJI aircraft, giving you a real-time aerial FPV (First Person View) experience. The wireless streaming

function enables you to project the live-feed from your mobile phone or computer to the goggles screen, bringing

you an immersive viewing experience. DJI Goggles 2 support the Head Tracking function. With this function, the

aircraft and gimbal can be controlled through head movements. When used with the DJI Motion Controller, you

can control the aircraft and the gimbal camera freely to meet your shooting needs in various scenarios. The touch

panel enables you to easily complete operations using only one hand while watching the screen. To provide a

more comfortable experience for users who are visually impaired, the goggles support diopter adjustment so that

glasses are not required during use.

Power Supply

Use the power cable provided to connect the power port of the goggles to the goggles battery.

Press the power button once to check the current battery level.

Press once, then press again and hold for two seconds to power the goggles on or o.

It is recommended to use a USB Power Delivery charger when the battery of the googles is low.

DJI Avata

User Manual

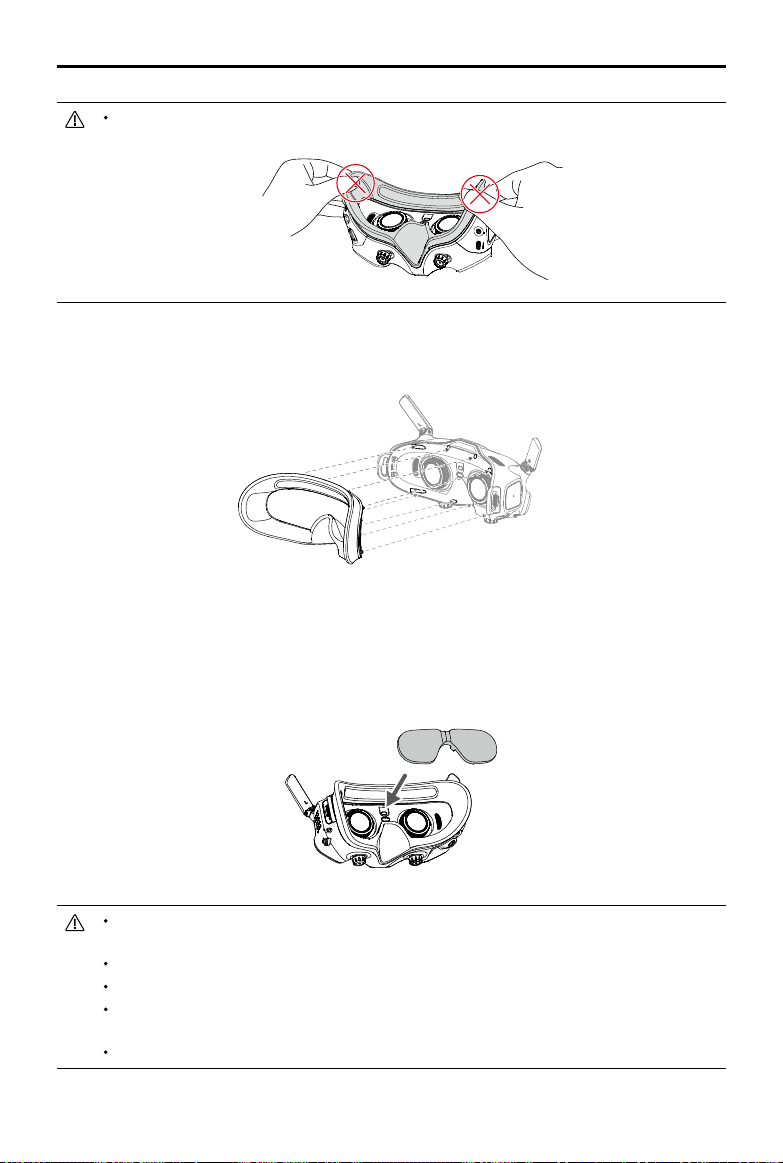

Using the Eyeglass Frames

The goggles support diopter adjustment in the range of -8.0 D to +2.0 D. The goggles do not support astigmatism

correction. If you require astigmatism correction or the goggles’ diopter is unsuitable, you can purchase additional

lenses and use the eyeglass frames to install them on the goggles.

When purchasing lenses, bring the eyeglass frames (a pair) to a professional optical shop to ensure

that the shape, size, astigmatism axis, and edge thickness (< 2.8 mm) of the lenses meet the

installation requirements of the eyeglass frames.

The overall diopter is the sum of the goggles’ diopter and the diopter of the additional lenses. Make

sure to adjust the diopter of the goggles rst and lock the knobs before installing the eyeglass frames.

If the installed lens supports astigmatism correction, do not rotate the knob after the eyeglass frame is

installed. Otherwise, the astigmatism axis will shift resulting in blurred vision. Make sure to adjust the

diopter of the goggles before installing the eyeglass frames.

1. Detach the eyeglass frame and remove the original dummy lens.

2. Install the prepared lens as shown. Make sure to distinguish the left lens and the right one.

< 2.8 mm

3. Adjust the diopter of the goggles according to your needs and lock the knobs.

For example, if you usually wear -6.0 D glasses and the self-prepared lens is -3.0 D, then you will need to

adjust the diopter of the goggles to -3.0 D to ensure that the overall diopter is -6.0 D after the eyeglass frame

is installed on the goggles.

DJI Avata

User Manual

4. Install the left and right frames onto the goggles. When installing, make sure that the mark on the top of

the frame is facing upwards, and the triangular arrow is aligned with the white dot on the upper edge of the

goggle lens.

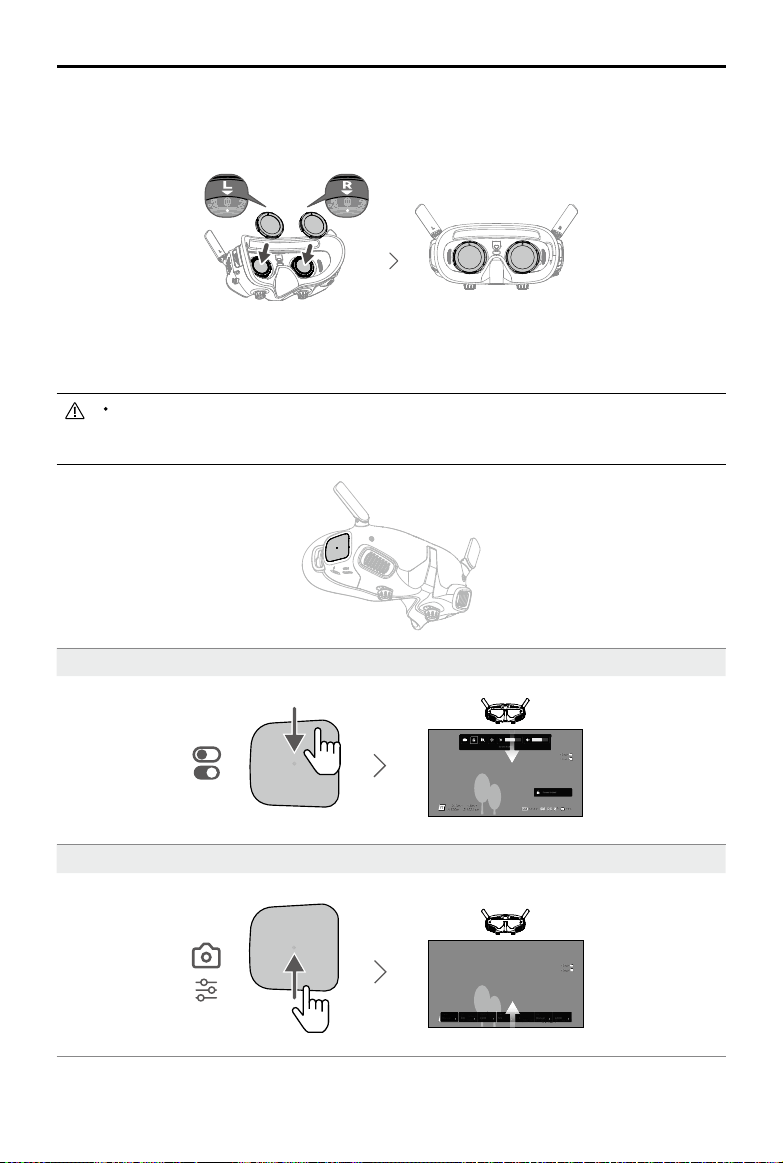

Operation

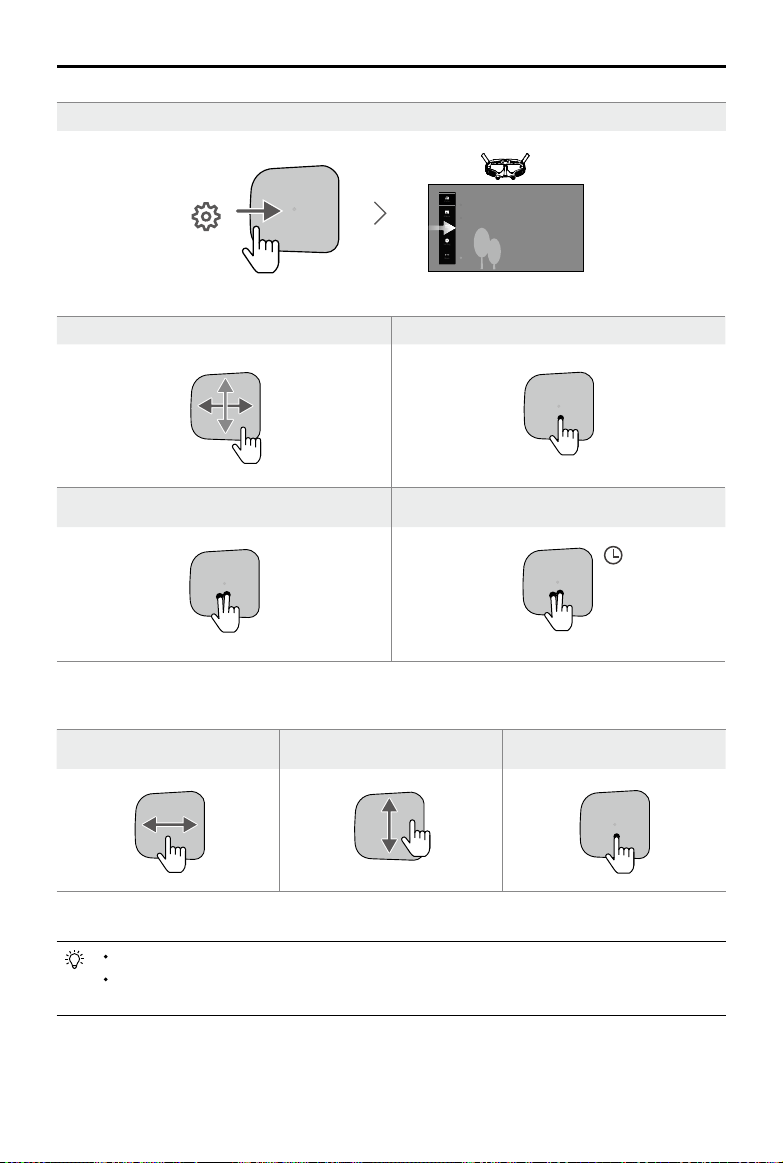

The touch panel enables you to operate with only one hand.

To ensure ight safety when using the motion controller, press the brake button once to brake and

hover before operating the touch panel of the goggles. Failure to do so is a safety risk and may lead to

the aircraft losing control or injury.

75%12'59''

Manual

Mode

300

ISO

1/200

Shuttle

5.5

Apeture

M.M

Manual

1200K

Status

Album

Transmission

Setting

Swipe down from the top: Enter the shortcut menu

15min

10min

1.8km/h

1024.4m

500m

20.5km/h

75%

12'59''

Manual

Mode

300

ISO

1/200

Shuttle

5.5

Apeture

M.M

Manual

1200K

Status

Album

Transmission

Setting

Swipe up from the bottom: Enter the camera settings

15min

10min

1.8km/h

1024.4m

500m

20.5km/h

75%

12'59''

Manual

Mode

300

ISO

1/200

Shuttle

5.5

Apeture

M.M

Manual

1200K

Status

Album

Transmission

Setting

DJI Avata

User Manual

Swipe up/down/right/left: Navigate the menu Single tap: Conrm/Select

Manual

Mode

300

ISO

1/200

Shuttle

5.5

Apeture

M.M

Manual

1200K

Status

Album

Transmission

Setting

Tap with two ngers: Back

Press and hold with two ngers on the Home Screen:

Lock/Unlock the screen

Manual

Mode

300

ISO

1/200

Shuttle

5.5

Apeture

M.M

Manual

1200K

Status

Album

Transmission

Setting

Manual

Mode

300

ISO

1/200

Shuttle

5.5

Apeture

M.M

Manual

1200K

Status

Album

Transmission

Setting

When playing video:

Swipe left/right: Control the progress

bar

Swipe up/down: Adjust volume Tap once: Pause/Play

Manual

Mode

300

ISO

1/200

Shuttle

5.5

Apeture

M.M

Manual

1200K

Status

Album

Transmission

Setting

When operating the touch panel, use slow and precise swipes to maximize function accuracy.

You can change the setting to enter the menu by swiping left to right. Go to Settings > Control > Invert

Horizontal Swipe to make the changes.

Swipe right from the left: Enter the menu

Manual

Mode

300

ISO

1/200

Shuttle

5.5

Apeture

M.M

Manual

1200K

Status

Album

Transmission

Setting

DJI Avata

User Manual

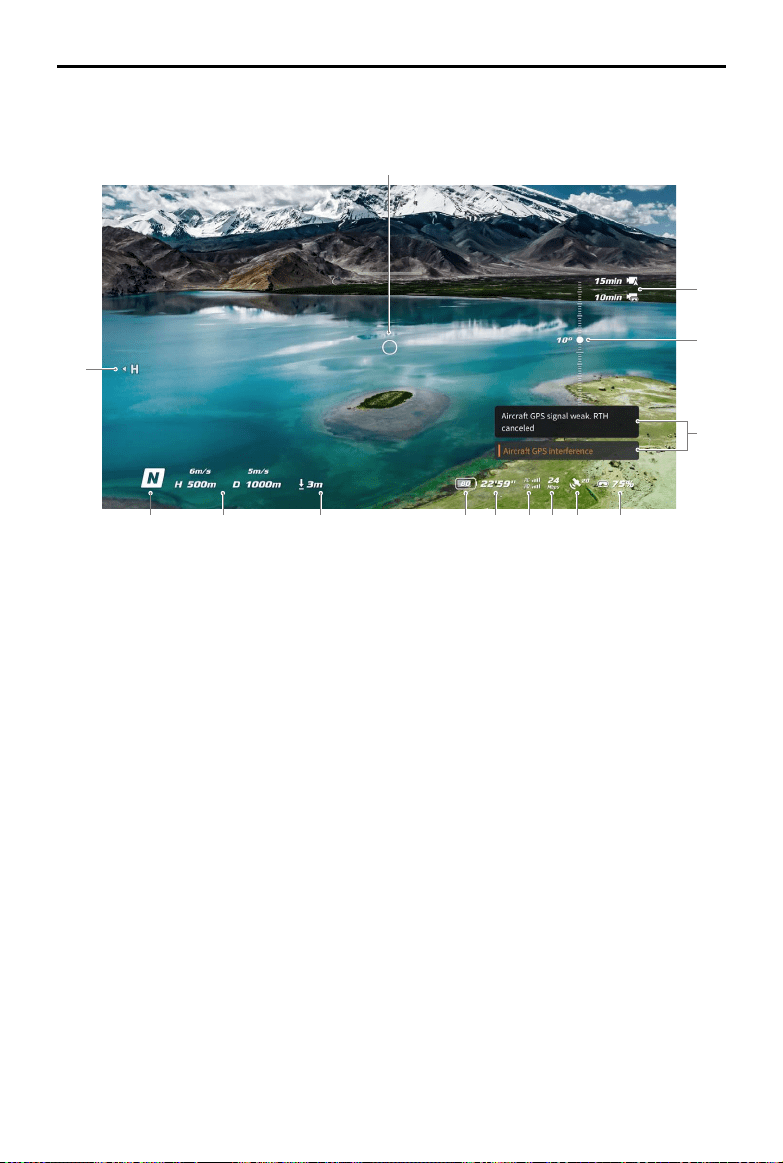

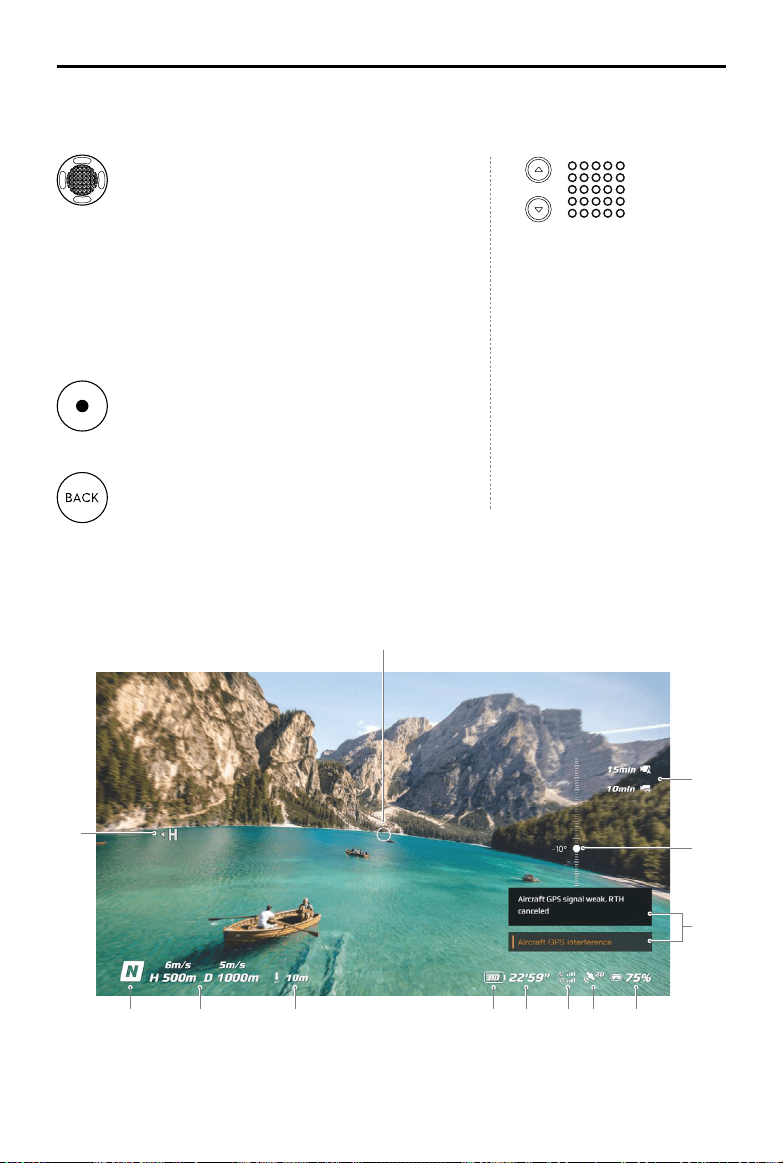

Home Screen

5678910111213

1. Flight Direction Indicator

When the motion controller is stationary, it indicates the midpoint of the screen. When the motion controller is

moved, it indicates the change of the aircraft orientation or gimbal tilt.

2. Storage Information

Displays the remaining capacity of the aircraft and goggles. A ashing icon will appear when recording.

3. Gimbal Slider

Displays the gimbal tilt angle when the gimbal slider or dial is toggled.

4. Prompts

Displays notications and information such as when a new mode is applied or battery level is low.

5. Goggles Battery Level

Displays the battery level of the goggles.

6. GNSS Status

Displays the current strength of the aircraft GNSS signal.

7. Video Bitrate

Displays the current video bitrate of the live view.

8. Remote Control Device and Video Downlink Signal Strength

Displays the remote control signal strength between the aircraft and remote control device and the video

downlink signal strength between the aircraft and the goggles.

When the remote control or image transmission signals are weak, a visual prompt will display at the bottom of

the screen. The user can keep ying or perform RTH.

Orange: moderately weak signal

Red: weak signal

DJI Avata

User Manual

9. Remaining Flight Time

Displays the remaining ight time of the aircraft after starting the motors.

10. Aircraft Battery Level

11. Distance to the Ground

Displays the current altitude information of the aircraft from the ground when the aircraft is less than 10 m

above the ground.

12. Flight Telemetry

Displays the horizontal distance (D) and speed as well as vertical distance (H) and speed between the aircraft

and the Home Point.

13. Flight Modes

Displays the current ight mode.

14. Home Point

Indicates the location of the Home Point.

The goggles will display the screen saver if they are disconnected from the aircraft and not used for an

extended period. Tap the touch panel to exit the screen saver. Reconnect the goggles to the aircraft

and image transmission will be restored.

If the devices are not used for an extended period, it may take longer than usual to search for the

GNSS signal. If the signal is unobstructed, it takes approximately 20 seconds to search for the GNSS

signal when powering on and o within a short period.

If you select to record with both the aircraft and the goggles, the storage information of both the

aircraft and goggles will be displayed on the home screen. If you select to record with only the aircraft

or goggles, only the storage information of the corresponding device will be displayed.

Shortcut Menu

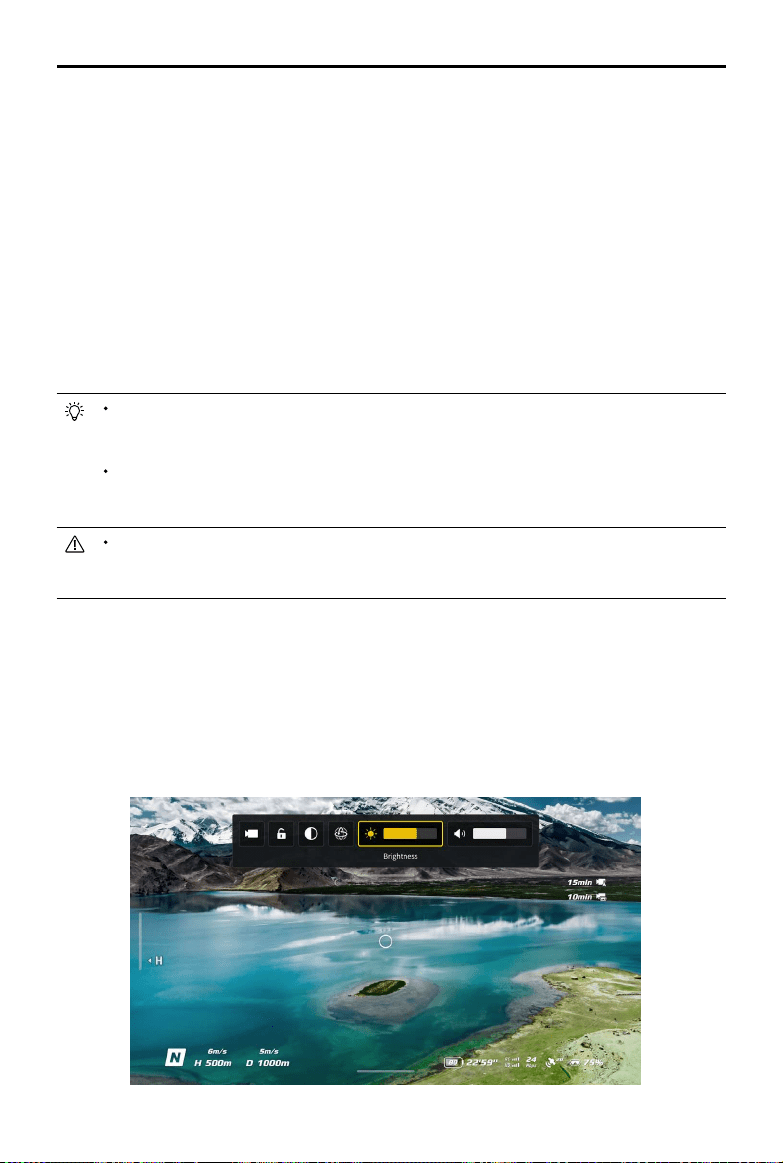

Swipe down from the top of the touch panel to enter the shortcut menu and perform the following functions:

• Start/stop recording • Lock/unlock the screen

• Enable/disable Enhanced Display • Enable/disable Head Tracking

• Adjust brightness • Adjust volume

DJI Avata

User Manual

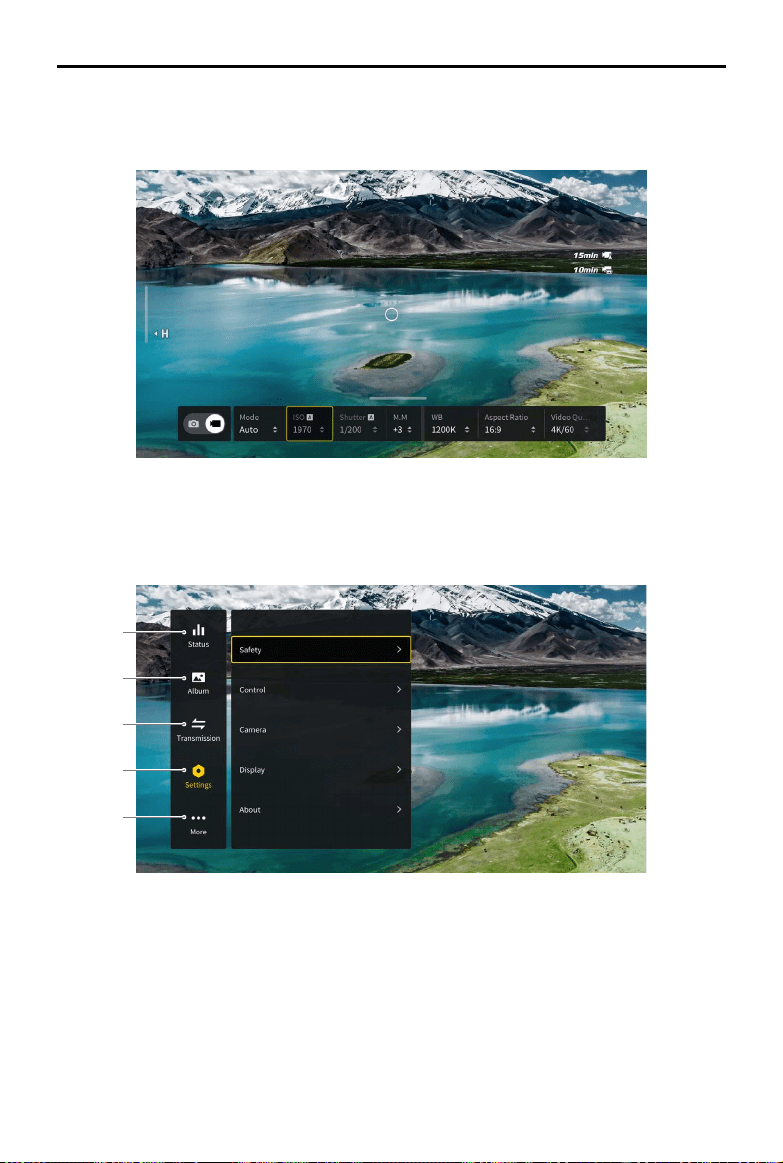

Camera Settings

Swipe up from the bottom of the touch panel to enter the camera settings to change the camera parameters.

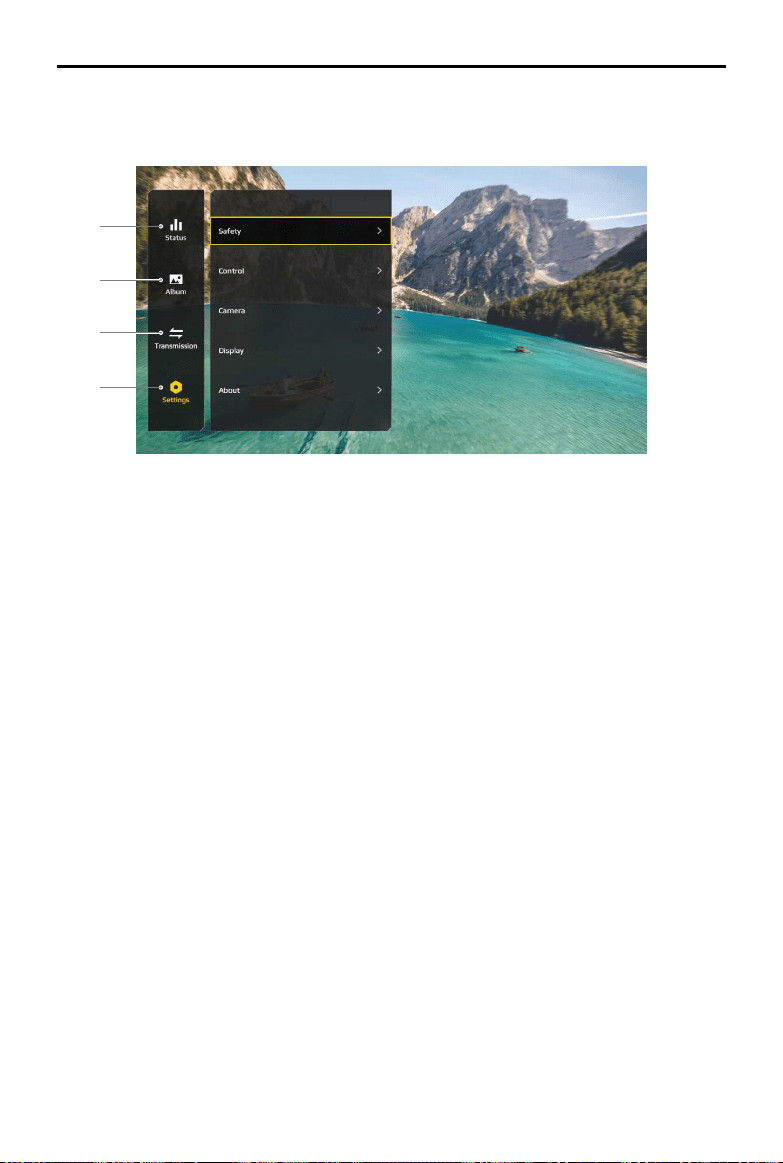

Swipe right from the left of the touch panel to open the goggles menu.

1. Status

Displays the in-use aircraft model and detailed information of prompt alerts. To change aircraft, use the switch

function in the upper right corner.

2. Album

Shows the photos or videos stored on the microSD of the goggles. Select the le and conrm to preview.

DJI Avata

User Manual

3. Transmission

The Transmission menu has a Pilot sub-menu and Audience sub-menu.

• The video transmission settings for the current device can be set under the Pilot sub-menu, including but

not limited to:

a. Enable or disable the broadcast mode. The device number will be displayed when Broadcast mode is

enabled so that other devices can nd the device and enter the channel to see the camera view.

b. Set the focus mode to on, o, or auto. If Focus mode is turned on, the center of the screen will be

clearer and the edges will be blurred.

c. Set the channel mode to auto or manual. It is recommended to select auto so that the video

transmission will intelligently select the channel with the best signal.

d. Set the frequency band. Only 5.8 GHz frequency band is supported.

e. Set the bandwidth of the video transmission. The number of channels available varies according to the

bandwidth. The channel with the best signal strength can be manually selected.

The larger the bandwidth, the more spectrum resources it occupies, which provides a higher video

transmission rate and clearer image quality. However, there will also be a higher chance of wireless

interference and the amount of equipment that can be accommodated will be more limited. To avoid

interference in a multiplayer scenario, manually select a xed bandwidth and channel.

• If any nearby video transmission device turns on the Broadcast mode, the device and its signal strength can

be viewed in the Audience sub-menu. Select a channel to see the camera view.

4. Settings

• Safety

a. Set the safety congurations such as max ight altitude, max ight distance, and RTH altitude. Users

can also update the Home Point, and view the IMU and compass status and calibrate them if necessary.

b. Find My Drone helps to nd the location of the aircraft on the ground by using the cached video in the

goggles. If the aircraft still has battery, turn on ESC beeping to help nd the aircraft using sound.

c. Advanced Safety Settings include aircraft signal lost action, enabling/disabling AirSense, and emergency

propeller stop. The aircraft can be set to hover, land, or RTH when it loses the signal from the remote

control devices. If the emergency propeller stop is enabled, the motors can be stopped mid-flight

anytime by pressing the lock button twice on the motion controller or performing a combination stick

command (CSC) on the remote controller. If the switch is disabled, the motors can only be stopped mid-

ight with the same control action in an emergency situation, such as if a collision occurs, a motor stalls,

the aircraft rolls in the air, or is out of control and is ascending or descending quickly.

Stopping the motors mid-flight will cause the aircraft to crash.

• Control

a. Set stick mode and customize functions of certain remote controller buttons in Remote Controller. The

exponential can be adjusted when using Manual mode. Users can also calibrate the remote controller.

b. Calibrate the motion controller, or view its tutorial video.

c. Calibrate the gimbal or adjust the gimbal tilt speed.

d. Set the unit, or invert horizontal swipe for the touch panel.

e. Use ip function.

f. Watch the goggles tutorial.

• Camera

a. Set video quality, camera FOV, EIS (electronic image stabilization), gridlines, enable or disable the

center point of the screen, and format the microSD card. Note that the data cannot be recovered after

formatting. Operate with caution.

b. In Advanced Camera Settings, users can set the recording device, color, and anti-icker, as well as

enable or disable auto record on takeo, and video subtitles.

c. Select Reset Camera Parameters to restore all camera settings to default.

DJI Avata

User Manual

• Display

Adjust screen brightness, zoom, and display or hide the Home Point.

• About

a. View device information, such as the serial number and the rmware of the goggles and linked devices.

b. Select the system language.

c. Select Reset All to reset the goggles and the linked devices to their default settings.

d. Select Clear All Data to clear all aircraft data, including data in the aircraft internal storage and SD card,

unlocking licenses, aircraft logs, and other user data stored on the aircraft, and the aircraft will be reset

to the default settings.

The cleared data cannot be restored. Perform with caution.

5. More

The wireless streaming function enables you to cast the video playing on the mobile device to the goggles

screen (the video player must support the screen casting function).

Using the Head Tracking Function

DJI Avata supports a head tracking function, which can be enabled by clicking in the shortcut menu of the

goggles.

After enabling the head tracking, the horizontal orientation of the aircraft and the gimbal tilt can be controlled

through head movements. The remote control device will only control the ight path of the aircraft. The gimbal will

not be able to be controlled by the remote control device.

Using the Wireless Streaming Function

The wireless streaming function enables you to project the video playing on your mobile phone or computer to the

goggles display. For this to work, the video player must support screen casting.

To use this function, open the goggles menu and select More, then tap Wireless Streaming and follow the on-

screen instructions.

DJI Avata

User Manual

DJI FPV Goggles V2

The DJI FPV Goggles V2 are equipped with a high-performance display and support 810p 120fps HD display

and real-time audio transmission. By receiving the video signal from the aircraft, users can enjoy a rst-person

view of their aerial experience in real-time. They can also be used to play videos recorded by the goggles and set

transmission, control, and camera parameters.

Power Supply

Use the included goggles power cable (USB-C) to connect the power port of the goggles to the goggles battery.

Press the power button once to check the current battery level.

Press once, then press again and hold for two seconds to power the goggles on or o.

Charge the goggles battery if the battery level is low.

5V, 1A

DJI Avata

User Manual

Operation

5D Button

Toggle the button to scroll through the menu. Press the

button to conrm.

On the home screen, press the button to enter

the menu. Toggle left or right to adjust the screen

brightness. Toggle up or down to adjust the volume.

During video playback, press the 5D button to pause or

continue, toggle the 5D button left or right to adjust the

progress bar, and toggle up or down to adjust the volume.

Shutter/Record Button

Press once to take photos or start or stop recording.

Press and hold to switch between photo and video mode.

Back Button

Press to return to the previous menu or exit the current

mode.

Channel Adjustment

Buttons

Press the up or down button to

switch channels (only available

when in manual channel mode).

Channel Display

Displays the current channel of

the goggles (will display A when

in auto channel mode).

Home Screen

56789101112

DJI Avata

User Manual

1. Flight Direction Indicator

When the motion controller is stationary, it indicates the midpoint of the screen. When the motion controller is

moved, it indicates the change of the aircraft orientation or gimbal tilt.

2. Storage Information

Displays the remaining capacity of the aircraft and goggles. A ashing icon will appear when recording.

3. Gimbal Slider

Displays the gimbal tilt angle when the gimbal slider or dial is toggled.

4. Prompts

Displays notications and information such as when a new mode is applied or battery level is low.

5. Goggles Battery Level

Displays the battery level of the goggles. The goggles will beep when the battery level is too low.

6. GNSS Status

Displays the current GNSS signal strength.

7. Remote Control Device and Video Downlink Signal Strength

Displays the remote control signal strength between the aircraft and remote control device and the video

downlink signal strength between the aircraft and the goggles.

8. Remaining Flight Time

Displays the remaining ight time of the aircraft after starting the motors.

9. Aircraft Battery Level

Displays the current battery level of the Intelligent Flight Battery on the aircraft.

10. Distance to the Ground

Displays the current altitude information of the aircraft from the ground when the aircraft is less than 10 m

above the ground.

11. Flight Telemetry

Displays the horizontal distance (D) and speed as well as vertical distance (H) and speed between the aircraft

and the Home Point.

12. Flight Modes

Displays the current ight mode.

13. Home Point

Indicates the location of the Home Point.

The goggles will display the screen saver if they are not used for an extended period or disconnected

from the aircraft. Press any button of the goggles or relink them to the aircraft to restore the video

transmission display.

If the devices are not used for an extended period, it may take longer than usual to search for the

GNSS signal. If the signal is unobstructed, it takes approximately 20 seconds to search for the GNSS

signal when powering on and o within a short period.

If you select to record with both the aircraft and the goggles, the storage information of both the

aircraft and goggles will be displayed on the home screen. If you select to record with only the aircraft

or goggles, only the storage information of the corresponding device will be displayed.

DJI Avata

User Manual

Press the 5D button on the goggles to enter the menu bar.

1. Status

Displays detailed information for current status warning prompts.

2. Album

Shows the photos or videos stored on the microSD of the goggles. Select the le and conrm to preview.

3. Transmission

The Transmission menu has a Pilot sub-menu and Audience sub-menu.

• The video transmission mode for the current device can be set under the Pilot sub-menu, including but not

limited to:
