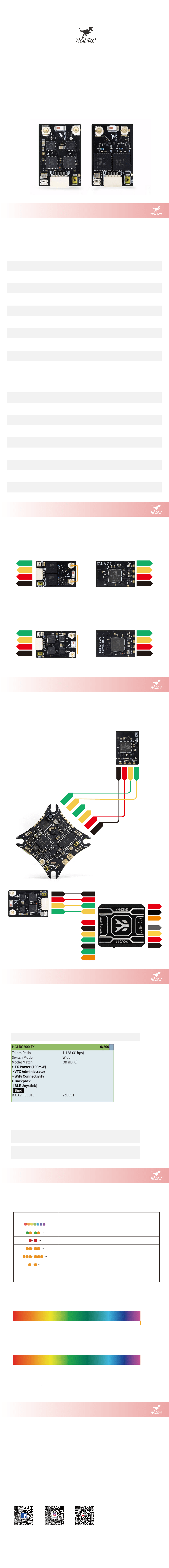

HGLRC ELRS 915Mhz/2.4Ghz
GEMINI RX Dual Receiver Manual
HGLRC ELRS 915Mhz/2.4Ghz
GEMINI RX Dual Receiver Manual
HGLRC ELRS 915Mhz/2.4Ghz
GEMINI RX Dual Receiver Manual
915Mhz product parameters
HGLRC ELRS 915Mhz/2.4Ghz
GEMINI RX Dual Receiver Manual
HGLRC ELRS 915Mhz/2.4Ghz
GEMINI RX Dual Receiver Manual
Receiver connected to
flight control definition diagram
Receiver binding steps
HGLRC ELRS 915Mhz/2.4Ghz
GEMINI RX Dual Receiver Manual
Indicator status
HGLRC ELRS 915Mhz/2.4Ghz
GEMINI RX Dual Receiver Manual
Name:HGLRC ELRS 915Mhz GEMINI RX Dual Receiver
Frequency:915Mhz
Antenna type:T-type
Chip:2XSX1276+ESP32-PICO-D4
Color:Black
Return power:50mW
Input voltage:3.6V-5.5V
Dual Antenna Connector:IPEX Generation 1
Size:22mm*15.24mm
Weight:1.5g (excluding antenna)
2.4Ghz product parameters
Name:HGLRC ELRS 2.4Ghz GEMINI RX Dual Receiver
Frequency:2.4Ghz
Antenna type:T type
Chip:ESP32+2*SX1281+TCXO
Colour:Black
Return power:2*100mW
Input voltage:3.6V-5.5V
Dual Antenna Connector:IPEX Generation 1
Size:22mmX 15.24mm
Weight:1.36g (excluding antenna)
1.Make sure the firmware version numbers of the built-in or external ELRS TX Module
are consistent. The factory version is ELRS 3.3 without password.
2.The receiver is quickly powered on and off three times (power off again after the
light is on). The power does not stop for the third time, then waiting status light
changes to double flashes, and the receiver enters binding mode.
3.After the frequency binding is successful, the receiver LED light is always on and
the telemetry signal can also be received.
4.Receiver LED status meaning: Steady light means linking is successful, double
flash means linking is in progress.
Enter the TX Module parameter adjustment script and select the Bind option
The LED flashing slowly means that the tuner signal cannot be received or
the frequency is not paired
The LED gradually flashes into wifi communication mode, and the ELRS
firmware can be updated by connecting to wifi via mobile phone and computer
GND
5V
TX
RX
GND
5V
TX
RX
T1
R1
GND
5V
T2
R2
5V
TX
GND
5V
TX
RX
GND
5V
LED
BB-
CAM
GND
10V
GND
5V
RX2
TX2
GND
5V
TX2
RX2
10V
GND
TX1
RX1
GND
RX2
VTX
GND
5V
TX
RX
GND
5V
TX
RX
HGLRC ELRS 915Mhz GEMINI RX
Dual receiving interface definition diagram
HGLRC ELRS 2.4Ghz GEMINI RX
Dual receiving interface definition diagram
RGB color Status description
Rainbow color gradient, power-on self-test
Green and orange lights flash, entering WiFi upgrade mode
The red light flashes quickly and the radio frequency chip
is not detected
Orange double flash, binding mode
Three orange flashes, connected, but does not match the
settings in model matching*
Flashing orange slowly, waiting for connection
Steady on, connected. The color indicates the refresh rate,
as shown in the figure below
* If RGB orange flashes three times, you can enter the remote control SYS → TOOS → ExpressLPS → Model MatchON
(ID:X), or set it to Model Match OFF (ID:X).
RGB color corresponding to 915M refresh rate
D50
25Hz
200Hz
100Hz Foll 100Hz
50Hz
D50 is a unique mode of ELRS Team900. Under the 200Hz refresh rate of Lora mode, the same data packet is sent four times repeatedly. The
receiving distance is equivalent to 200Hz. 100Hz Full achieves 16-channel full resolution output under the 200Hz refresh rate of Lora mode. mode,
the receiving distance is equivalent to 200Hz.
RGB color corresponding to 2.4G refresh rate
F1000
333HzF500 D500 D250
500Hz
50Hz250Hz 150Hz 100Hz
F1000 and F500 are refresh rates in FLRC mode, only ELRS 2.4G supports this mode, this mode provides faster modulation and lower latency, but the
reception distance is shorter than the ordinary Lora mode, suitable for competition: D500 and D250 is the refresh rate in DVDA (Deja Vu Diversity Aid)
mode, which works at the F1000 refresh rate in FLRC mode and provides a more reliable link connection in the presence of complex interference by
sending the same data packet multiple times. D500 and D250 indicate that the same data packet is sent twice and four times respectively.
About refresh rate settings:https://www.expresslrs.org/quick-start/transmitters/luanowto/?h=vu#packet-rate-and-telemetry-ratio18924433075
IPEX 1
IPEX 1
RGB
RGB
*When the receiver is powered on normally and is not connected to the remote control or TX Module,
short press/press the BOOT button for more than 6 seconds, the receiver will restore to factory settings.
Company name:Guangdong Huagulong Technology Co., Ltd.
After sales email:[email protected]
Official website:www.hglrc.com
Address:8th Floor, Building C1, Juntong Industrial Park, No. 9 Jiuyuan Road, Zhushan,
Dalang Town, Dongguan City, Guangdong Province 523770,China
Precautions for use
1. Pay attention to check whether the positive and negative poles are connected
correctly before powering on, so as to avoid short circuit damage to internal
components.
2. Make sure that the input voltage is within the specified range and correct to avoid
damaging internal components.
3. The temperature of the FC is relatively high. It is strictly forbidden to touch it directly
with your hands to avoid injury.
