VL60D/65D
Catalogue
1
1
- - - - - - - - - - - - - - - - - - - - - - -
What's Inside
2
2
- - - - - - - - - - - - - - - - - - - - - - - - - - -
Operation
3
8
- - - - - - - - - - - - - -
Care And Maintenance
4
9
- - - - - - - - - - - -
Error Codes & Solutions
5
11
- - - - - - - - - -
Warranty & Return Policy
6
12
- - - - - - - - - - -
Troubleshooting (Q & A)
7
17
- - - - - - - - - - - - - - - -
Safety Instructions
What's Inside
Refrigerator x1 Wired Basket x2
01
1
6 Feet 110V AC Wall
Outlet Cable X1
8 Feet 110V
DC Cigarette
Lighter Plug Cable x1
VL60D
External dimensions
(LxWxH)
Net weight
Supply voltage
Temperature setting
Insulation
Shell material
29 kg (64 lbs)
DC 12/24V & AC 110-120V & 50/60 Hz
C-pentane
Metal cabinet
792×493×478 mm
(31.2x19.5x18.9 inch)
-18°C to + 10°C (0°F to 50°F)
820×493×498 mm
(32.3x19.5x19.7 inch)
29.5 kg (65.0 lbs)
VL65DMODEL
Storage volume
60 liters (63 quarts) 65 liters (68 quarts)
Operation
2

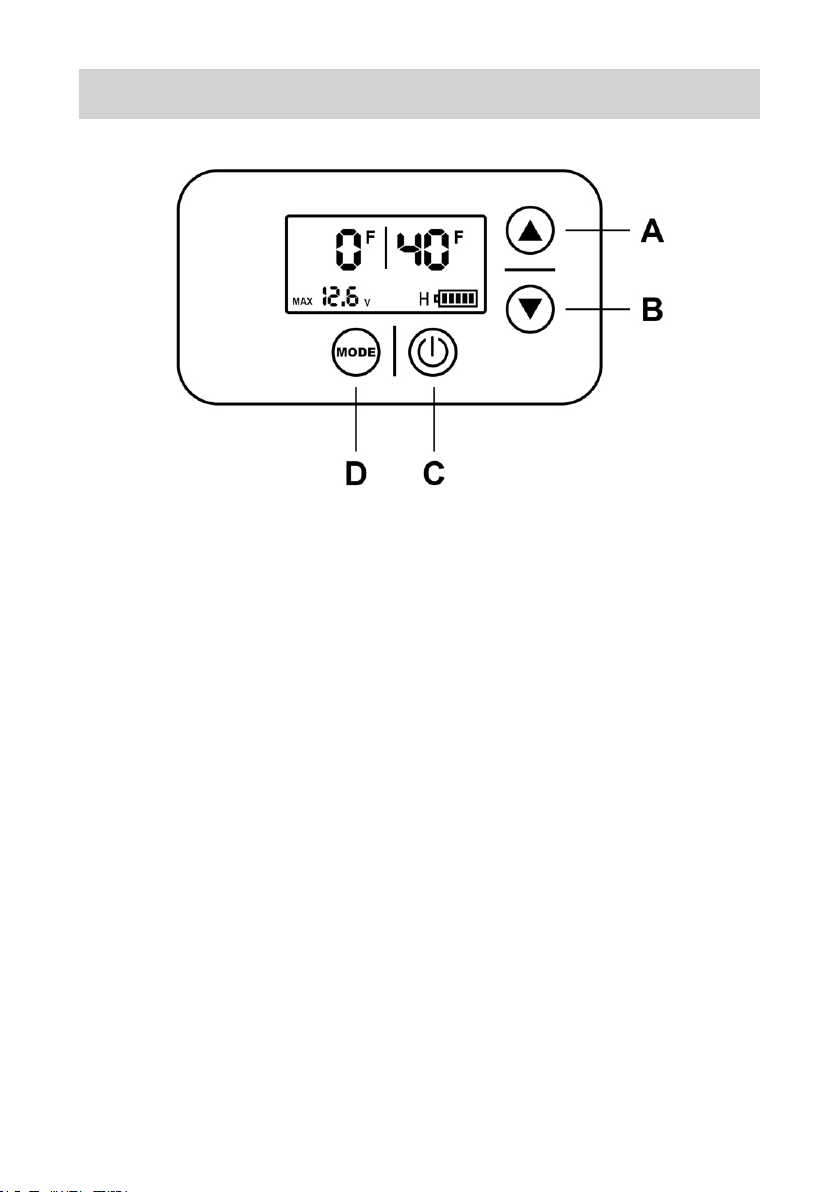

C
Power (Press & Hold to turn on/off)
D
Mode Button
A
Temp. Setting UP
B
Temp. Setting DOWN
02
LEFT
RIGHT
2.1 MAX & ECO Mode
03
After the fridge turned on(Press & Hold C/Power
Button), you can press the MODE Button D with
"MAX/ECO" flashing,press Button A/B to switch
between MAX or ECO compressor speed for the
fridge.
04
2.2 Switch Between °C to °F
With the fridge standby (plug-in, without pressing
Power Button C to turn on), press and hold
MODE Button D for 3 seconds to enter
adjustment mode. Press Button D for
times, with "F/C" flashing, press A/B to switch
between Celsius & Fahrenheit.
2.3 Power On/Off One Zone
Press and hold Temperature UP (A) or
Temperature DOWN (B) Buttons to turn on/off
one zone.
Button A for Left Zone, Button B for Right Zone.
05
06
2.4 Setting Temperature
After the fridge turned on, the fridge's CURRENT
interior temperature reading will appear on the
display, as a solid/non-flashing number.
To change the fridge's set temperature: Press
Button D with the number flashing; press
either the Temperature UP (A) or Temperature
DOWN (B) buttons to adjust the fridge's SET
temperature. Press MODE (D) to change LEFT
Zone or RIGHT Zone.
The SET temperature will appear as a
FLASHING number, and after the temperature is
SET, the display will return to showing the
fridge's CURRENT interior temperature.
07
2.5 Triple Battery Protection Operation
After the fridge turned on, press Mode Button D
with "L/M/H" flashing, press Button A/B to adjust
the level of the battery protection(L for LOW, M
for MEDIUM, H for HIGH).
NOTICE: Details of Battery Protection
Mode could be found in Page 14.
08
Care And Maintenance
3
Please use a wet cloth and warm water mixed
with gentle non-abrasive detergents to clean
the interior and exterior of your fridge.
Please power off and unplug the unit before
cleaning
Please use non-abrasive detergent to cleaning
the interior/exterior of the fridge
Please don't scrap the interior of the fridge to
defrost/de-ice the fridge
Please don't pressure-wash/spray the fridge
with a running water hose
3.1 Cleaning
3.2 DOs and DON'Ts
09
Error Codes & Solutions
4
The DC voltage is below the protection
settings and the battery protection
mode is activated.
E1
Code Description
The cooling fan is over-loaded with
more than 1A of current.
E2
Motor start error
The motor of compressor is blocked or
the pressure difference in the
refrigeration system is too high.
E3
Minimum motor speed error
The compressor is over-loaded, and the
motor cannot maintain its minimum
speed of 1850 rpms.
E4
Thermal cut-out of electronic unit
Thermal cut-out error. If the refrigeration
system overloads, or the ambient
temperature is too high, the thermal
sensor is overheated.
E5
NTC failure (open circuit)
LL
NTC failure (short circuit)
HH
10
Solutions
If this error code appears when the fridge is
operating on 12V DC, please try to lower the
battery protection setting and see if the error
is resolved. The battery protection mode may
be triggered prematurely on certain vehicles
due to small wiring imperfections, contributing
to a measured DC voltage drop at compressor
start-up. Lowering the battery protection
setting may resolve this issue.
Please also care about the reading of your
battery voltage to make sure it is not
depleted/discharged.
If possible, please connect the AC power to try
if the refrigerator appears error code.
Please contact us directly if the error persists.
11
Warranty & Return Policy
5
For returns or exchanges, please fill out the
following return and exchange registration
form in the package as a proof of return. All
materials must be returned in the original
condition and packaging. Thank you for your
cooperation.
If the product is received damaged or
defective during transportation, you need to
contact our customer service within 2
business days. Make sure to provide
relevant photos or videos, your order ID
number and your name. A customer service
agent will help assist into solving the issue
at a timely manner. (Return, Exchange, or
Discount Compensation) A free return label
will be provided if needed.
30 days refund guarantee upon receiving.
5 years warranty on the compressor.
1 year warranty for other parts or accessories.
12
Troubleshooting (Q & A)
6
1. Heat resistance & water resistance
ICECO refrigerators are engineered to operate at
an ambient temperature of up to 55 °C(131 °F).
Heat resistance
ICECO refrigerators can operate under light rain
conditions. Please keep the vents above clear
of water, and please add some clearances to
the bottom of the fridge if the ground is wet.
Weather Proof
We DO NOT recommend exposing the fridge
to moderate or heavy rain.
As with all electrical appliances, over-exposure
to moisture may shorten the fridge’s life.
Model Insulation Test
VL60D
VL65D
Ambient temperature of 25°C (77°F)，
refrigerator temperature from -18°C
(0°F) to 20°C (68°F) needs about
6-6.8 hours on average.
13
2. How long can the ICECO refrigerator
keep the temperature after powering
off?
The following data only represented the result of
the lab experiment with empty box. Everything
is based on the actual situation.
Insulation Performance
3. Why did it change back to the original
temperature after setting the
temperature?
The Solid/Non-Flashing number on the display
is the CURRENT interior temperature.
The Flashing number is your SET temperature
after adjustment. The compressor will shut off
when the SET temperature is reached.
14
4. What should I do if the refrigerator is
upside down when it is delivered?
Please leave your refrigerator upright for 24
hours to allow the compressor lubricant to
resettle before powering on the fridge.
Otherwise it may contribute to certain operation
abnormalities.
5. What is the function of triple battery
protection? How do they work?
The triple battery protection is designed to
prevent over-discharge and battery depletion.
When the measured DC voltage is below the
set value, the compressor is shut off to prevent
battery depletion.
LOW
VOLTAGE
PROTECTION
POSITION
DISPLAY
12V
CUT OFF
(V)
CUT IN
(V)
CUT OFF
(V)
CUT IN
(V)
24V
1 Bar
2 Bars
3 Bars
9.6 10.9 21.3 22.7
10.4 11.7 22.8 24.2
11.1 12.4 24.3 25.7
MED
HIGH
15
For example, when you switch to a LOW MODE,
the battery voltage is under 9.6 volts, the
refrigerator will automatically cut the power OFF;
The refrigerator will start again till the battery
voltage reached back to 10.9 volts.
6. What is the power draw in max/ fast
cooling mode?
Model
Electrical
Power
GO12
50W
Model
Electrical
Power
JP42
55W
GO20
50W
VL35
Series
65W
JP Series
60W
VL Series
85W
This data is only suitable for laboratory testing,
and the actual power is subject to actual
conditions.
VL45 ProS
45W
VL60 ProS
47W
VL75 ProD
57W
VL90 ProD
61W
16
8. What kind of cable do I need to use in
the car and at home?
The DC cable is provided. You can power it
from your vehicle's cigarette lighter plug using
the DC cable. You can also power it at home,
but you need to use with AC cable as
precondition.
9. What is the specification of the fuse
of the refrigerator?
The supply line is protected by a 15A fuse
located in the refrigerator.
Because of the sinking nature of cold air, the
different temperatures may exist in different
locations in the refrigerator (the temperature of
the bottom will be the lowest). The panel only
shows the average temperature of the refrigerator.
7. Why is there a temperature difference
(between the actual temperature of the
refrigerator and the set temperature)?
17
Safety Instruction
7
SAFETY INSTRUCTIONS
Please read the user manual and safety
instructions carefully before using the appliance.
By ignoring the safety instructions, the
manufacturer cannot be held responsible for
the damage.
The use of accessories that are not
recommended by manufacturer can cause
injuries and will invalidate any warranty that
you may have.
The appliance shall not be exposed to
moderate/heavy rain.
Place the refrigerator on a dry, secure surface,
with adaquate ventilation.
18
Do not leave the refrigerator unattended
in uncovered, outdoor areas exposed to
the elements.
！
Do not use this appliance near direct
heatsources, such as an open flame or
radiator.
！
Do not place open containers of liquid
inside the fridge.
！
Please don't put hot/warm food into the
fridge directly without letting it cooling
off. Place/arrange the content of your
fridge securely when using the refrigerator
inside a moving vehicle.
！
To maximize energy savings, please make sure
the lid is closed and secure, and only open the
fridge when you need to.
The power cable must only be replaced by
qualified technical personnel and by an
assistant body authorized by the manufacturer.
Before carrying out any maintenance operations
on the refrigerator, disconnect all power sources
from the fridge.
This appliance is suitable for camping use.
19
WARNING!
Please keep the fridge in a well ventilated
area.
！
Do not use mechanical devices or other
means to accelerate the defrosting
process, other than those recommended
by the manufacturer.
！
Do not use electrical devices inside the
food storage compartments of the
appliance, unless approved/recommended
by the manufacturer.
！
Do not store explosive items, such as
aerosol cans with a flammable propellant
in this appliance.
！
Risk of fire and electrical shock.
！
Do not let hot items touch the plastic parts
of the appliance.
！
Do not put flammable products or items in,
near or on the appliance.
！
20
Do not touch the compressor or the
condenser when the fridge is operating.
They may be very hot.
！
When setting up the appliance, ensure
the supply cord is not trapped or
damaged.
！
Further information is provided on the
technical data label inside the product.
1. This appliance is not intended for use by
persons (including children) with reduced
physical, sensory or mental capabilities, or lack
of experience and knowledge, unless they have
been given supervision or instruction concerning
use of the appliance by a person responsible for
their safety.
2. Children should be supervised to ensure that
they do not play with the appliance.
21
3. This appliance is intended to be used in
household and similar applications such as
staff kitchen areas in shops, offices and
other working environments;
farm houses and by clients in hotels, motels
and other residential type environments;
bed and breakfast type environments;
catering and similar non-retail applications.
4. If the supply cord is damaged, it must be
replaced by the manufacturer, its service agent
or similarly qualified person in order to avoid a
hazard.
5. Do not store explosive substances such as
aerosol cans with a flammable propellant in this
appliance.
6. DANGER: Risk of child entrapment. Before
you throw away your old refrigerator or freezer:
Take off the doors.
Leave the shelves in place so that
childrenmay not easily climb inside.
*
*
Cooler Than A Cooler
