HUSQVARNA AUTOMOWER
®
430XH/450XH
Read the operator's manual carefully and make sure that you
understand the instructions before you use the product.
Contents
1 Introduction
1.1 Support..................................................................3
1.2 Product description............................................... 3
1.3 Product overview...................................................4
1.4 Symbols on the product........................................ 5
1.5 Symbols on the display......................................... 5
1.6 Symbols on the battery......................................... 6
1.7 General manual instructions................................. 6
1.8 Menu structure overview 1.................................... 7
1.9 Menu structure overview 2.................................... 8
1.10 Menu structure overview 3.................................. 9
1.11 Display.............................................................. 10
1.12 Keypad.............................................................. 10
2 Safety
2.1 Safety information............................................... 11
2.2 Safety definitions.................................................12
2.3 Safety instructions for operation..........................12
3 Installation
3.1 Introduction - Installation..................................... 15
3.2 Main components for installation.........................15
3.3 General preparations.......................................... 15
3.4 Before the installation of the wires...................... 15
3.5 Installation of the product.................................... 20
3.6 To put the wire into position with stakes............. 22
3.7 To bury the boundary wire or the guide wire.......22
3.8 To extend the boundary wire or the guide wire... 22
3.9 After the installation of the product......................23
3.10 Product settings................................................ 23
3.11 Automower
®
Connect app................................ 23
3.12 Product settings with keypad and display......... 24
3.13 To get access to the menu in the display
of the product............................................................ 24
4 Operation
4.1 Main switch......................................................... 34
4.2 To start the product............................................. 34
4.3 Operating modes - Start......................................34
4.4 To park the product............................................. 35
4.5 To stop the product............................................. 35
4.6 To switch off the product..................................... 35
4.7 To charge the battery.......................................... 35
5 Maintenance
5.1 Introduction - maintenance..................................36
5.2 Clean the product................................................36
5.3 Replace the blades............................................. 37
5.4 Battery.................................................................37
5.5 Winter service..................................................... 37
6 Troubleshooting
6.1 Introduction - troubleshooting..............................38
6.2 Fault messages...................................................38
6.3 Information messages.........................................43
6.4 Indicator lamp in the charging station................. 45
6.5 Symptoms........................................................... 46
6.6 Find breaks in the loop wire................................ 47
7 Transportation, storage and disposal
7.1 Transportation..................................................... 50
7.2 Storage................................................................50
7.3 Disposal.............................................................. 50
8 Technical data
8.1 Technical data.....................................................51
8.2 Registered trademarks........................................53
9 Warranty
9.1 Warranty terms....................................................54
2 1230 - 003 - 19.03.2021
1 Introduction
Serial number:
PIN code:
The serial number is on the product rating plate and on the product carton.
• Use the serial number to register your product on www.husqvarna.com.
1.1 Support
For support about the product, speak to your Husqvarna
servicing dealer.
1.2 Product description
Note: Husqvarna regularly updates the appearance
and function of the products. Refer to
Support on page
3
.
The product is a robotic lawn mower. The product has a
battery power source and cuts the grass automatically. It
continuously alternates between mowing and charging.
The movement pattern is random, which means that the
lawn is mowed evenly and with less wear. The boundary
wire and the guide wire controls the movement of the
product within the work area. Sensors in the product
senses when it is approaching the boundary wire. The
front of the product always passes the boundary wire by
a specific distance before the product turns around.
When the product hits an obstacle or approaches the
boundary wire the product selects a new direction.
The operator selects the operation settings with the keys
on the keypad. The display shows the selected and
possible operation settings, and the operation mode of
the product.
1.2.1 Automower
®
Connect
Automower
®
Connect is a mobile application that makes
it possible to select the operation settings remotely.
Refer to
Automower
®
Connect app on page 23
.
1230 - 003 - 19.03.2021 Introduction -
3
1.3 Product overview
Automower® 430XH Automower® 450XH
23
22
28
24
25
27
26
21
31
32
30
29
4
5
2
3
1
19
20
9
11
10
12
13
14
15
16
17
6
7
8
18

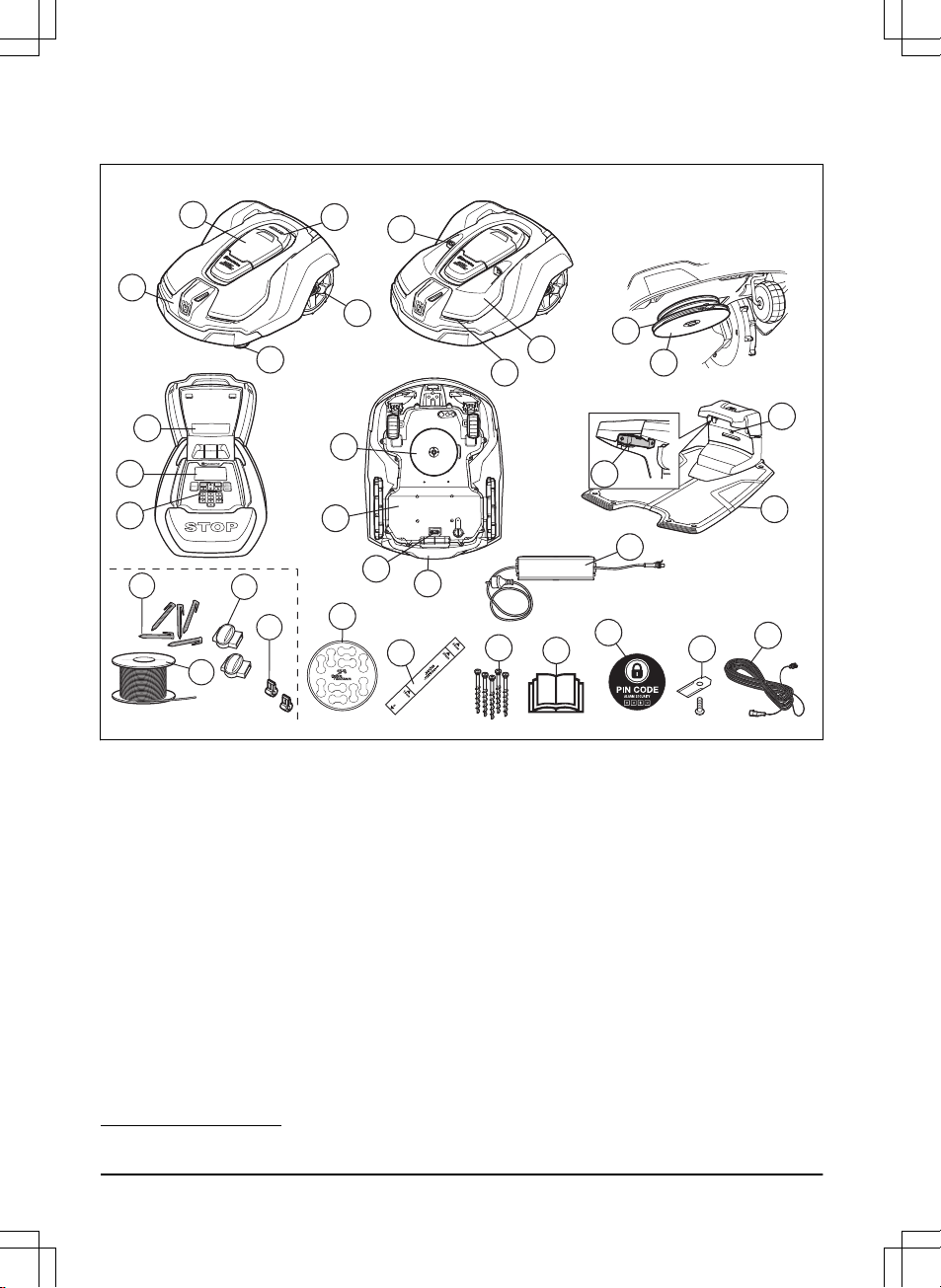

The numbers in the figure represent:
1. Body
2. Hatch to display and keypad
3. Stop button
4. Front wheels
5. Rear wheels
6. Ultrasonic sensors
7. Headlights
8. Replaceable cover
9. Rating plate (incl. product identification code)
10. Display
11. Keypad
12. Cutting system
13. Chassis box with electronics, battery and motors
14. Main switch
15. Handle
16. Blade disc
17. Skid plate
18. Contact plates
19. LED for operation check of the charging station
and boundary wire
20. Charging station
21. Power supply
1
22. Cable markers
23. Measurement gauge when installing the boundary
wire (the measurement gauge is broken loose from
the box)
24. Screws for securing the charging station
25. Operator’s Manual and Quick Guide
26. Alarm decal
27. Extra blades
28. Low voltage cable
1
The appearance may differ depending on market.
4 - Introduction 1230 - 003 - 19.03.2021
29. Couplers for the loop wire
2
30. Loop wire for boundary loop and guide wire
3
31. Stakes
4
32. Connectors for the loop wire
5

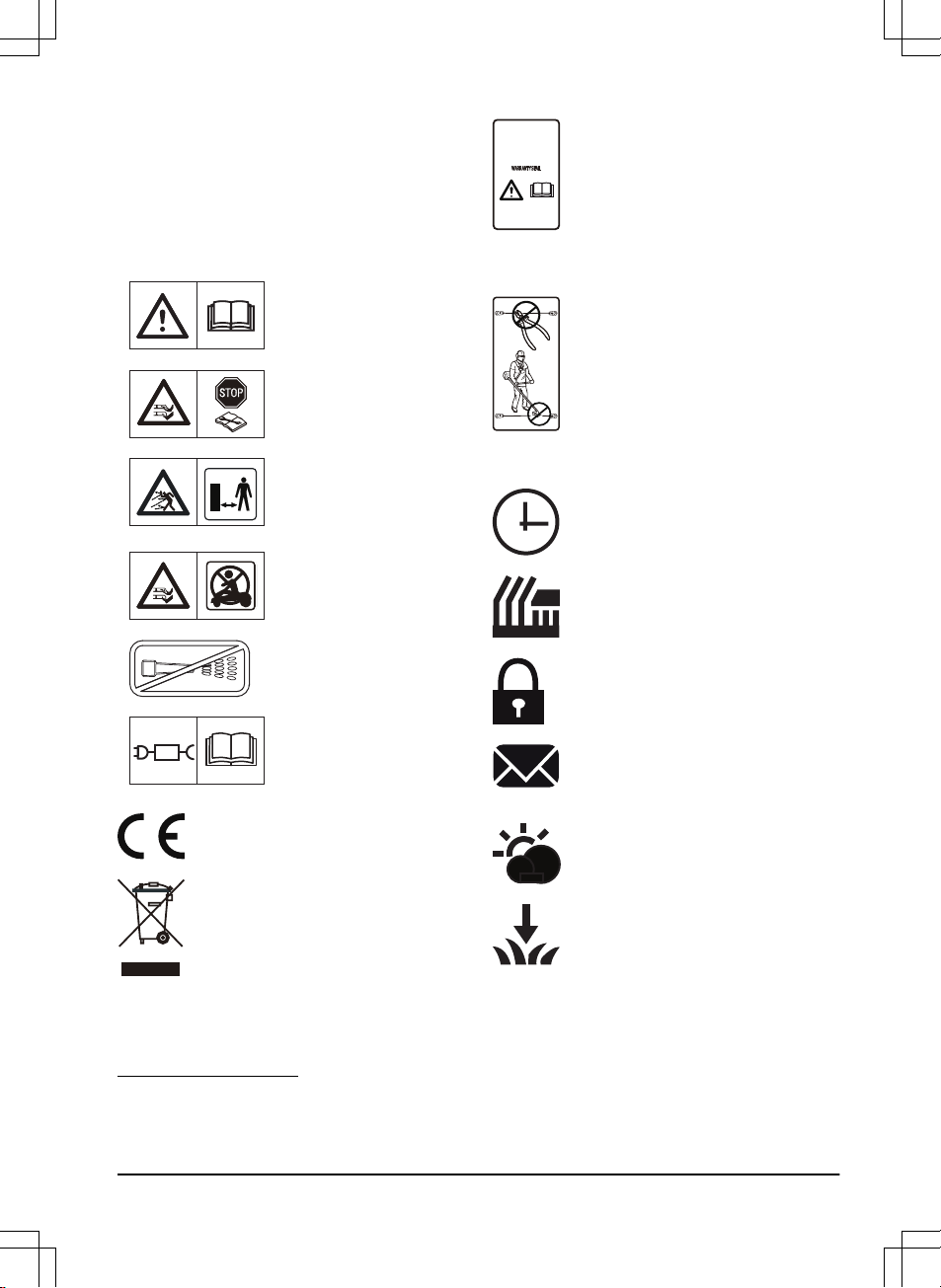

1.4 Symbols on the product
These symbols can be found on the product. Study them
carefully.
WARNING: Read the user in-
structions before operating
the product.
WARNING: Disable the prod-
uct before working on or lift-
ing the product.
WARNING: Keep a safe dis-
tance from the product when
operating. Keep your hands
and feet away from the rotat-
ing blades.
WARNING: Do not ride on
the product. Do not put your
hands or feet close to or un-
der the product.
Do not use a high-pressure
washer or even running water
to clean the product.
Use a detachable power sup-
ply as defined on the rating
label next to the symbol.
This product conforms to the applicable
EC Directives.
It is not permitted to dispose this product
as normal household waste. Ensure that
the product is recycled in accordance with
local legal requirements.
The chassis contains components which
are sensitive to electrostatic discharge
(ESD). The chassis must also be resealed
in a professional manner. For these
reasons the chassis shall only be opened
by authorized service technicians. A
broken seal can result in the entire or
parts of the guarantee no longer being
valid.
The low-voltage cable must not be
shortened, extended or spliced.
Do not use a trimmer nearby the low-
voltage cable. Be careful when trimming
edges where the cables are placed.
1.5 Symbols on the display
In the schedule menu you can set when
the product will cut the lawn.
In the cutting height menu you can set the
cutting height of the product.
In the security menu you can select
between 3 security levels for the product.
In the messages menu you can find the
Fault messages
and
Info messages
of the
product.
The Weather timer function automatically
adapts the cutting intervals to the grass
growth.
In the installation menu you can set
manual settings for the installation of the
product.
2
Is a part of the Installation kit which is purchased separately.
3
See note 2
4
See note 2
5
See note 2
1230 - 003 - 19.03.2021 Introduction -
5
In the settings menu you can set the
general settings of the product.
In the accessories menu you can set the
settings for the accessories of the product.
The schedule is set for the product to not
cut the grass.
The product overrides the schedule.
The battery indicator shows the charge
level of the battery. When the product
charges the symbol flashes.
The product is in the charging station but
do not charge the battery.
The product is set in ECO-mode.
Bluetooth
®
wireless communication with
your mobile device.
The GPS-supported navigation is active.
Flashes as it collects GPS information.
The GPS-supported navigation is not
active.
The signal strength of the GPRS
reception.
Problem with the connection to the
Internet server.
Problem with the SIM card or the module.
1.6 Symbols on the battery
Read the user instructions.
Do not discard the battery into fire and do
not expose the battery to a heat source.
Do not immerse the battery into water.
1.7 General manual instructions
The following system is used in the Operator’s Manual
to make it easier to use:
• Text written in
italics
is a text that is shown in the
display or is a reference to another section in the
Operator’s Manual.
• Text written in bold is one of the buttons on the
product.
6 - Introduction 1230 - 003 - 19.03.2021
1.8 Menu structure overview 1
Security
Low Medium High Custom
Duration
Duration
of alarm
Duration
of time lock
Change
PIN code
New loop
signal
Security level
Fault
messages
Info
messages
Messages
Advanced
Schedule
Overview (per day)
Overview Schedule settings
Cutting height
Cutting height
Period 1 Period 2 Copy to
Su Current
day
All weekSaFrThWeTuMoAll
days
Reset
1230 - 003 - 19.03.2021 Introduction - 7
1.9 Menu structure overview 2
Use
Low Medium High
Cutting time
Weather timer
Installation
Lawn
coverage
GPS Auto
Overview of
lawn coverage
Area 1-5
Find charging station
Overview of search method
Guide
Delay time
Test
Reset
Test
left
Test
right
Reset
Disable
Delay time
More
Disable
More
Boundary
Charger
Charging
station range
How?
How
often?
How
far?
Disable
ResetTest
More
Exit
angles
Corridor
width
Reversing
distance
Drive past
wire
Advanced
8 - Introduction 1230 - 003 - 19.03.2021
1.10 Menu structure overview 3
Settings
ECO mode
Use
Profiles
Select Rename
Save
Profile A,
B or C
Time &
date
Set time Set date Time format
Date format
Language Country &
Timezone
Reset all
user setting
About
LowLow-
High High+Medium
Intensity
Spiral cutting General
Use Use
Headlights
Ultrasonic
(450XH)
Accessories
Automower
Connect
Mower
house
Information
Slope control
Use
Use Aviod collision with
mower house
Pairing Geofence
Communication Network Reset
Use
Headlight
Schedule
Flashes when fault
1230 - 003 - 19.03.2021 Introduction - 9
1.11 Display
The display on the product shows information and
settings of the product.
To access the display, push the
STOP button.
1.12 Keypad
Use the keypad on the product to navigate in the menu.
To access the keypad, push the
STOP button.
• Use the START button (A) to start the operation of
the product.
• Use the BACK button (B) to move up in the menu
lists.
• Use the arrow buttons (C) to navigate in the menu.
• Use the OK button (D) to confirm the settings you
select in the menus.
• Use the MENU button (E) to go to the main menu.
• Use the PARK button (F) to send the product to
the charging station.
• Use the number buttons (G) to enter PIN code,
time and date.
A E
F
B D
C
G
10 - Introduction 1230 - 003 - 19.03.2021
2 Safety
2.1 Safety information
2.1.1 IMPORTANT. READ CAREFULLY
BEFORE USE. KEEP FOR FUTURE
REFERENCE
The operator is responsible for accidents or hazards occurring to
other people or property.
This appliance is not intended for use by persons (including
children) with reduced physical, sensory or mental capabilities (that
could affect a safe handling of the product), or lack of experience
and knowledge, unless they have been given supervision or
instruction concerning use of the appliance by a person
responsible for their safety.
This appliance can be used by children aged from 8 years and
above and persons with reduced physical, sensory or mental
capabilities or lack of experience and knowledge if they have been
given supervision or instruction concerning use of the appliance in
a safe way and understand the hazards involved. Local regulations
may restrict the age of the operator. Cleaning and maintenance
shall not be made by children without supervision.
Never connect the power supply to an outlet if the plug or cord is
damaged. Worn or damaged cord increase the risk of electric
shock.
Only charge the battery in the included charging station. Incorrect
use may result in electric shock, overheating or leaking of
corrosive liquid from the battery. In the event of leakage of
electrolyte, flush with water/neutralizing agent. Seek medical help if
it comes in contact with the eyes.
Use only original batteries recommended by the manufacturer.
Product safety cannot be guaranteed with other than original
batteries. Do not use non-rechargeable batteries.
1230 - 003 - 19.03.2021 Safety -
11
The appliance must be disconnected from the supply mains when
removing the battery.
WARNING: The product
can be dangerous if used
incorrectly.
WARNING: Do not use
the product when
persons, especially
children, or animals are
in the work area.
WARNING: Keep your
hands and feet away
from the rotating blades.
Never put your hands or
feet close to or under the
product when it is
switched on.
WARNING: In the event
of an injury or accident
seek medical help.
2.2 Safety definitions
Warnings, cautions and notes are used to point out
specially important parts of the manual.
WARNING: Used if there is a risk of
injury or death for the operator or bystanders
if the instructions in the manual are not
obeyed.
CAUTION: Used if there is a risk of
damage to the product, other materials or
the adjacent area if the instructions in the
manual are not obeyed.
Note: Used to give more information that is necessary
in a given situation.
2.3 Safety instructions for operation
2.3.1 Use
• The product may only be used with the equipment
recommended by the manufacturer. All other types
of use are incorrect. The manufacturer’s
instructions with regard to operation/maintenance
must be followed precisely.
• Warning signs shall be placed around the work
area of the product if it is used in public areas. The
signs shall have the following text:
Warning!
Automatic lawnmower! Keep away from the
machine! Supervise children!
Warning!
Automatic lawnmower!
Keep away from the machine!
Supervise children!
Warning!
Automatic lawnmower!
Keep away from the machine!
Supervise children!
• Use the park mode, refer to
To park the product on
page 35
or switch off the product when persons,
especially children or animals are in the work area.
Refer to
To switch off the product on page 35
. It
is recommended to program the product for use
during hours when the area is free from activity.
Refer to
Schedule on page 24
. Consider that
certain animals, e.g. hedgehogs, are active at
night. They can potentially be harmed by the
product.
• Do not install the charging station, including any
accessory, at a location that is below, or within 60
cm / 24 in. from, any combustible material. Do not
install the power supply unit in easily flammable
surroundings. In case of malfunction, heating of
12 - Safety 1230 - 003 - 19.03.2021
the charging station and the power supply may
occur and create a potential risk of fire.
• The product may only be operated, maintained and
repaired by persons that are fully conversant with
its special characteristics and safety regulations.
Please read the Operator’s Manual carefully and
make sure you understand the instructions before
using the product.
• It is not permitted to modify the original design of
the product. All modifications are made at your
own risk.
• Check that there are no foreign objects such as
stones, branches, tools or toys on the lawn. If the
blades hit foreign objects the blades can be
damaged. Always switch off the product with the
main switch before clearing a blockage. Inspect
the product for damage before staring the product
again.
• If the product starts to vibrate abnormally, switch
off the product with the main switch. Examine the
product for damages before you start the product
again.
• Start the product according to the instructions.
When the product is switched on, make sure to
keep your hands and feet away from the rotating
blades. Never put your hands and feet under the
product.
• Never touch moving hazardous parts, such as the
blade disc, before it has come to a complete stop.
• Never lift up the product or carry it around when it
is switched on.
• Do not let persons who do not know how the
product works and behaves use it.
• The product must never be allowed to collide with
persons or other living creatures. If a person or
other living creature comes in the product’s way it
shall be stopped immediately. Refer to
To stop the
product on page 35
.
• Do not put anything on top of the product or its
charging station.
• Do not allow the product to be used with a
defective guard, blade disc or body. Neither should
it be used with defective blades, screws, nuts or
cables. Never connect a damaged cable, or touch
a damaged cable before it is disconnected from
the supply.
• Do not use the product if the
Main switch does not
work.
• Always switch off the product using the
Main
switch when the product is not in use. The product
can only start when the Main switch has been
switched on and the correct PIN code has been
entered.
• Husqvarna
®
does not guarantee full compatibility
between the product and other types of wireless
systems such as remote controls, radio
transmitters, hearing loops, underground electric
animal fencing or similar.
• Metal objects in the ground (for example reinforced
concrete or anti-mole nets) can result in a
stoppage. The metal objects can cause
interference with the loop signal which then can
lead to a stoppage.
• Operation and storage temperature is 0-50 °C /
32-122 °F. Temperature range for charging is 0-45
°C / 32-113 °F. Too high temperatures might cause
damage to the product.
2.3.2 Battery safety
WARNING: Lithium-ion batteries can
explode or cause fire if disassembled, short-
circuited, exposed to water, fire, or high
temperatures. Handle carefully, do not
dismantle, open the battery or use any type
of electrical/mechanical abuse. Avoid
storage in direct sunlight.
For more information about the battery, refer to
Battery
on page 37
2.3.3 How to lift and move the product
WARNING: The product must be
switched off before lifting it. The product is
disabled when the
Main switch is in position
0
.
CAUTION: Do not lift the product when
it is parked in the charging station. It can
damage the charging station and/or the
product. Push
STOP and pull the product
out of the charging station before lifting it.
To safely move from or within the work area:
1. Push the STOP button to stop the product.
1230 - 003 - 19.03.2021 Safety -
13

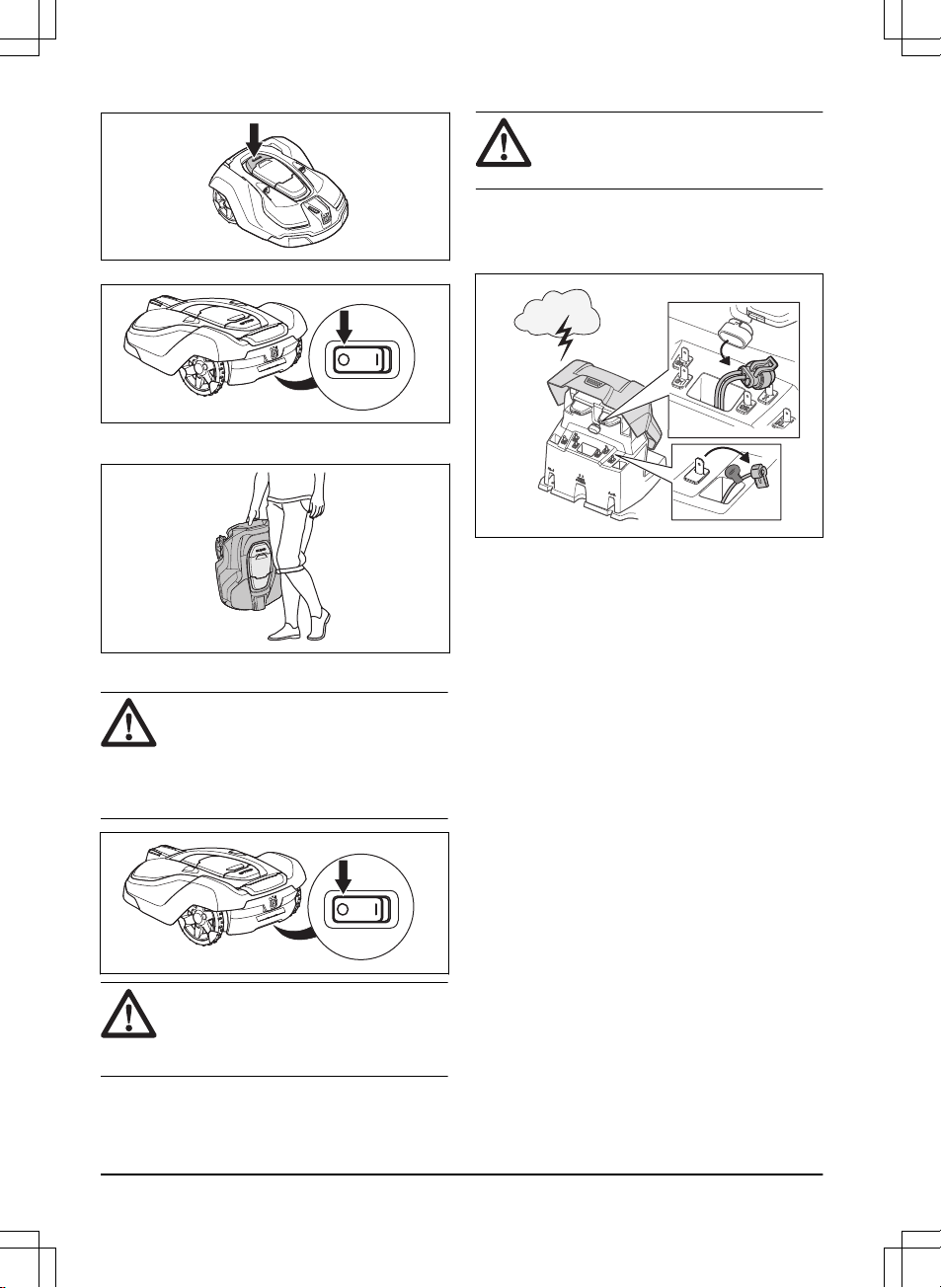

2. Set the main switch in position
0
.
3. Carry the product by the handle with the blade disc
away from the body.
2.3.4 Maintenance
WARNING: The product must be
switched off before any maintenance is
done. Use the plug to disconnect the
charging station before any cleaning or
maintenance of the charging station or the
loop wire.
WARNING: Use the plug to disconnect
the charging station before any cleaning or
maintenance of the charging station or the
loop wire.
CAUTION: Never use a high-pressure
washer or even running water to clean the
product. Never use solvents for cleaning.
Inspect the product weekly and replace any damaged or
worn parts. Refer to
Maintenance on page 36
.
2.3.5 In the event of a thunderstorm
To reduce the risk of damage to electrical components
in the product and the charging station, we recommend
that all connections to the charging station are
disconnected (power supply, boundary wire and guide
wire) if there is a risk of a thunderstorm.
1. Mark the wires to simplify reconnecting. The
charging station’s connections are marked AR, AL
and G1/G2/G3.
2. Disconnect all connected wires and the power
supply.
3. Connect all the wires and the power supply if there
is no longer a risk of thunder. It is important that
each wire is connected to the right place.
14 - Safety 1230 - 003 - 19.03.2021
3 Installation
3.1 Introduction - Installation
WARNING: Read and understand the
safety chapter before you install the product.
CAUTION: Use original spare parts and
installation material.
Note: Refer to www.husqvarna.com for more
information about installation.
3.2 Main components for installation
The installation involves the following components:
• A robotic lawn mower that mows the lawn
automatically.
• A charging station, which has 3 functions:
• To send control signals along the boundary
wire.
• To send control signals along the guide wire
so that the product can follow the guide wire
to specific remote areas in the garden and
can find its way back to the charging station.
• To charge the product.
• A power supply, which is connected to the
charging station and a 100-240V power outlet.
• Loop wire, which is laid around the work area and
around objects and plants that the product must
not run into. The loop wire is used both as
boundary wire and guide wire.
3.3 General preparations
CAUTION: Holes with water in the lawn
can cause damage to the product.
Note: Read through the Installation chapter before
beginning the installation. How the installation is done
affects how the product performs. It is therefore
important to plan the installation carefully.
• Make a blueprint of the work area and include all
obstacles. This makes it easier to see the ideal
positions for the charging station, the boundary
wire and the guide wire.
• Make a mark on the blueprint where to put the
charging station, the boundary wire and the guide
wire.
• Make a mark on the blueprint where the guide wire
connects to the boundary wire. Refer to
To install
the guide wire on page 21
.
• Fill in holes in the lawn.
• Cut the grass before you install the product. Make
sure that the grass is maximum 10 cm / 3.9 in.
Note: The first weeks after installation the perceived
sound level when cutting the grass may be higher than
expected. When the product has cut the grass for some
time, the perceived sound level is much lower.
3.4 Before the installation of the wires
You can select to attach the wires with stakes or bury
them. You can use the 2 procedures for the same work
area.
CAUTION: If you use a dethatcher in
the work area, bury the boundary wire and
the guide wire to prevent them from
damage.
3.4.1 To examine where to put the charging
station
• Keep a minimum 3 m / 10 ft. of free space in front
of the charging station. Refer to
To examine where
to put the guide wire on page 19
.
• Keep a minimum of 150 cm / 60 in. of free space to
the right and left of the center of the charging
station.
• Put the charging station near a power outlet.
• Put the charging station on a level surface.
• The baseplate of the charging station must not be
bent.
max. 5 cm / 2"
max. 5 cm / 2"
• If the work area has two parts separated with a
steep slope, we recommend to put the charging
station in the lower section.
1230 - 003 - 19.03.2021 Installation -
15

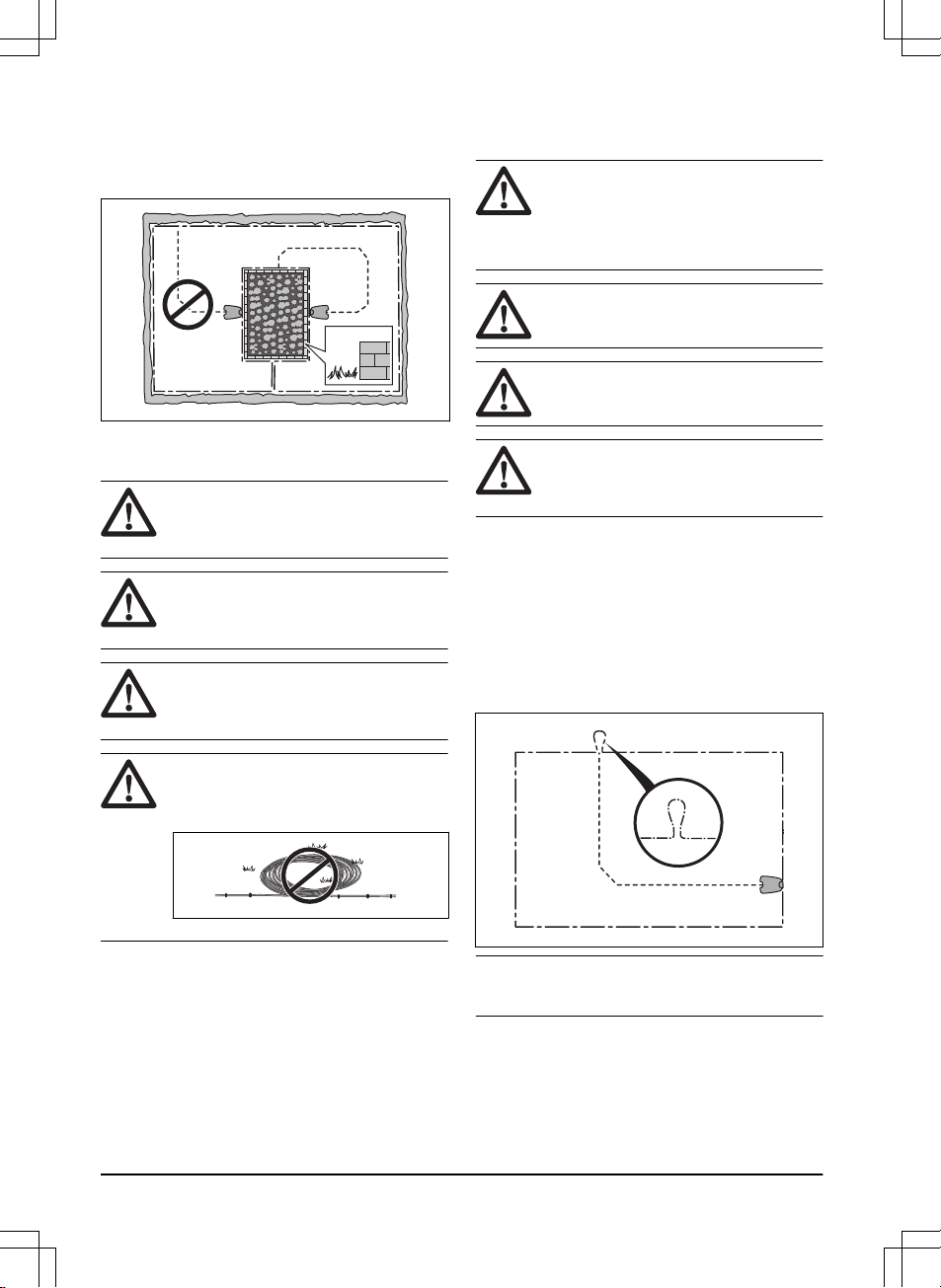

• Put the charging station in an area with protection
from the sun.
• If the charging station is installed on an island,
make sure to connect the guide wire to the island.
Refer to
To make an island on page 18
.
3.4.2 To examine where to put the power
supply
WARNING: Do not cut or extend the
low-voltage cable. There is a risk of
electrical shock.
CAUTION: Make sure that the blades
on the product do not cut the low-voltage
cable.
WARNING: The power supply cable
and extension cable must be outside the
work area to avoid damage to the cables.
CAUTION: Do not put the low-voltage
cable in a coil or below the charging station
plate. The coil causes interference with the
signal from the charging station.
• Put the power supply in an area with a roof and
protection from the sun and rain.
• Put the power supply in an area with good airflow.
• Use a residual-current device (RCD) with a tripping
current of maximum 30 mA when you connect the
power supply to the power outlet.
Low-voltage cables of different lengths are available as
accessories.
3.4.3 To examine where to put the
boundary wire
CAUTION: If the work area is adjacent
to water bodies, slopes, precipices or a
public road, the boundary wire must have a
protective wall. The wall must be minimum
15 cm / 6 in. in height.
CAUTION: Do not let the product
operate on gravel.
CAUTION: Do not make sharp bends
when you install the boundary wire.
CAUTION: For careful operation
without noise, isolate all obstacles such as
trees, roots and stones.
The boundary wire should be put as a loop around the
work area. Sensors in the product senses when the
product approaches the boundary wire, and the product
selects another direction. All parts of the work area must
be maximum 15 m / 50 ft. from the boundary wire.
To make the connection easier between the guide wire
and the boundary wire, it is recommended to make an
eyelet where the guide wire will be connected. Make the
eyelet with approximately 20 cm / 8 in. of the boundary
wire.
Note: Make a blueprint of the work area before you
install the boundary wire and guide wire.
16 - Installation 1230 - 003 - 19.03.2021

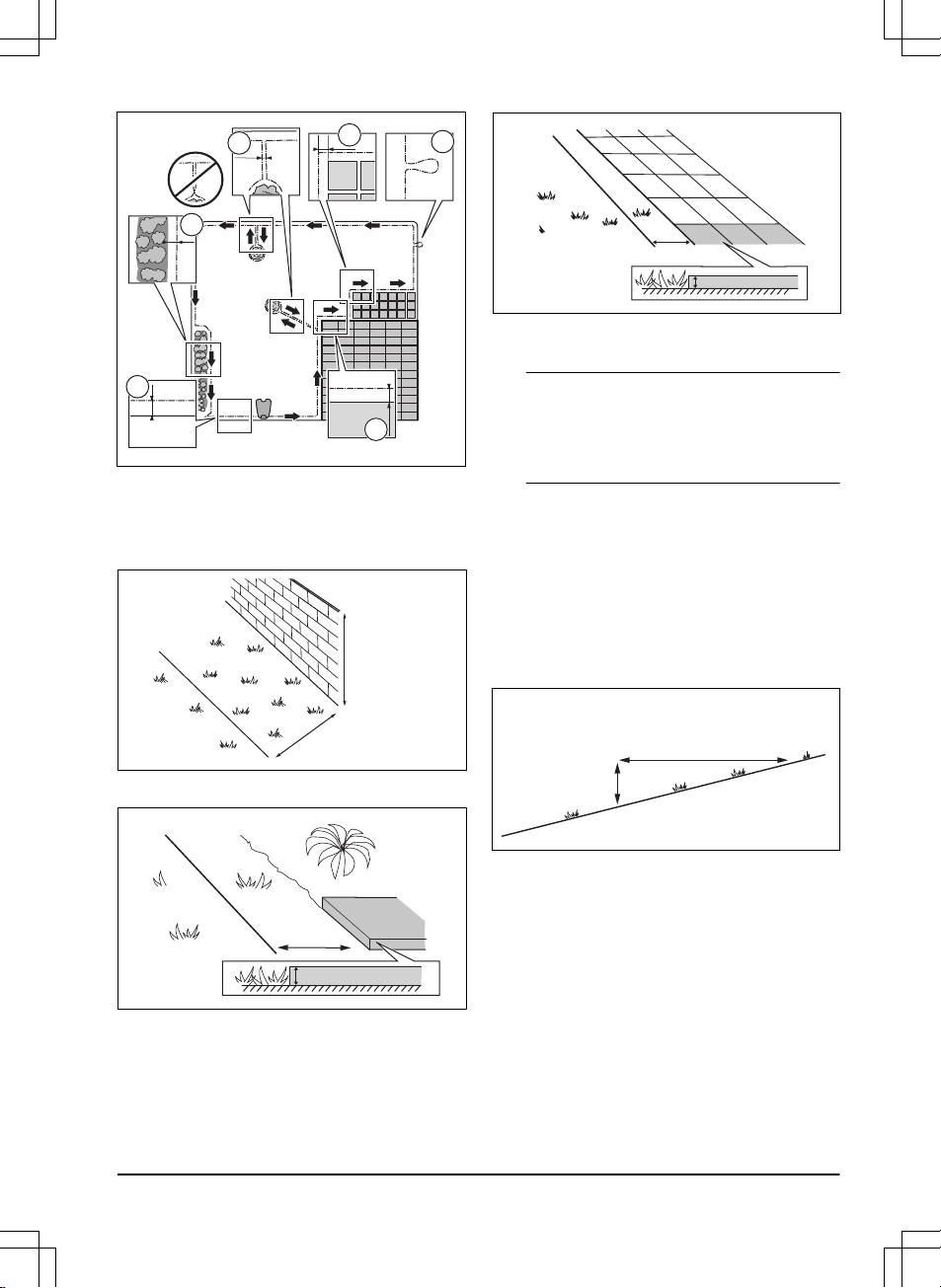

A
B
C
E
D
F
• Put the boundary wire around all of the work area
(A). Adapt the distance between the boundary wire
and obstacles.
• Put the boundary wire 40 cm / 16 in. (B) from an
obstacle that is more than 5 cm / 2 in. high.
40 cm /16
"
> 5 cm / 2
"
• Put the boundary wire 35 cm / 14 in. (C) from an
obstacle that is 1-5 cm / 0.4-2 in. high.
1-5 cm / 0.4 - 2"
35 cm / 14"
• Put the boundary wire 10 cm / 4 in. (D) from an
obstacle that is less than 1 cm / 0.4 in. high.
10 cm / 4"
max 1 cm / 0.4"
• If you have a paving stone path that is in level with
the lawn, put the boundary wire below the paving
stone.
Note: If the paving stone is minimum 30 cm / 12
in. wide, use the factory setting for the
Drive Past
Wire
function to cut all the grass adjacent to the
paving stone. Refer to
Drive Past Wire function on
page 30
.
• If you make an island, put the boundary wire that
runs to and from the island near together (E). Put
the wires in the same stake. Refer to
To put the
wire into position with stakes on page 22
.
• Make an eyelet (F) where the guide wire is to be
connected to the boundary wire.
3.4.3.1 To put the boundary wire in a slope
The product can operate in 45% slopes. Slopes that are
too steep must be isolated with the boundary wire. The
gradient (%) is calculated as height per m. Example: 10
cm / 100 cm = 10%.
10 cm/4"
100 cm/40"
10%
• For slopes steeper than 45% inside the work area,
isolate the slope with boundary wire.
• For slopes steeper than 15% along the outer edge
of the lawn, put the boundary wire 20 cm / 8 in. (A)
from the edge.
1230 - 003 - 19.03.2021 Installation -
17

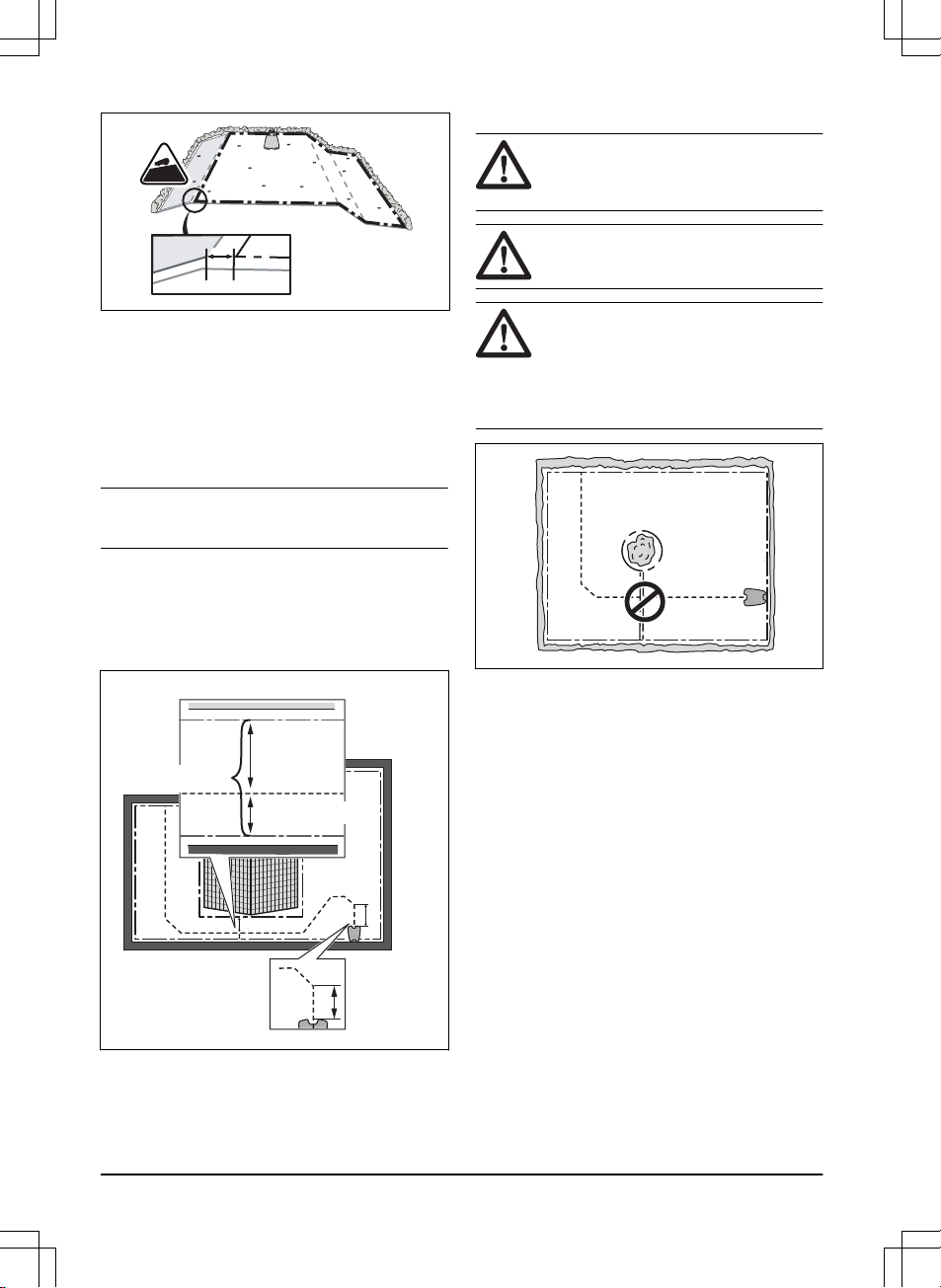

A
>10%
0-25%
• For slopes adjacent to a public road, put a barrier
of minimum 15 cm / 6 in. along the outer edge of
the slope. You can use a wall or a fence as a
barrier.
3.4.3.2 Passages
A passage is a section that has boundary wire on each
side and that connects 2 parts of the work area. The
distance between the boundary wire on each side in the
passage must be a minimum of 60 cm / 24 in.
Note: If a passage is less than 2 m / 6.5 ft. wide,
install a guide wire through the passage.
The recommended minimum distance between the
guide wire and the boundary wire is 30 cm / 12 in. The
product always runs to the left of the guide wire as seen
facing the charging station. It is recommended to have
as much free area as possible to the left of the guide
wire (A).
>2 m / 6.5 ft
A
>30 cm / 12"
>60 cm / 24"
3.4.3.3 To make an island
CAUTION: Do not put a section of
boundary wire across the other. The
sections of boundary wire must be parallel.
CAUTION: Do not put the guide wire
across the boundary wire.
CAUTION: Isolate or remove obstacles
that are less than 15 cm / 6 in. in height.
Isolate or remove obstacles that slope
slightly, for example, stones, trees or roots.
This will prevent damage to the blades of
the product.
To make an island, isolate areas in the work area with
the boundary wire. We recommend to isolate all stable
objects in the work area.
Some obstacles are resistant to a collision, for example,
trees or bushes that are more than 15 cm / 6 in. in
height. The product will collide with the obstacle and
then select a new direction.
• Put the boundary wire to and around the obstacle
to make an island.
• Put the 2 sections of boundary wire to and from the
island close together. This will make the product
run across the wire.
• Put the 2 sections of boundary wire in the same
stake.
18 - Installation 1230 - 003 - 19.03.2021

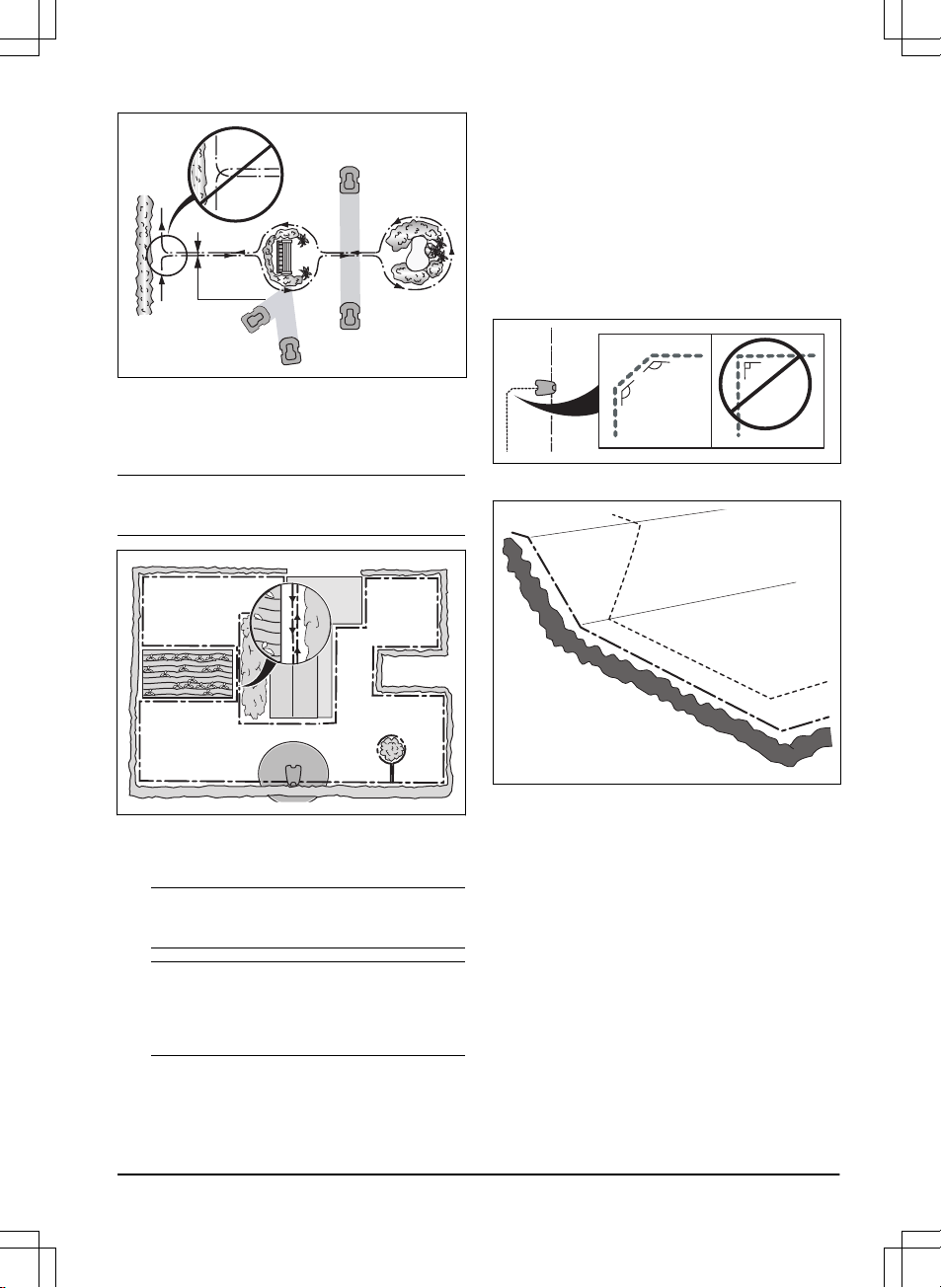

0 cm / 0
"
3.4.3.4 To make a secondary area
Make a secondary area (B) if the work area has 2 areas
that are not connected with a passage. The work area
with the charging station is the main area (A).
Note: The product must be manually moved between
the main area and the secondary area.
B
A
• Put the boundary wire around the secondary area
(B) to make an island. Refer to
To make an island
on page 18
.
Note: The boundary wire must be put as 1 loop
around all of the work area (A + B).
Note: When the product cuts grass in the
secondary area, the
Secondary area
mode must
be selected. Refer to
Secondary area on page
34
.
3.4.4 To examine where to put the guide
wire
• Put the guide wire in a line at a minimum of 2 m /
6.5 ft. in front of the charging station.
• Make as much free area as possible to the left of
the guide wire when facing the charging station.
Refer to
Corridor width on page 29
.
• Put the guide wire minimum 30 cm / 12 in. from the
boundary wire.
• Do not make sharp bends when you install the
guide wire.
135º
135º
90º
• If the work area has a slope, put the guide wire
diagonally across the slope.
3.4.5 Work area examples
• If the charging station is put in a small area (A),
make sure that the distance to the boundary wire is
at a minimum 3 m / 10 ft. in front of the charging
station.
• If the work area has a passage (B) with no guide
wire installed, the recommended minimum
distance between the boundary wires is 2 m / 6.5
ft. With a guide wire installed through the passage,
the recommended minimum distance between the
boundary wires is 60 cm / 24 in.
• If the work area has areas which are connected by
a narrow passage (B), you can set the product to
first follow and then leave the guide wire after a
certain distance (C). The settings can be changed
in
Lawn Coverage on page 27
.
• Use the GPS Assisted Navigation that helps the
product select the most optimal operation. Refer to
To set the GPS Assisted Navigation on page 27
.
1230 - 003 - 19.03.2021 Installation -
19

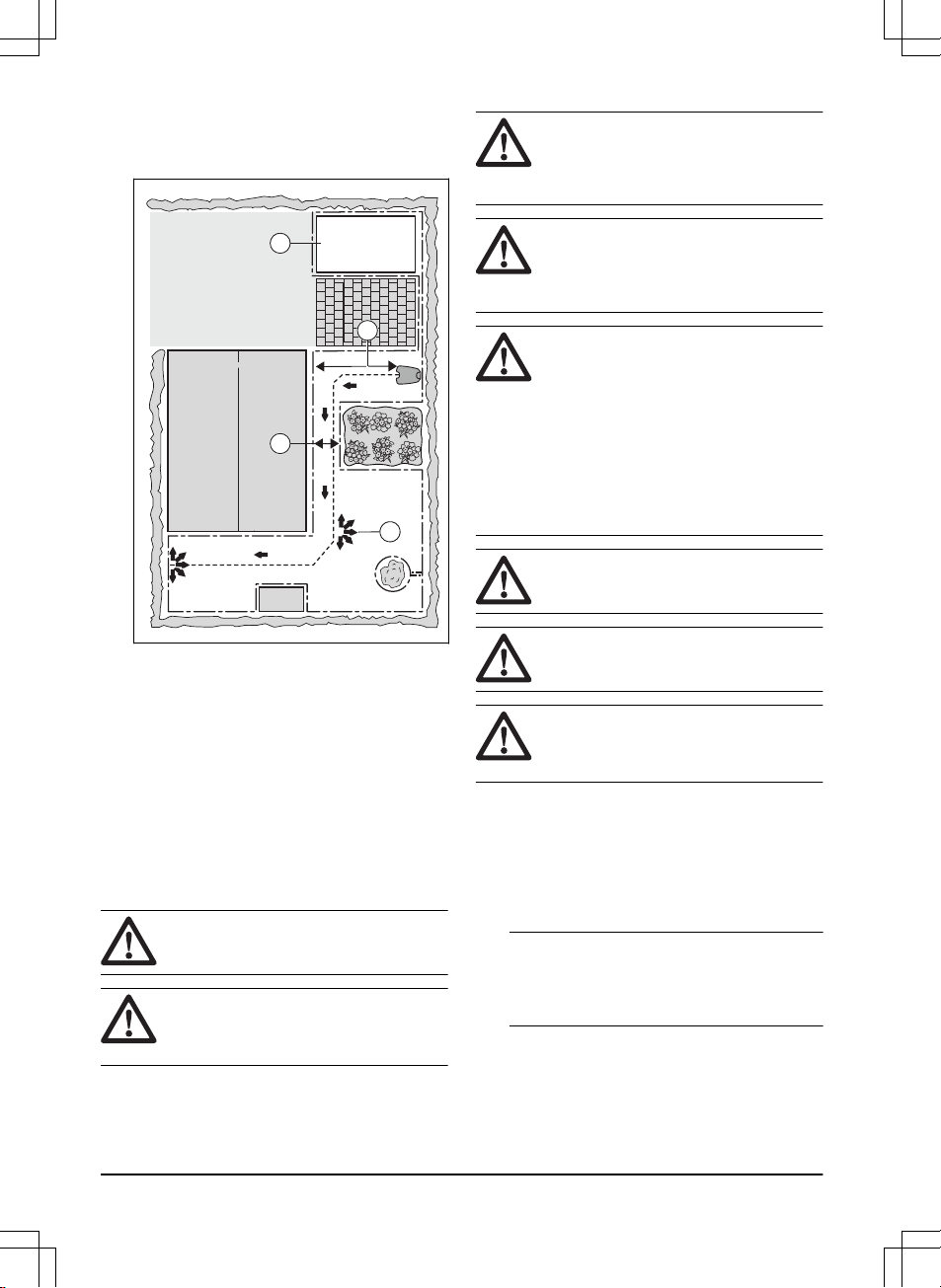

• If the work area includes a secondary area (D),
refer to
To make a secondary area on page 19
.
Put the product in the secondary area and select
Secondary area mode
.
B
D
C
A
3.5 Installation of the product
3.5.1 Installation tools
• Hammer/plastic mallet: To simplify putting the
stakes into the ground.
• Edge cutter/straight spade: To bury the boundary
wire.
• Combination pliers: For cutting the boundary wire
and pressing the connectors together.
• Adjustable plier: For pressing the couplers
together.
3.5.2 To install the charging station
WARNING: Obey national regulations
about electrical safety.
WARNING: The product is only to be
used with the power supply unit supplied by
Husqvarna.
WARNING: Do not put the power
supply at a height where there is a risk it can
be put in water. Do not put the power supply
on the ground.
WARNING: Do not encapsulate the
power supply. Condensed water can harm
the power supply and increase the risk of
electrical shock.
WARNING: Risk of Electric Shock.
Install only to an residual-current device
(RCD) with a tripping current of maximum 30
mA when connecting the power supply to
the power outlet. Applicable to USA/Canada.
If power supply is installed outdoors: Risk of
Electric Shock. Install only to a covered
Class A GFCI receptacle (residual-current
device) that has an enclosure that is
weatherproof with the attachment plug cap
inserted or removed.
CAUTION: Do not make new holes in
the charging station plate.
CAUTION: Do not put your feet on the
baseplate of the charging station.
WARNING: The power supply cable
and the extension cable must be outside the
work area to avoid damage to the cables.
When connecting the power supply, only use a power
outlet that is connected to an residual-current (RCD)
device.
1. Read and understand the instructions about the
charging station. Refer to
To examine where to put
the charging station on page 15
.
2. Put the charging station in the selected area.
Note: Do not attach the charging station to the
ground with the screws until the guide wire is
installed. Refer to
To install the guide wire on page
21
.

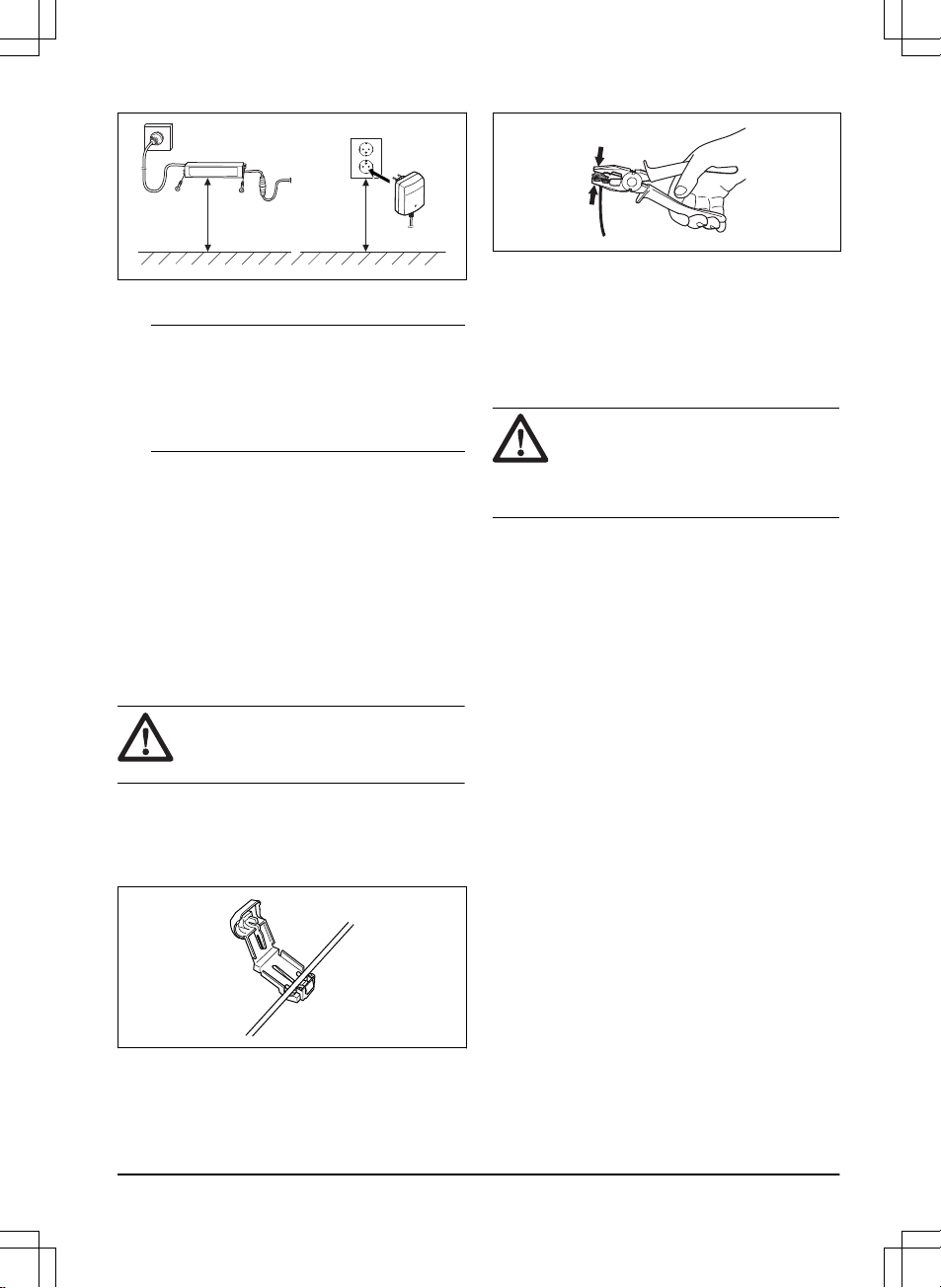

3. Connect the low-voltage cable to the charging
station.
4. Put the power supply at a minimum height of 30
cm / 12 in.
20 - Installation 1230 - 003 - 19.03.2021
min 30 cm / 12”
5. Connect the power supply cable to a 100-240V
power outlet.
Note: When the charging station is connected, it
is possible to charge the product. Place the
product in the charging station while the boundary
and guide wires are being laid. Switch on the
product. Do not continue with any product settings
before the installation is complete.
6. Put the low-voltage cable in the ground with stakes
or bury the cable. Refer to
To put the wire into
position with stakes on page 22
or
To bury the
boundary wire or the guide wire on page 22
.
7. Connect the wires to the charging station after the
installation of boundary wire and guide wire is
complete. Refer to
To install the boundary wire on
page 21
and
To install the boundary wire on page
21
.
8. Attach the charging station to the ground with the
supplied screws after the guide wire is installed.
Refer to
To install the guide wire on page 21
.
3.5.3 To install the boundary wire
CAUTION: Do not put remaining wire in
a coil. The coil causes interference with the
product.
1. Put the boundary wire around all of the work area.
Start and complete the installation behind the
charging station.
2. Open the connector and put the boundary wire in
the connector.
3. Close the connector with a pair of pliers.
4. Cut the boundary wire 1-2 cm / 0.4-0.8 in. above
each connector.
5. Push the right connector onto the metal pin on the
charging station with the mark "AR".
6. Push the left connector onto the metal pin on the
charging station with the mark "AL".
3.5.4 To install the guide wire
CAUTION: Twinned cables, or a screw
terminal block that is insulated with
insulation tape are not satisfactory splices.
Soil moisture will cause the wire to oxidize
and after a time result in a broken circuit.

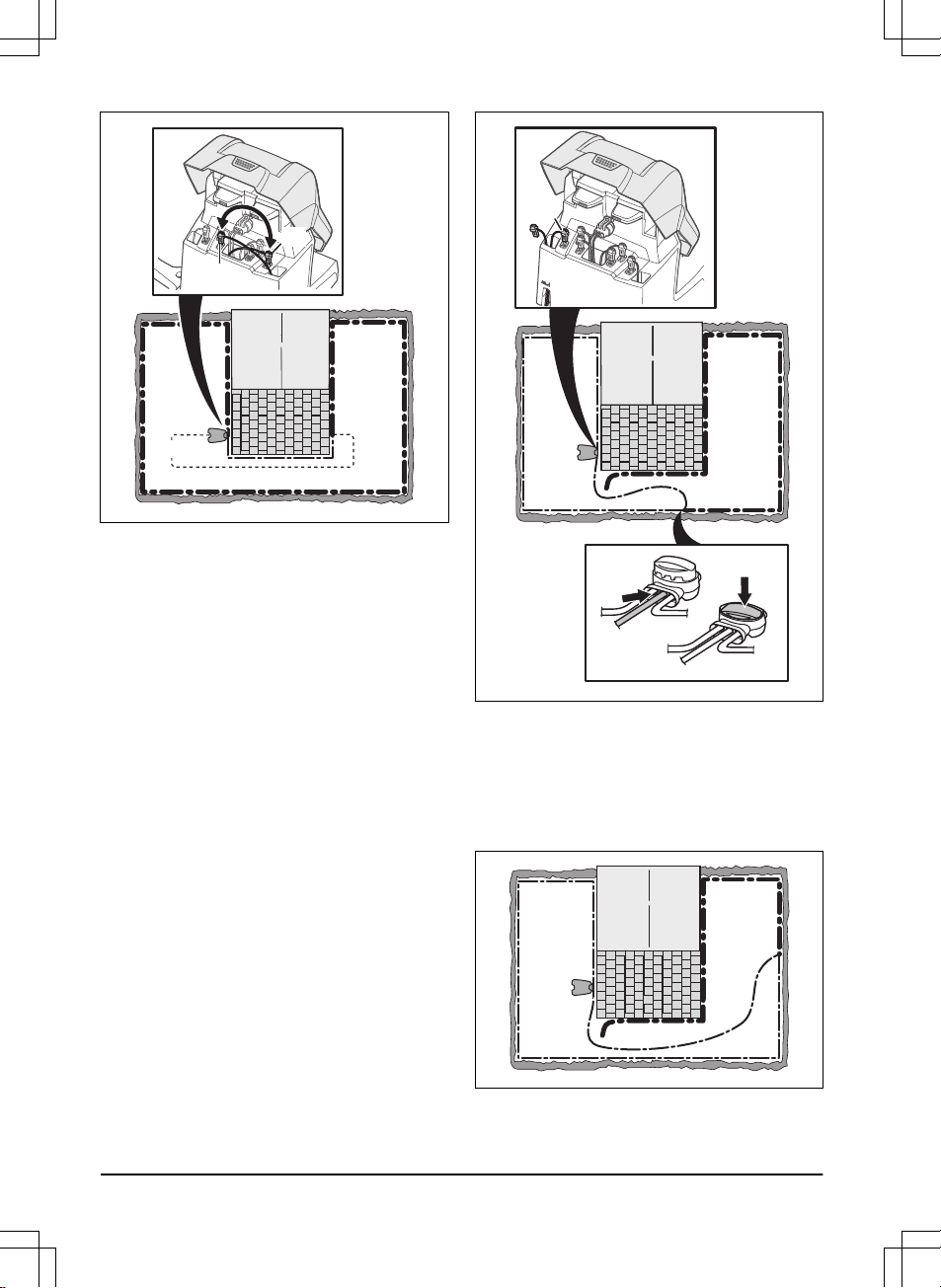

1. Open the connector and put the wires in the
connector.
2. Close the connector with a pair of pliers.
3. Cut the guide wires 1-2 cm / 0.4-0.8 in. above each
connector.
4. Put the guide wires centrally below the charging
station plate, and push them through the slot in the
charging station tower.
5. Push the connector onto the metal pin on the
charging station with the mark "G1, G2" or "G3".
6. Disconnect the charging station from the power
outlet.
7. Put the cable mark on the guide wires.
8. Put the end of the guide wires at the eyelet on the
boundary wire.
9. Cut the boundary wire with a pair of wire cutters.
10. Connect the guide wires to the boundary wire with
a coupler.
1230 - 003 - 19.03.2021 Installation -
21
a) Put the 2 ends of the boundary wire and the
end of the guide wires into the coupler.
Note: Make sure that you can see the end
of the guide wires through the transparent
area of the coupler.
b) Push down the cover on the coupler with
adjustable pliers to attach the wires in the
coupler.
11. Attach the guide wires to the ground with stakes or
bury the guide wires in the ground. Refer to
To put
the wire into position with stakes on page 22
or
To bury the boundary wire or the guide wire on
page 22
.
12. Connect the charging station to the power outlet.
3.6 To put the wire into position with
stakes
CAUTION: Make sure that the stakes
hold the boundary wire and the guide wire
against the ground.
CAUTION: Cutting the grass too low
right after installation can damage the wire
insulation. Damage to the insulation may not
cause disruptions until several weeks or
months later.

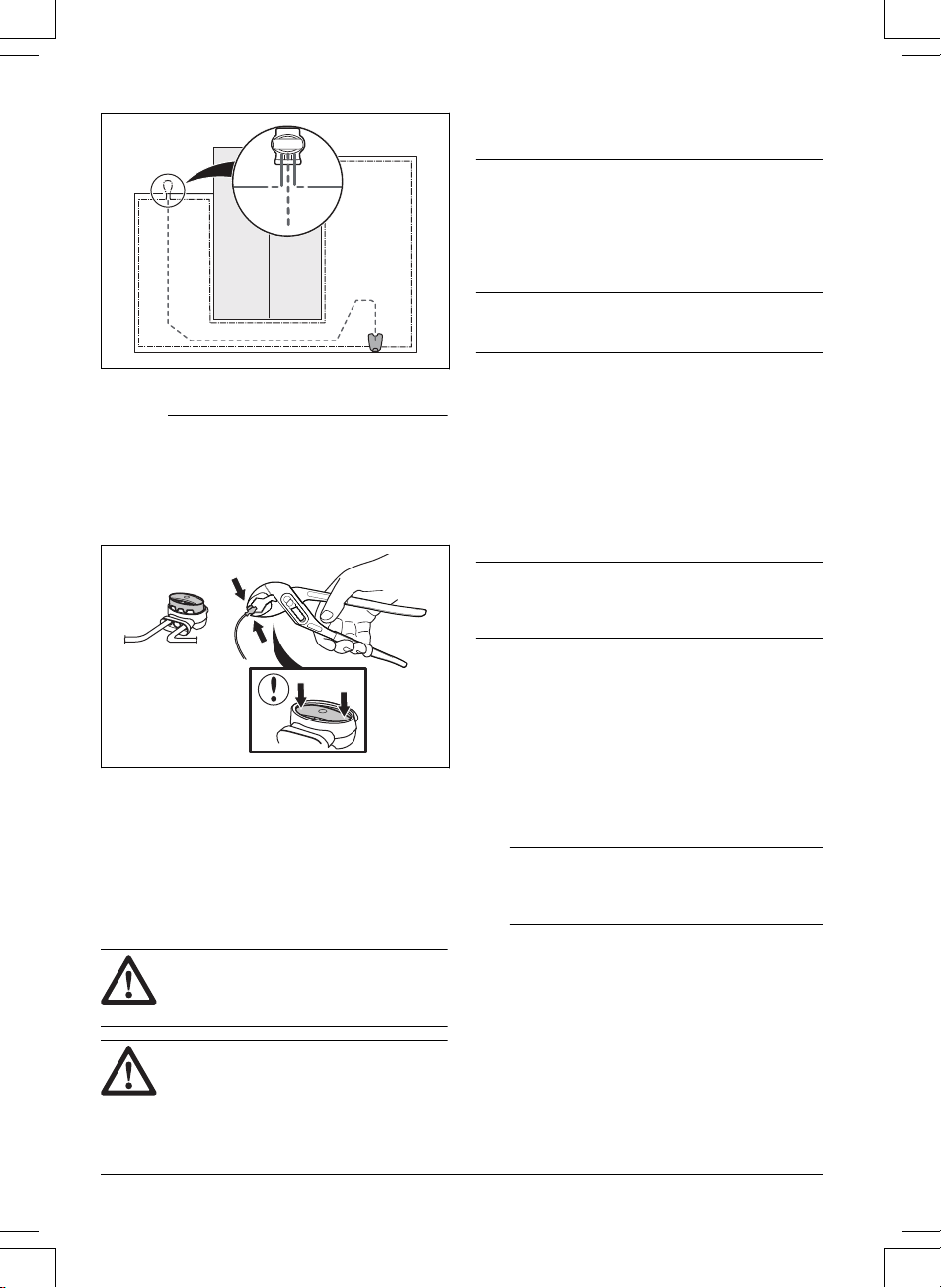

1. Put the boundary wire and the guide wire on the
ground.
2. Put the stakes at a maximum of 75 cm / 30 in.
distance from each other.
3. Attach the stakes to the ground with a hammer or
a plastic mallet.
Note: The wire is overgrown with grass and not visible
after a few weeks.
3.7 To bury the boundary wire or the
guide wire
• Cut a groove in the ground with an edge cutter or a
straight shovel.
• Put the boundary wire or the guide wire 1-20 cm /
0.4-8 in. into the ground.
3.8 To extend the boundary wire or the
guide wire
Note: Extend the boundary wire or the guide wire if it
is too short for the work area. Use original spare parts,
for example couplers.
1. Disconnect the charging station from the power
outlet.
2. Cut the boundary wire or the guide wire with a pair
of wire cutters where it is necessary to install the
extension.
3. Add wire where it is necessary to install the
extension.
4. Put the boundary wire or the guide wire into
position.
5. Put the wire ends into a coupler.
Note: Make sure that you can see the ends of
the boundary wire or the guide wire through the
transparent area of the coupler.
6. Push down the cover on the coupler with
adjustable pliers to attach the wires in the coupler.
22 - Installation 1230 - 003 - 19.03.2021

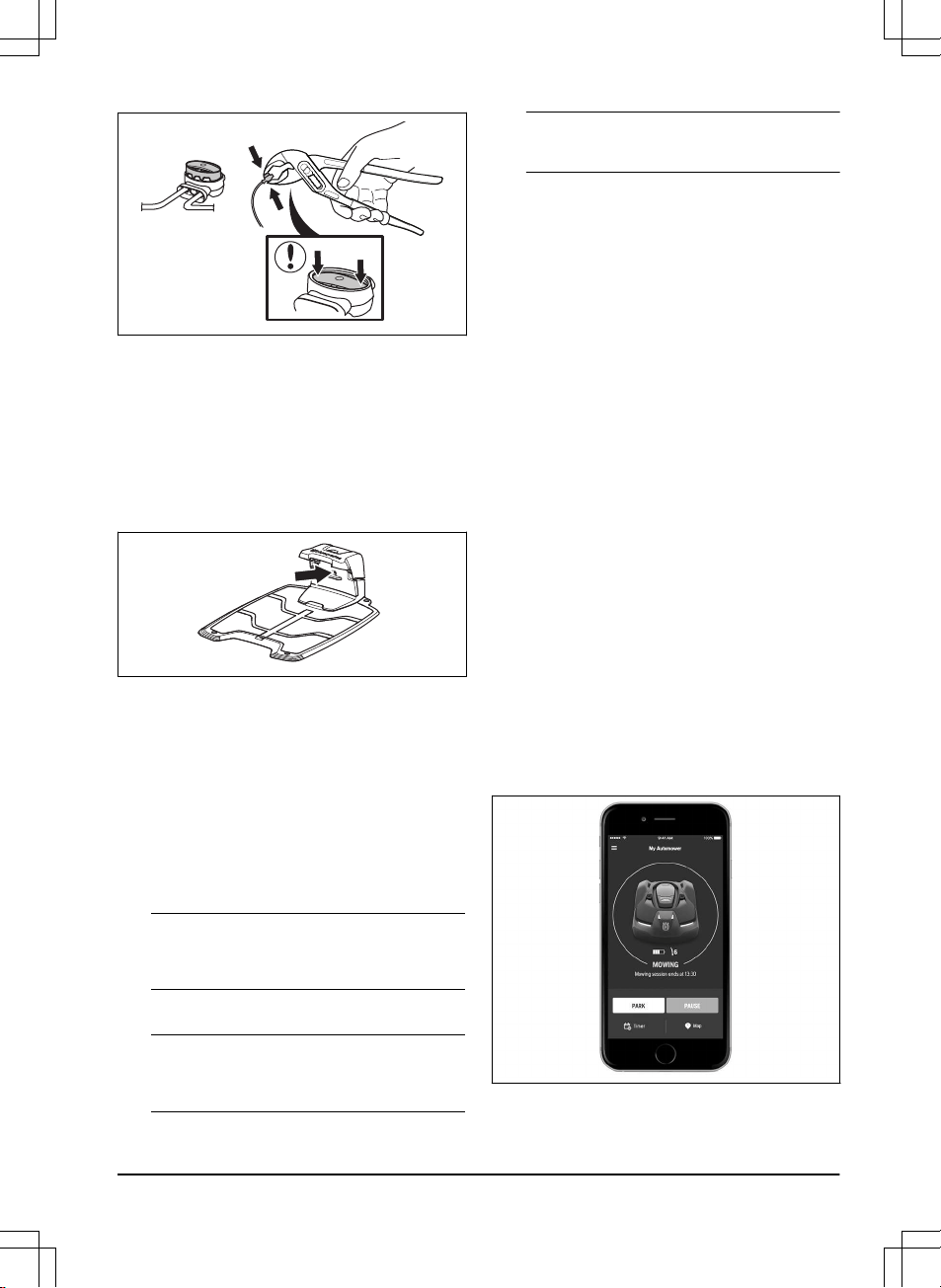

7. Put the boundary wire or the guide wire into
position with stakes.
8. Connect the charging station to the power outlet.
3.9 After the installation of the product
3.9.1 To do a visual check of the charging
station
1. Make sure that the indicator LED lamp on the
charging station has a green light.
2. If the indicator LED lamp does not have a green
light, do a check of the installation. Refer to
To
install the charging station on page 20
and
Indicator lamp in the charging station on page 45
.
3.9.2 To do the basic settings
Before the product starts to operate for the first time, you
must do the basic settings.
1. Put the product in the charging station.
2. Switch on the product.
3. Push the
arrow buttons and the OK button. Select
language, country, date, time and set a PIN code.
Note: For some models, a factory PIN code is
necessary before you select a personal PIN code.
It is not possible to use 0000 as PIN code.
4. Push the Start button and close the hatch to initiate
a calibration process of the product.
Note: If the battery is too low, the product needs
to charge the batteries fully before the calibration
starts. Refer to
Calibration on page 23
.
Note: Make a note of the PIN code. Refer to
Introduction on page 3
.
3.9.3 Calibration
The calibration process is automatic. After the basic
settings are done, the product moves away from the
charging station and stops, while it calibrates some of
the product settings. When the calibration is complete,
the product starts to mow.
3.10 Product settings
You can use the keypad and the display on the product
or the Automower
®
Connect app to do the settings for
the functions of the product. The functions of the product
have factory settings that are applicable for almost all
work areas, but the settings can be adapted to the
conditions for each work area.
3.11 Automower
®
Connect app
The product can connect to mobile devices that have the
Automower
®
Connect app installed. Automower
®
Connect is a free app for your mobile device. You can
use the extended functions for the product in the
Automower
®
Connect app.
• The
Dashboard
shows the current status of the
product. You can select an operating mode for the
product in the dashboard.
• The
Map
shows the current position of the product
and the set centerpoint for the GeoFence function.
• In the
Settings
menu you can set the settings for
the product.
• In the
Statistics
menu you can see the statistics of
the product.
• In the
Messages
menu you can find the previous
Fault messages
and the
Information messages
of
the product.
The Automower
®
Connect app has Long-range cellular
connectivity and Short-range Bluetooth
®
connectivity.
1230 - 003 - 19.03.2021 Installation - 23
3.11.1 To install the Automower
®
Connect
app
1. Download the Automower
®
Connect app on your
mobile device.
2. Sign up for a Husqvarna account in the
Automower
®
Connect app.
3. An e-mail is sent to the registered e-mail address.
Follow the instructions in the e-mail in less than 24
hours to validate your account.
4. Log in to your Husqvarna account in the
Automower
®
Connect app.
3.11.2 To pair Automower
®
Connect and
the product
have Bluetooth
®
communication and the Automower
®
Connect kit for cellular communication.
1. Do steps 1–3 in
To get access to the menu in the
display of the product on page 24
.
2. Use the arrow buttons and the OK button to move
through the menu structure
Accessories
>
Automower
®
Connect
>
Pairing
>
New pairing
.
3. Follow the instructions in the Automower
®
Connect
app.
3.12 Product settings with keypad and
display
3.13 To get access to the menu in the
display of the product
1. Push the
STOP button.
2. Use the number buttons and the OK button to
enter the PIN code.
3. Push the
MENU button.
3.13.1 Menu structure
The main menu contains:
•
Schedule
•
Cutting height
•
Security
•
Messages
•
Weather timer
•
Installation
•
Settings
•
Accessories
Refer to
Menu structure overview 1 on page 7
,
Menu
structure overview 2 on page 8
and
Menu structure
overview 3 on page 9
.
3.13.2 Schedule
Note: The lawn should not be cut too often to obtain
the best result. If the product is allowed to operate too
much, the lawn may appear flattened. The product is
also subjected to unnecessary wear.
3.13.2.1 To set the schedule
1. Do steps 1–3 in
To get access to the menu in the
display of the product on page 24
.
2. Use the arrow buttons and the OK button to move
through the menu structure
Schedule > Overview
.
3. Use the arrow buttons and the OK button to select
the day.
4. Use the right arrow button to select the period.
5. Push the OK button.
6. Calculate the suitable operating hours. Refer to
To
calculate the suitable operating hours on page
24
.
7. Enter the time with the number buttons. The
product can cut the grass 1 or 2 periods each day.
8. If the product must not cut grass on a specified
day, unselect the box adjacent to the 2 time
periods.
3.13.2.2 To calculate the suitable operating hours
If the work area is less than maximum product capacity,
the schedule should be set to minimize wear on the lawn
and the product.
1. Calculate the dimension of your lawn in m
2
/ ft
2
.
2. Divide the m
2
/ ft
2
of the lawn with the approximate
daily operation capacity. Refer to table below.
3. The result is equal to the number of hours that the
product must mow each day. The number of hours
includes both mowing, searching and charging
time.
Product work capacity Approximate daily operation
capacity, m
2
/h, ft
2
/h
Automower
®
430XH 133 / 1430
Automower
®
450XH 208 / 2240
24 - Installation 1230 - 003 - 19.03.2021
Example: A lawn of 1000 m
2
/ 10800 ft
2
, cut with a
Automower
®
430XH.
1000 m
2
/ 133 ≈ 7.5 h.
10800 ft
2
/ 1430 ≈ 7.5 h.
Days / week h / day Suggested sched-
ule setting
7 7.5 07:00- 14:30 / 7:00
am - 2:30 pm
3.13.2.3 To copy the schedule setting
1. Do steps 1–3 in
To get access to the menu in the
display of the product on page 24
.
2. Use the arrow buttons and the OK button to move
through the menu structure
Schedule > Overview >
Copy
.
3. Use the arrow buttons and the OK button to copy
the schedule setting. You can copy the schedule
settings day to day or for the full week.
3.13.2.4 To reset the schedule setting
You can remove all schedule settings and use the
factory setting.
1. Do steps 1–3 in
To get access to the menu in the
display of the product on page 24
.
2. Use the arrow buttons and the OK button to move
through the menu structure
Schedule > Overview >
Reset
.
a) Push the arrow buttons to select
Current day
to only reset the current day to factory
settings.
b) Push the arrow buttons to select
All week
to
reset all schedule settings to factory settings.
3. Push the OK button.
3.13.3 Cutting height
The cutting height can be varied from MIN (5 cm / 2 in.)
to MAX (9 cm / 3.6 in.).
Note: The height adjustment setting is shown in the
display of the product as a scale/numerical value.
CAUTION: During the first weeks after
a new installation, the cutting height must be
set to MAX to avoid damaging the loop wire.
After this, the cutting height can be lowered
step by step every week until the desired
cutting height has been reached.
3.13.3.1 To set the cutting height
1. Do steps 1–3 in
To get access to the menu in the
display of the product on page 24
.
2. Use the arrow buttons and the OK button to move
through the menu structure
Cutting height
.
3. Use the arrow buttons to set the cutting height.
4. Push the OK button.
3.13.4 Security level
There are 3 security levels for the product.
Function Low Medium High
Alarm
X
PIN-code
X X
Time lock
X X X
•
Alarm
- An alarm goes off if the PIN-code is not
entered within 10 seconds after the STOP button is
pushed. The alarm also goes off when the product
is lifted. The alarm stops when the PIN-code is
entered.
•
PIN-code
- The correct PIN-code must be entered
to get access to the Menu structure of the product.
If the incorrect PIN-code is entered 5 times, the
product is locked for a time. The lock is extended
for each new incorrect try.
•
Time lock
- The product locks if the PIN-code has
not been entered in 30 days. Enter the PIN-code to
get access to the product.
3.13.4.1 To set the security level
Select 1 of 3 security levels for your product.
1. Do steps 1–3 in
To get access to the menu in the
display of the product on page 24
.
2. Use the arrow buttons and the OK button to move
through the menu structure
Settings > Security >
Security level
.
3. Use the arrow buttons and the OK button to select
the level of security.
4. Push the OK button.
1230 - 003 - 19.03.2021 Installation -
25
3.13.4.2 To create a New loop signal
The loop signal is randomly selected to create a unique
link between the product and the charging station. In
rare cases, there may be a need to generate a new
signal, for instance if two adjacent installations have a
very similar signal.
1. Place the product in the charging station.
2. Do steps 1–3 in
To get access to the menu in the
display of the product on page 24
.
3. Use the arrow buttons and the OK button to move
through the menu structure
Security > Advanced >
New loop signal
.
4. Await confirmation that the loop signal has been
generated. This normally takes about 10 seconds.
3.13.4.3 To change the PIN-code
1. Do steps 1–3 in
To get access to the menu in the
display of the product on page 24
.
2. Use the arrow buttons and the OK button to move
through the menu structure
Settings > Security >
Advanced > Change PIN-code
.
3. Enter the new PIN code.
4. Push the OK button.
5. Enter the new PIN code again.
6. Push the OK button.
7. Make a note of the new PIN code. Refer to
Introduction on page 3
.
3.13.4.4 To change the duration of the alarm
1. Do steps 1–3 in
To get access to the menu in the
display of the product on page 24
.
2. Use the arrow buttons and the OK button to move
through the menu structure
Security > Advanced >
Duration > Duration of alarm
.
3. Use the arrow buttons to select a time interval of 1
to 20 minutes.
4. Push the BACK button.
3.13.4.5 To change the duration of the time lock
1. Do steps 1–3 in
To get access to the menu in the
display of the product on page 24
.
2. Use the arrow buttons and the OK button to move
through the menu structure
Security > Advanced >
Duration > Duration of time lock
.
3. Use the number buttons to select a time interval of
1–90 days.
4. Push the BACK button.
3.13.5 Messages
In this menu the previous fault and information
messages can be found. For some of the messages,
there are tips and advice to help to rectify the fault.
Refer to
Troubleshooting on page 38
.
If the product is disrupted in any way, for example it is
trapped or the battery is low, a message is saved
relating to the disruption and the time it happened.
If the same message is repeated several times, this may
indicate that an adjustment to the installation or the
product is required. Refer to
Installation on page 15
.
3.13.5.1 To read the messages
1. Do steps 1–3 in
To get access to the menu in the
display of the product on page 24
.
2. Use the arrow buttons and the OK button to move
through the menu structure
Messages > Fault
messages
and
Messages > Info messages
.
3. Read the messages and read the
Troubleshooting
to get information and recommendations to correct
the faults.
3.13.6 Weather timer
Weather timer
automatically adjust the cutting time to
the growth of the grass. The product is not permitted to
operate more than the schedule settings.
Note: When using
Weather timer
, it is recommended
to make as much operating time as possible available
for
Weather timer
. Do not restrict the schedule more
than necessary.
The first operation of the day is set by the schedule
settings. The product always complete 1 mowing cycle,
and then
Weather timer
selects if the product will
continue to operate or not.
Note:
Weather timer
is reset if the product does not
operate for more than 50 hours, or if a
Reset of all user
settings
is done.
Weather timer
is not changed if a
Reset
of schedule settings
is done.
3.13.6.1 To set the Weather timer
1. Do steps 1–3 in
To get access to the menu in the
display of the product on page 24
.
2. Use the arrow buttons and the OK button to move
through the menu structure
Weather timer > Use
Weather timer
.
3. Push the OK button to select the
Weather timer
.
4. Push the BACK button.
3.13.6.2 To set the Weather timer frequency
Set how frequently the product cuts the grass when the
Weather timer
is in use. There are 3 frequency levels:
26 - Installation 1230 - 003 - 19.03.2021

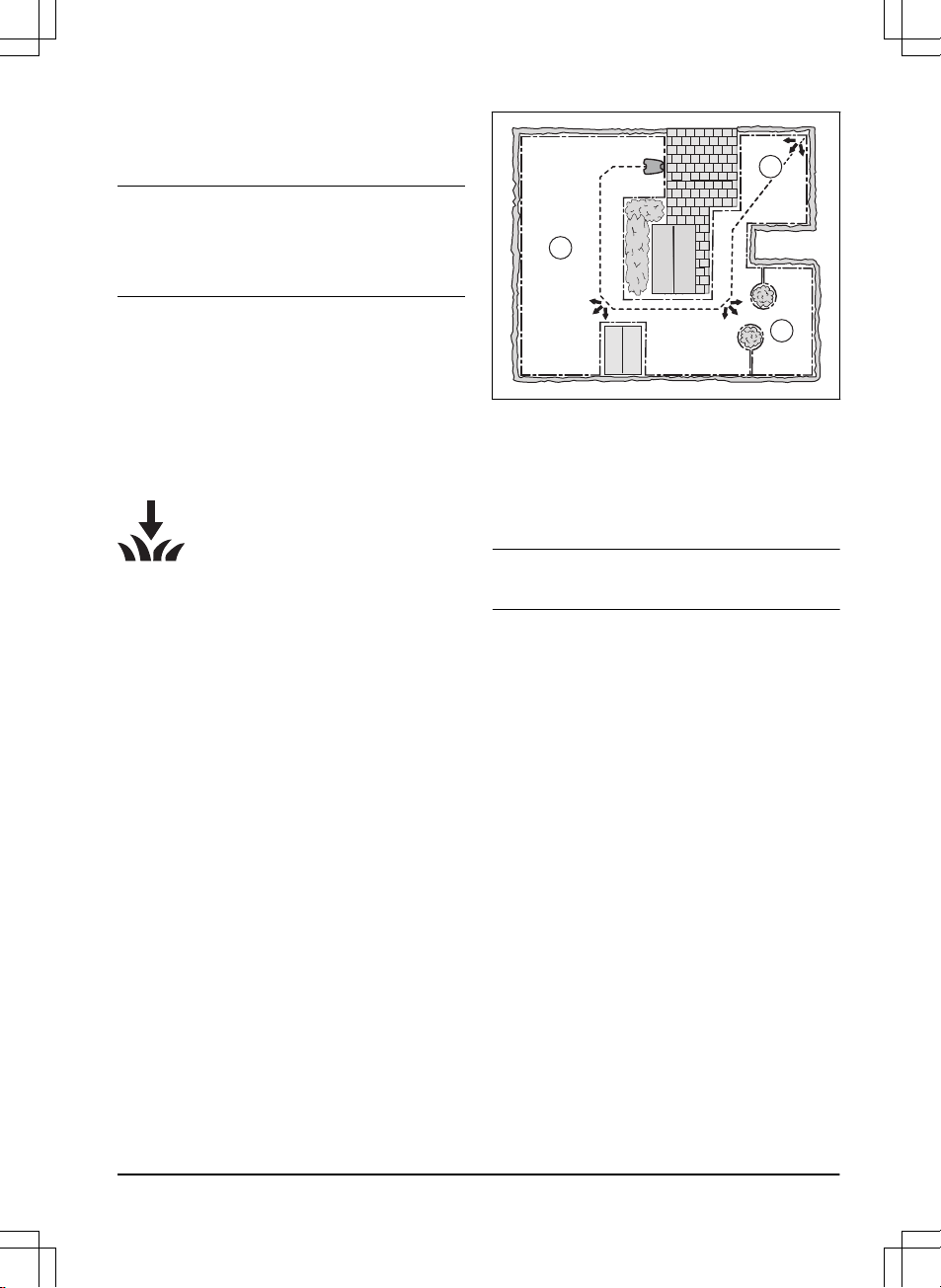

Low, Mid
and
High
. The higher the frequency, the more
sensitive the product is to the grass growth. That is, if
the grass growth is high then the product is allowed to
work longer.
Note: If the mowing results are not optimal when
using
Weather timer
, the schedule settings may need
adjusting. Do not restrict the schedule more than
necessary. Also, check that the blade disc is clean and
that the blades are in good condition.
1. Do steps 1–3 in
To get access to the menu in the
display of the product on page 24
.
2. Use the arrow buttons and the OK button to move
through the menu structure
Weather timer >
Cutting time
.
3. Use the arrow buttons to select
Low, Mid
or
High
frequency.
4. Push the BACK button.
3.13.7 Installation
In the Installation menu it is possible to adapt the
settings of the product for best mowing result.
3.13.7.1 Lawn Coverage
If the work area includes remote parts that are
connected with narrow passages, the
Lawn Coverage
function is useful to be able to maintain a well-cut lawn
in all parts of the yard. A guide wire must be installed to
use the functions. You can set a maximum of 5 remote
areas.
With the
Lawn Coverage
function the product first
follows and then leaves the guide wire after a certain
distance and starts to mow the lawn.
Area A, approximately 50%
Area B, approximately 30%
Area C, approximately 20%
A
C
B
GPS Assisted Navigation
The GPS Assisted Navigation function helps the product
to select the most optimal operation. Use the
Lawn
coverage
function to do manual settings.
To set the GPS Assisted Navigation
Disable the GPS Assisted Navigation to make manual
settings in
Lawn coverage
.
Note: It is recommended to use GPS Assisted
Navigation.
1. Do steps 1–3 in
To get access to the menu in the
display of the product on page 24
.
2. Use the arrow buttons and the OK button to move
through the menu structure
Installation > Lawn
coverage
.
3. Push the OK button to enble or disable the
function.
4. Push the BACK button.
To set the Lawn Coverage function
1. Do steps 1–3 in
To get access to the menu in the
display of the product on page 24
.
2. Use the arrow buttons and the OK button to move
through the menu structure
Installation > Lawn
Coverage > Area 1-5
.
3. Use the arrow button to select the area.
4. Push the OK button.
5. Measure the distance from the charging station to
the start of the area. Measure along the guide wire.
Refer to
To measure the distance from the
charging station on page 28
.
6. Push the number buttons to select the distance.
7. Push the OK button.
8. Use the number buttons to select the percentage
of the cutting time the product must cut the area.
The percentage is equal to the area in relation to
the complete work area.
1230 - 003 - 19.03.2021 Installation -
27
a) Measure the area.
b) Divide the measured area with the total work
area.
c) Convert the result to percentage.
Note: The sum of Area 1-5 must be 100% or
less. If the sum is less than 100%, the product
sometimes starts to mow at the charging station.
Refer to
To set the exit angle on page 29
.
9. Push the BACK button.
To do a test of the Lawn Coverage function
1. Put the product in the charging station.
2. Do step 1-3 in
To get access to the menu in the
display of the product on page 24
.
3. Use the arrow buttons and the OK button to move
through the menu structure
Installation > Lawn
Coverage > Area 1-5 > More > Test
.
4. Push the OK button.
5. Push the START button.
6. Close the hatch.
7. Make sure the product can find the area.
To measure the distance from the charging station
1. Put the product in the charging station.
2. Do steps 1–3 in
To get access to the menu in the
display of the product on page 24
.
3. Use the arrow buttons and the OK button to move
through the menu structure
Installation > Lawn
Coverage > Area 1-5 > How far?
4. Use the number buttons to set 500 m / 500 yd as a
distance.
5. Push the OK button.
6. Use the arrow buttons and the OK button to move
through the menu structure
Settings > Lawn
Coverage > Area 1-5 > More > Test
.
7. Push the OK button.
8. Push the STOP button when the product is at the
distance you select to measure. The distance
shows in the display.
To disable or enable the Lawn Coverage function
Disable or enable the
Lawn Coverage
function for each
area.
1. Do steps 1–3 in
To get access to the menu in the
display of the product on page 24
.
2. Use the arrow buttons and the OK button to move
through the menu structure
Installation > Lawn
Coverage > Area 1-5 > Disable
.
3. Push the
OK button.
4. Push the BACK button.
To reset the Lawn Coverage settings
You can reset the
Lawn Coverage
settings for each area
and use the factory setting.
1. Do steps 1–3 in
To get access to the menu in the
display of the product on page 24
.
2. Use the
arrow buttons and the OK button to move
through the menu structure
Installation > Lawn
Coverage > Area 1-5 > More > Reset
.
3. Push the OK button.
3.13.7.2 Methods for the product to find the charging
station
The product has 3 search methods to find the charging
station :
• Irregular - The product moves in the work area until
it finds the signal of the charging station.
• Guide wire - The product moves in the work area
until it finds the guide wire. The product moves
along the guide wire to the charging station.
• Boundary wire - The product moves in the work
area until it finds the boundary wire. The product
moves along the boundary wire to the charging
station.
The factory setting is set to mix the 3 search methods.
When the battery is low the product starts to search for
the charging station with the irregular method for 3 min.
After 3 min the product changes search method to the
guide wire method. The product tries to find the guide
wire for 8 min. After 11 min the product changes search
method to the boundary wire method.
You can change the settings for how the product finds
the charging station to adapt to the work area.
To set how the product finds the charging station
You can make manual settings to make the product
search for the guide wire or the boundary wire in 0–30
min from when the battery is low.
1. Do steps 1–3 in
To get access to the menu in the
display of the product on page 24
.
2. Use the arrow buttons and the OK button to move
through the menu structure
Installation > To find
the charging station > Overview of search methods
> Guide
.
3. Push the arrow buttons to select 1 of the guide
wires.
4. Push the number buttons to set the time.
5. Push the OK button.
6. Push the BACK button.
7. Use the arrow buttons and the OK button to move
through the menu structure
Installation > To find
the charging station > Overview of search methods
> Boundary wire
.
8. Push the
number buttons to set the time.
9. Push the OK button.
10. Push the START button and close the hatch.
To do a test of the guide wire
1. Do steps 1–3 in
To get access to the menu in the
display of the product on page 24
.
28 - Installation 1230 - 003 - 19.03.2021
2. Use the arrow buttons and the OK button to move
through the menu structure
Installation > Find
charging station > Guide > More > Test guide
.
3. Put the product 3 m / 9 ft. from the guide wire,
facing the guide wire.
4. Push the
START button and close the hatch.
5. Make sure the product follows the guide wire to the
charging station.
6. Make sure the product docks with the charging
station.
7. If the product does not dock with the charging
station, change the position of the charging station
or the guide wire. Refer to
To install the charging
station on page 20
and
To install the guide wire on
page 21
.
To do a test of the boundary wire
1. Put the product 3 m / 9 ft. from the boundary wire,
facing the boundary wire.
2. Do steps 1–3 in
To get access to the menu in the
display of the product on page 24
.
3. Use the arrow buttons and the OK button to move
through the menu structure
Installation > Find
charging station > Overview of search methods >
Boundary > More > Test right / Test left
.
4. Push the START button and close the hatch.
5. Make sure the product follows the guide wire to the
charging station.
6. Make sure the product docks with the charging
station.
7. Change the position of the charging station or the
guide wire if the product does not dock with the
charging station. Refer to
To install the charging
station on page 20
and
To install the guide wire on
page 21
.
To change the signal range of the charging station
1. Do steps 1–3 in
To get access to the menu in the
display of the product on page 24
.
2. Use the arrow buttons and the OK button to move
through the menu structure
Installation > Find the
charging station > Overview of search methods >
Charging station range
.
3. Use the left arrow button to select
MAX, MID, MIN
.
4. Push the BACK button.
Note: It is usually better to move the charging station,
than to decrease the range of the charging station
signal.
3.13.7.3 Corridor width
The boundary wire corridor is the area adjacent to the
boundary wire and the guide corridor is the area
adjacent to the guide wire. The product uses the
corridors to find the charging station. When the product
moves in the direction of the charging station, it always
moves to the left of the guide wire.
The corridor width is adjusted automatically. If it is
necessary to adjust the corridor width manually for the
product to operate satisfactorily, you can set the corridor
width between 0-9. If guide corridor width is set to 0, the
product straddles the guide wire. The factory setting is 6
for the boundary wire and 9 for the guide wire.
To set the corridor width
1. Do steps 1–3 in
To get access to the menu in the
display of the product on page 24
.
2. Use the arrow buttons and the OK button to move
through the menu structure
Installation > Advanced
> Corridor width
.
3. Use the arrow buttons to select a corridor.
4. Use the number buttons to select a corridor width
of 0-9.
Note: Make the corridor width as wide as possible for
a minimum risk of lines in the lawn.
3.13.7.4 Exit angle
If the sum of the
Lawn Coverage
function is less than
100%, the product sometimes starts to mow at the
charging station. The product moves away from the
charging station with an exit angle between 90°–270°.
The exit angles can be set to 1–2 exit sectors.
To set the exit angle
1. Do steps 1–3 in
To get access to the menu in the
display of the product on page 24
.
2. Use the arrow buttons and the OK button to move
through the menu structure
Installation > Advanced
> Exit angles > Sector 1
.
3. Use the number buttons to set the angles in
degrees.
4. Push the down
arrow button.
5. Use the number buttons to select how frequently
the product must use each sector. Set in
percentage.
6. Push the
BACK button.
1230 - 003 - 19.03.2021 Installation - 29
3.13.7.5 Reversing distance
The reversing distance makes the product move in
reverse for a set distance, before the product starts to
cut the lawn. The factory setting is 60 cm / 2 ft.
To set the reversing distance
1. Do steps 1-3 in
To get access to the menu in the
display of the product on page 24
.
2. Use the arrow button and the OK button to move
through the menu structure
Installation > Advanced
> Reversing distance
.
3. Use the number buttons to set the distance.
4. Push the BACK button.
3.13.7.6 Drive Past Wire function
The front of the product always moves past the
boundary wire by a specified distance. Then the product
moves rearward and changes direction. The factory
setting is 31 cm / 13 in. You can select a distance of
20-50 cm / 10-15 in.
Note: If you change the distance for
Drive Past Wire
,
the distance will change along the boundary wire in all
parts of the work area.
To set the Drive Past Wire function
1. Do steps 1–3 in
To get access to the menu in the
display of the product on page 24
.
2. Use the arrow button and the OK button to move
through the menu structure
Installation > Advanced
> Drive Past Wire
.
3. Use the number buttons to set the distance.
4. Push the BACK button.
3.13.8 Settings
In settings you can change the general settings to your
product.
3.13.8.1 Profiles
With the function Profiles, different sets of product
settings can be saved. This can be used when one
product is used for more than one work areas and
charging stations. The product settings and the pairing
with the charging stations are saved in the profile and
can easily be used again.
To save settings to a profile
1. Do steps 1–3 in
To get access to the menu in the
display of the product on page 24
.
2. Use the arrow buttons and the OK button to move
through the menu structure
Settings > Profiles >
Use profiles > Profile A, B, C.
3. Use the arrow buttons and the OK button to select
and save the profile.
4. Push the
BACK button.
If settings have been changed but not saved, the symbol
* is shown beside the profile name.
To change the name of a profile
1. Do steps 1–3 in
To get access to the menu in the
display of the product on page 24
.
2. Use the arrow buttons and the OK button to move
through the menu structure Settings
> Profiles >
Use profiles > Profile A, B, C. > Rename.
3. Use the arrow buttons and the OK button to select
letters.
4. Push the BACK button to save the new profile
name.
To use a profile
1. Do steps 1–3 in
To get access to the menu in the
display of the product on page 24
.
2. Use the arrow buttons and the OK button to move
through the menu structure
Settings > Profiles >
Use profiles > Profile A, B, C > Select.
3. Push the BACK button.
To connect a new charging station to a profile
1. Save the settings in a profile to be used with the
original charging station. Do steps 1–4 in
To save
settings to a profile on page 30
.
2. Put the product in the new charging station.
3. Use the arrow buttons and the OK button to move
through the menu structure
Security > Advanced >
New loop signal
.
4. Save a profile for the new charging station, or
select a profile in the list. Do steps 1–4 in
To save
settings to a profile on page 30
, or do steps 1–3 in
To use a profile on page 30
.
3.13.8.2 ECO mode
If
ECO mode
is activated, it switches off the signal in the
boundary loop, the guide wire and the charging station,
when the product is parked or is charging.
Note: Use
ECO mode
to save energy and avoid
interference with other equipment, for example hearing
loops or garage doors.
Note: To start the product manually in the work area,
push the
STOP button before you remove the product
from the charging station. If not, the product can not be
started in the work area.
To set the ECO mode
1. Do steps 1–3 in
To get access to the menu in the
display of the product on page 24
.
30 - Installation 1230 - 003 - 19.03.2021
2. Use the arrow buttons and the OK button to move
through the menu structure
Settings > ECO mode
.
3. Push the
OK button to select the
ECO mode
.
4. Push the
BACK button.
3.13.8.3 Spiral Cutting
The product cuts the grass in a spiral pattern if the grass
is longer in an area.
Spiral cutting
can be set in 5 levels:
• Low-
• Low
• Mid
• High
• High+
The level sets how sensitive the product is to changes in
grass height.
Note:
Spiral cutting
is only started in the Main area
mode. Cutting in the
Secondary area
mode does not let
the product to start
Spiral cutting
.
Spiral Cutting
does not
start in slopes steeper than 15%.
To set the Spiral Cutting
1. Do steps 1–3 in
To get access to the menu in the
display of the product on page 24
.
2. Use the arrow buttons and the OK button to move
through the menu structure
Settings > Spiral
Cutting > Use Spiral Cutting
.
3. Push the BACK button.
To set the level of Spiral Cutting
1. Do steps 1–3 in
To get access to the menu in the
display of the product on page 24
.
2. Use the arrow buttons and the OK button to move
through the menu structure
Settings > Spiral
Cutting > Use Spiral Cutting > Intensity
.
3. Use the left arrow button to select the level of the
Spiral Cutting.
4. Push the BACK button.
3.13.8.4 Slope control
In order to decrease lawn wear near the boundary wire
in slopes, the product prevents to move in the opposite
direction when the product operates in a slope.
Slope
control
is enabled in the factory settings.
To set the Slope control
1. Do steps 1–3 in
To get access to the menu in the
display of the product on page 24
.
2. Use the arrow buttons and the OK button to move
through the menu structure
Settings > Slope
control > Use Slope control
.
3. Push the BACK button.
3.13.8.5 General
In
General
you can change the general settings of the
product.
To set the time & date
1. Do steps 1–3 in
To get access to the menu in the
display of the product on page 24
.
2. Use the arrow buttons and the OK button to move
through the menu structure
Settings > General >
Time & Date
.
3. Use the number buttons to set the time and then
push the BACK button.
4. Use the number buttons to set the date and then
push the BACK button.
5. Use the arrow buttons to set the time format and
then push the BACK button.
6. Use the arrow buttons to set the date format and
then push the BACK button.
To set the language
1. Do steps 1–3 in
To get access to the menu in the
display of the product on page 24
.
2. Use the arrow buttons and the OK button to move
through the menu structure
Settings > General >
Language.
3. Use the arrow buttons to select language and then
push the BACK button.
To set the Country & Timezone
1. Do steps 1–3 in
To get access to the menu in the
display of the product on page 24
.
2. Use the arrow buttons and the OK button to move
through the menu structure
Settings > General >
Country & Timezone.
3. Use the arrow buttons to select country and then
push the BACK button.
To set the unit format
1. Do steps 1–3 in
To get access to the menu in the
display of the product on page 24
.
2. Use the arrow buttons and the OK button to move
through the menu structure
Settings > General >
Unit format.
3. Use the arrow buttons to select unit format and
then push the BACK button.
To reset all user settings
1. Do steps 1–3 in
To get access to the menu in the
display of the product on page 24
.
2. Use the arrow buttons and the OK button to move
through the menu structure
Settings > General >
Reset all user settings
.
3. Use the right arrow button to select
Proceed with
reset of all user settings?
4. Push the OK button to reset all the user settings.
1230 - 003 - 19.03.2021 Installation - 31
Note:
Security level, PIN code, Loop signal,
Messages, Date & Time, Language
and
Country
settings
are not reset.
The About menu
The
About
menu displays information about the product,
for example serial number and firmware versions.
3.13.9 Accessories
Settings for accessories mounted on the product can be
made in this menu.
3.13.9.1 Information
This menu handles accessories mounted on the
product. Contact your local Husqvarna representative for
more information on available accessories.
3.13.9.2 Automower
®
Connect
The product can connect to mobile devices that have the
Automower
®
Connect app installed. The Automower
®
Connect app has Long-range cellular connectivity and
Short-range Bluetooth
®
connectivity. Refer to
Automower
®
Connect app on page 23
.
Note: Automower
®
Connect is always connected to
your product while the mobile device have connection
with the mobile network and the product is switched on.
Note: All countries do not support Automower
®
Connect because of regional specified cellular systems.
The included Automower
®
Connect life-time service only
applies if there is a third part sub-supplier of 2G/3G/4G
available in the operational area. In some countries
Bluetooth
®
is not available because of legal reasons.
To enable the GeoFence function
GeoFence is a GPS-based theft protection that makes a
virtual fence for the product. You will get a message if
the product is moved on the other side of the GeoFence.
1. Put the product in the center of the work area.
2. Do steps 1–3 in
To get access to the menu in the
display of the product on page 24
.
3. Use the arrow buttons and the OK button to move
through the menu structure
Accessories >
Automower Connect > GeoFence > Activate
GeoFence
.
4. Push the OK button.
5. Select
Activate GeoFence
and push the OK
button.
To set a new center point for the Geofence function
1. Put the product in the center of the work area.
2. Do steps 1–3 in
To get access to the menu in the
display of the product on page 24
.
3. Use the arrow buttons and the OK button to move
through the menu structure
Accessories >
Automower Connect > GeoFence > New center
point
.
4. Push the
OK button.
To set the GeoFence level of sensitivity
The higher level of GeoFence sensitivity, the easier the
alarm starts.
1. Do steps 1–3 in
To get access to the menu in the
display of the product on page 24
.
2. Use the arrow buttons and the OK button to move
through the menu structure
Accessories >
Automower Connect > GeoFence
.
3. Use the arrow buttons to select level of GeoFence
sensitivity.
4. Push the BACK button.
To use the SMS function
The SMS function sends you an SMS when the product
is moved out of the GeoFence.
1. Do steps 1–3 in
To get access to the menu in the
display of the product on page 24
.
2. Use the arrow buttons and the OK button to move
through the menu structure
Accessories >
Automower Connect > Communication > Use
SMS
.
3. Push the OK button.
4. Use the arrow buttons and the OK button to move
through the menu structure
Accessories >
Automower Connect > Communication > SMS
phone numbers
.
5. Push the number buttons to enter the telephone
number with country code. For example
(+)46701234567.
6. Push the BACK button.
Note: There is a maximum of 10 SMS each month
from the product.
Network
APN settings
The product must specify APN settings to be able to use
and send data via the mobile net. Settings for
Husqvarna SIM is default.
3.13.9.3 Ultrasonic Automower
®
450XH
The
Ultrasonic
function makes the product decrease
speed when the product comes near an obstacle. The
product operates at a lower speed if the
Ultrasonic
function is disabled.
32 - Installation 1230 - 003 - 19.03.2021
To set the Ultrasonic function
1. Do steps 1–3 in
To get access to the menu in the
display of the product on page 24
.
2. Use the
arrow buttons and the OK button to move
through the menu structure
Accessories >
Ultrasonic > Use
.
3.13.9.4 Headlights
To set the schedule for the headlights
1. Do steps 1–3 in
To get access to the menu in the
display of the product on page 24
.
2. Use the arrow buttons and the OK button to move
through the menu structure
Accessories >
Headlights > Schedule
.
3. Select between
Always ON
,
Evening only
(19:00-00:00),
Evening & night
(19:00-07:00) or
Always OFF
.
To set the Flashes when fault function
The headlights flashes if the product stops to operate
because of a fault if
Flashes when fault
is enabled.
1. Do steps 1–3 in
To get access to the menu in the
display of the product on page 24
.
2. Use the arrow buttons and the OK button to move
through the menu structure
Accessories >
Headlights > Flashes when fault
.
3. Use the OK button to enable or disable the
Flashes when fault
function.
3.13.9.5 To avoid collisions with the Automower
®
house
The wear on the product and the Automower
®
house
decreases when you select
Avoid collisions with mower
.
1. Do steps 1–3 in
To get access to the menu in the
display of the product on page 24
.
2. Use the arrow buttons and the OK button to move
through the menu structure
Accessories > Mower
house > Avoid collisions with mower
.
Note: If
Avoid collisions with mower
is selected it can
result in grass that is not cut around the charging
station.
1230 - 003 - 19.03.2021 Installation - 33

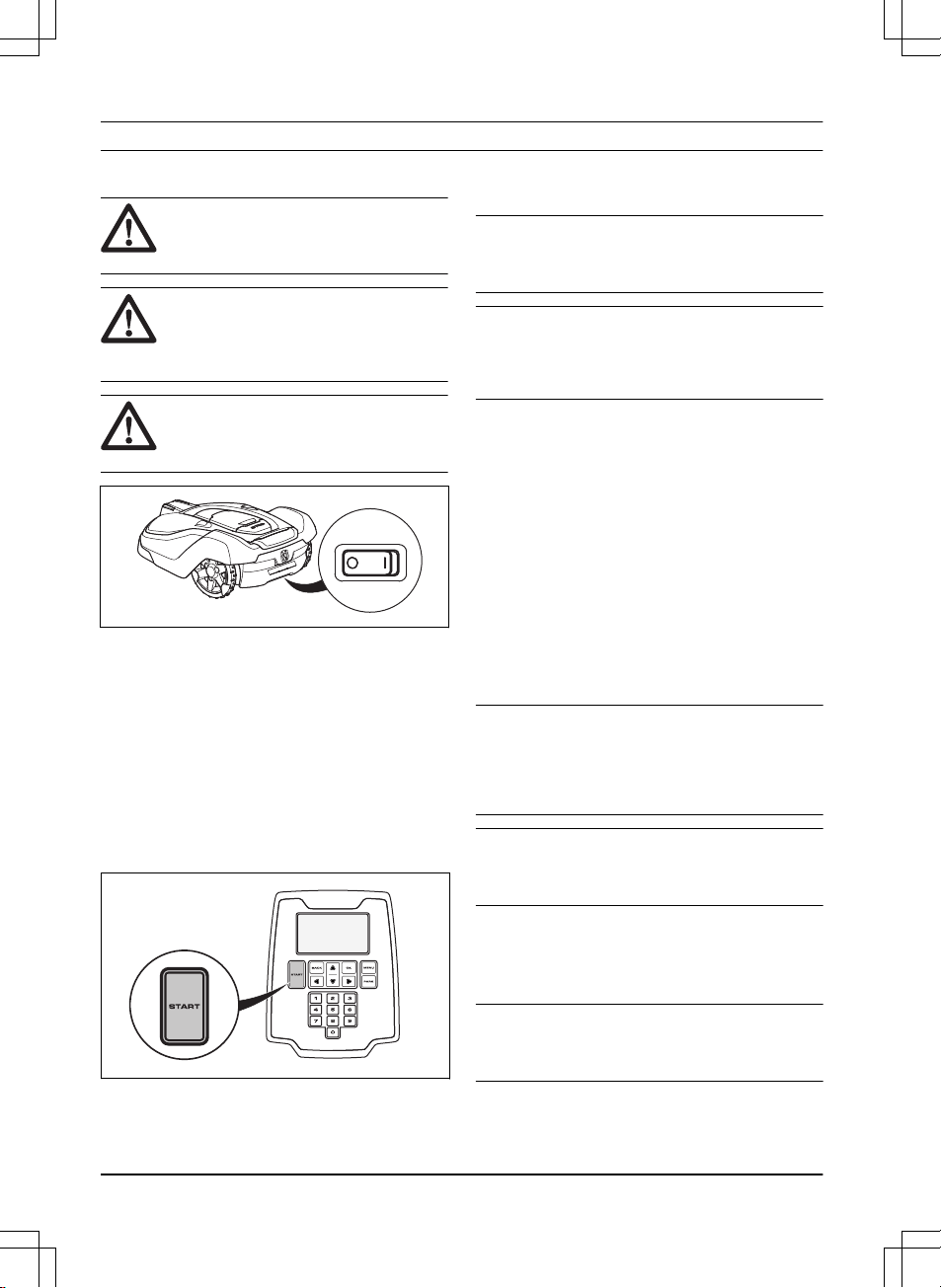

4 Operation
4.1 Main switch
WARNING: Read the safety
instructions carefully before you start the
product.
WARNING: Keep your hands and feet
away from the rotating blades. Do not put
your hands or feet near to or below the
product when the cutting motor is on.
WARNING: Do not use the product
when persons, especially children, or
animals are in the work area.
• Set the Main switch in the
1
position to start the
product.
• Set the Main switch in the
0
position when the
product is not in use or before you do inspection or
maintenance on the product.
4.2 To start the product
1. Push the
STOP button to open the hatch on the
product.
2. Set the
Main switch to position
1
.
3. Enter the PIN code.
4. Push the START button.
5. Select an operating mode. Refer to
Operating
modes - Start on page 34
.
6. Push the
OK button.
7. Close the hatch on the product.
Note: If the product is parked in the charging station,
the product will start to operate when the battery is fully
charged and if the
Schedule
settings is set for operation.
Note: The first weeks after installation the perceived
sound level when cutting the grass may be higher than
expected. When the product has cut the grass for some
time, the perceived sound level is much lower.
4.3 Operating modes - Start
•
Main area
•
Secondary area
•
Override schedule
•
Spot cutting
4.3.1 Main area
Use the operating mode
Main area
for the product to cut
and charge automatically.
4.3.2 Secondary area
Use
Secondary area
operating mode to cut secondary
areas. You must move the product manually between
the main area and the secondary area. The product cuts
for a selected period of time or until the battery is empty.
Note: You must put the product manually in the
charging station to charge the product when it is in a
secondary area. The product will move out from the
charging station and stop when the battery is charged.
You must select an operating mode to start the product.
Note: If you will cut the main area after the battery is
charged, set the product to
Main area
mode before you
put the product in the charging station.
4.3.3 Override schedule
Use the operating mode
Override schedule
to
temporarily override the
Schedule
settings for
24h
or
3
days
.
Note: It is not possible to cut more than the maximum
cutting time for each day. Refer to
To calculate the
suitable operating hours on page 24
.
34 - Operation 1230 - 003 - 19.03.2021

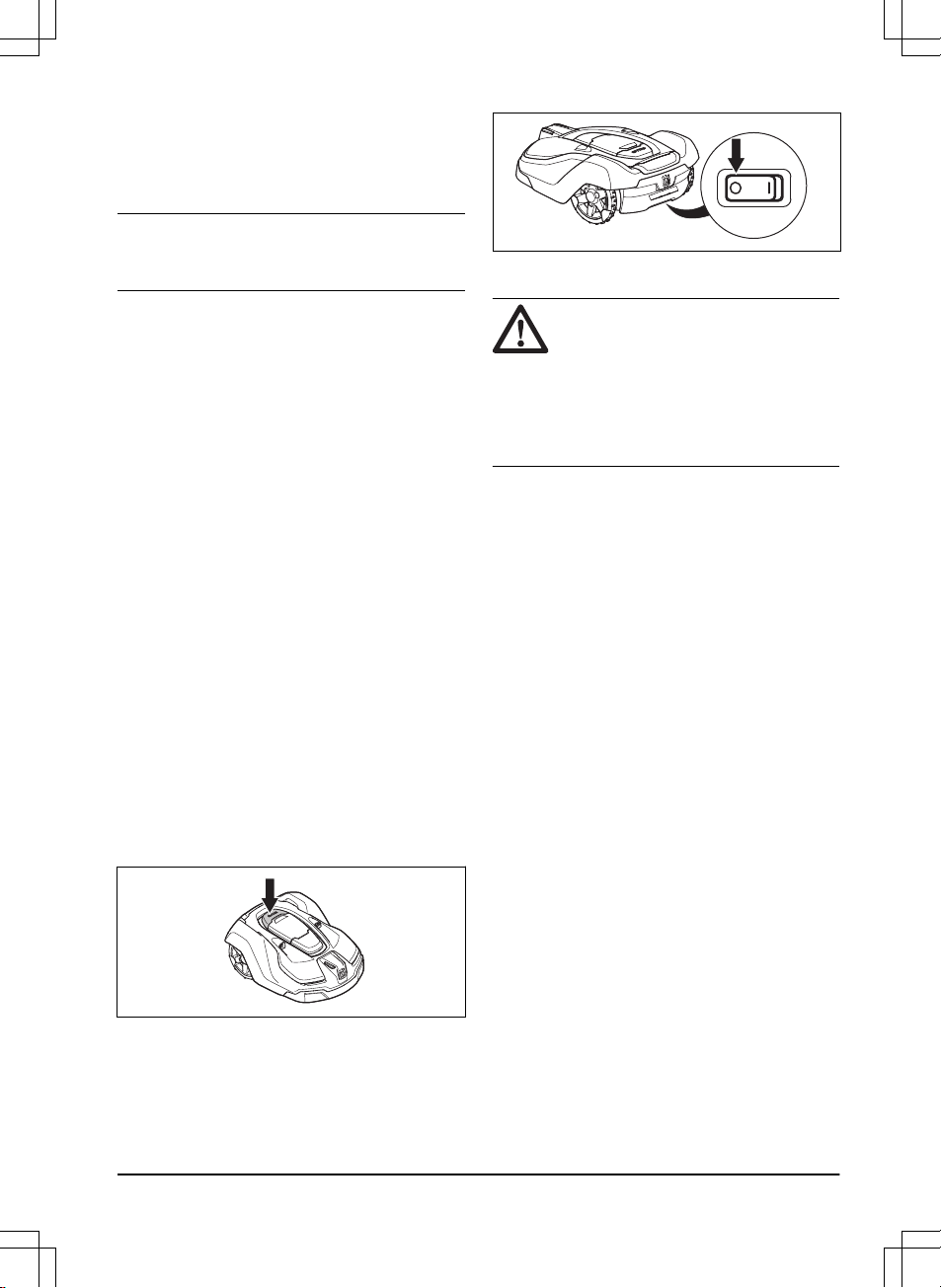

4.3.4 Spot cutting
Use the operating mode
Spot cutting
to cut a selected
area in a spiral pattern. You must move the product
manually to the selected area before you start the
Spot
cutting
operating mode.
Note: After the product has operated in the operating
mode
Spot cutting
, it will automatically start to cut in the
operating mode
Main area
or
Secondary area
.
4.4 To park the product
1. Push the STOP button to open the hatch.
2. Set the Main switch to position 0.
3. Enter the PIN code.
4. Push the PARK button.
5. Select an operating mode. Refer to
Operating
modes - Park on page 35
.
6. Push the OK button.
7. Close the hatch.
4.4.1 Operating modes - Park
•
Park until further notice
•
Start with schedule
4.4.1.1 Park until further notice
Use the operating mode
Park until further notice
for the
product to go back to the charging station. The product
will stay in the charging station until you select a new
operating mode.
4.4.1.2 Start again with next schedule
Use the operating mode
Start again with next schedule
for the product to go back to the charging station. The
product will stay in the charging station until the next
Schedule
setting.
4.5 To stop the product
1. Push the STOP button to make the product and
the cutting motor stop.
4.6 To switch off the product
1. Push the
STOP button on top of the product.
2. Set the
Main switch to position
0
.
4.7 To charge the battery
WARNING: Only charge the product
using a charging station which is intended
for it. Incorrect use may result in electric
shock, overheating or leakage of corrosive
liquid from the battery.
In the event of leakage of electrolyte flush
with water and seek medical help if it comes
in contact with the eyes etc.
When the product is new or has been stored for a long
period, the battery can be empty and needs to be
charged before starting. In the
Main area
mode, the
product automatically alternates between mowing and
charging.
1. Set the Main switch to position
1
.
2. Place the product in the charging station. Slide the
product in as far as possible to ensure proper
contact between the product and the charging
station. Refer to contact and charging plates in
Product overview on page 4
3. The display shows a message that charging is in
progress.
1230 - 003 - 19.03.2021 Operation -
35

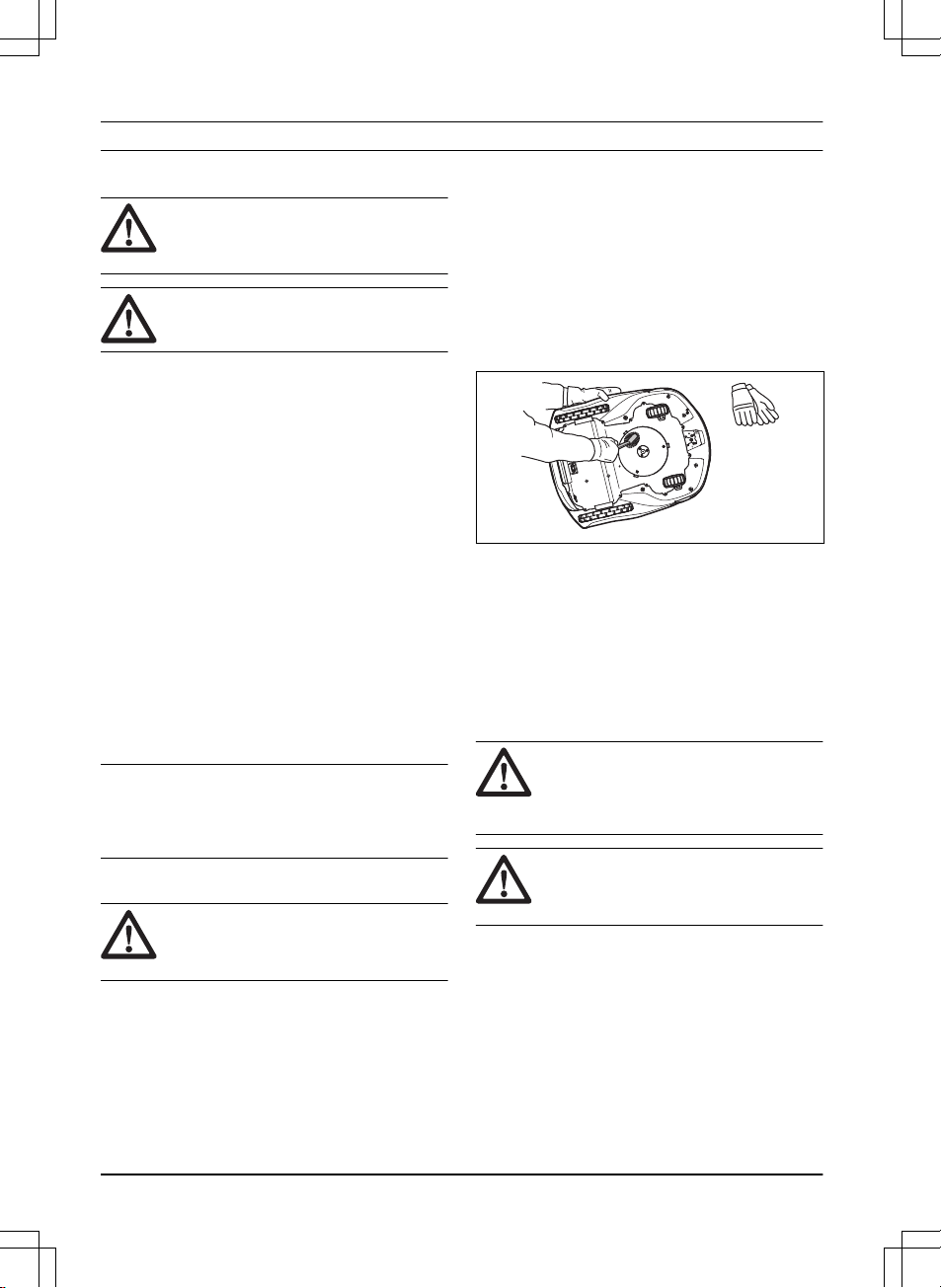

5 Maintenance
5.1 Introduction - maintenance
WARNING: The product must be
switched off before any maintenance is
done.
WARNING: Wear protective gloves.
For better operation and longer service life, make sure
to clean the product regularly and replace worn parts. All
maintenance and servicing must be done according to
Husqvarna's instructions. Refer to
Warranty on page
54
.
When the product is first used, the blade disc and
blades should be inspected once a week. If the amount
of wear during this period has been low, the inspection
interval can be increased.
It is important that the blade disc rotates easily. The
edges of the blades should not be damaged. The
lifetime of the blades varies immensely and depends for
instance on:
• Operating time and size of the work area.
• Type of grass and seasonal growth.
• Soil, sand and use of fertilizers.
• The presence of objects such as cones, windfalls,
toys, tools, stones, roots and the like.
The normal life is 3 to 6 weeks when used under
favorable conditions. Refer to
Replace the blades on
page 37
on how to replace the blades.
Note: Working with blunt blades gives a poorer
mowing result. The grass is not cut cleanly and more
energy is needed resulting in the product not mowing
such a large area.
5.2 Clean the product
CAUTION: Never use a high-pressure
washer to clean the product. Never use
solvents for cleaning.
The product does not operate satisfactorily in slopes if
the wheels are blocked with grass. Use a soft brush to
clean the product.
Husqvarna recommends to use a special cleaning and
maintenance kit, available as accessory. Speak to your
Husqvarna representative for more information.
5.2.1 Chassis and blade disc
Inspect the blade disc and blades once a week.
1. Push the
STOP button.
2. Set the Main switch to position
0
.
3. Lift the product onto its side.
4. Clean the blade disc and chassis using for
example a dish brush. At the same time, check
that the blade disc rotates freely in relation to the
foot guard. Also, check that the blades are intact
and can pivot freely.
5.2.2 Wheels
Clean around the wheels. Grass on the wheels can
impact on how the product performs in slopes.
5.2.3 The body of the product
Use a moist, soft sponge or cloth to clean the body of
the product. If the body of the product is dirty, use a mild
soap solution to clean it.
5.2.4 Charging station
WARNING: Disconnect the power
supply from the power outlet before any
maintenance, or cleaning of charging station
or power supply.
WARNING: Do not use a high-pressure
washer or running water to clean the
charging station.
Clean the charging station regularly from grass, leaves,
twigs and other objects that may impede docking.
36 - Maintenance 1230 - 003 - 19.03.2021

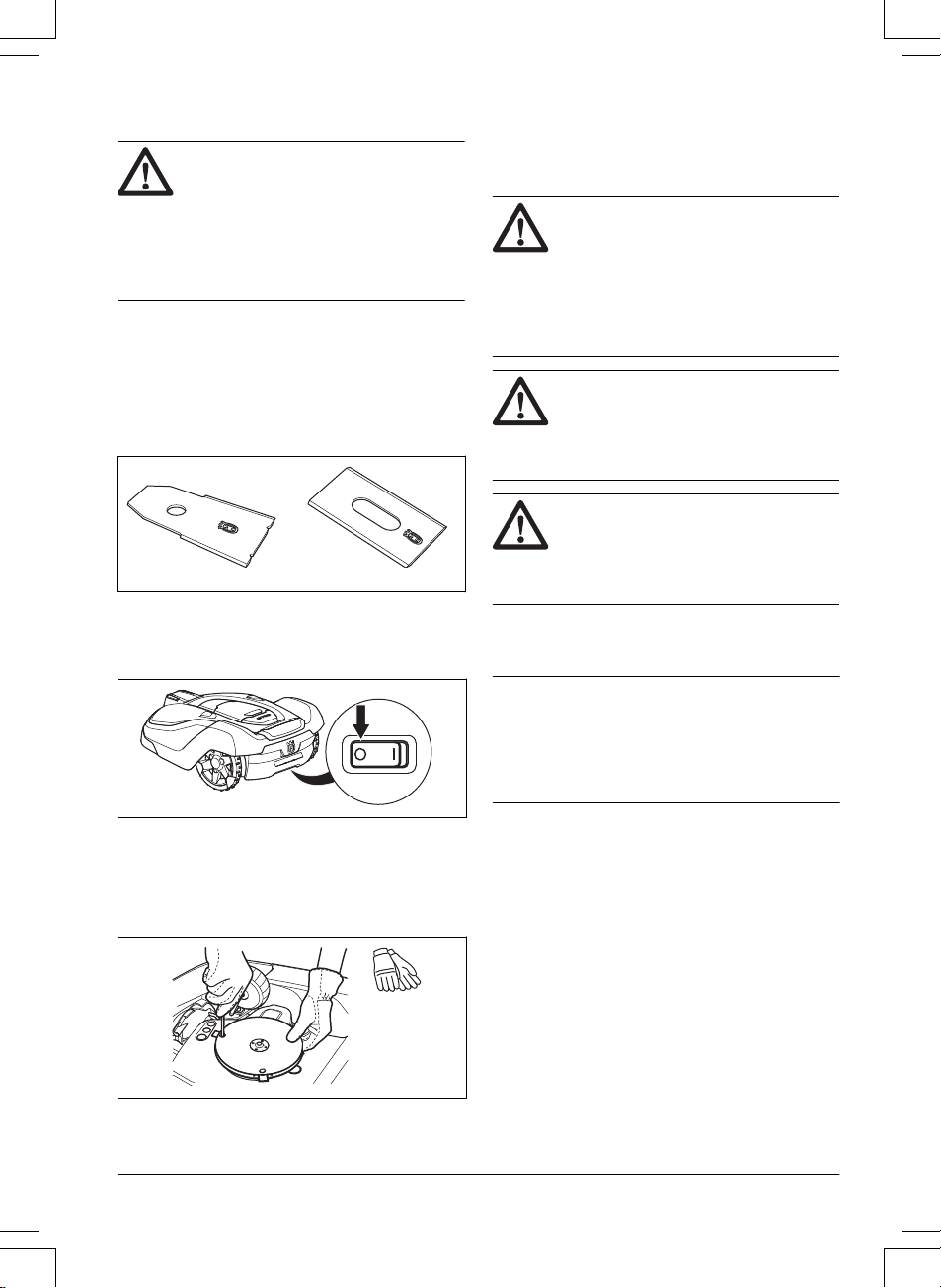

5.3 Replace the blades
WARNING: Use blades and screws of
the right type. Husqvarna can only
guarantee safety when using original blades.
Only replacing the blades and reusing the
screw can result in a screw wearing during
mowing. The blades can then be propelled
from under the body and cause serious
injury.
Replace worn or damaged parts for safety reasons.
Even if the blades are intact, they should be replaced on
a regular basis for the best mowing result and low
energy usage. All 3 blades and screws must be replaced
at the same time to obtain a balanced cutting system.
Use Husqvarna original blades embossed with the
crowned H-mark logotype, refer to
Technical data on
page 51
.
5.3.1 To replace the blades
1. Push the STOP button
2. Set the Main switch to position
0
.
3. Turn the product upside down. Put the product on
a soft and clean surface to avoid scratching the
product.
4. Rotate the skid plate so that its holes align with the
screws for the blade.
5. Remove the 3 screws with a screwdriver.
6. Remove the 3 blades.
7. Attach 3 new blades and screws.
8. Make sure that the blades can pivot freely.
5.4 Battery
WARNING: Only charge the product
using a charging station which is intended
for it. Incorrect use may result in electric
shock, overheating or leakage of corrosive
liquid from the battery. In the event of
leakage of electrolyte flush with water and
seek medical help if it comes in contact with
the eyes etc.
WARNING: Use only original batteries
recommended by the manufacturer. Product
safety cannot be guaranteed with other
batteries. Do not use non-rechargeable
batteries.
CAUTION: The battery must charge a
complete cycle before winter storage. If the
battery is not fully charged it can be
damaged and in certain cases be rendered
useless.
If the operating time for the product is shorter than
normal between charges, this indicates that the battery
is getting old and eventually needs replacing.
Note: Battery life is dependent on the length of the
season and how many hours a day the product is
operating. A long season or many hours of use a day
means that the battery must be replaced more regularly.
The battery is fine as long as the product maintains a
well-cut lawn.
5.5 Winter service
Take your product to your Husqvarna central service for
service prior to winter storage. Regular winter service
will maintain the product in good condition and create
the best conditions for a new season without any
disruptions.
Service usually includes the following:
• Thorough cleaning of the body, the chassis, the
blade disc and all other moving parts.
• Testing of the product’s function and components.
• Checking and, if required, replacing wear items
such as blades and bearings.
• Testing the product’s battery capacity as well as a
recommendation to replace battery if necessary.
• If new firmware is available, the product is
updated.
1230 - 003 - 19.03.2021 Maintenance -
37
6 Troubleshooting
6.1 Introduction - troubleshooting
In this chapter you can find information and help about faults and symptoms of the product. You can find more
information and FAQ (Frequently Asked Questions) on www.husqvarna.com.
6.2 Fault messages
The list below shows a number of fault messages that may be shown in the app. Speak to your local Husqvarna
representative if the same message shows frequently.
Message Cause Action
Wheel motor blocked
Grass or other objects is wound around the
drive wheel.
Examine the drive wheel and remove the
grass or other object.
Cutting system
blocked
Grass or other objects is wound around the
blade disc.
Examine the drive wheel and remove the
grass or other object.
The blade disc are in a pool of water. Move the product and prevent the collection
of water in the work area.
Cutting height
blocked
Grass or other objects is wound around the
cutting height adjustment, or between the
blade disc and chassis.
Examine the blade disc and the bellows
around the cutting height adjustment, and re-
move any grass or other objects that may
have got stuck.
Trapped
The product is blocked in a small area be-
hind a number of obstacles.
Examine if there are obstacles which make it
hard for the product to move away from this
location.
38 - Troubleshooting 1230 - 003 - 19.03.2021
Message Cause Action
No loop signal
The power supply or the low-voltage cable is
not connected.
Examine the LED status on the charging sta-
tion. If there is no power to the charging sta-
tion, the LED is not lit. Examine the power
outlet connection and if a residual-current de-
vice is engaged. Make sure that the low-volt-
age cable is connected to the charging sta-
tion.
The power supply or the low-voltage cable is
damaged.
Replace the power supply or low-voltage ca-
ble.
The boundary wire is not connected to the
charging station.
Make sure that the boundary wire connectors
are fitted properly to the charging station. Re-
place connectors if damaged. Refer to
To in-
stall the boundary wire on page 21
.
Boundary wire broken. Examine the LED on the charging station. If
the LED indicates that there is a break in the
boundary wire, find out where the break is.
Replace the damaged section of the loop
with a new loop wire. Use an original coupler
to make a splice of the loop ends. Refer to
Find breaks in the loop wire on page 47
.
ECO mode
is activated and the product has
attempted to start outside the charging sta-
tion.
Put the product in the charging station. Start
the product. Refer to
To start the product on
page 34
.
The boundary wire is crossed on its way to
and from an island.
Make sure that the boundary wire is put
down correctly. Refer to
To make an island
on page 18
.
The product does not find the loop signal
from the charging station.
Put the product in the charging station and
generate a new loop signal. Refer to
To cre-
ate a New loop signal on page 26
.
Disturbances from metal objects (fences, re-
inforcement steel) or buried cables close by.
Try to move the boundary wire and/or make
more islands in the work area to increase the
signal strength.
The product is too far from the boundary
wire.
Redo the installation of the boundary wire so
that all parts of the work area is maximum 35
m / 115 ft. from the boundary wire.
Wrong PIN code
An incorrect PIN code has been entered. 5
tries are permitted, and the product is then
blocked for a period of time.
Enter the correct PIN code. Speak to your lo-
cal Husqvarna representative if you forget
the PIN code.
1230 - 003 - 19.03.2021 Troubleshooting - 39
Message Cause Action
Outside work area
The boundary wire connections to the charg-
ing station are crossed.
Make sure that the boundary wire is connec-
ted correctly to the charging station. Refer to
To install the boundary wire on page 21
.
The boundary wire is too close to the edge of
the work area.
Make sure that the boundary wire is put
down correctly. Refer to
To install the boun-
dary wire on page 21
.
The work area slopes too much by the boun-
dary loop.
The boundary wire is laid in the wrong direc-
tion around an island.
Disturbances from metal objects (fences, re-
inforcement steel) or buried cables close by.
Try to move the boundary wire and/or make
more islands in the work area to increase the
signal strength.
The product finds it hard to distinguish the
signal from another product installation close
by.
Put the product in the charging station and
generate a new loop signal. Refer to
To cre-
ate a New loop signal on page 26
.
Empty battery
The product cannot find the charging station. Change the position of the guide wire. Refer
to
To install the guide wire on page 21
.
Check the installation settings about how to
find the charging station. Refer to
Methods
for the product to find the charging station on
page 28
.
The battery is spent. Replace the battery. Refer to
Battery on
page 37
.
The charging station’s antenna is defective. Check if the indicator lamp in the charging
station flashes red. Refer to
Indicator lamp in
the charging station on page 45
. This prob-
lem requires action by authorized service
technician.
No drive
The product has hit an obstacle and stopped
or the wheels cannot move on the wet grass.
Free the product and rectify the reason for
the lack of drive. If it is due to wet grass, wait
until the lawn has dried before using the
product.
The work area includes a steep slope. Maximum guaranteed slope is %. Steeper
slopes should be isolated. Refer to
To put
the boundary wire in a slope on page 17
.
The guide wire is not laid at an angle on a
slope.
If the guide wire is laid on a slope, it must be
laid at an angle across the slope. Refer to
To
make a secondary area on page 19
.
Wheel motor overloa-
ded
Grass or other objects is wound around the
drive wheel.
Examine the drive wheel and remove grass
or other objects.
40 - Troubleshooting 1230 - 003 - 19.03.2021
Message Cause Action
Charging station
blocked
The contact between the charging strips and
contact strips may be poor and the product
has made a number of attempts to charge.
Put the product in the charging station and
check that the charging plates and contact
plates make good contact.
An object is obstructing the product. Remove the object.
The charging station is tilted or bent. Confirm that the charging station is placed on
a fully flat and horizontal ground. The charg-
ing station must not be tilted or bent.
Stuck in charging sta-
tion
The product slips on the baseplate. Clean the baseplate.
There is an object in the way of the product
preventing it from leaving the charging sta-
tion.
Remove the object.
Upside down
The product is leaning too much or has
turned over.
Turn the product the right way up.
Mower tilted
The product is tilted more than the maximum
angle.
Move the product to a flat area.
Needs manual charg-
ing
The product is set to the
Secondary area
op-
erating mode.
Place the product in the charging station.
This behavior is normal and no action is re-
quired.
Next start hh:mm
The schedule setting prevents the product
from operating.
Change the schedule settings. Refer to
Schedule on page 24
.
The clock on the product is not correct. Set the time. Refer to
To set the time & date
on page 31
.
Lifted
The lift sensor is engaged because the prod-
uct hit an object or/and is blocked.
Free the product. If the problem stays, speak
to your approved servicing dealer.
Collision sensor
problem, front/rear
The body of the product can not move freely
around its chassis.
Remove dirt or objects between the chassis
and the body to make sure that the body can
move freely around the chassis.
The product has become stuck. Free the product and rectify the reason.
Wheel motor blocked
right/left
Grass or other object is wrapped around the
drive wheel.
Clean the wheels and around the wheels.
Alarm! Mower switch-
ed off
The alarm was activated because the prod-
uct was switched OFF.
Adjust the mower security settings in the
Se-
curity
menu. Refer to
Security level on page
25
.
Alarm! Mower stop-
ped
The alarm was activated because the prod-
uct was stopped.
Alarm! Mower lifted
The alarm was activated because the prod-
uct was lifted.
Alarm! Mower tilted
The alarm was activated because the prod-
uct was tilted.
1230 - 003 - 19.03.2021 Troubleshooting - 41
Message Cause Action
Electronic problem
Temporary electronic or firmware related is-
sue in the product.
Restart the product.
If the problem stays, speak to your approved
servicing dealer.
Loop sensor prob-
lem, front/rear
Charging system
problem
Tilt sensor problem
Temporary problem
Wheel drive problem,
right/left
Invalid device combi-
nation
Ultrasonic problem
GPS navigation prob-
lem
Temporary battery
problem
Faulty mix of batter-
ies
Battery problem
Temporary battery or firmware related issue
in the product.
Restart the product.
If the problem stays, speak to your approved
servicing dealer.
Wrong type of battery Use only original batteries recommended by
the manufacturer.
Battery temperature
outside limits
The product does not operate if the battery
temperature is too high or too low.
The product starts to operate again when the
temperature is between the set limits and the
schedule settings let the product to operate.
Make sure that the charging station is put in
an area with protection from the sun.
Charging current too
high
Wrong or faulty power supply unit. Restart the product.
If the problem stays, speak to your approved
servicing dealer.
Connectivity problem
Potential problem on the connectivity circuit
board in the product.
Restart the product.
If the problem stays, speak to your approved
servicing dealer.
42 - Troubleshooting 1230 - 003 - 19.03.2021
6.3 Information messages
The list below shows a number of information messages that may be found in the
Messages
menu in the Automower
®
Connect app. Contact your local Husqvarna representative if the same message appears often.
Message Cause Action
Low battery
The product cannot find the charging station. Change the position of the guide wire. Refer
to
To install the guide wire on page 21
.
Make sure that the installation settings about
how to find the charging station is correct.
Refer to
Methods for the product to find the
charging station on page 28
.
The battery is spent. Replace the battery. Refer to
Battery on
page 37
.
The charging station’s antenna is defective. Check if the indicator lamp in the charging
station flashes red. Refer to
Indicator lamp in
the charging station on page 45
. This prob-
lem requires action by authorized service
technician.
Settings restored
Confirmation that a
Reset all user settings
has been carried out.
This is normal. No action required.
Limited cutting height
The cutting height adjustment cannot move. Examine the cutting height adjustment and
remove grass or other objects. If the problem
stays, speak to your approved servicing deal-
er.
Unexpected cutting
height adj
Limited cutting height
range
Cutting height prob-
lem
Cutting height
blocked
Cutting system imbal-
ance
The product has discovered vibrations in the
blade disc.
Verify that the blades and screws are intact
and not worn out. Verify that all blades are
correctly mounted. Check that no double
blades are mounted on any of the three
blade positions.
Slope too steep
The product stopped because the slope is
too steep.
Change the installation of the boundary wire
to not include this steep part of the work
area. Refer to
To install the boundary wire on
page 21
.
Guide 1 not found
Guide 2 not found
Guide 3 not found
The guide wire is not connected to the charg-
ing station.
Check that the guide wire’s connector is
tightly connected to the charging station. Re-
fer to
To install the guide wire on page 21
.
Break in the guide wire. Find out where the break is. Replace the
damaged section of the guide wire with a
new loop wire and splice using an original
coupler.
The guide wire is not connected to the boun-
dary loop.
Check that the guide wire is connected cor-
rectly to the boundary loop. Refer to
To in-
stall the guide wire on page 21
.
1230 - 003 - 19.03.2021 Troubleshooting - 43
Message Cause Action
Guide calibration
failed
The product has failed to calibrate the guide
wire.
Check that the guide wires are installed ac-
cording to the instructions. Refer to
To install
the guide wire on page 21
. The next time the
product moves out from the charging station,
a new guide calibration is done.
Guide calibration ac-
complished
The product has succeeded to calibrate the
guide wire.
No action required.
GPS navigation prob-
lem
Problem with the GPS assisted navigation
equipment.
Contact your local Husqvarna representative
if this message appears often.
Weak GPS signal
The sky is blocked in large parts of the work
area.
If possible, remove objects that can cause a
blockage of the GPS signal.
Disable the GPS navigation function and use
the lawn coverage function. Refer to
Lawn
Coverage on page 27
.
Difficult finding home
The product has been following the boundary
wire several laps without finding the charging
station.
The installation has not been done correctly.
Refer to
To install the boundary wire on page
21
.
Wrong corridor width setting on boundary
wire. Refer to
To install the boundary wire on
page 21
.
The product was started on a Secondary
area with the Main area setting.
Temporary problem
with the server.
Please try again. Contact your local Husqvarna representative
if this message appears often.
Connection problems
Problem with the Automower
®
Connect mod-
ule
Restart the product. If there still is a connec-
tion problem, try to unpair the product
(My
mowers)
and then pair it again. If the prob-
lem remains, contact your local Husqvarna
representative.
Connection settings
restored
Settings for wireless connectivity have been
restored due to an error.
Check and revise settings if necessary.
SIM card requires
PIN
The SIM card must be unlocked. Make sure the correct SIM PIN has been en-
tered into the mower's menu (Network > SIM
card). Contact your local Husqvarna repre-
sentative if this message appears often.
SIM card locked
The SIM card must be replaced. Contact your local Husqvarna representative.
SIM card not found
Automower
®
Connect requires a SIM card to
be inserted in the mower.
Contact your local Husqvarna representative.
GeoFence problem
The GeoFence is not work due to poor (or
no) communication with the system.
Contact your local Husqvarna representative.
44 - Troubleshooting 1230 - 003 - 19.03.2021
6.4 Indicator lamp in the charging station
The indicator lamp in the charging station must show a solid or flashing green light for a correct installation. If not,
follow the instructions in the troubleshooting guide below.
Speak to your Husqvarna customer service for more information.
Light Cause Action
Green solid light Good signals Usual operation of the product.
Green flashing light The signals are good and
ECO mode
is ena-
bled.
Usual operation of the product. Refer to
ECO
mode on page 30
.
Blue flashing light The boundary wire is not connected to the
charging station.
Make sure that the boundary wire is correctly
installed in the charging station. Refer to
To
install the boundary wire on page 21
.
Damage in the boundary wire. Find out where the damage is. Replace the
damaged section with new boundary wire.
Red flashing light Interference in the antenna of the charging
station.
Speak to your Husqvarna customer service.
Red solid light Error in the circuit board or incorrect power
supply in the charging station. The error must
be corrected by an authorized service techni-
cian.
Speak to your Husqvarna customer service.
1230 - 003 - 19.03.2021 Troubleshooting - 45
6.5 Symptoms
If your product does not work as expected, follow the symptoms guide below.
There is a FAQ (Frequently Asked Questions) on www.husqvarna.com which provides more detailed answers to a
number of standard questions. Contact Husqvarna customer service if you still cannot find the reason for the fault.
Symptoms Cause Action
The product has diffi-
culty docking.
The guide wire is not laid in a long straight
line that is far enough out from the charging
station.
Check that the charging station has been in-
stalled according to the instructions in
To in-
stall the guide wire on page 21
The guide wire is not inserted in the slot un-
der the charging station.
Make sure that the guide wire is in the cor-
rect position below the charging station. Re-
fer to
To install the guide wire on page 21
.
The charging station is not on a level sur-
face.
Place the charging station on a surface that
is entirely level. Refer to
To examine where
to put the charging station on page 15
.
The product runs at
the wrong time
The clock or the date in the product is not
correct.
Set the clock or date. Refer to
To set the
time & date on page 31
.
The start and stop times for mowing are in-
correct.
Change the
Schedule
settings. Refer to
Schedule on page 24
.
The product vibrates. Damaged blades lead to imbalance in the
cutting system.
Inspect the blades and screws and replace
them if necessary. Refer to
Replace the
blades on page 37
.
Too many blades in the same position lead
to imbalance in the cutting system.
Check that only one blade is fitted at each
screw.
Different versions (thickness) of blades are
used.
Check if the blades are of different versions.
The product runs, but
the blade disc does
not rotate.
The product searches for the charging sta-
tion, or is reversing out of the charging sta-
tion.
No action. The blade disc does not rotate
when the product is searching for the charg-
ing station.
The product mows
for shorter periods
than usual between
charges.
Grass or other foreign object blocks the
blade disc.
Remove and clean the blade disc. Refer to
Chassis and blade disc on page 36
.
The battery is spent. Replace the battery. Refer to
Battery on
page 37
.
Dull blades. More energy is needed when
cutting the grass.
Replace the blades. Refer to
Replace the
blades on page 37
.
Both the mowing and
charging times are
shorter than usual.
The battery is spent. Replace the battery. Refer to
Battery on
page 37
.
The product is
parked for hours in
the charging station.
The hatch is closed but the
START button is
not pushed.
Push the STOP button to open the hatch.
Enter the PIN code and confirm with the OK
button. Push the START button and then
close the hatch.
Parking mode is activated. Change the operating mode. Refer to
Oper-
ating modes - Park on page 35
.
The product is not allowed to operate if the
battery temperature is too high or too low.
Check that the charging station is placed in
an area with protection from the sun.
46 - Troubleshooting 1230 - 003 - 19.03.2021
Symptoms Cause Action
Uneven mowing re-
sults.
The product works too few hours per day. Increase the mowing time. Refer to
Schedule
on page 24
.
The shape of the work area requires the use
of
Lawn coverage
function for the product to
find its way to all remote areas.
Steer the product to a remote area. Refer to
Lawn Coverage on page 27
.
The
How often?
setting is incorrect in relation
to the layout of the work area.
Check that the correct
How often?
value is
selected.
The work area is too large. Try limiting the work area or extending the
schedule. Refer to
Schedule on page 24
.
Dull blades. Replace all the blades. Refer to
Replace the
blades on page 37
.
Long grass in relation to the set cutting
height.
Increase the cutting height and then succes-
sively lower it.
Accumulation of grass by the blade disc or
around the motor shaft.
Check that the blade disc rotates freely and
easily. If not, screw off the blade disc and re-
move grass and foreign objects. Refer to
Chassis and blade disc on page 36
.

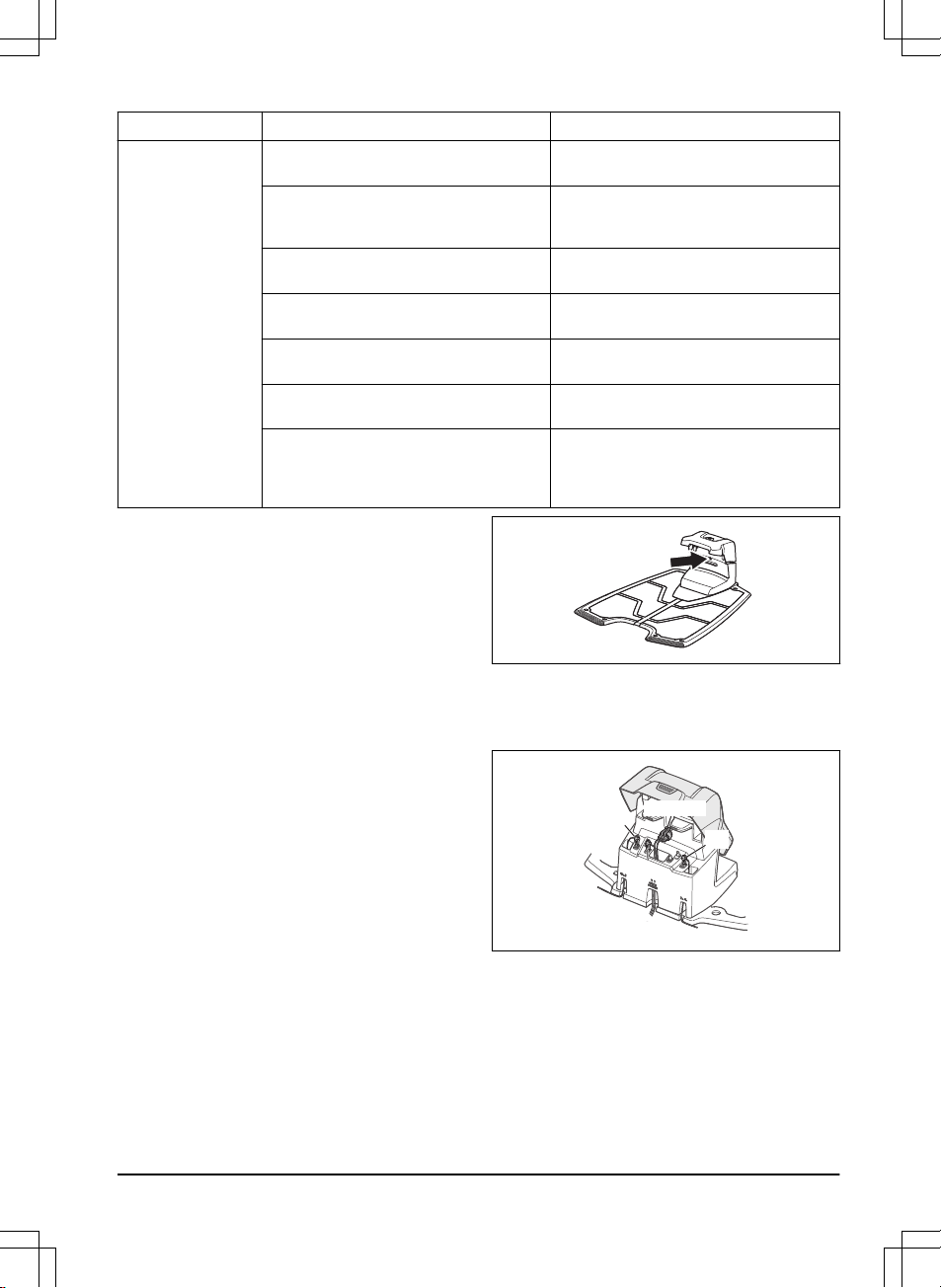

6.6 Find breaks in the loop wire
Breaks in the loop wire are usually the result of
unintentional physical damage to the wire such as when
gardening with a shovel. In countries with ground frost,
also sharp stones that move in the ground can damage
the wire. Breaks can also occur due to the wire being
stretched excessively during installation.
Mowing the grass too low right after the installation can
damage wire insulation. Damage to the insulation may
not cause disruptions until several weeks or months
later. To avoid this, always select the maximum cutting
height the first weeks after installation and then lower
the height one step at a time every second week until
the desired cutting height has been reached.
A defective splicing of the loop wire can also lead to
disruptions several weeks after the splice was done. A
faulty splice can, for example, be the result of the
coupler not being pressed together hard enough with a
pair of pliers, or that a coupler of lower quality than the
original coupler has been used. Please first check all
known splices before further troubleshooting is done.
A wire break can be located by gradually halving the
distance of the loop where the break may have occurred
until there is only a very short section of the wire left.
The following method does not work if
ECO mode
is
activated. Make sure first that
ECO mode
is switched
off. Refer to
ECO mode on page 30
.
1. Check that the indicator lamp in the charging
station flashes blue, which indicates a break in the
boundary loop. Refer to
Indicator lamp in the
charging station on page 45
.
2. Check that the boundary wire connections to the
charging station are properly connected and not
damaged. Check that the indicator lamp in the
charging station is still flashing blue.
AR
AL
G
POWER
3. Switch the connections between the guide wire
and the boundary wire in the charging station.
Start by switching connection AL and G.
If the indicator lamp has a solid green light, then
the break is somewhere on the boundary wire
between AL and the point where the guide wire is
connected to the boundary wire (thick black line in
the illustration).
1230 - 003 - 19.03.2021 Troubleshooting -
47
Guide
G
AL
To rectify the fault you will need boundary wire,
connector(s) and coupler(s):
a) If the suspected boundary wire is short then it is
easiest to exchange all of the boundary wire
between AL and the point where the guide wire is
connected to the boundary wire (thick black line).
b) If the suspected boundary wire is long (thick
black line) then do as follows: Put AL and G back
to their original positions. Then disconnect AR.
Connect a new loop wire to AR. Connect the other
end of this new loop wire at the middle of the
suspected wire section.
AR
If the indicator lamp now is green, then the break is
somewhere in the wire between the disconnected
end to the point where the new wire is connected
(thick black line below). In that case, move the
connection for the new wire closer to the
disconnected end (roughly at the middle of the
suspected wire section) and check again if the
indicator lamp is green.
48 - Troubleshooting 1230 - 003 - 19.03.2021
Continue until only a very short section of the wire
remains which is the difference between a solid
green light and a flashing blue light. Then follow
instruction in step 5 below.
4. If indicator lamp still flashes blue in step 3
above: Put AL and G back in their original
positions. Then switch AR and G. If indicator lamp
now is lit with a solid green light then disconnect
AL and connect a new boundary wire to AL.
Connect the other end of this new wire at the
middle of the suspected wire section. Follow the
same approach as in 3a) and 3b) above.
5. When the break is found, the damaged section
must be replaced with a new wire. Always use
original couplers.
1230 - 003 - 19.03.2021 Troubleshooting - 49
7 Transportation, storage and disposal
7.1 Transportation
The supplied Li-ion batteries obey the Dangerous Goods
Legislation requirements.
• Obey all applicable national regulations.
• Obey the special requirement on package and
labels for commercial transportations, including by
third parties and forwarding agents.
7.2 Storage
• Fully charge the product. Refer to
To charge the
battery on page 35
.
• Switch off the product. Refer to
To switch off the
product on page 35
.
• Clean the product. Refer to
Clean the product on
page 36
.
• Keep the product in a dry, frost free space.
• Keep the product with all wheels on level ground
during storage, or use a wall hanger.
• If you keep the charging station indoors,
disconnect and remove the power supply and all
the connectors from the charging station. Put the
end of each connector wire in a connector
protection box.
Note: If you keep the charging station outdoors,
do not disconnect the power supply and the
connectors.
• Contact Husqvarna sales representative about
what accessories are available for your product.
7.3 Disposal
• Obey the local recycling requirements and
applicable regulations.
• For questions about how to remove the battery,
refer to
To remove the battery on page 50
.

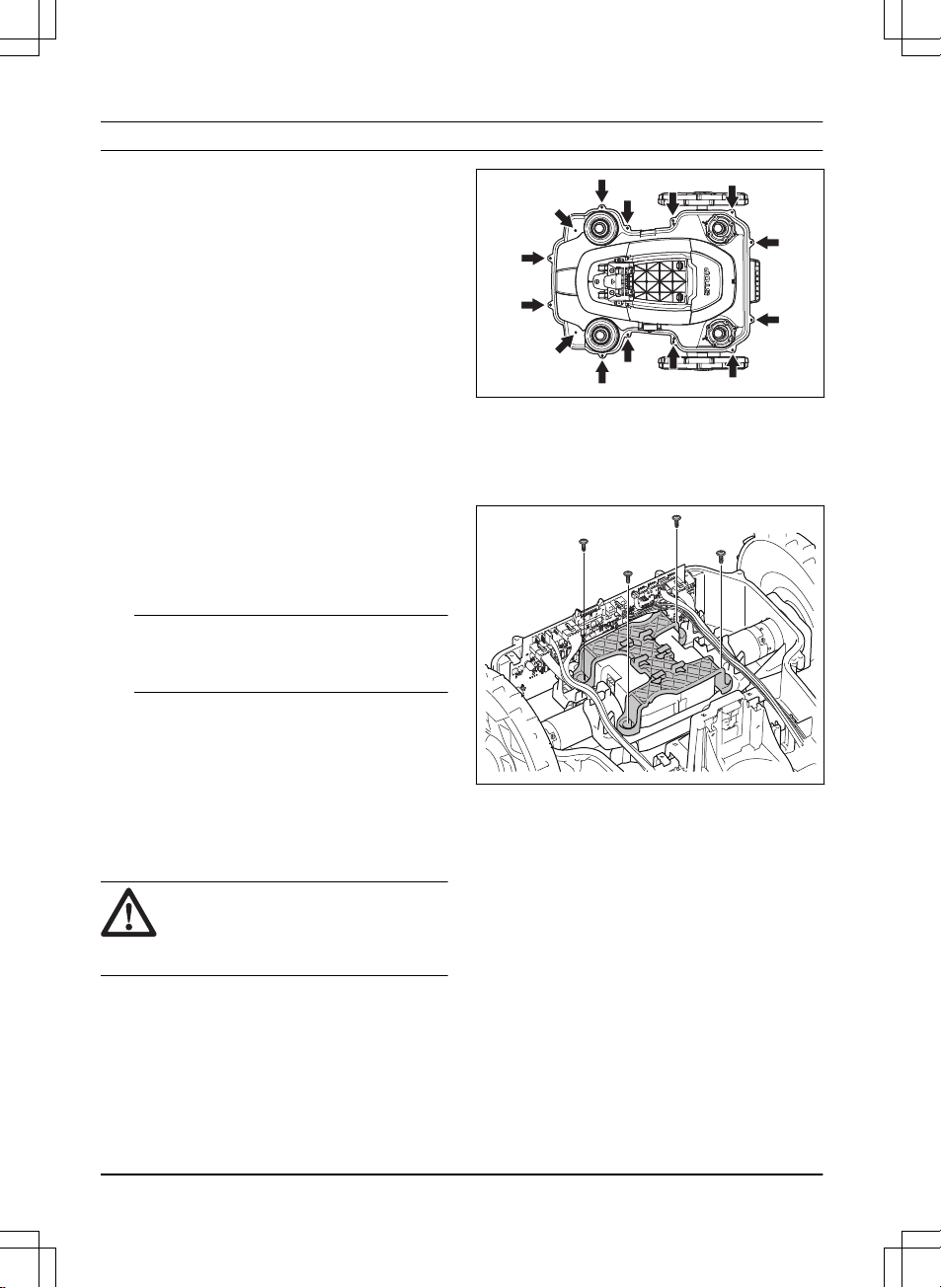

7.3.1 To remove the battery
CAUTION: Only remove the battery
when you dispose the product. When you
remove the warranty seal, the Husqvarna
warranty is no longer applicable.
1. Switch off the product. Refer to
To switch off the
product on page 35
.
2. Pull out the grommet on the charging cable at the
very front of the product, and carefully remove the
connector.
3. Lift the cover, one corner at a time.
4. Remove the 14 screws with a Torx 20.
5. Lift the rear edge of the top section of the chassis.
6. Disconnect the cable from the main circuit board.
7. Remove the top section of the chassis.
8. Remove the 4 screws that hold the battery with a
Torx 20.
9. Disconnect the battery connection from the main
circuit board.
10. Open the battery cover and remove the battery.
50 - Transportation, storage and disposal 1230 - 003 - 19.03.2021
8 Technical data
8.1 Technical data
Dimensions Automower
®
430XH Automower
®
450XH
Length, cm / in. 75 / 29.5 75 / 29.5
Width, cm / in. 63 / 24.8 63 / 24.8
Height, cm / in. 33 / 13 33 / 13
Weight, kg / lbs 14.7 / 5.8 15.3 / 6
Electrical system Automower
®
430XH Automower
®
450XH
Battery, Lithium-Ion 18 V/5.0 Ah Art. No. 593 11 84-01, 593 11
85-01, 593 11 84-03,
588 14 64-02
593 11 84-01, 593 11
84-03, 588 14 64-02,
593 11 85-01 (2 pcs.)
5.0 Ah/battery
Battery, Lithium-Ion 18 V/4.9 Ah Art. No. 593 11 84-02, 593 11
85-02, 588 14 64-03
593 11 84-02, 588 14
64-03, 593 11 85-02
(2 pcs.) 4.9 Ah/battery
Power supply (28V DC), V AC 100-240 100-240
Low-voltage cable length, m / ft. 10 / 33 10 / 33
Mean energy consumption at maximum use 18 kWh/month for a
work area of 3200 m
2
/
0.8 acre
23 kWh/month for a
work area of 5000 m
2
/
1.25 acres
Charging current, A DC 4.2 7
Type of Power Supply Unit
6
FW7448/28/D/XX/Y,
ADP-120DR XX,
ADP-120FR XX
FW7458/28/D/XX/Y,
ADP-200JR XX,
ADP-200MR XX
Average mowing time, min 145 270
Average charging time, min 50 60
Boundary wire antenna Automower
®
430XH Automower
®
450XH
Operating Frequency Band, Hz 100-80000 100-80000
Maximum magnetic field
7
, dBuA/m 82 82
Maximum Radio-frequency power
8
, mW @60m <25 <25
6
XX, YY can be any alphanumeric characters or blank for marketing purpose only, no technical differences.
7
Measured according to EN 303 447.
8
Maximum active output power to antennas in the frequency band in which the radio equipment operates.
1230 - 003 - 19.03.2021 Technical data -
51
Sound data
9
Automower
®
430XH Automower
®
450XH
Measured sound power noise level, dB (A) 56 60
Noise emissions uncertainties KWA, dB (A) 2 2
Guaranteed sound power noise level 59 62
Sound pressure noise level at the operator’s ear
10
, dB (A) 45 49
Mowing Automower
®
430XH Automower
®
450XH
Cutting system 3 pivoted cutting blades
Cutting motor speed, rpm 2300 2300
Power consumption during cutting, W +/- 20 % 30 35
Cutting height, cm / in. 5-9 / 2-3.6 5-9 / 2-3.6
Cutting width, cm / in. 24 / 9.4 24 / 9.4
Narrowest possible passage, cm / in. 60 / 24 60 / 24
Maximum slope for work area, % 45 45
Maximum slope for boundary wire, % 15 15
Maximum length boundary wire, m / ft. 800 / 2600 800 / 2600
Maximum length guide loop
11
, m / ft. 400 / 1300 400 / 1300
Maximum distance to boundary wire m / ft. 35 / 115 35 / 115
Area capacity, m
2
/ acre(s), +/- 20% 3200 / 0.8 5000 / 1.25
IP-code Automower
®
430XH Automower
®
450XH
Robotic lawn mower IPX4 IPX4
Charging station IPX1 IPX1
Power supply IP44 IP44
Frequency Band Support
Automower
®
Connect 2G GSM 850 MHz, E-GSM 900 MHz, DCS 1800 MHz, PCS 1900 MHz
Automower
®
Connect 3G Band 19 (800 MHz), Band 5 (850 MHz), Band 8 (900 MHz), Band 2 (1900 MHz),
Band 1 (2100 MHz)
Automower
®
Connect 4G Band 12 (700 MHz), Band 17 (700 MHz), Band 28 (700 MHz), Band 13 (700 MHz),
Band 20 (800 MHz), Band 26 (850 MHz), Band 5 (850 MHz), Band 19 (850 MHz),
Band 8 (900 MHz), Band 4 (1700 MHz), Band 3 (1800 MHz), Band 2 (1900 MHz),
Band 25 (1900 MHz), Band 1 (2100 MHz), Band 39 (1900 MHz)
9
Determined according to Directive 2006/42/EC and standard EN 50636-2-107.
10
Sound pressure noise uncertainties K
pA
, 2-4 dB (A)
11
A guide loop is the connection between the guide wire, boundary wire and the connection on the right connec-
tor on the charging station.
52 - Technical data 1230 - 003 - 19.03.2021
Power Class
Bluetooth
®
Output power 8 dBM
Automower
®
Connect 2G Power Class 4 (GSM/E-GSM) 33 dBm
Power Class 1 (DCS/PCS) 30 dBm
Power Class E2 (GSM/E-GSM) 27 dBm
Power Class E2 (DCS/PCS) 26 dBm
Automower
®
Connect 3G Power Class 3 24 dBm
Automower
®
Connect 4G Power Class 3 23 dBm
Husqvarna AB does not guarantee full compatibility between the product and other types of wireless systems such as
remote controls, radio transmitters, hearing loops, underground electric animal fencing or similar.
The products are made in England or the Czech Republic. See information on the rating plate. Refer to
Introduction
on page 3
8.2 Registered trademarks
The
Bluetooth
®
word mark and logos are registered trademarks owned by
Bluetooth SIG, inc.
and any use of such
marks by Husqvarna is under license.
1230 - 003 - 19.03.2021 Technical data -
53
9 Warranty
9.1 Warranty terms
Husqvarna
®
warranty covers this product's functionality
for a period of 2 years from date of purchase. The
warranty covers serious faults relating to materials or
manufacturing faults. Within the warranty period, we will
replace the product or repair it at no charge if the
following terms are met:
• The product and the charging station may only be
used in compliance with the instructions in this
Operator’s Manual. This manufacturer's warranty
does not affect warranty entitlements against the
dealer/retailer.
• End-users or non-authorized third parties must not
attempt to repair the product.
Examples of faults which are not included in the
warranty:
• Damage caused by water seepage from using a
high-pressure washer, or from being submerged
under water, for example when heavy rain forms
pools of water.
• Damage caused by lightning.
• Damage caused by improper battery storage or
battery handling.
• Damage caused by using a battery that is not a
Husqvarna original battery.
• Damage caused by not using Husqvarna original
spare parts and accessories, such as blades and
installation material.
• Damage to the loop wire.
• Damage caused by non-authorized changing or
tampering with the product or its power supply.
The blades and wheels are seen as disposable and are
not covered by the warranty.
If an error occurs with your Husqvarna product, please
contact Husqvarna customer service for further
instructions. Please have the receipt and the product’s
serial number at hand when contacting Husqvarna
customer service.
54 - Warranty 1230 - 003 - 19.03.2021
1230 - 003 - 19.03.2021 Warranty - 55
www.husqvarna.com
AUTOMOWER
®
is a trademark owned by Husqvarna AB.
Copyright
©
2021 HUSQVARNA. All rights reserved.
Original instructions
1142340-95
2021-03-31
