User’s Manual

DLP Cinema

Projector

NC3541L

NC2041L

DLP Cinema

Projector

Model No.

NP-NC3541L NP-NC2041L

Important Information

Precautions

Please read this manual carefully before using your

NC3541L/NC2041L and keep the manual handy for

future reference. The NC3541L/NC2041L (projector

unit) is called the “projector”, and the NP-90MS01/

NP-90MS02 (integrated media server) is called the

“media block” or “IMB” in this manual.

• DLP (Digital Light Processing), DLP Cinema and DLP

Cinema logo are trademarks of Texas Instruments.

• Microsoft, Windows and Internet Explorer are either reg-

istered trademarks or trademarks of Microsoft Corporation

in the United States and/or other countries.

• Mozilla and Firefox are either registered trademarks or

trademarks of the Mozilla Foundation in the United States

and/or other countries.

• Oracle and Java are registered trademarks of Oracle

and/or its affiliates.

• Linux is a registered trademark of Linus Torvalds in the

United States and/or other countries.

• Other product names and logos mentioned in the user’s

manual may be the trademarks or registered trademarks

of their respective holders.

• The display screens and illustrations shown in this man-

ual may differ slightly from the actual ones.

•

GPL/LGPL Software Licenses

The product includes software licensed under GNU

General Public License (GPL), GNU Lesser General

Public License (LGPL), and others.

For more information on each software, see “readme.pdf”

inside the “about GPL&LGPL” folder on the supplied

CD-ROM.

WARNING

TO REDUCE THE RISK OF FIRE OR ELECTRIC

SHOCK, DO NOT EXPOSE THIS APPLIANCE TO

RAIN OR MOISTURE.

CAUTION

TO PREVENT ELECTRIC SHOCK, DO NOT OPEN

TOP COVER. NO USER SERVICEABLE PARTS

INSIDE.

This symbol warns the user that uninsulated

voltage within the unit may have sufficient

magnitude to cause electric shock. Therefore,

it is dangerous to make any kind of contact

with any part inside of this unit.

This symbol alerts the user that important lit-

erature concerning the operation and mainte-

nance of this unit has been included. Therefore,

it should be read carefully in order to avoid any

problems.

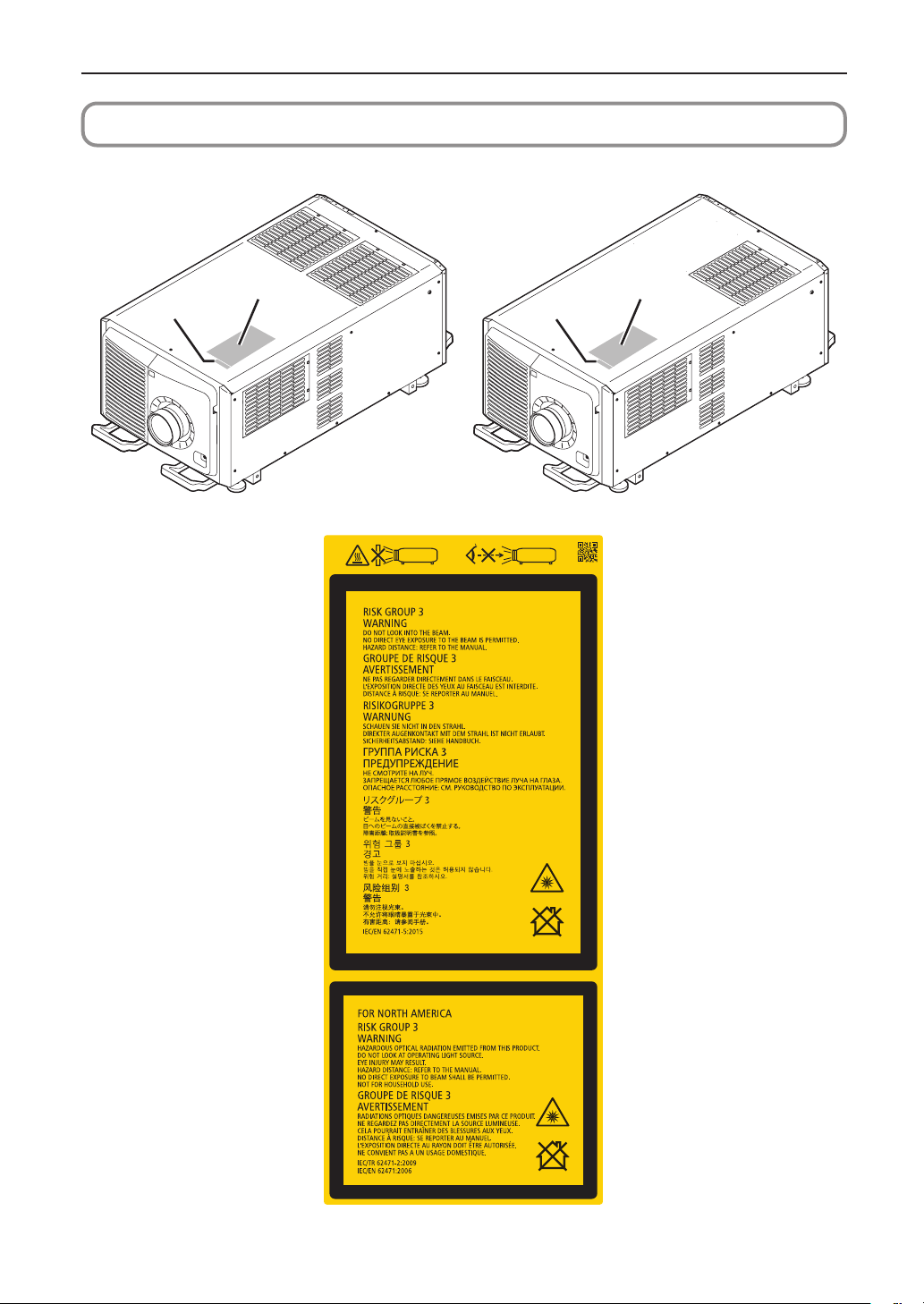

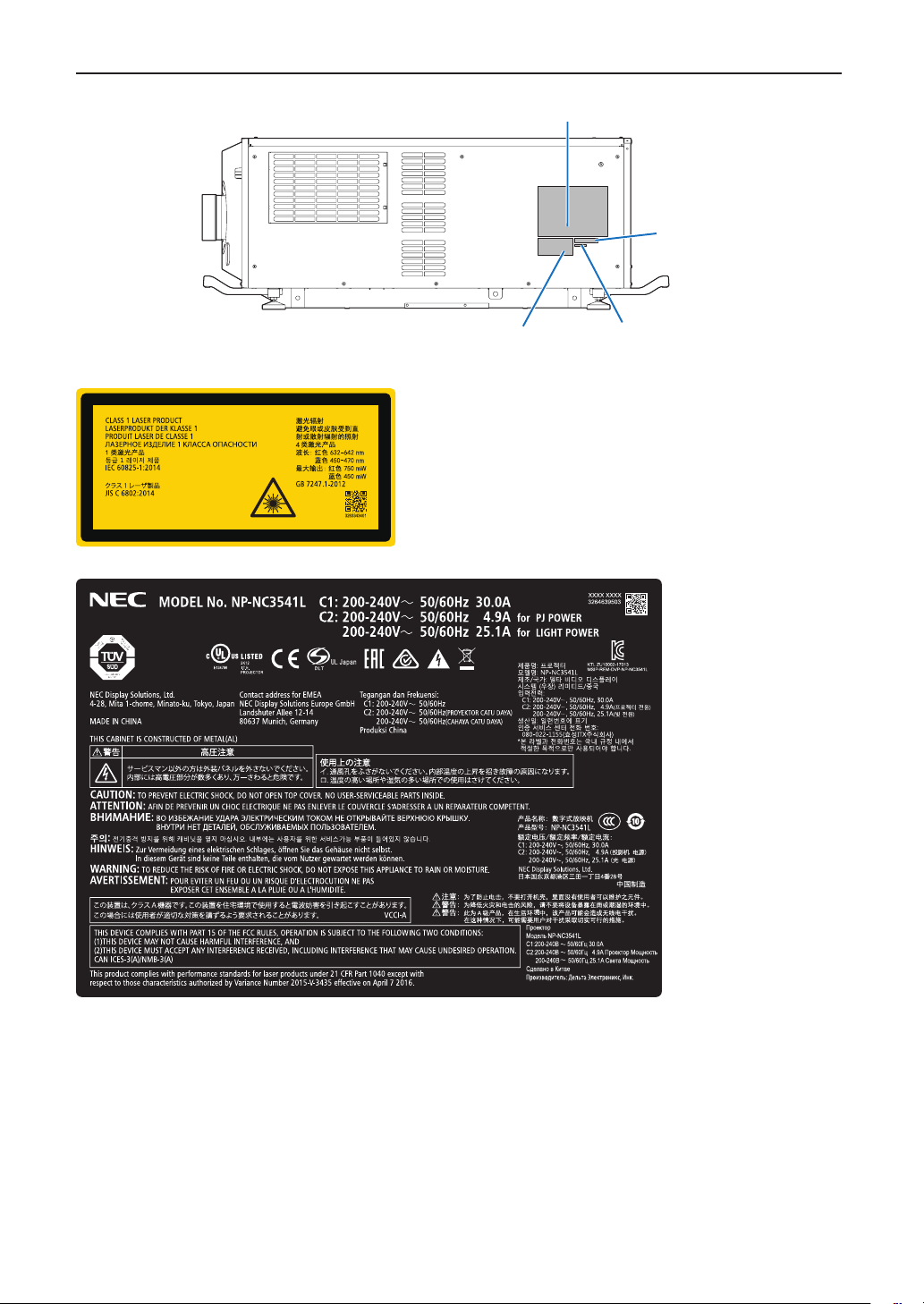

Laser Safety Caution

This product is classied as Class 1 of IEC 60825-1 Third

edition 2014. This product is classied as RG3 of IEC

62471-5 First edition 2015. This product is classied as RG3

of IEC 62471:2006.(for USA). Obey the laws and regula-

tions of your country in relation to the installation and man-

agement of the device.

CAUTION

Use of controls or adjustments of procedures other than

those specied herein may lead to hazardous laser radi-

ation exposure.

• Hazardous optical radiation is emitted from this product,

RG3 IEC 62471:2006. (for USA).

• No direct exposure to the beam shall be permitted, RG3

IEC 62471-5:2015.

• Outline of laser emitted from the built-in light module:

Wave length: Red 632-642 nm, Blue 450-470 nm

Maximum power: Red 219 W (NC3541L), 110 W

(NC2041L), Blue 1028 W (NC3541L), 514 W (NC2041L)

• Radiation pattern from the protective housing:

Wave length: Red 632-642 nm, Blue 450-470 nm

Maximum laser radiation output: Red 750 mW, Blue

450mW

• Do not look into the lens while the projector is on. Serious

damage to your eyes could result.

• Keep any items such as magnifying glass out of the light

path of the projector. The light being projected from the

lens is extensive, therefore any kind of abnormal objects

that can redirect light coming out of the lens, can cause

unpredictable outcome such as re or injury to the eyes.

• When turning on the projector, ensure that nobody is fac-

ing towards the lens in the path of the light emitted from

the laser.

• This product can only be operated in theaters by speci-

ed personnel. Customers should not operate this

product.

DOC Compliance Notice (for Canada only)

This Class A digital apparatus meets all requirements of the

Canadian ICES-003 Standards.

Machine Noise Information Regulation - 3. GPSGV,

The highest sound pressure level is less than 70 dB (A) in

accordance with EN ISO 7779.

WARNING

This equipment is compliant with Class A of CISPR 32.

In a residential environment this equipment may cause

radio interference.

Important Information

CAUTION

• In order to reduce any interference with radio and tele-

vision reception use a signal cable with ferrite core

attached. Use of signal cables without a ferrite core

attached may cause interference with radio and televi-

sion reception.

• This equipment has been tested and found to comply

with the limits for a Class A digital device, pursuant to

Part 15 of the FCC Rules. These limits are designed

to provide reasonable protection against harmful

interference when the equipment is operated in a

commercial environment. This equipment generates,

uses, and can radiate radio frequency energy and, if

not installed and used in accordance with the installa-

tion manual, may cause harmful interference to radio

communications. Operation of this equipment in a

residential area is likely to cause harmful interference

in which case the user will be required to correct the

interference at his own expense.

WARNING

THE END USER IS NOT ALLOWED TO OPEN OR

MODIFY THE PRODUCT.

NO USER SERVICEABLE PARTS.

MAINTENANCE AND SERVICE OF THE PRODUCT IS

ONLY TO BE HANDLED BY NEC AUTHORIZED

TECHNICIANS.

Important Safeguards

These safety instructions are to ensure the long life of your

projector and to prevent re and shock. Please read them

carefully and heed all warnings.

Installation

1. Do not point the projection beam toward other people or

reective objects.

2. Consult your dealer for information about transporting

and installing the projector. Do not attempt to transport

and install the projector yourself. The projector must be

installed by qualied technicians in order to ensure

proper operation and reduce the risk of bodily injury.

3. Place the projector on a at, level surface in a dry area

away from dust and moisture. Do not put the projector on

its side when the Laser is on. Doing so may cause dam-

age to the projector.

4. Do not place the projector in direct sunlight, near heaters

or heat radiating appliances.

5. Exposure to direct sunlight, smoke or steam could harm

internal components.

6. Handle your projector carefully. Dropping or jarring your

projector could damage internal components.

7. To carry the projector, a minimum of six persons are

required.

8. Do not hold the lens part with your hand. Otherwise the

projector may tumble or drop, causing personal injury.

9. Do not place heavy objects on top of the projector.

10. Turn off the projector, and disconnect the power cable

before moving the projector.

For C2 connection, turn off the projector, shut down the

AC power to the projector and the light using a circuit-

breaker. Disconnect the cables between devices and the

light before moving the projector.

11. Do not install and store the projector in the below circum-

stances. Failure to do so may cause of malfunction.

• Inpowerfulmagneticelds

• Incorrosivegasenvironment

• Outdoors

12. If you wish to have the projector installed on the ceiling;

• Donotattempttoinstalltheprojectoryourself.

• Theprojectormustbeinstalledbyqualiedtechni-

cians in order to ensure proper operation and reduce

the risk of bodily injury.

• Inaddition,theceilingmustbestrongenoughtosup-

port the projector and the installation must be in

accordance with any local building codes.

• Pleaseconsultyourdealerformoreinformation.

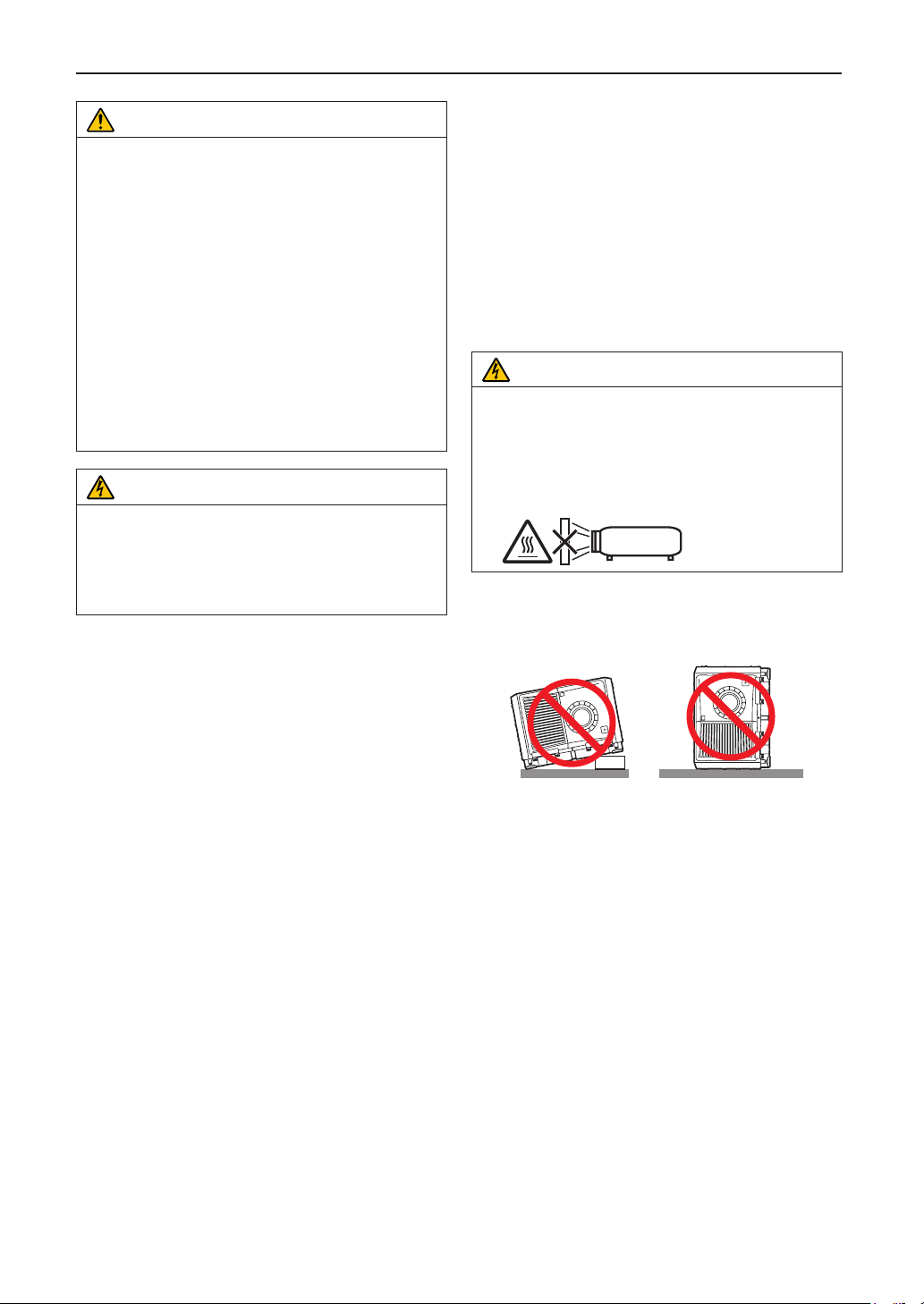

WARNING

1. Do not use the projector with the supplied lens cap or

equivalent while the projector is operating. This may

cause the lens cap to heat up and deform or melt.

2. Do not place any objects, which are easily affected by

heat, in front of the projector lens. Doing so could

lead to the object melting from the heat that is emitted

from the light output.

It is possible to vertically set up this device at 360 degrees.

However, please do not set up the main part of the device

slanted to the left or right because it may result in

malfunctions.

Power Supply

1. Consult your dealer for installing the power cable to the

projector. DO NOT install the power cable by yourself.

Doing so may cause a re or electric shock.

The projector is so designed that it operates with the

power supply voltage described below.

For C1 connection

(When the AC power to the projector power supply and

the light power supply is provided by a single cable)

• AC200V-240Vsinglephase50/60Hz

For C2 connection

(When the AC power to the projector power supply and

the light power supply is provided by separate cables)

•AC200V-240Vsinglephase50/60Hz(projectorpower

supply)

• AC 200V-240V single phase 50/60Hz (light power

supply)

Ensure that your power supply ts this requirement

before attempting to use your projector.

Important Information

2. The power cable is not included with the projector. Ask

your dealer for the power cable to select and purchase.

Use a power cable that meets the standards and power

supply voltage of the country where you are using the

projector.

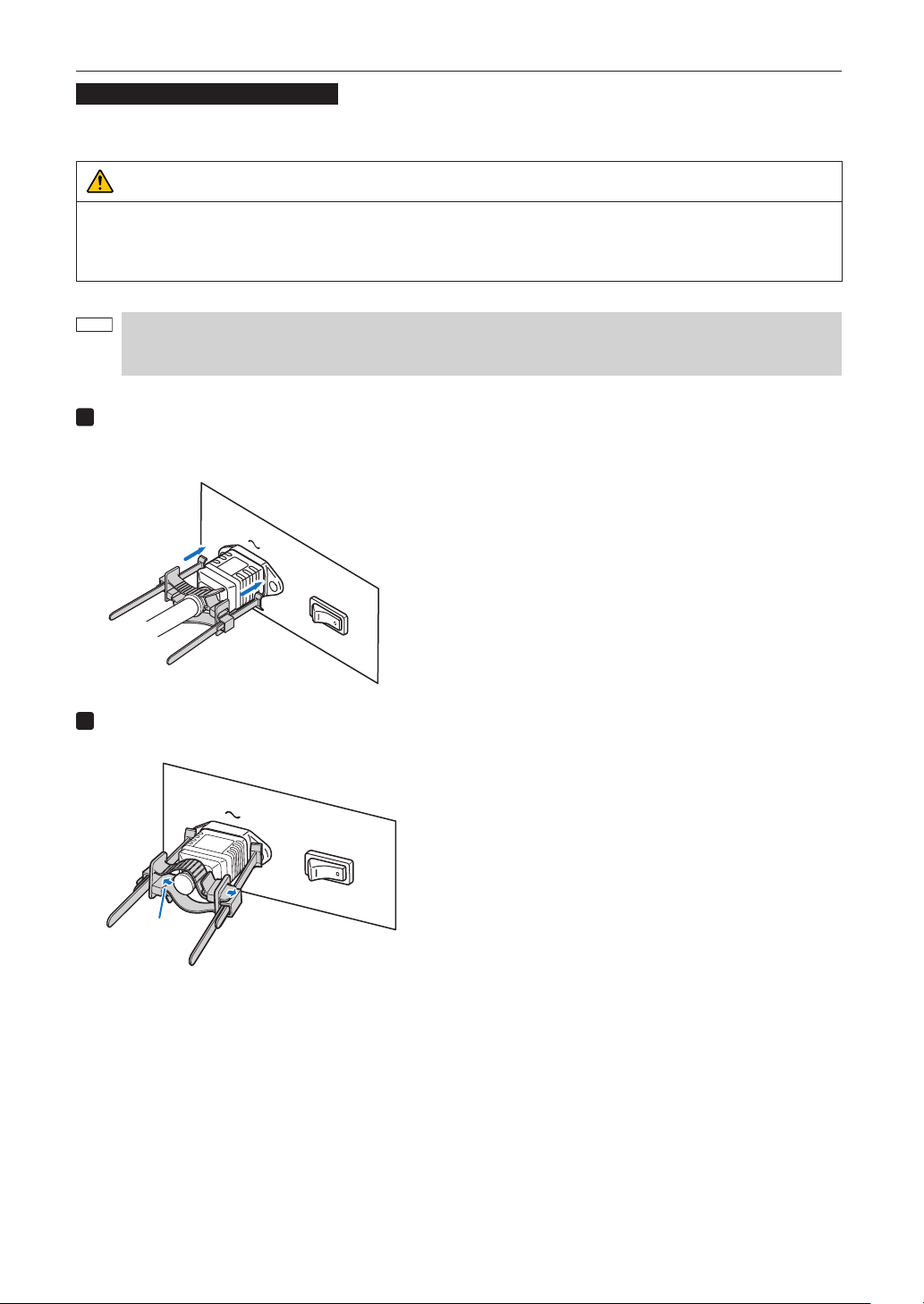

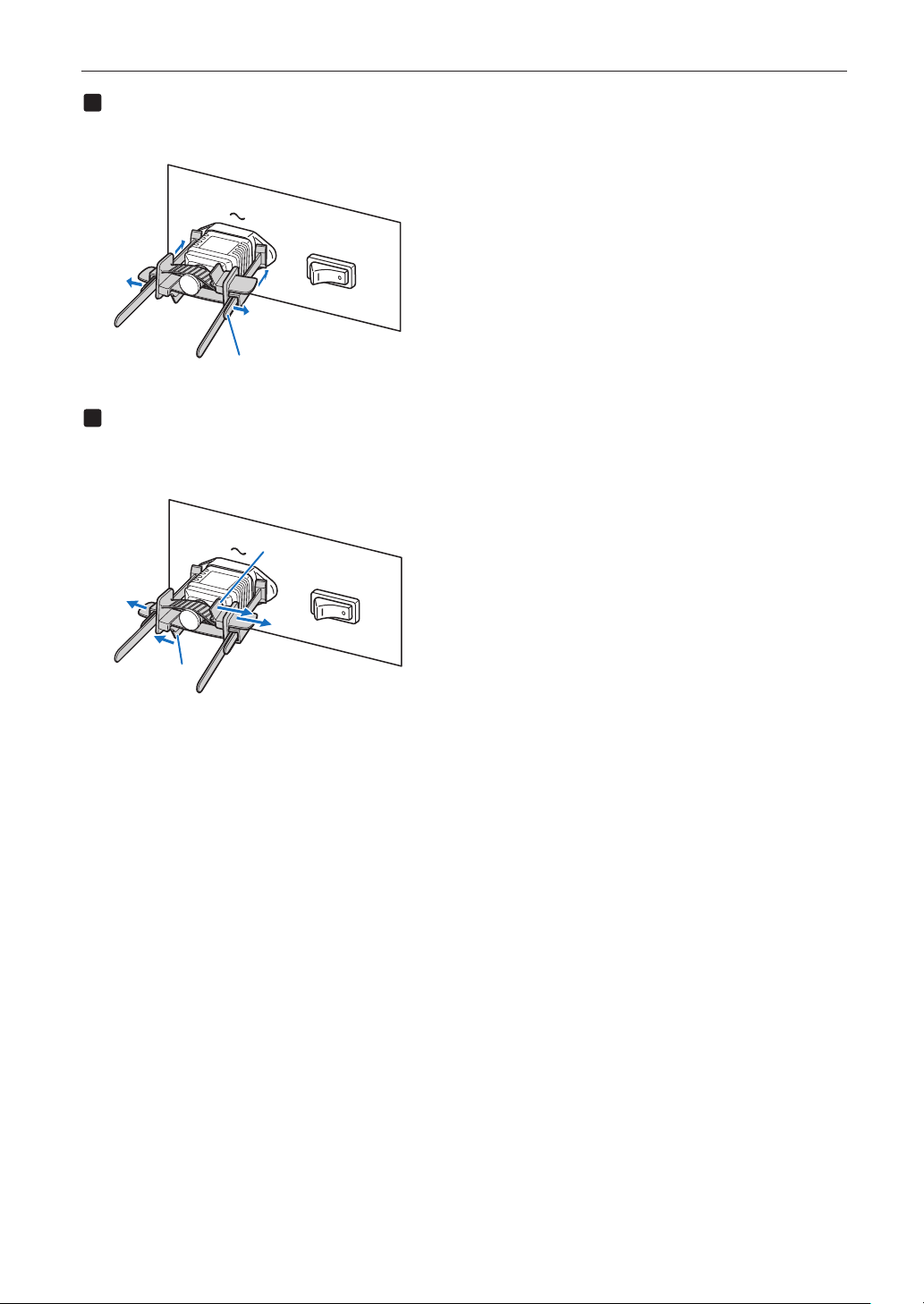

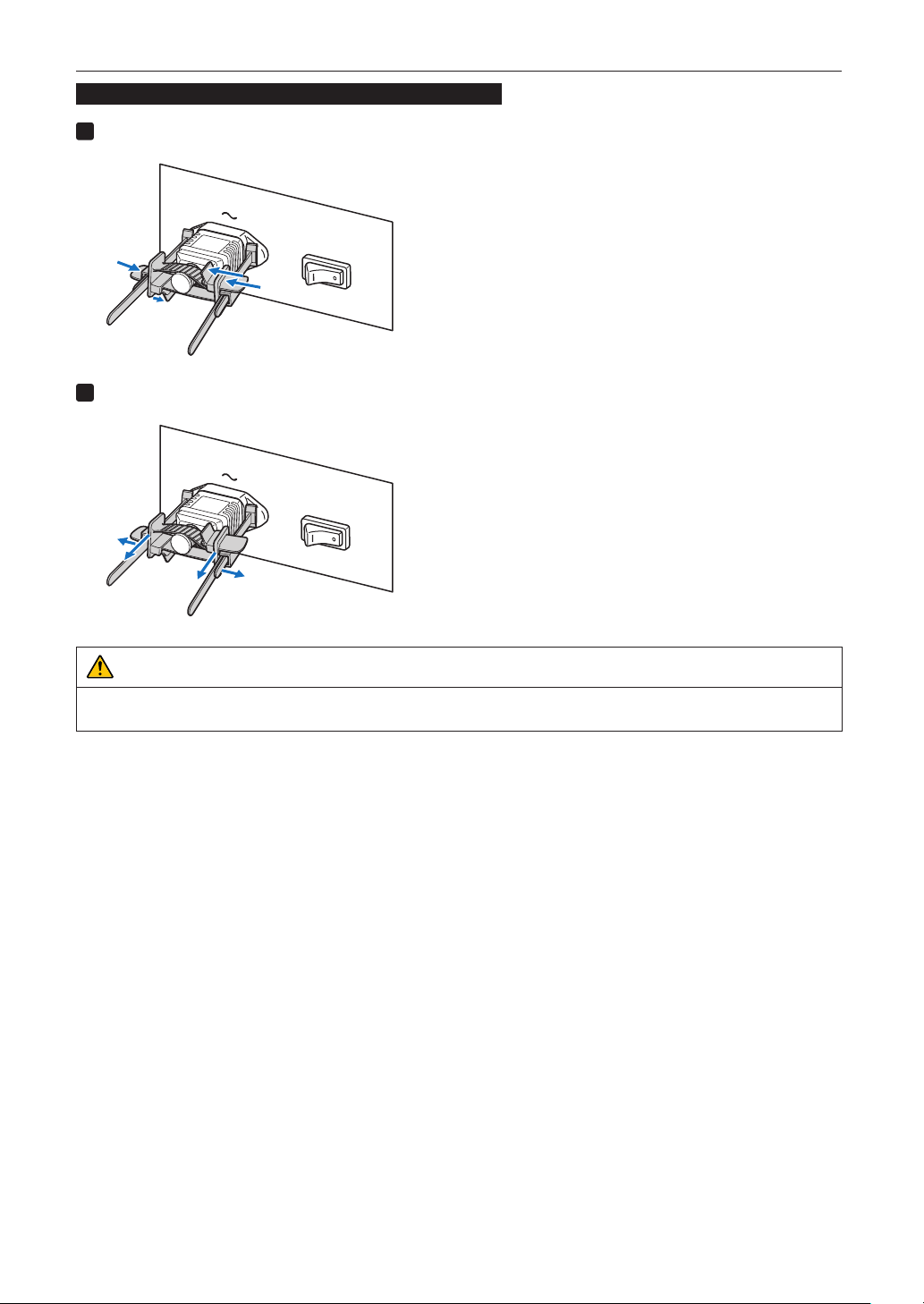

Refer to “2-2. Connecting the Power Cable” (page 25) for

details on connecting the power cable.

3. Handle the power cable carefully. A damaged or frayed

power cable can cause electric shock or re.

• Donotbendortugthepowercableexcessively.

• Donotplacethepowercableundertheprojector,or

any heavy object.

• Donotcoverthepowercablewithothersoftmateri-

als such as rugs.

• Donotheatthepowercable.

4. Placing the power cable and the signal cable closely to

each other can cause beat noise. If this happens, keep

the two separated so that beat noise is not generated.

Beat noise is corruption of the picture often seen as a

rolling band moving through the image.

5. Do not touch the projector during a thunder storm. Doing

so can cause electrical shock or re.

6. When installed on the ceiling, install the breaker in a

location that is easy to reach by hand.

Fire and Shock Precautions

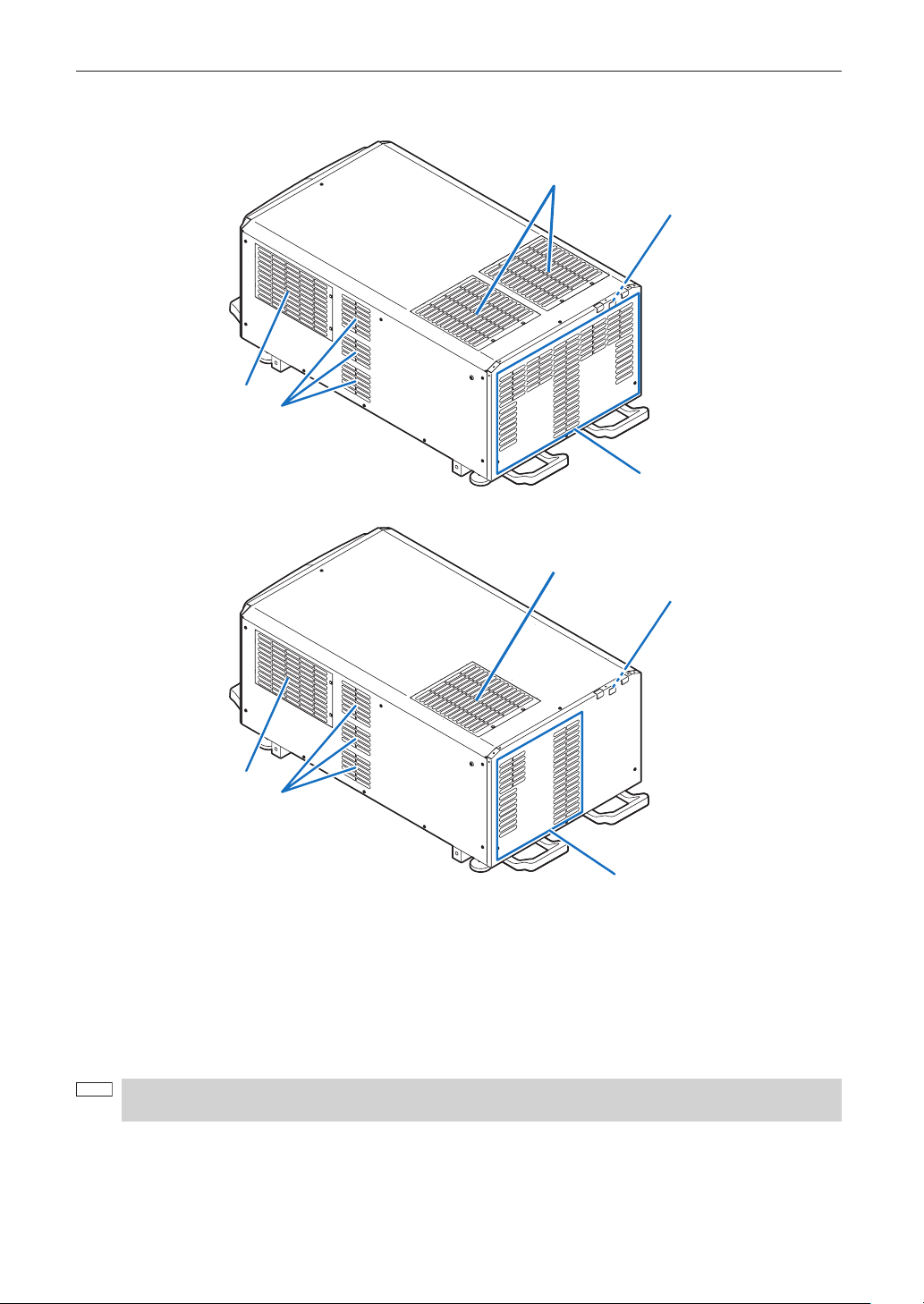

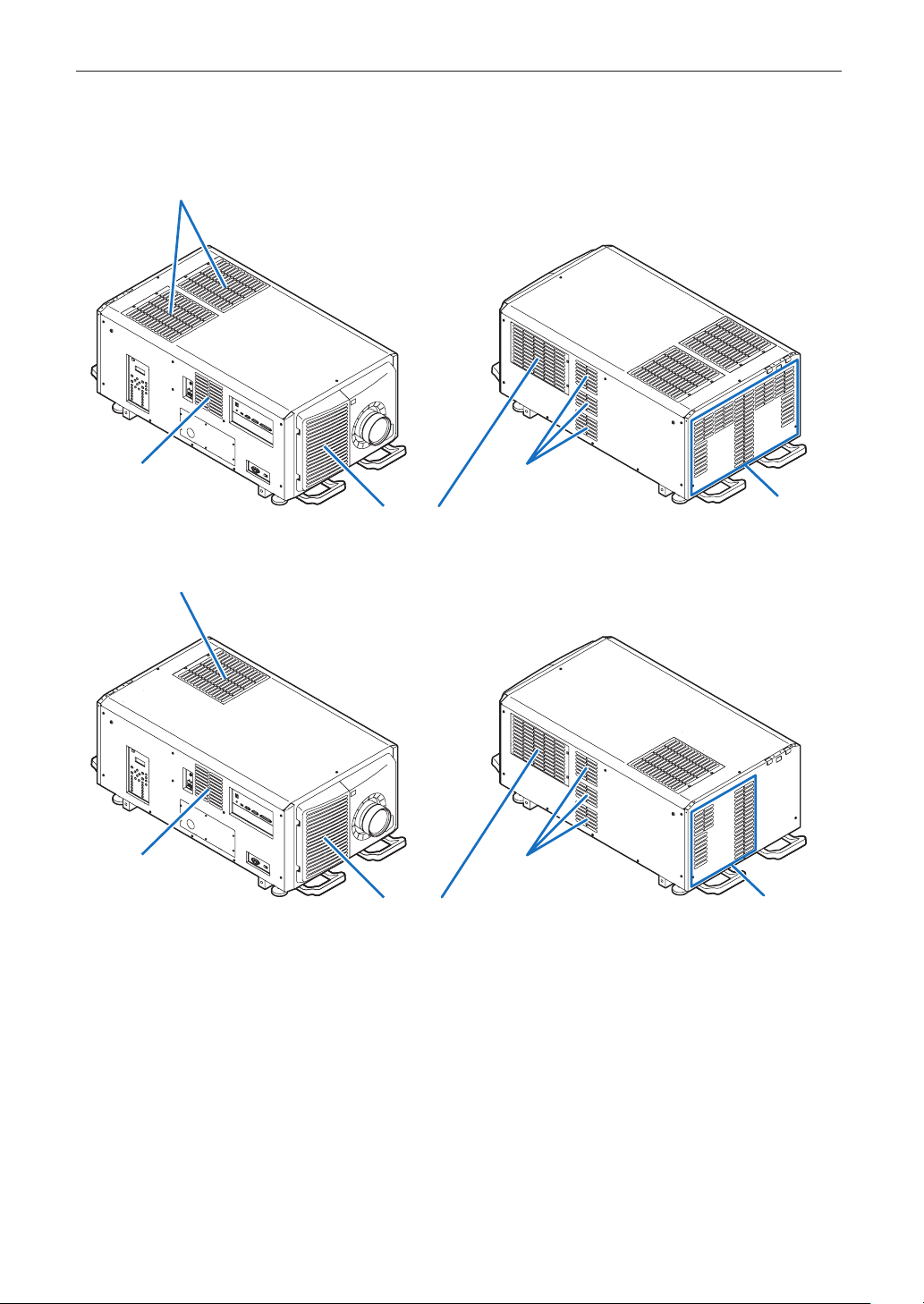

1. Ensure that there is sufficient ventilation and that vents

are unobstructed to prevent potentially dangerous con-

centrations of ozone and the build-up of heat inside your

projector. Allow at least 24 inches (60 cm) of space

between your projector and a wall. In particular, clear a

space of 26.7 inches (70 cm) or more in front of the air

outlet on the rear surface and 12 inches (30 cm) or more

on the upper part of the projecter body.

2. Prevent foreign objects such as paper clips and bits of

paper from falling into your projector. Do not attempt to

retrieve any objects that might fall into your projector. Do

not insert any metal objects such as a wire or screw-

driver into your projector. If something should fall into

your projector, shut down the AC power to the projector

immediately and have the object removed by a qualied

service person.

For C2 connection, turn off the projector, shut down the

AC power to the projector and the light using a circuit

breaker, and contact your dealer/distributor.

3. Turn off the projector, shut down AC power by using a

circuit breaker and contact qualied service personnel

under the following conditions. For C2 connection, turn

off the projector, shut down the AC power to the projector

and the light using a circuit breaker, and contact your

dealer/distributor for a repair.

• Whenthepowercableorplugisdamagedorfrayed.

• Ifliquidhasbeenspilledintotheprojector,orifithas

been exposed to rain or water.

• Iftheprojectordoesnotoperatenormallywhenyou

follow the instructions described in this user’s

manual.

• Iftheprojectorhasbeendroppedorthecabinethas

been damaged.

• Iftheprojectorexhibitsadistinctchangeinperfor-

mance, indicating a need for service.

4. When using a LAN cable:

For safety, do not connect to the connector for peripheral

device wiring that might have excessive Voltage.

Cleaning

1. Shut down AC power by using a circuit breaker before

cleaning.

For C2 connection, turn off the projector, shut down the

AC power to the projector and the light using a circuit

breaker.

2. Clean the cabinet periodically with a cloth. If heavily

soiled, use a mild detergent. Never use strong deter-

gents or solvents such as alcohol or thinner.

3. Use a blower or lens paper to clean the lens, and be

careful not to scratch or mar the lens.

4. Do not handle the projector and the power cable with wet

hands. Doing so can cause electrical shock or re.

CAUTION

1. Do not shut down AC power to the projector under

the following conditions. Doing so can damage the

projector.

•Whileprojectingimages

•Whilecoolingafterthepoweristurnedoff.

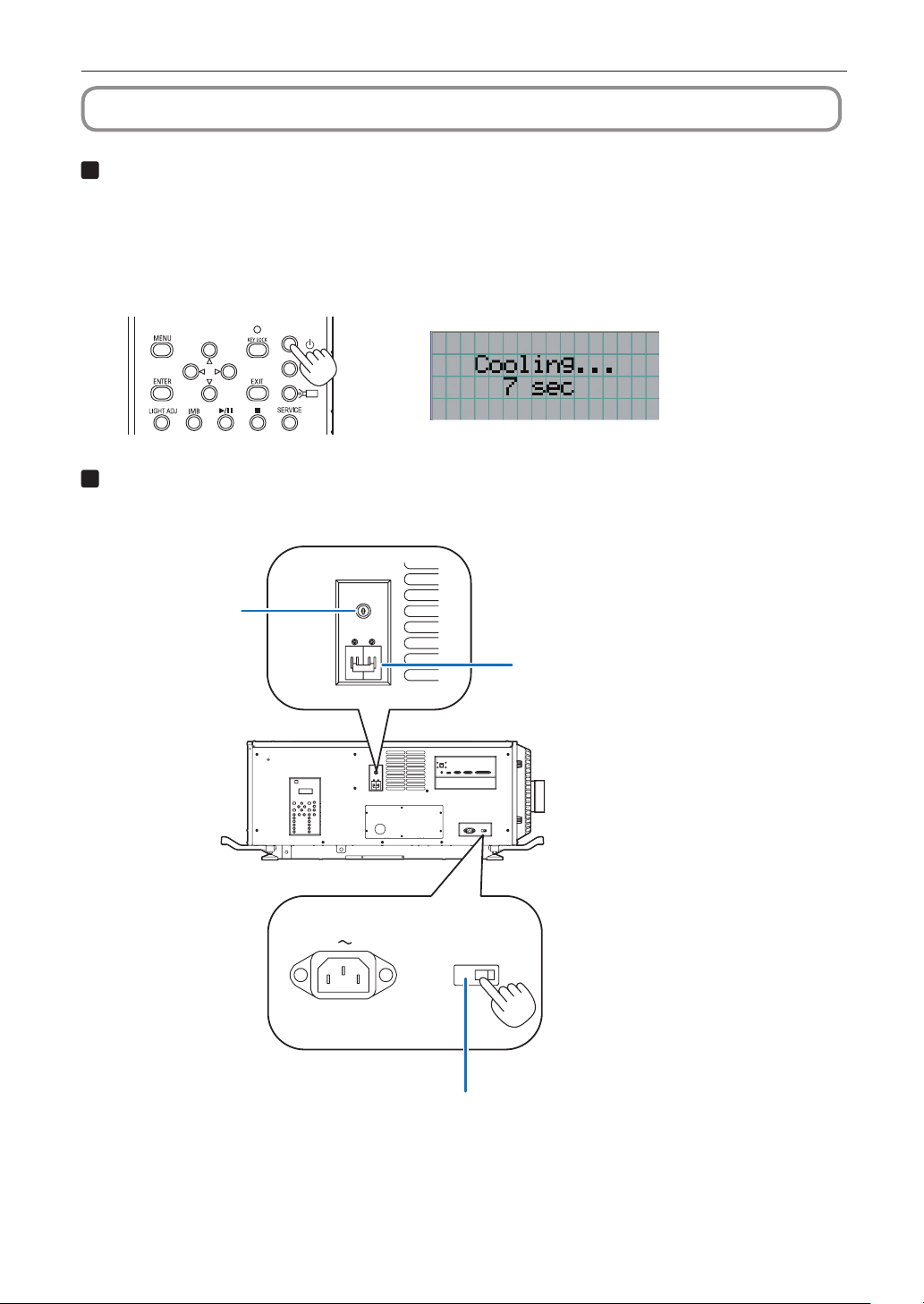

(The STATUS indicator LED blinks in orange while

the fan is rotating, and “cooling...” is displayed on

the LCD screen. )

- When using the NP-90MS01/NP-90MS02: 90

seconds

•During IMB Operation (if the projector is not in

standby state)

2. Do not turn of the AC power for 90 seconds after the

Laser is turned on and while the POWER indicator is

blinking green. Doing so could cause premature

Laser failure.

3. Keep hands away from the lens mounting portion

while the lens shift is in operation. Failure to do so

could result in ngers being pinched between the

cabinet and lens cover.

4. When main body is damaged, cooling uids may

come out of internal part. DO NOT touch and drink

the cooling uid.

When the cooling uids are swallowed or contacted

with your eyes, please consult with doctors

immediately.

Caution on Carrying the Projector/Handling the

Optional Lens

When installing / removing a lens, shut down the AC power

to the projector.

When shipping the projector with the lens, remove the lens

before shipping the projector. Always attach the dust cap to

the lens whenever it is not mounted on the projector. The

lens and the lens shift mechanism may encounter damage

caused by improper handling during transportation.

Light Module

1. A light module containing multiple laser diodes is

included in the product as the light source.

2. These laser diodes are sealed in the light module. No

maintenance or service is required for the performance

of the light module.

3. End user is not allowed to replace the light module.

4. Contact qualied distributor for light module replace-

ment and further information.

Disposing of your used product

EU-wide legislation as implemented in each

Member State requires that used electrical

and electronic products carrying the mark (left)

must be disposed of separately from normal

household waste.

This includes projectors and their electrical

accessories. When you dispose of such prod-

ucts, please follow the guidance of your local

authority and/or ask the shop where you pur-

chased the product.

After collecting the used products, they are

reused and recycled in a proper way. This

effort will help us reduce the wastes as well as

the negative impact to the human health and

the environment at the minimum level.

The mark on the electrical and electronic prod-

ucts only applies to the current European

Union Member States.

For EU: The crossed-out wheeled bin implies

that used batteries should not be put to the

general household waste! There is a separate

collection system for used batteries, to allow

proper treatment and recycling in accordance

with legislation.

According the EU directive 2006/66/EC, the

battery can’t be disposed improperly. The

battery shall be separated to collect by

local service.

For questions relating to unclear points or repairs

Contact your dealer or the following support branch for

questions relating to unclear points, malfunctions and

repairs of the product.

In Europe

Company Name: Sharp NEC Display Solutions Europe

GmbH

Address: Landshuter Allee 12-14, D-80637 Munich, Germany

Telephone: +49 89 99699 0

Fax Line: +49 89 99699 500

Email Address: infomail@nec-displays.com

WEB Address: https://www.sharpnecdisplays.eu

In North America

Company Name: Sharp NEC Display Solutions of

America, Inc.

Address: 3250 Lacey Rd, Ste 500

Downers Grove, IL 60515 U.S.A.

Telephone: +1 866-632-6431

Email: cinema.support@sharpnec-displays.com

WEB Address: https://www.sharpnecdisplays.us

Important Information

In China

Company Name: NEC (China) Co., Ltd.

Address: 6F, Landmark diplomatic office building D2,

No. 19 East Road, Chaoyang District,

Beijing 100600, R.P.C.

Telephone: 010-59342706

Email Address: nec-suppor[email protected]

In Hong Kong and Taiwan

Company Name: Westrex Hong Kong. LTD

Address: 4304, 43/F China Resources Bldg 26 Harbour RD

Wanchai Hong Kong

Telephone: +886 2 2370 6302

Fax Line: +886 2 2371 4855

Email Address: sales@wastrex.com.hk

In South Korea

Company Name: Hyosung ITX Co., Ltd.

Address: 1F, Ire Building, 2, Yangpyeong-dong 4-ga,

Yeongdeungpo-gu, Seoul, Korea 150-967

Telephone: +82-2-2102-8591

Fax Line: +82-2-2102-8600

Email Address: moneybear@hyosung.com

WEB Address: http://www.hyosungitx.com

In Australia and New Zealand

Company Name: NEC Australia Pty Ltd

Address: Level 9, 720 Bourke Street, Docklands, Melbourne

VIC 3008

Telephone: 131 632 (from anywhere in Australia)

Email Address: display[email protected]

WEB Address: http://www.nec.com.au

In Thailand, Singapore, Malaysia, Indonesia and

Philippines

Company Name: Goldenduck International Co., Ltd.

Address: 65 Soi Phutthamothon Sai 1, 21 Bangramad,

Talingchan, Bangkok, Thailand 10170

Telephone: +66-2887-8807

Fax Line: +66-2887-8808

Email Address: contact@goldenduckgroup.com

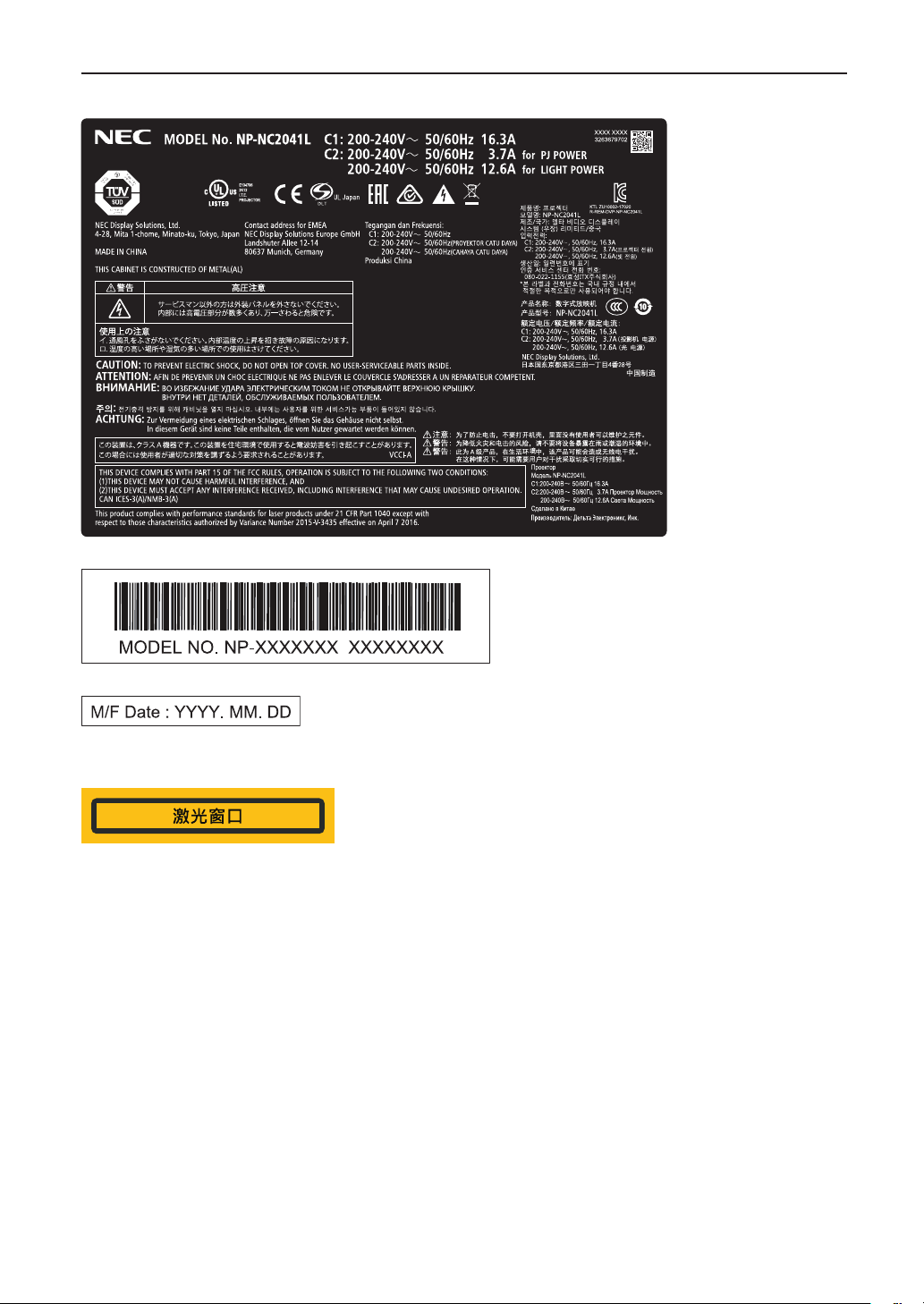

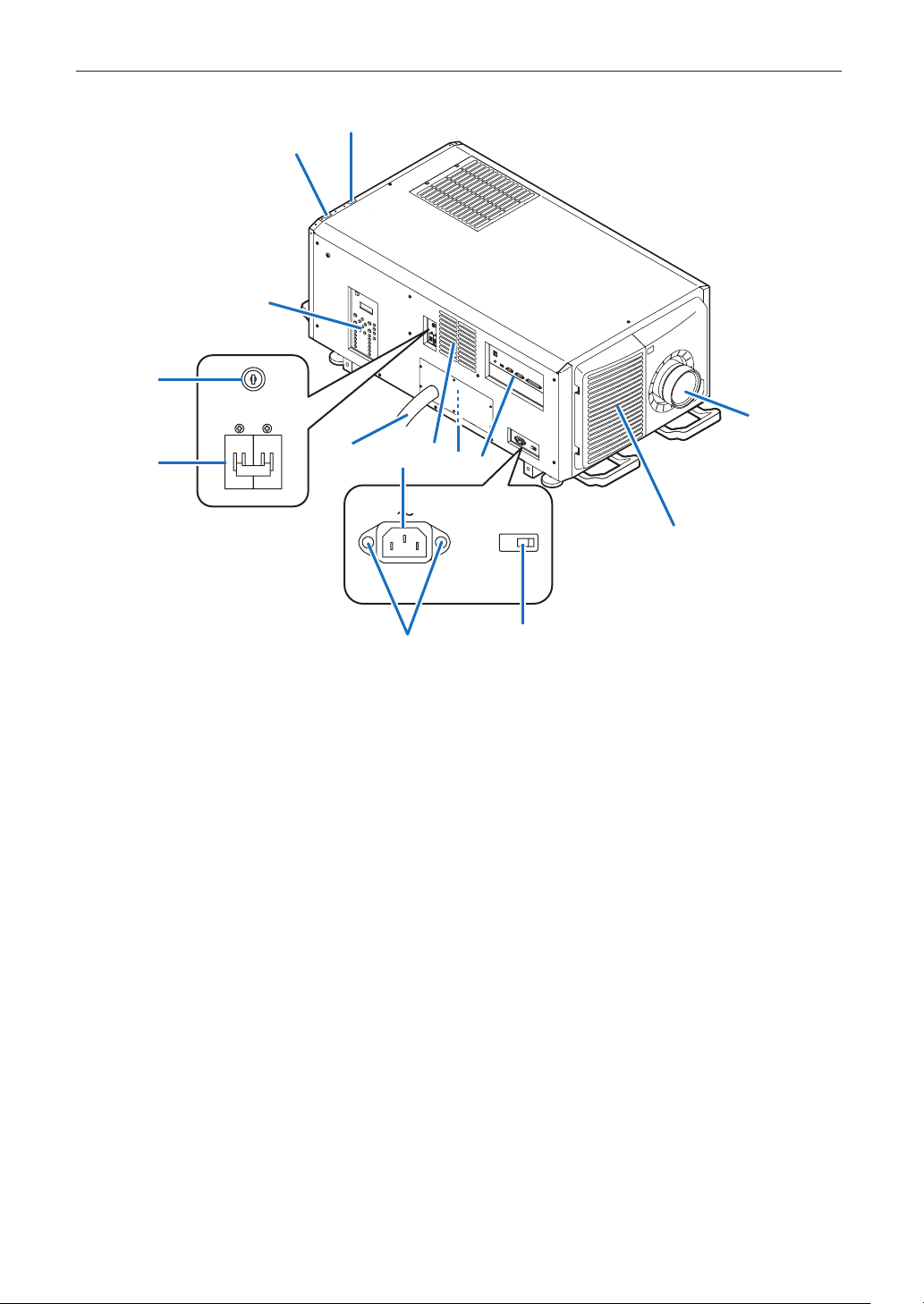

Label Information

• NC3541L

Label A

Label F

• NC2041L

Label A

Label F

Label A: Risk Group /Lamp Safety Label

3262160500

Important Information

Label C

Label D

Label E

Label B

• Label B

Laser Explanatory Label

• Label C: NC3541L

• Label C: NC2041L

• Label D

• Label E

• Label F

Aperture label

Important Information

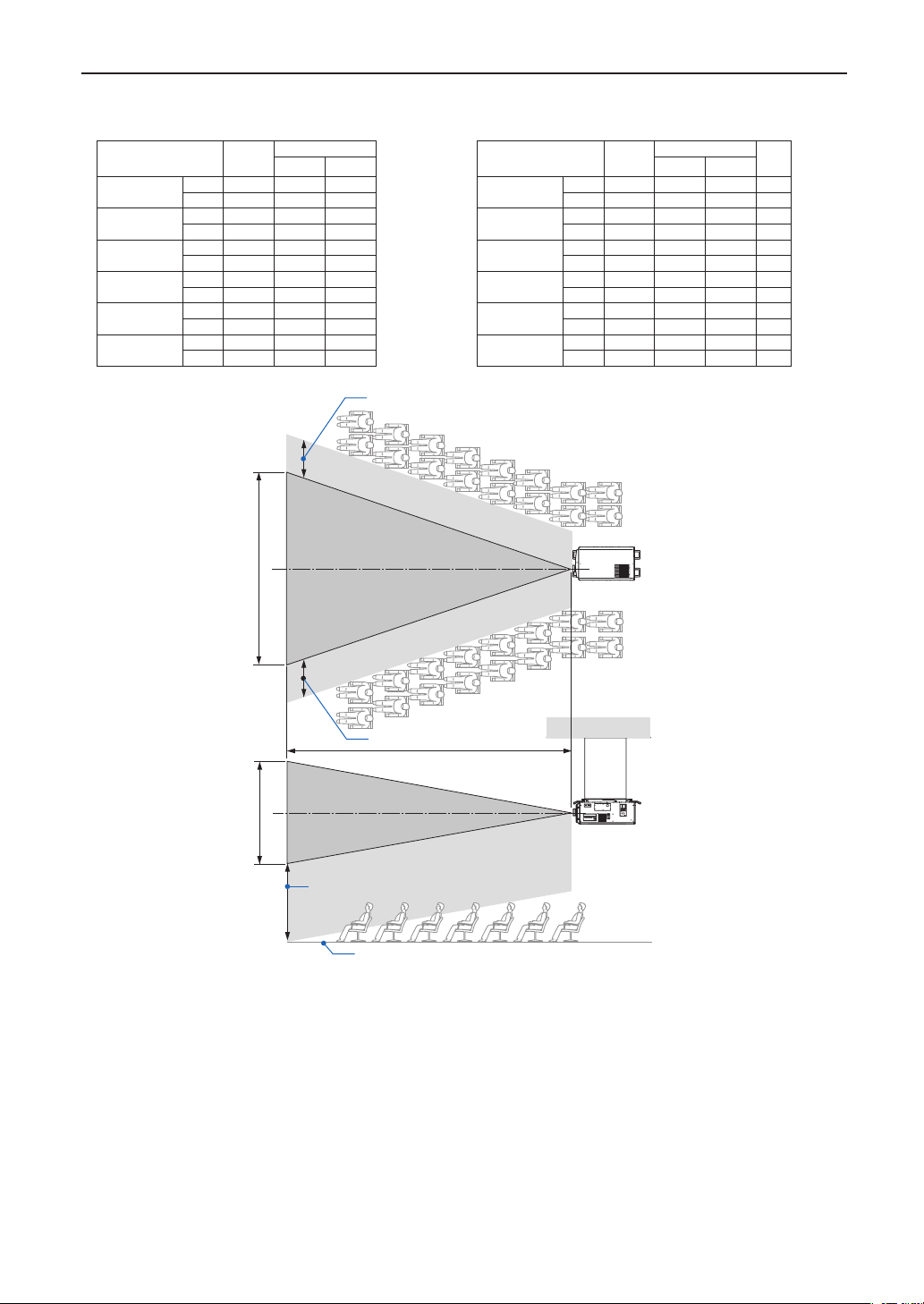

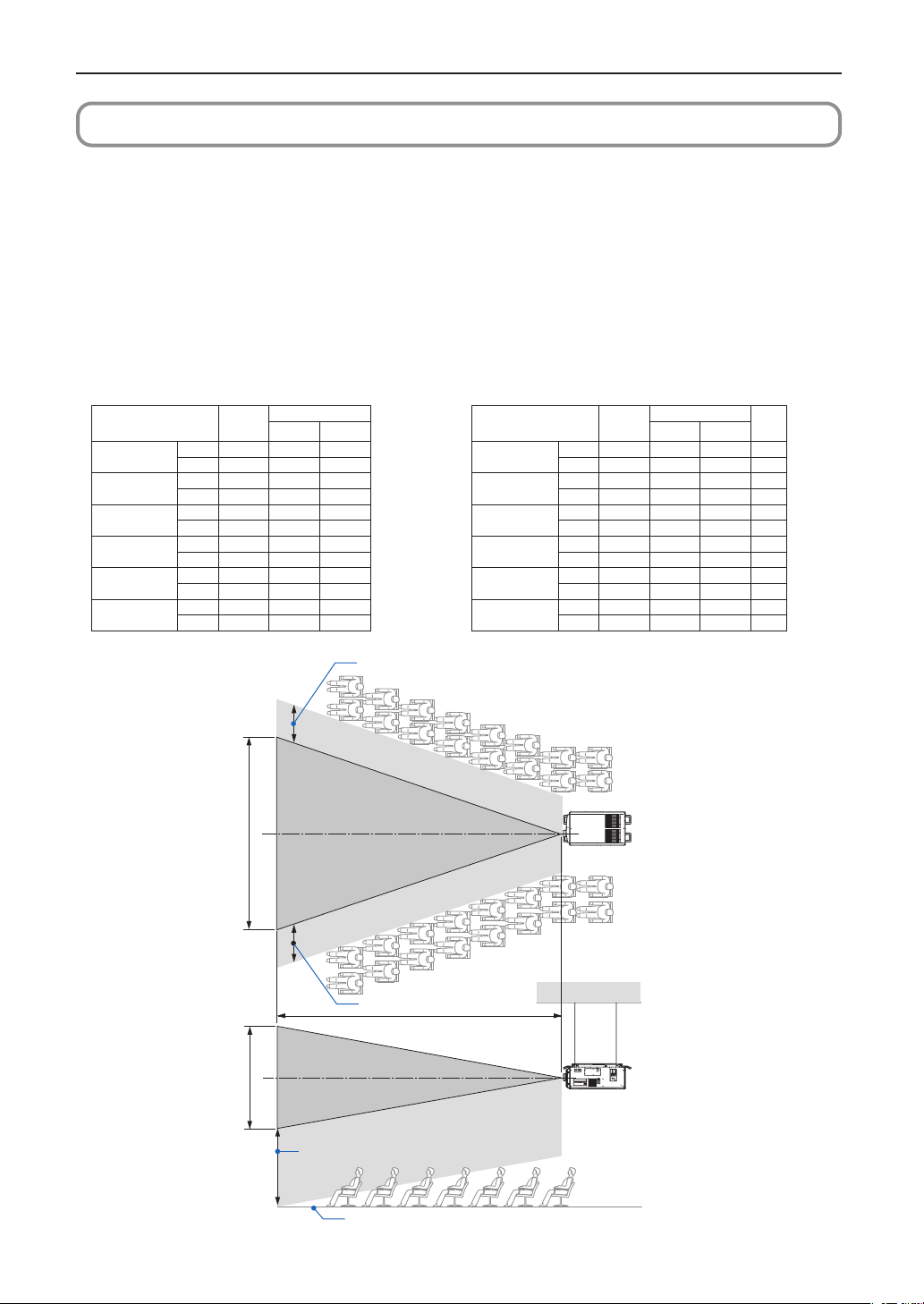

Laser radiation range/No entry range (HD: Hazard distance)

• The below table describes the radiation range of emitted light by the projector that is classified as Risk Group 3 (RG3) of IEC

62471-5 First edition 2015.

• The below table describes the radiation range of emitted light by the projector that is classified as Risk Group 3 (RG3) of IEC

62471:2006.(for USA).

• Please keep within bounds for installing the projector.

Install a barrier for preventing human eyes from entering the RG3 area. For the barrier installation position, keep horizontal safety

zone over 1 m from the RG3 area. In case to install the projector over head, keep over 2 m (2.5 m for USA) distance at least

between the floor surface and the RG3 area.

Operators shall control access to the beam within the hazard distance or install the product at the height that will prevent expo-

sures of spectators’ eyes within the hazard distance.

NC3541L

(IEC 62471-5 First edition 2015) (IEC 62471:2006 (for USA))

Lens

RG3

HD(m)

Screen size(m)

Lens

RG3

HD(m)

Screen size(m)

EHv

H V H V

NC-50LS12Z

Wide 1.4 1.29 0.68

NC-50LS12Z

Wide 1.4 1.29 0.68 1.3

Tele 2.0 1.28 0.68 Tele 2.0 1.28 0.68 2.0

NC-50LS14Z

Wide 1.4 1.17 0.62

NC-50LS14Z

Wide 1.4 1.17 0.62 1.4

Tele 2.3 1.26 0.66 Tele 2.3 1.26 0.66 2.1

NC-50LS16Z

Wide 1.7 1.28 0.68

NC-50LS16Z

Wide 1.7 1.28 0.68 1.7

Tele 2.7 1.29 0.68 Tele 2.7 1.29 0.68 2.4

NC-50LS18Z

Wide 1.9 1.23 0.65

NC-50LS18Z

Wide 1.9 1.23 0.65 1.8

Tele 3.2 1.24 0.65 Tele 3.2 1.24 0.65 2.8

NC-50LS21Z

Wide 2.4 1.28 0.68

NC-50LS21Z

Wide 2.4 1.28 0.68 2.2

Tele 4.0 1.28 0.67 Tele 4.0 1.28 0.67 3.5

L2K-30ZM

Wide 3.2 1.25 0.66

L2K-30ZM

Wide 3.2 1.25 0.66 2.8

Tele 4.7 1.26 0.66 Tele 4.7 1.26 0.66 3.9

When installed on a

oor or a desktop

[Plan view]

[Side view]

RG3 range

Vertical safety zone: over 2 m (2.5 m for USA)

floor

Horizontal safety zone: over 1 m

* If lens shift is utilized, please

consider the shift of pro-

jected image according to

the volume of lens shift.

When installed on a

ceiling

Important Information

NC2041L

(IEC 62471-5 First edition 2015) (IEC 62471:2006 (for USA))

Lens

RG3

HD(m)

Screen size(m)

Lens

RG3

HD(m)

Screen size(m)

EHv

H V H V

NC-50LS12Z

Wide 0.7 0.75 0.39

NC-50LS12Z

Wide 0.7 0.75 0.39 0.8

Tele 1.1 0.74 0.39 Tele 1.1 0.74 0.39 1.1

NC-50LS14Z

Wide 0.8 0.68 0.36

NC-50LS14Z

Wide 0.8 0.68 0.36 0.8

Tele 1.3 0.73 0.38 Tele 1.3 0.73 0.38 1.2

NC-50LS16Z

Wide 1.0 0.74 0.39

NC-50LS16Z

Wide 1.0 0.74 0.39 1.0

Tele 1.5 0.74 0.39 Tele 1.5 0.74 0.39 1.4

NC-50LS18Z

Wide 1.0 0.71 0.38

NC-50LS18Z

Wide 1.0 0.71 0.38 1.0

Tele 1.7 0.72 0.38 Tele 1.7 0.72 0.38 1.6

NC-50LS21Z

Wide 1.3 0.74 0.39

NC-50LS21Z

Wide 1.3 0.74 0.39 1.3

Tele 2.2 0.74 0.39 Tele 2.2 0.74 0.39 2.0

L2K-30ZM

Wide 1.8 0.73 0.38

L2K-30ZM

Wide 1.8 0.73 0.38 1.6

Tele 2.6 0.73 0.38 Tele 2.6 0.73 0.38 2.2

When installed on a

oor or a desktop

[Plan view]

[Side view]

RG3 range

Vertical safety zone: over 2 m (2.5m for USA)

floor

Horizontal safety zone: over 1 m

* If lens shift is utilized, please

consider the shift of pro-

jected image according to

the volume of lens shift.

When installed on a

ceiling

Important Information

CAUTION

Please heed all precaution for safety.

To install the projector

• For planning the layout of the projector, make sure to take safety measures instructed on the installation manual.

• In order to refuse danger, install either a wall outlet within easy reach for pulling out the power plug in emergency or a device

as a breaker to shut down the power supply to the projector.

• Take safety measures preventing human eyes from entering the RG3 area.

• Considering the installation place, select an appropriate lens and secure safety zone that is determined for each lens. For

operation on the powered projector as light adjustment, make sure appropriate safety measures have been taken.

• Check the validity of taken security measures if appropriate safety zone based on the installed lens is secured. Periodically

check the validity and keep these results.

• Educate the administrator of the projector (operators) about safety before starting to operate the projector.

To use the projector

• Instruct the administrator of the projector (operators) to perform inspections before powering on the projector. (Including the

safety check against emitted light by the projector)

• Instruct the administrator of the projector (operators) to be in circumstances able to control the projector whenever the projec-

tor is powered on for an emergency.

• Instruct the administrator of the projector (operators) to keep the installation manual, user’s manual and inspection records to

a place where they can take these documents out easily.

• Instruct them to clarify if the projector is conformed to standards of each country and region.

Important Information

Table of Contents

Important Information ..................................................................... 2

1. What’s in the Box? and the Names of the Projector Parts

.......... 13

1-1. Features .................................................................................................................................................................... 13

1-2. What’s in the Box? .................................................................................................................................................. 15

1-3. Names of the Projector Parts ................................................................................................................................. 16

2. Installation and Connection ....................................................... 24

2-1. Steps for setting up and connecting ..................................................................................................................... 24

2-2. Connecting the Power Cable .................................................................................................................................25

2-3. Connecting the image input terminals ..................................................................................................................30

2-4. Connecting the various control terminal .............................................................................................................30

3. Projection of Images (Basic Operation) ...................................... 31

3-1. Steps of projecting images..................................................................................................................................... 31

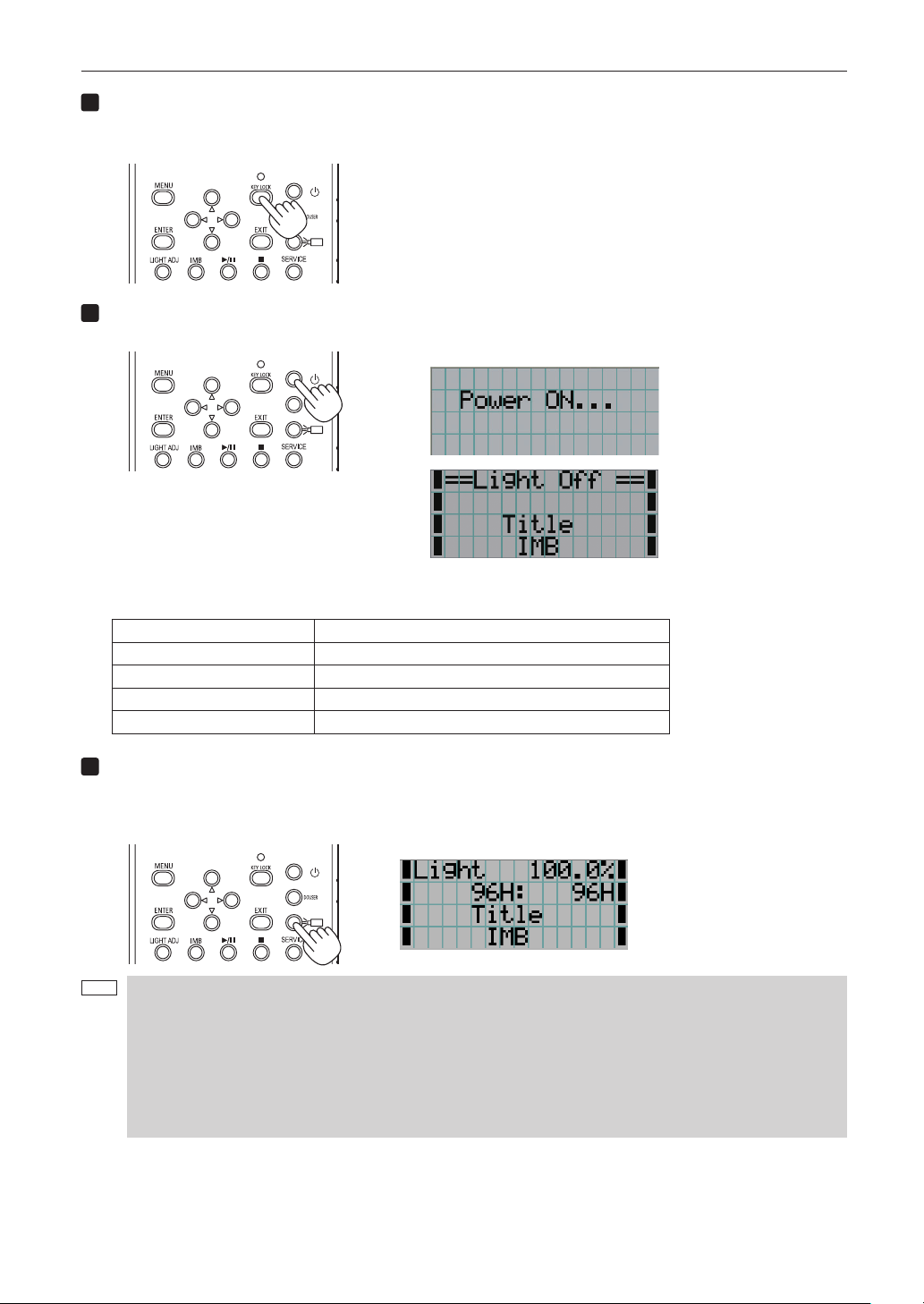

3-2. Turning your projector on ....................................................................................................................................... 32

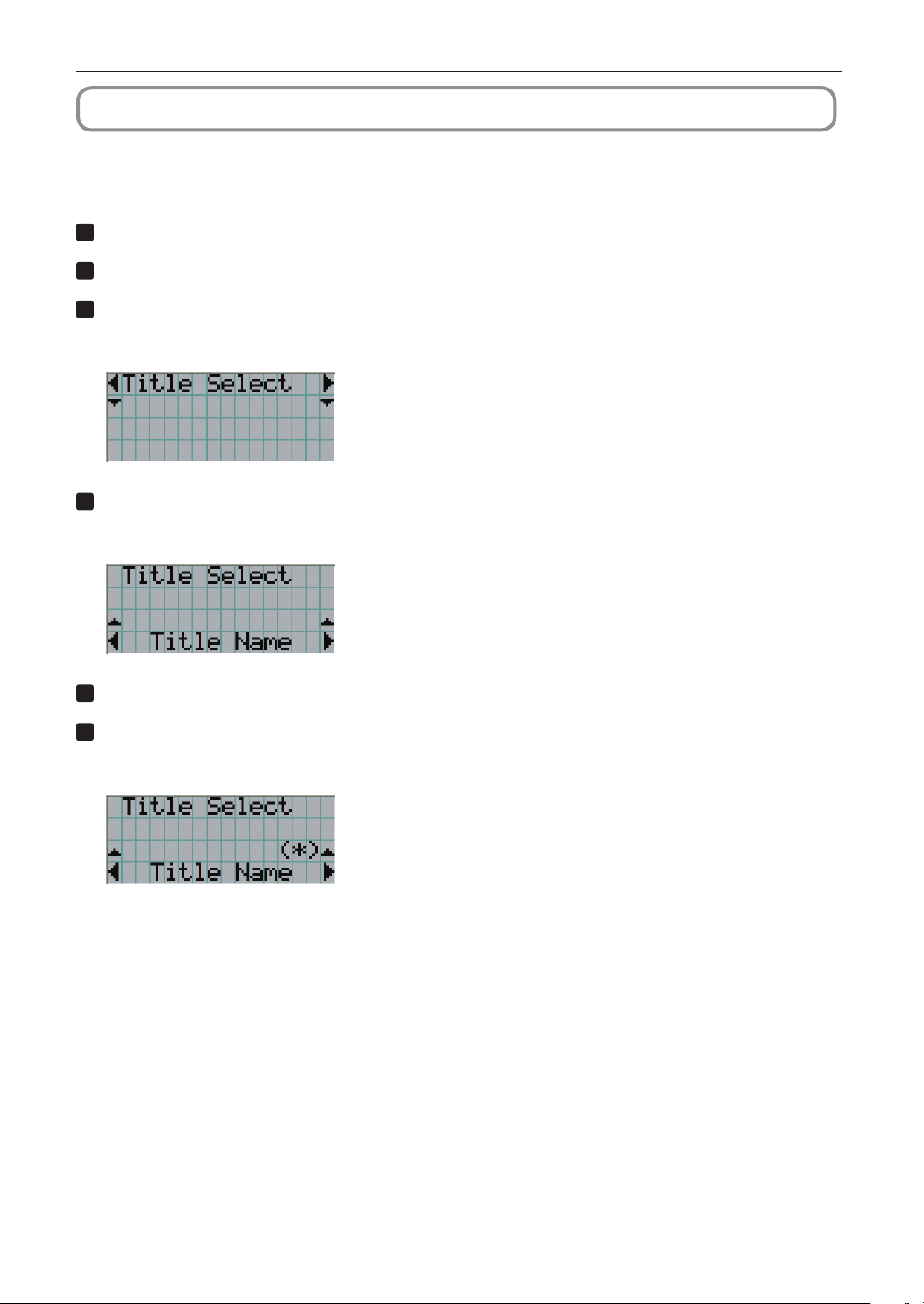

3-3. Selecting the title of input signal ........................................................................................................................... 35

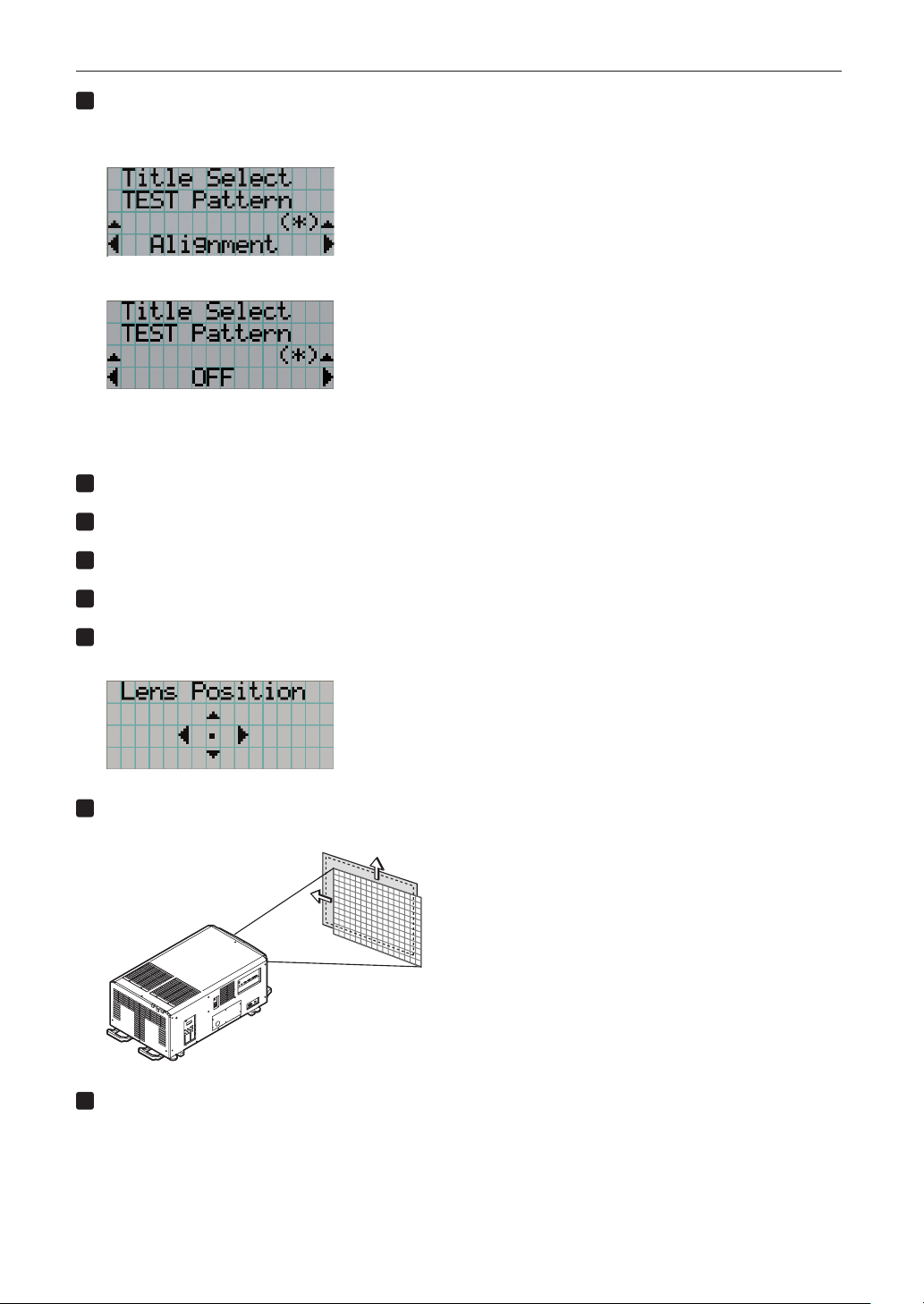

3-4. Adjusting the position and the size of projected screen ..................................................................................... 36

3-5. Preventing misoperations ...................................................................................................................................... 40

3-6. Turning on/off the light source with the projector turned on .............................................................................. 41

3-7. Turning your projector off ....................................................................................................................................... 42

4-1. Basic operation with adjustment menus...............................................................................................................44

4. Using Menus ............................................................................. 44

4-2. Table of adjustment menus ....................................................................................................................................49

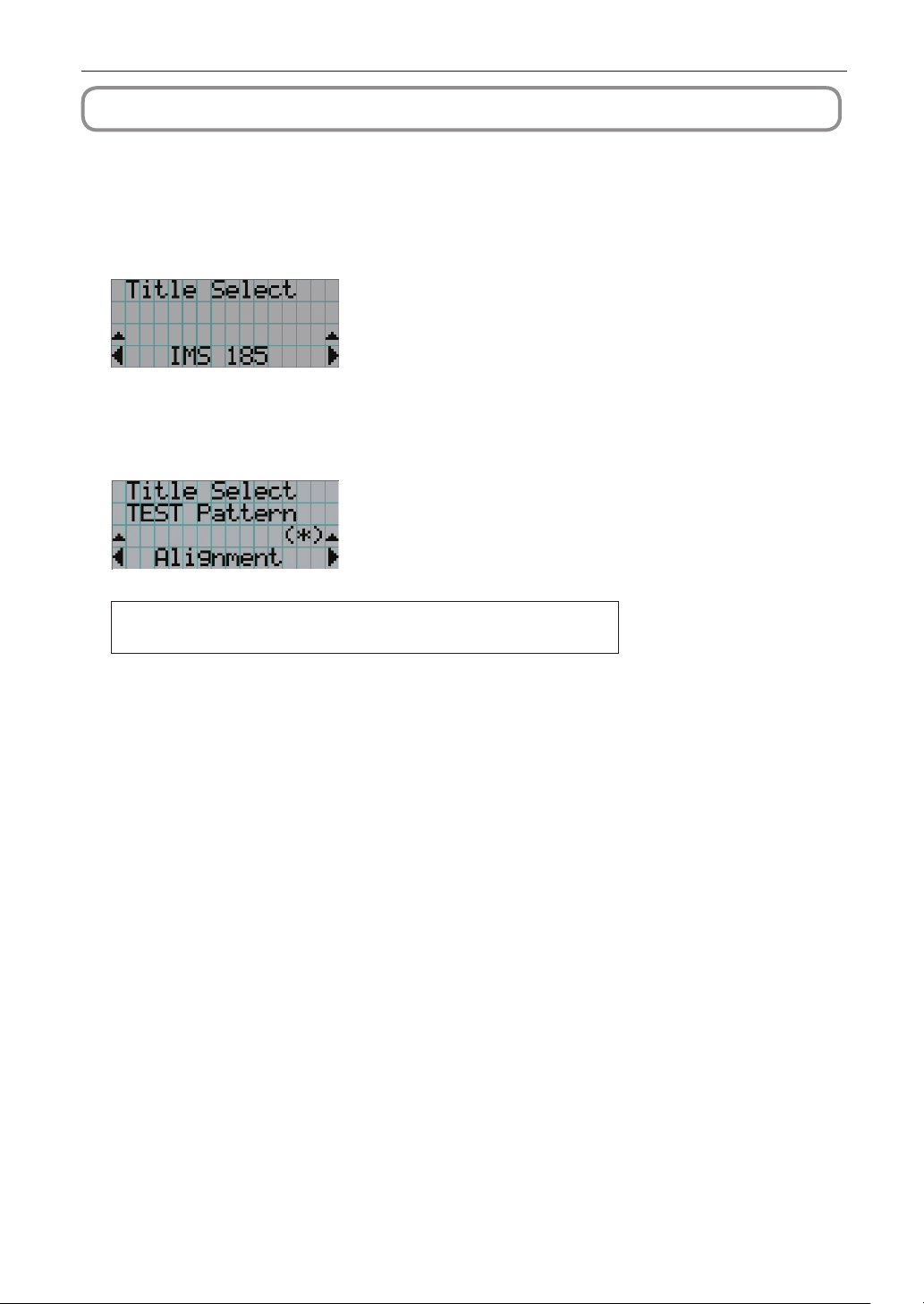

4-3. Title Select ............................................................................................................................................................... 50

4-4. Conguration ..........................................................................................................................................................51

4-5. Title Setup ................................................................................................................................................................ 53

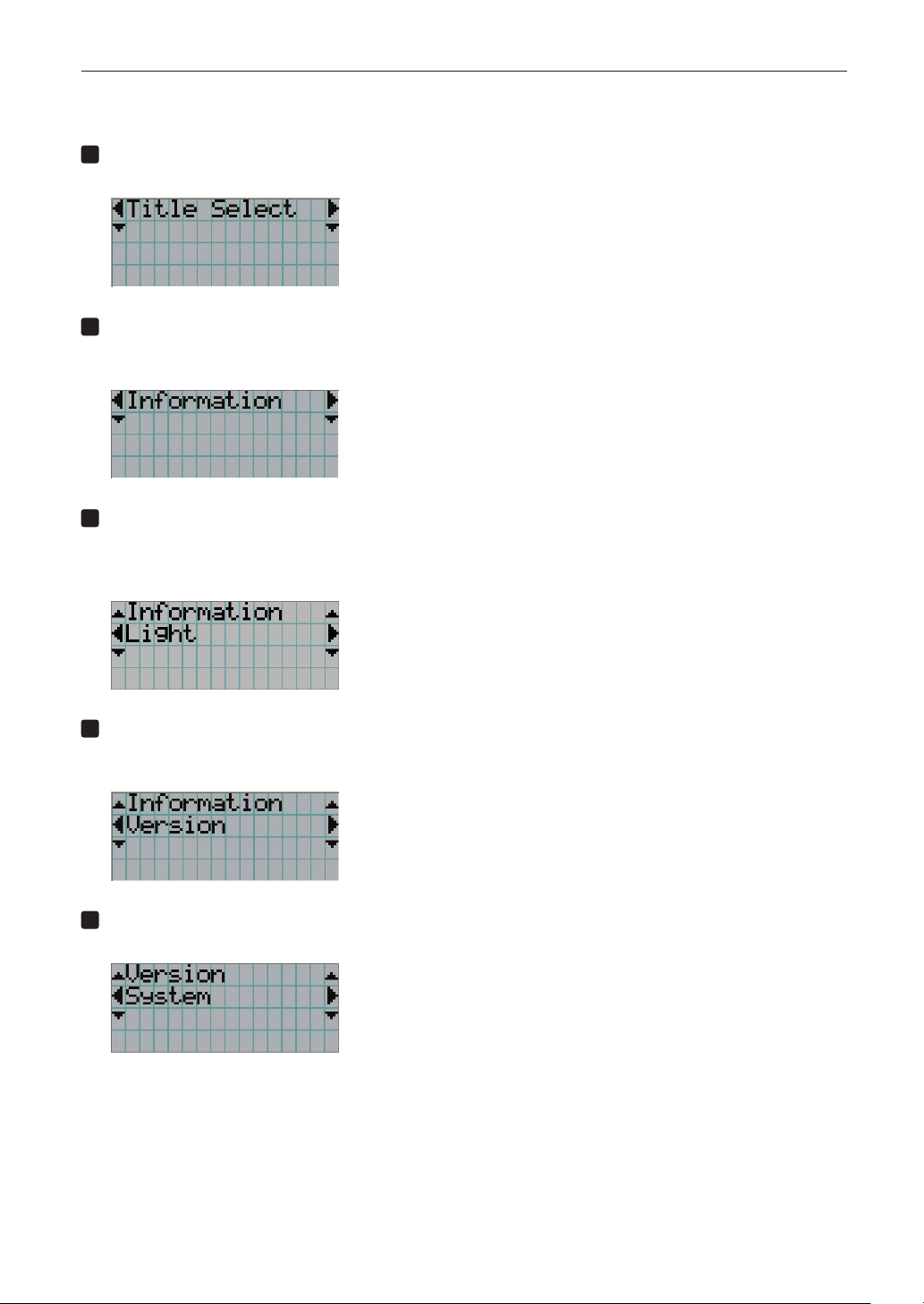

4-6. Information ..............................................................................................................................................................53

5. Maintenance of Your Projector .................................................. 57

5-1. Cleaning the Cabinet ............................................................................................................................................... 57

5-2. Cleaning the Lens ................................................................................................................................................... 58

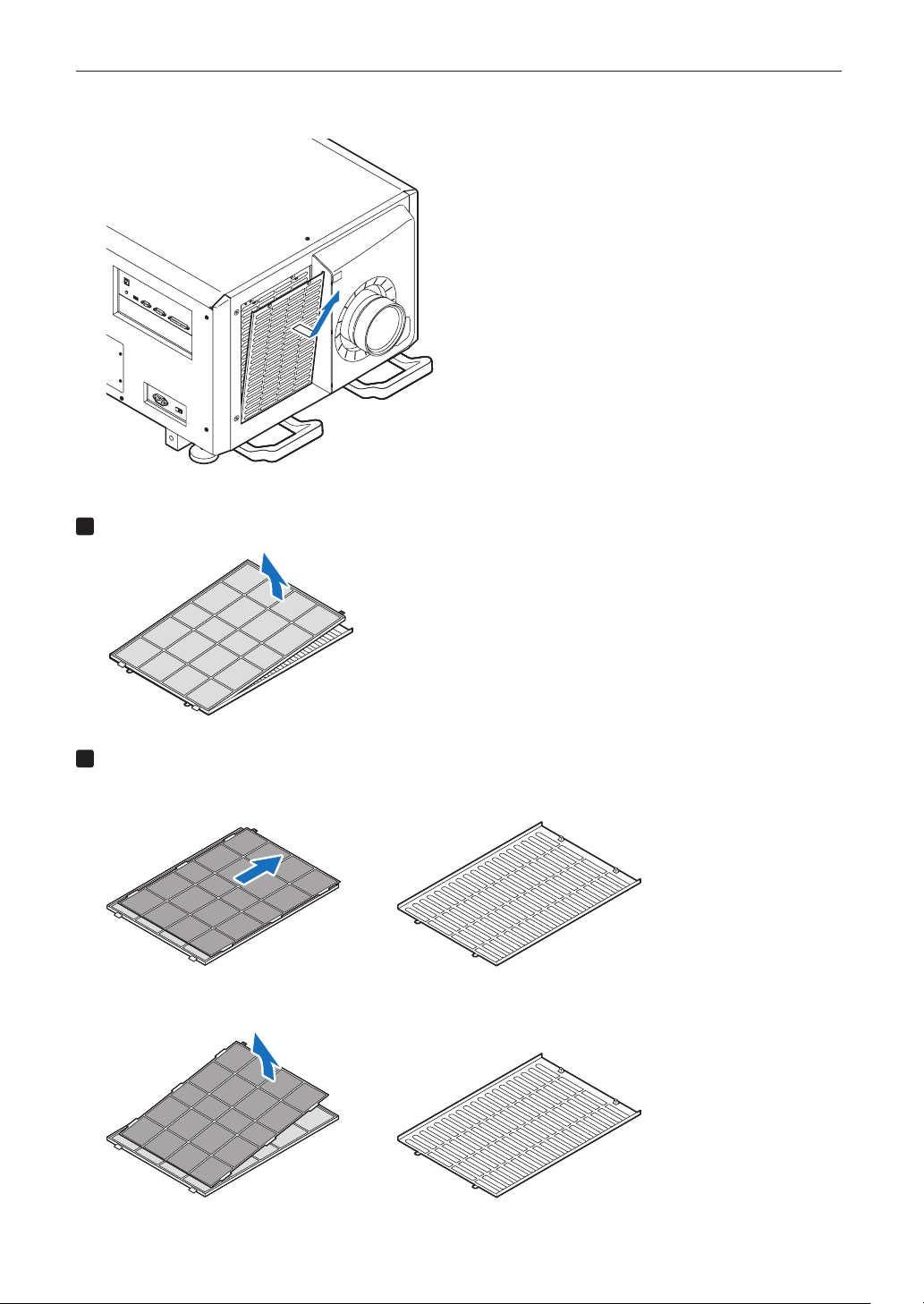

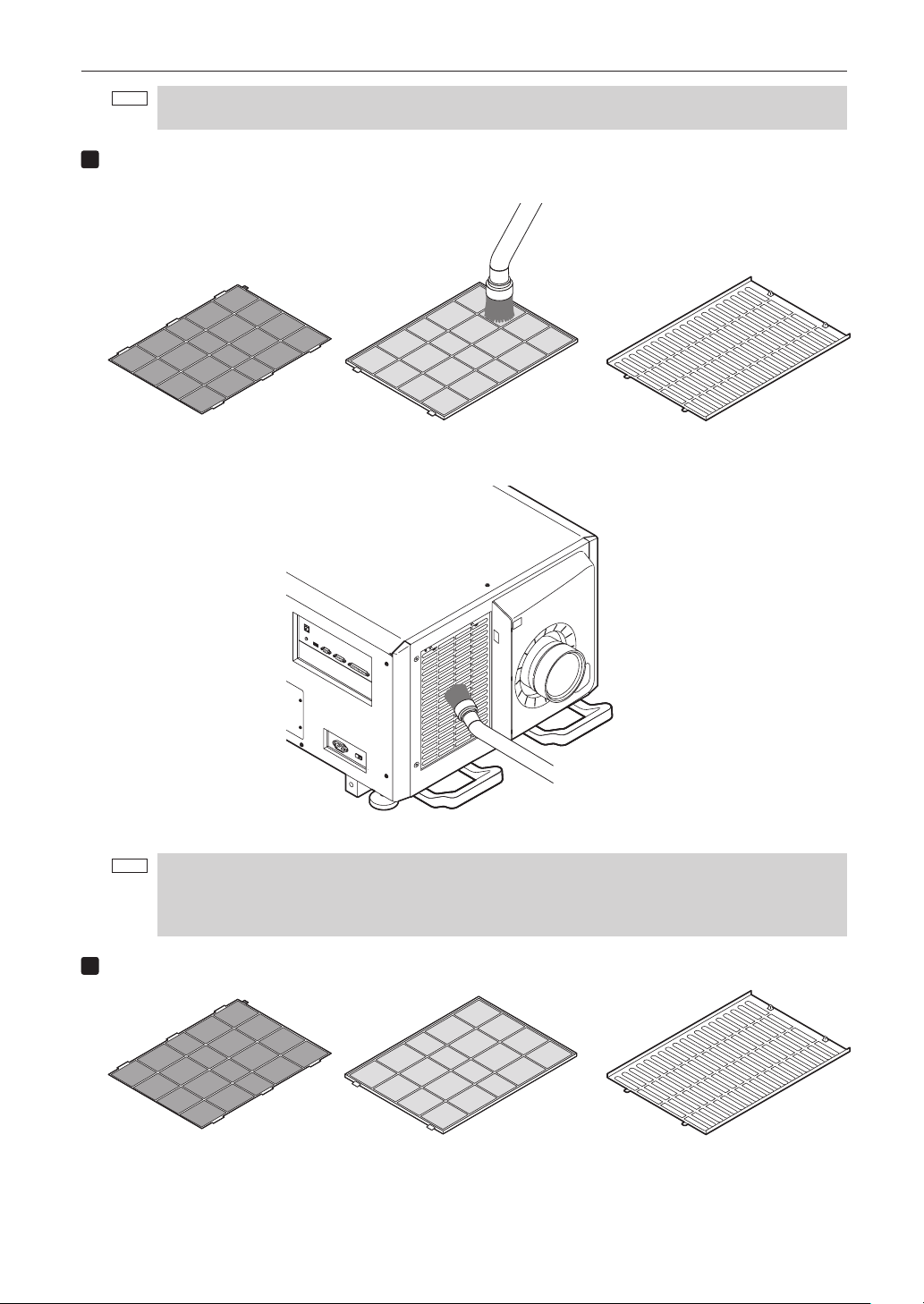

5-3. Cleaning the Air Filters ........................................................................................................................................... 58

6. Appendix ................................................................................... 65

6-1. Troubleshooting .......................................................................................................................................................65

6-2. Indicator display list ...............................................................................................................................................67

6-3. Operation using an HTTP browser ........................................................................................................................ 70

6-4. Writing of the log le (Save PJ Log) ...................................................................................................................... 73

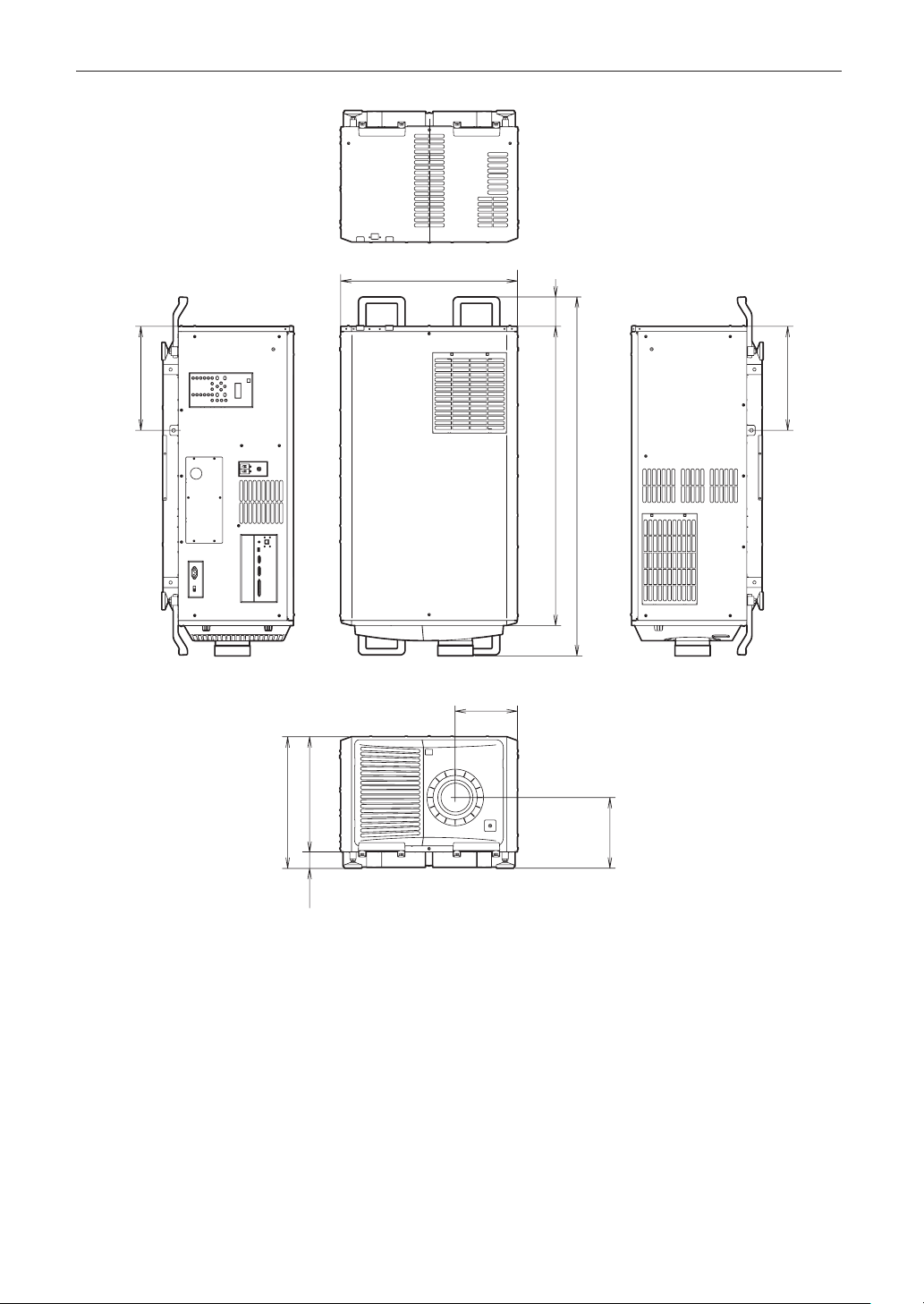

6-5. Outline Drawing ...................................................................................................................................................... 76

6-6. Specications .......................................................................................................................................................... 78

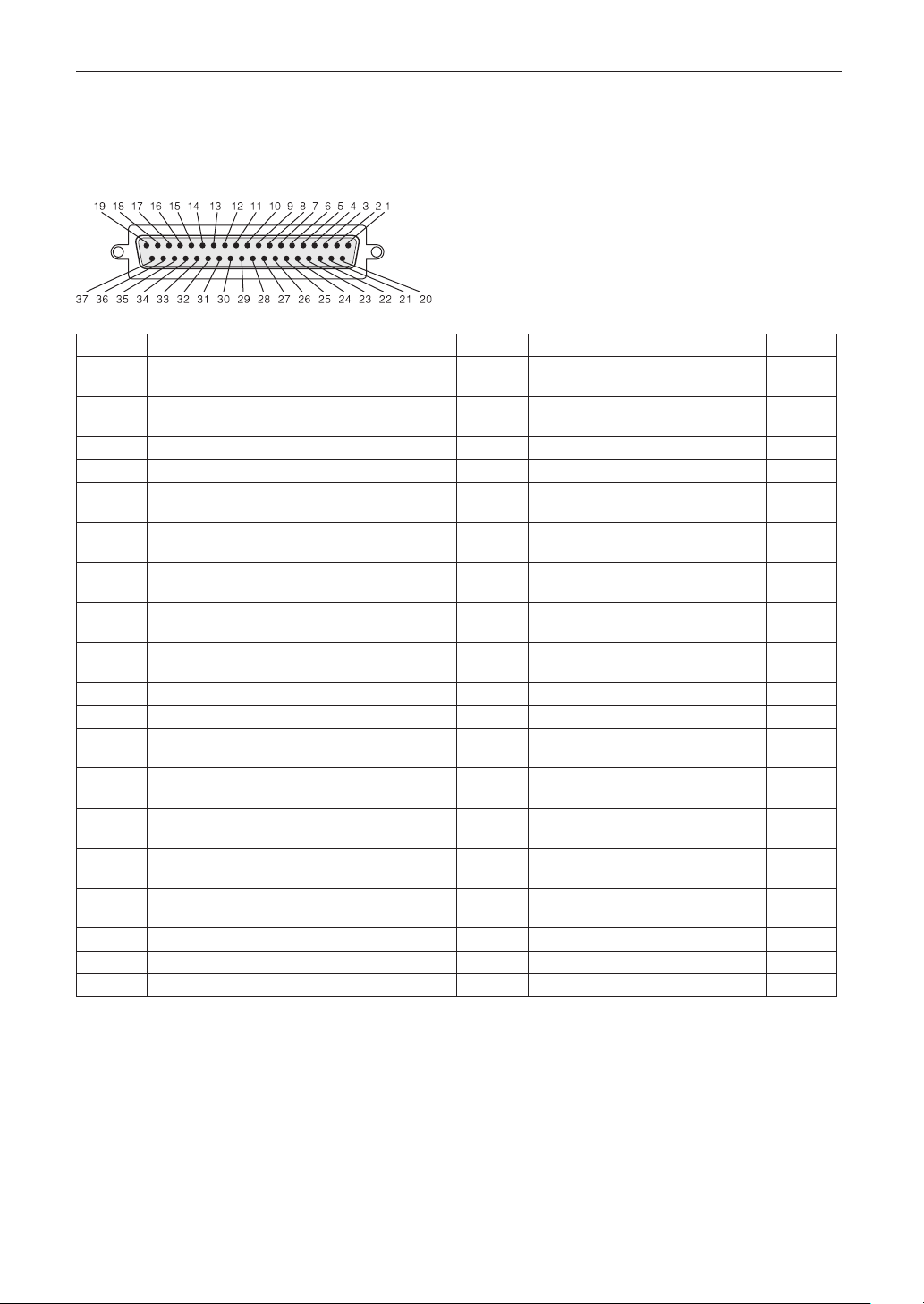

6-7. Pin Assignment and Functions of Terminal ........................................................................................................... 80

6-8. Related products list

............................................................................................................................................... 87

What’s in the Box? and

the Names of the

Projector Parts

1-1. Features

• DLPCinema

projector

Complies with the strict projection standards defined by the Digital Cinema Initiatives (DCI) industry group in the United States using

leading imaging technology of NEC. It also supports 3D projection and high frame rates (HFR).

• Employsalonglifelaserlightsource

The projector employs a newly developed laser light source offering excellent reliability and redundancy. Since the laser light source

has a long life, this delivers low cost operation by removing the need for maintenance such as replacing and adjusting the light

module over extended periods of time. Furthermore, it reduces the risk of the light source suddenly shutting off and leaving a black

screen.

• Superiordustpreventionabilities

The projector utilizes a circular cooling system when cooling the optical components. It cycles cold air to replace the warm air inside

the interior of the airtight case so open air does not touch the optical components. This protects against the device getting dirty with

dust and dirt, as well as maintains brightness.

*However, it cannot perfectly insulate against dust.

• Deliversreducedinstallationspaceandincreasedfreedomthroughamorecompactandlightweightbody

The use of a 1.38" DC4K chip together with integration of the light module into the projector main unit both delivers a reduced

installation area as well as improving the degree of freedom of installation, such as removing the need to connect to external ventila-

tion ducting and supporting both pedestal-mounted and ceiling-suspended installation. A wide variety of optional lenses (sold sepa-

rately) are also available for the projector in order to support a wide variety of installation methods (a lens is not mounted when the

projector is shipped from the factory).

• Runningcostreductionbyusingametallter

With regular cleaning, the filter can be repeatedly used without replacement.

On top of reducing running costs, we have implemented this eco-friendly feature so there is no need to dispose of used filters.

1. What’s in the Box? and the Names of the Projector Parts

• Equippedwitheasytousefunctions

(1) Lens memory function and light memory function that can be operated with one touch.

The projector is equipped with a lens memory function that can save the zoom position and shift position of the lens and a light

memory function that can save the brightness setting separately for each input signal. This makes it possible to project using

preconfigured settings simply by selecting the signal when projecting multiple different input signals each with different screen

size and brightness settings.

(2) Built-in automatic adjustment function that makes the brightness and color of the light source uniform

Degradation of brightness and variations in color that occur as the light source is used for longer periods of time are kept to a

minimum (the period over which variations in brightness can be limited varies depending on the brightness setting).

(3) Frequently used titles can be registered in preset buttons

The projector has been equipped with 10 preset buttons that make it easy to select registered title (input signal). To this projec-

tor, 100 titles at most can be registered (input signal registration). Among the registered titles, any 20 titles can be assigned to

the preset buttons.

(4) You can operate and configure the projector via a network from a PC

You can operate and configure the projector via a network from a PC by using the separately supplied software Digital Cinema

Communicator v2 (DCCv2).

1. What’s in the Box? and the Names of the Projector Parts

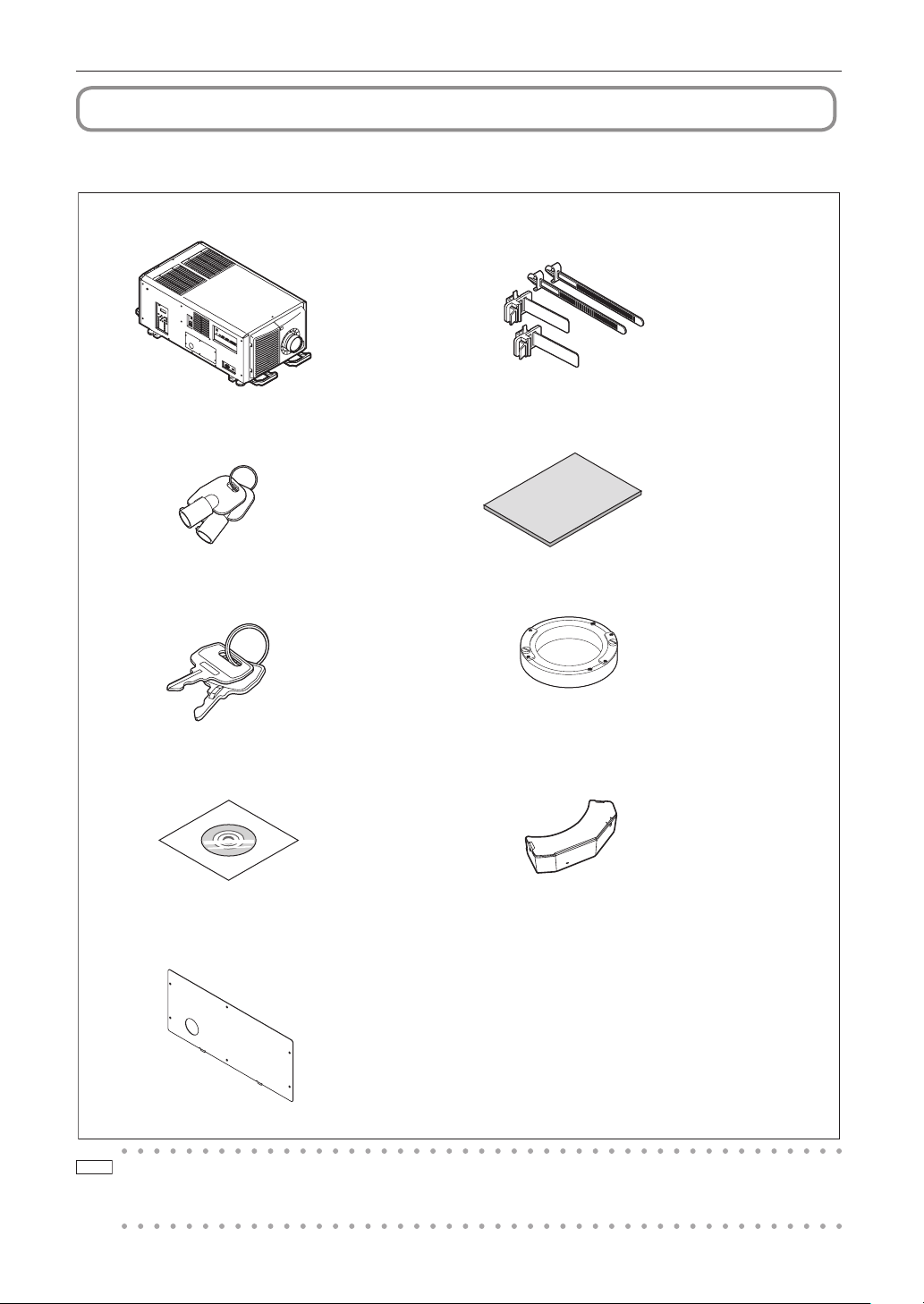

1-2. What’s in the Box?

Check the content of the accessories.

 Projector

 Lens hole cap

 CD-ROM (User’s Manual)

 Administrator key x 2

 Service keys x 2

 Important Information

 Lens holder

 Gear box cover

 Screw x 2

 Power cable stopper

 Plate Inlet φ35

TIP

In the event that you did not receive all of the accessories outlined above, or some are damaged, contact your dealer/

distributor.

Differs slightly from the drawings in this manual, but there is no problem in actual use.

1. What’s in the Box? and the Names of the Projector Parts

1-3. Names of the Projector Parts

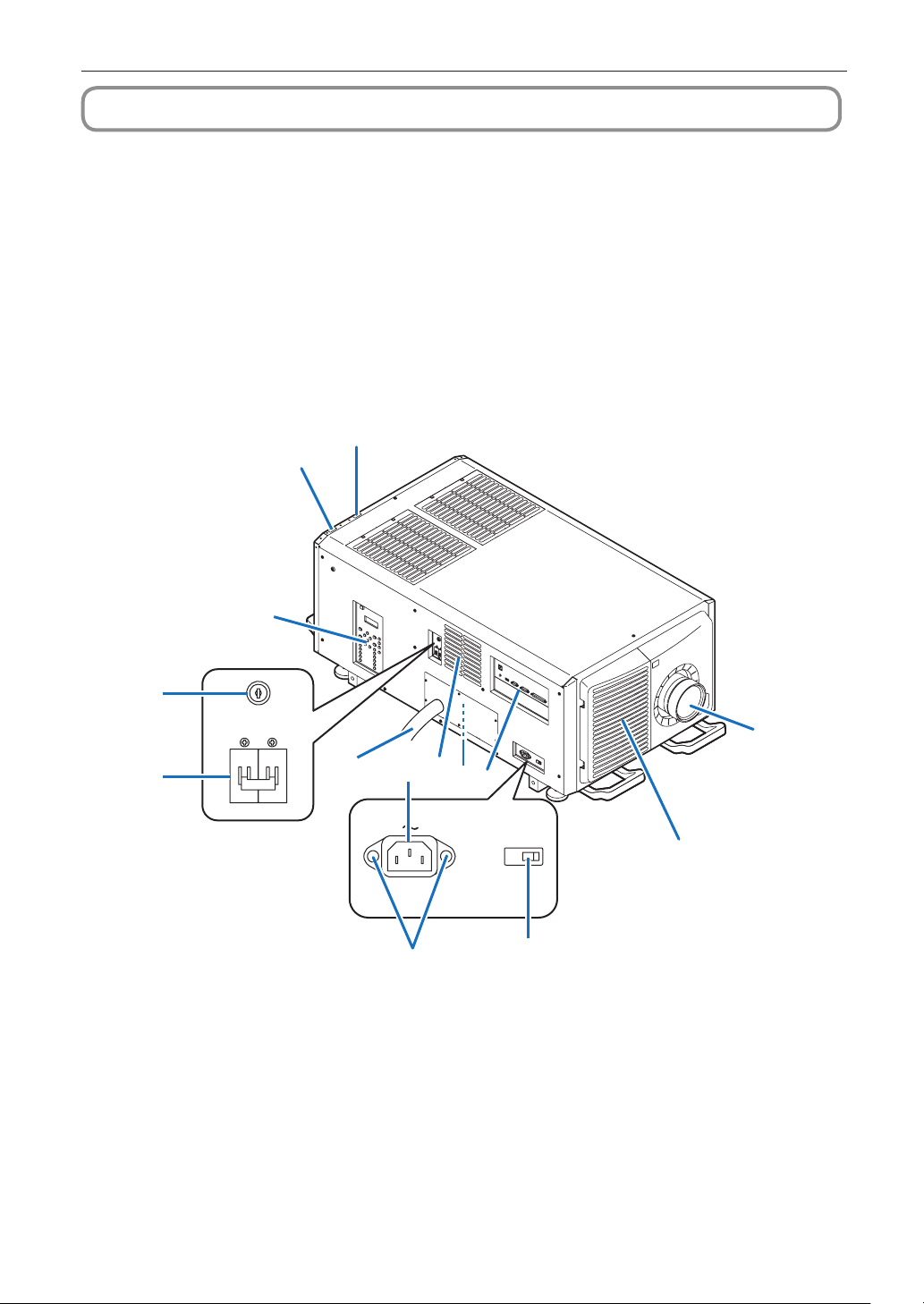

1-3-1. Front of the projector

NC3541L

1. What’s in the Box? and the Names of the Projector Parts

NC2041L

1. Light status indicator

Displays the status of the light source. The indicators turn on when the light source is on and turn off when the light source is

off. (See page 69)

2. System status indicator

Indicates the status of the projector. When the projector is operating normally, these light/blink in green or orange.

When an error occurs, they light/blink in red. When an error occurs, check the contents of the display on the LCD screen. (See

page 69)

3. Control panel

On the control panel, power to your projector is turned on or off, titles are selected, and various adjustments are made of pro-

jected screen. (See page 22)

4. Administrator switch

The projector can be operated normally by inserting the administrator key horizontally and turning it to the vertical direction.

At this time, the administrator key cannot be removed. The projector will not function unless the administrator key is inserted.

5. Light power switch

While AC power is being supplied, set the projector power switch and light power switch to ON position, then your projector will

enter a standby state.

6. AC power cable

This is the cable that supplies AC power to the projector head. Contact your dealer/distributor for connecting the power cable

or AC power cable.

7. Air outlet

The air outlet to exhaust heat inside the projector. Do not cover.

1. What’s in the Box? and the Names of the Projector Parts

8. Remote interlock connector (inside side of projector)

This port is for safely using this device. It is used to externally control the projector.

Consult with your dealer/distributor about using this.

9. Connection terminals

Various image signal cable are to be connected here. (See page 21)

You can expand signal input terminals by installing the optional board. (See page 21)

Contact your dealer/distributor for more information on separately sold optional products.

10. AC input

Connects to the AC power cable. The AC power cable is not an accessory. Consult with your dealer/distributor about the AC

power cable.

11. Power cable stopper

Prevents the power plug from falling out from the projector.

12. Projector power switch

While AC power is being supplied, set the projector power switch and light power switch to ON position, then your projector will

enter a standby state.

13. Air inlet / Air lter

The air inlet for cooling inside the projector. Do not cover.

An air filter is attached over the air inlet to prevent dust. Refer to “5-3. Cleaning the Air Filters” (page 58) on how to clean the

air filter.

14. Lens (optional)

Images are projected from the lens. Request your dealer/distributor to install or replace the lens.

NOTE

Do not cover the air inlets and outlet while the projector is in operation. Insufficient ventilation leads to a rise of the

internal temperature and may cause a fire or malfunction.

1. What’s in the Box? and the Names of the Projector Parts

1-3-2. Rear of the projector

NC3541L

NC2041L

1. Air inlet / Air lter

The air inlet for cooling inside the projector. Do not cover.

Two filters are attached over the air inlet to prevent dust. Refer to “5-3. Cleaning the Air Filters” (page 58) on how to clean the

air filters.

2. Air outlet

The air outlet to exhaust heat inside the projector. Do not cover.

3. Buzzer (inside rear of projector)

The buzzer rings when the power is turned on or an error has occurred.

NOTE

Do not cover the air inlets and outlet while the projector is in operation. Insufficient ventilation leads to a rise of the

internal temperature and may cause a fire or malfunction.

Hereinafter, illustrations of NC3541L are used for explanation purposes.

1. What’s in the Box? and the Names of the Projector Parts

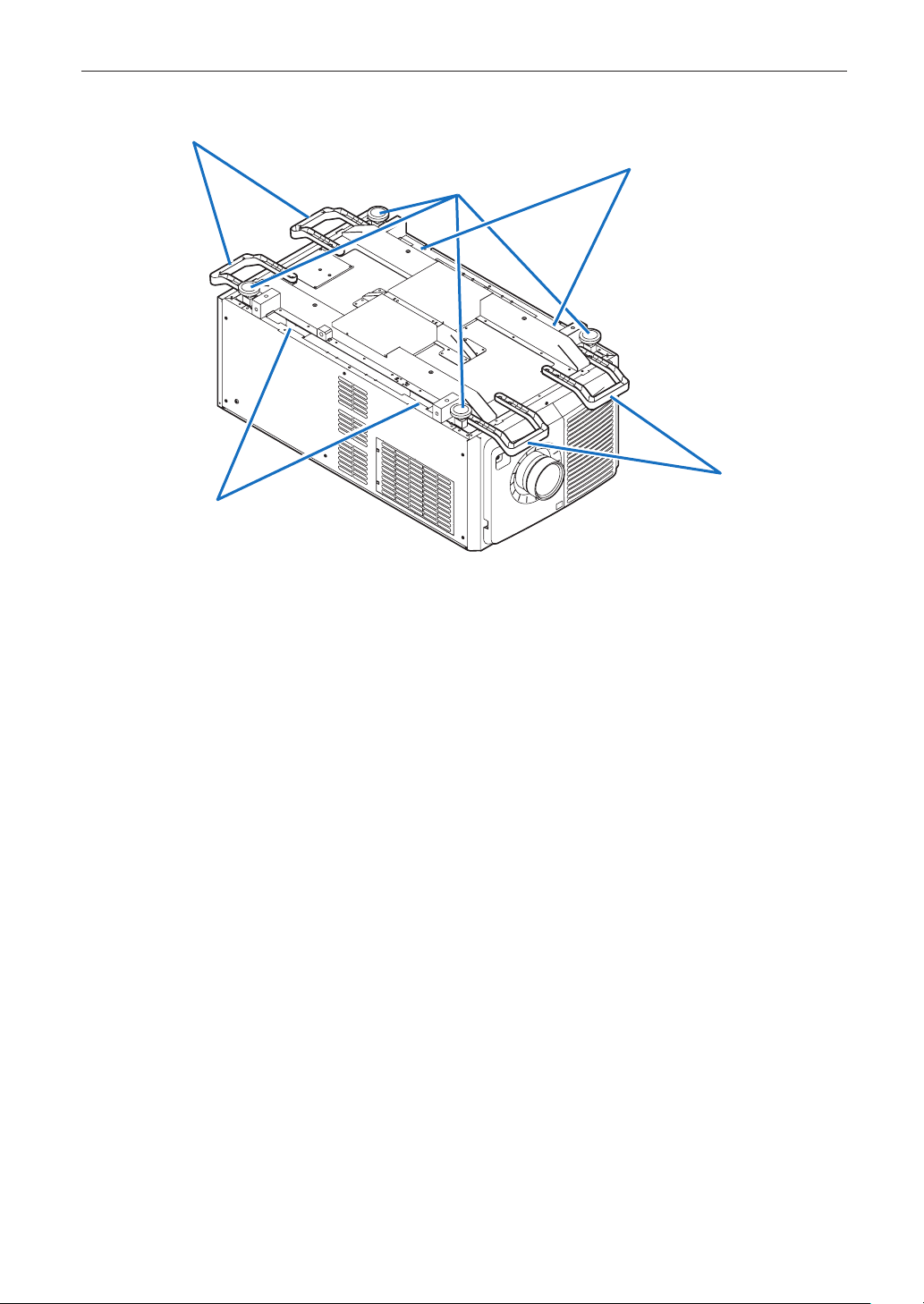

1-3-3. Bottom of the projector

1. Handle (4 locations)

Handles for moving the projector.

2. Level adjusters (in 4 positions)

In the ordinary installation, you can adjust the projector inclination at 4 positions.

3. Handle (4 locations)

Handles for moving the projector.

1. What’s in the Box? and the Names of the Projector Parts

1-3-4. Connection terminals

2 3 4 5 6

1. Service terminal (REMOTE) (Stereo mini)

This terminal is used for service purpose only.

2. Ethernet port (LAN) (RJ-45)

The port for interfacing with an image signal server or controlling the projector from a PC via a network. Connect the projector

and the PC with a commercially available Ethernet cable (10/100Base-T).

3. USB port (USB) (type A)

The port for the projector maintenance.

4. PC control terminal (RS-232) (D-sub 9P)

The terminal for operating the projector from a PC via an RS-232C or for service personnel to set data for the projector. Connect

the projector and the PC with a commercially available RS-232C straight cable.

5. 3D terminal (3D) (D-sub 15P)

The terminal for connecting a 3D image system to the projector. (See page 86)

6. External control terminal (GP I/O) (D-sub 37P)

The terminal for externally controlling the projector or connecting a 3D image system to the projector. (See page 81)

7. Slot

The slot is used for an image media block (IMB). Contact your dealer/distributor for an installation of IMB. Refer to the IMB

instruction manual for details on IMB.

1. What’s in the Box? and the Names of the Projector Parts

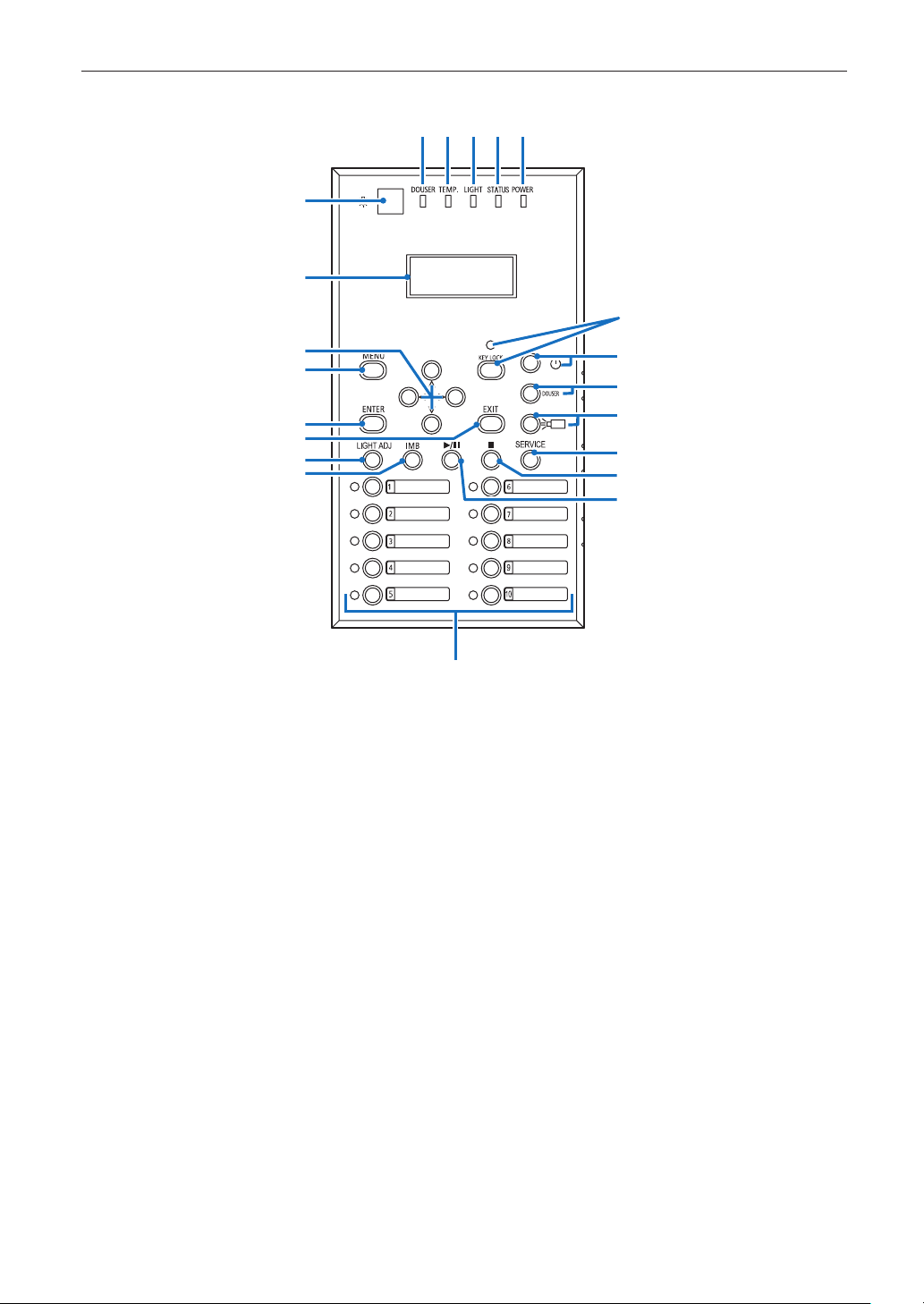

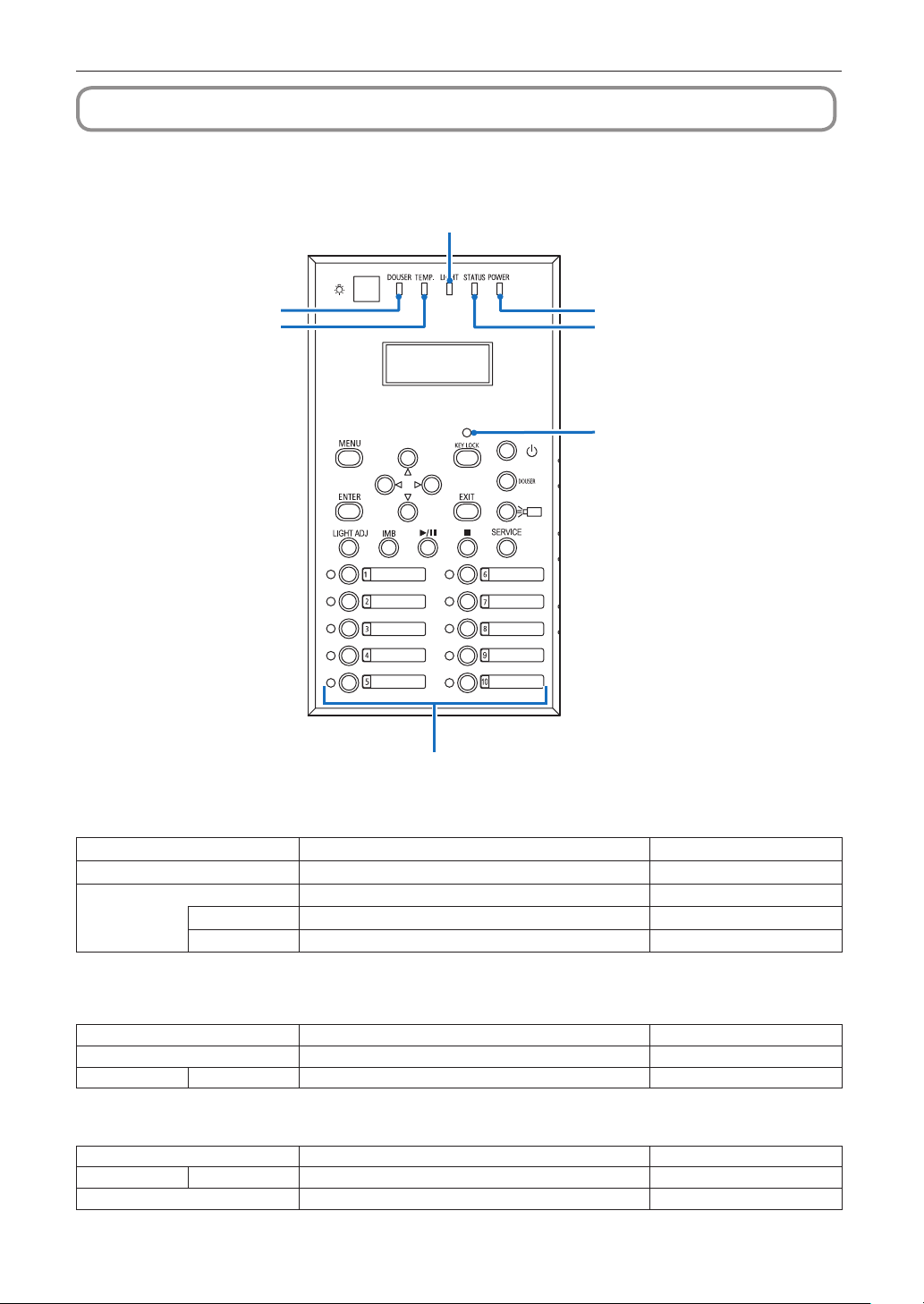

1-3-5. Control panel

2 3 4 5

1. Light button

Toggles ON and OFF the light on the control panel of the projector and the backlight on the LCD screen.

2. DOUSER indicator

Displays the douser open/close state. (See page 67)

3. TEMP. indicator

Displays the status of the temperature inside the projector. It blinks or lights up when the temperature inside the projector rises

close to the operating temperature limit or exceeds the operating temperature. (See page 68)

4. LIGHT indicator

Displays the status of the light source. The indicators turn on when the light source is on and turn off when the light source is

off. (See page 68)

5. STATUS indicator

Indicates the status of the projector. When the projector is operating normally, these light/blink in green or orange.

When an error occurs, they light/blink in red. When an error occurs, check the contents of the display on the LCD screen. (See

page 68)

6. POWER indicator

Displays the status that the projector software is starting after the projector power switch and light power switch has been turned

ON (see page 68).

7. LCD screen

The LCD screen displays menus and setting values for the projector operations.

8. UP/DOWN/LEFT/RIGHT buttons

Press these buttons to select a menu item while a menu is displayed.

9. MENU button

Press this button to display the menu for various settings and adjustments. (See page 49)

1. What’s in the Box? and the Names of the Projector Parts

. ENTER button

Press this button to select the menu item.

. EXIT button

Press this button to return to the previous menu item.

. KEY LOCK button

Press this button to lock (KEY LOCK) the buttons on the control panel. Buttons on the control panel do not function while KEY

LOCK is on.

Pressing the KEY LOCK button for one second or longer while KEY LOCK is off locks the buttons.

Pressing the KEY LOCK button for one second or longer while KEY LOCK is on unlocks the buttons. (See page 40)

NOTE

KEY LOCK becomes automatically on if no control panel operation takes place in the standby state for 30 seconds

by default. (See page 40)

. POWER button

Press this button for more than three seconds to turn on or off (standby) the projector. (See page 68)

In order to start up the projector, turn on the projector power switch and light power switch for the projector to set the projector

in the standby state. (See page 32)

. DOUSER button

Press this button to open and close the douser. (See page 67)

. LIGHT ON/OFF button

Press this button for three seconds or longer to turn on or off the light source while the projector is on. (See page 41)

. LIGHT ADJ button

Press this button to display the light source adjustment menu. (See page 39)

. IMB button (planned to be supported in a future update)

This button is operable when the media block is installed in the projector.

Press this button to display the operation menu of the media block.

. SERVICE button

This button is used for service purpose only.

. Stop button (planned to be supported in a future update)

This button is operable when the media block is installed in the projector.

Press this button to stop playing the image contents.

. Play/pause button (planned to be supported in a future update)

This button is operable when the media block is installed in the projector.

Press this button to play or pause the image contents.

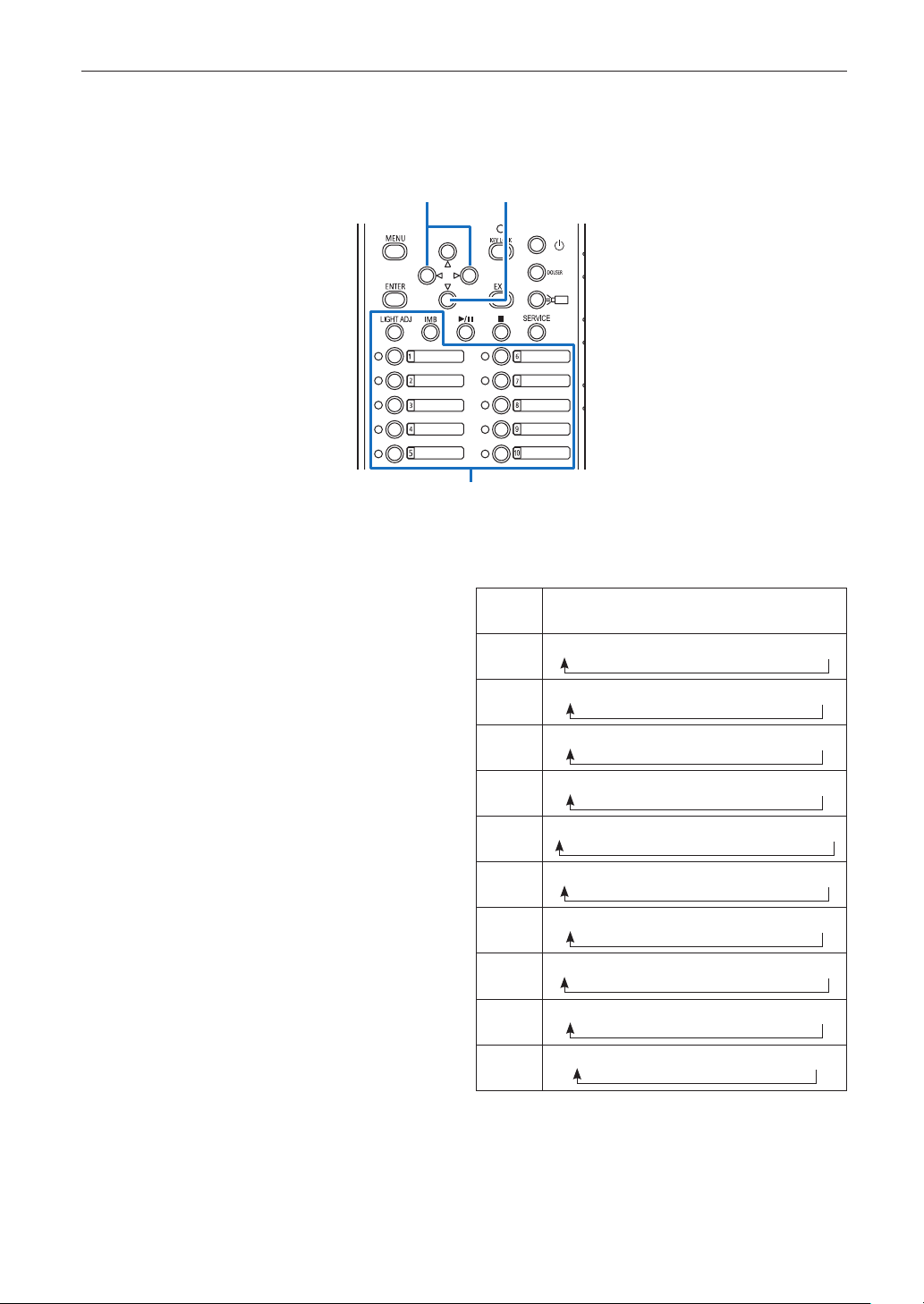

. Preset buttons

Press the preset button to select a title (input signal) assigned to each button. Up to 100 titles (input signals) can be registered

to this projector, and any 20 titles from them can be assigned to the preset button. Please request your dealer to register and

change the titles of the buttons as required.

The preset button indicators show their assigned title or selection status. (See page 67)

TIP

To select a title allocated to one of the preset buttons, use the following procedure.

• Toselectatitleallocatedtooneof“PresetButton1”to“PresetButton10”

Press the button which corresponds to the number of the preset button (button <1> to <10>).

- Press the <1> button to select the “Preset Button1”.

- Press the <10> button to select the “Preset Button10”.

• Toselectatitleallocatedtooneof“PresetButton11”to“PresetButton20”

Press the preset button (button <1> to <10>) while holding down the UP button.

- Press the <1> button while holding down the UP button to select the “Preset Button11”.

- Press the <10> button while holding down the UP button to select the “Preset Button20”.

Installation and

Connection

2-1. Steps for setting up and connecting

Use the following steps for setting up your projector:

• Step1

Setup the screen and projector. (Contact your dealer to carry out the setup.)

• Step2

Connect the power cable to the projector. (See page 25)

• Step3

Connect cables to the image input terminals. (See page 30)

Connect cables to the various control terminals. (See page 30)

2. Installation and Connection

2-2. Connecting the Power Cable

Consult your dealer for installing the power cable to the projector.

If AC power is supplied to the projector and light with one power cable (C1 connection), it is not necessary to connect the cable to

the projector power supply.

The power cable is not included with the projector. Use a power cable that meets the standards and power supply voltage of the

country where you are using the projector. Ask your dealer for the power cable to select and purchase.

WARNING

• Consult your dealer for installing the power cable to the projector.

DO NOT install the power cable by yourself. Doing so may cause a fire or electric shock.

• Before connecting the power cables, check that the projector power switch and light power switch of the projector is turned

off. Implement the connection with AC power shut off.

• Be sure to ground the equipment to ensure safety. Use a power cable that meets the standards and power supply voltage of

the country where you are using the projector, and always connect the equipment to the ground. If the ground is not con-

nected, it may cause electrical shocks.

• When connecting the power cable plugs to the AC IN and the electrical outlet, securely insert the plugs all the way in.

• For C2 connection, be sure to install the power cord stopper. If the connection between the power cable plug and the electri-

cal outlet is loose, the plug area may generate heat, causing burns and accidents.

2. Installation and Connection

Connect the AC power supply cable.

Connect the AC power supply cable to the projector.

AC input

Connect the power plug to the electrical outlet.

This completes the connection of the AC power supply cable.

2. Installation and Connection

Attaching the power cable stopper

To prevent the power cable from accidently removing from the AC IN of the projector, attach the supplied power cable stopper to

clamp the power cable.

CAUTION

• To prevent the power cable from coming loose, make sure that all the prongs of the power cable are fully inserted into the AC

IN terminal of the projector before using the power cable stopper to fix the power cable. A loose contact of the power cable

may cause a fire or electric shock.

• Do not bundle the power cable. Doing this could cause heat or a fire.

NOTE

• Do not clamp the power cable with other cables. Doing so can generate noise, which can affect adversely the signal

cable.

• Be careful not to insert the band inversely. Once the band is attached, it cannot be removed from the slot.

Set the clamper band to the power cable side, and insert the end of band of the power cable

stopper into the slot next to the AC IN on the terminal panel.

Attach the power cable stopper to the other side in the same way.

Pass each band through the slits in the power cable stopper.

Pass the bands through them so that the power cable will be sandwiched from above and below.

band

2. Installation and Connection

Slide the clamper to the hilt of the power cable.

Pulling the knob in the arrow direction allows you to adjust the clamper position.

Once the clamper position is adjusted, release the knob to lock the clamper.

knob

Pull the band to hold the power cable.

Pulling the knob in the arrow direction allows you to adjust the band position.

Pull the top and bottom bands by keeping their balance.

Once the band position is adjusted, release the knob to lock.

knob

This completes the attachment of the power cable stopper.

2. Installation and Connection

Removing the power cable from the power cable stopper

Pull the knob of the clamper and loosen the band.

Pull the knob and slide the clamper away from the power plug.

CAUTION

The projector may become hot temporarily when the power is turned off or if the AC power is disconnected while the projector

is projecting. Take care when handling the projector.

2. Installation and Connection

2-3. Connecting the image input terminals

The video input ports that can be used with the IMB are as follows. Refer to the instruction manual of the IMB for details on con-

necting the video input ports with external equipment.

NP-90MS02 HDMI input port x 1

SDI input port x 2

2-4. Connecting the various control terminal

For control, your projector comes with such ports as the PC control terminal and the Ethernet port (RJ-45).

• PCcontrolterminal(RS-232) -------------- Use this terminal when controlling the projector in serial connection from a PC.

• LANport(LAN) ------------------------------ Use this port when controlling the projector in LAN connection from a PC.

GP I/O3DRS-232

USB

REMOTE

LAN

LAN cable

RS-232C

Projection of Images

(Basic Operation)

3-1. Steps of projecting images

• Step1

Turn on the power to the projector. (See page 32)

• Step2

Select the title of input signal. (See page 35)

• Step3

Adjust the position and size of the projected screen. (See page 36)

• Step4

Turn off the power to the projector. (See page 42)

3. Projection of Images (Basic Operation)

3-2. Turning your projector on

Please contact your dealer/distributor to connect the power cable.

Preparation: • Connectthepowercabletotheprojector.(Seepage25)

 • SupplyACpowertotheprojector.

NOTE

• Turn off the projector power switch and light power switch to the projector when supplying or cutting AC power to

the projector.

Supplying or shutting down the AC power while the projector power switch and light power switch is on will damage

the projector.

• Turning on and off the projector involves a two-step operation; the “projector power switch and light power switch”

and the “POWER button”.

• Turning power on. (See this page)

[1] Turn on the “projector power switch and light power switch” of the projector.

Your projector is set in a standby state.

[2] If KEY LOCK is on, press the KEY LOCK button for one second or longer.

KEY LOCK is off and buttons on the control panel become operable.

[3] Press the POWER button three seconds or longer.

Your projector is turn on.

• Turning power off. (See page 42)

[1] Press the POWER button three seconds or longer.

Your projector is set in a standby state.

[2] Turn off the “projector power switch and light power switch” of the projector.

Your projector is turned off.

Remove the lens cap.

Insert the administrator key horizontally and turn it to the vertical direction.

The administrator key can no longer be removed. The projector will not function unless the administrator key is inserted.

3. Projection of Images (Basic Operation)

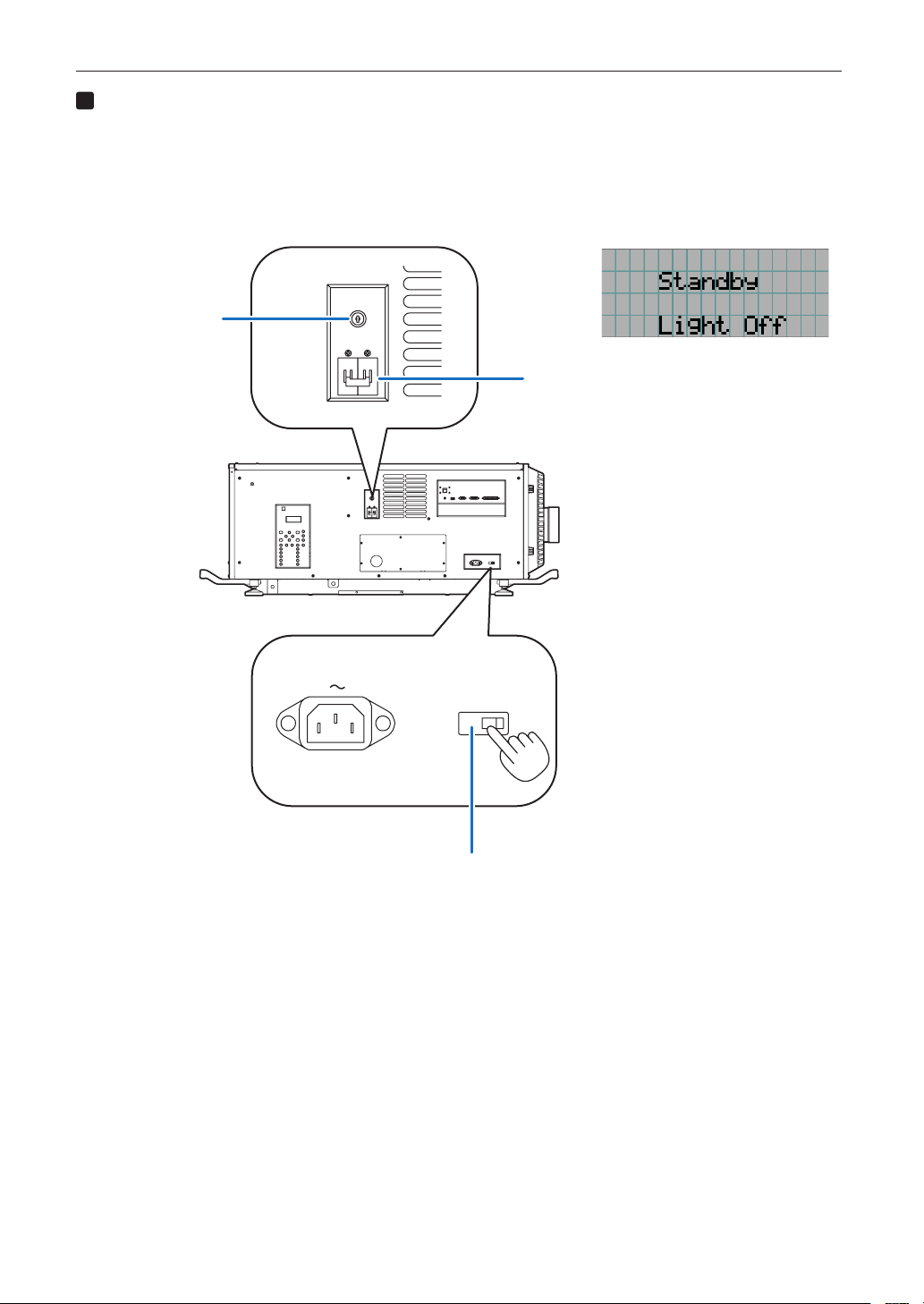

Turn on the light power switch ([1]) then the projector power switch ([2]) on the side of the

projector.

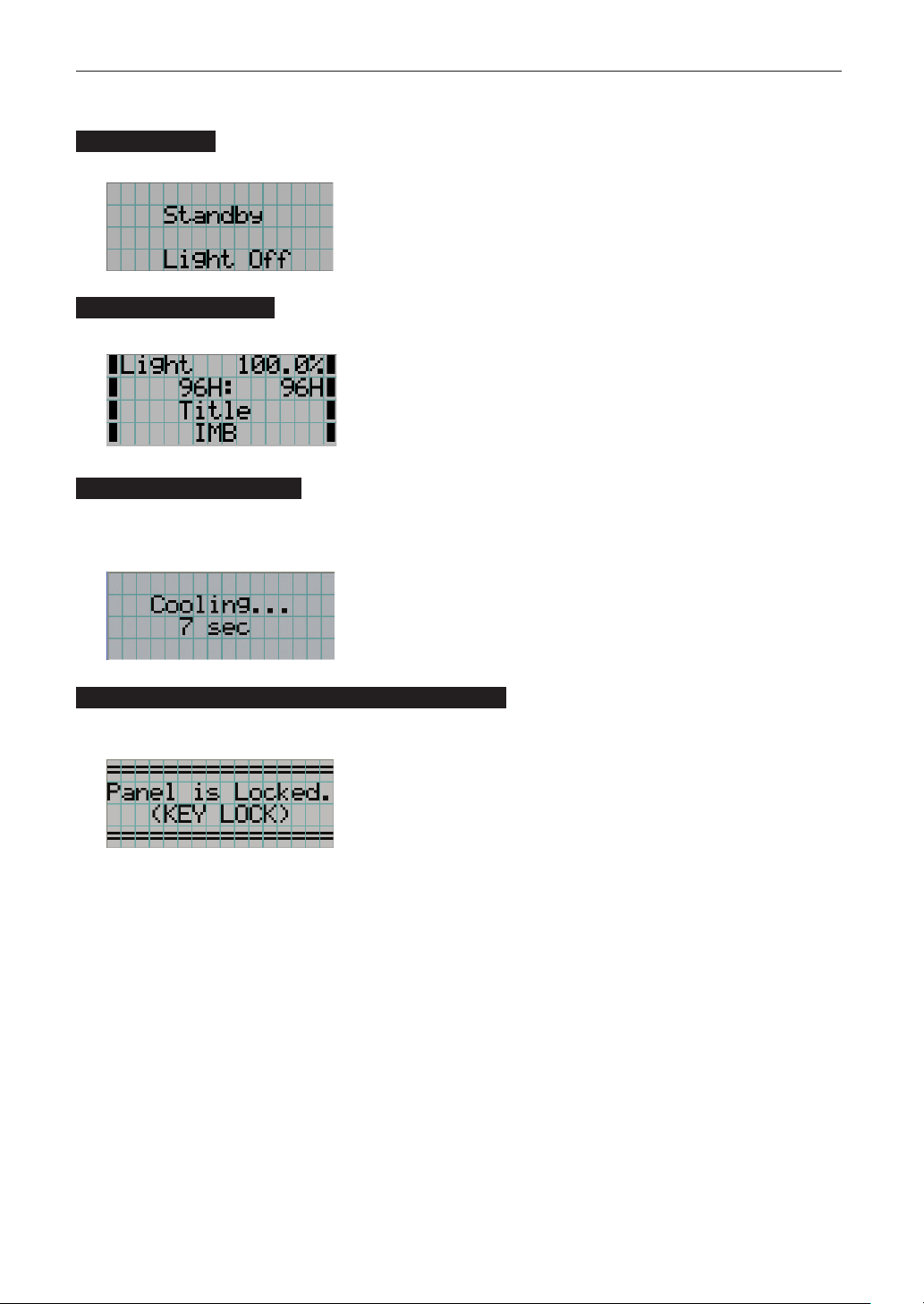

A buzzer sounds and the software begins to start. While the software is starting, the POWER indicator is changed from

lighting in blue to blinking in blue. After software startup is complete, the projector goes to a standby state. While the

projector is in a standby state, the POWER, STATUS, SYSTEM status indicators light in orange. KEY LOCK becomes

automatically on if no control panel operation takes place in the standby state for 30 seconds by default. Buttons on the

control panel do not function while KEY LOCK is on. (See page 40)

Projector power switch

Lightr power switch

Administrator switch

3. Projection of Images (Basic Operation)

If KEY LOCK is on, press the KEY LOCK button for one second or longer.

KEY LOCK becomes off. The KEY LOCK button indicator turns off and buttons on the control panel become operable.

(See page 40)

Press the POWER button on the control panel of your projector three seconds or longer.

Your projector is turn on.

When the startup of the projector completes, the status of the STATUS indicator, POWER indicator, DOUSER indicator,

LIGHT indicator, and preset button (button <1> to <10>) changes as follows.

STATUS indicator Initial settings: Blinking green (light source is off)

POWER indicator Lit green

DOUSER indicator Initial settings: Off (douser is off)

LIGHT indicator Initial settings: Off (light source is off)

Button <1> to <10> The preset button which was last selected is lit green

Press the LIGHT ON/OFF button on the control panel for three seconds or longer.

After you press the button, the light source is turned on and the screen glows light about 15 seconds later.

The douser is closed until the light source turns on (the DOUSER indicator lights green). When the douser is open, the

DOUSER indicator turns off.

NOTE

• While your projector is on, be sure to have the lens cap removed from the lens.

Otherwise, the lens cap may get deformed due to a heat buildup.

• In the following instances, the power to your projector cannot be turned on even if you press the POWER button.

- When the inside temperature is abnormally high. The protective function prevents power from turning on. Wait

some time (until the projector inside cools down) and then turn on the power.

- When the SYSTEM status indicator is blinking in red without the light source lighting up after power-on. Your

projector may be in trouble. Check the error display on the LCD screen and contact your dealer/distributor for

instructions.

3. Projection of Images (Basic Operation)

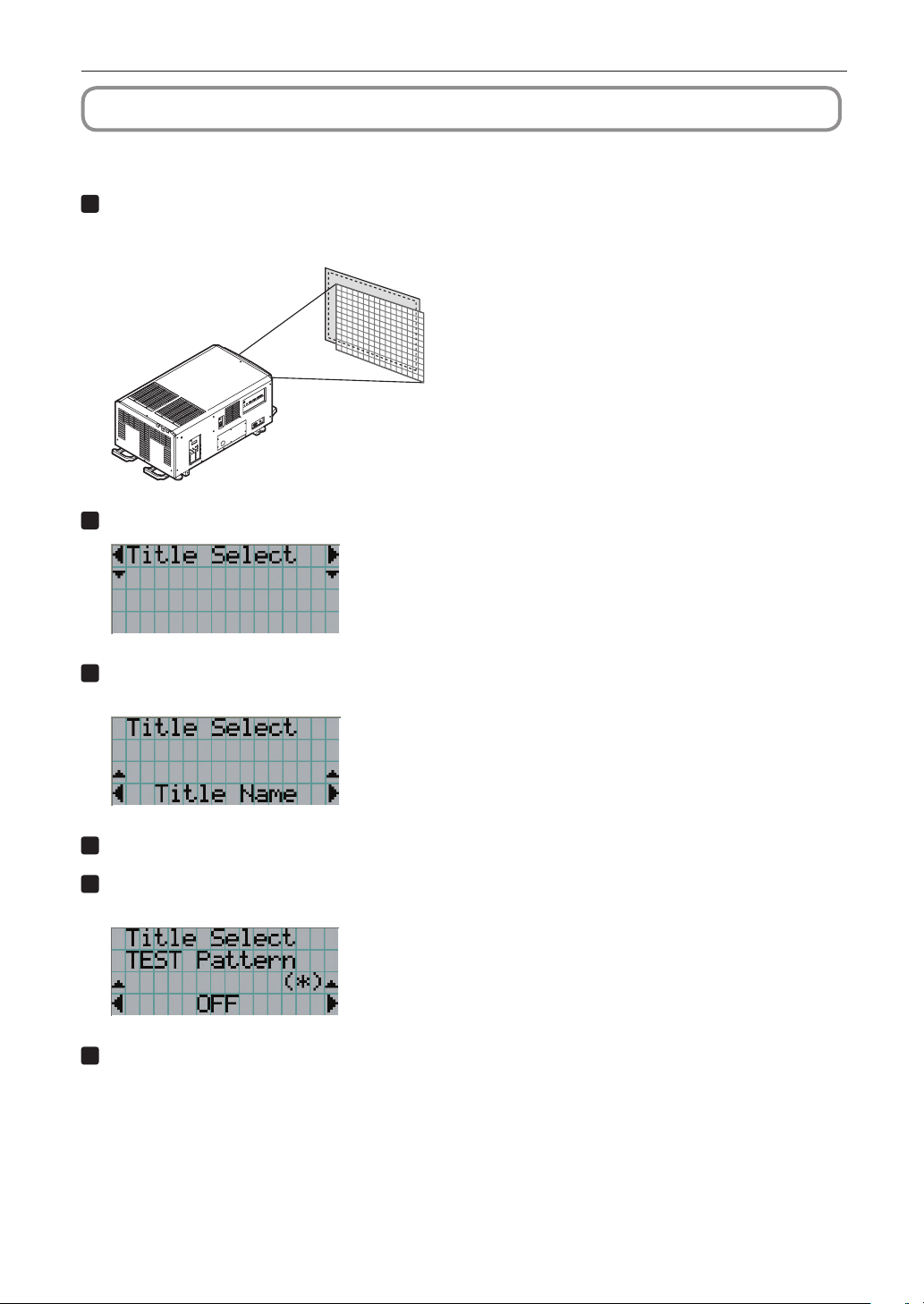

3-3. Selecting the title of input signal

This projector allows you to select pre-registered title (input signal) using the preset buttons on the control panel (up to 16 titles).

Request your dealer/distributor for details on registering and changing titles. This section explains the steps for selecting registered

titles.

Turn on the power to the image devices connected to the projector.

Press the MENU button.

Press the LEFT/RIGHT button to display “Title Select” on the LCD screen.

At each press of the LEFT/RIGHT buttons, the display will cycle as “Title Select” ←→ “Configuration” ←→ “(Title Setup)”

←→ “Information.”

Press the DOWN button.

The title of the input signal is displayed.

• Whenyouhavemadeawrongselection,presstheUPbutton.Areturnwillbemadetothepreviousmenu.

Press the LEFT/RIGHT buttons to display “Title of Signal to be Projected” on the LCD screen.

Press the ENTER button.

The title of the signal to be projected is selected.

• The(*)markontheLCDindicatesthatthisisthecurrentlyselecteditem.

3. Projection of Images (Basic Operation)

3-4.

Adjusting the position and the size of projected screen

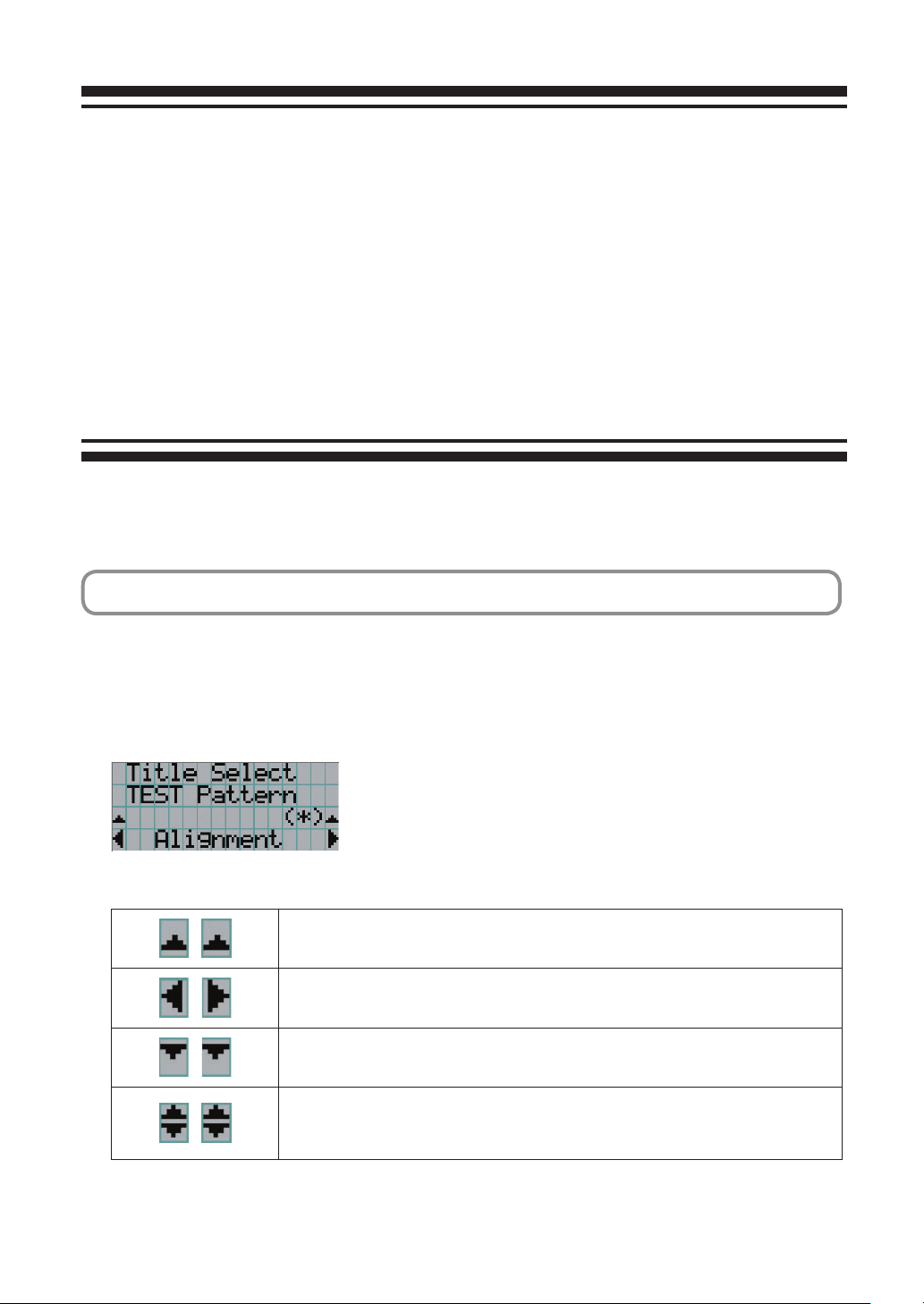

3-4-1. Displaying the test pattern

Press the MENU button, or select a test pattern from preset buttons (button <1> to <10>).

If you register the test patterns to the preset buttons (<1> to <10> buttons), select the test pattern according to “3-3.

Selecting the title of input signal (See page 35)”.

Press the LEFT/RIGHT button to display “Title Select” on the LCD screen.

Press the DOWN button.

The title of the input signal is displayed.

Press the LEFT/RIGHT button to display “TEST Pattern” on the LCD screen.

Press the DOWN button.

The LCD screen enters the mode where you can select a test pattern.

Press the LEFT/RIGHT button.

This switches the test pattern name displayed on the LCD screen.

3. Projection of Images (Basic Operation)

Display on the LCD the name of the test pattern to be projected, then press the ENTER

button.

The test pattern is displayed.

To cancel the test pattern display, select the title of the signal to project or select the “OFF” test pattern.

3-4-2. Adjusting the position of the projected screen (Lens shift)

Press the MENU button.

Press the LEFT/RIGHT button to display “Conguration” on the LCD screen.

Press the DOWN button.

Press the LEFT/RIGHT button to display “Lens Control” on the LCD screen.

Press the DOWN button.

The screen (“Lens Position”) to adjust the position of the projected screen is displayed.

Press the UP/DOWN/LEFT/RIGHT button.

The position of the projected screen moves in the selected direction.

Press the EXIT button when adjustment is complete.

The display will return to a menu one level above (where “Lens Control” is displayed).

3. Projection of Images (Basic Operation)

3-4-3. Adjustment of the size (zoom) and focus of the projected screen

Press the MENU button.

Press the LEFT/RIGHT button to display “Conguration” on the LCD screen.

Press the DOWN button.

Press the LEFT/RIGHT button to display “Lens Control” on the LCD screen.

Press the DOWN button.

The screen (“Lens Position”) to adjust the position of the projected screen is displayed.

Press the ENTER button.

The screen to adjust the size and focus of the projected screen is displayed.

Press the ENTER button to switch the display between “Lens Position” and “Focus Zoom” adjustments.

ENTER button

Adjust the size and focus of the projected screen.

Press the UP/DOWN button to adjust the focus.

Press the LEFT/RIGHT button to adjust the size.

Focus

(UP/DOWN button)

Zoom

(LEFT/RIGHT button)

Press the EXIT button when adjustment is complete.

The display will return to a menu one level above (where “Lens Control” is displayed).

3. Projection of Images (Basic Operation)

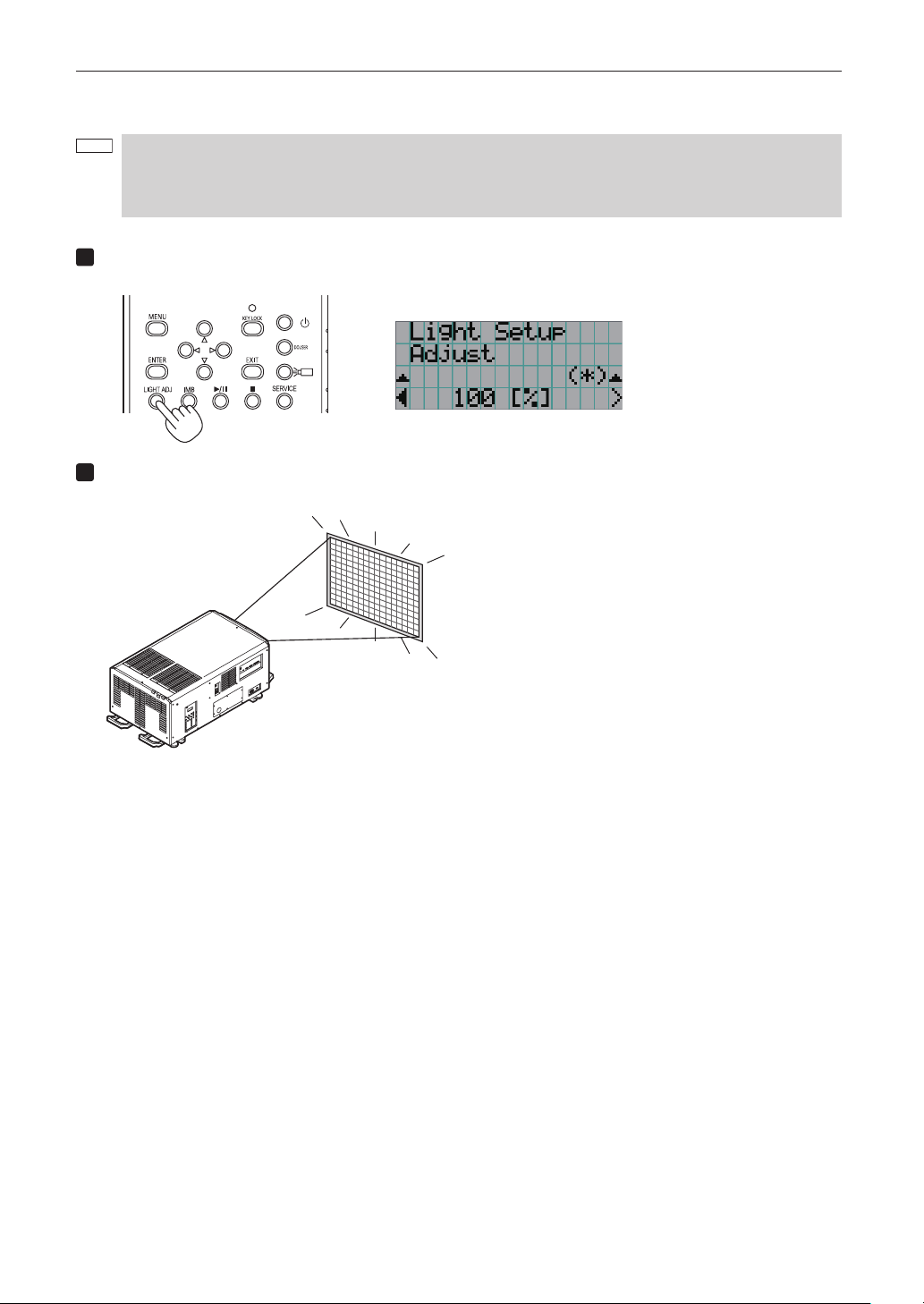

3-4-4. Adjusting the brightness of the projected screen (Light output)

NOTE

If the internal temperature within the projector rises due to the temperature in the room being high, the light output

may be automatically reduced. This is called “Thermal Protection Mode (Down Light Power)”. When the projector is

in the Thermal Protection Mode, the picture brightness decreases slightly. To clear Thermal Protection Mode, adjust

the light output. Consult with your dealer/distributor for details.

Press the LIGHT ADJ button.

The screen to adjust the light output is displayed.

Press the LEFT/RIGHT button to adjust the light output.

The specified adjustment value is applied.

3. Projection of Images (Basic Operation)

3-5. Preventing misoperations

Buttons on the control panel can be locked (KEY LOCK) to prevent misoperations. Buttons on the control panel do not function

while KEY LOCK is on. KEY LOCK must be off to operate these buttons.

NOTE

• KEY LOCK is automatically turned on in the following cases.

- When the projector has entered the standby state by turning on the projector power switch and light power

switch of the projector while the AC power is supplied.

- When the projector has entered the standby state after turning off the power using the POWER button.

• The timing where KEY LOCK is turned on while the projector is in standby state depends on the “Auto Key Lock”

setting in the adjustment menu.

- When Auto Key Lock is enabled, KEY LOCK becomes automatically on if no control panel operation takes place

in the standby state for 30 seconds. KEY LOCK becomes automatically on again even after KEY LOCK is turned

off if no control panel operation takes place for 30 seconds.

- When Auto Key Lock is disabled, KEY LOCK becomes automatically on when the projector enters the standby

state; however, it stays off after KEY LOCK is turned off.

3-5-1. KEY LOCK setting

• PresstheKEYLOCKbuttononthecontrolpanelforonesecondorlonger.

KEY LOCK becomes on. The KEY LOCK button indicator lights orange. When you press a button on the control panel of

the projector while KEY LOCK is on, “Panel is Locked. (KEY LOCK)” is displayed, and the button will not function. (See

page 45)

3-5-2. Turning KEY LOCK off

• PresstheKEYLOCKbuttonforonesecondorlongerwhileKEYLOCKison.

KEY LOCK becomes off. The KEY LOCK button indicator turns off.

3. Projection of Images (Basic Operation)

3-6.

Turning on/off the light source with the projector turned on

3-6-1. Turning off the light source

• PresstheLIGHTON/OFFbuttononthecontrolpanelforthreesecondsorlonger.

3-6-2. Turning on the light source

• PresstheLIGHTON/OFFbuttononthecontrolpanelforthreesecondsorlonger.

3. Projection of Images (Basic Operation)

3-7. Turning your projector off

Press the POWER button on the projector control panel for three seconds or longer.

The light source is turned off, the POWER indicator blinks green, and the STATUS and SYSTEM status indicators blink

orange (cooling state).

The fan will continue to rotate while cooling, and the amount of time remaining for cooling is dis-

played on the LCD screen.

When the cooling is finished, the POWER, STATUS, and SYSTEM status indicators light orange (standby state). KEY

LOCK becomes automatically on if no control panel operation takes place in the standby state for 30 seconds by default.

Buttons on the control panel do not function while KEY LOCK is on. (See page 40)

After the projector enters the standby state, turn off the projector power switch ([1]), then the

light power switch ([2]).

The POWER, STATUS, and SYSTEM status indicators lit orange and the main power is turned off.

Projector power switch

Light power switch

Administrator switch

3. Projection of Images (Basic Operation)

Return the administrator switch to the OFF position, then remove the administrator key.

Turn off the AC power to the projector.

NOTE

In the following instances, do not turn off the projector power switch and light power switch or disconnect the AC

power. Doing so can damage the projector.

• While projecting images

• While the power is on

• During the cooling after the power is turned off.

- When using the NP-90MS01/NP-90MS02: 90 seconds

• During IMB operation (if the projector is not in standby state)

Using Menus

4-1. Basic operation with adjustment menus

To adjust the projector, display the menu on the LCD screen of the projector control panel.

4-1-1. Screen display

The menu display screen is composed of a menu display field (the upper two lines) and a setting item display field (the bottom two

lines).

← Displays the main menu or submenus.

← Displays submenus or selection items.

← Displays settings and selection status.

← Displays settings, selected items and information on selected menus.

The meanings of symbols in the menu display screen are outlined below.

Indicates that there is a menu of a higher level.

Press the UP button to return to a menu one level above.

Indicates that there is a selected item or menu at the same level.

Press the LEFT/RIGHT button to display other selected items or menus.

Indicates that there is a menu of a lower level.

Press the DOWN button to display the menu one level below.

Indicates that there are setting items of a higher or lower level.

Press the UP button to return to a menu one level above.

Press the DOWN button to display the setting item one level below.

4. Using Menus

When not displaying menus, the following screen is normally displayed.

When in standby

When the projector is in a standby state (the projector power switch and light power switch in on), the following is displayed.

When power is turned on

When the power is turned on, the following is displayed.

← Displays the value of the light source output setting (%).

←

Displays the hours of light source use. (For NC3541L: light source 1 is on the left, and

light source 2 is on the right.)

← Displays the selected title.

← Displays the selected video input port.

When the power is turned off

When you press the POWER button on the control panel of the projector for 3 or more seconds, the projector starts cooling. When

cooling finishes, the projector enters the standby mode. The amount of time remaining for cooling is displayed as shown below

during cooling.

When a button is pressed while the key lock function is on

If a button on the control panel is pressed while the key lock function is on, the following is displayed and the button will not

function.

4. Using Menus

4-1-2. Operating menus

Preparation: Turn your projector on. (See page 32)

Press the MENU button on the control panel of your projector.

The menu is displayed in the LCD screen.

Press the LEFT/RIGHT buttons to display “Information.”

At each press of the LEFT/RIGHT buttons, the display will cycle as “Title Select” ←→ “Configuration” ←→ “(Title Setup)”

←→ “Information”.

Press the DOWN button.

The submenu “Light” of “Information” is displayed.

The menu item can be selected by pressing the ENTER button instead of the DOWN button.

To return to the previous state, press the UP button, or the EXIT button.

Press the LEFT/RIGHT button to select the submenu “Version.”

At each press of the LEFT/RIGHT button, the display will cycle as “Light” ←→ “AC Voltage” ←→ “Preset Button” ←→

“Usage” ←→ “Error Code” ←→ “Version” ←→ “IP Address” ←→ “Setup Date” ←→ “Option Status”.

Press the DOWN button.

The submenu “System” another rank lower than “Version” is displayed.

4. Using Menus

Press the DOWN button.

The submenu “Model” another rank lower than “System” is displayed.

Press the LEFT/RIGHT button to select the submenu “Kernel.”

At each press of the LEFT/RIGHT button, the display will cycle as “Model” ←→ “Serial No.” ←→ “Kernel” ←→ “U-Boot”

←→ “RFS” ←→ “Main Software” ←→ “Data” ←→ “ICP” ←→ “ICP ConfigFile” ←→ “Slave BIOS” ←→ “Slave Firmware”

←→ “Slave Data” ←→ “Set Ctrl FPGA” ←→ “SSL BIOS” ←→ “SSL Firmware” ←→ “SSL Data” ←→ “SSL FPGA” ←→

“Secure Processor” ←→ “LD Driver1” ←→ “LD Driver2” ←→ “LD Driver3” ←→ “LD Driver4” ←→ “Router” and each

version information is displayed.

Press the UP button several times.

At each press of the UP button, the display will return to a menu one level above.

4. Using Menus

4-1-3. How to enter alphanumeric characters

Alphanumeric characters are entered for items, such as the log file of the specified period is written to USB memory. (See page

73)

Characters can be entered by pressing numeric buttons on the control panel on this projector.

Move right and left

Enter characters

Delete entered characters

Enter characters

Characters can be entered by pressing each button as shown in the following table.

To delete a character during entry, press the DOWN button.

[Example of Entry]

To enter “XGA” for example, use the following procedure:

(1) Press the “8” button three times.

V → W → X

(2) Press the RIGHT button.

(3) Press the “3” button.

(4) Press the RIGHT button.

(5) Press the “1” button.

XGA

Button Entered character

A → B → C → 1 → a → b → c → ! →

D → E → F → 2 → d → e → f → “ →

G → H → I → 3 → g → h → i → # →

J → K → L → 4 → j → k → l → $ →

M → N → O → 5 → m → n → o → % →

P → Q → R → 6 → p → q → r → & →

S → T → U → 7 → s → t → u → ’ →

V → W → X → 8 → v → w → x → ( →

Y → Z → / → 9 → y → z → ? → ) →

* → , → . → 0 → ; → : → + → - →

4. Using Menus

4-2. Table of adjustment menus

Menus in parentheses are menus for our service personnel. Normally, these menus cannot be used.

Main menu Submenu Description

Reference

page

Title Select “Title Memory Name” Selects the title of the signal to be projected. 50

TEST Pattern Selects the test pattern to be projected. 50

Configuration Light Setup Adjust Adjusts the light source brightness (output). 51

Lens Control Lens Position Adjusts the position of the projected screen. 51

Focus Zoom Adjusts the size and focus of the projected screen. 51

Reset (FactoryDefault) Returns the settings to their default values. Selects between preset buttons

and titles only, LAN settings only and all settings.

Filter Cleaning Initializes the air filter usage time (for confirming the filter cleaning time). 52

(Fan Usage) Initializes the usage time of the fan. -

(Light Usage) Initializes the usage time of the light source. -

(Phosphor) Initializes the usage time of the phosphor. -

(Diffuser) Initializes the usage time of the diffuser. -

(Setup) Douser Setup Sets the douser open/close state. -

Panel Key Lock Locks the buttons on the projector’s control panel so that they cannot be

operated.

Auto Key Lock Enables or disables Auto Key Lock. -

Off Timer Sets the time until the projector power is turned off automatically. -

Message Sets the time to display the message indicating the air filter cleaning cycle. -

Silent Mode Selects whether to use the status indicator (SYSTEM / LIGHT), buzzer,

indicators on the control panel and backlight.

Remote Sensor Set the remote control receiver on the front and rear of the projector. -

Projector ID You can operate multiple projectors separately and independently with the

single remote control that has the Projector ID function. If you assign the

same ID to all the projectors, you can conveniently operate all the projectors

together using the single remote control.

Installation (Note) (Option Slot) Configures the device installed in slot (only when the projector is in standby

mode).

(Orientation) Sets the projection method and cooling fan operating mode. -

Lens Type (Note) This function can not be used. 52

Lens Calibrate (Note)

This function can not be used. 52

Lens Center (Note) Moves the lens shift position to the center (only when the projector power is

turned on).

(Baudrate) Sets the PC control terminal (RS-232) data transmission speed (bps). -

(Date/Time) Sets the date and time on the projector. -

(New Router Setup) Sets the router with the default settings when the router built-in the

projector has been replaced.

(Fan Speed Mode) Sets the cooling fan operating mode. -

(Service) Displays the Service man Menu. -

(Memory) Light The content of the selected light memory (light output power value) can be

overwritten with the current settings.

Lens The content of the selected lens memory can be overwritten with the current

settings.

(Title Setup) Preset Button Preset Button 1–20 Sets the title to be assigned to the preset buttons (<1> to <10> buttons). 53

Information Light Output Displays the light source output setting. 53

AC Voltage Displays the power supply voltage value supplied to the projector. 53

Preset Button Preset Button 1–20 Displays the titles which are assigned to the preset buttons (<1> to <10>

buttons).

Usage Displays information related to projector usage. 54

Error Code Displays the currently occurring error. 54

Version System Displays the model name and various version information about the

projector.

IMB Displays the vendor name and version information about the media block

(IMB).

IP Address System Displays the IP address of the projector. 55

Setup Date Displays the date when the projector was set up (starting date of the

warranty period).

Option Status Displays the link status of the device mounted in slot and projector. 56

(Note) Requires logging into the projector with Advanced User or higher privileges.

4. Using Menus

4-3. Title Select

4-3-1. Title select (Title Memory)

Selects the title of the signal to be projected.

You can register up to 100 titles. You can also assign registered titles to the preset buttons (<1> to <10> buttons) on the projector’s

control panel and call them up directly using those buttons.

Request your dealer/distributor for details on registering and changing titles.

← Displays the currently selected item with asterisk (*).

← Selects the title to be projected.

4-3-2. Test Pattern

Selects the test pattern to be projected.

← Displays the currently selected item with asterisk (*).

← Selects the test pattern to be projected.

OFF, Alignment, Cross Hatch, Convergence, Red, Green, Blue, White, Black,

White 50% [IRE], H-Ramp, Logo

4. Using Menus

4-4. Conguration

Please request your dealer/distributor to perform the settings.

4-4-1. Light Setup

Adjust

Adjusts the light source brightness (output). This setting is the fraction based on taking the maximum value of light source brightness

as 100%.

← Adjusts the output power value (%).

4-4-2. Lens Control

Adjust the position, size, and focus of the projected screen.

Press the ENTER button to switch the display between “Lens Position” and “Focus Zoom” adjustments. Press the EXIT button to

return to a menu one level above.

Lens Position

Adjusts the position of the projected screen.

The projected screen moves in the selected direction as you press the UP/DOWN/LEFT/RIGHT button.

Focus Zoom

Adjusts the size (Zoom) and focus (Focus) of the projected screen.

Press the UP/DOWN button to adjust the focus.

Press the LEFT/RIGHT button to adjust the size of the projected screen.

4. Using Menus

4-4-3. Reset

This is used to reset usage time for the air filter, etc.

Filter Cleaning

Resets the air filter usage time (for confirming the filter cleaning time). Select the filter. Press the ENTER button, then select “Yes” in

the displayed confirmation screen, and then press the ENTER button to reset the air filter usage time (for confirming the filter cleaning

time).

← Press the ENTER button to display the confirmation screen.

4-4-4. Installation

Lens Type

This function can not be used.

Lens Calibrate

This function can not be used.

Lens Center

Shifts the lens position at the center. The center position may slightly shift depending upon mounting conditions of the lens. This

menu item is available only when the projector power is turned on and you are logged into the projector with Advanced User or

higher privileges.

← Press the ENTER button to execute moving.

4. Using Menus

4-5. Title Setup

Sets the title to be assigned to the preset buttons (<1> to <10> buttons) (up to 20 titles).

Request your dealer/distributor to perform the settings.

4-6. Information

Displays information relating to the light source, the usage time of the projector, the version information and error codes.

4-6-1. Light

Output

Displays the value of the light source output setting (%).

← Displays the current setting (%).

4-6-2. AC Voltage

Displays the power supply voltage value supplied to the projector.

PS-S Supply voltage value of projector power supply

PS-L1 Supply voltage value of light power supply

4-6-3. Preset Button

Sets the title to be assigned to the preset buttons (<1> to <10> buttons) on the projector’s control panel.

← Selects the preset button number whose contents you want to display.

← Displays the assigned title numbers.

← Displays the registered names of the assigned titles.

TIP

To select a title allocated to one of “Preset Button11” to “Preset Button20”, press the preset button while holding

down the UP button. For example, to select the title allocated to “Preset Button11”, press the <1> button while

holding down the UP button.

4. Using Menus

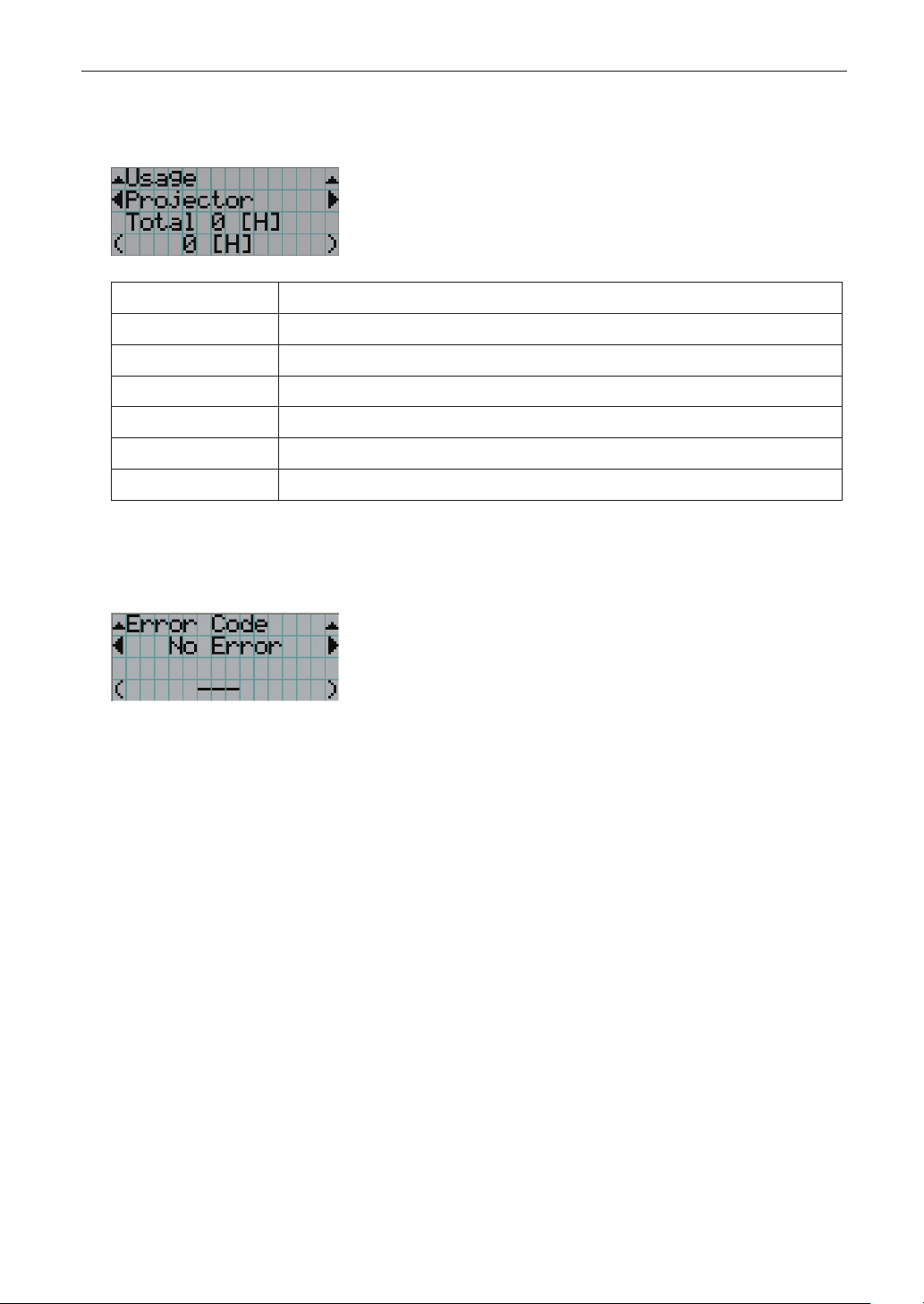

4-6-4. Usage

Displays information related to the projector usage, such as the usage time of the projector, light source, air filters, and fan, and

information about the light source replacement cycle.

← Selects the item to display.

← Displays information about the selected item.

Projector Displays the usage time of the projector.

Filter Cleaning Displays the usage time of the air filters (for confirming the filter cleaning time).

Fan Usage Displays the usage time of the fan.

Light Usage Displays the usage time of the light source.

Phosphor Displays the usage time of the phosphor.

Diffuser Displays the usage time of the diffuser.

Douser count Displays the number of times the douser has been used.

4-6-5. Error Code

Displays the error code when an error occurs.

← Displays the code of the error currently occurring.

← Displays the name of the error currently occurring.

When multiple errors occur, you can display them by pressing the LEFT/RIGHT buttons.

4. Using Menus

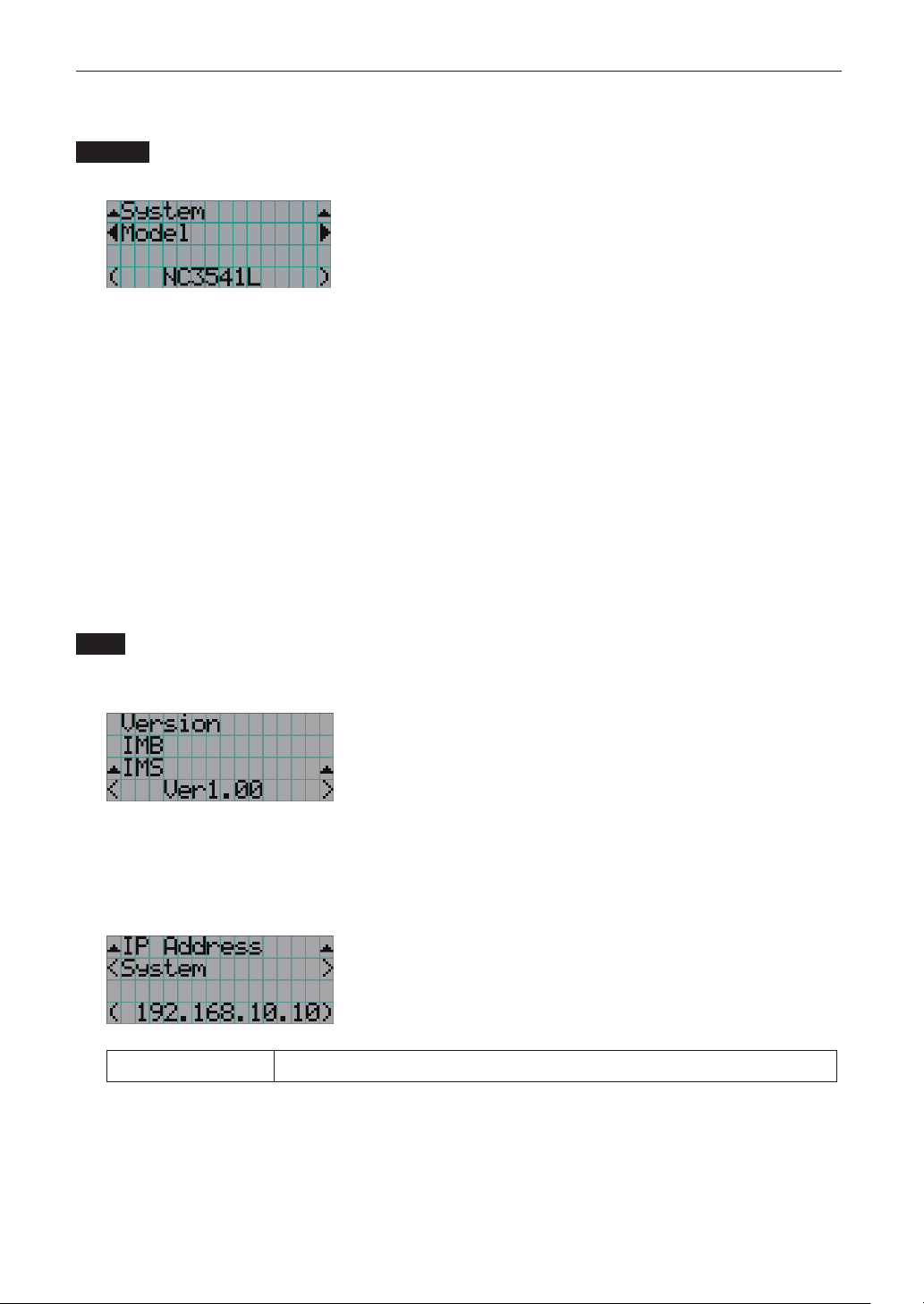

4-6-6. Version

Displays version information about the projector, optional boards, and IMB.

System

Displays the version information of the projector.

← Selects the item to display.

← Displays the version information.

Display items are as follows.

•

Model • SerialNo.

• Kernel • U-Boot

•

RFS • MainSoftware

• Data • ICP

•

ICPConfigFile • SlaveBIOS

• SlaveFirmware • SlaveData

• SetCtrlFPGA • SSLBIOS

• SSLFirmware • SSLData

• SSLFPGA • SecureProcessor

• LDDriver1 • LDDriver2

• LDDriver3 • LDDriver4

• Router

IMB

Displays the vendor name and version information about the media block (IMB). When the projector is in standby mode, the vendor

name is blank and the version information displays “---”.

← Displays the vendor name.

← Displays the version information.

* When the NP-90MS01/NP-90MS02 is mounted, the vendor name displays "IMS".

4-6-7. IP Address

Displays the IP address set in the projector.

← Displays the IP address.

System Displays the IP address set for the projector (System).

4. Using Menus

4-6-8. Setup Date

Displays the date when the projector was set up (starting date of the warranty period).

←

Displays the date when the projector was set up (starting date of the warranty period).

4-6-9. Option Status

Displays the link status of the device mounted in slot on the projector. The device name is displayed in ( ) when the projector is in

standby or when connection to the device cannot be confirmed.

← Displays the link status of the device in slot.

 •NP-90MS:NP-90MS01/NP-90MS02

 •<VendorName>IMB:Mediablock

 •NoBoard:Nodevicemounted

Maintenance of Your

Projector

NOTE

Please request your dealer to perform cleaning of the projector inside.

5-1. Cleaning the Cabinet

WARNING

Please do not use a spray containing flammable gas to remove dust attached to the cabinet, etc. Doing so may result in fires.

Be sure to always check that the AC power supply of the projector is disconnected before carrying out maintenance of the

projector.

• Wipe with a dry, soft cloth without nap.

When the cabinet is excessively dirty, wipe with cloth well wrung after being dampened with a neutral detergent diluted with water

and then finish up with a dry cloth.

When you use a chemical dust cloth, follow the instructions in the manual attached to it.

• Do not use a solvent, such as thinner or benzene. The coating may deteriorate or peel off.

• When removing dust on the ventilation opening, suck it off using an adapter with a brush on a vacuum cleaner. Never allow the

cleaner without an adapter to come into direct contact or use a nozzles adapter in cleaning.

• Clean the ventilation opening at regular intervals. Dust, if allowed to accumulate there, may cause heating inside, which leads to

functional trouble. The interval, which can vary with the location of your projector, is about 100 hours.

• Do not damage the cabinet by scratching it or allowing hard objects to hit it. This can scratch the projector.

• Consult your dealer/distributor about cleaning the inside of the projector.

NOTE

Do not allow insecticide or other volatile liquid to splash on the cabinet, lens or screen. Also, do not allow any rubber or

plastic object to remain in contact with the cabinet for a long time. The coating may deteriorate or peel off.

5. Maintenance of Your Projector

5-2. Cleaning the Lens

Clean the lens the same way as with camera lens (using a commercially available camera blower or cleaning paper for glasses).

Take care not to damage the lens when cleaning.

WARNING

• Do not look into the light source while the projector is ON. Strong light is emitted from the projector and visual impairment

could result.

• Please do not use a spray containing flammable gas to remove dust attached to the lens, etc. Doing so may result in fires.

5-3. Cleaning the Air Filters

Air filters are attached over the air inlet of the projector to prevent dust. The air filters should be cleaned periodically in order to

maintain projector performance.

• You can view the usage time of the air filters in “Information” - “Usage” in the adjustment menus (See page 54).

WARNING

• Dust in air filters will hinder ventilation of the projector, lead to a rise of the internal temperature and can cause a fire or

malfunction.

• Please do not use a spray containing flammable gas to remove dust attached to the filters, etc. Doing so may result in fires.

CAUTION

Before cleaning the filter, first turn off the power, make sure the cooling fan has completely stopped, then turn off the AC power.

Make sure the unit has cooled down completely before cleaning the filter. Removing the filter cover while the unit is running could

result in burns or electric shock from contact with internal parts.

5. Maintenance of Your Projector

The unit uses a two layer metal-mesh filter installed behind the filter cover. With regular cleaning it can be used repeatedly.

When cleaning the air filter, clean it all at the same time.

NC3541L

Air outlet

Air inlet (Filter cover / Filter)

NC2041L

Air outlet

Air inlet (Filter cover / Filter)

5. Maintenance of Your Projector

5-3-1. Cleaning the Air Filter

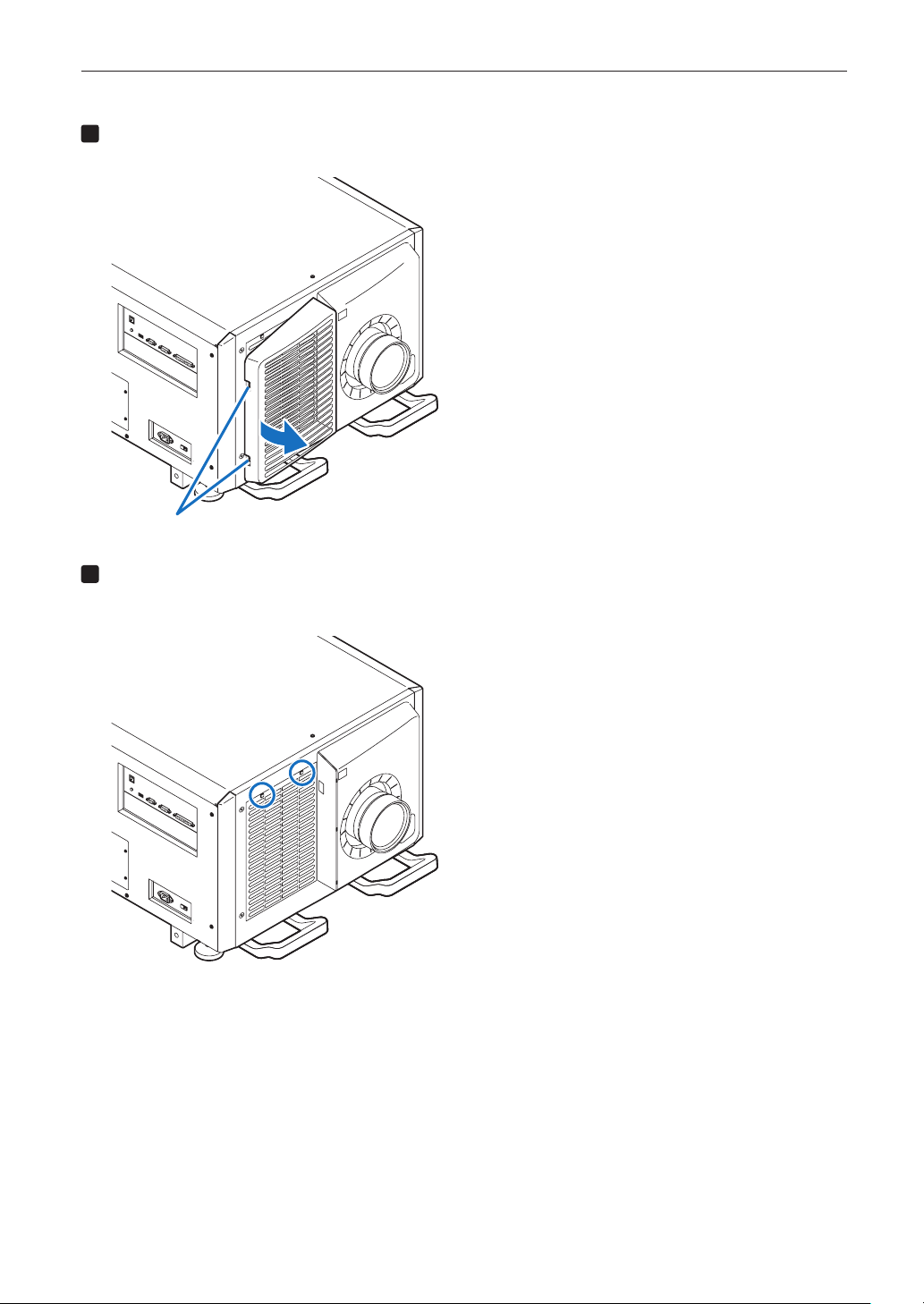

Remove the front lter cover.

Pull the front filter cover in the direction of the arrow to remove.

Handle

Remove the air lter.

1. Press the stopper button (2 places).

5. Maintenance of Your Projector

2. Pull the top part of the air lter towards you. Once you have freed the upper half of the air

lter, remove the lter by pulling it diagonally upwards.

Lift the air lter in the direction of the arrow and remove it.

Remove the air lters.

1. Slide the upper air lter to the position shown below.

2. Lift the upper air lter in the direction of the arrow and remove it.

5. Maintenance of Your Projector

NOTE

Do not apply a high degree of force or attempt to pry it open. This could deform the flange making it impossible

to reattach the filter cover.

Clean all the dust from the lters using a vacuum cleaner.

Carefully remove the dust from the filter covers as well as from both sides of all the filters.

Remove the dust from the grates on the outside of the projector as well.

Be sure to also remove any dust stuck to the louver (blind with angled horizontal slats) with a vacuum cleaner.

NOTE

• Whenever you vacuum the filter, use the soft brush attachment to vacuum. This is to avoid damage to the

filter.

• Do not wash the filter with water. Doing so can result in damage to the filter membrane and also cause

clogging.

Put the various parts of the lter together and t them inside the lter cover.

Fine grade filterCoarse grade filter Filter cover

5. Maintenance of Your Projector

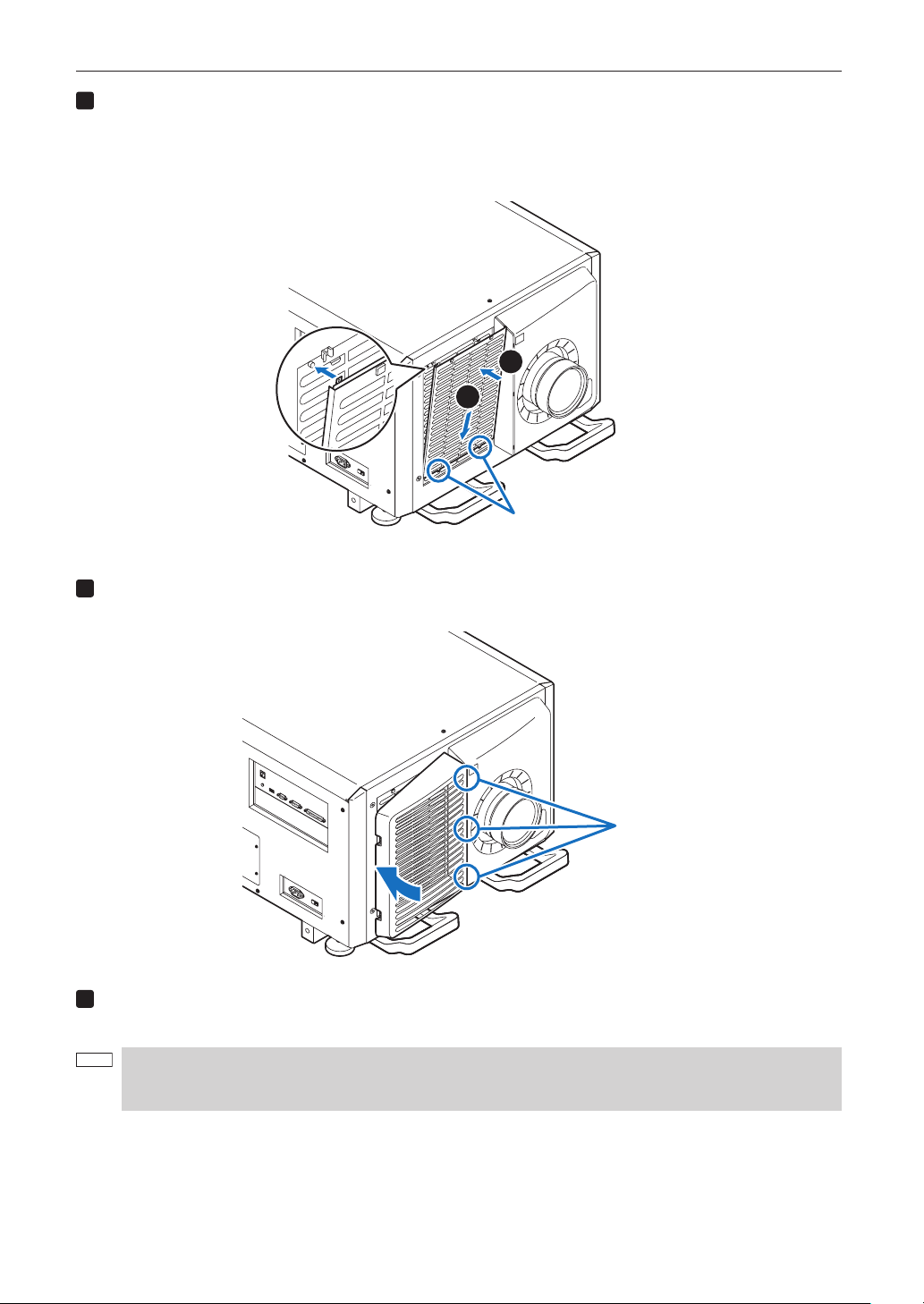

Fix the lter inside the projector unit.

1. Snap the lter cover tabs into the cutout portion of the projector unit to secure it.

2. Seat the air lter aligned with the air inlet.

Cut out portion

Attach the front lter cover.

Push the front filter cover in the direction of the arrow to install.

Cut out portion

Clean the other intake vent air lters in the same way.

Clean the other intake vent air filters in the same way as in steps [2] to [7].

NOTE

• Before turning on the power, make sure that all filter covers are in place. If they are not fitted properly dust could

get inside the projector causing it to malfunction.

• Reset “FilterCleaning Time” after cleaning the filters. (See this page)

5. Maintenance of Your Projector

5-3-2. Resetting the Air Filter Usage Time

Turn on the power to the projector.

Reset the displayed message by selecting “Conguration” → “Reset”.

Select “Configuration” → “Reset” → “Filter Cleaning” in the adjustment menu. “FilterCleaning Time” message on the LCD

screen is turned off.

This completes resetting the air filter usage time.

Appendix

6-1. Troubleshooting

Before asking for repair, please check your connection, settings and operation once again. If the trouble cannot be corrected, please

contact your dealer/distributor for instructions or repair.

6-1-1. Problems and where to check

Problem Check these items

The projector cannot be turned on. Check to see if AC power is supplied to the projector.

Make certain that the projector power switch and light power switch is ON.

Check to see whether the panel key lock function is activated. If so, the main unit’s control buttons

are locked and do not work.

Is the temperature inside the projector too high? When the inside temperature is too high, the

protective function does not allow your projector to be turned on. Wait some time and then turn it

on.

Is the administrator key inserted? The projector will not function unless the administrator key is

inserted.

The image cannot be projected. Check to see if the connected input has been selected.

Check to see if a cable is properly connected to the input terminal.

Check to see whether the douser is closed.

Check to see if the settings are all adjusted properly.

The image is distorted. Check to see if the protractor is properly set up.

The image is blurred. Make certain that the lens is properly focused.

Check to see if the screen and a projector are installed at correct angles.

The projection distance may be larger than the focusing range.

See if the lens and other parts have condensation on them. If the projector is turned on in a

warm place after storage in a cold place, the lens and other optical components inside may develop

condensation. In such a case, please wait several minutes until the condensation disappears.

Video image is disturbed. Check whether the signal cable connected to the projector is disconnected.

6. Appendix

Problem Check these items

The SYSTEM status indicator blinks

in red.

Your projector may have trouble. Please contact your dealer/distributor for instructions.

An error code is displayed. Please contact your dealer/distributor for instructions.

6. Appendix

6-2. Indicator display list

See the descriptions below when the buttons on the control panel or the indicators on the rear of the projector is lit or blinking. The

projector also has a warning function that uses a buzzer.

POWER indicator

STATUS indicator

DOUSER indicator

TEMP. indicator

Preset buttons

LIGHT indicator

KEY LOCK indicator

6-2-1. Preset buttons

Indicator condition Projector condition Note

Off No title is assigned to the button. -

Steady light A title is assigned to the button. -

Green The title is being selected. -

White The title is not selected. -

6-2-2. KEY LOCK indicator

Indicator condition Projector condition Note

Off The key lock is off. -

Steady light Orange The key lock is on. -

6-2-3. DOUSER indicator

Indicator condition Projector condition Note

Steady light Green The douser is closed. -

Off The douser is opened. -

6. Appendix

6-2-4. TEMP. indicator

Indicator condition Projector condition Note

Blinking light Red The projector temperature rises close to the operating

temperature limit.

An error message is displayed in

the LCD screen.

Check the content of the error.

Steady light Red The projector temperature exceeded the operating

temperature.

An error message is displayed in

the LCD screen.

Check the content of the error.

6-2-5. LIGHT indicator

Indicator condition Projector condition Note

Off The light source is off. -

Steady light Green The light source is on. -

6-2-6. STATUS indicator

Indicator condition Projector condition Note

Off The projector power supply is off. -

Blinking light Orange State from turning the power off to entering standby mode. Wait for a moment.

Green (cycle of 1

second)

(Note 1)

The projector is getting ready to turn on.

The douser is closed.

Wait for a moment.

Green (cycle of 2

second)

(Note 2)

The projector is turned on with light off. -

Red

(With buzzer)

Safety problem, error. An error message is displayed in

the LCD screen.

Check the content of the error.

Red

(Without buzzer)

Error with possible image project under certain conditions. An error message is displayed in

the LCD screen.

Check the content of the error.

Steady light Green The projector is turned on. -

Orange The projector is in standby. -

Red Error at a level with not affect on projection. An error message is displayed in

the LCD screen.

Check the content of the error.

(Note 1) Repeats 0.5 seconds on → 0.5 seconds off.

(Note 2) Repeats 1.5 seconds on → 0.5 seconds off.

6-2-7. POWER indicator

Indicator condition Projector condition Note

Steady light Blue While the projector software is starting. Wait for a moment.

Orange The projector power supply is on, or the projector is in

standby.

Green The projector is turned on.

Blinking light Blue While the projector software is starting. Wait for a moment.

Green The projector is getting ready to turn on.

State from turning the power off to entering standby mode.

Green (cycle of

3 second)

(Note 1)

When the sleep timer is activated. -

(Note 1) Repeats 2.5 seconds on → 0.5 seconds off.

6. Appendix

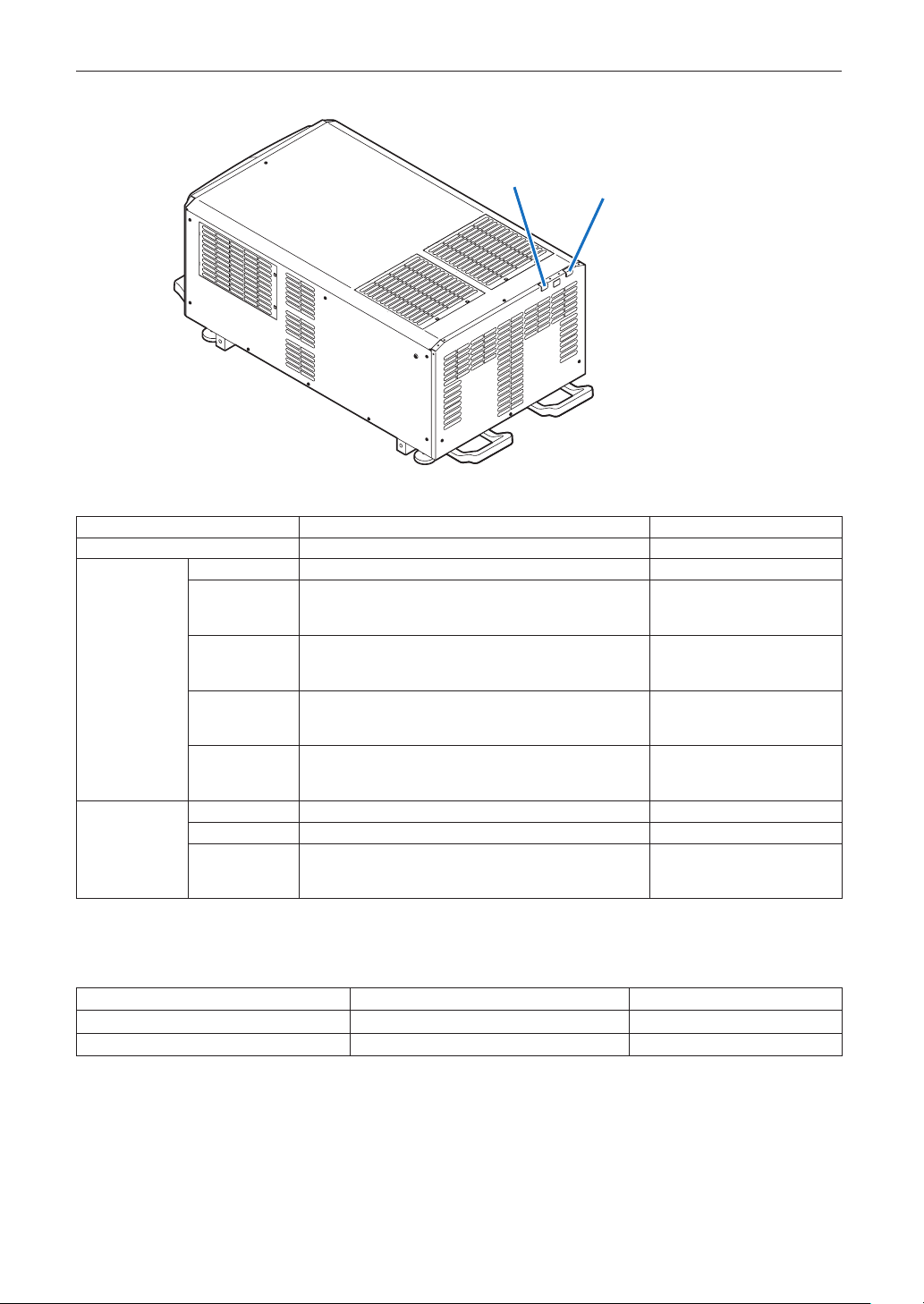

6-2-8. STATUS indicator

SYSTEM status indicator

LIGHT status indicator

SYSTEM status indicator

Indicator condition Projector condition Note

Off Main power is off. -

Blinking light Orange State from turning the power off to entering standby mode. Wait for a moment.

Green (cycle of 1

second)

(Note 1)

The projector is getting ready to turn on.

The douser is closed.

Wait for a moment.

Green (cycle of 2

second)

(Note 2)

The projector is turned on with light off. -

Red

(With buzzer)

Safety problem, error. An error message is displayed in

the LCD screen.

Check the content of the error.

Red

(Without buzzer)

Error with possible image project under certain conditions. An error message is displayed in

the LCD screen.

Check the content of the error.

Steady light Green The projector is turned on. -

Orange The projector is in standby. -

Red Error at a level with not affect on projection. An error message is displayed in

the LCD screen.

Check the content of the error.

(Note 1) Repeats 0.5 seconds on → 0.5 seconds off.

(Note 2) Repeats 1.5 seconds on → 0.5 seconds off.

LIGHT status indicator

Indicator condition Projector condition Note

Off The light source is off. -

Steady light The light source is on. -

6. Appendix

6-3. Operation using an HTTP browser

6-3-1. Overview

The use of HTTP server functions will allow control of the projector from a web browser. Please be sure to use “Microsoft Internet

Explorer 4.x” or a higher version for the web browser.

This device uses “JavaScript” and “Cookies” and the browser should be set to accept these functions. The setting method will vary

depending on the version of the browser. Please refer to the help files and the other information provided in your software.

NOTE

The display’s or button’s response can be slowed down or operation may not be accepted depending on the settings

of your network.

Should this happen, consult your network administrator.

The projector may not respond if its buttons are repeatedly pressed in rapid intervals. Should this happen, wait a

moment and repeat.

Access is gained to the HTTP server functions by and specifying

http://<the projector’s IP address>/index.html

in the entry column of the URL.

6-3-2. Preparation before use

Make network connections and set up the projector and confirm that it is complete before engaging in browser operations.

Operations with a browser that uses a proxy server may not be possible depending on the type of proxy server and the setting

method. Although the type of proxy server will be a factor, it is possible that items that have actually been set will not be displayed

depending on the effectiveness of the cache, and the contents set from a browser not be reflected in operation. It is recommended

that a proxy server not be used unless it is unavoidable.

6. Appendix

6-3-3. URL when connecting to an HTTP server

Although you normally specify “http://<IP Address of Projector>/index.html” as the URL when connecting to an HTTP server

(Example 2), you can also connect by specifying the host name as the URL if the following conditions are met (Example 1).

• The host name of the projector is registered with the domain name server

• The IP address and host name of the projector have been added to the “HOSTS” file on the PC

(Example 1) When the host name of the projector has been set to “pj.nec.co.jp”

http://pj.nec.co.jp/index.html is specified for the address or the entry column of the URL to access HTTP server

functions.

(Example 2) When the IP address of the projector is “192.168.10.10”

http://192.168.10.10/index.html is specified for the address or the entry column of the URL to access HTTP server

functions.

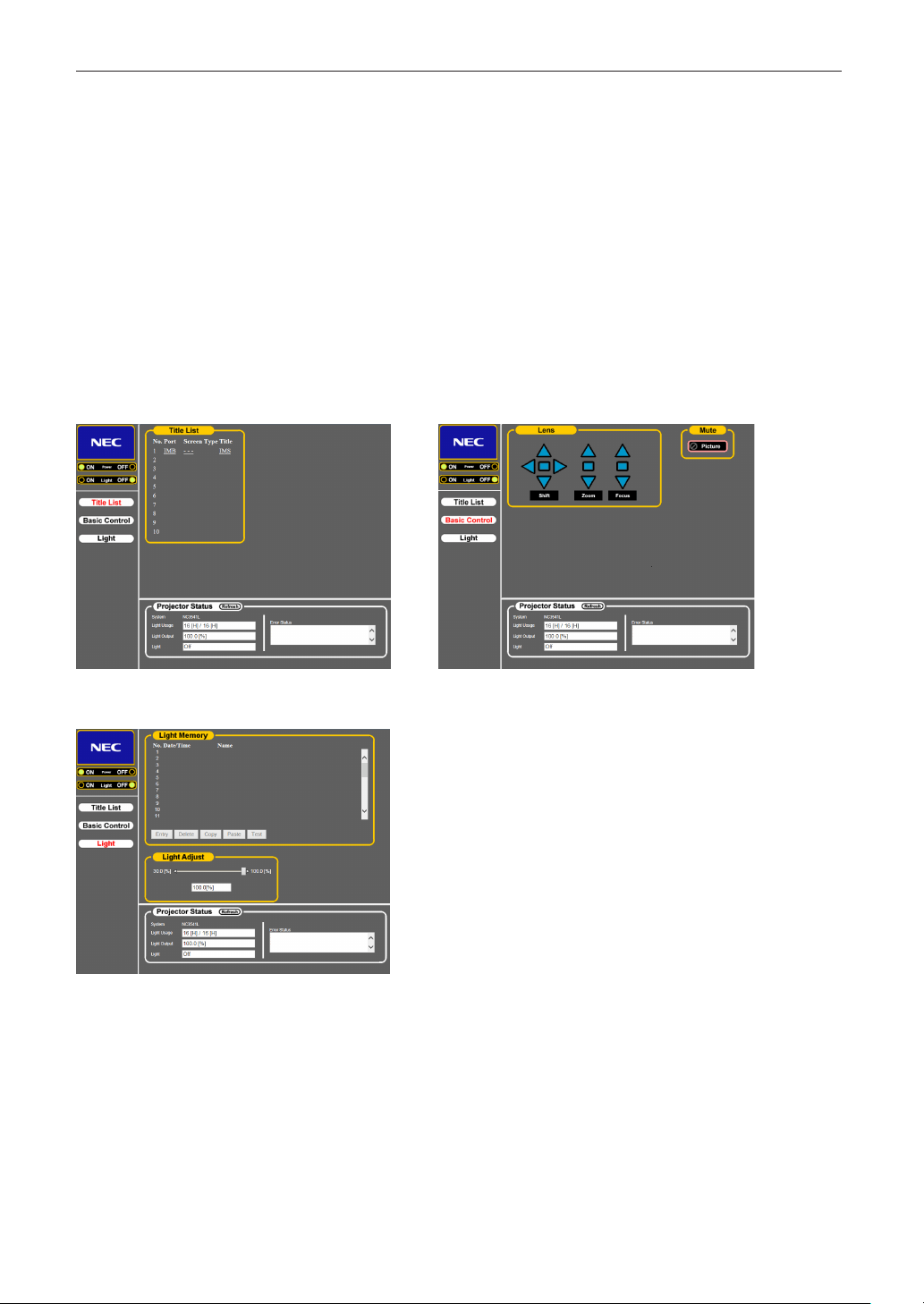

6-3-4. Structure of the HTTP server

6. Appendix

Power Controls the power to your projector.

•On: Turns the power on.

•Off: Turns the power off.

Light Turn the light source on/off.

•On: Turns the light source on.

•Off: Turns the light source off.

Title List Displays titles set in the projector (such as input port, screen type, and title).

Check, and the title will be changed.

Basic Control Displays the basic control items.

Lens Controls the lens operation.

Shift G : Shifts the projected screen upward.

H : Shifts the projected screen downward.

F : Shifts the projected screen leftward.

E : Shifts the projected screen rightward.

 : Stops the shifting.

Shifting can also be stopped by clicking the same button one more time.

Zoom G : Zooms up the lens.

H : Zooms down the lens.

 : Stops the zooming.

Zooming the can also be stopped by clicking the same button one more time.

Focus G : Focuses up the lens.

H : Focuses down the lens.

 : Stops the focusing.

Focusing can also be stopped by clicking the same button one more time.

Mute Picture Click and the douser closes and the projected picture disappears. Click once again and the

picture will be projected again.

Light Edits or loads the light memory and sets the brightness of the light source.

Projector Status Displays the condition of the projector.

•System: Displays the model name of the projector.

•Light Usage: Display of the usage time of the light source.

•Light Output: Displays light source output (%).

•Light: Displays the status of the light source (On: Lights / Off: Off).

•Error Status: Displays the status of errors occurring within the projector.

•Refresh: Updates the display of the following conditions.

6. Appendix

6-4. Writing of the log le (Save PJ Log)

Log files saved on the main unit can be written to USB memory connected to the USB port of the main unit. To perform the writing

of the log file, use the following procedure.

Connect the USB memory to the USB port of the main unit.

Wait until the USB memory is recognized, and it enters the condition in which it can be used (5 or more seconds). For

details, refer to the instruction guide of the USB memory.

Simultaneously press the UP button and ENTER button.

The “Save PJ Log” screen is displayed.

TIP

If you press the EXIT button during operation, operation is stopped and the display returns to the normal screen.

Press the LEFT/RIGHT button, and select the log le writing period.

The items that can be selected are as follows.

Today

Writes today’s log files.

7days Writes 7 days’ log files from today.

2years

Writes 2 years’ log files from today.

Manual Writes the specified period’s log files.

Press the ENTER button.

When “Today”, “7days”, or “2years” is selected, the log file writing period is displayed.

← The log file writing period is displayed.

6. Appendix

When “Manual” is selected, specify the log file writing period. For how to enter numerals, refer to “4-1-3. How to enter

alphanumeric characters” (See page 48). If you press the ENTER button, the display advances to the following screen.

← Enter the date/time to start writing.

Press the ENTER button.

← Enter the date/time to stop writing.

Press the ENTER button.

← The log file writing period is displayed.

Conrm the log le writing period, press the LEFT/RIGHT button to select “Execute”, and press

the ENTER button.

The log files of the specified period are written to the USB device. When writing completes, the following screen is

displayed.

TIP

If you select “Cancel” and press the ENTER button, the writing of log files is stopped, and the display returns to the

normal screen.

Press the ENTER button.

The display returns to the normal screen.

Remove the USB from the USB port of the main unit.

6. Appendix

6-4-1. Names of log les

Written log files are saved with the following file names.

(Model name)_(Serial Number)_YYMMDDHHmm.txt

(Model name)

This shows the model of projector.

(Serial Number)

This shows the serial number of projector.

YYMMDDHHmm Shows the date/time when written.

YY: Year (lower 2 digits)

MM: Month (2 digits)

DD: Date (2 digits)

HH: Hour (2 digits)

mm: Minute (2 digits)

For example, if NC3541L log file is written at 14:05 on June 1, 2017, it is saved with the "NC3541L_abcd1234_1706011405.txt"

file name.

6. Appendix

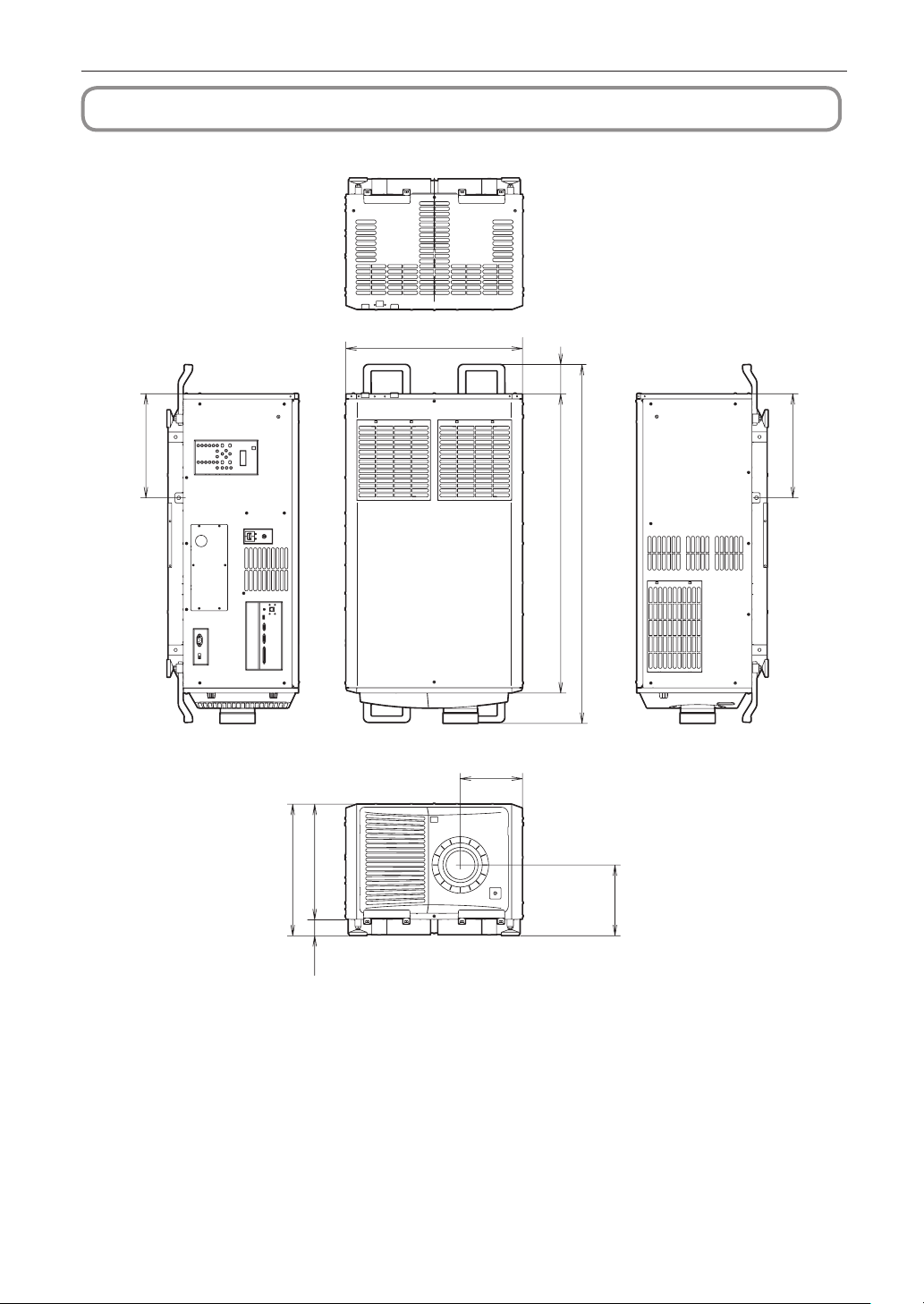

6-5. Outline Drawing

NC3541L

1180 116

410

（1412）

410

697

244.5

278.5

519.1

454.664.5

Units: mm

6. Appendix

NC2041L

1180 116

410

（1412）

410

697

244.5

278.5

519.1

454.664.5

Units: mm

6. Appendix

6-6. Specications

Model name NC3541L

Projection method 3 chip DLP Cinema® method

1.38-inch DC4K chip

Panel resolution 4096 x 2160

Light source Laser Diode

Screen sizes

Max. 32 m @14ft-L / Screen Gain 2.6 (Depends on setup conditions)

Contrast ratio 2000:1 with DCI specified color representation

Lens adjustment function Motorized lens shift (vertical/horizontal), motorized zoom, motorized focus

Signal input ports (slot) When shipped from factory: Empty

(for mounting optional components) (Note 1)

External Control RS-232C (D-sub 9pin) x 1

GPIO port (D-sub 37 pin) x 1

Service terminal (stereo mini jack) x 1

3D CTL (D-sub 15 pin) x 1

USB (Type A) x 1

Remote interlock port x 1

Ethernet port (RJ-45) x 1

Power supply voltage For C1 connection (Note 3) :

Single phase AC 200V-240V 50/60Hz (projector power supply + light power supply)

For C2 connection (Note 3) :

Single phase AC 200V-240V 50/60Hz (projector power supply)

Single phase AC 200V-240V 50/60Hz (light power supply)

Input current For C1 connection (Note 3)

projector power supply + light power supply: 30.0A

For C2 connection (Note 3)

projector power supply: 4.9A

light power supply: 25.1A

Power consumption (Note 2) For C1 connection (Note 3)

projector power supply + light power supply: 4885W

For C2 connection (Note 3)

projector power supply: 885W

light power supply: 4000W

Cooling method Cooling fluid system, Cooling air system

Noise level

Less than 55 dB

Installation Orientation: Desktop/front, Desktop/rear, Ceiling/front, Ceiling/rear

Net weight

169 kg (Excluding lens)

Dimensions 697 mm (W) x 1180 mm (D) x 455 mm (H) (Does not including protruding portions, includes foot.)

Environment Operating temperature: 10 to 35°C

Operating humidity: 10 to 85% (non-condensing)

Storage temperature: -10 to 50°C

Storage humidity: 10 to 85% (non-condensing)

Operating altitude: 0 to 2600m/8500 feet

(Note 1) The video input slots are empty when the device is shipped. Input ports can be added by mounting option boards, which

are sold separately. (See page 87)

(Note 2) The value is typical.

(Note 3) C1 connection is the case when the AC power to the projector power supply and the light power supply is provided by a

single cable.

C2 connection is the case when the AC power to the projector power supply and the light power supply is provided by sepa-

rate cables.

* Described the certification standard for laser products in “Important Information” of this manual. (See page 2)

* Note that these specifications and design can change without prior notice.

6. Appendix

Model name NC2041L

Projection method 3 chip DLP Cinema® method

1.38-inch DC4K chip

Panel resolution 4096 x 2160

Light source Laser Diode

Screen sizes

Max. 20 m @14ft-L / Screen Gain 1.8 (Depends on setup conditions)

Contrast ratio 2000:1 with DCI specified color representation

Lens adjustment function Motorized lens shift (vertical/horizontal), motorized zoom, motorized focus

Signal input ports (slot) When shipped from factory: Empty

(for mounting optional components) (Note 1)

External Control RS-232C (D-sub 9pin) x 1

GPIO port (D-sub 37 pin) x 1

Service terminal (stereo mini jack) x 1

3D CTL (D-sub 15 pin) x 1

USB (Type A) x 1

Remote interlock port x 1

Ethernet port (RJ-45) x 1

Power supply voltage For C1 connection (Note 3) :

Single phase AC 200V-240V 50/60Hz (projector power supply + light power supply)

For C2 connection (Note 3) :

Single phase AC 200V-240V 50/60Hz (projector power supply)

Single phase AC 200V-240V 50/60Hz (light power supply)

Input current For C1 connection (Note 3)

projector power supply + light power supply: 16.3A

For C2 connection (Note 3)

projector power supply: 3.7A

light power supply: 12.6A

Power consumption (Note 2) For C1 connection (Note 3)

projector power supply + light power supply: 2425W

For C2 connection (Note 3)

projector power supply: 425W

light power supply: 2000W

Cooling method Cooling fluid system, Cooling air system

Noise level

Less than 53 dB

Installation Orientation: Desktop/front, Desktop/rear, Ceiling/front, Ceiling/rear

Net weight

128 kg (Excluding lens)

Dimensions 697 mm (W) x 1180 mm (D) x 455 mm (H) (Does not including protruding portions, includes foot.)

Environment Operating temperature: 10 to 35°C

Operating humidity: 10 to 85% (non-condensing)

Storage temperature: -10 to 50°C

Storage humidity: 10 to 85% (non-condensing)

Operating altitude: 0 to 2600m/8500 feet

(Note 1) The video input slots are empty when the device is shipped. Input ports can be added by mounting option boards, which

are sold separately. (See page 87)

(Note 2) The value is typical.

(Note 3) C1 connection is the case when the AC power to the projector power supply and the light power supply is provided by a

single cable.

C2 connection is the case when the AC power to the projector power supply and the light power supply is provided by sepa-

rate cables.

* Described the certification standard for laser products in “Important Information” of this manual. (See page 2)

* Note that these specifications and design can change without prior notice.

6. Appendix

6-7. Pin Assignment and Functions of Terminal

6-7-1. PC CONTROL terminal (RS-232) (D-sub 9 pin)

This is an RS-232C interface for controlling the projector from a PC. The projector operates as a DCE (Data Communication

Equipment), so use a straight cable when connecting to a PC.

Pin No. RS-232C Signal Name Functions as RS-232C Projector Connector Operation

1 CD Carrier detection Not used (N.C.)

2 RXD Reception data Data transmission to an external device

3 TXD Transmission data Data reception from an external device

4 DTR

Data Terminal ready (Note)

Connection to 6 pins

5 GND Signal GND Signal GND

6 DSR Data set ready (Note) Connection to 4 pins

7 RTS Transmission request SYSTEM: Hi-Z (Not used)

CINEMA: Hi-Z (Used)

8 CTS Transmission available SYSTEM: Fixed at -6.5 V (Not used)

CINEMA: ±10.5 V (Used: Depends on communication status)

9 RI Ring indicator Not used (N.C.)

(Note) Do not use DTR and DSR signals when communicating.

6. Appendix

6-7-2. External control terminal (GP I/O) (D-sub 37 pin)

It is possible to control the projector with an external device and to control the external device from the projector using an external

control terminal (GPIO: General Purpose I/O Ports). Each pin is electrically separated from the projector internal circuits by a photo-

coupler. 8 port input and 8 port output are available.

Please contact your dealer/distributor regarding how to use and to operate them.

Pin view of female connector

Pin No. Signal Name I/O Pin No. Signal Name I/O

1 GPIN1+

(3D L/R Input Reference +)

IN 20 GPIN1-

(3D L/R Input Reference -)

2 GPIN2+

(3D L/R Display Reference +)

IN 21 GPIN2-

(3D L/R Display Reference -)

3 GPIN3+ (system reserved) IN 22 GPIN3- (system reserved) IN

4 GPIN4+ (system reserved) IN 23 GPIN4- (system reserved) IN

5 EXT_GPIN1+

(Control and Title Selection +)

IN 24 EXT_GPIN1-

(Control and Title Selection -)

6 EXT_GPIN2+

(Control and Title Selection +)

IN 25 EXT_GPIN2-

(Control and Title Selection -)

7 EXT_GPIN3+

(Control and Title Selection +)

IN 26 EXT_GPIN3-

(Control and Title Selection -)

8 EXT_GPIN4+

(Control and Title Selection +)

IN 27 EXT_GPIN4-

(Control and Title Selection -)

9 GPOUT1+

(External 3D L/R Output Reference +)

OUT 28 GPOUT1-

(External 3D L/R Output Reference -)

OUT

10 GPOUT2+ (system reserved) OUT 29 GPOUT2- (system reserved) OUT

11 GPOUT3+ (system reserved) OUT 30 GPOUT3- (system reserved) OUT

12 GPOUT4+

(Internal 3D L/R Output Reference +)

OUT 31 GPOUT4-

(Internal 3D L/R Output Reference -)

OUT

13 EXT_GPOUT1+

(Projector Ready/Busy +)

OUT 32 EXT_GPOUT1-

(Projector Ready/Busy -)

OUT

14 EXT_GPOUT2+

(Projector Error Status +)

OUT 33 EXT_GPOUT2-

(Projector Error Status -)

OUT

15 EXT_GPOUT3+

(IMB Play/End Status +)

OUT 34 EXT_GPOUT3-

(IMB Play/End Status -)

OUT

16 EXT_GPOUT4+

(Projector Heartbeat +)

OUT 35 EXT_GPOUT4-

(Projector Heartbeat -)

OUT

17 NC (not connected) - 36 NC (not connected) -

18 GND PWR 37 GND PWR

19 GND PWR - - -

EXT_GPIN1 - EXT_GPIN4: You can control the projector externally by combinations of input signals (high/low). (Projector

power supply/turning the light source on or off/image mute/title selection)

EXT_GPOUT1 - EXT_GPOUT4: Functions in the above table are default settings. You can change the assigned functions.

6. Appendix

Input terminal

GP I/O terminal Inside Projector

Resist = 360 Ω

Photo-coupler

Forward direction voltage: 1.1V (@5mA)

Ext_GPIN_P

Pin No.: 1 2 3 4 5 6 7 8

Ext_GPIN_N

Pin No.: 20 21 23 23 24 25 26 27

Voltage applied across the pins of Ext_GPIN_P and

Ext_GPIN_N should be in the range from 3.3 Vdc to 10 Vdc.

Recommended Operating Current: 5mA

Absolute Maximum Rating: 23mA

•UsingGPIOControl

Momentary “ON” pulse enables you to control projector. To enable “ON” pulse, hold it for at least 500 ms. Hold “OFF” for at least

500 ms before “ON”. (See page 83)

Here is function list to control projector by using GPIO port.

Pin No. Photo-coupler ON/OFF Function

1-20 ON/OFF 3D L/R timing signal input ON/OFF

2-21 ON/OFF 3D L/R display timing signal input ON/OFF

3-22 - System reserved (used internally)

4-23 - System reserved (used internally)

5-24

6-25

7-26

8-27

8-27 7-26 6-25 5-24 The following functions apply depending on the combination of input terminals.

OFF OFF OFF ON Power ON

OFF OFF ON OFF Power OFF

OFF OFF ON ON Light source ON

OFF ON OFF OFF Light source OFF

OFF ON OFF ON Image douser ON

OFF ON ON OFF Image douser OFF

OFF ON ON ON System reserved (used internally)

ON OFF OFF OFF Selects the title registered to the preset button 1

ON OFF OFF ON Selects the title registered to the preset button 2

ON OFF ON OFF Selects the title registered to the preset button 3

ON OFF ON ON Selects the title registered to the preset button 4

ON ON OFF OFF Selects the title registered to the preset button 5

ON ON OFF ON Selects the title registered to the preset button 6

ON ON ON OFF Selects the title registered to the preset button 7

ON ON ON ON Selects the title registered to the preset button 8

Example for dousing image: Input ON to 5-24 and 7-26 while 6-25 and 8-27 are OFF.

Example for selecting the preset button 2: Input ON to 5-24 and 8-27 while 6-25 and 7-26 are OFF.

NOTE

• The operation command coming from GPI/O port will be canceled when the projector is processing other tasks,

such as light source cooling and switching title.

• Set all other pins than those in use to “OFF”.

• The operation command is executed upon continuous input of the “ON” pulse for approximately 200 ms.

6. Appendix

•TimingchartofGPIOcontrol

Example of Select Preset Button

Off at least 500 ms at least 500 ms

approx. 200 ms

off

8-27

5-24/6-25/7-26

Execute

Select Preset Button

time

Example for turning the image douser (Douser) on

Off at least 500 ms at least 500 ms

approx. 200 ms

off

5-24/7-26

6-25/8-27

Execute

Image douser (Douser) ON

time

6. Appendix

Example of Light source On

Off at least 500 ms at least 500 ms

approx. 200 ms

off

5-24/6-25

7-26/8-27

Execute

Light source On

time

Example for turning the power off

Off at least 500 ms at least 500 ms

approx. 200 ms

off

6-25

5-24/7-26/8-27

Execute

Power OFF

time

6. Appendix

Output terminal

GP I/O terminal Inside Projector

Photo-coupler

Ext_GPOUT_P

Ext_PROJ_GOOD_P

Pin No.: 9 10 11 12 13 14 15 16

Pin No.: 28 29 30 31 32 33 34 35

Absolute Maximum Rating: 50 mA

Ext_GPOUT_N

Ext_PROJ_GOOD_N

•UsingGPIOControl

You can use GPIO control for the projector’s health check and error check. Also, you can use the output as the trigger to control

external devices.

The following functions are assigned to the pin number 13-32, 14-33, 15-34, and 16-35 (EXT_GPOUT1 - EXT_GPOUT4) as the

default. You can change the assigned functions.

Pin No. Photo-coupler ON/OFF Function

9-28 ON/OFF External 3D L/R timing signal output ON/OFF

10-29 – System reserved (used internally)

11-30 – System reserved (used internally)

12-31 ON/OFF Internal 3D L/R timing signal output ON/OFF

13-32 ON/OFF GPIO control status check

ON: GPIO control (input) is unavailable.

OFF: GPIO control (input) is available.

14-33 ON/OFF Error check

ON: Error

OFF: No error

15-34 ON/OFF IMB status check

ON: The content is being played.

OFF: The content is stopped/paused.

16-35 ON/OFF Health check (heart beat)

ON and OFF are alternately output when operations are

normal.

6. Appendix

6-7-3. 3D terminal (D-sub 15 pin)

This is used to connect a 3D image system to the projector.

Pin view of a female connector

Pin No. Signal Name I/O Function

1 +12V PWR Supplies power (+12V) to the 3D image system

2 GNDC GND Ground

3 GNDC GND Ground

4 RS232_RX IN Data transmission from the 3D image system

(1200 Baud, 8 bits, No Parity)

5 RS232_TX OUT Data transmission to the 3D image system

(1200 Baud, 8 bits, No Parity)

6 CONN_3D_MODE+ OUT 3D mode status (+)

(Connects to the collector of the output transistor of the photo

coupler inside the projector)

7 CONN_SYNC+ OUT 3D L/R switching timing signal (+)

(Connects to the collector of the output transistor of the photo

coupler inside the projector)

8 3D_INPUT_REFERENCE+ IN 3D L/R timing signal (+)

(Connects to the anode of the input diode of the photo

coupler inside the projector)

9 +12V PWR Supplies power (+12V) to the 3D image system

10 3D_INPUT_REFERENCE− IN 3D L/R timing signal (–)

(Connects to the cathode of the input diode of the photo

coupler inside the projector)

11 3D_DISPLAY_REFERENCE+ IN 3D L/R display timing signal (+)

(Connects to the anode of the input diode of the photo

coupler inside the projector)

12 3D_DISPLAY_REFERENCE− IN 3D L/R display timing signal (–)

(Connects to the cathode of the input diode of the photo

coupler inside the projector)

13 CONN_3D_MODE− OUT 3D mode status (–)

(Connects to the emitter of the output transistor of the photo

coupler inside the projector)

14 CONN_SYNC− OUT 3D L/R switching timing signal (–)

(Connects to the emitter of the output transistor of the photo

coupler inside the projector)

15 N/C − Unused

6. Appendix

6-8. Related products list

Product name Model name

Lens Zoom lens 1.13 to 1.66 NC-50LS12Z

Zoom lens 1.30 to 1.85 NC-50LS14Z

Zoom lens 1.45 to 2.17 NC-50LS16Z

Zoom lens 1.63 to 2.71 NC-50LS18Z

Zoom lens 1.95 to 3.26 NC-50LS21Z

Zoom lens 2.71 to 3.89 L2K-30ZM

Integrated Media Server Integrated Media Server NP-90MS02

Ver. 4 1/21

NEC NC3541L 35,000-lumen 4K RB Laser Projector

Product's Documents

User Manual

Specifications

NEC NC3541L Questions and Answers
