_BLI_ Ol COI4TIII<ilT5

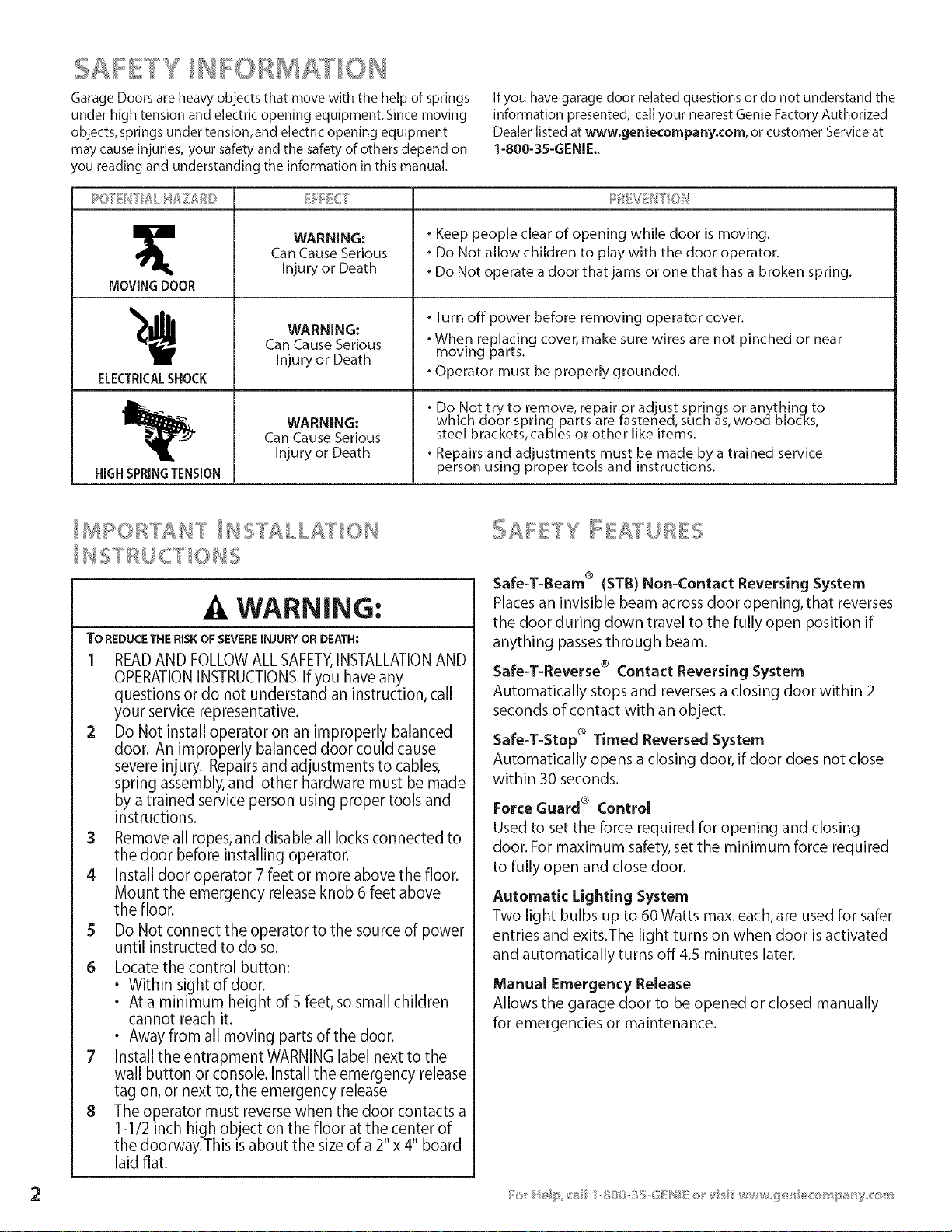

Safety Information ...................... 2
Important Installation Instructions ...... 2
Safety Features ......................... 2

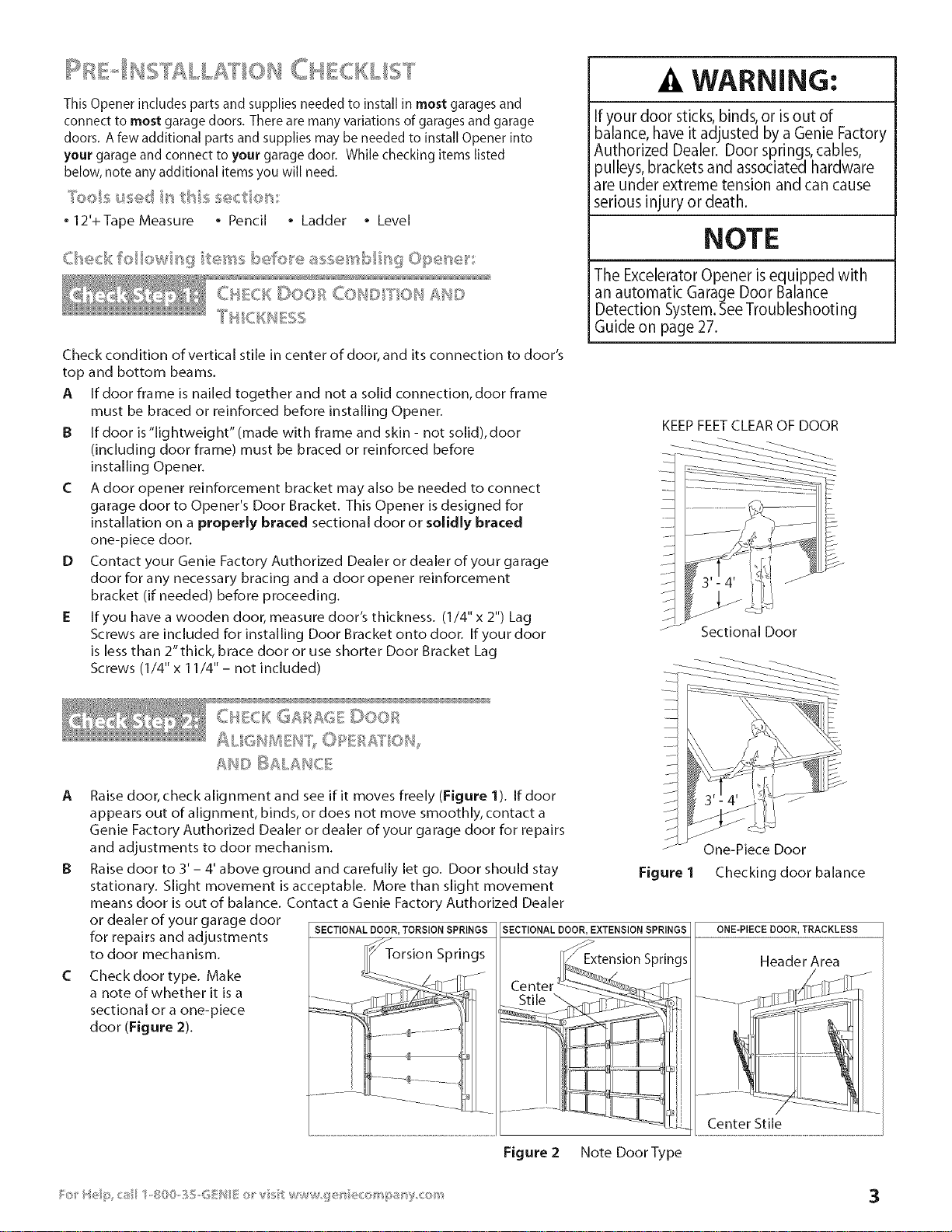

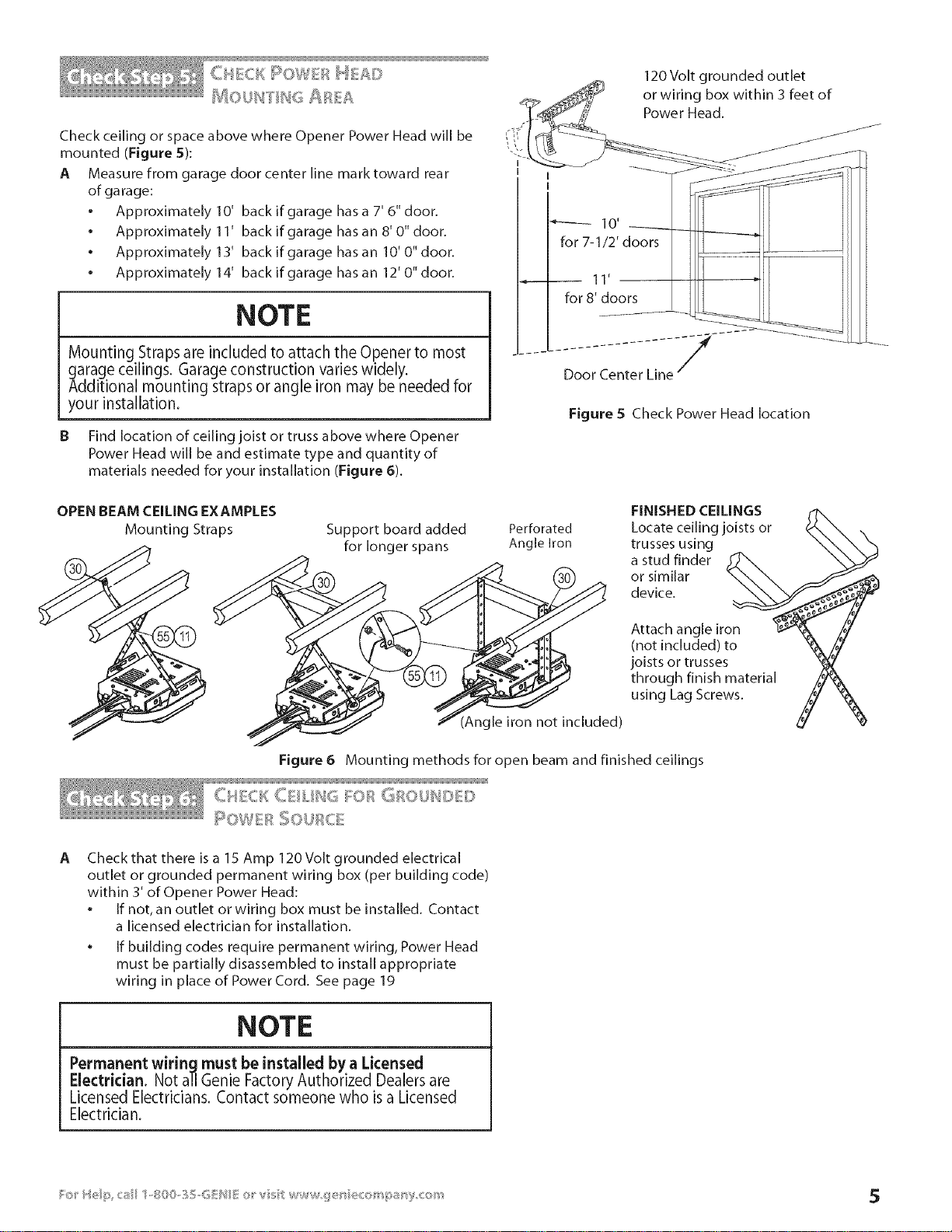

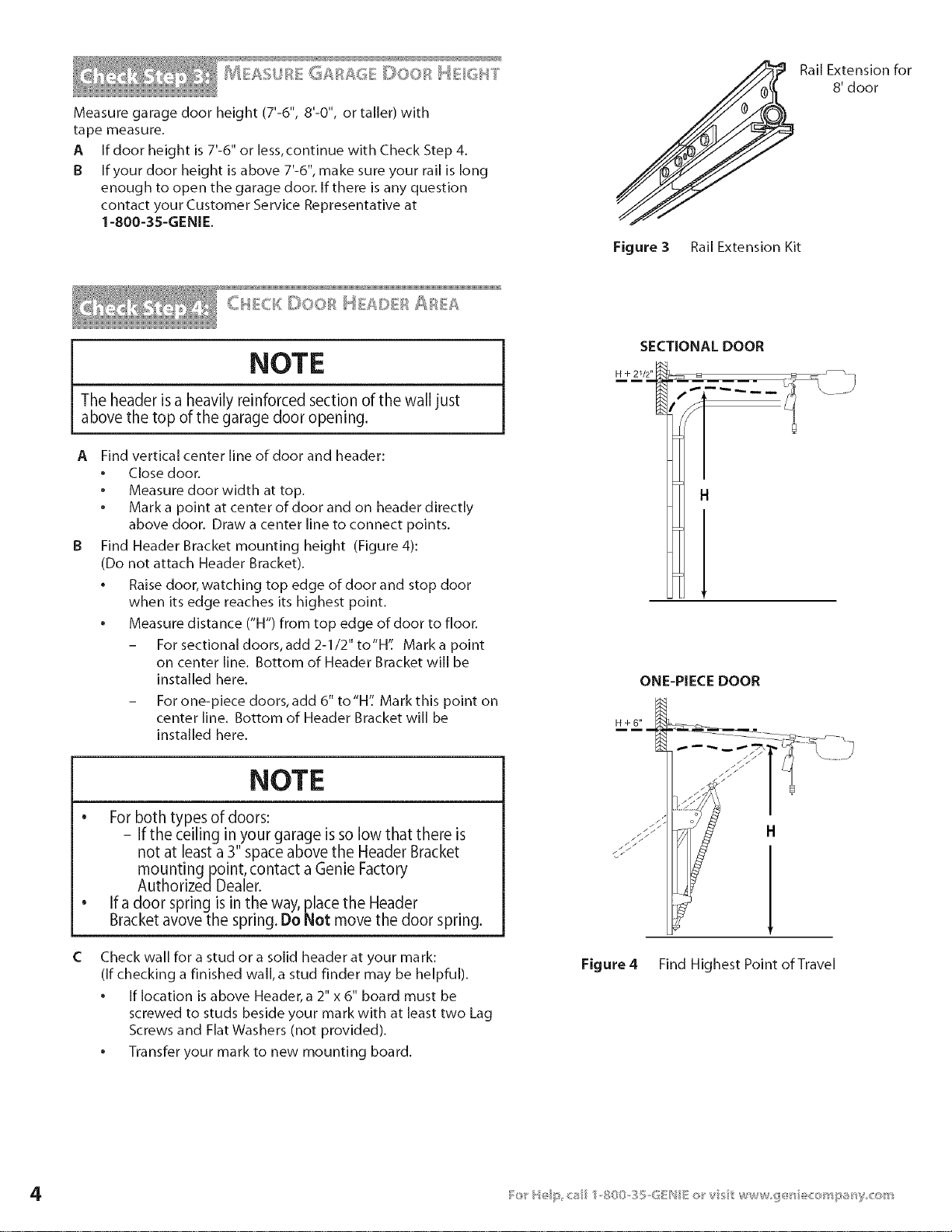

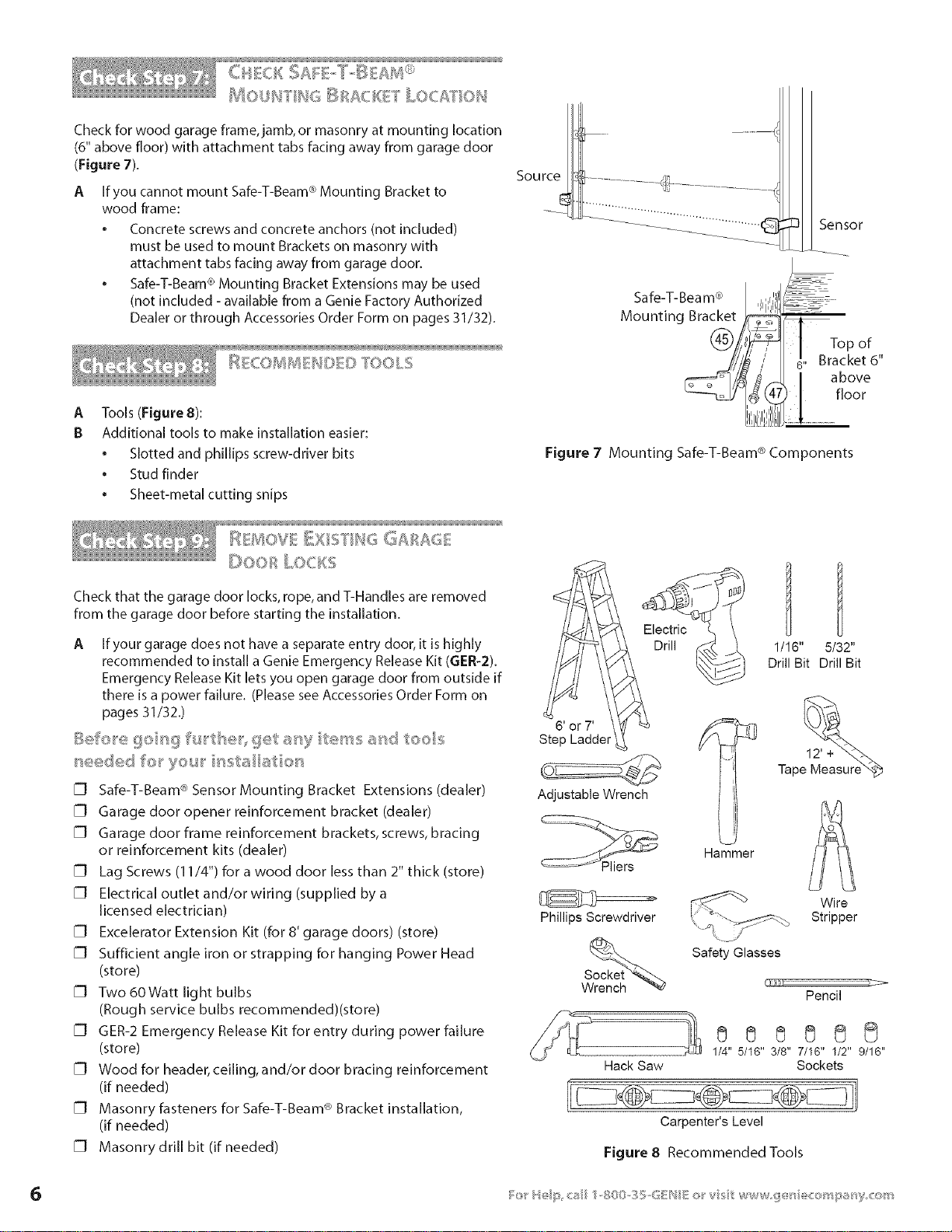

Pre-installation Checklist ................ 3

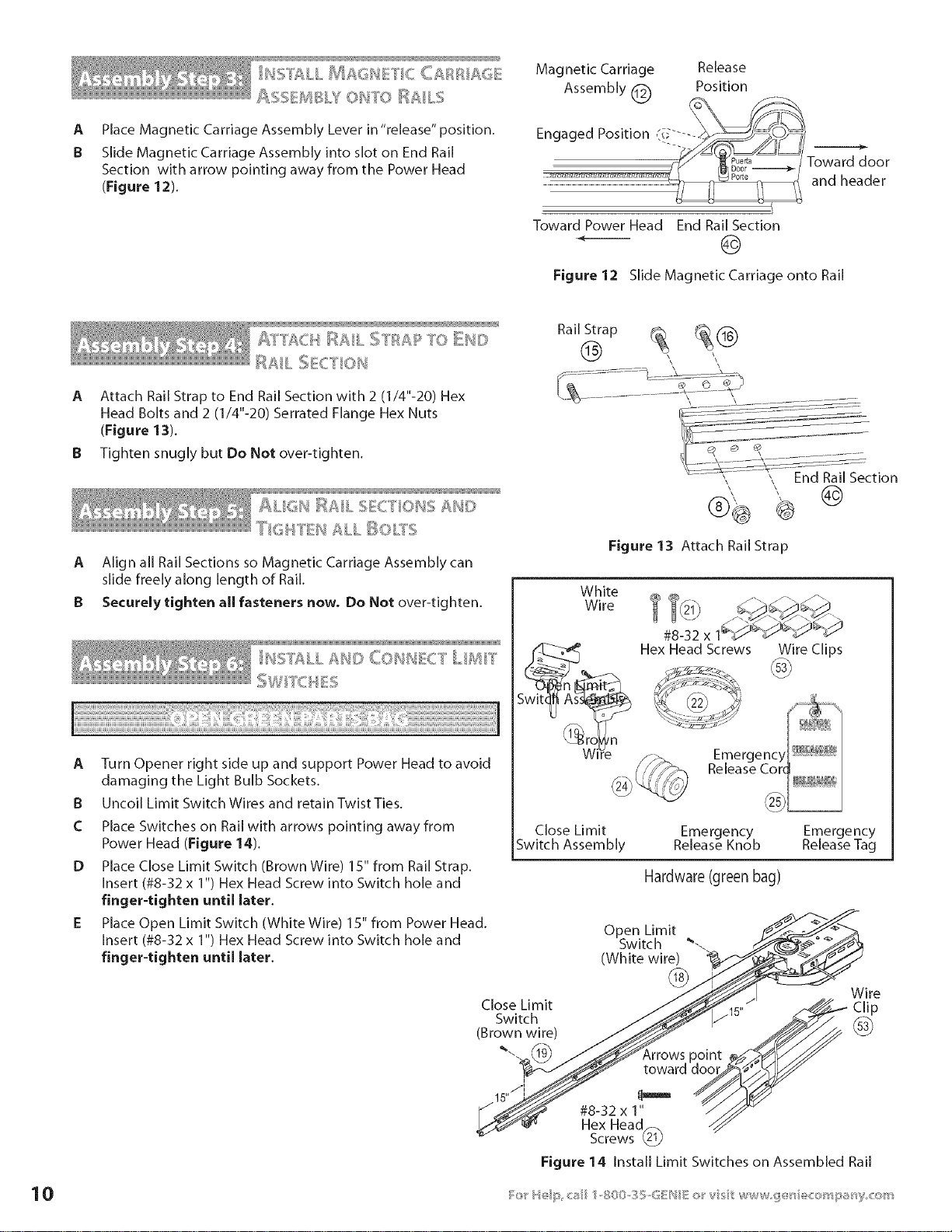

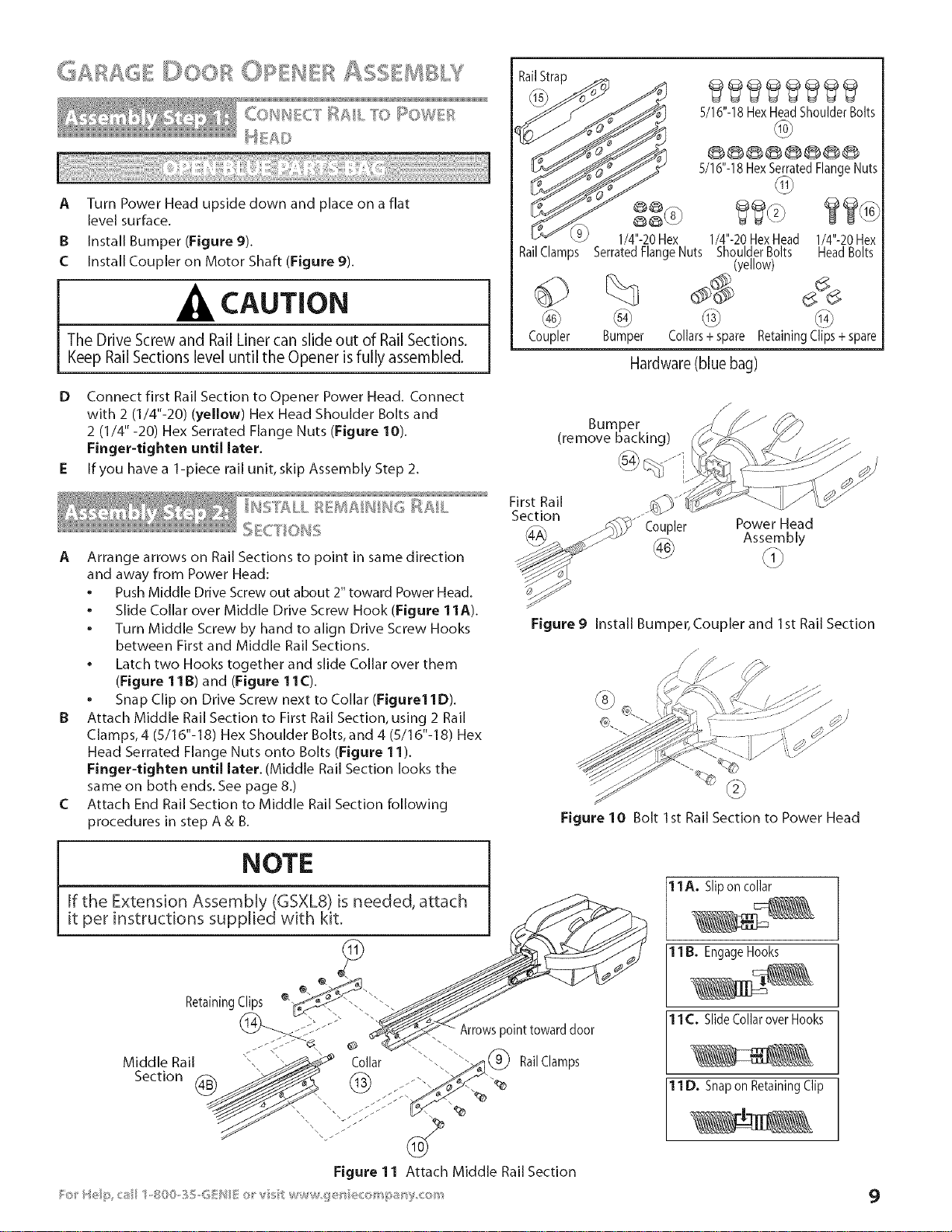

Garage Door Opener Assembly ......... 9

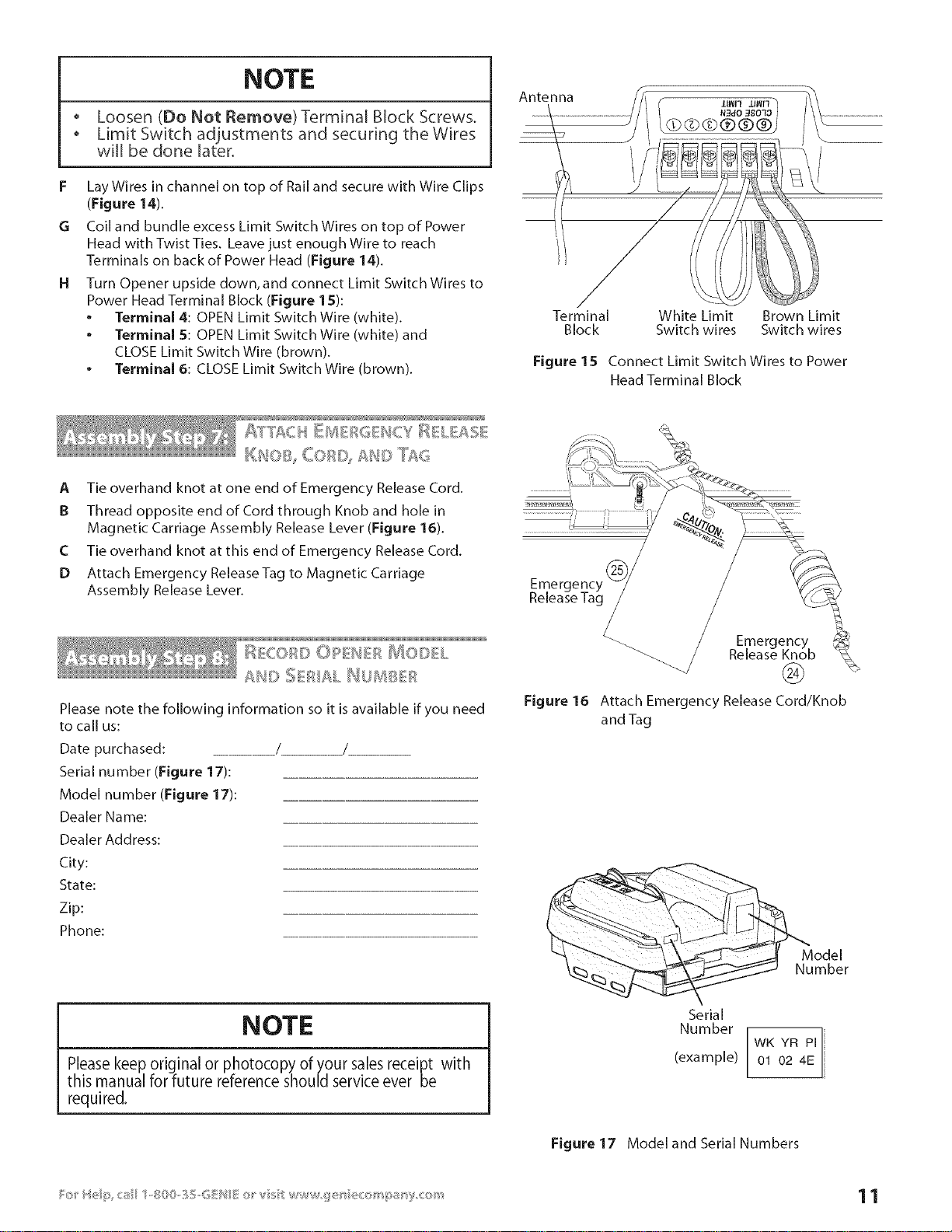

Record Data (for Service) .............. 11

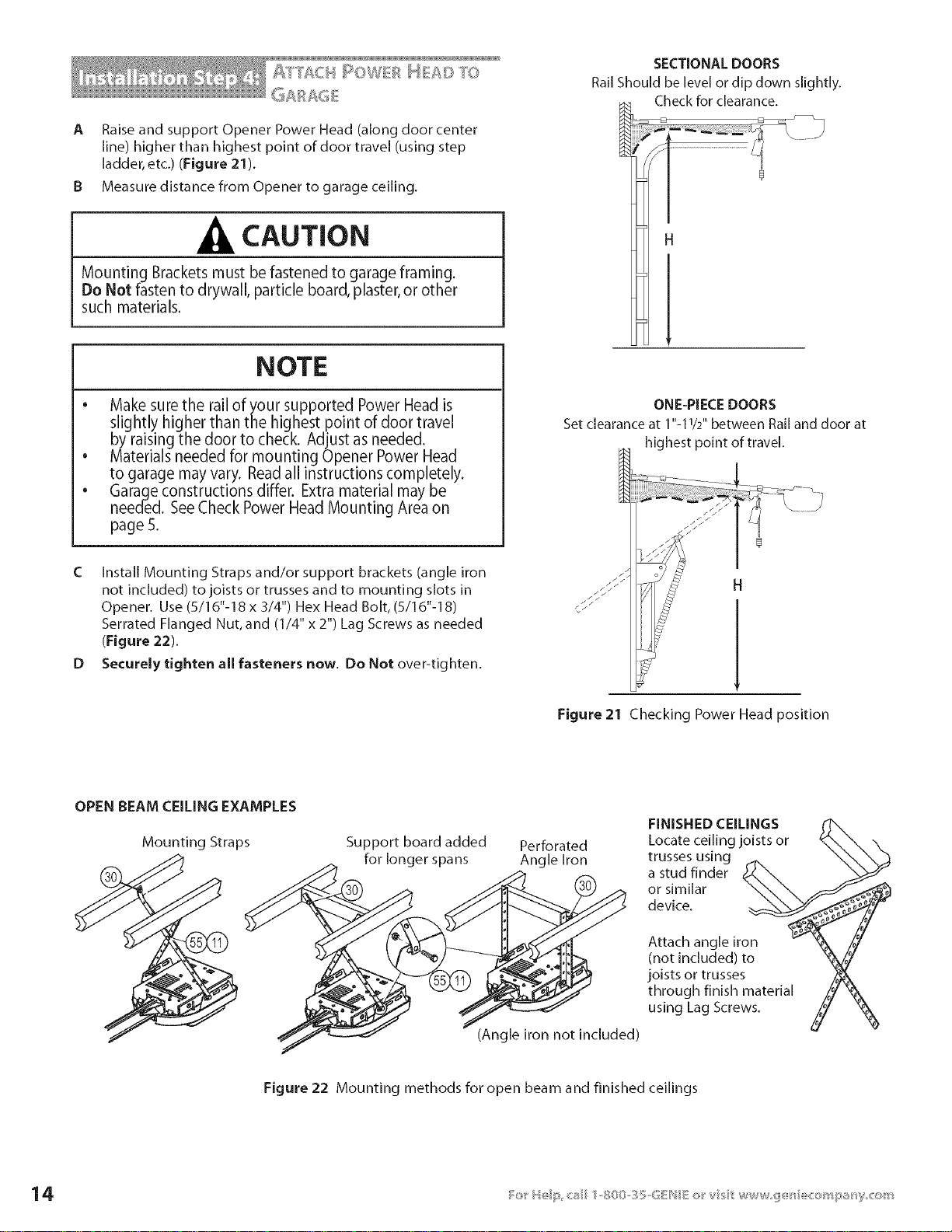

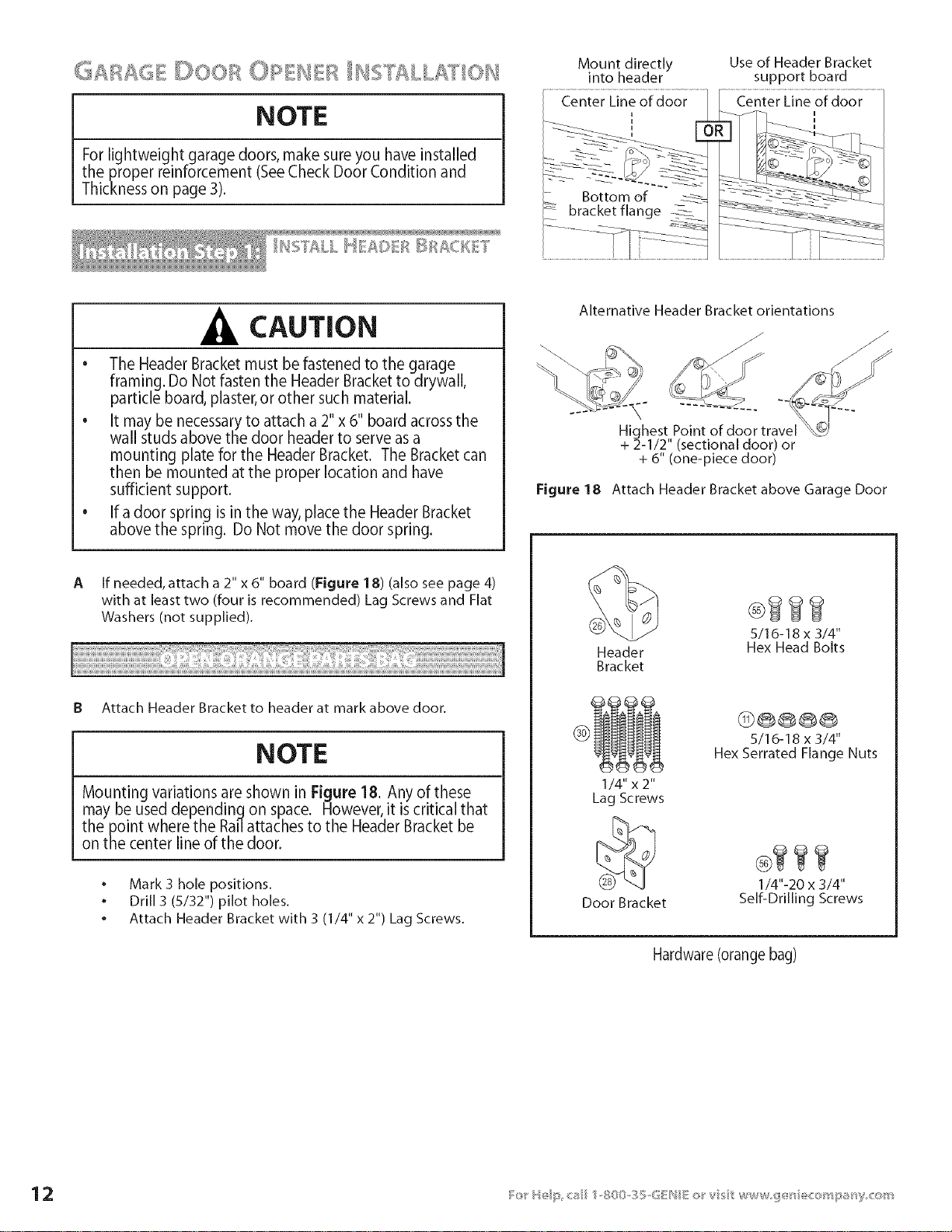

Garage Door Opener Installation ....... 12

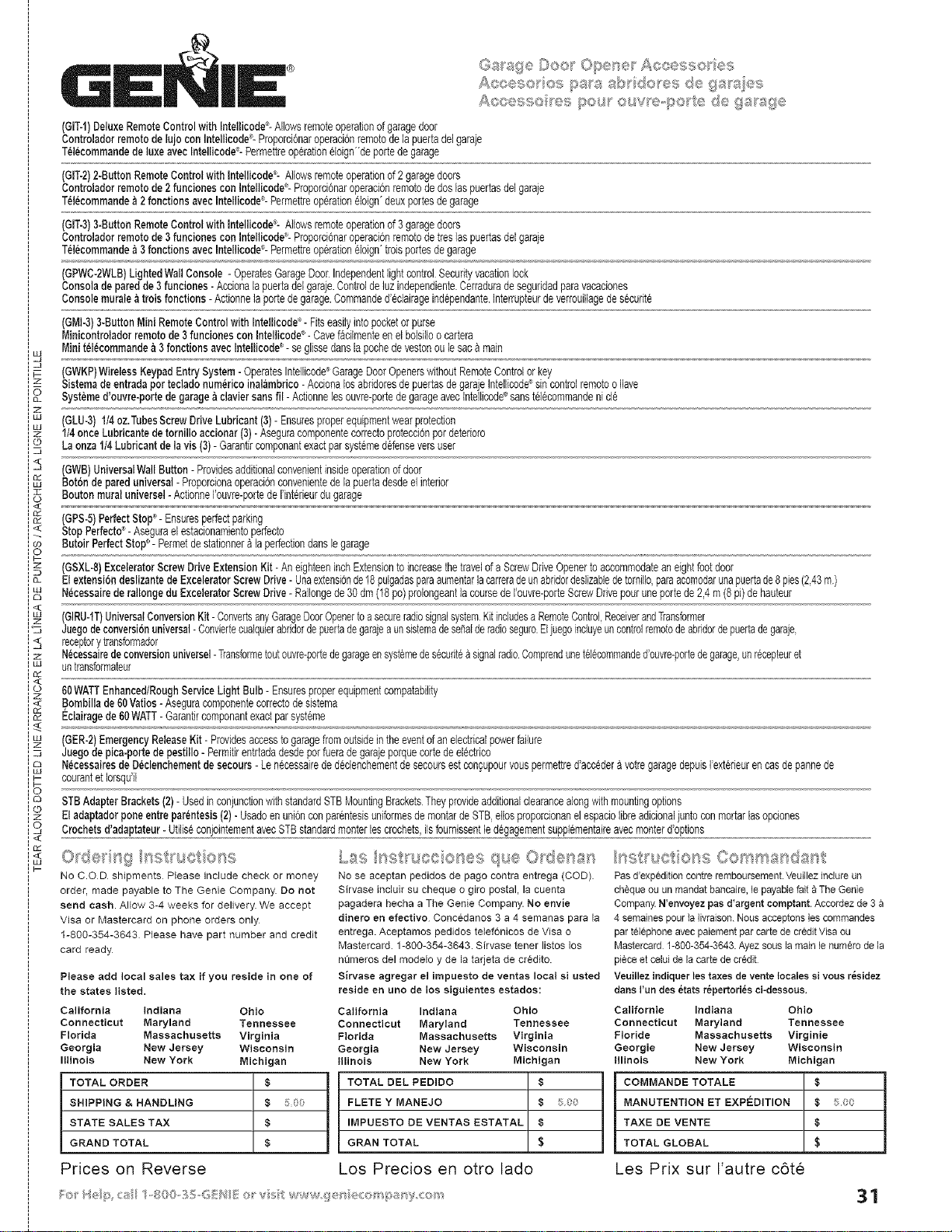

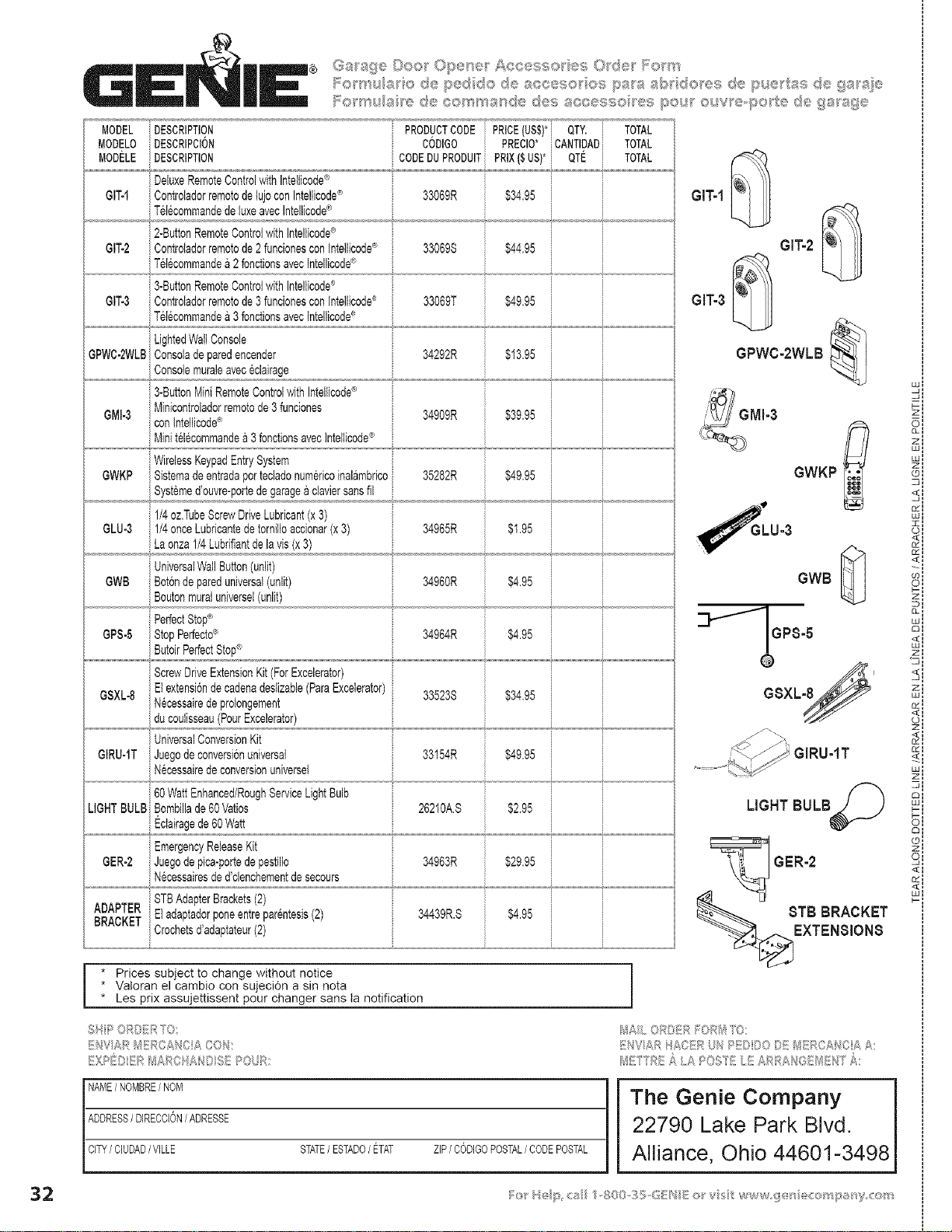

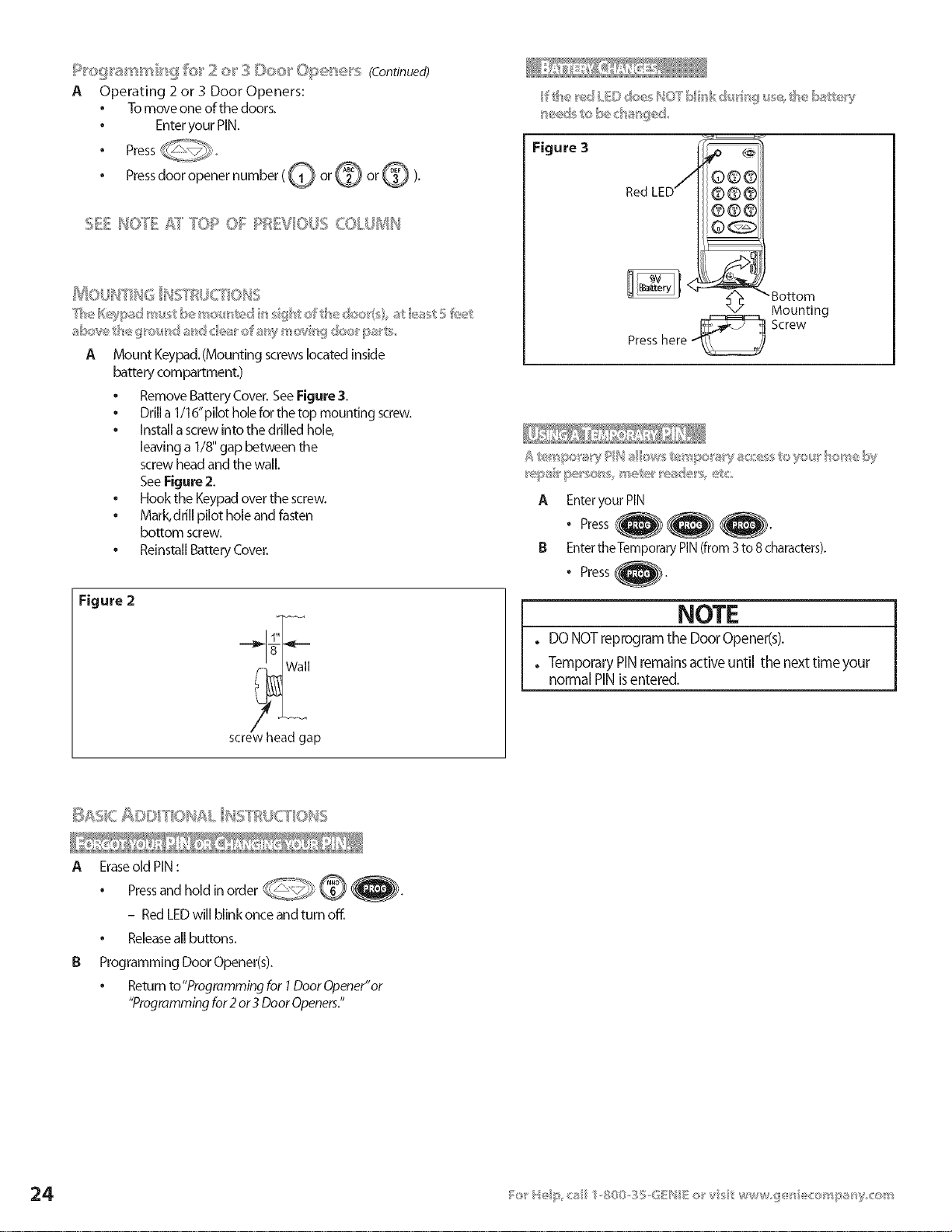

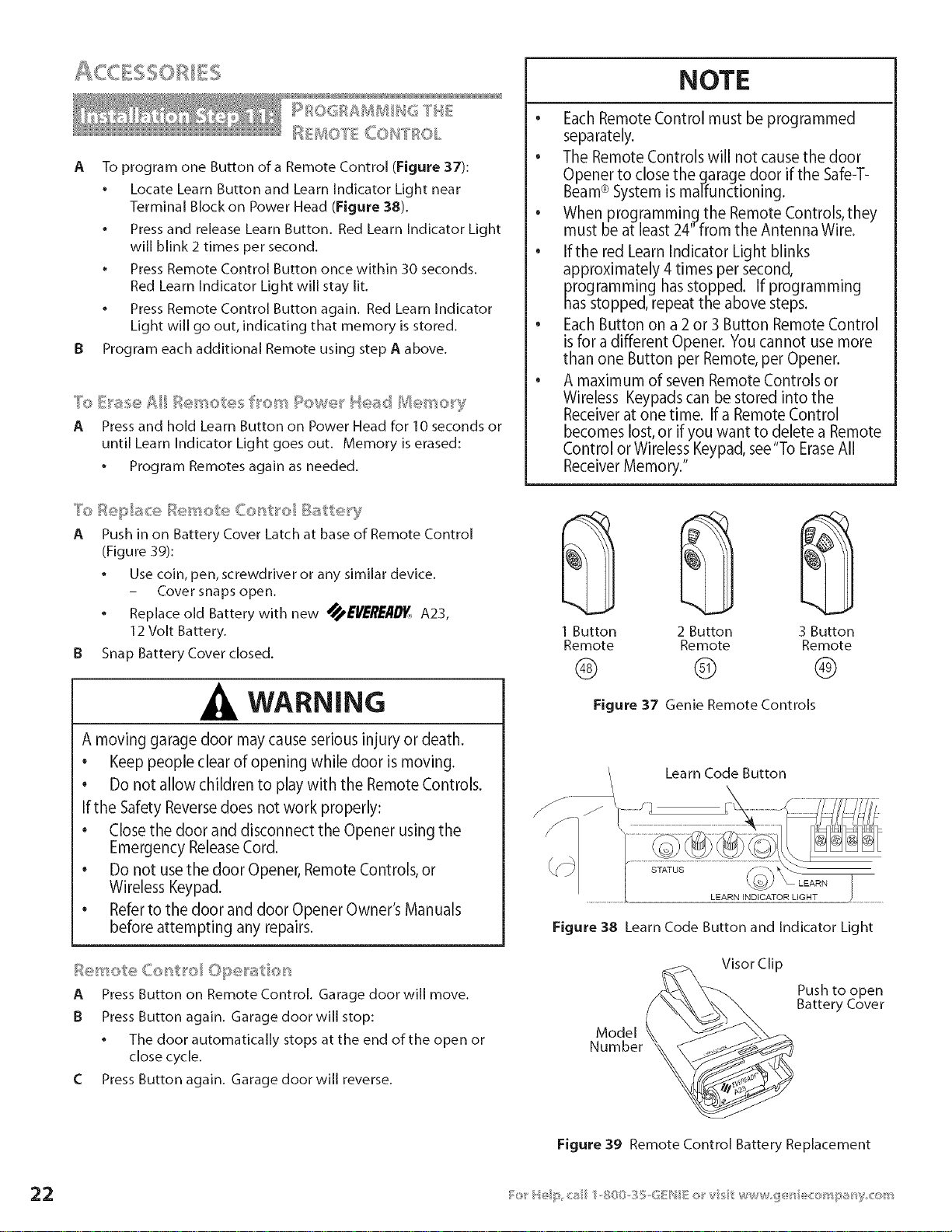

Accessories ........................... 22

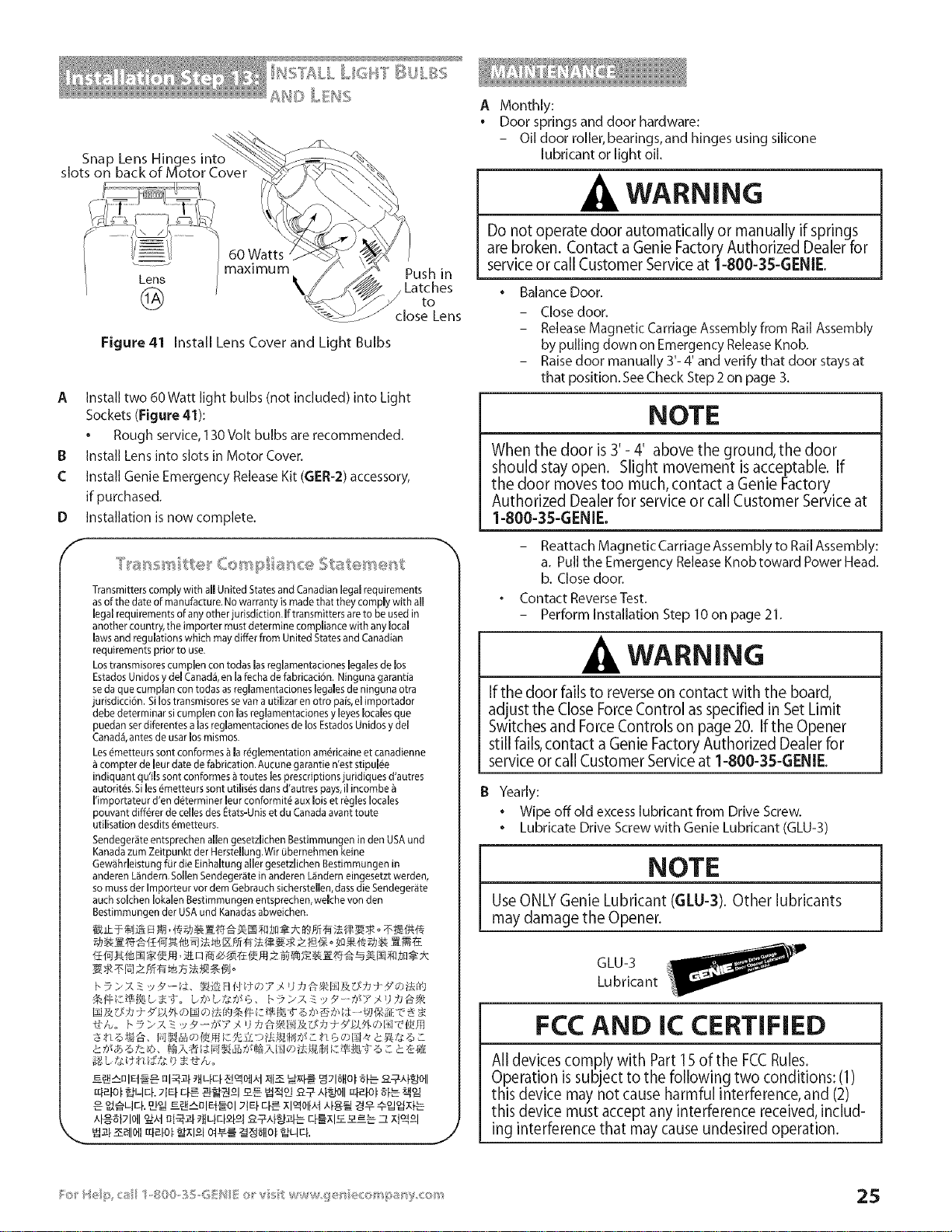

Maintenance .......................... 25

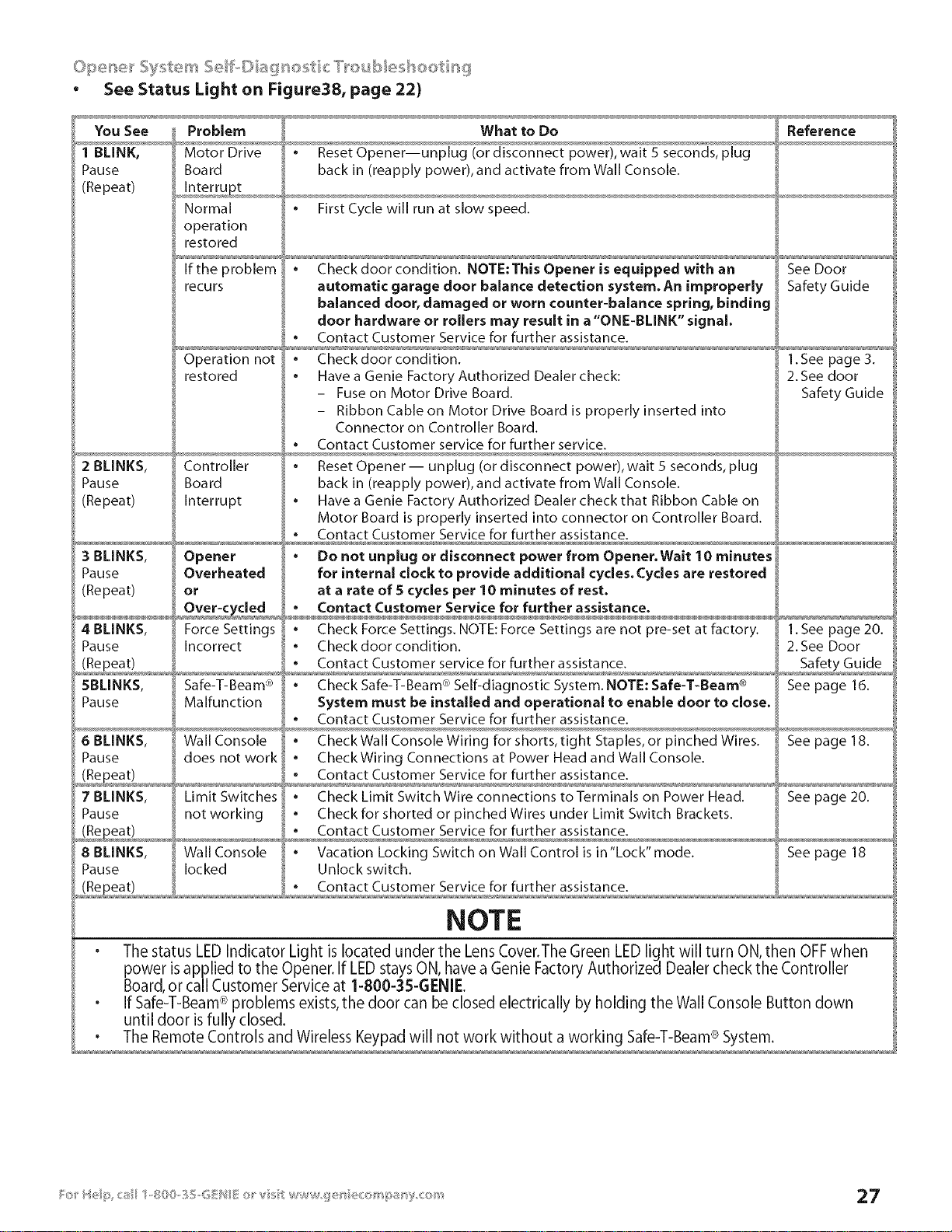

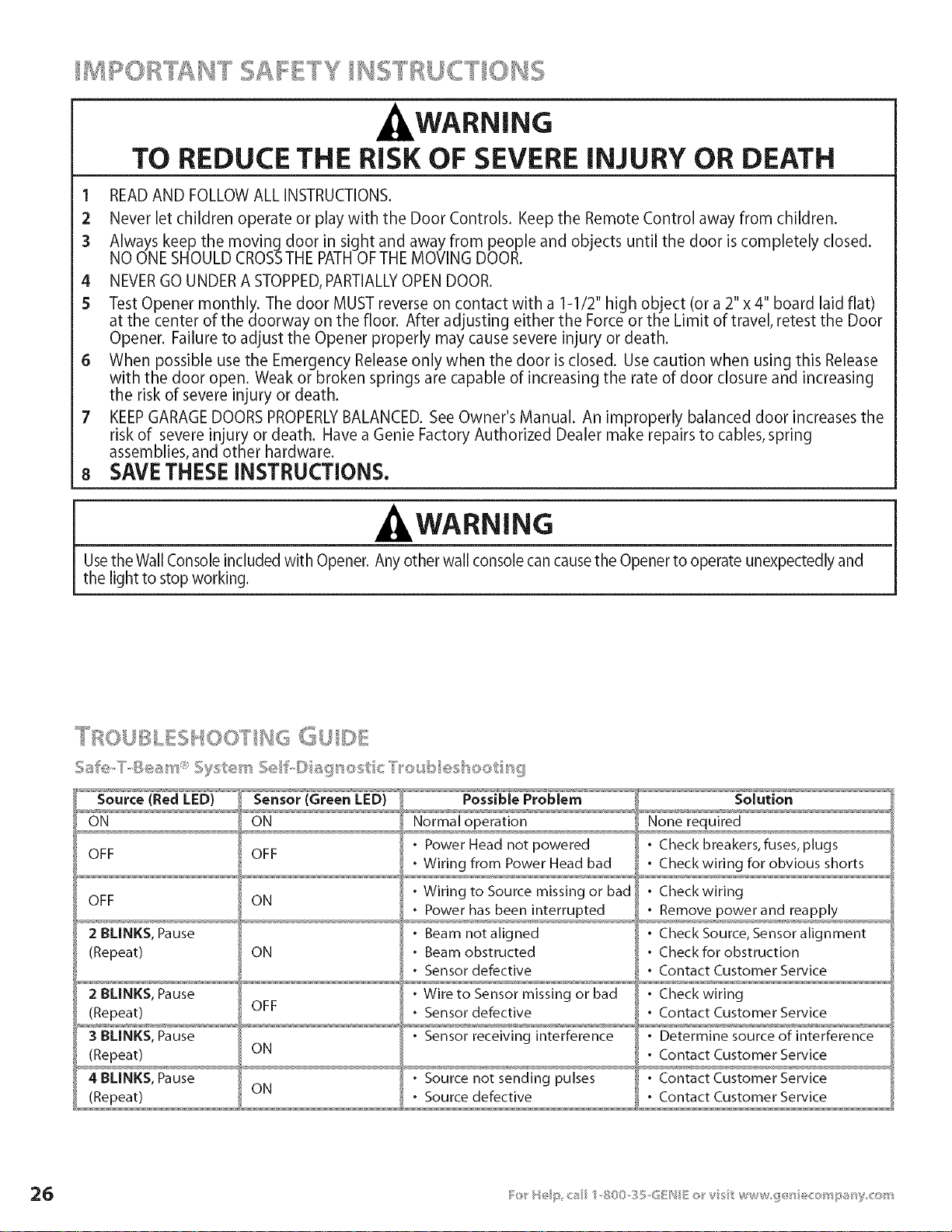

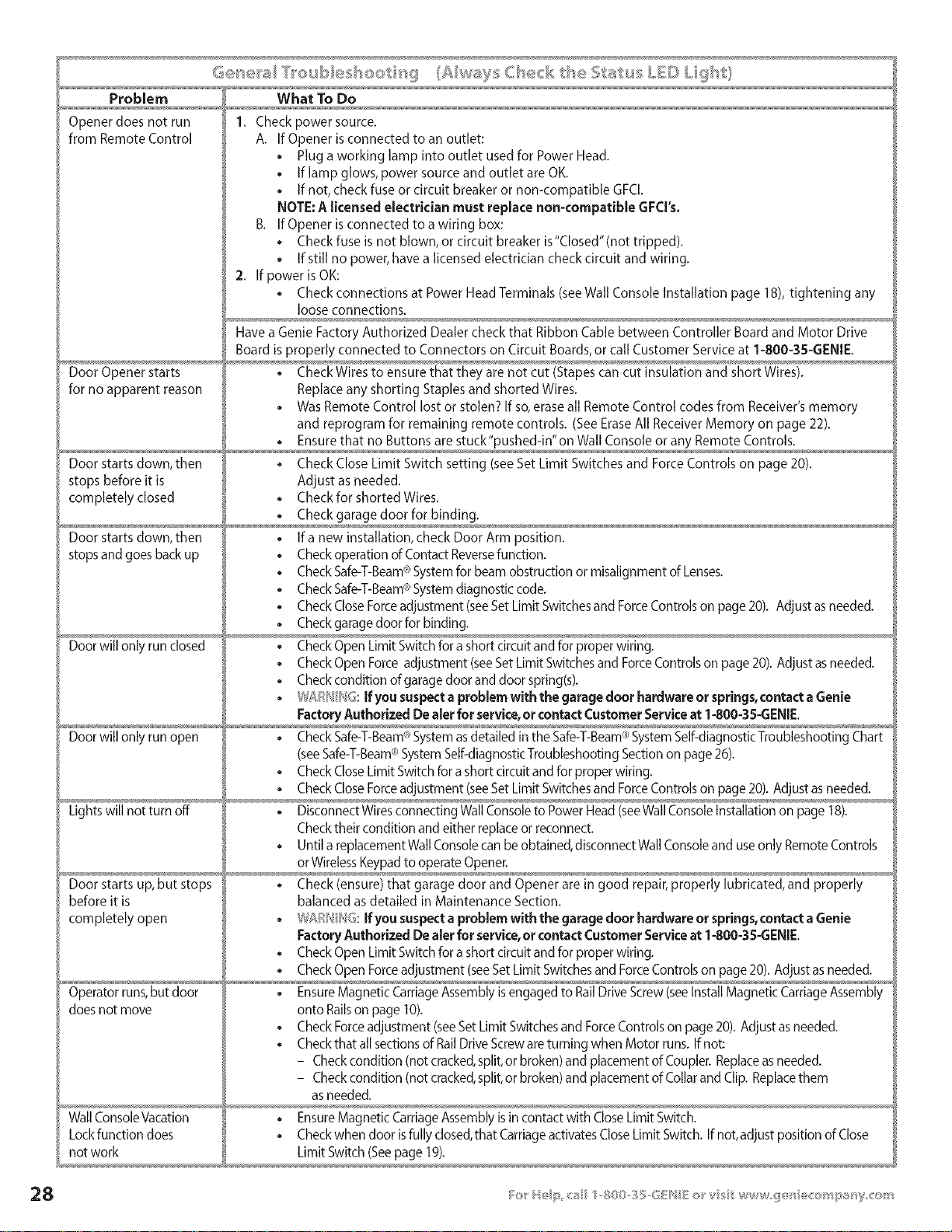

Troubleshooting ...................... 26

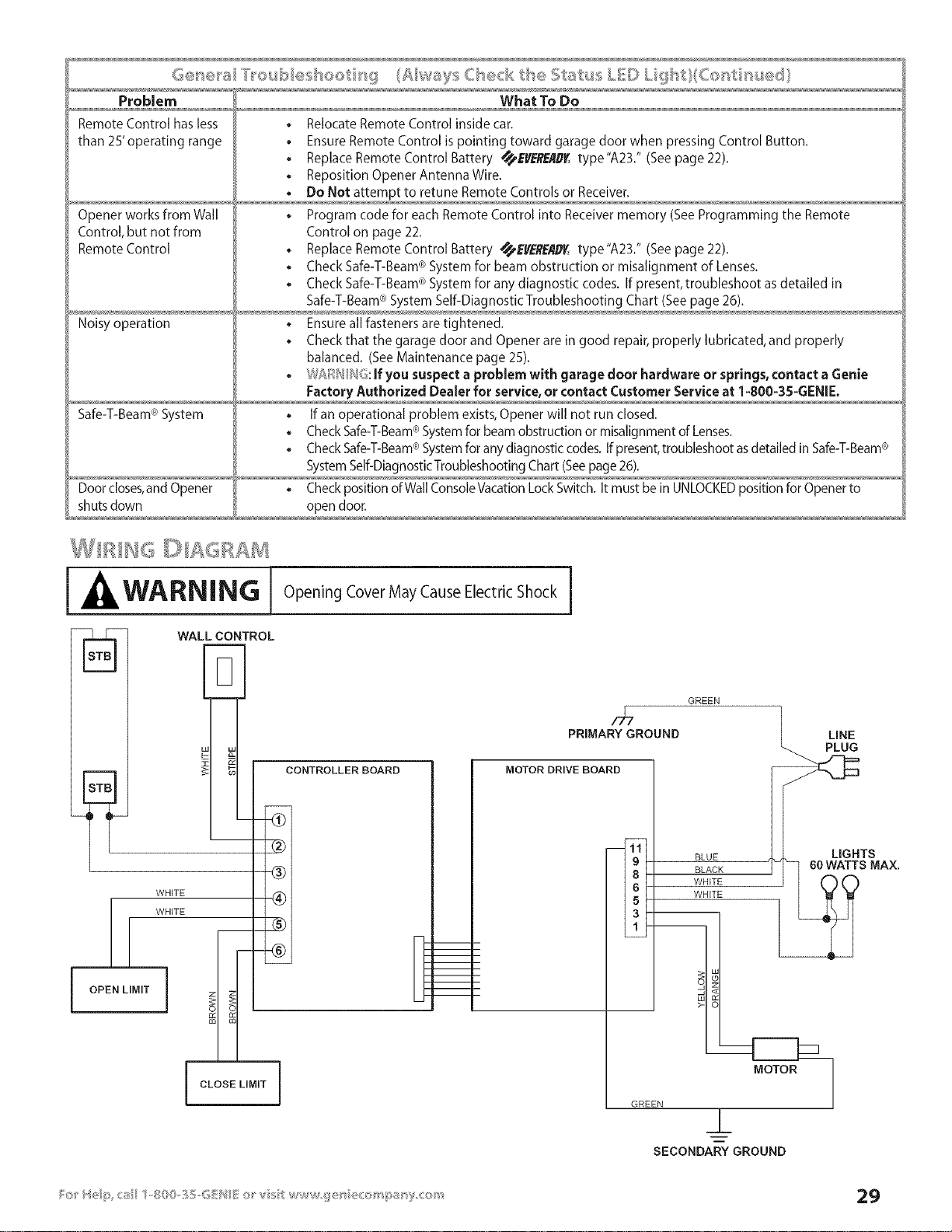

Wiring Diagram ....................... 29

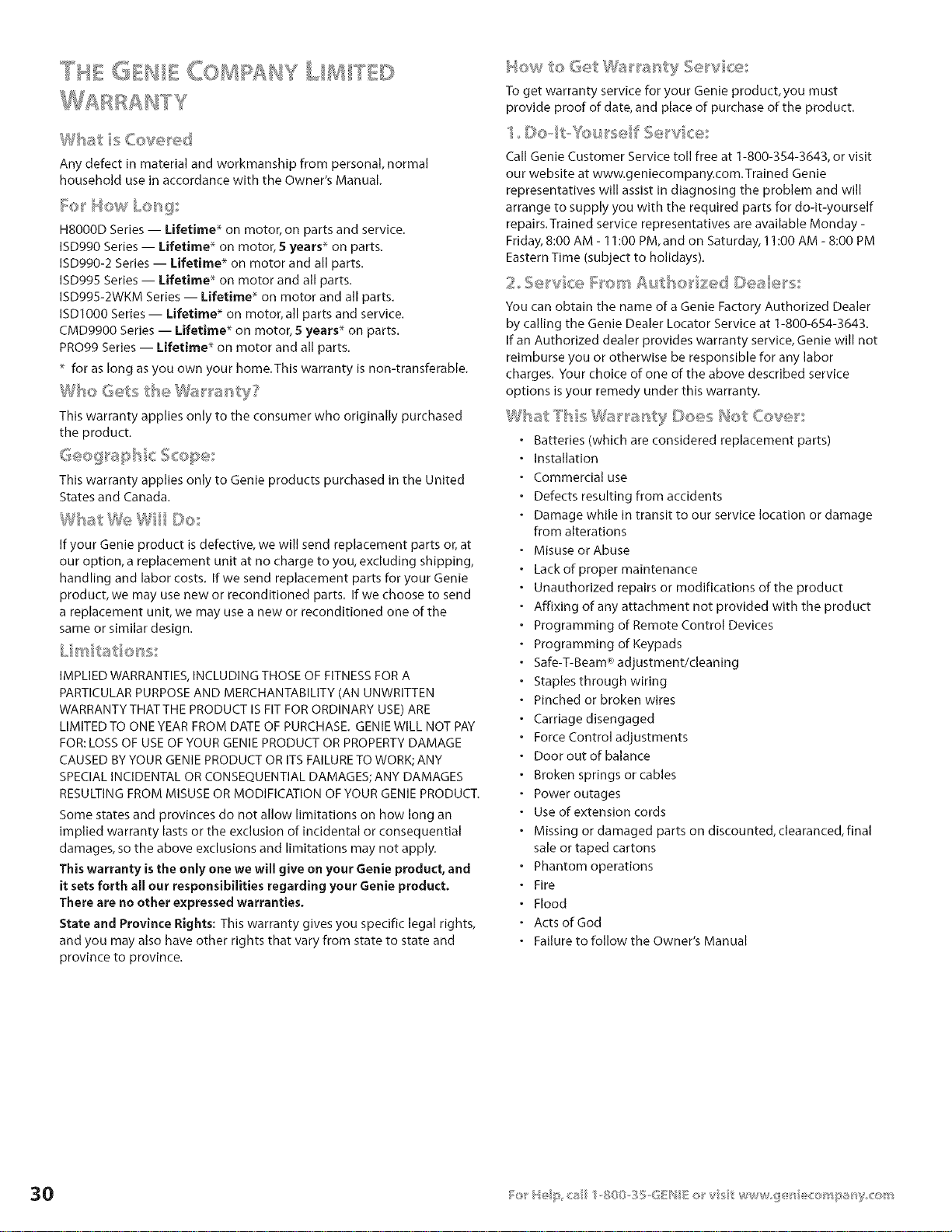

Warranty information .................. 30
Wl' '14ID4 [ELLICODE,.
For 7' 6" Doors. Extension Kit isavailable for 8' Doors
Included Wall Control MUST be installed prior to Operation
of this Garage Door Operator.
Safe-T-Beam ® Safety Reverse System Must be Installed and
the Force Controls MUST be Properly Set to dose door.
This Equipment meets or exceeds al Federal, State and UL 325
Safety Requirements.
Will not operate twice as fast on a one-piece door.
