Dehumidifier
SKU: HME021005N
SKU: HME021006N
40 Pint and 50 Pint
Thank you for purchasing our
appliance. Please be sure to read
the entirety of this user manual
carefully prior to using this
appliance. If you have any questions
regarding the use of this product,
please contact Customer Service
at homelabs.com/help
or help@homelabs.com.
Before First Use
To prevent any internal damage, it is very important to
keep the units upright throughout its journey. Please leave it standing
upright and outside the box for 24 HOURS before plugging it in.
In the event this product malfunctions, or you believe it is
defective, please contact Customer Service at homelabs.com/help
or [email protected] and hold onto the defective product
(pending further instruction). A defective product should
be clearly marked or stored where it cannot be used by mistake.
Failure to keep the product in its original quality from the time of
receipt may impede hOmeLabs’s ability to correct any legitimate
problem and may limit the extent to which hOmeLabs
may provide recourse.
Important Safety Instructions ........................................... 4–10
Installation........................................................................... 10–12
Operating Instructions........................................................ 13–16
Cleaning and Maintenance................................................. 16–17
Troubleshooting................................................................... 17–18
Warranty................................................................................... 19
Manufacturing Info.................................................................. 19
Warning..................................................................................... 19
Contact Us................................................................................ 19
Table of Contents
on bringing home your new appliance!
Congratulations
Don’t forget to register your product at homelabs.com/reg
for updates, coupons, and other relevant information.
Although greatly appreciated, product registration
is not required to activate any warranty.
Before First Use
To prevent any internal damage, it is very important to
keep the units upright throughout its journey. Please leave it standing
upright and outside the box for 24 HOURS before plugging it in.
In the event this product malfunctions, or you believe it is
defective, please contact Customer Service at homelabs.com/help
or help@homelabs.com and hold onto the defective product
(pending further instruction). A defective product should
be clearly marked or stored where it cannot be used by mistake.
Failure to keep the product in its original quality from the time of
receipt may impede hOmeLabs’s ability to correct any legitimate
problem and may limit the extent to which hOmeLabs
may provide recourse.
Important Safety Instructions ........................................... 4–10
Installation........................................................................... 10–12
Operating Instructions........................................................ 13–16
Cleaning and Maintenance................................................. 16–17
Troubleshooting................................................................... 17–18
Warranty................................................................................... 19
Manufacturing Info.................................................................. 19
Warning..................................................................................... 19
Contact Us................................................................................ 19
Table of Contents
on bringing home your new appliance!
Congratulations
Don’t forget to register your product at homelabs.com/reg
for updates, coupons, and other relevant information.
Although greatly appreciated, product registration
is not required to activate any warranty.
4 5
• This appliance is for household use only.
• Disconnect the appliance from its power source during service and when replacing parts
and cleaning.
• Please note: Check the nameplate for the type of refrigerant gas used in your appliance.
• Specific information regarding appliances with refrigerant gas.
• Do not pierce the cooling circuit of the machine. At the end of its useful life, deliver the
appliance to a special waste collection centre for disposal.
• GWP (Global Warming Potential): R410A: 2088, R134a: 1430, R290: 3, R32: 675.
• This hermetically sealed system contains fluoridated greenhouse gases.
• ENVIRONMENTAL INFORMATION: This unit contains fluoridated greenhouse gases covered
by the Kyoto Protocol.
• Do not use this unit for functions other than those described in this instruction manual.
• Make sure the plug is plugged firmly and completely into the outlet. Failure to firmly secure
the plug in the outlet may result the risk of electric shock or fire.
• Do not plug other appliances into the same outlet, it can result in the risk of electric shock.
• Do not disassemble or modify the appliance or the power cord, it can result in the risk of
electric shock or fire. All other services should be referred to a qualified technician.
• Do not place the power cord or appliance near a heater, radiator, or other heat source.
It can result in the risk of electric shock or fire.
• This unit is equipped with a cord that has a earthed wire connected to an earthed pin or
grounding tab. The plug must be plugged into a socket that is properly installed and earthed.
Do not under any circumstances cut or remove the earthed pin or grounding tab from this plug.
• The unit should be used or store in such a way that it is protected from moisture e.g.
condensation, splashed water, etc. Unplug unit immediately if this occurs.
• Always transport your appliance in a vertical position and place on a stable, level surface during
use. If the unit is transported laying on its side, stand the unit upright and unplugged for
six (6) hours before use.
• Always use the switch on the control panel or remote controller to turn the unit off, and do not
start or stop operation by plugging in or unplugging the power cord. It can result in the risk
of electric shock.
• Do not touch the buttons on the control panel with wet or damp fingers.
• Do not use hazardous chemicals to clean or come into contact with the unit. To prevent
damage to the surface finish, use only a soft cloth to clean the appliance. Do not use wax,
thinner, or a strong detergent. Do not use the unit in the presence of inflammable substance
or vapour such as alcohol, insecticides, gasoline, etc.
• If the appliance is making unusual sounds or is emitting smoke or an unusual odor,
unplug it immediately.
• Do not clean the unit with water. Water can enter the unit and damage the insulation, creating
a shock hazard. If water enters the unit, unplug it immediately and contact Customer Service.
• Utilize two or more people to lift and install the unit.
• Always grasp the plug when plugging in or unplugging the appliance. Never unplug by pulling
on the cord, it can result in the risk of electrical shock and damage.
• Install the appliance on a sturdy, level floor capable of supporting up to 110 lb (50 kg).
Installation on a weak or unlevel floor can result in the risk of property damage
and personal injury.
ELECTRICAL CONNECTIONS
Before plugging the appliance into the mains socket, check that:
• The mains power supply corresponds to the value indicated on the rating plate on the back
of the appliance.
• The power socket and electrical circuit are adequate for the appliance.
• The mains socket should match the plug on the appliance. If that is not the case,
have the socket replaced.
• The mains socket is adequately earthed. Failure to follow these important safety instructions
absolves the manufacturer of all liability.
WARNING
• This appliance is not intended for use by persons (including children) with reduced physical,
sensory or mental capabilities, or lack of experience and knowledge, unless they have been
given supervision or instruction concerning use of the appliance by a person responsible for
their safety.
• Children should be supervised to ensure that they do not play with the appliance.
• If the SUPPLY CORD is damaged, it must be replaced by the manufacturer, its service agent
or similarly qualified persons in order to avoid a hazard.
• The appliance should be installed in accordance with national wiring regulations.
• Do not use any means to accelerate the defrosting process or to clean, other than those
recommended by the manufacturer.
• The appliance should be stored in a room that does not contain continuously operating ignition
sources (for example: open flames, an operating gas appliance or an operating electric heater.
• Do not pierce or burn.
• Be aware that refrigerants may not contain an odour.
• If you suspect a leak or the unit is not performing as expected, immediately stop using the unit
and contact Customer Service
• The handling, installation, storage, servicing and disposal must comply with the provisions
of gas-related national laws and regulations, and also national wiring regulation.
• It is necessary to clear away the refrigerant in the system when maintaining or scrapping
an appliance.
• Ventilated area (open doors and Windows)
• Ensure that the working area is open or well ventilated before turning on the system or
performing hot work. Ventilation should be maintained during operation. Ventilation quickly
displaces safely diluted leaked refrigerant into the atmosphere.
• Flammable refrigerant R32/R290 is used within appliance. Please follow the instructions
carefully to handle, install, clean, and service the appliance to avoid damage or hazard.
Do not dispose of appliance in regular trash. Contact qualified agency for proper disposal.
• Servicing shall be performed only as recommended by the manufacturer.
• Only individuals authorized by an accredited organization certifying their competence
to handle refrigerants in compliance with industry legislation should work
on the refrigerant circuit.
• All working procedure that affects safety means shall only be carried
by competent persons.
• Repair must be performed based on the recommendations from the manufacturer.
Maintenance and repair that requires the assistance of other qualified personnel must
be performed under the supervision of specialists in the use of flammable refrigerants.
important safety instructions
save these instructions
For Household Use Only
WARNING
IMPORTANT NOTE: Read this manual
carefully before installing or operating your
new air conditioning unit. Keep this manual
for future reference.
A2L
CAUTION: Risk of fire/ flammable materials
4 5
• This appliance is for household use only.
• Disconnect the appliance from its power source during service and when replacing parts
and cleaning.
• Please note: Check the nameplate for the type of refrigerant gas used in your appliance.
• Specific information regarding appliances with refrigerant gas.
• Do not pierce the cooling circuit of the machine. At the end of its useful life, deliver the
appliance to a special waste collection centre for disposal.
• GWP (Global Warming Potential): R410A: 2088, R134a: 1430, R290: 3, R32: 675.
• This hermetically sealed system contains fluoridated greenhouse gases.
• ENVIRONMENTAL INFORMATION: This unit contains fluoridated greenhouse gases covered
by the Kyoto Protocol.
• Do not use this unit for functions other than those described in this instruction manual.
• Make sure the plug is plugged firmly and completely into the outlet. Failure to firmly secure
the plug in the outlet may result the risk of electric shock or fire.
• Do not plug other appliances into the same outlet, it can result in the risk of electric shock.
• Do not disassemble or modify the appliance or the power cord, it can result in the risk of
electric shock or fire. All other services should be referred to a qualified technician.
• Do not place the power cord or appliance near a heater, radiator, or other heat source.
It can result in the risk of electric shock or fire.
• This unit is equipped with a cord that has a earthed wire connected to an earthed pin or
grounding tab. The plug must be plugged into a socket that is properly installed and earthed.
Do not under any circumstances cut or remove the earthed pin or grounding tab from this plug.
• The unit should be used or store in such a way that it is protected from moisture e.g.
condensation, splashed water, etc. Unplug unit immediately if this occurs.
• Always transport your appliance in a vertical position and place on a stable, level surface during
use. If the unit is transported laying on its side, stand the unit upright and unplugged for
six (6) hours before use.
• Always use the switch on the control panel or remote controller to turn the unit off, and do not
start or stop operation by plugging in or unplugging the power cord. It can result in the risk
of electric shock.
• Do not touch the buttons on the control panel with wet or damp fingers.
• Do not use hazardous chemicals to clean or come into contact with the unit. To prevent
damage to the surface finish, use only a soft cloth to clean the appliance. Do not use wax,
thinner, or a strong detergent. Do not use the unit in the presence of inflammable substance
or vapour such as alcohol, insecticides, gasoline, etc.
• If the appliance is making unusual sounds or is emitting smoke or an unusual odor,
unplug it immediately.
• Do not clean the unit with water. Water can enter the unit and damage the insulation, creating
a shock hazard. If water enters the unit, unplug it immediately and contact Customer Service.
• Utilize two or more people to lift and install the unit.
• Always grasp the plug when plugging in or unplugging the appliance. Never unplug by pulling
on the cord, it can result in the risk of electrical shock and damage.
• Install the appliance on a sturdy, level floor capable of supporting up to 110 lb (50 kg).
Installation on a weak or unlevel floor can result in the risk of property damage
and personal injury.
ELECTRICAL CONNECTIONS
Before plugging the appliance into the mains socket, check that:
• The mains power supply corresponds to the value indicated on the rating plate on the back
of the appliance.
• The power socket and electrical circuit are adequate for the appliance.
• The mains socket should match the plug on the appliance. If that is not the case,
have the socket replaced.
• The mains socket is adequately earthed. Failure to follow these important safety instructions
absolves the manufacturer of all liability.
WARNING
• This appliance is not intended for use by persons (including children) with reduced physical,
sensory or mental capabilities, or lack of experience and knowledge, unless they have been
given supervision or instruction concerning use of the appliance by a person responsible for
their safety.
• Children should be supervised to ensure that they do not play with the appliance.
• If the SUPPLY CORD is damaged, it must be replaced by the manufacturer, its service agent
or similarly qualified persons in order to avoid a hazard.
• The appliance should be installed in accordance with national wiring regulations.
• Do not use any means to accelerate the defrosting process or to clean, other than those
recommended by the manufacturer.
• The appliance should be stored in a room that does not contain continuously operating ignition
sources (for example: open flames, an operating gas appliance or an operating electric heater.
• Do not pierce or burn.
• Be aware that refrigerants may not contain an odour.
• If you suspect a leak or the unit is not performing as expected, immediately stop using the unit
and contact Customer Service
• The handling, installation, storage, servicing and disposal must comply with the provisions
of gas-related national laws and regulations, and also national wiring regulation.
• It is necessary to clear away the refrigerant in the system when maintaining or scrapping
an appliance.
• Ventilated area (open doors and Windows)
• Ensure that the working area is open or well ventilated before turning on the system or
performing hot work. Ventilation should be maintained during operation. Ventilation quickly
displaces safely diluted leaked refrigerant into the atmosphere.
• Flammable refrigerant R32/R290 is used within appliance. Please follow the instructions
carefully to handle, install, clean, and service the appliance to avoid damage or hazard.
Do not dispose of appliance in regular trash. Contact qualified agency for proper disposal.
• Servicing shall be performed only as recommended by the manufacturer.
• Only individuals authorized by an accredited organization certifying their competence
to handle refrigerants in compliance with industry legislation should work
on the refrigerant circuit.
• All working procedure that affects safety means shall only be carried
by competent persons.
• Repair must be performed based on the recommendations from the manufacturer.
Maintenance and repair that requires the assistance of other qualified personnel must
be performed under the supervision of specialists in the use of flammable refrigerants.
important safety instructions
save these instructions
For Household Use Only
WARNING
IMPORTANT NOTE: Read this manual
carefully before installing or operating your
new air conditioning unit. Keep this manual
for future reference.
A2L
CAUTION: Risk of fire/ flammable materials
6 7
Class
Name Classification of instructions
Personnel Qualification
Requirements
A
Professional
Maintenance
Personnel
Personnel, such as installers
and maintenance supervisors,
who are required to install,
repair, and weld the
refrigeration system for
flammable refrigerant products.
Hold A class A certificate
issued by the competent
authority, available online.
B
Regular
contacts
personnel
1. Personnel who do not need to
open the refrigeration system
of combustible refrigerant
products, such as relevant
personnel of transportation
enterprises and general
maintenance personnel of
product after-sales
department, etc
2. Installation and maintenance
personnel of conventional
refrigerant products.
Hold a Class B certificate
issued by the competent
authority, available online.
C
(The
enterprise
internal)
Develop,
design
and test
personnel
Combustible refrigerant system
design personnel, supervision
personnel.
1. Master the skills and
knowledge of basic safety
welding and safety protection
level of combustible
refrigerant:
2. Familiar with product
development process and
capable of design:
3. Qualification certification/
recognition shall be
conducted by the institution
where you work.
• Personnel with class A certificate can carry out the operation of class B personnel;
• Class A and Class B personnel shall be trained and certified by the industry management
institution designated by the state;
• C type personnel should participate in the company's internal organization of professional
training, obtain internal issued certification or accreditation qualifications.
Tooling names Use requirement
Small vacuum
pump
Explosion-proof vacuum pump: ensure a certain accuracy, vacuum degree
should be less than 10 Pa.
Filling
equipment
Special explosion-proof charging equipment: with certain accuracy, the
charging amount deviation is less than 5 g.
Leak detector Regular calibration: annual leakage rate is not higher than 10 g.
Concentration
detector
A) The maintenance site shall be equipped with A fixed combustible
refrigerant concentration detector, which shall be connected to the safety
protection alarm system: its error must be guaranteed not to be higher
than 5%.
B) The installation site shall be equipped with portable combustible
refrigerant concentration detector, which can realize two-level acousto-
optic alarm: its error must be guaranteed not to be higher than 10%.
C) Regular calibration.
D) Function check and confirmation shall be carried out before use.
Pressure
gauge
A) The pressure gauge shall be calibrated regularly
B) R290 and R161 refrigerant can use the pressure gauge of R22, R32
refrigerant can use the pressure gauge of R410A.
Fire
extinguisher
Carry a fire extinguisher during installation and maintenance. There should
be at least two kinds of dry powder, carbon dioxide and foam extinguishers
in the maintenance site, and they should be placed in the prescribed
position with eye-catching signs and accessible places.
• The installation site should be in a well-ventilated condition.
• The sites for installing and maintaining an air conditioner using Refrigerant R32 should be free
from open fire or welding smoking, drying oven or any other heat source higher than 548°C
which easily produces open fire.
• When installing an air conditioner, it is necessary to take appropriate anti-static measures such
as wear anti-static clothing and or gloves.
• It is necessary to choose the site convenient for installation or maintenance wherein the air
inlets and outlets of the indoor and outdoor units should be not surrounded by obstacles or
close to any heat source or combustible and/or explosive environment.
• lf the indoor unit suffers refrigerant leak during the installation, all the personnel should go out
till the refrigerant leaks completely for 15 minutes. lf the product is damaged, it is a must to
carry such damaged product back to the maintenance station and it is prohibited to weld the
refrigerant pipe or conduct other operations on the user’s site.
• lt is necessary to choose the place where the inlet and outlet air of the indoor unit is even.
• lt is necessary to avoid the places where there are other electrical products, power switch
plugs and sockets, kitchen cabinet, bed, sofa and other valuables right under the lines on two
sides of the indoor unit, and also prevent mechanical damage from occurring.
1. REPAIRS TO SEALED COMPONENTS
• During repairs to sealed components, all electrical supplies shall be disconnected from the unit
being worked on prior to the removal of sealed covers and other parts (if any). If it is necessary
to have an electrical supply connected to the unit during servicing, then a permanently operating
form of leak detection shall be located at the most critical point to warn of a potentially
hazardous situation.
• Particular attention shall be paid to the following to ensure that when working on electrical
components, the casing is not altered in such a way that the level of protection is affected. This
shall include damage to the cables, an excessive number of connections, terminals not made to
the original specification, damage to seals, incorrect fitting of glands, etc. Ensure that the unit is
mounted securely. Ensure that the seals or sealing materials have not been degraded to a point
that they no longer serve the purpose of preventing the ingress of flammable atmospheres.
Replacement parts shall be in accordance with the manufacturer’s specifications.
INFORMATION FOR QUALIFICATION OF WORKERS
All operators or refrigeration system maintenance personnel shall have a valid certificate issued
by an industry-recognized evaluation body to certify that they are qualified for the safe disposal
of refrigerant agents as recognized by the industry;
• Maintain and repair the equipment only in accordance with the method recommended by the
equipment manufacturer. If other professionals are required to assist in the maintenance and
repair of equipment, do so under the supervision of personnel qualified to use combustible
refrigerants.
6 7
Class
Name Classification of instructions
Personnel Qualification
Requirements
A
Professional
Maintenance
Personnel
Personnel, such as installers
and maintenance supervisors,
who are required to install,
repair, and weld the
refrigeration system for
flammable refrigerant products.
Hold A class A certificate
issued by the competent
authority, available online.
B
Regular
contacts
personnel
1. Personnel who do not need to
open the refrigeration system
of combustible refrigerant
products, such as relevant
personnel of transportation
enterprises and general
maintenance personnel of
product after-sales
department, etc
2. Installation and maintenance
personnel of conventional
refrigerant products.
Hold a Class B certificate
issued by the competent
authority, available online.
C
(The
enterprise
internal)
Develop,
design
and test
personnel
Combustible refrigerant system
design personnel, supervision
personnel.
1. Master the skills and
knowledge of basic safety
welding and safety protection
level of combustible
refrigerant:
2. Familiar with product
development process and
capable of design:
3. Qualification certification/
recognition shall be
conducted by the institution
where you work.
• Personnel with class A certificate can carry out the operation of class B personnel;
• Class A and Class B personnel shall be trained and certified by the industry management
institution designated by the state;
• C type personnel should participate in the company's internal organization of professional
training, obtain internal issued certification or accreditation qualifications.
Tooling names Use requirement
Small vacuum
pump
Explosion-proof vacuum pump: ensure a certain accuracy, vacuum degree
should be less than 10 Pa.
Filling
equipment
Special explosion-proof charging equipment: with certain accuracy, the
charging amount deviation is less than 5 g.
Leak detector Regular calibration: annual leakage rate is not higher than 10 g.
Concentration
detector
A) The maintenance site shall be equipped with A fixed combustible
refrigerant concentration detector, which shall be connected to the safety
protection alarm system: its error must be guaranteed not to be higher
than 5%.
B) The installation site shall be equipped with portable combustible
refrigerant concentration detector, which can realize two-level acousto-
optic alarm: its error must be guaranteed not to be higher than 10%.
C) Regular calibration.
D) Function check and confirmation shall be carried out before use.
Pressure
gauge
A) The pressure gauge shall be calibrated regularly
B) R290 and R161 refrigerant can use the pressure gauge of R22, R32
refrigerant can use the pressure gauge of R410A.
Fire
extinguisher
Carry a fire extinguisher during installation and maintenance. There should
be at least two kinds of dry powder, carbon dioxide and foam extinguishers
in the maintenance site, and they should be placed in the prescribed
position with eye-catching signs and accessible places.
• The installation site should be in a well-ventilated condition.
• The sites for installing and maintaining an air conditioner using Refrigerant R32 should be free
from open fire or welding smoking, drying oven or any other heat source higher than 548°C
which easily produces open fire.
• When installing an air conditioner, it is necessary to take appropriate anti-static measures such
as wear anti-static clothing and or gloves.
• It is necessary to choose the site convenient for installation or maintenance wherein the air
inlets and outlets of the indoor and outdoor units should be not surrounded by obstacles or
close to any heat source or combustible and/or explosive environment.
• lf the indoor unit suffers refrigerant leak during the installation, all the personnel should go out
till the refrigerant leaks completely for 15 minutes. lf the product is damaged, it is a must to
carry such damaged product back to the maintenance station and it is prohibited to weld the
refrigerant pipe or conduct other operations on the user’s site.
• lt is necessary to choose the place where the inlet and outlet air of the indoor unit is even.
• lt is necessary to avoid the places where there are other electrical products, power switch
plugs and sockets, kitchen cabinet, bed, sofa and other valuables right under the lines on two
sides of the indoor unit, and also prevent mechanical damage from occurring.
1. REPAIRS TO SEALED COMPONENTS
• During repairs to sealed components, all electrical supplies shall be disconnected from the unit
being worked on prior to the removal of sealed covers and other parts (if any). If it is necessary
to have an electrical supply connected to the unit during servicing, then a permanently operating
form of leak detection shall be located at the most critical point to warn of a potentially
hazardous situation.
• Particular attention shall be paid to the following to ensure that when working on electrical
components, the casing is not altered in such a way that the level of protection is affected. This
shall include damage to the cables, an excessive number of connections, terminals not made to
the original specification, damage to seals, incorrect fitting of glands, etc. Ensure that the unit is
mounted securely. Ensure that the seals or sealing materials have not been degraded to a point
that they no longer serve the purpose of preventing the ingress of flammable atmospheres.
Replacement parts shall be in accordance with the manufacturer’s specifications.
INFORMATION FOR QUALIFICATION OF WORKERS
All operators or refrigeration system maintenance personnel shall have a valid certificate issued
by an industry-recognized evaluation body to certify that they are qualified for the safe disposal
of refrigerant agents as recognized by the industry;
• Maintain and repair the equipment only in accordance with the method recommended by the
equipment manufacturer. If other professionals are required to assist in the maintenance and
repair of equipment, do so under the supervision of personnel qualified to use combustible
refrigerants.
8 9
NOTE: The use of silicon sealant may inhibit the effectiveness of some types of leak
detection equipment. Intrinsically safe components do not have to be isolated prior to
working on them.
2. REPAIR TO INTRINSICALLY SAFE COMPONENTS
Do not apply any permanent inductive or capacitance loads to the circuit without ensuring that
this will not exceed the permissible voltage and current permitted for the equipment in use.
Intrinsically safe components are the only types that can be worked on while live in the
presence of a flammable atmosphere. The test apparatus shall be at the correct rating. Replace
components only with parts specified by the manufacturer. Other parts may result in the ignition
of refrigerant in the atmosphere from a leak.
3. CABLING
Check that cabling will not be subject to wear, corrosion, excessive pressure, vibration, sharp
edges or any other adverse environmental effects. The check shall also take into account the
effects of aging or continual vibration from sources such as compressors or fans.
4. DETECTION OF FLAMMABLE REFRIGERANTS
Under no circumstances shall potential sources of ignition be used in the searching for or
detection of refrigerant leaks. A halide torch (or any other detector using a naked flame)
shall not be used.
5. REMOVAL AND EVACUATION
When breaking into the refrigerant circuit to make repairs – or for any other purpose –
conventional procedures shall be used. However, it is important that best practice is followed
since flammability is a consideration. The following procedure shall be adhered to: safely remove
refrigerant following local and national regulations; purge the circuit with inert gas; evacuate;
purge again with inert gas; open the circuit by cutting or brazing.
6. CHARGING PROCEDURES
In addition to conventional charging procedures, the following requirements shall be followed.
• Ensure that contamination of different refrigerants does not occur when using charging
equipment. Hoses or lines shall be as short as possible to minimise the amount of refrigerant
contained in them.
• Cylinders shall be kept upright.
• Ensure that the refrigeration system is earthed prior to charging the system with refrigerant.
• Label the system when charging is complete (if not already).
• Extreme care shall be taken not to overfill the refrigeration system.
Prior to recharging the system it shall be pressure tested with OFN. The system shall be leak
tested on completion of charging but prior to commissioning. A follow up leak test
shall be carried out prior to leaving the site.
7. DECOMMISSIONING
Before carrying out this procedure, it is essential that the technician is completely familiar
with the equipment and all its detail. It is recommended good practice that all refrigerants are
recovered safely. Prior to the task being carried out, an oil and refrigerant sample shall be taken
in case analysis is required prior to re-use of reclaimed refrigerant. It is essential that electrical
power is available before the task is commenced.
• Become familiar with the equipment and its operation.
• Isolate system electrically.
• Before attempting the procedure ensure that :mechanical handling equipment is available, if
required, for handling refrigerant cylinders; all personal protective equipment is available and
being used correctly; the recovery process is supervised at all times by a competent person;
recovery equipment and cylinders conform to the appropriate standards.
• Pump down refrigerant system, if possible.
• If a vacuum is not possible, make a manifold so that refrigerant can be removed from various
parts of the system.
• Make sure that cylinder is situated on the scales before recovery takes place.
• Start the recovery machine and operate in accordance with manufacturer’s instructions.
• Do not overfill cylinders. (No more than 80% volume liquid charge).
• Do not exceed the maximum working pressure of the cylinder, even temporarily.
• When the cylinders have been filled correctly and the process completed, make sure that the
cylinders and the equipment are removed from site promptly and all isolation valves on the
equipment are closed off.
• Recovered refrigerant shall not be charged into another refrigeration system unless it has been
cleaned and checked.
8. LABELING
Equipment shall be labelled stating that it has been decommissioned and emptied of refrigerant.
The label shall be dated and signed.
Ensure that there are labels on the equipment stating the equipment contains flammable
refrigerant.
9. RECOVERY
When removing refrigerant from a system, either for servicing or decommissioning, it is
recommended good practice that all refrigerants are removed safely. When transferring
refrigerant into cylinders, ensure that only appropriate refrigerant recovery cylinders are
employed. Ensure that the correct number of cylinders for holding the total system charge are
available. All cylinders to be used are designated for the recovered refrigerant and labelled for
that refrigerant (i.e. special cylinders for the recovery of refrigerant). Cylinders shall be complete
with pressure relief valve and associated shut-off valves in good working order. Empty recovery
cylinders are evacuated and, if possible, cooled before recovery occurs.
The recovery equipment shall be in good working order with a set of instructions concerning the
equipment that is at hand and shall be suitable for the recovery of flammable refrigerants.In
addition,a set of calibrated weighing scales shall be available and in good working order. Hoses
shall be complete with leak-free disconnect couplings and in good condition. Before using the
recovery machine, check that it is in satisfactory working order, has been properly maintained
and that any associated electrical components are sealed to prevent ignition in the event
of a refrigerant release. Consult manufacturer if in doubt.
The recovered refrigerant shall be returned to the refrigerant supplier in the correct recovery
cylinder, and the relevant Waste Transfer Note arranged. Do not mix refrigerants in recovery units
and especially not in cylinders.
If compressors or compressor oils are to be removed, ensure that they have been evacuated to an
acceptable level to make certain that flammable refrigerant does not remain within the lubricant.
The evacuation process shall be carried out prior to returning the compressor to the suppliers.
Only electric heating to the compressor body shall be employed to accelerate this process. When
oil is drained from a system, it shall be carried out safely.
GENERAL INSTRUCTIONS
Checks to the area
Prior to beginning work on systems containing flammable refrigerants, safety checks are
necessary to ensure that the risk of ignition is minimised. For repair to the refrigerating system,
the following precautions shall be complied with prior to con-ducting work on the system.
Work procedure
Work shall be undertaken under a controlled procedure so as to minimise the risk
of a flammable gas or vapour being present while the work is being performed.
General work area
All maintenance staff and others working in the local area shall be instructed on the nature of
work being carried out. Work in confined spaces shall be avoided.The area around the workspace
shall be sectioned off. Ensure that the conditions within the area have been made safe by control
of flammable material.
Checking for presence of refrigerant
The area shall be checked with an appropriate refrigerant detector prior to and during work,
to ensure the technician is aware of potentially flammable atmospheres. Ensure that the leak
detection equipment being used is suitable for use with flammable refrigerants, i.e. nonsparking,
adequately sealed or intrinsically safe.
8 9
NOTE: The use of silicon sealant may inhibit the effectiveness of some types of leak
detection equipment. Intrinsically safe components do not have to be isolated prior to
working on them.
2. REPAIR TO INTRINSICALLY SAFE COMPONENTS
Do not apply any permanent inductive or capacitance loads to the circuit without ensuring that
this will not exceed the permissible voltage and current permitted for the equipment in use.
Intrinsically safe components are the only types that can be worked on while live in the
presence of a flammable atmosphere. The test apparatus shall be at the correct rating. Replace
components only with parts specified by the manufacturer. Other parts may result in the ignition
of refrigerant in the atmosphere from a leak.
3. CABLING
Check that cabling will not be subject to wear, corrosion, excessive pressure, vibration, sharp
edges or any other adverse environmental effects. The check shall also take into account the
effects of aging or continual vibration from sources such as compressors or fans.
4. DETECTION OF FLAMMABLE REFRIGERANTS
Under no circumstances shall potential sources of ignition be used in the searching for or
detection of refrigerant leaks. A halide torch (or any other detector using a naked flame)
shall not be used.
5. REMOVAL AND EVACUATION
When breaking into the refrigerant circuit to make repairs – or for any other purpose –
conventional procedures shall be used. However, it is important that best practice is followed
since flammability is a consideration. The following procedure shall be adhered to: safely remove
refrigerant following local and national regulations; purge the circuit with inert gas; evacuate;
purge again with inert gas; open the circuit by cutting or brazing.
6. CHARGING PROCEDURES
In addition to conventional charging procedures, the following requirements shall be followed.
• Ensure that contamination of different refrigerants does not occur when using charging
equipment. Hoses or lines shall be as short as possible to minimise the amount of refrigerant
contained in them.
• Cylinders shall be kept upright.
• Ensure that the refrigeration system is earthed prior to charging the system with refrigerant.
• Label the system when charging is complete (if not already).
• Extreme care shall be taken not to overfill the refrigeration system.
Prior to recharging the system it shall be pressure tested with OFN. The system shall be leak
tested on completion of charging but prior to commissioning. A follow up leak test
shall be carried out prior to leaving the site.
7. DECOMMISSIONING
Before carrying out this procedure, it is essential that the technician is completely familiar
with the equipment and all its detail. It is recommended good practice that all refrigerants are
recovered safely. Prior to the task being carried out, an oil and refrigerant sample shall be taken
in case analysis is required prior to re-use of reclaimed refrigerant. It is essential that electrical
power is available before the task is commenced.
• Become familiar with the equipment and its operation.
• Isolate system electrically.
• Before attempting the procedure ensure that :mechanical handling equipment is available, if
required, for handling refrigerant cylinders; all personal protective equipment is available and
being used correctly; the recovery process is supervised at all times by a competent person;
recovery equipment and cylinders conform to the appropriate standards.
• Pump down refrigerant system, if possible.
• If a vacuum is not possible, make a manifold so that refrigerant can be removed from various
parts of the system.
• Make sure that cylinder is situated on the scales before recovery takes place.
• Start the recovery machine and operate in accordance with manufacturer’s instructions.
• Do not overfill cylinders. (No more than 80% volume liquid charge).
• Do not exceed the maximum working pressure of the cylinder, even temporarily.
• When the cylinders have been filled correctly and the process completed, make sure that the
cylinders and the equipment are removed from site promptly and all isolation valves on the
equipment are closed off.
• Recovered refrigerant shall not be charged into another refrigeration system unless it has been
cleaned and checked.
8. LABELING
Equipment shall be labelled stating that it has been decommissioned and emptied of refrigerant.
The label shall be dated and signed.
Ensure that there are labels on the equipment stating the equipment contains flammable
refrigerant.
9. RECOVERY
When removing refrigerant from a system, either for servicing or decommissioning, it is
recommended good practice that all refrigerants are removed safely. When transferring
refrigerant into cylinders, ensure that only appropriate refrigerant recovery cylinders are
employed. Ensure that the correct number of cylinders for holding the total system charge are
available. All cylinders to be used are designated for the recovered refrigerant and labelled for
that refrigerant (i.e. special cylinders for the recovery of refrigerant). Cylinders shall be complete
with pressure relief valve and associated shut-off valves in good working order. Empty recovery
cylinders are evacuated and, if possible, cooled before recovery occurs.
The recovery equipment shall be in good working order with a set of instructions concerning the
equipment that is at hand and shall be suitable for the recovery of flammable refrigerants.In
addition,a set of calibrated weighing scales shall be available and in good working order. Hoses
shall be complete with leak-free disconnect couplings and in good condition. Before using the
recovery machine, check that it is in satisfactory working order, has been properly maintained
and that any associated electrical components are sealed to prevent ignition in the event
of a refrigerant release. Consult manufacturer if in doubt.
The recovered refrigerant shall be returned to the refrigerant supplier in the correct recovery
cylinder, and the relevant Waste Transfer Note arranged. Do not mix refrigerants in recovery units
and especially not in cylinders.
If compressors or compressor oils are to be removed, ensure that they have been evacuated to an
acceptable level to make certain that flammable refrigerant does not remain within the lubricant.
The evacuation process shall be carried out prior to returning the compressor to the suppliers.
Only electric heating to the compressor body shall be employed to accelerate this process. When
oil is drained from a system, it shall be carried out safely.
GENERAL INSTRUCTIONS
Checks to the area
Prior to beginning work on systems containing flammable refrigerants, safety checks are
necessary to ensure that the risk of ignition is minimised. For repair to the refrigerating system,
the following precautions shall be complied with prior to con-ducting work on the system.
Work procedure
Work shall be undertaken under a controlled procedure so as to minimise the risk
of a flammable gas or vapour being present while the work is being performed.
General work area
All maintenance staff and others working in the local area shall be instructed on the nature of
work being carried out. Work in confined spaces shall be avoided.The area around the workspace
shall be sectioned off. Ensure that the conditions within the area have been made safe by control
of flammable material.
Checking for presence of refrigerant
The area shall be checked with an appropriate refrigerant detector prior to and during work,
to ensure the technician is aware of potentially flammable atmospheres. Ensure that the leak
detection equipment being used is suitable for use with flammable refrigerants, i.e. nonsparking,
adequately sealed or intrinsically safe.
10 11
Installation
Castors and Other
Accesoreis
A≤45°
1. Control Panel
2. Air Outlet
3. Bucket
4. Water Level View Window
5. Casters
6. Handle
7. Air Intake Filter
8. Drainage Holes
9. Power Cord

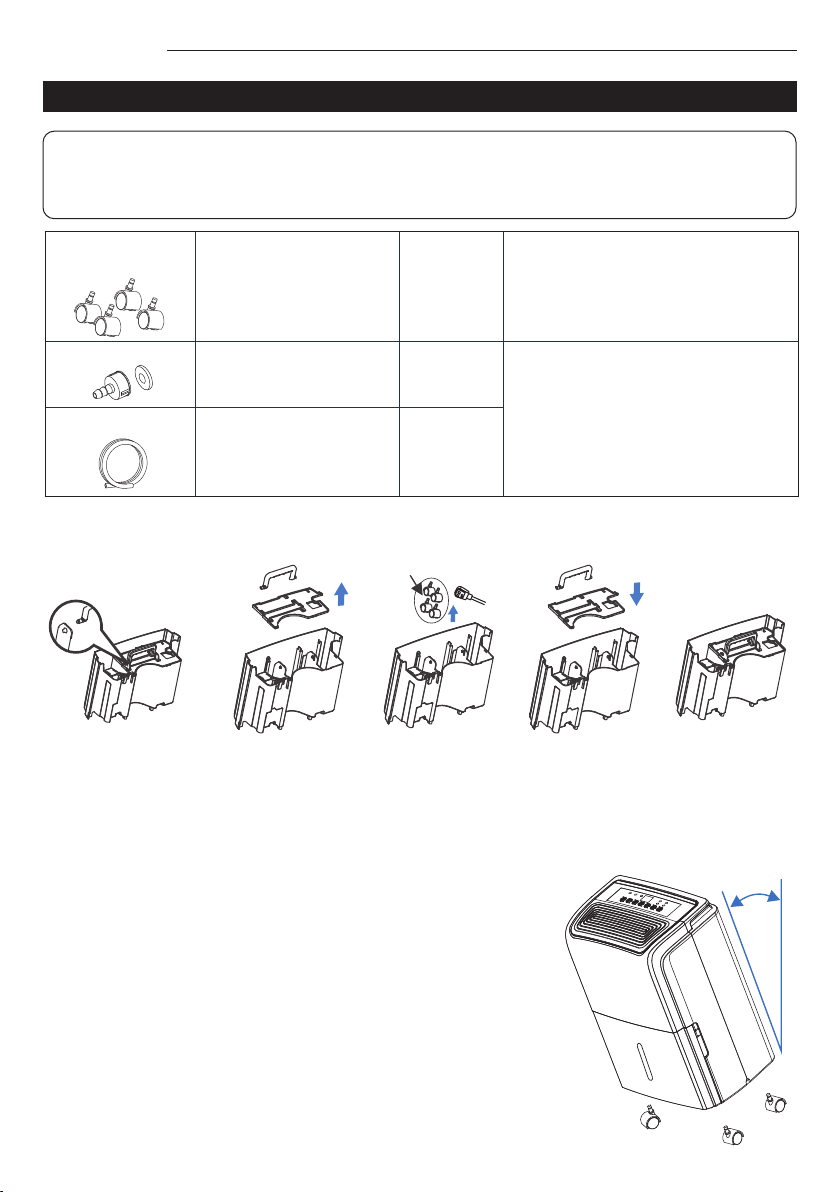

ACCESSORIES
COMPONENT DESCRIPTION
NOTE: All the illustrations in this manual are for explanatory purposes only.
Your appliance may be slightly different.
NOTE:
• Some accessory is not in the packing, please find it in the Bucket.
• Be sure all accessories are removed from the packing and Bucket before use.
Install the Casters
Tilt the unit less than 45° and forcibly insert the Casters. Make sure
the plate of the Casters
is flush against the bottom of the unit.
If the Casters have been installed to the appliance, skip this step.
Take out Accessories From Bucket
The accessories are stored in the Bucket during transportation.
Before use, remove the accessories from the Bucket.
• Remove the Bucket from the unit.
• Rotate the Handle to the position like below figure and
remove the Handle.
• Open the Bucket cover and take out the power plug and other
accessories.
• Replace the Bucket cover and Handle, then put back the
Bucket into the unit correctly.
Casters 4 pcs
The Casters may have been
installed on the appliance,
if so, there have no Casters
in the accessories.
Pump Drain Connector 1 set
Only supply for pump model.
Pump Drain Pipe
16.4 ft (5 m)
1 set
1
2
3
4
5
6
7
8
9
Presence of fire extinguisher
If any hot work is to be conducted on the refrigeration equipment or any associated parts,
propriate fire extinguishing equipment shall be available to hand. Have a dry powder
or CO₂ fire extinguisher adjacent to the charging area.
No ignition sources
No person carrying out work in relation to a refrigeration system which involves exposing any
pipe work that contains or has contained flammable refrigerant shall use any sources of ignition
in such a manner that it may lead to the risk of fire or explosion. All possible ignition sources,
including cigarette smoking, should be kept sufficiently far away from the site of installation,
repairing, removing and disposal, during which flammable refrigerant can possibly be released
to the surrounding space. Prior to work taking place, the area around the equipment is to be
surveyed to make sure that there are no flammable hazards or ignition risks. “No Smoking”
signs shall be displayed.
Ventilated area
Ensure that the area is in the open or that it is adequately ventilated before breaking into the
system or conducting any hot work. A degree of ventilation shall continue during the period
that the work is carried out. The ventilation should safely disperse any released refrigerant and
preferably expel it externally into the atmosphere.
Checks to the refrigeration equipment
Where electrical components are being changed, they shall be fit for the purpose and to the
correct specification. At all times the manufacturer’s maintenance and service guidelines shall
be followed. If in doubt consult the manufacturer’s technical department for assistance.The
following checks shall be applied to installations using flammable refrigerants: the charge size
is in accordance with the room size within which the refrigerant containing parts are installed;
the ventilation machinery and outlets are operating adequately and are not obstructed; if an
indirect refrigerating circuit is being used, the secondary circuit shall be checked for the presence
of refrigerant; marking to the equipment continues to be visible and legible. Markings and signs
that are illegible shall be corrected; refrigeration pipe or components are installed in a position
where they are unlikely to be exposed to any substance which may corrode refrigerant containing
components, unless the components are constructed of materials which are inherently resistant
to being corroded or are suitably protected against being so corroded.
Checks to electrical devices
Repair and maintenance to electrical components shall include initial safety checks and
component inspection procedures. If a fault exists that could compromise safety, then no
electrical supply shall be connected to the circuit until it is satisfactorily dealt with. If the
fault cannot be corrected immediately but it is necessary to continue operation, an adequate
temporary solution shall be used. This shall be reported to the owner of the equipment so all
parties are advised. Initial safety checks shall include: that capacitors are discharged: this shall
be done in a safe manner to avoid possibility of sparking; that there no live electrical components
and wiring are exposed while charging, recovering or purging the system; that there is continuity
of earth bonding.
Installation
10 11
Installation
Castors and Other
Accesoreis
A≤45°
1. Control Panel
2. Air Outlet
3. Bucket
4. Water Level View Window
5. Casters
6. Handle
7. Air Intake Filter
8. Drainage Holes
9. Power Cord
ACCESSORIES
COMPONENT DESCRIPTION
NOTE: All the illustrations in this manual are for explanatory purposes only.
Your appliance may be slightly different.
NOTE:
• Some accessory is not in the packing, please find it in the Bucket.
• Be sure all accessories are removed from the packing and Bucket before use.
Install the Casters
Tilt the unit less than 45° and forcibly insert the Casters. Make sure
the plate of the Casters
is flush against the bottom of the unit.
If the Casters have been installed to the appliance, skip this step.
Take out Accessories From Bucket
The accessories are stored in the Bucket during transportation.
Before use, remove the accessories from the Bucket.
• Remove the Bucket from the unit.
• Rotate the Handle to the position like below figure and
remove the Handle.
• Open the Bucket cover and take out the power plug and other
accessories.
• Replace the Bucket cover and Handle, then put back the
Bucket into the unit correctly.
Casters 4 pcs
The Casters may have been
installed on the appliance,
if so, there have no Casters
in the accessories.
Pump Drain Connector 1 set
Only supply for pump model.
Pump Drain Pipe
16.4 ft (5 m)
1 set
1
2
3
4
5
6
7
8
9
Presence of fire extinguisher
If any hot work is to be conducted on the refrigeration equipment or any associated parts,
propriate fire extinguishing equipment shall be available to hand. Have a dry powder
or CO₂ fire extinguisher adjacent to the charging area.
No ignition sources
No person carrying out work in relation to a refrigeration system which involves exposing any
pipe work that contains or has contained flammable refrigerant shall use any sources of ignition
in such a manner that it may lead to the risk of fire or explosion. All possible ignition sources,
including cigarette smoking, should be kept sufficiently far away from the site of installation,
repairing, removing and disposal, during which flammable refrigerant can possibly be released
to the surrounding space. Prior to work taking place, the area around the equipment is to be
surveyed to make sure that there are no flammable hazards or ignition risks. “No Smoking”
signs shall be displayed.
Ventilated area
Ensure that the area is in the open or that it is adequately ventilated before breaking into the
system or conducting any hot work. A degree of ventilation shall continue during the period
that the work is carried out. The ventilation should safely disperse any released refrigerant and
preferably expel it externally into the atmosphere.
Checks to the refrigeration equipment
Where electrical components are being changed, they shall be fit for the purpose and to the
correct specification. At all times the manufacturer’s maintenance and service guidelines shall
be followed. If in doubt consult the manufacturer’s technical department for assistance.The
following checks shall be applied to installations using flammable refrigerants: the charge size
is in accordance with the room size within which the refrigerant containing parts are installed;
the ventilation machinery and outlets are operating adequately and are not obstructed; if an
indirect refrigerating circuit is being used, the secondary circuit shall be checked for the presence
of refrigerant; marking to the equipment continues to be visible and legible. Markings and signs
that are illegible shall be corrected; refrigeration pipe or components are installed in a position
where they are unlikely to be exposed to any substance which may corrode refrigerant containing
components, unless the components are constructed of materials which are inherently resistant
to being corroded or are suitably protected against being so corroded.
Checks to electrical devices
Repair and maintenance to electrical components shall include initial safety checks and
component inspection procedures. If a fault exists that could compromise safety, then no
electrical supply shall be connected to the circuit until it is satisfactorily dealt with. If the
fault cannot be corrected immediately but it is necessary to continue operation, an adequate
temporary solution shall be used. This shall be reported to the owner of the equipment so all
parties are advised. Initial safety checks shall include: that capacitors are discharged: this shall
be done in a safe manner to avoid possibility of sparking; that there no live electrical components
and wiring are exposed while charging, recovering or purging the system; that there is continuity
of earth bonding.
Installation
12 13
Operating Instructions
CONTROL PANEL
1 2 8 3 4 5 6 7
1
2
3
4
5 6 78
ABCDEF G
POWERTIMERPUMP DECREASEINCREASE
FILTER
Clean Turbo Pump
RH% Lock
Timer
Full
Cont.
TURBO
1. Clean Filter Indicator A. On/Off Button
2. Turbo Indicator B. Timer Button
3. Display Screen C. Decrease Button
4. Lock Indicator D. Increase Button
5. Timer Indicator E. Fan Speed Button
6. Full Bucket Indicator F. Filter Reset Button
7. Continuous Indicator G. Pump Button
8. Pump Indicator
Power On
Insert the plug in the socket, the unit goes to stand-by, and the screen display
as the fig shown:
“On/Off” buon
Press this button to turn on or shut down the unit.
“Decrease / Increase” buon
• Press “Increase / Decrease” button to select the indoor humidity level you expect to achieve.
You can also use the two button to set a timer.
• The humidity adjustable range is 35–80% RH. The screen will display the setting humidity and
turn to display the ambient humidity after a few seconds.
• If the ambient humidity is lower than setting humidity, the compressor will stop running.
After a few minutes, the fan will stop running.
• Press the “Decrease” button until “ ” is displayed on the screen. The “Cont.” will light
up, then the unit will run continuously.
“Turbo” buon
Press the “Turbo” button to select the high speed or low speed of fan. When high speed
is selected, the “Turbo” indicator will light up.
Installation

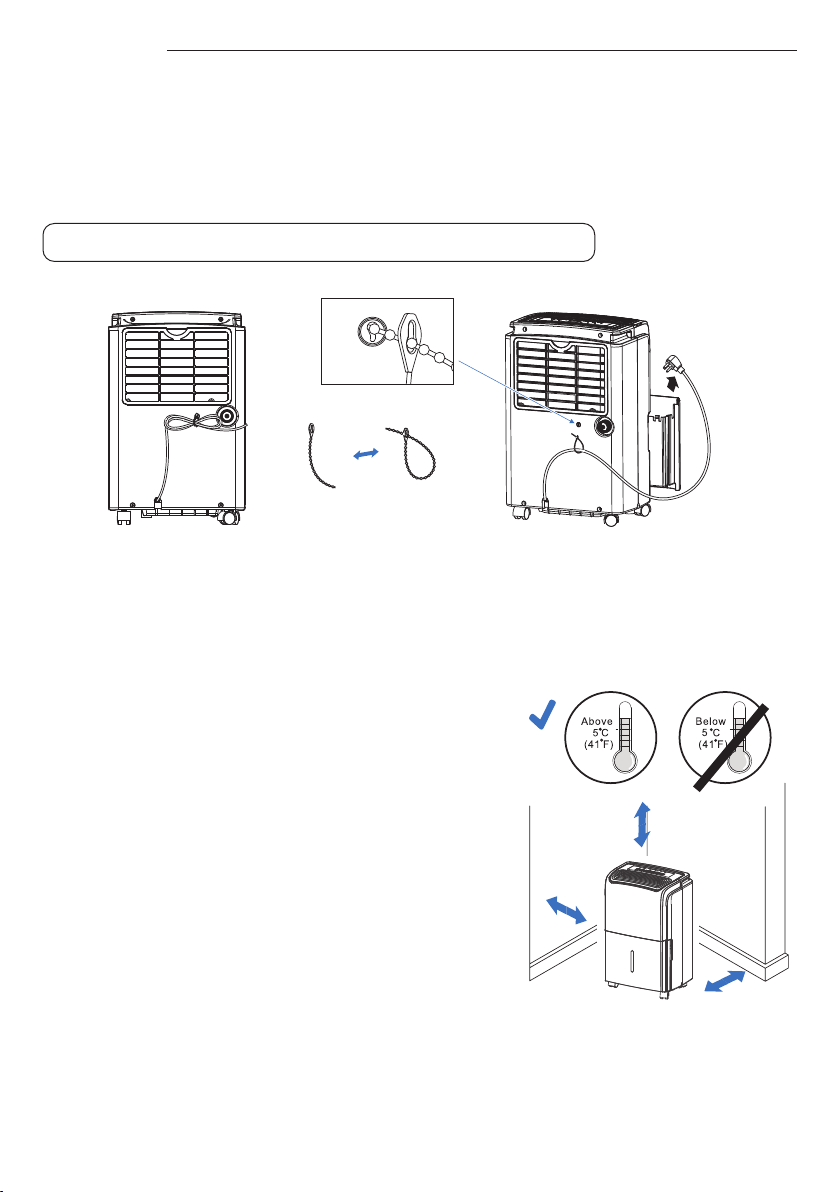

Use the Hooking Strip
When you use Dehumidifier, open the Hooking Strip at the back of the Dehumidifier
to tie up the Power Cord.
When you do not use the Dehumidifier, Power Cord can also be tied up by Hooking Strip again
and fasten into the hole.
NOTE: Hooking Strip can be used repeatedly. Do not throw it away.
Place the Unit
The unit operating in a basement will have little or no effect in drying out an adjacent enclosed
storage area, such as a closet, unless there is adequate circulation of air in and out of this area.
1. This appliance is intended for indoor use only.
Do not use outdoors.
2. Place the appliance on a smooth, level floor surface that
is strong enough to support the unit with a full Bucket
of water.
3. Allow at least 18 inches (46 cm) distance around and
above the unit to ensure efficiency.
4. Place the appliance in an area where the temperature will
not fall below 41°F (5°C).
5. Use the Dehumidifier in cooking, laundry, bathing and
dishwashing areas that have excessive moisture.
6. Place the Dehumidifier away from a clothes dryer.
7. Use the Dehumidifier in a basement to help prevent
moisture damage.
8. The Dehumidifier must be operated in an enclosed area.
Close all doors, windows and other outside openings
to the room.
9. Do not block the air inlet or outlet of the appliance.
Reduced air flow will result in poor performance
and could damage theunit.
12 13
Operating Instructions
CONTROL PANEL
1 2 8 3 4 5 6 7
1
2
3
4
5 6 78
ABCDEF G
POWERTIMERPUMP DECREASEINCREASE
FILTER
Clean Turbo Pump
RH% Lock
Timer
Full
Cont.
TURBO
1. Clean Filter Indicator A. On/Off Button
2. Turbo Indicator B. Timer Button
3. Display Screen C. Decrease Button
4. Lock Indicator D. Increase Button
5. Timer Indicator E. Fan Speed Button
6. Full Bucket Indicator F. Filter Reset Button
7. Continuous Indicator G. Pump Button
8. Pump Indicator
Power On
Insert the plug in the socket, the unit goes to stand-by, and the screen display
as the fig shown:
“On/Off” buon
Press this button to turn on or shut down the unit.
“Decrease / Increase” buon
• Press “Increase / Decrease” button to select the indoor humidity level you expect to achieve.
You can also use the two button to set a timer.
• The humidity adjustable range is 35–80% RH. The screen will display the setting humidity and
turn to display the ambient humidity after a few seconds.
• If the ambient humidity is lower than setting humidity, the compressor will stop running.
After a few minutes, the fan will stop running.
• Press the “Decrease” button until “ ” is displayed on the screen. The “Cont.” will light
up, then the unit will run continuously.
“Turbo” buon
Press the “Turbo” button to select the high speed or low speed of fan. When high speed
is selected, the “Turbo” indicator will light up.
Installation
Use the Hooking Strip
When you use Dehumidifier, open the Hooking Strip at the back of the Dehumidifier
to tie up the Power Cord.
When you do not use the Dehumidifier, Power Cord can also be tied up by Hooking Strip again
and fasten into the hole.
NOTE: Hooking Strip can be used repeatedly. Do not throw it away.
Place the Unit
The unit operating in a basement will have little or no effect in drying out an adjacent enclosed
storage area, such as a closet, unless there is adequate circulation of air in and out of this area.
1. This appliance is intended for indoor use only.
Do not use outdoors.
2. Place the appliance on a smooth, level floor surface that
is strong enough to support the unit with a full Bucket
of water.
3. Allow at least 18 inches (46 cm) distance around and
above the unit to ensure efficiency.
4. Place the appliance in an area where the temperature will
not fall below 41°F (5°C).
5. Use the Dehumidifier in cooking, laundry, bathing and
dishwashing areas that have excessive moisture.
6. Place the Dehumidifier away from a clothes dryer.
7. Use the Dehumidifier in a basement to help prevent
moisture damage.
8. The Dehumidifier must be operated in an enclosed area.
Close all doors, windows and other outside openings
to the room.
9. Do not block the air inlet or outlet of the appliance.
Reduced air flow will result in poor performance
and could damage theunit.
14 15
Operating Instructions Operating Instructions

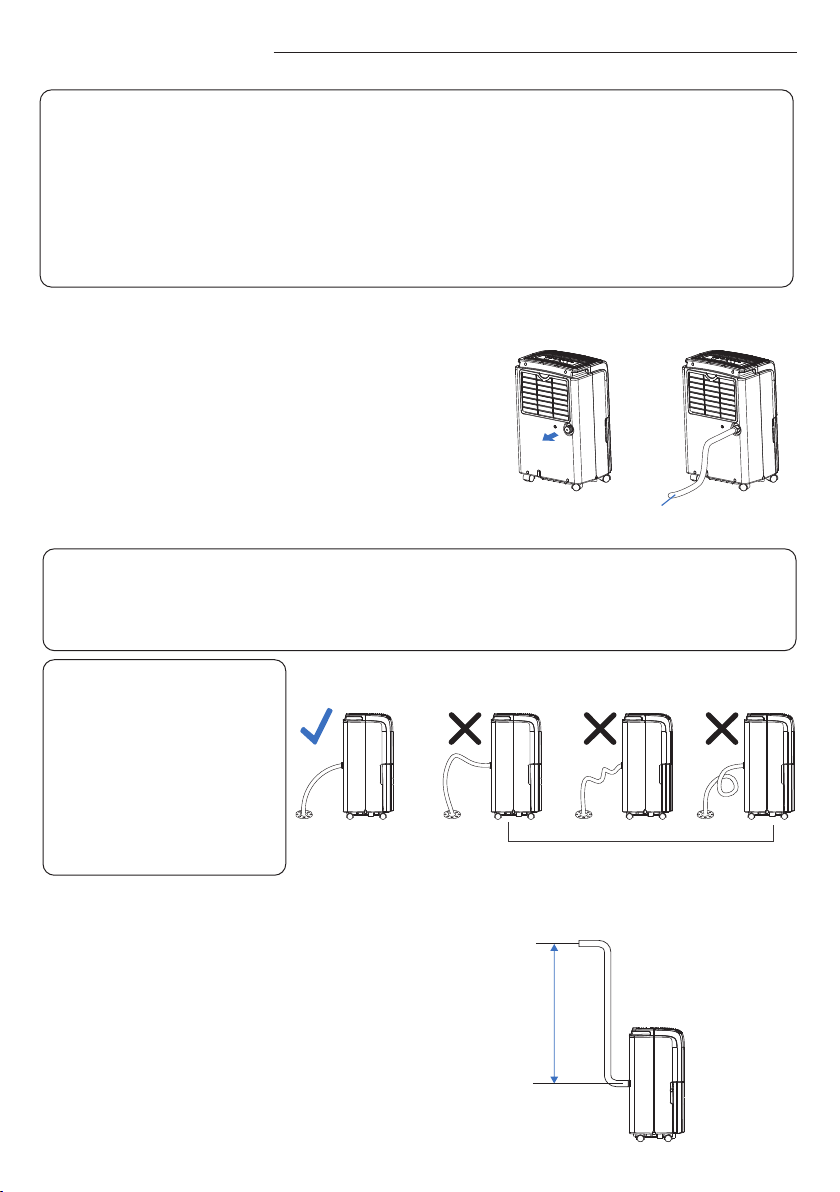

Garden Hose
Correct Incorrect
Max. 16.4 ft.
NOTE:
• Hold the Bucket with both hands when emptying the Bucket.
• The unit will not run again until the Bucket is emptied and properly placed back inside
the unit.
• When the Bucket is full or removed from the unit, the compressor will turn off but the fan
will continue to run for a few minutes. This is completely normal. The unit will not
be removing moisture from the air at this time.
• During operation, it is normal for the unit to exhaust warm air from the top of the unit.
NOTE:
• If Continuous Drain function will not be used, install the cap on the Drain Hole on the back
of the unit, then the water will flow into the Bucket.
• If the Drain Pipe is installed incorrectly, the water cannot drain from the pipe.
NOTE:
• Make sure the unit is put
on level ground and the
Drain Pipe is installed
correctly,
otherwise the Bucket will
be full of water, and the
unit stop run.
• Make sure the Bucket is
installed correctly.

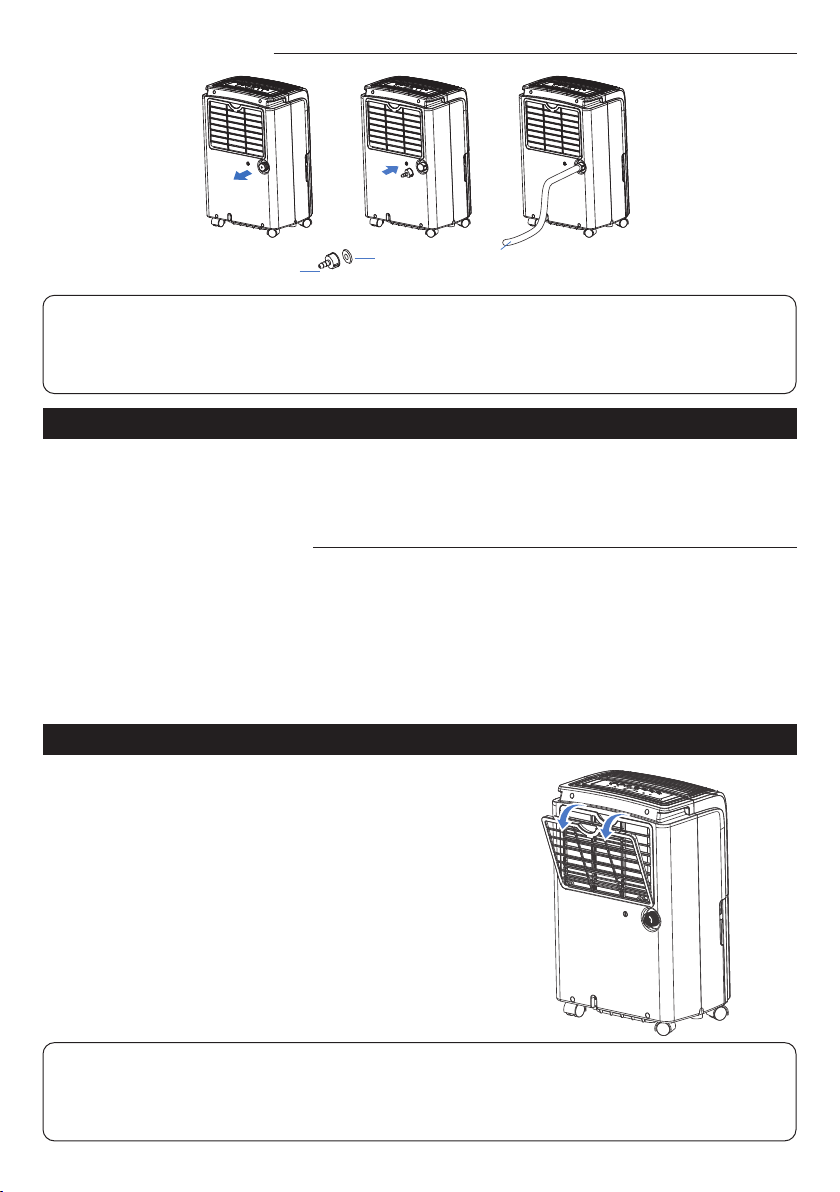

1. Connect the Pump 16.4 ft (5 m) Drain Pipe to the back
of the unit.
2. Put the unit on level floor. Unscrew the cap on the
back of the unit.
3. Install the Pump Adapter and the gasket.
4. Install the Drain Pipe to the Drain Connector.
5. Press the “Power” button to run the unit, and then
press the “Pump” button to start the Pump Drain
function. The “Pump” indicator will light up.
Pump Drain
The max height of Pump Drainage is about 16.4 ft (5 m) Take below steps to start the Pump Drain.
Continuous Drain
Connect the Drain Pipe on the back of unit, the unit can
continuous run without cleaning
the Bucket.
1. Put the unit on level floor, unscrew the cap on the
back of unit.
2. Install the Drain Connector and the gasket.
3. Install the Garden Hose (which has an outer diameter
of 1.0625 inches and a pitch of 11.5 TPI)
to the unit. Make sure the connection is tight and there
is no leaking.
4. Press “Power” button to run the unit.
CAUTION:
Do not place the Bucket on the floor when it is full as the boom of the Bucket
is uneven and may spill water.
“Timer” buon
This timer can be used to delay the appliance start-up or shutdown, this avoids wasting
electricity by optimizing operating periods.
• Programming start-up
1. Turn on the appliance, choose the mode you want, for example Dehumidify mode, high fan
speed. Turn off the appliance.
2. Press the “Timer” button, the screen starts to flash, press the "Up/Down" button to adjust
the set time from 0.5–24 hours.
3. In 5 seconds if there is no operation, the timer will be activated. The “Timer” indicator
lights up.
4. To cancel the timer, press the “Timer” button again. When canceled, the “Timer” indicator
will light off.
• Programming shut down
1. When the appliance is running, press the “Timer” button. The screen starts to flash.
2. Press the “Up/Down” button to adjust the set time from 0.5–24 hours.
3. In 5 seconds if there is no operation, the timer will be activated. The “Timer” indicator
lights up.
4. To cancel the timer, press the “Timer” button again. When canceled, the “Timer” indicator
will light off.
Child-Lock
• Lock the Control Panel to prevent someone from changing the settings accidentally.
• To lock the Control Panel, press and hold the “Timer” button for 3 seconds. When finished,
the “Lock” indicator will light up.
• To unlock the Control Panel, press and hold the “Timer” button for 3 seconds.

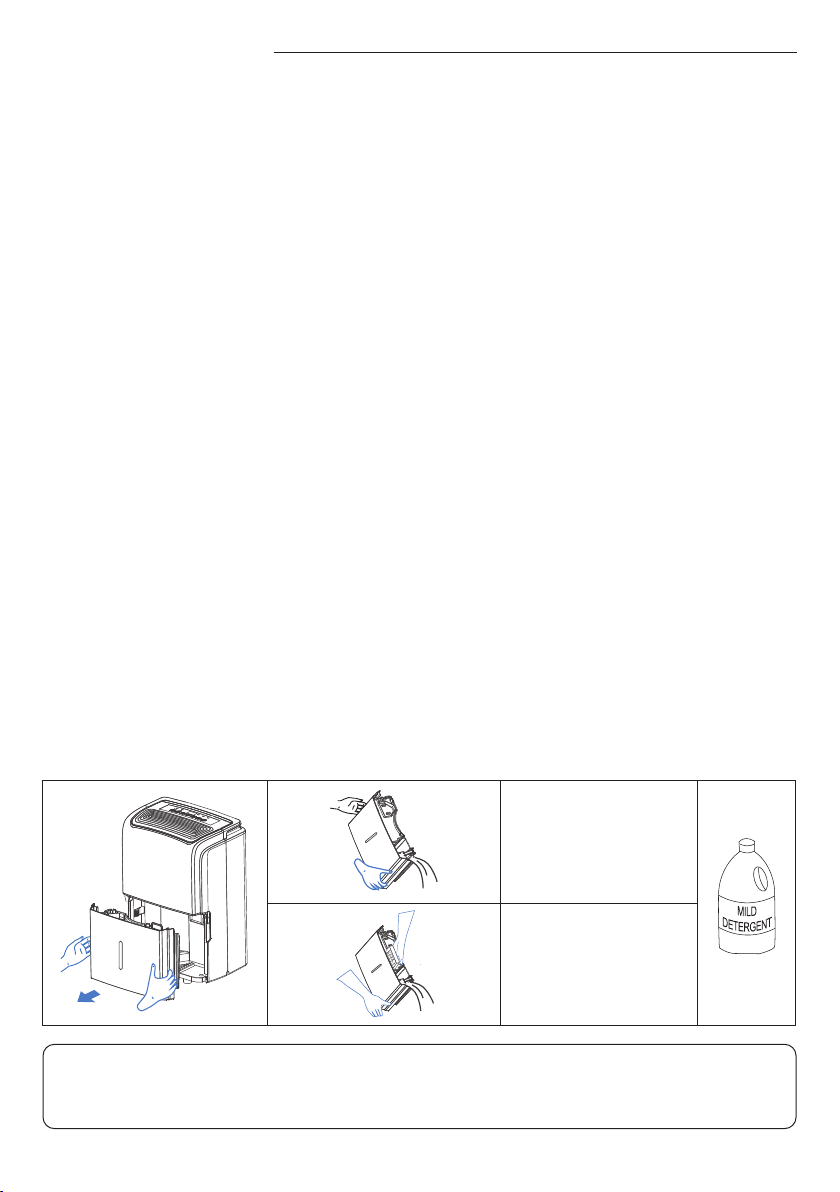

Alarm of Full Bucket
• When the Bucket is full, the compressor will shut off, and the fan will stop after a few minutes.
The unit will beep and the “Full Bucket” indicator starts flashing.
• The Bucket should be cleaned every week to prevent the growth of mould, mildew and bacteria.
Use a mild detergent to clean the Bucket.
• Dry the Bucket completely and place it back inside unit.
The Bucket
without Handle
The Bucket
with Handle
14 15
Operating Instructions Operating Instructions
Garden Hose
Correct Incorrect
Max. 16.4 ft.
NOTE:
• Hold the Bucket with both hands when emptying the Bucket.
• The unit will not run again until the Bucket is emptied and properly placed back inside
the unit.
• When the Bucket is full or removed from the unit, the compressor will turn off but the fan
will continue to run for a few minutes. This is completely normal. The unit will not
be removing moisture from the air at this time.
• During operation, it is normal for the unit to exhaust warm air from the top of the unit.
NOTE:
• If Continuous Drain function will not be used, install the cap on the Drain Hole on the back
of the unit, then the water will flow into the Bucket.
• If the Drain Pipe is installed incorrectly, the water cannot drain from the pipe.
NOTE:
• Make sure the unit is put
on level ground and the
Drain Pipe is installed
correctly,
otherwise the Bucket will
be full of water, and the
unit stop run.
• Make sure the Bucket is
installed correctly.
1. Connect the Pump 16.4 ft (5 m) Drain Pipe to the back
of the unit.
2. Put the unit on level floor. Unscrew the cap on the
back of the unit.
3. Install the Pump Adapter and the gasket.
4. Install the Drain Pipe to the Drain Connector.
5. Press the “Power” button to run the unit, and then
press the “Pump” button to start the Pump Drain
function. The “Pump” indicator will light up.
Pump Drain
The max height of Pump Drainage is about 16.4 ft (5 m) Take below steps to start the Pump Drain.
Continuous Drain
Connect the Drain Pipe on the back of unit, the unit can
continuous run without cleaning
the Bucket.
1. Put the unit on level floor, unscrew the cap on the
back of unit.
2. Install the Drain Connector and the gasket.
3. Install the Garden Hose (which has an outer diameter
of 1.0625 inches and a pitch of 11.5 TPI)
to the unit. Make sure the connection is tight and there
is no leaking.
4. Press “Power” button to run the unit.
CAUTION:
Do not place the Bucket on the floor when it is full as the boom of the Bucket
is uneven and may spill water.
“Timer” buon
This timer can be used to delay the appliance start-up or shutdown, this avoids wasting
electricity by optimizing operating periods.
• Programming start-up
1. Turn on the appliance, choose the mode you want, for example Dehumidify mode, high fan
speed. Turn off the appliance.
2. Press the “Timer” button, the screen starts to flash, press the "Up/Down" button to adjust
the set time from 0.5–24 hours.
3. In 5 seconds if there is no operation, the timer will be activated. The “Timer” indicator
lights up.
4. To cancel the timer, press the “Timer” button again. When canceled, the “Timer” indicator
will light off.
• Programming shut down
1. When the appliance is running, press the “Timer” button. The screen starts to flash.
2. Press the “Up/Down” button to adjust the set time from 0.5–24 hours.
3. In 5 seconds if there is no operation, the timer will be activated. The “Timer” indicator
lights up.
4. To cancel the timer, press the “Timer” button again. When canceled, the “Timer” indicator
will light off.
Child-Lock
• Lock the Control Panel to prevent someone from changing the settings accidentally.
• To lock the Control Panel, press and hold the “Timer” button for 3 seconds. When finished,
the “Lock” indicator will light up.
• To unlock the Control Panel, press and hold the “Timer” button for 3 seconds.
Alarm of Full Bucket
• When the Bucket is full, the compressor will shut off, and the fan will stop after a few minutes.
The unit will beep and the “Full Bucket” indicator starts flashing.
• The Bucket should be cleaned every week to prevent the growth of mould, mildew and bacteria.
Use a mild detergent to clean the Bucket.
• Dry the Bucket completely and place it back inside unit.
The Bucket
without Handle
The Bucket
with Handle
16 17
Before any cleaning or maintenance, turn off the appliance and unplug it from the wall socket.
• Wipe the cabinet of the unit with a slightly damp cloth and then dry it naturally or wipe it dry.
• Never wash the unit with water, it could be dangerous.
• Never use petrol, alcohol or solvents to clean the unit.
• Never spray insecticide liquids or similar to the unit.
• Clean the Bucket with water every two weeks.
Problem Possible Causes Solutions
Dehumidifier
does not
start.
The Dehumidifier is
unplugged.
Make sure the Dehumidifier’s plug is pushed
completely into the outlet.
The fuse is blown/circuit
breaker is tripped.
Check the house fuse/circuit breaker box and
replace the fuse or reset the circuit breaker.
Dehumidifier has reached
its present level or the Bucket
is full.
Change to a lower setting; Empty the water
Bucket and replace it properly.
Bucket is not in the proper
position.
The Bucket must be in place and securely
seated for the Dehumidifier to operate.
Power failure. There is a protective time delay (up to 3 min.)
to prevent the compressor from overloading.
For this reason, the unit may not start work
immediately, but delay 3 min when power
is resumed.
Dehumidifier
does not dry
the air as it
should.
Not enough time allowed
for unit to remove moisture.
When first installed, allow at least 24 hours
to maintain the desired dryness.
Airflow is restricted. Make sure there are no curtains, blinds
or furniture block the front or back of the
Dehumidifier.
Dirty filter. Clean the filter.
The Humidity Control may not
be set low enough.
For drier air, press the “Decrease” button
to lower the percent humidity desired in the
room, or set the Dehumidifier to “ ”
for maximum dehumidifying.
Doors and windows may
not be closed tightly.
Check that all doors, windows, and other
openings are securely closed.
Clothes dryer may be blowing
moist air into the room.
Install the Dehumidifier away from the dryer.
The dryer should be vented outside.
Room temperature
is too low.
Moisture removal is best at higher room
temperatures. Lower room temperatures will
reduce the moisture removal rate. This model
is designed to operate at temperatures
above 41°F (5°C).
Cleaning and Maintenance
Troubleshooting
CLEANING THE FILTER
END OF SEASON OPERATIONS
START OF SEASON CHECKS
• To keep your appliance working efficiently, clean the
filter every week of operation.
• When the filter needs to be cleaned, the Clean
indicator will light up (after 250 hours of use).
Remove the filter from the back of the unit.
• Remove the filter refer to below picture.
• Use a vacuum cleaner to remove dust from the filter.
If the filter is very dirty, immerse it in warm water and
rinse it a number of times. The water temperature
should not be higher than 104°F (40°C). After washing,
leave the filter to dry.
• Once the filter drys completely, place the filter back
in the unit and press the “Filter” button to reset the
Clean indicator.
Occasionally, you may encounter some problems that are of a minor nature and a service
call may not be necessary. Use this troubleshooting guide to identify possible problems
you may be experiencing.
• Unplug the unit from the outlet, empty the Bucket and remove the drain cap.
• Run off all water left inside the appliance. When all the water has been drained,
put the cap back in place.
• Clean the filter and dry it thoroughly before putting back.
• Cover the appliance to avoid dust accumulation.
• Store the appliance upright in a dry location.
When frost builds up on the evaporator coils, the compressor will cycle off and the fan will
continue to run until the frost disappears. When the coils are completely defrosted, the
compressor or fan (depending on the model) will automatically restart. The unit start
to dehumidify the room.
AUTOMATIC DEFROST
NOTE:
• After the Pump is activated, water will not run out of the Drain Hose right away as there
is a small, internal tank which must be filled first.
• Make sure there are no kinks or knots in the Drain Hose.
Pump Adaptor
Sealring
Pump Hose about 16.4 ft (5 m)
CAUTION:
• Do not operate the appliance without the filter in place.
• When removing or re-installing the filter, be careful to avoid possible cuts,
and do not contact the metal parts of the appliance, which will result in personal injury.
Operating Instructions
Make sure the power cable and plug are undamaged and the earth system is efficient.
Follow the installation instructions precisely.
Cleaning and Maintenance
16 17
Before any cleaning or maintenance, turn off the appliance and unplug it from the wall socket.
• Wipe the cabinet of the unit with a slightly damp cloth and then dry it naturally or wipe it dry.
• Never wash the unit with water, it could be dangerous.
• Never use petrol, alcohol or solvents to clean the unit.
• Never spray insecticide liquids or similar to the unit.
• Clean the Bucket with water every two weeks.
Problem Possible Causes Solutions
Dehumidifier
does not
start.
The Dehumidifier is
unplugged.
Make sure the Dehumidifier’s plug is pushed
completely into the outlet.
The fuse is blown/circuit
breaker is tripped.
Check the house fuse/circuit breaker box and
replace the fuse or reset the circuit breaker.
Dehumidifier has reached
its present level or the Bucket
is full.
Change to a lower setting; Empty the water
Bucket and replace it properly.
Bucket is not in the proper
position.
The Bucket must be in place and securely
seated for the Dehumidifier to operate.
Power failure. There is a protective time delay (up to 3 min.)
to prevent the compressor from overloading.
For this reason, the unit may not start work
immediately, but delay 3 min when power
is resumed.
Dehumidifier
does not dry
the air as it
should.
Not enough time allowed
for unit to remove moisture.
When first installed, allow at least 24 hours
to maintain the desired dryness.
Airflow is restricted. Make sure there are no curtains, blinds
or furniture block the front or back of the
Dehumidifier.
Dirty filter. Clean the filter.
The Humidity Control may not
be set low enough.
For drier air, press the “Decrease” button
to lower the percent humidity desired in the
room, or set the Dehumidifier to “ ”
for maximum dehumidifying.
Doors and windows may
not be closed tightly.
Check that all doors, windows, and other
openings are securely closed.
Clothes dryer may be blowing
moist air into the room.
Install the Dehumidifier away from the dryer.
The dryer should be vented outside.
Room temperature
is too low.
Moisture removal is best at higher room
temperatures. Lower room temperatures will
reduce the moisture removal rate. This model
is designed to operate at temperatures
above 41°F (5°C).
Cleaning and Maintenance
Troubleshooting
CLEANING THE FILTER
END OF SEASON OPERATIONS
START OF SEASON CHECKS
• To keep your appliance working efficiently, clean the
filter every week of operation.
• When the filter needs to be cleaned, the Clean
indicator will light up (after 250 hours of use).
Remove the filter from the back of the unit.
• Remove the filter refer to below picture.
• Use a vacuum cleaner to remove dust from the filter.
If the filter is very dirty, immerse it in warm water and
rinse it a number of times. The water temperature
should not be higher than 104°F (40°C). After washing,
leave the filter to dry.
• Once the filter drys completely, place the filter back
in the unit and press the “Filter” button to reset the
Clean indicator.
Occasionally, you may encounter some problems that are of a minor nature and a service
call may not be necessary. Use this troubleshooting guide to identify possible problems
you may be experiencing.
• Unplug the unit from the outlet, empty the Bucket and remove the drain cap.
• Run off all water left inside the appliance. When all the water has been drained,
put the cap back in place.
• Clean the filter and dry it thoroughly before putting back.
• Cover the appliance to avoid dust accumulation.
• Store the appliance upright in a dry location.
When frost builds up on the evaporator coils, the compressor will cycle off and the fan will
continue to run until the frost disappears. When the coils are completely defrosted, the
compressor or fan (depending on the model) will automatically restart. The unit start
to dehumidify the room.
AUTOMATIC DEFROST
NOTE:
• After the Pump is activated, water will not run out of the Drain Hose right away as there
is a small, internal tank which must be filled first.
• Make sure there are no kinks or knots in the Drain Hose.
Pump Adaptor
Sealring
Pump Hose about 16.4 ft (5 m)
CAUTION:
• Do not operate the appliance without the filter in place.
• When removing or re-installing the filter, be careful to avoid possible cuts,
and do not contact the metal parts of the appliance, which will result in personal injury.
Operating Instructions
Make sure the power cable and plug are undamaged and the earth system is efficient.
Follow the installation instructions precisely.
Cleaning and Maintenance
18 19
If the following error code appears, contact the after-sales service department for inspection
and repair.
Code Description Possible Causes Solutions
EH Humidity sensor
failure
Humidity sensor is damaged. Contact Customer Service
center.
E1 Temperature
sensor failure
Temperature sensor is damaged. Contact Customer Service
center.
E2
E3 Gas leakage Ambient temperature is too high. Move the appliance to cooler
place.
E3 appears many times. Contact Customer Service
center.
P1 Bucket pull out The Bucket isn’t in proper
position.
Re-install the Bucket and place
it in proper position.
E5 Pump failure Didn’t install the Pump Drainage
kit before starting pump function.
Install the Pump Drainage kit
before starting pump function
Users use non-standard drainage
pipes.
Use the original pipe.
The Drain Cover is not tightened. Tighten the cover.
The rubber washer is missing. Re-install the washer in cover.
Poor connection between Drain
Pipe and Drain Cover.
Check the connection of pipe
and Drain Cover.
Drain Hose is blocked or longer
than 16.4 ft (5 m).
Plug off and clean the Drain
Hose or replace with a new one.
Follow Pump Drain section to
lower the Drain Hose.
hOmeLabs offers a limited one-year warranty (“warranty period”) on all of our products
purchased new and unused from hOmeLabs Technologies, LLC or an authorized reseller, with an
original proof of purchase and where a defect has arisen, wholly or substantially, as a result of
faulty manufacture, parts, or workmanship during the one-year warranty period. The warranty
does not apply where damage is caused by other factors, including but without limitation to: (a)
normal wear and tear; (b) abuse, mishandling, accident, or failure to follow operating instructions;
(c) exposure to liquid or infiltration of foreign particles; (d) servicing or modifications of the
product other than by hOmeLabs; (e) commercial or non-household use.
The hOmeLabs warranty covers all costs related to restoring the proven defective product
through repair or replacement of any defective part and necessary labor so that it conforms
to its original specifications. A replacement product may be provided instead of repairing
a defective product. hOmeLabs’s exclusive obligation under this warranty is limited to such repair
or replacement.
A receipt indicating the purchase date is required for any claim, so please keep all receipts
in a safe place. We recommend that you register your product on our website: homelabs.com/reg.
Although greatly appreciated, the product registration is not required to activate any warranty and
product registration does not eliminate the need for the original proof of purchase. The warranty
becomes void if attempts at repair are made by non-authorized third parties and/or if spare parts,
other than those provided by hOmeLabs, are used. You may also arrange for service after the
warranty expires at an additional cost.
These are our general terms for warranty service, but we always urge our customers to reach out
to us with any issue, regardless of warranty terms. If you have an issue with a hOmeLabs product,
please contact Customer Service at homelabs.com/help or help@homelabs.com.
This warranty gives you specific legal rights, and you may have other legal rights which vary from
state to state, country to country, or province to province. The customer may assert any such
rights at their sole discretion.
Troubleshooting Warranty
This manual is to be used with all items with the model number
HME021006N HME021005N
SKU: HME021006N HME021005N
Rated voltage/Frequency: 115 V~, 60 Hz; Operating condition: 41–90°F / 30–90% RH
Manufacturing Info
NOTE:
• If “E3” appears, check weather the ambient temperature range is below 89.6°F. If the
ambient temperature is over 89.6°F, place the unit into the place below 89.6°F for two
hours before running the Dehumidifier again.
• Start the unit, if the “E3” appears again in 2 hours, contact the service center.
Contact Us
Manufacturer, distributor, importer and seller are not liable for ANY damage caused by improper use,
storage, care or failure to follow warnings associated with this product.
WARNING: Keep all plastic bags away from children.
Dehumidifier
runs too long.
The area is too large. The capacity of the appliance can not meet
the area of the room.
Doors and windows
are open.
Close the door and window.
Frost appears
on heat-
exchanger.
The Dehumidifier run
recently or the room
temperature is too low.
It is normal, frost usually disappear in 60 min.
Fan noise The air is passing through
the appliance.
This is normal.
Water on the
floor
The Drain Connection may
be aging or loose.
Check and replace the Drain Connection parts.
And check if the Drain Connection and the
appliance is placed level.
The Drain Pipe is connected,
but the water is not drained.
If use the Bucket, remove the Drain Pipe and put
back the Drain Cover; or install the Drain Pipe
correctly.
help@homelabs.com
EMAIL US
homelabs.com/help
CHAT WITH US
18 19
If the following error code appears, contact the after-sales service department for inspection
and repair.
Code Description Possible Causes Solutions
EH Humidity sensor
failure
Humidity sensor is damaged. Contact Customer Service
center.
E1 Temperature
sensor failure
Temperature sensor is damaged. Contact Customer Service
center.
E2
E3 Gas leakage Ambient temperature is too high. Move the appliance to cooler
place.
E3 appears many times. Contact Customer Service
center.
P1 Bucket pull out The Bucket isn’t in proper
position.
Re-install the Bucket and place
it in proper position.
E5 Pump failure Didn’t install the Pump Drainage
kit before starting pump function.
Install the Pump Drainage kit
before starting pump function
Users use non-standard drainage
pipes.
Use the original pipe.
The Drain Cover is not tightened. Tighten the cover.
The rubber washer is missing. Re-install the washer in cover.
Poor connection between Drain
Pipe and Drain Cover.
Check the connection of pipe
and Drain Cover.
Drain Hose is blocked or longer
than 16.4 ft (5 m).
Plug off and clean the Drain
Hose or replace with a new one.
Follow Pump Drain section to
lower the Drain Hose.
hOmeLabs offers a limited one-year warranty (“warranty period”) on all of our products
purchased new and unused from hOmeLabs Technologies, LLC or an authorized reseller, with an
original proof of purchase and where a defect has arisen, wholly or substantially, as a result of
faulty manufacture, parts, or workmanship during the one-year warranty period. The warranty
does not apply where damage is caused by other factors, including but without limitation to: (a)
normal wear and tear; (b) abuse, mishandling, accident, or failure to follow operating instructions;
(c) exposure to liquid or infiltration of foreign particles; (d) servicing or modifications of the
product other than by hOmeLabs; (e) commercial or non-household use.
The hOmeLabs warranty covers all costs related to restoring the proven defective product
through repair or replacement of any defective part and necessary labor so that it conforms
to its original specifications. A replacement product may be provided instead of repairing
a defective product. hOmeLabs’s exclusive obligation under this warranty is limited to such repair
or replacement.
A receipt indicating the purchase date is required for any claim, so please keep all receipts
in a safe place. We recommend that you register your product on our website: homelabs.com/reg.
Although greatly appreciated, the product registration is not required to activate any warranty and
product registration does not eliminate the need for the original proof of purchase. The warranty
becomes void if attempts at repair are made by non-authorized third parties and/or if spare parts,
other than those provided by hOmeLabs, are used. You may also arrange for service after the
warranty expires at an additional cost.
These are our general terms for warranty service, but we always urge our customers to reach out
to us with any issue, regardless of warranty terms. If you have an issue with a hOmeLabs product,
please contact Customer Service at homelabs.com/help or help@homelabs.com.
This warranty gives you specific legal rights, and you may have other legal rights which vary from
state to state, country to country, or province to province. The customer may assert any such
rights at their sole discretion.
Troubleshooting Warranty
This manual is to be used with all items with the model number
HME021006N HME021005N
SKU: HME021006N HME021005N
Rated voltage/Frequency: 115 V~, 60 Hz; Operating condition: 41–90°F / 30–90% RH
Manufacturing Info
NOTE:
• If “E3” appears, check weather the ambient temperature range is below 89.6°F. If the
ambient temperature is over 89.6°F, place the unit into the place below 89.6°F for two
hours before running the Dehumidifier again.
• Start the unit, if the “E3” appears again in 2 hours, contact the service center.
Contact Us
Manufacturer, distributor, importer and seller are not liable for ANY damage caused by improper use,
storage, care or failure to follow warnings associated with this product.
WARNING: Keep all plastic bags away from children.
Dehumidifier
runs too long.
The area is too large. The capacity of the appliance can not meet
the area of the room.
Doors and windows
are open.
Close the door and window.
Frost appears
on heat-
exchanger.
The Dehumidifier run
recently or the room
temperature is too low.
It is normal, frost usually disappear in 60 min.
Fan noise The air is passing through
the appliance.
This is normal.
Water on the
floor
The Drain Connection may
be aging or loose.
Check and replace the Drain Connection parts.
And check if the Drain Connection and the
appliance is placed level.
The Drain Pipe is connected,
but the water is not drained.
If use the Bucket, remove the Drain Pipe and put
back the Drain Cover; or install the Drain Pipe
correctly.
EMAIL US
homelabs.com/help
CHAT WITH US
Distributed by hOmeLabs™, LLC
350 Springfield Avenue, Suite #200,
Summit, NJ 07901
help@homelabs.com
homelabs.com/help
All rights reserved, hOmeLabs™.
Made in China.
For Household Use Only
