Cool Summer Oer
On those hot sweltering summer days and long restless
nights, there is no better escape from the heat than the
cool comforts of home. Your new air conditioner brings an
end to exhausting hot summer days and lets you rest. Beat
the heat with your own air conditioner this summer.
Cost Ecient System
Your new air conditioner not only provides maximum
cooling power in the summer, but also can be an ecient
heating method in the winter with the advanced “Heat
pump” system. “Heat pump” system is 3 times more
ecient compare to the other electrical heating appliance,
so you can further reduce its running cost. Now, meet year-
round needs with one air conditioner.
Look for Everywhere
The elegant and harmonious design gives priority
to the esthetics of your space and complements any
of your existing interior décor. With its soft color and
rounded-edge shape, the new air conditioner adds class
to any room. Enjoy what your air conditioner oers both
functionally and esthetically.
function
function allows you to set a comfortable
sleep temperature while saving energy and having sound
sleep.
USING PARTS
INSTALLATION PARTS
Features of your new air conditioner
Contents
Safety precautions ...........................................................................3
Checking before use
.......................................................................6
Checking the name of the parts
...............................................7
Checking the remote controller
................................................8
Basic function.................................................................................. 10
Adjusting the air ow direction
.............................................. 12
Using the Turbo function........................................................... 12
mode .......................................................................... 13
Setting the On/O timer............................................................ 14
Using the Smart Saver function
............................................. 15
Using the Quiet function
........................................................... 16
Using the Auto Clean function
............................................... 16
Cleaning the air conditioner
.................................................... 17
Maintaining the air conditioner
............................................. 19
Troubleshooting
............................................................................ 20
Safety precautions
........................................................................ 22
Choosing the installation location
........................................ 23
Accessories
....................................................................................... 26
Fixing the installation plate
...................................................... 27
Connecting the assembly cable
............................................. 28
Installing and connecting the assembly
pipe of the indoor unit
............................................................. 30
Purging the indoor unit
.............................................................. 31
Cutting or extending the pipe
................................................ 31
Installing and connecting the
drain hose of the indoor unit
................................................ 33
Changing direction of the drain hose.................................. 34
Installing and connecting the
drain hose of the outdoor unit
............................................ 35
Purging the connected pipes
.................................................. 35
Performing the gas leak tests
.................................................. 38
Fixing the indoor unit in place
................................................ 39
Fixing the outdoor unit in place
............................................. 39
Final Check and Trial Operation
.............................................. 40
Pump down procedure
(when removing the product)
................................................ 40
How to connect your extended power cables
................ 41
Sub PCB installation(optional)
................................................ 42
Remocon module installation (optional)
........................... 43
Vivaldi MAX_AQN09VFU@@ IB&IM_32163A-3_EN.indd 2 2015/8/17 14:47:25
ENGLISH
3
Safety precautions
USING PARTS
Before using your new air conditioner, please read this manual thoroughly to ensure that you know how to safely and
eciently operate the extensive features and functions of your new appliance.
Because the following operating instructions cover various models, the characteristics of your air conditioner may dier slightly
from those described in this manual. If you have any questions, call your nearest contact center or nd help and information
online at www.samsung.com.
Important safety symbols and precautions:
WARNING
Hazards or unsafe practices that may result in severe personal injury or death.
CAUTION
Hazards or unsafe practices that may result in minor personal injury or property damage.
Follow directions.
Unplug the power plug from the
wall socket.
Do NOT attempt. Do NOT disassemble.
Make sure the machine is grounded to prevent electric shock.
FOR INSTALLATION
WARNING
Plug the power cord into a wall socket with the power specications of the product or higher and use the socket for this
appliance only. In addition, do not use an extension cord.
Sharing a wall socket with other appliances using a power strip or extending the power cord may result in electric shock or fire.
Do not use an electric transformer. It may result in electric shock or fire.
If the voltage/frequency/rated current condition is different, it may cause fire.
The installation of this appliance must be performed by a qualied technician or service company.
Failing to do so may result in electric shock, fire, explosion, problems with the product, or injury.
Install a switch and circuit breaker dedicated to the air conditioner.
Failing to do so may result in electric shock or fire.
Fix the outdoor unit rmly so that the electric part of the outdoor unit is not exposed.
Failing to do so may result in electric shock or fire.
Do not install this appliance near a heater, inammable material. Do not install this appliance in a humid, oily or dusty
location, in a location exposed to direct sunlight and water (rain drops). Do not install this appliance in a location where
gas may leak.
This may result in electric shock or fire.
Never install the outdoor unit in a location such as on a high external wall where it could fall.
If the outdoor unit falls, it may result in injury, death or property damage.
This appliance must be properly grounded. Do not ground the appliance to a gas pipe, plastic water pipe, or telephone line.
Failure to do so may result in electric shock, fire, an explosion, or other problems with the product.
Never plug the power cord into a socket that is not grounded correctly and make sure that it is in accordance with local and
national codes.
FOR INSTALLATION
CAUTION
This appliance should be positioned in such a way that it is accessible to the power plug.
Failing to do so may result in electric shock or fire due to electric leakage.
Install your appliance on a level and hard oor that can support its weight.
Failing to do so may result in abnormal vibrations, noise, or problems with the product.
Install the draining hose properly so that water is drained correctly.
Failing to do so may result in water overflowing and property damage.
When installing the outdoor unit, make sure to connect the draining hose so that draining is performed correctly.
The water generated during the heating operation by the outdoor unit may overflow and result in property damage.
In particular, in winter, if a block of ice falls, it may result in injury, death or property damage.
Vivaldi MAX_AQN09VFU@@ IB&IM_32163A-4_EN.indd 3 2015/11/21 13:28:41
WARNING
• Cancer and Reproductive Harm - www.P65Warnings.ca.gov.
California Proposition 65 Warning (US)
4
Safety precautions
FOR POWER SUPPLY
WARNING
Remove all foreign substances such as dust or water from the power plug terminals and contact points using a dry cloth
on a regular basis.
Unplug the power plug and clean it with a dry cloth.
Failing to do so may result in electric shock or fire.
Plug the power plug into the wall socket in the right direction so that the cord runs towards the oor.
If you plug the power plug into the socket in the opposite direction, the electric wires within the cable may be damaged and
this may result in electric shock or fire.
When the appliance or power plug or power cord is damaged, contact your nearest service center.
Plug the power plug into the wall socket rmly. Do not use a damaged power plug, damaged power cord or loose wall
socket.
This may result in electric shock or fire.
Do not pull the power cord, when unplugging the power plug.
Unplug the power plug by holding the plug.
Failing to do so may result in electric shock or fire.
Do not pull or excessively bend the power cord. Do not twist or tie the power cord. Do not hook the power cord over a
metal object, place a heavy object on the power cord, insert the power cord between objects, or push the power cord
into the space behind the appliance.
This may result in electric shock or fire.
FOR POWER SUPPLY
CAUTION
When not using the air conditioner for a long period of time or during a thunder/lightning storm, cut the power at the
circuit breaker.
Failing to do so may result in electric shock or fire.
FOR USING
WARNING
If the appliance is ooded, please contact your nearest service center.
Failing to do so may result in electric shock or fire.
If the appliance generates a strange noise, a burning smell or smoke, unplug the power plug immediately and contact
your nearest service center.
Failing to do so may result in electric shock or fire.
In the event of a gas leak (such as propane gas, LP gas, etc.), ventilate immediately without touching the power plug. Do
not touch the appliance or power cord.
Do not use a ventilating fan.
A spark may result in an explosion or fire.
To reinstall the air conditioner, please contact your nearest service center.
Failing to do so may result in problems with the product, water leakage, electric shock, or fire.
A delivery service for the product is not provided. If you reinstall the product in another location, additional construction
expenses and an installation fee will be charged.
Especially, when you wish to install the product in an unusual location such as in an industrial area or near the seaside where it is
exposed to the salt in the air, please contact your nearest service center.
Do not touch the power plug or the circuit breaker with wet hands.
This may result in electric shock.
Do not unplug the power plug or turn the air conditioner o with the circuit breaker while it is operating.
Plugging the power plug into the wall outlet or turning the air conditioner on from the circuit breaker may cause a spark and
result in electric shock or fire.
After unpacking the air conditioner, keep all packaging materials well out of the reach of children, as packaging materials
can be dangerous to children.
If a child places a bag over its head, it may result in suffocation.
Do not insert your ngers or foreign substances into the outlet when the air conditioner is operating.
Take special care that children do not injure themselves by inserting their fingers into the product.
Do not touch the air ow blade with your hands or ngers during the heating operation.
This may result in electric shock or burns.
Do not insert your ngers or foreign substances into the air inlet/outlet of the air conditioner.
Take special care that children do not injure themselves by inserting their fingers into the product.
Do not strike or pull the air conditioner with excessive force.
This may result in fire, injury, or problems with the product.
Vivaldi MAX_AQN09VFU@@ IB&IM_32163A-3_EN.indd 4 2015/8/17 14:47:25
5
ENGLISH
FOR USING
WARNING
Do not place an object near the outdoor unit that allows children to climb onto the machine.
This may result in children seriously injuring themselves.
Do not use this air conditioner for long periods of time in badly ventilated locations or near inrm people.
Since this may be dangerous due to a lack of oxygen, Open a window at least once an hour.
If any foreign substance such as water has entered the appliance, cut the power by unplugging the power plug and
turning the circuit breaker o and then contact your nearest service center.
Failing to do so may result in electric shock or fire.
Do not attempt to repair, disassemble, or modify the appliance yourself.
Do not use any fuse (such as cooper, steel wire, etc.)other than the standard fuse.
Failing to do so may result in electric shock, fire, problems with the product, or injury.
FOR USING
CAUTION
Do not place objects or devices under the indoor unit.
Water dripping from the indoor unit may result in fire or property damage.
Check that the installation frame of the outdoor unit is not broken at least once a year.
Failing to do so may result in injury, death or property damage.
Max current is measured according to IEC standard for safety and current is measured according to ISO standard for
energy eciency.
Do not stand on top of the appliance or place objects (such as laundry, lighted candles, lighted cigarettes, dishes,
chemicals, metal objects, etc.) on the appliance.
This may result in electric shock, fire, problems with the product, or injury.
Do not operate the appliance with wet hands.
This may result in electric shock.
Do not spray volatile material such as insecticide onto the surface of the appliance.
As well as being harmful to humans, it may also result in electric shock, fire or problems with the product.
Do not drink the water from the air conditioner.
The water may be harmful to humans.
Do not apply a strong impact to the remote controller and do not disassemble the remote controller.
Do not touch the pipes connected with the product.
This may result in burns or injury.
Do not use this air conditioner to preserve precision equipment, food, animals, plants or cosmetics, or for any other
unusual purposes.
This may result in property damage.
Avoid directly exposing humans, animals or plants from the air ow from the air conditioner for long periods of time.
This may result in harm to humans, animals or plants.
This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental
capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use
of the appliance by a person responsible for their safety. Children should be supervised to ensure that they do not play
with the appliance.
For use in Europe : This appliance can be used by children aged from 8 years and above and persons with reduced
physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or
instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play
with the appliance. Cleaning and user maintenance shall not be made by children without supervision.
FOR CLEANING
WARNING
Do not clean the appliance by spraying water directly onto it. Do not use benzene, thinner or alcohol to clean the
appliance.
This may result in discoloration, deformation, damage, electric shock or fire.
Before cleaning or performing maintenance, unplug the air conditioner from the wall socket and wait until the fan stops.
Failing to do so may result in electric shock or fire.
FOR CLEANING
CAUTION
Take care when cleaning the surface of the heat exchanger of the outdoor unit since it has sharp edges.
To avoid cutting your fingers, wear thick cotton gloves when cleaning it.
Do not clean the inside of the air conditioner by yourself.
For cleaning inside the appliance, contact your nearest service center.
When cleaning the internal filter, refer to the descriptions in the ‘Cleaning the air conditioner’ section.
Failure to do may result in damage, electric shock or fire.
Vivaldi MAX_AQN09VFU@@ IB&IM_32163A-3_EN.indd 5 2015/8/17 14:47:26
6
Operation ranges
The table below indicates the temperature and humidity ranges the air conditioner can be operated within. Refer to the
table for ecient use.
Checking before use
Maintaining your air conditioner
If the air conditioner operates in cooling mode for long period of time in high humidity area, dew may be formed.
If the outdoor temperature goes down to 23˚F(-5°C), heating capacity may decrease as much as 60%~70% of
specied capacity according to the using conditions.
Mode Indoor temperature Outdoor temperature Indoor humidity
Cooling
61˚F~86˚F
(16˚C~30˚C)
14˚F~115˚F
(-10˚C~46˚C)
Relative humidity 80% or less
Heating
81˚F(27˚C) or less
5˚F~76˚F
(-15˚C~24˚C)
-
Dry
65˚F~90˚F
(18˚C~32˚C)
14˚F~115˚F
(-10˚C~46˚C)
-
Internal protections via the unit control system
This internal protection operates if an internal fault occurs in the air conditioner.
Type Description
Against cold air
The internal fan will be o to against cold air when the heat pump is heating.
De-ice cycle
The internal fan will be o to defrost ice when the heat pump is heating.
Anti-protection of
internal battery
The compressor will be o to protect internal battery when the air conditioner operates
in Cool mode.
Protect compressor
The air conditioner does not start operating immediately to protect the compressor of the
outdoor unit after it has been started.
• IftheheatpumpisoperatinginHeatmode,De-icecycleisactuatedtoremovefrostfromanoutdoorunitthatmay
have deposited at low temperatures.
The internal fan is switched o automatically and restarted only after the de-ice cycle is completed.
Vivaldi MAX_AQN09VFU@@ IB&IM_32163A-3_EN.indd 6 2015/8/17 14:47:26
ENGLISH
7
Main parts
Display
Your air conditioner may slightly look dierent from illustration shown above depending on your model.

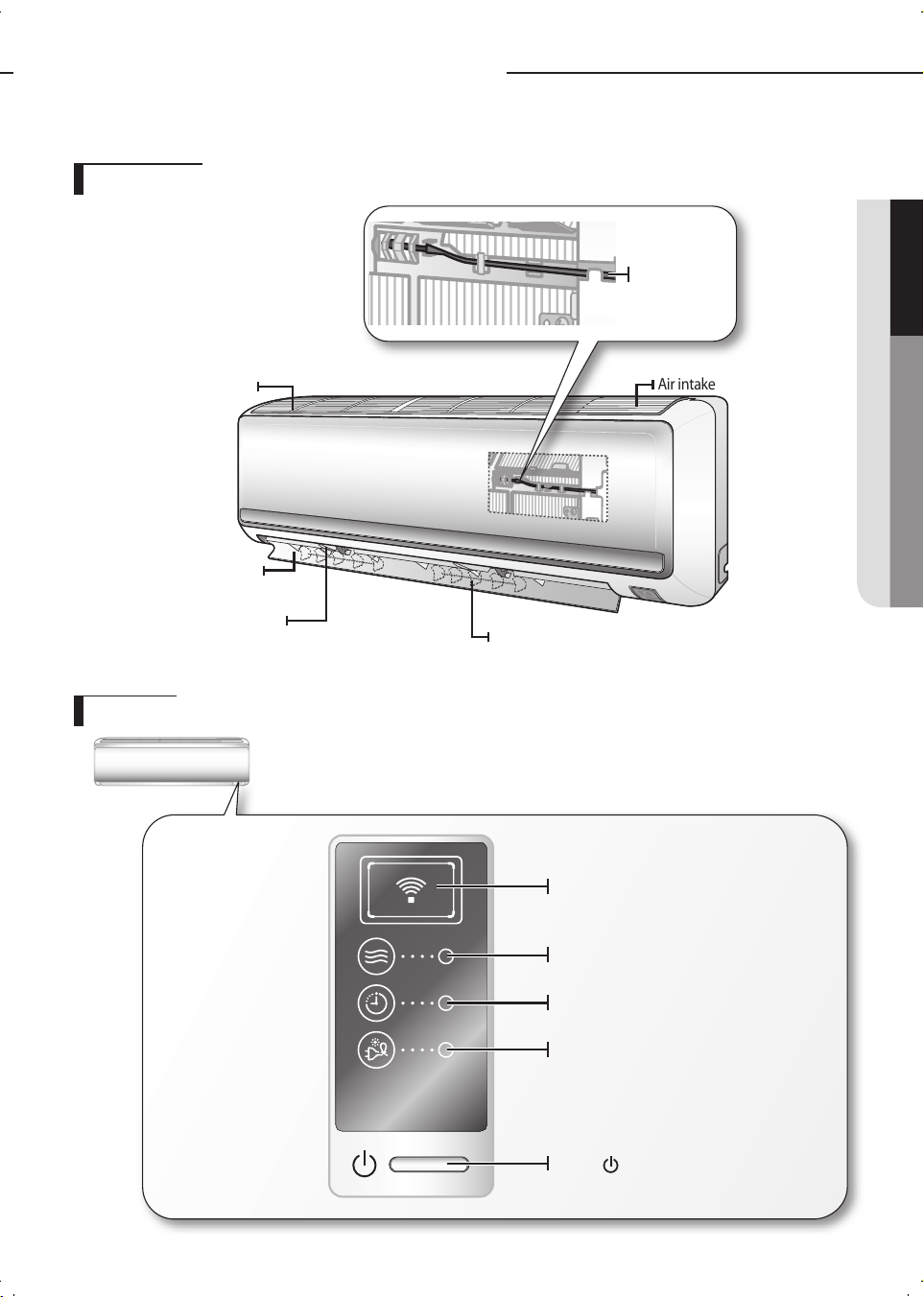

Checking the name of the parts
Air ow blade (left and right)
Air lter(under the panel)
Air ow blade
(up and down)
Blade pin lever
Air intake
Room
temperature
sensor
Remote control receiver
Operation indicator
Timer indicator
Smart Saver indicator
Power button
Vivaldi MAX_AQN09VFU@@ IB&IM_32163A-3_EN.indd 7 2015/8/17 14:47:27
8
Checking the remote controller

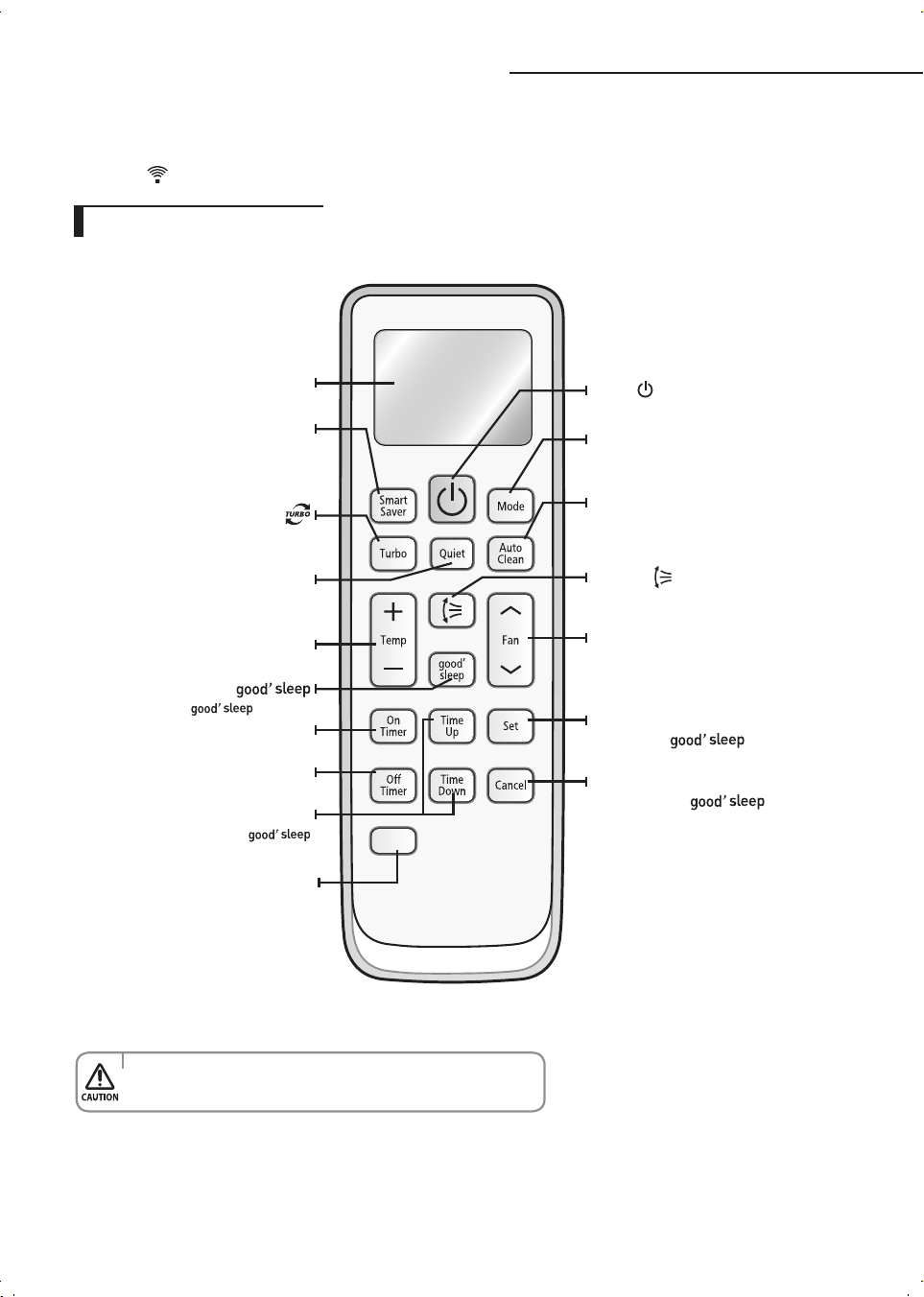

Remote controller buttons
• Pointtheremotecontrollertowardstheremotecontrollerreceiveroftheindoorunit.
• Whenyouproperlypressthebuttonontheremotecontroller,youwillhearbeepsoundfromtheindoorunitandatransmit
indicator( ) appears on the remote controller display.
Remote controller display
O Timer
Set the O Timer on.
Turbo
Operate in auto fan speed to
cool quickly.
Time Up/Time Down
Adjust the time for timer/
mode.
Fan
Adjust how much air ows through the air
conditioner with the 4 dierent fan speeds
such as Auto/Low/Medium/High.
Set
Set the timer/ mode.
Cancel
Cancel the timer/ mode.
Air swing
Activate/Deactivate air ow blade movement
automatically up and down.
Mode
Set one of the 5 operating modes
(see pages 10-11 for instructions).
Auto Clean
Auto clean function – Dry inside of the indoor
unit to get rid of odor.
Power
Turn on/o the air conditioner.
Temp + -
Increase/Decrease the temperature by 1˚F.

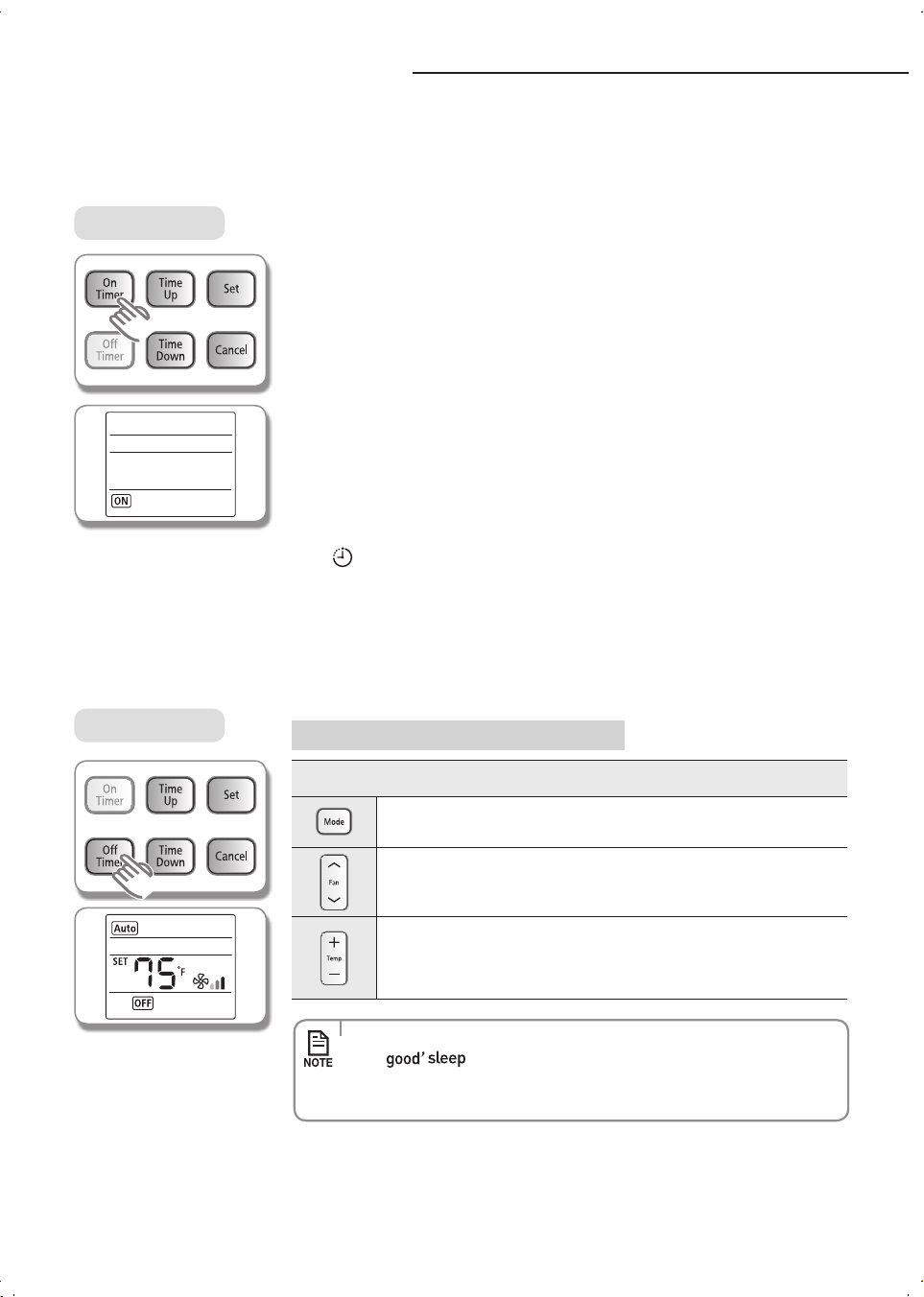

On Timer
Set the On Timer on.

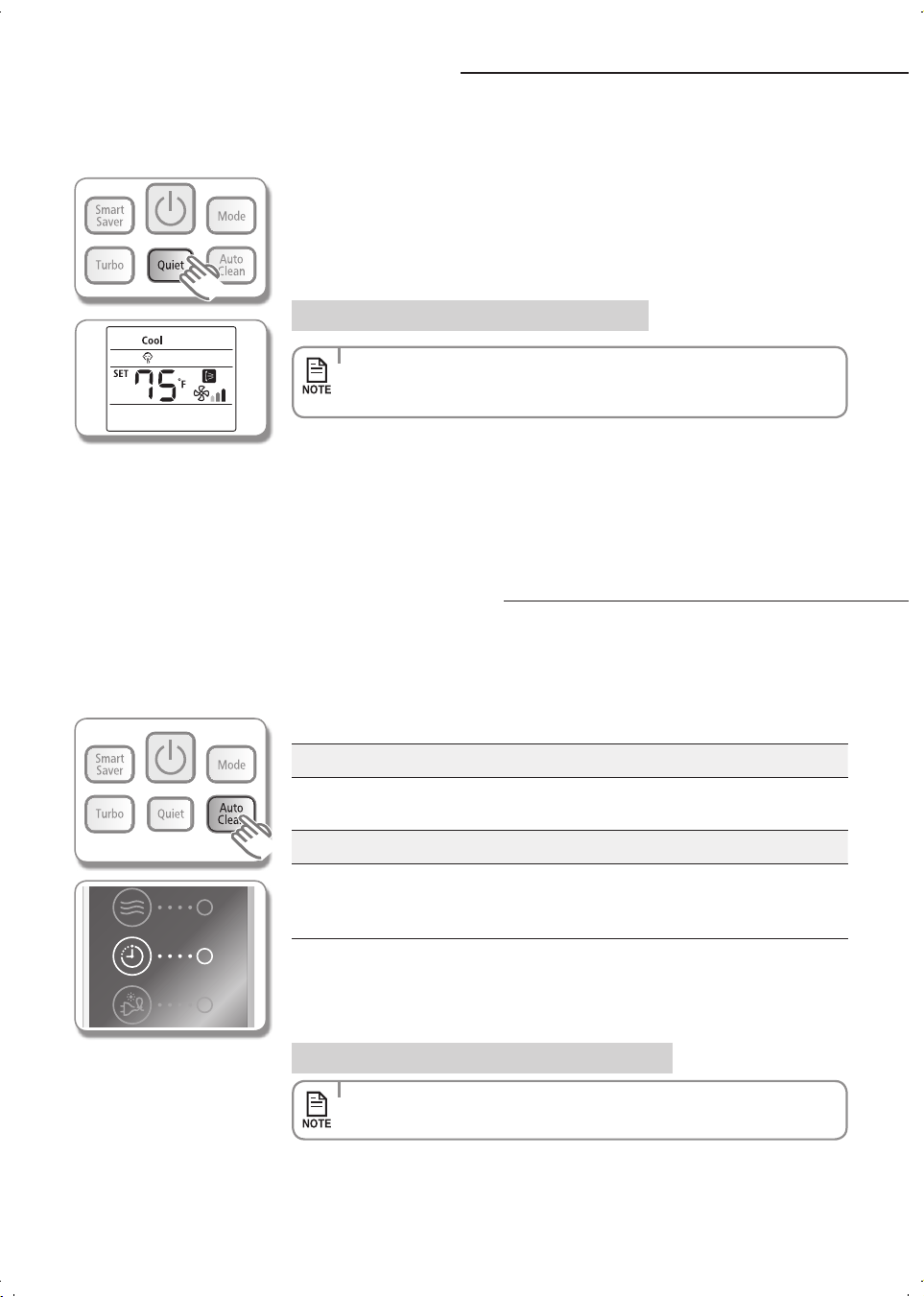

Quiet
Reduce noise generated from an indoor
unit during operation.
Set the mode on.
Smart Saver
Less energy usage makes your space
cool between the temperature range
of 76°F ~ 86°F(24°C~30°C).
This button doesn't have any function.
• Makesurethatthewaterdoesnotgettotheremotecontroller.
Vivaldi MAX_AQN09VFU@@ IB&IM_32163A-3_EN.indd 8 2015/8/17 14:47:27
9
ENGLISH

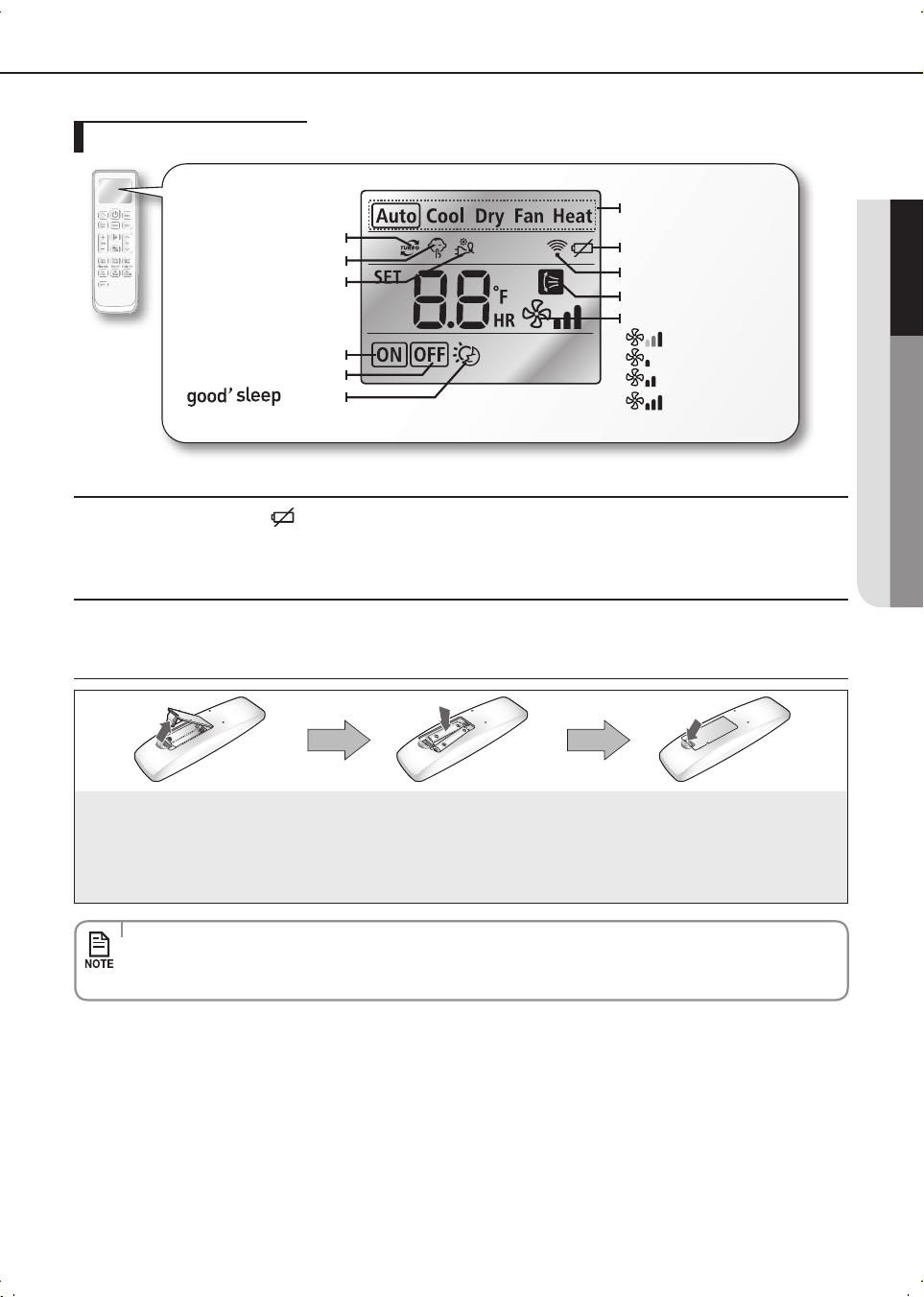

Remote controller display
• Thesignalmaynotbereceivedwellofelectroniclightingstyleuorescentlampssuchasinverteruorescentlamps
are in the same space.
• Ifotherelectricalproductsoperatebytheremotecontroller,callyournearestcontactcenter.
Quiet indicator
Turbo indicator
Smart Saver indicator
On Timer indicator
O Timer indicator
indicator
Operation mode
indicator
Fan speed indicator
Auto (Turbo)
Low
Medium
High
Low battery indicator
Transmit indicator
Air swing indicator
Battery changing time
When the battery is exhausted, ( ) will be displayed in the remote controller display. When the icon appears, change the
batteries. The remote controller requires two 1.5V AAA type batteries.
Storing the remote controller
When you do not use the remote controller for long time, remove the batteries from the remote controller and store it.
Inserting the batteries
1. Push the lever as arrow
indicates on the rear side of the
remote controller and pull up.
2. Insert two AAA batteries.
Check and match the “+” and “-”
signs accordingly. Make sure you
have inserted the batteries in
correct position.
3. Close the cover by place it back to its
original position.
You should hear click sound when the cover is
locked properly.
Vivaldi MAX_AQN09VFU@@ IB&IM_32163A-3_EN.indd 9 2015/8/17 14:47:28
10
Basic operation is an operation mode that can be selected by pressing the Mode button.
Auto
In Auto mode, the air conditioner will automatically set the temperature and fan speed depending on the room temperature
detected by the room temperature.
Dry
The air conditioner in Dry mode acts like a dehumidier by removing moisture from the indoor air.
Dry mode makes the air feel refreshing in a humid climate.
To maximize the dehumidication capacity during the Dry operation, the air conditioner could be
operating at lower or higher temperature than the remote controller set temperature.
Fan
Fan mode can be selected to ventilate your room. Fan mode will be helpful to refresh the stale air in your room.
Cool
In Cool mode, the air conditioner will cool your room. You can adjust the temperature and the fan speed to feel cooler in hot
season.
• Ifcurrentoutsidetemperaturesaremuchhigherthantheselectedindoortemperature,itmaytaketimetobringtheinner
temperature to the desired coolness.
• Quietmode( , ) makes the noise quieter during operating the indoor unit in the Cool mode.
Heat
The air conditioner heats as well as cools. Warm your room with this versatile appliance in the cold of winter.
• Fanmaynotoperateforabout3~5minutesatthebeginningtopreventanycoldblastswhiletheairconditioneris
warming up.
• Quietmode( , ) makes the noise quieter during operating the indoor unit in the Heat mode.
• Sincetheairconditionerheatstheroombytakingheatenergyfromoutdoorair,theheatingcapacitymaydecreasewhen
outdoor temperature is extremely low.
Use an additional heating appliance in combination with the air conditioner if you feel the air conditioner heats
insuciently.
Basic function
Vivaldi MAX_AQN09VFU@@ IB&IM_32163A-3_EN.indd 10 2015/8/17 14:47:28
11
ENGLISH

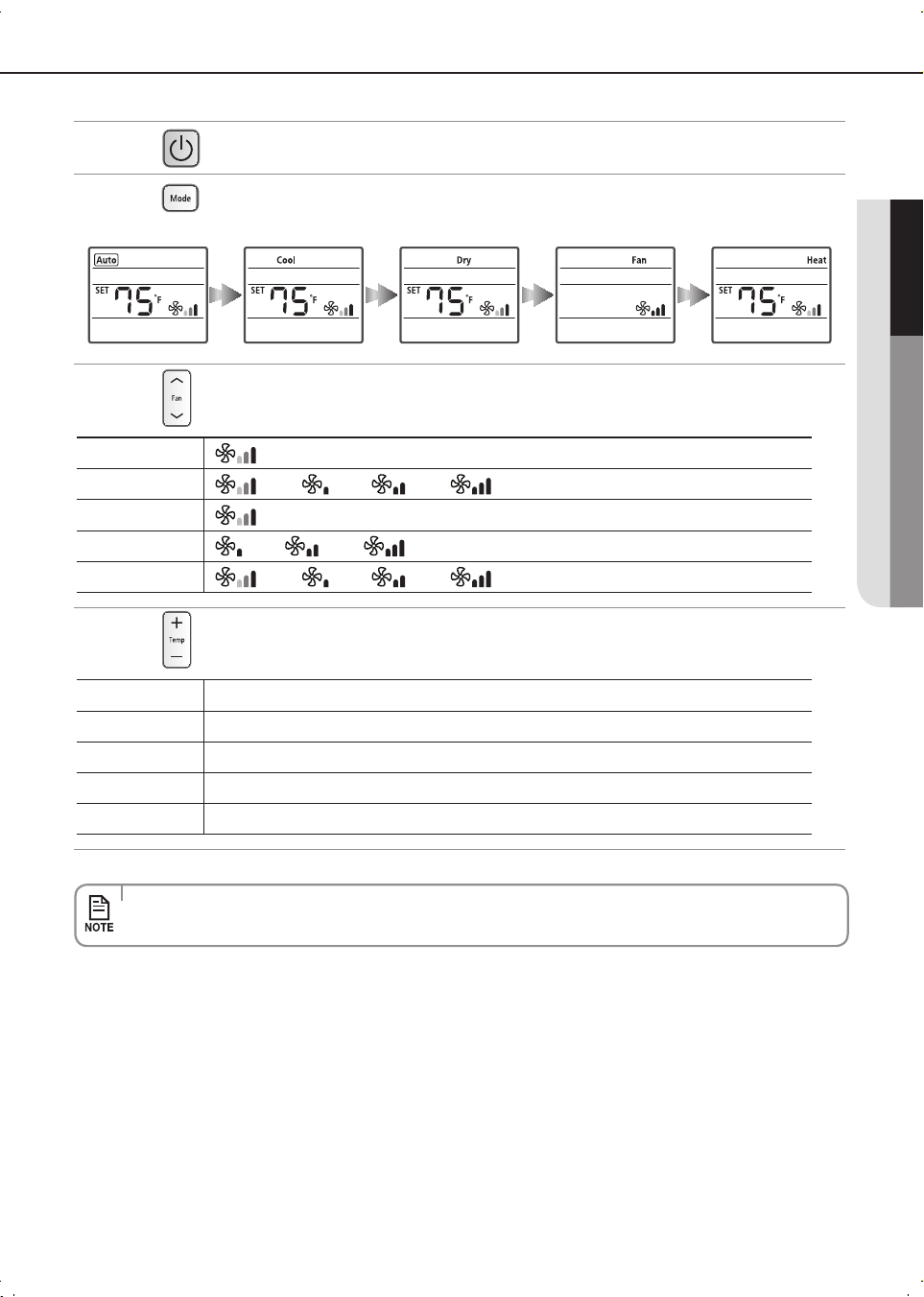

Press the button to turn on the air conditioner.
Press the button to set the operating mode.
• EachtimeyoupresstheMode button, the mode will change in order of Auto, Cool, Dry, Fan and Heat.
Press the button to set the desired fan speed.
Auto (Auto)
Cool
(Auto),
(Low),
(Med),
(High)
Dry
(Auto)
Fan
(Low),
(Med),
(High)
Heat
(Auto),
(Low),
(Med),
(High)
Press the
button to adjust the temperature.
Auto You can adjust the desired temperature by 1°F within the range of 61°F~86°F(16°C~30°C).
Cool You can adjust the desired temperature by 1°F within the range of 61°F~86°F(16°C~30°C).
Dry You can adjust the desired temperature by 1°F within the range of 65°F~86°F(18°C~30°C).
Fan Temperature adjustment is not possible.
Heat You can adjust the desired temperature by 1°F within the range of 61°F~86°F(16°C~30°C).
• Airowcanbeadjustedmanually.(seepage16forinstructions.)
Vivaldi MAX_AQN09VFU@@ IB&IM_32163A-3_EN.indd 11 2015/8/17 14:47:29
12

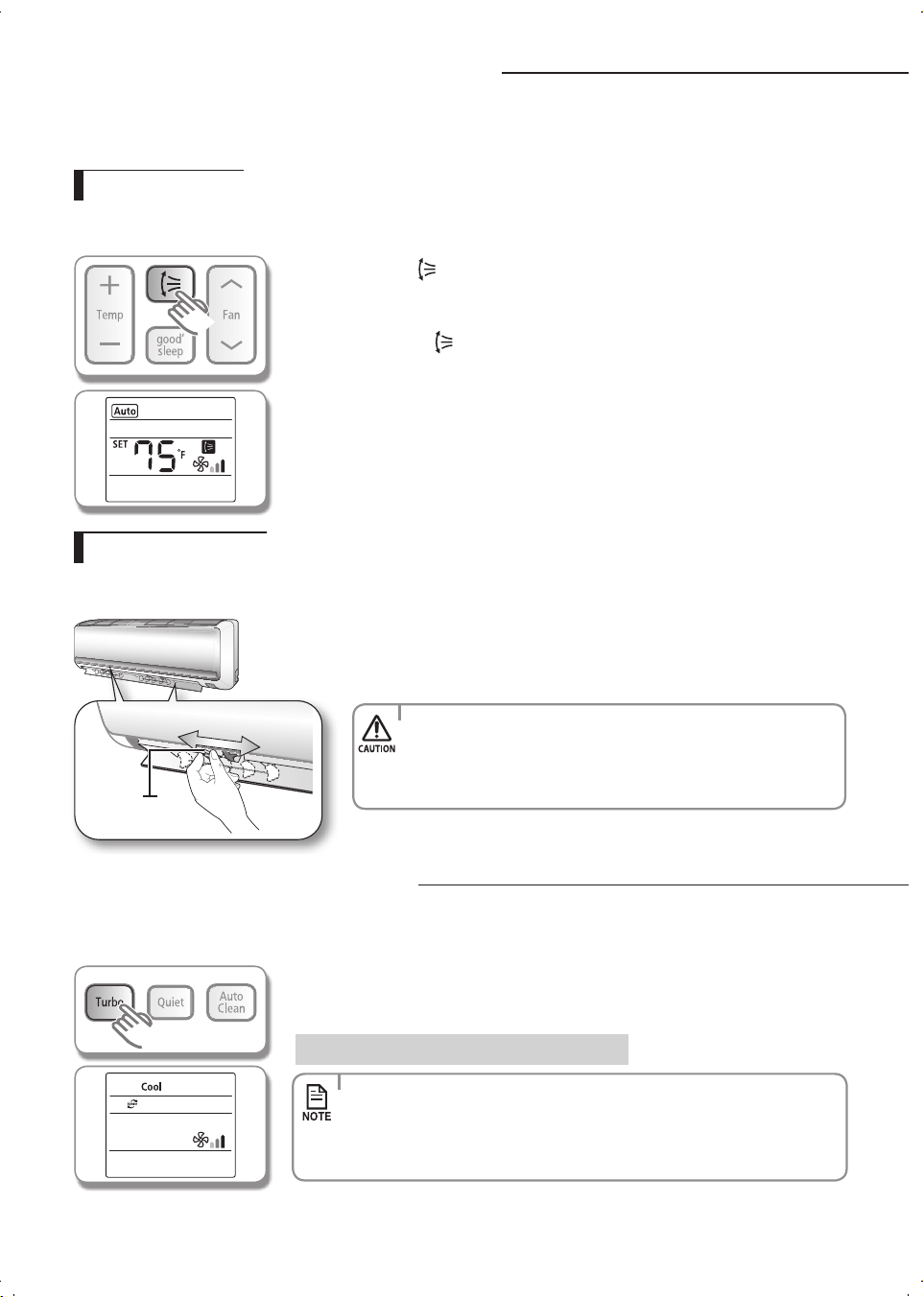

Adjusting the air ow direction
Air ow can be directed to your desired position.
Turbo function will be helpful to cool your room quickly and eectively.
Vertical air ow
Horizontal air ow
Air ow blades move up and down.
Make sure one of the blade pin lever that stick out of the air ow blades are not broken.
Press the Air swing button on the remote controller.
Air swing indicator will be on and air ow blades move up and down continuously to
circulate the air.
Press the Air swing button on the remote controller again, to keep the air ow
direction in a constant position.
Press the Turbo button on the remote controller during Cool mode.
Turbo indicator appears on the remote controller display and the air conditioner
operates in Turbo function for 30 minutes.
Move the blade pin lever left or right to keep the air ow direction in a constant
position you prefer.
Using the Turbo function
Blade pin lever
• TurbofunctionisonlyavailableinCoolmode.
• IfyoupresstheMode button while the Turbo function is on, it will cancel
the function.
• Temperature/Fanspeedcannotbeadjustedwhileusingthisfunction.
Press the Turbo button once again.Cancel
• BeextremelycarefulwithyourngerswhileadjustingtheHorizontal
air ow direction.
There is a potential risk of personal injury when the unit is
mishandled.
Vivaldi MAX_AQN09VFU@@ IB&IM_32163A-3_EN.indd 12 2015/8/17 14:47:30
ENGLISH
13
mode

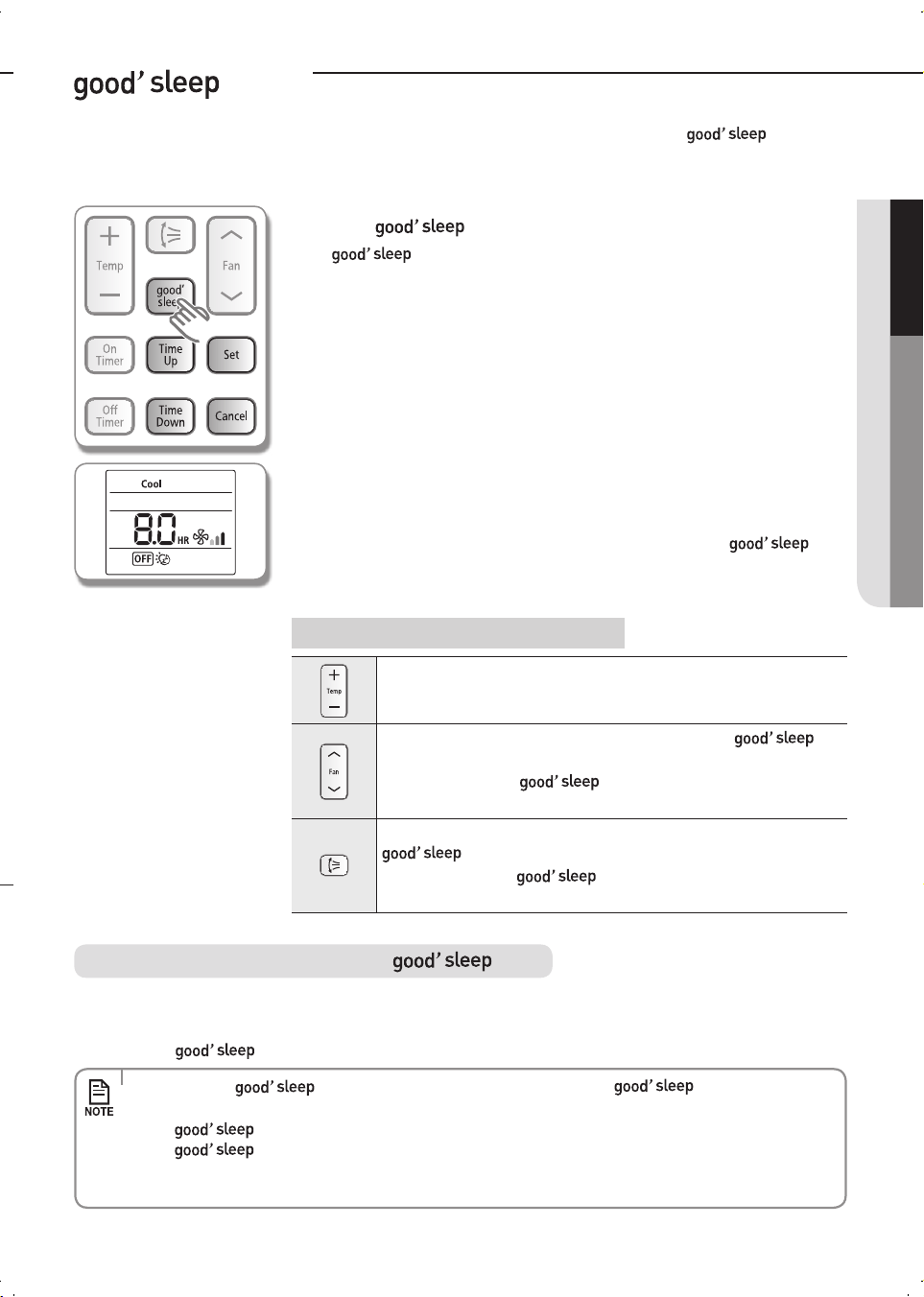

For a comfortable sleep, the air conditioner will operate it Fall asleep Sound sleep Wake up from mode.
1. Press the button on the remote controller.
indicator appears and O timer indicator starts blinking on the remote
controller display.
2. Press the Time Up or Time Down button to set the time.
You can set the time in half hourly unit from 30 minutes ~ 3 hours and hour unit from
3 hours ~ 12 hours.
Operating hour can be set from minimum 30 minutes to maximum
12 hours.
Default operation hour is set to 8 hours.
3. Press the Set button to active it on.
O timer indicator stops blinking and reserved time will be displayed for 3 seconds.
Then the air conditioner operates in good’sleep(Cool/Heat) mode.
If you don’t press Set button within 10 seconds after pressing the or
Time Up or Time Down button, the air conditioner will return to previous status.
• SetOtimerin mode over 5 hours. You fell disturbed sleep if the is set too short or long
because the default is set to 8-hour-operation.
• Ifthe mode is set less than 4 hours, the operation will stop at the same time.
If the mode is set over 5 hours, it will run as Wake up stage from the last one hour before it stops.
• Recommendedsettemperatureisbetween77˚F~81˚F(25˚C~27˚C)forcoolingand70˚F~73˚F(21˚C~23˚C)for
heating.
Temperature and fan speed changes in mode
• Fallasleep:Easesyouintosleepbydroppingthetemperature.
• Soundsleep:Relaxesyourbodyandraisesyourtemperatureslightly.
• Wakeupfrom mode:Allowsyoutowakeupfromcomfortableintermittentairanditmakesyoufeelrefreshed.
When the air conditioner is on and in cool/heat mode
You can set the desired temperature by 1˚F in the range of
61°F~86°F(16°C~30°C).
Fan speed will be adjusted automatically according to the
mode.
However, I f you select
mode while heating operation is on,
you can adjust fan speed.
Air ow direction will be adjusted automatically according to the
mode.
However, if you select mode while heating operation is on,
you can adjust air ow direction.
Press the Cancel button once again.Cancel
Vivaldi MAX_AQN09VFU@@ IB&IM_32163A-3_EN.indd 13 2015/8/17 14:47:30
14
Setting the On/O timer
You can set the air conditioner to turn on/o automatically at desired time.
Setting On timer while the air conditioner is o / O timer while the air conditioner is on
1. Press the On Timer/O Timer button.
On/O timer indicator will blink on the remote controller display.
2. Press the Time Up or Time Down button to set the time.
You can set the time in half hourly unit from 30 minutes ~ 3 hours and hour unit from
3 hours ~ 24 hours.
Operating hour can be set from minimum 30 minutes to maximum
24 hours.
3. Press the Set button to active it on.
On timer indicator stops blinking and reserved time will be displayed for 3 seconds.
If you don’t press Set button within 10 seconds after selecting the time the air
conditioner will return to previous status. Check On timer or O timer indicator and
indicator on the indoor unit.
Additional options available in On timer mode
You can select from Auto/Cool/Dry/Fan/Heat.
You can adjust the fan speed in Cool/Fan/Heat mode.
You can adjust the temperature in Auto/Cool/Dry/Heat mode.
• OnlythelatestsettingtimerwillbeappliedbetweentheOnTimer/OTimer
and O timer functions.
• Aftersettingthetimer,thesettimewillbedisplayedfor3secondsbeforeit
disappears.
Setting On timer
Setting O timer
Press the Cancel button.Cancel
Vivaldi MAX_AQN09VFU@@ IB&IM_32163A-3_EN.indd 14 2015/8/17 15:10:07
ENGLISH
15
Combining On Timer and O Timer
If the air conditioner is on If the air conditioner is o
Preset time on On timer is longer than O timer
Ex) On timer : 3 hours, O timer : 1 hour
- The air conditioner will operate the O timer after
1 hour from the moment you have set the timer.
Your air conditioner will turn on after 2 hours.
Preset time on On timer is shorter than O timer
Ex) On timer : 3 hours, O timer : 5 hours
- The air conditioner will operate On timer after 3 hours
from the moment you have set the timer.
Your air conditioner will remain on for 2 hours and then
turn o automatically.
• OntimerandOtimersettingtimeshouldbedierentfromeachother.
• PresstheCancelbuttonontheremotecontrollerwhiletimercombinationison.
BothoftheOnandOtimerwillbecanceledandtheindicatorwilldisappear.
Using the Smart Saver function
ThisfunctionwillsetthetemperaturerangelimittohelpyousaveenergywhiletheairconditionerisoperatinginCoolmode.
Press the Smart Saver button on the remote controller while the air conditioner is
operating in Cool mode.
SmartSaverindicatorandairswingindicatorappearsautomaticallyontheremote
controller display.
Theairowbladesmoveupanddown.
Ifthecurrentsettemperatureislowerthan76°F(24°C),itwillautomaticallyraiseto
76°F(24°C).
• SmartSaverfunctionisonlyavailableinCoolmode.
• WhenSmartSaverfunctionisactivated,temperaturerangewillbelimitedto
76°F~86°F(24°C~30°C).
• Ifthedesiredtemperatureislowerthan76°F(24°C),turnotheSmartSaver
functionbypressingtheSmart Saverbuttonagain.
• Temperature/Fanspeedcanalsobeadjusted(seepage11forinstructions).
• Airowcanbeadjustedmanually(seepage12forinstructions).
• IfyoupresstheModebuttonwhiletheSmartSaverfunctionison,itwillcancel
the function.
PresstheSmart Saverbuttononceagain.Cancel
Vivaldi MAX_AQN09VFU@@ IB&IM_32163A-3_EN.indd 15 2015/8/17 17:22:22
16
Auto clean function will prevent from growing mold by eliminating the moisture inside of the indoor unit. Your indoor unit
evaporates the moisture inside of the unit. Activate this function to provide you with more clean and healthier air.
Press the Auto Clean button.
• Whentheairconditioneristurnedon,theAutocleanfunctionrunsafter
stopping the air conditioner operation.
When the air conditioner is turned o,
The Auto clean indicator on the indoor unit display appears and the Auto cleaning
function runs.
When the air conditioner is turned on,
After stopping the air conditioner operation , the Auto clean indicator on the indoor
unit display appears and the Auto cleaning function runs.
Press the Auto Clean button once again.
Cancel
Auto Cleaning time can vary, depending on the previously used mode.
Auto(cool), Cool, Dry mode:approximately30minutes.
Auto(heat), Heat, Fan mode:approximately15minutes.
Using the Quiet function
You can reduce the noise generated from an indoor unit.
Press the Quiet button on the remote controller while the air conditioner is operating
in Cool/Heat mode.
Quiet indicator appears on the remote controller display.
The indoor unit will operate more quietly.
• Ifusingamultisystem,thisfunctionwillworkonlywhentheQuietfunctionis
set on all operated indoor units.
Press the Quiet button once again.Cancel
Using the Auto Clean function
Vivaldi MAX_AQN09VFU@@ IB&IM_32163A-3_EN.indd 16 2015/8/17 14:47:32
ENGLISH
17

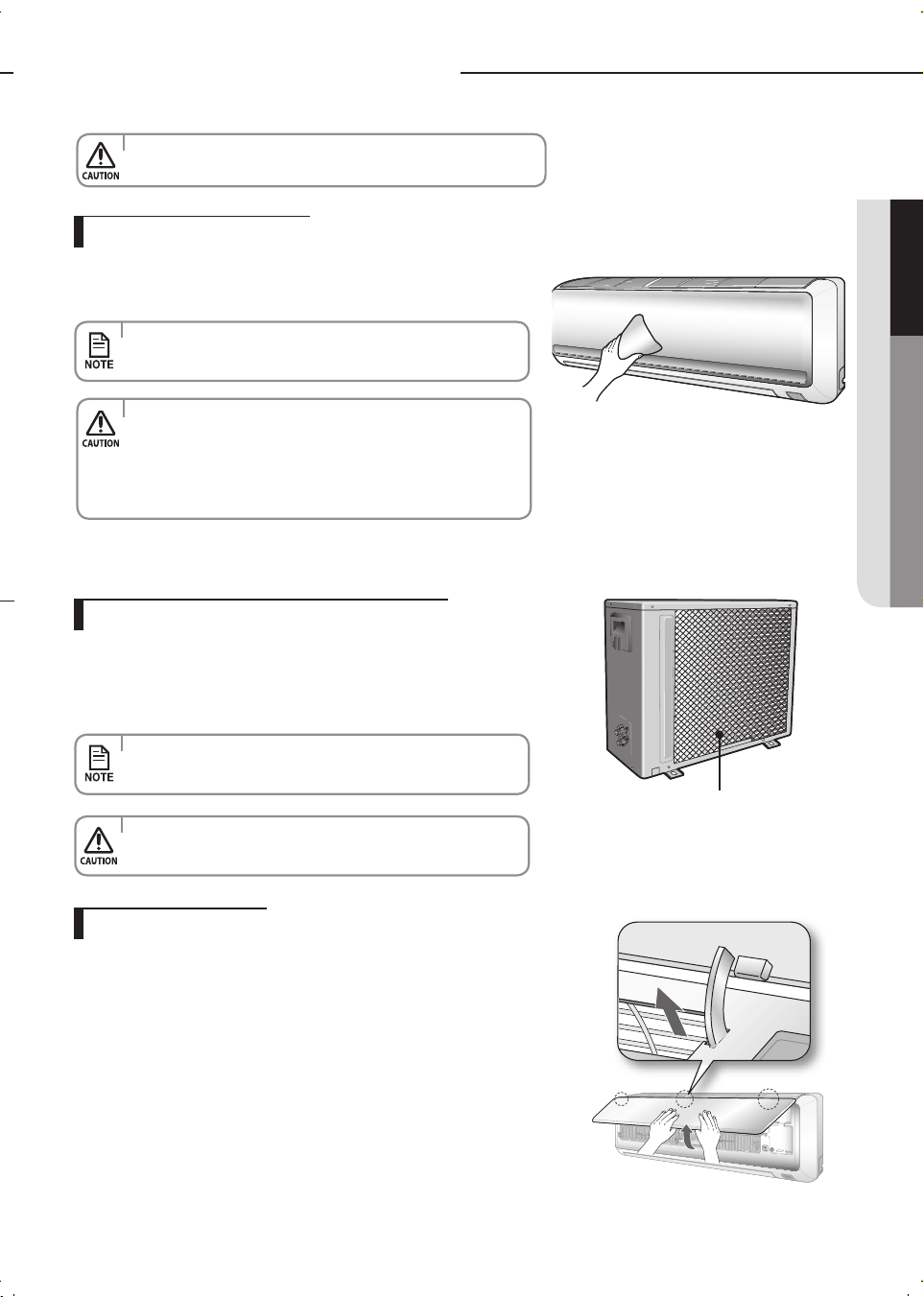

Cleaning the air conditioner
Cleaning the indoor unit
Cleaning the outdoor unit heat exchanger
Opening the panel
Wipe the surface of the unit with a slightly wet or dry cloth when
needed.
When dust accumulates on the heat exchanger, it may decrease cooling
performance. Therefore, clean it regularly.
Spray water to clean the dust.
Tightly grab top of the front panel and pull it down to open.
Then slightly lift the panel up.
• Ifitisdiculttocleantheoutdoorunitheatexchangeron
your own, contact service center.
• Contacttheservicecenterwhenyoucleantheindoorunit
heat exchanger because it needs to be disassembled.
Heat exchanger
(Illustration may dier slightly
depending on the models)
• Donotcleanthedisplayusingalkalinedetergent.
• Donotusesulfuricacid,hydrochloricacid,organicsolvents
(such as thinner, kerosene and acetone etc.) to clean the
surface of the product or put any stickers on it. They may
damage the surface of the air conditioner.
• Becarefulwiththesharpedgesontheoutdoorunitheat
exchanger.
•
Make sure the power is turned o and unplugged from
the wall socket when cleaning the air conditioner.
Vivaldi MAX_AQN09VFU@@ IB&IM_32163A-3_EN.indd 17 2015/8/17 14:47:32
18
Cleaning the air conditioner

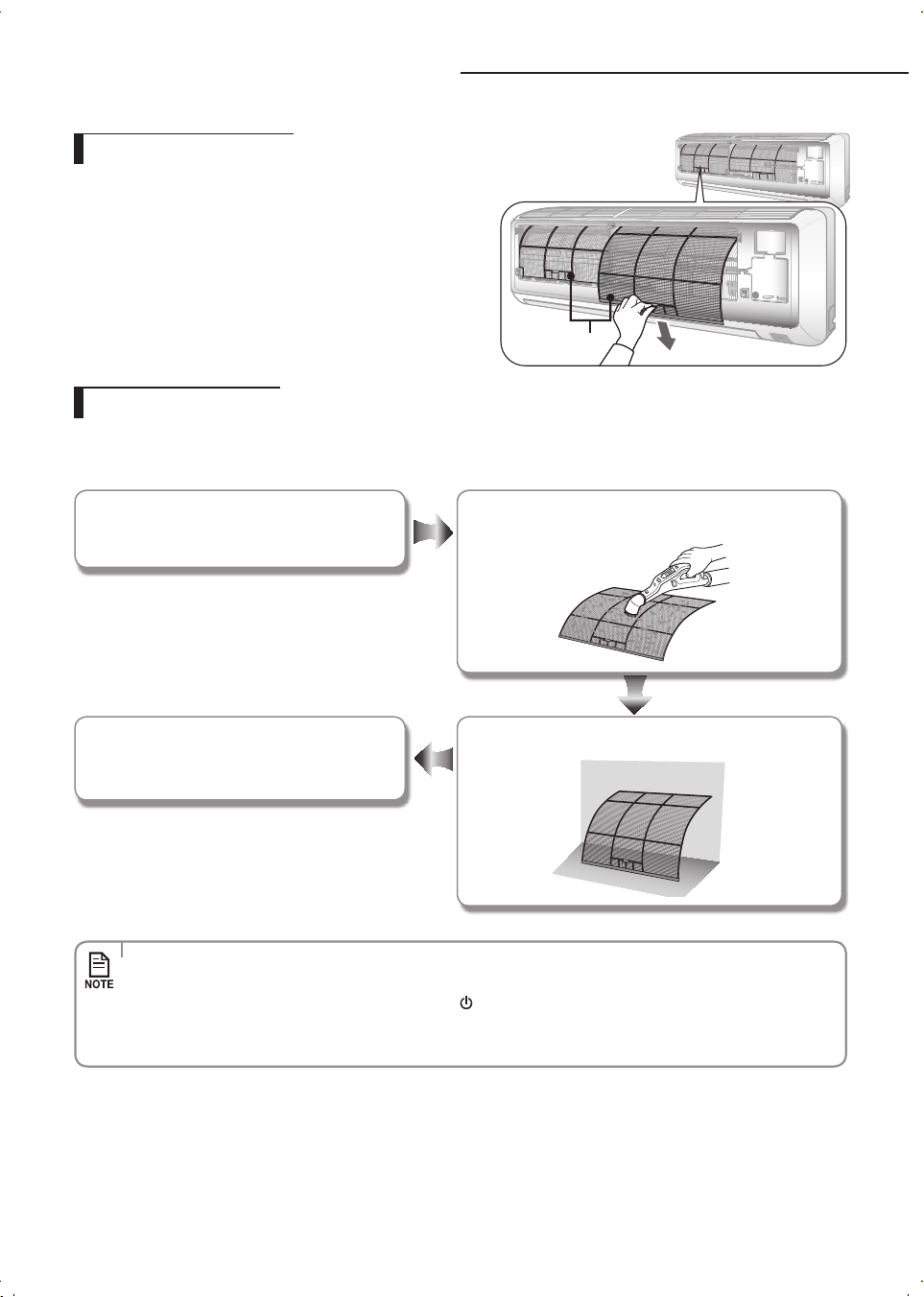

Removing the Air lter
Grab the handle and lift it up. Then, pull the Air lter towards you
and slide it down.
Air lter
Cleaning the air lter
Washable foam based air lter captures large particles from the air. The lter is cleaned with a vacuum or by hand washing.
Open the panel and put the Air filter out.
Insert the Air filter back in its original position
and close the front panel.
Dry the Air filter in a ventilated area.
Clean the Air filter with a vacuum cleaner or soft brush.
If dust is too heavy, rinse it with running water.
• CleantheAirlterevery2weeksorwhentheltercleanreminderlightsup.Cleaningtermmaydierdepending
on the usage and environmental conditions. In dusty area, clean it once a week.
• IfyouturnotheairconditionerbypressingPower button, the lter clean reminder will be turned o.
• IftheAirlterdriesinaconned(orhumid)area,odorsmaygenerate.Ifitoccurs,re-cleananddryitina
well-ventilated area.
Vivaldi MAX_AQN09VFU@@ IB&IM_32163A-3_EN.indd 18 2015/8/17 14:47:33
ENGLISH
19
Maintaining the air conditioner
If the air conditioner will not be used for an extended period of time, dry the air conditioner to maintain it in best condition.
Periodical checks
Refer to the following chart to maintain the air conditioner properly.
Type Description
Every 2
weeks
Every 3
months
Every 4
months
Once a year
Indoor
unit
Clean the air lter (1)
Clean the condensate drain pan (2)
Thoroughly clean the heat exchanger (2)
Clean the condensate drain pipe (2)
Replace the remote controller batteries (1)
Outdoor
unit
Clean the heat exchanger on the outside of the unit (2)
Clean the heat exchanger on the inside of the unit (2)
Clean the electric components with jets of air (2)
Verify that all the electric components are rmly
tightened (2)
Clean the fan (2)
Verify that all the fan assembly is rmly tightened (2)
Clean the condensate drain pan (2)
: This check mark requires checking the indoor/outdoor unit periodically, following to the description to maintain the
air conditioner properly.
1. Dry the air conditioner thoroughly by operating in Fan mode for 3 to 4 hours and disconnect the power plug.
There may be internal damage if moisture is left in components.
2. Before using the air conditioner again, dry the inner components of the air conditioner again by running in Fan mode
for 3 to 4 hours. This helps remove odors which may have generated from dampness.
(1) The described operations should be performed more frequently if the area of installation is very dusty.
(2) These operations must always be performed by qualied personnel. For more detailed information, see the
installation part in the manual.
Vivaldi MAX_AQN09VFU@@ IB&IM_32163A-3_EN.indd 19 2015/8/17 15:11:17
20
Troubleshooting
Refer to the following chart if the air conditioner operates abnormally. This may save time and unnecessary expenses.
PROBLEM SOLUTION
The air conditioner does
not work at all.
• Checkpowerstatusandthenoperatetheairconditioneragain.
• Pluginorswitchonthecircuitbreakerandthenoperatetheairconditioneragain.
• CheckifyouhavesettheOTimer.Operatetheairconditioneragainbypressingthe
Power button.
The temperature
adjustment is not working.
• CheckifyouhaveselectedFan/Turbomode.Inthesemodes,desiredtemperatureissetto
auto and you cannot adjust the temperature.
Cool/Warm air does
not come out of the air
conditioner.
• Checkifthesettemperatureishigher(duringCoolmode)/lower(duringHeatmode)than
the current temperature. Press the Temp + or - button on the remote controller to change
the set temperature.
• CheckiftheAirlterisblockedbydirt.IfthereisalotofdustontheAirlter,
cooling(heating) performance may decrease. Clean them frequently.
• Checkiftheoutdoorunitiscoveredorinstalledneartheobstacle.Takethecoveroand
take the obstacle away.
• Ifyouwanttooperatetheairconditionerinthesunlight,covertheoutdoorunitusing
curtains or etc.
• CheckiftheairconditionerisoperatinginDe-icemode.Whentheiceformedinwinter
or the outdoor temperature is too low, the air conditioner operates in De-ice mode
automatically. In De-ice mode, indoor fan stops and cool air does not come out.
• Ifthedoorsorwindowsareopen,itmaycausebadcooling(heating)performance.
Close the doors and windows.
• Checkiftheairconditionerhasjustbeenturnedonafterstoppingcooling(heating)
operation. In this case, just a fan will run to protect the outdoor unit compressor.
• Checkifthepipelengthistoolong.Whenthepipelengthexceedsmaximumallowable
pipe length, cooling (heating) performance may decrease.
Air ow adjustment is not
working.
• CheckifyouhaveselectedAuto/Dry/ mode. In these modes, desired
temperature is set to auto and you cannot adjust the temperature.
Fan speed adjustment is
not working.
• Check if you have selected Auto/Dry/Turbo/ mode. In these mode, fan speed
is set to Auto and you cannot adjust the fan speed.
Remote controller is not
working.
• Checkifyourbatteriesaredepleted.
• Makesurenothingisblockingyourremotecontrollersensor.
• Checkthattherearestronglightingapparatusneartheairconditioner.Stronglightwhich
comes from uorescent bulbs or neon signs may interrupt the electric waves.
Timer function does not
set.
• CheckifyoupresstheSet button on the remote controller after you have set the time.
The indicator is blinking
continuously.
• PressthePower button or disconnect the power plug/switch o the auxiliary power
switch.
If the indicator is still blinking, contact the service center.
Odors permeate in the
room during operation.
• Checkiftheapplianceisrunninginasmokyarea.Ventilatetheroomoroperatetheair
conditioner in Fan mode for 1~2 hours. (We do not use smelly components in the air
conditioner.)
Vivaldi MAX_AQN09VFU@@ IB&IM_32163A-3_EN.indd 20 2015/8/17 14:47:33
21
ENGLISH
PROBLEM SOLUTION
Error is indicated. •
When an indoor unit indicator blinks, contact the nearest service center.
Noise is generated. • Dependingonthestatusoftheairconditionerusage,noisecanbeheardwhenrefrigerant
ow movement changes. It is normal.
Smoke is generated from
the outdoor unit.
• Ifmaynotbearebutitcanbeasteamgeneratedbythedefrostoperationfromoutdoor
heat exchanger during Heat mode in winter.
Water is dropping from
the outdoor unit piping
connection.
•
Water may be generated because of the temperature dierence. It is normal.
Vivaldi MAX_AQN09VFU@@ IB&IM_32163A-3_EN.indd 21 2015/8/17 14:47:33
22
Carefully follow the precautions listed below because they are essential to guarantee the safety of the equipment.
•Alwaysdisconnecttheairconditionerfromthepowersupplybeforeservicingitoraccessingitsinternalcomponents.
•Verifythatinstallationandtestingoperationsareperformedbyqualifiedpersonnel.
•Verifythattheairconditionerisnotinstalledinaneasilyaccessiblearea.
INSTALLATION PARTS
General information
Carefully read the content of this manual before installing the air conditioner and store the manual in a safe place in order
to be able to use it as reference after installation.
For maximum safety, installers should always carefully read the following warnings.
Store the operation and installation manual in a safe location and remember to hand it over to the new owner if the air
conditioner is sold or transferred.
This manual explains how to install an indoor unit with a split system with two SAMSUNG units.
The use of other types of units with dierent control systems may damage the units and invalidate the warranty.
The manufacturer shall not be responsible for damages arising from the use of non compliant units.
The air conditioner is compliant with the requirements of the Low Voltage Directive (72/23/EEC),
the EMC Directive (89/336/EEC) and the Directive on pressurized equipment (97/23/EEC).
The manufacturer shall not be responsible for damage originating from unauthorized changes or the improper connection
of electric and requirements set forth in the “Operating limits” table, included in the manual, shall immediately invalidate
the warranty.
Theairconditionershouldbeusedonlyfortheapplicationsforwhichithasbeendesigned:theindoorunitisnotsuitable
to be installed in areas used for laundry.
Do not use the units if damaged. If problems occur, switch the unit o and disconnect it from the power supply.
In order to prevent electric shocks, res or injuries, always stop the unit, disable the protection switch and contact
SAMSUNG’s technical support if the unit produces smoke, if the power cable is hot or damaged or if the unit is very noisy.
Always remember to inspect the unit, electric connections, refrigerant tubes and protections regularly. These operations
should be performed by qualied personnel only.
The unit contains moving parts, which should always be kept out of the reach of children.
Do not attempt to repair, move, alter or reinstall the unit. If performed by unauthorized personnel, these operations may
cause electric shocks or res.
Do not place containers with liquids or other objects on the unit.
All the materials used for the manufacture and packaging of the air conditioner are recyclable.
The packing material and exhaust batteries of the remote controller(optional) must be disposed of in accordance with
current laws.
The air conditioner contains a refrigerant that has to be disposed of as special waste. At the end of its life cycle, the air
conditioner must be disposed of in authorized centers or returned to the retailer so that it can be disposed of correctly and
safely.
※
In this manual, you may find model names written in simplified forms as indicated in following table.
Safety precautions
Model Names Included Models Remark
AQ
VFU
AQ
09VFU
, AQ
12VFU
, AQ
18VFU
, AQ
24VFU
, AQ
36VFU
Grouping was done by series.
09
AQ
09VFU
Grouping was done by capacity.
12
AQ
12VFU
18
AQ
18VFU
24
AQ
24VFU
36
AQ
36VFU
Vivaldi MAX_AQN09VFU@@ IB&IM_32163A-3_EN.indd 22 2015/8/17 14:47:34
ENGLISH
23
Installing the unit
IMPORTANT:Wheninstallingtheunit,alwaysremembertoconnectrsttherefrigeranttubes,thentheelectricallines.
Always disassemble the electric lines before the refrigerant tubes.
Upon receipt, inspect the product to verify that it has not been damaged during transport.
If the product appears damaged, DO NOT INSTALL it and immediately report the damage to the carrier or retailer (if the
installer or the authorized technician has collected the material from the retailer.)
After completing the installation, always carry out a functional test and provide the instructions on how to operate the air
conditioner to the user.
Do not use the air conditioner in environments with hazardous substances or close to equipment that release free ames to
avoid the occurrence of res, explosions or injuries.
To prevent injury when accidentally touching the indoor unit fan, install the indoor unit at least 8.2ft(2.5m) above the oor.
Theairconditionershouldbeusedonlyfortheapplicationsforwhichithasbeendesigned:theindoorunitisnotsuitable
to be installed in areas used for laundry.
Our units must be installed in compliance with the spaces indicated in the installation manual to ensure either accessibility
from both sides or ability to perform routine maintenance and repairs. The units’components must be accessible and that
can be disassembled in conditions of complete safety either for people or things.
For this reason, where it is not observed as indicated into the Installation Manual, the cost necessary to reach and repair the
unit (in safety, as required by current regulations in force) with slings, trucks, scaolding or any other means of elevation
won’t be considered in-warranty and charged to end user.
Power supply line, fuse or circuit breaker
Always make sure that the power supply is compliant with current safety standards. Always install the air conditioner in
compliance with current local safety standards.
Always verify that a suitable grounding connection is available.
Verify that the voltage and frequency of the power supply comply with the specications and that the installed power is
sucient to ensure the operation of any other domestic appliance connected to the same electric lines.
Always verify that the cut-o and protection switches are suitably dimensioned.
Verify that the air conditioner is connected to the power supply in accordance with the instructions provided in the wiring
diagram included in the manual.
Always verify that electric connections (cable entry, section of leads, protections…) are compliant with the electric
specications and with the instructions provided in the wiring scheme.
Always verify that all connections comply with the standards applicable to the installation of air conditioners.
Indoor unit
Where airow is not blocked
Where cool air can be distributed throughout the room
Install the refrigerant piping length and the height dierence of both indoor and outdoor units as indicated in the
installation diagram
Wall that prevents vibration and is strong enough to hold the product weight
Out of the direct sunlight
1m or more away from the TV or radio (to prevent the screen from being distorted or noise from being generated)
As far away as possible from the uorescent and incandescent lights (so that the remote controller can be operated well)
A place where the air lter can be replaced easily
Choosing the installation location
Vivaldi MAX_AQN09VFU@@ IB&IM_32163A-3_EN.indd 23 2015/8/17 14:47:34

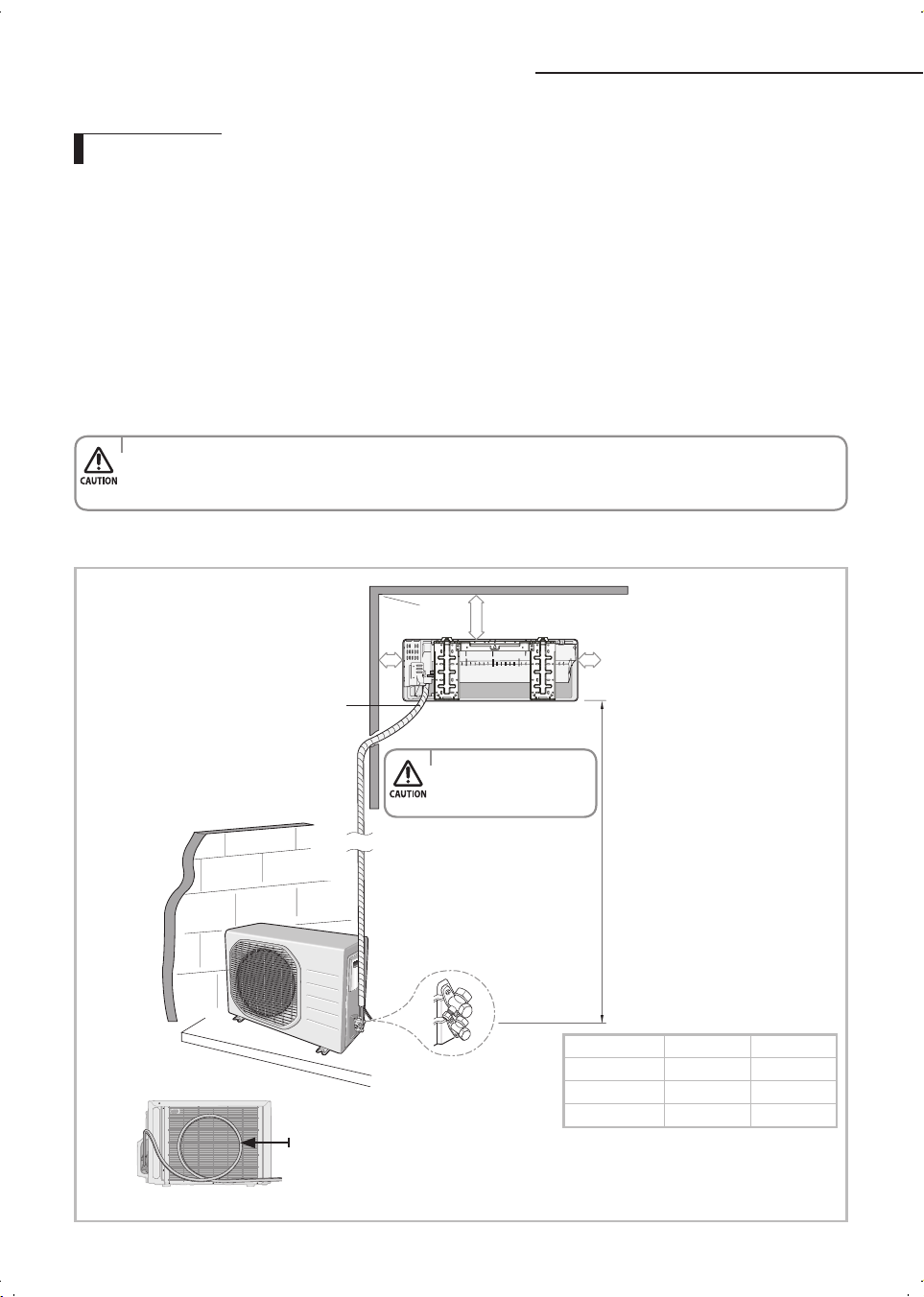

24
Outdoor Unit
Where it is not exposed to strong wind
Well ventilated and dustless places
Out of the direct sunlight and rain
Where neighbors are not annoyed by operation sound or hot air
Solid wall or support that prevents vibration and is strong enough to hold the product weight
Where there is no risk of ammable gas leakage
When installing the unit at a high place be sure to x the unit legs
9.84ft(3m) or more away from the TV or radio (to prevent the screen from being distorted or noise from being generated)
Install the unit horizontally
Place where drained water does not become any problem.
Place with no plants (especially climbing plants) and where small animal can not access.
Observe the clearances and maximum lengths as seen in the picture below when installing the air conditioner.
• Avoidthefollowingplacestopreventmalfunctionoftheunit
- Where there is machine oil - Salty environment such as seaside areas
- Where sulde gas exists - Other special atmosphere areas
4.9inch(125mm)
or more
11.8inch(300mm) or more
4.9inch(125mm)
or more
' L ' maximum
total pipe length
Wrap the refrigerant pipes and the drain hose
with the absorbent pad and vinyl tape. Refer to
page 38 for further details.
You can select the direction of
draining (left or right).
' H ' maximum total pipe
length
The appearance of the unit may be dierent from the diagram depending on the model.
Makeatleastoneround:Itwillreducenoiseandvibration
'L' as maximum pipe length and
9.84ft(3m) as minimum pipe
length (It will reduce noise and
vibration)
Choosing the installation location
Model L H
09/12
49.2ft(15m) 26.24ft(8m)
18/24
98.4ft(30m) 49.2ft(15m)
36
164ft(50m) 98.4ft(30m)
Vivaldi MAX_AQN09VFU@@ IB&IM_32163A-3_EN.indd 24 2015/8/17 14:47:34
25
ENGLISH

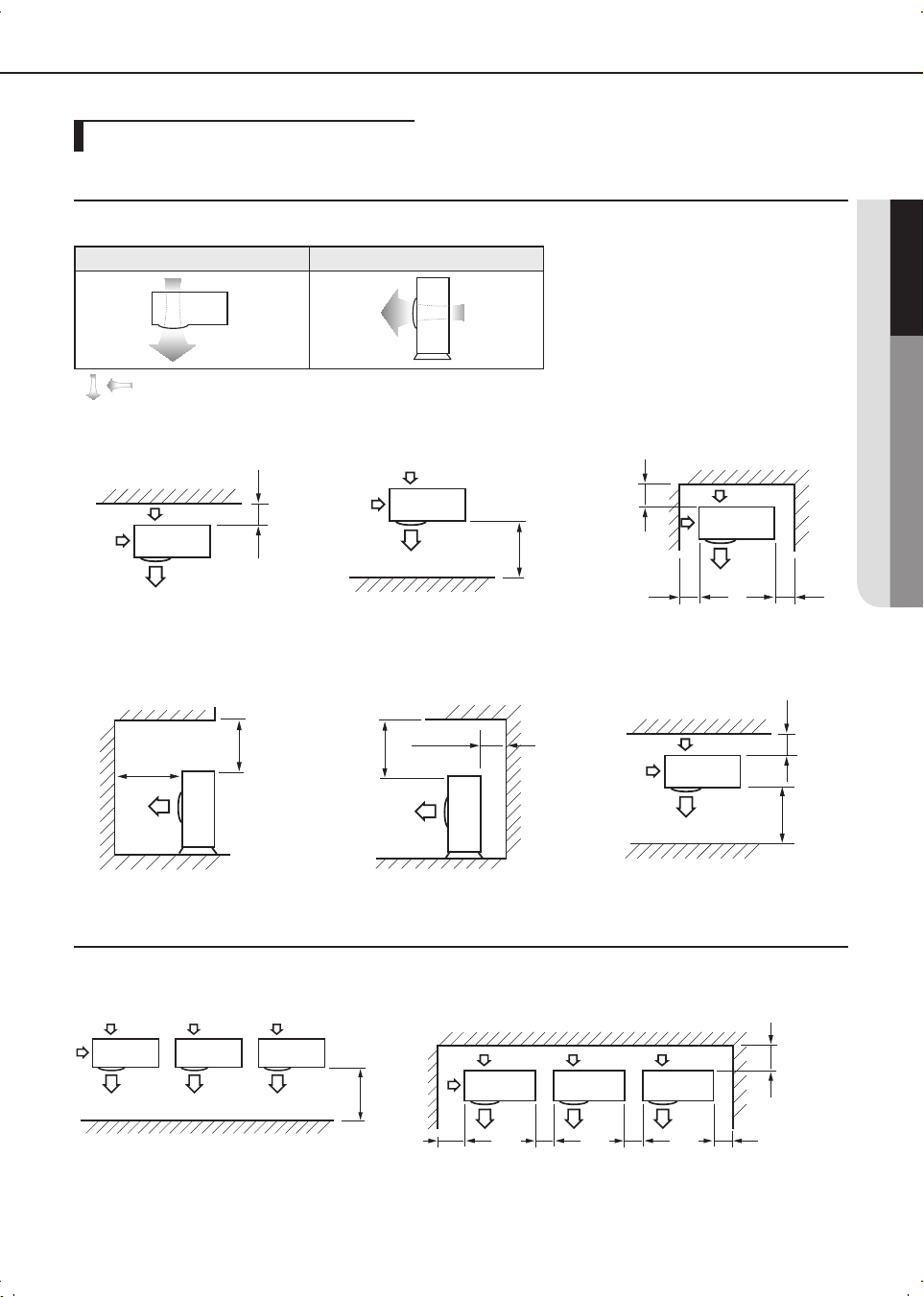

Space Requirements for Outdoor Unit
When installing 1 outdoor unit
When installing more than 1 outdoor unit
11.8 or more
When the air outlet is opposite the
wall
59.1 or more
When the air outlet is towards the
wall
11.8 or more
5.9 or more 23.6 or more
When 3 sides of the outdoor unit are
blocked by the wall
59.1 or more
78.7 or more
The upper part of the outdoor unit
and the air outlet is towards the wall
19.7 or more
11.8 or more
The upper part of the outdoor unit
and the air outlet is opposite the
wall
When the walls are blocking front
and the rear side of the outdoor unit
11.8 or
more
59.1 or
more
Top view Side view
Air outlet Air intake
Air intake
Air outlet
Figure Description
, Air flow direction.
(Unit:inch)
(Unit:inch)
59.1 or more
When the air outlet is towards the wall When 3 sides of the outdoor unit are blocked by the wall
11.8 or more
11.8 or more 23.6 or more 23.6 or more 23.6 or more
Vivaldi MAX_AQN09VFU@@ IB&IM_32163A-3_EN.indd 25 2015/8/17 14:47:35
26

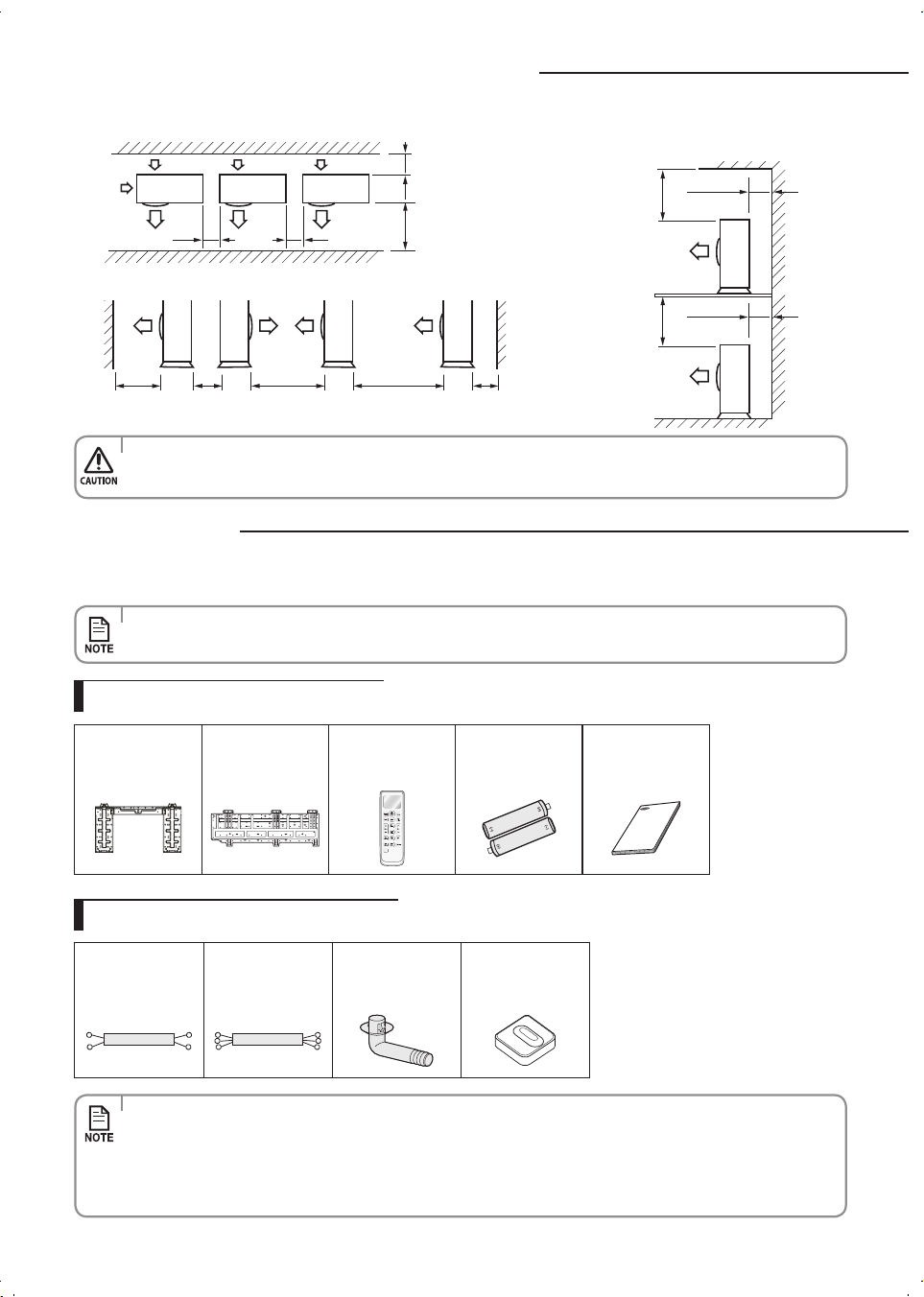

Choosing the installation location
(Unit:inch)
When the upper part of the outdoor unit
and the air outlet is opposite the wall
When the walls are blocking front and the rear side of the outdoor units
When front and rear side of the outdoor unit is towards the wall
19.7 or more
11.8 or more
19.7 or more
11.8 or more
11.8 or
more
59.1 or
more
23.6 or more 23.6 or more
59.1 or
more
23.6 or
more
118.1 or
more
7.9 or
more
118.1 or
more
• Ifinstallationisdoneininappropriatespace,unitmaygeneratesoundandcausebadeectontheproduct.
• Installationmustbedoneinlevelandinaplacewherevibrationwillnotcauseanyeect.

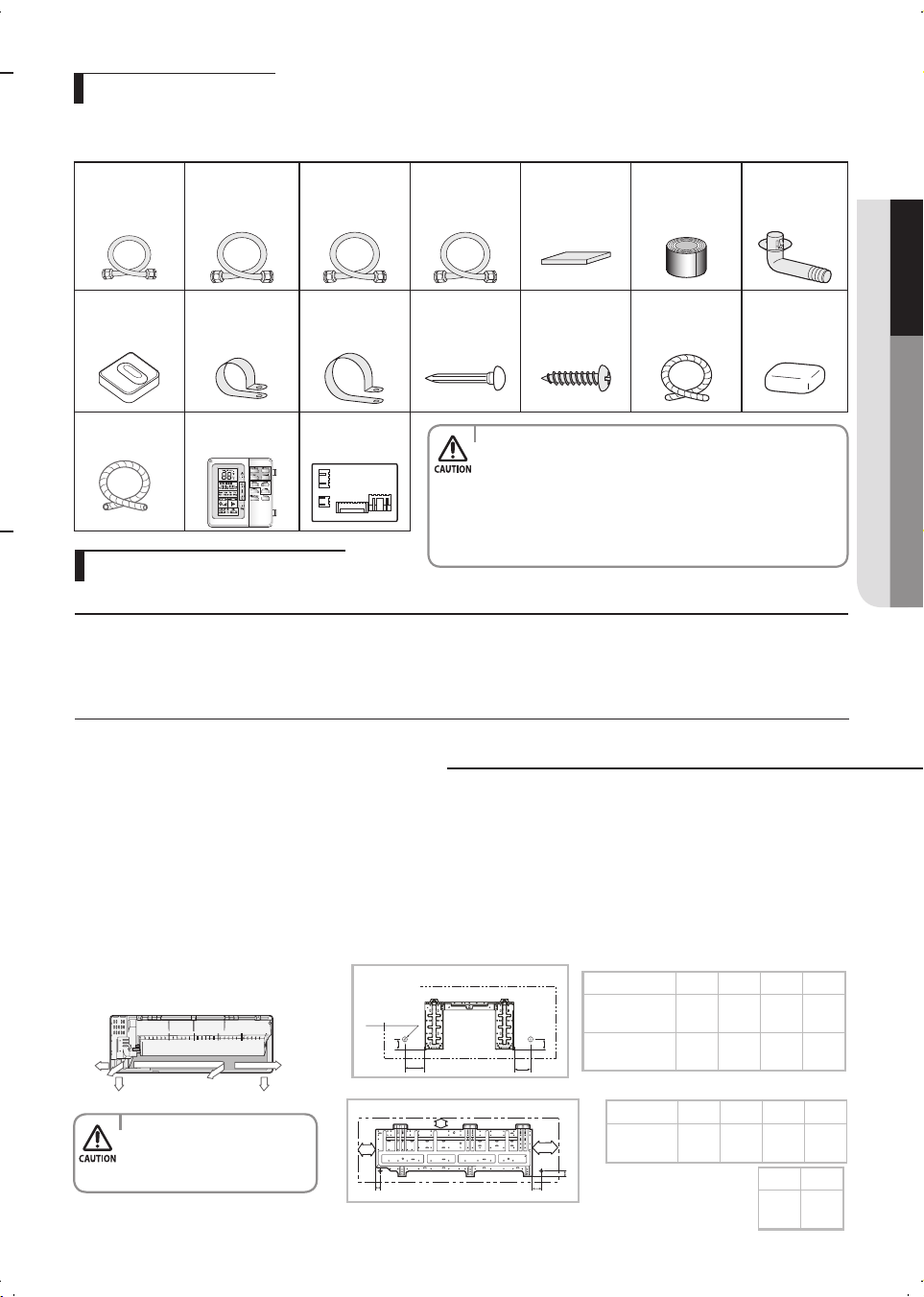

Accessories
Thefollowingaccessoriesaresuppliedwiththeairconditioner:
• Thenumberofeachaccessoryisindicatedinparentheses.
Accessories in the indoor unit case
Accessories in the outdoor unit case
• Thearenutsareattachedtotheendofeachpipeofanevaporatororaserviceport.
Use the nuts when connecting the pipes.
• Thewireassemblycableisoptional.Ifitisnotsupplied,usethestandardcable.
• Thedrainplugandrubberlegareonlyincludedwhentheairconditionerissuppliedwithouttheassemblypipeas
seen in the picture.
Installation Plate (1)
09/12/18/24
Installation Plate (1)
36
Remote controller
(1)
Batteries for Remote
controller (2)
User’s & Installation
Manual (1)
2-wire
Assembly Cable (1)
3-wire
Assembly Cable (1)
Drain Plug (1) Rubber Leg (4)
Vivaldi MAX_AQN09VFU@@ IB&IM_32163A-3_EN.indd 26 2015/8/17 14:47:36
ENGLISH
27
The following connection accessories are optional. If they are not supplied, you should obtain them before installing the air
conditioner.
Optional accessories
• Makesuretodrillonlyone
hole after choosing the
direction of the pipe.
Fixing the installation plate
Tools required for installation
Insulated
Assembly Pipe,
Ø1/4inch (Ø6.35mm)
(1)
Insulated Assembly Pipe,
Ø3/8inch(9.52mm) (1)
09/12
Insulated Assembly Pipe,
Ø 1/2inch(12.70mm) (1)
18
Insulated Assembly Pipe,
Ø 5/8inch(15.88mm) (1)
24/36
PE T3 Foam Tube
Insulation (1)
Vinyl Tapes (2) Drain Plug (1)
Rubber Legs (4) Pipe Clamps A (3) Pipe Clamps B (3) Cement Nails (6)
M0.16 x 0.98
(M4 x 25) Tapped
Screws (6)
Drain Hose,
length 6.56ft(2m) (1)
Putty 100g (1)
Foam
Insulation(1)
Wired remote
controller (1)
Sub COMM PBA
General Tools
•VacuumPump(Backwardowingprevention) •ManifoldGauge •StudFinder
•TorqueWrench •PipeCutter •Reamer •PipeBender •SpiritLevel
•ScrewDriver •Spanner •Drill •Wrench •MeasuringTape
Tools for test operations
•Thermometer •ResistanceMeter •Electroscope
You can select the direction of the drain hose depending on where you want to install the indoor unit. Therefore before xing
the installation plate to a wall or a window frame, you must determine the position of the 65mm hole through which the cable,
pipe and hose pass to connect the indoor unit to the outdoor unit.
Whenfacingthewall,thepipeandcablecanbeconnectedfromthe:
•Right(A)
•Left(B)
•Underside_right(C)
•Rear_rightorleft(D)
BA
D
C
D
Direction of pipe
1. Determine the position of the pipe and drain hose hole as seen in the
picture and drill the hole with an inner diameter of 65mm so that it slants
slightly downwards.
B
A
D
C
Pipe hole
(Ø2.56inch
(65mm))
(Unit:inch(mm))
Model A B C D
09/12
1.06
(27)
4.72
(120)
2.68
(68)
1.06
(27)
18/24
1.34
(34)
5.51
(140)
2.68
(68)
1.34
(34)
A
C
F
E
D
B
36
(Unit:inch(mm))
Model
A B C D
36
6.14
(156)
2.64
(67)
14.33
(364)
1.36
(34.5)
E F
2.54
(64.5)
0.77
(19.5)
09/12/18/24
• Iftheseaccessoriesaresupplied,theywillbeinthe
accessory box.
• Wiredremotecontrollerisoptional.IthasnoFilterReset
function in this model.
• At cool mode, when wireless Remote controller temp
setting is from 61
o
F~64
o
F, wired Remote controller
can display the setting temp correctly, but can't set
TEMP below from 64
o
F to 61
o
F .
Vivaldi MAX_AQN09VFU@@ IB&IM_32163A-3_EN.indd 27 2015/8/17 14:47:37
28
Fixing the installation plate
Wall
<0.79inch
(20mm)
Plastic
Anchor
2. Fix the indoor unit.
If you x the indoor unit on a wall
(1) Fix the installation plate to the wall giving attention to the weight of the indoor unit.
If you x the indoor unit on a window frame
(1) Determine the positions of the wooden uprights to be
attached to the window frame.
(2) Attach the wooden uprights to the window frame giving
attention to the weight of the indoor unit.
(3) Attach the installation plate to the wooden upright using
tapping screws.
If you x the indoor unit on a gypsum board
(1) Use stud nder to nd out locations of the studs.
(2) Fix the plate hanger on two studs.
• Ifyoumounttheplatetoaconcretewallusingplasticanchors,makesurethat
gapsbetweenthewallandtheplate,createdbyprojectedanchor,islessthan
0.79inch(20mm).
• Searchforotherspotsiftherearelessthantwostuds,orthedistancebetweenthestudsaredierentfromthe
plate hanger.
• Fixtheinstallationplatewithoutincliningtooneside.
• Makesurethatawallcanwithstandtheweightoftheproduct.Ifyouinstalltheproductinaplacewhereitisnot
strongenoughtowithstandtheproductweight,theunitcouldfallandcauseinjury.
Connecting the assembly cable
• Connectthepowercabletotheauxiliarycircuitbreaker.Ifeverypolefailstoconnecttothe
powersupply,itmustbeincorporatedinawirewithacontactopeningof≥0.118inch(3mm).
Cable specication
Connecting the cable
Electrical work
(1)Forelectricalandearthworks,complywiththe‘technicalstandardsofelectricalinstallations’andthethe‘wiring
regulations’oftheElectricityEnterprisesAct.
(2)Tightentheterminalblockscrewto0.89~1.33lb•ft[1.2~1.8N•m(12~18kgf•cm)].
(3)Precautionswhenconnectingterminalblocksoftheindoorunit
Beforeconnecting,makesuretheconnectingpartoftheterminalsocketisfacingupwards.
Upside down
The terminal
socketisdamaged.
There is no ring
terminalto cover the wire.
Model Use AWG Cross sectional area (mm
2
)
09/12/18/24
Mainpowersupply3-wirePowercable 13 or fewer 2.5 or more
Indoorpowersupply3-wirepowercable 15 or fewer 1.5 or more
2-wireassemblycable 15 or fewer 1.5 or more
36
Mainpowersupply3-wirePowercable 10 or fewer 4ormore
Indoorpowersupply3-wirepowercable 15 or fewer 1.5 or more
2-wireassemblycable 15 or fewer 1.5 or more
Vivaldi MAX_AQN09VFU@@ IB&IM_32163A-3_EN.indd 28 2015/8/17 17:25:40

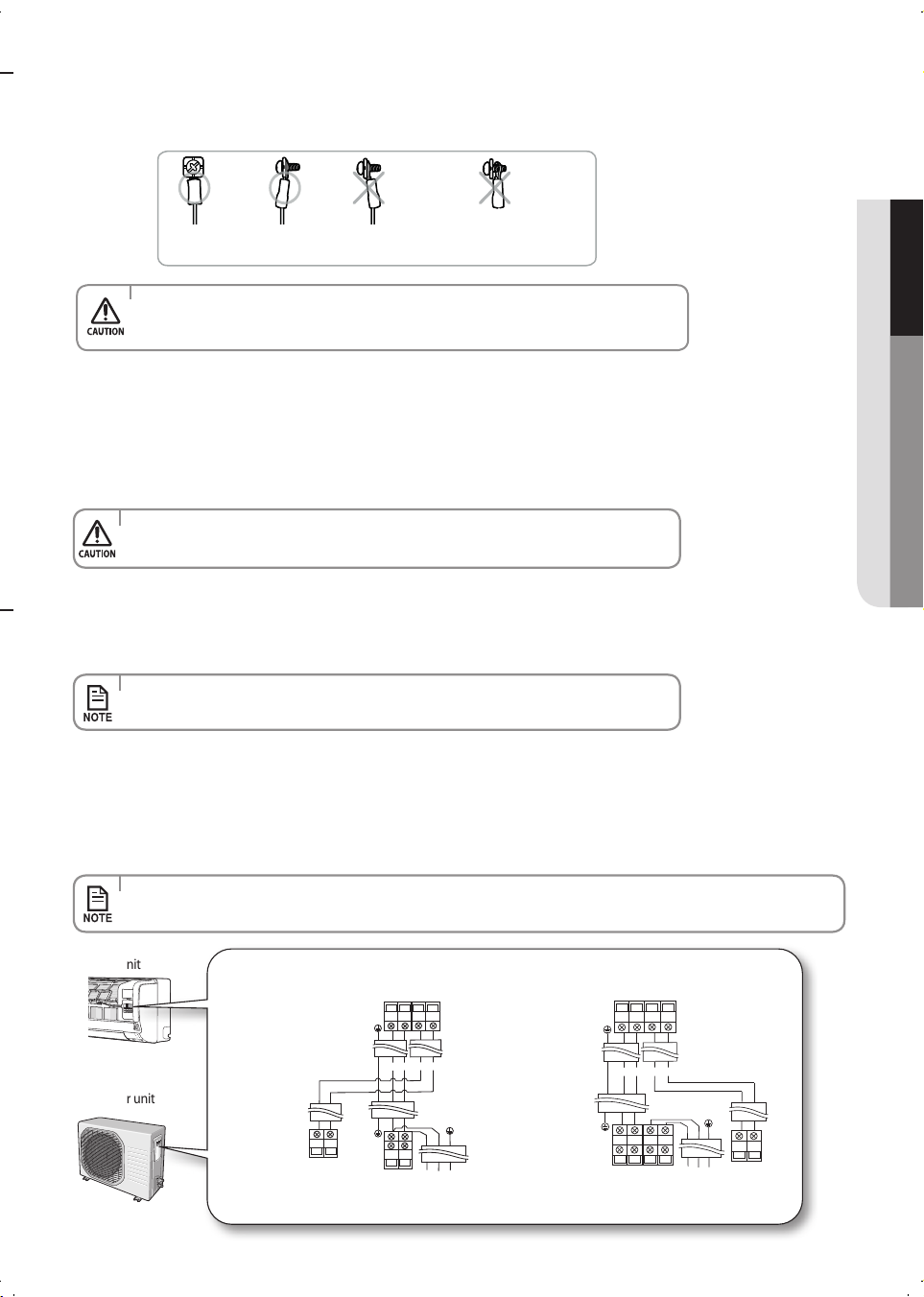

ENGLISH
29
2 . Open the front grille.
3 . Remove the screw securing the connector cover.
4 . Pass the assembly cable through the rear of the indoor unit and connect the assembly cable to terminals.
(Refer to the picture below)
5 . Pass the other end of the cable through the 2.56inch(65mm) hole in the wall.
6 . Close the connector cover by tightening the screw carefully.
7 . Close the front grille.
8 . Remove the terminal board cover on the side of the outdoor unit.
9. Connect the cables to the terminals as seen in the picture.
• Eachwireislabeledwiththecorrespondingterminalnumber.
1. Extend the assembly cable if necessary.
• Donotconnecttwoormoredierentcablestoextendthelength.
It may cause re.
When you install the unit, make rst refrigerant connections and then electrical connections.
Connect the air conditioner to grounding system before performing the electrical connection.
If unit is uninstalled, rst disconnect electrical cables, then refrigerant connections.
A 24.6ft(7.5m) pipe is supplied with the air conditioner. If the outdoor unit is more than 24.6ft(7.5m) away from the indoor
unit,you must extend the cable. The maximum length of the cable is 15(09/12)/20(18/24/36) meters.
• Eachwireislabeledwiththecorrespondingterminalnumber.
Indoor unit
Outdoor unit
There must be no space between the terminal and the screw when connected.
- Any remaining space may become a re hazard due to overheating of the electrical contact.
The terminal socket
is upside down.
Either the screw is not fitted properly
or there is a space between the screw
and the ring terminal.
• Fortheterminalblockwiring,useawirewitharingterminalsocketonly.
Regular wires without a ring terminal socket may become a re hazard due to overheating
of the electrical contact during a wiring work.
Indoor unit
Outdoor unit
The appearance of the unit may be dierent from the diagram depending on the model.
L1 L2
L1
L2
F1
F2
F1
F2
L1 L2
F1
F2
09/12/18/24
36
L3
L4
L3 L4
F1
F2
L3
L4
F1
F2
L1 L2
F1
F2
Indoor unit
Outdoor unit
Vivaldi MAX_AQN09VFU@@ IB&IM_32163A-3_EN.indd 29 2015/8/17 14:47:38
30
Connecting the assembly cable
• Endofthewiremustbecircular.
• Afterconnectingthecables,makesureterminalnumbersontheindoor/outdoorunitmatches.
• Screwsonterminalblockmustnotbeunscrewedwiththetorquelessthan0.87ft•lb(12kgf•cm).
10. Connect the grounding conductor to the grounding terminals.
11. Close the terminal board cover by tightening the screw carefully.
• InRussiaandEurope,consultwiththesupplyauthoritytodeterminethesupplysystemimpedancebefore
installation.
• Connectthewiresrmlysothatwirescannotbepulledouteasily.
(If they are loose, it could cause burn-out of the wires.)
• Connectthewiresaccordingtocolorcodes,referringtothewiringdiagram.
• Thepowercableandtheinterconnectioncableshouldbeselectedaccordingtothespecicationinpage28.
Installing and connecting the assembly pipe of the indoor unit
1. Cut out the appropriate knock-out piece (A, B, C) on the rear of the
indoor unit unless you connect the pipe directly from the rear.
2. Smooth the cut edges.
3. Remove the protection caps of the pipes and connect the assembly
pipe to each pipe. Tighten the nuts rst with your hands, and then
with a torque wrench, applying the following torque:
Connect indoor and outdoor units with eld-supplied copper pipes by means of are connections. Use insulated seamless
refrigeration grade pipe only, (Cu DHP type according to ISO1337), degreased and deoxidized, suitable for operating pressures
of at least 4200 kPa and for burst pressure of at least 20700 kPa. Under no circumstances must sanitary type copper pipe be
used.
Thereare2refrigerantpipesofdierentdiameters:
•Thesmalleroneisfortheliquidrefrigerant
•Thelargeroneisforthegasrefrigerant
A short pipe is already tted to the air conditioner. You may
need to extend the pipe using the assembly pipe (optional).
The connection procedure for the refrigerant pipe varies
accordingtotheexitpositionofthepipewhenfacingthewall:
•Right(A)
•Left(B)
•Underside(C)
•Rear
B
A
C
• Ifyouwanttoshortenorextendthepipes,refertopage31~32.
Outer
Diameter
Torque
N•m
ft•lb
(kgf•cm)
ø
1/4 inch
(
ø
6.35mm)
14~18
10.1~13.0
(140~180)
ø
3/8 inch
(
ø
9.52mm)
34~42
25.3~31.1
(350~430)
ø
1/2 inch
(
ø12.70 mm)
49~61
36.2~44.8
(500~620)
ø
5/8 inch
(
ø
15.88mm)
68~82
49.9~60.0
(690~830)
Vivaldi MAX_AQN09VFU@@ IB&IM_32163A-3_EN.indd 30 2015/8/17 14:47:38
ENGLISH
31
4. Cut o the remaining foam insulation.
5. If necessary, bend the pipe to t along the bottom of the indoor unit.
Then pull it out through the appropriate hole.
The pipe should not project from the rear of the indoor unit.
The bending radius should be 3.94inch(100 mm) or more.
6. Pass the pipe through the hole in the wall.
7. For further details on how to connect to the outdoor unit and purge the air, refer to page 35~37.
• Tightenthearenutwithtorquewrenchaccordingtospeciedmethod.
If the are nut is over-tightened, the are may break and cause refrigerant gas leakage.
• DONOTWALLUPTHEPIPECONNECTION!
All refrigerant pipe connection must be easy accessible and serviceable.
• Thepipewillbeinsulatedandxedpermanentlyintopositionafternishingtheinstallationandthegasleaktest;
refer to page 38 for further details.
The indoor unit is supplied with inert gas (nitrogen).
Before installing the unit, check if nitrogen gas ow out of indoor unit.
If this one isn’t true, DO NOT INSTALL THE UNIT since leakage could be inside the indoor unit.
Thelengthofthepipecanbe:
•Extendedupto:seetablepage24
•Shortenupto:seepage24
Ifyouneedapipelongerthan24.6ft(7.5m):
• Youmustextendtheassemblycable.
• Youmustaddrefrigeranttothepipes;otherwise,theindoorunitmayfreeze.
Unscrew the capsPipes
• TheremainingairintheRefrigerationcycle,whichcontainsmoisture,
may cause malfunction on the compressor.
• Alwayscontacttheservicecenteroraprofessionalinstallationagency
for product installation.
• Topreventdirtorforeignsubstancesfromgettingintothepipesduring
installation, do NOT remove the caps completely until you are ready to
connect the pipes.
Cutting or extending the pipe
Purging the indoor unit
1. Unscrew the caps at the end of each pipe.
All inert gas exhausts from the indoor unit.
Vivaldi MAX_AQN09VFU@@ IB&IM_32163A-3_EN.indd 31 2015/8/17 14:47:39

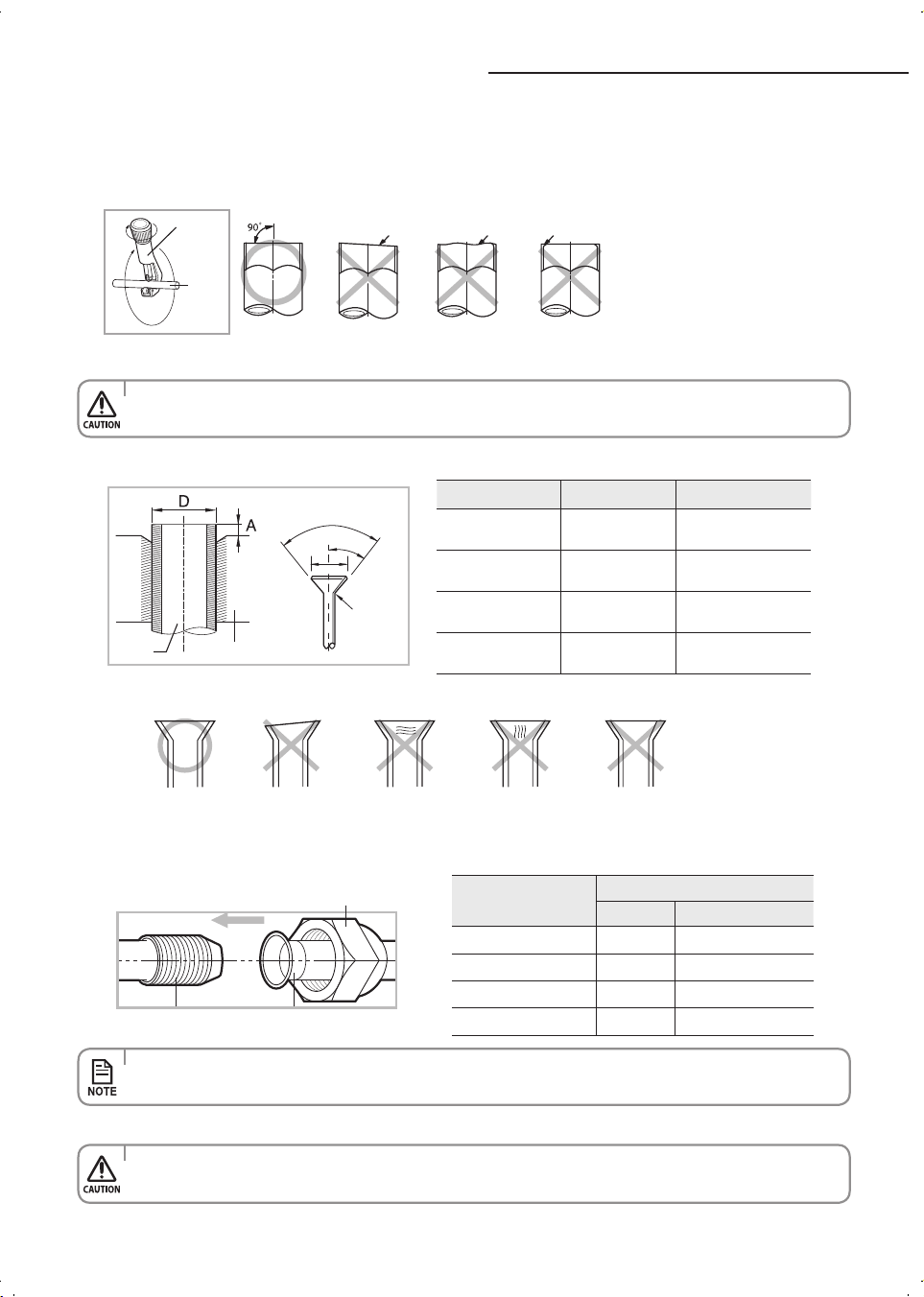

32
Cutting or extending the pipe
Indoor outlet pipe Connecting pipe
Flare nut
5. Check if you ared the pipe correctly (see examples of incorrectly ared pipes below).
6. Align the pipes to connect them easily. Tighten the are nuts rst with your hands, and then with a torque wrench,
applying the following torque:
7. For further details on how to connect to the outdoor unit and purge the air, refer to page 35~37.
Correct
Uneven
Thickness
Cracked
Damaged
Surface
Inclined
• Excessivetorquecanbecauseofgasleakage.Incasebrazingthepipe,thenitrogengasmustbeblownintothe
pipe (50 Pa). The joint must be accessible and serviceable.
• Tightenthearenutwithtorquewrenchaccordingtospeciedmethod.
If the are nut is over-tightened, the are may break and cause refrigerant gas leakage.
1. Make sure that you have all the required tools (pipe cutter, reamer, aring tool and pipe holder).
2. If you want to shorten the pipe, cut it using a pipe cutter, ensuring that the cut edge remains at 90° with the side of the
pipe (see below examples of correct and incorrect cut edges).
3. To prevent a gas leak, remove all burrs at the cut edge of the pipe using a reamer.
4. Put a are nut slightly into the pipe and modify the are.
Oblique Rough Burr
Pipe
cutter
Pipe
• Facethepipedownwhileremovingtheburrstomakesurethatburrsdonotgetintothepipe.
Outer Diameter (D) Depth (A) Flaring Size (B)
ø1/4inch
(6.35mm)
0.051inch
(1.3mm)
0.3425 - 0.3583 inch
(8.7 - 9.1 mm)
ø3/8inch
(9.52mm)
0.071inch
(1.8mm)
0.5039 - 0.5197 inch
(12.8 - 13.2 mm)
ø1/2inch
(12.70mm)
0.079inch
(2.0mm)
0.6378 - 0.6535 inch
(16.2 - 16.6 mm)
ø5/8inch
(15.88mm)
0.087inch
(2.2mm)
0.7598 - 0.7756 inch
(19.3 - 19.7 mm)
Pipe Flare
90°± 2°
°
2
±°
5
4
R 0.4~0.8
B
Outer
Diameter
Torque
N•m ft•lb(kgf•cm)
ø1/4 inch (ø6.35mm)
14~18
10.1~13.0 (140~180)
ø3/8 inch (ø9.52mm)
34~42 25.3~31.1 (350~430)
ø1/2 inch (ø12.70 mm)
49~61 36.2~44.8 (500~620)
ø5/8 inch (ø15.88mm)
68~82 49.9~60.0 (690~830)
Vivaldi MAX_AQN09VFU@@ IB&IM_32163A-3_EN.indd 32 2015/8/17 14:47:39

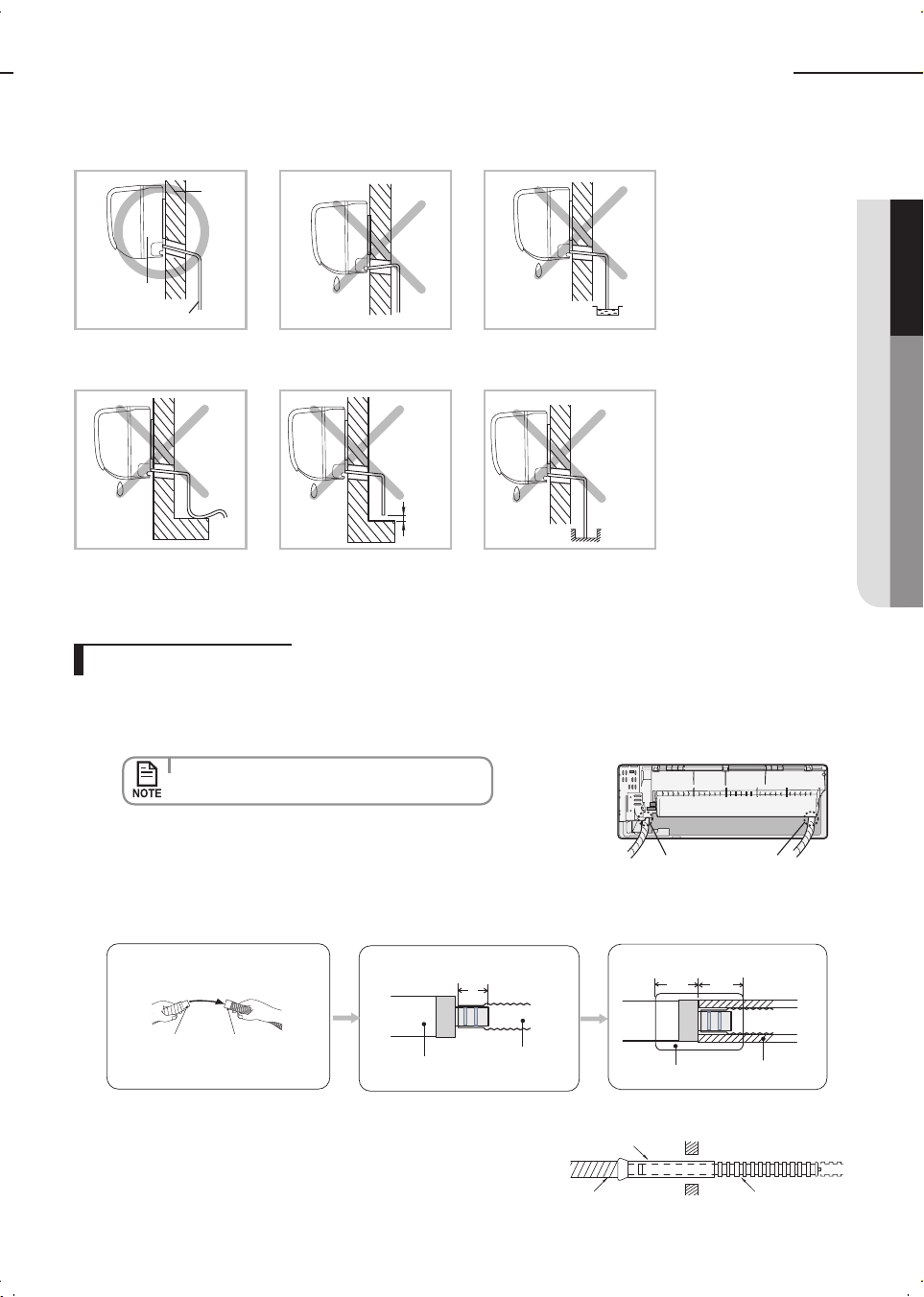

ENGLISH
33
Installing and connecting the drain hose of the indoor unit
Wall
Indoor unit
Drain hose
The drain hose must NOT
slant upwards.
The end of the drain hose must NOT
be placed under water.
The drain hose must not
be bent.
Keep a clearance of at least
2inch(50mm) between the
end of the drain hose and
the ground.
2inch
(50mm)
less
Do not place the end of the
drain hose in a hollow.
Ditch
When installing the drain hose for the indoor unit, check if condensation draining is adequate.
Whenpassingthedrainhosethroughthe2.56inch(65mm)holedrilledinthewall,checkthefollowings:
Drain hose installation
1. If necessary, connect the 6.6ft(2m) extension drain hose to the drain hose.
2. If you use the extension drain hose, insulate the inside of the extension drain hose with a shield.
3. Fit the drain hose into 1 of 2 drain hose holes, then x the end of the drain hose tightly with a clamp.
4. When extending the Drain Hose, hold the end of Drain Hose and
Extended Hose, rotate and insert the drain hose into Extended hose for
0.59~0.79inch(15~20 mm). Make sure the two hoses are rmly connected,
there is no water leakage.
5. Connect the Drain Hose after using Foam Insulation to wrap the Extended Hose. Then, Use vinyl tape to wrap the
each side of connection by 0.79inch(20mm) .
6. Pass the drain hose under the refrigerant pipe, keeping the drain
hose tight.
7. Pass the drain hose through the hole in the wall. Check if it slants
downwards as seen in the picture.
8. Using natural drainage method, check the drainage is normal.
Shield
Drain hose Extension drain hose
Drain hose
Extension
drain hose
Drain hose
Extension
drain hose
0.59~0.79inch(15~20 mm)
Foam Insulation
0.79inch
(20mm)
or more
0.79inch
(20mm)
or more
Vinyl Tape
• Ifyoudonotusetheotherdrainhosehole,
block it with a rubber stopper.
Drain hose hole
Vivaldi MAX_AQN09VFU@@ IB&IM_32163A-3_EN.indd 33 2015/8/17 14:47:40

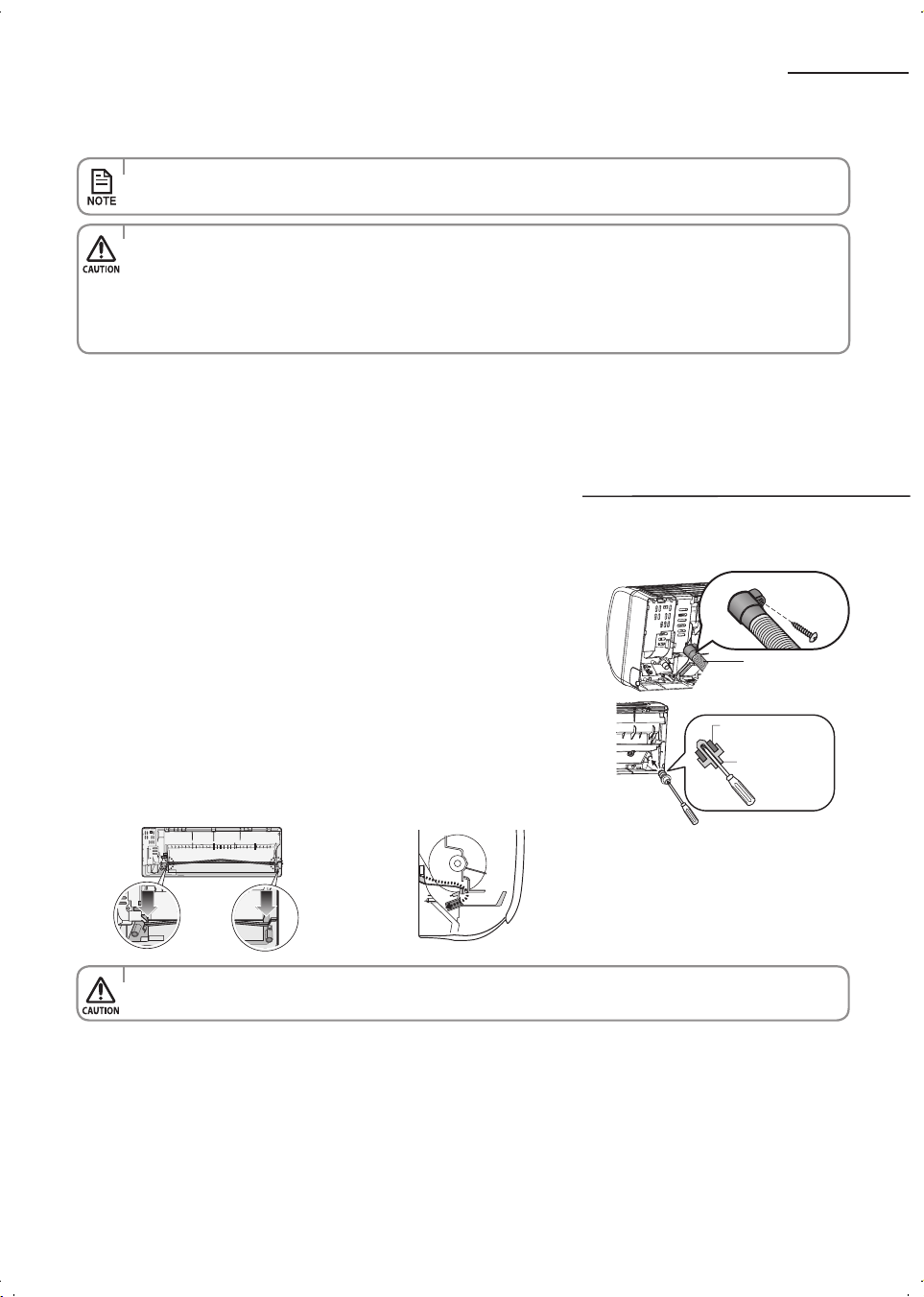

34
Installing and connecting the drain hose of the indoor unit
• Thehosewillbexedpermanentlyintopositionafternishingtheinstallationandthegasleaktest;refertopage
39 for further details.
• Makesuretheinstalleddirectionofthedrainhoseiscorrect.
Inadequate installation may cause condensate water leakage.
• Ifthedrainhoseisroutedinsidetheroom,insulatethehosesothatdrippingcondensationdoesnotdamagethe
furniture or oors.
• DONOTWALLUPTHEDRAINHOSECONNECTION!
Drain hose connection must be easy accessible and serviceable.
• Makesuretheindoorunitisinuprightpositionwhenyoupourwatertocheckforleakage.
Make sure that the water does not overow onto the electrical part.
Change the direction only when it is necessary.
1. Detach the rubber cap with the plier.
2. Detach the drain hose by pulling it and turning to the left.
3. Insert the drain hose by xing it with the screw into the groove of the drain
hose and the outlet of the drain pan.
4. Attach the rubber cap with a screwdriver by turning it to the right until it
xes to the end of the groove.
5. Check for leakage on both side of the drain outlet.
Changing direction of the drain hose
Drain hose
Screw hole
Screw
Rubber cap
Drain pan outlet
Pour the water in direction of arrow.
Direction of the drained water
Vivaldi MAX_AQN09VFU@@ IB&IM_32163A-3_EN.indd 34 2015/8/17 14:47:40
ENGLISH
35

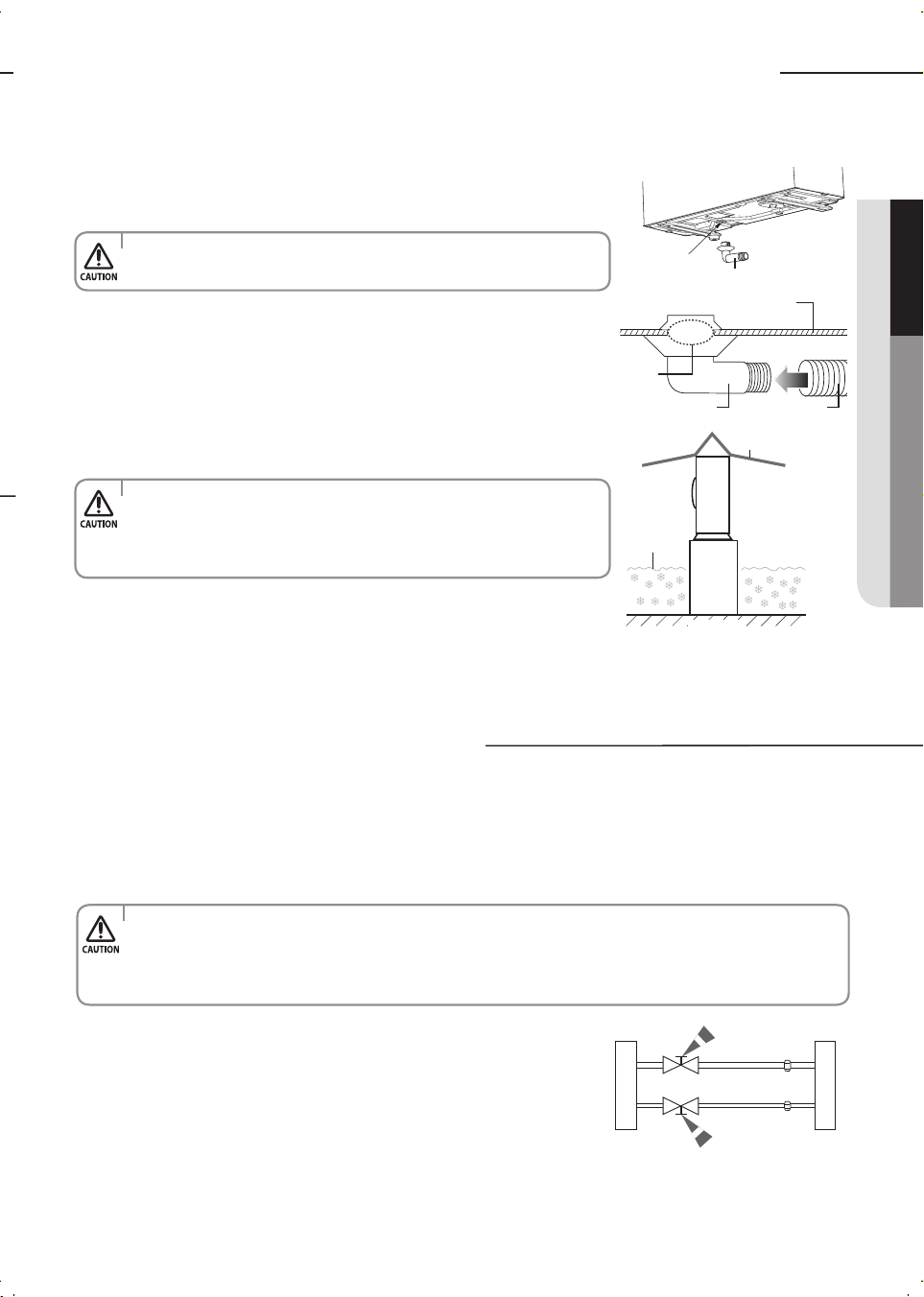

Installing and connecting the drain hose of the outdoor unit
Frame
Ground
Estimated
snow fall
Snow-proof hood
Bottom surface of outdoor unit
Drain hose
Drain hole
Drain plug
While heating, ice may accumulate. During the process of defrosting, check if condensation draining is adequate. For adequate
draining,dothefollowing:
1. Insert the drain plug into the drain hole on the underside of the outdoor unit.
2. Connect a drain hose to the drain plug.
3. Ensure that condensation draining is adequate.
Drain hole
Drain plug
• Toavoiddrainplugfromcontactingtheground,securegapbetweenthe
ground and the bottom surface of the outdoor unit.
• Inareaswithheavysnowfall,piledsnowcouldblocktheairintake.
To avoid this incident, install a frame that is higher than estimated snow
fall. In addition, install a snow-proof hood to avoid snow from piling on the
outdoor unit.
Purging the connected pipes
TheoutdoorunitisloadedwithsucientR-410Arefrigerant.DonotventR-410Aintoatmosphere:itisauorinated
greenhouse gas, covered by Kyoto Protocol, with a Global Warming Potential (GWP) = 1975.
You should purge the air in the indoor unit and in the pipe. If air remains in the refrigerant pipes, it aects the compressor.
It may cause reduction of cooling capacity and malfunction. Refrigerant for air purging is not charged in the outdoor unit.
Use Vacuum Pump as seen in the picture.
1. Connect each assembly pipe to the appropriate valve on the outdoor unit and
tighten the are nut.
2. Tighten the are nut rst with your hands, and then with a torque wrench,
applying the following torque:
• Wheninstalling,makesurethereisnoleakage.Whenrecoveringtherefrigerant,groundthecompressorrst
before removing the connection pipe. If the refrigerant pipe is not properly connected and the compressor works
with the service valve open, the pipe inhales the air and it makes the pressure inside of the refrigerant cycle
abnormally high. It may cause explosion and injury.
Outdoor unit Indoor unit
Gas pipe side
Liquid pipe side
Vivaldi MAX_AQN09VFU@@ IB&IM_32163A-3_EN.indd 35 2015/8/17 14:47:40
36
Purging the connected pipes
3. Connect the charging hose of the low-pressure side of manifold gauge
to a gas service port as seen in the picture.
4. Open the valve of the low pressure side of manifold gauge
counterclockwise.
5. Purge the air in the connected pipes using the vacuum pump for about
15 minutes.
Make sure that pressure gauge shows -0.1MPa(-76cmHg) after about
10 minutes.
This procedure is very important to avoid a gas leak.
Close the valve of the low pressure side of manifold gauge clockwise.
Turn o the vacuum pump.
Check for 2 minutes if there is any pressure change.
Remove the hose of the low pressure side of manifold gauge.
6. Set a valve cork of liquid and gas service port to the open position.
Vacuum
Pump
Manifold gauge
Valve
Gas service port
<Low pressure>
Liquid service port
<High pressure>
(Backward flowing
prevention)
• TheremainingairintheRefrigerationcycle,whichcontainsmoisture,maycausemalfunctiononthecompressor.
• Alwayscontacttheservicecenteroraprofessionalinstallationagencyforproductinstallation.
• Excessivetorquecanbecauseofgasleakage.
Addrefrigerantchargeaccordingtotablebelow:
If you use a pipe longer than 24.6ft(7.5m),
‘A’g of refrigerant R-410A must be added for each extra meter.
If you use a pipe shorter than 24.6ft(7.5m),
The purge time is normal.
Refer to the Service Manual for further details.
Adding Refrigerant
• Maketheelectricalconnectionandleavethesysteminto“standby
mode”.Donotturnonthesystem!
This is necessary for better vacuum operation (full OPEN position of
Electronic Expansion Valve - EEV -).
Model A
09/12/18/24
15
36
40
Outer
Diameter
Torque
N•m
ft•lb
(kgf•cm)
ø
1/4 inch
(
ø
6.35mm)
14~18
10.1~13.0
(140~180)
ø
3/8 inch
(
ø
9.52mm)
34~42
25.3~31.1
(350~430)
ø
1/2 inch
(
ø12.70 mm)
49~61
36.2~44.8
(500~620)
ø
5/8 inch
(
ø
15.88mm)
68~82
49.9~60.0
(690~830)
Vivaldi MAX_AQN09VFU@@ IB&IM_32163A-3_EN.indd 36 2015/8/17 14:47:41
37
ENGLISH
Refrigerant type GWP value
R-410A 1975
GWP=Global Warming Potential
Indoor unit
Outdoor unit
= ( )
kg
= ( )
kg
+
= ( )
kg
Contains uorinated greenhouse gases
covered by the Kyoto Protocol.
a
c
d
b
This product contains uorinated greenhouse gases covered by the Kyoto
Protocol.
Do not vent gases into the atmosphere.
1. Please ll in with indelible ink,
the factory refrigerant charge of the product,
the additional refrigerant amount charged in the eld and
+
the total refrigerant charge. on the refrigerant charge label
supplied with the product.
R-410A is a mixed type of refrigerant. It is necessary for recharging under conditions of liquid. When recharging refrigerant from
the refrigerant cylinder to the equipment, follow the instructions below.
1. Before recharging, check whether the cylinder has a siphon or not.
There are two ways to recharge the refrigerant.
Important information regulation regarding the refrigerant used
Charging the refrigerant under conditions of liquid by using a liquid pipe
a.Factoryrefrigerantchargeoftheproduct:
see unit name plate
b. Additional refrigerant amount charged in the eld (Refer
to the above information for the quantity of refrigerant
replenishment.)
c. Total refrigerant charge
d. Refrigerant cylinder and manifold for charging
• Thelled-outlabelmustbeadheredintheproximityoftheproductchargingport(e.g.ontotheinsideofthestop
valve cover).
Cylinder with siphon
siphon
Charge the refrigerant standing the
cylinder upright.
Cylinder without siphon
Charge the refrigerant turning the cylinder
upside down.
• IfR-410Arefrigerantischargedwithgas,thecompositionofthechargedrefrigerantchangesandthe
characteristics of the equipment vary.
• Duringthemeasuringoperationofrefrigerantquantityaddeduseanelectronicbalance.
If cylinder doesn’t have syphon, upset it.
Vivaldi MAX_AQN09VFU@@ IB&IM_32163A-3_EN.indd 37 2015/8/17 14:47:41

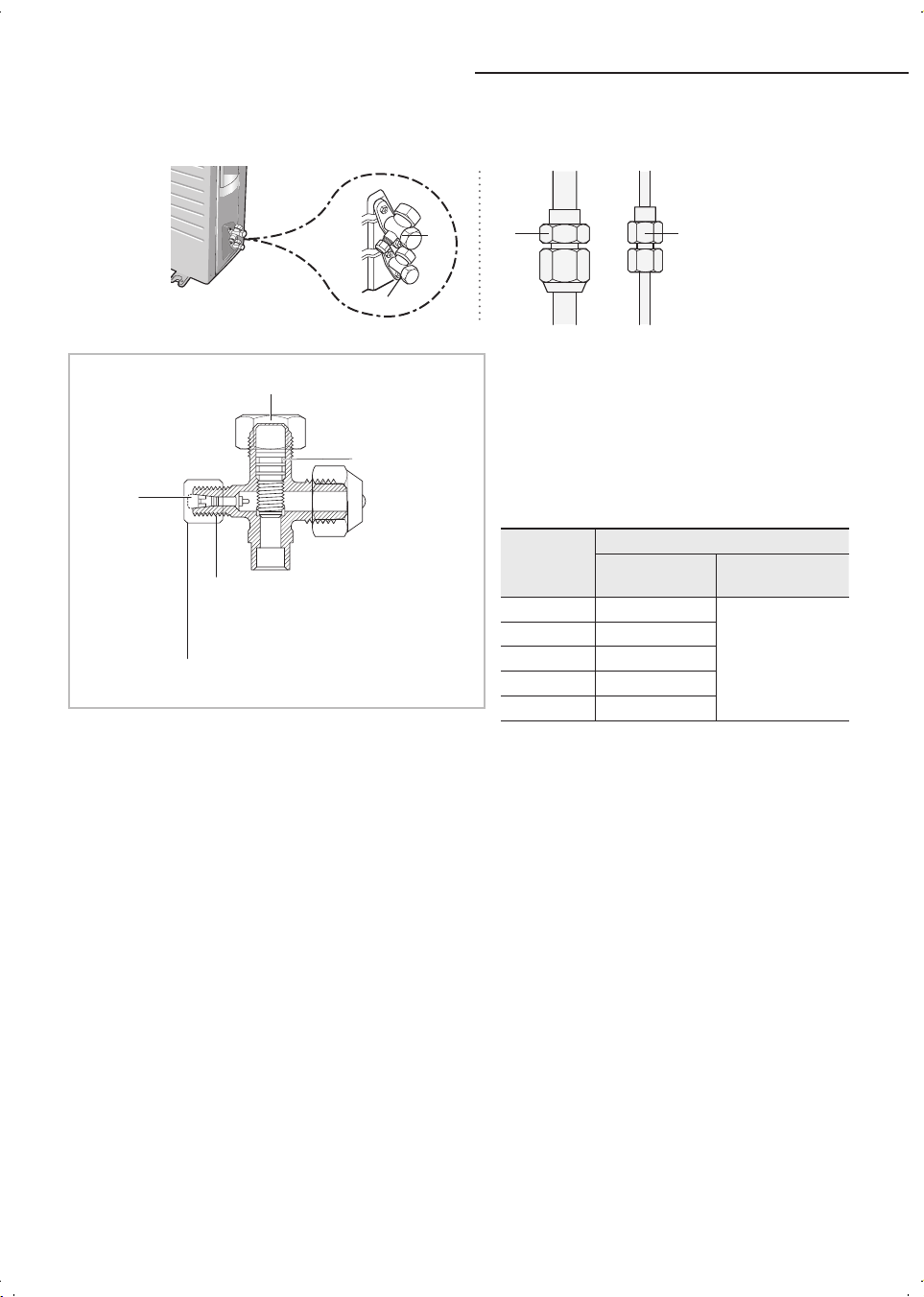

38
AA
Performing the gas leak tests
Leak test with nitrogen (before opening valves)
In order to detect basic refrigerant leaks, before recreating the vacuum and recirculating the R-410A, it’s responsible of
installer to pressurize the whole system with nitrogen (using a cylinder with pressure reducer) at a pressure above 40 bar
(gauge).
Leak test with R-410A (after opening valves)
Before opening valves, discharge all the nitrogen from the system and create vacuum according to page 35~37.
After opening valves, check leaks using a leak detector for refrigerant.
Pump down (before disconnecting the refrigerant connections for unit repair, removal or disposal)
Pump-down is an operation intended to collect all the system refrigerant in the outdoor unit.
This operation must be carried out before disconnecting the refrigerant tubing in order to avoid refrigerant loss to the
atmosphere.
Shut o the liquid valve with the Allen wrench.
Turn the system on in cooling with fan operating at high velocity.
( Compressor will immediately start, provided 3 minutes have elapsed since the last stop).
After 2 minutes of operation, shut the suction valve with the same wrench.
Turn the system o and switch mains supply o.
Disconnect tubing. After disconnection, protect valves and tubing ends from dust.
Compressor damage may occur if run at a negative suction pressure.
C
D
A
B
Make sure to check for gas leaks before completing the installation process (connecting the assembly pipe and hose between
indoor unit and outdoor unit, insulating the cables, hose and pipe, and xing the indoor unit to the installation plate).
To check for gas leaks on the outdoor unit,
Check the valve A and B using a leak detector.
To check for gas leaks on the indoor unit,
Check the are nut C and D using a leak detector.
Test part for outdoor unit
Tightening torque for body cap
(Refer to the table)
Charging
core
Spindle
R-22:Diameterofthescrew-7/16-20UNF
R-410A:Diameterofthescrew-1/2-20UNF
Tightening torque for charging port cap
(Refer to the table)
Test part for indoor unit
Before inspecting the leakage, use a torque wrench
to close the cap for the service valve. (Comply with a
tightening torque for each size of the diameter,and
tighten the cap rmly to prevent any leakage.).
To check for any possible leakage, insert inert gas into
the pipes connected to indoor/outdoor units and
check the connection part of the indoor/outdoor units
with soap lather or liquid for leakage test.
Outer Diam-
eter (mm)
Tightening torque
Body cap (N•m)
Charging port cap
(N•m)
ø 6.35
20 ~ 25
10 ~ 12
ø 9.52
20 ~ 25
ø12.70
25 ~ 30
ø15.88
30 ~ 35
ø19.05
35 ~ 40
( 1 N•m = 10 kgf•cm )
Vivaldi MAX_AQN09VFU@@ IB&IM_32163A-3_EN.indd 38 2015/8/17 14:47:41
ENGLISH
39
AA

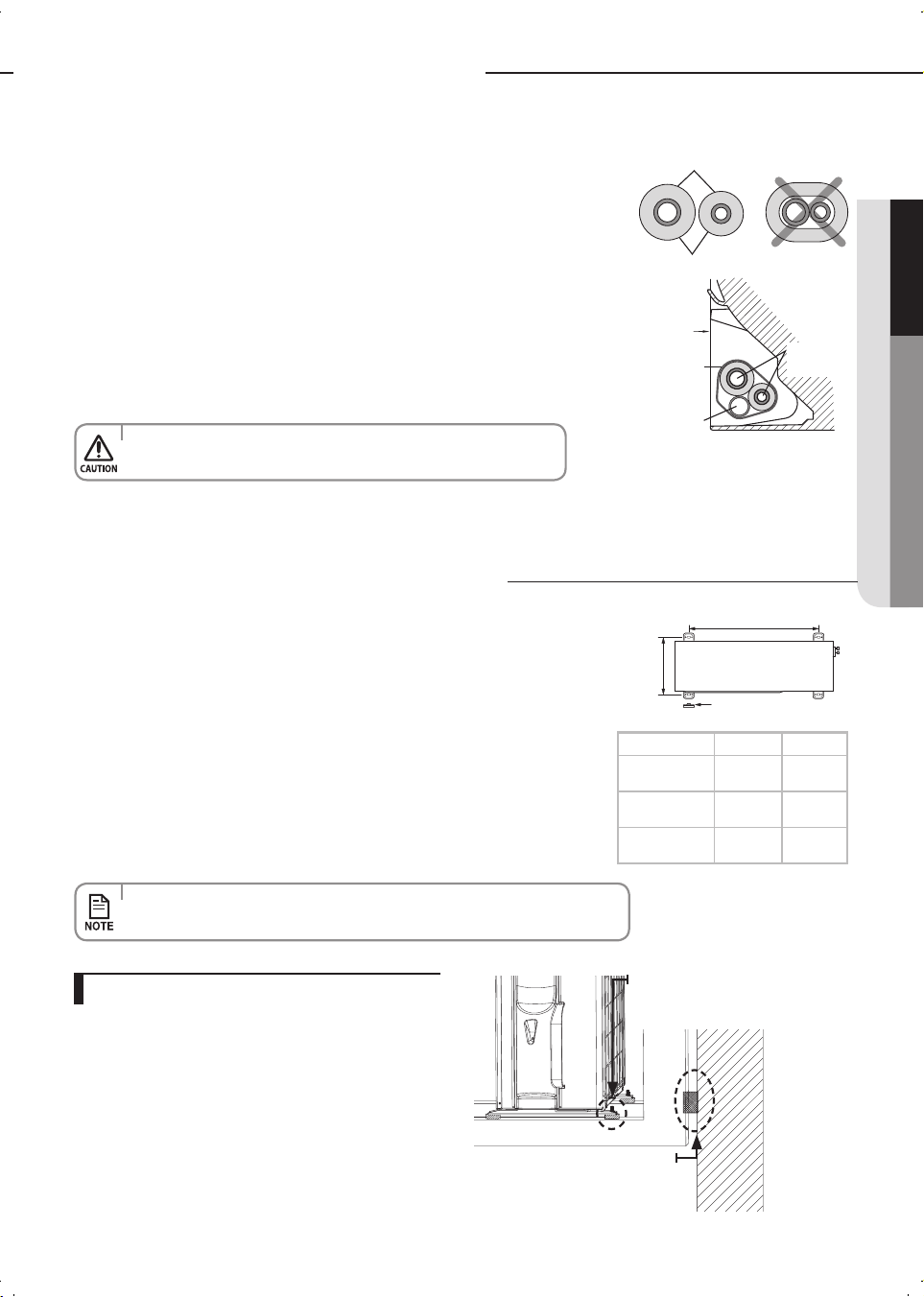

Fixing the indoor unit in place
Insulation
Pipes
'X'
Rubber leg
'Y'
Perform the following work on the area where gas leak test was done priorly.
After checking for gas leaks in the system, insulate the pipe, hose and cables.
Then place the indoor unit on the installation plate.
1. To avoid condensation problems, wrap foam insulation (as shown in the gure) on a
part without insulation on the end of the pipes.
2. Wind the pipe, assembly cable and drain hose with vinyl tape.
3. Place the bundle (the pipe, assembly cable and drain hose) in the lower part of the
indoor unit carefully so it does not project from the rear of the indoor unit.
4. Hook the indoor unit to the installation plate and move the unit to the right and left
until it is securely in place.
Install the outdoor unit in level on a stable base to avoid the generation of noise
and vibration, especially when installing the unit close to a neighbor.
If you install the outdoor unit in a place exposed to strong winds or at a height, x
it to an appropriate support (wall or ground).
1. Place the outdoor unit as indicated on the top of the unit to let the
discharged air out properly.
2. Fix the outdoor unit in level to an appropriate support using anchor bolts.
3. If the outdoor unit is exposed to strong winds, install shield plates around
the outdoor unit so that the fan can operate correctly.
5. Wrap the rest of the pipe with vinyl tape.
6. Attach the pipe to the wall using clamps (optional).
Installation
plate
Connecting
pipes
Vinyl tape
Drain hose
• Makesurepipedoesnotmovewhenyouinstalltheindooruniton
an installation plate.
Fixing the outdoor unit in place
• Ensurethewallwillbeabletosuspendtheweightofrackand
outdoorunit;
• Installtherackclosetothecolumnasmuchaspossible;
• Installpropergrommetinordertoreducenoiseandresidual
vibration transferred by outdoor unit towards wall.
Outdoor unit installed on the wall by rack
Soft rubber designed to cut off
vibration from rack to wall.
(not supplied with product)
Designed to cut off residual vibration
from outdoor unit to rack.
(not supplied with product)
• Securetherubberlegtopreventthegenerationofnoiseandvibration.
Model X Y
09/12/18
2.01ft
(612mm)
1.04ft
(317mm)
24
2.16ft
(660mm)
1.12ft
(340mm)
36
2.26ft
(690mm)
1.32ft
(403mm)
Vivaldi MAX_AQN09VFU@@ IB&IM_32163A-3_EN.indd 39 2015/8/17 14:47:41
40
AA
Final Check and Trial Operation
To complete the installation, perform the following checks and tests to
ensure that the air conditioner operates correctly.
Check the followings:
• Strength of the installation site
• Tightness of pipe connection to detect gas leak
• Electric wiring connection
• Heat-resistant insulation of the pipe
• Drainage
• Grounding conductor connection
• Correct operation (follow the steps below)
1. Press the Power button and check the following:
The indicator on the indoor unit lights up.
The airow blade opens and the fan gears up for operation.
1. Turn on the air conditioner and select Cool mode to run the compressor for 3 minutes.
2 . Release the valve caps on High and Low pressure side.
3 . Use L wrench to close the valve on the high pressure side.
4 . Approximately 2 minutes after, close the valve on the low pressure side.
5 . Stop operation of the air conditioner.
6 . Disconnect the pipes.
3. Press the Air swing button and check the following:
The airow blades work properly.
4. Press the Power button to stop the operation.
2. Press the Mode button to select Cool or Heat mode.
In Cool mode, use Temp + or - button and set the temperature at 61°F (16°C).
In Heat mode, use Temp + or - button and set the temperature at 86°F(30°C).
Cooling mode (indoor unit check) Inlet air temp. - Outlet air temp : From 10°K to 12°K ( indicative delta T)
Heating mode (indoor unit check) Outlet air temp. - Inlet air temp : From 11°K to 14°K (indicative delta T)
In heating mode, the indoor fan motor can remain o to avoid cold air blown into conditioned space.
Pump down procedure (when removing the product)
• Approximately 3~5 minutes later, outdoor unit will start to operate and the Cool or Warm air will blow out.
• After 12 minutes of stationary condition check the indoor unit air treatment:
• When you complete the installation successfully, hand over this manual to the user for storage in a handy and safe
place.
Vivaldi MAX_AQN09VFU@@ IB&IM_32163A-3_EN.indd 40 2015/8/17 17:28:32
ENGLISH
41
AA

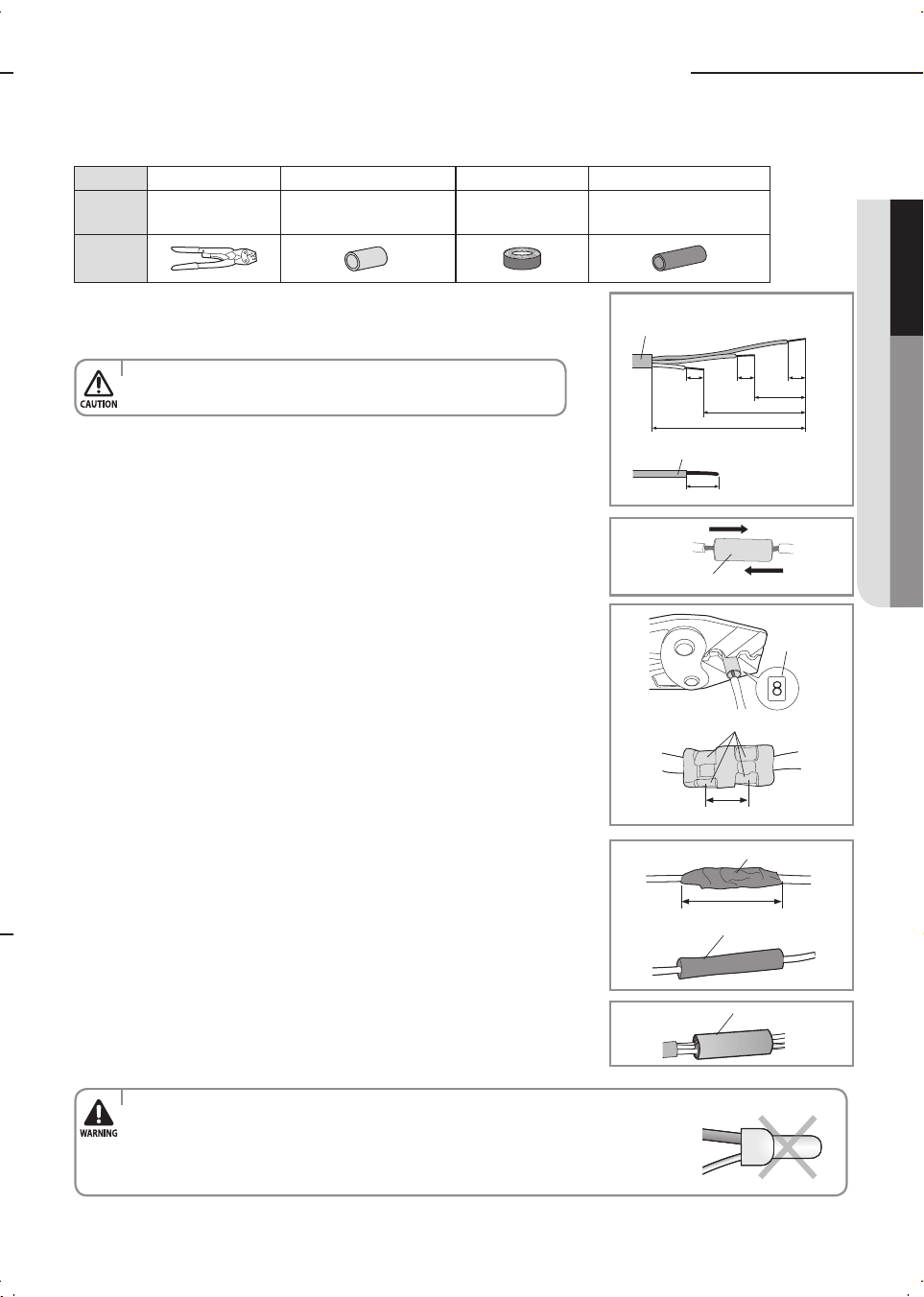

Items to prepare
(compressor and insulation tape should be prepared by an installation technician.)
1. As shown in the gure, peel o the shields from the rubber/wire
of the power cable.
- Peel o 0.79inch(20mm) of the wire shields of the tube installed already.
2. Insert both sides of core wire of the power cable into the connection sleeve.
3. Using a compressor, compress the two points and ip it over
and compress another two points in the same location.
- The compression dimension should be 8.0.
- After compressing it, pull both sides of the wire to
make sure it is rmly pressed.
4. Wrap it with the insulation tape twice and position your
contraction tube in the middle of the insulation tape.
5. Apply heat to the contraction tube to contract it.
6. After tube contraction work is completed, wrap it with the
insulation tape to nish.
How to connect your extended power cables
Tools Crimping plier
Connection sleeve
Insulation tape
Contraction tube (mm)
Spec
MH-14
0.79xØ0.28inch
((20xØ7.0mm)(HxOD)
Width
0.71inch(18mm)
1.97x Ø0.31inch
(50xØ8.0mm)(LxOD)
Shape
1.57inch(40mm)
Insulation tape
Contraction tube
(Unit:inch(mm))
Power cable (provided by us)
Wire tube power cable
Connection sleeve
Comp. dim.
Compress it 4 times
0.20inch(5mm)
Insulation tape
• Afterpeelingothetubewire,youmustinsertacontractiontube.
• Incaseofextendingtheelectricwire,pleaseDONOTusearound-shapedpressingsocket.
- Incomplete wire connections can cause electric shock or a re.
0.79(20)
0.79(20)
0.79(20)
0.79(20)
2.36(60)
4.72(120)
7.09(180)
Vivaldi MAX_AQN09VFU@@ IB&IM_32163A-3_EN.indd 41 2015/8/17 14:47:43
42

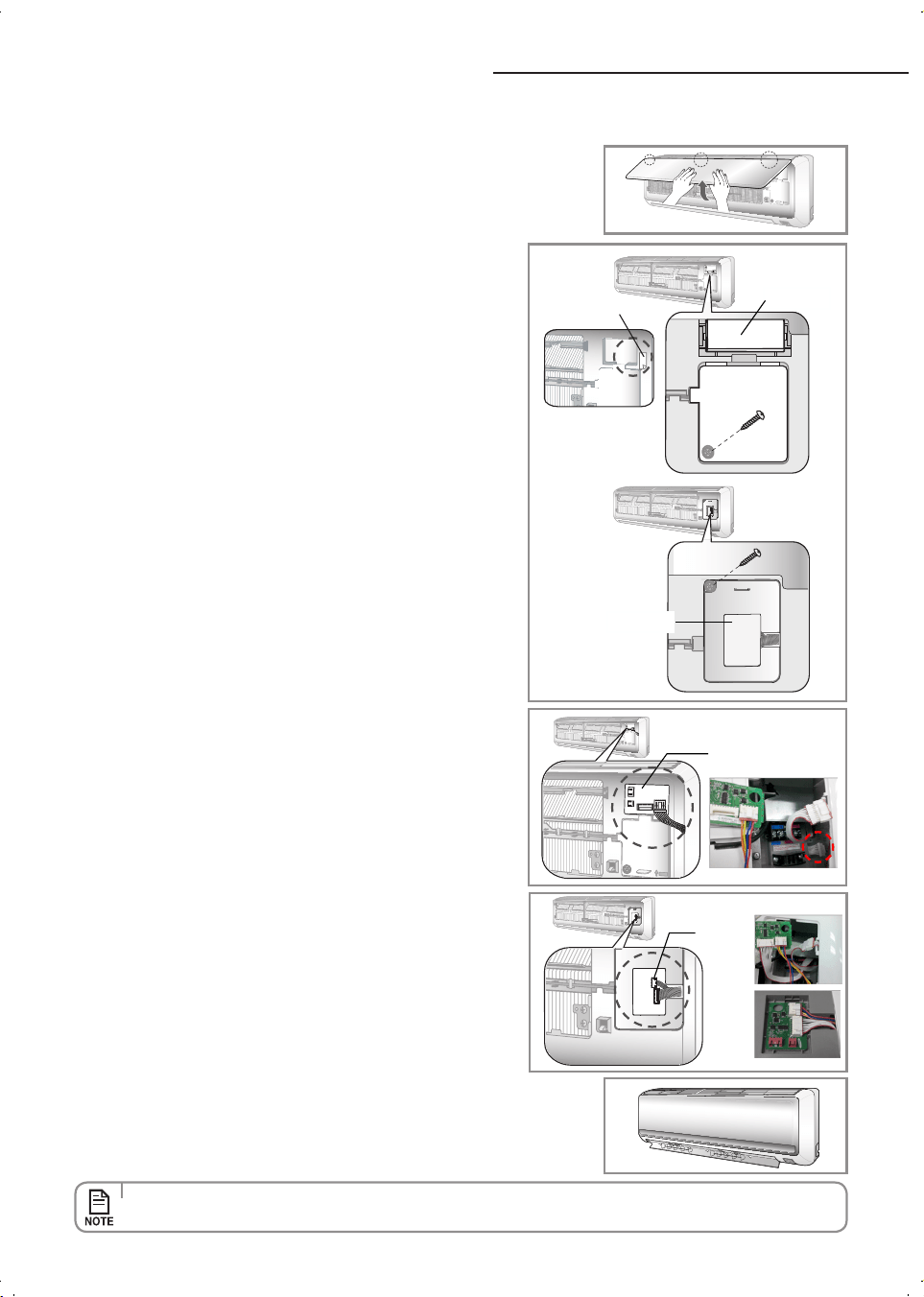

Sub PCB installation(optional)
(Wried remote controller, central remote controller etc.)
1. Turn the power o and tightly grab top of the front panel and pull
it down to open. Then slightly lift the panel up.
2. Take o the Cover PCB, remove the Flocked.
3. Attach the Sub PCB to the right side of the Panel-frame.
4. Find the PCB wire, and connect the wire to the Sub PCB as seen in
the picture.
5. Connect the wire(remote controller, central remote controller etc)
to the Sub PCB.
6. Assemble the Cover PCB and the front panel.
• TheSubPCBisattachedtobecontrolledbythewiredremotecontrollerandcentralcontroller.
Cover PCB
Cover PCB
09/12/18/24
36
Flocked
Sub PCB
09/12/18/24
36
Sub PCB
Vivaldi MAX_AQN09VFU@@ IB&IM_32163A-3_EN.indd 42 2015/8/17 14:47:44
ENGLISH
43

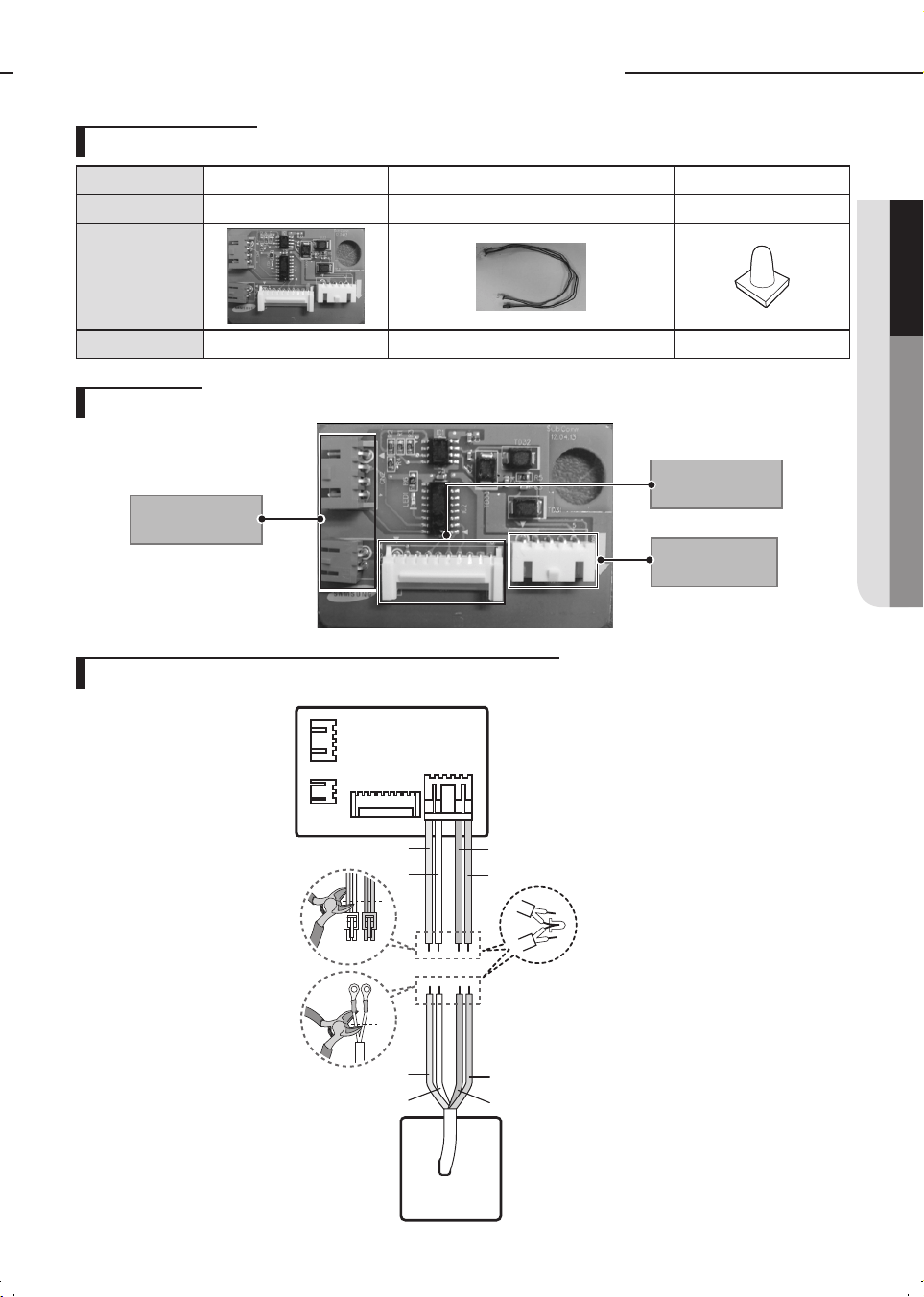

Remocon module installation (optional)
Components parts
Description
RAC SUB PBA - Wired Remote Controller Wire Connection
Product name RAC-SUB PBA Haness Wire(for Wired Remocon) Wire Joint
Quantity 1EA 1EA 4EA
Shape
Code DB93-13561A DB93-11405A DB96-90020A
ORG
Wired Remote
Controller
RAC SUB PCB
Communication Cable
POWER Cable
12V COM2
ORG
RED
RED
YEL
YEL
BLU
BLU
RAC MAIN -SUB
Connection
External controller
connection (MIM-B14)
Wired Remocon
(1,2:12V/4,5:COM2)
(Single model doesn't
use this function.)
Vivaldi MAX_AQN09VFU@@ IB&IM_32163A-3_EN.indd 43 2015/8/17 14:47:45
QUESTIONS OR COMMENTS?
COUNTRY CALL OR VISIT US ONLINE AT
U.S.A
- Consumer Electronics
1-800-SAMSUNG(726-7864) www.samsung.com/us/support
U.S.A
- Mobile Phones
1-800-SAMSUNG(726-7864) www.samsung.com/us/support
CANADA 1-800-SAMSUNG(726-7864)
www.samsung.com/ca/support (English)
www.samsung.com/ca_fr/support (French)
Vivaldi MAX_AQN09VFU@@ IB&IM_32163A-4_EN.indd 44 2015/11/20 11:50:03
AQ09VFU Series
AQ12VFU Series
AQ18VFU Series
AQ24VFU Series
AQ36VFU Series
Air Conditioner
user & installation manual
imagine the possibilities
Thank you for purchasing this Samsung product.
DB98-32163A-06
ESEN FR
Vivaldi MAX_AQN09VFU@@ IB&IM_32163A-4_EN.indd 45 2015/11/20 11:50:04
