Range Hood
Installation & User Manual
NK30CB700W**/NK36CB700W**
2
Contents
Makeup Air 24
Using the lighting 24
Checking air quality 25
Filter cleaning reminder 25
Wi-Fi On/Off 26
Smart ventilation mode 26
Automatic operation to prevent range hood overheating 27
Language setting 28
Entering AP(Access Point) 28
Cleaning and Maintenance 29
AI Energy Mode 29
Bixby 29
Amazon Alexa & Google Assistant 29
Installation Guide 29
Cleaning the range hood 30
Cleaning the sensor unit 30
Cleaning the Filters 31
Replacing the LED Lamp 31
SmartThings app 31
Open Source Announcement 33
Troubleshooting 33
General 33
Hood Operation 33
Information codes 34
Warranty (USA) 35
Warranty (CANADA) 36
Contents
Important Safety Instructions 3
Installation Requirements 7
General Specifications 7
Mounting Height 7
Venting Methods 8
Parts List 8
Sub-Parts List 9
Additional Purchase Accessories 9
Installation Clearances 9
Making a hole in the furniture 10
Installation 11
Setting the Location 11
Connecting the Vent System 12
Installing the Range Hood 13
Connect the filter support cable 16
Installing the Recirculation Kit 16
Range Hood Description 20
Range Hood Overview 20
Button panel 20
Using the Range Hood 21
Display 21
Turning the Range Hood On or Off 21
First Use Guide 22
Changing the operation mode 22
Smart mode 23
Activates/Deactivates Boost mode 23
3
Important Safety Instructions
Important Safety Instructions
APPROVED FOR RESIDENTIAL APPLIANCES FOR RESIDENTIAL USE ONLY
READ AND SAVE THESE INSTRUCTIONS
PLEASE READ THE ENTIRE INSTALLATION GUIDE BEFORE PROCEEDING.
INSTALLATION MUST COMPLY WITH ALL LOCAL CODES.
IMPORTANT: Save these instructions for the local electrical inspector's use.
INSTALLER: Please leave these Instructions with this unit for the owner.
OWNER: Please retain these instructions for future reference.
Symbols used in this manual
WARNING
Hazards or unsafe practices that may result in severe personal injury or death.
CAUTION
Hazards or unsafe practices that may result in electric shock, personal injury, or
property damage.
NOTE
Useful tips and instructions
These warning icons and symbols are here to prevent injury to you and others.
Please follow them explicitly. After reading this section, keep it in a safe place for
future reference.
WARNING
Turn off the power circuit in the service panel and lock out panel before wiring this
appliance.
Installation requires a branch circuit of 120 VAC, 60 Hz, and 15 or 20 A.
State of California Proposition 65 warning (US only)
WARNING
This product contains chemicals known to the State of California to cause cancer
and birth defects or other reproductive harm.
1. FCC Notice
CAUTION
FCC CAUTION: Any changes or modifications not expressly approved by the
party responsible for compliance could void the user’s authority to operate the
equipment.
This device complies with Part 15 of the FCC Rules. Operation is subject to the
following two conditions:
1) This device may not cause harmful interference, and
2) This device must accept any interference received, including interference that
causes undesired operation.
For products sold in the US and Canadian markets, only channels 1-11 are available.
You cannot select any other channels.
FCC STATEMENT:
This equipment has been tested and found to be in compliance within the limits
for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits
are designed to provide reasonable protection against harmful interference in a
residential installation.
This equipment generates, uses, and can radiate radio frequency energy and, if
not installed and used in accordance with the instructions, may cause harmful
interference with radio communications.
However, there is no guarantee that interference will not occur in a particular
installation. If this equipment does cause harmful interference to radio or
television reception, which can be determined by turning the equipment off and
on, the user is encouraged to try to correct the interference by one or more of the
following measures:
• Reorienting or relocating the receiving antenna
• Increasing the separation between the equipment and receiver
• Connecting the equipment to an outlet that is on a different circuit than the radio
or TV.
• Consulting with a dealer or an experienced radio/TV technician for help.
4
Important Safety Instructions
Important Safety Instructions
WARNING
TO REDUCE THE RISK OF FIRE, ELECTRIC SHOCK, OR INJURY TO PERSONS,
OBSERVE THE FOLLOWING PRECAUTIONS:
• Use this unit only in the manner intended by the manufacturer. If you have
questions, contact the manufacturer.
• Before servicing or cleaning the unit, switch the power off at the service panel and
lock the service panel to prevent the power from being switched on accidentally.
If the service panel cannot be locked, securely fasten a prominent warning device,
such as a tag, to the service panel.
• The installation work and electrical wiring must be done by qualified person(s)
in accordance with all applicable codes and standards, including fire-rated
construction.
• Sufficient air is needed for proper combustion and the exhausting of gases
through the flue (chimney) of the fuel burning equipment to prevent backdrafting.
Follow the heating equipment manufacturer’s guidelines and safety standards,
such as those published by the National Fire Protection Association (NFPA), the
American Society for Heating, Refrigeration and Air Conditioning Engineers
(ASHRAE), and the local code authorities.
• When cutting or drilling into the wall or ceiling, do not damage electrical wiring or
other hidden utilities.
• Ducted fans must always be vented outdoors.
CAUTION
For general ventilating use only. Do not use to exhaust hazardous or explosive
materials and vapors.
CAUTION
To reduce the risk of fire and to properly exhaust air, be sure to duct air outside -
do not vent exhaust air into spaces enclosed within walls, ceilings, attics, or into
crawl spaces or garages.
FCC RADIATION EXPOSURE STATEMENT:
This equipment complies with FCC radiation exposure limits set forth for an
uncontrolled environment. This equipment should be installed and operated so
there is at least 8 inches (20 cm) between the radiator and your body. This device
and its antenna(s) must not be co-located or operated in conjunction with any
other antenna or transmitter.
2. IC Notice
The term “IC” before the radio certification number only signifies that Industry
Canada technical specifications were met. Operation is subject to the following
two conditions: (1) this device may not cause interference, and (2) this device must
accept any interference, including interference that may cause undesired operation
of the device.
This Class B digital apparatus complies with Canadian ICES-003. For products sold
in the US and Canadian markets, only channels 1-11 are available. You cannot
select any other channels.
IC RADIATION EXPOSURE STATEMENT:
This equipment complies with the IC RSS-102 radiation exposure limits set forth
for an uncontrolled environment. This equipment should be installed and operated
so there is at least 8 inches (20 cm) between the radiator and your body. This
device and its antenna(s) must not be co-located or operated in conjunction with
any other antenna or transmitter.
5
Important Safety Instructions
WARNING
Do not let children near this appliance. Do not let children play with this appliance.
Keep all packaging materials out of children’s reach. Properly dispose the
packaging materials after this appliance is unpacked.
Electrical Requirements
IMPORTANT
Observe all governing codes and ordinances.
It is the customer’s responsibility:
To contact a qualified electrical installer.
To assure that the electrical installation is adequate and in conformance with the
National Electrical Code, ANSI/NFPA 70 — latest edition*, or CSA Standards C22.1-
94, Canadian Electrical Code, Part 1 and C22.2 No.0-M91 - latest edition** and all
local codes and ordinances.
If codes permit and a separate ground wire is used, it is recommended that a
qualified electrician determine that the ground path is adequate. A copy of the
above code standards can be obtained from:
National Fire Protection Association
1 Batterymarch Park
Quincy, MA 02169-7471
CSA International
8501 East Pleasant Valley Road
Cleveland, OH 44131-5575
• A 120 volt, 60 Hz., AC only, 15-amp, fused electrical circuit is required.
• If the house has aluminum wiring, follow the procedure below:
1. Connect a section of solid copper wire to the pigtail leads.
2. Connect the aluminum wiring to the added section of copper wire using
special connectors and/or tools designed and UL listed for joining copper to
aluminum.
WARNING
TO REDUCE THE RISK OF FIRE, USE ONLY METAL DUCTWORK.
WARNING
TO REDUCE THE RISK OF A RANGE TOP GREASE FIRE:
• Never leave surface units unattended at high settings. Boilovers cause smoking
and greasy spillovers that may ignite. Heat oils slowly on low or medium settings.
• Always turn the hood ON when cooking at high heat or when flambeing food (i.e.
Crepes Suzette, Cherries Jubilee, Peppercorn Beef Flambé).
• Clean ventilating fans frequently. Grease should not be allowed to accumulate on
the fan or filter.
• Use proper pan sizes. Always use cookware appropriate for the size of the surface
element.
WARNING
TO REDUCE THE RISK OF INJURY TO PERSONS IN THE EVENT OF A RANGE TOP
GREASE FIRE, OBSERVE THE FOLLOWING PRECAUTIONS:*
• SMOTHER FLAMES with a close fitting lid, cookie sheet, or metal tray, then turn
off the burner. BE CAREFUL TO PREVENT BURNS. If the flames do not go out
immediately, EVACUATE AND CALL THE FIRE DEPARTMENT.
• NEVER PICK UP A FLAMING PAN - you may get burned.
• DO NOT USE WATER, including wet dishcloths or towels - a violent steam explosion
will result.
• Use an extinguisher ONLY if:
– You know you have a class ABC extinguisher, and you already know how to
operate it.
– The fire is small and contained in the area where it started.
– The fire department is being called.
– You can fight the fire with your back to an exit.
* Based on “Kitchen Fire Safety Tips” published by NFPA.
WARNING
To reduce the risk of fire or electrical shock, do not use this fan with any solid-
state speed control device.
6
Important Safety Instructions
Important Safety Instructions
• Use clamps to seal all joints in the vent system.
• The vent system must have a damper. If the roof or wall cap has a damper, do not
use the damper supplied with the range hood.
• Use caulking to seal the exterior wall or roof opening around the cap.
• The size of the vent should be uniform.
Venting Methods
To use the hood’s top outlet to vent your hood, a 6” (15.2 cm) round vent system is
required. To use the hood’s rear outlet, a 31⁄4” x 10” (8.25 x 25.4 cm) rectangular
vent system is required. Neither of these vent systems are included and must be
purchased separately.
NOTE
Flexible vents are not recommended. Flexible vents create back pressure and air
turbulence that greatly reduces performance. The vent system can terminate either
through the roof or a wall. To vent through a wall, a 90° elbow is needed.
Mounting Height
Select a mounting height between a minimum of 24” (61 cm) for an electric
cooking surface, a minimum of 27” (68.6 cm) for a gas cooking surface, and a
suggested maximum of 36” (91.4 cm) above the range to the bottom of the hood.
Rear discharge
A 90° elbow may be installed immediately above the hood.
For Non-Vented (recirculating) Installations
If it is not possible to vent cooking fumes and vapors to the outside, the hood can
be used in the non-vented (recirculating) version, fitting a charcoal filter and a
plastic grid. Fumes and vapors are recycled through the recirculation grid.
• Follow the electrical connector manufacturer’s recommended procedure.
Aluminum/copper connections must conform with local codes and industry
accepted wiring practices.
• Wire sizes and connections must conform with the rating of the appliance as
specified on the model/serial rating plate. The model/serial plate is located behind
the filter on the rear wall of the range hood.
• Wire sizes must conform to the requirements of the National Electrical Code, ANSI/
NFPA 70 (latest edition), or CSA Standards C22. 1-94, Canadian Electrical Code,
Part 1 and C22.2 No. 0-M91 (latest edition and all local codes and ordinances.
GROUNDING INSTRUCTIONS
This appliance must be grounded. In the event of an electrical short circuit,
grounding reduces the risk of electric shock by providing an escape wire for the
electric current. This appliance is equipped with a cord that has a grounding wire
with a grounding plug. The plug must be plugged into an outlet that is properly
installed and grounded.
WARNING
• Improper grounding can result in a risk of electric shock.
• Consult a qualified electrician if the grounding instructions are not completely
understood, or if doubt exists as to whether the appliance is properly grounded.
• Do not use an extension cord. If the power supply cord is too short, have a
qualified electrician install an outlet near the appliance.
Venting Requirements (ducted models only)
• The vent system must terminate outdoors.
• Do not terminate the vent system in an attic or other enclosed area.
• Do not use a 4” (10.2 cm) laundry-type wall cap.
• Only use metal vents. Rigid metal vents are recommended. Plastic or metal foil
vents are not recommended.
• The length of the vent system and the number of elbows should be kept to a
minimum to provide efficient performance.
For the most efficient and quietest operation:
• Use no more than three 90° elbows.
• Make sure there is a minimum of 24” (61 cm) of straight vent between the elbows
if more than one elbow is used.
• Do not install two elbows together.
7
Installation Requirements
Installation Requirements

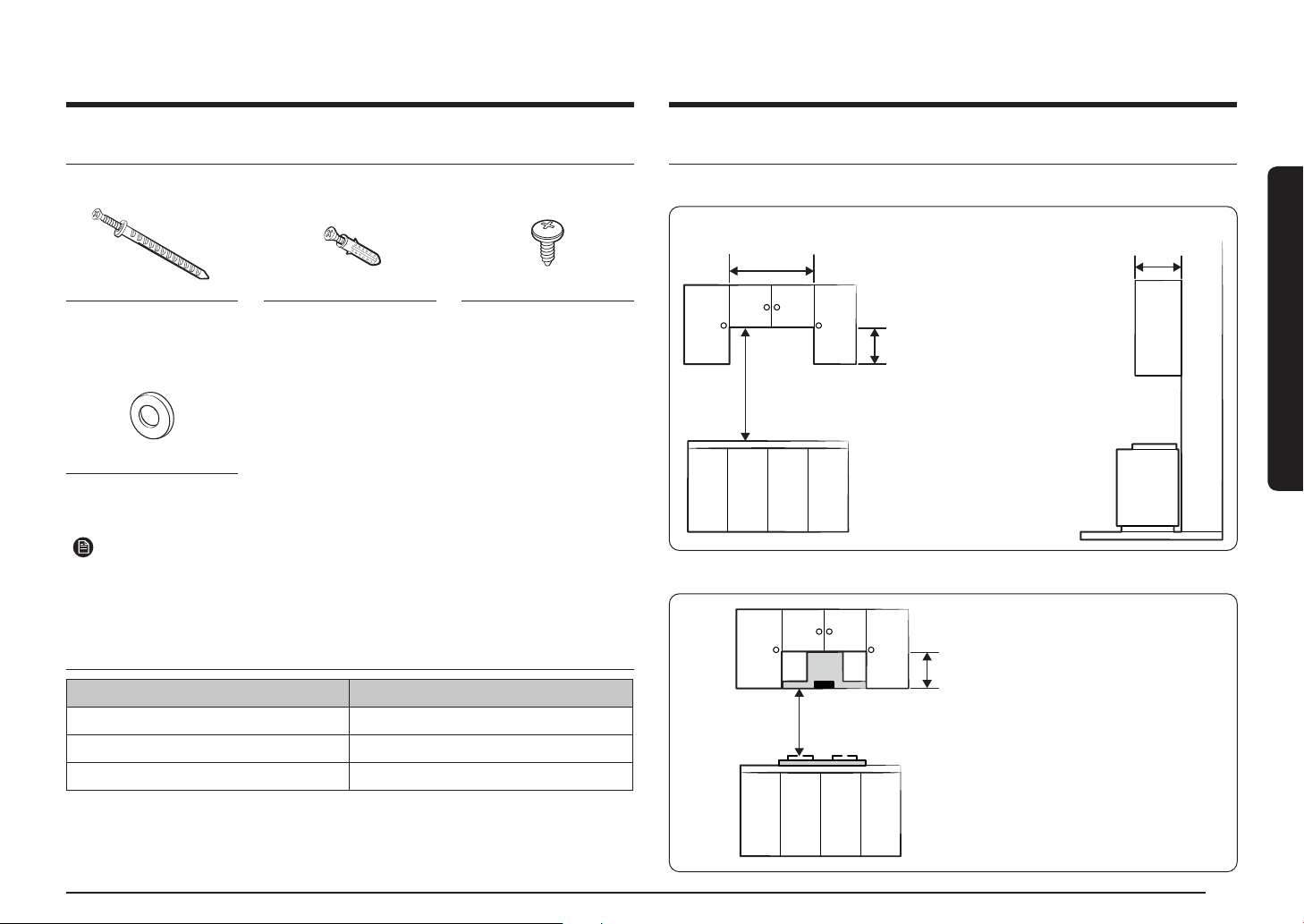

Mounting Height
CAUTION
• Be sure to check the mounting height before installing the product.
• The mounting height is measured from the top of the range to the upper
cabinets. The mounting height for an electric cooking surface is measured from
its glass cooktop as shown in the image on the left. For a gas cooking surface,
the mounting height is measured from the top of the burning grates as shown in
the image on the right.
Min 24
" (61 cm)
Max 36
" (91.4 cm)
Min 24" (61 cm)
Max 36" (91.4 cm)
Min 27
" (68.5 cm)
Max 36
" (91.4 cm)
Min 27" (68.5 cm)
Max 36" (91.4 cm)
ELECTRIC RANGES GAS RANGES
General Specifications
11
7
/32" (28.5 cm)
13
45
/64" (34.8 cm)
2
11
/64" (5.5 cm)
19
11
/16" (50.0 cm)
Vent Mode (Extension Kit)
Min 40" (101.6 cm)
Max 71
7
/
64
" (180.6 cm)
Vent Mode
Min 25
7
/
16
" (64.6 cm)
Max 41
31
/
32
" (106.6 cm)
Recirculation Mode (Extension Kit)
Min 40" (101.6 cm)
Max 71
7
/
64
" (180.6 cm)
Recirculation Mode
Min 28
11
/
32
" (72.0 cm)
Max 44
31
/
64
" (113.0 cm)
30" NK30CB700W** (29
27
/32" = 75.8 cm)
30" NK30CB600W** (29
29
/64" = 74.8 cm)
36" NK36CB700W** (35
23
/64" = 89.8 cm)
36 NK36CB600W** (35
23
/64" = 89.8 cm)
22
37
/32"
(55.5 cm)
8
Installation Requirements
Installation Requirements

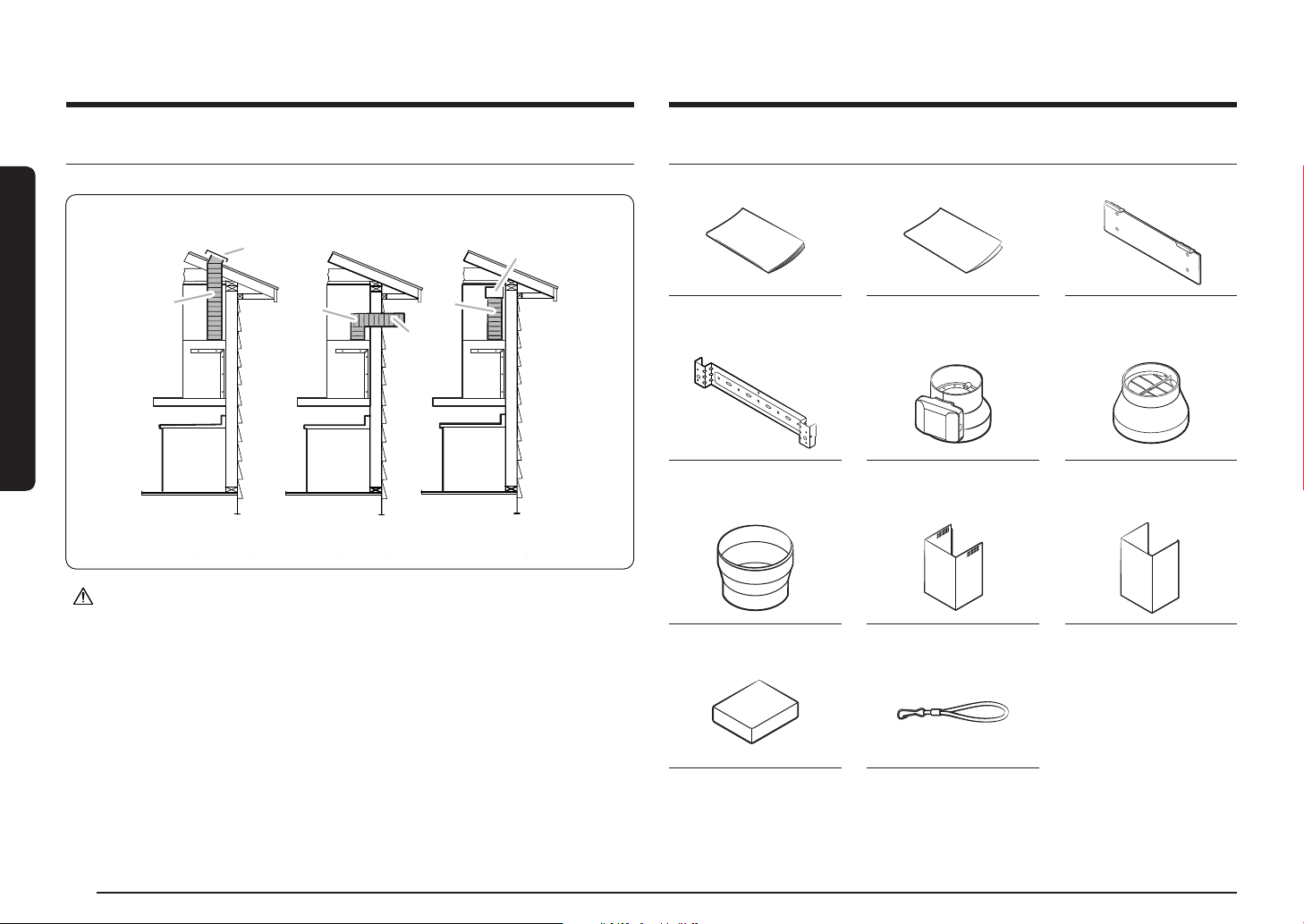

Venting Methods
Smoke is exhausted to the outside through a special pipe connected to the hood.
(Recirculating)
Wall Venting
Roof Venting
B
A
A.
B. 6" (15.2 cm)
A. Wall cap
B. 6" (15.2 cm)
A. Roof cap
B. 6" (15.2 cm)
B
A
B
A
Roof Venting Wall Venting (Recirculating)
A. Roof cap
B. 6" (15.2 cm)
A. Wall cap
B. 6" (15.2 cm)
A. Deflector
B. 6" (15.2 cm)
CAUTION
• The minimum connectable exhaust outlet diameter is 6" (15.2 cm).
• Ensure the exhaust outlet diameter and duct diameter match, and then connect
the duct to the wall outlet.
• If the duct and the wall outlet have different diameters, the suction performance
will decrease while also significantly increasing noise.
The manufacturer is not responsible for any problems caused by this.
• Use the minimum possible length for the duct, and do not significantly alter the
cross-section.
• When connecting the duct, minimize bending. (Max bending angle: 90˚)
• In an environment where installing with an external venting method is possible,
be sure to install only using the external venting method.
Parts List
User & Installation
manual (2)
Template for
Installation (1)
Hood Mounting
Bracket (1)
Duct Cover Mounting
Bracket (1)
Electric Damper (1)
NK3*CB700W** only
Damper (1)
NK3*CB600W** only
Damper Adapter (1) Upper Duct Cover (1) Lower Duct Cover (1)
5 mm Magnet (2) Filter Support Cable * (2)
*
To reduce the risk of the filter dropping, assemble the filter support cable to the filter.
9
Installation Requirements
Sub-Parts List
6 x 130 mm
Screw Anchor (2)
6 x 30 mm
Screw Anchor (5)
4
x
10 mm
Hood Fixing Screw (10)
22 mm Washer (4)
NOTE
Install the product by using the included accessories and materials appropriately
and according to the installation environment and conditions.
Additional Purchase Accessories
Model NK30CB700W**, NK36CB700W**
Recirculation Kit NK-AR7000WB/AA
Charcoal Filter Kit NK-AF7000WB/AA
Hood Extension Kit NK-AE7000W*/AA
Installation Clearances
Upper furniture Dimension
30" (Min 77.0 cm)
36" (Max 90.0 cm)
Min (Vent) 25
7
/16" (64.6 cm)
Min (Recirculation) 28
11
/32" (72.0 cm)
Min 11
27
/64"
(29.0 cm)
Elec : 46
27
/32" – 67
33
/64" (119.0 cm – 171.5 cm)
Gas : 51
3
/8" – 69
19
/64" (130.5 cm – 176.0 cm)
Required Hood installation Height
Elec : 24
1
/64" – 35
63
/64"(61.0 cm – 91.4 cm)
Gas : 26
31
/32" – 35
63
/64"(68.5 cm – 91.4 cm)
Min (Vent) 25
7
/
16
" (64.6 cm)
Min (Recirculation) 28
11
/
32
" (72.0 cm)
10
Installation Requirements
Installation Requirements
Making a hole in the furniture
Duct hole guide_Op.1
Cabinet floor drilling work: hood exhaust outlet (damper) cutting work
Rear (Wall)
Front
Duct
Hole
Furniture's Center Line
Max
13
/
64
"
(0.5 cm)
Min
8
21
/
32
"
(22.0 cm)
Min 6
19
/64" (16.0 cm)
Max 6
11
/16" (17.0 cm)
Min
25
/
32
"
(2.0 cm)
CAUTION
• Cut the cabinet in a way that does not interfere with the damper outlet.
• After assembling the duct cover, make sure that the cut surface of the cabinet is
not exposed. (The hole size must be smaller than the duct cover.)
• Vacuum the sawdust to prevent it from blowing away.
• Make sure the cabinets are not damaged.
• Before cutting the cabinet, explain to the customer that the cabinet needs to be
cut, and then obtain consent before proceeding.
Method and sequence of cutting the upper cabinets
1.
Refer to the cutting dimensions above and mark the lines to be cut on the cabinet.
2.
Use a jigsaw to cut the upper cabinets. When cutting, use a vacuum cleaner to
minimize the amount of dust.
Installation Tool Jigsaw
Duct hole guide_Op.2
Cabinet floor drilling work: hood exhaust outlet (damper) cutting work
Rear (Wall)
Front
Furniture's Center Line
Cutting Area
13
25
/64" (34.0 cm)
CAUTION
• Cut the cabinet in a way that does not interfere with the damper outlet.
• Vacuum the sawdust to prevent it from blowing away.
• Make sure the cabinets are not damaged.
• Before cutting the cabinet, explain to the customer that the cabinet needs to be
cut, and then obtain consent before proceeding.
Method and sequence of cutting the upper cabinets
1.
Refer to the cutting dimensions above and mark the lines to be cut on the cabinet.
2.
Use a jigsaw to cut the upper cabinets. When cutting, use a vacuum cleaner to
minimize the amount of dust.
Installation Tool Jigsaw, Grinder
11
Installation
Installation
3. Check the position for fixing the hood
mounting bracket.
또는
길이
130 mm
칼블럭(2 개)
와셔(2 개)
길이
30 mm
칼블럭(2 개)
130 mm
Screw Anchors
(2 pcs.)
or 30 mm
Screw Anchors
(2 pcs.)
and Washers
(2 pcs.)
4. Fix the hood mounting bracket
horizontally on the wall where the
hood is to be installed using screw
anchors, hood mounting bracket
screws, and washers.
Be sure to install it on the wall using
the two 30 mm screw anchors.
NOTE
For a secure hold, use a 130 mm screw
anchor.
CAUTION
• This product must be installed by a professional hood installer.
• If the product is installed on a tiled wall or on drywall, there is a risk of the hood
falling, so be sure to fix the fixing screws to the concrete behind the wall.
• Do not attach the product as if it were a tile or fix it with cement, silicone, or
adhesive. Install it on a concrete wall using the provided screws.
Setting the Location
1. Be sure to check that the product you
have purchased is suitable for the
installation space you have chosen.
24
1
/
64
" – 35
63
/
64
"
(61.0 cm – 91.4 cm)
26
31
/
32
" – 35
63
/
64
"
(68.5 cm – 91.4 cm)
2. Fix the enclosed installation template
and then install it so that it does not
twist horizontally.
CAUTION
Please pay attention to the mounting
height. The mounting height is
measured from the top of the range
to the upper cabinets. The mounting
height for an electric cooking surface
is measured from its glass cooktop. For
a gas cooking surface, the mounting
height is measured from the top of the
burning grates.
12
Installation
Installation

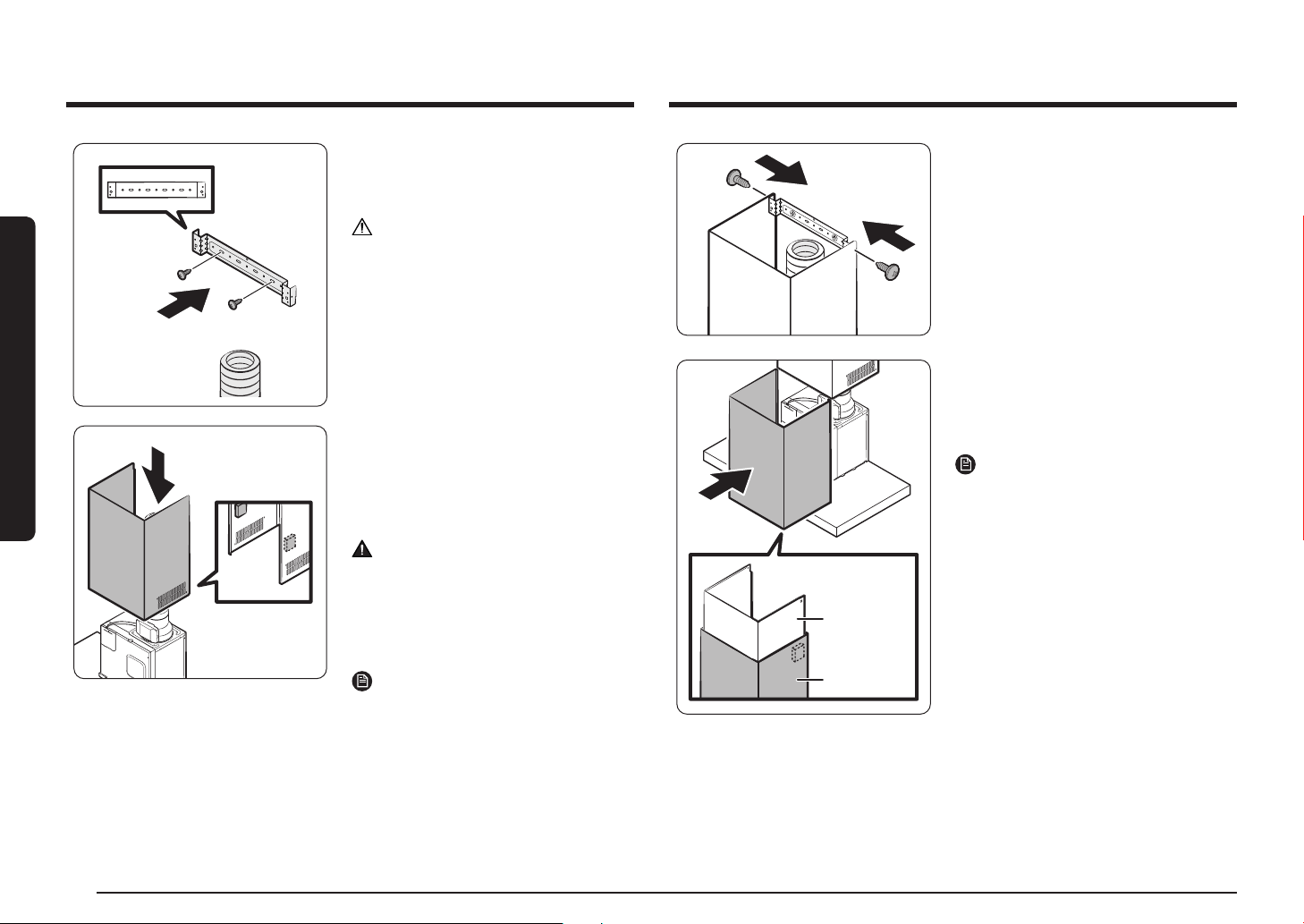

7. Remove the cover by loosening the
screw on the PCB cover.
8. Connect the connector of the electric
damper wire and the PCB connector.
NOTE
Insert the wire into the hole at the top
left corner.
9. Assemble the PCB cover using a
screw.
NOTE
Put the connected connector into the
hole of the cover as shown in the
picture.
Connecting the Vent System
NK3*CB600W**
5. Assemble the damper or the electric
damper for preventing backflow by
tufning It in to the hood exhaust
outlet.
NOTE
• Damper is provided in NK3*CB600W**.
• Electric Damper is provided in
NK3*CB700W**.
CAUTION
Check that the electric damper is seated
correctly on the screw thread and there
is no tilt. If the electric damper is not
flush, air will leak through the gap.
NK3*CB700W**
6. Assemble the damper adapter,
pushing it into a damper or electric
damper. Fix it using tape.
NOTE
• If the hood is NK3*CB600W**,
please follow it from No.10.
• If the hood is NK3*CB700W**,
please follow it from No.7.
13
Installation
6" (15.2 cm)
12. Fix the duct (6" (15.2 cm)) to the
hood outlet and the vent on the wall,
respectively, with tape.
CAUTION
• Ensure the exhaust outlet diameter and duct diameter match, and then connect
the duct to the wall outlet.
• If the duct and the wall outlet have different diameters, the suction performance
will decrease while significantly increasing noise.
The manufacturer is not responsible for any problems caused by this.
• Use the minimum possible length for the duct, and do not significantly alter the
cross-section.
• Minimize bending when connecting the duct (max bending angle: 90 degrees).
Installing the Range Hood
10. Fix the hood to the hood mounting
bracket installed on the wall.
11. Fix the duct auxiliary bracket using
two 30 mm screw anchors in the top
left of the duct.
14
Installation
Installation
15. Assemble with 10 mm hood fixing
screws from both sides.
Upper Duct
Lower Duct
16. Assemble the lower duct cover to
the hood. Magnets on the upper duct
cover hold the lower duct cover in
place.
NOTE
The magnet must be attached to the
upper line of the lower duct.
13. Fix the duct cover mounting bracket
to the ceiling or rear wall with the 10
mm hood fixing screws.
CAUTION
• Install the upper duct closely to the
ceiling and upper cabinets.
• Be careful not to let the upper duct
come into contact with the upper
cabinet door.
14. Attach each magnet to the inner
surface of the upper duct cover
overlapping the lower duct cover, and
assemble the upper duct cover in a
way that it fits the mounting bracket.
WARNING
Installation with screws or brackets
other than those specified in the
instruction of this manual may result in
electrical hazards.
NOTE
• If the upper duct assembly is
restricted by the upper cabinet, please
assemble it with an auxiliary duct.
• Magnets are included in the accessory
box.
15
Installation
Grounding Pin
CAUTION
Do not ground on gas pipes, water
pipes, telephone lines, etc.
NOTE
Be sure to install a short-circuit breaker
where there is a risk of a short circuit.
17. Remove the filter at the bottom of
the hood.
Assemble the lower duct cover by
fitting a 10 mm hood fixing screw to
the hole in the lower duct cover.
CAUTION
When removing the filter, use both
hands to avoid dropping the filter.
18. When the lower duct cover assembly
is complete, reassemble the filter in
the reverse order of disassembly.
NOTE
To install the extension kit, follow same
process.
WARNING
Be sure to use an outlet with a ground terminal for safety. This can prevent the
risk of electric shock, fire, or malfunction. If the outlet does not have a ground
terminal, purchase a separate grounding wire and connect it to the grounding
line.
16
Installation
Installation
Installing the Recirculation Kit
NOTE
Same process until No. 14
Duct Cover Mounting Bracket
Deflector
Assembly
screws
1. Assemble the air deflector with the
duct cover mounting bracket with the
four assembly screws provided with
the Recirculation Kit.
B
A
D
C
2. Measure from the bottom of the
deflector to the bottom of the hood
outlet.
3. Cut the duct to the measured size “X.”
4. Remove the deflector.
5. Slide the duct onto the bottom of the
deflector.
6. Place the assembled deflector and
duct over the exhaust outlet from the
hood.
7. Reassemble the air deflector to the
duct cover mounting bracket with the
four assembly screws.
8. Seal the connections with tape.
A Deflector
B
X = length to cut
duct
C Duct
D Exhaust outlet
Connect the filter support cable
1. Remove the filter at the bottom of
the hood. Pass the filter support
cable through the wire loop attached
on the top of the filter. Make the
knot by passing the hook of the filter
support cable through the other end
of the filter support cable.
2. Hang the hook of the filter support
cable to the anchor at bottom of the
hood. Assemble the filter.
17
Installation
10. Attach each magnet to the inner
surface of the upper duct cover
overlapping with the lower duct
cover, and assemble the upper
duct cover in a way that it fits the
mounting bracket.
WARNING
Installation with screws or brackets
other than those specified in the
instruction of this manual may result in
electrical hazards.
NOTE
• If the upper duct cover assembly is
restricted by the upper cabinet, please
assemble it with an auxiliary duct.
• Magnets are included in the accessory
box.
11. Assemble with 10 mm hood fixing
screws from both sides.
9. Rotate the upper duct as in the
picture.
18
Installation
Installation
14. Remove the 2 screws from the range
hood.
15. Remove the frame's middle part from
the range hood.
16. Remove one screw from the range
hood.
Upper Duct
Lower Duct
12. Assemble the lower duct cover to
the hood. Magnets on the upper duct
cover hold the lower duct cover in
place.
NOTE
The Magnet must be attached to the
upper line of the Lower Duct.
13. Remove metal grease filter from the
range hood. See the “Metal Grease
Filter” in this section.
19
Installation
19. Assemble the charcoal filter with the
assembly screw provided with the
Recirculation Kit. Reassemble the
frame middle and filter in the reverse
order of disassembly.
17. Remove the guard by pushing the
hook of the guard in the direction of
the arrow.
18. Insert the charcoal filter hook by
pushing it in the direction of the
arrow.
20
Range Hood Description / Overview
Range Hood Description Range Hood Overview
Button panel
01 02 03
01 Light button
• Short press: Changes the light mode (High
Low Off)
• 3 second press: Resets the filters
• 5 second press: Activates/deactivates the AP
02 Mode button
• Short press: Changes the operation mode
(Smart
Low Medium High (Boost) Smart)
• 3 second press: Language settings (English, Español, Français)
• 5 second press: Deactivates/activates the Wi-Fi
– Smart ventilation mode can be activated on the SmartThings app.
– Range Hood can be operated by mobile device or tablet with registered
Samsung products on the SmartThings app.
• 10 second press: Activates/deactivates Boost mode
*
Mode button + Light button
• 3 second press : Changes the operation mode
– Smart mode is the initial default mode.
03 Power button
• Short press: Turns the device ON/OFF
01
04
05
02
03
01 Duct 02 Display 03 Button panel
04 Lamp 05 Filter
21
Using the Range Hood
Using the Range Hood
Display
10
Smart
PM2.5
01 03
02
04
Smart
01 Shows the PM10, PM2.5, and PM1.0
with color indicators
02 Shows the operation mode
03 Shows the PM10, PM2.5 and PM1.0
status
04 Shows the concentrations of PM10,
PM2.5, and PM1.0
NOTE
• PM10: Dust in the air with a
diameter of 10
or less
– Fine particles about 1/5 of the
diameter of a human hair
• PM2.5: Dust in the air with a
diameter of 2.5
or less
– Fine particles about 1/20 of the
diameter of a human hair
• PM1.0: Dust in the air with a
diameter of 1.0
or less
– Fine particles about 1/50 of the
diameter of a human hair
*Diameter of a human hair: 50 - 70
Turning the Range Hood On or Off
• The device turns on with a chime sound,
and starts operation in Smart mode.
– Immediately after the device starts
operation, a welcome message and
app linkage reminder are displayed
in sequential order. After that, the air
quality color, PM levels and operation
mode are displayed.
– Air quality is shown with color
indicators: PM10, PM2.5, PM1.0
Concentrations of PM10, PM2.5 and
PM1.0 are shown.
22
Using the Range Hood
Using the Range Hood
First Use Guide
Welcome!
Welcome!
• When you plug in the power plug for the
first time, you will see the first use guide
screen.
Tap to explore and
choose cycles
Tap to explore and
choose cycles
• Press the button or wait for
7seconds to see the following
instructions.
Smart mode changes airflow
based on kitchen air quality
Smart mode changes airflow
based on kitchen air quality
Connect SmartThings to use
more features
Connect SmartThings to use
more features
Changing the operation mode
Change the device operation mode as
necessary.
• Press the button to select the
operation mode.
– Each time you press the button, the
mode changes in the following order:
Smart
Low Medium High
Boost Smart
• In Smart mode, the fan speed is
automatically adjusted depending on the
surrounding dust conditions to keep the
kitchen air clean.
Smart
Optimized ventilation
Smart
Optimized ventilation
Low
Silent ventilation
Low
Silent ventilation
Medium
Normal ventilation
Medium
Normal ventilation
High
Strong & fast ventilation
High
Strong & fast ventilation
23
Using the Range Hood
Smart mode
Smart
Optimized ventilation
Smart
Optimized ventilation
Smart mode is a function that
automatically adjusts the wind strength
according to the dust in the kitchen.
• In Smart mode, the fan speed is
automatically adjusted depending on the
surrounding dust conditions to keep the
kitchen air clean.
Kitchen air quality is bad.
Ventilation level increased
Kitchen air quality is bad.
Ventilation level increased
• If the kitchen air quality is bad during
Smart mode operation, a notice is
displayed and the hood range operates
in High mode.
Kitchen air quality improved.
Ventilation level decreased
Kitchen air quality improved.
Ventilation level decreased
• When the kitchen air quality improves
during Smart mode operation, a notice is
displayed and a mode suitable for the air
quality is enabled.
Smart mode tured off
after 2 hours
Smart mode turned off
after 2 hours
• If you operate in smart mode for 2hours,
it will be turned off automatically.
Activates/Deactivates Boost mode
Boost mode is a function that allows
powerful exhaust for a short time.
1.
Press the
button for 10 seconds.
English
Save
Next
English
Next Save
2.
Language Settings mode is displayed.
Please keep pressing.
Wi-Fi turned off
Wi-Fi turned off
3.
Wi-Fi On/Off mode is displayed.
Please keep pressing.
Boost mode added
Boost mode added
4.
Boost mode has been added.
Boost
Maximum speed of ventilation
Boost
Maximum speed of ventilation
5.
Boost mode (Max 630 CFM) is
available.
24
Using the Range Hood
Using the Range Hood
Using the lighting
Adjusting the lighting level of the
product.
• Press the button briefly to select the
desired lighting level.
– It cycles in the order of
High
Low Off.
High
High
Low
Low
Off
Off
Makeup Air
• When using ventilation systems with greater than the specified CFM of air
movement, review local building codes as they may require makeup air systems.
Consult an HVAC professional for the specific requirements for your area as the
CFM requirements can vary between locales.
• Consult an HVAC professional to select the correct CFM capacity range hood for
your application. The CFM capacity depends on the range or cooktop BTU rating,
size and location, size of the kitchen, and the range hood ductwork in the kitchen.
CAUTION
Do not activate this function without a qualified person present. We
recommend that a qualified technician install the range hood. It is the installer’s
responsibility to ensure that the range hood complies with the installation
clearances specified for the product. To activate this function's Power mode, the
Make-up air system is required.
25
Using the Range Hood
Checking air quality
10
Smart
PM2.5
Smart
The concentrations of PM10, PM2.5, and
PM1.0 are shown, and the air quality is
shown with color indicators that rate the
PM10, PM2.5 and PM1.0 levels.
• From among PM10, PM2.5 and PM1.0,
the value with the worst air quality is
displayed.
– If all items have low values, the
concentrations of PM10, PM2.5
and PM1.0 are displayed in turn for
10seconds each.
• Air quality levels
Pollution level
PM10
concentration
( /m³)
PM2.5/PM1.0
concentration
( /m³)
Very
poor
Red
151 and
over
76 and
over
Poor
Yellow
81
~
150 36
~
75
Moderate
Green 31
~
80 16
~
35
Good Blue
30 and
below
15 and
below
• PM10, PM2.5 and PM1.0 measurement
will be displayed in numbers 05-999.
Filter cleaning reminder
Filter needs cleaning
Filter needs Cleaning
Hold for info
Pull filter downward
to remove
Reset
Next
Pull filter downward
to remove
Next Reset
Resetting filter
Resetting filter
This function informs you when you need
to clean the filters.
• If an audible alarm is sounded and 'Filter
needs cleaning' appears on the front
display when using the device, press
and hold the button for more than
3 seconds for information about filter
cleaning.
• Press the
button to clean the filter
according to the instructions. Assemble
the cleaned filter and press the
button to reset the filter usage time.
When the alarm sounds, 'Resetting filter'
is displayed.
• You should also reset the filter cleaning
time by pressing and holding the
button for more than 3 seconds when
the filters have been cleaned for any
reason even if the front display did not
display 'Filter needs cleaning'.
NOTE
• If filter cleaning is required, a
10second 'Filter cleaning required'
notification is displayed on the display
when powered on.
• Filter cleaning notifications are
displayed approximately every
60hours and may vary depending on
usage mode.
26
Using the Range Hood
Using the Range Hood
Wi-Fi On/Off
This feature turns the product's Wi-Fi on
or off.
1.
Press the
button for 5 seconds.
English
Save
Next
English
Next Save
2.
Language Settings mode is displayed.
Please keep pressing.
Wi-Fi turned off
Wi-Fi turned off
3.
If you continue to press, the language
setting mode is canceled and Wi-Fi is
turned off.
• Press the
button again for
5 seconds to turn Wi-Fi on.
Smart ventilation mode
Smart ventilation turned on
Smart ventilation turned on
Smart ventilation mode is a function that
can measure the kitchen air quality when
the product is turned off and determine
whether to proceed with exhausting when
the air quality is bad.
• Quietly ventilate
• Get notifications
• Detection only
Smart ventilation turned on
Smart ventilation turned on
1.
If you set or turn off the smart
ventilation mode in the app, the phrase
will be displayed.
Kitchen air quality is bad.
Hood turned on
Kitchen air quality is bad.
Hood turned on
2.
When the air quality deteriorates, it
turns on automatically and operates in
Low mode.
Low
Silent ventilation
Low
Silent ventilation
27
Using the Range Hood
Kitchen air quality is good.
Hood turned off
Kitchen air quality is good.
Hood turned off
3.
It turns off automatically when the air
quality improves.
Smart ventilation turned
off after 1 hour
Smart ventilation turned off
after 1 hour
4.
If you operate for 1 hour in smart
ventilation mode, it will be turned off
automatically.
NOTE
Smart ventilation mode can only
be used by connecting the hood to
the SmartThings app. If the hood is
turned off automatically by operating
for 1 hour, it will be able to turn on
after least 4 hours.
Automatic operation to prevent range hood overheating
Inner temperature has risen.
Hood turned on for air flow
Inner temperature has risen.
Hood turned on for air flow
This feature prevents overheating when
the hood is turned off.
• When the hood temperature rises, a
notice is displayed and it operates in
Medium mode.
• If the hood temperature stabilizes or you
press the
button, the hood is turned
off.
Circulating air...
Circulating air...
Inner temperature stable.
Hood turned off
Inner temperature stable.
Hood turned off
28
Using the Range Hood
Using the Range Hood
Entering AP(Access Point)
1.
Press and hold the
button for
5 seconds, following the instructions of
the app.
AP
AP
2.
Enter AP mode.
Connecting...
Connecting...
3.
Please proceed with the connection
according to the mobile guide.
You’re connected
Try the SmartThings app
You’re connected
Try the SmartThings app
4.
When the connection is completed,
please proceed according to the mobile
guide.
Language setting
Changing the Hood's Language.
• The default language is English, and
you can choose English, Español, or
Français.
English
Save
Next
English
Next Save
1.
Please press the
product's button
for 3 seconds.
Español
Save
Next
Español
Next Save
2.
You can toggle through the languages
with the
button and save a
language with the button.
Français
Save
Next
Français
Next Save
29
Cleaning and Maintenance
Bixby
• Bixby is the name of Samsung's artificial intelligence solution which makes it
possible to control the product through voice.
• To use the voice recognition function, you need to connect the SmartThings app
and the product on your smartphone.
• For models that do not directly recognize voice after connecting with the app,
some functions can be controlled through Bixby on Samsung smartphones.
Amazon Alexa & Google Assistant
Samsung smart home appliances are supported by SmartThings skills in Alexa and
Actions in Google Assistant.
Installation Guide
Here's how to link a SmartThings account with Amazon Alexa or Google Assistant.
The SmartThings app and Alexa app (or Google Assistant app) should be installed
on your phone.
1. Setup supported devices in SmartThings
2. After device setup, tap '
Voice assistant' and link your Samsung account to
Amazon Alexa.
3. Check if the devices are visible on Amazon Alexa app. Then account linking is
complete. (Check the devices are visible and set the location (home and room)
of devices in the Google Home app. Then account linking is complete.)
Cleaning and Maintenance
AI Energy Mode
20
Smart
PM2.5
AI Energy Mode is a function that saves
energy when usage needs to be reduced
by comparing expected monthly usage
and its goals, and operates only in smart
mode.
• When you set AI Energy Mode in the
app, the leaf mark is displayed during
smart mode operation.
AI Energy Mode turned on
AI Energy Mode turned on
• If the entry condition is satisfied, the
phrase is displayed and operates in
AIEnergy Mode.
AI Energy Mode has
minimized energy use
00Wh(00%) saved
AI Energy Mode has
minimized energy use
00Wh(00%) saved
• If you save power usage in AI Energy
Mode, display the savings at the end.
NOTE
• AI Energy Mode can be used only
when the hood is connected to the
SmartThings app.
• You can set AI Energy Mode through
SmartThings Energy of SmartThings app.
Smart
30
Cleaning and Maintenance
Cleaning and Maintenance
Cleaning the sensor unit
1.
Please remove the sensor cover on the
left side of the lower duct cover.
• In the following cases, the dust
concentration may appear high.
2.
Clean the front/back of the sensor
cover using a vacuum cleaner.
• To prolong sensor life, clean every
6 months.
CAUTION
Do not force dust into the entrance of
the sensor unit.
3.
Please assemble the sensor cover in
the reverse order of disassembly.
• Hang the left hook first, press the
right side to insert it, and then lower
it.
NOTE
• The dust concentration may vary depending on the usage environment (around
the construction site, around the roadside, using vacuum cleaners, cleaning
blankets / clothes, around fabric sofas, etc.).
• In the following cases, dust concentration may be displayed high.
– When used on shag carpets, veterinarian clinics or clothing stores, humid
places, smoke-producing places, insect-rich places, etc.
– When using a humidifier, spray, sprayer, etc.
– When used in an environment where pollen occurs and external air flows in
(building air conditioner, window frame with draft, etc.)
• If different products are used in the same space, the difference in the
dust concentration indication value may occur due to air circulation.
Theconcentration display value may vary from product to product.
• The dust concentration indicator value may be different from the air quality
index (AQI) forecast.
• In environments affected by electromagnetic waves or electrical noise, dust
concentrations may temporarily appear high.
Cleaning the range hood
Wipe the front of the product with a soft
cloth soaked in neutral liquid detergent.
CAUTION
• Do not use rough materials such as sponges.
• Do not use baking soda, percarbonate, citric acid, abrasives, alcohol, etc.
The surface coating may be damaged or discolored.
• When cleaning, always wear gloves for safety.
• Be sure to turn off the power when cleaning the hood.
• There is a risk of fire if it is not cleaned according to the user manual.
31
SmartThings app
Cleaning and Maintenance
Cleaning the Filters
1.
Please remove the filter at the bottom
of the hood.
CAUTION
When separating the filter, use both
hands to separate it carefully so that it
does not drop.
2.
Soak the filter in lukewarm water with
neutral detergent for about 10 minutes,
then rinse it with water and clean it.
CAUTION
Do not use a scrubber to clean the filter.
3.
When cleaning is complete, reassemble
the filter in the reverse order of
disassembly.
NOTE
Put the filter into the dishwasher and
clean it conveniently with a standard
wash cycle.
CAUTION
• Filters should be cleaned by hand with neutral detergent once a month, and if washed
with a dishwasher, they should be washed for only a short time at a low temperature.
• Filters may discolor during cleaning, but this does not affect performance.
• Do not spray water directly on the filter while mounted on the hood. There is a risk
of electric shock and fire.
• The front of the filter is made of stainless steel. Please be careful with it.
• Be sure to wear gloves because the edge of the filter can be sharp and cause injury.
Replacing the LED Lamp
This product is equipped with a dedicated LED lamp. If you need a replacement,
please contact the service center.
Checking the power
connections
Check if the power is connected to the
product and the access point.
Setting up and connecting
to a Wi-Fi access point using
your smartphone
1. To connect the product to a Wi-Fi
network, turn on Wi-Fi in "Settings
> Wi-Fi", and then select the access
point that you wish to connect to.
• Only alphanumeric characters
are supported for wireless access
point names (SSIDs). If an SSID
has a special character, rename it
before connecting to it.
• This product supports only
2.4GHz Wi-Fi.
On
On
WI-FI
On
WI-FI DIRECT
SAMSUNG_2G
SAMSUNG_5G
Select
WI-FI
On
WI-FI DIRECT
2. Turning off "Switch to Mobile
Data" in "Settings > Wi-Fi" on Your
Smartphone
• If "Switch to mobile data" or
"Adaptive Wi-Fi" is turned on, you
cannot connect to the network. Be
sure to turn off these functions
before connecting to the network.
Advanced
Switch to mobile data
Insert SIM card to use mobile data.
Off
NOTE
The setup may differ depending on
your smartphone model, OS version,
and manufacturer.
3. Checking Internet Connectivity
• After connecting to Wi-Fi, check
that your smartphone is connected
to the Internet.
NOTE
A firewall may prevent your
smartphone from connecting to
the Internet. Contact your Internet
service provider for troubleshooting.
To use the SmartThings app, connect the product to the network in the sequence described
below. The images shown may differ depending on your smartphone model, OS version,
and manufacturer. You can only set up the Wi-Fi access point when connecting the product
to a Wi-Fi network. Once the product is connected, you can use the SmartThings app via
Wi-Fi, 3G, LTE, 5G or other wireless networks. If the Wi-Fi disconnects, please follow the
instructions in the Samsung SmartThings app via your mobile device or tablet. You can
easily install the SmartThings app or use the product with your smartphone by scanning
the QR code on the attached label.
SmartThings app
32
SmartThings app
SmartThings app
Downloading the
SmartThings app and
registering your Samsung
account
1.
Downloading the SmartThings app
• Search for "SmartThings" in the
Play Store or App Store, and
download the SmartThings app to
your smartphone.
• If the SmartThings app is already
installed on your smartphone,
update it to the latest version.
SmartThings (Samsung Connect)
Samsung Electronics Co., Ltd.
NOTE
• The SmartThings app supports
Android 7.0 or later (with at least
2 GB RAM) and iOS 12.0 or later.
The app is optimized for iPhone 6s
or later and Samsung smartphones
(Galaxy S and Note series). The
updates of the SmartThings app or
the functions supported by it may
be discontinued for the previously
supported OS versions due to
issues like usability and security.
• The SmartThings app may change
without prior notice to improve
product usability and performance.
2.
Registering your Samsung account
• A Samsung account is required to
use the SmartThings app.
To create a Samsung account and
log in to your account, follow
the instructions displayed on the
SmartThings app.. You do not need
to install an additional app.
NOTE
• If you already have a Samsung
account, log in to the account.
If you have a smartphone that
is a Samsung device and you
have a Samsung account, your
smartphone is automatically
logged in to your account.
• If you log in from a smartphone
produced for another country,
you need to log in with its
country code when you create
your Samsung account, and the
SmartThings app may not be
usable on some smartphones.
Connecting the SmartThings
app to your product
1.
Selecting the product that you want
to connect.
1) Start the SmartThings app about
one minute after turning on the
hood.
2) After the SmartThings app is
started, select "ADD NOW" when
a pop-up window saying that a
product is found appears.
A new device has been found.
Add this device to SmartThings?
Don’t add Later Add now
Select
3) If the pop-up window does not
appear, select "+," and then "Add
Device."
Home
Living room
Select
Home
Add device
Living room
Select
You can add a product you want to
connect to by selecting it manually or
by selecting "Scan."
• Select manually: Range Hood >
Samsung
• Scan: [Range Hood] Samsung
Home
Living room
Select
By device type
Range Hood
Select
2.
Connecting the SmartThings app to
your product
• Follow the instructions displayed
on the SmartThings app to connect
to your product.
• For information on how to use the
SmartThings app, select the How
To menu in the app.
NOTE
• If any pop-up-window appears on
the top of the smartphone while
connecting to your product, do not
select it.
• If a pop-up window saying that
the device is already registered
appears while connecting to your
product, get permission using
"REQUEST PERMISSION" from a
user already connected to the
product, or create a new account
using "REGISTER MY ACCOUNT"
to independently connect to the
product.
• If a Samsung account-related
country error occurs while
connecting to your product, log out
of your current Samsung account,
log in to your previous Samsung
account, and then delete all
devices that have been previously
connected. Then, log in to your
current Samsung account again
and configure the settings.
33
Troubleshooting
SmartThings app
• If a failure message appears while
adding a device, see "Setting up
and connecting to a Wi-Fi access
point using your smartphone" on
page 26. The connection may fail
temporarily due to an installation
location problem with the access
point or other problems.
• If the word "AP" does not
disappear from the display, unplug
the power and plug it in again.
• For the security protocols for
wireless/wired access points,
WPA-PSK and WPA2-PSK
are recommended. For the
authentication method, AES
is recommended. New Wi-Fi
authentication specifications and
non-standard WiFi authentication
methods are not supported.
• The product supports the
IEEE802.11 b/g/n (2.4 GHz)
communication protocol. (Samsung
recommends IEEE802.11n.)
• If your Internet service provider
has permanently registered
the MAC address (a unique
identification number) of your PC
or modem, you may not be able
to connect your product to the
Internet. Contact your Internet
service provider and ask how to
connect devices other than your
PC (such as a Range Hood) to the
Internet.
Open Source Announcement
The software included in this product
contains open source software.
You may obtain the complete
corresponding source code for a
period of three years after the
last shipment of this product by
contacting our support team via
http://opensource.samsung.com
(please use the "Inquiry" menu).
It is also possible to obtain the
complete corresponding source
code in a physical medium, such as
CD-ROM. A minimal payment will be
required.
The following URL http://opensource.
samsung.com/opensource/SMART_
AT_051/seq/0 leads to the open
source license information as related
to this product. This offer is valid to
anyone in receipt of this information.
Troubleshooting
If you suspect there is a failure while using the product, check the following before
requesting service from the service center. When you request service, you will
be charged for the visit and diagnosing the symptoms even if the product is not
broken.
CAUTION
If you require repairs, disconnect the power cord immediately and contact the
service center.
• Model number and serial number (find by removing the filter, listed inside product)
• Product warranty details
• Explanation of the problem
General
Problem Cause Action
It's not
working.
Is the power being
supplied like normal?
Please check if there is a power
outage.
Please unplug and plug in the
power cord.
Is there any moisture
on the exterior of the
product?
Please remove moisture from
the product.
Are there any foreign
substances on the exterior
of the product?
Please wipe off the foreign
substance.
Hood Operation
Problem Cause Action
The hood's
mode changes
automatically.
Is it working in smart
mode?
Smart mode automatically
operates in the High, Medium,
and Low modes depending on
the air quality.
The hood's
wind strength
is weak.
Is there a lot of foreign
matter in the filter?
Wipe off the filter with a
neutral detergent in lukewarm
water.
34
Troubleshooting
Troubleshooting
Code Description Action
C446
BLDC Motor or
Inverter PBA is not
working
Press the POWER
button to restart the
product.
If the problem persists, disconnect the
power plug for more than 30 seconds.
Allow the product to cool and restart it.
If it is not resolved, please contact a
Samsung Electronics Service Center.
C447
C455
C478
C486
C489
C493
C496
C499
C654
Electric Damper is not
working
Reconnect Electric damper and check any
foreign matter is on the damper.
Information codes
Code Description Action
C103
Panel PBA
communication is not
working
Press the POWER
button to restart the
product.
If the problem persists, disconnect the
power plug for more than 30 seconds.
Allow the product to cool and restart it.
If it is not resolved, please contact a
Samsung Electronics Service Center.
C121
Temperature sensor is
not working
C154
Main PBA
communication is not
working with Inverter
PBA
C162
Only occurs when
EEPROM Read or Write
is not working.
C163
If you need to check
the option code
C203
Inverter PBA
communication is not
working with Main
PBA
35
Warranty (USA)
During the applicable warranty period, the product will be repaired, replaced, or
the purchase price refunded, at the sole option of SAMSUNG. SAMSUNG may use
new or reconditioned parts in repairing a product, or replace the product with
a new or reconditioned product. Replacement parts and products are warranted
for the remaining portion of the original product's warranty or ninety (90) days,
whichever is longer. All replaced parts and products are the property of SAMSUNG
and you must return them to SAMSUNG.
This limited warranty covers manufacturing defects in materials and workmanship
encountered in normal household, noncommercial use of this product and shall
not cover the following: damage that occurs in shipment, delivery, installation, and
uses for which this product was not intended; damage caused by unauthorized
modification or alteration of the product; products where the original factory serial
numbers have been removed, defaced, changed in any way, or cannot be readily
determined; cosmetic damage, including scratches, dents, chips, and other damage
to the product's finishing; damage caused by abuse, misuse, pest infestations,
accidents, fire, floods or other acts of nature or God; damage caused by use of
equipment, utilities, services, parts, supplies, accessories, applications, installations,
repairs, external wiring or connectors not supplied or authorized by SAMSUNG;
damage caused by an incorrect electrical line current, voltage, fluctuations, and
surges; damage caused by failure to operate and maintain the product according
to instructions; in-home instruction on how to use your product; and service
to correct installation not in accordance with electrical or plumbing codes or
correction of household electrical infrastructure or plumbing (i.e., house wiring,
fuses, or water inlet hoses). The cost of repair or replacement under these excluded
circumstances shall be the customer's responsibility.
Visits by an authorized servicer to explain product functions, maintenance, or
installation is not covered by this limited warranty. Please contact SAMSUNG at the
number below for assistance with any of these issues.
Warranty (USA)
SAMSUNG RANGE HOOD
LIMITED WARRANTY TO ORIGINAL CONSUMER PURCHASER WITH PROOF OF
PURCHASE
This SAMSUNG brand product, as supplied and distributed by Samsung Electronics
America, Inc. (SAMSUNG) and delivered new, in the original carton to the original
consumer purchaser, is warranted by SAMSUNG against manufacturing defects in
materials and workmanship for a limited warranty period of:
ONE (1) YEAR PARTS AND LABOR
This limited warranty begins on the original date of purchase, and is valid
only on products purchased and used in the United States that have been
installed, operated, and maintained according to the instructions attached to
or furnished with the product. To receive warranty service, the purchaser must
contact SAMSUNG at the address or phone number provided below for problem
determination and service procedures. Warranty service can only be performed
by a SAMSUNG authorized service center. The original dated bill of sale must
be presented upon request as proof of purchase to SAMSUNG or SAMSUNG’s
authorized service center to receive warranty service.
SAMSUNG will provide in-home service within the contiguous United States
during the warranty period at no charge, subject to the availability of SAMSUNG
authorized servicers within the customer's geographic area. If in-home service is
not available, SAMSUNG may elect, at its option, to provide transportation of the
product to and from an authorized service center. If the product is located in an
area where service by a SAMSUNG authorized servicer is not available, you may
be responsible for a trip charge or required to bring the product to a SAMSUNG
authorized service center for service.
To receive in-home service, the product must be unobstructed and accessible to
the service agent.
36
Warranty (USA)
Warranty (USA) Warranty (CANADA)
EXCLUSION OF IMPLIED WARRANTIES
IMPLIED WARRANTIES, INCLUDING THE IMPLIED WARRANTIES OF
MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE, ARE LIMITED TO
ONE YEAR OR THE SHORTEST PERIOD ALLOWED BY LAW. Some states do not allow
limitations on how long an implied warranty lasts, so the above limitations or
exclusions may not apply to you. This warranty gives you specific rights, and you
may also have other rights, which vary from state to state.
LIMITATION OF REMEDIES
YOUR SOLE AND EXCLUSIVE REMEDY IS PRODUCT REPAIR, PRODUCT
REPLACEMENT, OR REFUND OF THE PURCHASE PRICE AT SAMSUNG'S OPTION,
AS PROVIDED IN THIS LIMITED WARRANTY. SAMSUNG SHALL NOT BE LIABLE
FOR SPECIAL, INCIDENTAL OR CONSEQUENTIAL DAMAGES INCLUDING BUT NOT
LIMITED TO TIME AWAY FROM WORK, HOTELS, AND/OR RESTAURANT MEALS,
REMODELING EXPENSES, LOSS OF REVENUE OR PROFITS, FAILURE TO REALIZE
SAVINGS OR OTHER BENEFITS, REGARDLESS OF THE LEGAL THEORY ON WHICH
THE CLAIM IS BASED, EVEN IF SAMSUNG HAS BEEN ADVISED OF THE POSSIBILITY
OF SUCH DAMAGES. Some states do not allow exclusions or limitations of
incidental or consequential damage, so the above limitations or exclusions may not
apply to you. This warranty gives you specific legal rights, and you may also have
other rights which vary from state to state.
SAMSUNG does not warrant uninterrupted or error-free operation of the product.
NO WARRANTY OR GUARANTY GIVEN BY ANY PERSON, FIRM, OR CORPORATION
WITH RESPECT TO THIS PRODUCT SHALL BE BINDING ON SAMSUNG.
To obtain warranty service, please contact SAMSUNG at:
1-800-SAMSUNG (726-7864) or
www.samsung.com/us/support
SAMSUNG RANGE HOOD
LIMITED WARRANTY TO ORIGINAL PURCHASER
This SAMSUNG brand product, as supplied and distributed by Samsung Electronics
Canada, Inc. (SAMSUNG) and delivered new, in the original carton to the original
consumer purchaser, is warranted by SAMSUNG against manufacturing defects in
mate-rials and workmanship for a limited warranty period of:
ONE (1) YEAR PARTS AND LABOR
This limited warranty begins on the original date of purchase, and is valid
only on products purchased and used in CANADA. To receive warranty service,
the purchaser must contact SAMSUNG to determine the problem and service
procedures. Warranty ser-vice can only be performed by a SAMSUNG authorized
service center. The original dated bill of sale must be presented upon request as
proof of purchase to SAMSUNG or SAMSUNG’s authorized service center.
SAMSUNG will repair or replace this product, at our option and at no charge as
stipulated herein, with new or reconditioned parts or products if it is found to
be defective during the limited warranty period specified above. All replaced
parts and prod-ucts become the property of SAMSUNG and must be returned
to SAMSUNG. Replacement parts and products assume the remaining original
warranty, or ninety (90) days, whichever is longer.
In-home service will be provided during the warranty labor period subject to
availability within the contiguous Canada.
In-home service is not available in all areas. To receive in home service, the
product must be unobstructed and accessible to the service agent. If during in-
home service repair can not be completed, it may be necessary to remove, repair
and return the product.
37
Warranty (CANADA)
Some provinces or territories may or may not allow limitations on how long an
implied warranty lasts, or the exclusion or limitation of incidental or consequential
damages, so the above limitations or exclusions may not apply to you. This
warranty gives you specific legal rights, and you may also have other rights which
vary from state to state.
To obtain warranty service, please contact SAMSUNG at:
1-800-SAMSUNG (726-7864) or
www.samsung.com/ca/support (English),
www.samsung.com/ca_fr/support (French)
This limited warranty covers manufacturing defects in materials and workmanship
encountered in normal, noncommercial use of this product and shall not apply
to the following, including, but not limited to: damage which occurs in shipment;
delivery and installation; applications and uses for which this product was not
intended; altered product or serial numbers; cosmetic damage or exterior finish;
accidents, abuse, neglect, fire, water, lightning, or other acts of nature; use of
products, equipment, systems, utilities, services, parts, supplies, accessories,
applications, installations, repairs, external wiring or connectors not supplied or
authorized by SAMSUNG which damage this product or result in service problems;
incorrect electrical line voltage, fluctuations, and surges; customer adjustments and
failure to follow operating instructions, cleaning, maintenance, and environmental
instruc-tions that are covered and prescribed in the instruction book; problems
caused by pest infestations, and overheating by user. SAMSUNG does not warrant
uninterrupted or error-free opera-tion of the product.
THERE ARE NO EXPRESS WARRANTIES OTHER THAN THOSE LISTED AND
DESCRIBED ABOVE, AND NO WARRANTIES WHETHER EXPRESS OR IMPLIED,
INCLUDING, BUT NOT LIMITED TO, ANY IMPLIED WARRANTIES OF MERCHANT-
ABILITY OR FITNESS FOR A PARTICULAR PURPOSE, SHALL APPLY AFTER THE
EXPRESS WARRANTY PERIODS STATED ABOVE, AND NO OTHER EXPRESS
WARRANTY OR GUAR-ANTY GIVEN BY ANY PERSON, FIRM OR CORPORATION
WITH RESPECT TO THIS PRODUCT SHALL BE BINDING ON SAMSUNG. SAMSUNG
SHALL NOT BE LIABLE FOR LOSS OF REVENUE OR PROFITS, FAILURE TO
REALIZE SAVINGS OR OTHER BENEFITS, OR ANY OTHER SPECIAL, INCIDENTAL
OR CONSEQUENTIAL DAMAGES CAUSED BY THE USE, MISUSE, OR INABILITY TO
USE THIS PRODUCT, REGARDLESS OF THE LEGAL THEORY ON WHICH THE CLAIM
IS BASED, EVEN IF SAMSUNG HAS BEEN ADVISED OF THE POSSIBILITY OF SUCH
DAMAGES. NOR SHALL RECOVERY OF ANY KIND AGAINST SAMSUNG BE GREATER
IN AMOUNT THAN THE PURCHASE PRICE OF THE PRODUCT SOLD BY SAMSUNG
AND CAUSING THE ALLEGED DAMAGE. WITHOUT LIMITING THE FOREGOING,
PURCHASER ASSUMES ALL RISK AND LIABILITY FOR LOSS, DAMAGE OR INJURY TO
PURCHASER AND PURCHASER’S PROPERTY AND TO OTHERS AND THEIR PROPERTY
ARISING OUT OF THE USE, MISUSE OR INABILITY TO USE THIS PRODUCT SOLD
BY SAMSUNG NOT CAUSED DIRECTLY BY THE NEGLIGENCE OF SAMSUNG. THIS
LIMITED WARRANTY SHALL NOT EXTEND TO ANYONE OTHER THAN THE ORIGINAL
PURCHASER OF THIS PRODUCT, IS NONTRANSFERABLE, AND STATES YOUR
EXCLUSIVE REMEDY.
DG68-01416B-00
QUESTIONS OR COMMENTS?
COUNTRY CALL OR VISIT US ONLINE AT
U.S.A
- Consumer Electronics
1-800-SAMSUNG (726-7864) www.samsung.com/us/support
CANADA 1-800-SAMSUNG (726-7864)
www.samsung.com/ca/support (English)
www.samsung.com/ca_fr/support (French)
