User Guide
Quality, Design and Innovation
home.liebherr.com/fridge-manuals
Contents
1 The appliance at a glance............................. 3
1.1 Additional benefits.............................................. 3
1.2 Delivered contents.............................................. 3
1.3 Appliance and equipment overview................. 4
1.4 Range of appliance use...................................... 4
1.5 Conformity............................................................ 4
2 General safety instructions.......................... 5
3 Start-up......................................................... 6
3.1 Turning on the appliance................................... 6
3.2 Insert the equipment.......................................... 7
4 Food management......................................... 7
4.1 Storing food......................................................... 7
4.2 Storage times...................................................... 8
5 Energy saving................................................ 8
6 Use................................................................. 9
6.1 Controls and displays......................................... 9
6.1.1 Status display.....................................................9
6.1.2 Navigation...........................................................9
6.1.3 Operating structure........................................... 9
6.1.4 Display symbols............................................... 10
6.2 Operating logic.................................................... 10
6.2.1 Activating/deactivating settings..................10
6.2.2 Selecting function value.................................10
6.2.3 Activating/deactivating settings...................11
6.2.4 Selecting the setting value.............................11
6.2.5 Calling up the customer menu....................... 11
6.3 Functions.............................................................. 12
Turn off appliance............................................ 12
Setting up the WLAN connection..................12
Temperature......................................................13
Temperature unit..............................................13
D-Value.............................................................. 13
SuperCool.......................................................... 13
PowerCool......................................................... 13
SuperFrost........................................................13
PartyMode......................................................... 14
HolidayMode..................................................... 14
SabbathMode....................................................14
E-Saver...............................................................14
IceMaker*.......................................................... 15
Ice cubes*..........................................................15
MaxIce*.............................................................. 15
TubeClean*........................................................15
CleaningMode...................................................15
Display brightness........................................... 16
Door alarm.........................................................16
Entry lock...........................................................16
Info......................................................................16
Reminder........................................................... 16
Reset.................................................................. 16
6.4 Error messages.................................................... 16
6.4.1 Warnings........................................................... 16
6.4.2 Message.............................................................17
6.4.3 DemoMode.........................................................17
7 Equipment...................................................... 17
7.1 Door racks............................................................ 17
7.2 Shelves................................................................. 18
7.3 Split shelf............................................................. 19
7.4 VarioSafe*............................................................ 19
7.5 Drawers................................................................. 20
7.6 EasyFresh-Safe.................................................... 21
7.7 Humidity control.................................................. 21
7.8 EasyTwist-Ice*..................................................... 21
7.9 IceMaker*............................................................. 22
7.10 VarioSpace........................................................... 22
7.11 Accessories.......................................................... 22
8 Maintenance.................................................. 23
8.1 FreshAir carbon filter.......................................... 23
8.2 Disassembling / assembling pull-out
systems................................................................. 24
8.3 Defrosting the appliance................................... 24
8.4 Cleaning the appliance...................................... 24
9 Customer support......................................... 26
9.1 Technical specifications.................................... 26
9.2 Operating noises................................................. 27
9.3 Technical faults................................................... 27
9.4 Customer service................................................ 29
9.5 Rating plate.......................................................... 29
10 Decommissioning.......................................... 29
11 Disposal......................................................... 30
11.1 Preparing the appliance for disposal............... 30
11.2 Disposing of the appliance in an
environmentally friendly manner..................... 30
2 * Depending on model and options
Congratulations on the purchase of your new appli‐
ance. With this purchase, you have chosen all the
advantages of the latest refrigeration technology, guar‐
anteeing you a high-quality appliance with a long life
span and high operating safety.
The equipment of your appliance gives you the highest
level of day-to-day ease of operation.
Together we are making an active contribution to the
conservation of our environment by purchasing this
appliance which is manufactured in an environmentally
friendly process with the use of recyclable materials.
We hope you enjoy your new appliance.
The manufacturer is constantly working to improve all
types and models. Therefore, please be aware that we
reserve the right to make changes to the shape, equip‐
ment and technology.
Symbol
Explanation
Read instructions
Please read the information in these
instructions carefully to understand all of
the benefits of your new appliance.
Check appliance
Check all parts for transport damage. If you
have any complaints, please contact your
agent or customer service.
Differences
These instructions apply to a range of
models, so there may be differences.
Sections that apply to certain models only
are indicated by an asterisk (*).
Instructions and results
Instructions are marked with a
.
Results are marked with a
.
Videos
Videos about the appliances are available
on the YouTube channel of Liebherr-Hausg‐
eräte.
These operating instructions apply to:
(S)C
57..IM / 75..(IM) / 76..
1 The appliance at a glance
1.1 Additional benefits
-
Natural coolant
-
Energy-optimized refrigerant circuit
-
Energy-efficient insulation
-
Low energy consumption
-
User-friendly electronic controls
-
Active function indicators
-
Temperature can be controlled in the appliance inde‐
pendent of ambient conditions according to its
climate rating - Temperature can be displayed as °C
or °F
-
The appliance defrosts automatically - no need to
spend time defrosting
-
Large refrigeration capacity
-
Safety glass storage shelves
-
Large freezing capacity
-
Shelves can be removed to make space for large
items.
-
Freezer over-temperature alarm
-
Quick-freeze feature for fresh food (SuperFrost)
-
Frozen food temperature indicator
-
Power outage /FrostControl display
-
All freezer drawers suitable for quick-freeze
-
Bright LED interior light
-
Door ajar alarm
-
Handle grips on all extra-large drawers for easy
transport
-
Integrated transport grips on appliance housing
-
Transport castors at back
-
Easy to clean
-
This appliance has a SabbathMode function, so you
can use it on religious holidays. Further information
can be found on the Star-K website www.star-k.org.
1.2 Delivered contents
Check all parts for damage during transport. If you
have any complaints, please contact the dealer or
Customer Service (see 9.4 Customer service) .
Delivery contains the following parts:
-
Standalone appliance
-
Equipment (depending on your model)
-
Installation parts (depending on your model)
-
User Guide
-
Installation Guide
-
Warranty documents
The appliance at a glance
* Depending on model and options 3
1.3 Appliance and equipment over‐
view

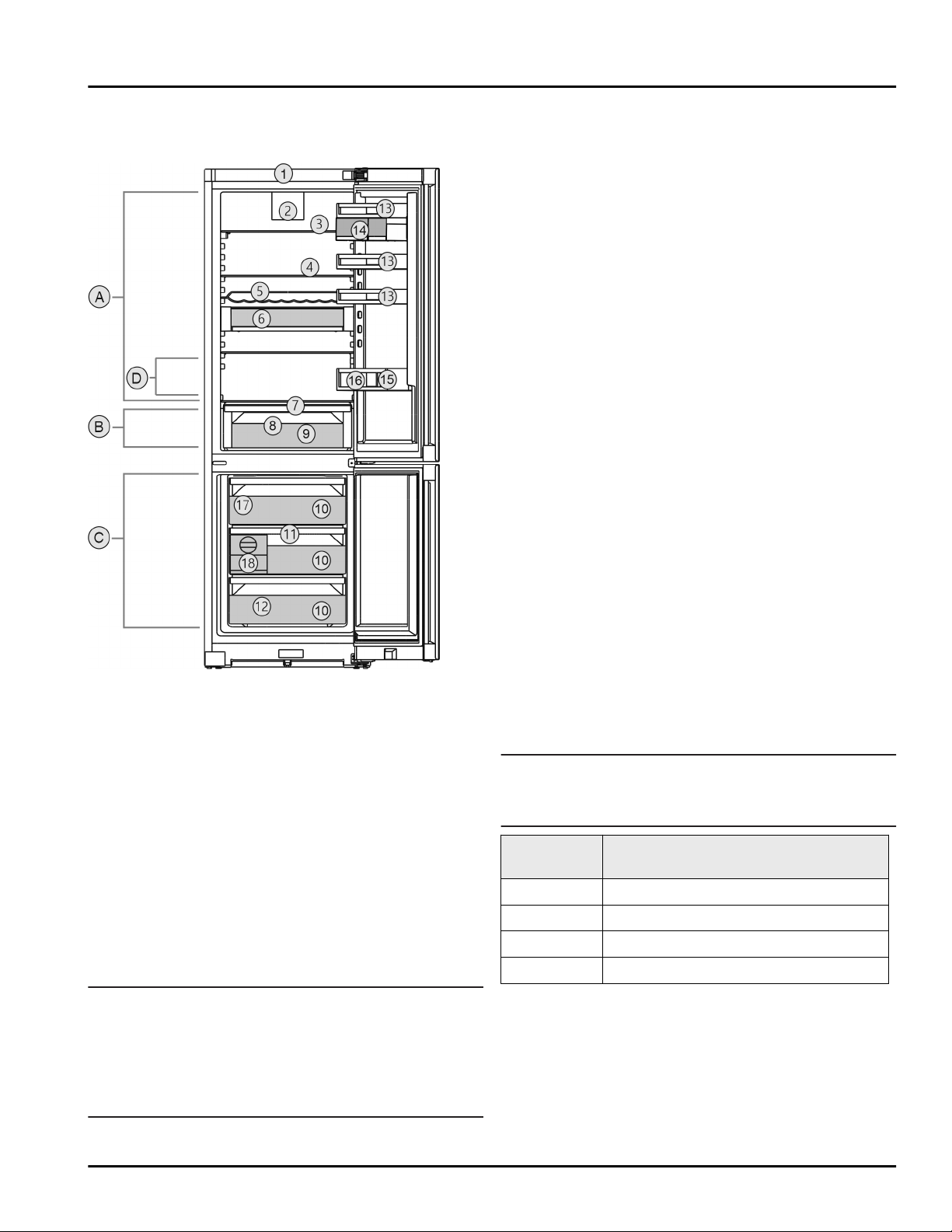

Fig. 1 Example illustration
Temperature range
(A)
Fridge compartment (C) Freezing compartment
(B) EasyFresh (D) Coldest zone
Equipment
(1)
Control elements (10)Freezer drawer
(2) Fan with FreshAir
activated charcoal
filter
(11) VarioSpace
(3) Split shelf (12) Serial tag
(4) Shelf* (13) Can rack*
(5) Bottle shelf* (14)VarioBoxes*
(6) VarioSafe* (15) Bottle holder
(7) Lid for EasyFresh-
Safe
(16) Bottle rack
(8) EasyFresh-Safe (17) IceMaker*
(9) Drain hole (18)EasyTwist-Ice*
Note
u
The shelves, drawers, and baskets are arranged for
optimal energy efficiency in the factory configura‐
tion. However, changes to the arrangement within
the given insertion options – for example the
arrangement of shelves in the fridge compartment –
have no effect on energy consumption.
1.4 Range of appliance use
Normal use
This appliance is intended to be used in
household and similar applications such as,
-
staff kitchen areas in shops, offices and
other working environments;
-
farm houses and by clients in hotels, motels
and other residential type environments;
-
bed and breakfast type environments;
-
catering and similar non-retail applications.
The appliance is not suitable as a built-in unit;
All other types of uses are not permitted.
Foreseeable misuse
The following uses are specifically prohibited:
-
Storage and cooling of medication, blood
plasma, laboratory preparations or similar
substances and products in accordance
with the CMDCAS and FDA 510(k)
-
Use outdoors
-
Use in moist areas exposed to the rain
-
Use in outdoor areas with very high humidity
-
Use in areas at risk of explosion
Incorrect appliance use can cause damage to
the stored products or cause them to spoil.
Climate ratings
The appliance is set to operate within specific
ambient temperature limits according to its
climate rating The climate rating for your
appliance is printed on the rating plate
Note
u
To guarantee trouble-free operation, comply
with the indicated ambient temperatures.
Climate
rating
for ambient temperatures from
SN 10 °C (50 °F) to 32 °C (90 °F)
N 16 °C (61 °F) to 32 °C (90 °F)
ST 16 °C (61 °F) to 38 °C (100 °F)
T 16 °C (61 °F) to 43 °C (109 °F)
1.5 Conformity
The refrigerant circuit has been tested for leaks. The
appliance complies with the applicable safety regula‐
tions and with the corresponding directives.
The appliance at a glance
4 * Depending on model and options
2 General safety instructions
Please keep these operating instructions in a
safe place so you can refer back to them at
any time.
If you pass the appliance on, please hand
these operating instructions to the new owner.
Read and follow these instructions. They
contain safety information which is important
for safe and problem-free installation and
operation. Always read and follow the safety
information.
Dangers for the user:
-
This appliance is not intended for use by
persons (including children) with reduced
physical, sensory or mental capabilities, or
lack of experience and knowledge, unless
they have been given supervision or instruc‐
tion concerning use of the appliance by a
person responsible for their safety. Children
should be supervised to ensure that they do
not play with the appliance. Cleaning and
user maintenance must not be performed by
children unless they are supervised. Chil‐
dren between the ages of 3 and 8 may load
and unload the appliance. Children under
the age of 3 must be kept away from the
appliance unless they are constantly super‐
vised.
-
IMPORTANT: The power plug must be easily
accessible so that the appliance can be
disconnected from the mains quickly in an
emergency. It must not be behind the back
of the appliance.
-
The socket must be easily accessible so that
the appliance can be disconnected quickly
from the electricity in an emergency. It must
not be located in the area behind the appli‐
ance.
-
Always hold the appliance at the plug when
disconnecting it from the household power.
Do not pull on the cable.
-
Disconnect the power plug or fuse if there is
a malfunction.
-
Do not damage the power cable. Do not
operate the appliance with a faulty power
cable. If the supply cord is damaged, it must
be replaced by the manufacturer, its service
agent or similarly qualified persons in order
to avoid a hazard. For Plug and Play connec‐
tions, the change may be carried out by the
customer.
-
Repairs and work on the appliance may only
be carried out by Customer Service or other
specifically trained qualified personnel.
-
Always follow the instructions when assem‐
bling, connecting and disposing of the appli‐
ance.
-
The manufacturer is not liable for damage
arising from a defective fixed water connec‐
tion.*
Risk of fire:
-
The refrigerant contained within the appli‐
ance (specifications on the identification
plate) is environmentally friendly, but flam‐
mable. Leaking refrigerant can ignite.
•
WARNING: Do not damage the refrigerant
circuit.
•
Do not handle ignition sources inside the
appliance.
•
WARNING: Do not use electrical appli‐
ances inside the food storage compart‐
ments of the appliance, unless they are of
the type recommended by the manufac‐
turer (e.g. steam cleaning appliances,
heating appliances, ice cream makers).
•
If refrigerant leaks: Remove naked flames
or ignition sources located near the area
of the leak. Ventilate the room well.
Contact Customer Service.
-
Do not operate the appliance near explosive
gases.
-
Do not store or use gasoline or other flam‐
mable gases and liquids near the appliance.
-
Do not store explosive substances such as
aerosol cans with a flammable propellant in
this appliance. You can recognize such spray
cans by the printed list of contents or by a
flame symbol. Any leaking gases can be
ignited by electrical components.
-
Keep lit candles, lamps and other objects
with naked flames away from the appliance
so they do not cause a fire.
-
Alcoholic beverages or other containers
holding alcohol must always be tightly
sealed for storage purposes. Any leaking
alcohol can be ignited by electrical compo‐
nents.
Risk of falling or toppling over:
General safety instructions
* Depending on model and options 5
-
WARNING: To avoid a hazard due to insta‐
bility of the appliance, it must be fixed in
accordance with the instructions.
-
Do not stand on the base, drawers, doors
etc. or use them as improper supports. This
applies in particular to children.
Danger of poisoning:
-
Do not consume spoiled food.
-
WARNING: Connect to potable water supply
only.*
-
Do not use any old or already premounted
water supply lines.*
Danger of frostbite, feeling of numbness and
pain:
-
Avoid prolonged skin contact with cold
surfaces or chilled/frozen food or take
protective measures, e.g. wear gloves.
Risk of injury and damage:
-
Hot steam may cause injuries. Do not use
any electrical heating or steam cleaning
equipment, naked flames or defrosting
sprays for defrosting measures.
-
WARNING: Do not use mechanical devices
or other means to accelerate the defrosting
process, other than those recommended by
the manufacturer.
-
Do not remove ice using sharp objects.
-
WARNING: Keep clear of obstruction all
ventilation openings in the appliance enclo‐
sure or in the structure for building-in.
-
WARNING: Risk of child entrapment. Before
you throw away your old refrigerator or
freezer:
•
Take off the doors.
•
Leave the shelves in place so that children
may not easily climb inside.
Risk of crushing:
-
Do not hold onto the hinge when opening
and closing the door. Fingers may become
trapped.
California Proposition 65
-
WARNING: This product can expose you to
chemicals including Diisononyl Phthalate
(DINP), which is known to the State of Cali‐
fornia to cause cancer, and Di-isodecyl
Phthalate (DIDP), which is known to the
State of California to cause birth defects or
other reproductive harm. For more informa‐
tion, go to www.P65Warnings.ca.gov

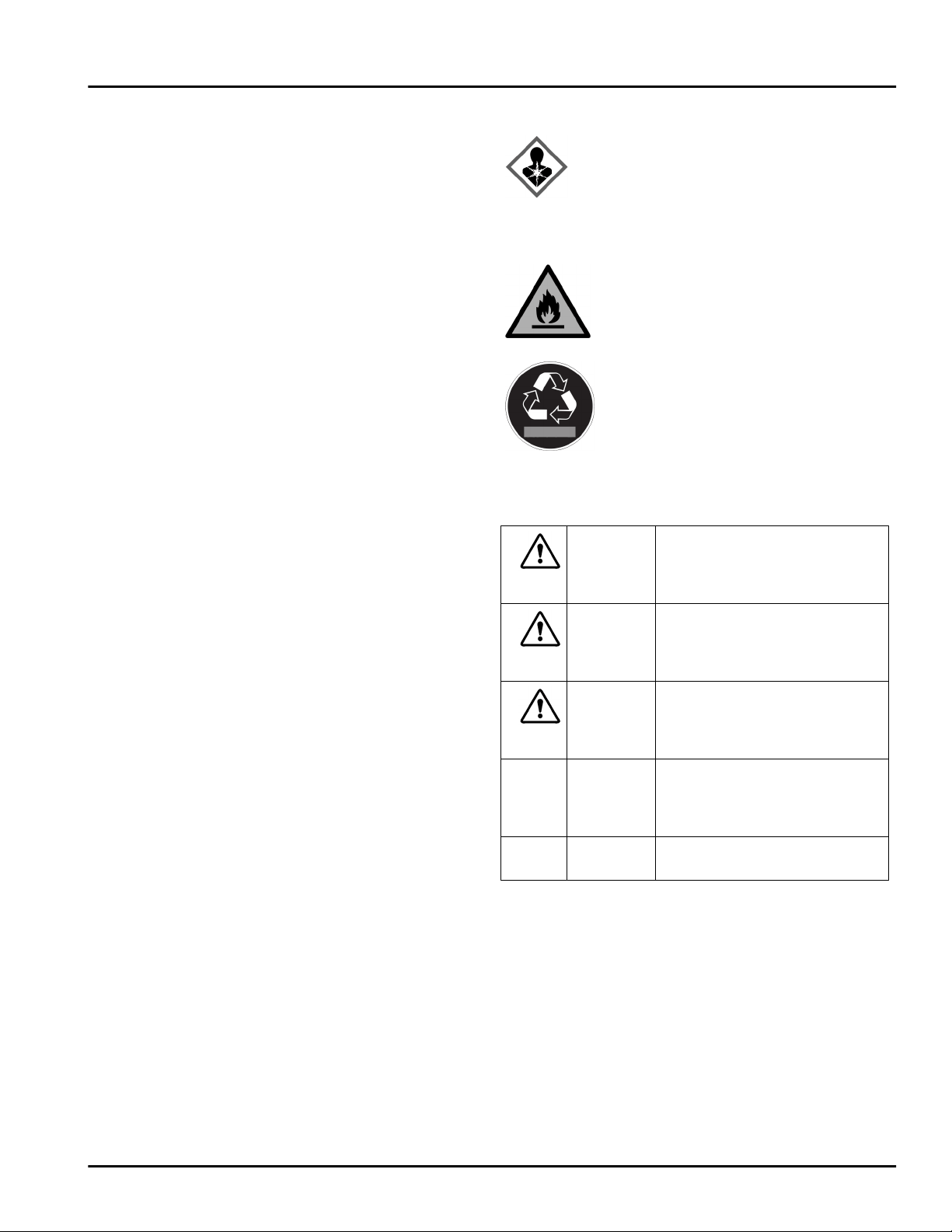

Symbols on the device:
The symbol may be located on the
compressor. It refers to the oil in the
compressor and refers to the following
danger: Can be fatal if swallowed or
inhaled. This notice only applies for
recycling. There is no danger during
normal operation.
WARNING: Risk of fire / flammable
materials. The symbol is located on the
compressor and indicates the danger
from flammable materials. Do not
remove the label.
This label or a similar one may be
located on the rear of the appliance. It
refers to the foam panels in the door
and/or the housing. This notice only
applies for recycling. Do not remove the
label.
Observe the warning messages and other
detailed information in the other sections:
DANGER
Indicates an immediately
hazardous situation, which if
not avoided, will result in death
or serious injury.
WARNING Indicates a hazardous situa‐
tion, which if not avoided,
could result in death or serious
injury.
CAUTION Indicates a hazardous situa‐
tion, which if not avoided,
could result in minor or
moderate injury.
NOTICE Indicates a hazardous situa‐
tion, which if not avoided,
could result in damage to prop‐
erty.
Note Indicates useful advice and
tips.
3 Start-up
3.1 Turning on the appliance
Make sure that the following requirements are met:
q
Appliance is set up and connected according to
installation instructions.
q
All adhesive strips, adhesive and protective films, as
well as transport safety devices in and on the appli‐
ance are removed.
q
All advertising material has been removed from the
drawers.
Start-up
6 * Depending on model and options

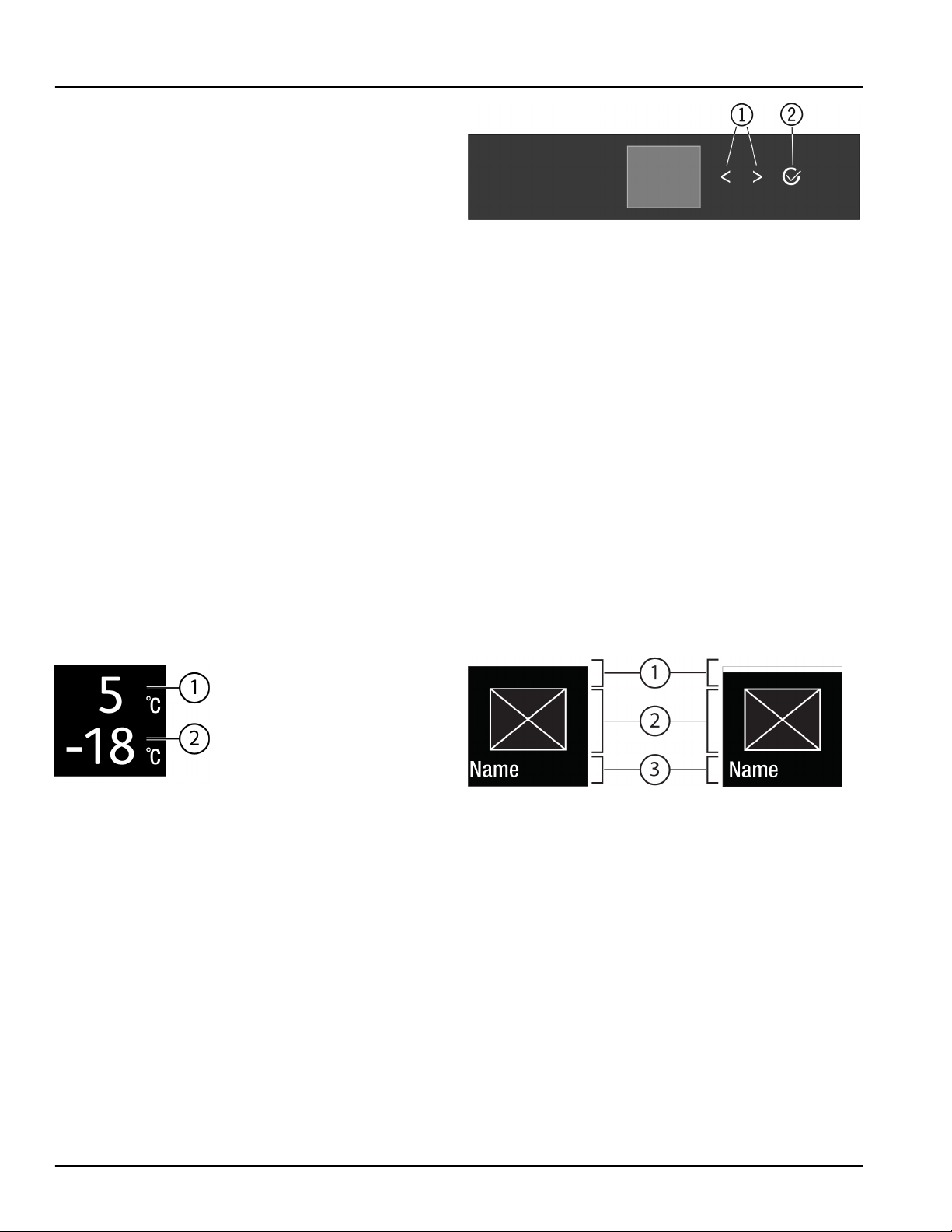

Fig. 2
u
Switch on the appliance using the control panel next
to the display.
w
The status display appears.
The appliance starts in DemoMode:
If the appliance starts in DemoMode, you can deacti‐
vate DemoMode within the next 5 minutes.

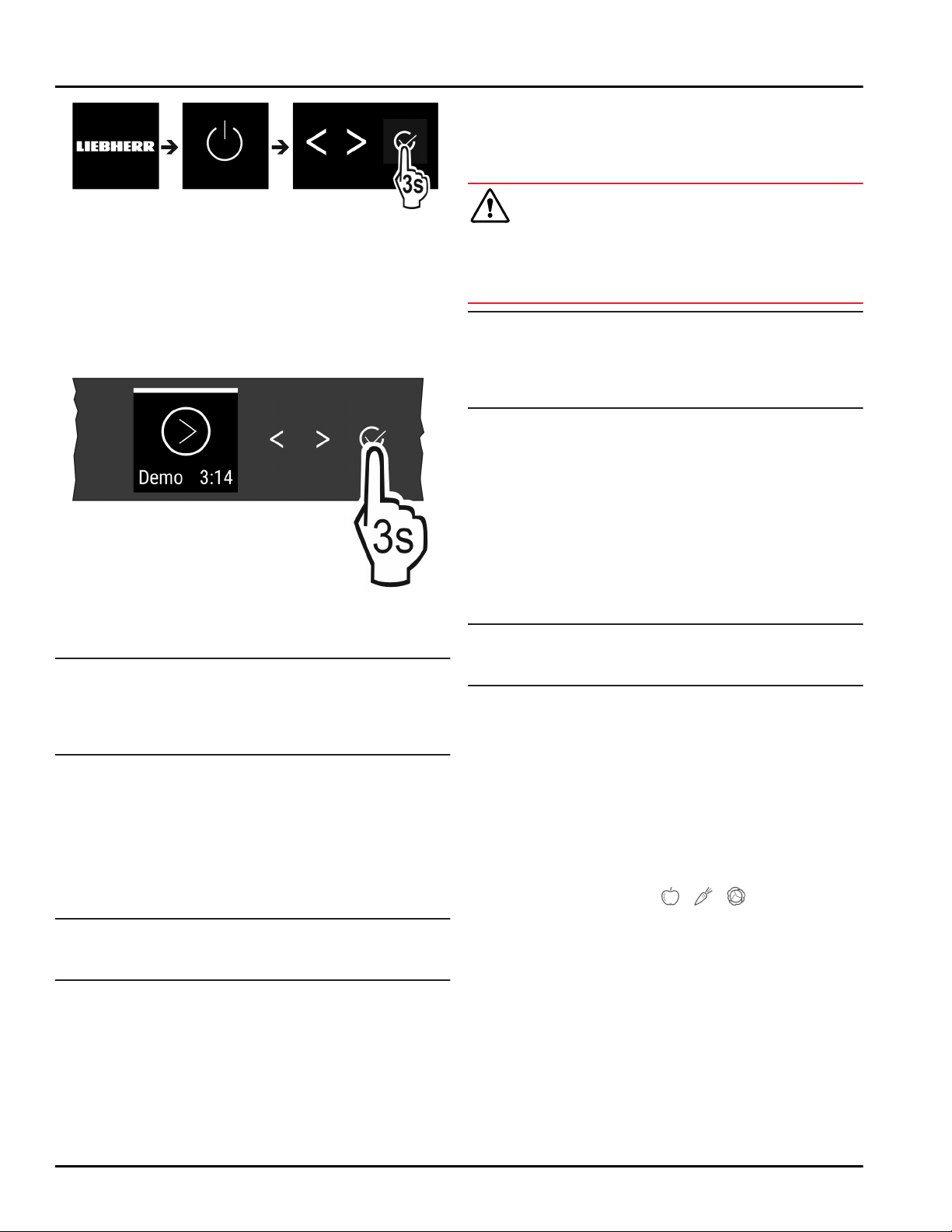

Fig. 3
u
Press Confirm next to the display for 3 seconds.
w
DemoMode is deactivated.
Note
The manufacturer recommends:
u
Place the food inside: Wait for around 6 hours until
the set temperature is reached.
u
Store frozen foods at -18 °C (-0 °F) or colder.
3.2 Insert the equipment
u
Insert the supplied equipment to help you make the
most of the appliance.
u
Purchase the SmartDevice Box and insert it (see
smartdevice.liebherr.com).
u
Install the SmartDevice app (see
apps.home.liebherr.com).
Note
You can purchase accessories from the Liebherr house‐
hold appliance store (home.liebherr.com).
4 Food management
4.1 Storing food
WARNING
Danger of fire
u
Do not use electrical appliances inside the food
storage compartments of the appliance, unless they
are of the type recommended by the manufacturer.
Note
Insufficient ventilation results in an increase in energy
consumption and reduction of the refrigerating
performance
u
Always keep the air slots unobstructed.
When storing food, remember these basic rules:
q
Do not obstruct the air vents on the back wall.
q
Do not obstruct the air vents on the fan.
q
Food is well sealed.
q
Food that easily absorbs or emits odor or taste, are
in sealed containers or are covered.
q
Raw meat or fish is in clean, sealed containers so
that other food cannot be touched or drip on them.
q
Liquids are in sealed containers.
q
Food is stored spaced apart to ensure good air circu‐
lation.
Note
Failure to follow these guidelines can lead to food
perishing.
4.1.1 Fridge
The natural air circulation means the temperature
varies in different sections.
Arranging the food:
u
In the top section and in the door: butter and
cheese, preserves, and tubes.
u
The coldest zone Fig. 1 (D) is for: easily perishable
food such as prepared meals, meat and sausages
u
On the bottom shelf: raw meat and fish
4.1.2 EasyFresh-Safe
This compartment is great for non-packaged foods,
such as fruit and vegetables.
The humidity depends on the moisture content of the
stored items and how frequently the door is opened.
You can regulate the moisture.
Arranging the food:
u
Place unsealed fruit and vegetables.
u
Excessive moisture: Regulate the air humidity
(see 7.7 Humidity control) .
Food management
* Depending on model and options 7
4.1.3 Freezer
This provides a dry, frosty storage climate at
-18 °C (-0 °F). A frosty climate is suitable for storing
frozen food and goods for several months, preparing
ice cubes, or freezing fresh food.
Freezing food
You can freeze as many kilograms of fresh food within
24 hours as indicated on the nameplate (see 9.5 Rating
plate) under "freezing capacity ... kg/24h".
To ensure that the food freezes quickly to the core,
keep to the following quantities per pack:
-
Fruit, vegetables up to 1 kg (2.20 lb)
-
Meat up to 2.5 kg (5.51 lb)
Before freezing, please note the following:
q
SuperFrost is activated (see 6.3 Functions) when the
amount of food to freeze exceeds approx.
1 kg (2.20 lb).
q
SuperFrost is activated (see 6.3 Functions) when the
amount of food to freeze exceeds approx.
2 kg (4.41 lb).
q
With a small amount of frozen goods: SuperFrost is
activated approx. 6 hours prior.
q
With the maximum amount of frozen goods:
SuperFrost is activated approx. 24 hours prior.
Arranging the food:
CAUTION
There is a risk of injury from pieces of broken glass!
Bottles and cans containing drinks can split or crack
when frozen. This applies in particular to carbonated
drinks.
u
The BottleTimer function must be used when
freezing bottles and cans with drinks.
With a small amount of frozen goods:
u
Place packaged groceries in the top drawer.
u
If possible, place groceries at the back of the drawer
near the rear wall.
With the maximum amount of frozen goods:
u
Distribute packaged groceries across all drawers,
but do not place any groceries in the lowest drawer.
u
If possible, place groceries at the back of the drawer
near the rear wall.
With the maximum amount of frozen goods:
u
Once SuperFrost deactivates automatically, place
food into the drawer.
Defrosting food
- in the fridge compartment
- in the microwave
- in the oven/fan oven
- at room temperature
WARNING
Danger of food poisoning!
u
Do not re-freeze defrosted food.
u
Remove only the food you need for now.
u
Use defrosted food as quickly as possible
4.2 Storage times
The storage times given are guidelines
Food with a “use by” date must still be consumed by
the date indicated on the package
4.2.1 Fridge
The best-before date stated on the packaging applies.
4.2.2 Freezer
Guidelines for storage periods for various foods
Ice cream at
-18 °C
(-0 °F)
2 to 6 months
Sausage, ham at
-18 °C
(-0 °F)
2 to 3 months
Bread, bakery prod‐
ucts
at
-18 °C
(-0 °F)
2 to 6 months
Game, pork at
-18 °C
(-0 °F)
6 to 9 months
Fish, fatty at
-18 °C
(-0 °F)
2 to 6 months
Fish, lean at
-18 °C
(-0 °F)
6 to 8 months
Cheese at
-18 °C
(-0 °F)
2 to 6 months
Poultry, beef at
-18 °C
(-0 °F)
6 to 12 months
Vegetables, fruit at
-18 °C
(-0 °F)
6 to 12 months
5 Energy saving
-
Always ensure good ventilation. Keep clear of
obstruction all ventilation openings in the appliance
enclosure or in the structure for building-in.
-
Never block air slits in the fan.
Energy saving
8 * Depending on model and options
-
Do not install the appliance in direct sunlight or next
to a stove, heater or similar heat source.
-
Energy consumption depends on installation condi‐
tions such as the ambient temperature
(see 1.4 Range of appliance use) . A warmer ambient
temperature can increase the energy consumption.
-
Avoid opening the appliance door for any longer then
necessary
-
The lower the temperature is set the higher the
energy consumption.
-
Sort your food items: home.liebherr.com/food.
-
All food stored in the appliance should be well
wrapped and covered. This prevents frost buildup.
-
Only take food out for as long as necessary so that it
does not get too warm.
-
Insertion of warm foods: first let the food cool down
to room temperature.
-
Defrost frozen food in the fridge
-
For longer periods of absence, use HolidayMode
(see HolidayMode) .
6 Use
6.1 Controls and displays
The display provides a quick overview of the tempera‐
ture setting and the status of functions and settings.
You can control the functions and settings either by
deactivating/activating them or by selecting a value.
6.1.1 Status display
Fig. 4
(1)
Fridge compartment
temperature display
(2) Freezer compartment
temperature display
The Status display shows the set temperatures and is
the home display. From there, you can navigate to the
options and settings.
6.1.2 Navigation
Navigate in the menu to access the individual func‐
tions. An audible signal sounds after confirming a
function or setting. If no selection is made after 10
seconds the display switches to the Status display.
The appliance is operated with the buttons next to the
display.
Fig. 5
(1) Left/right navigation
arrow
(2) Confirm
Left/right navigation arrow Fig. 5 (1):
-
Navigating in the menu. After the last menu page, it
goes back to the first one.
Confirm Fig. 5 (2):
-
Activating/deactivating a function.
-
Opening a submenu.
-
Confirming a selection. After confirmation the
display switches back to the menu.
Back to the Status display: in the fastest possible
manner:
-
Close and open the door.
-
or wait 10 seconds. The display changes to the
Status display.
6.1.3 Operating structure
The controls are explained by a template. The display
changes depending on the function or settings.
Menu without submenu
Fig. 6
(1)
Status deactivated /
status activated
white bar in the top
area
(3) Menu: Function name
or menu: Setting name
(2) Symbol or selected
value
Use
* Depending on model and options 9

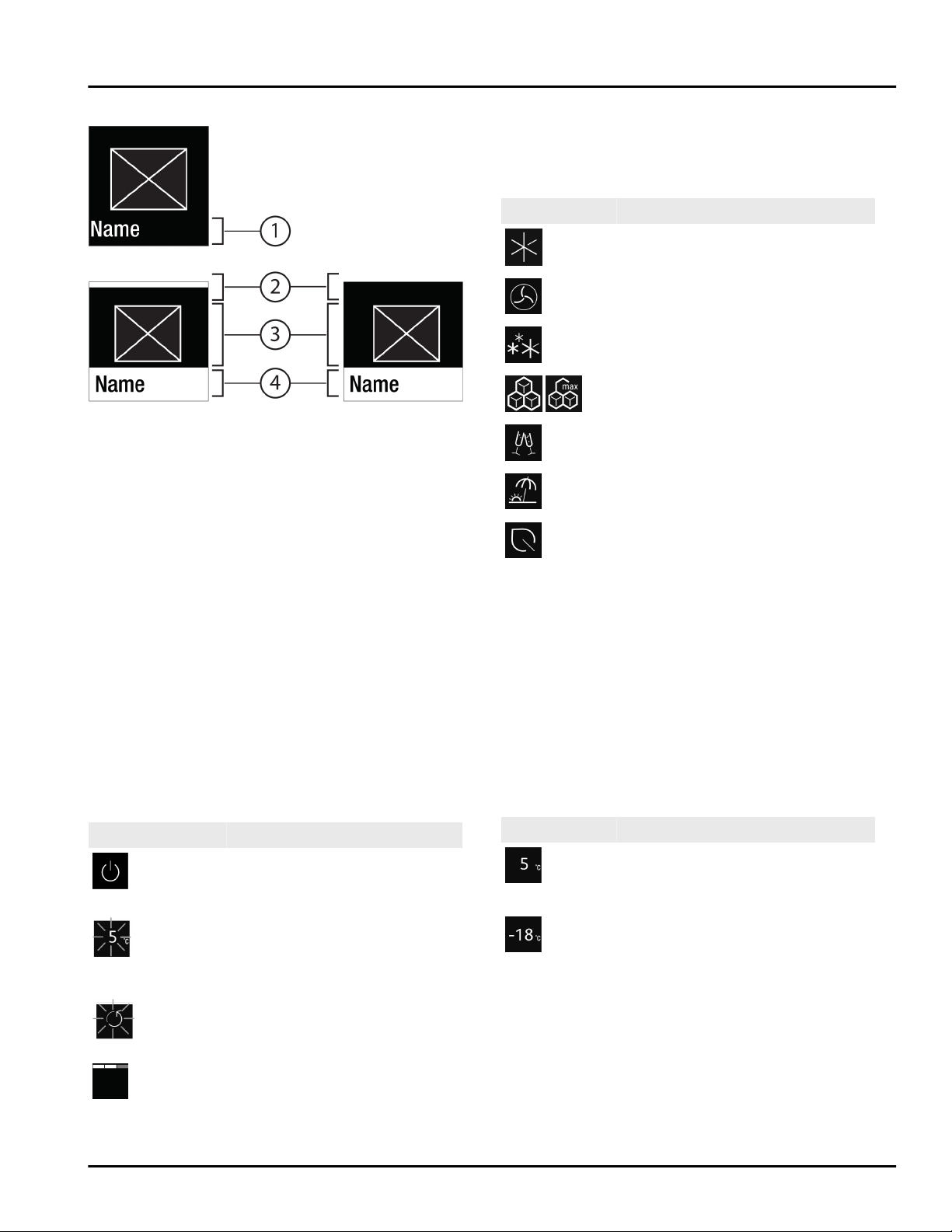

Menu with submenu
Fig. 7
(1)
Menu: Function
name or menu:
Setting name
(3) Symbol or selected
value
(2) Status (4) Submenu: Function
name or submenu:
Setting name
(2) Off / On
You can navigate as follows:
-
Navigate with the left/right navigation arrow
Fig. 5 (1).
-
Press Confirm Fig. 5 (2) to go to the submenu Fig. 7 (4).
•
Navigate with the left/right navigation arrow
Fig. 5 (1).
•
Set new level: Press Confirm Fig. 5 (2) to select a
deselected value Fig. 6 (1).
•
Back to menu: Press Confirm Fig. 5 (2) to select the
selected value Fig. 6 (2).
6.1.4 Display symbols
The display symbols provide information about the
current appliance status.
Symbol
Appliance status
Standby
The appliance or temperature
zone is turned off.
Flashing number
Appliance is working. Tempera‐
ture flashes, until the set value
is reached.
Flashing symbol
Appliance is working. Setting is
made.
Bar grows steadily
Function is activated.
6.2 Operating logic
6.2.1 Activating/deactivating settings
You can activate/deactivate the following functions:
Symbol Function
SuperCool
x
PowerCool
x
SuperFrost
x
*
IceMaker and MaxIce
x
*
PartyMode
x
HolidayMode
E-Saver
x
When function is on, the appliance works harder. This
means appliance noise when operating may be louder
for a short while, and more energy will be consumed.
u
Press the navigation arrows Fig. 5 (1) repeatedly until
the function is displayed.
u
Press Confirm Fig. 5 (2).
w
You hear the confirmation tone.
w
Status appears in the menu.
w
Function is on/off.
6.2.2 Selecting function value
With the following functions you can set a value in the
submenu:
Symbol
Function
Cool:
Setting the temperature
Turn on/off the temperature zone
Freeze:
Setting the temperature
Switch the appliance on/off
u
Press the navigation arrows Fig. 5 (1) repeatedly until
the function is displayed.
u
Press Confirm Fig. 5 (2).
u
Select the setting value with the navigation arrows
Fig. 5 (1).
Setting the temperature
u
Press Fig. 5 (2) confirm.
w
You hear the confirmation tone.
Use
10 * Depending on model and options
w
Status: on Fig. 6 (1) appears briefly in the submenu
Fig. 7 (4).
w
Display switches back to the menu.
Switching the temperature zone on/off
u
Press Confirm for 3 seconds.
w
You hear the confirmation tone.
w
Display returns to the status screen.
6.2.3 Activating/deactivating settings
You can activate/deactivate the following settings:
Symbol Setting
WiFi
1
Entry lock
2
SabbathMode
2
Cleaning Mode
2
Reminders
1
Reset
2
Switch off
2
u
Press the navigation arrows Fig. 5 (1) repeatedly until
the settings are displayed.
u
Press Confirm Fig. 5 (2).
u
Press the navigation arrows Fig. 5 (1) repeatedly until
the desired setting is displayed.
1
Activate setting (short press)
u
Press Confirm Fig. 5 (2).
w
You hear the confirmation tone.
w
Status appears in the menu.
w
Setting is activated / deactivated.
2
Activate setting (long press)
u
Press Confirm Fig. 5 (2) for 3 seconds.
w
You hear the confirmation tone.
w
Status appears in the menu.
w
Display changes.
6.2.4 Selecting the setting value
With the following settings you can set a value in the
submenu:
Symbol
Settings
Brightness
Symbol Settings
Door alarm
Temp. unit
u
Press the navigation arrows Fig. 5 (1) repeatedly until
the settings are displayed.
u
Press Confirm Fig. 5 (2).
u
Press the navigation arrows Fig. 5 (1) repeatedly until
the desired setting is displayed.
u
Press Confirm Fig. 5 (2).
u
Select the setting value with the navigation arrows
Fig. 5 (1).
u
Press Confirm Fig. 5 (2).
w
You hear the confirmation tone.
w
Status appears briefly in the submenu.
w
Display switches back to the menu.
6.2.5 Calling up the customer menu
The customer menu provides the following settings:
Symbol
Function
D-Value
1
*
TubeClean
2
*
*
Ice cube
1
*
Software
u
Press the navigation arrows Fig. 5 (1) repeatedly until
the settings appear.
u
Press Confirm Fig. 5 (2).
u
Press the navigation arrows Fig. 5 (1) repeatedly until
appliance information appears in the display.
u
Press Confirm Fig. 5 (2).
u
Enter the numerical code 151.
w
The customer menu appears.
u
Press the navigation arrows Fig. 5 (1) repeatedly until
the desired setting appears.
1
Select the setting value
u
Press Confirm Fig. 5 (2).
w
You hear the confirmation tone.
w
Status appears briefly in the display.
w
The display switches back to the menu.
2
Activate setting
u
Press Confirm Fig. 5 (2) for 3 seconds.
w
You hear the confirmation tone.
w
Status appears in the display.
w
The symbol flashes as long as the appliance is
working.
Use
* Depending on model and options 11
6.3 Functions
Turn off appliance
This setting turns off the whole appliance.
Switch off whole appliance
Fig. 8
u
Turning off the IceMaker .*
u
Activating/deactivating (see 6.2 Operating logic) .
w
Off: Display turns black.
Setting up the WLAN connection
This setting connects the appliance to the internet.
The connection is managed in the SmartDevice Box.
You can use the SmartDevice-App to add your appli‐
ance to a SmartHome-System. Use the SmartDevice-
App or other compatible partner networks to enjoy
advanced options and settings.
Note
The SmartDevice Box is available from the Liebherr
Residential Appliances Store (https://
home.liebherr.com/shop/de/deu/smartdevi‐
cebox.html).
More information about the availability, prerequisites
and individual options can be found on the Internet at
https://smartdevice.liebherr.com/install.
Use:
-
Manage the appliance with the SmartDevice-App or
a compatible partner network.
-
Enjoy advanced functions and settings.
-
Check the appliance status on the SmartDevice-App.
q
Purchase the SmartDevice Box and insert it (see
https://smartdevice.liebherr.com/install).
q
Install the SmartDevice app (see https://
apps.home.liebherr.com/).
Setting up the WLAN connection
Fig. 9
u
Activate (see 6.2 Operating logic) .
w
The connection is set up: Status: on Fig. 6 (1) and WiFi
connecting appears. The symbol flashes.
w
The connection is set up: Status: on Fig. 6 (1) appears.
w
The connection failed: Status and Connect appears.
The symbol appears permanently.
Disconnecting
u
Deactivate the setting (see 6.2 Operating logic) .
Fig. 10

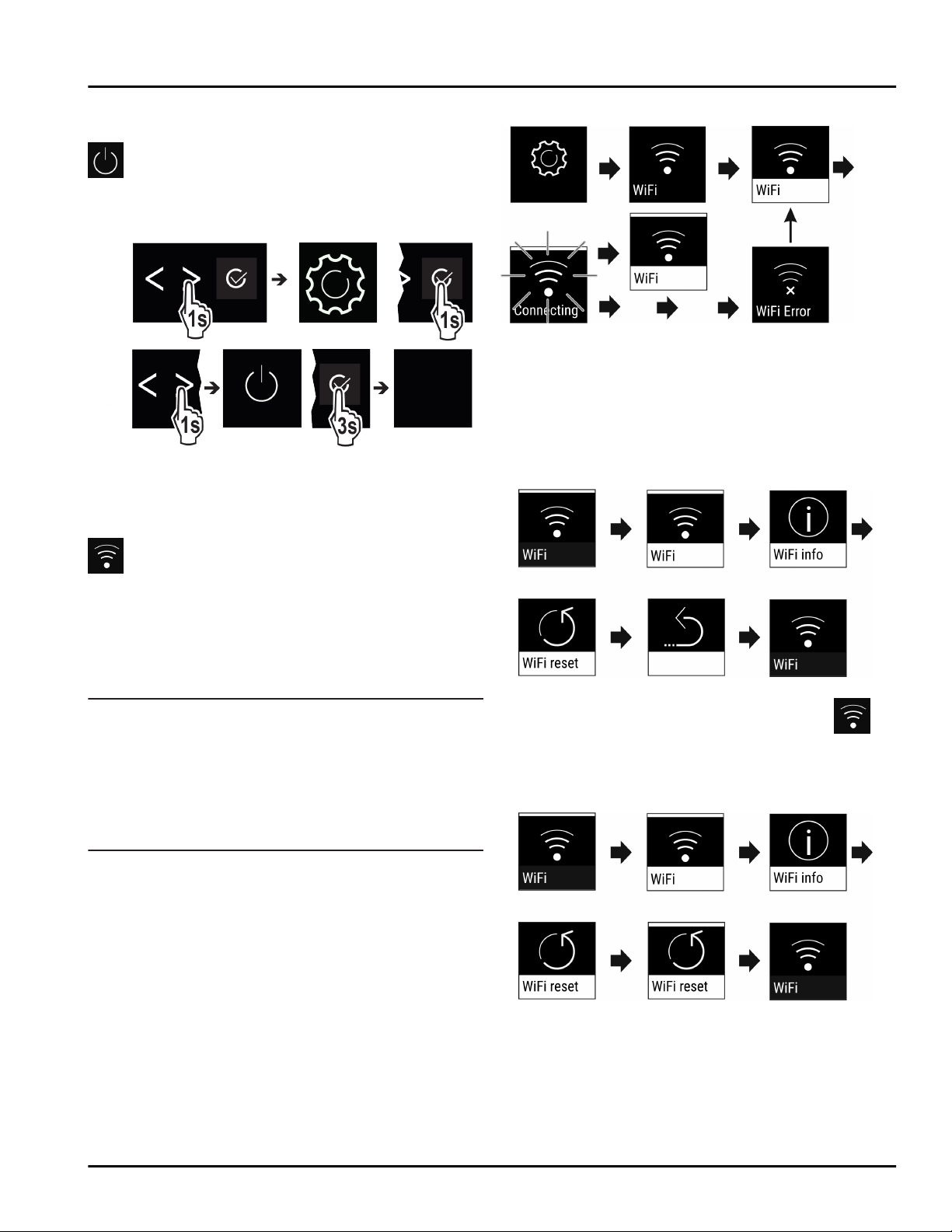

w
There is no connection: The symbol
is
displayed constantly.
Restoring the connection
u
Restore settings (see 6.2 Operating logic) .
Fig. 11
w
Connection and other settings are restored to
factory settings.
Use
12 * Depending on model and options
Temperature
The temperature depends on the following factors:
-
the number of times the door is opened
-
The duration the door is opened
-
the room temperature of the installation location
-
the type, temperature and amount of food
Temperature zone Recommended setting
Fridge
5 °C
41 °F
Freezing
compartment
-18 °C
-0 °F
Setting the temperature

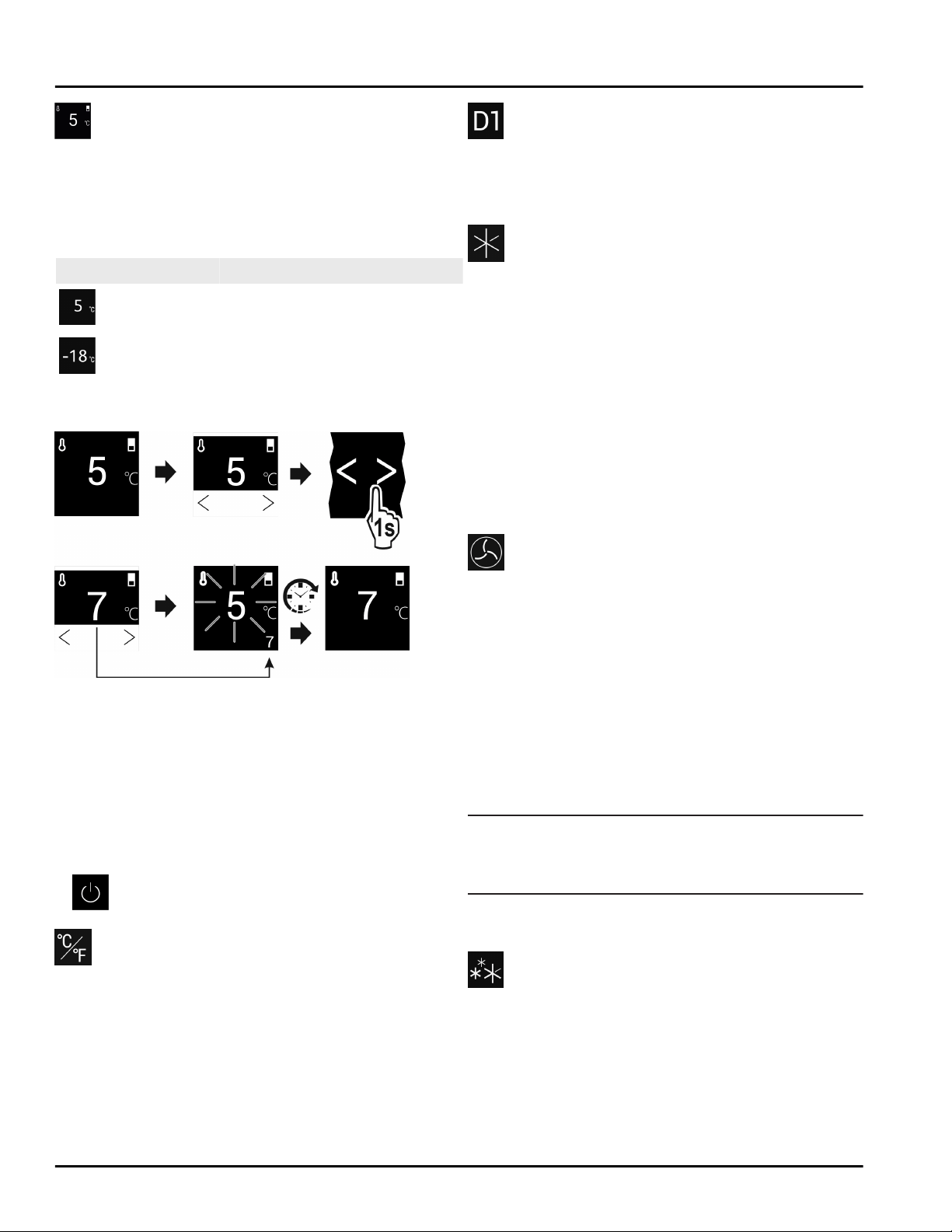

Fig. 12
u
Set the value. (see 6.2 Operating logic) .
w
The set temperature is shown on the bottom right of
the display.
Switching off the temperature zone
You can switch off the fridge compartment separately.
If you switch off the freezing compartment, all temper‐
ature zones are switched off.
u
Deactivate IceMaker. *
u
Set the value. (see 6.2 Operating logic) .
w
appears.
Temperature unit
This setting allows you to change between Celsius and
Fahrenheit as the temperature unit.
Selecting the setting value
u
Set the value (see 6.2 Operating logic) .
D-Value
Choosing the setting
u
Set the value in the customer menu. (see 6.2 Oper‐
ating logic)
SuperCool
Select this function for the maximum cooling setting,
to reach lower cooling temperatures.
This function is relevant to the fridge section Fig. 1 (A)
Use:
-
Cool large amounts of food quickly.
Activating/deactivating settings
u
Using the fridge section: activate the function when
you add the goods.
u
Activating/deactivating (see 6.2 Operating logic) .
The function automatically turns off. The appliance
goes back to normal mode. The temperature adjusts
itself to the set level.
PowerCool
This function provides the perfect blanket temperature
to cool your food.
This function is relevant to the fridge section Fig. 1 (A).
Use:
-
For higher room temperatures (from
approx. 35 °C (95 °F))
-
At high air moisture e.g. on summer days
-
When storing moist goods, to avoid condensation
building up inside
Activating/deactivating settings
u
Activating/deactivating (see 6.2 Operating logic) .
Note
The fan can keep running even if the function has been
deactivated. This ensures optimum temperature distri‐
bution in the appliance.
w
Function activated: Energy consumption of the appli‐
ance is slightly increased.
SuperFrost
Select this function for the maximum freezing setting,
to reach lower freezing temperatures.
This function is relevant to the freezer section Fig. 1 (C).
Use:
-
To freeze more than 2 kg (4.41 lb) fresh food a day.
Use
* Depending on model and options 13
-
Freezing fresh food quickly to the core.
-
Increasing the cold reserves in the stored goods
before defrosting the appliance.
Activating/deactivating settings
With a small volume of frozen goods:
u
Activate 6 hours before use.
With the maximum volume of frozen goods:
u
Activate 24 hours before use.
u
Activating/deactivating (see 6.2 Operating logic) .
The function automatically turns off. The appliance
goes back to normal mode. The temperature adjusts
itself to the set level.
PartyMode
This option offers an assortment of special functions
and settings that are useful if you are having a party.
The following functions are activated:
-
SuperCool
-
SuperFrost
-
IceMaker and MaxIce*
You can set any functions you like. Your changes are
lost when the option is switched off.
Activating/deactivating settings
u
Activating/deactivating (see 6.2 Operating logic) .
w
On: All functions are activated at the same time.
w
Deactivated: Previously set temperatures are
restored.
The function is automatically switched off after 24
hours.
HolidayMode
This function minimizes the energy consumption during
an extended absence. The temperature of the refriger‐
ator compartment is set to 15 °C (59 °F) and this is
displayed on the status screen when the temperature
has been reached.
The set freezer temperature remains unchanged.
This function is relevant to the fridge section Fig. 1 (A).
Use:
-
Save energy if you plan to be away for a while.
-
Avoid coming home to bad smells and mold.
Activating/deactivating settings
u
Empty everything from the fridge section.
u
Activating/deactivating (see 6.2 Operating logic) .
w
On: Fridge temperature is raised.
w
Off: The previously set temperature is restored.
SabbathMode
This setting meets the religious requirements on the
Sabbath and Jewish festivals. Turn on SabbathMode to
switch off certain controls. This means you can use the
appliance without anyone changing any settings.
You can find a list of Star-K-certified appliances at
www.star-k.org/appliances.
This appliance has certification from the “Institute for
Science and Halacha”.
WARNING
Danger of food poisoning!
If there is a power outage when SabbathMode is on,
this message is not saved. When the power is restored,
the appliance continues in SabbathMode. Afterwards,
the temperature display does not show a message
about the power outage.
If there was a power outage during SabbathMode:
u
Check the quality of the food. Do not consume
spoiled food!
What the appliance does in SabbathMode:
-
The Status display continuously shows
SabbathMode.
-
The display is locked for all functions apart from
deactivating SabbathMode.
-
Any functions/settings that are already on, remain
active.
-
The display stays bright when the door is closed.
-
Reminders are disabled. The set timer interval is also
stopped. The function is no longer executed in
SabbathMode.
-
Reminders and warnings are not displayed. No
acoustic signals are emitted and the display does
not show warnings / settings such as temperature
alarm or door alarm.
-
IceMaker is out of use.*
-
The internal light is off.
-
The defrost cycle only works for the specified time
without taking account of fridge use.
-
After a power cut the appliance automatically
returns to SabbathMode.
Activating/deactivating SabbathMode
u
To activate this function, click the arrows next to the
display until you see the Settings menu item and
then confirm. The menu shows the available
settings.
u
Click the arrows next to the display until you see the
SabbathMode (Menora) symbol. Confirm the symbol.
w
A white bar appears in the top part of the display.
w
SabbathMode has been activated.
To deactivate this function, press the confirmation
button next to the display for 3 seconds.
SabbathMode has been deactivated.
E-Saver
This function reduces energy consumption. If you acti‐
vate this function, the cooling temperature increases.
Use
14 * Depending on model and options
Temperature zone Recommended
setting (see
Temperature)
Temperature
when E-Saver
activated
Fridge
compartment
5 °C
41 °F
7 °C
45 °F
Freezing
compartment
-18 °C
-0 °F
-16 °C
3 °F
Use:
-
Save energy.
Activating/deactivating settings
u
Activating/deactivating (see 6.2 Operating logic) .
w
Activated: Higher temperatures are set in all temper‐
ature zones.
w
Deactivated: Previously set temperatures are
restored.
IceMaker*
This function activates the production of ice cubes.*
The function refers to the freezer compartment
Fig. 1 (C).*
Use:*
-
Producing ice cubes
The ice cube size can be set with the ice cube function.
(see Ice cubes*) *
You can increase the number of ice cubes produced
with the MaxIce function. (see MaxIce*) *
The lines can be cleaned with the TubeClean function.
(see TubeClean*) *
Activating the function*
Make sure that the following requirements are fulfilled:
q
The water supply is established at the fixed water
connection. See Assembly Manual.*
q
IceMaker is put into operation. (see 7.9 IceMaker*)
u
Activate the function. (see 6.2 Operating logic)
w
It can take up to 24 hours for the first ice cubes to
be made.
Deactivating the function*
u
Deactivate the function. (see 6.2 Operating logic)
w
If ice cubes are currently being made, the system
completes the process. After that, the IceMaker
switches off.
Ice cubes*
With this setting, you can choose the ice cube size.*
Choosing the setting*
u
Make your settings in the Customer menu
(see 6.2 Operating logic) .
MaxIce*
Using the MaxIce function, ice cubes can quickly be
produced at 1.5 kg (3.31 lb) of ice cubes in 24 hours.*
Use:*
-
Produces many ice cubes in a short period of time.
Activate/deactivate the function*
u
Activate/deactivate (see 6.2 Operating logic) .
TubeClean*
This setting cleans the IceMaker pipes.*
Make sure that the following requirements are met:*
q
IceMaker cleaning process is ready
(see 8.4.6 Cleaning the IceMaker*) .
Activate setting*
u
Activate the setting in the customer menu
(see 6.2 Operating logic) .
w
TubeClean is prepared (max. 60 min.): The symbol
flashes.
w
Water pipes are rinsed: Symbol flashes.
w
Rinsing process is complete: Function turns off auto‐
matically.
CleaningMode
This setting makes it easy to clean the appliance.
This setting is relevant to the fridge section Fig. 1 (A).
Use:
-
Clean the fridge section manually.
What happens with the appliance when this setting is
on:
-
The refrigerator compartment is switched off.
-
The internal light is on.
-
Reminders and warnings are not shown. There is no
acoustic signal.
Activating/deactivating settings
u
Activate/deactivate setting (see 6.2 Operating
logic) .
w
On: Fridge compartment is switched off. Light stays
on.
w
Off: preset temperature is restored.
The setting is automatically deactivated after 60
minutes. Then the appliance continues operation in
normal mode.
Use
* Depending on model and options 15
Display brightness
With this setting, you can choose a brightness level for
the display.
You can set the following brightness levels:
-
40%
-
60%
-
80%
-
100%
Choosing the setting
u
Set the level (see 6.2 Operating logic) .
Door alarm
Set the time before the door alarm (see Close the
door) sounds.
Options are as follows:
-
1 min
-
2 min
-
3 min
-
Off
Choosing the setting
u
Set the level (see 6.4 Error messages) .
Entry lock
This setting avoids accidental operation of the appli‐
ance, e.g. by children.
Use:
-
Avoid unintentional changing of settings and func‐
tions.
-
Avoid unintentional switching off of the appliance.
-
Avoid unintentional temperature adjustments.
Activating/deactivating settings
u
Activating/deactivating (see 6.2 Oper‐
ating logic) .
Info
This setting allows the appliance information to be
read out as well as access to the customer menu.
It provides the following information:
-
Model name
-
Index
-
Serial number
-
Service number
View appliance data
u
Press the navigation arrows Fig. 5 (1) repeatedly until
the settings
are displayed.
u
Press Confirm Fig. 5 (2).
u
Press the navigation arrows Fig. 5 (1) repeatedly until
the information display appears.
u
Read the appliance data.
Reminder
Reminders are displayed acoustically by a beep and
visually by a symbol in the display. The signal gets
louder until the alert stops.
Replace the FreshAir active carbon filter
This message appears when the air filter needs
replacing.
u
Replace the air filter every six months.
u
Confirm the message with OK.
w
The service interval resets.
w
The air filter guarantees the air quality in the fridge.
Activate setting
u
Activating/deactivating (see 6.2 Operating logic) .
Reset
This function resets all settings to the factory settings.
All settings that you have made thus far will be reset to
their original values.
Activate the setting
u
Activating (see 6.2 Operating logic) .
6.4 Error messages
Error messages appear in the display. There are two
categories of error message:
Category
Meaning
Message Reminder of general procedures. You can
carry out these procedures to eliminate the
message.
Warning Appears when there are malfunctions. A
signal sounds in addition to the display. The
signal becomes louder until you acknowl‐
edge by tapping the display. You can elimi‐
nate simple defects yourself. For more
serious defects, you must contact
customer service.
6.4.1 Warnings
Close the door
This message appears if the door is open too long.
Use
16 * Depending on model and options
You can set the time before this message appears .
u
Stop alarm: Confirm the message.
-or-
u
Close the door.
Power failure.
This message appears if the freezer temperature rises
after a power outage. When the power outage is over,
the appliance will continue to operate at the last
temperature setting.
u
Stop alarm: Confirm the message.
w
Temperature alarm appears (see Temperature
alarm) .
Temperature alarm
This message appears if the freezer temperature does
not match the set temperature.
Temperature differences may be caused by:
-
Hot fresh food was placed in the appliance.
-
When sorting and removing food from the appliance,
too much warm ambient air got in.
-
There has been a prolonged power outage.
-
The appliance is faulty.
When the cause is eliminated, the appliance will
continue to operate at the last temperature setting.
u
Confirm the display.
w
Warmest temperature is displayed.
u
Confirm the display again.
w
The status display is displayed.
w
Current temperature is displayed.
Error
This message appears when there is a fault with the
appliance. An appliance component has an error.
u
Open the door.
u
Take note of the error code.
u
Confirm the message.
w
The signal tone stops.
w
The status display appears.
u
Close the door.
u
Contact customer service. (see 9.4 Customer
service)
6.4.2 Message
Insert IceMaker drawer*
This message appears if the IceMaker drawer is open.
u
Push in the IceMaker drawer.
w
The message disappears.
w
The IceMaker produces ice cubes.
6.4.3 DemoMode
If “D” appears in the display, demo mode is on. This
feature is designed for retailers. The cooling features
are disabled.
Switching off DemoMode
When you see a time counting down:
u
Confirm within the countdown.
w
DemoMode is off.
If there is no countdown:
u
Disconnect the power plug.
u
Reconnect the power plug.
w
DemoMode is off.
7 Equipment
7.1 Door racks
7.1.1 Moving/removing door racks

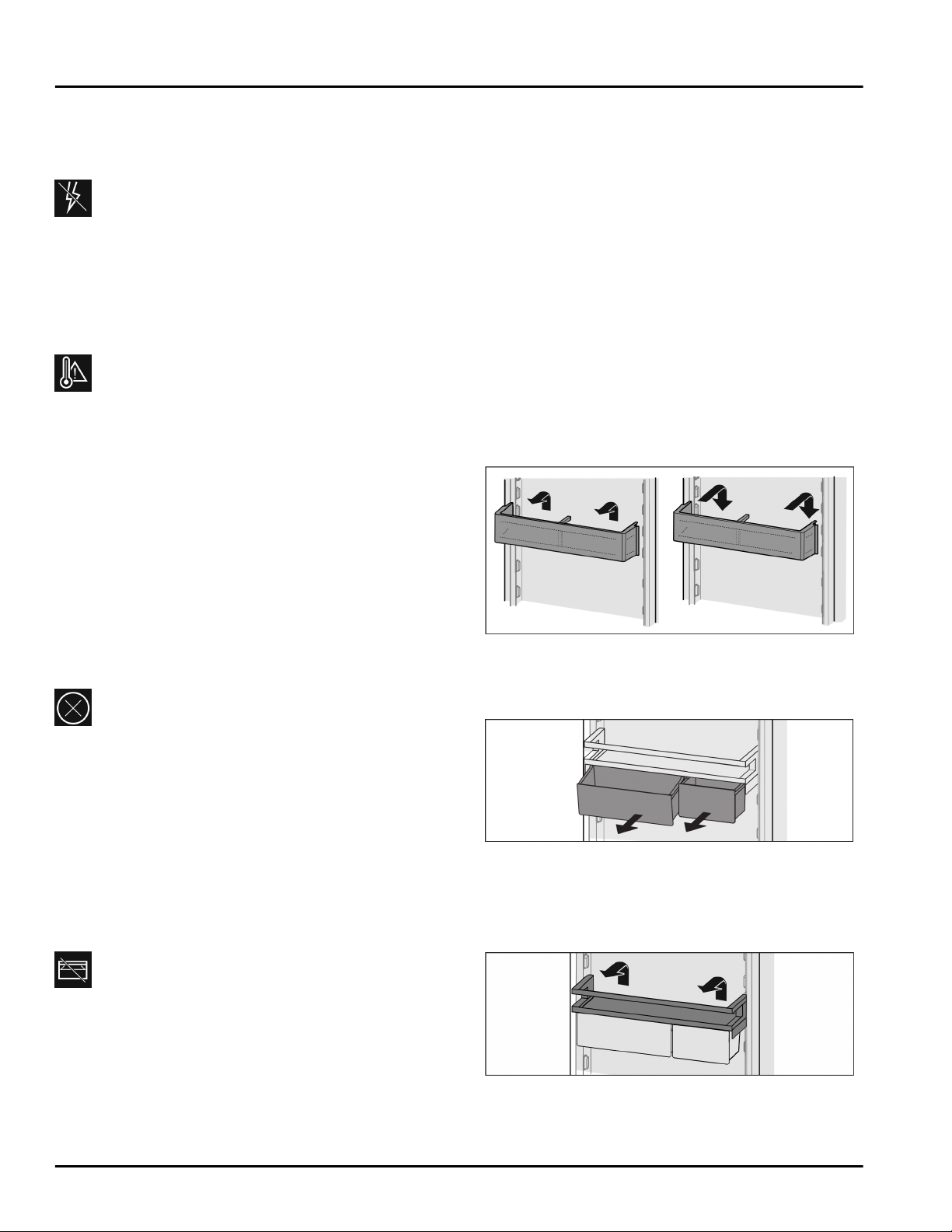

Fig. 13
u
Slide racks up.
u
Pull to the front.
u
Re-insert in reverse order.
Fig. 14 *
You can use just one or both VarioBoxes. To store over‐
sized bottles, suspend just one box over the bottle
rack.*
Move the VarioBox shelf:*
Fig. 15 *
u
Pull up and out.*
u
Replace at any position.*
Equipment
* Depending on model and options 17
Moving the VarioBoxes:*

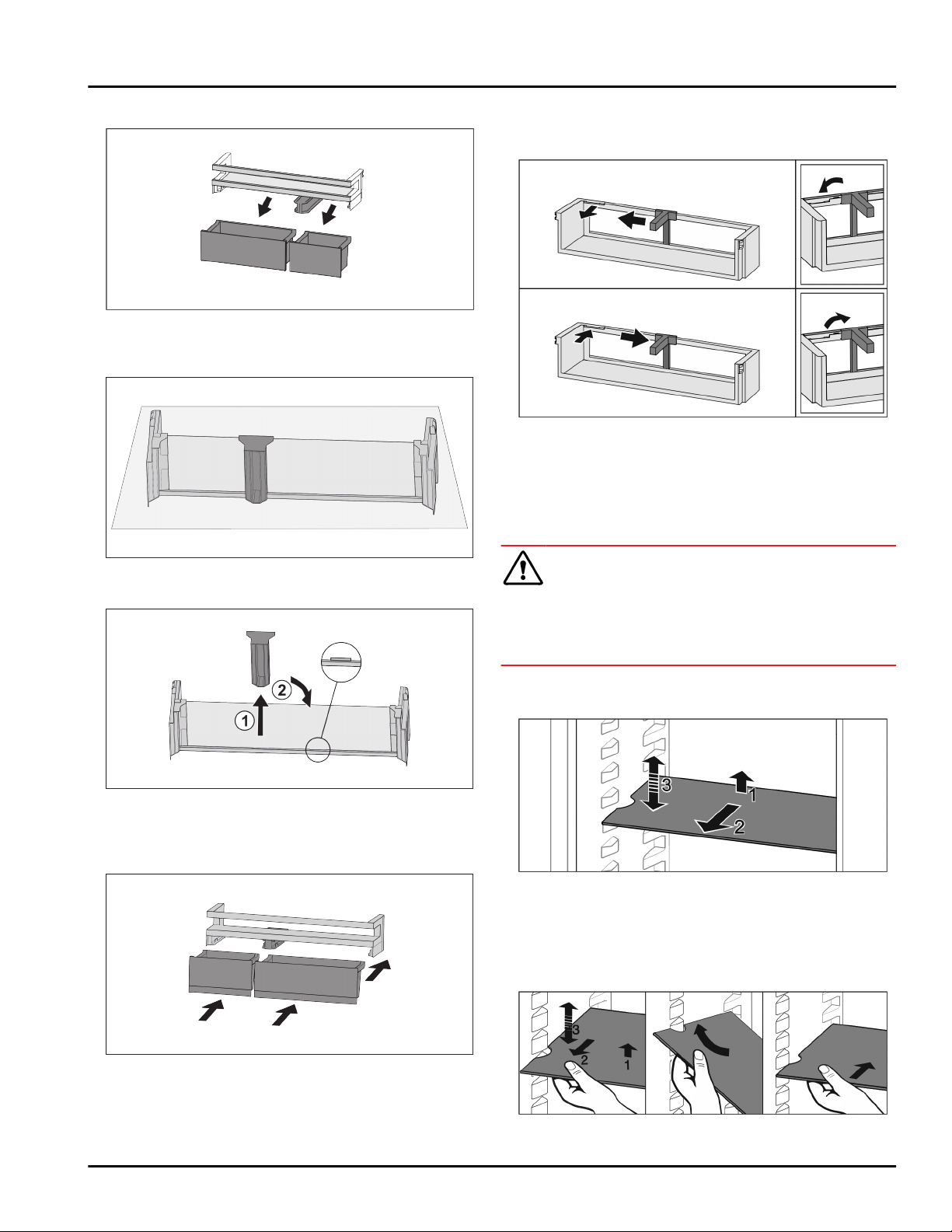

Fig. 16 *
If the door rack is removed:*
u
Remove boxes.*
Fig. 17 *
u
Place the shelf on the table.*
Fig. 18 *
u
Pull off the middle holder Fig. 18 (1).*
u
Insert the middle holder in the second position
Fig. 18 (2).*
Fig. 19 *
u
Replacing boxes.*
7.1.2 To dismantle door racks
The door racks can be disassembled for cleaning.
Fig. 20
u
Disassemble the door racks.
7.2 Shelves
7.2.1 Moving/removing shelves
CAUTION
Broken shelves!
Danger of cuts.
u
Only remove storage shelves when there is nothing
on them
Extension stops secure the shelves against being acci‐
dentally pulled out
Fig. 21
u
Lift the shelf and pull to the front.
w
Side recess to shelf position.
u
Reposition the shelf: Lift up or lower to the desired
height and insert.
-or-
Fig. 22
Equipment
18 * Depending on model and options
u
Take out the shelf completely: Pull out to the front.
u
Easier removal: Set the shelf at an angle.
u
Reinsert the shelf: Push it in to its stop limit.
w
Pull-out stoppers are pointing down.
w
Pull-out stoppers are behind the front shelf.
You can also remove the shelf above the EasyFresh
compartments.

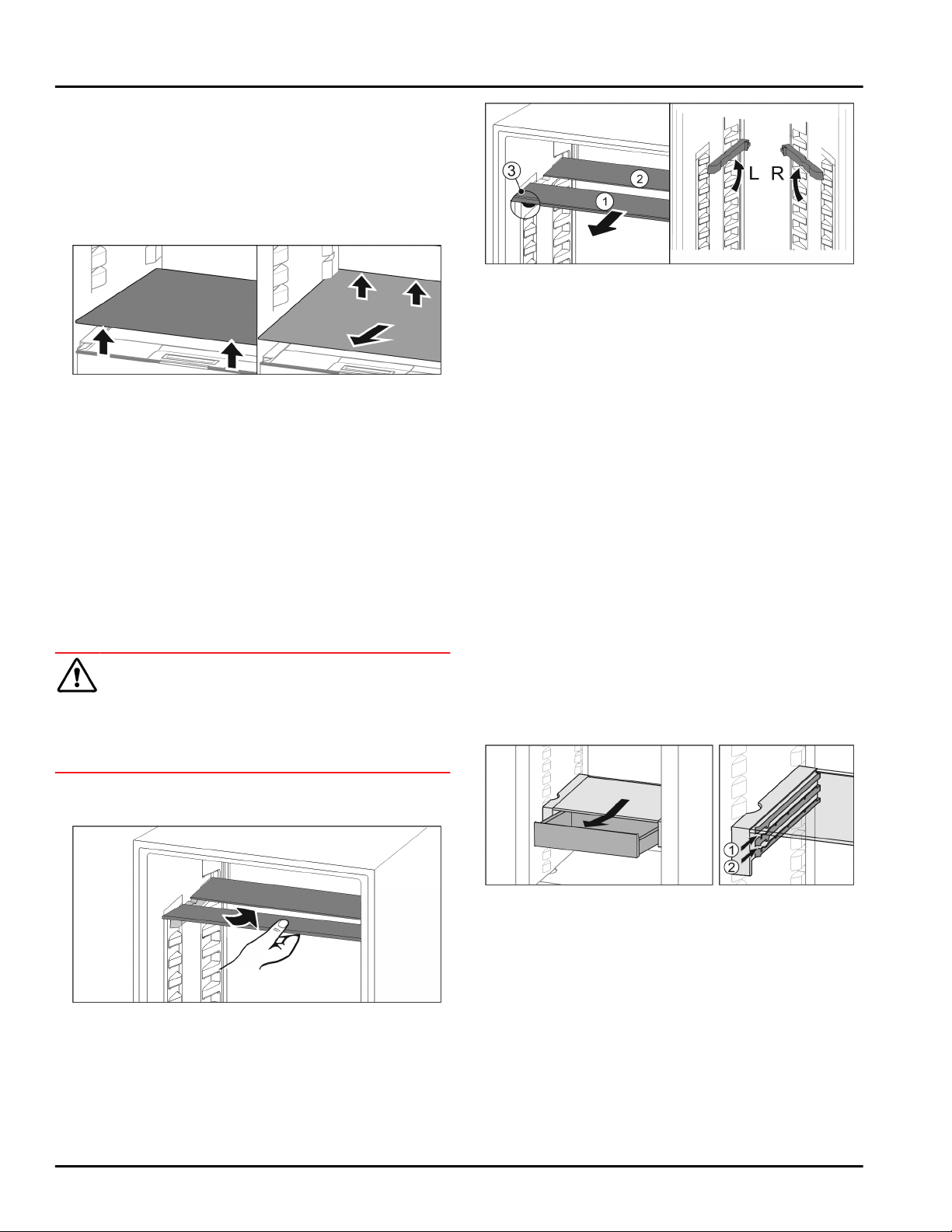

Fig. 23
To remove shelf
u
Lift the shelf at the front and back.*
u
Remove from the front.
Do not place any goods on the drawer cover below!
Slide the shelf in:
u
Place the shelf at an angle, with the back tilted
downwards.
w
Pull-out stoppers are pointing down.
u
Slide the shelf into place.
7.3 Split shelf
7.3.1 Using the split shelf
CAUTION
Broken shelves!
Danger of cuts.
u
Only remove storage shelves when there is nothing
on them
Extension stops secure the shelves against being acci‐
dentally pulled out
Fig. 24
u
Push the split shelf underneath as in the illustration
Fig. 25
Adjusting heights:
u
Pull the glass panels out Fig. 25 (1) from the front,
one at a time.
u
Pull the support rails out of their retainers and snap
into place at the height you want them.
u
Slide in the glass panels one at a time.
w
Flat pull-out stoppers at the front, right behind the
support rail.
w
Taller pull-out stoppers at the back.
Using both shelves:
u
Hold the bottom glass panel with one hand and pull
it to the front.
w
The glass panel Fig. 25 (1) with the trim strip is at the
front.
w
The stops Fig. 25 (3) point downward.
7.4 VarioSafe*
The VarioSafe provides space for small food, packs,
tubes, and jars.
7.4.1 Using the VarioSafe
You can remove the drawer and slide it back in at two
different heights. This is to accommodate taller small
items in the drawer.
Fig. 26
u
Remove the drawer.
u
Slide in at any height Fig. 26 (1) or Fig. 26 (2).
7.4.2 Moving the VarioSafe
You can shift the height of the entire VarioSafe unit.
Equipment
* Depending on model and options 19

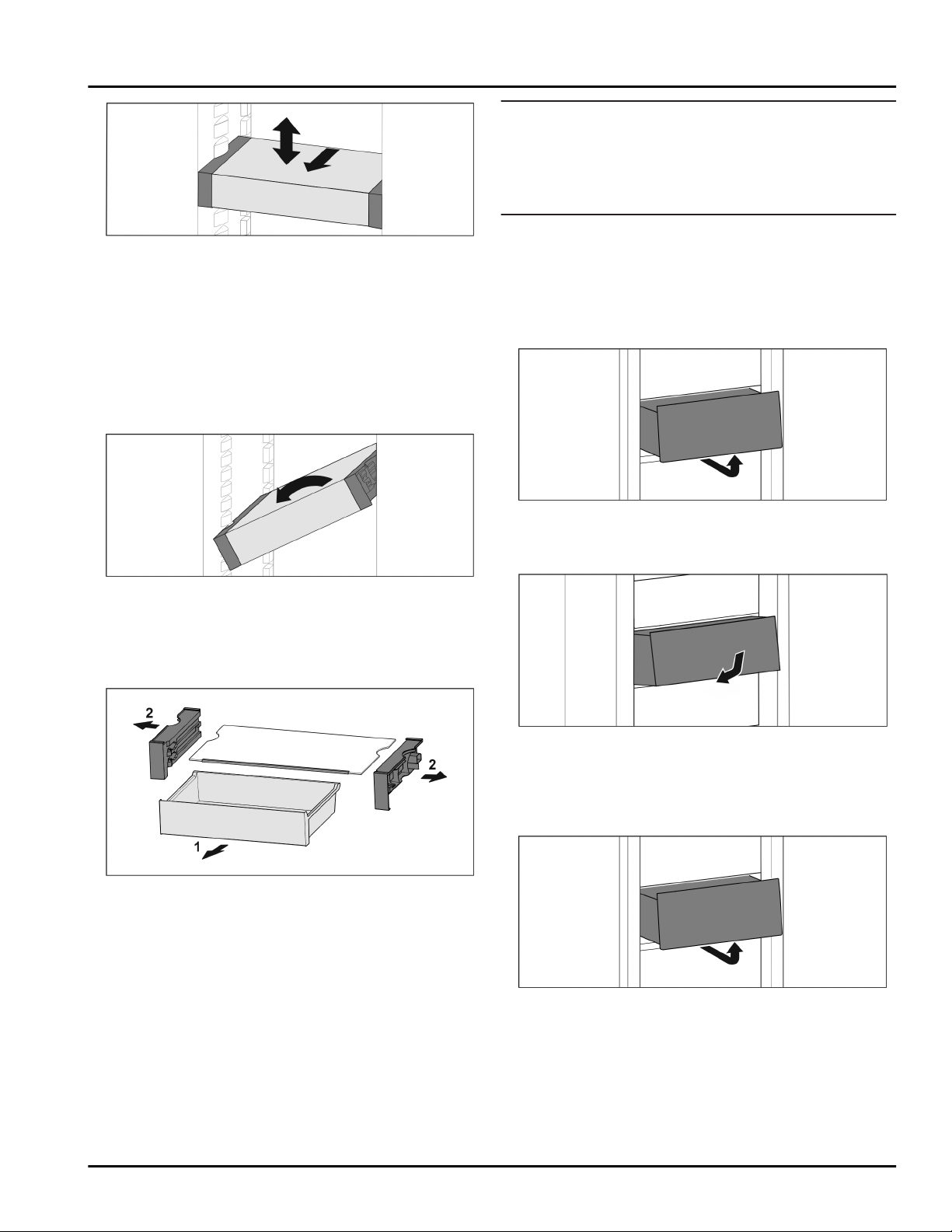

Fig. 27
u
Pull to the front.
w
Side recess to shelf position.
u
Raise or lower to any height.
u
Slide to the rear.
7.4.3 Removing the VarioSafe completely
You can remove the entire VarioSafe unit.
u
Pull to the front.
w
Side recess to shelf position.
Fig. 28
u
Tilt and pull to the front.
7.4.4 Disassembling the VarioSafe
The VarioSafe can be dismantled for cleaning.
Fig. 29
u
Dismantling the VarioSafe.
7.5 Drawers
You can remove the drawers for cleaning.
You can remove the drawers to use VarioSpace.
The way to remove/insert the drawers varies
depending on the pull-out system. Your appliance can
contain a variety of pull-out systems.
Note
Insufficient ventilation results in an increase in energy
consumption and reduction of the refrigerating
performance.
u
Leave the bottom drawer in appliance!
u
Never obstruct the vents on the interior rear wall!
7.5.1 Drawer on appliance base or glass
shelf
The drawer runs directly on the appliance base or on a
glass shelf. There are no rails.
Removing drawer
Fig. 30
u
Remove drawer as shown in the diagram.
Inserting drawer
Fig. 31
u
Insert drawer as shown in the diagram.
7.5.2 Drawer on glide rails
Removing drawer
Fig. 32
u
Remove drawer as shown in the diagram.
Equipment
20 * Depending on model and options
Inserting drawer

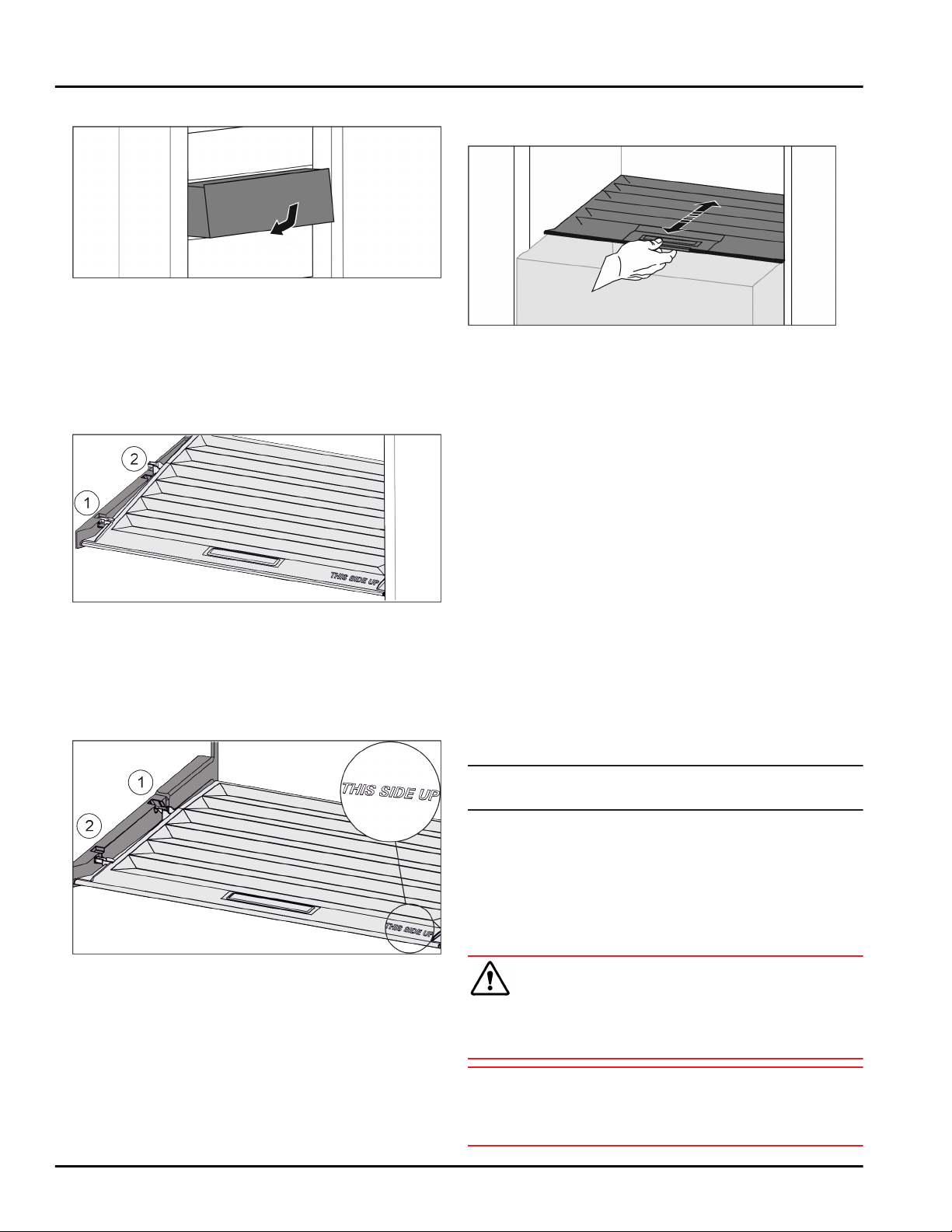

Fig. 33
u
Insert drawer as shown in the diagram.
7.6 EasyFresh-Safe
The compartment lid can be removed for cleaning.
7.6.1 Removing the compartment lid
Fig. 34
If the drawers are removed:
u
Pull the lid up at the front in the retaining parts to
the opening Fig. 34 (1).
u
Lift from the back and pull it up and out Fig. 34 (2).
7.6.2 Inserting the compartment lid
Fig. 35
If the text THIS SIDE UP is on top:
u
Insert the lip of the cover over the opening of the
rear bracket Fig. 35 (1) and click into place Fig. 35 (2).
u
Position the cover where you want it
(see 7.7 Humidity control) .
7.7 Humidity control
You can regulate the moisture in the drawer yourself by
adjusting the compartment cover.
The compartment cover is on the drawer itself and can
be covered with shelves or additional drawers.
Fig. 36
Low air humidity
u
Open the drawer.
u
Pull the drawer cover to the front.
w
If the drawer is closed: Gap between lid and
compartment.
w
Moisture levels lower in the Safe.
High air moisture:
u
Open the drawer.
u
Slide the compartment cover to the back.
w
If the drawer is closed: The cover seals the compart‐
ment.
w
Moisture levels rise in the Safe.
If there is too much moisture in the compartment:
u
Choose a “low moisture setting”.
-or-
u
Remove the moisture with a cloth.
7.8 EasyTwist-Ice*
The EasyTwist-Ice produces ice cubes when the water
tank is inserted.
The EasyTwist-Ice is used exclusively for the produc‐
tion of ice cubes in standard household quantities.
Note
Do not change the position of the EasyTwist-Ice.
Make sure that the following conditions are met:
-
The EasyTwist-Ice has been cleaned
(see 8.4.5 Cleaning the EasyTwist-Ice*)
-
The water tank has been cleaned.
-
The EasyTwist-Ice drawer is fully inserted.
7.8.1 Filling the water tank
WARNING
Contaminated water!
Poisoning.
u
Fill with potable water only.
NOTICE
Sugary liquids!
Damage to the EasyTwist-Ice.
u
Fill with cold drinking water only.
Equipment
* Depending on model and options 21
Note
Using filtered, decarbonized water ensures the best-
tasting drinking water for your ice cubes.
This water quality can be achieved using a table water
filter of the kind available in trade retail outlets.
u
Always fill the water tank only with filtered, decar‐
bonized drinking water.
The water for the EasyTwist-Ice is supplied from a
water tank.

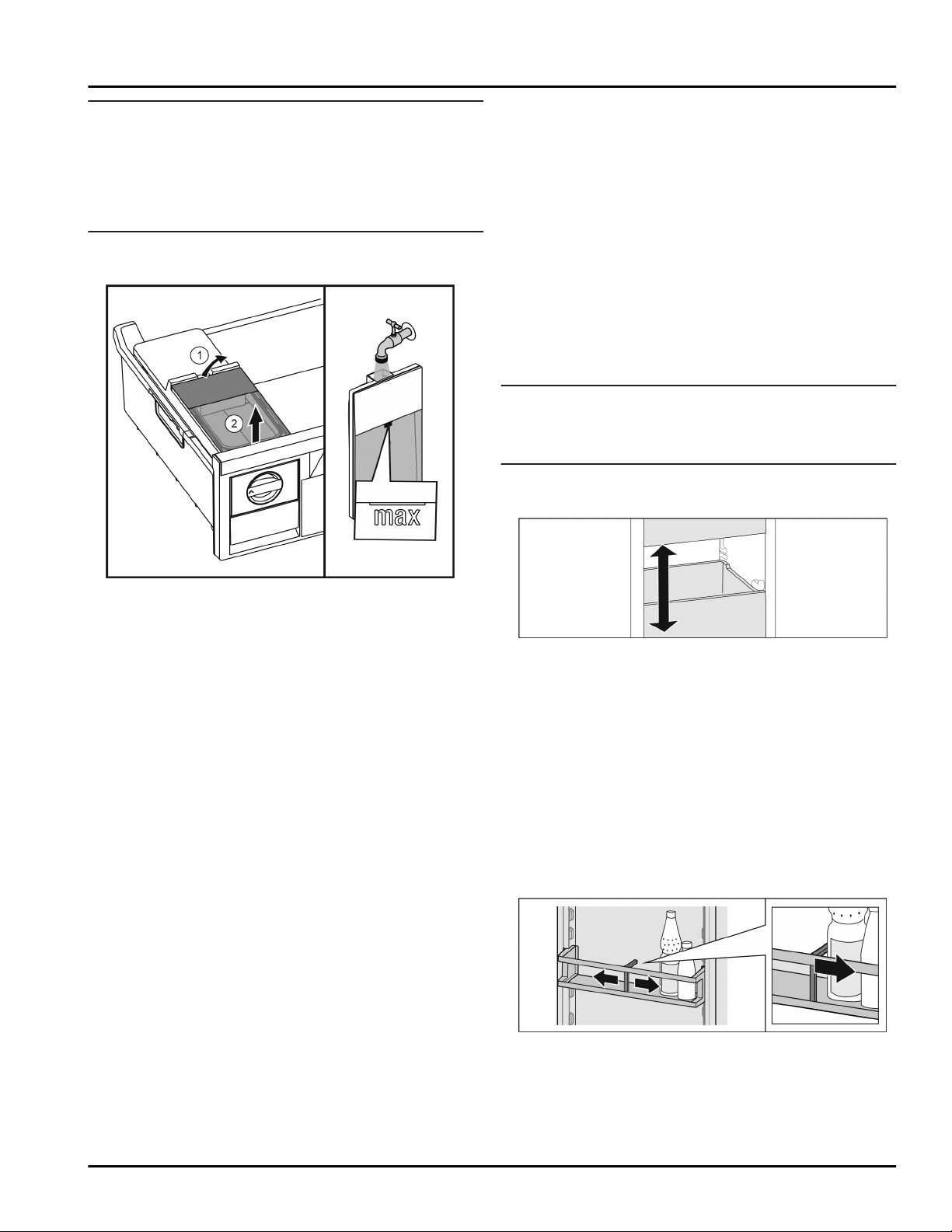

Fig. 37
u
Lift up the water tank at the rear Fig. 37 (1) and take it
out upwards Fig. 37 (2).
u
Fill with drinking water up to the mark.
u
Insert the water tank by reversing the steps
described above.
7.8.2 Producing ice cubes
The production capacity depends on the freezer
temperature. The lower the temperature, the more ice
cubes that can be produced in a certain period.
Maximum capacity of the ice cube drawer – 40 cubes
(2x ice cube production).
Time required for ice cube production – at least 5
hours.
Releasing the ice cubes
u
Turn the knob to the right to its stop limit.
u
If necessary, repeat several times and turn the knob
a little more.
7.9 IceMaker*
The IceMaker is used exclusively for the production of
ice cubes in household quantities.
Make sure that the following conditions are fulfilled
-
IceMaker is cleaned (see 8 Maintenance) .
-
IceMaker drawer is fully inserted.
7.9.1 Producing ice cubes
The production capacity depends on the freezer
temperature The lower the temperature, the more ice
cubes can be produced in a certain period
Once IceMaker is switched on for the first time, it can
take up to 24 hours to produce the first ice cubes.
u
Activate the IceMaker (see 6.2 Operating logic) .
u
To make a large quantity of ice cubes: Activate the
MaxIce (see 6.2 Operating logic) .
u
To make a large quantity of ice cubes: Move or
remove the separators in the IceMaker drawer.*
u
Distribute ice cubes evenly in the drawer to increase
its capacity.
u
Close the drawer: The IceMaker starts making ice
again.
Note
When a certain level is reached in the IceMaker drawer,
it stops making ice cubes. The IceMaker does not fill
the drawer to the very top.
7.10 VarioSpace
Fig. 38
You can remove drawers and glass panels from your
appliance. This provides more room for large food
items such as poultry, joints of meat, large game and
bulky baked goods. You can then freeze these items
whole for later preparation.
u
Note the load limits on the drawers and glass panels
(see 9.1 Technical specifications) .
7.11 Accessories
7.11.1 Bottle rack
Using the bottle rack
Fig. 39
u
Slide the bottle rack at the edges.
w
Stops bottles from tipping over.
Equipment
22 * Depending on model and options
Removing the bottle rack

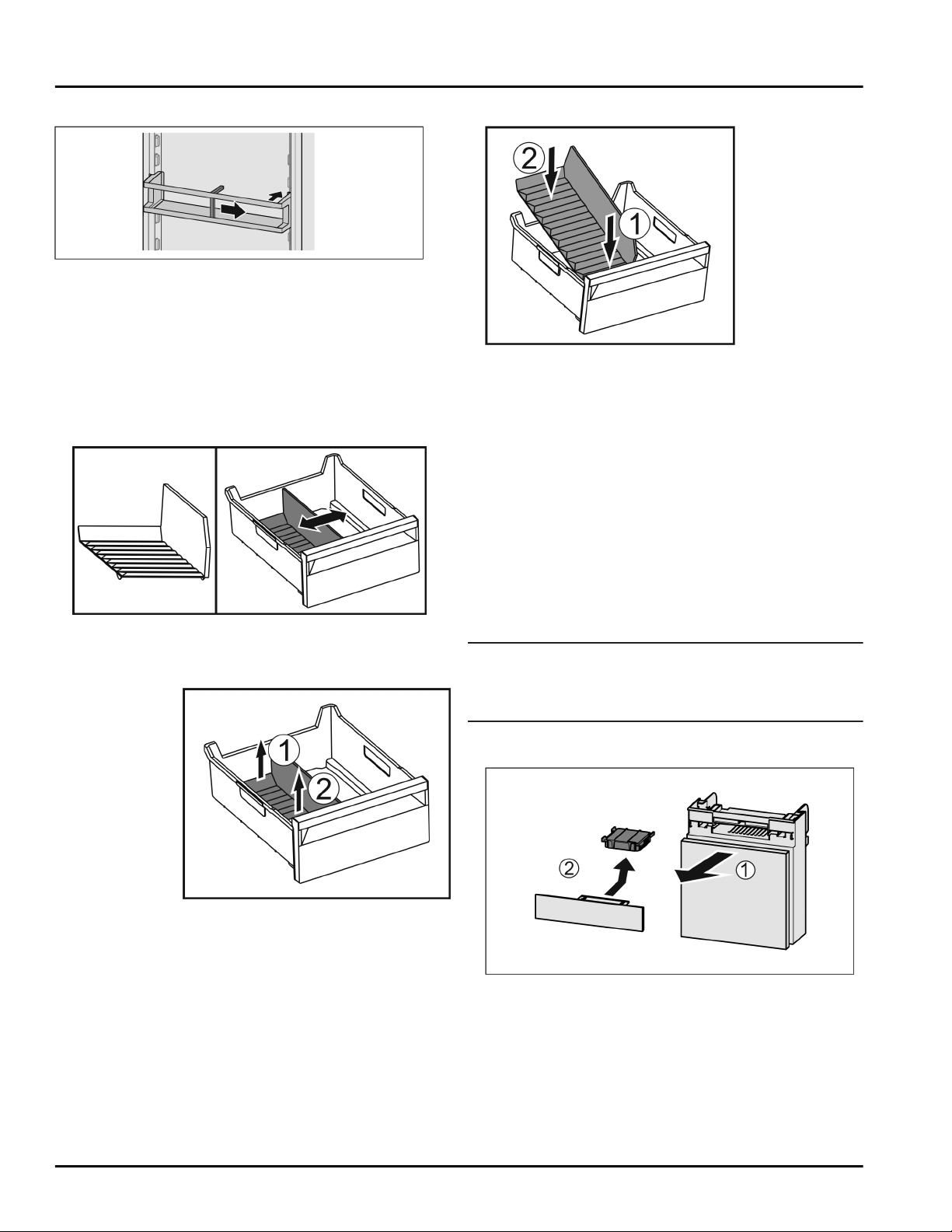

Fig. 40
u
Slide the bottle rack all the way to the right edge.
u
Remove to the back.
7.11.2 Flexible ice compartment divider*
Using the flexible ice compartment divider
Appliances with an IceMaker have a large ice cube tray
with a movable divider so that food can be stored on
the other side if necessary.
Fig. 41
u
Move the divider.
Removing the flexible ice compartment divider
u
Lift the back of the divider Fig. 41 (1).
u
Lift it up and out Fig. 41 (2).
Putting in the flexible ice compartment divider
Fig. 42
u
Put in the divider at the front at first Fig. 42 (1).
u
Lower the rear part Fig. 42 (2).
8 Maintenance
8.1 FreshAir carbon filter
The FreshAir carbon filter is located in the compart‐
ment above the fan.
It guarantees the best air quality.
q
Change the carbon filter every 6 months.
With an active Reminder, a change prompt appears
in the display.
q
You can dispose of the carbon filter with the regular
household waste.
Note
The FreshAir carbon filter is available for purchase
from the Liebherr home appliance store
(home.liebherr.com).
8.1.1 Removing the FreshAir carbon filter
Fig. 43
u
Pull out the compartment Fig. 43 (1).
u
Remove the carbon filter Fig. 43 (2).
Maintenance
* Depending on model and options 23
8.1.2 Inserting the FreshAir carbon filter

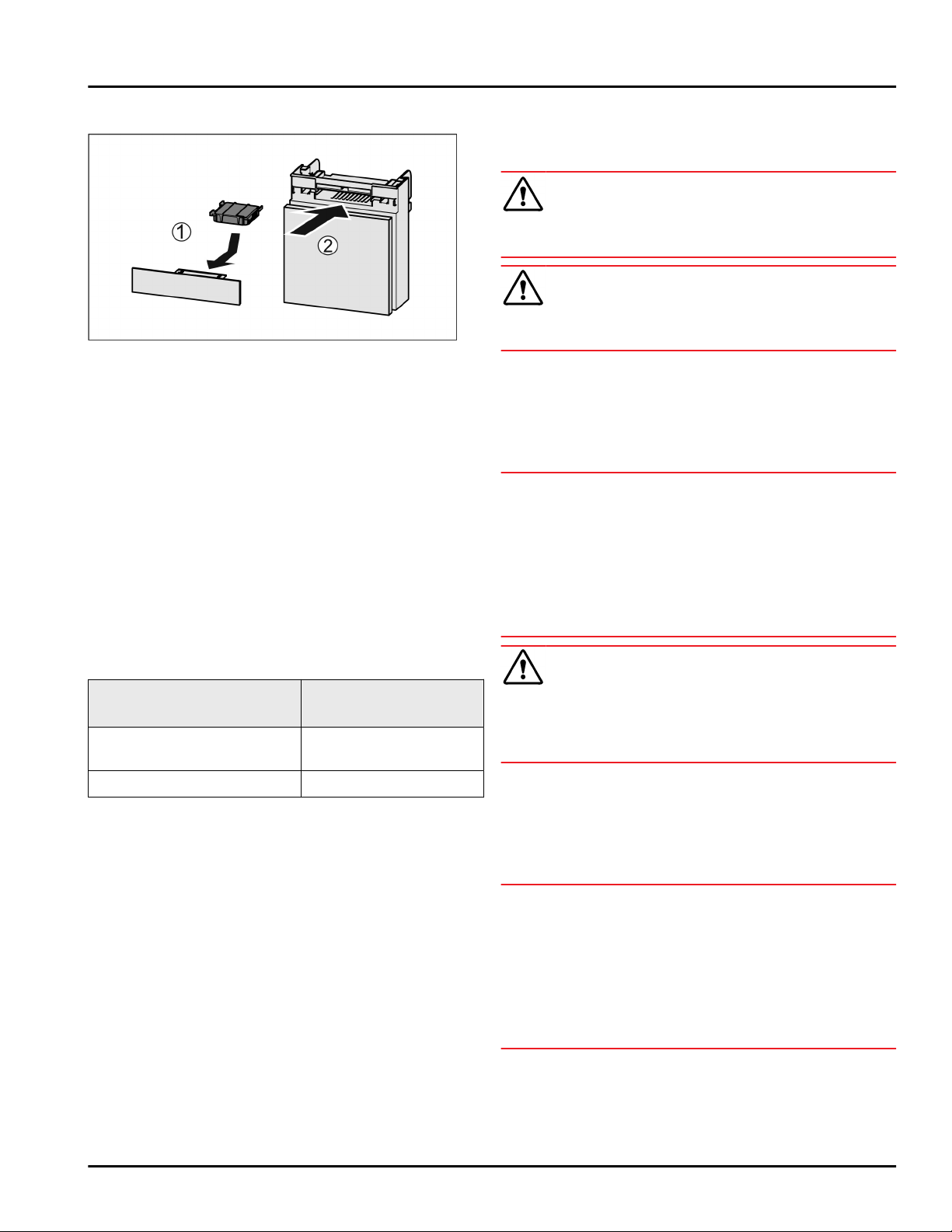

Fig. 44
u
Insert the carbon filter as shown in the diagram
Fig. 44 (1).
w
The carbon filter clicks into place.
If the carbon filter is pointing downwards:
u
Push the compartment in Fig. 44 (2).
w
The carbon filter is now ready for use.
8.2 Disassembling / assembling pull-
out systems
8.2.1 Notes on disassembly
You can disassemble some of the pull-out systems for
cleaning. Your appliance can contain a variety of pull-
out systems.
The following pull-out systems can be disassembled or
cannot be disassembled:
Pull-out system
can be disassembled /
cannot be disassembled
Drawer on appliance base or
glass shelf
cannot be disassembled
Drawer on glide rails cannot be disassembled
8.3 Defrosting the appliance
8.3.1 Defrosting the refrigerator compart‐
ment
Defrosting is performed automatically. The water from
the thawing process runs out via the drain opening and
is evaporated.
u
Clean the drain opening regularly (see 8.4 Cleaning
the appliance) .
8.3.2 Defrosting the freezer compartment
with NoFrost
Defrosting is performed automatically by the NoFrost
system. The moisture condenses on the evaporator and
is periodically defrosted and evaporated.
The appliance does not have to be defrosted.
8.4 Cleaning the appliance
8.4.1 Preparation
WARNING
Danger of electric shock.
u
Unplug refrigerator or disconnect power.
WARNING
Danger of fire
u
Do not damage the refrigerant circuit.
u
Empty appliance.
u
Pull out the power plug.
-or-
u
Activate CleaningMode. (see CleaningMode)
8.4.2 Cleaning the housing
NOTICE
Improper cleaning!
Damage to the appliance.
u
Only use soft cleaning cloths and ph-neutral all-
purpose cleaners.
u
Do not use steel wool or sponges that scour or
scratch.
u
Do not use caustic or abrasive cleaning materials or
those containing sand, chloride, or acids.
WARNING
Risk of injury or damage due to hot steam.
Hot steam can cause scalding/burns and damage to
surfaces.
u
Do not use steam cleaners.
u
Wipe the housing down with soft, clean cloth. If very
dirty, use lukewarm water with a neutral cleaner.
Glass surfaces can also be cleaned with glass
cleaner.
8.4.3 Cleaning the interior
NOTICE
Improper cleaning!
Damage to the appliance.
u
Only use soft cleaning cloths and ph-neutral all-
purpose cleaners.
u
Do not use steel wool or sponges that scour or
scratch.
u
Do not use caustic or abrasive cleaning materials or
those containing sand, chloride, or acids.
u
Plastic surfaces: clean by hand with a soft clean
cloth, lukewarm water and a little detergent.
u
Metal surfaces: clean by hand with a soft clean
cloth, lukewarm water and a little detergent.
Maintenance
24 * Depending on model and options
u
Drain outlet Fig. 1 (9): Remove any deposits with a
thin item such as a cotton bud.
8.4.4 Cleaning the equipment
NOTICE
Improper cleaning!
Damage to the appliance.
u
Only use soft cleaning cloths and ph-neutral all-
purpose cleaners.
u
Do not use steel wool or sponges that scour or
scratch.
u
Do not use caustic or abrasive cleaning materials or
those containing sand, chloride, or acids.
Clean with a soft, clean cloth, lukewarm water and a
little washing up liquid:
- Door racks
- Shelf
- Split shelf
- VarioSafe*
- EasyFresh-Safe
- Drawer
Please note: Do not remove the magnet on the
drawer. The magnet ensures that the IceMaker func‐
tions.*
- Divider in the IceMaker drawer*
Clean in the dishwasher up to 60 °C (140 °F):
- VarioBox*
- Bottle rack
- Holder for the split shelf
- Ice cube tray*
- Ice cube scoop*
u
Disassemble the equipment: see the relevant
section.
u
Clean the equipment.
8.4.5 Cleaning the EasyTwist-Ice*
Cleaning must be conducted in the following situa‐
tions:
q
Operating for the first time
q
Non-use for longer than 48 hours
q
When the appliance requires cleaning
When operating for the first time, longer periods of
disuse and when the appliance requires cleaning

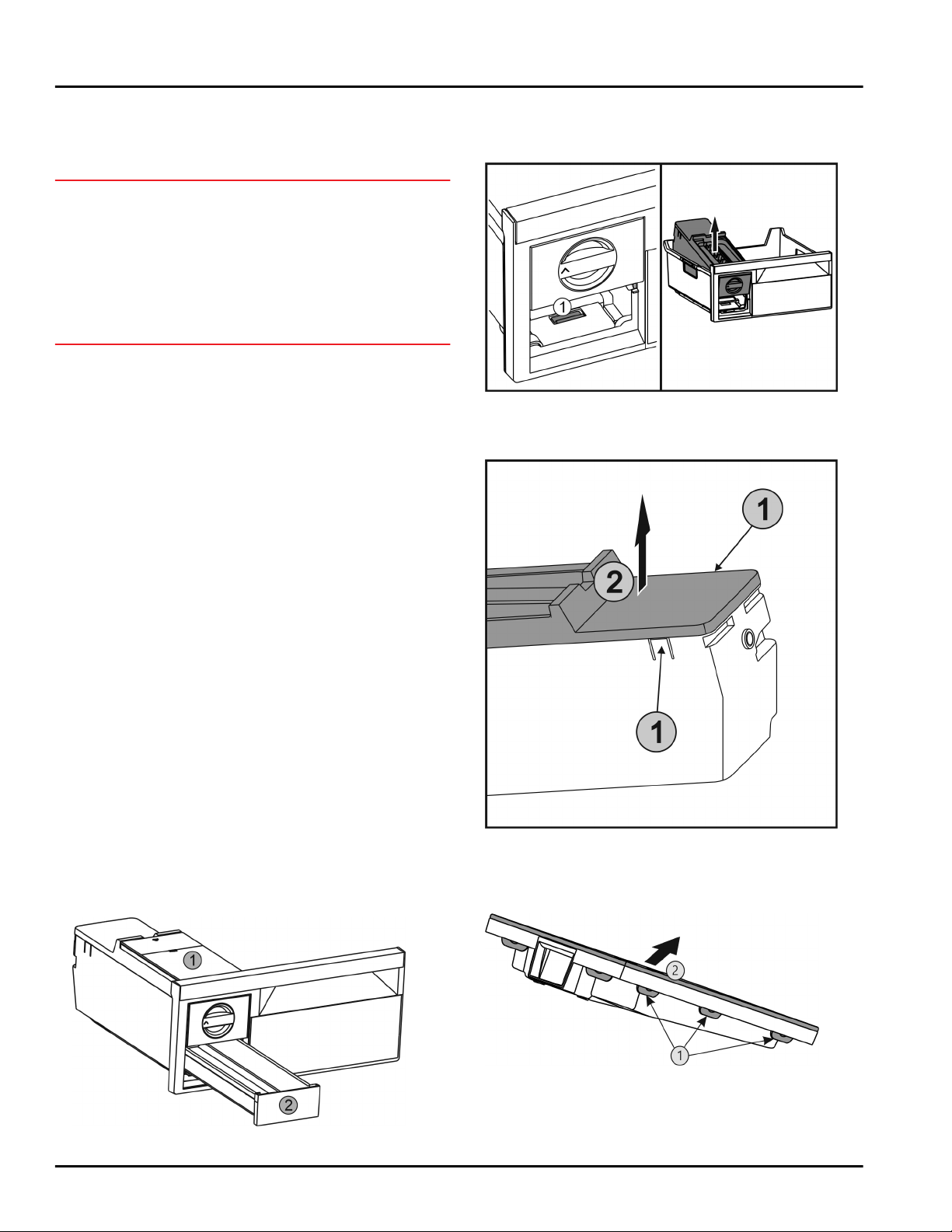

Fig. 45
u
Take out the water tank Fig. 45 (1) and ice cube
drawer Fig. 45 (2).
u
Take out the freezer drawer with EasyTwist-Ice.
Fig. 46
u
Press the lug Fig. 46 (1), lift up the EasyTwist-Ice at
the back and take it out of the freezer drawer.
Fig. 47
u
Press the lugs Fig. 47 (1) on both sides of the Easy‐
Twist-Ice simultaneously and take off the cover
Fig. 47 (2) upwards.
Fig. 48
u
Press all lugs Fig. 48 (1) one after another and remove
the cover Fig. 48 (2).
Maintenance
* Depending on model and options 25
u
Clean the Ice cube drawer, water tank and Easy‐
Twist-Ice with water and a little detergent.
u
Assemble the EasyTwist-Ice.

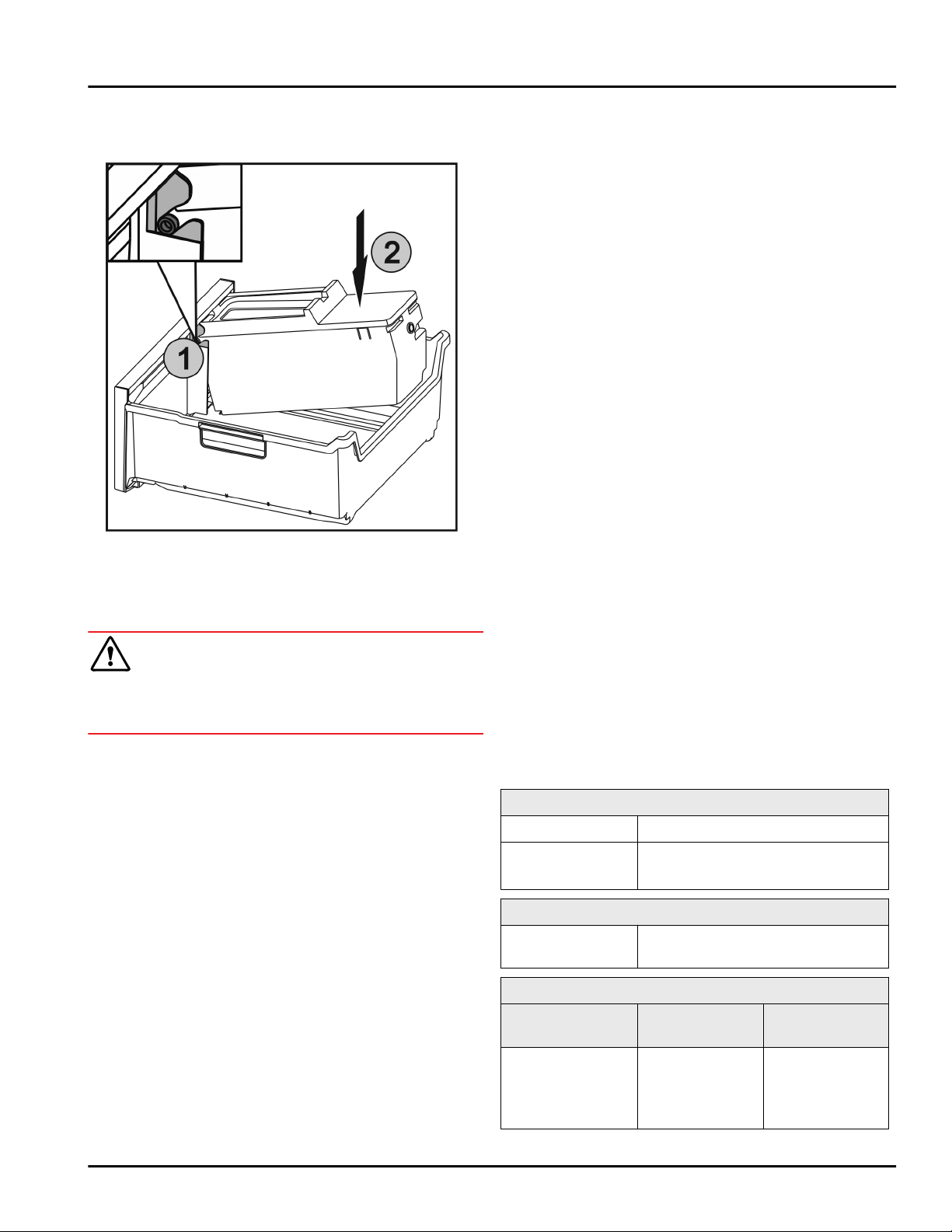

Fig. 49
u
Insert the axles Fig. 49 (1) on the EasyTwist-Ice in the
guides and push the rear side Fig. 49 (2) until the lug
engages.
u
Push in the EasyTwist-Ice drawer.
WARNING
Contaminated water!
Poisoning.
u
Fill with potable water only.
u
Fill the water tank and insert it. (see 7.8.1 Filling the
water tank)
With unfiltered water:
u
Dispose of ice cubes that were produced within 24
hours of the first ice cube production.
With filtered water:
u
Dispose of ice cubes that were produced within 48
hours of the first ice cube production.
8.4.6 Cleaning the IceMaker*
There are various options for cleaning the IceMaker.
We recommend cleaning in the following situations:
q
Initial commissioning
q
If out of use for longer than 5 days.*
Make sure that the following requirements are met:
q
IceMaker drawer is emptied.
q
IceMaker drawer is fully inserted.
q
The IceMaker has been activated. (see 6.2 Operating
logic)
On first use or if not used for prolonged periods
Clean the IceMaker with TubeClean.
u
Place a 1.5 l (1.59 liq qt) empty container (max.
height 10 cm (3.94 in)) in the drawer under the
IceMaker.
u
Activate the TubeClean function. (see 6.2 Operating
logic)
w
The rinse process is prepared (max. 60 min.): The
symbol flashes.
w
Water pipes are rinsed: Symbol flashes.
w
Rinsing process is complete: Function turns off auto‐
matically.
u
Take out the IceMaker drawer and remove the
container.
u
Clean the IceMaker drawer with warm water and a
little detergent.
u
Push in the IceMaker drawer.
w
Ice cube production starts automatically.
u
Dispose of any ice cubes that are produced within 24
hours of the first ice cube production.
When cleaning is required
Clean the IceMaker manually.
u
Remove the IceMaker drawer and clean with warm
water and a little detergent.
u
Push in the IceMaker drawer.
w
Ice cube production starts automatically.
8.4.7 After cleaning
u
Wipe dry the appliance and items of equipment
u
Connect and switch on the appliance.
u
Activate SuperFrost (see 6.3 Functions) .
When the temperature is sufficiently cold
u
Place the food inside.
u
Repeat cleaning regularly.
9 Customer support
9.1 Technical specifications
Temperature zone
Cool: 2 °C (36 °F) to 9 °C (48 °F)
Freezing -26 °C (-15 °F) to -15 °C (5 °F)
to
Maximum freezing capacity / 24 hrs
Freezer See nameplate, “Freezing
capacity … /24h”
Max. door capacity
Number of
drawers, freezer
Top door Bottom door
3 drawers 12 kg
26.46 lb
9 kg
19.84 lb
--
Customer support
26 * Depending on model and options
Max. equipment capacity
Equipment Appliance
width
550 mm
(1.8 ft)
(see
installa‐
tion
instruc‐
tions,
appliance
dimen‐
sions)
Appliance
width
600 mm
(1.97 ft)
(see
installa‐
tion
instruc‐
tions,
appliance
dimen‐
sions)
Appliance
width
700 mm
(2.3 ft)
(see
installa‐
tion
instruc‐
tions,
appliance
dimen‐
sions)
Drawer on glass
shelf
12 kg
26.46 lb
15 kg
33.07 lb
--
Ice cube production with IceMaker
Ice cube produc‐
tion / 24 h
At a temperature of
-18 °C (-0 °F): 1.2 kg (2.65 lb) of
ice cubes
Maximum ice cube
production / 24 h
When the MaxIce function is
active: 1.5 kg (3.31 lb) of ice
cubes
Ice cube production with EasyTwist-Ice*
Time required at -18 °C (-0 °F) approx. 5.5 h
Time required with SuperFrost activated approx. 3 h
9.2 Operating noises
The appliance makes noises while in operation.
-
At less cooling output the appliance saves energy
but takes longer to cool items. The volume is lower.
-
At a higher cooling output the food cools more
quickly. The volume is higher.
Examples:
•
Activated functions (see 6.3 Functions)
•
Running fan
•
Freshly sorted food
•
High ambient temperature
•
Door opened for long periods
Noise
Possible cause Type of noise
Bubbling and
splashing
Coolant is
flowing into the
cooling circuit.
Normal noise
Noise Possible cause Type of noise
Spitting and
hissing
Coolant is
spraying into the
cooling circuit.
Normal noise
Humming The appliance
cools. The
volume depends
on the cooling
output.
Normal noise
Whirring and
murmuring
The fan is
running.
Normal oper‐
ating noise
Clicking Components are
being switched
on and off.
Normal
switching noise
Rattling or
humming
Valves are
active.
Normal
switching noise
Noise Possible
cause
Type of
noise
How to
resolve
Vibration Unsuitable
setup
Error noise Adjust the
feet to
make sure
the appli‐
ance is
horizontal.
Clattering Equipment,
Objects
inside the
appliance
Error noise Secure
equipment
parts.
Leave a gap
between
items.
9.3 Technical faults
Your appliance is designed and manufactured for reli‐
able operation and a long service life. If a malfunction
nonetheless occurs during operation, please check
whether the malfunction is due to an operating error. In
this case, you will have to be charged for the costs
incurred, even during the warranty period.
You may be able to rectify the following faults yourself.
9.3.1 Appliance function
Defect
Cause Remedy
The appliance
does not work.
The appliance is not switched on.
u
Switch on the appliance.
Customer support
* Depending on model and options 27
Defect Cause Remedy
The power plug is not properly
inserted in the wall socket.
u
Check the power plug.
The powerfuse in the wall socket
is not OK.
u
Check the fuse.
Power failure.
u
Keep the appliance closed.
u
Protect your food: Lay freezer packs on top of the
food or use another freezer if the power is off for a
prolonged period.
u
Do not re-freeze defrosted food.
The appliance connector is not
correctly inserted in the appliance.
u
Check the appliance connector.
The temperature
is not cold
enough
This means that the door of the
appliance is not closed properly
u
Close the appliance door
Insufficient ventilation
u
Clear and clean the ventilation grille.
The ambient temperature is too
high
u
Solution: (see 1.4 Range of appliance use) .
The appliance was opened too
frequently or for too long
u
Wait to see whether the required temperature
resets itself by itself. If not, contact Customer
Service (see 9.4 Customer service) .
Too much fresh food was placed
inside without SuperFrost.
u
Solution: (see SuperFrost)
The temperature is incorrectly set
u
Set to a colder temperature and check after 24
hours.
The appliance is too near to a heat
source (stove, heater etc).
u
Change location of appliance or the heat source.
The door seal is
defective or
should be
replaced for
other reasons.
The door seal is interchangeable.
You can replace it without the use
of any special tools.
u
Contact Customer Service (see 9.4 Customer
service) .
The appliance is
iced up or
condensation is
building.
The door seal may have slipped
out of its groove.
u
Check the door seal is well placed in the groove.
The outside
surfaces of the
appliance are
hot*.
The heat of the refrigerant circuit
is used to prevent condensate
from forming
u
This is normal.
9.3.2 Equipment
Defect Cause Remedy
The appliance and therefore the
IceMaker are not connected.
u
Connect the appliance (see Installation Guide).
Customer support
28 * Depending on model and options
Defect Cause Remedy
The IceMaker
cannot be
switched on.*
The IceMaker is
not making any
ice cubes.*
The IceMaker is not switched on.
u
Activate the IceMaker.
The drawer of the IceMaker is not
properly closed
u
Close the drawer properly
The water connection is not open
u
Open the water connection*
The interior light
does not turn on.
The appliance is not switched on.
u
Switch on the appliance.
The door was open for longer than
15 min.
u
The interior light automatically switches itself off
if the door stays open for approx. 15 min.
The LED interior light is faulty or
the lid is damaged.
u
Contact Customer Service (see 9.4 Customer
service) .
9.4 Customer service
First check if you can fix the error yourself
(see 9 Customer support) . If this is not the case,
please contact customer service.
Please refer to the enclosed “Liebherr Service”
brochure for the address.
WARNING
Unprofessional repair!
Injuries.
u
A damaged power cable may only be replaced by the
manufacturer, the manufacturer’s Customer Service
or a similarly qualified person.
u
For appliances with plug and play connection cables,
the change can be made by the customer.
9.4.1 Contact Customer Service
Make sure to have the following appliance information
to hand:
q
Appliance name (model and index)
q
Service no. (service)
q
Serial no. (S no.)
u
Showing appliance info on the display (see Info) .
-or-
u
Referring to appliance info on the nameplate
(see 9.5 Rating plate) .
u
Take note of the appliance information.
u
Inform Customer Service: Tell us the problem and
the appliance details.
w
This will help us give you fast and accurate support.
u
Further instructions from customer service will
follow.
9.5 Rating plate
The nameplate is located behind the drawers on the
inside of the appliance.

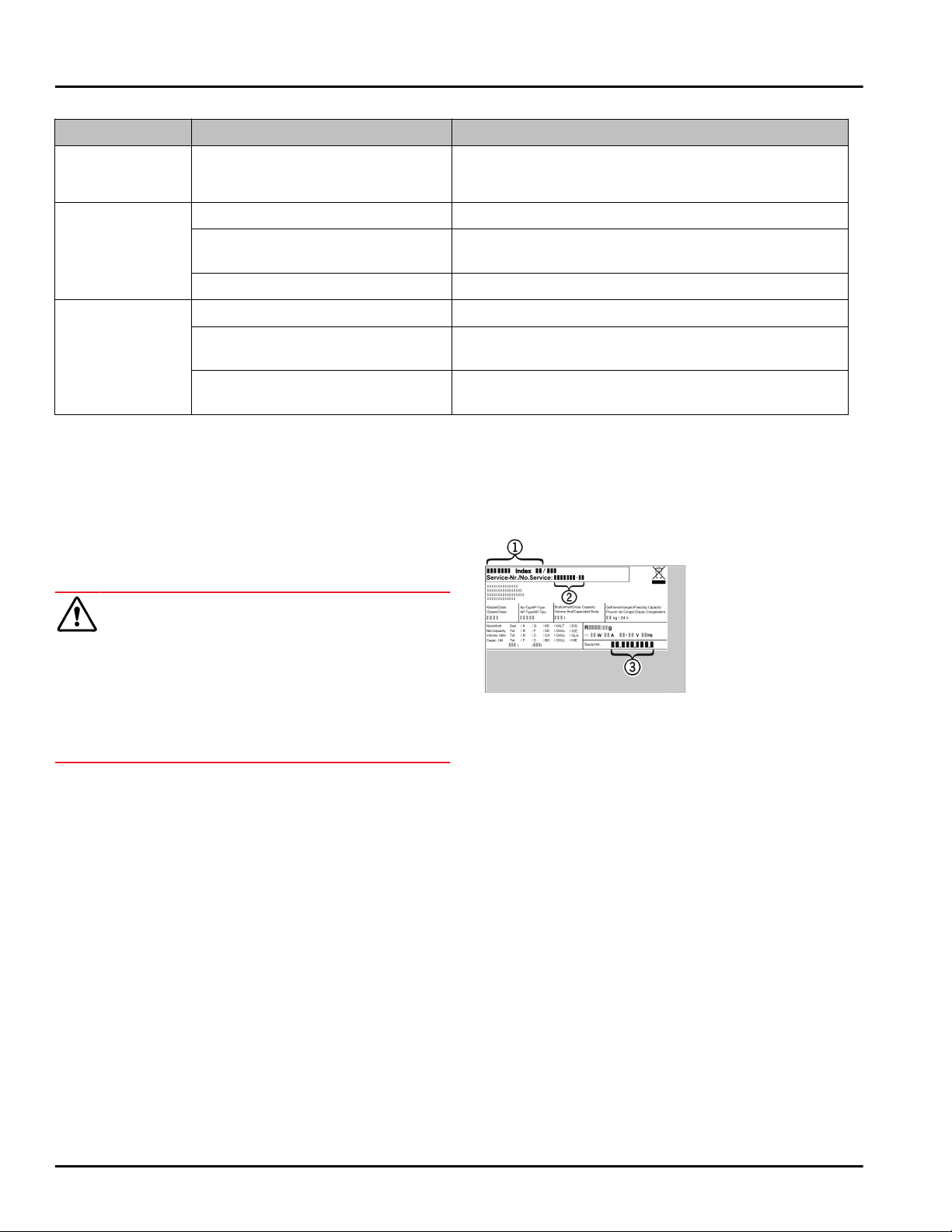

Fig. 50
(1)
Appliance name (3) Serial no.
(2) Service no.
u
Information from the nameplate.
10 Decommissioning
u
Empty appliance.
u
Switch off the IceMaker .*
u
Switch off the appliance .
u
Pull out the power plug.
u
Remove the appliance connector if necessary: Pull it
out and, at the same time, move it from the left to
the right.
u
Clean the appliance (see 8.4 Cleaning the appli‐
ance) .
u
Leave the door open to prevent bad smells
Decommissioning
* Depending on model and options 29
11 Disposal
11.1 Preparing the appliance for
disposal
WARNING
Risk of child entrapment!
Before you throw away your old refrigerator or freezer:
u
Take off the doors.
u
Leave the shelves in place so that children may not
easily climb inside.
Liebherr uses batteries in some of its appli‐
ances. You should remove these before
disposal of the old appliance for environ‐
mental reasons. If your appliance contains
batteries, a corresponding notice is
attached to the appliance.
Lamps If you can remove the lamps yourself
without destroying them, also remove these
before disposal.
u
Take the appliance out of operation.
u
Appliance with batteries: Remove the batteries. For
description, see Maintenance chapter.
u
If possible: Remove lamps without destroying them.
11.2 Disposing of the appliance in an
environmentally friendly manner
The appliance still contains
valuable materials and must
be collected separately from
unsorted municipal waste so
it can be recycled.
Dispose of batteries sepa‐
rately from the old appliance.
Certain batteries should NOT
go in household garbage or
recycling bins. Waste
batteries can always be recy‐
cled or taken to household
hazardous waste collection
points. To prevent fires from
lithium-ion batteries, tape
battery terminals and/or
place batteries in separate
plastic bags and never put
these batteries in household
garbage or recycling bins.
Lamps
Dispose of removed lamps via
the respective collection
systems.
For USA: Check the Responsible Appli‐
ance Disposal (RAD) program
to find a RAD partner near
you.
For Canada: Follow your local guidance
about recycling and disposal
capabilities near you.
WARNING
Leaking refrigerant and oil!
Fire. The refrigerant contained within the appliance is
environmentally friendly, but flammable. The oil
contained within the appliance is flammable. Escaping
refrigerant and oil can ignite if they are of high enough
concentration and are exposed to an external heat
source.
u
Do not damage the pipelines of the coolant circuit
and the compressor.
u
Transport the appliance away without damaging it.
u
Dispose of batteries, lamps, and the appliance
according to the above specifications.
Disposal
30 * Depending on model and options
Disposal
* Depending on model and options 31
home.liebherr.com/fridge-manuals
Combined fridge-freezer
Issue date: 20221130
Part number index: 7080508-00
For Service in the U.S.: Liebherr Service Center
Toll Free: 1-866-LIEBHER or 1-866-543-2437
Service-appliances.us@liebherr.com
PlusOne Solutions, Inc.
3501 Quadrangle Blvd, Suite 120
Orlando, FL 32817
For Service in Canada: Liebherr Service Center
Toll Free: 1-888-LIEBHER or 1-888-543-2437
www.euro-parts.ca
EURO-PARTS CANADA
39822 Belgrave Road, Belgrave, Ontario, N0G 1E0
Phone: (519) 357-3320 | Fax: (519) 357-1326
