Version: V1.00.000
Revised date: 11-16-2020
Statement: LAUNCH owns the complete intellectual property rights for the
software used by this product. For any reverse engineering or cracking actions
against the software, LAUNCH will block the use of this product and reserve the
right to pursue their legal liabilities.
LAUNCH X-431 V V4.0 User Manual
i
Copyright Information
Copyright © 2020 by LAUNCH TECH CO., LTD. All rights reserved. No part of
this publication may be reproduced, stored in a retrieval system, or transmitted
in any form or by any means, electronic, mechanical, photocopying, recording or
otherwise, without the prior written permission of LAUNCH. The information
contained herein is designed only for the use of this unit. LAUNCH is not
responsible for any use of this information as applied to other units.
Neither LAUNCH nor its affiliates shall be liable to the purchaser of this unit or
third parties for damages, losses, costs, or expenses incurred by purchaser or
third parties as a result of: Accident, misuse, or abuse of this unit, or
unauthorized modifications, repairs, or alterations to this unit, or failure to strictly
comply with LAUNCH operating and maintenance instructions. LAUNCH shall
not be liable for any damages or problems arising from the use of any options or
any consumable products other than those designated as Original LAUNCH
Products or LAUNCH Approved Products by LAUNCH.
Trademark Information
LAUNCH is a registered trademark of LAUNCH TECH CO., LTD. (LAUNCH) in
China and other countries. All other LAUNCH trademarks, service marks,
domain names, logos, and company names referred to in this manual are either
trademarks, registered trademarks, service marks, domain names, logos,
company names of or are otherwise the property of LAUNCH or its affiliates. In
countries where any of the LAUNCH trademarks, service marks, domain names,
logos and company names are not registered, LAUNCH claims other rights
associated with unregistered trademarks, service marks, domain names, logos,
and company names. Other products or company names referred to in this
manual may be trademarks of their respective owners. You may not use any
trademark, service mark, domain name, logo, or company name of LAUNCH or
any third party without permission from the owner of the applicable trademark,
service mark, domain name, logo, or company name. You may contact LAUNCH
by visiting the website at www.cnlaunch.com, or writing to LAUNCH TECH. CO.,
LTD., Launch Industrial Park, North of Wuhe Avenue, Banxuegang, Bantian,
Longgang, Shenzhen, Guangdong, P.R.China, to request written permission to
use Materials on this manual for purposes or for all other questions relating to
this manual.
LAUNCH X-431 V V4.0 User Manual
ii
Important Safety Precautions
Important: To avoid personal injury, property damage, or accidental damage to
the product, read all of the information in this section before using the product.
Never collide, throw, or puncture the tool, and avoid falling, extruding and
bending it.
Do not insert foreign objects into or place heavy objects on your device.
Sensitive components inside might cause damage.
Do not use the tool in exceptionally cold or hot, dusty, damp or dry
environments.
In places using the tool may cause interference or generate a potential risk,
please turn it off.
This tool is a sealed unit. There are no end-user serviceable parts inside. All
internal repairs must be done by an authorized repair facility or qualified
technician. If there is any inquiry, please contact the dealer.
Never place the tool into apparatus with strong electromagnetic field.
Keep the tool far away from magnetic devices because its radiations can
damage the screen and erase the data stored on the tool.
DANGER: Do not attempt to replace the internal rechargeable lithium battery.
Contact the dealer for factory replacement.
CAUTION: Please use the included battery and charger. Risk of explosion if
the battery is replaced with an incorrect type.
Precautions on Using This Tool
Before using this tool, please read the following safety information carefully.
Always perform automotive testing in a safe environment.
If the VCI (Vehicle Communication Interface) device is not in use for a long
period of time, it is suggested to unplug the connector from vehicle’s DLC to
conserve battery power.
Wear an ANSI-approved eye shield when testing or repairing vehicles.
The vehicle shall be tested in a well-ventilated work area, as engines produce
various poisonous compounds (hydrocarbon, carbon monoxide, nitrogen
oxides, etc.)
Do not connect or disconnect any test equipment while the ignition is on or
the engine is running.
Put blocks in front of the drive wheels and never leave the vehicle unattended
LAUNCH X-431 V V4.0 User Manual
iii
while testing.
Keep the tool dry, clean, free from oil, water or grease. Use a mild detergent
on a clean cloth to clear the outside of the equipment as necessary.
Do not drive the vehicle and operate the tool at the same time. Any distraction
may cause an accident.
Keep clothing, hair, hands, tools, test equipment, etc. away from all moving or
hot engine parts.
Before starting the engine, put the gear lever in the Neutral position (for
manual transmission) or in the Park (for automatic transmission) position to
avoid injury.
To avoid damaging the tool or generating false data, please make sure the
vehicle battery is fully charged and the connection to the vehicle DLC (Data
Link Connector) is clear and secure.
Automotive batteries contain sulfuric acid that is harmful to skin. In operation,
direct contact with the automotive batteries should be avoided. Keep the
ignition sources away from the battery at all times.
Precautions on Operating Vehicle’s ECU
Do not disconnect battery or any wiring cables in the vehicle when the ignition
switch is on, as this could avoid damage to the sensors or the ECU.
Do not place any magnetic objects near the ECU. Disconnect the power
supply to the ECU before performing any welding operations on the vehicle.
Use extreme caution when performing any operations near the ECU or
sensors. Ground yourself when you disassemble PROM, otherwise ECU and
sensors can be damaged by static electricity.
When reconnecting the ECU harness connector, be sure it is attached firmly,
otherwise electronic elements, such as ICs inside the ECU, can be damaged.
LAUNCH X-431 V V4.0 User Manual
iv
TABLE OF CONTENTS
1 INTRODUCTION ............................................................................................. 1
1.1 PRODUCT PROFILE ..................................................................................... 1
1.2 PACKAGE LIST ........................................................................................... 2
1.3 COMPONENTS & CONTROLS ....................................................................... 2
1.3.1 Display Tablet .................................................................................... 3
1.3.2 VCI (Only applies to 12V cars) .......................................................... 4
1.4 TECHNICAL PARAMETERS ........................................................................... 5
2 INITIAL USE .................................................................................................... 7
2.1 CHARGING THE TABLET .............................................................................. 7
2.2 POWER ON/OFF .......................................................................................... 7
2.2.1 Power on ........................................................................................... 7
2.2.2 Power off ........................................................................................... 7
2.3 BASIC GESTURES ....................................................................................... 8
2.4 SCREEN LAYOUT ........................................................................................ 8
2.5 ADJUST BRIGHTNESS ................................................................................. 8
2.6 SET STANDBY TIME .................................................................................... 9
2.7 CHANGE SYSTEM LANGUAGE ...................................................................... 9
3 NETWORK SETUP ....................................................................................... 10
3.1 CONNECT TO A WLAN NETWORK.............................................................. 10
3.2 DISCONNECT FROM A WLAN NETWORK .................................................... 10
4 GETTING STARTED ..................................................................................... 11
4.1 DIAGNOSIS FLOWCHART ........................................................................... 11
4.2 REGISTER & DOWNLOAD DIAGNOSTIC SOFTWARE ..................................... 11
4.3 JOB MENU ............................................................................................... 14
4.4 DIAGNOSTICS TOOLBAR ............................................................................ 16
4.5 CONNECTIONS ......................................................................................... 16
4.5.1 Preparation ..................................................................................... 16
LAUNCH X-431 V V4.0 User Manual
v

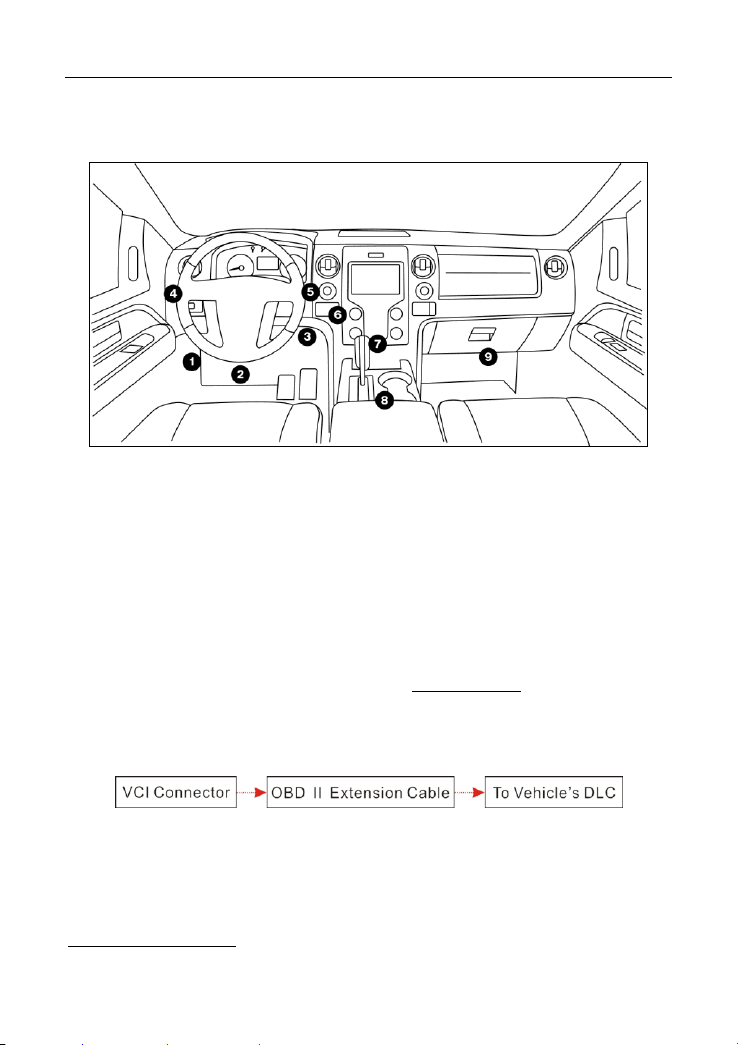

4.5.2 DLC location ................................................................................... 16

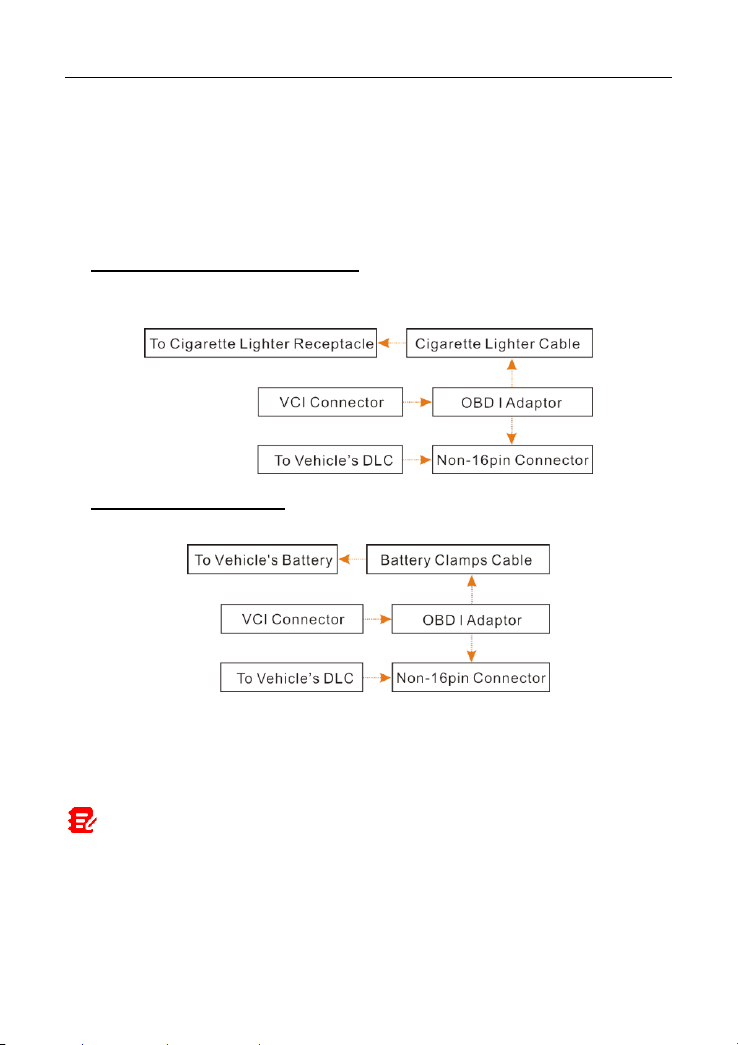

4.5.3 Vehicle connection .......................................................................... 17
4.6 COMMUNICATION SETUP........................................................................... 18

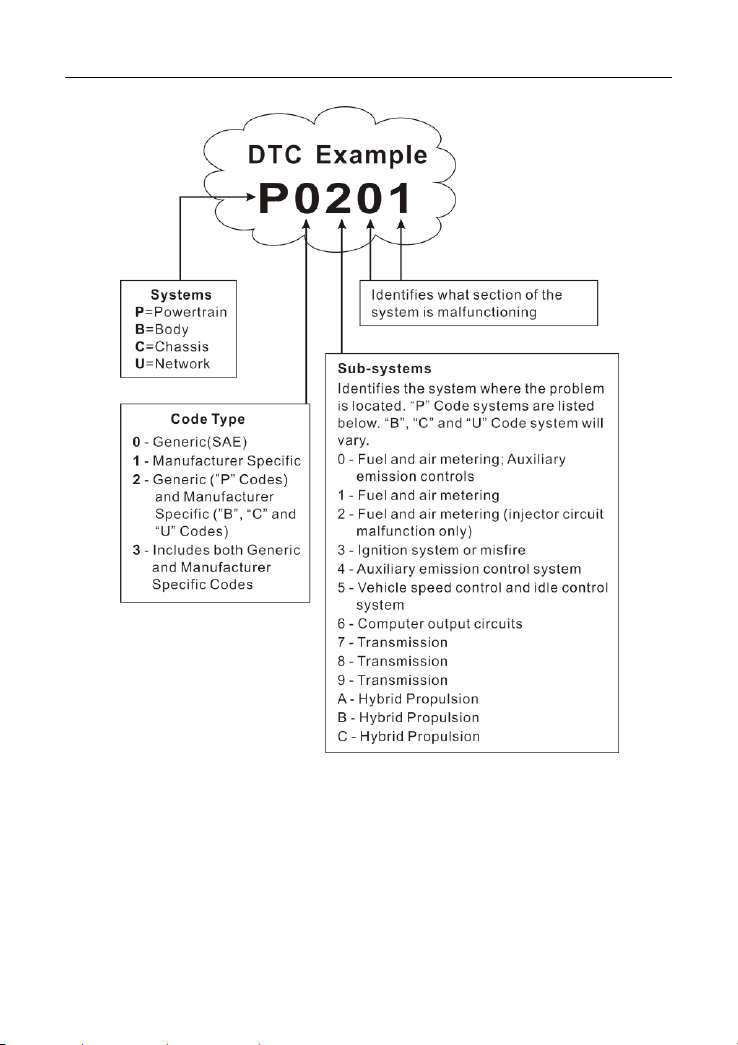

4.7 DIAGNOSTIC TROUBLE CODES (DTCS) ...................................................... 18
5 DIAGNOSIS................................................................................................... 21
5.1 INTELLIGENT DIAGNOSIS ........................................................................... 21
5.2 LOCAL DIAGNOSIS .................................................................................... 25
5.2.1 Health Report (Quick Test) .............................................................. 27

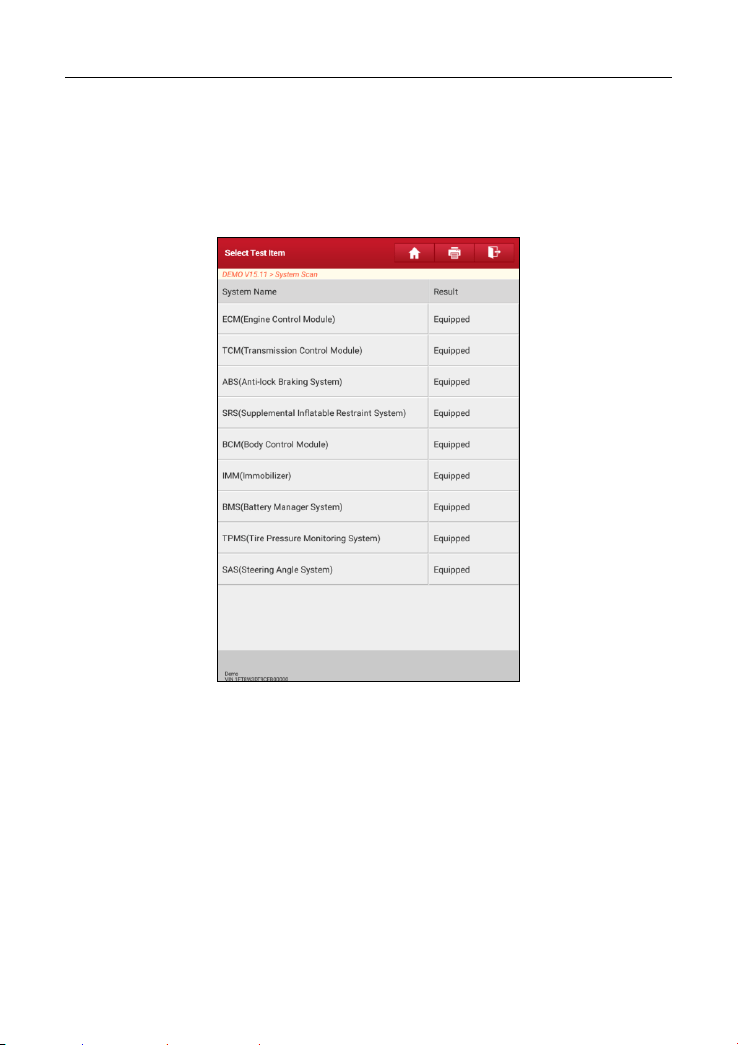

5.2.2 System Scan ................................................................................... 30
5.2.3 System Selection ............................................................................ 30
5.3 REMOTE DIAGNOSIS ................................................................................. 39

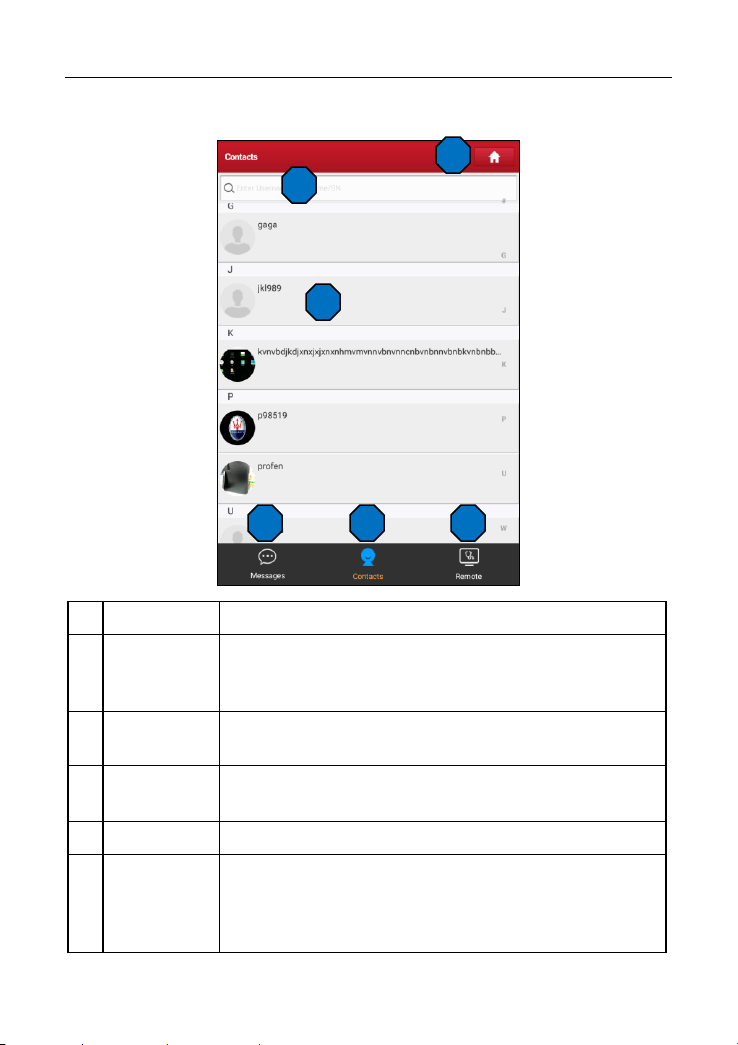

5.3.1 Interface Layout .............................................................................. 40

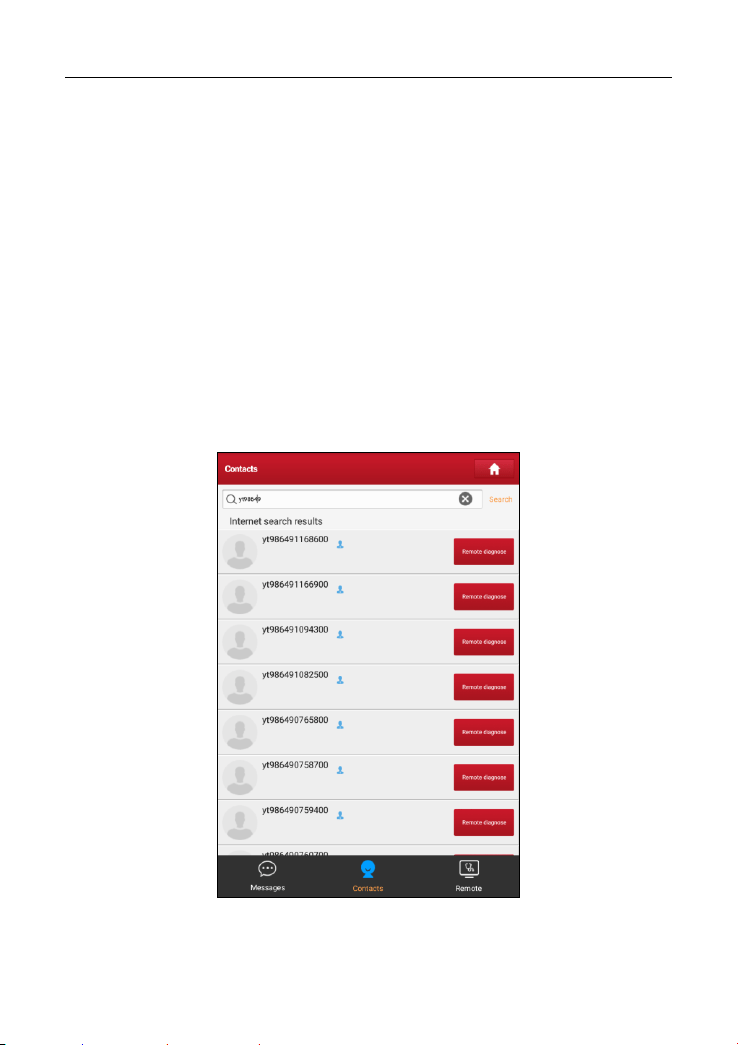

5.3.2 Add Friends ..................................................................................... 41
5.3.3 Start Instant Messaging ................................................................... 43
5.3.4 Launch Remote Diagnosis (Device-To-Device) ............................... 44

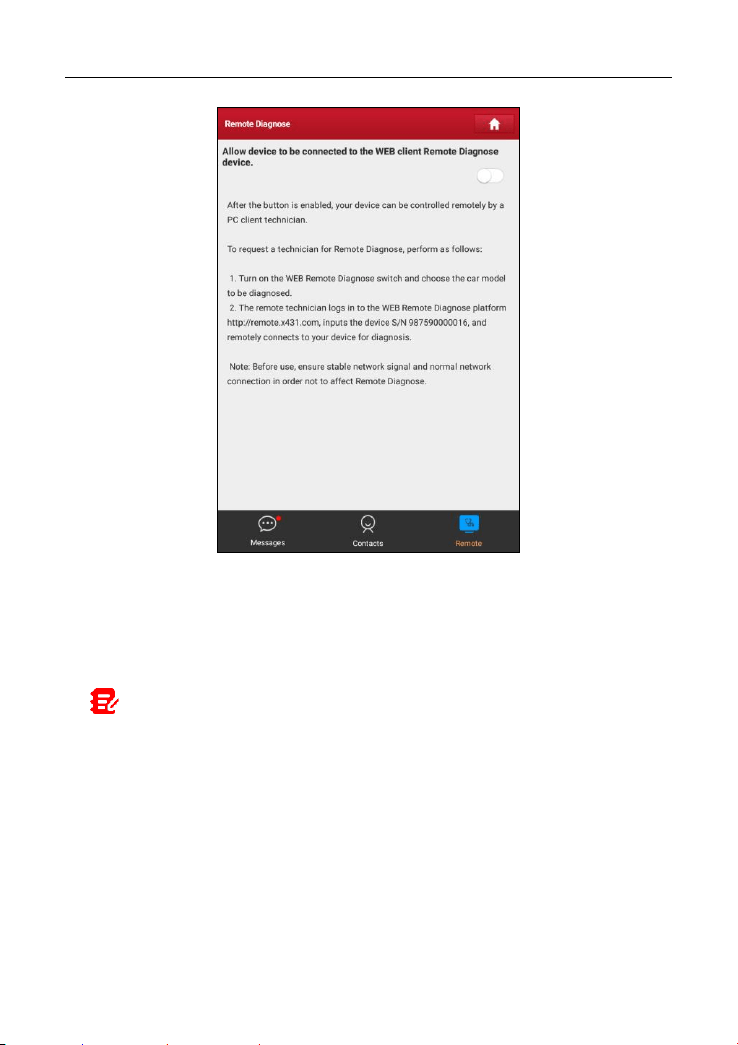

5.3.5 Launch Remote Diagnosis (Device-To-PC) ..................................... 47

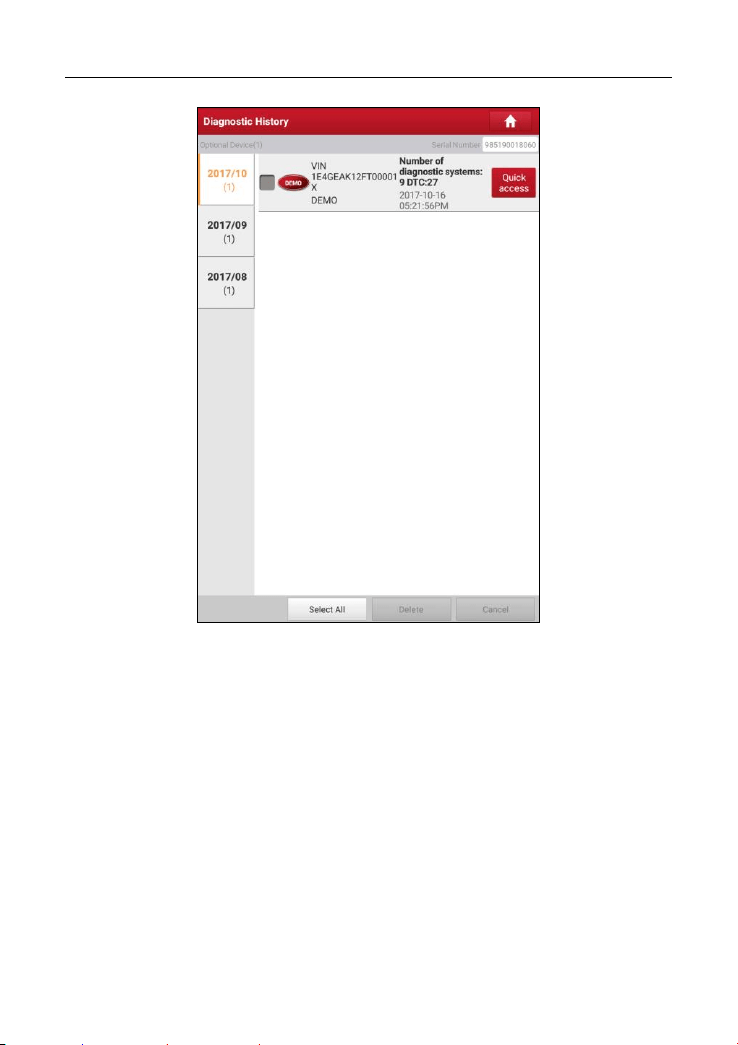

5.4 DIAGNOSTIC HISTORY .............................................................................. 50
6 SPECIAL (RESET) FUNCTION ..................................................................... 52
6.1 OIL RESET SERVICE ................................................................................. 53
6.2 ELECTRONIC PARKING BRAKE RESET........................................................ 53
6.3 STEERING ANGLE CALIBRATION ................................................................ 54
6.4 ABS BLEEDING ........................................................................................ 54
6.5 TIRE PRESSURE MONITOR SYSTEM RESET ................................................ 54
6.6 GEAR LEARNING ...................................................................................... 54
6.7 IMMO SERVICE........................................................................................ 55
6.8 INJECTOR CODING.................................................................................... 55
6.9 BATTERY MAINTENANCE SYSTEM RESET................................................... 56
6.10 DIESEL PARTICULATE FILTER (DPF) REGENERATION ............................... 56
6.11 ELECTRONIC THROTTLE POSITION RESET ............................................... 56
6.12 GEARBOX MATCHING ............................................................................. 57
LAUNCH X-431 V V4.0 User Manual
vi
6.13 AFS (ADAPTIVE FRONT-LIGHTING SYSTEM) RESET .................................. 57
6.14 SUNROOF INITIALIZATION ........................................................................ 57
6.15 SUSPENSION CALIBRATION ..................................................................... 57
7 SOFTWARE UPDATE ................................................................................... 58

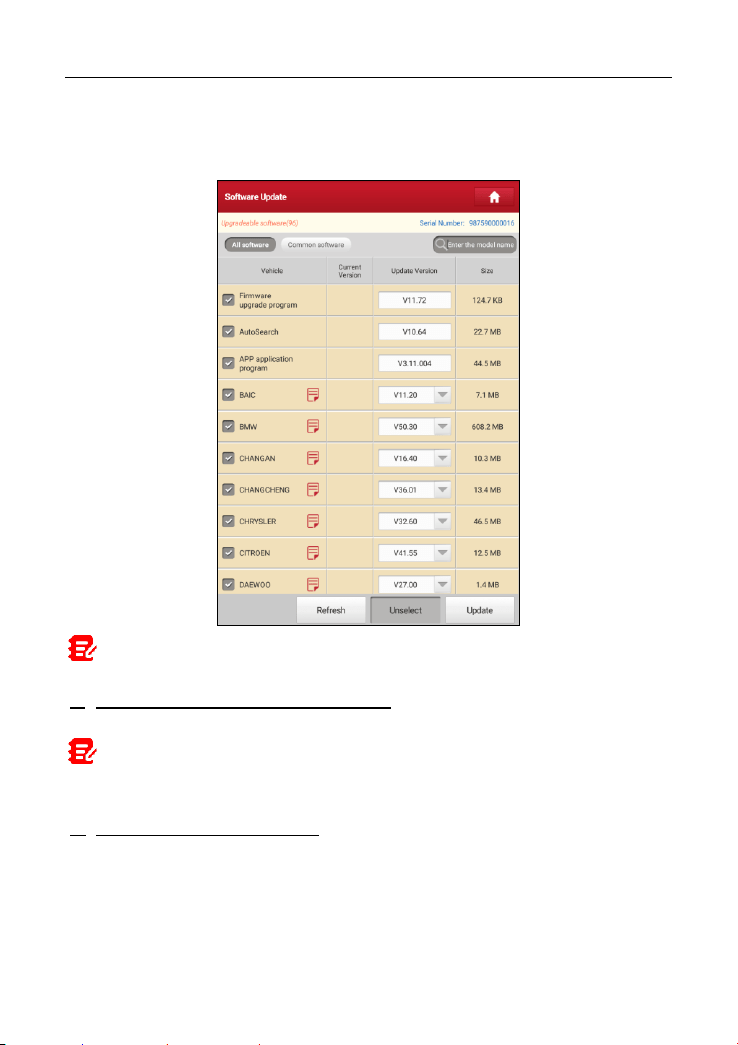

7.1 UPDATE DIAGNOSTIC SOFTWARE & APP ................................................... 58
7.2 SET FREQUENTLY USED SOFTWARE .......................................................... 59
7.3 RENEW SUBSCRIPTION ............................................................................. 59
8 FEEDBACK ................................................................................................... 61
9 USER INFO ................................................................................................... 62

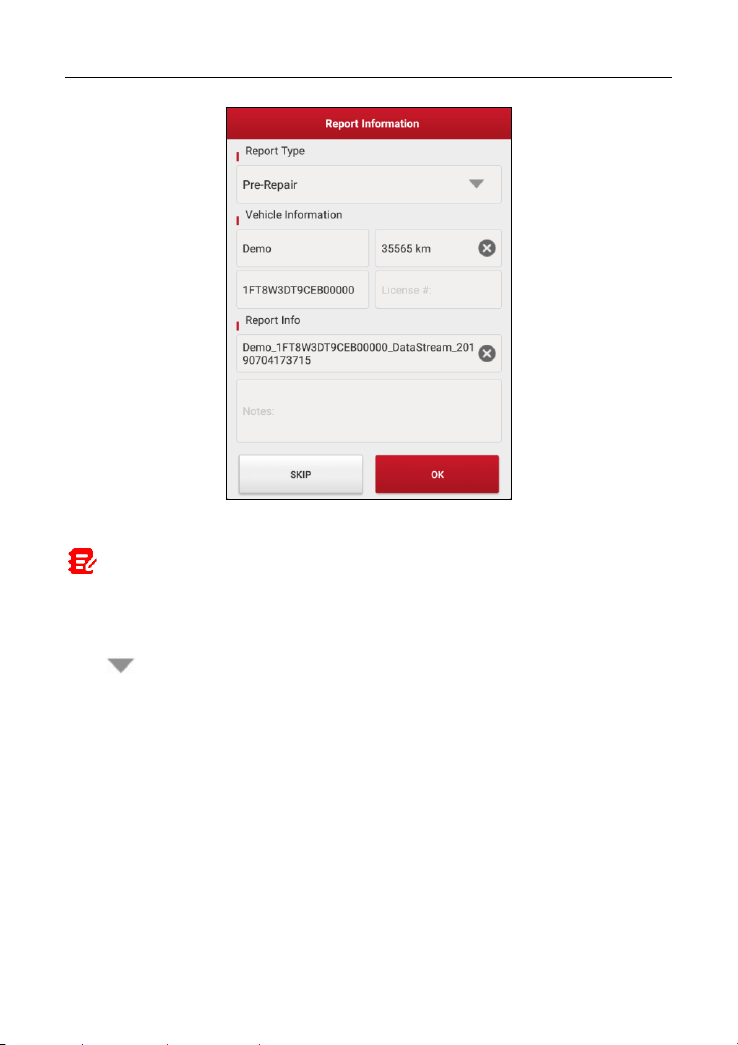

9.1 MY REPORT ............................................................................................. 62
9.2 VCI ......................................................................................................... 64
9.3 VCI MANAGEMENT ................................................................................... 64
9.4 ACTIVATE VCI .......................................................................................... 64
9.5 FIRMWARE FIX ......................................................................................... 65
9.6 MY NEWS ................................................................................................ 65
9.7 MY ORDER .............................................................................................. 65
9.8 SUBSCRIPTION RENEWAL CARD ................................................................ 65
9.9 PROFILE .................................................................................................. 65
9.10 CHANGE PASSWORD .............................................................................. 66
9.11 SETTINGS .............................................................................................. 66
9.11.1 Units of Measurement ................................................................... 66
9.11.2 Shop Information ........................................................................... 66
9.11.3 Printer Set ..................................................................................... 66
9.11.4 Orientation ..................................................................................... 68
9.11.5 Clear Cache .................................................................................. 68
9.11.6 About ............................................................................................. 68
9.11.7 Login/Logout.................................................................................. 68
10 OTHERS ...................................................................................................... 69
10.1 SYNCHRONIZATION ................................................................................. 69
LAUNCH X-431 V V4.0 User Manual
vii
10.1.1 Connect to PC ............................................................................... 69
10.1.2 Run on PC .................................................................................... 69
10.1.3 Install an application ...................................................................... 69
10.2 CLEAR CACHE ........................................................................................ 69
11 FAQ ............................................................................................................. 70
LAUNCH X-431 V V4.0 User Manual
1
1 Introduction
1.1 Product Profile
X-431 V V4.0 adopts a higher performance-price ratio display tablet, which is
equipped with Android operating system and 8” HD capacitive touch screen. It
inherits from LAUNCH’s advanced diagnosing technology and is characterized
by covering a wide range of vehicles, featuring powerful functions, and providing
precise test result.
Through the simple Bluetooth communication between the VCI (Vehicle
Communication Interface) device and the display tablet, it achieves full car
model and full system vehicle trouble diagnosis, which include Reading DTCs,
Clearing DTCs, Reading Data Stream, Actuation Test and Special Functions.
Moreover, taking advantage of the mobile Internet, it also integrates One-click
Update, Remote Diagnosis and Repair Data, which helps to diagnose vehicle
issues more efficiently, and greatly increase customer’s retention and boost
shop revenue.
It supports the following functions and advantages:

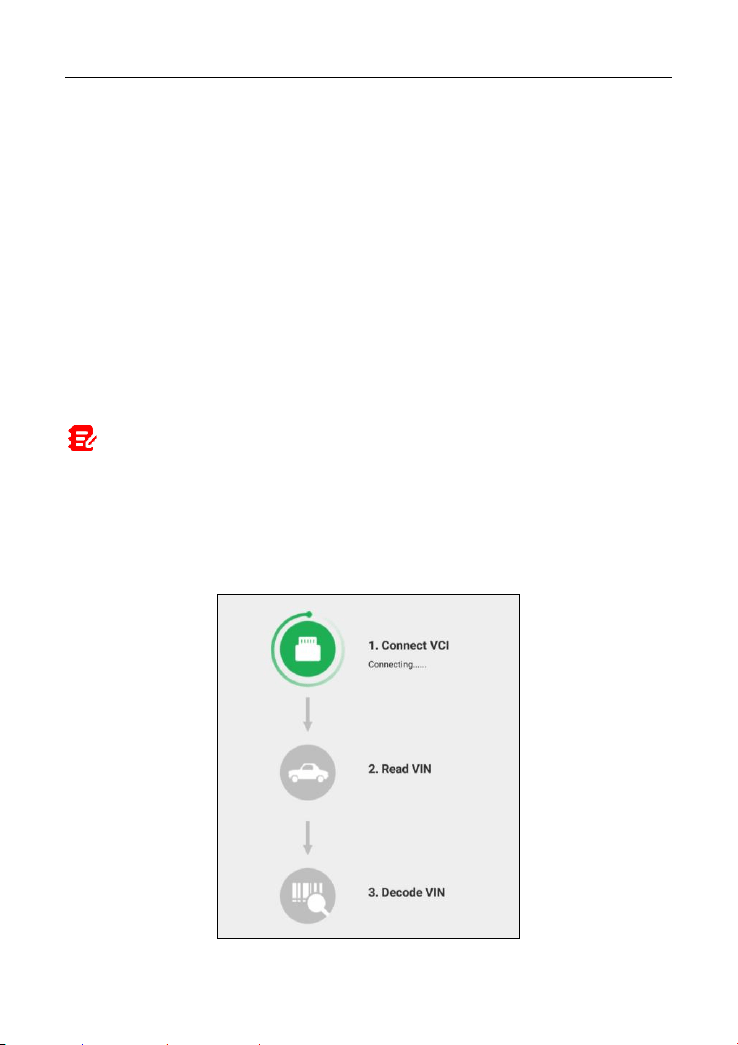

Intelligent Diagnosis: This module allows you to use the VIN information of
the currently identified vehicle to access its data (including vehicle information,
historical diagnostic records) from the cloud server to perform quick test.
Local Diagnosis: Follow the on-screen prompts to start diagnostic session

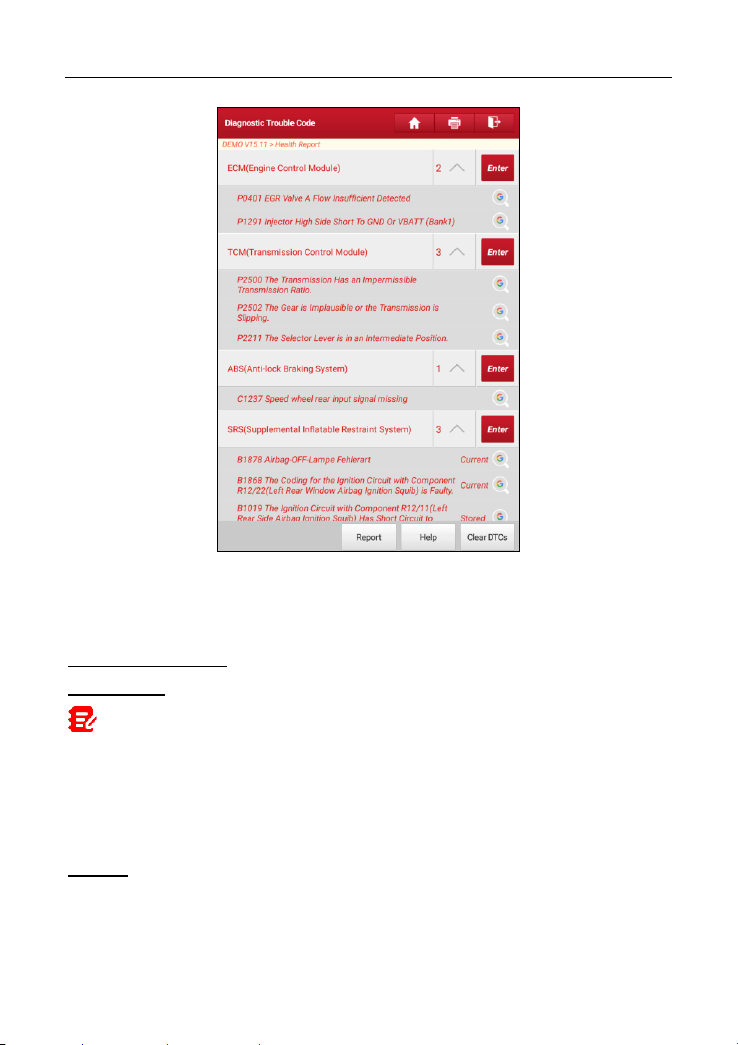

step by step. Diagnosis functions include: Read DTCs, Clear DTCs, Read
Data Stream, Special Functions etc.

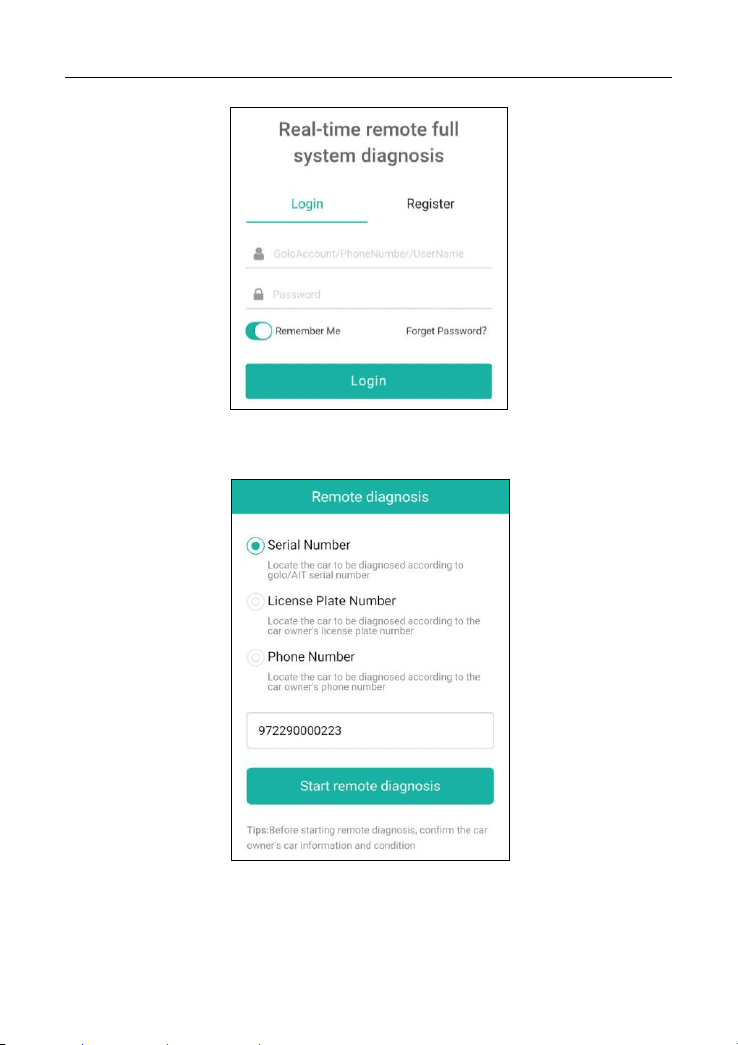

Remote Diagnosis: This option aims to help repair shops or technicians
launch instant messaging and remote diagnosis, making the repair job getting
fixed faster.
Reset: All kinds of common maintenance and reset items including Oil lamp
reset, DPF regeneration, ABS bleeding can be done.
One-click Update: Lets you update your diagnostic software online.
Diagnostic History: This function provides a quick access to the tested
vehicles and users can choose to view the test report or resume from the last
operation, without the necessity of starting from scratch.
Diagnostic Feedback: Enables you to submit the vehicle issue to us for
analysis and troubleshooting.
Vehicle Coverage: Quick dial to view the vehicle models that the tool covers.
LAUNCH X-431 V V4.0 User Manual
2
1.2 Package List
Common accessories are same, but for different destinations, the accessories
(such as diagnostic software, testing connectors) may vary. Please consult from
the local agency or check the package list supplied with this tool together.
No.
Item
Descriptions
Qt.
1
Display tablet
Indicates the test result.
1
2
VCI device
Collects the vehicle data and sends it
to the tablet for analysis.
1
3
OBD II extension
cable
To connect the VCI connector to the
OBD II vehicle’s DLC.
1
4
Password envelope
A piece of paper bearing the product
Serial Number and Activation Code for
product registration.
1
5
Power adaptor
For charging the tablet via AC outlet.
1
6
Cigarette lighter
cable
To supply power to the non-16pin
connector from the vehicle’s cigarette
lighter receptacle.
(Optional)
7
Battery clamps
cable
To supply power to the non-16pin
connector from the vehicle’s battery.
(Optional)
8
USB/Charging
cable
Connect the power adaptor to charge
the tablet.
1
9
OBD I adaptor box
For connecting the VCI connector and
non-16pin adaptor cable.
(Optional)
10
Non-16pin adaptor
cable kit
To connect to the vehicle equipped
with non-OBD II management system.
(Optional)
1.3 Components & Controls
There are two main components to the X-431 V V4.0 system:
LAUNCH X-431 V V4.0 User Manual
3
Display Tablet – the central processor and monitor for the system (See
Chapter “1.3.1”).
VCI Device – the device for accessing vehicle data (See Chapter “1.3.2”).
1.3.1 Display Tablet
The tablet acts as the central processing system, which is used to receive and
analyze the live vehicle data from the VCI device and then output the test result.
1
Slot for VCI device
For housing the VCI.
The VCI is pre-installed in this slot on the top of
the display tablet. Use the hand to press the
VCI once, it will be automatically ejected from
the docking slot.
When the VCI is not in use, please insert it into
this slot to avoid loss.
2
Ambient light
sensor
3
Front camera
4
VOLUME +/- Key
To adjust the volume.
LAUNCH X-431 V V4.0 User Manual
4
5
POWER Key
In Off mode, press it for 3 seconds to turn the
tablet on.
In On mode:
• Press it to wake it up if the screen is black.
• Press it to enter sleep mode if the screen
lights up.
• Press it for 3 seconds to turn it off.
• Press it for 8 seconds to perform forced
shutdown.
6
LCD Screen
7
Rear Camera
8
Audio Speakers
9
USB/Charging
Port
• To connect to AC outlet for charging.
• To connect to PC for data exchange.
1.3.2 VCI (Only applies to 12V cars)
The VCI works as a vehicle communication interface device, which is used to
connect to the vehicle’s DLC (Data Link Connector) socket directly or via OBD II
extension cable to read the vehicle data and then send it to the tablet via
Bluetooth.
It is pre-installed in the docking slot on the top of the display tablet. Use the hand
to press the VCI once, it will be automatically ejected from the docking slot.
When it is not in use, please insert it into the slot to avoid loss.
LAUNCH X-431 V V4.0 User Manual
5
1
OBD-16 diagnostic
connector
To connect on vehicle’s OBD II DLC(Data Link
Connector) socket.
2
Mode LED
It illuminates red when the VCI device is
connected to the vehicle’s DLC.
Blue indicates the VCI device is working in
wireless (BT) communication mode.
1.4 Technical Parameters
Display tablet
Operating system
Android
Memory
3GB
Storage
32GB
Screen
8 inch high-definition capacitive touch screen
with a resolution of 1280 x 800 pixels
Camera
Front-facing 2.0MP camera + Rear-facing
LAUNCH X-431 V V4.0 User Manual
6
5.0MP camera
Working temperature
0℃ ~ 50℃
Storage temperature
-20℃ ~ 70℃
VCI device:
Working voltage
9 ~18V
Working temperature
0℃ ~ 50℃
Relative humidity
20% ~ 90%
LAUNCH X-431 V V4.0 User Manual
7
2 Initial Use
2.1 Charging the Tablet
1. Plug one end of the included charging port of the tool, and the other end to
the power adaptor.
2. Connect the other end to the AC outlet.
If appears on the screen, it indicates it is being charged. If the logo changes
into , it indicates that the battery is fully charged. Unplug the power adaptor
from the tablet.
Caution: Please use the included power adaptor to charge your tool. No
responsibility can be assumed for any damage or loss caused as a result of using power
adaptors other than the one supplied.
Notes:
If the battery remains unused for a long period of time or the battery is completely
discharged, it is normal that the tool will not power on while being charged. Please
charge it for a period of 5 minutes and then turn it on.
While the tablet has low battery, a beep will sound. If it is very low, the tablet will be
switched off automatically.
2.2 Power on/off
2.2.1 Power on
Press [POWER] to turn the tool on.
Note: If it is the first time you have used this tool or the tool remains idle for a
long period of time, the tool could fail to turn on. Please charge the tool for a minimum
of 5 minutes and attempt to turn on again.
2.2.2 Power off
Press [POWER] for 3 seconds, an option menu will pop up on the screen. Tap
“Power off” to turn the tool off.
LAUNCH X-431 V V4.0 User Manual
8
2.3 Basic Gestures
Single-tap: To select an item or launch a program.
Double-tap: To zoom in so that the text on a webpage
appears in a column that fits your device’s screen.
Long press: Tap and hold on the current interface or
area until a contextual menu pops up on the screen,
and then release it.
Slide: To jump to different pages.
Drag: Tap the application icon and drop it to other
location.
Spread apart/pinch together: To zoom in manually,
place two fingers on the screen and then spread them
apart. To zoom out, place two fingers apart on the
screen and then pinch them together.
2.4 Screen Layout
There are four on-screen buttons available on the bottom of the screen.
BACK
Tap it to return to the previous screen.
HOME
Tap it to navigate to the Android’s home screen.
Recent Apps
Tap it to view the recently launched applications.
Screenshot
Tap it to capture the current screen.
2.5 Adjust Brightness
Note: Reducing the brightness of the screen is helpful to conserve the battery
power.
1. On the home screen, tap Settings -> Display -> Brightness level.
2. Drag the slider to adjust it.
LAUNCH X-431 V V4.0 User Manual
9
2.6 Set Standby Time
If no activities are made within the defined standby period, the screen will be
locked automatically and the system enters sleep mode to save power.
1. On the home screen, tap Settings -> Display -> Advanced -> Sleep.
2. Choose the desired sleep time.
2.7 Change System Language
The tool supports multiple system languages. To change the language of the
tool, please do the following:
1. On the home screen, tap Settings -> System -> Language & input ->
Languages.
2. Tap Add a language, and then choose the desired language from the list.
3. Tap and hold the desired language and drag it to the top of the screen and
then release it, the system will change into the target language.
LAUNCH X-431 V V4.0 User Manual
10
3 Network Setup
Note: If you don’t need to use WLAN for a while, you can turn it off to conserve
battery life.
The tablet has built-in WLAN module that can be used to get online. Once you’re
online, you can register your tool, surf the Internet, get apps, send email, launch
the remote diagnosis, and check for software updates etc.
3.1 Connect to a WLAN Network
1. On the home screen, tap Settings -> Network & Internet -> WLAN.
2. Slide the WLAN switch to ON, the tablet starts searching for available
wireless networks.
3. Select a wireless network,
If the chosen network is open, the tablet will connect automatically.
If the selected network is encrypted, a network password will need to be
entered.
4. When “Connected” appears, it indicates the WLAN connection is complete.
Once it is connected successfully, tap the desired network from the list to view
its name, link speed, security type, IP address etc.
When this tablet is in range, it will connect to the previously linked network
automatically.
3.2 Disconnect from a WLAN Network
1. On the home screen, tap Settings -> Network & Internet -> WLAN.
2. Tap the network with a Connected status, then tap “Disconnect”.
LAUNCH X-431 V V4.0 User Manual
11
4 Getting Started
4.1 Diagnosis Flowchart
For new users, please follow the operation chart shown below to get familiar with
and start using this tool.
Tap “Diagnostic”
Select vehicle
Select test system
Select test function
Select diagnostic
software version
Tap “Login” to
register
Is connector
activated ?
No
Tap “Update” to
update software
Yes
…… (Refer to
Chapter 4.2)
Register & Activate
OK
4.2 Register & Download Diagnostic Software
Tap the application icon on the home screen to launch it, and then tap “Login” to
enter the login interface of diagnosis software.
LAUNCH X-431 V V4.0 User Manual
12

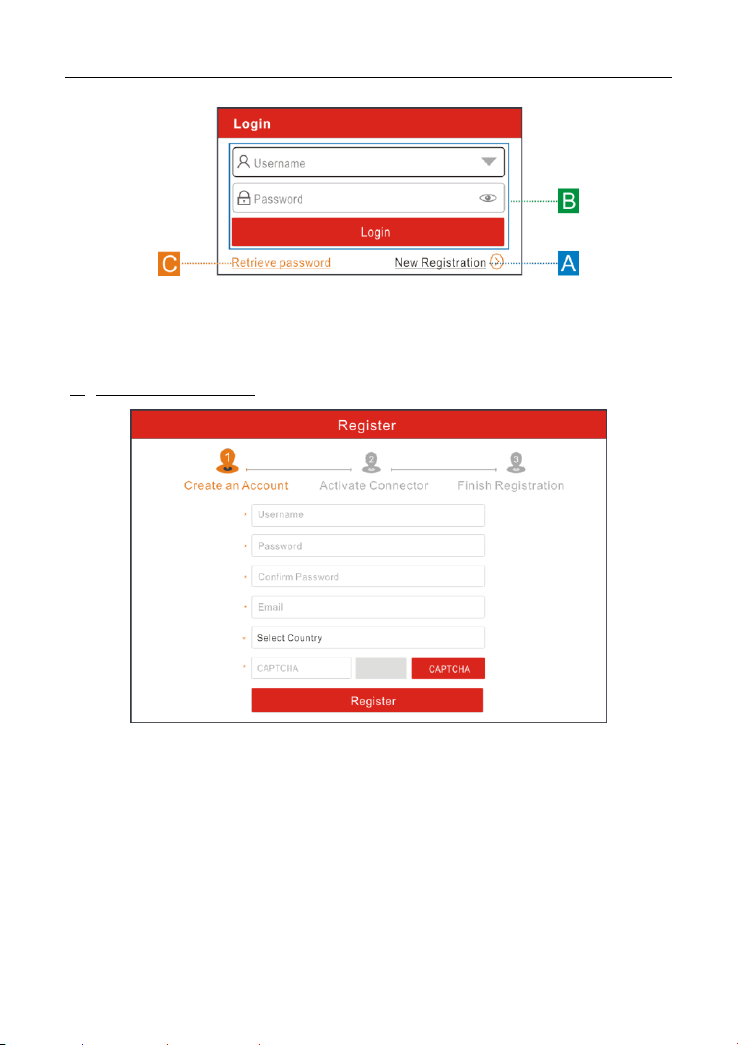

(If you are a new user, follow A to proceed.)
(If you have registered to be a member, go to B to login the system directly.)
(In case you forgot password, refer to C to reset a new password.)
A. If you are a new user, tap “New Registration” to enter registration page.
Enter the information in each field (Items with * must be filled). After inputting,
tap “Register”, a screen similar to the following will appear:
LAUNCH X-431 V V4.0 User Manual
13
Input the Serial Number and Activation Code, which can be found in the
password envelope.
Note: To exit and activate it later, tap “Skip”. In this case, you can activate your
VCI module by tapping “Activate VCI” in “User Info”. For details, please refer to
Chapter 9.4 Activate VCI.
Tap “Activate” to finish your registration.
To download the diagnostic software, tap “Yes” to enter the update page.
Tap “No” to download and install it later.
Product SN
Activation code
Product SN
LAUNCH X-431 V V4.0 User Manual
14
On download page, tap “Update” to start downloading. To pause downloading,
tap “Stop”. To resume it, tap “Continue”. Once download is complete, the system
will install the software package automatically.
Note: In process of download, please make sure it is properly connected to the
WLAN network. It may take several minutes to finish it, please be patient to wait.
B. If you have registered to be a member, input your name and password, and
then tap the “Login” button to enter the main menu screen directly.
Note: The tablet has an auto-save function. Once the username and password are
correctly entered, the system will automatically store it. Next time you login the system,
you will not be asked to input the account manually.
C. If you forgot the password, tap “Retrieve password” and then follow
on-screen instructions to set a new password.
4.3 Job Menu
It mainly includes the following items:
LAUNCH X-431 V V4.0 User Manual
15
Name
Description
Intelligent
Diagnose
This module allows you to obtain vehicle data from the
cloud server to perform quick test via reading VIN,
which provides a perfect solution to various defects
resulting from step-by-step menu selection. In addition,
user can also check the historical repair records online
through this module.
Local Diagnose
To diagnose a vehicle manually.
Diagnostic History
Generally once a vehicle diagnosis is performed, the
tablet will automatically save every details of diagnostic
process. This function provides a quick access to the
tested vehicles and users can resume from the last
operation, without the necessity of starting from scratch.
Software Update
To update vehicle diagnostic software and APK.
Reset
To perform all kinds of common repair & maintenance
items, including electronic throttle position reset, ABS
bleeding, oil lamp reset etc.
Remote Diagnose
This option aims to help repair shops or technicians
launch instant messaging and remote diagnosis,
making the repair job getting fixed faster.
Feedback
To feed back the recent 20 diagnostic logs to us for
issue analysis.
Maintenance
Abundant maintenance data are available, which helps
repair professionals diagnose and repair vehicles
efficiently, accurately and profitably.
Vehicle Coverage
To view all the vehicle models that the tool covers.
Mall
An online diagnostic software store. This module
enables you to subscribe some extra software or
service functions that are not integrated in the tool
online.
User Info
To manage VCI, reports, change password, configure
system settings and logout etc.
LAUNCH X-431 V V4.0 User Manual
16
Other Modules
Includes product manual and FAQ etc.
4.4 Diagnostics toolbar
The diagnostics toolbar contains a number of buttons that allow you to print the
displayed data or make other controls. It is displayed on the upper right corner of
the screen and goes through the whole diagnostic session. The table below
provides a brief description for the operations of the diagnostics toolbar buttons:
Name
Button
Description
Home
Returns to Job menu screen.
Print
Tap to print the current screen. To perform
printing, you need to purchase an extra
wireless printer manufactured by LAUNCH
separately and then properly configure the
wireless printer following the steps described in
Chapter 9.8.3.
Exit
To exit the diagnostic application.
4.5 Connections
4.5.1 Preparation
Normal testing conditions
Turn on the vehicle power supply.
Vehicle battery voltage range should be 9-18V.
Throttle should be closed at its close position.
4.5.2 DLC location
The DLC (Data Link Connector or Diagnostic Link Connector) is typically a
standard 16-pin connector where diagnostic code readers interface with the
vehicle’s on-board computer. The DLC is usually located 12 inches from the
center of the instrument panel (dash), under or around the driver’s side for most
vehicles. If DLC is not located under dashboard, a label should be there telling
location. For some Asian and European vehicles, the DLC is located behind the
LAUNCH X-431 V V4.0 User Manual
17
ashtray and the ashtray must be removed to access the connector. If the DLC
cannot be found, refer to the vehicle’s service manual for the location.
4.5.3 Vehicle connection
The method used to connect the VCI device to a vehicle’s DLC depends on the
vehicle’s configuration as follows:
A vehicle equipped with an OBD II management system supplies both
communication and 12V power through a standardized DLC.
A vehicle not equipped with an OBD II management system supplies
communication through a DLC connection, and in some cases supplies 12V
power through the cigarette lighter receptacle or a connection to the vehicle
battery.
Follow the steps mentioned below to connect OBD II vehicle:
1. Locate vehicle’s DLC socket.
2. Plug the VCI device into the vehicle’s DLC socket (It is suggested to use the
OBD II extension cable to connect the VCI device and DLC socket).
3. Choose one of the two ways to obtain power from:
A. Power adaptor: Connect one end of the included power adaptor to
charging port of the tablet, and the other end to AC outlet.
B. Internal battery pack
For non-OBDII vehicle, proceed as follows:
LAUNCH X-431 V V4.0 User Manual
18
1. Locate vehicle’s DLC socket.
2. Select the corresponding non-16pin connector.
3. Plug the non-16pin end of the connector into the DLC socket, then connect
the other end to the OBD I adaptor, and then tighten the captive screws.
4. Connect the other end of the adaptor to the included VCI device.
5. To supply power to OBD I adaptor from:
A. Cigarette Lighter cable (optional): Connect one end of the cigarette lighter
cable to vehicle’s cigarette lighter receptacle, and the other end to the power
jack of OBD I adaptor.
B. Battery Clamps Cable: Connect one end of the battery clamps cable to
vehicle’s battery, and the other end to the power jack of OBD I adaptor.
4.6 Communication Setup
If the VCI is successfully activated in process of product registration, it will
automatically pair with the tablet after it is properly plugged into the vehicle’s
DLC. No more Bluetooth setting is required.
Note: In case no Bluetooth setting is done before diagnostic software is launched,
you can also configure it in process of vehicle diagnosis.
4.7 Diagnostic Trouble Codes (DTCs)
OBD II Diagnostic Trouble Codes are codes that are stored by the on-board
computer diagnostic system in response to a problem found in the vehicle.
LAUNCH X-431 V V4.0 User Manual
19
These codes identify a particular problem area and are intended to provide you
with a guide as to where a fault might be occurring within a vehicle. DO NOT
replace parts based only on DTCs without first consulting the vehicle’s service
manual for proper testing procedures for that particular system, circuit or
component.
OBD II Diagnostic Trouble Codes consist of a five-digit alphanumeric code.
• The 1st character is a letter (B, C, P or U). It identifies the “main system”
where the fault occurred (Body, Chassis, Powertrain, or Network).
• The 2nd character is a numeric digit (0 thru 3). It identifies the “type” of code
(Generic or Manufacturer-Specific).
Notes:
• Generic DTCs are codes that are used by all vehicle manufacturers. The standards
for generic DTCs, as well as their definitions, are set by the Society of
Automotive Engineers (SAE).
• Manufacturer-Specific DTCs are codes that are controlled by the vehicle
manufacturers. The Federal Government does not require vehicle manufacturers
to go beyond the standardized generic DTCs in order to comply with the new
OBD II emissions standards. However, manufacturers are free to expand beyond
the standardized codes to make their systems easier to diagnose.
• The 3rd character is a letter or a numeric digit (0 thru 9, A thru F). It identifies
the specific system or sub-system where the problem is located.
• The 4th and 5th characters are letters or numeric digits (0 thru 9, A thru F).
They identify the section of the system that is malfunctioning.
LAUNCH X-431 V V4.0 User Manual
20
P0201 - Injector circuit malfunction, Cylinder 1
LAUNCH X-431 V V4.0 User Manual
21
5 Diagnosis
5.1 Intelligent Diagnosis
Through simple Bluetooth communication between the display tablet and VCI,
you can easily get the VIN (Vehicle Identification Number) information of the
currently identified vehicle. Once the VIN is successfully identified, the system
will retrieve it from the remote server and then guide you to vehicle information
page without the necessity of step-by-step manual menu selection.

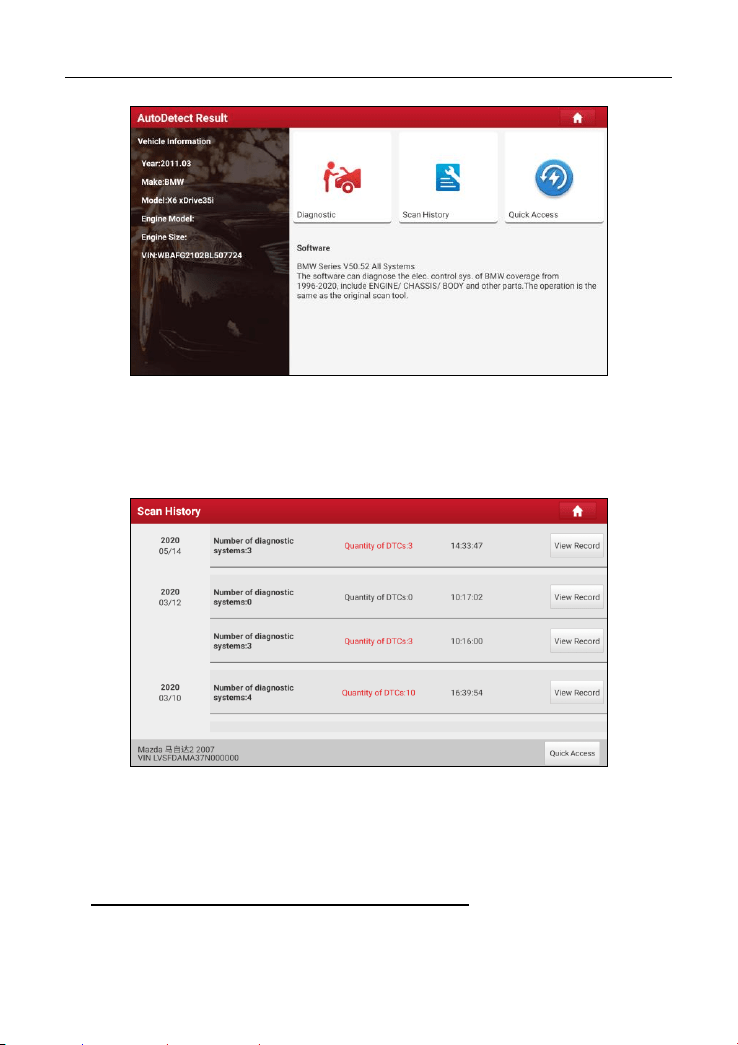

The vehicle information page lists all historical diagnostic records of the vehicle,
which lets the technician have a total command of the vehicle faults. In addition,
a quick dial to local diagnosis and diagnostic function are also available on this
page for reducing the roundabout time and increasing productivity.
Notes:
• Before using this function, please make sure the VCI is properly connected to the
vehicle’s DLC. For detailed connection, see Chapter 4.3.3 “Vehicle Connection”.
• A stable network connection is required for this function.
Follow the steps below to proceed.
1. Tap “Intelligent Diagnose” on the Job menu screen.
LAUNCH X-431 V V4.0 User Manual
22
Note: If the VCI is not paired up with the tablet before doing this step, a prompt
message box will appear on the screen. Check all the possible reasons of Bluetooth
connection failure carefully, and then tap OK to enter the following screen.
If the VCI was once used with other devices, you need to cancel the pairing of the VCI
first via either one of the following ways:
• On the Android’s home screen, tap “Settings” -> “Bluetooth” -> Choose the desired
VCI from the Paired list. Tap “ ”, and then tap “FORGET” to unpair it.
• Tap “User Info” -> “VCI Management” -> Tap “Deactivate matching”.
Tap “Scan” to start searching for the VCI and pairing up with it.
2. Once pairing is complete, the tablet starts reading the vehicle VIN.
A. If the VIN can be found from the remote server database, the following
screen will appear:
LAUNCH X-431 V V4.0 User Manual
23
• Tap “Diagnostic” to start a new diagnostic session.
• Tap “Scan History” to view its historical repair record. If there are records
available, it will be listed on the screen in sequence of date. If no records
exist, the screen will show “No Record”.
• Tap “View record” to view the details of the current diagnostic report.
• To perform other functions, tap “Quick access” to directly go to the function
selection screen. Choose the desired one to start a new diagnostic
session.
B. If the tablet failed to access the VIN information, the following screen will
appear:
LAUNCH X-431 V V4.0 User Manual
24

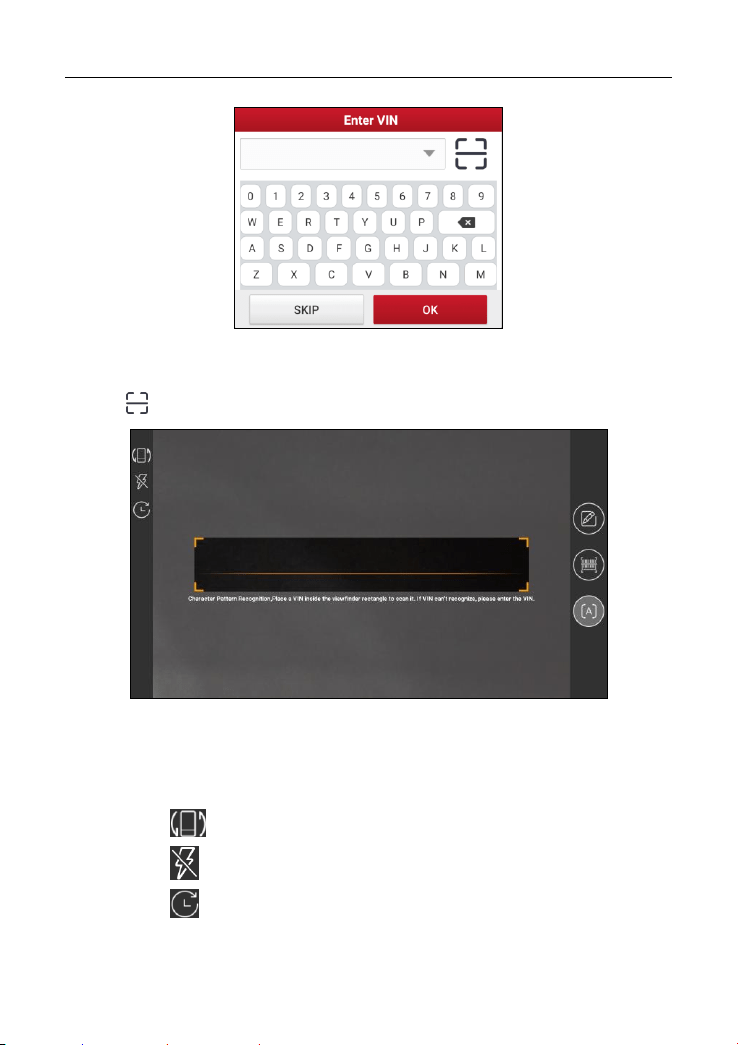

• Tap the input field to directly, tap OK. If the VIN exists on the remote server,
the system will enter the diagnostic function selection screen.
• Tap to launch the VIN recognition module.
Place the VIN inside the viewfinder rectangle to scan it. The most
recognizable location for this number is in the top left corner on the
vehicle’s dashboard. Other locations include the driver’s door or post, and
the firewall under the hood.
• Tap to switch the display mode of the screen.
• Tap to turn the camera flash on.
• Tap to choose it from the record list if the VIN of the vehicle has
been scanned before.
LAUNCH X-431 V V4.0 User Manual
25

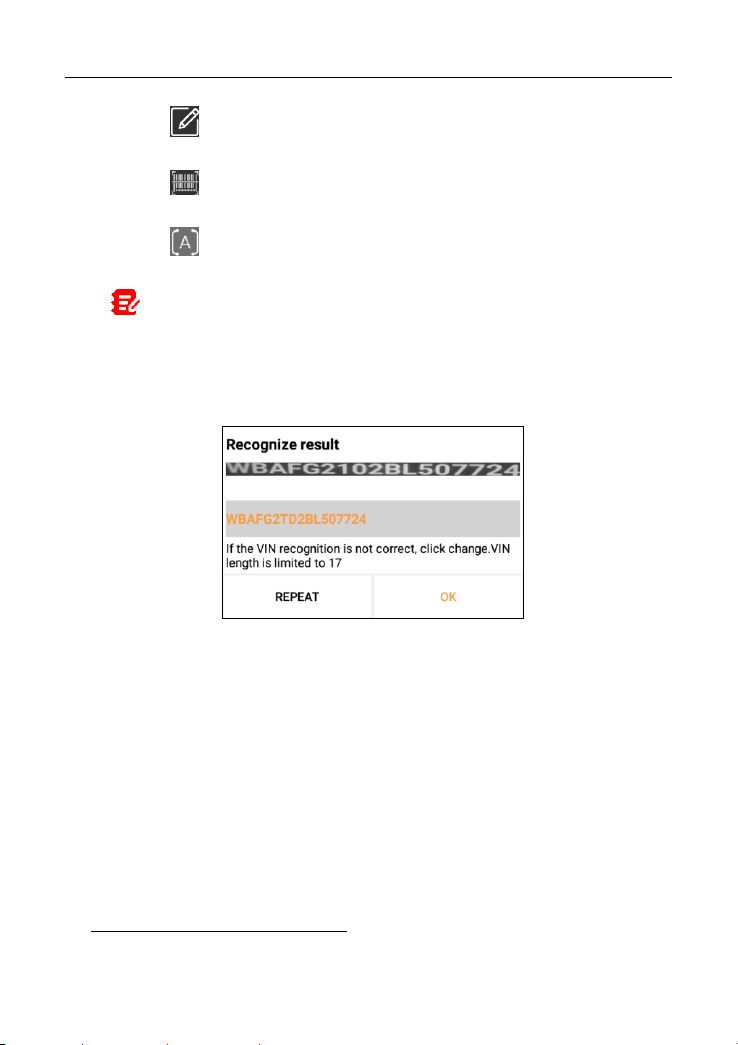

• Tap to input the VIN manually if the tablet has failed to identify the
VIN of the vehicle.
• Tap to scan the VIN barcode. If the VIN barcode cannot be
recognized, please manually input the VIN.
• Tap to scan the VIN character. If the VIN character cannot be
recognized, please manually input the VIN.
Note: In general, vehicle identification numbers are standardized - all
contain 17 characters. VIN characters may be capital letters A through Z and
numbers 1 through 0; however, the letters I, O and Q are never used in order to
avoid mistakes of misreading. No signs or spaces are allowed in the VIN.
After scanning, the screen automatically displays the result.
• If the VIN scanned is incorrect, tap the result field to modify it and then tap
OK.
• To scan it again, tap REPEAT.
If the VIN exists on the remote server, the system will enter the diagnostic
function selection screen.
5.2 Local Diagnosis
Tap “Local Diagnose” to enter the vehicle selection page. Tap a corresponding
diagnostic software logo, and then follow the on-screen instruction to access the
diagnostic software.
Take Demo as an example to demonstrate how to diagnose a vehicle.

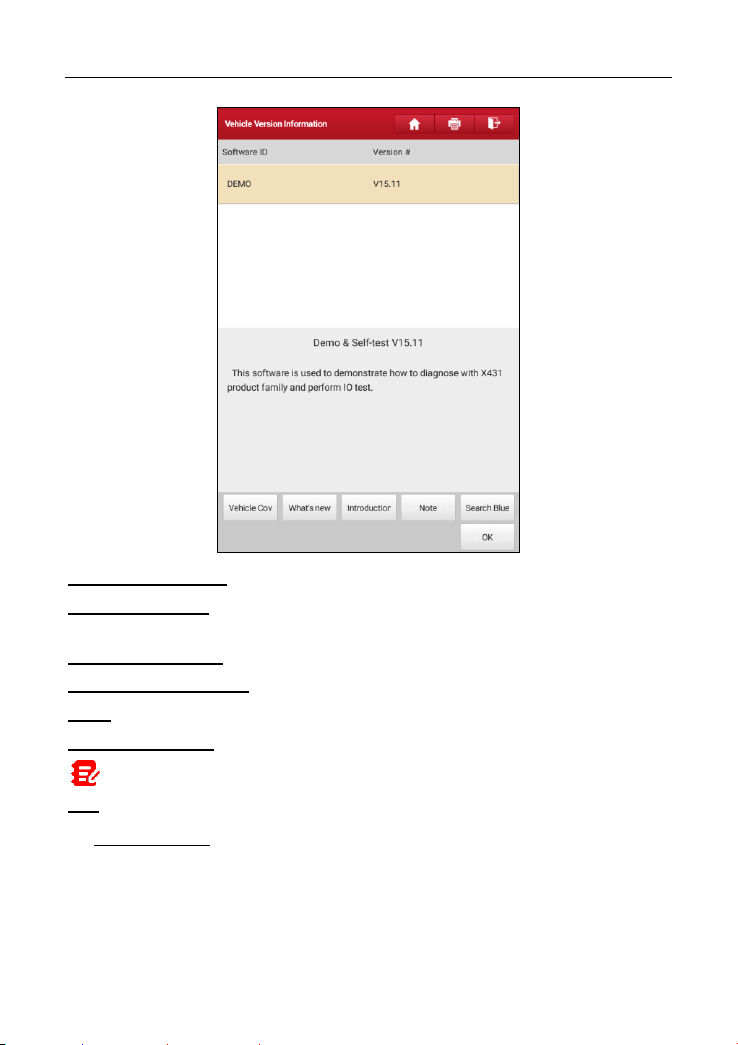

1). Select diagnostic software version: Tap the “DEMO” to go to Step 2.
LAUNCH X-431 V V4.0 User Manual
26
On-screen Buttons:
Testable models: Tap to view the vehicle models that the current diagnostic
software covers.
Update instruction: Tap to view the optimized items and enhancements.
Software introduction: Tap to check the software function list.
Note: Tap to read some precautions on using the current diagnostic software.
Search Bluetooth: Tap to search for the available VCI Bluetooth connector.
Note: No Bluetooth connection is required for DEMO program.
OK: Tap it to go to next step.

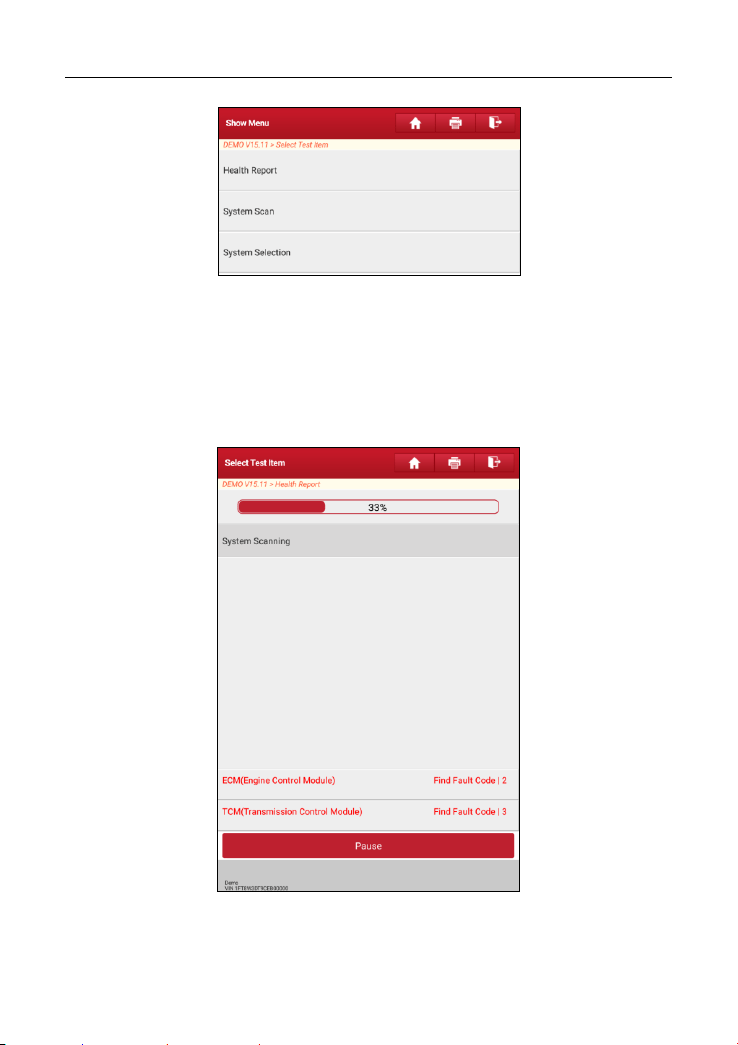

2). Select test item: Select the desired test item to proceed.
LAUNCH X-431 V V4.0 User Manual
27
5.2.1 Health Report (Quick Test)
This function varies from vehicle to vehicle. It enables you to quickly access all
the electronic control units of the vehicle and generate a detailed report about
vehicle health.
On the test item selection screen, tap “Health Report”, the system start scanning
the ECUs and the screen displays as follows:
(To stop the system scanning, tap “Pause”.)
Once the scanning is complete, a screen similar to the following appears:
LAUNCH X-431 V V4.0 User Manual
28
Fig. 5-14
The tested system with fault code appears in red and the system with OK
displays in black (normally).
On-screen Buttons:
Clear DTCs: Tap to clear the existing diagnostic trouble codes.
Note: Diagnostic Trouble Codes or Fault Codes can be used to identify which
engine systems or components that are malfunctioning. Never replace a part based only
on the DTC definition. Retrieving and using DTCs for troubleshooting vehicle
operation is only one part of an overall diagnostic strategy. Follow testing procedures
(in vehicle’s service manual), instructions and flowcharts to confirm the locations of the
problem.
Report: Tap to save it as a diagnostic report.
LAUNCH X-431 V V4.0 User Manual
29
Fig. 5-15
Note: Diagnostic report is classified into three categories: Pre-Repair report,
Post-Repair report and Diagnostic Scan. No matter which type you saved the report as,
the report type will be appended as a tag on the upper right corner of the diagnostic
report for easier identification.
Tap to select the report type from the option list and input the required
information, and then tap “OK”.
Alternatively you can also set the workshop information in “User Info” ->
“Settings” -> “Shop Information”.
Once you configured the information, it will be automatically generated every
time you saved the diagnostic report. All vehicle and workshop information will
be appended to the diagnostic report.
To skip the workshop information, tap “Skip” to go to the next step.
All reports are saved under the tab “Diagnostic Report” in “My Report” from
“User Info” menu. For details on report operations, please refer to Chapter 9.1
“My Report”.
LAUNCH X-431 V V4.0 User Manual
30
5.2.2 System Scan
This option allows you to quickly scan which systems are installed on the
vehicle.
On the test item selection screen, tap “System Scan”, the system start scanning
the systems. Once the scanning is complete, the screen will display the result.
Tap the desired system to advance to the test function selection page. For
detailed operations on test function, please refer to Chapter 5.2.3.
5.2.3 System Selection
This option allows you manually select the test system and function step by step.
On the test item selection screen, tap “System Selection”, the following screen
will appear:
LAUNCH X-431 V V4.0 User Manual
31

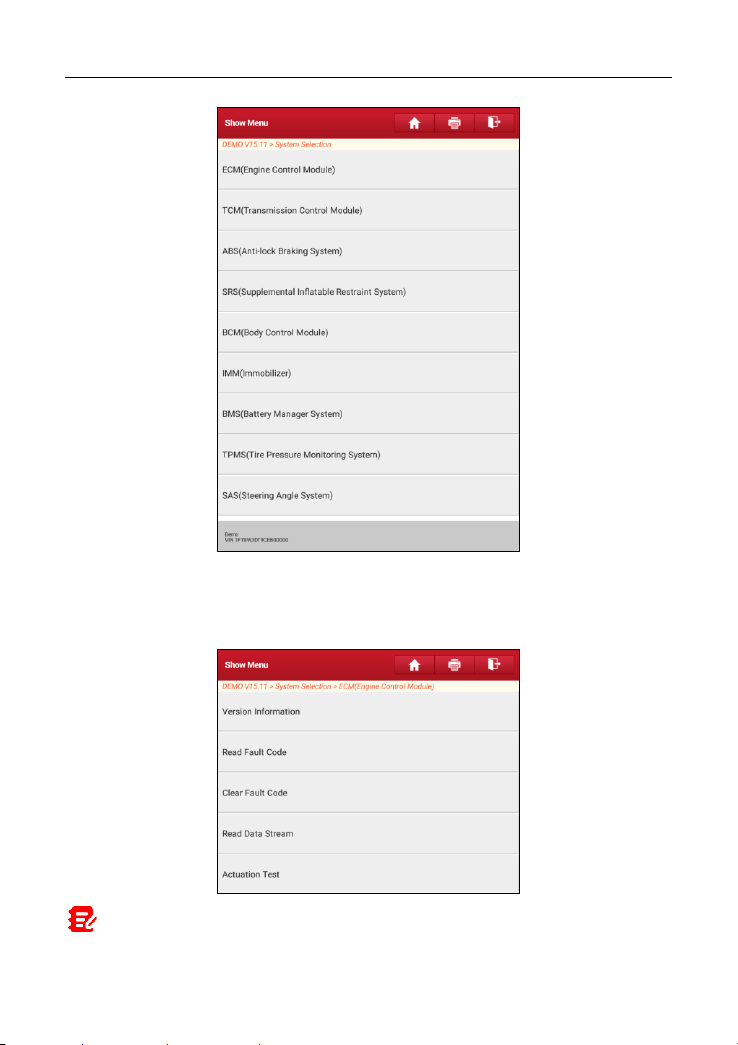

Swipe the screen from the bottom to view the vehicle system on the next page.
Tap the desired system (take “ECM” for example) to enter the test function
selection screen.
Note: Different vehicle has different diagnostic menus.
A. Version Information
LAUNCH X-431 V V4.0 User Manual
32
This function is used to read the version information of system mode, vehicle
VIN, software and ECU.
B. Read Fault Code
This function displays the detailed information of DTC records retrieved from the
vehicle’s control system.
Caution: Retrieving and using DTCs for troubleshooting vehicle operation is only
one part of an overall diagnostic strategy. Never replace a part based only on the DTC
definition. Each DTC has a set of testing procedures, instructions and flow charts that
must be followed to confirm the location of the problem. This information can be found
in the vehicle’s service manual.

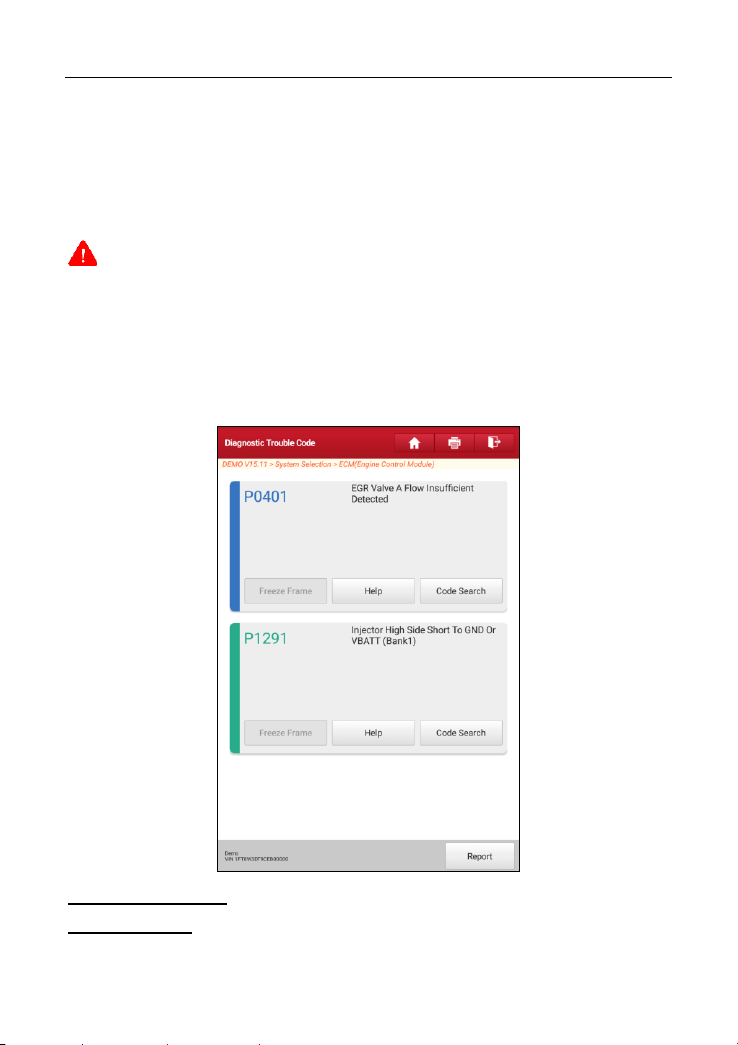

On the test function selection screen, tap “Read Fault Code”, the screen will
display the diagnostic result.
On-screen Buttons:
Freeze Frame: When an emission-related fault occurs, certain vehicle
conditions are recorded by the on-board computer. This information is referred
LAUNCH X-431 V V4.0 User Manual
33
to as freeze frame data. Freeze frame data includes a snapshot of critical
parameter values at the time the DTC is set.
Help: Tap to view the help information.
Code Search: Tap it to search for more information about the current DTC
online.
Report: To save the current data in text format. All reports are saved under the
tab “Diagnostic Report” in “My Report” from “User Info” menu. For details on
report operations, please refer to Chapter 9.1 “My Report”.
C. Clear Fault Code
After reading the retrieved codes from the vehicle and certain repairs have been
carried out, you can use this function to erase the codes from the vehicle. Before
performing this function, please be sure the vehicle’s ignition key is in the ON
position with the engine off.
Clearing DTCs does not fix the problem(s) that caused the code(s) to be set. If
proper repairs to correct the problem that caused the code(s) to be set are not
made, the code(s) will appear again and the check engine light will illuminate as
soon as the problem that cause the DTC to set manifests itself.
On the test function selection screen, tap “Clear Fault Code”, a confirmation
dialog box pops up on the screen.
Tap “Yes” and the system will automatically delete the currently existing trouble
code.
Note: After clearing, you should retrieve trouble codes once more or turn ignition
on and retrieve codes again. If there are still some trouble codes in the system, please
troubleshoot the code using a factory diagnosis guide, then clear the code and recheck.
D. Read Data Stream
This option lets you view and capture (record) real-time Live Data. This data
including current operating status for parameters and/or sensor information can
LAUNCH X-431 V V4.0 User Manual
34
provide insight on overall vehicle performance. It can also be used to guide
vehicle repair.
Caution: If you must drive the vehicle in order to perform a troubleshooting
procedure, ALWAYS have a second person help you. Trying to drive and operate the
diagnostic tool at the same time is dangerous, and could cause a serious traffic accident.
Note: The real time (Live Data) vehicle operating information (values/status) that
the on-board computer supplies to the tool for each sensor, actuator, switch, etc. is
called Parameter Identification Data (PID).

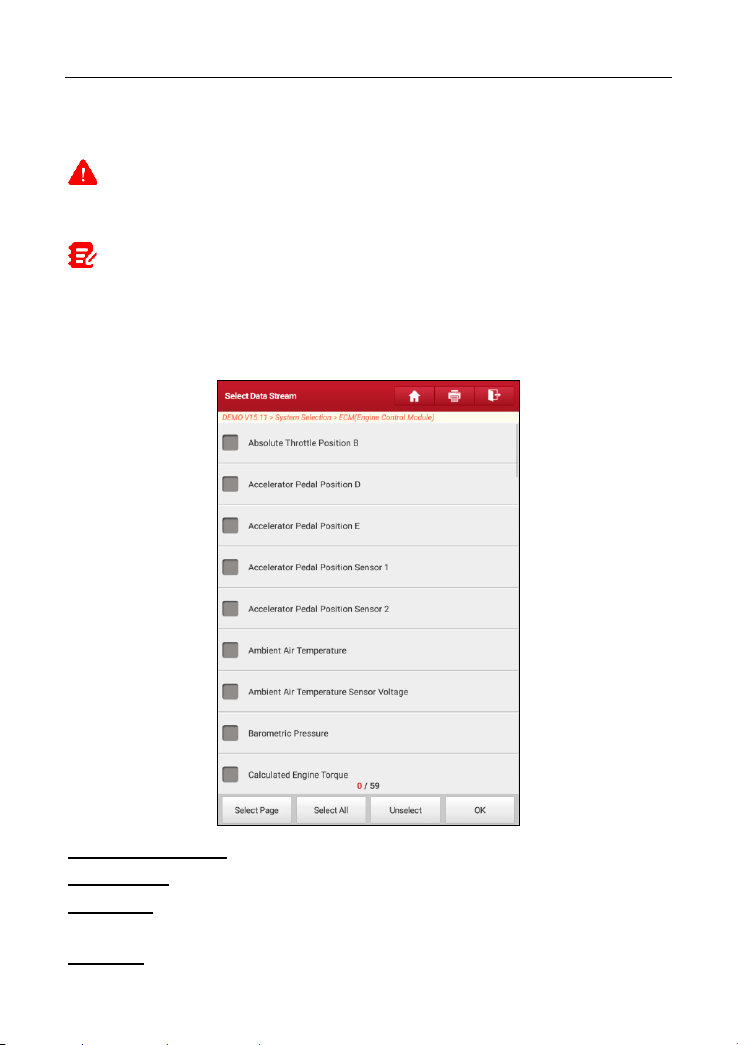

On the test function selection screen, tap “Read Data Stream”, the system will
display data stream items.
On-screen Buttons:
Select Page: Tap it to select all items of the current page.
Select All: Tap it to select all items. To select certain data stream item, just
check the box before the item name.
Unselect: Tap it to deselect all data stream items.
LAUNCH X-431 V V4.0 User Manual
35
OK: Tap it to confirm and jump to the next step.
After selecting the desired items, tap “Confirm” to enter the data stream reading
page.
Notes:
1. If the value of the data stream item is out of the range of the standard (reference)
value, the whole line will display in red. If it complies with the reference value, it
displays in blue (normal mode).
2. The indicator 1/X shown on the bottom of the screen stands for the current
page/total page number. Swipe the screen from the right/left to advance/return to the
next/previous page.
There are 3 types of display modes available for data viewing, allowing you to
view various types of parameters in the most suitable way.

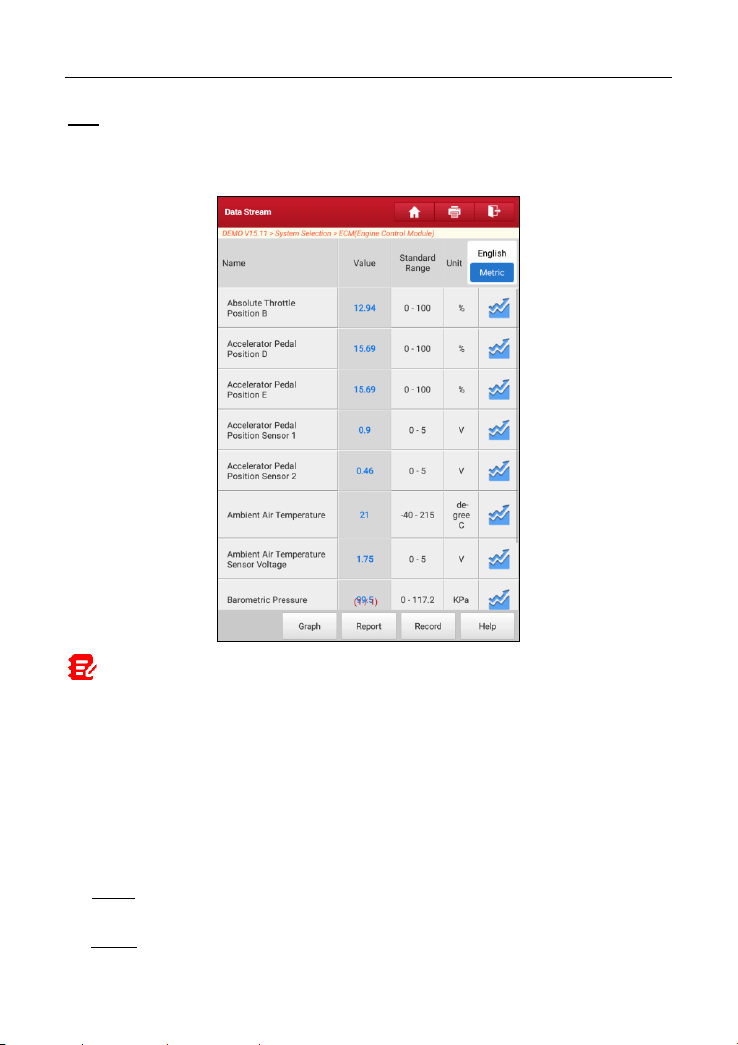

Value – this is the default mode which displays the parameters in texts and
shows in list format.

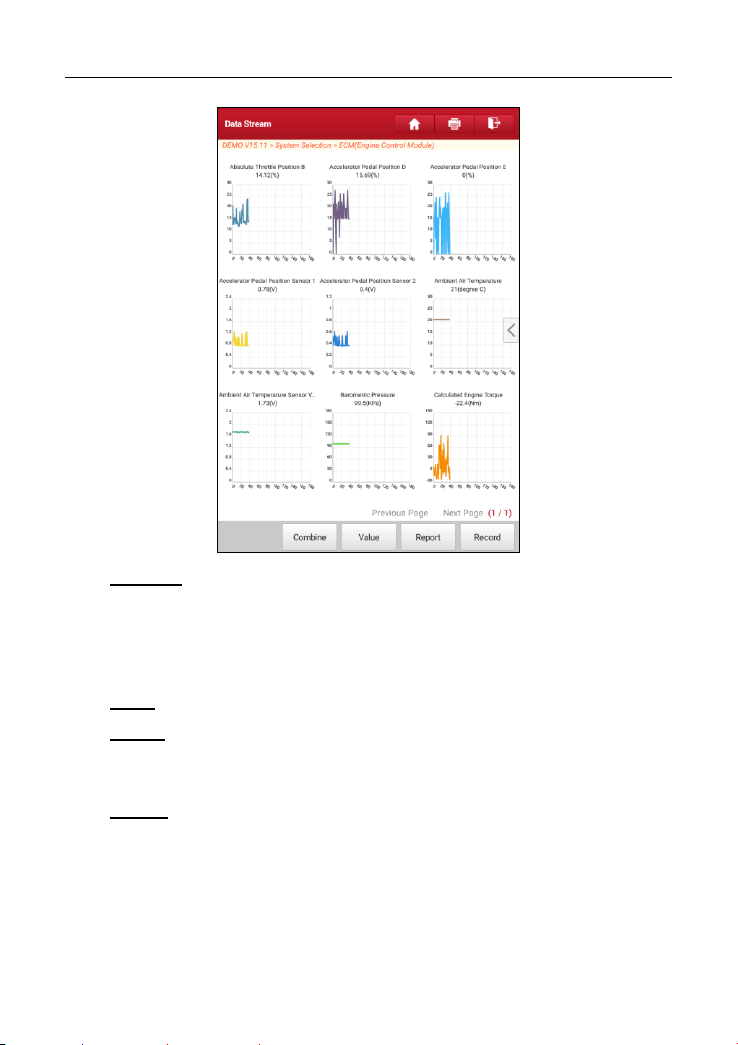

Graph – displays the parameters in waveform graphs.
LAUNCH X-431 V V4.0 User Manual
36
Combine – this option is mostly used in graph merge status for data
comparison. In this case, different items are marked in different colors.
On-screen Buttons:
Graph(Single): Tap it to view the waveform.
Graph: Tap it to view the waveform.
LAUNCH X-431 V V4.0 User Manual
37
• Combine: This option is mostly used in graph merge status for data
comparison. In this case, different items are marked in different colors
(maximum 4 items can be displayed on the same screen simultaneously).
If the graph is more than one page, swipe the screen from the left to jump
to the next page.
• Value: Switches the current graph display mode to Value display mode.
• Report: To save the current data in text format. All reports are saved under
the tab “Diagnostic Report” in “My Report” menu. For details on report
operations, please refer to Chapter 9.1 “User Info”.

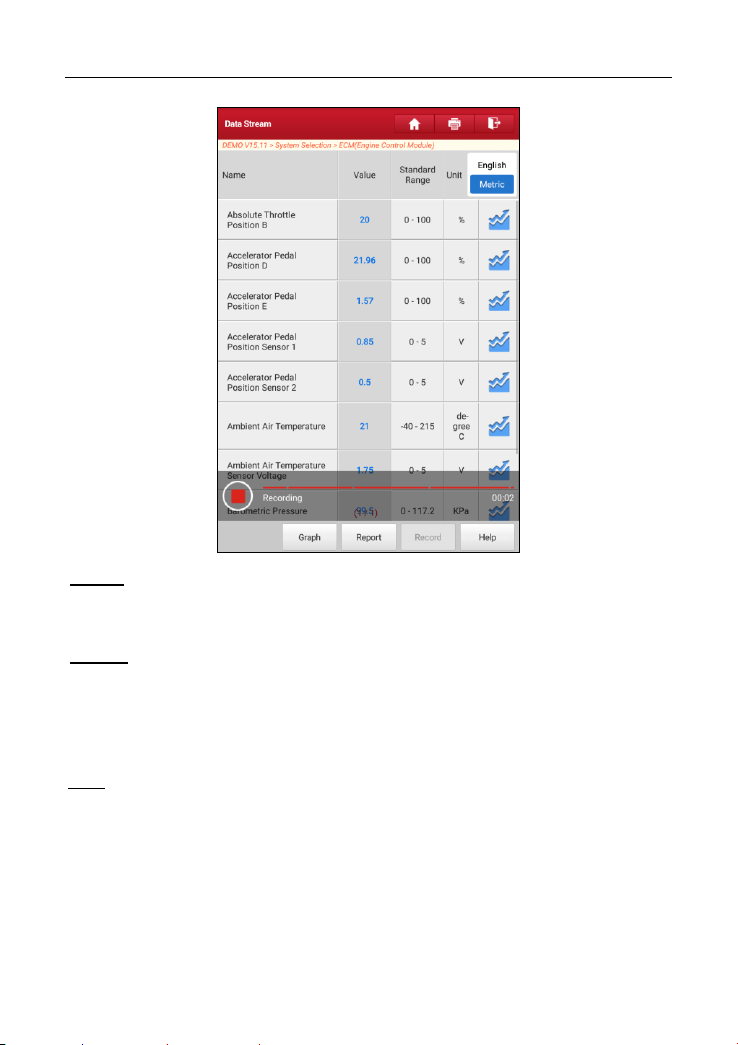

• Record: Tap to start recording diagnostic data for future playback and
analysis. The saved file follows the naming rule: It begins with vehicle type,
and then the record starting time and ends with .x431 (To differentiate
between files, please configure the accurate system time). The file is
stored in “My Report” under “User Info” menu.
LAUNCH X-431 V V4.0 User Manual
38
Report: To save the current data in text format. All reports are saved under the
tab “Diagnostic Report” in “My Report”. For details on report operations, please
refer to Chapter 9.1 “My Report”.
Record: Tap to start recording diagnostic data for future playback and analysis.
The saved file follows the naming rule: It begins with vehicle type, and then the
record starting time and ends with .x431 (To differentiate between files, please
configure the accurate system time). The file is stored in “My Report” under
“User Info” menu.
Help: Tap to view the help information.
E. Actuation Test
This option is used to access vehicle-specific subsystem and component tests.
Available test vary by vehicle manufacturer, year, and model.
During the actuation test, the tool outputs commands to the ECU in order to
drive the actuators, and then determines the integrity of the system or parts by
reading the ECU data, or by monitoring the operation of the actuators, such as
switching a injector between two operating states.
LAUNCH X-431 V V4.0 User Manual
39
On the test function selection screen, tap “Actuation Test”, the following screen
will appear:
Simply follow the on-screen instructions and make appropriate selections to
complete the test. Each time when an operation is successfully executed,
“Completed” displays.
F. Special Function
In addition to amazing & powerful diagnostic function, the tool also features
various reset functions, which varies from vehicle to vehicle.
5.3 Remote Diagnosis
This option aims to help repair shops or technicians launch instant messaging
and remote diagnosis, making the repair job getting fixed faster.
Tap “Remote Diagnosis” on the Job menu, the screen appears blank by default.
LAUNCH X-431 V V4.0 User Manual
40
5.3.1 Interface Layout
1
Home button
Tap it to navigate to the Job menu screen.
2
Search bar
Directly input the registered username of the tool to start
searching, and then tap the desired one to add it into your
friend list.
3
Friend list
display area
By default it appears blank.
4
Message tab
Once an incoming message reaches, a red dot will appear
on the upper right corner of the tab.
5
Contact tab
Tap to enter the friend list.
6
Remote
switch
Tap to slide the switch to ON, the tool keeps online and
becomes accessible on the web client. In this case, inform
the technician of your product S/N, and he/she will control
your device remotely.
1
2
3
5
6
4
LAUNCH X-431 V V4.0 User Manual
41
5.3.2 Add Friends
Tap “Contact” to enter the contact page. By default it appears blank.
In the search bar, input the partner’s username and tap “Search” button next to
the search bar to starts searching from Launch’s golo business database.
The partner must be the users who have registered their Launch’s diagnostic
tools. They may be the following:
Workshop
Technician
golo users
Once the result matches the keyword, a screen similar to the following will
appear:
Here you can tap “Remote Diagnose” to launch remote diagnostics directly or
choose to add the partner into the Contacts list.
Tap the desired name from the list, the following screen appears:
LAUNCH X-431 V V4.0 User Manual
42
Tap “Add friend”, a dialog box pops up:
Tap “CONFIRM” to send your request.

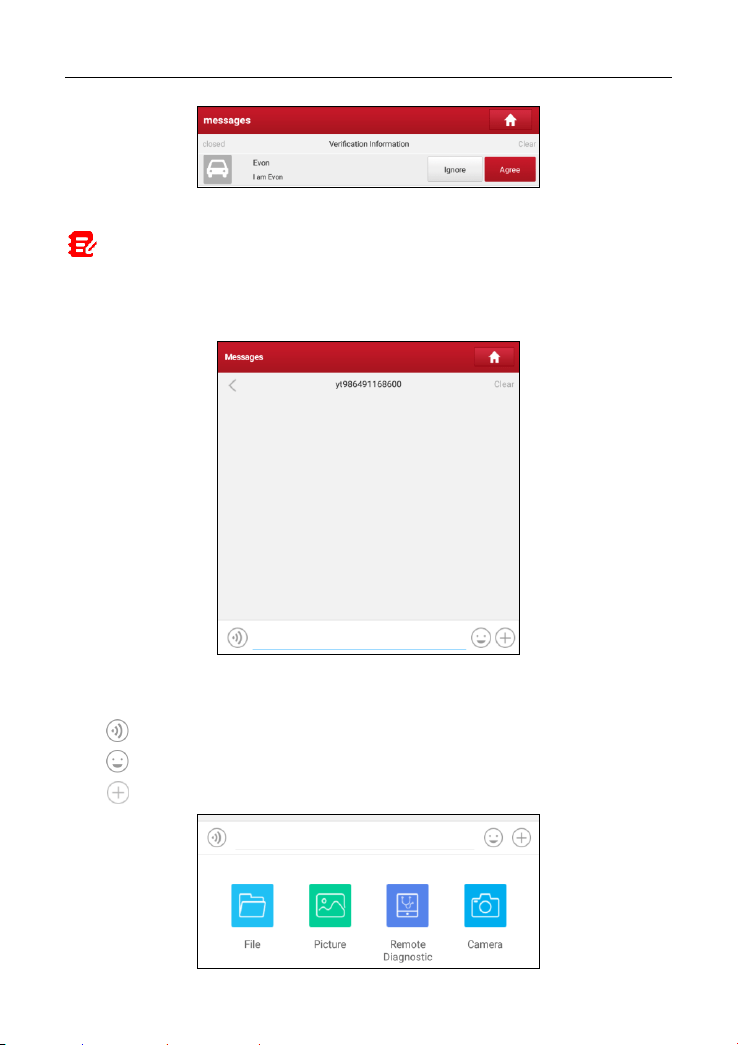

Once the partner receives the request, a beep will sound. Tap the “Message”
tab:
• Once the partner agreed your request, he/she will automatically be listed in
the Contact tab.
• If a technician sent you a friend request, you can tap “Agree” to confirm and
his/her name will appear in the friend list (Contact). Or tap “Ignore” to ignore
this request.
LAUNCH X-431 V V4.0 User Manual
43
5.3.3 Start Instant Messaging
Note: The I/M (Instant Messaging) function is open to all users who had Launch’s
diagnostic tool equipped with this module.
After adding your friends, tap the desired one’s photo to enter a screen similar to
the following:
Tap the input field and use the on-screen keyboard to enter the text message,
and then tap “Send” to send it.
Tap
to send the voice message.
Tap
to send the emoj.
Tap
to call out more function options.
LAUNCH X-431 V V4.0 User Manual
44
File: Choose diagnostic reports or local files to send.
Picture: Choose screenshots or pictures to send.
Remote Diagnostic: To start a remote diagnostic session. For details, refer to
Chapter 5.3.4.
Camera: Open camera to take pictures.
Tap “Clear” to delete all the partner’s dialog logs.
Tap “Close” to close the current dialog.
5.3.4 Launch Remote Diagnosis (Device-To-Device)
The tool is allowed to initiate remote diagnosis with other diagnostic tools
(including but not limited to the X-431 V V4.0) of Launch family, which are
equipped with this module.
Note: Before performing this operation, please make sure the following no matter
which side sends the remote request:
Turn on the vehicle power supply.
Throttle should be in a closed position.
The tool should be properly connected to the vehicle’s DLC and a successful
communication is required.
On the function option selection screen, tap “Remote Diagnostic”, a pull-down
menu including the following options appears:
These options are defined as follows:
Actions
Results
Request control
remote device
Request to control the partner’s device remotely to
help him diagnose the vehicle.
Notes:
Remote diagnosis has the same diagnostic steps as
manual diagnosis.
In process of remote diagnosis, tap the button to
send a voice message.
LAUNCH X-431 V V4.0 User Manual
45

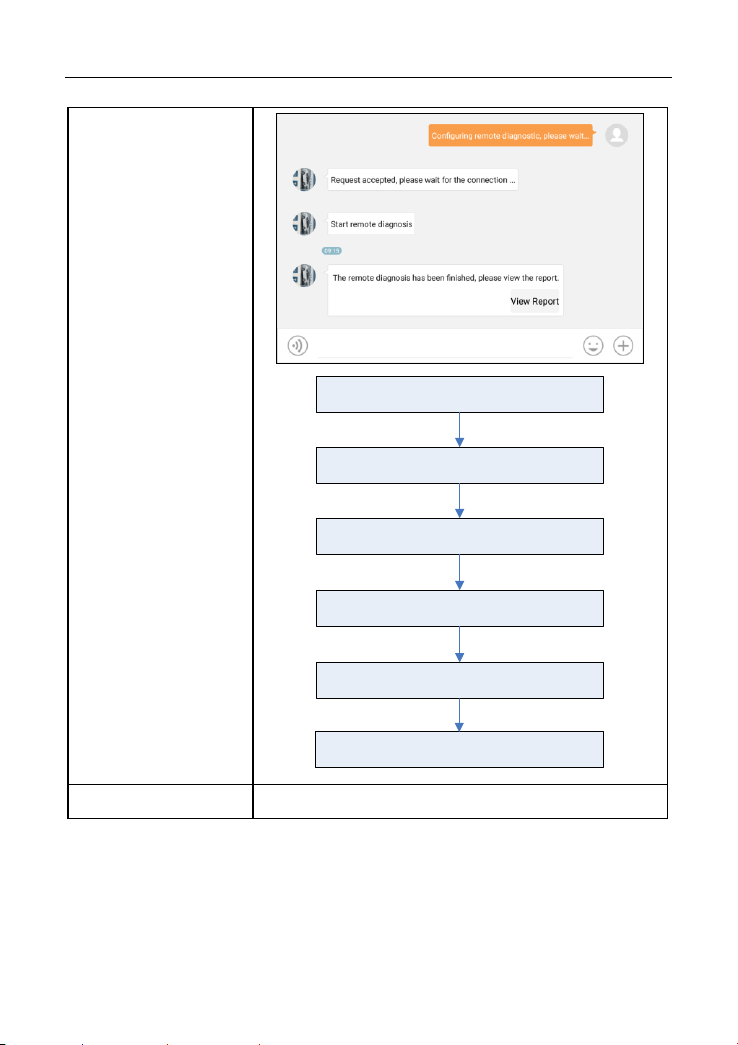

Once vehicle diagnosis is complete, a report will be
created. Input your comments on this report, and then
tap “Send Report” to send it to the partner.
Tap “Request control remote device”
Wait for partner’s confirmation
Start connecting after request confirmed
Start Diagnosis
Generate diagnostic report
Invite remote
diagnostic assistant
If you need support, just use this option to invite a
technician to perform a remote control on your tool.
Notes:
Remote diagnosis has the same diagnostic steps as
manual diagnosis.
In process of remote diagnosis, tap the button to
send voice message.
Once you received the report from the partner, tap
“View Report” to view details. All diagnostic reports
are saved under the “Remote Diagnostic Reports” tab
of “My Report” in “User Info”.
LAUNCH X-431 V V4.0 User Manual
46
Tap “Invite remote diagnostic assistant”
Choose the desired diagnostic software
Wait for partner’s confirmation
Start connecting after request confirmed
Start Diagnosis
Generate diagnostic report
Cancel
To cancel this operation.
LAUNCH X-431 V V4.0 User Manual
47
5.3.5 Launch Remote Diagnosis (Device-To-PC)
Except that the remote diagnosis can be done between different Launch’s
diagnostic tools that come loaded with the module, user also can ask for remote
control from PC client technician.
Slide the switch to ON
Notify the partner of the remote diagnostic web link
Input the partner’s official account and password
Input the Serial Number of your handset
Start Diagnosis
Generate diagnostic report
Tap the “Web Remote” tab, the screen displays as follows:
LAUNCH X-431 V V4.0 User Manual
48
1. Slide the switch “Allow device to be connected to the WEB client remote
diagnostic device” to ON so that the partner can find and connect to this
device while using the PC.
2. Notify the partner of the PC client website http://remote.x431.com. When the
partner accesses the link, the PC displays as below:
Note: Before processing remote diagnosis, please make sure the tool is
properly connected to the vehicle.
LAUNCH X-431 V V4.0 User Manual
49
3. Tell the partner to input his own official technician account and password, and
then tap “Login” to navigate to the following figure.
4. Tell the partner to check the box “Serial number” and enter the Serial Number
provided by you, and then tap “Start remote diagnosis” to control your device
remotely.
In process of remote diagnosis, please note the following things:
LAUNCH X-431 V V4.0 User Manual
50
1) You are not suggested to execute any actions.
2) The partner is not allowed to save any diagnostic reports or records on
your tablet.
The operations in remote diagnosis are same as those in local diagnosis. Once
the session is complete, a remote diagnostic report will be automatically
generated.
5.4 Diagnostic History
Generally once a vehicle diagnosis is performed, the tool will record the every
details of diagnostic process. The History function provides direct access to the
previously tested vehicles and users can resume from the last operation, without
the necessity of starting from scratch.
Tap “Diagnostic History” on the Job menu screen, all diagnostic records will be
listed on the screen in date sequence.
LAUNCH X-431 V V4.0 User Manual
51
• Tap certain vehicle model to view the details of the last diagnostic report.
• To delete certain diagnostic history, select it and then tap “Delete”. To
delete all historical records, tap “Select All” and then tap “Delete”.
• Tap “Quick access” to directly navigate to the function selection page of
last diagnostic operation. Choose the desired option to proceed.
LAUNCH X-431 V V4.0 User Manual
52
6 Special (Reset) Function
In addition to amazing & powerful diagnostic function, the tool also features
various service functions. The most commonly performed service functions
contain:
Oil Reset Service
Electronic Parking Brake Reset
Steering Angle Calibration
ABS Bleeding
TPMS (Tire Pressure Monitor System) Reset
Gear Learning
IMMO Service
Injector Coding
Battery Maintenance System
Diesel Particulate Filter (DPF) Regeneration
Electronic Throttle Position Reset
Gearbox Matching
AFS (Adaptive Front-lighting System) Reset
Sunroof Initialization
Suspension Calibration
There are two methods to reset service lamp: Manual reset or Auto reset. Auto
reset follows the principle of sending command from the tool to vehicle’s ECU to
do resetting. While using manual reset, users just follow the on-screen
instructions to select appropriate execution options, enter correct data or values,
and perform necessary actions, the system will guide you through the complete
performance for various service operations.
LAUNCH X-431 V V4.0 User Manual
53
Select “Reset”
Select the desired reset
item (e.g. oil lamp reset
etc.)
Select the car brand
Select the service mode
(The available mode varies
from vehicle to vehicle)
Follow the instructions
on the screen to operate
6.1 Oil Reset Service
This function allows you to perform reset for the engine oil life system, which
calculates an optimal oil life change interval depending on the vehicle driving
conditions and climate.
This function can be performed in the following cases:
1. If the service lamp is on, you must provide service for the car. After service,
you need to reset the driving mileage or driving time so that the service lamp
turns off and the system enables the new service cycle.
2. After changing engine oil or electric appliances that monitor oil life, you need
to reset the service lamp.
6.2 Electronic Parking Brake Reset
1. If the brake pad wears the brake pad sense line, the brake pad sense line
sends a signal sense line to the on-board computer to replace the brake pad.
After replacing the brake pad, you must reset the brake pad. Otherwise, the
car alarms.
2. Reset must be performed in the following cases:
a) The brake pad and brake pad wear sensor are replaced.
b) The brake pad indicator lamp is on.
c) The brake pad sensor circuit is short, which is recovered.
d) The servo motor is replaced.
LAUNCH X-431 V V4.0 User Manual
54
6.3 Steering Angle Calibration
To reset the steering angle, first find the relative zero point position for the car to
drive in straight line. Taking this position as reference, the ECU can calculate the
accurate angle for left and right steering.
After replacing the steering angle position sensor, replacing steering mechanical
parts (such as steering gearbox, steering column, end tie rod, steering knuckle),
performing four-wheel alignment, or recovering car body, you must reset the
steering angle.
6.4 ABS Bleeding
This function allows you to perform various bi-directional tests to check the
operating conditions of Anti-lock Braking System (ABS).
1. When the ABS contains air, the ABS bleeding function must be performed to
bleed the brake system to restore ABS brake sensitivity.
2. If the ABS computer, ABS pump, brake master cylinder, brake cylinder, brake
line, or brake fluid is replaced, the ABS bleeding function must be performed
to bleed the ABS.
6.5 Tire Pressure Monitor System Reset
This function allows you to quickly look up the tire sensor IDs from the vehicle’s
ECU, as well as to perform TPMS replacement and sensor test.
1. After the tire pressure MIL turns on and maintenance is performed, the tire
pressure resetting function must be performed to reset tire pressure and turn
off the tire pressure MIL.
2. Tire pressure resetting must be performed after maintenance is performed in
the following cases: tire pressure is too low, tire leaks, tire pressure
monitoring device is replaced or installed, tire is replaced, tire pressure sensor
is damaged, and tire is replaced for the car with tire pressure monitoring
function.
6.6 Gear Learning
The crankshaft position sensor learns crankshaft tooth machining tolerance and
saves to the computer to more accurately diagnose engine misfires. If tooth
learning is not performed for a car equipped with Delphi engine, the MIL turns on
after the engine is started. The diagnostic device detects the DTC P1336 'tooth
not learned'. In this case, you must use the diagnostic device to perform tooth
LAUNCH X-431 V V4.0 User Manual
55
learning for the car. After tooth learning is successful, the MIL turns off.
After the engine ECU, crankshaft position sensor, or crankshaft flywheel is
replaced, or the DTC 'tooth not learned' is present, tooth learning must be
performed.
6.7 IMMO Service
An immobilizer is an anti-theft mechanism that prevents a vehicle’s engine from
starting unless the correct ignition key or other device is present. Most new
vehicles have an immobilizer as standard equipment. An important advantage of
this system is that it doesn’t require the car owner to activate it since it operates
automatically. An immobilizer is considered as providing much more effective
anti-theft protection than an audible alarm alone.
As an anti-theft device, an immobilizer disables one of the systems needed to
start a car’s engine, usually the ignition or the fuel supply. This is accomplished
by radio frequency identification between a transponder in the ignition key and a
device called a radio frequency reader in the steering column. When the key is
placed in the ignition, the transponder sends a signal with a unique identification
code to the reader, which relays it to a receiver in the vehicle’s computer control
module. If the code is correct, the computer allows the fuel supply and ignition
systems to operate and start the car. If the code is incorrect or absent, the
computer disables the system, and the car will be unable to start until the correct
key is placed in the ignition.
To prevent the car being used by unauthorized keys, the anti-theft key matching
function must be performed so that the immobilizer control system on the car
identifies and authorizes remote control keys to normally use the car.
When the ignition switch key, ignition switch, combined instrument panel, ECU,
BCM, or remote control battery is replaced, anti-theft key matching must be
performed.
6.8 Injector Coding
Write injector actual code or rewrite code in the ECU to the injector code of the
corresponding cylinder so as to more accurately control or correct cylinder
injection quantity.
After the ECU or injector is replaced, injector code of each cylinder must be
confirmed or re-coded so that the cylinder can better identify injectors to
accurately control fuel injection.
LAUNCH X-431 V V4.0 User Manual
56
6.9 Battery Maintenance System Reset
This function enables you to perform a resetting operation on the monitoring unit
of vehicle battery, in which the original low battery fault information will be
cleared and battery matching will be done.
Battery matching must be performed in the following cases:
a) Main battery is replaced. Battery matching must be performed to clear
original low battery information and prevent the related control module from
detecting false information. If the related control module detects false
information, it will invalidate some electric auxiliary functions, such as
automatic start & stop function, sunroof without one-key trigger function,
power window without automatic function.
b) Battery monitoring sensor. Battery matching is performed to re-match the
control module and motoring sensor to detect battery power usage more
accurately, which can avoid an error message displaying on the instrument
panel.
6.10 Diesel Particulate Filter (DPF) Regeneration
DPF regeneration is used to clear PM (Particulate Matter) from the DPF filter
through continuous combustion oxidation mode (such as high temperature
heating combustion, fuel additive or catalyst reduce PM ignition combustion) to
stabilize the filter performance.
DPF regeneration may be performed in the following cases:
a) The exhaust back pressure sensor is replaced.
b) The PM trap is removed or replaced.
c) The fuel additive nozzle is removed or replaced.
d) The catalytic oxidizer is removed or replaced.
e) The DPF regeneration MIL is on and maintenance is performed.
f) The DPF regeneration control module is replaced.
6.11 Electronic Throttle Position Reset
This function enables you to make initial settings to throttle actuators and returns
the “learned” values stored on ECU to the default state. Doing so can accurately
control the actions of regulating throttle (or idle engine) to adjust the amount of
air intake.
LAUNCH X-431 V V4.0 User Manual
57
6.12 Gearbox Matching
1. This function can complete the gearbox self-learning to improve gear shifting
quality.
2. When the gearbox is disassembled or repaired (after some of the car battery
is powered off), it will lead to shift delay or impact problem. In this case, this
function needs to be done so that the gearbox can automatically compensate
according to the driving conditions so as to achieve more comfortable and
better shift quality.
6.13 AFS (Adaptive Front-lighting System) Reset
This feature is used to initialize the adaptive headlamp system. According to the
ambient light intensity, the adaptive headlamp system may decide whether to
automatically turn on the headlamps, and timely adjust the headlamp lighting
angle while monitoring the vehicle speed and body posture.
6.14 Sunroof Initialization
This function can set the sunroof lock off, closed when it rains, sliding / tilting
sunroof memory function, temperature threshold outside the car etc.
6.15 Suspension Calibration
1. This function can adjust the height of the body.
2. When replacing the body height sensor in the air suspension system, or
control module or when the vehicle level is incorrect, you need to perform this
function to adjust the body height sensor for level calibration.
LAUNCH X-431 V V4.0 User Manual
58
7 Software Update
This module allows you to update the diagnostic software & App and set
frequently used software.
If you did not download the software in process of product registration or a
pop-up message prompting you that some new software can be updated, you
may use this option to download it or keep it synchronized with the latest
version.
7.1 Update Diagnostic Software & APP
Tap “Software Update” on the Job Menu to enter the update center.
By default, all diagnostic software is selected. To deselect certain software, tap
“Unselect”, and then check the box next to vehicle model. Tap “Update” to start
downloading.
It may take several minutes to finish it, please be patient to wait.
To pause downloading, tap “Stop”. To resume it, tap “Continue”. If network
LAUNCH X-431 V V4.0 User Manual
59
connection failure occurs, tap “Retry” to try again.
Once download is finished, the software packages will be installed automatically.
7.2 Set Frequently Used software
To easily locate and quickly update some frequently used software, you can use
the “Common Software” option to create a frequently used software list.
Tap “+” on the right edge of the screen, a pop-up window appears. Select the
checkbox before the software name and tap “SAVE”, the software will be
displayed in the Common software list. Next time you want to update it, just go to
“Common Software”.
7.3 Renew Subscription
If the software subscription is due or expires, the system will prompt you to
renew your subscription and a “Renew” button will appear on the bottom of the
update page.
LAUNCH X-431 V V4.0 User Manual
60
Tap “Renewal” to navigate to the payment screen.
There are two ways available for you to make payment: PayPal and Subscription
Renewal Card (*need to buy it from the local dealer where you purchased the tool).
A. Using PayPal
1. Tap “Renewal” on the update page to navigate to the renewal type selection
screen.
2. Select “PayPal”, and then follow the on-screen instructions to finish the
transaction.
3. After payment, go to update center to update the diagnostic software.

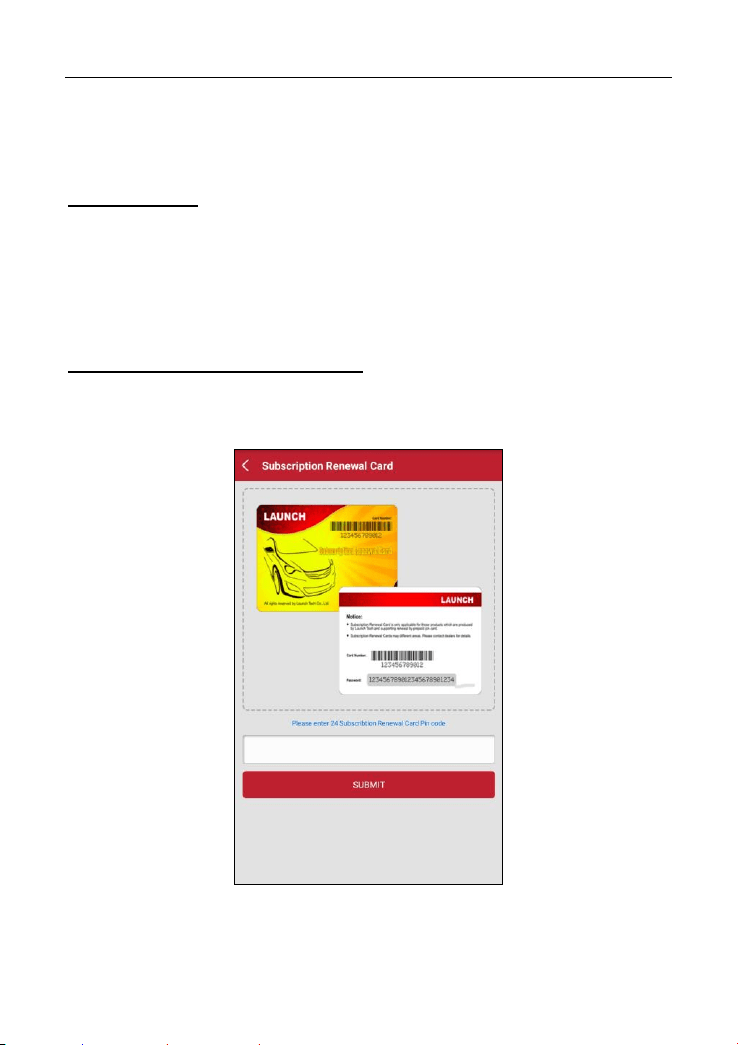

B. Using Subscription Renewal Card
1. Tap “Renewal” to navigate to the renewal type selection screen.
2. Select “Subscription Renewal Card”.
3. Input the 24-digit pin code of Subscription Renewal Card and then
tap “Submit” to finish the renewal.
4. Go to update center to update the diagnostic software.
LAUNCH X-431 V V4.0 User Manual
61
8 Feedback
This function allows you to feedback your diagnostic problems to us for analysis
and troubleshooting.
Tap “Feedback”, a pop-up message will appear:
Tap “Confirm”, the following 3 options will be displayed on the left column of the
screen.
A. Feedback
Tap certain tested vehicle model to enter the feedback screen.
1) Tap “Choose File” to open the target folder and choose the desired diagnostic
logs.
2) Choose the failure type and fill in the detailed failure description in the blank
text box and telephone or email address. After inputting, tap “Submit Result”
to send it to us.
B. History
Tap it to view all diagnostic feedback records. Different process states are
marked with different colors.
C. Offline list
Tap it to display all diagnostic feedback logs which have not been submitted
successfully due to network failure. Once the tablet gets a stable network signal,
it will be uploaded to the remote server automatically.
LAUNCH X-431 V V4.0 User Manual
62
9 User Info
This function allows users to manage personal information and VCI.
9.1 My Report
This option is used to view, delete or share the saved reports.
Tap “My Report”, there are total 3 options available.
In case the DTC result is saved on Read Trouble Code page, the files will be
listed under Diagnostic Report tab.
• To select certain report, check the box before the report. To select all reports,
tap “Select All”. To deselect all, tap “Unselect”.
• To share the report with others, select the desired one and then tap “Share”.
LAUNCH X-431 V V4.0 User Manual
63
• Select the desired report and then tap “Delete” to delete it.
• To revise the filename of the report, tap “Rename”.
If user records the running parameters while reading data stream, it will be
saved as .x431 file and appear under Diagnostic Record tab.

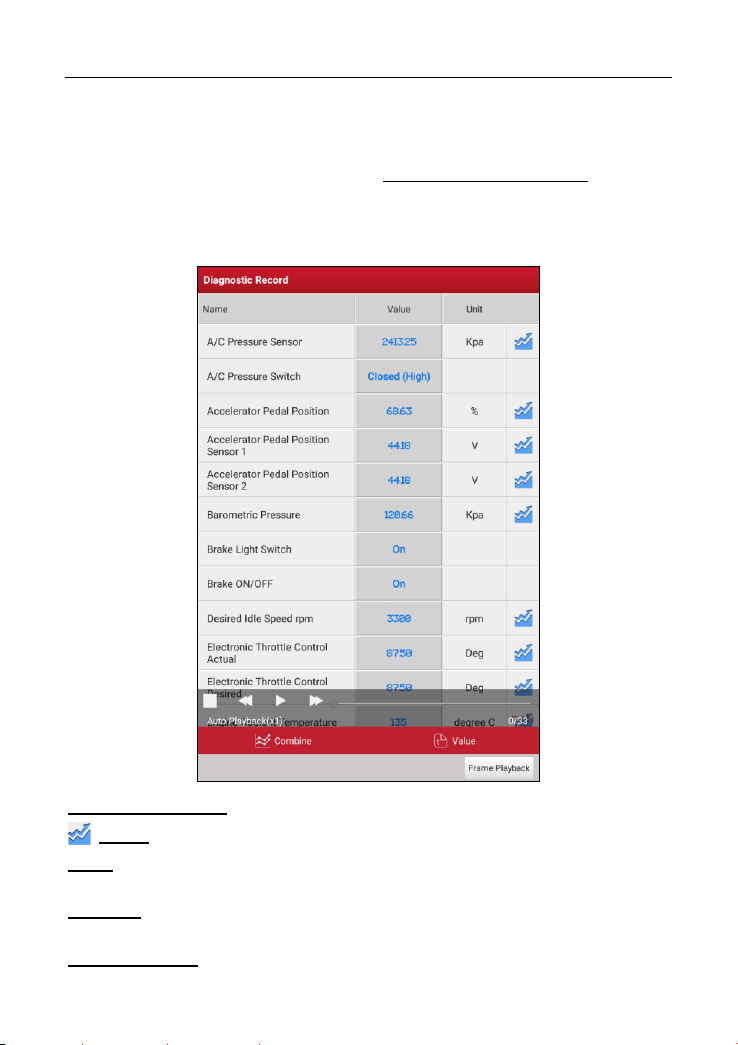

Tap the desired one to enter. Select the desired data stream items and tap
“Confirm” to jump to the playback page:
On-screen Buttons:
Graph – displays the parameters in waveform graphs.
Value – this is the default mode which displays the parameters in texts and
shows in list format.
Combine – this option is mostly used in graph merge status for data comparison.
In this case, different items are marked in different colors.
Frame Playback – plays back the recorded data stream items frame by frame.
LAUNCH X-431 V V4.0 User Manual
64
Once it is in frame playback mode, this button changes into “Auto Playback”.
Remote Diagnostic Report lists all diagnostic reports generated in process of
remote diagnosis.
9.2 VCI
This option allows you to manage all your activated VCI devices.
If several VCI devices are activated on this tool, a list of VCIs will be displayed
on the screen. Once you choose the VCI that belongs to other account, you
have to log out, and then input the right account to continue.
9.3 VCI Management
This option is used for the tablet to deactivate pairing up with the VCI device via
Bluetooth.
Note: please be sure to keep the VCI powered on while performing the operation.
9.4 Activate VCI
This item lets you to activate a new VCI device.
Input the Serial Number and Activation Code, and then tap “Activate” to activate
the connector.
For details on how to obtain Activation Code, tap the link below to get help.
LAUNCH X-431 V V4.0 User Manual
65
9.5 Firmware Fix
Use this item to upgrade and fix diagnostic firmware. During fixing, please do not
cut power or switch to other interfaces.
9.6 My News
This option allows you to receive some commercial and promotional activity
messages.
9.7 My Order
This item allows you to check the status of all your orders.
9.8 Subscription Renewal Card
This item is used to check the status of the subscription renewal card.
Input the 12-digit subscription renewal card number. Tap Search to get the
search result.
9.9 Profile
Use this item to view and configure personal information.
• Tap the user image to change it.
• Tap > next to “Free Upgrade Period” to check the due date of all diagnostic
LAUNCH X-431 V V4.0 User Manual
66
software.
9.10 Change password
This item allows you to modify your login password.
9.11 Settings
It enables you to make some application settings and view software version
information etc.
9.11.1 Units of Measurement
It is designed to configure the measurement unit. Metric System and English
System are available.
9.11.2 Shop Information
This option lets you define your shop Information. It mainly includes Workshop,
Address, Telephone, Fax and License Plate.
After inputting, tap “Save”.
Once you saved the shop information, it will be entered automatically in the “Add
Information” box every time you save the diagnostic report.
9.11.3 Printer Set
This option is designed to establish a wireless connection between the tablet
and the printer (sold separately) while performing printing operations.
Follow the steps below to connect the printer.
1. Tap “Printer Set”.
LAUNCH X-431 V V4.0 User Manual
67
A. If it is the first time you have operated this printer, please proceed the
following:
2. For initial use, you are suggested to reset the printer: Press and hold [MODE]
& [FEED] for 8 seconds, the following resetting command will be printed out:
at + default = 1
ok
at + reboot = 1
rebooting...
1. Tap “Reset” to configure the printer.
Step 1: Connect the printer:
Tap “Scan” to start scanning and select the desired printer hotspot named
with X-431PRINTER-XXXX (XXXX stands for 4 characters), and then tap
“Connect” to enter Step 2.
Step 2: Join the printer into LAN:
Tap “Scan” to select the desired local WLAN network from the list, and type in
the security password (If it is an open network, password is not required), and
then tap “Confirm”.
4. Once the WLAN network of the printer is connected and the printer is found,
tap “Printing test” to test the printing.
Now you can use the printer to print!
If the printer is not found, please reset the printer to default factory settings (refer
to Step 2 for details) and check whether the current device and the printer are on
the same LAN.
B. If you have configured the printer to the LAN:
2. Tap “Connect to Printer”:
LAUNCH X-431 V V4.0 User Manual
68
a). If the local network remains as it is, tap “Test Print” directly to test the
printing.
b). If the local network changes, you have to reset the printer.
9.11.4 Orientation
The option is used to set the screen display orientation.
9.11.5 Clear Cache
This option allows you to clear the App cache. Clearing the cache will restart the
App.
9.11.6 About
The software version information and disclaimer are included.
9.11.7 Login/Logout
To logout the current user ID, tap “Logout”.
To login the system again, tap “Login”.
LAUNCH X-431 V V4.0 User Manual
69
10 Others
10.1 Synchronization
You can transfer media files and APK between the PC and the tablet.
10.1.1 Connect to PC
1. Use the USB cable to connect the tablet to your PC.
2. Swipe from the top, a message “Connected as a media device” appears.
10.1.2 Run on PC
Perform the following steps:
Locate the new disc.
Copy the files.
10.1.3 Install an application
Do the following steps:
1. Tap Settings -> Security, and set the “Unknown sources” to ON, which
allows you to install apps from unknown sources.
2. A dialog box appears on the screen, tap “OK” to confirm.
3. Set the tool as “Connected as a media device”, and copy the APK file from
the PC to the tool.
10.2 Clear Cache
Doing so clears all browsing records and accounts and enables the tablet to run
smoothly and quickly.
1. Tap Settings -> Apps.
2. Tap and select “Sort by size” to arrange all applications in size order.
3. Tap certain application, then tap “Clear Cache” to release the space these
cache files are occupied.
LAUNCH X-431 V V4.0 User Manual
70
11 FAQ
1. How to save power?
Please turn off the screen while the tool keeps idle.
Set a shorter standby time.
Decrease the brightness of the screen.
If WLAN connection is not required, please turn it off.
Disable GPS function if GPS service is not in use.
2. Communication error with vehicle ECU?
Please confirm:
1. Whether the VCI device is correctly connected.
2. Whether ignition switch is ON.
3. If all checks are normal, send vehicle year, make, model and VIN number to
us using Feedback feature.
3. Failed to enter into vehicle ECU system?
Please confirm:
1. Whether the vehicle is equipped with this system.
2. Whether the VCI device is correctly connected.
3. Whether ignition switch is ON.
4. If all checks are normal, send vehicle year, make, model and VIN number to
us using Feedback feature.
4. How to reset the tablet?
Resetting may cause data loss. Before doing so, please make sure important data
and information has been backed up.
Do the following to reset the tablet:
1. Tap “Settings” -> “Back & Reset”.
2. Tap “Factory data reset”.
3. Tap “Reset tablet”.
LAUNCH X-431 V V4.0 User Manual
71
4. Tap “Clear all data” to start resetting until the tool automatically reboots.
5. How to download the App after resetting the tablet?
Note: Before registration, please make sure the network is properly connected.
After the tablet has been successfully reset, follow the steps below to download
the App:
1. Launch the browser and the default official Launch website opens (If a blank
page pops up, just type in www.x431.com in the input bar).
2. Tap Login, input the username and password and tap Log In.
3. Make sure that the serial number is correct, tap APP application program
and tap the Download icon to start downloading.
4. After the download is complete, follow the on-screen instructions to install it.
5. After installation, use the existing username and password to login and go to
update center to download the diagnostic software.
6. What to do if the language of vehicle diagnostic software does not
match the system language?
1. English is the default system language of the tool. After the system language
is set to the preference language, please go to the update center to
download the vehicle diagnostic software of the corresponding language.
2. If the downloaded diagnostic software is still displayed in English, it indicates
that the software of the current language is under development.
7. How to retrieve the login password?
Please follow below steps to proceed in case you forgot the login password:
1. Tap the application icon on the home screen to launch it.
2. Tap [Login] button on the upper right corner of the screen.
3. Tap "Retrieve password".
4. Input product S/N and follow the on-screen prompts to retrieve the password.
Warranty
THIS WARRANTY IS EXPRESSLY LIMITED TO PERSONS WHO PURCHASE
LAUNCH PRODUCTS FOR PURPOSES OF RESALE OR USE IN THE
ORDINARY COURSE OF THE BUYER’S BUSINESS.
LAUNCH electronic product is warranted against defects in materials and
workmanship for one year from date of delivery to the user.
This warranty does not cover any part that has been abused, altered, used for a
purpose other than for which it was intended, or used in a manner inconsistent
with instructions regarding use. The exclusive remedy for any automotive meter
found to be defective is repair or replacement, and LAUNCH shall not be liable
for any consequential or incidental damages.
Final determination of defects shall be made by LAUNCH in accordance with
procedures established by LAUNCH. No agent, employee, or representative of
LAUNCH has any authority to bind LAUNCH to any affirmation, representation,
or warranty concerning LAUNCH automotive meters, except as stated herein.
Disclaimer
The above warranty is in lieu of any other warranty, expressed or implied,
including any warranty of merchantability or fitness for a particular purpose.
Purchase Order
Replaceable and optional parts can be ordered directly from your LAUNCH
authorized tool supplier. Your order should include the following information:
Order quantity
Part number
Part name
Customer Service
Any question during the operation, please call 86-755-84528722.
If your unit requires repair service, return it to the manufacturer with a copy of
the sales receipt and a note describing the problem. If the unit is determined to
be in warranty, it will be repaired or replaced at no charge. If the unit is
determined to be out of warranty, it will be repaired for a nominal service charge
plus return freight. Send the unit pre-paid to:
Attn: Customer Service Department
LAUNCH TECH. CO., LTD.
Launch Industrial Park,
North of Wuhe Avenue,
Banxuegang, Bantian,
Longgang, Shenzhen, Guangdong
P.R.China, 518129
Launch website: http://www. cnlaunch.com
http://www.x431.com
Statement:
LAUNCH reserves the rights to make any change to product designs and
specifications without notice. The actual object may differ a little from the
descriptions in the manual in physical appearance, color and configuration. We
have tried our best to make the descriptions and illustrations in the manual as
accurate as possible, and defects are inevitable, if you have any question,
please contact local dealer or after-sale service center of LAUNCH, LAUNCH
does not bear any responsibility arising from misunderstandings.
