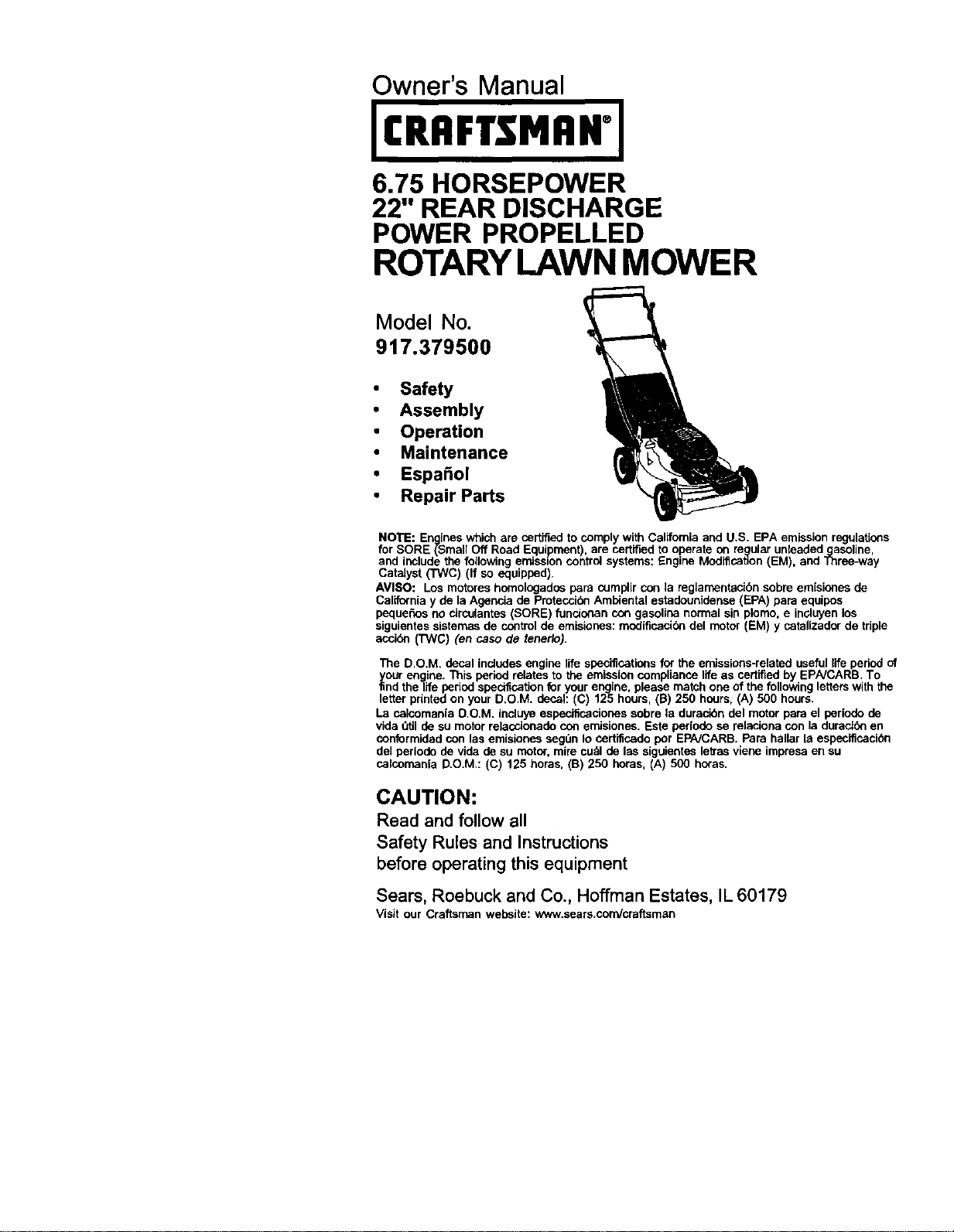

Owner's Manual
ICRAFTSMAN+I
6.75 HORSEPOWER
22" REAR DISCHARGE
POWER PROPELLED
ROTARY LAWN MOWER
Model No.
917.379500
• Safety
•Assembly
•Operation
•Maintenance
•EspaSol
•Repair Parts
NOTE: Engines which are certified to comply with Califomia and U.S. EPA emission regulatines
for SORE (Small Off Road Equipment). are certified to operate on regular unleadedgasoline,
and include the following emission control systems: Engine Modification (EM), and Three-way
Catalyst (TWC) (If so equipped).
AVISO: Los motores hcmologados pera cumplir con la reglamentaci6n sobre emisiones de
California y de la Agencia de Protecci6n Ambiental estadounidenee (EPA) para equipos
pequefios no circulantes (SORE) funcionan con gasolina normal sin plomo, e induyen los
siguientes sistemas de control de emisienes: mediflcack'xl del motor (EM) y catalizador de triple
accibn (TWC) (en caso de tener_).
The D.O.M. decal includes engine life specifications for the emissions-related useful life peded of
_our engine. This period relates to the emission compliance life as certified by EPNCARB. To
nd the life peded specillcation for your engine, please match one of the following letters with the
letter pdnted on your D.O.M. decal: (C) 125 hours, (B) 250 hours, (A) 500 hours.
La calcomanla D.O.M. incluye especificaciones sobre la duracibn del motor para el periodo de
vide Otil de su mok_rrelaccionade con emisiones. Este periode se relaciona con la duraolde en
conformidad con las emisiones segun Io certiflcado por EPNCARB. Para hallar la especfficacibn
del periode de vida de su motor,mire cu_l de las alguientes letras viene impresa en su
calcomanla D.O.M.: (C) 125 horas, (B) 250 horas, (A) 500 horas.
CAUTION:
Read and follow all
Safety Rules and Instructions
before operatingthisequipment
Sears, Roebuck and Co., Hoffman Estates, IL 60179
Visit our Craftsman website: www.sears.corn/craftsman
Warranty ................................................. 2 Product Specifications.......................... 11
Safety Rules ........................................ 2-4 Service and Adjustments ................. 14-15
Assembly ................................................ 5 Storage ............................................ 15-16
Operation ............................................. 6*9 Troubleshooting .............................. 17-18
Maintenance Schedule ........................ 10 Repair Parts..................................... 35-43
Maintenance .................................... 10-13 Parts Ordedng ........................ Back Cover
LIMITED TWO YEAR WARRANTY ON CRAFTSMAN POWER MOWER
For two years from date of purchase, when this Craftsman Lawn Mower is maintained,
lubdcated, and tuned up according to the operating and maintenance instructionsin
the owner's manual, Sears will repair free of charge any defect in matedal or workman-
ship.
If this Craftsman Lawn Mower is used for commercial or rental purposes, this warranty
appliesfor only 90 days from the date of purchase.
ThisWarranty does not cover:
• Expendable items which become worn during normal use, such as rotary mower
blades, blade adapters, belts, air cleaners and spark plug.
• Repairs necessary because of operator abuse or negligence, including bent
crankshafts and the failure to maintain the equipment according to the instructions
contained in the owner's manual.
Warranty service is available by returning the Craftsman power mower tothe nearest
Sears Service Center/Department in the United States. This warranty applies only
while this product is in use in the United States.
ThisWarranty gives you specific legal rights, and you may also have other rights which
varyfrom state tostate.
Sears, Roebuck and Co., D/817 WA, Hoffman Estates, Illinois 60179
IMPORTANT: This cuttingmachine is capable of amputating hands and feet and
throwingobjects. Failure to observe the followingsafety instructionscould resultin
sedous injury or death.
I.GENERAL OPERATION •
• Read, understand, and follow all
instructionson the machine and in the
manual(s) before starting. Be thor-
oughly familiar with the controlsand
the proper use of the machine before
starting.
•Do not put hands or feet near or under
rotating parts. Keep clear of the
discharge opening at all times.
•Only allow responsible individuals, •
who are familiar with the instructions,to
operate the machine.
•Clear the area of objects such as •
rocks,toys,wire, bones, sticks,etc.,
whichcould be picked up and thrown
by the blade. 2
Be sure the area Is clear ofother
people before mowing. Stop machine if
anyone enters the area.
Do not operate the mower when
barefoot or weadng open sandals.
Always wear substantial foot wear.
Do not pull mower backwards unless
absolutely necessary. Always look
down and behind before and while
moving backwards.
Do not operate the mower without
proper guards, plates, grass catcher or
other safety protective devices in place.
See manufacturer's instructionsfor
proper operation and installation of
accessodes. Only use accassodes
approved by the manufacturer.
• Stoptheblade(s)whencrossinggravel
ddves,walks,orroads.
•Stop the engine (motor) whenever you
leave the equipment, before cleaning
the mower or uncloggingthe chute.
• Shut the engine (motor) off and wait
untilthe blade comes to complete stop
before removing grass catcher.
•Mow only in daylight or good artificial
light.
•Do not operate the machine while
under the influence of alcohol or drugs.
•Never operate machine in wet grass.
Always be sure ofyour footing: keep a
firm hold on the handle and walk; never
run.
•Disengage the serf-propelled mecha-
nismor drive clutch on mowers so
equipped before starting the engine
(motor).
•If the equipment should start tovibrate
abnormally, stop the engine (motor)
and check immediately for the cause.
Vibration is generally a warning of
trouble.
•Always wear safety goggles or safety
glasses with side shields when
operating mower.
I1.SLOPE OPERATION
Slopes are a major factor related to slip
and fall accidents which can result in
severe injury. All slopes require extra
caution. If you feel uneasy on e slope, do
notmow it.
DO:
• Mow across the face of slopes: never
up and down. Exercise extreme caution
when changing direction on slopes.
•Remove obstacles such as rocks, tree
limbs,etc.
•Watch for holes, ruts, or bumps.Tall
grass can hide obstacles.
DO NOT:
• Do not trim near drop-offs, ditchesor
embankments. The operator could lose
footing or balance.
•Do not tdm excessively steep slopes.
•Do notmow on wet grass. Reduced
footing could cause slipping.
II1. CHILDREN
Tragic accidents can occur if the operator
is notalert to the presence of children.
Children are often attracted to the
machine and the mowing activity. Never
assume that children will remain where
you last saw them.
•Keep children out of the trimming area
and under the watchful care of another
responsible adult.
•Be aled and turn machine off if children
enter the area.
•Before and while walking backwards,
lock behind and down for small
children.
•Never allow children to operate the
machine.
•Use extra care when approaching blind
comers, shrubs, trees, or otherobjects
that may obscure vision.
IV. SERVICE
•Use extra care in handling gasoline
and other fuels. They are flammable
and vapors are explosive.
- Use only an approved container.
- Never remove gas cap or add fuel
with the engine running. Allow
engine to cool before refueling. Do
not smoke.
- Never refuel the machine indoors.
-Never store the machine orfuel
container inside where there is an
open flame, such as a water heater.
•Never run a machine inside a closed
area.
•Never make adjuslments or repairs with
the engine (motor) running. Disconnect
the spark plug wire, and keep the wire
away from the plug to prevent acciden-
tal starting.
• Keep nuts and bolts, especially blade
attachment bolts, tight and keep
equipment in good condition.
•Never tamper with safety devices.
Check their proper operation regularly.
•Keep machinefree of grass, leaves, or
other debds build-up. Clean oil or fuel
spillage. Allow machine to cool before
stodng.
•Stop and inspect the equipment if you
stdke an object. Repair, if necessary,
before restarting.
•Never attempt to make wheel height
adjustments while the engine (motor) is
running.
•Grass catcher components are subject
to wear, damage, and detederation,
which could expose moving parts or
allow objects to be thrown. Frequently
check components and replace with
manufacturer's recommended parts,
when necessary.
•Mower blades are sharp and can cut.
Wrap the blade(s) or wear gloves, and
use extra caution when servicingthem.
•Do not change the engine governor
setting or overspeed the engine.
A,Look forthis symbol to pointout
importantsafety precautions. It means
CAUTIONltl BECOMEALERTtl! YOUR
SAFETY IS INVOLVED.
A CAUTION: In order to prevent
accidental starting when setting up,
transporting, adjusting or making repairs,
always disconnect spark plug wire and
place wire where it cannot contact spark
plug.
AWARNING: Battery posts, terminalsand
related accessories contain lead and
lead compounds, chemicals known to the
State of California tocause cancer and
birthdefects or other reproductive harm.
Wash hands after handling.
_IWARNING: Engine exhaust, some of its
constituents, and certain vehicle
components contain or emit chemicals
known tothe State of Califomia to cause
cancer and birthdefects or other
reproductive harm.
_11CAUTION: Muffler and other engine
parts become extremely hot dudng
operation and remain hot after engine has
stopped, To avoid severe burns on
contact, stay away from these areas.

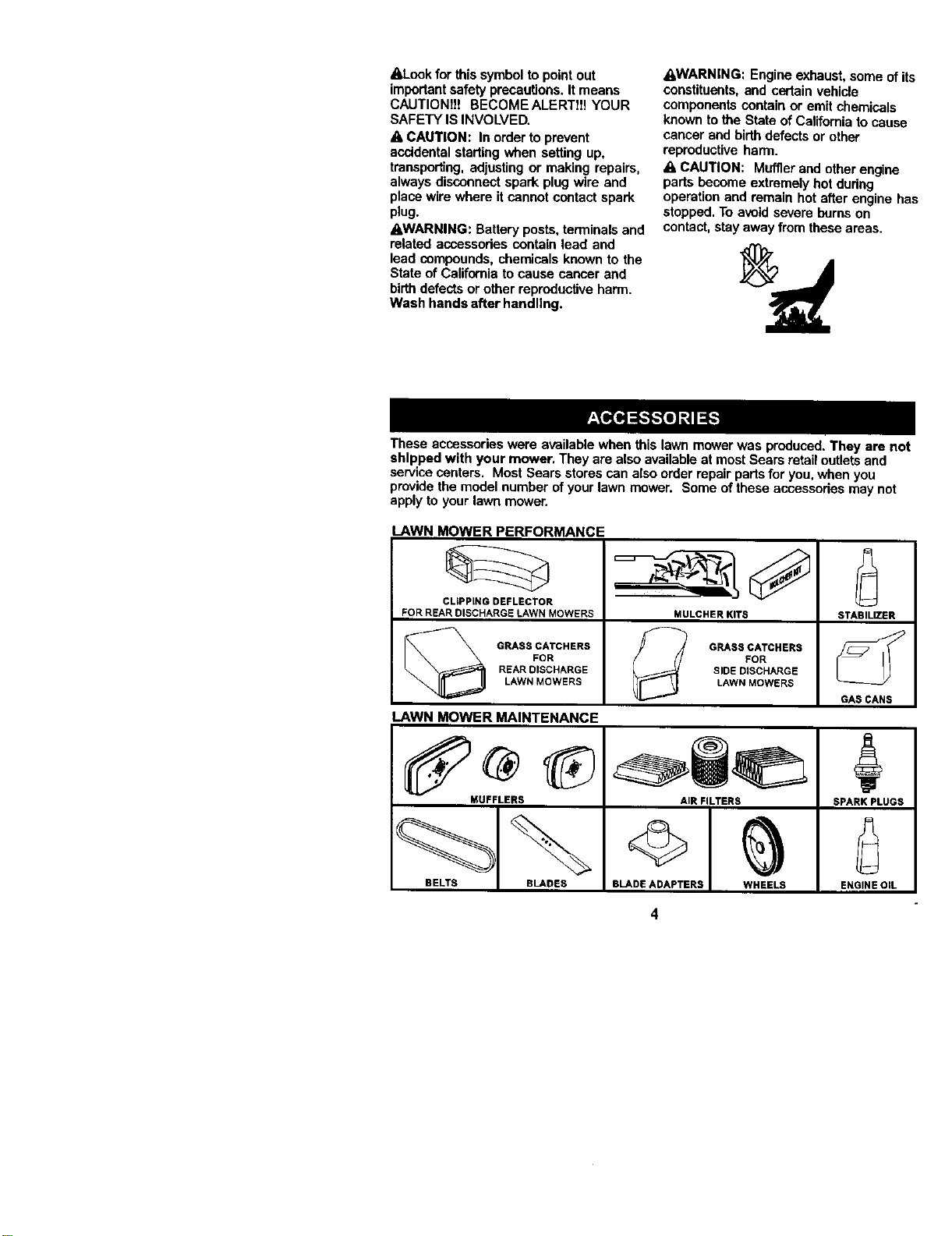

These accessories were available when this lawn mower was produced. They are not
shipped with your mower. They are also available at most Sears retail outlets and
servicecenters. Most Sears stores can also order repair partsfor you, when you
providethe model number of your lawn mower. Some ofthese accessories may not
apply to your lawn mower.
LAWN MOWER PERFORMANCE
FOR REAR DISCHARGE LAWN MOWERS MULCEER KITS STABILIZER
GRASS CATCHERS _GRASS CATCHERS
FOR FOR
REAR DISCHARGE SIDE DISCHARGE
LAWN MOWERS LAWN MOWERS
GAS CANS
LAWN MOWER MAINTENANCE
MUFFLERS AIR FILTERS SPARK PLUGS
BELTS BLADES BLADE ADAPTERS WHEELS ENGINE OIL
4

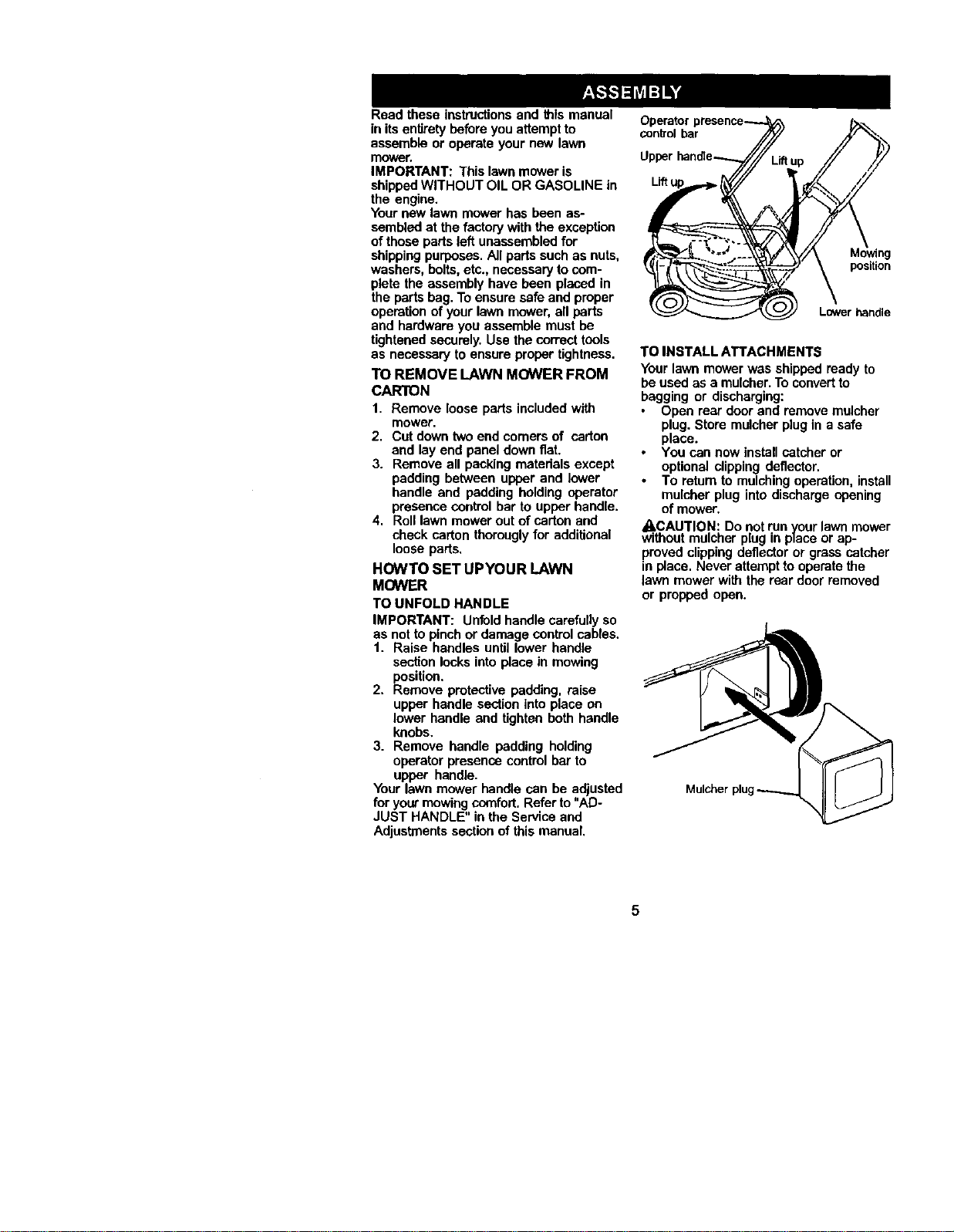

Reedtheseinstructionsandthismanual
initsentiretybeforeyouattemptto
assembleoroperateyournewlawn
mower.
IMPORTANT: This lawn mower is
shippedWITHOUT OIL OR GASOLINE in
the engine.
Your now lawn mower has been as-
sembled at the factory with the exception
of those partslef_unassembled for
shipping purposes. All parts such as nuts,
washers, bolts, etc., necessary to com-
plete the assembly have been placed in
the parts bag. To ensure safe and proper
operation of your lawn mower, all parts
and hardware you assemble must be
tightened securely. Use the correct tools
as necessary to ensure proper tightness.
TO REMOVE LAWN MOWER FROM
CARTON
1. Remove loose parts included with
mower.
2. Cut down two end comers of carton
and lay end panel down flat.
3. Remove all packing reatedals except
padding between upper and lower
handle and padding holding operator
presence control bar to upper handle.
4. Roll lawn mower out of carton and
check carton thorouglyfor additional
loose parts.
HOWTO SET UPYOUR LAWN
MOWER
TO UNFOLD HANDLE
IMPORTANT: Unfold handle carefully so
as not to pinch or damage control cables.
1. Raise handles until lower handle
section locks into place in mowing
position.
2. Remove protective padding, raise
upper handle section into place on
lower handle and tighten both handle
knobs.
3. Remove handle padding holding
operator presence control bar to
upper handle.
Your lawn mower handle can be adjusted
for your mowing comfort. Refer to "AD-
JUST HANDLE" in the Service and
Adjustmentssection of this manual.
Operator
conb'ol bar
position
Lower handle
TO INSTALL ATTACHMENTS
Your lawn mower was shipped ready to
be used as a mulcher.To convertto
bagging or discharging:
Open rear door end remove mulcher
plug. Store rnulcherplug in a safe
place.
•You can now installcatcher or
optional clipping deflector.
•To return to mulchingoperation, install
mulcher plug into discharge opening
of mower.
_.thCAUTION: Do not run your lawnmower
out mulcher plug in place or ap-
proved clippingdeflector or grass catcher
in place. Never attempt to operate the
lawn mower with the rear door removed
or prepped open.
Mulcher plu

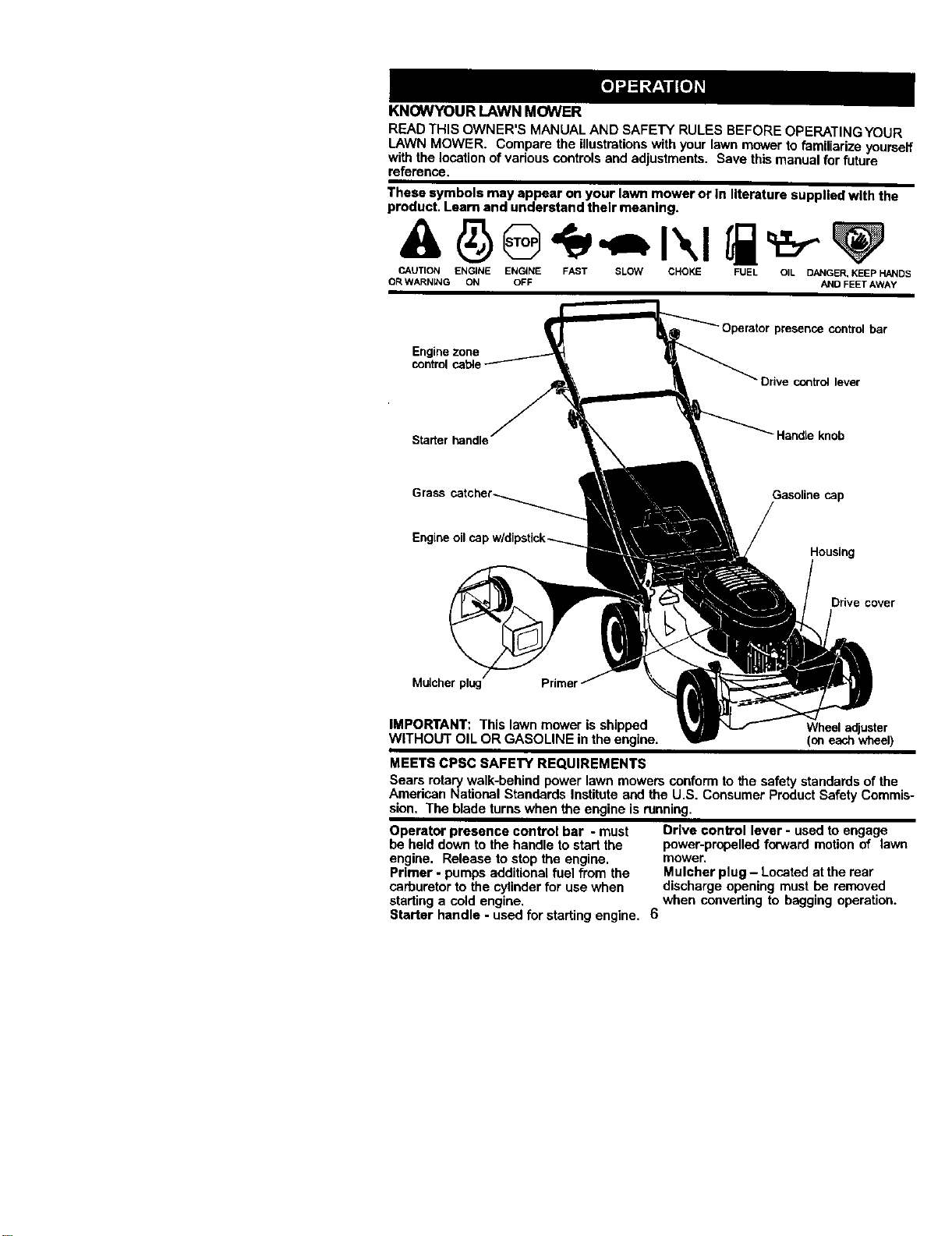

KNOWYOUR LAWN MOWER
READ THIS OWNER'S MANUAL AND SAFETY RULES BEFORE OPERATING YOUR
LAWN MOWER. Compare the illustrations with your lawn mower to familiarize yourself
with the location of various controls and adjustments. Save this manual for future
reference.
These symbols may appear on your lawn mower or In literature supplied with the
product, Learn and understand their meaning.
CAUTION ENGINE ENGINE FAST SLOW CHOKE FUEL OIL DANGER, KEEP HANDS
OR WARN_G ON OFF AND FEET AWAY
Engine zone
control cable Drive control lever
Starter handle Handle knob
Grass Gasoline cap
Engine oil cap w/d
Housing
Drive cover
Muncher plug
IMPORTANT: This lawn mower is shipped Wheeladjuster
WITHOUT OIL OR GASOLINE in the engine. (on eachwheel)
MEETS CPSC SAFETY REQUIREMENTS
Sears rotarywalk-behind power lawn mowers conform to the safety standards of the
Amedcan National Standards Institute and the U,S. Consumer Product Safety Commis-
sion, The blade turns when the engine is running,
Operator presence control bar -must Drive control lever -used to engage
be helddown to the handle to start the power-propelled forward motion of lawn
engine, Release to stop the engine, mower,
Primer -pumps additional fuel from the Mulcher plug - Locatedat the rear
carburetor to the cylinder for use when discharge opening must be removed
starting a cold engine, when converting to bagging operation.
Starter handle -used for starting engine. 6
Theoperationofanylawn
mowerconresultinforeign
objects thrown intothe
eyes, which can result in
severe eye damage.
Always wear safety glasses or eye
shields while operating your lawn mower
or performing any adjustments _repairs.
We recommend a wide vision safety
mask over spectacles or standard safety
glasses.

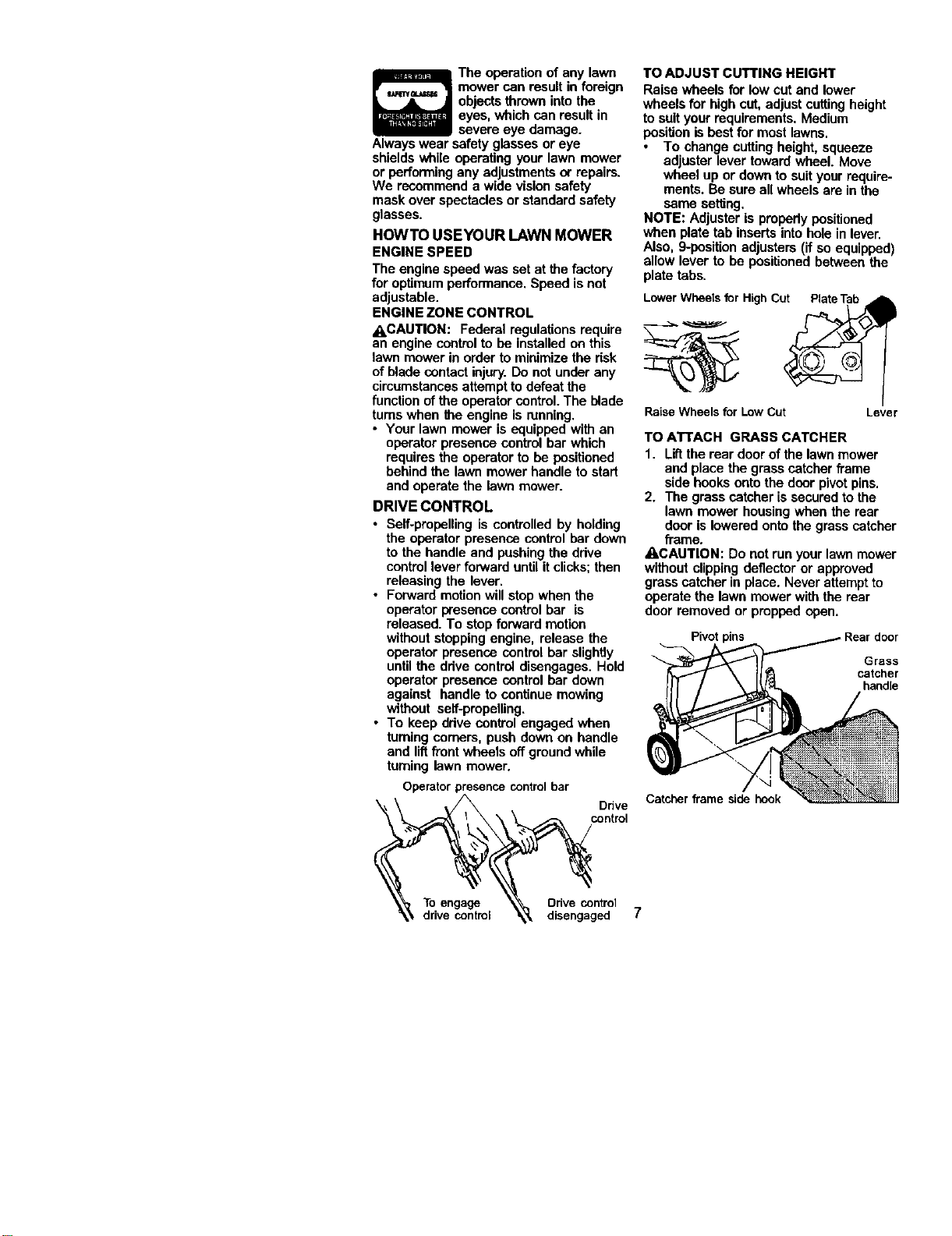

HOWTO USEYOUR LAWN MOWER
ENGINE SPEED
The engine speed was set at the factory
for optimumperformance. Speed is not
adjustable.
ENGINE ZONE CONTROL
_,CAUTION: Federal regulations require
an engine controlto be installed on this
lawn mower in order to minimize the dsk
of blade contact injury. Do not under any
circumstances attempt to defeat the
function of the operator control. The blade
turns when the engine is running.
• Your lawn mower is equipped with an
operator presence control bar which
requires the operatorto be positioned
behind the lawn mower handle to start
and operate the lawn mower.
DRIVE CONTROL
• Self-propelling is controlled by holding
the operator presence control bar down
to the handle and pushing the ddve
controllever forward until itclicks; then
releasing the lever.
•Forward motion will stop when the
operator presance control bar is
released. To stop forward motion
withoutstopping engine, release the
operator presence control bar slightly
until the ddve control disengages. Hold
operator presence control bar down
against handle to continue mowing
without self-propelling.
•To keep ddve control engaged when
turningcorners, push down on handle
and liftfront wheels off ground while
turning lawn mower.
Operator presence control bar Drive
control
TO ADJUST CUTTING HEIGHT
Raise wheels for low cut and lower
wheels for high cut, adjustcutting height
to suit your requirements, Medium
position isbest for most lawns.
• To change cuttingheight, squeeze
adjuster lever toward wheel. Move
wheel up or down to suit your require-
ments. Be sure all wheels are in the
same seffing.
NOTE: Adjuster is prepedy positioned
when plate tab inserts into hole in lever.
Also, 9-pesition adjusters (if so equipped)
allow lever to be positioned between the
plate tabs.
LowerWheetsforHighCut PlateTab
Raise Wheels for Low Cut Leve
TO ATTACH GRASS CATCHER
1. L_ the rear doorof the lawn mower
and place the grass catcher frame
side hooks onto the deer pivot pins.
2. The grass catcher is secured to the
lawn mower housing when the rear
deer is lowered onto the grass catcher
frame.
_,CAUTION: Do not run your lawn mower
without clipping deflector or approved
grass catcher in place. Never attempt to
operate the lawn mower with the rear
door removed or propped open.
Pivot pins
Grass
catcher
handle
Catcher frame side hook
To engage Odvecontrol
drive control disengaged 7
TO EMPTY GRASS CATCHER
I, Liftup on grass catcher using the
frame handle.
2. Remove grass catcher with clippings
from under lawn mower handle.
3. Empty clippingsfrom bag using both
frame handle and bag handle.
NOTE: Do not drag the bag when
emptying; it will cause unnecessary wear.
/
fTame
handle
BEFORE STARTING ENGINE
ADD OIL
Your lawnmower is shipped without oil in
the engine, Engine holds 20 oz, of oil.
For type and grade of oil to use, see
"ENGINE" in Maintenance section of this
manual.
1. Be sure lawnmower is level and area
around oil fill is clean,
2. Remove engine oil cap and fill to the
full line on the dipstick. Pour oil slowly.
Do not over fill.
NOTE: Allow oil to settle down intoengine
for accurate reading, To read proper level,
tighten engine oil cap, then remove itto
read the dipstick.
3, Reinstall engine oil cap and tighten.
• Check oil level before each use. Add
oil if needed. Fill to full line on dipstick.
•Change the oil after every 25 hours of
operation or each season. You may
need to change the oil more often
under dusty, dirty conditions.
ADD GASOLINE
•Fillfuel tank. Use fresh, clean, regular
unleaded gasoline with a minimum of
87 octane. Do not mix oil with gaso-
line. Purchase fuel in quantities that
can be used within 30 days to assure
fuel freshness.
J_WARNING: Experience indicates that
alcohol blended fuels (called gasehol or
using ethanol or methanol) can attract
moisturewhich leads to separation and
formation of acids dudngstorage. Acidic
gas can damage the fuel system of an
engine while in storage. To avoid engine
problems, the fuel system should be
emptied before storage of 30 days or
longer. Drainthe gas tank, start the
engine and let it run untilthe fuel lines
and carburetor are empty. Use freshfuel
next season. See Storage Instructionsfor
additional information. Never use engine
or carburetor cleaner productsin the fuel
tank or permanent damage may occur.
A CAUTION: Fill tobottom of gas tank
fillerneck. Do not overfill. Wipe offany
spilled oil or fuel. Do not store, spillor
use gasoline near an open flame.
Engine oil cap Gasoline filler cap
TO START ENGINE
NOTE: Due to protectivecoatings on the
engine, a small amount of smoke may be
present dudng the initialuse of the
product and should be considered
normal.
1, To start a cold engine, push pdmer
three (3) times before Wing tostart,
Use afirm push, This step isnot
usually necessary when starting an
engine which has already run for a
few minutes.
2. Hold operator presence control bar
down toMe handle and pullstarter
handle quickly, Do not allow starter
rope to snap back.
8
TO STOP ENGINE
•To stop engine, release operator
presence control bar.
NOTE: In coolerweather it may be
necessary to repeat pdmingsteps. In
wanner weather over pdming may cause
floodingand engine will not start. If you
do floodengine, wait a few minutes
before attemptingto start and do not
repeat priming steps.

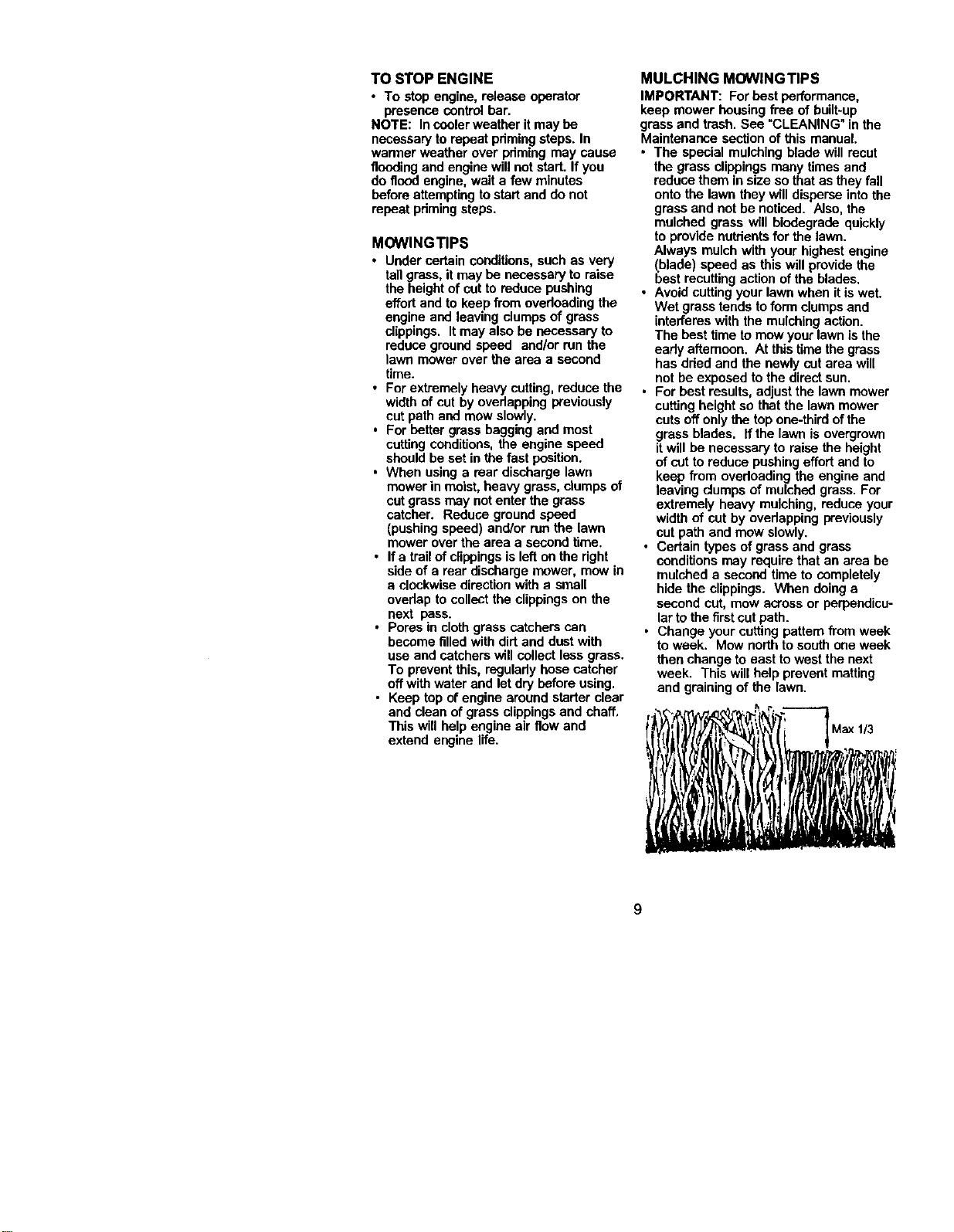

MOWINGTIPS
•Under certain conditions,such as very
tallgrass, it may be necessary to raise
the height of cut to reduce pushing
effortand to keep from ovedoading the
engine and leaving clumps of grass
clippings. It may also be necessary to
reduce groundspeed and/or run the
lawn mower over the area a second
time.
• For extremely heavy cutting, reduce the
width of cut by overlapping weviously
cut path and mow slowly.
•For better grass bagging and most
cutting conditions,the engine speed
should be set in the fast position.
• When using a rear discharge lawn
mower in moist,heavy grass, clumps of
cutgrass may not enter the grass
catcher. Reduce ground speed
(pushing speed) and/or run the lawn
mower over the area a second time.
•If a trail of clippingsisleft on the right
side of a rear discharge mower, mow in
a clockwisedirection with asmall
overlap to collect the clippings on the
next pass.
•Pores in cloth grass catchers can
become filledwith dirt and dust with
use and catchers will collect less grass.
To prevent this, regularly bose catcher
off with water and let dry before using.
• Keep top ofengine around starter clear
and clean of grass clippingsand chaff,
This will help engine air flow and
extend engine llfe.
MULCHING MOWINGTIPS
IMPORTANT: For best performance,
keep mower housingfree of built-up
grass and trash. See =CLEANING" in the
Maintenance section of this manual.
•The special mulching blade will recut
the grass clippingsmany times and
reduce them in size so that as they fall
onto the lawn they will disperse into the
grass and not be noticed. Also, the
mulched grass will biedegrade quickly
to provide nutrientsfor the lawn.
Always mulch with your highest engine
(blade) speed as this will provide the
best recutting action of the blades,
•Avoid cuttingyour lawn when it iswet.
Wet grass tends to form clumpsand
interferes with the mulchingaction.
The best time to mow your lawn is the
eady afternoon. At this timethe grass
has dded and the newly cut area will
notbe exposed to the directsun,
•For best results, adjustthe lawn mower
cuffing height so that the lawn mower
cuts off only the topone-third ofthe
grass blades. If the lawn is overgrown
itwill be necessary to raise the height
ofcut to reduce pushingeffort and to
keep from overloading the engine and
leaving dumps of mulched grass. For
extremely heavy mulching, reduce your
width of cut by overlapping previously
cut path and mow slowly,
•Certain types of grass and grass
conditionsmay require that an area be
mulched a second time to completely
hide the clippings. When doing a
second cut, mow across or perpendicu-
lar to the first cut path.
•Change your cuttingpattern from week
toweek. Mow northto south one week
then change to east towest the next
week. This will help prevent matting
and graining of the lawn.
Max1/3
F' L'"
REGULARSERVICE 44f_ _(j/_(_#'_,_-_"_@ _" SERVICEDATES
Check for Lo_e Fasteners _it#
Clean/Inspect Grass Catcher
(If Equipped) li/ I k/ IV/
Mclean Lawn Mower i/
O Clean Under Ddve Cover
{Power-Propelled Mowers) _#
Check ddve belt/ ulleys

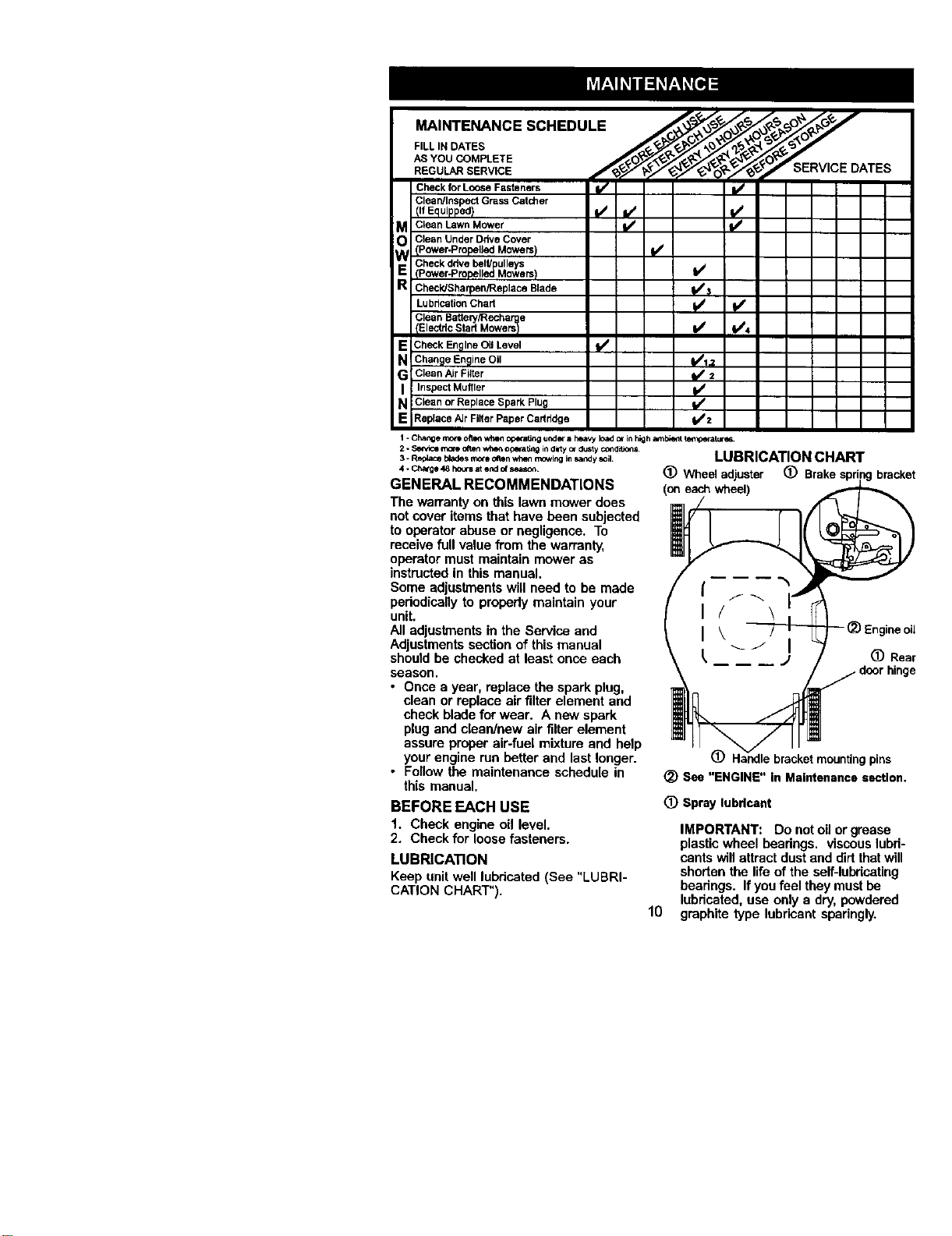

E (Power-P ropelle_J_Mowers) f_
Check/Sharpen/Replace Blade I,/}
LubdcaUon Chad _/
Clean Battely/Rechar E
Electric Stert Mowers I_ 1_/4
ECheck Engine OilLevel It/
N ChangeEngineOil II/t_
GClean Air Filter I_ 2
I Inspect Muffler ip/
NClean or Replace Spark Plug V*
E ReplaceAirFilterPaperCadddge 1_2
1-Change mo_ oP_mvH_eno_g ur,dm'a heavy bad _in highamble_ tet_Ceralwu.
2 - Service _o_n wh4mopefatk_ in dmyor dustyCC_d_ic_s
3-Replace _des _o olin when _ing ie sandy soil¸
4 - Chaq_e48 hoursat end o( saasc*_
GENERAL RECOMMENDATIONS
The warranty on this lawn mower does
notcover items that have been subjected
to operatorabuse or negligence. To
receive full value from the warranty,
operator must maintain mower as
instructedin this manual.
Some adjustments will need to be made
pededically to propedy maintain your
unit.
All adjustments in the Service and
Adjustmentssection of this manual
should be checked at least once each
season.
• Once a year, replace the spark plug,
clean or replace air filter element and
check blade for wear. A now spark
plug and clean/new air filter element
assure proper air-fuel mixture and help
your engine run better and last longer.
• Follow the maintenance schedule in
this manual.
LUBRICATION CHART
(_) Wheeladjuster _) Brake
(oneachwheel)
BEFORE EACH USE
1. Check engine oil level.
2. Check for loose fasteners.
LUBRICATION
Keep unit well lubricated (See "LUBRI-
CATION CHART").
bracket
(_ Handle bracket mounting pins
(_) See "ENGINE" in Maintenance section.
(_) Spray lubricant
10
IMPORTANT: Do notoil orgrease
plastic wheel beadegs, viscouslubri-
cants will attractdust and dirtthat will
shorten the life of the self-lubricating
bearings. Ifyou feel they must be
lubricated, use only a dry, powdered
graphite type lubricant sparingly,

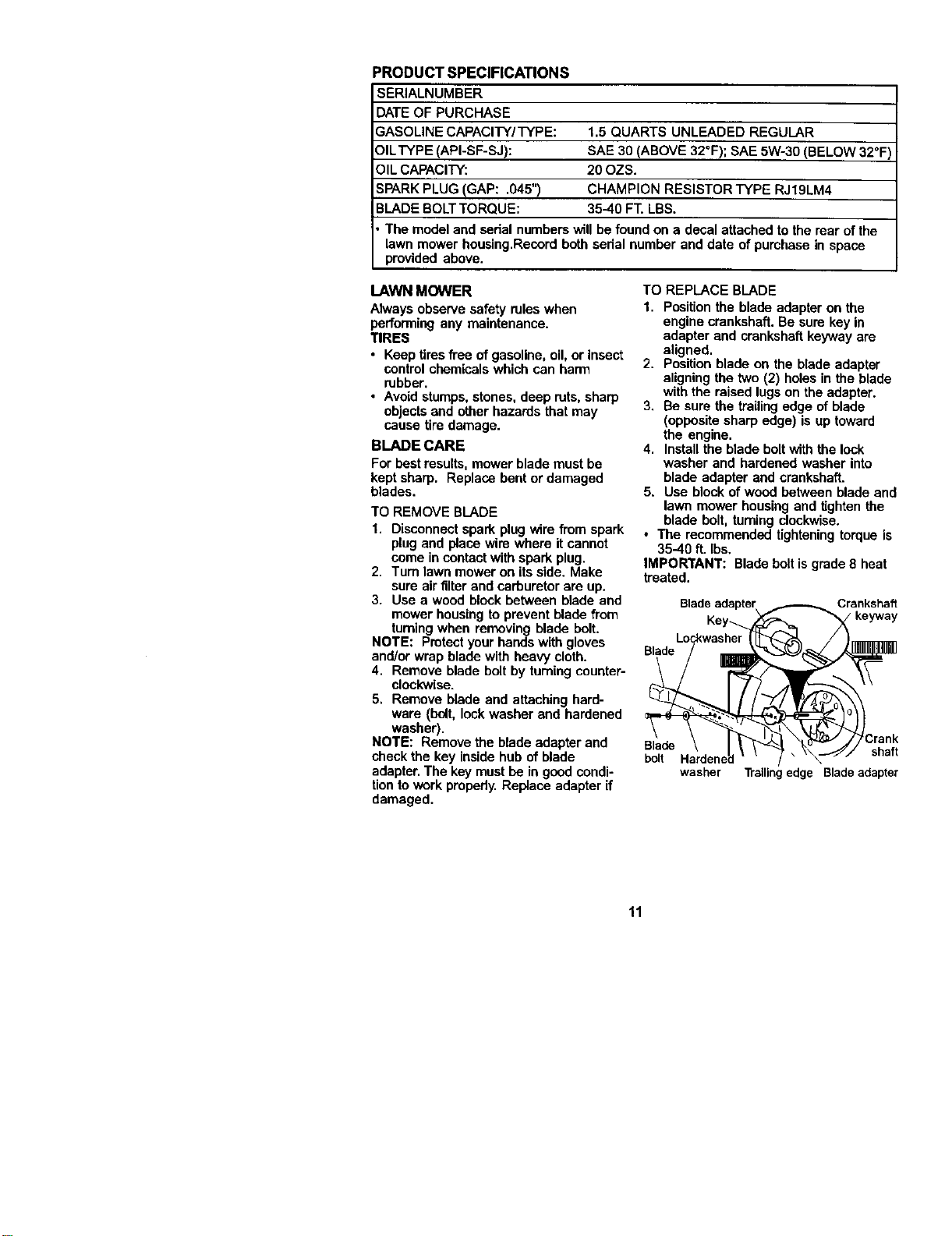

PRODUCTSPECIFICATIONS
SERIALNUMBER
DATEOFPURCHASE
3ASOLINECAPACITY/TYPE:
:)ILTYPE(API-SF-SJ):
OIL CAPACITY:
SPARK PLUG (GAP: ,045")
BLADE BOLTTORQUE:
1.5 QUARTS UNLEADED REGULAR
SAE 30 (ABOVE 32°F); SAE 5W-30 (BELOW 32°F
20 OZS.
CHAMPION RESISTOR TYPE RJ19LM4
35-40 FT. LBS.
. The model and sedal numbers will be found on a decal attached to the rear ofthe
lawn mower housing.Record both sedal number and date of purchase in space
provided above.
LAWN MOWER
Always observe safety rules when
performing any maintenance.
TIRES
•Keep tires free of gasoline, oil, or insect
control chemicals which can harm
rubber.
• Avoid stumps, stones, deep ruts, sharp
objects and other hazards that may
cause tire damage.
BLADE CARE
For best results, mower blade must be
kept sharp. Replace bent or damaged
blades.
TO REMOVE BLADE
1. Disconnect spark plug wire from spark
plug and place wire where it cannot
come in contactwith spark plug.
2. Tum lawn mower on its side. Make
sure air filter and carburetor are up.
3. Use awood block between blade and
mower housing to prevent blade from
turningwhen removing blade belt.
NOTE: Protectyour handswith gloves
and/or wrap blade with heavy cloth.
4. Remove blade bolt by turning counter-
clockwise.
5. Remove blade and attaching hard-
ware (bolt, lock washer and hardened
washer).
NOTE: Remove the blade adapter and
check the key inside hub of blade
adapter. The key must he in goodcondi-
tionto work propedy.Replace adapter if
damaged.
TO REPLACE BLADE
1. Position the blade adapter on the
engine crankshaft. Be sure key in
adapter and crankshaft keyway are
aligned.
2. Position blade on the blade adapter
aligning the two (2) holes in the blade
with the raised lugs on the adapter.
3. Be sure the trailingedge of blade
(opposite sharp edge) is up toward
the engine.
4. Install the blade bolt with the lock
washer and hardened washer into
blade adapter and crankshaft.
5. Use block of wood between blade and
lawn mower housing and tighten the
blade bolt, turning clockwise.
•The recommended tighteningtorque is
35-40 ft. Ibs.
IMPORTANT: Blade boltis grade 8 heat
treated.
Bladeadapter Crankshaft
Key_ keyway
Blade _ :r_anfk
washer Trailing edge Blade adapter
11
TO SHARPEN BLADE
NOTE: We do not recommend sharpen-
ing blade -but if you do, be sure the
blade Is balanced.
Care should be taken to keep the blade
balanced. An unbalanced blade wilt
cause eventual damage to lawn mower
or engine.
• The blade can be sharpened with a file
or on a grinding wheel. Do notattempt
to sharpen while on the mower.
• To check blade balance, ddve anail
into abeam or wail. Leave aleut one
inch of the straight nail exposed. Place
center hole of blade over the head of
the nail. If blade is balanced, it should
remain in a horizontal position. If either
end of the blade moves downward,
sharpen the heavy end untilthe blade
isbalanced.
GRASS CATCHER
• The grass catcher may be hosed with
water, but must be dry when used.
• Check your grass catcher oftenfor
damage or detedoration. Through
nGrmalUSeitwiU weax'. If catcber
needs replacing, replace only with a
manufacturer approved replacement
catcher. Give the lawn mower model
number when ordering.
DRIVE WHEELS
Check front drive wheels each time
before you mow to be sure they move
freely.
The wheels not turningfreely means
trash, grass cuttings, etc. are in the drive
wheel area and must be cleaned to free
drive wheals.
if necessary to dean the drive wheels,
check both front wheels.
1. Remove hubcaps, hairpin cotters and
washers.
2. Remove wheels from wheel adjusters.
3. Remove any trash or grass cuttings
from inside the dust cover, pinion and/
or drive wheel gear teeth.
4. Put wheels back in place.
NOTE: If after cleaning, the ddve wheels
do not turn freely, contact a Sears or other
qualified service center.
GEAR CASE
• To keep your ddve system working
propedy, the gear case and area
around the ddve should be kept clea
and frea of trash build-up. Clean unc
the drive cover twice a season.
• The gear case is filledwith lubricant
the proper level atthe factory. The o
time the lubricantneeds attentionis i
service has been performed on the
gear case.
• If lubricantis required, use only Tex_
Starpiex Premium 'l Grease, Part No
750369. Do net substitute.
ENGINE
LUBRICATION
Use on_ high quality detergent oil rate1
withAPI service classificationSF-SJ.
Select the oil's SAE viscositygrade
according to your expected operating
temperature.
NOTE', Although multi-viscosityoils
(5W30, 10W30 etc.) improvestarting il_
coldweather, these multi-vLscosity oils
will result In increased oil consumptior
when used above 32°F. Check your
engine oil level more frequently to avoi,
possible engine damage from running
tow on oil
Change the oil after every 25 hours of
operationor at least once a year if the
lawn mower is notused for 25 hours in
one year.
Check the crankcase oil level before
starting the engine and after each five !
hours of continuous use. Tighten oil plL
securely each time you check the oil
level.
12

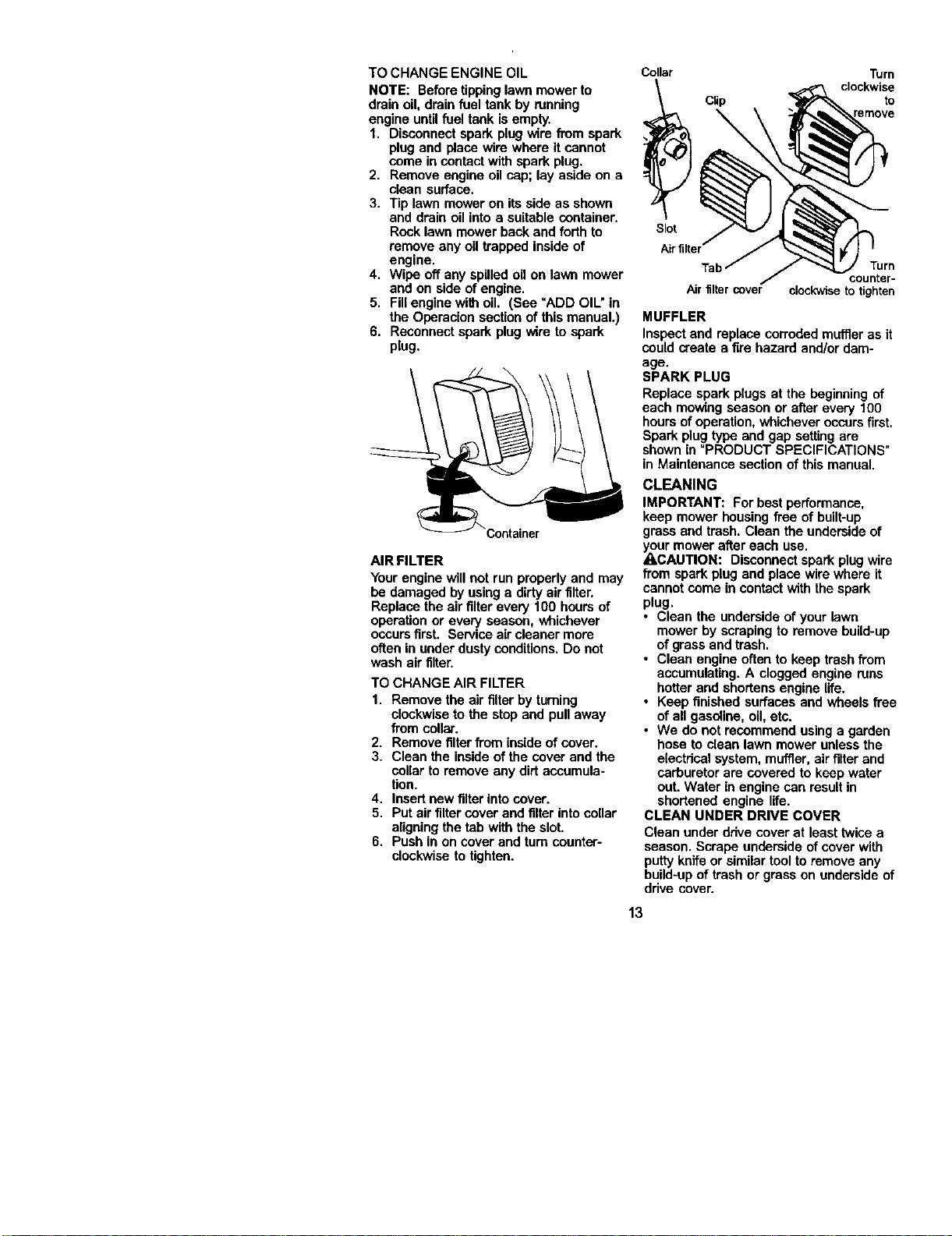

TO CHANGE ENGINE OIL
NOTE: Before tipping lawn mower to
drain oil, drain fuel tank by running
engine until fuel tank is empty.
1. Disconnect spark plug wire from spark
plug and place wire where it cannot
come in contact with spark plug.
2. Remove engine oil cap; lay aside on a
clean surface.
3. Tip lawn mower on its side as shown
and drain oil into a suitable container.
Rock lawn mower back and forth to
remove any oil trapped inside of
engine.
4. Wipe off any spilled oil on lawn mower
and on side of engine.
5. Fill engine with oil. (See "ADD OIL" in
the Operacion section of this manual.)
6. Reconnect spark plug wire to spark
plug.
Container
AIR FILTER
Your engine will not run properly and may
be damaged by using a dirty air filter.
Replace the air filter every 100 hours of
operation or every season, whichever
occurs first. Service air cleaner more
often in under dusty conditions. Do not
wash air filter.
TO CHANGE AIR FILTER
1. Remove the air filter by turning
clockwise to the stop and pull away
from collar.
2. Remove filter from inside of cover.
3. Clean the inside of the cover and the
collar to remove any dirt accumula-
tion.
4. Insert new filter into cover.
5. Put air filter cover and filter into collar
aligningthe tab with the slot.
6. Push in on cover and turn counter-
clockwise to tighten.
Collar
CUp
Slot
Airfilter"
Air filter cover
Turn
clockwise
to
emove
Turn
counter-
clockwise to tighten
MUFFLER
Inspect and replace corroded muffler as it
could create a fire hazard and/or dam-
age.
SPARK PLUG
Replace spark plugs at the beginning of
each mowing season or after every 100
hours of operation, whichever occurs first.
Spark plug type and gap setting are
shown in "PRODUCT SPECIFICATIONS"
in Maintenance section of this manual.
CLEANING
IMPORTANT; For best performance,
keep mower housing free of built-up
grass and trash. Clean the underside of
your mower after each use.
_,CAUTION: Disconnect spark plug wire
from spark plug and place wire where it
cannot come in contactwith the spark
plug.
•Clean the underside of your lawn
mower by scraping to remove build-up
of grass and trash.
• Clean engine often to keep trash from
accumulating. A clogged engine runs
hotter and shortens engine life.
• Keep finished surfaces and wheels free
of all gasoline, oil, etc.
•We do not recommend using a garden
hose to clean lawn mower unless the
electdcal system, muffler, air filterand
carburetor are covered to keep water
out. Water in engine can result in
shortened engine life.
CLEAN UNDER DRIVE COVER
Clean under drive cover at least twice a
season. Scrape underside of cover with
puttyknife or similar tool toremove any
build-upof trash or grass on underside of
ddve cover.
13
_CAUTION: Before performingany
service or adjustments:
I. Release control bar and stop engine.
2. Make sure the blade and all moving
parts have completely stopped.
3. Disconnect spark plug wire from spark
plug and place where it cannot come
in contact with plug.
LAWN MOWER
TO ADJUST CuI-rlNG HEIGHT
See "TO ADJUST CUTTING HEIGHT" in
the Operation section of this manual.
REAR DEFLECTOR
The rear deflector, attached between the
rear wheels of your mower, is provided to
minimize the possibilitythat objects will
be thrownout of the rear of the mower
intothe operator mowing position. If the
deflector becomes damaged, it should be
replaced.
TO REMOVE/REPLACE DRIVE BELT
1. Remove drive cover. Remove belt
from gearcase pulley by pushing
down on pulley and rolling belt off it.
2. Turn lawn mower on its side with air
filter and carburetor up.
3. Remove blade•
4. Remove debds shield•
5. Remove belt from engine pulley on
crankshaft.
6. Install new belt by reversing above
steps.
7. Always use factory approved belt to
assure fit and long life.
TO ADJUST HANDLE
The handle can be mounted in a high or
low position. The mounting holes in the

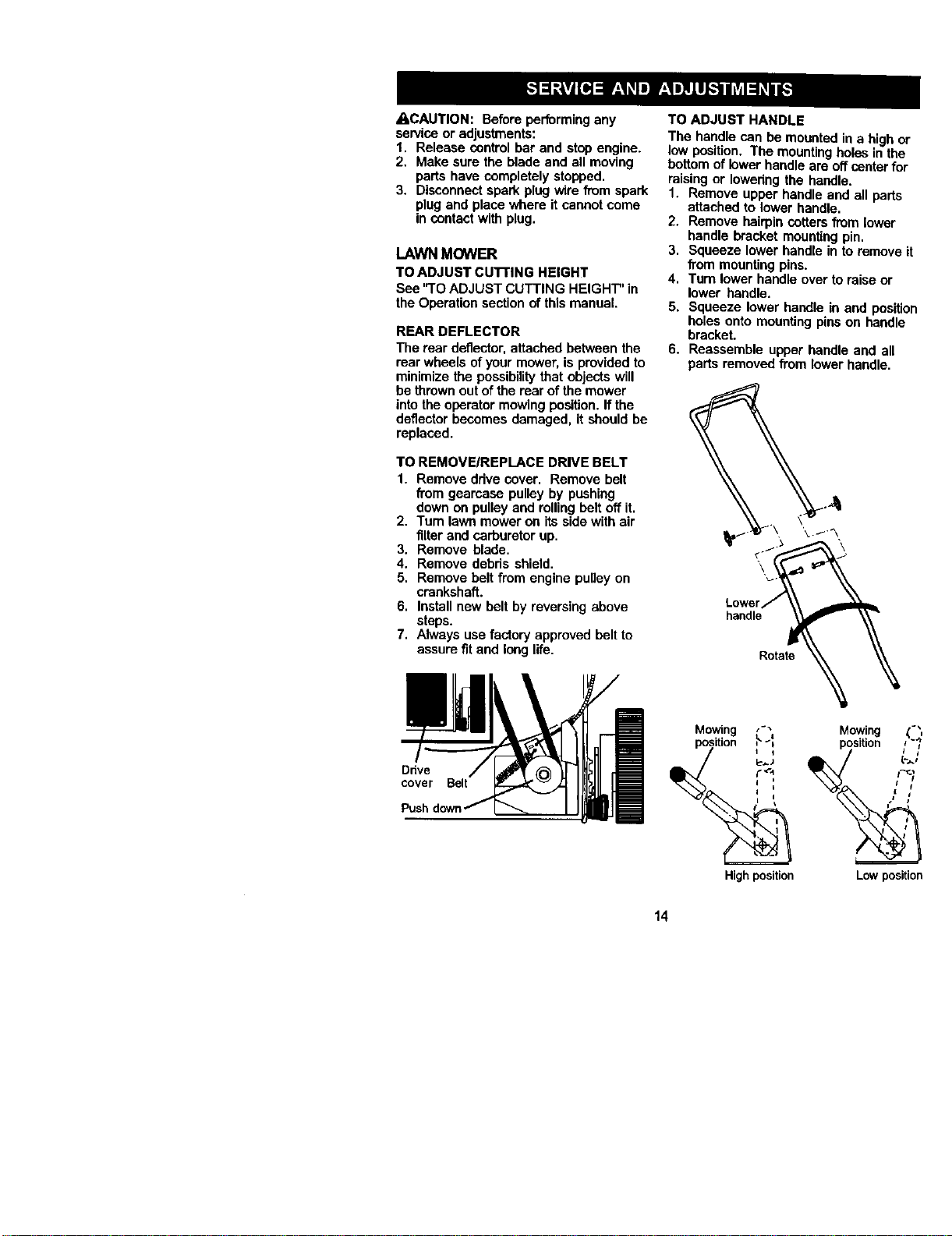

bottom of lower handle are off canter for
raising or Iowedng the handle.
1. Remove upper handle and all parts
attached to lower handle.
2. Remove hairpin cottersfrom lower
handle bracket mounting pin.
3. Squeeze lower handle in to remove it
from mounting pins.
4. Turn lower handle over to raise or
lower handle.
5. Squeeze lower handle in and position
holes onto mounting pins on handle
bracket.
6. Reassemble upper handle and all
parts removed from lower handle•
\
Lower
handle
Rotate
Drive
cover Belt
Mowing _Mowing ('",
position , _l position _"_
I = ) / I
Highposition Lowposition
14

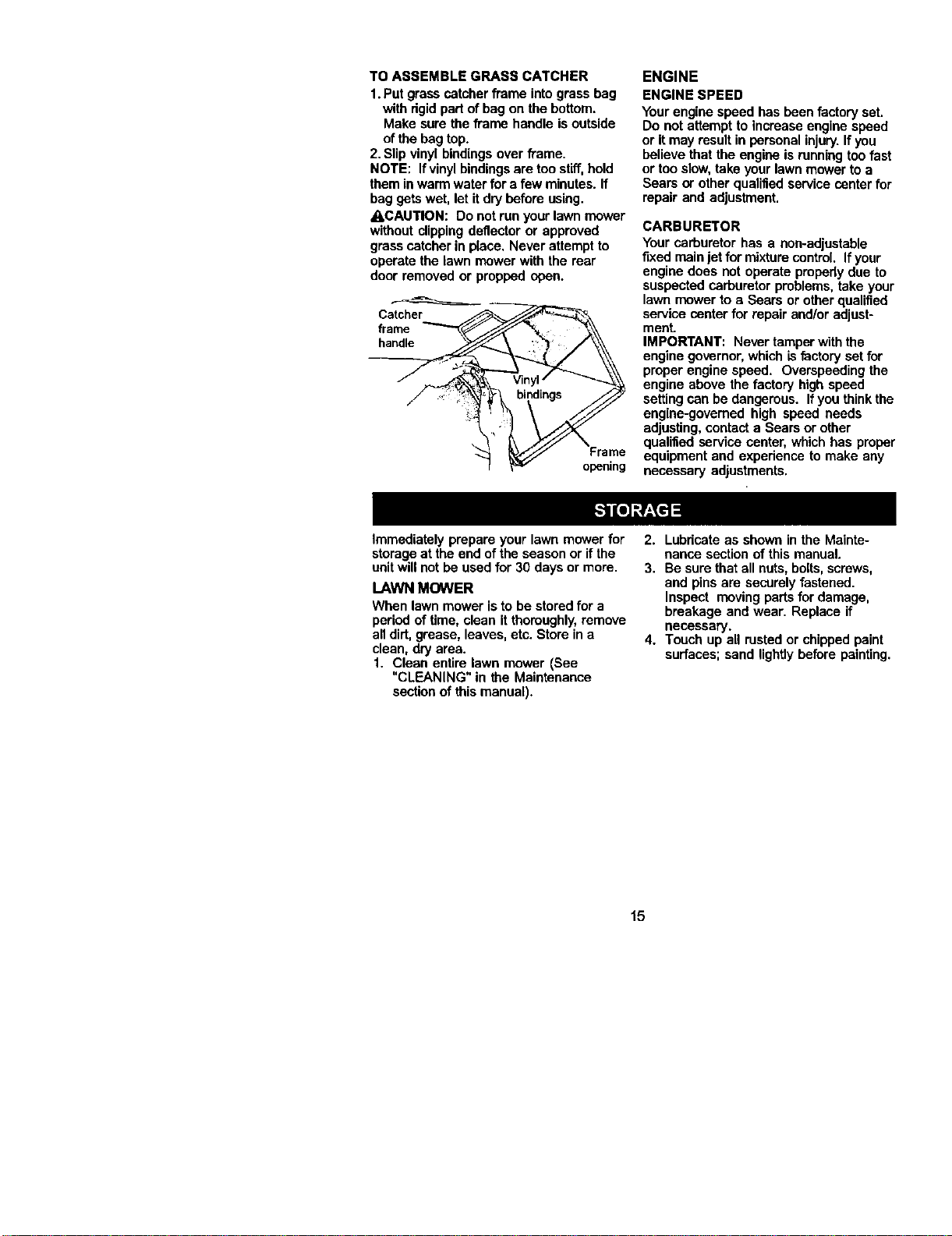

TO ASSEMBLE GRASS CATCHER
1.Put grass catcher frame intograss bag
with rigid part of bag on the bottom.
Make sure the frame handle is outside
of the bag top.
2. Slip vinyl bindings over frame.
NOTE: If vinyl bindingsare too stiff,hold
them in warm water fora few minutes. If
bag gets wet, let itdry before using.
_,CAUTION: Do not run your lawn mower
without clippingdeflector or approved
grass catcher in place. Never attempt to
operate the lawn mower with the rear
door removed or propped open.
Catcher
frame
handle
opening
ENGINE
ENGINE SPEED
Your engine speed has been factoryset.
Do not attempt to increase engine speed
or it may result in personal injury.If you
believe that the engine is running too fast
or too slow,take your lawn mower toa
Sears or other qualified service center for
repair and adjustment.
CARBURETOR
Your carburetor has a non-adjustable
fixed mainjet formixture control Ifyour
engine does not operate propedydue to
suspected carburetor problems, take your
lawn mower to a Sears or other qualified
service center for repair and/or adjust-
menL
IMPORTANT: Never tamper with the
engine governor,which isfactory setfor
proper engine speed. Overspeeding the
engine above the factory high speed
setting can be dangerous. If you think the
engine-govemed high speed needs
adjusting, contact a Sears or other
qualified service center, which has proper
equipment and experience to make any
necessary adjustments.
immediately prepare your lawn mower for
storage at the end of the season or if the
unitwill net be used for 30 days or more.
LAWN MOWER
When lawn mower is to be stored for a
period of time, clean itthoroughly,remove
all dirt, grease, leaves, etc. Store in a
clean, dry area.
1. Clean entire lawn mower (See
"CLEANING" in the Maintenance
sectionof this manual).
2. Lubricate as shown in the Mainte-
nance section of this manual.
3. Be sure that all nuts, bolts, screws,
and pins are securely fastened.
Inspect moving parts for damage,
breakage and wear. Replace if
necessary.
4. Touch up all rusted or chipped paint
surfaces; sand lightly before painting.
15

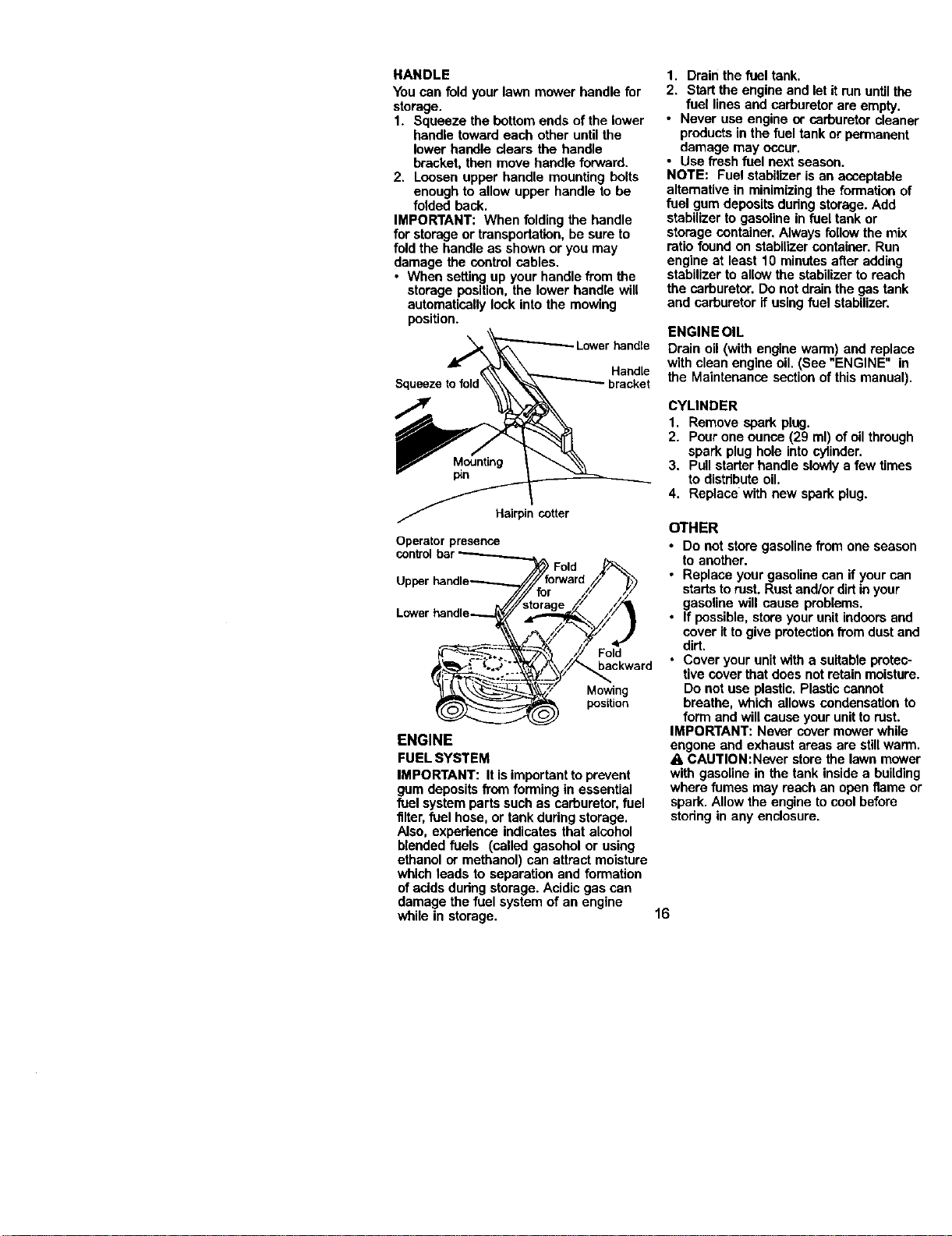

HANDLE
Youcan fold your lawn mower handle for
storage.
1. Squeeze the bottom ends of the lower
handle toward each other until the
lower handle dears the handle
bracket, then move handle forward.
2. Loosen upper handle mounting bolts
enough to allow upper handle to be
folded back.
IMPORTANT: When folding the handle
for storage or transportation, be sure to
foldthe handle as shown or you may
damage the control cables.
• When setting up your handle from the
storage position, the lower handle will
automatically lock into the mowing
position.
Lower handle
Handle
Squeeze to fold" bracket
Hairpin cotter
Operatorpresence
controlbar----------__.._
Upperhandle----.-_/S
"°war id'e :;
ENGINE
FUEL SYSTEM
-'old _
•ward]/'_'_/_
,//" Fol"d
J'. okward
Mowing
position
IMPORTANT: It isimportant to prevent
gum deposits from forming in essential
fuel systemparts such as carburetor, fuel
filter,fuel hose, or tank during storage.
Also. expedence indicates that alcohol
blended fuels (called gasehol or using
ethanol or methanol) can attract moisture
which leads to separation and formation
ofacids dudng storage. Acidic gas can
damage the fuel system of an engine
while in storage.
1. Drainthe fuel tank.
2. Start the engine and let it rununtil the
fuel lines and carburetor are empty.
• Never use engine or carburetor cleaner
products in the fuel tank or permanent
damage may occur.
• Use fresh fuel next season.
NOTE: Fuel stabilizer is an acceptable
alternative in minimizingthe formation of
fuel gum depositsdudng storage. Add
stabilizer to gasoline in fuel tank or
storage container, Always follow the mix
ratio found on stabilizercontainer. Run
engine at least 10 minutes after adding
stabilizer to allow the stabilizer to reach
the carburetor. Do not drainthe gas tank
and carburetor if using fuel stabilizer.
ENGINE OIL
Drain oil (with engine warm) and replace
with clean engine oil. (See *ENGINE" in
the Maintenance section of this manual).
CYLINDER
1. Remove spark plug.
2. Pour one ounce (29 ml) of oil through
spark plug hole into cylinder.
3. Pull starter handle slowly a few times
to distributeoil.
4. Replace with new spark plug.
OTHER
•Do not store gasoline from one season
to another.
• Replace your gasoline can if your can
startsto rust. Rust and/or dirtin your
gasoline will cause problems.
• If passible, store your unit indoors and
cover itto give protectionfrom dust and
dirt.
•Cover your unit with a suitable protec-
tive cover that does not retainmoisture.
Do not use plastic. Plastic cannot
breathe, which allows condensation to
form and willcause your unitto rust.
IMPORTANT: Never cover mower while
engone and exhaust areas are stillwarm.
ACAUTION:Never storethe lawn mower
with gasoline in the tank inside a building
where fumes may reach an open flame or
spark. Allow the engine to cool before
stodng in any enclosure.
16

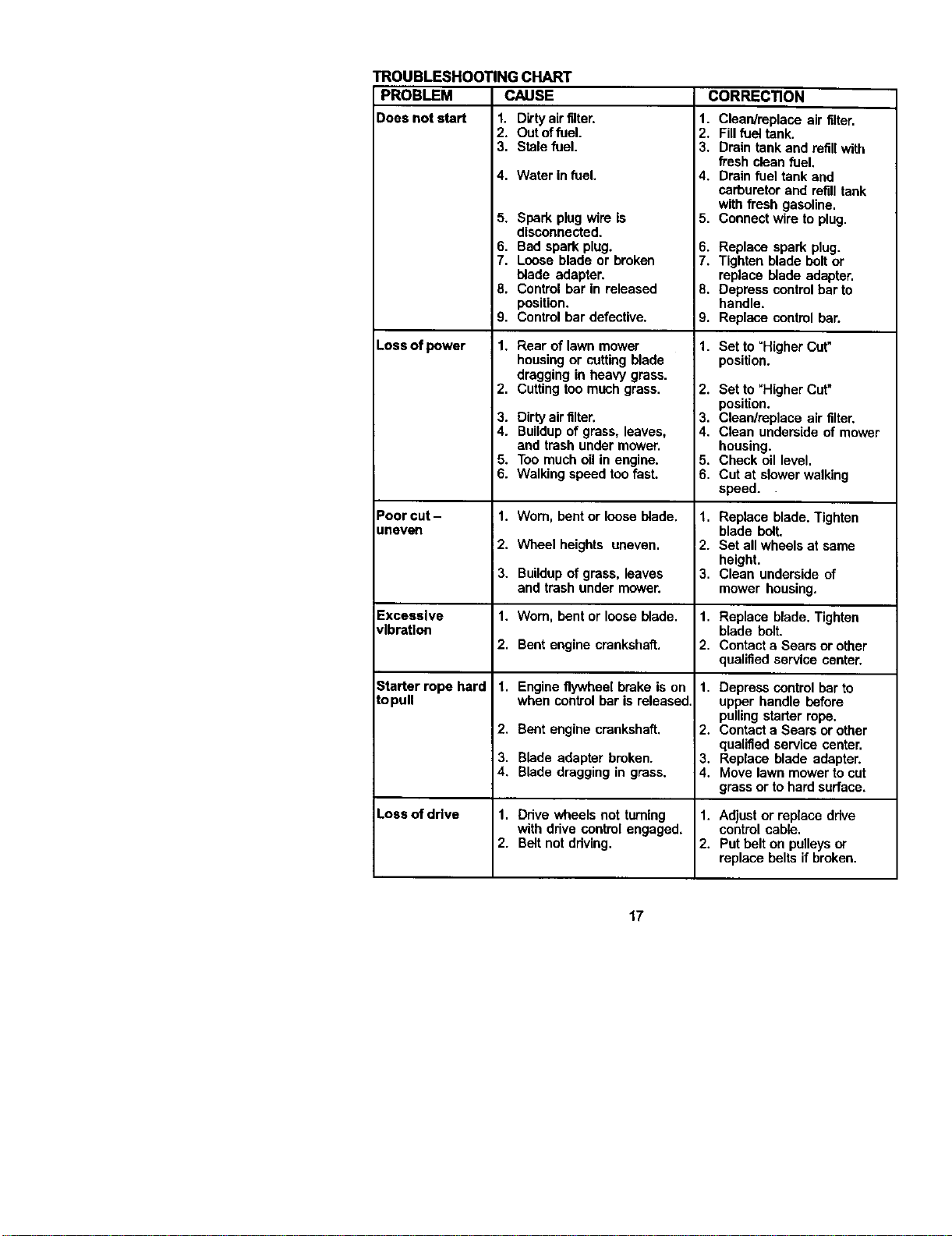

TROUBLESHOOTING CHART
PROBLEM CAUSE
Does not start 1. Dirty air filter.
2. Out offuel.
3. Stale fuel.
Loss of power
Poor cut -
unavell
CORREC_ON
4. Water In fuel.
5. Spark plug wire is
disconnected.
6. Bad spark plug.
7. Loose blade or broken
blade adapter.
8. Control bar in released
position.
9. Control bar defective.
1. Rear of lawn mower
housing or cutting blade
dragging in heavy grass.
2. Cutting too much grass.
3. Dirty air filter.
4. Buildupof grass, leaves,
and trash under mower.
5. Too much oil in engine.
6. Walking speed too fast.
1. Worn, bent or loose blade.
2. Wheel heights uneven.
3. Buildupof grass, leaves
and trash under mower.
1. Wom, bent or loose blade.
2. Bent engine crankshaft.
1. Engine flywheel brake is on
when control bar is released.
2. Bent engine crankshaft.
3. Blade adapter broken.
4. Blade dragging in grass.
1. Ddve wheels not turning
with ddve control engaged.
2. Belt not driving.
1. Clean/replace air filter.
2. Fillfuel tank.
3. Drain tank and refill with
fresh clean fuel.
4. Drain fuel tank and
carburetor and refill tank
with fresh gasoline.
5. Connect wire to plug.
6. Replace spark plug.
7. Tighten blade bolt or
replace blade adapter.
8. Depress control bar to
handle.
9. Replace control bar.
1. Set to "Higher Cut"
position.
2. Set to "Higher Cut"
position.
3. Clean/replace air filter.
4. Clean underside of mower
housing.
5. Check oil level.
6. Cut at slower walking
speed.
1. Replace blade. Tighten
blade bolt.
2. Set all wheels at same
height.
3. Clean underside of
mower housing.
Excessive 1. Replace blade. Tighten
vibration blade bolt.
2. Contact a Sears or other
qualified service center.
Starter rope hard 1.
topull
2.
3.
4.
Depress control bar to
upper handle before
pulling starter rope.
Contact a Sears or other
qualified service center.
Replace blade adapter.
Move lawn mower to cut
grass or to hard surface.
Loss of drive 1. Adjust or replace drive
control cable.
2. Put belt on pulleysor
replace belts if broken.
17
TROUBLESHOOTINGCHART
PROBLEM CAUSE CORRECTION
Grasscatcher 1.Cuttingheighttoolow. 1. Raisecuttingheight.
notfllllng(ifso 2. Liftonbladewornoff. 2. Replaceblade.
equipped) 3. Catcher not venting air. 3. Clean grass catcher.
Hard to push 1. Grass is too high or wheel 1. Raise cuttingheight.
height is too low.
2. Rear of lawn mower 2. Raise rear of lawn mower
housing or cutting blade housing one (1) setting
dragging in grass, higher.
3. Grass catcher too full. 3. Empty grass catcher.
4. Handle height position not 4. Adjust handle height to
rightfor you. suit,
18

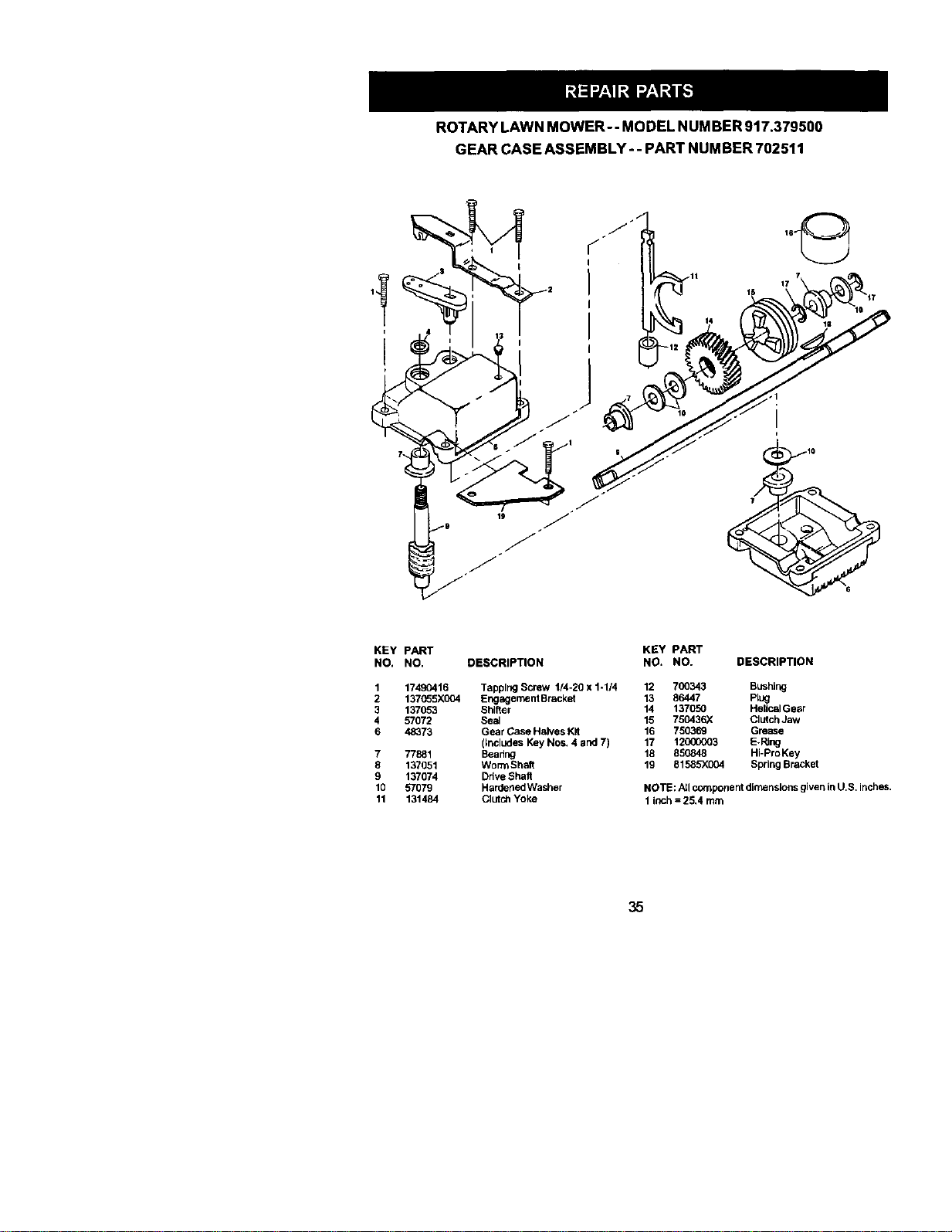

ROTARYLAWNMOWER--MODELNUMBER917.379500
GEARCASEASSEMBLY--PARTNUMBER702511
17
KEY PART
NO. NO.
1 17490416
2 137_5X004
3 137053
4 57072
6 48373
7 77881
8 137051
9 137074
10 57079
11 131484
DESCRIPTION KEY PART
NO. NO. DESCRIPTION
Tapping Screw 1/4-20 x 1-1/4 12 700343 Bushing
Engagement Bracket 13 86447 PlUg
Shifter 14 137050 HelicalGear
Sea_ 15 750436X Clutch Jaw
Gear Case Halves Kit 16 750369 Grease
(Includes Key Nos. 4 and 7) 17 12000003 E-Ring
Beadng 18 850848 Hi-ProKey
WormShafl 19 51585X004 Spring Bracket
Drive Shag
HardenedWasher NOTE: All component dimensions given inU,S. inche_s,
Clutch Yoke 1 inch = 25,4 mm
35
ROTARYLAWNMOWER-- MODEL NUMBER 917.379500
9
/
23 31
• 39 35
3O 27
28
27
41
7O

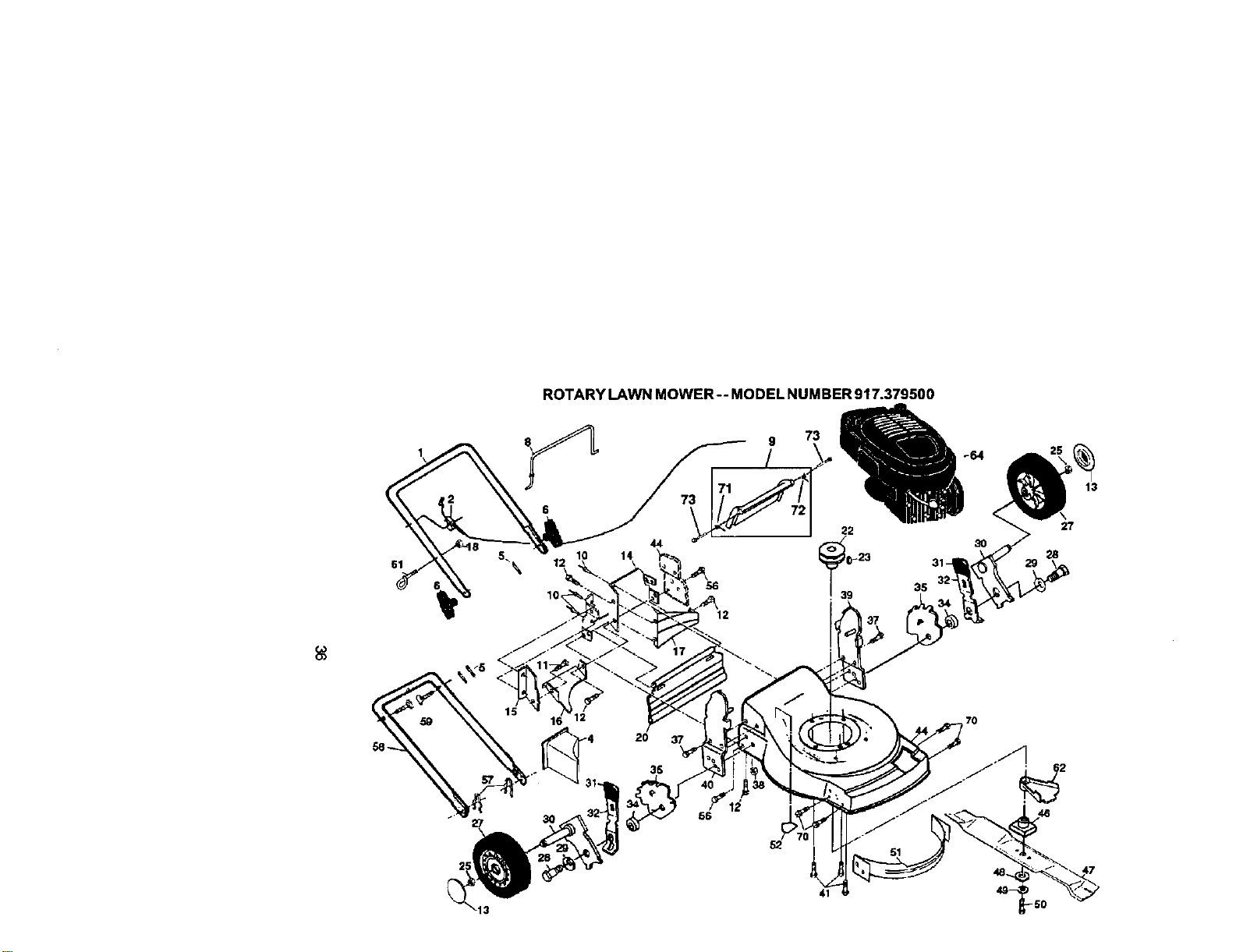

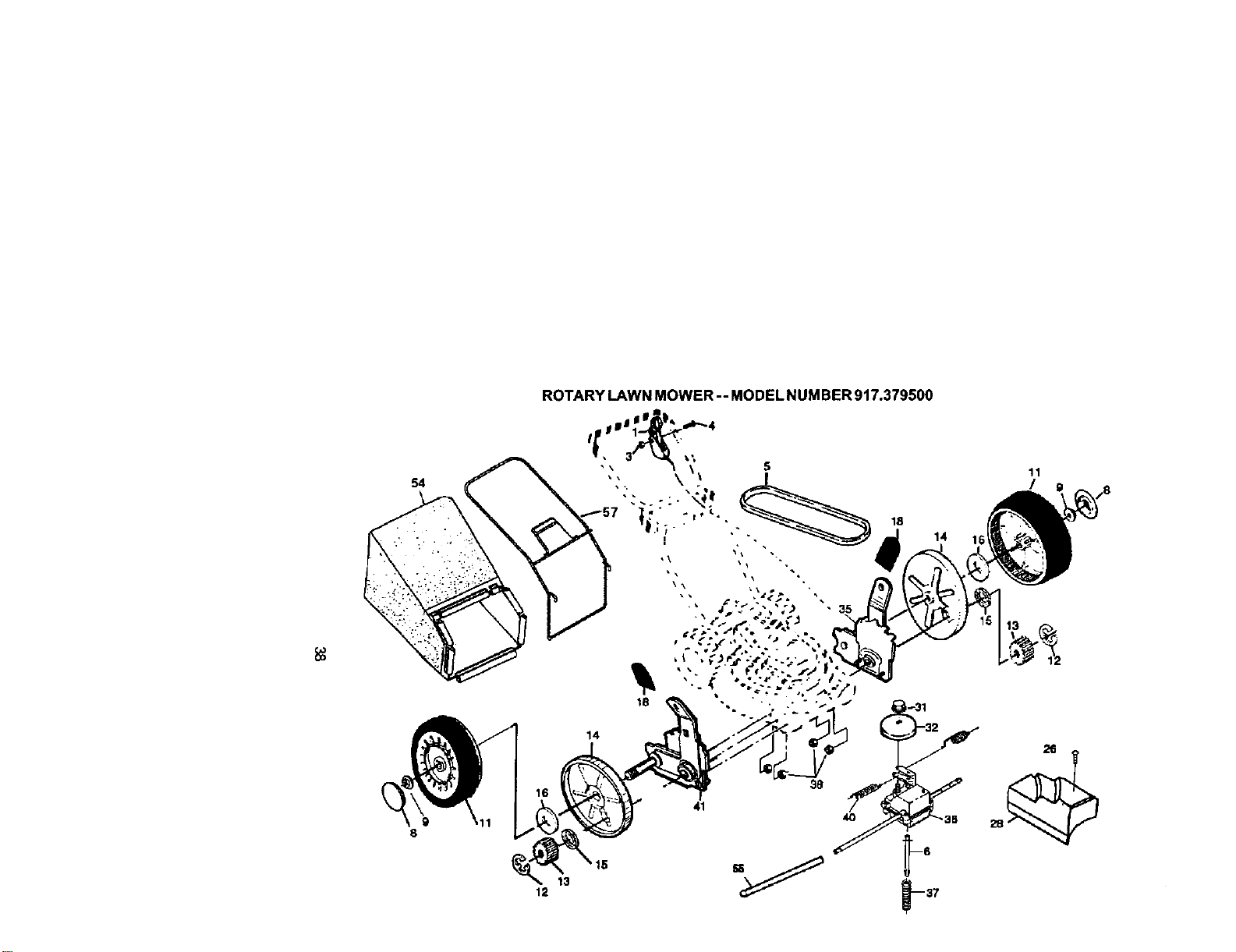

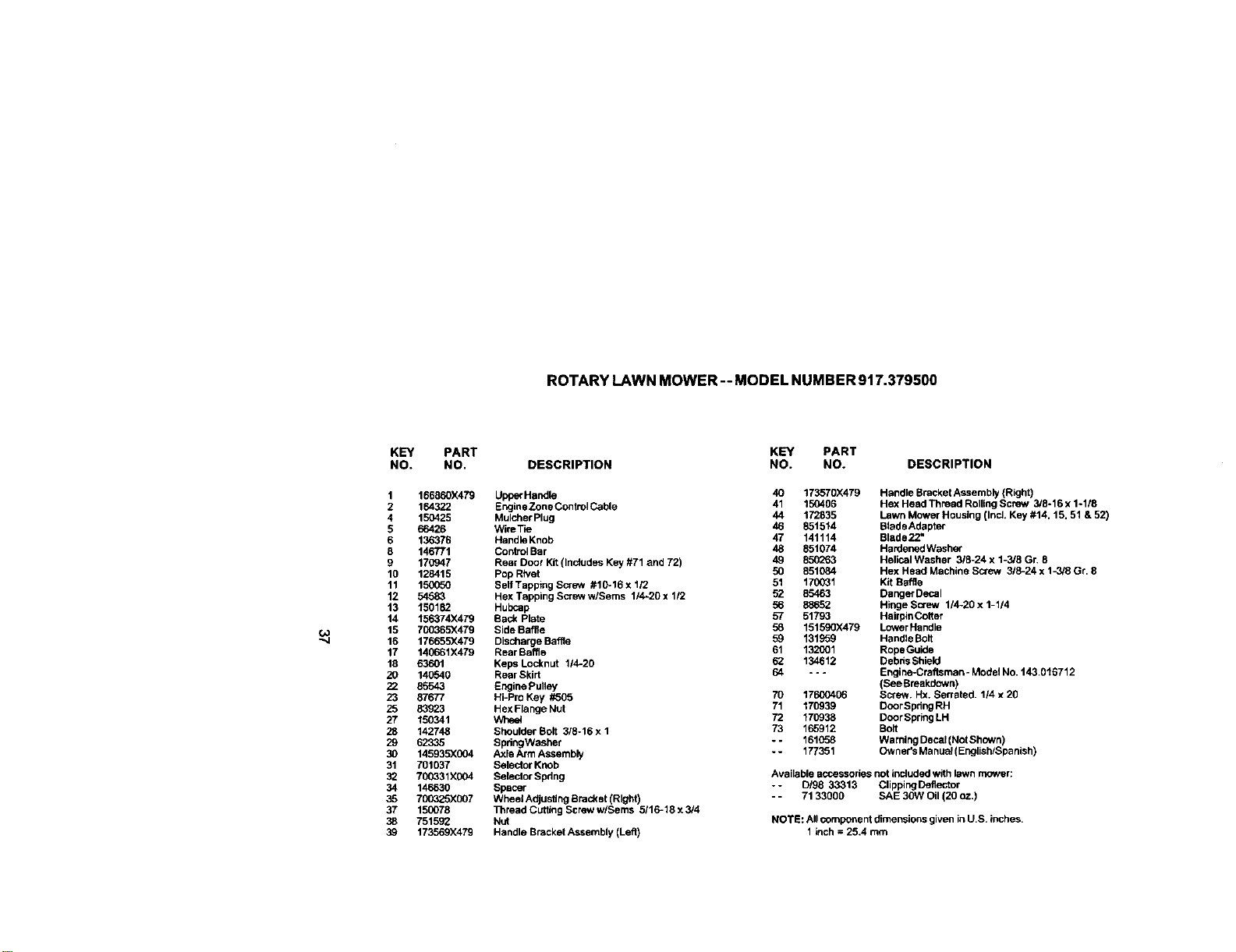

ROTARY LAWN MOWER -- MODEL NUMBER 917.379500
KEY PART
NO. NO.
1 166860X479
2 164322
4 150425
5 66426
6 136376
8 146771
9 170947
10 128415
11 150C50
12 54583
t3 150182
t4 156374)(479
15 700365X479
16 t76555X479
17 t40661X479
18 63601
20 140540
22 85543
23 87677
25 83923
27 150341
28 142748
29 62335
30 145935X004
31 701037
32 700331X004
34 146630
35 700325X007
37 150078
38 751592
39 173569X479
KEY PART
DESCRIPTION NO. NO. DESCRIPTION
Upp_ Haedle 40 173570X479 Handle BracketAssembly (Right)
EngineZone Control Cable 41 150406 Hex Heed Thread Rolling Screw 3/8.1g x 1.118
Mulcher Plug 44 172835 Lawn Mower Housing (Incl. Key #14. t5, 51 & 52)
WireTm 46 851514 Blade Adapter
Handle Knob 47 141114 Blade 2.2"
Conb'olBar 48 851074 Hardened Washer
Rear Door Kit (InckJdeSKey #71 and 72) 49 85_263 Helical Washer 318-24 x 1-3/8 Gr 8
Pop Rivet 50 851084 Hex Heart Machine Screw 318-24 x 1_3/8 Gr, 8
Serf Tapping Screw #10-16 x tl2 51 170031 Kit Baffle
Hex Tapping Screw w/Seres 1/4-20 x 112 52 85463 Danger Decal
Hubcap 56 88652 Hinge Screw 1/4-20 x 1-1/4
Back Plate 57 51793 Hairpin Cotter
Side Baffle 58 1515g_X479 Lower Handle
Discharge Baf5e 59 131959 Handle Bolt
Rear Baffle 61 132001 RopeGuide
Keps Locknut 1/4-20 62 134612 DebrisShield
Rear Skirt 64 --- Engine_Craftsman-Model No t43 016712
Engine Pulley (See Breakdown)
Hi-Pro Key _05 70 17600406 Screw. Hx. Serrated. 1/4 x 20
Hex Flange Nut 71 170939 DoorSpdng RH
Whe_ 72 170938 Door SpringLH
Shoulder Bolt 3/8-16 x 1 73 165912 Bolt
SpringWashef -- 161058 Warning Decal(Not Shown)
Axle Arm Assembly -- 177351 Owner's Manual(English/Spanish)
Selector Knob
Selecter Spdng Available accessories not included with lawn mower:
Spacer -- D/glt 33313 ClippingDeflector
Wheel Artjustlng Bracket (Right) - - 71 33000 SAE 30W Oil(20 oz.)
Thread Cutting Screw w/Seres 5/t6-18 x 3/4
Nut NOTE: All component dimensions given inU.S. inches.
Handle Bracket Assembly (Left) 1 inch = 25.4 mm
54
ROTARY LAWN MOWER -- MODEL NUMBER 917.379500
,r" _-_ _'_4
r' _+, 18
!". 14
11
//8
14
18
41
--6
'--37
ROTARY LAWN MOWER --MODEL NUMBER 917.379500
KEY
NO.
1
3
4
5
6
8
9
11
12
13
14
15
16
18
26
PART
NO.
145755
751152
158755
146527
150495
150152
145212
150340
12000058
137054
88O8O
88118
67725
701037
143603
KEY PART
DESCRIPTION NO. NO. DESCRIPTION
Control CableAssembly 28 154990 DdveCover
Locknut #1024 31 132010 Hex Flange Nut
Hex Washer Head Screw 114-20 x 2.12 32 137052 Drive Pulley
V-Belt 35 151521 Wheel Adjuster Assembty (Left)
SpringRetainer 36 7{)2511 Gear Case Assembly
Hubcap 37 137090 Spring
Locknut 38 63601 Locknut 114-20
Wheel & Tire Assembly 40 75192 Spring
E-Ring 41 151520 Wheel Adjuster Assembly (Right)
Pinion 54 169932 Grassbag Assembly
Dust Cover 55 86012 Ddveshaft Cover
FeltWasher 57 169931 Grassbag Frame
Washer 1/2x 1-112 x ,134
Selector Knob NOTE: All component dimensions given in U.S. Inches,
Pan Head Tapping Screw #10-24 x 2-314 1 inch = 25.4 mm
CRAFTSMAN 4-CYCLE ENGINE MODEL NUMBER 143.016712
9O0
37ow
130
120 119
416 ]
125
_285
40
CRAFTSMAN 4-CYCLE ENGINE MODEL NUMBER 143.016712
KEY PART KEY PART
NO. NO. DESCRIPTION NO. NO.
1 37465 Cylinder (Ind. 2 & 20) 169 36783
2 26727 Dowel Pin 172 36784
6 33734 Breather Element 174 30200
7 36557 Breather Ass'y. (Inol. 6 & 12A) 176 29752
12 36775 Breather Tube 182 6201
12A 36558 Breather Cover & Tube 184 26756
(Includes Key Number 12B) 185 37466
12B 36694 Breather Tube Elbow 166 32653
14 28277 Washer 189 650839
15 30589 Govemor Rod (Ind. 14) 191 36559A
16 34839A Governor Lever 195 610973
17 31335 Governor Lever Clamp 207 34336
18 651018 Screw, Torx T-15#8-32x19/64 216 33086
19 36281 Extension Spring 223 650451
20 32600 OII Seal 224 36786
30 37464 Crankshaft 238 650932
40 40027 Piston, P_n & Ring Set (S_I.) 239 34338
41 40042 Piston & Pin Ass'y. (Btd.) 241 36919
(Includes Key Number 43) 245 36906
42 40006 Ring Set (Std.) 250 37122
43 20381 Piston Pin Retaining Ring 260 36980
45 36777 Connecting Rod Assembly 261 30266
(Includes Key Number 46) 262 650831
46 326t0A Connecting Rod Bolt 263A 37184
48 27241 Valve Lifter 275 37462
50 37460 Camshaft Exhaust (MCR) 277 650988
(includes Key Number 104) 285 35000A
52 29914 Oil Pump Assembly 287 650926
69 37609 Mounting Flange Gasket P 290 29774
70 37608 Mounting Flange (Incl. 72-83) 292 26460
72 37615 OII Drain Plug (Incl. 73) 298 28763
73 28833 Drain Plug Gasket 300 36916
75 27897 Oil Seel 301 36246
80 30574A Governor Shaft 305 35647
81 36596A Washer 396 37610
82 30591 Governor Gear Assy (IncL 81) 307 35499
83 30588A Governor Spool 309 650562
86 650468 Screw, 1/4-20 x 1-1/4" 309A 650783
89 611004 Flywheel Key 310 35648
90 611112 Flywheel 311A 37611
92 650815 Bellevllle Washer 313 34080
93 650816 Flywheel Nut 347 651038
100 34443C Solid State Ignition 355 590701
101 616118 Spark Plug Cover 370A 36261
103 651007 Screw. Ton( T-1510-24x16/16 370C 37318
104 37466 Cam Bushing 376R 37317
116 37047 Ground Wire 380 640271
119 36787 * Cylinder Head Gasket 390 590739
120 36825 Cylinder Head 460 36792B
125 36780 Exhaust Valve (1/32" OS)
(Includes Key Number 151) 416 36085
125 37288 Exhaust Valve (Standard)
(includes Key Number 151) 417 650760
126 37289 Intake Valve (Std.) (Incl. 151) 900 - --
130 6021A Screw, 5/16-18 x 1-1/2"
135 37598 Resistor Spark Plug .....
(RJ19LM4)
150 31672 Valve Spring
151 31673 Valve Swing Cap
151A 40017 Intake Valve Seal
DESCRIPTION
* Valve Cover Gasket
Valve Cover
Screw, 10-24 x 9/16"
Nut & Lock Washer, 114-28
Screw, 1/4-28 x 7/8"
* Carb. to Intake Pipe Gasket
Intake Pipe
Governor Link
Screw, 114-20 x 3/8"
B.E. Brake Bracket (Incl. 195)
Terminal
Throttle Link
R.P.M. Adjusting Lever
Screw, 1/4-20 x 1"
* Intake Pipe Gasket
Screw, 10-32 x 49/64"
•Air Cleaner Gasket
Air Cleaner Collar
Air Cleaner Filter
Air Cleaner Cover
Blower Housing
Screw, 10-24 x 9/16"
Screw, 1/4-20 x 1/2"
Starter Grtll
Muffler
Screw, 1/4-20 x 2-5116"
Starter Cup
Screw, 8-32 x 21164"
Fuel Une
Fuel Une Clamp
Screw, 10-32 x 35164"
Fuel Tank (Incl. 292 & 301)
Fuel Cap (Black)
OII Fill Tube
*"O"-Rlug
"O"-Ring
Screw, 10-32 x 1/2"
Screw, 10-24 x 3/4"
Dipstick
Hold Down Bracket
Spacer
Screw, 10-32 x 51/64"
Starter Handle
Lubdcafion Decal
Primer Decal (3 X)
Warning Decal
Carburetor (IncL 184)
Rewind Starter
Gasket Set
(Includes Items Marked *)
Spark Arrestor Kit (Incl. 417)
(Optional)
Screw. 8-32 x 3/8" (Optional)
Replacement B/B 750865
Order from 71 -999
RPM: High 2906 to 3200
NOTE: This engine could have been built with
Starter #690702.
NOTE: All component dimensions given in U.S.
41 inches. 1 inch = 26.4 mm
CRAFTSMAN 4-CYCLE ENGINE MODEL NUMBER 143.016712
KEY PART
NO. NO. DESCRIPTION
---- 640271
1 31615
2 31767
4631184 *
6 631183 *
6 640070
7 650506 *
16 631807
17 651025
18 630766
20 640027
26A 640200
26 631867
27 631024 *
28 632019
29 631028 °
30 631021 *
31 631022
35 640259
36 646080
36A 632766
37 632547 *
40 640030
44 27110A *
47 630748 *
48 631027 *
60 632760B
Carburetor (Incl. 184 of Engine Parts List)
Throttle Shaft & Lever Assembly
ThrotBe Return Spring
Dust Seal Washer
Dust Seal (Throttle)
Throttle Shutter
Shutter Screw
Fuel Fitting
Threthe Crack Screwlldle Speed Screw
Tension Spring
Idle Restrictor Screw
Idle Resbictor Scrwe Cap (Black)
Float Bow[
Float Shaft
Float
Float Bowl =O" Ring
Inlet Needle, Seat, & Clip (Incl. 31)
Spring Clip
Primer Bulb/Retainer Ring
Main Nozzle Tube
Carburetor Tube
"O" Ring, Main Nozzle Tube
High Speed Bowl Nut
Bowl Nut Washer
Welch Plug, Idle Mixture Well
Welch Plug, Atmospheric Vent
Repair kit (Ind. Items Marked * in Notes)
42
CRAFTSMAN 4-CYCLE ENGINE MODEL NUMBER 143.016712
_m5
Om2
KEY PART
NO. NO. DESCRIPTION
-- 590702 Recoil Starter
1 590699A Spdng Pin (Ind. 4)
2 590600 Washer
3 590696 Retainer
4 590601 Washer
5 590697 Brake Spdng
6 590698 Starter Dog
7 590699 Dog Spring
8 590700 Pulley & Rewind Spring Ass'y
11 590703 Starter Housing Assembly
(40 degree grommet)
12 590535 Starter Rope
(98" long x 9/64" diameter)
13 590701 Starter Handle
V--t4
KEY PART
NO. NO. DESCRIPTION
-- 59O739
12 3 590740
6 590616
7 590617
8 590618A
11 590638
--e 12 590535
13 590701
14 590760
l-_
Rewind Starter
Retainer
Starter DOg
DOg Spring
Pulley & Rewind Spring Ass'y
Starter Housing Assembly
(40 degree grommet)
Starter Rope
(96" long x 9/64" diameter)
Starter Handle
Spdog Clip
Forrep_rofmajorbrand appliancesInyour own home...
nomatterwhomadeit,no matterwhosold
Forrepairofcarryonproductslikevacuums,lavmequipment,and
electronics,callforthenearestSears Partsand Repair Center.
1-800..488-1222 Any,ires,dayo_rigN(U.S.Aorgy)
W1NW.Se611LCOm
Forthereplacementparts,accessoriesandownersmanuals
thatyouneedtodo-R-yourself,callSeam PartsDirect_!
1-800-366-PART 6am.- 11p.m., 7daysaweek
(1_oe-3_-7278) (u.s._o_y)
_ww_sea_co_Ypattsdmct
To purchaseor inquireaboutaSearsServiceAgreement
orSearsMaintenanceAgreement:
1-800-827-6655 (u.s.A.) 1-800-361-6665 (Canal)
7 a.m.- 5 p.m.,CST, Mort.- Sat. 9 a.m.- 8 p.m.EST, M- F,4p.m.S_I.
Parapedrsetviciodemparaci6na AuCanadapours_v_eenf_ng_s:
domicio,yparamdenarpiezas: 1.8004.E.IFOYIEFIMC
1-888.SU-HOGAFIsu (1-800_-533_3937)
@Sea_ Rceb_k andCo.
®Registered Trademark I_ Trademark Isu Service Mark of Sears, Roebuck and Co.
®Marca Reglstrada I_,4Marca de F_bdca Is_ Marca de Servicio de Sears, Roebuck and Co.
M::Marque de commerce /M_Marque d_pos_e de Seam, Roebuck and Co.
177351 02.14.01 BY Printed in U.S.A.
