OPERATING GUIDE
IMPORTANT SAFETY INSTRUCTIONS 2-3
FIRSTTIME USE 4-19

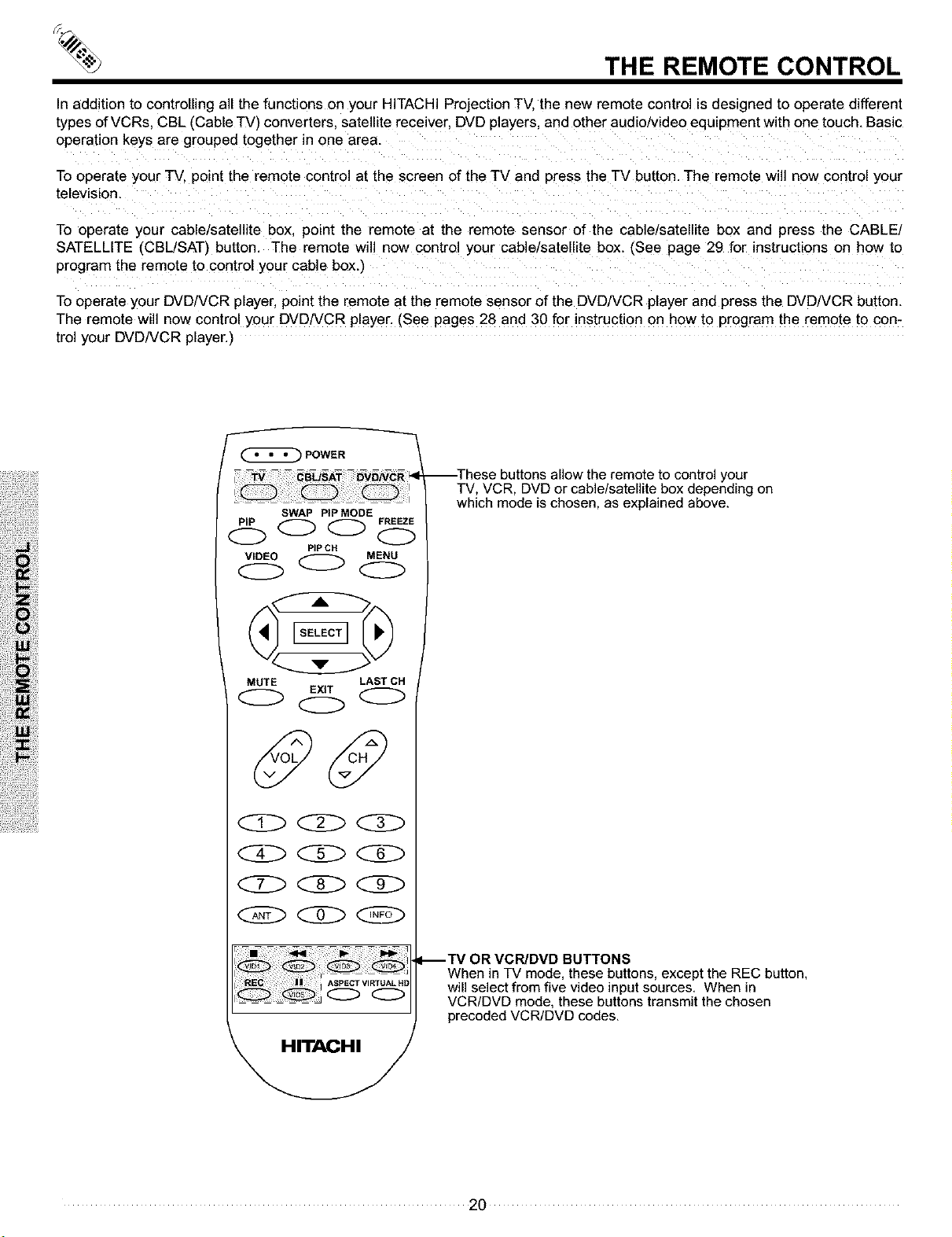

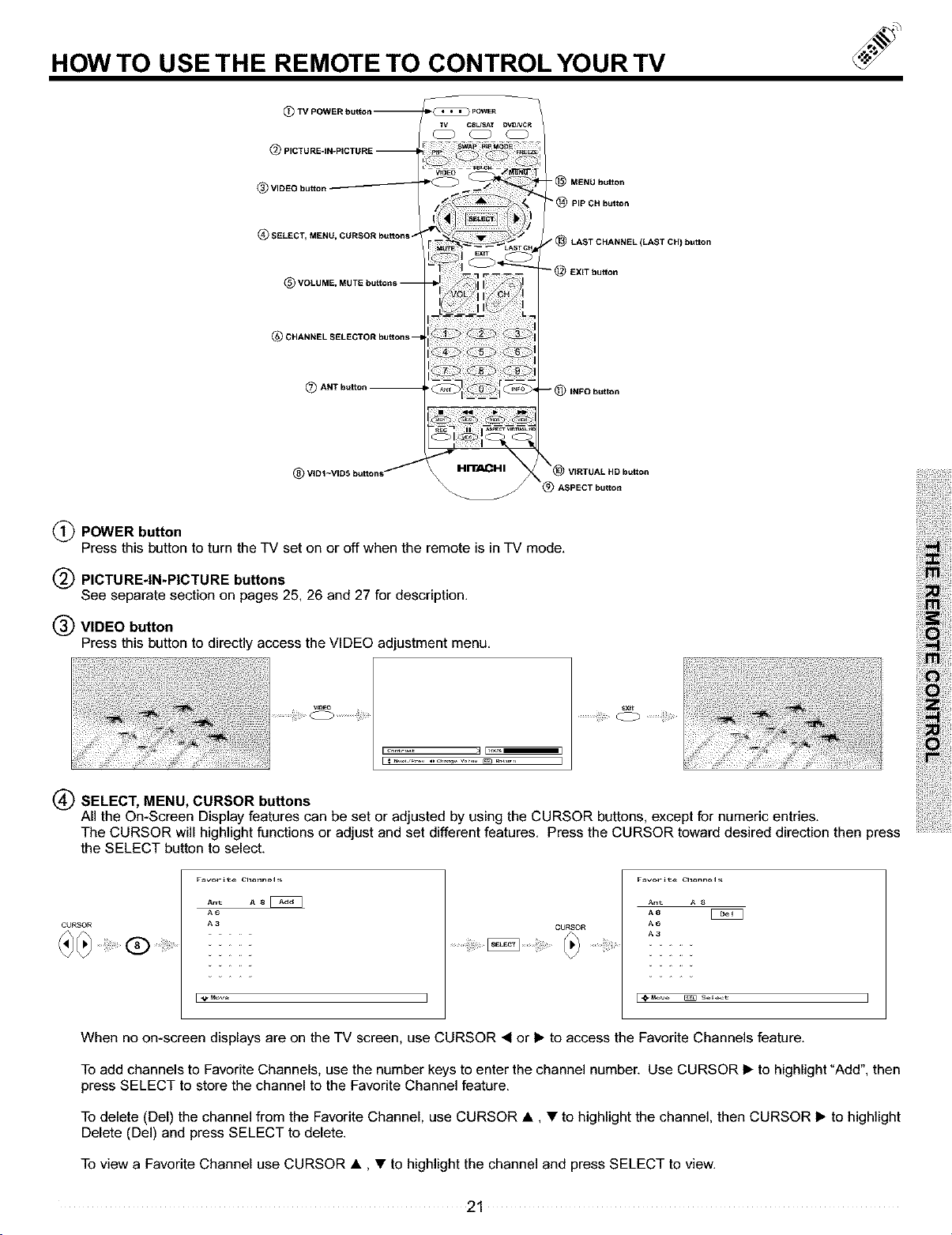

THE REMOTE CONTROL
20-31
H V_deo
IIAudio
[ ch Maria e_ J
[_

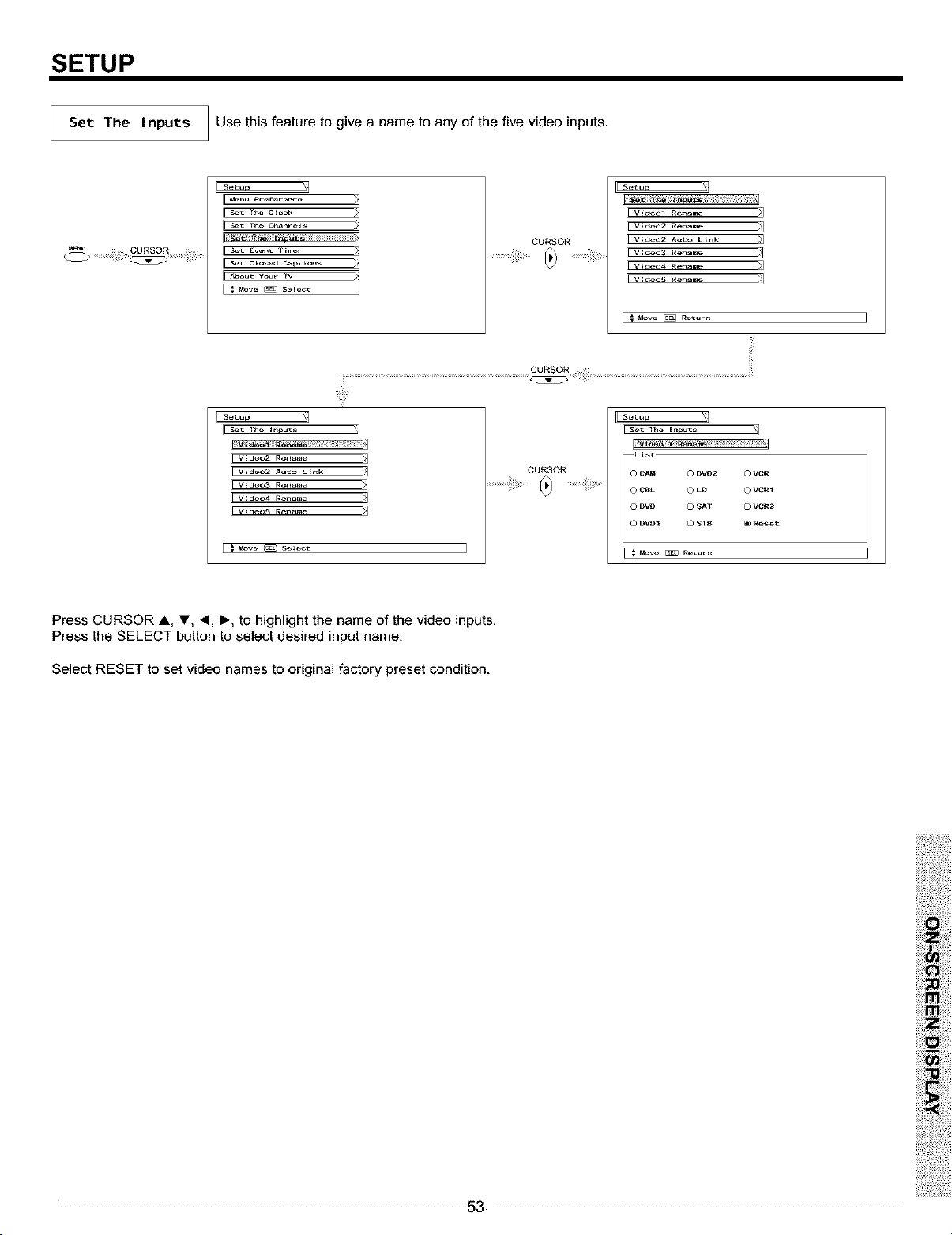

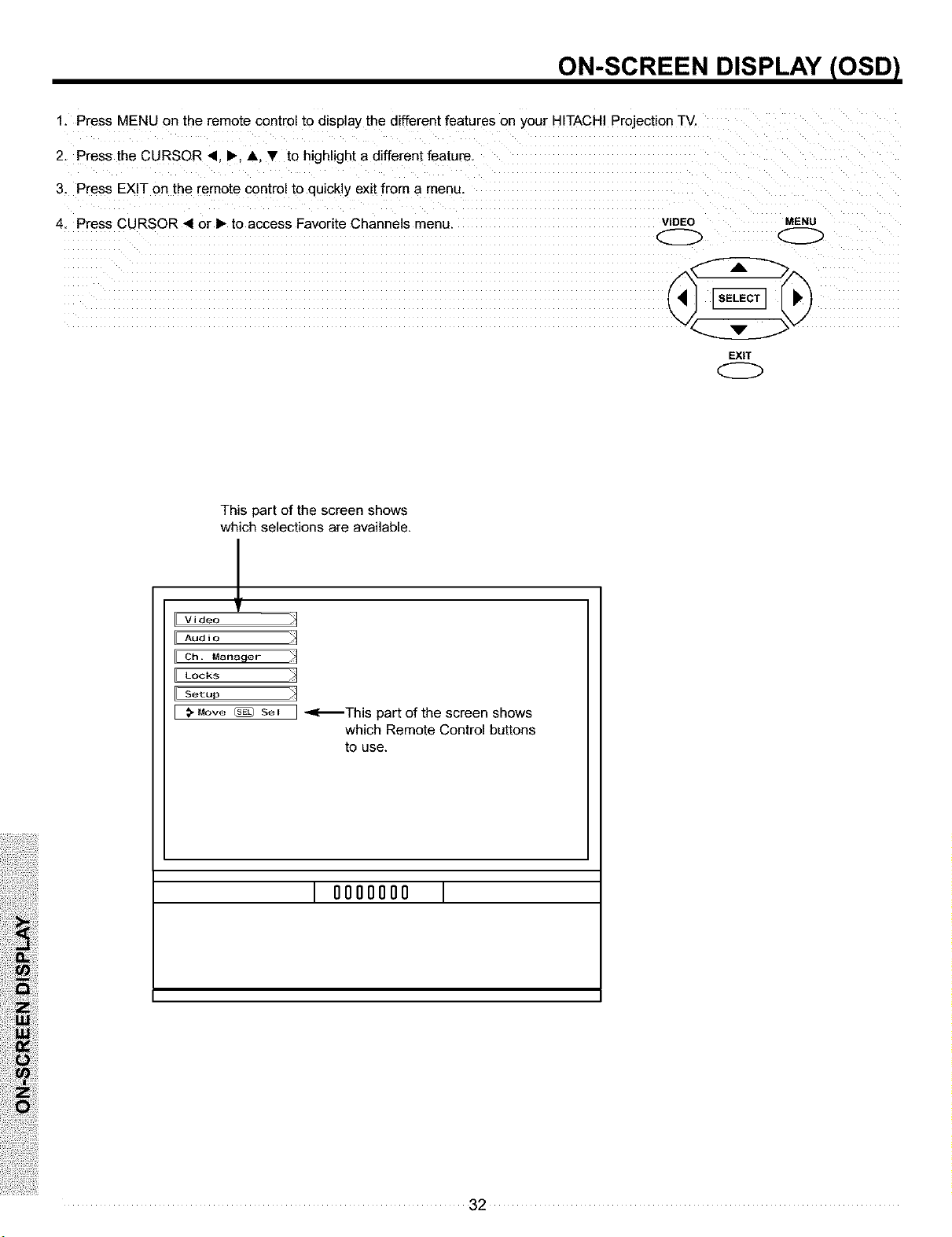

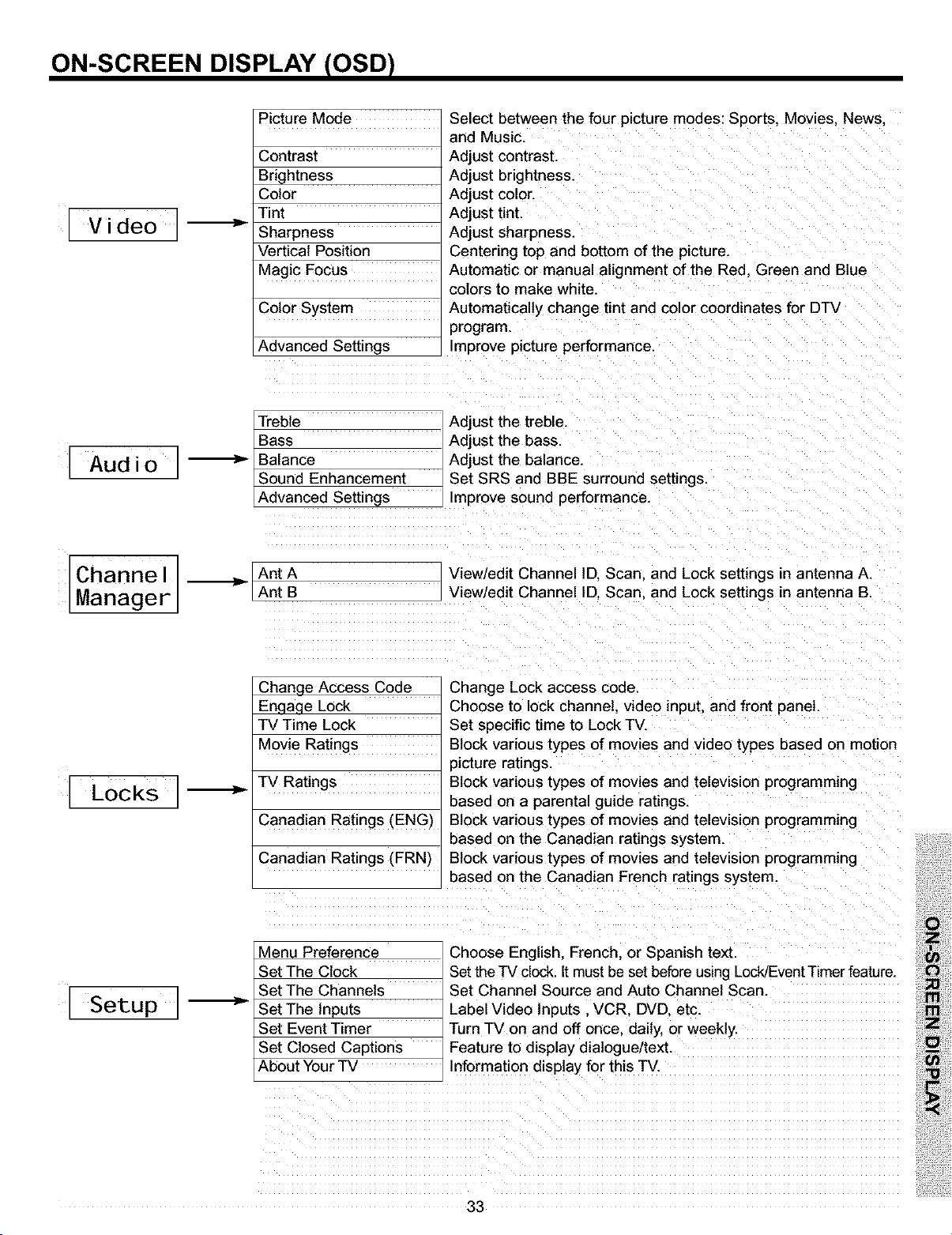

ON-SCREEN DISPLAY
USEFUL INFORMATION INDEX
32-56
57-63
As an ENERGYSTAR® Partner, Hitachi, Ltd. has determined that this
product meets the ENERGYSTAR @ guidelines for energy efficiency.

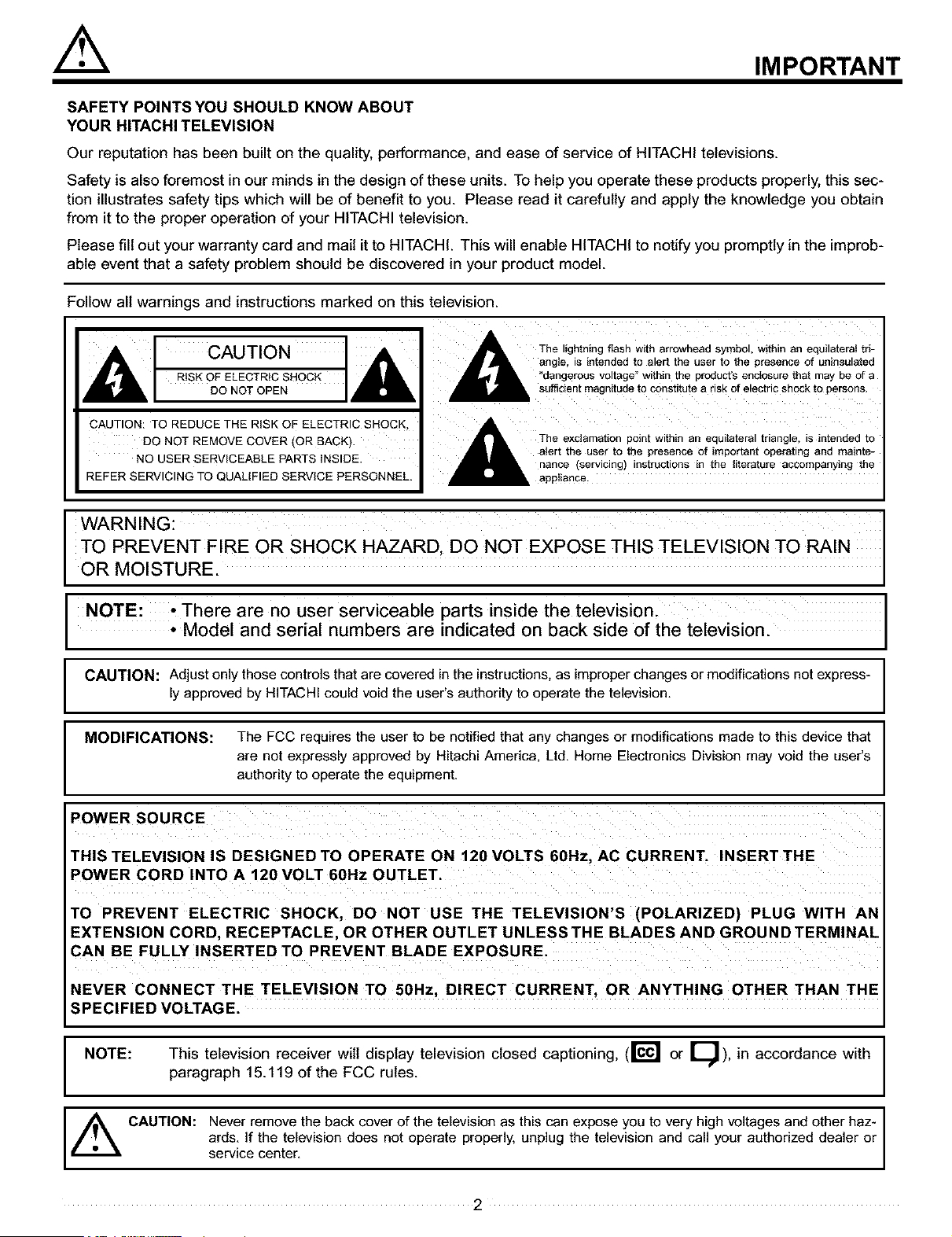

IMPORTANT
SAFETY POINTSYOU SHOULD KNOW ABOUT
YOUR HITACHI TELEVISION
Our reputation has been built on the quality, performance, and ease of service of HITACHI televisions.
Safety is also foremost in our minds in the design of these units. To help you operate these products properly, this sec-
tion illustrates safety tips which will be of benefit to you. Please read it carefully and apply the knowledge you obtain
from it to the proper operation of your HITACHI television.
Please fill out your warranty card and mail it to HITACHI. This will enable HITACHI to notify you promptly in the improb-
able event that a safety problem should be discovered in your product model.
Follow all warnings and instructions marked on this television.
CAUTION
RISK OF ELECTRIC SHOCK
DO NOT OPEN
CAUTION: TO REDUCE THE RiSK OF ELECTRIC SHOCK,
DO NOT REMOVE COVER (OR BACK).
NO USER SERVICEABLE PARTS INSIDE.
REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.
The lightning flash with arrowhead symbol, within an equilateraI tri-
angIe, is intended to alert the user to the presence Of uninsulated
"dangerous voltage" within the product's enc(osure that may be Of a
sufficient magnitude to constitute a risk Of electric shock to persons.
The e×clarnation point within an equilateral triangle, is intended to
alert the user to the presence Of important operating and mainte-
nance (servicing) instructions in the literature accompanying the
app(iance,
WARNING:
TO PREVENT FIRE OR SHOCK HAZARD, DO NOT EXPOSE THIS TELEVISION TO RAIN
OR MOISTURE.
NOTE: • There are no user serviceable parts inside the television.
• Model and serial numbers are indicated on back side of the television.
CAUTION: Adjust onlythose controls that arecovered in the instructions, as improperchanges or modifications not express-
ly approvedby HITACHIcould void the user's authority to operate the television.
MODIFICATIONS: The FCC requires the user to be notified that any changes or modifications made to this device that
are not expressly approved by Hitachi America, Ltd. Home Electronics Division may void the user's
authority to operate the equipment.
POWER SOURCE
THIS TELEVISION IS DESIGNED TO OPERATE ON 120 VOLTS 60Hz, AC CURRENT. INSERT THE
POWER CORD INTO A 120 VOLT 60Hz OUTLET.
TO PREVENT ELECTRIC SHOCK, DO NOT USE THE TELEVISION'S (POLARIZED) PLUG WITH AN
EXTENSION CORD, RECEPTACLE, OR OTHER OUTLET UNLESSTHE BLADES AND GROUND TERMINAL
CAN BE FULLY INSERTED TO PREVENT BLADE EXPOSURE.
NEVER CONNECT THE TELEVISION TO 50Hz, DIRECT CURRENT, OR ANYTHING OTHER THAN THE
SPECIFIED VOLTAGE.
NOTE: This television receiver will display television closed captioning, (_ or El), in accordance with
,Iv
paragraph 15.119 of the FCC rules.
_ CAUTION: Never removethe back cover of the television as this can expose you to very high voltages and other haz-
ards. If the television does not operate properly, unplug the television and call your authorized dealer or
service center.
2

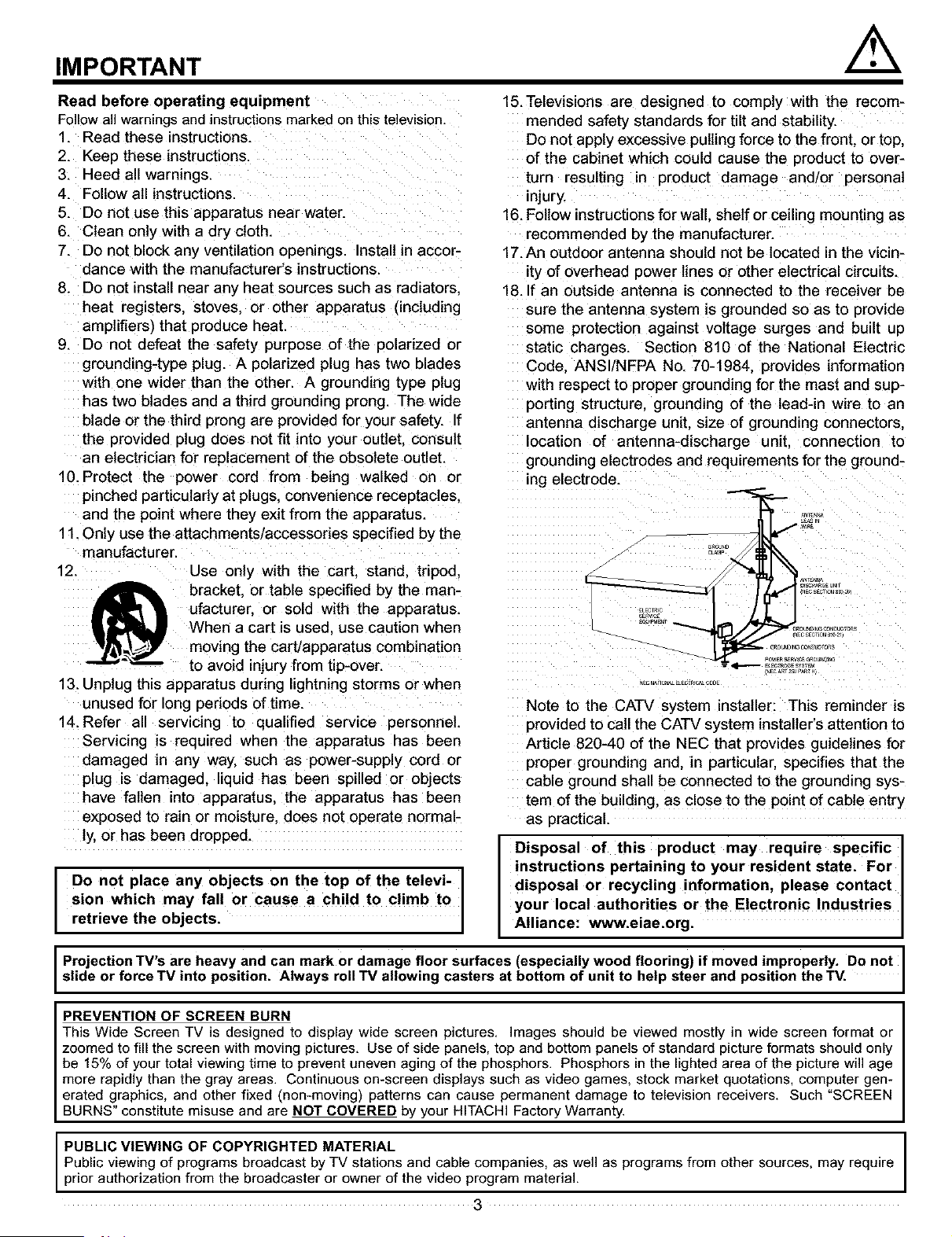

IMPORTANT
Read before operating equipment
Followall warnings and instructions marked on this television.
1. Read these instructions.
2. Keep these instructions.
3. Heed all warnings.
4. Follow atl instructions.
5. Do not use this apparatus near water.
6. Clean only with a dry cloth.
7. Do not block any ventilation openings. Install in accor-
dance with the manufacturer's instructions.
8. Do not install near any heat sources such as radiators,
heat registers, stoves, or other apparatus (including
amplifiers) that produce heat.
9. Do not defeat the safety purpose of the polarized or
grounding-type plug. A polarized plug has two blades
with one wider than the other. A grounding type plug
has two blades and a third grounding prong. The wide
blade or the third prong are provided for your safety. If
the provided plug does not fit into your outlet, consult
an electrician for replacement of the obsolete outlet.
10. Protect the power cord from being walked on or
pinched particularly at plugs, convenience receptacles,
and the point where they exit from the apparatus.
11. Only use the attachments/accessories specified by the
manufacturer.
12. Use only with the cartl stand, tripod,
bracket, or table specified by the man-
ufacturer, or sold with the apparatus.
_'_1_ When a cart is used, use caution when
__=_ moving the cart/apparatus combination
to avoid injury from tip-over.
13. Unplug this apparatus during lightning storms or when
unused for long periods of time.
14, Refer all servicing to qualified service personnel.
Servicing is required when the apparatus has been
damaged in any way, such as power-supp!y cord or
p!ug is damaged, liquid has been spilled or objects
have fallen into apparatus, the appa[atus has been
exposed to rain or moisture, does not operate normal-
ly, or has been dropped.
Do not place any objects on the top of the televi-
sion which may fall or cause a child to climb to
retrieve the objects.
15.Televisions are designed to comply with the recom-
mended safety standards for tilt and stability.
Do not apply excessive pulling force to the front, or top,
of the cabinet which could cause the product to over-
turn resulting in product damage and/or personal
injury.
16. Follow instructions for wall. shelf or ceiling mounting as
recommended by the manufacturer.
17. An outdoor antenna should not be located in the vicin-
ity of overhead power lines or other electrical circuits.
18. If an outside antenna is connected to the receiver be
sure the antenna system is grounded so as to provide
some protection against voltage surges and built up
static charges. Section 810 of the National Electric
Code. ANSI/NFPA No. 70-1984. provides information
with respect to proper grounding for the mast and sup-
porting structure, grounding of the lead-in wire to an
antenna discharge unit. size of grounding connectors.
location of antenna-discharge unit. connection to
grounding electrodes and requirements for the ground-
ing electrode.
/ w_E
_,c,t_Rc_ ul
_N_cSECrrON8_1
_ N
_CSECrON_
.C N_rC,_,__kC_a C_Xc'OUa
Note to the CATV system installer: This reminder is
provided to call the CATV system instalter'sattention to
Article 820-40 of the NEC that provides guidelines for
proper grounding and. in particular seecifies that the
cable ground shall be connected to the grounding sys-
tem of the building as close to the point of cable entry
as practical.
Disposal of this product may require specific
instructions pertaining to your resident state. For
disposal or recycling information, please contact
your local authorities or the Electronic Industries
Alliance: www.eiae.org.
Projection TV's are heavy and can mark or damage floor surfaces (especially wood flooring) if moved improperly. Do not
s de or force TV nto pos t on. A ways ro TV a ow ng casters at bottom of un t to he p steer and pos t on the TV.
PREVENTION OF SCREEN BURN
This Wide Screen TV is designed to display wide screen pictures, images should be viewed mostly in wide screen format or
zoomed to fill the screen with moving pictures. Use of side panels, top and bottom panels of standard picture formats should only
be 15% of your total viewing time to prevent uneven aging of the phosphors. Phosphors in the lighted area of the picture will age
more rapidly than the gray areas. Continuous on-screen displays such as video games, stock market quotations, computer gen-
erated graphics, and other fixed (non-moving) patterns can cause permanent damage to television receivers. Such "SCREEN
BURNS" constitute misuse and are NOT COVERED by your HITACHi Factory Warranty.
PUBLIC VIEWING OF COPYRIGHTED MATERIAL
Public viewing of programs broadcast by TV stations and cable companies, as well as programs from other sources, may require
prior authorization from the broadcaster or owner of the video program material.
3
! i!ii!!iii!iii ii i!ili !i!iii

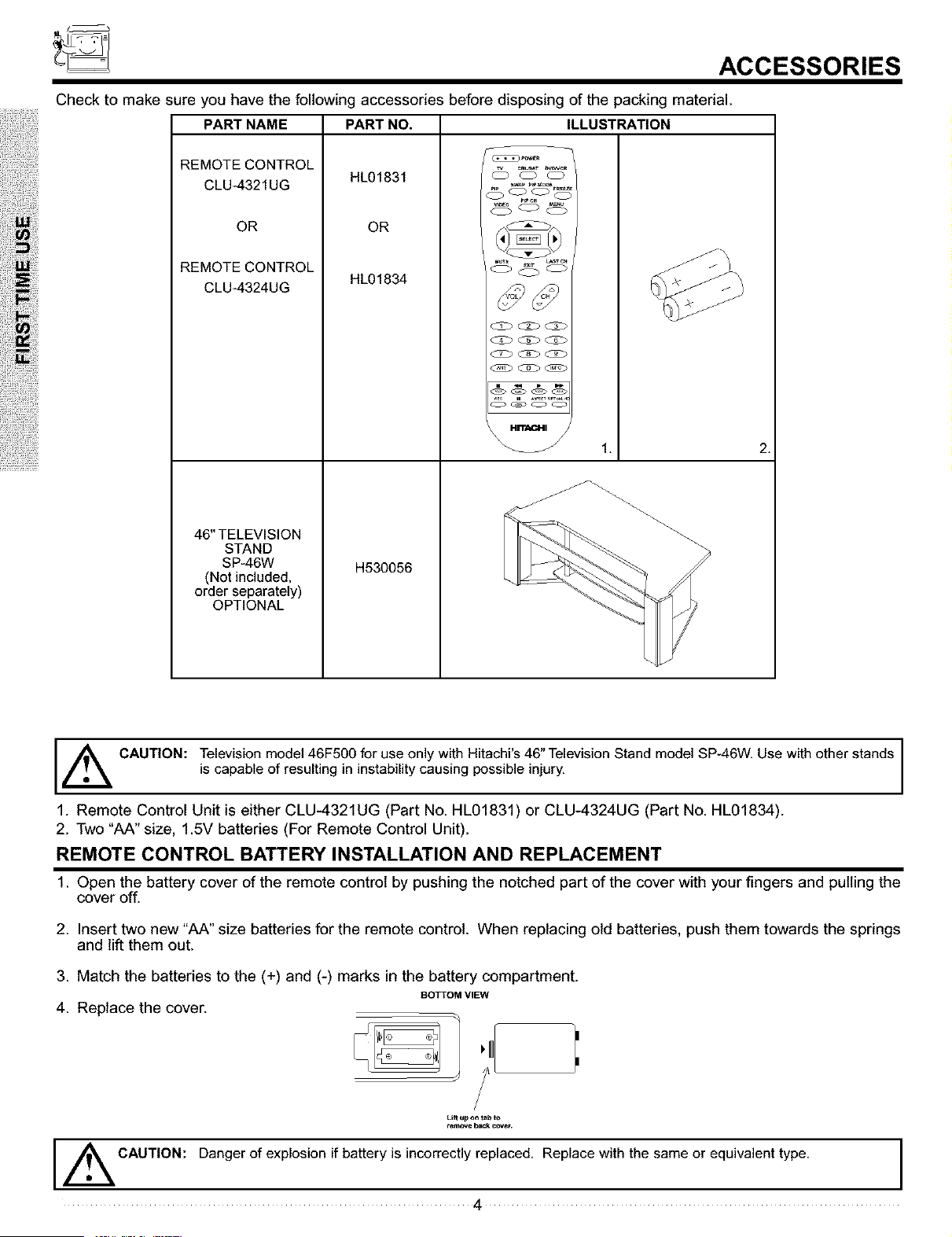

ACCESSORIES
Check to make sure you have the following accessories before disposing of the packing material.
PART NAME PART NO. ILLUSTRATION
REMOTE CONTROL
CLU-4321UG
OR
REMOTE CONTROL
CLU-4324UG
HL01831
OR
HL01834
H530056
46" TELEVISION
STAND
SP-46W
(Not included,
order separately)
OPTIONAL
vo_o
000
\
1, 2.
_ CAUTION: Television model 46F500 for use only with Hitachi's 46" Television Stand model SP-46W. Use with other stands
is capable of resulting in instability causing possible injury,
1. Remote Control Unit is either CLU-4321UG (Part No. HL01831) or CLU-4324UG (Part No. HL01834).
2. Two "AA" size, 1.5V batteries (For Remote Control Unit).
REMOTE CONTROL BATTERY INSTALLATION AND REPLACEMENT
1. Open the battery cover of the remote control by pushing the notched part of the cover with your fingers and pulling the
cover off.
2. Insert two new "AA" size batteries for the remote control. When replacing old batteries, push them towards the springs
and lift them out.
3. Match the batteries to the (+) and (-) marks in the battery compartment.
BOTTOM VIEW
4. Replace the cover.
/
/
Ll_o_t_to
remove back cowt.
b_ CAUTION: Danger of explosion if battery is incorrectly replaced, Replace with the same or equivalent type, I
I
I
4

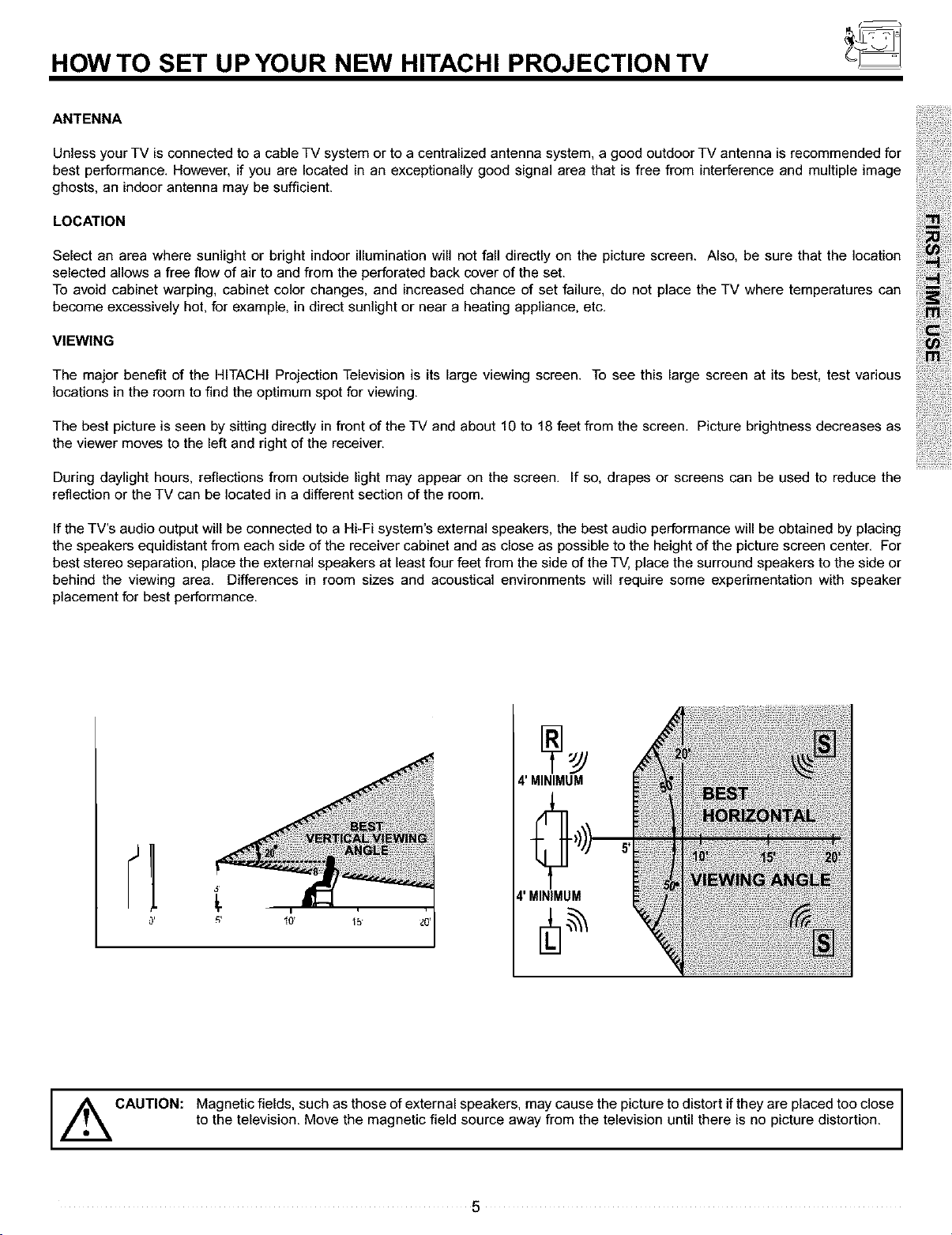

HOW TO SET UP YOUR NEW HITACHI PROJECTION TV
ANTENNA
Unless your TV is connected to a cable TV system or to a centralized antenna system, a good outdoor TV antenna is recommended for
best performance. However, if you are located in an exceptionally good signal area that is free from interference and multiple image
ghosts, an indoor antenna may be sufficient.
LOCATION
Select an area where sunlight or bright indoor illumination will not fall directly on the picture screen. Also, be sure that the location
selected allows a free flow of air to and from the perforated back cover of the set.
To avoid cabinet warping, cabinet color changes, and increased chance of set failure, do not place the TV where temperatures can
become excessively hot, for example, in direct sunlight or near a heating appliance, etc.
VIEWING
The major benefit of the HITACHI Projection Television is its large viewing screen. To see this large screen at its best, test various
locations in the room to find the optimum spot for viewing.
The best picture is seen by sitting directly in front of the TV and about 10 to 18 feet from the screen. Picture brightness decreases as
the viewer moves to the left and right of the receiver.
During daylight hours, reflections from outside light may appear on the screen. If so, drapes or screens can be used to reduce the
reflection or the TV can be located in a different section of the room.
If the TV's audio output will be connected to a Hi-Fi system's external speakers, the best audio performance will be obtained by placing
the speakers equidistant from each side of the receiver cabinet and as close as possible to the height of the picture screen center. For
best stereo separation, place the external speakers at least four feet from the side of the TV, place the surround speakers to the side or
behind the viewing area. Differences in room sizes and acoustical environments will require some experimentation with speaker
placement for best performance.
4' MINIMUM
4' MINIMUM
_ CAUTION: Magnetic fields, such as those of external speakers, may cause the picture to distort if they are placed too close
to the television, Move the magnetic field source away from the television until there is no picture distortion,
5

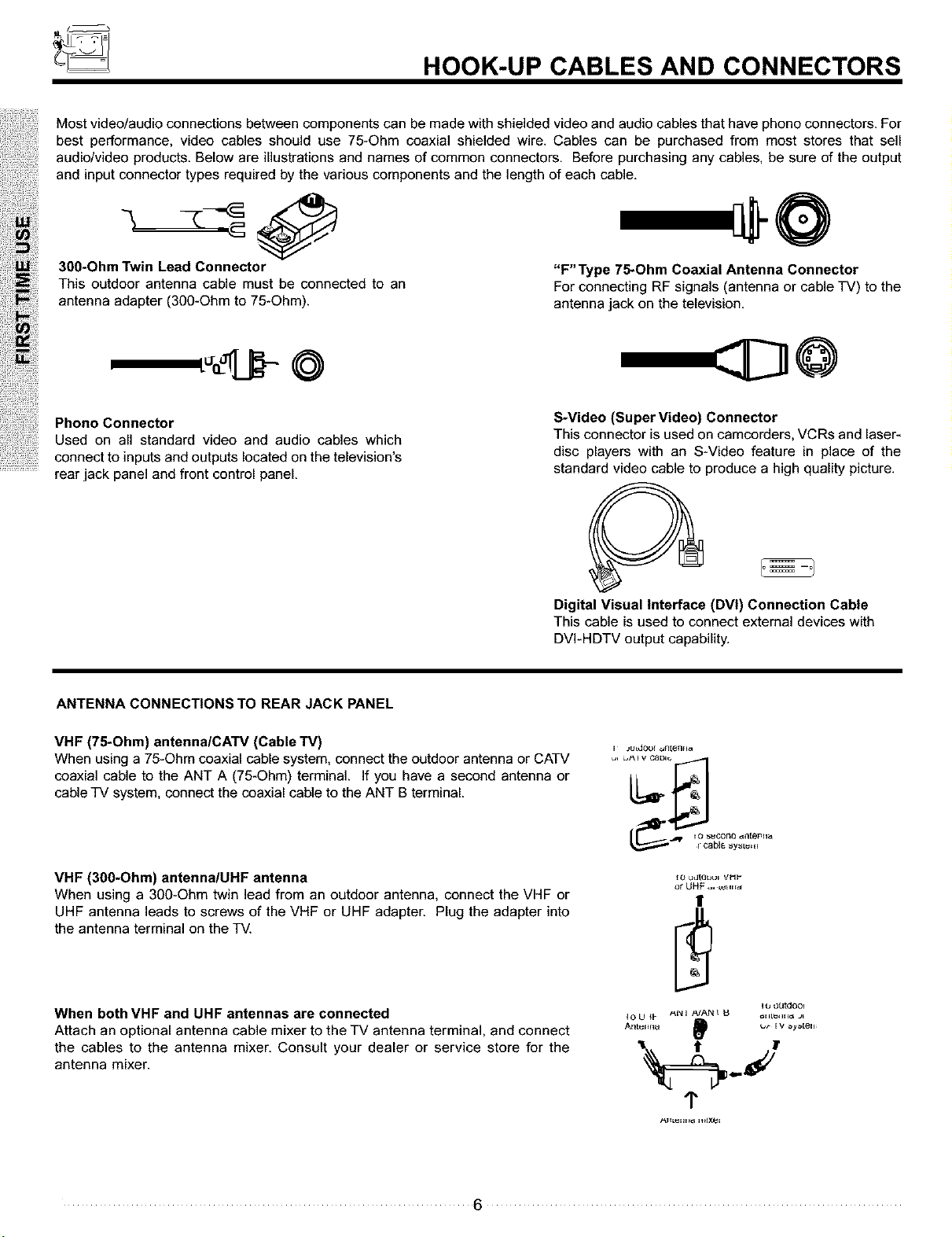

HOOK-UP CABLES AND CONNECTORS
! i!ii!!iii!iii ii i!ili !i!ii:
rear jack panel and front control panel.
Most video/audio connections between components can be made with shielded video and audio cables that have phono connectors. For
best performance, video cables should use 75-Ohm coaxial shielded wire. Cables can be purchased from most stores that sell
audio/video products. Below are illustrations and names of common connectors. Before purchasing any cables, be sure of the output
and input connector types required by the various components and the length of each cable.
300-Ohm Twin Lead Connector
This outdoor antenna cable must be connected to an
antenna adapter (300-Ohm to 75-Ohm).
"F"Type 75-Ohm Coaxial Antenna Connector
For connecting RF signals (antenna or cable TV) to the
antenna jack on the television.
@
Phono Connector
Used on all standard video and audio cables which
connect to inputs and outputs located on the television's
S-Video (Super Video) Connector
This connector is used on camcorders, VCRs and laser-
disc players with an S-Video feature in place of the
standard video cable to produce a high quality picture.
Digital Visual Interface (DVI) Connection Cable
This cable is used to connect external devices with
DVI-HDTV output capability.
ANTENNA CONNECTIONS TO REAR JACK PANEL
VHF (75-Ohm) antennalCATV (Cable TV)
When using a 75-Ohm coaxial cable system, connect the outdoor antenna or CATV
coaxial cable to the ANT A (75-Ohm) terminal. If you have a second antenna or
cable TV system, connect the coaxial cable to the ANT B terminal.
VHF (300-Ohm) antennalUHF antenna
When using a 300-Ohm twin lead from an outdoor antenna, connect the VHF or
UHF antenna leads to screws of the VHF or UHF adapter. Plug the adapter into
the antenna terminal on the TV.
When both VHF and UHF antennas are connected
Attach an optional antenna cable mixer to the TV antenna terminal, and connect
the cables to the antenna mixer. Consult your dealer or service store for the
antenna mixer.
I JoLdOU[ _,n[en_k_
_E L,P,I v C3D_,
_o UdtQUUE _'Hl"
|
Iu outdOoI
tO U tP toni P,tAN!_ _ _.Im*m_ Jt
A_[u[_[_ _I _ _ iv _y_[el_
W
6

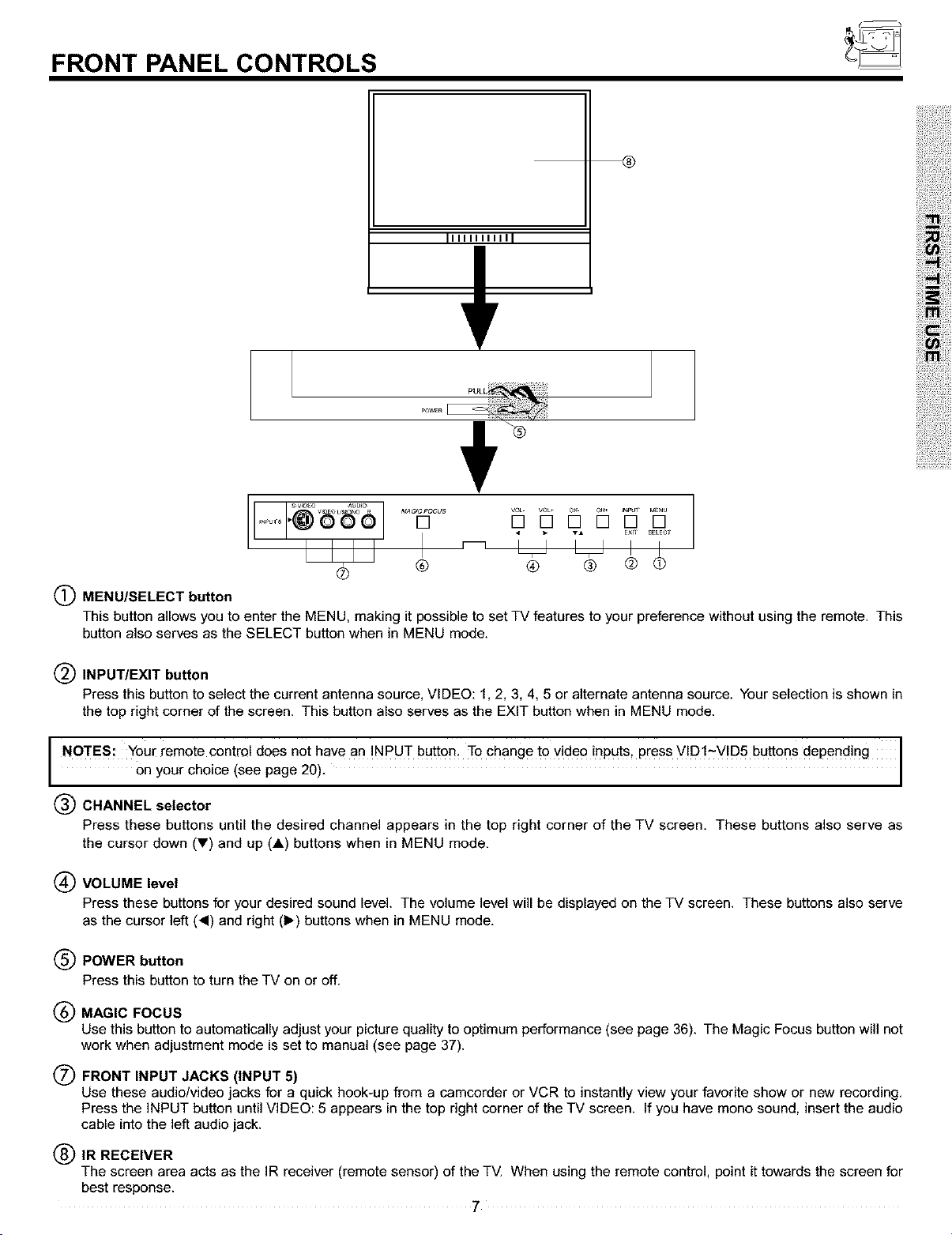

FRONT PANEL CONTROLS
Illllllllll I
s w_o _uo_o _sA_ic _ocus
,rA EXIT S_LECT
® ® @ 0
(_ MENU/SELECT button
This button allows you to enter the MENU, making it possible to set TV features to your preference without using the remote. This
button also serves as the SELECT button when in MENU mode.
(_ INPUT/EXIT button
Press this button to select the current antenna source, VIDEO: 1, 2, 3, 4, 5 or alternate antenna source. Your selection is shown in
the top right corner of the screen. This button also serves as the EXIT button when in MENU mode.
I NOTES: Your remote control does not have an INPUT button_ To change to yideo inputs, press VID!-V!D5 buttons depending
on your cho ce (see page 20).
CHANNEL selector
Press these buttons until the desired channel appears in the top right corner of the TV screen, These buttons also serve as
the cursor down (_') and up (4,) buttons when in MENU mode,
(_ VOLUME level
Press these buttons for your desired sound level. The volume level will be displayed on the TV screen. These buttons also serve
as the cursor left (.) and right (1_) buttons when in MENU mode.
(_ POWER button
Press this button to turn the TV on or off.
(_) MAGIC FOCUS
Use this button to automatically adjust your picture quality to optimum performance (see page 36). The Magic Focus button will not
work when adjustment mode is set to manual (see page 37).
(_ FRONT INPUT JACKS (INPUT 5)
Use these audio/video jacks for a quick hook-up from a camcorder or VCR to instantly view your favorite show or new recording.
Press the INPUT button until VIDEO: 5 appears in the top right corner of the TV screen. If you have mono sound, insert the audio
cable into the left audio jack.
IR RECEIVER
The screen area acts as the IR receiver (remote sensor) of the TV. When using the remote control, point it towards the screen for
best response.
7
iiiiiiii!ili ii!! ii

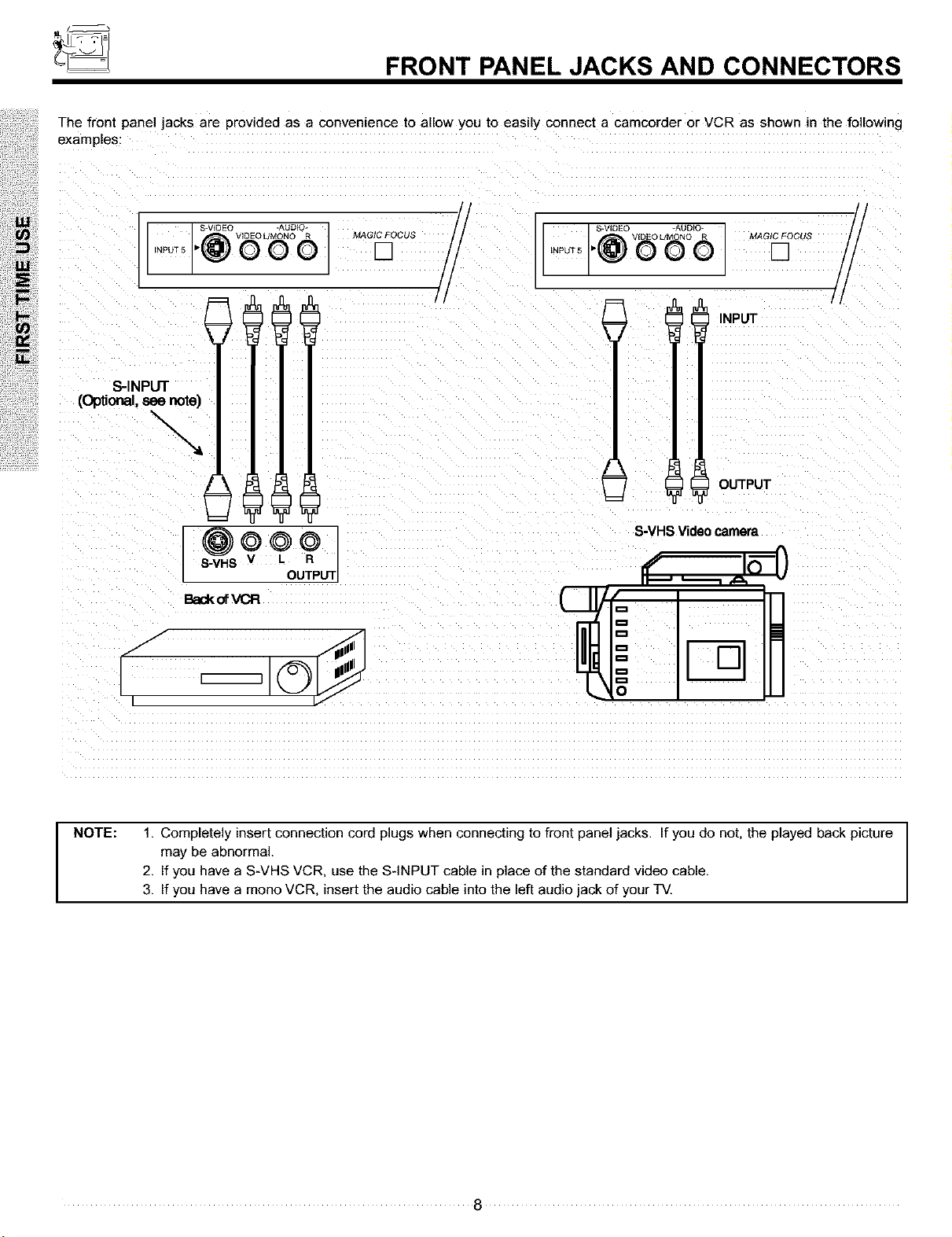

FRONT PANEL JACKS AND CONNECTORS
NOTE: 1. Completely insert connection cord plugs when connecting to front panel jacks. If you do not, the played back picture
may be abnormal.
2. If you have a S-VHS VCR, use the S-INPUT cable in place of the standard video cable.
3. If you have a mono VCR, insert the audio cable into the left audio jack of your TV.
8

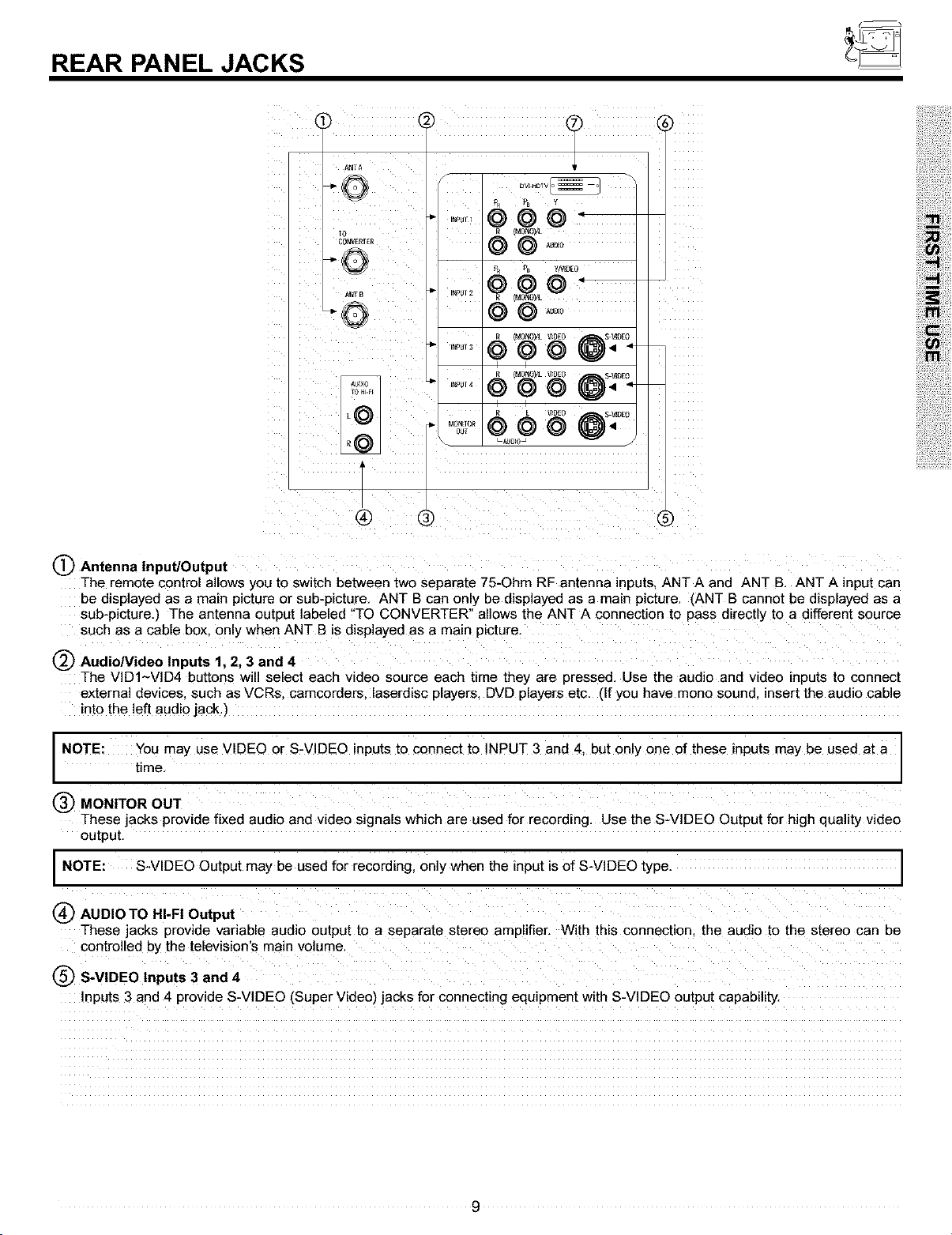

REAR PANEL JACKS
l0
C0_ZRI£R
ili!!mi!!i!!i
(_ Antenna InputlOutput
The remote control allows you tc switch between two separate 75-Ohm RF antenna inputs ANT A and ANT B. ANT A input can
be displayed as a main picture or sub-picture. ANT B can only be displayed as a main picture, rANT B cannot be displayed as a
sub-picture.= The antenna output labeled "TO CONVERTER" allows the ANT A connection to pass directly to a different source
such as a cable box. only when ANT B is displayed as a main picture.
(_) AudioNideo Inputs 1, 2, 3 and 4
The VIDl~VID4 buttons will select each video source each time they are pressed. Use the audio and video inputs to connect
external devices such as VCRs camcorders laserdisc players. DVD players etc. (If you have mono sound insert the audio cable
into the left audio jack.)
NOTE: You may use VIDEO or S-VIDEO inputs to connect to INPUT 3 and 4. but only one of these inputs may be used at a
Lime
(_ MONITOR OUT
These jacks provide fixed audio and video signals which are used for recording. Use the S-VIDEO Output for high quality video
output.
NOTE: S-VIDEO Output may be used for recording, only when the input is of S-VIDEO type.
(_ AUDIO TO HI-FI Output
These jacks provide variable audio output to a separate stereo amplifier. With this connection, the audio to the stereo can be
controlled by the television's main volume.
Inputs 3 and 4 provide S-VIDEO (Super Video) jacks for connecting equipment with S-VIDEO output capability.
9
REAR PANEL JACKS
(_ Component: Y-PBPR Inputs
Inputs 1 and 2 provide Y-PBPR jacks for connecting equipment with this capability, such as a DVD player or Set Top Box. You may
use composite video signal for INPUT:2.
NOTES: 1. Do not connect composite VIDEO and S-VIDEO to Input 3, 4 or 5 at the same time. S-VIDEO has priori_/--_'_]
over VIDEO input. /
ILl I
2 Yourcomponent outputsmay be labeledY, B-Y,and R-Y.Inthis case connect thecomponents B-Y output to theTV's PB input and I
the components R-Y output to the TV's PR input. _ ' I
IM I
3. Your component outputsmay be labeledY-CBCR. In thiscase, connect the component CB output to the TV's PB inputandthe I
component CR outputto theTV's PR input. /
f._ 4. It may be necessary toad ustTINT to obtain optimumpicture quality whenusing theY-PBPRinputs. See page 35) /
/
a
5. To ensure no copyright infringement, the MONITOR OUT outputwill be abnormal,when using the Y-PBPRjacks. /
6. Input 2 (Y/VIDEO) can be used for composite video and componentvideo input.
/
(_ DVI-HDTV Input (Input 1)
Use this DVI-HDTV Input for your external devices wth DVI-HDTV output such as a Set-Top-Box high-band DTV decoders DVD
players and D-VHS with Digital Content Protection.
NOTES: 1, Only DTV format such as 1080i, 720p, 480i and 480p are available for DVI-HDTV input.
2. The DVI-HDTV input is NOT compatible when used with a DVD player from a personal computer. I
I
3. When connecting a Set-Top-Box with a copy-protect digital out terminal, a high definition picture can be displayed I
on the screen in its digital form. I
I
10
REAR PANEL CONNECTIONS

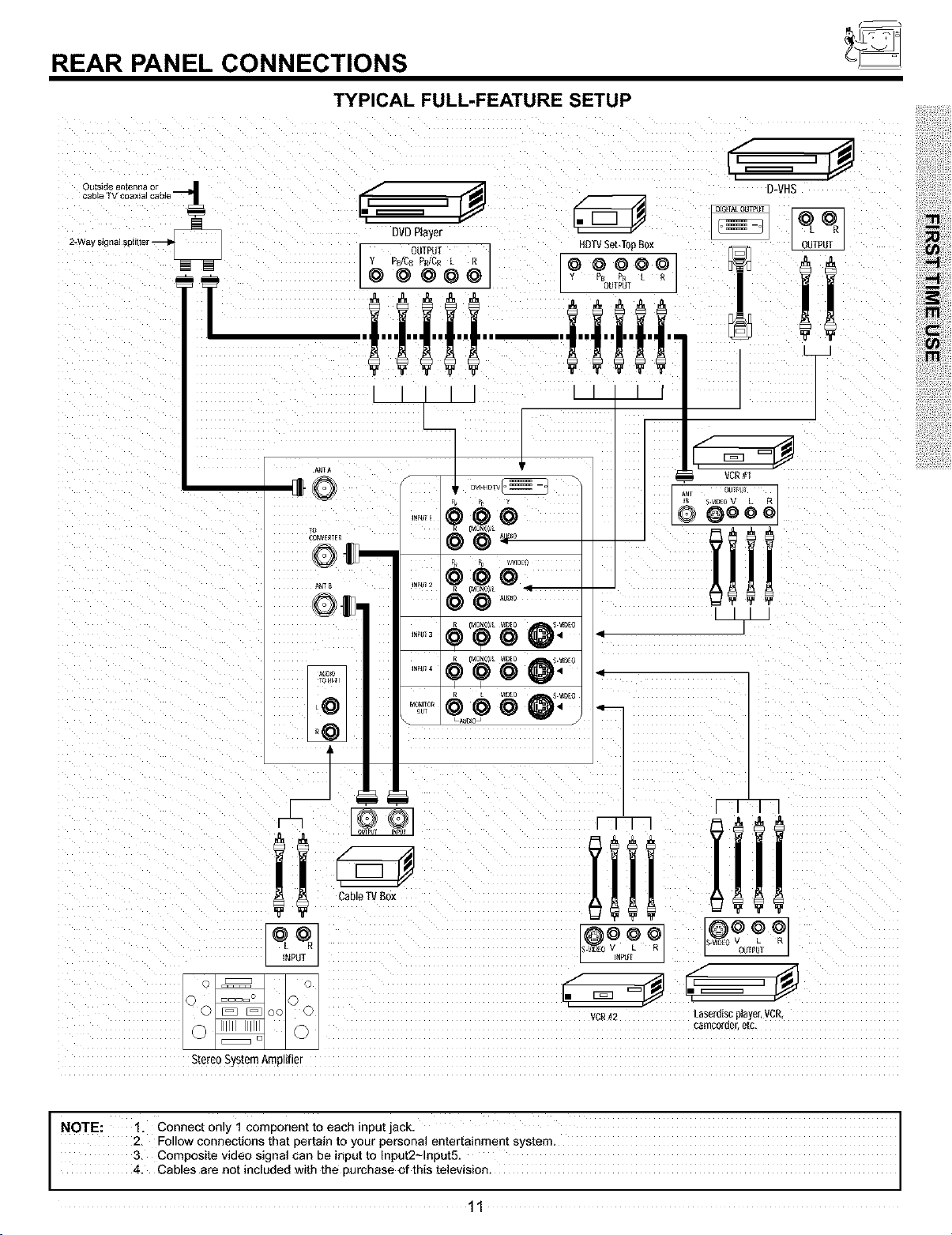

TYPICAL FULL-FEATURE SETUP
m
DVDPlayer
OUIPUT
,H
I
D-VHS
k_ 1
VNOE
StereoSystemAmp fier
I NOTE: 1. Connect only l component to each input ack.
2, Followconnections that pertain to your personal entertainment system.
3, Composite video signal can be input to [nput2-1nputS.
4. Cables are not included with the purchase ofthis television.
11

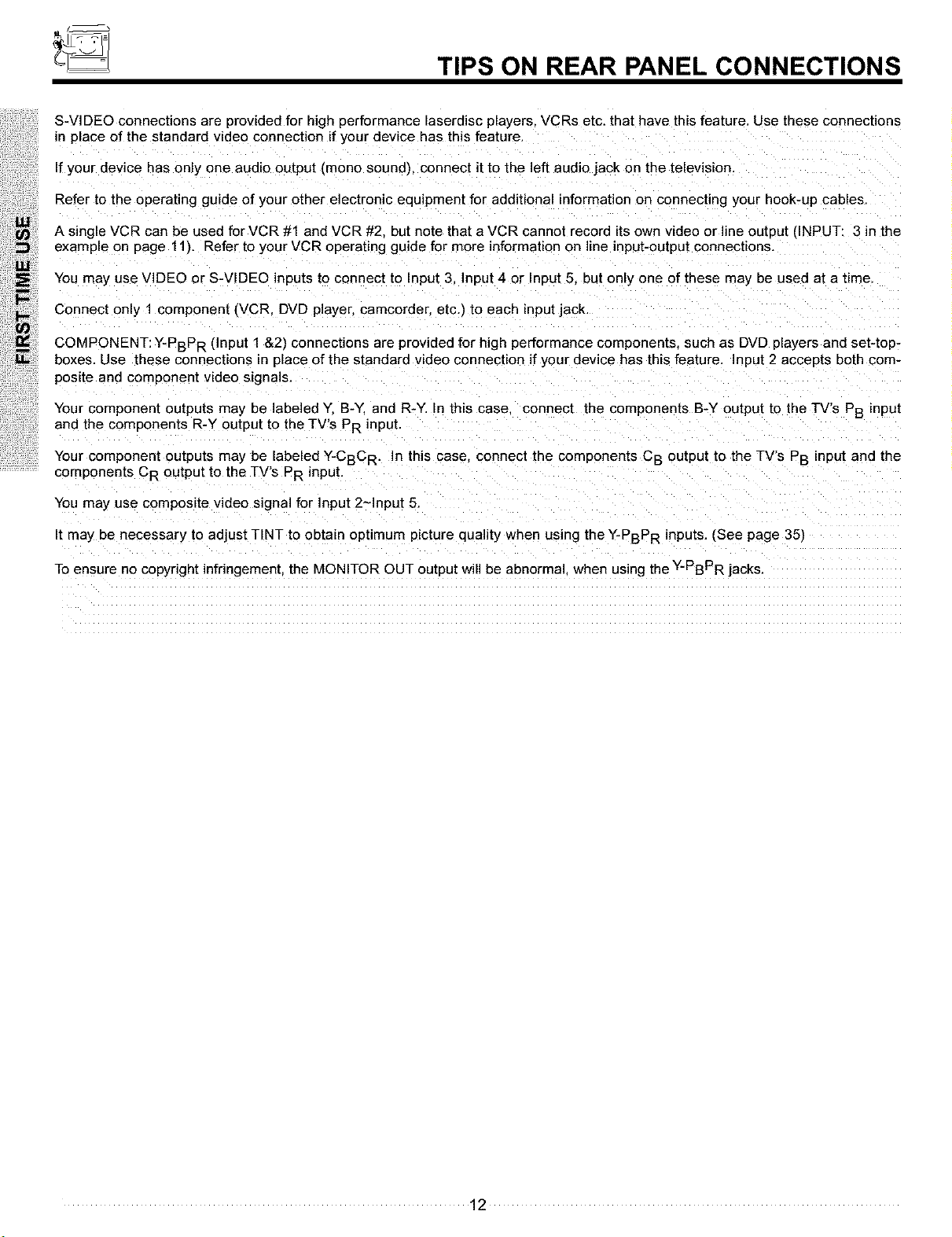

TIPS ON REAR PANEL CONNECTIONS
S-VIDEO connections are provided for high performance laserdisc players VCRs etc. that have this feature. Use these connections
in place of the standard video connection if your device has this feature.
If your device has only one audio output (mono soundL connect it to the left audio jack on the television.
W Refer to the operating guide of your other electronic equipment for additional information on connecting your hook-up cables
tJ) A single VCR can be used for VCR #1 and VCR #2 but note that a VCR cannot record its own video or line output IINPUT: 3 in the
example on page 11). Refer to your VCR operating guide for more information on line input-output connections.
W
=_ You may use VIDEO or S-VIDEO inputs to connect to Input 3, Input 4 or Input 5. but only one of these may be used at a time.
F-
l,.- Connect only 1 component CVCR. DVD player, camcorder, etc.i to each input jack.
COMPONENT: Y-PBPR (Input 1 &21 connections are provided for high performance components, such as DVD players and set-top-
boxes. Use these connections in place of the standard video connection if your device has this feature. Input 2 accepts both com-
posite and component video signals
Your component outputs may be labeled Y B-Y. and R-Y. In this case connect the components B-Y output to the TV's PB input
and the components R-Y output to the TV's PR input.
Your component outputs may be labeled Y-CBC R. In this case connect the components CB output to the TV's PB input and the
components CR output to the TV's PR input.
You may use composite video signal for Input 2~Input 5.
It may be necessary to adjust TINT to obtain optimum picture quality when using the Y-PBPR inputs. (See page 35)
To ensure no copyright infringement, the MONITOR OUT output will be abnormal when using the Y-PBPR jacks.
12

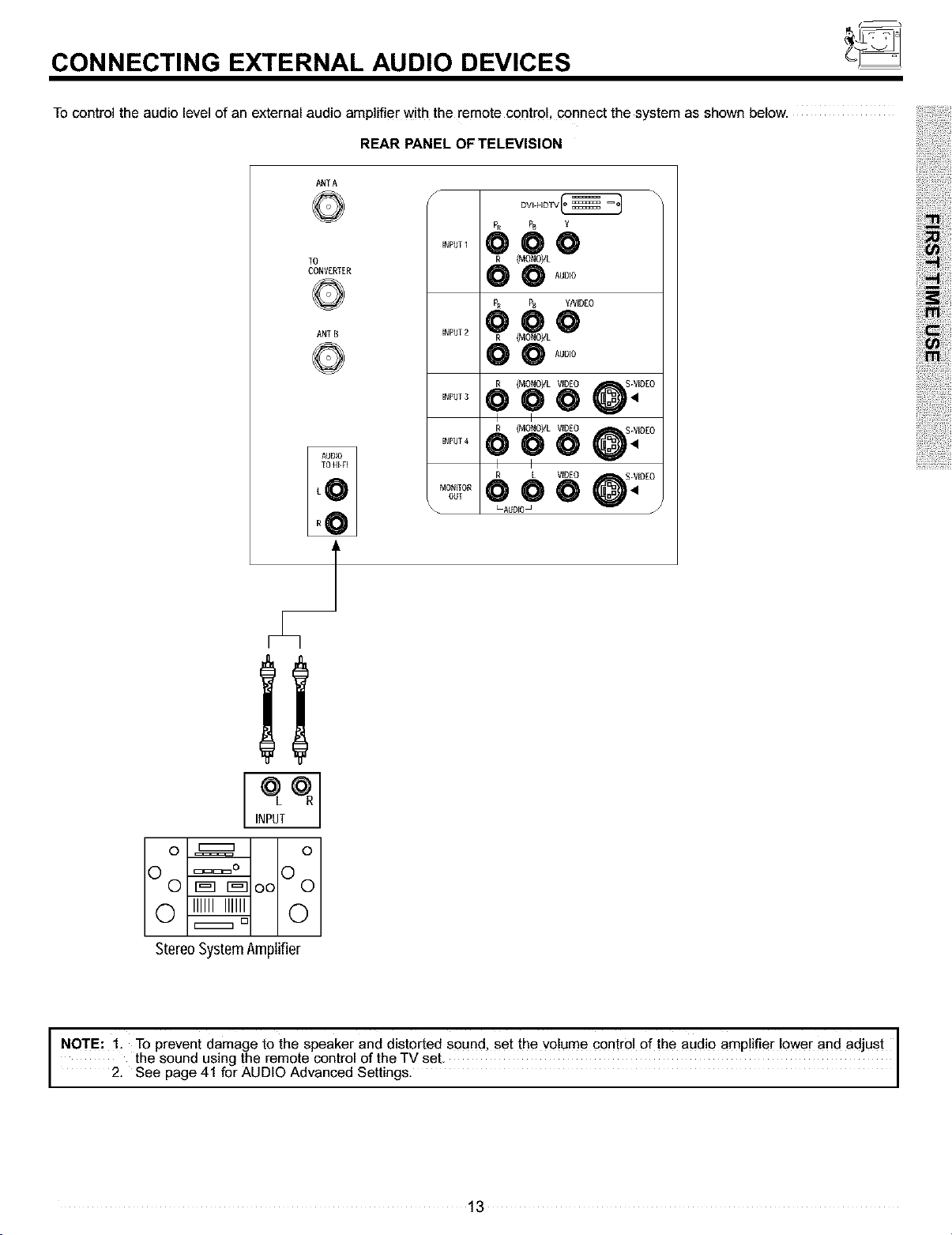

CONNECTING EXTERNAL AUDIO DEVICES
To control the audio level of an external audio amplifierREARwithpANELtheoFrem°teTELEVISIoNc°ntr°l'connect the system as shown below.
INPUT
Oo ooOo
StereoSystemAmplifier
ANTA
TO
CONVERTER
ANTB
T
P_ _ v
O @_oo,o
P_ P_ YNiDEO
O O _oo,o
oP_T_,o6,L6@s:,o,o
I I
op,,,,o6,,6@s:,o,o
R L VIDEO
000
LAUDIO]
ili!!mi!!i!!i
I NOTE: 1. To prevent damage to the speaker and distorted sound, set the volume control of the audio amplifier lower and adjust I
the sound using the remote control of the TV set.
2. See page 41 for AUDIO Advanced Settings,
13

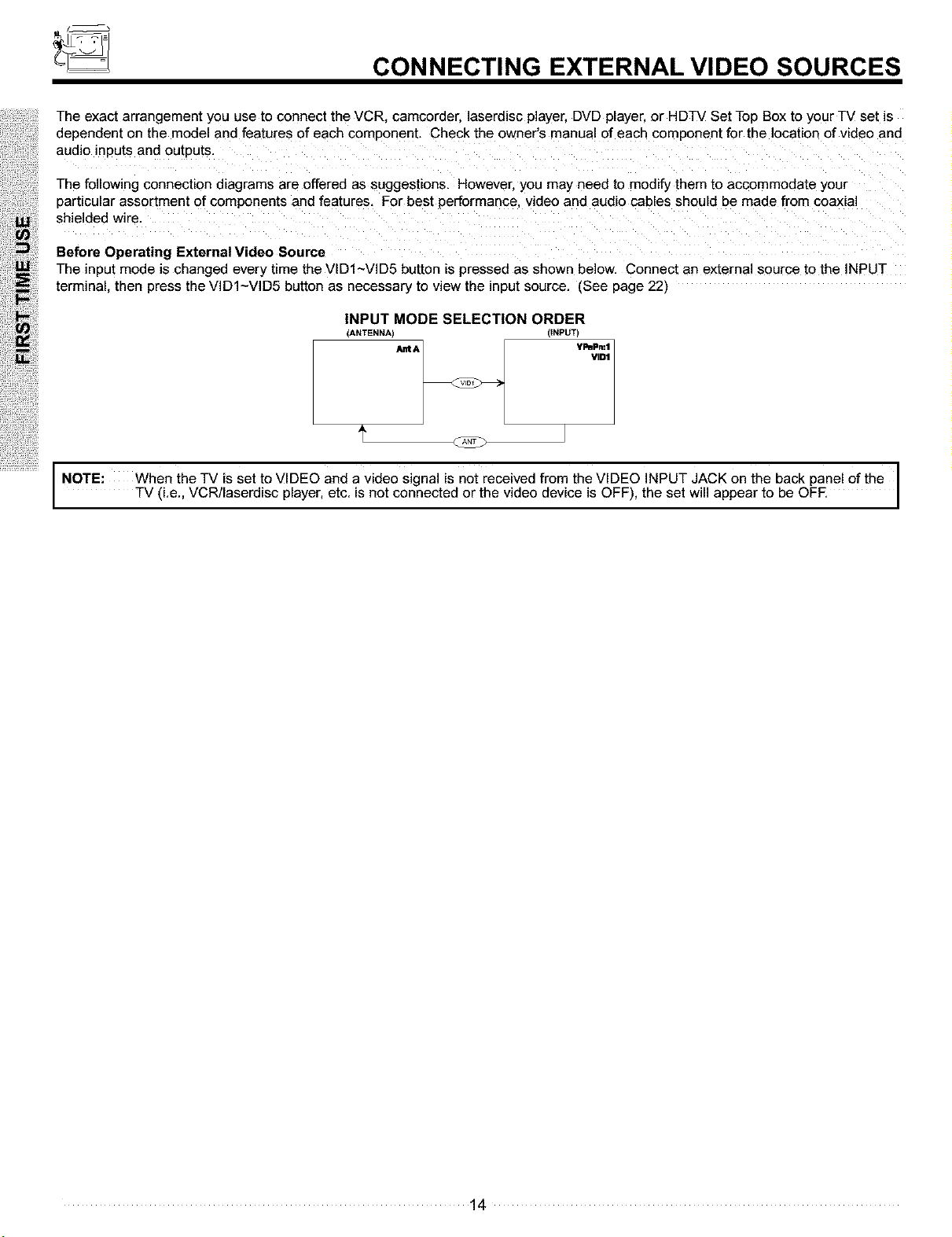

CONNECTING EXTERNAL VIDEO SOURCES
The exact arrangement you use to connect the VCR camcorder, laserdisc player, DVD player, or HDTV Set Top Box to your TV set is
dependent on the model and features of each component. Check the owner's manual of each component for the location of video and
audio inputs and outputs,
The following connection diagrams are offered as suggestions. However, you may need to modify them to accommodate your
particular assortment of components and features For best performance video and audio cables should be made from coaxial
shielded wire,
Before Operating External Video Source
The input mode is changed every time the VIDl~VID5 button is pressed as shown below. Connect an external source to the INPUT
terminal, then press the VIDI~VID5 button as necessary to view the input source. (See page 22'J
INPUT MODE SELECTION ORDER
(ANTENNA) (iNPUT)
NOTE: When the TV is set to VIDEO and a video Signal is not received from the VIDEO INPUT JACK on the back panel of the
TV ( .e., VCR/aserd sc payer, etc. s not connected or the v deo dev ce s OFF), the set w appear to be OFE
14
CONNECTING EXTERNAL VIDEO SOURCES

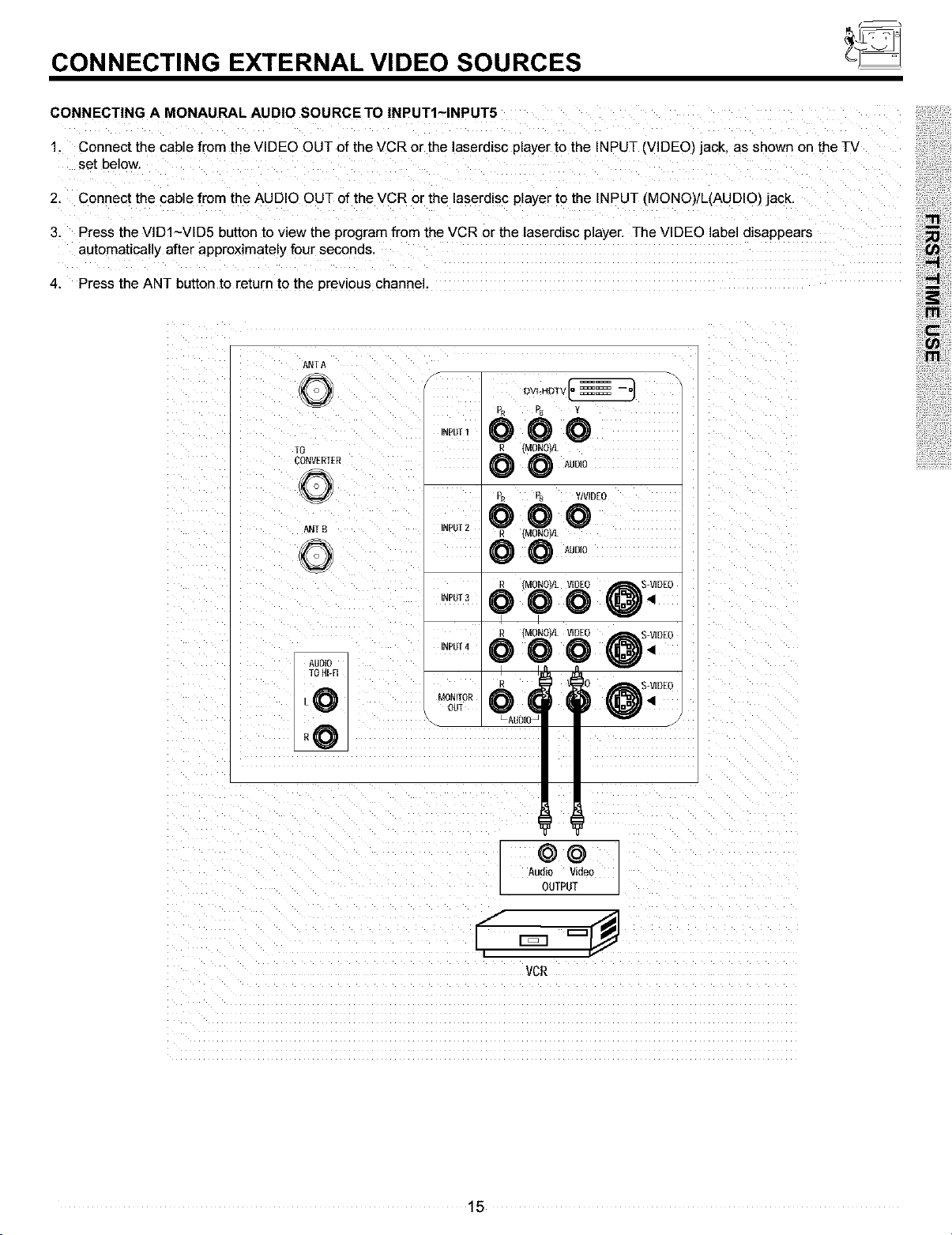

CONNECTING A MONAURAL AUDIO SOURCE TO INPUTI-INPUT5
1. Connect the cable from the VIDEO OUT of the VCR or the laserdisc player to the INPUT (VIDEO) jack, as shown on the TV
set below.
2. Connect the cable from the AUDIO OUT of the VCR or the laserdisc player to the INPUT (MONO)/L(AUDIO) jack.
i
3. Press the VIDI~VID5 button to view the program from the VCR or the laserdisc player. The VIDEO label disappears
automatically after approximately four seconds. ,_
4. Press the ANT button to return to the previous channel.
rrl
o_
ANTA m
DVt=HDTV _
p_ _
,°P0,,O O O
]ONVERTER AUDIO
_.NTB
@@
Audio Video
OUTPUT
"JCR
15
CONNECTING EXTERNAL VIDEO SOURCES
! i!ii!!iii!iii ii i!ili !i!iii

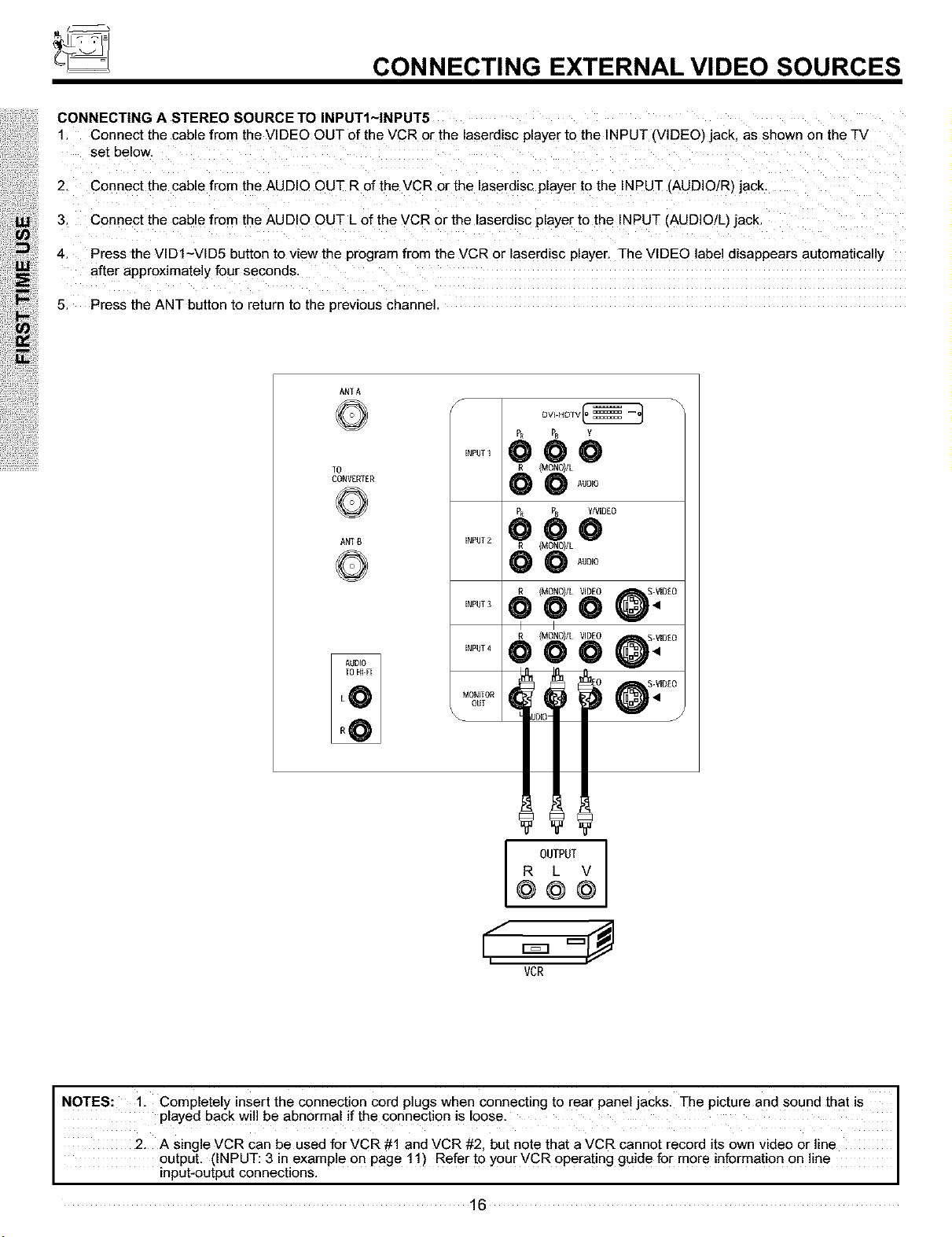

CONNECTING A STEREO SOURCE TO INPUTI~INPUT5
1. Connect the cable from the VIDEO OUT of the VCR or the laserdisc player to the INPUT (VIDEO) jack. as shown on the TV
set below.
2. Connect the cable from the AUDIO OUT R of the VCR or the laserdisc player to the INPUT (AUDIO/R) jack
3. Connect the cable from the AUDIO OUT L of the VCR or the laserdisc player to the INPUT (AUDIO/L) jack.
4. Press the VIDI~VID5 button to view the program from the VCR or laserdisc olayer. The VIDEO label disappears automatically
after approximately four seconds.
5. Press the ANT button to return to the 0revious channel.
ANTA
TO
CONVERTER
ANTB
/
INPUT1
INPUT2
INPUT3
INPUT4
MONITOR
OUT
OUTPUT
R L V
@@@
NOTES: 1. Completely insert the connection cord plugs when connecting to rear panel acks. The picture and sound that is
played back will be abnormal if the connection is loose. I
I
2. A Single VCR can be used for VCR #1 and VCR #2, but note that a VCR cannot record its own video or line I
output. (INPUT: 3 in exampl e on page ! !) Refer to your VCR operat ng guide for more information on ine
nput-output connect ons.
16
CONNECTING EXTERNAL VIDEO SOURCES

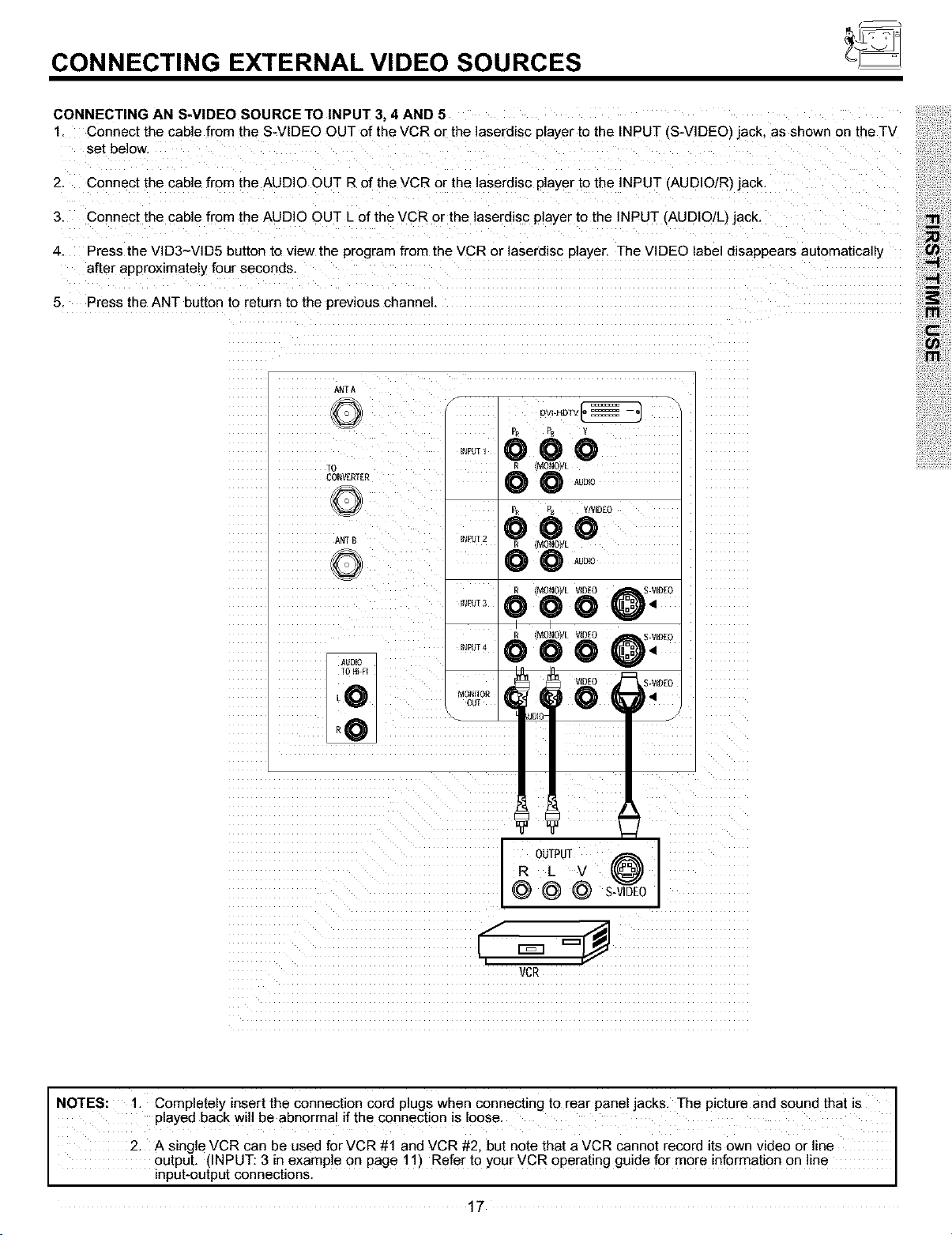

CONNECTING AN S-VIDEO SOURCE TO INPUT 3, 4 AND 5
1. Connect the cable from the S-VIDEO OUT of the VCR or the laserdisc player to the INPUT (S-VIDEO'J jack, as shown on the TV
set below.
2. Connect the cable from the AUDIO OUT R of the VCR or the laserdisc player to the INPUT (AUDIO/R) jack
3. Connect the cable from the AUDIO OUT L of the VCR or the laserdisc player to the INPUT (AUDIO/L/jack
4. Press the VID3~VID5 button to view the program from the VCR or laserdisc player, The VIDEO label disappears automatically
after approximately four seconds.
5. Press the ANT button to return to the previous channel.
ANTA
-D
CONV[RIER
ANTB
;0"°.'_r,
LO
iiiiiii!i!ii!iiiiii
iii+
i!+!i+:iii!i_+!i
iiiiii+_i+i
°°+P°,@ I
R L V
@ @ @ S-VIDEO
NOTES: 1. Completely insert the connection cord plugs when connecting to rear panel jacks, The picture and sound that is
played back will be abnormal if the connection is loose.
I
2. AsingleVCRcanbeusedforVCR#1 andVCR#2, but note that a VCR cannot record its 0wn video or line
output. (INPUT: 3 in examp e on page ! !) Refer to you r vCR operating gu de for more nformat on on line
nput-output connect ons.
17
CONNECTING EXTERNAL VIDEO SOURCES

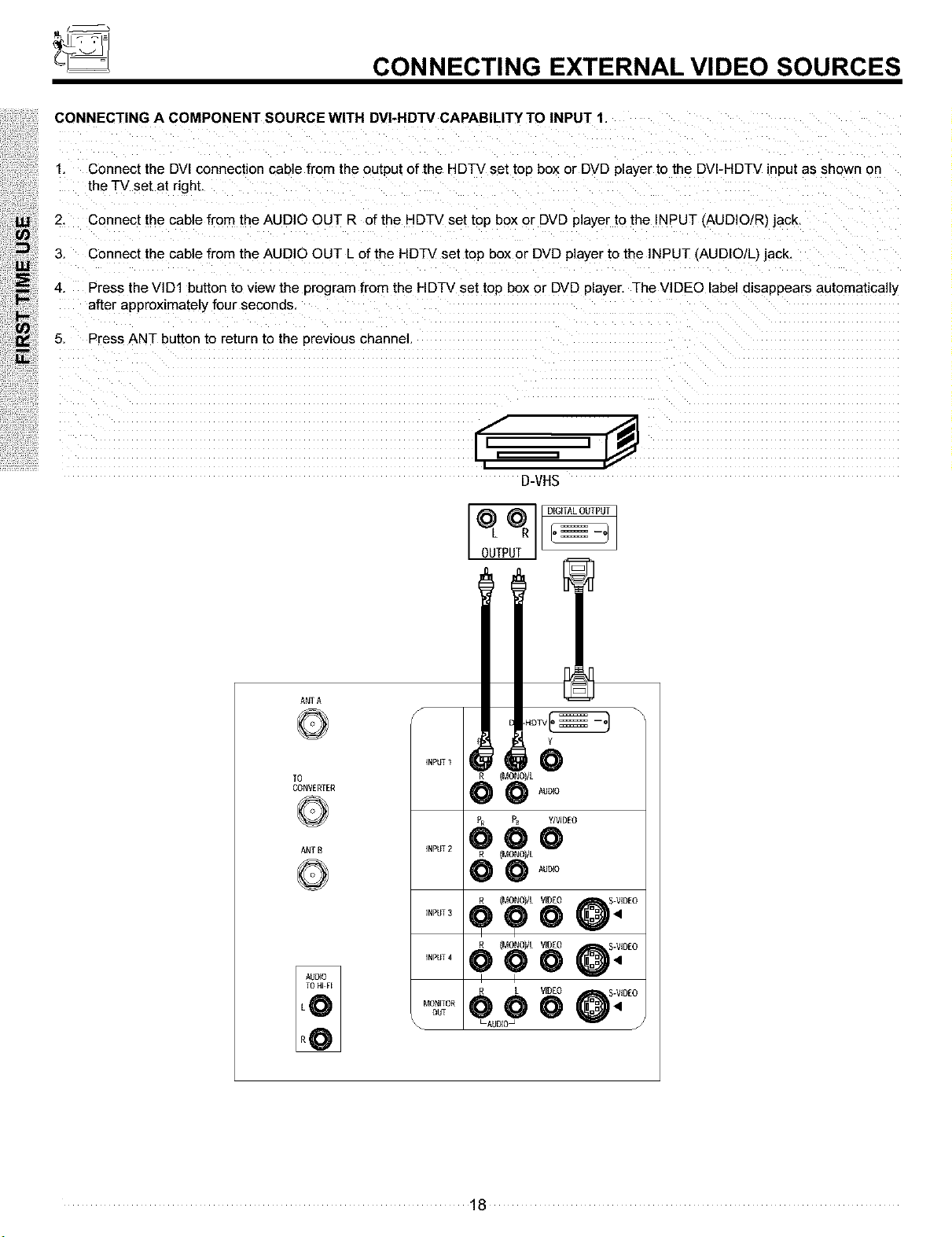

CONNECTING A COMPONENT SOURCE WITH DV|+HDTV CAPABILITY TO INPUT 1.
1 Connect the DVI connection cable from the output of the HDTV set top box or DVD player to the DVI-HDTV input as shown on
the TV set at right.
2. Connect the cable from the AUDIO OUT R of the HDTV set top box or DVD player to the INPUT (AUDIO/R) jack,
3 Connect the cable from the AUDIO OUT L of the HDTV set top box or DVD player to the INPUT (AUDIO/L) jack,
4 Press the VID1 button to view the program from the HDTV set top box or DVD player. The VIDEO label disappears automatically
after approximately four seconds,
5 Press ANT button to return to the previous channel.
D-VHS
DIGITALOUTPUT
OUTPUT
ANTA
TO
CONVERTER
ANTB
LAUD[O_
18
CONNECTING EXTERNAL VIDEO SOURCES

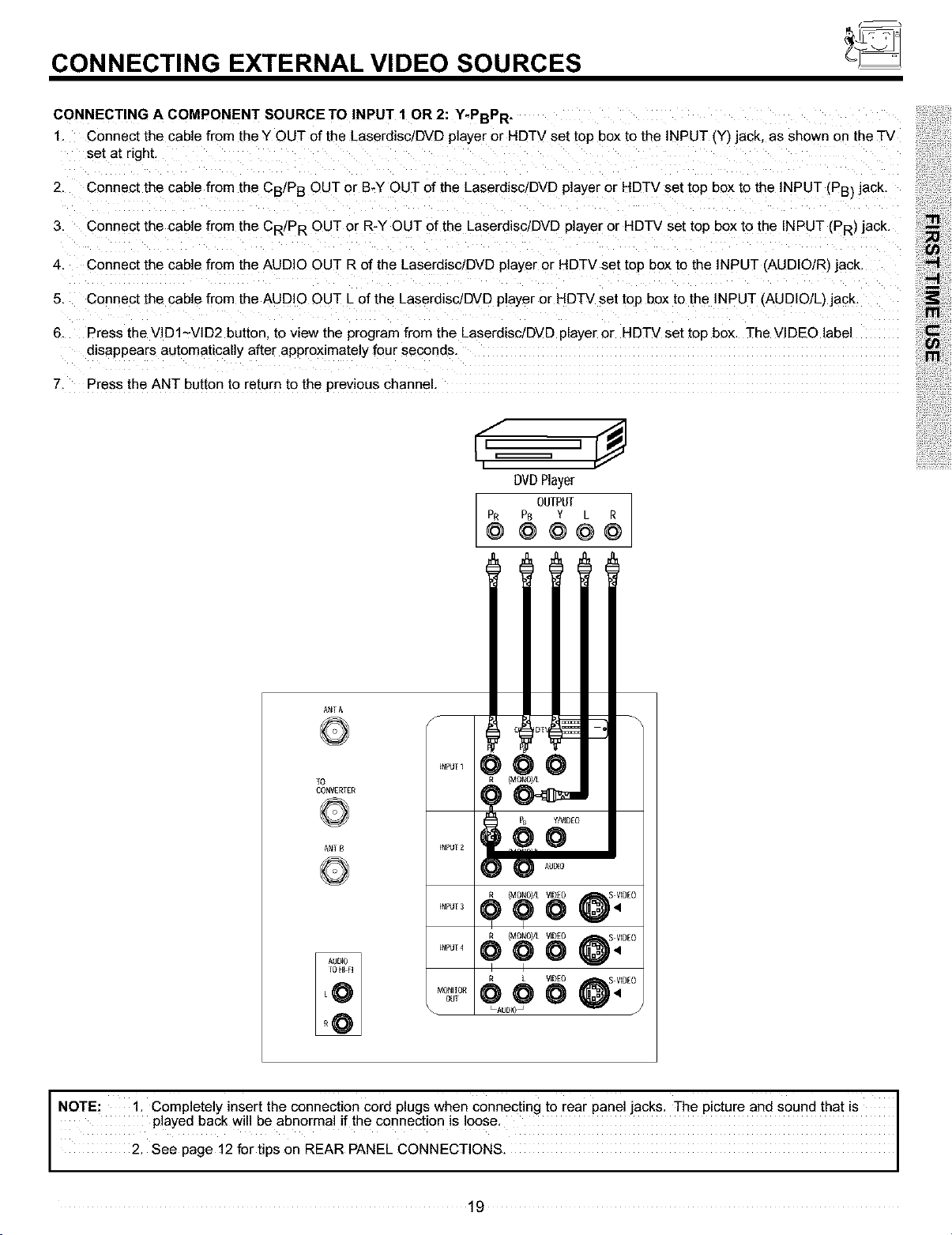

CONNECTING A COMPONENT SOURCE TO INPUT 1 OR 2: Y-PBPR -
1. Connect the cable from the Y OUT of the Laserdisc/DVD player or HDTV set tOD box to the INPUT (Y) jack. as shown on the TV
set at right.
2. Connect the cable from the CB/P B OUT or B-Y OUT of the Laserdisc/DVD player or HDTV set top box to the INPUT (PB_ jack.
3. Connect the cable from the GRIP R OUT or R-Y OUT of the Laserdisc/DVD player or HDTV set top box to the INPUT (PR) jack.
4. Connect the cable from the AUDIO OUT R of the Laserdisc/DVD player or HDTV set top box to the INPUT (AUDIO/R) jack.
5. Connect the cable from the AUDIO OUT L of the Laserdisc/DVD player or HDTV set top box to the INPUT (AUDIO/L) jack,
rtl
6. Press the VIDl~VID2 buttor, to view the program from the Laserdisc/DVD player or HDTV set top box. The VIDEO labeJ C
oe
disappears automatically after approximately four seconds, m
7, Press the ANT button to return to the previous channel,
DVDPlayer
OUTPUT
PR Pi_ Y L R
@ @ @@@
ANTA
]_9uf 1
TO
CONVERTER
ANT8 I_9U[2
ININ[3
ININ[4
our
6°6,6 @:0,o
I I
6°6,6 @,:0eo
I I
60 Q: ,0,o
LAUDE0_ J
NOTE: 1. Completely insert the connection Cord plugs when connecting to rear panel jacks. The picture and sound that is
played back will be abnormal if the connection is loose,
2. see page 12 for tips On REAR PANEL CONNECTIONS.
19
THE REMOTE CONTROL
In addition to controlling all the functions on your HITACHI Projection TV. the new remote control is designed to operate different
types ofVCRs. CBL (Cable TV_converters satellite receiver. DVD players, and other audio/video equipment with one touch. Basic
operation keys are grouped together in one area.
To operate your TV, point the remote control at the screen of the TV and press the TV button. The remote will now control your
television.
To operate your cable/satellite box. point the remote at the remote sensor of the cable/satellite box and press the CABLE
SATELLITE [CBL/SAT) button. The remote will now contro your cable/satellite box. (See page 29 far instructions on how to
program the remote to control your cable box.'J
To operate your DVD!VCR 3layer, point the remote at the remote sensor of the DVDNCR player and press the DVDNCR button.
The remote will now control your DVDNCR player. (See pages 28 and 30 for instruction on how to program the remote to con-
trol your DVDNCR player.)
SWAP PIP MODE
PiP CH
VIDEO MENU
000
MUTE LAST OH
O EXIT
O o
-_These buttons allow the remote to control your
TV, VCR, DVD or cable/satellite box depending on
which mode is chosen, as explained above.
--TV OR VCR/DVD BUTTONS
When in TV mode, these buttons, except the REC button.
will select from five video input sources. When in
VCR/DVD mode, these buttons transmit the chosen
precoded VCR/DVD codes.
2O
HOW TO USE THE REMOTE TO CONTROL YOUR TV
®
®
® VIDEG
SELECT, MENU, CURSOR buttons _"
®VOLUME,
®
®
-- (_ MENU button
(_ pIp CH button
/(]_LASTCHANNEL(LASTCH)button
@ EXIT button
-- _) INFO button
®
_ VIRTUA L HD button
ASPECT button
(_) POWER button
Press this button to turn the TV set on or off when the remote is in TV mode.
(_ PICTURE-IN-PICTURE buttons
See separate section on pages 25, 26 and 27 for description.
(_) VIDEO button
Press this button to directly access the VIDEO adjustment menu.
(_) SELECT, MENU, CURSOR buttons
All the On-Screen Display features can be set or adjusted by using the CURSOR buttons, except for numeric entries.
The CURSOR will highlight functions or adjust and set different features. Press the CURSOR toward desired direction then press .......
the SELECT button to select.
CURSOR
Favor _te channo_s
Ant A 8
A6
A3
CURSOR
..........ii!_;i_;i>_,_,!_!ii_i,_i_;:,_',,_ _,_,!iii_ii;ii_'_
Ant A 8
A8
A6
A3
When no on-screen displays are on the TV screen, use CURSOR < or I_ to access the Favorite Channels feature.
To add channels to Favorite Channels, use the number keys to enter the channel number. Use CURSOR I_ to highlight "Add", then
press SELECT to store the channel to the Favorite Channel feature.
To delete (Del) the channel from the Favorite Channel, use CURSOR •, • to highlight the channel, then CURSOR 1_to highlight
Delete (Del) and press SELECT to delete.
To view a Favorite Channel use CURSOR •, • to highlight the channel and press SELECT to view.
21
HOW TO USE THE REMOTE TO
CONTROL YOUR TV
(_ VOLUME, MUTE button
Press the VOLUME up (A) or down (T) button until you obtain the desired sound level.
To reduce the sound to one half of normal volume (SOFT MUTE) to answer the telephone, etc., press the MUTE button. Press the
MUTE button again to turn the sound off completely (MUTE). To restore the sound, press the MUTE button one more time, or press
the VOLUME Up (A) button.
MUTE MUTE
Closed Captioning will display when MUTE/SOFT MUTE is on and Closed Caption is set to AUTO (See page 56).
(_) CHANNEL selector buttons
CHANNEL selector buttons are used to select channels, lock access code, etc.
Enter one, two, or three numbers to select channels. Enter "0" first for channels 1 to 9, or simply press the single digit channel you
wish to tune then wait a few seconds for the TV to tune. For channels 100 and above, press the "1" button, wait until two dashes
appear next to the channel display on your TV, then enter the remaining two numbers using the number buttons.
Channel selection may also be performed by pressing CH up (A) or down (_').
I NOTE: The TV may not receive some channels if you are not in the correct ANTENNA/CABLE mode. (see page 51)
(_ ANTENNA button
The ANT button will select between Antenna A and Antenna B each time the button is pressed.
(_) VIOl - MID5
When the remote control is in TV mode, press these buttons to directly select the video inputsources between the five video inputs,
When the remote control is in Set-Top-Box mode (STB} these buttons will control the Set-Top-Box or satellite receiver and execute
the secondary function labeled,
22

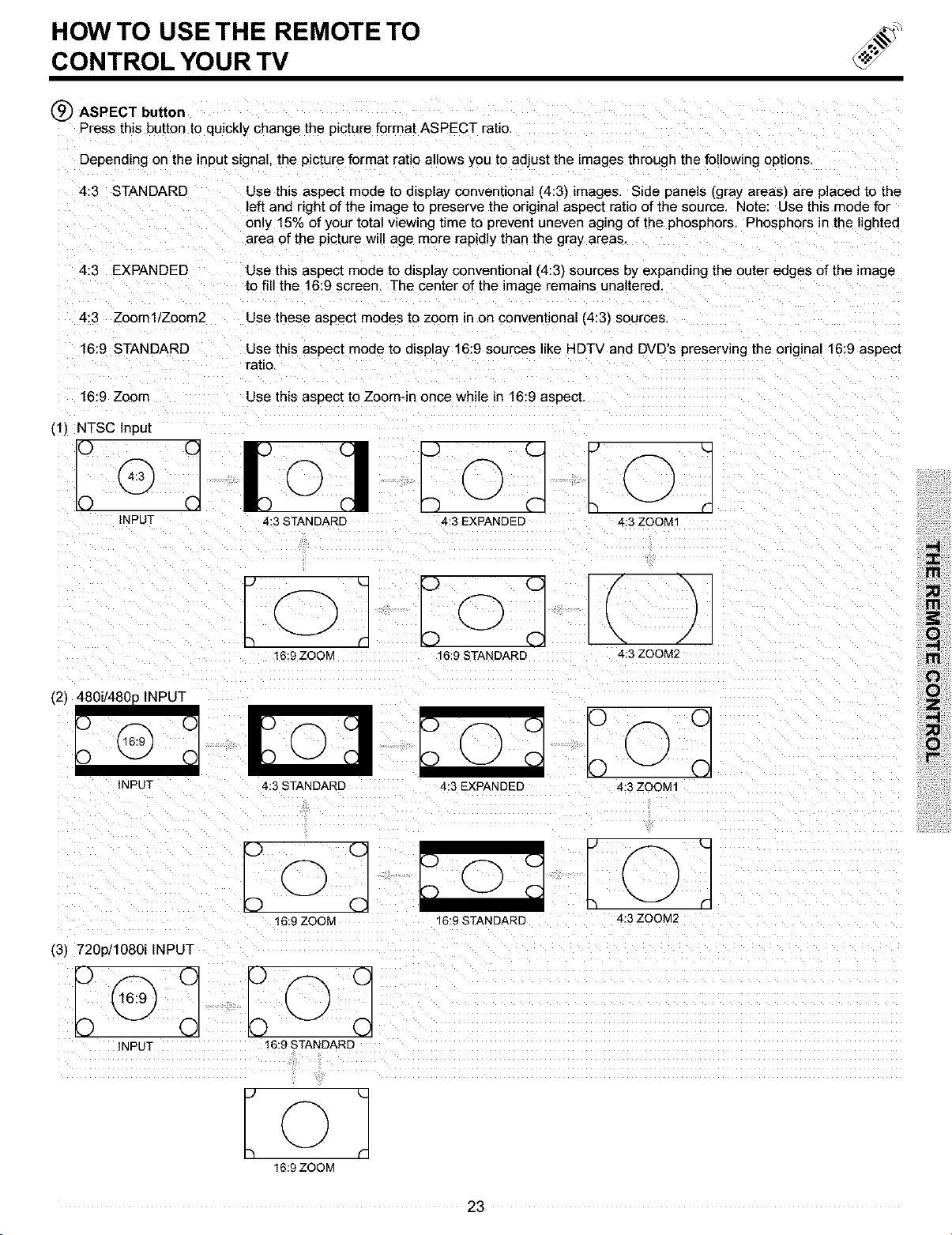

HOW TO USE THE REMOTE TO
CONTROL YOUR TV
(_) ASPECT button
Press this button to quickly change the picture format ASPECT ratio
Depending on the input signal, the picture format ratio allows you to adjust the images through the following options.
4:3 STANDARD
4:3 EXPANDED
4:3 Zooml/Zoom2
16:9 STANDARD
16:9 Zoom
(1) NTSC Input
INPUT
Use this aspect mode to display conventional (4:3) images. Side panels (.gray areas) are placed to the
left and right of the image to preserve the original aspect ratio of the source. Note: Use this mode for
only 15% of your total viewing time to prevent uneven aging of the phosphors. Phosphors in the lighted
area of the picture will age more rapidly than the gray areas.
Use this aspect mode to display conventional (4:3_ sources by expanding the outer edges of the image
to fill the 16:9 screen. The center of the image remains unaltered.
Use these aspect modes to zoom in on conventional (4:3) sources.
Use this aspect mode to display 16:9 sources like HDTV and DVD's preserving the original 16:9 aspect
ratio.
Use this aspect to Zoom-in once while in 16:9 aspect.
4:3STANDARD a3 EXPANDED
Iol
4:3 ZOOM1
Iol
16:9ZOOM 16:9STANDARD 4:3 ZOOM2
(21
INPUT
4:3 STANDARD 4:3 EXPANDED
°o©°
©
4:3ZOOM1
(3) 720p/1080i INPUT
INP-T
13:9ZOOM
Iol
16:9STANDARD 4:3ZOOM2
16:9 STANDARD
16:9ZOOM
23
HOWTO USE THE REMOTE TO CONTROLYOURTV

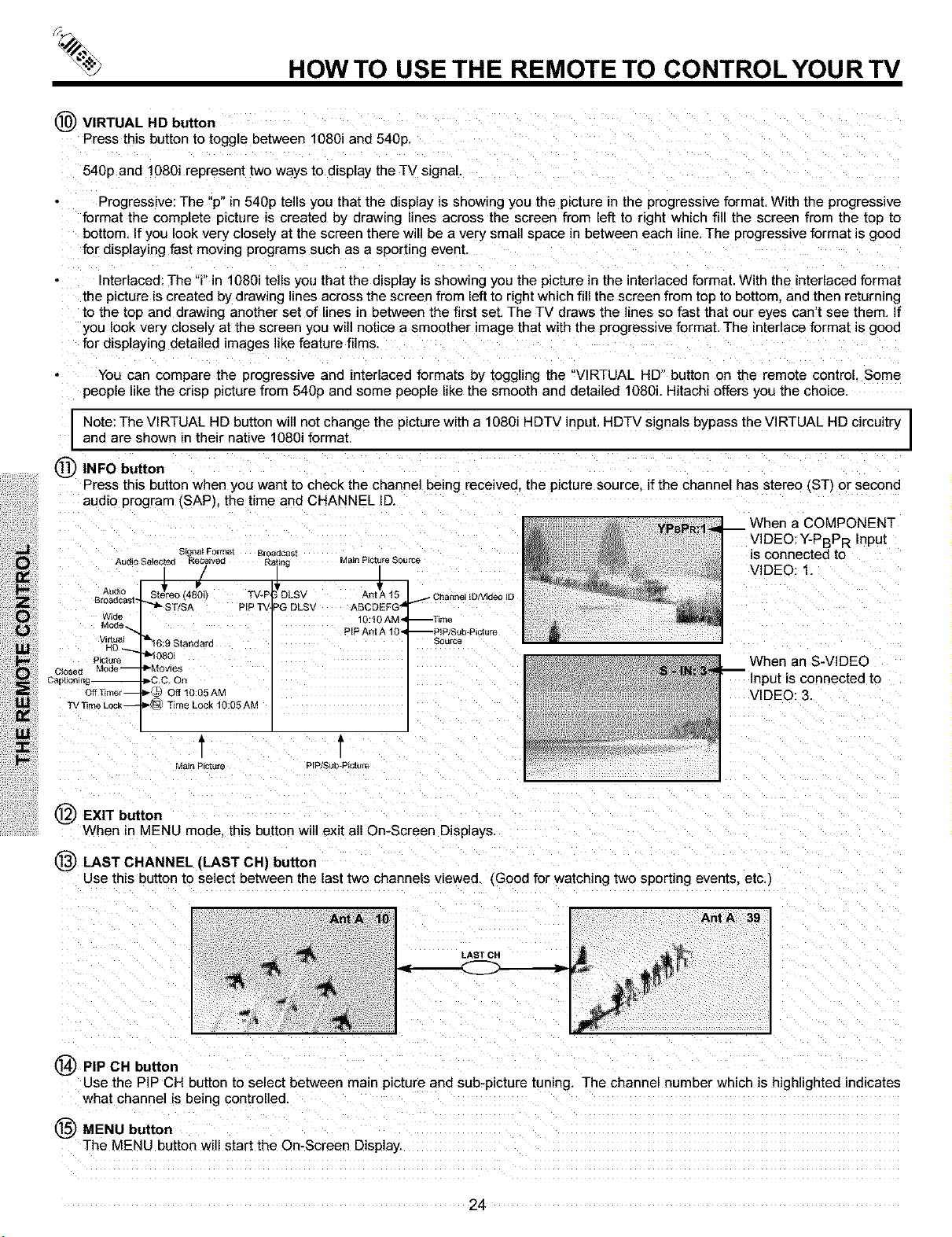

(_ VIRTUAL HD button
Press this button to toggle between 1O8Oiand 540p,
540p and 1080i represent two ways to display the TV signal.
• Progressive: The "p" in 540p tells you that the display is showing you the picture in the progressive format. With the progressive
format the complete picture is created by drawing lines across the screen from left to right which fill the screen from the top to
bottom. If you look very closely at the screen there will be a very small space in between each line. The progressive format is good
for displaying fast moving programs such as a sporting evenL
• Interlaced: The "i" in 1080i tells you that the display is showing you the picture in the interlaced format. With the interlaced format
the picture iscreated by drawing lines across the screen from left to right which fill the screen from top to bottom, and then returning
to the top and drawing another set of lines in between the first set. The TV draws the lines so fast that our eyes can't see them. If
you look very closely at the screen you will notice a smoot her image that with the progressive format. The interlace format is good
for displaying detailed images like feature films.
• You can compare the progressive and interlaced formats by toggling the "VIRTUAL HD" button on the remote control. Some
people like the crisp picture from 540p and some people like the smooth and detailed 1080i. Hitachi offers you the choice.
I
andN°te:areTheshownVIRTUALintheirHDnativebUtt°nl080iwillnotformat.Changethe picture with a 1080i HDTV input. HDTV signals bypass the VIRTUAL HD circuitry I
t
(_ INFO button
Press this button when you want to check the channel being received, the picture source if the channel has stereo (ST_or second
audio program (SAP). the time and CHANNEL ID,
Si nat Format Broadcsst
Audio Selected gRTived Rating Main PiCture SOUrce
A.0os!,oo,'--,v,Ls A, t,
Broadcast _ ( ) " ) • / Channel tD/Video IE
ST/SA PIP T% G DLSV ABCDEFG
Wide 10:10AM, Time
ode ._. PIP Ant A t0, PIP/Sub-Picture
V_H_ual L't6:9 Standard Soume
D_
Picture I'10801
C}osed Mode -- =-Movies
;apfioning-- _-CC. On
OffTimer-- =-(_ OffI0:05AM
TVTimeLock-- _ TirneLockt0:05AM
- - i • -- -
V_ainPictu[e pip/Sub-picture
EXIT button
When in MENU mode this button will exit all On-Screen Displays.
When a COMPONENT
VIDEO: Y-PBPR Input
is connected to
VIDEO: 1
When an S-VIDEO
Input is connected to
VIDEO: 3.
LAST CHANNEL (LAST CH) button
Use this 3utton to select between the last two channels viewed. (Good for watching two sporting events, etc._
LAST CF
(_) PIP CH button
Use the PiP CH button to select between mai_ picture and sub-picture tuning. The channel number which is highlighted indicates
what channel is being controlled.
(_ MENU button
The MENU button will start the On-Screen Display
24

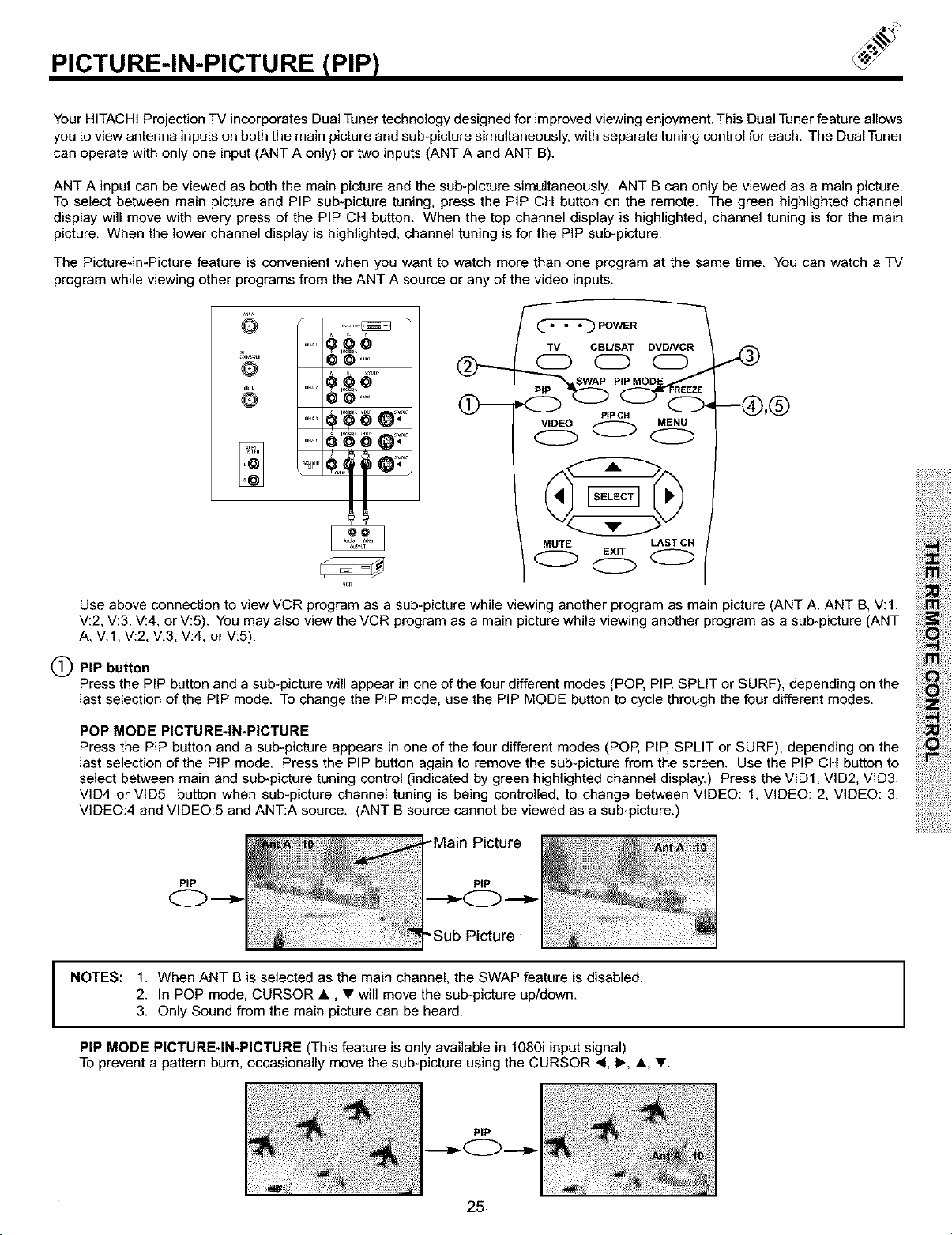

PICTURE-IN-PICTURE (PIP}
Your HITACHI Projection TV incorporates Dual Tuner technology designed for improved viewing enjoyment. This Dual Tuner feature allows
you to view antenna inputs on both the main picture and sub-picture simultaneously, with separate tuning control for each. The Dual Tuner
can operate with only one input (ANT A only) or two inputs (ANT A and ANT B).
ANT A input can be viewed as both the main picture and the sub-picture simultaneously. ANT B can only be viewed as a main picture.
To select between main picture and PiP sub-picture tuning, press the PiP CH button on the remote. The green highlighted channel
display will move with every press of the PIP CH button. When the top channel display is highlighted, channel tuning is for the main
picture. When the lower channel display is highlighted, channel tuning is for the PIP sub-picture.
The Picture-in-Picture feature is convenient when you want to watch more than one program at the same time. You can watch a TV
program while viewing other programs from the ANT A source or any of the video inputs.
....
@
@@,.o
.....0'ee o:"
....°if°"
vcR
r"- "m
POWER
TV CBL/SAT DVDNCR
CD 0 CD
_ _PIP SWAP PIP MOD FREEZE
PIP CH
VIDEO MENU
000
MUTE LAST CH
EXIT
0 o
Use above connection to view VCR program as a sub-picture while viewing another program as main picture (ANT A, ANT B, V:l.
V:2, V:3, V:4, or V:5). You may also view the VCR program as a main picture while viewing another program as a sub-picture (ANT
A. V:I. V:2, V:3, V:4, or V:5).
(_PIP button
Press the PIP button and a sub-picture will appear in one of the four different modes (POP, PIP, SPLIT or SURF), depending on the
last selection of the PIP mode. To change the PIP mode, use the PIP MODE button to cycle through the four different modes.
POP MODE PICTURE-IN-PICTURE
Press the PIP button and a sub-picture appears in one of the four different modes (POP, PIP, SPLIT or SURF), depending on the
last selection of the PIP mode. Press the PIP button again to remove the sub-picture from the screen. Use the PIP CH button to
select between main and sub-picture tuning control (indicated by green highlighted channel display.) Press the VID1, VID2, VID3,
VID4 or VID5 button when sub-picture channel tuning is being controlled, to change between VIDEO: 1, VIDEO: 2, VIDEO: 3.
VIDEO:4 and VIDEO:5 and ANT:A source. (ANT B source cannot be viewed as a sub-picture.)
NOTES: 1. When ANT B is selected as the main channel, the SWAP feature is disabled.
2. In POP mode, CURSOR •, • will move the sub-picture up/down.
3. Only Sound from the main picture can be heard.
PIP MODE PICTURE4N-PICTURE (This feature is only available in 1080i input signal)
To prevent a pattern burn, occasionally move the sub-picture using the CURSOR 4.1_. •, •.
PiP
25

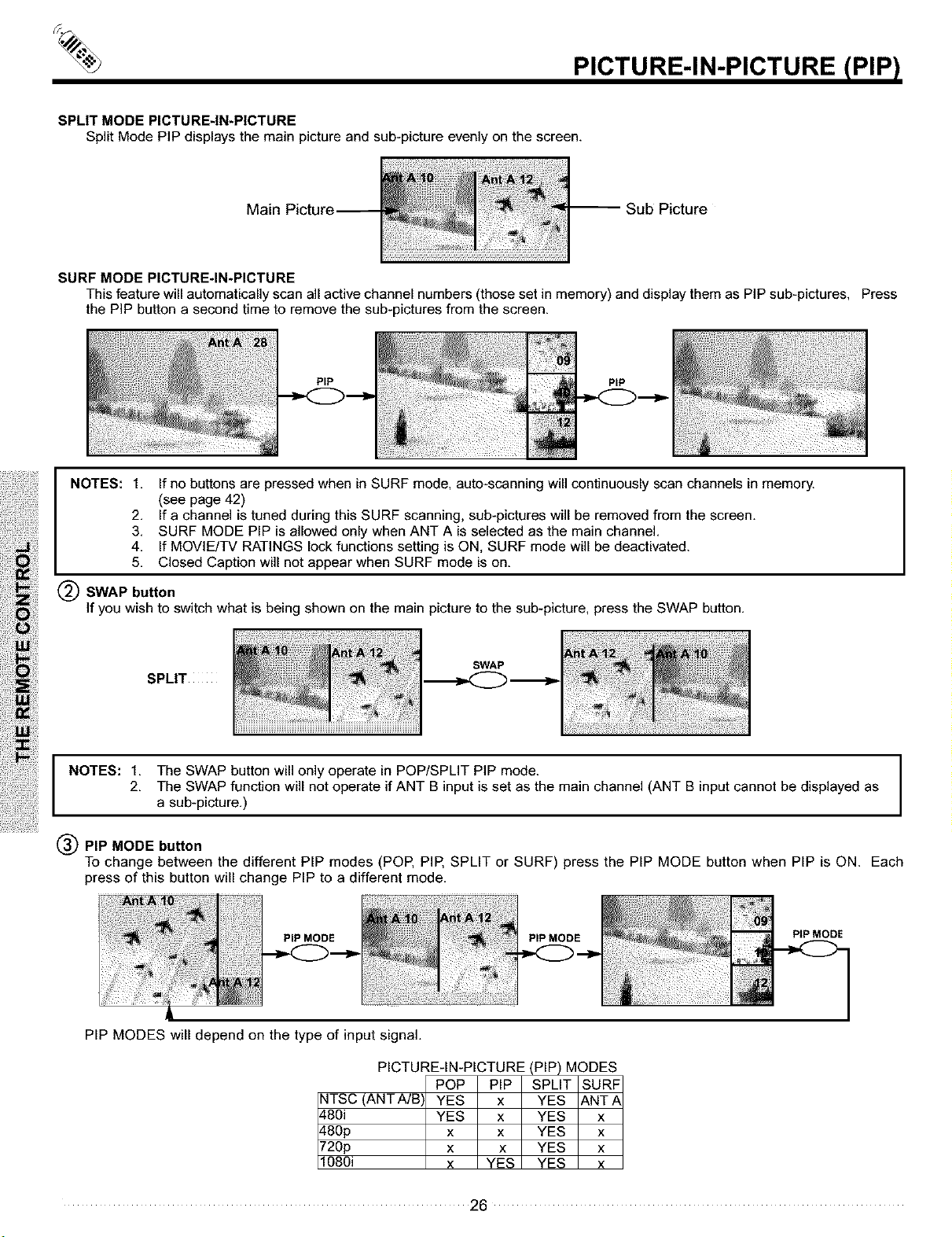

PICTURE-IN-PICTURE (PIP)
SPLIT MODE PICTURE-IN-PICTURE
Split Mode PIP displays the main picture and sub-picture evenly on the screen.
Main F c[ure -- Sub Picture
SURF MODE PICTURE-IN-PICTURE
This feature will automatically scan all active channel numbers (those set in memory) and display them as PIP sub-pictures, Press
the PIP button a second time to remove the sub-pictures from the screen.
PiP PIP
NOTES: 1,
If no buttons are pressed when in SURF mode, auto-scanning will continuously scan channels in memory.
(see page 42)
2. If a channel is tuned during this SURF scanning, sub-pictures will be removed from the screen.
3. SURF MODE PIP is allowed only when ANT A is selected as the main channel.
4. If MOVIE/TV RATINGS lock functions setting is ON, SURF mode will be deactivated.
5. Closed Caption will not appear when SURF mode is on.
(_ SWAP button
If you wish to switch what is being shown on the main picture to the sub*picture, press the SWAP button.
SPLIT
SWAP
NOTES: 1. The SWAP button will only operate in POP/SPLIT PIP mode.
2. The SWAP function will not operate if ANT B input is set as the main channel (ANT B input cannot be displayed as
a sub-picture.)
(_) PIP MODE button
To change between the different PIP modes (POP, PIP, SPLIT or SURF) press the PIP MODE button when PIP is ON. Each
press of this button will change PIP to a different mode.
PiP MODE PiP MODE
PtP MODE
PIP MODES will depend on the type of input signal.
PICTURE-IN-PICTURE (PIP) MODES
POP PIP SPLIT SURF
_ITSC (ANTA/B YES x YES ANTA
$80i YES x YES x
$80p x x YES x
720p x x YES x
1080i x YES YES x
26
PICTURE-IN-PICTURE (PIP)

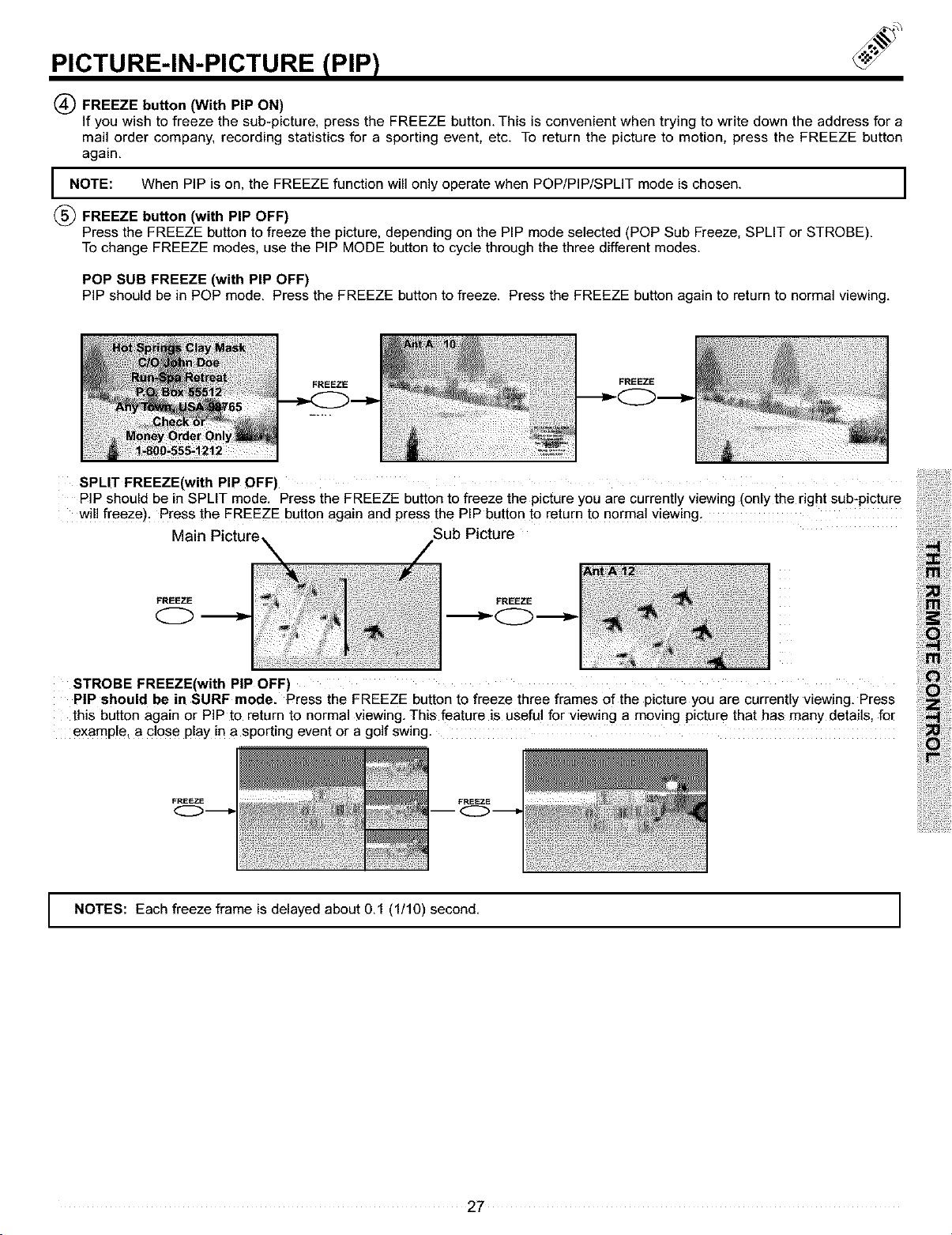

(_ FREEZE button (With PIP ON)
if you wish to freeze the sub*picture, press the FREEZE button. This is convenient when trying to write down the address for a
mail order company, recording statistics for a sporting event, etc. To return the picture to motion, press the FREEZE button
again.
I NOTE: When PIP is on, the FREEZE function will only operate when POP/PIP/SPLIT mode is chosen. I
m m
_) FREEZE button (with PIP OFF)
Press the FREEZE button to freeze the picture, depending on the PIP mode selected (POP Sub Freeze, SPLIT or STROBE).
To change FREEZE modes, use the PIP MODE button to cycle through the three different modes.
POP SUB FREEZE (with PIP OFF)
PIP should be in POP mode. Press the FREEZE button to freeze. Press the FREEZE button again to return to normal viewing.
SPLIT FREEZE(with PIP OFF)
PiP should be in SPLIT mode. Press the FREEZE button to freeze the picture you are currently viewing (only the right sub-picture
Wi!lfreeze)_ press the FREEZE butt0n again and press the PIP button to return t0 n0rma! viewing_
P ctur ubP ctore
STROBE FREEZElwith PiP OFF)
PIP should be in SURF mode. Press the FREEZE button to freeze three frames of the picture you are currently viewing. Press
this button again or PiP to return to normal viewing. This feature is useful for viewing a moving picture that has many details, for
example, a close play in a sporting event or a goff swing.
FREEZE -- FREEZE
NOTES: Each freeze frame is delayed about 0.1 (1/10) second. ]
27

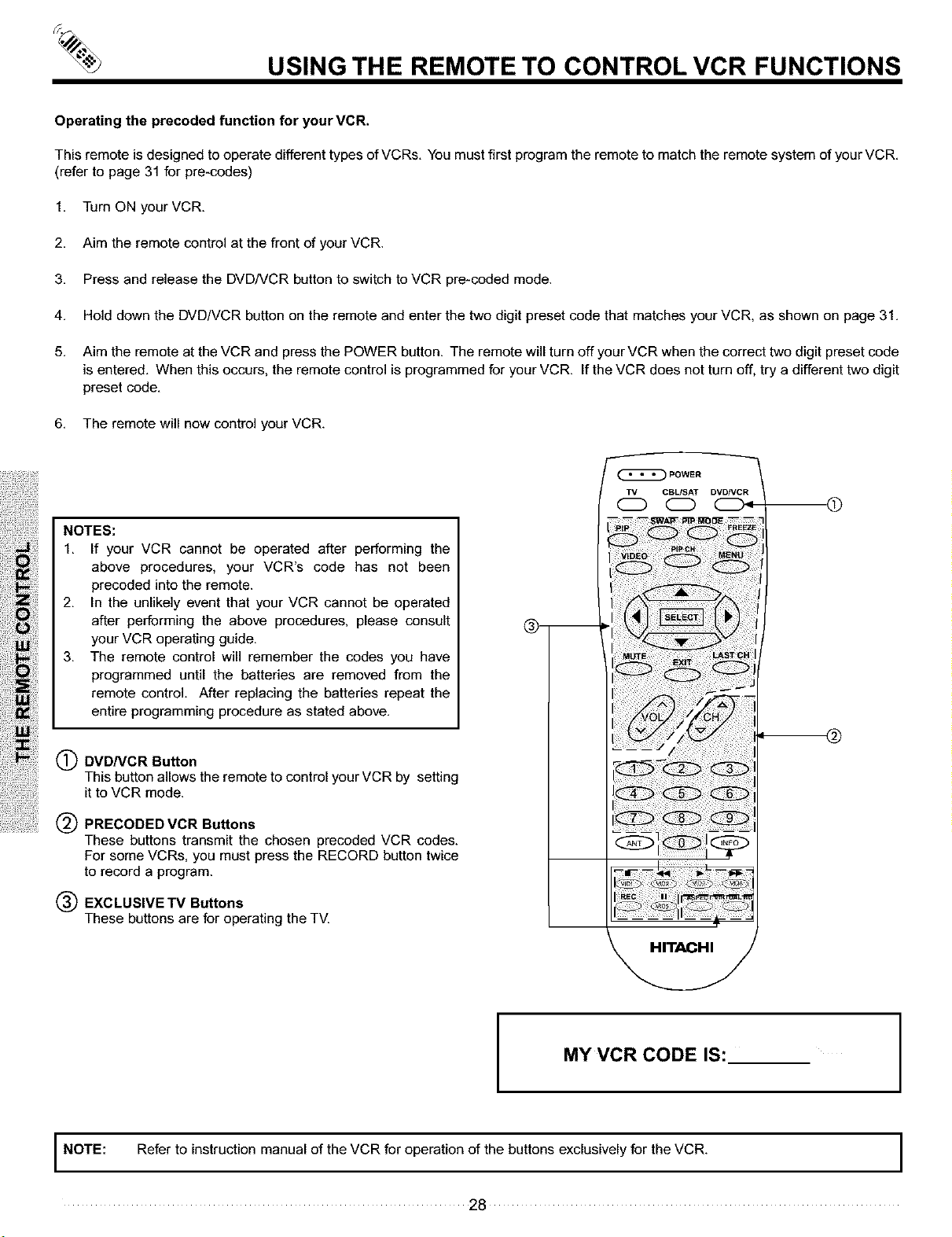

USING THE REMOTE TO CONTROL VCR FUNCTIONS
Operating the precoded function for your VCR.
This remote is designed to operate different types of VCRs. You must first program the remote to match the remote system of your VCR.
(refer to page 31 for pre-cedes)
1. Turn ON your VCR.
2. Aim the remote control at the front of your VCR.
3. Press and release the DVDNCR button to switch to VCR pre-ceded mode.
4. Hold down the DVD/VCR button on the remote and enter the two digit preset code that matches your VCR, as shown on page 31.
5. Aim the remote at the VCR and press the POWER button. The remote will turn off your VCR when the correct two digit preset code
is entered. When this occurs, the remote control is programmed for your VCR. If the VCR does not turn off, try a different two digit
preset code.
6. The remote will now control your VCR.
NOTES:
1. If your VCR cannot be operated after performing the
above procedures, your VCR's code has not been
preceded into the remote.
2. In the unlikely event that your VCR cannot be operated
after performing the above procedures, please consult
your VCR operating guide.
3. The remote control will remember the codes you have
programmed until the batteries are removed from the
remote control. After replacing the batteries repeat the
entire programming procedure as stated above.
(_ DVDNCR Button
This button allows the remote to control your VCR by setting
it to VCR mode.
(_ PRECODED VCR Buttons
These buttons transmit the chosen preceded VCR codes.
For some VCRs, you must press the RECORD button twice
to record a program.
(_) EXCLUSIVE TV Buttons
These buttons are for operating the TV.
I
_)mm
POWER
TV C BIGSAT DVDNCR
m(9
mQ
MY VCR CODE IS:
I NOTE: Refer to instruction manual of the VCR for operation of the buttons exclusively for the VCR. I
I
28

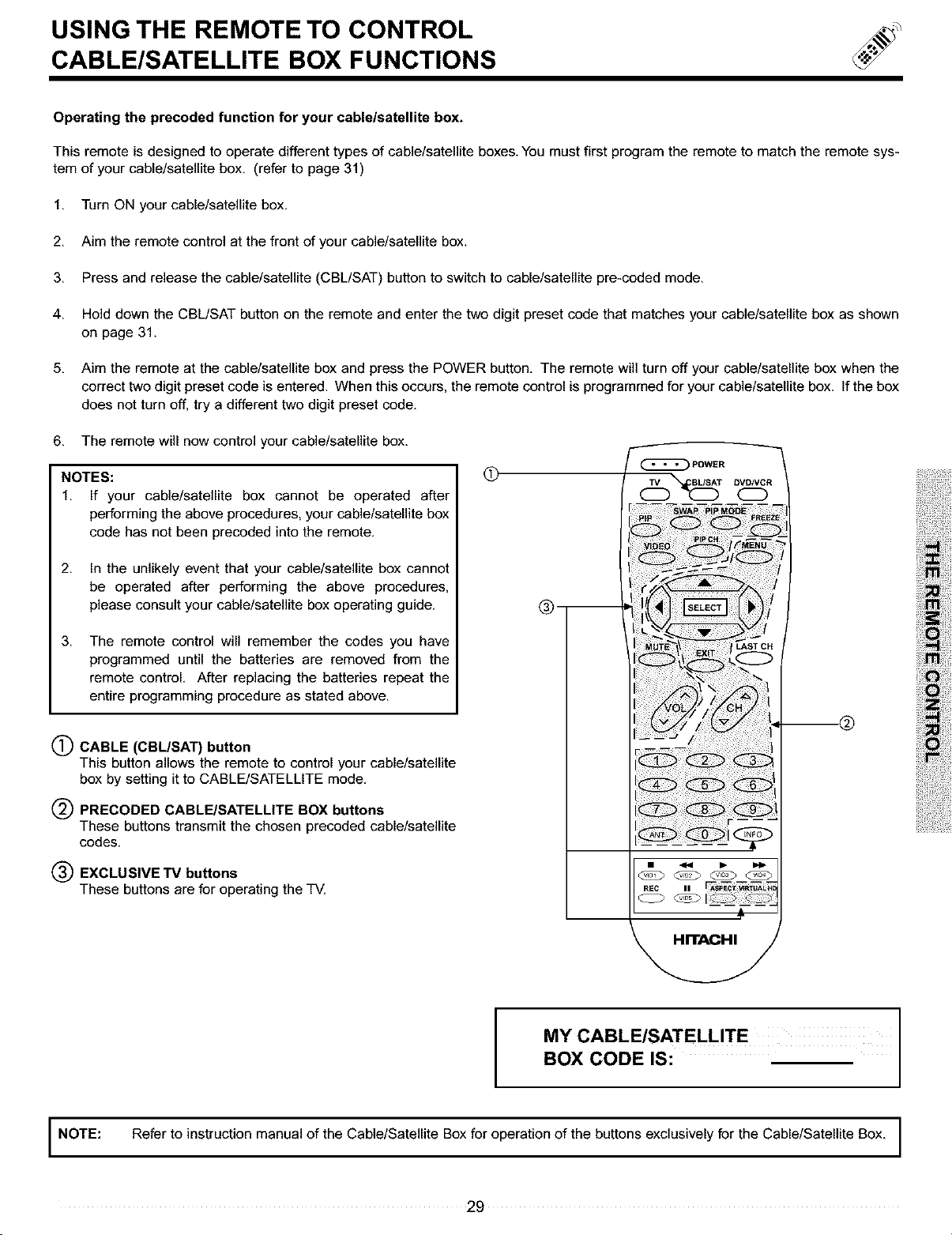

USING THE REMOTE TO CONTROL
CABLE/SATELLITE BOX FUNCTIONS
Operating the precoded function for your cable/satellite box.
This remote is designed to operate different types of cable/satellite boxes. You must first program the remote to match the remote sys-
tem of your cable/satellite box. (refer to page 31)
1. Turn ON your cable/satellite box.
2. Aim the remote control at the front of your cable/satellite box.
3. Press and release the cable/satellite (CBL/SAT) button to switch to cable/satellite pre-coded mode.
4. Hold down the CBL/SAT button on the remote and enter the two digit preset code that matches your cable/satellite box as shown
on page 31.
5. Aim the remote at the cable/satellite box and press the POWER button. The remote will turn off your cable/satellite box when the
correct two digit preset code is entered. When this occurs, the remote control is programmed for your cable/satellite box. If the box
does not turn off, try a different two digit preset code.
6. The remote will now control your cable/satellite box.
NOTES:
1. If your cable/satellite box cannot be operated after
performing the above procedures, your cable/satellite box
code has not been precoded into the remote.
2. In the unlikely event that your cable/satellite box cannot
be operated after performing the above procedures,
please consult your cable/satellite box operating guide.
3,
The remote control will remember the codes you have
programmed until the batteries are removed from the
remote control. After replacing the batteries repeat the
entire programming procedure as stated above.
(_) CABLE (CBL/SAT) button
This button allows the remote to control your cable/satellite
box by setting it to CABLE/SATELLITE mode.
(_) PRECODED CABLE/SATELLITE BOX buttons
These buttons transmit the chosen precoded cable/satellite
codes.
(_,._)EXCLUSIVE TV buttons
These buttons are for operating the TV,
0
®
I_
4'
HrrAOHI
m®
I
MY CABLE/SATELLITE
BOX CODE IS:
NOTE: Refer to instruction manual of the Cable/Satellite Box for operation of the buttons exclusively for the Cable/Satellite Box. I
29

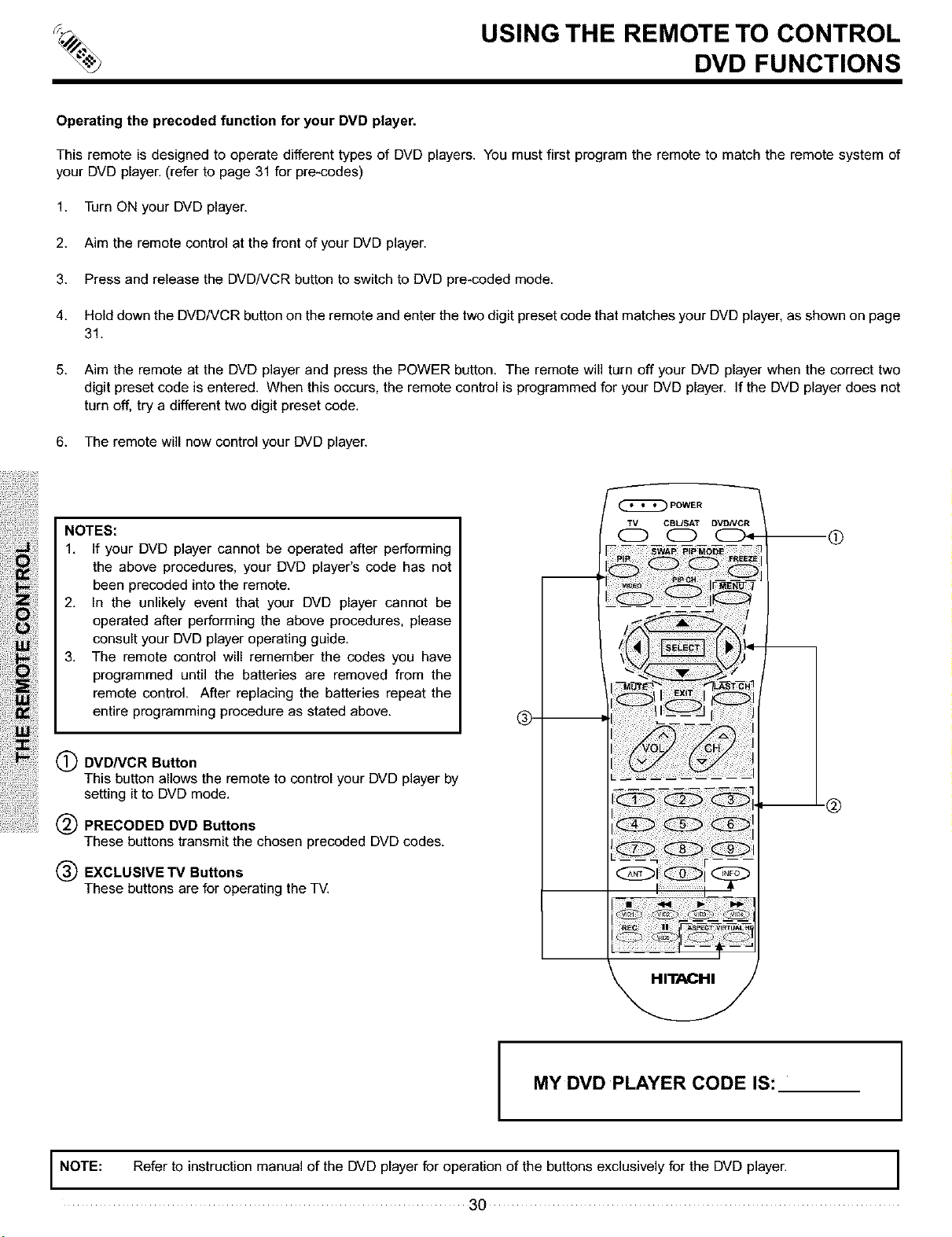

USING THE REMOTE TO CONTROL
DVD FUNCTIONS
Operating the precoded function for your DVD player.
This remote is designed to operate different types of DVD players. You must first program the remote to match the remote system of
your DVD player. (refer to page 31 for pre-codes)
1. Turn ON your DVD player.
2. Aim the remote control at the front of your DVD player.
3. Press and release the DVD/VCR button to switch to DVD pre-coded mode.
4. Hold down the DVD/VCR button on the remote and enter the two digit preset code that matches your DVD player, as shown on page
31.
5. Aim the remote at the DVD player and press the POWER button. The remote will turn off your DVD player when the correct two
digit preset code is entered. When this occurs, the remote control is programmed for your DVD player, if the DVD player does not
turn off, try a different two digit preset code.
6. The remote will now control your DVD player.
NOTES:
1. if your DVD player cannot be operated after performing
the above procedures, your DVD player's code has not
been precoded into the remote.
2. In the unlikely event that your DVD player cannot be
operated after performing the above procedures, please
consult your DVD player operating guide.
3. The remote control will remember the codes you have
programmed until the batteries are removed from the
remote control. After replacing the batteries repeat the
entire programming procedure as stated above.
(_ DVDNCR Button
This button aflows the remote to control your DVD player by
setting it to DVD mode.
(_ PRECODED DVD Buttons
These buttons transmit the chosen precoded DVD codes.
(_) EXCLUSIVE TV Buttons
These buttons are for operating the TV.
POWER
TV CBL/SAT DVDNCR
O O CZ_-
m o
I
MY DVD PLAYER CODE IS:
I NOTE: Refer to instruction manual of the DVD player for operation of the buttons exclusively for the DVD player. I
I
m
3O

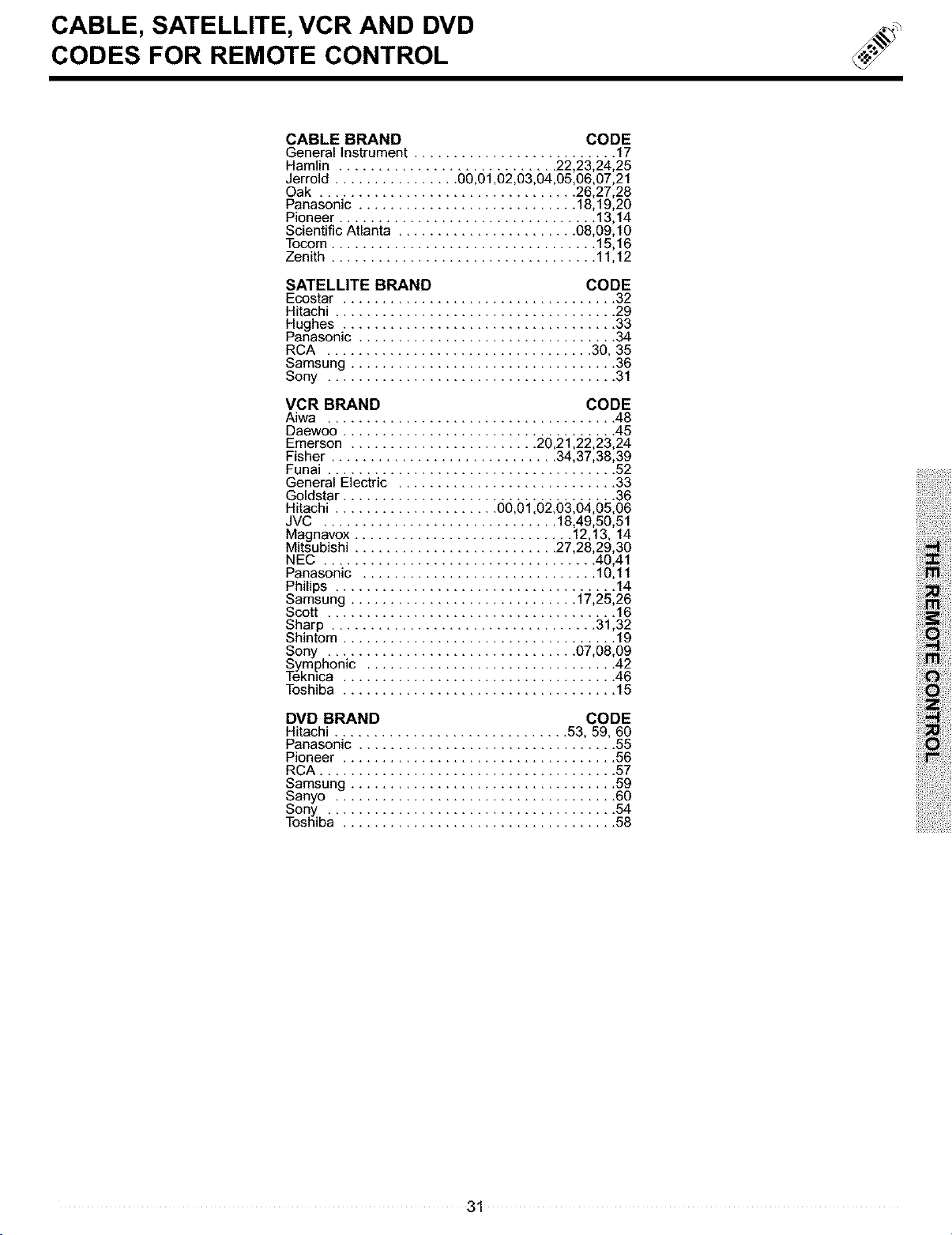

CABLE, SATELLITE, VCR AND DVD
CODES FOR REMOTE CONTROL
CABLE BRAND CODE
General Instrument .......................... 17
Hamlin ............................ 22,23,24,25
Jerrold ................ 00,01,02,03,04,05,06,07,21
Oak ................................. 26,27,28
Panasonic ............................ 18,19,20
Pioneer ................................. 13,14
Scientific Atlanta ....................... 08,09,10
Tocom .................................. 15,16
Zenith .................................. 11,12
SATELLITE BRAND CODE
Ecostar ................................... 32
Hitachi .................................... 29
Hughes ................................... 33
Panasonic ................................. 34
RCA .................................. 30, 35
Samsung .................................. 36
Sony ..................................... 31
VCR BRAND CODE
Aiwa ..................................... 48
Daewoo ................................... 45
Emerson ........................ 20,21,22,23,24
Fisher ............................. 34,37,38,39
Funai ..................................... 52
General Electric ............................ 33
Goldstar ................................... 36
Hitachi ..................... 00,01,02,03,04,05,06
JVC .............................. 18,49,50,51
Magnavox ............................ 12,13, 14
Mitsubishi .......................... 27,28,29,30
NEC ................................... 40,41
Panasonic .............................. 10,11
Philips .................................... 14
Samsung ............................. 17,25,26
Scott ..................................... 16
Sharp .................................. 31,32
Shintom ................................... 19
Sony ................................ 07,08,09
Symphonic ................................ 42
T6knlca ................................... 46
Toshiba ................................... 15
DVD BRAND CODE
Hitachi .............................. 53, 59, 60
Panasonic ................................. 55
Pioneer ................................... 56
RCA ...................................... 57
Samsung .................................. 59
Sanyo .................................... 60
Sony ..................................... 54
Toshiba ................................... 58
31
ON-SCREEN DISPLAY (OSD)
1. Press MENU on the remote control to display the different features on your HITACHI Projection TV.
2. Press the CURSOR 41, I_, A, • to highlight a different feature.
3. Press EXIT on the remote control to quickly exit from a menu.
4_ Press CURSOR _1or 1_to access Favorite Channels menu. VIDEO MENU
O O
EXIT
0
This part of the screen shows
which selections are available.
L
Video _]
Audio _]
Ch. Manager _]
LOCKS _]
Setup _J
Move _ Se= ] _This part of the screen shows
which Remote Control buttons
to use.
L ooooooo J
32
ON-SCREEN DISPLAY {OSD)

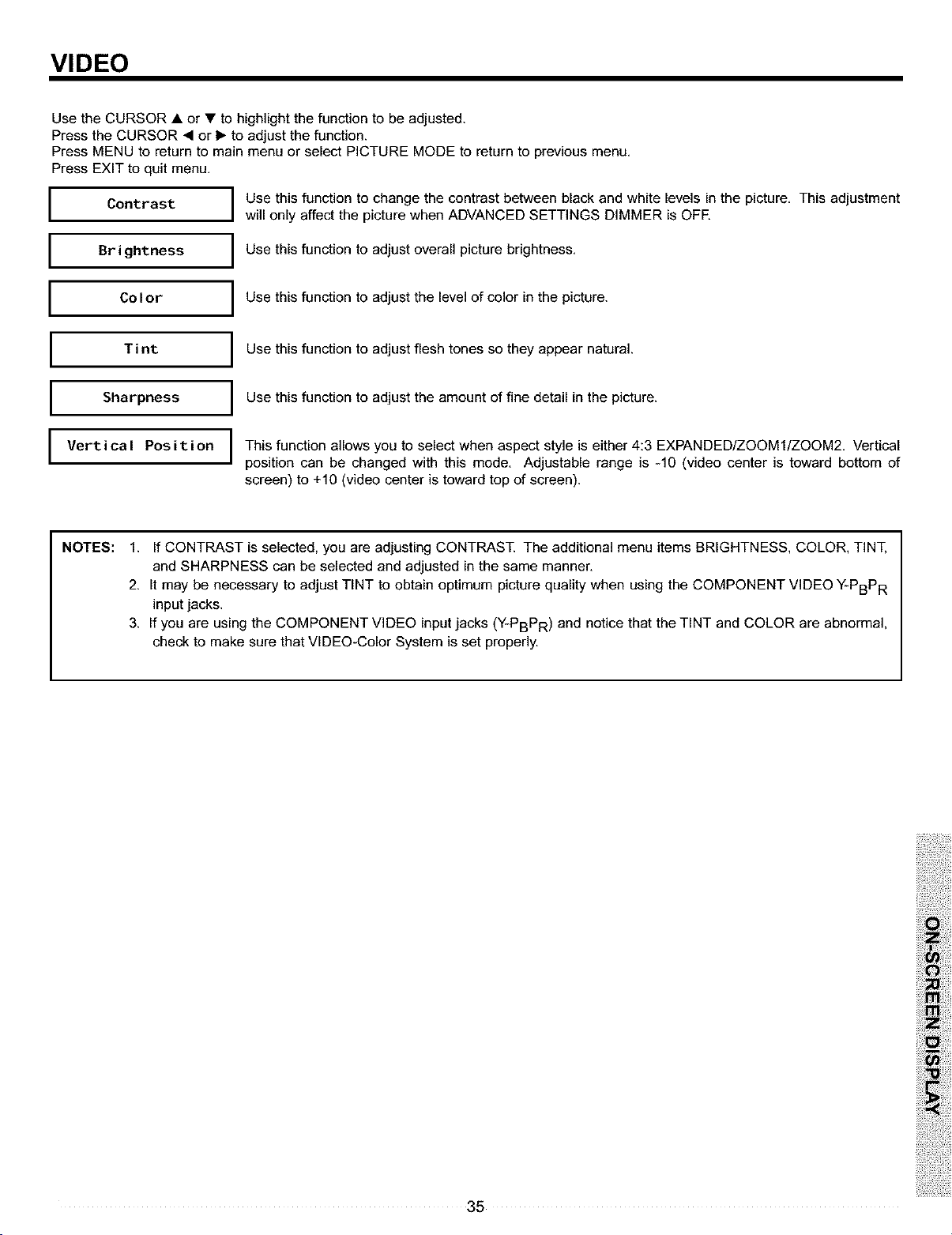

IVideoI
Picture Mode
Contrast
Brightness
Color
Tint
Sharpness
Vertical Position
Magic Focus
Color System
Advanced Settings
Select between the four picture modes: Sports. Movies. News.
and Music.
Adjust contrast.
Adjust brightness.
Adjust color.
Adjust tint.
Adjust sharpness.
Centering top and bottom of the picture.
Automatic or manual alignment of the Red. Green and Blue
colors to make white.
Automatically change tint and color coordinates for DTV
program
Improve picture performance.

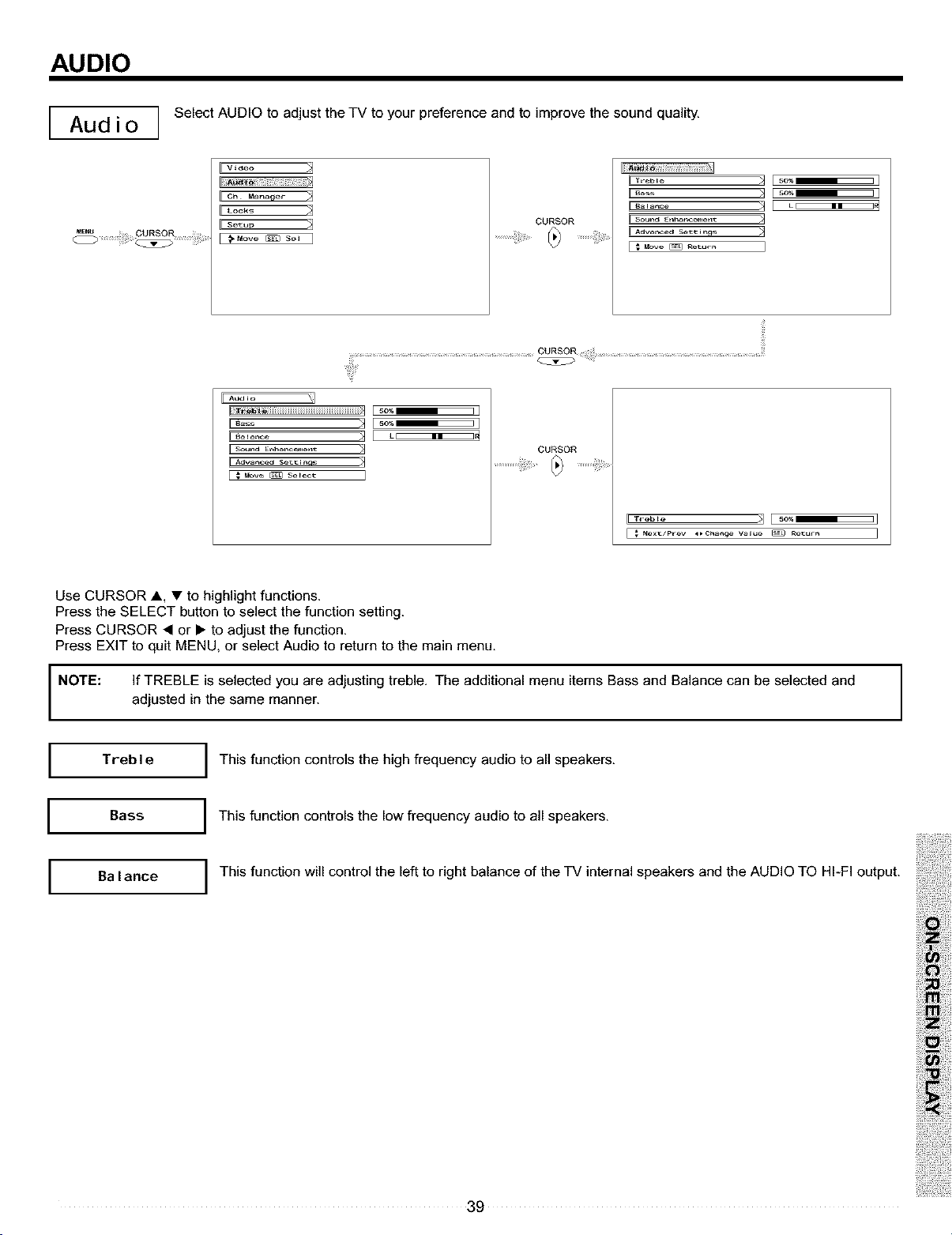

I AudioI
Treble Adjust the treble.
Bass Adjust the bass.
-_ Ba ante Adjust the balance.

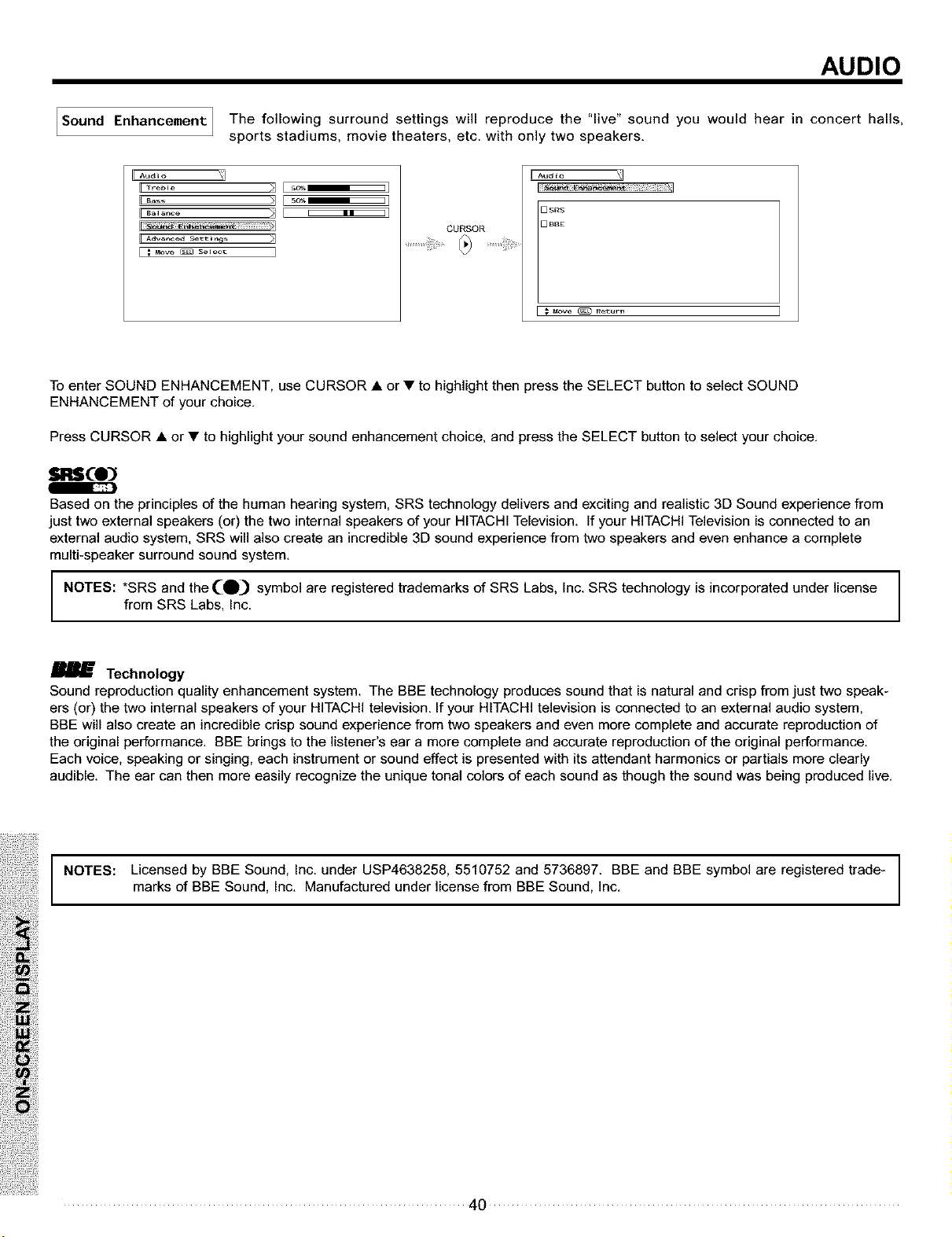

_h_ Set SRS and BBE surround settings.
[Advanced Settings I Improve sound performance.

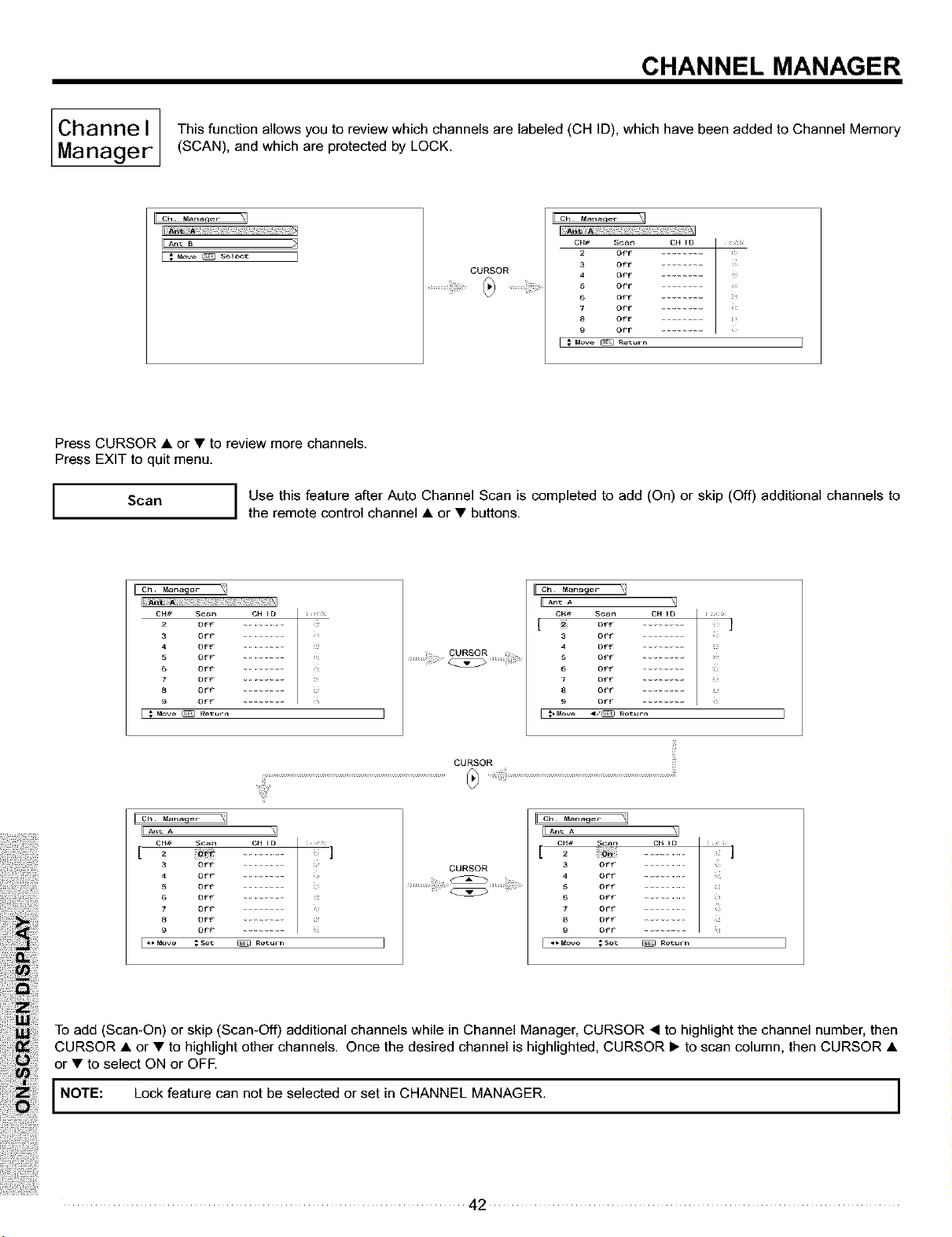

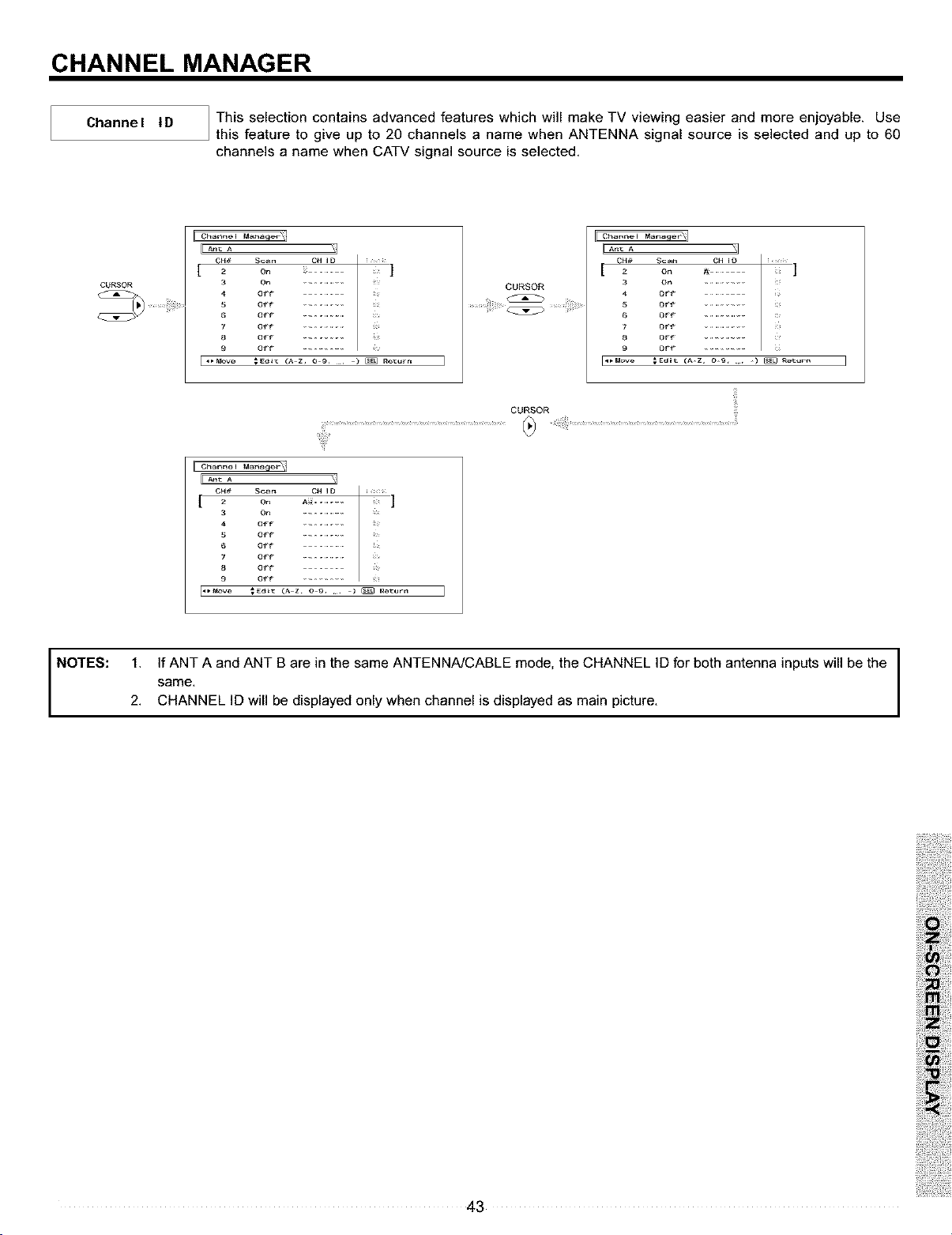

Channel ._ A_AntA
Manager Ant B
View/edit Channel ID. Scan. and Lock settings in antenna A.
View/edit Channel ID. Scan. and Lock settings in antenna B.

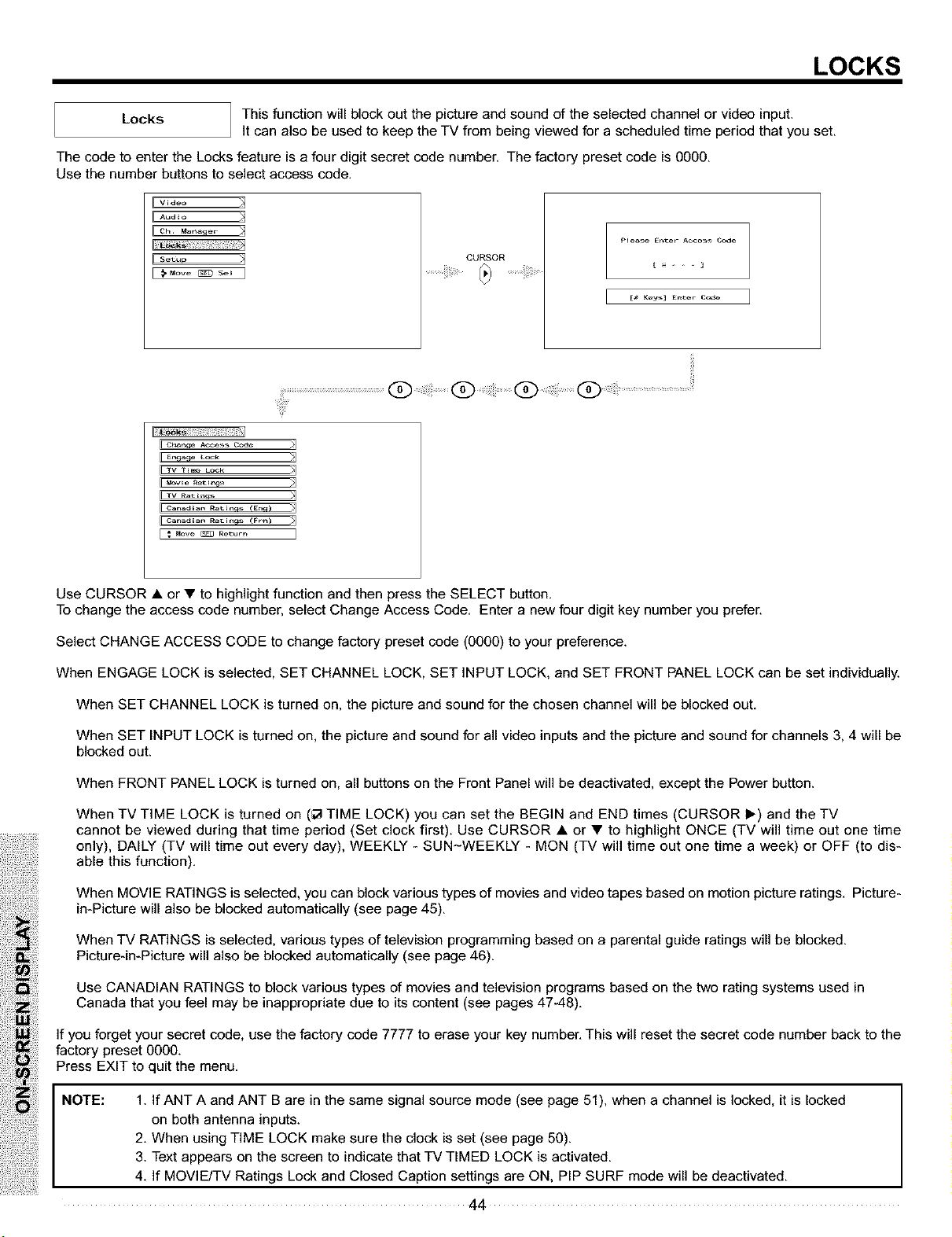

I LocksI
Change Access Code
En.qafle Lock
TV Time Lock

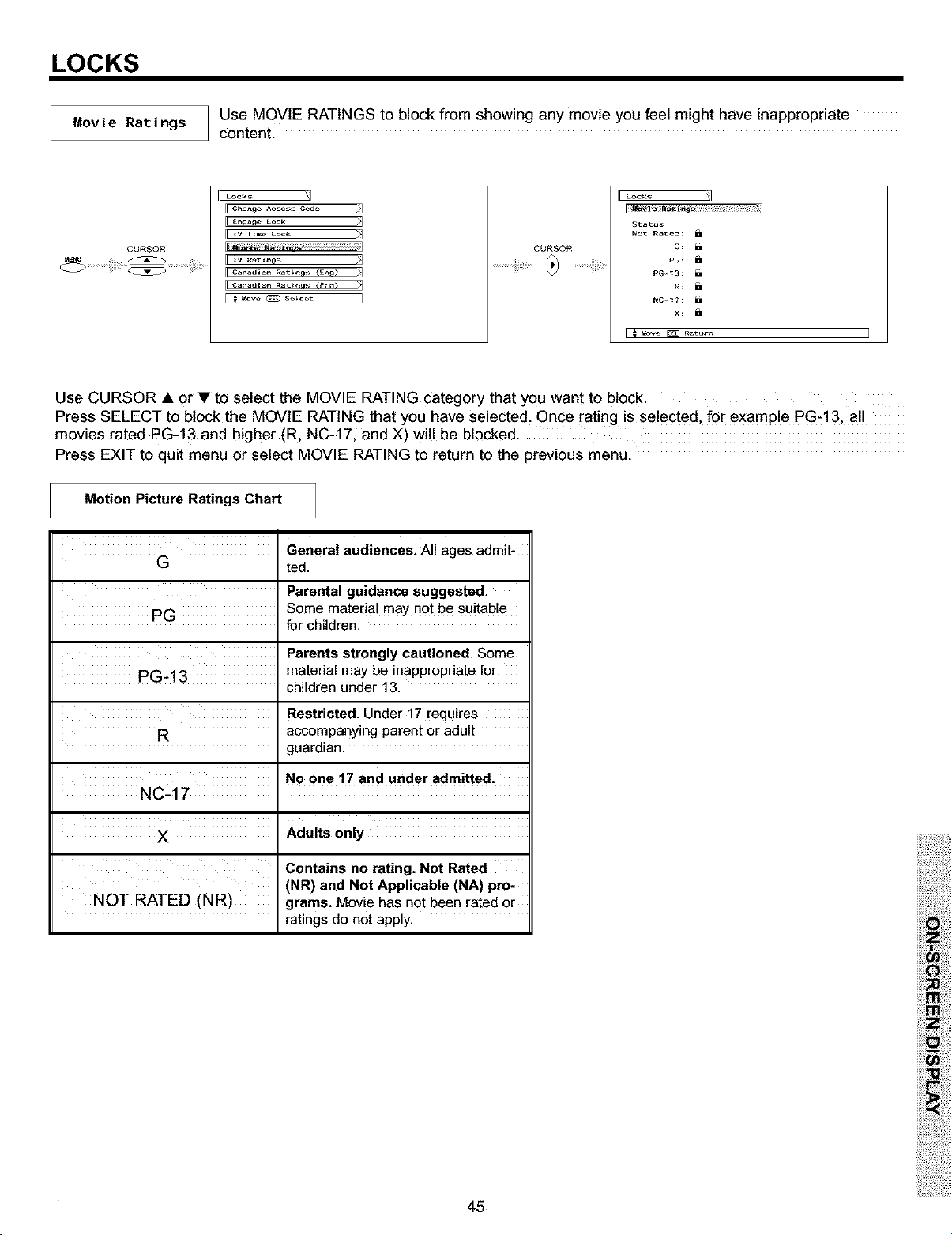

Movie Ratings

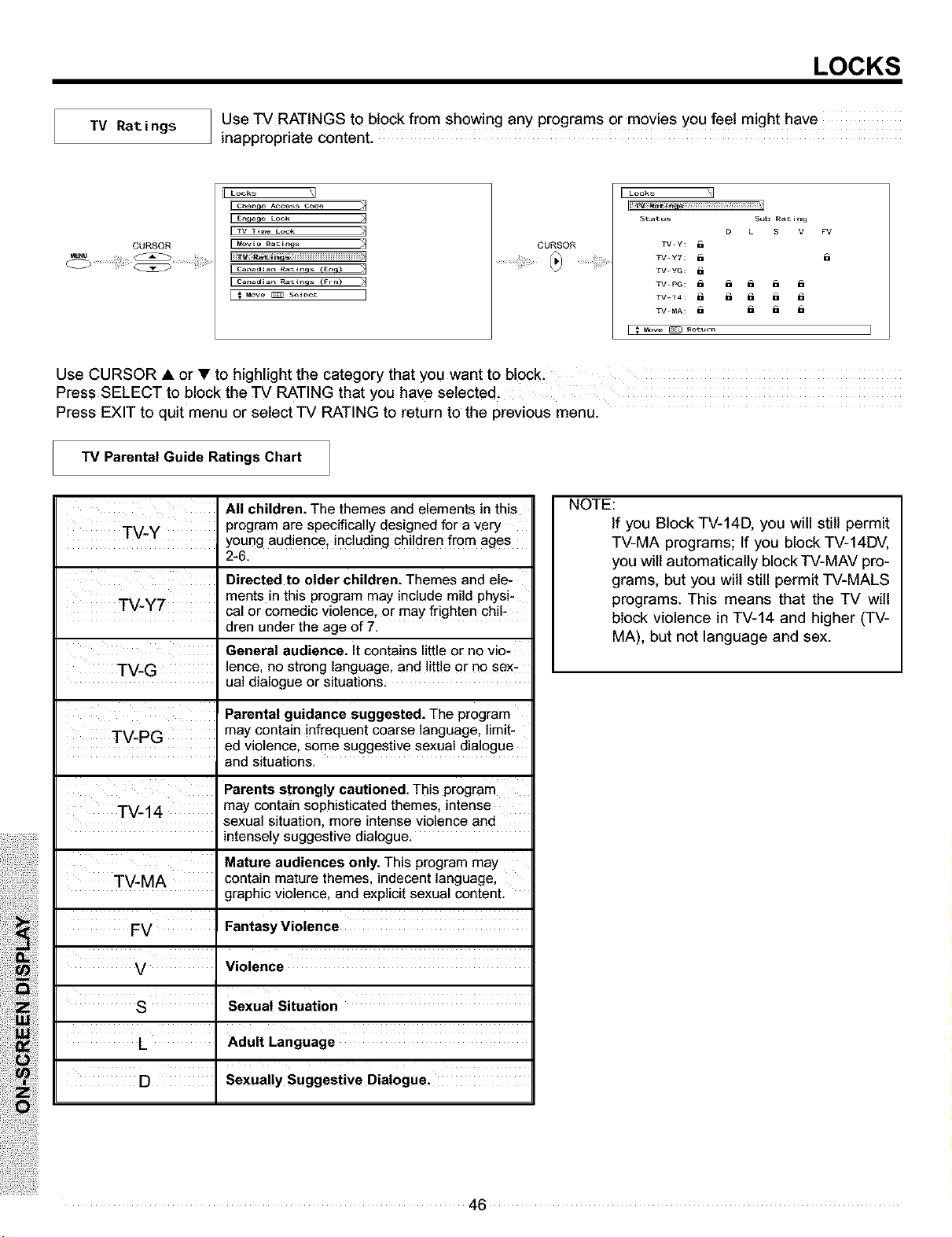

TV Ratings

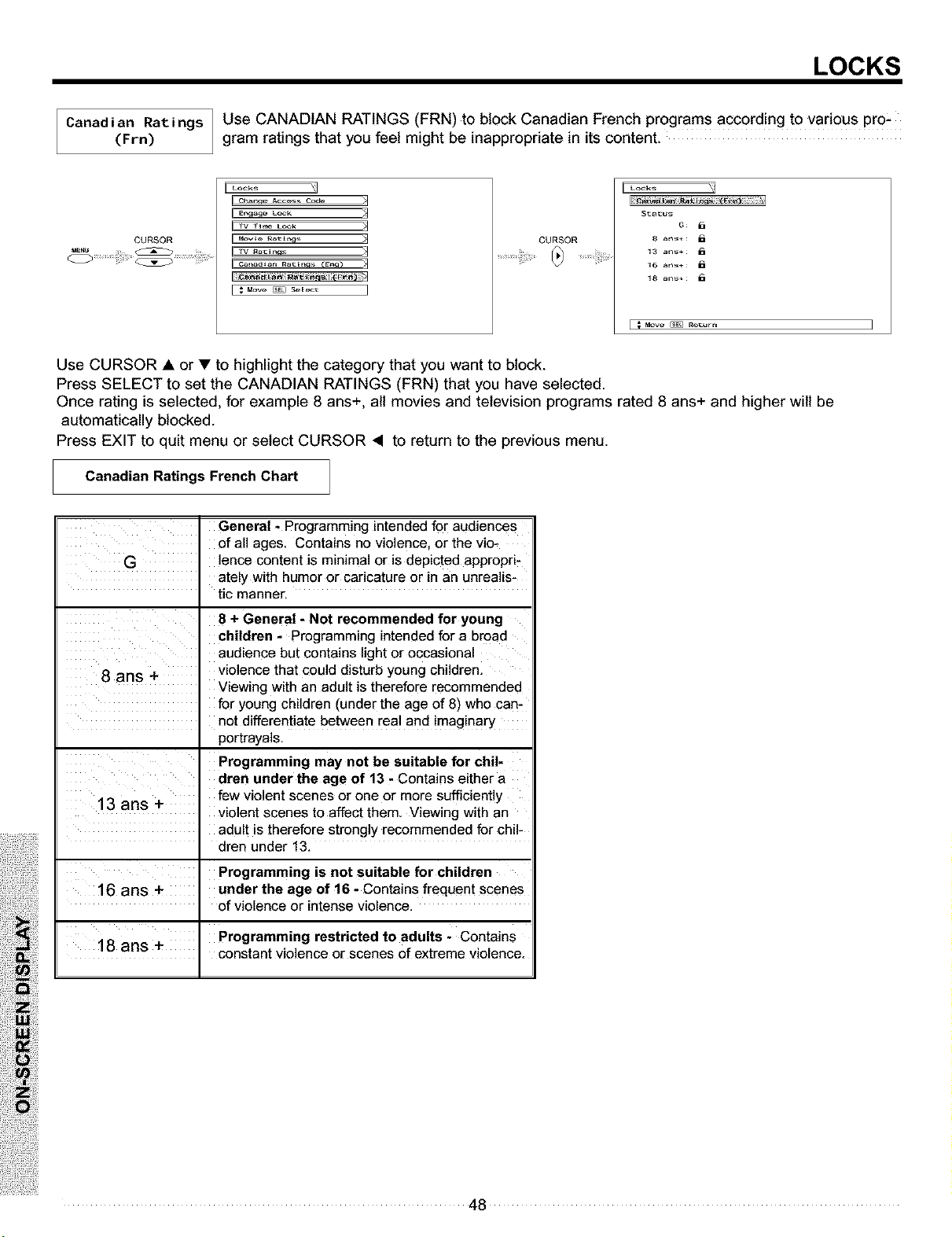

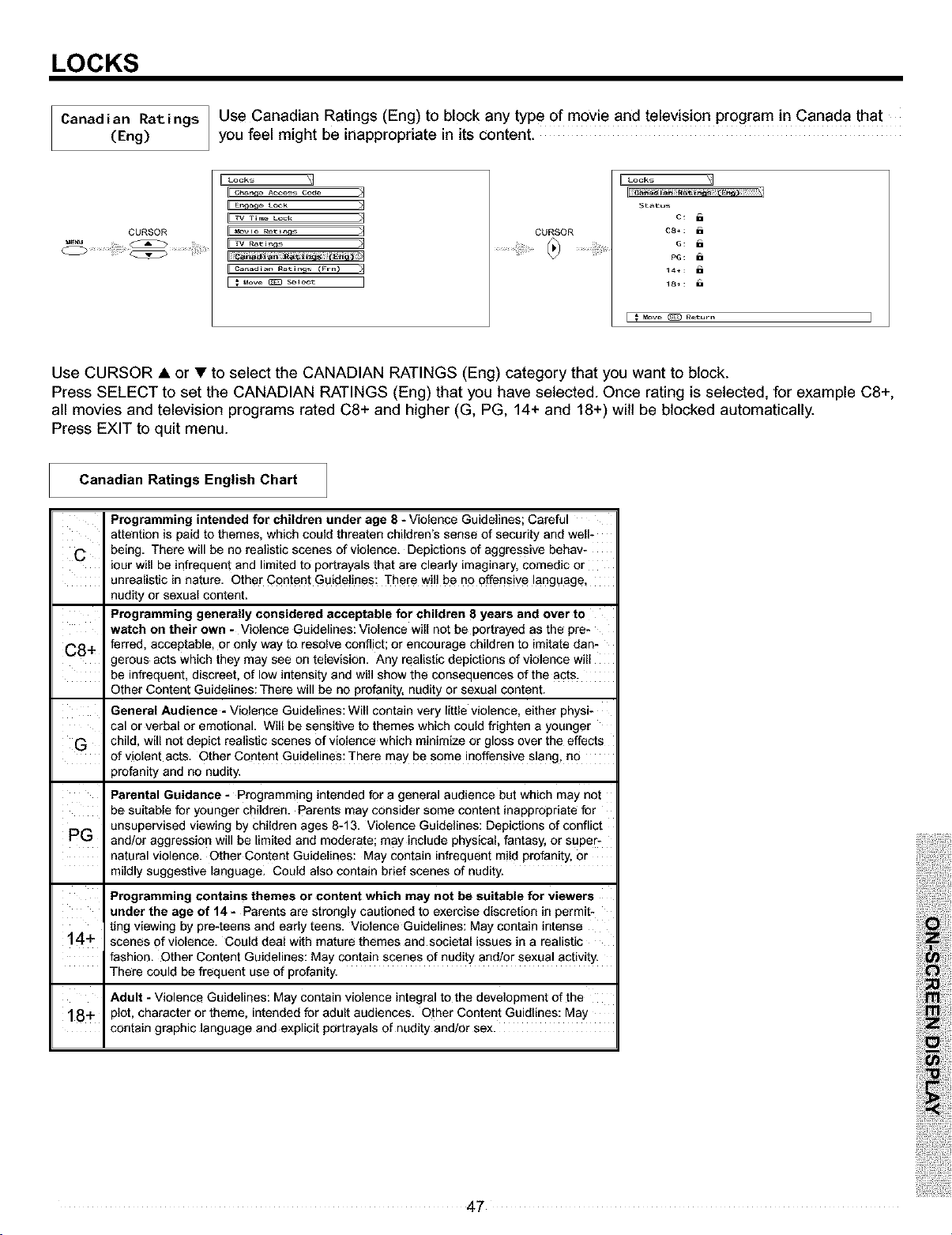

Canadian Ratings (ENG)
Canadian Ratings (FRN)
Change Lock access code
Choose to lock channel, video input, and front panel.
Set specific time to Lock TV.
Block various types of movies and video types based on motion
picture ratings.
Block various types of movies and television programming
based on a parental guide ratings.
Block various types of movies and television programming
based on the Canadian ratings system.
Block various types of movies and television programming
based on the Canadian French ratings system.
ISetup I

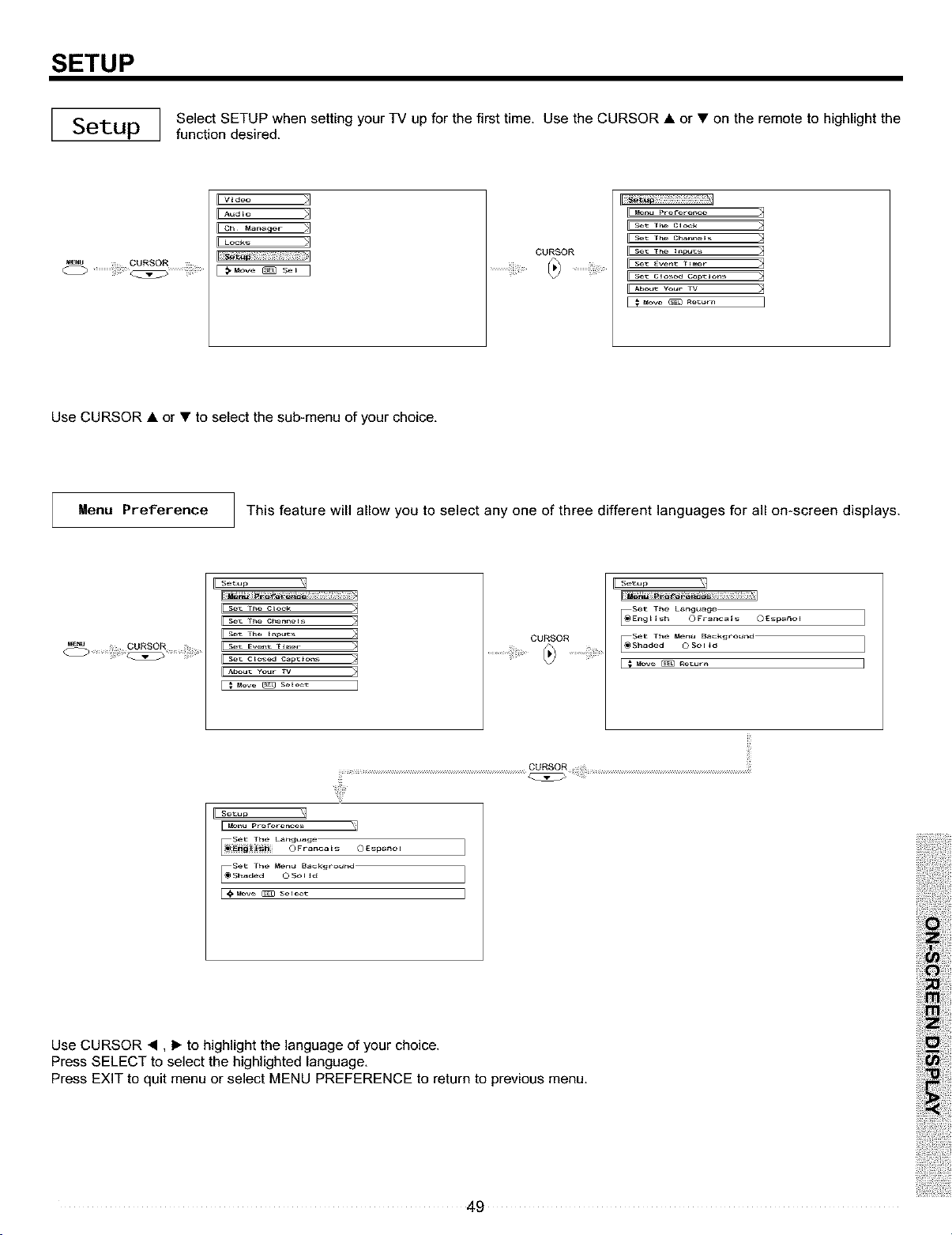

Menu Preference

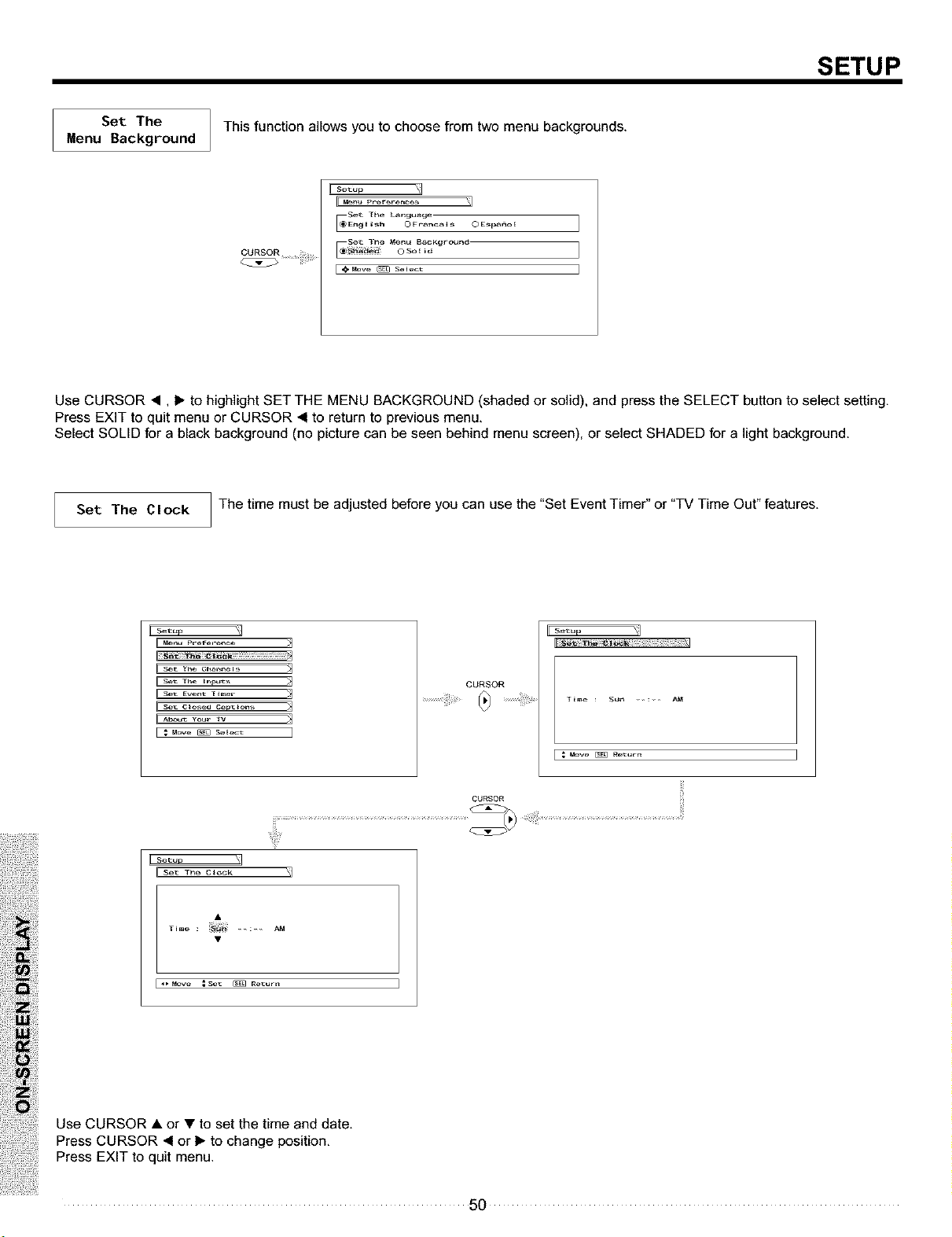

Set The Clock

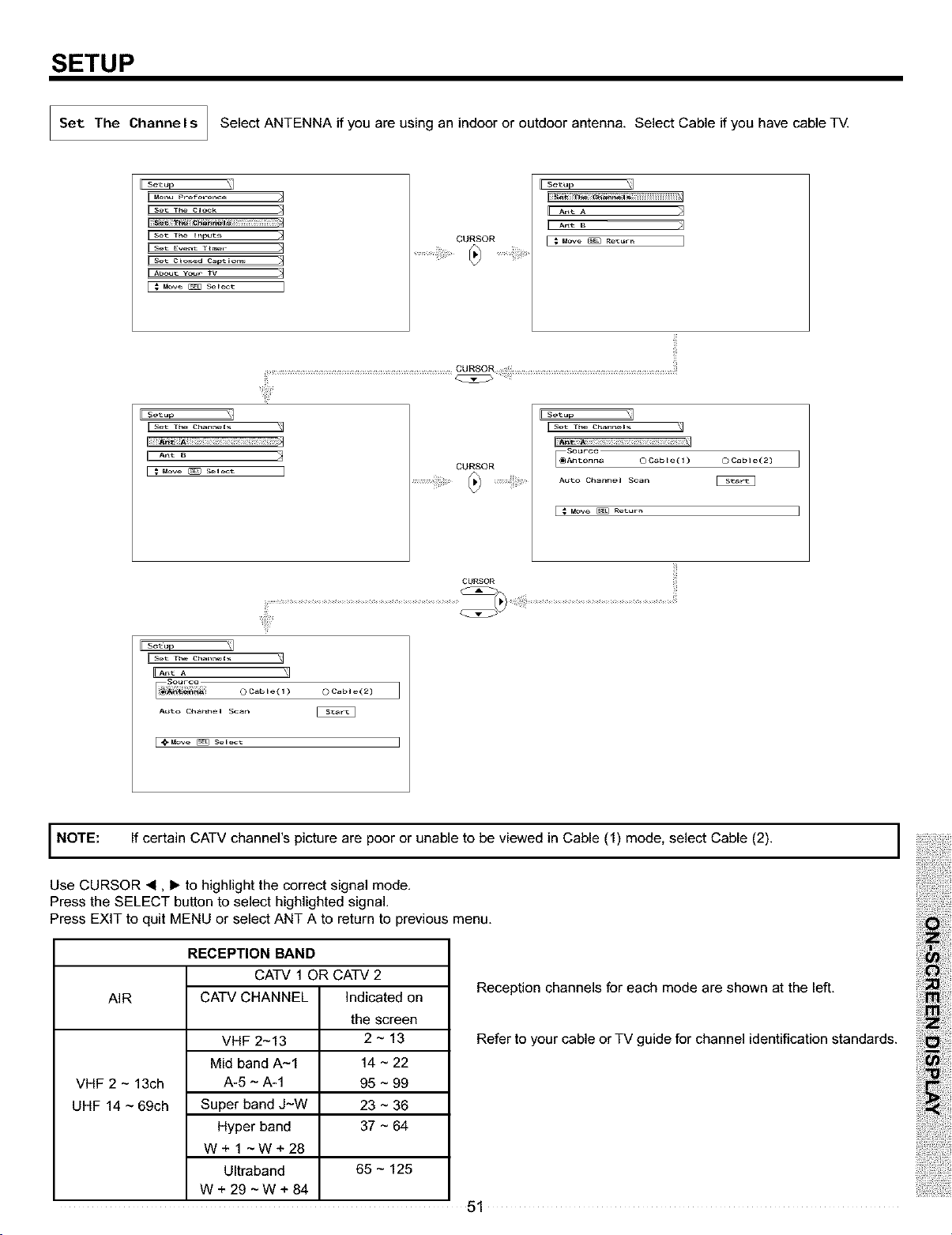

Set The Channels

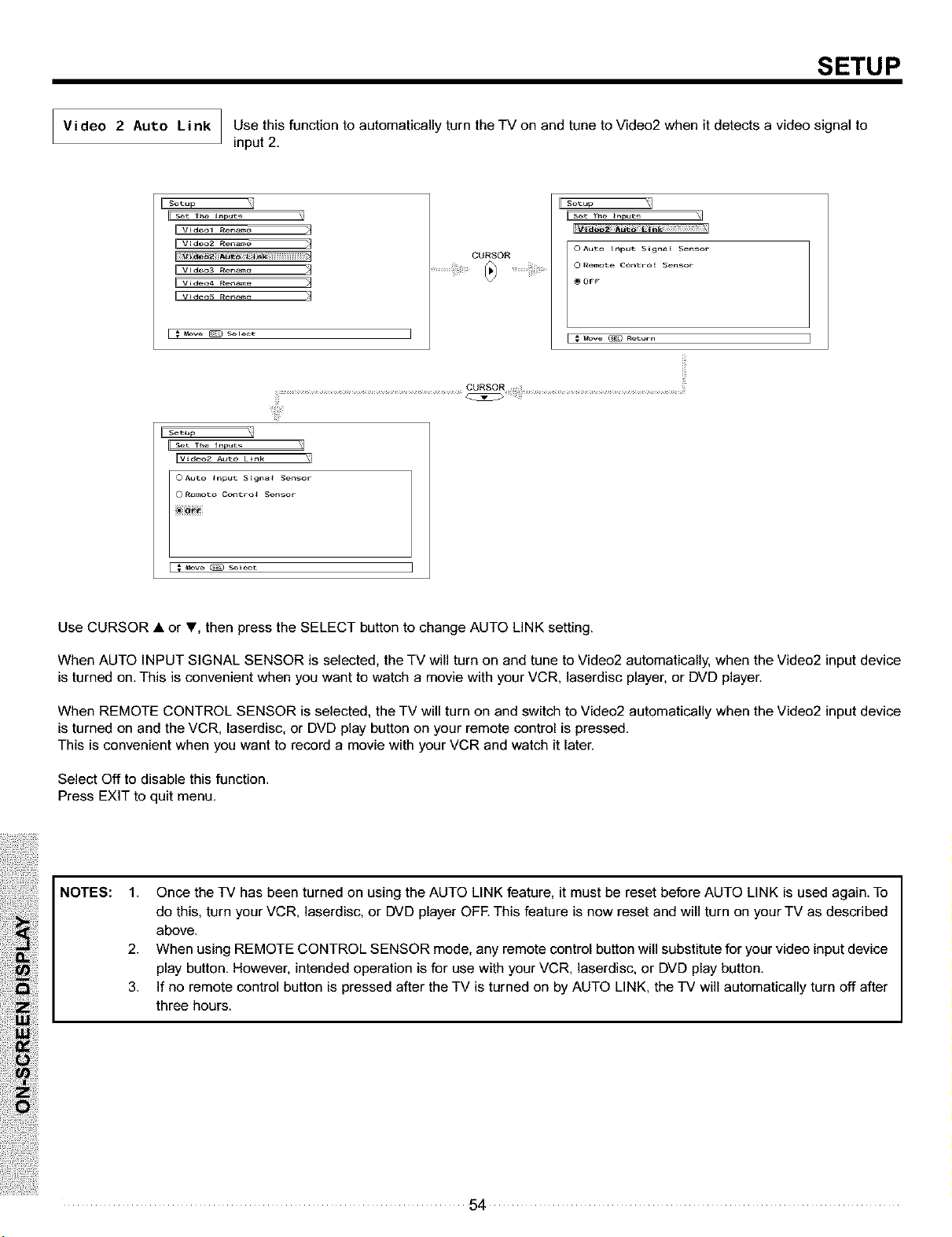

Set The Inputs

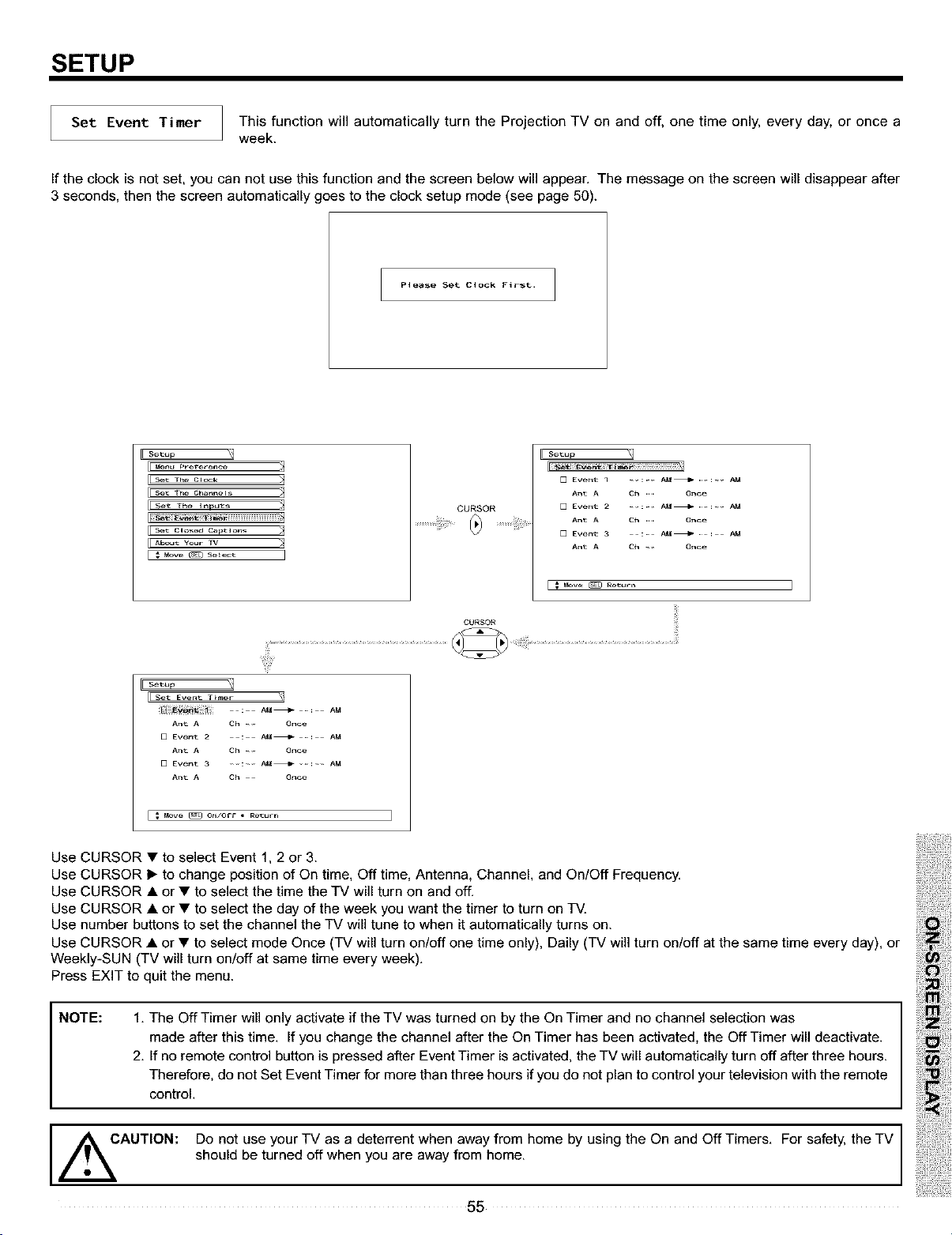

Set Event Timer
Set Closed Captions
About Your TV
Choose English. French. or Spanish text.
Set the TV clock. It must be set before using Lock/EventTimer feature.
Set Channel Source and Auto Channel Scan.
Label Video Inputs, VCR, DVD, etc.
Turn TV on and off once. daily, or weekly.
Feature to display dialogue/text.
Information display for this TV.
33

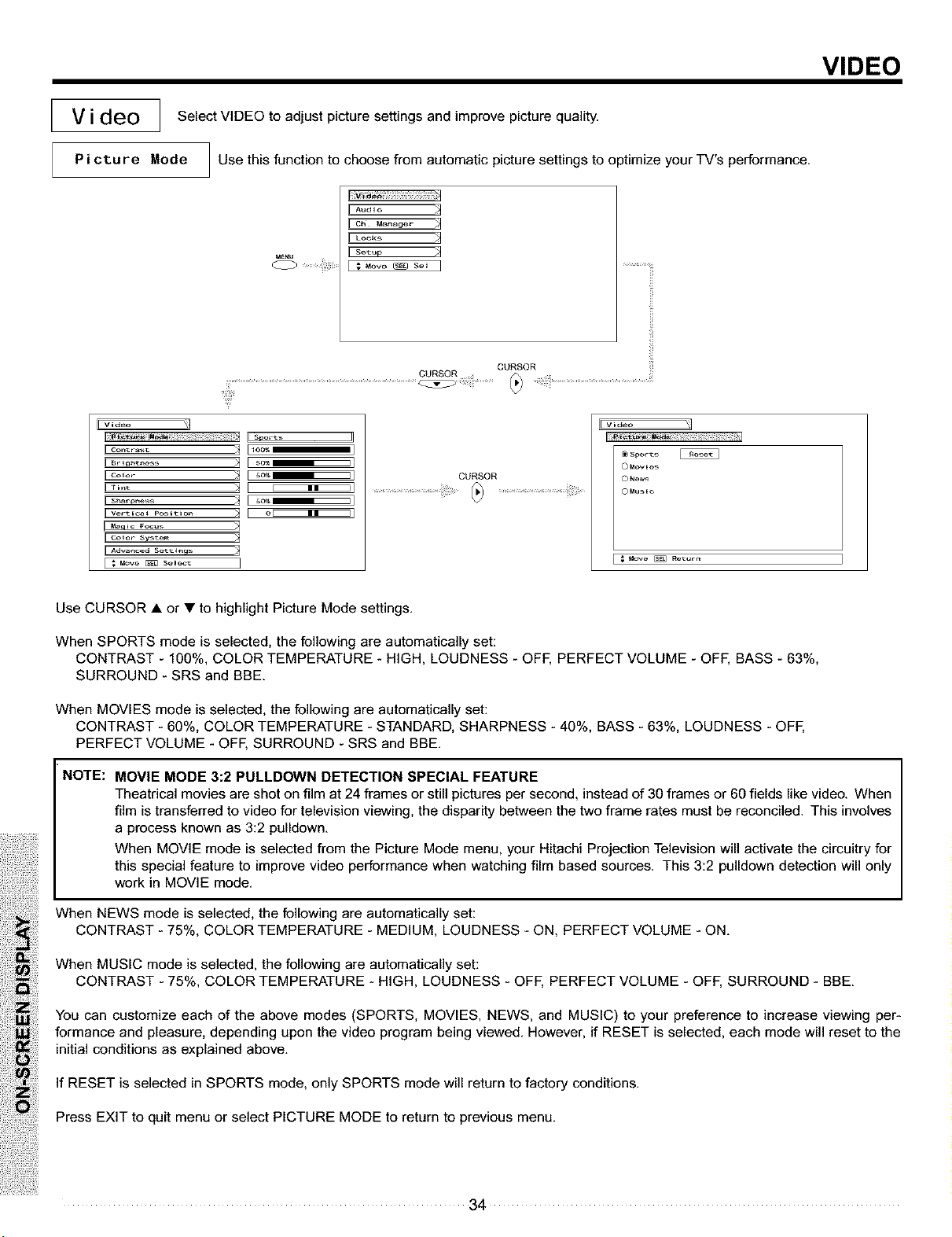

V i deo ] Select VIDEO to adjust picture settings and improve picture quality.
P i ctu re Mode Use this function to choose from automatic picture settings to optimize your TV's performance.
Au dlo
I ch M_na_er >]
Loc_<s _]
VIDEO
IIco_o_ :_[ 5_
CURSOR
_) ..............................................
CURSOR
wdeo \1
@s£ ort_ _
© Music
Use CURSOR • or • to highlight Picture Mode settings.
When SPORTS mode is selected, the following are automatically set:
CONTRAST - 100%, COLOR TEMPERATURE - HIGH, LOUDNESS - OFF, PERFECT VOLUME - OFF, BASS - 63%,
SURROUND - SRS and BBE.
When MOVIES mode is selected, the following are automatically set:
CONTRAST - 60% COLOR TEMPERATURE - STANDARD, SHARPNESS - 40%, BASS - 63%, LOUDNESS - OFF,
PERFECT VOLUME - OFF, SURROUND - SRS and BBE.
NOTE: MOVIE MODE 3:2 PULLDOWN DETECTION SPECIAL FEATURE
Theatrical movies are shot on film at 24 frames or still pictures per second, instead of 30 frames or 60 fields like video. When
film istransferred to video for television viewing, the disparity between the two frame rates must be reconciled. This involves
a process known as 3:2 pulldown.
When MOVIE mode is selected from the Picture Mode menu, your Hitachi Projection Television will activate the circuitry for
this special feature to improve video performance when watching film based sources. This 3:2 pulldown detection will only
work in MOVIE mode.
When NEWS mode isselected, the following are automatically set:
CONTRAST - 75%, COLOR TEMPERATURE - MEDIUM, LOUDNESS - ON, PERFECT VOLUME - ON.
When MUSIC mode is selected, the following are automatically set:
CONTRAST - 75%, COLOR TEMPERATURE - HIGH, LOUDNESS - OFF, PERFECT VOLUME - OFF, SURROUND - BBE.
You can customize each of the above modes (SPORTS, MOVIES, NEWS, and MUSIC) to your preference to increase viewing per-
formance and pleasure, depending upon the video program being viewed. However, if RESET is selected, each mode will reset to the
initial conditions as explained above.
If RESET is selected in SPORTS mode, only SPORTS mode will return to factory conditions.
Press EXIT to quit menu or select PICTURE MODE to return to previous menu.
34
VIDEO
Use the CURSOR • or • to highlight the function to be adjusted.
Press the CURSOR • or 1_to adjust the function.
Press MENU to return to main menu or select PICTURE MODE to return to previous menu.
Press EXITto quit menu.
I Contrast
I Brightness
I Color
I Tint
I Sharpness
I Vertical Position
I Use this function to change the contrast between black and white levels in the picture. This adjustment
will only affect the picture when ADVANCED SETTINGS DIMMER is OFE
I Use this function to adjust overall picture brightness.
I Use this function to adjust the level of color in the picture.
I Use this function to adjust flesh tones so they appear natural.
I Use this function to adjust the amount of fine detail in the picture.
I This function allows you to select when aspect style is either 4:3 EXPANDED/ZOOM1/ZOOM2. Vertical
position can be changed with this mode. Adjustable range is -10 (video center is toward bottom of
screen) to +10 (video center is toward top of screen).
NOTES:
1. If CONTRAST is selected, you are adjusting CONTRAST The additional menu items BRIGHTNESS, COLOR, TINT,
and SHARPNESS can be selected and adjusted in the same manner.
2. It may be necessary to adjust TINT to obtain optimum picture quality when using the COMPONENT VIDEO Y-PBPR
input jacks.
3. If you are using the COMPONENT VIDEO input jacks (Y-PBPR) and notice that the TINT and COLOR are abnormal,
check to make sure that VIDEO-Color System is set properly.
35

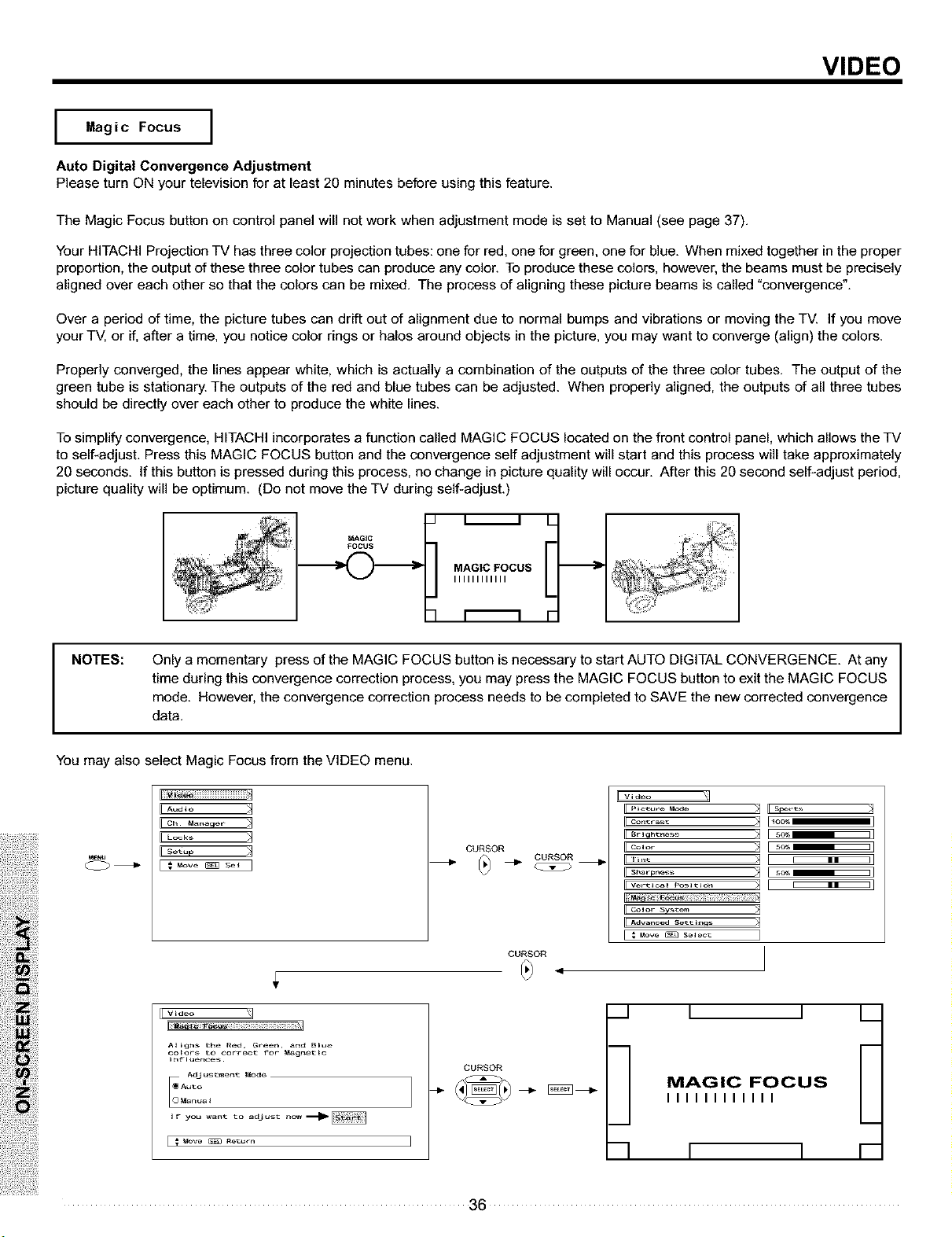

VIDEO
I agic Focus I
Auto Digital Convergence Adjustment
Please turn ON your television for at least 20 minutes before using this feature.
The Magic Focus button on control panel will not work when adjustment mode is set to Manual (see page 37).
Your HITACHI Projection TV has three color projection tubes: one for red, one for green, one for blue. When mixed together in the proper
proportion, the output of these three color tubes can produce any color. To produce these colors, however, the beams must be precisely
aligned over each other so that the colors can be mixed. The process of aligning these picture beams is called "convergence".
Over a period of time, the picture tubes can drift out of alignment due to normal bumps and vibrations or moving the TV. If you move
your TV, or if, after a time, you notice color rings or halos around objects in the picture, you may want to converge (align) the colors.
Properly converged, the lines appear white, which is actually a combination of the outputs of the three color tubes. The output of the
green tube is stationary. The outputs of the red and blue tubes can be adjusted. When properly aligned, the outputs of all three tubes
should be directly over each other to produce the white lines.
To simplify convergence, HITACHI incorporates a function called MAGIC FOCUS located on the front control panel, which allows the TV
to self-adjust Press this MAGIC FOCUS button and the convergence self adjustment will start and this process will take approximately
20 seconds. If this button is pressed during this process, no change in picture quality will occur. After this 20 second self-adjust period,
picture quality will be optimum. (Do not move the TV during self-adjust)
MAGIC
NOTES:
Only a momentary press of the MAGIC FOCUS button is necessary to start AUTO DIGITAL CONVERGENCE. At any
time during this convergence correction process, you may press the MAGIC FOCUS button to exit the MAGIC FOCUS
mode. However, the convergence correction process needs to be completed to SAVE the new corrected convergence
data.
You may also select Magic Focus from the VIDEO menu.
M_u
O_
IFL_ _I
CURSOR
CURSOR
4
[Video
JJ Picture Mod_
i Cont ra_t
II Briqh_.... >1
i vertlca_ posi_lor_ >]
IIco,orsw_., >1
i Advanced _tl"i_qs
l
CURSOR
/ I I I_
MAGIC FOCUS I
IIIIIIIIIIII
-] I I l-
36
VIDEO
Manual Convergence Adjustment Mode
I NOTES: 1. Please turn ON your television for at ]east 20 minutes before using this feature.
2. Auto Adjustment Mode is recommended. If convergence is still not acceptable, use the Manual Adjustment Mode.
DO NOT press MAGIC FOCUS or use Auto Adjustment Mode after using Manual Adjustment Mode.
Using the Remote Control, select VIDEO-MAGIC FOCUS-MANUAL ADJUSTMENT MODE-START to access convergence crosshatch
pattern. The adjustment point is indicated by the Adjustment Point Cursor.
To Move Adjustment Point
To move the Adjustment Point Cursor, use the CURSOR buttons. The Adjustment Point Cursor must be WHITE.
Another way to move the Adjustment Point Cursor is to press the followiing buttons: [2] up, [4] left, [5] down, [6] right. If you use the
number buttons while the adjustment point is WHITE, it will change to RED.
To Change the Color of Adjustment Point
Press the SELECT button repeatedly (WHITE-RED-BLUE-WHITE...). Green color is fixed and cannot be adjusted.
To Adjust the Convergence
Move the Adjustment Cursor to the point to be adjusted. Use the CURSOR 4, I_, A, • to match the RED and BLUE colors to GREEN
(reference color). Properly aligned, all three colors should appear white.
LAud_o
[ ch _na _ ]
IELoo._ >l
[,Mow_S_k ]
CURSOR
..... @
CURSOR
............... @
Video _
Ilii;_i_ii_i;i;iiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiU
Aklgns the Red, Green, and Blue
colors to correct for Magnetic
Inf_uences
CURSOR
Adjustment Mod_
O Auto
Manuak
_ f you want to adjust now -"_
_ _ve _ R_tur_
IFW deo
II Pictur_ _de
_ BJ _qh_ne_
IIco*o_ >1
[ coIo_ s¥,._e,. _]
>1IIs_,o_ _1
>1I_o'_'_m I
_] I _o_m:_l
I E_m:_ I
I _o_m:_ I
I E_m:_ I
Adjustment Point
Cursor
/
i
I I
If convergence is acceptable after Manual Convergence adjustment, press EXIT button to access menu mode.
EXIT
DONE
CANCEL
INI. RESET
BACK
[1]
[2]
[3]
[4]
Press the [1] button on the remote control to SAVE adjusted data and return to main picture.
Press the [2] button on the remote control to CANCEL adjusted data and return to main picture.
Press the [3] button on the remote control to recall the factory pre-set convergence data.
Press the [4] button on the remote control to return to the manual convergence adjustment mode (crosshatch pattern).
Press the [9] button on the remote control to read the SAVED adjusted data. If there is no saved data, pressing the [9] button will recall
the factory pre-set data.
37
VIDEO
Color System
I This function allows to automatically change tint and color coordinates for DTV
you programs.
HDTV - High Definition Television - Use for High Vision Signal Y-PBPR from HDTV Set-Top Box.
SDTV/DVD - Standard Definition Television or DVD (Digital Versatile Disc Player)Y*CBC R,
NOTES:
1. if Color System is set improperly (does not match actual input signal), the color and tint of the main picture will be
abnormal
2. You must be tuned to VIDEO: 1 or 2 inputs and have a component hooked up to the Y-PBPR input jacks to access this
color system.
3. All component color type settings will affect only color component input you are currently viewing, if you are using
both sets of component input jacks, be sure to set the color system feature for both inputs.
Advanced
Settings
Your HITACHI Projection TV has an ADVANCED SETTINGS function which will automatically adjust picture
settings to produce the highest quality picture possible.
When ADVANCED SETTINGS is highlighted, press SELECT or CURSOR to access an ADVANCED
SETTINGS feature.
rv....
CURSOR
cuRsor_
_w d_o
[o................. 1
Use CURSOR A, • to highlight functions.
Press the SELECT button to select the function setting. When the function has an "_'" in the box, it is ON.
Press the SELECT button to change COLOR TEMPERATURE setting. When the function shows a "®% it is selected.
Press EXIT to quit menu or CURSOR _1to return to previous menu.
Color Temperature
Set this to High for less intense colors with more blue (9,300K), set to Medium for hotter colors with more red (7,500K), or set
to Standard for standard colors (6,500K).
Dimmer
Turn ON the Dimmer to reduce picture contrast and brightness automatically when viewing in a dark room.
Auto Color
The AUTO COLOR function automatically monitors and adjusts the color to maintain constant color levels even after a program or
channel changes. It also maintains natural flesh tones while preserving fidelity of background colors.
Noise Reduction
The NOISE REDUCTION function automatically reduces conspicuous noise in the picture without degrading picture quality.
When the Noise Reduction feature is ON, the Sharpness feature is disabled.
Scan Velocity Modulation
The Scan Velocity Modulation function automatically enhances the edges between light and dark areas.
Black Level Expansion
The BLACK LEVEL EXPANSION function automatically enhances shadow detail in dark scenes,
Black Side Panel
The BLACK SIDE PANEL function turns the gray side bars on/off when watching 4:3 signals in Standard mode.
The top/bottom gray bar will appear in SPLIT MODE PIP and SPLIT FREEZE.
NOTE: Tomaximize the operatinglifeof the television's picturetubes when watching4:3 signal, the Black Side Paneliscancelled
at Powerore it is recommended to watch 4:3 signal with gray side bar,
38
AUDIO
I Audio ]
Select AUDIO to adjust the TV to your preference and to improve the sound quality.
CURSOR
r._,,o _q[ ,o',_ ]
CURSOR
IIA_,d_o _1
Tr_iiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiii_I 5c_ E ]
II sound Er_h_nc_,o_t
[ Adv_nc_'d Setth,q,.
CURSOR
[ _Noxl_/pr_v_,c_,9owlu_ _ Rotur_ ]
Use CURSOR A, • to highlight functions.
Press the SELECT button to select the function setting.
Press CURSOR • or • to adjust the function.
Press EXIT to quit MENU, or select Audio to return to the main menu.
NOTE:
If TREBLE is selected you are adjusting treble, The additional menu items Bass and Balance can be selected and
adjusted in the same manner.
I Treble I This function controls the high frequency audio to all speakers.
I
Bass
I This function controls the low frequency audio to all speakers,
I Ba lance I This function will control the left to right balance of the TV internal speakers and the AUDIO TO HI-FI output.
39
AUDIO
I Sound Enhancement I The following surround settings will reproduce the "live" sound you would hear in concert halls,
I
sports stadiums, movie theaters, etc. with only two speakers.
Audio [-Audio
[] SRS
[]BBE
; Vov_ _ Return
To enter SOUND ENHANCEMENT, use CURSOR • or • to highlight then press the SELECT button to select SOUND
ENHANCEMENT of your choice.
Press CURSOR • or • to highlight your sound enhancement choice, and press the SELECT button to select your choice.
S_CO_
Based on the principles of the human hearing system, SRS technology delivers and exciting and realistic 3D Sound experience from
just two external speakers (or) the two internal speakers of your HITACHI Television. If your HITACHI Television is connected to an
external audio system, SRS will also create an incredible 3D sound experience from two speakers and even enhance a complete
multi-speaker surround sound system.
NOTES: *SRS and the (O) symbol are registered trademarks of SRS Labs, Inc. SRS technology is incorporated under license
from SRS Labs, Inc.
Technology
Sound reproduction quality enhancement system. The BBE technology produces sound that is natural and crisp from just two speak-
ers (or) the two internal speakers of your HITACHI television. If your HITACHI television is connected to an external audio system,
BBE will also create an incredible crisp sound experience from two speakers and even more complete and accurate reproduction of
the original performance. BBE brings to the listener's ear a more complete and accurate reproduction of the original performance.
Each voice, speaking or singing, each instrument or sound effect is presented with its attendant harmonics or partials more clearly
audible. The ear can then more easily recognize the unique tonal colors of each sound as though the sound was being produced live.
NOTES: Licensed by BBE Sound, Inc. under USP4638258, 5510752 and 5736897. BBE and BBE symbol are registered trade-
marks of BBE Sound, Inc. Manufactured under license from BBE Sound, Inc.
4O

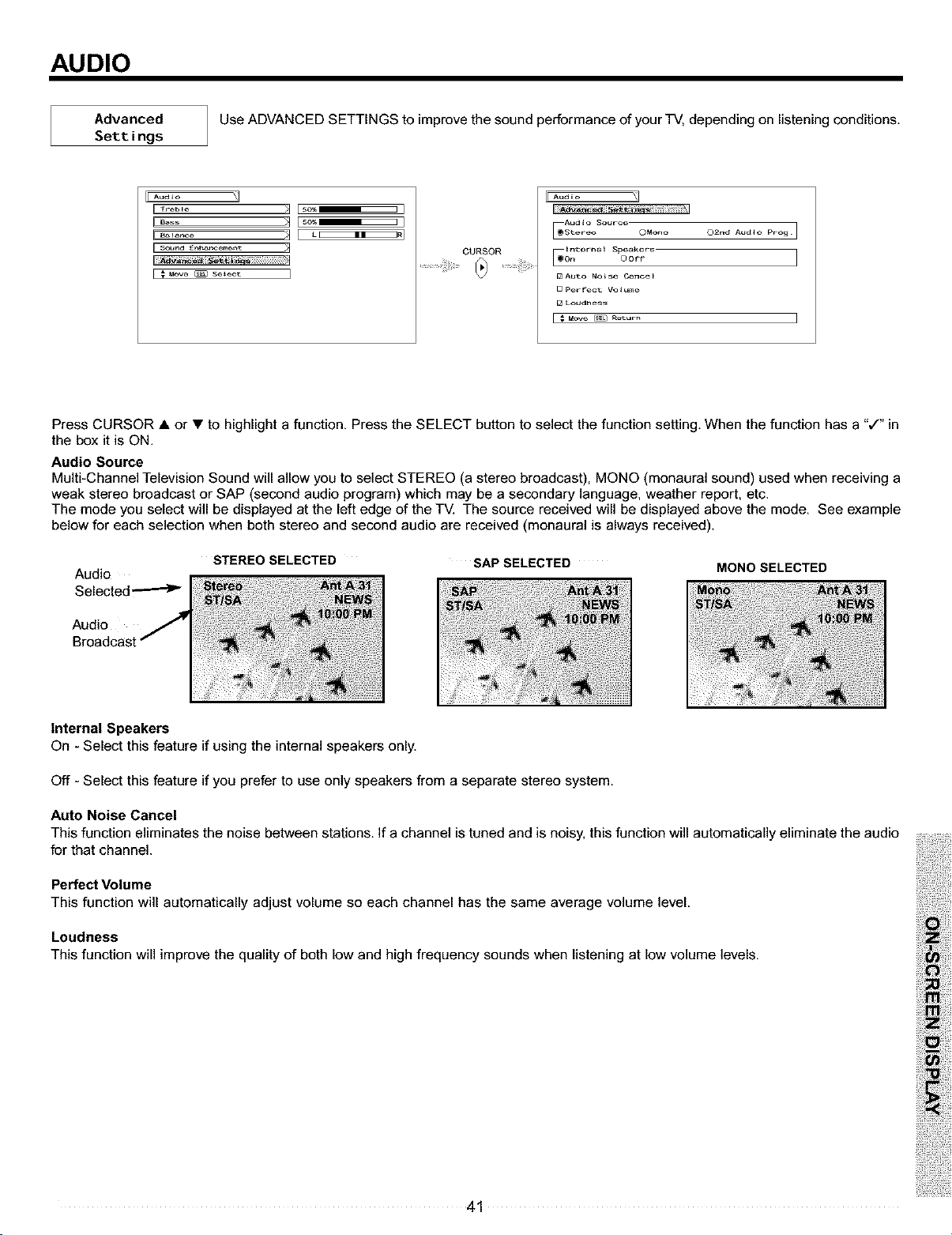

AUDIO
Advanced
Settings
Use ADVANCED SETTINGS to improve the sound performance of your TV, depending on listening conditions.
II SOUFId [l_l_l_emefit
CURSOR
O2nd Audio Prog
Press CURSOR • or • to highlight a function. Press the SELECT button to select the function setting. When the function has a ",/" in
the box it is ON.
Audio Source
Multi-Channel Television Sound will allow you to select STEREO (a stereo broadcast), MONO (monaural sound) used when receiving a
weak stereo broadcast or SAP (second audio program) which may be a secondary language, weather report, etc.
The mode you select will be displayed at the left edge of the TV. The source received will be displayed above the mode. See example
below for each selection when both stereo and second audio are received (monaural is always received).
STEREO SELECTED
Audio
Selected ------_ _
SAP SELECTED
MONO SELECTED
Audio J
Broadcast"
Internal Speakers
On - Select this feature if using the internal speakers only,
Off - Select this feature if you prefer to use only speakers from a separate stereo system.
Auto Noise Cancel
This function eliminates the noise between stations. If a channel is tuned and is noisy, this function will automatically eliminate the audio
for that channel.
Perfect Volume
This function will automatically adjust volume so each channel has the same average volume level.
Loudness
This function will improve the quality of both low and high frequency sounds when listening at low volume levels.
41
CHANNEL MANAGER
Channe I This function allows you to review which channels are labeled (CH ID), which have been added to Channel Memory
Manager (SCAN), and which are protected by LOCK.
II Ch Manaqer _1
CURSOR
@ .............
I Ch Manaqer _1
CH# Scan CH ID
3 O?f ........
5 O?f ........
_ ........... iiiii:I
_7 Off ........ _
8 o??
9 O?r
[ _ Mow _ Return
Press CURSOR • or • to review more channels.
Press EXIT to quit menu.
I
Scan
I Use this feature after Auto Channel Scan is completed to add (On) or skip (Off) additional channels to
the remote control channel • or • buttons.
H Ch _anaRer \1
CH# Scan CH ID _,.
4 OFf ..........
°.......... iii
6 Off .......
°....... iiii
8 Off
Off9
E _ uove _ R_urn
I Ch _anage_ _1
CH# Scan CH ID
t , o_* ]
3 Of Y
4 O?f
5 Ofy
6 Of Y
/ Ofy
8 Of Y
9 O?r
CURSOR
[_1 E_]
CH# Scan CH ID CH# Stark CH I13
3 or_ ........ CURSOR 3 ovf
4 Off 4 Of"_
6 Off 6 Of"f
7 Off
8 Off Of"f
o o_
i!_!!iiiiill! :...... :,o, ®....... _ [..... ,_ ®....... ]
:_ililill_
!:_i!iiii!S:i
_i_i_i_i_iT_add(Scan_n)_rskip(Sc_n_ff)additi_nalchannelswhiI_inChannelManager_CURS_R.t_high_ightth_channelnumber_t hen
CURSOR • or • to highlight other channels. Once the desired channel is highlighted, CURSOR • to scan column, then CURSOR •
or • to select ON or OFF.
iiSi!i !ili!!i oc featurecannotbese,ectedorset,nC,ANN MANA R.
42
CHANNEL MANAGER
Channel ID
This selection contains advanced features which will make TV viewing easier and more enjoyable. Use
this feature to give up to 20 channels a name when ANTENNA signal source is selected and up to 60
channels a name when CATV signal source is selected.
CURSOR
H _q
o"'2,OOnoo=!::::!
3 On
6 0f_ _
7 0f_ _
8 0f_ _
9 0f_ _
[ "_Nvo _Ealt (A Z O9 ) _ Return
CURSOR
[_\]
..... \]
CH# Scan CH ID I
6 0f_
87 0f_0f_
9 0f_
E4_M_Ve _Edit (A_Z 0_9 _) _ R_tur_
CURSOR
EA.t A _1
CH# Scan CH ID _ _
6 0_
7 0_
8 0_
9 0_
NOTES:
1. if ANT A and ANT B are in the same ANTENNA/CABLE mode, the CHANNEL ]D for both antenna inputs will be the
same.
2. CHANNEL ]D will be displayed only when channel is displayed as main picture.
43
LOCKS
Locks
This function will block out the picture and sound of the selected channel or video input.
It can also be used to keep the TV from being viewed for a scheduled time period that you set.
The code to enter the Locks feature is a four digit secret code number. The factory preset code is 0OOO.
Use the number buttons to select access code.
Hwd..o 21
HA.d,o >1
I I
plea,,e Et_ter Acees,, Code
[# Key,,] Ek_l:er Code
[ C_ar_qe Access Code _J
[_v n,,_ Look >]
[ TV Ratlrlq% )J
[ Cak_adla_ Ratirlq_ (Enq) )J
Use CURSOR • or • to highlight function and then press the SELECT button.
To change the access code number, select Change Access Code. Enter a new four digit key number you prefer.
Select CHANGE ACCESS CODE to change factory preset code (OOOO)to your preference.
When ENGAGE LOCK is selected, SET CHANNEL LOCK, SET INPUT LOCK, and SET FRONT PANEL LOCK can be set individually.
When SET CHANNEL LOCK is turned on, the picture and sound for the chosen channel will be blocked out.
When SET INPUT LOCK is turned on, the picture and sound for all video inputs and the picture and sound for channels 3, 4 will be
blocked out.
When FRONT PANEL LOCK is turned on, all buttons on the Front Panel will be deactivated, except the Power button.
When TV TIME LOCK is turned on (# TIME LOCK) you can set the BEGIN and END times (CURSOR 1_) and the TV
cannot be viewed during that time period (Set clock first). Use CURSOR • or • to highlight ONCE (TV will time out one time
only), DAILY (TV will time out every day), WEEKLY - SUN-WEEKLY - MON (TV will time out one time a week) or OFF (to dis-
able this function).
When MOVIE RATINGS is selected, you can block various types of movies and video tapes based on motion picture ratings. Picture-
in-Picture will also be blocked automatically (see page 45).
When TV RATINGS is selected, various types of television programming based on a parental guide ratings will be blocked.
Picture-in-Picture will also be blocked automatically (see page 46).
Use CANADIAN RATINGS to block various types of movies and television programs based on the two rating systems used in
Canada that you feel may be inappropriate due to its content (see pages 47-48).
If you forget your secret code, use the factory code 7777 to erase your key number. This will reset the secret code number back to the
factory preset 0000.
Press EXIT to quit the menu.
NOTE:
1. If ANT A and ANT B are in the same signal source mode (see page 51), when a channel is locked, it is locked
on both antenna inputs.
2. When using TIME LOCK make sure the clock is set (see page 50).
3. Text appears on the screen to indicate that TV TIMED LOCK is activated.
4. If MOVlE/TV Ratings Lock and Closed Caption settings are ON, PIP SURF mode will be deactivated.
44
LOCKS
Movie Ratings
Use MOVIE RATINGS to block from shewing any movie you fee! might have inappropriate
content.
CURSOR
Lock_
Ch_m_e Acce_ Code
_nqaqe Lock _]
TV _me Lec_
Canadi_ R_n_s (Em_)
Car_adi_ R_=_nqs (Frn) _]
_MOVe _ Select ]
CURSOR
Status
Not Rated:
PG:
Use CURSOR • or • to select the MOVIE RATING category that you want to block.
Press SELECT to block the MOVIE RATING that you have selected. Once rating is selected, for example PG-13, al!
movies rated PG-13 and higher (R, NC-17, and X) witl be blocked.
Press EXIT to quit menu or select MOVIE RATING to return to the previous menu.
Motion Picture Ratings Chart
General audiences. All ages admit-
G ted.
Parental guidance suggested.
PG Some material may not be suitable
for children.
Parents strongly cautioned, Some
PG-13 material may be inappropriate for
children under 13.
Restricted. Under 17 requires
R accompanying parent or adult
guardian,
No one 17 and under admitted.
NC-17
X Adults only
Contains no rating. Not Rated
(NR) and Not Applicable (NA) pro-
NOT RATED (NR) grams. Movie has not been rated or
ratings do not apply.
iiii!i!_il
45
LOCKS
TV Ratings I Use TV RATINGS to btock from showing any programs or movies you feel might have
inappropriate content.
CURSOR
i ch_nqe Ace_ Code ._
i TV r_ Lec_
II Movie Ratinq_
II Canadian R_t_gs (Frrl)
Status Sub Rating
D • S V
TM Y:
TVy7 :
TV YG:
TYRO: 6 6 6 6
TV_4: 6 6 6 6
FV
Use CURSOR • or V to highlight the category that you want to block.
Press SELECT to block the TV RATING that you have selected.
Press EXIT to quit menu or select TV RATING to return to the previous menu.
TV Parental Guide Ratings Chart
All children. The themes and elements in this
TV-Y program are specifically designed for a very
young audience, including children from ages
2-6.
Directed to older children. Themes and ele-
ments in this program may include mild physi-
TV-Y7 cal or comedic violence, or may frighten chil-
dren under the age of 7.
General audience. It contains little or no vio-
TV-G lence, no strong language, and little or no sex-
ual dialogue or situations.
Parental guidance suggested. The program
TV-PG may contain infrequent coarse language, limit-
ed violence, some suggestive sexual dialogue
and situations.
Parents strongly cautioned, This program
TV-14 may contain sophisticated themes, intense
sexual situation, more intense violence and
intensely suggestive dialogue.
Mature audiences only. This program may
TV-MA contain mature themes, indecent language,
graphic violence, and explicit sexual content.
FV Fantasy Violence
V Violence
S Sexual Situation
L Adult Language
Sexually Suggestive Dialogue,
NOTE:
If you Block TV-14D, you will still permit
TV-MA programs; If you block TV-14DV,
you will automatically block TV-MAV pro-
grams, but you wilt still permit TV-MALS
programs. This means that the TV will
block violence in TV-14 and higher (TV-
MA), but not language and sex.
46
LOCKS
Canadian Rat irigs Use Canadian Ratings (Eng) to block any type of movie and television program in Canada that
(Eng) yOUfeel might be inappropriate in its content.
CURSOR
I Lock_
_c_anqe Access code
CURSOR
Locks \]
Status
C8÷:
PG:
14+:
18÷:
[ €rove _ Return ]
Use CURSOR • or • to select the CANADIAN RATINGS (Eng) category that you want to block.
Press SELECT to set the CANADIAN RATINGS (Eng) that you have selected. Once rating is selected, for example C8+,
all movies and television programs rated C8+ and higher (G, PG, 14+ and 18+) wilt be blocked automatically.
Press EXIT to quit menu.
Canadian Ratings English Chart
Programming intended for children under age 8 - Violence Guidelines; Careful
attention is paid to themes, which could threaten children's sense of security and welk
being. There will be no realistic scenes of violence. Depictions of aggressive behev-
iour will be infrequent and limited to portrayals that are clearly imaginary, Comedic or
unrealistic in nature. Other Content Guide!ines_ ]-here will be no offensive language_
nudity or sexual content.
Programming generally considered acceptable for children 8 years and over to
watch on their own - Violence Guidelines: Violence will not be portrayed as the pre-
8÷ farted, acceptable, or 0nly to resolve conflict; or children to imitate dan-
way encourage
gerous acts which they may see on television. Any realistic depictions of violence will
be infrequent, discreet, of low intensity and will show the consequences of the act&
Other Content Guidelines: There will be no profanity, nudity or sexual content.
General Audience - Violence Guidelines: Will contain very little violence, either physi-
cal or verbal or emotional. Will be sensitive to themes which could frighten a younger
G child, will not depict realistic scenes of violence which minimize or gloss over the effects
of violent acts. Other content Guide!inns: ]hare may be soma inoffensive slang, n0
profanity and no nudity.
Parental Guidance - Programming intended for a general audience but which may not
be suitable for younger children. Parents may consider some content inappropriate for
unsupervised viewing by children ages 8-13. Violence Guidelines: Depictions of conflict
PG and/or aggression will be limited and moderate; may include physical, fantasy, or super-
natural violence. Other Content Guidelines: May contain infrequent mild profanity, or
mildly suggestive language_ Could also contain brief scenes of nudity.
Programming contains themes or content which may not be suitable for viewers
under the age of 14 - Parents are strongly cautioned to exercise discretion in permit-
ting viewing by pre-teens and early teens. Violence Guidelines: May contain intense
14+ scenes of violence. Could deal with mature themes and societal issues in a realist[e
fashion. Other Content Guidelines: May contain scenes of nudity and/or sexual activity.
There could be frequent use of profanity.
Adult - Violence Guidelines: May contain v{olence integral to the development of the
18+ plot, character or theme, intended for adult audiences. Other Content Guidlines: May
contain graphic language and explicit portrayals of nudity and/or sex.
47
LOCKS
Canadian Rat i rigs Use CANADIAN RATINGS (FRN) to block Canadian French programs according to various pro-
(Frn) gram ratings that you feel might be inappropriate in its content.
CURSOR
_Tv _ot i.q_ _l
CURSOR
Status
8 arts÷:
13 arts÷:
16 arts÷:
18 arts÷:
I € aove _ Return 1
Use CURSOR • or • to highlight the category that you want to block.
Press SELECT to set the CANADIAN RATINGS (FRN) that you have selected.
Once rating is selected, for example 8 arts+, all movies and television programs rated 8 arts+ and higher wilt be
automatically blocked.
Press EXIT to quit menu or select CURSOR • to return to the previous menu.
Canadian Ratings French Chart
General - Programming intended for audiences
of all ages, Contains no violence, or the vio-
G lence content is minimal or is depicted appropri-
ately with humor or caricature or in an unrealis-
tic manner,
, 8 + General - Not recommended for young
children - Programming intended for a broad
audience but contains light or occasional
8 ans + violence that could disturb young children.
Viewing with an adult is therefore recommended
for young children (under the age of 8) who can-
not differentiate between real and imaginary
portrayals,
Programming may net be suitable for chil-
dren under the age of 13 - Contains either a
few violent scenes or one or more sufficiently
13 arts +
violent scenes to affect them, Viewing with an
adult is therefore strongly recommended for chil-
dren under 13,
Programming is not suitable for children
16 ans+ under the age of 16 - Contains frequent scenes
of violence or intense violence.
Programming restricted to adults - Contains
18 arts + ' . . , .
constan[ violence or scenes of extreme violence,
48
SETUP
I Select SETUP when setting your TV up for the first time. Use the CURSOR • or • on the remote to highlight the
,J L tJ
I
function desired.
HWd.-o _1
IIAud_o _1
I_1
I
[_.,ove _Sek I
CURSOR
@
[E_nu Pr_f_r_
[Es_t Th_ CI_
I_S_t _ven_ Tier
[FS_t Clo_d Cap_ion_
HAb_t Your TV
Use CURSOR • or • to select the sub-menu of your choice.
Menu Preference This feature will allow you to select any one of three different languages for all on*screen displays.
I Setup \]
sot T}_ ctoct_
S_lc Th_ I_at_
A_ut ¥_r TV _[
Mow _ S_E_c_
CURSOR
Se_ The L_nguage
Set Th_ M_nu B_ckground
[_S_aded © Sol_d
Use CURSOR •. 1_to highlight the language of your choice.
Press SELECT to select the highlighted language.
Press EXIT to quit menu or select MENU PREFERENCE to return to previous menu.
49
SETUP
Set The
Menu Background
This function allows you to choose from two menu backgrounds.
I setup _1
[ u_nu P_r_r_ E I
_Set The LalnguageEngt _sh O Fralncal _S © E_palno _
_Set The Menu Background
Use CURSOR •, I_ to highlight SET THE MENU BACKGROUND (shaded or solid), and press the SELECT button to select setting.
Press EXIT to quit menu or CURSOR • to return to previous menu.
Select SOLID for a black background (no picture can be seen behind menu screen), or select SHADED for a light background.
Set The CIock The time must be adjusted before you can use the "Set Event Timer" or "TV Time Out" features.
II Menu Prere, cmce
l Sot the Chav_ne{,_ _j
H Sot Event [_mer
I Sot C}o%ed Capt_orls _]
l At:out you_ TV _j
CURSOR
CURSOR
I Setup _
st_t The C_ock _1
4_ UOVe _ Set _ Re_urn I
Use CURSOR • or • to set the time and date.
Press CURSOR • or 1_to change position.
Press EXIT to quit menu.
5O
SETUP
Set The Channe I s Select ANTENNA if you are using an indoor or outdoor antenna. Select Cable if you have cable TV.
[ Menu Preference _]
[[ set The Clook _J
[[ Set Evorlt l_mel
Set C_o,_od Captio_l_, _]
[[ About You_ TV
CURSOR
II Ant A :_
E; Mow_ Re_.... ]
[_
II A_t B :q
E,"Mow_ se'e_t ]
CURSOR
@ ..............
I Setup
Source
[_JAntenna O Cabke(1) O Cable(2)
Auto ChanneJ Scan
set Th_ Char_el_ _]
[F_ntA _q
O Cabke(1) O Cable(2)
Auto ChanneJ Scan
CURSOR
I NOTE: If certain CATV channel's picture are poor or unable to be viewed in Cable (1) mode, select Cable (2). I
Use CURSOR 4,1_ to highlight the correct signal mode.
Press the SELECT button to select highlighted signal.
Press EXIT to quit MENU or select ANT A to return to previous menu.
AIR
VHF 2 ~ 13ch
UHF 14 ~ 69ch
RECEPTION BAND
CATV 1 OR CATV 2
CATV CHANNEL Indicated on
VHF 2~13
Mid band A-1
A-5 - A-1
Super band J-W
Hyper band
W+1~W+28
Ultraband
W+29~W+84
the screen
2~13
14 ~ 22
95 ~ 99
23 ~ 36
37 ~ 64
65 ~ 125
Reception channels for each mode are shown at the left.
Refer to your cable or TV guide for channel identification standards.
51
SETUP
Auto Channel Scan
This feature will automatically store active TV channels in Auto Channel Scan, This will allow you to skip
unused channels when using CHANNEL UP (A) or DOWN (_'),
IFs_up TI
HAn_A
Source
Auto Channek Scaln _
i s_t Th_ Ch_nr_l_ _
IIAnt A Xl
Source
roAntenna _ Cable(l) O Cable(2)
Auto Channek Scan
IFs_up _I
IIs_t The Ch_nne_
IAn_A
iAuto Channek Scan
Sc_nnlng Channe_ N_ber: 66
I
If the EXIT button is pressed while AUTO CHANNEL SCAN function is engaged, programming will stop, If two antenna are
connected, switch antenna inputs with the ANT button and repeat AUTO CHANNEL SCAN for the second antenna input,
Remember to select the correct ANTENNA/CABLE mode before using AUTO CHANNEL SCAN.
See CHANNEL MANAGER - SCAN to add or to erase additional channels (see page 42),
52
SETUP
Set The Inputs Use this feature to give a name to any of the five video inputs,
I Setup
]] MeNu Pre_ere_e >]
[Eset Tie ct_annel_
i I
IIset E_ Ti_e_ _1
IIsot CIo_,ed Ca£tiorls )1
CURSOR
[ Setup
IF V [ de01 Renaae
i wdeo2 Rename >_
II wd_o2 A.to Link >1
i wd_o3 Rena_
II vi_o4 Re=la_a_ _1
[ _ u_e _ he.urn ]
I sot°p
[Fset u_e _nput_
i Vldeo2 Renaae >_
LV_deo2 Auto Link _J
[L V i deo3 Rename
Lvideo4 Rename _J
J _ Vow _ se*ect ]
CURSOR
_ Setup
Jlset Th_ _p.t_
lst
0 CAN 0 DVD2 0 vcl_
0 DVD 0 SA1 0 VC_I2
DVD_ 0 STB _ R_et
E _ Mov_ [_ R_turn
Press CURSOR A, _', _, I_, to highlight the name of the video inputs,
Press the SELECT button to select desired input name,
Select RESET to set video names to original factory preset condition,
53
SETUP
7
Video 2 Auto Link | Use this function to automatically turn the TV on and tune to Video2 when it detects a video signal to
J
input 2.
I Se_u P
set The l_put_ _{
Video1 Rename
Video2 Rename
Video3 Rename _1
Video4 R_na_e
Video_ R_na_e
CURSOR
I Setup
_set T_e tnput_
© Auto _nput Sign_ S_nso_
© Re_ote Contro_ Senso_
_Vov_ _Return
set T_e _put_ _]
_deo2 Auto L_nk _1
© Auto _nput Sign_ S_n_or
¢_ov_ _ Set_t I
Use CURSOR • or _', then press the SELECT button to change AUTO LINK setting.
When AUTO INPUT SIGNAL SENSOR is selected, the TV will turn on and tune to Video2 automatically, when the Video2 input device
is turned on. This is convenient when you want to watch a movie with your VCR, laserdisc player, or DVD player.
When REMOTE CONTROL SENSOR is selected, the TV will turn on and switch to Video2 automatically when the Video2 input device
is turned on and the VCR, laserdisc, or DVD play button on your remote control is pressed.
This is convenient when you want to record a movie with your VCR and watch it later.
Select Off to disable this function.
Press EXIT to quit menu.
NOTES:
1. Once the TV has been turned on using the AUTO LINK feature, it must be reset before AUTO LINK is used again. To
do this, turn your VCR, laserdisc, or DVD player OFE This feature is now reset and will turn on your TV as described
above.
2. When using REMOTE CONTROL SENSOR mode, any remote control button will substitute for your video input device
play button. However, intended operation is for use with your VCR, laserdisc, or DVD play button.
3. If no remote control button is pressed after the TV is turned on by AUTO LINK, the TV will automatically turn off after
three hours.
54
SETUP
Set Event Timer Thisfunction willautomaticallyturnthe Projection TV on and off, onetime only, every day, oronce a
week.
If the clock is not set, you can not use this function and the screen below will appear. The message on the screen will disappear after
3 seconds, then the screen automatically goes to the clock setup mode (see page 50).
Please Set Clock First.
I Setup _J
L_enu prefe.ence
set The Cl_k _]
Set Tho Chan_
Set T_e _nDutS
_i r£',a_ T t .,_ riiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiii_
set Clo_od captlon_
Ab_t Your TV
€ _w _ Select ]
CURSOR
I setop XJ
Ant A Ch ...... Once
[] Event 2 _w:rw AM_ :_ AM
Ant A Ch ...... Once
Ant A Ch _ Once
I # Move _ Retur_ I
CURSOR
Set Event T_mer _]
..... A_ ..... AM
Ant A Ch _ Once
Ant A Ch _ Once
[] Event 3 _:_ _ _ :_ AM
Ant A Ch _ Once
[ _ Move _ or_/oF_ • Return I
Use CURSOR • to select Event 1, 2 or 3.
Use CURSOR 1_to change position of On time, Off time, Antenna, Channel, and On/Off Frequency.
Use CURSOR • or • to select the time the TV will turn on and off.
Use CURSOR • or • to select the day of the week you want the timer to turn on TV.
Use number buttons to set the channel the TV will tune to when it automatically turns on.
Use CURSOR • or • to select mode Once (TV will turn on/off one time only), Daily (TV will turn on/off at the same time every day), or
Weekly-SUN (TV will turn on/off at same time every week).
Press EXIT to quit the menu.
NOTE: 1. The Off Timer will only activate if the TV was turned on by the On Timer and no channel selection was
made after this time. If you change the channel after the On Timer has been activated, the Off Timer will deactivate.
2. If no remote control button is pressed after Event Timer is activated, the TV will automatically turn off after three hours.
Therefore, do not Set Event Timer for more than three hours if you do not plan to control your television with the remote
control.
_!! CAUTION: Do not use your TV as a deterrent when away from home by using the On and Off Timers. For safety, the TV
should be turned off when you are away from home.
55
iiii!ii i i !iii ii! !ii iiiiiii ii i!ii
ii!i!!ii!!i ii! i iiii!iii iii!i ii!iiiii

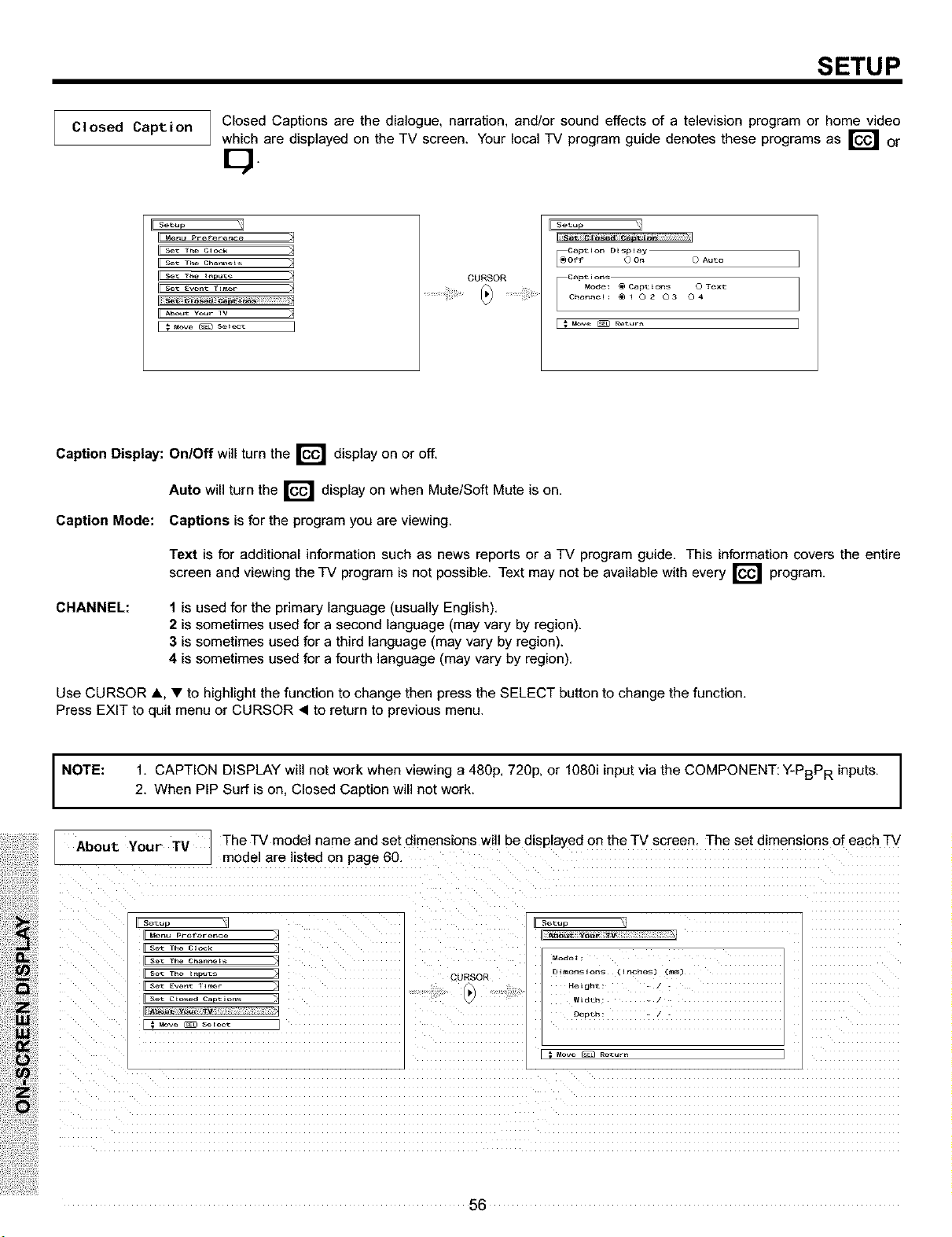

SETUP
Closed Caption
Closed Captions are the dialogue, narration, and/or sound effects of a television program or home video
which are displayed on the TV screen. Your local TV program guide denotes these programs as _'_ or
_ Setup
IM[Me_ue_uPreference
IEsotT.oc,_.
II set The Cl_anr_e_s
II set The I_put_
IEs_t Ew_t T_
II Ab_t Your lV b]
CURSOR
_ Setop \1
Capt ion Display
[@Orf © On O Auto
Call_t ions
Mode: _) Caption5 © Text
Channel: _102 03 04
[ _ _ve _ £etur_
Caption Display: On/Off will turn the r_ display on or off,
Auto will turn the _ display on when Mute/Soft Mute is on,
Caption Mode: Captions is for the program you are viewing,
Text is for additional information such as news reports or a TV program guide. This information covers the entire
screen and viewing the TV program is not possible. Text may not be available with every _ program.
CHANNEL:
1 is used for the primary language (usually English).
2 is sometimes used for a second language (may vary by region).
3 is sometimes used for a third language (may vary by region).
4 is sometimes used for a fourth language (may vary by region).
Use CURSOR A, • to highlight the function to change then press the SELECT button to change the function.
Press EXIT to quit menu or CURSOR • to return to previous menu.
NOTE: 1. CAPTION DISPLAY will not work when viewing a 480p, 720p, or 1080i input via the COMPONENT: Y-PBPR inputs.
2. When PIP Surf is on, Closed Caption will not work.
About '/our TV The TV model name and set dimensions will be disPlaYed on the TV screen: The set dimensions of each TV
I I model are listed on page 60.
i i
ii ilili!iliiiiii!: ii!iiii!;:i, ........... .... Oo soR.......
!ii!iiiii i
i iii!!i
56

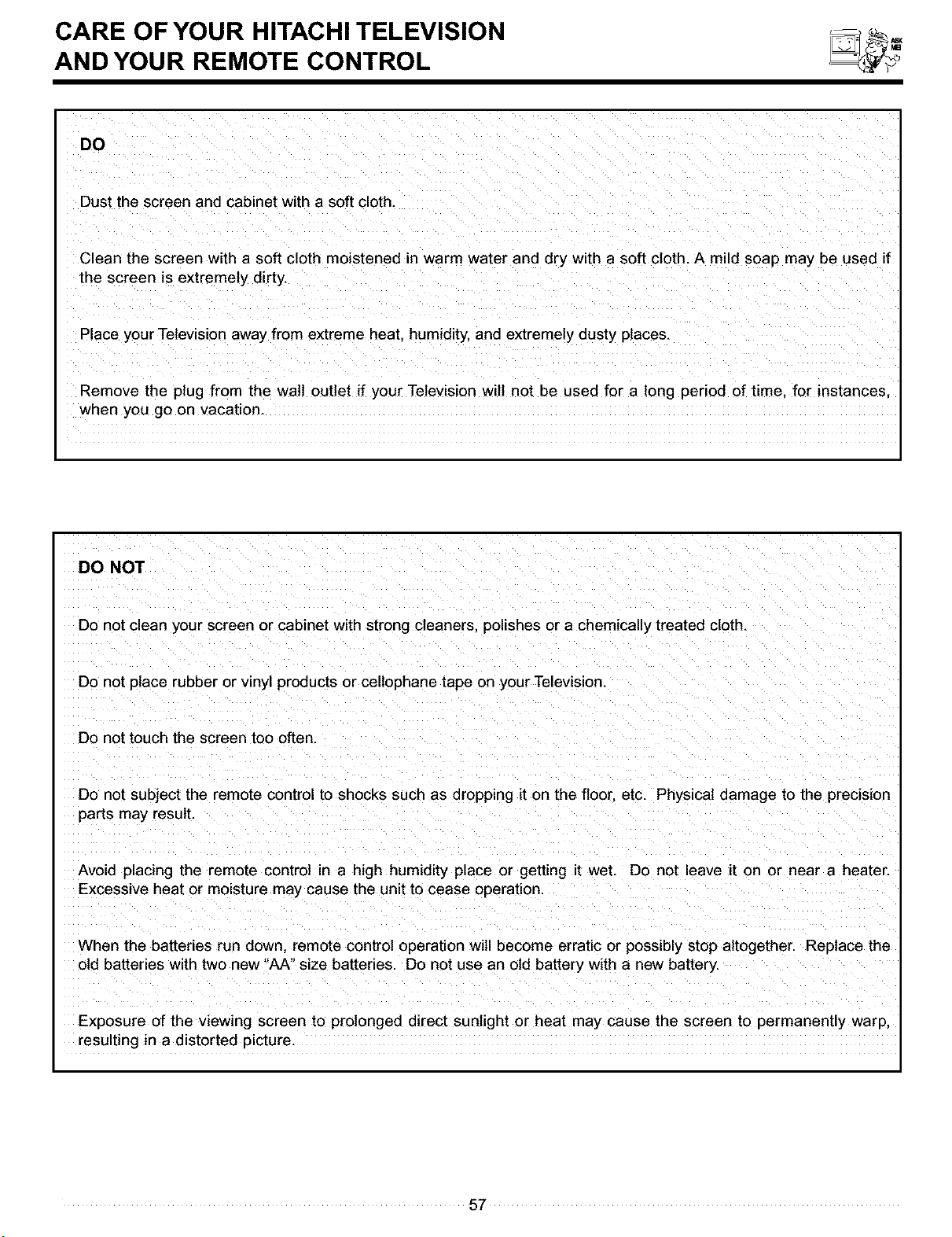

CARE OF YOUR HITACHI TELEVISION
AND YOUR REMOTE CONTROL
Dust the screen and cabinet with a soft cloth.
Clean the screen with a soft cloth moistened in warm water and dry with a soft cloth. A mild soap may be used if
the screen iS extreme!y dirtY.
Place your Television away from extreme heat, humidity, and extremely dusty places.
Remove the plug from the walt outlet if your Television will not be used for a long period of time, for instances,
when you go on vacation.
DO NOT
Do not clean your screen or cabinet with strong cleaners, polishes or a chemically treated cloth.
Do not _lace rubber or vinyl products or cellophane tape on your Television.
Do not touch the screen too often.
Do not subject the remote control to shocks such as dropping it on the floor, etc. Physical damage to the precision
parts may result.
Avoid placing the remote control in a high humidity place or getting it wet. Do not leave it on or near a heater.
Excessive heat or moisture may cause the unit to cease operation.
When the batteries run down. remote control operation will become erratic or possibly stop altogether. Replace the
old batteries with two new "AA" size batteries. Do not use an old battery with a new battery.
Exposure of the viewing screen to prolonged direct sunlight or heat may cause the screen to permanently warp,
resulting in a distorted #icture.
57
Reception Problems
7
i
I
I
I
I
I
I
I
I
I
• IGNITION NOISE:
Black spots or horizontal streaks may appear, picture may flutter or drift.
Usually caused by interference from automobile ignition systems, neon
lamps, electrical drills, and other electrical appliances.
• GHOSTS:
Ghosts are caused by the television signal following two paths. One is the
direct path and the other is reflected from tall buildings, hills or some other
objects. Changing the direction or position of the antenna may improve
reception. Ghosting may also be caused by defects in the antenna system
such as unshielded leads or connecting several sets to the same antenna
without using multiple antenna couplers.
• SNOW:
If your receiver is located in the fringe area of a television station where the
signal is weak, your picture may be marred by the appearance of small
dots. When the signal is extremely weak, it may be necessary to install a
special antenna to improve the picture.
• RADIO FREQUENCY INTERFERENCE:
The interference produces moving ripples or diagonal streaks, and in some
cases, causes loss of contrast in the picture.
NOTE: The TV set can generate sound distortion in external devices such as a radio. Please separate radio equipment from the
TV set to a considerable distance.
58
USEFUL INFO
SYMPTOMS
No Picture, no sound • • • • • • •
Sound OK, picture poor • • • • • • • •
Picture OK, sound poor • • • • • • •
Picture biurred • • • • • •
Linesorstreaksinpicture • • • • •
Poor reception on some channels • • • • •
Picture roils vertically • •
No color • • • • • •
Poor color • • • • • • •
HITACHI Projection Television incorporates advanced power surge protection technology designed to protect against
component or circuit damage due to external or internal voltage power surges.
IF YOUR TELEVISION SHOULD APPEAR TO HAVE A LOSS OF POWER, PLEASE FOLLOW THIS PROCEDURE:
1. Press the power switch (ON/OFF switch) once.
2. If there is still no power, wait 30 seconds and press the power switch again.
3. If there is still no power, unplug the power cord from the wall. Wait 30 seconds and plug the power cord back in.
Press the power switch again.
This protective technology should provide for years of lasting entertainment from your HITACHI Projection Television.
59
USEFUL INFO
Features:
Superfine Picture Quality
1280 Line Horizontal Resolution
Remote (Controls many VCRs, DVD players, cable boxes, and satellite boxes.)
New Easy-to-Use (3-Language) On-Screen Menu
Full Set of Input Jacks, including S-VIDEO
COMPONENT VIDEO: Y'PB/PR
Velocity Modulation
Six Aspect Modes
Closed Caption Decoder
2-Tuner Picture in Picture
Magic Focus (Auto Digital Convergence and Manual Adjustment)
Dual Antenna Inputs
Video Input Sensor
3 Dimensional Y/C Comb Filter
Full 1080i HDTV capable when used with a Set-Top Box.
High Bandwidth Digital Content Protection V1.0 Compatible.
Technology.
*Licensed by BBE Sound, Inc. under USP4638258, 5510752 and 5736897. BBE and BBE symbol are registered
trademarks of BBE Sound, Inc. Manufactured under license from BBE Sound, Inc.
SII_BCO31Technology.
*SRS and the (O.) symbol are registered trademarks of SRS Labs, Inc. SRS technology is incorporated under license from
SRS Labs, Inc.
Inputs: Dimensions:
Power Input .............. AC 120V, 60Hz
Stand-by Power ................... 1.3W
Power Consumption
- Refer to rear panel at the back of the T.V.
Antenna input impedance ......... 75 Ohm
Channel coverage ................ 181ch.
VHF-Band ...................... 2 - 13
UHF-Band ..................... 14 - 69
CATV Mid Band ............... A-5 ~ A-1
Super Band ...................... J-W
Hyper Band ................ W+I - W+28
Ultra Band ................ W+29 - W+84
Video ................. 1.0Vp-p, 75 Ohm
S-Video
Luminance (Y) ........... 1.0Vp-p, 75 Ohm
Chrominance (C) ....... 0.286Vp-p, 75 Ohm
Component Video
Luminance (Y) ............... 1.0Vp-p, 75 Ohm
Chrominance (PB/PR) ......... 0.7Vp-p, 75 Ohm
Audio input Impedence .......... 47k Ohm
Average input level ................. 470mVrms
DVI-HDTV ........................ DVI 25 pin
Outputs:
51F5O0 57F500
46F500 51G500 57G500
Height in. 39 13/16 50 1/4 54 3/16
(ram) 1,011.0 1,275.0 1,376.2
Width (in.) 44 7/16 48 3/4 54
(mm) 1,128.0 1,239.0 1,372.0
Depth (in.) 24 1/2 25 1/16 25 8/16
(mm) 622.0 636.0 647.9
Weight (Ibs.) 160 245 273
NOTE: Due to improvements, specifications in this oper-
ating guide are subject to change without notice.
Video ....................... 1.0Vp-p,75 Ohm
Audio (Fixed) .............. 470mVrms, lk Ohm
6O
USEFUL INFO
HITACHI
To locate an authorized
HITACHI service facility
in the continental U.S.A.
and Canada,
DIAL TOLL FREE
7 days a week, 24 hours a day
(1-800-448-2244)
Hitachi America, LTD.
Home Electronics Division
Hitachi has made every effort to assure you hours of trouble free operation from your unit. However, should you require service,
a network of Hitachi Authorized Service Facilities has been established in all 50 states and Puerto Rico. Each facility will provide
you with convenient and expedient assistance. Our service hotline operator will direct you to the Hitachi Authorized Service Facility
nearest you. Just present proof of purchase and/or delivery receipts to the Hitachi Authorized Service Facility, and service will be
rendered in accordance with the terms of the limited warranty as stated on your warranty card or operating guide.
Should you have any questions regarding warranty, service, operation, or technical assistance, please contact:
Hitachi America, LTD.
Home Electronics Division
1855 Dornoch Court
San Diego, CA 92154
61
USEFUL INFO
Hitachi Canada, LTD.
Digital Media Division
Should you have any questions regarding warranty, service, operation, or technical assistance, please
contact:
In Canada:
1-800-HITACHI
(1-800-,1.48-22,1.4)
Monday - Friday EST 9:00am - 7:00pm
Saturday EST 9:00am - 5:00pm
Look for your French Manual on the outside of the box.
If the manual is missing, carl
1-800-HITACHI
(1-800-448-2244)
for a copy.
Pour de plus amples renseignements sur le service durant la p_riode couverte par la garantie, sur le fonc-
tionnement ou pour de I'assistance technique communiquez avec:
Au Canada:
1-800-HITACHI
(1-800-448-2244)
Lundi - Vendredi L'EST 9:00am - 7:00pm
Samedi L'EST 9:00am - 5:00pm
La version fran_ais de votre manual se trouve a I'exterieur de la boite.
Si le manuel est manquant, copesez le
1-800-HITACHI
(1-800-448-2244)
pour obenir votre copie.
HITACHI CANADA, LTD.
6740 Campobello Road
Mississauga, ON L5N 2L8
62
INDEX
A I R
Accessories. 4
Antennas (Connecting). 5. 6
Aspect Ratio. 23
Audio (Sound Enhancemenb
SRS. 40
BBE. 40
Audio Settings. 39 - 41
Audio Source. 41
Auto Color. 38
Auto Noise Cancel. 41
B
Balance 39
Bass. 39
Black Level Expansion. 38
Black Side Panel. 38
Brightness. 35
C
Input Setup, 53 - 54
L
Language
Menu Language. 49
Locks
Change Access Code 44
Channel Lock. 44
Input Lock. 44
Front Panel Lock. 44
TV Time Lock. 44
Movie Ratings. 45
TV Ratings. 46
TV Ratings
(Canadian - English), 47
TV Ratings
(Canadian - French), 48
Loudness. 41
M
Remote Control
Functions 20 - 31
Programming Codes. 28 - 31
Installing Batteries. 4
S
Scan Velocity Modulation. 38
Sharpness. 35
Sound Enhancement. 40
Speakers. 41
Connecting External Speakers. 5. 13
T
Time. 50
Tint. 35
Treble 39
Channel Manager. 42 - 43
Channel Setup. 51
Auto Channel Scan. 52
Clock
Time. 50
Closed Captions
Captions. 56
Color System. 38
Color Temperature. 38
Color. 35
Contrast. 35 N
Convergence (see Magic Focus)
Noise Reduction. 38
V
Magic Focus
Auto Convergence. 7. 36
Manual Convergence. 37
Menu Preference
Language, 49
Background. 49
Monitor Out. 9
Vertical Position. 35
Video Settings. 34 - 38
D
P
Dimmer. 38
Perfect Volume. 41
Picture Mode. 34
Picture-in-Picture (PIP), 25 - 27
Picture-outside-Picture (POP), 25
Event Timer. 55
63
HITACHI
QR54412
