Craftsman 917273756 tractor User Manual

Owner's Manual

CRI FTSMIIN°

18.0 HE 42" Mower

Electric Start

6 Speed Transaxle

Model No.

917.27375(}

i_] his product has a mowemission engine which operates

differently from previously built engines. Before you start the

engine, read and understand this Owner's Manual.

Read and follow all Safety

Rules and instructions before

operating this equipment.

For answers to your questions about

this product, Call:

1_800-659°5917

Sears Craftsman Help Line

5 am o5 pm, Men o Sat

Sears, Roebuck and Co., Hoffman Estates, IL 60179 U.S.A.

Visit our Craftsman website:www.sears.com/craftsman

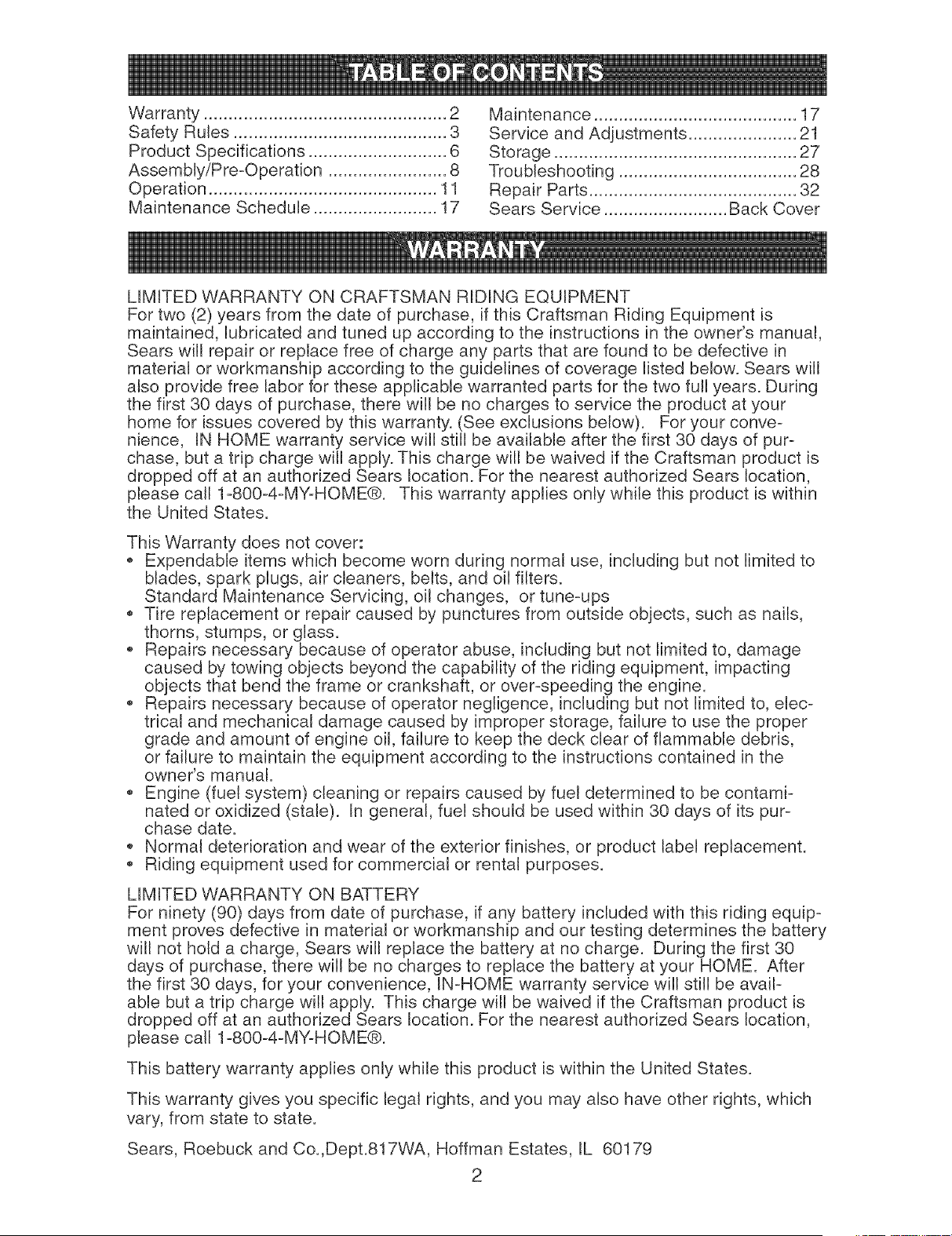

Warranty.................................................2

SafetyRules...........................................3

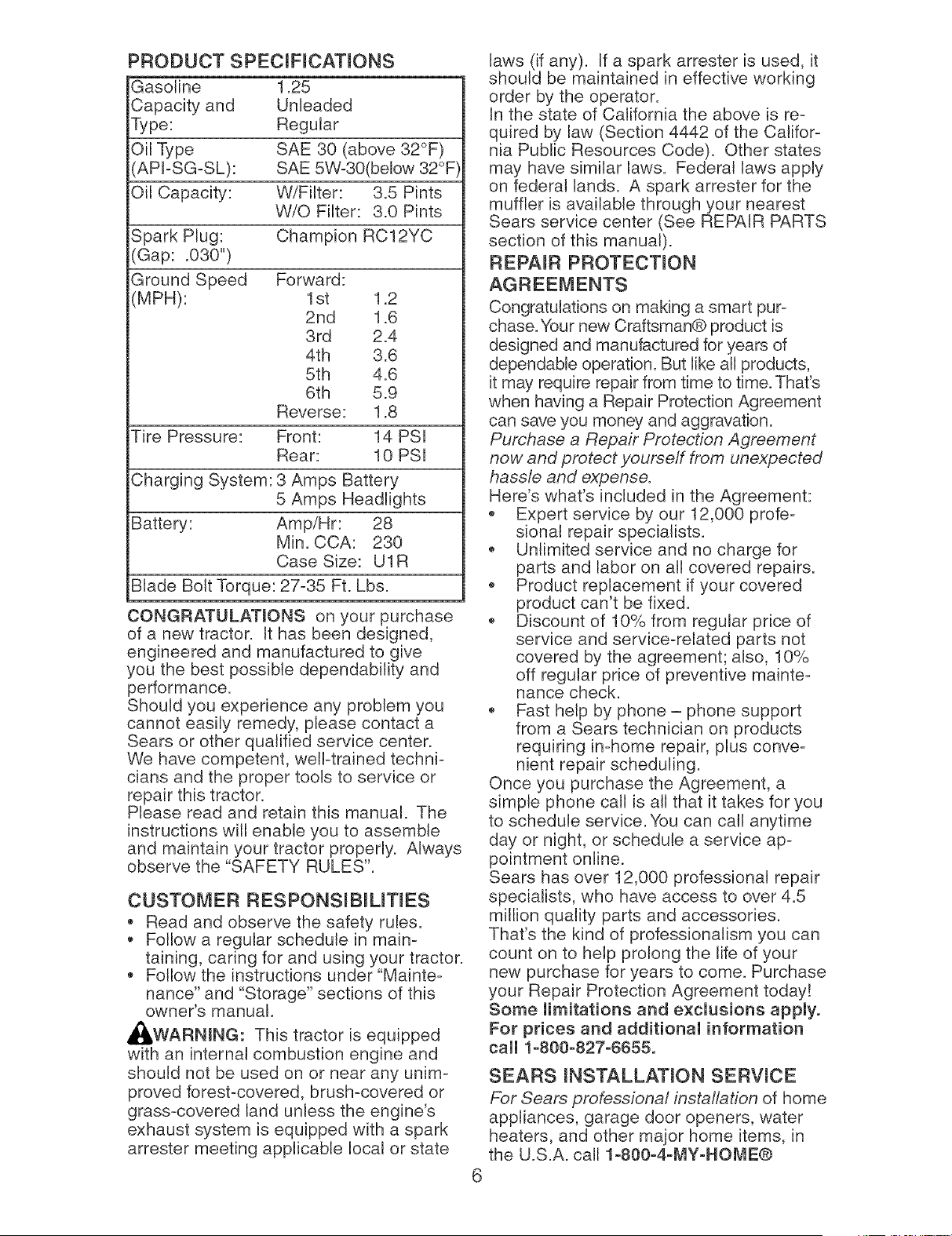

ProductSpecifications............................6

Assembly/Pre-Operation........................8

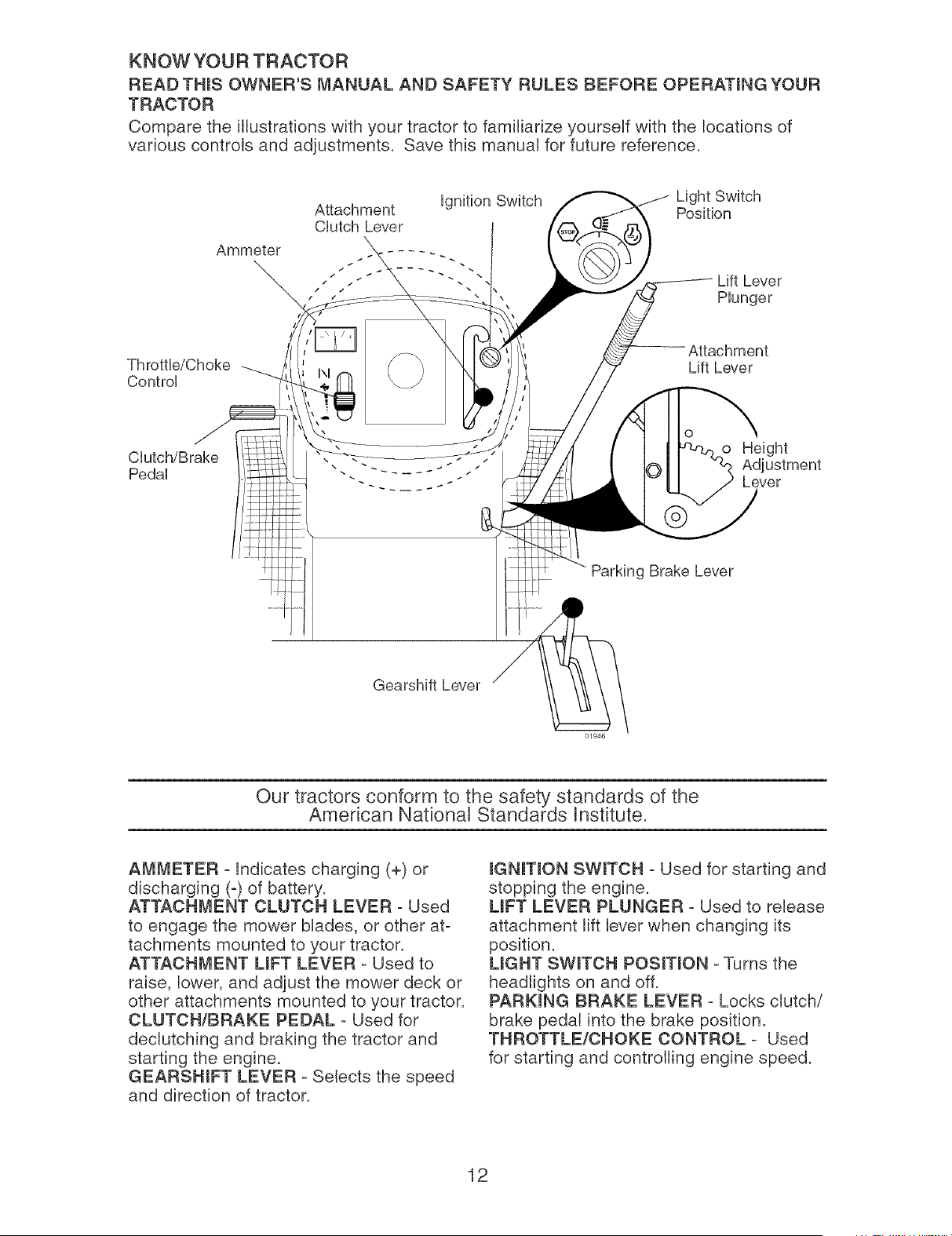

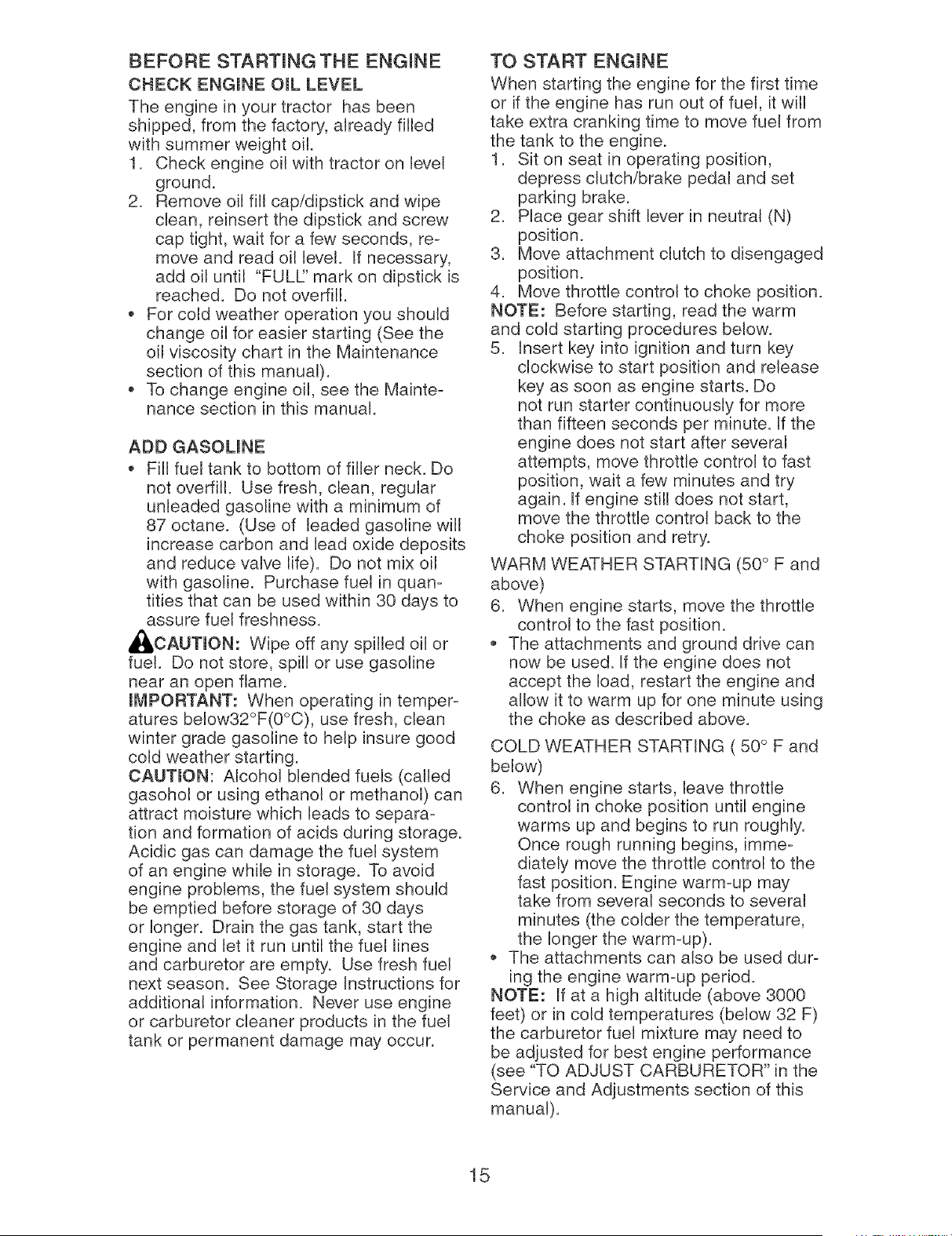

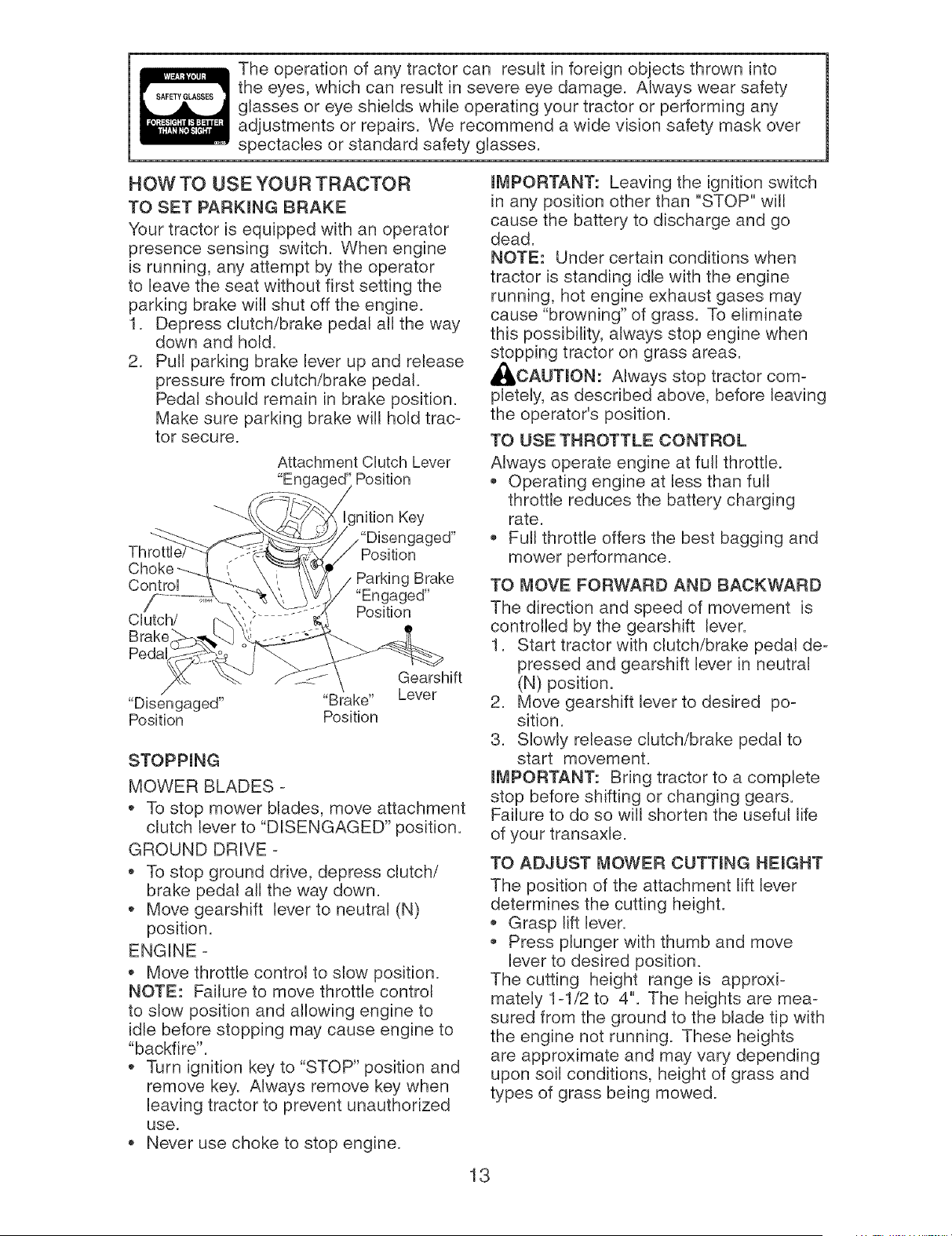

Operation..............................................11

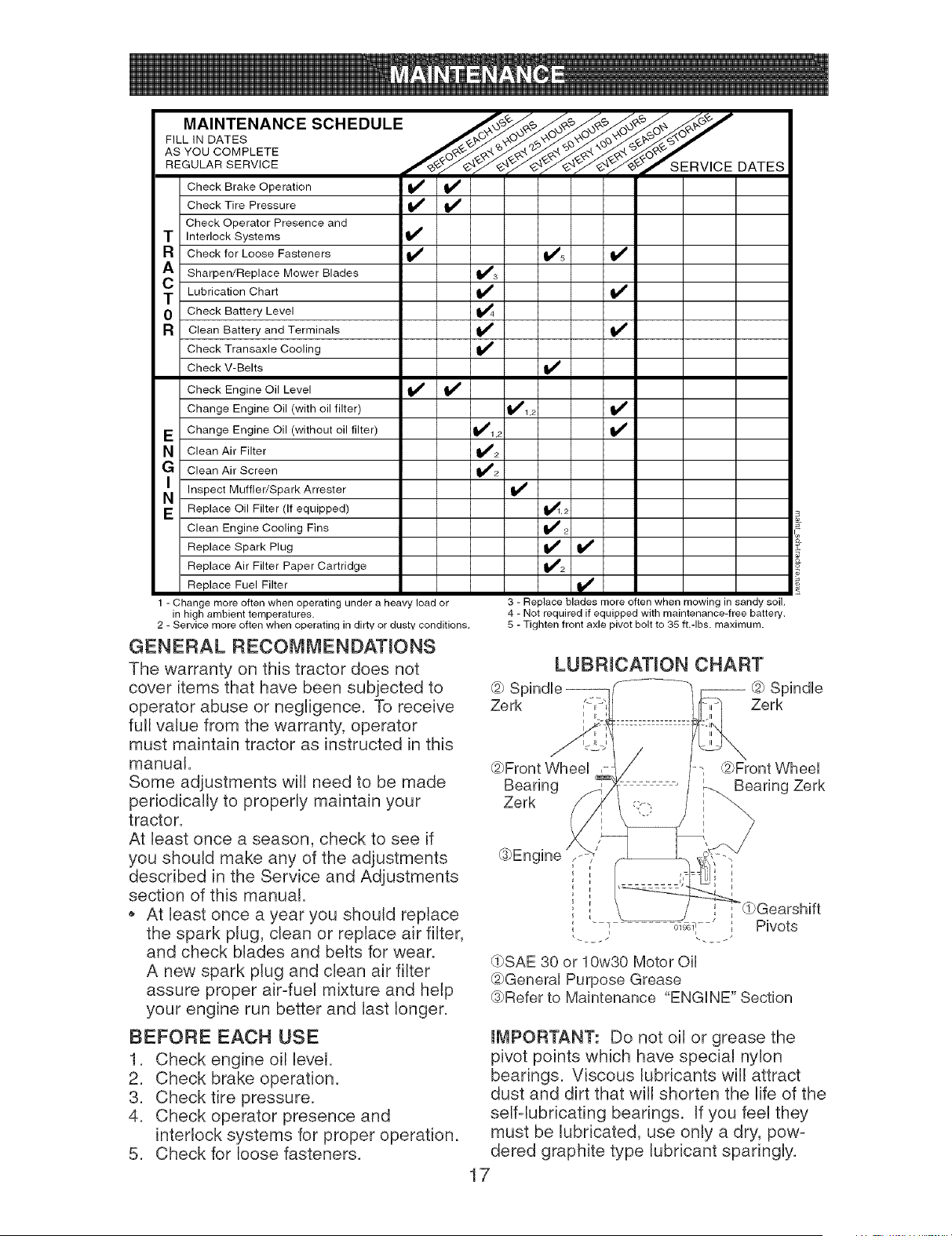

MaintenanceSchedule.........................17

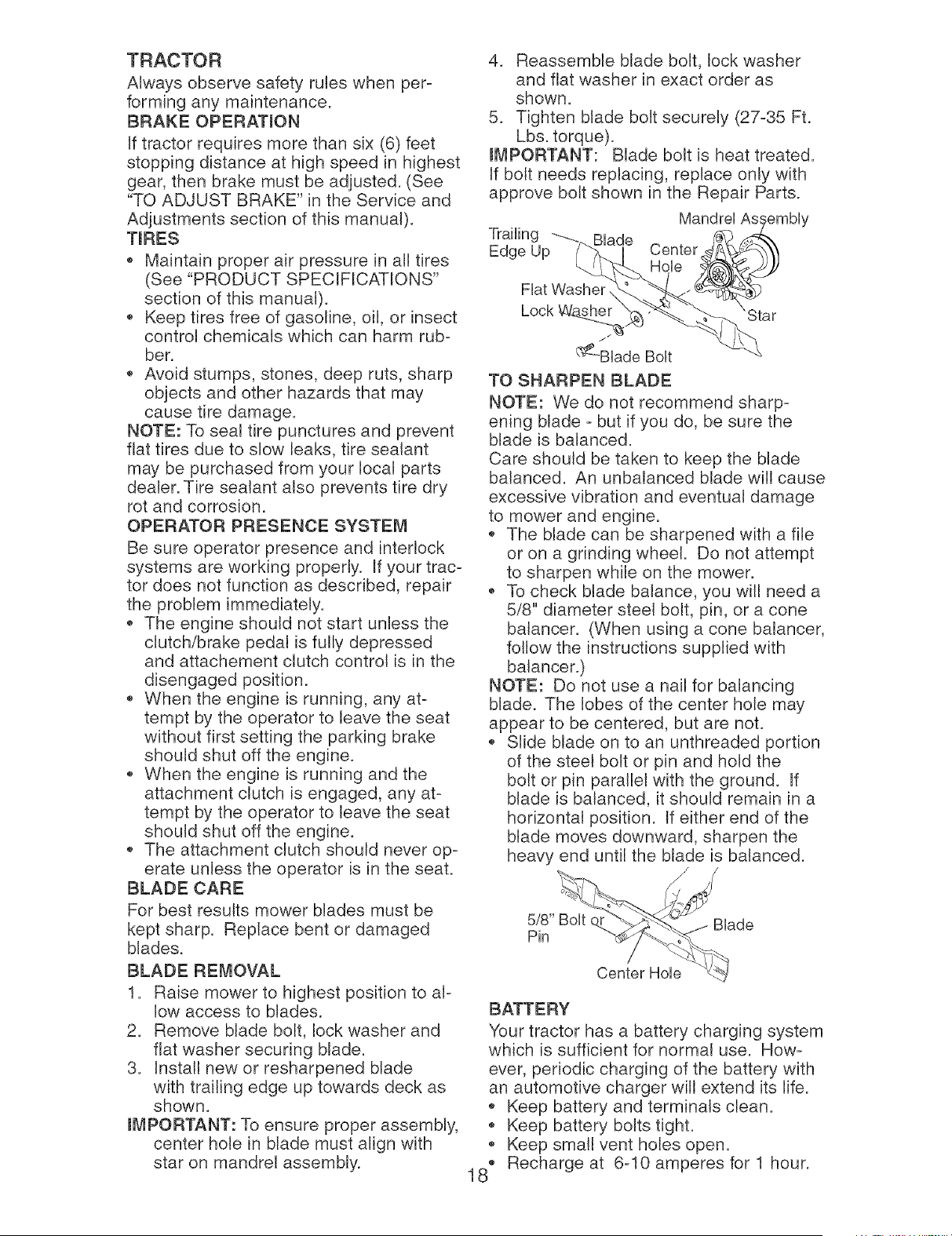

Maintenance.........................................17

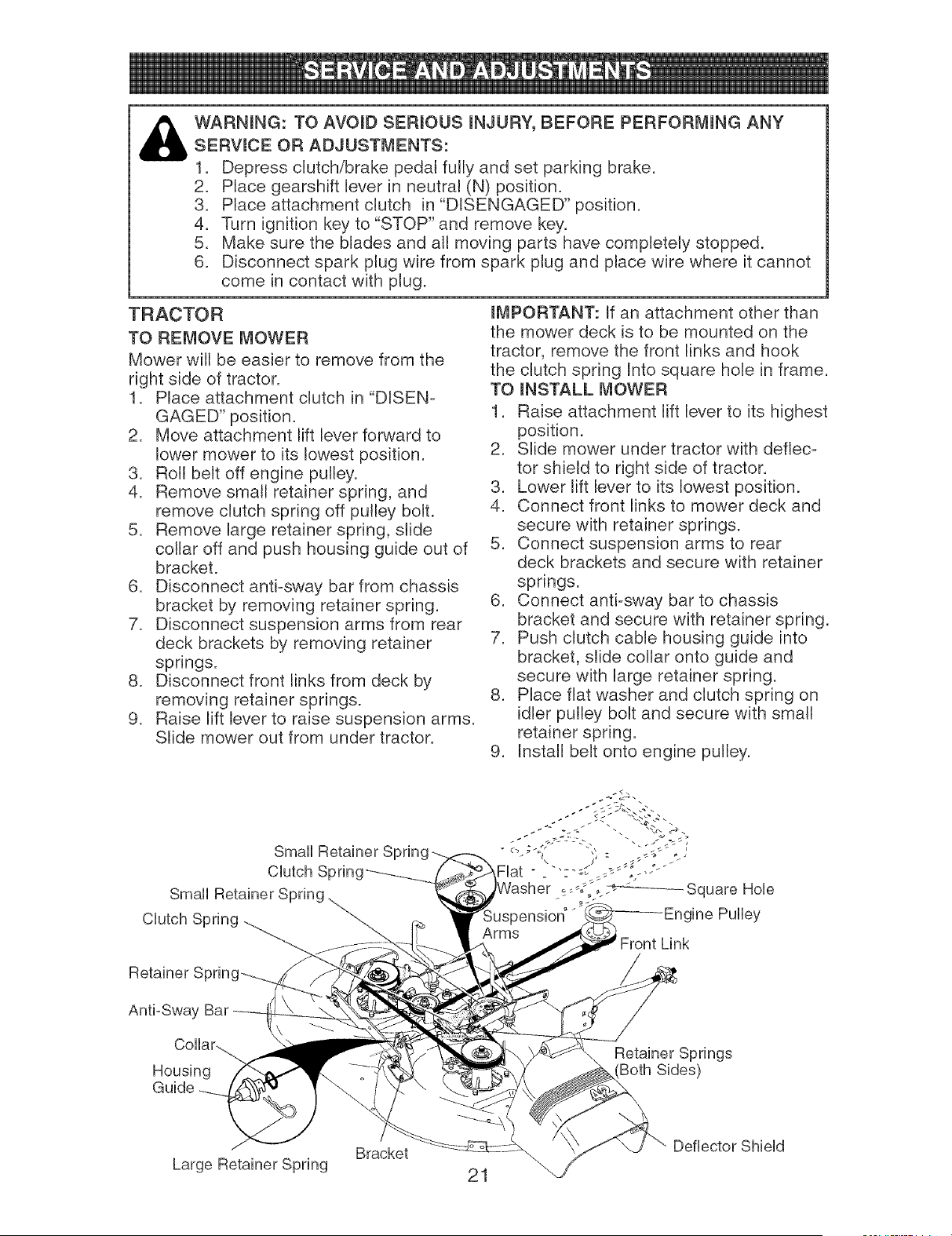

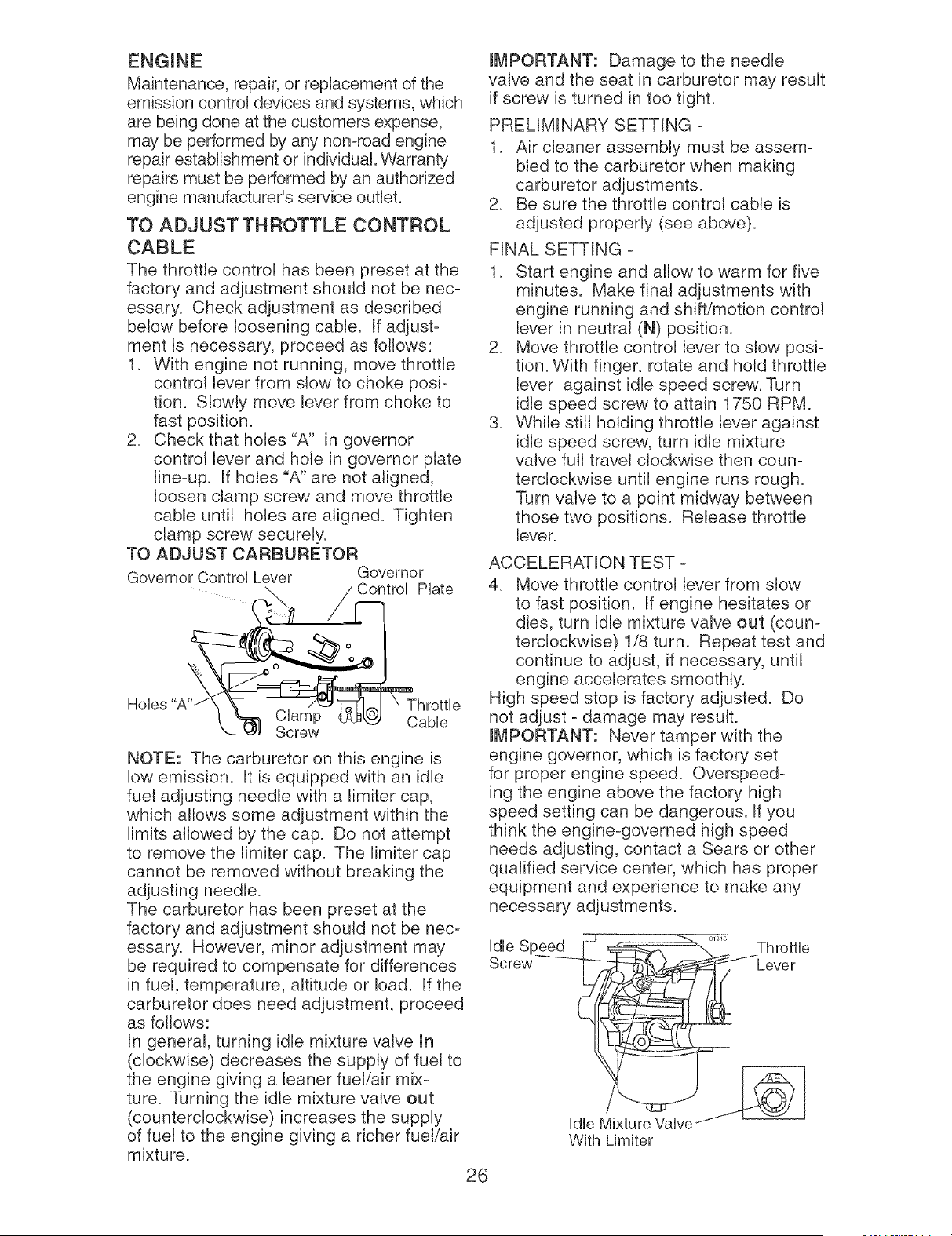

Service andAdjustments......................21

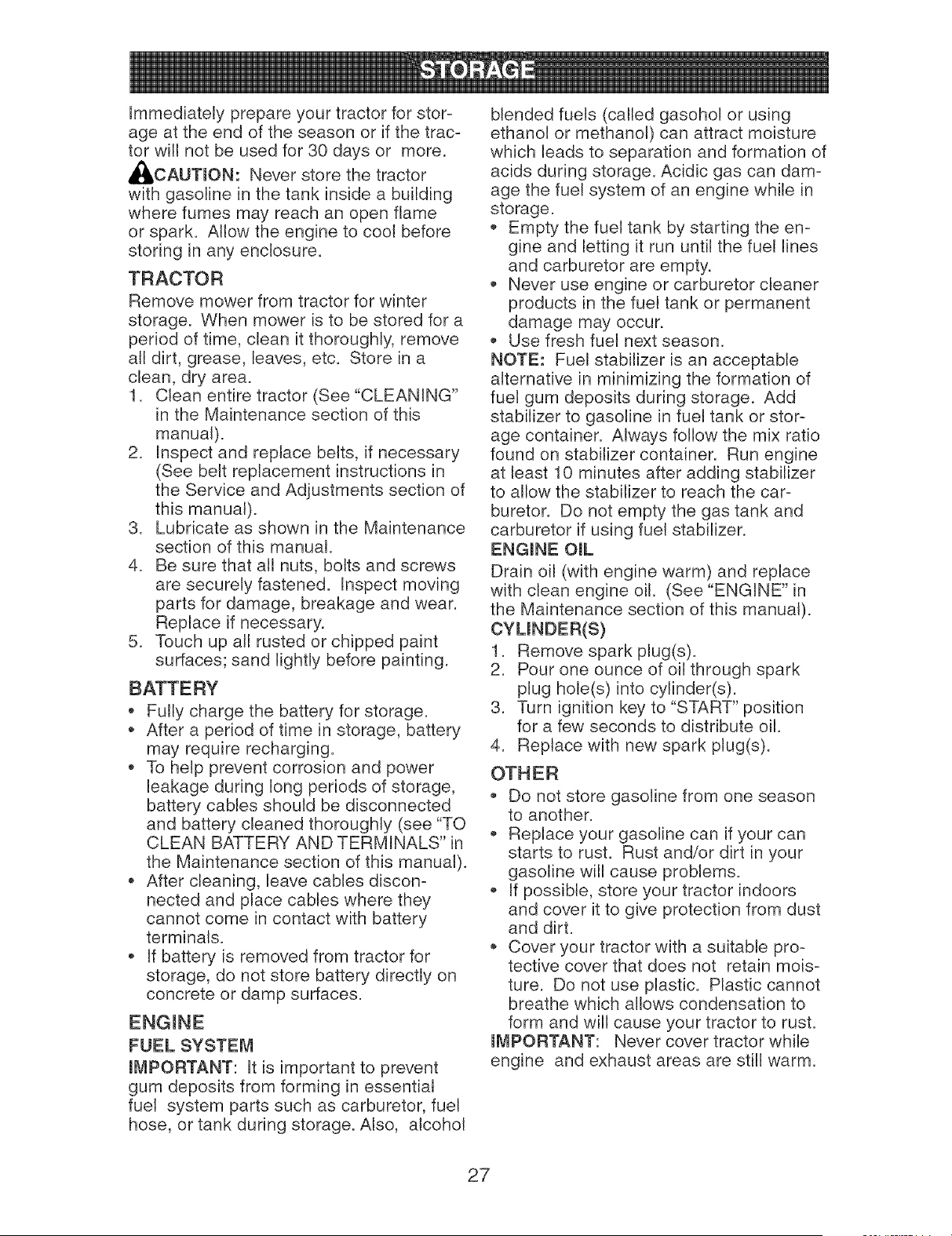

Storage.................................................27

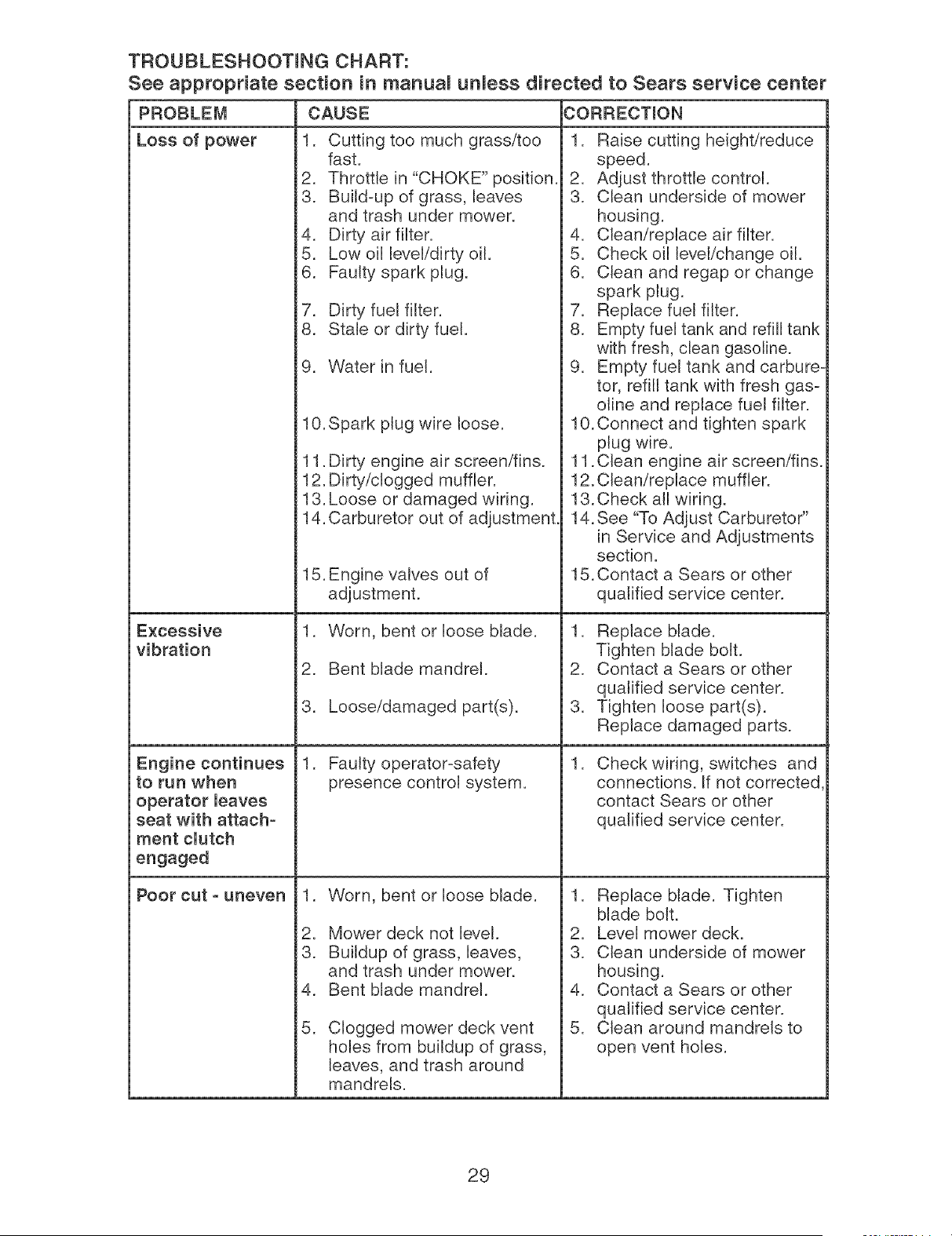

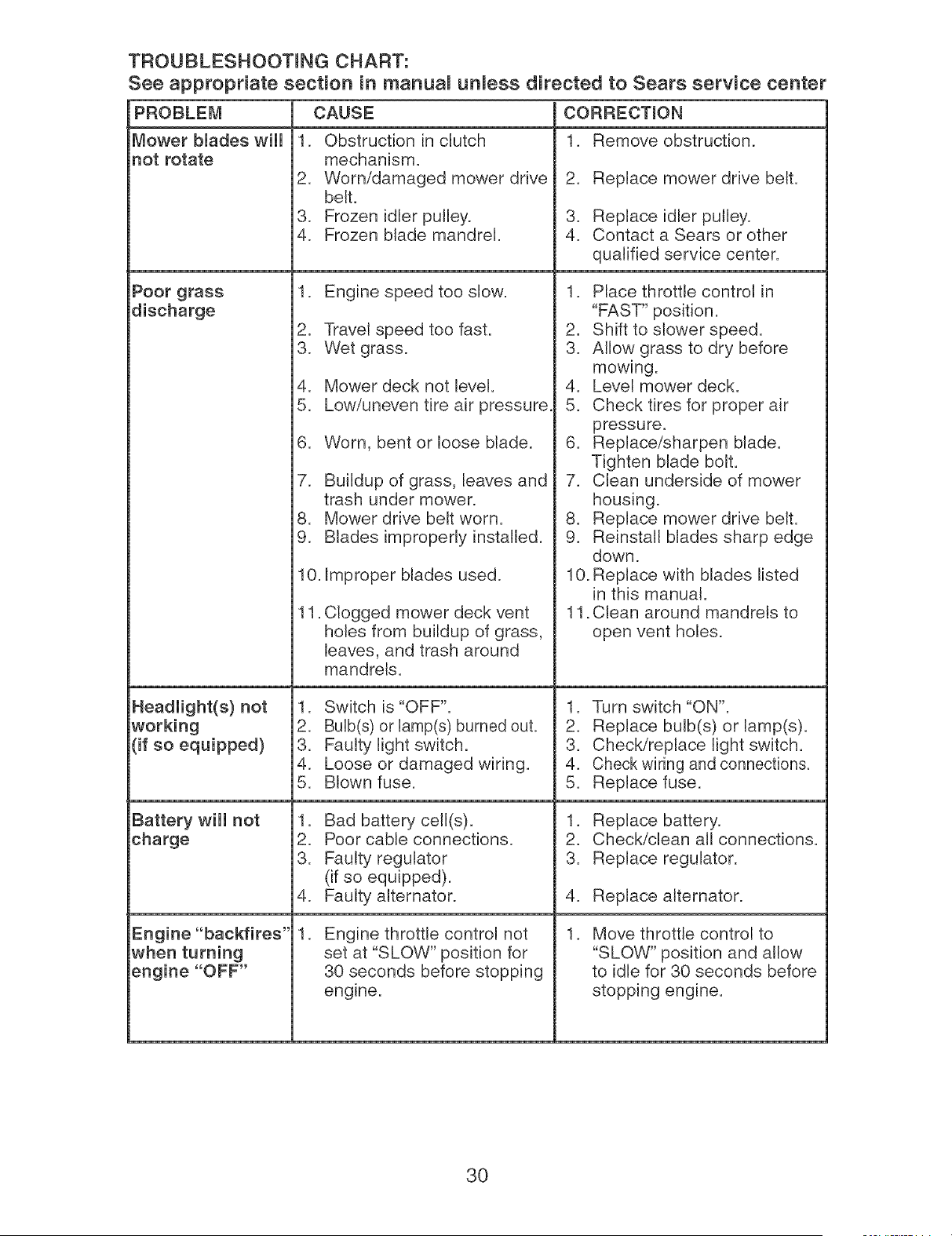

Troubleshooting....................................28

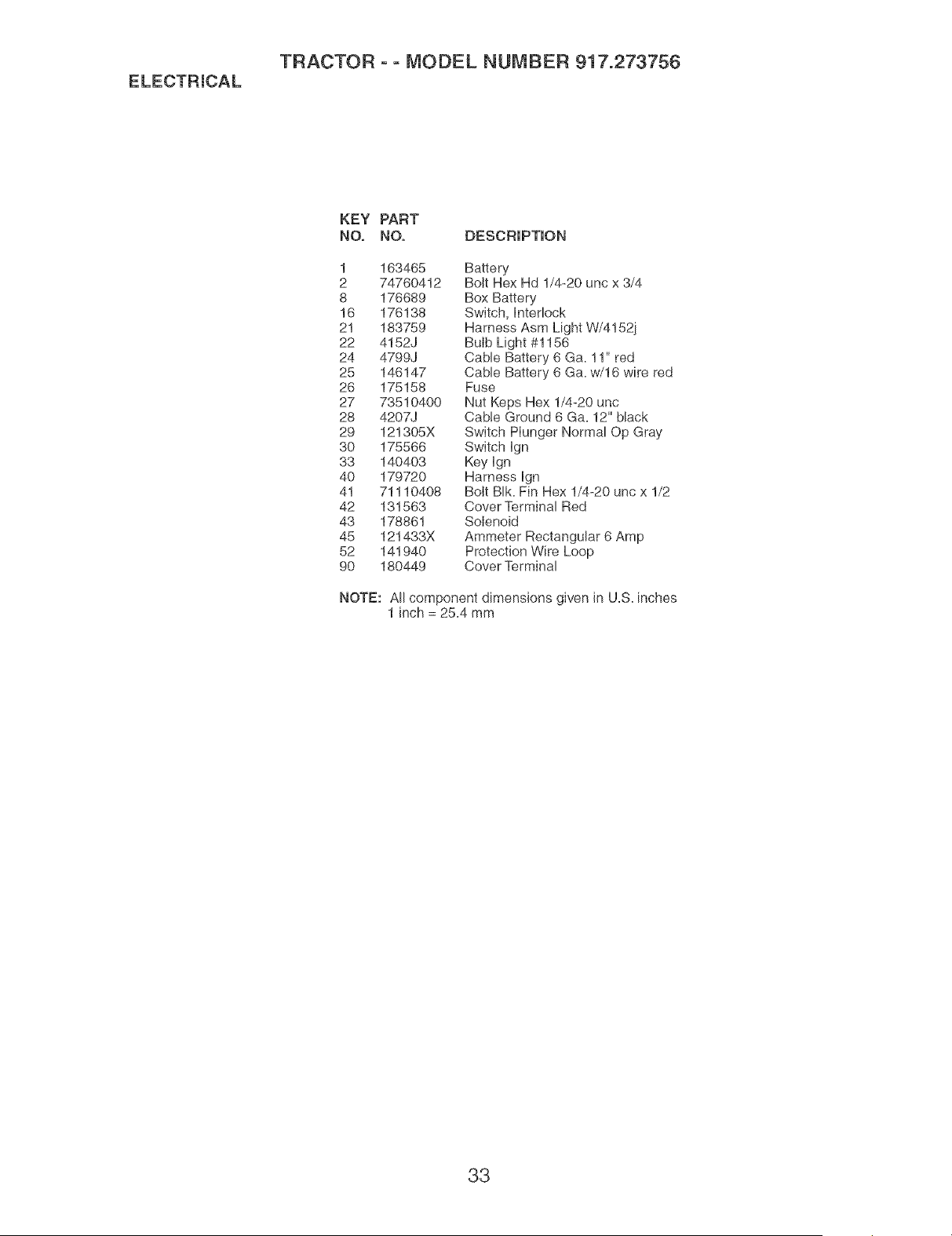

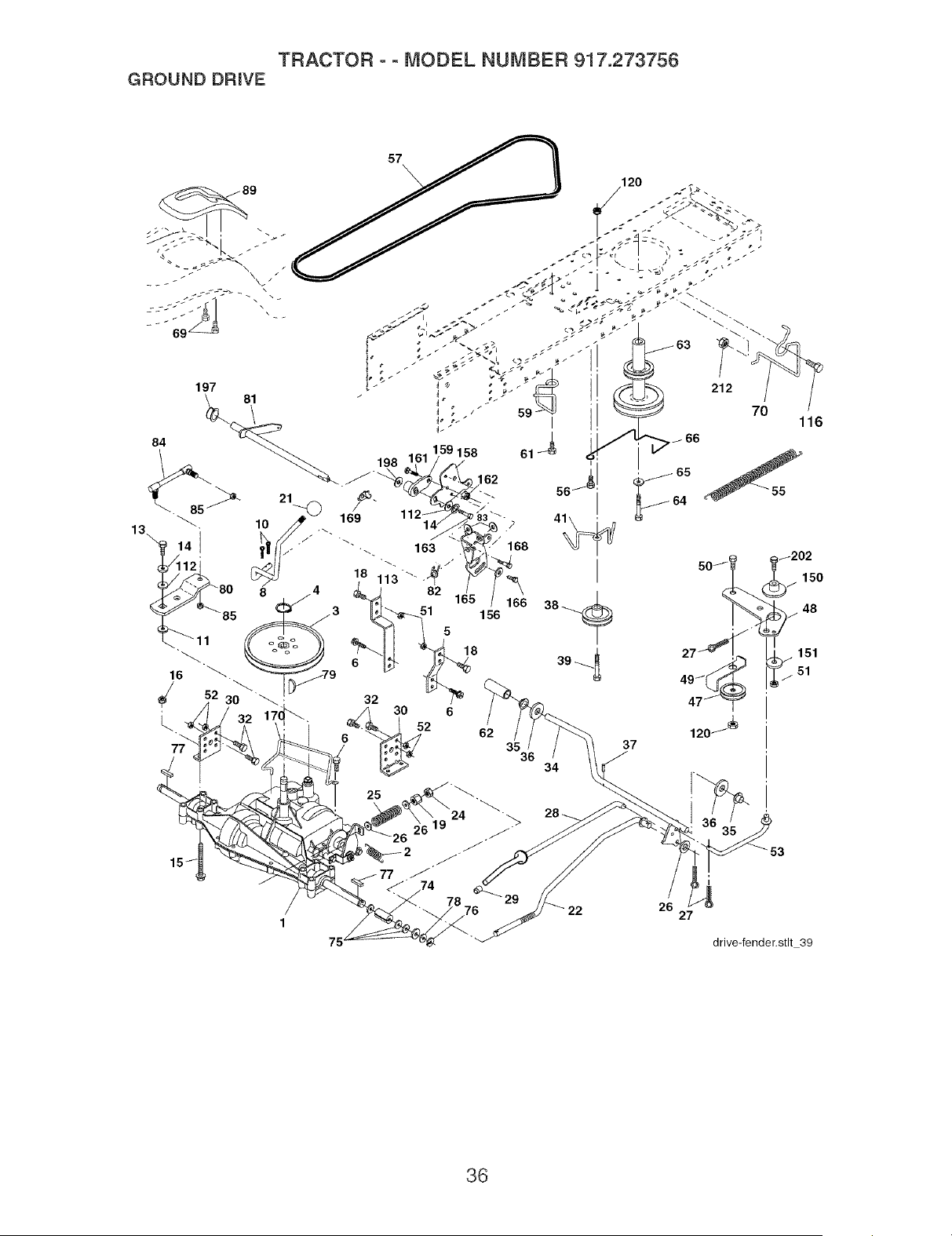

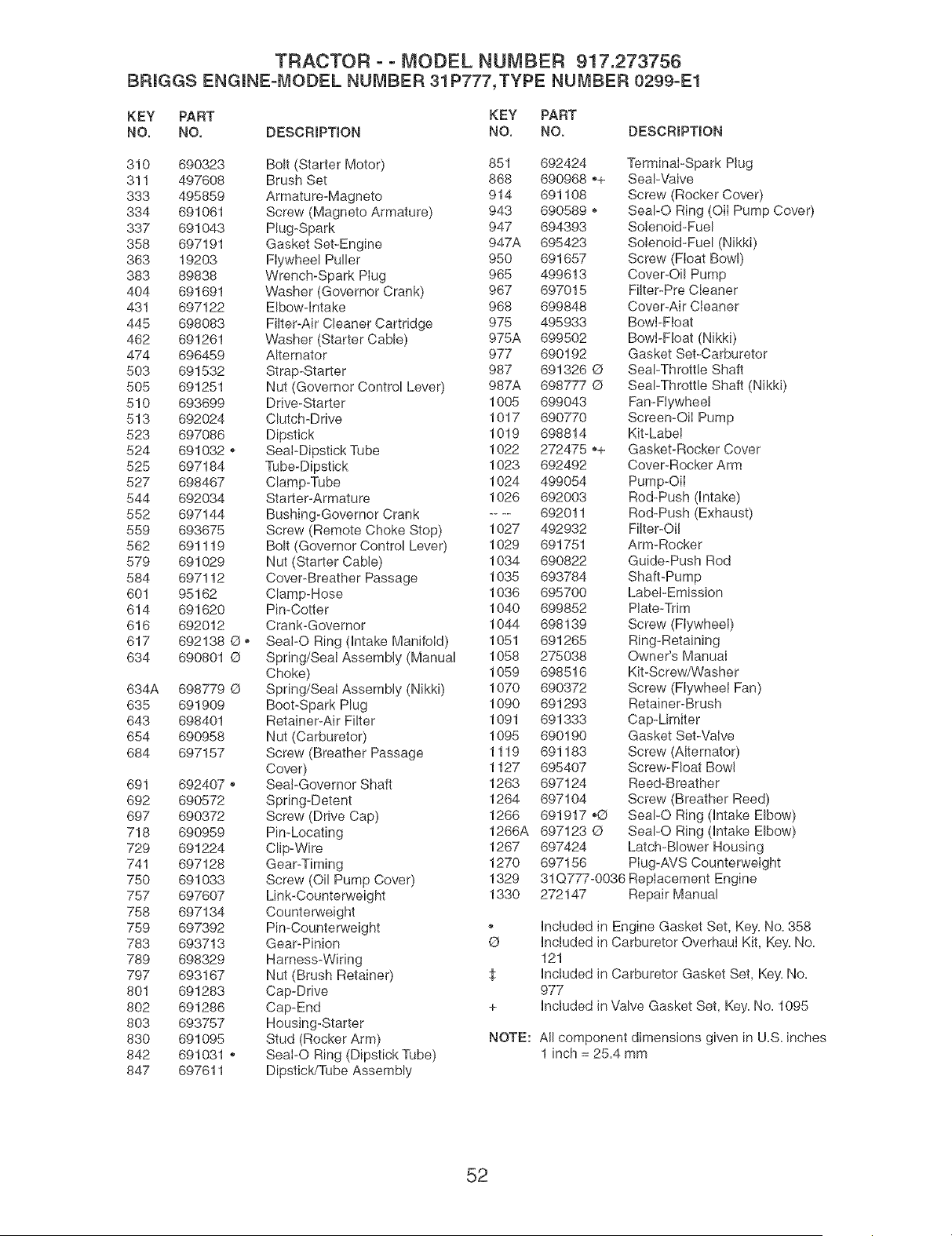

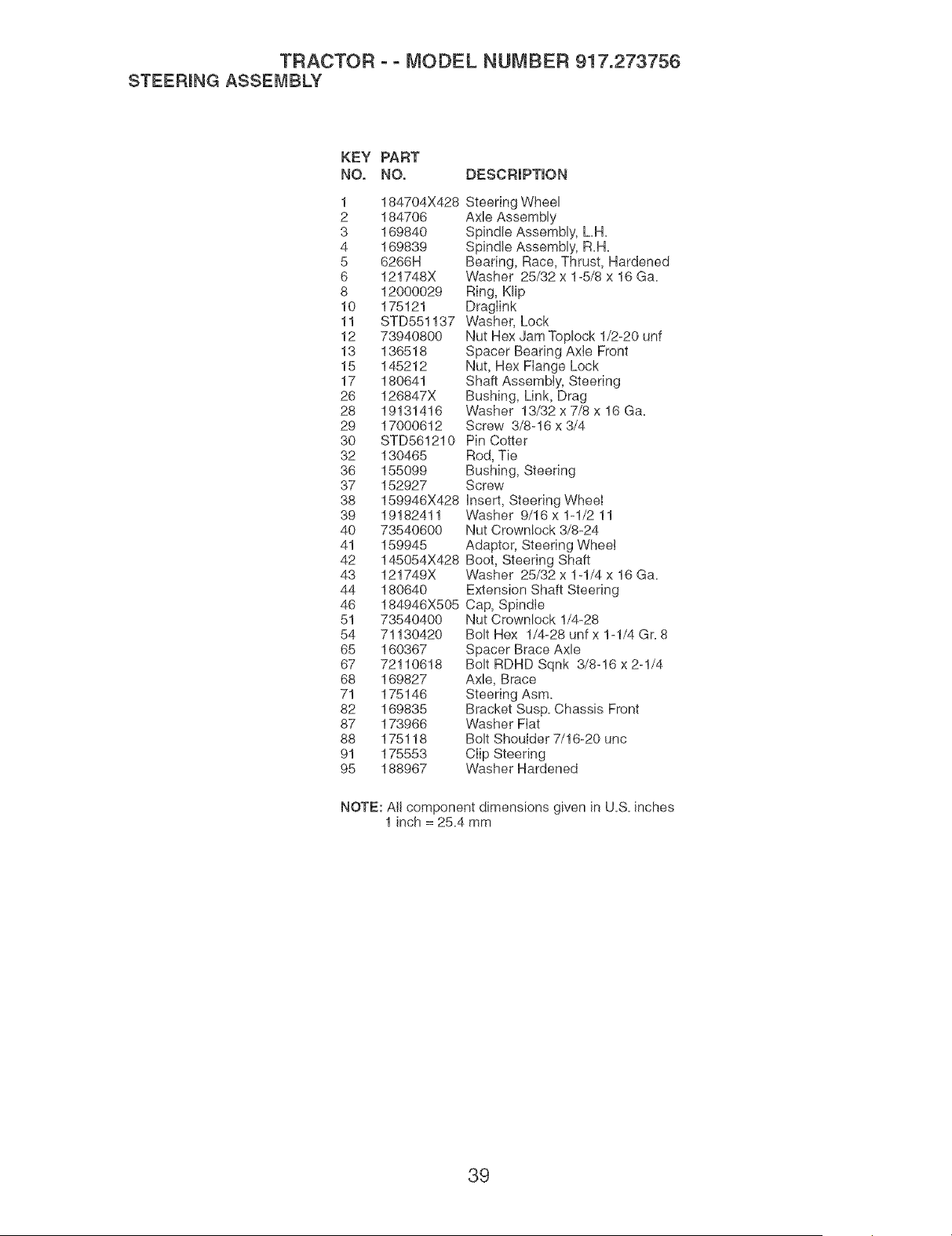

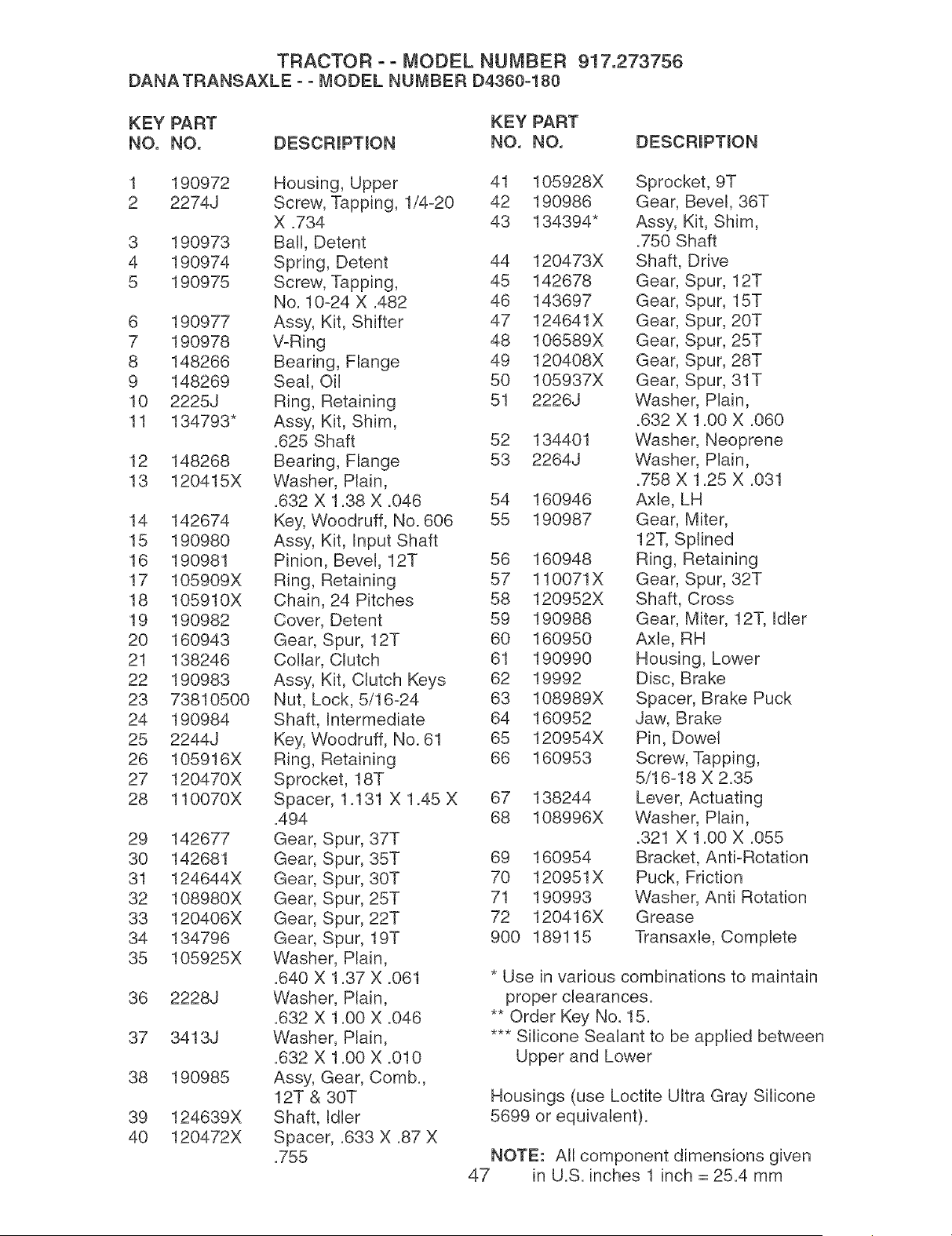

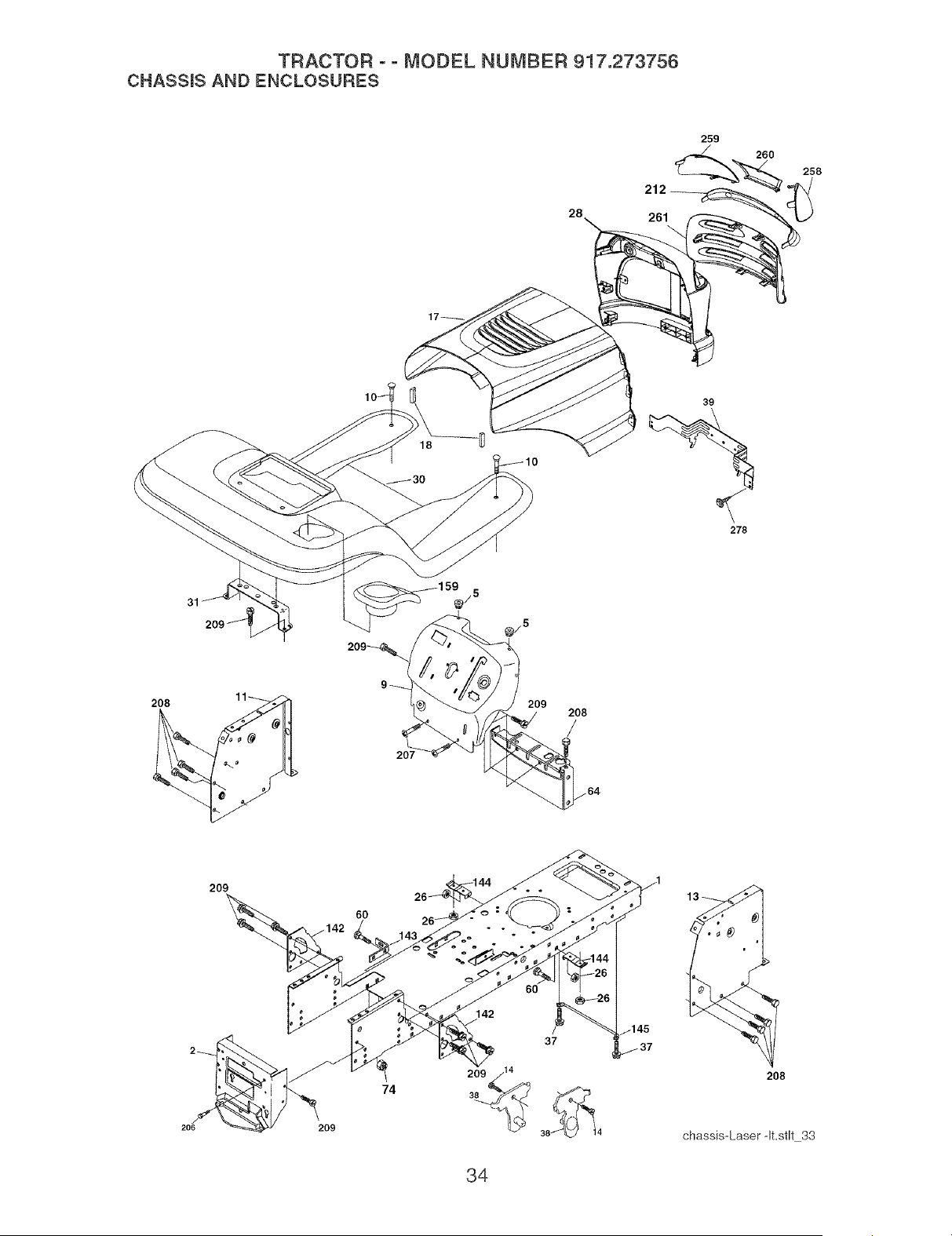

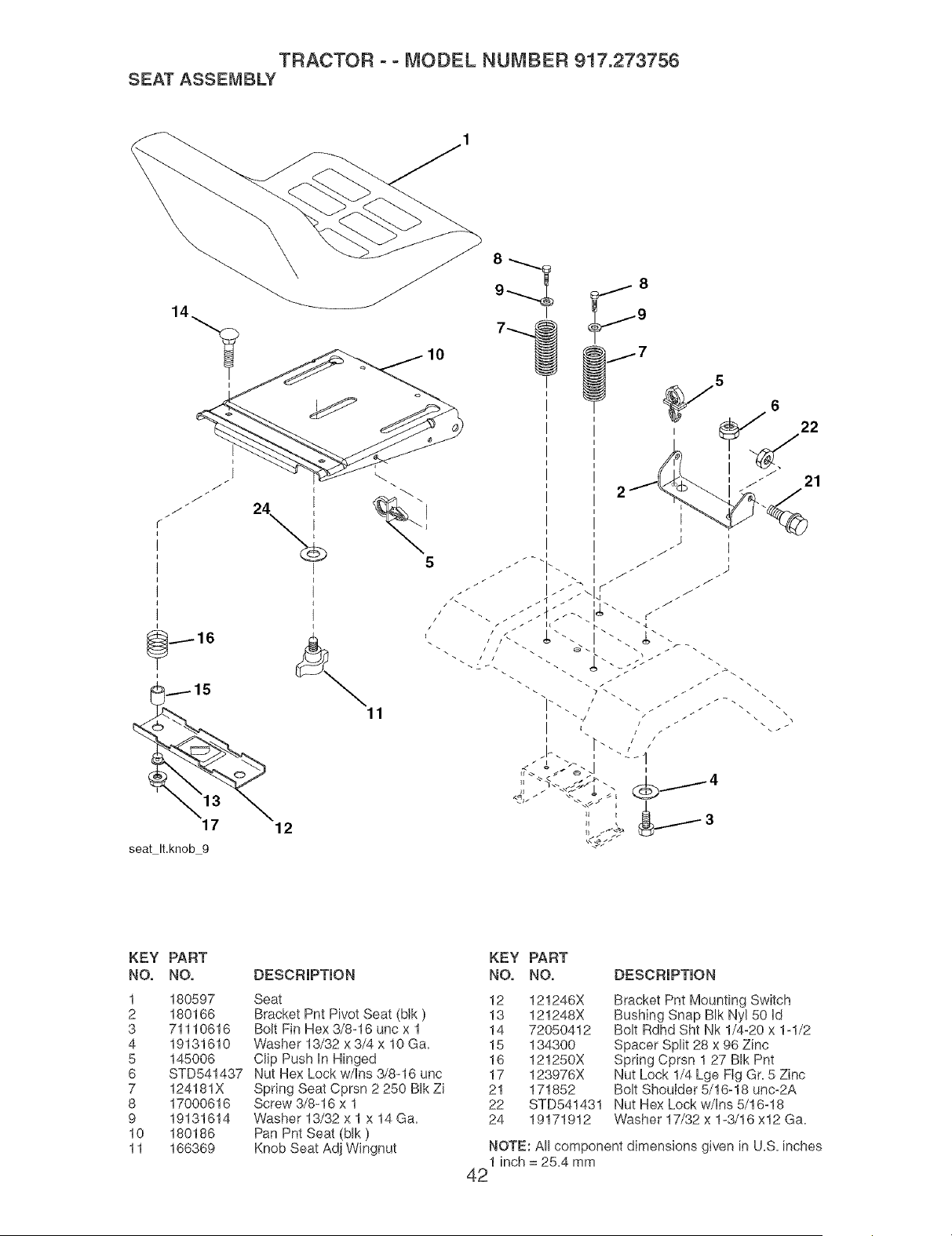

Repair Parts..........................................32

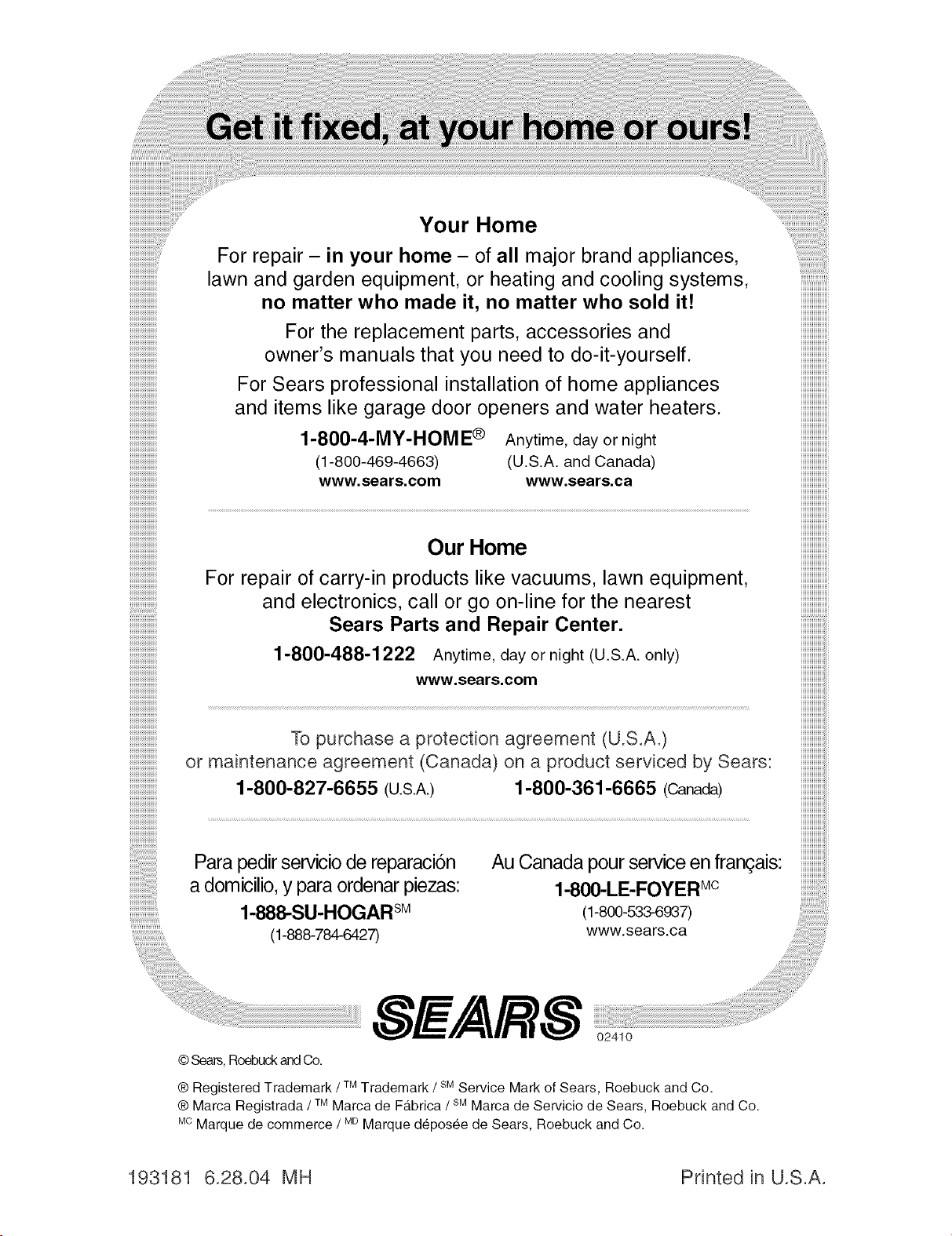

Sears Service.........................BackCover

LIMITEDWARRANTYON CRAFTSMANRIDINGEQUIPMENT

Fortwo (2)years from the date of purchase,if this CraftsmanRiding Equipmentis

maintained,lubricatedand tuned upaccordingto the instructionsin the owner'smanual,

Searswill repairor replacefree of chargeany partsthat arefoundto be defectivein

materialor workmanshipaccordingto the guidelinesof coveragelisted below.Searswill

also providefree labor for these applicablewarrantedpartsfor the two full years.During

the first 30 days of purchase,there will be no chargesto servicethe productat your

homefor issuescoveredby this warranty.(See exclusionsbelow). Foryour conve-

nience, IN HOMEwarrantyservicewill still be availableafterthe first 30 days of pur-

chase, buta trip charge will apply.This charge will be waived if the Craftsmanproduct is

droppedoff at an authorizedSears location.For the nearestauthorizedSears location,

pleasecall 1-800-4-MY-HOME@.This warrantyapplies onlywhile this productis within

the UnitedStates.

This Warrantydoes notcover:

Expendableitemswhich becomeworn during normal use, includingbut not limitedto

blades,spark plugs,air cleaners,belts,and oil filters.

StandardMaintenanceServicing,oil changes, or tune-ups

Tire replacementor repair caused by puncturesfrom outsideobjects,such as nails,

thorns,stumps,or glass.

Repairs necessarybecauseof operatorabuse, includingbut not limitedto, damage

causedby towing objectsbeyondthe capabilityof the riding equipment,impacting

objectsthat bend the frame or crankshaft,or over-speedingthe engine.

Repairs necessarybecauseof operator negligence,includingbut not limitedto, elec-

trical and mechanicaldamagecaused by improperstorage,failure to use the proper

gradeand amount of engine oil, failureto keepthe deckclear of flammabledebris,

or failure to maintainthe equipmentaccordingto the instructionscontainedin the

owner'smanual.

• Engine (fuel system)cleaning or repairs caused by fuel determinedto becontami-

nated or oxidized(stale). In general,fuel should be used within30 days of its pur-

chase date.

• Normaldeteriorationand wear of the exteriorfinishes,or productlabel replacement.

• Ridingequipmentusedfor commercialor rental purposes.

LIMITEDWARRANTYON BATTERY

For ninety(90) daysfrom date of purchase,if any battery includedwith this riding equip-

ment provesdefectivein materialor workmanshipand our testing determinesthe battery

will not hold a charge, Searswill replacethe batteryat no charge. Duringthe first 30

daysof purchase,there will be no chargesto replacethe battery at your HOME. After

the first 30 days,foryour convenience,IN-HOMEwarrantyservicewill still be avail-

ablebut a trip charge will apply. Thischarge will be waived if the Craftsmanproduct is

droppedoff at an authorizedSears location.For the nearestauthorizedSears location,

pleasecall 1-800-4-MY-HOME@.

This battery warrantyapplies onlywhile this productis within the United States.

This warrantygivesyou specificlegal rights,and you mayalso haveother rights, which

vary,from state to state.

Sears, Roebuck and Co.,Dept.817WA, Hoffman Estates, IL 60179

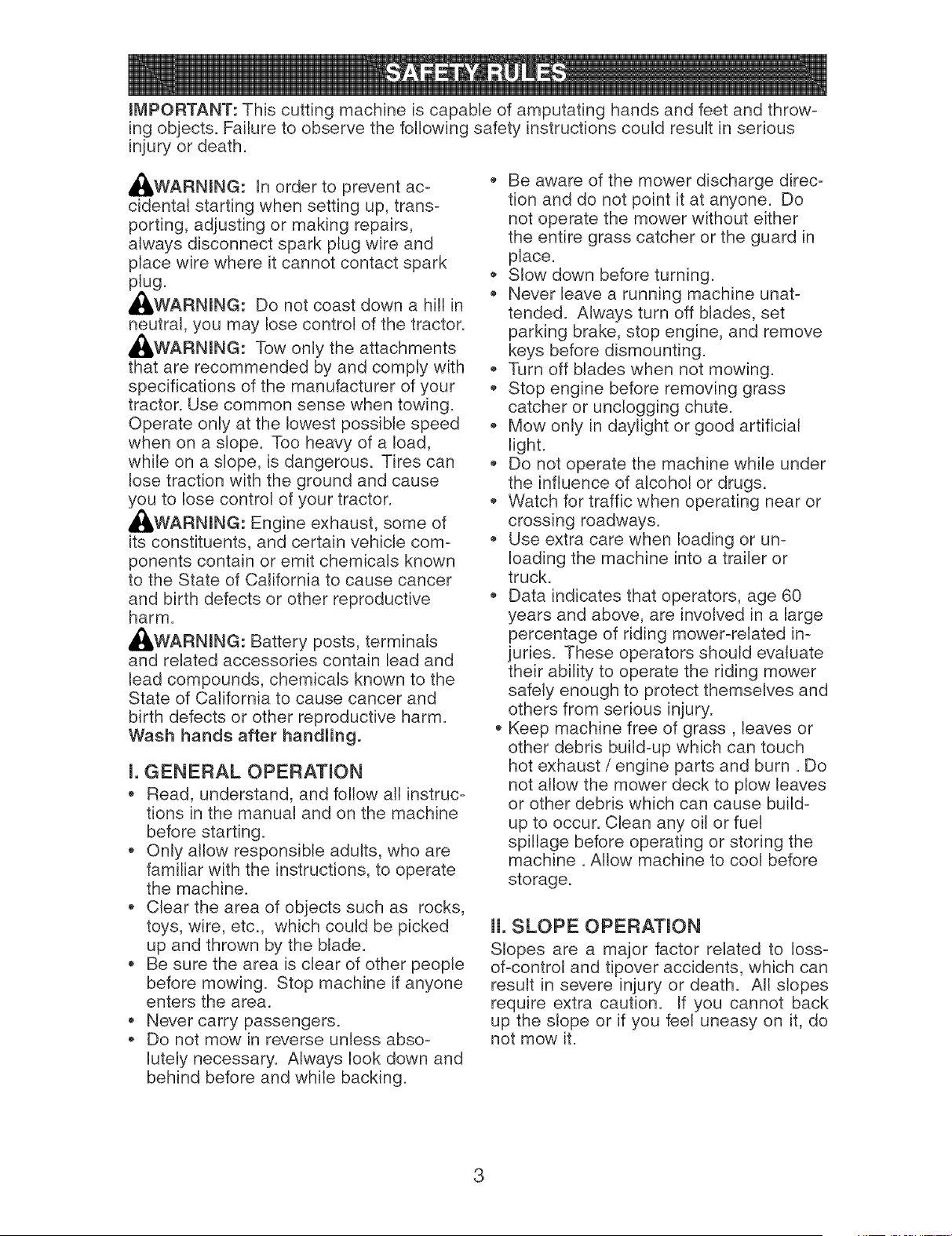

mMPORTANT: This cutting machine is capable of amputating hands and feet and throw-

ing objects. Failure to observe the following safety instructions could result in serious

injury or death.

_IWARNmNG: In order to prevent ac-

cidental starting when setting up, trans-

porting, adjusting or making repairs,

always disconnect spark plug wire and

place wire where it cannot contact spark

plug.

dHLWARNING: Do not coast down a hill in

neutral, you may lose control of the tractor.

_,WARNING: Tow only the attachments

that are recommended by and comply with •

specifications of the manufacturer of your •

tractor. Use common sense when towing.

Operate only at the lowest possible speed •

when on a slope. Too heavy of a load,

while on a slope, is dangerous. Tires can •

lose traction with the ground and cause

you to lose control of your tractor.

_IWARNmNG: Engine exhaust, some of

its constituents, and certain vehicle com- •

portents contain or emit chemicals known

to the State of California to cause cancer

and birth defects or other reproductive

harm.

_IWARNmNG: Battery posts, terminals

and related accessories contain lead and

lead compounds, chemicals known to the

State of California to cause cancer and

birth defects or other reproductive harm.

Wash hands after handling. *

L GENERAL OPERATmON

• Read, understand, and follow all instruc-

tions in the manuat and on the machine

before starting.

• Only allow responsible adults, who are

familiar with the instructions, to operate

the machine.

• Clear the area of objects such as rocks,

toys, wire, etc., which could be picked

up and thrown by the blade.

• Be sure the area is clear of other people

before mowing. Stop machine if anyone

enters the area.

• Never carry passengers.

• Do not mow in reverse unless abso-

lutely necessary. Always look down and

behind before and while backing.

Be aware of the mower discharge direc-

tion and do not point it at anyone. Do

not operate the mower without either

the entire grass catcher or the guard in

place.

Slow down before turning.

Never leave a running machine unat-

tended. Always turn off blades, set

parking brake, stop engine, and remove

keys before dismounting.

Turn off blades when not mowing.

Stop engine before removing grass

catcher or unclogging chute.

Mow only in daylight or good artificial

light.

Do not operate the machine while under

the influence of alcohol or drugs.

Watch for traffic when operating near or

crossing roadways.

Use extra care when loading or un-

loading the machine into a trailer or

truck.

Data indicates that operators, age 60

years and above, are involved in a large

percentage of riding mower=related in-

juries. These operators should evaluate

their ability to operate the riding mower

safely enough to protect themselves and

others from serious injury.

Keep machine free of grass, leaves or

other debris build-up which can touch

hot exhaust / engine parts and burn. Do

not allow the mower deck to plow leaves

or other debris which can cause build-

up to occur. Clean any oil or fuel

spillage before operating or storing the

machine. Allow machine to cool before

storage.

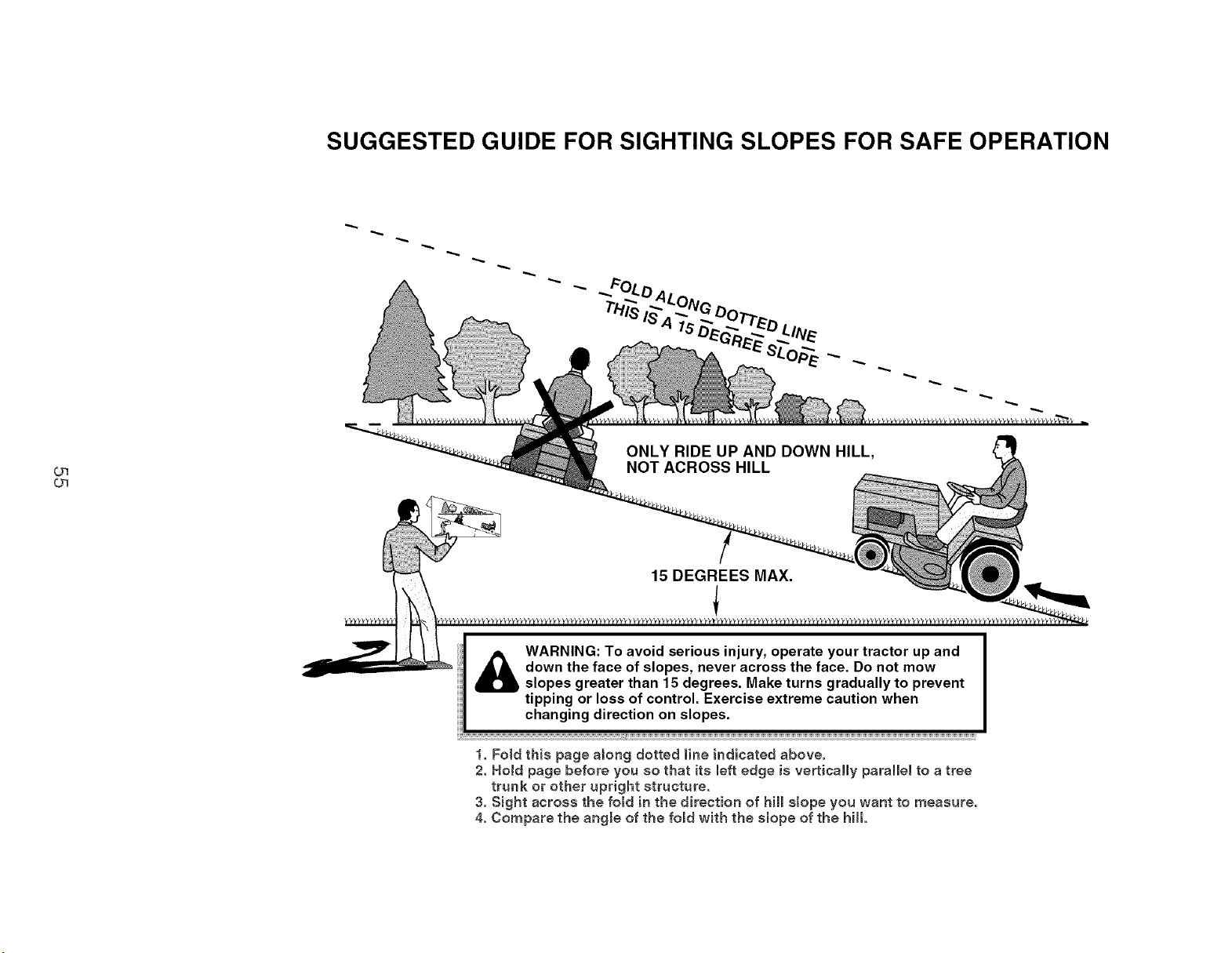

H. SLOPE OPERATION

Slopes are a major factor related to loss-

of-control and tipover accidents, which can

result in severe injury or death. All slopes

require extra caution. If you cannot back

up the slope or if you feel uneasy on it, do

not mow it.

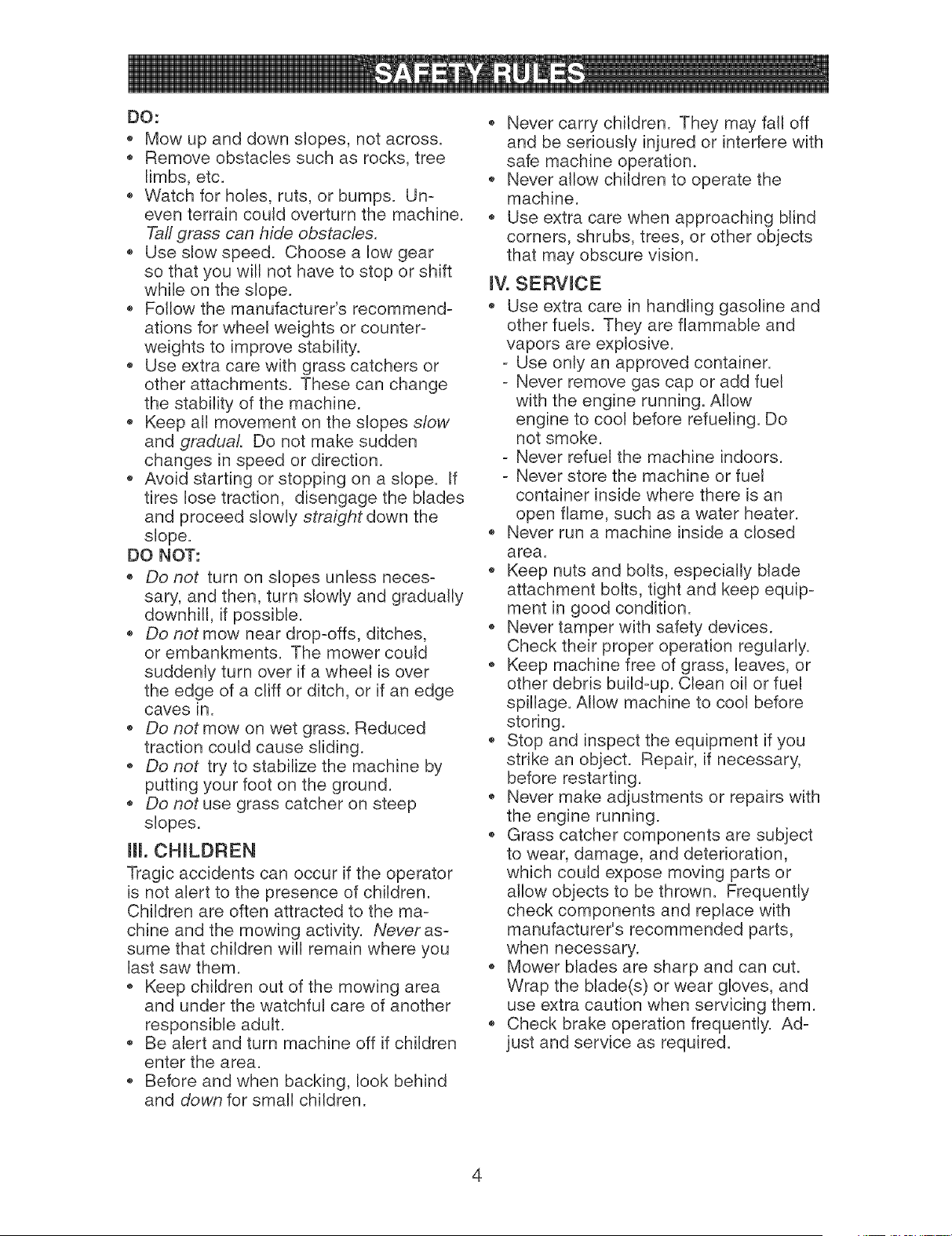

DO:

Mow up and down slopes, not across.

Remove obstacles such as rocks, tree

limbs, etc.

Watch for holes, ruts, or bumps. Un-

even terrain could overturn the machine.

Taft grass can hide obstacles.

Use slow speed. Choose a low gear

so that you will not have to stop or shift

while on the slope.

Follow the manufacturer's recommend-

ations for wheel weights or counter-

weights to improve stability.

Use extra care with grass catchers or

other attachments. These can change

the stability of the machine.

Keep all movement on the slopes slow

and gradual Do not make sudden

changes in speed or direction.

Avoid starting or stopping on a slope. If

tires lose traction, disengage the blades

and proceed slowly straight down the

slope.

DO NOT:

Do not turn on slopes unless neces-

sary, and then, turn slowly and gradually

downhill, if possible.

Do not mow near drop-offs, ditches,

or embankments. The mower could

suddenly turn over if a wheel is over

the edge of a cliff or ditch, or if an edge

caves in.

* Do not mow on wet grass. Reduced

traction could cause sliding.

* Do not try to stabilize the machine by

putting your foot on the ground.

Do not use grass catcher on steep

slopes.

ill. CHILDREN

Tragic accidents can occur if the operator

is not alert to the presence of children.

Children are often attracted to the ma-

chine and the mowing activity. Never as-

sume that children will remain where you

last saw them.

* Keep children out of the mowing area

and under the watchful care of another

responsible adult.

Be alert and turn machine off if children

enter the area.

Before and when backing, look behind

and down for small children.

* Never carry children. They may fall off

and be seriously injured or interfere with

safe machine operation.

Never allow children to operate the

machine.

Use extra care when approaching blind

corners, shrubs, trees, or other objects

that may obscure vision.

iV, SERVICE

Use extra care in handling gasoline and

other fuels. They are flammable and

vapors are explosive.

- Use only an approved container.

- Never remove gas cap or add fuel

with the engine running. Allow

engine to cool before refueling. Do

not smoke.

- Never refuel the machine indoors.

- Never store the machine or fuel

container inside where there is an

open flame, such as a water heater.

Never run a machine inside a closed

area.

Keep nuts and bolts, especially blade

attachment bolts, tight and keep equip-

ment in good condition.

* Never tamper with safety devices.

Check their proper operation regularly.

* Keep machine free of grass, leaves, or

other debris build-up. Clean oil or fuel

spillage. Allow machine to cool before

storing.

Stop and inspect the equipment if you

strike an object. Repair, if necessary,

before restarting.

* Never make adjustments or repairs with

the engine running.

* Grass catcher components are subject

to wear, damage, and deterioration,

which could expose moving parts or

allow objects to be thrown. Frequently

check components and replace with

manufacturer's recommended parts,

when necessary.

* Mower blades are sharp and can cut.

Wrap the blade(s) or wear gloves, and

use extra caution when servicing them.

Check brake operation frequently. Ad-

just and service as required.

Be sure the area is clear of other people

before mowing. Stop machine if anyone

enters the area.

Never carry passengers or children

even with the blades off.

Do not mow in reverse unless abso-

lutely necessary. Always look down and

behind before and while backing.

Never carry children. They may fall off

and be seriously injured or interfere with

safe machine operation.

Keep children out of the mowing area

and under the watchful care of another

responsible adult.

Be alert and turn machine off if children

enter the area.

Before and when backing, look behind

and down for small children.

Mow up and down slopes (15 ° Max), not

across.

Remove obstacles such as rocks, tree

limbs, etc.

Watch for holes, ruts, or bumps. Uneven

terrain could overturn the machine. Tall

grass can hide obstacles.

Use slow speed. Choose a low gear

so that you will not have to stop or shift

while on the slope.

Avoid starting or stopping on a slope. If

tires lose traction, disengage the blades

and proceed slowly straight down the

slope.

If machine stops while going uphill,

disengage blades, shift into reverse and

back down slowly.

Do not turn on slopes unless necessary,

and then, turn slowly and gradually

downhill, if possible.

PRODUCT SPECIFICATmONS

Gasoline 1.25

Capacityand Unleaded

Type: Regular

OilType SAE 30 (above32°F)

IAPFSG-SL): SAE 5W-30(below 32°F

Oil Capacity: W/Filter: 3.5 Pints

W/O Filter: 3.0 Pints

Spark Plug: Champion RC12YC

(Gap: .030")

Ground Speed

(MPH):

Forward:

1st 1.2

2nd 1.6

3rd 2.4

4th 3.6

5th 4.6

6th 5.9

Reverse: 1.8

Tire Pressure: Front: 14 PSI

Rear: 10 PSI

Charging System: 3 Amps Battery

5 Amps Headlights

Battery: Amp/Hr: 28

Min. CCA: 230

Case Size: U1R

Blade Bolt Torque: 27-35 Ft. Lbs.

CONGRATULATmONS on your purchase

of a new tractor. It has been designed,

engineered and manufactured to give

you the best possible dependability and

performance.

Should you experience any problem you

cannot easily remedy, please contact a

Sears or other qualified service center.

We have competent, well-trained techni-

cians and the proper tools to service or

repair this tractor.

Please read and retain this manual. The

instructions will enable you to assemble

and maintain your tractor properly. Always

observe the "SAFETY RULES".

CUSTOMER RESPONSIBIUTIES

Read and observe the safety rules.

* Follow a regular schedule in main-

taining, caring for and using your tractor.

Follow the instructions under "Mainte-

nance" and "Storage" sections of this

owner's manual.

_bWARNmNG: This tractor is equipped

with an internal combustion engine and

should not be used on or near any unim-

proved forest-covered, brush-covered or

grass-covered land unless the engine's

exhaust system is equipped with a spark

arrester meeting applicable local or state

laws (if any). If a spark arrester is used, it

should be maintained in effective working

order by the operator.

In the state of California the above is re-

quired by law (Section 4442 of the Califor-

nia Public Resources Code). Other states

may have similar laws. Federal laws apply

on federal lands. A spark arrester for the

muffler is available through your nearest

Sears service center (See REPAIR PARTS

section of tMs manual).

REPAmR PROTECTmON

Congratulations on making a smart pur-

chase. Your new Craftsman® product is

designed and manufactured for years of

dependable operation. But like all products,

it may require repair from time to time. That's

when having a Repair Protection Agreement

can save you money and aggravation.

Purchase a Repair Protection Agreement

now and protect yourseff from unexpected

hassle and expense.

Here's what's included in the Agreement:

Expert service by our 12,000 profe-

sional repair specialists.

* Unlimited service and no charge for

parts and labor on all covered repairs.

Product replacement if your covered

product can't be fixed.

Discount of 10% from regular price of

service and service-related parts not

covered by the agreement; also, 10%

off regular price of preventive mainte-

nance check.

Fast help by phone - phone support

from a Sears technician on products

requiring in-home repair, plus conve-

nient repair scheduling.

Once you purchase the Agreement, a

simple phone call is all that it takes for you

to schedule service. You can call anytime

day or night, or schedule a service ap-

pointment online.

Sears has over 12,000 professional repair

specialists, who have access to over 4.5

million quality parts and accessories.

That's the kind of professionalism you can

count on to help prolong the life of your

new purchase for years to come. Purchase

your Repair Protection Agreement today!

Some limitations and exclusions apply.

For prices and additional information

call 1-800-827-8655.

SEARS mNSTALLATmON SERVmCE

For Sears professional installation of home

appliances, garage door openers, water

heaters, and other major home items, in

the U.S.A. call 1-800-4-MY-HOME®

Steering

Wheel Insert

Steering Wheel

(1) Hex Bolt 1/4-28 x 1-1/4

_ Steering Wheel

Adapter

(1) Locknut 1/2-20

Seat

(1) Large Flat Washer

(1) Locknut 1/4-28

Steering

Extension

Steering Shaft

Boot

(1) Washer

@ 17/32 x1-3/16 x12 Gauge

_(1 ) Knob

Keys

(1) Oil Drain Tube

For Future Use

Slope Sheet

Video Cassette

(2) Keys

Your new tractor has been assembled at the factory with the exception of those parts left

unassemNed for shipping purposes. To ensure safe and proper operation of your tractor

all parts and hardware you assemble must be tightened securely. Use the correct tools

as necessary to insure proper tightness. Review the video cassette before you begin.

TOOLS REQUIRED FOR

ASSEMBLY

A socket wrench set will make assembly

easier. Standard wrench sizes you need

are listed below.

(1) 3/4" wrench (1) Pliers

(2) 7/16" wrench (1) Utility knife

(1) Tire pressure gauge

When right or left hand is mentioned in

this manual, it means when you are in

the operating position (seated behind the

steering wheel).

TO REMOVE TRACTOR FROM

CARTON

UNPACK CARTON

1. Remove all accessible loose parts and

parts boxes from carton.

2. Cut along dotted lines on all four pan-

els of carton. Remove end panels and

lay side panels flat.

3. Check for any additional loose parts or

cartons and remove.

BEFORE REMOVING TRACTOR

FROM SKID

ATTACH STEERmNGWHEEL

ASSEMBLE EXTENSION SHAFT AND

BOOT

1. Slide extension shaft onto lower steer-

ing shaft. Align mounting holes in ex-

tension and lower shafts and instal[ 1/4

hex bolt and Iocknut. Tighten securely.

[MPORTANT: Tighten bolt and nut se-

curely to 10-12 ft. Ibs torque.

2. Place tabs of steering boot over tab

slots in dash and push down to secure.

INSTALL STEERING WHEEL

3. Position front wheels of the tractor so

they are pointing straight forward.

4. Remove steering wheel adapter from

steering wheel and slide adapter onto

steering shaft extension.

5. Position steering wheel so cross bars

are horizontal (left to right) and slide

inside boot and onto adapter.

6. Assemble large flat washer, 1/2 hex

nut and tighten securely.

_¢_-_ 1/2 Hex Nut

_t Large Fiat

Washer

Steering

WheeU

Steering

Boot

Tab

Slots

7. Snap steering wheel insert into center

of steering wheel.

8. Remove protective materials from trac-

tor hood and grill.

IMPORTANT: Check for and remove any

staples in skid that may puncture tires

where tractor is to roll off skid.

INSTALL SEAT

Adjust seat before tightening adjustment

knob.

1. Remove adjustment knob and flat

washer securing seat to cardboard

packing and set aside for assembly of

seat to tractor.

2. Pivot seat upward and remove from

the cardboard packing. Remove the

cardboard packing and discard.

3. Place seat on seat pan so head of

shoulder bolts are positioned over the

large slotted holes in pan.

4. Push down on seat to engage shoulder

bolts in slots and pull seat towards rear

of tractor.

5. Pivot seat and pan forward and as-

semble adjustment knob and fiat

washer loosely. Do not tighten.

6. Lower seat into operating position and

sit in seat.

7. Slide seat until a comfortable position

is reached which allows you to press

clutch/brake pedal all the way down.

8. Get off seat without moving its ad-

justed position.

9. Raise seat and tighten adjustment

knob securely.

Seat

ShouUder

BoUts

FUatWasher

Adjustment Knob

CHECK BATTERY

1. Lift seat pan to raised position.

NOTE: If this battery is put into service

after month and year indicated on label

(label located between terminals) charge

battery for minimum of one hour at 6-10

amps. (See "BATTERY" in Maintenance

section of this manual for charging instruc-

tions).

Seat

Terminal

NOTE: You may now roll or drive your

tractor off the skid. Follow the appropriate

instruction below to remove the tractor

from the skid.

TO ROLL TRACTOR OFF SKiD (See

Operation section for location and

function of controls}

1. Press lift lever plunger and raise

attachment lift lever to its highest po-

sition.

2. Release parking brake by depressing

dutch/brake pedal.

3. Place gearshift lever in neutral (N)

position.

4. Roll tractor forward off skid.

5. Remove banding holding deflector

shield up against tractor.

TO DRIVE TRACTOR OFF SKiD (See

Operation section for location and

function of controms)

_,WARNmNG: Before starting, read, un-

derstand and follow all instructions in the

Operation section of this manual. Be sure

tractor is in a well-ventilated area. Be sure

the area in front of tractor is clear of other

people and objects.

1. Be sure all the above assembly steps

have been completed.

2. Check engine oil level and fii[ fuel tank

with gasoline.

3. Sit on seat in operating position,

depress clutch/brake pedal and set the

parking brake.

4. Place gear shift lever in neutral (N)

position.

5. Press lift lever plunger and raise

attachment lift lever to its highest posi-

tion.

6. Start the engine. After engine has

started, move throttle control to idle

position.

7. Depress clutch/brake pedal into full

"BRAKE" position and hold. Move gear-

shift lever to 1st gear.

8. Slowly release clutch/brake pedal and

slowly drive tractor off skid.

9. Apply brake to stop tractor, set park-

ing brake and place gearshift lever in

neutral position.

10.Turn ignition key to "STOP" position.

Continue with the instructions that follow.

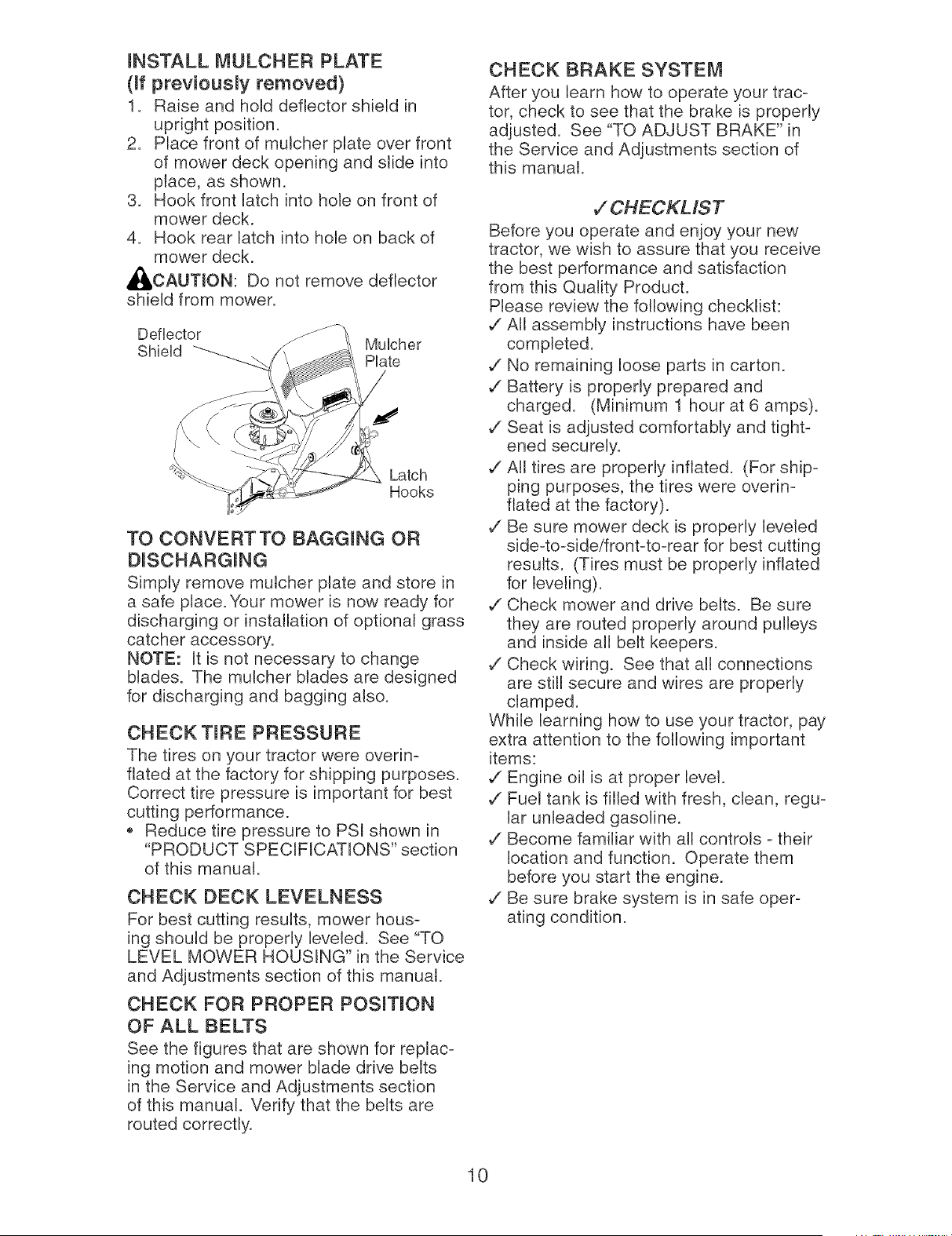

mNSTALLMULCHER PLATE

(If previousmy removed)

1. Raise and hold deflector shield in

upright position.

2. Place front of mulcher plate over front

of mower deck opening and slide into

place, as shown.

3. Hook front latch into hole on front of

mower deck.

4. Hook rear latch into hole on back of

mower deck.

,_CAUTmON: Do not remove deflector

shield from mower.

Deflector

Shield

Mulcher

Plate

Latch

Hooks

TO CONVERTTO BAGGING OR

DmSCHARGING

Simply remove mutcher plate and store in

a safe place.Your mower is now ready for

discharging or installation of optional grass

catcher accessory.

NOTE: It is not necessary to change

blades. The mulcher blades are designed

for discharging and bagging also.

CHECK TmRE PRESSURE

The tires on your tractor were overin-

fiated at the factory for shipping purposes.

Correct tire pressure is important for best

cutting performance.

,, Reduce tire pressure to PSI shown in

"PRODUCT SPECIFICATIONS" section

of this manual.

CHECK DECK LEVELNESS

For best cutting results, mower hous-

ing should be properly leveled. See "TO

LEVEL MOWER HOUSING" in the Service

and Adjustments section of this manual.

CHECK FOR PROPER POSmTmON

OF ALL BELTS

See the figures that are shown for replac-

ing motion and mower blade drive belts

in the Service and Adjustments section

of this manual. Verify that the belts are

routed correctly.

CHECK BRAKE SYSTEM

After you learn how to operate your trac-

tor, check to see that the brake is properly

adjusted. See "TO ADJUST BRAKE" in

the Service and Adjustments section of

this manual.

,/CHECKMST

Before you operate and enjoy your new

tractor, we wish to assure that you receive

the best performance and satisfaction

from this Quality Product.

Please review the following checklist:

,/All assembly instructions have been

completed.

,/No remaining loose parts in carton.

,/Battery is properly prepared and

charged. (Minimum 1 hour at 6 amps).

,/Seat is adjusted comfortably and tight-

ened securely.

,/All tires are properly inflated. (For ship-

ping purposes, the tires were overin-

fiated at the factory).

,/Be sure mower deck is properly leveled

side-to-sideifront-to-rear for best cutting

results. (Tires must be properly inflated

for leveling).

,/Check mower and drive belts. Be sure

they are routed properly around pulleys

and inside all belt keepers.

,/Check wiring. See that all connections

are still secure and wires are properly

clamped.

While learning how to use your tractor, pay

extra attention to the following important

items:

,/Engine oil is at proper level.

,/Fuel tank is filled with fresh, clean, regu-

lar unleaded gasoline.

,/Become familiar with all controls - their

location and function. Operate them

before you start the engine.

,/Be sure brake system is in safe oper-

ating condition.

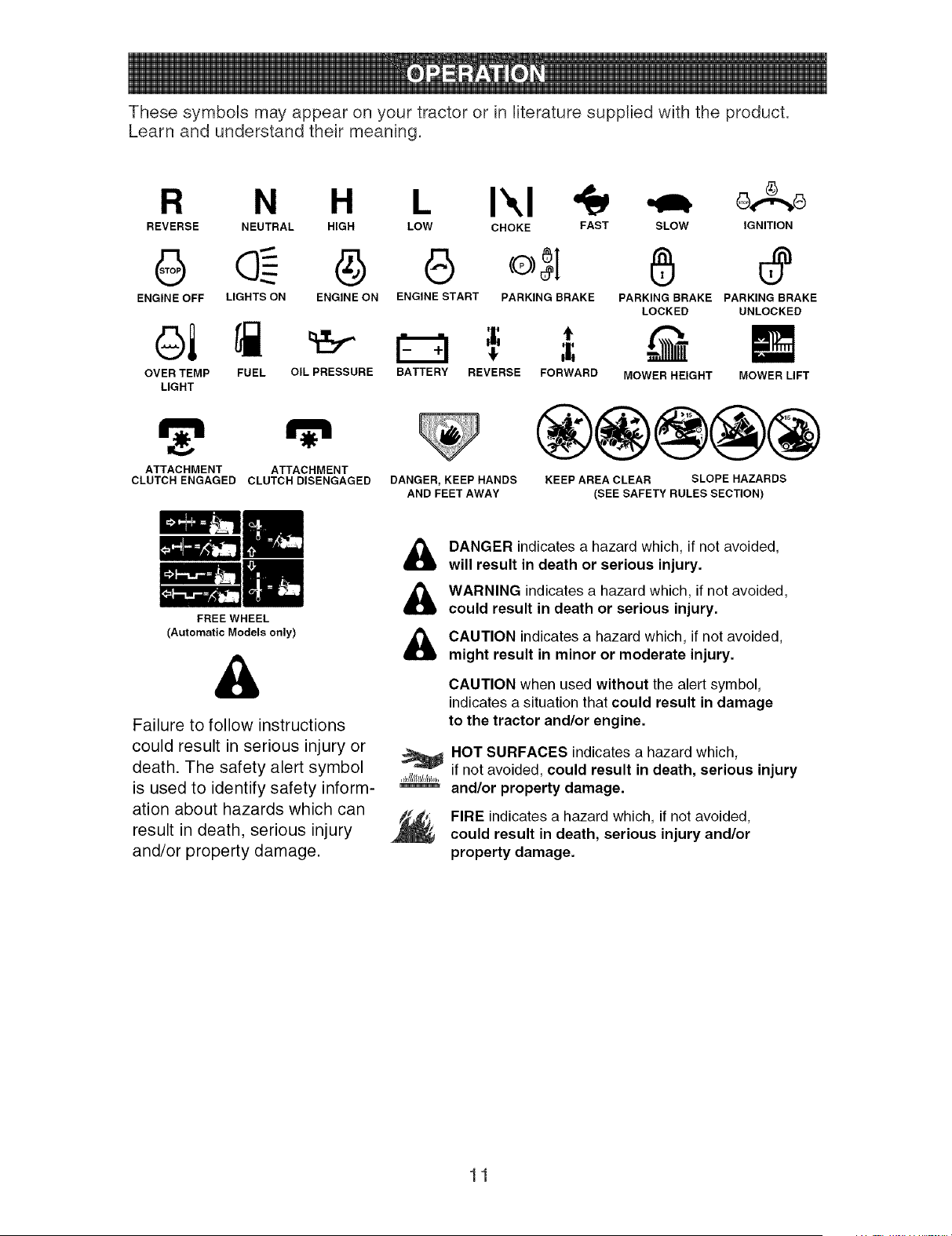

These symbols may appear on your tractor or in literature supplied with the product.

Learn and understand their meaning.

R N H L I'-,I

REVERSE NEUTRAL HIGH LOW CHOKE FAST

G G

ENGINE OFF LIGHTS ON ENGINE ON ENGINE START PARKING BRAKE

OVER TEMP FUEL OIL PRESSURE

LIGHT

ATTACHMENT ATTACHMENT

CLUTCH ENGAGED CLUTCH DISENGAGED

FREE WHEEL

(Automatic Models only)

Failure to follow instructions

could result in serious injury or

death. The safety alert symbol

is used to identify safety inform-

ation about hazards which can

result in death, serious injury

and/or property damage.

BATTERY REVERSE FORWARD

SLOW IGNITION

PARKING BRAKE PARKING BRAKE

LOCKED UNLOCKED

MOWER HEIGHT MOWER LIFT

DANGER, KEEP HANDS

AND FEET AWAY

®@@@@

KEEP AREA CLEAR SLOPE HAZARDS

(SEE SAFETY RULES SECTION)

DANGER indicatesa hazard which, if not avoided,

will result in death or serious injury.

WARNING indicates a hazard which, if not avoided,

could result in death or serious injury.

CAUTION indicates a hazard which, if not avoided,

might result in minor or moderate injury.

CAUTION when used without the alert symbol,

indicates a situation that could result in damage

to the tractor and/or engine.

HOT SURFACES indicates a hazard which,

if not avoided, could result in death, serious injury

and/or property damage.

FIRE indicatesa hazard which, if not avoided,

could result in death, serious injury and/or

property damage.

KNOW YOUR TRACTOR

READTHINSOWNER'SMANUAL AND SAFETYRULES BEFOREOPERATmNGYOUR

TRACTOR

Comparethe illustrationswith your tractorto familiarizeyourselfwith the locationsof

variouscontrols and adjustments. Savethis manualfor futurereference.

Ammeter

Attachment

Clutch Lever

ignition Switch Light Switch

Position

Lift Lever

Plunger

Th rottle/Choke

Control

-- Attachment

Lift Lever

Clutch/Brake

Pedal

Height

Parking Brake Lever

Gearshift Lever

01946

Our tractors conform to the safety standards of the

American National Standards Institute.

AMMETER - Indicates charging (+) or

discharging (-) of battery.

ATTACHMENT CLUTCH LEVER - Used

to engage the mower blades, or other at-

tachments mounted to your tractor.

ATTACHMENT UFT LEVER - Used to

raise, lower, and adjust the mower deck or

other attachments mounted to your tractor.

CLUTCH/BRAKE PEDAL - Used for

declutching and braking the tractor and

starting the engine.

GEARSHmFT LEVER - Selects the speed

and direction of tractor.

mGNmON SWITCH - Used for starting and

stopping the engine.

LiFT LEVER PLUNGER - Used to release

attachment lift lever when changing its

position.

UGHT SWmTCH POSmON - Turns the

headlights on and off.

PARKmNG BRAKE LEVER - Locks clutch/

brake pedal into the brake position.

THROTTLE/CHOKE CONTROL - Used

for starting and controlling engine speed.

The operation of any tractor can result in foreign objects thrown into

the eyes, which can result in severe eye damage. Always wear safety

glasses or eye shields while operating your tractor or performing any

adjustments or repairs. We recommend a wide vision safety mask over

spectacles or standard safety glasses.

HOW TO USE YOUR TRACTOR

TO SET PARKmNG BRAKE

Your tractor is equipped with an operator

presence sensing switch. When engine

is running, any attempt by the operator

to leave the seat without first setting the

parking brake will shut off the engine.

1. Depress clutch/brake pedal all the way

down and hold.

2. Pull parking brake lever up and release

pressure from clutch/brake pedal.

Pedal should remain in brake position.

Make sure parking brake will hold trac-

tor secure.

Attachment CUutch Lever

"Eric Position

Choke ---_

Control Parking Brake

"Engaged"

CUutch/ Position

Brake

Pedal

Gearshift

"Disengaged" "Brake" Lever

Position Position

STOPPmNG

MOWER BLADES -

To stop mower blades, move attachment

clutch lever to "DISENGAGED" position.

GROUND DRIVE -

To stop ground drive, depress clutch/

brake pedal all the way down.

Move gearshift lever to neutral (N)

position.

ENGINE -

Move throttle control to slow position.

NOTE: Failure to move throttle control

to slow position and allowing engine to

idle before stopping may cause engine to

"backfire".

Turn ignition key to "STOP" position and

remove key. Always remove key when

leaving tractor to prevent unauthorized

use.

Never use choke to stop engine.

mMPORTANT: Leaving the ignition switch

in any position other than "STOP" will

cause the battery to discharge and go

dead.

NOTE: Under certain conditions when

tractor is standing idle with the engine

running, hot engine exhaust gases may

cause "browning" of grass. To eliminate

this possibility, always stop engine when

stopping tractor on grass areas.

_kCAUTmON: Always stop tractor com-

pletely, as described above, before leaving

the operator's position.

TO USE THROTTLE CONTROL

Always operate engine at full throttle.

* Operating engine at less than full

throttle reduces the battery charging

rate.

Full throttle offers the best bagging and

mower performance.

TO MOVE FORWARD AND BACKWARD

The direction and speed of movement is

controlled by the gearshift lever.

1. Start tractor with clutch/brake pedal de-

pressed and gearshift lever in neutral

(N) position.

2. Move gearshift lever to desired po-

sition.

3. Slowly release clutch/brake pedal to

start movement.

mMPORTANT: Bring tractor to a complete

stop before shifting or changing gears.

Failure to do so will shorten the useful life

of your transaxle.

TO ADJUST MOWER CUTTmNG HEmGHT

The position of the attachment lift lever

determines the cutting height.

,, Grasp lift lever.

* Press plunger with thumb and move

lever to desired position.

The cutting height range is approxi-

mately 1-1/2 to 4". The heights are mea-

sured from the ground to the blade tip with

the engine not running. These heights

are approximate and may vary depending

upon soil conditions, height of grass and

types of grass being mowed.

The average lawn should be cut to approxi-

mately 2-1/2 inches during the cool season

and to over 3 inches during hot months.

For healthier and better looking lawns, mow

often and after moderate growth.

For best cutting performance, grass over

6 inches in height should be mowed

twice. Make the first cut relatively high;

the second to desired height.

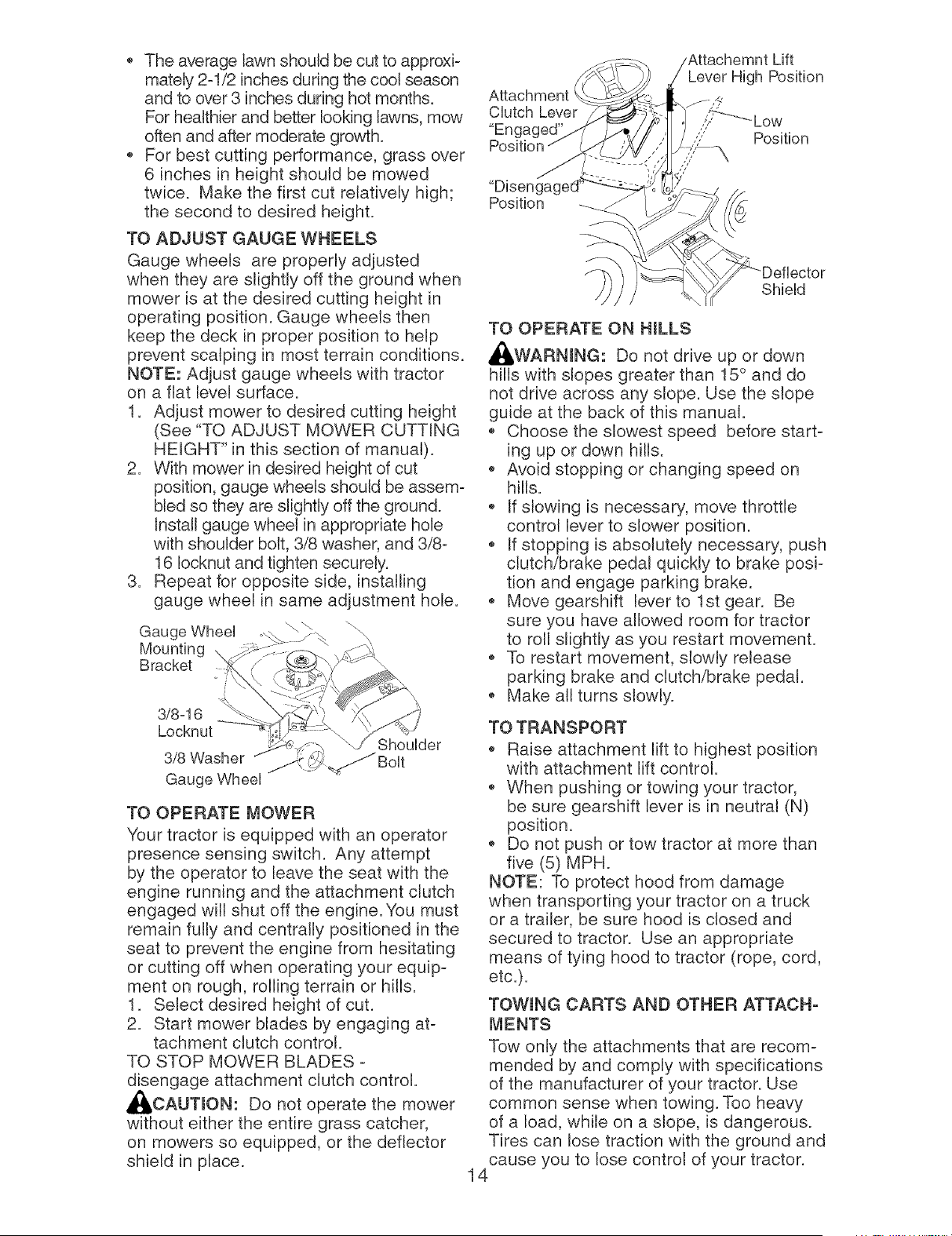

TO ADJUST GAUGE WHEELS

Gauge wheels are properly adjusted

when they are slightly off the ground when

mower is at the desired cutting height in

operating position. Gauge wheels then

keep the deck in proper position to help

prevent scalping in most terrain conditions.

NOTE: Adjust gauge wheels with tractor

on a flat level surface.

1. Adjust mower to desired cutting height

(See "TO ADJUST MOWER CUTTING

HEIGHT" in this section of manual).

2. With mower in desired height of cut

position, gauge wheels should be assem-

bled so they are slightly off the ground.

Install gauge wheel in appropriate hole

with shoulder bolt, 3/8 washer, and 3/8-

16 Iocknut and tighten securely.

3. Repeat for opposite side, installing

gauge wheel in same adjustment hole.

Gauge WheeU

Mounting

Bracket

3/8-16

Locknut

3/8 Washer

Gauge Wheel

Shoulder

TO OPERATE MOWER

Your tractor is equipped with an operator

presence sensing switch. Any attempt

by the operator to leave the seat with the

engine running and the attachment clutch

engaged will shut off the engine. You must

remain fully and centrally positioned in the

seat to prevent the engine from hesitating

or cutting off when operating your equip-

ment on rough, rolling terrain or hills.

1. Select desired height of cut.

2. Start mower blades by engaging at-

tachment clutch control.

TO STOP MOWER BLADES -

disengage attachment clutch control.

_CAUTmON: Do not operate the mower

without either the entire grass catcher,

on mowers so equipped, or the deflector

shield in place.

Clutch Lever

"Engaged'

"Disen(

Position

Lever High Position

,,,::,;4_ Low

,':;' Position

,,/

Shield

TO OPERATE ON HmLLS

_IWARNING: Do not drive up or down

hills with slopes greater than 15 ° and do

not drive across any slope. Use the slope

guide at the back of this manual.

,, Choose the slowest speed before start-

ing up or down hills.

Avoid stopping or changing speed on

hills.

If slowing is necessary, move throttle

control lever to slower position.

If stopping is absolutely necessary, push

clutch/brake pedal quickly to brake posi-

tion and engage parking brake.

Move gearshift lever to 1st gear. Be

sure you have allowed room for tractor

to roll slightly as you restart movement.

To restart movement, slowly release

parking brake and clutch/brake pedal.

Make all turns slowly.

TO TRANSPORT

,, Raise attachment lift to highest position

with attachment lift control.

,, When pushing or towing your tractor,

be sure gearshift lever is in neutral (N)

position.

,_ Do not push or tow tractor at more than

five (5) MPH.

NOTE: To protect hood from damage

when transporting your tractor on a truck

or a trailer, be sure hood is closed and

secured to tractor. Use an appropriate

means of tying hood to tractor (rope, cord,

etc.).

TOWING CARTS AND OTHER ATTACH-

MENTS

Tow only the attachments that are recom-

mended by and comply with specifications

of the manufacturer of your tractor. Use

common sense when towing. Too heavy

of a load, while on a slope, is dangerous.

Tires can lose traction with the ground and

cause you to lose control of your tractor.

BEFORE STARTING THE ENGINE

CHECK ENGINE OIL LEVEL

The engine in your tractor has been

shipped, from the factory, already filled

with summer weight oil.

1. Check engine oil with tractor on level

ground.

2. Remove oil fill cap/dipstick and wipe

clean, reinsert the dipstick and screw

cap tight, wait for a few seconds, re-

move and read oil level. If necessary,

add oil until "FULL:' mark on dipstick is

reached. Do not overfill.

For cold weather operation you should

change oil for easier starting (See the

oil viscosity chart in the Maintenance

section of this manual).

To change engine oil, see the Mainte-

nance section in this manual.

ADD GASOLINE

Fill fuel tank to bottom of filler neck. Do

not overfill. Use fresh, clean, regular

unleaded gasoline with a minimum of

87 octane. (Use of leaded gasoline will

increase carbon and lead oxide deposits

and reduce valve life). Do not mix oil

with gasoline. Purchase fuel in quan-

tities that can be used within 30 days to

assure fuel freshness.

_CAUTION: Wipe off any spilled oil or

fuel. Do not store, spill or use gasoline

near an open flame.

IMPORTANT: When operating in temper-

atures below32°F(0°C), use fresh, clean

winter grade gasoline to help insure good

cold weather starting.

CAUTION: Alcohol blended fuels (called

gasohol or using ethanol or methanol) can

attract moisture which leads to separa-

tion and formation of acids during storage.

Acidic gas can damage the fuel system

of an engine while in storage. To avoid

engine problems, the fuet system should

be emptied before storage of 30 days

or longer. Drain the gas tank, start the

engine and let it run until the fuel lines

and carburetor are empty. Use fresh fuel

next season. See Storage Instructions for

additional information. Never use engine

or carburetor cleaner products in the fuel

tank or permanent damage may occur.

TO START ENGINE

When starting the engine for the first time

or if the engine has run out of fuel, it will

take extra cranking time to move fuel from

the tank to the engine.

1. Sit on seat in operating position,

depress clutch/brake pedal and set

parking brake.

2. Place gear shift lever in neutral (N)

position.

3. Move attachment clutch to disengaged

position.

4. Move throttle control to choke position.

NOTE: Before starting, read the warm

and cold starting procedures below.

5. Insert key into ignition and turn key

clockwise to start position and release

key as soon as engine starts. Do

not run starter continuously for more

than fifteen seconds per minute. If the

engine does not start after several

attempts, move throttle control to fast

position, wait a few minutes and try

again. If engine still does not start,

move the throttle control back to the

choke position and retry.

WARM WEATHER STARTING (50 ° F and

above)

6. When engine starts, move the throttle

control to the fast position.

The attachments and ground drive can

now be used. If the engine does not

accept the load, restart the engine and

allow it to warm up for one minute using

the choke as described above.

COLD WEATHER STARTING ( 50 ° F and

below)

6. When engine starts, leave throttle

control in choke position until engine

warms up and begins to run roughly.

Once rough running begins, imme-

diately move the throttle control to the

fast position. Engine warm-up may

take from several seconds to several

minutes (the colder the temperature,

the longer the warm-up).

The attachments can also be used dur-

ing the engine warm-up period.

NOTE: If at a high altitude (above 3000

feet) or in cold temperatures (below 32 F)

the carburetor fuel mixture may need to

be adjusted for best engine performance

(see "TO ADJUST CARBURETOR" in the

Service and Adjustments section of this

manual).

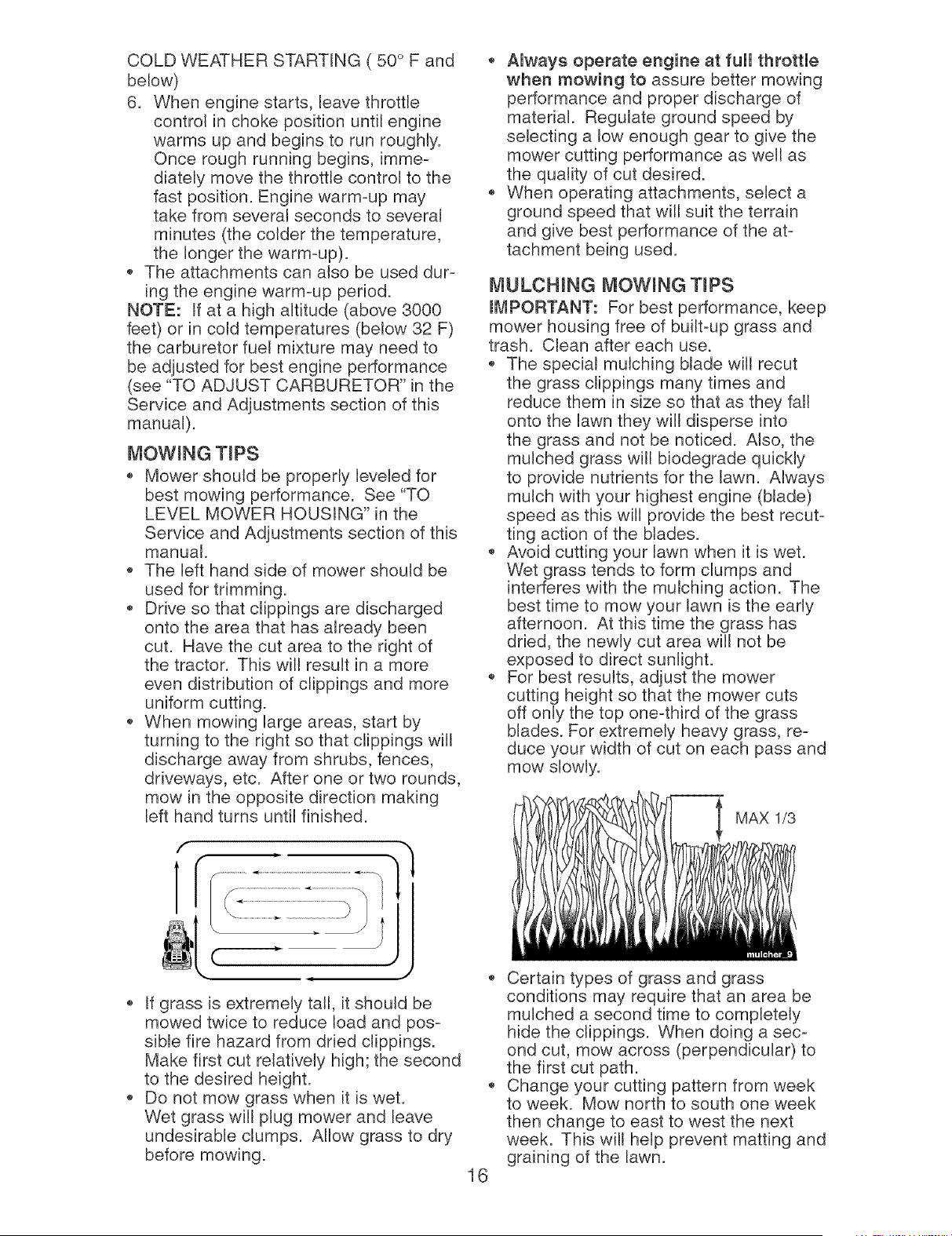

COLD WEATHER STARTING ( 50 ° F and

below)

6. When engine starts, leave throttle

control in choke position until engine

warms up and begins to run roughly.

Once rough running begins, imme-

diately move the throttle control to the

fast position. Engine warm-up may

take from several seconds to several

minutes (the colder the temperature,

the longer the warm-up).

The attachments can also be used dur-

ing the engine warm-up period.

NOTE: If at a high altitude (above 3000

feet) or in cold temperatures (below 32 F)

the carburetor fuel mixture may need to

be adjusted for best engine performance

(see "TO ADJUST CARBURETOR" in the

Service and Adjustments section of this

manual).

MOWING TIPS

Mower should be properly leveled for

best mowing performance. See "TO

LEVEL MOWER HOUSING" in the

Service and Adjustments section of this

manual.

The left hand side of mower should be

used for trimming.

Drive so that clippings are discharged

onto the area that has already been

cut. Have the cut area to the right of

the tractor. This will result in a more

even distribution of clippings and more

uniform cutting.

When mowing large areas, start by

turning to the right so that clippings will

discharge away from shrubs, fences,

driveways, etc. After one or two rounds,

mow in the opposite direction making

left hand turns until finished.

...........ii I

If grass is extremely tall, it should be

mowed twice to reduce load and pos-

sible fire hazard from dried clippings.

Make first cut relatively high; the second

to the desired height.

Do not mow grass when it is wet.

Wet grass will plug mower and leave

undesirable clumps. Allow grass to dry

before mowing.

Always operate engine at full throttle

when mowing to assure better mowing

performance and proper discharge of

material. Regulate ground speed by

selecting a low enough gear to give the

mower cutting performance as well as

the quality of cut desired.

When operating attachments, select a

ground speed that will suit the terrain

and give best performance of the at-

tachment being used.

MULCHING MOWING TIPS

IMPORTANT: For best performance, keep

mower housing free of built-up grass and

trash. Clean after each use.

The special mulching blade will recut

the grass clippings many times and

reduce them in size so that as they fall

onto the lawn they will disperse into

the grass and not be noticed. Also, the

mulched grass will biodegrade quickly

to provide nutrients for the lawn. Always

mulch with your highest engine (blade)

speed as this will provide the best recut-

ting action of the blades.

Avoid cutting your lawn when it is wet.

Wet grass tends to form clumps and

interferes with the mulching action. The

best time to mow your lawn is the early

afternoon. At this time the grass has

dried, the newly cut area will not be

exposed to direct sunlight.

o For best results, adjust the mower

cutting height so that the mower cuts

off only the top one-third of the grass

blades. For extremely heavy grass, re-

duce your width of cut on each pass and

mow slowly.

MAX 1/3

Certain types of grass and grass

conditions may require that an area be

mulched a second time to completely

hide the clippings. When doing a sec-

ond cut, mow across (perpendicular) to

the first cut path.

Change your cutting pattern from week

to week. Mow north to south one week

then change to east to west the next

week. This will help prevent matting and

graining of the lawn.

F,LL,, DATES

AS COMPLETE ......

REGULARSERV,OE f y4 yA TS ERV'CEDATES

Check Brake Operation _1_ t_

Check Tire Pressure

Check Operator Presence and

T Interlock Systems If

R Check for Loose Fasteners If I_s If

A Sharpen/Replace Mower Blades li#13

C Lubrication Chart tf If

0 Check Battery Level 1_4

a Clean Battery and Terminals _ If

i,,'Check Transaxle Cooling

Check V-Belts If

Check Engine Oil Level _ If

Change Engine Oil (with oil filter) I_$1,2

E Change Engine Oil (without oil filter) 11_'1,2

N Clean Air Filter 11_2

G Clean Air Screen 1_112

I Inspect Muffler/Spark

Arrester

E Replace Oil Filter (If equipped) 1_,2

Clean Engine Cooling Fins If 2

Replace Spark Plug I_ If

Replace Air Filter Paper Cartridge 1_'2

Replace Fuel Filter

1 - Change more often when operating under a heavy load or

in high ambient temperatures.

2 - Service more often when operatinq in dirty or dusty conditions.

GENERAL RECOMMENDATmONS

The warranty on this tractor does not

cover items that have been subjected to

operator abuse or negligence. To receive

full value from the warranty, operator

must maintain tractor as instructed in this

manual.

Some adjustments will need to be made

periodically to properly maintain your

tractor.

At least once a season, check to see if

you should make any of the adjustments

described in the Service and Adjustments

section of this manual.

At least once a year you should replace

the spark plug, clean or replace air filter,

and check blades and belts for wear.

A new spark plug and clean air filter

assure proper air-fuel mixture and help

your engine run better and last longer.

3 - Replace blades more often when mowing in sandy soil.

4 - Not required if equipped with maintenance-free battery.

5 - Tighten front axle pivot bolt to 35 ft,-Ibs, maximum.

LUBRmCATION CHART

@ Sl: -- @ Spindb

Zerk Zerk

@Front Wheel ,

Bearing

Zerk

@Front Wheel

Bearing Zerk

@Engine .

Pivots

(gSAE 30 or 10w30 Motor Oil

@General Purpose Grease

@Refer to Maintenance "ENGINE" Section

BEFORE EACH USE

1. Check engine oil level.

2. Check brake operation.

3. Check tire pressure.

4. Check operator presence and

interlock systems for proper operation.

5. Check for loose fasteners.

mlVlPORTANT: Do not oil or grease the

pivot points which have special nylon

bearings. Viscous lubricants will attract

dust and dirt that will shorten the life of the

self-lubricating bearings. If you feet they

must be lubricated, use only a dry, pow-

dered graphite type lubricant sparingly.

TRACTOR

Always observe safety rutes when per-

forming any maintenance.

BRAKE OPERATmON

If tractor requires more than six (6) feet

stopping distance at high speed in highest

gear, then brake must be adjusted. (See

"TO ADJUST BRAKE" in the Service and

Adjustments section of this manual).

TmRES

, Maintain proper air pressure in all tires

(See "PRODUCT SPECIFICATIONS"

section of this manual).

* Keep tires free of gasoline, oil, or insect

control chemicals which can harm rub-

ber.

* Avoid stumps, stones, deep ruts, sharp

objects and other hazards that may

cause tire damage.

NOTE: To seal tire punctures and prevent

flat tires due to slow leaks, tire sealant

may be purchased from your local parts

dealer. Tire sealant also prevents tire dry

rot and corrosion.

OPERATOR PRESENCE SYSTEM

Be sure operator presence and interlock

systems are working properly. If your trac-

tor does not function as described, repair

the problem immediately.

The engine should not start unless the

clutch/brake pedal is fully depressed

and attachement clutch control is in the

disengaged position.

When the engine is running, any at-

tempt by the operator to leave the seat

without first setting the parking brake

should shut off the engine.

When the engine is running and the

attachment clutch is engaged, any at-

tempt by the operator to leave the seat

should shut off the engine.

The attachment clutch should never op-

erate unless the operator is in the seat.

BLADE CARE

For best results mower blades must be

kept sharp. Replace bent or damaged

blades.

BLADE REMOVAL

1. Raise mower to highest position to al-

low access to blades.

2. Remove blade bolt, lock washer and

flat washer securing blade.

3. Install new or resharpened blade

with trailing edge up towards deck as

shown.

mMPORTANT: To ensure proper assembly,

center hole in blade must align with

star on mandrel assembly.

4. Reassemble blade bolt, lock washer

and flat washer in exact order as

shown.

5. Tighten blade bolt securely (27-35 Ft.

Lbs. torque).

mMPORTANT: Blade bolt is heat treated.

If bolt needs replacing, replace only with

approve bolt shown in the Repair Parts.

Mandrel A_embly

TrailingEdgeUp"--_"_e Center_

W shho: X

_lade Bolt

TO SHARPEN BLADE

NOTE: We do not recommend sharp-

ening blade - but if you do, be sure the

blade is balanced.

Care should be taken to keep the blade

balanced. An unbalanced blade will cause

excessive vibration and eventual damage

to mower and engine.

The blade can be sharpened with a file

or on a grinding wheel. Do not attempt

to sharpen while on the mower.

To check blade balance, you will need a

5/8" diameter steel bolt, pin, or a cone

balancer. (When using a cone balancer,

follow the instructions supplied with

balancer.)

NOTE: Do not use a nail for balancing

blade. The lobes of the center hole may

appear to be centered, but are not.

Slide blade on to an unthreaded portion

of the steel bolt or pin and hold the

bolt or pin parallel with the ground. If

blade is balanced, it should remain in a

horizontal position. If either end of the

blade moves downward, sharpen the

heavy end until the blade is balanced.

5/8" Bolt Blade

Center Hole

BATTERY

Your tractor has a battery charging system

which is sufficient for normal use. How-

ever, periodic charging of the battery with

an automotive charger will extend its life.

Keep battery and terminals clean.

Keep battery bolts tight.

Keep small vent holes open.

, Recharge at 6-10 amperes for 1 hour.

NOTE:The original equipmentbattery on

your tractoris maintenancefree.Do not

attemptto open or removecaps or covers.

Adding or checking levelof electrolyteis

not necessary.

TO CLEAN BATTERYAND TERMINALS

Corrosionand dirt on the batteryand

terminalscan causethe batteryto "leak"

power.

1. DisconnectBLACKbatterycablefirst

then RED batterycable and remove

batteryfrom tractor.

2. Rinsethe batterywith plain water and

dry.

3. Cleanterminals and batterycable ends

with wire brushuntil bright.

4. Coat terminalswith greaseor petro-

leumjelly.

5. Reinstallbattery(See "REPLACING

BATTERY""in the SERVICEAND AD-

JUSTMENTSsection of this manual).

TRANSAXLE COOUNG

Keeptransaxlefree from build-upof dirt

andchaff which can restrictcooling.

V-BELTS

CheckV-beltsfor deteriorationand wear

after 100 hoursof operationand replace if

necessary.The belts are not adjustable.Re-

place belts if they begin to slip from wear.

LUBRiCATiON

Only use highqualitydetergentoil rated

with API service classificationSG-SL

Select the oil's SAE viscosity grade

accordingto your expectedoperating

temperature.

SAE VISCOSITY GRADES

-30 -10 0 20 30 40

TEMPERATURE RANGE ANTICIPATED BEFORE NEXT OIL CHANGE

oil vi_¢chartl e

NOTE: Although multi-viscosity oils

(5W30, 10W30 etc.) improve starting in

cold weather, they will result in increased

oil consumption when used above 32°R

Check your engine oil level more frequent-

ly to avoid possible engine damage from

running low on oil.

Change the oil after every 50 hours of op-

eration or at least once a year if the tractor

is not used for 50 hours in one year.

Check the crankcase oil level before start-

ing the engine and after each eight (8)

hours of operation. Tighten oil fill cap/

dipstick securely each time you check the

oil level.

TO CHANGE ENGINE OIL

Determine temperature range expected

before oil change. All oil must meet API

service classification SG-SL

• Be sure tractor is on level surface.

• Oil will drain more freely when warm.

• Catch oil in a suitable container.

1. Remove oil fill cap/dipstick. Be careful

not to allow dirt to enter the engine

when changing oil.

2. Remove yellow cap from end of drain

valve and install the drain tube onto the

fitting.

Oil Drain Valve

3. Unlock drain valve by pushing inward

slightly and turning counterclockwise.

4. To open, pull out on the drain valve.

5. After oil has drained completely, close

and lock the drain valve by pushing

inward and turning clockwise until the

pin is in the locked position as shown.

6. Remove the drain tube and replace the

cap onto the end of the drain valve.

7. Refill engine with oil through oil fill dip-

stick tube. Pour slowly. Do not overfill.

For approximate capacity see "PROD-

UCT SPECIFICATIONS" section of this

manual.

8. Use gauge on oil fill cap/dipstick for

checking level. For accurate reading,

tighten dipstick cap securely onto the

tube before removing dipstick. Keep oil

at "FULL:' line on dipstick. Tighten cap

onto the tube securely when finished.

ENGmNE OIL FmLTER

Replace the engine oil filter every season

or every other oil change if the tractor is

used more than 100 hours in one year.

AmR FmLTER

Your engine will not run properly using a

dirty air filter. Replace pre-cleaner after

every 25 hours of operation or every

season. Service paper cartridge every

100 hours of operation or every season,

whichever occurs first.

Service air cleaner more often under dusty

conditions.

1. Pull up on air filter cover handle and

19 rotate towards engine.

2. Removecover.

3. Carefullyremoveair filter cartridgeand

pre-cleanerfrom base.

4. Clean basecarefullyto preventdebris

from falling into carburetor.

NOTE:If very dirty or damaged, replace

cartridge.

5. Place new pre-cleanerand cartridge

firmly in base.

6. Align tabs on coverwith slots in blower

housingand replacecover.

7. Hook handleon cover and pushdown

on handleto close.

mMPORTANT:Petroleumsolvents,such

as kerosene,are notto be usedto clean

the cartridge. They maycause deterio-

rationof the cartridge. Do not oil car-

tridge. Do not use pressurizedair to clean

cartridge.

_ Handle

_ Cover

Cartridge

Air Screen

Clean out chaff and debris

MUFFLER

Inspect and replace corroded muffler and

spark arrester (if equipped) as it could cre-

ate a fire hazard and/or damage.

SPARK PLUG(S)

Replace spark plug(s) at the beginning

of each mowing season or after every

100 hours of operation, whichever occurs

first. Spark plug type and gap setting are

shown in "PRODUCT SPECiFiCATiONS"

section of this manual.

mN°LmNE FUEL FmLTER

The fuel filter should be replaced once

each season. If fuel filter becomes

clogged, obstructing fuel flow to carbu-

retor, replacement is required.

1. With engine cool, remove filter and

plug fuel line sections.

2. Place new fuel filter in position in fuel

line with arrow pointing towards carbu-

retor.

3. Be sure there are no fuel line leaks

and clamps are properly positioned.

4. Immediately wipe up any spilled gaso-

line.

Tabs

"SUots

CLEAN AmR SCREEN

Air screen must be kept free of dirt and

chaff to prevent engine damage from

overheating. Clean with a wire brush or

compressed air to remove dirt and stub-

born dried gum fibers.

ENGmNE COOUNG SYSTEM

Debris may clog the engine's air cool-

ing system. Remove blower housing and

clean area shown to prevent overheating

and engine damage.

_ Clamp

Clamp J __el Filter

• Clean engine, battery, seat, finish, etc.

of all foreign matter.

• Keep finished surfaces and wheels free

of all gasoline, oil, etc.

• Protect painted surfaces with auto-

motive type wax.

We do not recommend using a garden

hose or pressure washer to clean your

tractor unless the engine and transmis-

sion are covered to keep water out. Water

in engine or transmission will shorten the

useful life of your tractor. Use compressed

air or a leaf blower to remove grass,

leaves and trash from tractor and mower.

,_ WARNING: TO AVOID SERIOUS INJURY, BEFORE PERFORMING ANY

SERVICE OR ADJUSTMENTS:

1. Depress clutch/brake pedal fully and set parking brake.

2. Place gearshift lever in neutral (N) position.

3. Place attachment clutch in "DISENGAGED" position.

4. Turn ignition key to "STOP" and remove key.

5. Make sure the blades and all moving parts have completely stopped.

6. Disconnect spark plug wire from spark plug and place wire where it cannot

come in contact with plug.

TRACTOR

TO REMOVE MOWER

Mower will be easier to remove from the

right side of tractor.

1. Place attachment clutch in "DISEN-

GAGED" position.

2. Move attachment lift lever forward to

lower mower to its lowest position.

3. Roll belt off engine pulley.

4. Remove small retainer spring, and

remove clutch spring off pulley bolt.

5. Remove large retainer spring, slide

collar off and push housing guide out of

bracket.

6. Disconnect anti-sway bar from chassis

bracket by removing retainer spring.

7. Disconnect suspension arms from rear

deck brackets by removing retainer

springs.

8. Disconnect front links from deck by

removing retainer springs.

9. Raise lift lever to raise suspension arms.

Slide mower out from under tractor.

IMPORTANT: If an attachment other than

the mower deck is to be mounted on the

tractor, remove the front links and hook

the clutch spring Into square hole in frame.

TO INSTALL MOWER

1. Raise attachment lift lever to its highest

position.

2. Slide mower under tractor with deflec-

tor shield to right side of tractor.

3. Lower lift lever to its lowest position.

4. Connect front links to mower deck and

secure with retainer springs.

5. Connect suspension arms to rear

deck brackets and secure with retainer

springs.

6. Connect anti-sway bar to chassis

bracket and secure with retainer spring.

7. Push clutch cable housing guide into

bracket, slide collar onto guide and

secure with large retainer spring.

8. Place flat washer and dutch spring on

idler pulley bolt and secure with small

retainer spring.

9. Install belt onto engine pulley.

Small Retainer S

Clutch Spring _

Retainer S

Anti-Sway

Housing

Guide

Both Sides)

Deflector Shield

Bracket

Large Retainer Spring 21

TO LEVEL MOWER HOUSmNG

Adjust the mower while tractor is parked

on level ground or driveway. Make sure

tires are properly inflated (See "PROD-

UCT SPECIFICATIONS" section of this

manual). If tires are over or underinflated,

you will not properly adjust your mower.

SIDE-TO-SIDE ADJUSTMENT

• Raise mower to its highest position.

• At the midpoint of both sides of mower,

measure height from bottom edge of

mower to ground. Distance "A" on both

sides of mower should be the same or

within 1/4" of each other.

• If adjustment is necessary, make adjust-

ment on one side of mower only.

• To raise one side of mower, tighten lift

link adjustment nut on that side.

• To lower one side of mower, loosen lift

link adjustment nut on that side.

NOTE: Each full turn of adjustment nut

will change mower height about 1/8".

Recheck measurements after adjusting.

Bottom edge Bottom edge of

• When distance "D" is 1/8" to 1/2"

lower at front than rear, tighten nuts "F"

against trunnion on both front links.

• To raise front of mower, loosen nut "F"

from trunnion on both front links. Tighten

nut "E" on both front links an equal num-

ber of turns. The two front links must

remain equal in length.

When distance "D" is 1/8" to 1/2" lower

at front than rear, tighten nut "F" against

trunnion on both front links.

• Recheck side-to-side adjustment.

_ Mandrel

Both Front. _nks Should beEgual in Length

n Arm

Lift Link N_

Adjustment

FRONT-TO-BACK ADJUSTMENT

mMPORTANT: Deck must be level side-to

side. If the following front-to-back adjust-

ment is necessary, be sure to adjust both

front links equally so mower will stay level

side-to-side.

To obtain the best cutting results, the

mower housing should be adjusted so

that the front is approximately 1/8" to 1/2"

lower than the rear when the mower is in

its highest position.

Check adjustment on right side of trac-

tor. Measure distance "D" directly in front

and behind the mandrel at bottom edge of

mower housing as shown.

• Before making any necessary adjust-

ments, check that both front links are

equal in length.

• If links are not equal in length, adjust

one link to same length as other link.

• To lower front of mower loosen nut "E"

on both front links an equal number of

turns.

_E _

Trunnion

Front Links

TO REPLACE MOWER BLADE DRIVE

BELT

The mower blade drive belt may be re-

placed without tools. Park the tractor on

level surface. Engage parking brake.

BELT REMOVAL -

1. Remove mower from tractor (See "TO

REMOVE MOWER" in this section of

manual).

2. Work belt off both mandrel pulleys and

idler pulleys.

3. Pull belt away from mower.

BELT INSTALLATION -

1. Work belt around both mandrel pulleys

and idler pulleys

2. Make sure belt is in all pulley grooves

and inside all belt guides.

3. Install mower (See "To Install Mower" in

this section of this manual).

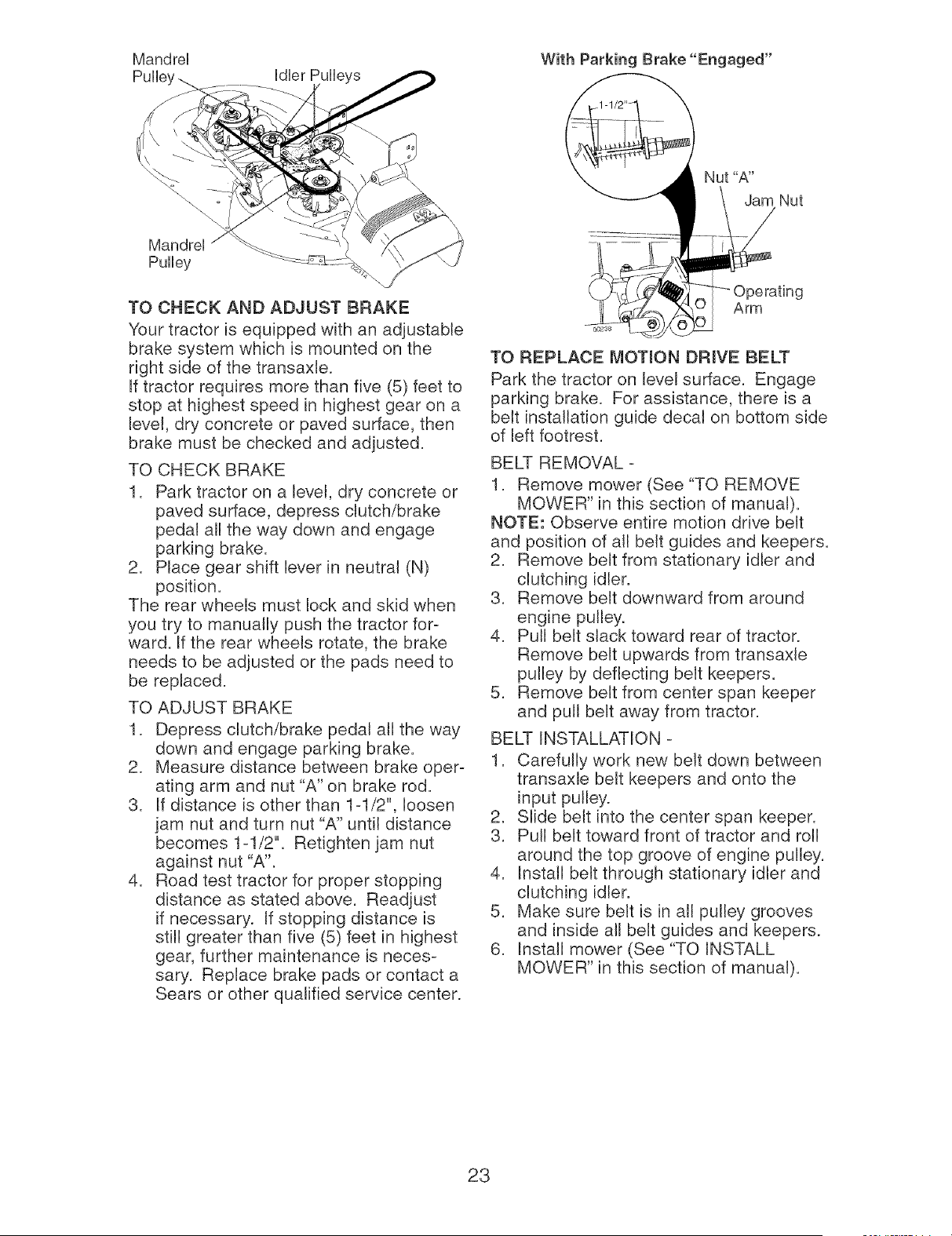

MandreU With Parking Brake"Engaged"

MandreU

Pulley

Nut "A"

Jam Nut

TO CHECK AND ADJUST BRAKE

Your tractor is equipped with an adjustable

brake system which is mounted on the

right side of the transaxle.

If tractor requires more than five (5) feet to

stop at highest speed in highest gear on a

level, dry concrete or paved surface, then

brake must be checked and adjusted.

TO CHECK BRAKE

1. Park tractor on a level, dry concrete or

paved surface, depress clutch/brake

pedal all the way down and engage

parking brake.

2. Place gear shift lever in neutral (N)

position.

The rear wheels must lock and skid when

you try to manually push the tractor for-

ward. If the rear wheels rotate, the brake

needs to be adjusted or the pads need to

be replaced.

TO ADJUST BRAKE

1. Depress clutch/brake pedal all the way

down and engage parking brake.

2. Measure distance between brake oper-

ating arm and nut "A" on brake rod.

3. If distance is other than 1-1/2", loosen

jam nut and turn nut "A" until distance

becomes 1-1/2". Retighten jam nut

against nut "A".

4. Road test tractor for proper stopping

distance as stated above. Readjust

if necessary. If stopping distance is

still greater than five (5) feet in highest

gear, further maintenance is neces-

sary. Replace brake pads or contact a

Sears or other qualified service center.

Arm

00238

TO REPLACE MOTmON DRmVE BELT

Park the tractor on level surface. Engage

parking brake. For assistance, there is a

belt installation guide decal on bottom side

of left footrest.

BELT REMOVAL -

1. Remove mower (See "TO REMOVE

MOWER" in this section of manual).

NOTE: Observe entire motion drive belt

and position of all belt guides and keepers.

2. Remove belt from stationary idler and

clutching idler.

3. Remove belt downward from around

engine pulley.

4. Pull belt slack toward rear of tractor.

Remove belt upwards from transaxle

pulley by deflecting belt keepers.

5. Remove belt from center span keeper

and pull belt away from tractor.

BELT INSTALLATION -

1. Carefully work new belt down between

transaxle belt keepers and onto the

input pulley.

2. Slide belt into the center span keeper.

3. Pull belt toward front of tractor and roll

around the top groove of engine pulley.

4. Install belt through stationary idler and

clutching idler.

5. Make sure belt is in all pulley grooves

and inside all belt guides and keepers.

6. Install mower (See "TO INSTALL

MOWER" in this section of manual).

Engine

Clutchin(

Center

Keeper

Stationary Idler

Transaxle

Pulley

TRANSAXLE GEAR SHmFT LEVER NEU-

TRAL ADJUSTMENT

The transaxb should be in neutral when

the gear shift lever is in neutral (N) (lock

gate) position. The adjustment is preset

at the factory; however, if adjustment is

needed, proceed as follows:

1. Make sure transaxle is in neutral (N).

NOTE: When the tractor rear wheels move

freely, the transaxle is in neutral.

2. Loosen adjustment bolt in front of the

right rear wheel.

3. Position the gear shift lever in the neu-

tral (N) position.

4. Tighten adjustment bolt securely.

NOTE: If additional clearance is needed

to get to adjustment bolt, move mower

deck height to the lowest position.

Neutral Lock Gate

Gearshift

..... ..... ,:,.... Adjustment Bolt

TO ADJUST STEERmNG WHEEL AUGN-

MENT ]

If steering wheel crossbars are no

horizontal (left to right) when wheels are

positioned straight forward, remove steer-

ing wheel and reassemble with crossbars

horizontal. Tighten securely.

FRONT WHEEL TOE4N/CAMBER

The front wheel toe-in and camber are not

adjustable on your tractor. If damage has

occurred to affect the front wheel toe-in or

camber, contact a Sears or other qualified

service center.

TO REMOVE WHEEL FOR REPAmRS

1. Block up axle securely.

2. Remove axle cover, retaining ring and

washers to allow wheel removal (rear

wheels have a square key - Do not

lose).

3. Repair tire and reassemble.

NOTE: On rear wheels only: align

grooves in rear wheel hub and axle. Insert

square key.

4. Replace washers and snap retaining

ring securely in axle groove.

5. Replace axle cover.

NOTE: To seat tire punctures and prevent

flat tires due to slow leaks, purchase and

use tire sealant from Sears. Tire sealant

also prevents tire dry rot and corrosion.

Washers

Retaining

Ring

Axle

Cover

Square Key ....... _

(Rear Wheel Only) v

TO START ENGmNE WroTH A WEAK BAT-

TERY

_,WARNmNG: Lead-acid batteries gen-

erate explosive gases. Keep sparks, flame

and smoking materials away from bat-

teries. Always wear eye protection when

around batteries.

If your battery is too weak to start the

engine, it should be recharged. (See "BAT-

TERY" in the MAINTENANCE section of

this manual).

If "jumper cables" are used for emergency

starting, follow this procedure:

mMPORTANT: Your tractor is equipped

with a 12 volt system. The other vehicle

must also be a 12 volt system. Do not use

your tractor battery to start other vehicles.

TO ATTACH JUMPER CABLES -

1. Connect one end of the RED cable

to the POSITIVE (+) terminal of each

battery(A-B), taking care not to short

against tractor chassis.

2. Connect one end of the BLACK cable

to the NEGATIVE (-) terminal (C) of

fully charged battery.

3. Connect the other end of the BLACK

cable (D) to good chassis ground,

away from fuel tank and battery.

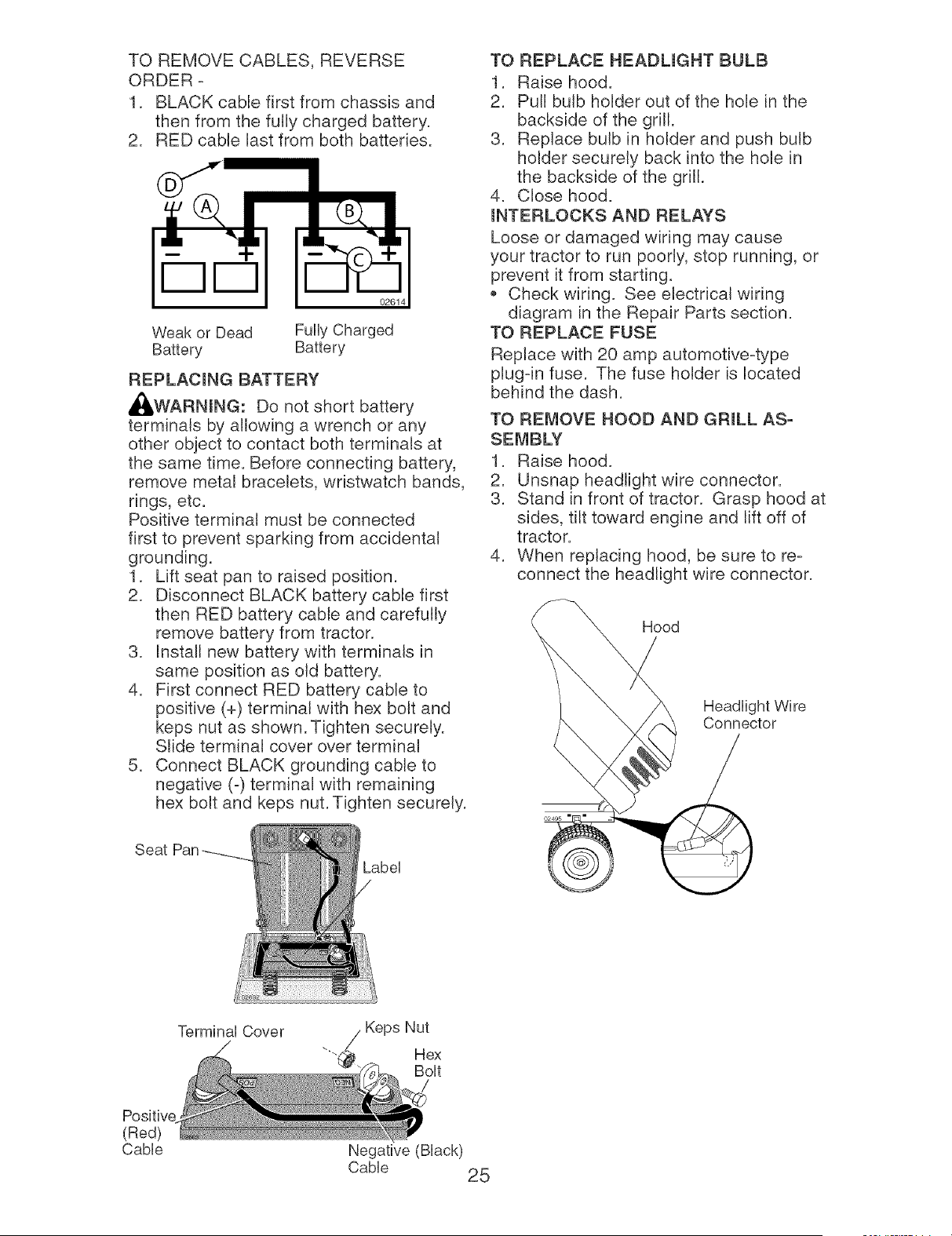

TO REMOVECABLES,REVERSE

ORDER-

1. BLACKcablefirst from chassis and

then from the fully charged battery.

2. RED cablelast from both batteries.

0261 1

Weak or Dead FuHy Charged

Battery Battery

REPLACmNG BATTERY

_IbWARNmNG: Do not short battery

terminals by allowing a wrench or any

other object to contact both terminals at

the same time. Before connecting battery,

remove metal bracelets, wristwatch bands,

rings, etc.

Positive terminal must be connected

first to prevent sparking from accidental

grounding.

1. Lift seat pan to raised position.

2. Disconnect BLACK battery cable first

then RED battery cable and carefully

remove battery from tractor.

3. Install new battery with terminals in

same position as old battery.

4. First connect RED battery cable to

positive (+) terminal with hex bolt and

keps nut as shown. Tighten securely.

Slide terminal cover over terminal

5. Connect BLACK grounding cable to

negative (-) terminal with remaining

hex bolt and keps nut. Tighten securely.

TO REPLACE HEADUGHT BULB

1. Raise hood.

2. Pull bulb holder out of the hole in the

backside of the grill.

3. Replace bulb in holder and push bulb

holder securely back into the hole in

the backside of the grill.

4. Close hood.

mNTERLOCKS AND RELAYS

Loose or damaged wiring may cause

your tractor to run poorly, stop running, or

prevent it from starting.

Check wiring. See electrical wiring

diagram in the Repair Parts section.

TO REPLACE FUSE

Replace w4th 20 amp automotive-type

plug-in fuse. The fuse holder is located

behind the dash.

TO REMOVE HOOD AND GRmLL AS-

SEMBLY

1. Raise hood.

2. Unsnap headlight wire connector.

3. Stand in front of tractor. Grasp hood at

sides, tilt toward engine and lift off of

tractor.

4. When replacing hood, be sure to re-

connect the headlight wire connector.

Hood

Headlight Wire

Connector

Label

Terminal Cover

Keps Nut

"-_. Hex

Bolt

Positive

(Red)

Cable

Negative (Black)

Cable

Maintenance, repair, or replacement of the

emission control devices and systems, which

are being done at the customers expense,

may be performed by any non-road engine

repair establishment or individual. W]arranty

repairs must be performed by an authorized

engine manufacturer's service outlet.

TO ADJUST THROTTLE CONTROL

The throttle control has been preset at the

factory and adjustment should not be nec-

essary. Check adjustment as described

below before loosening cable. If adjust-

ment is necessary, proceed as follows:

1. With engine not running, move throttle

control lever from slow to choke posi-

tion. Slowly move lever from choke to

fast position.

2. Check that holes "A" in governor

control lever and hole in governor plate

line-up. If holes "A" are not aligned,

loosen clamp screw and move throttle

cable until holes are aligned. Tighten

clamp screw securely.

TO ADJUST CARBURETOR

Governor Control Lever Governor

Plate

Hobs Throttle

Clamp Cable

Screw

NOTE: The carburetor on this engine is

low emission. It is equipped with an idle

fuel adjusting needle with a limiter cap,

which allows some adjustment within the

limits allowed by the cap. Do not attempt

to remove the limker cap. The limker cap

cannot be removed without breaking the

adjusting needle.

The carburetor has been preset at the

factory and adjustment should not be nec-

essary. However, minor adjustment may

be required to compensate for differences

in fuel, temperature, altitude or load. If the

carburetor does need adjustment, proceed

as follows:

In general, turning idle mixture valve in

(clockwise) decreases the supply of fuel to

the engine giving a leaner fuel/air mix-

ture. Turning the idle mixture valve out

(counterclockwise) increases the supply

of fuel to the engine giving a richer fuel/air

mixture.

mMPORTANT: Damage to the needle

valve and the seat in carburetor may result

if screw is turned in too tight.

PRELIMINARY SETTING -

1. Air cleaner assembly must be assem-

bled to the carburetor when making

carburetor adjustments.

2. Be sure the throttle control cable is

adjusted properly (see above).

FINAL SETTING -

1. Start engine and allow to warm for five

minutes. Make final adjustments with

engine running and shift/motion control

lever in neutral (N) position.

2. Move throttle control lever to slow posi-

tion. With finger, rotate and hold throttle

lever against idle speed screw. Turn

idle speed screw to attain 1750 RPM.

3. While still holding throttle lever against

idle speed screw, turn idle mixture

valve full travel clockwise then coun-

terclockwise until engine runs rough.

Turn valve to a point midway between

those two positions. Release throttle

lever.

ACCELERATION TEST -

4. Move throttle control lever from slow

to fast position. If engine hesitates or

dies, turn idle mixture valve out (coun-

terclockwise) 1/8 turn. Repeat test and

continue to adjust, if necessary, until

engine accelerates smoothly.

High speed stop is factory adjusted. Do

not adjust - damage may result.

mMPORTANT: Never tamper with the

engine governor, which is factory set

for proper engine speed. Overspeed-

ing the engine above the factory high

speed setting can be dangerous. If you

think the engine-governed high speed

needs adjusting, contact a Sears or other

qualified service center, which has proper

equipment and experience to make any

necessary adjustments.

Idle Speed [- Throttle

Screw Lever

With Limiter

Immediately prepare your tractor for stor-

age at the end of the season or if the trac-

tor will not be used for 30 days or more.

_I, CAUTmON: Never store the tractor

with gasoline in the tank inside a building

where fumes may reach an open flame

or spark. Allow the engine to cool before

storing in any enclosure.

TRACTOR

Remove mower from tractor for winter

storage. When mower is to be stored for a

period of time, clean it thoroughly, remove

all dirt, grease, leaves, etc. Store in a

clean, dry area.

1. Clean entire tractor (See "CLEANING"

in the Maintenance section of this

manual).

2. Inspect and replace belts, if necessary

(See belt replacement instructions in

the Service and Adjustments section of

this manual).

3. Lubricate as shown in the Maintenance

section of this manual.

4. Be sure that all nuts, bolts and screws

are securely fastened. Inspect moving

parts for damage, breakage and wear.

Replace if necessary.

5. Touch up all rusted or chipped paint

surfaces; sand lightly before painting.

BATTERY

Fully charge the battery for storage.

After a period of time in storage, battery

may require recharging.

To help prevent corrosion and power

leakage during long periods of storage,

battery cables should be disconnected

and battery cleaned thoroughly (see "TO

CLEAN BATTERY AND TERMINALS" in

the Maintenance section of this manual).

After cleaning, leave cables discon-

nected and place cables where they

cannot come in contact with battery

terminals.

If battery is removed from tractor for

storage, do not store battery directly on

concrete or damp surfaces.

FUEL SYSTEM

mMPORTANT: It is important to prevent

gum deposits from forming in essential

fuel system parts such as carburetor, fuel

hose, or tank during storage. Also, alcohol

blended fuels (called gasohol or using

ethanol or methanol) can attract moisture

which leads to separation and formation of

acids during storage. Acidic gas can dam-

age the fuel system of an engine while in

storage.

Empty the fuel tank by starting the en-

gine and letting it run until the fuel lines

and carburetor are empty.

Never use engine or carburetor cleaner

products in the fuel tank or permanent

damage may occur.

Use fresh fuel next season.

NOTE: Fuel stabilizer is an acceptable

alternative in minimizing the formation of

fuel gum deposits during storage. Add

stabilizer to gasoline in fuel tank or stor-

age container. Always follow the mix ratio

found on stabilizer container. Run engine

at least 10 minutes after adding stabilizer

to allow the stabilizer to reach the car-

buretor. Do not empty the gas tank and

carburetor if using fuel stabilizer.

ENG(NE OIL

Drain oil (with engine warm) and replace

with clean engine oil. (See "ENGINE" in

the Maintenance section of this manual).

1. Remove spark plug(s).

2. Pour one ounce of oil through spark

plug hole(s) into cylinder(s).

3. Turn ignition key to "START" position

for a few seconds to distribute oil.

4. Replace with new spark plug(s).

Do not store gasoline from one season

to another.

Replace your gasoline can if your can

starts to rust. Rust and/or dirt in your

gasoline will cause problems.

If possible, store your tractor indoors

and cover it to give protection from dust

and dirt.

Cover your tractor with a suitable pro-

tective cover that does not retain mois-

ture. Do not use plastic. Plastic cannot

breathe which allows condensation to

form and will cause your tractor to rust.

mMPORTANT: Never cover tractor while

engine and exhaust areas are still warm.

TROUBLESHOOTmNG CHART:

See appropriate section in marluam unmess directed to Sears service center

Hard to start

Engine wiii not

turn over

Engine clicks but

wiii not start

CAUSE

1. Out of fuel.

2. Engine not "CHOKED"

properly.

3. Engine flooded.

4. Bad spark plug.

5. Dirty air filter.

6. Dirty fuel filter.

7 Water in fuel.

8. Loose or damaged wiring.

9. Carburetor out of adjustment.

10. Engine valves out of

adjustment.

1. Dirty air filter.

2. Bad spark plug.

3. Weak or dead battery.

4. Dirty fuel filter.

5. Stale or dirty fuel.

6. Loose or damaged wiring.

7. Carburetor out of adjustment.

8. Engine valves out of

adjustment.

1. Clutch/brake pedal not

depressed.

2. Attachment clutch is engaged.

3. Weak or dead battery.

4. Blown fuse.

5. Corroded battery terminals.

6. Loose or damaged wiring.

7. Faulty ignition switch.

8. Faulty solenoid or starter.

9. Faulty operator presence

switch(es).

1. Weak or dead battery.

2. Corroded battery terminals.

3. Loose or damaged wiring.

4. Faulty solenoid or starter.

GORRECTmON

1. Fill fuel tank.

2. See "TO START ENGINE"

in Operation section.

3. Wait several minutes

before attempting to start.

4. Replace spark plug.

5. Clean/replace air filter.

6. Replace fuel filter.

7. Empty fuel tank and carbure=

tor, refill tank with fresh gas=

oline and replace fuel filter.

8. Check all wiring.

9. See "To Adjust Carburetor"

in Service and Adjustments

section.

10. Contact a Sears or other

qualified service center.

1. Clean/replace air filter.

2. Replace spark plug.

3. Recharge or replace battery.

4. Replace fuel filter.

5. Empty fuel tank and refill tank

with fresh, clean gasoline.

6. Check all wiring.

7. See "To Adjust Carburetor"

in Service and Adjustments

section.

8. Contact a Sears or other

qualified service center.

1. Depress clutch/brake pedal.

2. Disengage attachment clutch.

3. Recharge or replace battery.

4. Replace fuse.

5. Clean battery terminals.

6. Check all wiring.

7. Check/replace ignition switch.

8. Check/replace solenoid or

starter.

9. Contact a Sears or other

qualified service center.

1. Recharge or replace battery.

2. Clean battery terminals.

3. Check atl wiring.

4. Check/replace solenoid or

starter.

TROUBLESHOOTmNG CHART:

See appropriate section in manuam unmess directed to Sears service center

CAUSE CORRECTmON

1. Cutting too much grass/too

fast.

2. Throttle in "CHOKE" position.

3. Build=up of grass, leaves

and trash under mower.

4. Dirty air filter.

5. Low oil level/dirty oil.

6. Faulty spark plug.

7. Dirty fuel filter.

8. Stale or dirty fuel.

PROBLEM

Loss of power

Excessive

vibration

Engine continues

to run when

operator leaves

seat with attach-

ment clutch

engaged

9. Water in fuel.

10.Spark plug wire loose.

11. Dirty engine air screen/fins.

12. Dirty/clogged muffler.

13. Loose or damaged wiring.

14. Carburetor out of adjustment

15. Engine valves out of

adjustment.

1. Worn, bent or loose blade.

2. Bent blade mandrel.

3. Loose/damaged part(s).

1. Faulty operator=safety

presence control system.

Worn, bent or loose blade.

Mower deck not level.

Buildup of grass, leaves,

and trash under mower.

Bent blade mandrel.

Clogged mower deck vent

holes from buildup of grass,

leaves, and trash around

mandrels.

POOr cut _ uneven

Raise cutting height/reduce

speed.

2. Adjust throttle control.

3. Clean underside of mower

housing.

4. Clean/replace air filter.

5. Check oil level/change oil.

6. Clean and regap or change

spark plug.

7. Replace fuel filter.

8. Empty fuel tank and refill tank

with fresh, clean gasoline.

9. Empty fuel tank and carbure=

tor, refill tank with fresh gas-

oline and replace fuel filter.

10. Connect and tighten spark

plug wire.

11. Clean engine air screen/fins.

12. Clean/replace muffler.

13.Check all wiring.

14. See "To Adjust Carburetor"

in Service and Adjustments

section.

15. Contact a Sears or other

qualified service center.

1. Replace blade.

Tighten blade bolt.

2. Contact a Sears or other

qualified service center.

3. Tighten loose part(s).

Replace damaged parts.

Check wiring, switches and

connections. If not corrected

contact Sears or other

qualified service center.

1. Replace blade. Tighten

blade bolt.

2. Level mower deck.

3. Clean underside of mower

housing.

4. Contact a Sears or other

qualified service center.

5. Clean around mandrels to

open vent holes.

TROUBLESHOOTmNG CHART:

See appropriate section in manuam unmess directed to Sears service center

Mower blades wiii

not rotate

PROBLEM CAUSE CORRECTmON

1. Remove obstruction.

Poor grass

discharge

Headlight(s) not

working

(if so equipped)

Battery wiii not

charge

Engine "backfires"

when turning

engine "OFF"

1. Obstruction in clutch

mechanism.

2. Worn/damaged mower drive

belt.

3. Frozen idler pulley.

4. Frozen blade mandrel.

1. Engine speed too slow.

2. Travel speed too fast.

3. Wet grass.

4. Mower deck not level.

5. Low/uneven tire air pressure

6. Worn, bent or loose blade.

7. Buildup of grass, leaves and

trash under mower.

8. Mower drive belt worn.

9. Blades improperly installed.

10. Improper blades used.

. Clogged mower deck vent

holes from buildup of grass,

leaves, and trash around

mandrels.

1. Switch is "OFF".

2. Bulb(s) or lamp(s) burned out.

3. Faulty light switch.

4. Loose or damaged wiring.

5. Blown fuse.

1. Bad battery cell(s).

2. Poor cable connections.

3. Faulty regulator

(if so equipped).

4. Faulty alternator.

Engine throttle control not

set at "SLOW" position for

30 seconds before stopping

engine.

2. Replace mower drive belt.

3. Replace idler pulley.

4. Contact a Sears or other

qualified service center.

1. Place throttle control in

"FAST" position.

2. Shift to slower speed.

3. Allow grass to dry before

mowing.

4. Level mower deck.

5. Check tires for proper air

pressure.

6. Replace/sharpen blade.

Tighten blade bolt.

7. Clean underside of mower

housing.

8. Replace mower drive belt.

9. Reinstall blades sharp edge

down.

10. Replace with blades listed

in this manual.

11. Clean around mandrels to

open vent holes.

1. Turn switch "ON".

2. Replace bulb(s) or lamp(s).

3. Check/replace light switch.

4. Check wiring and connections.

5. Replace fuse.

1. Replace battery.

2. Check/clean all connections.

3. Replace regulator.

4. Replace alternator.

. Move throttle control to

"SLOW" position and allow

to idle for 30 seconds before

stopping engine.

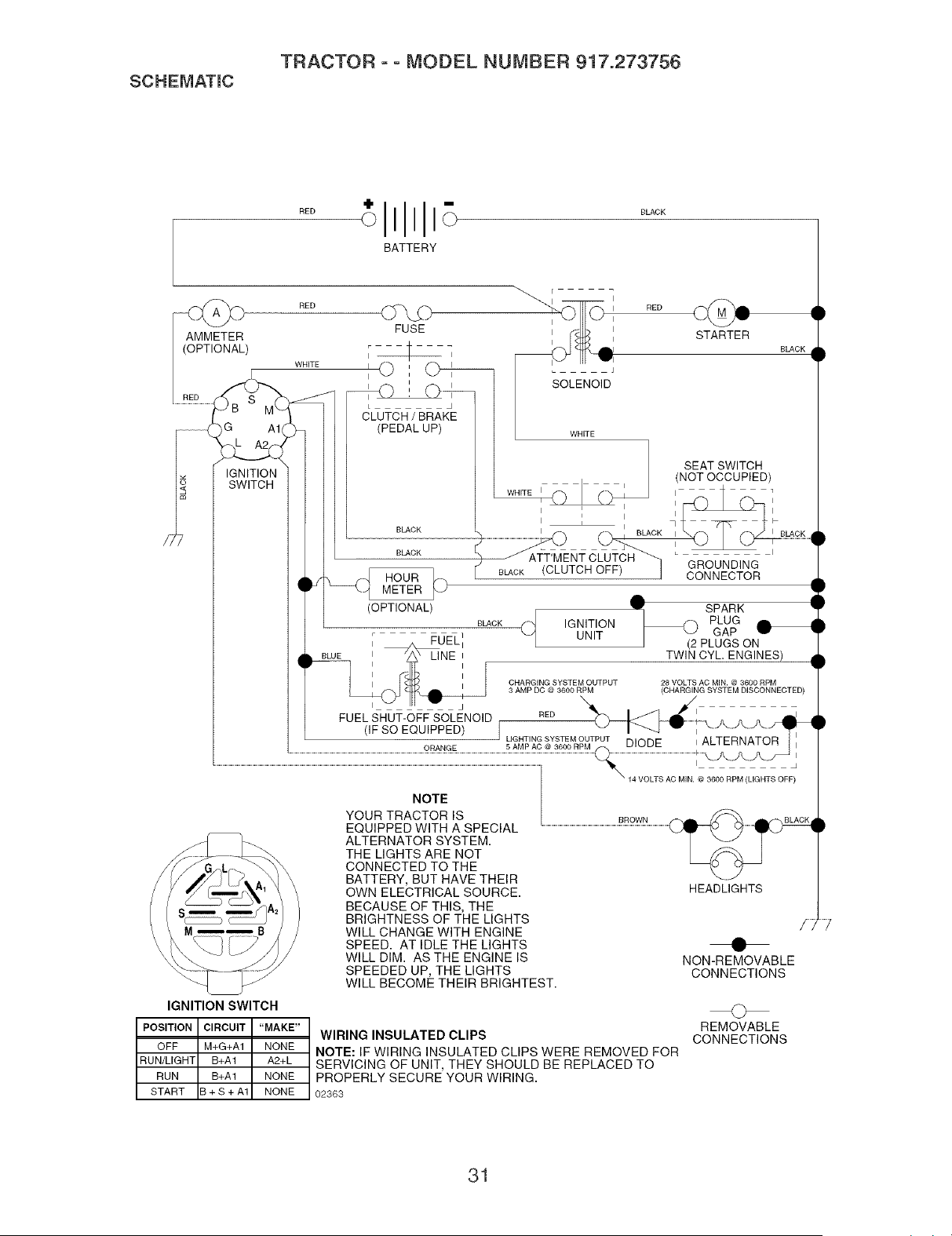

SCHEMATmC

TRACTOR o o MODEL NUMBER 917.273756

"° llllll;;

BATTERY

AMMETER

(OPTIONAL)

• <

IG All

cL_

IGNITION

SWITCH

RED _>

FUSE

WR,TE © 0----

I i

L J

CLUTCH / BRAKE

(PEDAL UP)

BLACK

(OPTIONAL)

BLACK

SOLENOID

RED

STARTER

BLACK

WHITE

SEAT SWITCH

I (NOT OCCUPIED)

I I

I i i

I I I

L_..........................'FC_UT_If I BLACK I I BLACK ......

I" BLACK CLUTCH OFF) I GROUNDING

CONNECTOR

SPARK I r

_._ IGNITION _ PLUG

UNIT GAP H)

(2 PLUGS ON

TWIN CYL ENGINES) t

CHARGING SYSTEM OUTPUT 28 VOLTS AC MIN. @ 3600 RPM

3 AMP DC @ 3600 RPM (CHARGING SYSTEM DISCONNECTED)

YOUR TRACTOR IS

EQUIPPED WITH A SPECIAL

ALTERNATOR SYSTEM.

THE LIGHTS ARE NOT

CONNECTED TO THE

BATTERY, BUT HAVE THEIR

OWN ELECTRICAL SOURCE.

BECAUSE OF THIS, THE

BRIGHTNESS OF THE LIGHTS

WILL CHANGE WITH ENGINE

SPEED. AT IDLE THE LIGHTS

WILL DIM. AS THE ENGINE IS

SPEEDED UP, THE LIGHTS

WILL BECOME THEIR BRIGHTEST.

HEADLIGHTS

NON-REMOVABLE

CONNECTIONS

IGNITION SWITCH

POSITION CIRCUIT "MAKE"

OFF M+G+A1 NONE

RUN/LIGHT B+A1 A2+L

RUN B+A1 NONE

START B + S + A1 NONE

WIRING INSULATED CLIPS

NOTE: IF WIRING INSULATED CLIPS WERE REMOVED FOR

SERVICING OF UNIT, THEY SHOULD BE REPLACED TO

PROPERLY SECURE YOUR WIRING.

02363

REMOVABLE

CONNECTIONS

ELECTFIJCAL

TRACTOR - - MODEL NUMBER 917.273756

F \

_ i /

\- I

ELECTRmCAL

TRACTOR o o MODEL NUMBER 917.273756

KEY PART

NO. NO. DESCRmPTmON

1 163465 Battery

2 74760412 Bolt Hex Hd 1/4-20 unc x 3/4

8 176689 Box Battery

16 176138 Switch, hterlock

21 183759 Harness Asm Light W/4152j

22 4152J Bulb Light #1156

24 4799J Cable Battery 6 Ga. 11" red

25 146147 Cable Battery 6 Ga. w/16 wire red

26 175158 Fuse

27 73510400 Nut Keps Hex 1/4-20 unc

28 4207J Cable Ground 6 Ga. 12" black

29 121305X Switch Hunger Normal Op Gray

30 175566 Switch Hgn

33 140403 Key Hgn

40 179720 Harness Hgn

41 71110408 BoIt BIk. Fin Hex 1/4-20 unc x 1/2

42 131563 Cover Terminal Red

43 178861 Solenoid

45 121433X Ammeter Rectangular 6 Amp

52 141940 Protection Wire Loop

90 180449 Cover Terminal

NOTE: All component dimensions given in U.S. inches

1 inch = 25.4 mm

TRACTOR o o MODEL NUMBER 917.273756

CHASSmS AND ENCLOSURES

212

261

259

260

258

278

@/5

208

2O7

209

208

206

209

208

chassis-Laser -It.silt 33

TRACTOR o o MODEL NUMBER 917.273756

CHASSmSAND ENCLOSURES

KEY PART

NO. NO. DESCRiPTiON

1 174619 Chassis

2 176554 Drawbar

5 155272 Bumper Hood/Dash

9 187846X013 Dash

10 STD533710 Bolt, Carriage 3/8-16 x 3/4

11 174996 Panel, Dash, L=H=

13 172105X010 Panel, Dash, R.H=

14 17490608 Screw Thdrol 3/8-16 x 1/2

17 185682X613 Hood Assembly

18 184921 Bumper Hood

26 STD541437 Nut

28 184247 GdlIe/Lens Asm= dncIudes Key Nos= 212, 258 through 261)

30 188570X613 Fend/Ftrest

31 139976 Bracket, Fender Support

37 17490508 ScrewThdrol 5/16-18 x 1/2

38 175710 Pivot Bracket Assembly, Rear

39 174714 Bracket Pivot Laser Lt

60 72140606 Bolt Rdhd Sqnk 3/8-16 uric x 1

64 154798 Dash Lower STLT

74 STD541437 Nut Crownlock 3/8-16 uric

142 175702 Plate Reinforcement STLT

143 186689 Bracket Swaybar Chassis

144 175582 Bracket Pnt Footrest STLT

145 156524 Rod Pivot Chassis/Hood

159 155123X428 Cupholder Stlt BIack

206 170165 BoltShouIder 5/16-18TT

207 17670508 ScrewThdrol 5/16-18 x 1/2Tytt

208 17670608 ScrewThdroi 3/8-16 x 1/2

209 17000612 Screw Hexwsh Thdr. 3/8-16 x 3/4

212 184248 hsert Lens Reflective

258 184245X599 Lens RH

259 184246X599 Lens LH

260 184250X428 Cover Lens

261 184258X428 hsert GriIIe

278 191611 Screw #10 x 3/4 SingIe Lead - Hex

- - 187801 Plug Dome PIastic

- - 5479J Plug, Button

NOTE: AlI component dimensions given in U=S=inches

1 inch = 25=4 mm

TRACTOR o o MODEL NUMBER 917.273756

GROUND DRmVE

197 212

116

151

drive-fender.stlt 39

TRACTOR o o MODEL NUMBER 917.273756

GROUND DRmVE

KEY PART KEY PART

NO. NO. DESCRIPTION NO. NO.

1 Transaxte Dana 4360-180 63 187618

(See Breakdown) 64 188025

2 146682 Spring, Return, Brake 65 188029

3 123666X Pulley, Transaxle 66 154778

4 12000028 Ring, Retainer 69 142432

5 121520X Strap, Torque 70 134683

6 17000512 Screw 5/16-18 x 3/4 74 109502X

8 165866 Rod Shifter Fender STLT 75 121749X

10 STD561210 Pin, Cotter 76

11 105701X Washer, Shift Plate 77 123583X

13 74550412 Bolt 1/4-28 unf W/Patch Gr. 8 78 121748X

14 10040400 Washer Lock Hvy Helical 79 STD580025

15 74490544 Bolt Hex FLGHD 5/16-18 Gr. 5 80 160783

16 STD541431 Nut Lock Hx W/Ins 5/16-18 unc 81 165593

18 STD523710 Bolt FinHex3/8-16uncx 1 Gr. 5 82 165711

21 106933X Knob 83 19171216

22 130804 Rod, Brake 84 169149

24 STD541237 Nut 85 150360

25 106888X Spring, Brake Rod 89

26 STD551037 Washer 112 19091210

27 STD561210 Pin 113 127285X

28 175765 Rod, Parking Brake 116 72140608

29 71673 Cap, Parking Brake 120 73900600

30 169592 Bracket, Transaxle 150 175456

32 STD523107 Bolt 151 19133210

34 175578 Shaft Assembly, Foot Pedal 156 166002

35 120183X Bearing, Nylon 158 165589

36 STD551062 Washer 159 183900

37 STD571810 RolI Pin 161 72140406

38 179114 Pulley, Composite, Flat 162 73680400

39 72110622 Bolt 163 74780416

41 175556 Keeper, Belt, Hler 165 165623

47 127783 Pulley, Idler, V-Groove, Plastic 166 17490510

48 154407 Bellcrank Clutch Grad Drv Stl 168 165492

49 123205X Retainer, Belt 169 165580

50 72110612 Bolt 170 178394

51 STD541437 Nut Crown Lock 3/8-16 uric 197 169613

52 STD541431 Nut Crown Lock 5/16-18 unc 198 169593

53 105710X Link, Clutch 202 72110614

55 105709X Spring, Clutch Return 212 145212

56 17060620 Screw 3/8-16 x 1-1/4

57 160855 V-Belt, Ground Drive

59 169691 Keeper, Belt, Center Span

61 17120614 Screw 3/8-16 x .875

62 8883R Cover, Pedal

DESCRIPTION

Pulley, Engine

Bolt, 7/16-20 x 1.5

Washer

Keeper, Belt, Engine, Fool Proof

Screw Hex Wsh Hi-Lo 1/4 x 1/2 unc

Guide, Mower Drive Belt, R.H.

Spacer, Axle

Washer 25/32 x 1-1/4 x 16 Ga.

STD581075 E-Ring

Key, Square 2.0 x .1845/1865

Washer 25/32 x 1-5/8 x 16 Ga.

Key Woodruff

Arm, Shift

Shaft Asm Cross Tapered 650 20

Spring, Torsion

Washer 17/32 x 3/4 x 16 Ga.

Link Transaxle

Nut, Nylock

188310X428 Console, Shift, STLT

Washer 9/32 x 3/4 x 10 Ga.

Strap Torque 90 Degrees

Bolt Rdhd Sqneck 3/8-16 x 1

Nut Lock Fig. 3/8-16 unc

Spacer Retainer

Washer 13/32 x 2 x 10 Ga.

Washer Srrted 5/161D x 1.125

Bracket Shift Mount

Hub Shift

Bolt Rdhd Sqnk 1/4-20 x 3/4 Gr. 5

Nut Crownlock 1/4-20 uric

Bolt Hex Fin 1/4-20 unc x 1 Gr. 5

Bracket Pivot Lever

Screw 5/16-18 x 5/8 TT Yellow

Bolt Shoulder 5/16-18 x .561

Plate Fastening Lt

Keeper Belt Transaxle Gear

Nyliner Snap-in 5/8 ID

Washer Nyliner 7/8 ID x .105 Hd

Bolt Cam SH 3/8-16 x 1-3/4 Gr. 5

Nut Hex Flange Lock

NOTE: All component dimensions given in U.S. inches

1 inch = 25.4 mm

TRACTOR - - MODEL NUMBER 917.273756

STEERmNG ASSEMBLY

_ _ _38

I _12

/ /

37"_ i_37

68 67

, 9

' 40

............................. 10 30

steering put 47

/ /

\\ \ t_

TRACTOR o o MODEL NUMBER 917.273756

STEERmNG ASSEMBLY

KEY PART

NO. NO. DESCRiPTiON

1 184704X428 Steering Wheel

2 184706 Axle Assembly

3 169840 Spindle Assembly, LH.

4 169839 Spindle Assembly, R.H.

5 6266H Bearing, Race, Thrust, Hardened

6 121748X Washer 25/32 x 1-5/8 x 16 Ga.

8 12000029 Ring, Klip

10 175121 Draglink

11 STD551137 Washer, Lock

12 73940800 Nut Hex Jam Toplock 1/2-20 unf

13 136518 Spacer Bearing Axle Front

15 145212 Nut, Hex Flange Lock

17 180641 Shaft Assembly, Steering

26 126847X Bushing, Link, Drag

28 19131416 Washer 13/32 x 7/8 x 16 Ga.

29 17000612 Screw 3/8-16 x 3/4

30 STD561210 Pin Cotter

32 130465 Rod, Tie

36 155099 Bushing, Steering

37 152927 Screw

38 159946X428 insert, Steering Wheel

39 19182411 Washer 9/16 x 1-1/2 11

40 73540600 Nut Crown!ock 3/8-24

41 159945 Adaptor, Steering Wheel

42 145054X428 Boot, Steering Shaft

43 121749X Washer 25/32 x 1-1/4 x 16 Ga.

44 180640 Extension Shaft Steering

46 184946X505 Cap, Spindle

51 73540400 Nut Crownlock 1/4-28

54 71130420 Bolt Hex 1/4-28 unf x 1-1/4 Gr. 8

65 160367 Spacer Brace Axle

67 72110618 Bolt RDHD Sqnk 3/8-16 x 2-1/4

68 169827 Axle, Brace

71 175146 Steering Asm.

82 169835 Bracket Susp. Chassis Front

87 173966 Washer Fiat

88 175118 Bolt Shoulder 7/16-20 unc

91 175553 Clip Steering

95 188967 Washer Hardened

NOTE: Atl component dimensions given in U.S. inches

1 inch = 25.4 mm

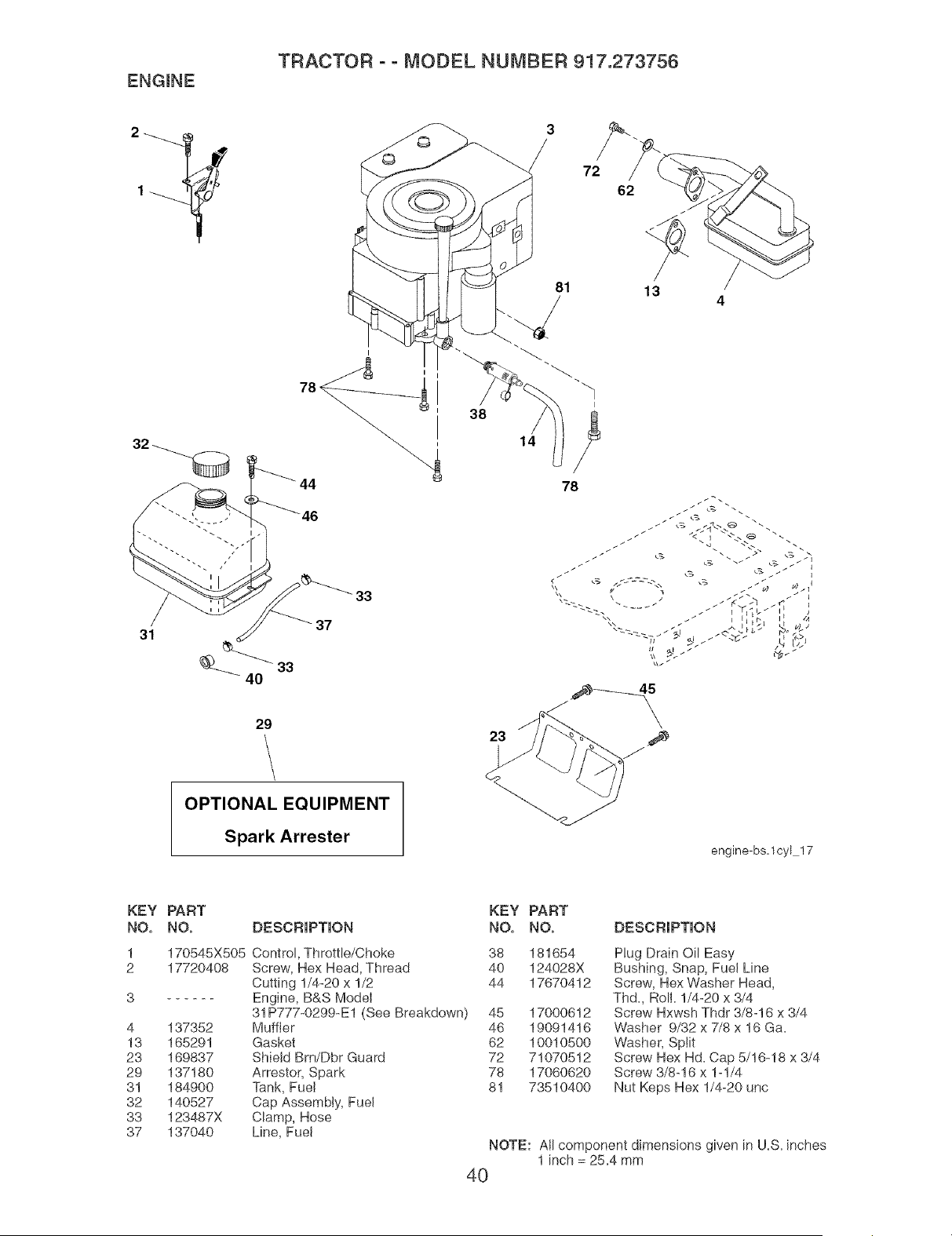

ENGmNE

TRACTOR - - MODEL NUMBER 917.273756

OPTIONAL EQUIPMENT

Spark Arrester

÷ngine-bs=lcyF !7

KEY PART

NO. NO.

1 170545X505

2 17720408

4 137352

13 165291

23 169837

29 137180

31 184900

32 140527

33 123487X

37 137040

DESCRIPTION

Control, Throttle/Choke

Screw, Hex Head, Thread

Cutting 1/4-20 x 1/2

Engine, B&S Model

31P777-0299-E1 (See Breakdown)

MuffIer

Gasket

Shietd Brn/Dbr Guard

Arrestor, Spark

Tank, Fuel

Cap Assembly, Fuel

Clamp, Hose

Line, Fuel

KEY PART

NO. NO.

38 181654

40 124028X

44 17670412

45 17000612

46 19091416

62 10010500

72 71070512

78 17060620

81 73510400

DESCRIPTION

Hug Drain Oil Easy

Bushing, Snap, Fuel Line

Screw, Hex Washer Head,

Thd, Roll 1/4-20 x 3/4

Screw Hxwsh Thdr 3/8-16 x 3/4

Washer 9/32 x 7/8 x 16 Ga=

Washer, Split

Screw Hex Hd=Cap 5/16-18 x 3/4

Screw 3/8-16 x 1-1/4

Nut Keps Hex 1/4-20 unc

NOTE: Atl component dimensions given in U.S. inches

1 inch = 25.4 mm

TRACTOR o o MODEL NUMBER 917.273756

UFT ASSEMBLY

.../ 15

Fift-rh.lpiece 3

KEY

NO.

PART

NO.

159460

159471

105767X

12000002

19211621

120183X

125631X

122365X

139865

139866

DESCRIPTION

Washer Asm Inner Spring

W/Plunger

Shaft Asm. Lift

Pin Groove

E Ring #5133-62

Washer 21/32 x 1 x 21 Ga.

Bearing Nylong

Grip Handle Fluted

Button Plunger Read

Link Asm Lift L.H.

Link Asm Lift R.H.

KEY PART

NO. NO. DESCRIPTION

13 STD624008 Retainer Spring

15 173288 Link Front

16 73350800 Nut Jam Hex 1/2-13 unc

17 175689 Trunnion BIk Zinc

18 73800800 Nut Lock w/Wsh 1/2-13 uric

19 139868 Arm Suspension Mower

20 163552 Retainer Spring

31 169865 Bearing, Pvt. Lift

32 73540600 Nut Crownlock 3/8-24

NOTE: AtI component dimensions given in U.S. inches

1 inch = 25.4 mm

TRACTOR oo MODEL NUMBER 917.273756

SEATASSEMBLY

seat It.knob 9

"/ 21

KEY PART

NO, NO,

1 180597

2 180166

3 71110616

4 19131610

5 145006

6 STD541437

7 124181X

8 17000616

9 19131614

10 180186

11 166369

DESCRIPTION

Seat

Bracket Pnt Pivot Seat (btk)

Bolt Fin Hex 3/8-16 uric x 1

Washer 13/32 x 3/4 x 10 Ga.

Clip Push In Hinged

Nut Hex Lock w/Ins 3/8-16 uric

Spring Seat Cprsn 2 250 BIk Zi

Screw 3/8-16 x 1

Washer 13/32 x 1 x 14 Ga.

Pan Pnt Seat (blk)

Knob Seat Adj Wingnut

KEY PART

NO. NO. DESCRIPTION

12 121246X

13 121248X

14 72050412

15 134300

16 121250X

17 123976X

21 171852

22 STD541431

24 19171912

Bracket Pnt Mounting Switch

Bushing Snap BIk Nyl 50 Id

Bolt Rdhd Sht Nk 1/4-20 x 1-1/2

Spacer Split 28 x 96 Zinc

Spring Cprsn 1 27 BIk Pnt

Nut Lock 1/4 Lge Fig Gr. 5 Zinc

Bolt Shoulder 5/16-18 unc-2A

Nut Hex Lock w/Ins 5/16-18

Washer 17/32 x 1-3/16 x12 Ga.

NOTE: All component dimensions given in U.S. inches

1 inch = 25.4 mm

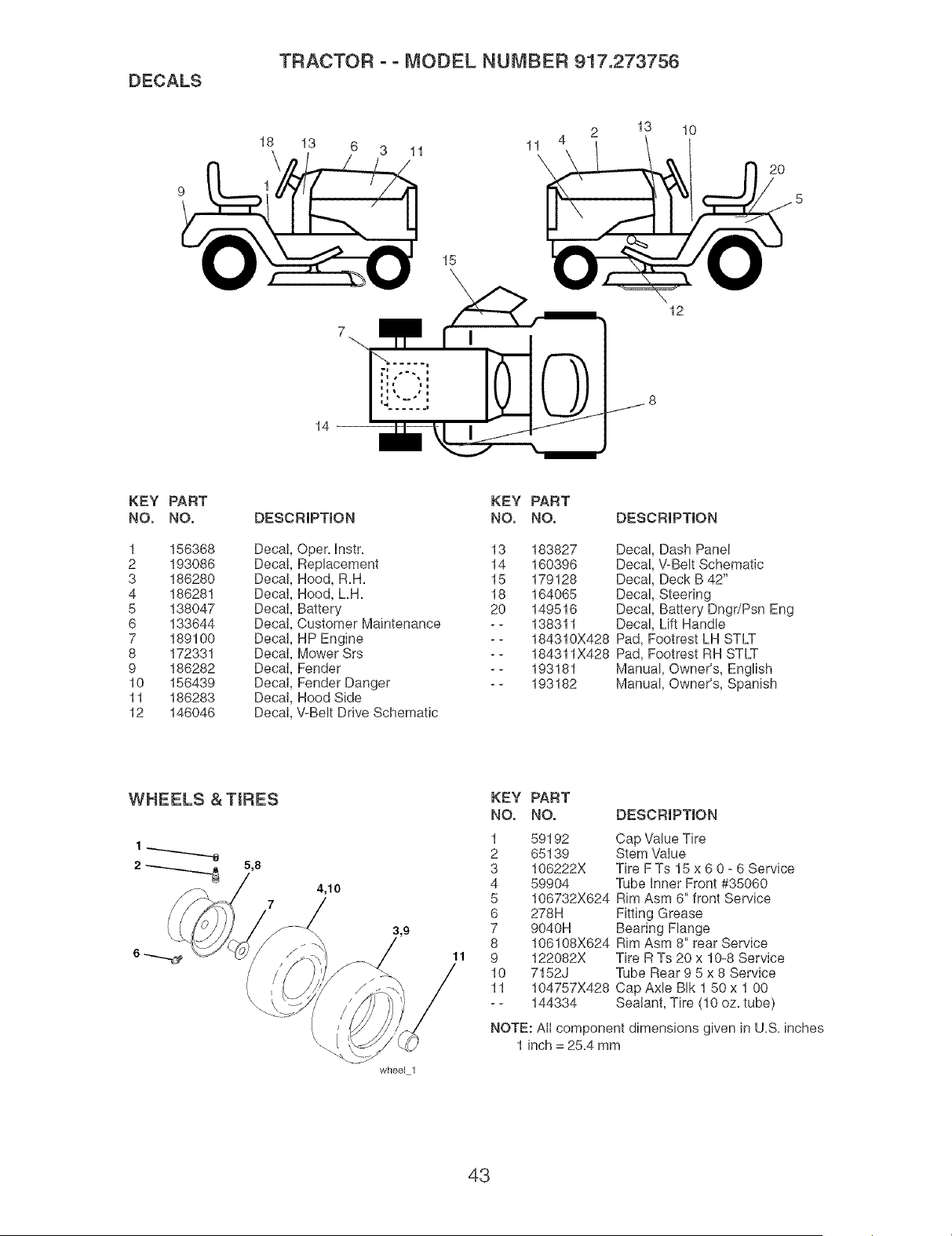

DECALS

TRACTOR o o MODEL NUMBER 917.273756

18 13 6 3 11 11

13 10

KEY PART

NO. NO.

KEY PART

DESCRIPTION NO. NO. DESCRIPTION

1 156368 DecaI

2 193086 Decal

3 186280 Decal

4 186281 Decal

5 138047 DecaI

6 133644 Decal

7 189100 Decal

8 172331 Decal

9 186282 Decal

10 156439 Decal

11 186283 Decal

12 146046 DecaI

Oper. Instr. 13 183827

Replacement 14 160396

Hood, R.H. 15 179128

Hood, LH. 18 164065

Battery 20 149516

Customer Maintenance - - 138311

HP Engine - - 184310X428

Mower Srs - - 184311X428

Fender - - 193181

Fender Danger - - 193182

Hood Side

V-Belt Drive Schematic

Decal, Dash Panel

Decal, V-Belt Schematic

Decal, Deck B 42"

Decal, Steering

Decal, Battery Dngr/Psn Eng

Decal, Lift Handle

Pad, Footrest LH STLT

Pad, Footrest RH STLT

Manual, Owner's, English

Manual, Owner's, Spanish

4,10

wheel 1

KEY PART

NO, NO,

1 59192

2 65139

3 106222X

4 59904

5 106732X624

6 278H

7 9040H

8 106108X624

9 122082X

10 7152J

11 104757X428

-- 144334

DESCRIPTION

Cap Value Tire

Stem Value

Tire FTs 15 x 6 0 - 6 Service

Tube Inner Front #35060

Rim Asm 6" front Service

Fitting Grease

Bearing Flange

Rim Asm 8" rear Service

Tire R Ts 20 x 10-8 Service

Tube Rear 9 5 x 8 Service

Cap Axle BIk 1 50 x 1 00

Sealant, Tire (10 oz. tube)

NOTE: AII component dimensions given in U.S. inches

1 inch = 25.4 mm

TRACTOR ° ° MODEL NUMBER 917.273756

MOWER DECK

i !147 142

106/_ 102 103 105

1011\_

102_

142

113 111 2

_116

117

119 118 j_.

19F 21

42 D man-t-path stlt 3

13_

10_

_8 v

119 _ 117

TRACTOR o o MODEL NUMBER 917.273756

MOWERDECK

KEY PART KEY PART

NO, NO, DESCRiPTiON NO, NO, DESCRiPTiON

1 165892

2 STD533107

3 138017

4 165460

5 STD624008

6 178024

8 850857

9 STD551137

10 140296

11 134149

-- 139775

-- 138971

13 137645

14 128774

15 110485X

16 174493

18 72140505

19 132827

20 159770

21 STD541431

23 177563

24 105304X

25 123713X

26 110452X

27 130968X428

28 19111016

29 131491

30 173984

31 187690

32 153535

33 178342

34 72110612

36 131494

37 STD551037

40 73900600

44 140088

45 STD624003

46 137729

48 133944

52 139888

53 184907

54 178515

Mower Deck Assembly, 42" 55 155046

Bolt 56 165723

Bracket Assembly, Sway Bar, Front 59 141043

Bracket Sway Bar 38/42" Deck 67 184939

Retainer Spring 68 144959

Bar Sway Deck 92 STD541437

Bolt, Hex 3/8-24 x 1.25 Gr. 8 101 136420

Washer, Lock 102 71081010

Washer, Hardened 103 19061216

(The following blades are available) 104 STD551110

Blade, 42" Mulching Std 105 160793

(For mulching mowers only) 106 2029J

Blade, 42" Mulching Premium 111 179292

(For better wear when mulching) 112 179293

Blade, 42" Hi-Lift 113 17000510

(For bagging or discharging) 116 4898H

Shaft Assembly, Mandrel, Vented 117 165746

Housing, Mandrel, Vented 118 73930600

Bearing, Ball, Mandrel 119 19121414

Stripper, Vented Mower Deck 129 19131312

Bolt, Carriage 5/16-18 x 5/8 130 STD523710

Bolt, Shoulder 131 STD533710

Baffle, Vortex 142 165890

Nut Crownlock 5/16-18 unc 143 157109

Bracket, Deflector 144 158634

Cap, SIeeve 145 165888

Spring, Torsion, Deflector 146 171977

Nut, Push 147 131335

Shield, Deflector 148 169022

Washer 11/32 x 5/8 x 16 Ga. 149 165898

Rod, Hinge 150 19091210

Screw Thdrol Washer Head 152 169676

Washer, Spacer 158 17720408

Pulley, Mandrel 159 72140614

Nut, TopIock, Flanged 184 19131410

Bolt Cam Sh 3/8-16 x 1-1/2 Gr. 5 185 188234

Pulley, Idler, Flat -- 130794

Washer 13/32 x 13/16 x 16 Ga.

Nut 3/8-16

Guard, Mandrel, LH.

Retainer - - 169583

Screw, Thd. Roll 1/4-20 x 5/8

Washer, Hardened

Bolt, Shoulder 5/16-18 unc

Arm Assembly, Pad, Brake

Washer, Hardened

Arm, Idler

Spacer, Retainer

Guard, TUV Idler

Knob Custom Oval

V-Belt

Nut

Mulcher Cover

Screw

Washer #10

Washer, Lock

Latch Assembly, Bagger

Nut, Weld

Bracket Gauge Wheel Lh

Bracket Gauge Wheel Rh

Screw 5/16-18 Unc

Bolt Shoulder

Wheet Gauge Std

Nut Centeriock 3/8-16 unc

Washer 3/8 x 7/8 x 4 Ga.

Washer 13/32 x 13/16 x 12 Ga.

Bolt, Fin Hex 3/8-16 unc x 1 Gr. 5

Bolt, Rdhd Sqnk 3/8-16 unc x 1

Arm Spring Brake Mower

Bracket Arm Idler 42"

Keeper Belt 42" Clutch Cable

Pulley Idler Flat

Bolt Carriage Idler

Spring Extension

Spring Return Idler

Retainer Spring Yellow Zinc

Washer 9/32 x 3/4 x 10 Ga.

Cable Clutch 42 In

Screw Hex Thd Cut 1/4-20 x 1/2

Bolt Rdhd Sqn 3/8-16 unc x 3/4

Washer 13/32 x 7/8 x 10 Ga.

Head Asm. Cable Clutch

Mandret Assembly (Includes

Housing, Shaft and Shaft

Hardware OnIy- PulIey Not

Included)

Replacement Mower, Complete

(Std. Deck-Order separately muI-

cher cover and gauge wheel

components key nos. 101 - 106

and 116 - 119)

NOTE: Atl component dimensions given in U.S. inches

1 inch = 25.4 mm

TRACTOR ° ° MODEL NUMBER 917.273756

DANA TRANSAXLE ° ° MODEL NUMBER D4360o180

11_

43_

70 65///

64-

6768

4-3'_

TRACTOR o o MODEL NUMBER 917.273756

DANA TRANSAXLE o o MODEL NUMBER D4360o180

KEY PART KEY PART

NO. NO. DESCRmPTmON NO. NO.

DESCRmPTmON

1 190972 Housing, Upper 41 105928X

2 2274J Screw, Tapping, 1/4-20 42 190986

X .734 43 134394"

3 190973 Ball, Detent

4 190974 Spring, Detent 44 120473X

5 190975 Screw, Tapping, 45 142678

No. 10-24 X .482 46 143697

6 190977 Assy, Kit, Shifter 47 124641X

7 190978 V-Ring 48 106589X

8 148266 Bearing, Flange 49 120408X

9 148269 Seal, Oil 50 105937X

10 2225J Ring, Retaining 51 2226J

11 134793* Assy, Kit, Shim,

.625 Shaft 52 134401

12 148268 Bearing, Flange 53 2264J

13 120415X Washer, Plain,

.632X1.38X.046 54 160946

14 142674 Key, Woodruff, No. 606 55 190987

15 190980 Assy, Kit, Input Shaft

16 190981 Pinion, Bevel, 12T 56 160948

17 105909X Ring, Retaining 57 110071X

18 105910X Chain, 24 Pitches 58 120952X

19 190982 Cover, Detent 59 190988

20 160943 Gear, Spur, 12T 60 160950

21 138246 Collar, Clutch 61 190990

22 190983 Assy, Kit, Clutch Keys 62 19992

23 73810500 Nut, Lock, 5/16-24 63 108989X

24 190984 Shaft, Intermediate 64 160952

25 2244J Key, Woodruff, No. 61 65 120954X

26 105916X Ring, Retaining 66 160953

27 120470X Sprocket, 18T

28 110070X Spacer, 1.131 X 1.45 X 67 138244

.494 68 108996X

29 142677 Gear, Spur, 37T

30 142681 Gear, Spur, 35T 69 160954

31 124644X Gear, Spur, 30T 70 120951X

32 108980X Gear, Spur, 25T 71 190993

33 120406X Gear, Spur, 22T 72 120416X

34 134796 Gear, Spur, 19T 900 189115

35 105925X Washer, Plain,

.640 X 1.37 X .061

36 2228J Washer, Plain,

.632 X 1.00 X .046

37 3413J Washer, Plain,

.632 X 1.00 X .010

38 190985 Assy, Gear, Comb.,

12T & 30T

39 124639X Shaft, Idler

40 120472X Spacer, .633 X .87 X

.755

Sprocket, 9T

Gear, Bevel, 36T

Assy, Kit, Shim,

.750 Shaft

Shaft, Drive

Gear, Spur, 12T

Gear, Spur, 15T

Gear, Spur, 20T

Gear, Spur, 25T

Gear, Spur, 28T

Gear, Spur, 31T

Washer, Plain,

.632 X 1.00 X .060

Washer, Neoprene

Washer, Plain,

.758 X 1.25 X .031

Axle, LH

Gear, Miter,

127, Splined

Ring, Retaining

Gear, Spur, 32T

Shaft, Cross

Gear, Miter, 127, Idler

Axle, RH

Housing, Lower

Disc, Brake

Spacer, Brake Puck

Jaw, Brake

Pin, Dowel

Screw, Tapping,

5/16-18 X 2.35

Lever, Actuating

Washer, Plain,

.321 X 1.00 X .055

Bracket, Anti-Rotation

Puck, Friction

Washer, Anti Rotation

Grease

Transaxle, Complete

* Use in various combinations to maintain

proper clearances.

** Order Key No. 15.

*** Silicone Sealant to be applied between

Upper and Lower

Housings (use Loctite Ultra Gray Silicone

5699 or equivalent).

NOT_': All component dimensions given

47 in U.S. inches 1 inch = 25.4 mm

TRACTOR o o MODEL NUMBER 917.273756

BRmGGSENGmNE-MODELNUMBER31P777,TYPE NUMBER0299oe1

1330 REPAIR MANUAL I

11329REPLACEMENTENGINEI

307_

358 ENGINE GASKET SET

20@ 6170

868_)

9430

1022

51% 691(_ 0

524 _ 8420 1266

24 @

43,_

16,

146,

741

684I'11_

584_ _'

1264'_

I 1019 LABEL KIT ]

I 1058 OWNER'S MANUAL

I 1036EMISSIONLABELI

750 &

15_

200 89

1027(_

TRACTOR ° ° MODEL NUMBER 917.273756

BRmGGS ENGmNE-MODEL NUMBER 31P777,TYPE NUMBER 0299°E1

238

,¢

1022

103_

6170

404 # 914

614 _

1022

54_

654

643

1095 VALVE GASKET SET

617 0 1022

868

525

I 524F_

1119_ 789

8091 801 @

803_ 310_

579_46_ _ 508_

802

729

697 _

1005

363#

1070

I044_

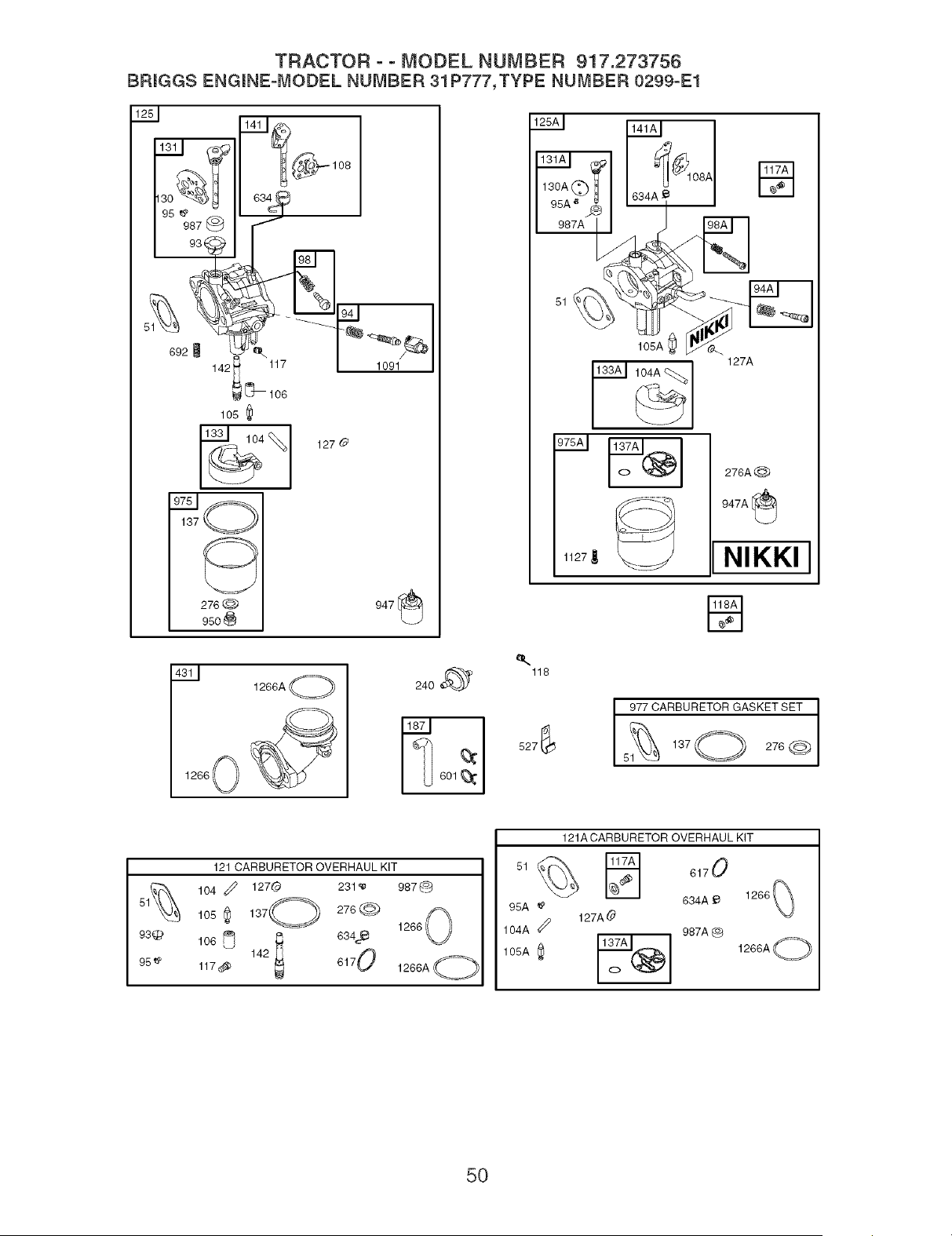

TRACTOR ° ° MODEL NUMBER 917.273756

BRmGGS ENGmNE=MODEL NUMBER 31P777, TYPE NUMBER 0299=E1

93_

1091 J

127

947_

1127_ %:___

;34A _8

127A

276A@

947A [_

NIKKI J

1266 0

1266A <_>

118

527(_

977 CARBURETOR GASKETSET t

51_ 1370 276@ /

121 CARBURETOR OVERHAUL KIT

104 _ 1270

105 _ 137 0

106 _ 142_

117,_

231 "_ 987 ('o)

276 @ _=_

63419 1266

6170 1266A <-->

121A CARBURETOR OVERHAUL KIT

51% _ 6170

96A _ 634A9 1266%

104A _ 127A O

997A

137A[ 1266A <_

10_A_ o

TRACTOR ° ° MODEL NUMBER 917.273756

BRIGGS ENGINE=MODEL NUMBER 31P777, TYPE NUMBER 0299=E1

KEY PART KEY PART

NO. NO. DESCRIPTION NO. NO. DESCRiPTiON

1 697174 Cylinder Assembly 106 690577

2 399265 Kit-Bushing/Seal (Magneto 108 690464

Side) 108A 695419

3 391086 ,, SeaFOil (Magneto Side) 117 694352

4 697188 Sump-Engine 117A 699457

5 698147 Head-Cylinder 118 697228

7 699168 ,,+ Gasket-Cylinder Head 118A 699458

9 697109 ,, Gasket-Breather 121 697241

11 697113 Tube-Breather 121A 699521

12 697110 ,, Gasket-Crankcase 125 698445

13 690360 Screw (Cylinder Head) 125A

15 690946 Hug-Oil Drain

16 697127 Crankshaft

20 690947 ,, SeaFOil (PTO Side) 127 695005

22 692125 Screw (Crankcase Cover/Sump) 127A 690727

23 693557 Flywheel 130 691750

24 222698 Key-Flywheel 130A 699500

25 699052 Piston Assembly (Standard) 131 494379

-- 699054 Piston Assembly (.020" 131A 699501

Oversize) 133 494381

26 699051 Ring Set (Standard) 133A 694914

-- 697559 Ring Set (.020" Oversize) 135 698780

27 698469 Lock-Piston Pin 137 281165

28 697099 Pin-Piston 137A 698781

29 697126 Rod-Connecting (Standard) 141 495097

-- 697263 Rod-Connecting (.020"

Undersize) 141A 698778

32 692852 Screw (Connecting Rod) 142 697140

33 695760 Valve-Exhaust 146 691639

34 695761 Valve-intake 187 699331

35 691279 Spring-Valve (intake) 188 691693

36 691279 Spring-Valve (Exhaust) 192 691986

37 697352 Guard-Flywheel 202 691841

40 690964 Retainer-Valve 209 692208

43 691968 Slinger-Governor/Oil 216 691840

45 690564 Tappet-Valve 222 694042

46 698492 Camshaft 227 691374

48 697762 Short Block 232 691842

50 690193 Manifold-intake 238 691843

51 692137 ,,O$+ Gasket-intake 240 394358

53 690227 Stud (Carburetor) 265 691024

54 691148 Screw (intake Manifold) 267 695134

73 697133 Screen-Rotating 276 692255

74 697897 Screw (Rotating Screen) 276A 695410

78 691003 Screw (Flywheel Guard) 304 699828

89 690283 Plug-Oil 305 697102

93 690602 O Bushing-Throttle Shaft 305A 697103

94 498030 Kit-idle Mixture 306 697107

94A 695425 Kit-idle Mixture (Nikki) 307 691003

95 691636 Screw (Throttle Valve) 309 693551

95A 690718 Q Screw (Throttle Valve (Nikki)

98 495800 Kitqdle Speed ,,

98A 695408 Kit-idle Speed (Nikki) Q

104 690525 Q Pin-Float Hinge

104A 694918 Q Pin-Float Hinge (Nikki) $

105 231855 Q Valve-Float Needle

105A 696136 Q Valve-Float Needle (Nikki) +

Q Seat-inlet

Valve-Choke (Manual Choke)

Valve-Choke (Nikki)

Q Jet-Main (Standard)

Q Jet-Main (Standard) (Nikki)

Jet-Main (High Altitude)

Jet-Main (High Altitude) (Nikki)

Kit-Carburetor Overhaul

Kit-Carburetor Overhaul (Nikki)

Carburetor

Carburetor (For Complete

Carburetor, Service with

698445)

Plug-Welch

O Plug-Welch (Nikki)

Valve-Throttle

Valve-Throttle (Nikki)

Kit-Throttle Shaft

Kit-Throttle Shaft (Nikki)

Float-Carburetor

Float-Carburetor (Nikki)

Tube-Fuel Transfer

Q$ Gasket-Float Bowl

Q Gasket-Float Bowl (Nikki)

Kit-Choke Shaft (Manual

Choke)

Kit-Choke Shaft (Nikki)

Key-Timing

Line-Fue!

Screw (Control Bracket)

Adjuster-Rocker Arm

Link-Mechanical Governor

Spring-Governor

Link-Choke

Bracket-Control

Lever-Governor Control

Spring-Governor

Cap-Valve

FiIter-FueI

Clamp-Casing

Screw (Casing Clamp)

O1: Washer-Sealing

Washer-Sealing

Housing-Blower

Screw (B!ower Housing)

Shield-Cylinder

Screw (Cylinder Shield)

Motor-Starter

Inciuded in Engine Gasket Set, Key. No. 358

Included in Carburetor Overhaul Kit, Key. No.

121

Included in Carburetor Gasket Set, Key. No.

977

Included in Valve Gasket Set, Key. No. 1095

NOTE: All component dimensions given in U.S. inches

1 inch = 25.4 mm

TRACTOR ° o MODEL NUMBER 917.273756

BRmGGSENGmNE-MODELNUMBER31P777,TYPE NUMBER0299°E1

KEY PART KEY PART

NO. NO. DESCRIPTmON NO. NO. DESCRIPTION

310 690323 Bolt (Starter Motor) 851 692424

311 497608 Brush Set 868 690968

333 495859 Armature-Magneto 914 691108

334 691061 Screw (Magneto Armature) 943 690589

337 691043 Hug-Spark 947 694393

358 697191 Gasket Set-Engine 947A 695423

363 19203 Flywheel Puller 950 691657

383 89838 Wrench-Spark Plug 965 499613

404 691691 Washer (Governor Crank) 967 697015

431 697122 Elbow-Intake 968 699848

445 698083 Filter-Air Cleaner Cartridge 975 495933

462 691261 Washer (Starter Cable) 975A 699502

474 696459 Alternator 977 690192

503 691532 Strap-Starter 987 691326

505 691251 Nut (Governor Control Lever) 987A 698777

510 693699 Drive-Starter 1005 699043

513 692024 Clutch-Drive 1017 690770

523 697086 Dipstick 1019 698814

524 691032 o Seal-Dipstick Tube 1022 272475

525 697184 Tribe-Dipstick 1023 692492

527 698467 Clamp-Tube 1024 499054

544 692034 Starter-Armature 1026 692003

552 697144 Bushing-Governor Crank .... 692011

559 693675 Screw (Remote Choke Stop) 1027 492932

562 691119 Bolt (Governor Control Lever) 1029 691751

579 691029 Nut (Starter Cable) 1034 690822

584 697112 Cover-Breather Passage 1035 693784

601 95162 Clamp-Hose 1036 695700

614 691620 Pin-Cotter 1040 699852

616 692012 Crank-Governor 1044 698139

617 692138 a,, SeaFa Ring dntake ManifoId) 1051 691265

634 690801 G Spring/Seal Assembly (Manual 1058 275038

Choke) 1059 698516

635 691909 Boot-Spark Plug 1090 691293

643 698401 Retainer-Air Filter 1091 691333

654 690958 Nut (Carburetor) 1095 690190

684 697157 Screw (Breather Passage 1119 691183

Cover) 1127 695407

691 692407 • Seat-Governor Shaft 1263 697124

692 690572 Spring-Detent 1264 697104

697 690372 Screw (Drive Cap) 1266 691917

718 690959 Pin-Locating 1266A 697123

729 691224 Clip-Wire 1267 697424

741 697128 Gear-Timing 1270 697156

750 691033 Screw (Oil Pump Cove0 1329

757 697607 Link-Counterweight 1330

758 697134 Counterweight

759 697392 Pin-Counterweight "

783 693713 Gear-Pinion O

789 698329 Harness-Wiring

797 693167 Nut (Brush Retainer) $

801 691283 Cap-Drive

802 691286 Cap-End +

803 693757 Housing-Starter

830 691095 Stud (Rocker Arm) NOTE:

842 691031 • SeaFO Ring (Dipstick Tube)

847 697611 Dipstick/Tube Assembly

TerminaI-Spark Plug

,,+ SeabVaIve

Screw (Rocker Cover)

,, SeabO Ring (OiI Pump Cove0

Solenoid-Fuel

Solenoid-Fuel (Nikko

Screw (Float Bowl)

Cover-Oil Pump

Filter-Pre CIeaner

Cover-Air Cleaner

Bowl-Float

Bowl-Float (Nikko

Gasket Set-Carburetor

O SeabThrottle Shaft

O SeabThrottle Shaft (Nikki)

Fan- FIywhee!

Screen-Oil Pump

Kit-Label

,,+ Gasket-Rocker Cover

Cover-Rocker Arm

Pump-Oil

Rod-Push (intake)

Rod-Push (Exhaust)

Filter-Oil

Arm-Rocker

Guide-Push Rod

Shaft-Pump

LabebEmission

Plate-Trim

Screw (Flywheel)

Ring-Retaining

Owner's Manual

Kit-Screw/Washer

Screw (Flywheel Fan)

Retainer-Brush

Cap-Limiter

Gasket Set-VaIve

Screw (Alternator)

Screw-Float Bowl

Reed-Breather

Screw (Breather Reed)

,,@ SeaI-O Ring (intake Elbow)

G SeaI-O Ring (intake Elbow)

Latch-Blower Housing

PIug-AVS Counterweight

31Q777-0036 Replacement Engine

272147 Repair Manual

Inciuded in Engine Gasket Set, Key. No. 358

included in Carburetor OverhauI Kit, Key. No.

121

included in Carburetor Gasket Set, Key. No.

977

included in Valve Gasket Set, Key. No. 1095

All component dimensions given in U.S. inches

1 inch = 25.4 mm

SUGGESTED GUIDE FOR SIGHTING SLOPES FOR SAFE OPERATION

ONLY RIDE UP AND DOWN HILL,

NOT ACROSS HILL

15 DEGREES MAX.

WARNING: To avoid serious injury, operate your tractor up and

down the face of slopes, never across the face. Do not mow

slopes greater than 15 degrees. Make turns gradually to prevent

tipping or loss of control. Exercise extreme caution when

changing direction on slopes.

1. Fold this page along dotted line indicated above,

2. Hold page before you so that its [eft edge is vertically parallel to a tree

trunk or other upright structure.

3. Sight across the fo_d in the direction of hill smope you want to measure,

4. Compare the angle of the fo_d with the sJope of the hill

!_i_!JJJJJJJJJJJJJJJJiii_i

_iiiiiiiiiiiiiiiiiiii

iiiiiiiiiiiiiiiiiiii

Your Home

For repair - in your home - of all major brand appliances,

lawn and garden equipment, or heating and cooling systems,

no matter who made it, no matter who sold it!

For the replacement parts, accessories and

owner's manuals that you need to do-it-yourself.

For Sears professional installation of home appliances

and items like garage door openers and water heaters.

1-800-4-MY-HOME ® Anytime, day or night

(1-800-469-4663) (U.S.A. and Canada)

www.sears.com www.sears.ca

Our Home

For repair of carry-in products like vacuums, lawn equipment,

and electronics, call or go on-line for the nearest

Sears Parts and Repair Center.

1-800-488-1222 Anytime, day or night (U.S.A. only)

www.sears.com

To purchase a protection agreement (U.S.A.)

or maintenance agreement (Canada) on a product serviced by Sears:

1-800-827-6655 (U.S.A.) 1-800-361-6665 (Canada)

Para pedir servicio de reparaci6n

a domicilio, y para ordenar piezas:

1-888-SU-HOGAR sM

(1-888-784-6427)

Au Canada pour service en frangais:

1-800-LE-FOYER Mc

(1-800-533-6937)

www.sears.ca

!!!!!!!!!!!!!L

iiiiiiiiiiiiiiiiii

HHHHHHHH_

iiiiiiiiiiiiiii

SEARS

TM SM

® Registered Trademark / Trademark / - Service Mark of Sears, Roebuck and Co.

® Marca Registrada / TMMarca de Fabrica / SMMarca de Servicio de Sears, Roebuck and Co.

MCMarque de commerce / MDMarque deposee de Sears, Roebuck and Co.

193181 6.28.04 MH Printed in U.S.A.

Craftsman 917273756 tractor

Product's Documents

User Manual

Specifications

Craftsman 917273756 Questions and Answers
