5KHM9212
W10466753B_Final.indd 1 4/10/13 3:03 PM
W10466753B_Final.indd 2 4/10/13 3:03 PM
English ................................................................................5
Deutsch ............................................................................15
Français ............................................................................25
Italiano ..............................................................................35
Nederlands ......................................................................45
Español .............................................................................55
Português .........................................................................65
Ελληνικά ...........................................................................75
Svenska ............................................................................85
Norsk ................................................................................95
Suomi ..............................................................................105
Dansk ..............................................................................115
Íslenska ...........................................................................125
Русский ..........................................................................135
Polski ...............................................................................145
Český ..............................................................................155
.............................................................................165
W10466753B_Final.indd 3 4/10/13 3:03 PM
HAND MIXER INSTRUCTIONS
W10466753B_Final.indd 4 4/10/13 3:03 PM
English
5
HAND MIXER INSTRUCTIONS
HAND MIXER SAFETY
Important safeguards ................................................................................................. 6
Electrical requirements .............................................................................................7
Electrical equipment waste disposal .......................................................................... 7
PARTS AND ACCESSORIES ........................................................................................8
Accessory guide .........................................................................................................9
SETTING UP YOUR HAND MIXER
Attaching the accessories ..........................................................................................9
Removing the accessories ........................................................................................10
USING YOUR HAND MIXER
Operating the speed control ...................................................................................11
Speed control guide .................................................................................................12
CARE AND CLEANING
Cleaning the hand mixer body .................................................................................13
Cleaning the accessories ..........................................................................................13
TROUBLESHOOTING .................................................................................................13
WARRANTY AND SERVICE
KitchenAid Hand Mixer warranty ............................................................................14
Customer service ....................................................................................................14
Table of ConTenTs
W10466753B_Final.indd 5 4/10/13 3:03 PM
6

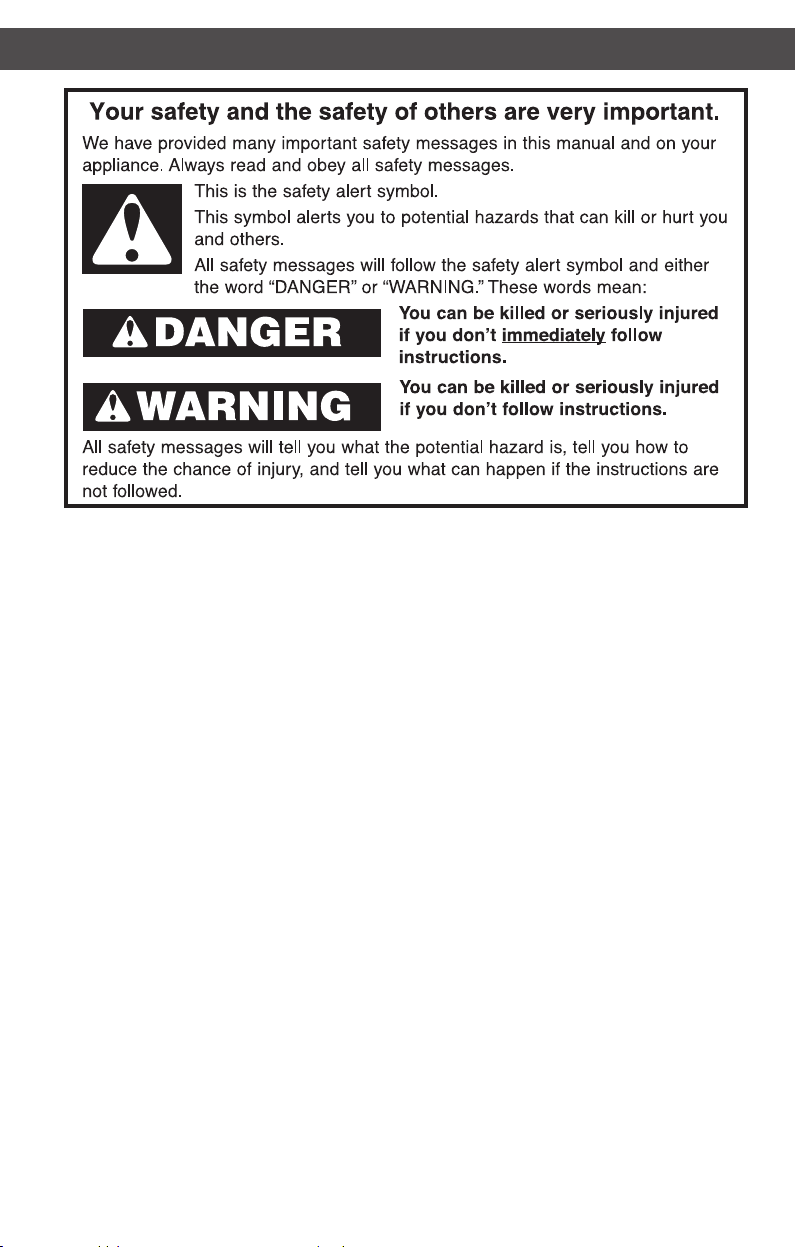

HAND MIXER SAFETYHAND MIXER SAFETY
IMPORTANT SAFEGUARDS
When using electrical appliances, basic safety precautions
should always be followed, including the following:
1. Read all instructions.
2. To protect against risk of electrical shock, do not put
Hand Mixer in water or other liquid.
3. This appliance can be used by children aged from 8 years
and above and persons with reduced physical, sensory
or mental capabilities or lack of experience and knowledge
if they have been given supervision or instruction concerning
use of the appliance in a safe way and understand hazards
involved. Children shall not play with the appliance. Cleaning
and user maintenance shall not be made by children
without supervision.
4. Unplug Hand Mixer from the outlet when not in use,
before putting on or taking off parts, and before cleaning.
5. Avoid contacting moving parts. Keep hands, hair, clothing,
as well as spatulas and other utensils away from all
accessories during operation to reduce the risk of injury
to persons and/or damage to the Hand Mixer.
W10466753B_Final.indd 6 4/10/13 3:03 PM
English
7
HAND MIXER SAFETY
Electrical requirements
SAVE THESE INSTRUCTIONS
Voltage: 220-240 Volts
Frequency: 50/60 Hertz
Wattage: 85 Watts
Disposal of packing material
The packing material is 100% recyclable
and is marked with the recycle symbol .
The various parts of the packing must
therefore be disposed of responsibly and
in full compliance with local authority
regulations governing waste disposal.
Scrapping the product
- This appliance is marked in compliance
with European Directive 2002/96/EC, Waste
Electrical and Electronic Equipment (WEEE).
- By ensuring this product is disposed of
correctly, you will help prevent potential
negative consequences for the environment
and human health, which could otherwise be
caused by inappropriate waste handling
of this product.
- The symbol on the product or on the
accompanying documentation indicates
that it should not be treated as domestic
waste but must be taken to an appropriate
collection centre for the recycling of
electrical and electronic equipment.
For more detailed information about
treatment, recovery and recycling of this
product, please contact your local city ofce,
your household waste disposal service or the
shop where you purchased the product.
Electrical equipment waste disposal
6. Do not operate the Hand Mixer with a damaged cord or
plug, or after the Hand Mixer malfunctions, or is dropped
or damaged in any manner. Return the Hand Mixer to the
nearest Authorized Service Center for examination, repair,
or electrical or mechanical adjustment.
7. The use of attachments not recommended or sold
by KitchenAid may cause re, electric shock, or injury.
8. Do not use the Hand Mixer outdoors.
9. Do not let cord hang over edge of table or counter.
10. Do not let cord contact hot surface, including the stove.
11. Remove any accessories from Hand Mixer before washing.
12. This product is designed for household use only.
NOTE: If the plug does not fit in the outlet,
contact a qualified electrician. Do not modify
the plug in any way. Do not use an adapter.
HAND MIXER SAFETY
W10466753B_Final.indd 7 4/10/13 3:03 PM
8
PARTS AND ACCESSORIES
SETTING UP YOUR HAND MIXER
PARTS AND ACCESSORIES
Mixing rod
Turbo Beaters
Dough hooks
Swivel lock
power cord
Soft grip handle Beater ejector
button
Speed control
Air
vents
16-wire whisk
Heel rest
Cord strap
Storage bag
W10466753B_Final.indd 8 4/10/13 3:03 PM
English
9
PARTS AND ACCESSORIES
Accessory Uses
Turbo Beaters cookie dough
cake batter
Mixing rod smoothies
milkshakes
sauces
salad dressing
Dough hooks yeast bread doughs
16-wire whisk whipped cream
whipped egg whites
sauces
puddings
Storage bag to store accessories
SETTING UP YOUR HAND MIXER
Attaching the accessories
1Unplug the Hand Mixer from the
electrical outlet.
IMPORTANT: Be sure to read and follow
the specific instructions in this manual for
proper use of the Hand Mixer.
Accessory guide
PARTS AND ACCESSORIES
W10466753B_Final.indd 9 4/10/13 3:03 PM
10
USING YOUR HAND MIXERSETTING UP YOUR HAND MIXER
Removing the accessories
2Insert the accessory shaft with the collar
(D) into the larger opening (B) of the
Hand Mixer. Align the flanges on the
shaft with the slots in the opening. Push
to lock into place.
2Press the ejector button to release
the accessories from the Hand Mixer,
then remove them.
1If the Hand Mixer is running, stop the
Hand Mixer by sliding the Power switch
to the “O” (Off) position. Unplug the
Hand Mixer from the electrical outlet.
3Insert the accessory without a collar (C)
into the smaller opening (A). Align and
push to lock into place.
NOTE: An accessory shaft without a collar
may be used in either opening (A or B). Those
with a collar may only be used in the larger
opening (B).
CD
D
B
B
A
Paired accessories (Turbo beaters, dough
hooks) include one accessory with a collar
(D), and one without (C). Single accessories
come with a collar (D) (mixing rod) or
without (C) (whisk).
W10466753B_Final.indd 10 4/10/13 3:03 PM
English
11
USING YOUR HAND MIXER
2Slide the Power switch to the “I” (ON)
position. The motor will automatically
start at Speed 1, and the “1” on the
speed indicator control will light up.
4When mixing job is finished, slide the
Power switch to the “O” (Off) position.
Unplug the Hand Mixer before removing
accessories.
3Touch the “UP (arrow)” button to
increase the mixing speed to the desired
setting. If necessary, touch the “DOWN
(arrow)” button to decrease the mixing
speed. See the “Speed control guide”
for more information.
NOTE: The Hand Mixer automatically
starts at Speed 1 every time it is turned on,
regardless of the speed setting at the time
the mixer is shut off.
Operating the speed control
1Plug the Hand Mixer into an electrical
outlet.
This KitchenAid Hand Mixer will beat faster and more thoroughly than most other electric
hand mixers. Therefore, the beating time in most recipes must be adjusted to avoid over
beating. Beating time is faster due to larger beater sizes.
To help determine the ideal beating time, observe the batter or dough and beat only until it
has the desired appearance described in your recipe, such as “smooth and creamy”. To select
the best beating speeds, use the “Speed control guide” section.
SETTING UP YOUR HAND MIXER
W10466753B_Final.indd 11 4/10/13 3:03 PM
12
CARE AND CLEANING
TROUBLESHOOTING
USING YOUR HAND MIXER
Speed control guide
The 9-Speed Hand Mixer always starts on the lowest speed (Speed 1). Move
to higher speeds as needed, the speed setting indicator control will light up
with the corresponding number for each speed.
NOTE: To mix and knead bread dough, use the dough hooks. The Turbo beaters are not
designed for that purpose.
Speed Attachment Description
1For slow stirring, combining, and starting all
mixing procedures. Use this speed to stir
in nuts, chocolate chips, shredded cheese,
onions, olives, and other chunky ingredients.
2Mix flour and other dry ingredients with
liquids or other moist mixtures.
Knead yeast dough (bread, pizza dough) with
the dough hooks.
3Mix runny batters, such as pancake or
waffle batter.
4Combine heavy mixtures, such as cookie or
biscuit dough.
5Mix thick dough, such as muffin or cake batter.
Mash potatoes or squash.
6Blend butter and sugar. Mix frostings.
7Finish mixing cake and other batters.
8Whip cream and mousse mixtures.
Mix liquid preparations (milkshakes, sauces)
and emulsify salad dressings.
9Beat egg white and meringue mixtures.
Mix liquid preparations (milkshakes, sauces)
and emulsify salad dressings.
W10466753B_Final.indd 12 4/10/13 3:03 PM
English
13
CARE AND CLEANING
Electrical Shock Hazard
Do not put in water.
Doing so can result in death or
electrical shock.
Cleaning the Hand Mixer body
Cleaning the accessories
1Always unplug Hand Mixer before
cleaning. Wipe power cord and cord
strap with damp cloth. Dry with a soft
cloth.
Always remove accessories from Hand Mixer
before cleaning. Wash in dishwasher, or by hand
in warm, soapy water. Rinse and wipe dry.
NOTE: Do not immerse Hand Mixer
in water.
2Wipe Hand Mixer with a damp cloth.
Dry with a soft cloth.
First try the solutions suggested here and
possibly avoid the cost of service.
1. Is the Hand Mixer plugged in?
2. Is the fuse in the circuit to the Hand
Mixer in working order? If you have a
circuit breaker box, make sure the circuit
is closed.
TROUBLESHOOTING
3. Try unplugging the Hand Mixer, then plug
it back in.
If the problem cannot be xed with the steps
provided in this section, see “Warranty
and service” section.
If Hand Mixer malfunctions or fails to operate:
USING YOUR HAND MIXER
W10466753B_Final.indd 13 4/10/13 3:03 PM
14
WARRANTY AND SERVICE
Length of
Warranty: KitchenAid Will Pay For: KitchenAid Will Not
Pay For:
Europe, Middle
East and Africa :
For Model
5KHM9212:
Two years Full
Warranty from
date of purchase.
The replacement parts
and repair labor costs to
correct defects in materials
or workmanship. Service
must be provided by an
Authorized KitchenAid
Service Center.
A. Repairs when Hand Mixer
is used for operations other
than normal household
food preparation.
B. Damage resulting from
accident, alterations,
misuse, abuse, or
installation/operation
not in accordance with
local electrical codes.
KITCHENAID DOES NOT ASSUME ANY RESPONSIBILITY FOR INDIRECT DAMAGES.
KitchenAid Hand Mixer warranty
Customer service
© 2013. All rights reserved.
Specications subject to change without notice.
www.KitchenAid.eu
In U.K. and Ireland:
For any questions, or to nd the nearest KitchenAid Authorized Service Center, please nd
our contact details below.
NOTE: All service should be handled locally by an Authorized KitchenAid Service Center.
Contact number for U.K. and Northern Ireland:
Tollfree number 0800 988 1266 (calls from mobile phones are charged standard
network rate)
Contact number for Ireland:
Tollfree number +44 (0) 20 8616 5148
E-mail contact for U.K. and Ireland:
Go to www.kitchenaid.co.uk, and click on the link “Contact Us” at the bottom of the page.
Address for U.K. and Ireland:
KitchenAid Europa, Inc.
PO BOX 19
B-2018 ANTWERP 11
BELGIUM
In other countries:
For all product related questions and after sales matters, please contact your dealer
to obtain the name of the nearest Authorized KitchenAid Service/Customer Center.
W10466753B_Final.indd 14 4/10/13 3:03 PM
English
15
W10466753B 04/13
© 2013. All rights reserved.
Specications subject to change without notice.
WARRANTY AND SERVICE
W10466753B_Final.indd 15 4/10/13 3:03 PM
