Operator's Manual
16" Electric Mower MEB1216K
Save this manual for future reference
Read all safety rules and instructions carefully before operating this tool.
2
Section Page
TABLE OF CONTENTS
TABLE OF CONTENTS 2
SPECIFICATIONS 3
IMPORTANT SAFETY INSTRUCTIONS 4-9
SYMBOLS 10-11

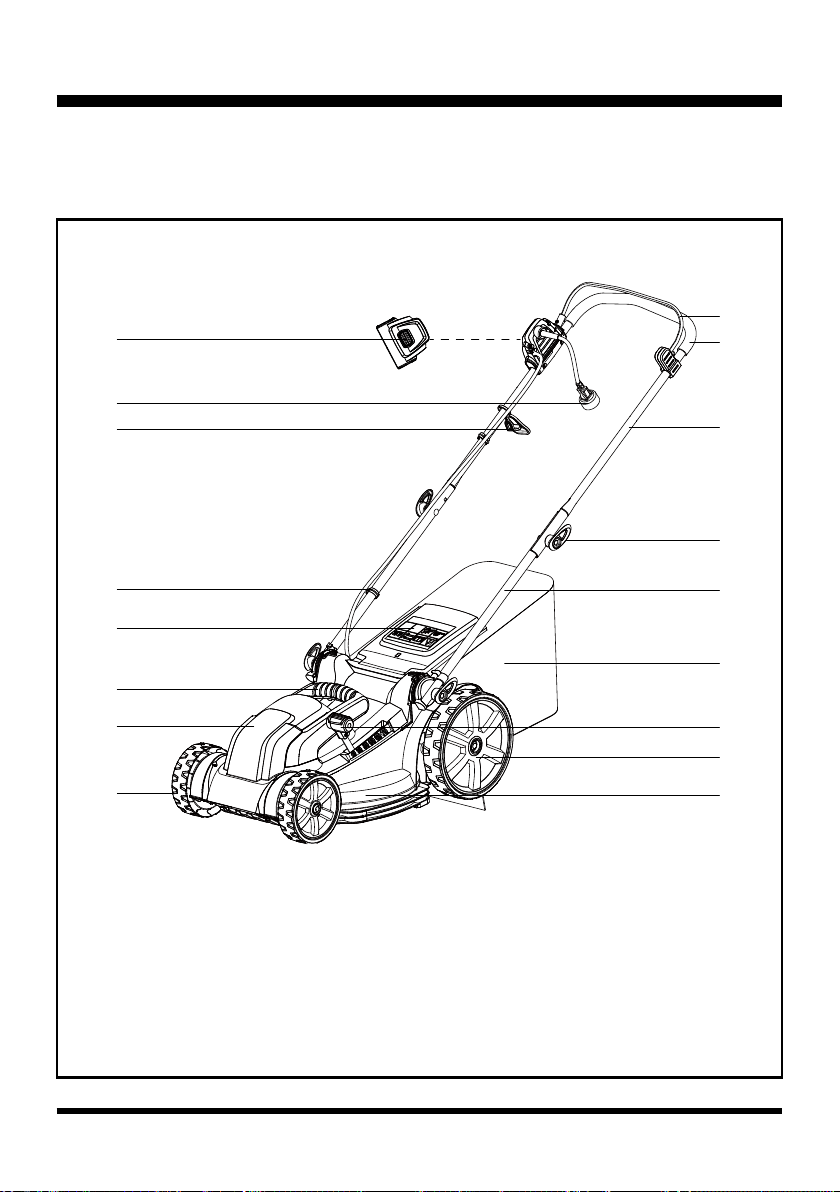

KNOW YOUR ELECTRIC MOWER 12
ASSEMBLY 13-17
OPERATION 18-20
MAINTENANCE 21-25
TROUBLESHOOTING 26-27
LAWNMASTER
®
WARRANTY 28

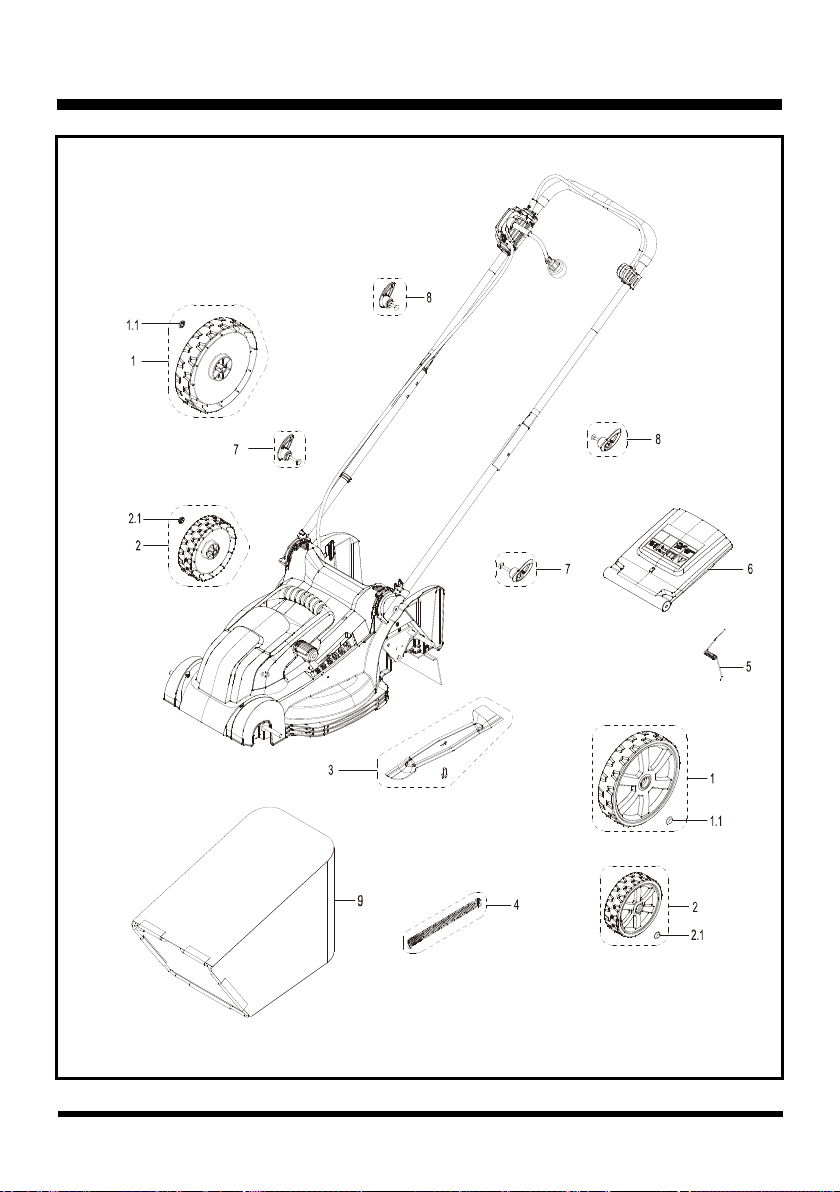

EXPLODED VIEW 29
PARTS LIST 30
NOTES 31-32
3
SPECIFICATIONS
Voltage 120 V ~ 60 Hz
Current 12 A
Motor Speed 3500 RPM
Deck Width 16 inch
Cutting Width 16 inch
Cutting Height Adjustment 1 inch -3 inch (25-75 mm)
Collection Bag Capacity 8 gallon (30 liters)
Wheel Size 6.69 inch (17 cm) / 8.86 inch (22.5 cm)
Unit Weight 32.32 lbs (14.66 kg)
ELECTRIC MOWER MEB1216K
4
INTRODUCTION
This product has many features for making its use more pleasant and enjoyable.
Safety, performance, and dependability have been given top priority in the design of this product
making it easy to maintain and operate.
IMPORTANT SAFETY INSTRUCTIONS
This symbol indicates important safety instructions. If these instructions are not followed, it could
endanger the personal safety and/or property of the operator and others. Read and understand all
instructions in this manual before attempting to operate the mower. Failure to comply with these
instructions may result in personal injury.
This mower was built to be operated according to the rules for safe operation that are contained in this
manual. As with any type of power equipment, carelessness or error on the part of the operator can
result in serious injury. This mower is capable of amputating body parts and throwing objects. Failure
to observe the following safety rules could result in serious injury or death.
Use of this mower should be restricted to individuals who have read and understood and will follow the
warnings and instructions that are printed in this manual and on the mower.
TRAINING AND PREPARATION
■ Read the operating and service instruction manual carefully. Be thoroughly familiar with the controls
and the proper use of the tool.
■ Avoid operating the lawn mower in a dangerous environment. Do not use the lawn mower in damp
or wet conditions or operate in the rain, keep a rm hold on the handle and walk, never run.
■ Keep children away. All visitors should be kept a safe distance from work area. Stop the equipment
and attachment(s) if anyone enters the working area.
■ Only allow operators, who are responsible, trained, familiar with the instructions, and physically
capable to operate the lawn mower.
■ Never allow children to operate a power mower.
■ Keep the area of operation clear of all persons, particularly small children, and pets.
■ Clear the operating area of any objects which could be thrown by or interfere with operation of the
tool.
■ Do not operate the lawn mower without the collection bag, discharge chute, or other safety devices
in place and functioning properly. Check frequently for signs of wear or deterioration and replace as
needed.
■ Wear appropriate personal protective equipment such as safety glasses, hearing protection, and
footwear.
■ Dress properly. Do not wear loose clothing or jewelry. They can be caught in moving parts. Use of
rubber gloves and footwear is recommended when working outdoors.
WARNING
DANGER
WARNING
5
IMPORTANT SAFETY INSTRUCTIONS
■ This cutting tool is capable of amputating hands and feet and throwing objects. Failure to observe
all safety instructions could result in serious injury or death.
■ Do not operate the tool while under the inuence of alcohol or drugs.
■ Use lawn mower for the correct purpose. Do not use lawn mower for any job except that for which it
is intended.
■ Ground Fault Circuit Interrupter (GFCI) protection should be provided on the circuit(s) or outlet(s) to
be used for the lawn mower. Receptacles are available having built-in GFCI protection and may be
used for this measure of safety.
■ Warning: To prevent electric shock use only with an extension cord suitable for outdoor use, such as
SW, SOW, STW, STOW, SJW, SJOW, SJTW, or SJTOW.
■ To reduce the risk of electric shock, this appliance has a polarized plug (one blade is wider than
the other) and will require the use of a polarized extension cord. The appliance plug will t into a
polarized extension cord only one way.
■ If the plug does not t fully into the extension cord, reverse the plug. If the plug still does not t,
obtain a correct polarized extension cord. A polarized extension cord will require the use of a
polarized wall outlet. This plug will t into the polarized wall outlet only one way. If the plug does not
t fully into the wall outlet, reverse the plug. If the plug still does not t, contact a qualied electrician
to install the proper wall outlet. Do not change the equipment plug, extension cord receptacle, or
extension cord plug in any way.
■ Make sure your extension cord set is in good condition. When using an extension cord, be sure to
use one heavy enough to carry the current your product will draw. For lengths less than 50 feet,
No. 14 AWG extension cord should be used. An undersized cord will cause a drop in line voltage
resulting in loss of power and overheating. To reduce the likelihood of disconnection of lawn mower
cord from the cord set during operating.
OPERATION
■ Only operate the equipment in daylight or good articial light.
■ Extinguish all cigarettes, cigars, pipes and other sources of ignition prior to operating the lawn
mower.
■ Avoid holes, ruts, bumps, rocks, or other hidden hazards. Uneven terrain could overturn the
machine, or cause operator to lose their balance or footing.
■ Do not put hands or feet near under rotating parts or the lawn mower. Keep clear of the discharge
opening at all times.
■ Do not direct discharge material toward anyone. Avoid discharging material against a wall or
obstruction. Material may ricochet back toward the operator. Stop the blade(s) when crossing gravel
surfaces.
■ Always wear safety glasses with side shields. Everyday glasses have only impact resistant lenses.
They are NOT safety glasses. Following this rule will reduce the risk of eye injury. Use face mask if
operation is dusty.
■ Wear safety glasses or goggles that are marked to comply with ANSI Z87.1 standard when
operating this product.
■ Do not leave a running lawn mower unattended. Always park on level ground, disengage the
attachment, set parking brake, and stop engine.
■ Do not mow in reverse unless absolutely necessary. Always look down and behind before and while
backing.
■ Stop the blade(s) when crossing gravel drives, walks, or roads.
■ If the equipment should start to vibrate abnormally, stop the motor and check immediately for the
6
IMPORTANT SAFETY INSTRUCTIONS
cause. Vibration is generally a warning of trouble.
■ Stop the motor and disconnect the plug from power source whenever leaving the equipment, before
cleaning the mower housing, and before making any repairs or inspections.
■ Shut the motor off and wait until the blade comes to a complete stop before removing the grass
catcher or before unclogging the chute.
■ Mow across the face of slopes, never up and down. Exercise extreme caution when changing
direction on slopes. Do not mow excessively steep slopes.
■ Always keep the equipment in gear when going down slopes. Do not coast downhill.
■ Avoid starting and stopping on slopes. Avoid making sudden changes in speed or direction. Make
turns slowly and gradually.
■ Do not wash with a hose; avoid getting water in motor and electrical connections.
■ Tragic accidents can occur if the operator is not alert to the presence of children. Children are often
attracted to the machine and the mowing activity. Never assume that children will remain where you
last saw them.
■ Keep children out of the operating area and under the watchful care of a responsible adult other
than the operator.
■ Do not abuse the cord. Never use the cord to pull the lawn mower or to disconnect the plug from
an outlet. Keep cord away from heat, oil, sharp edges, or moving parts. Replace damaged cords
immediately. Damaged cords increase the risk of electric shock.
■ Do not force lawn mower. It will do the job better and safer at the rate for which it was designed.
■ Do not overreach. Keep proper footing and balance at all times.
■ Stay alert. Watch what you are doing. Use common sense. Do not operate lawn mower when you
are tired.
■ Avoid mowing wet grass. Poor footing could cause a slip and fall accident.
■ Do not operate machine under any condition where traction, steering, or stability is in question. Tires
could slide even if the wheels are stopped.
■ Use extra care while operating the equipment with a grass catcher or other attachment(s). They can
affect the stability of the machine.
■ Thoroughly inspect the area where the equipment is to be used and remove all stones, sticks, wires,
bones, and other foreign objects.
■ Disengage the self-propelled mechanism or drive clutch on units so equipped before starting the
motor.
■ Never attempt to make a wheel height adjustment while the motor is running.

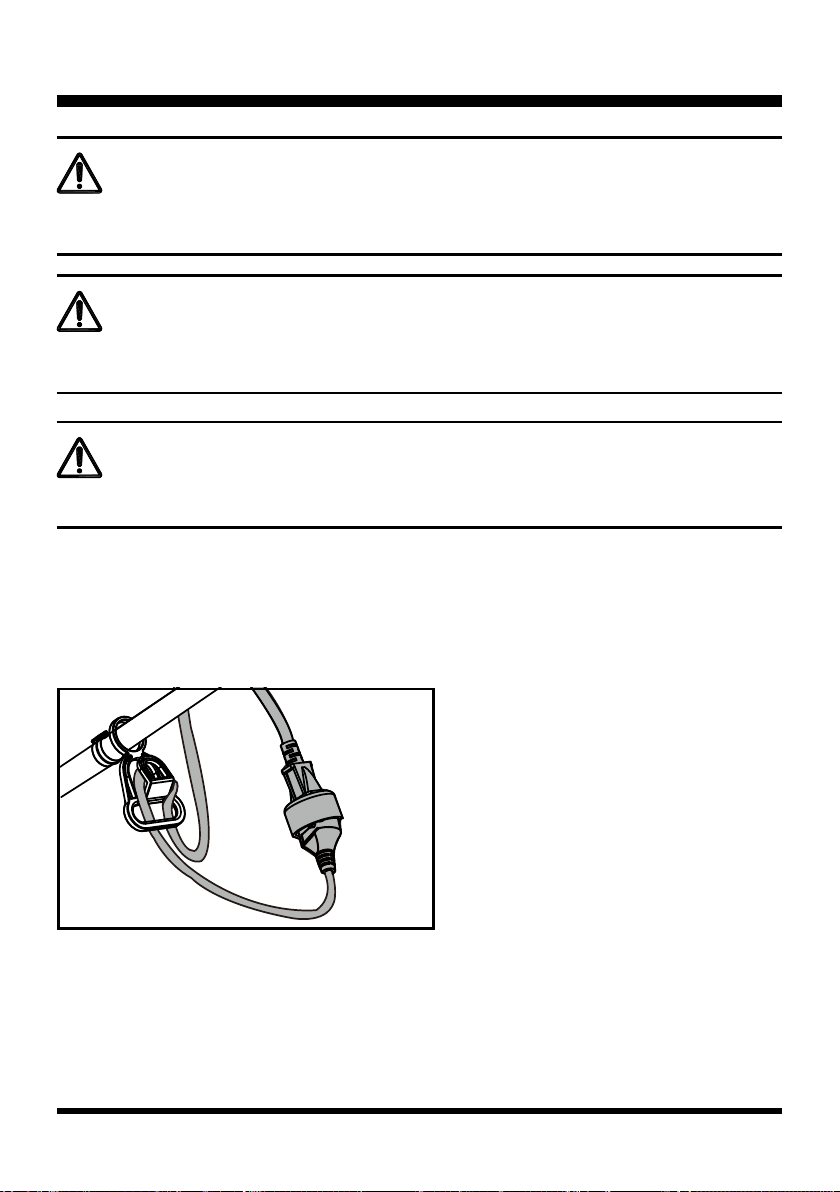

■ Make a knot as shown, or use one of the plug-receptacle retaining straps or connectors described
in this manual.
(B) CONNECT PLUG AND RECEPTACLE S1036A
Method of securing cord set
CORD
(A) TIE CORD AS SHOWN
SET
CORD
APPLIANCE
7
IMPORTANT SAFETY INSTRUCTIONS
MAINTENANCE AND STORAGE
■ Use caution when servicing blades. Wrap the blade(s) or wear gloves. Replace damaged blades.
Do not repair or alter blade(s).
■ Store idle lawn mower indoors. When not in use, lawn mower should be stored in an indoor dry and
locked-up place-out of reach of children.

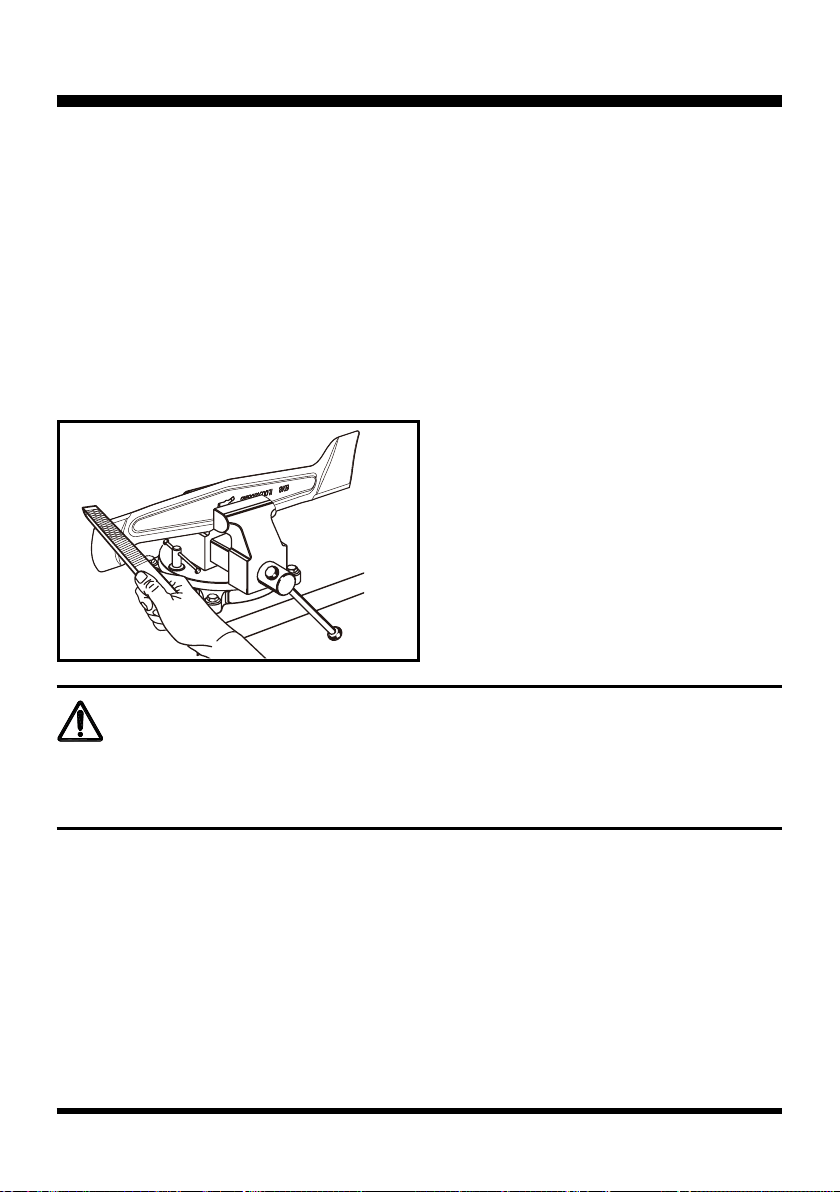

■ Maintain lawn mower with care. Keep cutting edges sharp and clean for best and safest
performance.
■ Check the blade and the engine mounting bolts at frequent intervals for proper tightness.
■ Keep all nuts, bolts, and screws tight to be sure the equipment is in safe working condition.
■ Check bag frequently for deterioration and wear, and replace worn bags. Check that replacement
bags comply with the original manufacturer's recommendations or specications.
■ Replace the blade if it is bent or cracked. An unbalanced blade causes vibration that could damage
the motor drive unit or cause personal injury.

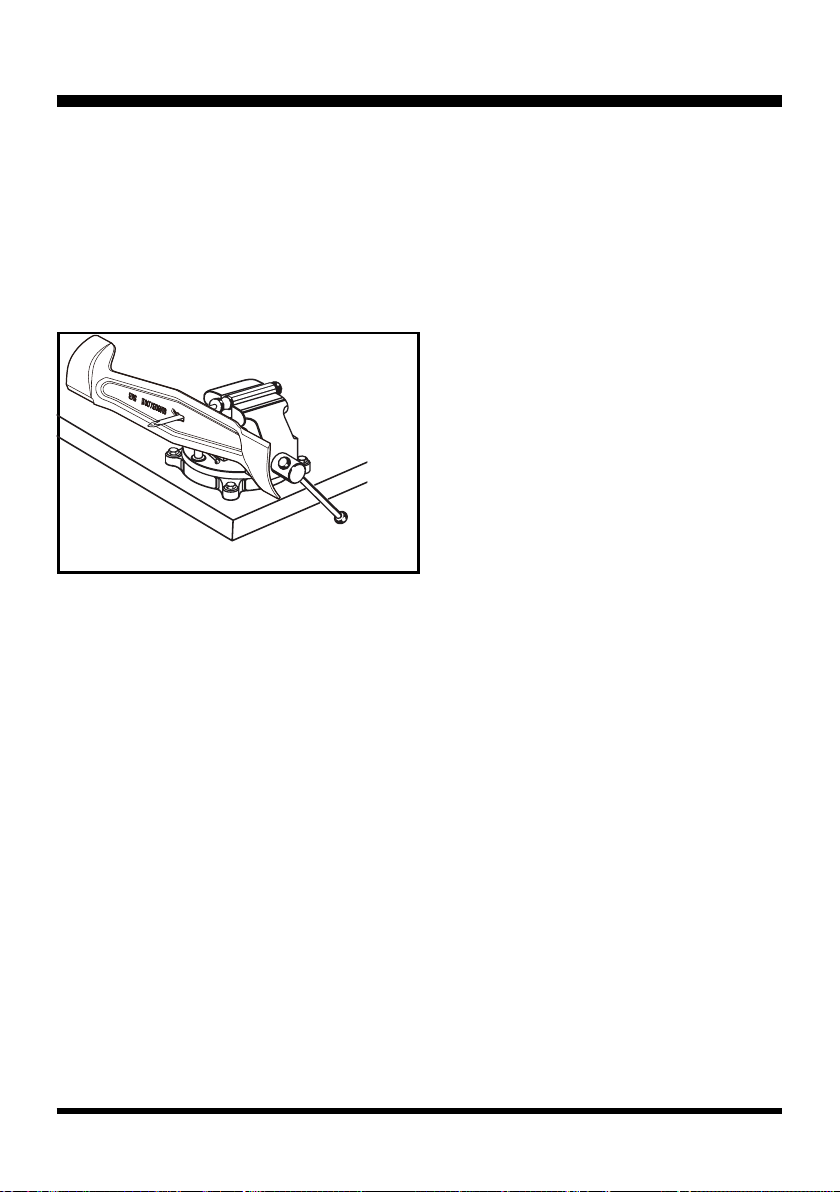

■ Clean the blade thoroughly and check its balance by supporting it horizontally on a thin nail through
its centre hole. The nail should also be in a horizontal position. If either end of the blade rotates
downward, remove some metal from the heavy or lower end until the blade is balanced. It is
balanced when neither end drops.
■ Follow instructions for lubricating and changing accessories.
■ Inspect lawn mower cord periodically and if damaged, have it repaired by an authorized service
facility. Inspect extension cords periodically and replace if damaged. Keep handles dry, clean, and
free from oil and grease.
■ Keep guards in place and in working order.
■ Keep blades sharp.
■ Keep hands and feet away from cutting area.
■ Objects struck by the lawn mower blade can cause severe injuries to persons. The lawn should
always be carefully examined and cleared of all objects prior to each mowing.
■ If lawn mower strikes a foreign object, follow these steps:
- Stop lawn mower. Release the switch
- disconnect from the power supply.
- Inspect for damage.
- Repair any damage before restarting and operating the lawn mower.
■ When servicing use only identical replacement parts.
ELECTRICAL INFORMATION
TO AVOID ELECTRICAL HAZARDS, FIRE HAZARDS, OR DAMAGE TO THE TOOL, USE
PROPER CIRCUIT PROTECTION. YOUR LAWN MOWER IS WIRED AT THE FACTORY FOR 120V
OPERATION. CONNECT TO A 120 V, 15 A CIRCUIT, AND USE A 15 A TIME-DELAYED FUSE OR
CIRCUIT BREAKER. TO AVOID SHOCK OR FIRE, IF THE EXTENSION CORD IS WORN, CUT OR
DAMAGED IN ANY WAY, REPLACE IT IMMEDIATELY.
WARNING
8
IMPORTANT SAFETY INSTRUCTIONS
WARNING
DOUBLE INSULATED
This lawn mower has a plug. The lawn mower is double insulated to provide a double thickness
of insulation between you and the tool’s electrical system. All exposed metal parts are isolated from
the internal metal motor components with protective insulation.
USE ONLY IDENTICAL REPLACEMENT PARTS WHEN SERVICING THE LAWN MOWER TO
AVOID INJURY.
DOUBLE INSULATION DOES NOT TAKE THE PLACE OF NORMAL SAFETY PRECAUTIONS
WHEN OPERATING THIS LAWN MOWER.
ALWAYS MAKE SURE THAT YOUR OUTLET IS PROPERLY GROUNDED. IF UNCERTAIN, HAVE
IT CHECKED BY A CERTIFIED ELECTRICIAN.
THIS LAWN MOWER IS FOR OUTDOOR USE ONLY. DO NOT EXPOSE TO RAIN OR USE IN
DAMP LOCATIONS.
GUIDELINES FOR USING EXTENSION CORDS
USE THE PROPER EXTENSION CORD. Make sure your extension cord is in good condition. When
using an extension cord, be sure to use one heavy enough to carry the current your product will draw.
An undersized cord will cause overheating. The table below shows the correct size to use depending
on cord length and nameplate ampere rating. If in doubt, use the next heavier gauge. The smaller the
gauge number, the heavier the cord.
WARNING
WARNING
CAUTION
9
IMPORTANT SAFETY INSTRUCTIONS
Minimum Gauge for Extension Cords (AWG)
(Using 120 V only)
Make sure your extension cord is properly wired and in good electrical condition. Always replace a
damaged extension cord or have it repaired by a qualied person before use. Keep extension cords
away from sharp objects, excessive heat and damp or wet areas.
Use a separate electrical circuit for your tools. This circuit should comprise a wire of at least 12 gauge
and should be protected with a 15 A time-delayed fuse. Before connecting the motor to the power line,
make sure the switch is in the OFF position and the electric current is identical to that stamped on the
motor nameplate. Running at a lower voltage will damage the motor.
SAVE THESE INSTRUCTIONS.
ALTHOUGH THIS LAWN MOWER IS DOUBLE INSULATED, THE EXTENSION CORD AND
RECEPTACLE MUST STILL BE GROUNDED WHILE IN USE TO PROTECT THE OPERATOR
FROM ELECTRICAL SHOCK.
SAVE THESE INSTRUCTIONS
Refer to them frequently and use them to instruct others who may use this appliance. If you loan
someone this appliance, loan them these instructions also.
Total Length of Cord in Feet (meters)
120V 25ft (7.62m) 50ft (15.24m) 100ft (30.48m) 150ft (45.72m)
Ampere Rating
AWG
More Than Not More Than
0 6 18 16 16 14
6 10 18 16 14 12
10 12 16 16 14 12
12 16 14 12 Not Recommended
WARNING
10
SYMBOLS
SYMBOL NAME DESIGNATION/EXPLANATION
V Volts Voltage
A Amperes Current
Hz Hertz Frequency (cycles per second)
W Watts Power
hrs Hours Time
Class II Construction Double-insulated construction
Safety Alert Precautions that involve your safety
Read The Operator’s
Manual
To reduce the risk of injury, user must read and
understand Operator’s Manual before using this
product.
Do not mow up and
down slopes!
To avoid the risk of injury do not mow up and down
slopes. Always mow across slopes. (Angle ≤15°)
Keep all persons and
pets at a safe distance
from the mower while
operating!
To avoid the risk of injury to bystanders keep all
persons and pets at a safe distance from the mower
while operating.
Keep hands and feet
clear of mower deck
and discharge opening
at all times!
Rotating blades can cause serious injury.
Keep hands and feet clear of mower deck and
discharge opening at all times. Always be sure
blade has stopped after releasing switch lever and
unplugging before removing and replacing collection
bag, cleaning, servicing, transporting or lifting the
mower.
Stay behind the handle
when the motor is
running!
Objects struck by mower blade can cause serious
injury. Stay behind the handle when the moto is
running. Always ensure persons and pets are clear
of the discharge from the mower while operating.
Some of the following symbols may be used on this product. Please study them and
learn their meaning. Proper interpretation of these symbols will allow you to operate
the product better and safer.
11
SYMBOLS
SYMBOL SIGNAL MEANING
DANGER
Indicates an imminently hazardous situation, which, if not
avoided, will result in death or serious injury.
WARNING
Indicates a potentially hazardous situation, which, if not
avoided, could result in death or serious injury.
CAUTION
Indicates a potentially hazardous situation, which, if not
avoided, may result in minor or moderate injury.
NOTICE
(Without Safety Alert Symbol) Indicates a situation that may
result in property damage.
The following signal words and meanings are intended to explain the levels of risk
associated with this product.
SERVICE
Service requires extreme care and knowledge and should be performed only by a qualied service
technician. For service, we suggest you return the product to your nearest SERVICE CENTER for
repair. When servicing, use only identical replacement parts.
To avoid serious personal injury, do not attempt to use this product until you read thoroughly and
understand completely the Operator’s Manual.
If you do not understand the warnings and instructions in the Operator’s Manual, do not use this
product. Please call customer service for assistance (866) 384-8432.
WARNING
12
KNOW YOUR ELECTRIC MOWER
The safe use of this product requires an understanding of the information on the product and in
this Operator’s Manual as well as a knowledge of the project you are attempting. Before use of this
product, familiarize yourself with all operating features and safety rules.
Components
1.Start/Stop Bale Switch
2.Foam Grip
3.Upper Handle
4.Locking Knob (×4)
5.Lower Handle
6.Grass Collection Bag
7.Cutting Height Adjustment Lever
8.Rear Wheel
9.Deck
10.Front Wheel
11.Motor Housing
12.Carry Handle
13.Safety Flap
14.Cable Clip (×2)
15.Cord Retainer
16.Power Cord
17.Safety Switch Button
1
2
3
4
5
6
7
8
9
17
16
15
14
13
12
10
11
13
ASSEMBLY
WARNING
If any parts are damaged or missing do not operate this product until the parts are replaced. Failure to
heed this warning could result in serious personal injury.
Do not attempt to modify this product or create accessories not recommended for use with this
product. Any such alteration or modication is misuse and could result in a hazardous condition
leading to possible serious personal injury, and will void the warranty.
Do not connect power supply until assembly is complete. Failure to comply could result in accidental
starting and possible serious personal injury.
Never operate the mower without the proper safety devices in place and working. Never operate the
mower with damaged safety devices. Failure to heed this warning can result in serious personal injury.
UNPACKING
This product requires assembly.
■ Carefully remove the product and any accessories from the box. Make sure that all items listed in
the packing list are included.
■ Inspect the product carefully to make sure no breakage or damage occurred during shipping.
■ Do not discard the packing material until you have carefully inspected and satisfactorily operated
the product.
■ If any parts are damaged or missing, please call customer service for assistance (866) 384-8432.
YOU WILL NEED (ITEMS NOT SUPPLIED)
■ Suitable Personal Protective Equipment
PACKING LIST
(1) Lawn Mower
(1) Grass Collection Bag Assembly (Bag & Metal Frame)
(1) Upper Handle Assembly
(2) Lower Handle Assembly
(1) Operator’s Manual
(1) Cord Retainer
(2) Cable Clips
(4) Locking Knobs
(4) Washers
(2) Bolts
14
ASSEMBLY

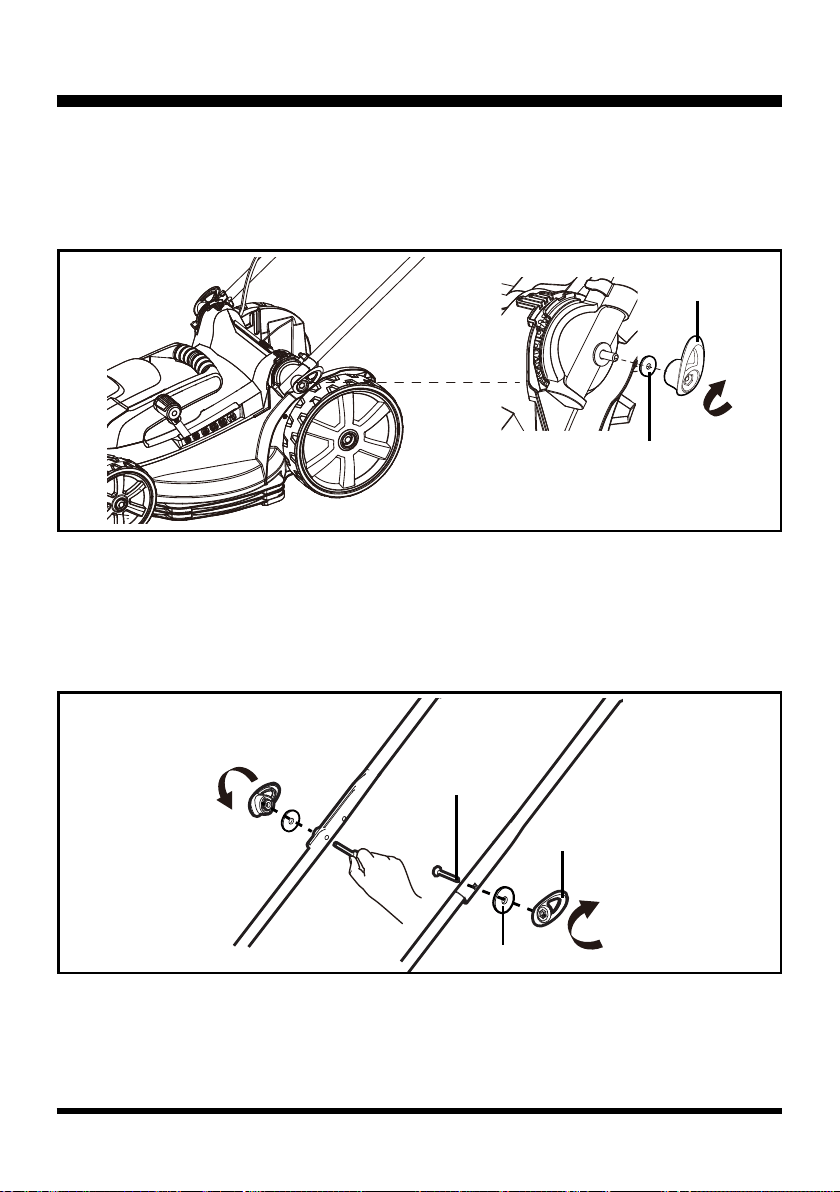

INSTALLING THE HANDLE
1. Insert the lower handle into the bolts on the lawnmower housing. Fasten the handle using the
locking lever and washer to tighten, then fold them back in. The tilt of the handle can be adjusted.
Do not use excessive force; this may damage the levers (Fig. 1).
ASSEMBLING THE UPPER HANDLE
1.The cord retainer helps keep the extension cord connection secure during mower operation. Ensure the
cord retainer is positioned over the upper handle.
2. Fix the upper handle bar using the bolts, washers and the locking knobs (Fig. 2). There are two possible
positions.
Fig. 1
Fig. 2
Locking knob
Washer
Bolt
Washer
Locking Knob
15
ASSEMBLY

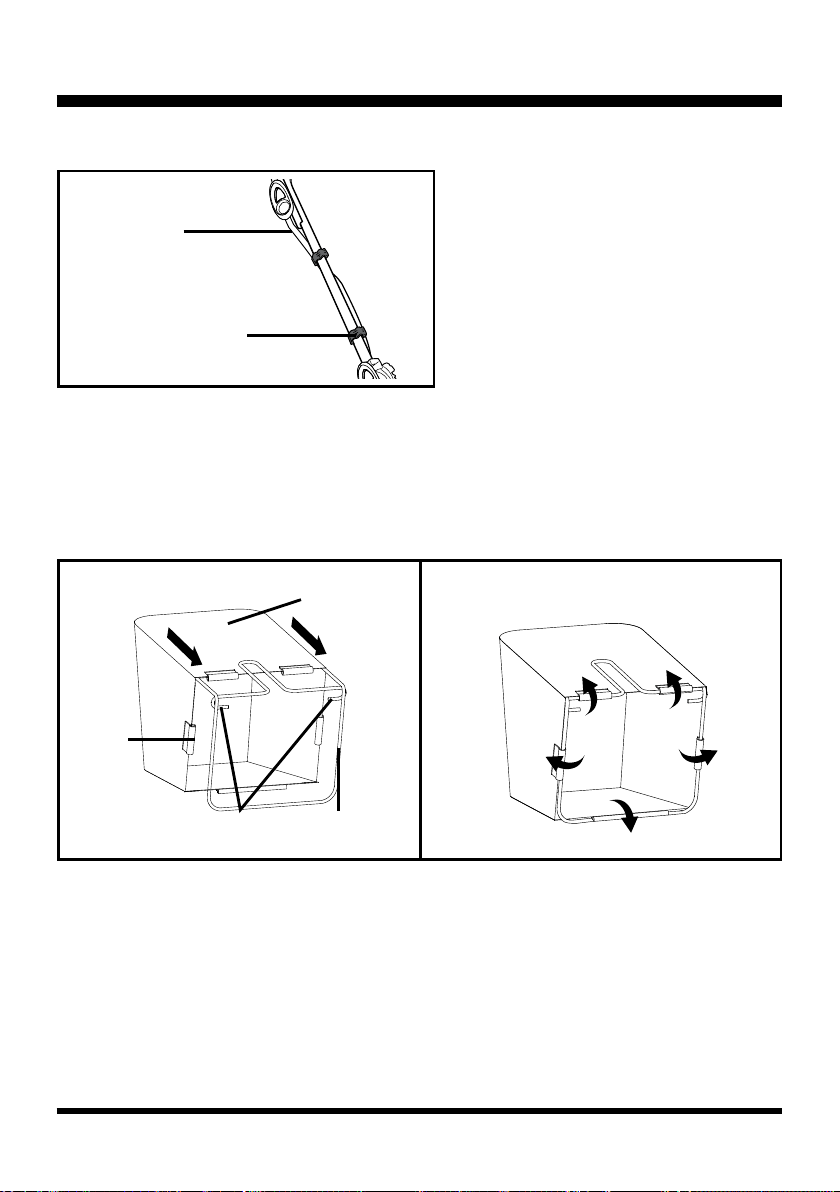

3. Secure the control cable with the cable clips (Fig. 3).
ASSEMBLE THE GRASS COLLECTION BAG
1. Check the grass collection bag before assembling to make sure there is no damage.
2. Pull the grass collection bag over the metal frame as shown (Fig. 4).
3. Pry open the soft plastic clamping sleeves and insert the metal frame into the sleeves. Ensure all sleeves
are properly clamped on the frame.
4. The completely assembled grass collection bag is shown as below (Fig. 5).
Fig. 4 Fig. 5
Control Cable
Cable Clip
Fig. 3
Collection Bag
Sleeve
Rods
Metal Frame
INSTALLING AND REMOVING THE GRASS COLLECTION BAG
NOTE: The safety ap is spring operated. Ensure you have a rm grip when opening and closing to avoid
personal injury.

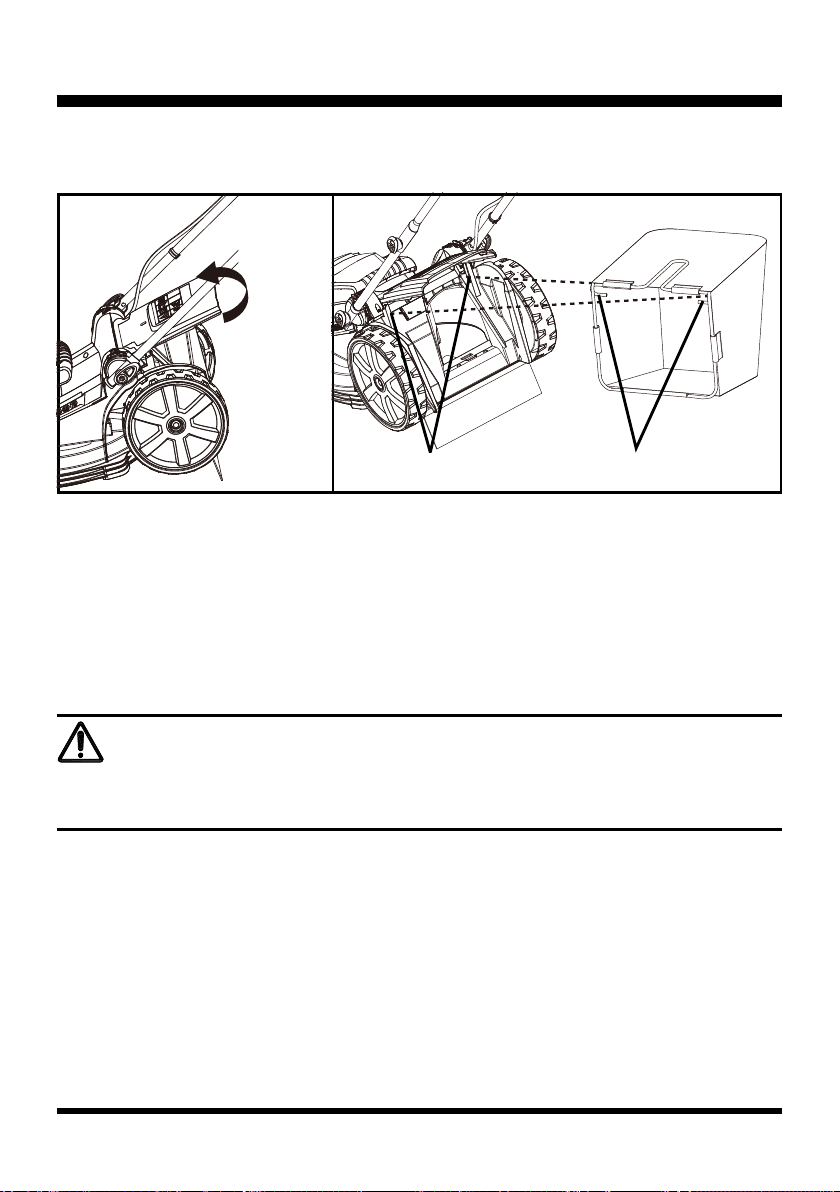

Installing the grass collection bag:
1. Lift the rear safety ap and hold it in position (Fig. 6).
2. Lift the grass collection bag by its handle, and align the rods of grass collection bag with the hooks under
rear safety ap (Fig. 7).
3. Release the rear safety ap.
16
ASSEMBLY
Fig. 6 Fig. 7
4. Make sure both rods are rmly seated on the holder hooks and the safety ap rests rmly against the top
of the grass collection bag.
Hooks Rods
Removing the grass collection bag:
1. Lift the rear safety ap and hold it in position.
2. Lift the grass collection bag by its handle, and unhook the grass collection bag from the mower.
3. Release the rear safety ap.
NOTE: Under normal usage, bag material is subject to wear. To reduce the risk of injury, frequently inspect the
bag assembly and replace if there are any signs of wear or deterioration.
ADJUSTING THE CUTTING HEIGHT
Do not at any time make any adjustment to the lawn mower without rst stopping the motor and removing the
safety key. Keep your feet away from the mower deck when adjusting its height.
When shipped, the rear wheels on the mower are set to a low-cutting position. Before using the mower
for the rst time, adjust the cutting position to the height best suited for your lawn. The mower can be
set to 6 cutting heights between 25 mm and 75 mm. Choose the proper cutting height according to the
types and conditions of the grass.
WARNING
17
ASSEMBLY
75mm
65mm
55mm
45mm
35mm
25mm
Fig. 8

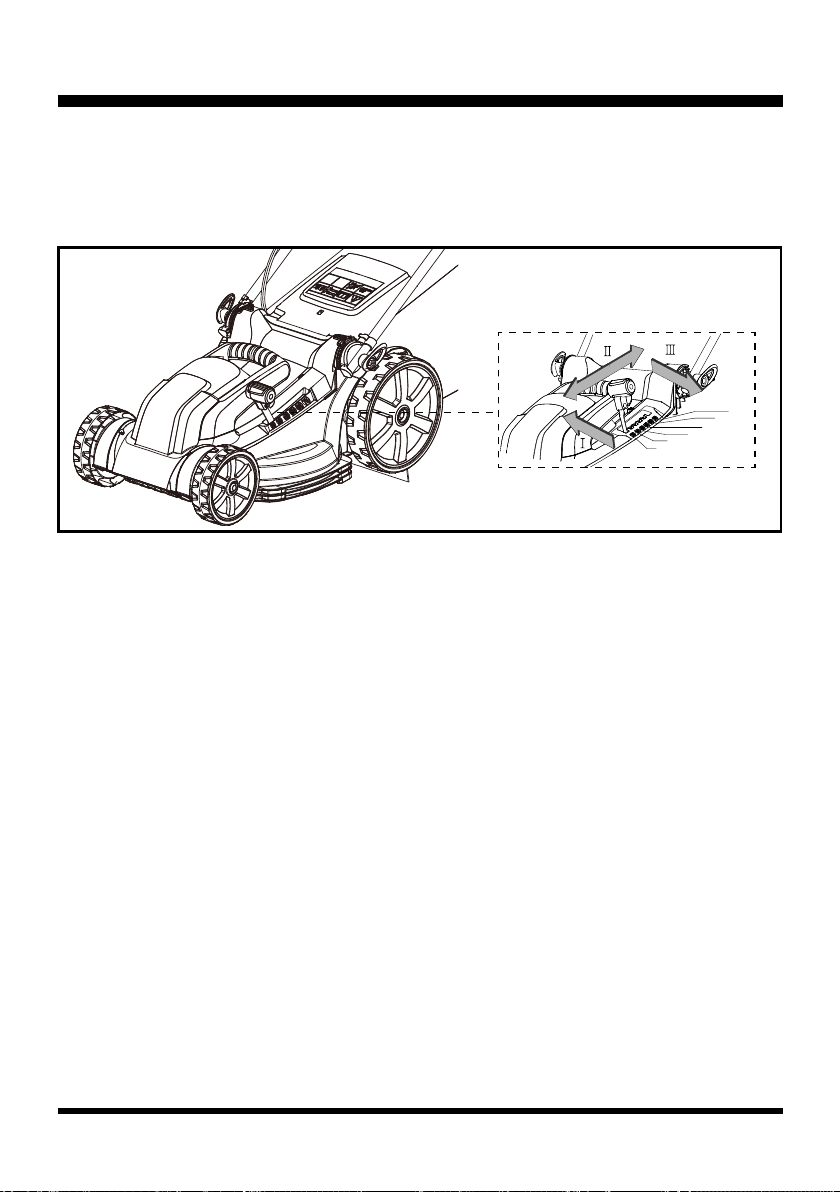

To set the cutting height:
1.To raise the cutting height, grasp the cutting height adjustment lever and move it toward the back of
the mower (Fig. 8).
2.To lower the cutting height, grasp the cutting height adjustment lever and move it toward the front of
the mower (Fig. 8).
18
OPERATION
WARNING
Do not allow familiarity with this type of product to make you careless. Remember that a careless
fraction of a second is sufcient to inict serious injury.
Always wear safety goggles or safety glasses with side shields when operating this product. Failure to
do so could result in objects being thrown into your eyes, resulting in possible serious injury.
Do not use any attachments or accessories not recommended by the manufacturer of this product.
The use of attachments or accessories not recommended can result in serious personal injury.
STARTING/STOPPING THE MOWER
1. Attach the outlet end of an extension cord to the plug on the rear of the mower power cord.
NOTE: Use only an approved outdoor extension cord as described previously in this manual.
2 Make a loop in the extension cord. From the right side, pass the loop through the hole in the back of
cord retainer and place it around the hook (Fig. 9).
3. Press down the safety switch button and hold it.
4. Pull the start/stop bale switch toward the mower handle and release the safety switch button.
Continue to hold the start/stop bale switch against the mower handle as you mow (Fig. 10).
5. To stop the mower, release the start/stop bale switch.
NOTE: A high-pitched noise and sparking may occur as the electric motor decelerates. This is normal.
WARNING
WARNING
Fig. 9
19
OPERATION

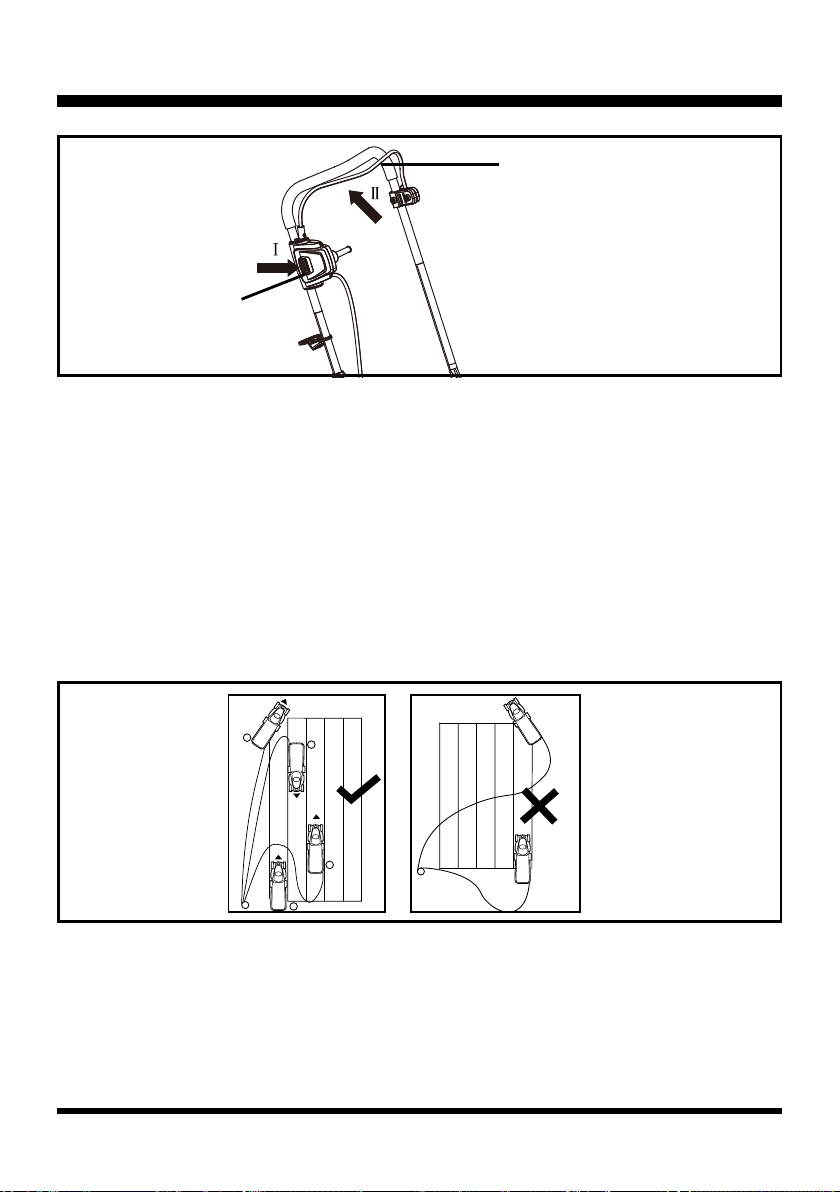

MOWING TIPS
1. Make sure the lawn is clear of stones, sticks, wires, and other objects that could damage the lawn
mower blades or motor. Such objects could be accidentally thrown by the mower in any direction
and cause serious personal injury to the operator and others.
2. To reduce the chances of disconnecting the lawn mower from the extension cord, be sure to use the
cord retainer provided.
3. For a healthy lawn, always cut off one-third or less of the total length of the grass.
4. When cutting heavy grass, reduce walking speed to allow for more effective cutting and a proper
discharge of the clippings.
5. Do not cut wet grass. It will stick to the underside of the deck and prevent proper mulching of grass
clippings.
6. New or thick grass may require a narrower cut.

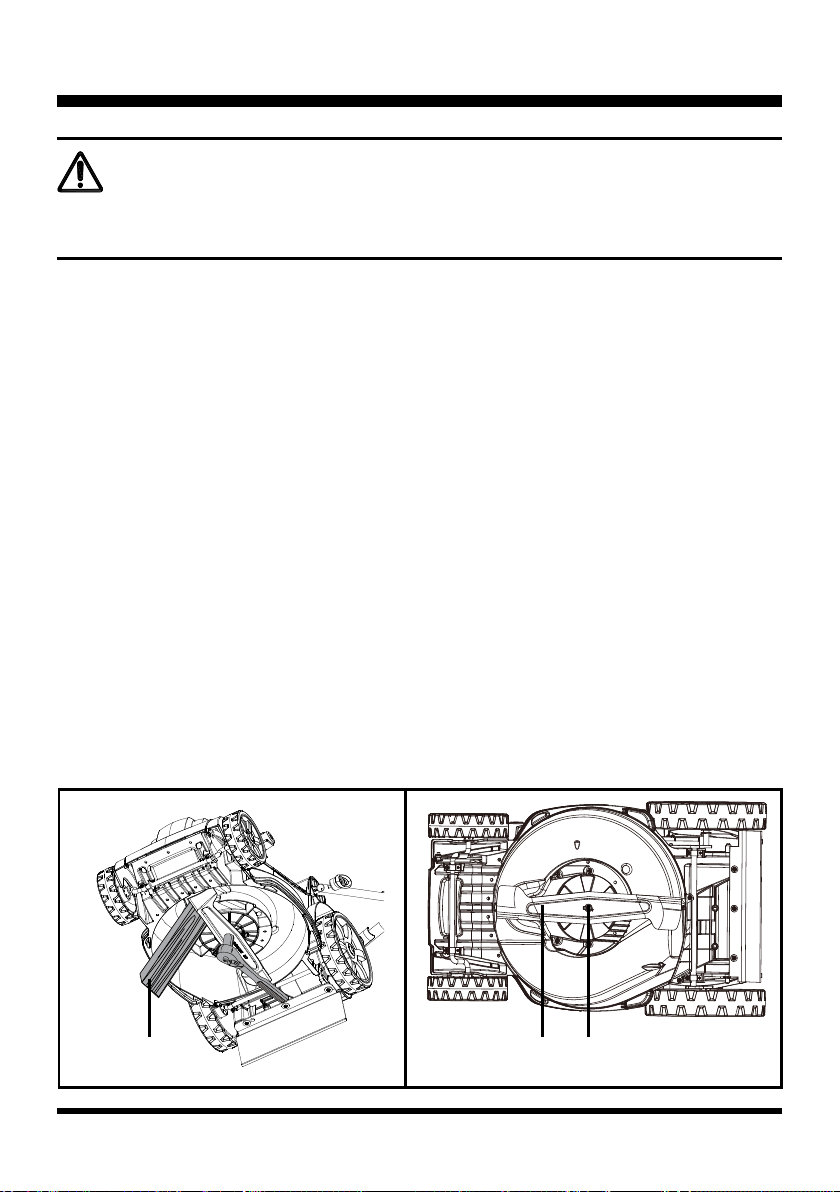

7. Clean the underside of the mower deck after each use to remove grass clippings, leaves, dirt, and
any other accumulated debris (Fig. 11).
Fig. 10
Safety Switch Button
Start/Stop Bale Switch
1
2
3
4
Fig. 11
20
OPERATION

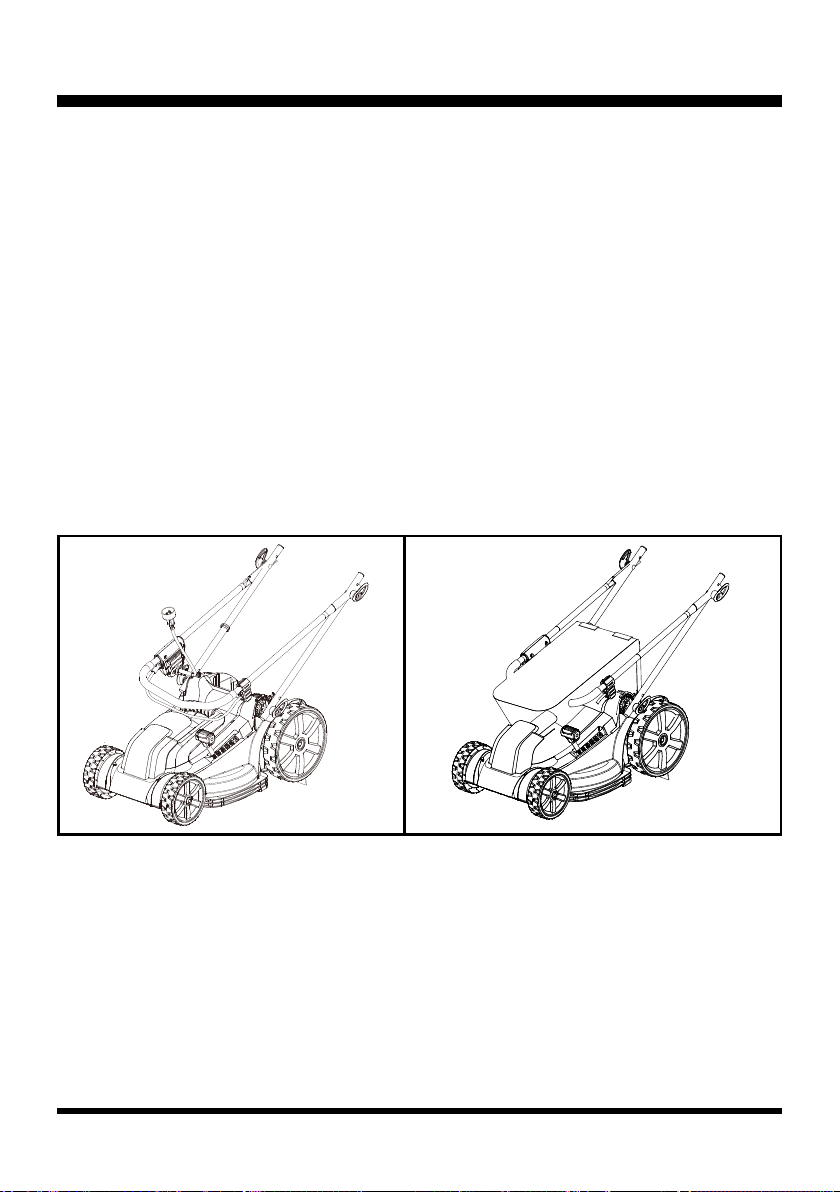

MOWING ON A SLOPE (Fig. 12)
1. Slopes are a major factor related to slip and fall accidents that can result in severe injury. Mowing
on slopes requires extra caution. If you feel uneasy on a slope, do not mow it. For your safety, do
not attempt to mow slopes greater than 15 degrees.
2. Mow across the face of slopes, not up and down. Exercise extreme caution when changing direction
on slopes.
3. Watch for holes, ruts, rocks, hidden objects, or bumps which can cause you to slip or trip. Tall grass
can hide obstacles. Remove all objects such as rocks, tree limbs, etc., which could be tripped over
or thrown by the blade.
4. Always be sure of your footing. A slip and fall can cause serious personal injury. If you feel you are
losing your balance, release the start/stop bale switch immediately.
5. Do not mow near drop-offs, ditches, or embankments; you could lose your footing or balance.
AFTER USE
1. Switch the product off, disconnect it from the power supply and let it cool down.
2. Check, clean and store the product as described below.
Fig. 12
21
MAINTENANCE
GENERAL MAINTENANCE
Avoid using solvents when cleaning plastic parts. Most plastics are susceptible to damage from various
types of commercial solvents and may be damaged by their use. Use clean cloths to remove dirt, dust,
oil, grease, etc.
WARNING
WARNING
When servicing, use only identical replacement parts. Use of any other parts may create a hazard or
cause product damage.
Always wear safety goggles or safety glasses with side shields during power tool operation or when
blowing dust. If operation is dusty, also wear a dust mask.
WARNING
Do not use any attachments or accessories not recommended by the manufacturer of this product. The
use of attachments or accessories not recommended can result in serious personal injury.
1. Do not at any time make any maintenance to the lawn mower without rst switching the mower
off, disconnecting it from the power supply and letting the mower cool down. Adjust the handle bar
or make other adjustments as illustrated in the manual, if necessary or if it can make it easier for
maintenance.
2. Periodically check all nuts and bolts for proper tightness to insure safe operation of the mower.
3. Remove any buildup of grass and leaves on or around the motor cover. Wipe the mower clean with
a dry cloth occasionally. Do not use water.
WARNING
Always protect hands by wearing heavy gloves and/or wrapping the cutting edges of the blade with rags
and other material when performing blade maintenance. Failure to heed this warning could result in
serious personal injury.
22
MAINTENANCE
REPLACING THE MOWER BLADE
NOTE: Only use identical replacement blades. LawnMaster® mower blade replacement part
NO.GM90BX.00.11.
1. Stop the motor and allow the blade to come to a complete stop. Disconnect the power supply.
2. Turn the mower on its side.
3. Wedge a block of wood between the blade and the mower deck in order to prevent the blade from
turning when the nut is being removed (Fig. 13).
4. Loosen the blade nut using a 14 mm wrench or socket (not provided) (Fig. 13).
5. Remove the blade nut and blade.
6. Make certain the fan assembly is pushed completely against the motor shaft.
7. Place the new blade on the shaft against the fan assembly. Make sure it is installed with the curved
ends pointing up toward the mower deck and not down toward the ground.
8. Thread the blade nut on the shaft and nger tighten.
9. Torque the blade nut down using a torque wrench (not provided) to ensure the bolt is properly
tightened (Fig. 14).
NOTE: Make certain all parts are replaced in the exact order in which they were removed.
WARNING
Before performing any maintenance, make sure the mower is unplugged from the power supply. Failure
to heed this warning could result in serious personal injury.
Fig. 13 Fig. 14
BoltBladeWooden Block
23
MAINTENANCE
SHARPENING THE BLADE
For best mowing performance, the mower blade must be kept sharp. A dull blade does not cut grass
evenly and overloads the motor. Under normal circumstances, sharpening the blade twice during the
mowing season is usually sufcient. However, if your lawn has sandy soil, more frequent sharpening
may be required.
1. Following the instructions in the Replacing Mower Blade section, remove the mower blade. DO NOT
attempt to sharpen the blade while it is attached to the mower.
2. Using a ne-tooth le or sharpening stone, sharpen cutting edges on both ends of the blade,
removing equal amounts of material from both ends (Fig. 15).
Fig. 15
WARNING
When removing, inspect the blade carefully. If the blade is bent or damaged, replace immediately with
a new blade. Failure to replace a bent or damaged blade could cause an accident resulting in possible
serious injury.
BALANCING THE BLADE (Fig. 16)
When sharpening, care should be taken to keep the blade balanced. An unbalanced blade will cause
excessive vibration when the mower is running. This vibration will eventually cause damage to the
mower, especially the motor.
24
MAINTENANCE
To check the blade balance:
1. Clamp a screwdriver horizontally in a vise as shown.
NOTE: If a vise is not available, a straight nail can also be used.
2. Place the center hole of blade on the screwdriver (or nail) shank.
3. If blade is balanced, it will remain in a horizontal position. If either end of the blade drops downward,
sharpen the heavy side until the blade is balanced.
Fig. 16
25
MAINTENANCE
STORING THE MOWER
1. Disconnect the mower from the power supply.
2. Turn mower on its side and clean grass clippings that have accumulated on the underside of the
mower deck.
3. Wipe the mower clean with a dry cloth.
4. Check all nuts, bolts, knobs, screws, fasteners, etc., for tightness.
5. Inspect moving parts for damage, breakage, and wear. Have repairs made on any damaged or
missing parts.
6. Store mower indoors in a clean, dry place out of the reach of children.
7. Do not store near corrosive materials such as fertilizer or rock salt. To lower the handle before
storing:
- Remove and clean the grass collection bag.
- Fully loosen the handle locking knobs on the sides of the handle and fold the upper handle down (Fig.
17).
- To save the space, the grass collection bag can be put on the mower (Fig. 18).
Fig. 17 Fig. 18
26
TROUBLESHOOTING
Suspected malfunctions are often due to causes that the user can x themselves.
Therefore check the product using this section. In most cases the problem can be solved quickly.
WARNING
Only perform the steps described within these instructions!
All further inspection, maintenance and repair work must be performed by an authorized service center
or a similarly qualied specialist if you cannot solve the problem yourself!
Problem Possible Cause Solution
Mower fails to start.
The carriage bolts are not
seated properly.
Adjust the height of the handle and
make sure the carriage bolts are seated
properly.
The locking knobs are not
tightened.
Tighten locking knobs.
The extension cord is not
connected to the mower
plug.
Reconnect the cord and use the cord
retainer to keep the cord close to the
motor/blade control.
The extension cord is not
connected to the power
source.
Connect the extension cord to a live 120
V AC, 60 HZ AC receptacle.
Tripped circuit breaker in
the house.
Reset house circuit breaker. If it trips
again, call a qualied electrician.
The switch is defective.
Replace the switch or call customer
service for assistance (866) 384-8432.
Mower cuts unevenly.
Lawn is rough or uneven. Check the mowing area.
Cutting height is not set
properly.
Set the mower at a higher position.
Dull blade. Sharpen or replace the blade.
Mower does not mulch
properly
Wet grass clippings
sticking to the underside of
the deck.
Wait until the grass dries before mowing.
27
TROUBLESHOOTING
Mower is hard to push
High grass and low
cutting height. Rear of
mower housing and blade
dragging in heavy grass.
Raise the cutting height.
Mower vibrates overly
and makes excessive
noise.
The cutting blade is not
assembled securely.
Tighten the blade bolts.
The blade is not balanced.
Sharpen and balance the blade
following instructions in this manual (see
page 23-24 ). Or replace the blade.
The motor shaft is bent.
Stop the mower and unplug it from
the power supply. Have the mower
inspected and repaired by an authorized
service center before restarting.
28
LAWNMASTER
®
WARRANTY
We take pride in producing a high quality, durable product. This Lawnmaster® product carries a limited
two (2) year warranty against defects in workmanship and materials from date of purchase under normal
household use. If product is to be used for commercial, industrial or rental use, a 30 day limited warranty
will apply. Warranty does not apply to defects due to direct or indirect abuse,negligence, misuse,
accidents, repairs or alterations and lack of maintenance.Please keep your receipt/packing list as proof
from state to state. For product service call customer service at (866) 384-8432.
Items not covered by warranty :
1. Any part that has become inoperative due to misuse, commercial use, abuse, neglect, accident,
improper maintenance, or alteration;
2. The unit, if it has not been operated and/or maintained in accordance with the owner's manual;
3. Normal wear, except as noted below;
4. Routine maintenance items such as lubricants, blade sharpening;
osure.
Transportation Charges : Transportation charges for the movement of any power equipment unit or
attachment are the responsibility of the purchaser. It is the purchaser’s responsibility to pay transportation
charges for any part submitted for replacement under this warranty unless such return is requested in
writing by LawnMaster.
SAVE YOUR RECEIPTS. THIS WARRANTY IS VOID WITHOUT THEM.
29
EXPLODED VIEW
30
PARTS LIST
Key Number Description Quantity
1 Rear Wheel 2
1.1 Cap 2
2 Front Wheel 2
2.1 Cap 2
3 Blade 1
4 Tension Spring 1
5 Safety Door Spring 1
6 Safety Door 1
7 Lower Handle Knob 2
8 Upper Handle Knob 2
9 Complete REDI-BAG assembly 1
31
NOTES
32
NOTES
